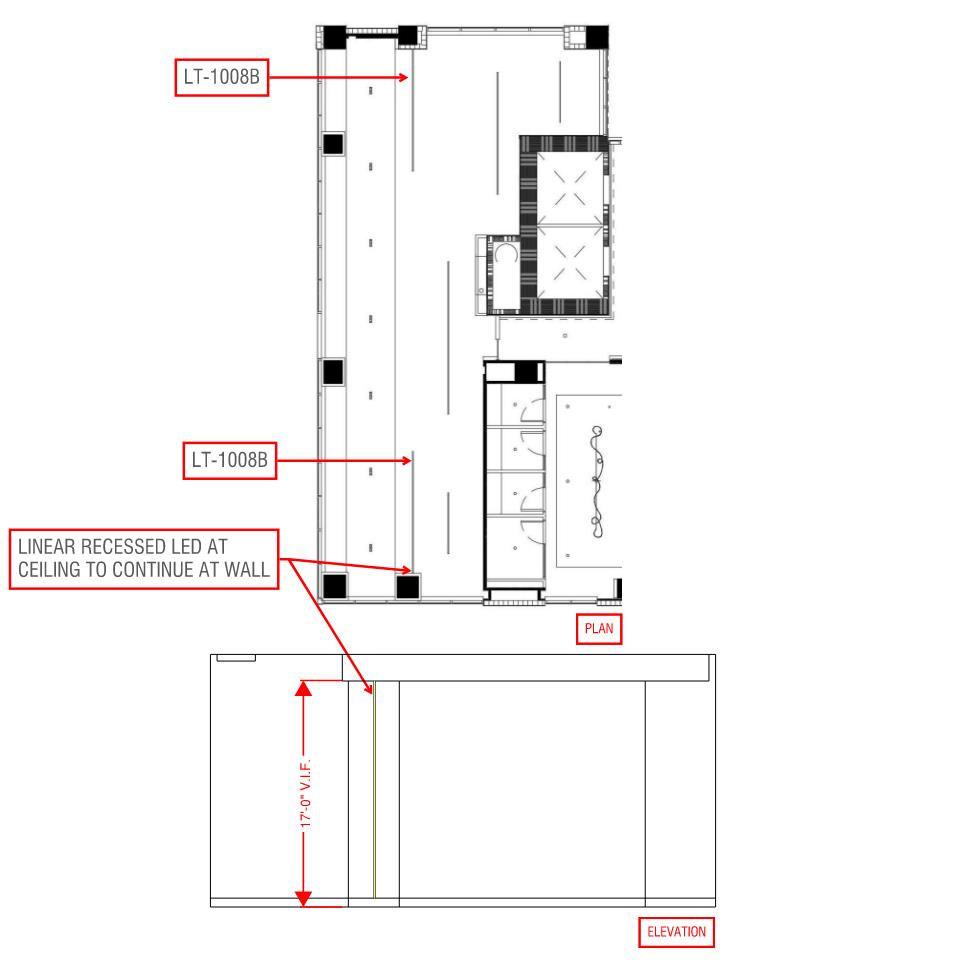

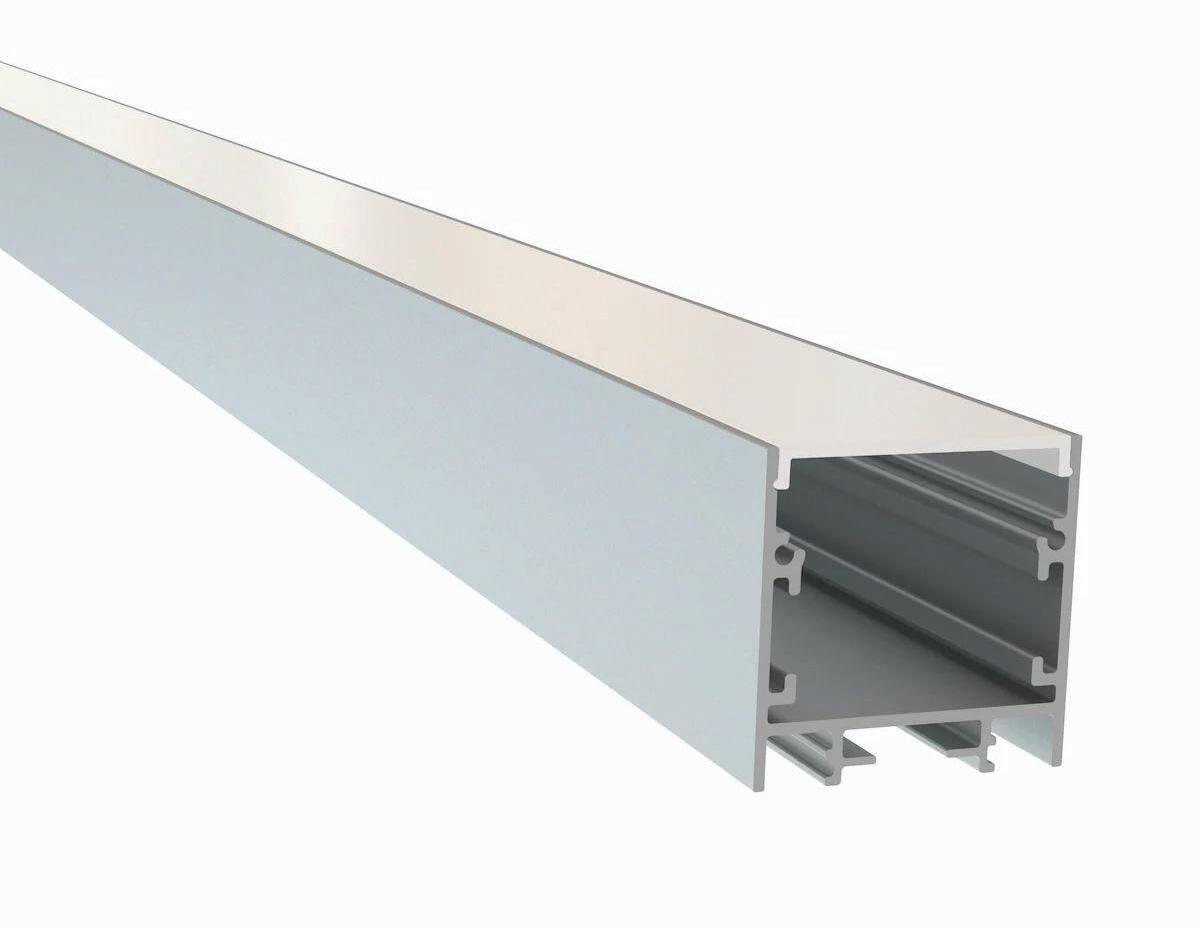

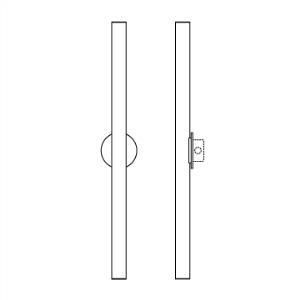

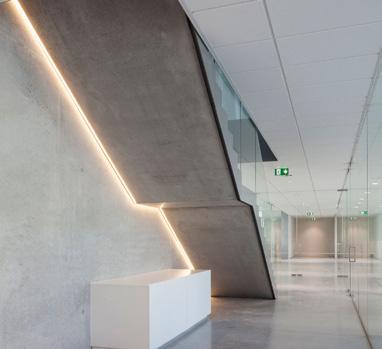

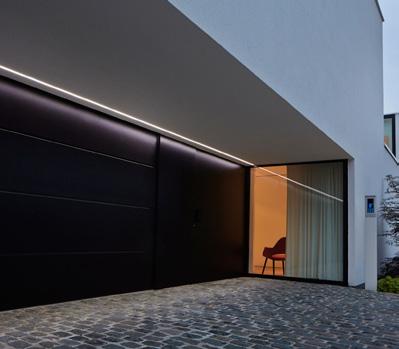

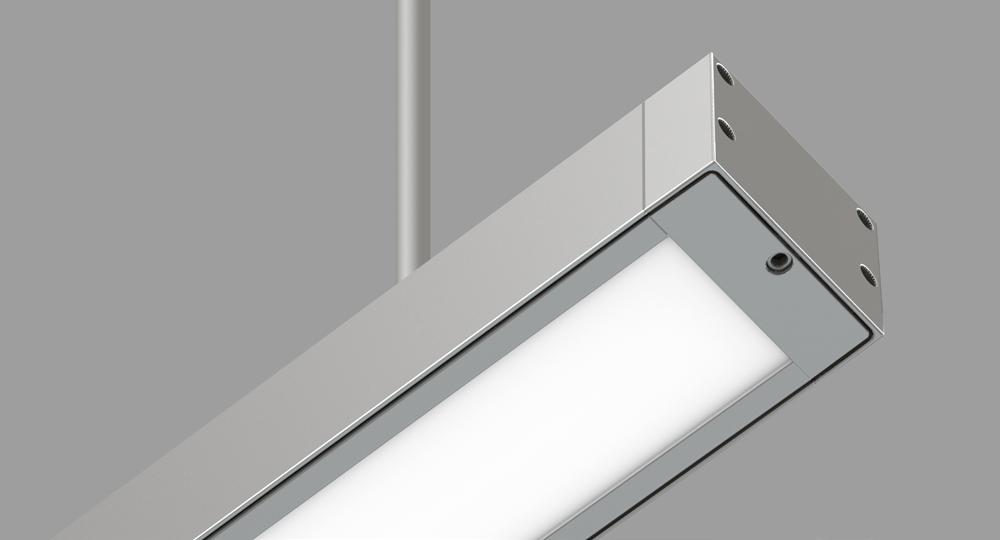

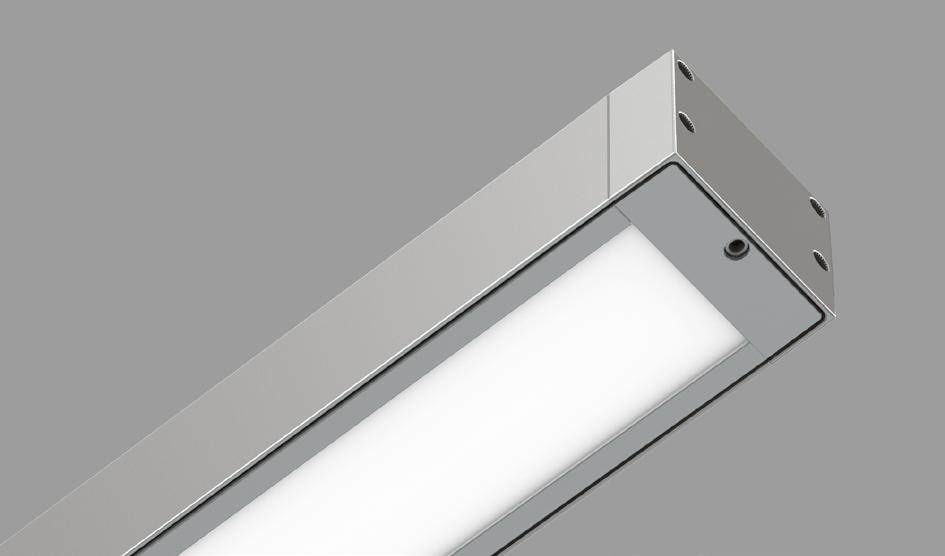

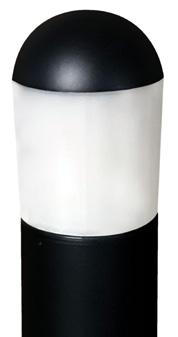

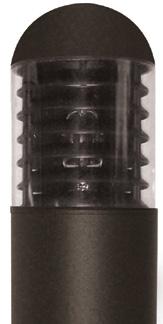

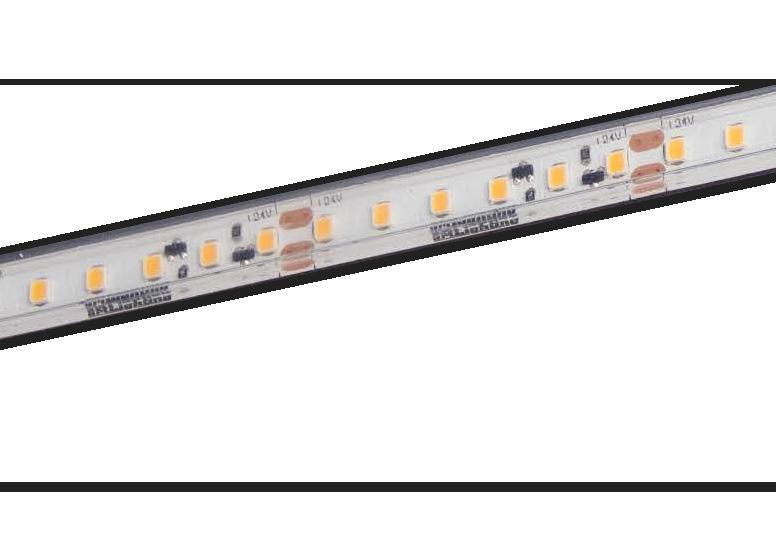

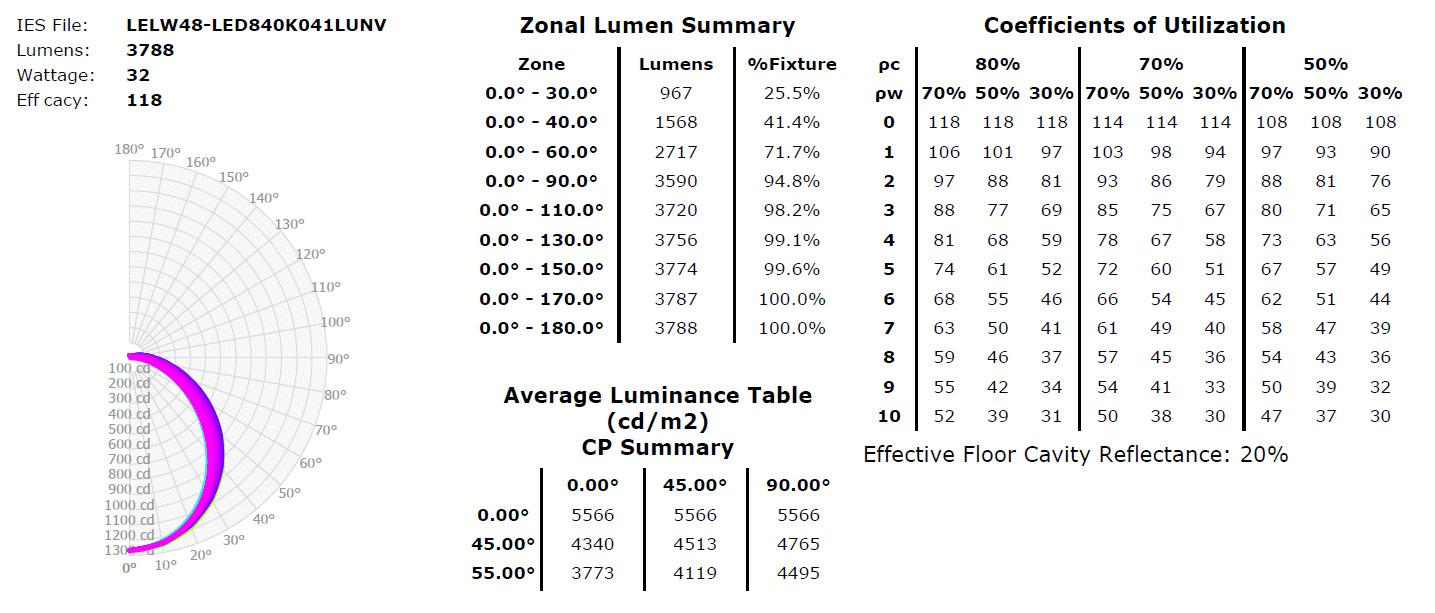

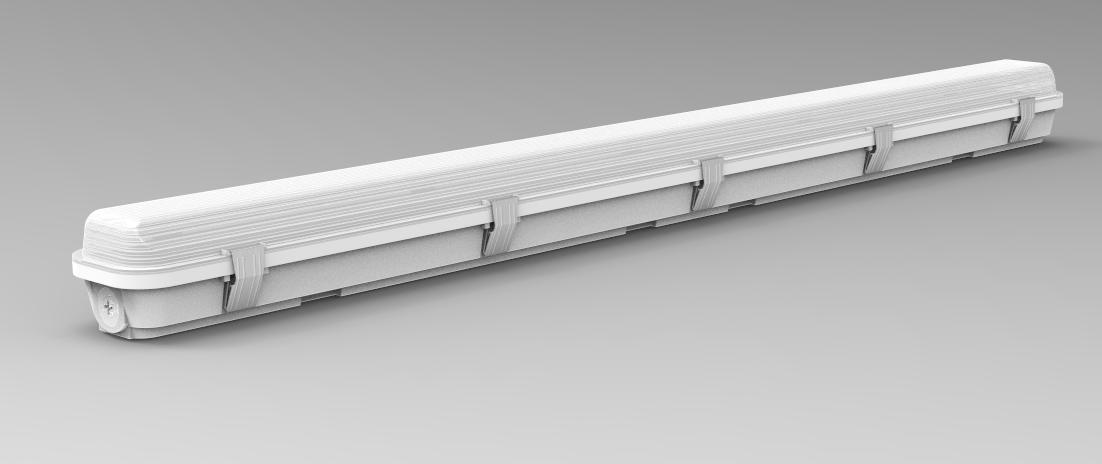

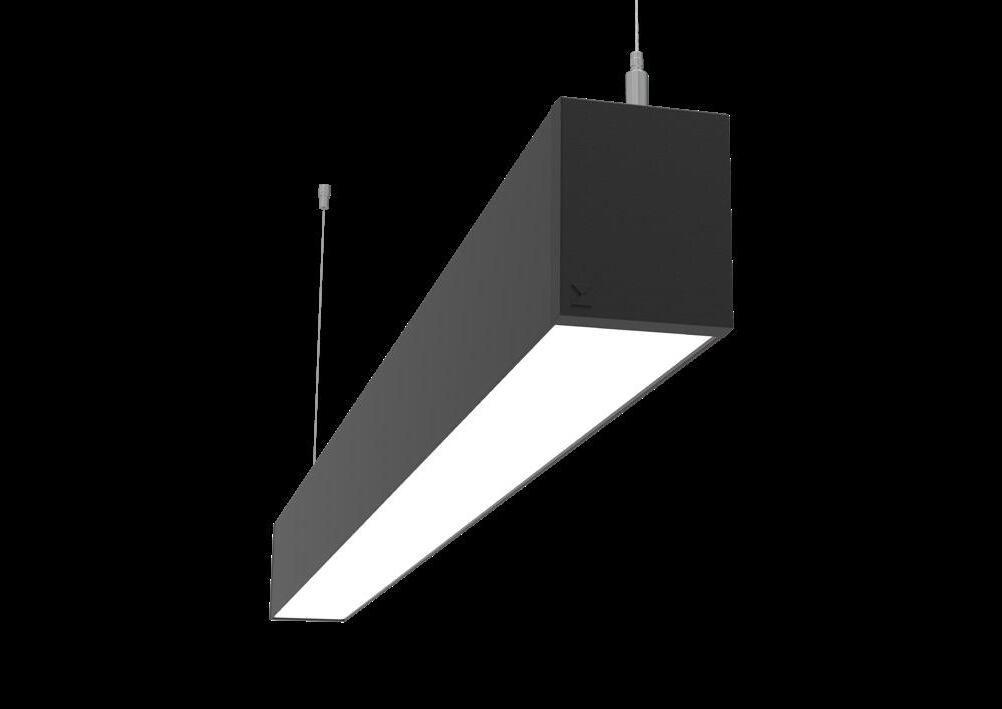

Via Wet offers architectural lighting for wet locations in both exterior and interior applications. With a simple 3¾" high by 4½" wide profile of extruded aluminum, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting.
Fully sealed, Via Wet is suitable for extreme weather condition, -20ºC/-4ºF to 40ºC/104ºF. A choice of output options provides up to 1000 lumens per foot section.
9
10
11
12
13
14
2 PoE (Power-over-Ethernet) compatible. Consult factory for details.
3 On-site commissioning is required.
4 Suitable for temperatures down to -40°C/F.
number of circuits (#), including any circuits required for electrical section options. Provide drawing or layout specifications. Minimum 4' section per circuit.
6 Minimum 4' fixture.
7 Not available with 347V.
8 Not available for environments where the ambient temperature falls below 0°C (32°F).
#2#0

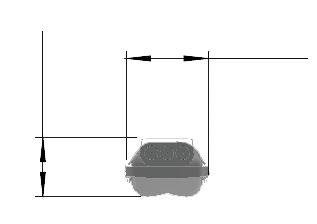

Covered Ceiling Mount Only
VIA WET
DESCRIPTION
Via Wet offers architectural lighting for wet locations in both exterior and interior applications. With a simple 3¾" high by 4½" wide profile of extruded aluminum, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting.
Fully sealed, Via Wet is suitable for extreme weather condition, -20ºC/-4ºF to 40ºC/104ºF. A choice of output options provides up to 1000 lumens per foot section.
9
10
11
12
13
14
2 PoE (Power-over-Ethernet) compatible. Consult factory for details.
3 On-site commissioning is required.
4 Suitable for temperatures down to -40°C/F.
number of circuits (#), including any circuits required for electrical section options. Provide drawing or layout specifications. Minimum 4' section per circuit.
6 Minimum 4' fixture.
7 Not available with 347V.
8 Not available for environments where the ambient temperature falls below 0°C (32°F).
#4#0
VIA WET
DESCRIPTION
Via Wet offers architectural lighting for wet locations in both exterior and interior applications. With a simple 3¾" high by 4½" wide profile of extruded aluminum, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting.
Fully sealed, Via Wet is suitable for extreme weather condition, -20ºC/-4ºF to 40ºC/104ºF. A choice of output options provides up to 1000 lumens per foot section.
9
10
11
12
13
14
2 PoE (Power-over-Ethernet) compatible. Consult factory for details.
3 On-site commissioning is required.
4 Suitable for temperatures down to -40°C/F.
number of circuits (#), including any circuits required for electrical section options. Provide drawing or layout specifications. Minimum 4' section per circuit.
6 Minimum 4' fixture.
7 Not available with 347V.
8 Not available for environments where the ambient temperature falls below 0°C (32°F).
#4#0
VIA WET
Order Guide
DESCRIPTION
Via Wet offers architectural lighting for wet locations in both exterior and interior applications. With a simple 3¾" high by 4½" wide profile of extruded aluminum, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting. Fully sealed, Via Wet is suitable for extreme weather condition, -20ºC/-4ºF to 40ºC/104ºF. A choice of output options provides up to 1000 lumens per foot section.
VIA WET
Order Guide
DESCRIPTION
Via Wet offers architectural lighting for wet locations in both exterior and interior applications. With a simple 3¾" high by 4½" wide profile of extruded aluminum, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting. Fully sealed, Via Wet is suitable for extreme weather condition, -20ºC/-4ºF to 40ºC/104ºF. A choice of output options provides up to 1000 lumens per foot section.
VIA WET
Order Guide
DESCRIPTION
Via Wet offers architectural lighting for wet locations in both exterior and interior applications. With a simple 3¾" high by 4½" wide profile of extruded aluminum, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting. Fully sealed, Via Wet is suitable for extreme weather condition, -20ºC/-4ºF to 40ºC/104ºF. A choice of output options provides up to 1000 lumens per foot section.
VIA WET
Order Guide
DESCRIPTION
Via Wet offers architectural lighting for wet locations in both exterior and interior applications. With a simple 3¾" high by 4½" wide profile of extruded aluminum, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting. Fully sealed, Via Wet is suitable for extreme weather condition, -20ºC/-4ºF to 40ºC/104ºF. A choice of output options provides up to 1000 lumens per foot section.
Order Guide
DESCRIPTION
Via Wet offers architectural lighting for wet locations in both exterior and interior applications. With a simple 3¾" high by 4½" wide profile of extruded aluminum, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting. Fully sealed, Via Wet is suitable for extreme weather condition, -20ºC/-4ºF to 40ºC/104ºF. A choice of output options provides up to 1000 lumens per foot section.
Order Guide
DESCRIPTION
Via Wet offers architectural lighting for wet locations in both exterior and interior applications. With a simple 3¾" high by 4½" wide profile of extruded aluminum, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting. Fully sealed, Via Wet is suitable for extreme weather condition, -20ºC/-4ºF to 40ºC/104ºF. A choice of output options provides up to 1000 lumens per foot section.
Project: Type: Part #:

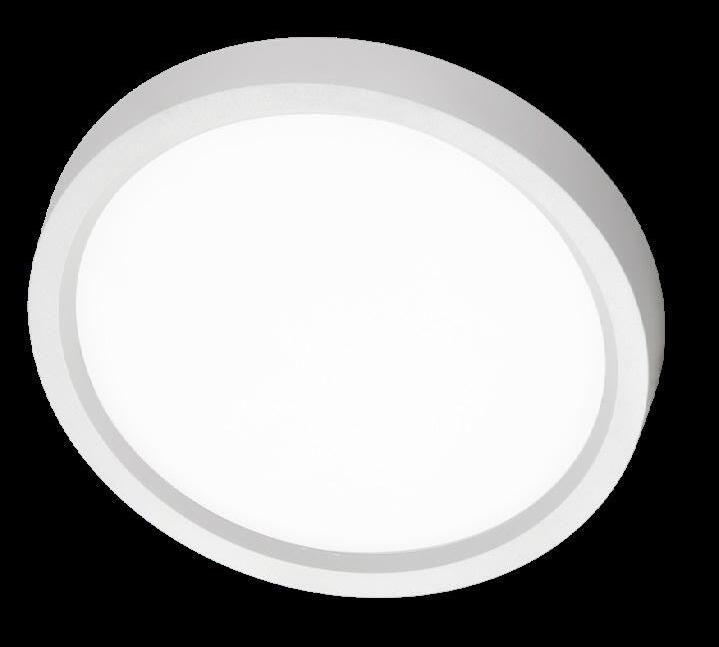

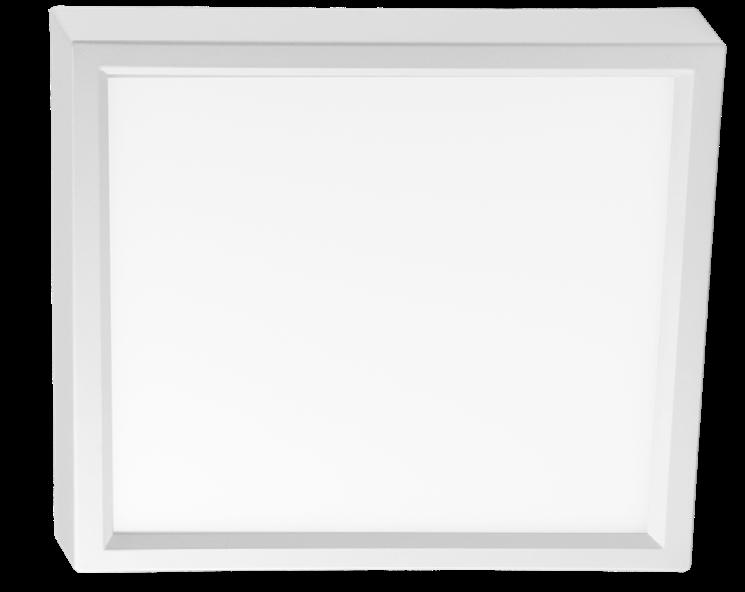

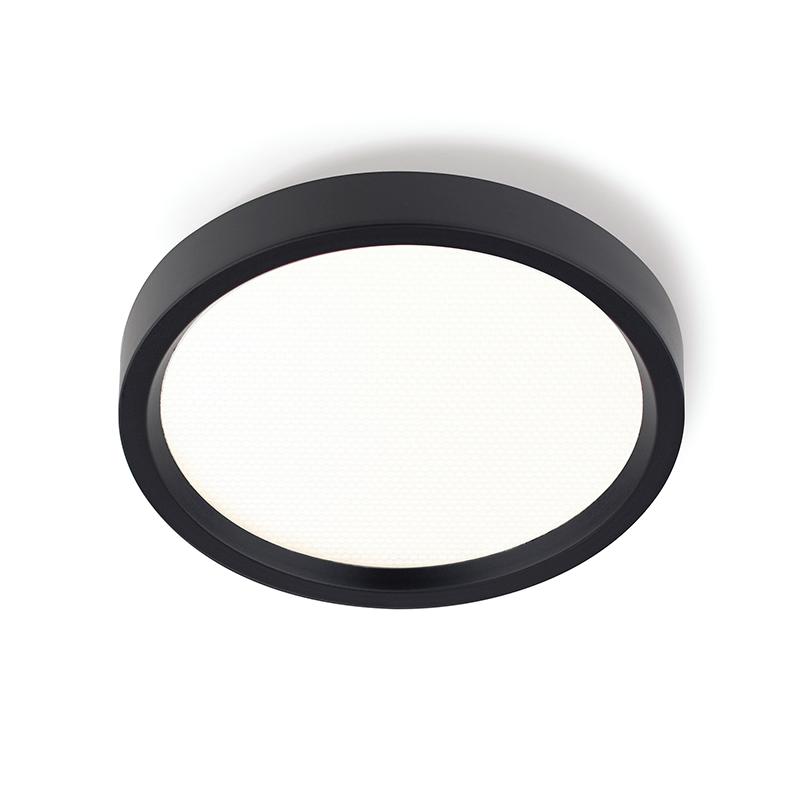

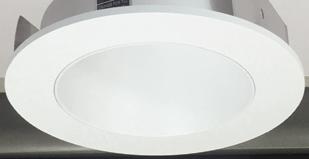

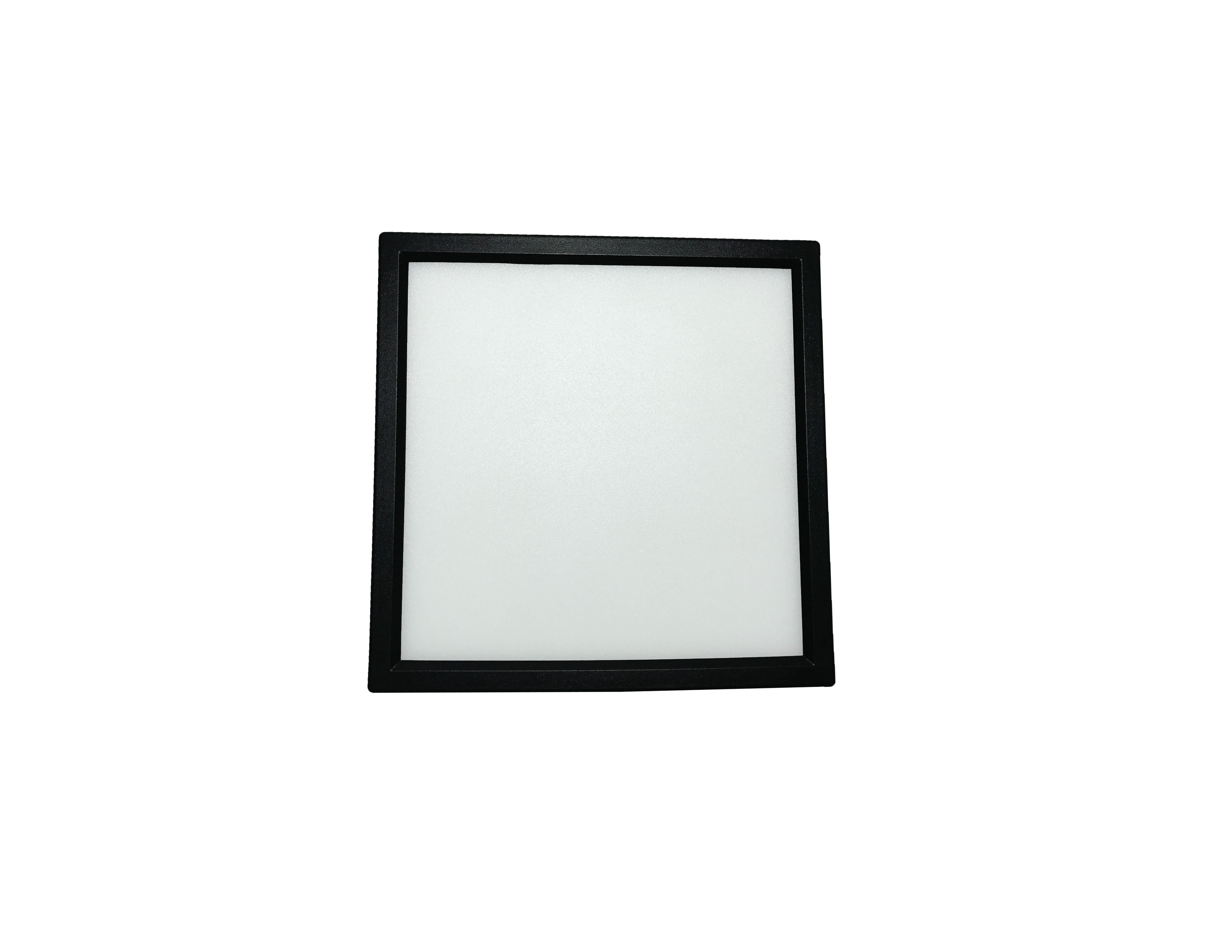

SlimLine Surface Mounts
Detail Specifications:
•Finishes: White, Bronze, Black, Brushed Nickel
•IP Rating: Wet Location
•Beam Angle: 110°
•Chip: SMD 2835, R9 >50, CRI >90
• 3 Step MacAdam Ellipses
•Operating Temperature: -40° - 114° F
• Lens: Frosted Acrylic, non-yellowing
•Housing:
-5 & 7”: Plastic
- 12, 15, 19, 24”: Metal
-Trims: Metal
•Average life (L70) of 50,000 hours
Applications:
•General Recessed Lighting
•Residential & Multifamily
•Office and Meeting Rooms
•Education, Healthcare, Retail, Hospitality
Product Information:
•AC technology: slim and easy driverless installation
•Edge-lit technology: reduces glare with even light distribution
•Standard white round trim included: optional trims available
Driver Options:
•120V Triac dimmable down to 5%
•(120-277V 0-10V dimmable available on separate spec sheet)
SLDSK-4CLIP 4” Recessed Can Converter for 5" fixtures
SLDSK-7-6CLIP 6” Recessed Can Converter for 7” fixtures
SLDSK-12-6CLIP 6” Recessed Can Converter for 12” fixtures
SLDSKR-7-EMB-UNV Surface mount pancake EMB
SLDSKR-7-EMB-EMPTY-UNV Empty surface mount pancake EMB
SLDSKR-12-EMB-UNV Surface mount pancake EMB
SLDSKR-12-EMB-EMPTY-UNV Empty surface mount pancake EMB
LED-EMB-25W-HV-2P For fixtures up to 25W
STM-JBX-6-BLK 6’ Stem Mount (Adjustable length) Black
Features
Project
Notes
-year Limited Warranty. See warranty documentation

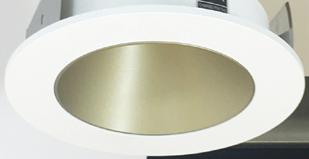

Trim-RDL-5-BN
Trim-RDL-5-BL
Trim-RDL-7-BN
Trim-RDL-7-BL
Trim-RDL-12-BN
Trim-RDL-12-BL for more information.
Triac Dimming
SS LED
APPLICATION

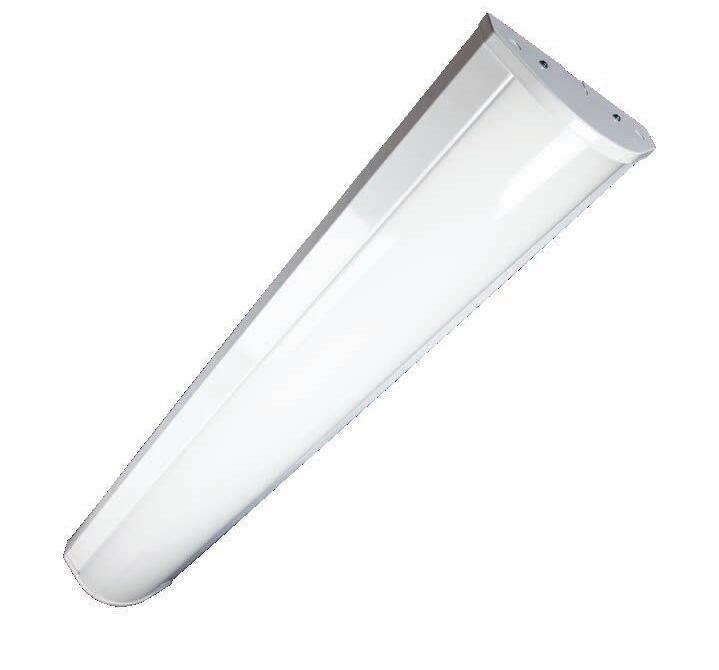

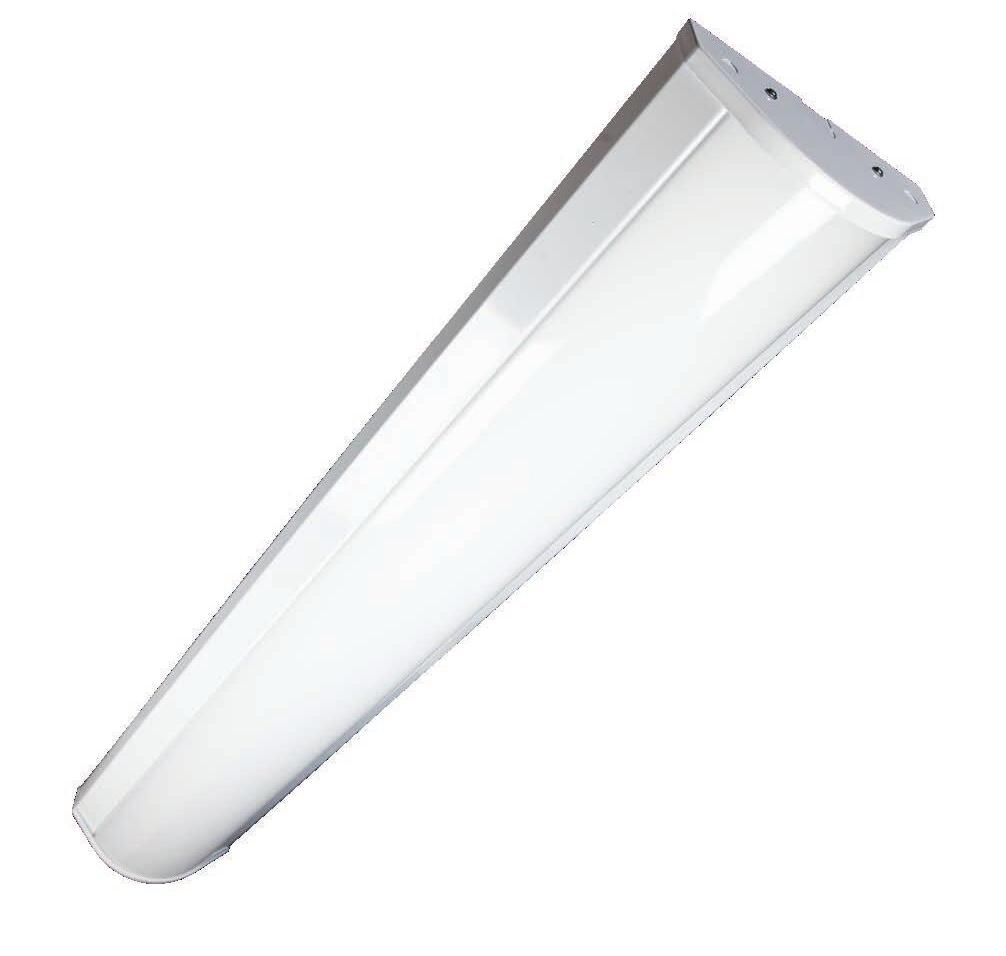

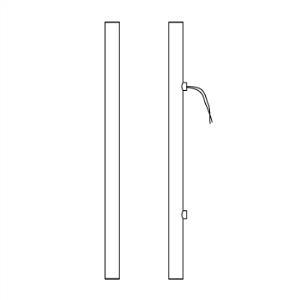

The LED slim strip light series are more efficient and compact. The LED technology used illuminates a crisper brightness while saving more energy to that of the traditional lights. Its functionality makes it a standard fixture used in storage areas, displays, institutions, industrial and retail applications.
CONFIGURATIONS
FEATURES:
• Die-formed steel channel with knock-outs for versatile configuration and simple mounting.
• Available with 1 or 2 rows of LED, and in single unit lengths or as tandems.
• One continuous lens for 8-feet fixtures.
• Finish is high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
MOUNTING:
• Fixture is wall or surface mounted, or suspended mounted with chains, stems or cables.
• Joiner clip provided for easy continuous run (with “CON” option).
• Metal belly band provided to eliminate light leak from space between lenses in continuous run (with “CON” option).
• Compatible with most ceiling types.
LED:
• High quality array LEDs.
• LM80
• Color Temperature: 2700/3000/3500/4000/5000 (K)
• Color Rendering Index: > 82.8
• Calculated L70: 122,000 hours
• Reported L70: >54,000 hours
ELECTRICAL:
• High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
• Features included over voltage protection, surge, short circuit protection and over load protection.
• Power Factor: typical > 0.95, THD <20, meets Class1 or Class2 circuit.
• Philips Xitanium: 0-10V Dim to 1%(PH).
• Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS ).
• Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
• Interfaces with fire alarm panel or security system.
• “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
• UL listed for use in emergency circuits.
LISTING:
• UL/CUL listed and labeled.
• Listed to UL 1598 and UL 8750.
• DLC listed. 6
• Suitable for damp locations.
• CEC Compliant EM (please contact for more information)
• ARRA compliant (optional).
• 5 years warranty.
• 7 or 10 years limited warranty. (optional) 5

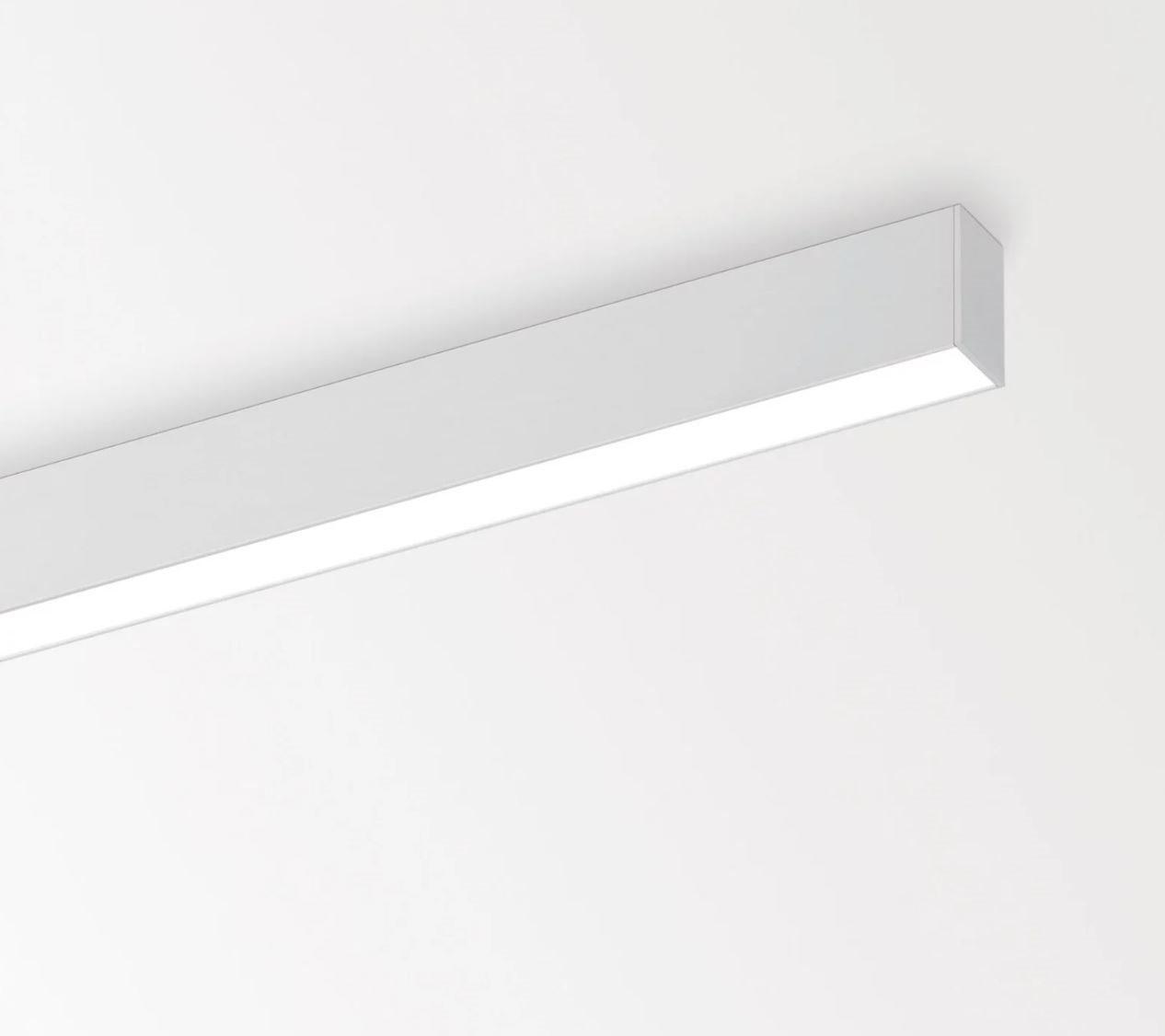

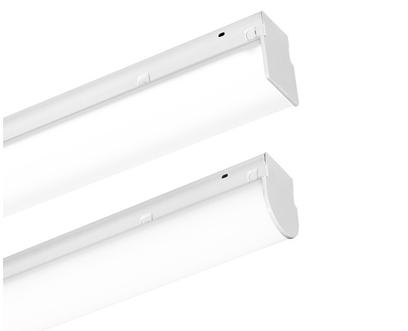

Power&CCT Selectable Linear Strip
LED PREMIUM STRIP LIGHT
ORDERING INFORMATION
(Blank) Wiring for Individual mount (Std.)
Wiring for Continuous mount (Specify row/length and number of power feed)
SH-3/8-xx SH-1/2-xx
Ceiling/Wall Mount V-Hook Chain for use with V-hook (xx=lenght) Adjustable Aircraft Cable w/ Canopy (* xx = Specify length (48 or 96)) 3/8” IPS STEM w/ Canopy 1/2” IPS STEM w/ Canopy (* xx = 18, 24, 36, 48 inches)
LED DRIVER OPTIONS
Generic, 0-10V 10% dim (Std.) 7
Philips Xitanium, 0-10V 1% dim 7 Osram Optotronic, 0-10V 10% dim 7 Osram Optotronic, 0-10V 1% dim 7
40% / 100% Bi-Level Step dim (PH only)
XX% / 100% Bi-Level Step dim (Specify XX : 10% ~ 70%) (PH only)
Triac Dim. (120V only)
30% / 70% / 100% Tri-Level Step dim (PH only)
XX% / YY% / 100% Tri-Level Step dim (Specify XX, YY : 10% ~ 70%) (PH only) eldoLED ECOdrive 0-10V natural dim to 1% (Hybrid HydraDrive) eldoLED SOLOdrive Natural Dimming to dark, 0-10V, 100% ~ 0.1% dim
5-Series EcoSystem LED driver, 100% ~ 5% dim Hi-lume 1% EcoSystem LED driver with Soft-on, Fade-to-Black dimming technology, 100% ~ 1% dim ELV compatible (reverse-phase or trailing-edge)
Philips Xitanium Sensor-Ready, Dali 5%~100% dim
Philips Xitanium DALI driver, Dim to 5% Tridonic IoT ready, 1-100% dim via Smart Module Interface (SMI), automated dimming/lighting controls via Enlighted Sensor Interface Driver prewired for non-dimming applications
eldoLED LightShape DALI dim to dark, 0.1% ~ 100% 0-10V dual channel, 0.1% ~ 100% Tri-mode dimming (Triac, ELV, 0-10V)
Fixture external mount, PIR Occupancy Sensor, no dimming support, 120/277V with standard cone shape lens (15ft) with 1.18” extension joint. Adjustable through a dip switch.
Optional 7 Years Limited Warranty 5
Optional 10 Years Limited Warranty 5
Custom Color Housing (Specify RAL#)
Separated EM feed for City of Chicago code compliance
T-Bar Clip for Surface Mount LIGHTING CONTROL SYSTEM
Vive Integral fixture control (RF with daylight and occupancy sensing), (Must be ordered with EcoSystem drivers or PHSR) 16
Vive Integral fixture control (RF only), (Must be ordered with EcoSystem drivers or PHSR)
Vive Attached fixture control (RF only for 0-10V drivers), (N/A with GR driver)
Vive Attached fixture control (RF only for Lutron EcoSystem drivers)
UL 924 Emergency PowPak wireless fixture control for 0-10V drivers
UL 924 Emergency PowPak wireless fixture control for Ecosystem drivers
1. Tandem units.
2. Contact factory for other emergency ballast options.
3. Custom wattage products are not DLC qualified.
4. Not available with Non Lens option (NLE).
5. This limited warranty covers electrical parts only and does not apply to labor, equipment
or defect from improper installation or operation. (EM battery backup does not included) 6. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to
7. To find an approved dimmer switch, please see table 1.
8. For 2’ length, only EMG5 and EMG8 are available.
9. Shipped separately.
<EasySense>
EasySense Fixture-mount occupancy sensing, daylight harvesting and task tuning in one device (Must be ordered with PHSR driver) 12, 15 IR dongle v2.0 for EasySense control
<Enlighted>
Enlighted IoT ready 0-10V Indoor Micro sensor with occupancy/vacancy detection, daylight harvesting, thermal sensing, task tuning, and room and zone control, Bluetooth enabled (Must be ordered with TRIOT) 13
Enlighted Room controller providing basic control functions of a standard wall switch with preset dimming capability
10. Available with C9 (90+ CRI) only.
11. 5000K is not available.
12. See NFC and IR manual in the separate attachment. If your phone is not compatible, please order “RS-IR” and follow the manual.
13. “RS-WS” option can be added if wish to have a wall switch, please see Enlighted Room Controller in the separate attachment.
14. Must be ordered with either ED560 or MU050 driver.
15. Refer to Advanced Grouping Datasheet for its default setting and compatible wireless switches.
16. See VDO data sheet to find its default setting.
17. Emergency Ballast options are not available with 347V or 480V
18. Must be ordered with either ED560 or MU050 driver.
19. Refer to color charts (RAL and/or Cardinal) in the separate attachment.
* See more details in ACESSORIES sheet. ★ Contact sales team for more details about Bluetooth Mesh Control.
SS LED
APPLICATION
The LED slim strip light series are more efficient and compact. The LED technology used illuminates a crisper brightness while saving more energy to that of the traditional lights. Its functionality makes it a standard fixture used in storage areas, displays, institutions, industrial and retail applications.
CONFIGURATIONS
FEATURES:
• Die-formed steel channel with knock-outs for versatile configuration and simple mounting.
• Available with 1 or 2 rows of LED, and in single unit lengths or as tandems.
• One continuous lens for 8-feet fixtures.
• Finish is high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
MOUNTING:
• Fixture is wall or surface mounted, or suspended mounted with chains, stems or cables.
• Joiner clip provided for easy continuous run (with “CON” option).
• Metal belly band provided to eliminate light leak from space between lenses in continuous run (with “CON” option).
• Compatible with most ceiling types.
LED:
• High quality array LEDs.
• LM80
• Color Temperature: 2700/3000/3500/4000/5000 (K)
• Color Rendering Index: > 82.8
• Calculated L70: 122,000 hours
• Reported L70: >54,000 hours
ELECTRICAL:
• High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
• Features included over voltage protection, surge, short circuit protection and over load protection.
• Power Factor: typical > 0.95, THD <20, meets Class1 or Class2 circuit.
• Philips Xitanium: 0-10V Dim to 1%(PH).
• Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS ).
• Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
• Interfaces with fire alarm panel or security system.
• “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
• UL listed for use in emergency circuits.
LISTING:
• UL/CUL listed and labeled.
• Listed to UL 1598 and UL 8750.
• DLC listed. 6
• Suitable for damp locations.
• CEC Compliant EM (please contact for more information)
• ARRA compliant (optional).
• 5 years warranty.
• 7 or 10 years limited warranty. (optional) 5
Power&CCT Selectable Linear Strip
LED PREMIUM STRIP LIGHT
ORDERING INFORMATION
(Blank) Wiring for Individual mount (Std.)
Wiring for Continuous mount (Specify row/length and number of power feed)
SH-3/8-xx SH-1/2-xx
Ceiling/Wall Mount V-Hook Chain for use with V-hook (xx=lenght) Adjustable Aircraft Cable w/ Canopy (* xx = Specify length (48 or 96)) 3/8” IPS STEM w/ Canopy 1/2” IPS STEM w/ Canopy (* xx = 18, 24, 36, 48 inches)
LED DRIVER OPTIONS
Generic, 0-10V 10% dim (Std.) 7
Philips Xitanium, 0-10V 1% dim 7 Osram Optotronic, 0-10V 10% dim 7 Osram Optotronic, 0-10V 1% dim 7
40% / 100% Bi-Level Step dim (PH only)
XX% / 100% Bi-Level Step dim (Specify XX : 10% ~ 70%) (PH only)
Triac Dim. (120V only)
30% / 70% / 100% Tri-Level Step dim (PH only)
XX% / YY% / 100% Tri-Level Step dim (Specify XX, YY : 10% ~ 70%) (PH only) eldoLED ECOdrive 0-10V natural dim to 1% (Hybrid HydraDrive) eldoLED SOLOdrive Natural Dimming to dark, 0-10V, 100% ~ 0.1% dim
5-Series EcoSystem LED driver, 100% ~ 5% dim Hi-lume 1% EcoSystem LED driver with Soft-on, Fade-to-Black dimming technology, 100% ~ 1% dim ELV compatible (reverse-phase or trailing-edge)
Philips Xitanium Sensor-Ready, Dali 5%~100% dim
Philips Xitanium DALI driver, Dim to 5% Tridonic IoT ready, 1-100% dim via Smart Module Interface (SMI), automated dimming/lighting controls via Enlighted Sensor Interface
Driver prewired for non-dimming applications
eldoLED LightShape DALI dim to dark, 0.1% ~ 100% 0-10V dual channel, 0.1% ~ 100% Tri-mode dimming (Triac, ELV, 0-10V)
5W EM Battery Backup (CEC Compliant EM) 2, 8, 17 8W EM Battery Backup (CEC Compliant EM) 2, 8, 17 16W EM Battery Backup (CEC Compliant EM) 2, 17
Fail-to-on Emergency lighting, UL924 9
Daylight Dimming Photosensor (0-10 VDC Control) 4
Occupancy Sensor w/ Daylight Harvesting (max. 8’ detection mounting height with 14’ coverage) 4 Setup Remote Control for DPMS
Occupant Remote Control for DPMS
Assembled in USA for Buy American Act
Motion Sensor
Fixture external mount, PIR Occupancy Sensor, no dimming support, 120/277V with standard cone shape lens (15ft) with 1.18” extension joint. Adjustable through a dip switch.
Optional 7 Years Limited Warranty 5
Optional 10 Years Limited Warranty 5
Custom Color Housing (Specify RAL#)
Separated EM feed for City of Chicago code compliance
T-Bar Clip for Surface Mount LIGHTING CONTROL SYSTEM
Vive Integral fixture control (RF with daylight and occupancy sensing), (Must be ordered with EcoSystem drivers or PHSR) 16
Vive Integral fixture control (RF only), (Must be ordered with EcoSystem drivers or PHSR)
Vive Attached fixture control (RF only for 0-10V drivers), (N/A with GR driver)
Vive Attached fixture control (RF only for Lutron EcoSystem drivers)
UL 924 Emergency PowPak wireless fixture control for 0-10V drivers
UL 924 Emergency PowPak wireless fixture control for Ecosystem drivers
1. Tandem units.
2. Contact factory for other emergency ballast options.
3. Custom wattage products are not DLC qualified.
4. Not available with Non Lens option (NLE).
5. This limited warranty covers electrical parts only and does not apply to labor, equipment
or defect from improper installation or operation. (EM battery backup does not included) 6. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to
7. To find an approved dimmer switch, please see table 1.
8. For 2’ length, only EMG5 and EMG8 are available.
9. Shipped separately.
<EasySense>
EasySense Fixture-mount occupancy sensing, daylight harvesting and task tuning in one device (Must be ordered with PHSR driver) 12, 15 IR dongle v2.0 for EasySense control
<Enlighted>
Enlighted IoT ready 0-10V Indoor Micro sensor with occupancy/vacancy detection, daylight harvesting, thermal sensing, task tuning, and room and zone control, Bluetooth enabled (Must be ordered with TRIOT) 13
Enlighted Room controller providing basic control functions of a standard wall switch with preset dimming capability
10. Available with C9 (90+ CRI) only.
11. 5000K is not available.
12. See NFC and IR manual in the separate attachment. If your phone is not compatible, please order “RS-IR” and follow the manual.
13. “RS-WS” option can be added if wish to have a wall switch, please see Enlighted Room Controller in the separate attachment.
14. Must be ordered with either ED560 or MU050 driver.
15. Refer to Advanced Grouping Datasheet for its default setting and compatible wireless switches.
16. See VDO data sheet to find its default setting.
17. Emergency Ballast options are not available with 347V or 480V
18. Must be ordered with either ED560 or MU050 driver.
19. Refer to color charts (RAL and/or Cardinal) in the separate attachment.
* See more details in ACESSORIES sheet. ★ Contact sales team for more details about Bluetooth Mesh Control.
This fixture is universal 120-277V when using the standard 0-10V dimming driver. Voltage must be specified when using optional drivers. A (3) designated fixture will have a 347V driver with 0-10V DC dimming (1%-100%).
Prewired and grounded junction box with galvanized snap-on covers. Listed for through branch circuit wiring.
Electrogalvanized plated steel hanger bars are included as factory standard. Bars extend to 24" and of fer self-nailing and additional mounting features.
5-year LED component warranty details at atlantic-lighting.com/main/support
PrevaLED ® by eldoLED Cube LED Module
80+ CRI
90 CRI option offered.

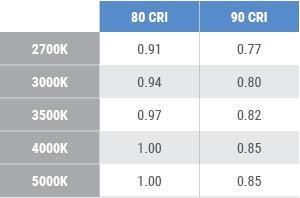

Lower lumen output and reduced lumens per watt will be experienced with this option.
Rated Life: 50,000 hours a t 70% lumen maintenance (L70) when maintained in a 45 °C ambient environment with open air flow. Ambient temperatures lower than 45°C may extend life of module.
OPTOTRONIC ® by eldoLED Driver
Passive Heat Sink
Dimmable, instant 100% light, (1%-100%) via: 0-10V protocol. Contact factory for optional dim-to-off and soft-start programming. See driver spec.
Black anodized aluminum
This LED fixture is intended for non-IC a pplications, insulation must be kept 3" away from fixture on all sides. Not for use within enclosures.
Listed for Damp Location. Listed to UL 1598 and Canadian standards.

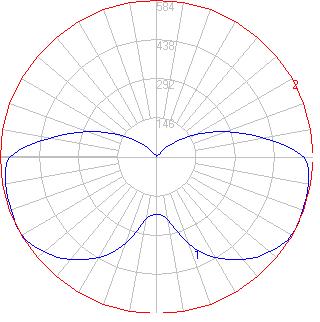

Photometrics at atlantic-lighting.com
Specifications and dimensions subject to change without notice.

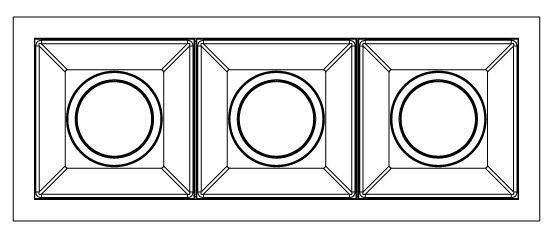

TRIM KIT
reflector KSQ4410 Square open
FRAME-IN KIT SERIES
COM4x4 Commercial 4"x4" LED LUMENS*
DIMMING
0-10V DC standard, lea ve
2-wire. TRIAC forward-phase or ELV reverse-phase (100-1%)
DAL DALI (Type 6, IEC62386) Driver; Dimming to 0.1%
DMX DMX Driver with RDM capability; Dimming to 0.1%
Must specify volta ge with optional dimming.
OPTIONS
Trim is a die-formed square reflector with mitred corners and a standard white flange. The integral flange is constructed with a stamped overlay that eliminates visible corner seams and creates a more rigid trim. Optional polished flange will match the reflector finish.
9CR 90 CRI, effects lumens per watt. Not of fered in 5K. EM6 6W emergency battery pack IEM6 Internal EM with test button in reflector.
TRIM KIT Refer to left for part numbers. Specify finish & other below.
Finishes
Specular clear
Semi-specular clear
Haze clear (etched)
Polished flange
with IEM 6.

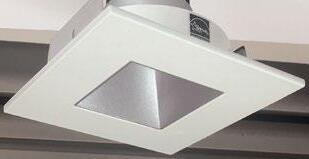

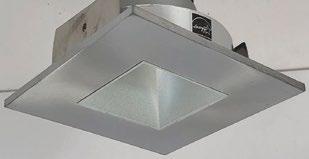

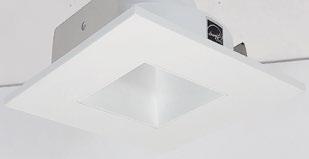

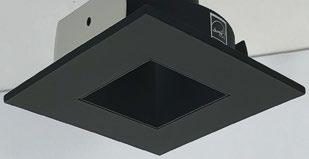

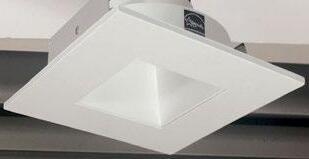

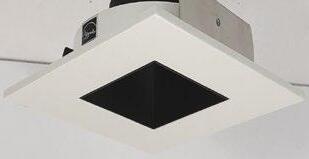

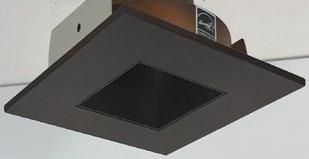

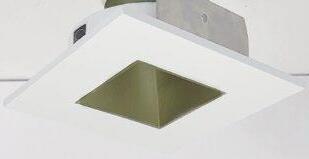

NIO-4SNDSQ
4" Iolite Square Reflector with Square Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
provide ultimate design flexibility from its modular, scalable design. Fixture sizes range from 1” to 5” and are all available in a variety of reflector finishes in both round and square shapes, able to match any décor. Precision TIR optics combined with set screw aiming deliver light where you need it.
FEATURES
Flangeless fixture installation provides a clean, sleek and modern appearance
• Reflectors are easily changeable in the field
GOOD TO KNOW
The Sense Family of fixures offers sizes and features that provide solutions for the complete lighting project
• A Single LED Module works with all available trims, housings and reflectors
Set screws offer precise adjustment of vertical aiming angle up to 30° either before or after fixture installation
Housing
• New construction steel frame supplied with universal bar hangers and butterfly brackets
• Bar hangers are adjustable from 13-1/4” to 24-1/2
• Fixture and driver are serviceable from below the ceiling
Flangeless trims install with mud ring and
Install in ceilings between ¼” and 1” thick Fixture rotates up to 355° and tilt up to 30°
Spring loaded module uses set screws to
Universal 120-277V, 50/60Hz, 0-10V or
Drivers connect to LED modules using
Thermal
• Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
Compliance
• ETL listed for Damp locations
• Optional Wet location rated trim
Warranty
• 5 Year limited parts warranty

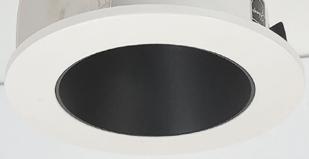

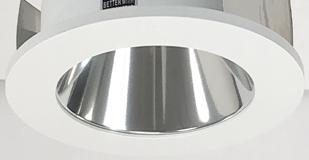

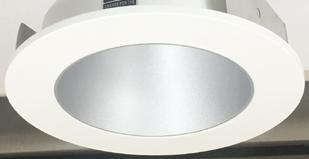

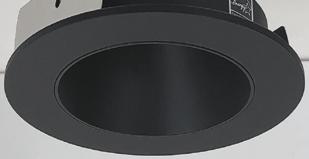

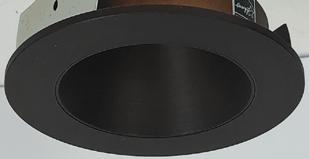

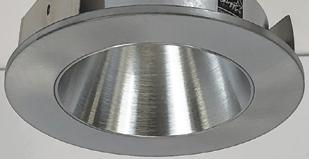

NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available in 800lm only
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail: nora@noralighting.com
Compatible Housings
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W NHRIOIC-48 = ICAT Remodel / 800-1000lm
SENSE 3.0
NHIOICD-415 / NHIOICD-420 / NHIOICD-425
NHIOICDCP-415 / NHIOICDCP-420 / NHIOICDCP-425

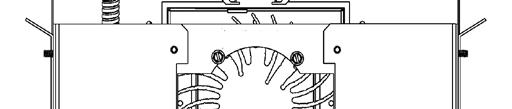

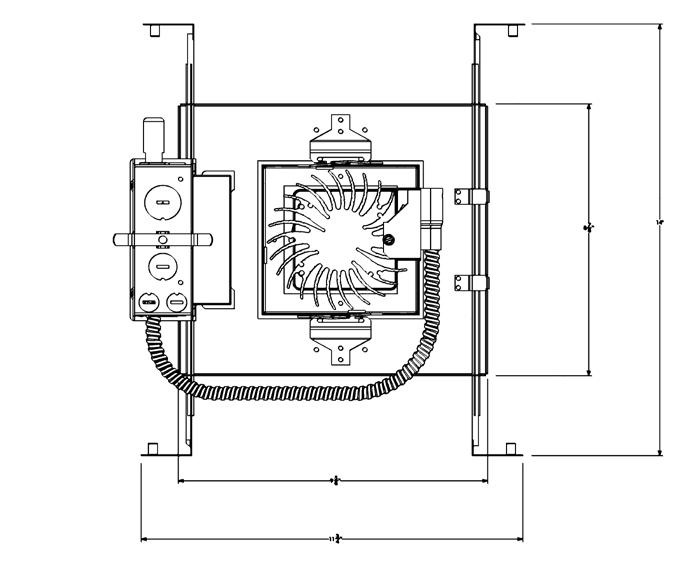

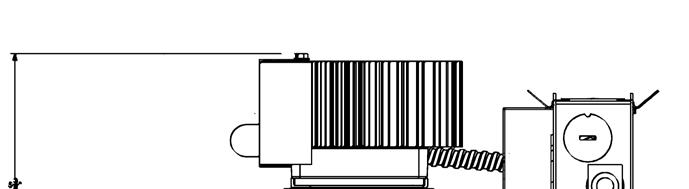

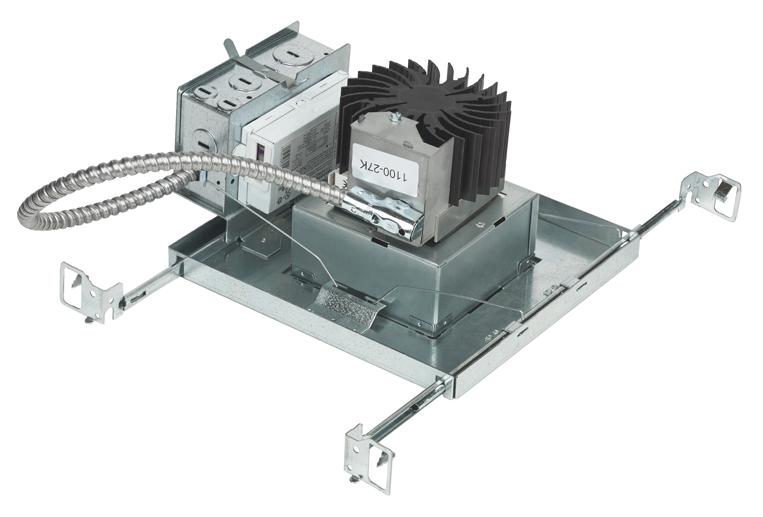

4" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Emergency: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ). Note: Emergency is not compatible with Chicago Plenum housings.
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant FCC compliant Patent #D824567S Meets or exceeds ASTM-283 Air-Tight requirements
4" Iolite ICAT High Lumen New Construction Housing - Compatible with NIO-4 trims (except PLUS trims)
NHIOICD-415 = IC Air-Tight, 1500lm / 20W NHIOICDCP-415 = Chicago Plenum, 1500lm / 20W
NHIOICD-420 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum, 2000lm / 24W
NHIOICD-425 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
/PEM = Pre-Wired for Remote Em ergency (not compatible with NHIOICDCP)
LE4 = 120/277V input; Triac / ELV / 0-10V dimming /PEM = Pre-Wired for Remote Em ergency (not compatible with NHIOICDCP)
Example: NHIOICD-420LE4 = 4" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V input; Triac / ELV / 0-10V dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
NHIOICD-415 / NHIOICDCP-415
NHIOICD-420 / NHIOICDCP-420

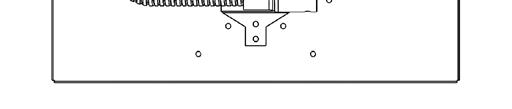

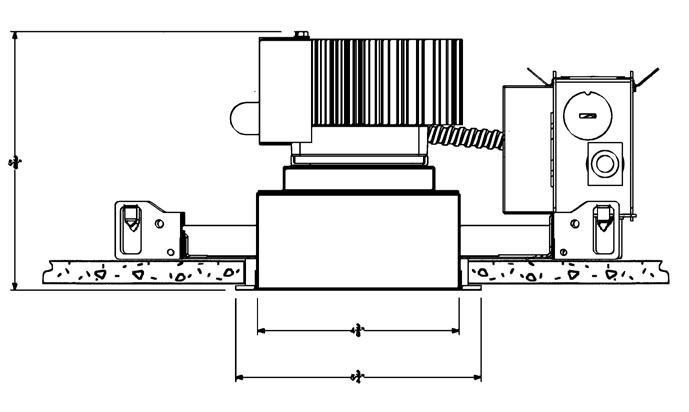

Ceiling Cut-Out
NHIOICD-425 / NHIOICDCP-425
Optional Accessories
Description
NEPK-07LEDUNV = Remote Emergency Battery w/Test Switch NIO-4EXTC2 = Ceiling Extension Collar up to 2"
SENSE 3.0

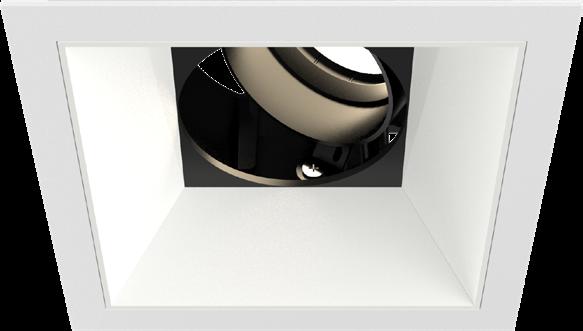

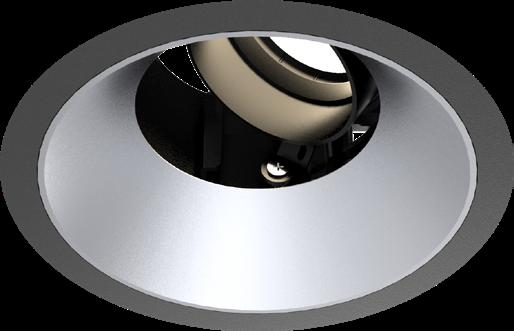

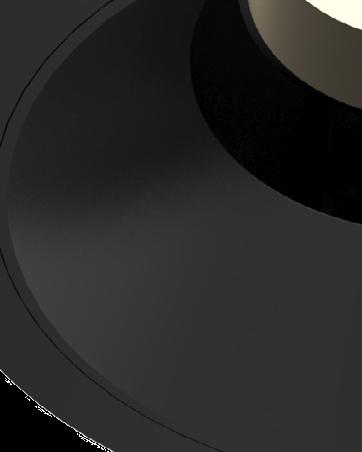

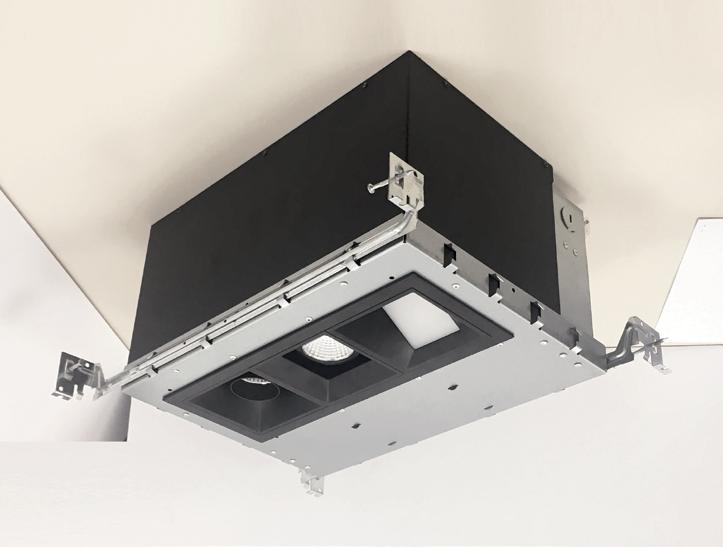

Adjustable Downlight
SENSE ADJUSTABLE DOWNLIGHTS
provide ultimate design flexibility from its modular, scalable design. Fixture sizes range from 1” to 5” and are all available in a variety of reflector finishes in both round and square shapes, able to match any décor. Precision TIR optics combined with set screw aiming deliver light where you need it.
FEATURES
Flangeless fixture installation provides a clean, sleek and modern appearance
• Reflectors are easily changeable in the field
GOOD TO KNOW
The Sense Family of fixures offers sizes and features that provide solutions for the complete lighting project
• A Single LED Module works with all available trims, housings and reflectors
Set screws offer precise adjustment of vertical aiming angle up to 30° either before or after fixture installation
Housing
• New construction steel frame supplied with universal bar hangers and butterfly brackets
• Bar hangers are adjustable from 13-1/4” to 24-1/2
• Fixture and driver are serviceable from below the ceiling
Flangeless trims install with mud ring and
Install in ceilings between ¼” and 1” thick Fixture rotates up to 355° and tilt up to 30° Spring loaded module uses set screws to
Universal 120-277V, 50/60Hz, 0-10V or
Drivers connect to LED modules using
Thermal
• Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
Compliance
• ETL listed for Damp locations
• Optional Wet location rated trim
Warranty
• 5 Year limited parts warranty
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available in 800lm only
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
4" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Emergency: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ). Note: Emergency is not compatible with Chicago Plenum housings.
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant FCC compliant Patent #D824567S Meets or exceeds ASTM-283 Air-Tight requirements
4" Iolite ICAT High Lumen New Construction Housing - Compatible with NIO-4 trims (except PLUS trims)
= Chicago Plenum, 1500lm / 20W LE4 = 120/277V input; Triac / ELV / 0-10V dimming LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
NHIOICD-420 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum, 2000lm / 24W
NHIOICD-425 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming /PEM = Pre-Wired for Remote Em ergency (not compatible with NHIOICDCP)
Example: NHIOICD-420LE4 = 4" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V input; Triac / ELV / 0-10V dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
NHIOICD-415 / NHIOICDCP-415
NHIOICD-420 / NHIOICDCP-420
Ceiling Cut-Out
NHIOICD-425 / NHIOICDCP-425
Optional Accessories
Description
NEPK-07LEDUNV = Remote Emergency Battery w/Test Switch NIO-4EXTC2 = Ceiling Extension Collar up to 2"
SENSE 3.0
Adjustable Downlight
SENSE ADJUSTABLE DOWNLIGHTS
provide ultimate design flexibility from its modular, scalable design. Fixture sizes range from 1” to 5” and are all available in a variety of reflector finishes in both round and square shapes, able to match any décor. Precision TIR optics combined with set screw aiming deliver light where you need it.
FEATURES
Flangeless fixture installation provides a clean, sleek and modern appearance
• Reflectors are easily changeable in the field
GOOD TO KNOW
The Sense Family of fixures offers sizes and features that provide solutions for the complete lighting project
• A Single LED Module works with all available trims, housings and reflectors
Set screws offer precise adjustment of vertical aiming angle up to 30° either before or after fixture installation
Housing
• New construction steel frame supplied with universal bar hangers and butterfly brackets
• Bar hangers are adjustable from 13-1/4” to 24-1/2
• Fixture and driver are serviceable from below the ceiling
Flangeless trims install with mud ring and
Install in ceilings between ¼” and 1” thick Fixture rotates up to 355° and tilt up to 30° Spring loaded module uses set screws to
Universal 120-277V, 50/60Hz, 0-10V or
Drivers connect to LED modules using
Thermal
• Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
Compliance
• ETL listed for Damp locations
• Optional Wet location rated trim
Warranty
• 5 Year limited parts warranty
NIO-4SNDSQ
4" Iolite Square Reflector with Square Aperture
Source: 14W to 28W
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800 lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700 K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Com fort Dim (warm dimming) also available in 800lm only
Flo od optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DES CRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800 -1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800 -1000lm / 14W
NHRIOIC-48 ICAT Remodel 800 -1000lm / 14W
NHIOICD-415 ICAT New Construction 150 0lm / 20W
NHIOICDCP-415 Chicago Plenum 150 0lm / 20W
NHIOICD-420 ICAT New Construction 200 0lm / 24W
NHIOICDCP-420 Chicago Plenum 200 0lm / 24W
NHIOICD-425 ICAT New Construction 250 0lm / 28W
NHIOICDCP-425 Chicago Plenum 250 0lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cUL us Listed for Wet Locations
ENE RGY STAR certified 5-Year Limited Warranty
RoHS Compliant
Cer tified to the high efficacy requirements of California Title 24 JA8-2022
provide ultimate design flexibility from its modular, scalable design. Fixture sizes range from 1” to 5” and are all available in a variety of reflector finishes in both round and square shapes, able to match any décor. Precision TIR optics combined with set screw aiming deliver light where you need it.
FEATURES
Flangeless fixture installation provides a clean, sleek and modern appearance
• Reflectors are easily changeable in the field
GOOD TO KNOW
The Sense Family of fixures offers sizes and features that provide solutions for the complete lighting project
• A Single LED Module works with all available trims, housings and reflectors
Set screws offer precise adjustment of vertical aiming angle up to 30° either before or after fixture installation
Housing
• New construction steel frame supplied with universal bar hangers and butterfly brackets
• Bar hangers are adjustable from 13-1/4” to 24-1/2
• Fixture and driver are serviceable from below the ceiling
Flangeless trims install with mud ring and
Install in ceilings between ¼” and 1” thick Fixture rotates up to 355° and tilt up to 30° Spring loaded module uses set screws to
Universal 120-277V, 50/60Hz, 0-10V or
Drivers connect to LED modules using
Thermal
• Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
Compliance
• ETL listed for Damp locations
• Optional Wet location rated trim
Warranty
• 5 Year limited parts warranty
NIO-4SNDSQ
4" Iolite Square Reflector with Square Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm , 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available in 800lm only
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCR IPTION LUMENS / WATTAGE
NHIOICD-48 ICAT Ne w Construction 800-1 000lm / 14W
NHIOICDCP-48 Chica go Plenum 800-1 000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1 000lm / 14W
NHIOICD-415 ICAT Ne w Construction 1500lm / 20W
NHIOICDCP-415 Chica go Plenum 1500lm / 20W
NHIOICD-420 ICAT Ne w Construction 2000lm / 24W
NHIOICDCP-420 Chica go Plenum 2000lm / 24W
NHIOICD-425 ICAT Ne w Construction 2500lm / 28W
NHIOICDCP-425 Chica go Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus L isted for Wet Locations
ENERGY STAR certified
5-Year Limited Warranty
RoHS C ompliant
Certi fied to the high efficacy requirements of California Title 24 JA8-2022

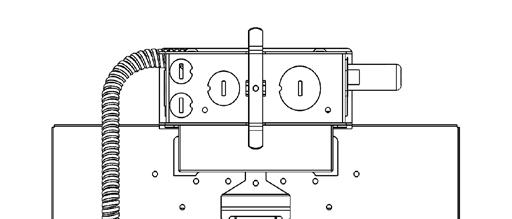

4" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Emergency: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ). Note: Emergency is not compatible with Chicago Plenum housings.
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant FCC compliant Patent #D824567S Meets or exceeds ASTM-283 Air-Tight requirements
4" Iolite ICAT High Lumen New Construction Housing - Compatible with NIO-4 trims (except PLUS trims)
= IC Air-Tight, 1500lm / 20W
= Chicago Plenum, 1500lm / 20W
NHIOICD-420 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum, 2000lm / 24W
NHIOICD-425 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory) /PEM = Pre-Wired for Remote Emerg ency (not compatible with NHIOICDCP)
LE4 = 120/277V input; Triac / ELV / 0-10V dimming /PEM = Pre-Wired for Remote Emerg ency (not compatible with NHIOICDCP)
Example: NHIOICD-420LE4 = 4" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V input; Triac / ELV / 0-10V dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
NEPK-07LEDUNV = Remote Emergency Battery w/Test Switch NIO-4EXTC2 = Ceiling Extension Collar up to 2"
SENSE 3.0
Adjustable Downlight
SENSE ADJUSTABLE DOWNLIGHTS
provide ultimate design flexibility from its modular, scalable design. Fixture sizes range from 1” to 5” and are all available in a variety of reflector finishes in both round and square shapes, able to match any décor. Precision TIR optics combined with set screw aiming deliver light where you need it.
FEATURES
Flangeless fixture installation provides a clean, sleek and modern appearance
• Reflectors are easily changeable in the field
GOOD TO KNOW
The Sense Family of fixures offers sizes and features that provide solutions for the complete lighting project
• A Single LED Module works with all available trims, housings and reflectors
Set screws offer precise adjustment of vertical aiming angle up to 30° either before or after fixture installation
Housing
• New construction steel frame supplied with universal bar hangers and butterfly brackets
• Bar hangers are adjustable from 13-1/4” to 24-1/2
• Fixture and driver are serviceable from below the ceiling
Flangeless trims install with mud ring and
Install in ceilings between ¼” and 1” thick Fixture rotates up to 355° and tilt up to 30° Spring loaded module uses set screws to
Universal 120-277V, 50/60Hz, 0-10V or
Drivers connect to LED modules using
Thermal
• Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
Compliance
• ETL listed for Damp locations
• Optional Wet location rated trim
Warranty
• 5 Year limited parts warranty
NIO-4SNDSQ
4" Iolite Square Reflector with Square Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm , 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available in 800lm only
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCR IPTION LUMENS / WATTAGE
NHIOICD-48 ICAT Ne w Construction 800-1 000lm / 14W
NHIOICDCP-48 Chica go Plenum 800-1 000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1 000lm / 14W
NHIOICD-415 ICAT Ne w Construction 1500lm / 20W
NHIOICDCP-415 Chica go Plenum 1500lm / 20W
NHIOICD-420 ICAT Ne w Construction 2000lm / 24W
NHIOICDCP-420 Chica go Plenum 2000lm / 24W
NHIOICD-425 ICAT Ne w Construction 2500lm / 28W
NHIOICDCP-425 Chica go Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus L isted for Wet Locations
ENERGY STAR certified
5-Year Limited Warranty
RoHS C ompliant
Certi fied to the high efficacy requirements of California Title 24 JA8-2022
provide ultimate design flexibility from its modular, scalable design. Fixture sizes range from 1” to 5” and are all available in a variety of reflector finishes in both round and square shapes, able to match any décor. Precision TIR optics combined with set screw aiming deliver light where you need it.
FEATURES
Flangeless fixture installation provides a clean, sleek and modern appearance
• Reflectors are easily changeable in the field
GOOD TO KNOW
The Sense Family of fixures offers sizes and features that provide solutions for the complete lighting project
• A Single LED Module works with all available trims, housings and reflectors
Set screws offer precise adjustment of vertical aiming angle up to 30° either before or after fixture installation
Housing
• New construction steel frame supplied with universal bar hangers and butterfly brackets
• Bar hangers are adjustable from 13-1/4” to 24-1/2
• Fixture and driver are serviceable from below the ceiling
Flangeless trims install with mud ring and
Install in ceilings between ¼” and 1” thick Fixture rotates up to 355° and tilt up to 30° Spring loaded module uses set screws to
Universal 120-277V, 50/60Hz, 0-10V or
Drivers connect to LED modules using
Thermal
• Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
Compliance
• ETL listed for Damp locations
• Optional Wet location rated trim
Warranty
• 5 Year limited parts warranty
NIO-4SNDSQ
4" Iolite Square Reflector with Square Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1 000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3 000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfor t Dim (warm dimming) also available in 800lm only
Flood op tic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New C onstruction 800-10 00lm / 14W
NHIOICDCP-48 Chicag o Plenum 800-10 00lm / 14W
NHRIOIC-48 ICAT Rem odel 800-10 00lm / 14W
NHIOICD-415 ICAT New C onstruction 1500lm / 2 0W
NHIOICDCP-415 Chicag o Plenum 1500lm / 2 0W
NHIOICD-420 ICAT New C onstruction 2000lm / 24W
NHIOICDCP-420 Chicag o Plenum 2000lm / 24W
NHIOICD-425 ICAT New C onstruction 2500lm / 2 8W
NHIOICDCP-425 Chicag o Plenum 2500lm / 2 8W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
ENERGY STAR certified
5-Year L imited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022

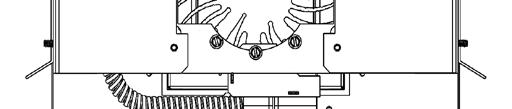

4" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm PRODUCT
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.

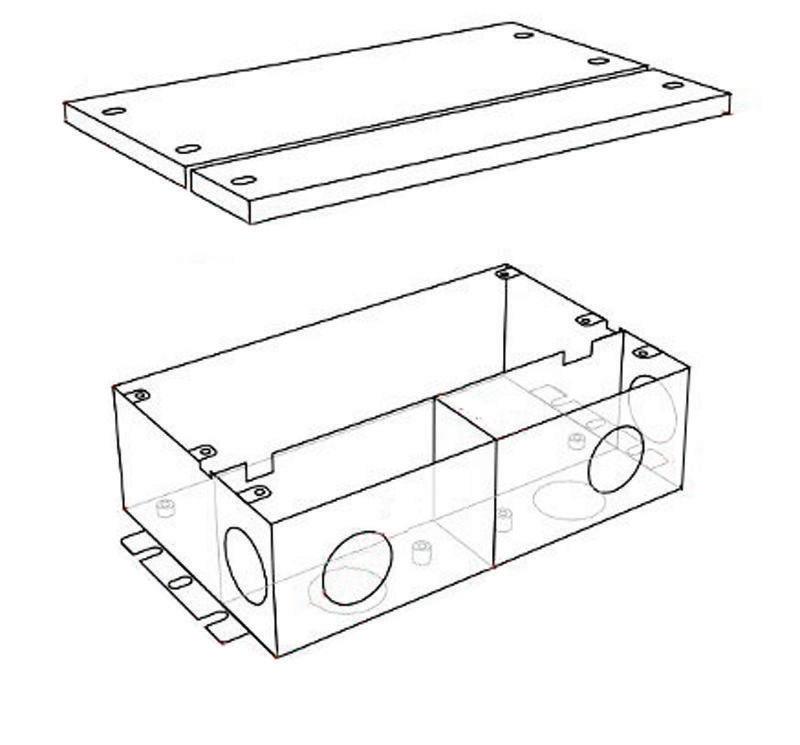

Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Emergency: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ). Note: Emergency is not compatible with Chicago Plenum housings.
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant FCC compliant Patent #D824567S Meets or exceeds ASTM-283 Air-Tight requirements
4" Iolite ICAT High Lumen New Construction Housing - Compatible with NIO-4 trims (except PLUS trims)
= IC Air-Tight, 1500lm / 20W
= Chicago Plenum, 1500lm / 20W
NHIOICD-420 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum, 2000lm / 24W
NHIOICD-425 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory) /PEM = Pre-Wired for Remote Emergen cy (not compatible with NHIOICDCP)
LE4 = 120/277V input; Triac / ELV / 0-10V dimming /PEM = Pre-Wired for Remote Emergen cy (not compatible with NHIOICDCP)
Example: NHIOICD-420LE4 = 4" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V input; Triac / ELV / 0-10V dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
NHIOICD-415 / NHIOICDCP-415
NHIOICD-420 / NHIOICDCP-420
Ceiling Cut-Out
NHIOICD-425 / NHIOICDCP-425
Optional Accessories
Description
NEPK-07LEDUNV = Remote Emergency Battery w/Test Switch NIO-4EXTC2 = Ceiling Extension Collar up to 2"

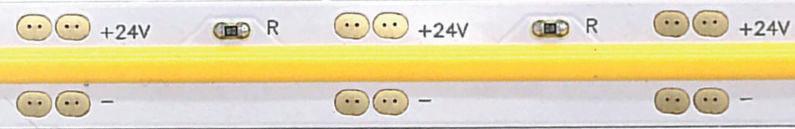

TL24COB - 24VDC COB Flexible LED Strip TL SERIES -
Type:
The TL24COB flexible strip light uses high efficacy LED chips to produce exceptional illumination. The utilization of remote phosphor technology makes this product perfect for direct view and shallow channel applications. With a CRI of 92 and an R9 value of 64, these LED chips offer exceptional color rendering. The color uniformity is further ensured by 2-step MacAdam ellipse binning. Our robust copper flexible printed circuit board allows for optimal heat dissipation. The TL24COB utilizes silicone coating and jacketing that guarantees color consistency across our IP20, IP65 and IP67 strips.
IP20 - Indoor
IP65 - Moisture Proof

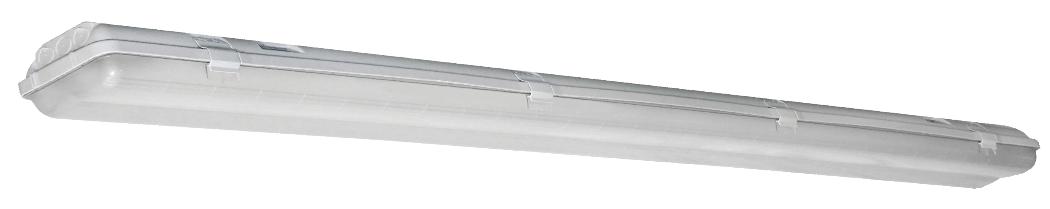

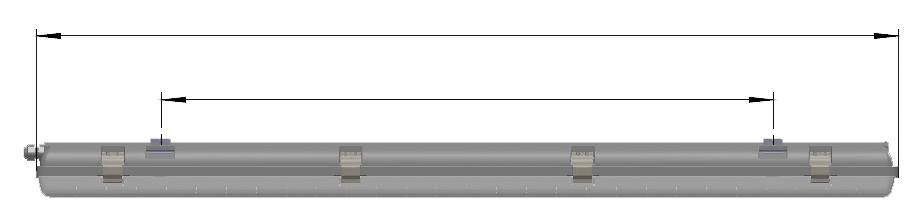

DUO SELECTABLE VP FIXTURE
Ideal for both indoor and outdoor areas
ATG’s LED Vapor Proof fixture is a rugged fixture designed for ambient lighting in indoor or semi-open environments. It is ideal for indoor and outdoor parking zones, gas stations, warehouses, canopies, and other areas that may see exposure to humidity or moisture while requiring high quality light.
Product Specs
Input Voltage (VAC) 120-277 / 347-480
CRI 83
CCT (K) 3500K/4000K/ 5000K Selectable PF >.9
THD 15%
Color White
Housing Polycarbonate Body & Diffuser
Lens Matte
Warranty 10 Years‡
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
IK Rating IK08
Lumen Maintanance See table
IP Rating IP66
‡see website for warranty terms
*Sensor and EM Unit shall be ordered separately.
PROJECT DETAILS
Project:
Product:
Prepared by:
APPLICATIONS
Notes: ENABLED:
Application Ceiling Fixture Type Sealed and Gasketed Office and Meeting Space
Educational Facilities X Industrial and Distribution X Hospital and Healthcare Facilities X Garage and Parking Lot X Parks and Recreation
CERTIFICATIONS AND COMPATIBILITIES
TL24COB - 24VDC COB Flexible LED Strip
Technical Specifications:
Operating Voltage
Dimming Levels
MacAdam Ellipse Binning 2-step
Increments
Ordering Code:
CRI / CCT
924 - 90+ / 2400K
927 - 90+ / 2700K
930 - 90+ / 3000K
935 - 90+ / 3000K
940 - 90+ / 4000K

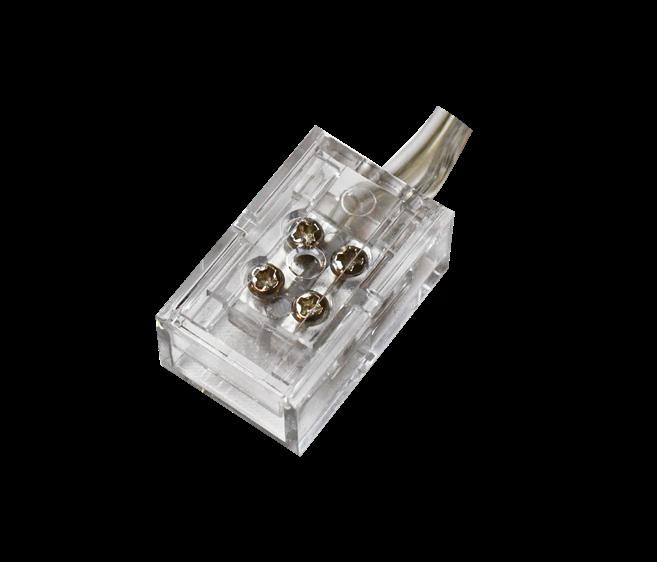

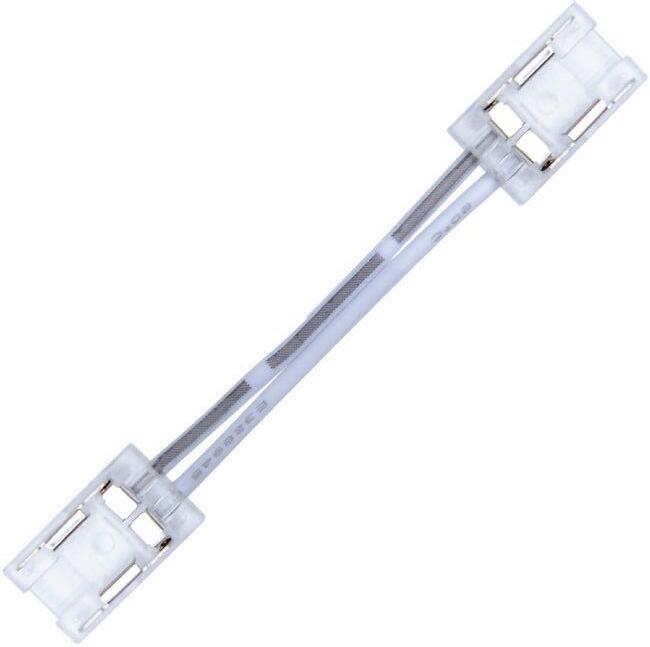

Solderless Connectors:
IES File (3000K) These connectors fit into our smallest channels. The connectors pierce the PCB, giving a solid and permanent connection.
Finish: Silver, Black Lens: Frosted, Black Imaging Rating: 0
Finish: Silver, Black Lens: Frosted, Black Imaging Rating: 0
Finish: Silver Lens: Frosted Imaging Rating: 0

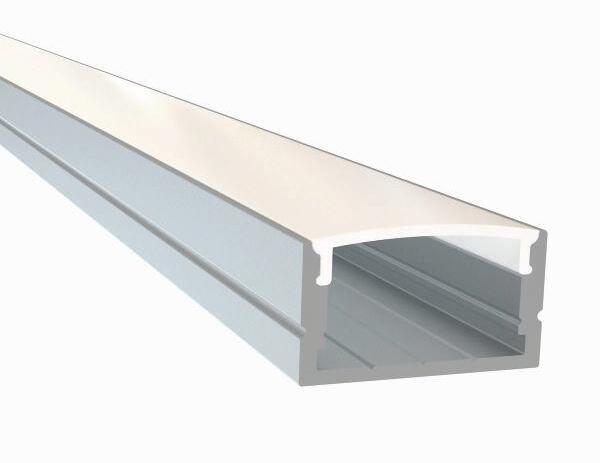

AP-21-2.4
Large Wide WxH 1.97” x 1.16” Finish: Silver, Black Len: Frosted Imaging Rating: 0
AP-03-2.4
Finish: Silver Lens: Frosted Imaging Rating: 0 Medium Side Lens WxH 1.14” x 0.88” Finish: Silver Lens: Frosted Imaging Rating: 0
BLANK
TYPE P SPEC FLAGLER SKY

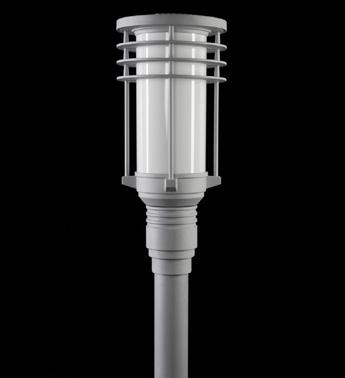

EC812/EC813 SERIES
ECLIPSE MAXI
8” Pole/Wall mount
TYPE: QUANTITY: PROJECT:
CATALOG NUMBER:
MATERIALS
Eclipse is made of corrosion resistant 356 aluminum alloy with a copper (CU) content of less than 0.1%.
Light source is enclosed in a high impact white translucent UV stabilized acrylic sealed diffuser. Increased impact protection with a set of three aluminum louvers.
The lower cast aluminum housing fits with a 4” (102mm) or 5” (127mm) pole and contains all electrical controls on a removable tray.
ELECTRICAL
DRIVER Standard driver is 0-10V dimming-ready (dims to 10%) with: 120-277 multi-volt compatibility (50-60Hz), optional 347V on request, minimum operating temperature of -30ºC/-22ºF, output over voltage protection, output over current protection, output short circuit protection with auto-recovery, and over temperature protection (110ºC)
LED Standard 4000K/80CRI. Optional 2700K, 3000K and 3500K. Removable modular LED platform.
LIFE
75,000hrs L86B50 (based on IESNA TM-21 Test Method and LM-80 data).
145,000hrs L70B50 (calculated projection from LM-80 data).
FINISH
Five-stage preparation process including preheating of cast aluminum parts for air extraction, and an environmentally friendly alloy sealant. Polyester powder coating is applied through an electrostatic process and oven cured for long term finish.
1- Heavy cast aluminum top cover with integral LED heat dissipating pad.
2- Ø 30” x .090” (2.3mm) thick hard aluminum top shade. Underside surface is painted white enamel to optimize light performance (EC813 only).
3- Set of three aluminum louvers.
4- Set of 4 X 1/2” (13mm) solid aluminum struts.
5- High impact white translucent UV stabilized acrylic diffuser.
6- Cast aluminum upper electrical housing.
7- Cast aluminum lower electrical housing.
EC812
EC813
MOUNTING
Maximum weight: 32 lbs (14.5 kg)
Eclipse is designed for ease of access and installation. Standard luminaire mounts on a 4” (102mm) or 5” (127mm) pole. Alternate poles or wall attachments are proposed with high quality components to meet multiple installation conditions.
CERTIFICATION
Certified and Approved as per CSA C22.2 No.: 250.0 standard and ANSI/UL 1598 standard, for wet location. Rated IP65.
Photometric testing performed by an independent laboratory in accordance with IES LM-79-08 standards at 25ºC. Lumen depreciation in accordance with IESNA LM80 standards.
EC812 EPA: 0.96
EC813
1.25
Specifications LA160
Material:
Project Name:
Fixture Type:
Customer:
Durable A356 cast aluminum and aluminum sheet metal. Hardware is stainless steel or zinc-plated steel.
Lens: Multiple choices of lens or no lens.
Fixture Mounting:
Post Mount: Post Cap with set screws.
Drivers: Universal Voltage 120-277V is standard. 0-10V dimming is standard. (Refer to Driver Specification section for other specifications.)
Dark Sky Friendly: To maintain dark sky friendly compatibility: ≤ 3000K & no lens.
Catalog Logic
CPS30W18 (30W TIR Performance Platform)
CPS39W18 (39W TIR Performance Platform, CA Title 24)
CPS46W18 (46W TIR Performance Platform)
T2 (Type II) T3 (Type III)
(Type IV)
(Type V)
27K (2700K)
30K (3000K)
35K (3500K)
40K (4000K)
*Consult Factory for 5000K
Quantity:
Electrical: A lightning surge protective device is standard (20KA³ Max/10KA² Nominal). Approximately 12” of pull wire extends from luminaire. All luminaires are prewired with 0-10V dimming leads. Post Arms and Wall Mounts are also prewired with line voltage & dimming leads.
Finish: A polyester powder coat high quality finish. Marine grade finish is available.
Certifications: UL Listed for outdoor, wet location. LED is IP66.
Modifications: Consult factory for custom or modified designs.
Buy American: This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS, and DOT regulations. Click here for additional information.
ACCESSORIES
HSS90 (90° House Side Shield)
HSS120 (120° House Side Shield)
*EMG-LED10 (10W LED Emergency Driver, See Below For Compatibility)
*EMG-LED20 (20W LED Emergency Driver, See Below For Compatibility)
AD (AstroDIM™ - Night-time dimming, consult factory)
FAID (Field Adjustable Internal Dimmer)
*Most Emergency Drivers are remote mount only (consult factory). 10W & 30W Emergency Drivers are not compatible with all LED Light Source and Wattages. For percent lumens in emergency mode, see Technical Section
(Slips over Ø5” pole or tenon) PA5151
TYPICAL PHOTOMETRY SUMMARY
Descriptive Information
EC812-L1W65r1
EC813-L1W65r1
Total Lms: 4553 Lumens
Total Input Watts: 48.3 W
Source: LED
Efficacy: 94.2 Lumens/Watt
BUG: B2-U4-G3
CCT/CRI: 4000K/80 Maximum Candela: 584 @ 65ºV
Please visit our web site www.luminis.com for complete I.E.S. formatted download data.
L1W18r1
L1W65r1 4553 48W
STANDARD COLORS
WHT Snow white
BKT Jet black
BZT Bronze
Optional 347V
OPTIONS
ELECTRICAL
FS Fuse 2
PH Photocell 2
347L 347V input power driver
LIGHT
Alternate CCT ºK LED (LCF: Lumen conversion factor). (Apply multiplier to listed values for lumens output reference).
K27 2700K CCT 80 CRI (LCF: 0.91)
K3 3000K CCT 80 CRI (LCF: 0.94)
K35 3500K CCT 80 CRI (LCF: 0.98)
NOTE: Other CCT & higher CRI available, please consult factory.
NOTES
MST Matte silver
GRT Titanium gray
DGT Gun metal
CHT Champagne
SGT Steel gray
BGT English cream
OPTIONAL COLORS
CS Custom color RAL RAL# color
MOUNTING
AC8 Pole mount attachment with 45º support
2AC8 Double pole mount attachment with 45º support at 180º
AW8 Wall mount attachment with 45º support
EC8P Pole mount attachment with stacked arms
2EC8P Double pole mount attachment with stacked arms at 180º
EC8PS Pole mount attachment with short stacked arms (EC812 only)
2EC8PS Double pole mount attachment with short stacked arms at 180º (EC812 only)
EC8W Wall mount attachment with stacked arms
EC8WS Wall mount attachment with short stacked arms (EC812 only)
ECM4T Post top mounting on 4” (102mm) pole
ECM5T Post top mounting on 5” (127mm) pole 4
TN3 3” Tenon pole adaptor 3
PR8 Pedestal mount adaptor
(Refer to color chart) 120V 277V
ACCESSORIES
HS8 House side shield
CONTROL
NLTAIR2 nLight AIR Control gen2, Pole mounted black sensor. 5, 6, 7
1- Luminaires are factory prewired for 120V (if no voltage is specified). For other voltages, please specify with catalog number or consult factory.
2- Fuse and photocell options are normally installed with poles when specified with Luminis luminaires (except for other types of mounting).
3- 3” tenon pole adaptor only required for 3” O.D. poles by others.
4- For 1/8” wall thickness. For other wall thickness contact factory.
5- Not compatible with PH, Wall mounts, Double Pole Mounts, TN3, PR8.
- High performance UV stabilized polycarbonate diffuser
- CRI > 80
MOUNTING
CODE COMPLIANCE
- cSAus Listed for Wet Locations
- Meets UL Requirements
- IP65 Rated
- Title20 Compliant
- Title24 Compliant
- BAA Compliant
- Meets DLC Requirements
- Surface mount configuration standard with stainless steel mounting brackets
- Chain kit, pendant mount and air craft cable also available
CATALOG# Wattage Lumens
VT6-35L-QT-* 35W 3,500 Lumens
VT6-50L-QT-* 50W 6,300 Lumens
VT6-55L-QT-* 55W 6,400 Lumens
VT6-70L-QT-* 70W 8,800 Lumens
*Specify 35K, 40K, 50K
OPTIONS (Factory Installed)
EBLED - Emergency Ballast
SSL - Stainless Steel Latches
FP - Fuse Protection
SGP - Surge Protection
TPS - Tamper Proof Screws
TPB - Tamper Proof Drill Bit
OCS - External Occupancy Sensor
480V - 480V Driver (replaces QT)
10YR - 10 Year Warranty
ACCESSORIES (Order Separately, Ships on Side)
VT6-GK50 - 50” Adjustable Gripple Kit
VT6-GK72 - 72” Adjustable Gripple Kit
VT6-GK100 - 100” Adjustable Gripple Kit
VT6-GK150 - 150” Adjustable Gripple Kit
VT6-GK250 - 250” Adjustable Gripple Kit
VT6-CK48 - 48” Chain Kit
VT6-SK12 - 12” Pendant Kit
VT6-SK24 - 24” Pendant Kit
VT6-SK48 - 48” Pendant Kit
VT6-SWK12 - 12” Swivel Pendant Kit
VT6-SWK24 - 24” Swivel Pendant Kit
VT6-SWK48 - 48” Swivel Pendant Kit
VT6-SB - Trunion Mount
VT6-JBOX - Junction Mount
WARRANTY - 5 Year - 10 Year available 35.1”
DUO SELECTABLE VP FIXTURE
ATG’s LED Vapor Proof fixture is a rugged fixture designed for ambient lighting in indoor or semi-open environments. It is ideal for indoor and outdoor parking zones, gas stations, warehouses, canopies, and other areas that may see exposure to humidity or moisture while requiring high quality light.
Product Specs
Input
Housing Polycarbonate Body & Diffuser Lens Matte Warranty 10 Years‡ Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
- High performance UV stabilized polycarbonate diffuser
- CRI > 80
MOUNTING
CODE COMPLIANCE
- cSAus Listed for Wet Locations
- Meets UL Requirements
- IP65 Rated
- Title20 Compliant
- Title24 Compliant
- BAA Compliant
- Meets DLC Requirements
- Surface mount configuration standard with stainless steel mounting brackets
- Chain kit, pendant mount and air craft cable also available
CATALOG# Wattage Lumens
VT6-35L-QT-* 35W 3,500 Lumens
VT6-50L-QT-* 50W 6,300 Lumens
VT6-55L-QT-* 55W 6,400 Lumens
VT6-70L-QT-* 70W 8,800 Lumens
*Specify 35K, 40K, 50K
OPTIONS (Factory Installed)
EBLED - Emergency Ballast
SSL - Stainless Steel Latches
FP - Fuse Protection
SGP - Surge Protection
TPS - Tamper Proof Screws
TPB - Tamper Proof Drill Bit
OCS - External Occupancy Sensor
480V - 480V Driver (replaces QT)
10YR - 10 Year Warranty
ACCESSORIES (Order Separately, Ships on Side)
VT6-GK50 - 50” Adjustable Gripple Kit
VT6-GK72 - 72” Adjustable Gripple Kit
VT6-GK100 - 100” Adjustable Gripple Kit
VT6-GK150 - 150” Adjustable Gripple Kit
VT6-GK250 - 250” Adjustable Gripple Kit
VT6-CK48 - 48” Chain Kit
VT6-SK12 - 12” Pendant Kit
VT6-SK24 - 24” Pendant Kit
VT6-SK48 - 48” Pendant Kit
VT6-SWK12 - 12” Swivel Pendant Kit
VT6-SWK24 - 24” Swivel Pendant Kit
VT6-SWK48 - 48” Swivel Pendant Kit
VT6-SB - Trunion Mount
VT6-JBOX - Junction Mount
WARRANTY - 5 Year - 10 Year available 35.1”
DUO SELECTABLE VP FIXTURE
ATG’s LED Vapor Proof fixture is a rugged fixture designed for ambient lighting in indoor or semi-open environments. It is ideal for indoor and outdoor parking zones, gas stations, warehouses, canopies, and other areas that may see exposure to humidity or moisture while requiring high quality light.
Product Specs
Input
Housing Polycarbonate Body & Diffuser Lens Matte Warranty 10 Years‡ Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
IK Rating IK08
Lumen Maintanance See table
IP Rating IP66 ‡see website for warranty terms
Product:
Prepared by:
Notes:
*Sensor and EM Unit shall be ordered separately.

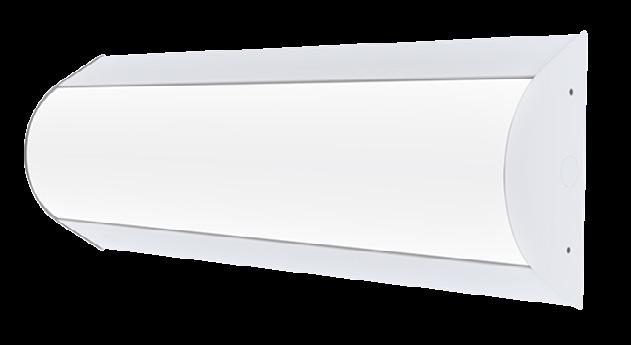

LED - Specification-Grade ADA Surface Mount | Industrial/Commercial Lighting
Project:
Notes: Catalogue #: Type:
Product Description
Specification-grade, surface-mounted ideally suited for multiple indoor applications including hallways, corridors and stairwells. Suitable for continuous row-mounting.
Applications
Commercial Spaces, Hallways, Stairwells
Features
• Unique ADA compliant design
• Shallow design
• Energy savings Bi-Level
• Available in 24 and 48 inch lengths
• 80+ CRI
• Standard low voltage dimming (0-10v)
Featured Options
• Microwave Occ Sensor
• Ultrasonic Occ Sensor
• Emergency Battery Pack
Optical System
Frosted extruded micro-grooved acrylic lens.
Mounting
Mounting holes are provided for surface mounted applications. Continuous raceway and row-mounting capability.
Construction
CNC brake-formed, code gauge, steel housing and ends. Knockouts are provided for conduit attachment.
Finish
White, polyester powder painted housing.
Electrical
Long life LEDs coupled with high efficiency drivers provide quality illumination.
Rated to deliver L80 > 50,000 hours. Supplied with dimmable drivers (0-10v).
Warranty
5 year limited warranty. For complete warranty, click here:
Approvals
• Approved to CSA and UL standards.
• Tested in accordance to IESNA LM-79.
• Suitable for damp locations.
• DesignLights Consortium® Qualified.
All configurations may not be DLC qualified. Check www.designlights.org/QPL for qualified configurations
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
Controls Options For advanced wireless controls Click Here Other options may be available, consult factory. Specifications and data subject to change without notice.
Select Series Stair Lighter
Specifications
Input Line Voltage
Input Line Frequency (Hz)
Wattage (W)
120-277 VAC
50/60HZ
35W/45W/55W
Lumens (L) 4725L/6075L/7425L
Lumens per Watt (LPW) 135 LPW (80 CRI)
CCT 3500K/4000K/5000K Selectable
Rated Life 50,000 hours
Minimum Starting Temperature 20°C (-4°F)
Maximum Operating Temperature 50°C (122°F)
CRI >80
Power Factor >0.95
THD <20%
Ratings cULus, Damp location rated
Controls 0-10V dimming (standard)
Features
• Lightweight, quick-install construction
• Standard frosted lens for glare control
• No shadows; smooth, even lighting
• Damp location rated
• 0-10V smooth, no-flicker dimming
• Operating temperature: -4°F to 122°F
• Sharkward bi-level dimming microwave motion sensor included
cULus Listed RoHS Compliant Five year limited warranty against defects in manufacturing. Item
Listings
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
1 Approximate lumen output. Actual performance may vary based on CCT, options selected and end use application.
2 Actual wattage may differ by +/- 10%
3 55W Model is selectable: 35/45/55W
Field
LED - Specification-Grade ADA Surface Mount | Industrial/Commercial Lighting
Project:
Notes: Catalogue #: Type:
Product Description
Specification-grade, surface-mounted ideally suited for multiple indoor applications including hallways, corridors and stairwells. Suitable for continuous row-mounting.
Applications
Commercial Spaces, Hallways, Stairwells
Features
• Unique ADA compliant design
• Shallow design
• Energy savings Bi-Level
• Available in 24 and 48 inch lengths
• 80+ CRI
• Standard low voltage dimming (0-10v)
Featured Options
• Microwave Occ Sensor
• Ultrasonic Occ Sensor
• Emergency Battery Pack
Optical System
Frosted extruded micro-grooved acrylic lens.
Mounting
Mounting holes are provided for surface mounted applications. Continuous raceway and row-mounting capability.
Construction
CNC brake-formed, code gauge, steel housing and ends. Knockouts are provided for conduit attachment.
Finish
White, polyester powder painted housing.
Electrical
Long life LEDs coupled with high efficiency drivers provide quality illumination.
Rated to deliver L80 > 50,000 hours. Supplied with dimmable drivers (0-10v).
Warranty
5 year limited warranty. For complete warranty, click here:
Approvals
• Approved to CSA and UL standards.
• Tested in accordance to IESNA LM-79.
• Suitable for damp locations.
• DesignLights Consortium® Qualified.
All configurations may not be DLC qualified. Check www.designlights.org/QPL for qualified configurations
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Color S electable 35/40/50K
• Optional battery backup
Ideal Applications
• Commercial settings
• Stairways
• Bi-level dimming microwave motion sensor
• Surface or pendant mounting
• Indust rial settings
• Wareh ouses
TYPE STE SPEC FLAGLER
Finish
Packaging
Wiring
Controls
Select Series Stair Lighter
Specifications
Input Line Voltage
Input Line Frequency (Hz)
Wattage (W)
120-277 VAC
50/60HZ
35W/45W/55W
Lumens (L) 4725L/6075L/7425L
Lumens per Watt (LPW) 135 LPW (80 CRI)
CCT 3500K/4000K/5000K Selectable
Rated Life 50,000 hours
Minimum Starting Temperature 20°C (-4°F)
Maximum Operating Temperature 50°C (122°F)
CRI >80
Power Factor >0.95
THD <20%
Ratings cULus, Damp location rated
Controls 0-10V dimming (standard)
Features
• Lightweight, quick-install construction
• Standard frosted lens for glare control

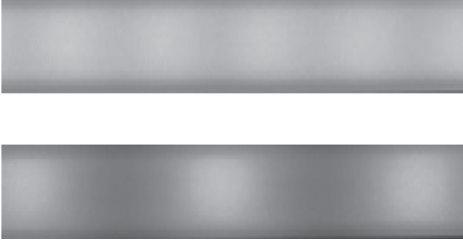

• No shadows; smooth, even lighting
• Damp location rated
• 0-10V smooth, no-flicker dimming
• Operating temperature: -4°F to 122°F
• Sharkward bi-level dimming microwave motion sensor included
cULus Listed RoHS Compliant Five year limited warranty against defects in manufacturing. Item
Listings
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
1 Approximate lumen output. Actual performance may vary based on CCT, options selected and end use application.
2 Actual wattage may differ by +/- 10%
3 55W Model is selectable: 35/45/55W
Field
Date: Job:
TL24HO-60-OUT
- 24VDC Outdoor Flexible
Strip
The TL24HO-60-OUT flexible strip light uses high efficacy LED chips to produce outstanding illumination. With a CRI of 93 and an R9 value of 82, these LED chips offer exceptional color rendering. The color uniformity is further ensured by 2-step MacAdam ellipse binning. Our robust copper flexible printed circuit board allows for long runs of 49.2ft and optimal heat dissipation. The TL24HO-60-OUT utilizes silicone coating and jacketing that guarantees color consistency across our IP20, IP65 and IP67 strips. Our sauna ratedversion is also an option.
(5mm) 0.59” (15mm) 0.45” (11.5mm)
(5mm)
(15mm) 0.45” (11.5mm)
(96mm)
(96mm)
IP67 - Outdoor Jacketed
IP68 - Submersible Silicone Filled Jacket
LTR-P Professional Series ®
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Outdoor Series Flexible LED Tape combines style and technology with reliability for wet location. Designed for professional installations that demand a high level of quality, the LTR-P Series boasts a wide array of key features and is available in 16’-4” (5M), 98’-6” (30M) reels or custom cuts. Do not submerge in water.
FEATURES
• 24VDC
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K as well as Amber, Red, Green, Blue color temps
• Remote control with GM’s LUXcontrol™ App and controllers (requires NEMA box - by others)
• LM80 / IP65
• 120 LEDs per meter
• Cuttable every 2”
• Wet location
• Optical clear UV protected silicone sheath
• Premium diodes
• 120° viewing angle
• Dimmable
• Maximum run on a given lead is 60’ (1.5W), 32’-8” (3.0W), 16’-4” (5.8W)
SPECIFICATIONS
ELECTRICAL
•24V
•1.5W, 3W and 5.8 watts per foot
•90+ CRI
•-4°F to 122°F
CERTIFICATION
•UL
•May comply with Title 24 with select power supplies
•Class 2
•5-year warranty when paired with GM power supply OPTICS
• For proper thermal management, we recommend to mount this product in a channel
•Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5), excluding colors -AM, -BL, -RD, -GR and LTR-P-WP-24V-1.5W
WARRANTY
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
TL24HO-60-OUT - 24VDC Outdoor Flexible LED Strip
Technical Specifications:
Operating Voltage
Lumens/ft (3000K) 202lm/ft
Efficacy (3000K) 78lm/W
LED Chips/ft 18 (60/M)
LED Pitch 0.7"
Color Temperatures 1800K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
CRI 93
R9 Value 82
LED Life 50,000 hrs
MacAdam Ellipse Binning 2-step
Cuttable Increments 3.8"
Maximum Run Length 32.8' Warranty 5 years
Ordering Code:
- Outdoor
- Submersible CRI / CCT
918 - 90+ / 1800K
922 - 90+ / 2200K
924 - 90+ / 2400K
927 - 90+ / 2700K
930 - 90+ / 3000K
935 - 90+ / 3500K
940 - 90+ / 4000K
950 - 90+ / 5000K
Outdoor Connector for OUT & SUB tape (solder only):
Inground Deep WxH 0.98” x 0.55” Finish: Silver Lens: Frosted Imaging Rating: 1
AP-LL13
LTR-P Professional Series ®
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet
COMPATIBLE CONTROLLERS
Model Description
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, see page 8
SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage, see page 8
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC see page 10
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC see page 10
Note: For wet location applications, use NEMA box (by others)
RECOMMENDED DRIVERS
or
LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W,
Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W
Please see our website for updated power supply specifications and information.
DIMENSION
16’-4” (5M reel) .32” (8mm)
.2” (5mm) Cuttable every 2” (51mm) Dimensions measured from edge of adapters TTC-3 (3”), TTC-6 (6”) TTC-12 (12”), TTC-24 (24”)
.5” (13mm)
LTR-P Professional Series ®
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet
LED-CHL-XD
LED-CHL-XD-8

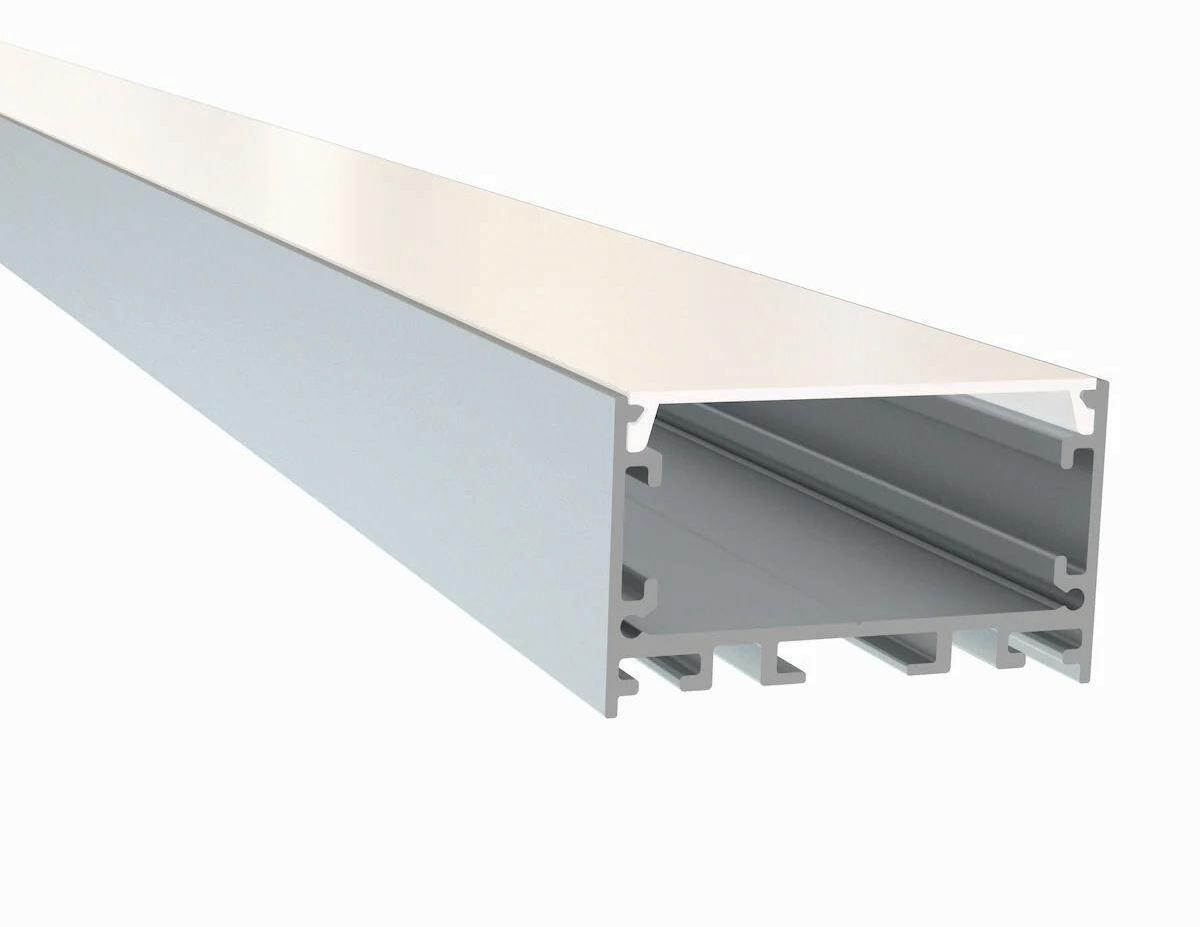

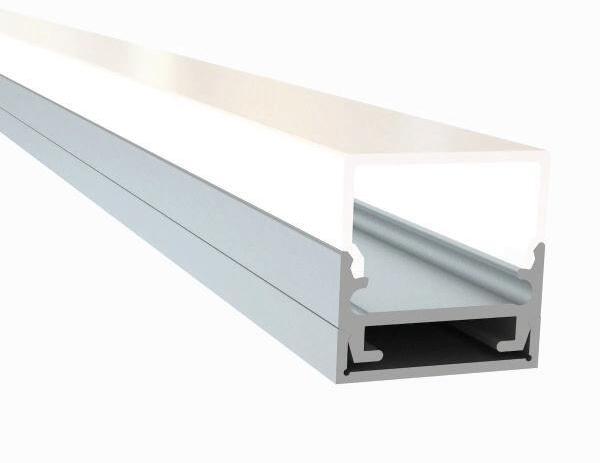

Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 8’
LED-CHL-XD-AMC (2) Adjustable mounting brackets for LED-CHL-XD N/A
LED-CHL-XD-EC (2) End caps for LED-CHL-XD. One solid, one with hole. N/A
LED-CHL-XD-MC (2) Mounting clips and screws for LED-CHL-XD N/A
LED-CHL-XD-F
LED-CHL-XD-F-8

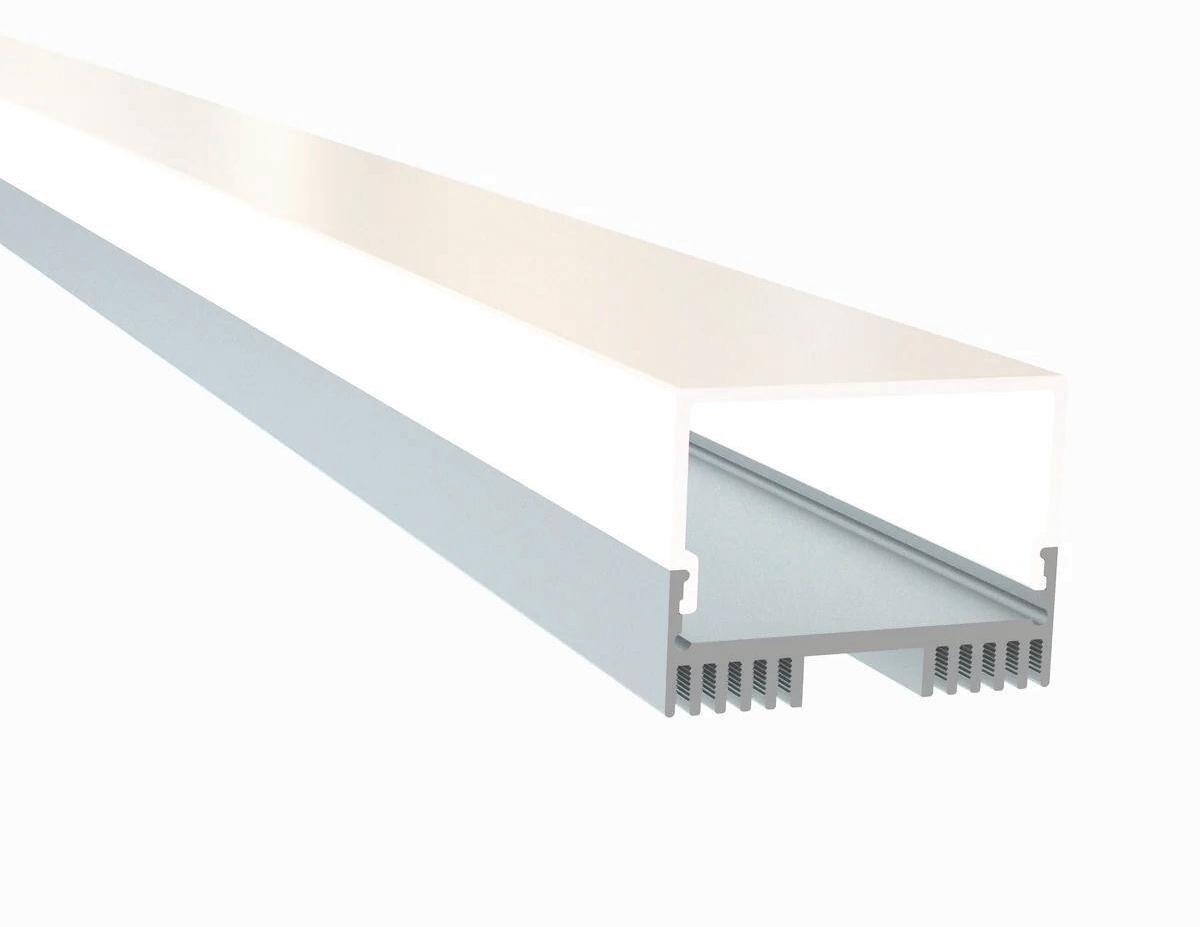

Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 8’
LED-CHL-XD-F-DC (2) Drywall mounting brackets for LED-CHL-XD-F N/A
LED-CHL-XD-F-EC (2) End caps for LED-CHL-XD-F. One solid, one with hole.
45º LARGE ANGLE MOUNT
LED-CHL-45-1200
Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-1200-EC (2) End caps for LED-CHL-45 - one solid, one with hole
LED-CHL-45-1200-MC (2) Additional mounting clips for LED-CHL-45-1200

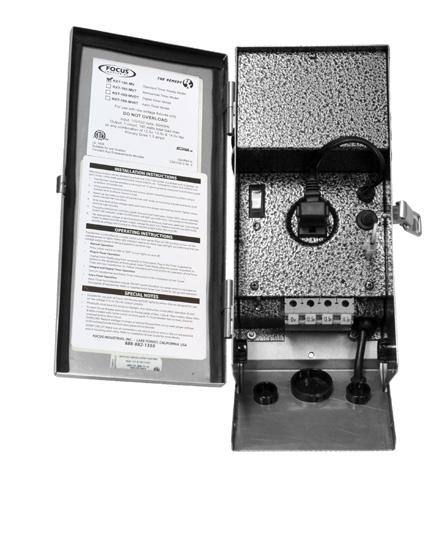

30W 6.5" x 3.7” x 1.6"
60W 7.4" x 3.7” x 1.6" 96W 8.7" x 3.7" x 1.6" 150W 10.2" x 4.1" x 1.8"
10.9" x 4.3” x 1.8"
Ordering Code:
30W - 30 Watts
60W - 60 Watts
96W - 96 Watts
150W - 150 Watts
300W - 300 Watts
BLANK
Covered Ceiling Mount Only

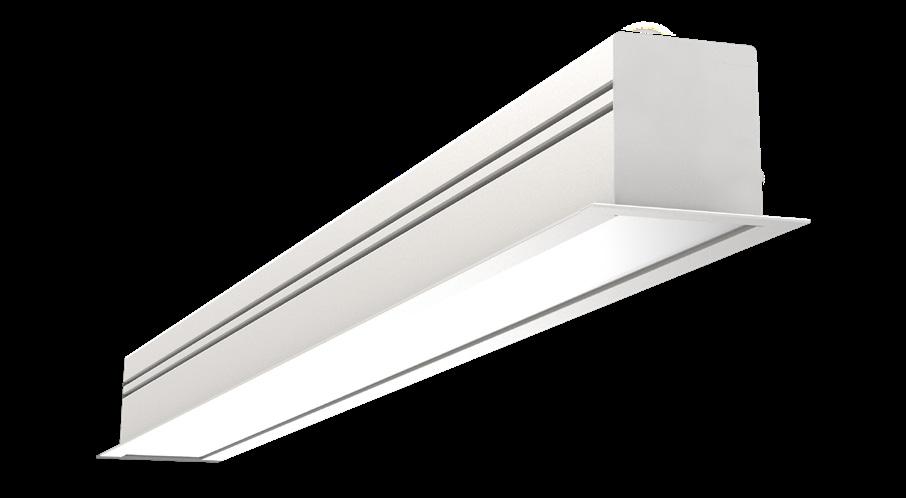

VIA 3 RECESSED
Project:
Type:
DESCRIPTION

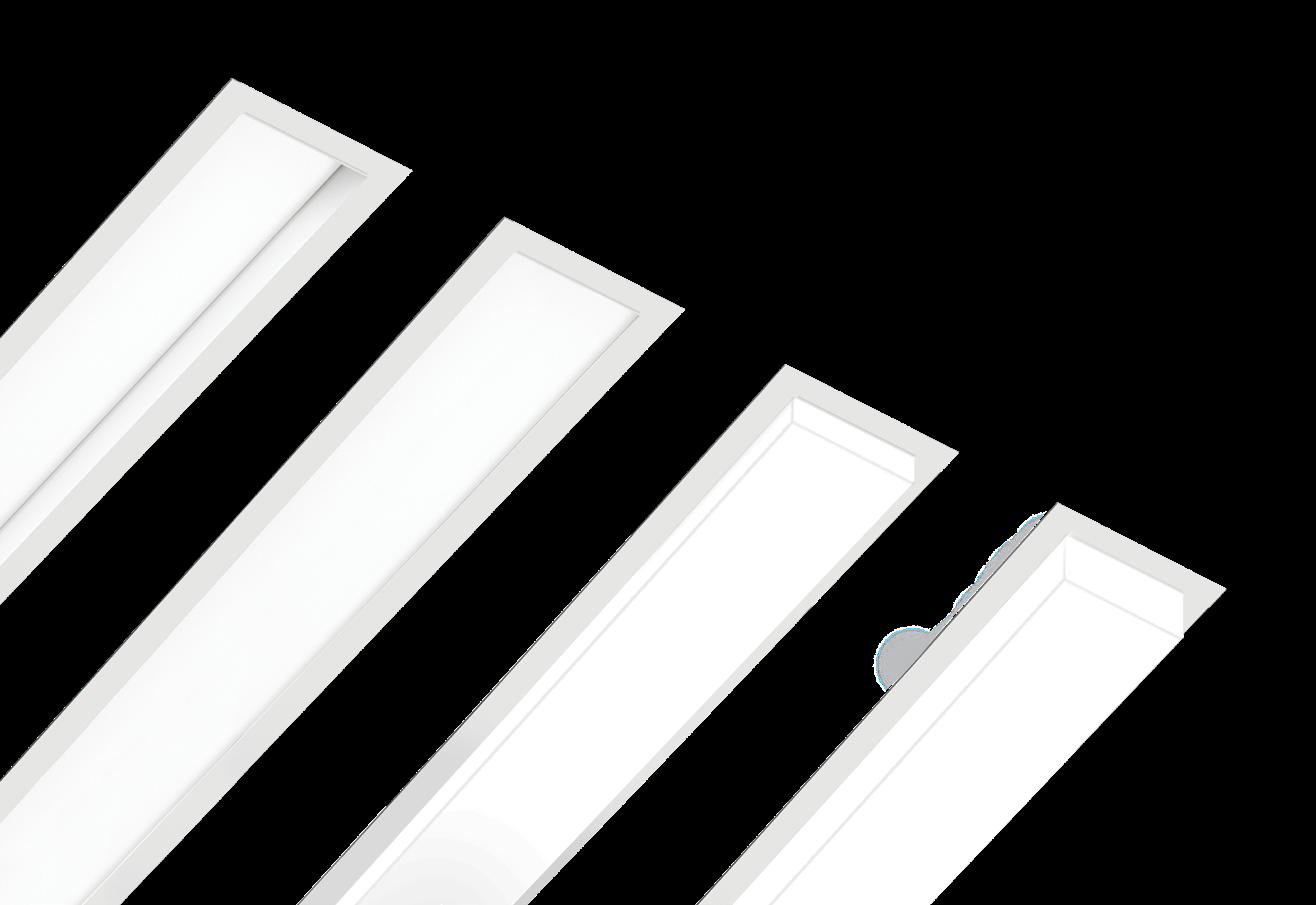

Our elegant, flexible Via family is composed of linear, pendant, surface, recessed, and wall mounted luminaires. Each lighting fixture can be installed as a discrete luminaire or in continuous runs or patterns. Via 3 Recessed is offered with Lambertian, asymmetric, widespread, wall wash, low-glare, or grazing reflector optics.
BLANK
VIA 3 RECESSED
Order Guide
5
VIA3R - Via 3" Recessed D - Direct
HLO - High-Efficiency Lambertian Optic
ARO2 - Asymmetric Refractive Optic
WRO2 - Wall Wash Refractive Optic
WDO - Widespread Direct Optic
LGO - Low-Glare Optic
GRO - Grazing Reflector Optic
D1 - 1% 0-10V
DA 12 - DALI
LDE1 12 - Lutron Hi-lume 1% Eco
ELD1 - eldoLED 1% ECOdrive 0-10V
ELD0 - eldoLED 0.1% SOLOdrive 0-10V
ELV 13 - ELV 120V
TRI 13 - TRIAC 120V
11 PoE (Power-over-Ethernet) compatible. Consult factory for details.
12 On-site commissioning is required.
13 Available with 120V only.
1C - 1 circuit
#MC 14 - Multi circuit
EC - Emergency-powered fixture
NL - Night light fixture
DL - Daylight fixture
GTD 15, 16 - Generator transfer device fixture
14 Specify total number of circuits (#), including any required for electrical section or COB options. Provide drawing or layout specifications. Minimum 4' section per circuit.
15 Minimum 4' fixture.
16 Not available with 347V.
Specify the quantity (#) of sensors per fixture.
#OMS 29 - Onboard Occupancy
#OMS## 30 - Onboard Occupancy with bilevel dimming
#ODS - Onboard Daylight
#OCS - Onboard Occupancy & Daylight
Project:
Type:
with HLO only.
2 Chromawerx Sola, Duo and Quadro also available. Consult other spec sheets.
3 Only available with low and medium lumen packages.
23 Transition mounting options also available (e.g. Recessed to Pendant/Surface), consult factory for details.
24 See page 4 for details.
LU- Lutron
AWNR - Lutron Athena Wireless Node RF Only
AWNS - Lutron Athena Wireless Node Sensor
EN - Enlighted
ENC - Encelium
WL - Cooper Wavelinx
AN - Acuity nLight
CA - Casambi
LG - Legrand
NA - None
25 Standalone and connected control options cannot be combined.
26 Available with D1 driver and 1 circuit options only.
27 Minimum 4' per zone. Provide control zone length.
28 Available with flush lens option only.
29 Fixture turns off when no occupancy.
30 Fixture dims to specified light level % (##).
31 Consult factory for connected controls.
32 See page 3 for ordering details.
33 If more than one option is specified, separate codes with a "+", e.g. 1COB20(...)+1COB30(...).
Covered Ceiling Mount Only
VIA 3 RECESSED
Project:
Type:
DESCRIPTION
Our elegant, flexible Via family is composed of linear, pendant, surface, recessed, and wall mounted luminaires. Each lighting fixture can be installed as a discrete luminaire or in continuous runs or patterns. Via 3 Recessed is offered with Lambertian, asymmetric, widespread, wall wash, low-glare, or grazing reflector optics.
BLANK
VIA 3 RECESSED
Order Guide
5
VIA3R - Via 3" Recessed D - Direct
HLO - High-Efficiency Lambertian Optic
ARO2 - Asymmetric Refractive Optic
WRO2 - Wall Wash Refractive Optic
WDO - Widespread Direct Optic
LGO - Low-Glare Optic
GRO - Grazing Reflector Optic
D1 - 1% 0-10V
DA 12 - DALI
LDE1 12 - Lutron Hi-lume 1% Eco
ELD1 - eldoLED 1% ECOdrive 0-10V
ELD0 - eldoLED 0.1% SOLOdrive 0-10V
ELV 13 - ELV 120V
TRI 13 - TRIAC 120V
11 PoE (Power-over-Ethernet) compatible. Consult factory for details.
12 On-site commissioning is required.
13 Available with 120V only.
1C - 1 circuit
#MC 14 - Multi circuit
EC - Emergency-powered fixture
NL - Night light fixture
DL - Daylight fixture
GTD 15, 16 - Generator transfer device fixture
14 Specify total number of circuits (#), including any required for electrical section or COB options. Provide drawing or layout specifications. Minimum 4' section per circuit.
15 Minimum 4' fixture.
16 Not available with 347V.
Specify the quantity (#) of sensors per fixture.
#OMS 29 - Onboard Occupancy
#OMS## 30 - Onboard Occupancy with bilevel dimming
#ODS - Onboard Daylight
#OCS - Onboard Occupancy & Daylight
Project:
Type:
with HLO
2 Chromawerx Sola, Duo and Quadro also available. Consult other spec sheets.
3 Only available with low and medium lumen packages.
23 Transition mounting options also available (e.g. Recessed to Pendant/Surface), consult factory for details.
24 See page 4 for details.
LU- Lutron
AWNR - Lutron Athena Wireless Node RF Only
AWNS - Lutron Athena Wireless Node Sensor
EN - Enlighted
ENC - Encelium
WL - Cooper Wavelinx
AN - Acuity nLight
CA - Casambi
LG - Legrand
NA - None
25 Standalone and connected control options cannot be combined.
26 Available with D1 driver and 1 circuit options only.
27 Minimum 4' per zone. Provide control zone length.
28 Available with flush lens option only.
29 Fixture turns off when no occupancy.
30 Fixture dims to specified light level % (##).
31 Consult factory for connected controls.
32 See page 3 for ordering details.
33 If more than one option is specified, separate codes with a "+", e.g. 1COB20(...)+1COB30(...).
Covered Ceiling Mount Only
VIA 3 RECESSED
Project:
Type:
DESCRIPTION
Our elegant, flexible Via family is composed of linear, pendant, surface, recessed, and wall mounted luminaires. Each lighting fixture can be installed as a discrete luminaire or in continuous runs or patterns. Via 3 Recessed is offered with Lambertian, asymmetric, widespread, wall wash, low-glare, or grazing reflector optics.
BLANK
VIA 3 RECESSED
Order Guide
5
VIA3R - Via 3" Recessed D - Direct
HLO - High-Efficiency Lambertian Optic
ARO2 - Asymmetric Refractive Optic
WRO2 - Wall Wash Refractive Optic
WDO - Widespread Direct Optic
LGO - Low-Glare Optic
GRO - Grazing Reflector Optic
D1 - 1% 0-10V
DA 12 - DALI
LDE1 12 - Lutron Hi-lume 1% Eco
ELD1 - eldoLED 1% ECOdrive 0-10V
ELD0 - eldoLED 0.1% SOLOdrive 0-10V
ELV 13 - ELV 120V
TRI 13 - TRIAC 120V
11 PoE (Power-over-Ethernet) compatible. Consult factory for details.
12 On-site commissioning is required.
13 Available with 120V only.
1C - 1 circuit
#MC 14 - Multi circuit
EC - Emergency-powered fixture
NL - Night light fixture
DL - Daylight fixture
GTD 15, 16 - Generator transfer device fixture
14 Specify total number of circuits (#), including any required for electrical section or COB options. Provide drawing or layout specifications. Minimum 4' section per circuit.
15 Minimum 4' fixture.
16 Not available with 347V.
Specify the quantity (#) of sensors per fixture.
#OMS 29 - Onboard Occupancy
#OMS## 30 - Onboard Occupancy with bilevel dimming
#ODS - Onboard Daylight
#OCS - Onboard Occupancy & Daylight
Project:
Type:
with HLO only.
2 Chromawerx Sola, Duo and Quadro also available. Consult other spec sheets.
3 Only available with low and medium lumen packages.
23 Transition mounting options also available (e.g. Recessed to Pendant/Surface), consult factory for details.
24 See page 4 for details.
LU- Lutron
AWNR - Lutron Athena Wireless Node RF Only
AWNS - Lutron Athena Wireless Node Sensor
EN - Enlighted
ENC - Encelium
WL - Cooper Wavelinx
AN - Acuity nLight
CA - Casambi
LG - Legrand
NA - None
25 Standalone and connected control options cannot be combined.
26 Available with D1 driver and 1 circuit options only.
27 Minimum 4' per zone. Provide control zone length.
28 Available with flush lens option only.
29 Fixture turns off when no occupancy.
30 Fixture dims to specified light level % (##).
31 Consult factory for connected controls.
32 See page 3 for ordering details.
33 If more than one option is specified, separate codes with a "+", e.g. 1COB20(...)+1COB30(...).
TYPE Y8 SPEC FLAGLER SKY
Covered Ceiling Mount Only
VIA 3 RECESSED
Project:
Type:
DESCRIPTION
Our elegant, flexible Via family is composed of linear, pendant, surface, recessed, and wall mounted luminaires. Each lighting fixture can be installed as a discrete luminaire or in continuous runs or patterns. Via 3 Recessed is offered with Lambertian, asymmetric, widespread, wall wash, low-glare, or grazing reflector optics.
BLANK
VIA 3 RECESSED
Order Guide
5
VIA3R - Via 3" Recessed D - Direct
HLO - High-Efficiency Lambertian Optic
ARO2 - Asymmetric Refractive Optic
WRO2 - Wall Wash Refractive Optic
WDO - Widespread Direct Optic
LGO - Low-Glare Optic
GRO - Grazing Reflector Optic
D1 - 1% 0-10V
DA 12 - DALI
LDE1 12 - Lutron Hi-lume 1% Eco
ELD1 - eldoLED 1% ECOdrive 0-10V
ELD0 - eldoLED 0.1% SOLOdrive 0-10V
ELV 13 - ELV 120V
TRI 13 - TRIAC 120V
11 PoE (Power-over-Ethernet) compatible. Consult factory for details.
12 On-site commissioning is required.
13 Available with 120V only.
1C - 1 circuit
#MC 14 - Multi circuit
EC - Emergency-powered fixture
NL - Night light fixture
DL - Daylight fixture
GTD 15, 16 - Generator transfer device fixture
14 Specify total number of circuits (#), including any required for electrical section or COB options. Provide drawing or layout specifications. Minimum 4' section per circuit.
15 Minimum 4' fixture.
16 Not available with 347V.
Specify the quantity (#) of sensors per fixture.
#OMS 29 - Onboard Occupancy
#OMS## 30 - Onboard Occupancy with bilevel dimming
#ODS - Onboard Daylight
#OCS - Onboard Occupancy & Daylight
Project:
Type:
with HLO only.
2 Chromawerx Sola, Duo and Quadro also available. Consult other spec sheets.
3 Only available with low and medium lumen packages.
- Ultra bright, energy efficient red or green LEDs
-Clear acrylic edgelit panel (single face), silver and white mylar acrylic panels (single and double faces)
BATTERY
-Maintenance-free, rechargeable NiCad battery (EM models)
Type
Catalog Number
- Internal transfer switch automatically connects battery to LED board for 90-minute emergency illumination
-LVD (Low Voltage Disconnect) prevents battery from deep discharge
-Two-rate charger initiates battery charge to recharge in battery in 48 hours
MOUNTING
-Exit can be surface wall, ceiling, or end mount (must specify)
- Recessed wall and ceiling mounting available (must specify)
-Mullion mount also available (must specify)
CODE COMPLIANCE
- cSAus Listed for Indoor Locations
- Meets UL924, NFPA101, NEC, OSHA, Local and State Codes
- CEC Title20 Certified
- BAA Compliant
WARRANTY
- 5 Year
ORDERING INFORMATION
MODEL#
EDGU
# Faces / Letter/ Panel
Mounting
1RCW (1 Face, Red Letters, Clear Panel) RC (Recessed Ceiling)
2RSW (2 Face, Red Letters, Mirror Panel) RW (Recessed Wall)
2RWW (2 Face, Red Letters, White Panel) SC (Surface Ceiling)
3RSW (1 Face, Red Letters, Mirror Panel) SW (Surface Wall)
3RWW (1 Face, Red Letters, White Panel) SE (Surface End) MM (Mullion Mount)*
1GCW (1 Face, Green Letters, Clear Panel) *1 and 3 face only
2GSW (2 Face, Green Letters, Mirror Panel)
2GWW (2 Face, Green Letters, White Panel)
3GSW (1 Face, Green Letters, Mirror Panel)
3GWW (1 Face, Green Letters, White Panel) EX: EDGU2RSW-SC
Options (Factory Installed)
B -Black Trim (replaces second ‘W’ in part number)
BA -Brushed Aluminum Trim (replaces second ‘W’ in part number)
EM -NiCad Battery
EM2 -120 Minute NiCad Battery
SD -Self Diagnostics (requires EM)
2C -Dual Circuit (AC only)
FA -Fire Alarm Interface (specify type - open/closed dry contact)
INV -Inverted Face
SWXE - Special Wording Panel (prefix to part number)
Accessories (order separately, ships on side)
SK12-W -12” Pendant Kit - White
SK12-B -12” Pendant Kit - Black
SK12-BA -12” Pendant Kit - Brushed Aluminum

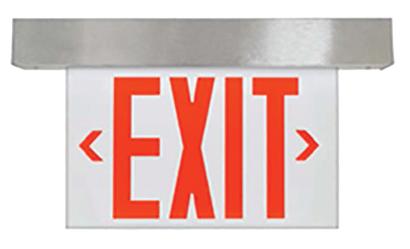

EDGU Edgelit Exit
FLAGLER SKY VIEW

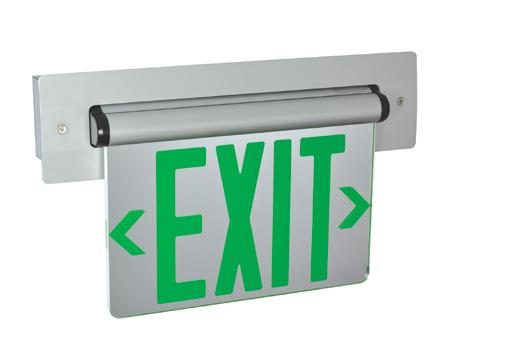

NX-813-LED / NX-814-LED / NX-815-LED
Recessed Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
· UL Listed
· State & Municipal
5-Year Limited Warranty
Certified to the energy efficiency standards of California Title 20
- Internal transfer switch automatically connects battery to LED board for 90-minute emergency illumination
-LVD (Low Voltage Disconnect) prevents battery from deep discharge
-Two-rate charger initiates battery charge to recharge in battery in 24 hours
-Bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery)
MOUNTING
-Mounting canopy included for top or end mount
- Universal knockout pattern on back plate for wall mount
CODE COMPLIANCE
- UL Listed for Wet Locations
- Meets UL924, NFPA101, NEC, OSHA, Local and State Codes
- CEC Title20 Certified
WARRANTY
- 5 Year
ORDERING INFORMATION
-Self Diagnostics
2AC120V -Dual Circuit with 120V Input
(Black, black faceplate)
(Gray, white faceplate)
2AC277V -Dual Circuit with 277V Input TPS -Tamper Proof Screws SWXE -Special Wording (prefix to part number)

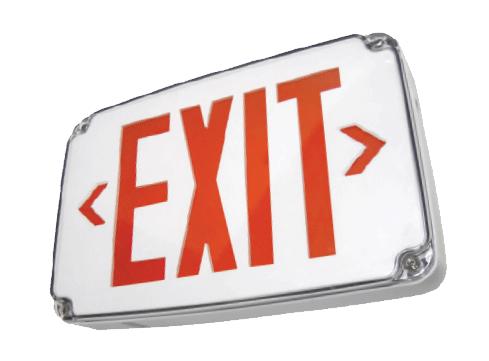

SPWLEX Wet Location
Thermoplastic Exit
Source: 2.2W
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
UL 924 Listed for Wet Locations
· NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant

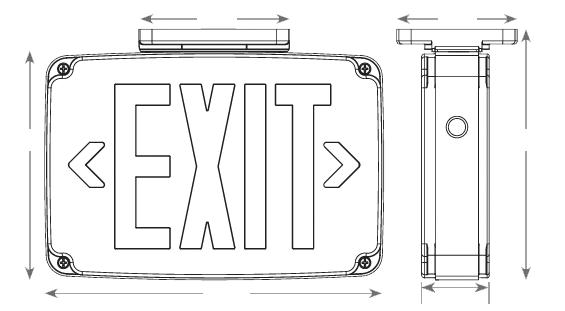

PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com

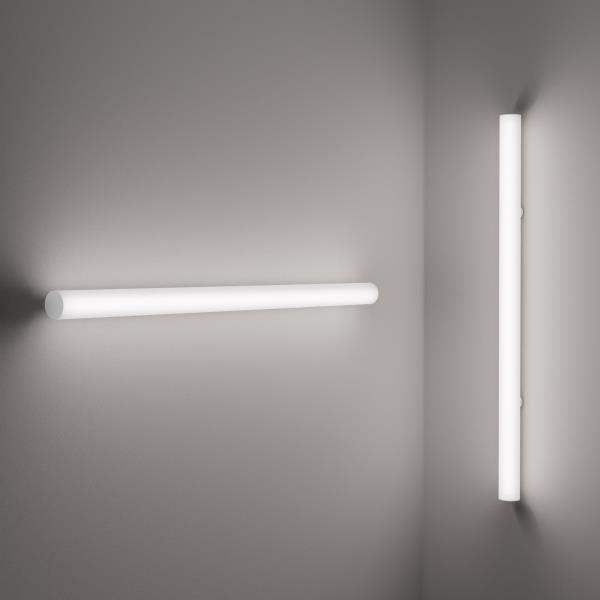

This sleek 2” cylindrical form is a pure expression of light and proof that great design is rooted in simplicity. Pavo 2” Wall is fully illuminated with no housing or metal accents to interrupt its minimalist form. It looks uniform from every angle. Its round diffuser emits a soft gradual display of light on the wall behind the fixture. This low-profile sconce is ADA-compliant and a great choice for hallways, elevator bays, vanities, or anywhere you want to add a simple yet sophisticated line of light. Available in 1' to 6' sizes.
FEATURES & BENEFITS
The design element you've been missing
● Linearly-lit wall sconce provides even illumination along the entire length of the lens
● Meticulously designed ends have no visible shadowing
● Minimal bracketry and hardware for an exceptionally clean look
● An expression of light in its most basic form
● Provides functional light, up to 750 lumens per foot, with comfortable luminance levels
● Pairs well with the entire Pavo family of pendants
● Mount vertically or horizontally on walls or ceilings
● Compliant with Americans with Disabilities Act (ADA) requirements
● Handcrafted in USA
● SPECIFICATIONS LIGHT SOURCE: White LED light engine
● CRI: 80+ or 90+
● LUMEN MAINTENANCE: L70 = >50,000 Hrs.
● EFFICACY: 107 lm/W delivered
● CCT: 2700K, 3000K, 3500K, 4000K, 5000K
● VOLTAGE: 120-277V standard
● DRIVER: Remote or integral Class 2 power supply. Max distance to the driver is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
JOB NAME:
TYPE:
NOTES:
● DIMMING: 1% minimum dim level standard
● CONTROLS: 0-10V standard. Lutron Athena, Current NX, and
●
NO SPEC
nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
● INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation. Contact factory for other Emergency options.
● DIFFUSER: White matte acrylic
● CONSTRUCTION: Aluminum and stainless steel
● FINISH: Solid flat end plates and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
● MODIFICATIONS: Consult factory for all modification requests; including different sizes
● APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

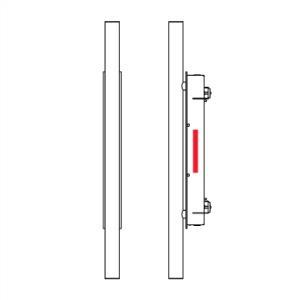

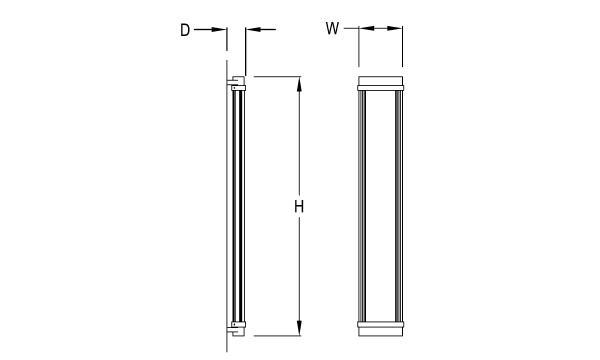

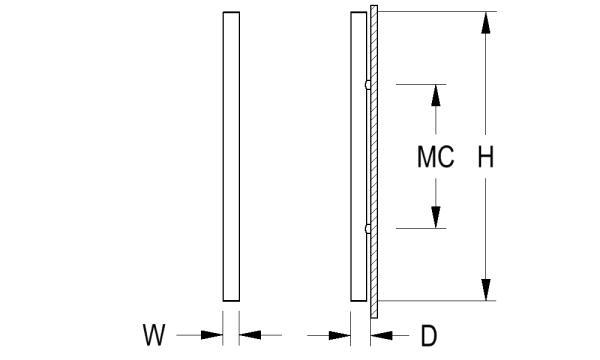

● DIMENSIONS
Mounting Weight:Approximate: 5 lb (3 kg)
Mounting Weight:Approximate: 5
Mounting Weight:Consult Factory.
Mounting Weight:Approximate:
NO SPEC
CONFIGURATOR
To configure your spec sheet online, go to www.spilighting.com/SIW12169. Not all options are available in all configurations; consult factory for details.
Required Field *
A - LIGHT SOURCE *
To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.
1
4FT-L14W
6FT-L42W
NO SPEC
*
Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.
2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT
D - CRI *
DF_80 | (default)
90
E - CONTROLS *
Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.
DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 1 | Lutron Athena Wireless Node, 1% Dimming
NX 1 | Current NX Wireless, 1% Dimming
NLTA 1 | Acuity nLight Air, 1% Dimming
1 Not available with REC mounting option.
F - DIFFUSER *
DF_MA01 | Matte Acrylic Diffuser Lens (default)
MA01
NO SPEC
MCS mounting supplied with 8' lead length and 2.25" round goof plates. REC mounting requires a cut-out for the recessed box that measures 1.75" wide by a height calculated as MC plus 3" and a minimum wall cavity depth of 3.5”. Consider wall framing accordingly, as the application requires.
MCS | Invisible Stems, Remote Power Supply
REC | Recessed, Integral Power Supply
JBC01 2 | 5" Round J-box Cover, Remote Power Supply
JBC02 2 | 4.3" Square J-box Cover, Remote Power Supply
2 Only available in 1', 2', or 3' sizes
- EMERGENCY
MCS REC JBC01
JBC02
10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.
EMR | Emergency Battery Remote
NO SPEC
Standard Finishes
The colors shown are representative. Their actual appearance may vary due to differences in display settings. You can request color chips by emailing contact@spilighting.com. Please note, finishes may not be available in all configurations.
Paint Colors
PT01
Signal White (Gloss)
Light Grey (Textured)
Specialty Finishes
Dusty Grey (Textured)
More RAL®, Pantone®, and custom finishes are available upon request. Setup fee and additional lead time applies.Call factory for details.
NO SPEC

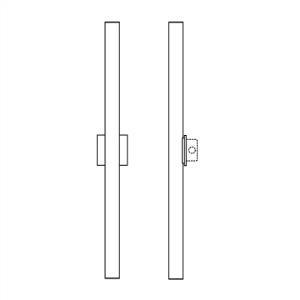

Pavo 2" - Wall
SIW12169 2.00 in
DESCRIPTION
This sleek 2” cylindrical form is a pure expression of light and proof that great design is rooted in simplicity. Pavo 2” Wall is fully illuminated with no housing or metal accents to interrupt its minimalist form. It looks uniform from every angle. Its round diffuser emits a soft gradual display of light on the wall behind the fixture. This low-profile sconce is ADA-compliant and a great choice for hallways, elevator bays, vanities, or anywhere you want to add a simple yet sophisticated line of light. Available in 1' to 6' sizes.
FEATURES & BENEFITS

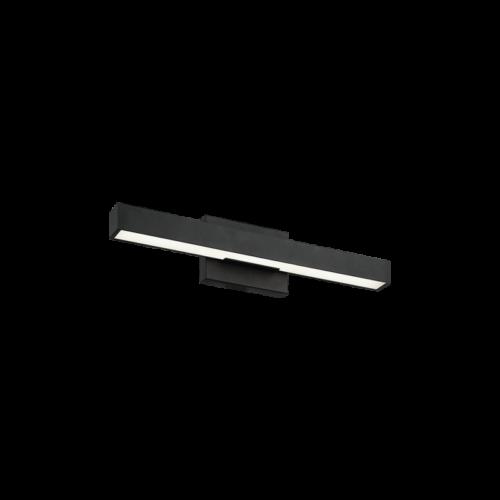

The design element you've been missing

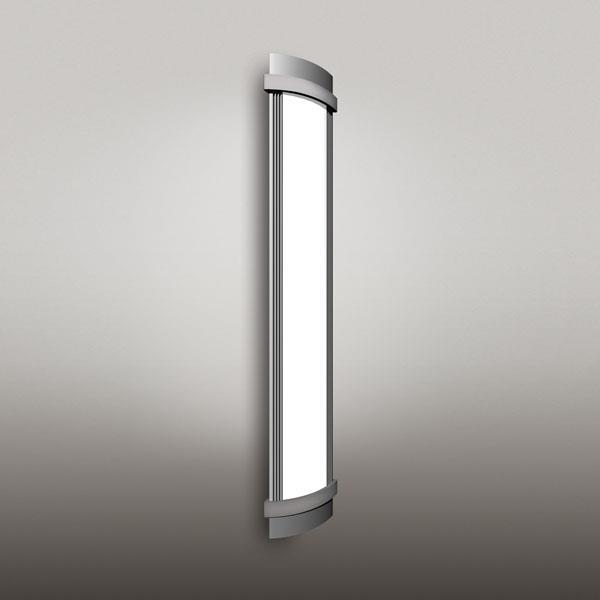

● Linearly-lit wall sconce provides even illumination along the entire length of the lens
● Meticulously designed ends have no visible shadowing
● Minimal bracketry and hardware for an exceptionally clean look
● An expression of light in its most basic form
● Provides functional light, up to 750 lumens per foot, with comfortable luminance levels
● Pairs well with the entire Pavo family of pendants
● Mount vertically or horizontally on walls or ceilings
● Compliant with Americans with Disabilities Act (ADA) requirements
● Handcrafted in USA
● SPECIFICATIONS LIGHT SOURCE: White LED light engine
● CRI: 80+ or 90+
● LUMEN MAINTENANCE: L70 = >50,000 Hrs.
● EFFICACY: 107 lm/W delivered
● CCT: 2700K, 3000K, 3500K, 4000K, 5000K
● VOLTAGE: 120-277V standard
● DRIVER: Remote or integral Class 2 power supply. Max distance to the driver is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
JOB NAME:
TYPE:
NOTES:
● DIMMING: 1% minimum dim level standard
● CONTROLS: 0-10V standard. Lutron Athena, Current NX, and
●
NO SPEC
nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
● INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation. Contact factory for other Emergency options.
● DIFFUSER: White matte acrylic
● CONSTRUCTION: Aluminum and stainless steel
● FINISH: Solid flat end plates and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
● MODIFICATIONS: Consult factory for all modification requests; including different sizes
● APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

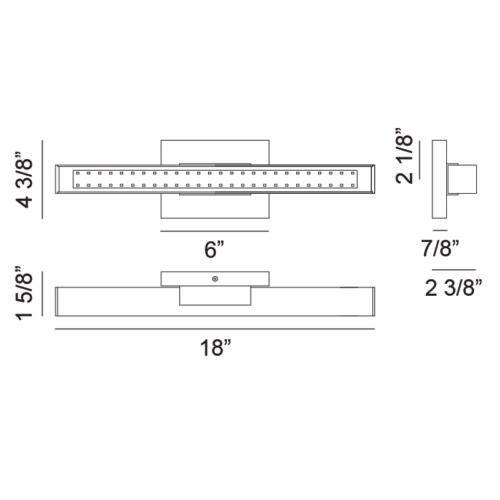

● DIMENSIONS
Mounting Weight:Approximate: 5 lb (3 kg)
Mounting Weight:Approximate: 5
Mounting Weight:Consult Factory.
Mounting Weight:Approximate:
NO SPEC
CONFIGURATOR
To configure your spec sheet online, go to www.spilighting.com/SIW12169. Not all options are available in all configurations; consult factory for details.
Required Field *
A - LIGHT SOURCE *
To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.
1
4FT-L14W
6FT-L42W
NO SPEC
*
Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.
2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT
D - CRI *
DF_80 | (default)
90
E - CONTROLS *
Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.
DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 1 | Lutron Athena Wireless Node, 1% Dimming
NX 1 | Current NX Wireless, 1% Dimming
NLTA 1 | Acuity nLight Air, 1% Dimming
1 Not available with REC mounting option.
F - DIFFUSER *
DF_MA01 | Matte Acrylic Diffuser Lens (default)
MA01
NO SPEC
MCS mounting supplied with 8' lead length and 2.25" round goof plates. REC mounting requires a cut-out for the recessed box that measures 1.75" wide by a height calculated as MC plus 3" and a minimum wall cavity depth of 3.5”. Consider wall framing accordingly, as the application requires.
MCS | Invisible Stems, Remote Power Supply
REC | Recessed, Integral Power Supply
JBC01 2 | 5" Round J-box Cover, Remote Power Supply
JBC02 2 | 4.3" Square J-box Cover, Remote Power Supply
2 Only available in 1', 2', or 3' sizes
EMERGENCY
location enclosure for Battery
MCS REC JBC01
JBC02
10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp
back-up.
EMR | Emergency Battery Remote
NO SPEC
Standard Finishes
The colors shown are representative. Their actual appearance may vary due to differences in display settings. You can request color chips by emailing contact@spilighting.com. Please note, finishes may not be available in all configurations.
Paint Colors
PT01
Signal White (Gloss)
Light Grey (Textured)
Specialty Finishes
Dusty Grey (Textured)
More RAL®, Pantone®, and custom finishes are available upon request. Setup fee and additional lead time applies.Call factory for details.
TYPE WB SPEC FLAGLER SKY

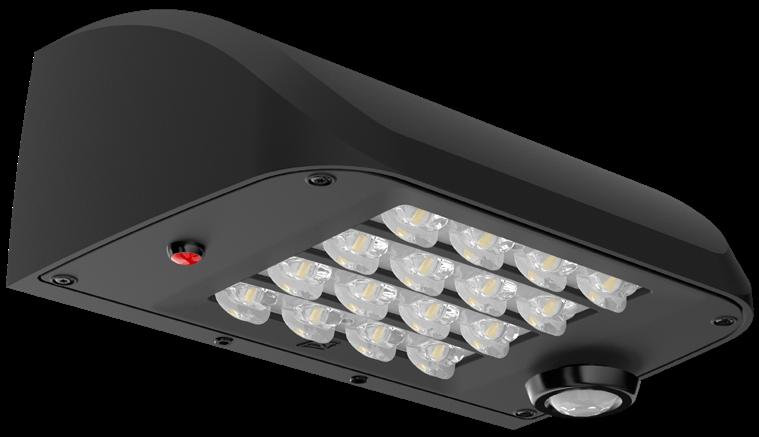

Mirada Small Wall Sconce Silicone (XWS SIL)
Outdoor LED Wall
Light
OVERVIEW
Lumen Package (lm)2,000 - 8,000
Wattage Range (W) 13 - 61
Efficacy Range (LPW) 126 - 162
Weight lbs (kg) 10 (4.5)
FEATURES & SPECIFICATIONS
Construction
• Rugged die-cast aluminum housing.
• Fixtures are finished with LSI’s DuraGrip® polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling. Other standard LSI finishes available. Consult factory.
• Extended housing available with 1/2” threaded hubs for surface conduit and rated wire.
• Standard luminaire shipping weight: TBD lbs in carton.
• Max luminaire shipping weight: 12 lbs in carton (20 lbs w/EH option)
Optical System
• State-of-the-Art one piece silicone optic provides industry leading optical control while also acting as an integrated gasket reducing system complexity and improving fixture reliability.
• Proprietary silicone refractor optics provide exceptional coverage and uniformity in distribution types 2, 3, and FT.
• Silicone optical material does not yellow or crack with age and provides a typical light transmittance of 93%.
• Zero uplight.
• Available in 5000K, 4000K, and 3000K color temperatures per ANSI C78.377.
• Minimum CRI of 70
Electrical
• High-performance driver features overvoltage under-voltage, short-circuit, and over temperature protection.
QUICK LINKS
• 0-10V dimming (10% - 100%) standard.
• Standard Universal Voltage (120-277 VAC) Input 50/60 Hz or optional High Voltage (347-480 VAC).
• L70 Calculated Life: >60k Hours
• Total harmonic distortion (THD): <20%
• Operating temperature: -40°C to +50°C (-40°F to +122°F).
• Power factor (PF): >.90
• Input power stays constant over life.
• Optional 10kV surge protection device meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2).
• High-efficacy LEDs mounted to metal-core circuit board to maximize heat dissipation
• Driver is fully encased in potting material for moisture resistance. Driver complies with FCC standards. Accessible driver and electrical components.
• Optional battery backup provides 90-minutes of constant power to the LED system, ensuring code compliance. A test switch/indicator button is installed on the housing for ease of maintenance. Standard battery rated for 0°C to 50°C with cold weather battery rated for -20°C to 50°C (40°C max for 8L). 120-277V Only.
Controls
• Optional integral passive infrared Bluetooth™ motion. Fixtures operate independently and can be commissioned via iOS or Android configuration app.
• Optional button photocell turns fixtures on and off based on ambient light levels for dusk to dawn lighting.
• LSI’s AirLink Blue wireless control system options allow for fixture and motion sensor grouping while reducing energy and maintenance costs.
Installation
• Universal wall mounting plate mounts directly to vertical surface or 4” junction box (octagonal or square).
• Luminaire hinges to the top of the mounting plate and is secured via two flush mount screws that help to conceal the hardware and prevent over tightening during installation.
Warranty
• LSI luminaires carry a 5-year limited warranty. Refer to https://www.lsicorp.com/ resources/terms-conditions-warranty/ for more information.
Listings
• Listed to UL 1598 and UL 8750.
• Meets Buy American Act requirements.
• IDA compliant; with 3000K color temperature selection.
• Title 24 Compliant; see local ordinance for qualification information.
• Suitable for wet locations.
• IP65 rated luminaire per IEC 60598-1.
• IK08 rated luminiare per IEC 66262 mechanical impact code.
• DesignLights Consortium® (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GUARD PACK
ARCHER
ARCHER
ARCHER
ARCHER
Project Details Type
Architectural Area Light/Floodlight Combination
Project:
Product:
With industry-leading 145 LPW high efficacy and precision-engineered polycarbonatelenses,theArcherAreaLightdeliversmaximumvalue by providing significant energy savings, long life and outstanding photometric performance at an affordable price. PROJECT
With industry-leading 145 LPW high
and
With industry-leading 145 LPW high efficacy and
PROJECT DETAILS
PROJECT DETAILS
DETAILS
Project:
Prepared by:
Project:
Project:
Project:
Product:
Product:
Product:
Notes:
Product:
Prepared by:
Prepared by:
Prepared by:
Prepared by:
Prepared by:
Notes:
Notes:
Notes:
Notes:
Notes:
With industry-leading 145 LPW high efficacy and precision-engineered polycarbonatelenses,theArcherAreaLightdeliversmaximumvalue by providing significant energy savings, long life and outstanding photometric performance at an affordable price.
With industry-leading 145 LPW high efficacy and precision-engineered polycarbonatelenses,theArcherAreaLightdeliversmaximumvalue by providing significant energy savings, long life and outstanding photometric performance at an affordable price.

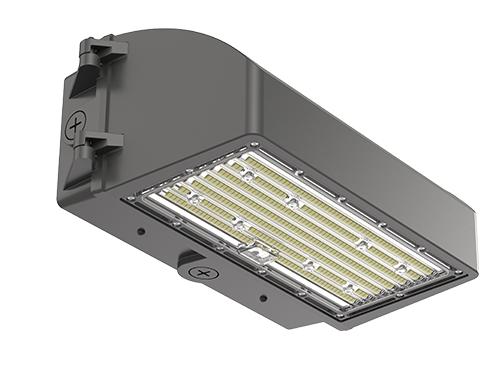

Our new Guard Pack(GP) WallPack is a full cut-off series wallpack designed for an easy, universal installation best suited for outdoor illumination. With effective thermal management, corrosion-resistant, and die cast aluminum enclosure, the GP WallPack offers a glare free and unform lighting, all while providing a comfortable visual experience.
polycarbonatelenses,theArcherAreaLightdeliversmaximumvalue by providing significant energy savings, long life and outstanding photometric performance at an affordable price.
polycarbonatelenses,theArcherAreaLightdeliversmaximumvalue by providing significant energy savings, long life and outstanding photometric performance at an affordable price.
With industry-leading 145 LPW high efficacy and precision-engineered polycarbonatelenses,theArcherAreaLightdeliversmaximumvalue by providing significant energy savings, long life and outstanding photometric performance at an affordable price.
PRODUCT SPECS
PRODUCT SPECS
PRODUCT SPECS
PRODUCT SPECS
Product Specs
Input Voltage (VAC) 100-277 / 347-480
Input Voltage (VAC)
Input Voltage (VAC) 100-277 / 347-480 CRI 70+
Input Voltage (VAC) 100-277 / 347-480
Input Voltage (VAC) 100-277 / 347-480 CRI 70+
CRI 70+
Input Voltage (VAC) 100-277 / 347-480*
CCT (K) 3000**, 4000, 5000
CCT (K) 3000**, 4000, 5000
CCT (K) 3000**, 4000, 5000
CRI 80+
