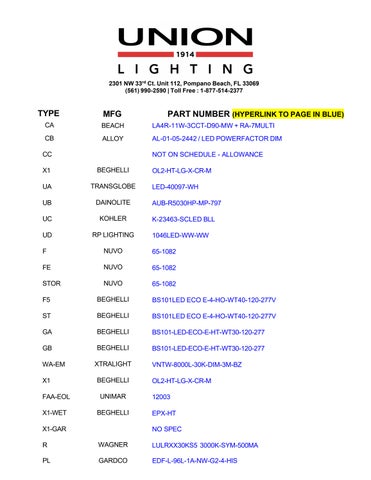

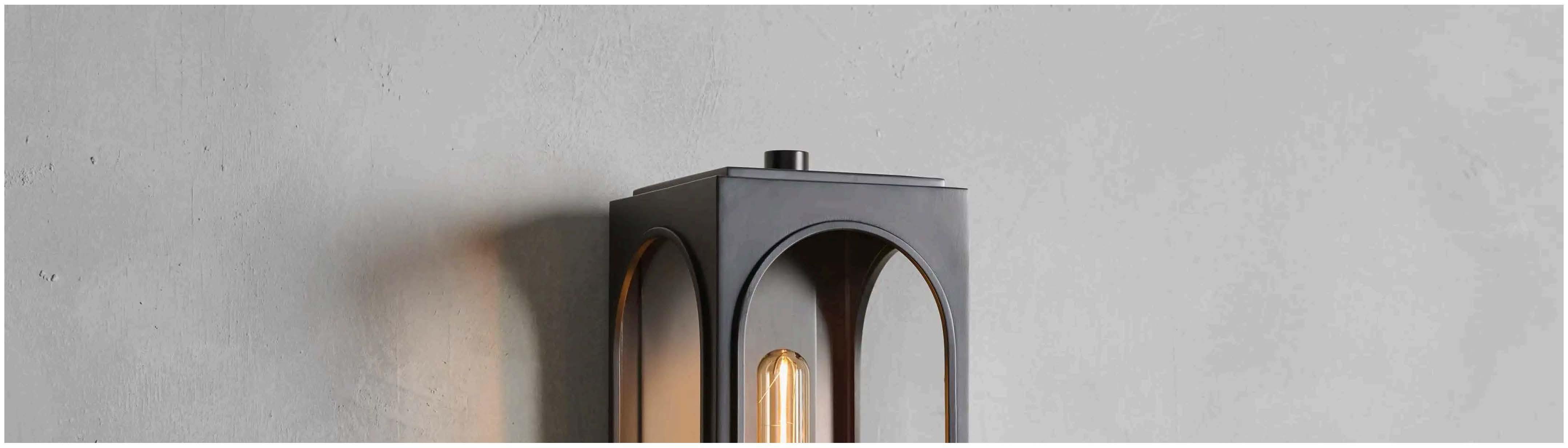

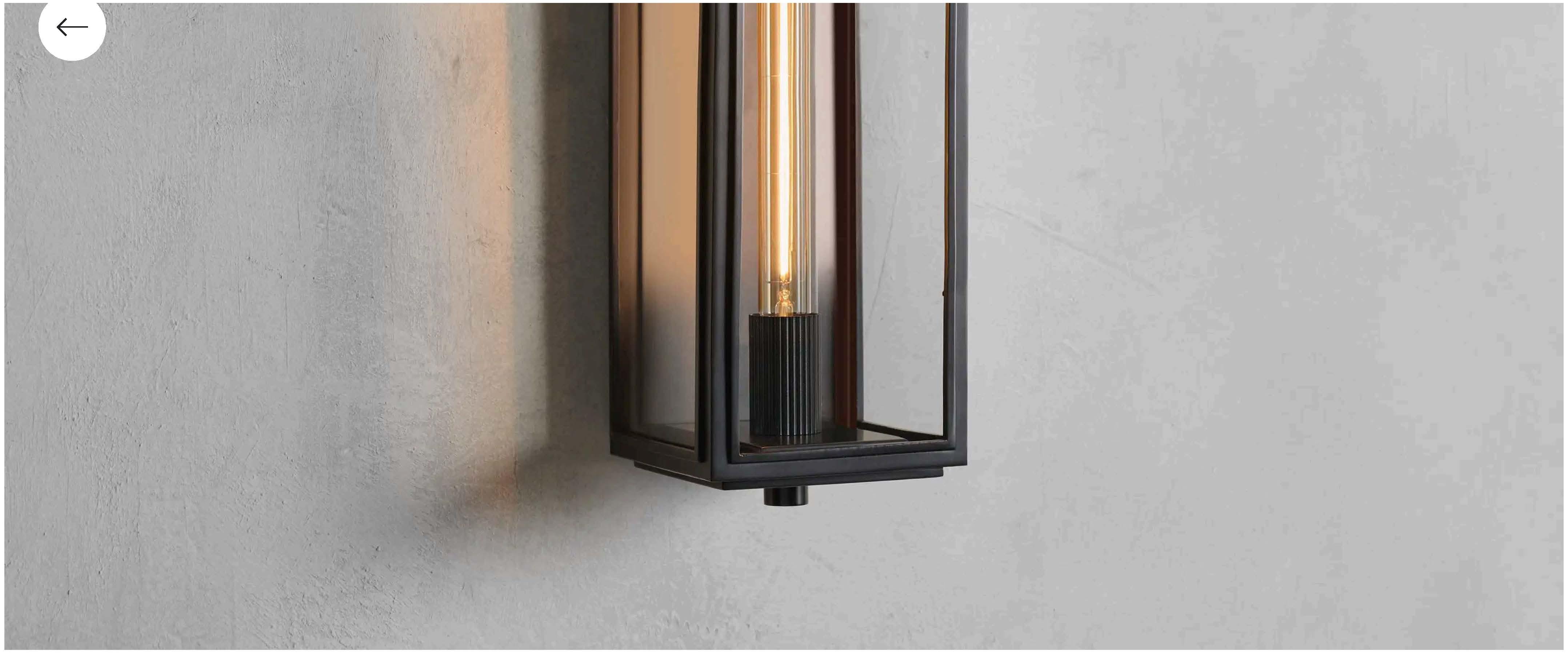

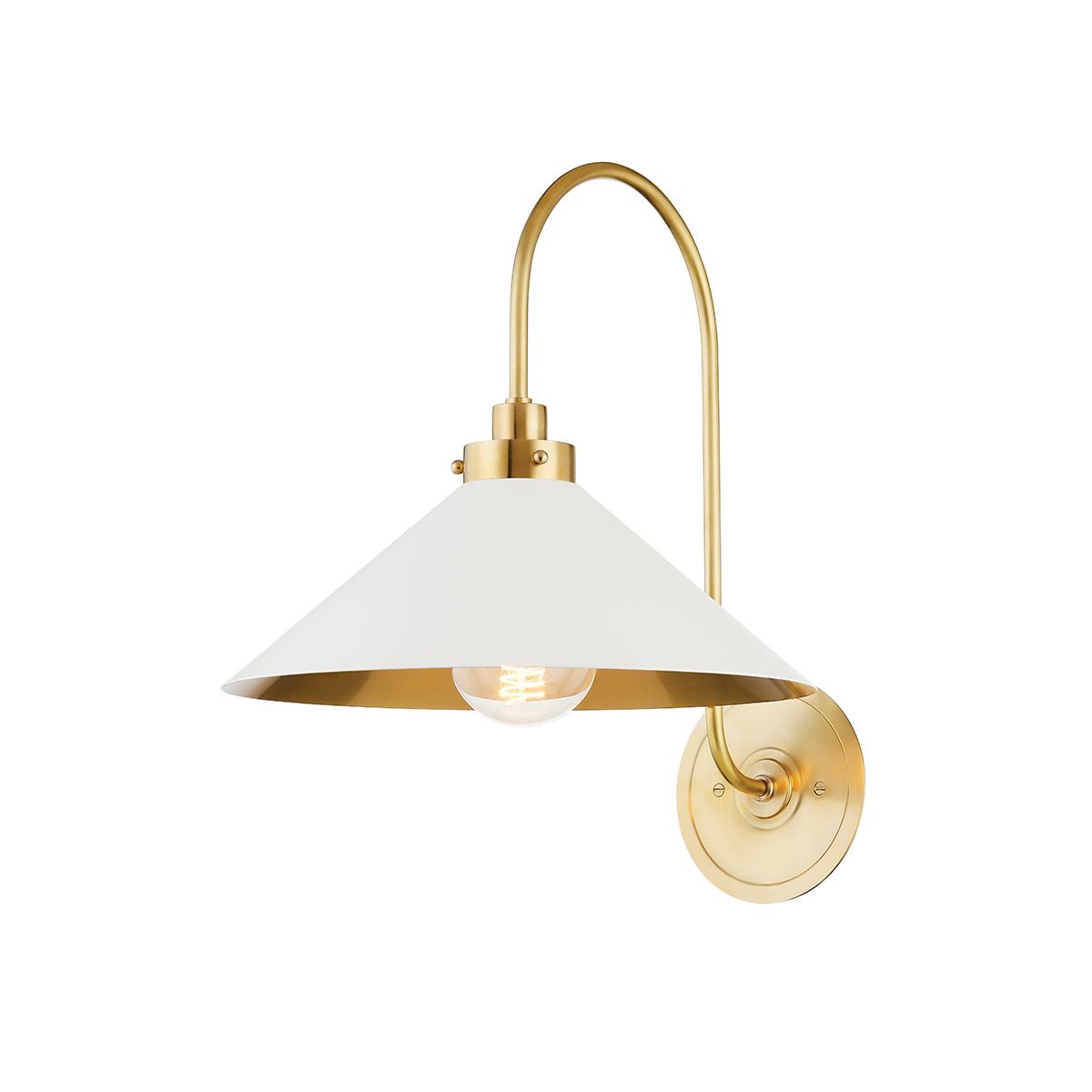

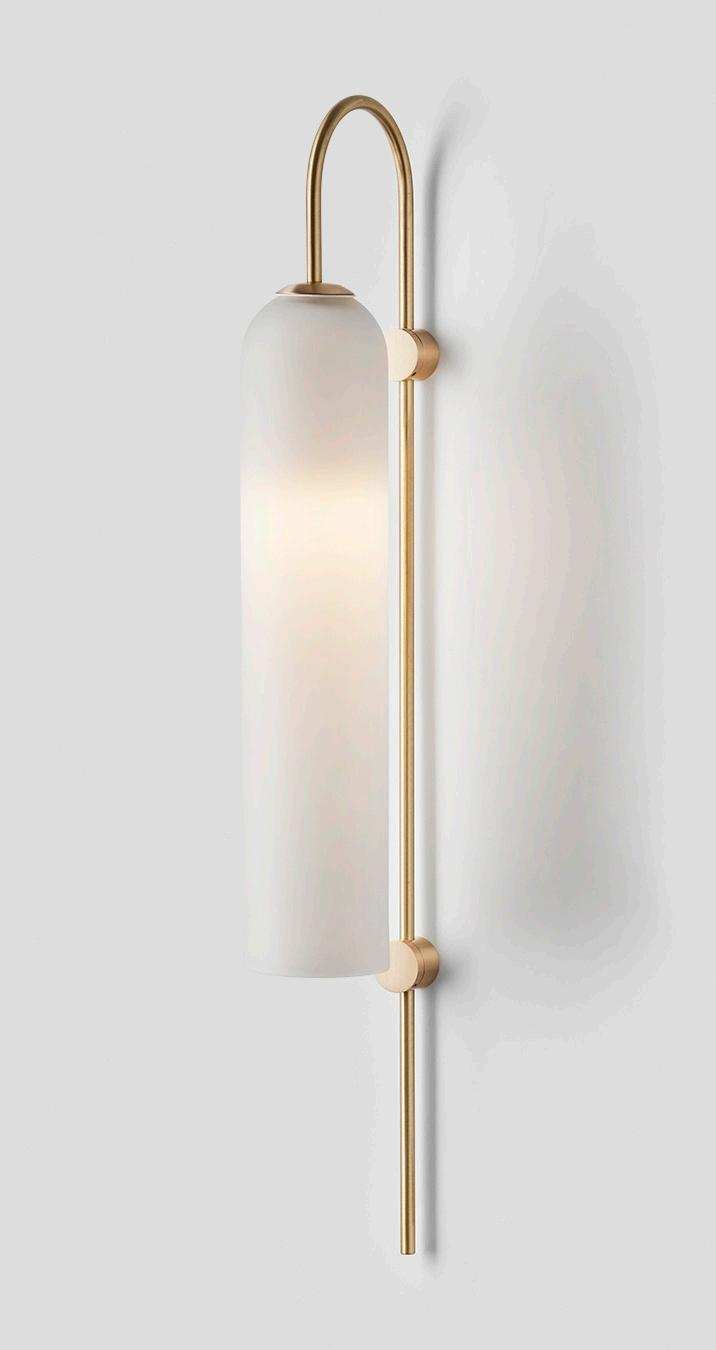

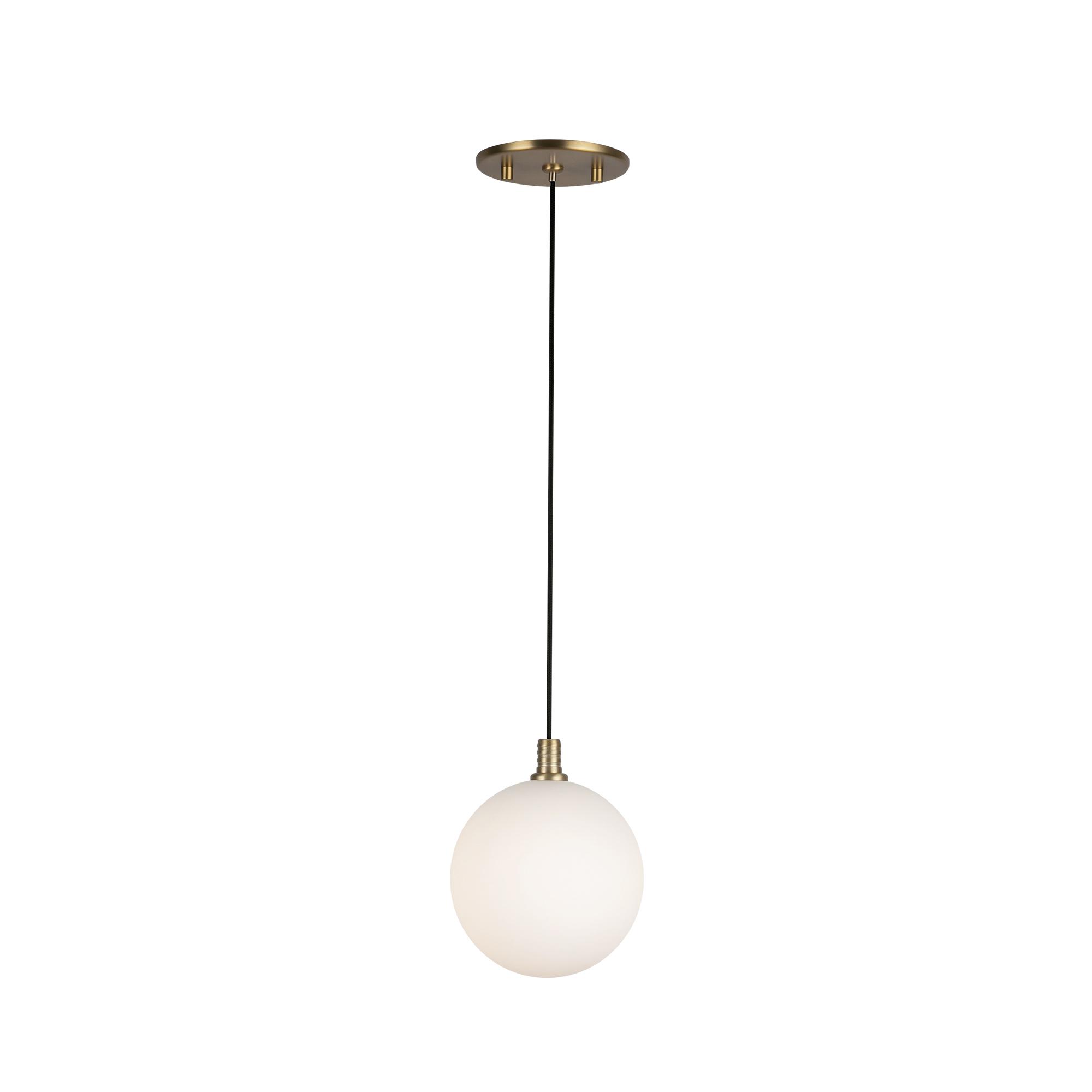

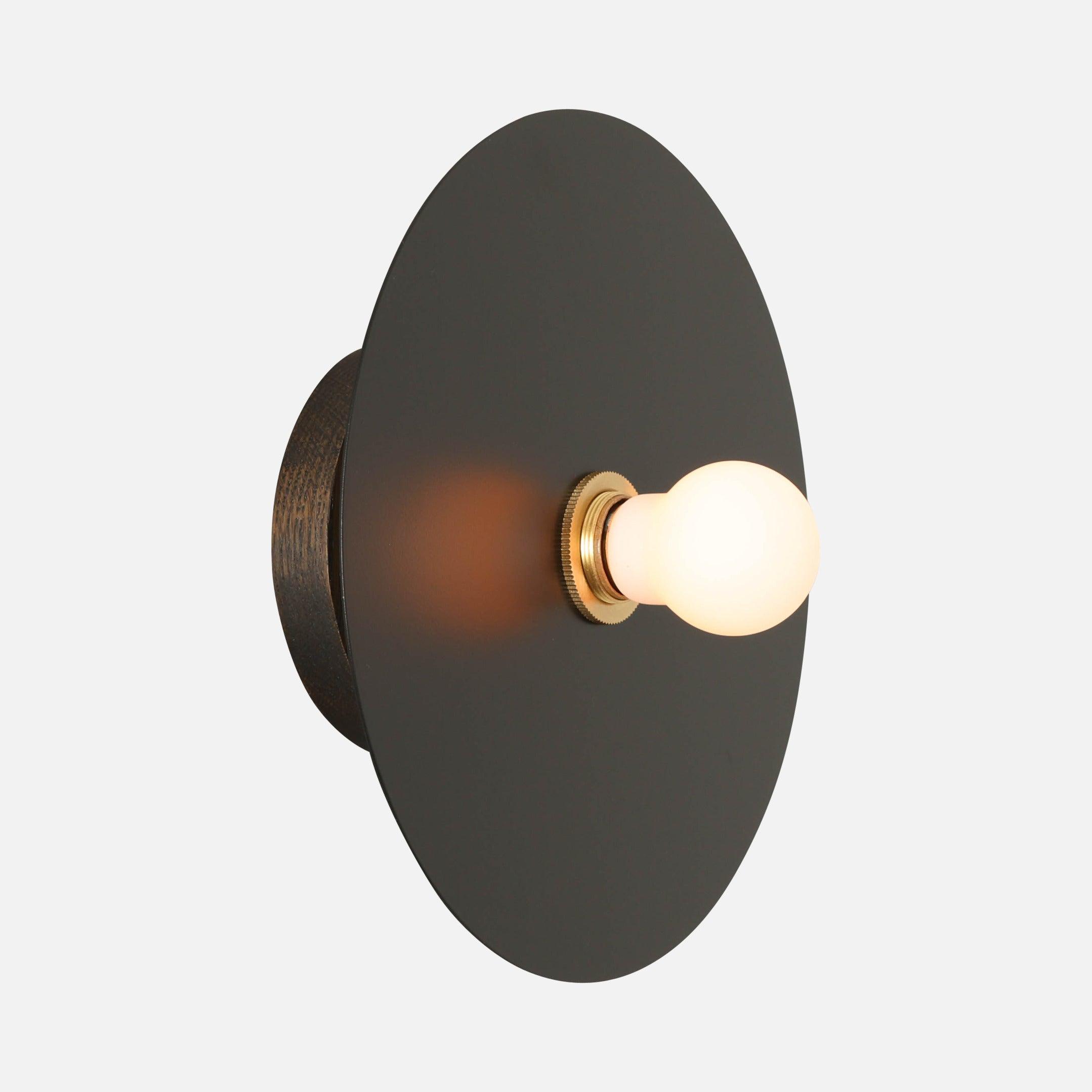

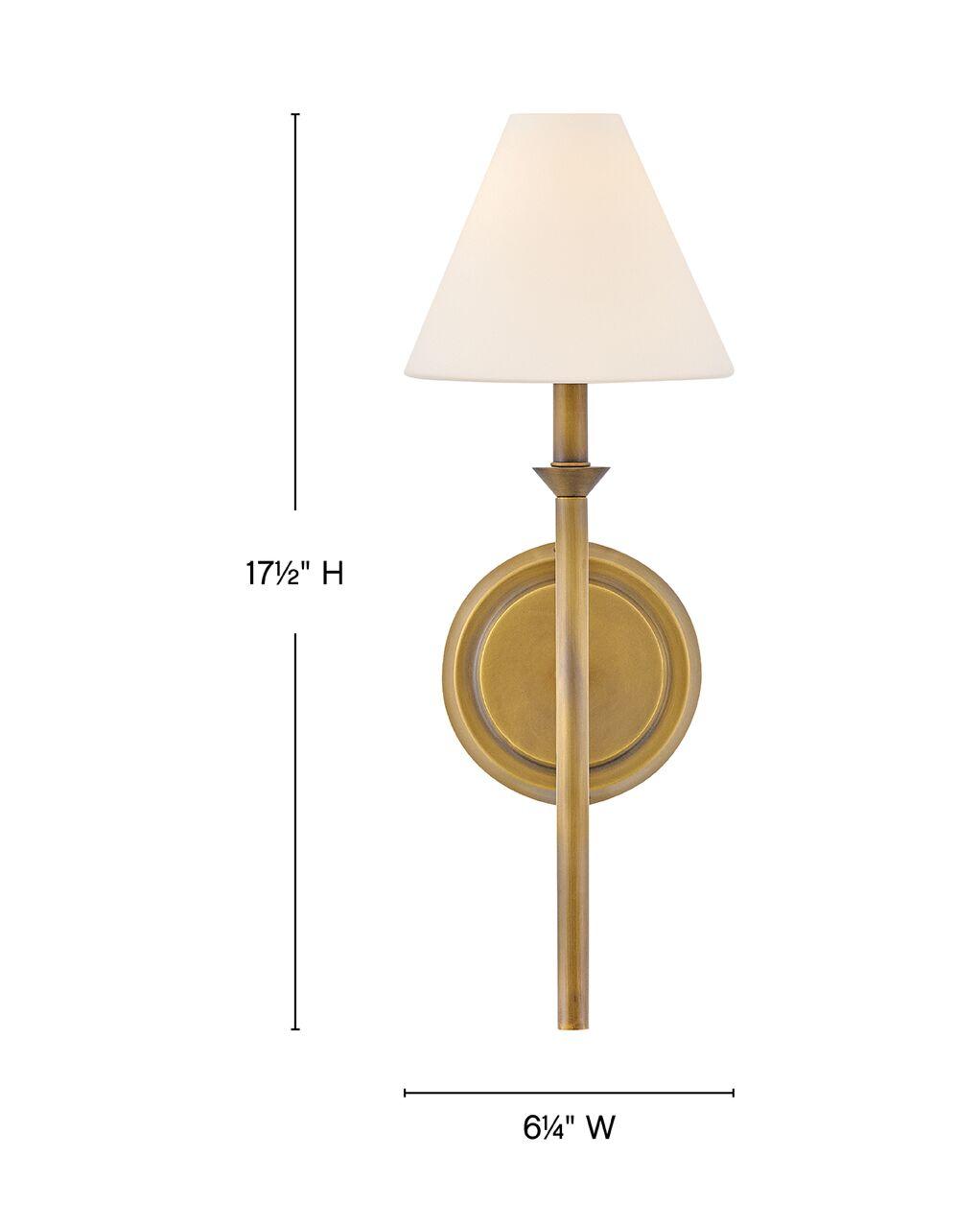

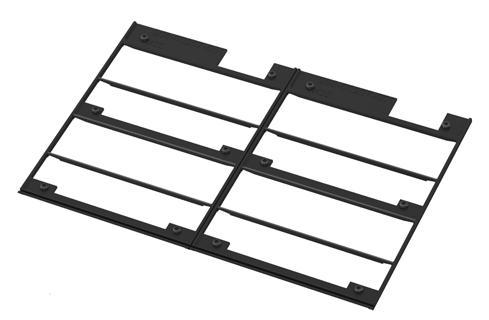

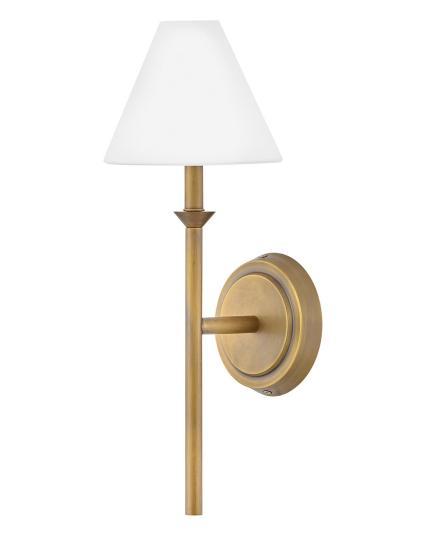

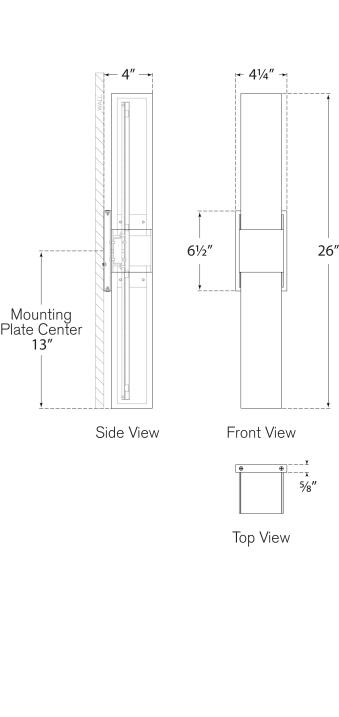

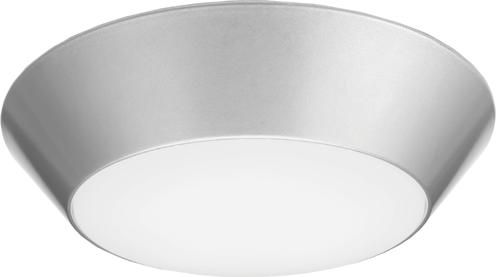

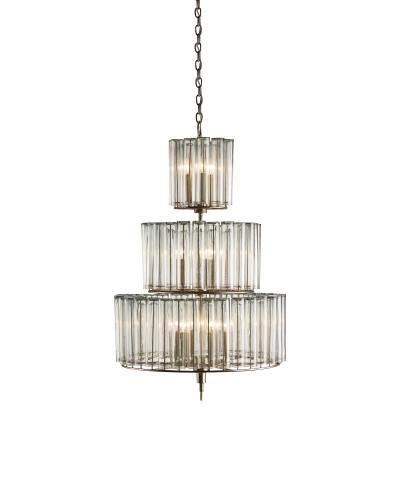

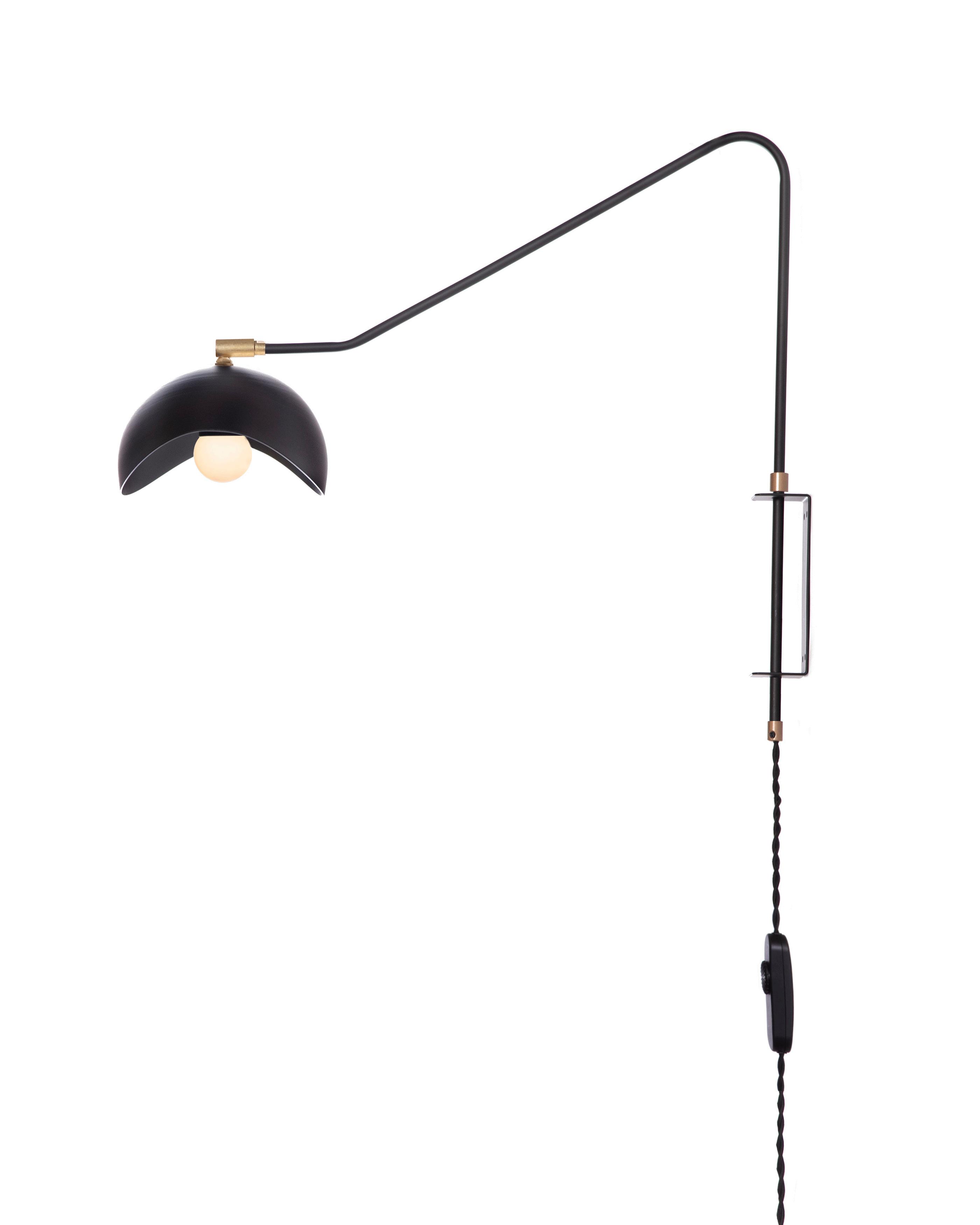

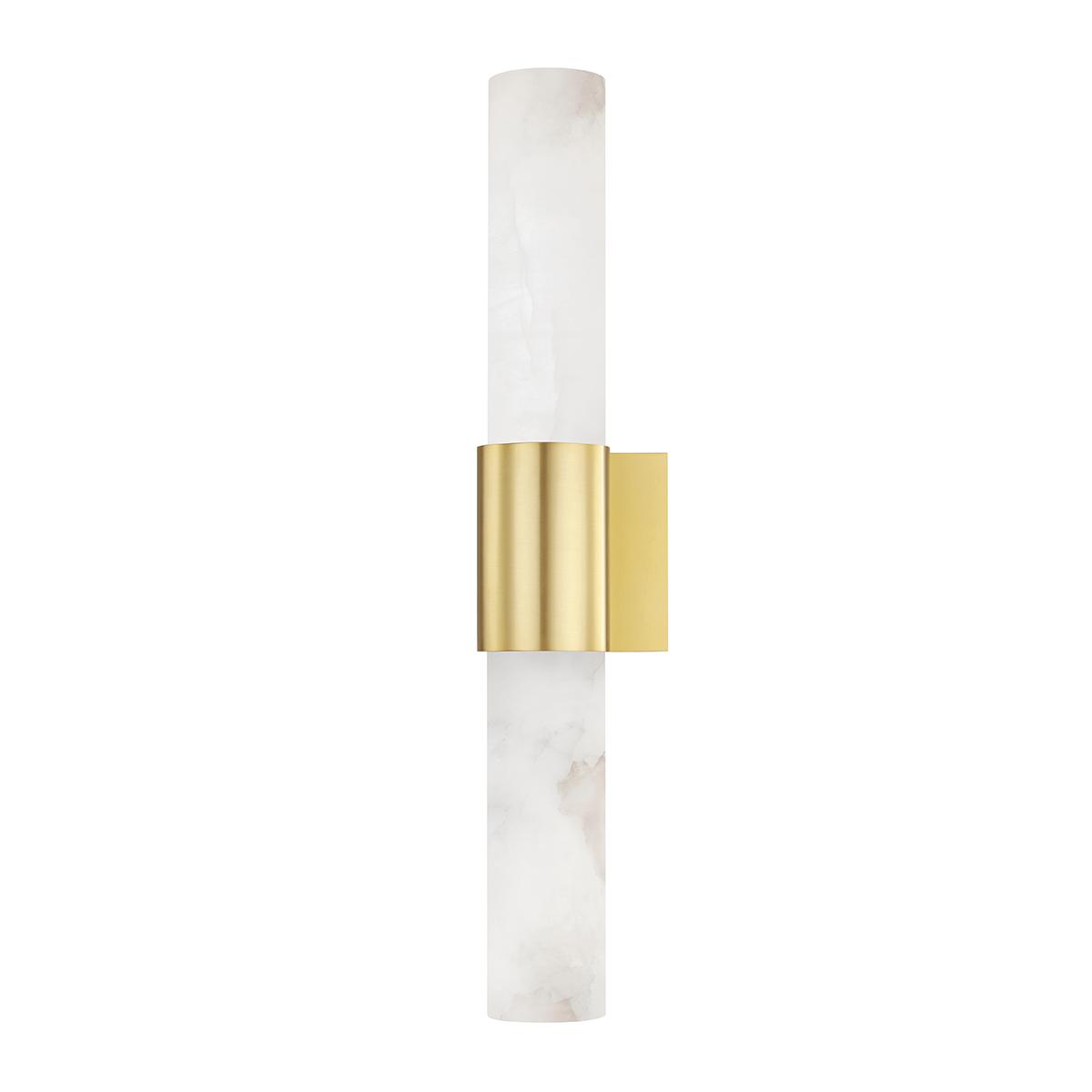

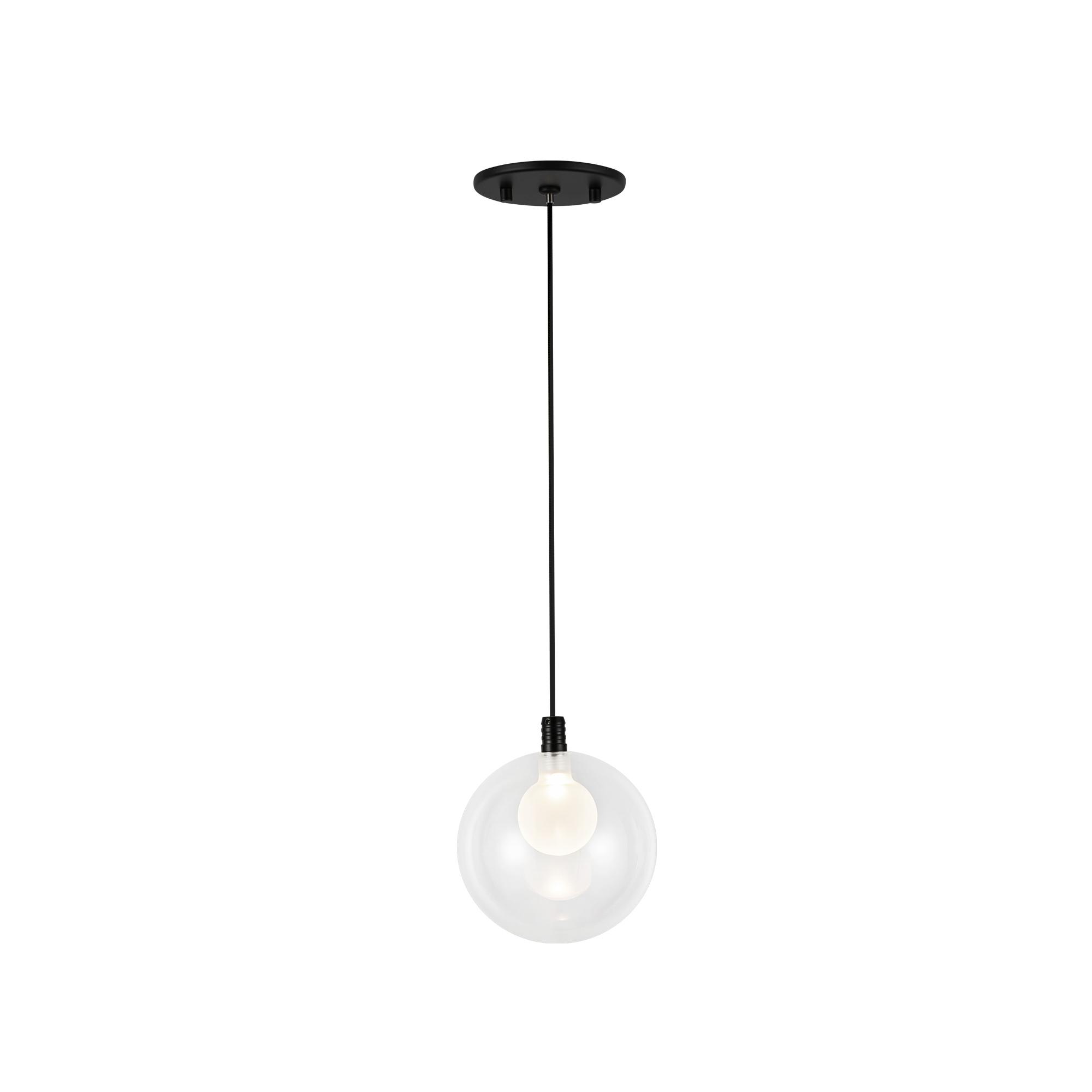

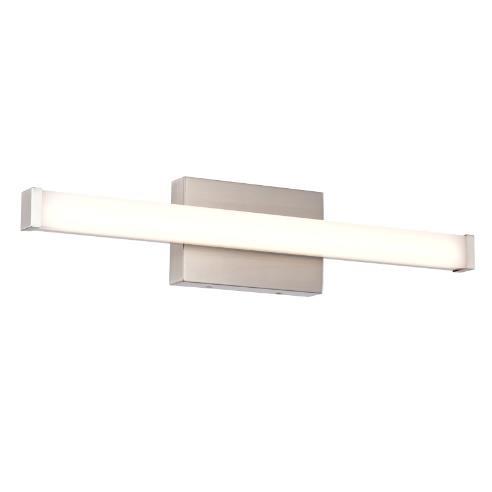

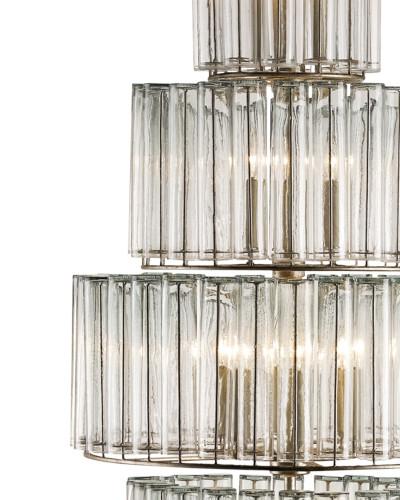

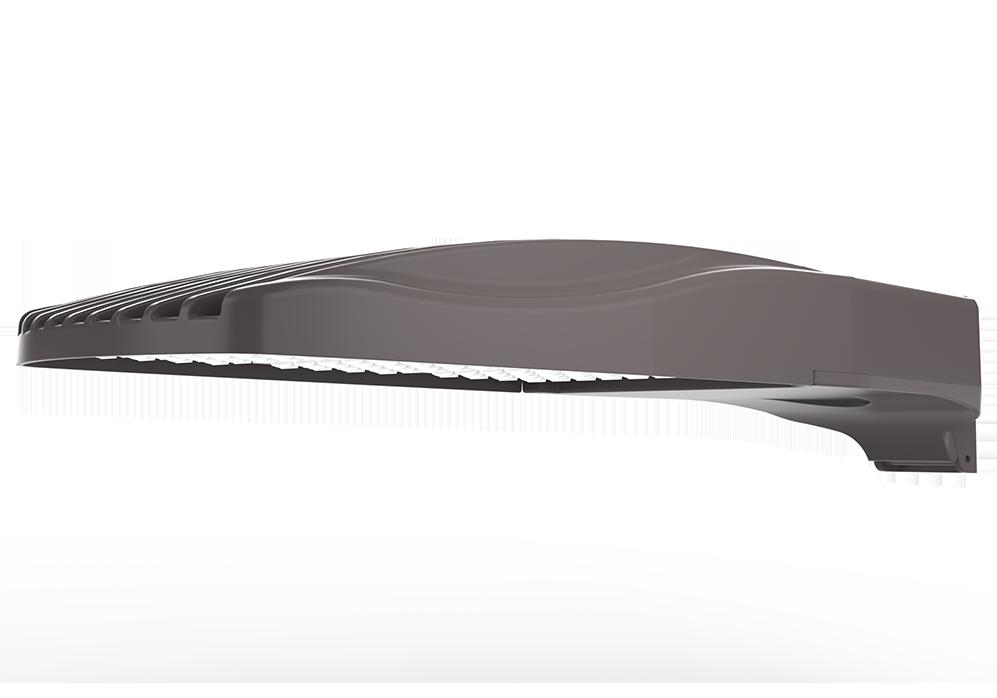

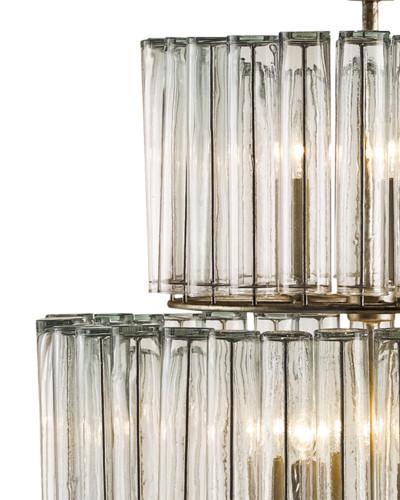

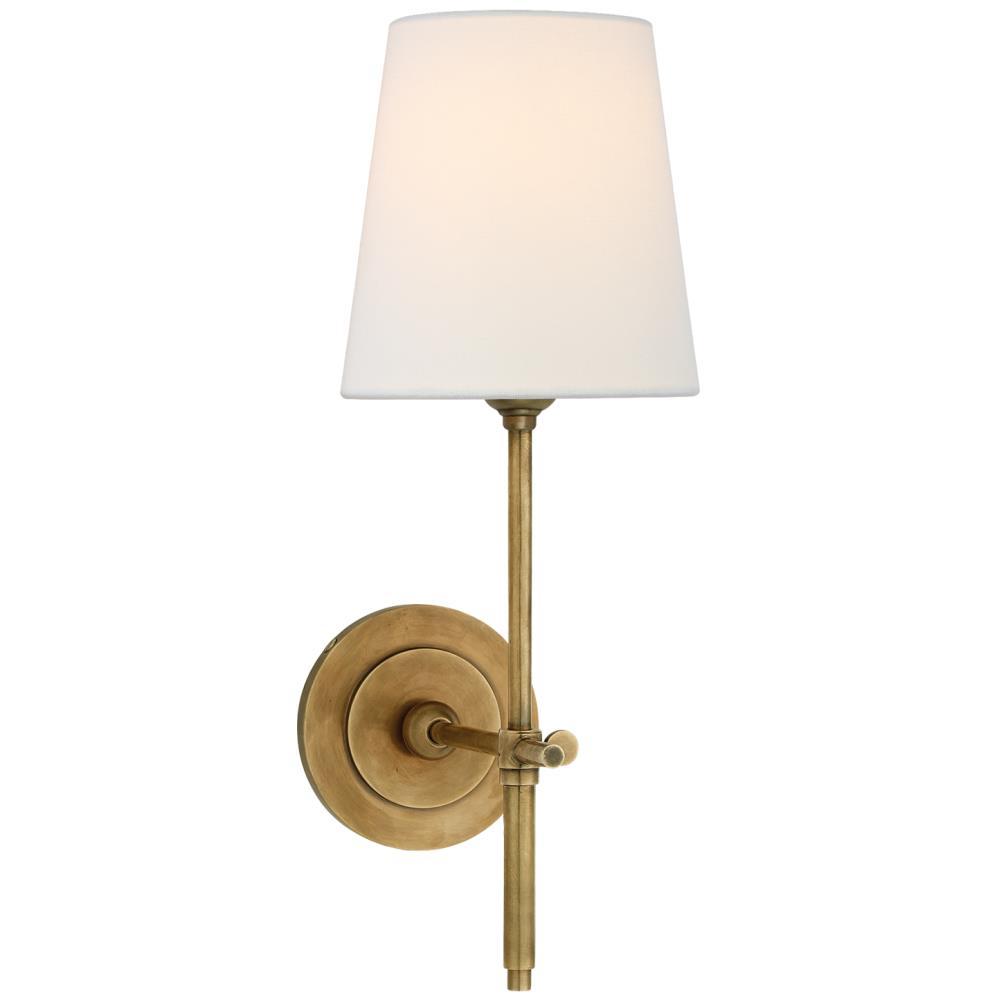

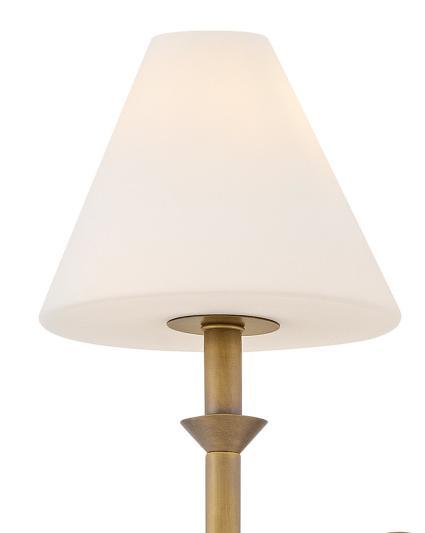

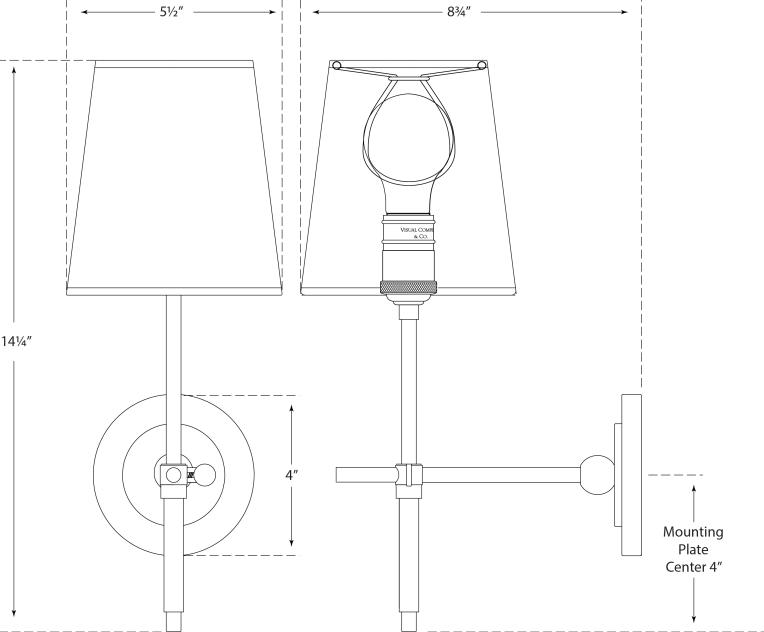

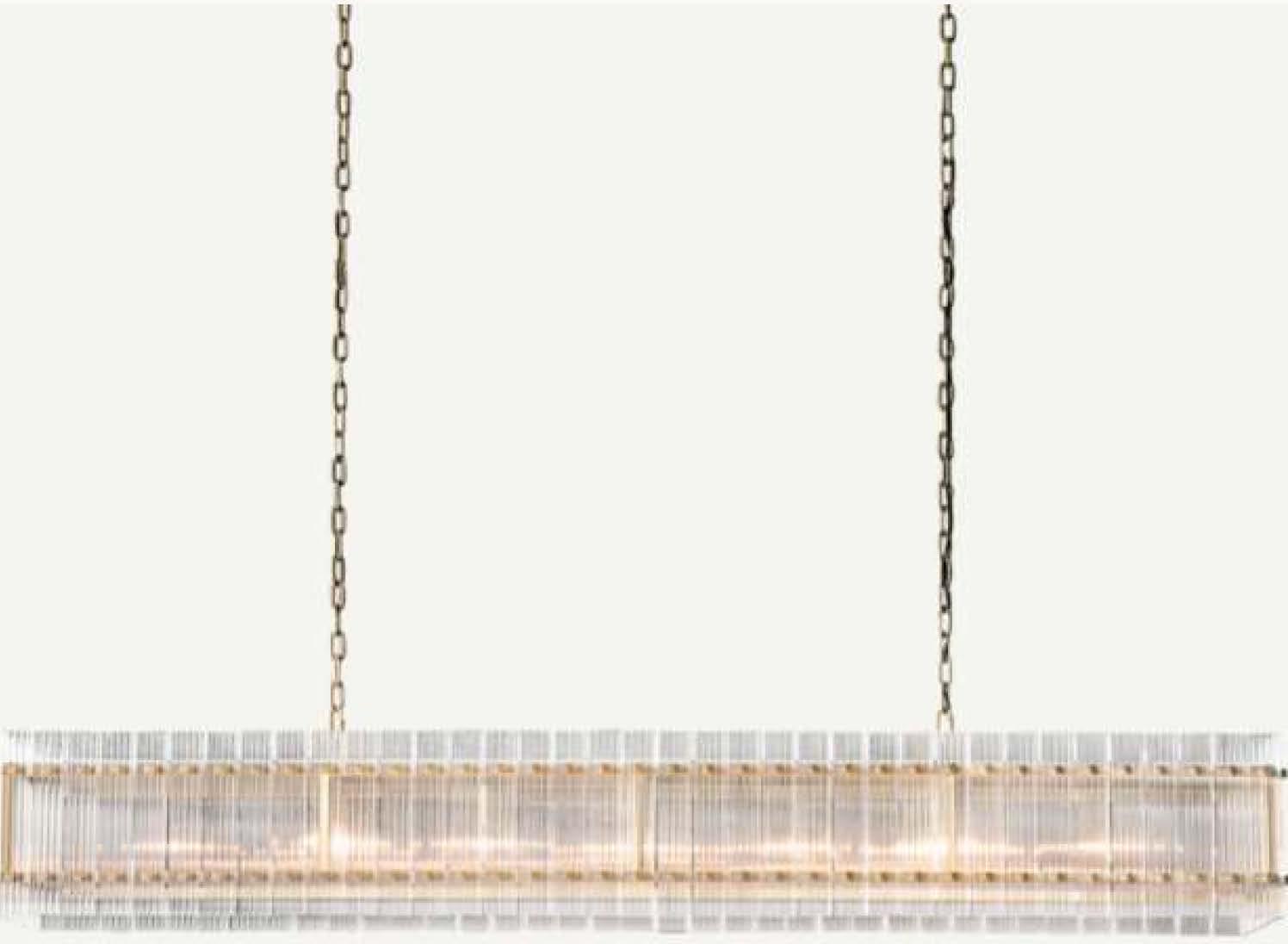

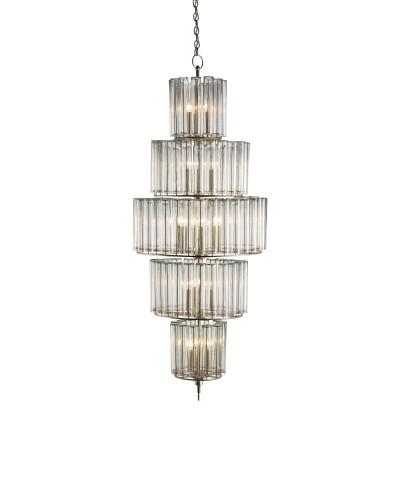

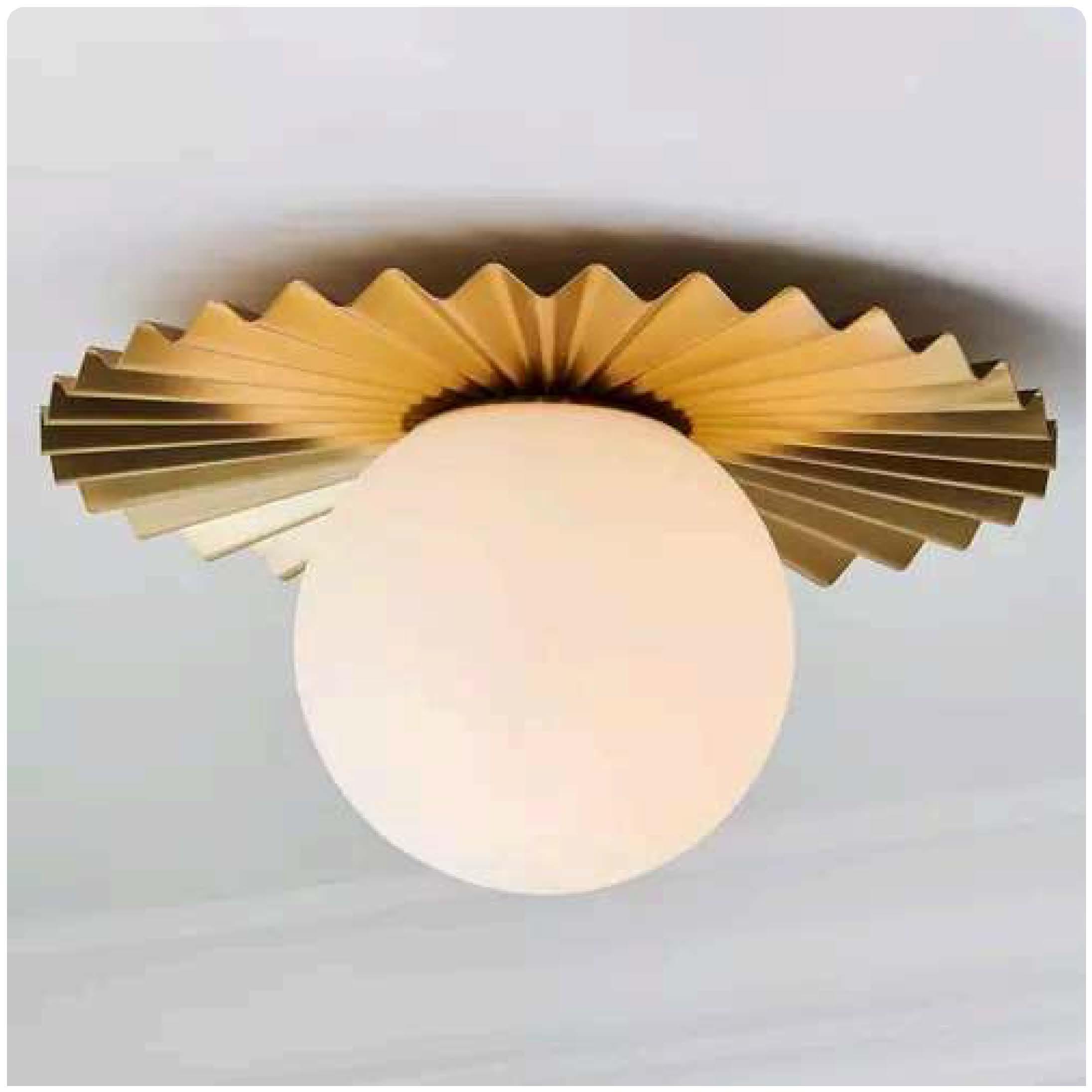

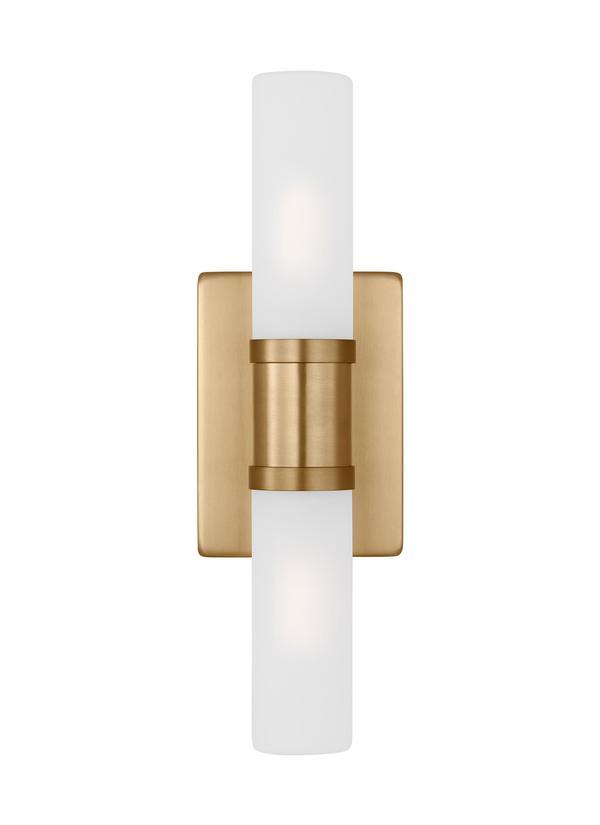

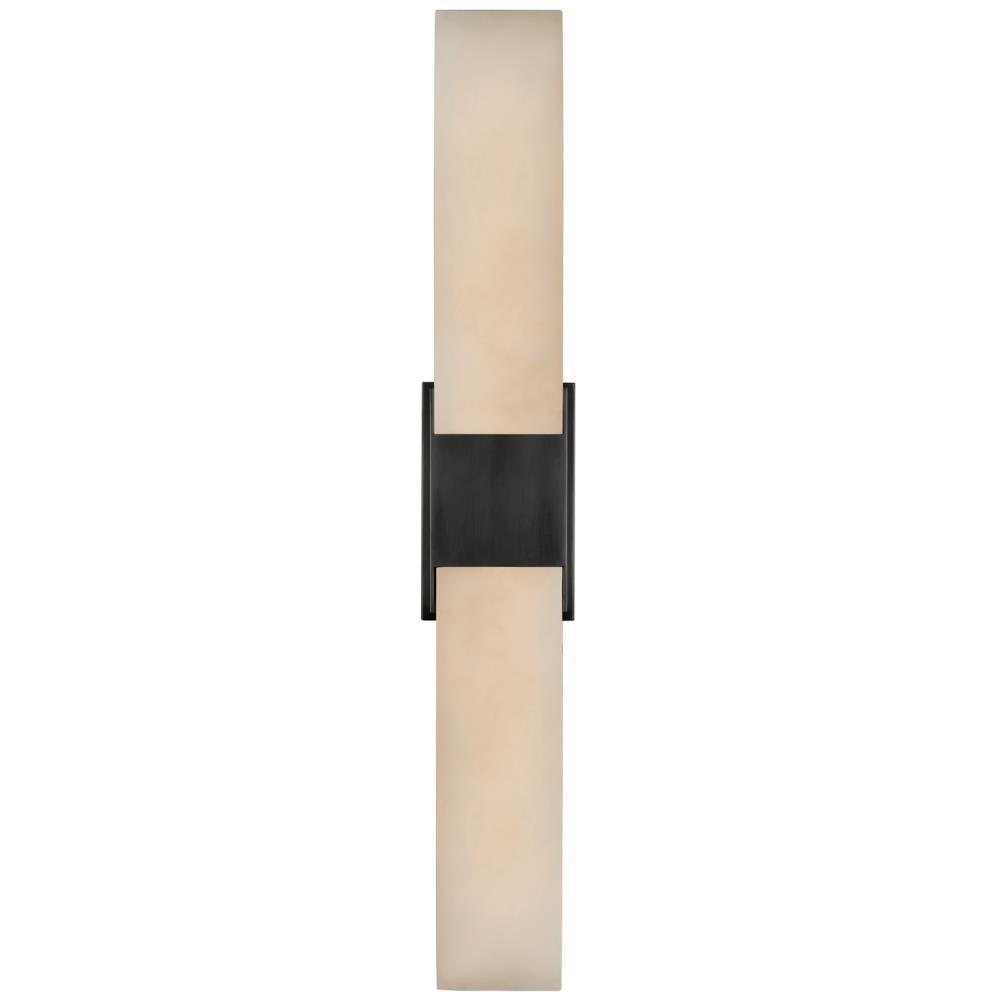

F-23 Currey Bevilacqua Medium Chandelier 9309 Silver Leaf

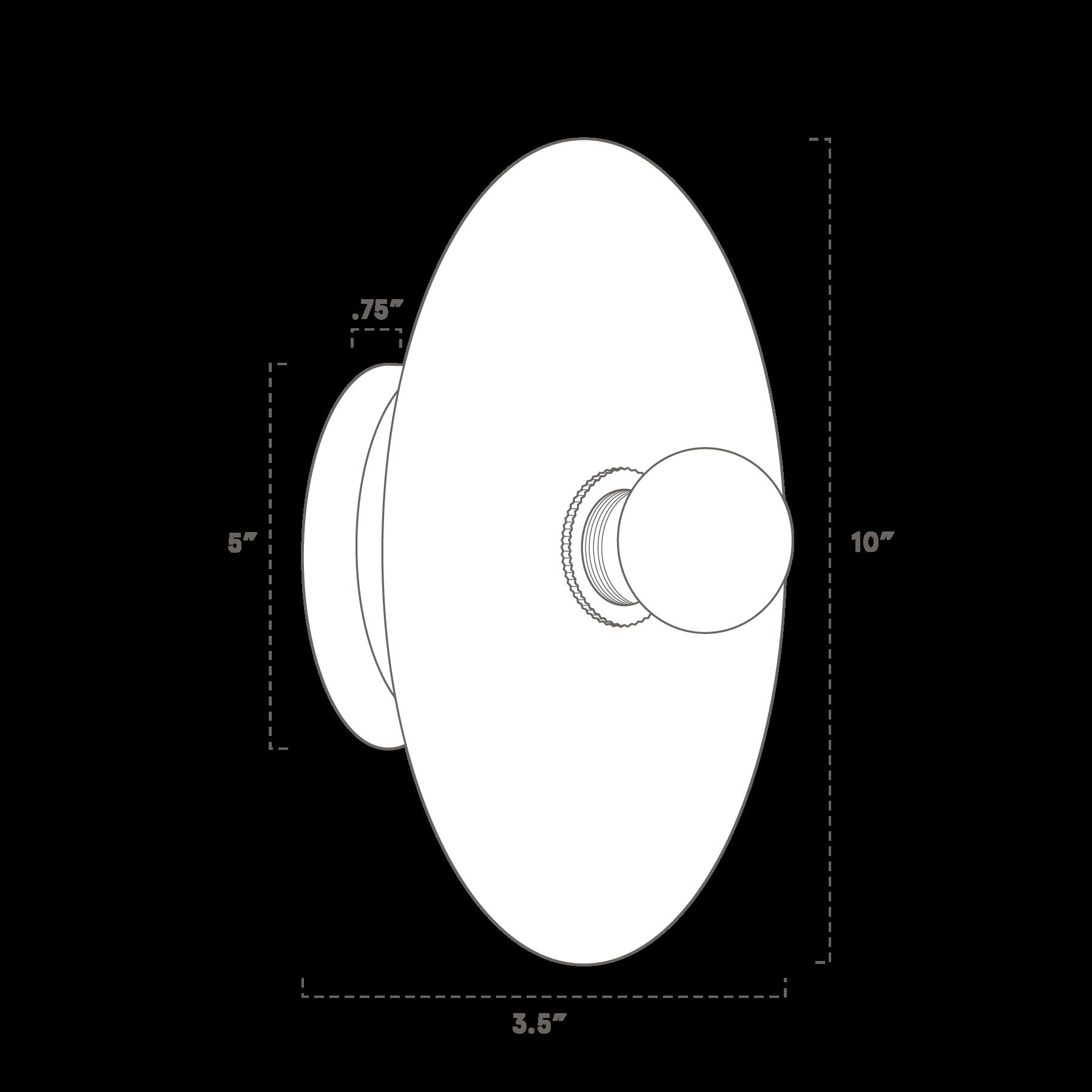

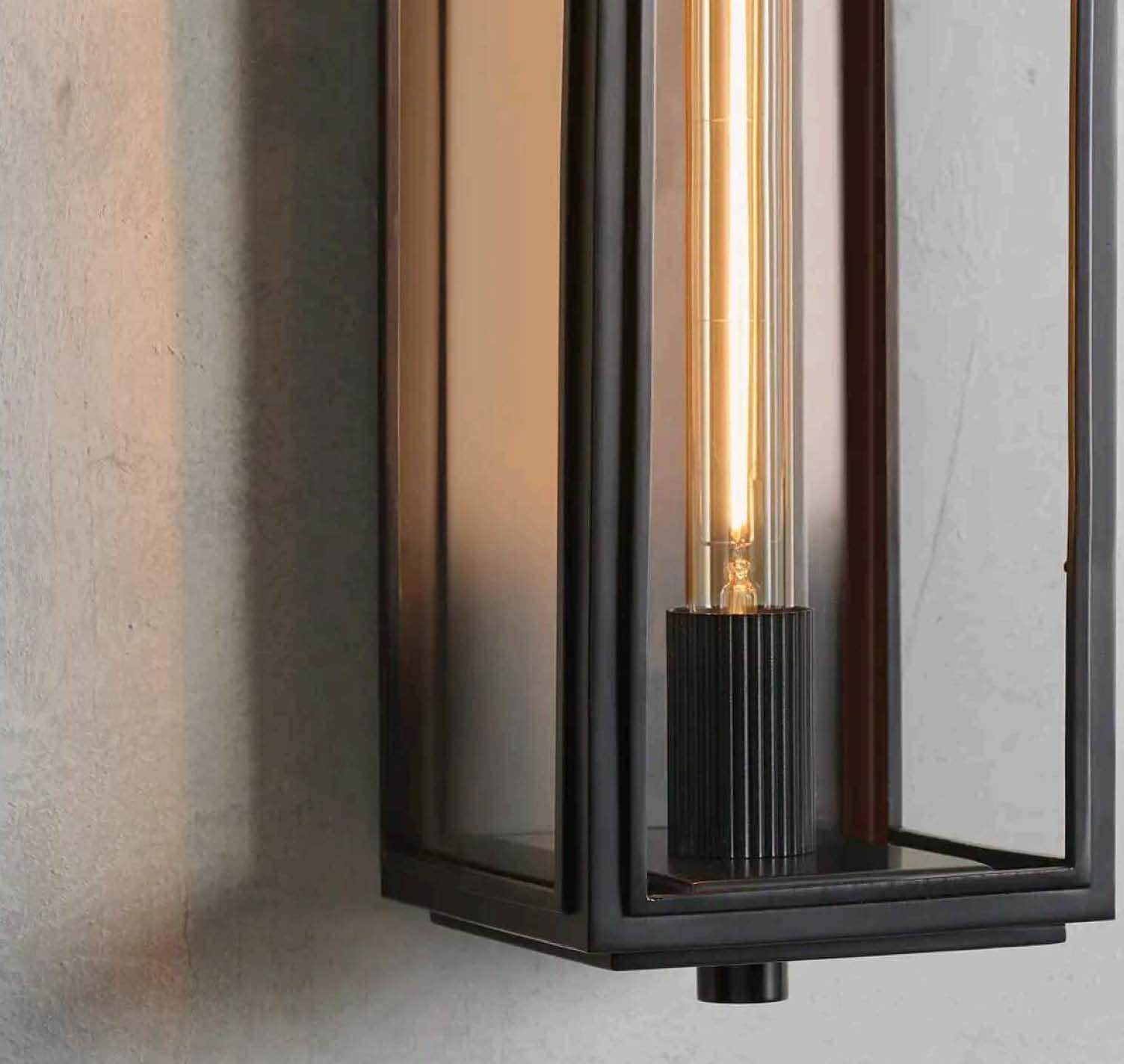

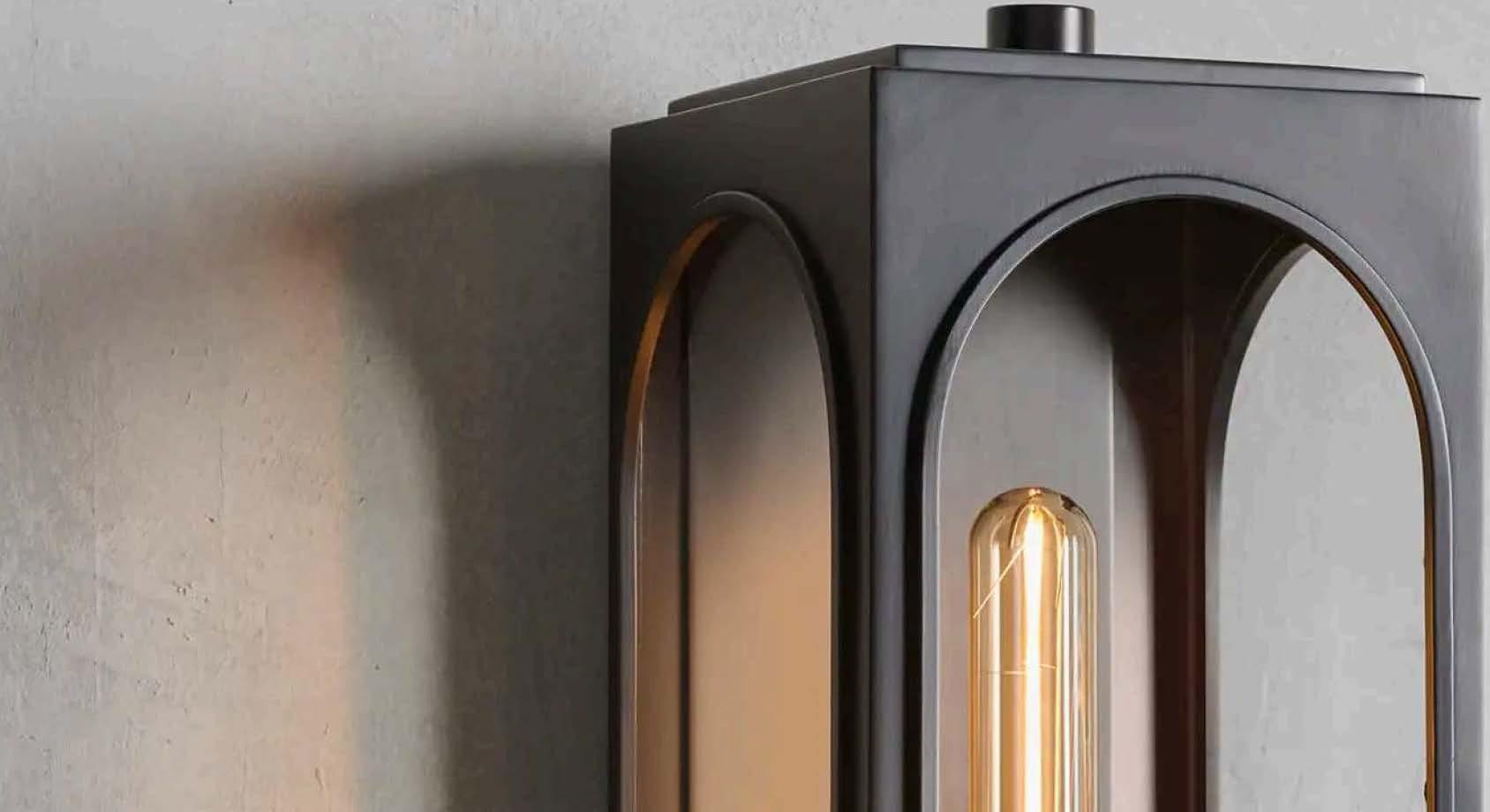

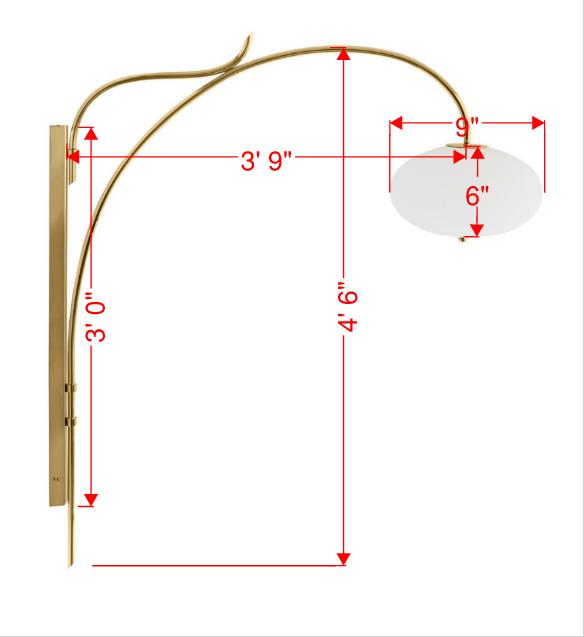

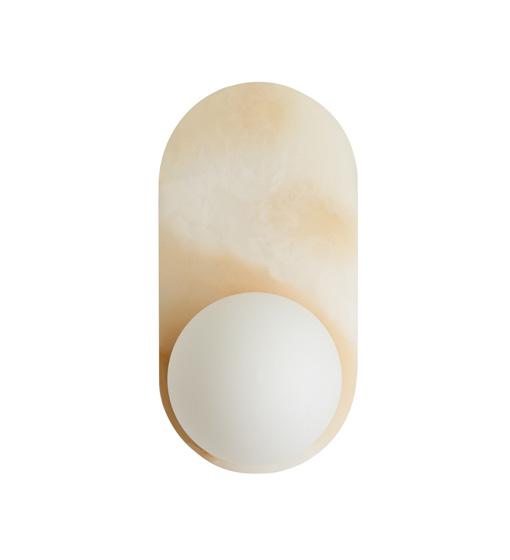

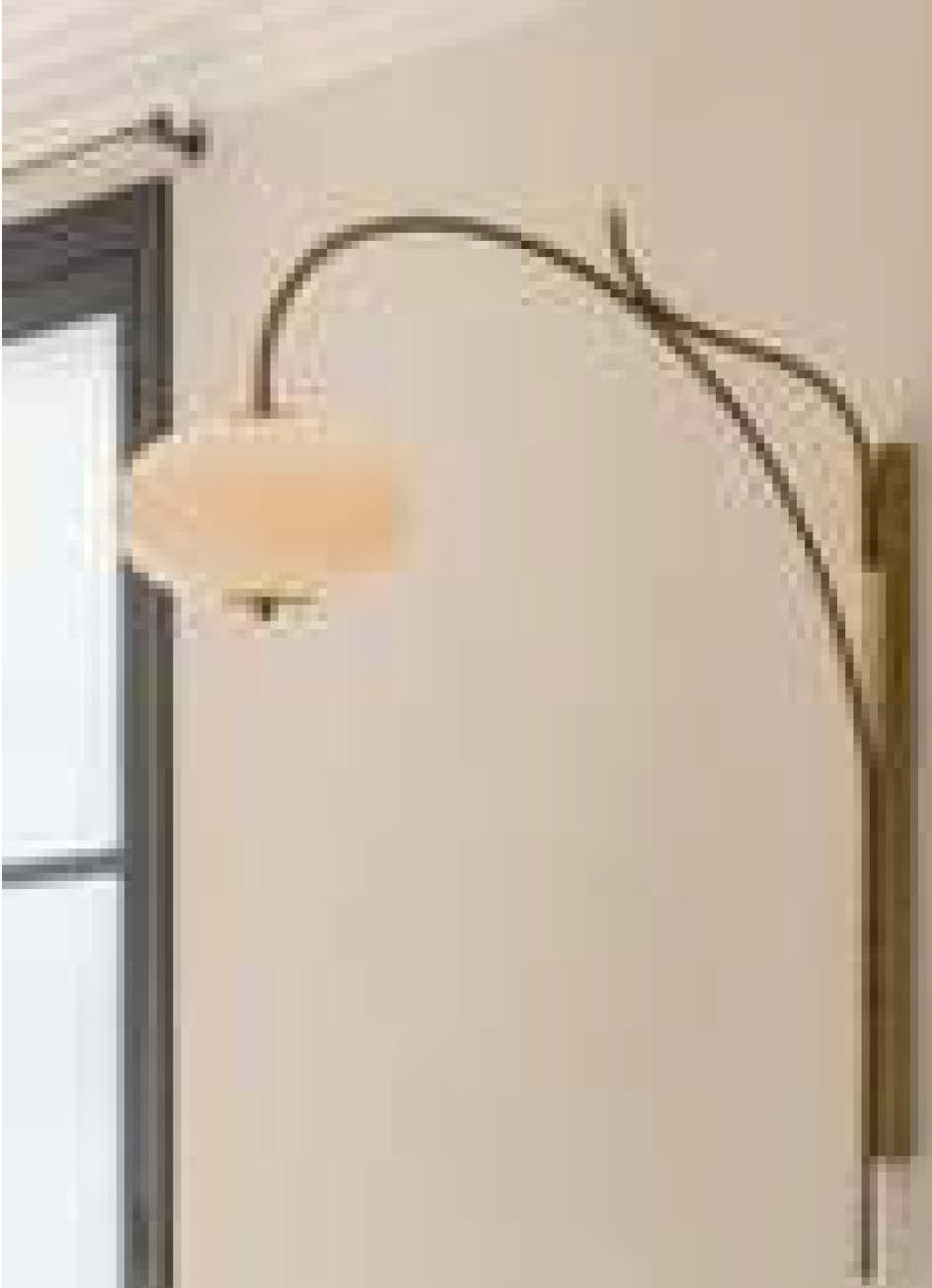

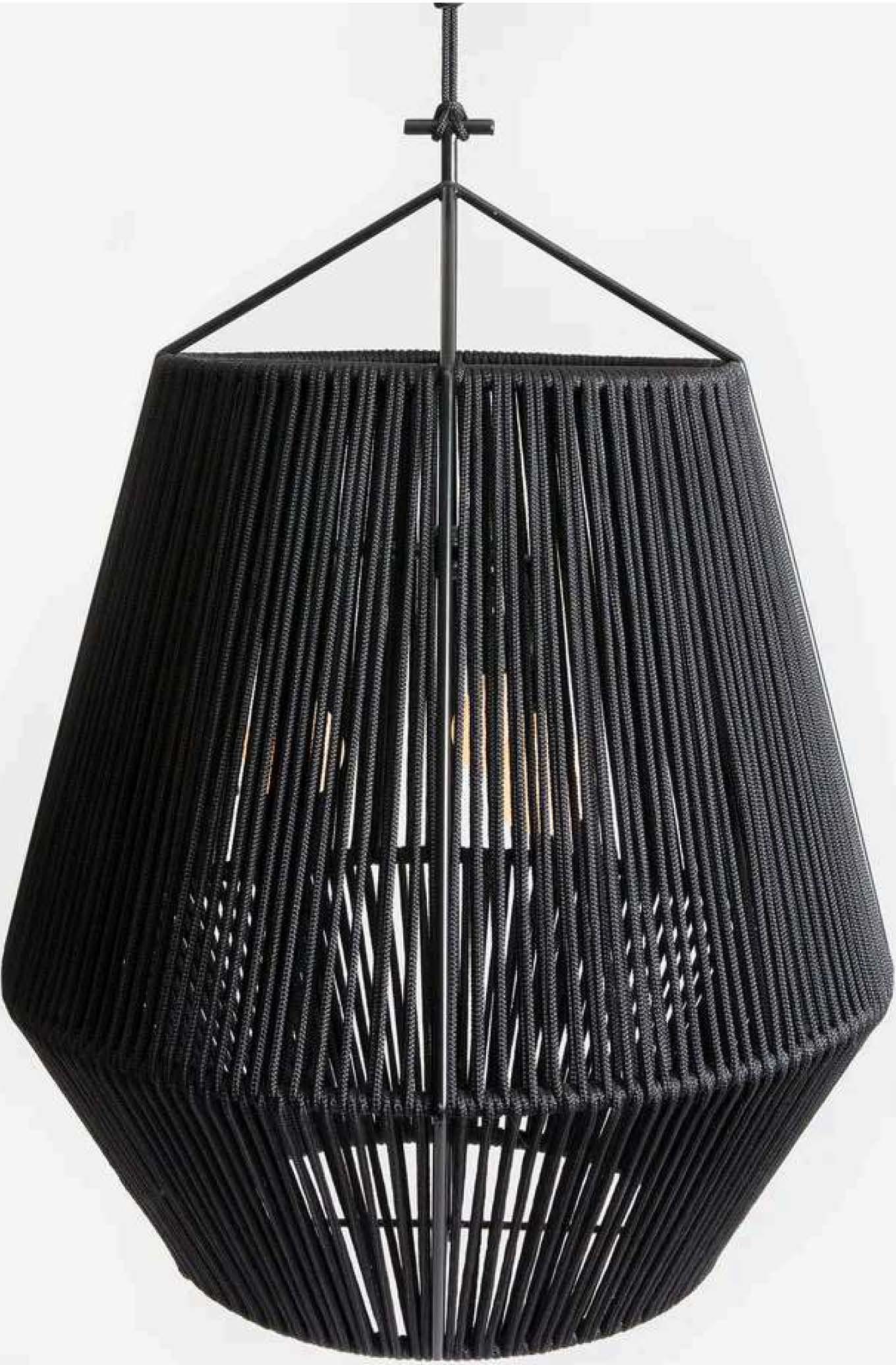

F-24 Luminaire Authentik Arch Onyx-LA20/40

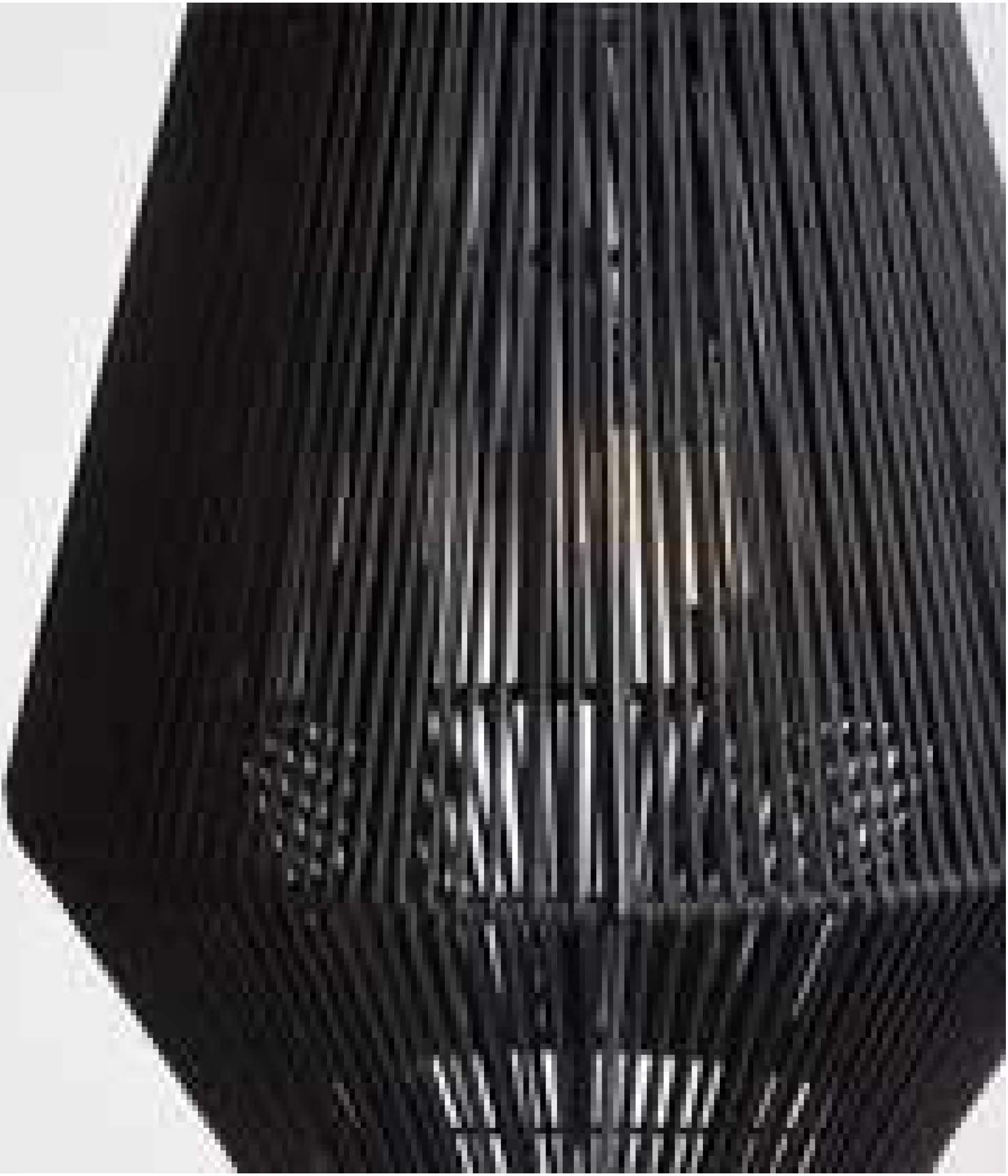

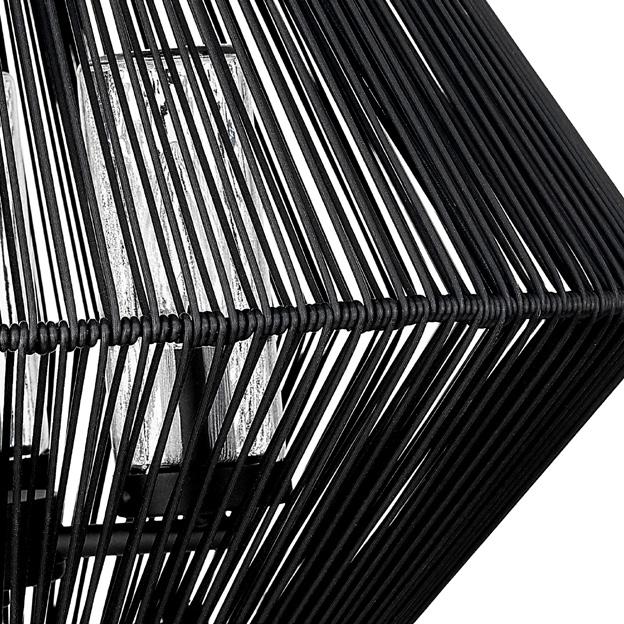

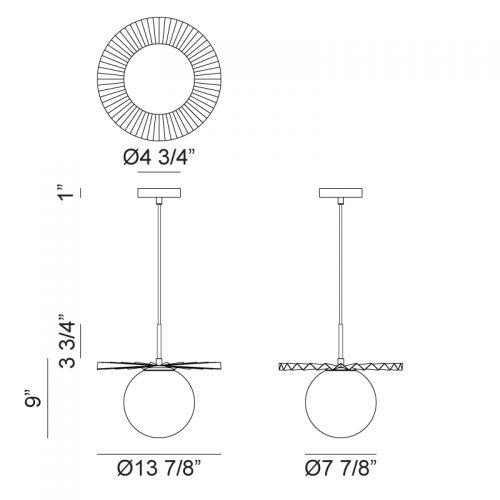

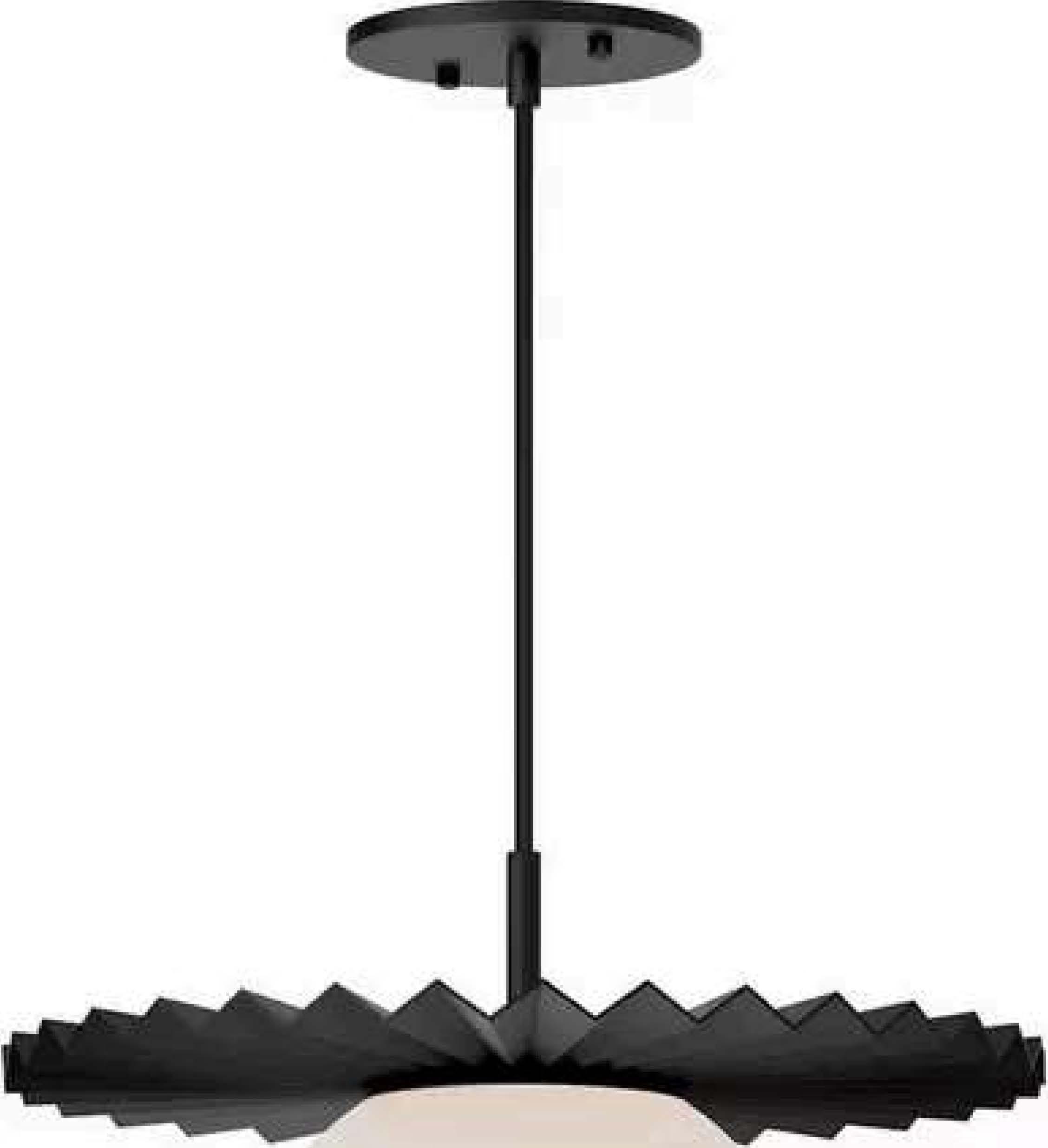

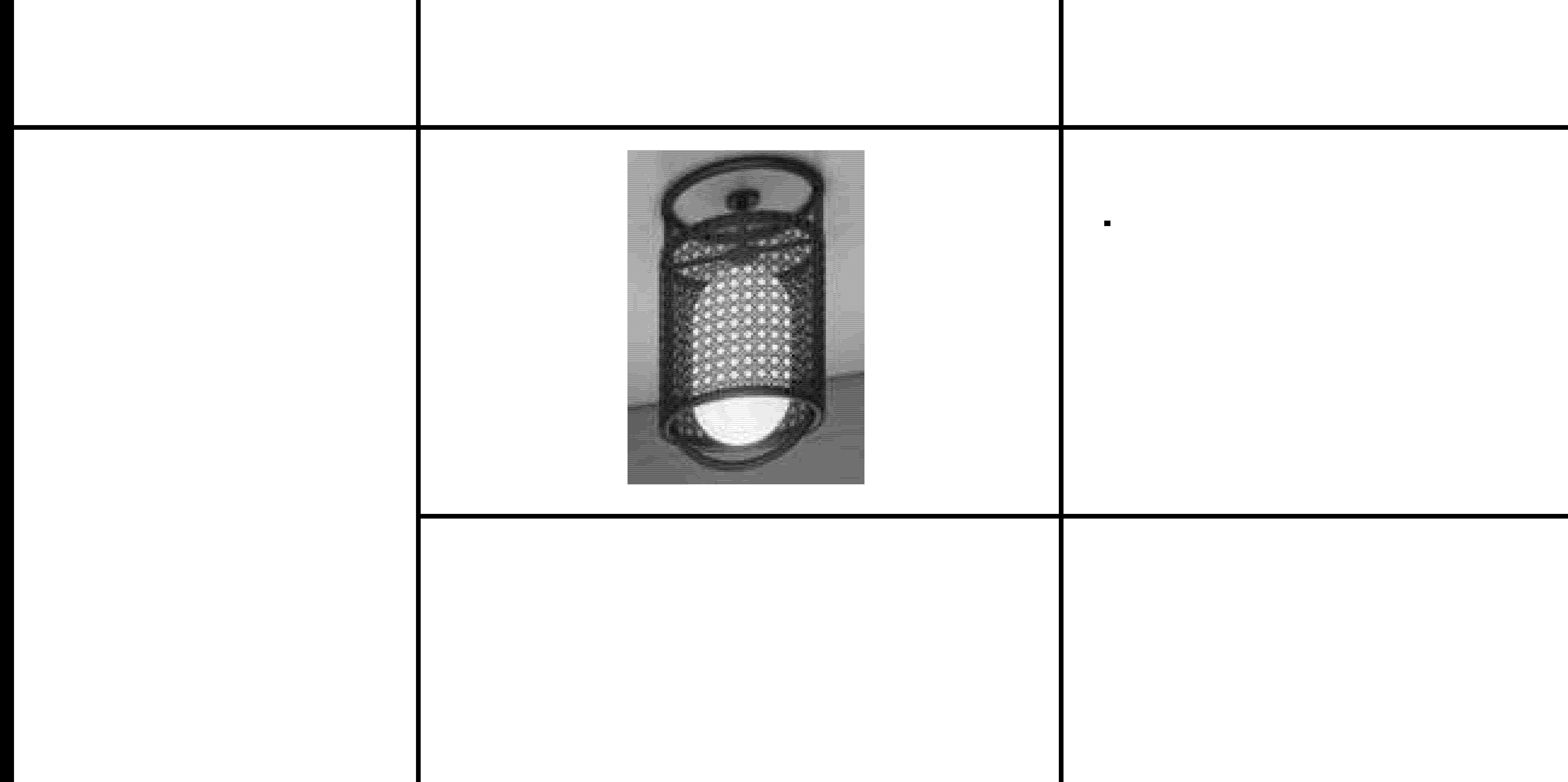

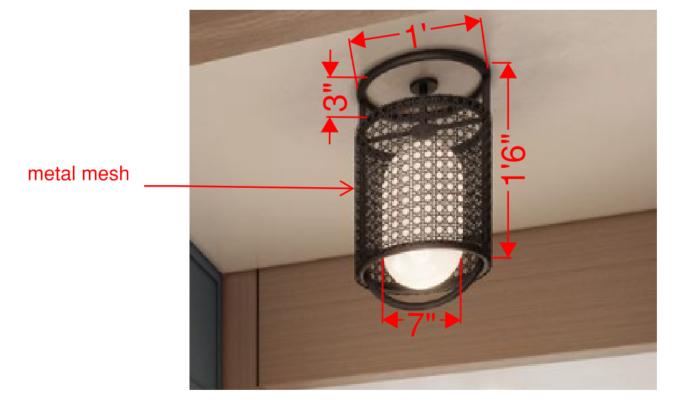

F-25 Cutedge METAL LASER CUT CAGE SEMI FLUSH

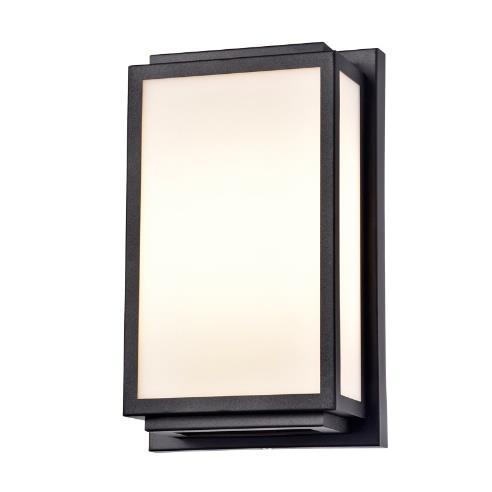

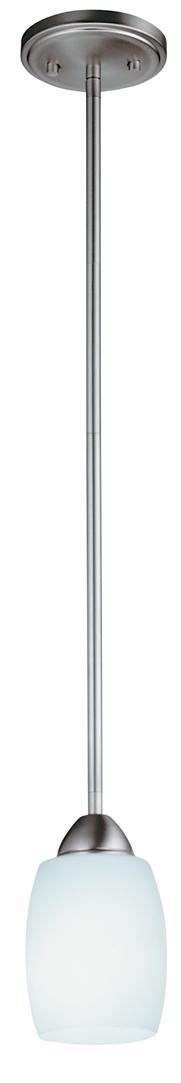

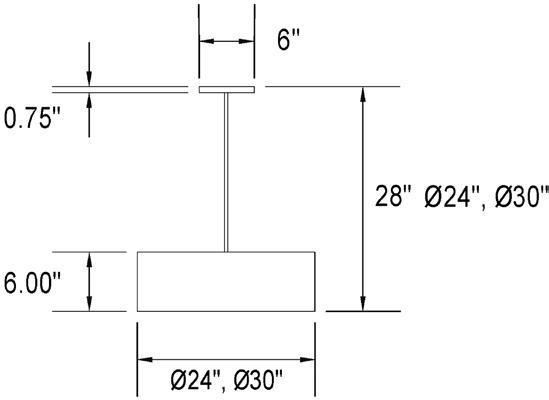

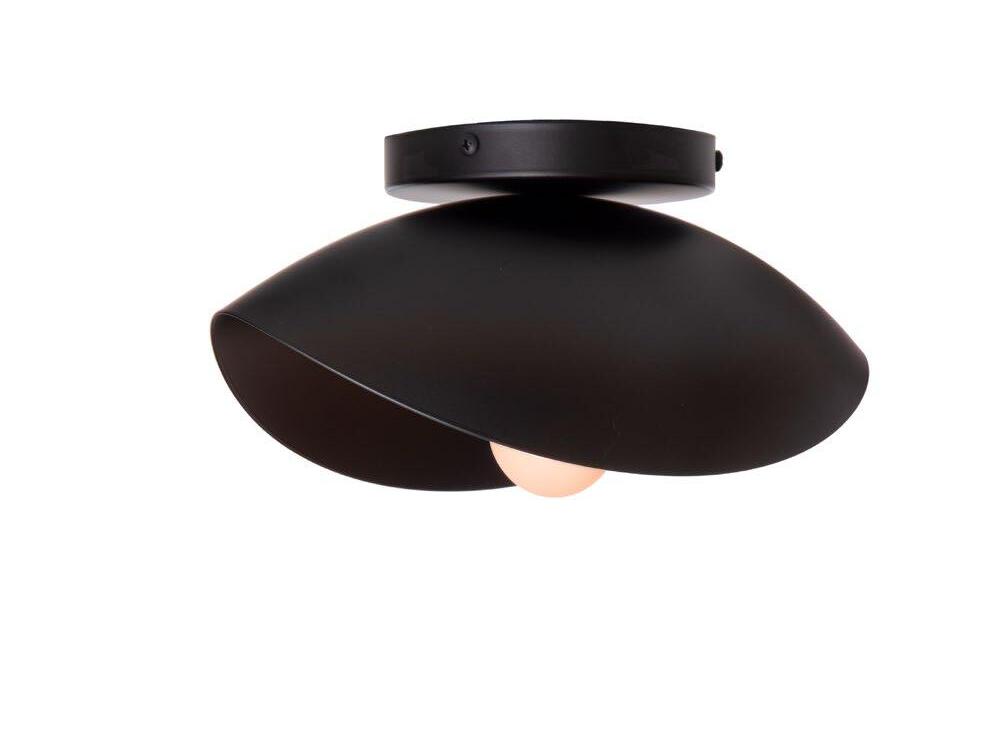

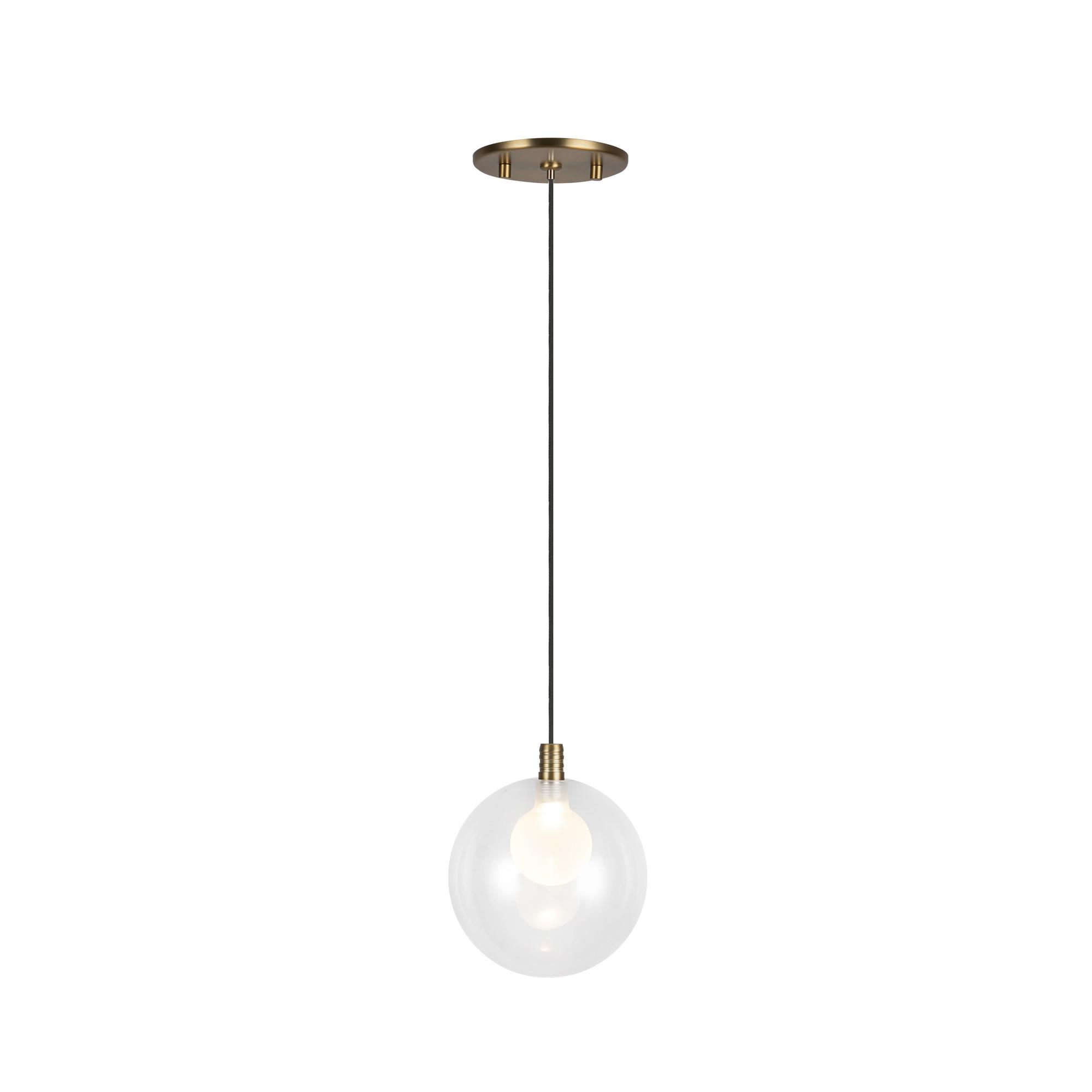

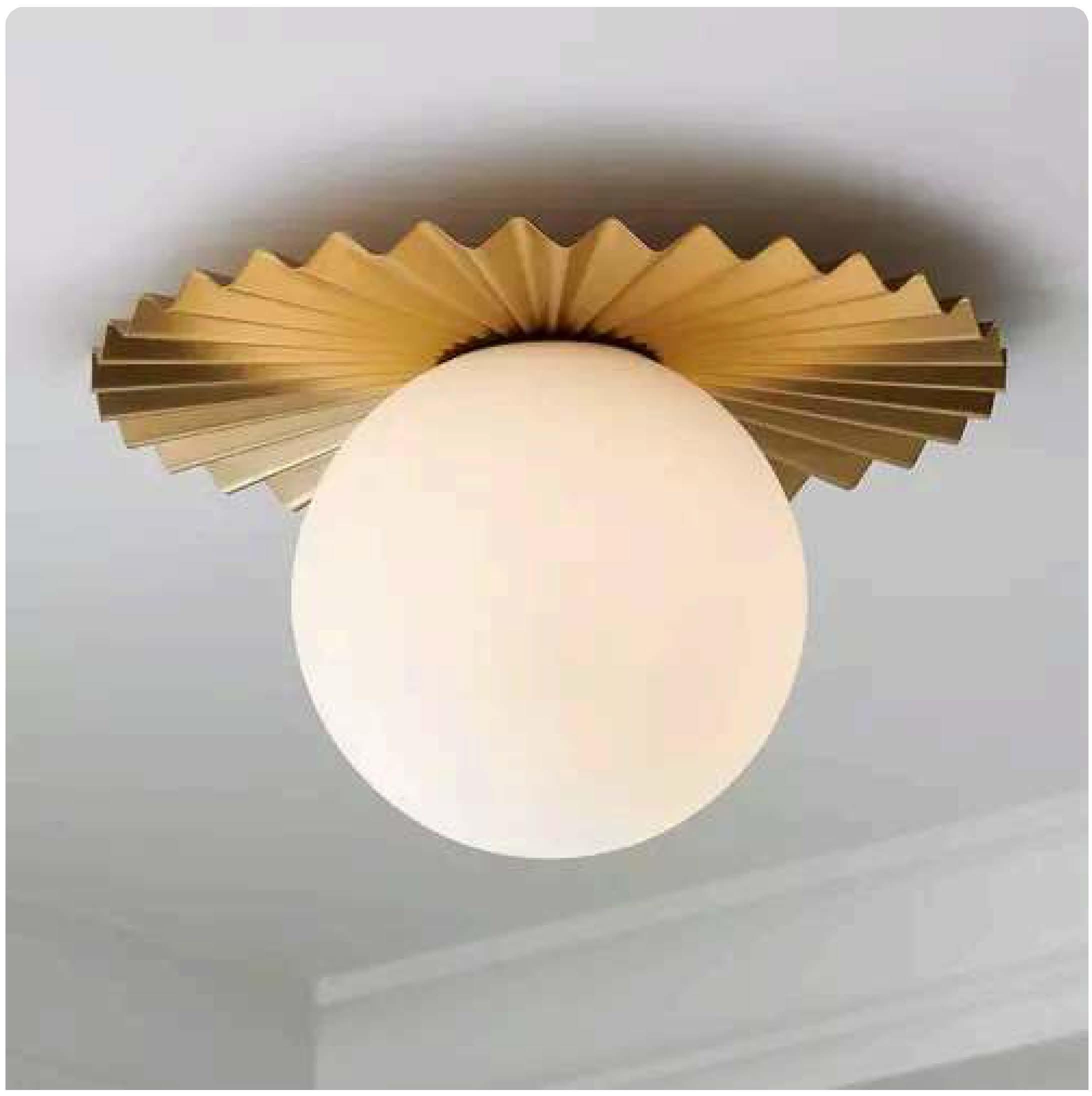

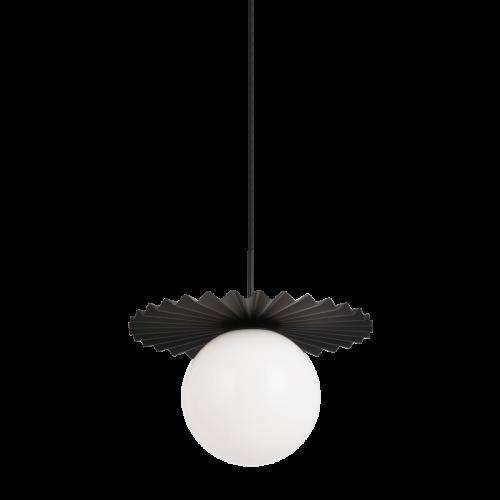

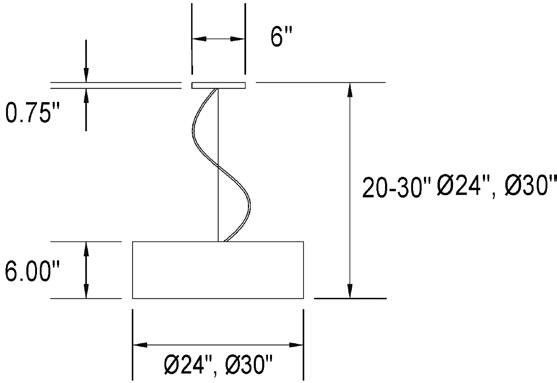

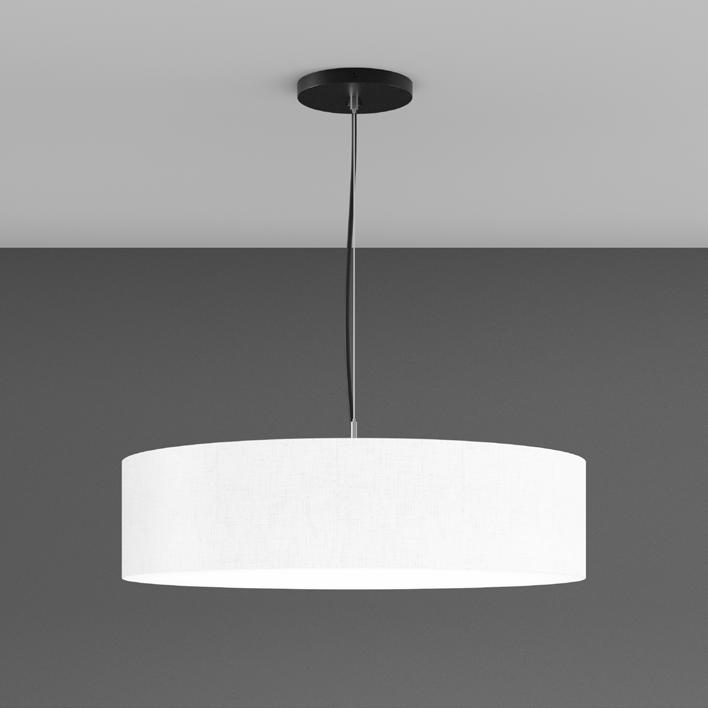

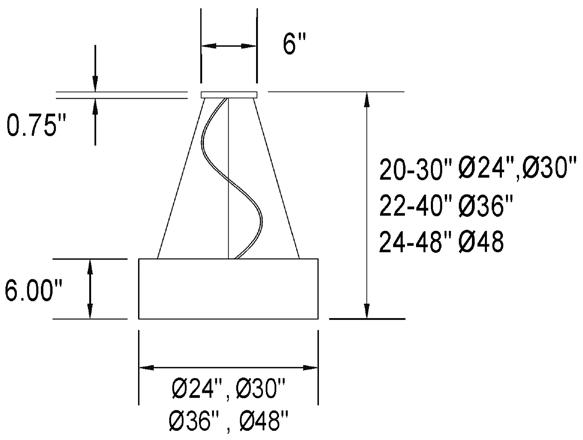

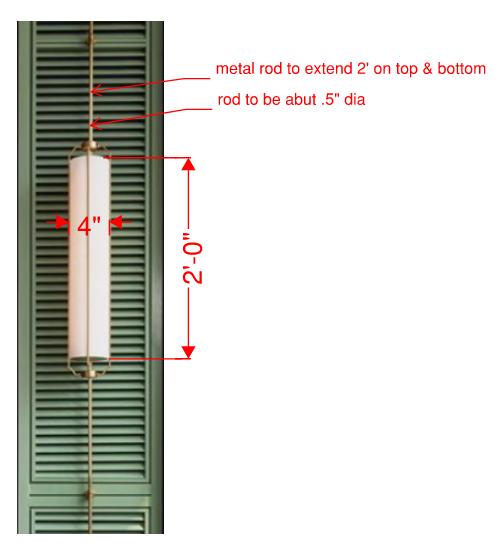

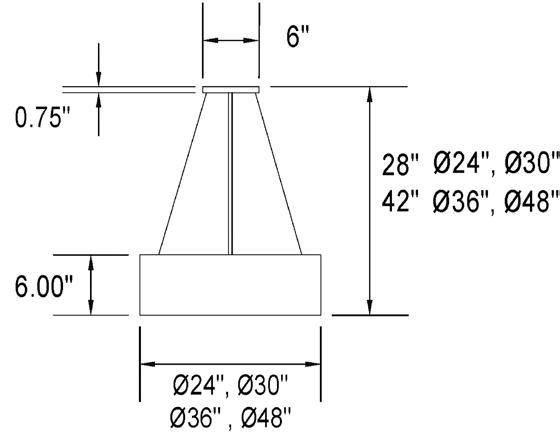

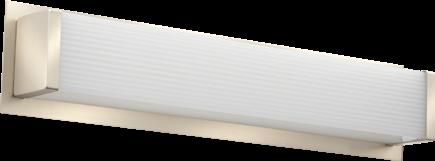

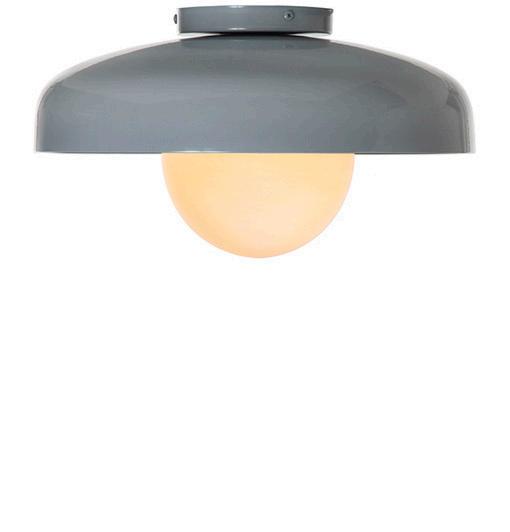

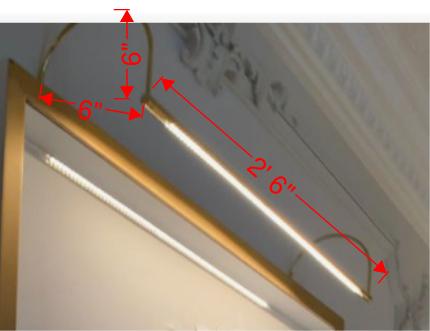

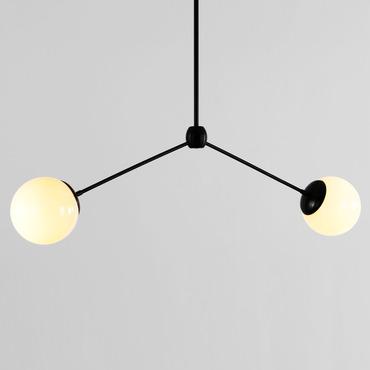

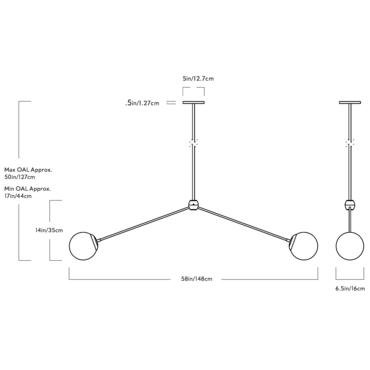

F-26 Dainolite Custom

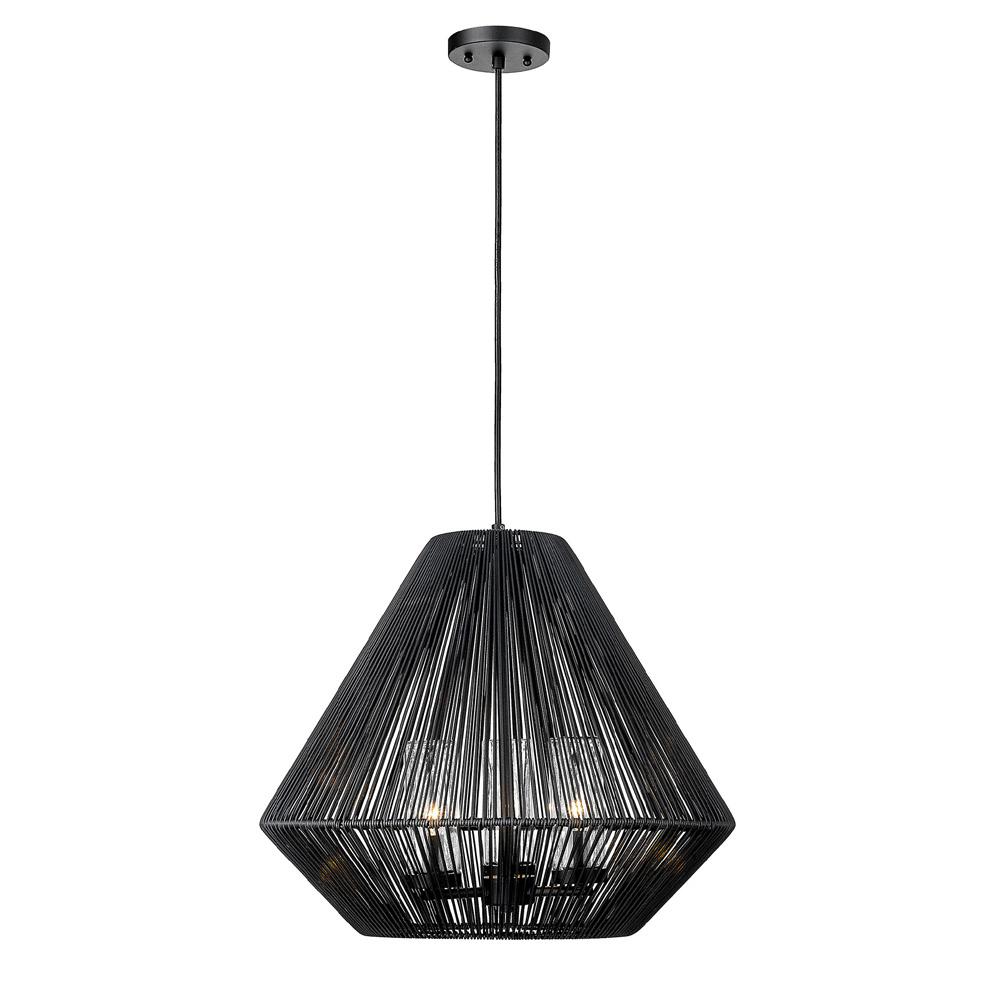

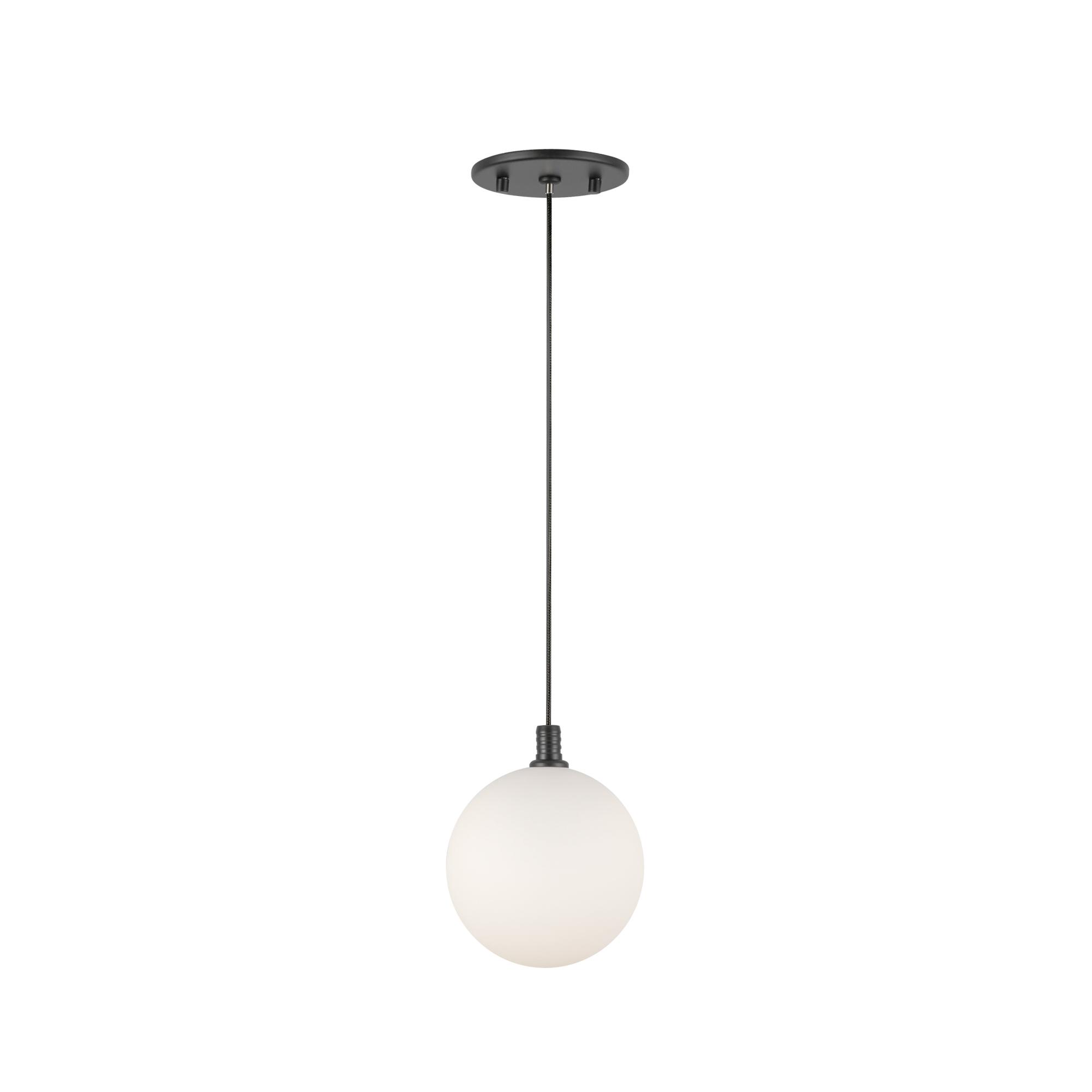

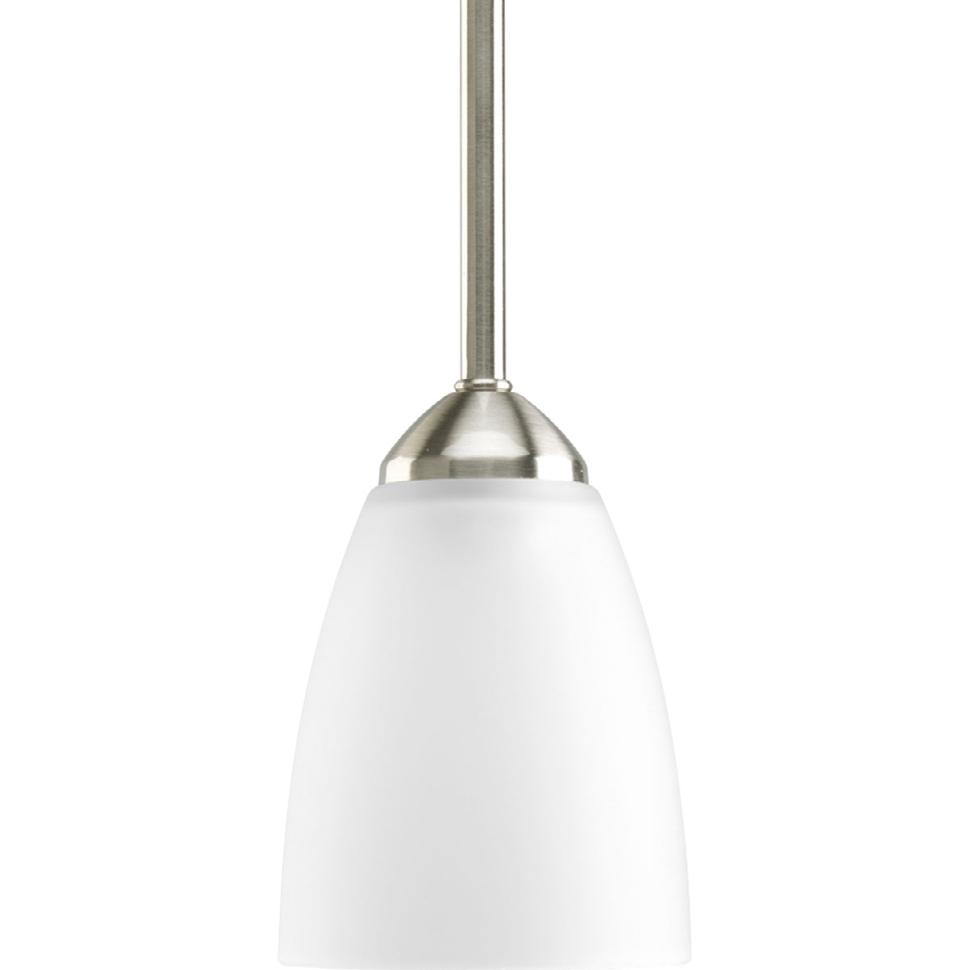

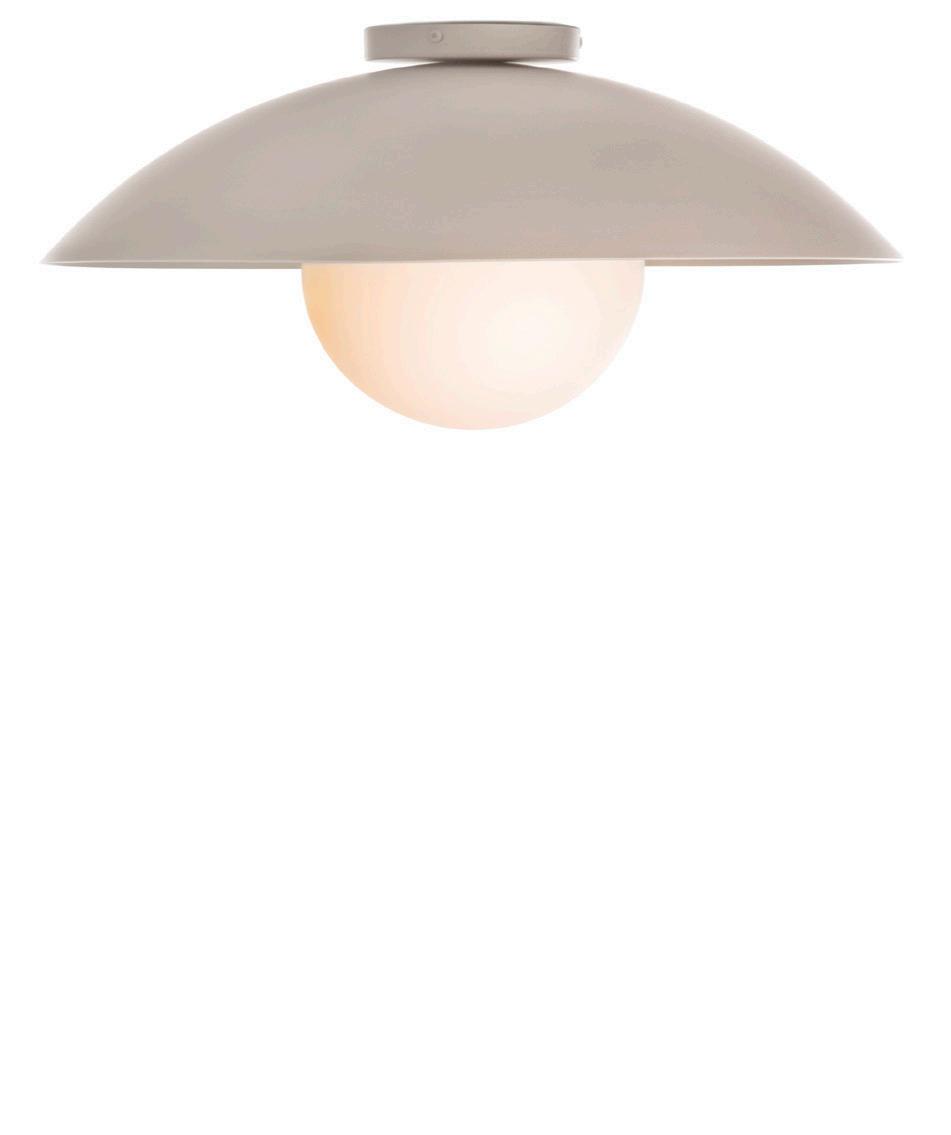

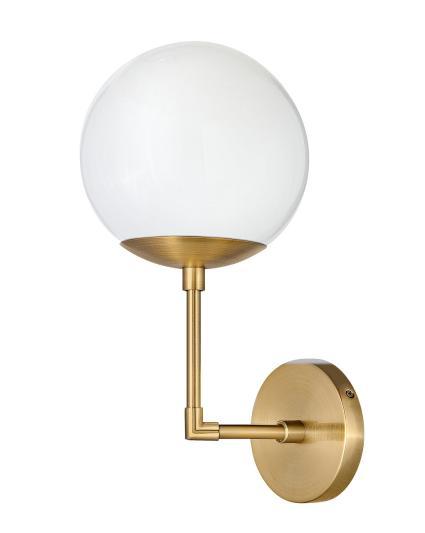

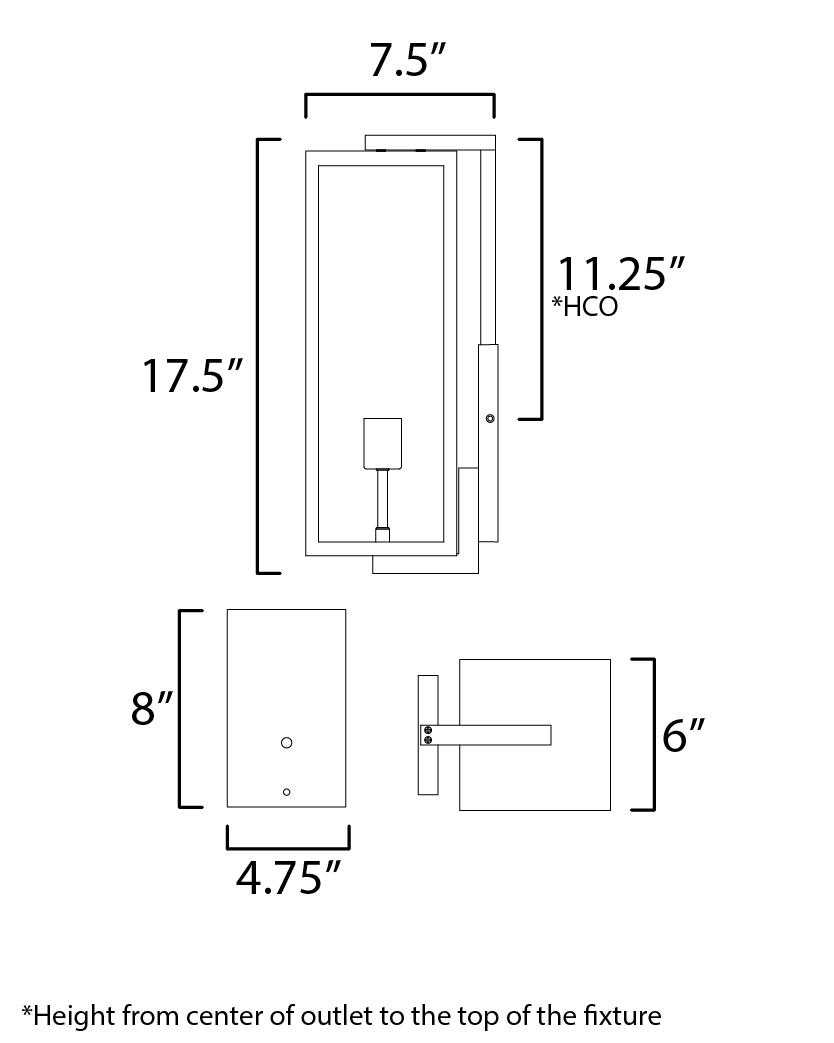

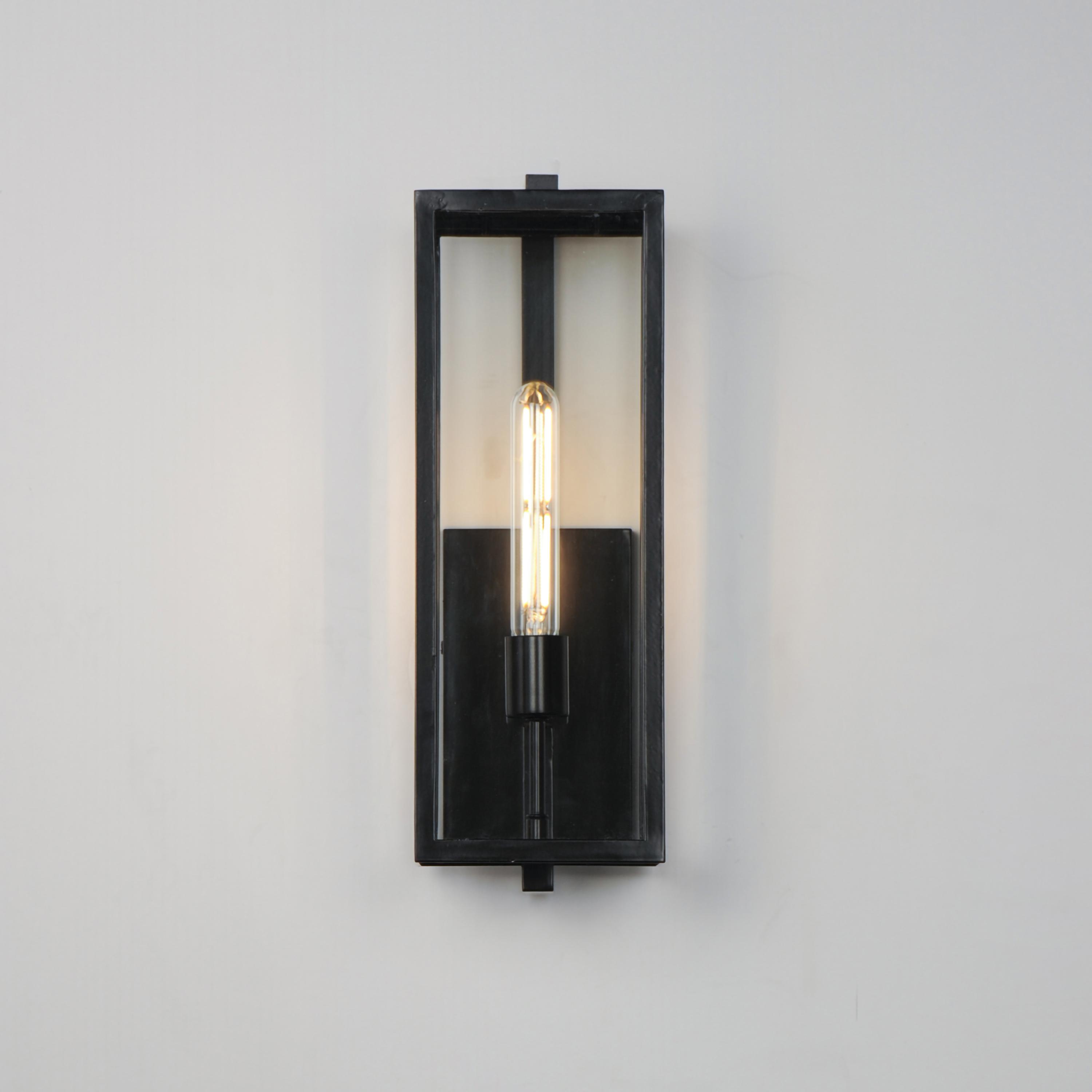

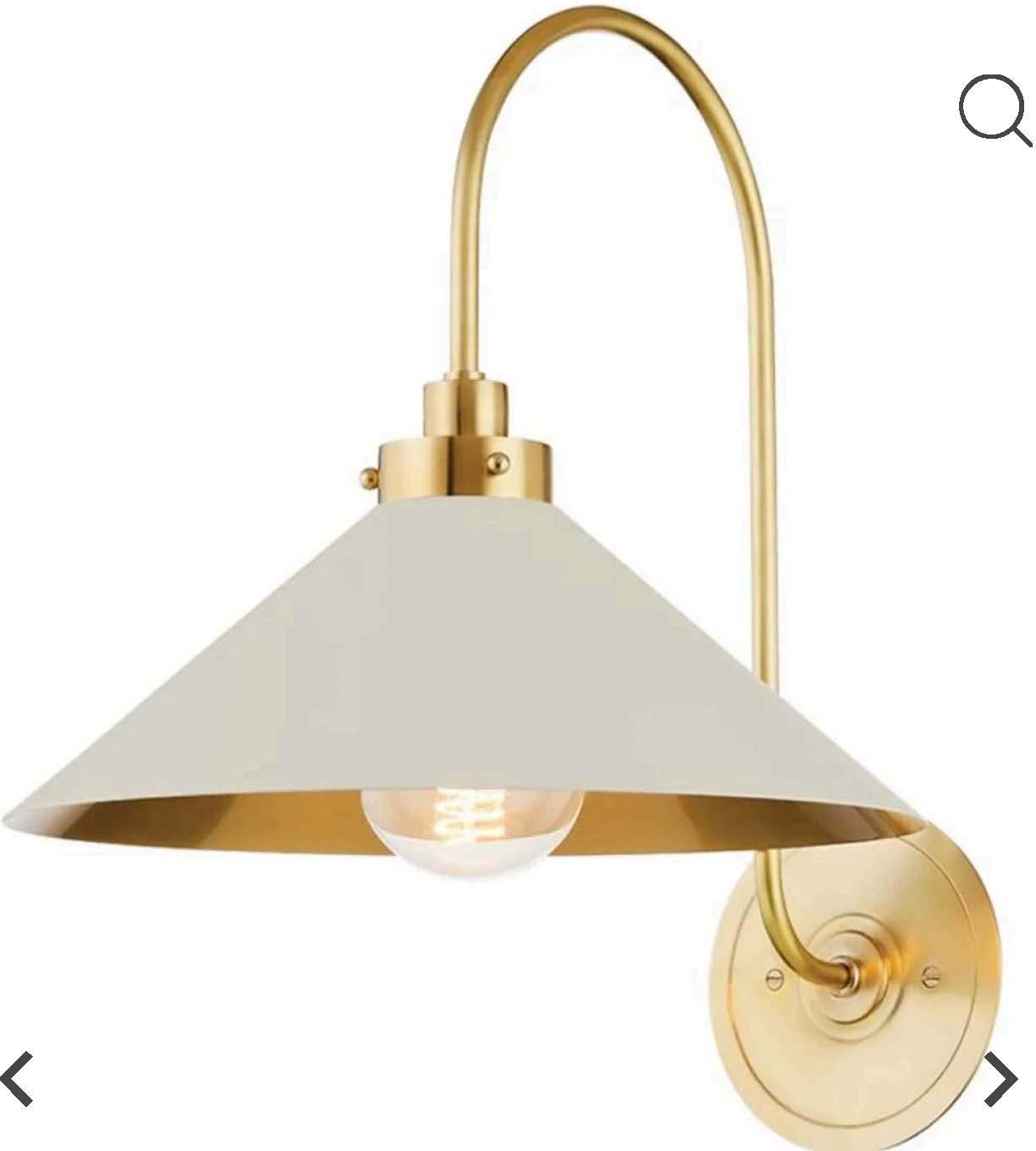

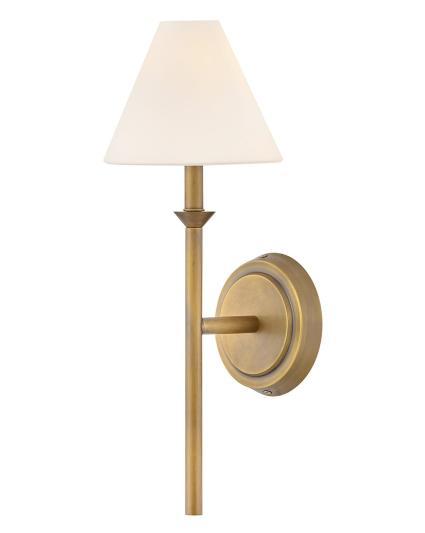

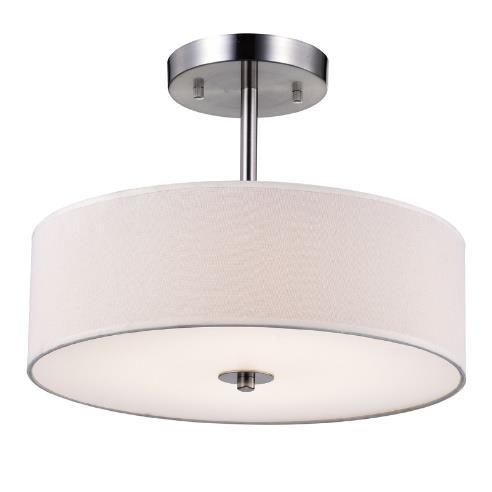

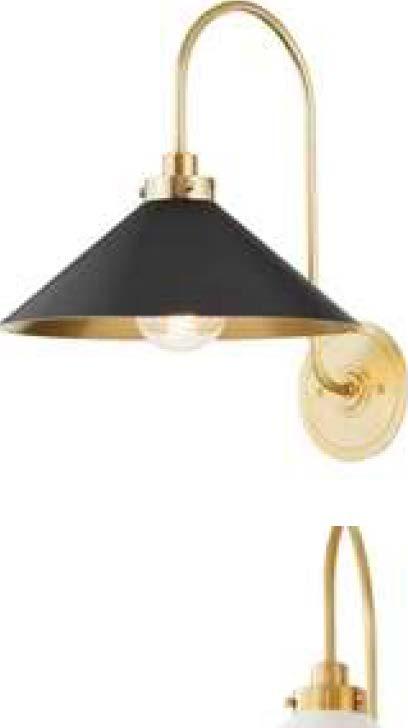

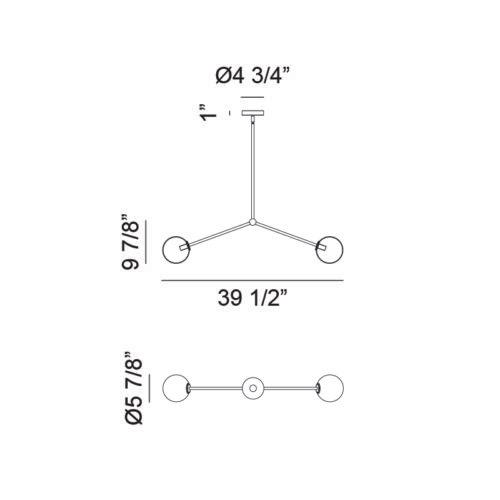

F27 Livex 16562-12

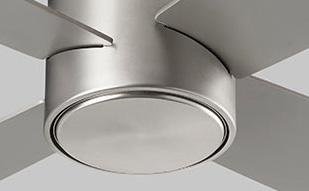

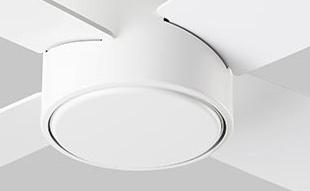

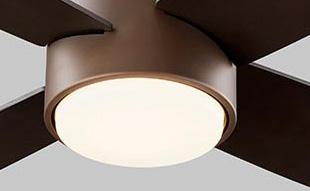

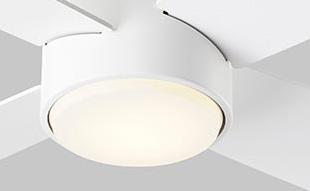

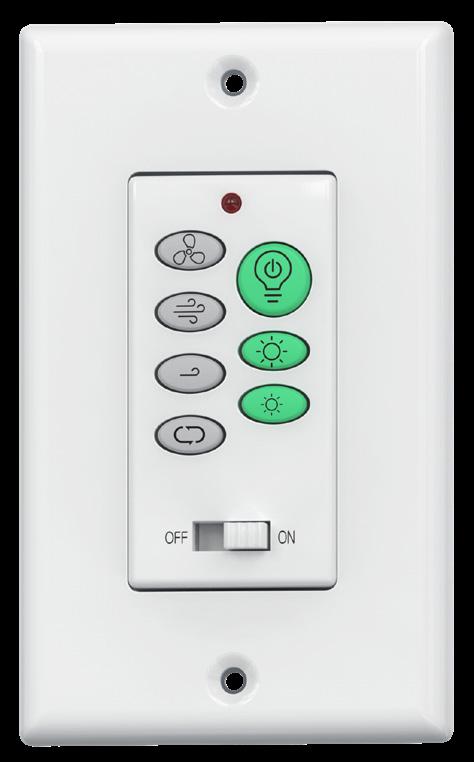

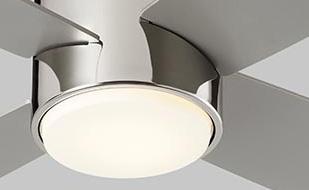

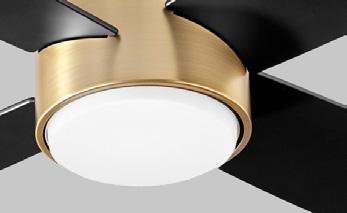

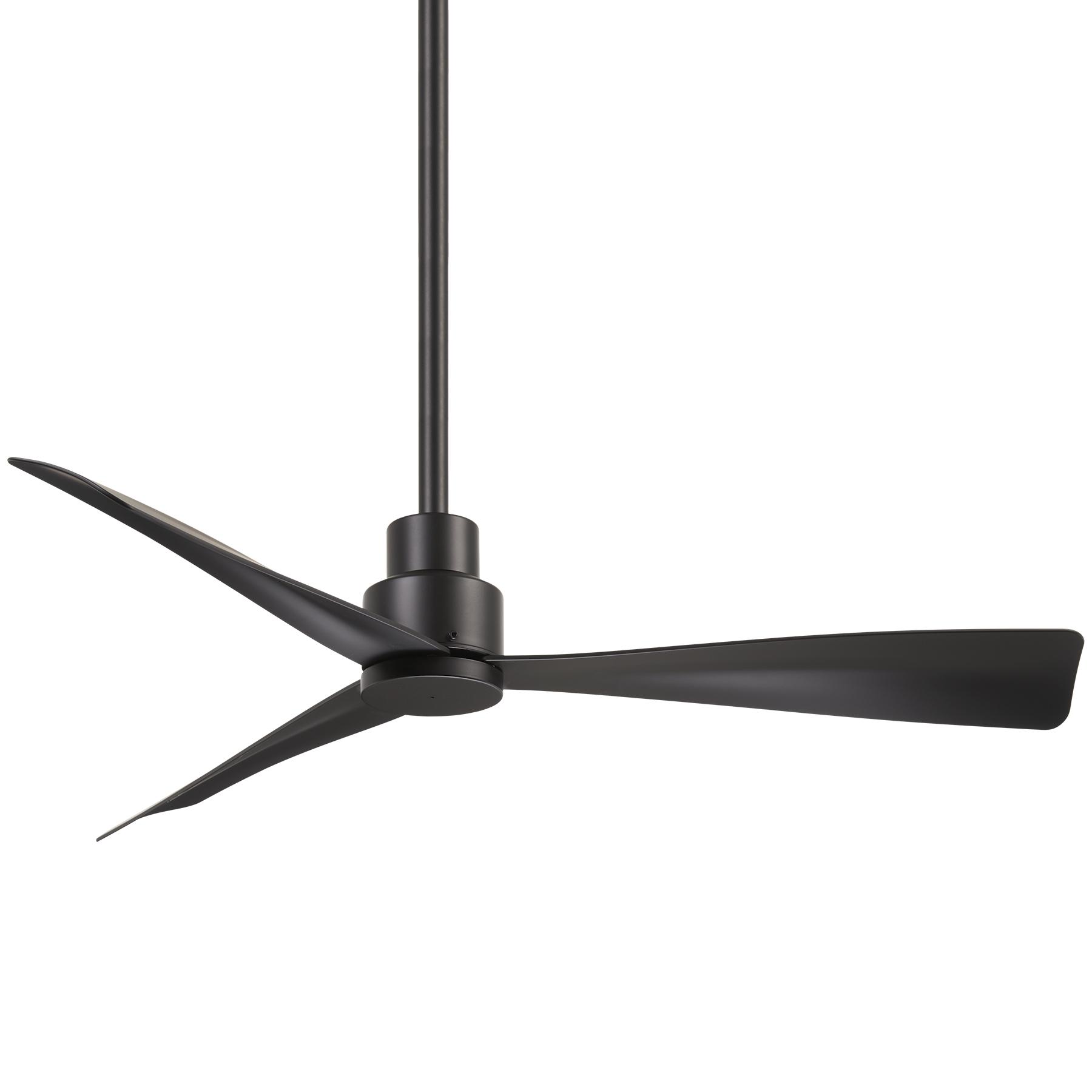

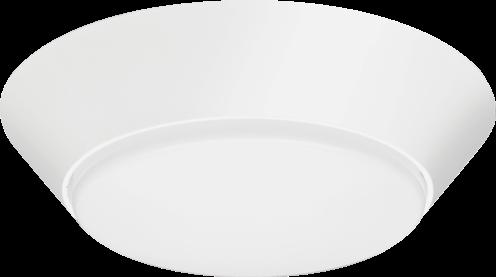

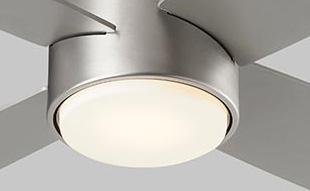

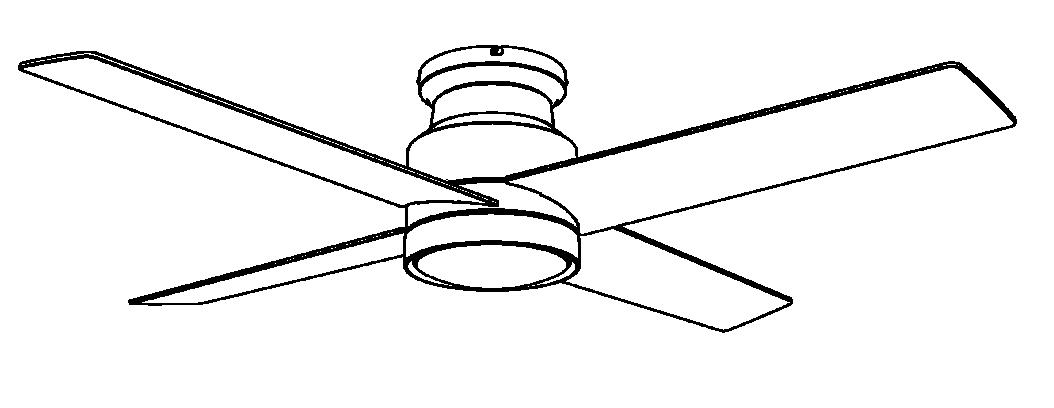

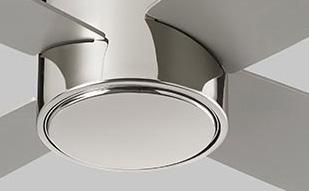

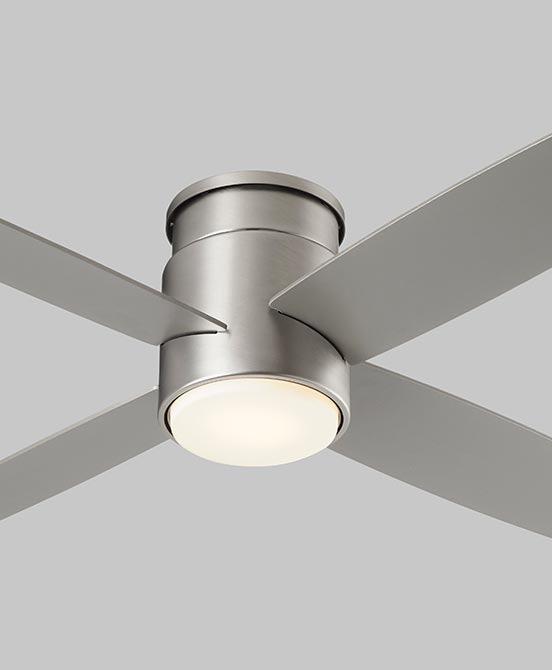

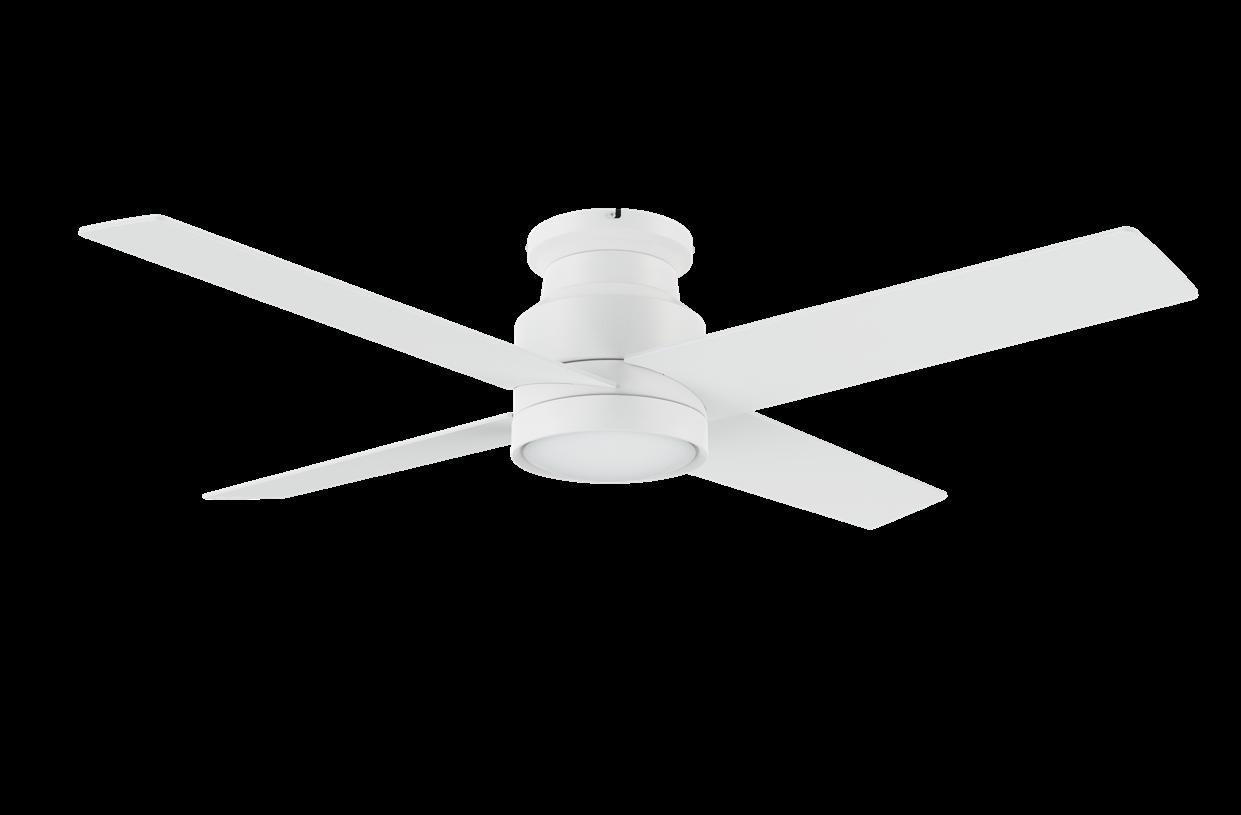

F-28 Minka Aire F786-CL

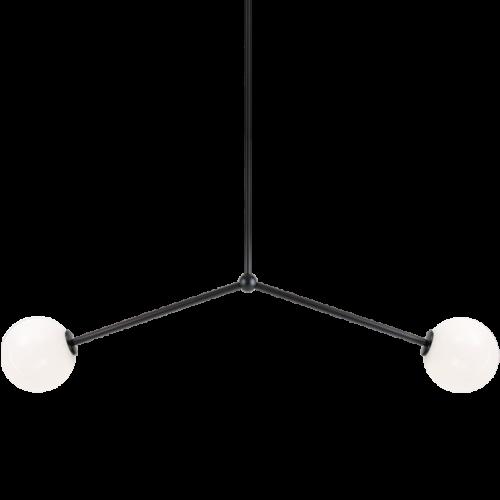

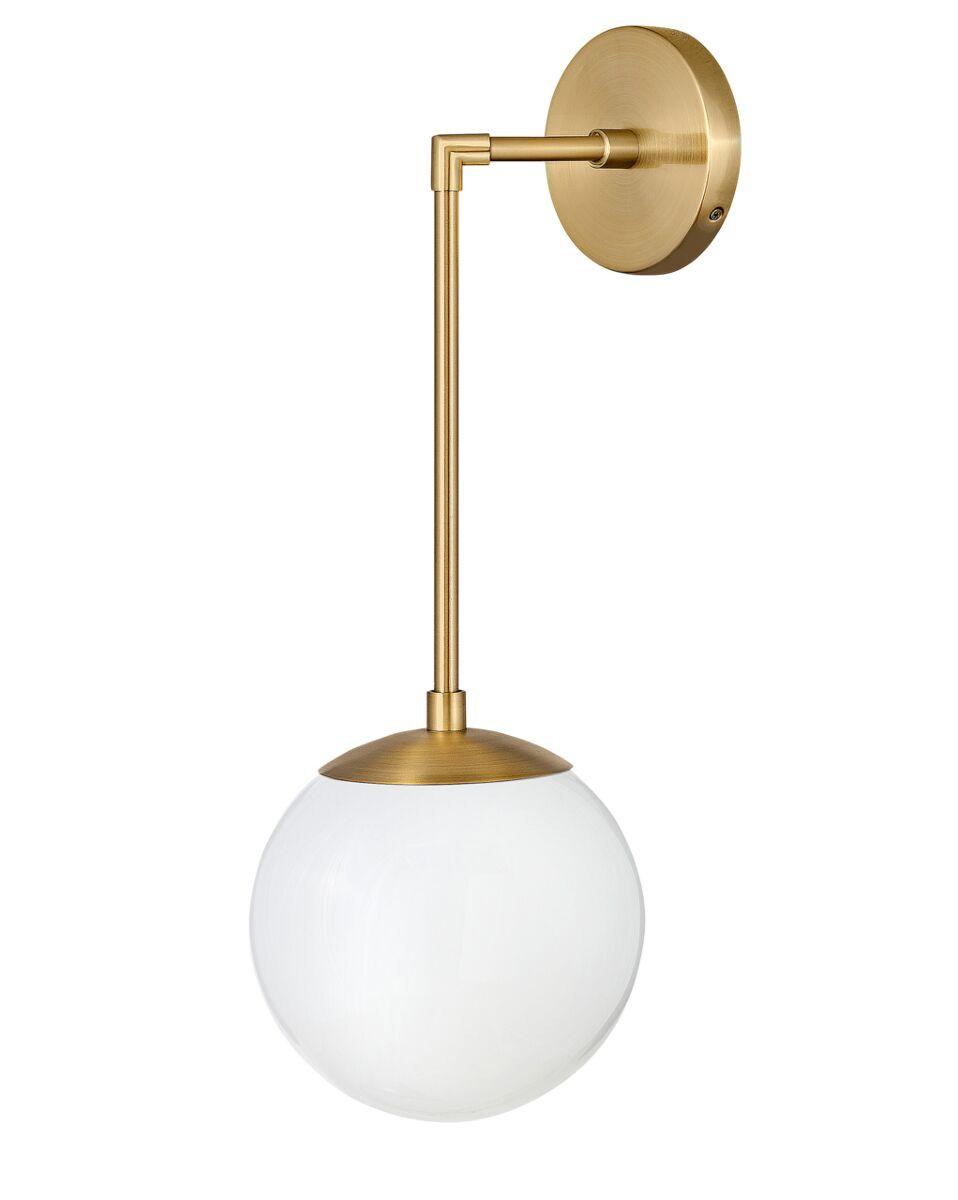

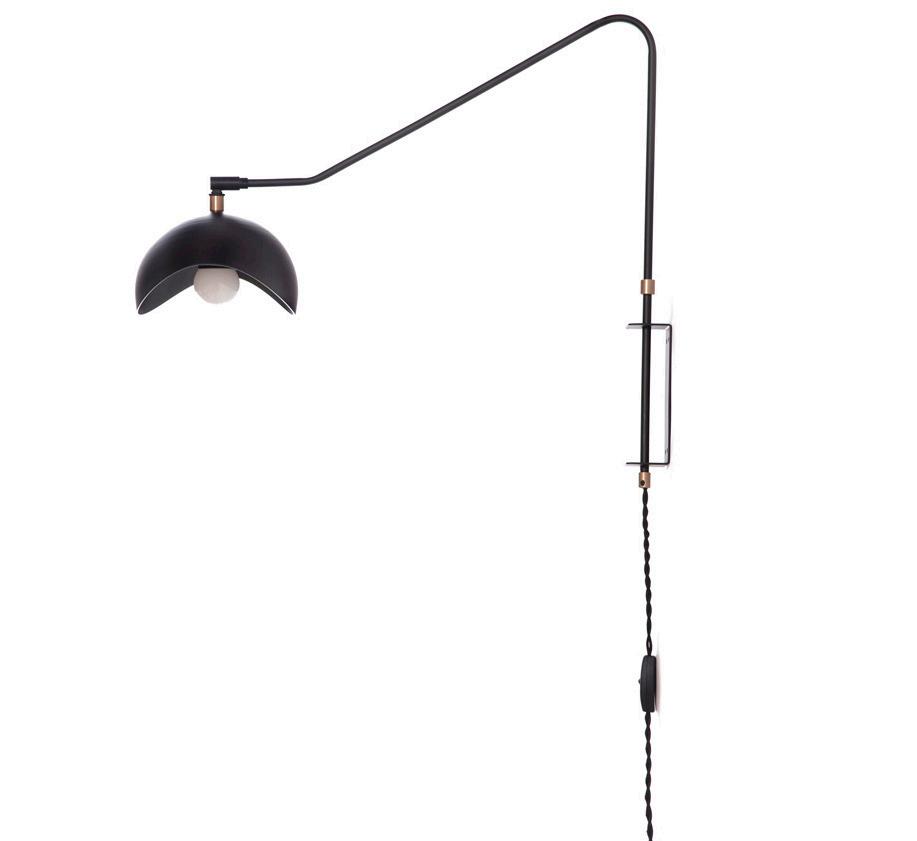

F-29 Luminaire Authentik Danoise 2008-LA20/40

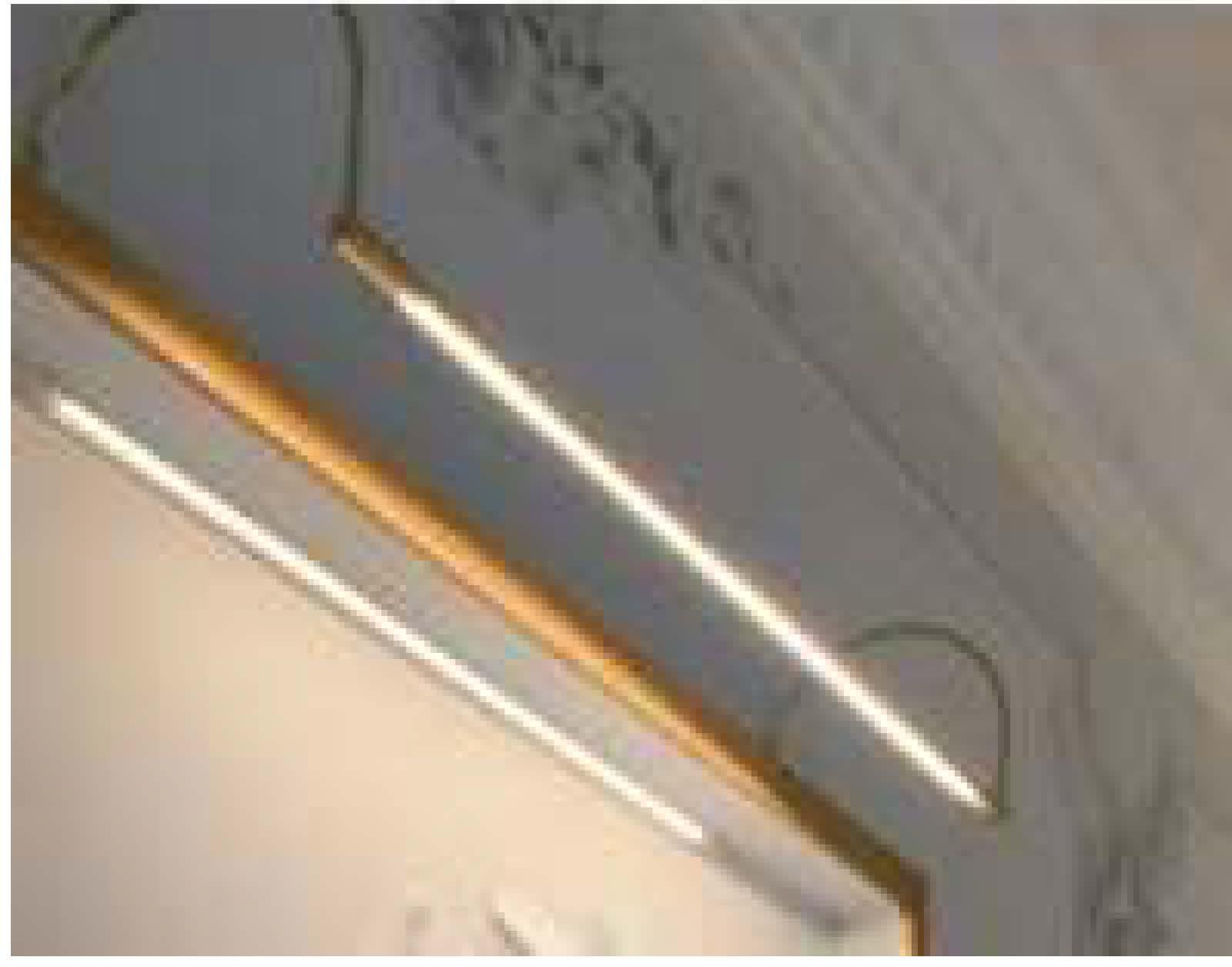

Cove GM

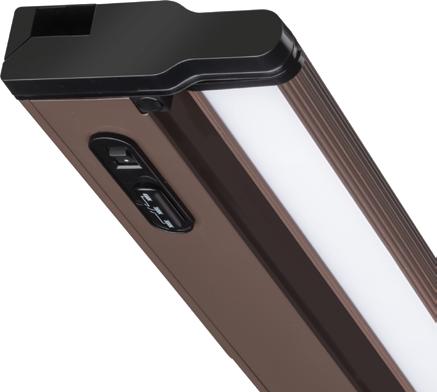

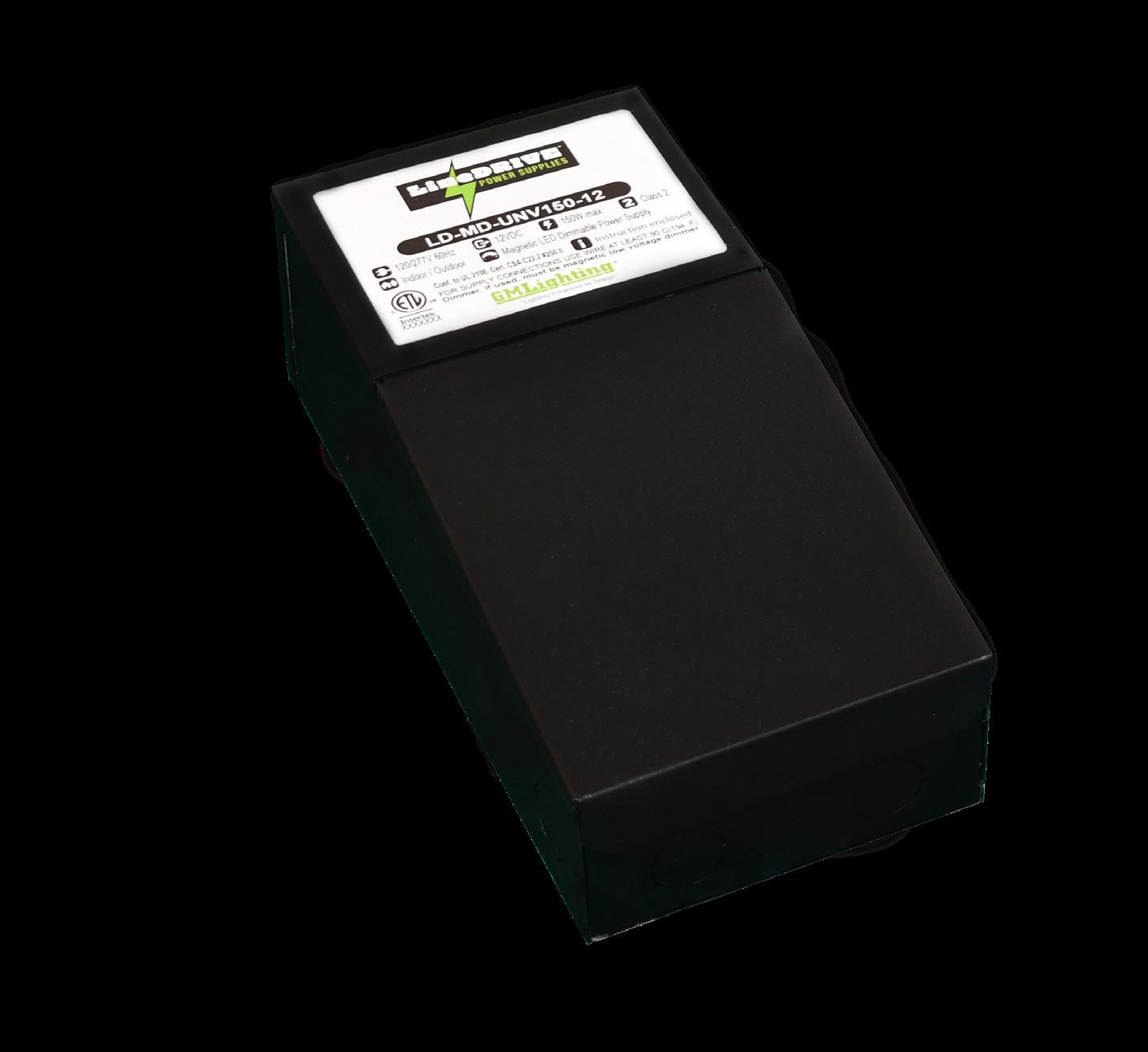

LED STR GM
Up Light GM

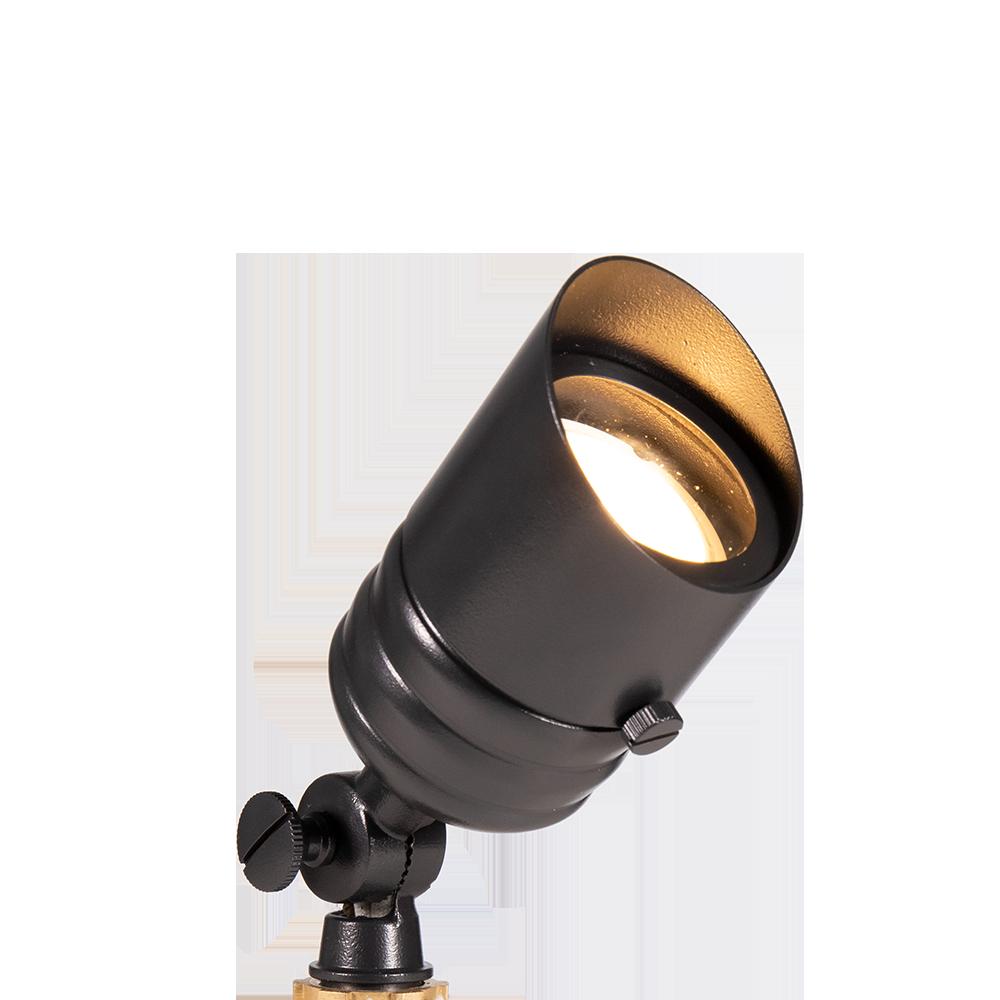

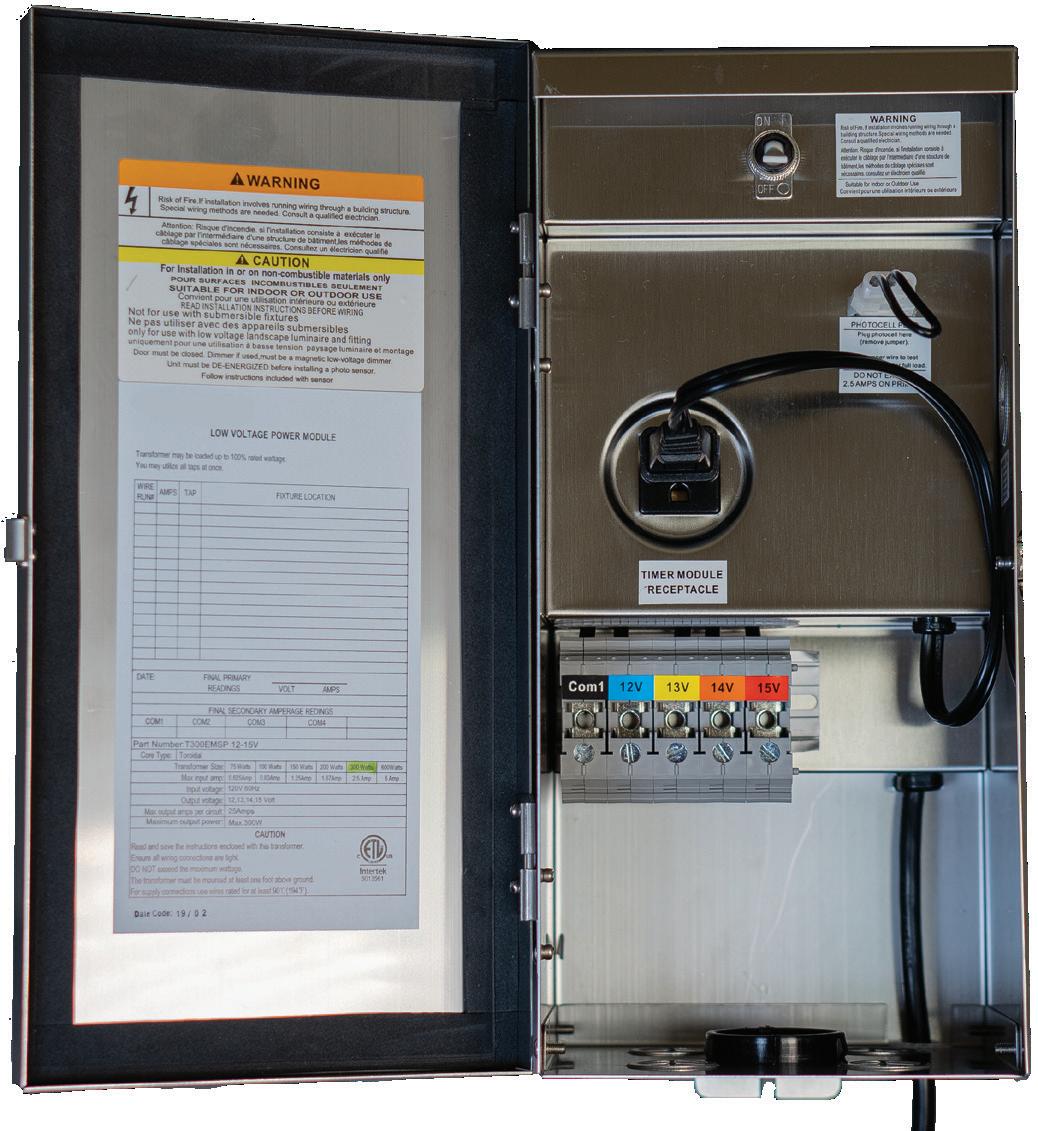

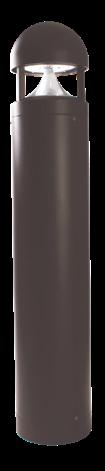

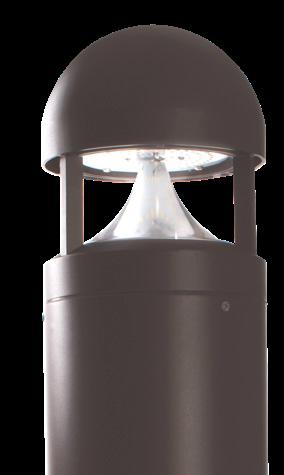

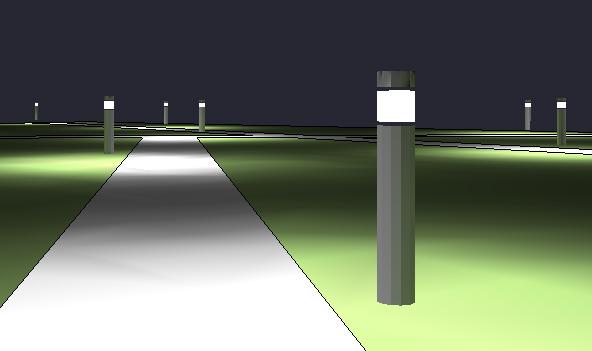

LANDSCAPE

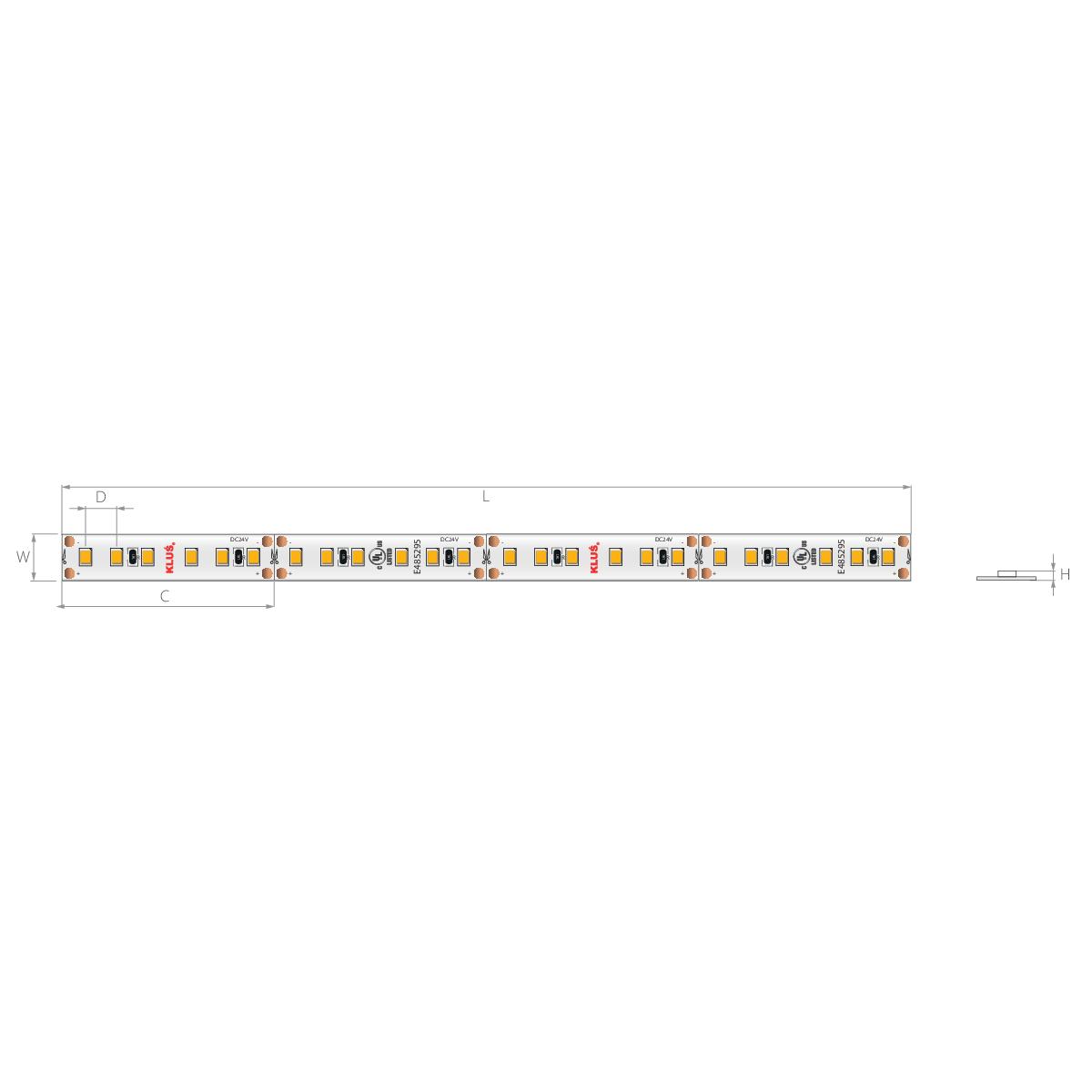

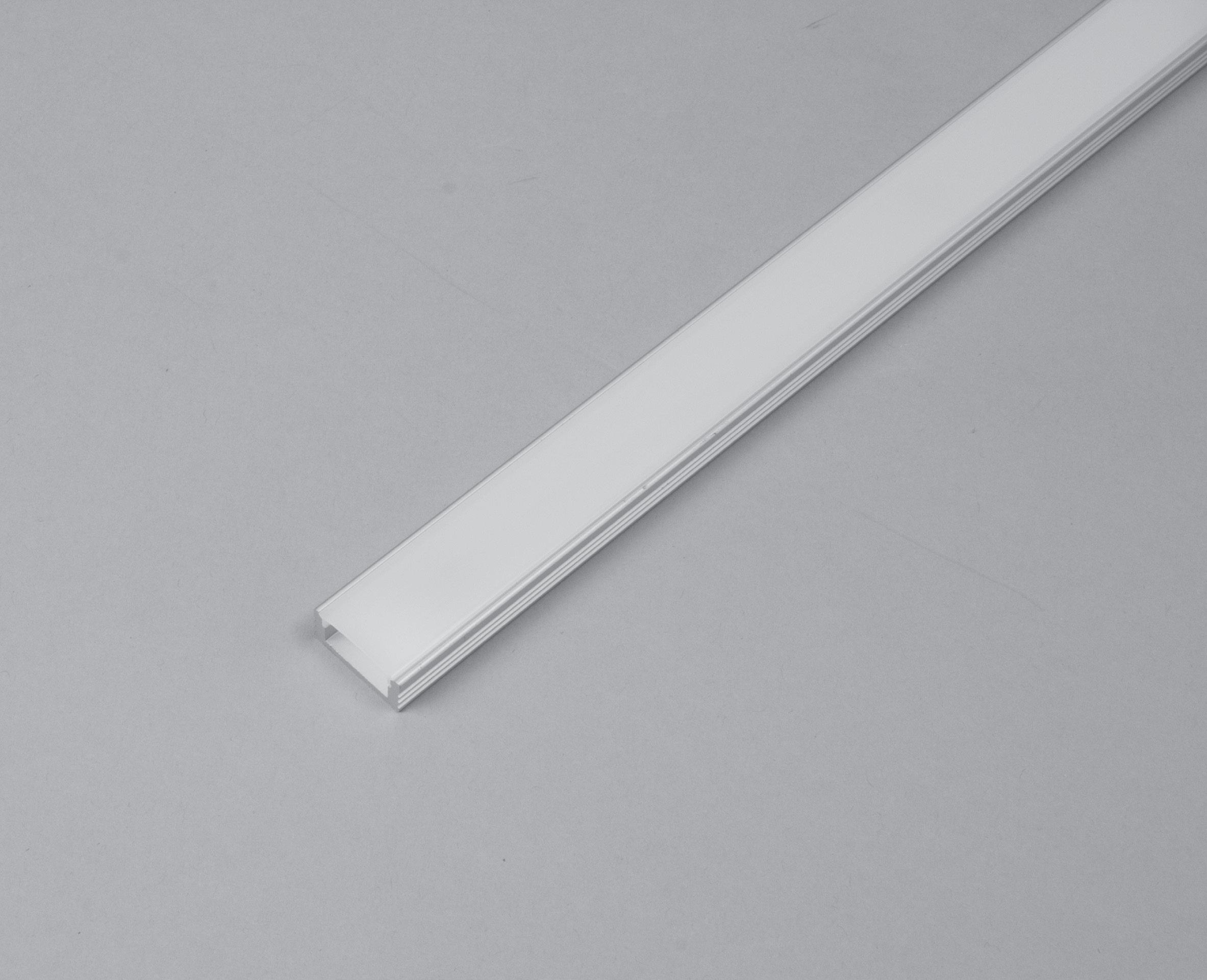

Klus GM

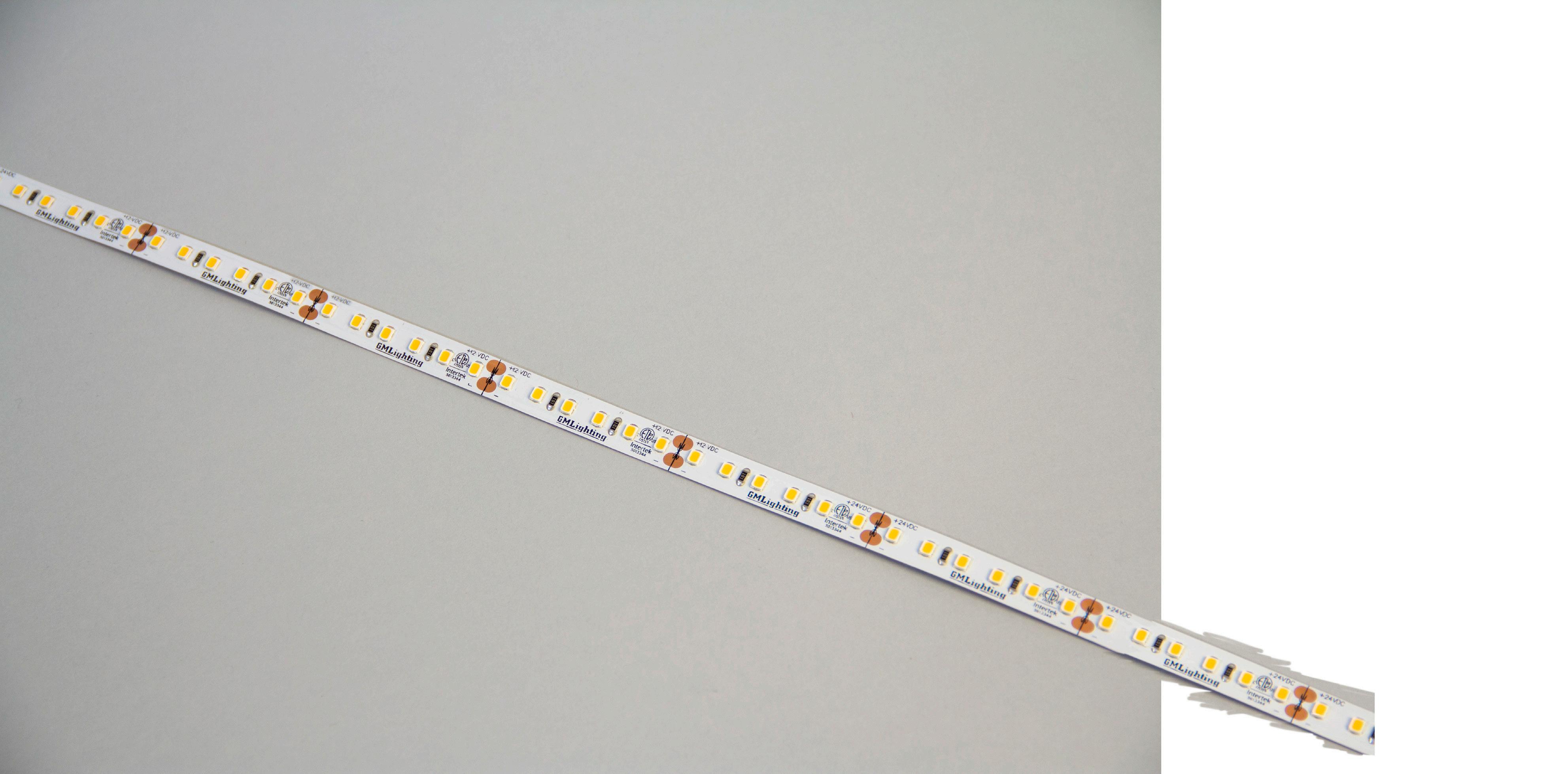

LTR-P-24V-3.0W-40K-XX
LTR-P-24V-3.0W-40K-XX
LTR-P-24V-3.0W-40K-XX
V120-SO-AM-3-0

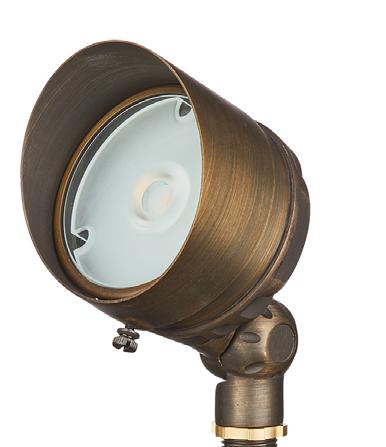

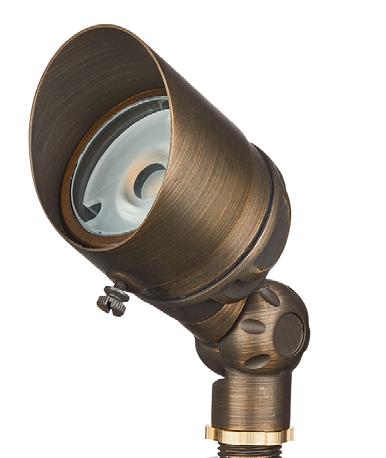

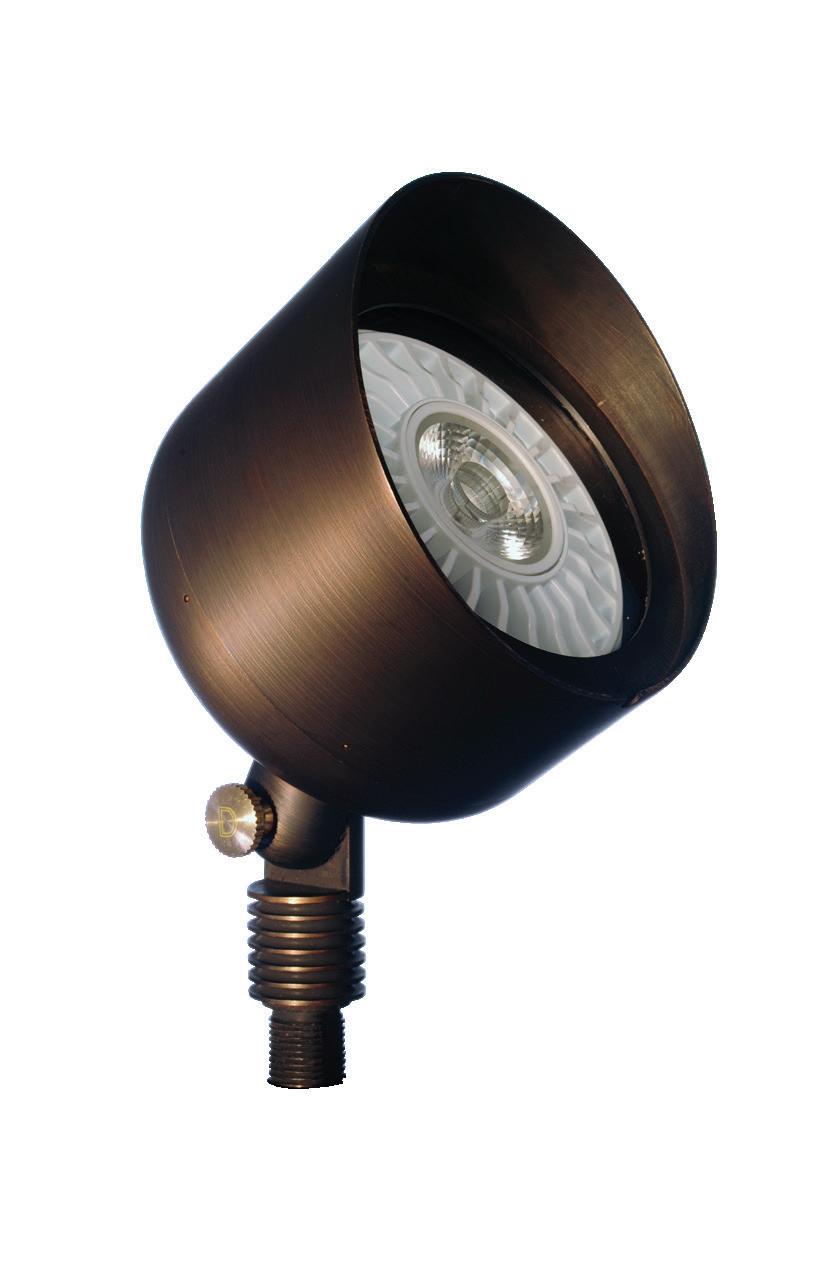

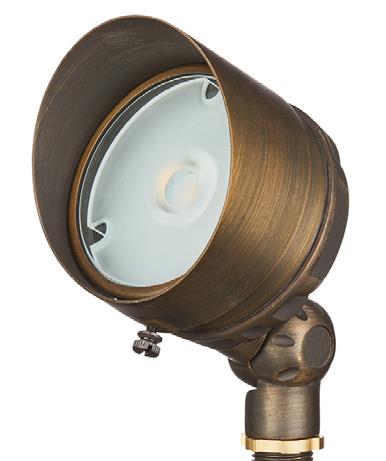

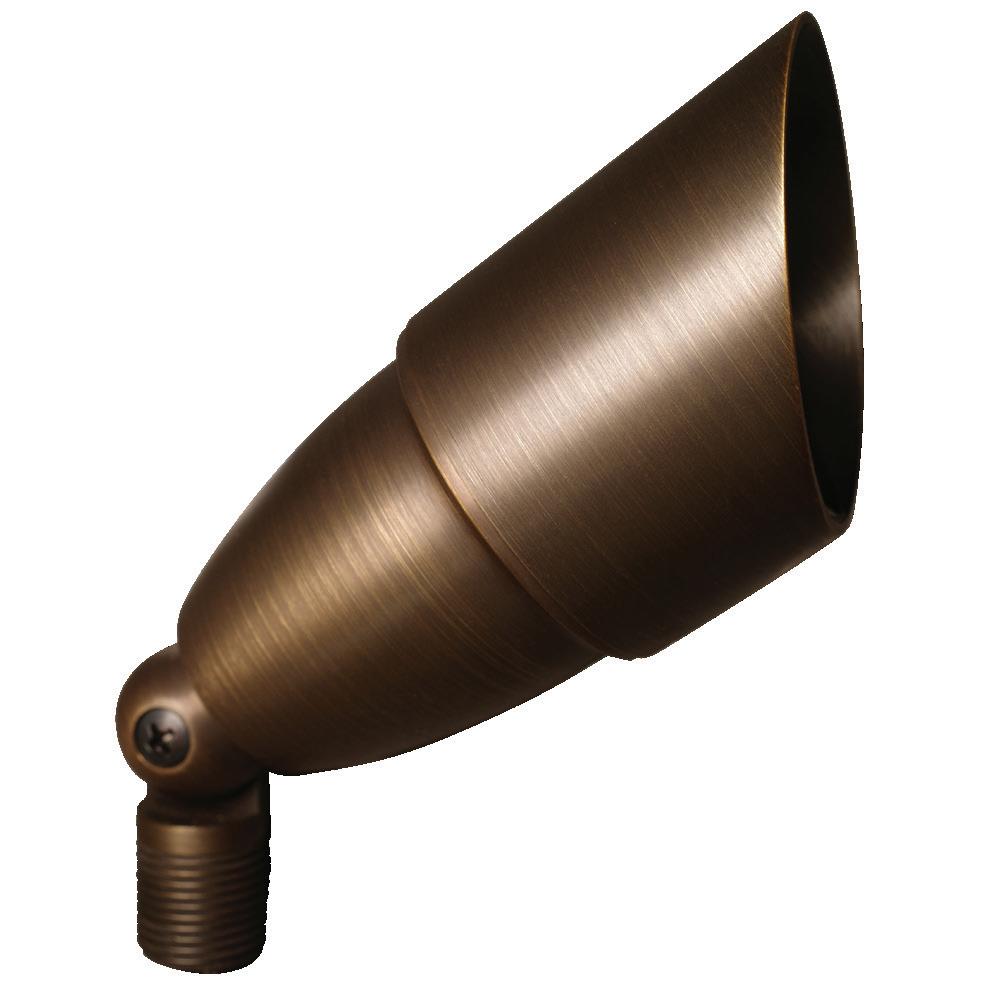

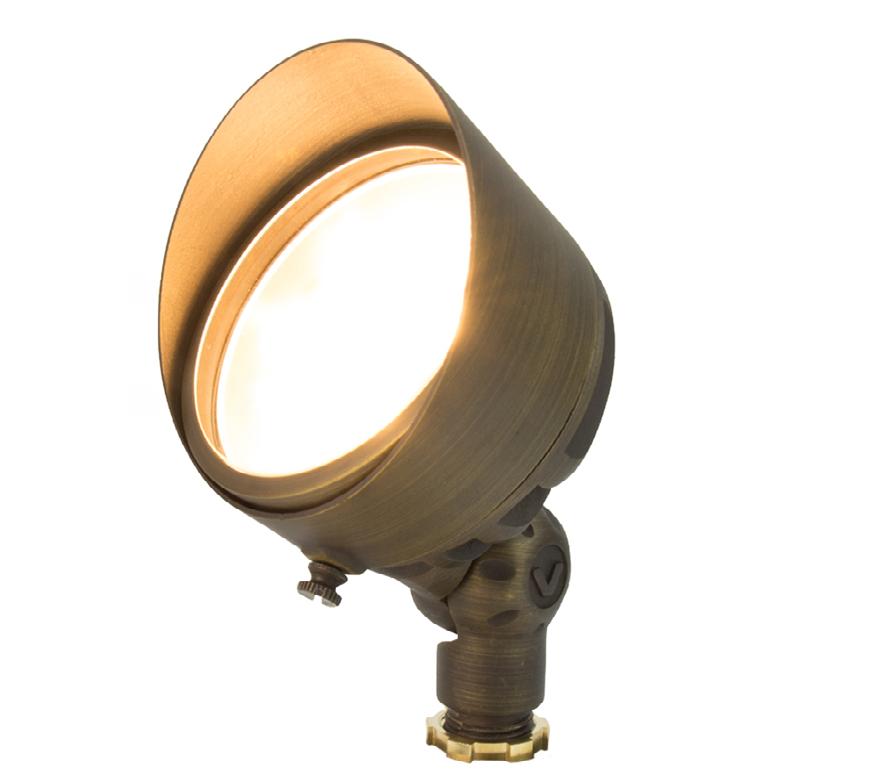

G3 Dauer 490015-PAR36-8W-60-MS
G4 Dauer 490003-5W-25-3000K-MS

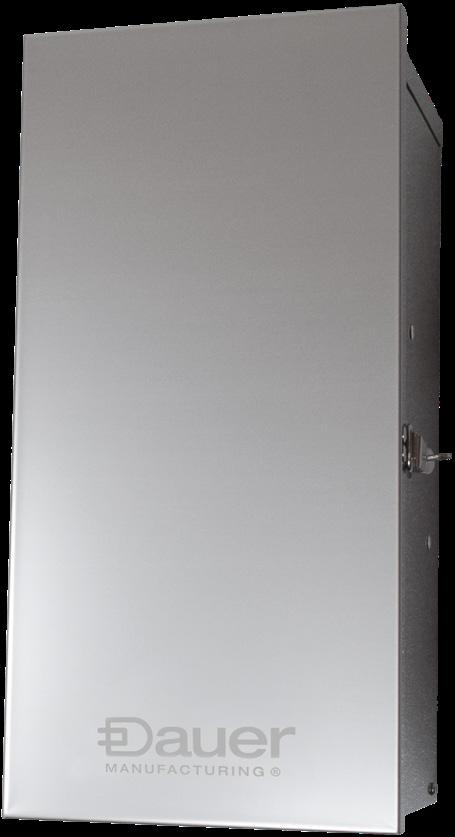

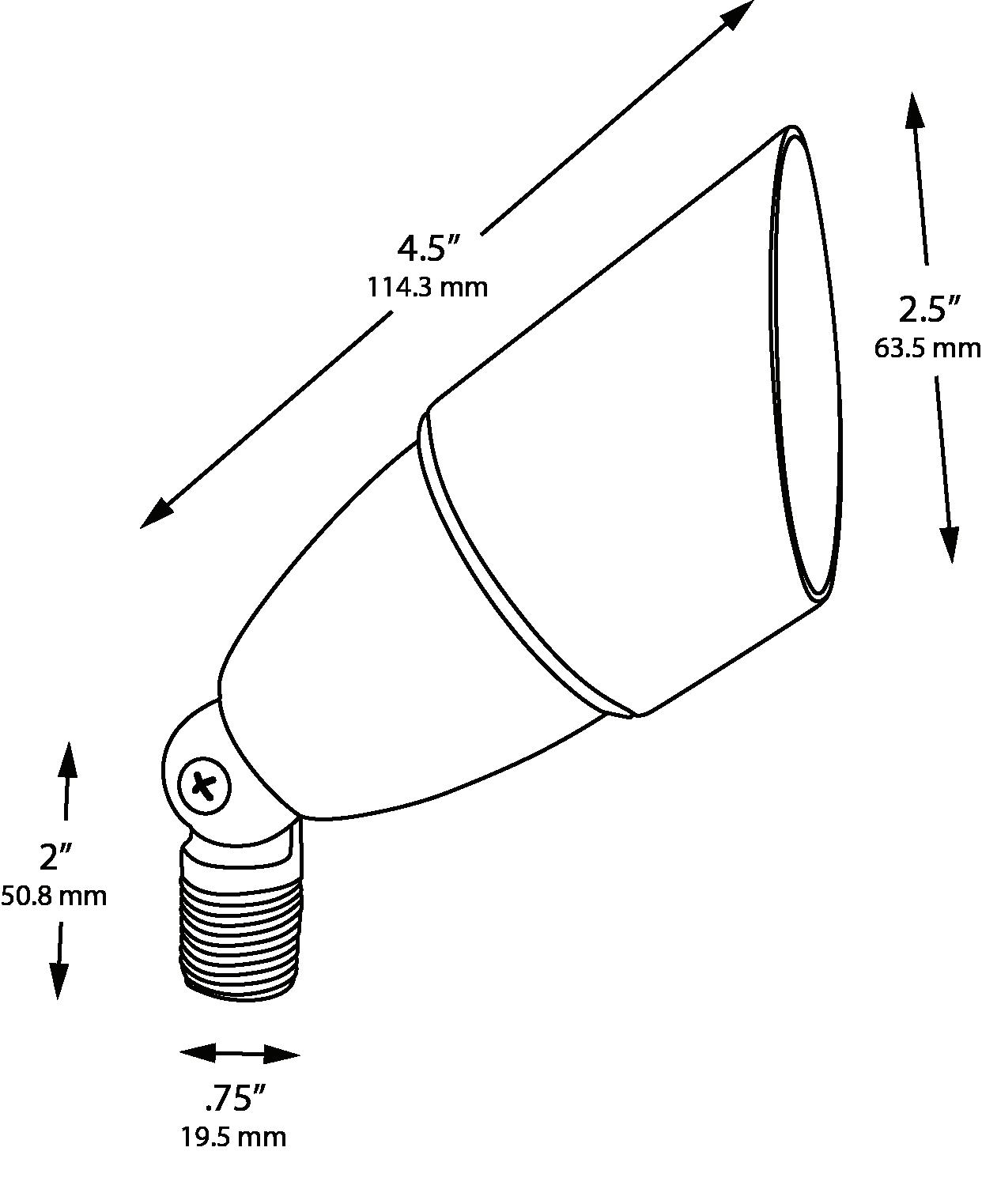

Mini Br SP Dauer

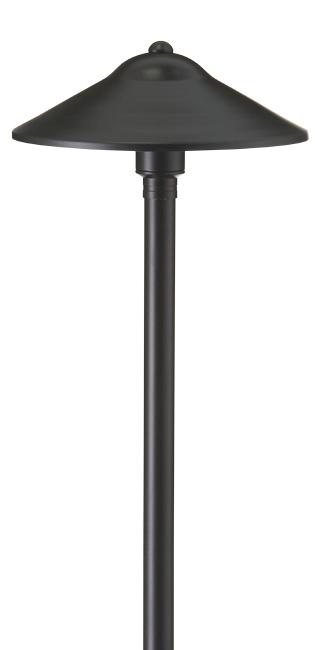

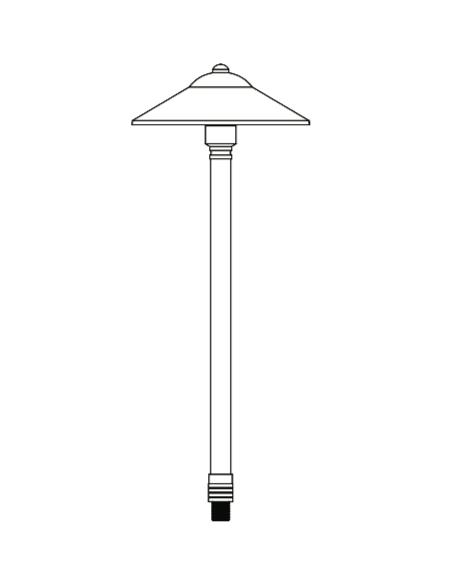

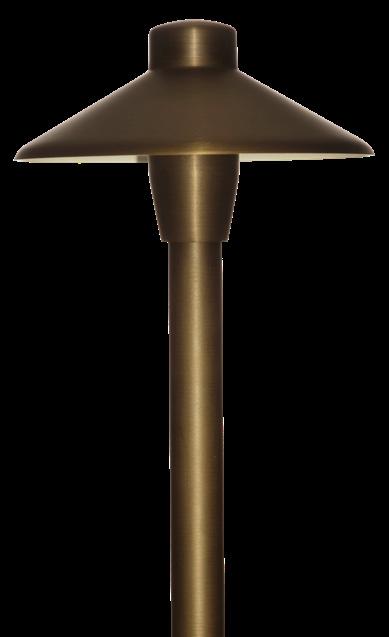

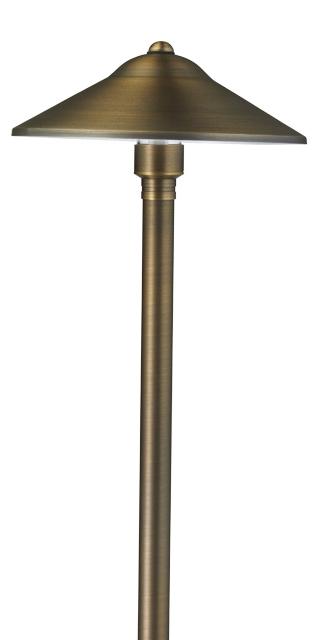

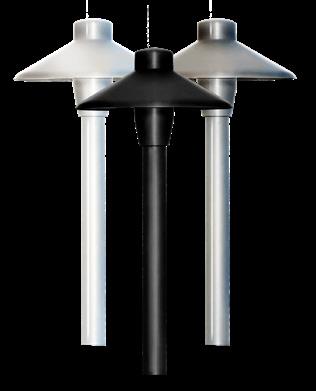

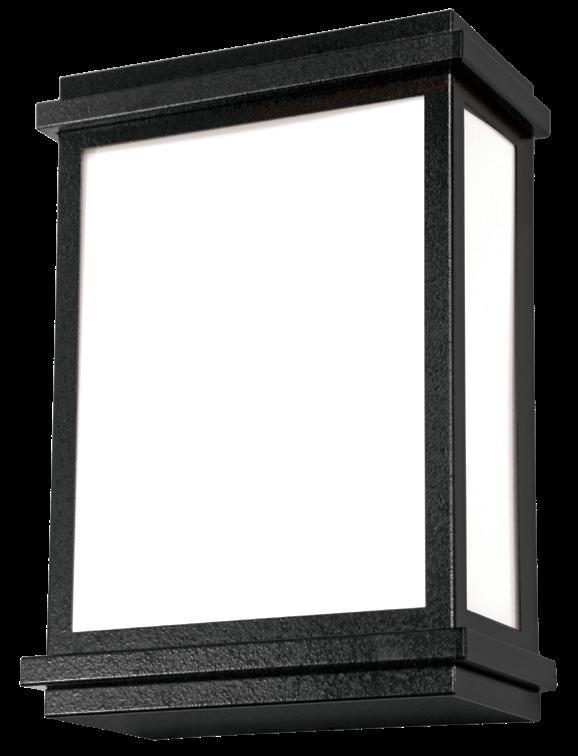

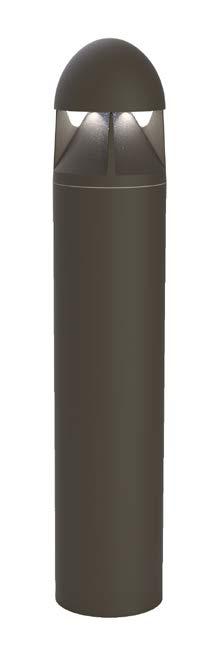

Mini Path Dauer
LS PS Dauer
490003-5W-25-3000K-MS
490020-10-4W-3000K-HO-MS
490542-PPC8

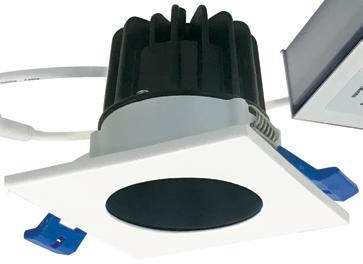

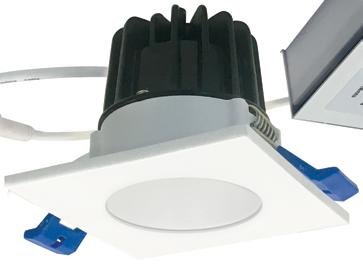

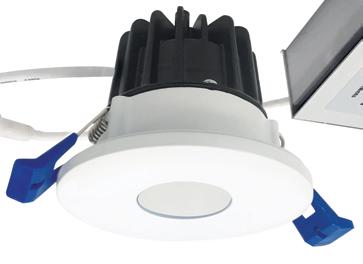

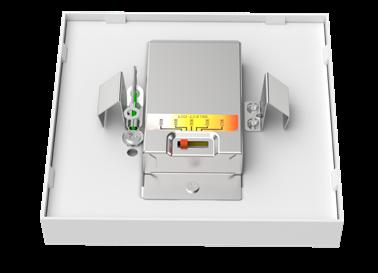

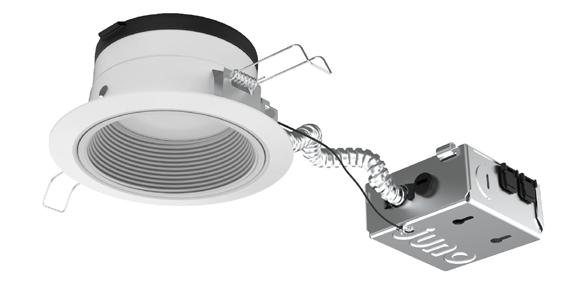

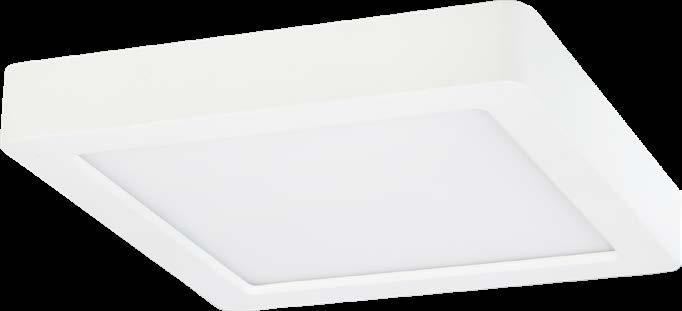

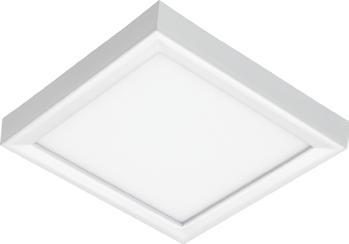

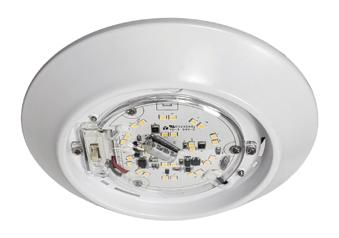

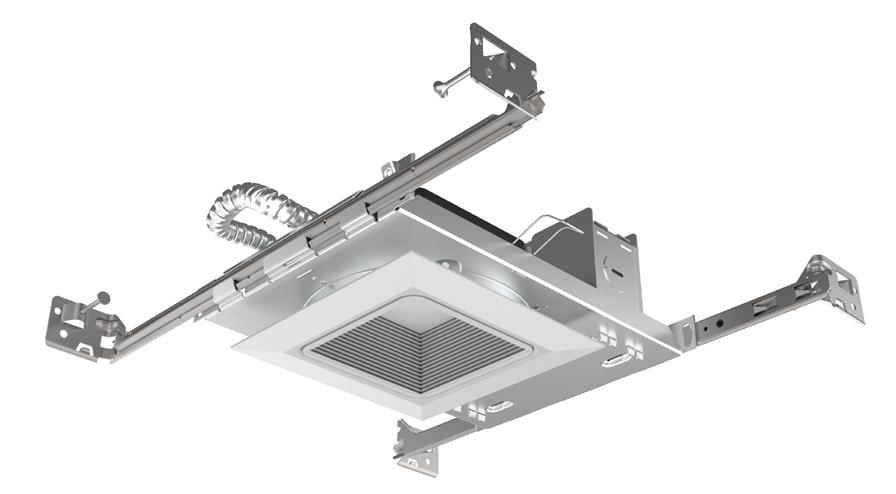

Podz™ LED Downlight Series
4" Canless Round and Square LED Downlight New Construction or Remodel
Dimensions
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features
Canless low profile 4" LED recessed downlight with deeply regressed light source and technology rich features offers performance up to 1200L and installation solutions for both new construction and remodel applications.
Patented color temperature and intensity configurable lighting fixture (US Patent No. 11,259,377 B2)
• Integrated light engine offers switchable LED color temperature and adjustable lumen output directly on module for easy switching
• Advanced color mixing technology provides consistent color rendering on the black body curve at all LED color temperatures while maintaining a high 90+ CRI
• Warmdim™ setting provides performance similar to incandescent light sources and warms the LED color temperature over the dimming range from 2850K to 1900K
Installation flexibility and ease
• Low profile integrated LED downlight less than 3" in height fits virtually anywhere
• Installs directly into the plenum - eliminates need for typical recessed housing
• Installs into new construction or remodel applications
Applications
• Ideal for a breadth of residential and commercial applications
• Shallow plenum installations
• IC rated - for direct contact with insulation
• Wet location listed - for use in shower and outdoor covered ceiling applications
Performance
Switchable Delivered Lumens700L, 1000L, 1200L
Switchable LED Color Temperature27K, 30K, 35K, 40K, 50K
WarmDim Included as standard2850K - 1900K over dimming range
CRI 90+
Voltage Dedicated 120V or MVOLT (120-277V)
Dimming Forward/Reverse Phase or 0-10V Dimming range from 100% to 5%
Specifications
3.75" (9.53) 3.56" (9.04)
(11.43) 4.75" (12.07)
5.05" (12.82) 5.5" (13.97)
(5.89) 2.44" (6.2)
All dimensions are in Inches (centimeters unless otherwise indicated).

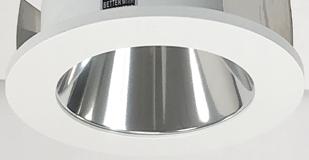

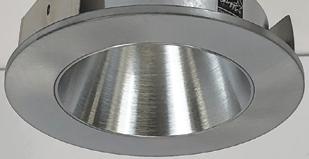

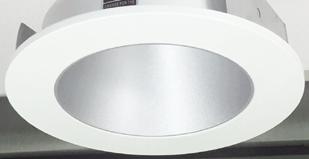

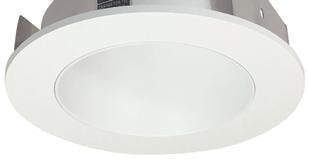

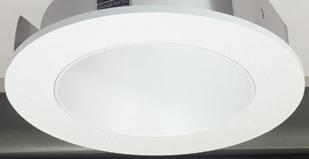

NPR-4RNDC

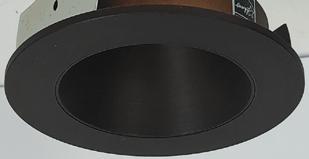

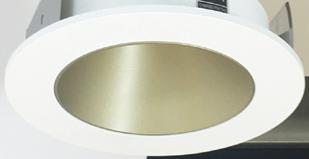

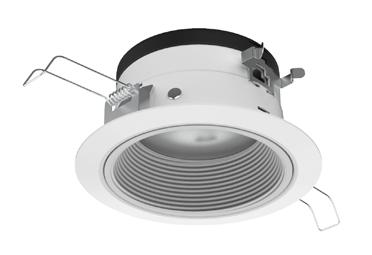

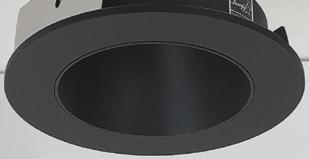

4" Pearl LED Round Retrofit Reflector with Round Aperture
Source: 12W LED 1200lm
PRODUCT DESCRIPTION
Pearl LED Retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The 4" retrofit luminaires deliver over 1200 lumen s with deep regressed cone reflector for optim al visual cut-off.
FEATURES
Comfort Dim (warm dimming) is available in 900lm only 2700K, 300 0K, 3500K, 4000K @ 90+ CRI
Field chang eable optics included (Spot, Narrow Flood and Flood - installed) Integral dimmable driver
Includes m edium base socket adapter for easy retrofitting in 4" recessed housings
5-year limited warranty
ENERGY STAR certified cULus clas sified for wet locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 22° and 26° TIR optics are also available .
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 900lm only
Dimming: Triac (leading edge) or ELV (trailing edge)
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE HOUSINGS
Pearl retrofit s are compatible with most 4" IC and Non-IC housings by Nora and others.
Fire Box
NFBIC-4LMRATA* ICAT Dedica ted LED
NFBIC-4INCATA ICAT Line Vo ltage
New Construction
NSIC-4LMRAT * Max. Adjus tability ICAT Dedicated LED
* Nora Dedicated LED housings are cULus listed for use only with Nora LED Retrofits.
Retrofit: Pearl retrofit series includes medium base screw-socket adapter (NRA-211SM) for retrofitting into existing medium base downlight housings. GU24 socket adapter is available for use with GU24 housings, must specify NRA-212SM.
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2.
LABELS AND LISTINGS
cULus clas sified for Wet Locations ENERGY STAR certified RoHS comp liant
· 5-Year Limited Warranty
· Certified t o the high efficacy requirements of California Title 24 JA8-2022
4" Pearl LED Round Retrofit Reflector with Round Aperture
Two ways to order Podz:
Podz™ LED Downlight Series
1 WWH is available with DB, SQDB, DC and SQDC.
2 BWH only available with DB and SQDB.
3 CWH, HZWH and WHZWH only available with DC and SQDC.
4 Not for use in an existing housing.
5 Square black baffle not ENERGY STAR® and T24 certified.
EMERGENCY OPERATION OPTION
For use in Non-IC applications where insulation is spaced at least 3" away. If installing from below the ceiling, minimum plenum depths required:
IIS 25 = 15 7/8" for JPDZ4 RD and 14 3/4" for JPDZ4 SQ
IIS 50 = 20 1/8" for JPDZ4 RD and 18 5/8" for JPDZ4 SQ
Iota IIS 25 I 25W Emergency Micro-Inverter
Iota IIS 50 I 50W Emergency Micro-Inverter
ACCESSORIES
Trim
RK3JPDZ4
RK3JPDZ4
RFL4" Round Cone Wheat Haze Trim Insert
RK3JPDZ4 DC WWH RFL4" Round Cone White Trim Insert

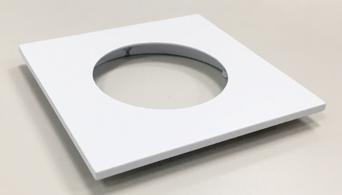

RK3JPDZ4 SQDB BWH BFL4" Square Baffle Black Trim Insert
RK3JPDZ4 SQDB WWH BFL4" Square Baffle White Trim Insert
RK3JPDZ4 SQDC CWH RFL4" Square Cone Clear Trim Insert
RK3JPDZ4 SQDC HZWH RFL4" Square Cone Haze Trim Insert
RK3JPDZ4 SQDC WHZWH RFL4" Square Cone Wheat Haze Trim Insert
RK3JPDZ4 SQDC WWH RFL4" Square Cone White Trim Insert

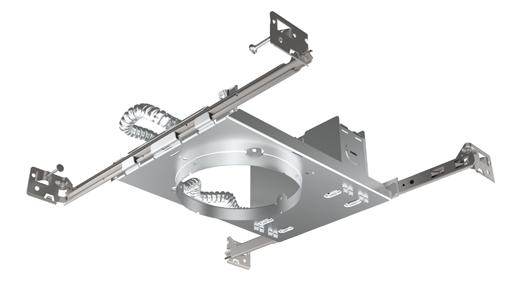

NHIC-4LMRAT
4" IC Air-Tight LED Dedicated New Construction Housing (Compatible with Iolite / Cobalt / Marquise / Onyx / Pearl)
PRODUCT DESCRIPTION
Dedicated new construction housing for use in insulated ceilings can be in direct contact with insulation.* Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with LED retrofit luminaires.
FEATURES
IC rat ed for direct contact with insulation
Quic k connect provided for electrical connection to the LED downlights
ASTM E 283 for Air-Tight

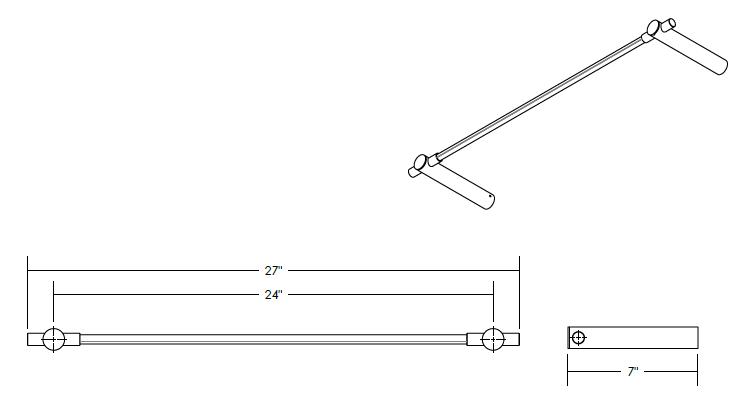

24-1 /2" bar hangers with captive nails and alignment foot
CONSTRUCTION
Plaster Frame: High quality 0.04" steel die cut one piece frame
Housing: 0.040 galvanized steel housing with riveted cap adjusts for ceiling thicknesses from 5/8" to 1". Spring brackets accept torsion wing trim springs; slots on socket plate surface accept standard coil springs.
Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.
Junction Box: Prewired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2 " trade size knockouts and four Romex pryouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.
ELECTRICAL
Input Voltage: 120/277V or 277V (must specify)
Socket: Quick connect for LED downlights
Operating Temperature: 122°F (50°C) max.
Dimming: Specified by downlight
Step Down Transformer (converts 277V input to 120V): Optional 50W step down transformer installed (NHIC-4LMRAT/277). Maximum of 6 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box when used with step down transformer.
COMPATIBILITY
NIR-4 = 4" Iolite Retrofit
NLCBC-4 / NLCBC2-4 = 4" Cobalt Retrofit
NRMC2-4 = 4" Marquise II Retrofit
NOX-4 / NOXAC-4 / NOXTW-4 = 4" Onyx Retrofit
NPR-4 = 4" Pearl Retrofit
Emergency: Housing can be specified with an emergency battery installed on frame (Cobalt only). Requires top access.
Up to 7. 5W emergency illumination with LEDs
· Illumination Time: 90min
Volt age: 120/277 VAC, 60Hz
Output Voltage: 15.0-50.0 VDC
Remote test switch included
LABELS AND LISTINGS
cULus Listed for Damp Location (wet location when used with compatible downlight)
ENER GY STAR certified
· Meets or exceeds ASTM-283 Air-Tight requirements Cert ified to the high efficacy requirements of California Title 24 JA8-2022 (when used with compatible downlight) RoHS compliant
NHIC-4LMRAT/277 = 4” IC Air-Tight Housing, 277V input with 50W Step Down Transformer
NHIC-4LMRAT/EM = 4" IC Air-Tight Housing with Emergency Battery and Remote Test Switch, 120/277V input (Cobalt only - EM required)
NHIC-4LMRAT/277EM = 4" IC Air-Tight Housing with Emergency Battery and Remote Test Switch, 277V input with 50W Step Down Transformer (Cobalt only - EM required)
NHIC-4LMRAT/4W = 4" IC Air-Tight Housing, 120/277V input (120V Triac/ELV/0-10V & 277V 0-10V dimming, Cobalt only - LE4 required)
NHIC-4LMRAT/6WEM = 4" IC Air-Tight Housing with Emergency Battery and Remote Test Switch, 120/277V input (120V Triac/ELV/0-10V & 277V 0-10V dimming, Cobalt only - LE4EM required)
Example: NHIC-4LMRAT = 4" IC Air-Tight LED Dedicated New Construction Housing, 120/277V input

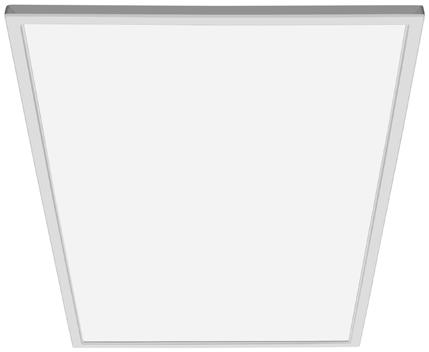

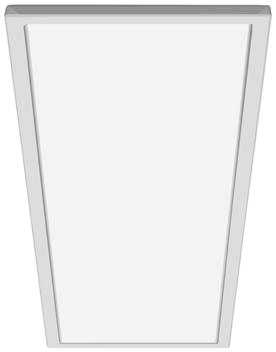

FEATURES & SPECIFICATIONS
INTENDED USE — The EPANL Series LED Edge-Lit Flat Panel provides a fully luminous appearance across the face of the lens. This provides a soft, glare-free solution that is visually comfortable within the space. Suitable for many lighting applications including schools, offices and other commercial spaces, retail, convenience stores, hospitals and healthcare facilities. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — This edgelit platform was built to last with an aluminum frame for strength and durability, the seamless frame prevents light leak in the corners. The PMMA light guide plate and lens resists yellowing and transmits light with superior efficacy. The satin white lens provides excellent shielding and fully luminous appearance. EPANL's low-profile design provides increased installation flexibility especially in restricted plenum spaces. The back plate includes integral T-bar clips for installation into 15/16" or 9/16" T-grid ceilings. Fixture may be recessed, suspended, surface box mounted or mounted in a hard-ceiling see accessories section for more information.

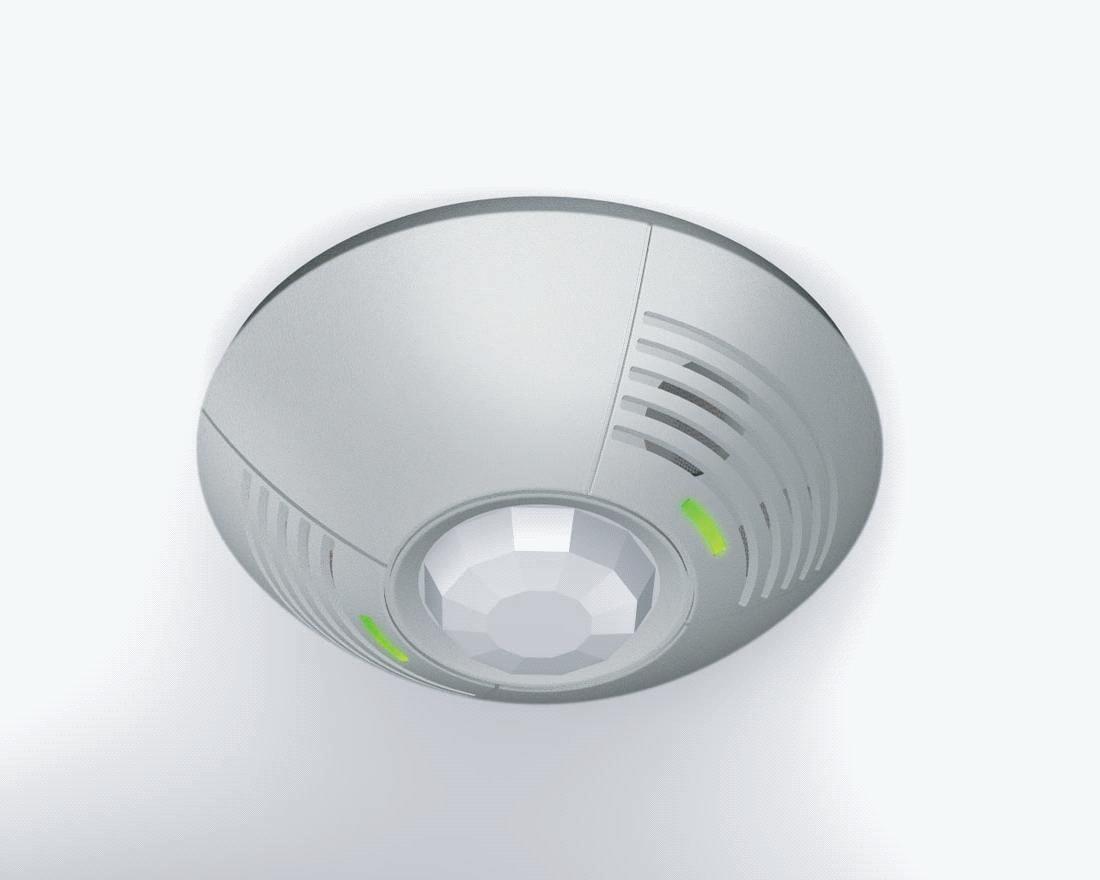

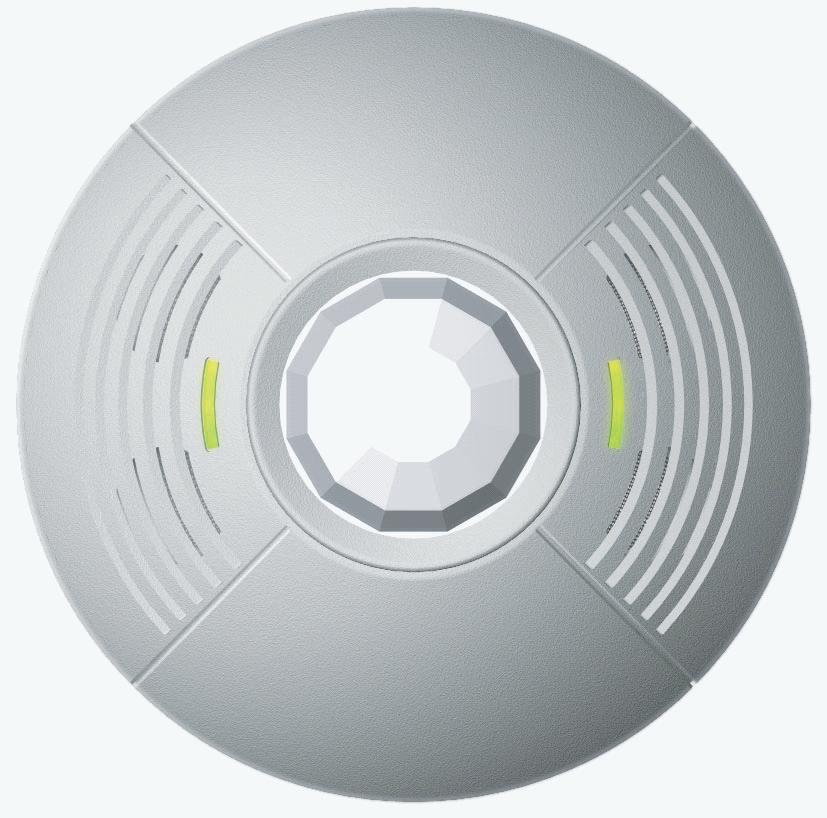

Integrated Sensor (nLight Wired Networking): This sensor is nLight-enabled, meaning it has the ability to communicate over an nLight network. When wired, using CAT-5 cabling, with other nLight-enabled sensors, power packs, or WallPods, an nLight control zone is created. Once linked to a Gateway, directly or via a Bridge, the zone becomes capable of remote status monitoring and control via SensorView software.
Integrated Smart Sensor (nLight Air Wireless Platform): The RES7 sensor is nLight AIR enabled, meaning it has the ability to communicate over the wireless nLight control platform. It is available with an automatic dimming photocell, and either a digital PIR or a microphonics (PDT) dual technology occupancy sensor. It pairs to other luminaires and wall switches through our mobile app, CL AIRITY+, which allows for simple sensor adjustment.
Integrated Wireless Sensor (single room control): Sensor Switch VERTEX JOT or JOTVTX15 luminaire-embedded occupancy and ambient light sensor allows the luminaire to power off when the space is unoccupied or when enough ambient light is entering the space. See page 7 for more details on the integrated wireless sensor.
ELECTRICAL — Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life. See page 3 for detailed lumen maintenance information. 0-10V dimming driver, dims to 1% or 10% and contains non-isolated dimming leads.
LISTINGS — CSA Certified to meet US and Canadian standards. Tested to meet UL1598. Intended for indoor use only. Product is not to be stored in non-climate controlled spaces. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Damp location listed. IC rated. IP5X rated. Long nomenclature, configurable product is rated for NSF/ANSI Standard 2 - Light Fixture for Splash Zone and Non Food Zone. Tested in accordance with ISO 14644-1; suitable for ISO Class 5–9 positive and negative pressure clean rooms. Suitable for ambient temperatures from 32°F (0°C) to 77°F (25°C).
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
* Base configurations; options may add weight Ordering Tree
EPANL LED
Embed nLight controls today. Prepare for tomorrow. User-friendly install
energy savings
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks when ordered with drivers marked by a shaded background*
• This luminaire is part of an A+ Certified solution for nLight control networks, providing advanced control functionality at the luminaire level, when selection includes driver and control options marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
LED
1X4’, 2X2’, 2X4’
LAY IN BACKLIT FLAT PANEL - 5CCT & WATTAGE SELECTABLE
WATTAGE
A+ Capable options indicated by this color background.
1500LM 1500 Lumens
3000LM 3000 Lumens
4000LM 4000 Lumens
4800LM 4800 Lumens
6000LM 6000 Lumens
2000LM 2000 Lumens
3400LM3400 Lumens
4000LM 4000 Lumens
4800LM 4800 Lumens
3000LM 3000 Lumens
4000LM 4000 Lumens
4800LM 4800 Lumens
5400LM 5400 Lumens
6000LM 6000 Lumens
6800LM 6800 Lumens
7200LM 7200 Lumens
1500LMHE1500 Lumens
3000LMHE 3000 Lumens
4000LMHE 4000 Lumens
4800LMHE 4800 Lumens
6000LMHE 6000 Lumens
2000LMHE 2000 Lumens
3400LMHE 3400 Lumens
4000LMHE 4000 Lumens
4800LMHE 4800 Lumens
3000LMHE 3000 Lumens
4000LMHE 4000 Lumens
4800LMHE 4800 Lumens
5400LMHE 5400 Lumens
6000LMHE 6000 Lumens
6800LMHE 6800 Lumens
7200LMHE 7200 Lumens
ZT Generic 0-10V Dimming EZT eldoLED 0-10V Dimming DALI eldoLED DALI MVOLT 120-277V 120120V 277277V 347347V ‡ (Blank) None SLD Step Level Dimming ‡
E10WCP EM Self-Diagnostic battery pack, 10W Constant Power, Certified in CA Title 20 MAEDBS ‡ GTDGenerator Transfer Device ‡ EMG for use with NLIGHT or NLTAIR2 on generator supply EM power ‡
nLight Wireless: RIO nLight AIR Radio module without sensor ‡ RES7 nLight AIR control with PIR integral occupancy sensor and automatic dimming photocell ‡ RES7PDT nLight AIR control with PDT dual technology integral occupancy sensor and automatic dimming photocell ‡
PWS1846 PWSLV Two cables: one 6' pre-wire, 3/8" diameter, 18 gauge, 2 circuits; one 6' pre-wire, 3/8" diameter, 18 gauge ‡
Individual Control
JOT Wireless room control with “Just One Touch” pairing ‡ JOTVTX15 Wireless occupancy sensor with “Just One Touch” pairing ‡
NOTE: ‡ indicates option value has ordering restrictions. Please reference the Option Value Ordering Restictions chart on the next page. Options are sorted alphanumerically.
LED2X2BPNL/3WO/5CCT/D
LED2X4BPNL/3WO/5CCT/D
LED1X4BPNL/3WO/5CCT/D
LED2X2BPNL/3WO/5CCT/D
LED2X4BPNL/3WO/5CCT/D
LED1X4BPNL/3WO/5CCT/D
PHOTOMETRIC
3000K/3500K/4000K/5000K/6500K
3000K/3500K/4000K/5000K/6500K
3000K/3500K/4000K/5000K/6500K

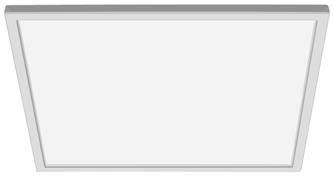

FEATURES & SPECIFICATIONS
INTENDED USE — The EPANL Series LED Edge-Lit Flat Panel provides a fully luminous appearance across the face of the lens. This provides a soft, glare-free solution that is visually comfortable within the space. Suitable for many lighting applications including schools, offices and other commercial spaces, retail, convenience stores, hospitals and healthcare facilities. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — This edgelit platform was built to last with an aluminum frame for strength and durability, the seamless frame prevents light leak in the corners. The PMMA light guide plate and lens resists yellowing and transmits light with superior efficacy. The satin white lens provides excellent shielding and fully luminous appearance. EPANL's low-profile design provides increased installation flexibility especially in restricted plenum spaces. The back plate includes integral T-bar clips for installation into 15/16" or 9/16" T-grid ceilings. Fixture may be recessed, suspended, surface box mounted or mounted in a hard-ceiling see accessories section for more information.
Integrated Sensor (nLight Wired Networking): This sensor is nLight-enabled, meaning it has the ability to communicate over an nLight network. When wired, using CAT-5 cabling, with other nLight-enabled sensors, power packs, or WallPods, an nLight control zone is created. Once linked to a Gateway, directly or via a Bridge, the zone becomes capable of remote status monitoring and control via SensorView software.
Integrated Smart Sensor (nLight Air Wireless Platform): The RES7 sensor is nLight AIR enabled, meaning it has the ability to communicate over the wireless nLight control platform. It is available with an automatic dimming photocell, and either a digital PIR or a microphonics (PDT) dual technology occupancy sensor. It pairs to other luminaires and wall switches through our mobile app, CL AIRITY+, which allows for simple sensor adjustment.
Integrated Wireless Sensor (single room control): Sensor Switch VERTEX JOT or JOTVTX15 luminaire-embedded occupancy and ambient light sensor allows the luminaire to power off when the space is unoccupied or when enough ambient light is entering the space. See page 7 for more details on the integrated wireless sensor.
ELECTRICAL — Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life. See page 3 for detailed lumen maintenance information. 0-10V dimming driver, dims to 1% or 10% and contains non-isolated dimming leads.
LISTINGS — CSA Certified to meet US and Canadian standards. Tested to meet UL1598. Intended for indoor use only. Product is not to be stored in non-climate controlled spaces. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Damp location listed. IC rated. IP5X rated. Long nomenclature, configurable product is rated for NSF/ANSI Standard 2 - Light Fixture for Splash Zone and Non Food Zone. Tested in accordance with ISO 14644-1; suitable for ISO Class 5–9 positive and negative pressure clean rooms. Suitable for ambient temperatures from 32°F (0°C) to 77°F (25°C).
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
EPANL LED
Embed nLight controls today. Prepare for tomorrow. User-friendly install
energy savings
* Base configurations; options may add weight
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks when ordered with drivers marked by a shaded background*
• This luminaire is part of an A+ Certified solution for nLight control networks, providing advanced control functionality at the luminaire level, when selection includes driver and control options marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
LED
1X4’, 2X2’, 2X4’
LAY IN BACKLIT FLAT PANEL - 5CCT & WATTAGE SELECTABLE
WATTAGE
A+ Capable options indicated by this color background.
1500LM 1500 Lumens
3000LM 3000 Lumens
4000LM 4000 Lumens
4800LM 4800 Lumens
6000LM 6000 Lumens
2000LM 2000 Lumens
3400LM3400 Lumens
4000LM 4000 Lumens
4800LM 4800 Lumens
3000LM 3000 Lumens
4000LM 4000 Lumens
4800LM 4800 Lumens
5400LM 5400 Lumens
6000LM 6000 Lumens
6800LM 6800 Lumens
7200LM 7200 Lumens
1500LMHE1500 Lumens
3000LMHE 3000 Lumens
4000LMHE 4000 Lumens
4800LMHE 4800 Lumens
6000LMHE 6000 Lumens
2000LMHE 2000 Lumens
3400LMHE 3400 Lumens
4000LMHE 4000 Lumens
4800LMHE 4800 Lumens
3000LMHE 3000 Lumens
4000LMHE 4000 Lumens
4800LMHE 4800 Lumens
5400LMHE 5400 Lumens
6000LMHE 6000 Lumens
6800LMHE 6800 Lumens
7200LMHE 7200 Lumens
ZT Generic 0-10V Dimming EZT eldoLED 0-10V Dimming DALI eldoLED DALI MVOLT 120-277V 120120V 277277V 347347V ‡ (Blank) None SLD Step Level Dimming ‡
E10WCP EM Self-Diagnostic battery pack, 10W Constant Power, Certified in CA Title 20 MAEDBS ‡ GTDGenerator Transfer Device ‡ EMG for use with NLIGHT or NLTAIR2 on generator supply EM power ‡
nLight Wireless: RIO nLight AIR Radio module without sensor ‡ RES7 nLight AIR control with PIR integral occupancy sensor and automatic dimming photocell ‡ RES7PDT nLight AIR control with PDT dual technology integral occupancy sensor and automatic dimming photocell ‡
PWS1846 PWSLV Two cables: one 6' pre-wire, 3/8" diameter, 18 gauge, 2 circuits; one 6' pre-wire, 3/8" diameter, 18 gauge ‡
Individual Control
JOT Wireless room control with “Just One Touch” pairing ‡ JOTVTX15 Wireless occupancy sensor with “Just One Touch” pairing ‡
NOTE: ‡ indicates option value has ordering restrictions. Please reference the Option Value Ordering Restictions chart on the next page. Options are sorted alphanumerically.
LED2X2BPNL/3WO/5CCT/D
LED2X4BPNL/3WO/5CCT/D
LED1X4BPNL/3WO/5CCT/D
LED2X2BPNL/3WO/5CCT/D
LED2X4BPNL/3WO/5CCT/D
LED1X4BPNL/3WO/5CCT/D
PHOTOMETRIC
3000K/3500K/4000K/5000K/6500K
3000K/3500K/4000K/5000K/6500K
3000K/3500K/4000K/5000K/6500K
FEATURES & SPECIFICATIONS

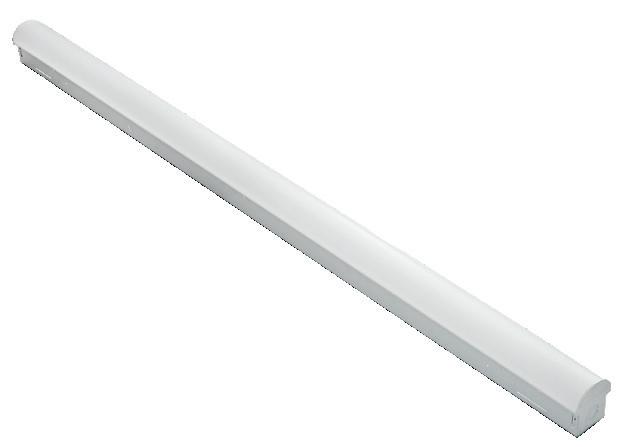

INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T8 lengths. Ideal for use in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/ or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install six-point row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), or matte black (MB). After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring coolrunning operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications (see PLR_ ordering information on page 5). Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide 80CRI or 90 CRI at 3000 K, 3500 K,4000 K or 5000 K.
Lumen output up to 1,500 lumens per foot. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Six-point aligner locks in place for easy continuous row mounting.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Cer tified solution for nLight® or control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details
48" and 96" Lengths
A+ Capable options indicated by this color background.
ORDERING INFORMATION
Lead times will vary depending on options selected. Consult with your sales representative.
ZL1D LED
PLR__ Plug-in wiring ‡
PLR1LVG Plug-in wiring-low voltage ‡
E7W Emergency battery pack, 7W CA Title 20 Noncompliant ‡
(blank) Less reflector ASR Asymmetric SMR Symmetric (blank) Less reflector SMR Symmetric
2E7W Two Emergency battery packs, 7W CA Title 20 Noncompliant ‡
E10WLCP Emergency battery pack, 10W Linear Constant Power, Certified in CA Title 20 MAEDBS ‡
2E10WLCP Two Emergency battery packs, 10W Linear Constant Power, Certified in CA Title 20 MAEDBS ‡
E15WLCP Emergency battery pack, 15W Linear Constant Power, Certified in CA Title 20 MAEDBS ‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless
NLTAIR2 RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2 RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
1500LM 1,500 lumens
2500LM 2,500 lumens
3500LM 3,500 lumens
3000LM 3,000 lumens
5000LM 5,000 lumens
7000LM 7,000 lumens
6000LM 6,000 lumens
10000LM 10,000 lumens
14000LM 14,000 lumens
Accessories: Order as separate catalog number.
HC36 M12 Hanger chain, 36" (1 pair)
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
GALVB Galvanized fixture with black plastic lens endcaps
GALVW Galvanized fixture with white plastic lens endcaps
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LED96/LINEAR/3CCT/3WO/UNV/D/HO
- 141
- 136
- 137 5000K - 138
3500K - 133 4000K - 134
5000K - 135
- 4760
- 4794
- 5168
- 5206
BLANK
LR25187
LED96/LINEAR/3CCT/3WO/UNV/D/HO
PHOTOMETRIC
COMPATIBLE WITH:
3500K - 5985
4000K - 6030
5000K - 6075
3500K - 9035
4000K - 9100
5000K - 9165
3500K - 10200
4000K - 10275
5000K - 10350
3500K - 11970
4000K - 12060
5000K - 12150
LR25178
FEATURES & SPECIFICATIONS

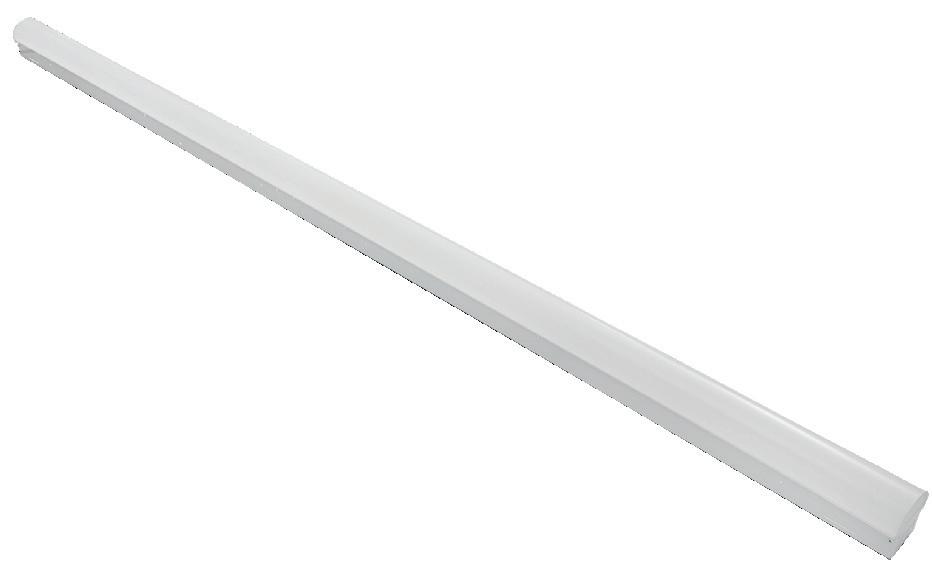

INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T8 lengths. Ideal for use in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/ or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install six-point row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), or matte black (MB). After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring coolrunning operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications (see PLR_ ordering information on page 5). Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide 80CRI or 90 CRI at 3000 K, 3500 K,4000 K or 5000 K.
Lumen output up to 1,500 lumens per foot. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Six-point aligner locks in place for easy continuous row mounting.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domest ic end product under the Buy American Act as implemented in the FAR and DFARS. Product w ith the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details

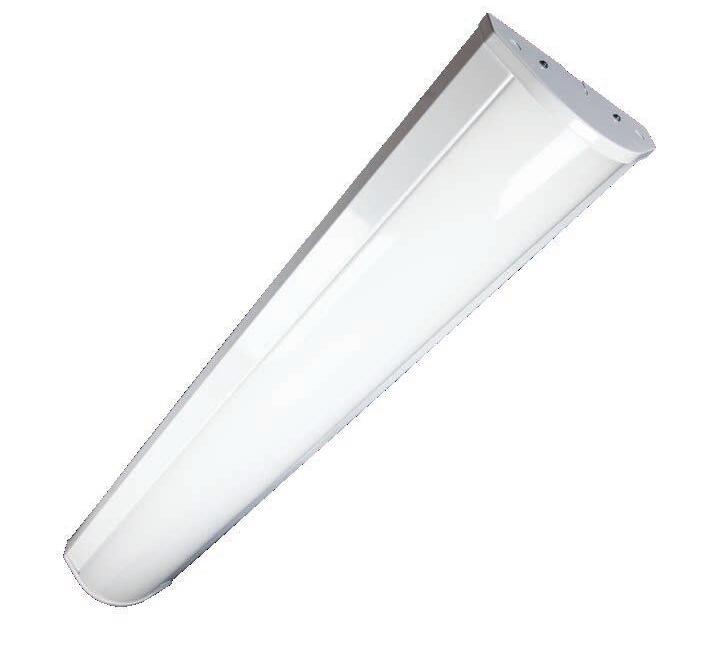

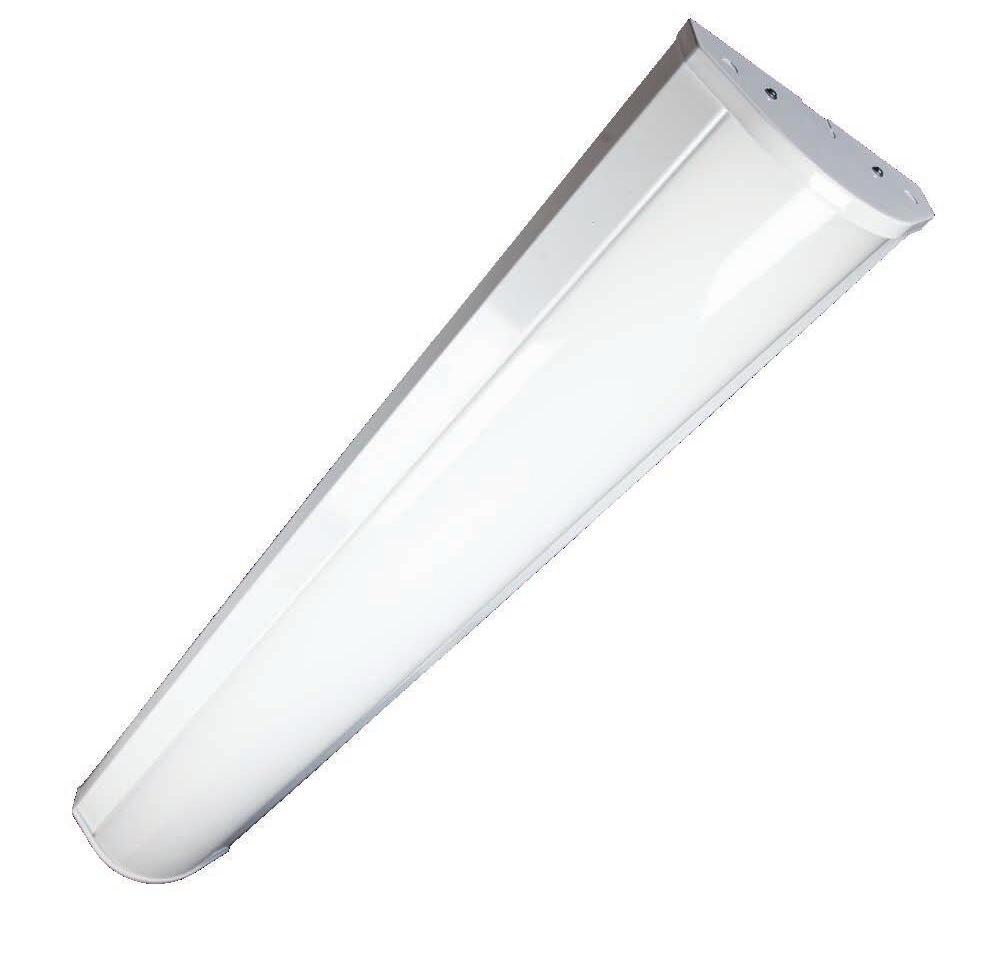

Select Series
Stair Lighter
Product
Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Color Sele ctable 35/40/50K
• Optional b attery backup
Ideal Applications
• Commercial settings
• Stairways
• Bi-leve l dimming microwave motion sensor
• Surface or pendant mounting
• Industrial settings
• Warehouse s
A+ Capable options indicated by this color background.
ORDERING INFORMATION
Lead times will vary depending on options selected. Consult with your sales representative.
ZL1D LED
PLR__ Plug-in wiring ‡
PLR1LVG Plug-in wiring-low voltage ‡
E7W Emergency battery pack, 7W CA Title 20 Noncompliant ‡
(blank) Less reflector ASR Asymmetric SMR Symmetric (blank) Less reflector SMR Symmetric
2E7W Two Emergency battery packs, 7W CA Title 20 Noncompliant ‡
E10WLCP Emergency battery pack, 10W Linear Constant Power, Certified in CA Title 20 MAEDBS ‡
2E10WLCP Two Emergency battery packs, 10W Linear Constant Power, Certified in CA Title 20 MAEDBS ‡
E15WLCP Emergency battery pack, 15W Linear Constant Power, Certified in CA Title 20 MAEDBS ‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless
NLTAIR2 RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2 RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
1500LM 1,500 lumens
2500LM 2,500 lumens
3500LM 3,500 lumens
3000LM 3,000 lumens
5000LM 5,000 lumens
7000LM 7,000 lumens
6000LM 6,000 lumens
10000LM 10,000 lumens
14000LM 14,000 lumens
Accessories: Order as separate catalog number.
HC36 M12 Hanger chain, 36" (1 pair)
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
Field Installed Accessories: YTGHANGER - 10’ adjustable cable hang kit
Listings
cULus Listed
Five year limited warranty against defects in manufacturing.
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
High Center Beam Round Downlight 2"
• Thirteen optimized distribution patterns allow designers to achieve tailored objectives
• Bounding Ray™ optical design
• 50° Cutoff to source and source image
• Field interchangeable optic
• Driver and LED light engine fully serviceable from below ceiling •
TROPICAL TYPE DE ALT

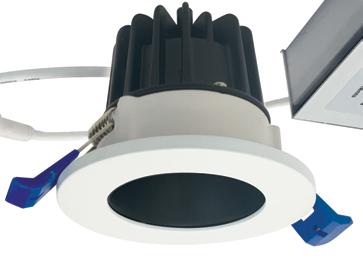

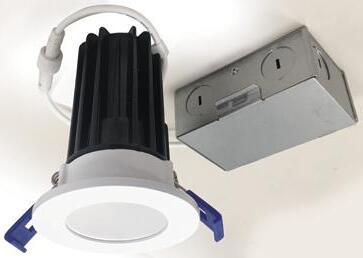

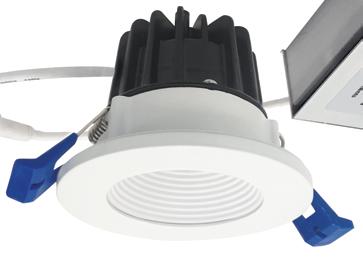

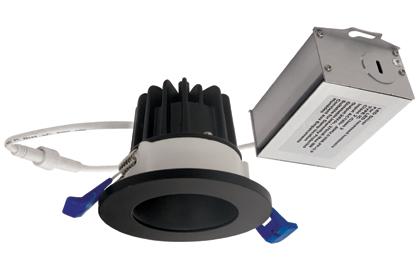

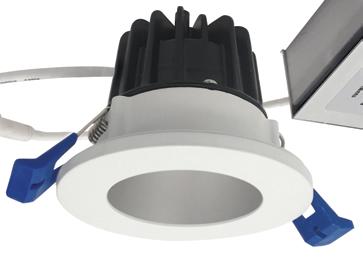

NM2-2RDC
2" M2 Round LED Recessed
Downlight
Source: 6W, 8W or 10W LED 400lm, 600lm or 850lm
PRODUCT DESCRIPTION
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.
FEATURES
No housin g required - IC Air-Tight rated
Easy inst allation for remodel or new construction applications
· Variety o f trim accessories to configure desired appearance
Quick dis connect allows for extended lengths
400lm, 60 0lm or 850lm LED packages
2700K, 30 00K or 4000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
ENERGY STAR certified
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims available in matte black or matte powder white finish. Open downlight includes a reflector with the same finish as trim; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire. Luminaire includes 5" (400lm/600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kits are available, see accessories.
2" M2 Round LED Recessed Downlight
NM2-2RDC40
NM2-2RDC60 = 600lm / 8W
Trims: M2 series is available in three lumen outputs with LED driver. Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
OPTIONAL TRIM ACCESSORIES
NM2-2REFL : Reflector Insert for NM2-2RDC, Black or Haze
NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White
NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White
NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White
NM2-2SDT: Square Trim for NM2-2RDC, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2 : Two Head Multiple Lighting System Plate
NM2-MLS3: Three Head Multiple Lighting System Plate
cETLus Listed for Wet Locations · ENERGY STAR certified 5-Year Limited Warranty FCC compliant Certifie d to the high efficacy requirements of California Title 24 JA8-2022
NM2-MLS1 = One Head MLS Plate NM2-MLS2 = Two Head MLS Plate
= Three Head MLS Plate
Design Select options indicated by this color background.
High Center Beam Round Downlight 2"
Luminaire Type:
Catalog Number: ACCESSORIES — order as separate catalog numbers (shipped separately)
nLight® dimming
nLight® dimming pack for fixtures on emergency circuit
NLTAIR2 nLight® AIR dimming pack.
NLTAIRER25 nLight® AIR dimming pack for fixtures on emergency circuit
NLTAIREM2 nLight® AIR dimming pack for fixtures on emergency circuit
90CRI1 High CRI (90+)
NCH6 Structural reinforcement pan
ICAT7 IC/Airtight housing construction
CP7 Chicago Plenum
HAO8 High ambient (40°C)
N809 nLight Lumen Compensation
TRW10 White painted flange
TRBL11 Black painted flange
Additional optics for field installation. Replace "XX" with beam angle.
Kit including a field interchangeable optic for each of the 13 preset beam distribution patterns
Must be remote mounted.
ORDERING NOTES
1. 5000K CCT not available with 90CRI.
2. Not available with Reflector Finish.
3. Refer to Tech 240 for compatible dimmers.
4. Field installed. Access required to location of remote mounted device.
5. ER for use with generator supply power. Will require an emergency hot feed and normal hot feed.
6. NCH is required for T-grid ceilings or where code requires.
7. Not available with 1500lm or 2000lm.
8. Not available with 2000lm.
9. Requires NLT or NLTER.
10. For use with different reflector finish only (i.e. AR, PR, WTR, GR options). Not available with WR (White Reflector). Not available with FL.
11. For use with different reflector finish only (i.e. AR, PR, WTR, GR options). Not available with BR (Black Reflector). Not available with FL.
NM2-2RDC
2" M2 Round LED Recessed Downlight Accessories

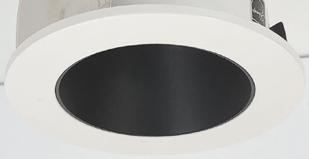

Reflector/Baffle Insert for NM2-2RDC
NM2-2REFLB Matte Black Reflector
NM2-2REFLHZ Haze Reflector
NM2-2BAFB Matte Black Baffle
NM2-2BAFMPW Matte Powder White Baffle
Replaces the reflector included with NM2-2RDC downlight

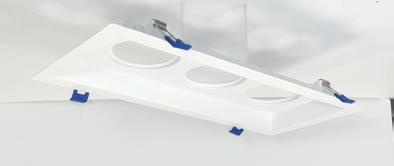

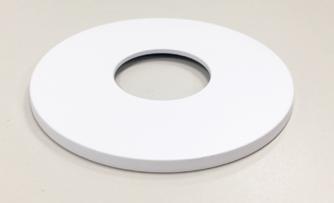

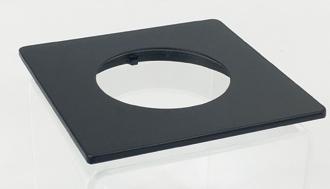

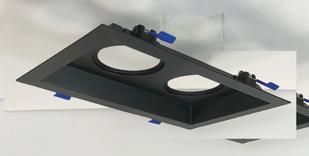

Multiple Lighting System Plates
NM2-MLS1B 1 Head / Matte Black
NM2-MLS1MPW 1 Head / Matte Powder White
NM2-MLS2B 2 Head / Matte Black
NM2-MLS2MPW 2 Head / Matte Powder White
NM2-MLS3B 3 Head / Matte Black
NM2-MLS3MPW 3 Head / Matte Powder White
Converts multiple round LED luminaires into multiple lighting system without a large housing.

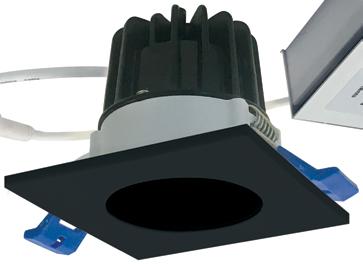

Square Trim for NM2-2RDC
NM2-2SDTB Matte Black
NM2-2SDTMPW Matte Powder White
Converts the round trim included with NM2-2RDC downlight into a square trim

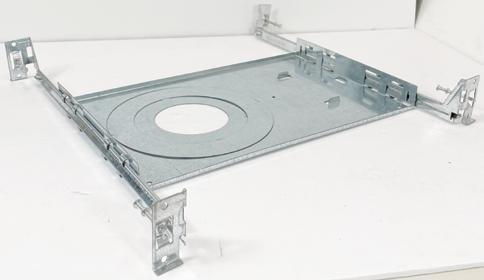

Universal New Construction Frame-In
NF-R246
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
Type Project Catalog No. Notes

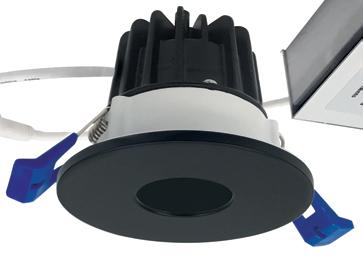

Round Pinhole Trim for NM2-2RDC
NM2-2RPHB Matte Black
NM2-2RPHMPW Matte Powder White
Converts the round trim included with NM2-2RDC downlight into a round pinhole
New Construction Frame-In with Collar
NFC-R275
New construction frame-in can be used to assist installing can-less recessed downlighting.

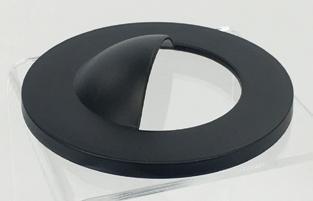

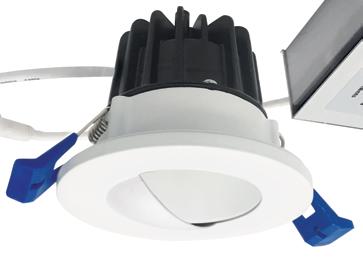

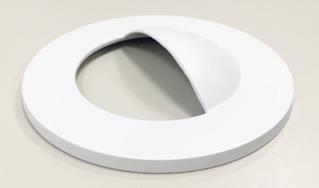

Round Wall Wash Trim for NM2-2RDC
NM2-2RWB Matte Black
NM2-2RWMPW Matte Powder White
Converts the round trim included with NM2-2RDC downlight into a round wall wash

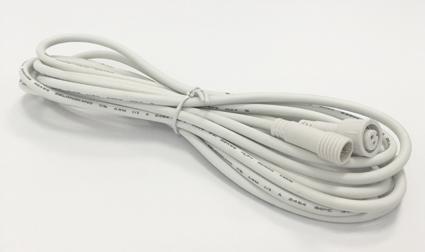

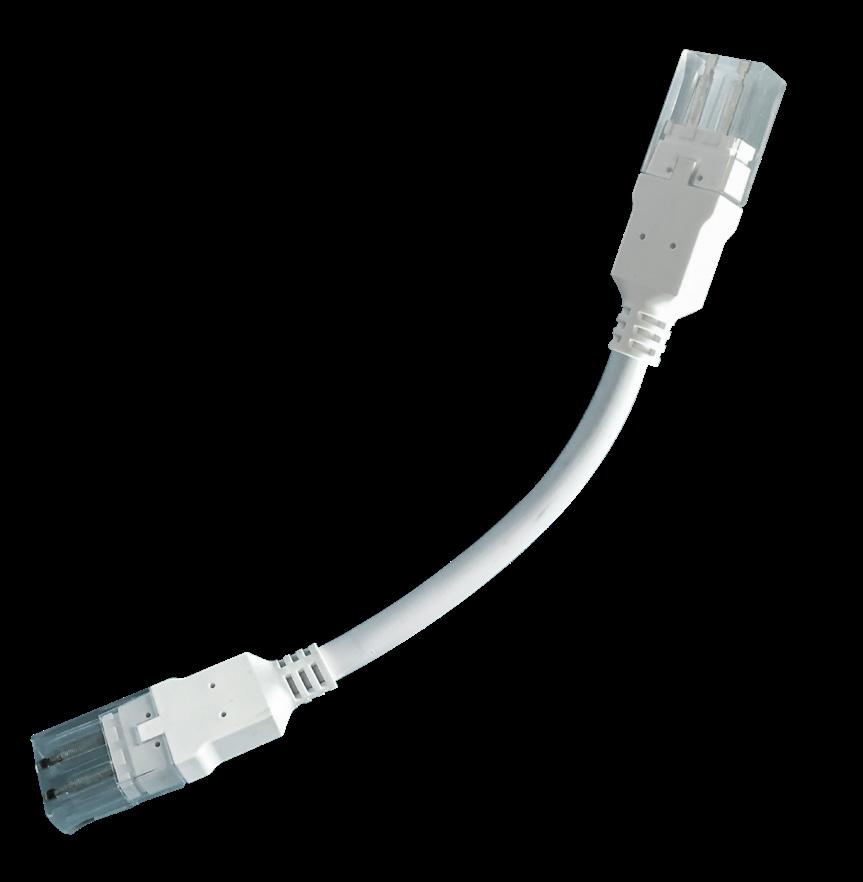

Quick Connect Extension Linkable Cables
NM2-EW-4
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Luminaire Examples
NO SPECIFICATION

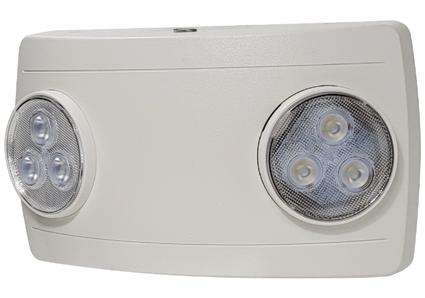

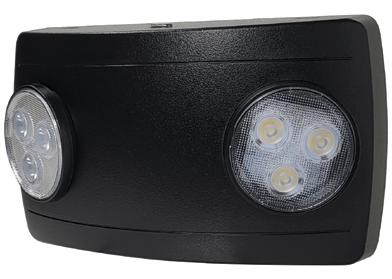

Compact Dual Head LED Emergency Light with Optional Remote Capability
Source: (2) 0.9W or 1W LED (2)90lm to 150lm
PRODUCT DESCRIPTION
Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power. Emergency unit is available in higher lumen output and remote capability.
FEATURES
Compact h ousing with (2) adjustable LEDs
Lightweight snap together design
Plastic enclosure with 5VA flame retardant
3.6V maintenance-free, rechargeable NiMH battery
· Self-diagnostic and self-testing option available
Ceiling or wall mounted
Univers al 120/277VAC input
Remote c apability
SPECIFICATION
Construction: Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Quick connector design for easy installation. Two fully adjustable glare-free round heads for emergency lighting.
Mounting: Plastic enclosure includes a top and side knockout for conduit application. Suitable for wall mounting or ceiling mounting. Waterproof vandal resistant enclosure available, must specify NEG-602.
Operation: Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time per battery.
ELECTRICAL
Input Voltage: 120/277VAC 60Hz
Lumens / Wattage:
NE-612LED: (2) 110lm / 0.9W
NE-612LEDRC: (2) 90lm / 0.9W
NE-612LEDHORC: (2) 150lm / 1W
Color Temperature: 5700K
Operating Temperature: 10˚C to 40˚C ambient temperature (-25°C to 50°C when used with NEG-602)
Batteries: NiMH 3.6V 2W maintenance-free
Remote Option: Luminaire is capable of including an additional 3.6V / 4W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, each additional battery requires an additional 24 hours to recharge.
LABELS AND LISTINGS
cULus Lis ted for Damp Locations (Wet Location Listed when used with NEG-602)
Meets or exceeds all requirements in NFPA 70, NFPA 101 life safety code
INTENDED USE —For areas that require good vertical illumination and excellent glare control at low mounting heights. Ideal for open areas, retail spaces and aisles. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION — One-piece 5VA rated fiberglass housing with integral perimeter channel utilizes continuous poured-in-place NEMA 4X gasket. Simple two-piece design consists of housing and optical assembly to streamline installation process. Polymeric latches positively attach to housing and keep from becoming a hindrance during install.
OPTICS — Injection-molded, acrylic lens (.080" thick), provides high impact-resistance comparable to 100% DR. F1 rated for outdoor use, lenses resist breaking, yellowing or becoming brittle over time. UV stabilized polycarbonate diffuser available (.080" thick) in clear or frosted for additional impact strength. Polycarbonate lens is recommend for lower mounting heights where vandal protection is desired.
ELECTRICAL — Tool-less one piece optical assembly combines LEDs and lens into one component. Optical assembly easily connects to housing with plug and play harness, eliminating time consuming wiring connections. High-efficiency drivers operate 120-480V offered with 0-10V dimming, allowing granular control when coupled with wireless networking controls. Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015.
L85 at 60,000 hours.
INSTALLATION — Two-piece design makes installations faster than ever by simplifying wiring connections. Power connection is easily accommodated through pre-drilled holes at each end, optional wet location fittings available for maximum flexibility.
Stainless steel (#316) surface spring-mounting brackets with bail wires standard (2 included) allow for ceiling, wall or suspended mount.
Swivel stem(provided by others) when pendant mounting. Factory installed junction box option accommodates up to 4X4 sized boxes and includes integrated gasket to maintain wet location listings.
Quick Mount Bracket (QMB) ships installed on fixture and is recommended for fastest surface mount installs, ideal for end to end installations or larger jobs.
LISTINGS — CSA Certified to UL and C-UL standards. NEMA 4X rated. IP ratings: IP65 and IP66 rated. See page 3 for ambients.
NSF listed for Splash Zone II.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
DIMENSIONS
All dimensions are shown in inches (centimeters) unless otherwise noted.
PHOTOMETRICS
Please see www.lithonia.com
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Cer tified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details
SYLVANIA Luminaires

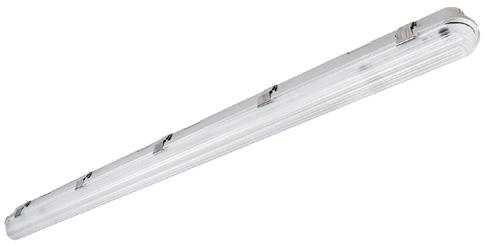

UltraLED™ Dual Selectable Vapor Tight 3A
Application
Ideal in new construction and retrofit applications, the UltraLED Dual Selectable Vapor Tight 3A is offered in three sizes that all feature both lumen and CCT selectability. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
Benefits and Features
IP66 rated polycarbonate body and lens and a broad temperature range ensure a durable product
— Stainless steel lens clips
— DLC 5.1 listing maximizes energy savings and rebate opportunities
Optional integrated motion/daylight sensor and emergency battery back-up offer further potential energy savings
Dual selectability facilitated by the switches located inside the luminaire allows for customizable light
Offered in three wattage selectable sizes
–2ft : 15, 20, or 25W selectable
–4ft : 30, 40, or 50W selectable
–8ft: 70, 80, or 90W selectable
3500K, 4000K, and 5000K selectable color temperature
Up to 144 LPW
CRI >80
Energy savings up to 59%
Electrical
— 120-347Vac
— Power Factor >90%
THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated
Auxiliary 12V output
Rated Lif e
— 100,000 hours (L70)
Warranty
NLB
Wattage Comparison
Operating Temperature
— -40°F to 122°F (-40°C to 50°C) for 2' and 4' models
— -40°F to 113°F (-40°C to 45°C) for 8' models
— -31°F (-35°C) minimum ambient for motion sensor models
32°F (0°C) minimum ambient for EMBB models
Certifications and Listings
— UL1598 (cULus) — RoHS
FCC
NEMA 4X
Installation
— IP66 — DLC 5.1
NSF Splash Zone
— Fixture ca n be surface mounted or suspended.
— Stainle ss steel mounting brackets and V-hooks are included
DMW2 LED Wet Location
A+ Capable options indicated by this color background.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
PS1050 Emergency LED battery pack for 0°C and up (1400 lumens), 10W, CA Title 20 noncompliant 2
E10WCP EM Self-diagnostics battery pack , 10W, Constant Power Certified in CA Title 20 MAEDBS 2,3
PMP4X Pendant monopoint with NEMA4X fitting (not available with JSB option)3,4
WLFEND Wet location fitting (one fitting out end)5
WLFEND2 Wet location fitting (fittings out both ends)6
JSB Junction box snap-bracket7
QMBQuick-mount ceiling bracket7
CS896' white cord, 16/3, no plug, wet location8
CS89L1212' white cord, 16/3, no plug, wet location8
CS88 6' Brad Harrison 16/3 cord and straight blade plug set, NEMA 4X rated 8
CS88L12 12' Brad Harrison 16/3 cord and straight blade plug set, NEMA 4X rated 8
CS88R Brad Harrison receptacle, NEMA 4X rated 9
NOM Nom certified
TPS TorxT10 tamper-resistant screws
STSL Stainless steel latches
SPD 10KV surge protection device 10
BAABuy America(n) Act Compliant
Accessories: Order as separate catalog number.
RK1 T10BIT W/PIN UHex-base driver bit, Torx TX10, for tamper-resistant screws with center reject pin
DMW2WLF Wet location fitting
DMW2QMBQuick-mount ceiling bracket
Notes
MSI10NWLLow mount 360 integral motion sensor, wet location, On/Off operation11
MSI102L3VWL Low mount 360 integral motion sensor, wet location, High/Low operation (3 level)11
MSI10NWL DSCNWL low mount 360 integral motion sensor, wet location , On/Off operation for motion sensing, override Off due to daylight11
NLTAIR2 RSBOR10 nLight AIR Generation 2 enabled 360° low mount motion sensor12
1. Plastic latches supplied as standard. Provided with 2X KO plugs at both ends.
2. Not available with JSB, PMP4X mounting options. Not available with CS88 cord sets or CS88R receptacle. Must specify voltage. Not available with 347, 480V. Maximum ambient temperature 25°C.
3. Not for field install.
4. Not available with PS1050 option. Not available with QMB, JSB mounting options.
5. Not available with WLFEND2. Not available with PS1050. Not available with cordsets or sensors.
6. Not available with WLFEND, PS1050, CS cord sets, or MSI sensors.
7. Not available with other mounting options
8. Not available with other cord sets. Not available with PS1050 option.
9. Receptacle only. Not available with PS1050.
10. Not available with PS1050, SBOR & RSBOR.
11. Not available with other external MSI sensors or WLFEND2. Must specify voltage.
12. Not available with other external MSI sensors or WLFEND2. Normal luminaires (non-emergency) can be used as a normal power sensing device for nearby nLight AIR devices and luminaires with EM emergency options.

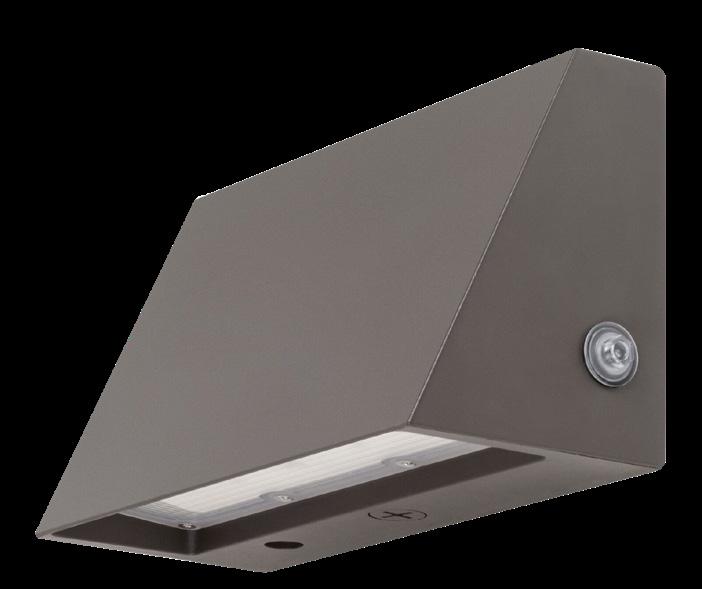

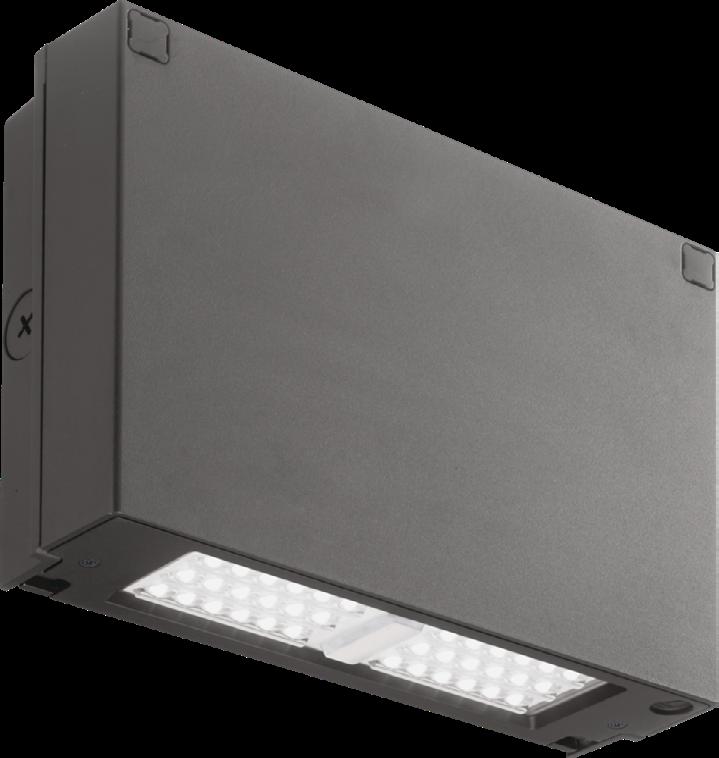

The WPX LED wall packs are energy-efficient, cost-effective, and aesthetically appealing full-cut off solution for both new construction and HID wall pack replacement/renovation opportunities. Reliable IP66 construction and excellent LED lumen maintenance ensure a long service life.
FEATURES:
¡ Architectural design at very economical prices
¡ Energy efficient - payback in less than two years
¡ Wide range of configuration options available
Note : WPX3 lumen package and all the WPX configuration options are not included in the Contractor Select program. For more information, please visit WPX LED
More configurations are available. Click here or visit www.acuitybrands.com and search for WPX LED
*Delivered lumen may vary, refer to photometric for full performance data
DIMENSIONS
Weight: 4.38lbs
PROJECT/DATE
C2 Bi-Level Microwave Motion Sensor
Shown in dark bronze
Specifications
INTENDED USE:
The WPX LED wall packs are designed to provide a cost-effective, energy-efficient solution for the one-for-one replacement of existing HID wall packs. The WPX0, WPX1, WPX2 and WPX3 are ideal for replacing up to 70W, 150W, 250W, and 400W HID luminaires respectively. WPX luminaires deliver a uniform, wide distribution. WPX is rated for -40ºC to 40ºC.
CONSTRUCTION:
WPX feature a die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life. The luminaires are IP66 rated, and sealed against moisture or environmental contaminants.
ELECTRICAL:
Light engine(s) configurations consist of high-efficacy LEDs with a min LED lumen maintenance of L86/100,000 hours. Color temperature (CCT) options of 3000K, 4000K and 5000K with minimum CRI of 70 (80 for WPX0). Electronic drivers ensure system power factor >90% and THD <20%. All luminaires have 6kV surge protection (Note: WPX1 LED P1 package and WPX0 comes with a standard surge protection rating of 2.5kV).
Note: The standard WPX LED wall pack luminaires come with field-adjustable drive current feature. This feature allows tuning the output current of the LED drivers to adjust the lumen output (to dim the luminaire).
INSTALLATION:
Dimensions
WPX can be mounted directly over a standard electrical junction box. A port on the back surface allows poke-through conduit wiring on surfaces that don't have an electrical junction box. WPX1, WPX2 and WPX3 come with three 1/2 inch conduit ports on three sides that allow for surface conduit wiring. Wiring can be made in the integral wiring compartment in all cases. WPX is only recommended for installations with LEDs facing downwards.
LISTINGS:
CSA Certified to meet U.S. and Canadian standards. Suitable for wet locations. IP66 Rated. DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY:
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/ warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C. Specifications subject to change without notice.

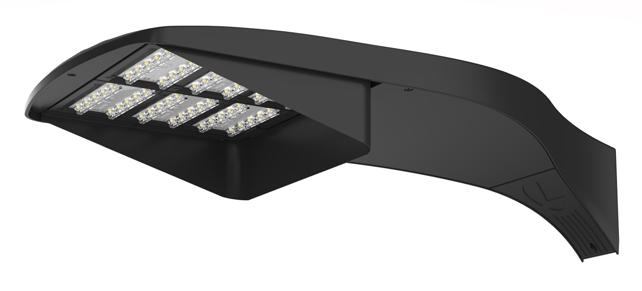

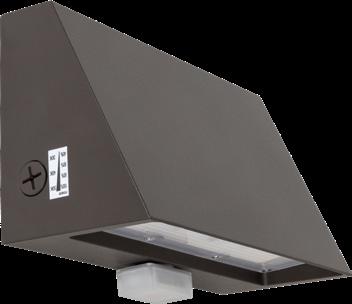

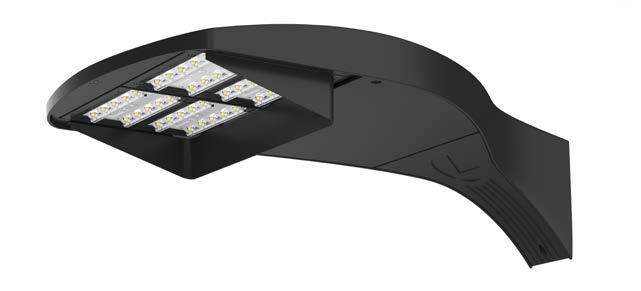

Architectural Full Cut Off Wall Pack
ORDERING INFORMATION
WPFP - ( Color Changeable Full Cut-Off Wall Pack)
37LC - (3700LM/3100LM/ 2400LM/1600LM,) U - (120 - 277V) H - (277-480V)** CC - (Color Changeable 3000K/4000K/5000K)
- (General)
*Additional cost and/or lead time on customized fixtures may apply. Customized fixtures can not be returned. **EM Option not available for High Voltage (H)
ACCESSORIES SOLD SEPERATLY
BRI810 - B- M7 BI-LEVEL MICROWAVE MOTION SENSOR
PROJECT/DATE
SPECIFICATIONS
CONSTRUCTION
The single-piece cast aluminum housing optimized thermal dissipation from the LED engine and promote long life. The diecast door frame is fully gasketed with a silicone gasket to keep out moisture and dust, providing an IP65 rating.
FINISH
Exterior parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering.
OPTICS
UV stabilized polycarbonate optic engineered for superior application efficiency.
- (On/off with 0-10V driver ) C1 - (On/Off with photocell, 0-10V driver)
- (Bi-level Microwave Motion Sensor)*
ELECTRICAL
Light engine consists of high-efficacy LEDs mounted to aluminum boards to maximize heat dissipation, reported L90 >36,000 hours . A Class 2, constant current 0-10V dimmable driver with 120V-277Vac, 50-60 HZ. Ships with field enable/disable button photocell.
LISTINGS
UL. FCC. RoHs. IK08(lens), IK10(housing). Wet location. Dark sky friendly.

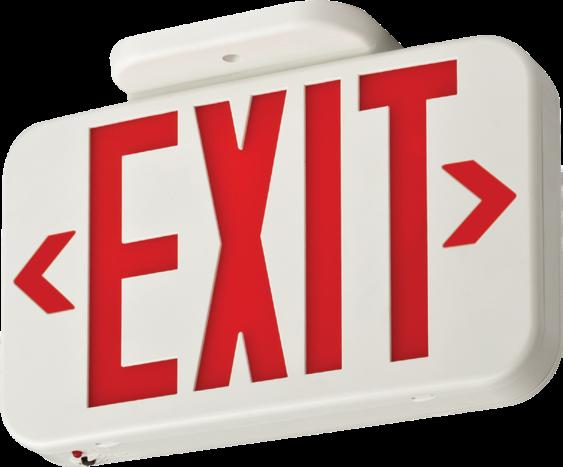

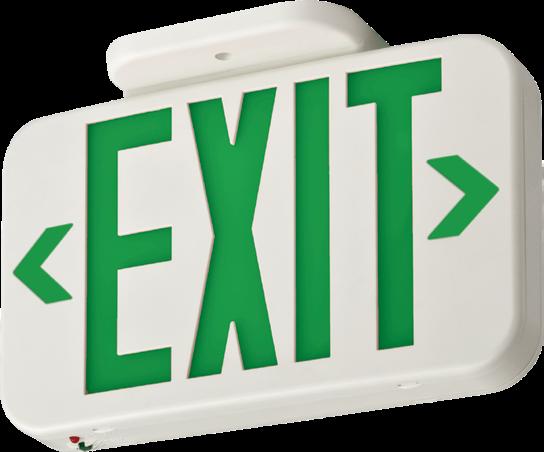

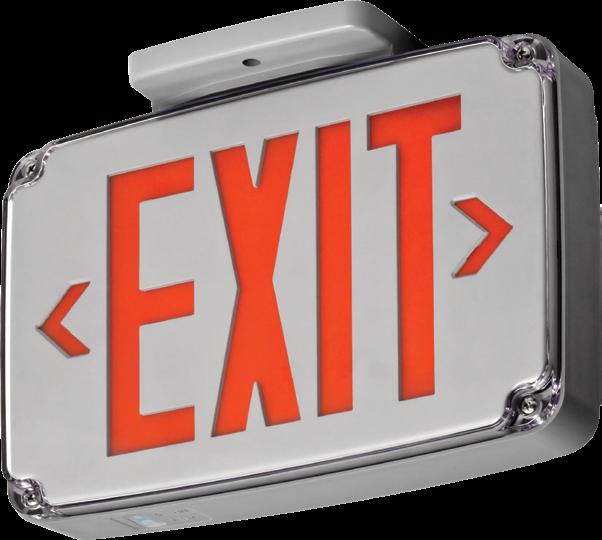

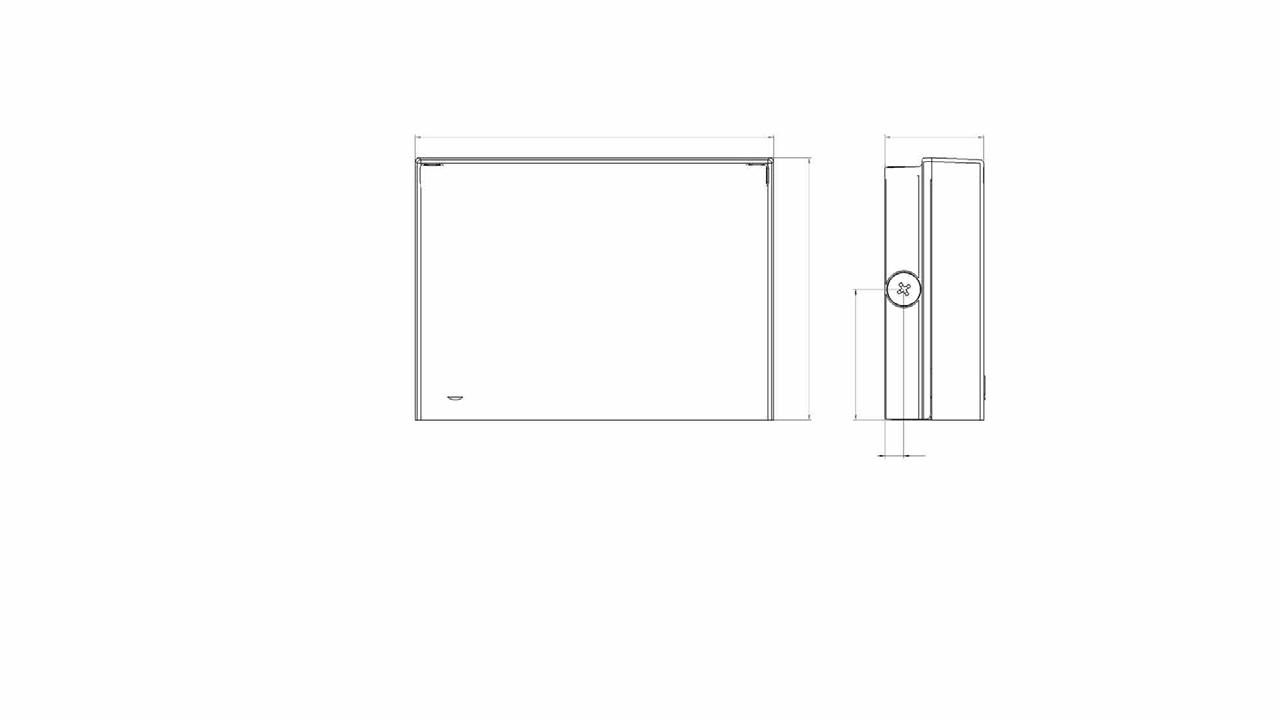

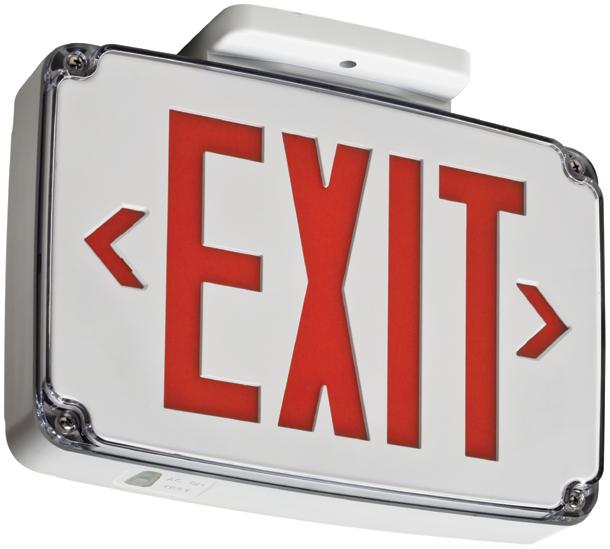

The Lithonia Lighting Basics™ EXRG Exit Sign is suitable for emergency signage applications such as stairways and hallways. This fully assembled single-face exit with extra faceplate is available in red and green letters. It's low profile makes it ideal for safely illuminated the path of egress in small spaces and can be wall or ceiling mounted. The emergency power provides 90 minutes of illumination in the event of a power loss.
FEATURES:
¡ Internal toggle switch for red or green letter color selection
¡ Test switch and status indicator for low maintenance (EL emergency models only)
¡ UL indoor damp location 50° to 104°F (10°C to 40°C) listed standard
¡ For use with Dual voltage 120/277VAC
¡ Internal switch for color selection

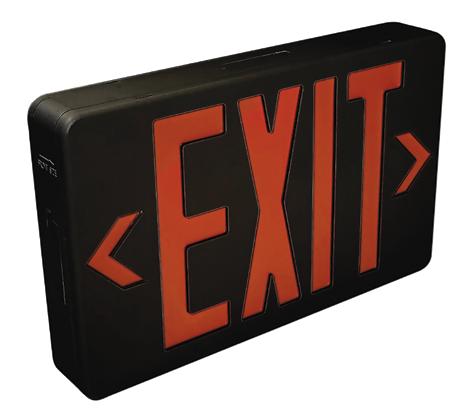

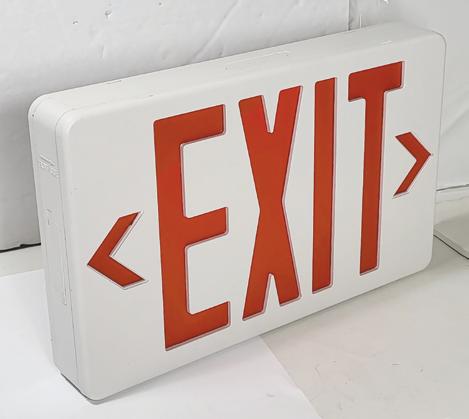

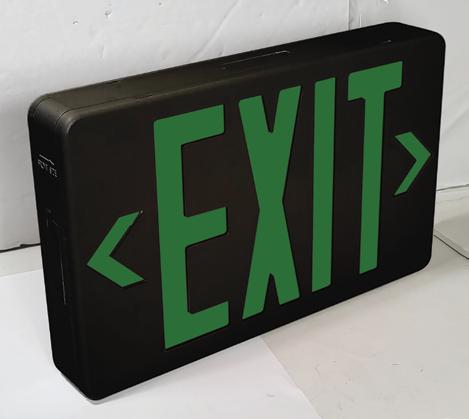

NX-603D-LED
Thermoplastic Dual Color (Red/Green) LED Exit Sign with Battery Backup
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
• 11-13 /16" Width X 7-1/4" Height X 1-13/16" Depth
• Injec tion-molded thermoplastic housing
• Black or White housing finish
FACE
• 6" high t ext with color diffusion
• Both do uble and a blank face are included
• Snap- in direction indicators
MOUNTING
• Wall, s ide, or ceiling
• Mount ing hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES

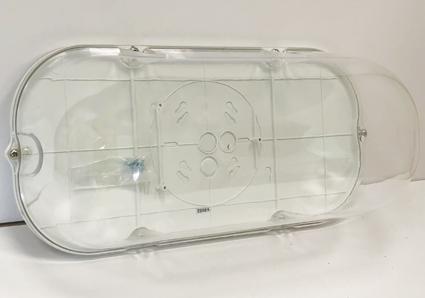

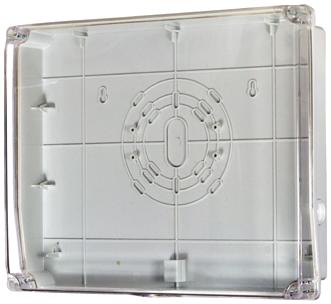

NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
· UL 924
· Rated for Damp Locations (Wet Location when used with NEG-60)
NFPA
Certi fied to the energy efficiency standards of California Title 20
The LOS-CDT Series dual technology ceiling-mount sensors can integrate into LutronR systems or function as stand-alone controls using a LutronR power pack. The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product.
Features
•Intelligent, continually adapting sensor
• Ultrasonic (US) combined with Passive Infrared (PIR) sensing provide high sensitivity, high noise immunity, and excellent false tripping immunity
• Suited for complex environments that are difficult to control with single-technology sensors
•Snap-locks to ceiling-mounted cover plate
• Non-Volatile Memory: settings saved in protected memory are not lost during power outages
• 500 ft( to 2000 ft( (46 m( to 186 m() coverage when mounted on an 8 ft to 12 ft (2.4 m to 3.7 m) ceiling
• Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a LutronR system.
Models Available
Model ColorCoverage Field of View
LOS-CDT-500-WHWhite500 ft( (46 m()180°
LOS-CDT-500R-WHWhite500 ft( (46 m()180°
LOS-CDT-1000-WHWhite1000 ft( (93 m()180°
LOS-CDT-1000R-WHWhite1000 ft( (93 m()180°
LOS-CDT-2000-WHWhite2000 ft( (186 m()360°
LOS-CDT-2000R-WHWhite2000 ft( (186 m()360°
Self-Adaptive Feature
The LOS-CDT Series sensors combine both Ultrasonic (US) motion detection for maximum sensitivity and Passive Infrared (PIR) motion detection for false triggering immunity. The self-adapting internal microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and callbacks found in non-intelligent sensors.
PP and UPP 1 Series Power Packs provide both the 24 V- power supply to operate Lutron wired occupancy sensors, as well as the 16 A line-voltage relay to control the load, in one compact housing. The unit can be mounted inside a ballast enclosure or inside / outside a junction box.
The manual-ON Power Pack (-DV-M) is used to provide a vacancy-only solution (not configurable for occupancy behavior) when paired with Lutron wired occupancy sensors. A low-voltage momentary switch should be used to manually turn ON the load while the sensor automatically shuts the load OFF when unoccupied. Pressing the momentary switch can also turn the load OFF.

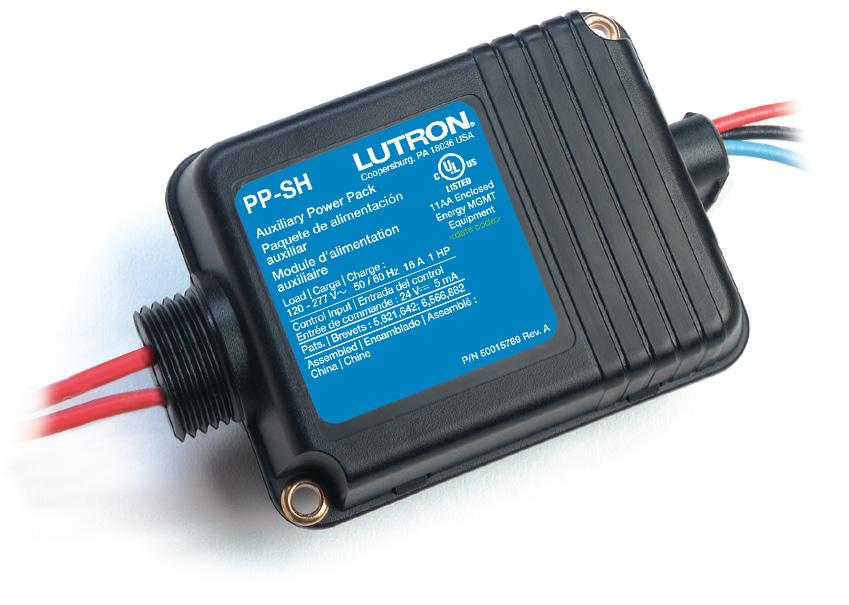

The auxiliary Power Pack (-SH) must be used in conjunction with at least one line-voltage Power Pack and one Lutron wired occupancy sensor to switch additional loads.
Features
•High-impact UL94 flammability-rated plastic case construction
•Relay: Class B 266 °F (130 °C) insulating material; silver alloy contacts
•Power Pack units (PP-DV / UPP-DV, PP-347H, PP-DV-M / UPP-DV-M) power up to 3 total devices. PP-SH / UPP-SH counts as 1 device, each occupancy sensor counts as 1 device.
•For indoor use only, 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
1 “U” denotes BAA compliance
2 Lighting loads include (but are not limited to): Incandescent, MLV, ELV, Resistive, Inductive
3 PP-SH / UPP-SH counts as 1 device and each occupancy sensor counts as 1 device
Job Name:
(-DV)
(-DV-M [vacancy ONLY]) (-347H)
(-SH)
NO SPECIFICATION

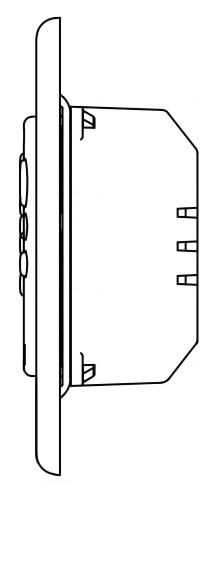

Maestro Occupancy Sensor LED+ Dimmer
Lutron Maestro occupancy sensor LED+ dimmers (formerly C•L) are lighting controls with passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. The Maestro occupancy sensor LED+ dimmer combines a Maestro LED+ dimmer with an occupancy or vacancy sensor.
Features
• Controls LED, CFL, incandescent, and halogen load types 1
• Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection
• 180˚ sensor field-of-view
• Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m²)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m²)] minor motion coverage
• Occupancy version can be set to auto-on / auto-off or manual-on / auto-off
• Vacancy version available to meet CA Title 24 requirements
• Adjustable timeout (1, 3, 5, 15, or 30 minutes) and high / low sensitivity adjustment
Models Available
MSCL-OP153M-XX3,4
• Adjustable settings for auto-on light level (occupied level): 100%, 50%, last light level, or locked preset light level
• Off warning fades lights to off over a period of 10 seconds
• Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.)
• All models have single pole and multi-location capability
• Works with a single standard mechanical 3-way switch or up to 9 companion dimmers / switches (MA-R or MSC-AD) 2
MSCL-OP153MH-XXC3,5 Occupancy / vacancy single-pole / multi-location Auto-on / auto-off or manual-on / auto-off 600 W Incandescent / Halogen 150 W LED / CFL 1
1 For a complete list of compatible dimmable LEDs please visit www.lutron.com/LEDfinder
2 If using with standard mechanical 3-way switch, some rewiring and dimmer programming is required
3 “XX” in model number represents color / finish code
4 For clamshell packaging, add an “H” after the “M”. Available in AL, IV, LA, and WH
5 Clamshell packaged product for Canada. Available in AL, IV, LA, and WH
W Incandescent / Halogen
W LED / CFL 1
Job Name:
Job Number: Model Numbers:
BLANK
Specifications
Regulatory Approvals
• UL Listed to U.S. and Canadian safety requirements
• Title 20 / 24 certified lighting control device
– Complies with Title 20 and Title 24 Section 119 (Until Jan 1st, 2014)
• Title 20 / 24 certified lighting control device
– Complies with Title 20 and Title 24 Section 110.9 (After Jan 1st, 2014)
• NOM Certified
Power
• Operating voltage: 120 V~ 60 Hz
Environment
• Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0%-90% humidity, non-condensing; indoor use only
Warranty
• 5 Year Limited Warranty
For additional Warranty information, please visit: www.lutron.com/TechnicalDocumentLibrary/Sensor_ Warranty.pdf
Key Design Features
Dimmer
• On a single-tap, lights fade ON or OFF
• On a double-tap, lights go to full ON
• When ON, press and hold to engage a long fade to OFF
• Light levels can be fine-tuned by pressing and holding the dimming rocker until the desired light level is reached
Custom Sensor Settings
Timeout Options
• 1 Minute
• 3 Minute
• 5 Minutes (default)
• 15 Minutes
• 30 Minutes
• Test Mode
– Short (less than 15-second) timeout for testing sensor coverage. After entering, device will exit test mode automatically after 5 minutes, or when any button is pressed.
Job Name:
Job Number: Model Numbers:
Sensitivity Options
• High sensitivity (default)
• Low sensitivity
Auto-ON Options
• Occupancy (default): Auto-ON / Auto-OFF
– Occupancy Mode is also called “Auto-On: Enabled”
• Vacancy *: Manual-ON / Auto-OFF
– Vacancy Mode is also called “Auto-On: Disabled”
* There is a 15-second grace period that begins when the lights are automatically turned off, during which the lights will automatically turn back on in response to motion. This grace period is provided as a safety and convenience feature in the event that the lights turn off while the room is still occupied, so that the user does not need to manually turn the lights back on. After 15 seconds, the grace period expires and the lights must be manually turned on.
• Ambient Light Detection (ALD): Lights turn on only if natural light in room is low
– Smart—Ambient light threshold adjusts to the user’s preference **
** If sensor turns on when there is enough natural light, or if sensor does not turn on when there is not enough natural light, press the large button within 5 seconds of entering the room. Over time, this interaction will “teach” the sensor your preferred setting.
• Off While Occupied (OWO)
– When the sensor dimmer is manually turned off, the sensor dimmer will not turn the lights back on automatically while the room is occupied.
– Once the room is vacated, the Auto-ON feature returns to normal operation after the timeout period has expired.
– This may be the preference in conference rooms or classrooms while viewing presentations. This feature requires motion to keep the lights off.
Occupied Level Options
Occupied Level is the light level that the sensor dimmer will turn ON to when motion is detected.
• 100% (default)
• 50%
• Preset
– While in preset mode, lights will automatically turn to the last level or to the “Locked Preset” level if a “Locked Preset” has been selected in Advanced Programming.
FEATURES & SPECIFICATIONS
INTENDED USE — Ideal for wet location areas requiring exit signs for AC only or battery back-up power that are subject to saturation with non-mechanically delivered water. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — White, compact, contemporary design. Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. Universal directional Chevron inserts are easily removed and reinserted. UL94V-0 flame rating. UV-stable resin resists discoloration from natural and man-made light sources. Rugged, heavy-duty, polycarbonate clear housing lens. Housing also available in black or gray. Letters 6" high with 3/4" stroke, with 100 ft. viewing distance rating, based upon UL924 standards.
OPTICS — Low energy consumption — fewer than 5 watts. The typical life of the exit LED lamp is 5 years, based on 24/7 operation.
ELECTRICAL — Dual voltage input capacity (120/277V).
Battery: (EL Option) – Sealed, maintenance free nickel-cadmium battery delivers 90 minutes rated capacity. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection. Self-diagnostic testing (SD Option Only) for 30 seconds every 30 days, 30 minutes every 180 days and a 90-minute annual test. Diagnostic evaluation of LED light source, charging and battery condition.
INSTALLATION — Universal mounting canopy for top or end mount. Back mount standard for single face only. Junction box hole pattern for 4" octagon mounting. Flexible conduit entry.
LISTINGS — UL listed. Wet location listed. Standard cold temperature rating -4°F to 122°F (-20°C to 50°C). Meets UL 924, NFPA 101 (current Life Safety Code) and NFPA 70-NEC, Meets all applicable FCC Title 47, Part 15, Subpart B requirements.
WARRANTY — 5-year limited warranty. (Battery is prorated.) This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
† Exit Signs Certified in the CA Title 20 Appliance Efficiency Database.
Specifications
Length: 12-1/2 (31.8)
Depth: 2-1/2 (6.4)
Height: 8-1/8 (20.6)
Weight: 4.1 lbs (1.9 kg)
All dimensions are inches (centimeters) unless otherwise indicated.
Source: 2.2W
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Univers al Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
· Self-Diagnostic Testing
Polycar bonate plastic enclosure with flame retardant and wet location rated
Push-To -Test Switch
High temp erature maintenance free NiCad battery 120/277 VAC input
6" Letter s and 3/4" stroke
Cold weat her option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS UL 924 List ed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant · Title 20 Compliant
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.

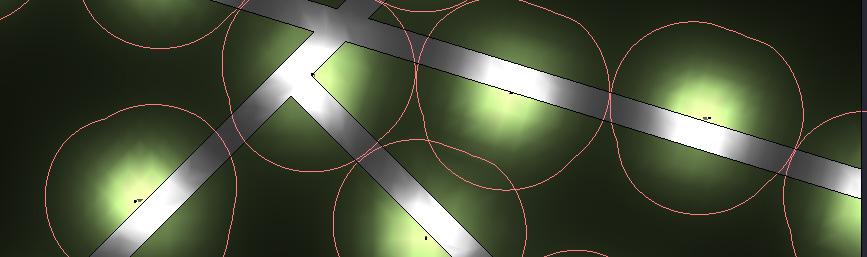

The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications with typical energy savings of 65% and expected service life of over 100,000 hours.
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc. 11, 12, 20, 21
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 20, 21
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate)14, 21
PER7 Seven-pin receptacle only (controls ordered separate) 14, 21
FAO Field adjustable output 15, 21
BL30 Bi-level switched dimming, 30% 16, 21
BL50 Bi-level switched dimming, 50% 16, 21
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
1 Rotated optics available with packages P10, P11, P12 and P13. Must be combined with option L90 or R90.
2 30K, 40K, and 50K available in 70CRI and 80CRI. 27K and 35K only available with 80CRI. Contact Technical Support for other possible combinations.
3 T3LG, T4LG, BLC3, BLC4, LCCO, RCCO not available with option HS.
4 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
5 HVOLT driver operates on any line voltage from 347-480V (50/60 Hz).
6 HVOLT not available with package P1 and P10 when combined with option NLTAIR2 PIRHN or option PIR.
7 XVOLT operates with any voltage between 277V and 480V (50/60 Hz).
8 XVOLT not available in packages P1 or P10. XVOLT not available with fusing (SF or DF).
9 SPA5 and RPA5 for use with #5 drilling only (Not for use with #8 drilling).
10 WBA cannot be combined with Type 5 distributions plus photocell (PER).
11 NLTAIR2 and PIRHN must be ordered together. For more information on nLight AIR2 visit this link
12 NLTAIR2 PIRHN not available with other controls including PIR, PER, PER5, PER7, FAO, BL30, BL50, DMG and DS. NLTAIR2 PIRHN not available with P1 and P10 using HVOLT. NLTAIR2 PIRHN not available with P1 and P10 using XVOLT.
13 PIR not available with NLTAIR2 PIRHN, PER, PER5, PER7, FAO BL30, BL50, DMG and DS. PIR not available with P1 and P10 using HVOLT. PIR not available with P1 and P10 using XVOLT.
14 PER/PER5/PER7 not available with NLTAIR2 PIRHN, PIR, BL30, BL50, FAO, DMG and DS. Photocell ordered and shipped as a separate line item from Acuity Brands Controls. See accessories. Shorting Cap included.
15 FAO not available with other dimming control options NLTAIR2 PIRHN, PIR, PER5, PER7, BL30, BL50, DMG and DS.
16 BL30 and BL50 are not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, FAO, DMG and DS. BL30 or BL50 must specify 120, 277 or 347V. Consult tech support for 208, 240 or 480V
17 DMG not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DS.
18 DS not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DMG.
19 DS requires (2) separately switched circuits. DS provides 50/50 fixture operation via (2) different sets of leads using (2) drivers. DS only available with packages P8, P9, P10, P11, P12 and P13.
20 Reference Motion Sensor Default Settings table on page 4 to see functionality.
21 Reference Controls Options table on page 4.
22 HS not available with T3LG, T4LG, BLC3, BLC4, LCCO and RCCO distribution. Also available as a separate accessory; see Accessories information.
23 CCE option not available with option BS and EGSR. Contact Technical Support for availability.
24 Option HA not available with performance packages P4, P5, P7, P8, P9 and P13.
25 Requires luminaire to be specified with PER, PER5 or PER7 option. See Controls Table on page 4.
26 Single fuse (SF) requires 120V, 277V, or 347V. Double fuse (DF) requires 208V, 240V or 480V. XVOLT not available with fusing (SF or DF).
*Includes luminaire and integral mounting arm. Other tenons, arms, brackets or other accessories are not included in this EPA data. House Side Shield (HS)
External Glare Shield (EGSR)
VIENTO AREA LUMINARE
• Red: Horizontal / Blue: vertical
2M
3M
• Some Photometric Data is extrapolated and subject to change.
BLANK
VIENTO AREA LUMINARE
• Some Photometric Data is extrapolated and subject to change.
EPA RATINGS
• EPA calculated with the following:
• 4” square pole (Single, two At 90, two At 180, three At 90, Four At 90)
• 4” round pole (three At 120)
• vnt-SSA (Dual SSA)
BLANK

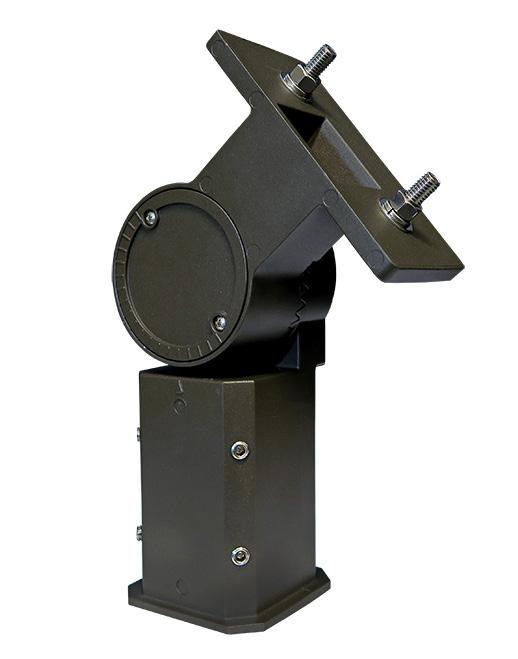

VIENTO ADJUSTABLE SLIP FITTER
FEATURES
• Slips over 2” IP tenon (2.38”OD x 4.8” max depth).
• Cover plate on knuckle is removable for access to angle adjustment and wiring.
• Cover plate includes incremental angle markings for easy reference.
• Rotation is 90° from vertical (180° total) in 10° increments.
• (4x) 3/8-16 x 0.75” Set Screws.
• (2x) 3/8-16 x 1.50” Bolts.
CONSTRUCTION
• Heavy wall aluminum die-cast construction.
• All stainless steel hardware.
• Protected with a thermoset TGIC-polyester powder coat finish using a tightly controlled multi-stage process to a uniform 3 mil thickness (min). This finish provides superior protection from corrosion and maximum environmental durability.
DIMENSIONS
• 10.9” overall length.
• 7.06” base to C/L of rotation.
• EPA: 0.127 sq. ft.
• Weight: 6.0 lbs.
Specifications
EPA: 0.69 ft2 (0.06 m2)
Length: 32.71" (83.1 cm)
Width: 14.26" (36.2 cm)
Height H1: 7.88" (20.0 cm)
Height H2: 2.73" (6.9 cm)
Weight: 34 lbs (15.4 kg)

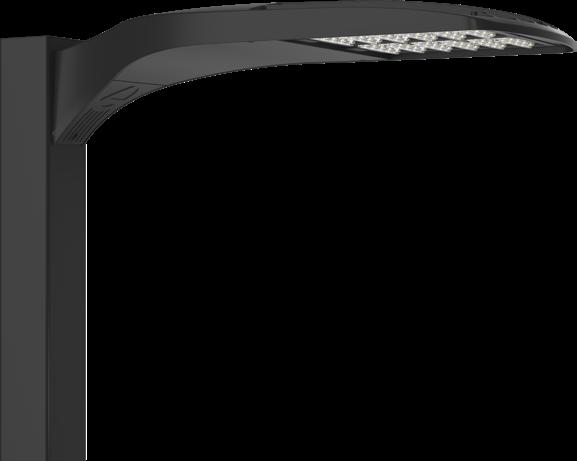

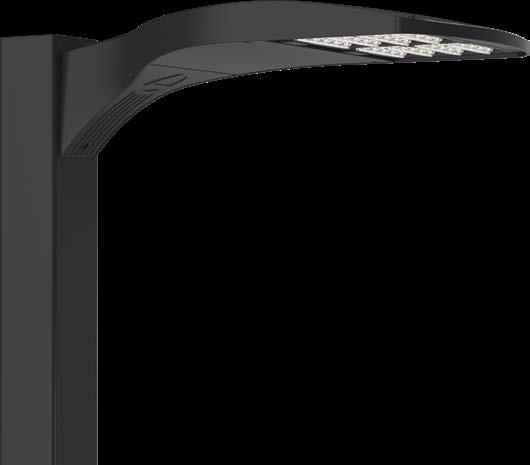

D-Series Size 1
LED Area Luminaire
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications with typical energy savings of 65% and expected service life of over 100,000 hours.
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc. 11, 12, 20, 21
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 20, 21
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate)14, 21
PER7 Seven-pin receptacle only (controls ordered separate) 14, 21
FAO Field adjustable output 15, 21
BL30 Bi-level switched dimming, 30% 16, 21
BL50 Bi-level switched dimming, 50% 16, 21
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
1 Rotated optics available with packages P10, P11, P12 and P13. Must be combined with option L90 or R90.
2 30K, 40K, and 50K available in 70CRI and 80CRI. 27K and 35K only available with 80CRI. Contact Technical Support for other possible combinations.
3 T3LG, T4LG, BLC3, BLC4, LCCO, RCCO not available with option HS.
4 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
5 HVOLT driver operates on any line voltage from 347-480V (50/60 Hz).
6 HVOLT not available with package P1 and P10 when combined with option NLTAIR2 PIRHN or option PIR.
7 XVOLT operates with any voltage between 277V and 480V (50/60 Hz).
8 XVOLT not available in packages P1 or P10. XVOLT not available with fusing (SF or DF).
9 SPA5 and RPA5 for use with #5 drilling only (Not for use with #8 drilling).
10 WBA cannot be combined with Type 5 distributions plus photocell (PER).
11 NLTAIR2 and PIRHN must be ordered together. For more information on nLight AIR2 visit this link
12 NLTAIR2 PIRHN not available with other controls including PIR, PER, PER5, PER7, FAO, BL30, BL50, DMG and DS. NLTAIR2 PIRHN not available with P1 and P10 using HVOLT. NLTAIR2 PIRHN not available with P1 and P10 using XVOLT.
13 PIR not available with NLTAIR2 PIRHN, PER, PER5, PER7, FAO BL30, BL50, DMG and DS. PIR not available with P1 and P10 using HVOLT. PIR not available with P1 and P10 using XVOLT.
14 PER/PER5/PER7 not available with NLTAIR2 PIRHN, PIR, BL30, BL50, FAO, DMG and DS. Photocell ordered and shipped as a separate line item from Acuity Brands Controls. See accessories. Shorting Cap included.
15 FAO not available with other dimming control options NLTAIR2 PIRHN, PIR, PER5, PER7, BL30, BL50, DMG and DS.
16 BL30 and BL50 are not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, FAO, DMG and DS. BL30 or BL50 must specify 120, 277 or 347V. Consult tech support for 208, 240 or 480V.
17 DMG not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DS.
18 DS not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DMG.
19 DS requires (2) separately switched circuits. DS provides 50/50 fixture operation via (2) different sets of leads using (2) drivers. DS only available with packages P8, P9, P10, P11, P12 and P13.
20 Reference Motion Sensor Default Settings table on page 4 to see functionality.
21 Reference Controls Options table on page 4.
22 HS not available with T3LG, T4LG, BLC3, BLC4, LCCO and RCCO distribution. Also available as a separate accessory; see Accessories information.
23 CCE option not available with option BS and EGSR. Contact Technical Support for availability.
24 Option HA not available with performance packages P4, P5, P7, P8, P9 and P13.
25 Requires luminaire to be specified with PER, PER5 or PER7 option. See Controls Table on page 4.
26 Single fuse (SF) requires 120V, 277V, or 347V. Double fuse (DF) requires 208V, 240V or 480V. XVOLT not available with fusing (SF or DF).
*Includes luminaire and integral mounting arm. Other tenons, arms, brackets or other accessories are not included in this EPA data.
External Glare Shield (EGSR)
VIENTO AREA LUMINARE
• Red: Horizontal / Blue: vertical
2M
3M
• Some Photometric Data is extrapolated and subject to change.
BLANK
TROPICAL TYPE S1 ALT
VIENTO AREA LUMINARE
• Some Photometric Data is extrapolated and subject to change.
EPA RATINGS
• EPA calculated with the following:
• 4” square pole (Single, two At 90, two At 180, three At 90, Four At 90)
• 4” round pole (three At 120)
• vnt-SSA (Dual SSA)
BLANK
FEATURES
• Slips over 2” IP tenon (2.38”OD x 4.8” max depth).
• Cover plate on knuckle is removable for access to angle adjustment and wiring.
• Cover plate includes incremental angle markings for easy reference.
• Rotation is 90° from vertical (180° total) in 10° increments.
• (4x) 3/8-16 x 0.75” Set Screws.
• (2x) 3/8-16 x 1.50” Bolts.
CONSTRUCTION
• Heavy wall aluminum die-cast construction.
• All stainless steel hardware.
• Protected with a thermoset TGIC-polyester powder coat finish using a tightly controlled multi-stage process to a uniform 3 mil thickness (min). This finish provides superior protection from corrosion and maximum environmental durability.
DIMENSIONS
• 10.9” overall length.
• 7.06” base to C/L of rotation.
• EPA: 0.127 sq. ft.
• Weight: 6.0 lbs.
Specifications
Diameter: 8” Round (20.3 cm)
Height: 42” (106.7 cm)
D-Series LED Bollard
Hit the Tab key or mouse over the page to see all interactive elements.
Introduction
The D-Series LED Bollard is a stylish, energysaving, long-life solution designed to perform the way a bollard should—with zero uplight. An optical leap forward, this full cut-off luminaire will meet the most stringent of lighting codes.
The D-Series LED Bollard’s rugged construction, durable finish and long-lasting LEDs will provide years of maintenance-free service.
Ordering Information
Shipped installed PE Photoelectric cell, button type
DMG 00-10v dimming wires pulled outside fixture (for use with an external control, ordered separately)
ELCW Emergency battery backup6
Shipped installed
SF Single fuse (120, 277, 347V) 4,7
DF Double fuse (208, 240V) 4,7
H24 24” overall height
H30 30” overall height
H36 36” overall height
FG Ground-fault festoon outlet
L/AB Without anchor bolts
Accessories
Ordered and shipped separately.
NOTES
1 Only available in the 12C, ASY version.
2 Only available in the 16C, SYM version.
3 Only available with 450 AMBLW version.
4 Not available with ELCW.
Black DDBTXD Textured dark bronze DBLBXD Textured black
DNATXD Textured natural aluminum
DWHGXD Textured white
L/AB4 4-bolt retrofit base without anchor bolts 8 DWHXD White DNAXD Natural aluminum DDBXD Dark bronze
5 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz). Specify 120, 208, 240 or 277 options only when ordering with fusing (SF, DF options), or photocontrol (PE option).
6 Not available with 347V. Not available with fusing. Not available with 450 AMBLW.
7 Single fuse (SF) requires 120, 277, or 347 voltage option. Double fuse (DF) requires 208 or 240 voltage option.
8 MRAB U not available with L/AB4 option.
SPARTAN BOLLARD
SPARTAN BOLLARD
The Spartan Bollard is the LED alternative to traditional bollard lighting, which illuminates pathways, parking structures, or any kind of commercial real estate. Details at the top of the fixtures, add an architectural feel to the design, making this light great for customers looking for safety and style. PROJECT DETAILS
PRODUCT SPECS
LED Bollard Light
The Spartan Bollard is the LED alternative to traditional bollard lighting, which illuminates pathways, parking structures, or any kind of commercial real estate. Details at the top of the fixtures, add an architectural feel to the design, making this light great for customers looking for safety and style.
The Spartan Bollard is the LED alternative to traditional bollard lighting, which illuminates pathways, parking structures, or any kind of commercial real estate. Details at the top of the fixtures, add an architectural feel to the design, making this light great for customers looking for safety and style.
PRODUCT SPECS
Input Voltage (VAC) 100-277 CRI 70+
Input Voltage (VAC) 100-277 CRI 70+
PRODUCT SPECS
CCT (K) 4000, 5000 PF >.9
Project:
Product:
Prepared by:
PROJECT DETAILS
Notes:
PROJECT DETAILS TYPE
Project:
Project:
Product:
Product:
Prepared by:
Prepared by:
Notes:
Notes:
PRODUCT HIGHLIGHTS
• IP65 Rated
PRODUCT HIGHLIGHTS
• Can be cut to custom lengths
· IP65 Rated
• Built from high strength extruded aluminum
PRODUCT HIGHLIGHTS
· Can be cut to custom lengths
Input Voltage (VAC) 100-277
Lifetime (Hrs per TM21-08 @L70 50,000
CCT (K) 3000K/4000K/5000K Selectable PF >.9
CRI 70+
Lifetime (Hrs per TM21-08 @L70 54,000
Color Bronze, Black Housing Aluminum and PC
CCT (K) 4000, 5000 PF >.9
Color Bronze, Black
Lens Clear (std.), Frosted Operating Temperature -40°C to 40°C
Lifetime (Hrs per TM21-08 @L70 50,000
Housing Aluminum
Lens Clear
Limited Warranty 10 Years‡
Operating Temperature -40°C to 40°C
Limited Warranty 10 Years‡
Color Bronze, Black Housing Aluminum and PC
CERTIFICATIONS AND COMPATIBILITIES
· Built from high strength extruded aluminum
• IP65 Rated
• Can be cut to custom lengths
CERTIFICATIONS AND COMPATIBILITIES
• Built from high strength extruded aluminum
CERTIFICATIONS AND COMPATIBILITIES
*Photocontrol is available by special order. Contact ATG for details. *
*Photocontrol is available by special order. Contact ATG for details.
ORDER FORMAT EXAMPLE: BLD-24-40
ORDER FORMAT
Lens Clear (std.), Frosted
Product ID – Wattage – CCT – Voltage
Operating Temperature -40°C to 40°C
Seties– Wattage – CCT
Limited Warranty 10 Years‡
EXAMPLE: BLD-24-40
BLD=Dome Top BLF=Round Flat Top – 24=24W – CS=3000K/4000K/5000K Selectable – Blank=100-277V –Blank=1-10V Dimming– Blank=Bronze custom finins*
ORDER FORMAT
*talk to our sales for more information about custom finis
*Photocontrol is available by special order. Contact ATG for details.
BLD-24-40
APPLICATION CONSTRUCTION
APPLICATION
The luminaire comes standard with an 8 bolt mounting kit. The Spartan Bollard can also be cut to custom lengths upon request.
The luminaire comes standard with an 8 bolt mounting kit. The Spartan Bollard can also be cut to custom lengths upon request.
CONSTRUCTION
ATG’s Spartan LED bollard is built from high-strength extruded aluminum with a polycarbonate lens. The housing features integral thermal management and is IP65 rated for stellar protection from the elements. Operating ambient temperature ranges from -40°C to +40°C.
CONSTRUCTION
ATG’s Spartan LED bollard is built from high-strength extruded aluminum with a polycarbonate lens. The housing features integral thermal management and is IP65 rated for stellar protection from the elements. Operating ambient temperature ranges from -40°C to +40°C.
ELECTRICAL
The fixture operates at a standard voltage of 100-277V and draws 24W of power. L70 is rated for >54,000 hours, or >10 years at 12 hours a day of operation.
ATG’s Spartan LED bollard is built from high-strength extruded aluminum with a polycarbonate lens. The housing features integral thermal management and is IP65 rated for stellar protection from the elements. Operating ambient temperature ranges from -40°C to +40°C.
OPTICS
The Sparttan Bollard outputs 2,472+ Lm. The fixture operates at a standard voltage of 100-277V and draws 24W of power. L70 is rated for >54,000 hours, or >10 years at 12 hours a day of operation.
ELECTRICAL
The LED array is tight shielded by a clear polycarbonate lens. Available with CCT switchable model with 3000K/4000K/5000K selections, matched with an outstanding 70+ CRI for optimal nighttime visibility.
The Sparttan Bollard outputs 2,472+ Lm. The fixture operates at a standard voltage of 100-277V and draws 24W of power. L70 is rated for >54,000 hours, or >10 years at 12 hours a day of operation.
The LED array is tight shielded by a clear polycarbonate lens. Available CCT options are 4000K, and 5000K, matched with an outstanding 70+ CRI for optimal nighttime visibility.
OPTICS
*Data for 4000K(fixed) is based on IES file,5000K is based on extrapolated data with 1.08 factor
The LED array is tight shielded by a clear polycarbonate lens. Available CCT options are 4000K, and 5000K, matched with an outstanding 70+ CRI for optimal nighttime visibility.
Note: Available with phosphor-converted amber LED’s (nomenclature AMBPC). These LED’s produce light with 97+% >530 nm. Output can be calculated by applying a 0.7 factor to 4000 K lumen values and photometric files.
Projected LED Lumen Maintenance
Data references the extrapolated performance projections for the platforms noted in a 25°C ambient, based on 10,000 hours of LED testing (tested per IESNA LM-80-08 and projected per IESNA TM-21-11).
To calculate LLF, use the lumen maintenance factor that corresponds to the desired number of operating hours below. For other lumen maintenance values, contact factory.
Photometric Diagrams
Electrical Load
70039W0.3850.2310.2070.1850.163
Amber45020W0.1990.1390.1300.1230.116
To see complete photometric reports or download .ies files for this product, visit Lithonia Lighting’s D-Series Bollard homepage
Isofootcandle plots for the DSXB LED 700 40K. Distances are in units of mounting height (3’).
53210
Test No. LTL24360-2 tested in accordance with
FEATURES & SPECIFICATIONS
INTENDED USE
The rugged construction and maintenance-free performance of the D-Series LED Bollard is ideal for illuminating building entryways, walking paths and pedestrian plazas, as well as any other location requiring a low-mounting-height light source.
CONSTRUCTION
One-piece 8-inch-round extruded aluminum shaft with thick side walls for extreme durability, and die-cast aluminum reflector and top cap. Die-cast aluminum mounting ring allows for easy leveling even in uneven areas and full 360-degree rotation for precise alignment during installation. Three ½” x 11” anchor bolts with double nuts and washers and 3-5/8” max. bolt circle template ensure stability. Overall height is 42” standard.
FINISH
Exterior parts are protected by a zinc-infused super durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering for maximum retention of gloss and luster. A tightly controlled multi-stage process ensures a minimum 3-mil thickness for a finish that can withstand the elements without cracking or peeling. Available in both textured and non-textured finishes.
OPTICS
Two 0% uplight optical distributions are available: symmetrical and asymmetrical. IP66 sealed LED light engine provides smoothly graduated illumination without uplight. Light engines are available in standard 4000 K (>70 CRI) or optional 3000 K (>80 CRI) or 5000 K (67 CRI). Limited-wavelength amber LEDs are also available.
ELECTRICAL
Light engines consist of high-efficacy LEDs mounted to metal-core circuit boards to maximize heat dissipation and promote long life (L95/100,000 hours at 700mA at 25°C). Class 2 electronic drivers are designed for an expected life of 100,000 hours with < 1% failure rate. Electrical components are mounted on a removable power tray.
LISTINGS
CSA certified to U.S. and Canadian standards. Light engines are IP66 rated. Rated for -40°C minimum ambient. Cold-weather emergency battery backup rated for -20°C minimum ambient.
GOVERNMENT PROCUREMENT
BAA – Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
Five-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
SPARTAN BOLLARD
SPARTAN BOLLARD
Specifications
Diameter: 8” Round (20.3 cm)
Height: 42” (106.7 cm)
D-Series LED Bollard
Hit the Tab key or mouse over the page to see all interactive elements.
Introduction
The D-Series LED Bollard is a stylish, energysaving, long-life solution designed to perform the way a bollard should—with zero uplight. An optical leap forward, this full cut-off luminaire will meet the most stringent of lighting codes.
The D-Series LED Bollard’s rugged construction, durable finish and long-lasting LEDs will provide years of maintenance-free service.
Ordering Information
Shipped installed PE Photoelectric cell, button type
DMG 00-10v dimming wires pulled outside fixture (for use with an external control, ordered separately)
ELCW Emergency battery backup6
Shipped installed
SF Single fuse (120, 277, 347V) 4,7
DF Double fuse (208, 240V) 4,7
H24 24” overall height
H30 30” overall height
H36 36” overall height
FG Ground-fault festoon outlet
L/AB Without anchor bolts
Accessories
Ordered and shipped separately.
NOTES
1 Only available in the 12C, ASY version.
2 Only available in the 16C, SYM version.
3 Only available with 450 AMBLW version.
4 Not available with ELCW.
Black DDBTXD Textured dark bronze DBLBXD Textured black
DNATXD Textured natural aluminum
DWHGXD Textured white
L/AB4 4-bolt retrofit base without anchor bolts 8 DWHXD White DNAXD Natural aluminum DDBXD Dark bronze
5 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz). Specify 120, 208, 240 or 277 options only when ordering with fusing (SF, DF options), or photocontrol (PE option).
6 Not available with 347V. Not available with fusing. Not available with 450 AMBLW.
7 Single fuse (SF) requires 120, 277, or 347 voltage option. Double fuse (DF) requires 208 or 240 voltage option.
8 MRAB U not available with L/AB4 option.
SPARTAN BOLLARD
SPARTAN BOLLARD
The Spartan Bollard is the LED alternative to traditional bollard lighting, which illuminates pathways, parking structures, or any kind of commercial real estate. Details at the top of the fixtures, add an architectural feel to the design, making this light great for customers looking for safety and style. PROJECT DETAILS
PRODUCT SPECS
LED Bollard Light
The Spartan Bollard is the LED alternative to traditional bollard lighting, which illuminates pathways, parking structures, or any kind of commercial real estate. Details at the top of the fixtures, add an architectural feel to the design, making this light great for customers looking for safety and style.
The Spartan Bollard is the LED alternative to traditional bollard lighting, which illuminates pathways, parking structures, or any kind of commercial real estate. Details at the top of the fixtures, add an architectural feel to the design, making this light great for customers looking for safety and style.
PRODUCT SPECS
Input Voltage (VAC) 100-277 CRI 70+
Input Voltage (VAC) 100-277 CRI 70+
PRODUCT SPECS
CCT (K) 4000, 5000 PF >.9
Project:
Product:
Prepared by:
PROJECT DETAILS
Notes:
PROJECT DETAILS TYPE
Project:
Project:
Product:
Product:
Prepared by:
Prepared by:
Notes:
Notes:
PRODUCT HIGHLIGHTS
• IP65 Rated
PRODUCT HIGHLIGHTS
• Can be cut to custom lengths
· IP65 Rated
• Built from high strength extruded aluminum
PRODUCT HIGHLIGHTS
· Can be cut to custom lengths
Input Voltage (VAC) 100-277
Lifetime (Hrs per TM21-08 @L70 50,000
CCT (K) 3000K/4000K/5000K Selectable PF >.9
CRI 70+
Lifetime (Hrs per TM21-08 @L70 54,000
Color Bronze, Black Housing Aluminum and PC
CCT (K) 4000, 5000 PF >.9
Color Bronze, Black
Lens Clear (std.), Frosted Operating Temperature -40°C to 40°C
Lifetime (Hrs per TM21-08 @L70 50,000
Housing Aluminum
Lens Clear
Limited Warranty 10 Years‡
Operating Temperature -40°C to 40°C
Limited Warranty 10 Years‡
Color Bronze, Black Housing Aluminum and PC
CERTIFICATIONS AND COMPATIBILITIES
· Built from high strength extruded aluminum
• IP65 Rated
• Can be cut to custom lengths
CERTIFICATIONS AND COMPATIBILITIES
• Built from high strength extruded aluminum
CERTIFICATIONS AND COMPATIBILITIES
*Photocontrol is available by special order. Contact ATG for details. *
*Photocontrol is available by special order. Contact ATG for details.
ORDER FORMAT EXAMPLE: BLD-24-40
ORDER FORMAT
Lens Clear (std.), Frosted
Product ID – Wattage – CCT – Voltage
Operating Temperature -40°C to 40°C
Seties– Wattage – CCT
Limited Warranty 10 Years‡
EXAMPLE: BLD-24-40
BLD=Dome Top BLF=Round Flat Top – 24=24W – CS=3000K/4000K/5000K Selectable – Blank=100-277V –Blank=1-10V Dimming– Blank=Bronze custom finins*
ORDER FORMAT
*talk to our sales for more information about custom finis
*Photocontrol is available by special order. Contact ATG for details.
BLD-24-40
APPLICATION CONSTRUCTION
APPLICATION
The luminaire comes standard with an 8 bolt mounting kit. The Spartan Bollard can also be cut to custom lengths upon request.
The luminaire comes standard with an 8 bolt mounting kit. The Spartan Bollard can also be cut to custom lengths upon request.
CONSTRUCTION
ATG’s Spartan LED bollard is built from high-strength extruded aluminum with a polycarbonate lens. The housing features integral thermal management and is IP65 rated for stellar protection from the elements. Operating ambient temperature ranges from -40°C to +40°C.
CONSTRUCTION
ATG’s Spartan LED bollard is built from high-strength extruded aluminum with a polycarbonate lens. The housing features integral thermal management and is IP65 rated for stellar protection from the elements. Operating ambient temperature ranges from -40°C to +40°C.
ELECTRICAL
The fixture operates at a standard voltage of 100-277V and draws 24W of power. L70 is rated for >54,000 hours, or >10 years at 12 hours a day of operation.
ATG’s Spartan LED bollard is built from high-strength extruded aluminum with a polycarbonate lens. The housing features integral thermal management and is IP65 rated for stellar protection from the elements. Operating ambient temperature ranges from -40°C to +40°C.
OPTICS
The Sparttan Bollard outputs 2,472+ Lm. The fixture operates at a standard voltage of 100-277V and draws 24W of power. L70 is rated for >54,000 hours, or >10 years at 12 hours a day of operation.
ELECTRICAL
The LED array is tight shielded by a clear polycarbonate lens. Available with CCT switchable model with 3000K/4000K/5000K selections, matched with an outstanding 70+ CRI for optimal nighttime visibility.
The Sparttan Bollard outputs 2,472+ Lm. The fixture operates at a standard voltage of 100-277V and draws 24W of power. L70 is rated for >54,000 hours, or >10 years at 12 hours a day of operation.
The LED array is tight shielded by a clear polycarbonate lens. Available CCT options are 4000K, and 5000K, matched with an outstanding 70+ CRI for optimal nighttime visibility.
OPTICS
*Data for 4000K(fixed) is based on IES file,5000K is based on extrapolated data with 1.08 factor
The LED array is tight shielded by a clear polycarbonate lens. Available CCT options are 4000K, and 5000K, matched with an outstanding 70+ CRI for optimal nighttime visibility.
Note: Available with phosphor-converted amber LED’s (nomenclature AMBPC). These LED’s produce light with 97+% >530 nm. Output can be calculated by applying a 0.7 factor to 4000 K lumen values and photometric files.
Projected LED Lumen Maintenance
Data references the extrapolated performance projections for the platforms noted in a 25°C ambient, based on 10,000 hours of LED testing (tested per IESNA LM-80-08 and projected per IESNA TM-21-11).
To calculate LLF, use the lumen maintenance factor that corresponds to the desired number of operating hours below. For other lumen maintenance values, contact factory.
Photometric Diagrams
Electrical Load
70039W0.3850.2310.2070.1850.163
Amber45020W0.1990.1390.1300.1230.116
To see complete photometric reports or download .ies files for this product, visit Lithonia Lighting’s D-Series Bollard homepage
Isofootcandle plots for the DSXB LED 700 40K. Distances are in units of mounting height (3’).
53210
Test No. LTL24360-2 tested in accordance with
FEATURES & SPECIFICATIONS
INTENDED USE
The rugged construction and maintenance-free performance of the D-Series LED Bollard is ideal for illuminating building entryways, walking paths and pedestrian plazas, as well as any other location requiring a low-mounting-height light source.
CONSTRUCTION
One-piece 8-inch-round extruded aluminum shaft with thick side walls for extreme durability, and die-cast aluminum reflector and top cap. Die-cast aluminum mounting ring allows for easy leveling even in uneven areas and full 360-degree rotation for precise alignment during installation. Three ½” x 11” anchor bolts with double nuts and washers and 3-5/8” max. bolt circle template ensure stability. Overall height is 42” standard.
FINISH
Exterior parts are protected by a zinc-infused super durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering for maximum retention of gloss and luster. A tightly controlled multi-stage process ensures a minimum 3-mil thickness for a finish that can withstand the elements without cracking or peeling. Available in both textured and non-textured finishes.
OPTICS
Two 0% uplight optical distributions are available: symmetrical and asymmetrical. IP66 sealed LED light engine provides smoothly graduated illumination without uplight. Light engines are available in standard 4000 K (>70 CRI) or optional 3000 K (>80 CRI) or 5000 K (67 CRI). Limited-wavelength amber LEDs are also available.
ELECTRICAL
Light engines consist of high-efficacy LEDs mounted to metal-core circuit boards to maximize heat dissipation and promote long life (L95/100,000 hours at 700mA at 25°C). Class 2 electronic drivers are designed for an expected life of 100,000 hours with < 1% failure rate. Electrical components are mounted on a removable power tray.
LISTINGS
CSA certified to U.S. and Canadian standards. Light engines are IP66 rated. Rated for -40°C minimum ambient. Cold-weather emergency battery backup rated for -20°C minimum ambient.
GOVERNMENT PROCUREMENT
BAA – Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
Five-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
SPARTAN BOLLARD
SPARTAN BOLLARD
TYPE S4 SPEC TROPICAL
D-Series Size 0 LED Area Luminaire
Specifications
Design Select options indicated by this color background.
2700K
PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40' mounting height, ambient sensor enabled at 2fc. 11, 12, 18, 19
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 18, 19
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate) 14, 19
PER7 Seven-pin receptacle only (controls ordered separate) 14, 19
FAO Field adjustable output 15, 19
BL30 Bi-level switched dimming, 30% 16, 19
BL50 Bi-level switched dimming, 50% 16, 19
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications, with typical energy savings of 70% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Shipped installed HS Houseside shield (black finish standard) 20 L90 Left rotated optics 1 R90 Right rotated optics 1
Coastal Construction 21 HA 50°C ambient operation 22
1 Rotated optics available with packages P10, P11, P12 and P13. Must be combined with option L90 or R90.
2 30K, 40K, and 50K available in 70CRI and 80CRI. 27K and 35K only available with 80CRI. Contact Technical Support for other possible combinations.
3 T3LG, T4LG, BLC3, BLC4, LCCO, RCCO not available with option HS.
4 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
5 HVOLT driver operates on any line voltage from 347-480V (50/60 Hz).
6 HVOLT not available with package P1, P2 and P10 when combined with option NLTAIR2 PIRHN or option PIR.
7 XVOLT operates with any voltage between 277V and 480V (50/60 Hz).
8 XVOLT not available in packages P1, P2 or P10. XVOLT not available with fusing (SF or DF).
9 SPA5 and RPA5 for use with #5 drilling only (Not for use with #8 drilling).
10 WBA cannot be combined with Type 5 distributions plus photocell (PER).
11 NLTAIR2 and PIRHN must be ordered together. For more information on nLight Air 2.
12 NLTAIR2 PIRHN not available with other controls including PIR, PER, PER5, PER7, FAO, BL30, BL50 and DMG. NLTAIR2 PIRHN not available with P1, P2 and P10 using HVOLT. NLTAIR2 PIRHN not available with P1, P2 and P10 using XVOLT. NLTAIR2 PIRHN not available with P1 using MVOLT.
13 PIR not available with NLTAIR2, PER, PER5, PER7, FAO BL30, BL50 and DMG. PIR not available with P1, P2 and P10 using HVOLT. PIR not available with P1, P2 and P10 using XVOLT. PIR not available with P1 using MVOLT.
14 PER/PER5/PER7 not available with NLTAIR2, PIR, BL30, BL50. Photocell ordered and shipped as a separate line item from Acuity Brands Controls. See accessories. Shorting Cap included.
15 FAO not available with other dimming control options NLTAIR2 PIRHN, PIR, PER5, PER7, BL30, BL50, or DMG.
16 BL30 and BL50 are not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, FAO and DMG. BL30 or BL50 must specify 120, 277 or 347V. Consult tech support for 208, 240 or 480V.
17 DMG not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50 and FAO.
18 Reference Motion Sensor Default Settings table on page 4 to see functionality.
19 Reference Controls Options table on page 4.
20 Option HS not available with T3LG, T4LG, BLC3, BLC4, LCCO and RCCO distribution. Also available as a separate accessory; see Accessories information.
21 CCE option not available with option BS and EGSR. Contact Technical Support for availability.
22 Option HA not available with performance packages P6, P7, P12 and P13.
23 Requires luminaire to be specified with PER, PER5 or PER7 option. See Controls Table on page 4.
24 Single fuse (SF) requires 120V, 277V, or 347V. Double fuse (DF) requires 208V, 240V or 480V. XVOLT not available with fusing (SF or DF).
Tenon Mounting Slipfitter
VIENTO AREA LUMINARE
• Red: Horizontal / Blue: vertical
2M
3M
• Some Photometric Data is extrapolated and subject to change.
BLANK
VIENTO AREA LUMINARE
• Some Photometric Data is extrapolated and subject to change.
EPA RATINGS
• EPA calculated with the following:
• 4” square pole (Single, two At 90, two At 180, three At 90, Four At 90)
• 4” round pole (three At 120)
• vnt-SSA (Dual SSA)
BLANK
FEATURES
• Slips over 2” IP tenon (2.38”OD x 4.8” max depth).
• Cover plate on knuckle is removable for access to angle adjustment and wiring.
• Cover plate includes incremental angle markings for easy reference.
• Rotation is 90° from vertical (180° total) in 10° increments.
• (4x) 3/8-16 x 0.75” Set Screws.
• (2x) 3/8-16 x 1.50” Bolts.
CONSTRUCTION
• Heavy wall aluminum die-cast construction.
• All stainless steel hardware.
• Protected with a thermoset TGIC-polyester powder coat finish using a tightly controlled multi-stage process to a uniform 3 mil thickness (min). This finish provides superior protection from corrosion and maximum environmental durability.
DIMENSIONS
• 10.9” overall length.
• 7.06” base to C/L of rotation.
• EPA: 0.127 sq. ft.
• Weight: 6.0 lbs.
TYPE S5 SPEC TROPICAL
D-Series Size 0 LED Area Luminaire
Specifications
Design Select options indicated by this color background.
2700K
Shipped installed
PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40' mounting height, ambient sensor enabled at 2fc. 11, 12, 18, 19
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 18, 19
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate) 14, 19
PER7 Seven-pin receptacle only (controls ordered separate) 14, 19
FAO Field adjustable output 15, 19
BL30 Bi-level switched dimming, 30% 16, 19
BL50 Bi-level switched dimming, 50% 16, 19
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications, with typical energy savings of 70% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Shipped installed HS Houseside shield (black finish standard) 20 L90 Left rotated optics 1 R90 Right rotated optics 1 CCE Coastal Construction 21
1 Rotated optics available with packages P10, P11, P12 and P13. Must be combined with option L90 or R90.
2 30K, 40K, and 50K available in 70CRI and 80CRI. 27K and 35K only available with 80CRI. Contact Technical Support for other possible combinations.
3 T3LG, T4LG, BLC3, BLC4, LCCO, RCCO not available with option HS.
4 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
5 HVOLT driver operates on any line voltage from 347-480V (50/60 Hz).
6 HVOLT not available with package P1, P2 and P10 when combined with option NLTAIR2 PIRHN or option PIR.
7 XVOLT operates with any voltage between 277V and 480V (50/60 Hz).
8 XVOLT not available in packages P1, P2 or P10. XVOLT not available with fusing (SF or DF).
9 SPA5 and RPA5 for use with #5 drilling only (Not for use with #8 drilling).
10 WBA cannot be combined with Type 5 distributions plus photocell (PER).
11 NLTAIR2 and PIRHN must be ordered together. For more information on nLight Air 2.
12 NLTAIR2 PIRHN not available with other controls including PIR, PER, PER5, PER7, FAO, BL30, BL50 and DMG. NLTAIR2 PIRHN not available with P1, P2 and P10 using HVOLT. NLTAIR2 PIRHN not available with P1, P2 and P10 using XVOLT. NLTAIR2 PIRHN not available with P1 using MVOLT.
13 PIR not available with NLTAIR2, PER, PER5, PER7, FAO BL30, BL50 and DMG. PIR not available with P1, P2 and P10 using HVOLT. PIR not available with P1, P2 and P10 using XVOLT. PIR not available with P1 using MVOLT.
14 PER/PER5/PER7 not available with NLTAIR2, PIR, BL30, BL50. Photocell ordered and shipped as a separate line item from Acuity Brands Controls. See accessories. Shorting Cap included.
15 FAO not available with other dimming control options NLTAIR2 PIRHN, PIR, PER5, PER7, BL30, BL50, or DMG.
16 BL30 and BL50 are not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, FAO and DMG. BL30 or BL50 must specify 120, 277 or 347V. Consult tech support for 208, 240 or 480V.
17 DMG not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50 and FAO.
18 Reference Motion Sensor Default Settings table on page 4 to see functionality.
19 Reference Controls Options table on page 4.
20 Option HS not available with T3LG, T4LG, BLC3, BLC4, LCCO and RCCO distribution. Also available as a separate accessory; see Accessories information.
21 CCE option not available with option BS and EGSR. Contact Technical Support for availability.
22 Option HA not available with performance packages P6, P7, P12 and P13.
23 Requires luminaire to be specified with PER, PER5 or PER7 option. See Controls Table on page 4.
24 Single fuse (SF) requires 120V, 277V, or 347V. Double fuse (DF) requires 208V, 240V or 480V. XVOLT not available with fusing (SF or DF).
Tenon Mounting Slipfitter
VIENTO AREA LUMINARE
• Red: Horizontal / Blue: vertical
2M
3M
• Some Photometric Data is extrapolated and subject to change.
BLANK
VIENTO AREA LUMINARE
• Some Photometric Data is extrapolated and subject to change.
EPA RATINGS
• EPA calculated with the following:
• 4” square pole (Single, two At 90, two At 180, three At 90, Four At 90)
• 4” round pole (three At 120)
• vnt-SSA (Dual SSA)
BLANK
VIENTO ADJUSTABLE SLIP FITTER
FEATURES
• Slips over 2” IP tenon (2.38”OD x 4.8” max depth).
• Cover plate on knuckle is removable for access to angle adjustment and wiring.
• Cover plate includes incremental angle markings for easy reference.
• Rotation is 90° from vertical (180° total) in 10° increments.
• (4x) 3/8-16 x 0.75” Set Screws.
• (2x) 3/8-16 x 1.50” Bolts.
CONSTRUCTION
• Heavy wall aluminum die-cast construction.
• All stainless steel hardware.
• Protected with a thermoset TGIC-polyester powder coat finish using a tightly controlled multi-stage process to a uniform 3 mil thickness (min). This finish provides superior protection from corrosion and maximum environmental durability.
DIMENSIONS
• 10.9” overall length.
• 7.06” base to C/L of rotation.
• EPA: 0.127 sq. ft.
• Weight: 6.0 lbs.
TYPE S8E SPEC TROPICAL
D-Series Size 0 LED Area Luminaire
Specifications
Design Select options indicated by this color background.
2700K
Shipped installed
PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40' mounting height, ambient sensor enabled at 2fc. 11, 12, 18, 19
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 18, 19
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate) 14, 19
PER7 Seven-pin receptacle only (controls ordered separate) 14, 19
FAO Field adjustable output 15, 19
BL30 Bi-level switched dimming, 30% 16, 19
BL50 Bi-level switched dimming, 50% 16, 19
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications, with typical energy savings of 70% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Shipped installed HS Houseside shield (black finish standard) 20 L90 Left rotated optics 1 R90 Right rotated optics 1 CCE Coastal Construction 21
1 Rotated optics available with packages P10, P11, P12 and P13. Must be combined with option L90 or R90.
2 30K, 40K, and 50K available in 70CRI and 80CRI. 27K and 35K only available with 80CRI. Contact Technical Support for other possible combinations.
3 T3LG, T4LG, BLC3, BLC4, LCCO, RCCO not available with option HS.
4 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
5 HVOLT driver operates on any line voltage from 347-480V (50/60 Hz).
6 HVOLT not available with package P1, P2 and P10 when combined with option NLTAIR2 PIRHN or option PIR.
7 XVOLT operates with any voltage between 277V and 480V (50/60 Hz).
8 XVOLT not available in packages P1, P2 or P10. XVOLT not available with fusing (SF or DF).
9 SPA5 and RPA5 for use with #5 drilling only (Not for use with #8 drilling).
10 WBA cannot be combined with Type 5 distributions plus photocell (PER).
11 NLTAIR2 and PIRHN must be ordered together. For more information on nLight Air 2.
12 NLTAIR2 PIRHN not available with other controls including PIR, PER, PER5, PER7, FAO, BL30, BL50 and DMG. NLTAIR2 PIRHN not available with P1, P2 and P10 using HVOLT. NLTAIR2 PIRHN not available with P1, P2 and P10 using XVOLT. NLTAIR2 PIRHN not available with P1 using MVOLT.
13 PIR not available with NLTAIR2, PER, PER5, PER7, FAO BL30, BL50 and DMG. PIR not available with P1, P2 and P10 using HVOLT. PIR not available with P1, P2 and P10 using XVOLT. PIR not available with P1 using MVOLT.
14 PER/PER5/PER7 not available with NLTAIR2, PIR, BL30, BL50. Photocell ordered and shipped as a separate line item from Acuity Brands Controls. See accessories. Shorting Cap included.
15 FAO not available with other dimming control options NLTAIR2 PIRHN, PIR, PER5, PER7, BL30, BL50, or DMG.
16 BL30 and BL50 are not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, FAO and DMG. BL30 or BL50 must specify 120, 277 or 347V. Consult tech support for 208, 240 or 480V.
17 DMG not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50 and FAO.
18 Reference Motion Sensor Default Settings table on page 4 to see functionality.
19 Reference Controls Options table on page 4.
20 Option HS not available with T3LG, T4LG, BLC3, BLC4, LCCO and RCCO distribution. Also available as a separate accessory; see Accessories information.
21 CCE option not available with option BS and EGSR. Contact Technical Support for availability.
22 Option HA not available with performance packages P6, P7, P12 and P13.
23 Requires luminaire to be specified with PER, PER5 or PER7 option. See Controls Table on page 4.
24 Single fuse (SF) requires 120V, 277V, or 347V. Double fuse (DF) requires 208V, 240V or 480V. XVOLT not available with fusing (SF or DF).
Tenon Mounting Slipfitter
VIENTO AREA LUMINARE
• Red: Horizontal / Blue: vertical
2M
3M
• Some Photometric Data is extrapolated and subject to change.
BLANK
VIENTO AREA LUMINARE
• Some Photometric Data is extrapolated and subject to change.
EPA RATINGS
• EPA calculated with the following:
• 4” square pole (Single, two At 90, two At 180, three At 90, Four At 90)
• 4” round pole (three At 120)
• vnt-SSA (Dual SSA)
BLANK
FEATURES
• Slips over 2” IP tenon (2.38”OD x 4.8” max depth).
• Cover plate on knuckle is removable for access to angle adjustment and wiring.
• Cover plate includes incremental angle markings for easy reference.
• Rotation is 90° from vertical (180° total) in 10° increments.
• (4x) 3/8-16 x 0.75” Set Screws.
• (2x) 3/8-16 x 1.50” Bolts.
CONSTRUCTION
• Heavy wall aluminum die-cast construction.
• All stainless steel hardware.
• Protected with a thermoset TGIC-polyester powder coat finish using a tightly controlled multi-stage process to a uniform 3 mil thickness (min). This finish provides superior protection from corrosion and maximum environmental durability.
DIMENSIONS
• 10.9” overall length.
• 7.06” base to C/L of rotation.
• EPA: 0.127 sq. ft.
• Weight: 6.0 lbs.
Juno SlimForm™ LED with Selectable CCT
5" and 7" Square Downlight for JBox Installation
Dimensions
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features
Sleek, ultra-low profile energy efficient LED surface mount downlights available in 5" and 7" sizes. Optional finish trims available for custom, designer look similar to standard recessed downlights. Provides general illumination in residential and commercial applications including multifamily and hospitality. Ideal for use in corridors, living spaces, closets, hallways, pantries, stairways, outdoor covered areas.
With the newly added selectable CCT switch, the JSFSQ gives the ultimate in flexibility for both the distributor as well as the end user.
Applications
• Suitable for wet locations (indoor covered ceilings): perfect for closets, showers, bathrooms, outdoor soffits, and covered ceiling applications.
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Led Color Temperature Switchable White (2700K, 3000K, 3500K, 4000K, 5000K) Default set at 3000K CRI 90+
Voltage Dedicated 120V and MVOLT (120V-277V) Dimming Phase Dimming down to 10%
Specifications
All dimensions are in Inches (centimeters unless otherwise indicated.
LED DECORATIVE DISK SERIES
Key Features & Benefits:
• 5CCT Field Selectable
• Compatible with 3" and 4" J Boxes
• Wet Location Rated
• 120 VAC Triac Dimmable
• T24 Compliant
• Easy Surface Mount Installation
• Optional Trim Kits*
Product Specifications:
Wattage: 11 Watts
Selectable Kelvin:
2700K–3000K–3500K–4000K–5000K
Lumen Output: Up to 792 Lumens
Efficacy: Up to 70 lm/W
Input Voltage: 120 VAC
CRI: >90
Operating Temperature: -4°F to 104°F
Operational Lifetime: 50,000 hrs
Dimensions: 5.6" x 5.6" x H 1.18"
Ordering Guide:
Project: Catalog #:
Notes:
Easy Select Kelvin Switch on Backplate FIELD INSTALLED
KITS
ESL-DDSK1-R9-Tff
ESL-DDSK1-S9-Tff
ESL-DDSK1-R11-Tff
Date:
ESL-DDSK1-S11-Tff 11" DDSK field installable square trim kit* Finishes: (ff)=(MW) Field Paintable, (BK) Black, (BN) Brushed Nickel, (BZ) Bronze, (CP) Copper *Contact ESL Representative for more information regarding Trim Kit lead times. Field Installable Trim Rings Sold Separately: Black, Bronze, Nickel, Copper, and Field Paintable
Juno SlimForm™ LED with Selectable CCT
5" and 7" Square Downlight for JBox Installation
BLACK
SATIN NICKEL
BLANK
Juno SlimForm™ LED with Selectable CCT
5" and 7" Square Downlight for JBox Installation
Specifications
Construction
Shallow, less than 1", solid ring with white finish • Non conductive construction allows for light shower applications • Optional, field installable finish trims available for 5" and 7" versions to change the exterior finish of fixture
Optics
Light guide technology combined with diffusing lens conceals the LEDs from direct view and provides uniform lens luminance.
LED Light Engine
LEDs mounted directly to heatsink designed to provide superior thermal management and ensure long life • Selectable CCT with steps at 27K, 30K, 35K, 40K, 50K • LEDs binned for 4-step MacAdam ellipse color consistency •90 CRI minimum.
LED Driver
Choice of dedicated 120 volt (120) driver or universal voltage (MVOLT) driver that accommodates input voltages from 120-277 volts AC at 50/60Hz • Power factor > 0.9 at 120V input •120 volt driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers • Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers • External driver is only available on 5" and 7" models • For a list of compatible dimmers, see JUNOSLIMFORM-DIM
Installation
Junction Box Mounting
Fixture provided with leads for direct wire connection in j-box • Installs directly to industry standard junction boxes • Compatible junction boxes include 4" metal or plastic octagonal standard and IC1JB junction box housing (3 1/2" junction box screw-hole spacing required for installation) • Minimum 1 3/4" depth and minimum 3 1/2" width of junction box required for installation for 5" and 7" fixtures • Quick mount bracket provides fast installation of fully assembled fixture to junction box • Suitable for ceiling mount • Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Life
Rated for 50,000 hours at >70% lumen maintenance.
Labels
ENERGY STAR® certified • Certified to the high efficacy requirements of California T24 JA8-2019 • CSA listed for US and Canada • Suitable for wet locations (covered ceilings) • Damp location only with emergency option.
Testing
All reports are based on published industry procedures; field performance may differ from laboratory performance.
Warranty
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-andconditions
Note: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
BLANK
Juno SlimForm™ LED with Selectable CCT
5" and 7" Square Downlight for JBox Installation
Dimensions
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features
Sleek, ultra-low profile energy efficient LED surface mount downlights available in 5" and 7" sizes. Optional finish trims available for custom, designer look similar to standard recessed downlights. Provides general illumination in residential and commercial applications including multifamily and hospitality. Ideal for use in corridors, living spaces, closets, hallways, pantries, stairways, outdoor covered areas.
With the newly added selectable CCT switch, the JSFSQ gives the ultimate in flexibility for both the distributor as well as the end user.
Applications
• Suitable for wet locations (indoor covered ceilings): perfect for closets, showers, bathrooms, outdoor soffits, and covered ceiling applications.
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Led Color Temperature Switchable White (2700K, 3000K, 3500K, 4000K, 5000K) Default set at 3000K CRI 90+
Voltage Dedicated 120V and MVOLT (120V-277V) Dimming Phase Dimming down to 10%
Specifications
All dimensions are in Inches (centimeters unless otherwise indicated.
LED DECORATIVE DISK SERIES
Key Features & Benefits:
• 5CCT Field Selectable
• Compatible with 3" and 4" J Boxes
• Wet Location Rated
• 120 VAC Triac Dimmable
• T24 Compliant
• Easy Surface Mount Installation
• Optional Trim Kits*
Product Specifications:
Wattage: 11 Watts
Selectable Kelvin:
2700K–3000K–3500K–4000K–5000K
Lumen Output: Up to 792 Lumens
Efficacy: Up to 70 lm/W
Input Voltage: 120 VAC
CRI: >90
Operating Temperature: -4°F to 104°F
Operational Lifetime: 50,000 hrs
Dimensions: 5.6" x 5.6" x H 1.18"
Ordering Guide:
Project: Catalog #:
Notes:
Easy Select Kelvin Switch on Backplate FIELD
KITS
ESL-DDSK1-R9-Tff
ESL-DDSK1-S9-Tff
ESL-DDSK1-R11-Tff
Date:
ESL-DDSK1-S11-Tff 11" DDSK field installable square trim kit* Finishes: (ff)=(MW) Field Paintable, (BK) Black, (BN) Brushed Nickel, (BZ) Bronze, (CP) Copper *Contact ESL Representative for more information regarding Trim Kit lead times. Field Installable Trim Rings Sold Separately: Black, Bronze, Nickel, Copper, and Field Paintable
Juno SlimForm™ LED with Selectable CCT 5"
and 7" Square Downlight for JBox Installation
BLACK
SATIN NICKEL
BLANK
Juno SlimForm™ LED with Selectable CCT
5" and 7" Square Downlight for JBox Installation
Specifications
Construction
Shallow, less than 1", solid ring with white finish • Non conductive construction allows for light shower applications • Optional, field installable finish trims available for 5" and 7" versions to change the exterior finish of fixture
Optics
Light guide technology combined with diffusing lens conceals the LEDs from direct view and provides uniform lens luminance.
LED Light Engine
LEDs mounted directly to heatsink designed to provide superior thermal management and ensure long life • Selectable CCT with steps at 27K, 30K, 35K, 40K, 50K • LEDs binned for 4-step MacAdam ellipse color consistency •90 CRI minimum.
LED Driver
Choice of dedicated 120 volt (120) driver or universal voltage (MVOLT) driver that accommodates input voltages from 120-277 volts AC at 50/60Hz • Power factor > 0.9 at 120V input •120 volt driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers • Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers • External driver is only available on 5" and 7" models • For a list of compatible dimmers, see JUNOSLIMFORM-DIM
Installation
Junction Box Mounting
Fixture provided with leads for direct wire connection in j-box • Installs directly to industry standard junction boxes • Compatible junction boxes include 4" metal or plastic octagonal standard and IC1JB junction box housing (3 1/2" junction box screw-hole spacing required for installation) • Minimum 1 3/4" depth and minimum 3 1/2" width of junction box required for installation for 5" and 7" fixtures • Quick mount bracket provides fast installation of fully assembled fixture to junction box • Suitable for ceiling mount • Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Life
Rated for 50,000 hours at >70% lumen maintenance.
Labels
ENERGY STAR® certified • Certified to the high efficacy requirements of California T24 JA8-2019 • CSA listed for US and Canada • Suitable for wet locations (covered ceilings) • Damp location only with emergency option.
Testing
All reports are based on published industry procedures; field performance may differ from laboratory performance.
Warranty
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-andconditions
Note: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
BLANK
FEATURES & SPECIFICATIONS
INTENDED USE — Provides general illumination in residential applications. If required for commercial application or operation more than eight (8) hours per day, consult factory for available options. Suspended from ceiling, ideal for over dinette tables, game tables, entertainment bars, kitchen counters, or other work areas.
CONSTRUCTION — A classic look, this transitionally styled mini-pendant is offered in a brushed-nickel finish with acid-etched, opal frosted glass shade, which provides a widespread even illumination and is suspended by the matching support stem and canopy.
OPTICS Includes (1) 13W integrated GU24 spiral 2700K fluorescent lamp/ballast (see note below) for energy efficiency, superior color rendering and long life.
ELECTRICAL Standard with electronic ballast (120 volt, 60Hz) ensures no flickering and quiet operation without interfering with other home electronics.
Included lamps are for use with non-dimmable switches only. If fixture is supplied with integrated lamps/ballasts and tall sockets (see note below), dimmable lamps (CF15INLB27 GU24 DIM) can be used (sold separately).
INSTALLATION All mounting hardware included.
LISTINGS UL listed to US and Canadian safety standards and suitable for damp locations.
Note: Actual performance may differ as a result of end-user environment and application. Specifications subject to change without notice.
NOTE: Older fixtures may have shipped with pin-based lamps and SU13 ballasts. To identify the correct replacement lamps, look at the sockets.
Tall Sockets
Uses GU24 integrated lamps/ ballasts (CF13INLB27 GU24) (CF13INLB GU24 lamp is not available)
Short Sockets
Uses pin-based lamps (CF13S27) AND SU13 ballasts (BLST SU 13W)
DATE: TYPE:
NAME:
PROJECT: Incandescent
P5113-09
Gather
Gather possesses a smart simplicity to complement today’s home. This one-light mini-pendant contains etched glass shades which add distinction and provide pleasing illumination to your room. Complimented by a Brushed Nickel finish.
• Brushed Nickel finish.
• White etched glass shades provide distinctive lighting.
• Includes two 6” stems and 42 in of chain.
Category: Pendants
Finish: Brushed Nickel (plated)
Construction: Steel Construction
Glass/Shade: Etched glass shade
Ceiling chain or stem mounted
Mounting strap for outlet box included
42 in of 9 gauge chain supplied
Two 6” lengths of stem included
Canopy covers a standard 4” octagonal recessed outlet box
The 6” h low profile 2630 series drum is available in two UV stabilized configurationsWhite Acrylic, and Encased White Linen. Drum can be wiped down with a non-abrasive commercial cleaning solution, including bleach/ammonia, and a soft cloth.
White Acrylic (WHA): one-piece drum. Both the outer wall and base (bottom) diffuser are constructed of high transmission matte white acrylic.
Encased White Linen (EWL): one-piece drum. The outer wall consists of fabric which is bonded between two layers of acrylic. The base (bottom) diffuser is constructed of high transmission matte white acrylic. The result is a sustainable fabric drum which can be effortlessly wiped down when needed.
HOUSING
Formed, cold rolled steel design, finished in a high reflectance powder coat white. The housing covers the entire top surface of the drum. No need for top cover.
SUSPENSION SYSTEM
CC1 – Cord & Single Cable: Both the power cord and aircraft cable can be trimmed in the field. See optional ordering code CE1 and CE2 for extended 10’ and 20’ drops. (24” & 30” only)
CC3 – Cord & Three Cable: Both the power cord and aircraft cables can be trimmed in the field. See optional ordering code CE1 and CE2 for extended 10’ and 20’ drops.
SSM – Single Stem Mount: Traditional pendant style. Steel stem in your choice of finish. The standard overall height (OAH) can be extended with additional stem sections in 1’ and 2’ intervals - see accessories section. (24” & 30” only)
SCM – Stem & Cable Mount: Steel stem in your choice of finish with three aircraft cables. The standard overall height (OAH) can be extended with additional stem sections in 1’ and 2’ intervals - see accessories section.
Provides an LED lighting platform to deliver general or task lighting for residential and light commercial applications. Light engine delivers long life and excellent color to ensure a quality, low-maintenance light installation. Ideal for use in bathrooms, lavatories, hallways, corridors, stairways, utility areas and more.
CONSTRUCTION
The Traditional Square Vanity is constructed of an acrylic diffuser with housing available in brushed nickel. The white acrylic diffuser provides even illumination and softens the appearance of the LEDs for improved aesthetics.
OPTICS
2' produces 1300 lumens and 3' produces 1900 lumens at 3000K with 50,000 hours of life. Extruded acrylic diffuser is of highly transmissive material to minimize LED image and provides highangle brightness control.
ELECTRICAL
Long-life LEDs, coupled with a multivolt driver, provide extended service life. Standard input = 9.5 watts, (2'); 26 watts, (3'). Fixture is rated to deliver L70 performance at 50,000 hours and operates at 120-277 volts.
Use with non-dimmable switches only.
LISTINGS
UL Listed to US and Canadian safety standards. Listed for damp locations. ENERGY STAR® certified.
WARRANTY
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Shade: High Transmission Acrylic Create Excellent Light Distribution and Uniformity LED: High Efficiency, High CRI, Binned and Mixed to Reach Uniform Light
Electrical High Power Factor, Low THD
Lamp
LED Module: Multiple Color Temperature Type (MCT, Adjustable, 3000K/3500K/4000K)
Sunpark Electronics Corp. Phone: (310) 324-8880 Specifications are subject to 6/13/23
Page 1 of 1 16200 S. Figueroa St., Gardena, CA90248 Fax: (310) 324-4020 change without notice.
www.sunparkelectronics.com
NO SPECIFICATION
Argyle
LED MIRROR
FEATURES
– Vinyl Safety Backing
– Forward facing task lighting
– ETL-Listed to UL STD .962 for USA and CSA Std. C22.2 for Canada
– Finger Print Protection
– 5-year limited warranty on mirror plate
– 5-year warranty on LED driver
– 5-year warranty on Premium LED strips
– Easy adjustable mounting system for installation
– 120v~277v non-dimmable driver standard
– Can be provided with cord and 90-degree flat plug, or ready for hardwire
– No minimum quantities
– ADA Compliant
LIGHTING SPECIFICATIONS
– Standard CCT: 3,000 Kelvin (custom CCT available)
– Natural looking warm white LED color
– CRI 85+ (95+ available)
– Gen 3 LED strips are 750 lumens per foot
– Premium LED strips rated for 69,000 hours
AVAILABLE OPTIONS
– 0-10V dimming
– TRIAC dimming
– Title 24 compliance available
– Custom sizing
– Night Light
– Defogger
– Touch button dimmers on face of the mirror (no dimmable driver or dimming wall switch needed)
– Bluetooth Speaker
– LED Digital clock
Limited Warranty
BLANK
Argyle LED Mirror
FEATURES & SPECIFICATIONS
INTENDED USE
Provides general illumination in commercial and residential applications. Use 3-position switch to select 3000K, 4000K or 5000K color temperature at time of installation. Ideal for use in closets, foyers, hallways, corridors, bedrooms, offices, utility work areas, stairways and much more.
CONSTRUCTION
This contemporary shaped fixture features a matte white acrylic diffuser and a robust aluminum housing.
OPTICS
50,000 hours life. Rated for 50,000 hours at >70% lumen maintenence. 90+ CRI
3000 K: 636 lumens
4000 K: 695 lumens
5000 K: 656 lumens
Factory set at 3000K CCT
ELECTRICAL
Fixture operates at 120 volts, 50/60 Hz. 7" Round standard input = 12.2 watts.
Works with most standard incandescent dimmers (see list of suggested dimmers on page 2).
INSTALLATION
All mounting hardware included.
LISTINGS
CSA certified to UL standards for sale in the USA and Canada.
Certified for Damp or Wet Location. ENERGY STAR® certified Round Versi U.S. Patent No. D691,763.
Certified to the high efficacy requirements of California T24 JA8-2019 WARRANTY
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/customer-support/terms-andconditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
3-position switch for selecting 3000K, 4000K or 5000K located on top of fixture
Round Specifications
Height: 1-3/4 (4.4)
Width: 7-1/4 (18.4)
Weight: 1.1 lbs (.5 kg)
All dimensions are inches (centimeters) unless otherwise indicated.
Versi Lite™ LED Switchable White
(4.4)
Textured White
NLOPAC-R4TW
4" AC Opal LED Surface Mount with Selectable CCT
Source: 10W Up to 700lm
PRODUCT DESCRIPTION
The AC Opal LED Series LED fixture is designed to surface mount over a standard junction box. The low profile dimmable luminaire produces even illumination and is cETLus listed for wet locations.
FEATURES
AC LED (No Dr iver)
Dimmable
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
White, bl ack, bronze or natural metal finishes
Mount on st andard 4" junction box
Retrofit k it included for 4" recessed housings
· ENERGY STAR certified
SPECIFICATION
Construction: One piece aluminum die formed housing and trim. Aluminum body dissipates heat and extends life.
Mounting: Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes for ceiling or wall mount applications. Luminaires can also be retrofit over 4" recessed housings with retrofit kit (included).
Optics: Nora specified and designed precision molded lens for optimal lumen output and even distribution.
Finishes: Available in white, black, bronze and natural metal finishes.
Ratings: IC rated when used with a 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.
Retrofit: Each luminaire includes a retrofit kit with medium base socket adapter to mount over 4" recessed housings. Kit also includes torsion spring brackets that hold luminaire flush against ceiling. Retrofit kit is intended to be used with a lighting fixture as a lamp replacement.
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: Up to 700lm / 10W
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Operating temperature: 0-40°C
Lifetime: 50,000 hours @ L70
Dimming: 5% with Triac or 10% with ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
LISTING
cETLus Listed for wet locations
cETLus cl assified for retrofit
ENERGY STAR certified
· 5-Year Limited Warranty
Certifie d to the high efficacy requirements of California Title 24 JA8-2022
Suitabl e for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1)
T249 Title 24 JA8 Compliant (B12 & C24 in 3000K only)
Notes: (0) 90R - cannot be combined with ES. 1) BAC - cannot be combined with FCL. (2) BBI/BBS/BBC- cannot be combined with ECW EXT, or T24.
(3) BLD - includes integral OCC sensor (do not combine with OCC option). Cannot be combined with DTR or T24. (4) DTR - cannot be combined with BLD or T24. (5) ECW - cannot be combined with BBI, BBC, or DTR. (6) ES - cannot be combined with 90R or T24. (7) FCL - cannot be combined with BAC or T24. (8) OCC - integral ON/OFF occupancy sensor. (9) T24 - includes JA8 labeling and 90 CRI LEDs (do not combine with 90R option). Cannot be combined with BBI (10) BBS - cannot be combined with BLD, ECW, EXT, OCC, or T24. (11) PCH/PC4 - cannot be combined with BLD or OCC.
Add’l Notes: *BBI/BBS/BBC - standard BBI (and BBS) option has a minimum operating temperature of 10C/50F. BBC option has a minimum operating temperature of -20C/-4F. **BLD - integral OCC sensor with onboard control. 1: Motion is detected, illuminate to 100%. 2: Motion no longer detected, dim to 50%
BBC BBS BLD, DTR, ES, or FCL. (factory default), 30%, 20% or 10%. 3: Remain in continuous dimmed state (factory default) or turn off after set period.
STANDARD SPECIFICATIONS www.brownlee.com
Specifications and dimensions subject to change without notice. Consult your Brownlee Lighting representative for availability and ordering information.
W208D Wall Sconce
Features
Housing
Die-formed Cold-rolled Steel
Optical
Shade: High Transmission Acrylic Creates Excellent Light Distribution and Uniformity
LED: High Efficiency, High CRI, Binned and Mixed to Reach Uniform Light
Electrical High Power Factor, Low THD
Lamp
Integrate LED Module , 3000K LED
More Color Temperature Option 3500K, 4000K, 5000K
Certification
ETL/cETL Listed
Warranty
5 Years Limited Warranty on Driver and LED
LED Type
Sunpark Electronics Corp. Phone: (310) 324-8880 Specifications are subject to 11/25/19 Page 1 of 1 16200 S. Figueroa St., Gardena, CA90248 Fax: (310) 324-4020 change without notice. DS_W208D.docx www.sunparkelectronics.com
Project:
Fixture Type:
Location:
Contact/Phone:
PRODUCT DESCRIPTION
Available in four lengths, the UPLD Swivel LED undercabinet includes an easily accessible switch to select 3000K, 3500K or 4000K color temperature with 50,000 hours of life. Provides task or accent lighting in commercial, retail, hospitality and residential applications. Ideal for use over and under cabinets, display cases, task lighting, office lighting, coves and utility/work areas. Warranty 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and- conditions
PRODUCT SPECIFICATIONS
LEDs Utilizes long-life, high-efficiency LEDs binned to within a 3-step MacAdam ellipse for excellent color consistency • Rated for 50,000 hours at 70% lumen maintenence • 90 CRI minimum • The UPLD uses an improved, recessed linking mechanism that allows two fixtures to connect together with virtually no gap between with included row connector.
Driver Integrated, high efficiency 120v, 60Hz driver • Dimmable • Works with most standard incandescent, magnetic low voltage or electronic low voltage dimmers • Compatible with most residential phase-cut dimmers.
Housing Slim 1" profile • Light bar has 20 degree swivel in each direction •Housing end caps can be pivoted for easy access to linking port • Linkable, plug-together design to connect fixture-to-fixture • Available in white or bronze finishes • Each fixture has an integrated ON/OFF switch for independent power control • Juno Pro-Series accessories are not compatible • For a complete list of compatible accessories, see below Diffuser Lightly frosted, acrylic diffuser for maximum light transmission and uniform light distribution • Swivel head allows light to be directed to desired area.
Labels cULus listed to US and Canadian safety standards • ENERGY STAR® certified • Listed for Damp Locations • Can be used to comply with 2019 Title 24, Part 6, JA8 high efficacy LED light source requirements. Note: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
INSTALLATION
UPLD Series fixtures offer several convenient methods for installation and can be installed as direct wire or portable luminaires. Fixtures may be mounted flush to the backsplash or up against the front lip of the cabinetry using captive mounting screws.
Direct Wire The UPLD 9", 14", 22" and 30" lengths have a rear wiring access compartment and push-in electrical connectors for direct-wire application • Each length includes a die cast fitting for 3/8" flexible metal conduit • Optional UCD JB Junction/Splice box (sold separately) is available to facilitate bringing power to front end of cabinetry and then using jumper cords to connect to fixtures (see installation diagram below) • All standard mounting hardware included • 17" jumper wire and straight joiner (row) connector are included accessories.
Electrically Connecting Multiple Fixtures Fixtures can be electrically joined together using either the straight joiner (row) connector supplied with each fixture or with the included 17" connector jumper cord or optional 24" UC ERC24 connecting cord. No more than 29 units of any size should be linked together.
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Includes Sure-Tite connectors
SPECIFICATIONS
•12V/24V •3 watts per foot
•90+ CRI
to 122 F
BLANK
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
LTR-P-24V-3W-40K-16
/
/
/
/
Kelvin temperature (color) ±100K. 16’-4” and 100’ reel includes 48” lead affixed to tape. 16’-4” reel includes (3) ESTW-60 Sure-Tite connectors. 100’ reel includes (10) ESTW-60 Sure-Tite connectors
COMPATIBLE CONTROLLERS
Model Description
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, see page 8
SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage, see page 8
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 12VDC see page 10
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 12VDC see page 10
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC see page 10
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC see page 10
BLANK
ALUMINUM MOUNTING CHANNEL ®
4’ / 8’ WIDE FORMAT
PRODUCT OVERVIEW
GM Lighting’s LED-CHL-W channel accepts all low voltage
GM Lighting LED tape. Available in 48” and 96” lengths, these wide format mounting channels are the perfect vessel that not only insures an architectural quality installation, but also minimizes diode imaging due to the frosted lens that is included with each channel.
FEATURES
•Available in 4ft (48in) and 8ft (96in)
• Silver Anodized finish
•Includes 2 mounting clips and screws with 4ft, 4 mounting clips and screws with 8ft
•Includes acrylic frosted lens
•End caps sold separately
• For LTR Series Tape - LTR-P, LTR-S and LTR-E
• Custom lengths available - consult factory
•Dry location only
Note: For Vision120, use V120-CHL channels.
SPECIFICATIONS
ELECTRICAL
•Fits 12V/24V LEDtask LED tape
WARRANTY
•5-year warranty
BLANK
ALUMINUM MOUNTING CHANNEL ®
4’ / 8’ WIDE FORMAT
LED-CHL-W
LED-CHL-W-8
DIAGRAM
DIMENSIONS
L48”or 96” x W 1.019” x D.457” Sure-Tite and EZ Connectors LTR-P, LTR-S, LTR-E Series Dry and Wet Location Blank (Silver Anodized)
/ 96”
BLANK
Magnetic Dimmable ®
12/24VDC LineDRIVE Power Supply
Specification Sheet
PRODUCT OVERVIEW
LED dimming magnetic power supply that works with conventional low voltage magnetic wall mount dimmer with on/off switch. 12 or 24 VDC output. 120 or 277 VAC input. Highest efficiency with auto reset. Compatible with standard low voltage magnetic dimmers. Not recommended for digital control systems.
FEATURES
•Multi-tap Class 2
•120VAC and 277VAC dual input
•Auto-reset protection for short circuit
•NEMA 3R enclosure with built-in junction box
•Fanless design, cooling by free air convection
•Dimmable with compatible MLV dimmers
•Suitable indoor/outdoor wet locations when mounted vertically
•ETL Listed. Conf. to UL2108. Cert. CSA C22.2 No. 250.2
•5-Year warranty
SPECIFICATIONS
ELECTRICAL
•12V/24VDC
•120/277VAC / 60Hz input
•Load: min. 20% to max. 80% for optimal performance
HOUSING
•Black powder coated steel enclosure
•Cooling by free-air convection ENVIRONMENT
•Outdoor / wet location NEMA 3R enclosure. For vertical mounting only.
ORDERING INFORMATION
OPERATING TEMP
•0 to 104°F (-18 to +40°C)
CERTIFICATION
•ETL compliant
•Cert. CSA C22.2 No. 250.2
•Class 2
WARRANTY
•5-year warranty
Juno SlimForm™ LED with Selectable CCT
5" and 7" Square Downlight for JBox Installation
Dimensions
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features
Sleek, ultra-low profile energy efficient LED surface mount downlights available in 5" and 7" sizes. Optional finish trims available for custom, designer look similar to standard recessed downlights. Provides general illumination in residential and commercial applications including multifamily and hospitality. Ideal for use in corridors, living spaces, closets, hallways, pantries, stairways, outdoor covered areas.
With the newly added selectable CCT switch, the JSFSQ gives the ultimate in flexibility for both the distributor as well as the end user.
Applications
• Suitable for wet locations (indoor covered ceilings): perfect for closets, showers, bathrooms, outdoor soffits, and covered ceiling applications.
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Led Color Temperature Switchable White (2700K, 3000K, 3500K, 4000K, 5000K) Default set at 3000K CRI 90+
Voltage Dedicated 120V and MVOLT (120V-277V) Dimming Phase Dimming down to 10%
Specifications
All dimensions are in Inches (centimeters unless otherwise indicated.
LED DECORATIVE DISK SERIES
Key Features & Benefits:
• 5CCT Field Selectable
• Compatible with 3" and 4" J Boxes
• Wet Location Rated
• 120 VAC Triac Dimmable
• T24 Compliant
• Easy Surface Mount Installation
• Optional Trim Kits*
Product Specifications:
Wattage: 11 Watts
Selectable Kelvin:
2700K–3000K–3500K–4000K–5000K
Lumen Output: Up to 792 Lumens
Efficacy: Up to 70 lm/W
Input Voltage: 120 VAC
CRI: >90
Operating Temperature: -4°F to 104°F
Operational Lifetime: 50,000 hrs
Dimensions: 5.6" x 5.6" x H 1.18"
Ordering Guide:
Project:
Catalog #:
Notes:
Easy Select Kelvin Switch on Backplate FIELD
KITS
ESL-DDSK1-R9-Tff
ESL-DDSK1-S9-Tff
ESL-DDSK1-R11-Tff
Date:
ESL-DDSK1-S11-Tff 11" DDSK field installable square trim kit* Finishes: (ff)=(MW) Field Paintable, (BK) Black, (BN) Brushed Nickel, (BZ) Bronze, (CP) Copper *Contact ESL Representative for more information regarding Trim Kit lead times. Field Installable Trim Rings Sold Separately: Black, Bronze, Nickel, Copper, and Field Paintable
Juno SlimForm™ LED with Selectable CCT 5"
and 7" Square Downlight for JBox Installation
BLACK
SATIN NICKEL
BLANK
Juno SlimForm™ LED with Selectable CCT
5" and 7" Square Downlight for JBox Installation
Specifications
Construction
Shallow, less than 1", solid ring with white finish • Non conductive construction allows for light shower applications • Optional, field installable finish trims available for 5" and 7" versions to change the exterior finish of fixture
Optics
Light guide technology combined with diffusing lens conceals the LEDs from direct view and provides uniform lens luminance.
LED Light Engine
LEDs mounted directly to heatsink designed to provide superior thermal management and ensure long life • Selectable CCT with steps at 27K, 30K, 35K, 40K, 50K • LEDs binned for 4-step MacAdam ellipse color consistency •90 CRI minimum.
LED Driver
Choice of dedicated 120 volt (120) driver or universal voltage (MVOLT) driver that accommodates input voltages from 120-277 volts AC at 50/60Hz • Power factor > 0.9 at 120V input •120 volt driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers • Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers • External driver is only available on 5" and 7" models • For a list of compatible dimmers, see JUNOSLIMFORM-DIM
Installation
Junction Box Mounting
Fixture provided with leads for direct wire connection in j-box • Installs directly to industry standard junction boxes • Compatible junction boxes include 4" metal or plastic octagonal standard and IC1JB junction box housing (3 1/2" junction box screw-hole spacing required for installation) • Minimum 1 3/4" depth and minimum 3 1/2" width of junction box required for installation for 5" and 7" fixtures • Quick mount bracket provides fast installation of fully assembled fixture to junction box • Suitable for ceiling mount • Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Life
Rated for 50,000 hours at >70% lumen maintenance.
Labels
ENERGY STAR® certified • Certified to the high efficacy requirements of California T24 JA8-2019 • CSA listed for US and Canada • Suitable for wet locations (covered ceilings) • Damp location only with emergency option.
Testing
All reports are based on published industry procedures; field performance may differ from laboratory performance.
Warranty
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-andconditions
Note: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.
The Bevilacqua Large Chandelier has re ective glass utes made from recycled bud vases for a shade. Its wrought iron frame is nished in an exquisite silver leaf that compliments the hues in the recycled glass. This silver chandelier is one in a variety of xtures in the Bevilacqua collection.
this information is accurate as of 08/02/2024 05:52
Bevilacqua Large Chandelier
9311
In Stock / Bestseller
Overall: 68"h x 27"dia
Adjustable Height: 75" to 167"
Finish: Silver Leaf
Materials: Wrought Iron/Glass
Item Weight: 83 lbs.
Number of Lights: 18
Suggested Bulb: B Torpedo Tip
Socket Type: E12
40/720
Chain Included: 8' Silver Leaf
Cord: 17' Clear Silver
The Bevilacqua Large Chandelier has re ective glass utes made from recycled bud vases for a shade. Its wrought iron frame is nished in an exquisite silver leaf that compliments the hues in the recycled glass. This silver chandelier is one in a variety of xtures in the Bevilacqua collection.
this information is accurate as of 08/02/2024 05:52
Bocci recommends remote mounting power supplies for ease of long-term maintenance.
Environment Indoor, dry location. IP30
Note Every single Bocci product is handmade. Each one is variously blown, poured, carved, polished, packed and dispatched directly by us. As such, no two products are identical; they are individual, irregular expressions of our research.
Registration ® 14 Series product design protected as U.S. Reg. No. 7,129,209
Shown in Black braidedco/Ion andslain blackkame andca...
Fixture Finish: Natural Black
Valentina NB
6937-O3P NB-MBW
UPC: 844375102347
3 Light Pendant - Outdoor
Be inspired by the natural texture and shape of Valentina. This series is the perfect addition to any home with minimalist or natural fiber décor. Sophisticated black finishes complement the handwoven shade options. The collection features indoor as well as some wet-rated outdoor options. The outdoor options feature synthetic fiber shades and an extra UV-coating that prevents fading.
Glass/Shade Finish: Matte Black Wicker Materials: Steel Rope
The distinctive visual appeal of this pendant consists of a single-drop design, a decorative pleated metal disc softened by the graceful nature of its matte opal glass shade. This fashion-forward fixture is exactly what you need for an En Pointe interior.
Specifications
Actual Size: ll.75"Hxl3.87"Wxl3.87"D
Backplate Canopy Size: 4.75"Wx4.75"D Round
Bulb Base: US Candelabra-El2
BLANK
Color: Matte Black/ Matte Opal Glass
Cord Wire Length: 72
Dimmable: Yes
Material: Glass, Steel
Max Bulb Wattage: 60
Number Of Lights: 1
Overall Height Max: 83.75
Overall Height Min: 15
Safety Rating: UL Dry
California Residents See PROP 65 WARNINGS v No reviews forthis productyet Reviews
The Modo Linear Pendant features a sleek, modern silhouette crafted from precisely engineered, CNCmilled aluminum. Two glass globe diffusers extend from a central node at an angle on slim arms. The smoke and clear glass shades are supplied with mirror-topped globe bulbs which reduce glare and reflect light upwards to create a gentle glow. The cream glass shade includes LED A19 bulbs.
Modo Linear Pendant
Shown in: Black / Cream
C81702BKOP
SHEET
THINSURFACEMOUNTPICTURELIGHT
SPECIFICATIONS Color/Finish
ColorTemperature
3000K PowerSupply R. Standard Remote 120-277V | 2-Wire/TRIAC/Forward-Pha se, 0-10V, ELV/Reverse-Phase
THINSURFACEMOUNTPICTURELIGHT
SPECIFICATIONS Color/Finish
ColorTemperature
3000K PowerSupply R. Standard Remote 120-277V | 2-Wire/TRIAC/Forward-Pha se, 0-10V, ELV/Reverse-Phase
Our fixture by renowned designer Theo Eichholtz evokes the glamour of 1960s Italian glasslighting. Arranged within a sleek metal frame, dozens of glass panes are raked by hand to create a fluted texture, producing a dramatic play of light and a softly diffused glow.
SHOP THE ENTIRE COLLECTION
• Crafted of handmade fluted glass panels on a steel frame
• Rated for ten 40W max. E12 candelabra bulbs
• Bulbs included
• If brighter light is preferred, consider an LED bulb with a higher lumen output. View our assortment.
• Dimmer switch compatible
• Suspended from a metal chain and ceiling canopy; chain may be shortened at time of professional installation
• Can be mounted on a vaulted ceiling
• 110-120V manufactured to US standards for US and Canadian markets
Configured price $12 Memberr$16Regular REVIEW
WATTAGE 4W
$16 Regular/ $12 Member
• Certified to Dry UL electrical standard: suitable for use indoors in drylocationsnot directlyexposedto excessive moisture and water
• Hardwire
• Chandeliers weighing more than 50 lbs. cannot be mounted alone to a standard outlet box and require additional bracing above the ceiling where they are to be installed
• Requires professional assembly and installation by a licensed electrician. RH delivery service does not include assembly or installation.
• Wipe with a soft, dry cloth; avoid the use of all cleaners and abrasives, as they will damage the finish
TheGalileo collection includeswall sconces, pendant lightsand chandeliersall featuring striking, circulardiscshadeswith sleek and re ned silhouettes. Barebulbsadorn each shade producing bright, stylish light. Each pieceis nished by hand and assembled in ourstudio in South Carolina.
TheGalileo collection includeswall sconces, pendant lightsand chandeliersall featuring striking, circulardiscshadeswith sleek and re ned silhouettes. Barebulbsadorn each shade producing bright, stylish light. Each pieceis nished by hand and assembled in ourstudio in South Carolina.
Finish samples areavailableat worleyslighting.com/ nishes. For pricing and purchasing, pleasevisit worleyslighting.comorcontact us with furtherquestions.
DIMENSIONS
Overall 3.5” depth (bulb not included), 10" width, 10” height
Canopy 5” diameter.75" depth
Shade 10" diameter
Materials Wood, brassorpowdercoated steel and aluminum
Finish samples areavailableat worleyslighting.com/ nishes. For pricing and purchasing, pleasevisit worleyslighting.comorcontact us with furtherquestions.
GalileoSconce10"
WS-GA10-035
OVERVIEW
TheGalileo collection includeswall sconces, pendant lightsand chandeliersall featuring striking, circulardiscshadeswith sleek and re ned silhouettes. Barebulbsadorn each shade producing bright, stylish light. Each pieceis nished by hand and assembled in ourstudio in South Carolina.
TheGalileo collection includeswall sconces, pendant lightsand chandeliersall featuring striking, circulardiscshadeswith sleek and re ned silhouettes. Barebulbsadorn each shade producing bright, stylish light. Each pieceis nished by hand and assembled in ourstudio in South Carolina.
Finish samples areavailableat worleyslighting.com/ nishes. For pricing and purchasing, pleasevisit worleyslighting.comorcontact us with furtherquestions.
DIMENSIONS
Overall 3.5” depth (bulb not included), 10" width, 10” height
Canopy 5” diameter.75" depth
Shade 10" diameter
Materials Wood, brassorpowdercoated steel and aluminum
Finish samples areavailableat worleyslighting.com/ nishes. For pricing and purchasing, pleasevisit worleyslighting.comorcontact us with furtherquestions.
$650.00 Finish Off White QUANTITY 1---� 1 �1 +�1 ADDTO CART
This classic metal shade design feels special with fresh finish combinations and sleek, heritage-inspired details. The contrasting Aged Brass accents and modern gooseneck arm allow this sconce an updated, yet classic feel. Available inOffWhite or Distressed Bronze. Details & Dimensions Shipping & Handling
OFFERS & PROMOTIONS v ENTERYOUREMAIL JOIN f @ 'P a
BLANK
Bryant Sconce
Item # TOB 2002HAB-L
Designer: Thomas O'Brien
Height: 14.25"
Width: 5.5"
Extension: 8.75"
Backplate: 4" Round
Finishes: AN, BZ, BZ/HAB, HAB, PN
Shade Treatments: L, NP/BT, NP/ST
Shade Details: 4" x 5.5" x 6"
Socket: E26 Keyless
Wattage: 40 A19
Weight: 4 Pounds
Note: Requires Smaller Outlet Box
Mounting hardware is hidden on the back plate to ensure a clean silhouette Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards. Classic, elegant lines and timeless details enhance a traditional space
GRETA
52490HB-OP
MEDIUM SCONCE
Inspired by traditional lighting styles, Greta complements its slim, contemporary silhouette with timeless details and classic finishes. A tapered, etched opal glass shade softly diffuses light, filling your space with a warm ambiance.
DETAILS
FINISH: Heritage Brass
MATERIAL: Steel
GLASS: Etched Opal
DIMENSIONS
WIDTH: 6.3"
HEIGHT: 17.5"
WEIGHT: 2.5lb
BACK PLATE: 5.25" Dia.
EXTENSION: 7”
TOP TO OUTLET:11"
LIGHT SOURCE
LIGHT SOURCE: Socketed
WATTAGE: 1-5w Cand. LED, 60w Equiv.
VOLTAGE: 120v
SHIPPING
CARTON LENGTH:19.3
CARTON WIDTH:8.8
CARTON HEIGHT:9.5
CARTON WEIGHT:3.5
DETAILS:
Mounting hardware is hidden on the back plate to ensure a clean silhouette Fixture can be mounted either up or down Includes 1-4" and 1-10" stem for variable mounting heights Suitable for use in dry (indoor) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards. Height when mounted with included 4" down rod is 16"
WARBY
3742HB-WH
LARGE SINGLE LIGHT SCONCE
Add a mid-century modern design pop to a multitude of spaces with Warby. Tailor Warby to your personal style by modifying the length of the stems or choose to install sconces with the globe either up or down. Vintage style bulbs are recommended.
DETAILS
FINISH: Heritage Brass
MATERIAL: Steel
GLASS: Cased Opal
DIMMABLE: YES, WITH DIMMABLE LAMP (NOT INCLUDED)
DIMENSIONS
WIDTH: 8"
HEIGHT: 21.8"
WEIGHT: 2.8lb
BACK PLATE: 5" Dia.
EXTENSION: 9.5”
TOP TO OUTLET:2.5"
LIGHT SOURCE
LIGHT SOURCE: Socketed
WATTAGE: 1-10w Med. LED, 100w Equiv.
VOLTAGE: 120v
MOUNTING
LEAD WIRE: 1 x 48"
SHIPPING
CARTON LENGTH:16.3
CARTON WIDTH:16
CARTON HEIGHT:10.5
CARTON WEIGHT:4.7
DETAILS:
Mounting hardware is hidden on the back plate to ensure a clean silhouette Fixture can be mounted either up or down Includes 1-4" and 1-10" stem for variable mounting heights Suitable for use in dry (indoor) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards. Height when mounted with included 4" down rod is 16"
WARBY
3742HB-WH
LARGE SINGLE LIGHT SCONCE
Add a mid-century modern design pop to a multitude of spaces with Warby. Tailor Warby to your personal style by modifying the length of the stems or choose to install sconces with the globe either up or down. Vintage style bulbs are recommended.
Specifications : E26 base LED, 120 volts, dimmable Ampoule/Bulb : Tala Sphere I 3.8 Watt • 220 Lumens • 2000K to 2800K Dim to warm
Poids/Weight: 3 lb.
Garantie/Warranty : 2 ans/years
Certification : Usage intérieur seulement/Indoor use only
Lien 3D/link : Cliquez ici/Click here
Colors/Couleurs :
Matt White WTM
Matt Black BKM
Matt Beige BGM
Matt Linen LIM
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
Specifications : E26 base LED, 120 volts, dimmable Ampoule/Bulb : Tala Sphere I 3.8 Watt • 220 Lumens • 2000K to 2800K Dim to warm
Poids/Weight: 3 lb.
Garantie/Warranty : 2 ans/years
Certification : Usage intérieur seulement/Indoor use only
Lien 3D/link : Cliquez ici/Click here
Colors/Couleurs :
Matt White WTM
Matt Black BKM
Matt Beige BGM
Matt Linen LIM
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
Coquelicot 11-LA64
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
Type : Murale/Wallmount
Matériaux/Materials : Aluminium powder coat
Specifications : E26 base LED, 120 volts, dimmable
Ampoule/Bulb : Tala Sphere I 3.8 Watt • 220 Lumens • 2000K to 2800K Dim to warm
Poids/Weight : 5 lb.
Garantie/Warranty : 2 ans/years
Certification : Usage intérieur seulement/Indoor use only
Lien 3D/link : Cliquez ici/Click here
Pivot/Swivel
Quincaillerie/ Hardware
LIEN 3D: LIEN 3D
LIEN 3D: LIEN 3D
INCANDESCENT / LED
/ BULB :
AMPOULE / BULB :
TO 2800K
INCANDESCENT / LED 1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
Côté/Side Avant/Front
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
AMPOULE INCLUSE / BULB INCLUDED*
AMPOULE INCLUSE / BULB INCLUDED*
*Détail sur fiche technique / Details on spec sheet*
*Détail sur fiche technique / Details on spec sheet*
USAGE INTÉRIEUR SEULEMENT, INDOOR USE ONLY
USAGE INTÉRIEUR SEULEMENT, INDOOR USE ONLY
Coquelicot 11-LA64
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
Type : Murale/Wallmount
Matériaux/Materials : Aluminium powder coat
Specifications : E26 base LED, 120 volts, dimmable
Ampoule/Bulb : Tala Sphere I 3.8 Watt • 220 Lumens • 2000K to 2800K Dim to warm
Poids/Weight : 5 lb.
Garantie/Warranty : 2 ans/years
Certification : Usage intérieur seulement/Indoor use only
Lien 3D/link : Cliquez ici/Click here
Pivot/Swivel
Quincaillerie/ Hardware
LIEN 3D: LIEN 3D
LIEN 3D: LIEN 3D
INCANDESCENT / LED
/ BULB :
AMPOULE / BULB :
TO 2800K
INCANDESCENT / LED 1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
Côté/Side Avant/Front
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
AMPOULE INCLUSE / BULB INCLUDED*
AMPOULE INCLUSE / BULB INCLUDED*
*Détail sur fiche technique / Details on spec sheet*
*Détail sur fiche technique / Details on spec sheet*
USAGE INTÉRIEUR SEULEMENT, INDOOR USE ONLY
USAGE INTÉRIEUR SEULEMENT, INDOOR USE ONLY
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
Specifications : E26 base LED, 120 volts, dimmable
Ampoule/Bulb : Tala Sphere II 6 Watt • 480 Lumens • 2000K to 2800K Dim to warm
Poids/Weight : 10 lb.
Garantie/Warranty : 5 ans/years
Certification : Usage intérieur seulement/Indoor use only
Lien 3D/link : Cliquez ici/Click here
INCANDESCENT / LED
INCANDESCENT / LED
2in
2in
/ BULB
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
AMPOULE INCLUSE / BULB INCLUDED*
*Détail sur fiche technique / Details on spec sheet* LIEN 3D: https://a360.co/3MTSNz1
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
AMPOULE INCLUSE / BULB INCLUDED*
*Détail sur fiche technique / Details on spec sheet* LIEN 3D: https://a360.co/445bDdF
USAGE INTÉRIEUR SEULEMENT, INDOOR USE ONLY
UL # Certificat: 20150318-E475067
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
Specifications : E26 base LED, 120 volts, dimmable
Ampoule/Bulb : Tala Sphere II 6 Watt • 480 Lumens • 2000K to 2800K Dim to warm
Poids/Weight : 10 lb.
Garantie/Warranty : 5 ans/years
Certification : Usage intérieur seulement/Indoor use only
Lien 3D/link : Cliquez ici/Click here
INCANDESCENT / LED
INCANDESCENT / LED
2in
2in
/ BULB
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
AMPOULE INCLUSE / BULB INCLUDED*
*Détail sur fiche technique / Details on spec sheet* LIEN 3D: https://a360.co/3MTSNz1
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
AMPOULE INCLUSE / BULB INCLUDED*
*Détail sur fiche technique / Details on spec sheet* LIEN 3D: https://a360.co/445bDdF
USAGE INTÉRIEUR SEULEMENT, INDOOR USE ONLY
UL # Certificat: 20150318-E475067
Bevilacqua Medium Chandelier
9309
In Stock
Overall: 43"h x 27"dia
Adjustable Height: 50" to 147"
Finish: Silver Leaf
Materials: Wrought Iron/Glass
Item Weight: 57 lbs.
Number of Lights: 12
Suggested Bulb: Candelabra
Socket Type: E12
60/720
Chain Included: 8' Silver Leaf
Cord: 17' Clear Silver
The Bevilacqua Medium Chandelier has re ective glass utes made from recycled bud vases for a shade. Its wrought iron frame is nished in an exquisite silver leaf that compliments the hues in the recycled glass. This silver chandelier is one in a variety of xtures in the Bevilacqua collection.
this information is accurate as of 08/02/2024 05:52
Bevilacqua Medium Chandelier
9309
In Stock
Overall: 43"h x 27"dia
Adjustable Height: 50" to 147"
Finish: Silver Leaf
Materials: Wrought Iron/Glass
Item Weight: 57 lbs.
Number of Lights: 12
Suggested Bulb: Candelabra
Socket Type: E12
60/720
Chain Included: 8' Silver Leaf
Cord: 17' Clear Silver
The Bevilacqua Medium Chandelier has re ective glass utes made from recycled bud vases for a shade. Its wrought iron frame is nished in an exquisite silver leaf that compliments the hues in the recycled glass. This silver chandelier is one in a variety of xtures in the Bevilacqua collection.
this information is accurate as of 08/02/2024 05:52
Veuillez noter que chaque pièce de pierre naturelle est unique et il peut y avoir une variance dans la couleur/Please note that each piece of natural stone is unique and there may be a variance in the colour.
Specifications : E26 base LED, 120 volts, dimmable
Ampoule/Bulb : Tala Sphere I 3.8 Watt • 220 Lumens • 2000K to 2800K Dim to warm
Poids/Weight: 4 lb.
Garantie/Warranty : 2 ans/years
Certification : Usage intérieur seulement/Indoor use only
Lien 3D/link : Cliquez ici/Click here
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
Veuillez noter que chaque pièce de pierre naturelle est unique et il peut y avoir une variance dans la couleur/Please note that each piece of natural stone is unique and there may be a variance in the colour.
Specifications : E26 base LED, 120 volts, dimmable
Ampoule/Bulb : Tala Sphere I 3.8 Watt • 220 Lumens • 2000K to 2800K Dim to warm
Poids/Weight: 4 lb.
Garantie/Warranty : 2 ans/years
Certification : Usage intérieur seulement/Indoor use only
Lien 3D/link : Cliquez ici/Click here
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
Specifications : E26 base LED, 120 volts, dimmable Ampoule/Bulb : Tala Sphere II 6 Watt • 480 Lumens • 2000K to 2800K Dim to warm
Poids/Weight : 10 lb.
Garantie/Warranty : 2 ans/years
Certification : Usage intérieur seulement/Indoor use only
Lien 3D/link : Cliquez ici/Click here
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
Specifications : E26 base LED, 120 volts, dimmable Ampoule/Bulb : Tala Sphere II 6 Watt • 480 Lumens • 2000K to 2800K Dim to warm
Poids/Weight : 10 lb.
Garantie/Warranty : 2 ans/years
Certification : Usage intérieur seulement/Indoor use only
Lien 3D/link : Cliquez ici/Click here
Abat-jour/Shade Ext.
Abat-jour/Shade
Int.
Boules de verre/Glass ball
Abat-jour/Shade Ext.
Abat-jour/Shade
Int.
Boules de verre/Glass ball
TYPE F-29 SPEC TROPICAL
Canopy style + colour
Canopy style + colour
NO SPECIFICATION
TROPICAL
LTR-P Professional Series
3W, 12VDC and 24VDC LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Includes Sure-Tite connectors
SPECIFICATIONS
•12V/24V •3 watts per foot
•90+ CRI
to 122 F
Controllers
BLANK
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
LTR-P-24V-3W-40K-16
/
/
/
/
Kelvin temperature (color) ±100K. 16’-4” and 100’ reel includes 48” lead affixed to tape. 16’-4” reel includes (3) ESTW-60 Sure-Tite connectors. 100’ reel includes (10) ESTW-60 Sure-Tite connectors
COMPATIBLE CONTROLLERS
Model Description
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, see page 8
SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage, see page 8
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 12VDC see page 10
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 12VDC see page 10
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC see page 10
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC see page 10
BLANK
ALUMINUM MOUNTING CHANNEL ®
4’ / 8’ WIDE FORMAT
PRODUCT OVERVIEW
GM Lighting’s LED-CHL-W channel accepts all low voltage
GM Lighting LED tape. Available in 48” and 96” lengths, these wide format mounting channels are the perfect vessel that not only insures an architectural quality installation, but also minimizes diode imaging due to the frosted lens that is included with each channel.
FEATURES
•Available in 4ft (48in) and 8ft (96in)
• Silver Anodized finish
•Includes 2 mounting clips and screws with 4ft, 4 mounting clips and screws with 8ft
•Includes acrylic frosted lens
•End caps sold separately
• For LTR Series Tape - LTR-P, LTR-S and LTR-E
• Custom lengths available - consult factory
•Dry location only
Note: For Vision120, use V120-CHL channels.
SPECIFICATIONS
ELECTRICAL
•Fits 12V/24V LEDtask LED tape
WARRANTY
•5-year warranty
BLANK
Magnetic Dimmable ®
12/24VDC LineDRIVE Power Supply
Specification Sheet
PRODUCT OVERVIEW
LED dimming magnetic power supply that works with conventional low voltage magnetic wall mount dimmer with on/off switch. 12 or 24 VDC output. 120 or 277 VAC input. Highest efficiency with auto reset. Compatible with standard low voltage magnetic dimmers. Not recommended for digital control systems.
FEATURES
•Multi-tap Class 2
•120VAC and 277VAC dual input
•Auto-reset protection for short circuit
•NEMA 3R enclosure with built-in junction box
•Fanless design, cooling by free air convection
•Dimmable with compatible MLV dimmers
•Suitable indoor/outdoor wet locations when mounted vertically
•ETL Listed. Conf. to UL2108. Cert. CSA C22.2 No. 250.2
•5-Year warranty
SPECIFICATIONS
ELECTRICAL
•12V/24VDC
•120/277VAC / 60Hz input
•Load: min. 20% to max. 80% for optimal performance
HOUSING
•Black powder coated steel enclosure
•Cooling by free-air convection ENVIRONMENT
•Outdoor / wet location NEMA 3R enclosure. For vertical mounting only.
ORDERING INFORMATION
OPERATING TEMP
•0 to 104°F (-18 to +40°C)
CERTIFICATION
•ETL compliant
•Cert. CSA C22.2 No. 250.2
•Class 2
WARRANTY
•5-year warranty
BLANK
TROPICAL TYPE COVE ALT
Magnetic Dimmable ®
12/24VDC LineDRIVE Power Supply
Specification Sheet
DIMENSION
LD-MD-UNV30
LD-MD-UNV60
LD-MD-UNV96-24
LD-MD-UNV150-12
LD-MD-UNV200-24
LD-MD-UNV300-24
NO SPECIFICATION
TROPICAL TYPE STRIP ALT
LTR-P Professional Series
3W, 12VDC and 24VDC LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Includes Sure-Tite connectors
SPECIFICATIONS
•12V/24V •3 watts per foot
•90+ CRI
to 122 F
Controllers
BLANK
TROPICAL TYPE STRIP ALT
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
LTR-P-24V-3W-40K-16
/
/
/
/
Kelvin temperature (color) ±100K. 16’-4” and 100’ reel includes 48” lead affixed to tape. 16’-4” reel includes (3) ESTW-60 Sure-Tite connectors. 100’ reel includes (10) ESTW-60 Sure-Tite connectors
COMPATIBLE CONTROLLERS
Model Description
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, see page 8
SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage, see page 8
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 12VDC see page 10
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 12VDC see page 10
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC see page 10
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC see page 10
BLANK
ALUMINUM MOUNTING CHANNEL ®
4’ / 8’ WIDE FORMAT
PRODUCT OVERVIEW
GM Lighting’s LED-CHL-W channel accepts all low voltage
GM Lighting LED tape. Available in 48” and 96” lengths, these wide format mounting channels are the perfect vessel that not only insures an architectural quality installation, but also minimizes diode imaging due to the frosted lens that is included with each channel.
FEATURES
•Available in 4ft (48in) and 8ft (96in)
• Silver Anodized finish
•Includes 2 mounting clips and screws with 4ft, 4 mounting clips and screws with 8ft
•Includes acrylic frosted lens
•End caps sold separately
• For LTR Series Tape - LTR-P, LTR-S and LTR-E
• Custom lengths available - consult factory
•Dry location only
Note: For Vision120, use V120-CHL channels.
SPECIFICATIONS
ELECTRICAL
•Fits 12V/24V LEDtask LED tape
WARRANTY
•5-year warranty
BLANK
Magnetic Dimmable ®
12/24VDC LineDRIVE Power Supply
Specification Sheet
PRODUCT OVERVIEW
LED dimming magnetic power supply that works with conventional low voltage magnetic wall mount dimmer with on/off switch. 12 or 24 VDC output. 120 or 277 VAC input. Highest efficiency with auto reset. Compatible with standard low voltage magnetic dimmers. Not recommended for digital control systems.
FEATURES
•Multi-tap Class 2
•120VAC and 277VAC dual input
•Auto-reset protection for short circuit
•NEMA 3R enclosure with built-in junction box
•Fanless design, cooling by free air convection
•Dimmable with compatible MLV dimmers
•Suitable indoor/outdoor wet locations when mounted vertically
•ETL Listed. Conf. to UL2108. Cert. CSA C22.2 No. 250.2
•5-Year warranty
SPECIFICATIONS
ELECTRICAL
•12V/24VDC
•120/277VAC / 60Hz input
•Load: min. 20% to max. 80% for optimal performance
HOUSING
•Black powder coated steel enclosure
•Cooling by free-air convection ENVIRONMENT
•Outdoor / wet location NEMA 3R enclosure. For vertical mounting only.
ORDERING INFORMATION
OPERATING TEMP
•0 to 104°F (-18 to +40°C)
CERTIFICATION
•ETL compliant
•Cert. CSA C22.2 No. 250.2
•Class 2
WARRANTY
•5-year warranty
BLANK
TROPICAL TYPE STRIP ALT
Magnetic Dimmable ®
12/24VDC LineDRIVE Power Supply
Specification Sheet
DIMENSION
LD-MD-UNV30
LD-MD-UNV60
LD-MD-UNV96-24
LD-MD-UNV150-12
LD-MD-UNV200-24
LD-MD-UNV300-24
NO SPECIFICATION
LTR-P Professional Series
3W, 12VDC and 24VDC LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Includes Sure-Tite connectors
SPECIFICATIONS
•12V/24V •3 watts per foot
•90+ CRI
to 122 F
Controllers
BLANK
TROPICAL
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
LTR-P-24V-3W-40K-16
/
/
/
/
Kelvin temperature (color) ±100K. 16’-4” and 100’ reel includes 48” lead affixed to tape. 16’-4” reel includes (3) ESTW-60 Sure-Tite connectors. 100’ reel includes (10) ESTW-60 Sure-Tite connectors
COMPATIBLE CONTROLLERS
Model Description
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, see page 8
SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage, see page 8
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 12VDC see page 10
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 12VDC see page 10
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC see page 10
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC see page 10
BLANK
ALUMINUM MOUNTING CHANNEL ®
4’ / 8’ WIDE FORMAT
PRODUCT OVERVIEW
GM Lighting’s LED-CHL-W channel accepts all low voltage
GM Lighting LED tape. Available in 48” and 96” lengths, these wide format mounting channels are the perfect vessel that not only insures an architectural quality installation, but also minimizes diode imaging due to the frosted lens that is included with each channel.
FEATURES
•Available in 4ft (48in) and 8ft (96in)
• Silver Anodized finish
•Includes 2 mounting clips and screws with 4ft, 4 mounting clips and screws with 8ft
•Includes acrylic frosted lens
•End caps sold separately
• For LTR Series Tape - LTR-P, LTR-S and LTR-E
• Custom lengths available - consult factory
•Dry location only
Note: For Vision120, use V120-CHL channels.
SPECIFICATIONS
ELECTRICAL
•Fits 12V/24V LEDtask LED tape
WARRANTY
•5-year warranty
BLANK
Magnetic Dimmable ®
12/24VDC LineDRIVE Power Supply
Specification Sheet
PRODUCT OVERVIEW
LED dimming magnetic power supply that works with conventional low voltage magnetic wall mount dimmer with on/off switch. 12 or 24 VDC output. 120 or 277 VAC input. Highest efficiency with auto reset. Compatible with standard low voltage magnetic dimmers. Not recommended for digital control systems.
FEATURES
•Multi-tap Class 2
•120VAC and 277VAC dual input
•Auto-reset protection for short circuit
•NEMA 3R enclosure with built-in junction box
•Fanless design, cooling by free air convection
•Dimmable with compatible MLV dimmers
•Suitable indoor/outdoor wet locations when mounted vertically
•ETL Listed. Conf. to UL2108. Cert. CSA C22.2 No. 250.2
•5-Year warranty
SPECIFICATIONS
ELECTRICAL
•12V/24VDC
•120/277VAC / 60Hz input
•Load: min. 20% to max. 80% for optimal performance
HOUSING
•Black powder coated steel enclosure
•Cooling by free-air convection ENVIRONMENT
•Outdoor / wet location NEMA 3R enclosure. For vertical mounting only.
ORDERING INFORMATION
OPERATING TEMP
•0 to 104°F (-18 to +40°C)
CERTIFICATION
•ETL compliant
•Cert. CSA C22.2 No. 250.2
•Class 2
WARRANTY
•5-year warranty
BLANK
TROPICAL TYPE UPLIGHT ALT
Magnetic Dimmable ®
12/24VDC LineDRIVE Power Supply
Specification Sheet
DIMENSION
LD-MD-UNV30
LD-MD-UNV60
LD-MD-UNV96-24
LD-MD-UNV150-12
LD-MD-UNV200-24
LD-MD-UNV300-24
TECHNICAL SPECIFICATIONS
lm/ft lm/ft Working temperature -4°F - 140°F - 140°F Input voltage
V DC V DC Power
W/ft 3 W/ft
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
PRODUCT OVERVIEW
A standard output, wet location flexible 120V plug-in or hardwire LED linear tape for architectural coves, indoor steps, bannisters, exterior recesses and other constructs where even, energy saving LED illumination is specified. 5 year warranty. Do not submerge. Factory cut only - cutting in field will void ETL label and warranty.
NOTE: Each run requires power connector (see Connectors and Accessories next page).
FEATURES
•120V operation (no power supply required)
•Wet location - IP65
•Cord and plug or hardwire power connector (replaceable fuse protected)
•Tape encased in UV inhibiting water resistant clear poly flexible sheath
•Mounting options: Clips or PVC / aluminum channel
•Frosted lens and channel covers available (see below)
SPECIFICATIONS
ELECTRICAL
•120V
•2.0 watts per foot
OPTICS
•90+ CRI
LUMENS
• 27K (140lm/ft), 30K (150lm/ft), 40K (160lm/ft)
OPERATING TEMP
•-4 to 122°F (-20 to +50°C)
WARRANTY •5 years
HOW TO SPECIFY VISION120 AND CREATE A CATALOG NUMBER
Standard Output (163’ Max.) Specify by the foot / inches - minimum cut is 4”.
Example: To order an 8’-4” length of 2700K tape, specify: V120-SO-27-8-4
Example: To order a 24’ length of 3000K tape, specify: V120-SO-30-24
Example: To order a 120’-8” length of 4000K tape, specify: V120-SO-40-120-8
• Do not install in an application that is not easily accessed for service.
V120 state of the art connectors insuring a professional connection.
BLANK
Vision120™ ®
90+ CRI Flexible LED Tape Wet
Location Standard Output
CONNECTORS AND ACCESSORIES
V120-PC-4 4’ POWER CONNECTOR - CORD AND PLUG
V120-PC-8 8’ POWER CONNECTOR - CORD AND PLUG
V120-PCHW-4 4’ POWER CONNECTOR - HARDWIRE
V120-PCHW-8 8’ POWER CONNECTOR - HARDWIRE
V120-TTC-6 5-3/8” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-12 12-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-18 15-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-24 23-1/4” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-3M-VHB-15 15’ LONG X 1/2” WIDTH DOUBLE-SIDED MTG. TAPE
V120-CHL-4 4’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-4-LENS FROSTED LENS FOR 4’ ALUMINUM CHANNEL
V120-CHL-8 8’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-8-LENS FROSTED LENS FOR 8’ ALUMINUM CHANNEL
V120-CHL-P-4 VISION120 4’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-CHL-P-8 VISION 120 8’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-MC VISION 120 MOUNTING CLIPS - USE 1 PER FOOT MIN. (BAG OF 10)
V120-ECC END CAP COVERS (2) FOR ALUMINUM CHANNEL WITH LENS. WHITE
V120-90L VISION120 90° LEFT CONNECTOR
V120-90R VISION120 90° RIGHT CONNECTOR
SHWC-V120 LUXCONTROL VISION 120 CONTROLLER
CONNECTORS DIAGRAMS
TTC6 = 3”
TTC12 = 7”
TTC18 =10”
TTC24 = 13”
TTC6 = 3”
TTC12 = 7”
TTC18 =10”
TTC24 = 13”
Project Name Date
Type or Model Qty
VOLT® Low Voltage Lighting Infiniti™ G3 Integrated LED Directional Lights VAL-20xx Series
Product Description
VOLT® Infiniti™ G3 spotlights are professional grade integrated LED fixtures perfect for any uplighting application.
Constructed of heavy solid cast brass, the Infiniti™ G3 incorporates a built in driver and uses the body as a heat sink. The design allows the LED chips to run at a cooler temperature which equates to a longer life; up to 60,000 hours! Constructed with a silicone plug where the lead wires exit the luminaire and O-ring under the shroud, the Infiniti is completely water-tight. The luminaire is field serviceable and has an adjustable knuckle to aim light where it is needed.
Product Dimensions
Features & Benefits
◗ Solid Brass Construction.
◗ Pre-aged finish- a natural patina that does not corrode.
◗ Adjustable knuckle with lock screw allows precision positioning.
◗ Silicone plug at lead wire exit prevents ground moisture and insects from entering luminaire through the stem.
◗ The Infiniti™ G3 series of fixtures should NOT be used as a downlight nor aimed in a downward position.
Specifications
◗ Construction: Solid Cast Brass
◗ Finish: Bronze
◗ Lead Wire: 18AWG, SPT-2
◗ Glass or Lens: Tempered flat glass
◗ Light Source: Integrated CREE® LED
◗ Operating Voltage: 6-18 VAC, with decreased lumens under 11V
VOLT® Low Voltage Lighting Infiniti™ G4 Integrated Spot Lights, VAL-30xx Series
Product Description
VOLT® Infiniti™ G4 spotlights are professional grade integrated LED fixtures perfect for any uplighting application.
Constructed of heavy solid cast brass, the Infiniti™ G4 incorporates a built in driver and uses its body as a heat sink. The design allows the single source CREE LED chip to run at a cooler temperature, which equates to a longer life! Constructed (with a silicone plug where the lead wires exit the luminaire) and thick O-ring under the shroud, the Infiniti is completely water-tight. The luminaire has an adjustable knuckle to aim light where it is needed.
Product Dimensions
Features & Benefits
◗ Solid Brass Construction.
◗ Pre-aged finish- a natural patina that does not corrode.
◗ Adjustable knuckle with lock screw allows light to be precision positioned.
◗ Silicone plug at lead wire exit prevents ground moisture and insects from entering luminaire through the stem.
◗ Machine threaded body screws tighten onto thick O-ring for a moisture-tight design.
◗ The Infiniti™ G4 series of fixtures should NOT be used as a downlight nor aimed in a downward position.
◗ CREE 4 Step Binned LED Diodes with L70 over 60,000 Hours
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS:
Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
BLANK
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
(floating socket)
/
(incl.) 490034
Trident Heavy-Duty 3-Prong Stake 490036 PM Round pier mount 490057 MR Round tapered 3-hole surface mount 490048
PVC/Brass post stake 490037
Brass gutter mount 490047
PRODUCT SPECIFICATIONS
VOLT® Low Voltage Landscape Lighting
Elevate your outdoor lighting game with the sleek and stylish VOLT® Fat Boy Mini Brass Spotlight in Black. Boasting a slim and shortened profile with an extended glare guard, this spotlight makes bulb replacement a breeze and is perfect for customers seeking reliable and budget-friendly landscape lighting solutions.
With the same exceptional features and benefits as the VOLT® G2 Fat Boy, the VOLT® Fat Boy Mini Brass Spotlight in Black offers a modern and sophisticated look that will complement any outdoor space. The durable brass construction and stunning black finish ensure that this spotlight can withstand the elements for years to come and is the perfect combination of functionality and style.
• Construction: Brass
• Finish: Black
• Lead Wire: 4’ (standard) or 25’ (optional) 18AWG
• Lens:
• Light Source (not included): MR16 (LED or Halogen)
• Operating Voltage: 12VAC
• Mounting: 10” Hammer® Stake with cutout for wire exit
• Powered by: VOLT’s Low Voltage Transformer
•Sheet Brass Construction.
or peel—just natural patina that does not corrode.
•Beryllium copper socket – more corrosion resistant than copper.
•Silicone plug at lead wire exit prevents ground moisture and insects from entering luminaire through the stem.
•Water Tight Silicone O-Ring - keeps water from entering luminaire.
•Extra-long (1-inch) strip resistant threading and solid brass locknut provide superior mounting stability.
•Glare guard and heavy duty adjustable knuckle - allows light to be positioned.
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS:
Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
BLANK
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
(floating socket)
/
(incl.) 490034
Trident Heavy-Duty 3-Prong Stake 490036 PM Round pier mount 490057 MR Round tapered 3-hole surface mount 490048
PVC/Brass post stake 490037
Brass gutter mount 490047
VOLT VOLT ® ® Low Voltage Landscape Lighting Max Spread Path &
Area
Lights – 330 Series
The Max Spread Path & Area Light is a high-quality outdoor light
hat, the luminaire projects an extra-wide beam of illumination with a diameter of about 16 ft. This allows you to use fewer lights to illuminate a path or garden area.
Corrosion-resistant internal components and an easy-tochange bulb socket-and-enclosure ensure years of optimal performance. Lifetime Warranty.
PRODUCT DIMENSIONS
◗ Construction:
◗ Finish: Bronze, Powder Coated Black or Raw Copper
◗ Lead Wire: 4’ (standard) or 25’ (optional) 18AWG
◗ Mounting: 10” Hammer® Stake with cutout for wire exit
◗ Lens: Clear Protective Polycarbonate lens
◗ Light Source (sold separately): Bi-Pin (LED or Halogen)
◗ Operating Voltage: 12V AC
◗ Powered by: VOLT’s Low Voltage Transformer
Warranty
◗
◗ Solid Brass or Copper Construction.
◗ Stem is 1-inch thick and includes extra-long (1-inch) strip resistant threading for greater stability.
◗ Beryllium copper socket – more corrosion resistant than copper.
◗ Silicone plug at lead wire exit prevents ground moisture and insects from entering luminaire through the stem.
◗ Machine threaded body screws tight onto an O-ring for a moisture tight design.
10" (Model 490025), 16" (Model 490023) and 18” (Model 490026) stems are sold separately.
SOCKET/LAMP HOLDER:
One fixed ceramic bi-pin socket in stem accepts bi-pin lamps with G4 or GY6.35 bases.
LAMP TYPE:
12V bi-pin. LED recommended. Halogen 35W maximum or 6W LED maximum.
MOUNTING:
1/2" NPT. Heavy-duty composite stake included with stem. May be mounted into threaded hubs in junction boxes or other mounting accessories.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
ARCHITECTURAL COLORS:
FINE TEXTURE SILVER
FINE TEXTURE WHITE
FINE TEXTURE BLACK
DIMENSIONS:
490020-S (clear lens)
490021-S (frosted lens)
490020-WH (clear lens)
490021-WH (frosted lens)
490020-BLK (clear lens)
490021-BLK (frosted lens)
The Zen path light features a 6.3-inch-diameter cast brass hat. Its underside is a powder-coated reflective white surface. Impact-resistant clear or frosted lens options.
BLANK
LED LAMP SPECIFICATIONS
LAMP TYPE:
Dauer encapsulated bi-pin with 5-year warranty. COLOR TEMPERATURES: 2700K or 3000K. Decorative colors include amber, blue, green and red.
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490020-490025-4W-E-2700K-MS
(clear lens)
490020
490020-S
490020-WH
490020-BLK (frosted lens) 490021 490021-S
490021-WH
490021-BLK
M3 Trident Heavy-Duty 3-Prong Stake 490036 PM Round pier mount 490057 MR Round tapered 3-hole surface mount 490048 MP PVC/Brass post stake 490037
NO SPECTIFICATIONS
300W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490542
SPECIFICATIONS
OUTPUT:
300W, 25A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT: 120V, 60Hz, 2.5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 25A breaker, heavy-duty grounded 5-foot power cord. Suitable for interior or exteriror use.
AGENCY LISTINGS:
ETL approved. Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490542-DT200LT
DIMENSIONS:
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
