BBB OFFICE BOOK

2301 NW 33 Ave Pompano Beach FL 33069 USA

(561) 990-2590

BBB OFFICE RELOCATION WASHINGTON, DC

2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561) 990-2590 | Toll Free : 1-877-514-2377

TYPE

MFG

P1

FLUXWERX

SK1-P-C-3-A-S1-C03-B|B|B-D-W-5-9-30-D-F2-M

P2A

FOCALPOINT

ASM1CBS-BW/LC-LF-8-250UP-750DL-930K-2C-UNV-L11-J24-WFLBKCD-BS-X-8'0"

P2B

FOCALPOINT

ASM1S-BWSD-LF-8-250LF-930K-1C-UNV-L11-J24-BKCD-X-8'0"

P5

LUXXBOX

P6

LIGHTOLOGY

LORA PENDANT

P7A

FOCALPOINT

ASM2BS-BW/BW-8-750DN-250UP-930K-2C-UNV-L11-J24-BKCD-X-8'0"

P8

LUCIFER

CM1-X-AD1-BK-BK-90T17A-TR-25-DG1-7-C

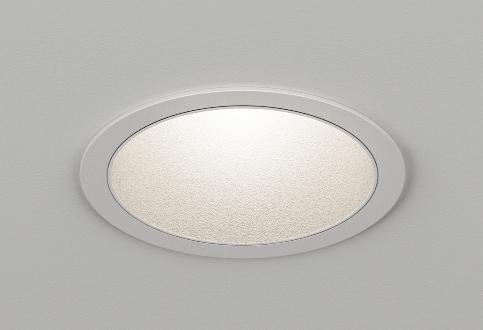

R1

LUCIFER

A2RS-T-1-00-AG-FD-N-9010D-30-80-6-SG6

R2

LUCIFER

A2RW-T-1-00-AG-WW-N-9010D-30-WW-W-SG6

R3

LUCIFER

A2RS-T-1-00-AG-FD-N-9010D-30-25-5-SG6

R4A

LUCIFER

A2RS-T-1-00-AG-FD-N-9010D-30-80-6-SG6

R4B

LUCIFER

A2RS-T-1-00-AG-FD-N-9010D-30-80-6-SG6

R6B

CORONET

LSR3-PAT-TW-HIGH-UNV-TW10-W-NT-FL-NT-FL-NA-NA-NA

R8

FLUXWERX

SK1-M-D3-A-C2-W|W|B-D-N1-9-30-B-F2-M

S1A

CORONET

FP1-4-30-MED-UNV-DB-W-SMHC-SD-NA-NA-NA

S2

Q-TRAN

AK1SW-3.0HE-30-DMP-WO-DF-S1-CON6-CLS-WH-CL2-SST-ST-X-O

S4

Q-TRAN

VERS-04-SW-6.0HE-30-DRY-GZR-L2-BK-S1-CON6-CLS-BK-CL2-CC-BKX-O/BL-GRAZER-BK-CC-01-XX

S3

FLUXWERX

TC1-T-05-S-J1-XX-N1-9-30-A-F2-M

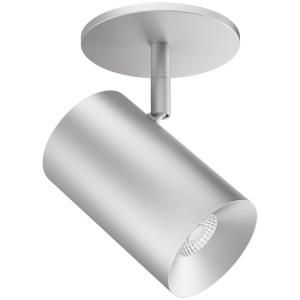

S5

CORONET

LS1-RD-PAT-TW-HIGH-UNV-TW-10-BLK-SMHC-RD-NA-NA-CAN.BLK

S6

LEDFLEX

JS-TA18-JL-30-04-20-P-B-LENGTH

PART NUMBER (HYPERLINK TO PAGE IN BLUE)

LX-HI-M-XX-30-UNV-CD5

2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561) 990-2590 | Toll Free : 1-877-514-2377

TYPE

MFG

P1

PHAINO

OJO4-25-30-D1-36-BK-BK-PC-CO4-RJ

P2A (8')

NULITE

AP1-8H-FF-BW-08-03-L30-UNV-D-2-2-PW-SR-B-048-8

P2B (8')

NULITE

AP1-8H-V-BW-03-L30-UNV-D-1-1-PW-SR-B-048-8

P5

LUXX BOX

CAP-P-LG-B14-5CCT

P6

LUMENS

BLS1874042

P7A (8')

NULITE

AP1-8H-FF-BW-08-03-L30-UNV-D-2-2-PW-SR-B-048-8

P8

ELCO

E36-M-B-18-4T-D

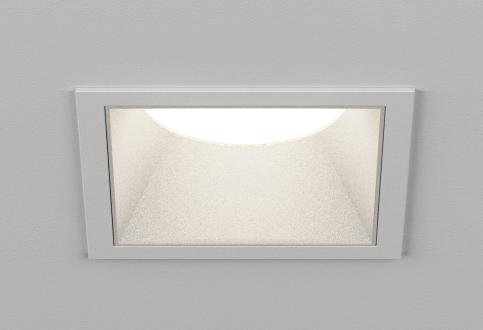

R1

NORA

NIO-2RTLNDC30X-HZ/NHIOICD-28-LE4/NIO-TLMR-2RA/NIO-REFL60FR

R2

NORA

NIO-2RTLA30X-HZ/NHIOICD-28-LE4/NIO-TLMR-2RA

R3

NORA

NIO-2RTLA30X-HZ/NHIOICD-28-LE4/NIO-TLMR-2RA

R4A

NORA

NIO-2RTLNDC30X-HZ/10/NHIOICD-28-LE4/NIO-TLMR-2RA/NIO-REFL60FR

R4B

NORA

NIO-2RTLNDC30X-HZ/10/NHIOICD-28-LE4/NIO-TLMR-2RA/NIO-REFL60FR

R6B

AMERLUX

GRUV2.5-GB-A16-PL-10-TW9-2757-HW-120/277-(9'X19'/13'X24')-PR-0-10V

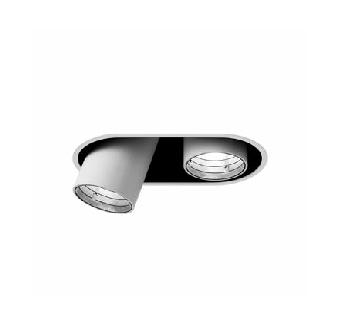

R8

REGGIANI

A-8M-5-3-H-HQ-12-V-O-LD49-159V + V.OLD49.159V

S1A

BARTCO

BSS205-4-30-D-R-C-SN-ESS

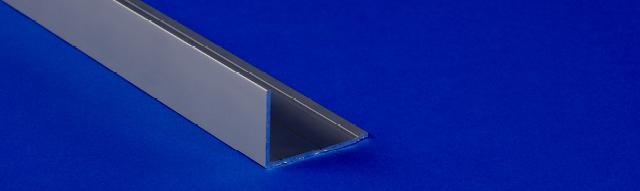

S2

GM

LTRP-24V-3.0W-30K-16/LED-CHL-45-1200/LED-CHL-45-1200-EC/LD-XDUNV60-24/LD-XD-UNV40-24

S4

GM

VTX-G-24V-5.8W-30K-4'/5'/8' /VTXCHL4/VTXLENS4/VTXCHL6/VTXLENS6/ VTXCHLEC/LD-XD-UNV40/86/60-24

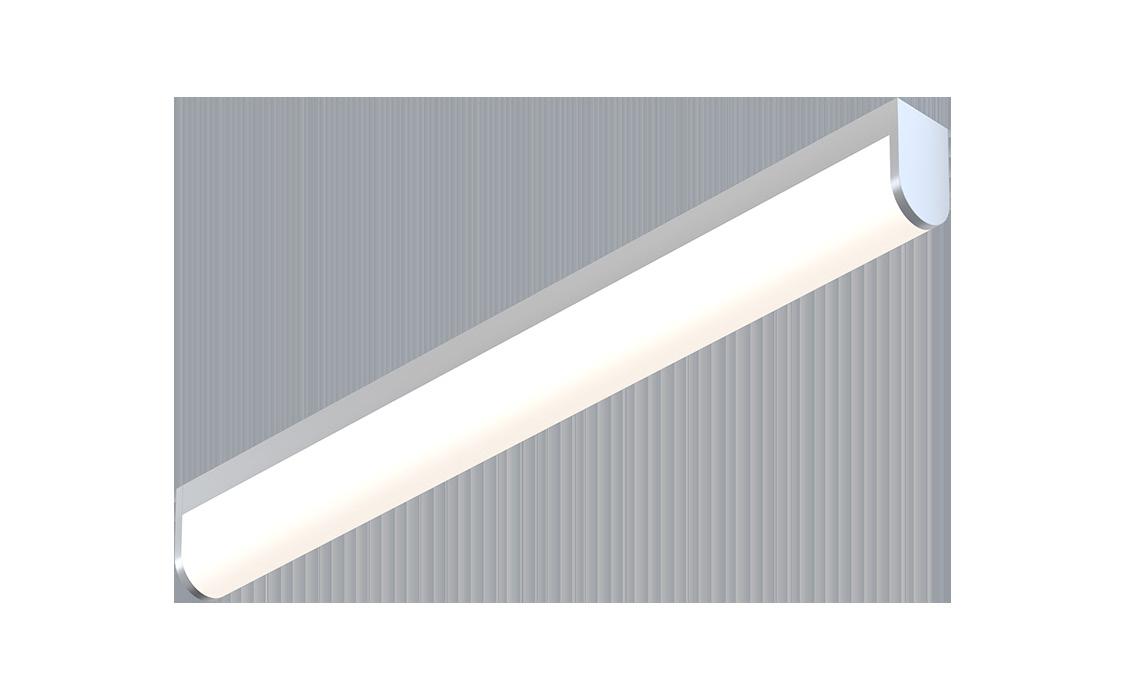

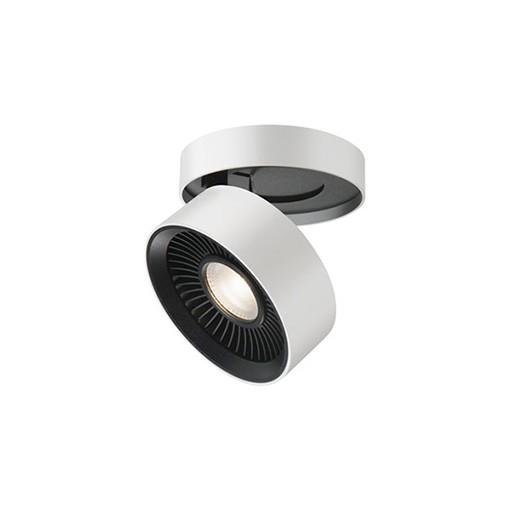

S3

KUZCO

FM9405-WH-UNV

S5

AMERLUX

LIN2.5D-A16-DRP1-SM-10-TW9-2757-BT-120/277-6'X18'-PR-0-10V

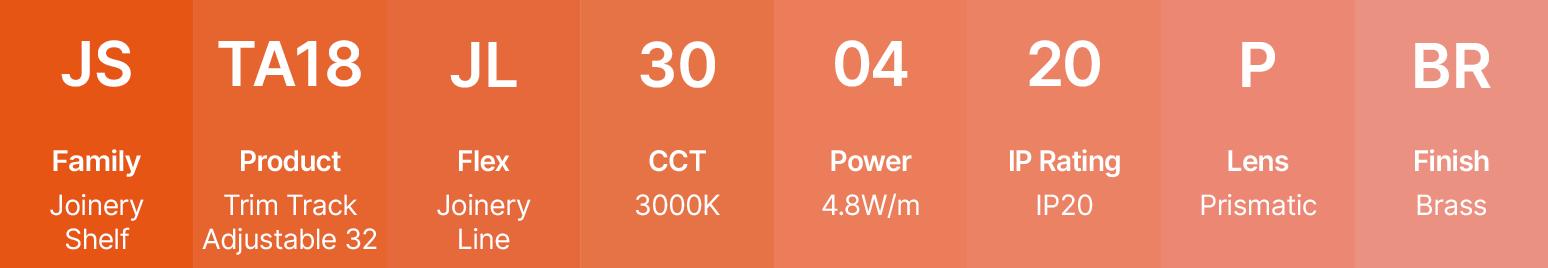

S6 (8')

LED FLEX

JS-TA18-JL-30-04-20-P-BR-8' + JD1524A

PART NUMBER (HYPERLINK TO PAGE IN BLUE)

2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561) 990-2590 | Toll Free : 1-877-514-2377

TYPE

MFG

S8A

FOCALPOINT

ASM2S-BW-8-1000LF-930K-1C-UNV-L11-DTS-XXX-8'0"

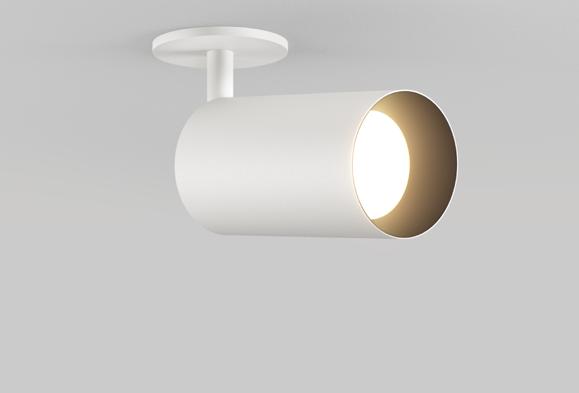

T1

CORONET

POINT.SM-30-HIGH-BLK-120V-MED-JTYPE-HEX-LSF

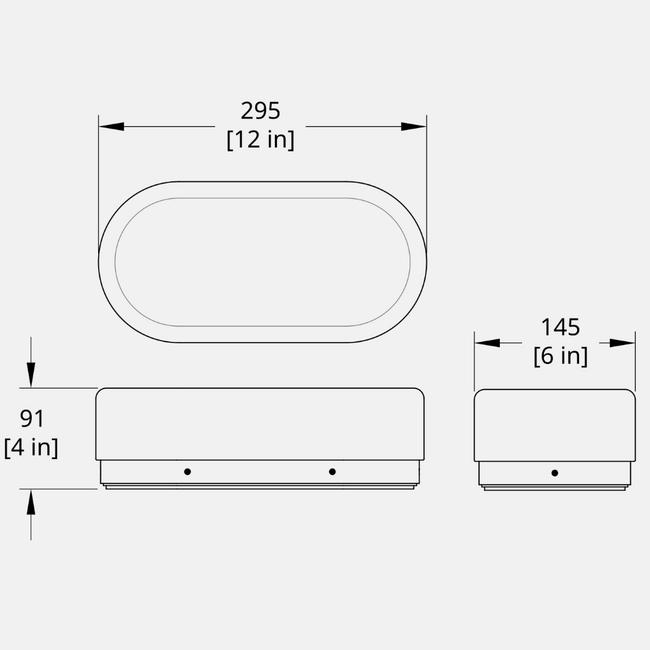

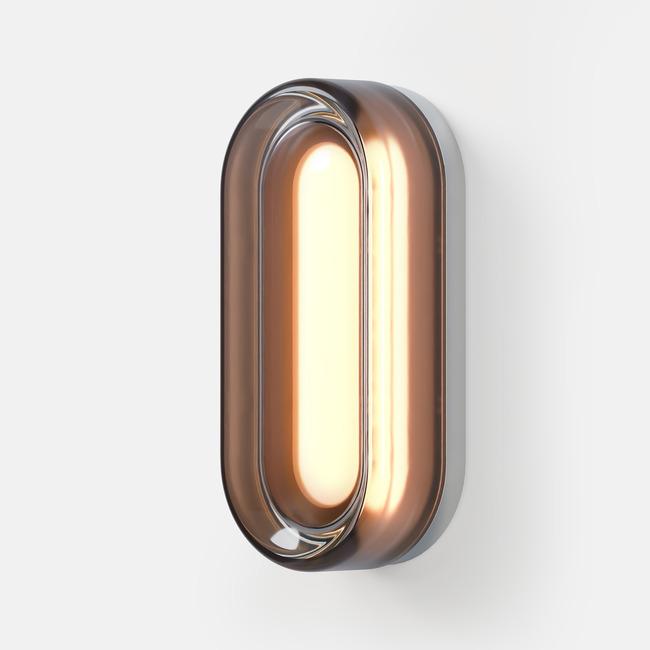

W1

LIGHTOLOGY

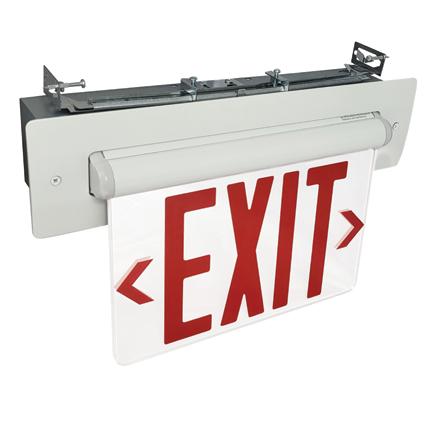

1F EXIT

COOPER

EUX6R

2F EXIT

COOPER

EUX6R

PART NUMBER

XX

2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561) 990-2590 | Toll Free : 1-877-514-2377

TYPE

MFG

S8A (8')

NULITE

AP1-8H-D-50B-08-H-30-UNV-D-1-PW-SR-B-048-8

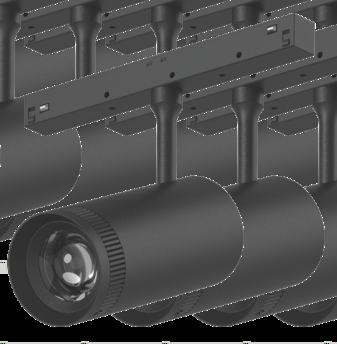

T1 (HEAD)

JADEMAR

JTLS-MT20SZ-55-3000K

T1 (TRACK)

JADEMAR

JTLS-MT20-MS2-30-SCM-BK/HLG-100H-48B

W1

RBW

DP-D-WS-S1-PC92-30-1_10V_UNV-IP20

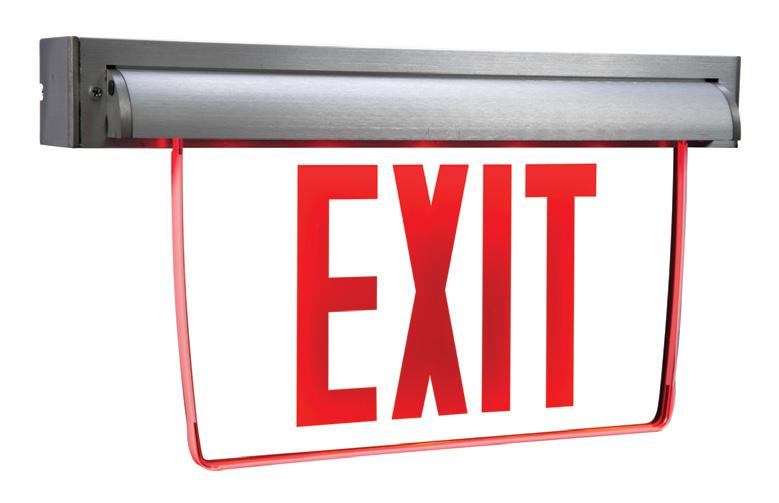

1F EXIT

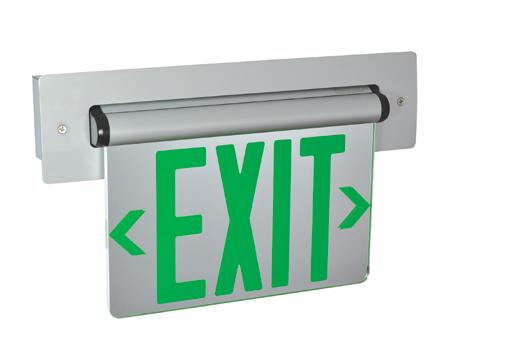

NORA

NX-815-LED-R-C-A

2F EXIT

NORA

NX-815-LED-R-2M-A

PART NUMBER

TYPE P1 SPEC

BBB OFFICE TYPE

SPECIFICATION DATA

SPEAK PENDANT 3" FLAT (SK1Px3)

CATALOG #

PROJECT

NOTES

PERFORMANCE FOCUS DIMENSIONS 3" Flat, Medium Beam, 30 Up | 70 Dn, 80 CRI, 3500K

Drywall Flush ceiling canopy shown.

4.25 in 108 mm

4.25 in 108 mm

3.29 in 84 mm

2.17 in 55 mm

Energy (W)

Light (lm)

Efficacy (lm/W)

B

8W

950

120

C

12 W

1400

117

D

16 W

1900

115

Certified

ENERGY STAR TITLE 24 JA8 (90 CRI)

(Pending) (C3) COMPACT 3" FLAT

(S3) SHORT 3" FLAT

3.0 in 76 mm 3.29 in 84 mm

E (Up | Dn) 3.0 in 76 mm 3.29 in 84 mm

Color Matching (SDCM)

<2

20 W

2300

113

Lumen Maintenance (hr) L80 per TM21

L70 Estimate

> 54,000

> 140,000

Preliminary nominal values, refer to back pages for full performance data.

4.25 in 108 mm

4.25 in 108 mm

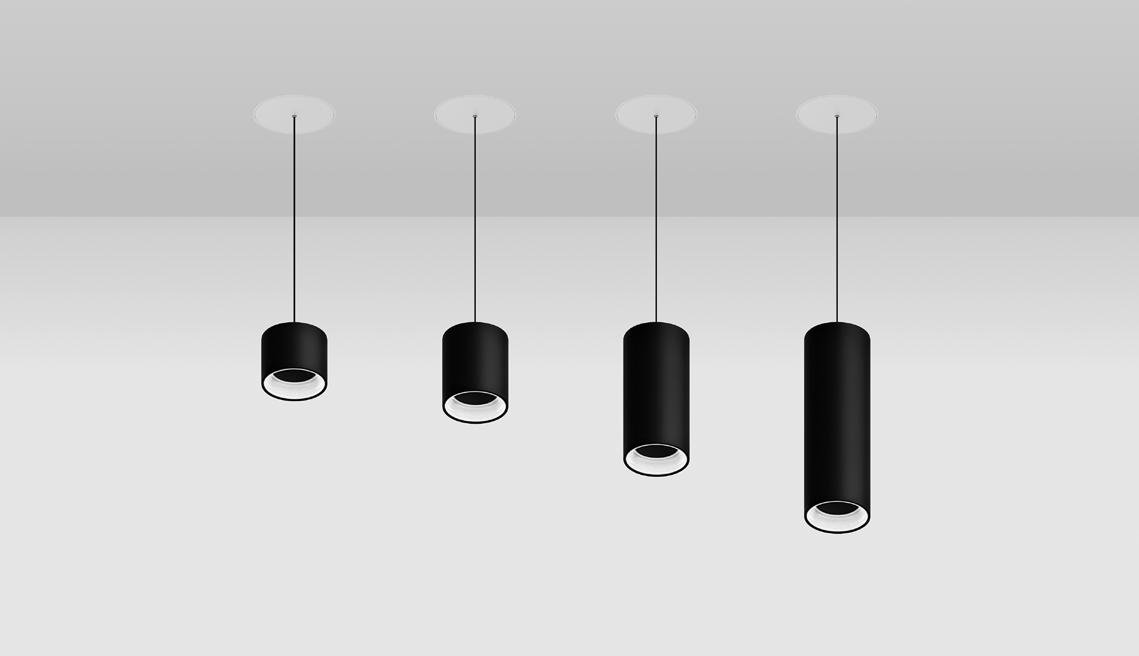

• 3" or 4" diameter pendant mount cylinders with a ring optic — bezel replaced by source.

• 4 heights, from compact to tall, plus soft edge Radius versions and an elegant pendant Taper companion for design freedom.

• Anidolic Extraction Optics™ generate a comfortable, precisely controlled light distribution in a direct narrow, medium or wide beam.

• Wide throw 25 | 75 and 40 | 60 up/down distributions deliver exceptional lighting quality.

• Optional drop center enhances the lower ring of light appearance.

• Slender (<1/8"), integrated power and suspension cord de-emphasizes its appearance.

• New flush drywall and millwork canopy mounts.

• A variety of CRI, CCT and output choices plus dim-to-warm control.

9.0 in 229 mm 6.0 in 152 mm

(M3) MEDIUM 3" FLAT

3.0 in 76 mm 3.29 in 84 mm

(T3) TALL 3" FLAT

FEATURES

3.0 in 76 mm 3.29 in 84 mm

Spec-Fluxwerx-Speak-Pendant-3in-na-en | 2026-04

All rights reserved. © Fluxwerx Illumination 2026 604.549.9379 | fluxwerx.com Due to continuous product improvements, specifications and dimensions are subject to change without notice.

Certain options have limited compatibility with some other product selections. Consult www.fluxwerx.com for most current technical information.

1 of 16

BBB OFFICE

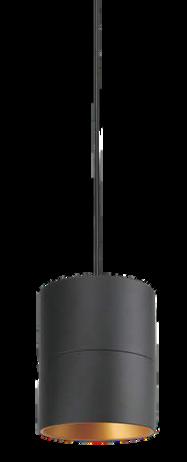

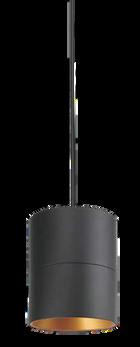

TYPE P1 ALT

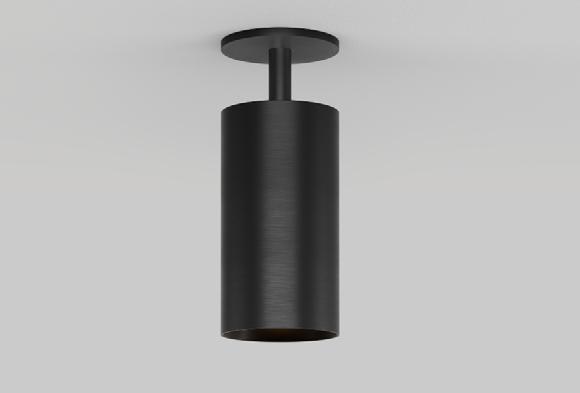

Cylinder

Ojo 4"

Job Name

Catalog Number

Notes

Type

Phaino Lighting Lighting Illuminated

FEATURES Modular design allows for configurations that are tailored to your project requirements Four different optics (15, 24, 36, and 60 degree) make the Ojo the perfect choice for projects requiring the same fixture to be placed at different mounting heights to achieve different light levels 80 CRI light engines allow for color-rich environments with natural materials to be experienced as they were intended.

Trims engineered with a high level of glare control provide increased levels of occupant comfort.

0-10v and Triac dimming are both possible with the same driver.

Multiple mounting options (cable pendant, rigid stem pendant, surface mount and wall mount) permit greater design flexibility while maintaining the same form factor.

PERFORMANCE / WATTAGE DATA

Dimensions

Wattage Options

2700K

3000K

3500K

4000K

25 W

2250lm 90 lm/w

2375lm 95 lm/w

2450 lm 98 lm/w

2500 lm 100 lm/w

Ra>80

Ra>80

2.17 in

Ra>80

4.92 in

Ra>80

* Data based on 25w with white trim and 60° optic

Black Trim Color Multiplier Multiplier for Lumen Output 0.92

Cable Mount

Gold 0.97

Stem Mount

Anti-Glare Trim

Clear Alzac 0.94

3.94 in

3.94 in

Wall Mount

Surface Mount

Surface mount with conduit cutout 4" octogonal junction box

WWW.PHAINOLIGHTING.COM

January 2026 (214)629-5947 SALES@PHAINOLIGHTING,COM

TYPE P1 SPEC

BBB OFFICE TYPE

SPECIFICATION DATA

SPEAK PENDANT 3" FLAT (SK1Px3) CATALOG NUMBER 1

2

SK1

P

3

4

5

6

7

8

9

10

11

12

13

14

15

16

OPTIONS

CONTROLS

3

ORDER GUIDE 1

FAMILY

2

SK1 Speak

VERSION

3

HEIGHT

4

P Pendant Cylinder

C S M T

Compact Short Medium Tall

3 3" Flat

WIDTH + END

5

POWER MOUNT

6

A Canopy Driver R Remote Driver C Chicago CCEA – Canopy V Chicago CCEA – Remote Driver

CEILING CANOPY

7

D1 Drywall Slim D2 Drywall Flush Trimless G1 Grid M1 Millwork Edge J1 J-Box Slim (Structure/Drywall) 1 S1 Structure (4.5") 2 S2 Structure – Extended (5.5")

C03 C06 C12 T##

SUSPENSION

Cord ≤ 3 ft Cord ≤ 6 ft Cord ≤ 12 ft Stem 6-96 in (6 in increments) 3

(06, 12, 18, 24, 30, 36, 42, 48, 60, 72, 84, 96)

( J1) J-Box canopy requires (R,V) Remote mount driver.

(S1) Structure canopy end matches fixture end (Flat/Radius).

1

3

2

8

FINISH

9

FIXTURE | CANOPY | CENTER (select each) 4

5

CENTER

D Drop R Recess

B|B|B S|S|S

Black Powdercoat Metallic Silver Powdercoat W | W | W White Powdercoat C | C | C Custom Color (RAL) 4

5

| DN 11 UP DISTRIBUTION

N Narrow (30°) M Medium (40°) W Wide (60°)

1 100 Dn 3 30 Up | 70 Dn 5 45 Up | 55 Dn

12 CRI

13

8 80 CRI 9 90 CRI

27 30 35 40 A1

Cord or stem matches fixture finish (silver cord with white fixture). nly white or black canopy in Grid (G1) O ceiling. Canopy coupler matches canopy finish except silver coupler with white canopy or (D2, M1) Flush canopy.

15

14 ENERGY 7

B C D E

8W 12 W 16 W 20 W 8

Nominal input power.

Add 2 W for BP or 347 V. Energy E only with Up | Dn distributions.

7

DRIVER

Non-Dim 0–10 V Dim 3% Line Voltage Dim (Fwd/Rev) 3% 120 V eldoLED ECO 0–10 V Dim 1% eldoLED SOLO 0–10 V Dim 0.1% eldoLED ECO DALI-2 DT6 Dim 1% eldoLED SOLO DALI-2 DT6 Dim 0.1% Lutron Hi-Lume 1% EcoSystem (LDE1) 9 L3 Lutron Hi-Lume 0.1% EcoSystem (PEQ0) 9

16 VOLTAGE

OPTIONS

M 1 2 3

B Battery Pack H Emergency Switch (GTD) 12,13

120–277 V 120 V 10 277 V 10 347 V 11

Fixed voltage only for (F4) Line Dim driver or nLight controls.

347 V: Needs (R) Remote mount driver/transformer with (S1, S2) Structure ceiling canopy.

10

11

L utron: Limited ceiling mount options due to driver size.

CCT

2700 K 3000 K 3500 K 4000 K Dim-to-Warm 2700-2200 K 6 A2 Dim-to-Warm 3000-2200 K 6 A3 Dim-to-Warm 3500-2200 K 6 6

F1 F2 F4 E1 E2 E3 E4 L1

9

BEAM SPREAD

10

nly (C) Cord with (A) Taper O version or (D2) Drywall Flush or (M1) Millwork canopy.

im-to-Warm not D available in (C) Compact height.

8

CONTROLS 12

Remote mounted BP (120-277 V) & GTD, except with (D2) Drywall Flush or (M1) Millwork canopy.

13 GTD not compatible with (F4) Line Dim driver.

TYPE & LOCATION 14

BRAND & PROTOCOL 14

R Remote Sensor / Controller on Ceiling S Sensor / Controller on Canopy V Controller on Remote / Plenum Enclosure Y Controller on Canopy / Room side

N1 N2 N3 L1 M1 V1

Acuity nLight Wired 15 Acuity nLight Air rIO 15 Acuity nLight Air RPP20 15 Lutron Athena Wireless Legrand Wattstopper PLUS Leviton Intellect Wireless

12

14

ontrols selection may be limited C by version, protocol or other features — see Controls page.

15

nLight: Controller (V,Y) only.

Spec-Fluxwerx-Speak-Pendant-3in-na-en | 2026-04

All rights reserved. © Fluxwerx Illumination 2026 604.549.9379 | fluxwerx.com Due to continuous product improvements, specifications and dimensions are subject to change without notice.

Certain options have limited compatibility with some other product selections. Consult www.fluxwerx.com for most current technical information.

2 of 16

BBB OFFICE

TYPE P1 ALT

Cylinder

Ojo 4"

Job Name

Catalog Number

Notes

Type

Phaino Lighting Lighting Illuminated

Product Ordering Guide Cylinder Part Number Cylinder

(Example: OJO4-30-D1-15-BK-WH-PC-C04-RJ

Wattage

CCT / CRI 27

25 (25 Watts)

OJO4

1

30 35

Dimming (120-277V) D1

(2700K /80 CRI/2250 lm) (3000K / 80 CRI/2375 lm)

Optic

(0-10V Dims to 1%) Triac dimming (120V only)

Housing Finish

Trim Finish

15

Narrow Beam

BK (Black)

WH White

24

Medium Beam

WH (White)

BK Black

36

Wide Beam

GL Gold CL Clear

60 Flood

(3500K / 80 CRI / 2450 lm)

40 (4000K / 80 CRI / 2500 lm)

Cable / Stem (Pendants only)

Mounting PC

Pendant Cable

C04 4' Cable

PS

Pendant Rigid Stem

C96 8' Cable

SM

Surface Mount

R4

WM Wall Mount

4' Rigid Pendant

Ceiling Type

Media Option

RJ Recessed J-Box pendant mount SJ

R8 8' Rigid Pendant

Conduit cutout surface mount junction box

Emergency Function

None

None

HC Honeycomb for 15°-60° beam anti glare trim

EM 8w emergency LED driver

Distribution Diagram

WWW.PHAINOLIGHTING.COM

January 2026 (214)629-5947 SALES@PHAINOLIGHTING,COM

TYPE P2A SPEC

BBB OFFICE

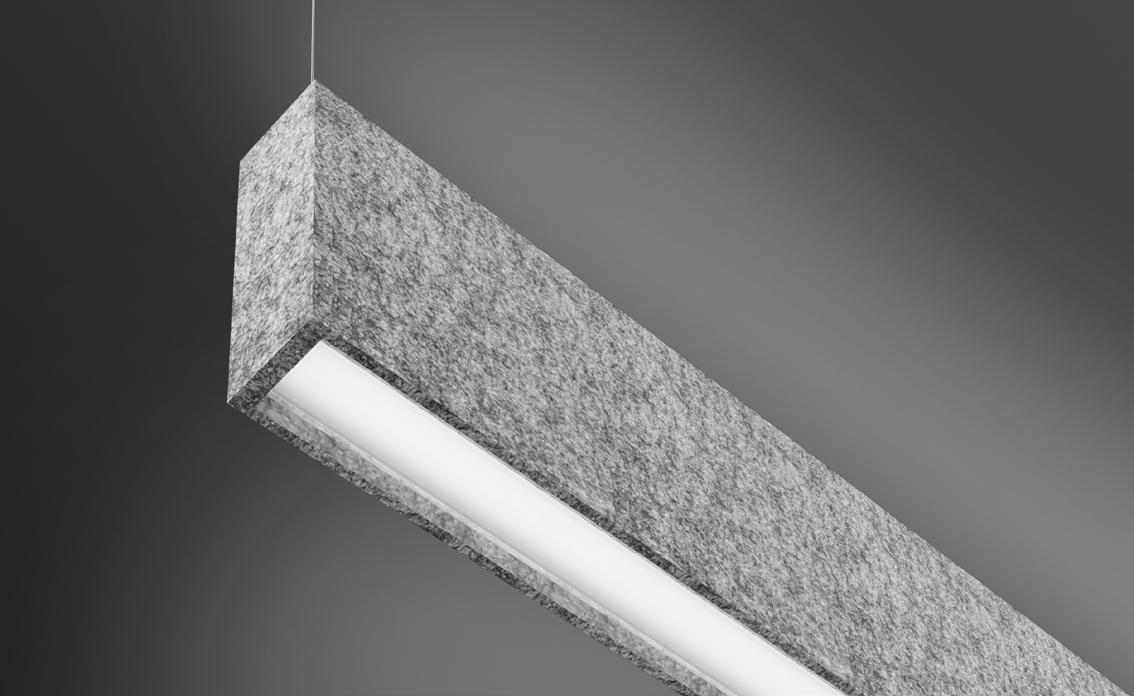

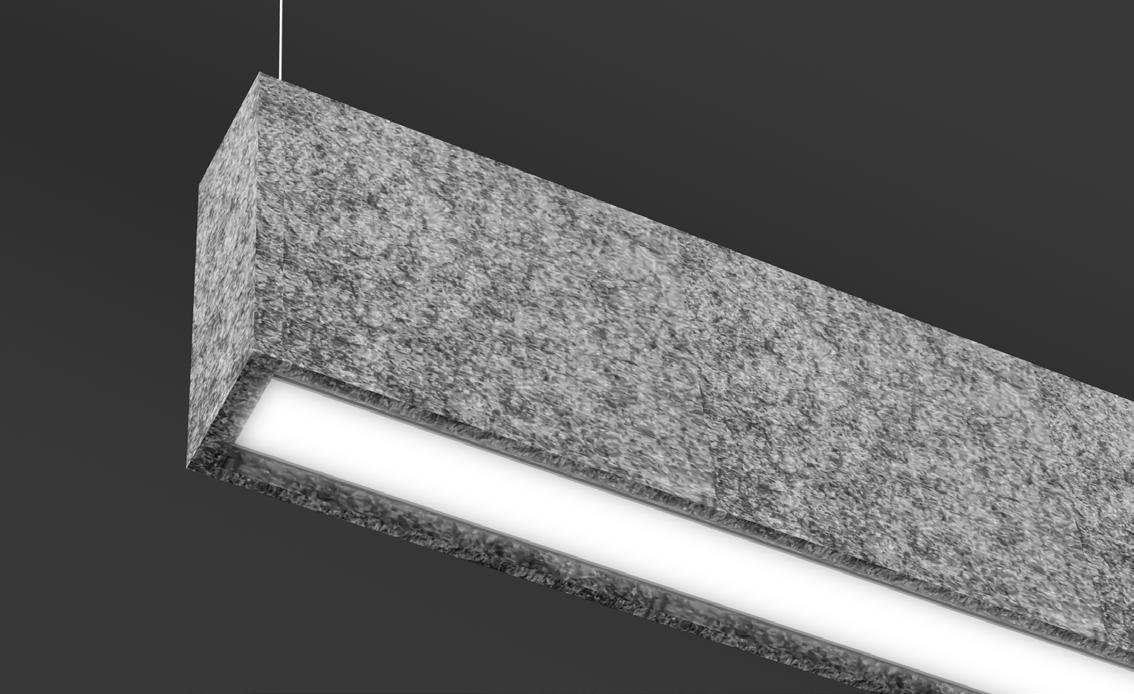

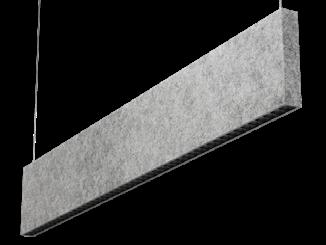

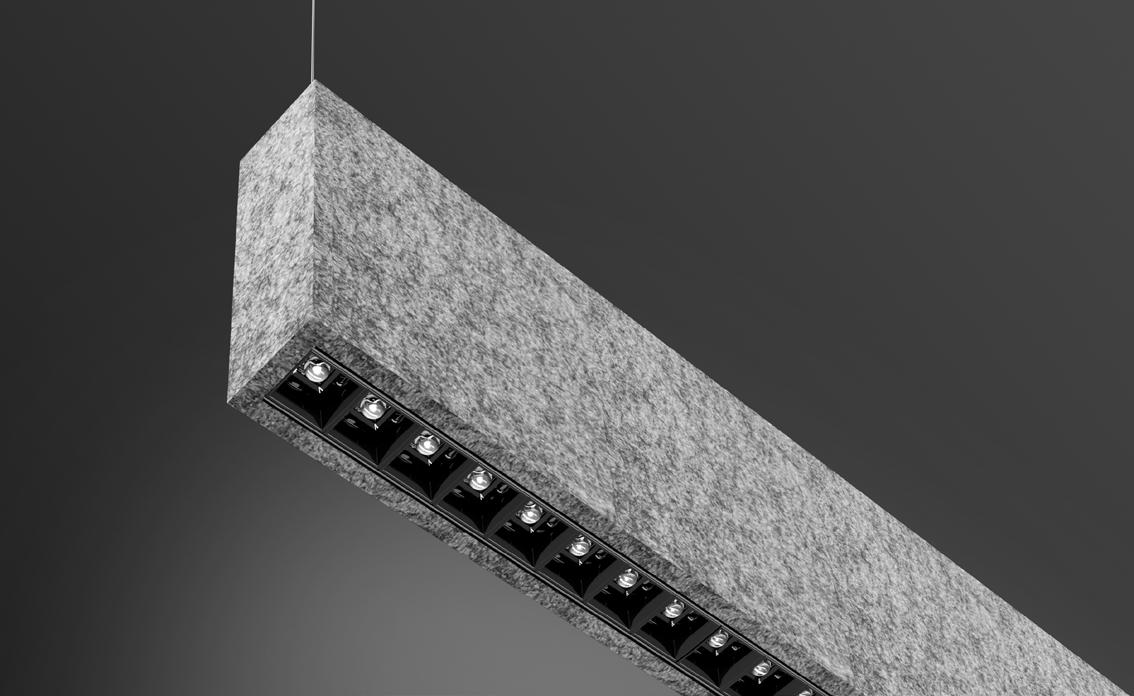

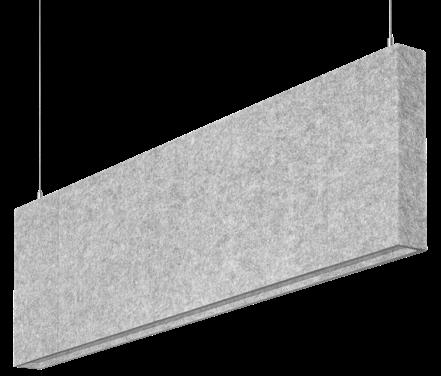

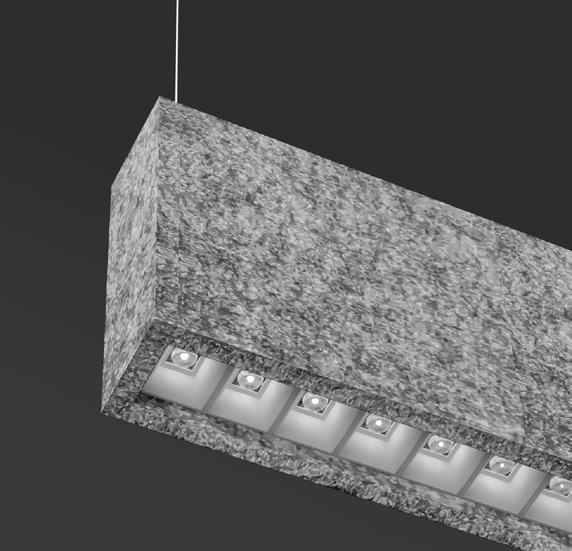

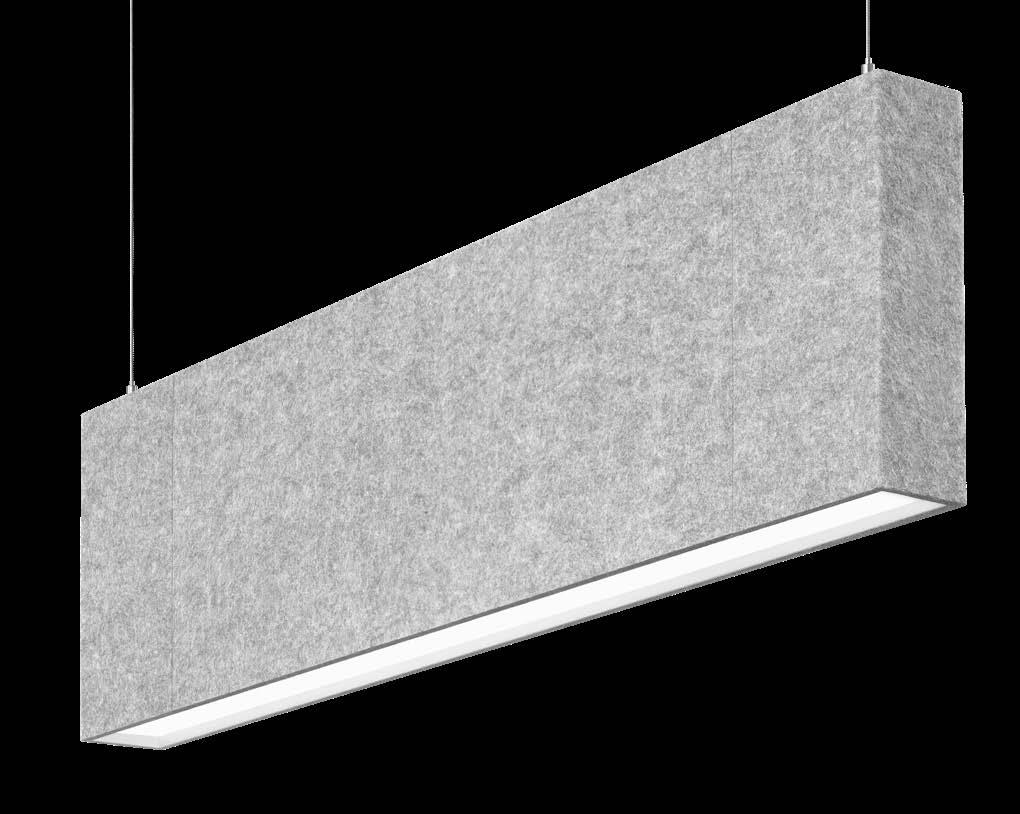

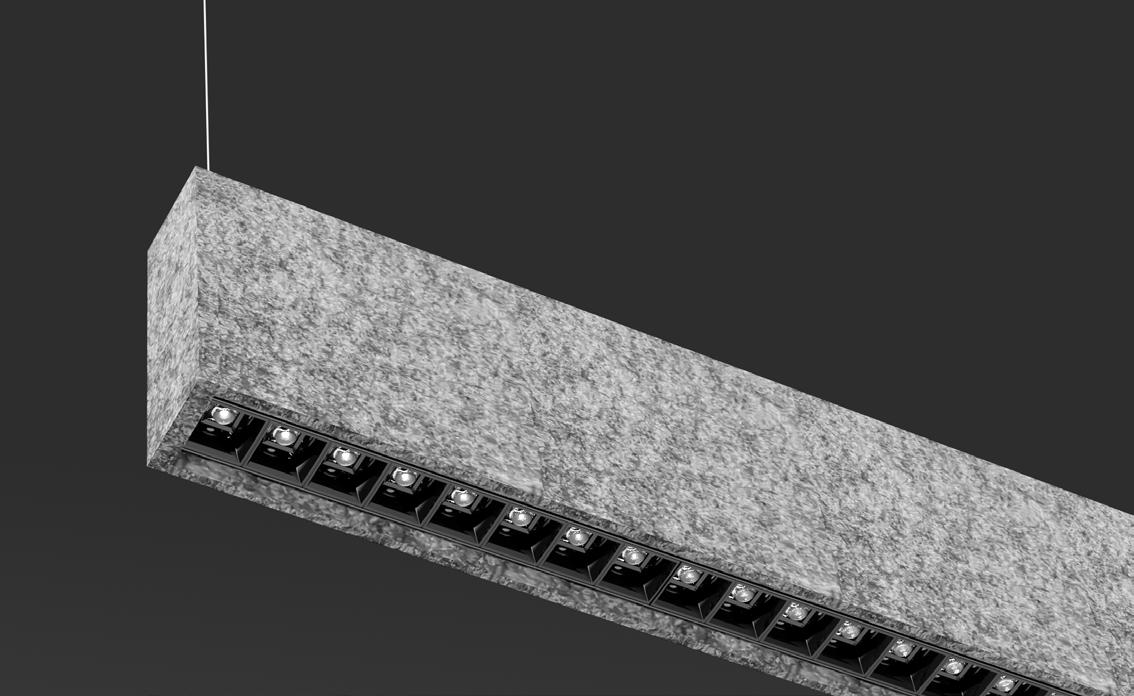

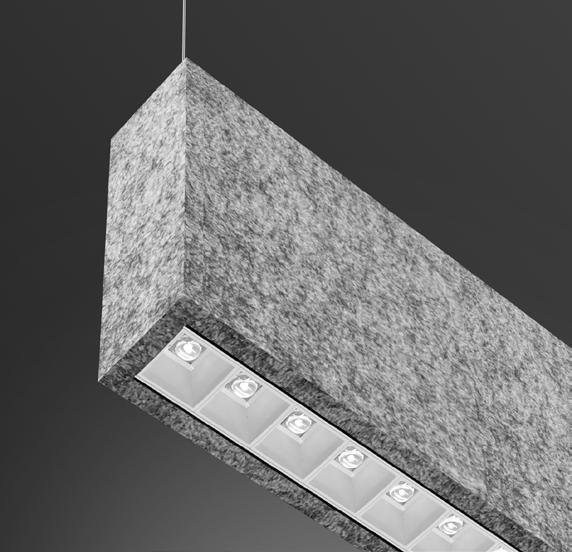

Seem 1 Acoustic Louver ®

LED DIRECT/INDIRECT

Black Specular Louver

The Naturals collection - Chestnut shown Cosmic collection - Solar Flare shown

Clear Diffuse Louver

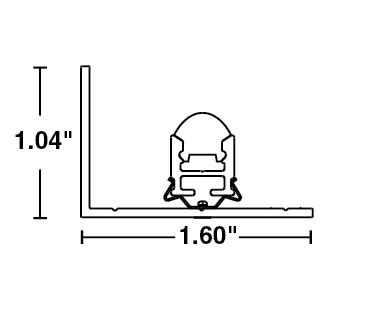

DIMENSIONAL DATA

Clear Specular Louver

Black Matte Louver

Matte White Louver

FEATURES

Narrow, sound absorbing 1.5" aperture linear direct/indirect acoustic LED luminaire with louver and high-performance optics.

Available in 4' to 208' lengths in 6" increments with 8", 12" or 16" nominal housing heights in straight lengths.

16.52" 419.6mm

Deeply regressed louver cells provide 60° cut-off from light source to promote visual comfort.

12.52" 318.0mm

Diversity of louver finishes to tailor how the light is perceived and experienced, from nearly invisible light sources with a striking transition to warmly illuminated louver cells with a smooth transition.

15.25" 387.4mm 11.25" 285.8mm

Pair with Seem 1 Acoustic unlit baffle, Seem 1 Acoustic Trio, AirCore Blade®, or TruBlade® to create a coordinated look in interior spaces.

Available in a range of curated printed finish options, including The Naturals and Cosmic.

7.25" 184.5mm

ACOUSTIC PERFORMANCE 20 16

1.50" 38.1mm

1.50" 38.1mm

SABINS/UNIT

8.52" 216.4mm

AirCore® Technology: patented, eco-friendly technology that maximizes sound absorption and reduces ecological impact.

12 8

Seem 1 Acoustic Baffle

4

12" height 18" on-center

2.27" 57.7mm 200 250

500

750

1000

1250

1500

2000

2500

FREQUENCY (Hz) - SPEECH RANGE All products were tested in multiple configured arrays. Total absorption will vary based on configuration. Please refer to ASTM C423 reports for more information.

Focal Point LLC | 4141 S. Pulaski Rd, Chicago, IL 60632 | 773.247.9494 | focalpointlights.com

December 2025 G

BBB OFFICE

TYPE P2A (8') ALT DATE:

PROJECT: TYPE:

CATALOG #:

QTY:

AP1

Pendant BI-DIRECT

Acoustic Luminaire Frosted Lens 2’ [609 mm]

Light Distribution

16 Cells

3’ [914 mm]

24 Cells combines high performance LED lighting with sound Nulite's AP1 Regolo acoustic system 4’ [1219 mm] absorbing PET felt to dampen noise within a space while also introducing color and texture to the 32 Cells ceiling plane.

5’ [1524 mm] 40 Cells

•6’ [1828 Hybrid mm] PET felt and extruded aluminum fixture construction 48 Cells • 28 PET felt color and pattern options mm] •7’ [2133 Direct-indirect light distribution with optional batwing uplight 56 Cells • Individual or continuous row mounting 8’ [2438 mm] • Tool free installation with engineered spring latch design

64 Cells

Standard Individual Fixture Lengths*

03 3 mm) mm) 05 5 mm) mm) 06 6 mm) mm)

2’ [609 mm]

2’ [609 mm]

3’ [914 mm]

3’ [914 mm] (203mm) mm) 8”8” (203 12” (305mm) mm) 12” (305 16” (406mm) mm) 16” (406

4’ [1219 mm] 5’ [1524 mm]

8”(203 mm)mm) 8”(203 12”(305 mm)mm) 12”(305 16”(406 mm)mm) 16”(406

8”(203 mm) 12”(305 mm) 16”(406 mm)

4’ [1219 mm] 5’ [1524 mm]

6’ [1828 mm]

8”(203 mm) 12”(305 mm) 16”(406 mm)

6’ [1828 mm]

7’ [2133 mm]

3/4” 2 23/4”

7’ [2133 mm]

2 3/4”

2 3/4” 2 3/4”

mm) (70(70mm) 8’ [2438 mm] R1 Acoustic Frosted Drop Lens

2 3/4”

(70 mm) 8’ [2438 mm]

(70 mm) (70 mm) R1 Acoustic Frosted Flush Lens

ORDERING INFORMATION / Example: AP1-8H-B-FF-O-05-05-L30-UNV-D-11-PW-T1W048.

(70 mm) * Dimensions represent fixture body length, add 1" for overall fixture dimension that includes both end caps

AP1 SERIES

FIXTURE HEIGHT

DISTRIBUTION

DIRECT SHIELDING

INDIRECT SHIELDING

LUMENS DOWN

LUMENS UP

CRI & CCT

AP1 -

8H - 8"(203mm) 12H - 12"(305mm) 16H - 16"(406mm)

B - Bi-Direct

FF - Frosted Flush Lens FRL - Frosted Dropped

O - Open DG - Dust Guard BW - Batwing Optic ASYM - Asymmetric

03 - 300 lm/ft 05 - 500 lm/ft 08 - 800 lm/ft 10 - 1000 lm/ft

03 - 300 lm/ft 05 - 500 lm/ft 08 - 800 lm/ft 10 - 1000 lm/ft 13 - 1300 lm/ft 15 - 1500 lm/ft

L - 80 CRI H - 90 CRI

Regolo Acoustic Pendant

Lens (Luminous Ends)

Optic

VOLTAGE

DRIVER

CIRCUITING

UNV - Universal 120 - 277V 50/60Hz

Dimming 0-10V D - Dim to 1% (Standard) D0 - Dim to 1%, Fade to Off D02 - Eldoled Solodrive, Dim

Qty of Power Circuits 1 - 1 Power 2 - 2 Power

120V - 120V 277V - 277V

FELT OPTION

Qty of Control Circuits 1 - 1 Control 2 - 2 Control

to 0% LUTRON - See options on page 2

Ceiling Type T1 - Aircraft Cable to 1” Grid T9 - Aircraft Cable to 9/16” Grid TS - Aircraft Cable to Slotted Grid SR - Aircraft Cable to Structure

Options B10 - 10 Watt Battery Pack (CEC

PW - Pewter SL - Slate

B15 - 15 Watt Battery Pack (CEC

*See page 4 to review 26 additional colors and patterns

Compliant)

Compliant) GTD - Generator Transfer Device (120V or 277V) EM - Dedicated Emergency Circuit

MOUNTING

OPTIONS

Mounting Hardware Finish W - White Canopies and Cord B - Black Canopies and Cord

30 - 3000K 35 - 3500K 40 - 4000K

LINEAR ROWS

Suspension Length WLX - Wavelinx (Cooper Lighting Solutions) Integral 048 - 48” Adjustable Aircraft Sensor Cable NX - NX (Hubbel) Integral Sensor 120 - 120” Adjustable NLT - nLight (Acuity Brands) Integral Sensor Aircraft Cable LV - Vive (Lutron) Integral Sensor 240 - 240” Adjustable ENL - Enlighted Integral Sensor Aircraft Cable

NULITE 10770 EAST 51ST AVE DENVER, CO 80239 / P 303 287 9646 / NULITE-LIGHTING.COM

2 - 24” 3 - 36” 4 - 48” 5 - 60” 6 - 72” 7 - 84” 8 - 96” XX - Specify continuous run lengths in 1’ increments

©2023 ALL RIGHTS RESERVED

1

TYPE P2A SPEC fixture:

BBB OFFICE

project:

ORDERING

Luminaire Series Seem 1 Acoustic Louver Direct/Indirect

SPECIFICATIONS

Shielding Batwing Optic Top/Louver Bottom Dust Cover Top/Louver Bottom

Acoustic Material Content

Housing material is 100% polyester containing up to 50% of recycled plastic bottles (PET felt) and is moisture resistant.

Louver Configuration Fully Louvered

See page 3 for color offering. Acoustic material colors are subject to change without notice. For the most current color options, please visit focalpointlights.com/ acousticsolutions. Printed finishes such as The Naturals and Cosmic may leave the base material color visible on edges, depending on the product. Consult factory for more information. Lead times may vary depending on color.

Cleaning and Care

Remove dust and debris with a clean, soft, lint-free cloth or vacuum

PET Thickness

9mm

Surface Burning Characteristcs

ASTM E84 Class A / CAN ULC S102 Flame Spread: 0, Smoke Development Index: 300

Colorfastness

AATCC 16A Option 3 Class 4 minimum at 40 hours

BWLC DCLC LF LF

Luminaire Height

(heights are nominal)

8" 12" 16"

8 12 16

Indirect Distribution 250 Lumens per foot 375 Lumens per foot 500 Lumens per foot 625 Lumens per foot 800 Lumens per foot

Acoustic Performance

Acoustic testing is performed on all Focal Point acoustic products and varies based on installation and configuration. ASTM C423 test reports can be downloaded from focalpointlights.com.

Contact acoustic.solutions@focalpointlights.com for technical questions.

Sabins

ASM1CBS ASM1CBS

250UP 375UP 500UP 625UP 800UP

(Not available with D11)

Direct Louvered Distribution

Sabins is a unit of sound absorption. It measures how well one square foot of material absorbs sound. Focal Point has averaged the Sabins per unit at four specific frequency bands representing the human speech range (250, 500, 1000, 2000 Hz) to determine the Sabins per product.

250 Lumens per foot

250DL

375 Lumens per foot 500 Lumens per foot 625 Lumens per foot 750 Lumens per foot 875 Lumens per foot 1000 Lumens per foot

375DL 500DL

(Consult factory for available options)

8' length, 12" height: 12" OC = 5.08 Sabins, 18" OC = 9.05 Sabins, 24" OC = 9.46 Sabins

LED System

Proprietary linear LED module incorporates premium LEDs on a robust platform to achieve excellent thermal management. LEDs are placed to promote a uniform appearance. Available in 2700K, 3000K, 3500K or 4000K with both 80 and 90 CRI options. LED drivers are replaceable from above. Color accuracy <3 SDCM.

Color Temperature 2700K, 80CRI or 90CRI 3000K, 80CRI or 90CRI 3500K, 80CRI or 90CRI 4000K, 80CRI or 90CRI

Weight - 12" height, 4' length = 13.38lbs. 12" height, 6' length = 19.51lbs. 12" height, 8' length = 25.64lbs.

Optic

Circuit Single Circuit Dual Circuit

60-degree cut-off to louvered light source and its image.

Mounting

625DL 750DL 875DL 1000DL 27K or 927K 30K or 930K 35K or 935K 40K or 940K 1C 2C

(Circuit 1 = Indirect, Circuit 2 = All Direct sources.)

Minimum mounting height 7.5" from the ceiling.

Voltage 120/277 UNV Volt

Electrical

Luminaires are pre–wired with factory installed branch circuit wiring and over-molded quick connects.

Standard 120-277V constant current driver includes 0-10V analog dimming. Power factor > .9. Power cord white as standard.

Control System & Dimming Level 0-10V - 10% Dimming 0-10V - 1% Dimming Lutron Hi-Lume EcoSystem (LDE1) 1% Dimming DALI 1% Dimming

Canopy

Polyester powder coat applied over a multi-stage pre–treatment. Canopy white as standard.

Emergency Battery

Emergency output - 10 watts for 90 minutes. Maximum mounting height: 16.83ft.

UNV UNV LD1 L11 LH1 D11

Mounting

Labels UL and cUL listed. Suitable for Dry Locations, indoor use only.

(Mounting hang kits ship with order. Power cable is 18" longer than suspension length. Consult factory for longer power cable lengths.)

24" Cable Suspension 48" Cable Suspension 96" Cable Suspension 120" Cable Suspension

Lumen Maintenance

Linear Source Reported: L70 at >61,000 hours Calculated: L70 at 470,000 hours L90 at >61,000 hours L90 at 115,000 hours

(Specify canopy color White (WH), Black (BK) or Titanium Silver (TS). Example: J24WH.) (Consult factory for sloped ceiling applications)

Louvered Sources Reported: L70 at >54,000 hours Calculated: L70 at 138,000 hours L90 at 43,000 hours L90 at 43,000 hours

Distribution Narrow Flood Flood 1 Flood 2 Wide Flood Louvered Mixing Chamber

Derived from EPA TM-21 calculator. Based on typical conditions, consult factory for additional data.

Reliability

At Focal Point, our products are designed to stand the test of time. Each luminaire is engineered using superior components, manufactured with the utmost care and rigorously tested. Contact us for reliability data.

J24__ J48__ J96__ J120__

NFL FL1 FL2 WFL LMC

Factory Options

Warranty

Black Cord

LED system rated for operation in ambient environments up to 25°C and when mounted no less than 7.5" from the ceiling. 5-year limited warranty.

Emergency Circuit †

BKCD _EC

Emergency Battery Pack† _EM

(6' minimum length. Consult factory for available options.)

DISTRIBUTIONS NFL

FL1

FL2

WFL

LMC

Beam Spread

20˚

29˚

43˚

67˚

68˚

Spacing Criteria

0.36

0.50

0.70

0.98

1.18

Louver Finish Matte Black Black Specular Clear Diffuse Clear Specular Matte White

BK BS CD CS WH

Acoustic Panel Color See page 3 for color offering

4' PERFORMANCE CHART - See page 4

Luminaire Length

(Luminaires are 3/4” longer than specified and cannot be cut to length or joined in the field.)

Specify length in 6" increments from 4' to 208'

Focal Point LLC reserves the right to change specifications for product improvement without notification.

ft

8'0"

_ft _in

in

BBB OFFICE

TYPE P2A (8') ALT Regolo Acoustic Series /AP1-B

PRODUCT SPECIFICATIONS AND INFORMATION HOUSING CONSTRUCTION

GENERATOR TRANSFER DEVICES

Fixture body is constructed of powder coat painted extruded aluminum, formed sheet metal internal bracketing and sound absorbing recycled polyester (PET) felt. Captive joining mechanism is a combination die formed sheet metal and zinc plated spring steel. All hardware is stainless steel.

The GTD emergency lighting control device senses the loss of normal power and switches the AC driver input power connection to an unswitched, generator (or central inverter) supplied lighting circuit. GTD fixtures ship with 3 additional wires (orange wire "constant hot", blackred wire "generator hot", white-red wire "generator neutral").

LED LENS ASSEMBLY

FIXTURE FINISHES

Replaceable one-piece optical assembly is comprised of an LED PCBA AND AN EXTRUSED acrylic lens and reflector assembly. Available CCT's are 3000K, 3500K, and 4000K. Also available CRI's are 80 or 90.

Fixture Internal Body The R1A internal fixture body will be painted white with the exception R1A fixtures having black baffle optics, these fixture bodies will be painted black.

Mounting Hardware Canopies Mounting hardware canopies are available in black or white consult factory for custom colors.

STANDARD DIMMING LED DRIVERS Standard constant current integral electronic 0-10v dimming input. Two standard driver options are available. Option D dims to 1% and option D0 dims to 0% or OFF (the final 1 percent is a "step"). Both options are the same price and representative of the base fixture price. Options D and D0 ship with 5 wires (Line Voltage- Black and White wires, Low VoltagePurple and Pink wires, Ground- Green wire)

DALI DRIVERS

Standard constant current DALI drivers available in either a dim to 1% (ELE) or dim to 0% (ELS). DALI fixtures ship with 5 wires(Line Voltage- Black and White wires, Low VoltagePurple and Pink wires, Ground- Green wire)

LIGHT OUTPUT For bi-direct luminaires you must specify "direct" light output and "indirect" light output and the factory will tune or program each lighting channel. Available nominal direct and direct-indirect light outputs are (03) 300 lms/ft, (05) 500 lms/ft, and (08) 800 lms/ft. . Each circuit or channel may be independently controlled and this can be specified in "circuiting" within the ordering information. Specifying a "2-2" enables independent dimming control of each channel.

CIRCUITING Each luminaire may have up to 2 line voltage (Power) circuits and 2 low voltage (control) circuits. Two power circuits are required for independent control of uplight and downlight in bidirect luminaires, and low voltage control circuits are for independent dimming of each circuit.

Examples: • "1-1"- 1 power circuit(Line Voltage) and 1 control circuit (Low Voltage) > 5 wires total (1 Black Wire "Hot", 1 White Wire "Neutral", 1 Green Wire "Ground", and 2 low voltage control wires, 1 Pink wire and 1 purple wire)

• "2-2"- 2 power circuits (Line Voltage) and 1 control circuit (Low Voltage) > 9 wires

total (2 Black Wires "Hot", 2 White Wires "Neutral", 1 Green Wire "Ground", and 4 low voltage control wires, 2 Pink wires and 2 purple wires)

BATTERY PACKS Recyclable Ni-Cad battery pack, battery run time is 90 minutes. Recharge time of 24 hours.

6W or 10W battery packs are available. To calculate Battery Lumen Output, multiply luminaire efficacy by battery wattage. (example: 120 lms/watt (120) x B10 Battery Wattage (10) = 1200 lumens of egress illumination for 90 minutes.) Battery option not available in fixtures less than 4', and other limitations apply, consult factory. Entire "direct" fixture housing is energized by battery for lengths up to 5'. Half of direct fixture is energized by battery for 6' - 8' housing lengths. Emergency or night light circuit available (requires addtional power circuit). Battery fixtures ship with an additional orange "constant hot" wire.

Acoustical Felt Material Felt fixture material is available in two standard colors Pewter (PW), or Slate (SL).

There are an additional 26 color options on page 4, consult factory for lead time and availability.

INSTALLATION AND MOUNTING The R1A is designed to be pendant mounted by aircraft suspension cable in individual, continuous rows. The R1A may be specified to mount to acoustical grid ceilings, sheet rock, and structural ceiling surfaces. Refer to installation instructions at www.nulite-lighting.com for details.

FIXTURE LENGTHS - LINEAR ROWS Standard fixture lengths for individual or continuous row mounting are available in exact 1'(305mm) increments from 2' (610mm) to 8' (2438mm). Consult factory for custom lengths, limitations apply.

WARRANTY 5-year limited warranty on LED and driver from date of shipment. Refer to the full warranty details on www.nulite-lighting.com/products/184.

WEIGHT Fixtures are 2.7 lbs/ft, Driver box weights vary, consult factory.

APPROVALS ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, indoor dry/ damp locations.

TESTING PROTOCOLS AND DATA All of Nulite's LED components have been tested under LM-80 guidelines insuring 6000 hours of luminous flux data. Additionally Nulite can supply LM-79 data on all luminaires. This data includes luminous flux, electrical power, efficiency, chromaticity as well as the diffusion of luminous intensity.

LUMEN MAINTENANCE 90% of initial light output (L90) at 100,000+ hours, 70% of initial light output (L70) at 200,000+ hours.

NULITE 10770 EAST 51ST AVE DENVER, CO 80239 / P 303 287 9646 / NULITE-LIGHTING.COM

©2023 ALL RIGHTS RESERVED

7

TYPE P2B SPEC

BBB OFFICE

Seem 1 Acoustic ®

LED INDIRECT

90˚ corner detail

Seem 1 Acoustic Unlit companion

‘L’ pattern

AirCore Blade companion

Seem 1 Acoustic Trio companion

The Naturals collection - Light Oak shown Cosmic Collection - Blue Sky shown

DIMENSIONAL DATA

FEATURES

Narrow, sound absorbing 1.5" aperture linear indirect acoustic LED luminaire.

Available in 3' to 208' lengths in 1" increments with 8", 12" or 16" nominal housing heights. in straight lengths or patterns with 90˚ corners.

Indirect batwing optic allows for wide on-center spacing while maintaining ceiling uniformity.

16.52" 419.6mm

AirCore® Technology: patented, eco-friendly technology that maximizes sound absorption and reduces ecological impact.

Available in a range of curated printed finish options, including The Naturals and Cosmic.

11.25" 285.8mm

ACOUSTIC PERFORMANCE

7.25" 184.5mm

20 16 SABINS/UNIT

8.52" 216.4mm

15.25" 387.4mm

12.52" 318.0mm

Pair with Seem 1 Acoustic unlit baffle, Seem 1 Acoustic Trio, AirCore Blade®, or TruBlade® to create a coordinated look in interior spaces.

12 8 Seem 1 Acoustic Baffle

4

2.27" 57.7mm

12" height 18" on-center

200 250

500

750

1000

1250

1500

2000

2500

FREQUENCY (Hz) - SPEECH RANGE All products were tested in multiple configured arrays. Total absorption will vary based on configuration. Please refer to ASTM C423 reports for more information.

Focal Point LLC | 4141 S. Pulaski Rd, Chicago, IL 60632 | 773.247.9494 | focalpointlights.com

April 2026 AH

BBB OFFICE

TYPE P2B (8') ALT DATE:

PROJECT: TYPE:

CATALOG #:

QTY:

AP1

Pendant BI-DIRECT

Acoustic Luminaire Frosted Lens 2’ [609 mm]

Light Distribution

16 Cells

3’ [914 mm]

24 Cells combines high performance LED lighting with sound Nulite's AP1 Regolo acoustic system 4’ [1219 mm] absorbing PET felt to dampen noise within a space while also introducing color and texture to the 32 Cells ceiling plane.

5’ [1524 mm] 40 Cells

•6’ [1828 Hybrid mm] PET felt and extruded aluminum fixture construction 48 Cells • 28 PET felt color and pattern options mm] •7’ [2133 Direct-indirect light distribution with optional batwing uplight 56 Cells • Individual or continuous row mounting 8’ [2438 mm] • Tool free installation with engineered spring latch design

64 Cells

Standard Individual Fixture Lengths*

03 3 mm) mm) 05 5 mm) mm) 06 6 mm) mm)

2’ [609 mm]

2’ [609 mm]

3’ [914 mm]

3’ [914 mm] (203mm) mm) 8”8” (203 12” (305mm) mm) 12” (305 16” (406mm) mm) 16” (406

4’ [1219 mm] 5’ [1524 mm]

8”(203 mm)mm) 8”(203 12”(305 mm)mm) 12”(305 16”(406 mm)mm) 16”(406

8”(203 mm) 12”(305 mm) 16”(406 mm)

4’ [1219 mm] 5’ [1524 mm]

6’ [1828 mm]

8”(203 mm) 12”(305 mm) 16”(406 mm)

6’ [1828 mm]

7’ [2133 mm]

3/4” 2 23/4”

7’ [2133 mm]

2 3/4”

2 3/4” 2 3/4”

mm) (70(70mm) 8’ [2438 mm] R1 Acoustic Frosted Drop Lens

2 3/4”

(70 mm) 8’ [2438 mm]

(70 mm) (70 mm) R1 Acoustic Frosted Flush Lens

ORDERING INFORMATION / Example: AP1-8H-B-FF-O-05-05-L30-UNV-D-11-PW-T1W048.

(70 mm) * Dimensions represent fixture body length, add 1" for overall fixture dimension that includes both end caps

AP1 SERIES

FIXTURE HEIGHT

DISTRIBUTION

DIRECT SHIELDING

INDIRECT SHIELDING

LUMENS DOWN

LUMENS UP

CRI & CCT

AP1 -

8H - 8"(203mm) 12H - 12"(305mm) 16H - 16"(406mm)

B - Bi-Direct

FF - Frosted Flush Lens FRL - Frosted Dropped

O - Open DG - Dust Guard BW - Batwing Optic ASYM - Asymmetric

03 - 300 lm/ft 05 - 500 lm/ft 08 - 800 lm/ft 10 - 1000 lm/ft

03 - 300 lm/ft 05 - 500 lm/ft 08 - 800 lm/ft 10 - 1000 lm/ft 13 - 1300 lm/ft 15 - 1500 lm/ft

L - 80 CRI H - 90 CRI

Regolo Acoustic Pendant

Lens (Luminous Ends)

V

Optic

VOLTAGE

DRIVER

CIRCUITING

UNV - Universal 120 - 277V 50/60Hz

Dimming 0-10V D - Dim to 1% (Standard) D0 - Dim to 1%, Fade to Off D02 - Eldoled Solodrive, Dim

Qty of Power Circuits 1 - 1 Power 2 - 2 Power

120V - 120V 277V - 277V

FELT OPTION

Qty of Control Circuits 1 - 1 Control 2 - 2 Control

to 0% LUTRON - See options on page 2

Ceiling Type T1 - Aircraft Cable to 1” Grid T9 - Aircraft Cable to 9/16” Grid TS - Aircraft Cable to Slotted Grid SR - Aircraft Cable to Structure

Options B10 - 10 Watt Battery Pack (CEC

PW - Pewter SL - Slate

B15 - 15 Watt Battery Pack (CEC

*See page 4 to review 26 additional colors and patterns

Compliant)

Compliant) GTD - Generator Transfer Device (120V or 277V) EM - Dedicated Emergency Circuit

MOUNTING

OPTIONS

Mounting Hardware Finish W - White Canopies and Cord B - Black Canopies and Cord

30 - 3000K 35 - 3500K 40 - 4000K

LINEAR ROWS

Suspension Length WLX - Wavelinx (Cooper Lighting Solutions) Integral 048 - 48” Adjustable Aircraft Sensor Cable NX - NX (Hubbel) Integral Sensor 120 - 120” Adjustable NLT - nLight (Acuity Brands) Integral Sensor Aircraft Cable LV - Vive (Lutron) Integral Sensor 240 - 240” Adjustable ENL - Enlighted Integral Sensor Aircraft Cable

NULITE 10770 EAST 51ST AVE DENVER, CO 80239 / P 303 287 9646 / NULITE-LIGHTING.COM

2 - 24” 3 - 36” 4 - 48” 5 - 60” 6 - 72” 7 - 84” 8 - 96” XX - Specify continuous run lengths in 1’ increments

©2023 ALL RIGHTS RESERVED

1

TYPE P2B SPEC fixture:

BBB OFFICE

project:

DETAILS Standard Patterns with 90˚ Corners

ORDERING

Corner Detail

‘L’ Patterns - A'xB'

Rectangular Patterns - A'xB'R Overall Length ‘B’

Overall Length ‘A’

Overall Length ‘A’

Overall Length ‘B’

Overall Length ‘B’

start

Order: 8'x6'

Corners are constructed as 12" x 12" units with mitered lenses and corner suspension points. start

‘A’ Overall Length

start

12"

Order: 6'x8'

Order: 8'x6'R

‘U’ Patterns - A'xB'xC' start

‘C’

Overall Length

Ordering examples assume A=8', B=6' & C=5' Overall Length ‘A’

‘C’

Overall Length

Overall Length ‘A’

Overall Length ‘B’

Specify clockwise from start of run.

Start of run is always at rst speci ed run length.

‘B’ Overall Length

start Order: 8'x6'x5'

Order: 8'x6'x5'

SPECIFICATIONS Acoustic Material Content

Housing material is 100% polyester containing up to 50% of recycled plastic bottles (PET felt) and is moisture resistant.

See page 3 for color offering. Acoustic material colors are subject to change without notice. For the most current color options, please visit focalpointlights.com/ acousticsolutions. Printed finishes such as The Naturals and Cosmic may leave the base material color visible on edges, depending on the product. Consult factory for more information. Lead times may vary depending on color.

Cleaning and Care Remove dust and debris with a clean, soft, lint-free cloth or vacuum PET Thickness

9mm

Surface Burning Characteristcs

ASTM E84 Class A / CAN ULC S102 Flame Spread: 0, Smoke Development Index: 300

Colorfastness

AATCC 16A Option 3 Class 4 minimum at 40 hours

ASM1S

ASM1S

Shielding Batwing Top/Solid Bottom Dust Cover Top/Solid Bottom

BWSD DCSD

Luminaire Height

(heights are nominal)

8" 12" 16"

8 12 16

Lumen Output 125 Lumens per foot

125LF

250 Lumens per foot 375 Lumens per foot 500 Lumens per foot 625 Lumens per foot 800 Lumens per foot

250LF 375LF 500LF 625LF 800LF

(4' minimum. Consult factory for Lutron & DALI)

Color Temperature 2700K, 80CRI or 90CRI 3000K, 80CRI or 90CRI 3500K, 80CRI or 90CRI 4000K, 80CRI or 90CRI Circuit Single Circuit Voltage 120/277 UNV Volt Control System & Dimming Level 0-10V - 10% Dimming 0-10V - 1% Dimming Lutron Hi-Lume EcoSystem (LDE1) - 1% Dimming DALI 1% Dimming

27K or 927K 30K or 930K 35K or 935K 40K or 940K 1C

1C UNV

UNV LD1 L11 LH1 D11

Mounting

Acoustic Performance Acoustic testing is performed on all Focal Point acoustic products and varies based on installation and configuration. ASTM C423 test reports can be downloaded from focalpointlights.com.

Contact acoustic.solutions@focalpointlights.com for technical questions.

Sabins

Luminaire Series Seem 1 Acoustic Indirect LED

Sabins is a unit of sound absorption. It measures how well one square foot of material absorbs sound. Focal Point has averaged the Sabins per unit at four specific frequency bands representing the human speech range (250, 500, 1000, 2000 Hz) to determine the Sabins per product.

8' length, 12" height: 12" OC = 5.08 Sabins, 18" OC = 9.05 Sabins, 24" OC = 9.46 Sabins

LED System Proprietary linear LED module incorporates premium LEDs on a robust platform to achieve excellent thermal management. LEDs are placed to promote a uniform appearance. Available in 2700K, 3000K, 3500K or 4000K with both 80 and 90 CRI options. LED drivers are replaceable from above. Color accuracy <3 SDCM.

Weight

12" height, 4' length = 10.75lbs. 12" height, 6' length = 16.13lbs. 12" height, 8' length = 21.5lbs.

Optic Reflector fabricated of 22 Ga. steel finished in Matte White powder coat. 0.02" thick clear acrylic dust cover.

Mounting

(Mounting hang kits ship with order. Power cable is 18" longer than suspension length.)

24" Cable Suspension 48" Cable Suspension 96" Cable Suspension 120" Cable Suspension

(Specify canopy color White (WH), Black (BK) or Titanium Silver (TS). Example: J24WH.) (Consult factory for sloped ceiling applications)

J24__ J48__ J96__ J120__

Factory Options Black Cord

BKCD

Acoustic Panel Color See page 3 for color offering Luminaire Length

(Leave blank for patterns. Luminaires are are 3/4” longer than specified and cannot be cut to length or joined in the field.)

Specify length in 1" increments from 3' to 208'

ft _ft _in

in

8'0"

(Consult factory for alternate lengths.)

Pattern Options

Minimum mounting height 7.5" from the ceiling.

(Patterns available with LD1 and L11 drivers only.)

(5’ minimum leg length for L patterns.

6’ minimum leg length for U and Rectangle patterns)

Electrical Luminaires are pre–wired with factory installed branch circuit wiring and over-molded quick connects.

Standard 120-277V constant current driver includes 0-10V analog dimming. Power factor > .9. Power cord white as standard.

‘L’ pattern ‘U’ pattern Rectangular pattern

(Consult factory for other pattern options)

Canopy

A' x B' A' x B' x C' A' x B' R

Polyester powder coat applied over a multi-stage pre–treatment. Canopy white as standard.

Labels

UL and cUL listed. Suitable for Dry Locations, indoor use only.

Lumen Maintenance Reported: L70 at >61,000 hours L90 at >61,000 hours

Calculated: L70 at 470,000 hours L90 at 115,000 hours

Derived from EPA TM-21 calculator. Based on typical conditions, consult factory for additional data.

Reliability At Focal Point, our products are designed to stand the test of time. Each luminaire is engineered using superior components, manufactured with the utmost care and rigorously tested. Contact us for reliability data.

Warranty LED system rated for operation in ambient environments up to 25°C and when mounted no less than 7.5" from the ceiling. 5-year limited warranty.

4' PERFORMANCE CHART - See page 4 Focal Point LLC reserves the right to change specifications for product improvement without notification.

in orange qualify for the Quickship program. Five color options.

10 DAY Options Available in 4’, 6’, 8’, 10’, 12’, 14’, 16’, lengths. Maximum linear feet is 200’ of

acoustic products per order. Refer to Quickship Guide for complete details.

BBB OFFICE

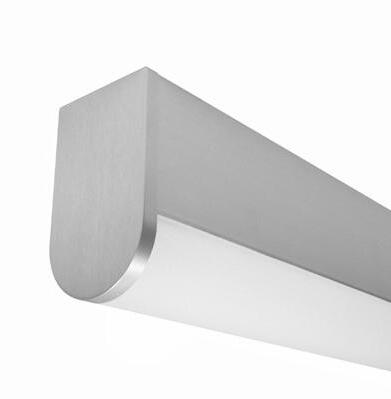

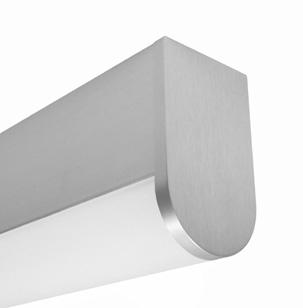

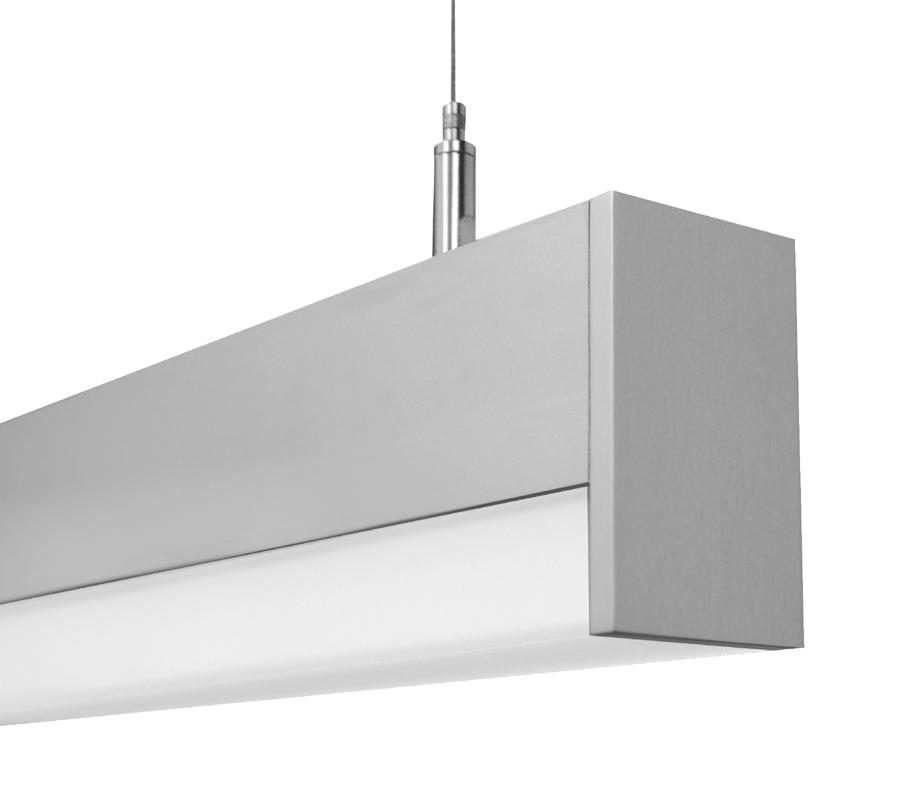

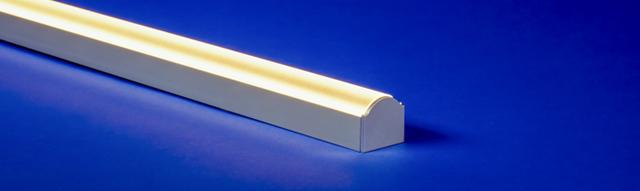

TYPE P2B (8') ALT Regolo Acoustic Series /AP1-B

PRODUCT SPECIFICATIONS AND INFORMATION HOUSING CONSTRUCTION

GENERATOR TRANSFER DEVICES

Fixture body is constructed of powder coat painted extruded aluminum, formed sheet metal internal bracketing and sound absorbing recycled polyester (PET) felt. Captive joining mechanism is a combination die formed sheet metal and zinc plated spring steel. All hardware is stainless steel.

The GTD emergency lighting control device senses the loss of normal power and switches the AC driver input power connection to an unswitched, generator (or central inverter) supplied lighting circuit. GTD fixtures ship with 3 additional wires (orange wire "constant hot", blackred wire "generator hot", white-red wire "generator neutral").

LED LENS ASSEMBLY

FIXTURE FINISHES

Replaceable one-piece optical assembly is comprised of an LED PCBA AND AN EXTRUSED acrylic lens and reflector assembly. Available CCT's are 3000K, 3500K, and 4000K. Also available CRI's are 80 or 90.

Fixture Internal Body The R1A internal fixture body will be painted white with the exception R1A fixtures having black baffle optics, these fixture bodies will be painted black.

Mounting Hardware Canopies Mounting hardware canopies are available in black or white consult factory for custom colors.

STANDARD DIMMING LED DRIVERS Standard constant current integral electronic 0-10v dimming input. Two standard driver options are available. Option D dims to 1% and option D0 dims to 0% or OFF (the final 1 percent is a "step"). Both options are the same price and representative of the base fixture price. Options D and D0 ship with 5 wires (Line Voltage- Black and White wires, Low VoltagePurple and Pink wires, Ground- Green wire)

DALI DRIVERS

Standard constant current DALI drivers available in either a dim to 1% (ELE) or dim to 0% (ELS). DALI fixtures ship with 5 wires(Line Voltage- Black and White wires, Low VoltagePurple and Pink wires, Ground- Green wire)

LIGHT OUTPUT For bi-direct luminaires you must specify "direct" light output and "indirect" light output and the factory will tune or program each lighting channel. Available nominal direct and direct-indirect light outputs are (03) 300 lms/ft, (05) 500 lms/ft, and (08) 800 lms/ft. . Each circuit or channel may be independently controlled and this can be specified in "circuiting" within the ordering information. Specifying a "2-2" enables independent dimming control of each channel.

CIRCUITING Each luminaire may have up to 2 line voltage (Power) circuits and 2 low voltage (control) circuits. Two power circuits are required for independent control of uplight and downlight in bidirect luminaires, and low voltage control circuits are for independent dimming of each circuit.

Examples: • "1-1"- 1 power circuit(Line Voltage) and 1 control circuit (Low Voltage) > 5 wires total (1 Black Wire "Hot", 1 White Wire "Neutral", 1 Green Wire "Ground", and 2 low voltage control wires, 1 Pink wire and 1 purple wire)

• "2-2"- 2 power circuits (Line Voltage) and 1 control circuit (Low Voltage) > 9 wires

total (2 Black Wires "Hot", 2 White Wires "Neutral", 1 Green Wire "Ground", and 4 low voltage control wires, 2 Pink wires and 2 purple wires)

BATTERY PACKS Recyclable Ni-Cad battery pack, battery run time is 90 minutes. Recharge time of 24 hours.

6W or 10W battery packs are available. To calculate Battery Lumen Output, multiply luminaire efficacy by battery wattage. (example: 120 lms/watt (120) x B10 Battery Wattage (10) = 1200 lumens of egress illumination for 90 minutes.) Battery option not available in fixtures less than 4', and other limitations apply, consult factory. Entire "direct" fixture housing is energized by battery for lengths up to 5'. Half of direct fixture is energized by battery for 6' - 8' housing lengths. Emergency or night light circuit available (requires addtional power circuit). Battery fixtures ship with an additional orange "constant hot" wire.

Acoustical Felt Material Felt fixture material is available in two standard colors Pewter (PW), or Slate (SL).

There are an additional 26 color options on page 4, consult factory for lead time and availability.

INSTALLATION AND MOUNTING The R1A is designed to be pendant mounted by aircraft suspension cable in individual, continuous rows. The R1A may be specified to mount to acoustical grid ceilings, sheet rock, and structural ceiling surfaces. Refer to installation instructions at www.nulite-lighting.com for details.

FIXTURE LENGTHS - LINEAR ROWS Standard fixture lengths for individual or continuous row mounting are available in exact 1'(305mm) increments from 2' (610mm) to 8' (2438mm). Consult factory for custom lengths, limitations apply.

WARRANTY 5-year limited warranty on LED and driver from date of shipment. Refer to the full warranty details on www.nulite-lighting.com/products/184.

WEIGHT Fixtures are 2.7 lbs/ft, Driver box weights vary, consult factory.

APPROVALS ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, indoor dry/ damp locations.

TESTING PROTOCOLS AND DATA All of Nulite's LED components have been tested under LM-80 guidelines insuring 6000 hours of luminous flux data. Additionally Nulite can supply LM-79 data on all luminaires. This data includes luminous flux, electrical power, efficiency, chromaticity as well as the diffusion of luminous intensity.

LUMEN MAINTENANCE 90% of initial light output (L90) at 100,000+ hours, 70% of initial light output (L70) at 200,000+ hours.

NULITE 10770 EAST 51ST AVE DENVER, CO 80239 / P 303 287 9646 / NULITE-LIGHTING.COM

©2023 ALL RIGHTS RESERVED

7

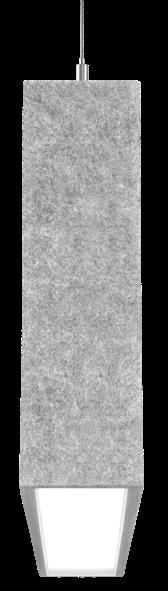

TYPE P5 SPEC

BBB OFFICE

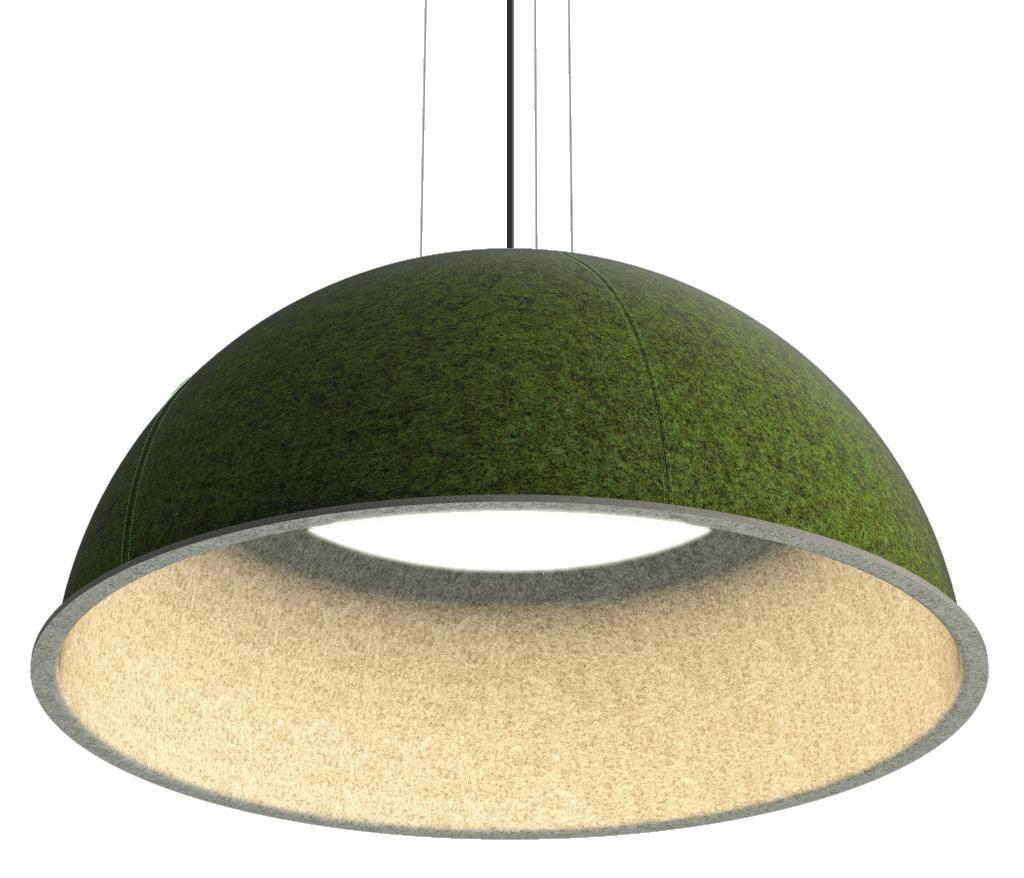

H EM I I (L X- H I ) TYPE: LX-HIK E Y F E AT U R E S

OPTIONAL EXTRAS

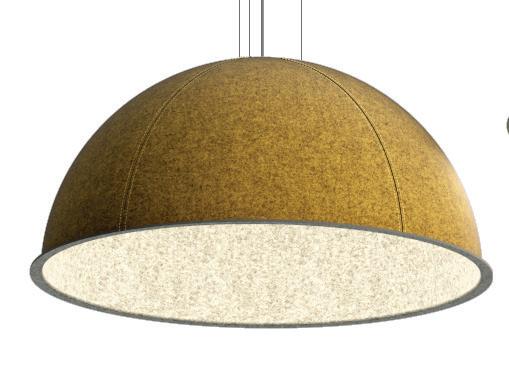

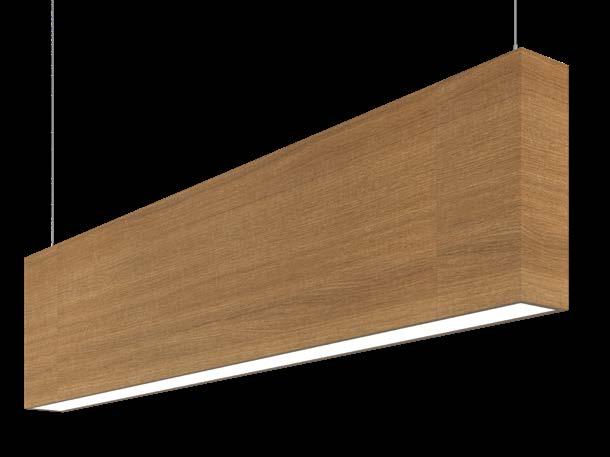

– High-performance lumen output – A minimalistic design that blends seamlessly into any space

– Thermo-formed felt shell manufactured from recycled plastics

– Hand-upholstered exterior from rapidly renewable and biodegradable woo UGR<19 Highly effective noise absorption 3 sizes and 77 wool colors 9' / 2.740mm length of black woven power cable per fixture – IES / LDT photometric files available – E27/E26 lamp holder option

– – – –

SIZE, OUTPUT AND WEIGHT L

14" / 360mm

18" / 450mm

M

Additional options available upon request: 0.1% dimming option POE Bluetooth controller (US & EU) Tunable White output White canopy and power cord BABA Act Certificate

– – – – – –

standard interior in grey 28" - 715mm

LU M I N O U S I N T E N S I T Y D I S T R I B U T I O N

36" / 915mm

M 229 Cd

Delivered Lumen Output

M

L

2683 lm

5133 lm

Wattage

26.9 W

48.3 W

Efficacy

99.8 lm/W

106.3 lm/W

CRI

459 Cd

90+

UGR

<19

Beam Angle

100°

CCT

2683 lm 918 Cd 26.9 W

Output Max Power

19.8lbs / 9Kg

918 Cd

L

446 Cd

3000, 3500, 4000 K

Weight

688 Cd

892 Cd

24.2lbs / 11Kg 5133 lm 1783 Cd 48.3W

Output Max Power

1337 Cd 1783 Cd

ORDER CODE

EXAMPLE: LX - HI - M - 1N - 40 - G - RD

(Luxxbox Hemii, Size M (28" x 14" / 715mm x 360mm), Wool option 1N, 4000K, Global 220-240V 1% dimming DSi/DALI, Remote driver)

EXAMPLE: LX - HH - M - 1N - E27

(Luxxbox Hemii, Size M (28" x 14" / 715mm x 360mm), Wool option 1N, with an E27 lamp holder)

LX - HI PRODUCT CODE

g

a

SIZE

SHADE COLOR

M

28" x 14" (715 x 360mm)

HI

L

36" x 18" (915 x 450mm)

Use color codes as shown on pg. 2

a

A

A

COLOR TEMP

DRIVER / DIMMING

DRIVER TYPE

30

3000K

UNV

3500K

0 - 10V - 1% dimming (120-277V) (North America)

CD

35

Canopy concealed driver (UNV/North America)

40

4000K

G

1% dimming DSI/DALI (220 - 240V)**

RD

Remote driver (UNV or G)

*E26

E26 Lamp holder - 120V AC (North America)

*E27

E27 Lamp holder - 220-240V AC (Global)

* Please note the globe or driver will not be supplied with the E26/E27 option for this fixture.

|

** Global (G) dimming type is available with Remote driver (RD) only

Luxxbox reserves the right to change the specification, material and colors at any time without notice. Standard warranty terms and conditions apply. All rights reserved © All dimensions and values on specification sheet are nominal. March 2025. LX-Hemii-Spec-Sheet_A4 v5.4

LUX XBOX USA INC USA@LUXXBOX.COM (P)+1 (415) 871 0448 W W W.LUXXBOX.COM

1

5

BBB OFFICE

TYPE P5 ALT Project Name: Type: Qty:

Cap

PRODUCT DESCRIPTION

Pendant

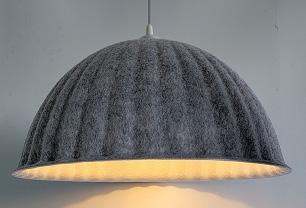

The Cap fixture combines the elements of color, shape, and sound. Cap is an extremely versatile lighting tool for a range of projects. Utilizing Gray 104 for the exterior and White 105 for the interior Cap is easily integrated in to your project design. With great acoustic performance, Cap is sound absorbing with non-toxic, non-allergic and nonirritant characteristics. With an E26 bulb base tube inside Cap is a simple design shade that is easy to disassemble and install.

FEATURES • • • • • • • • • •

E26 Bulb base Permanent flame retardent Free of formaldehyde Environmentally friendly 120-277 volt Efficiency is 70lm/w Max power not to exceed 36w Height is10” Diameter is 17.8” Damp listed

ORDERING INFORMATION CAP

P

Fixture Type

Mounting

Diameter

CAP

P Pendant

SM MD LG

Cap

17.8” (10”H) 24” (12”H) 30.3” (15.7”H)

Light Source B9 LED Bulb (9w / 800lm) B14 LED Bulb (14w / 1,600lm)

Color Temp.

5CCT

*Note: All Direct/Indirect lighting options come as 2 separate circuits from the factory. If anything else is required, please consult NAL Lighting Group.

Lighting Elements, LLC | 8509 Phoenix Dr., Manassas, VA 20110 | Ph: 410-401-5500 | www.lighting-elements.com

Selectable via switch on bulb (27K, 30K, 35K, 40K, 50K)

TYPE P6 SPEC

BBB OFFICE

LUMENS

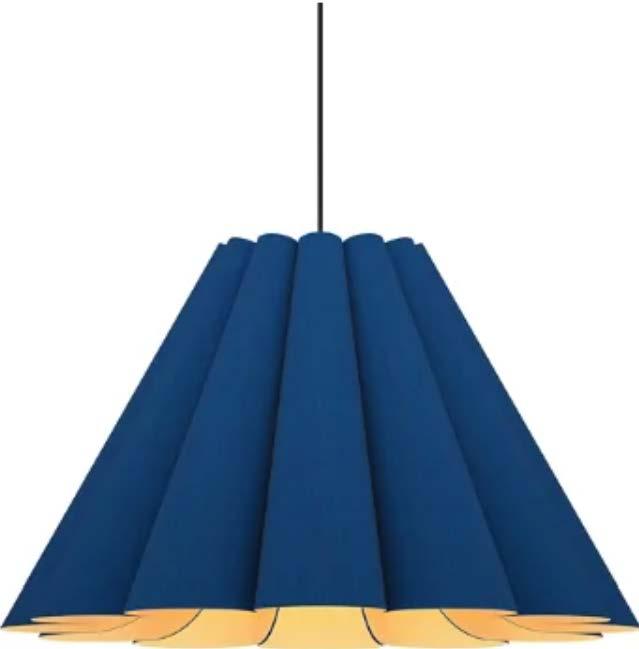

Lora Pendant By: Bruck Lighting

Call Us (877) 445-4486

Product Options Finish:Ash Size: 23-ln. Diameter

Details • Features a two-sided wood veneer section fused with a malleable center panel •Includes a bayonet black canopy • All pendants are hand painted, and may vary from fixture to fixture, and vary from image slightly • Field adjustable cord • This item is handcrafted in from sustainably sourced materials which can result in longer lead times

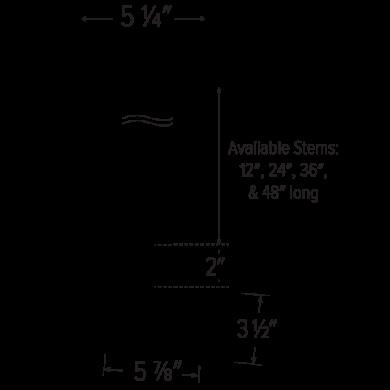

Dimensions 23-ln. Diameter Option Canopy; Height l", Diameter 4.8" 23-ln. Diameter Option Fixture; Height 14.25''. Diameter 22.8", Weight 4.lLbs 23-ln. Diameter Option Maximum Hanging; LengthAdjustable From 21.25''.Adjustable To 123.25"

Lighting Light Source:

Light Bulb (Not

Lumens:

1600.0

Total Watta�e:

14W

Included) Number Of Bulbs: Volta�e:

120

Color Temperature:

2700(Warm)

Cri:

90

Other Bulbs

Yes

Compatible: Bulb Shape:

A19

Average Life:

15,000

BaseAN SI:

E26

Energy Star

No

Qualified: Bulb Requirements:

Bulb Required - Not Included

Additional Details Product URL: https://www.lumens.com/1ora-pendant-by-bruck-lighting-BLS1874036.htm1 Rating: UL Listed

ITEM#: BLS1874036

Created July 16th, 2026

BBB OFFICE

TYPE P6 ALT

LUMENS

Lora Pendant By: Bruck Lighting

Call Us (877) 445-4486

Product Options Finish:Ash Size: 23-ln. Diameter

Details • Features a two-sided wood veneer section fused with a malleable center panel •Includes a bayonet black canopy • All pendants are hand painted, and may vary from fixture to fixture, and vary from image slightly • Field adjustable cord • This item is handcrafted in from sustainably sourced materials which can result in longer lead times

Dimensions 23-ln. Diameter Option Canopy; Height l", Diameter 4.8" 23-ln. Diameter Option Fixture; Height 14.25''. Diameter 22.8", Weight 4.lLbs 23-ln. Diameter Option Maximum Hanging; LengthAdjustable From 21.25''.Adjustable To 123.25"

Lighting Light Source:

Light Bulb (Not

Lumens:

1600.0

Total Watta�e:

14W

Included) Number Of Bulbs: Volta�e:

120

Color Temperature:

2700(Warm)

Cri:

90

Other Bulbs

Yes

Compatible: Bulb Shape:

A19

Average Life:

15,000

BaseAN SI:

E26

Energy Star

No

Qualified: Bulb Requirements:

Bulb Required - Not Included

Additional Details Product URL: https://www.lumens.com/1ora-pendant-by-bruck-lighting-BLS1874036.htm1 Rating: UL Listed

ITEM#: BLS1874036

Created July 16th, 2026

TYPE P7A SPEC

BBB OFFICE

Seem 2 Acoustic ®

LED DIRECT/INDIRECT

90˚ corner detail

Rectangle pattern

Left and right corner pattern

Seem 2 Acoustic Unlit companion

The Naturals collection - Chestnut shown Cosmic Collection - Blue Star shown

DIMENSIONAL DATA

AirCore Blade companion

FEATURES

2.5" aperture sound absorbing linear direct/indirect LED luminaire.

Available in 4' to 208' lengths in 1" increments with 8", 12", or 16" nominal housing heights in straight lengths or patterns with 90˚ corners.

Cable Suspension

Frosted acrylic lens provides uninterrupted illumination, without pixels or shadows.

AirCore® Technology: patented, eco-friendly technology that maximizes sound absorption and reduces ecological impact.

15.25" 387.4mm

16.52" 419.6mm

LED position and lens material optimized to provide the perfect blend of high performance and visual comfort.

Pair with Seem 2 Acoustic unlit baffle, AirCore Blade®, or TruBlade® to create a coordinated look in interior spaces.

Available in a range of curated printed finish options, including The Naturals and Cosmic.

Direct to Grid*

11.25" 285.8mm

12.52" 318.0mm

0.41" 10.4mm

ACOUSTIC PERFORMANCE 20

7.25" 184.5mm

Flush

SABINS/UNIT

8.52" 216.4mm

16

Direct to Strut (1-5/8”)*

12 8 Seem 2 Acoustic Baffle

4

3.24" 82.3mm

12" height 18" on-center

*Grid/Strut by others

200 250

500

750

1000

1250

1500

2000

2500

FREQUENCY (Hz) - SPEECH RANGE All products were tested in multiple configured arrays. Total absorption will vary based on configuration. Please refer to ASTM C423 reports for more information.

Focal Point LLC | 4141 S. Pulaski Rd, Chicago, IL 60632 | 773.247.9494 | focalpointlights.com

February 2026 K

BBB OFFICE

TYPE P7A (8') ALT DATE:

PROJECT: TYPE:

CATALOG #:

QTY:

AP1

Pendant BI-DIRECT

Acoustic Luminaire Frosted Lens 2’ [609 mm]

Light Distribution

16 Cells

3’ [914 mm]

24 Cells combines high performance LED lighting with sound Nulite's AP1 Regolo acoustic system 4’ [1219 mm] absorbing PET felt to dampen noise within a space while also introducing color and texture to the 32 Cells ceiling plane.

5’ [1524 mm] 40 Cells

•6’ [1828 Hybrid mm] PET felt and extruded aluminum fixture construction 48 Cells • 28 PET felt color and pattern options mm] •7’ [2133 Direct-indirect light distribution with optional batwing uplight 56 Cells • Individual or continuous row mounting 8’ [2438 mm] • Tool free installation with engineered spring latch design

64 Cells

Standard Individual Fixture Lengths*

03 3 mm) mm) 05 5 mm) mm) 06 6 mm) mm)

2’ [609 mm]

2’ [609 mm]

3’ [914 mm]

3’ [914 mm] (203mm) mm) 8”8” (203 12” (305mm) mm) 12” (305 16” (406mm) mm) 16” (406

4’ [1219 mm] 5’ [1524 mm]

8”(203 mm)mm) 8”(203 12”(305 mm)mm) 12”(305 16”(406 mm)mm) 16”(406

8”(203 mm) 12”(305 mm) 16”(406 mm)

4’ [1219 mm] 5’ [1524 mm]

6’ [1828 mm]

8”(203 mm) 12”(305 mm) 16”(406 mm)

6’ [1828 mm]

7’ [2133 mm]

3/4” 2 23/4”

7’ [2133 mm]

2 3/4”

2 3/4” 2 3/4”

mm) (70(70mm) 8’ [2438 mm] R1 Acoustic Frosted Drop Lens

2 3/4”

(70 mm) 8’ [2438 mm]

(70 mm) (70 mm) R1 Acoustic Frosted Flush Lens

ORDERING INFORMATION / Example: AP1-8H-B-FF-O-05-05-L30-UNV-D-11-PW-T1W048.

(70 mm) * Dimensions represent fixture body length, add 1" for overall fixture dimension that includes both end caps

AP1 SERIES

FIXTURE HEIGHT

DISTRIBUTION

DIRECT SHIELDING

INDIRECT SHIELDING

LUMENS DOWN

LUMENS UP

CRI & CCT

AP1 -

8H - 8"(203mm) 12H - 12"(305mm) 16H - 16"(406mm)

B - Bi-Direct

FF - Frosted Flush Lens FRL - Frosted Dropped

O - Open DG - Dust Guard BW - Batwing Optic ASYM - Asymmetric

03 - 300 lm/ft 05 - 500 lm/ft 08 - 800 lm/ft 10 - 1000 lm/ft

03 - 300 lm/ft 05 - 500 lm/ft 08 - 800 lm/ft 10 - 1000 lm/ft 13 - 1300 lm/ft 15 - 1500 lm/ft

L - 80 CRI H - 90 CRI

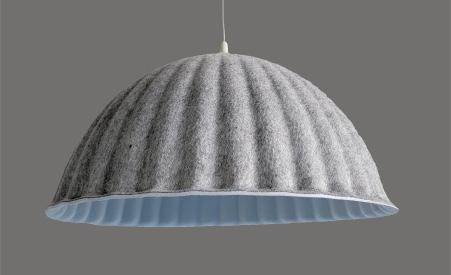

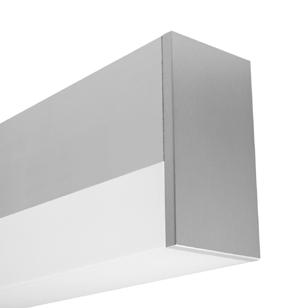

Regolo Acoustic Pendant

Lens (Luminous Ends)

Optic

VOLTAGE

DRIVER

CIRCUITING

UNV - Universal 120 - 277V 50/60Hz

Dimming 0-10V D - Dim to 1% (Standard) D0 - Dim to 1%, Fade to Off D02 - Eldoled Solodrive, Dim

Qty of Power Circuits 1 - 1 Power 2 - 2 Power

120V - 120V 277V - 277V

FELT OPTION

Qty of Control Circuits 1 - 1 Control 2 - 2 Control

to 0% LUTRON - See options on page 2

Ceiling Type T1 - Aircraft Cable to 1” Grid T9 - Aircraft Cable to 9/16” Grid TS - Aircraft Cable to Slotted Grid SR - Aircraft Cable to Structure

Options B10 - 10 Watt Battery Pack (CEC

PW - Pewter SL - Slate

B15 - 15 Watt Battery Pack (CEC

*See page 4 to review 26 additional colors and patterns

Compliant)

Compliant) GTD - Generator Transfer Device (120V or 277V) EM - Dedicated Emergency Circuit

MOUNTING

OPTIONS

Mounting Hardware Finish W - White Canopies and Cord B - Black Canopies and Cord

30 - 3000K 35 - 3500K 40 - 4000K

LINEAR ROWS

Suspension Length WLX - Wavelinx (Cooper Lighting Solutions) Integral 048 - 48” Adjustable Aircraft Sensor Cable NX - NX (Hubbel) Integral Sensor 120 - 120” Adjustable NLT - nLight (Acuity Brands) Integral Sensor Aircraft Cable LV - Vive (Lutron) Integral Sensor 240 - 240” Adjustable ENL - Enlighted Integral Sensor Aircraft Cable

NULITE 10770 EAST 51ST AVE DENVER, CO 80239 / P 303 287 9646 / NULITE-LIGHTING.COM

2 - 24” 3 - 36” 4 - 48” 5 - 60” 6 - 72” 7 - 84” 8 - 96” XX - Specify continuous run lengths in 1’ increments

©2023 ALL RIGHTS RESERVED

1

TYPE P7A SPEC fixture:

BBB OFFICE ORDERING

project:

Luminaire Series Seem 2 Acoustic Direct/Indirect LED ASM2BS

PATTERN DETAILS Standard Patterns with 90˚ Corners

Shielding Regress lens bottom ASRL Asymmetric Regress Batwing Lens bottom ASBW Optic top Regress Asymmetric Lens bottom ASAS

Corner Detail

‘L’ Patterns - A'xB'

Rectangular Patterns - A'xB'R Overall Length ‘B’

Overall Length ‘A’

Overall Length ‘A’

Overall Length ‘B’

Overall Length ‘B’

start

start Order: 8'x6'

12"

Corners are constructed as 12" x 12" units with mitered lenses and corner suspension points. start

‘A’ Overall Length Order: 6'x8'

Regress lens bottom BWRL Batwing Regress Batwing Lens bottom BWBW Optic top Regress Asymmetric Lens bottom BWAS Regress lens bottom DCRL Dust Cover Regress Batwing Lens bottom DCBW top Regress Asymmetric Lens bottom DCAS Luminaire Height

Order: 8'x6'R

(heights are nominal)

8" 8 12" 12 16" 16

‘U’ Patterns - A'xB'xC' start

‘C’

Overall Length

Ordering examples assume A=8', B=6' & C=5' Overall Length ‘A’

‘C’

Overall Length

Overall Length ‘A’

Overall Length ‘B’

Specify clockwise from start of run.

Direct Distribution 200 Lumens per foot 300 Lumens per foot 400 Lumens per foot 500 Lumens per foot 700 Lumens per foot 900 Lumens per foot 1000 Lumens per foot 1200 Lumens per foot Indirect Distribution 200 Lumens per foot 300 Lumens per foot 400 Lumens per foot 500 Lumens per foot 700 Lumens per foot 900 Lumens per foot 1000 Lumens per foot

Start of run is always at rst speci ed run length.

‘B’ Overall Length

start Order: 8'x6'x5'

Order: 8'x6'x5'

SPECIFICATIONS Acoustic Material Content

Housing material is 100% polyester containing up to 50% of recycled plastic bottles (PET felt) and is moisture resistant.

See page 3 for color offering. Acoustic material colors are subject to change without notice. For the most current color options, please visit focalpointlights.com/acousticsolutions. Printed finishes such as The Naturals and Cosmic may leave the base material color visible on edges, depending on the product. Consult factory for more information. Lead times may vary depending on color.

Cleaning and Care

Remove dust and debris with a clean, soft, lint-free cloth or vacuum

PET Thickness

9mm

Surface Burning Characteristcs

ASTM E84 Class A / CAN ULC S102 Flame Spread: 0, Smoke Development Index: 300

Colorfastness

AATCC 16A Option 3 Class 4 minimum at 40 hours

Acoustic Performance

Acoustic testing is performed on all Focal Point acoustic products and varies based on installation and configuration. ASTM C423 test reports can be downloaded from focalpointlights.com.

Contact acoustic.solutions@focalpointlights.com for technical questions.

Sabins

ASM2BS

Sabins is a unit of sound absorption. It measures how well one square foot of material absorbs sound. Focal Point has averaged the Sabins per unit at four specific frequency bands representing the human speech range (250, 500, 1000, 2000 Hz) to determine the Sabins per product.

8' length, 12" height: 12" OC = 10.26 Sabins, 18" OC = 11.67 Sabins, 24" OC = 12.43 Sabins

Color Temperature 2700K, 80CRI or 90CRI 3000K, 80CRI or 90CRI 3500K, 80CRI or 90CRI 4000K, 80CRI or 90CRI

Voltage 120/277 UNV Volt Control System & Dimming Level 0-10V - 10% Dimming 0-10V - 1% Dimming Lutron Hi-Lume EcoSystem (LDE1) 1% Dimming DALI 1% Dimming Mounting

Proprietary linear LED module incorporates premium LEDs on a robust platform to achieve excellent thermal management. LEDs are placed to promote a uniform appearance. Available in 2700K, 3000K, 3500K or 4000K with both 80 and 90 CRI options. LED drivers are replaceable from above. Color accuracy <3 SDCM. Weight- 12" height, 4' length = 18.6lbs

Optic

(Mounting hang kits ship with order. Power cable is 18” longer than suspension length. Consult factory for longer power cable lengths.)

24" Cable Suspension 48" Cable Suspension 96" Cable Suspension 120" Cable Suspension

Mounting Minimum mounting height 7.5" from the ceiling.

Electrical Luminaires are pre–wired with factory installed branch circuit wiring and over-molded quick connects.

Standard 120-277V constant current driver includes 0-10V analog dimming. Power factor > .9. Power cord white as standard.

(Specify canopy color White (WH), Black (BK) or Titanium Silver (TS). Example: J24WH.) (Consult factory for sloped ceiling applications)

27K or 927K 30K or 930K 35K or 935K 40K or 940K

UNV UNV LD1 L11 LH1 D11

J24__ J48__ J96__ J120__

Factory Options

Polyester powder coat applied over a multi-stage pre–treatment. Canopy white as standard.

Emergency Battery Emergency output - 10 watts for 90 minutes. Maximum mounting height: 16.83 ft See EM/EC Guide (page 5) for default locations and ordering details. †

Black Cord BKCD Daylight Circuit _DC Emergency Circuit _EC Emergency Battery Pack† _EM Emergency Control Device† _ECD

(6' minimum length. Consult factory for available options.)

UL and cUL listed. Suitable for Dry Locations, indoor use only.

Lumen Maintenance Reported: L70 at >61,000 hours L90 at >61,000 hours

250U P

(See Ordering Guide on page 5 for ordering details for DC, EC, EM & ECD.)

Canopy

Labels

200UP 300UP 400UP 500UP 700UP 900UP 1000UP

750D N

Circuits & Zones 1 Circuit, non-emergency 1C 2 non-emergency circuits provide independent 2C control of Direct and Indirect sources Consult Ordering Guide on page 5 for _C_Z_DL multiple circuiting and zoning options

LED System

Reflectors fabricated of 22 Ga. steel finished in Matte White powder coat. Extruded acrylic lens .05" thick with frosted finish, up to 8' continuous. 0.02" thick clear acrylic dust cover.

200DN 300DN 400DN 500DN 700DN 900DN 1000DN 1200DN

Calculated: L70 at 470,000 hours L90 at 115,000 hours

Derived from EPA TM-21 calculator. Based on typical conditions, consult factory for additional data.

Reliability At Focal Point, our products are designed to stand the test of time. Each luminaire is engineered using superior components, manufactured with the utmost care and rigorously tested. Contact us for reliability data.

Warranty LED system rated for operation in ambient environments up to 25°C and when mounted no less than 7.5" from the ceiling. 5-year limited warranty.

4' PERFORMANCE CHART - See page 4 Focal Point LLC reserves the right to change specifications for product improvement without notification.

Acoustic Panel Color See page 3 for color offering Luminaire Length

(Leave blank for patterns. Luminaires are 3/4" longer than specified and cannot be cut to length or joined in the field.)

Specify length in 1" increments _ft _in from 4' to 208'

(16' maximum for DTG, consult factory for alternate lengths.)

Pattern Options

(Patterns available with LD1 and L11 drivers only.)

(5’ minimum leg length for L patterns.

6’ minimum leg length for U and Rectangle patterns)

‘L’ pattern A' x B' ‘U’ pattern A' x B' x C' Rectangular pattern A' x B' R

(Consult factory for other pattern options)

ft

8'0"

in

BBB OFFICE

TYPE P7A (8') ALT Regolo Acoustic Series /AP1-B

PRODUCT SPECIFICATIONS AND INFORMATION HOUSING CONSTRUCTION

GENERATOR TRANSFER DEVICES

Fixture body is constructed of powder coat painted extruded aluminum, formed sheet metal internal bracketing and sound absorbing recycled polyester (PET) felt. Captive joining mechanism is a combination die formed sheet metal and zinc plated spring steel. All hardware is stainless steel.

The GTD emergency lighting control device senses the loss of normal power and switches the AC driver input power connection to an unswitched, generator (or central inverter) supplied lighting circuit. GTD fixtures ship with 3 additional wires (orange wire "constant hot", blackred wire "generator hot", white-red wire "generator neutral").

LED LENS ASSEMBLY

FIXTURE FINISHES

Replaceable one-piece optical assembly is comprised of an LED PCBA AND AN EXTRUSED acrylic lens and reflector assembly. Available CCT's are 3000K, 3500K, and 4000K. Also available CRI's are 80 or 90.

Fixture Internal Body The R1A internal fixture body will be painted white with the exception R1A fixtures having black baffle optics, these fixture bodies will be painted black.

Mounting Hardware Canopies Mounting hardware canopies are available in black or white consult factory for custom colors.

STANDARD DIMMING LED DRIVERS Standard constant current integral electronic 0-10v dimming input. Two standard driver options are available. Option D dims to 1% and option D0 dims to 0% or OFF (the final 1 percent is a "step"). Both options are the same price and representative of the base fixture price. Options D and D0 ship with 5 wires (Line Voltage- Black and White wires, Low VoltagePurple and Pink wires, Ground- Green wire)

DALI DRIVERS

Standard constant current DALI drivers available in either a dim to 1% (ELE) or dim to 0% (ELS). DALI fixtures ship with 5 wires(Line Voltage- Black and White wires, Low VoltagePurple and Pink wires, Ground- Green wire)

LIGHT OUTPUT For bi-direct luminaires you must specify "direct" light output and "indirect" light output and the factory will tune or program each lighting channel. Available nominal direct and direct-indirect light outputs are (03) 300 lms/ft, (05) 500 lms/ft, and (08) 800 lms/ft. . Each circuit or channel may be independently controlled and this can be specified in "circuiting" within the ordering information. Specifying a "2-2" enables independent dimming control of each channel.

CIRCUITING Each luminaire may have up to 2 line voltage (Power) circuits and 2 low voltage (control) circuits. Two power circuits are required for independent control of uplight and downlight in bidirect luminaires, and low voltage control circuits are for independent dimming of each circuit.

Examples: • "1-1"- 1 power circuit(Line Voltage) and 1 control circuit (Low Voltage) > 5 wires total (1 Black Wire "Hot", 1 White Wire "Neutral", 1 Green Wire "Ground", and 2 low voltage control wires, 1 Pink wire and 1 purple wire)

• "2-2"- 2 power circuits (Line Voltage) and 1 control circuit (Low Voltage) > 9 wires

total (2 Black Wires "Hot", 2 White Wires "Neutral", 1 Green Wire "Ground", and 4 low voltage control wires, 2 Pink wires and 2 purple wires)

BATTERY PACKS Recyclable Ni-Cad battery pack, battery run time is 90 minutes. Recharge time of 24 hours.

6W or 10W battery packs are available. To calculate Battery Lumen Output, multiply luminaire efficacy by battery wattage. (example: 120 lms/watt (120) x B10 Battery Wattage (10) = 1200 lumens of egress illumination for 90 minutes.) Battery option not available in fixtures less than 4', and other limitations apply, consult factory. Entire "direct" fixture housing is energized by battery for lengths up to 5'. Half of direct fixture is energized by battery for 6' - 8' housing lengths. Emergency or night light circuit available (requires addtional power circuit). Battery fixtures ship with an additional orange "constant hot" wire.

Acoustical Felt Material Felt fixture material is available in two standard colors Pewter (PW), or Slate (SL).

There are an additional 26 color options on page 4, consult factory for lead time and availability.

INSTALLATION AND MOUNTING The R1A is designed to be pendant mounted by aircraft suspension cable in individual, continuous rows. The R1A may be specified to mount to acoustical grid ceilings, sheet rock, and structural ceiling surfaces. Refer to installation instructions at www.nulite-lighting.com for details.

FIXTURE LENGTHS - LINEAR ROWS Standard fixture lengths for individual or continuous row mounting are available in exact 1'(305mm) increments from 2' (610mm) to 8' (2438mm). Consult factory for custom lengths, limitations apply.

WARRANTY 5-year limited warranty on LED and driver from date of shipment. Refer to the full warranty details on www.nulite-lighting.com/products/184.

WEIGHT Fixtures are 2.7 lbs/ft, Driver box weights vary, consult factory.

APPROVALS ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, indoor dry/ damp locations.

TESTING PROTOCOLS AND DATA All of Nulite's LED components have been tested under LM-80 guidelines insuring 6000 hours of luminous flux data. Additionally Nulite can supply LM-79 data on all luminaires. This data includes luminous flux, electrical power, efficiency, chromaticity as well as the diffusion of luminous intensity.

LUMEN MAINTENANCE 90% of initial light output (L90) at 100,000+ hours, 70% of initial light output (L70) at 200,000+ hours.

NULITE 10770 EAST 51ST AVE DENVER, CO 80239 / P 303 287 9646 / NULITE-LIGHTING.COM

©2023 ALL RIGHTS RESERVED

7

TYPE P8 SPEC

BBB OFFICE

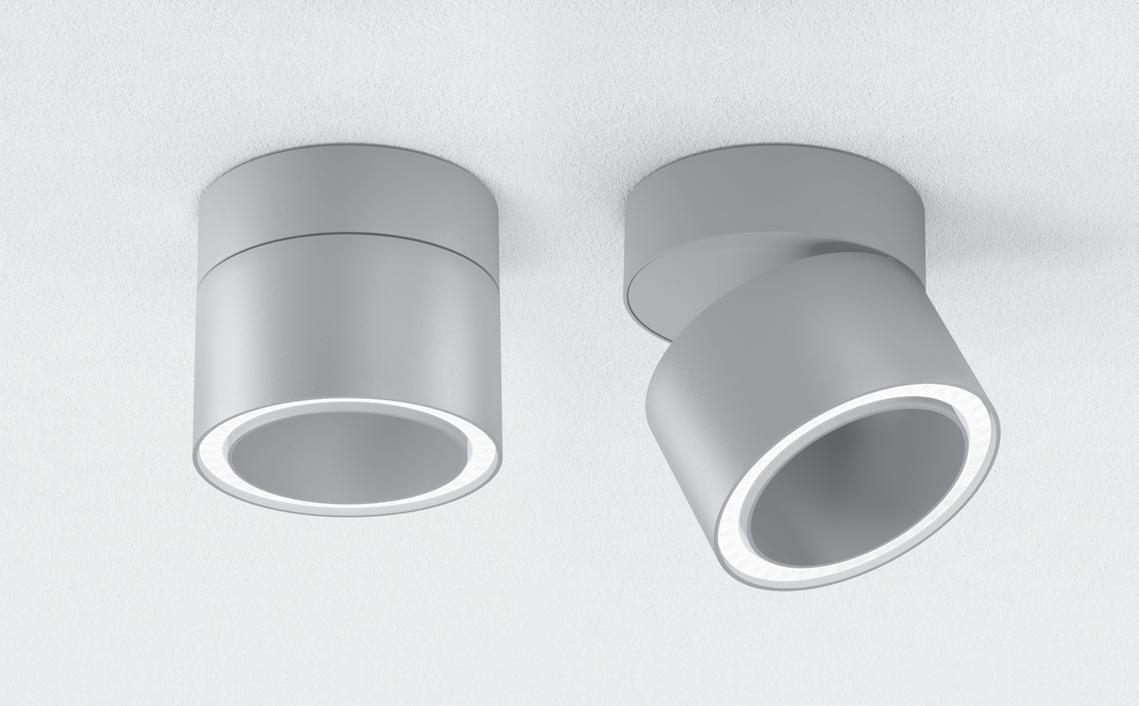

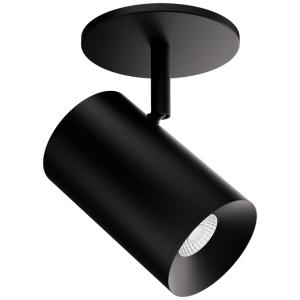

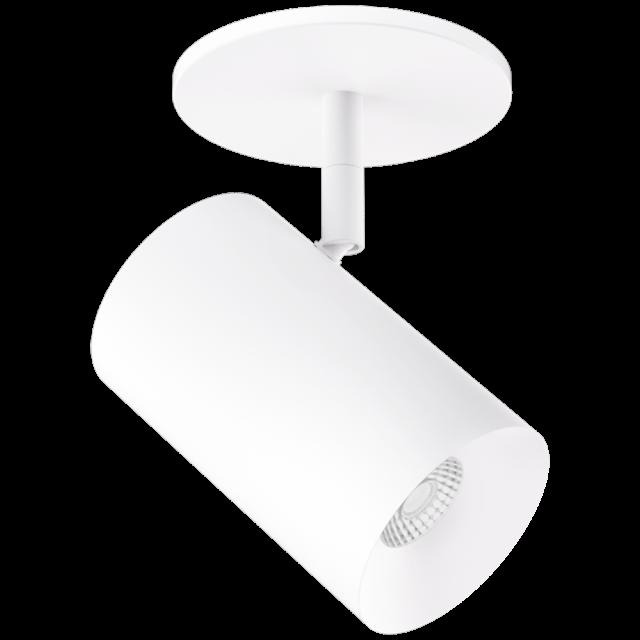

MONOPOINT CM1 SURFACE MOUNT

PROJECT NAME:

TYPE:

Elegant design means this monopoint does more. An inventive elbow built into the fixture body that allows a full 90 degree tilt and drop lengths of up to 1’ extend adjustability.

ORDERING INFORMATION - MONOPOINT CYLINDER

LENGTH

FIXTURE

JA8-2022 COMPLIANCE INDICATED BY SHADING

BODY

BAFFLE

STEM

CRI / WATTAGE

FINISH

FINISH

FINISH

PACKAGE

CCT

OPTIC (UGR)

DRIVER

MEDIA

MOUNTING

CM1 CM1 2.60”

POWDERCOAT STATIC WHITE 24 2400K* 15 15° (<13) LENGTHS ADJUSTABLE POWDERCOAT INTEGRAL STANDARD ROUGH-IN POWDERCOAT *(90+ CRI only) MEDIA DRY / DAMP 20 20° (<10) CA3 0-10V, LIN SL 1.4” Standard J JBMP WH White WH White WH White 80S11A 80+ CRI, 11 Watts 120V-277V 4 Soft Focus AD1 Adjustable BK Black 27 2700K 25 25° (<10) 4” Sq. or 4/0 lm Delivered - 1095 BK Black BK Black 06 6” CE3 Forward / Reverse Lens* Junction Box 90° Tilt 40 40° (<10) 30 3000K AB Architectural AB Architectural AB Architectural 90S11A 90+ CRI, 11 Watts Phase, 120V *(Required for 10� optic) 12 12” Mounting Plate.

FIXED ANGLE lm Delivered - 941 Bronze Bronze Bronze Features 2.6” 35 3500K 60 60° (<13) REMOTE (120V) CUSTOM WET (IP65) AG Satin Silver diameter canopy.* ALTERNATE Satin Silver Satin Silver AG AG 97S11A 97+ CRI, 11 Watts 40 4000K LENGTHS RE3 Forward / Reverse * (Mounting plate must MEDIA F02 Fixed AU Cashmere Gold AU Cashmere Gold AU Cashmere Gold lm Delivered - 826 Phase, 120V be installed on junction XX Specify in 0° No Tilt* BB Burnt Bronze BB Burnt Bronze BB Burnt Bronze 2 Honeycomb box prior to ceiling REMOTE 1” increments REMOTE Louver* installation) (120V-277V) 24 2400K* 10 10°* (>19) between 2”-11” F12 Fixed CF Custom Finish* CF Custom Finish* CF Custom Finish* STATIC WHITE * *(17W package (Not available for Wet * *(Consult Factory) *(Consult Factory) (Ex. 4” = 04)* LH1 Lutron, Hi-Lume 15° Tilt* *(Consult Factory) FINISH OUT 80S17A 80+ CRI, 17 Watts (90+ CRI only) only) Location) *(Increased lead Ecosystem lm Delivered 1655 27 2700K F32 Fixed C CMJB 15 15° (<16) time) 1% Fade to Black, 3 Clear Glass ALUMINA ALUMINA ALUMINA 1/2” and 3/4” 90S17A 90+ CRI, 17 Watts 30 3000K 20 20° (<10) LP1 Lutron, Hi-Lume 30° Tilt* Lens Conduit Ceiling INTERIOR CONSULT FACTORY CONSULT FACTORY lm Delivered - 1422 Premier Ecosystem 5 Frosted Glass 35 3500K 25 25° (<10) F42 Fixed Mount Junction STEMS ARE APPLICATIONS FOR ALUMINA FOR ALUMINA 97S17A 97+ CRI, 17 Watts 0.1% Fade to Black Lens Box. Features 40 40° (<10) * 45° Tilt NOT FIELD ONLY FINISHES FINISHES 40 4000K lm Delivered - 1249 EG1 eldoLED, SOLOdrive matching 3.25” CUTTABLE 60 60° (<16) 6 Frosted Soft *FIXED ANGLE 01 Brushed 0-10V, 0.1%, LOG canopy.* Focus Lens TILT IS SET AS Obsidian * (Not available for Wet 15 15° (<13) ED1 eldoLED, SOLOdrive WARM DIM SPECIFIED, Location.

Only available DALI-2, 0.1%, LOG 7 Frosted Linear 02 Matte Obsidian 20 20° (<10) CANNOT BE in powdercoat finishes.

LX1 eldoLED, SOLO Spread Lens 90L11A 90+ CRI, 11 Watts 03 Brushed Dark Alumina finish fixtures CHANGED IN drive DMX, 0.1%, WL 2700K - 25 25° (<10) Incandescent Profile Patinated THE FIELD S Soft Focus Lens ship with Black powderLOG 1800K 40 40° (<10) lm Delivered - 920 Bronze w/ Honeycomb coat CMJB) AS1 Athena Control Halogen Profile Louver 04 Matte Dark WD 3000K - 60 60° (<13) G Zero Sightline eldoLED, DUALdrive lm Delivered - 967 Patinated 1800K Gypsum 0.1%* F Frosted Glass Bronze (1/16” Appliquè) *(Includes Athena Node.

Lens w/ 15 15° (<13) REMOTE Features 2.6” Increased lead time) 05 Brushed Aged Honeycomb WARM DIM diameter 20 20° (<10) HUB Separate Remote Aluminum Louver canopy.* Power Supply and Distri25 25° (<10) 06 Matte Aged 90L17A 90+ CRI, 17 Watts *( Mounts to 4/0 N No Lens* bution Hub, Powers up to Aluminum Incandescent Profile *(Not available for Wet junction box) WL 2700K - 40 40° (<10) 6 Fixtures* lm Delivered - 1227 07 Brushed 1800K 60 60° (<13) *(Requires further specifica- Location) R Remodel Cast Brass tion on page 2) 4.5” diameter Halogen Profile WD 3000K 08 Matte Flange Overlay BUD Combined Remote lm Delivered - 1291 1800K Cast Brass Canopy.* Power Distribution, Pow*(Mounts to existing 4/0 ers up to 6 Fixtures* 09 Brushed Light SEE PAGE 4 FOR junction box) *(Requires further specificaPatinated WARM DIM PROFILE tion on page 2) Bronze COMPARISON TUNABLE WHITE 10 Matte Light POWER SUPPLIES Patinated TH 5000K - 15 15° (<13) REMOTE (120-277V) Bronze 2700K 20 TUNABLE WHITE 20° (<10) DD2 eldoLED, DUALdrive DALI-2 DT8, 0.1% TR 4000K - 25 25° (<10) 90T17A 90+ CRI, 17W LOG ALUMINA NOT 1800K Cool Profile: 5000K - 2700K 40 40° (<10) DG1 eldoLED, DUALdrive RECOMMENDED lm Delivered - 888 0-10V, 0.1%, LOG FOR EXTERIOR 60 60° (<13) Warm Profile: 4000K - 1800K APPLICATIONS, MX2 DMX, 0.1%, LOG lm Delivered. - 896 FINISHES ARE NOT AD1 Athena Control UV RATED eldoLED, DUALdrive 0.1%*

PART NUMBER NOTES • • •

CM1 ships as e.g., CM102AD1WHBK90S11*3040CA*4F Remote driver ships as e.g., PS-RMT-90S-11A-1RE* Mounting ships separate from fixture, part numbers listed on page 6.

ALL LM DELIVERED AND T24 COMPLIANCE REFLECT 3000K PAIRED WITH 25° OPTIC AND SOFT FOCUS LENS

Red List Approved

luciferlighting.com

*(Includes Athena Node.

Increased lead time)

LOW VOLTAGE SYSTEM LVS Low Voltage System*

* (See page 9 for specification information)

©2026 Lucifer Lighting Company As part of its policy of continuous research and product development, the company reserves the right to change or withdraw specifications without prior notice.

[ DATE OF REV: 06262026]

[ PH ] +1-210-227-7329 [FAX] +1-210-227-4967

pg. 1

BBB OFFICE

TYPE P8 ALT Project name: Fixture type: Date:

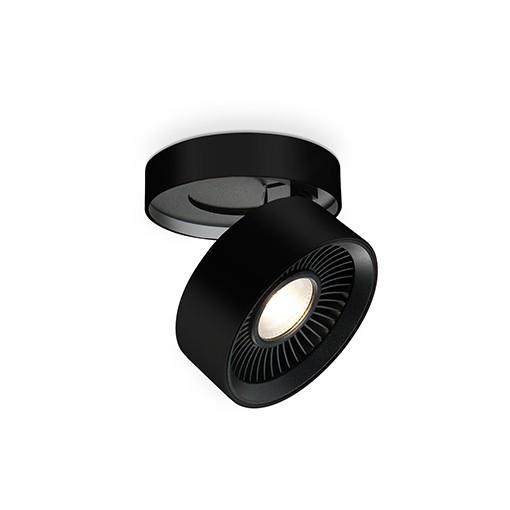

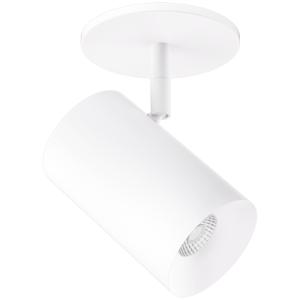

3″ Koto Sylo™ Monopoint

Features Modern Monopoint Die-Cast aluminum fixture for easy maintenance and upgrades Standard Fixtures or Fixtures with Stems (12", 24", 36", 48", and 60") available Includes Standard 38º lens, with 25º and 60º lenses. Optional: 18° & 90° lenses available.

Fits 3 ½″ and 4″ Octagon and Round Junction boxes Sunset option dims from 3000K to 1800K Human Centric option dims from 4000K to 2200K 90° tilt, 358° rotation Energy Star Certified. Title 24 JA8-2019 Compliant Life span of 50,000 hours L70

Specifications Wattage

5W - 14.7W

Lumens

350 lm - 1500 lm

Voltage

120/277V or 120V

Color Temp.

2400KK - Tunable WhiteK

Dimmable

Triac/ELV, 0-10V/Triac/ELV (1% Dimming), DALI 2 Controlled

Lamp Type

LED

Beam Angle

38°

CRI

95+

Options

All White

All Black

All Silver

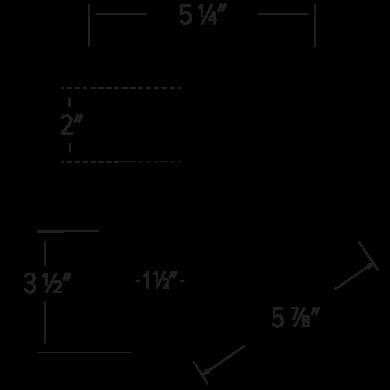

Dimensions

Damp Location cUL Listed

Technical Details Optics: Polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.

Construction: Integrated driver and light engine with quick connect. Diecast aluminum body with heat fins allows for efficient cooling.

Installation: Twist-on design for toolless module installation.

Electrical: Module connects to 120V power supply. High-efficiency driver with a power factor >0.9. Start time of less than 0.75 seconds.

Dimensions with Stem

LED Technology: Extremely accurate Color Rendering Index of 95+. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integrated heat sink. Instant On to Full Brightness technology. No LED pixelation.

Delivered Lumens: 0327 2700K/442.8 lm/5W 0330 3000K/461.2 lm/5W 0727 2700K/770 lm/10.5W 0730 3000K/800 lm/10.5W 0735 3500K/830 lm/10.5W 0740 4000K/860 lm/10.5W 08CT5 2700K/728.5 lm/10.5W 08CT5 3000K/886 lm/10.5W 08CT5 3500K/902 lm/10.5W 08CT5 4000K/920 lm/10.5W 08CT5 5000K/931 lm/10.5W 0927 2700K/912 lm/10.5W 0930 3000K/950 lm/10.5W 0935 3500K/990 lm/10.5W 0940 4000K/1030 lm/10.5W 09SD Sunset/940 lm/10.5W

2042 E. Vernon Ave., Vernon, CA 90058 • Tel (323) 231-2600 Fax (323) 231-3200 • elcolighting.com © ELCO Lighting 2026. All rights reserved • Rev. 24 Sep 2025 • ELCO Lighting reserves the right to make specification and design changes without notice.

Page 1 of 7

TYPE P8 SPEC MONOPOINT CM1 SURFACE MOUNT

BBB OFFICE

HUB AND BUD CONFIGURATION - REQUIRED FOR ‘HUB’ AND ‘BUD’ DRIVER SPECIFICATION ASSEMBLY

HUB Separate Remote Power Supply and Distribution Hub BUD Combined Remote Power Distribution

QTY

WATTAGE

3 FIXTURES

4 FIXTURES

5 FIXTURES

6 FIXTURES

11W

17W

11W

17W

11W

11W

17W

11W

PH1





 



 



17W

SG5





 

 



SG5 eldoLED, ECOdrive 1%, 0-10V, LOG, 120V-277V

EG1/ED1





 

 





EG1 eldoLED, SOLOdrive 0.1% 0-10V, LOG, 120V-277V

AS1





 

 





PH1 Forward /Reverse Phase, 2%, 120V

3X 3 Fixtures 17W 17 Watts 4X 4 Fixtures 6X 6 Fixtures

2 FIXTURES

DRIVER

REMOTE DRIVER

2X 2 Fixtures 11W 11 Watts

5X 5 Fixtures

COMPATIBILITY BY DRIVER TYPE AND QUANTITY 17W

ED1 eldoLED, SOLOdrive 0.1% DALI-2, LOG, 120V-277V AS1 Athena Control, eldoLED, SOLOdrive, 0.1%, 120V-277V* *(Includes Athena Node. Extended lead time, consult factory)

PART NUMBER NOTES •

HUB and BUD assemblies are ordered as separate line item from fixtures.

FINISHES

POWDERCOAT FINISHES (WH) White

(BK) Black

(AB) Architectural Bronze

(AG) Satin Silver

(AU) Cashmere Gold

ALUMINA FINISHES BY LUCIFER LIGHTINGTM (BB) Burnt Bronze

(01) Brushed Obsidian

(03) (05) Brushed Dark Brushed Aged Patinated Bronze Aluminum

(07) Brushed Cast Brass

(09) Brushed Light Patinated Bronze

(02) Matte Obsidian

(04) Matte Dark Patinated Bronze

(08) Matte Cast Brass

(10) Matte Light Patinated Bronze

(06) Matte Aged Aluminum

ACCESSORIES REPLACEMENT MEDIA ¨ HCL-CT1 Honeycomb Louver* ¨ CGL-CT1 Clear Glass Lens ¨ SFL-CT1 Soft Focus Lens ¨ FGL-CT1 Frosted Glass Lens ¨ FSFL-CT1 Frosted Soft Focus Lens ¨ FLSL-CT1 Frosted Linear Spread Lens REPLACEMENT OPTICS Interchangeable optics accessible by removing baffle.

Static White ¨ RO-50-15-S 15° optic ¨ RO-50-20-S 20° optic ¨ RO-50-25-S 25° optic ¨ RO-50-40-S 40° optic ¨ RO-50-60-S 60° optic

Warm Dim ¨ RO-50-15-W 15° optic ¨ RO-50-20-W 20° optic ¨ RO-50-25-W 25° optic ¨ RO-50-40-W 40° optic ¨ RO-50-60-W 60° optic

Tunable White ¨ RO-50-15-S 15° optic ¨ RO-50-20-S 20° optic ¨ RO-50-25-S 25° optic ¨ RO-50-40-S 40° optic ¨ RO-50-60-S 60° optic

EMERGENCY LIGHTING - REMOTE MOUNT ONLY ¨ EMB-S-25-120/277-LEDX 25 watt max capacity, 120 or 277 VAC 60Hz ¨ EMB-S-100-120-LEDX 100 watt max capacity, 120 VAC 60Hz, 0-10V dimmable ¨ EMB-S-100-277-LEDX 100 watt max capacity, 277 VAC 60Hz, 0-10V dimmable ¨ EMB-S-250-120/277-LEDX 250 watt max capacity, 120 or 277 VAC 60Hz During disruption of main power, emergency battery inverter provides temporary 120V or 277V to fixture.

NOTE: CONSULT FACTORY FOR USE WITH WIRELESS CONTROLS.

luciferlighting.com

©2026 Lucifer Lighting Company As part of its policy of continuous research and product development, the company reserves the right to change or withdraw specifications without prior notice.

[ DATE OF REV: 06262026]

[ PH ] +1-210-227-7329 [FAX] +1-210-227-4967

pg. 2

BBB OFFICE

TYPE P8 ALT

Product Number Builder Koto Sylo™

Example: E36MW-0727 Finish

Style

Color Temp.

Koto™ Module

Voltage

Beam Angle

Length

E36 M Monopoint

W All White

-03 350 lm (5W) 1, 2

24

2400K

120V, Triac/ELV

B

All Black

-07 750 lm (10.5W)

27

2700K

S

All Silver

-09 950 lm (10.5W)

30

3000K

120/277V, D 0-10V/Triac/ELV

-11 1150 lm (12.5W)

35

3500K

A DALI 2, 120/277V

-13 1350 lm (12.5W)

40

4000K

-15 1500 lm (14.7W)

SD

Sunset

HC

Human Centric 1, 7, 8 (-11 only)

-18 1800 lm (18.9W) 880 lm -08 (11.5W)(41TA Only) 3 lm (10.5W) 1, -08 825 4 -10

5, 6

- 5000K CT5 2700K 10 4T

Available with 2400K, 2700K and 3000K Color Temperature Only

3

Available with Tunable White color temperature only

4

Available with CT5 color temperature only

5

Available with -09, -11, -13 and -15 lumen outputs only

6

Sunset, Dim to Warm technology, automatically transitions from 3000K to 1800K when dimmed

7

Available with 1150 lumen (-11) outputs only

8

Human Centric, Dim to Warm technology, automatically transitions from 4000K to 2200K when dimmed

9

Available with -08 and -10 lumen outputs only Available with -08AL output only, Dali 2 dimmable and Tunable White

12

Includes 25° and 60° lens in the box

13

Available with 350 and 750 lumen, 2700K and 3000K options only

14

90° Frosted Reflector

15

Stem is not field cuttable

-N 25º lens

-24 24" Stem 15

-W 60º lens

-36 36" Stem 15

-T

10º lens 1, 13

-E

90º lens 14

-48 48" Stem 15 -60 60" Stem 15

9,

1, 4

Available as 120V, Triac/ELV only

Available as 120V, Triac/ELV only

-12 12" Stem 15

1000 lm (12.5W)

2

11

Standard

18º lens

Tunable White 4000K-1800K 11

1

10

38º lens 12 -S

2042 E. Vernon Ave., Vernon, CA 90058 • Tel (323) 231-2600 Fax (323) 231-3200 • elcolighting.com © ELCO Lighting 2026. All rights reserved • Rev. 24 Sep 2025 • ELCO Lighting reserves the right to make specification and design changes without notice.

Page 4 of 7

TYPE R1 SPEC

BBB OFFICE

HOUSINGS AVAILABLE FOR 5 DAY QUICK SHIP. SEE BELOW AND PAGE 2 FOR DETAILS.

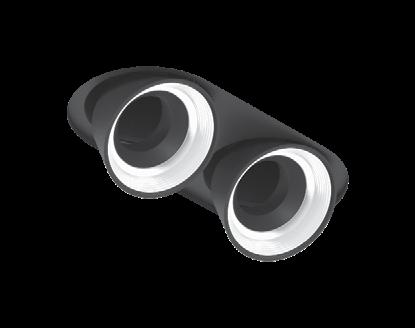

ATOMOS RENEW 2 UNIVERSAL AND SLIM ®

PROJECT NAME:

TYPE:

A miniature downlight range offering impressive performance in an extremely small profile with a 2” aperture. Available as flange overlay and trimless for both drywall and millwork applications.

Atomos is now Atomos Renew. Atomos Renew is produced with reclaimed plastics and fishing nets from the ocean, repurposing almost 1 ton of discarded net each year.

ORDERING INFORMATION - TRIM / HOUSING TRIM

TRIM TYPE

RATING

TRIM FINISH

BAFFLE FINISH

Universal Housing elgible for Quick Ship Note following SKUs below for eligibility.

All orders must have “QS” at end of part number.

FIXTURE TYPE

INSTALL TYPE

5.52” UNIVERSAL HOUSING WH White ADJUSTABLE & F Flange 1 Dry / Damp WH White (SEPARATE TRIM AND HOUSING) FIXED Overlay (IP20) AB Architectural AB Architectural 1/2” - 2” MAX CEILING THICKNESS Bronze Bronze A2RS 2” Round T Trimless 2 Wet (IP44) SEE PAGE 2 FOR T-GRID ACCESSORY Drywall AG Satin Silver AG Satin Silver AD Adjustable, A2SS 2” Square INTEGRAL DRIVER W Trimless AU Cashmere AU Cashmere WALLWASH 30° Max Tilt I IC Millwork* Gold Gold A2RW 2” Round * (Not available for remodel FD Fixed N Non-IC installations) BB Burnt Bronze BB Burnt Bronze A2SW 2” Square WW Wallwash A IC, Airtight* BK Black BK Black PR Primer

PR Primer

00 Trimless

CF Custom Finish*

CF Custom Finish* * (Consult Factory)

* (Consult Factory)

(AB) (AG) (WH) Architectural Bronze Satin Silver White Powder Coat Powder Coat Powder Coat

(AU) Cashmere Gold Powder Coat

(BB) Burnt Bronze Powder Coat

(BK) Black Powder Coat

PART NUMBER NOTES • Universal trims ship as e.g: A2RSFAD1AGAG8012D27-15I-PH*0 • Universal housings ship as e.g: IFR-A2I-280APH* • Slim fixtures ship as e.g: A2RSFSF1AGAG8012D27-15X-PH*0 • Remote drivers ship as e.g: PSA2-RMT-280APH* Red List Approved

LUMEN PACKAGE

JA8-2022 INDICATED BY SHADING CCT

OPTIC (UGR)

24 2400K* 10 10°* (<13)

DRIVER

ALL INSTALL TYPES PH1 2% Forward / 27 2700K Reverse Phase, 120V 4 Soft Focus Film* 30 3000K 15 15° (<16)* * (Required for 10°optic) SG6 eldoLED, ECOdrive *(For use with 10�Optic only) * (Not available for 35 3500K Warm Dim when 1% 0-10V, LOG, W Wallwash Lens* 8012D 80+ CRI, 920 lm 120V- 277V 40 4000K paired with 0, 2, 3, or * (Required for and only C media) 9007D 90+ CRI, 455 lm available with wallwash) EG1 eldoLED, SOLOdrive 9009H 90+ CRI, 273 lm* 0.1% 0-10V, LOG, 25 25° (<16) ALTERNATE *(For use with 10�Optic only) 120 V- 277V MEDIA 35 35° (<19) * (Chicago Plenum, Airtight & 9010D 90+ CRI, 779 lm ED1 eldoLED, SOLOdrive Title 24 compliant housing) 0.1% DALI-2 DT6, 50 50° (<19) 0 No Media* 9506D 95+ CRI, 405 lm LOG, 120V - 277V * (Not available for Wet L IC, Light Enclosed* 9509H 95+ CRI, 251 lm* 80 80° * * (Chicago Plenum, Airtight Location) MX2 0.1% DMX, LOG* *(For use with 10�Optic only) * (Requires -6 wide *(Not available for X, Y and C & Title 24 compliant housing. distribution film) 2 Honeycomb Prevents light leak in transpar- 9510D 95+ CRI, 693 lm install types, consult factory) ent ceilings) Louver * AZ Adjustable * LP1 Lutron, Premier UNIVERSAL WARM DIM (Not available for Wet Zoom* (<19) REMOTE DRIVER Ecosystem 0.1% WL 2700K - * (Universal Static Location,8016D, 9014D, 9006D 90+ CRI, 395 lm Fade to Black, S IC, Remote 1800K White only. 24�, 30�, or 9513D) 9011D 90+ CRI, 690 lm 120 V or 277V* 36�, 42� and 48� * 3 Clear Film (Not available for X, Y and C WD 3000K - beam spreads. ) T Non-IC, Remote install types, consult factory) 1800K WW Wallwash* 5 Linear K IC, Airtight, REMOTE ONLY Spread Film * (Required for and UNIVERSAL TUNABLE WHITE Remote* only available with AS1 Athena Control *(Chicago Plenum, Airtight & 9010D 90+ CRI* 6 80° Wide wallwash) eldoLED, SOLOdrive Title 24 compliant housing) * (Tunable White not available for R install type) Distribution Film* 0.1% 120-277V* * (Must be paired with TR 4000K J IC, Light Enclosed, Warm Profile, 694 lm *(Includes Node. Extended lead 80˚ optic) 1800K time, consult factory) Remote* * (Chicago Plenum, Airtight Cool Profile, 611 lm TH 5000K S Honeycomb HUB Separate Remote & Title 24 compliant housing.

Louver w/ Soft Power Supply and Distribu2700K Prevents light leak in transparFocus Film* ent ceilings) tion Hub. Powers up to 6 * (Not available for 8016D, 24 2400K* SLIM STATIC WHITE Fixtures* REMODEL *(90+CRI Only) 9014D or 9513D) *(Requires further specification 8008D 80+ CRI, 594 lm on page 2) 27 2700K R Remodel* C Honeycomb *(Not available for Tunable 8009H 80+ CRI, 346 lm* BUD Combined Remote 30 3000K Louver w/ Clear * (For use with 10�Optic only) White) Power Distribution, Film* 35 3500K 8012D 80+ CRI, 1012 lm * (Not available for 8016D, Powers up to 6 Fixtures* REMOTE REMODEL 40 4000K *(Requires further specification 9014D, 9513D) 8016D 80+ CRI, 1227 lm on page 2) M Remote Remodel 9007D 90+ CRI, 503 lm TUNABLE WHITE 3.4” SLIM HIGH OUTPUT HOUSING 9009H 90+ CRI, 293 lm* REMOTE ONLY *(For use with 10�Optic only) (INTEGRATED LED HOUSING) (120V-277V) SF: 1/2” - 1” MAX CEILING THICKNESS 9010D 90+ CRI, 860 lm DD2 eldoLED, DUALdrive, SW: 1/2” - 5/8” MAX CEILING THICKNESS 9014D 90+ CRI, 1042 lm 0.1%, DALI-2 DT8, LOG SEE PAGE 2 FOR T-GRID ACCESSORY 9506D 95+ CRI, 448 lm DG1 eldoLED, DUALdrive INTEGRAL DRIVER 9509H 95+ CRI, 270 lm* SF Fixed 0.1% 0-10V, ACLOG *(For use with 10�Optic only) SW Wallwash* X IC MX2 0.1% DMX, LOG 9510D 95+ CRI, 765 lm * (Not available for Y NIC AD1 Athena Control, trimless millwork, 8016D, 9513D 95+ CRI, 927 lm EldoLED, DUALdrive 9014D, 9015D, or 9513D) C IC, Airtight* SLIM WARM DIM 0.1%* * (Chicago Plenum, Airtight & *(Includes Node. Extended lead Title 24 compliant housing) WL 2700K 9006D 90+ CRI, 479 lm time, consult factory) 1800K REMOTE DRIVER 9011D 90+ CRI, 837 lm LOW VOLTAGE SYSTEM WD 3000K 9015D 90+ CRI, 1009 lm LVS Low Voltage System* V IC, Remote 1800K * (See page 14 for specification W NIC, Remote information. Only available with SLIM TUNABLE WHITE S, T, K, J, M, V, W, D install types) D IC, Airtight, 9010D 90+ CRI Remote* * (Chicago Plenum, Airtight & TR 4000K Title 24 compliant housing) Warm Profile, 764 lm 1800K CONSULT FACTORY FOR LINEAR 0-10V OR CASAMBI TH 5000K Cool Profile, 672 lm CONTROLS 2700K UNIVERSAL STATIC WHITE 8008D 80+ CRI, 538 lm 8009H 80+ CRI, 322 lm*

*(90+CRI Only)

* (For use with 09H lumen package only)

STANDARD MEDIA

*ALL LM DATA REFLECTS 15�OPTIC

luciferlighting.com

©2026 Lucifer Lighting Company As part of its policy of continuous research and product development, the company reserves the right to change or withdraw specifications without prior notice.

[ DATE OF REV: 07162026]

MEDIA

[PH] +1-210-227-7329 [FAX] +1-210-227-4967

pg. 1

BBB OFFICE

TYPE R1 ALT

NIO-2RTLNDC

Type

2" Iolite Round Trimless Downlight Source: 13W LED 800lm or 1000lm

Project Catalog No. Notes

PRODUCT DESCRIPTION 2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.

PRODUCT IMAGES AND DIMENSIONS

FEATURES · Trimless knife edge appearance · 800lm or 1000lm LED packages · Comfort Dim (warm dimming) also available in 800lm only · 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI · Flood optic, narrow flood and spot optics (included) · 5-Year limited warranty

2-3/4" NIO-2RTLNDC Non-Adjustable

SPECIFICATION Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.

Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.

BB Black

BZ Bronze

CH Champagne Haze

HZ Haze

MPW Matte Powder White

WW White

OPTICS 800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.

ELECTRICAL Lumens / Wattage: 800lm or 1000lm / 13W Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K Color Rendering Index: 90+CRI Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70 Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.

Dimming: Specified by housing COMPATIBLE HOUSINGS Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.

CATALOG NO. DESCRIPTION LUMENS / WATTAGE NHIOICD-28 ICAT New Construction 800-1000lm / 13W NHIOICDCP-28 Chicago Plenum 800-1000lm / 13W Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.

LABELS AND LISTINGS · cULus Listed for Wet Locations · 5-Year Limited Warranty · RoHS Compliant · Certified to the high efficacy requirements of California Title 24 JA8-2025

WET

5 YEAR L I M I TE D

WARRANTY

TITLE

24

COMPLIANT

o omfortDim

®

RoHS

COMPLIANT

Recreate the Sunset with LED

2" Iolite Round Trimless Downlight - New Construction Housing & Trimless Mud Ring Required

Compatible Housings

Color Temperature

Housing Type

Finish

NIO-2RTLNDC50X = 5000K* NIO-2RTLNDCCDX = Comfort Dim † NIO-2RTLNDC27X = 2700K NIO-2RTLNDC30X = 3000K NIO-2RTLNDC35X = 3500K NIO-2RTLNDC40X = 4000K NIO-2RTLNDC50X = 5000K * †

BB = Black BZ = Bronze CH = Champagne Haze HZ = Haze MPW = Matte Powder White WW = White

Lumens / Wattage (blank) = 800lm / 13W /10 = 1000lm / 13W

NHIOICD-28 = ICAT New Construction / 800-1000lm / 13W NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 13W

2" Iolite Trimless Mud Ring Description NIO-TLMR-2RA = 2" Round Trimless Mud Ring

5000K LED modules in 800lm are while supplies last Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite

Example: NIO-2RTLNDC50XWW / NIO-TLMR-2RA = 2" Iolite Round Trimless Downlight, 5000K, White finish, 800lm / 2" Round Trimless Mud Ring 6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com © 2025 Nora Lighting, Inc. All rights reserved. Specifications subject to change without notice.

051126P1

TYPE R1 SPEC

BBB OFFICE

BLANK

BBB OFFICE

TYPE R1 ALT

2" Iolite Accessories

Type

2" Iolite Round Trimless Downlight

Project Catalog No. Notes

FIELD CHANGEABLE OPTICS Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available.

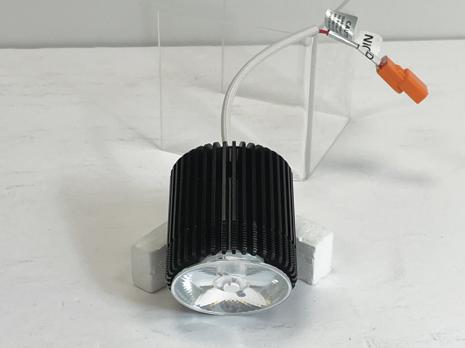

LED Module

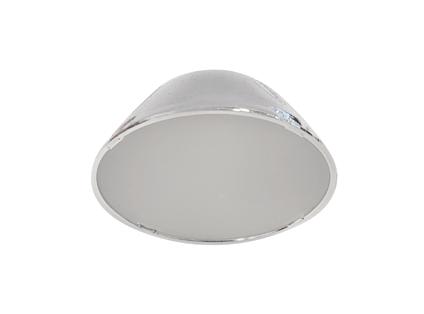

Frosted Optics Optic

NIO-REFL38FR NIO-REFL60FR

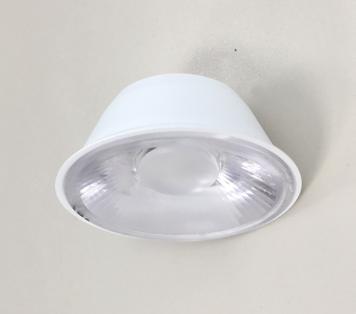

Premium TIR Optics 60° Optic 73° Optic

Not compatible with /HL LED module.

NIO-REFLTIR15 NIO-REFLTIR25

10° TIR Optic Assembly 22° Optic 26° Optic

Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.

Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.

Die-cast Trim ACCESSORIES Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim.

Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.

LED Module

Accessory

Die-cast Trim

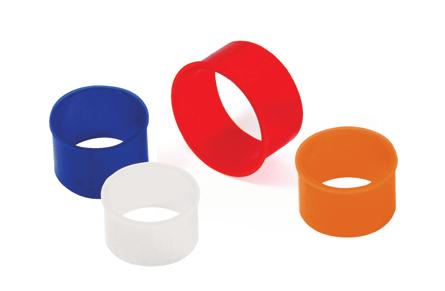

Translucent Decorative Collar

Opaque Collar Snoot

Hex Cell Louver

NIO-AS14(color) 5/8" length NIO-AS19(color) 3/4" length NIO-AS26(color) 1" length Color: AM (amber), BLU (blue), FR (frosted), R (red)

NIO-AS14(color) 5/8" length NIO-AS19(color) 3/4" length NIO-AS26(color) 1" length Color: MPW (matte powder white), WH (white)

NIO-HC

Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.

Opaque snoot greatly reduces aperture brightness while preserving light output.

Hex cell louver is not compatible with TIR optics.

Black

Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.

TRIMLESS 2" Iolite trimless downlights have no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.

Mud Ring Suction Cup

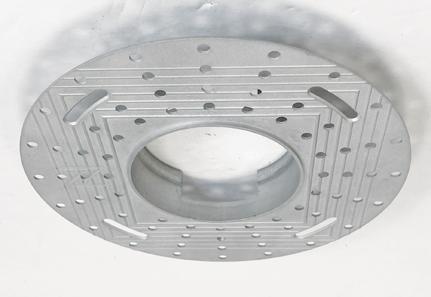

Trimless Mount Mud Ring

Suction Cup for Removal

NIO-TLMR-2RA

NIO-TLSUCTION

Mounts trimless downlight with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIO-2RTLNDC or NIO-2RTLA. Dimensions: 7-7/8" diameter 1/2" thick

Assist removing trimless downlight from finished ceiling after installation. For maintenance on trimless downlight.

6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com © 2025 Nora Lighting, Inc. All rights reserved. Specifications subject to change without notice.

051126P2

TYPE R2 SPEC

BBB OFFICE

HOUSINGS AVAILABLE FOR 5 DAY QUICK SHIP. SEE BELOW AND PAGE 2 FOR DETAILS.

ATOMOS RENEW 2 UNIVERSAL AND SLIM ®

PROJECT NAME:

TYPE:

A miniature downlight range offering impressive performance in an extremely small profile with a 2” aperture. Available as flange overlay and trimless for both drywall and millwork applications.

Atomos is now Atomos Renew. Atomos Renew is produced with reclaimed plastics and fishing nets from the ocean, repurposing almost 1 ton of discarded net each year.

ORDERING INFORMATION - TRIM / HOUSING TRIM

TRIM TYPE

RATING

TRIM FINISH

BAFFLE FINISH

Universal Housing elgible for Quick Ship Note following SKUs below for eligibility.

All orders must have “QS” at end of part number.

FIXTURE TYPE

INSTALL TYPE

5.52” UNIVERSAL HOUSING WH White ADJUSTABLE & F Flange 1 Dry / Damp WH White (SEPARATE TRIM AND HOUSING) FIXED Overlay (IP20) AB Architectural AB Architectural 1/2” - 2” MAX CEILING THICKNESS Bronze Bronze A2RS 2” Round T Trimless 2 Wet (IP44) SEE PAGE 2 FOR T-GRID ACCESSORY Drywall AG Satin Silver AG Satin Silver AD Adjustable, A2SS 2” Square INTEGRAL DRIVER W Trimless AU Cashmere AU Cashmere WALLWASH 30° Max Tilt I IC Millwork* Gold Gold A2RW 2” Round * (Not available for remodel FD Fixed N Non-IC installations) BB Burnt Bronze BB Burnt Bronze A2SW 2” Square WW Wallwash A IC, Airtight* BK Black BK Black PR Primer

PR Primer

00 Trimless

CF Custom Finish*

CF Custom Finish* * (Consult Factory)

* (Consult Factory)

(AB) (AG) (WH) Architectural Bronze Satin Silver White Powder Coat Powder Coat Powder Coat

(AU) Cashmere Gold Powder Coat

(BB) Burnt Bronze Powder Coat

(BK) Black Powder Coat

PART NUMBER NOTES • Universal trims ship as e.g: A2RSFAD1AGAG8012D27-15I-PH*0 • Universal housings ship as e.g: IFR-A2I-280APH* • Slim fixtures ship as e.g: A2RSFSF1AGAG8012D27-15X-PH*0 • Remote drivers ship as e.g: PSA2-RMT-280APH* Red List Approved

LUMEN PACKAGE

JA8-2022 INDICATED BY SHADING CCT

OPTIC (UGR)

24 2400K* 10 10°* (<13)

DRIVER

ALL INSTALL TYPES PH1 2% Forward / 27 2700K Reverse Phase, 120V 4 Soft Focus Film* 30 3000K 15 15° (<16)* * (Required for 10°optic) SG6 eldoLED, ECOdrive *(For use with 10�Optic only) * (Not available for 35 3500K Warm Dim when 1% 0-10V, LOG, W Wallwash Lens* 8012D 80+ CRI, 920 lm 120V- 277V 40 4000K paired with 0, 2, 3, or * (Required for and only C media) 9007D 90+ CRI, 455 lm available with wallwash) EG1 eldoLED, SOLOdrive 9009H 90+ CRI, 273 lm* 0.1% 0-10V, LOG, 25 25° (<16) ALTERNATE *(For use with 10�Optic only) 120 V- 277V MEDIA 35 35° (<19) * (Chicago Plenum, Airtight & 9010D 90+ CRI, 779 lm ED1 eldoLED, SOLOdrive Title 24 compliant housing) 0.1% DALI-2 DT6, 50 50° (<19) 0 No Media* 9506D 95+ CRI, 405 lm LOG, 120V - 277V * (Not available for Wet L IC, Light Enclosed* 9509H 95+ CRI, 251 lm* 80 80° * * (Chicago Plenum, Airtight Location) MX2 0.1% DMX, LOG* *(For use with 10�Optic only) * (Requires -6 wide *(Not available for X, Y and C & Title 24 compliant housing. distribution film) 2 Honeycomb Prevents light leak in transpar- 9510D 95+ CRI, 693 lm install types, consult factory) ent ceilings) Louver * AZ Adjustable * LP1 Lutron, Premier UNIVERSAL WARM DIM (Not available for Wet Zoom* (<19) REMOTE DRIVER Ecosystem 0.1% WL 2700K - * (Universal Static Location,8016D, 9014D, 9006D 90+ CRI, 395 lm Fade to Black, S IC, Remote 1800K White only. 24�, 30�, or 9513D) 9011D 90+ CRI, 690 lm 120 V or 277V* 36�, 42� and 48� * 3 Clear Film (Not available for X, Y and C WD 3000K - beam spreads. ) T Non-IC, Remote install types, consult factory) 1800K WW Wallwash* 5 Linear K IC, Airtight, REMOTE ONLY Spread Film * (Required for and UNIVERSAL TUNABLE WHITE Remote* only available with AS1 Athena Control *(Chicago Plenum, Airtight & 9010D 90+ CRI* 6 80° Wide wallwash) eldoLED, SOLOdrive Title 24 compliant housing) * (Tunable White not available for R install type) Distribution Film* 0.1% 120-277V* * (Must be paired with TR 4000K J IC, Light Enclosed, Warm Profile, 694 lm *(Includes Node. Extended lead 80˚ optic) 1800K time, consult factory) Remote* * (Chicago Plenum, Airtight Cool Profile, 611 lm TH 5000K S Honeycomb HUB Separate Remote & Title 24 compliant housing.

Louver w/ Soft Power Supply and Distribu2700K Prevents light leak in transparFocus Film* ent ceilings) tion Hub. Powers up to 6 * (Not available for 8016D, 24 2400K* SLIM STATIC WHITE Fixtures* REMODEL *(90+CRI Only) 9014D or 9513D) *(Requires further specification 8008D 80+ CRI, 594 lm on page 2) 27 2700K R Remodel* C Honeycomb *(Not available for Tunable 8009H 80+ CRI, 346 lm* BUD Combined Remote 30 3000K Louver w/ Clear * (For use with 10�Optic only) White) Power Distribution, Film* 35 3500K 8012D 80+ CRI, 1012 lm * (Not available for 8016D, Powers up to 6 Fixtures* REMOTE REMODEL 40 4000K *(Requires further specification 9014D, 9513D) 8016D 80+ CRI, 1227 lm on page 2) M Remote Remodel 9007D 90+ CRI, 503 lm TUNABLE WHITE 3.4” SLIM HIGH OUTPUT HOUSING 9009H 90+ CRI, 293 lm* REMOTE ONLY *(For use with 10�Optic only) (INTEGRATED LED HOUSING) (120V-277V) SF: 1/2” - 1” MAX CEILING THICKNESS 9010D 90+ CRI, 860 lm DD2 eldoLED, DUALdrive, SW: 1/2” - 5/8” MAX CEILING THICKNESS 9014D 90+ CRI, 1042 lm 0.1%, DALI-2 DT8, LOG SEE PAGE 2 FOR T-GRID ACCESSORY 9506D 95+ CRI, 448 lm DG1 eldoLED, DUALdrive INTEGRAL DRIVER 9509H 95+ CRI, 270 lm* SF Fixed 0.1% 0-10V, ACLOG *(For use with 10�Optic only) SW Wallwash* X IC MX2 0.1% DMX, LOG 9510D 95+ CRI, 765 lm * (Not available for Y NIC AD1 Athena Control, trimless millwork, 8016D, 9513D 95+ CRI, 927 lm EldoLED, DUALdrive 9014D, 9015D, or 9513D) C IC, Airtight* SLIM WARM DIM 0.1%* * (Chicago Plenum, Airtight & *(Includes Node. Extended lead Title 24 compliant housing) WL 2700K 9006D 90+ CRI, 479 lm time, consult factory) 1800K REMOTE DRIVER 9011D 90+ CRI, 837 lm LOW VOLTAGE SYSTEM WD 3000K 9015D 90+ CRI, 1009 lm LVS Low Voltage System* V IC, Remote 1800K * (See page 14 for specification W NIC, Remote information. Only available with SLIM TUNABLE WHITE S, T, K, J, M, V, W, D install types) D IC, Airtight, 9010D 90+ CRI Remote* * (Chicago Plenum, Airtight & TR 4000K Title 24 compliant housing) Warm Profile, 764 lm 1800K CONSULT FACTORY FOR LINEAR 0-10V OR CASAMBI TH 5000K Cool Profile, 672 lm CONTROLS 2700K UNIVERSAL STATIC WHITE 8008D 80+ CRI, 538 lm 8009H 80+ CRI, 322 lm*

*(90+CRI Only)

* (For use with 09H lumen package only)

STANDARD MEDIA

*ALL LM DATA REFLECTS 15�OPTIC

luciferlighting.com

©2026 Lucifer Lighting Company As part of its policy of continuous research and product development, the company reserves the right to change or withdraw specifications without prior notice.

[ DATE OF REV: 07162026]

MEDIA

[PH] +1-210-227-7329 [FAX] +1-210-227-4967

pg. 1

BBB OFFICE

TYPE R2 ALT

NIO-2RTLA

Type

2" Iolite Round Trimless Adjustable Source: 14W LED 800lm or 1000lm

Project Catalog No. Notes

PRODUCT DESCRIPTION 2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Regressed cone reflector optimizes visual cut-off and adjust up to 15°.

FEATURES · Trimless knife edge appearance · 800lm or 1000lm LED packages · Comfort Dim (warm dimming) also available in 800lm only · 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI · Flood optic, narrow flood and spot optics (included) · 5-Year limited warranty

PRODUCT IMAGES AND DIMENSIONS

Adjustable finish

Reflector finish 2-3/4"

NIO-2RTLA Round Trimless Adjustable 15˚ Adjustable

SPECIFICATION Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.

Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.

OPTICS 800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.

ELECTRICAL Lumens / Wattage: 800lm / 14W, 1000lm / 14W Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K Color Rendering Index: 90+CRI Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70 Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.

Dimming: Specified by housing COMPATIBLE HOUSINGS Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.

CATALOG NO. DESCRIPTION LUMENS / WATTAGE NHIOICD-28 ICAT New Construction 800-1000lm / 14W NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per reflector.

LABELS AND LISTINGS · cULus Listed for Damp Locations · 5-Year Limited Warranty · RoHS Compliant · Certified to the high efficacy requirements of California Title 24 JA8-2022

DAMP

5 YEAR LIM IT ED

WARRANTY

TITLE

24

COMPLIANT

o omfortDim

®

RoHS

COMPLIANT

Recreate the Sunset with LED

BB Black Adjustable Black Reflector

BW Black Adjustable White Reflector

BZ Bronze Adjustable Bronze Reflector

CH Champagne Haze Adjustable Champagne Haze Reflector

CHMPW Champagne Haze Adjustable Matte Powder White Reflector

HW Haze Adjustable White Reflector

HZ Haze Adjustable Haze Reflector

HZMPW Haze Adjustable Matte Powder White Reflector

MPW Matte Powder White Adjustable Matte Powder White Reflector

WW White Adjustable White Reflector

2" Iolite Round Trimless Adjustable - New Construction Housing & Trimless Mud Ring Required

Compatible Housings

Color Temperature

Housing Type

Finish

NIO-2RTLA50X = 5000K* NIO-2RTLACDX = Comfort Dim † NIO-2RTLA27X = 2700K NIO-2RTLA30X = 3000K NIO-2RTLA35X = 3500K NIO-2RTLA40X = 4000K NIO-2RTLA50X = 5000K

* †

Lumens / Wattage

BB = Black BW = Black / White BZ = Bronze CH = Champagne Haze CHMPW = Champagne Haze / Matte Powder White HW = Haze / White HZ = Haze HZMPW = Haze / Matte Powder White MPW = Matte Powder White WW = White

(blank) = 800lm / 14W /10 = 1000lm / 14W

NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W

2" Iolite Trimless Mud Ring Description NIO-TLMR-2RA = 2" Round Trimless Mud Ring

5000K LED modules in 800lm are while supplies last Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite

Example: NIO-2RTLA50XWW / NIO-TLMR-2R = 2" Iolite Round Trimless Adjustable, 5000K, White finish, 800lm / 2" Round Trimless Mud Ring 6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com © 2025 Nora Lighting, Inc. All rights reserved. Specifications subject to change without notice.

012325P1

TYPE R3 SPEC

BBB OFFICE

HOUSINGS AVAILABLE FOR 5 DAY QUICK SHIP. SEE BELOW AND PAGE 2 FOR DETAILS.

ATOMOS RENEW 2 UNIVERSAL AND SLIM ®

PROJECT NAME:

TYPE:

A miniature downlight range offering impressive performance in an extremely small profile with a 2” aperture. Available as flange overlay and trimless for both drywall and millwork applications.

Atomos is now Atomos Renew. Atomos Renew is produced with reclaimed plastics and fishing nets from the ocean, repurposing almost 1 ton of discarded net each year.

ORDERING INFORMATION - TRIM / HOUSING TRIM

TRIM TYPE

RATING

TRIM FINISH

BAFFLE FINISH

Universal Housing elgible for Quick Ship Note following SKUs below for eligibility.

All orders must have “QS” at end of part number.

FIXTURE TYPE

INSTALL TYPE

5.52” UNIVERSAL HOUSING WH White ADJUSTABLE & F Flange 1 Dry / Damp WH White (SEPARATE TRIM AND HOUSING) FIXED Overlay (IP20) AB Architectural AB Architectural 1/2” - 2” MAX CEILING THICKNESS Bronze Bronze A2RS 2” Round T Trimless 2 Wet (IP44) SEE PAGE 2 FOR T-GRID ACCESSORY Drywall AG Satin Silver AG Satin Silver AD Adjustable, A2SS 2” Square INTEGRAL DRIVER W Trimless AU Cashmere AU Cashmere WALLWASH 30° Max Tilt I IC Millwork* Gold Gold A2RW 2” Round * (Not available for remodel FD Fixed N Non-IC installations) BB Burnt Bronze BB Burnt Bronze A2SW 2” Square WW Wallwash A IC, Airtight* BK Black BK Black PR Primer

PR Primer

00 Trimless

CF Custom Finish*

CF Custom Finish* * (Consult Factory)

* (Consult Factory)

(AB) (AG) (WH) Architectural Bronze Satin Silver White Powder Coat Powder Coat Powder Coat

(AU) Cashmere Gold Powder Coat

(BB) Burnt Bronze Powder Coat

(BK) Black Powder Coat

PART NUMBER NOTES • Universal trims ship as e.g: A2RSFAD1AGAG8012D27-15I-PH*0 • Universal housings ship as e.g: IFR-A2I-280APH* • Slim fixtures ship as e.g: A2RSFSF1AGAG8012D27-15X-PH*0 • Remote drivers ship as e.g: PSA2-RMT-280APH* Red List Approved

LUMEN PACKAGE

JA8-2022 INDICATED BY SHADING CCT

OPTIC (UGR)

24 2400K* 10 10°* (<13)

DRIVER

ALL INSTALL TYPES PH1 2% Forward / 27 2700K Reverse Phase, 120V 4 Soft Focus Film* 30 3000K 15 15° (<16)* * (Required for 10°optic) SG6 eldoLED, ECOdrive *(For use with 10�Optic only) * (Not available for 35 3500K Warm Dim when 1% 0-10V, LOG, W Wallwash Lens* 8012D 80+ CRI, 920 lm 120V- 277V 40 4000K paired with 0, 2, 3, or * (Required for and only C media) 9007D 90+ CRI, 455 lm available with wallwash) EG1 eldoLED, SOLOdrive 9009H 90+ CRI, 273 lm* 0.1% 0-10V, LOG, 25 25° (<16) ALTERNATE *(For use with 10�Optic only) 120 V- 277V MEDIA 35 35° (<19) * (Chicago Plenum, Airtight & 9010D 90+ CRI, 779 lm ED1 eldoLED, SOLOdrive Title 24 compliant housing) 0.1% DALI-2 DT6, 50 50° (<19) 0 No Media* 9506D 95+ CRI, 405 lm LOG, 120V - 277V * (Not available for Wet L IC, Light Enclosed* 9509H 95+ CRI, 251 lm* 80 80° * * (Chicago Plenum, Airtight Location) MX2 0.1% DMX, LOG* *(For use with 10�Optic only) * (Requires -6 wide *(Not available for X, Y and C & Title 24 compliant housing. distribution film) 2 Honeycomb Prevents light leak in transpar- 9510D 95+ CRI, 693 lm install types, consult factory) ent ceilings) Louver * AZ Adjustable * LP1 Lutron, Premier UNIVERSAL WARM DIM (Not available for Wet Zoom* (<19) REMOTE DRIVER Ecosystem 0.1% WL 2700K - * (Universal Static Location,8016D, 9014D, 9006D 90+ CRI, 395 lm Fade to Black, S IC, Remote 1800K White only. 24�, 30�, or 9513D) 9011D 90+ CRI, 690 lm 120 V or 277V* 36�, 42� and 48� * 3 Clear Film (Not available for X, Y and C WD 3000K - beam spreads. ) T Non-IC, Remote install types, consult factory) 1800K WW Wallwash* 5 Linear K IC, Airtight, REMOTE ONLY Spread Film * (Required for and UNIVERSAL TUNABLE WHITE Remote* only available with AS1 Athena Control *(Chicago Plenum, Airtight & 9010D 90+ CRI* 6 80° Wide wallwash) eldoLED, SOLOdrive Title 24 compliant housing) * (Tunable White not available for R install type) Distribution Film* 0.1% 120-277V* * (Must be paired with TR 4000K J IC, Light Enclosed, Warm Profile, 694 lm *(Includes Node. Extended lead 80˚ optic) 1800K time, consult factory) Remote* * (Chicago Plenum, Airtight Cool Profile, 611 lm TH 5000K S Honeycomb HUB Separate Remote & Title 24 compliant housing.

Louver w/ Soft Power Supply and Distribu2700K Prevents light leak in transparFocus Film* ent ceilings) tion Hub. Powers up to 6 * (Not available for 8016D, 24 2400K* SLIM STATIC WHITE Fixtures* REMODEL *(90+CRI Only) 9014D or 9513D) *(Requires further specification 8008D 80+ CRI, 594 lm on page 2) 27 2700K R Remodel* C Honeycomb *(Not available for Tunable 8009H 80+ CRI, 346 lm* BUD Combined Remote 30 3000K Louver w/ Clear * (For use with 10�Optic only) White) Power Distribution, Film* 35 3500K 8012D 80+ CRI, 1012 lm * (Not available for 8016D, Powers up to 6 Fixtures* REMOTE REMODEL 40 4000K *(Requires further specification 9014D, 9513D) 8016D 80+ CRI, 1227 lm on page 2) M Remote Remodel 9007D 90+ CRI, 503 lm TUNABLE WHITE 3.4” SLIM HIGH OUTPUT HOUSING 9009H 90+ CRI, 293 lm* REMOTE ONLY *(For use with 10�Optic only) (INTEGRATED LED HOUSING) (120V-277V) SF: 1/2” - 1” MAX CEILING THICKNESS 9010D 90+ CRI, 860 lm DD2 eldoLED, DUALdrive, SW: 1/2” - 5/8” MAX CEILING THICKNESS 9014D 90+ CRI, 1042 lm 0.1%, DALI-2 DT8, LOG SEE PAGE 2 FOR T-GRID ACCESSORY 9506D 95+ CRI, 448 lm DG1 eldoLED, DUALdrive INTEGRAL DRIVER 9509H 95+ CRI, 270 lm* SF Fixed 0.1% 0-10V, ACLOG *(For use with 10�Optic only) SW Wallwash* X IC MX2 0.1% DMX, LOG 9510D 95+ CRI, 765 lm * (Not available for Y NIC AD1 Athena Control, trimless millwork, 8016D, 9513D 95+ CRI, 927 lm EldoLED, DUALdrive 9014D, 9015D, or 9513D) C IC, Airtight* SLIM WARM DIM 0.1%* * (Chicago Plenum, Airtight & *(Includes Node. Extended lead Title 24 compliant housing) WL 2700K 9006D 90+ CRI, 479 lm time, consult factory) 1800K REMOTE DRIVER 9011D 90+ CRI, 837 lm LOW VOLTAGE SYSTEM WD 3000K 9015D 90+ CRI, 1009 lm LVS Low Voltage System* V IC, Remote 1800K * (See page 14 for specification W NIC, Remote information. Only available with SLIM TUNABLE WHITE S, T, K, J, M, V, W, D install types) D IC, Airtight, 9010D 90+ CRI Remote* * (Chicago Plenum, Airtight & TR 4000K Title 24 compliant housing) Warm Profile, 764 lm 1800K CONSULT FACTORY FOR LINEAR 0-10V OR CASAMBI TH 5000K Cool Profile, 672 lm CONTROLS 2700K UNIVERSAL STATIC WHITE 8008D 80+ CRI, 538 lm 8009H 80+ CRI, 322 lm*

*(90+CRI Only)

* (For use with 09H lumen package only)

STANDARD MEDIA

*ALL LM DATA REFLECTS 15�OPTIC

luciferlighting.com

©2026 Lucifer Lighting Company As part of its policy of continuous research and product development, the company reserves the right to change or withdraw specifications without prior notice.

[ DATE OF REV: 07162026]

MEDIA

[PH] +1-210-227-7329 [FAX] +1-210-227-4967

pg. 1

BBB OFFICE

TYPE R3 ALT

NIO-2RTLA

Type

2" Iolite Round Trimless Adjustable Source: 14W LED 800lm or 1000lm

Project Catalog No. Notes

PRODUCT DESCRIPTION 2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Regressed cone reflector optimizes visual cut-off and adjust up to 15°.

FEATURES · Trimless knife edge appearance · 800lm or 1000lm LED packages · Comfort Dim (warm dimming) also available in 800lm only · 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI · Flood optic, narrow flood and spot optics (included) · 5-Year limited warranty

PRODUCT IMAGES AND DIMENSIONS

Adjustable finish

Reflector finish 2-3/4"

NIO-2RTLA Round Trimless Adjustable 15˚ Adjustable

SPECIFICATION Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.

Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.

OPTICS 800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.

ELECTRICAL Lumens / Wattage: 800lm / 14W, 1000lm / 14W Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K Color Rendering Index: 90+CRI Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70 Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.

Dimming: Specified by housing COMPATIBLE HOUSINGS Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.

CATALOG NO. DESCRIPTION LUMENS / WATTAGE NHIOICD-28 ICAT New Construction 800-1000lm / 14W NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per reflector.

LABELS AND LISTINGS · cULus Listed for Damp Locations · 5-Year Limited Warranty · RoHS Compliant · Certified to the high efficacy requirements of California Title 24 JA8-2022

DAMP

5 YEAR LIM IT ED

WARRANTY

TITLE

24

COMPLIANT

o omfortDim

®

RoHS

COMPLIANT

Recreate the Sunset with LED

BB Black Adjustable Black Reflector

BW Black Adjustable White Reflector

BZ Bronze Adjustable Bronze Reflector

CH Champagne Haze Adjustable Champagne Haze Reflector

CHMPW Champagne Haze Adjustable Matte Powder White Reflector

HW Haze Adjustable White Reflector

HZ Haze Adjustable Haze Reflector

HZMPW Haze Adjustable Matte Powder White Reflector

MPW Matte Powder White Adjustable Matte Powder White Reflector

WW White Adjustable White Reflector

2" Iolite Round Trimless Adjustable - New Construction Housing & Trimless Mud Ring Required

Compatible Housings

Color Temperature

Housing Type

Finish

NIO-2RTLA50X = 5000K* NIO-2RTLACDX = Comfort Dim † NIO-2RTLA27X = 2700K NIO-2RTLA30X = 3000K NIO-2RTLA35X = 3500K NIO-2RTLA40X = 4000K NIO-2RTLA50X = 5000K

* †

Lumens / Wattage

BB = Black BW = Black / White BZ = Bronze CH = Champagne Haze CHMPW = Champagne Haze / Matte Powder White HW = Haze / White HZ = Haze HZMPW = Haze / Matte Powder White MPW = Matte Powder White WW = White

(blank) = 800lm / 14W /10 = 1000lm / 14W

NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W

2" Iolite Trimless Mud Ring Description NIO-TLMR-2RA = 2" Round Trimless Mud Ring

5000K LED modules in 800lm are while supplies last Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite

Example: NIO-2RTLA50XWW / NIO-TLMR-2R = 2" Iolite Round Trimless Adjustable, 5000K, White finish, 800lm / 2" Round Trimless Mud Ring 6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com © 2025 Nora Lighting, Inc. All rights reserved. Specifications subject to change without notice.

012325P1

TYPE R4A SPEC

BBB OFFICE

HOUSINGS AVAILABLE FOR 5 DAY QUICK SHIP. SEE BELOW AND PAGE 2 FOR DETAILS.

ATOMOS RENEW 2 UNIVERSAL AND SLIM ®

PROJECT NAME:

TYPE:

A miniature downlight range offering impressive performance in an extremely small profile with a 2” aperture. Available as flange overlay and trimless for both drywall and millwork applications.

Atomos is now Atomos Renew. Atomos Renew is produced with reclaimed plastics and fishing nets from the ocean, repurposing almost 1 ton of discarded net each year.

ORDERING INFORMATION - TRIM / HOUSING TRIM

TRIM TYPE

RATING

TRIM FINISH

BAFFLE FINISH

Universal Housing elgible for Quick Ship Note following SKUs below for eligibility.

All orders must have “QS” at end of part number.

FIXTURE TYPE

INSTALL TYPE

5.52” UNIVERSAL HOUSING WH White ADJUSTABLE & F Flange 1 Dry / Damp WH White (SEPARATE TRIM AND HOUSING) FIXED Overlay (IP20) AB Architectural AB Architectural 1/2” - 2” MAX CEILING THICKNESS Bronze Bronze A2RS 2” Round T Trimless 2 Wet (IP44) SEE PAGE 2 FOR T-GRID ACCESSORY Drywall AG Satin Silver AG Satin Silver AD Adjustable, A2SS 2” Square INTEGRAL DRIVER W Trimless AU Cashmere AU Cashmere WALLWASH 30° Max Tilt I IC Millwork* Gold Gold A2RW 2” Round * (Not available for remodel FD Fixed N Non-IC installations) BB Burnt Bronze BB Burnt Bronze A2SW 2” Square WW Wallwash A IC, Airtight* BK Black BK Black PR Primer

PR Primer

00 Trimless

CF Custom Finish*

CF Custom Finish* * (Consult Factory)

* (Consult Factory)

(AB) (AG) (WH) Architectural Bronze Satin Silver White Powder Coat Powder Coat Powder Coat

(AU) Cashmere Gold Powder Coat

(BB) Burnt Bronze Powder Coat

(BK) Black Powder Coat

PART NUMBER NOTES • Universal trims ship as e.g: A2RSFAD1AGAG8012D27-15I-PH*0 • Universal housings ship as e.g: IFR-A2I-280APH* • Slim fixtures ship as e.g: A2RSFSF1AGAG8012D27-15X-PH*0 • Remote drivers ship as e.g: PSA2-RMT-280APH* Red List Approved

LUMEN PACKAGE

JA8-2022 INDICATED BY SHADING CCT

OPTIC (UGR)

24 2400K* 10 10°* (<13)

DRIVER

ALL INSTALL TYPES PH1 2% Forward / 27 2700K Reverse Phase, 120V 4 Soft Focus Film* 30 3000K 15 15° (<16)* * (Required for 10°optic) SG6 eldoLED, ECOdrive *(For use with 10�Optic only) * (Not available for 35 3500K Warm Dim when 1% 0-10V, LOG, W Wallwash Lens* 8012D 80+ CRI, 920 lm 120V- 277V 40 4000K paired with 0, 2, 3, or * (Required for and only C media) 9007D 90+ CRI, 455 lm available with wallwash) EG1 eldoLED, SOLOdrive 9009H 90+ CRI, 273 lm* 0.1% 0-10V, LOG, 25 25° (<16) ALTERNATE *(For use with 10�Optic only) 120 V- 277V MEDIA 35 35° (<19) * (Chicago Plenum, Airtight & 9010D 90+ CRI, 779 lm ED1 eldoLED, SOLOdrive Title 24 compliant housing) 0.1% DALI-2 DT6, 50 50° (<19) 0 No Media* 9506D 95+ CRI, 405 lm LOG, 120V - 277V * (Not available for Wet L IC, Light Enclosed* 9509H 95+ CRI, 251 lm* 80 80° * * (Chicago Plenum, Airtight Location) MX2 0.1% DMX, LOG* *(For use with 10�Optic only) * (Requires -6 wide *(Not available for X, Y and C & Title 24 compliant housing. distribution film) 2 Honeycomb Prevents light leak in transpar- 9510D 95+ CRI, 693 lm install types, consult factory) ent ceilings) Louver * AZ Adjustable * LP1 Lutron, Premier UNIVERSAL WARM DIM (Not available for Wet Zoom* (<19) REMOTE DRIVER Ecosystem 0.1% WL 2700K - * (Universal Static Location,8016D, 9014D, 9006D 90+ CRI, 395 lm Fade to Black, S IC, Remote 1800K White only. 24�, 30�, or 9513D) 9011D 90+ CRI, 690 lm 120 V or 277V* 36�, 42� and 48� * 3 Clear Film (Not available for X, Y and C WD 3000K - beam spreads. ) T Non-IC, Remote install types, consult factory) 1800K WW Wallwash* 5 Linear K IC, Airtight, REMOTE ONLY Spread Film * (Required for and UNIVERSAL TUNABLE WHITE Remote* only available with AS1 Athena Control *(Chicago Plenum, Airtight & 9010D 90+ CRI* 6 80° Wide wallwash) eldoLED, SOLOdrive Title 24 compliant housing) * (Tunable White not available for R install type) Distribution Film* 0.1% 120-277V* * (Must be paired with TR 4000K J IC, Light Enclosed, Warm Profile, 694 lm *(Includes Node. Extended lead 80˚ optic) 1800K time, consult factory) Remote* * (Chicago Plenum, Airtight Cool Profile, 611 lm TH 5000K S Honeycomb HUB Separate Remote & Title 24 compliant housing.

Louver w/ Soft Power Supply and Distribu2700K Prevents light leak in transparFocus Film* ent ceilings) tion Hub. Powers up to 6 * (Not available for 8016D, 24 2400K* SLIM STATIC WHITE Fixtures* REMODEL *(90+CRI Only) 9014D or 9513D) *(Requires further specification 8008D 80+ CRI, 594 lm on page 2) 27 2700K R Remodel* C Honeycomb *(Not available for Tunable 8009H 80+ CRI, 346 lm* BUD Combined Remote 30 3000K Louver w/ Clear * (For use with 10�Optic only) White) Power Distribution, Film* 35 3500K 8012D 80+ CRI, 1012 lm * (Not available for 8016D, Powers up to 6 Fixtures* REMOTE REMODEL 40 4000K *(Requires further specification 9014D, 9513D) 8016D 80+ CRI, 1227 lm on page 2) M Remote Remodel 9007D 90+ CRI, 503 lm TUNABLE WHITE 3.4” SLIM HIGH OUTPUT HOUSING 9009H 90+ CRI, 293 lm* REMOTE ONLY *(For use with 10�Optic only) (INTEGRATED LED HOUSING) (120V-277V) SF: 1/2” - 1” MAX CEILING THICKNESS 9010D 90+ CRI, 860 lm DD2 eldoLED, DUALdrive, SW: 1/2” - 5/8” MAX CEILING THICKNESS 9014D 90+ CRI, 1042 lm 0.1%, DALI-2 DT8, LOG SEE PAGE 2 FOR T-GRID ACCESSORY 9506D 95+ CRI, 448 lm DG1 eldoLED, DUALdrive INTEGRAL DRIVER 9509H 95+ CRI, 270 lm* SF Fixed 0.1% 0-10V, ACLOG *(For use with 10�Optic only) SW Wallwash* X IC MX2 0.1% DMX, LOG 9510D 95+ CRI, 765 lm * (Not available for Y NIC AD1 Athena Control, trimless millwork, 8016D, 9513D 95+ CRI, 927 lm EldoLED, DUALdrive 9014D, 9015D, or 9513D) C IC, Airtight* SLIM WARM DIM 0.1%* * (Chicago Plenum, Airtight & *(Includes Node. Extended lead Title 24 compliant housing) WL 2700K 9006D 90+ CRI, 479 lm time, consult factory) 1800K REMOTE DRIVER 9011D 90+ CRI, 837 lm LOW VOLTAGE SYSTEM WD 3000K 9015D 90+ CRI, 1009 lm LVS Low Voltage System* V IC, Remote 1800K * (See page 14 for specification W NIC, Remote information. Only available with SLIM TUNABLE WHITE S, T, K, J, M, V, W, D install types) D IC, Airtight, 9010D 90+ CRI Remote* * (Chicago Plenum, Airtight & TR 4000K Title 24 compliant housing) Warm Profile, 764 lm 1800K CONSULT FACTORY FOR LINEAR 0-10V OR CASAMBI TH 5000K Cool Profile, 672 lm CONTROLS 2700K UNIVERSAL STATIC WHITE 8008D 80+ CRI, 538 lm 8009H 80+ CRI, 322 lm*

*(90+CRI Only)

* (For use with 09H lumen package only)

STANDARD MEDIA

*ALL LM DATA REFLECTS 15�OPTIC

luciferlighting.com

©2026 Lucifer Lighting Company As part of its policy of continuous research and product development, the company reserves the right to change or withdraw specifications without prior notice.

[ DATE OF REV: 07162026]

MEDIA

[PH] +1-210-227-7329 [FAX] +1-210-227-4967

pg. 1

BBB OFFICE

TYPE R4A ALT

NIO-2RTLNDC

Type

2" Iolite Round Trimless Downlight Source: 13W LED 800lm or 1000lm

Project Catalog No. Notes

PRODUCT DESCRIPTION 2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.

PRODUCT IMAGES AND DIMENSIONS

FEATURES · Trimless knife edge appearance · 800lm or 1000lm LED packages · Comfort Dim (warm dimming) also available in 800lm only · 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI · Flood optic, narrow flood and spot optics (included) · 5-Year limited warranty

2-3/4" NIO-2RTLNDC Non-Adjustable

SPECIFICATION Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.

Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.

BB Black

BZ Bronze

CH Champagne Haze

HZ Haze

MPW Matte Powder White

WW White

OPTICS 800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.

ELECTRICAL Lumens / Wattage: 800lm or 1000lm / 13W Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K Color Rendering Index: 90+CRI Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70 Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.

Dimming: Specified by housing COMPATIBLE HOUSINGS Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.

CATALOG NO. DESCRIPTION LUMENS / WATTAGE NHIOICD-28 ICAT New Construction 800-1000lm / 13W NHIOICDCP-28 Chicago Plenum 800-1000lm / 13W Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.

LABELS AND LISTINGS · cULus Listed for Wet Locations · 5-Year Limited Warranty · RoHS Compliant · Certified to the high efficacy requirements of California Title 24 JA8-2025

WET

5 YEAR LIMITED

WARRANTY

TITLE

24

COMPLIANT

o omfortDim

®

RoHS

COMPLIANT

Recreate the Sunset with LED

2" Iolite Round Trimless Downlight - New Construction Housing & Trimless Mud Ring Required

Compatible Housings

Color Temperature

Housing Type

Finish

NIO-2RTLNDC50X = 5000K* NIO-2RTLNDCCDX = Comfort Dim † NIO-2RTLNDC27X = 2700K NIO-2RTLNDC30X = 3000K NIO-2RTLNDC35X = 3500K NIO-2RTLNDC40X = 4000K NIO-2RTLNDC50X = 5000K

BB = Black BZ = Bronze CH = Champagne Haze HZ = Haze MPW = Matte Powder White WW = White

Lumens / Wattage (blank) = 800lm / 13W /10 = 1000lm / 13W

NHIOICD-28 = ICAT New Construction / 800-1000lm / 13W NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 13W

2" Iolite Trimless Mud Ring Description NIO-TLMR-2RA = 2" Round Trimless Mud Ring

5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite *

Example: NIO-2RTLNDC50XWW / NIO-TLMR-2RA = 2" Iolite Round Trimless Downlight, 5000K, White finish, 800lm / 2" Round Trimless Mud Ring 6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com © 2025 Nora Lighting, Inc. All rights reserved. Specifications subject to change without notice.

051126P1

TYPE R4A SPEC

BBB OFFICE

BLANK

BBB OFFICE

TYPE R4A ALT

2" Iolite Accessories

Type

2" Iolite Round Trimless Downlight

Project Catalog No. Notes

FIELD CHANGEABLE OPTICS Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available.

LED Module

Frosted Optics Optic

NIO-REFL38FR NIO-REFL60FR

Premium TIR Optics 60° Optic 73° Optic

Not compatible with /HL LED module.

NIO-REFLTIR15 NIO-REFLTIR25

10° TIR Optic Assembly 22° Optic 26° Optic

Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.

Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.

Die-cast Trim ACCESSORIES Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim.

Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.

LED Module

Accessory

Die-cast Trim

Translucent Decorative Collar

Opaque Collar Snoot

Hex Cell Louver

NIO-AS14(color) 5/8" length NIO-AS19(color) 3/4" length NIO-AS26(color) 1" length Color: AM (amber), BLU (blue), FR (frosted), R (red)

NIO-AS14(color) 5/8" length NIO-AS19(color) 3/4" length NIO-AS26(color) 1" length Color: MPW (matte powder white), WH (white)

NIO-HC

Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.

Opaque snoot greatly reduces aperture brightness while preserving light output.

Hex cell louver is not compatible with TIR optics.

Black

Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.

TRIMLESS 2" Iolite trimless downlights have no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.

Mud Ring Suction Cup

Trimless Mount Mud Ring

Suction Cup for Removal

NIO-TLMR-2RA

NIO-TLSUCTION

Mounts trimless downlight with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIO-2RTLNDC or NIO-2RTLA. Dimensions: 7-7/8" diameter 1/2" thick

Assist removing trimless downlight from finished ceiling after installation. For maintenance on trimless downlight.

6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com © 2025 Nora Lighting, Inc. All rights reserved. Specifications subject to change without notice.

051126P2

TYPE R4B SPEC

BBB OFFICE

HOUSINGS AVAILABLE FOR 5 DAY QUICK SHIP. SEE BELOW AND PAGE 2 FOR DETAILS.

ATOMOS RENEW 2 UNIVERSAL AND SLIM ®

PROJECT NAME:

TYPE:

A miniature downlight range offering impressive performance in an extremely small profile with a 2” aperture. Available as flange overlay and trimless for both drywall and millwork applications.

Atomos is now Atomos Renew. Atomos Renew is produced with reclaimed plastics and fishing nets from the ocean, repurposing almost 1 ton of discarded net each year.

ORDERING INFORMATION - TRIM / HOUSING TRIM

TRIM TYPE

RATING

TRIM FINISH

BAFFLE FINISH

Universal Housing elgible for Quick Ship Note following SKUs below for eligibility.

All orders must have “QS” at end of part number.

FIXTURE TYPE

INSTALL TYPE

5.52” UNIVERSAL HOUSING WH White ADJUSTABLE & F Flange 1 Dry / Damp WH White (SEPARATE TRIM AND HOUSING) FIXED Overlay (IP20) AB Architectural AB Architectural 1/2” - 2” MAX CEILING THICKNESS Bronze Bronze A2RS 2” Round T Trimless 2 Wet (IP44) SEE PAGE 2 FOR T-GRID ACCESSORY Drywall AG Satin Silver AG Satin Silver AD Adjustable, A2SS 2” Square INTEGRAL DRIVER W Trimless AU Cashmere AU Cashmere WALLWASH 30° Max Tilt I IC Millwork* Gold Gold A2RW 2” Round * (Not available for remodel FD Fixed N Non-IC installations) BB Burnt Bronze BB Burnt Bronze A2SW 2” Square WW Wallwash A IC, Airtight* BK Black BK Black PR Primer

PR Primer

00 Trimless

CF Custom Finish*

CF Custom Finish* * (Consult Factory)

* (Consult Factory)

(AB) (AG) (WH) Architectural Bronze Satin Silver White Powder Coat Powder Coat Powder Coat

(AU) Cashmere Gold Powder Coat

(BB) Burnt Bronze Powder Coat

(BK) Black Powder Coat

PART NUMBER NOTES • Universal trims ship as e.g: A2RSFAD1AGAG8012D27-15I-PH*0 • Universal housings ship as e.g: IFR-A2I-280APH* • Slim fixtures ship as e.g: A2RSFSF1AGAG8012D27-15X-PH*0 • Remote drivers ship as e.g: PSA2-RMT-280APH* Red List Approved

LUMEN PACKAGE

JA8-2022 INDICATED BY SHADING CCT

OPTIC (UGR)

24 2400K* 10 10°* (<13)

DRIVER

ALL INSTALL TYPES PH1 2% Forward / 27 2700K Reverse Phase, 120V 4 Soft Focus Film* 30 3000K 15 15° (<16)* * (Required for 10°optic) SG6 eldoLED, ECOdrive *(For use with 10�Optic only) * (Not available for 35 3500K Warm Dim when 1% 0-10V, LOG, W Wallwash Lens* 8012D 80+ CRI, 920 lm 120V- 277V 40 4000K paired with 0, 2, 3, or * (Required for and only C media) 9007D 90+ CRI, 455 lm available with wallwash) EG1 eldoLED, SOLOdrive 9009H 90+ CRI, 273 lm* 0.1% 0-10V, LOG, 25 25° (<16) ALTERNATE *(For use with 10�Optic only) 120 V- 277V MEDIA 35 35° (<19) * (Chicago Plenum, Airtight & 9010D 90+ CRI, 779 lm ED1 eldoLED, SOLOdrive Title 24 compliant housing) 0.1% DALI-2 DT6, 50 50° (<19) 0 No Media* 9506D 95+ CRI, 405 lm LOG, 120V - 277V * (Not available for Wet L IC, Light Enclosed* 9509H 95+ CRI, 251 lm* 80 80° * * (Chicago Plenum, Airtight Location) MX2 0.1% DMX, LOG* *(For use with 10�Optic only) * (Requires -6 wide *(Not available for X, Y and C & Title 24 compliant housing. distribution film) 2 Honeycomb Prevents light leak in transpar- 9510D 95+ CRI, 693 lm install types, consult factory) ent ceilings) Louver * AZ Adjustable * LP1 Lutron, Premier UNIVERSAL WARM DIM (Not available for Wet Zoom* (<19) REMOTE DRIVER Ecosystem 0.1% WL 2700K - * (Universal Static Location,8016D, 9014D, 9006D 90+ CRI, 395 lm Fade to Black, S IC, Remote 1800K White only. 24�, 30�, or 9513D) 9011D 90+ CRI, 690 lm 120 V or 277V* 36�, 42� and 48� * 3 Clear Film (Not available for X, Y and C WD 3000K - beam spreads. ) T Non-IC, Remote install types, consult factory) 1800K WW Wallwash* 5 Linear K IC, Airtight, REMOTE ONLY Spread Film * (Required for and UNIVERSAL TUNABLE WHITE Remote* only available with AS1 Athena Control *(Chicago Plenum, Airtight & 9010D 90+ CRI* 6 80° Wide wallwash) eldoLED, SOLOdrive Title 24 compliant housing) * (Tunable White not available for R install type) Distribution Film* 0.1% 120-277V* * (Must be paired with TR 4000K J IC, Light Enclosed, Warm Profile, 694 lm *(Includes Node. Extended lead 80˚ optic) 1800K time, consult factory) Remote* * (Chicago Plenum, Airtight Cool Profile, 611 lm TH 5000K S Honeycomb HUB Separate Remote & Title 24 compliant housing.

Louver w/ Soft Power Supply and Distribu2700K Prevents light leak in transparFocus Film* ent ceilings) tion Hub. Powers up to 6 * (Not available for 8016D, 24 2400K* SLIM STATIC WHITE Fixtures* REMODEL *(90+CRI Only) 9014D or 9513D) *(Requires further specification 8008D 80+ CRI, 594 lm on page 2) 27 2700K R Remodel* C Honeycomb *(Not available for Tunable 8009H 80+ CRI, 346 lm* BUD Combined Remote 30 3000K Louver w/ Clear * (For use with 10�Optic only) White) Power Distribution, Film* 35 3500K 8012D 80+ CRI, 1012 lm * (Not available for 8016D, Powers up to 6 Fixtures* REMOTE REMODEL 40 4000K *(Requires further specification 9014D, 9513D) 8016D 80+ CRI, 1227 lm on page 2) M Remote Remodel 9007D 90+ CRI, 503 lm TUNABLE WHITE 3.4” SLIM HIGH OUTPUT HOUSING 9009H 90+ CRI, 293 lm* REMOTE ONLY *(For use with 10�Optic only) (INTEGRATED LED HOUSING) (120V-277V) SF: 1/2” - 1” MAX CEILING THICKNESS 9010D 90+ CRI, 860 lm DD2 eldoLED, DUALdrive, SW: 1/2” - 5/8” MAX CEILING THICKNESS 9014D 90+ CRI, 1042 lm 0.1%, DALI-2 DT8, LOG SEE PAGE 2 FOR T-GRID ACCESSORY 9506D 95+ CRI, 448 lm DG1 eldoLED, DUALdrive INTEGRAL DRIVER 9509H 95+ CRI, 270 lm* SF Fixed 0.1% 0-10V, ACLOG *(For use with 10�Optic only) SW Wallwash* X IC MX2 0.1% DMX, LOG 9510D 95+ CRI, 765 lm * (Not available for Y NIC AD1 Athena Control, trimless millwork, 8016D, 9513D 95+ CRI, 927 lm EldoLED, DUALdrive 9014D, 9015D, or 9513D) C IC, Airtight* SLIM WARM DIM 0.1%* * (Chicago Plenum, Airtight & *(Includes Node. Extended lead Title 24 compliant housing) WL 2700K 9006D 90+ CRI, 479 lm time, consult factory) 1800K REMOTE DRIVER 9011D 90+ CRI, 837 lm LOW VOLTAGE SYSTEM WD 3000K 9015D 90+ CRI, 1009 lm LVS Low Voltage System* V IC, Remote 1800K * (See page 14 for specification W NIC, Remote information. Only available with SLIM TUNABLE WHITE S, T, K, J, M, V, W, D install types) D IC, Airtight, 9010D 90+ CRI Remote* * (Chicago Plenum, Airtight & TR 4000K Title 24 compliant housing) Warm Profile, 764 lm 1800K CONSULT FACTORY FOR LINEAR 0-10V OR CASAMBI TH 5000K Cool Profile, 672 lm CONTROLS 2700K UNIVERSAL STATIC WHITE 8008D 80+ CRI, 538 lm 8009H 80+ CRI, 322 lm*

*(90+CRI Only)

* (For use with 09H lumen package only)

STANDARD MEDIA

*ALL LM DATA REFLECTS 15�OPTIC

luciferlighting.com

©2026 Lucifer Lighting Company As part of its policy of continuous research and product development, the company reserves the right to change or withdraw specifications without prior notice.

[ DATE OF REV: 07162026]

MEDIA

[PH] +1-210-227-7329 [FAX] +1-210-227-4967

pg. 1

BBB OFFICE

TYPE R4B ALT

NIO-2RTLNDC

Type

2" Iolite Round Trimless Downlight Source: 13W LED 800lm or 1000lm

Project Catalog No. Notes

PRODUCT DESCRIPTION 2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.

PRODUCT IMAGES AND DIMENSIONS

FEATURES · Trimless knife edge appearance · 800lm or 1000lm LED packages · Comfort Dim (warm dimming) also available in 800lm only · 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI · Flood optic, narrow flood and spot optics (included) · 5-Year limited warranty

2-3/4"

NIO-2RTLNDC Non-Adjustable

SPECIFICATION Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.

Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.

BB Black

BZ Bronze

CH Champagne Haze

HZ Haze

MPW Matte Powder White

WW White

OPTICS 800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.

ELECTRICAL Lumens / Wattage: 800lm or 1000lm / 13W Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K Color Rendering Index: 90+CRI Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70 Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.

Dimming: Specified by housing COMPATIBLE HOUSINGS Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.

CATALOG NO. DESCRIPTION LUMENS / WATTAGE NHIOICD-28 ICAT New Construction 800-1000lm / 13W NHIOICDCP-28 Chicago Plenum 800-1000lm / 13W Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.

LABELS AND LISTINGS · cULus Listed for Wet Locations · 5-Year Limited Warranty · RoHS Compliant · Certified to the high efficacy requirements of California Title 24 JA8-2025

WET

5 YEAR L I M I TE D

WARRANTY

TITLE

24

COMPLIANT

o omfortDim

®

RoHS

COMPLIANT

Recreate the Sunset with LED

2" Iolite Round Trimless Downlight - New Construction Housing & Trimless Mud Ring Required

Compatible Housings

Color Temperature

Housing Type

Finish

NIO-2RTLNDC50X = 5000K* NIO-2RTLNDCCDX = Comfort Dim † NIO-2RTLNDC27X = 2700K NIO-2RTLNDC30X = 3000K NIO-2RTLNDC35X = 3500K NIO-2RTLNDC40X = 4000K NIO-2RTLNDC50X = 5000K * †

BB = Black BZ = Bronze CH = Champagne Haze HZ = Haze MPW = Matte Powder White WW = White

Lumens / Wattage (blank) = 800lm / 13W /10 = 1000lm / 13W

NHIOICD-28 = ICAT New Construction / 800-1000lm / 13W NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 13W

2" Iolite Trimless Mud Ring Description NIO-TLMR-2RA = 2" Round Trimless Mud Ring

5000K LED modules in 800lm are while supplies last Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite

Example: NIO-2RTLNDC50XWW / NIO-TLMR-2RA = 2" Iolite Round Trimless Downlight, 5000K, White finish, 800lm / 2" Round Trimless Mud Ring 6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com © 2025 Nora Lighting, Inc. All rights reserved. Specifications subject to change without notice.

051126P1

TYPE R4B SPEC

BBB OFFICE

BLANK

BBB OFFICE

TYPE R4B ALT

2" Iolite Accessories

Type

2" Iolite Round Trimless Downlight

Project Catalog No. Notes

FIELD CHANGEABLE OPTICS Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available.

LED Module

Frosted Optics Optic

NIO-REFL38FR NIO-REFL60FR

Premium TIR Optics 60° Optic 73° Optic

Not compatible with /HL LED module.

NIO-REFLTIR15 NIO-REFLTIR25

10° TIR Optic Assembly 22° Optic 26° Optic

Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.

Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.

Die-cast Trim ACCESSORIES Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim.

Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.

LED Module

Accessory

Die-cast Trim

Translucent Decorative Collar

Opaque Collar Snoot

Hex Cell Louver

NIO-AS14(color) 5/8" length NIO-AS19(color) 3/4" length NIO-AS26(color) 1" length Color: AM (amber), BLU (blue), FR (frosted), R (red)

NIO-AS14(color) 5/8" length NIO-AS19(color) 3/4" length NIO-AS26(color) 1" length Color: MPW (matte powder white), WH (white)

NIO-HC

Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.

Opaque snoot greatly reduces aperture brightness while preserving light output.

Hex cell louver is not compatible with TIR optics.

Black

Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.

TRIMLESS 2" Iolite trimless downlights have no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.

Mud Ring Suction Cup

Trimless Mount Mud Ring

Suction Cup for Removal

NIO-TLMR-2RA

NIO-TLSUCTION

Mounts trimless downlight with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIO-2RTLNDC or NIO-2RTLA. Dimensions: 7-7/8" diameter 1/2" thick

Assist removing trimless downlight from finished ceiling after installation. For maintenance on trimless downlight.

6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com © 2025 Nora Lighting, Inc. All rights reserved. Specifications subject to change without notice.

051126P2

TYPE R6B SPEC

BBB OFFICE a CarbonNeutral company

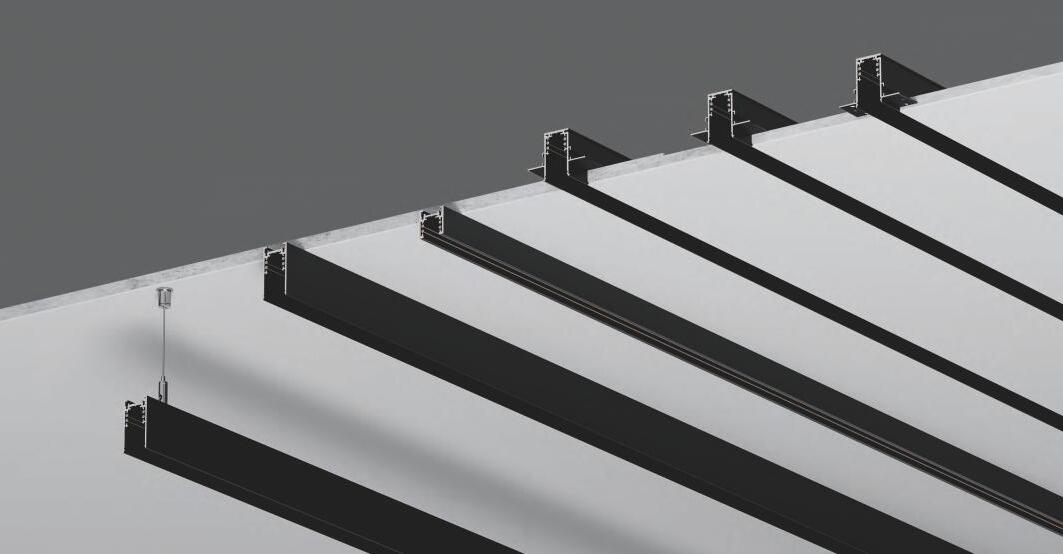

LSR3 recessed CRI>90 >90 CRI up to

112

lumens /watt

The LS Series of architectural luminaires offers a wide range of profiles and mounting options.

Custom lengths and patterns are tailored to suit any modern space.

Features

Dimensions

• Living Building Challenge Declare listed. Red List Free optional.

• Extruded recycled aluminum housing • Aluminum core LED boards, specifiable optics

3.7"

3.5"

• Specifiable color temperature. CRI > 90, R9 > 70 • Custom lengths, welded patterns, and finishes available 3.2"

• Integral specifiable dimmable drivers or PoE

flange/mud-in flange

• 5 Year, 50,000 hour warranty, damp location rated

3"

grid/slot grid/wood

¹Flat End Cap is standard, Overhang End Cap available, see page 5.

• Compatible with all wood ceilings • WELL Building Standard compatible learn more

Optics

916 cd

1200 cd

824 cd

762 cd

flat lens

asymmetric

wall wash

avi-batwing

Representative distribution and peak candela. For other options see order information or IES files here.

Page 1 of 5

T 973 345 7660

Modification date: March, 2026 Coronet reserves the right to make design changes.

BBB OFFICE

TYPE R6B ALT

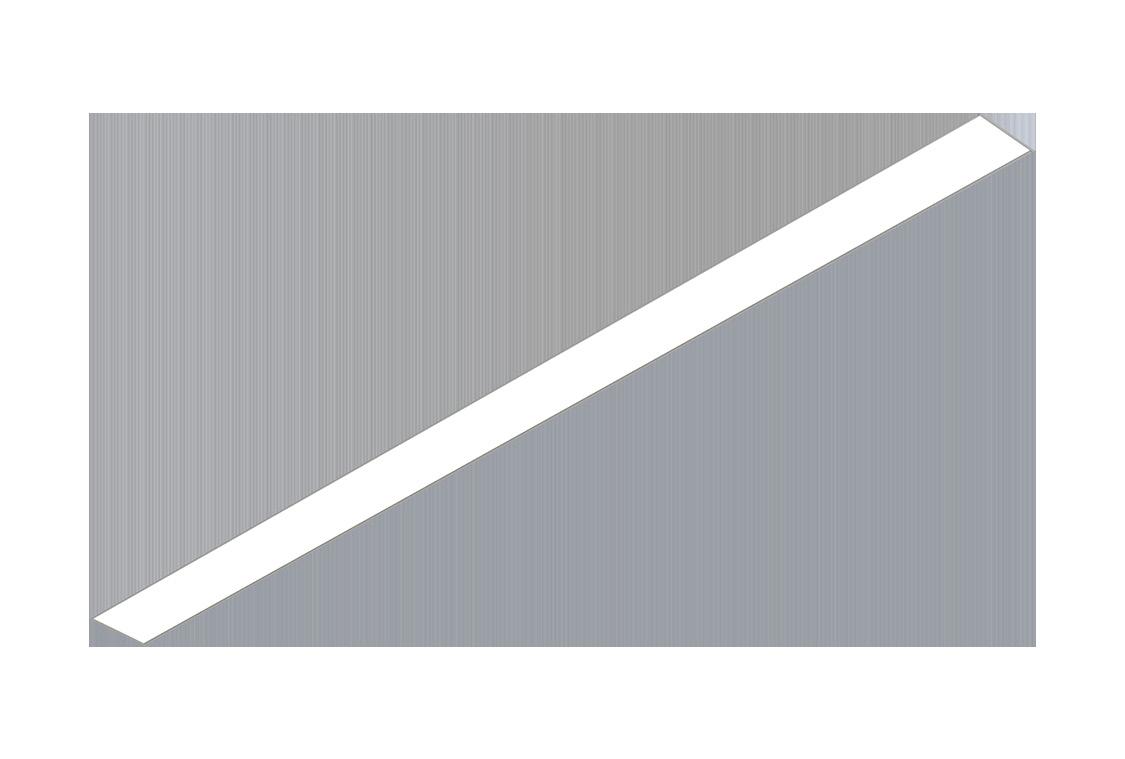

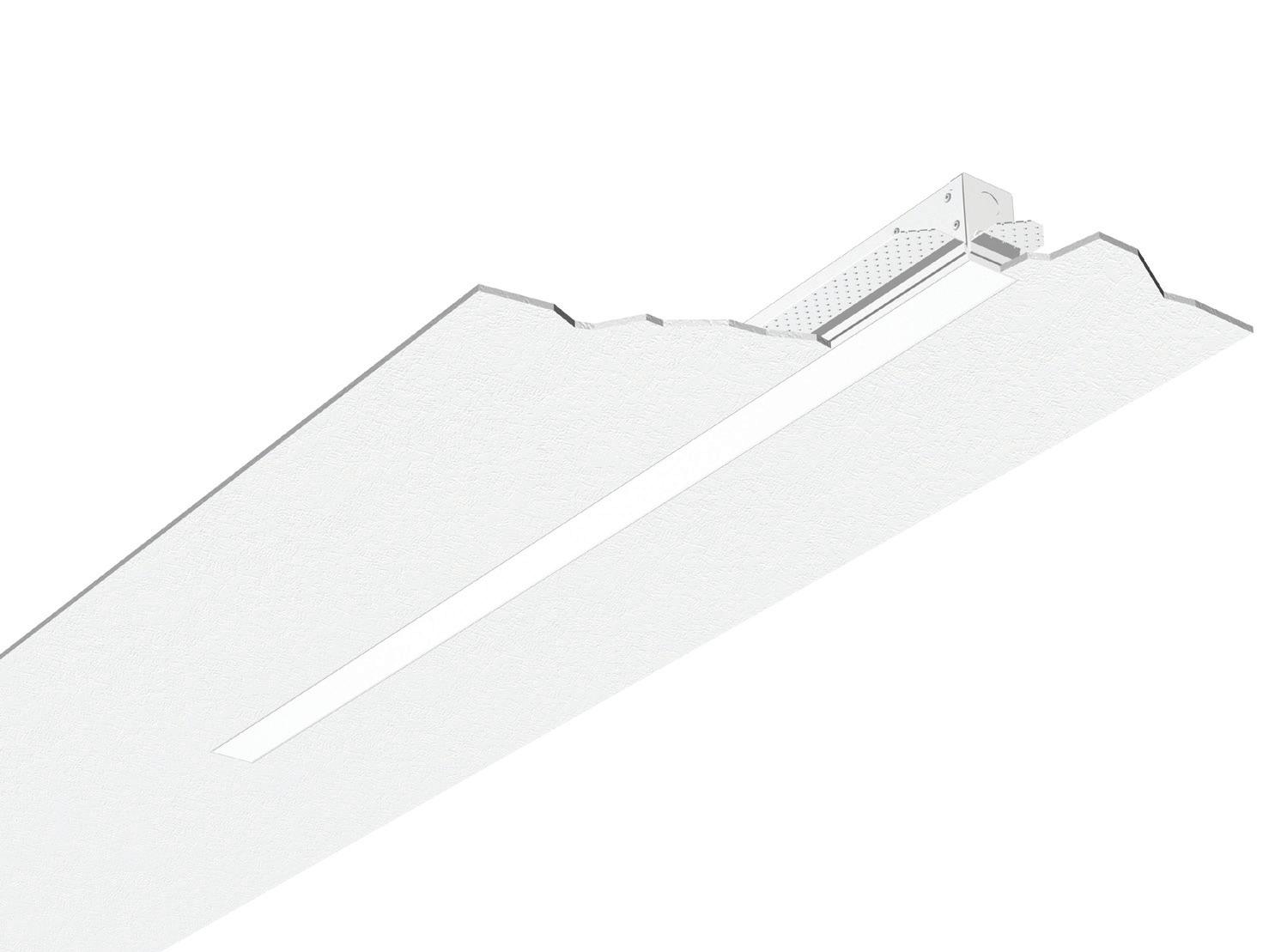

Grüv® 2.5” Recessed Linear LED

PROJECT: TYPE: Features Small in scale, big on performance: Grüv® 2.5” LED, 5 or 10 watts/foot, delivers superior performance that makes it ideal for ambient lighting in ceiling and wall applications. At only 2.5” in width and less than 6” in depth: and providing superior visual aesthetic with snap-in hybrid micro-linear lens Grüv 2.5” LED is big enough for ambient lighting and small enough to add visual accent to your designs.

GRUV2.5

Product Overview Type: Wattage: Color Temp: CRI:

Recessed Linear, Direct 5W/ft, 10W/ft (other wattages available see p2) 2700K, 3000K, 3500K, 4000K; Tunable White (2700K-5700K) 83 or 90+ typ. (2700K, 3000K, 3500K, 4000K) 90+ (Tunable White) Static White Tunable White Dimming (wired): 0-10V, 1% dimming (standard) 0-10V TW, 1% dimming Lutron LDE1 Hi-lume® 1% Dim DALI DT8, 1% digital dimming Soft-On/Fade-to-Black DALI dimming, 1% dim Dimming (wireless): Lutron Athena (integral Lutron Athena TW (integral wireless RF node)

wireless RF node)

Certifications

BubblyNet Bluetooth

5 Fixture Summary Ceiling Types 4” Tech Zone 6” Tech Zone 9/16” 15/16” * Gyp Board Millwork Perimeter J-Mold No

No

Yes

Yes

Yes

Yes

Yes

* Flange Grid (GRUV2.5-FLG-GRID) model only.

Performance Data Nominal Wattage/Foot Delivered Lumens LPW Color Temp-CRI 5

2351

121.8

3500K-83

10

4374

115

3500K-83

Data is based on 4’ fixture with Performance lens, 3500K, 83CRI IES files available on website.

Electrical Data 4’ Wattage/Foot

8’

Voltage

System Watts

Amps

System Watts

Amps

120V

19.3

0.16

38.6

0.32

277V

19.3

0.07

38.6

0.14

120V

38

0.32

76

0.63

277V

38

0.14

76

0.27

5 10

Electronic multi-volt (120-277VAC), constant current LED driver.

Standard Patterns Wall to Ceiling Custom* Yes

Yes

Yes

Yes

Yes

Yes

Yes

* Submit drawing, consult factory 178 Bauer Drive, Oakland, NJ 07436 • P: 973-882-5010 F: 973-882-2605 • amerlux.com Amerlux reserves the right to change details that do not affect overall function and performance.

LIT-2035 • 03/17/26 • Page 1 of 13

TYPE R6B SPEC

BBB OFFICE a CarbonNeutral company

LSR3 recessed Ordering Information For each option group below specify one option. If you don’t see your preferred option listed, contact us for help.

1

Fixture ID

2

LSR3

Length

2 4 8 XX PAT

2 ft 4 ft 8 ft Specify length Pattern Submit drawing.

3

Color Temperature

4

27 30 35 40 50 TW

2700K/90 CRI 3000K/90 CRI 3500K/90 CRI 4000K/90 CRI 5000K/90 CRI Tunable White 2700K-6500K

LOW MED HIGH CUST

Output Low output Medium output High output Custom output

Specify watts or lumens: Up to 13W/ft max.

Down to 6W/driver min.

Must use TW10 driver.

RGBW30 RGB +white; 3000k

Must use remote DMX driver.

RGBW35 RGB +white; 3500k

Must use remote DMX driver.

RGBW40 RGB +white; 4000k

Must use remote DMX driver.

WD

5 UNV 347V

Voltage

6

9

Driver

DB DB.1% ELV TRI LDE1 JA8 DALI PoE TW10

Universal (120/277V) 347V

Optics

AVI.BWG Batwing optic ASYM Asymmetric optic WW Wall wash reflector POL 1-inch Pop out lens FL Flat diffuser

Must use WD10 driver.

7

Finish

8

W BLK CC

White Black Custom color

CWF

Custom wood finish

SLV

Silver

WD10 DMX

Standard 0-10V 1% 0-10V 0.1% Reverse phase 1% (120V only) Forward phase Lutron Digital EcoSystem JA8 compliant 1% dimming DALI-2 driver Power over ethernet 2 channel 0-10V for tunable white 0-10V warm dimming DMX512

10

Sensors/Controls

11

See finish options here See finish options here

T T15 SG F NT PM.X WOOD

Mounting 9/16th. Tee Grid 15/16 in. Tee Grid Slot Grid/Interlude Flange Mud-in Flange X denotes mounting type on opposite side of wall (eg PMNT).

Wood ceiling Provide specifications.

All DMX drivers set to default address 001 and provided in remote enclosers. Contact us for other addressing needs.

NA None WISM_% Wattstopper occupancy WISD Wattstopper daylight ACM Acuity nLight- module only ACS Acuity nLight- (nES 7) ACAS Acuity nLight- AIR (rES 7) CCS Casambi module AWNR Lutron Athena wireless node AWNS Lutron Athena wireless node with sensor OTHER Consult factory ACAM Acuity nLight Air (rIO)

Output¹

Watts/ft

Lumens/ft

LPW

Low

3.5

393

112

Medium

5.5

593

108

High

7.5

806

108

Based on a typically configured 90 CRI, 3500K luminaire using one driver.

Custom outputs available. Please consult factory.

For 4000K multiply by 1.05; for 3000K, 0.96; for 2700K, 0.92.

For Warm Dim multiply by .80.

NA EMPCK EMCKT

Circuit

12

None Emergency battery pack Emergency circuit

May require additional power feeds.

DAYCKT Daylight circuit

May require additional power feeds.

NA WH6 CP RLF OEC

Options None 6ft whips preinstalled Chicago Plenum Red List Free Overhang endcap

Technical Information

Performance

1

Warm Dim 2200K-3000K

click here or scan QR code

Wiring diagrams, PoE and sensor details

Page 2 of 5

T 973 345 7660

Modification date: March, 2026 Coronet reserves the right to make design changes.

BBB OFFICE

TYPE R6B ALT

Grüv® 2.5” Recessed Linear LED

PROJECT: TYPE: Ordering Information

1 1

2

3

Model

4 2

GRUV2.5-FLG-A16† exposed flange GRUV2.5-FLG-GRID-A16† exposed flange grid mount GRUV2.5-GB-A16† gyp board trimless mud-in GRUV2.5-GRID-A16† grid mount GRUV2.5-IS-A16† independently suspended, millwork GRUV2.5-J/GB-A16† j-mold/gyp board trimless GRUV2.5-J/GRID-A16† j-mold/grid GRUV2.5-J/IS-A16† j-mold/independently suspended 4

Color Temp-CRI Static White 27 2700K-83 279 2700K-90+ 30 3000K-83 309 3000K-90+ 35 3500K-83 �59 3500K-90+ 40 4000K-83 409 4000K-90+ Tunable White TW9-2757 tunable white, 90CRI

5

HW

120/277

5

6

8

7

Optics

9 3

PL performance lens (standard) DL designer lens SLDW straight blade louver, white aluminum, solid blades w/overlay SLDB straight blade louver, black, solid blades w/overlay SLDS straight blade louver, silver, solid blades w/overlay DRP1 1” drop lens

10

Wattage (per foot) Standard 5 5W/ft 10 10W/ft

Optional 3 3W/ft* 4 4W/ft* 6 6W/ft 7 7W/ft 8 8W/ft 9 9W/ft

* 4' min. length required

Finish

6

HW high reflectance matte white

Voltage

7

Length _________________ x _________________ x _________________ Length A Length B Length C - all patterns - all patterns - PU - IND/IND-S+ - PR (2 lengths of 2) - PZ - CON/CON-S+ - CUS

120/277

(9'X19'/13'X24')

(2700K-5700K)

8

Configuration IND1 individual fixture, 2' to 8' in 1' increments IND-S+ individual with standard plus (see pg 8 for GRID or J/GRID only) CON continuous run > than 8', specify to nearest foot CON-S+ continuous run with standard plus (see pg 8 for GRID or J/GRID only)

CUS custom made to measure, ± 1/8" of customer supplied field dimensions Standard Patterns (see pg 8 for details) PLL L left, (2) straights + (1) 90° corner, leg right PLR L right, (2) straights + (1) 90° corner, leg left PU U shape, (3) straight lengths + (2) 90° corners PR Rectangle shape, (4) straight lengths + (4) 90° corners PZ Z shape, (3) straight lengths + (2) 90° corners PWC wall to ceiling (1) 90° corner joining (2) segments For custom patterns, submit an EDR on amerlux.com

10

9

Drivers/Controls Wired - Static White 0-10V 1% analogue dimming, 120-277VAC, dim to off when selected with wireless dimming control HILUME-H-ECO Lutron LDE1 Hi-lume® 1% dim Soft-On/Fade-to-Black DALI DALI dimming 120-277VAC, 1% dim Wired - Tunable White 0-10V-TW 1% dimming, multi-volt (120V-277V) constant current DALI-DT8 1% digital dimming, CCT control per DALI DT8 (120V-277V) constant current Wireless - Static White AWNR-WH-SR Lutron Athena wireless node, RF only, white, D4i/DALI-2 AWNR-BL-SR Lutron Athena wireless node, RF only, black, D4i/DALI-2 AWNR-WH-010 Lutron Athena wireless node, RF only, white, 0-10V AWNR-BL-010 Lutron Athena wireless node, RF only, black, 0-10V AWNR-OCC-WH-SR Lutron Athena wireless node, Occupancy & Daylight sensor, white, D4i/DALI-2 AWNR-OCC-BL-SR Lutron Athena wireless node, Occupancy & Daylight sensor, black, D4i/DALI-2 AWNR-OCC-WH-010 Lutron Athena wireless node, Occupancy & Daylight sensor, white, 0-10V AWNR-OCC-BL-010 Lutron Athena wireless node, Occupancy & Daylight sensor, black, 0-10V BN-BT-OCC-WH-SR BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, D4i/DALI-2 BN-BT-OCC-WH-010 BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, 0-10V Wireless - Tunable White AWNR-WH-SR-TW Lutron Athena wireless node, RF only, white, D4i/DALI-2 AWNR-BL-SR-TW Lutron Athena wireless node, RF only, black, D4i/DALI-2 AWNR-OCC-WH-SR-TW Lutron Athena wireless node, Occupancy & Daylight sensor, white, D4i/DALI-2 AWNR-OCC-BL-SR-TW Lutron Athena wireless node, Occupancy & Daylight sensor, black, D4i/DALI-2

Options/Accessories CP Chicago Plenum (CCEA) WHIP 6' whip, 18/5 conductor EMC-PF2 emergency circuit requires power feed located in last fixture section (for other locations consult factory) PF2 extra power feed for additional circuiting EMB emergency battery pack (not available for lengths under 4')

† The "A" refers to the sequential revision in a year and "XX" refers to the year of update. Updates coincide with improved performance while not changing the overall fixture aesthetic and are reflected in the published performance data. Please contact your Amerlux representative for explanations of changes.

1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.

2 Not available with IND (individual) configuration.

178 Bauer Drive, Oakland, NJ 07436 • P: 973-882-5010 F: 973-882-2605 • amerlux.com Amerlux reserves the right to change details that do not affect overall function and performance.

LIT-2035 • 03/17/26 • Page 2 of 13

TYPE R8 SPEC

BBB OFFICE TYPE

SPECIFICATION DATA

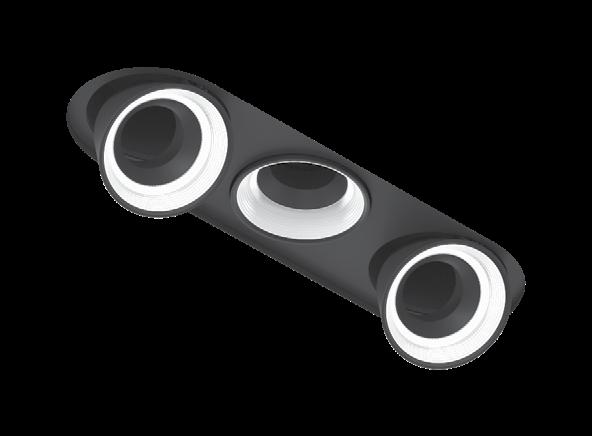

SPEAK RECESSED MULTIPLE 3" (SK1Mx3 | SK1Lx3) CATALOG #

PROJECT

NOTES

PERFORMANCE FOCUS DIMENSIONS

Per Light Module, Adjustable, Medium Beam, 80 CRI 3500 K

Round Trim Flange version.

Energy (W)

Light (lm)

Efficacy (lm/W)

B

9W

725

79

C

14 W

1050

77

MAX 8.46 in 215 mm

(S3) 3" SINGLE

2.87 in 73 mm

ENERGY STAR TITLE 24 JA8 (90 CRI)

D (Fixed) 4.96 in 126 mm

Certified

3.0 in 76 mm

(D3) 3" DOUBLE

0.38 in 9.5 mm

19 W

1750

(Pending)

90

Lumen Maintenance (hr)

Color Matching (SDCM)

L80 per TM21

L70 Estimate

<2

> 54,000

> 140,000

Nominal values, refer to back pages for full performance data.

2.87 in 73 mm

FEATURES

(T3) 3" TRIPLE

9.26 in 235 mm

0.38 in 9.5 mm

4.96 in 126 mm 3.0 in 76 mm

• 1, 2 or 3 light recessed multiple with fixed or adjustable light modules.

• 3" or 4" open center optic — reflector replaced by source.

• Anidolic Extraction Optics™ generate a visually comfortable, precisely controlled light distribution in a narrow (30°), medium (40-50°) or fixed wide beam (60°).

• Optional drop center delivers a bolder ring of light appearance.

• Round or square trims with drywall trimless, millwork and IC housing options for a wide range of ceilings & aesthetics.

• Tailored multiple version allows mixed optics, finishes & 2-circuit wiring for more complex applications.

• Wide and medium beam UGR < 19.

• A variety of CRI, CCT and output choices as well as dim-to-warm control.

2.87 in 73 mm

Center-to-center: 4.25 in (108 mm)

13.5 in 343 mm 0.38 in 9.5 mm

4.96 in 126 mm 3.0 in 76 mm

Spec-Fluxwerx-Speak-Recess-Multiple-3in-na-en | 2026-07

All rights reserved. © Fluxwerx Illumination 2026 604.549.9379 | fluxwerx.com Due to continuous product improvements, specifications and dimensions are subject to change without notice.

Certain options have limited compatibility with some other product selections. Consult www.fluxwerx.com for most current technical information.

1 of 19

BBB OFFICE

TYPE R8 ALT Type: Description:

YORI 2LT. OVAL RECESSED 3.7”

INDOOR - RECESSED

REGGIANI SPA ILLUMINAZIONE

Project:

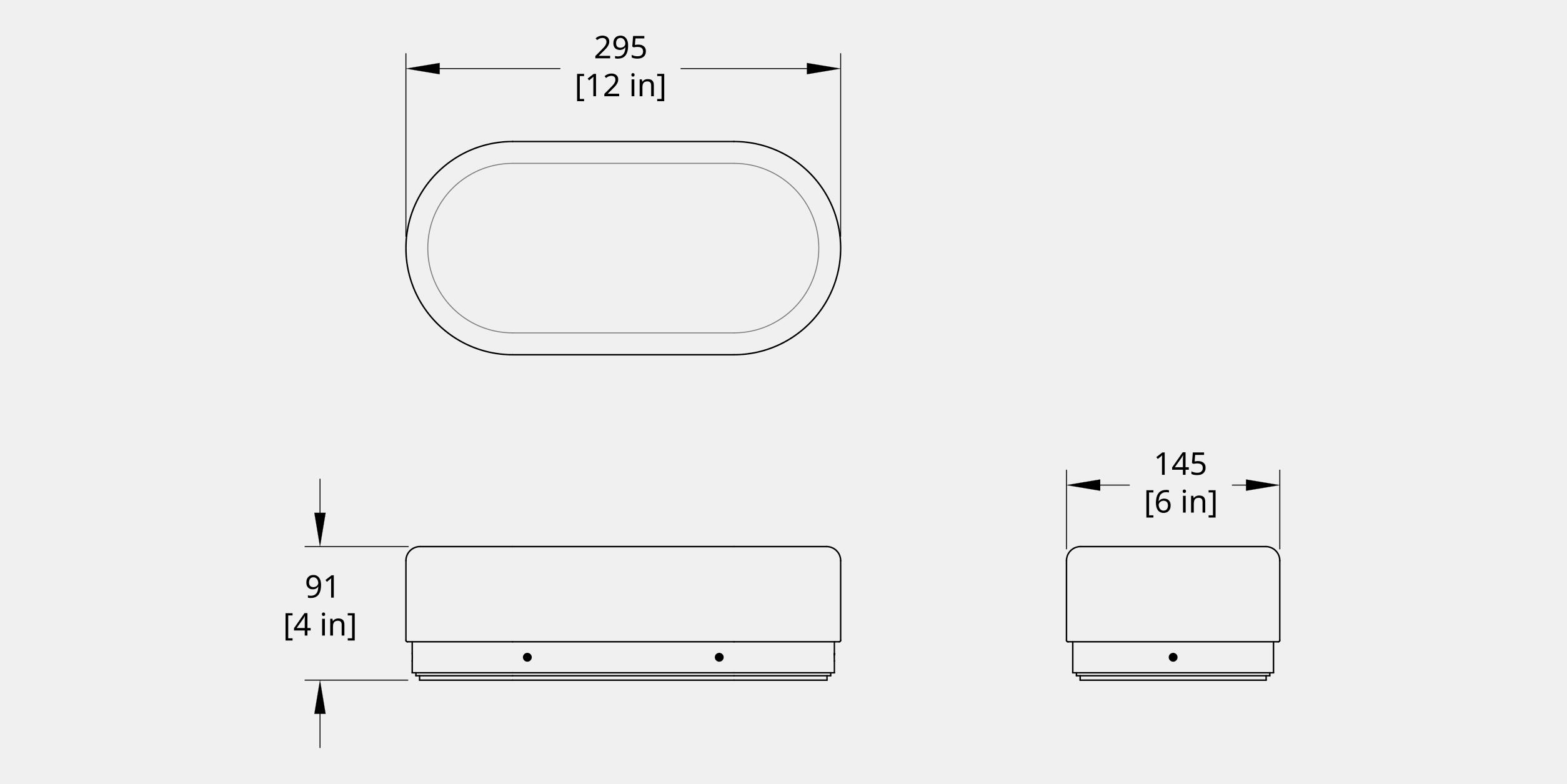

Oval: 6.2 x 11.5in

Yori 2 Lt Oval Trim

Precision = Refractor Optics Performance = Reflector Optics

Yori 2 Lt Oval Trimless

LIGHT ENGINE COB LED Very Narrow Optic A .

Trim . 9M Oval Trim EM Oval Trimless

Example:

5

4

Optic Type

Wattage

Optics

5 Precision

4

A

A 17Wx2

A.9M54A.HW12

.

Precision 7°

NOTES 1. For alternate ceiling thickness consult factory 2. For 3500K, must consult with factory to confirm availability.

CCT . HW HQ WW WN2 NN HC

17Wx2 2700 K 3000 K 3000 K 3500 K 4000 K 3000 K

CRI >90 CRI >90 CRI >80 CRI >80 CRI >80 CRI >98

lm 1870x2 lm 1920x2 lm 2320x2 lm 2360x2 lm 2400x2 lm 1700x2

Finishes 12 31

Embossed matt white Embossed matt Black

All lumens shown above are source.

Lumen delivered up to 1510 lm Precision Lumen maintenance: L90 B10=50,000h

COB LED Standard Optics A

1 1/4in Max Ceiling Thickness

Example:

A.7M53E.HW12

.

.

Trim

Optic Type

Wattage

Optics

CCT

. 7M Oval Trim 8M Oval Trimless

5 Precision 6 Performance

3 4

B E B E H M

. HW HQ WW WN2 NN HC

NOTES 1. For alternate ceiling thickness consult factory 2. For 3500K, must consult with factory to confirm availability.

12 W x2 17 W x2

Precision 12° Precison 24° Performance 10° Performance 20° Performance 31° Performance 40°

12Wx2/17Wx2 2700 K 3000 K 3000 K 3500 K 4000 K 3000K

CRI >90 CRI >90 CRI >80 CRI >80 CRI >80 CRI >98

lm 1491x2/2067x2 lm 1533x2/2122x2 lm 1859x2/2582x2 lm 1890x2/2624x2 lm 1920x2/2665x2 lm 1323x2/1834x2

Finishes 12 31

Embossed matt white Embossed matt black

All lumens shown above are source.

Lumen delivered up to 1690x2/2350x2 Precision Lumen delivered up to 1800x2/2500x2 Performance Lumen maintenance: L70 B50 =50,000h

contact@reggiani.net www.reggianiusa.com

Page 1 of 5

TYPE R8 SPEC

BBB OFFICE TYPE

SPECIFICATION DATA

SPEAK RECESSED MULTIPLE 3" (SK1Mx3 | SK1Lx3) CATALOG NUMBER 1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

OPTIONS

CONTROLS

SK1 Extra features for Tailored Version

ORDER GUIDE 1

FAMILY

SK1 Speak

2

VERSION

3

M Recessed Multiple L Tailored Multiple

SIZE

4

HOUSING 2

5

TRIM

S3 3" Single 1 D3 3" Double T3 3" Triple

A E H R T C V

New Construction 3 Retrofit 3 Insulation Contact Housing 2,4 Remote Driver 3,4 Remote Driver – Retrofit 3 Chicago CCEA Housing 4 Chicago CCEA – Remote Driver 4

C1 C2 C3 Q1 Q2 Q3

Round Trim Flange Round Drywall Trimless Round Millwork Edge Square Trim Flange Square Drywall Trimless Square Millwork Edge

very housing IC Rated at lower Energy levels or in Single size.

E For Double or Triple, IC/CCEA (H/C/V) housing limits total module Energy. Refer to ‘Energy Levels by Housing’ table.

3 A/E/R/T: Non-fire-rated installations only.

4 H/R/C/V: New construction, includes rough-in mount.

2

1

6

FINISH 5

7

TRIM | SURROUND 6 | LIGHT MODULE (select each)

I ndicate separate finish for Trim, Surround & Light Module.

Surround: Light module border & inner housing.

6

LIGHT MODULE 7

D Fixed – Drop Center R Fixed – Recess Center J Adjustable

B | B | B Black Powdercoat S | S | S Metallic Silver Powdercoat W | W | W White Powdercoat C | C | C Custom Color (RAL) 5

ailored version only applies to T Double & Triple.

8

or Single Fixed, use Recessed F Downlight.

9

N1 Narrow (30°) M1 Medium (40°| 50°) 8 W1 Wide (60°) 9

8 7

BEAM SPREAD

9

CRI

10

8 80 CRI 9 90 CRI

27 30 35 40 A1

CCT

11

B 9W C 14 W D 19 W (Fixed)

2700 K 3000 K 3500 K 4000 K Dim-to-Warm 2700-2200K 12 A2 Dim-to-Warm 3000-2200K 12 A3 Dim-to-Warm 3500-2200K 12

Fixed | Adjustable light module. ide beam only with Fixed W Light Module.

MODULE ENERGY 10,11

Add 2 W for BP or 347 V. For (D) Double or (T) Triple size: Add 2 W with A/E housing at higher Energy levels for thermal protector. IC/CCEA (H/C/V) housing limits total module Energy. Refer to ‘Energy Levels

by Housing’ table.

10 11

12

DRIVER

13 VOLTAGE

OPTIONS

CONTROLS

F1 F2 F4 E1 E2 E3 E4 L1 L3

Non-Dim 12 0–10 V Dim 3% 12 Line Voltage Dim (Fwd/Rev) 3% 120 V eldoLED ECO 0–10 V Dim 1% eldoLED SOLO 0–10 V Dim 0.1% eldoLED ECO DALI-2 DT6 Dim 1% eldoLED SOLO DALI-2 DT6 Dim 0.1% Lutron Hi-Lume 1% EcoSystem (LDE1) Lutron Hi-Lume Premier 0.1% EcoSystem (PEQ0) 13

M 1 2 3

A B F H

TYPE & LOCATION 18

BRAND & PROTOCOL 18

R Remote Sensor / Controller on Ceiling V Controller on Remote Enclosure

N1 N2 N3 L1 M1 V1

F1/F2 driver not with (A1-3) Dim-to-Warm.

Lutron L3: Max Energy D (18 W).

12

13

120–277 V 120 V 14 277 V 14 347 V

2 Circuit Wiring 15 Battery Pack 16 6' Flex Whip (not CCEA) Emergency Switch (GTD) 16,17

Separate circuit for Module B. Energy difference requires 2nd circuit.

Detached, prewired BP or GTD, 120–277 V only.

17 GTD not with (F4) Line Dim driver.

Acuity nLight Wired 19,20 Acuity nLight Air rIO 19 Acuity nLight Air RPP20 19,20 Lutron Athena Wireless Legrand Wattstopper PLUS Leviton Intellect Wireless

15

Specify (1, 2) 120 or 277 V with (F4) Line Dim driver, (N1) nLight Wired control, or (D) Double / (T) Triple size A/E housing over Energy B.

14

16

18

ontrols selection may be limited C by version, protocol or other features — see Controls page.

19 20

nLight: Controller (V) only.

Remote Driver housing only.

EXTRA FEATURES FOR TAILORED VERSION Tailored version is to specify differences in one of the Light Modules — can be placed in any module position.

14 LIGHT MODULE FINISH (B)

15 LIGHT MODULE (B)

16

BEAM SPREAD (B)

17

MODULE ENERGY (B)

B S W C

D Fixed – Drop Center R Fixed – Recess Center J Adjustable

N1 Narrow (30°) M1 Medium (40°| 50°) 21 W1 Wide (60°) 22

B C D

9W 14 W 19 W (Fixed) 23

Black Powdercoat Metallic Silver Powdercoat White Powdercoat Custom Color (RAL)

23

Fixed | Adjustable light module.

Wide beam only with Fixed Light Module.

21

22

dd 2 W with A/E housing at higher Energy A levels for thermal protector.

Refer to ‘Energy Levels by Housing’ table.

Spec-Fluxwerx-Speak-Recess-Multiple-3in-na-en | 2026-07

All rights reserved. © Fluxwerx Illumination 2026 604.549.9379 | fluxwerx.com Due to continuous product improvements, specifications and dimensions are subject to change without notice.

Certain options have limited compatibility with some other product selections. Consult www.fluxwerx.com for most current technical information.

2 of 19

BBB OFFICE

TYPE R8 ALT Type: Description:

YORI 2LT. OVAL RECESSED 3.7”

INDOOR - RECESSED

HOUSING/DRIVER (RETROFIT OPTION AVAILABLE, CONSULT FACTORY) .O Dimming

V

L

Phase-Cut

Housing/Driver Location . O

T.OLH62.159V

.

Open Housing with Remote/Semi-remote Driver

0-10V

Lutron EcoSystem

Driver Code

Plate

12Wx2

120V, Phase-cut, dims to 1%, LH100 powers 1 fixture at a time

. 159V Oval Plate

17Wx2

120V, Phase-cut, dims to 1%, LH62 powers 1 fixture at a time

12Wx2

120/277V, 0-10V, dims to 0.1%, LD49 powers 1 fixture at a time

17Wx2

120/277V, 0-10V, dims to 0.1%, LD50 powers 1 fixture at a time

12Wx2

120/277V, Lutron EcoSystem Soft-on, fade to black, dims down LL121 to 0.1%, powers 1 fixture at a time

T

Example:

REGGIANI SPA ILLUMINAZIONE

Project:

NOTES 3. For emergency driver options, consult factory

V.OLD49.159V

contact@reggiani.net www.reggianiusa.com

Page 2 of 5

TYPE S1A SPEC

BBB OFFICE a CarbonNeutral company

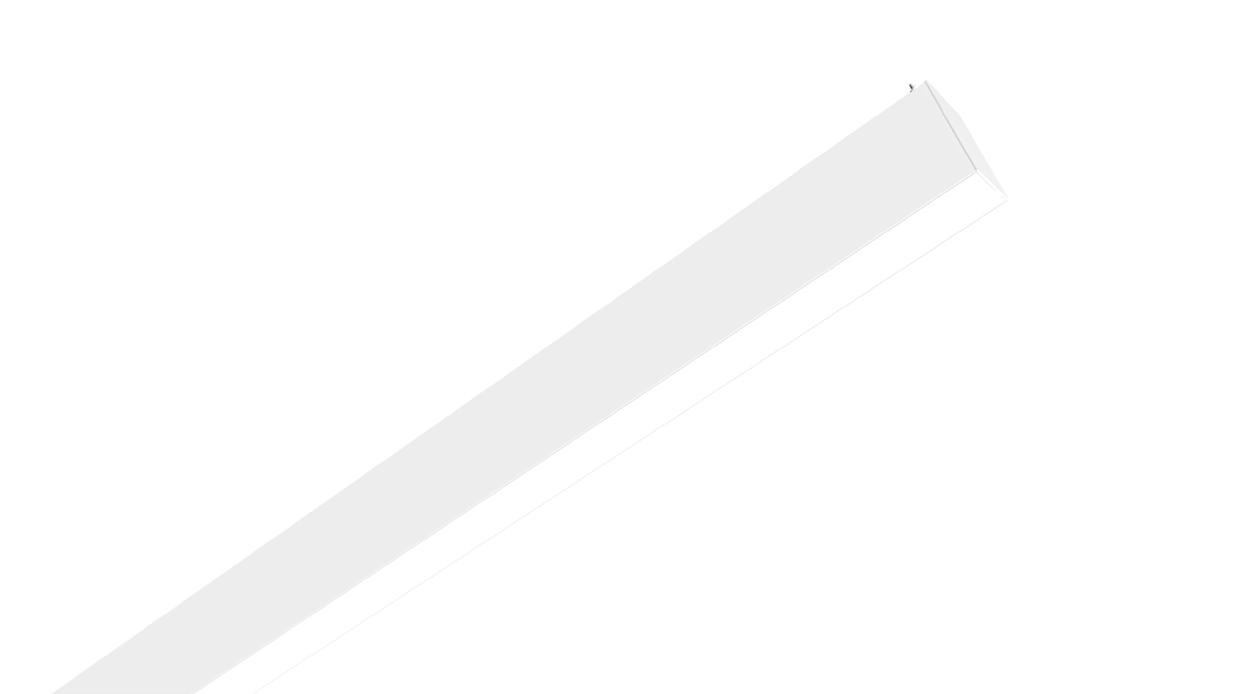

FP1

Our linear architectural luminaires offer a wide range of profiles and mounting options.

Custom lengths and patterns are tailored to suit any modern space.

Features

Dimensions

• Damp location rated • Aluminum core LED boards, specifiable output • Specifiable color temperature. CRI > 90, R9 > 50

4.5"

• Specifiable dimmable drivers or PoE • 5 Year, 50,000 hour warranty, damp location rated

2.6"

Optics

637 cd

903 cd

1205 cd

low

medium

high

Representative distribution and peak candela. For other options see order information or IES files here.

Page 1 of 4

T 973 345 7660

Modification date: April,2026 Coronet reserves the right to make design changes.

BBB OFFICE

TYPE S1A ALT

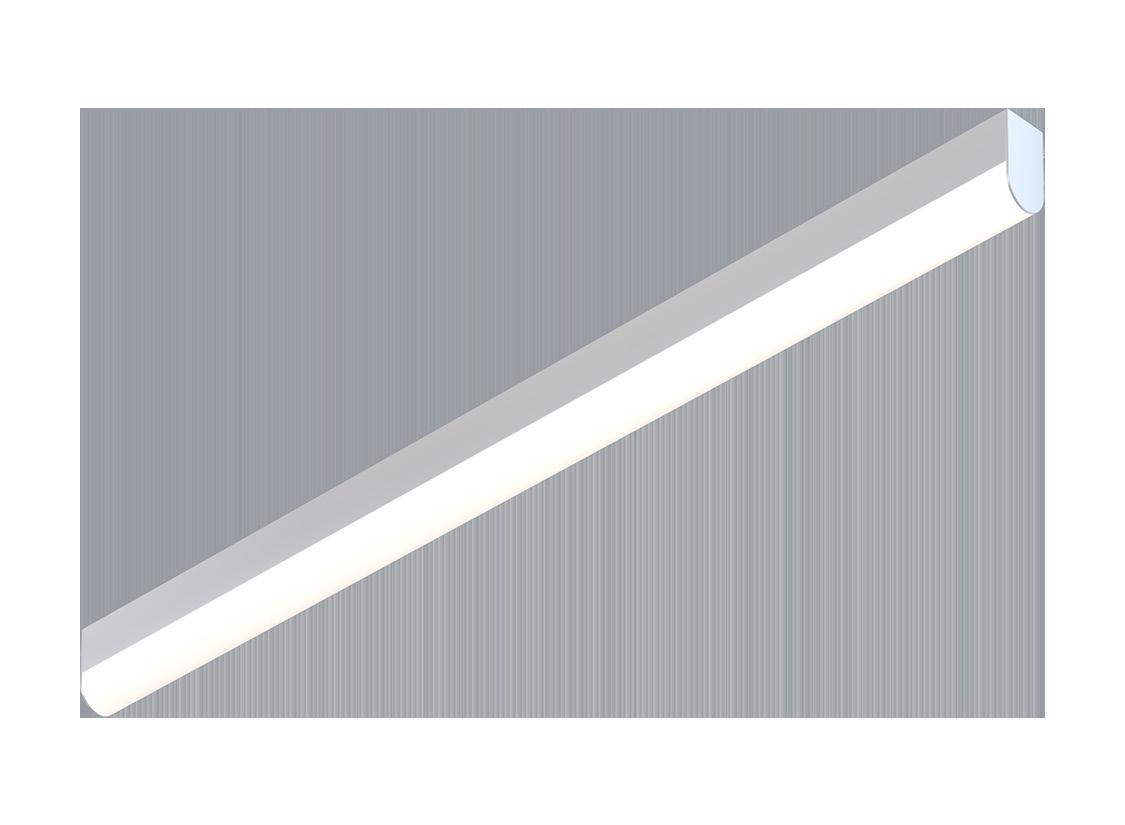

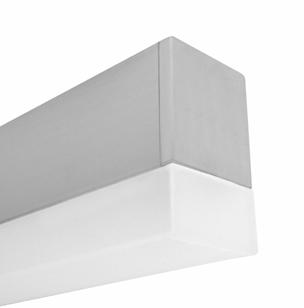

BSS205 |

1-25/32” wide LED luminaire with drop lens

Project:

Type:

FEATURES The BSS205 is a linear LED luminaire for general lighting applications.

The 1-25/32” wide extruded aluminum housing is capped by a 1” tall, rectangular or rounded profile frosted acrylic lens that produces a wide distribution of diffuse illumination from 90+CRI LEDS. 1/4” thick machined aluminum end caps finish off the fixture ends. The BSS205 is Controls Capable, being offered with a variety of integrated control options.

Fixture with certain options available for 7-Day QuickShip.

SPECIFICATIONS Fixture constructed of an extruded aluminum housing, extruded, frosted acrylic lens and machined aluminum end caps.

Model variations offered in rectangular or rounded profiles for surface, wall mount and cable suspended mounting with solid or luminous end options.

Standard finishes as shown below.

Available in nominal 2’–8’ single fixtures and continuous runs.

Basic continuous run fixtures provided with 18 ga. wiring harness for 6 Amp maximum load (consult factory for runs requiring multiple circuits, sensor integration, etc.).

Highlighted fields denote QuickShip Options. See complete 7-Day QuickShip Terms and Conditions available at www.bartcolighting.com/quickship-products/ Purchase order must reference “QuickShip”.

Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available).

SECTION

Integral 120-277V emergency battery backup available for 4’ nominal non-dim or 0-10V (consult factory for all other lengths/drivers).

2” 3”

Standard light outputs are 600, 800 or 1000 lumens per foot.

LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical.

Life: 50,000 hours L70.

1-²⁵⁄₃₂”

PERFORMANCE NOMINAL LENGTH 4’

Bartco Lighting Controls Capable fixture available with integrated controls from a variety of suppliers (FOR RECTANGULAR PROFILE ONLY).

Note: All data reflects fixtures with 3500K LEDs and rectangular profile and solid ends.

OUTPUT

Limited five year warranty.

LUMENS/ft.

WATTS/ft.

LUMINAIRE LUMENS

EFFICACY (LPW)

L: low

600

5.7

2265

108

R: regular

800

7.8

2942

101

H: high

1000

9.0

4008

112

UL and C-UL listed for dry and damp locations.

BSS205 -

-

-

-

-

-

-

-

-

NOMINAL FIXTURE LENGTH*

CORRELATED COLOR TEMPERATURE

DRIVER

OPTIC

OPTIONS

MOUNT

FINISH

ND: non-dimming

A: rectangular profile – solid end

SM: surface mount

AW: architectural white (semi-matte)

2: 22-5/8”

27: 2700K-90+ CRI

D: 0-10V, 1%

ED: emergency driver (4’ nom. non-dim or 0-10V only)

3: 33-5/8”

30: 3000K-90+ CRI

DTR: triac, 1%, (120V ONLY)

4: 44-5/8”

35: 3500K-90+ CRI

DLV: electronic low voltage, 1%, (120V ONLY)

5: 55-5/8”

40: 4000K-90+ CRI

6: 66-5/8” 7: 77-5/8” 8: 88-5/8”

[Dimming]

HES: Lutron EcoSystem, soft-on/fade-to-black, 1% EL: eldoLED ECOdrive 0-10V, 1% ES: eldoLED SOLOdrive 0-10V, 0.1%

* Actual dimension dependent on run configuration. ‡ See Integrated Controls section for driver compatibility information.

ELD: eldoLED ECOdrive DALI, 1% ESD: eldoLED SOLOdrive DALI, 0.1%

B: rectangular profile – luminous end C: rounded profile – solid end D: rounded profile – luminous end

LIGHT OUTPUT

WS1A: Wattstopper FS-205, 100%-0% ‡ WS1B: Wattstopper FS205, 100%-50%‡ ES4: Philips EasySense SNS211 MC ‡ CA1: Casambi CBUA2D ‡

(lumens per foot)

NL1: nLight RES7 ‡

L: low – 600

NL2: nLight RIO ‡

R: regular – 800

LA1: Lutron Athena A-WND01-RF-WH ‡

H: high – 1000 CF: consult factory for custom output

LA2: Lutron Athena A-WND01-OCC-WH ‡

WD: wall mount - direct WI: wall mount - indirect C4: cable mount 4’ cable length C8: cable mount 8’ cable length CF: consult factory for custom mounting

RUN CONFIGURATION

WH: white (semigloss) BL: black (semimatte) MB: matte black ESS: environmental satin silver BZ: bronze PR: primer CF: consult factory for custom finish

SN: single ST: starter AD: adder

SA: satin anodize (may require additional lead time)

TR: terminator

©2025 Bartco Lighting, Inc. These products are protected by patents and patents pending. Unauthorized use or reproduction of illustrations, photographs or text is prohibited. Bartco Lighting reserves the right to discontinue products or to change the technical and/or design specifications at any time.

pg.1 06.2025

TYPE S1A SPEC

BBB OFFICE a CarbonNeutral company

FP1 Ordering Information For each option group below specify one option. If you don’t see your preferred option listed, contact us for help.

1

Fixture ID

2

FP1

Length

2 3 4

2 ft 3 ft 4 ft

3

Color Temperature

4

27 30 35 40 50 TW

2700K/90 CRI 3000K/90 CRI 3500K/90 CRI 4000K/90 CRI 5000K/90 CRI Tunable White 2700K-6500K

LOW MED HIGH CUST

WD

5 UNV

Voltage

6

Driver

DB DB.1% ELV TRI LDE1 DALI PoE TW10

Universal (120/277V)

W CC

10

Sensors/Controls

11

NA ACM CCS AWNR OTHER

None Acuity nLight- module only Casambi module Lutron Athena wireless node Consult factory

NA EMPCK EMCKT

WD10 DMX

9

Optics

SD

Standard diffuser

Specify watts or lumens: Up to 13W/ft max.

Down to 6W/driver min.

Must use TW10 driver.

Warm Dim 2200K-3000K

Must use WD10 driver.

Finish

8 SMHC WM

White Custom color

See finish options here

Mounting Surface mount hard ceiling Wall mount

All DMX drivers set to default address 001 and provided in remote enclosers. Contact us for other addressing needs.

Output¹

Watts/ft

Lumens/ft

LPW

Low

5

460

90

Medium

7.25

652

92

High

10

870

87

Based on a typically configured 90 CRI, 3500K luminaire using one driver.

Custom outputs available. Please consult factory.

For 4000K multiply by 1.05; for 3000K, 0.96; for 2700K, 0.92.

For Warm Dim multiply by .80.

Circuit

12

None Emergency battery pack Emergency circuit

NA

Options None

May require additional power feeds.

Technical Information

Performance

1

7

Standard 0-10V 1% 0-10V 0.1% Reverse phase 1% (120V only) Forward phase Lutron Digital EcoSystem DALI-2 driver Power over ethernet 2 channel 0-10V for tunable white 0-10V warm dimming DMX512

Output Low output Medium output High output Custom output

click here or scan QR code

Wiring diagrams, PoE and sensor details

Page 2 of 4

T 973 345 7660

Modification date: April,2026 Coronet reserves the right to make design changes.

BBB OFFICE

TYPE S1A ALT

BSS205 |

1-25/32” wide LED luminaire with drop lens

OPTIC ORDERING CODE

DESCRIPTION

SPECIFICATIONS

A

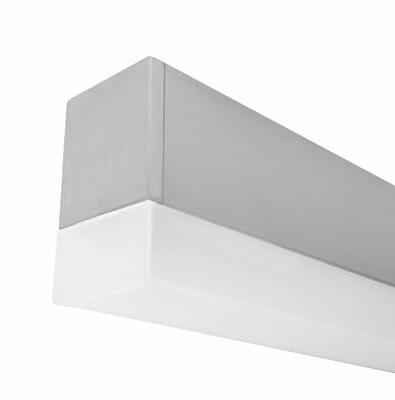

RECTANGULAR SOLID END

Rectangular profile with full height aluminum end cap

B

RECTANGULAR LUMINOUS END

Rectangular profile with aluminum end cap and frosted acrylic lens end

C

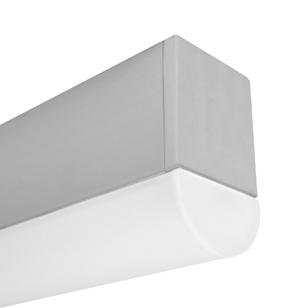

ROUNDED SOLID END

Rounded profile with full height aluminum end cap

D

ROUNDED LUMINOUS END

Rounded profile with aluminum end cap and frosted acrylic lens end

OPTIONS ORDERING CODE

ED

DESCRIPTION

SPECIFICATIONS

EMERGENCY LED DRIVER

• Universal 120-277V input voltage emergency driver delivers initial minimum power of 10W for 90 minutes.

• Available for 4’ nominal length non-dim or 0-10V fixture only (consult factory for all other lengths/drivers).

©2025 Bartco Lighting, Inc. These products are protected by patents and patents pending. Unauthorized use or reproduction of illustrations, photographs or text is prohibited. Bartco Lighting reserves the right to discontinue products or to change the technical and/or design specifications at any time.

pg.2 06.2025

TYPE S2 SPEC

BBB OFFICE

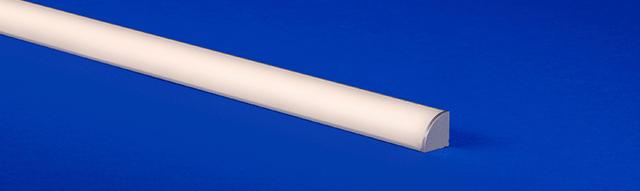

ESSENTIALS ARKA-FLAT (01) STATIC WHITE 24VDC Linear Fixtures - Corner & Surface Corner and surface mount linear fixture with rounded lens Choose from diffused, polar, or frosted lens options for varying diode visibility and beam angles Mounting options include stainless steel or plastic clip Features painted end caps to match extrusion finish Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations Can be suitable for exterior use when specified as wet, contact factory for more information INFORMATION REQUIRED FOR LIGHTING SCHEDULE

1

2

PRODUCT

WATTS/ FT

3

4

CCT

ADDITIONAL INFORMATION REQUIRED TO ORDER

5

RATED

EFFICIENCY

6

7

LENS

WIRE INPUT/ OUTPUT

8

9

10

CONNECTOR/ CONNECTOR/ WIRE IN WIRE OUT

11

WIRE COLOR

WIRE TYPE

12

13

MOUNTING

FINISH

14

15

LENGTH (IN)

EXACT/ OPTIMAL

Sample Part Number: AK1SW-5.0-30-DRY-STD-DF-P1-BW-BW-BK-CL2-SST-BK-48”-E

1

2

PRODUCT AK1SW AK1SW-USA

WATTS/FT 1.5 3.0 4.0 5.0

Select USA option for BAA and BABA projects. Only DRY or WET ratings apply.

3

1.5W/ft 3.0W/ft 4.0W/ft 5.0W/ft

See following pages for compatible power supplies.

7

18 20 22 24 27 30 35 40

8

WIRE INPUT/OUTPUT SINGLE (Input only) S1 End Feed

PASS THROUGH (Input/output) P1 End Feed

4

CCT 1800K 2000K 2200K 2400K 2700K 3000K 3500K 4000K

5

RATED DRY DMP WET

IP20 IP54 IP67

STD WO

9

WIRE TYPE CL2 CL2P N/A

Class 2 Plenum Rated For Barrel

CL2P only available with bare wire leads (BW)

12 SST PL

MOUNTING

Bare Wire (Standard 24") Barrel Connector 6" Connector 24"

CLS

BW BRL CON6 CON24

Bare Wire (Standard 24") Barrel Connector 6" Connector 24"

BW BRL CON6 CON24

Stainless Steel Plastic Clip

13 ST BK BZ CU

FINISH Satin Black Bronze Custom

LENS DF PR FR

Diffused Polar Frosted

For representation of LED visibility, see Diode Visibility section on following pages.

For beam angles, see Photometric Performance section on following pages

CONNECTOR/WIRE OUT

BW BRL CON6 CON24

Closed End (No feed)

10

WIRE COLOR

WH BK N/A

White Black For Barrel

wet barrel only available in black

BW: Standard length is 24", Max length is 120".

Request custom length by writing in part number next to BW (example: BW48)

11

Standard White Optics

WhiteOptics - Internal coating, greater lumen output

Can be suitable for exterior use, contact factory for more information

CONNECTOR/WIRE IN

6

EFFICIENCY

Bare Wire (Standard 24") Barrel Connector 6" Connector 24"

BW: Standard length is 24", Max length is 120".

Request custom length by writing in part number next to BW (example: BW48)

14

LENGTH (IN)

Minimum length is 12”, maximum length is 98” not including end caps. Contact us for lengths under 12”.

Custom finishes require a longer lead time, consult factory

© 2026 QTL. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | sales@QTL.lighting | www.QTL.lighting

15 O E

EXACT/OPTIMAL Optimal Illumination Exact Specified Length

Exact fixtures match the exact length you specify, but they may have dim spots at the ends. Optimal fixtures are slightly shorter than the length specified, but provide full illumination from end to end. See Exact/Optimal Fixture Length charts.

Specification subject to change. Rev-05-07-26

5 year warranty | Warranty only valid with QTL power supplies | Field modifications void warranty | Data subject to change, all data has +/- 5% tolerance

BBB OFFICE

TYPE S2 ALT

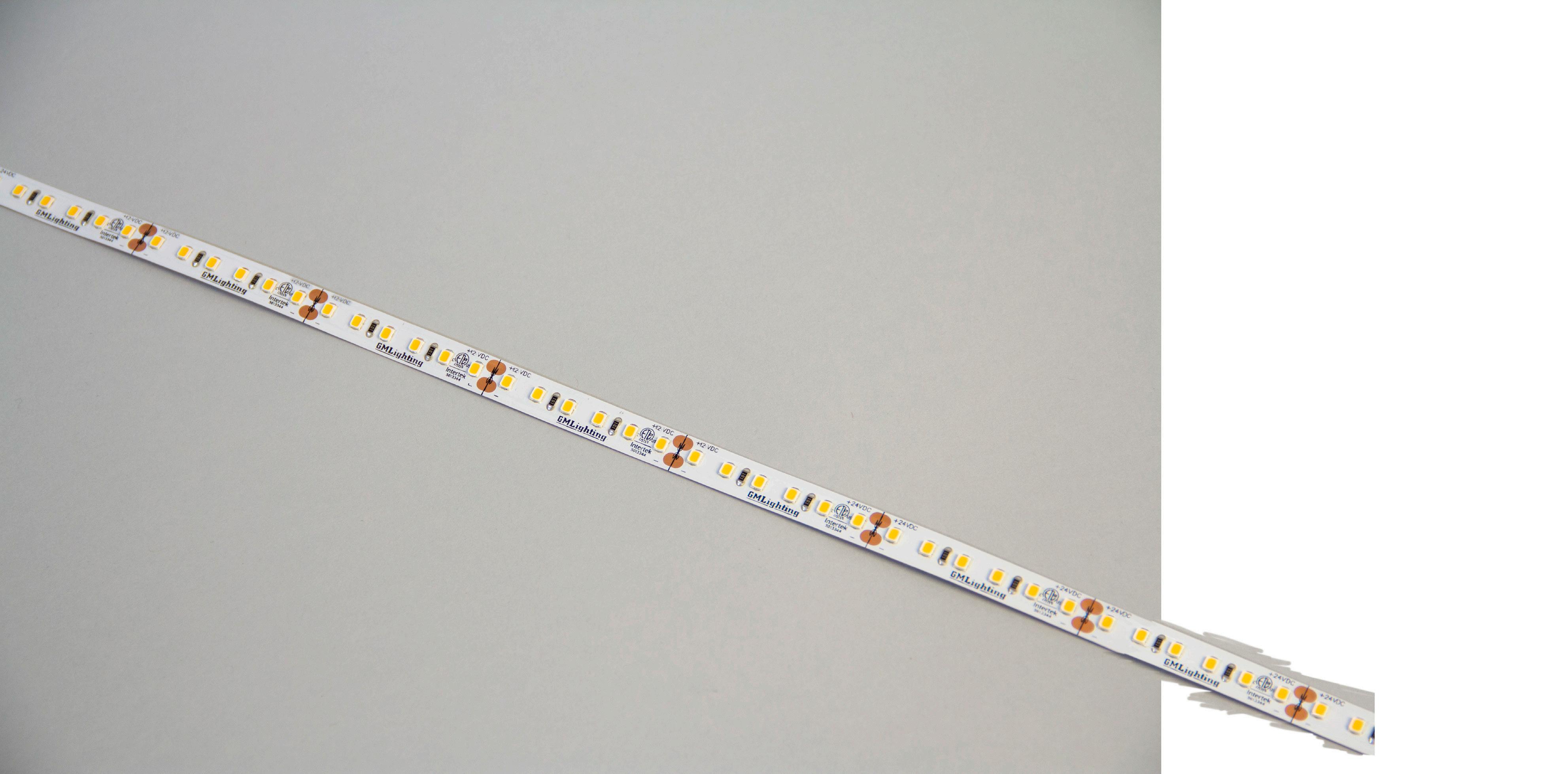

LTR-P Professional Series

®

3W, 12VDC and 24VDC LED Tape Specification Sheet PRODUCT OVERVIEW

GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.

Type

Catalog #

Date

12 24 VOLT VOLT

FEATURES • • • • • • • • • • • • •

Project Name

CLOSET

2 24 5 Yr.

L O C AT I O N

+ 90 C R I

12VDC or 24VDC models 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps Remote control with GM’s LUXcontrol™ App and controllers Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V) Dry location 120 LEDs per meter Cuttable every 2” Custom lengths available - consult factory Includes Sure-Tite connectors Premium diodes 120° viewing angle Dimmable 3M adhesive back

TITLE

CLASS DRY

WARRANTY

36 LED’s/FOOT CAN BE CUT EVERY 2”

SPECIFICATIONS CERTIFICATION • ETL (12V) / UL (24V) • Title 24 compliant when used with used with specific drivers. Consult factory.

• Class 2 • Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space

ELECTRICAL • 12V/24V • 3 watts per foot OPTICS • 90+ CRI OPERATING TEMP • -4F to 122 F

WARRANTY • 5-year warranty when paired with GM power supply Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.

ORDERING INFORMATION Model

-

-

Series

Example: LTR-P-12V-3W-24K-16 Voltage

-

Wattage

-

Color Temp

-

Reel Length

24K 12V LTR

P

3W 24V

16

27K 30K 35K 40K

100

50K *Reel Length: 16 = 16’-4”, 100 = 98’-6”

ACCESSORIES Model

Description

ESTC-1

Sure-Tite tape to tape connector

ESTC-90

Sure-Tite 90° connector

ESTLK-60

Sure-Tite 60” adjustable tape to tape connector

ESTW-60

Sure-Tite 60” adjustable tape to power connector

ESTW-CO

Sure-Tite tape to power supply connector (no wire) ®

Your LED Tape Specification Checklist: 1. Select Tape 2. Select Connectors 3. Select Channels 4. Select Controllers or Dimmers 5. Select Power Supplies

©2026 GM LIGHTING, LLC • www.gmlighting.net • Specifications subject to change without notice 18700 Ridgeland Ave., Tinley Park, IL 60477 • Toll-Free: (866) 671-0811 FAX: (708) 478-2640 • tech@gmlighting.net

Install Sheet

LTR-P-3.0W_05.29.2026 Page 1

TYPE S2 SPEC

BBB OFFICE

BLANK

BBB OFFICE

TYPE S2 ALT

LTR-P Professional Series

®

3W, 12VDC and 24VDC LED Tape Specification Sheet RECOMMENDED DRIVERS Catalog No.

Description

Watts

Specification Sheet

LD-XD-UNV

LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC

20W, 40W, 60W, 96W, 180W, 200W, 300W

View Spec Sheet

LD-MD-UNV

LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC

30W, 60W, 96W, 150W, 200W, 300W

View Spec Sheet

LD-EDM

LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC

60W

View Spec Sheet

LTP

Cord and Plug Power Supply, 12VDC or 24VDC

25W, 48W, 60W, 90W

View Spec Sheet

PSD

Electronic Dimmable Power Supply, 12VDC or 24VDC

15W, 24W, 60W, 90W

View Spec Sheet

Please see our website for updated power supply specifications and information.

DIMENSION

.32” (8mm)

16’-4” (5M reel) 100’ (30M reel)

.39” (10mm) Cuttable every 2” (51mm)

.039” (1mm)

.47” (12mm)

.47” (12mm)

EST SERIES CONNECTORS

ESTC-90 .66” (17mm) .66” (17mm)

.31” (8mm) EST SERIES

ESTC-1

®

60” (1524mm)

60” (1524mm)

ESTLK-60

ESTW-60

©2026 GM LIGHTING, LLC • www.gmlighting.net • Specifications subject to change without notice 18700 Ridgeland Ave., Tinley Park, IL 60477 • Toll-Free: (866) 671-0811 FAX: (708) 478-2640 • tech@gmlighting.net

LTR-P-3.0W_05.29.2026 Page 3

TYPE S2 SPEC

BBB OFFICE

BLANK

BBB OFFICE

TYPE S2 ALT

LTR-P Professional Series

®

3W, 12VDC and 24VDC LED Tape Specification Sheet

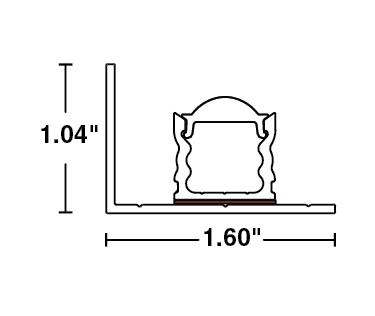

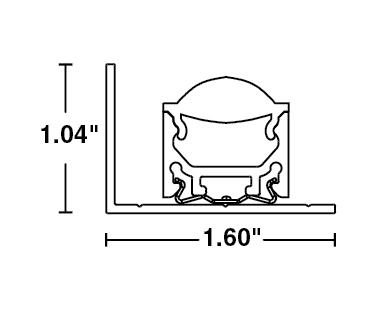

COMPATIBLE CHANNELS- FIT CONNECTORS ON PG. 1 45º ANGLE MOUNT Catalog No.

Description

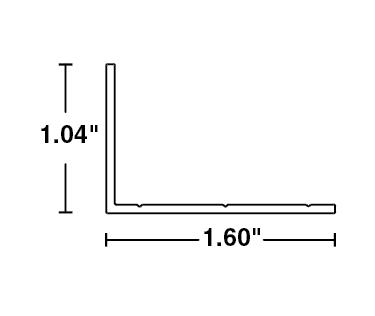

LED-CHL-45

Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws.

4’

LED-CHL-45-EC

(2) End caps for LED-CHL-45 - one solid, one with hole

N/A

LED-CHL-45-MC

(2) Mounting clips and screws for LED-CHL-45

N/A

LED-CHL-45-1200

Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws.

4’

LED-CHL-45-1200-EC

(2) End caps for LED-CHL-45 - one solid, one with hole

N/A

LED-CHL-45-1200-MC

(2) Additional mounting clips for LED-CHL-45-1200

N/A

45º LARGE ANGLE MOUNT

Dimensions .53”

.825” .825”

1.65” 90°

1.18”

1.18”

WIDE LED-CHL-W

Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws.

4’

LED-CHL-W-6

Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws.

6’

LED-CHL-W-AMC

(2) Adjustable mounting brackets for LED-CHL-W

N/A

LED-CHL-W-EC

(2) End caps for LED-CHL-W - one solid, one with hole.

N/A

LED-CHL-W-MC

(2) Additional mounting clips for LED-CHL-W

N/A

Standard extruded aluminum mud-in channel. Includes snap-on frosted lens.

6’

.75”

.457” 1.019”

MUD IN - STANDARD LED-CHL-MI-ST6

1.81” .55”

LED-CHL-MI-ST-EC

(2) End caps for LED-CHL-MI-ST6 one solid, one with hole.

N/A

.39”

.81” 1.12”

STANDARD STRAIGHT LED-CHL2-4-CA

Silver channel, white lens (2) mounting clips, (2) screws

4’

LED-CHL2-4-WH

White channel, white lens (2) mounting clips, (2) screws

4’

LED-CHL2-4-BK

Black channel, white lens (2) mounting clips, (2) screws

4’

LED-CHL2-6-CA

Silver channel, whilte lens, (4) mounting clips, (4) screws

6’

LED-CHL2-6-WH

White channel, whilte lens, (4) mounting clips, (4) screws

6’

LED-CHL2-6-BK

Black channel, whilte lens, (4) mounting clips, (4) screws

6’

LED-CHL2 LENS-4-BK

Lens in black for LED-CHL2-4

4’

LED-CHL2 LENS-6-BK

Lens in black for LED-CHL2-6

6’

LED-CHL2-ECG

(2) End caps for LED-CHL2-CA: light gray, one solid, one with hole

N/A

LED-CHL2-ECW

(2) End caps for LED-CHL2-WH: white, one solid, one with hole

N/A

LED-CHL2-ECB

(2) End caps for LED-CHL2-BK: black, one solid, one with hole

N/A

LED-CHL2-MC

(2) Mounting clips and (2) screws

N/A

LED-CHL2-AMC

(2) Adjustable mounting clips and (2) screws

N/A

®

©2026 GM LIGHTING, LLC • www.gmlighting.net • Specifications subject to change without notice 18700 Ridgeland Ave., Tinley Park, IL 60477 • Toll-Free: (866) 671-0811 FAX: (708) 478-2640 • tech@gmlighting.net

.5" .5" .69"

LTR-P-3.0W_05.29.2026 Page 5

TYPE S4 SPEC

BBB OFFICE

VERS-GRAZER (04) STATIC WHITE 24VDC Linear Fixtures - Surface & Recessed Optically enhanced VERSatile fixture with narrow grazing properties ranging from 12° to 36° The high-quality lens features a proprietary diffusing agent for superior beam control and clean edges Features integrated metal endcaps Mounting options include a concealed or magnetic clip With an internal White Optics coating, the fixture achieves greater lumen output Durable anodized aluminum housings Consult factory for field assembly options Can be suitable for exterior use when specified as wet, contact factory for more information Optional external louver accessory available in white or black for added glare control INFORMATION REQUIRED FOR LIGHTING SCHEDULE

1

2

PRODUCT

WATTS/ FT

3

4

CCT

RATED

ADDITIONAL INFORMATION REQUIRED TO ORDER

5

6

LENS

EXTERNAL LOUVER

8

7

9

10

11

WIRE INPUT/ CONNECTOR/ CONNECTOR/ OUTPUT WIRE IN WIRE OUT WIRE COLOR

WIRE TYPE

12

13

MOUNTING

FINISH

14

15

LENGTH (IN)

EXACT/ OPTIMAL

Sample Part Number: VERS-04-SW-5.0-30-DRY-GZR-L1-BK-P1-BW-BW-BK-CL2-CC-BK-48”-E

1

2

PRODUCT VERS-04-SW VERS-04-SW-USA Select USA option for BAA and BABA projects. Only DRY, PENC, or WET ratings apply.

See following pages for compatible power supplies.

7

11

3

WATTS/FT

4

CCT

5

RATED

1.5 3.0 4.0 5.0 1.5HE 3.0HE 6.0HE 9.0HE

1.5W/ft 3.0W/ft 4.0W/ft 5.0W/ft 1.5W/ft HE 3.0W/ft HE 6.0W/ft HE 9.0W/ft HE

18 20 22 24 27 30 35 40

1800K 2000K 2200K 2400K 2700K 3000K 3500K 4000K

DRY

1.5 3.0 4.0 5.0 1.5HE 3.0HE 6.0HE

1.5W/ft 3.0W/ft 4.0W/ft 5.0W/ft 1.5W/ft HE 3.0W/ft HE 6.0W/ft HE

18 20 22 24 27 30 35 40

1800K 2000K 2200K 2400K 2700K 3000K 3500K 4000K

DMP

IP54

1.5 3.0 4.0 5.0 1.5HE 3.0HE 6.0HE

1.5W/ft 3.0W/ft 4.0W/ft 5.0W/ft 1.5W/ft HE 3.0W/ft HE 6.0W/ft HE

22 24 27 30 40

2200K 2400K 2700K 3000K 4000K

PENC

IP67

1.5 3.0 4.0 5.0

1.5W/ft 3.0W/ft 4.0W/ft 5.0W/ft

18 20 22 24 27 30 35 40

1800K 2000K 2200K 2400K 2700K 3000K 3500K 4000K

WET

8

WIRE INPUT/OUTPUT

IP20

LENS

25D GZR

6

Optical 25° Grazer

EXTERNAL LOUVER L1-WH White Plastic L1-BK Black Plastic L2-ST Satin Anodized Aluminum L2-BK Black Anodized Aluminum L2-WH White Powder Coated Aluminum N/A No Louver

For representation of LED visibility, see Diode Visibility section on following pages.

For beam angles, see Photometric Performance section on following pages

Plastic Louvers come in 12” lengths, multiple pieces will be used to match fixture length.

Aluminum louvers come in maximum 98” lengths and will be cut to match fixture length.

White and custom painted finishes are not compatible with L2 external louvers.

PENC-partially encapsulated; N/A for TBC clips

IP67

Can be suitable for exterior use, contact factory for more information

9

CONNECTOR/WIRE IN

SINGLE (Input only) S1 End Feed S2 Bottom Feed S3 Left Side Feed S4 Right Side Feed

BW CON6 CON24

Bare Wire (Standard 36") Connector 6" Connector 24"

CLS

Closed End (No feed)

PASS THROUGH (Input/output) P1 End Feed P2 Bottom Feed P3 Left Side Feed P4 Right Side Feed

BW CON6 CON24

Bare Wire (Standard 36") Connector 6" Connector 24"

BW CON6 CON24

Bare Wire (Standard 36") Connector 6" Connector 24"

Pass Through options are not available for PENC rating. When using TBC Mounting, a bare wire P2 wire feed is recommended. See install instructions for details.

BW: Standard length is 36", Max length is 120".

Request custom length by writing in part number next to BW (example: BW48)

WIRE TYPE CL2 CL2P

Class 2 Plenum Rated

CL2P only available with bare wire leads (BW)

12 CC MG TBC-03 TBC-04 TBC-05 TBC-06 TBC-07 TBC-08

MOUNTING Concealed Clip Magnet 9/16" Flat TB-Grid 15/16" Flat or Tegular TB-Grid 9/16" Tegular TB-Grid or 9/16" Flat TB-Grid, with External Louver 9/16" Tegular TB-Grid, with External Louver 15/16" Flat TB-Grid, with External Louver 15/16" Tegular TB-Grid, with External Louver

13 ST BK BZ WH CU

FINISH Satin Black Bronze White Custom

White and custom finishes are incompatible with external louvers; custom finishes have longer lead times. NonRAL 9003 whites custom.

© 2026 QTL. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | sales@QTL.lighting | www.QTL.lighting

10

CONNECTOR/WIRE OUT

WH BK

WIRE COLOR White Black

BW: Standard length is 36", Max length is 120".

Request custom length by writing in part number next to BW (example: BW48)

14

LENGTH (IN)

Minimum length is 12”, maximum length is 98” not including end caps. Contact us for lengths under 12”.

15 O E

EXACT/OPTIMAL Optimal Illumination Exact Specified Length

Exact fixtures match the exact length you specify, but they may have dim spots at the ends. Optimal fixtures are slightly shorter than the length specified, but provide full illumination from end to end. See Exact/Optimal Fixture Length charts.

Specification subject to change. Rev-05-04-26

5 year warranty | Warranty only valid with QTL power supplies | Field modifications void warranty | Data subject to change, all data has +/- 5% tolerance | Suitable for installation in the storage area of a clothes closet when using wattage of 4.0W/ft or less

BBB OFFICE

TYPE S4 ALT

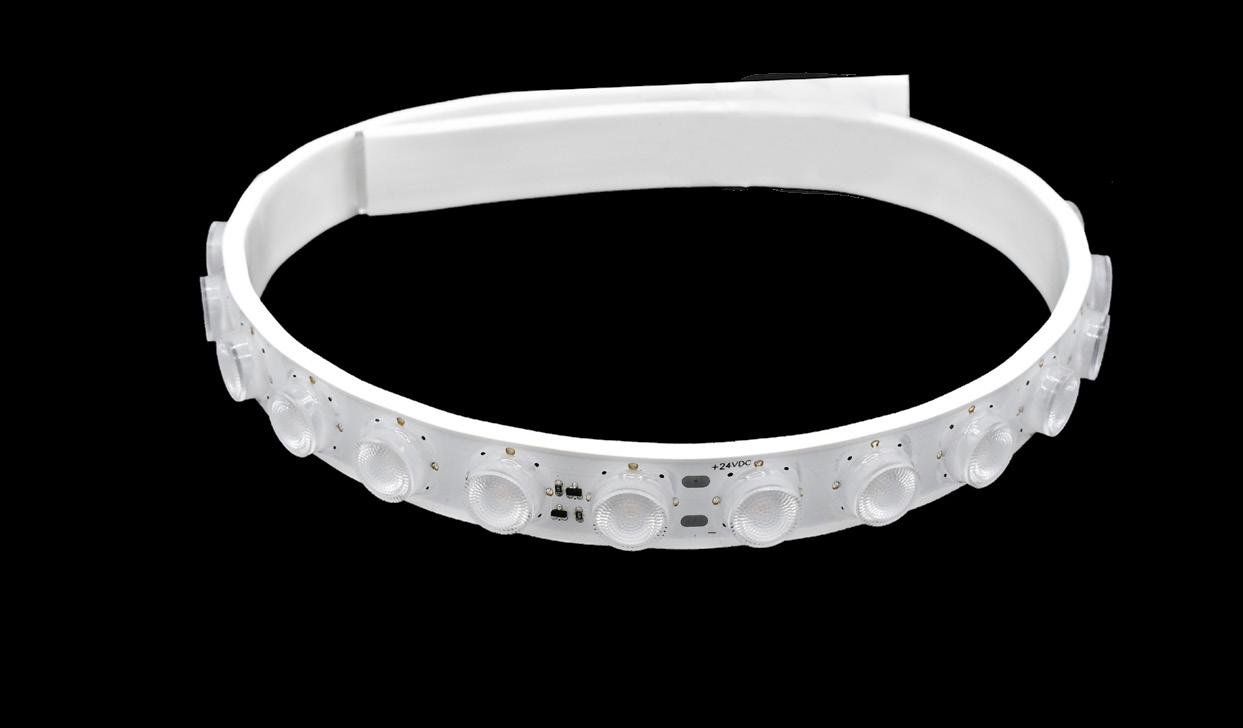

VorteXLED Specification Series 5.8W, 24VDC WALL GRAZING LED Tape Specification Sheet PRODUCT OVERVIEW Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.

®

Project Name

Type

Catalog #

Date

24 VOLT

FEATURES • • • • • • • • • • •

CLASS TITLE WET L O C AT I O N

Available in 2700K, 3000K and 4000K Order in 6” increments All configurations are factory built to order Compatible with LUXcontrol WiFi system 30° beam angle Dimmable Suitable for wet locations - IP65 3M adhesive back Maximum run on a given lead is 16’ Factory cut only Field cuttable channel and lens

2 24 + 90 C R I

SPECIFICATIONS CERTIFICATION • UL listed for US and Canada • Title 24 compliant when used with used with specific drivers. Consult factory.

• Class 2 • IP65

ELECTRICAL • 24VDC • 5.8 watts per foot OPTICS • 90+ CRI

WARRANTY • 5-year warranty when paired with GM power supply

OPERATING TEMP • -4F to 122 F

ORDERING INFORMATION

Model VTX

-

Series

Example: VTX-G-24V-5.8W-27K-16

-

Voltage

G (Grazer)

24V

-

Wattage

-

5.8W

Color Temp

-

Reel Length

27K

XX

30K

4'/5'/8'

40K

*Reel Length: XX = per foot

Note: Includes 48” leads. Factory sealed.

ACCESSORIES

CONTROLLERS

Model

Description

VTX-TTC6

6in tape to tape connector

VTX-TTC12

12in tape to tape connector

VTX-TTC24

24in tape to tape connector

VTX-PCHW8

8ft. hardwired power feed

VTX-EC

Tape end cap

Note: For compatible channels, see next page.

Accessories included in factory assembled components.

Model

Description

SHWC

Smart 2.4 GHz WiFi Controller, Single Color, 24V Low Voltage, 1-Channel / 2-Wire (Use LD-E driver)

SHWD

Smart 2.4 WiFi Dimmer, 120V, White (Use LD-ED driver)

SwitchLD SWD series

All in one power supply and wall dimmer

HC-RF-UNV-5CH

Universal 1-5 Channel RF Remote Control

CM-RF-UNV-5CH

Universal 1-5 Channel Control Module

RPT-UNV-5CH

Universal 1-5 Channel Repeater Amplifier

This product is compatible with 24V LD-MD, LD-ED and PSD series drivers. ®

©2025 GM LIGHTING, LLC • www.gmlighting.net • Specifications subject to change without notice 18700 Ridgeland Ave., Tinley Park, IL 60477 • Toll-Free: (866) 671-0811 FAX: (708) 478-2640 • tech@gmlighting.net

VTX-G_01.31.2025 Page 1

TYPE S4 SPEC

BBB OFFICE

BL-GRAZER BACKWARDS L BRACKET - ALUMINUM EXTRUSION Backwards L bracket with no reveal, creating the least amount of cutoff Surface mount from the bottom, ideal for illuminating pre-existing cove applications Mounts grazer fixtures, LED light engines, and SHIELD Paintable finish Intended for indoor use only Mounting clips conveniently preinstalled for hassle-free installation Durable anodized aluminum

1

2

3

4

PRODUCT

FINISH

MOUNTING

LENGTH (IN)

BL-GRAZER Sample Part Number: BL-GRAZER-ST-SST-01-48"

1

PRODUCT BL-GRAZER

2

FINISH ST BK

Satin Black

3

MOUNTING SST-08 CC-01 VHB N/A

Stainless Steel Clip Concealed Clip VHB Tape No Clip (For Light Engine)

4

LENGTH (IN) 1" increments from 2" - 98.43" Tolerance +0.0/-0.5" Light engine ordered separately

Mounting clips preinstalled See MOUNTING COMPATIBILTY CHART for more information

1

PRODUCT - DIMENSIONS WITH RECOMMENDED PROFILES

Profile

profile with: ALTA-02

profile with: TORQ-02

profile with: VERS-04

Field modifications must comply with Q-Tran’s installation methods otherwise warranty is null & void | Surface mount

© 2024 QTL. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | sales@QTL.lighting | www.QTL.lighting

Specification subject to change. Rev-03-12-24

BBB OFFICE

TYPE S4 ALT

VorteXLED Specification Series

®

5.8W, 24VDC WALL GRAZING LED Tape Specification Sheet Catalog No.

Length

Lumens/Ft.

CRI

Color Temp.

Max. Run

580

90+

2700K

16’

610

90+

3000K

16’

640

90+

4000K

16’

VTX-G-24V-5.8W-27K-FT VTX-G-24V-5.8W-30K-FT

Per foot

VTX-G-24V-5.8W-40K-FT Kelvin temperature (color) ±100K.

CHANNELS Model

Description

VTX-CHL4

VorteXLED 4ft. channel & internal tape clips

VTX-CHL6

VorteXLED 6ft. channel & internal tape clips

VTX-LENS-4

VorteXLED 4ft.lens for channel

VTX-LENS-6

VorteXLED 6ft. lens for channel

VTX-CHL-JC

VorteXLED 6ft. channel joint couplers set (set of 2 with set screws)

VTX-CHL-EC

VorteXLED 4ft. channel end cap (set of 2 for cord and no cord ends)

VTX-CHL-AMC

VorteXLED 4ft. channel adjustable mounting bracket (with 2 set screws, 2 wood screws, 2 wall anchors)

LD-XD-UNV40/86/60-24

Note: Use minimum of 2 clips or brackets per 4ft of channel.

DIMENSION 6” TAPE INCREMENTS

CUTTABLE EVERY 6” (7 LEDS)

0.13” 0.94” WALL MOUNT WALL MOUNT

0.79”

0.51” End Cap is .34” high

1.181”

0.43”

0.15”

1.181”

6”, 12”, 24” tape to tape connectors length 1.75”

0.84” CHANNEL 0.84” CHANNEL

1.75” Connectors are .5” high 1.10”

1.10”

6” TAPE INCREMENTS

0.194”

1.41”

LENS 0.194”

LENS

1.41” WALL MOUNT

1.181”

CEILING MOUNT CEILING MOUNT (90° AIMING) (90° AIMING)

1.50”

1.50”

ADJUSTABLE ADJUSTABLE BRACKET BRACKET

0.84” CHANNEL

2.00”

2.00”

1.84”

1.84”

1.10” 0.194”

LENS

CEILING MOUNT (90° AIMING)

1.41”

1.50” ®

©2025 GM LIGHTING, LLC • www.gmlighting.net • Specifications subject to change without notice 18700 Ridgeland Ave., Tinley Park, IL 60477 • Toll-Free: (866) 671-0811 FAX: (708) 478-2640 • tech@gmlighting.net

ADJUSTABLE BRACKET 2.00”

VTX-G_01.31.2025 Page 2

TYPE S3 SPEC

BBB OFFICE TYPE

SPECIFICATION DATA

PORTAL SURFACE 5.5" (TC1-S05, TC1-T05)

CATALOG #

PROJECT

NOTES

PERFORMANCE FOCUS 5.5" Medium Beam, 80 CRI, 4000 K

DIMENSIONS

Energy (W)

5.11 in 130 mm

Z

6W

850

135

9W

1300

138

B

12 W

1750

139

C

16 W

2350

142

D

21 W

3000

137

<2 0.56 in 14 mm

Medium Beam (45°)

Certified

ENERGY STAR TITLE 24 JA8 (90 CRI)

Lumen Maintenance (hr) L80 per TM21

L70 Estimate

> 72,000

> 130,000

Nominal values, refer to back pages for full performance data.

FEATURES

BEAM ANGLES Narrow Beam (30°)

Efficacy (lm/W)

A

Color Matching (SDCM)

5.66 in 144 mm

Light (lm)

Wide Beam (65°)

• Portal reimagines directional and general area illumination.

Proprietary optics deliver exceptional lighting control from a minimalist aesthetic.

• To support your design vision, both 5.5" & 9" sizes are available in six mounting variants — Recessed, Semi-Recessed, Semi-Recessed Adjustable, Surface, Surface Adjustable & Pendant.

• Light outputs range from 800 lm (5.5") to 4100 lm (9") with efficacies exceeding 150 lm/W. • Flexible lighting schemes are enabled by beam angles of 30°, 45° & 65°, as well as 20 | 80 and 50 | 50 direct/indirect pendant distributions.

• White, Metallic Silver & Black powdercoat finishes (plus RAL colors) can be combined to augment the ceiling design.

• 80 and 90 CRI LEDs are available in four CCTs — 2700 K, 3000 K, 3500 K, 4000 K.

Spec-Fluxwerx-Portal-Surface-5in-na-en | 2025-10

All rights reserved. © Fluxwerx Illumination 2025 604.549.9379 | fluxwerx.com Due to continuous product improvements, specifications and dimensions are subject to change without notice.

Certain options have limited compatibility with some other product selections. Consult www.fluxwerx.com for most current technical information.

1 of 9

BBB OFFICE SOLO FM9405-UNV

TYPE S3 ALT

PROJECT

FLUSH MOUNT DESCRIPTION LED flush mount made from heavy gauge cast aluminum painted white or black, round cylinder shaped. Adjustable from mounting position 90 degrees with a 360 degrees radius. Perfect for commercial use to control

FM9405-WH-UNV

Black

White

SPECIFICATION DETAILS Fixture Dimensions

D5" x H4"

Light Source

LED with DC Driver

Wattage

20W

Total Lumens

2400lm

Delivered Lumens

BK-2190lm|WH-2190lm

Voltage

120-277V

Color Temperature

3000K

CRI (Ra)

90CRI

Optional Color Temps

2700K - 5000K Available, Minimum Order Quantities

Finish BK - Black WH - White

Ø5”

Apply LED Rated Life

50,000 hours

Dimming

100% - 10%, TRIAC or ELV Dimmer (Not Included)

Diffuser Details

Frosted acrylic diffuser

Location

Dry

Mounting Style

All Orientation; Ceiling and Wall;

CEC Title 24 JA8

Yes, JA8-2022

Canopy Dimensions

D5" x H1-1/2"

Paint Finish

BK02; WH02;

* For custom options, consult factory for details. * For warranty information, please visit www.kuzcolighting.com/warranty

COMMENT C A N A DA : 1 9 0 5 4 2 8 T H AV E N U E - S U R R E Y , B C V 3 Z 6 M 3 U S A : 3 0 3 5 E . LO N E M O U N TA I N ROA D - L A S V E G A S , N V 8 9 0 8 1 W W W . K U Z CO L I G H T I N G . CO M © 2016 KUZCO LIGHTING. ALL RIGHTS RESERVED.

2”

FM9405-BK-UNV

4”

1-1/2”

the exact point to direct the light to weather it’s against a wall, product display or many other applications. May be wall or ceiling mounted.

TYPE S3 SPEC

BBB OFFICE TYPE

SPECIFICATION DATA

PORTAL SURFACE 5.5" (TC1-S05, TC1-T05)

ORDER GUIDE 1

2

TC1 —

1

BB SS WW CC

4

5

6

7

8

9

10

11

12

OPTIONS

CONTROLS

05

FAMILY

TC1 Portal

6

3

—

2

VERSION

3

SIZE

4

CEILING TYPE

5

TRIM

S T

Surface Surface Adjustable

05 09

5.5" 9"

S R

Structure or Drywall Remote Driver

J1

J-Box

FINISH

7

BEAM SPREAD

8

CRI

9

CCT

10

ENERGY 1

Black Powdercoat Metallic Silver Powdercoat White Powdercoat Custom Color (RAL)

N1 Narrow (30°) M1 Medium (45°) W1 Wide (65°)

8 9

80 CRI 90 CRI

27 30 35 40

2700 K 3000 K 3500 K 4000 K

Z A B C D

6W 9W 12 W 16 W 21 W

1

12

DRIVER

13

VOLTAGE

OPTIONS

CONTROLS

F1 F2 F4

Non-Dim 0–10 V Dim 3% Line Voltage Dim (Fwd/Rev) 3% 120 V eldoLED ECO 0–10 V Dim 1% eldoLED SOLO 0–10 V Dim 0.1% eldoLED ECO DALI-2 DT6 Dim 1% eldoLED SOLO DALI-2 DT6 Dim 0.1% Lutron Hi-Lume 1% EcoSystem (LDE1) Lutron Hi-Lume Premier 0.1% EcoSystem (PEQ0) 2

M 1 2 3

120–277 V 120 V 3 277 V 3 347 V 4

B C H

TYPE & LOCATION 8

BRAND & PROTOCOL 8

R

N1

E1 E2 E3 E4 L1 L3

Max Energy C (16 W).

Battery Pack 5 Chicago Plenum Emergency Switch

V

(GTD) 5,6

P

Oversize J-Box Canopy 7

Remote Sensor / Controller on Ceiling Controller on Remote Enclosure

N2 N3 L1 M1 V1

Remote mounted BP & GTD. GTD not compatible with (F4) Line Dim driver.

7 For Structure ceilings.

Acuity nLight Wired 9 Acuity nLight Air rIO 9 Acuity nLight Air RPP20 9 Lutron Athena Wireless Legrand Wattstopper PLUS Leviton Intellect Wireless

5

ixed voltage only for (F4) Line F Dim Driver or nLight controls.

4 347 V: Remote with transformer.

3

2

ominal input power.

N Add 4 W for BP and 2 W for 347 V.

6

8

ontrols selection may be limited C by version, protocol or other features — see Controls page.

9

nLight: Controller (V) only.

Spec-Fluxwerx-Portal-Surface-5in-na-en | 2025-10

All rights reserved. © Fluxwerx Illumination 2025 604.549.9379 | fluxwerx.com Due to continuous product improvements, specifications and dimensions are subject to change without notice.

Certain options have limited compatibility with some other product selections. Consult www.fluxwerx.com for most current technical information.

2 of 9

BBB OFFICE

TYPE S3 ALT

BLANK

TYPE S5 SPEC

BBB OFFICE a CarbonNeutral company

LS1 Round direct CRI>90 >90 CRI up to

110 lumens /watt

The LS Series of architectural luminaires offers a wide range of profiles and mounting options.

Custom lengths and patterns are tailored to suit any modern space.

Features

Dimensions

• Living Building Challenge Declare listed. Red List Free optional.

1.9"

• Extruded recycled aluminum housing

3.3"

• Aluminum core LED boards, specifiable optics • Specifiable color temperature. CRI > 90, R9 > 70 • Custom lengths, welded patterns, and finishes available 1.9"

• Integral specifiable dimmable drivers or PoE • 5 Year, 50,000 hour warranty, damp location rated • WELL Building Standard compatible learn more

Optics

453 cd

600 cd

777 cd

low

medium

high

Representative distribution and peak candela. For other options see order information or IES files here.

Page 1 of 4

T 973 345 7660

Modification date: March, 2026 Coronet reserves the right to make design changes.

BBB OFFICE

TYPE S5 ALT

Linea® 2.5” Linear Direct

PROJECT: TYPE: Features Linea 2.5” drives your design scenario, seamlessly. Streamlined and flexible, these architectural LED pendants provide the freedom to create truly dynamic spaces.

A synthesis of aesthetics, performance and energy efficiency, the Linea family delivers on its promises. Linea 2.5” complements our Gruv 2.5” products.

LIN2.5D

Product Overview Type: Wattage: Color Temp: CRI:

Cable Suspended, Wall or Surface Mounted Linear, Direct 5W/ft, 10W/ft (other wattages available see p2) 2700K, 3000K, 3500K, 4000K; Tunable White (2700K-5700K) 83 or 90+ typ. (2700K, 3000K, 3500K, 4000K) 90+ (Tunable White) Dimming (wired): Static White Tunable White 0-10V, 1% dimming (standard) 0-10V TW, 1% dimming Lutron LDE1 Hi-lume® 1% Dim DALI DT8, 1% digital dimming Soft-On/Fade-to-Black DALI dimming, 1% dim Dimming (wireless): Lutron Athena (integral Lutron Athena TW (integral wireless RF node)

wireless RF node)

Certifications

BubblyNet Bluetooth

5 Fixture Summary Performance Data Wattage Delivered per Foot Lumens

LPW

Color Temp

CRI

5

2351

121.8

3500K

83

10

4374

115

3500K

83

Runs Individual Runs: 2’ - 8’ (whole foot standard).

Continuous Runs: Available (whole foot standard).

Custom: Made to measure lengths available (nearest 1/8” of field dimensions).

Requires approval drawings. Added cost & lead time.

Data is based on 3500K-83 120V IES files available on website.

Data is based on 4’ fixture with Performance lens.

Electrical Data Wattage per Foot 5 10

Voltage 120V 277V 120V 277V

4’ 8’ System System Watts Amps Watts Amps 19.3 0.16 38.6 0.32 19.3 0.07 38.6 0.14 38 0.32 76 0.63 38 0.14 76 0.27

Electronic multi-volt (120-277VAC), constant current LED driver.

Standard Patterns Yes

Yes

Yes

Yes

Yes

Wall to Ceiling

Custom*

No

Yes

* Submit drawing, consult factory.

178 Bauer Drive, Oakland, NJ 07436 • P: 973-882-5010 F: 973-882-2605 • amerlux.com Amerlux reserves the right to change details that do not affect overall function and performance.

LIT-2050 • 11/25/25 • Page 1 of 11

TYPE S5 SPEC

BBB OFFICE a CarbonNeutral company

LS1 Round direct Ordering Information For each option group below specify one option. If you don’t see your preferred option listed, contact us for help.

1

Fixture ID

2

LS1.RD

Length

2 4 8 XX PAT

2 ft 4 ft 8 ft Specify length Pattern

Submit drawing.

3

Color Temperature

4

27 30 35 40 50 TW

2700K/90 CRI 3000K/90 CRI 3500K/90 CRI 4000K/90 CRI 5000K/90 CRI Tunable White 2700K-6500K

LOW MED HIGH CUST

Output Low output Medium output High output Custom output

Specify watts or lumens: Up to 13W/ft max.

Down to 6W/driver min.

Must use TW10 driver.

RGBW30 RGB +white; 3000k

Must use remote DMX driver.

RGBW35 RGB +white; 3500k

Must use remote DMX driver.

RGBW40 RGB +white; 4000k

Must use remote DMX driver.

WD

5 UNV 347V

Voltage

6

Driver

DB DB.1% ELV TRI LDE1 JA8 DALI PoE TW10

Universal (120/277V) 347V

Standard 0-10V 1% 0-10V 0.1% Reverse phase 1% (120V only) Forward phase Lutron Digital EcoSystem JA8 compliant 1% dimming DALI-2 driver Power over ethernet 2 channel 0-10V for tunable white 0-10V warm dimming DMX512

WD10 DMX

9 RD

Optics Round diffuser

7

Finish

8

W BLK CC

White Black Custom color

AC ACCC

CWF

Custom wood finish

SLV

Silver

To conduit pipe canopy.

See finish options here

Specify 9/16th; 15/16th; or Slot.

AC3.5 PS.X

3.5 in. canopy + Jbox adaptor

Adaptor must be mudded-in.

Pendant stem with standard 5-inch canopy.

12; 18; 24; 36; or 48 in. Consult factory for lengths not shown.

PSFC

Field cuttable pendant stem

94 in. stem field cuttable to any length.

SMHC Surface mount hard ceiling SMTB.X Surface mount to Tbar clip Specify 9/16th; 15/16th; or Slot.

WM

10

Sensors/Controls

11

NA ACM CCS AWNR OTHER ACAM

None Acuity nLight- module only Casambi module Lutron Athena wireless node Consult factory Acuity nLight Air (rIO)

NA EMPCK EMCKT

Circuit

12

None Emergency battery pack Emergency circuit

May require additional power feeds.

DAYCKT Daylight circuit

Wall mount

May require additional power feeds.

Options

NA STD CAN.X

None White canopy/cord/stem Canopy + color

SJ.BLK SJ.WHT RLF MPD

Black cord White cord Red List Free Mounting + power drawings

See finish options here

Mounting and power feed locations will be added to approval drawings. See additional information here.

Technical Information

Output¹

Watts/ft

Lumens/ft

LPW

Low

3.5

385

110

Medium

5.5

588

107

High

7.5

761

101

Based on a typically configured 90 CRI, 3500K luminaire using one driver.

Custom outputs available. Please consult factory.

For 4000K multiply by 1.05; for 3000K, 0.96; for 2700K, 0.92.

For Warm Dim multiply by .80.

Mounting AC cable (50 in.)

AC cable

ACTB.X Aircraft cable to Tbar clip

See finish options here

All DMX drivers set to default address 001 and provided in remote enclosers. Contact us for other addressing needs.

Performance

1

Warm Dim 2200K-3000K

Must use WD10 driver.

click here or scan QR code

Wiring diagrams, PoE and sensor details

Page 2 of 4

T 973 345 7660

Modification date: March, 2026 Coronet reserves the right to make design changes.

BBB OFFICE

TYPE S5 ALT

Linea® 2.5” Linear Direct

PROJECT: TYPE: Ordering Information 120/277

LIN2.5D-A16 1 1

Model LIN2.5D-A16†

4

2

3

2

Optics PL performance lens

5 3

DL designer lens SLDW straight blade louver, white aluminum, solid blades w/overlay SLDB straight blade louver, black, solid blades w/overlay SLDS straight blade louver, silver, solid blades w/overlay DRP1 1” drop lens

7

6

8

Mounting Pendant Mount (aircraft cable suspension) ASW04 through ceiling tile or gyp board, white, 4’* ASW10 through ceiling tile or gyp board, white, 10’ ASW20 through ceiling tile or gyp board, white, 20’ ASB04 through ceiling tile or gyp board, black, 4’* ASB10 through ceiling tile or gyp board, black, 10’ ASB20 through ceiling tile or gyp board, black, 20’ ASW04T over ceiling tee, white, 4’* ASW10T over ceiling tee, white, 10’ ASW20T over ceiling tee, white, 20’ ASB04T over ceiling tee, black, 4’* ASB10T over ceiling tee, black, 10’ ASB20T over ceiling tee, black, 20’

9

10 4

Wall Mount WM wall mount Surface Mount SM surface mount

11

Wattage (per foot) Standard Optional 5 5W/ft 3* 3W/ft 10 10W/ft 4* 4W/ft 6 6W/ft 7 7W/ft 8 8W/ft 9 9W/ft * 4' min. length required

* 4’ (xxx04) is standard length, other lengths are additional charge

5

Color Temp Static White 27 2700K-83 279 2700K-90+ 30 3000K-83 309 3000K-90+ 35 3500K-83 �59 3500K-90+ 40 4000K-83 409 4000K-90+ Tunable White TW9-2757 tunable white, 90CRI

6

Finish

7

HW high reflectance matte white BT black texture ST silver texture

Voltage

8

Length ________________ x__________________ 6'X18' Length B Length A - all patterns - all patterns - IND - PR (2 lengths of 2) - CON - CUS

120/277

For other RAL color, consult factory

x_________________ Length C - PU - PZ

(2700K-5700K)

9

Configuration IND1 individual fixture, 2’ to 8’ in 1’ increments CON continuous run > than 8’, specify to nearest foot CUS custom made to measure, +/- 1/8” of customer supplied field dimensions Standard Patterns (see pg 6 for details) PLL L left, (2) straights + (1) 90° corner, leg right PLR L right, (2) straights + (1) 90° corner, leg left PU U shape, (3) straight lengths + (2) 90° corners PR Rectangle shape, (4) straight lengths + (4) 90° corners PZ Z shape, (3) straight lengths + (2) 90° corners For custom patterns, submit an EDR on amerlux.com.

11

10

Drivers/Controls Wired - Static White 0-10V 1% analogue dimming, 120-277VAC, dim to off when selected with wireless dimming control HILUME-H-ECO Lutron LDE1 Hi-lume® 1% dim Soft-On/Fade-to-Black DALI DALI dimming 120-277VAC, 1% dim Wired - Tunable White 0-10V-TW 1% dimming, multi-volt (120V-277V) constant current DALI-DT8 1% digital dimming, CCT control per DALI DT8 (120V-277V) constant current Wireless - Static White AWNR-WH-SR Lutron Athena wireless node, RF only, white, D4i/DALI-2 AWNR-BL-SR Lutron Athena wireless node, RF only, black, D4i/DALI-2 AWNR-WH-010 Lutron Athena wireless node, RF only, white, 0-10V AWNR-BL-010 Lutron Athena wireless node, RF only, black, 0-10V AWNR-OCC-WH-SR Lutron Athena wireless node, Occupancy & Daylight sensor, white, D4i/DALI-2 AWNR-OCC-BL-SR Lutron Athena wireless node, Occupancy & Daylight sensor, black, D4i/DALI-2 AWNR-OCC-WH-010 Lutron Athena wireless node, Occupancy & Daylight sensor, white, 0-10V AWNR-OCC-BL-010 Lutron Athena wireless node, Occupancy & Daylight sensor, black, 0-10V BN-BT-OCC-WH-SR BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, D4i/DALI-2 BN-BT-OCC-WH-010 BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, 0-10V Wireless - Tunable White AWNR-WH-SR-TW Lutron Athena wireless node, RF only, white, D4i/DALI-2 AWNR-BL-SR-TW Lutron Athena wireless node, RF only, black, D4i/DALI-2 AWNR-OCC-WH-SR-TW Lutron Athena wireless node, Occupancy & Daylight sensor, white, D4i/DALI-2 AWNR-OCC-BL-SR-TW Lutron Athena wireless node, Occupancy & Daylight sensor, black, D4i/DALI-2

Options/Accessories EMC-PF2 emergency circuit requires power feed located in last fixture section (for other locations consult factory) PF2 Extra power feed for additional circuiting EMB emergency battery pack (not available for lengths under 4')

† The "A" refers to the sequential revision in a year and "XX" refers to the year of update. Updates coincide with improved performance while not changing the overall fixture aesthetic and are reflected in the published performance data. Please contact your Amerlux representative for explanations of changes.

1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.

2 Not available with IND (individual) configuration.

178 Bauer Drive, Oakland, NJ 07436 • P: 973-882-5010 F: 973-882-2605 • amerlux.com Amerlux reserves the right to change details that do not affect overall function and performance.

LIT-2050 • 11/25/25 • Page 2 of 11

TYPE S6 SPEC

BBB OFFICE

JSTA18JL300420PBR

Trim Track Adjustable 18 - Brass - 3000K Product Information

Product Code

Product Range

Joinery Shelf

Description

JOINERY SHELF TRIM TRACK ADJUSTABLE 18 3000K 4.8W/m IP20 PRISMATIC BRASS 186LM/M TRIM 1000MM

Product Specification (per piece) Dimensions

H13.5 x W36.73mm | H0.53 x W1.45in

Material

Aluminium

Performance Data (per piece)

Finish

Brass

Power Consumption

4.8W/m | 1.46W/ft

Lens Type

Prismatic

Supply Voltage

24V DC

Mounting

Trim

Supply Current

0.2A

Connection

Joinery Cable Set

Luminous Flux

186lm/m | 56.69lm/ft

Cable Length

3000mm | 118.11in

Lumen Efficacy

38.75lm/W

IP Rating

IP20

Max Power Length

5000mm | 196.85in

Colour Temperature

3000K

CRI Rating

97

LED Count

400 LED/m | 121.91 LED/ft

Operating Temp

-25°C to 55°C | -13°F to 131°F

LED Pitch

2.5mm | 0.10in

Storage Temp

-40°C to 80°C | -40°F to 176°F

Bin/Step

3SDCM

Lifetime

>50000h

Technical Drawing

info@ledflexgroup.com www.ledflexgroup.com

BBB OFFICE

TYPE S6 ALT

JSTA18JL300420PBR

Trim Track Adjustable 18 - Brass - 3000K Product Information

Product Code

Product Range

Joinery Shelf

Description

JOINERY SHELF TRIM TRACK ADJUSTABLE 18 3000K 4.8W/m IP20 PRISMATIC BRASS 186LM/M TRIM 1000MM

Product Specification (per piece) Dimensions

H13.5 x W36.73mm | H0.53 x W1.45in

Material

Aluminium

Performance Data (per piece)

Finish

Brass

Power Consumption

4.8W/m | 1.46W/ft

Lens Type

Prismatic

Supply Voltage

24V DC

Mounting

Trim

Supply Current

0.2A

Connection

Joinery Cable Set

Luminous Flux

186lm/m | 56.69lm/ft

Cable Length

3000mm | 118.11in

Lumen Efficacy

38.75lm/W

IP Rating

IP20

Max Power Length

5000mm | 196.85in

Colour Temperature

3000K

CRI Rating

97

LED Count

400 LED/m | 121.91 LED/ft

Operating Temp

-25°C to 55°C | -13°F to 131°F

LED Pitch

2.5mm | 0.10in

Storage Temp

-40°C to 80°C | -40°F to 176°F

Bin/Step

3SDCM

Lifetime

>50000h

Technical Drawing

info@ledflexgroup.com www.ledflexgroup.com

TYPE S8A SPEC

BBB OFFICE

Seem 2 Acoustic ®

LED DIRECT

90˚ corner detail

Rectangle pattern

Left and right corner pattern

Seem 2 Acoustic Unlit companion

The Naturals collection -Chestnut shown

DIMENSIONAL DATA

AirCore Blade companion

FEATURES

2.5" aperture sound absorbing linear direct LED luminaire..

Available in 3' to 208' lengths in 1" increments with 8", 12" or 16" nominal housing heights in straight lengths or patterns with 90˚ corners.

Cable Suspension

Frosted acrylic lens provides uninterrupted illumination, without pixels or shadows.

AirCore® Technology: patented, eco-friendly technology that maximizes sound absorption and reduces ecological impact.

15.25" 387.4mm

16.52" 419.6mm

LED position and lens material optimized to provide the perfect blend of high performance and visual comfort.

Pair with Seem 2 Acoustic unlit baffle, AirCore Blade®, or TruBlade® to create a coordinated look in interior spaces.

Direct to Grid*

11.25" 285.8mm

0.41" 10.4mm

ACOUSTIC PERFORMANCE

Direct to Strut (1-5/8”)*

7.25" 184.5mm

8.52" 216.4mm

20

Flush

16 SABINS/UNIT

12.52" 318.0mm

Available with The Naturals, a series of finishes that exude biophilic beauty.

12 8 Seem 2 Acoustic Baffle

4

3.24" 82.3mm

12" height 18" on-center

*Grid/Strut by others

200 250

500

750

1000

1250

1500

2000

2500

FREQUENCY (Hz) - SPEECH RANGE All products were tested in multiple configured arrays. Total absorption will vary based on configuration. Please refer to ASTM C423 reports for more information.

Focal Point LLC | 4141 S. Pulaski Rd, Chicago, IL 60632 | 773.247.9494 | focalpointlights.com

November 2023 D

BBB OFFICE

TYPE S8A (8') ALT DATE:

PROJECT: TYPE:

CATALOG #:

QTY:

AP1 Series

Pendant

Linear Accent Optics

Light Distribution

DIRECT

Acoustic Luminaire

Nulite's AP1 Regolo acoustic system combines high performance LED lighting with sound absorbing PET felt to dampen noise within a space while also introducing color and texture to the ceiling plane.

• Hybrid PET felt and extruded aluminum fixture construction • 28 PET felt color and pattern options • Linear accent optical system offers three beam patterns: 350, 500, 800 • Tool free installation with engineered spring latch design

Standard Individual Fixture Lengths* 2’ [609 mm]

16 Cells

3’ [914 mm]

8”(203 mm) 12”(305 mm) 16”(406 mm)

8”(203 mm) 12”(305 mm) 16”(406 mm)

8”(203 mm) 12”(305 mm) 16”(406 mm)

24 Cells

4’ [1219 mm]

8”(203 mm) 12”(305 mm) 16”(406 mm)

5’ [1524 mm]

40 Cells

6’ [1828 mm]

2 3/4”

7’ [2133 mm]

2 3/4”

(70 mm)

48 Cells

2 3/4”

2 3/4”

8’ [2438 mm] (70 mm)

(70 mm)

8”(203 12”(305 16”(406

8”(203 mm) 12”(305 mm) 16”(406 mm)

32 Cells

ORDERING INFORMATION / Example: AP1-8H-D-35B-O-05-05-L30-UNV-D-11-PW-T1W048.

56 Cells

(70 mm)

2 3/4”

(70 mm)

64 Cells

* Dimensions represent fixture body length, add 1" for overall fixture dimension that includes both end caps

AP1 2’ [609 mm] SERIES

AP1 -3’ [914 mm]

Regolo Acoustic 4’ [1219 mm] Pendant

FIXTURE HEIGHT

DISTRIBUTION

8H - 8"(203mm) 12H - 12"(305mm) 16H - 16"(406mm)

D - Direct

5’ [1524 mm] 6’ [1828 mm]

2’ [609 mm] DIRECT SHIELDING [914 mm] 35B - 35° Spot Black3’ Baffle 35W - 35° Spot White Baffle 4’ [1219 50B - 50° Flood Black Bafflemm] 50W - 50° Flood White Baffle 5’ [1524 mm] 80B - 80° Wide Flood Black Baffle 80W - 80° Wide Flood Whitemm] Baffle 6’ [1828

7’ [2133 mm]

7’ [2133 mm]

8’ [2438 mm]

8’ [2438 mm]

VOLTAGE

DRIVER

CIRCUITING

UNV - Universal 120 - 277V 50/60Hz

Dimming 0-10V D - Dim to 1% (Standard) D0 - Dim to 1%, Fade to Off D02 - Eldoled Solodrive, Dim

Qty of Power Circuits 1 - 1 Power 2 - 2 Power

120V - 120V 277V - 277V

L - 80 CRI H - 90 CRI

Suspension Length 048 - 48” Adjustable

Aircraft Cable 120 - 120” Adjustable Aircraft Cable 240 - 240” Adjustable Aircraft Cable

30 - 3000K 35 - 3500K 40 - 4000K

FELT OPTION

Options B10 - 10 Watt Battery Pack (CEC

PW - Pewter SL - Slate

B15 - 15 Watt Battery Pack (CEC

*See page 4 to review 26 additional colors and patterns

Compliant)

Compliant) GTD - Generator Transfer Device (120V or 277V) EM - Dedicated Emergency Circuit

MOUNTING

Mounting Hardware Finish W - White Canopies and Cord B - Black Canopies and Cord

CRI & CCT

03 - 300 lm/ft 05 - 500 lm/ft 08 - 800 lm/ft 10 - 1000 lm/ft

Qty of Control Circuits 1 - 1 Control 2 - 2 Control

to 0% LUTRON - See options on page 2

Ceiling Type T1 - Aircraft Cable to 1” Grid T9 - Aircraft Cable to 9/16” Grid TS - Aircraft Cable to Slotted Grid SR - Aircraft Cable to Structure

LUMENS DOWN

OPTIONS

LINEAR ROWS

WLX - Wavelinx (Cooper Lighting Solutions) Integral

2 - 24” 3 - 36” 4 - 48” 5 - 60” 6 - 72” 7 - 84” 8 - 96” XX - Specify continuous run lengths in 1’ increments

Sensor NX - NX (Hubbel) Integral Sensor NLT - nLight (Acuity Brands) Integral Sensor LV - Vive (Lutron) Integral Sensor ENL - Enlighted Integral Sensor

NULITE 10770 EAST 51ST AVE DENVER, CO 80239 / P 303 287 9646 / NULITE-LIGHTING.COM

©2023 ALL RIGHTS RESERVED

1

TYPE S8A SPEC fixture:

BBB OFFICE

project:

PATTERN DETAILS

ORDERING

Standard Patterns with 90˚ Corners

Luminaire Series Seem 2 Acoustic Direct LED

Corner Detail

‘L’ Patterns - A'xB'

Rectangular Patterns - A'xB'R Overall Length ‘B’

Overall Length ‘A’

Overall Length ‘A’

Overall Length ‘B’

Overall Length ‘B’

start

Order: 8'x6'

Corners are constructed as 12" x 12" units with mitered lenses and corner suspension points. start

‘A’ Overall Length

start

12"

Order: 6'x8'

Shielding Regress Lens Regress Batwing Lens Regress Asymmetric Lens (heights are nominal)

8" 12" 16"

‘U’ Patterns - A'xB'xC' start

‘C’

Overall Length

Overall Length ‘A’

‘C’

Overall Length

Overall Length ‘A’

Ordering examples assume A=8', B=6' & C=5' Specify clockwise from start of run.

Start of run is always at rst speci ed run length.

‘B’ Overall Length

start Order: 8'x6'x5'

Order: 8'x6'x5'

SPECIFICATIONS Acoustic Material Content

Housing material is 100% polyester containing up to 50% of recycled plastic bottles (PET felt) and is moisture resistant.

See page 3 for color offering. Acoustic material colors are subject to change without notice. For the most current color options, please visit focalpointlights.com/acousticsolutions. Lead times may vary depending on color.

Cleaning and Care

Remove dust and debris with a clean, soft, lint-free cloth or vacuum

PET Thickness

9mm

Surface Burning Characteristcs

ASTM E84 Class A / CAN ULC S102 Flame Spread: 0, Smoke Development Index: 300

Acoustic Performance

Acoustic testing is performed on all Focal Point acoustic products and varies based on installation and configuration. ASTM C423 test reports can be downloaded from focalpointlights.com.

Contact acoustic.solutions@focalpointlights.com for technical questions.

Sabins

Sabins is a unit of sound absorption. It measures how well one square foot of material absorbs sound. Focal Point has averaged the Sabins per unit at four specific frequency bands representing the human speech range (250, 500, 1000, 2000 Hz) to determine the Sabins per product.

8' length, 12" height: 12" OC = 10.26 Sabins, 18" OC = 11.67 Sabins, 24" OC = 12.43 Sabins

LED System

Proprietary linear LED module incorporates premium LEDs on a robust platform to achieve excellent thermal management. LEDs are placed to promote a uniform appearance. Available in 3000K, 3500K or 4000K with both 80 and 90 CRI options. LED drivers are replaceable from above. Color accuracy <3 SDCM. Weight- 12" height, 4' length = 18.6lbs

Optic

Reflectors fabricated of 22 Ga. steel finished in Matte White powder coat. Extruded acrylic lens .05" thick with frosted finish, up to 8' continuous. 0.02" thick clear acrylic dust cover.

Mounting Electrical

Luminaires are pre–wired with factory installed branch circuit wiring and over-molded quick connects.

Standard 120-277V constant current driver includes 0-10V analog dimming. Power factor > .9. Power cord white as standard.

Canopy

Polyester powder coat applied over a multi-stage pre–treatment. Canopy white as standard.

Emergency Battery

Emergency output - 10 watts for 90 minutes. Maximum mounting height: 16.83 ft See EM/EC Guide (page 5) for default locations and ordering details.

Labels

ETL listed in accordance with UL standards. Suitable for Dry Locations, indoor use only.

Lumen Maintenance

Reported: L70 at >61,000 hours L90 at >61,000 hours

Calculated: L70 at 470,000 hours L90 at 115,000 hours

Derived from EPA TM-21 calculator. Based on typical conditions, consult factory for additional data.

Reliability

At Focal Point, our products are designed to stand the test of time. Each luminaire is engineered using superior components, manufactured with the utmost care and rigorously tested. Contact us for reliability data.

Warranty

LED system rated for operation in ambient environments up to 25°C and when mounted no less than 7.5" from the ceiling. 5-year limited warranty.

4' PERFORMANCE CHART See page 4

200LF 300LF 400LF 500LF 700LF 900LF 1000LF 1200LF

Color Temperature 3000K, 80CRI or 90CRI 3500K, 80CRI or 90CRI 4000K, 80CRI or 90CRI

30K or 930K 35K or 935K 40K or 940K

Circuits & Zones 1 Circuit, non-emergency Consult Ordering Guide on page 5 for multiple circuiting and zoning options Voltage 120/277 UNV Volt Control System & Dimming Level 0-10V - 10% Dimming 0-10V - 1% Dimming Lutron Hi-Lume EcoSystem (LDE1) - 1% Dimming DALI 1% Dimming Mounting Suspended

(Mounting hang kits ship with order. Power cable is 18” longer than suspension length. Consult factory for longer power cable lengths)

24" Cable Suspension 48" Cable Suspension 96" Cable Suspension 120" Cable Suspension

(Specify canopy color White (WH), Black (BK) or Titanium Silver (TS). Example: J24WH.) (Consult factory for sloped ceiling applications)

1C _C_Z_DL UNV UNV LD1 L11 LH1 D11

J24__ J48__ J96__ J120__

Surface Mounted

(30" power cable standard. Consult factory for longer power cable lengths.)

DTG DTS

Factory Options

(See Ordering Guide on page 5 for ordering details for DC, EC, EM & ECD.)

Black Cord

BKCD

Daylight Circuit

_DC

Emergency Circuit

_EC

Emergency Battery Pack† _EM Emergency Control Device† _ECD †

(4' minimum length.)

Acoustic Panel Color See page 3 for color offering Luminaire Length

(Leave blank for patterns. Luminaires are are 3/4" longer than specified and cannot be cut to length or joined in the field.)

Specify length in 1" increments from 3' to 208'

ft _ft _in

(16' maximum for DTG, consult factory for alternate lengths.)

Pattern Options

(Patterns available with LD1 and L11 drivers only.)

(5’ minimum leg length for L patterns.

6’ minimum leg length for U and Rectangle patterns)

‘L’ pattern ‘U’ pattern Rectangular pattern

(Consult factory for other pattern options) Focal Point LLC reserves the right to change specifications for product improvement without notification.

8 12 16

Direct Lumen Output 200 Lumens per foot 300 Lumens per foot 400 Lumens per foot 500 Lumens per foot 700 Lumens per foot 900 Lumens per foot 1000 Lumens per foot 1200 Lumens per foot

Direct/Flush to Grid Direct/Flush to Strut

Minimum mounting height 7.5" from the ceiling.

RL BW AS

Luminaire Height

Order: 8'x6'R

Overall Length ‘B’

ASM2S ASM2S

A' x B' A' x B' x C' A' x B' R

8'0"

in

BBB OFFICE

TYPE S8A (8') ALT Regolo Acoustic Series /AP1-D

PRODUCT SPECIFICATIONS AND INFORMATION HOUSING CONSTRUCTION

GENERATOR TRANSFER DEVICES

Fixture body is constructed of powder coat painted extruded aluminum, formed sheet metal internal bracketing and sound absorbing recycled polyester (PET) felt. Captive joining mechanism is a combination die formed sheet metal and zinc plated spring steel. All hardware is stainless steel.

The GTD emergency lighting control device senses the loss of normal power and switches the AC driver input power connection to an unswitched, generator (or central inverter) supplied lighting circuit. GTD fixtures ship with 3 additional wires (orange wire "constant hot", blackred wire "generator hot", white-red wire "generator neutral").

LED DISCRETE OPTICAL ASSEMBLY

FIXTURE FINISHES

Replaceable one-piece optical assembly is comprised of an LED PCBA having high power LEDs coupled to clear acrylic TIR optics (350, 500 or 800 beam patterns) and injection molded plastic baffle assembly available in black or white. Square optical light cells are 1.5" x 1.5". The sheet metal optical assembly is connected to power via quick wire disconnects. Max length of optical assembly is 4' and minimum length is 1'. Available CCT's are 3000K, 3500K, and 4000K. Also available CRI's are 80 or 90.

Fixture Internal Body The R1A internal fixture body will be painted white with the exception R1A fixtures having black baffle optics, these fixture bodies will be painted black.

STANDARD DIMMING LED DRIVERS

Acoustical Felt Material Felt fixture material is available in two standard colors Pewter (PW), or Slate (SL).

There are an additional 26 color options on page 4, consult factory for lead time and availability.

Standard constant current integral electronic 0-10v dimming input. Two standard driver options are available. Option D dims to 1% and option D0 dims to 0% or OFF (the final 1 percent is a "step"). Both options are the same price and representative of the base fixture price. Options D and D0 ship with 5 wires (Line Voltage- Black and White wires, Low VoltagePurple and Pink wires, Ground- Green wire)

DALI DRIVERS

Standard constant current DALI drivers available in either a dim to 1% (ELE) or dim to 0% (ELS). DALI fixtures ship with 5 wires(Line Voltage- Black and White wires, Low VoltagePurple and Pink wires, Ground- Green wire)

LIGHT OUTPUT For bi-direct luminaires you must specify "direct" light output and "indirect" light output and the factory will tune or program each lighting channel. Available nominal direct and direct-indirect light outputs are (03) 300 lms/ft, (05) 500 lms/ft, and (08) 800 lms/ft. . Each circuit or channel may be independently controlled and this can be specified in "circuiting" within the ordering information. Specifying a "2-2" enables independent dimming control of each channel.

CIRCUITING Each luminaire may have up to 2 line voltage (Power) circuits and 2 low voltage (control) circuits. Two power circuits are required for independent control of uplight and downlight in bidirect luminaires, and low voltage control circuits are for independent dimming of each circuit.

Examples: • "1-1"- 1 power circuit(Line Voltage) and 1 control circuit (Low Voltage) > 5 wires total (1 Black Wire "Hot", 1 White Wire "Neutral", 1 Green Wire "Ground", and 2 low voltage control wires, 1 Pink wire and 1 purple wire)

• "2-2"- 2 power circuits (Line Voltage) and 1 control circuit (Low Voltage) > 9 wires

total (2 Black Wires "Hot", 2 White Wires "Neutral", 1 Green Wire "Ground", and 4 low voltage control wires, 2 Pink wires and 2 purple wires)

BATTERY PACKS Recyclable Ni-Cad battery pack, battery run time is 90 minutes. Recharge time of 24 hours.

6W or 10W battery packs are available. To calculate Battery Lumen Output, multiply luminaire efficacy by battery wattage. (example: 120 lms/watt (120) x B10 Battery Wattage (10) = 1200 lumens of egress illumination for 90 minutes.) Battery option not available in fixtures less than 4', and other limitations apply, consult factory. Entire "direct" fixture housing is energized by battery for lengths up to 5'. Half of direct fixture is energized by battery for 6' - 8' housing lengths. Emergency or night light circuit available (requires addtional power circuit). Battery fixtures ship with an additional orange "constant hot" wire.

Mounting Hardware Canopies Mounting hardware canopies are available in black or white consult factory for custom colors.

INSTALLATION AND MOUNTING The R1A is designed to be pendant mounted by aircraft suspension cable in individual, continuous rows. The R1A may be specified to mount to acoustical grid ceilings, sheet rock, and structural ceiling surfaces. Refer to installation instructions at www.nulite-lighting.com for details.

FIXTURE LENGTHS - LINEAR ROWS Standard fixture lengths for individual or continuous row mounting are available in exact 1'(305mm) increments from 2' (610mm) to 8' (2438mm). Consult factory for custom lengths, limitations apply.

WARRANTY 5-year limited warranty on LED and driver from date of shipment. Refer to the full warranty details on www.nulite-lighting.com/products/184.

WEIGHT Fixtures are 2.7 lbs/ft, Driver box weights vary, consult factory.

APPROVALS ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, indoor dry/ damp locations.

TESTING PROTOCOLS AND DATA All of Nulite's LED components have been tested under LM-80 guidelines insuring 6000 hours of luminous flux data. Additionally Nulite can supply LM-79 data on all luminaires. This data includes luminous flux, electrical power, efficiency, chromaticity as well as the diffusion of luminous intensity.

LUMEN MAINTENANCE 90% of initial light output (L90) at 100,000+ hours, 70% of initial light output (L70) at 200,000+ hours.

NULITE 10770 EAST 51ST AVE DENVER, CO 80239 / P 303 287 9646 / NULITE-LIGHTING.COM

©2023 ALL RIGHTS RESERVED

7

TYPE T1 SPEC

BBB OFFICE a CarbonNeutral company

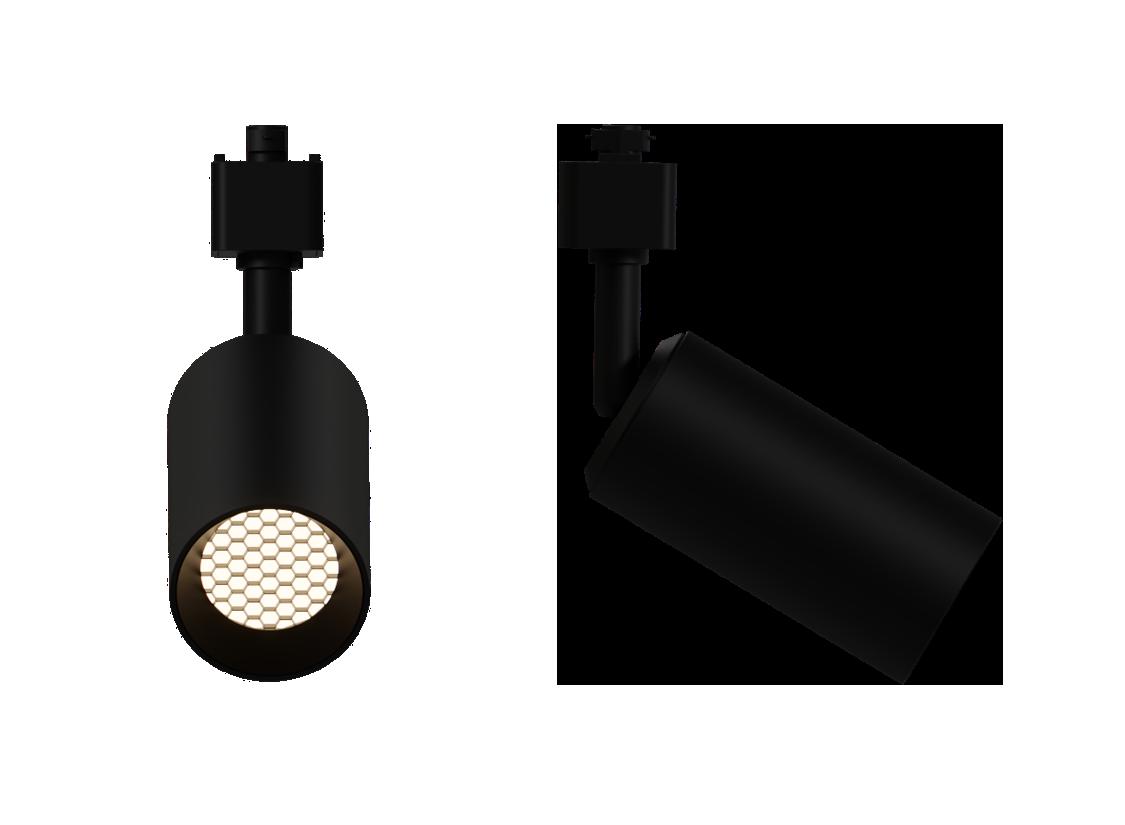

Point small

The Point Series of track heads and monopoints features unique over-center stem placement and a beveled aperture for exceptional low-glare performance; fieldchangeable TIR optics, and optional hex louver. Designed for use with standard line voltage track systems, drivers are integral.

Features

Dimensions

• 360 degrees rotation, 90 degrees tilt • Seamless cast recycled aluminum cylinder • Up to 93 lumens per watt delivered • Field changeable, beam-shaping TIR optics • Specifiable color temperature. CRI > 90, R9 >50

5.0"

90°

• 5 Year, 50,000 hour warranty

360˚ rotation

• Specifiable dimmable drivers 2.4"

Optics

21427 cd

SP15

9650 cd

NFL24

4755 cd

FL36

2502 cd

WFL60

Representative distribution and peak CBCP, center beam candlepower For other options see order information or IES files here.

Modification date: May, 2026

Page 1 of 3

T 973 345 7660

Coronet reserves the right to make design changes.

BBB OFFICE

TYPE T1 ALT

JTLS-MT20SZ-55 -Spotlights with Zoom Optics PRODUCT OVERVIEW AL1070, spraying surface

· Coating:

Black (RAL9005)/White (RAL9003)

· Size:

Ø55*115mm (Ø2.17*4.53")

· IP grade:

IP20

· CCT:

2700K, 3000K, 4000K optional

· CRI:

90

· SDCM:

<3 Step (ANSI)

· Beam angle:

15°-45° Adjustable

· Light efficiency:

65 LM/W

· Input voltage:

DC24-48V

· Lighting direction:

Downward

· Dimming options:

Non-dimming, DALI-2, CASAMBI

· Application:

Indoor

· Warranty:

5 years

16.5mm (0.65") 67mm (2.64")

· Material:

Ø5 5m

0-10 DIM (Group dimming) / With DALI & CASAMBI Individually Addressible

m (Ø2

3")

") .17

m 115

m

5 (4.

PRODUCT DETAILS & DIMENSIONS 172mm (6.77")

350°

15°-45°

90°

Quotations: quotes@jademar.com To place an order: orders@jademar.com Tel: (305) 640.0465 ǀ Fax: (305) 640.0468

Informa on contained herein is subject to change without no ce.

Revised 11/2025

WWW.JADEMAR.COM

Page 1 of 4

TYPE T1 SPEC

BBB OFFICE a CarbonNeutral company

Point small Ordering Information For each option group below specify one option. If you don’t see your preferred option listed, contact us for help.

1

Fixture ID

POINT.SM

2

Color Temperature

3

27 30 35 40

2700K/90 CRI 3000K/90 CRI 3500K/90 CRI 4000K/90 CRI

HIGH

5

Voltage/Driver

6

120V

Phase Control (120V only)

SP15 NFL24

120DB 277DB

ELV and TRAIC Compatible For compatible dimmers see here.

120V 0-10V

Only w/ Stucchi track

277V 0-10V

Only w/ Stucchi track, HTEK non dimming

FL36 WFL60

Beam Spread

Spot: 15-degrees; 21427 cd Narrow flood: 24-degrees; 9650 cd Flood: 36-degrees; 4755 cd Wide flood: 60-degrees; 2501 cd

Output

4 W BLK SLV

High output

CC

Finish White Black Silver

will extend leadtimes.

Custom Color

will extend leadtimes see finish options here.

7

Track Adapter

8

Accessories

JTYPE HTYPE

J-Type Compatible (default) H-Type Compatible

NA HEX DF LSF

None Hex Louver Diffusion Film Linear Spread Film

GES STCH

Single-Circuit Only.

Global GES Compatible Stucchi Concealed Adapter 2-Circuit 2-Neutral Compatible

60 x 10

Available w/ 120DB 0-10v or 277DB 0-10v.

TEK HTEK

Global 120V 2-Circuit, 2-Neutral Compatible Global 277V 2-Circuit, 2-Neutral Compatible

All Point heads are provided with J-Type adapters unless otherwise specified. For more information on the adapters, see Page 3 or click here.

All these accessories can be used at once.

Linear Dimming Curve by default. Consult factory for Logarithmic options.

Additional Ordering Information If you require additional optics or accessories, see example order codes below, POINT.SM-SP POINT.SM-HEX POINT.MONO.SM-FL POINT.MONO.SM-DF

Technical Information

Performance Beam Spread¹

Watts

Lumens

Spot

15

1401

Narrow Flood

15

1352

Flood

15

1331

Wide Flood

15

1292

Based on 90 CRI and 3500K luminaire using one driver.

For 4000K multiply by 1.02; for 3000K, 0.98; for 2700K, 0.96.

1

click here or scan QR code

Wiring diagrams, PoE and sensor details

Modification date: May, 2026

Page 2 of 3

T 973 345 7660

Coronet reserves the right to make design changes.

BBB OFFICE

TYPE T1 ALT

SPECIFICATIONS Version

Model

Normal

Input Voltage (V)

Size

JTLS-MT20SZ-55 Ø55*115mm 24-48VDC (Ø2.17*4.53")

Max. Current (A)

Type Max. Power Power CRI (W) (W)

Beam Angle

CCT

Lumen (LM)

0.33-0.17

8.0

>90

15°-45°

2700K

460

3000K

485

4000K

520

8.0

Note: 1. The output data is based on the testing result of Ra90,4000K CCT; 2. The tolerance of output data can be vary up to 5%; 3. The output data is typical value.

PHOTOMETRY · Normal h(m) D(cm) E(lx)

COB 8W

-60

h(m) D(cm) E(lx)

60

-30

1

29

3823

2

59

955

3

88

42 4

30 4

3823

15°

COB 8W

-60

60

-30

118

91

772

2

182

193

3

273

85

4

364

4 8

CB-NLC

-

30 772

45°

238

1

ORDERING GUIDE ORDERING INFORMATION / EXAMPLE: JTLS-MT20SZ-55-8W-DC24-48V-27K-CB-NLC-BK-BK JTLS-MT20SZ

-

55

Product Series

Size

JTLS-MT20SZ

Ø55

-

8W

8W

-

DC24-48V

-

-

Wattage

Input Voltage

CRI

8 Watts

DC24-48V

Blank >90 CRI

CCT 27K 30K 40K

2700K 3000K 4000K

-

-

Beam Angle

Dimming Options

Blank 15° - 45°

Blank Non-Dimming D 1-10V Dimming DALI DALI Dimming

Controls Option CB-NLC

CASAMBI

Housing Color BK WH

Black White

BK Inner Ring Color BK

Black

0-10 DIM (Group dimming) / With DALI & CASAMBI Individually Addressible

Quotations: quotes@jademar.com To place an order: orders@jademar.com Tel: (305) 640.0465 ǀ Fax: (305) 640.0468

Informa on contained herein is subject to change without no ce.

Revised 11/2025

WWW.JADEMAR.COM

Page 2 of 4

TYPE T1 SPEC

BBB OFFICE

BLANK

BBB OFFICE

TYPE T1 ALT

JTLS-MT20-MS2 SERIES PENDANT/SURFACE STRAIGHT MAGNETIC TRACKS PRODUCT FEATURES Installa on method: Pendant/Surface Material: AL6063-T5 Profile color: Black/White Standard Lengths, mm (inch): 1000/2000/3000 (39.37/78.74/118.11) Rated current: 12A Voltage (Max Power): 48VDC (350W per driver)

ADDITIONAL TRACKS & MOUNTING TYPES AVAILABLE STRAIGHT TRACKS Trimless track 12.5mm (0.49")

Trimless track 9.5mm (0.37")

Trimless track

Ceiling Ceiling Pendant track

STRAIGHT TRACKS JTLS-MT20-MS2X0

27.3mm (1.07") 27.3mm (1.07")

*X: 1M / 2M / 3M (3.28' / 6.56' / 9.84') Standard Track Lengths

Quotations: quotes@jademar.com To place an order: orders@jademar.com Tel: (305) 640.0465 ǀ Fax: (305) 640.0468

Informa on contained herein is subject to change without no ce.

Revised 12/2025

WWW.JADEMAR.COM

Page 1 of 3

TYPE T1 SPEC

BBB OFFICE

BLANK

BBB OFFICE

TYPE T1 ALT

JTLS-MT20-MS2 SERIES PENDANT/SURFACE STRAIGHT MAGNETIC TRACKS TRACK SECTION ORDERING GUIDE ORDERING INFORMATION / EXAMPLE: JTLS-MT20-MS2-10-PM-5-NPC-BK-WH (Straight Track)

Part Number

STRAIGHT

JTLS-MT20-MS2 Track Type

JTLS-MT20-MS2

-

-

-

Length 10 20 30 XX

-

Ceiling Type

3.28 Ft 6.56 Ft 9.84 Ft Custom Cut*

N/A

Mounting Options (for MS2 and MH2 parts only) PM-5-NPC-xx PM-5-PC-xx PM-x-NPC-xx PM-x-PC-xx SCM

Non applicable to MS2

Pendant mount 5ft Non-Powered Canopy * Pendant mount 5ft Powered Canopy* Pendant mount Canopy** Pendant mount Canopy** Surface/Ceiling mount

Profile Color BK WH

Black White

*xx represents canopy color (Specify: BK/WH) **x can be replaced with desired cable length, xx represents canopy color (Specify: BK/WH)

*Please specify custom length in Ft

Maximum track power is 350W and up to 131 (40m) track using a single Track Connect (M261) with any combina on of luminaires.

DRIVERS DRIVER PART #

PRODUCT DESCRIPTION

INPUT VOLTAGE

OUTPUT VOLTAGE

DIMMING

HLG-60H-48B

48Vdc 1.3A Dimmable LED Driver IP67, PFC, Metal Case Class 2

120 - 277V

48VDC

0-10 Dimming

HLG-100H-48B

48Vdc 2A Dimmable LED Driver IP67, PFC, Metal Case Class 2

120 - 277V

48VDC

0-10 Dimming

HLG-150H-48B

48Vdc 3.2A Dimmable LED Driver IP67, PFC, Metal Case

120 - 277V

48VDC

0-10 Dimming

HLG-240H-48B

48Vdc 5A Dimmable LED Driver IP67, PFC, Metal Case

120 - 277V

48VDC

0-10 Dimming

HLG-320H-48B

48Vdc 6.7A Dimmable LED Driver IP67, PFC, Metal Case

120 - 277V

48VDC

0-10 Dimming

WIRE SIZE & LENGTH (for 48VDC at 3% Max. Voltage Drop) Wire Length (Ft.)

10

20

30

40

150W@48VDC

50

60

70

80

90

200W@48VDC

14AWG

250W@48VDC

16AWG

300W@48VDC 350W@48VDC

100

16AWG

14AWG

16AWG 16AWG

14AWG 14AWG

12AWG 12AWG

TRACK LENGTH & POWER SUPPLY SELECTION Max. Combinded Luminaire Wattage

Power Supply

Max. Watts/Amps @ 48VDC

Max. Track Length

HLG-60H-48B

60W / 1.3A

23Ft

60W

HLG-100H-48B

100W / 2A

38Ft

100W

HLG-150H-48B

150W / 3.2A

57Ft

150W

HLG-240H-48B

240W / 5A

92Ft

240W

HLG-320H-48B

320W / 6.7A

131Ft

350W

Quotations: quotes@jademar.com To place an order: orders@jademar.com Tel: (305) 640.0465 ǀ Fax: (305) 640.0468

Informa on contained herein is subject to change without no ce.

Revised 12/2025

WWW.JADEMAR.COM

Page 2 of 3

TYPE W1 SPEC

BBB OFFICE Project: Company: Fixture Type:

Location:

lightology.com 866-954-4489 07-16-26

SPEC #:

RBW1441655

Approved On:

Approved By:

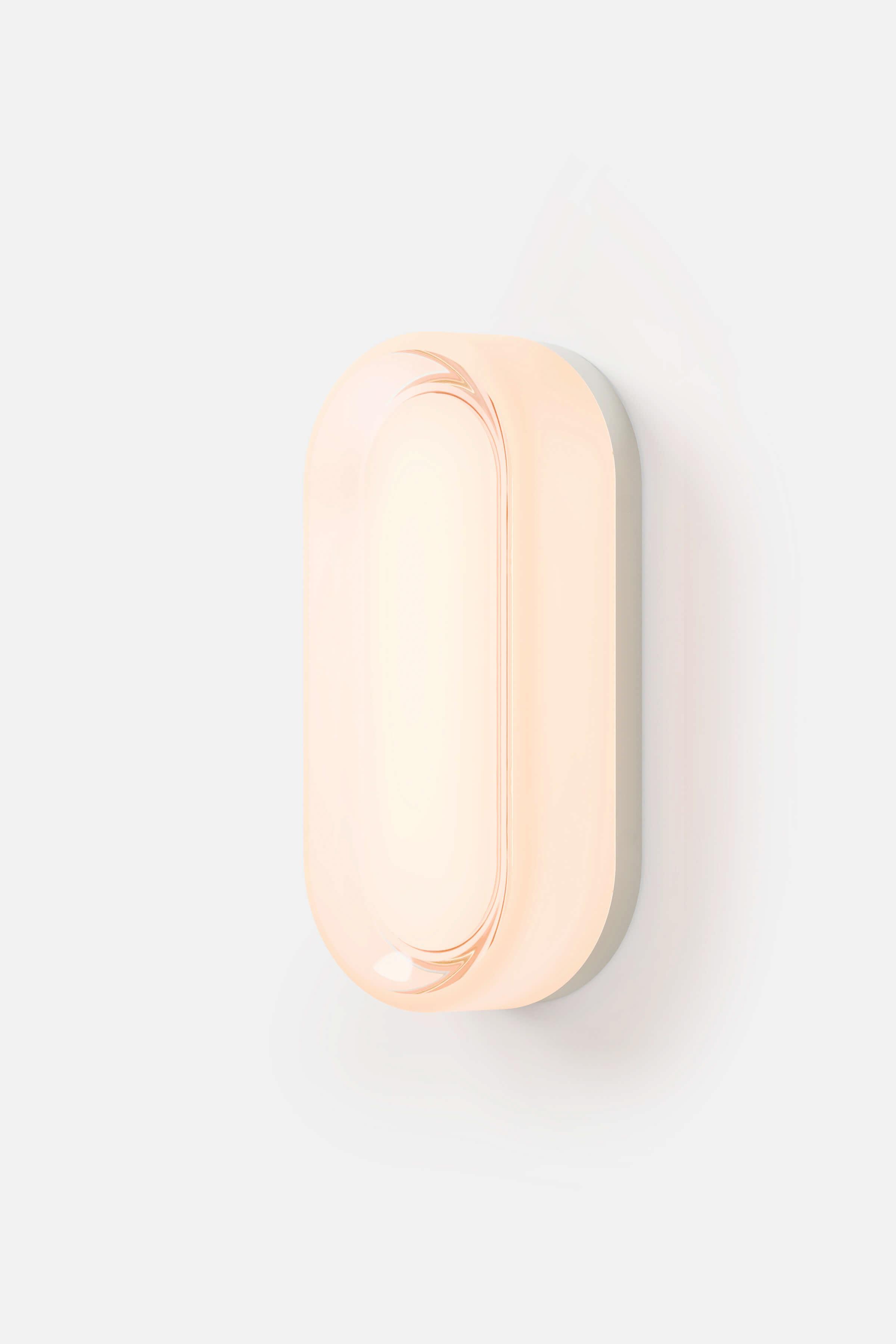

Dimple Dash Wall Sconce

By RBW

Description Cheekily named for its curved front, the Dimple Dash Wall Sconce is a sleek addition to any space.

Crafted from a cast glass, the diffuser provides soft, atmospheric light.

Shown in natural / smoked

Specifications COLOR

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Smoked

BODY FINISH

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Natural

WATTAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DIMMER

7.5W

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Standard 120V

DIMENSIONS

. . . . . . . . . . . . . . . . . . . . . . . . . . 6"W x 12"H x 4"D

INTEGRATED LED MODULE . . . . . . . . . . . . . . . . 1 x LED/7.5W/120V LED

Technical Information LAMP LIFE

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

50000 hours

COLOR RENDERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 CRI LAMP COLOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000K LUMENS/WATT LUMINOUS FLUX

Notes:

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

85.33

. . . . . . . . . . . . . . . . . . . . . . . . . . 640 lumens

CLICK TO VIEW PRODUCT

BBB OFFICE

TYPE W1 ALT

7/16/26, 10:30 PM

Buy Dimple Dash From RBW | Top Designer LED Lighting Manufacturer Company in New York PERFORMANCE

C E R T I F I C AT I O N

Frosted, 1284 lumens

ADA Compliant

Painted White, 879 lumens Amber, 695 lumens

UL Listed UL Listed to Canadian safety

Smoke, 367 lumens Power Consumption DC 19.7W

standards.

Suitable for Damp Locations IP20

PAT E N T F I L E N U M B E R

EU: 015110995-0003, 015110995-0004, CN Registration: ZL202530411423.1, CA Registration:

L E D L I F E S PA N

50k hours

242127

S P E C I F I C AT I O N L O G I C

GLASS FINISH

White Interior

S1

B A C K P L AT E F I N I S H

Natural Cast

PC92

C O L O R T E M P E R AT U R E

Dimple Dash Sconces

YOUR PRODUCT CODE D P- D -W S -

-

-

-

_

_

2200K (candle light)

22

2700K (warm white)

27

3000K (soft white)

30

3500K (neutral white)

35

4000K (cool white)

40

DIMMING / CONTROL / INPUT

0.1% Dimming, 0-10V Control, 120V or 277V "Universal Input" (Driver External)

0.1_10V_UNV

-

1% Dimming, 0-10V Control, 120V or 277V "Universal Input" (Driver External)

1_10V_UNV

1% Dimming, TRIAC / Forward Phase Control, 120V Input (Driver External)

1_TRIAC_120V

10% Dimming, TRIAC / Forward Phase Control, 120V Input

10_TRIAC_120V

DESCRIPTION

A sleek evolution of RBW’s beloved Dimple, Dimple Dash flexes the soft, domed glass design you know into a linear masterpiece.

Originally created in collaboration with Ace Atelier, this elongated iteration brings new possibilities to a familiar favorite. Whether installed in perfect alignment or staggered for a playful twist, Dimple Dash strikes the balance between understated simplicity and striking presence.

Low Voltage (Driver required, driver not included)

LV

I P R AT I N G

IP 20

IP20

DRAWINGS

Dimple Dash dimensional drawing

M AT E R I A L S

Cast solid glass, aluminum

COLLECTION NOTES

Each form of cast glass is unique. As part of the casting process, there may be small air bubbles within the glass. The Natural Anodized backplate finish on Dimple Sconces is not the same finish as the Natural Cast backplate finish on Dimple Dash Sconces. The backplate on Dimple Sconces can be powder coated to more closely match the Natural Cast finish on Dimple Dash Sconces. Contact us to special order a powder coated backplate.

PRODUCT DIMENSIONS

12 in L x 6 in W x 4 in D

https://rbw.com/products/dimple-dash/s1-pc92-30-1_10v_unv-ip20

1/2

TYPE 1F EXIT SPEC

BBB OFFICE

Project

Catalog #

Type

Prepared by

Notes

Date

Sure-Lites EUX Series Universal Mount Edge Lit LED Exit Sign Typical Applications Office • Education • Healthcare • Hospitality • Retail • Manufacturing

Interactive Menu

Product Certification

• Dimensions and Mounting Details page 2 • Product Specifications page 3 • Technical Data page 4 • Product Warranty

Product Features 10˚to 40˚C

operating temperature range

Top Product Features

• Universal mounting: standard surface ceiling, wall and end mount and recessed mount • All aluminum housing • LED source • Single/Double sided lenses with white and mirrored inserts • Field installable chevrons • Self-diagnostics available with battery back-up models • Dual voltage input 120/277 VAC

Ordering Information SAMPLE ORDER NUMBER: EUX7RSD-MUL

Series

Face Options

Exit Color

Housing Color

Options

Series

Face Options

Exit Color

Housing Color

Options

EUX6=AC only

[Blank]=Universal 1=Single Face 2=Double Face

R=Red G=Green

(1)

[Blank]=Brushed Aluminum WH=White BK=Black

[Blank]=None 2C=Two Circuit

Notes

Examples Examples EUX6R, EUX61RWH EUX6G, EUX6GBK EUX6R-2C, EUX62GWH2C

Notes

(1) Custom finishes available. Contact the factory to confirm finish availability and lead time.

Series

Face Options

Exit Color

Housing Color

Series

Face Options

Exit Color

Housing Color

EUX7=Self-powered (battery back-up)

[Blank]=Universal 1=Single Face 2=Double Face

R=Red G=Green

(2)

(2) The 2C / Two circuit option does not accept two hot circuits.

(1)

[Blank]=Brushed Aluminum WH=White BK=Black

Self-diagnostics Self-diagnostics [Blank]=No self-diagnostics SD=Self-diagnostics

Examples Examples EUX7R, EUX7G, EUX71R, EUX71G EUX7RSD, EUX72WHSD, EUX7GSD, EUX7GBKSD

Notes (1) Custom finishes available. Contact the factory to confirm finish availability and lead time.

Notes: EUXFAI=Fire alarm interface module (ordered separately; field installed).

- MUL=mullion mount (inverted sign) option. Add “-MUL” as a suffix.

Shipping Information: The EUX housings and lens panels are shipped in separate boxes.

PS505143EN page 1

November 25, 2025 7:10 PM

BBB OFFICE

TYPE 1F EXIT ALT

NX-813-LED / NX-814-LED / NX-815-LED

Type

Recessed Adjustable LED Edge-Lit Exit Sign Source: 3.8W normal operation 0.7W emergency operation

Project Catalog No. Notes

PRODUCT DESCRIPTION Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc.

Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.

PRODUCT IMAGES AND DIMENSIONS

BODY Galvanized steel housing with die-cast cover plate and acrylic panel.

FACE Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.

MOUNTING Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.

ELECTRICAL Voltage: Dual 120/277VAC (0.038A / 0.017A) LED Wattage: Normal operation: 3.8W / Emergency operation: 0.7W Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator Battery Back-Up (NX-815-LED): NiCad battery provides 90 minutes of illumination during emergency operation Testing: High charge / ready operation indicator light with test button and automatic reset Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge) Life Expectancy: 25 Years with no change in illumination level LABELS AND LISTINGS · 5-Year Limited Warranty · UL Listed · NEC · NFPA · State & Municipal · Certified to the energy efficiency standards of California Title 20

14-1/2"

2-7/8"

8-1/4"

5 YEAR L IM I TE D

WARRANTY

TITLE

20

COMPLIANT

DAMP

4"

12"

15-3/4" 3-1/8" 5-5/8"

1-1/4"

Recessed Adjustable LED Edge-Lit Exit Sign Operation

Letter Color

NX-813-LED = AC only NX-814-LED = 2-Circuit NX-815-LED = Battery Backup

R = Red G = Green

Face(s) / Acrylic C = Single Face / Clear Acrylic M = Single Face / Mirrored Acrylic 2M = Double Face / Mirrored Acrylic

Optional Accessories Housing Color A = Aluminum B = Black W = White

Description NEXC-G = Replacement Green Chevrons NEXC-R = Replacement Red Chevrons

Example: NX-813-LEDRCA = AC only Exit Sign, Red Letters, Single Face / Clear Acrylic, Aluminum Housing 6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com © 2026 Nora Lighting, Inc. All rights reserved. Specifications subject to change without notice.

031126P1

TYPE 2F EXIT SPEC

BBB OFFICE

Project

Catalog #

Type

Prepared by

Notes

Date

Sure-Lites EUX Series Universal Mount Edge Lit LED Exit Sign Typical Applications Office • Education • Healthcare • Hospitality • Retail • Manufacturing

Interactive Menu

Product Certification

• Dimensions and Mounting Details page 2 • Product Specifications page 3 • Technical Data page 4 • Product Warranty

Product Features 10˚to 40˚C

operating temperature range

Top Product Features

• Universal mounting: standard surface ceiling, wall and end mount and recessed mount • All aluminum housing • LED source • Single/Double sided lenses with white and mirrored inserts • Field installable chevrons • Self-diagnostics available with battery back-up models • Dual voltage input 120/277 VAC

Ordering Information SAMPLE ORDER NUMBER: EUX7RSD-MUL

Series

Face Options

Exit Color

Housing Color

Options

Series

Face Options

Exit Color

Housing Color

Options

EUX6=AC only

[Blank]=Universal 1=Single Face 2=Double Face

R=Red G=Green

(1)

[Blank]=Brushed Aluminum WH=White BK=Black

[Blank]=None 2C=Two Circuit

Notes

Examples Examples EUX6R, EUX61RWH EUX6G, EUX6GBK EUX6R-2C, EUX62GWH2C

Notes

(1) Custom finishes available. Contact the factory to confirm finish availability and lead time.

Series

Face Options

Exit Color

Housing Color

Series

Face Options

Exit Color

Housing Color

EUX7=Self-powered (battery back-up)

[Blank]=Universal 1=Single Face 2=Double Face

R=Red G=Green

(2)

(2) The 2C / Two circuit option does not accept two hot circuits.

(1)

[Blank]=Brushed Aluminum WH=White BK=Black

Self-diagnostics Self-diagnostics [Blank]=No self-diagnostics SD=Self-diagnostics

Examples Examples EUX7R, EUX7G, EUX71R, EUX71G EUX7RSD, EUX72WHSD, EUX7GSD, EUX7GBKSD

Notes (1) Custom finishes available. Contact the factory to confirm finish availability and lead time.

Notes: EUXFAI=Fire alarm interface module (ordered separately; field installed).

- MUL=mullion mount (inverted sign) option. Add “-MUL” as a suffix.

Shipping Information: The EUX housings and lens panels are shipped in separate boxes.

PS505143EN page 1

November 25, 2025 7:10 PM

BBB OFFICE

TYPE 2F EXIT ALT

NX-813-LED / NX-814-LED / NX-815-LED

Type

Recessed Adjustable LED Edge-Lit Exit Sign Source: 3.8W normal operation 0.7W emergency operation

Project Catalog No. Notes

PRODUCT DESCRIPTION Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc.

Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.

PRODUCT IMAGES AND DIMENSIONS

BODY Galvanized steel housing with die-cast cover plate and acrylic panel.

FACE Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.

MOUNTING Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.

ELECTRICAL Voltage: Dual 120/277VAC (0.038A / 0.017A) LED Wattage: Normal operation: 3.8W / Emergency operation: 0.7W Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator Battery Back-Up (NX-815-LED): NiCad battery provides 90 minutes of illumination during emergency operation Testing: High charge / ready operation indicator light with test button and automatic reset Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge) Life Expectancy: 25 Years with no change in illumination level LABELS AND LISTINGS · 5-Year Limited Warranty · UL Listed · NEC · NFPA · State & Municipal · Certified to the energy efficiency standards of California Title 20

14-1/2"

2-7/8"

8-1/4"

5 YEAR L IM I TE D

WARRANTY

TITLE

20

COMPLIANT

DAMP

4"

12"

15-3/4" 3-1/8" 5-5/8"

1-1/4"

Recessed Adjustable LED Edge-Lit Exit Sign Operation

Letter Color

NX-813-LED = AC only NX-814-LED = 2-Circuit NX-815-LED = Battery Backup

R = Red G = Green

Face(s) / Acrylic C = Single Face / Clear Acrylic M = Single Face / Mirrored Acrylic 2M = Double Face / Mirrored Acrylic

Optional Accessories Housing Color A = Aluminum B = Black W = White

Description NEXC-G = Replacement Green Chevrons NEXC-R = Replacement Red Chevrons

Example: NX-813-LEDRCA = AC only Exit Sign, Red Letters, Single Face / Clear Acrylic, Aluminum Housing 6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com © 2026 Nora Lighting, Inc. All rights reserved. Specifications subject to change without notice.

031126P1
