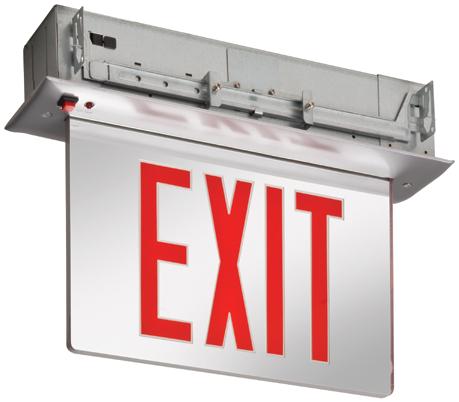

INTENDED USE — Suitable for applications requiring attractive edge-lit exit signage, universal installation and low energy consumption.
CONSTRUCTION — Extruded brushed aluminum finish.
Clear acrylic panels- letters measure 6" high with 3/4" stroke, with 100 ft viewing distance rating, based upon UL 924 standard.
For single-face clear panels, EXIT is seen as a reversed image from the back.
OPTICS — LEDs mounted on printed circuit board. The typical life of the exit LED lamp is >5 years, based on 24/7 operation.
The LED operating frequency is 120Hz.
ELECTRICAL — Dual voltage input capacity (120/277V).
Battery: (EL Option) – Sealed, maintenance free nickel-cadmium battery delivers 90 minutes capacity to emergency lamps. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection.
Self-diagnostic testing (EL Option Only) for 30 seconds every 30 days and 90 minutes annually. Diagnostic evaluation of LED light source, AC to DC transfer, charging and battery condition.
INSTALLATION — EDG – Universal mounting canopy for top or end mount. Back mount standard for single face only. Canopy provided.
EDGR – Recessed mounting. Bar hanger and brackets provided for both new or restricted ceiling access installation applications. Available for use in drop ceiling applications. Back wall mount (WM) option.
Universal directional indicators. Field selected and attached.
LISTINGS — UL damp location listed 32°-122°F (0°-50°C) standard. Meets UL924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards. Meets all applicable FCC Title 47, Part 15, Subpart B requirements.
BUY AMERICAN ACT — BAA – Buy America(n) Act: Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty (Battery is prorated). This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
† Exit Signs Certified in the CA Title 20 Appliance Efficiency Database.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details Design Select options indicated by this color background.
Accessories: Order as separate item.

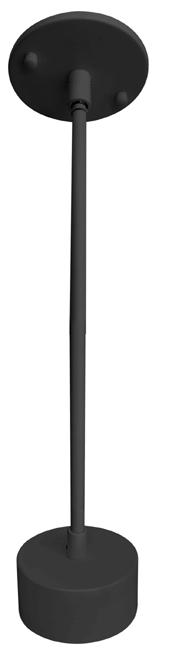

ELA US1212" stem kit with brushed aluminum canopy8

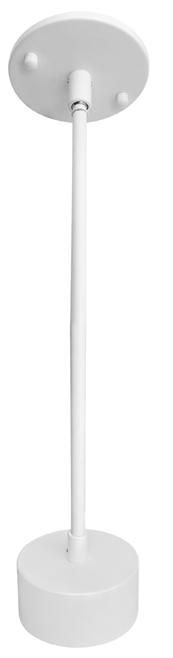

ELA W US12 12" stem kit with white canopy8
ELA WG1 Wireguard (13 3/4"H x 15 1/4"W x 6" D, back mount only)
Notes
1 For single-face clear panels, EXIT is seen as a reversed image from the back.
2 Available with single and double face.
3 White panel standard for double and single face.
4 Both circuits can be energized at the same time.
5 Not available with EL and SD options.
6 Available with EL option only.
7 Available on EDGR single face only
8 See spec sheet ELA-StemKits . Only available for EDG.
NX-617-LED
Source: 5W
PRODUCT DESCRIPTION

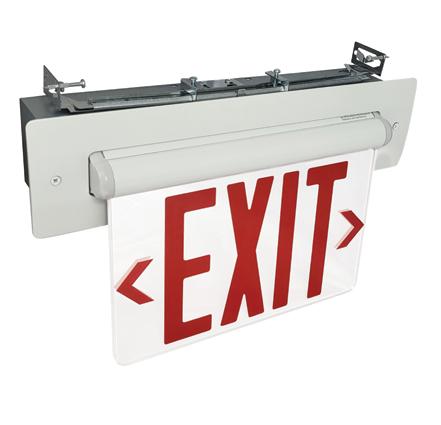

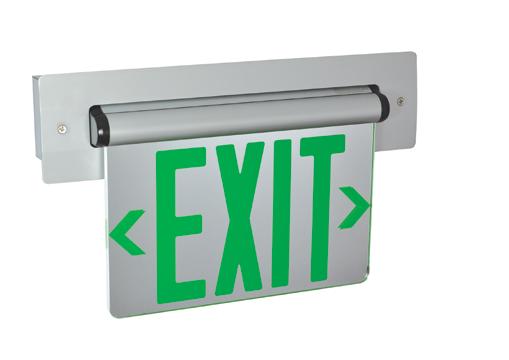

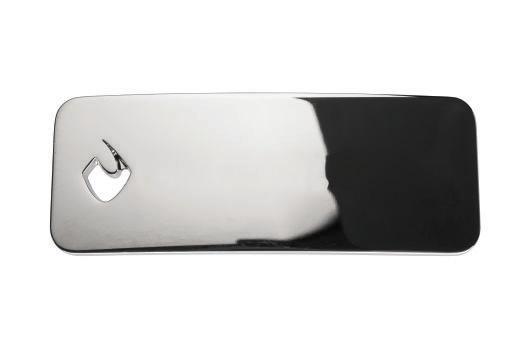

Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING

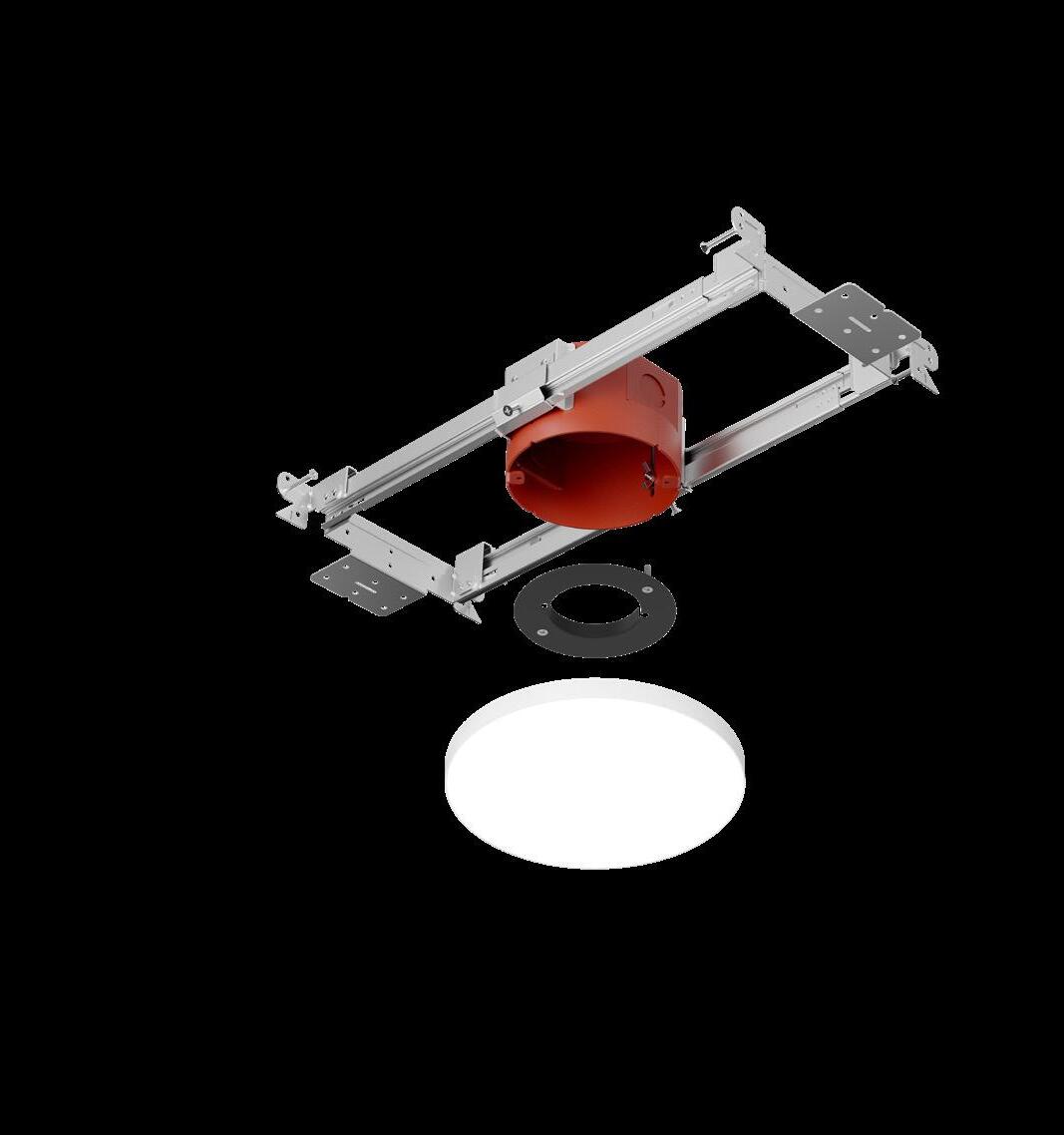

Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
&
· Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Type
Project
Catalog No.
Notes
FEATURES & SPECIFICATIONS

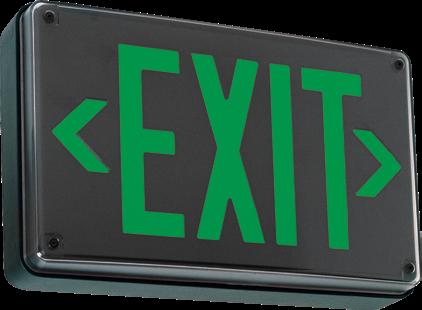

INTENDED USE — Suitable for cold weather (down to -40°C with CW option), wet location (4X option), security/prisons and high-abuse applications.
CONSTRUCTION — The housing is .25" to .525" thick rugged, low-profile cast aluminum.
Clear, UV-stable polycarbonate cover is .130" thick to prevent cracking or breaking. Cover is secured with four stainless steel Torx T20, tamper-resistant screws with center pin. Cover is secured with four stainless steel Phillips head screws, with the FPA option.
.1" thick polycarbonate faceplate incorporates universal directional chevron knockouts that are concealed and easily removed and replaced.
Universal mount (UM) option available – top, back, end mounting or conduit entry. (canopy provided) Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based upon UL924 standards.
U.S. Patent No. 5,611,163 and D383,501.
OPTICS — Lamp is constructed using new LED technology. Provides perfectly uniform illumination.
The typical life of the exit LED lamp is 10 years. Single-face exit uses one LED lamp; double-face exit uses two LED lamps. Low energy consumption — red lamp consumes 3.3 watts (120V); green lamp consumes 1.7 watts (120V).
ELECTRICAL — Dual voltage input capability (120/277V).
Sealed, maintenance-free nickel-cadmium battery delivers 90 minutes capacity to lamp. Constant-current series charger, automatic recharge after battery discharge.
Vandal-resistant magnetic test switch (magnet included) and LED indicator mounted on bottom of housing provide a safe, easy means for testing. Manual test switch also provided inside housing.
Polarized battery connector simplifies installation and maintenance; prevents charger damage from improper connection.
Brownout protection.
Low voltage disconnect allows battery connection before AC power is applied and prevents battery damage from deep discharge.
Self-diagnostics (optional). Automatically tests once a month for five minutes and once every six months for 30 minutes. Bi-color LED status indicator, test and service required.
INSTALLATION — Back mount standard for single face (no canopy), unless universal mount (UM) specified.
Conduit entry (1/2" - 14 UNC) included with universal mounting.
Cast-aluminum canopy attaches to 10-gauge steel mounting plate for top or end mounting (not required for back mounting).
Canopy mounting bracket provides 160 lbs. of mounting strength when mounted to suitable structure. Bracket will only fit a 2-gang junction box.
LISTINGS — UL Listed (standard). NOM certified (see Option). 4X option is UL Listed to NEMA 4X ratings. CW and 4X option is UL 924 wet location listed. NSF certified (FPA option). Meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards, and State of Minnesota energy-efficient legislation requiring less than 20W consumption. Suitable for ambient temperatures 10°C (50°F) to 40°C (104°F).
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
1.
2.
3.
4.
5.

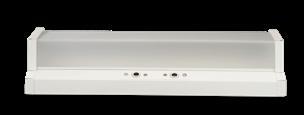

PRODUCT DESCRIPTION

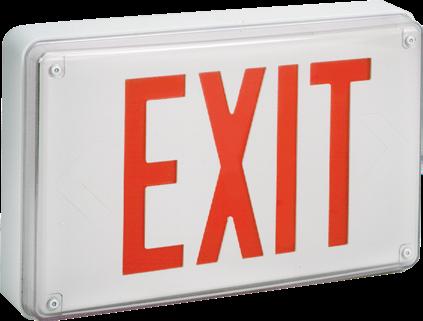

LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
· High temperature maintenance free NiCad battery
120/277VAC input
6" Letters and 3/4" stroke
· Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
Type
Project
Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
A+ Capable options indicated by this color background.
Ordering Information
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8

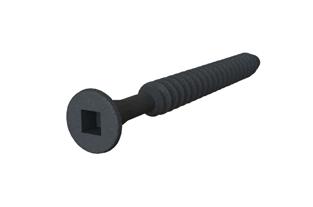

TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction

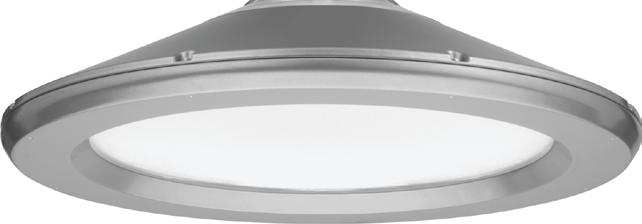

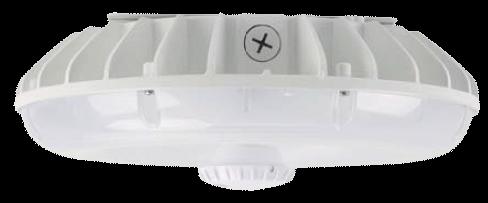

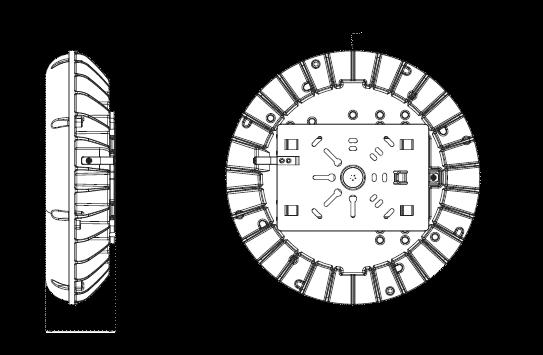

The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units)
U Unit packs only
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
A+ Capable options indicated by this color background.
Ordering Information
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units)
U Unit packs only
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
A+ Capable options indicated by this color background.
Ordering Information
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units)
U Unit packs only
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
A+ Capable options indicated by this color background.
Ordering Information
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units)
U Unit packs only
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
Project
Type
Catalog Number
OPTIONS (Factory Installed)

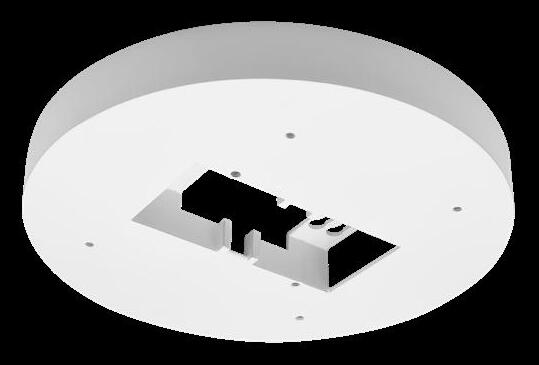

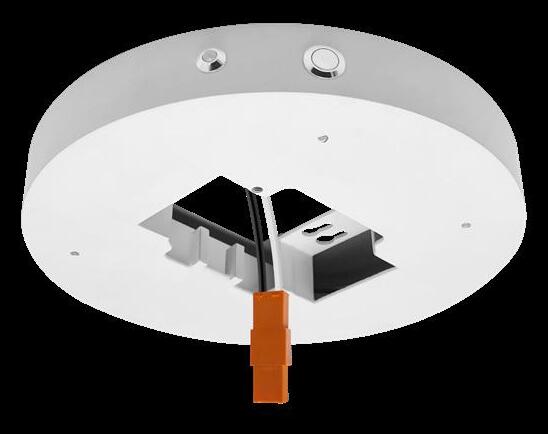

GL9-MS-MCT LED Selectable Canopy

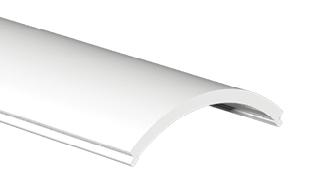

ALP-50C
SURFACE/ CORNER MOUNT
PROFILE

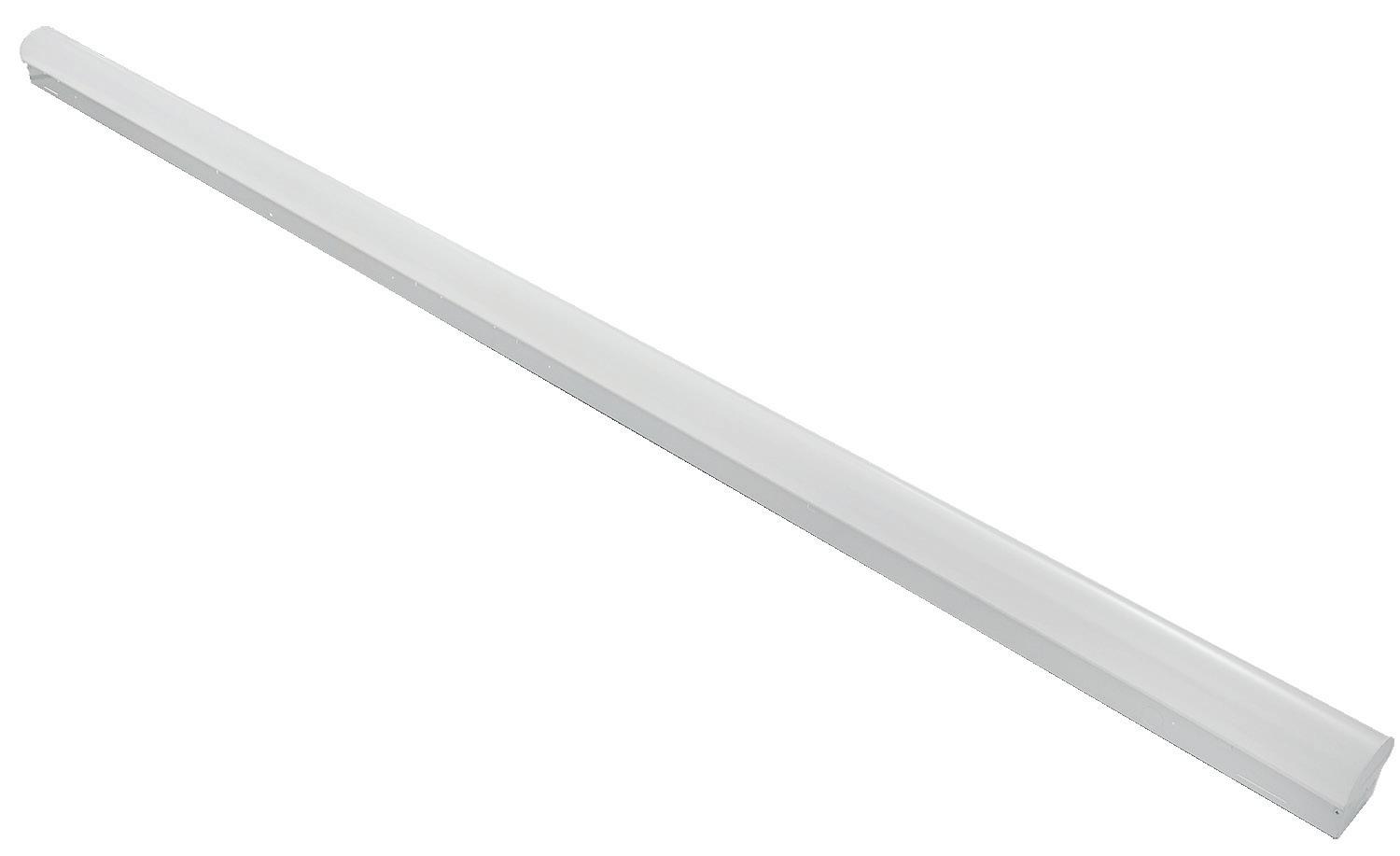

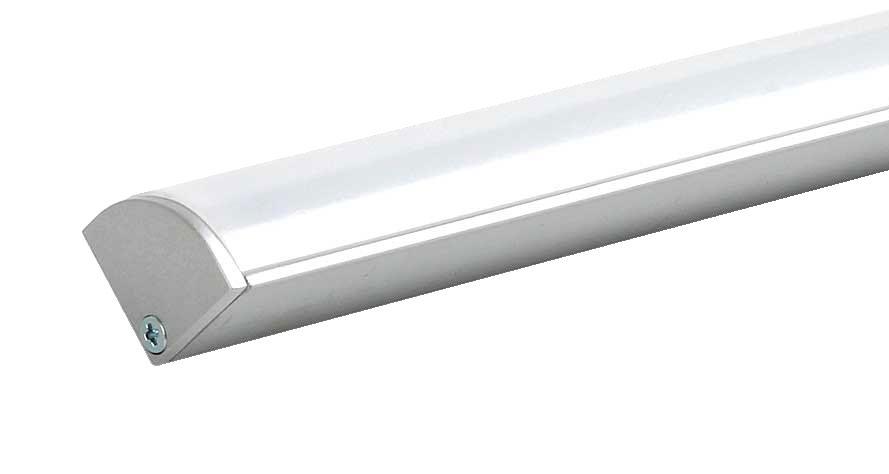

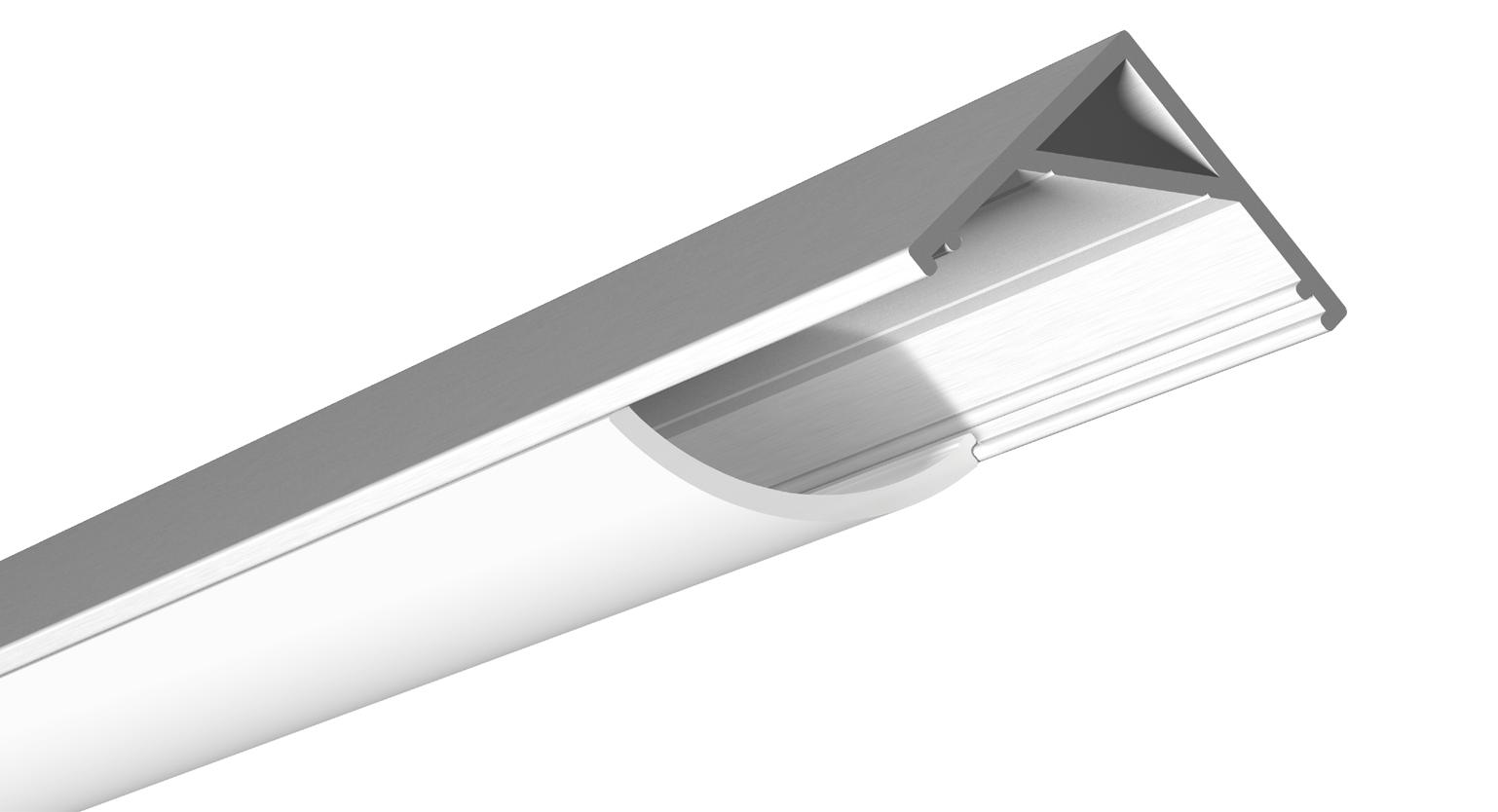

The ALP-50C is an Architectural-grade LED extrusion designed for surface/ corner mount applications and can fit linear LED strips up to 16mm (0.63”) wide. Made from high quality aluminum and manufactured with a patented frosted diffuser for maximum lumen output and wider beam distribution.
SPECIFICATIONS
TYPE
AVAILABLE LENGTHS FINISH LENS OPTION CHANNEL LENS END CAP
MOUNTING CLIPS WARRANTY
Surface/ Corner Mount
48 in./ 84 in./ 98.5 in.
Black/ Silver
Frosted
ALP50C

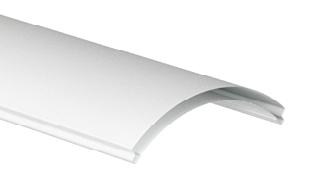

ALP50C-LN (Frosted)

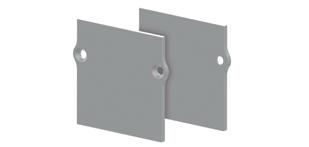

ALP50C-EC
ALP50C-CL 5 Years
Project Location Quote/ Ref #
FEATURES
• Customizable Durable, anodized aluminum
• Protects LED systems from dust and other elements Slim, low profile design
• Dissipates heat f rom LED, prolonging its lifetime Compatible with LED strips up to 16mm (0.63 in.) wide
Custom color finishes require powder coating. Allow 7 days lead time.
(Powder Coat)

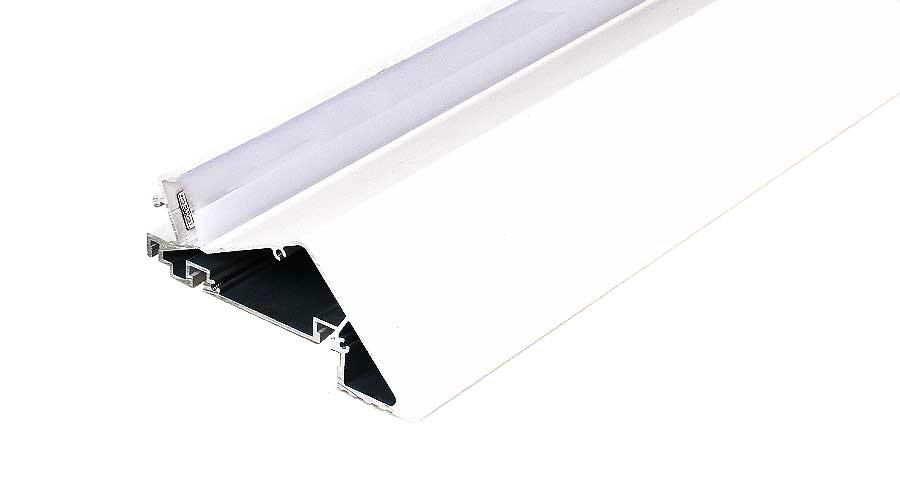

2000 PROFILE
WELL FOCUSED ON THE TASK!

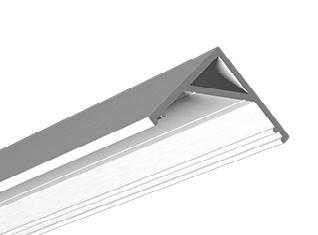

Offering lighting without hot spots at a 45-degree angle from a corner, the 2000 Series excels at maximizing appeal of the products in POP stands, while maintaining a minimalist style.
FEATURES
–Offer s lighting with a beam oriented at 45 degrees.
–Designed to give a uniform light without hot spots with an opal or prime lens*.
–Custom length by sections of 2 to 240 inches (6m).
–Applic ation guide for 10mm (3/8-inch) LED engine or less.
–Made of ALCOA 6063-T5 aluminum alloy increasing heat dissipation.
–It s use increases the lifetime of your LED engine.
–Designed to meet North American woodworking standards.
–Conforms to UL STD. 2108 for closet usage.
Cross-section dimensions:
IP22: Compatible with LED engines up to 14mm wide.
IP68: Compatible with LED engines up to 10mm wide.
WD1 - 2200-2700K 14W/m Lumen Package selection is not available for WD, TW and RGB color options.
RGB2 - RGB 19W/m
RGBW2 - 3000K 4in1 14W/m
TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.

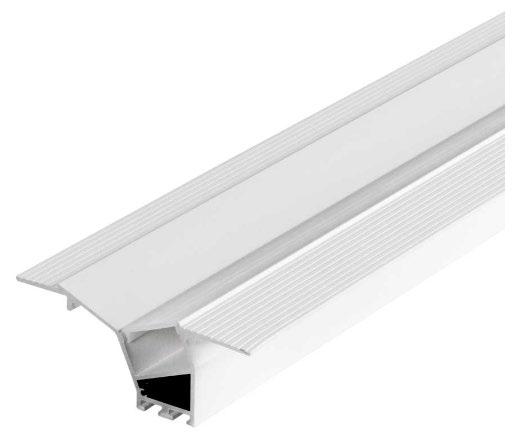

The ALP-3400TL is an Architectural Grade, LED extrusion profile designed for linear LED strips up to 41mm (1.61 inches) wide and recessed applications. Made from high-quality aluminum, these extrusions provide superior thermal management for higher wattage LED strips prolonging the overall lifespan of the lighting system. Manufactured with a patented frosted diffuser for maximum lumen output and a wider beam distribution.
SPECIFICATIONS
TYPE
LED STRIP LENS OPTION
APERTURE
AVAILABLE LENGTHS FINISH CHANNEL LENS
END CAP

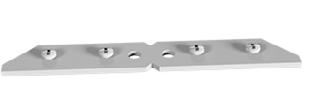

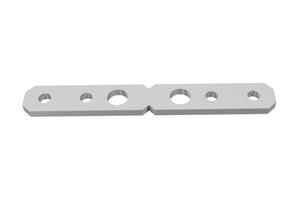

STRAIGHT CONNECTOR
INTERNAL CONNECTOR
* LED strips sold separately.
Recessed/ Corner Mount
Fits up 41mm (1.61”)
Frosted
1 Inch
42 in. / 84 in.
Matte White
ALP-3400TL
ALP-3400TL-LN (Included)
ALP-3400TL-EC (Sold Separately)
ALP-2000TL-STB
ALP-2000TL-INB
* Remote mounted power supply sold separately.
Project
Location
Quote/ Ref #
FEATURES
Field Cuttable
Accommodates LED strips up to 41mm (1.61”) wide 1” Aperture
Suitable for corner installations/ applications
Frosted Lens diffuser included Dissipates heat from LED, prolonging its lifetime
Frosted Lens incuded

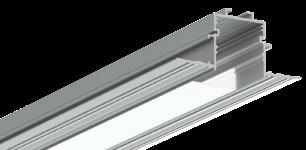

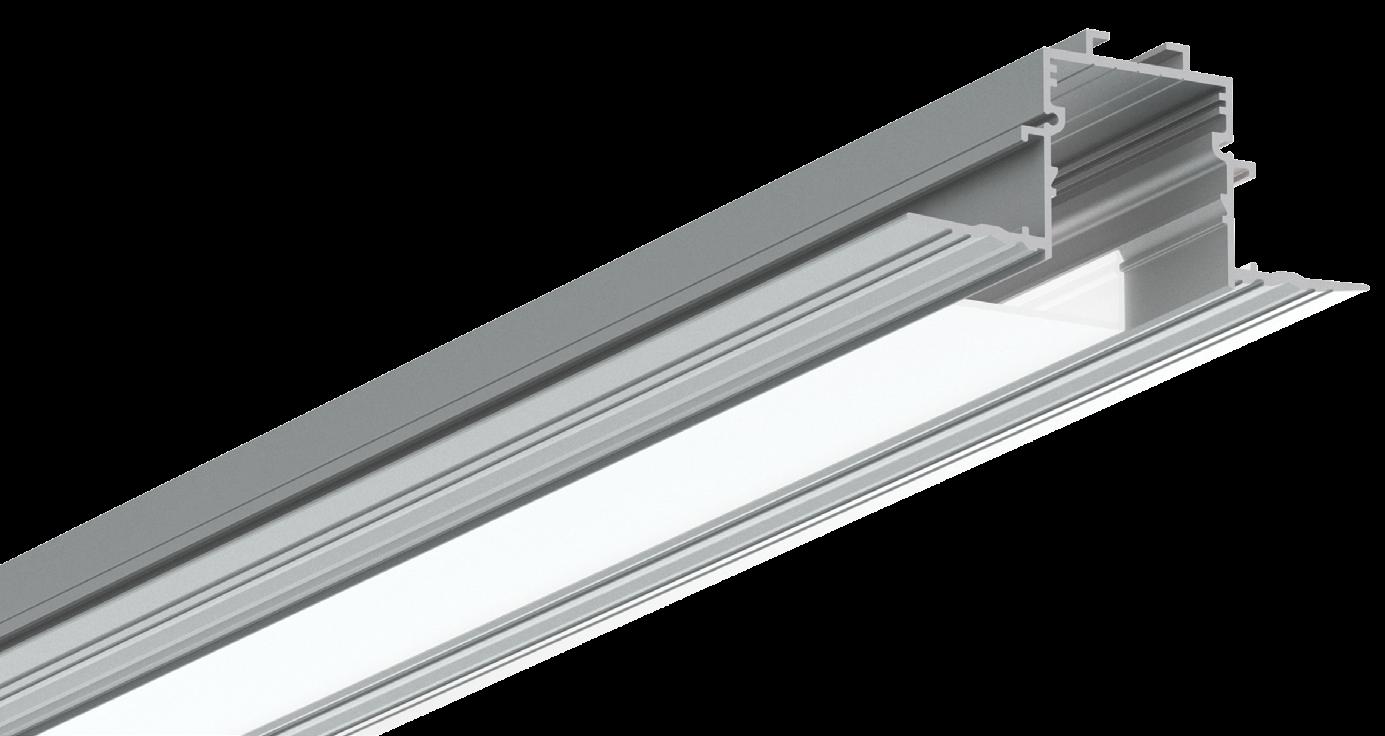

8550 PROFILE

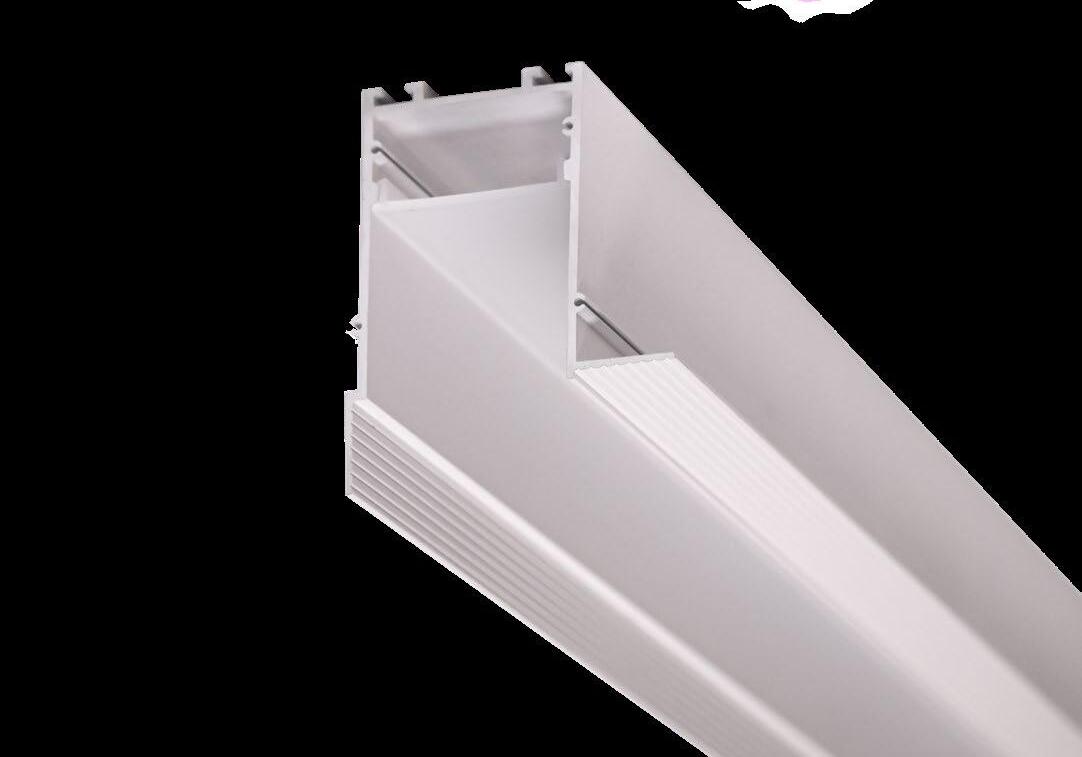

The 8550 Pro profile is designed to disappear into the structure, merging the light source with the surface. Very versatile with 15 LED light sources to choose from 2400 K to 6200 K including WarmDim, Tunable White, RGB and RGB white. Its refined look harmonizes perfectly with any project.
FEATURES
– Available in 96 in (2.43 m) lengths including 3 straight Type C joiners; profile can be cut onsite for easy and accurate installation
–On each side of the extrusion, the edges have grooves that reduce the space between the screws and the surface
–Designed to give a uniform light without hot spots with a prime lens.
–15 LED light sources to choose from 2400 K to 6200 K, including WarmDim, RGB and RGBW
–Made of ALCOA 6063-T5 aluminum alloy for increased heat dissipation
–Compatible with the HER Pro PVC reflector that provides maximum luminance.
–Indoor use
– Bonus: PVC protector included with each profile
Cross-section dimensions:
LED ENGINE COMPATIBILITY
Compatible with LED engines up to 14mm wide.
lens)
BLANK
8550 Profile ordering sheet
Available in straight section of 8 feet (96 inches/2.4 m).
Series
WD3 - 2700-3500K 14W/m
COBWD - 2200-3200K 14W/m
TW1 - Tunable White 11W/m
LHP - 668 LM / 7.0W FT / 95+CRI F - DMX
WD1 - 2200-2700K 14W/m Lumen Package selection is not available for WD, TW and RGB color options.
G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
J - Casambi CBU-PWM4-4CHBluetooth 100/277 VAC
TW2 - Tunable White 19W/m K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC
62 - 6200K (LP only) For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
ALP-4201KN
KNIFE-EDGE LED PROFILE SYSTEM
The ALP-4201KN (Knife Edge LED System) produces a seamless, elegant and visually striking, sharpedged architectural feature that produces even light distibution and uniform lighting. It attaches to heavy gauge steel wall brackets or special extension. It accepts 1/2” or 5/8” thick drywall on its underside.
SPECIFICATIONS
LED STRIP WATTAGE
LUMEN OUTPUT
LENS
LENGTH OPTIONS
CRI
COLOR TEMPERATURE
DIMMING
CONNECTIONS
OPERATING TEMPERATURE
RATING
CERTIFICATIONS
Fits LED strips up to 20mm (0.78 in)
3W/ 4.4W/ 7W
210Lm/ 315 Lm/ 698 Lm Frosted (Included) 96 In. 95+
27K/ 30K/ 35K/ 40K/ 50K/ RGB/ RGBW/ RGBWW
TRIAC, 0-10, DMX and Lutron End to End In-Field
-40°C (-40°F) to 50°C (122°F)
IP54 Indoor UL Listed Project Location Quote/ Ref #
FEATURES
Fits LED strips up to 20mm (0.78 in) wide
Frosted lens included with each profile
Factory cut to length
Field Cuttable

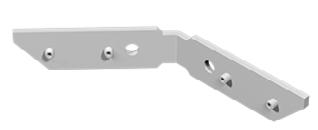

Factory built precision inside and outside corners
Painted eggshell RAL 9010
Primer to accept field painting
PSDL Series TRIAC ELV Dimming
PSDE-96W-24-010JB 0-10V Dimming
Lutron 2-Wire
Lutron ECO 3-Wire
Custom color finishes require powder coating. Allow 4 weeks lead time.

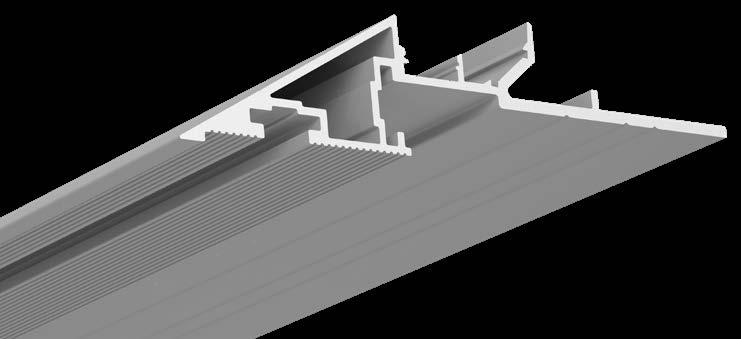

8920 PROFILE ( Knife Edge )
8000 Series

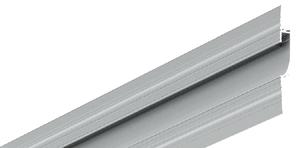

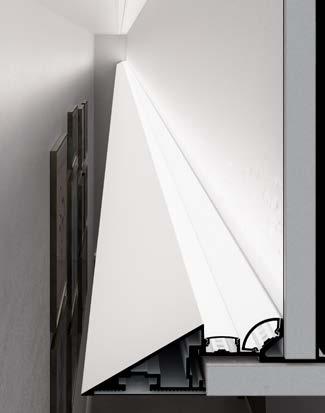

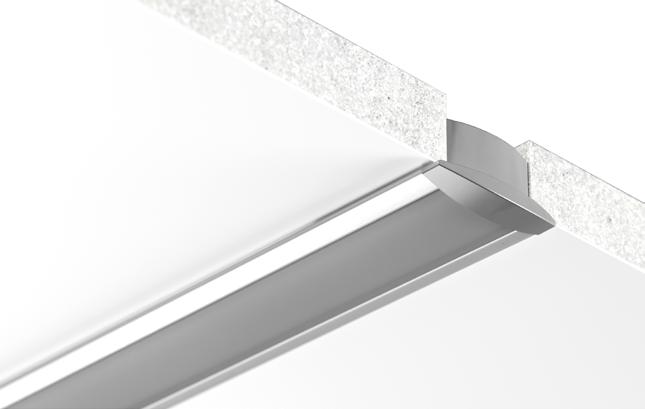

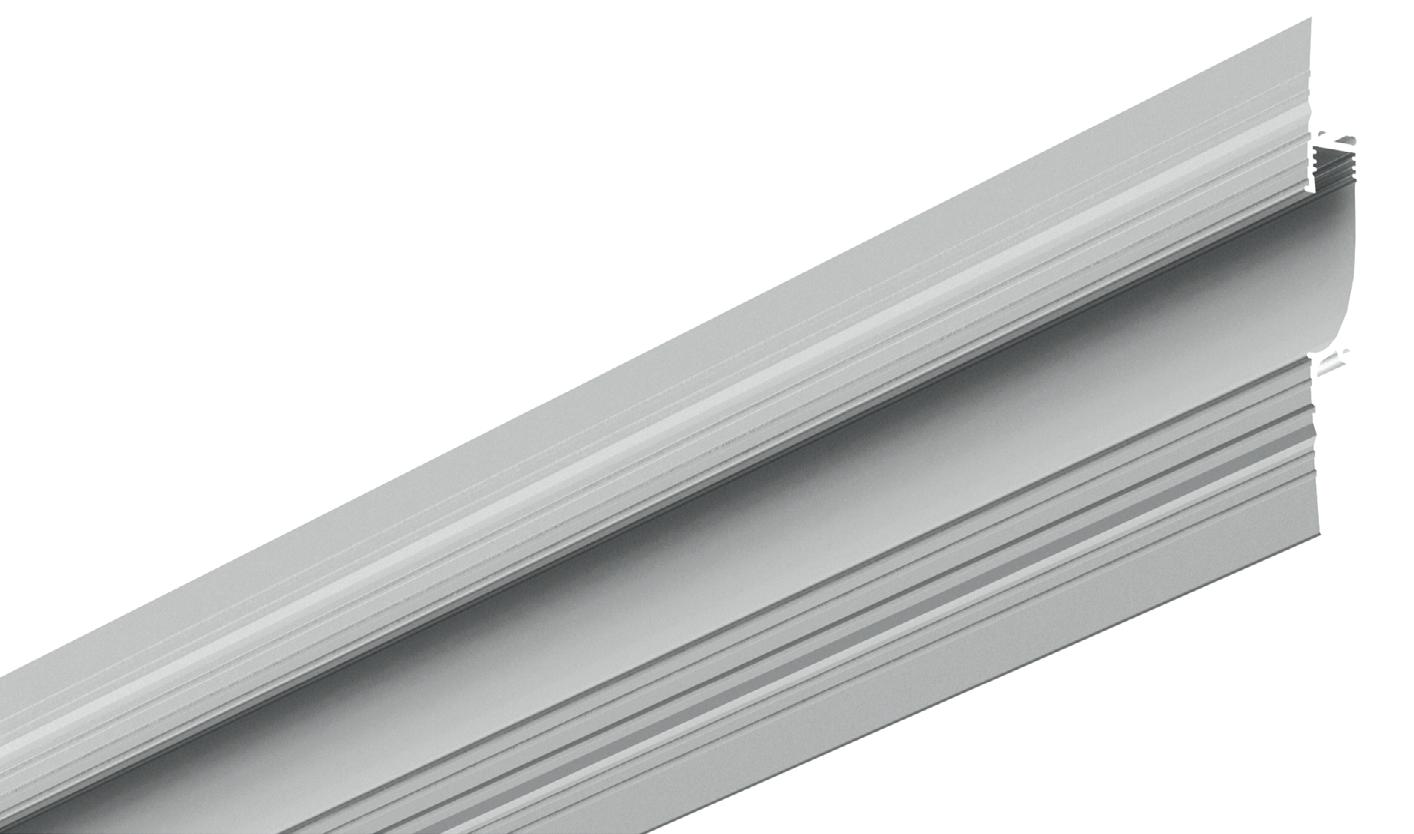

The 8920 “Knife Edge” profile is designed for cove lighting. The aluminum channel directly fits standard gypsum panels for a seamless finish and to simplify the construction of cove lighting. Two integrated LED channels add contour lighting upward and outward to beautifully fill the space with light. Build rectangular or square coves to your measurements using the pre-built corners and straight extrusions. Customize the light with the various LED lighting options and even have the ability to program scenes when integrated with a Casambi controller.
FEATURES
– A direct fit for standard 5/8" gypsum panels, will also accommodate 1/2" panels with the installation of 1/8” shims onsite.
– The grooved area allows to level the profile to the plasterboard using drywall mud.
– Two different LED channels, a 90 degrees to focus the light in the cove, a 40 degrees to wash of the ceiling, use both for a maximum indirect lighting.
– The LED channels are designed for up to 12mm wide LED strip tape. Are to be ordered to desired lengths for easier installation.
– Ordered in length of 96 inches (2.43m), cuttable on site for easy and precise installation.
– Available for easier installation with straight joiners to connect with 2 types of pre-made corners, inside corner (8901) lighting on 90 degrees, and outside corner (8902) lighting on 270 degrees.
– Each 96-inch section and the corners include both the 1000 and 2200 Prime lenses.
– A variety of color temperatures and lumen packages (light outputs), as well as warm dim, tunable white, RGB, or RGBW available.
– Made of ALCOA 6063-T5 aluminum alloy for increased heat dissipation.
Cross-section dimensions:
OPTIONS
LED ENGINE COMPATIBILITY
Both LED channels are compatible with LED engines up to 12mm wide.
LINEAR WEIGHT
1.288 lbs/ft, 1.916 kg/m, without lenses.
BLANK
8920 Profile (knife edge) ordering sheet 8000 Series
LENGTH
Available in straight section of 8 feet (96 inches/2.4 m).
NOTE: By default pre-made corners will be fitted with the same lenses that were selected for the 9820 profile
WD1 - 2200-2700K 14W/m
COBWD - 2200-3200K 14W/m
TW1 - Tunable White 11W/m
TW2 - Tunable White 19W/m
RGB1 - RGB 14W/m
RGB2 - RGB 19W/m
For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
PREMIER 0,1% Eco System 24V/96W
RGBW2 - 3000K 4in1 14W/m NO - No driver Lumen Package selection is not available for WD TW and RGB color options.
WD3 - 2700-3500K 14W/m I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC

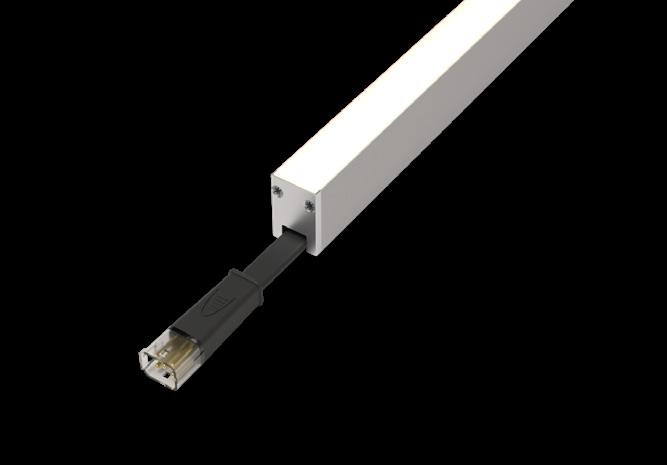

BrightLinx offers easy installation with a built-in cable raceway and a quick, plug-andplay connection system. With a polyurethane coating on top of our wash and graze lens options, this fixture is sure to withstand the elements and provide reliable performance for years to come.
Features
Built-in Raceway for Simple Wire Management
• Vandal Proof Polyurethane Lens Coating
• Grazing and Wash Lenses Available
• Matte Anodized Aluminum Housing IP67 and IK10 Ratings
Dimensions
6I(6.24"), 1(12.20″), 2(24.17"), or 4(48.27")
(18.0mm)
(27.0mm)
* Customizable – Consult Factory
§ Additional Accessories Needed
BrightLinx
Specifications
Series BTLX
Temp/Color 1800K–6500K, RGBW
Input Voltage 24V DC
Lumens per Foot 118–793
Watts per Foot 8 (Static White) 5 (Color Changing)
Beam Spread 35°, 45°, 120°
CRI* 90+
Diodes 2835 (Static White) 5050 (Color Changing)
Binning Tolerance 3 SDCM (Static White) -1 Bin
Length Options 6in, 1ft, 2ft, 4ft
Max Run Length 12ft (Static White) 20ft (Color Changing)

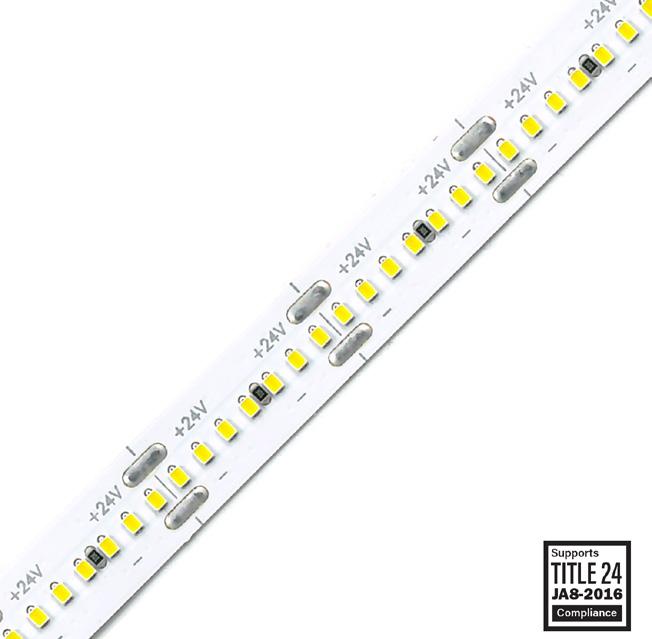

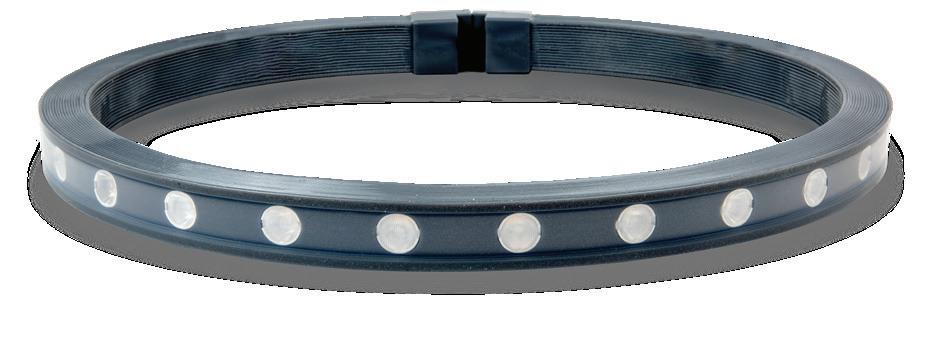

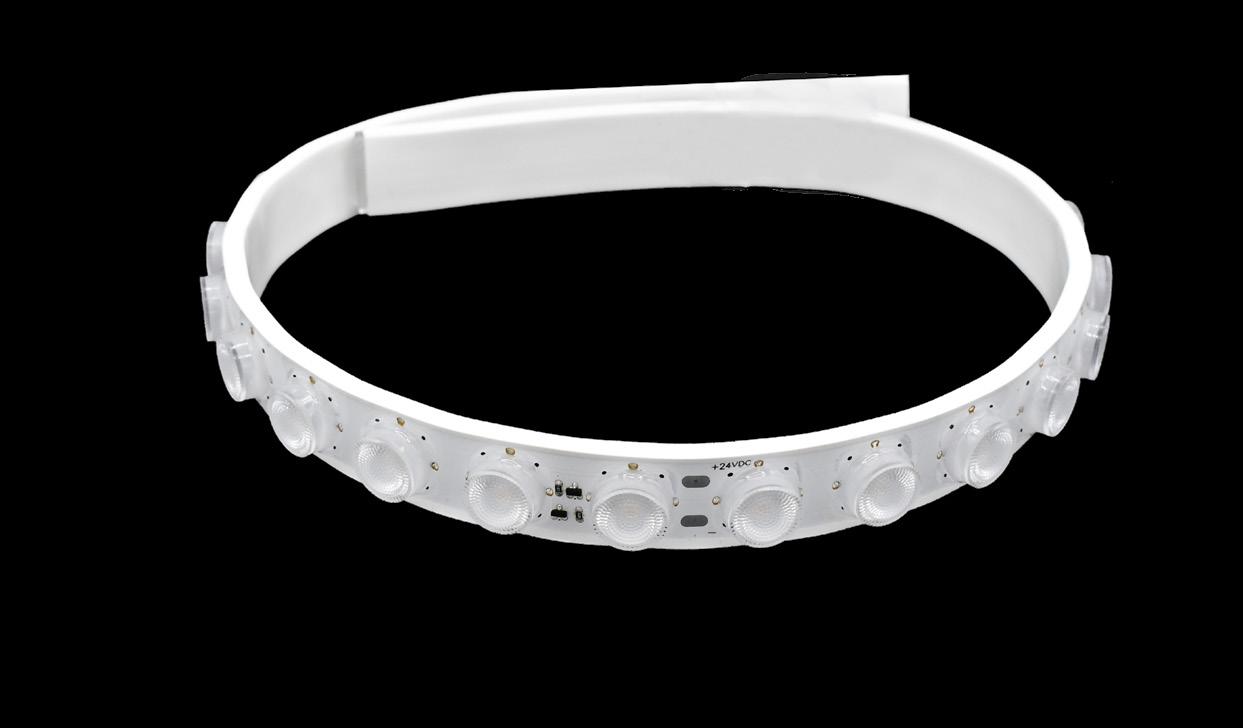

5.8W, 24VDC WALL GRAZING LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6” increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• 30° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens
SPECIFICATIONS
ELECTRICAL
•24VDC
•5.8 watts per foot
•90+ CRI
CERTIFICATION
•UL listed for US and Canada
•Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
•IP65
WARRANTY
•5-year warranty when paired with GM power supply
Note: Includes 48” leads. Factory sealed. *Reel Length: XX = per foot
CONTROLLERS

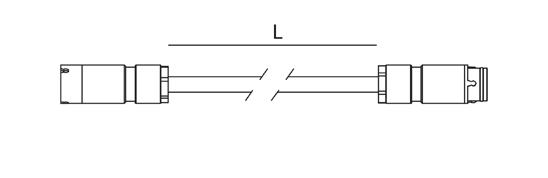

VTX-TTC6 6in tape to tape connector
VTX-TTC12 12in tape to tape connector
VTX-TTC24 24in tape to tape connector

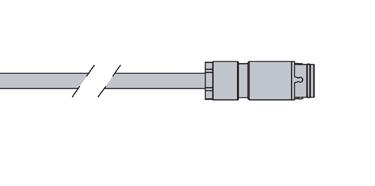

VTX-PCHW8 8ft. hardwired power feed
VTX-EC Tape end cap
Note: For compatible channels, see next page. Accessories included in factory assembled components.
Note: Use minimum of 2 clips or brackets per 4ft of channel.
DIMENSION
CUTTABLE EVERY 6” (7 LEDS)

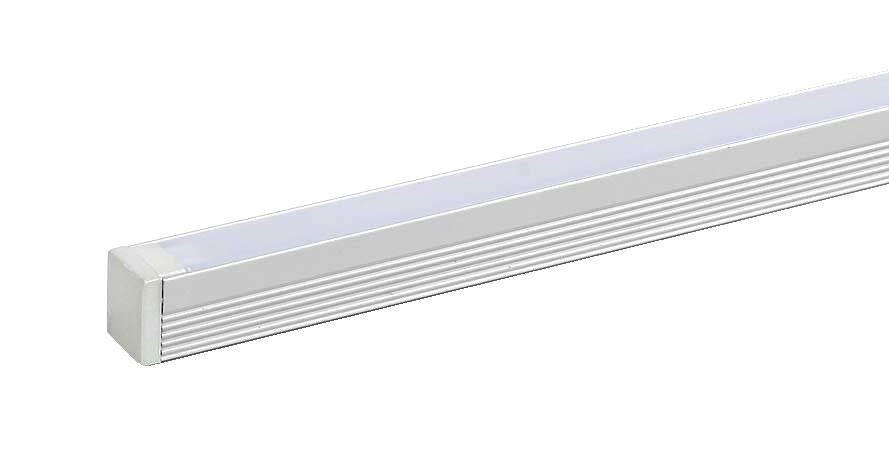

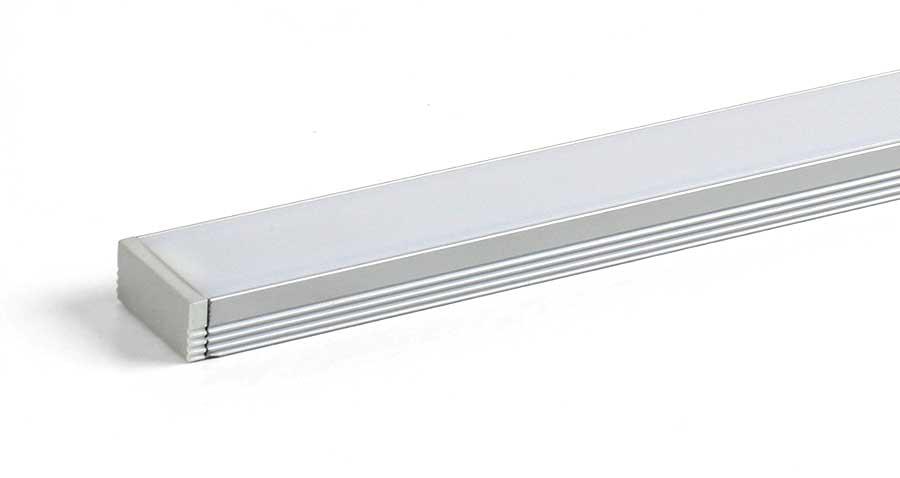

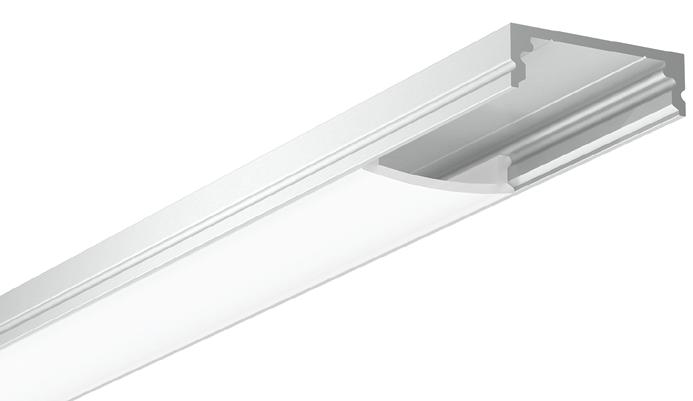

ALP20
Surface Mount LED Profile
SPECIFICATIONS
TYPE
AVAILABLE LENGTHS
FINISH
LENS OPTIONS
CHANNEL
LENS (INCLUDED)
END CAP
MOUNTING CLIPS
ADJUSTABLE BRACKET
ADJUSTABLE BRACKET
Surface mount
49.25”, 84” and 98.5“
White / Black / Silver
Frosted
ALP-20

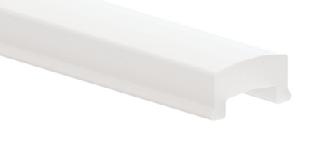

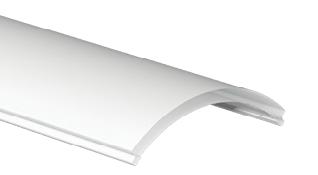

ALP-20-LN (frosted)
ALP-20-EC
ALP-20-CL
ALP-20-BKT-ADJ
ALP-20-ASB
CompatiblewithLEDstripsupto 12mm (0.5”) wide.
LEDtapelightsoldseparately
FrostedLensdiffuserincluded
2(two)endcapsincludedwitheverychannel.
Customcolorfinishesavailable(powder-coating).
ARCHITECTURAL
JOB NAME: LOCATION: QUOTE/REF#:
The ALP-20 is an Architectural-grade LED extrusion designed for surface mount applications and can fit linearLED strips up to 12mm (0.5”) wide. Made from high quality aluminum and manufactured with a patented frosted diffuser for maximum lumen output and wider beamdistribution.
FEATURES
■ Customizable
■ Durable, anodized aluminum
■ Protects LED systems from dust and other elements
■ Slim, low profile design
■ Dissipates heat from LED, prolonging its lifetime
DIMENSIONS
ALP20SPECSHEET P1

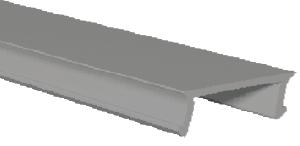

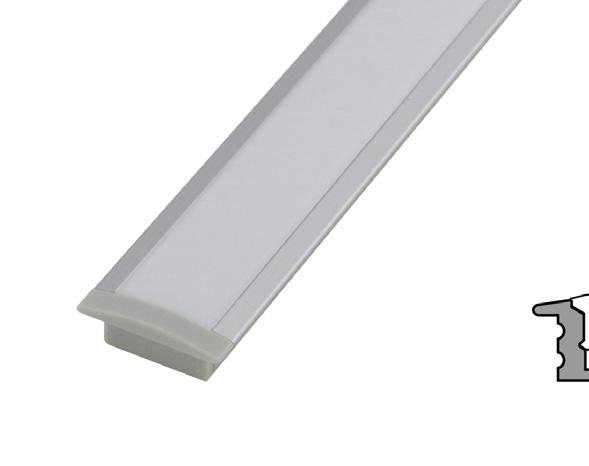

1100 PROFILE
1000 Series
THE THINNEST OF THE 1000 SERIES
This profile is the thinnest of the 1000 Series being only 6 mm (0.236 inch) thick and 18.7 mm (0.736 inch) wide, and is compatible with most of our LED engines. Perfect for tight spots, it will be very discreet and will stand out.
FEATURES
–T he most compact profile of the 1000 Series, only 6mm thick.
–Custom length by sections of 2 to 240 inches (6m).
–Applic ation guide for 10mm (3/8 inch) LED engine or less.
–Made of ALCOA 6063-T5 aluminum alloy increasing heat dissipation.
–It s use increases the lifetime of your LED engine.
–Compatible with multiple installation accessories. –Designed to meet North American woodworking standards.
Cross-section dimensions:
Compatible with LED engines up to 14mm
0.060 lbs/ft, 0.089 kg/m (without lens)
Profile ordering sheet 1000 Series
62 - 6200K (LP only) DC9** - DC plug 9 FT
F - DMX
G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W DCX** - DC plug custom FT
WD3 - 2700-3500K 14W/m I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
WD1 - 2200-2700K 14W/m Lumen Package selection is not available for WD, TW and RGB color options. NO - No lead For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
RGB2 - RGB 19W/m
K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC
RGBW2 - 3000K 4in1 14W/m NO - No driver

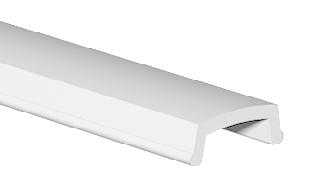

ALP-40
5MM SURFACE MOUNT PROFILE
The ALP-40 is an Architectural-grade LED extrusion designed for surface mount applications, specifically for 5mm (0.2") wide. Made from high quality aluminum and manufactured with a patented frosted diffuser for maximum lumen output and wider beam distribution.
SPECIFICATIONS
TYPE AVAILABLE LENGTHS
FINISH LENS OPTION
CHANNEL
LENS END CAP
MOUNTING CLIPS WARRANTY
Surface Mount 41.75 in./ 84 in.
White/ Black/ Silver Frosted (Included)
ALP-40
ALP40-LN (Frosted)
ALP40-EC
ALP40-CL 5 Years Project Location Quote/ Ref #
* Factory recommends using LSM-35TN-5MM tape
FEATURES
Customizable
Compatible with 5mm (0.2") wide LED strips Durable, anodized aluminum

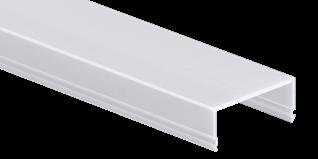

• Frosted lens diffuser included Protects LED systems from dust and other elements Dissipates heat from LED, prolonging its lifetime

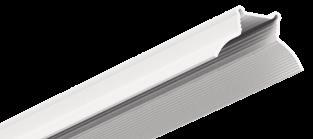

1400 PROFILE
The 1400 series is a rectangular and flangeless profile with a sleek and minimalist design. Integrate into different types of walls or ceilings, or recess within a flangeless drywall system for clean lines of light. The 1400 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
• A channel for wire management, secure connections between channels, and pattern assembly
• Recessed flangeless installation with the Gypsum Groove drywall insert
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Mounting hardware for peace of mind integration
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Inter nal groove guide for easy application of LED strip when field installation is needed
• A selec tion of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas

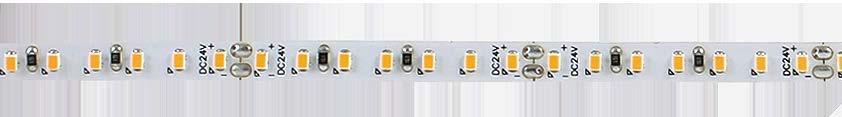

LSM-35TN
3.0W INDOOR 5MM WIDE FLEXIBLE LED STRIP
LSM35TN is a 5MM wide, dimmable flexible LED strip capable of delivering up to 285 lumens of light output per Ft. Ideal for low profile and narrow installations, this LED strip light was designed for easy installation. 3M adhesive backing to stick to most surfaces and is field cuttable.
SPECIFICATIONS
INPUT VOLTAGE
POWER CONSUMPTION
NO. OF LEDS
LUMEN OUTPUT
CRI
COLOR TEMPERATURE
DIMMING
MAXIMUM RUN LENGTH
CUTTABLE
BINNING
OPERATING TEMPERATURE
BEAM ANGLE
IP RATING
CERTIFICATIONS
LUMEN MAINTENANCE
24V DC
3W per Ft.
60 LEDs per Ft. up to 285 Lm/Ft.
95+
27K / 30K / 35K / 40K
MLV, ELV, 0-10 and TRIAC
12 Ft.
Every 1.5 in (38.3mm)
1.5 Step Macadam Elipse
-40°F (-40°C) ~ +140°F (+60°C)
120°
IP45 dry location (Indoor)
UL Listed, TITLE 24 JA8 50,000 Hrs.
*Approved for closet / storage space installation per NEC 410. 16(A)(3) and 410.16(C)(5)
* Custom color finishes require powder coating. Allow 7 days leads time.
1 PROFILE
CA14 2 FINISH
0 - Anodized aluminum finish
1 - Anodized black finish
2 - Painted white finish
X - Custom color provide RAL #
3 MOUNTING

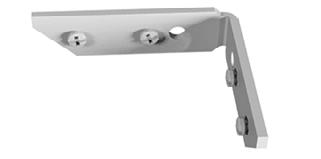

MC11 - Flat surface bracket

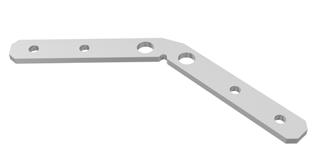

MC12 - 45° Corner bracket
MC18 - Swivel 180°
MC10 - Phantom bracket
MI10 - Magnetic bracket
MI12 - Surface 2-side bracket
MI11 - Surface 1-side bracket

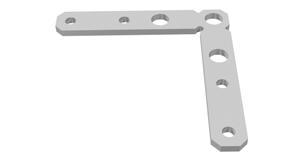

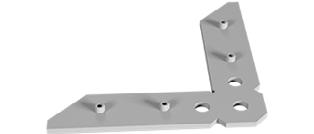

MI13 - Surface 90-degree bracket
MI14 - Surface 45-degree bracket
MNO - No mounting
7 APPLICATION
AID - Indoor dry locations
AIM - Indoor damp locations
For damp location applications, LED strip will be put inside a waterproof silicone sleeve.

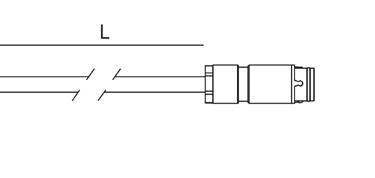

8 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
9 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WS1 - Simple lead-in, side feed 1
WS2 - Simple lead-in, side feed 2
WPE - Pass-through, end feed
WPB - Pass-through, back feed
WP1 - Pass-through, side 1
WP2 - Pass-through, side 2
4 OPTICS
DC10 - Clear
DX10 - Optiflex lens
DO10 - Opal lens
DR10 - Prime lens
DB10 - Black lens
DS10 - Silens
DOD10 - 3D Opal lens
DNO - No lens
5 LUMEN PACKAGE
LP1 - 1.5
K24 - 2400K
K27 - 2700K
K30 - 3000K
K35 - 3500K
K40 - 4000K
K62 - 6200K
K24 - 2400K
K27 - 2700K
K30 - 3000K
K35 - 3500K
K40 - 4000K
K53 - 5300K
10 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges. Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
11 LENGTH*
Length of the luminaire in inches.
*Includes end caps, excludes flanges (when applicable). length no flange flange
12 MOTION SENSORS
SI05 - 30 sec., embedded
SE05 - 30 sec., external
SI4 - 4 min., embedded
SE4 - 4 min., external
SIP - embedded proximity hand motion sensor
SNO - No sensor
All motion sensors can only be used with non-dimmable power supplies
The 1300 series is a flanged and rectangular profile designed for a recessed linear lighting installation. The 1300 series offers a wide selection of lenses, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainle ss steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Inter nal groove guide for easy application of LED strip when field installation is needed
• A selec tion of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
MOUNTING recessed
LOCATION RATING dry damp wet
OTHER OPTIONS
Description
The newest member of our Direct View family, the DL-series offers a lower output option while still providing smooth, pixel-free illumination in all channels.
Features
• Supports Title 24 JA8-2019 Compliance
• Suitable for Most Direct View Applications Dimmable
• 50,000 Hour Life
5-Year Warranty
• UL-Listed for Indoor and Outdoor Use
• Silicone Outer Jacket Material
• 3M™ Industrial Adhesive Backing
• For Use with 24V Power Supplies
Direct View
Product Code Builder
Series Spec
Series DL
Color/Temp 2700K–5000K
Dimming Protocol PWM, TRIAC*, 0-10V*, DMX 512*
Indoor/Outdoor Indoor & Outdoor
Input Voltage 24V DC
Wats per Foot (AVG) 3.1 W/ft
Beam Angle 120°
Max Run Length 20ft
CRI 90+
Operating Temp. -40°F (-40°C) to 149°F (65°C)
Cut Intervals 1.00" (25.0mm)
Tape Width 0.50" (13.2mm)
Tape Height 0.25" (6.0mm)
End Cap Width 0.56" (14.2mm)
End Cap Height 0.37" (9.0mm)
Diode 2016
Field Cuttable No
IP Rating IP67
Additional Accessories Needed
1 PROFILE & FINISH
CA1300 - Anodized aluminum finish
CA1301 - Anodized black finish
CA130W- White (special order)
CA130X - Custom color provide RAL #
2 MOUNTING
MCF - Flat surface bracket
M3M - Double face mounting tape
MNO - No mounting
3 OPTICS
DCS - Clear lens
DXS - Optiflex lens
DOS - Opal lens
DRS - Prime lens
DBS - Black lens
DSS - Silens
DNO - No lens
4 LUMEN PACKAGE
LP100 - 1.5 W/ft - 131 lm/ft
LP200 - 2.9 W/ft - 226 lm/ft
LP300 - 4.4 W/ft - 313 lm/ft
LP450 - 5.8 W/ft - 477 lm/ft
LP750* - 7.0 W/ft - 590 lm/ft
PRECISE
LE150 - 1.3 W/ft - 180 lm/ft
LE300 - 3.0 W/ft - 360 lm/ft
LE600 - 5.2 W/ft - 690 lm/f PEAK
LK150 - 1.0 W/ft - 128 lm/ft
LK300 - 2.0 W/ft - 260 lm/ft
LK450 - 3.0 W/ft - 390 lm/ft
LK600 - 4.5 W/ft - 585 lm/ft
LK750 - 6.0 W/ft - 780 lm/ft
LK900 - 7.5 W/ft - 973 lm/ft NEAT
LT300 - 3.0 W/ft - 305 lm/ft
7 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
8 INPUT / OUTPUT
WSB - Simple lead-in, back feed
WPB - Pass-through, back feed
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
5 CCT
K24 - 2400K (not available for LE150)
K27 - 2700K
K30 - 3000K
K35 - 3500K (not available for LE150)
K40 - 4000K (not available for LE150)
K50* - 5000K (LP750 only)
6 APPLICATION
AID - Indoor dry locations
AIW - Indoor wet locations
For wet location applications, LED strip will be put inside a waterproof silicone sheath.
(Note: Specifications are subject to change without notice)

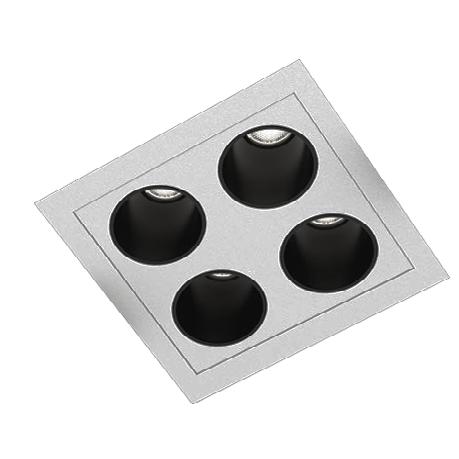

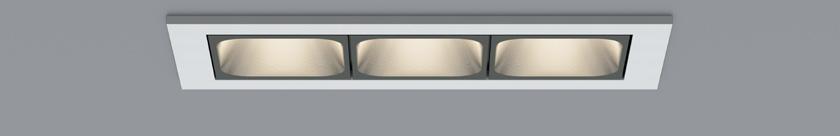

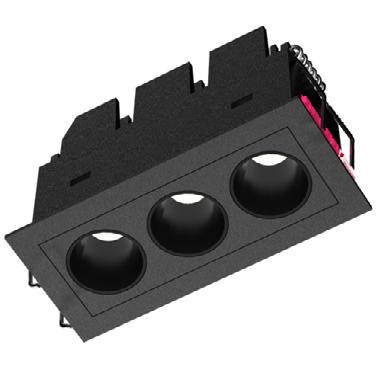

6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM690LM @30K/80CRI150mA5.5W
10LM890LM @30K/80CRI200mA7.5W
15LM1280LM @30K/80CRI300mA 11W
07LM590LM @30K/90CRI150mA5.5W
10LM760LM @30K/90CRI200mA7.5W
15LM1090LM @30K/90CRI300mA 11W
Notes Delivered lumens based on 60D optic with no lens, (see page 2)

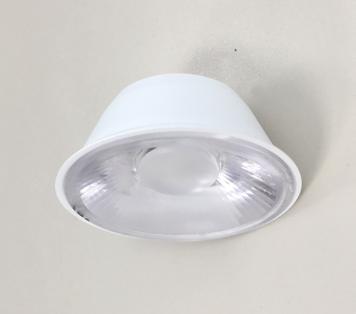

17° BEAM
(Note: Specifications are subject to change without notice)
4.2mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM610LM @30K/80CRI150mA5.5W
07LM520LM @30K/90CRI150mA5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING
AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI 2 dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%

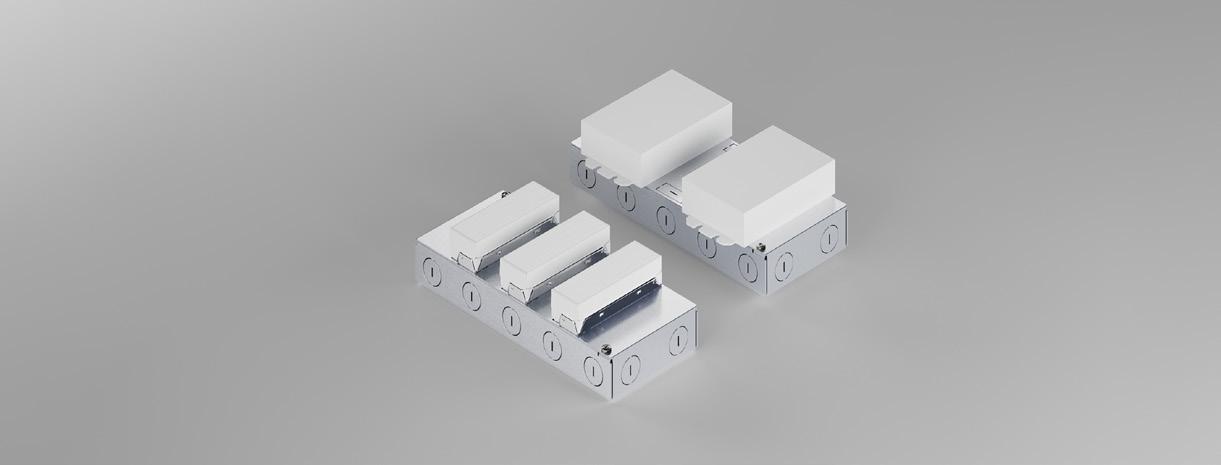

• All driver offerings are remote with above ceiling access, see page 3 for details.

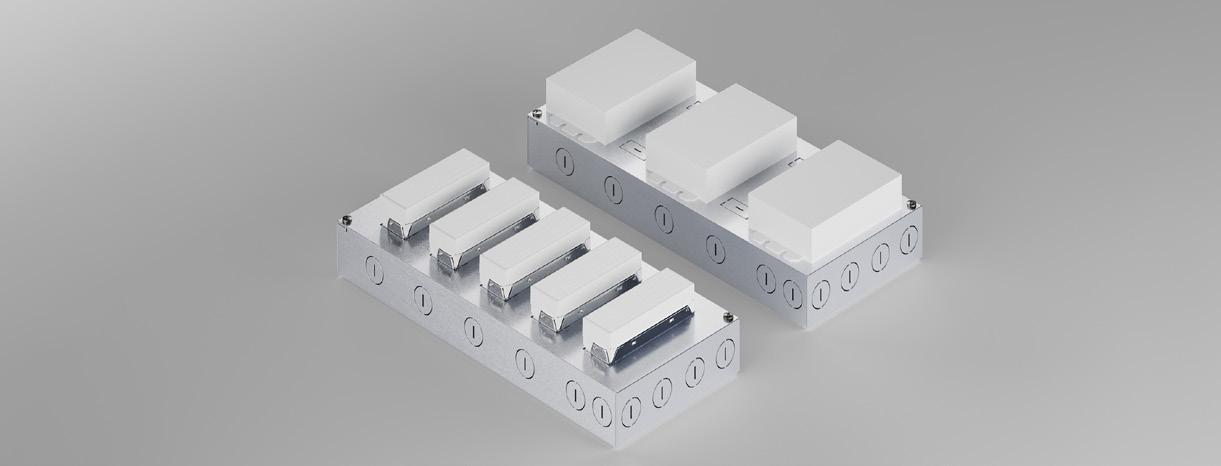

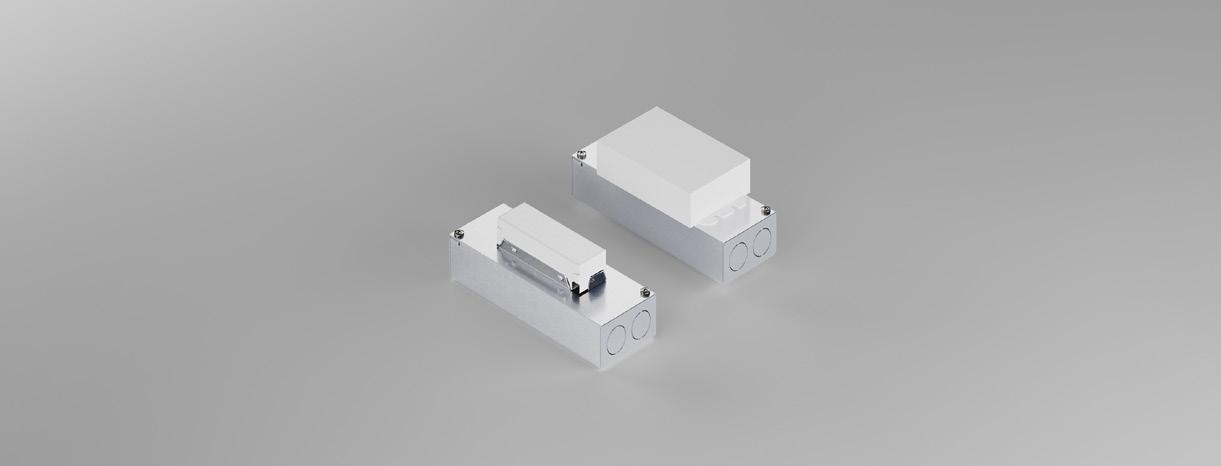

• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP65 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 1 5LM - 300mA

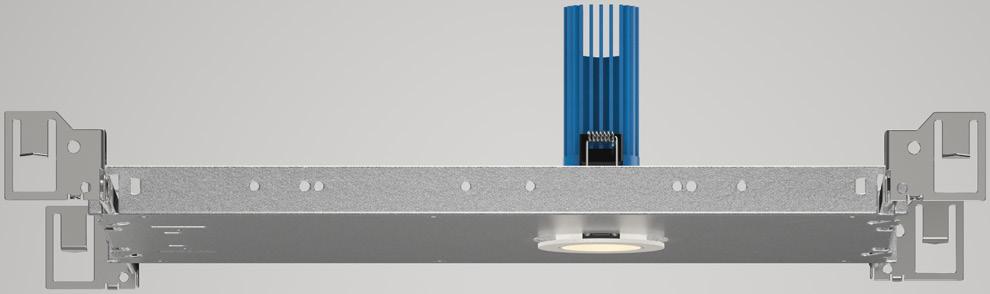

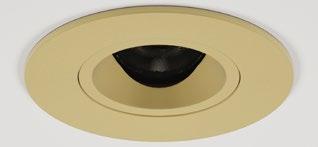

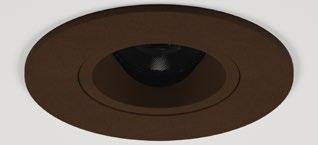

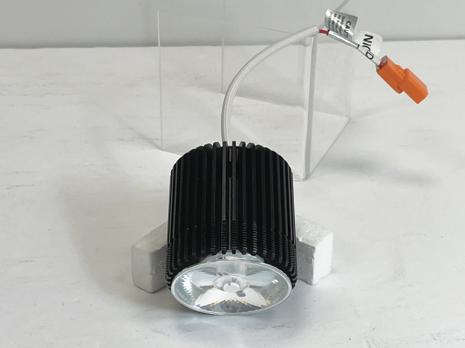

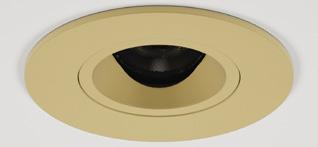

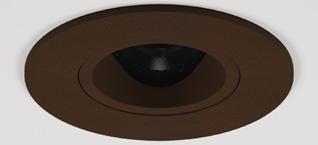

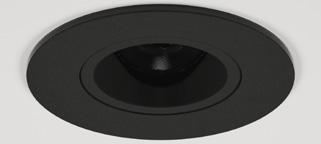

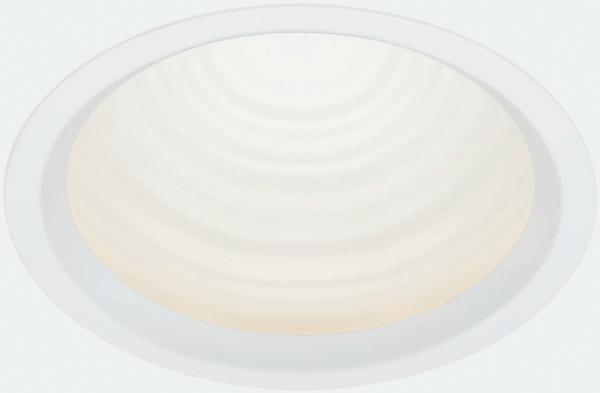

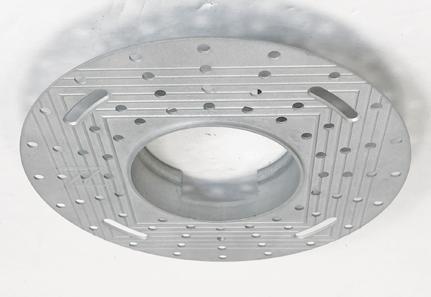

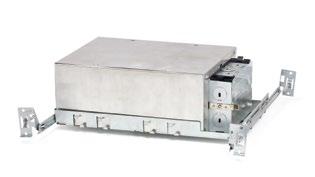

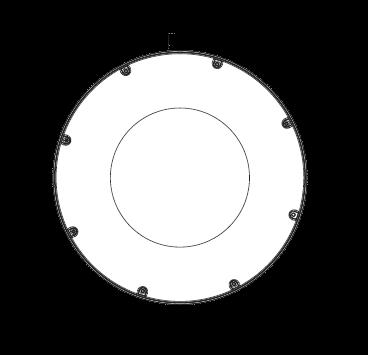

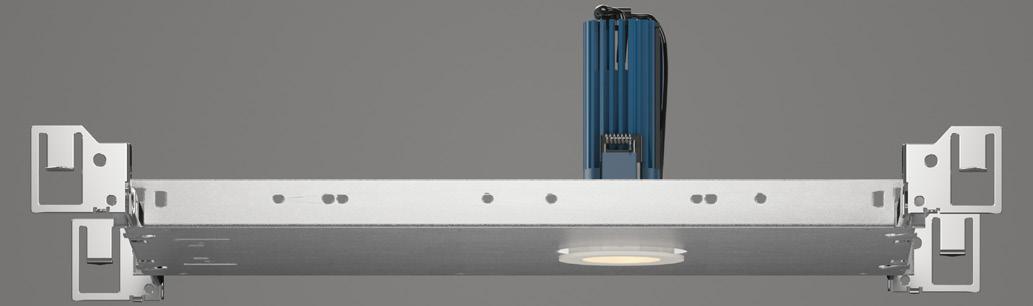

NIOB-1RNB
1" Iolite BWF Round Bullnose Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Bullnose trim with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION
LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV 60 0lm / 9W
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC Air-Tight Remodel, 120-277V; Triac/ELV/0-10V
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
0lm / 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
· 5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-1RNB27 X = 2700K
NIOB-1RNB30X = 3000K
NIOB-1RNB35 X = 3500K
NIOB-1RNB40X = 4000K
NIOB-1RNB50X = 5000K
NIOB-1RNBCDX
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Compatible Housings
ORDERING CODE SERIES NU1 NU1
TYPE
RD round downlight
RDT round downlight trimless
RDTMW round downlight trimless millwork
LED SW standard white
07LM 690 lm
10LM 890 lm
DELIVERED LUMENS
15LM 1280 lm
Standard Configuration: 3000K 80CRI 60D, NL
Calculated Delivered Lumens = [Delivered Lumen Value] x [CCT Multiplier] x [Optic Multiplier] x [Lens Multiplier]
30K 3000K
35K 3500K
40K 4000K
CRI 80 80 CRI
90 90 CRI
2, 3 17 degrees
3 22 degrees
OPTIC
BEZEL LENS SEE PAGE 5
30 degrees
40 degrees
TRIM COLOR
SEE PAGE 5
elliptical beam spread
honeycomb louver
high efficiency textured lens, similar to Solite™
SBL smoothing beam lens
Maximum 2pcs of media per fixture.
BK black
WH white
MC matte chrome
BZ bronze
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Not applicable to trimless option. Do not include in trimless ordering code.
BK black (0.98)
WH white (1.00)
ORDERING CODE
MOUNTING
OPTIONS
SEE PAGE 8, 9
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8, 9 insulation contact housing
ICAT8, 9 insulation contact/airtight housing
CP8, 9 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example:
NOTES
1. 17D available in 07LM.
2 17D & 2 2D not available in NL and CL options.
3. 17D & 2 2D includes SBL lens as standard. One additional media may be used.
4. NL option does not meet requirements for AT/WET/NSF listings.
5. Elliptical lens not available with 17D optic options. Actual beam distributions [22D=
,
, 40D= 50° x 65° , 55D= 60° x 75°]
6. Custom set up fee plus minimum quantity required per color.
7. NCINH, RE TINH available in 07LM.
8. IC/ICAT/CP not available in 15LM.
9. IC/ICAT/CP not available in RDTMW.
BEZEL COLOR
SEE PAGE 5
MC matte chrome (0.99)
BZ bronze (0.98)
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
(0.99)
Construction Housing Source: 9W or 10W

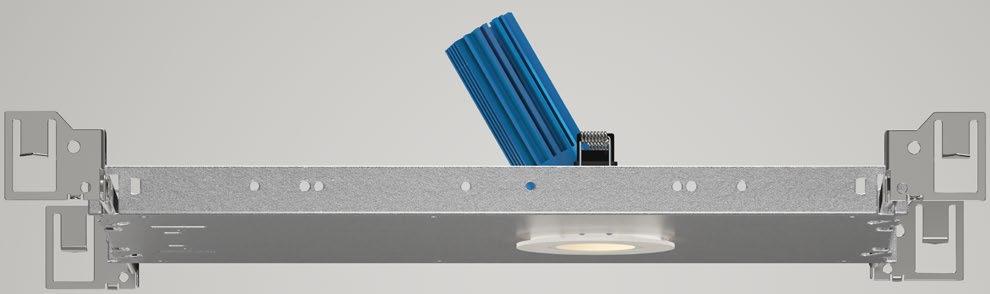

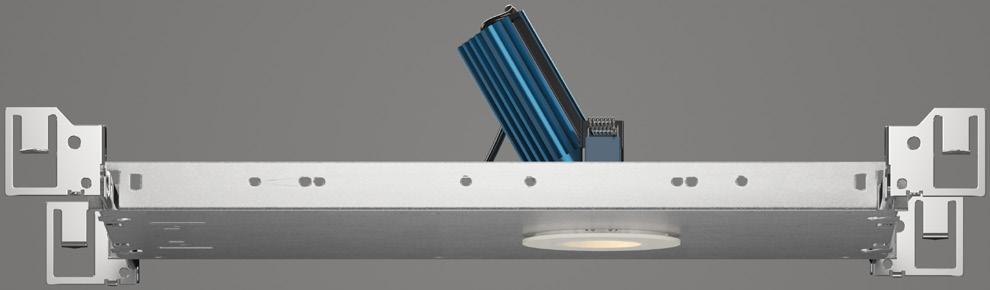

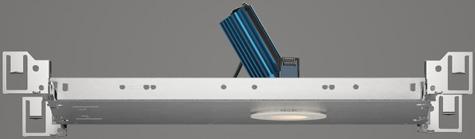

PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DES CRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)

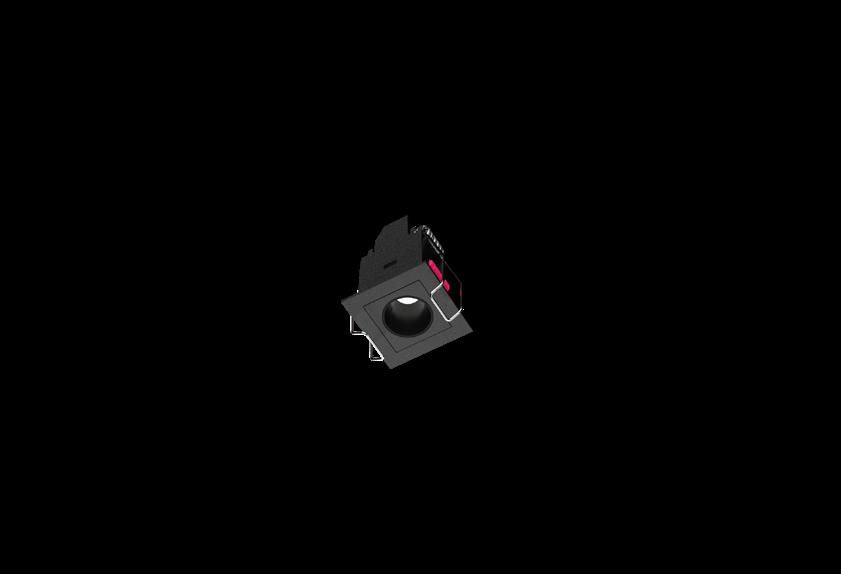

NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" Ro und Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO -1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iP OINT Cylinder
NIOP-1RTC 1" iP OINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cUL us Listed for Damp Locations (Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FCC compliant
Patent #D824567S
· Meet s or exceeds ASTM-283 Air-Tight requirements
• Maximum Remote mounting distance of EM driver shall be 50 feet

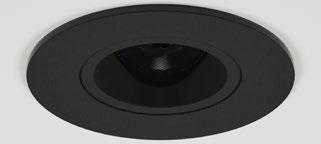

NIOB-1RNB 1" Iolite BWF Round Bullnose Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Bullnose trim with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION
LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV 60 0lm / 9W
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC Air-Tight Remodel, 120-277V; Triac/ELV/0-10V
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
0lm / 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
· 5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-1RNB27 X = 2700K
NIOB-1RNB30X = 3000K
NIOB-1RNB35 X = 3500K
NIOB-1RNB40X = 4000K
NIOB-1RNB50X = 5000K
NIOB-1RNBCDX
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Compatible Housings
ORDERING CODE SERIES NU1 NU1
TYPE
RD round downlight
RDT round downlight trimless
RDTMW round downlight trimless millwork
LED SW standard white
07LM 690 lm
10LM 890 lm
DELIVERED LUMENS
15LM 1280 lm
Standard Configuration: 3000K 80CRI 60D, NL
Calculated Delivered Lumens = [Delivered Lumen Value] x [CCT Multiplier] x [Optic Multiplier] x [Lens Multiplier]
30K 3000K
35K 3500K
40K 4000K
CRI 80 80 CRI
90 90 CRI
2, 3 17 degrees
3 22 degrees
OPTIC
BEZEL LENS SEE PAGE 5
30 degrees
40 degrees
TRIM COLOR
SEE PAGE 5
elliptical beam spread

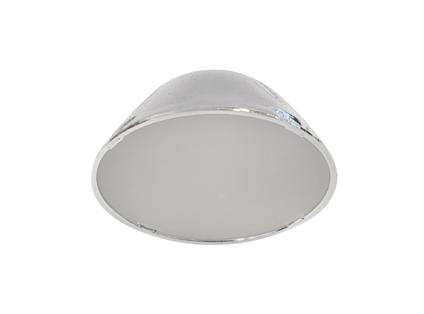

honeycomb louver
high efficiency textured lens, similar to Solite™
SBL smoothing beam lens
Maximum 2pcs of media per fixture.
BK black
WH white
MC matte chrome
BZ bronze
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Not applicable to trimless option. Do not include in trimless ordering code.
BK black (0.98)
WH white (1.00)
ORDERING CODE
MOUNTING
OPTIONS
SEE PAGE 8, 9
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8, 9 insulation contact housing
ICAT8, 9 insulation contact/airtight housing
CP8, 9 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example:
NOTES
1. 17D available in 07LM.
2 17D & 2 2D not available in NL and CL options.
3. 17D & 2 2D includes SBL lens as standard. One additional media may be used.
4. NL option does not meet requirements for AT/WET/NSF listings.
5. Elliptical lens not available with 17D optic options. Actual beam distributions [22D=
,
, 40D= 50° x 65° , 55D= 60° x 75°]
6. Custom set up fee plus minimum quantity required per color.
7. NCINH, RE TINH available in 07LM.
8. IC/ICAT/CP not available in 15LM.
9. IC/ICAT/CP not available in RDTMW.
BEZEL COLOR
SEE PAGE 5
MC matte chrome (0.99)
BZ bronze (0.98)
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
(0.99)
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DES CRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" Ro und Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO -1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iP OINT Cylinder
NIOP-1RTC 1" iP OINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cUL us Listed for Damp Locations (Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FCC compliant
Patent #D824567S
· Meet s or exceeds ASTM-283 Air-Tight requirements
Type Project Catalog No. Notes
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
CURRENT
VOLTAGE
DIMMING
150 150mA
200 200mA
300 300mA
120 120V UNV 120V-277V
DIM10 eldoLED flicker free 0-10V dimming to 1%
DIM10Z eldoLED flicker free 0-10V dimming to 0%
DALI eldoLED flicker free DALI-2 dimming to 1%
DALIZ eldoLED flicker free DALI-2 dimming to 0%
DMX-RJ451 DMX control dimming to 0.1% with RJ45 connection
DMX-WL1 DMX control dimming to 0.1% with wire lead connection
DMX-XLR1 DMX control dimming to 0.1% with XLR 5pin connection
LUT Lutron Hi-lume Ecosystem dimming to 1%, Soft-on & Fade-to-Black
LUTP Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black
ELV12 leading & trailing edge (Triac/ELV) dimming to 1%
NLT nLight control interface: standard Cat-5/RJ45 connection (female), dim to off
CAS3 Casambi control with flicker free 1% dimming AWNR4 lutron athena wireless node
ELECTRICAL OPTIONS
NOTES
EM7 5 remote emergency battery backup, 90 minutes at 7 watts to LED, Remote TS
1. DMX available only in DX-C-1.
2. ELV available in 120V.
3. All driver s on single Casambi dimming circuit.
4. AWNR re ference page 11 for product specification on Athena wireless node.
5. EM available only with DX-C-1. Box size same as DX-C-2, with one driver and one battery.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve, add “LIN” after dimming code, i.e. DIM10LIN.
22° - 60° BEAM
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
07LM690LM @30K/80CRI7W
10LM890LM @30K/80CRI9W
15LM1280LM @30K/80CRI14W
07LM590LM @30K/90CRI7W
10LM760LM @30K/90CRI9W
15LM1090LM @30K/90CRI14W
Notes Delivered lumens based on 60D optic with no lens
ELECTRICAL/CONTROLS
• 120V-277V, 120 only Triac / ELV
• Power factor ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 90min battery
• Max. ambient installation temperature 95°F (35°C)
17° BEAM
(Note: Specifications are subject to change without notice) 4.2mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
07LM610LM @30K/80CRI8W
07LM520LM @30K/90CRI8W
Notes Delivered lumens based on 17D optic with SBL lens
(Note: Specifications are subject to change without notice)
6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM690LM @30K/80CRI150mA5.5W
10LM890LM @30K/80CRI200mA7.5W
15LM1280LM @30K/80CRI300mA 11W
07LM590LM @30K/90CRI150mA5.5W
10LM760LM @30K/90CRI200mA7.5W
15LM1090LM @30K/90CRI300mA 11W
Notes Delivered lumens based on 60D optic with no lens, (see page 2)
17° BEAM
(Note: Specifications are subject to change without notice)
4.2mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM610LM @30K/80CRI150mA5.5W
07LM520LM @30K/90CRI150mA5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING
AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI 2 dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP65 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 1 5LM - 300mA
NIOB-1RNB
1" Iolite BWF Round Bullnose Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Bullnose trim with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
600 lm / 9W or 10W
2700 K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Com fort Dim (warm dimming) also available
Flo od optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DES CRIPTION
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV
LUMENS / WATTAGE
lm / 9W
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V 600 lm / 10W
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV 600 lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 600 lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
· 5-Year Limited Warranty
RoHS Compliant
Cer tified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-1RNB30X =
NIOB-1RNB35
NIOB-1RNB40X = 4000K
NIOB-1RNB50X = 5000K
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
Housings
ORDERING CODE SERIES NU1 NU1
TYPE
RD round downlight
RDT round downlight trimless
RDTMW round downlight trimless millwork
LED SW standard white
07LM 690 lm
10LM 890 lm
DELIVERED LUMENS
15LM 1280 lm
Standard Configuration: 3000K 80CRI 60D, NL
Calculated Delivered Lumens = [Delivered Lumen Value] x [CCT Multiplier] x [Optic Multiplier] x [Lens Multiplier]
2700K
30K 3000K
35K 3500K
40K 4000K
CRI 80 80 CRI
90 90 CRI
2, 3 17 degrees
3 22 degrees
OPTIC
BEZEL LENS SEE PAGE 5
30 degrees
40 degrees
TRIM COLOR
SEE PAGE 5
elliptical beam spread
honeycomb louver
high efficiency textured lens, similar to Solite™
SBL smoothing beam lens
Maximum 2pcs of media per fixture.
BK black
WH white
MC matte chrome
BZ bronze
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Not applicable to trimless option. Do not include in trimless ordering code.
BK black (0.98)
WH white (1.00)
ORDERING CODE
MOUNTING
OPTIONS
SEE PAGE 8, 9
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8, 9 insulation contact housing
ICAT8, 9 insulation contact/airtight housing
CP8, 9 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example:
NOTES
1. 17D available in 07LM.
2. 17D & 22D not available in NL and CL options.
3. 17D & 22D include s SBL lens as standard. One additional media may be used.
4. NL option does not meet requirements for AT/WET/NSF listings.
5. Elliptical lens not available with 17D optic options. Actual beam distributions [22D= 20° x
, 30D=
, 40D= 50° x 65° , 55D= 60° x 75°]
6. Custom se t up fee plus minimum quantity required per color.
7. NCINH, RET INH available in 07LM.
8. IC/ICAT/CP not available in 15LM.
9. IC/ICAT/CP not available in RDTMW.
BEZEL COLOR
SEE PAGE 5
MC matte chrome (0.99)
BZ bronze (0.98)
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
(0.99)
Source: 9W or 10W
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB -1SNB WET 1" Square Bullnose (BWF)
NIOB -1RNG WET 1" Round Straight Regress (BWF)
NIOB -1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO -1RNG WET 1" Round Straight Regress (NTF)
NIO -1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Ye ar Limited Warranty
RoHS compliant
FCC c ompliant
Paten t #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
(Note: Specifications are subject to change without notice)
6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM690LM @30K/80CRI150mA5.5W
10LM890LM @30K/80CRI200mA7.5W
15LM1280LM @30K/80CRI300mA 11W
07LM590LM @30K/90CRI150mA5.5W
10LM760LM @30K/90CRI200mA7.5W
15LM1090LM @30K/90CRI300mA 11W
Notes Delivered lumens based on 60D optic with no lens, (see page 2)
17° BEAM
(Note: Specifications are subject to change without notice)
4.2mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM610LM @30K/80CRI150mA5.5W
07LM520LM @30K/90CRI150mA5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING
AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI 2 dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP65 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 1 5LM - 300mA
NIOB-1RNB 1" Iolite BWF Round Bullnose Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Bullnose trim with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
600 lm / 9W or 10W
2700 K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Com fort Dim (warm dimming) also available
Flo od optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DES CRIPTION
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV
LUMENS / WATTAGE
lm / 9W
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V 600 lm / 10W
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV 600 lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 600 lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
· 5-Year Limited Warranty
RoHS Compliant
Cer tified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-1RNB30X =
NIOB-1RNB35
NIOB-1RNB40X = 4000K
NIOB-1RNB50X = 5000K
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
ORDERING CODE SERIES NU1 NU1
TYPE
RD round downlight
RDT round downlight trimless
RDTMW round downlight trimless millwork
LED SW standard white
07LM 690 lm
10LM 890 lm
DELIVERED LUMENS
15LM 1280 lm
Standard Configuration: 3000K 80CRI 60D, NL
Calculated Delivered Lumens = [Delivered Lumen Value] x [CCT Multiplier] x [Optic Multiplier] x [Lens Multiplier]
2700K
30K 3000K
35K 3500K
40K 4000K
CRI 80 80 CRI
90 90 CRI
2, 3 17 degrees
3 22 degrees
OPTIC
BEZEL LENS SEE PAGE 5
30 degrees
40 degrees
TRIM COLOR
SEE PAGE 5
elliptical beam spread
honeycomb louver
high efficiency textured lens, similar to Solite™
SBL smoothing beam lens
Maximum 2pcs of media per fixture.
BK black
WH white
MC matte chrome
BZ bronze
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Not applicable to trimless option. Do not include in trimless ordering code.
BK black (0.98)
WH white (1.00)
ORDERING CODE
MOUNTING
OPTIONS
SEE PAGE 8, 9
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8, 9 insulation contact housing
ICAT8, 9 insulation contact/airtight housing
CP8, 9 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example:
NOTES
1. 17D available in 07LM.
2. 17D & 22D not available in NL and CL options.
3. 17D & 22D include s SBL lens as standard. One additional media may be used.
4. NL option does not meet requirements for AT/WET/NSF listings.
5. Elliptical lens not available with 17D optic options. Actual beam distributions [22D= 20° x
, 30D=
, 40D= 50° x 65° , 55D= 60° x 75°]
6. Custom se t up fee plus minimum quantity required per color.
7. NCINH, RET INH available in 07LM.
8. IC/ICAT/CP not available in 15LM.
9. IC/ICAT/CP not available in RDTMW.
BEZEL COLOR
SEE PAGE 5
MC matte chrome (0.99)
BZ bronze (0.98)
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
(0.99)
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB -1SNB WET 1" Square Bullnose (BWF)
NIOB -1RNG WET 1" Round Straight Regress (BWF)
NIOB -1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO -1RNG WET 1" Round Straight Regress (NTF)
NIO -1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Ye ar Limited Warranty
RoHS compliant
FCC c ompliant
Paten t #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
Type Project Catalog No. Notes
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
CURRENT
VOLTAGE
DIMMING
150 150mA
200 200mA
300 300mA
120 120V UNV 120V-277V
DIM10 eldoLED flicker free 0-10V dimming to 1%
DIM10Z eldoLED flicker free 0-10V dimming to 0%
DALI eldoLED flicker free DALI-2 dimming to 1%
DALIZ eldoLED flicker free DALI-2 dimming to 0%
DMX-RJ451 DMX control dimming to 0.1% with RJ45 connection
DMX-WL1 DMX control dimming to 0.1% with wire lead connection
DMX-XLR1 DMX control dimming to 0.1% with XLR 5pin connection
LUT Lutron Hi-lume Ecosystem dimming to 1%, Soft-on & Fade-to-Black
LUTP Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black
ELV12 leading & trailing edge (Triac/ELV) dimming to 1%
NLT nLight control interface: standard Cat-5/RJ45 connection (female), dim to off
CAS3 Casambi control with flicker free 1% dimming AWNR4 lutron athena wireless node
ELECTRICAL OPTIONS
NOTES
EM7 5 remote emergency battery backup, 90 minutes at 7 watts to LED, Remote TS
1. DMX available only in DX-C-1.
2. ELV available in 120V.
3. All drivers on single Casambi dimming circuit.
4. AWNR ref erence page 11 for product specification on Athena wireless node.
5. EM available only w ith DX-C-1. Box size same as DX-C-2, with one driver and one battery.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve, add “LIN” after dimming code, i.e. DIM10LIN.
22° - 60° BEAM
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
07LM690LM @30K/80CRI7W
10LM890LM @30K/80CRI9W
15LM1280LM @30K/80CRI14W
07LM590LM @30K/90CRI7W
10LM760LM @30K/90CRI9W
15LM1090LM @30K/90CRI14W
Notes Delivered lumens based on 60D optic with no lens
ELECTRICAL/CONTROLS
• 120V-277V, 120 only Triac / ELV
• Power factor ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 90min battery
• Max. ambient installation temperature 95°F (35°C)
17° BEAM
(Note: Specifications are subject to change without notice) 4.2mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
07LM610LM @30K/80CRI8W
07LM520LM @30K/90CRI8W
Notes Delivered lumens based on 17D optic with SBL lens
(Note: Specifications are subject to change without notice)
6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM630LM @30K/80CRI 150mA 5.5W
10LM800LM @30K/80CRI 200mA 7.5W
13LM1150LM @30K/80CRI 300mA 11W
07LM530LM @30K/90CRI 150mA 5.5W
10LM680LM @30K/90CRI 200mA 7.5W
13LM980LM @30K/90CRI 300mA 11W
Notes Delivered lumens based on 55D optic with no lens, (see page 2)
17° BEAM
(Note: Specifications are subject to change without notice)
4mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM550LM @30K/80CRI 150mA 5.5W
07LM500LM @30K/90CRI 150mA 5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment, see page 9
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 13LM - 300mA
Trim
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
600 lm / 9W or 10W
2700 K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Com fort Dim (warm dimming) also available
Flo od optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DES CRIPTION LUMENS / WATTAGE
NHIOICD-16LE3
ICAT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
lm / 9W
lm / 10W
lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 600 lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cUL us Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Cer tified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-1RSL50X
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
Adjustable Slot Aperture
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Compatible Housings
TYPE RA round adjustable
RAT round adjustable trimless RATMW round adjustable trimless millwork
LED SW standard white
07LM 630 lm
10LM 800 lm
DELIVERED LUMENS
13LM 1150lm
Standard Configuration: 3000K 80CRI 55D, NL
Calculated Delivered Lumens = [Delivered Lumen Value] x [CCT Multiplier] x [Optic Multiplier] x [Lens Multiplier]
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8 insulation contact housing
ICAT8 insulation contact/airtight housing
CP8 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example:
NOTES
1. 17D available in 07LM.
2 17D & 2 2D not available with NL and CL options.
3. 17D & 2 2D includes SBL lens as standard. One additional media may be used.
4. Elliptical lens not available with 17D optic options. Actual beam distributions [22D=
, 40D= 40° x 70° , 55D= 55° x 80°]
5. NL option does not meet requirements for AT/WET/NSF listings. Bezel lensing cannot be added in the field.
6. Custom set up fee plus minimum quantity required per color.
7. NCINH, RE TINH available in 07LM.
8. IC/ICAT/CP available in 07LM/10LM.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve,
diffused lens
high efficiency textured lens, similar to Solite™
smoothing beam lens
TRIM COLOR
SEE PAGE 5 BK black
white MC matte chrome
BZ bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM. Not applicable to trimless option. Do not include in trimless ordering code.
black
white
matte chrome
BEZEL COLOR
SEE PAGE 5
bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Source:
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DE SCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" R ound Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)

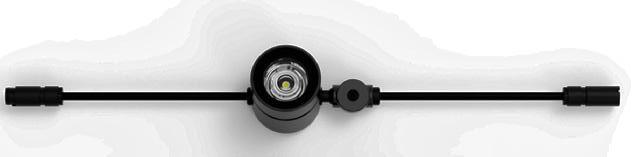

NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FC C compliant
Pa tent #D824567S
· Mee ts or exceeds ASTM-283 Air-Tight requirements
(Note: Specifications are subject to change without notice)
6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM630LM @30K/80CRI 150mA 5.5W
10LM800LM @30K/80CRI 200mA 7.5W
13LM1150LM @30K/80CRI 300mA 11W
07LM530LM @30K/90CRI 150mA 5.5W
10LM680LM @30K/90CRI 200mA 7.5W
13LM980LM @30K/90CRI 300mA 11W
Notes Delivered lumens based on 55D optic with no lens, (see page 2)
17° BEAM
(Note: Specifications are subject to change without notice)
4mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM550LM @30K/80CRI 150mA 5.5W
07LM500LM @30K/90CRI 150mA 5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment, see page 9
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 13LM - 300mA
Trim
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
600lm / 9W or 10W
2700K , 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Floo d optic, narrow flood and spot optics (included)
5-Ye ar limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chic ago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chic ago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 ICAT R emodel, 120-277V; Triac/ELV/0-10V
NS / WATTAGE
m / 9W
m / 10W
m / 9W
m / 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Ye ar Limited Warranty
· RoHS Compliant
Cert ified to the high efficacy requirements of California Title 24 JA8-2022
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8 insulation contact housing
ICAT8 insulation contact/airtight housing
CP8 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example:
NOTES
1. 17D available in 07LM.
2. 17D & 22D not available with NL and CL options.
3. 17D & 22D include s SBL lens as standard. One additional media may be used.
4. Elliptical lens not available with 17D optic options. Actual beam distributions [22D=
, 40D= 40° x 70° , 55D= 55° x 80°]
5. NL option does not meet requirements for AT/WET/NSF listings. Bezel lensing cannot be added in the field.
6. Custom se t up fee plus minimum quantity required per color.
7. NCINH, RET INH available in 07LM.
8. IC/ICAT/CP available in 07LM/10LM.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve,
diffused lens
high efficiency textured lens, similar to Solite™
smoothing beam lens
TRIM COLOR
SEE PAGE 5 BK black
white MC matte chrome
BZ bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM. Not applicable to trimless option. Do not include in trimless ordering code.
black
white
matte chrome
BEZEL COLOR
SEE PAGE 5
bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Source: 9W or 10W
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB -1SNB WET 1" Square Bullnose (BWF)
NIOB -1RNG WET 1" Round Straight Regress (BWF)
NIOB -1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO -1RNG WET 1" Round Straight Regress (NTF)
NIO -1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Ye ar Limited Warranty
RoHS compliant
FCC c ompliant
Paten t #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
(Note: Specifications are subject to change without notice)
6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM630LM @30K/80CRI 150mA 5.5W
10LM800LM @30K/80CRI 200mA 7.5W
13LM1150LM @30K/80CRI 300mA 11W
07LM530LM @30K/90CRI 150mA 5.5W
10LM680LM @30K/90CRI 200mA 7.5W
13LM980LM @30K/90CRI 300mA 11W
Notes Delivered lumens based on 55D optic with no lens, (see page 2)
17° BEAM
(Note: Specifications are subject to change without notice)
4mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM550LM @30K/80CRI 150mA 5.5W
07LM500LM @30K/90CRI 150mA 5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment, see page 9
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 13LM - 300mA
Trim
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
600lm / 9W or 10W
2700K , 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Floo d optic, narrow flood and spot optics (included)
5-Ye ar limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chic ago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chic ago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 ICAT R emodel, 120-277V; Triac/ELV/0-10V
NS / WATTAGE
m / 9W
m / 10W
m / 9W
m / 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Ye ar Limited Warranty
· RoHS Compliant
Cert ified to the high efficacy requirements of California Title 24 JA8-2022
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8 insulation contact housing
ICAT8 insulation contact/airtight housing
CP8 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example:
NOTES
1. 17D available in 07LM.
2. 17D & 22D not available with NL and CL options.
3. 17D & 22D include s SBL lens as standard. One additional media may be used.
4. Elliptical lens not available with 17D optic options. Actual beam distributions [22D=
, 40D= 40° x 70° , 55D= 55° x 80°]
5. NL option does not meet requirements for AT/WET/NSF listings. Bezel lensing cannot be added in the field.
6. Custom se t up fee plus minimum quantity required per color.
7. NCINH, RET INH available in 07LM.
8. IC/ICAT/CP available in 07LM/10LM.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve,
diffused lens
high efficiency textured lens, similar to Solite™
smoothing beam lens
TRIM COLOR
SEE PAGE 5 BK black
white MC matte chrome
BZ bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM. Not applicable to trimless option. Do not include in trimless ordering code.
black
white
matte chrome
BEZEL COLOR
SEE PAGE 5
bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Construction Housing Source: 9W or 10W
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DES CRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" Ro und Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO -1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iP OINT Cylinder
NIOP-1RTC 1" iP OINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cUL us Listed for Damp Locations (Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FCC compliant
Patent #D824567S
· Meet s or exceeds ASTM-283 Air-Tight requirements
(Note: Specifications are subject to change without notice)
6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM630LM @30K/80CRI 150mA 5.5W
10LM800LM @30K/80CRI 200mA 7.5W
13LM1150LM @30K/80CRI 300mA 11W
07LM530LM @30K/90CRI 150mA 5.5W
10LM680LM @30K/90CRI 200mA 7.5W
13LM980LM @30K/90CRI 300mA 11W
Notes Delivered lumens based on 55D optic with no lens, (see page 2)
17° BEAM
(Note: Specifications are subject to change without notice)
4mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM550LM @30K/80CRI 150mA 5.5W
07LM500LM @30K/90CRI 150mA 5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment, see page 9
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 13LM - 300mA
Trim
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
600lm / 9 W or 10W
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCR IPTION LUMENS / WATTAGE
NHIOICD-16LE3
ICAT Ne w Construction, 120V; Triac/ELV 600lm / 9 W
NHIOICD-16LE4 ICAT Ne w Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3
Chica go Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4
NHRIOIC-16LE4
/ 1 0W
/ 9 W
Chica go Plenum, 120-277V; Triac/ELV/0-10V 600lm / 1 0W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus L isted for Damp Locations
5-Year Limited Warranty
· RoHS C ompliant
Certi fied to the high efficacy requirements of California Title 24 JA8-2022
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8 insulation contact housing
ICAT8 insulation contact/airtight housing
CP8 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example:
NOTES
1. 17D available in 07LM.
2. 17D & 22D not available with NL and CL options.
3. 17D & 22D includes SBL lens as standard. One additional media may be used.
4. Elliptical lens not available with 17D optic options. Actual beam distributions [22D=
, 40D= 40° x 70° , 55D= 55° x 80°]
5. NL option doe s not meet requirements for AT/WET/NSF listings. Bezel lensing cannot be added in the field.
6. Custom set up fee plus minimum quantity required per color.
7. NCINH, RETINH available in 07LM.
8. IC/ICAT/CP available in 07LM/10LM.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve,
diffused lens
high efficiency textured lens, similar to Solite™
smoothing beam lens
TRIM COLOR
SEE PAGE 5 BK black
white MC matte chrome
BZ bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM. Not applicable to trimless option. Do not include in trimless ordering code.
black
white
matte chrome
BEZEL COLOR
SEE PAGE 5
bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Construction Housing Source: 9W or 10W
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCR IPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB -1RPH WET 1" Round Pinhole (BWF)
NIOB -1RSL 1" Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1 SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1 SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus L isted for Damp Locations (Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS c ompliant
FCC compliant Patent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
(Note: Specifications are subject to change without notice)
6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM690LM @30K/80CRI150mA5.5W
10LM890LM @30K/80CRI200mA7.5W
15LM1280LM @30K/80CRI300mA 11W
07LM590LM @30K/90CRI150mA5.5W
10LM760LM @30K/90CRI200mA7.5W
15LM1090LM @30K/90CRI300mA 11W
Notes Delivered lumens based on 60D optic with no lens, (see page 2)
17° BEAM
(Note: Specifications are subject to change without notice)
4.2mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM610LM @30K/80CRI150mA5.5W
07LM520LM @30K/90CRI150mA5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING
AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI 2 dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP65 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 1 5LM - 300mA
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
600lm / 9W or 10W
2700K , 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Floo d optic, narrow flood and spot optics (included)
5-Ye ar limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chic ago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chic ago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 ICAT R emodel, 120-277V; Triac/ELV/0-10V
NS / WATTAGE
m / 9W
m / 10W
m / 9W
m / 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Ye ar Limited Warranty
· RoHS Compliant
Cert ified to the high efficacy requirements of California Title 24 JA8-2022
Calculated Delivered Lumens = [Delivered Lumen Value] x [CCT Multiplier] x [Optic Multiplier] x [Lens Multiplier]
2700K
30K 3000K
35K 3500K
40K 4000K
CRI 80 80 CRI 90 90 CRI
2, 3 17 degrees
OPTIC & LM
40 degrees
TRIM COLOR
SEE PAGE 5
elliptical beam spread
honeycomb louver
high efficiency textured lens, similar to Solite™
SBL smoothing beam lens
Maximum 2pcs of media per fixture.
BK black
WH white
MC matte chrome
BZ bronze
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Not applicable to trimless option. Do not include in trimless ordering code.
BK black (0.98)
WH white (1.00)
ORDERING CODE
MOUNTING
OPTIONS
SEE PAGE 8, 9
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8, 9 insulation contact housing
ICAT8, 9 insulation contact/airtight housing
CP8, 9 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example: NU1
NOTES
1. 17D available in 07LM.
2. 17D & 22D not available in NL and CL options.
3. 17D & 22D includes SBL lens as standard. One additional media may be used.
4. NL option does not meet requirements for AT/WET/NSF listings.
5. Elliptical lens not available with 17D optic options. Actual beam distributions [22D= 20° x
, 30D= 45° x
, 40D= 50° x 65° , 55D= 60° x 75°]
6. Custom set up fee plus minimum quantity required per color.
7. NCINH, RETINH available in 07LM.
8. IC/ICAT/CP not available in 15LM.
9. IC/ICAT/CP not available in RDTMW.
BEZEL COLOR
SEE PAGE 5
MC matte chrome (0.99)
BZ bronze (0.98)
WT wheat (0.99)
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Source: 9W or 10W
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1 SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1 SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" Round A dj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO-1R NG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1R CY 1" iPOIN T Cylinder
NIOP-1RTC 1" iPOIN T Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year L imited Warranty
RoHS compliant
FCC comp liant
Patent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
(Note: Specifications are subject to change without notice)
6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM690LM @30K/80CRI150mA5.5W
10LM890LM @30K/80CRI200mA7.5W
15LM1280LM @30K/80CRI300mA 11W
07LM590LM @30K/90CRI150mA5.5W
10LM760LM @30K/90CRI200mA7.5W
15LM1090LM @30K/90CRI300mA 11W
Notes Delivered lumens based on 60D optic with no lens, (see page 2)
17° BEAM
(Note: Specifications are subject to change without notice)
4.2mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM610LM @30K/80CRI150mA5.5W
07LM520LM @30K/90CRI150mA5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING
AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI 2 dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP65 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 1 5LM - 300mA
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
600lm / 9 W or 10W
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCR IPTION LUMENS / WATTAGE
NHIOICD-16LE3
ICAT Ne w Construction, 120V; Triac/ELV 600lm / 9 W
NHIOICD-16LE4 ICAT Ne w Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3
Chica go Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4
NHRIOIC-16LE4
/ 1 0W
/ 9 W
Chica go Plenum, 120-277V; Triac/ELV/0-10V 600lm / 1 0W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus L isted for Damp Locations
5-Year Limited Warranty
· RoHS C ompliant
Certi fied to the high efficacy requirements of California Title 24 JA8-2022
Calculated Delivered Lumens = [Delivered Lumen Value] x [CCT Multiplier] x [Optic Multiplier] x [Lens Multiplier]
27K 2700K
30K 3000K
35K 3500K
40K 4000K
CRI 80 80 CRI
90 90 CRI OPTIC &
2, 3 17 degrees
3 22 degrees
30 degrees
40 degrees
diffused lens
elliptical beam spread
honeycomb louver
high efficiency textured lens, similar to Solite™ (0.92) SBL smoothing beam lens
Maximum 2pcs of media per fixture.
BK black
WH white
MC matte chrome
TRIM
COLOR
SEE PAGE 5
BEZEL COLOR
SEE PAGE 5
BZ bronze
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Not applicable to trimless option. Do not include in trimless ordering code.
BK black (0.98)
WH white (1.00)
MC matte chrome (0.99)
BZ bronze (0.98)
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
(0.99)
ORDERING CODE
MOUNTING
OPTIONS
SEE PAGE 8, 9
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8, 9 insulation contact housing
ICAT8, 9 insulation contact/airtight housing
CP8, 9 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example:
NOTES
1. 1 7D available in 07LM.
2. 1 7D & 22D not available in NL and CL options.
3. 1 7D & 22D includes SBL lens as standard. One additional media may be used.
4. NL option does not meet requirements for AT/WET/NSF listings.
5. Elliptical lens not available with 17D optic options. Actual beam distributions [22D= 20° x 25° , 30D= 45° x 65° , 40D= 50° x 65° , 55D= 60° x 75°]
6. Cus tom set up fee plus minimum quantity required per color.
7. NCINH RETINH available in 07LM.
8. IC/IC AT/CP not available in 15LM.
9. IC/IC AT/CP not available in RDTMW.
Construction Housing Source: 9W or 10W
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCR IPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB -1RPH WET 1" Round Pinhole (BWF)
NIOB -1RSL 1" Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1 SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1 SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus L isted for Damp Locations (Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS c ompliant
FCC compliant Patent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• 5 Year Limi ted warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1"
• Fixture is pre-set and shipped at 30deg tilt
ELECTRICAL
• 120V-277V, 120 only Triac / ELV
• Power factory ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 9 0min battery
• Max. ambient installation temperature 95°F (35°C)
1" Round Wall Wash Standard White
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC AT Remodel, 120-277V; Triac/ELV/0-10V
0lm / 9W
/ 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NCINH2 new construction with ceiling fitting plate, IC rated, inherently protected remote driver housing only VOLTAGE
120V UNV 120V-277V DIMMING
DIM10 eldoLED flicker free 0-10V dimming to 1%
DIM10Z eldoLED flicker free 0-10V dimming to 0%
DALI eldoLED flicker free DALI 2 dimming to 1%
DALIZ eldoLED flicker free DALI 2 dimming to 0%
LUT Lutron Hi-lume Ecosystem dimming to 1%, Soft-on & Fade-to-Black
Preliminary
ELECTRICAL OPTIONS
LUTP Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black
ELV13 leading & trailing edge (Triac/ELV) dimming to 1%
EM7 emergency battery backup, 90 minutes at 7W to LED
EM12 emergency battery backup, 90 minutes at 12W to LED
EM10CA20 remote emergency battery backup, 90 minutes at 10W to LED, CA title 20
NHIOICD-16 / NHIOICDCP-16
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DE SCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" R ound Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FC C compliant
Pa tent #D824567S
· Mee ts or exceeds ASTM-283 Air-Tight requirements
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT
ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
05LM420LM @30K/80CRI 150mA 5.5W
10LM765LM @30K/80CRI 300mA 11W
05LM360LM @30K/90CRI 150mA 5.5W
10LM650LM @30K/90CRI 300mA 11W
Notes Delivered lumens based on WW optic
DIMMING AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI 2 dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
FIXTURE HEIGHT
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment, see page 7
• Fixture is pre-set and shipped at 30deg tilt
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 05LM - 150mA
• 10LM - 300mA
Trim Trimless
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
600 lm / 9W or 10W
2700 K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Com fort Dim (warm dimming) also available
Flo od optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DES CRIPTION LUMENS / WATTAGE
NHIOICD-16LE3
ICAT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
lm / 9W
lm / 10W
lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 600 lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cUL us Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Cer tified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-1RSL50X
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
Adjustable Slot Aperture
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Calculated Delivered Lumens = [Delivered Lumen Value] x [CCT Multiplier]
30K 3000K
3500K 40K 4000K
80 80 CRI 90 90 CRI
PAGE 5 WW wall wash with diffused
CC1 custom color, consult factory for details Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Not applicable to trimless option. Do not include in trimless ordering code.
wheat
CC1 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
MOUNTING OPTIONS
WW BEAM ORDERING CODE
NC new construction with ceiling fitting plate
NCINH2 new construction with ceiling fitting plate, IC rated, inherently protected
IC2 insulation contact housing
ICAT2 insulation contact/airtight housing
CP2 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH2 retrofit, no ceiling fitting plate, IC rated, inherently protected remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING
ND No Driver Included. Customer to Supply PoE system components or order remote driver separately. Refer to POE/Remote Driver reference sheet for additional details.
Follow the steps to specify your fixture, example: NU1 - RW - SW - 10LM - 35K - 90 -
1. Custom set up fee plus minimum quantity required per color. 2 IC/ICAT/CP/NCINH/RE TINH available in 05LM.
Source:
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DE SCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" R ound Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FC C compliant
Pa tent #D824567S
· Mee ts or exceeds ASTM-283 Air-Tight requirements
provides a low glare option for highlighting hallways, desks and other horizontal surfaces within commercial, hospitality and retail environments. It is easy to install and blends into existing ceiling architecture seamlessly.
FEATURES
• Flangeless fixture installation provides a modern minimalist design concept
Mix and match with other FUSION light fixtures for even more design options
• Wet location listing are avilable in 3 light, 5 light and 10 light fixture sizes
GOOD TO KNOW
• Flangeless installation available in 5 light and 10 light sizes
Produces a round beam pattern from a linear form factor fixture
• Small light apertures deliver “quiet ceiling” lighting with minimal glare.
SPECIFICATIONS
OPTICAL
Beam Angle
MECHANICAL
Finish Specular Matte Black Custom Finish
ELECTRICAL 24° Narrow Flood
Die cast fixture body
• End mounted mouse trap style springs
Available in self-flanged or flangeless trim versions
Install in ceilings between ½” and 1”
Available in matte black, matte white or custom finish
THERMAL
Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
HOUSING
• New construction steel frame supplied with universal bar hangers and butterfly brackets
Bar hangers are adjustable from 13-1/4” to 24-1/2
Fixture and driver are serviceable from below the ceiling
COMPLIANCE
• ETL listed for Damp locations Optional Wet location rated trim
Universal 120-277V, 50/60Hz, 0-10V or 120V, 60Hz Triac/ELV dimming driver available Drivers connect to LED modules using plenum rated, quick connect cable
WARRRANTY
• 5 Year limited parts warranty
Reflector
BLANK
FUSION

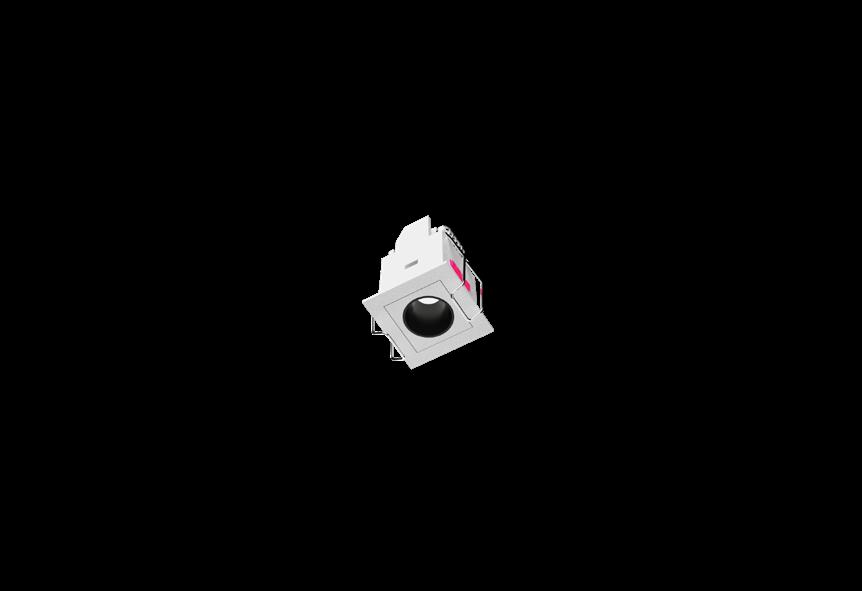

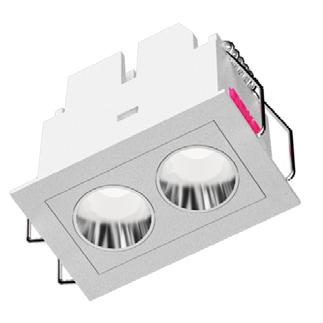

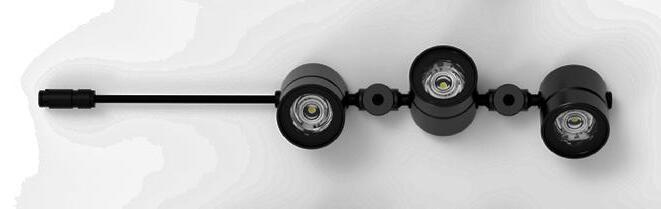

LAMBDA
Multicell (1,2,3) Fixed
FEATURES
- Ultra-Mini flange width 1/4"
- 24° - 45° beam options
- UGR < 10
- 1 – 10 Cell options
- Bezel and Trim finishes (Black, Matte Chrome, White)
CONSTRUCTION
- Aluminum die cast frame and heatsink integrated into one piece to provide enhanced thermal transfer from the LED board.
ELECTRICAL/CONTROLS
- 120V-277V, 120 only Triac / ELV
- Power factor ≥ 0.9
- 2kV driver input surge protection
- Max. ambient installation temperature 95°F (35°C)
LISTING
- ETLus Listed to UL2108, cETL Listed to CSA C22.2 #250.0
- Type Non-IC, IC, CP, Airtight ASTM Standard E283
provides a low glare option for highlighting hallways, desks and other horizontal surfaces within commercial, hospitality and retail environments. It is easy to install and blends into existing ceiling architecture seamlessly.
FEATURES
• Flangeless fixture installation provides a modern minimalist design concept
Mix and match with other FUSION light fixtures for even more design options
• Wet location listing are avilable in 3 light, 5 light and 10 light fixture sizes
GOOD TO KNOW
• Flangeless installation available in 5 light and 10 light sizes
Produces a round beam pattern from a linear form factor fixture
• Small light apertures deliver “quiet ceiling” lighting with minimal glare.
SPECIFICATIONS
OPTICAL
Beam Angle
MECHANICAL
Finish Specular Matte Black Custom Finish
ELECTRICAL 24° Narrow Flood
Die cast fixture body
• End mounted mouse trap style springs
Available in self-flanged or flangeless trim versions
Install in ceilings between ½” and 1”
Available in matte black, matte white or custom finish
THERMAL
Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
HOUSING
• New construction steel frame supplied with universal bar hangers and butterfly brackets
Bar hangers are adjustable from 13-1/4” to 24-1/2
Fixture and driver are serviceable from below the ceiling
COMPLIANCE
• ETL listed for Damp locations Optional Wet location rated trim
Universal 120-277V, 50/60Hz, 0-10V or 120V, 60Hz Triac/ELV dimming driver available Drivers connect to LED modules using plenum rated, quick connect cable
WARRRANTY
• 5 Year limited parts warranty
Reflector
BLANK
FUSION
S Series
INSTALLATION
Ceiling Thickness
SurfaceFrame: 0" up to 1 1/2"
SurfaceFrame (Emergency): 1/2" up to 1 1/4"
Ceiling Material
Drywall
PHYSICAL
Housing 4" Round Junction Box
Application New Construction
Shape
8" Round & 18" x 4" Rectangle
Finish
White
Product Code:
Type:
Date:
8" Round & 18" Linear Surface Mount Downlights
F4NC 4" New Construction
Fire Rated Shallow Junction Box
• 8" round area light for lighting smaller spaces including bathrooms, closets and kitchens
• 18" x 4" rectangular area light perfect for narrow applications such as corridors or kitchen islands
• Extends just 0.6" below the ceiling plane to minimize visual profile
• Features multiple ratings to meet the demands of a wide range of situations
LIGHT OUTPUT & DISTRIBUTION
Module Downlight
Lumens (Power)
1500 lm (17.0W)
Color Quality
90+ CRI, <3-step SDCM
Color Temperature
2700K 3000K
3 500K
POWER & CONTROLS
Input Voltage 120V only (TRIAC/ELV), 120/277V (0-10V)
Dimming TRIAC/ELV (5%), 0-10V (1%)
Emergency Lighting
Optional Emergency LED Driver with integrated Test Switch for lighting up to 90 minutes in event of power failure
RATINGS & CERTIFICATIONS
Housing
IC (Insulation Contact) Rated
ASTM E283 Certified Air Tight
Code compliant for use in fire-rated assemblies up to a maximum of 2-hours
STC/IIC Sound Rated
RoHS Compliant
Module
UL Listed for Wet Location
Warranty
5 year limited warranty; 50,000 hours
Trimless Surface
J-Box or E26
LED-TSM-5R-12W-5CCT-WH
850 Lm • White Finish
LED-TSM-7R-15W-5CCT-WH
1,100Lm • White Finish
LED-TSM-9R-18W-5CCT-WH
1,300 Lm • White Finish
LED-TSM-11R-20W-5CCT-WH
1,500 Lm • White Finish
Introducing the EnVision LED Trimless Surface Mount: Crafted with precision, this cutting-edge luminaire boasts an ultra-thin profile, ensuring a sleek and unobtrusive appearance that seamlessly integrates into both residential and commercial recessed environments. This luminaire redefines modern lighting solutions, setting a new standard for sophistication and functionality in the realm of architectural lighting.
Detail Specifications:
•Finishes: White
•IP Rating: Wet Location
•Beam Angle: 100°
• Chip: SMD 2835, R9 >50, CRI >90
•3 Step MacAdam Ellipses
•Operating Temperature: -40° - 114° F
•Lens: Frosted Acrylic, non-yellowing
•Average life (L70) of 50,000 hours
Applications:
•General Recessed Lighting
•Residential & Multifamily
•Office and Meeting Rooms
•Education, Healthcare, Retail, Hospitality
Product Information:
•Available in 4 different sizes
•Battery backup module available in 7" and 9" models
•Extends to just 0.8” from the ceiling
• Standard white round trim included: optional trims available
Driver Options:
•120V Triac dimmable down to 5%
•THD: <15% (+/-5% tolerance), PF >0.9, 50/60Hz
• AC Driverless technology
•Flicker Free
Mounting & Installation:
•3O/4O Junction Box (including pancake j-box)
•Surface mount bracket included
•4” & 6” Recessed can converter
Certifications:
•ETL Listed for USA and CA
•Energy Star Certified
•CA Title 24 JA8-2022 CEC Listed
• 5 Year Limited Warranty
•FCC CFR 47, GCC Part 15, Subpart B:2017
• IC Rated and ASTM-E283 Air-Tight
•Closet Rated
Accessories (Order Separately)
TSM-7R-EMB-UNV
7" Surface mount pancake EMB
TSM-7R-EMB-EMPTY-UN
7" Empty surface mount pancake EMB
TSM-9R-EMB-UNV
9" Surface mount pancake EMB
TSM-9R-EMB-EMPTY-UNV
9" Empty surface mount pancake EMB
LED-EMB-25W-HV-0/10V-2P
Remote EMB for fixtures up to 25W
STM-JBX-6-WH
6' Stem Mount (Adjustable length)
White Finish
STM-JBX-6-BLK
6' Stem Mount (Adjustable length)
Black Finish
S Series
PRODUCT BUILDER - TRIAC/ELV, 0-10V
HOUSING
F4NC
8" ROUND MODULE
PRODUCT BUILDER - EMERGENCY LIGHTING
HOUSING
F4NC15OEMS
TSM-7R-EMB-UNV
TSM-9R-EMB-UNV
TSM-7R-EMPTY-UNV
TSM-9R-EMPTY-UNV
LED-EMB-25W-HV-0/10V-2P
STM-JBX-6-WH
STM-JBX-6-BLK
Trimless Surface J-Box or E26
LED-TSM-5R-12W-5CCT-WH
LED-TSM-7R-15W-5CCT-WH
LED-TSM-9R-18W-5CCT-WH
>90
>90
>90 LED-TSM-11R-20W-5CCT-WH
EMERGENCY BACKUP
Accessory Description
TSM-7R-EMB-UNV 7” Surface mount pancake EMB
TSM-7R -EMB-EMPTY-UNV 7” Empty surface mount pancake EMB
TSM-9R -EMB-UNV 9” Surface mount pancake EMB
TSM-9R-EMB-EMPTY-UNV 9” Empty surface mount pancake EMB
LED-EMB-25W-HV-0/10V-2P Remote EMB for fixtures up to 25W
PENDANT STEM MOUNT
Accessory Description
STM-JBX-6-WH
STM-JBX-6-BLK
>90
6’ Stem Mount (Adjustable length) White Finish
6’ Stem Mount (Adjustable length) Black Finish
TESTED COMPATIBLE DIMMERS
Other dimmers may be compatible but have not been tested. Please contact us for more information.
Lutron
LUTRON PD-6WCL
LUTRON DVCL-153P
LUTRON CTCL-153P
LUTRON MACL-153M
LUTRON LECL-153

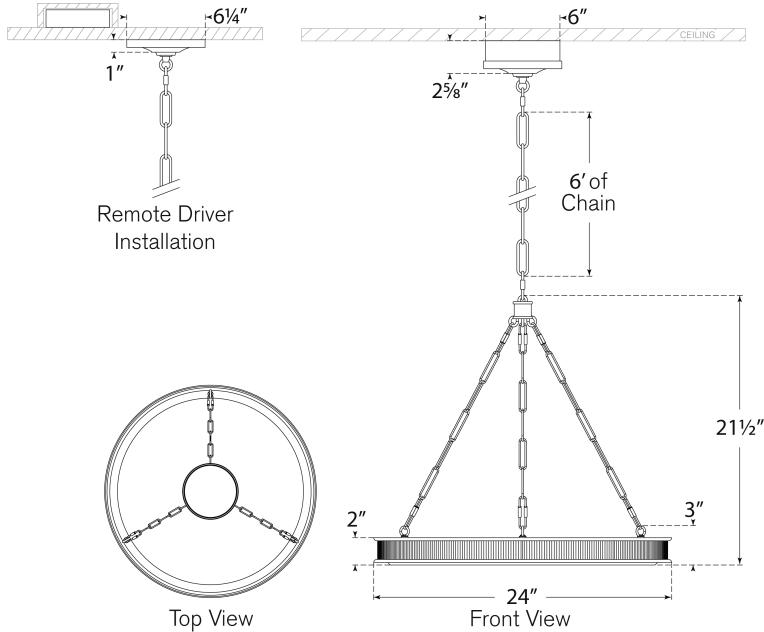

Matthew 24" Chandelier
Item # MF 5203SB-ALB
Designer: Marie Flanigan
Height: 21.5"
Width: 24"
Canopy: 6" Round
Finishes: BZ, PN, SB
Trim Options: ALB
Lightsource: Dedicated LED
Wattage: 45w (5400lm)
Weight: 56 Pounds
Note: Alabaster is a Natural Stone | Variations in Color and Texture are Expected
Matthew 24" Chandelier
Item # MF 5203SB-ALB
Designer: Marie Flanigan
Height: 21.5"
Width: 24"
Canopy: 6" Round
Finishes: BZ, PN, SB
Trim Options: ALB
Lightsource: Dedicated LED
Wattage: 45w (5400lm)
Weight: 56 Pounds
Note: Alabaster is a Natural Stone | Variations in Color and Texture are Expected
Matthew 24" Chandelier
Item # MF 5203SB-ALB
Designer: Marie Flanigan
Height: 21.5"
Width: 24"
Canopy: 6" Round
Finishes: BZ, PN, SB
Trim Options: ALB
Lightsource: Dedicated LED
Wattage: 45w (5400lm)
Weight: 56 Pounds
Note: Alabaster is a Natural Stone | Variations in Color and Texture are Expected
Matthew 24" Chandelier
Item # MF 5203SB-ALB
Designer: Marie Flanigan
Height: 21.5"
Width: 24"
Canopy: 6" Round
Finishes: BZ, PN, SB
Trim Options: ALB
Lightsource: Dedicated LED
Wattage: 45w (5400lm)
Weight: 56 Pounds
Note: Alabaster is a Natural Stone | Variations in Color and Texture are Expected

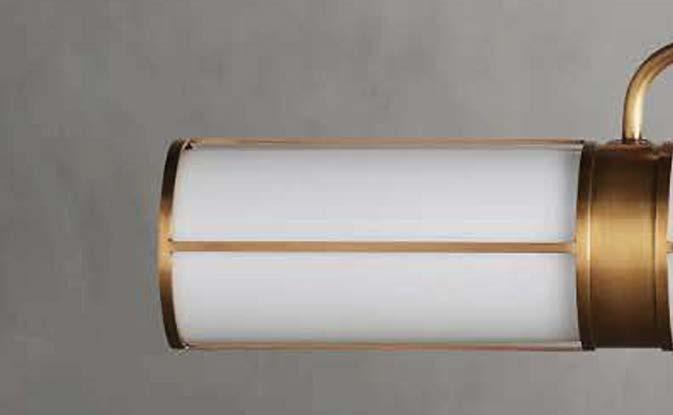

TYPE P5 SPEC 975 AVENUE
DIMENSIONS
54'Widthx6.5'Depthx10.5' Height
See full dimensions
SPECIFICATIONS
DETAILS V
Modernsophisticationidealfordiningtablesandkitchenislands-ourexclusiveRemmingLighting Collectionfeatures linear milkglass tubesandcontrastingfinishdetails thatcometogetherto createan elevated,industrial-chicaesthetic.
Note: Alabaster is a Natural Stone | Variations in Color and Texture are Expected
Matthew 24" Chandelier
Item # MF 5203SB-ALB
Designer: Marie Flanigan
Height: 21.5"
Width: 24"
Canopy: 6" Round
Finishes: BZ, PN, SB
Trim Options: ALB
Lightsource: Dedicated LED
Wattage: 45w (5400lm)
Weight: 56 Pounds
Note: Alabaster is a Natural Stone | Variations in Color and Texture are Expected

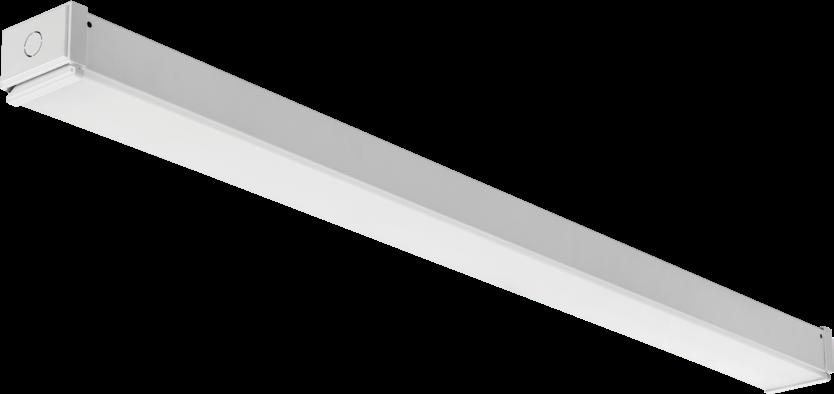

FEATURES & SPECIFICATIONS
INTENDED USE — The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel. The endcaps come standard with a 7/8" knock out for continuous mounting but can be ordered without.
Finish: Paint options include high-gloss, baked white polyester (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Offered with acrylic lens and less lens configurations. Provides a choice of optical distributions including, wide, narrow, and aisle.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring coolrunning operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 15.) Electronic LED driver is multi-volt input and 0-10V dimming standard (see Operational Data on page 12 for actual wattage consumption). This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
L70>100,000 hours at 25˚C.
LEDs provide nominal 80 CRI or 90CRI at 3000 K, 3500 K,4000 K, or 5000 K.
Lumen output up to 2,500 lumens per foot.
INSTALLATION — Fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBRT), pendant or stem mounted with appropriate mounting options.
WARNING — Removing the lens and opening the fixture during installation exposes the LEDs, putting them at risk for damage.
If you plan to surface mount the fixture, we recommend using the THCLX. This eliminates the need to open the fixture.
If you plan to continuous row mount, we recommend using the PLR wiring harness option. This eliminates the need to open the fixture.
Damage to the LEDs caused during installation will not be covered under the warranty.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -4°F (-20°C) and 104°F (40°C). Optional High Ambient (HA) ranging to 122°F(50°C) available on certain lumen packages (See ambient temperature chart for additional information).
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Stock configurations are offered for shorter lead times:
CLX L48 3000LM SEF FDL
00191723525816PJANKZR4 Yes
50K 80CRI WH 00191723525885PKW32VKL Yes
5000LM SEF FDL MVOLT GZ10 40K 80CRI WH 00191723525939P77I8Z20 Yes
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or XPoint™ Wireless control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details

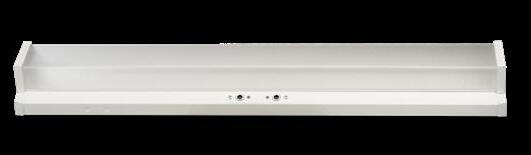

CLX LED Linear
(Blank) General ND Narrow 8,9 WD Wide 8,9
AD2 Aisle, 24° off center 8,9
3500LM 3,500 lumens
4500LM 4,500 lumens
5000LM 5,000 lumens
2250LM 2,250 lumens
3000LM 3,000 lumens
3750LM 3,750 lumens
5250LM 5,250 lumens
Straight blade louver, smoke gray6
6,000 lumens
8000LM 8,000 lumens 10000LM 10,000 lumens
PS1050 Emergency battery pack, 10W, CA Title 20 Noncompliant 2,11,13,16,17
E10WLCP Emergency battery pack, 10W Linear Constant Power, Certified in CA Title 20 MAEDBS 2,11,13,16,17
BGTD Generator transfer device, not avaialble with PS105013,16,18
OCS 5', 18/3 Reloc selectable One Pass cable16
HA High ambient, for use in ambient temperatures up to 50°C 11
EPNKO Decorative endplate, no knock out19
OUTCTR Wiring leads pulled through back center of fixture20
OUTEND Wiring leads pulled through end of fixture21
Cord Sets:
CS1W Staight blade plug, 120V10,16
CS3W NEMA twist-lock plug, 120V10,16
CS7W Staight blade plug, 277V10,16
CS11W NEMA twist-lock plug, 277V10,16
CS25WNEMA twist-lock plug, 347V10,16
CS97W NEMA twist-lock plug, 480V10,16
CS93W 600V SEOOW white cord, no plug (no voltage required)
CS6WG16STOWD5D 6' white cord, 16/5, no plug, includes low voltage dimming wires (no voltage required)15
PLR__ Plug-in wiring, see page 16 for ordering information
PLR1LVG Plug-in wiring,low voltage dimming22
RRL__RELOC®-ready luminaire. See page 15 for ordering information
SPD Surge protection device, provides up to 6kV protection16,20
USPOM Assembled in the United States
nLight® Wireless: 23,24
NLTAIR2 RES7 nLight® Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell
NLTAIR2 RES7PDT nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell
NLTAIR2 RIO No sensor control
nLight® Wired: 23,25
N100 nLight® without lumen management
NES7 nLight® nES 7 PIR integral occupancy sensor26
NESPDT7 nLight® nES PDT 7 dual technology integral occupancy control26
NES7ADCX nLight® nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell26
NESPDT7ADCX nLight® nES PDT 7 dual technology integral occupancy sensor with automatic dimming photocell26
Individual controls: 23,25
MSD7 PIR integral occupancy sensor
MSDPDT7 PDT 7 dual technology integral occupancy control
MSD7ADC PIR integral occupancy sensor with automatic dimming control photocell
MSDPDT7ADC PDT integral occupancy sensor with automatic dimming control photocell

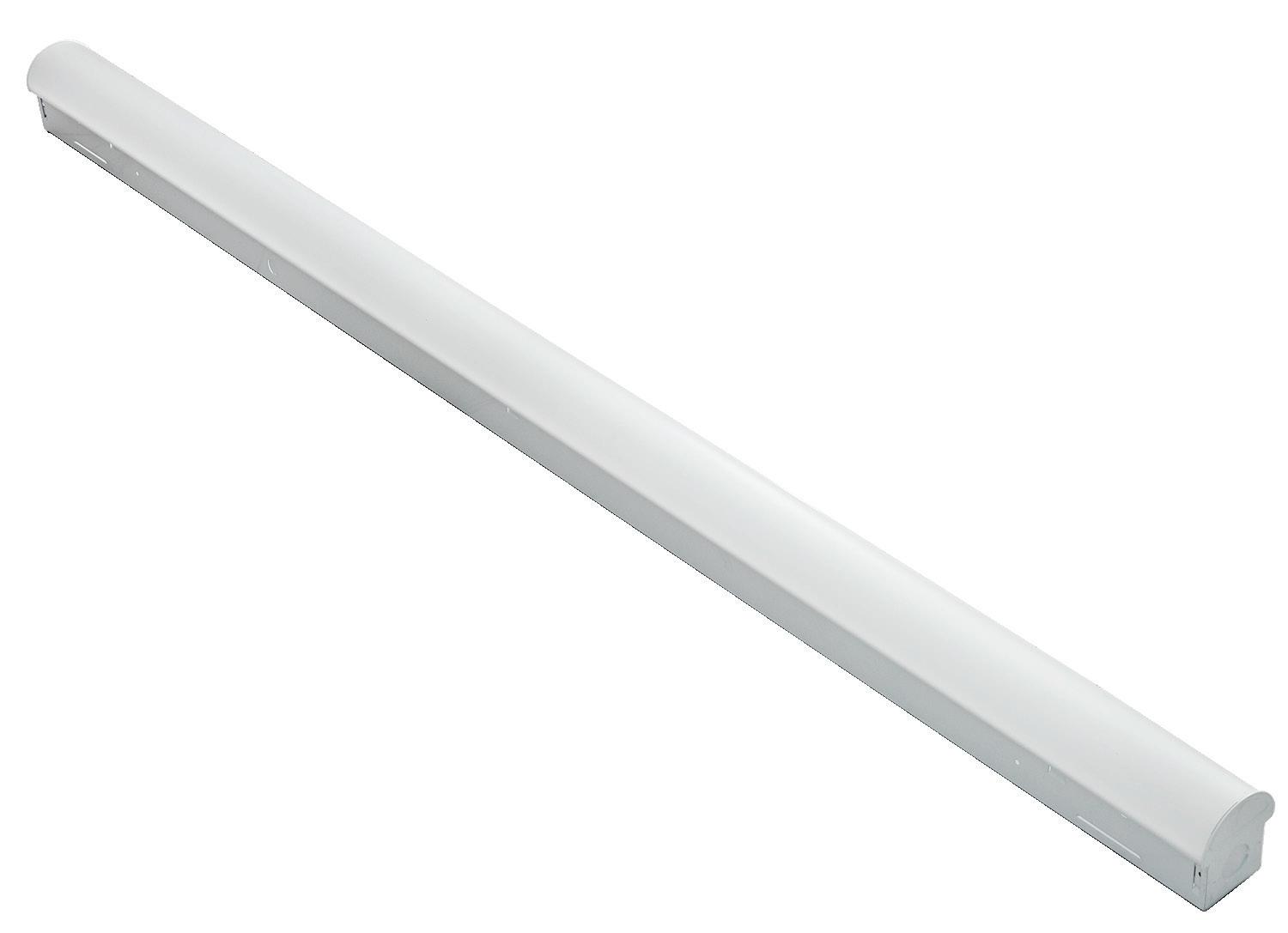

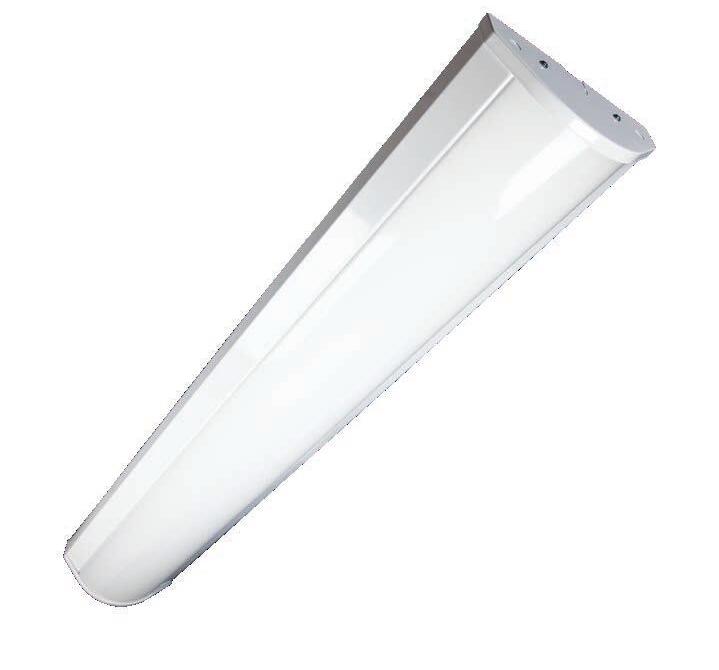

DESCRIPTION
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LR25185+EM
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LR25185+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+MS
LR25185+EM+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138

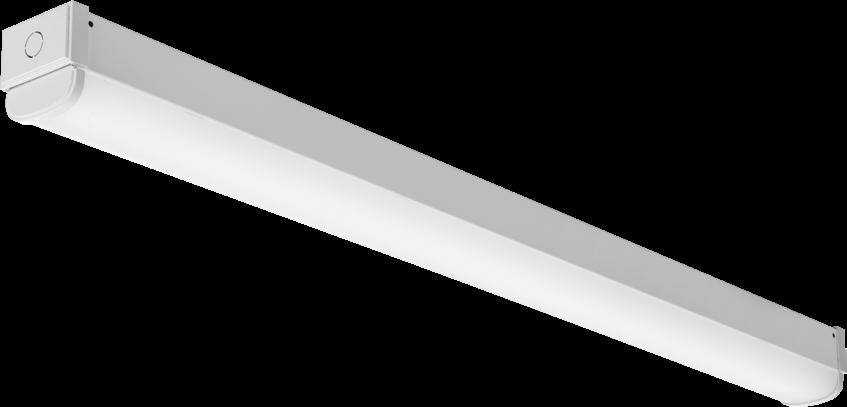

FEATURES & SPECIFICATIONS
INTENDED USE — The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel. The endcaps come standard with a 7/8" knock out for continuous mounting but can be ordered without.
Finish: Paint options include high-gloss, baked white polyester (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Offered with acrylic lens and less lens configurations. Provides a choice of optical distributions including, wide, narrow, and aisle.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring coolrunning operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 15.) Electronic LED driver is multi-volt input and 0-10V dimming standard (see Operational Data on page 12 for actual wattage consumption). This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
L70>100,000 hours at 25˚C.
LEDs provide nominal 80 CRI or 90CRI at 3000 K, 3500 K,4000 K, or 5000 K.
Lumen output up to 2,500 lumens per foot.
INSTALLATION — Fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBRT), pendant or stem mounted with appropriate mounting options.
WARNING — Removing the lens and opening the fixture during installation exposes the LEDs, putting them at risk for damage.
If you plan to surface mount the fixture, we recommend using the THCLX. This eliminates the need to open the fixture.
If you plan to continuous row mount, we recommend using the PLR wiring harness option. This eliminates the need to open the fixture.
Damage to the LEDs caused during installation will not be covered under the warranty.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -4°F (-20°C) and 104°F (40°C). Optional High Ambient (HA) ranging to 122°F(50°C) available on certain lumen packages (See ambient temperature chart for additional information).
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Stock configurations are offered for shorter lead times:
CLX L48 3000LM SEF FDL
00191723525816PJANKZR4 Yes
50K 80CRI WH 00191723525885PKW32VKL Yes
5000LM SEF FDL MVOLT GZ10 40K 80CRI WH 00191723525939P77I8Z20 Yes
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or XPoint™ Wireless control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details
TYPE S4E SPEC
8,9
Aisle, 24° off center 8,9
1500LM 1,500
2000LM 2,000 lumens 2500LM 2,500 lumens
3500LM 3,500 lumens
4500LM 4,500 lumens
5000LM 5,000 lumens 3,4
2250LM 2,250 lumens
3000LM 3,000 lumens
3750LM 3,750 lumens
5250LM 5,250 lumens
6750LM 6,750 lumens
7500LM 7,500 lumens
lumens 4000LM 4,000 lumens
6000LM 6,000 lumens
8000LM 8,000 lumens 10000LM 10,000 lumens
PS1050 Emergency battery pack, 10W, CA Title 20 Noncompliant 2,11,13,16,17
E10WLCP Emergency battery pack, 10W Linear Constant Power, Certified in CA Title 20 MAEDBS 2,11,13,16,17
BGTD Generator transfer device, not avaialble with PS105013,16,18
OCS 5', 18/3 Reloc selectable One Pass cable16
HA High ambient, for use in ambient temperatures up to 50°C 11
EPNKO Decorative endplate, no knock out19
OUTCTR Wiring leads pulled through back center of fixture20
OUTEND Wiring leads pulled through end of fixture21
Cord Sets:
CS1W Staight blade plug, 120V10,16
CS3W NEMA twist-lock plug, 120V10,16
CS7W Staight blade plug, 277V10,16
CS11W NEMA twist-lock plug, 277V10,16
CS25WNEMA twist-lock plug, 347V10,16
CS97W NEMA twist-lock plug, 480V10,16
CS93W 600V SEOOW white cord, no plug (no voltage required)
CS6WG16STOWD5D 6' white cord, 16/5, no plug, includes low voltage dimming wires (no voltage required)15
PLR__ Plug-in wiring, see page 16 for ordering information
PLR1LVG Plug-in wiring,low voltage dimming22
RRL__RELOC®-ready luminaire. See page 15 for ordering information
SPD Surge protection device, provides up to 6kV protection16,20
USPOM Assembled in the United States
nLight® Wireless: 23,24
NLTAIR2 RES7 nLight® Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell
NLTAIR2 RES7PDT nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell
NES7 nLight® nES 7 PIR integral occupancy sensor26
NESPDT7 nLight® nES PDT 7 dual technology integral occupancy control26
NES7ADCX nLight® nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell26
NESPDT7ADCX nLight® nES PDT 7 dual technology integral occupancy sensor with automatic dimming photocell26
Individual controls: 23,25
MSD7 PIR integral occupancy sensor
MSDPDT7 PDT 7 dual technology integral occupancy control
MSD7ADC PIR integral occupancy sensor with automatic dimming control photocell
MSDPDT7ADC PDT integral occupancy sensor with automatic dimming control photocell
DESCRIPTION
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LR25185+EM
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LR25185+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+MS
LR25185+EM+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
BLANK
COMPATIBLE
DIMENSIONS
LR35120, LR35121 - SPECIFICATIONS
Melange 28" Elongated Sconce
Item # KW 2016AB-ALB
Designer: Kelly Wearstler
Height: 28"
Width: 4.25"
Extension: 3.5"
Backplate: 4" x 28" Oval
Finishes: AB, BZ, PN
Shade Treatments: ALB
Socket: Dedicated LED
Wattage: 22w (1700lm)
Weight: 17 Pounds
Note: UL Only | Alabaster is a Natural Stone | Variations in Color and Texture are Expected | Requires Smaller Outlet Box
40W Wall Sconce in Aged Brass w/ Alabaster Diffuser
Height 32''
Dimmable
Dimmable
Width/Length 4.75'' LED Compatible Integrated LED
Depth 2.5'' Total Wattage 40W
Weight 7 lbs
Body Material Faux Alabaster
Second Material Metal Finish/Color Alabaster Second Finish/Color Aged Brass Second Type of Finish Electroplated
Light Qty 1
Rated For Damp Location
Light Base AC LED Voltage 120V
Light Max Watt 40W
Light Inc Yes
Approval cUL or equivalent
Light Lumens 3000(Initial) 1600(Delivered) Warranty 3 Year Limited
Light CRI 90+
Light CCT 3000K
Light Life 30000 Hours
Date: Notes: Fixture Type:
Install Position Wall
Melange 28" Elongated Sconce
Item # KW 2016AB-ALB
Designer: Kelly Wearstler
Height: 28"
Width: 4.25"
Extension: 3.5"
Backplate: 4" x 28" Oval
Finishes: AB, BZ, PN
Shade Treatments: ALB
Socket: Dedicated LED
Wattage: 22w (1700lm)
Weight: 17 Pounds
Note: UL Only | Alabaster is a Natural Stone | Variations in Color and Texture are Expected | Requires Smaller Outlet Box
40W Wall Sconce in Aged Brass w/ Alabaster Diffuser
Height 32''
Dimmable
Dimmable
Width/Length 4.75'' LED Compatible Integrated LED
Depth 2.5'' Total Wattage 40W
Weight 7 lbs
Body Material Faux Alabaster
Second Material Metal Finish/Color Alabaster Second Finish/Color Aged Brass Second Type of Finish Electroplated
Light Qty 1
Rated For Damp Location
Light Base AC LED Voltage 120V
Light Max Watt 40W
Light Inc Yes
Approval cUL or equivalent
Light Lumens 3000(Initial) 1600(Delivered) Warranty 3 Year Limited
Light CRI 90+
Light CCT 3000K
Light Life 30000 Hours
Date: Notes: Fixture Type:
Install Position Wall
HL 1
DESCRIPTION
LIME EDITION
A unique versatile sconce, crafted from natural materials. The base is created from solid metal and is available in varioushigh-endfinishes. Goingfromgun metal to nickel to polished brass, the possibilitiesareendless.
We made the covers of the sconce versatile to blend perfect in luxurious interior Discover every the collaborations with our craftsman to find the most beautiful finish for your cover. The light will always blend very nice out ofthesconceandgiveapleasantglow.
FINISHINGS
DIMENSIONS
HL 1
DESCRIPTION
LIME EDITION
A unique versatile sconce, crafted from natural materials. The base is created from solid metal and is available in varioushigh-endfinishes. Goingfromgun metal to nickel to polished brass, the possibilitiesareendless.
We made the covers of the sconce versatile to blend perfect in luxurious interior Discover every the collaborations with our craftsman to find the most beautiful finish for your cover. The light will always blend very nice out ofthesconceandgiveapleasantglow.
FINISHINGS
DIMENSIONS
Precision 15" Bath Light
Item # KW 2222AB-WG
Designer: Kelly Wearstler
Height: 15"
Width: 4.25"
Extension: 2.75"
Backplate: 4.25" Square
Finishes: AB, BZ, PN
Glass Options: WG
Lightsource: Dedicated LED
Wattage: 14w (1100lm)
Weight: 3 Pounds
Precision 15" Bath Light
Item # KW 2222AB-WG
Designer: Kelly Wearstler
Height: 15"
Width: 4.25"
Extension: 2.75"
Backplate: 4.25" Square
Finishes: AB, BZ, PN
Glass Options: WG
Lightsource: Dedicated LED
Wattage: 14w (1100lm)
Weight: 3 Pounds
Melange 28" Elongated Sconce
Item # KW 2016AB-ALB
Designer: Kelly Wearstler
Height: 28"
Width: 4.25"
Extension: 3.5"
Backplate: 4" x 28" Oval
Finishes: AB, BZ, PN
Shade Treatments: ALB
Socket: Dedicated LED
Wattage: 22w (1700lm)
Weight: 17 Pounds
Note: UL Only | Alabaster is a Natural Stone | Variations in Color and Texture are Expected | Requires Smaller Outlet Box
40W Wall Sconce in Aged Brass w/ Alabaster Diffuser
Height 32''
Dimmable
Dimmable
Width/Length 4.75'' LED Compatible Integrated LED
Depth 2.5'' Total Wattage 40W
Weight 7 lbs
Body Material Faux Alabaster
Second Material Metal Finish/Color Alabaster Second Finish/Color Aged Brass Second Type of Finish Electroplated
Light Qty 1
Rated For Damp Location
Light Base AC LED Voltage 120V
Light Max Watt 40W
Light Inc Yes
Approval cUL or equivalent
Light Lumens 3000(Initial) 1600(Delivered) Warranty 3 Year Limited
Light CRI 90+
Light CCT 3000K
Light Life 30000 Hours
Date: Notes: Fixture Type:
Install Position Wall
HL 1
DESCRIPTION
LIME EDITION
A unique versatile sconce, crafted from natural materials. The base is created from solid metal and is available in varioushigh-endfinishes. Goingfromgun metal to nickel to polished brass, the possibilitiesareendless.
We made the covers of the sconce versatile to blend perfect in luxurious interior Discover every the collaborations with our craftsman to find the most beautiful finish for your cover. The light will always blend very nice out ofthesconceandgiveapleasantglow.
FINISHINGS
DIMENSIONS
HL 1
DESCRIPTION
LIME EDITION
A unique versatile sconce, crafted from natural materials. The base is created from solid metal and is available in varioushigh-endfinishes. Goingfromgun metal to nickel to polished brass, the possibilitiesareendless.
We made the covers of the sconce versatile to blend perfect in luxurious interior Discover every the collaborations with our craftsman to find the most beautiful finish for your cover. The light will always blend very nice out ofthesconceandgiveapleasantglow.
FINISHINGS
DIMENSIONS
lightology.com 866-954-4489 10-01-25
Linger Double Wall Sconce
By Visual Comfort Modern
Description
The Linger Double Wall Sconce showcases elegant glass and acrylic pipe shades. Their double layer design adds dimension and a unique modern aesthetic as they disperse the LED light. The fixture includes two 13.5 inch long shades and one shorter 7.5 inch shade, for customizing the configuration to suit your space. Whether placed in a bathroom, vanity area, or hallway, the Linger offers beautiful illumination with contemporary flair. 120V: TRIAC and ELV dimmable. 277V: 0-10V dimmable.
Project:
Company:
Location: Fixture Type:
SPEC #: TLG813029
Approved On: Approved By:
Specifications
INTEGRATED
Technical Information
Notes:
Shown in natural brass / clear CLICK TO VIEW PRODUCT
LINGER WALL/BATH
PRODUCT FEATURES
From the brand formerly known as Tech Lighting
Designed with two blades of LED light shaped by elegant glassacrylic cylinders
• Coordinate with the entire Linger family, including Chandeliers, Linear Suspension, Pendant and 1-Light Wall Sconce
Mounts horizontally or vertically. The LED Driver is housed within the junction box for this product
•
This item is made of natural brass. It is a living nish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the nish
• The LED Driver is housed within the junction box. (L. 3.03" | W. 1.22" | H. .83")
LAMPING
Includes 120 volt 17.4 watts, 1145 delivered lumens, 3000K LED module. Dimmable with most LED compatible ELV and TRIAC dimmers. 277V compatible with 0-10V dimmers. Mounts horizontally or vertically. ADA compliant. Ships with (1) 7.5IN and (2) 13.5IN additional pieces of glass for customization.
ORDERING INFORMATION
700BCLNG SHAPE OR SIZE FINISH LAMP 2-LIGHT VANITY2 NBNATURAL BRASS B NIGHTSHADE BLACK N POLISHED NICKEL -LED930 INTEGRATED
-LED930-277 INTEGRATED LED 90 CRI 3000K 277V
700BCLNG
JOB NAME
NOTES
lightology.com 866-954-4489 10-01-25
Linger Double Wall Sconce
By Visual Comfort Modern
Description
The Linger Double Wall Sconce showcases elegant glass and acrylic pipe shades. Their double layer design adds dimension and a unique modern aesthetic as they disperse the LED light. The fixture includes two 13.5 inch long shades and one shorter 7.5 inch shade, for customizing the configuration to suit your space. Whether placed in a bathroom, vanity area, or hallway, the Linger offers beautiful illumination with contemporary flair. 120V: TRIAC and ELV dimmable. 277V: 0-10V dimmable.
Project:
Company:
Location: Fixture Type:
SPEC #: TLG813029
Approved On: Approved By:
Specifications
DIMENSIONS
x 32.3"H x 3.3"D DIMMER
INTEGRATED
COUNTRY
Technical Information
Notes:
Shown in natural brass / clear CLICK TO VIEW PRODUCT
LINGER WALL/BATH
PRODUCT FEATURES
From the brand formerly known as Tech Lighting
Designed with two blades of LED light shaped by elegant glassacrylic cylinders
• Coordinate with the entire Linger family, including Chandeliers, Linear Suspension, Pendant and 1-Light Wall Sconce
Mounts horizontally or vertically. The LED Driver is housed within the junction box for this product
•
This item is made of natural brass. It is a living nish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the nish
• The LED Driver is housed within the junction box. (L. 3.03" | W. 1.22" | H. .83")
LAMPING
Includes 120 volt 17.4 watts, 1145 delivered lumens, 3000K LED module. Dimmable with most LED compatible ELV and TRIAC dimmers. 277V compatible with 0-10V dimmers. Mounts horizontally or vertically. ADA compliant. Ships with (1) 7.5IN and (2) 13.5IN additional pieces of glass for customization.
ORDERING INFORMATION
700BCLNG SHAPE OR SIZE FINISH LAMP 2-LIGHT VANITY2 NBNATURAL BRASS B NIGHTSHADE BLACK N POLISHED NICKEL -LED930 INTEGRATED
-LED930-277 INTEGRATED LED 90 CRI 3000K 277V
700BCLNG
JOB NAME
NOTES
TYPE SC11 SPEC 975 AVENUE
DIMENSIONS
6.75'Widthx6.75"Depthx17"Heightx6.75"Diameter
See full dimensions
SPECIFICATIONS V
DETAILS
Reimagineyour outdoorspacewiththewarmglowfromourmodernFultzCollection.Crafted from aluminumandstainlesssteel.Fultz'scross-directionalribbeddetailingaddsastunning,textural designelementtoanyoutdooraesthetic.
Reimagineyour outdoorspacewiththewarmglowfromourmodernFultzCollection.Crafted from aluminumandstainlesssteel.Fultz'scross-directionalribbeddetailingaddsastunning,textural designelementtoanyoutdooraesthetic.
• Housing made of cold rolled die formed steel for strength and durability
• High impact diffuse polycarbonate lens. Meets IK07 impact rating.
• Housing is treated with rust inhibitor post-fabrication. High-reflectance white polyester powder coating maximizes performance.
• Vandal resistant design using tamper-proof hardware
• Dust and insect tight
Optical System
• Prismatic high-transmission cover lens for optimal performance and visual comfort
• Polycarbonate lens material for maximum impact resistance
• Minimum color rendering index of 80
• Up to 1% enhanced dimming
Electrical
• High-performance programmable driver features overvoltage, under voltage, short-circuit and over temperature protection. Custom lumen and wattage options available
QUICK LINKS
Ordering Guide Performance Dimensions
• Meets FCC Part 15 EMI/EMC requirements
• Bi-level dimming (OFF/ 10%/ 25%/ 50%) standard with integrated ultrasonic sensor IMUS.
• Standard Universal Voltage (120-277 VAC) Input 50/60 or optional High Voltage (347 VAC)
• L70 Calculated Life: >100K hours
• Total Harmonic Distortion: <20%
• Power factor: >.95
• Optional 120-277V 10W integral emergency battery pack is available to meet critical life-safety standby lighting requirements. Self diagnostic test capable. CEC Title 20 and 24 compliant
Controls
• Every unit ships with a factory-installed ultrasonic motion sensor
• Available with AirLink™ Blue. AirLink Blue (ALB) is a low-power wireless Bluetooth mesh control system. ALB provides significant energy savings while ensuring code compliance and security. The integrated fixture sensor module can control multiple luminaires based on motion or daylight and events can be scheduled based on time of day or an astronomical clock.
• 360 degree coverage to detect motion throughout stairwells
• Field-configurable light levels to maximize energy savings
• See page 2 for more details.
Installation
• Wall or ceiling mount
• Side or top stem mount using trade size knockouts (stem supplied by others)
Warranty
• Complete warrenty terms loacted at https://www.lsicorp.com/resources/termsconditions-warranty/
• 1 Year warranty on optional Battery Backup. Test regularly in accordance with local codes
Listings
• Listed to UL 1598 and UL 8750
• Suitable for damp locations
• BAA/TAA compliant
• Title 20, Title 24 compliant
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
2 - Consult factory for lead times or custom color options.
3 - 3500lm available in both 2ft and 4ft.
PERFORMANCE
DELIVERED LUMENS1
FOOTNOTES:
1 - All values are subject to ±10% variation based on production tolerances
CONTROLS
Integral Motion Ultrasonic Sensor (IMUS)
LSI’s “IMUS” ultrasonic motion sensor is a 0-10V fixture-integrated sensor for standalone lighting control. Configurable settings include length of time delays, sensor range and dimming level using DIP switches and trimpots. IMUS is designed for 8 -12 ft mounting height and an operating ambient temperature range of -22°F to 158°F (-30°C to 70°C).
Tested to UL & CSA by Intertek For Use in USA & CANADA.
+ RGBW DMX
BLANK
Ashbery
Specification Sheet | AP100/200/300
Housing & Materials
Cast aluminum construction. LED light engine attached to aluminum cartridge housing using magni-coated steel screws. Housing features an acrylic frosted or clear lens and an LED center element. All hardware is magni-coated steel which features an anti-corrosion coating. Assembly is IP66 rated.
Electrical
120V through 277V 50/60 Hz electronic driver. 0-10V dimming. -40°C start temperature. LED cartridge with weatherproof quick disconnect provides ease of installation and serviceability. Cast aluminum driver housing assembly located at base of luminaire. Available with optional ANSI C136.41 twist lock receptacle and/or pole-mounted photo/ motion sensor. Ashbery area light ships prewired with center element having a separate circuit from main light engine.
Light Engine
High powered LEDs mounted to a RoHS compliant circuit board with PMMA optics affixed to each LED on the board. Available in 2700K, 3000K, and 4000K. >80 CRI across all available color temperatures. Center element available in 2000K color temperature. Luminaries meet or exceed TM21 L70: >60,000 hrs.
Featured in the 100 and 200 series luminaires, the visual comfort light engine brings to the forefront attributes of human-centric optical design in pedestrian centric spaces. It reduces high angle glare and contrast ratio, eliminates ‘lens image’ of LEDs, and has distributions that aid to a first class visual experience for pedestrians.
Featured in the 300 series luminaire, the performance light engine delivers high output with up to 8400 lumens through a wide selection of roadway distribution types. Capable of meeting footcandle minimum and uniformity requirements at taller pole heights and wider spacing, the 300 series addresses lighting needs in vehicular and other environments where design criteria includes non-pedestrian needs. The 300 series is the ideal accompaniment to the 100 and 200 series in meeting all lighting needs on a site, both pedestrian and vehicular.
Ashbery is a trio of lights that combines advanced LED technology and optics with an homage to traditional-style lights that have a special place in the American lexicon. The line includes single or dual configurations for small scale area lights in 8’, 10’ and 12’ pole heights as well as large-scale area lights in 12’, 14’ and 16’ pole heights offered with different symmetric and asymmetric distributions and clear or diffused lenses to tailor directionality and ambiance of illumination. Options for the Landscape Forms visual comfort and high output light engines adapt Ashbery’s performance specifically for the pedestrian scale or beyond in use cases like parking lots, streetscapes, transit and other environments with a wide range of illumination requirements.
Warranty
LED lighting products are warranted for six years.
Certification
UL Listed for Wet Location, CE, International Dark Sky Approved, Buy America Compliant, RoHS Compliant, cUL
Designed by Robert A.M. Stern Architects Click here for patent information related to this product.
Distributions
Ashbery
Specification Sheet | AP100/200/300
Specification
Luminaire #1
Luminaire #2 Pole
Luminaire and Mounting Configurations - 100 Series (Small Size Luminaire with Visual Comfort Light Engine)
Luminaire and Mounting Configurations - 200 Series (Full Size Luminaire with Visual Comfort Light Engine)
Luminaire and Mounting Configurations - 300 Series (Full Size Luminaire with Performance Light Engine)
• LED Accent available on sides of head and pole (optional)
• Patent-pending pole structure design
• Available in 10’ to 16’ height
• High-definition digital printing
• Low-maintenance DuroClear™ protective coating (no staining, no fading, easy to clean)
• Prewired pole – 24 VDC low-voltage with Easy-access integral drivers
• Cast aluminum base plate and printed base cover included
Ashbery
Specification Sheet | AP100/200/300
( Single Post-Top )
Example: AP-16-A – NUT – R – MS1 – Powdercoat * For AP100 Series fixtures only ** Not available for 8' & 10' poles
Modifications
Modifications listed are the most common changes/additions requested. If your requirements aren't shown here, select 'other' and write in the modification needed. Please provide as much detail as possible to streamline the quoting process. All modifications to standard products will require evaluation and quoting approved by Landscape Forms prior to order placement.

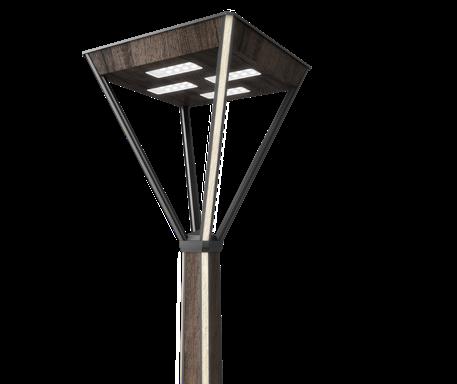

LAMPPOST - Model F
CONSTRUCTION
Aluminum tapered pole and head assembly made of extruded aluminum, digitally printed aluminum composite panels and cast aluminum. The construction is chemically bonded together to create a robust assembly and a seamless look. The pole is fully prewired in factory and features a proprietary KwikLockTM tenon and quick connector for ease of installation and serviceability.
LIGHT MODULES
High efficiency, Sealed IP67 LED modules incorporating heat sink for efficient heat dissipation and an impact-resistant lens. The lens is available in two shapes: dome to maximize output or flush for reduced uplight and glare control.
LED ACCENTS
Our unique design integrates LED Accents as an option, covered by a printed acrylic diffuser that matches the selected fixture finish. The accents are located on the four corners of the pole and the position on the head varies according to the model. The accents color can be specified from a variety of options.
ELECTRICAL
CETL US listed for wet location and certified to CSA STDs C22.2 250.0, 206 and conforms to UL STDs 1598. Surge protected 100-277V 50/60hz Class II integral dimmable drivers located at the base and accessible through hand hole. Dimmable drivers are compatible with ELV, MLV, 0-10V, 1-10V, PWM and wired to a potentiometer in factory. Corner accents are on an independent circuit for individual dimming. Operating temperature is -40°C to 70°C / -40°F to 158°F.
FINISH

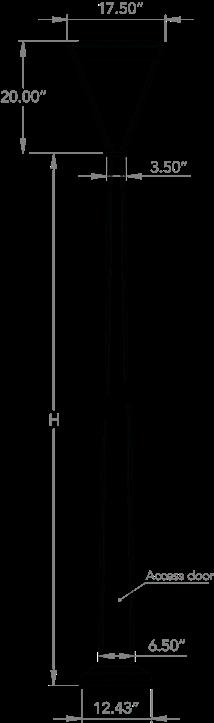

DIMENSIONS

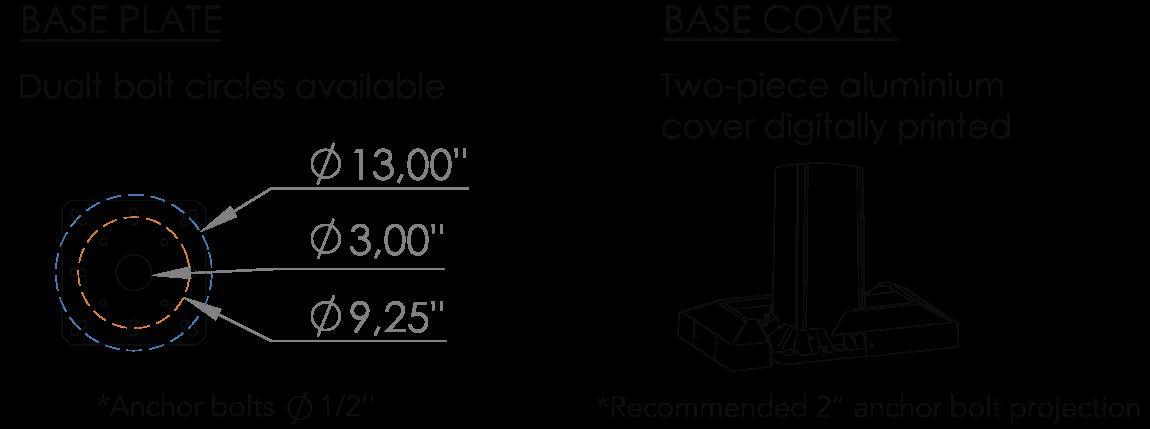

BASE PLATE AND COVER
The base plate and base cover are made of heavy duty cast aluminum. Base plate is anchored using factory supplied mounting hardware. The base cover is made of two pieces and features printed aluminum surfaces that match the selected texture.
WARRANTY SERVICEABILITY
Pretreated primer coated aluminum, then digitally printed with the selected texture or design. Consult the factory for custom textures application or to integrate any logos, indications or other references to your finish. The printed surface is covered with our proprietary DUROCLEAR clear coat, tested in accordance with ASTM standards for the following: 15 years limited warranty against defects in workmanship on pole and fixture heads and excessive fading of the finish. LEDs are covered for 10 years and Drivers are covered for 7 years. Please refer to the warranty section of our website for additional information : zilux warranty
Drivers are accessible through the hand hole at the base of the post. Access door is flush mounted, digitally printed to the match the pole finish and secured with anti-theft screws. All electrical components are field serviceable.
Version April 2025 - AB We reserve the right to change specifications and equipment without notice.
ZXL16
(includes former ZXL16 & ZXL16-NF models)
ACCENT & LANDSCAPE | ZX16 Series | 2.25"
5 - 10W (500 - 900lm) | 12V | HK LED, RGB, Amber
• Our most versatile round, directional 12V LED modern accent light for architectural outdoor and landscape lighting environments.
• 5W, 7W, 10W integrated HK LED delivering 500 to 900 lumens. 2200-4000K CCT, including specialty Amber and RGB options.
Wet Location Listed, IP67 Standard.
• Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
• 240º vertical and 360º horizontal adjustment via locking swivel stem design.
FEATURES SPECIFICATIONS
Modular components, field changeable LED optical beams, and lenses. Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
Every fixture tested end of line for water tightness and light quality.
Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials
Machined from solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 for details).
Voltage
12V AC/DC. Requires remote step down transformer.
Wattage 5, 7 or 10W HK LED delivers 500 to 900 lumens.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGB options available. Consult factory for specialty LED specification details.
Dimming
MLV or ELV Phase Control dimming.
Optics
Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 for details).
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Finned Low Voltage Accent: ZXL16-0R1FA-ABL
SPECIFICATION SHEET

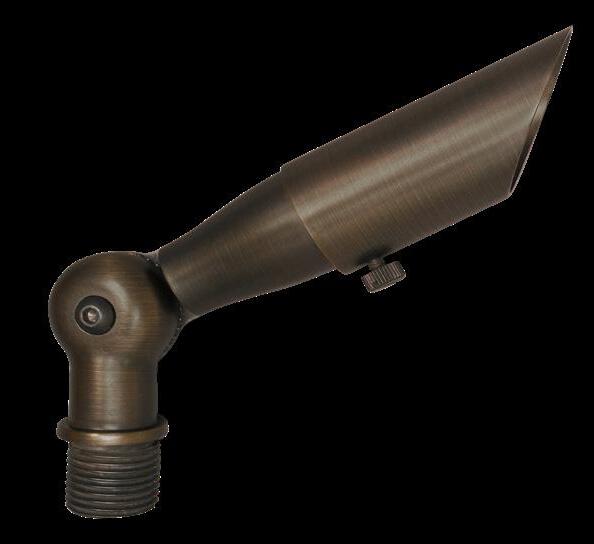

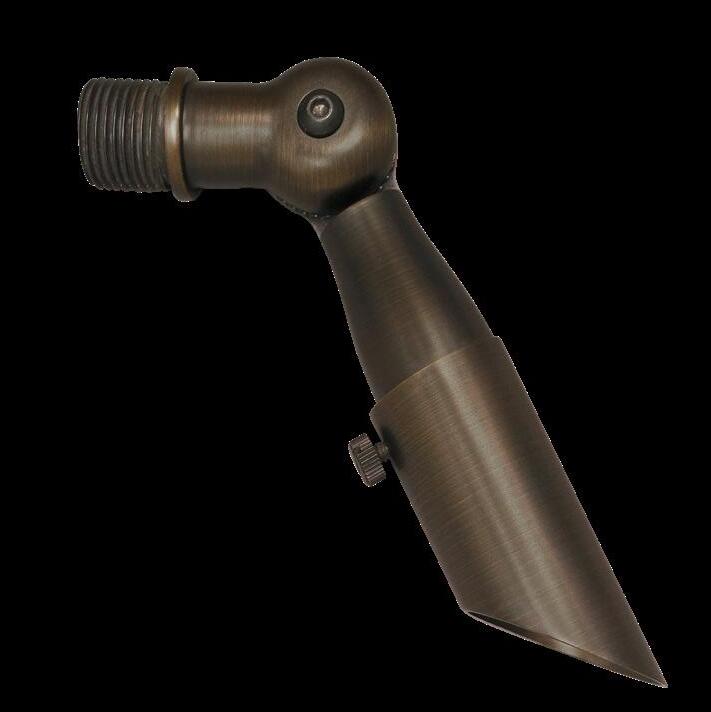

ELEMENT Integrated LED
Uplight/Downlight
Fixture
SPECIFICATIONS
VOLTAGE: 12V AC/DC.
HOUSING:
Cast brass with removable shroud.
FINISH:
Weathered brass.
MOUNTING:
Threaded with 1/2” NPT. Heavy-duty composite stake and locknut included. May be mounted into threaded hubs in junction boxes or mounting accessories.
WIRING:
Pre-wired with a 5’ pigtail of 18/2 cable.
WARRANTY: Ten years.
Type:
The Element features an integrated LED source available in 3.5W. 2700K and 3000K. 25-, 40-, 60- and 100-degree beam spreads.
DIMENSIONS:
Readymade eligible configurations ship in 2 to 4 weeks
1 For premium materials, please consult the factory for current lead times and pricing. A minimum order quantity of 10 units is required.
2 For Specialty AM (Amber LED) and RG (RGB LED), select SPW (Specialty) for Wattage. Consult factory for LED technical details before Specification or Order. MOUNTING (Most common listed, see Page 4 for additional options)
TM125-TS-ABR Stainless Steel Strap for TM125 EXTENSIONS
EX-12-XXX 12" Extension
EX-24-XXX 24 Extension
EL-XXX Elbow Extension
• Consult Accessory Spec Sheet for desired option code.
• XXX represents color option.
• Readymade options available in ABL and ABR only unless noted by the part code above.
(Go to Accessories for detailed specification)
SPECIFICATION SHEET Page 2 ELEMENT Integrated LED Uplight/Downlight Fixture
LED LAMP SPECIFICATIONS
LAMP TYPE: Integrated LED.
OPTICS:
Integral optics providing available beam spreads from 25° to 100˚.
COLOR TEMPERATURES: 2700K and 3000K.
FIXTURE ORDERING INFORMATION
To order a fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 489891-3.5W-25˚2700K-MS
MS Composite Stake 490034
EX Excalibur Post Stake 490037
MY Y-Bracket Surface Mount - 490045
TH9 Tree Hugger Strap Kit 9”- Max 14” - 490330
TH15 Tree Hugger Strap Kit 15”- Max 22.5” - 490331
TH24 Tree Hugger Strap Kit 24”-
N Newhouse Brass Tree Mount J-Box - 490060
GM Brass Gutter Mount 490047
MSM Brass Micro Surface Mount 490049
TR Trident HD 3-Prong Stake 490036
PM Pier Mount 490057
TSM Tapered Surface Mount 490048
EM Round Electrical Mounting Plate 490043
RMP Rectangular Electrical Mounting Plate 490044
ZXL16
(includes former ZXL16 & ZXL16-NF models)
ACCENT & LANDSCAPE | ZX16 Series | 2.25"
5 - 10W (500 - 900lm) | 12V | HK LED, RGB, Amber
FEATURES
• Our most versatile round, directional 12V LED modern accent light for architectural outdoor and landscape lighting environments.
• 5W, 7W, 10W integrated HK LED delivering 500 to 900 lumens. 2200-4000K CCT, including specialty Amber and RGB options.
Wet Location Listed, IP67 Standard.
• Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
• 240º vertical and 360º horizontal adjustment via locking swivel stem design.
Modular components, field changeable LED optical beams, and lenses.
Available with adjustable Angled, Long, and Shor t Glare Shields and ground, sur face, and canopy mounting options.
Every fixture tested end of line for water tightness and light quality.
Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
SPECIFICATIONS
Materials
Machined from solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 for details).
Voltage
12V AC/DC. Requires remote step down transformer.
Wattage 5, 7 or 10W HK LED delivers 500 to 900 lumens.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGB options available. Consult factory for specialty LED specification details.
Dimming
MLV or ELV Phase Control dimming.
Optics
Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 for details).
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Finned Low Voltage Accent: ZXL16-0R1FA-ABL
SPECIFICATION SHEET

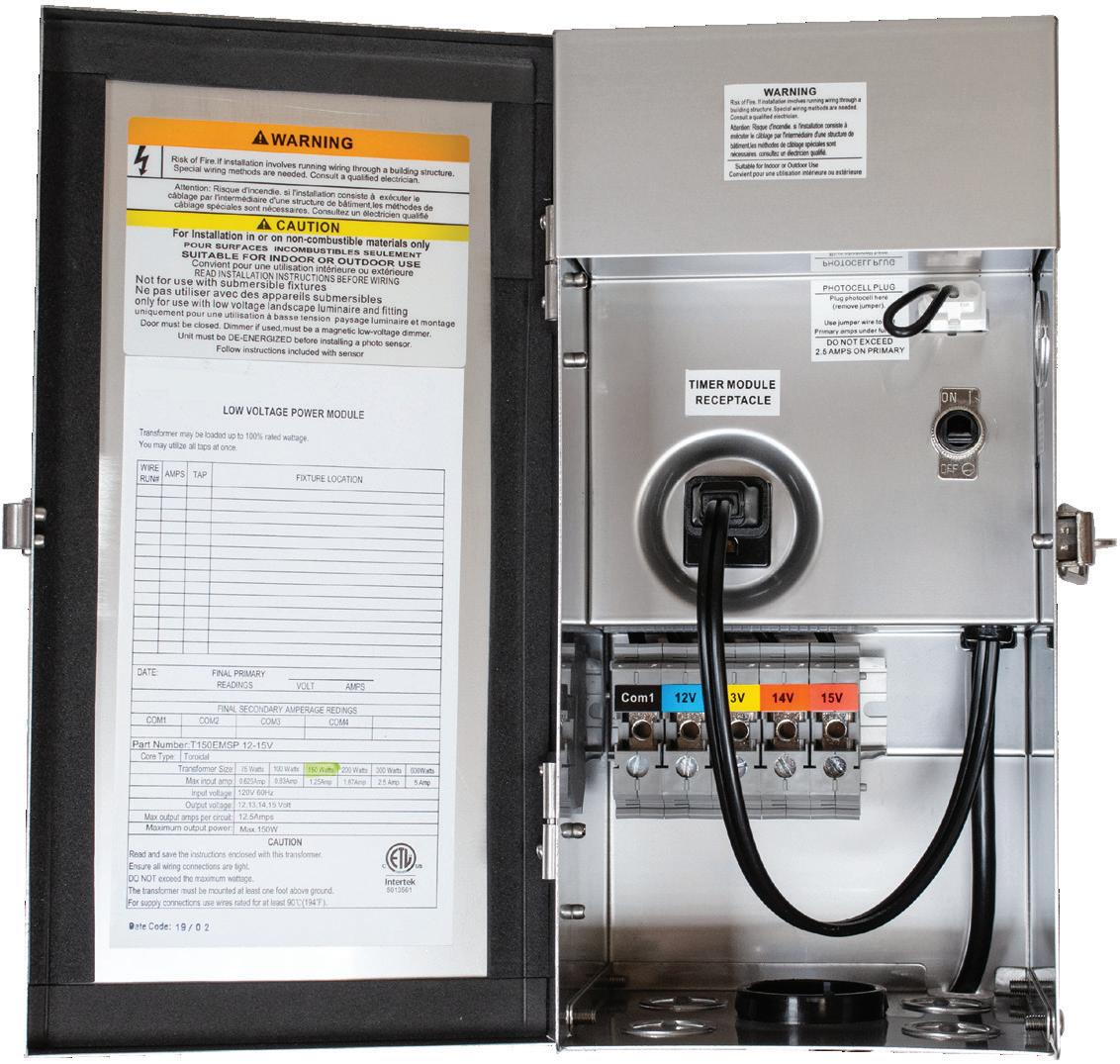

150W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490541
SPECIFICATIONS
OUTPUT:
150W, 12.5A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT: 120V, 60HZ, 1.25A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 12.5A breaker, heavy-duty grounded 5-foot power cord. suitable for interior or exterior use.
AGENCY LISTINGS: ETL approved (5013561). Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropiate choices from each column as in the following example: EXPAMPLE: 490541-DT200LT
Type:
Model:
DIMENSIONS:
Readymade eligible configurations ship in 2 to 4 weeks
1 For premium materials, please consult the factory for current lead times and pricing. A minimum order quantity of 10 units is required.
2 For Specialty AM (Amber LED) and RG (RGB LED), select SPW (Specialty) for Wattage. Consult factory for LED technical details before Specification or Order. MOUNTING (Most common listed, see Page 4 for additional options)
TM125-TS-ABR Stainless Steel Strap for TM125 EXTENSIONS
EX-12-XXX 12" Extension
EX-24-XXX 24 Extension
EL-XXX Elbow Extension
• Consult Accessory Spec Sheet for desired option code.
• XXX represents color option.
• Readymade options available in ABL and ABR only unless noted by the part code above.
(Go to Accessories for detailed specification)
BLANK
Stenos
Linear Downlight Features
• Flawless beam quality from a unique micro-linear form factor
• Narrow 15° TIR native beam is aimable +/- 30°
• Louvers available for 15°, 30°, and 60° beams
• Snap-on optics available to easily adjust beam angle in the field
• Available in three sizes and outputs, four CCTs
• For 1/2” to 2” ceiling thickness 24VDC Class 2
• L90 > 50K hours
• Wall Wash optic provides even illumination starting from the top of the wall to the bottom
• Wall Wash recommended spacing is 2ft from the wall and 2ft on-center
• Fixture is IC rated and does not require a housing or pan
Ordering Code | Linear Downlight
Ordering Code | Linear Downlight Accessories
FUSION
Fixed Downlight
provides a low glare option for highlighting hallways, desks and other horizontal surfaces within commercial, hospitality and retail environments. It is easy to install and blends into existing ceiling architecture seamlessly.
FEATURES
• Flangeless fixture installation provides a modern minimalist design concept
Mix and match with other FUSION light fixtures for even more design options
• Wet location listing are avilable in 3 light, 5 light and 10 light fixture sizes
GOOD TO KNOW
• Flangeless installation available in 5 light and 10 light sizes
Produces a round beam pattern from a linear form factor fixture
• Small light apertures deliver “quiet ceiling” lighting with minimal glare.
SPECIFICATIONS
OPTICAL
Beam Angle
MECHANICAL
Finish Specular Matte Black Custom Finish
ELECTRICAL 24° Narrow Flood
Die cast fixture body
• End mounted mouse trap style springs
Available in self-flanged or flangeless trim versions
Install in ceilings between ½” and 1”
Available in matte black, matte white or custom finish
THERMAL
Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
HOUSING
• New construction steel frame supplied with universal bar hangers and butterfly brackets
Bar hangers are adjustable from 13-1/4” to 24-1/2
Fixture and driver are serviceable from below the ceiling
COMPLIANCE
• ETL listed for Damp locations Optional Wet location rated trim
Universal 120-277V, 50/60Hz, 0-10V or 120V, 60Hz Triac/ELV dimming driver available Drivers connect to LED modules using plenum rated, quick connect cable
WARRRANTY
• 5 Year limited parts warranty
Reflector
BLANK
FUSION

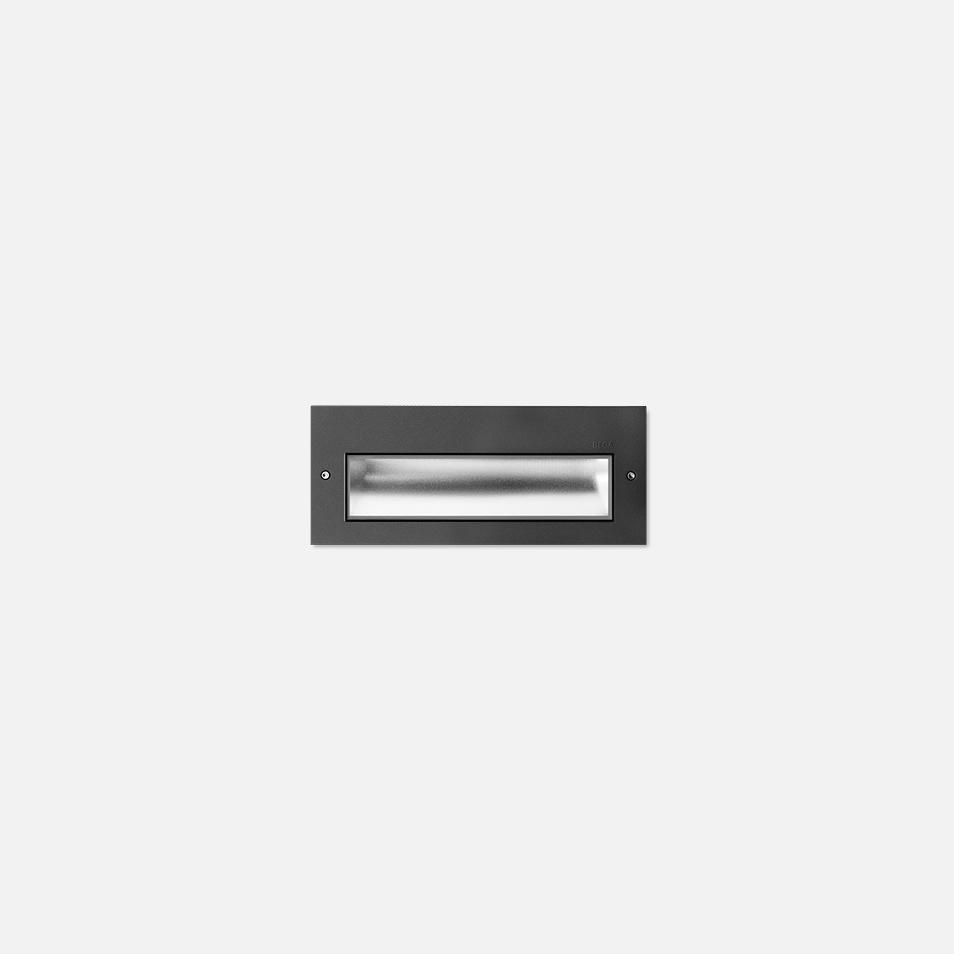

Project : Type: SPECIFICATION
Page: 1 of 5
Surface mounted luminaire that emits a light blade without any unwanted dispersion. Design by Dean Skira.
Luminaire characteristic:
Power input: 3.7W or 4.5W (source wattage)
Lumens: 124lm or 146lm (for 3000K, 80CRI) Luminaire efficacy: Up to 33lm/W
Source: White LED (LM-80), 3000K: 80CRI, Lumen maintenance: 80% of initial lumens at 50 000 hours (L80) (LM-79).
Optic: 180° blade effect.
Material:
Mounting:
Electrical:
Finish:
Operating temperature:
Body: Die-cast aluminum Diffuser: PMMA lens
Hardware: Stainless steel screws
Wall or ceiling mounted, installs on standard 4" octagonal junction box. Floor mounting in dry location only (interior).
High efficiency dimmable remote LED driver, rated at 50 000 hours. See remote option on page 3.
White (RAL9016), black, rust brown or gray (RAL9007) painted finish with a high level of weather and UV resistance. The semi-gloss finish coating is electrostatically applied, durable acrylic enamel baked at high temperatures for superior color retentive finish.
BO From -30°C to 50°C (-22°F to 122°F) HO From -30°C to 35°C (-22°F to 95°F)
Weight: 0.55lb (0.24kg)
Warranty: 5 year limited warranty.
Ratings: IP66, IK07
Certification: cULus listed for wet location.
Page: 1 of 5
Project
Surface mounted luminaire that emits a light blade without any unwanted dispersion. Design by Dean Skira.
Luminaire characteristic:
Power input: 3.7W or 4.5W (source wattage)
Lumens: 124lm or 146lm (for 3000K, 80CRI) Luminaire efficacy: Up to 33lm/W
Source: White LED (LM-80), 3000K: 80CRI, Lumen maintenance: 80% of initial lumens at 50 000 hours (L80) (LM-79).
Optic: 180° blade effect.
Material:
Mounting:
Electrical:
Finish:
Operating temperature:
Body: Die-cast aluminum Diffuser: PMMA lens
Hardware: Stainless steel screws
Wall or ceiling mounted, installs on standard 4" octagonal junction box. Floor mounting in dry location only (interior).
High efficiency dimmable remote LED driver, rated at 50 000 hours. See remote option on page 3.
White (RAL9016), black, rust brown or gray (RAL9007) painted finish with a high level of weather and UV resistance. The semi-gloss finish coating is electrostatically applied, durable acrylic enamel baked at high temperatures for superior color retentive finish.
BO From -30°C to 50°C (-22°F to 122°F) HO From -30°C to 35°C (-22°F to 95°F)
Weight: 0.55lb (0.24kg)
Warranty: 5 year limited warranty.
Ratings: IP66, IK07
Certification: cULus listed for wet location.

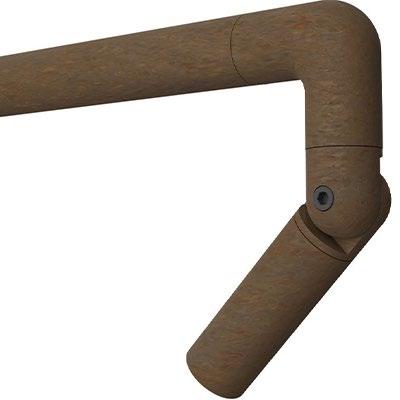

Modular Flexible Outdoor Projector System
CONCEPT
CATIRPEL is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required, ordered separately.
Wattage 3W per module (NSP only) – 3W Single / 9W Triple / 15W Quintet 6W per module – 6W Single / 18W Triple / 30W Quintet
Voltage 24V DC
Finish Matte smooth finish: Black Anodized
Power Connection
Textured finish: Ferrite Dark Grey Sandstone Grey
White Custom RAL
Black Heritage Brown Bronze
Pre-cabled with IN/OUT IP68 connections for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.
Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP67
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed. Tested in accordance with LM-79-08. Compliant for California installations. RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments.
Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
with Lenses
Delivered Lumens
188Lm 465Lm 421Lm 409Lm 413Lm
Efficacy 84Lm/W max. Refer to photometric graphs for specific values.
CATIRPEL is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required, ordered separately.
Wattage 3W per module (NSP only) – 3W Single / 9W Triple / 15W Quintet 6W per module – 6W Single / 18W Triple / 30W Quintet
Voltage 24V DC
Finish Matte smooth finish: Black Anodized
Power Connection
Textured finish: Ferrite Dark Grey Sandstone Grey
White Custom RAL
Black Heritage Brown Bronze
Pre-cabled with IN/OUT IP68 connections for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.
Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP67
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed. Tested in accordance with LM-79-08. Compliant for California installations. RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments.
Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
with Lenses
Delivered Lumens
188Lm 465Lm 421Lm 409Lm 413Lm
Efficacy 84Lm/W max. Refer to photometric graphs for specific values.
CATIRPEL is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required, ordered separately.
Wattage 3W per module (NSP only) – 3W Single / 9W Triple / 15W Quintet 6W per module – 6W Single / 18W Triple / 30W Quintet
Voltage 24V DC
SOURCE
Finish Matte smooth finish: Black Anodized
Power Connection
Textured finish: Ferrite Dark Grey Sandstone Grey
White Custom RAL
Black Heritage Brown Bronze
Pre-cabled with IN/OUT IP68 connections for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.
Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP67
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed. Tested in accordance with LM-79-08. Compliant for California installations. RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments.
Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
with Lenses
Delivered Lumens
188Lm 465Lm 421Lm 409Lm 413Lm
Efficacy 84Lm/W max. Refer to photometric graphs for specific values.
CATIRPEL is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required, ordered separately.
Wattage 3W per module (NSP only) – 3W Single / 9W Triple / 15W Quintet 6W per module – 6W Single / 18W Triple / 30W Quintet
Voltage 24V DC
Finish Matte smooth finish: Black Anodized
Power Connection
Textured finish: Ferrite Dark Grey Sandstone Grey
White Custom RAL
Black Heritage Brown Bronze
Pre-cabled with IN/OUT IP68 connections for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.
Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP67
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed. Tested in accordance with LM-79-08. Compliant for California installations. RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments.
Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
Delivered Lumens
Efficacy 84Lm/W max. Refer to photometric graphs for specific values.

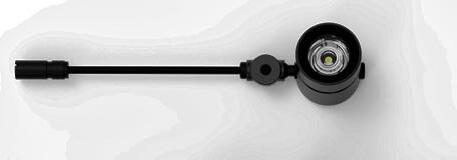

1x (single module) with IN/OUT connections for Lead / Center configurations.
Connection Type A
3x (triple module) with IN/OUT connections for Lead / Center configurations.
Connection Type C
5x (quintet module) with IN/OUT connections for Lead / Center configurations.
Connection Type E
1x (single module) with IN connection for End / Solo configurations.
Connection Type B
3x (triple module) with IN connection for End / Solo configurations.
Connection Type D
5x (quintet module) with IN connection for End / Solo configurations.
Connection Type F
9 – WIRING ACCESSORIES (REQUIRED)
Lead wire connection cable with Female connector. Length 10ft
Part No. 1USA03010
Jumper connection cable with Male/Female connectors. (OPTIONAL)

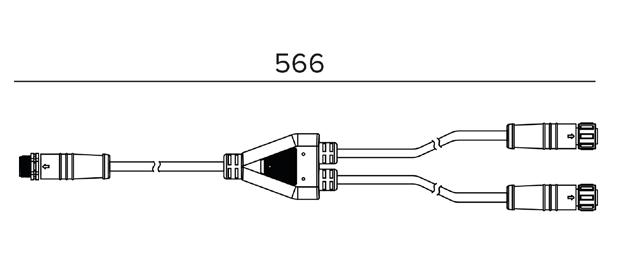

T-Branch electrical connector. (OPTIONAL)
BLANK
ZXL16
(includes former ZXL16 & ZXL16-NF models)
ACCENT & LANDSCAPE | ZX16 Series | 2.25"
5 - 10W (500 - 900lm) | 12V | HK LED, RGB, Amber
• Our most versatile round, directional 12V LED modern accent light for architectural outdoor and landscape lighting environments.
• 5W, 7W, 10W integrated HK LED delivering 500 to 900 lumens. 2200-4000K CCT, including specialty Amber and RGB options.
Wet Location Listed, IP67 Standard.
• Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
• 240º vertical and 360º horizontal adjustment via locking swivel stem design.
FEATURES SPECIFICATIONS
Modular components, field changeable LED optical beams, and lenses. Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
Every fixture tested end of line for water tightness and light quality.
Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials
Machined from solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 for details).
Voltage
12V AC/DC. Requires remote step down transformer.
Wattage 5, 7 or 10W HK LED delivers 500 to 900 lumens.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGB options available. Consult factory for specialty LED specification details.
Dimming
MLV or ELV Phase Control dimming.
Optics
Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 for details).
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
Readymade eligible configurations ship in 2 to 4 weeks
1 For premium materials, please consult the factory for current lead times and pricing. A minimum order quantity of 10 units is required.
2 For Specialty AM (Amber LED) and RG (RGB LED), select SPW (Specialty) for Wattage. Consult factory for LED technical details before Specification or Order. MOUNTING (Most common listed, see Page 4 for additional options)
The STEP is a miniature die-cast discrete architectural accent light, STEP provides soft, even illumination for stairs, theater seating aisles and corridors. It can also be applied as a simple walkway marker light. With a CRI of 93 and an R9 value of 82, these LED sources provide exceptional color rendering. The color consistency is further ensured by 2-step MacAdam ellipse binning. Durable die-cast construction allows this product to be used in both interior and exterior IP65 applications. STEP is available in 6 standard finishes with the option to create a one-of-a-kind lighting element with a custom painted color. The classic Italian design of STEP combined with modern LED technology provides illumination and architectural integrity to any project.
Standard Finishes white painted corten painted shining palladium golden palladium natural copper zinc
JOB:
NOTES:
TYPE:QUANTITY:
PRO DU C T D ESCRIPTIO N
Deck and patio light with superb forward-throw light distribution
FE ATURE S
• IP66 rated, Protected against powerful water jets
• 6' lead wire included
• Translucent lens provides for
• Solid diecast brass or corrosion resistant aluminum alloy
• ADA compliant
• Maintains constant lumen output against voltage drop
• UL 1838 Listed
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFI CATION S
Input: Power:
Brightness: CRI:
Rated Life: 9-15VAC (Transformer is required)
2.8W / 4.6VA (Use VA value for sizing the transformer and calculate voltage drop.)
Stainless Steel, 12-15V output, IP65 rated, UL 1838 listed See transformer spec sheet for details and its accessories
9150-TRN-SS 150W Max
9300-TRN-SS 300W Max
9600-TRN-SS 600W Max
DivaDVLV-600600W33% - 100% Output maxes at 50% dimming level
SkylarkSLV-600P 600W28% - 100%Output maxes at 50% dimming level
SkylarkS-10P 1000W Not recommended
*Low end of this range is determined by output current which may not directly translate to the perceived light output
to a number of factors. Exclusion from the list does not imply incompatibility, just that it has not been tested by WAC Lighting. Please reference the dimmer manufacturer’s instructions for installation, or contact a WAC lighting professional at 800-526-2588.
Recessed wall luminaire · Extended throw
Application
Recessed wall luminaire with asymmetric forward throw distribution for superior illumination of ground surfaces from an extremely low mounting height. The optimal mounting height between 1' and 1.5' above finished grade. Separate installation housing allows for seamless coordination into construction and easy maintenance.
BEGA Tricoat ®, a 3-layer finishing technology for increased corrosion protection
Stainless steel screw clamps
Mechanically captive stainless steel fasteners
Composite installation housing
Pure anodized aluminum reflector
NRTL listed to North American Standards, suitable for wet locations Protection class IP 65
Weight: 1.2 lbs.
Electrical
Operating voltage 120-277V AC
Minimum start temperature -40° C
LED module wattage 5.1 W
System wattage 6.8 W
Controllability 0-10V dimmable
Color rendering index Ra > 80
Luminaire lumens 301 lm
LED service life (L70) 60000 hrs
LED color temperature
4000K (K4)
3500K (K35)
3000K (K3)
2700K (K27)
BEGA can supply you with suitable LED replacement modules for up to 20 years after the purchase of LED luminaires - see website for details
Finish
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL, custom, and premium colors provided in polyester powder and/or liquid paint.
Available colors
Black (BLK) Bronze (BRZ) Silver (SLV) White (WHT) Natural Bronze (NTB) RAL: CUS:
(Also available in RAL Finishes. See submittal SUB-1439-00)
LENS TYPE
12 - Soft Focus 13 - Rectilinear
SHIELDING
11 - Honeycomb Baffle
CAP STYLE
A - 45°
B - 90°
C - Flush
D - 45° Less Weephole (Interior use only)
E - 90° Less Weephole (Interior use only)
OPTIONS
PC-TRe20 - Power Canopy with TRe20 Electronic Transformer (105-300 VAC. 50/60 Hz. non-dimming)*
UPM - Universal Power Module
MOD OPTIONS
5 - 5 Ft Leads
25 - 25 Ft Leads
IP66 RATED 12/06/2022 SKU-631
SUB-2258-00
SLS-05 SERIES SIGN LIGHT
1” (Focus brand canopy)
36” maximum (aluminum) 30” maximum (brass)
SINGLE FIXTURE SIDE VIEW
maximum (aluminum) 20” maximum (brass)
DOUBLE FIXTURE TOP VIEW
SPECIFICATIONS
Aluminum: Extruded housing; Die cast base and canopy; adjustable die cast swivel; extruded aluminum extension pole
Brass: Extruded housing; Die cast base and canopy; adjustable die cast swivel; extruded brass extension pole
Contractor installed junction box (supplied by others) must be designed to hold full fulcrum weight of xture. 8. EXTENSION POLE LENGTH
1. MATERIAL
A: ALUMINUM RXD05 12: 12 INCHES
B: BRASS RXD05
2. FIXTURE TYPE
1: SINGLE
2: DOUBLE (ALUMINUM)
3: DOUBLE (BRASS)
3. LIGHT SOURCE
NL: NO LAMP, MED BASE SOCKET
Max Wattage: 50w
Lamp Options: PAR20 LED
Socket: 120v - High temperature brass nickle plated medium base with 150° C silicone lead wires
Wiring: Standard 120v black, white & green
Power Supply: 120v - No transformer required
Finish: See color options in ordering information below
Note: 45° bend required for full rotation of single xture towards wall.
18: 18 INCHES
24: 24 INCHES (MAX FOR DOUBLE)
30: 30 INCHES (SINGLE ONLY / MAX BRS)
36: 36 INCHES (MAX ALUM SINGLE)
CUSTOM: (ADDER PER INCH)
9. EXTENSION POLE STYLE
A: STRAIGHT
B: 30° BEND
1: 8W 120V PAR20 ARROW SS LED 15° L140C: 45° BEND
2: 8W 120V PAR20 ARROW SS LED 40° L142D: U BEND (PROVIDE SPEC)
E: GOOSE NECK (PROVIDE SPEC)
F: CUSTOM BEND (PROVIDE SPEC)
4. CAP STYLE
A: ANGLE CAP 10. CANOPY
B: TUBE SHIELD CAP
5. LENS TYPE
1: CONVEX
2: FLAT
6. LENS ENHANCEMENT
0: NO LENS ENHANCEMENT
A: LINEAR SPREAD
B: WIDE SOFTENER
C: BLUE
D: GREEN
7. GLARE SHIELDING
0: NO SHIELDING
H: HEX CELL LOUVER
0: NO CANOPY (1/2” NPS REQUIRED)
1: FA-24-LGCST ALUM ROUND
2: FA-24-LGCST BRASS ROUND
3: FA-22-CST ALUM RECTANGLE
4: FA-22-CST BRASS RECTANGLE
11. COLOR
BLT/BRT: BLACK OR BRONZE TEXTURE (STANDARD, ALUMINUM ONLY)
OTHER POWDER COLOR FIXTURE
OTHER POWDER COLOR POLE
OTHER POWDER COLOR CANOPY
BRS: UNFINISHED BRASS (STANDARD)
OTHER ACID TREATMENT FIXTURE
OTHER ACID TREATMENT POLE
OTHER ACID TREATMENT CANOPY
ALP-2700TL
LED WALL WASHER PROFILE
The ALP-2700TL is an Architectural Grade, LED extrusion profile designed for recessed applications. Made from high quality aluminum, these extrusions provide superior thermal management for higher wattage LED strips prolonging the overall lifespan of of the lighting system. Manufactured with a patented frosted diffuser for maximum lumen output and a wider beam distribution.
SPECIFICATIONS
TYPE
AVAILABLE LENGTHS FINISH LENS OPTION APERTURE TRANSFORMER CHANNEL LENS
• Field cuttable Accomodates LED strips up to 23.7mm (0.93”)wide
• Durable, anodized aluminum Protects LEDs from dust and other elements
• Dissipates heat from LED, prolonging its lifetime
3200 PROFILE
With its smooth and curved inner surface, the new 3200 recessed profile allows indirect lighting with a hollow effect, regardless of the height at which it is installed. What’s new? The possibility of adding endcaps for a neat and elegant finish. The 3200 is ideal for residential or commercial applications that require high efficiency, safe lighting.
FEATURES
–Direct adjustment with standard ½ inch gypsum panels and with 5/8 inch gypsum panels. –Impeccable finish thanks to the grooves that allow the profile to be leveled to the wall surface using joint compound.
–Available in 96 inch (2.43 m) lengths for easy and accurate on-site installation. Optional endcaps, available.
–Equipped with a Prime lens for uniform illumination without light dots and optimal light diffusion.
–8 mm LED light source: 4.8 W, 9.6 W, and 14.5 W, with 7 color temperatures (2400K to 6200K), IP22; also available in 10 mm width in 14.4 W-RGB.
Cross-section dimensions:
OPTIONS
LED ENGINE COMPATIBILITY
Compatible with LED engines up to 10mm wide.
LINEAR WEIGHT
0.330lbs/ft, 0.491kg/m (without lens)
SAFIRE-50
5W DESIGNER SERIES LED TAPE LIGHT
The SAFIRE-50 — a high efficiency, indoor tape light designed to illuminate your space with unparalleled efficiency and versatility. The Safire Series utilizes the most technologically advanced LEDs in the market. Using only the top binned LEDs with a macadam ellipse 1.5 step binning procedure, Core Lighting can deliver the most efficient LED strip, with a longer life, higher CRI and higher R9 values. Choose from multiple CCT options ranging from 2200K to 5000K.
WD1 - 2200-2700K 14W/m Lumen Package selection is not available for WD, TW and RGB color options.
RGB1 - RGB 14W/m
- HI-LUME PREMIER 0,1% Eco System 24V/96W For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC
RGB2 - RGB 19W/m NO - No driver
ALP-50C
SURFACE/ CORNER MOUNT
PROFILE
The ALP-50C is an Architectural-grade LED extrusion designed for surface/ corner mount applications and can fit linear LED strips up to 16mm (0.63”) wide. Made from high quality aluminum and manufactured with a patented frosted diffuser for maximum lumen output and wider beam distribution.
SPECIFICATIONS
TYPE
AVAILABLE LENGTHS FINISH LENS OPTION CHANNEL LENS END CAP
MOUNTING CLIPS WARRANTY
Surface/ Corner Mount
48 in./ 84 in./ 98.5 in.
Black/ Silver
Frosted
ALP50C
ALP50C-LN (Frosted)
ALP50C-EC
ALP50C-CL 5 Years
Project Location Quote/ Ref #
FEATURES
• Customizable Durable, anodized aluminum
• Protects LED systems from dust and other elements Slim, low profile design
• Dissipates heat from LED, prolonging its lifetime Compatible with LED strips up to 16mm (0.63 in.) wide
2000 PROFILE
WELL FOCUSED ON THE TASK!
Offering lighting without hot spots at a 45-degree angle from a corner, the 2000 Series excels at maximizing appeal of the products in POP stands, while maintaining a minimalist style.
FEATURES
–Offer s lighting with a beam oriented at 45 degrees.
–Designed to give a uniform light without hot spots with an opal or prime lens*.
–Custom length by sections of 2 to 240 inches (6m).
–Applic ation guide for 10mm (3/8-inch) LED engine or less.
–Made of ALCOA 6063-T5 aluminum alloy increasing heat dissipation.
–It s use increases the lifetime of your LED engine.
–Designed to meet North American woodworking standards.
–Conforms to UL STD. 2108 for closet usage.
Cross-section dimensions:
IP22: Compatible with LED engines up to 14mm wide.
IP68: Compatible with LED engines up to 10mm wide.
The SAFIRE-50 — a high efficiency, indoor tape light designed to illuminate your space with unparalleled efficiency and versatility. The Safire Series utilizes the most technologically advanced LEDs in the market. Using only the top binned LEDs with a macadam ellipse 1.5 step binning procedure, Core Lighting can deliver the most efficient LED strip, with a longer life, higher CRI and higher R9 values. Choose from multiple CCT options ranging from 2200K to 5000K.
UL Listed California TITLE 24 JA8 Compliant 7-Year Warranty*
Only with compatible Core Lighting drivers
2See Page 3 - 5 for compatible profiles.
Custom color finishes require powder coating. Allow 7 days leads time.
2000 Profile ordering sheet 2000 Series
WD3 - 2700-3500K 14W/m
COBWD - 2200-3200K 14W/m
TW1 - Tunable White 11W/m
TW2 - Tunable White 19W/m
WD1 - 2200-2700K 14W/m Lumen Package selection is not available for WD, TW and RGB color options.
RGB2 - RGB 19W/m
RGBW2 - 3000K 4in1 14W/m
TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
The ALP-50C is an Architectural-grade LED extrusion designed for surface/ corner mount applications and can fit linear LED strips up to 16mm (0.63”) wide. Made from high quality aluminum and manufactured with a patented frosted diffuser for maximum lumen output and wider beam distribution.
SPECIFICATIONS
TYPE
AVAILABLE LENGTHS FINISH LENS OPTION CHANNEL LENS END CAP
MOUNTING CLIPS WARRANTY
Surface/ Corner Mount
48 in./ 84 in./ 98.5 in.
Black/ Silver
Frosted
ALP50C
ALP50C-LN (Frosted)
ALP50C-EC
ALP50C-CL 5 Years
Project Location Quote/ Ref #
FEATURES
• Customizable Durable, anodized aluminum
• Protects LED systems from dust and other elements Slim, low profile design
• Dissipates heat f rom LED, prolonging its lifetime Compatible with LED strips up to 16mm (0.63 in.) wide
Custom color finishes require powder coating. Allow 7 days lead time.
(Powder Coat)
2000 PROFILE
WELL FOCUSED ON THE TASK!
Offering lighting without hot spots at a 45-degree angle from a corner, the 2000 Series excels at maximizing appeal of the products in POP stands, while maintaining a minimalist style.
FEATURES
–Offers lighting with a beam oriented at 45 degrees.
–Designed to give a uniform light without hot spots with an opal or prime lens*.
–Custom length by sections of 2 to 240 inches (6m).
–Application guide for 10mm (3/8-inch) LED engine or less.
–Made of ALCOA 6063-T5 aluminum alloy increasing heat dissipation.
–Its use increases the lifetime of your LED engine.
–Designed to meet North American woodworking standards.
–Conforms to UL STD. 2108 for closet usage.
Cross-section dimensions:
IP22: Compatible with LED engines up to 14mm wide.
IP68: Compatible with LED engines up to 10mm wide.
The SAFIRE-50 — a high efficiency, indoor tape light designed to illuminate your space with unparalleled efficiency and versatility. The Safire Series utilizes the most technologically advanced LEDs in the market. Using only the top binned LEDs with a macadam ellipse 1.5 step binning procedure, Core Lighting can deliver the most efficient LED strip, with a longer life, higher CRI and higher R9 values. Choose from multiple CCT options ranging from 2200K to 5000K.
UL Listed California TITLE 24 JA8 Compliant 7-Year Warranty*
Only with compatible Core Lighting drivers
2See Page 3 - 5 for compatible profiles.
Custom color finishes require powder coating. Allow 7 days leads time.
2000 Profile ordering sheet 2000 Series
WD3 - 2700-3500K 14W/m
COBWD - 2200-3200K 14W/m
TW1 - Tunable White 11W/m
TW2 - Tunable White 19W/m
WD1 - 2200-2700K 14W/m Lumen Package selection is not available for WD, TW and RGB color options.
RGB2 - RGB 19W/m
RGBW2 - 3000K 4in1 14W/m
TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
BrightLinx offers easy installation with a built-in cable raceway and a quick, plug-andplay connection system. With a polyurethane coating on top of our wash and graze lens options, this fixture is sure to withstand the elements and provide reliable performance for years to come.
Features
Built-in Raceway for Simple Wire Management
• Vandal Proof Polyurethane Lens Coating
• Grazing and Wash Lenses Available
• Matte Anodized Aluminum Housing IP67 and IK10 Ratings
Dimensions
6I(6.24"), 1(12.20″), 2(24.17"), or 4(48.27")
(18.0mm)
(27.0mm)
* Customizable – Consult Factory
§ Additional Accessories Needed
BrightLinx
Specifications
Series BTLX
Temp/Color 1800K–6500K, RGBW
Input Voltage 24V DC
Lumens per Foot 118–793
Watts per Foot 8 (Static White) 5 (Color Changing)
Beam Spread 35°, 45°, 120°
CRI* 90+
Diodes 2835 (Static White) 5050 (Color Changing)
Binning Tolerance 3 SDCM (Static White) -1 Bin
Length Options 6in, 1ft, 2ft, 4ft
Max Run Length 12ft (Static White) 20ft (Color Changing)
5.8W, 24VDC WALL GRAZING LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6” increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• 30° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens
SPECIFICATIONS
ELECTRICAL
•24VDC
•5.8 watts per foot
•90+ CRI
CERTIFICATION
•UL listed for US and Canada
•Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
•IP65
WARRANTY
•5-year warranty when paired with GM power supply
Note: Includes 48” leads. Factory sealed. *Reel Length: XX = per foot
CONTROLLERS
VTX-TTC6 6in tape to tape connector
VTX-TTC12 12in tape to tape connector
VTX-TTC24 24in tape to tape connector
VTX-PCHW8 8ft. hardwired power feed
VTX-EC Tape end cap
Note: For compatible channels, see next page. Accessories included in factory assembled components.
Note: Use minimum of 2 clips or brackets per 4ft of channel.
DIMENSION
CUTTABLE EVERY 6” (7 LEDS)
ALP20
Surface Mount LED Profile
SPECIFICATIONS
TYPE
AVAILABLE LENGTHS
FINISH
LENS OPTIONS
CHANNEL
LENS (INCLUDED)
END CAP
MOUNTING CLIPS
ADJUSTABLE BRACKET
ADJUSTABLE BRACKET
Surface mount
49.25”, 84” and 98.5“
White / Black / Silver
Frosted
ALP-20
ALP-20-LN (frosted)
ALP-20-EC
ALP-20-CL
ALP-20-BKT-ADJ
ALP-20-ASB
CompatiblewithLEDstripsupto 12mm (0.5”) wide.
LEDtapelightsoldseparately
FrostedLensdiffuserincluded
2(two)endcapsincludedwitheverychannel.
Customcolorfinishesavailable(powder-coating).
ARCHITECTURAL
JOB NAME: LOCATION: QUOTE/REF#:
The ALP-20 is an Architectural-grade LED extrusion designed for surface mount applications and can fit linearLED strips up to 12mm (0.5”) wide. Made from high quality aluminum and manufactured with a patented frosted diffuser for maximum lumen output and wider beamdistribution.
FEATURES
■ Customizable
■ Durable, anodized aluminum
■ Protects LED systems from dust and other elements
■ Slim, low profile design
■ Dissipates heat from LED, prolonging its lifetime
DIMENSIONS
ALP20SPECSHEET P1
1100 PROFILE
1000 Series
THE THINNEST OF THE 1000 SERIES
This profile is the thinnest of the 1000 Series being only 6 mm (0.236 inch) thick and 18.7 mm (0.736 inch) wide, and is compatible with most of our LED engines. Perfect for tight spots, it will be very discreet and will stand out.
FEATURES
–T he most compact profile of the 1000 Series, only 6mm thick.
–Custom length by sections of 2 to 240 inches (6m).
–Applic ation guide for 10mm (3/8 inch) LED engine or less.
–Made of ALCOA 6063-T5 aluminum alloy increasing heat dissipation.
–It s use increases the lifetime of your LED engine.
–Compatible with multiple installation accessories. –Designed to meet North American woodworking standards.
Cross-section dimensions:
Compatible with LED engines up to 14mm
0.060 lbs/ft, 0.089 kg/m (without lens)
Profile ordering sheet 1000 Series
F - DMX
62 - 6200K (LP only) DC9** -
G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W DCX** - DC plug custom FT
WD3 - 2700-3500K 14W/m I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
WD1 - 2200-2700K 14W/m Lumen Package selection is not available for WD, TW and RGB color options. NO - No lead For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
RGB2 - RGB 19W/m
K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC
• eldoLED flicker free 0-10V dimming to 0% and 1% eldoLED flicker free DALI dimming to 0% and 1%
• Lutron Hi-lumen 2-Wire (Eco System) dimming to 0.1% and 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• Casambi bluetooth dimming to 1.0%
• NLight control interface dimming to 0%
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0 IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• 5 Year Limi ted warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment
ELECTRICAL
• 120V-277V, 120 only Triac / ELV Power factory ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 9 0min battery
• Max. ambient installation temperature 95°F (35°C)
1" Round Downlight Standard White
975 AVENUE
NIOB-1RNB
1" Iolite BWF Round Bullnose Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Bullnose trim with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION
LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV 60 0lm / 9W
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC Air-Tight Remodel, 120-277V; Triac/ELV/0-10V
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
0lm / 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
· 5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-1RNB27 X = 2700K
NIOB-1RNB30X = 3000K
NIOB-1RNB35 X = 3500K
NIOB-1RNB40X = 4000K
NIOB-1RNB50X = 5000K
NIOB-1RNBCDX
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Compatible Housings
MOUNTING OPTIONS
SEE PAGE 5, 6
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH6 new construction with ceiling fitting plate, IC rated, inherently protected
IC insulation contact housing
ICAT insulation contact/airtight housing
CP chicago plenum housing
RET retrofit, no ceiling fitting plate
remote driver housing only VOLTAGE
120V
UNV 120V-277V
DIM10 eldoLED flicker free 0-10V dimming to 1%
DIM10Z eldoLED flicker free 0-10V dimming to 0%
DALI eldoLED flicker free DALI dimming to 1%
DALIZ eldoLED flicker free DALI dimming to 0%
LUT Lutron Hi-lume Ecosystem dimming to 1%, Soft-on & Fade-to-Black
DIMMING
ELECTRICAL OPTIONS
LUTP Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black
ELV1 7 leading & trailing edge (Triac/ELV) dimming to 1%
NLT nLight control interface: standard Cat-5/RJ45 connection (female), dim to off
CAS Casambi Bluetooth control with flicker free 1% dimming
EM7 emergency battery backup, 90 minutes at 7W to LED
EM12 emergency battery backup, 90 minutes at 12W to LED
EM10CA20 remote emergency battery backup, 90 minutes at 10W to LED, CA title 20
ADDITIONAL MOUNTING INFO
New Construction Bar Hangers (included) Mounting Length: 14-3/4" to 26"
Extension Kit p/n: K20266 (ordered separately, 1 per fixture)
Extends a pair of Bar Hangers Total Mounting Length: 29" to 48"
in trimless ordering code.
BEZEL
white
matte chrome
bronze
wheat
CC5 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Follow the steps to specify your fixture, example: NU1
NOTES
1. 12D available in 07LM.
2. NL option does not meet requirements for AT/DF/WET/NSF listings. Lensing cannot be added in the field.
3. Elliptical lens not available with 12D optic options. Actual beam distributions [20D= 25° x
40D= 40° x 70° , 55D= 55° x 80°]
4. HCL not available with lens.
5. Custom set up fee plus minimum quantity required per color.
6. NCINH available in 07LM.
7. ELV1 (120V)
Source: 9W or 10W
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DE SCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" R ound Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FC C compliant
Pa tent #D824567S
· Mee ts or exceeds ASTM-283 Air-Tight requirements
• eldoLED flicker free 0-10V dimming to 0% and 1% eldoLED flicker free DALI dimming to 0% and 1%
• Lutron Hi-lumen 2-Wire (Eco System) dimming to 0.1% and 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• Casambi bluetooth dimming to 1.0%
• NLight control interface dimming to 0%
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0 IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• 5 Year Limi ted warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment
ELECTRICAL
• 120V-277V, 120 only Triac / ELV Power factory ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 9 0min battery
• Max. ambient installation temperature 95°F (35°C)
1" Round Downlight Standard White
975 AVENUE
NIOB-1RNB
1" Iolite BWF Round Bullnose Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Bullnose trim with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION
LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV 60 0lm / 9W
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC Air-Tight Remodel, 120-277V; Triac/ELV/0-10V
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
0lm / 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
· 5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-1RNB27 X = 2700K
NIOB-1RNB30X = 3000K
NIOB-1RNB35 X = 3500K
NIOB-1RNB40X = 4000K
NIOB-1RNB50X = 5000K
NIOB-1RNBCDX
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Compatible Housings
MOUNTING OPTIONS
SEE PAGE 5, 6
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH6 new construction with ceiling fitting plate, IC rated, inherently protected
IC insulation contact housing
ICAT insulation contact/airtight housing
CP chicago plenum housing
RET retrofit, no ceiling fitting plate
remote driver housing only VOLTAGE
120V
UNV 120V-277V
DIM10 eldoLED flicker free 0-10V dimming to 1%
DIM10Z eldoLED flicker free 0-10V dimming to 0%
DALI eldoLED flicker free DALI dimming to 1%
DALIZ eldoLED flicker free DALI dimming to 0%
LUT Lutron Hi-lume Ecosystem dimming to 1%, Soft-on & Fade-to-Black
DIMMING
ELECTRICAL OPTIONS
LUTP Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black
ELV1 7 leading & trailing edge (Triac/ELV) dimming to 1%
NLT nLight control interface: standard Cat-5/RJ45 connection (female), dim to off
CAS Casambi Bluetooth control with flicker free 1% dimming
EM7 emergency battery backup, 90 minutes at 7W to LED
EM12 emergency battery backup, 90 minutes at 12W to LED
EM10CA20 remote emergency battery backup, 90 minutes at 10W to LED, CA title 20
ADDITIONAL MOUNTING INFO
New Construction Bar Hangers (included) Mounting Length: 14-3/4" to 26"
Extension Kit p/n: K20266 (ordered separately, 1 per fixture)
Extends a pair of Bar Hangers Total Mounting Length: 29" to 48"
in trimless ordering code.
BEZEL
white
matte chrome
bronze
wheat
CC5 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Follow the steps to specify your fixture, example: NU1
NOTES
1. 12D available in 07LM.
2. NL option does not meet requirements for AT/DF/WET/NSF listings. Lensing cannot be added in the field.
3. Elliptical lens not available with 12D optic options. Actual beam distributions [20D= 25° x
40D= 40° x 70° , 55D= 55° x 80°]
4. HCL not available with lens.
5. Custom set up fee plus minimum quantity required per color.
6. NCINH available in 07LM.
7. ELV1 (120V)
,
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DE SCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" R ound Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FC C compliant
Pa tent #D824567S
· Mee ts or exceeds ASTM-283 Air-Tight requirements
Type Project Catalog No. Notes
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
1" Round Adjustable Standard White
FEATURES
• True 30° Tilt with <6% beam disruption (clipping)
• Zero ceiling line obstruction at Full Tilt
• Concentric Tilt Tracking ensures minimal light loss 17° - 55° optical beam control
• UGR < 19
• Glare control, specialty optics, trim options, and custom finishes available
• Microban® antimicrobial finish available on all exposed painted surfaces
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment , see page 9
ELECTRICAL
• Low voltage luminaire: 3 6Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 13LM - 300mA
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
600 lm / 9W or 10W
2700 K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Com fort Dim (warm dimming) also available
Flo od optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DES CRIPTION LUMENS / WATTAGE
NHIOICD-16LE3
ICAT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
lm / 9W
lm / 10W
lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 600 lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cUL us Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Cer tified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-1RSL50X
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Compatible Housings
SERIES NU1 NU1
ORDERING CODE
TYPE RA round adjustable RAT round adjustable trimless RATMW round adjustable trimless millwork
LED SW standard white
07LM 630 lm
DELIVERED LUMENS
MOUNTING OPTIONS
SEE PAGE 8 9
VOLTAGE
DIMMING
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8 insulation contact housing
ICAT8 insulation contact/airtight housing
CP8 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected remote driver only
LVL low voltage luminaire
ND No driver included. See page 3 for remote driver options.
Follow the steps to specify your fixture, example: NU1 - RA - SW - 10LM - 35K -
NOTES
1. 17D available in 07LM.
2. 17D & 22D not available with NL and CL options.
3. 17D & 22D includes SBL lens as standard. One additional media may be used.
4. Elliptical lens not available with 17D optic options. Actual beam distributions [22D= 25° x
30D= 30° x
, 40D= 40° x 70° 55D= 55° x 80°]
5. NL option does not meet requirements for AT/WET/NSF listings. Bezel lensing cannot be added in the field.
6. Custom set up fee plus minimum quantity required per color.
7. NCINH, RE TINH available in 07LM.
8. IC/ICAT/CP available in 07LM/10LM.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve, add “LIN” after dimming code, i.e. DIM10LIN.
BEZEL COLOR
SEE PAGE 5
finish, add AM to black, white or matte chrome i.e. BKAM.
applicable to trimless option. Do not include in trimless ordering code.
black
white
matte chrome
bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Source: 9W or 10W
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DE SCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" R ound Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FC C compliant
Pa tent #D824567S
· Mee ts or exceeds ASTM-283 Air-Tight requirements
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment , see page 9
ELECTRICAL
• Low voltage luminaire: 3 6Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 13LM - 300mA
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
600 lm / 9W or 10W
2700 K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Com fort Dim (warm dimming) also available
Flo od optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DES CRIPTION LUMENS / WATTAGE
NHIOICD-16LE3
ICAT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
lm / 9W
lm / 10W
lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 600 lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cUL us Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Cer tified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-1RSL50X
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
Adjustable Slot Aperture
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Compatible Housings
SERIES NU1 NU1
ORDERING CODE
TYPE RA round adjustable RAT round adjustable trimless RATMW round adjustable trimless millwork
LED SW standard white
07LM 630 lm
DELIVERED LUMENS
MOUNTING OPTIONS
SEE PAGE 8 9
VOLTAGE
DIMMING
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8 insulation contact housing
ICAT8 insulation contact/airtight housing
CP8 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected remote driver only
LVL low voltage luminaire
ND No driver included. See page 3 for remote driver options.
Follow the steps to specify your fixture, example: NU1 - RA - SW - 10LM - 35K -
NOTES
1. 17D available in 07LM.
2. 17D & 22D not available with NL and CL options.
3. 17D & 22D includes SBL lens as standard. One additional media may be used.
4. Elliptical lens not available with 17D optic options. Actual beam distributions [22D= 25° x
30D=
x
, 40D= 40° x 70° 55D= 55° x 80°]
5. NL option does not meet requirements for AT/WET/NSF listings. Bezel lensing cannot be added in the field.
6. Custom set up fee plus minimum quantity required per color.
7. NCINH, RE TINH available in 07LM.
8. IC/ICAT/CP available in 07LM/10LM.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve, add “LIN” after dimming code, i.e. DIM10LIN.
BEZEL COLOR
SEE PAGE 5
finish, add AM to black, white or matte chrome i.e. BKAM.
applicable to trimless option. Do not include in trimless ordering code.
black
white
matte chrome
bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DE SCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" R ound Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FC C compliant
Pa tent #D824567S
· Mee ts or exceeds ASTM-283 Air-Tight requirements
• Maximum Remote mounting distance of EM driver shall be 50 feet
REMOTE SINGLE DRIVER BOX
REMOTE 2 TO 3 DRIVER BOX (2 Drivers for DIM10Z/DALI/DALIZ/LUT/LUTP) (1 Driver + EM)
REMOTE 4 TO 5 DRIVER BOX (3 Drivers for DIM10Z/DALI/DALIZ/LUT/LUTP)
BLANK
NO SPEC
NIOB-1RSL
NHIOICD-16 / NHIOICDCP-16
1" Iolite BWF Round Slot Aperture
1" Iolite IC Air-Tight New Construction Housing
Type Project
Source: 9W or 10W LED
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
600 lm / 9W or 10W
2700 K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Com fort Dim (warm dimming) also available
Flo od optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DES CRIPTION LUMENS / WATTAGE
NHIOICD-16LE3
ICAT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
lm / 9W
lm / 10W
lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 600 lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cUL us Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Cer tified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-1RSL35
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
Compatible Housings
Iolite BWF Round Slot Aperture
BLANK
Source: 9W or 10W
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DE SCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" R ound Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FC C compliant
Pa tent #D824567S
· Mee ts or exceeds ASTM-283 Air-Tight requirements
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM 630LM @30K/80CRI 150mA 5.5W
10LM 800LM @30K/80CRI 200mA 7.5W
13LM 1150LM @30K/80CRI 300mA 11W
07LM 530LM @30K/90CRI 150mA 5.5W
10LM 680LM @30K/90CRI 200mA 7.5W
13LM 980LM @30K/90CRI 300mA 11W
Notes Delivered lumens based on 55D optic with no lens, (see page 2)
17° BEAM
(Note: Specifications are subject to change without notice) 4mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM 550LM @30K/80CRI 150mA 5.5W
07LM 500LM @30K/90CRI 150mA 5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI dimming to 0% and 1%
• Lutron Hi-lumen 2-Wire (Eco System) dimming to 0.1% and 1% Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• 5 Year Limi ted warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment , see page 9
ELECTRICAL
• Low voltage luminaire: 3 6Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 13LM - 300mA
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
600 lm / 9W or 10W
2700 K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Com fort Dim (warm dimming) also available
Flo od optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DES CRIPTION LUMENS / WATTAGE
NHIOICD-16LE3
ICAT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
lm / 9W
lm / 10W
lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 600 lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cUL us Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Cer tified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-1RSL50X
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
Adjustable Slot Aperture
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Compatible Housings
SERIES NU1 NU1
ORDERING CODE
TYPE RA round adjustable RAT round adjustable trimless RATMW round adjustable trimless millwork
LED SW standard white
07LM 630 lm
DELIVERED LUMENS
MOUNTING OPTIONS
SEE PAGE 8 9
VOLTAGE
DIMMING
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8 insulation contact housing
ICAT8 insulation contact/airtight housing
CP8 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected remote driver only
LVL low voltage luminaire
ND No driver included. See page 3 for remote driver options.
Follow the steps to specify your fixture, example: NU1 - RA - SW - 10LM - 35K -
NOTES
1. 17D available in 07LM.
2. 17D & 22D not available with NL and CL options.
3. 17D & 22D includes SBL lens as standard. One additional media may be used.
4. Elliptical lens not available with 17D optic options. Actual beam distributions [22D= 25° x
30D=
x
, 40D= 40° x 70° 55D= 55° x 80°]
5. NL option does not meet requirements for AT/WET/NSF listings. Bezel lensing cannot be added in the field.
6. Custom set up fee plus minimum quantity required per color.
7. NCINH, RE TINH available in 07LM.
8. IC/ICAT/CP available in 07LM/10LM.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve, add “LIN” after dimming code, i.e. DIM10LIN.
BEZEL COLOR
SEE PAGE 5
CC6 custom color, consult factory for details
finish, add AM to black, white or matte chrome i.e. BKAM.
applicable to trimless option. Do not include in trimless ordering code.
black
white
matte chrome
bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DE SCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" R ound Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FC C compliant
Pa tent #D824567S
· Mee ts or exceeds ASTM-283 Air-Tight requirements
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment , see page 9
ELECTRICAL
• Low voltage luminaire: 3 6Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 13LM - 300mA
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
600lm / 9W or 10W
2700K , 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Floo d optic, narrow flood and spot optics (included)
5-Ye ar limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chic ago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chic ago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 ICAT R emodel, 120-277V; Triac/ELV/0-10V
NS / WATTAGE
m / 9W
m / 10W
m / 9W
m / 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Ye ar Limited Warranty
· RoHS Compliant
Cert ified to the high efficacy requirements of California Title 24 JA8-2022
TYPE RA round adjustable RAT round adjustable trimless RATMW round adjustable trimless millwork
LED SW standard white
07LM 630 lm
DELIVERED LUMENS
MOUNTING OPTIONS
SEE PAGE 8 9
VOLTAGE
DIMMING
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8 insulation contact housing
ICAT8 insulation contact/airtight housing
CP8 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected remote driver only
LVL low voltage luminaire
ND No driver included. See page 3 for remote driver options.
Follow the steps to specify your fixture, example: NU1 - RA - SW - 10LM - 35K -
NOTES
1. 17D available in 07LM.
2. 17D & 22D not available with NL and CL options.
3. 17D & 22D includes SBL lens as standard. One additional media may be used.
4. Elliptical lens not available with 17D optic options. Actual beam distributions [22D= 25° x
30D=
x
, 40D= 40° x 70° 55D= 55° x 80°]
5. NL option does not meet requirements for AT/WET/NSF listings. Bezel lensing cannot be added in the field.
6. Custom set up fee plus minimum quantity required per color.
7. NCINH, RE TINH available in 07LM.
8. IC/ICAT/CP available in 07LM/10LM.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve, add “LIN” after dimming code, i.e. DIM10LIN.
BEZEL COLOR
SEE PAGE 5
CC6 custom color, consult factory for details
finish, add AM to black, white or matte chrome i.e. BKAM.
applicable to trimless option. Do not include in trimless ordering code.
black
white
matte chrome
bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DES CRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" Ro und Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO -1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iP OINT Cylinder
NIOP-1RTC 1" iP OINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cUL us Listed for Damp Locations (Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FCC compliant
Patent #D824567S
· Meet s or exceeds ASTM-283 Air-Tight requirements
• eldoLED flicker free 0-10V dimming to 0% and 1% eldoLED flicker free DALI 2 dimming to 0% and 1%
• Lutron Hi-lumen 2-Wire (Eco System) dimming to 0.1% and 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0 IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• 5 Year Limi ted warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1"
• Fixture is pre-set and shipped at 30deg tilt
ELECTRICAL
• 120V-277V, 120 only Triac / ELV Power factory ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 9 0min battery
• Max. ambient installation temperature 95°F (35°C)
1" Round Wall Wash Standard White
NIOB-1RSL
NHIOICD-16 / NHIOICDCP-16
1" Iolite BWF Round Slot Aperture
1" Iolite IC Air-Tight New Construction Housing Source: 9W or 10W LED
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC AT Remodel, 120-277V; Triac/ELV/0-10V
0lm / 9W
/ 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NCINH2 new construction with ceiling fitting plate, IC rated, inherently protected remote driver housing only
DIM10 eldoLED flicker free 0-10V dimming to 1%
DIM10Z eldoLED flicker free 0-10V dimming to 0%
DALI eldoLED flicker free DALI 2 dimming to 1%
DALIZ eldoLED flicker free DALI 2 dimming to 0%
LUT Lutron Hi-lume Ecosystem dimming to 1%, Soft-on & Fade-to-Black
LUTP Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black
ELV13 leading & trailing edge (Triac/ELV) dimming to 1%
EM7 emergency battery backup, 90 minutes at 7W to LED
EM12 emergency battery backup, 90 minutes at 12W to LED
EM10CA20 remote emergency battery backup, 90 minutes at 10W to LED, CA title 20
Source: 9W or 10W
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DE SCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" R ound Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FC C compliant
Pa tent #D824567S
· Mee ts or exceeds ASTM-283 Air-Tight requirements
Innovative, first-of-its-kind technology in architectural downlights, Reflections combines decorative recessed domes with beautifully controlled, reduced-glare indirect LED illumination. Reflections domes (available in 5 , 8 and 12 diameters) are recessed into the ceiling plane and act as reflectors to a completely hidden ring of up-firing LEDs.
The decorative domes: Bloom, Dune, Fleur and Torus consist of beautiful molded geometry for dramatic visual interest with the subtle contrast of light and shadow. The smooth Skye dome creates soft, low-glare general illumination with a peaceful visual aesthetic.
Reflections offers two ceiling appearance options: Flanged for a more traditional ceiling appearance and a field-paintable flange ring, or flangeless for a smooth, mudded-in ceiling appearance.
Pristine design and illumination:
• Reduced glare, indirect illumination (dimmable for enhanced mood-setting options)
• Three aperture options: 5 , 8 and 12 (Flanged or Flangeless appearance)
• Beveled, rounded trim edges smoothly and seamlessly integrate into ceiling
• Housing and Trim/Dome sold separately.
• High quality LM80-tested LEDs for consistent long-life performance and color
SKYE SHOWN IN FLANGELESS
DUNE SHOWN IN FLANGED
SPECIFICATIONS
CCT OPTIONS 2700K, 3000K, 3500K or Warm Color Dimming (3000K-2000K)
VOLTAGE Universal 120V-277V
LIGHT DISTRIBUTION Lambertian
DIMMING1
0-10V, ELV, TRIAC (down to 5%) EldoLED 0-10V or DALI-2 (down to 0.1%) Lutron Hi-lume EcoSystem (down to 0.1%)
POWER SUPPLY Constant current driver with +.9 power factor and +85% efficiency. Serviceable from below the ceiling.
CEILING APPEARANCE Flanged or Flangeless
CEILING THICKNESS Flanged: 1/2" to 1" Flangeless: No ceiling thickness limitations
HOUSING IC Airtight, Chicago Plenum. IC suitable up to R60 spray foam insulation.
FINISH Flanged trim: White (paintable)
GENERAL LISTINGS ETL Listed. Damp Location.
CALIFORNIA TITLE 24 Registered CEC Appliance Database. Can be used to comply with CEC 2019 Title 24 Part 6 (JA8-2016, JA8-2019).
L70 50,000 hours min
WARRANTY2 5 years
Ordering grids available on page 2.
1See visualcomfort.com for dimmer compatibility.
2Visit visualcomfort.com for specific warranty limitations and details.
TORUS SHOWN IN FLANGELESS
FLEUR SHOWN IN FLANGED
BLOOM SHOWN IN FLANGELESS
UPDATED 3/10/23
Trimless Surface
J-Box or E26
LED-TSM-5R-12W-5CCT-WH
850 Lm • White Finish
LED-TSM-7R-15W-5CCT-WH
1,100Lm • White Finish
LED-TSM-9R-18W-5CCT-WH
1,300 Lm • White Finish
LED-TSM-11R-20W-5CCT-WH
1,500 Lm • White Finish
Introducing the EnVision LED Trimless Surface Mount: Crafted with precision, this cutting-edge luminaire boasts an ultra-thin profile, ensuring a sleek and unobtrusive appearance that seamlessly integrates into both residential and commercial recessed environments. This luminaire redefines modern lighting solutions, setting a new standard for sophistication and functionality in the realm of architectural lighting.
Detail Specifications:
•Finishes: White
•IP Rating: Wet Location
•Beam Angle: 100°
•Chip: SMD 2835, R9 >50, CRI >90
•3 Step MacAdam Ellipses
•Operating Temperature: -40° - 114° F
•Lens: Frosted Acrylic, non-yellowing
•Average life (L70) of 50,000 hours
Applications:
•General Recessed Lighting
•Residential & Multifamily
•Office and Meeting Rooms
•Education, Healthcare, Retail, Hospitality
Product Information:
•Available in 4 different sizes
•Battery backup module available in 7" and 9" models
•Extends to just 0.8” from the ceiling
•Standard white round trim included: optional trims available
Driver Options:
•120V Triac dimmable down to 5%
•THD: <15% (+/-5% tolerance), PF >0.9, 50/60Hz
•AC Driverless technology
•Flicker Free
Mounting & Installation:
•3O/4O Junction Box (including pancake j-box)
•Surface mount bracket included
•4” & 6” Recessed can converter
Certifications:
•ETL Listed for USA and CA
•Energy Star Certified
•CA Title 24 JA8-2022 CEC Listed
•5 Year Limited Warranty
•FCC CFR 47, GCC Part 15, Subpart B:2017
•IC Rated and ASTM-E283 Air-Tight
•Closet Rated
Accessories (Order Separately)
TSM-7R-EMB-UNV
7" Surface mount pancake EMB
TSM-7R-EMB-EMPTY-UN
7" Empty surface mount pancake EMB
TSM-9R-EMB-UNV
9" Surface mount pancake EMB
TSM-9R-EMB-EMPTY-UNV
9" Empty surface mount pancake EMB
LED-EMB-25W-HV-0/10V-2P
Remote EMB for fixtures up to 25W
STM-JBX-6-WH
6' Stem Mount (Adjustable length)
White Finish
STM-JBX-6-BLK
6' Stem Mount (Adjustable length)
Black Finish
INDIRECT DOWNLIGHT - NEW CONSTRUCTION
ORDERING GRIDS
TSM-7R-EMB-UNV
TSM-9R-EMB-UNV
TSM-7R-EMPTY-UNV
TSM-9R-EMPTY-UNV
LED-EMB-25W-HV-0/10V-2P
STM-JBX-6-WH
STM-JBX-6-BLK
Trimless Surface J-Box or E26
LED-TSM-5R-12W-5CCT-WH
LED-TSM-7R-15W-5CCT-WH
LED-TSM-9R-18W-5CCT-WH
>90
>90
>90 LED-TSM-11R-20W-5CCT-WH
EMERGENCY BACKUP
Accessory Description
TSM-7R-EMB-UNV 7” Surface mount pancake EMB
TSM-7R -EMB-EMPTY-UNV 7” Empty surface mount pancake EMB
TSM-9R -EMB-UNV 9” Surface mount pancake EMB
TSM-9R-EMB-EMPTY-UNV 9” Empty surface mount pancake EMB
LED-EMB-25W-HV-0/10V-2P Remote EMB for fixtures up to 25W
PENDANT STEM MOUNT
Accessory Description
STM-JBX-6-WH
STM-JBX-6-BLK
>90
6’ Stem Mount (Adjustable length) White Finish
6’ Stem Mount (Adjustable length) Black Finish
TESTED COMPATIBLE DIMMERS
Other dimmers may be compatible but have not been tested. Please contact us for more information.
Lutron
LUTRON PD-6WCL
LUTRON DVCL-153P
LUTRON CTCL-153P
LUTRON MACL-153M
LUTRON LECL-153
FORMERLY KNOWN AS TECH LIGHTING
REFLECTIONS
INDIRECT DOWNLIGHT - NEW CONSTRUCTION
Innovative, first-of-its-kind technology in architectural downlights, Reflections combines decorative recessed domes with beautifully controlled, reduced-glare indirect LED illumination. Reflections domes (available in 5 , 8 and 12 diameters) are recessed into the ceiling plane and act as reflectors to a completely hidden ring of up-firing LEDs.
The decorative domes: Bloom, Dune, Fleur and Torus consist of beautiful molded geometry for dramatic visual interest with the subtle contrast of light and shadow. The smooth Skye dome creates soft, low-glare general illumination with a peaceful visual aesthetic.
Reflections offers two ceiling appearance options: Flanged for a more traditional ceiling appearance and a field-paintable flange ring, or flangeless for a smooth, mudded-in ceiling appearance.
Pristine design and illumination:
• Reduced glare, indirect illumination (dimmable for enhanced mood-setting options)
• Three aperture options: 5 , 8 and 12 (Flanged or Flangeless appearance)
• Beveled, rounded trim edges smoothly and seamlessly integrate into ceiling
• Housing and Trim/Dome sold separately.
• High quality LM80-tested LEDs for consistent long-life performance and color
SKYE SHOWN IN FLANGELESS
DUNE SHOWN IN FLANGED
SPECIFICATIONS
CCT OPTIONS 2700K, 3000K, 3500K or Warm Color Dimming (3000K-2000K)
VOLTAGE Universal 120V-277V
LIGHT DISTRIBUTION Lambertian
DIMMING1
0-10V, ELV, TRIAC (down to 5%) EldoLED 0-10V or DALI-2 (down to 0.1%) Lutron Hi-lume EcoSystem (down to 0.1%)
POWER SUPPLY Constant current driver with +.9 power factor and +85% efficiency. Serviceable from below the ceiling.
CEILING APPEARANCE Flanged or Flangeless
CEILING THICKNESS Flanged: 1/2" to 1" Flangeless: No ceiling thickness limitations
HOUSING IC Airtight, Chicago Plenum. IC suitable up to R60 spray foam insulation.
FINISH Flanged trim: White (paintable)
GENERAL LISTINGS ETL Listed. Damp Location.
CALIFORNIA TITLE 24 Registered CEC Appliance Database. Can be used to comply with CEC 2019 Title 24 Part 6 (JA8-2016, JA8-2019).
L70 50,000 hours min
WARRANTY2 5 years
Ordering grids available on page 2.
1See visualcomfort.com for dimmer compatibility.
2Visit visualcomfort.com for specific warranty limitations and details.
TORUS SHOWN IN FLANGELESS
FLEUR SHOWN IN FLANGED
BLOOM SHOWN IN FLANGELESS
UPDATED 3/10/23
NIO-2RTLNDC
PRODUCT DESCRIPTION
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI Flood optic, narrow flood and spot optics (included) 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28
NHIOICDCP-28 Chicago Plenum
/ 14W
/ 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Die-cast Trim
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Module
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Die-cast Trim
TRIMLESS
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trimless downlights have no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Trimless Mount Mud Ring
NIO-TLMR-2RA
Mounts trimless downlight with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIO-2RTLNDC or NIO-2RTLA.
Assist removing trimless downlight from finished ceiling after installation. For maintenance on trimless downlight.
Hex Cell Louver
NIO-HC Black
Suction Cup
Mud Ring
LED Module
Optic
S Series
INSTALLATION
Ceiling Thickness
SurfaceFrame: 0" up to 1 1/2"
SurfaceFrame (Emergency): 1/2" up to 1 1/4"
Ceiling Material
Drywall
PHYSICAL
Housing 4" Round Junction Box
Application New Construction
Shape
8" Round & 18" x 4" Rectangle
Finish
White
Product Code:
Type:
Date:
8" Round & 18" Linear Surface Mount Downlights
F4NC 4" New Construction
Fire Rated Shallow Junction Box
• 8" round area light for lighting smaller spaces including bathrooms, closets and kitchens
• 18" x 4" rectangular area light perfect for narrow applications such as corridors or kitchen islands
• Extends just 0.6" below the ceiling plane to minimize visual profile
• Features multiple ratings to meet the demands of a wide range of situations
LIGHT OUTPUT & DISTRIBUTION
Module Downlight
Lumens (Power)
1500 lm (17.0W)
Color Quality
90+ CRI, <3-step SDCM
Color Temperature
2700K 3000K
POWER & CONTROLS
RATINGS & CERTIFICATIONS
Housing
IC (Insulation Contact) Rated
ASTM E283 Certified Air Tight
Code compliant for use in fire-rated assemblies up to a maximum of 2-hours
STC/IIC Sound Rated
RoHS Compliant
Module
UL Listed for Wet Location
Warranty
Input Voltage 120V only (TRIAC/ELV), 120/277V (0-10V)
Dimming TRIAC/ELV (5%), 0-10V (1%)
Emergency Lighting
Optional Emergency LED Driver with integrated Test Switch for lighting up to 90 minutes in event of power failure 3500K
5 year limited warranty; 50,000 hours
Trimless Surface
J-Box or E26
LED-TSM-5R-12W-5CCT-WH
850 Lm • White Finish
LED-TSM-7R-15W-5CCT-WH
1,100Lm • White Finish
LED-TSM-9R-18W-5CCT-WH
1,300 Lm • White Finish
LED-TSM-11R-20W-5CCT-WH
1,500 Lm • White Finish
Introducing the EnVision LED Trimless Surface Mount: Crafted with precision, this cutting-edge luminaire boasts an ultra-thin profile, ensuring a sleek and unobtrusive appearance that seamlessly integrates into both residential and commercial recessed environments. This luminaire redefines modern lighting solutions, setting a new standard for sophistication and functionality in the realm of architectural lighting.
Detail Specifications:
•Finishes: White
•IP Rating: Wet Location
•Beam Angle: 100°
• Chip: SMD 2835, R9 >50, CRI >90
•3 Step MacAdam Ellipses
•Operating Temperature: -40° - 114° F
•Lens: Frosted Acrylic, non-yellowing
•Average life (L70) of 50,000 hours
Applications:
•General Recessed Lighting
•Residential & Multifamily
•Office and Meeting Rooms
•Education, Healthcare, Retail, Hospitality
Product Information:
•Available in 4 different sizes
•Battery backup module available in 7" and 9" models
•Extends to just 0.8” from the ceiling
• Standard white round trim included: optional trims available
Driver Options:
•120V Triac dimmable down to 5%
•THD: <15% (+/-5% tolerance), PF >0.9, 50/60Hz
• AC Driverless technology
•Flicker Free
Mounting & Installation:
•3O/4O Junction Box (including pancake j-box)
•Surface mount bracket included
•4” & 6” Recessed can converter
Certifications:
•ETL Listed for USA and CA
•Energy Star Certified
•CA Title 24 JA8-2022 CEC Listed
• 5 Year Limited Warranty
•FCC CFR 47, GCC Part 15, Subpart B:2017
• IC Rated and ASTM-E283 Air-Tight
•Closet Rated
Accessories (Order Separately)
TSM-7R-EMB-UNV
7" Surface mount pancake EMB
TSM-7R-EMB-EMPTY-UN
7" Empty surface mount pancake EMB
TSM-9R-EMB-UNV
9" Surface mount pancake EMB
TSM-9R-EMB-EMPTY-UNV
9" Empty surface mount pancake EMB
LED-EMB-25W-HV-0/10V-2P
Remote EMB for fixtures up to 25W
STM-JBX-6-WH
6' Stem Mount (Adjustable length)
White Finish
STM-JBX-6-BLK
6' Stem Mount (Adjustable length)
Black Finish
S Series
PRODUCT BUILDER - TRIAC/ELV, 0-10V
HOUSING
F4NC
8" ROUND MODULE
PRODUCT BUILDER - EMERGENCY LIGHTING
HOUSING
F4NC15OEMS
TSM-7R-EMB-UNV
TSM-9R-EMB-UNV
TSM-7R-EMPTY-UNV
TSM-9R-EMPTY-UNV
LED-EMB-25W-HV-0/10V-2P
STM-JBX-6-WH
STM-JBX-6-BLK
Trimless Surface J-Box or E26
LED-TSM-5R-12W-5CCT-WH
LED-TSM-7R-15W-5CCT-WH
LED-TSM-9R-18W-5CCT-WH
>90
>90
>90 LED-TSM-11R-20W-5CCT-WH
EMERGENCY BACKUP
Accessory Description
TSM-7R-EMB-UNV 7” Surface mount pancake EMB
TSM-7R -EMB-EMPTY-UNV 7” Empty surface mount pancake EMB
TSM-9R -EMB-UNV 9” Surface mount pancake EMB
TSM-9R-EMB-EMPTY-UNV 9” Empty surface mount pancake EMB
LED-EMB-25W-HV-0/10V-2P Remote EMB for fixtures up to 25W
PENDANT STEM MOUNT
Accessory Description
STM-JBX-6-WH
STM-JBX-6-BLK
>90
6’ Stem Mount (Adjustable length) White Finish
6’ Stem Mount (Adjustable length) Black Finish
TESTED COMPATIBLE DIMMERS
Other dimmers may be compatible but have not been tested. Please contact us for more information.
