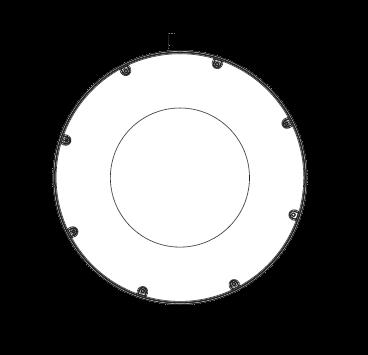

• Housing made of cold rolled die formed steel for strength and durability
• High impact diffuse polycarbonate lens. Meets IK07 impact rating.
• Housing is treated with rust inhibitor post-fabrication. High-reflectance white polyester powder coating maximizes performance.
• Vandal resistant design using tamper-proof hardware
• Dust and insect tight
Optical System
• Prismatic high-transmission cover lens for optimal performance and visual comfort
• Polycarbonate lens material for maximum impact resistance
• Minimum color rendering index of 80
• Up to 1% enhanced dimming
Electrical
• High-performance programmable driver features overvoltage, under voltage, short-circuit and over temperature protection. Custom lumen and wattage options available
QUICK LINKS
Ordering Guide Performance Dimensions
• Meets FCC Part 15 EMI/EMC requirements
• Bi-level dimming (OFF/ 10%/ 25%/ 50%) standard with integrated ultrasonic sensor IMUS.
• Standard Universal Voltage (120-277 VAC) Input 50/60 or optional High Voltage (347 VAC)
• L70 Calculated Life: >100K hours
• Total Harmonic Distortion: <20%
• Power factor: >.95
• Optional 120-277V 10W integral emergency battery pack is available to meet critical life-safety standby lighting requirements. Self diagnostic test capable. CEC Title 20 and 24 compliant
Controls

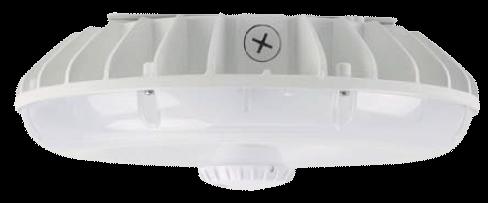

• Every unit ships with a factory-installed ultrasonic motion sensor
• Available with AirLink™ Blue. AirLink Blue (ALB) is a low-power wireless Bluetooth mesh control system. ALB provides significant energy savings while ensuring code compliance and security. The integrated fixture sensor module can control multiple luminaires based on motion or daylight and events can be scheduled based on time of day or an astronomical clock.
• 360 degree coverage to detect motion throughout stairwells
• Field-configurable light levels to maximize energy savings
• See page 2 for more details.
Installation
• Wall or ceiling mount
• Side or top stem mount using trade size knockouts (stem supplied by others)
Warranty
• Complete warrenty terms loacted at https://www.lsicorp.com/resources/termsconditions-warranty/
• 1 Year warranty on optional Battery Backup. Test regularly in accordance with local codes
Listings
• Listed to UL 1598 and UL 8750
• Suitable for damp locations
• BAA/TAA compliant
• Title 20, Title 24 compliant

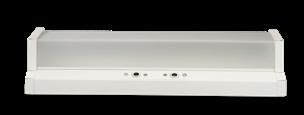

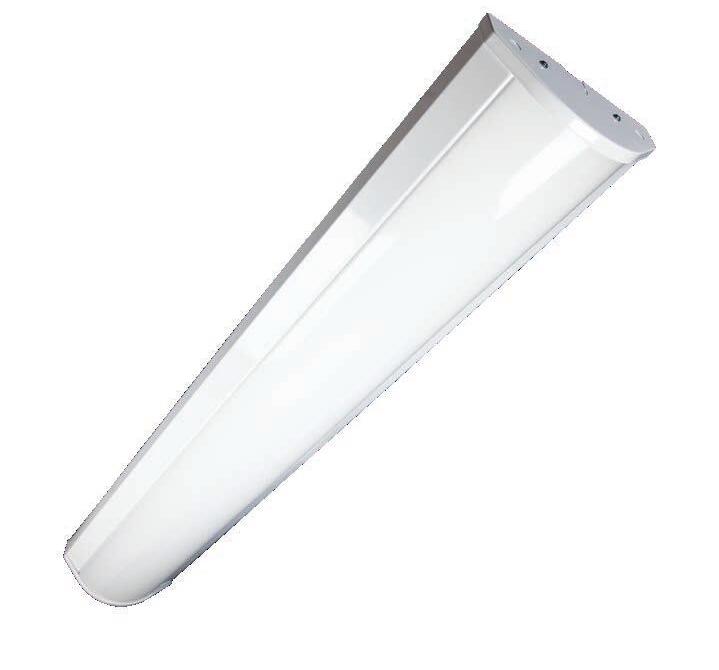

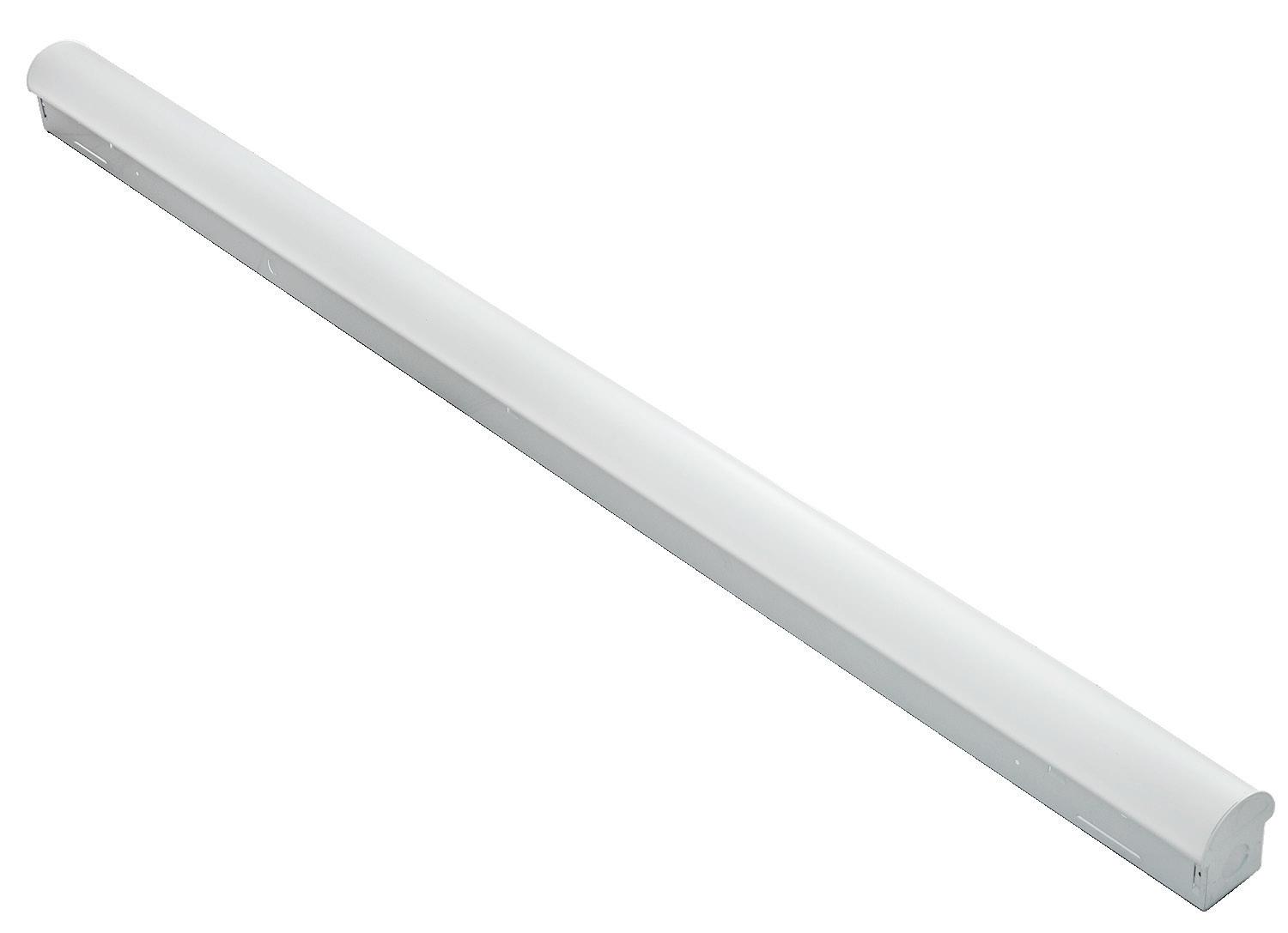

Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
2 - Consult factory for lead times or custom color options.
3 - 3500lm available in both 2ft and 4ft.

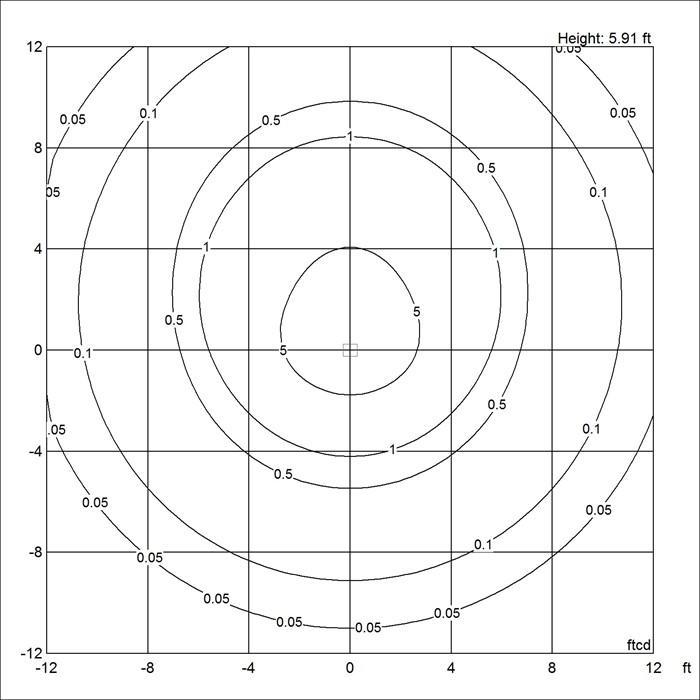

PERFORMANCE
DELIVERED LUMENS1
FOOTNOTES:
1 - All values are subject to ±10% variation based on production tolerances
CONTROLS
Integral Motion Ultrasonic Sensor (IMUS)
LSI’s “IMUS” ultrasonic motion sensor is a 0-10V fixture-integrated sensor for standalone lighting control. Configurable settings include length of time delays, sensor range and dimming level using DIP switches and trimpots. IMUS is designed for 8 -12 ft mounting height and an operating ambient temperature range of -22°F to 158°F (-30°C to 70°C).
Field Installed Accessories: YTGHANGER - 10’ adjustable cable hang kit
Listings
Five year limited warranty against defects
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
FEATURES & SPECIFICATIONS

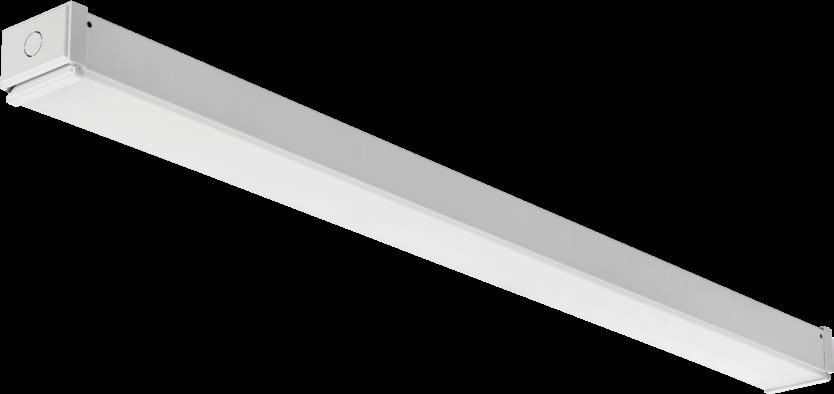

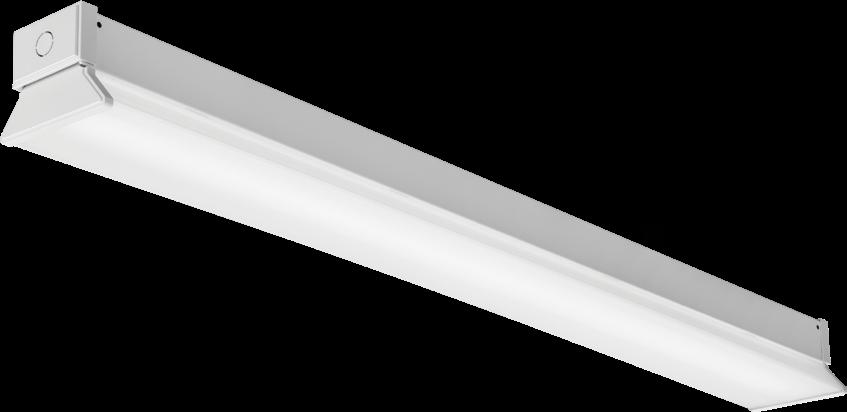

INTENDED USE — The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel. The endcaps come standard with a 7/8" knock out for continuous mounting but can be ordered without.
Finish: Paint options include high-gloss, baked white polyester (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Offered with acrylic lens and less lens configurations. Provides a choice of optical distributions including, wide, narrow, and aisle.
Models with wide diffuse lens provide up to 12% uplight. Please check the IES file for specific uplight value.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 9.) Electronic LED driver is multi-volt input and 0-10V dimming standard (see Operational Data on page 6 for actual wattage consumption). This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided. Color Variation within 3-step MacAdam ellipse (3SDCM).
L70>100,000 hours at 25˚C.
LEDs provide nominal 80 CRI or 90 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,500 lumens per foot.
INSTALLATION — Fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBKT), pendant or stem mounted with appropriate mounting options.
WARNING — Removing the lens and opening the fixture during installation exposes the LEDs, putting them at risk for damage.
If you plan to surface mount the fixture, we recommend using the THCLX. This eliminates the need to open the fixture.
If you plan to continuous row mount, we recommend using the PLR wiring harness option. This eliminates the need to open the fixture.
Damage to the LEDs caused during installation will not be covered under the warranty.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -4°F (-20°C) and 104°F (40°C). Optional High Ambient (HA) ranging to 122°F(50°C) available on certain lumen packages (See ambient temperature chart for additional information).
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
L48 3000LM SEF FDL MVOLT GZ10 40K 80CRI WH 00191723525816
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands' specifications for chromatic consistency – including color rendering, color fidelity, and color temperature tolerance around standard CIE chromaticity coordinates.
To learn more about Acuity A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details

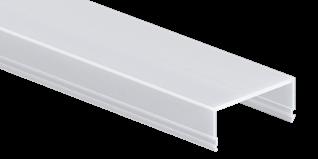

Flat Diffuse Lens
Round Diffuse Lens
Wide Diffuse Lens
CLX with Reflector
Aisle, 24° off center
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch [LINK ] ‡
E10WSTAR Emergency battery pack, Enabled with STAR ‡
BGTDGenerator transfer device, not available with E10W ‡
OCS 5', 18/3 Reloc selectable One Pass cable (fixture will bear dry location label) ‡
HA High ambient, for use in ambient temperatures up to 50°C ‡

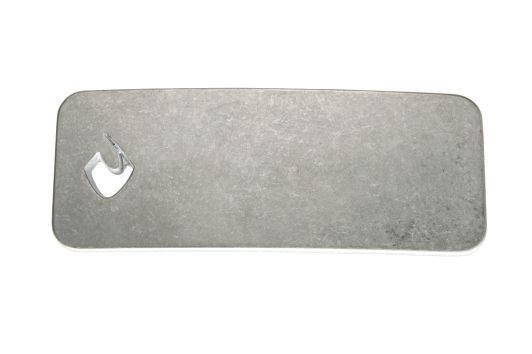

EPNKO Decorative endplate, no knock out ‡
OUTCTR Wiring leads pulled through back center of fixture ‡
OUTEND Wiring leads pulled through end of fixture ‡
Cord Sets: ‡
CS1W 6' Staight blade plug, 120V ‡
CS3W NEMA twist-lock plug, 120V ‡
CS7W Staight blade plug, 277V ‡
CS11W NEMA twist-lock plug, 277V ‡
CS25W NEMA twist-lock plug, 347V ‡
CS97W NEMA twist-lock plug, 480V ‡
CS93W 600V SEOOW white cord, no plug (no voltage required) ‡
CS6WG16STOWD5D 6' white cord, 16/5, no plug, includes low voltage dimming wires (no voltage required) ‡
PLR__ Plug-in wiring, see page 9 for ordering information
PLR1G Plug-in wiring, single circuit, Ground
PLR1LVG Plug-in wiring, single circuit, low-voltage dimming, Ground ‡
RRL__ RELOC®-ready luminaire. See page 10 for ordering information
SPD Surge protection device, provides up to 6kV protection ‡
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless:
NLTAIR2 RES7 nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7EM nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RES7PDT nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7PDTEM nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RIO No sensor control ‡
NLTAIR2 RIOEM No sensor, Control Input function only and UL924 Emergency operation, via power interrupt detection ‡
nLight® Wired: N100 nLight® without lumen management
N100EMG nLight® without lumen management For use with generator supply EM power ‡
NES7 nLight® nES 7 PIR integral occupancy sensor ‡
NESPDT7 nLight® nES PDT 7 dual technology integral occupancy control ‡
NES7ADCX nLight® nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell ‡
NESPDT7ADCX nLight® nES PDT 7 dual technology integral occupancy sensor with automatic dimming photocell ‡
Individual controls: ‡
MSD7 PIR integral occupancy sensor
MSDPDT7 PDT 7 dual technology integral occupancy control
MSD7ADC PIR integral occupancy sensor with automatic dimming control photocell
MSDPDT7ADC PDT integral occupancy sensor with automatic dimming control photocell
WH White
GALVW Galvanized with white lens end caps
GALVB Galvanized with black lens end caps
MBMatte black
SKGYW Smoke gray with white lens end caps
SKGYB Smoke gray with black lens end caps
See Accessories and footnotes on next page
Design Select options indicated by this color background.
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LR25185+EM
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LR25185+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+MS
LR25185+EM+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
FEATURES & SPECIFICATIONS
INTENDED USE — The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel. The endcaps come standard with a 7/8" knock out for continuous mounting but can be ordered without.
Finish: Paint options include high-gloss, baked white polyester (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Offered with acrylic lens and less lens configurations. Provides a choice of optical distributions including, wide, narrow, and aisle.
Models with wide diffuse lens provide up to 12% uplight. Please check the IES file for specific uplight value.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 9.) Electronic LED driver is multi-volt input and 0-10V dimming standard (see Operational Data on page 6 for actual wattage consumption). This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided. Color Variation within 3-step MacAdam ellipse (3SDCM).
L70>100,000 hours at 25˚C.
LEDs provide nominal 80 CRI or 90 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,500 lumens per foot.
INSTALLATION — Fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBKT), pendant or stem mounted with appropriate mounting options.
WARNING — Removing the lens and opening the fixture during installation exposes the LEDs, putting them at risk for damage.
If you plan to surface mount the fixture, we recommend using the THCLX. This eliminates the need to open the fixture.
If you plan to continuous row mount, we recommend using the PLR wiring harness option. This eliminates the need to open the fixture.
Damage to the LEDs caused during installation will not be covered under the warranty.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -4°F (-20°C) and 104°F (40°C). Optional High Ambient (HA) ranging to 122°F(50°C) available on certain lumen packages (See ambient temperature chart for additional information).
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
L48 3000LM SEF FDL MVOLT GZ10 40K 80CRI WH 00191723525816
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands' specifications for chromatic consistency – including color rendering, color fidelity, and color temperature tolerance around standard CIE chromaticity coordinates.
To learn more about Acuity A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Flat Diffuse Lens
Round Diffuse Lens
Wide Diffuse Lens
CLX with Reflector
Aisle, 24° off center
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch [LINK ] ‡
E10WSTAR Emergency battery pack, Enabled with STAR ‡
BGTDGenerator transfer device, not available with E10W ‡
OCS 5', 18/3 Reloc selectable One Pass cable (fixture will bear dry location label) ‡
HA High ambient, for use in ambient temperatures up to 50°C ‡
EPNKO Decorative endplate, no knock out ‡
OUTCTR Wiring leads pulled through back center of fixture ‡
OUTEND Wiring leads pulled through end of fixture ‡
Cord Sets: ‡
CS1W 6' Staight blade plug, 120V ‡
CS3W NEMA twist-lock plug, 120V ‡
CS7W Staight blade plug, 277V ‡
CS11W NEMA twist-lock plug, 277V ‡
CS25W NEMA twist-lock plug, 347V ‡
CS97W NEMA twist-lock plug, 480V ‡
CS93W 600V SEOOW white cord, no plug (no voltage required) ‡
CS6WG16STOWD5D 6' white cord, 16/5, no plug, includes low voltage dimming wires (no voltage required) ‡
PLR__ Plug-in wiring, see page 9 for ordering information
PLR1G Plug-in wiring, single circuit, Ground
PLR1LVG Plug-in wiring, single circuit, low-voltage dimming, Ground ‡
RRL__ RELOC®-ready luminaire. See page 10 for ordering information
SPD Surge protection device, provides up to 6kV protection ‡
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless:
NLTAIR2 RES7 nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7EM nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RES7PDT nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7PDTEM nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RIO No sensor control ‡
NLTAIR2 RIOEM No sensor, Control Input function only and UL924 Emergency operation, via power interrupt detection ‡
nLight® Wired: N100 nLight® without lumen management
N100EMG nLight® without lumen management For use with generator supply EM power ‡
NES7 nLight® nES 7 PIR integral occupancy sensor ‡
NESPDT7 nLight® nES PDT 7 dual technology integral occupancy control ‡
NES7ADCX nLight® nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell ‡
NESPDT7ADCX nLight® nES PDT 7 dual technology integral occupancy sensor with automatic dimming photocell ‡
Individual controls: ‡
MSD7 PIR integral occupancy sensor
MSDPDT7 PDT 7 dual technology integral occupancy control
MSD7ADC PIR integral occupancy sensor with automatic dimming control photocell
MSDPDT7ADC PDT integral occupancy sensor with automatic dimming control photocell
WH White
GALVW Galvanized with white lens end caps
GALVB Galvanized with black lens end caps
MBMatte black
SKGYW Smoke gray with white lens end caps
SKGYB Smoke gray with black lens end caps
See Accessories and footnotes on next page
Design Select options indicated by this color background.
DESCRIPTION
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LR25185+EM
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LR25185+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+MS
LR25185+EM+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
BLANK
COMPATIBLE
DIMENSIONS

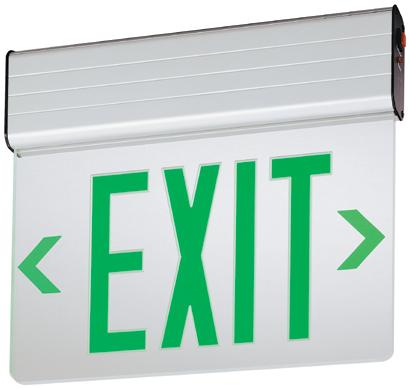

LR35120, LR35121 - SPECIFICATIONS
FEATURES & SPECIFICATIONS
INTENDED USE — Suitable for applications requiring attractive edge-lit exit signage, universal installation and low energy consumption.
CONSTRUCTION — Extruded brushed aluminum finish.
Clear acrylic panels- letters measure 6" high with 3/4" stroke, with 100 ft viewing distance rating, based upon UL 924 standard.
For single-face clear panels, EXIT is seen as a reversed image from the back.
OPTICS — LEDs mounted on printed circuit board. The typical life of the exit LED lamp is >5 years, based on 24/7 operation.
The LED operating frequency is 120Hz.
ELECTRICAL — Dual voltage input capacity (120/277V).
Battery: (EL Option) – Sealed, maintenance free nickel-cadmium battery delivers 90 minutes capacity to emergency lamps. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection.
Self-diagnostic testing (EL Option Only) for 30 seconds every 30 days and 90 minutes annually. Diagnostic evaluation of LED light source, AC to DC transfer, charging and battery condition.
INSTALLATION — EDG – Universal mounting canopy for top or end mount. Back mount standard for single face only. Canopy provided.
EDGR – Recessed mounting. Bar hanger and brackets provided for both new or restricted ceiling access installation applications. Available for use in drop ceiling applications. Back wall mount (WM) option.
Universal directional indicators. Field selected and attached.
LISTINGS — UL damp location listed 32°-122°F (0°-50°C) standard. Meets UL924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards. Meets all applicable FCC Title 47, Part 15, Subpart B requirements.
BUY AMERICAN ACT — BAA – Buy America(n) Act: Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty (Battery is prorated). This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
† Exit Signs Certified in the CA Title 20 Appliance Efficiency Database.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details Design Select options indicated by this color background.
Accessories: Order as separate item.

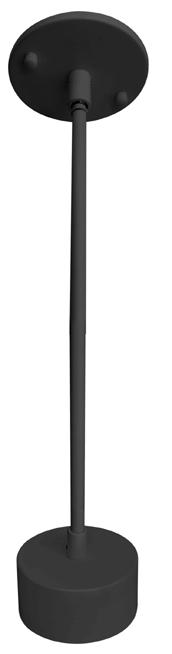

ELA US1212" stem kit with brushed aluminum canopy8
ELA W US12 12" stem kit with white canopy8
ELA WG1 Wireguard (13 3/4"H x 15 1/4"W x 6" D, back mount only)
Notes
1 For single-face clear panels, EXIT is seen as a reversed image from the back.
2 Available with single and double face.
3 White panel standard for double and single face.
4 Both circuits can be energized at the same time.
5 Not available with EL and SD options.
6 Available with EL option only.
7 Available on EDGR single face only
8 See spec sheet ELA-StemKits . Only available for EDG.

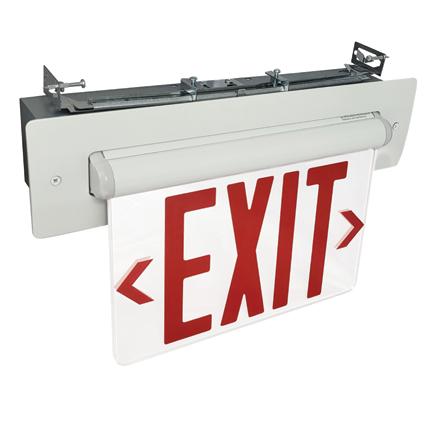

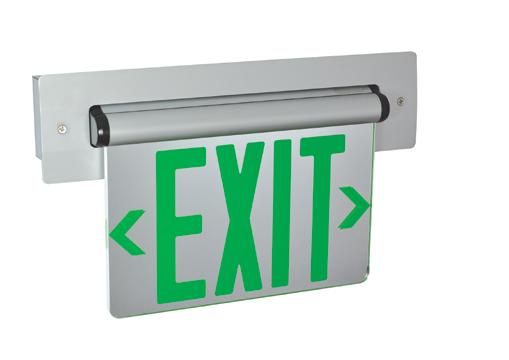

Recessed Adjustable
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
&
· Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Type
Project
Catalog No.
Notes
FEATURES & SPECIFICATIONS
INTENDED USE — Suitable for cold weather (down to -40°C with CW option), wet location (4X option), security/prisons and high-abuse applications.
CONSTRUCTION — The housing is .25" to .525" thick rugged, low-profile cast aluminum.
Clear, UV-stable polycarbonate cover is .130" thick to prevent cracking or breaking. Cover is secured with four stainless steel Torx T20, tamper-resistant screws with center pin. Cover is secured with four stainless steel Phillips head screws, with the FPA option.
.1" thick polycarbonate faceplate incorporates universal directional chevron knockouts that are concealed and easily removed and replaced.
Universal mount (UM) option available – top, back, end mounting or conduit entry. (canopy provided) Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based upon UL924 standards.
U.S. Patent No. 5,611,163 and D383,501.
OPTICS — Lamp is constructed using new LED technology. Provides perfectly uniform illumination.
The typical life of the exit LED lamp is 10 years. Single-face exit uses one LED lamp; double-face exit uses two LED lamps. Low energy consumption — red lamp consumes 3.3 watts (120V); green lamp consumes 1.7 watts (120V).
ELECTRICAL — Dual voltage input capability (120/277V).
Sealed, maintenance-free nickel-cadmium battery delivers 90 minutes capacity to lamp. Constant-current series charger, automatic recharge after battery discharge.
Vandal-resistant magnetic test switch (magnet included) and LED indicator mounted on bottom of housing provide a safe, easy means for testing. Manual test switch also provided inside housing.
Polarized battery connector simplifies installation and maintenance; prevents charger damage from improper connection.
Brownout protection.
Low voltage disconnect allows battery connection before AC power is applied and prevents battery damage from deep discharge.
Self-diagnostics (optional). Automatically tests once a month for five minutes and once every six months for 30 minutes. Bi-color LED status indicator, test and service required.
INSTALLATION — Back mount standard for single face (no canopy), unless universal mount (UM) specified.
Conduit entry (1/2" - 14 UNC) included with universal mounting.
Cast-aluminum canopy attaches to 10-gauge steel mounting plate for top or end mounting (not required for back mounting).
Canopy mounting bracket provides 160 lbs. of mounting strength when mounted to suitable structure. Bracket will only fit a 2-gang junction box.
LISTINGS — UL Listed (standard). NOM certified (see Option). 4X option is UL Listed to NEMA 4X ratings. CW and 4X option is UL 924 wet location listed. NSF certified (FPA option). Meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards, and State of Minnesota energy-efficient legislation requiring less than 20W consumption. Suitable for ambient temperatures 10°C (50°F) to 40°C (104°F).
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
1.
2.
3.
4.
5.

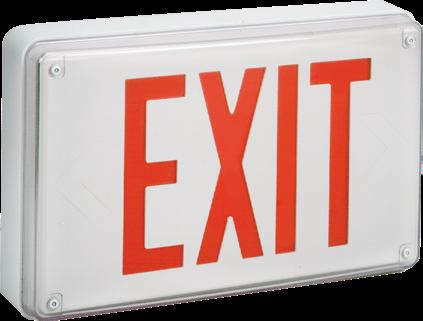

NX-617-LED

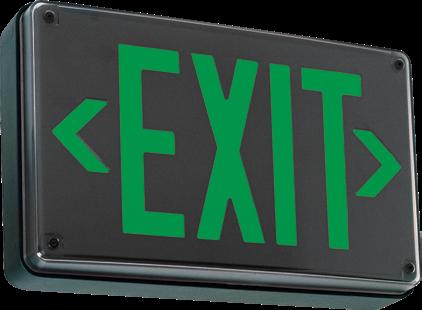

PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
· High temperature maintenance free NiCad battery
120/277VAC input
6" Letters and 3/4" stroke
· Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty
924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code
(CEC) Compliant
Type
Project
Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
A+ Capable options indicated by this color background.
Ordering Information
Shipped installed

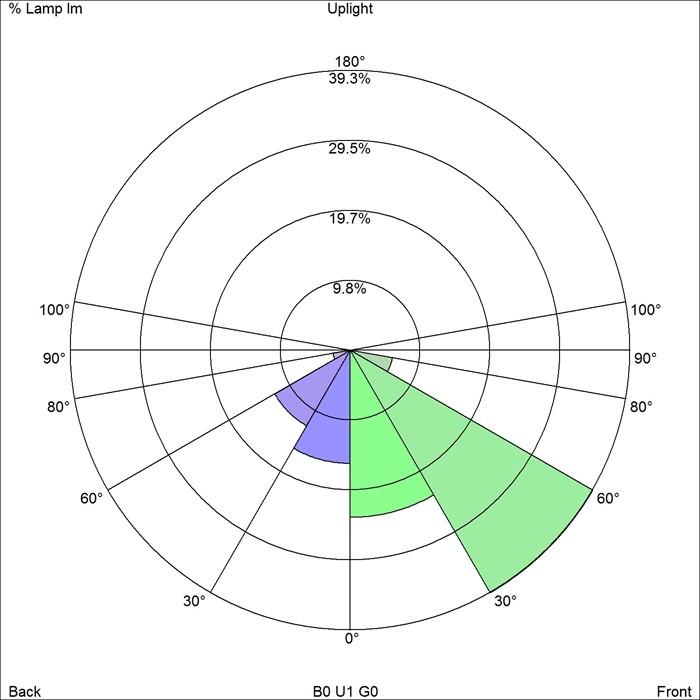

UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction

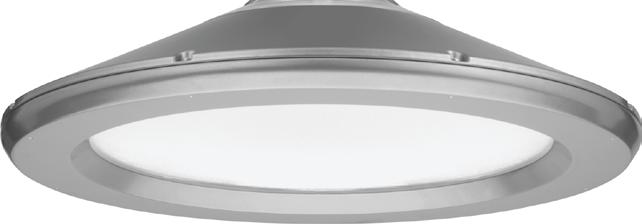

The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units)
U Unit packs only
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
Project
Type
Catalog Number
OPTIONS (Factory Installed)

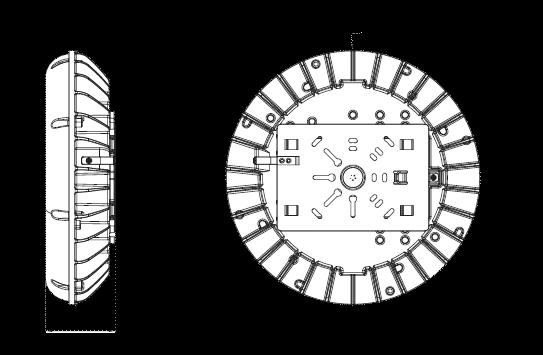

GL9-MS-MCT LED Selectable Canopy
VCPG LED Parking Garage
Specifications
A+ Capable options indicated by this color background.
Ordering Information
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units)
U Unit packs only
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available

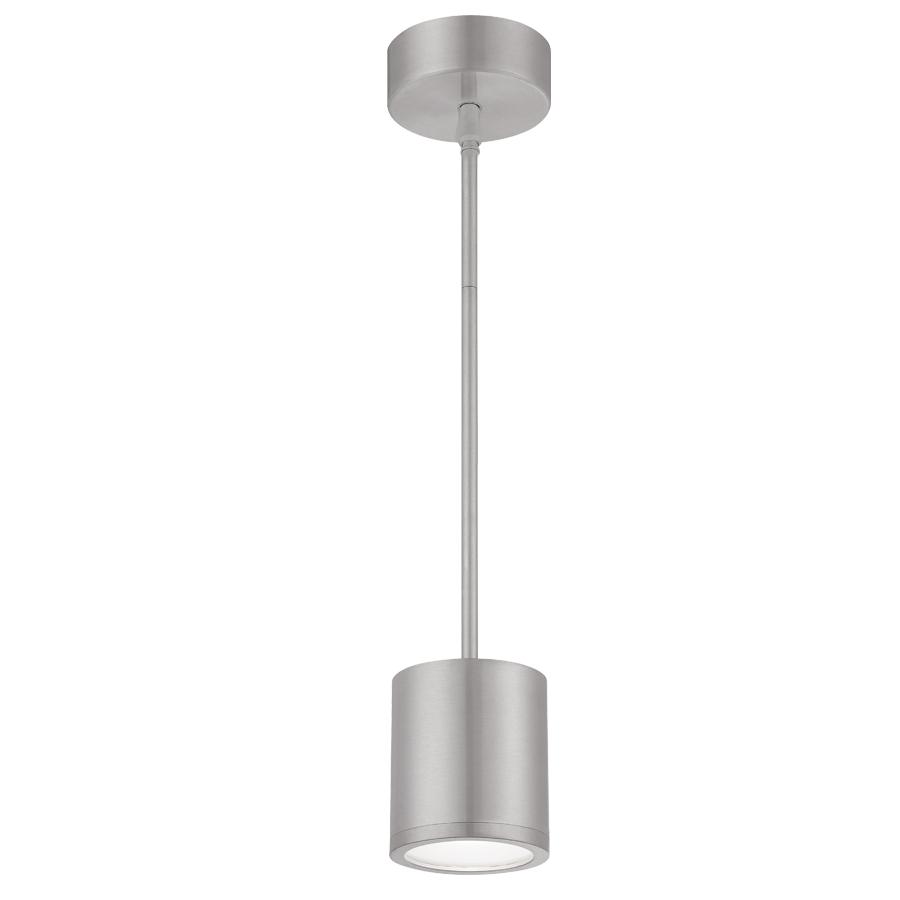

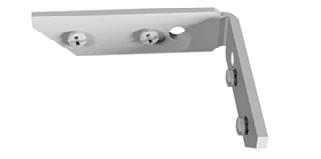

-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
Type
OPTIONS (Factory Installed)

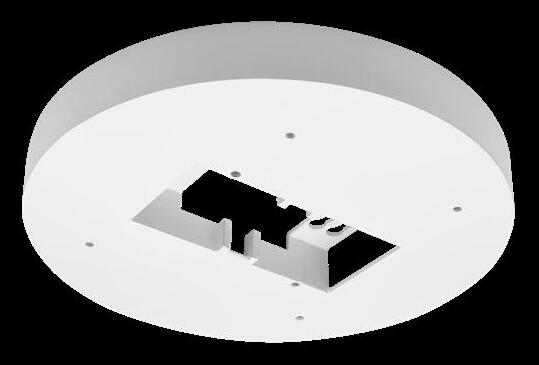

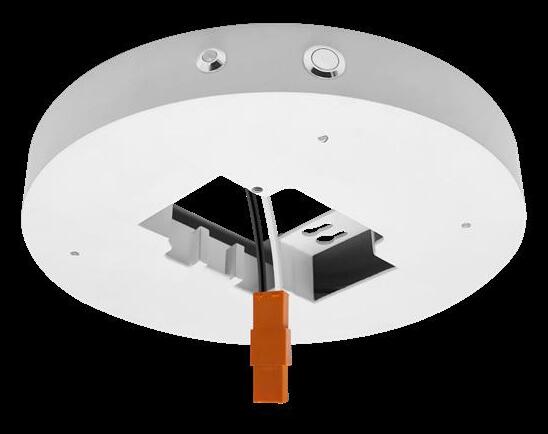

GL9-MS-MCT LED Selectable Canopy

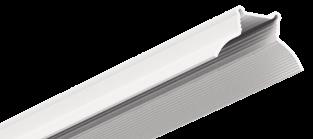

ALP-50C
SURFACE/ CORNER MOUNT
PROFILE

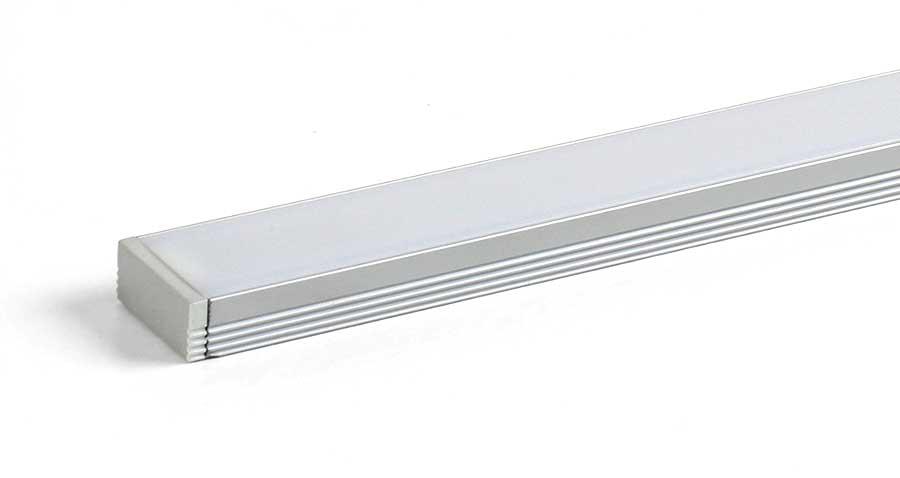

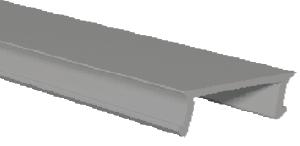

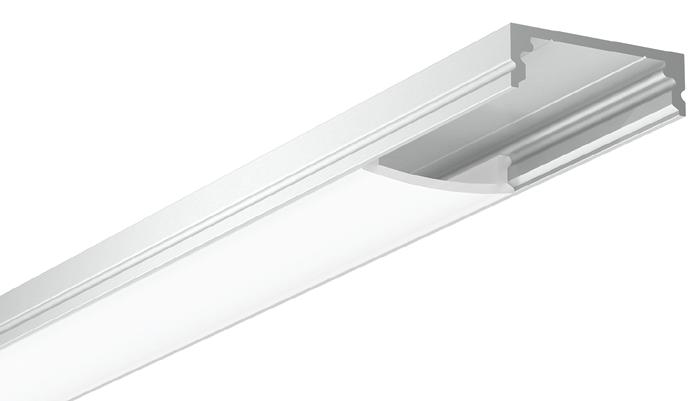

The ALP-50C is an Architectural-grade LED extrusion designed for surface/ corner mount applications and can fit linear LED strips up to 16mm (0.63”) wide. Made from high quality aluminum and manufactured with a patented frosted diffuser for maximum lumen output and wider beam distribution.
SPECIFICATIONS
TYPE
AVAILABLE LENGTHS FINISH LENS OPTION CHANNEL LENS END CAP
MOUNTING CLIPS WARRANTY
Surface/ Corner Mount
48 in./ 84 in./ 98.5 in.
Black/ Silver
Frosted
ALP50C

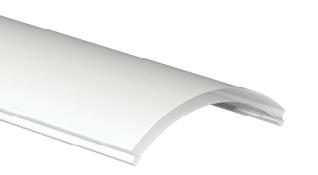

ALP50C-LN (Frosted)

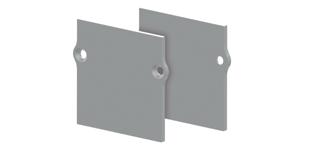

ALP50C-EC

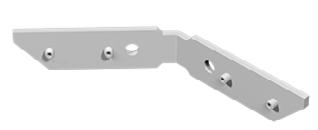

ALP50C-CL 5 Years
Project Location Quote/ Ref #
FEATURES
• Customizable Durable, anodized aluminum
• Protects LED systems from dust and other elements Slim, low profile design
• Dissipates heat from LED, prolonging its lifetime Compatible with LED strips up to 16mm (0.63 in.) wide

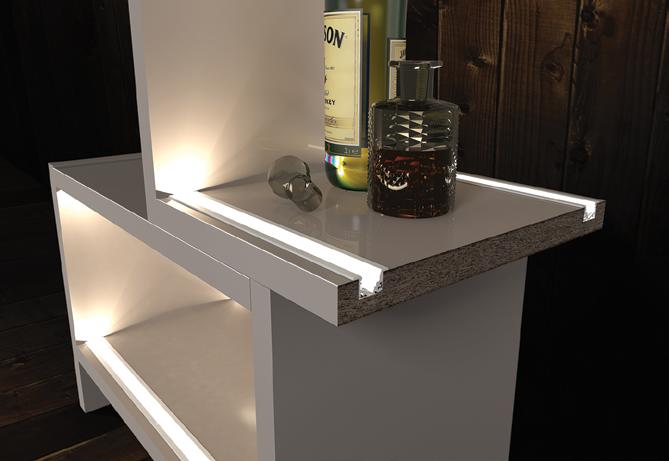

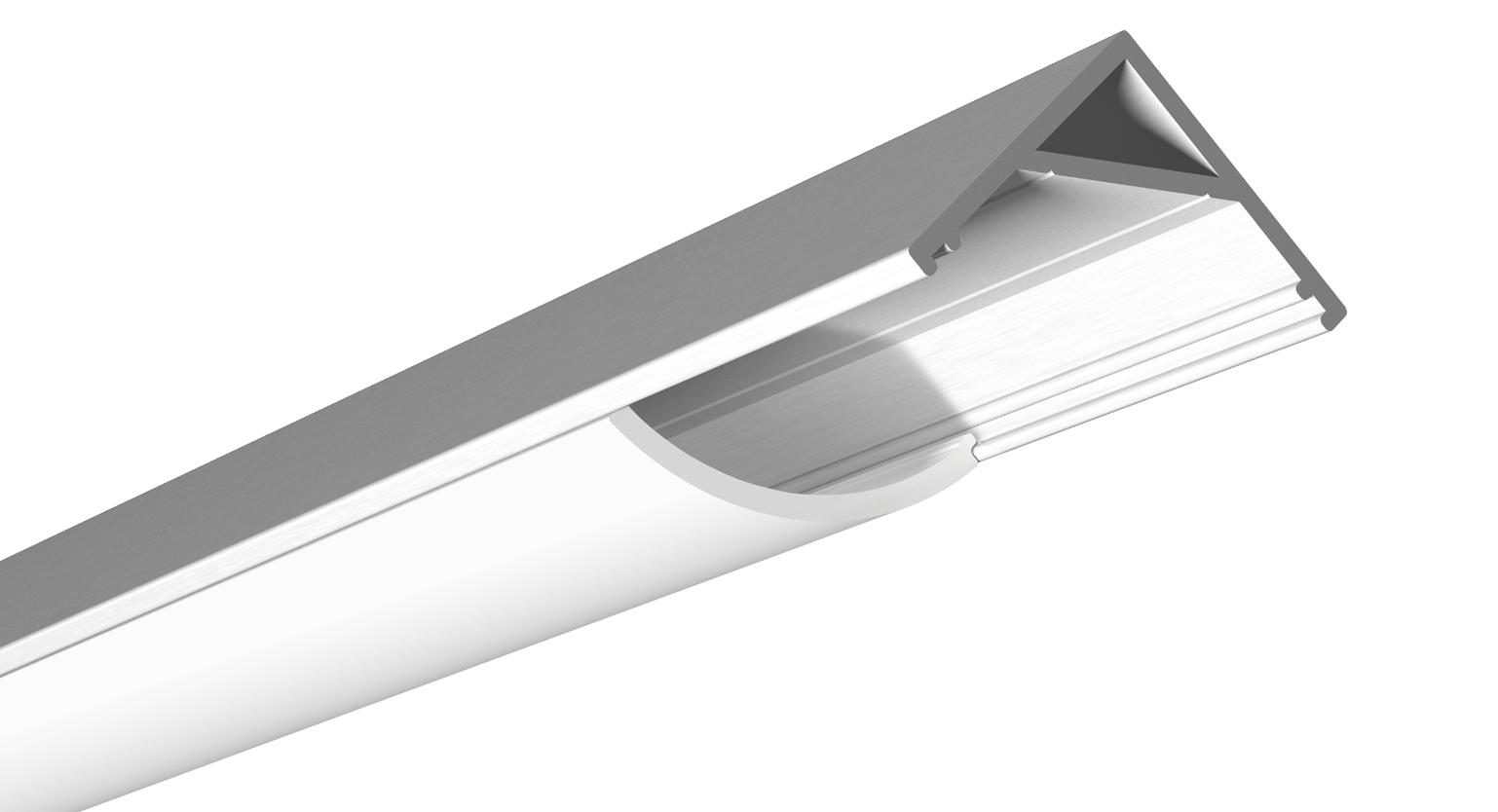

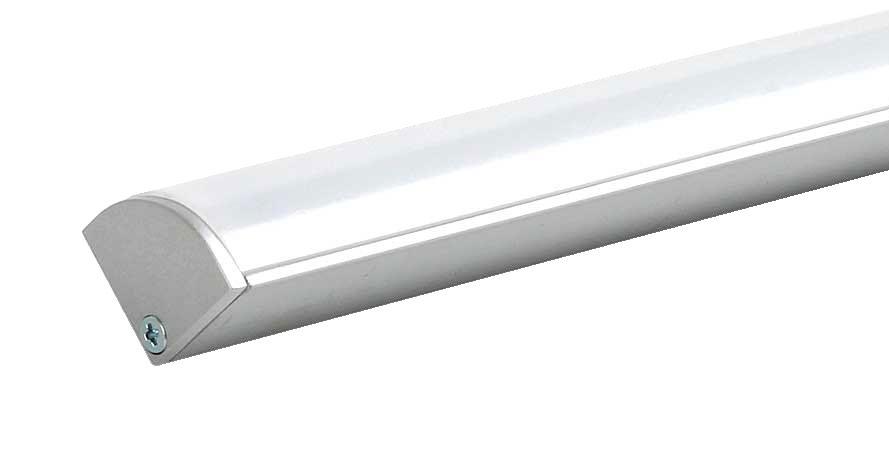

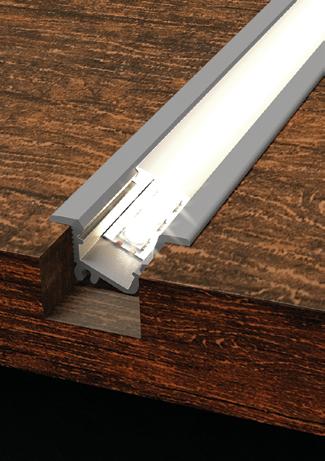

2000 PROFILE
WELL FOCUSED ON THE TASK!

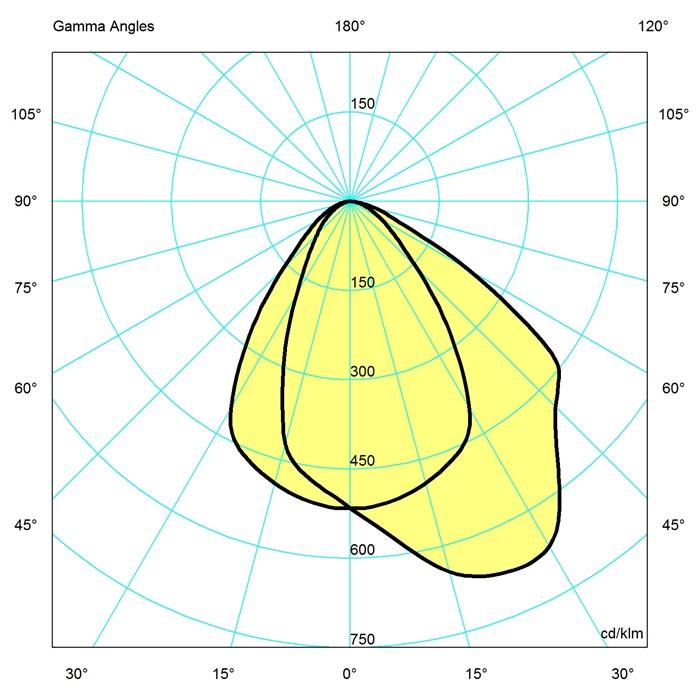

Offering lighting without hot spots at a 45-degree angle from a corner, the 2000 Series excels at maximizing appeal of the products in POP stands, while maintaining a minimalist style.
FEATURES
– Offers lighting with a beam oriented at 45 degrees.
– Designed to give a uniform light without hot spots with an opal or prime lens*.
– Custom length by sections of 2 to 240 inches (6m).
– Application guide for 10mm (3/8-inch) LED engine or less.
– Made of ALCOA 6063-T5 aluminum alloy increasing heat dissipation.
– Its use increases the lifetime of your LED engine.
– Designed to meet North American woodworking standards.
– Conforms to UL STD. 2108 for closet usage.
Cross-section dimensions:
IP22: Compatible with LED engines up to 14mm wide.
IP68: Compatible with LED engines up to 10mm wide.
WD1 - 2200-2700K 14W/m Lumen Package selection is not available for WD, TW and RGB color options.
RGB2 - RGB 19W/m
RGBW2 - 3000K 4in1 14W/m
TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.

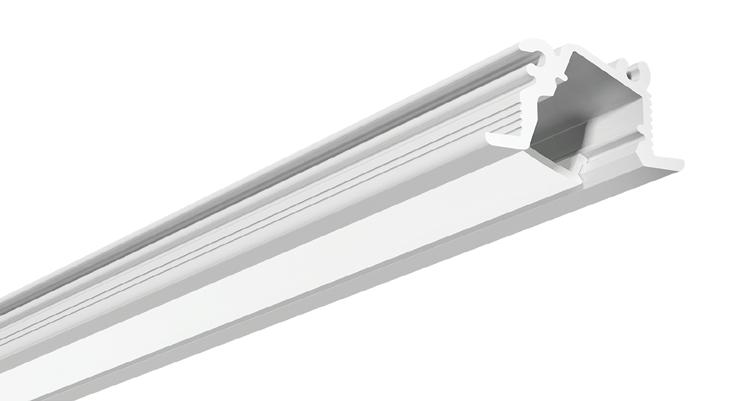

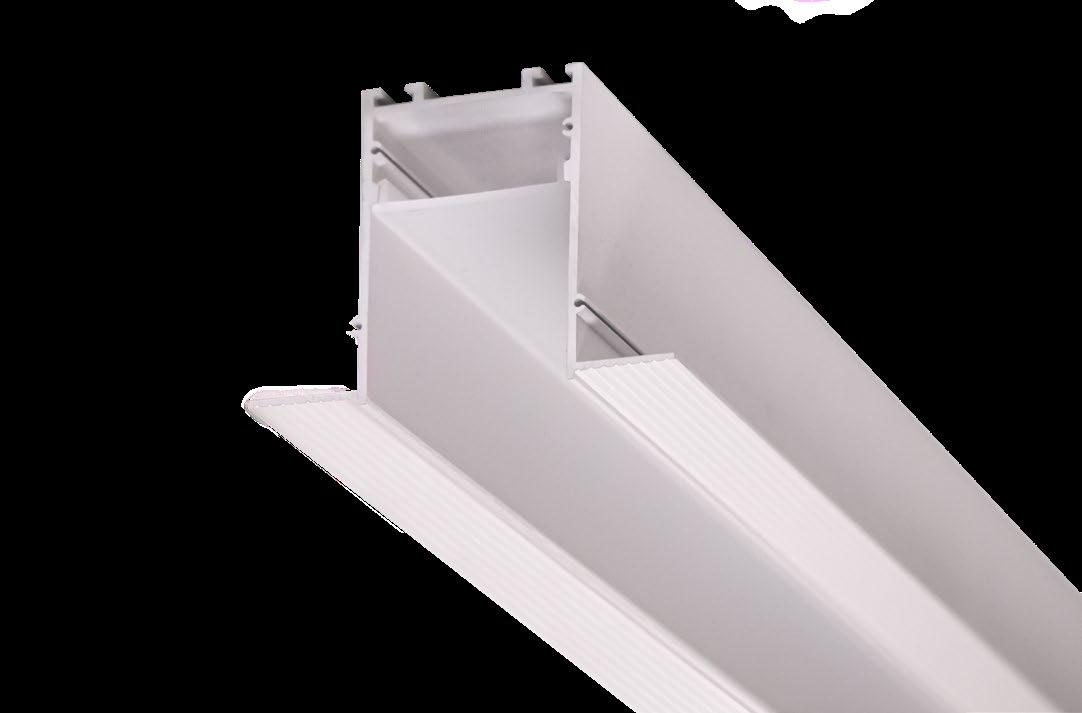

The ALP-3400TL is an Architectural Grade, LED extrusion profile designed for linear LED strips up to 41mm (1.61 inches) wide and recessed applications. Made from high-quality aluminum, these extrusions provide superior thermal management for higher wattage LED strips prolonging the overall lifespan of the lighting system. Manufactured with a patented frosted diffuser for maximum lumen output and a wider beam distribution.
SPECIFICATIONS
TYPE
LED STRIP LENS OPTION
APERTURE
AVAILABLE LENGTHS FINISH CHANNEL LENS
END CAP

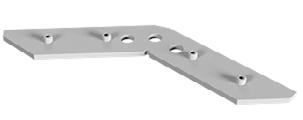

STRAIGHT CONNECTOR
INTERNAL CONNECTOR
* LED strips sold separately.
Recessed/ Corner Mount
Fits up 41mm (1.61”)
Frosted
1 Inch
42 in. / 84 in.
Matte White
ALP-3400TL
ALP-3400TL-LN (Included)
ALP-3400TL-EC (Sold Separately)

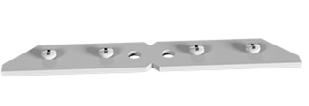

ALP-2000TL-STB
ALP-2000TL-INB
* Remote mounted power supply sold separately.
Project
Location
Quote/ Ref #
FEATURES
Field Cuttable
Accommodates LED strips up to 41mm (1.61”) wide 1” Aperture
Suitable for corner installations/ applications
Frosted Lens diffuser included Dissipates heat from LED, prolonging its lifetime
Frosted Lens incuded

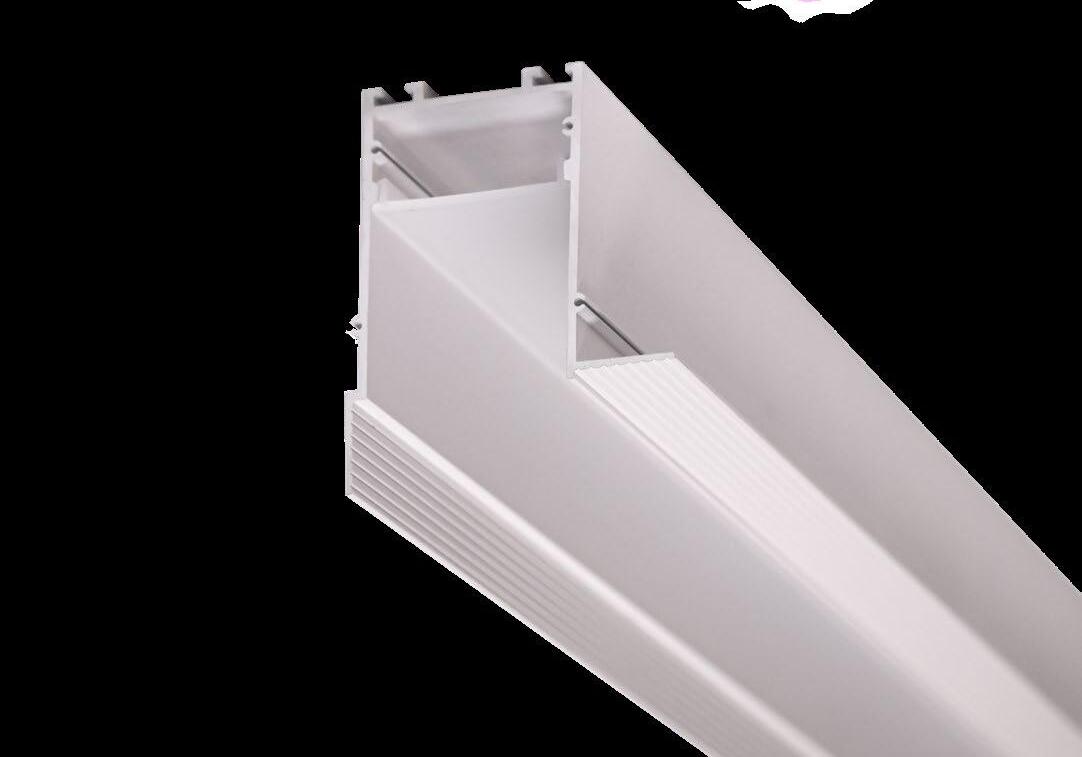

8550 PROFILE

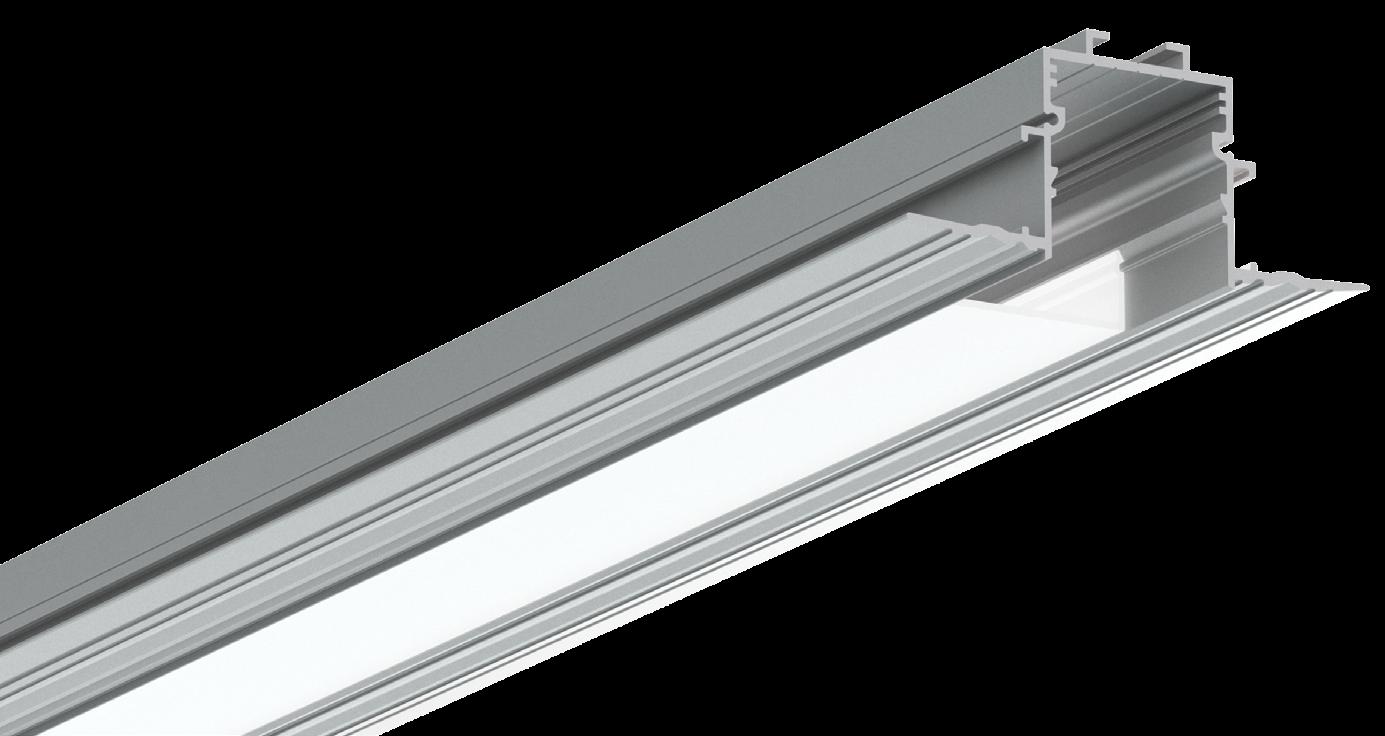

The 8550 Pro profile is designed to disappear into the structure, merging the light source with the surface. Very versatile with 15 LED light sources to choose from 2400 K to 6200 K including WarmDim, Tunable White, RGB and RGB white. Its refined look harmonizes perfectly with any project.
FEATURES
– Available in 96 in (2.43 m) lengths including 3 straight Type C joiners; profile can be cut onsite for easy and accurate installation
– On each side of the extrusion, the edges have grooves that reduce the space between the screws and the surface
– Designed to give a uniform light without hot spots with a prime lens.
– 15 LED light sources to choose from 2400 K to 6200 K, including WarmDim, RGB and RGBW
– Made of ALCOA 6063-T5 aluminum alloy for increased heat dissipation
– Compatible with the HER Pro PVC reflector that provides maximum luminance.
– Indoor use
– Bonus : PVC protector included with each profile
Cross-section dimensions:
LED ENGINE COMPATIBILITY
Compatible with LED engines up to 14mm wide.
WEIGHT
(without lens)
BLANK
8550 Profile ordering sheet
Available in straight section of 8 feet (96 inches/2.4 m).
Series
WD3 - 2700-3500K 14W/m
COBWD - 2200-3200K 14W/m
TW1 - Tunable White 11W/m
LHP - 668 LM / 7.0W FT / 95+CRI F - DMX
WD1 - 2200-2700K 14W/m Lumen Package selection is not available for WD, TW and RGB color options.
G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
J - Casambi CBU-PWM4-4CHBluetooth 100/277 VAC
TW2 - Tunable White 19W/m K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC
62 - 6200K (LP only) For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
- 3000K 4in1 14W/m

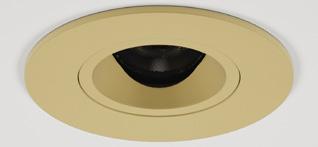

1" Round Downlight Standard White
FEATURES
• 3/8" bezel regress with 1/16" micro flange
• 17° - 60° optical beam control
• UGR < 19
• Up to 123 LPW
• Glare control, specialty optics, trim options, and custom finishes available
• Microban® antimicrobial finish available on all exposed painted surfaces
(Note: Specifications are subject to change without notice)

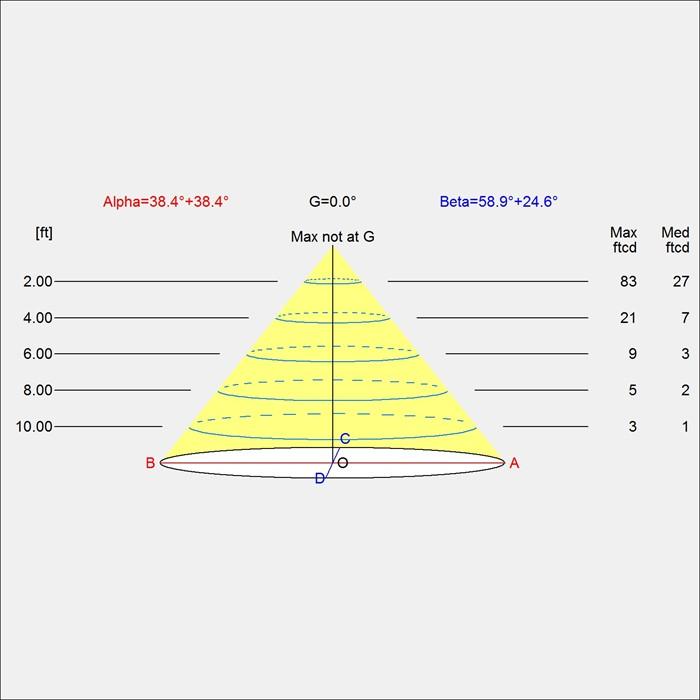

6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM690LM @30K/80CRI150mA5.5W
10LM890LM @30K/80CRI200mA7.5W
15LM1280LM @30K/80CRI300mA 11W
07LM590LM @30K/90CRI150mA5.5W
10LM760LM @30K/90CRI200mA7.5W
15LM1090LM @30K/90CRI300mA 11W
Notes Delivered lumens based on 60D optic with no lens, (see page 2)
17° BEAM
(Note: Specifications are subject to change without notice)
4.2mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM610LM @30K/80CRI150mA5.5W
07LM520LM @30K/90CRI150mA5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING
AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI 2 dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%

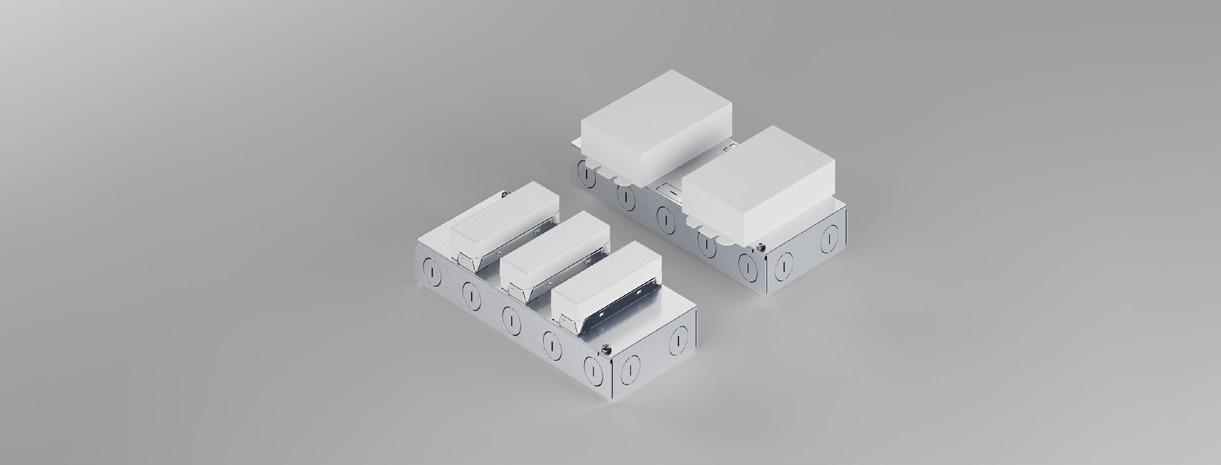

• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP65 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 1 5LM - 300mA
NIOB-1RNB

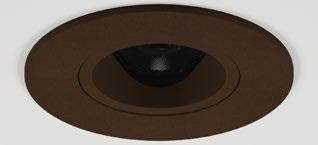

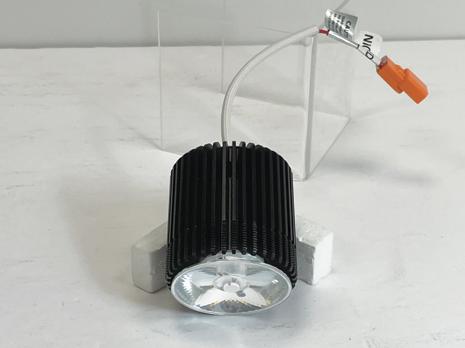

1" Iolite BWF Round Bullnose
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Bullnose trim with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
6 00lm / 9W or 10W
2 700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
C omfort Dim (warm dimming) also available
F lood optic, narrow flood and spot optics (included)
5 -Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
L UMENS / WATTAGE
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV 6 00lm / 9W
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V 6 00lm / 10W
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV 6 00lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 6 00lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
c ULus Listed for Wet Locations
· 5 -Year Limited Warranty
R oHS Compliant
C ertified to the high efficacy requirements of California Title 24 JA8-2022
1" Iolite BWF Round Bullnose - Dedicated Housing Required Color Temperature Finish
NIOB-1RNB27 X = 2700K
NIOB-1RNB30X = 3000K
NIOB-1RNB35 X =
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Calculated Delivered Lumens = [Delivered Lumen Value] x [CCT Multiplier] x [Optic Multiplier] x [Lens Multiplier]
27K 2700K
30K 3000K
35K 3500K
40K 4000K
CRI 80 80 CRI
90 90 CRI OPTIC & LM MULTIPLIER
2, 3 17 degrees
3 22 degrees
30 degrees
40 degrees
diffused lens
BEZEL LENS SEE PAGE 5
TRIM
COLOR
SEE PAGE 5
BEZEL COLOR
SEE PAGE 5

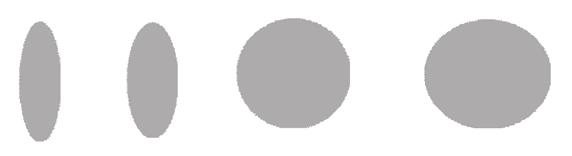

elliptical beam spread
HCL honeycomb louver
high efficiency textured lens, similar to Solite™ (0.92) SBL smoothing beam lens
Maximum 2pcs of media per fixture.
BK black
WH white
MC matte chrome
BZ bronze
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Not applicable to trimless option. Do not include in trimless ordering code.
BK black (0.98)
WH white (1.00)
MC matte chrome (0.99)
BZ bronze (0.98)
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
(0.99)
ORDERING CODE
MOUNTING
OPTIONS
SEE PAGE 8, 9
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8, 9 insulation contact housing
ICAT8, 9 insulation contact/airtight housing
CP8, 9 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example:
NOTES
1. 1 7D available in 07LM.
2. 1 7D & 22D not available in NL and CL options.
3. 1 7D & 22D includes SBL lens as standard. One additional media may be used.
4. NL option does not meet requirements for AT/WET/NSF listings.
5. Elliptical lens not available with 17D optic options. Actual beam distributions [22D= 20° x 25° , 30D= 45° x 65° , 40D= 50° x 65° , 55D= 60° x 75°]
6. Cus tom set up fee plus minimum quantity required per color.
7. NCINH RETINH available in 07LM.
8. IC/IC AT/CP not available in 15LM.
9. IC/IC AT/CP not available in RDTMW.

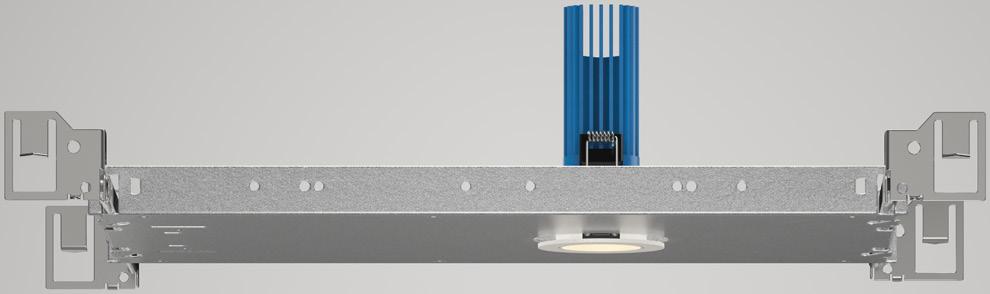

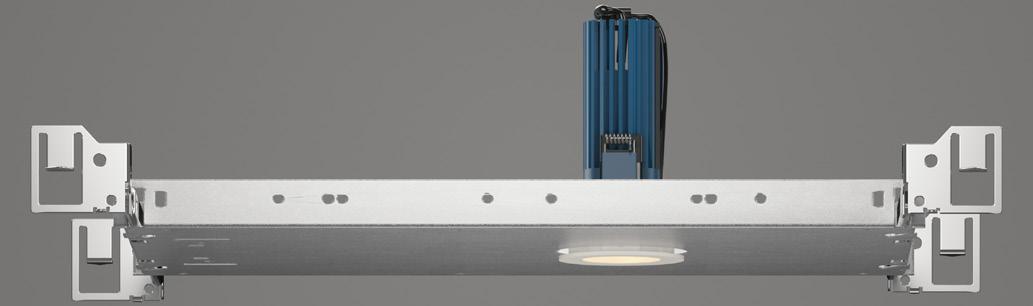

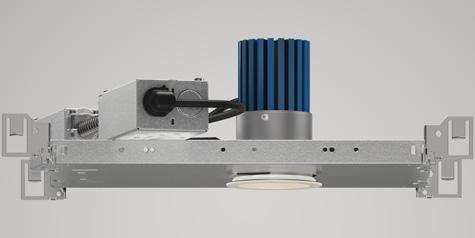

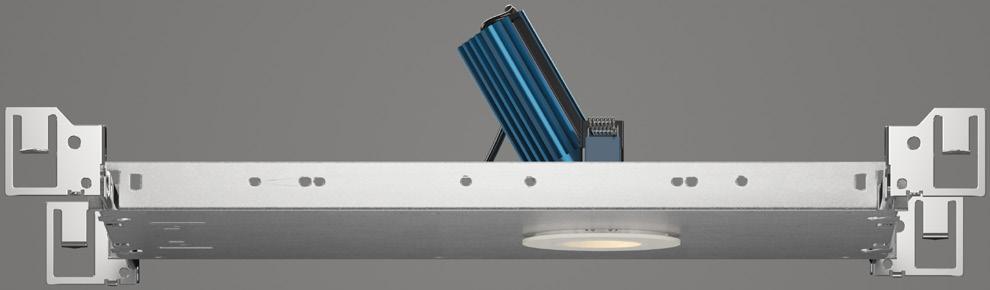

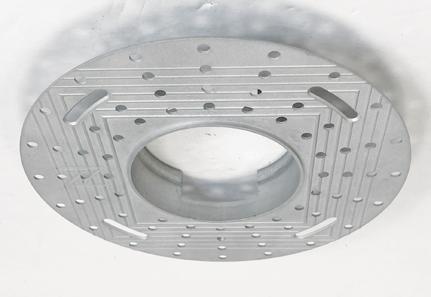

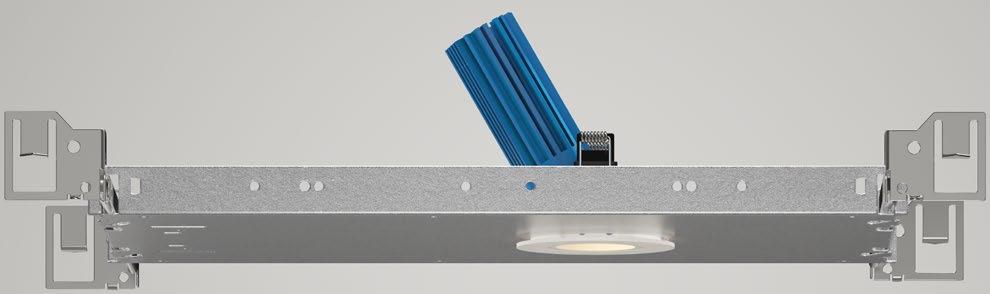

NHIOICD-16 / NHIOICDCP-16
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DE SCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" R ound Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FC C compliant
Pa tent #D824567S
· Mee ts or exceeds ASTM-283 Air-Tight requirements
(Note: Specifications are subject to change without notice)

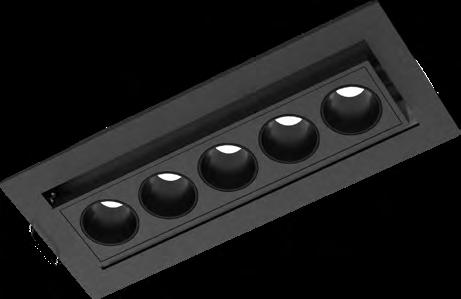

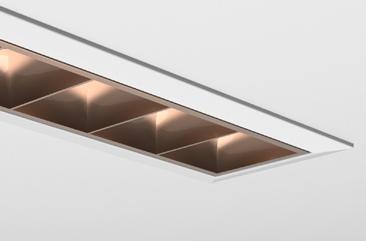

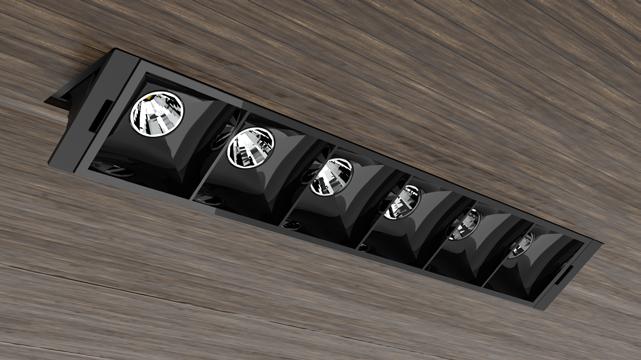

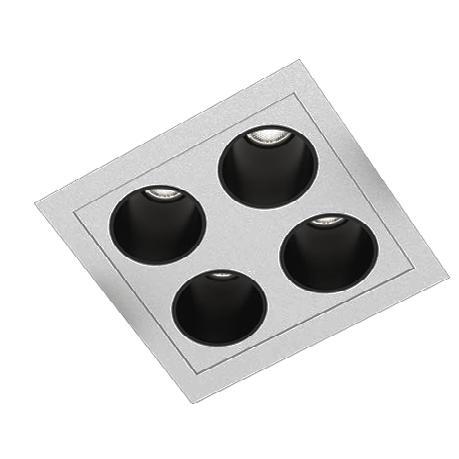

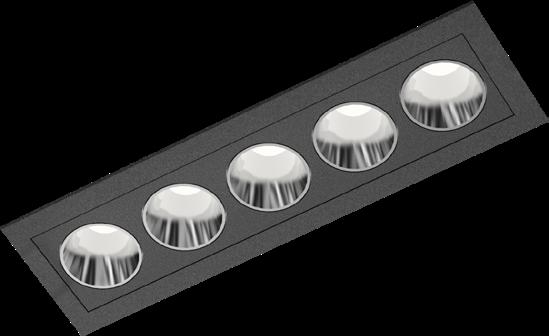

6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM690LM @30K/80CRI150mA5.5W
10LM890LM @30K/80CRI200mA7.5W
15LM1280LM @30K/80CRI300mA 11W
07LM590LM @30K/90CRI150mA5.5W
10LM760LM @30K/90CRI200mA7.5W
15LM1090LM @30K/90CRI300mA 11W
Notes Delivered lumens based on 60D optic with no lens, (see page 2)
17° BEAM
(Note: Specifications are subject to change without notice)
4.2mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM610LM @30K/80CRI150mA5.5W
07LM520LM @30K/90CRI150mA5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING
AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI 2 dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.

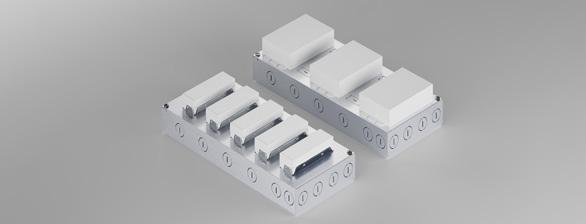

• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP65 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 1 5LM - 300mA
NIOB-1RNB
1" Iolite BWF Round Bullnose
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Bullnose trim with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
6 00lm / 9W or 10W
2 700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
C omfort Dim (warm dimming) also available
F lood optic, narrow flood and spot optics (included)
5 -Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
L UMENS / WATTAGE
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV 6 00lm / 9W
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V 6 00lm / 10W
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV 6 00lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 6 00lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
c ULus Listed for Wet Locations
· 5 -Year Limited Warranty
R oHS Compliant
C ertified to the high efficacy requirements of California Title 24 JA8-2022
1" Iolite BWF Round Bullnose - Dedicated Housing Required Color Temperature Finish
NIOB-1RNB27 X = 2700K
NIOB-1RNB30X = 3000K
NIOB-1RNB35 X = 3500K
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Calculated Delivered Lumens = [Delivered Lumen Value] x [CCT Multiplier] x [Optic Multiplier] x [Lens Multiplier]
27K 2700K
30K 3000K
35K 3500K
40K 4000K
CRI 80 80 CRI
90 90 CRI OPTIC & LM MULTIPLIER
2, 3 17 degrees
3 22 degrees
30 degrees
40 degrees

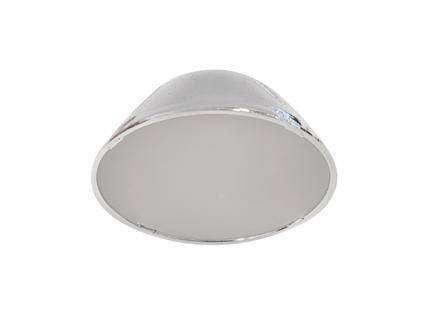

diffused lens
BEZEL LENS SEE PAGE 5
TRIM
COLOR
SEE PAGE 5
BEZEL COLOR
SEE PAGE 5
elliptical beam spread
HCL honeycomb louver
high efficiency textured lens, similar to Solite™ (0.92) SBL smoothing beam lens
Maximum 2pcs of media per fixture.
BK black
WH white
MC matte chrome
BZ bronze
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Not applicable to trimless option. Do not include in trimless ordering code.
BK black (0.98)
WH white (1.00)
MC matte chrome (0.99)
BZ bronze (0.98)
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
(0.99)
ORDERING CODE
MOUNTING
OPTIONS
SEE PAGE 8, 9
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8, 9 insulation contact housing
ICAT8, 9 insulation contact/airtight housing
CP8, 9 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example:
NOTES
1. 1 7D available in 07LM.
2. 1 7D & 22D not available in NL and CL options.
3. 1 7D & 22D includes SBL lens as standard. One additional media may be used.
4. NL option does not meet requirements for AT/WET/NSF listings.
5. Elliptical lens not available with 17D optic options. Actual beam distributions [22D= 20° x 25° , 30D= 45° x 65° , 40D= 50° x 65° , 55D= 60° x 75°]
6. Cus tom set up fee plus minimum quantity required per color.
7. NCINH RETINH available in 07LM.
8. IC/IC AT/CP not available in 15LM.
9. IC/IC AT/CP not available in RDTMW.
NHIOICD-16 / NHIOICDCP-16
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DE SCRIPTION
NIOB-1RNB WET 1" Round Bullnose (BWF)
NIOB-1SNB WET 1" Square Bullnose (BWF)
NIOB-1RNG WET 1" Round Straight Regress (BWF)
NIOB-1SNG WET 1" Square Straight Regress (BWF)
NIOB-1RPH WET 1" Round Pinhole (BWF)
NIOB-1RSL 1" R ound Adj. Slot Aperture (BWF)
NIO-1RNB WET 1" Round Bullnose (NTF)
NIO-1SNB WET 1" Square Bullnose (NTF)
NIO-1RNG WET 1" Round Straight Regress (NTF)
NIO-1SNG WET 1" Square Straight Regress (NTF)
NIOP-1RCY 1" iPOINT Cylinder
NIOP-1RTC 1" iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant
FC C compliant
Pa tent #D824567S
· Mee ts or exceeds ASTM-283 Air-Tight requirements
Type Project Catalog No. Notes
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com

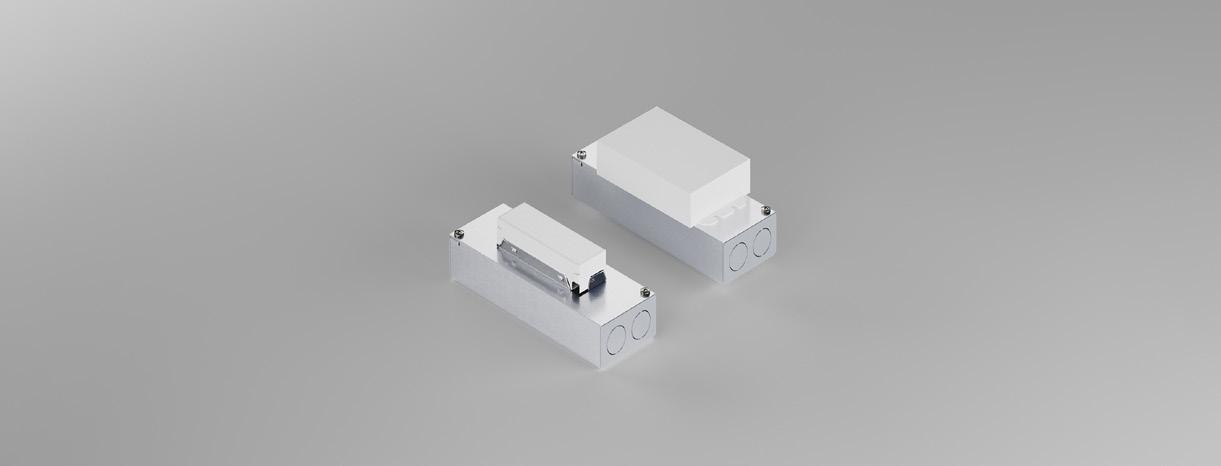

CURRENT
VOLTAGE
DIMMING
150 150mA
200 200mA
300 300mA
120 120V UNV 120V-277V
DIM10 eldoLED flicker free 0-10V dimming to 1%
DIM10Z eldoLED flicker free 0-10V dimming to 0%
DALI eldoLED flicker free DALI-2 dimming to 1%
DALIZ eldoLED flicker free DALI-2 dimming to 0%
DMX-RJ451 DMX control dimming to 0.1% with RJ45 connection
DMX-WL1 DMX control dimming to 0.1% with wire lead connection
DMX-XLR1 DMX control dimming to 0.1% with XLR 5pin connection
LUT Lutron Hi-lume Ecosystem dimming to 1%, Soft-on & Fade-to-Black
LUTP Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black
ELV12 leading & trailing edge (Triac/ELV) dimming to 1%
NLT nLight control interface: standard Cat-5/RJ45 connection (female), dim to off
CAS3 Casambi control with flicker free 1% dimming AWNR4 lutron athena wireless node
ELECTRICAL OPTIONS
NOTES
EM7 5 remote emergency battery backup, 90 minutes at 7 watts to LED, Remote TS
1. DMX available only in DX-C-1.
2. ELV available in 120V.
3. All drivers on single Casambi dimming circuit.
4. AWNR reference page 11 for product specification on Athena wireless node.
5. EM available only with DX-C-1. Box size same as DX-C-2, with one driver and one battery.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve, add “LIN” after dimming code, i.e. DIM10LIN.

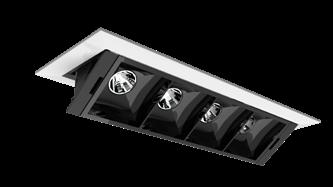

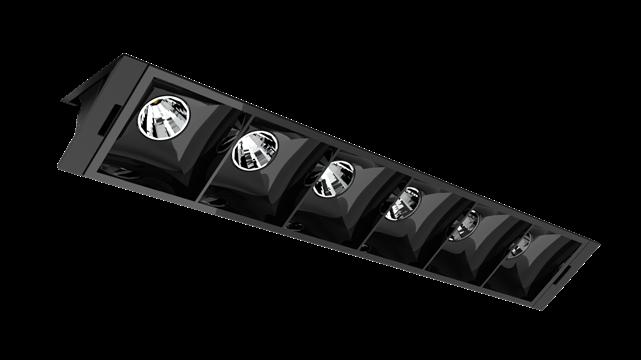

22° - 60° BEAM
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
07LM690LM @30K/80CRI7W
10LM890LM @30K/80CRI9W
15LM1280LM @30K/80CRI14W
07LM590LM @30K/90CRI7W
10LM760LM @30K/90CRI9W
15LM1090LM @30K/90CRI14W
Notes Delivered lumens based on 60D optic with no lens
ELECTRICAL/CONTROLS
• 120V-277V, 120 only Triac / ELV
• Power factor ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 90min battery
• Max. ambient installation temperature 95°F (35°C)
17° BEAM
(Note: Specifications are subject to change without notice)
4.2mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
07LM610LM @30K/80CRI8W
07LM520LM @30K/90CRI8W
Notes Delivered lumens based on 17D optic with SBL lens

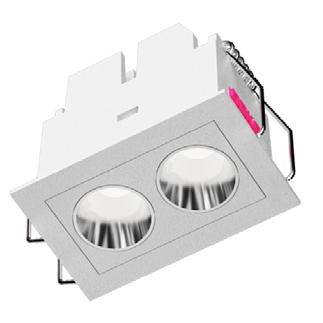

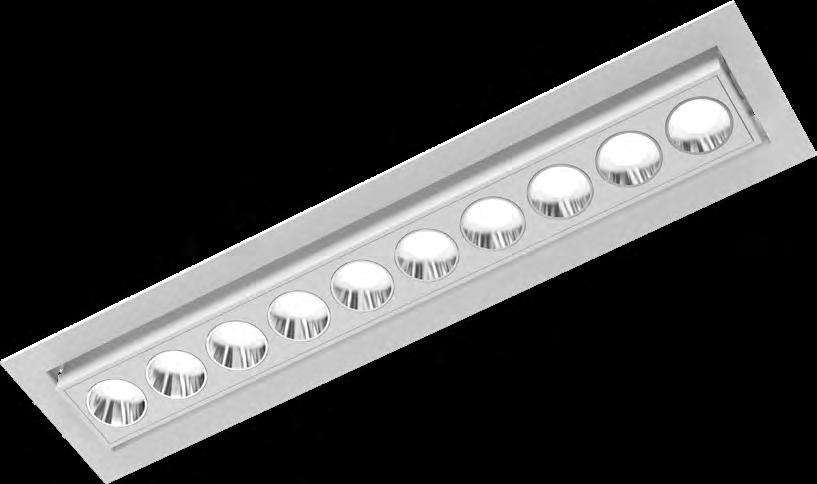

(Note: Specifications are subject to change without notice)

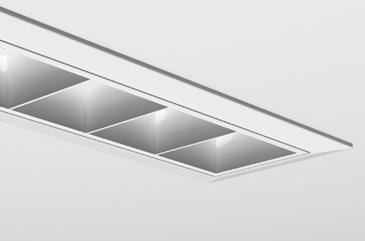

6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM630LM @30K/80CRI 150mA 5.5W
10LM800LM @30K/80CRI 200mA 7.5W
13LM1150LM @30K/80CRI 300mA 11W
07LM530LM @30K/90CRI 150mA 5.5W
10LM680LM @30K/90CRI 200mA 7.5W
13LM980LM @30K/90CRI 300mA 11W
Notes Delivered lumens based on 55D optic with no lens, (see page 2)
17° BEAM
(Note: Specifications are subject to change without notice)
4mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM550LM @30K/80CRI 150mA 5.5W
07LM500LM @30K/90CRI 150mA 5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment, see page 9
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 13LM - 300mA
Trim

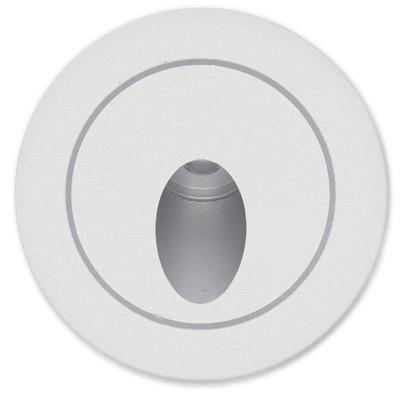

NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC AT Remodel, 120-277V; Triac/ELV/0-10V
0lm / 9W
/ 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Not applicable to trimless option. Do not include in trimless ordering code.
black
white
matte chrome
bronze
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example:
NOTES
1. 1 7D available in 07LM.
2. 1 7D & 22D not available with NL and CL options.
3. 1 7D & 22D includes SBL lens as standard. One additional media may be used.
4. Elliptical lens not available with 17D optic options. Actual beam distributions [22D=
, 40D= 40° x 70° , 55D= 55° x 80°]
5. NL option does not meet requirements for AT/WET/NSF listings. Bezel lensing cannot be added in the field.
6. Cus tom set up fee plus minimum quantity required per color.
7. NCINH RETINH available in 07LM.
8. IC/IC AT/CP available in 07LM/10LM.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming
1" Iolite IC Air-Tight New Construction Housing
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1 " Round Bullnose (BWF)
NIOB-1SNB WET 1 " Square Bullnose (BWF)
NIOB-1RNG WET 1 " Round Straight Regress (BWF)
NIOB-1SNG WET 1 " Square Straight Regress (BWF)
NIOB-1RPH WET 1 " Round Pinhole (BWF)
NIOB-1RSL 1 " Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1 " Round Bullnose (NTF)
NIO-1SNB WET 1 " Square Bullnose (NTF)
NIO-1RNG WET 1 " Round Straight Regress (NTF)
NIO-1SNG WET 1 " Square Straight Regress (NTF)
NIOP-1RCY 1 " iPOINT Cylinder
NIOP-1RTC 1 " iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
c ULus Listed for Damp Locations (Wet Locations when used with compatible trim)
5 -Year Limited Warranty
R oHS compliant
F CC compliant
P atent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
(Note: Specifications are subject to change without notice)
6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM630LM @30K/80CRI 150mA 5.5W
10LM800LM @30K/80CRI 200mA 7.5W
13LM1150LM @30K/80CRI 300mA 11W
07LM530LM @30K/90CRI 150mA 5.5W
10LM680LM @30K/90CRI 200mA 7.5W
13LM980LM @30K/90CRI 300mA 11W
Notes Delivered lumens based on 55D optic with no lens, (see page 2)
17° BEAM
(Note: Specifications are subject to change without notice)
4mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
07LM550LM @30K/80CRI 150mA 5.5W
07LM500LM @30K/90CRI 150mA 5.5W
Notes Delivered lumens based on 17D optic with SBL lens, (see page 2)
DIMMING AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment, see page 9
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 13LM - 300mA
Trim
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC AT Remodel, 120-277V; Triac/ELV/0-10V
0lm / 9W
/ 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8 insulation contact housing
ICAT8 insulation contact/airtight housing
CP8 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected
remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING ND No driver included. See page 3 for remote driver options.
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example:
NOTES
1. 1 7D available in 07LM.
2. 1 7D & 22D not available with NL and CL options.
3. 1 7D & 22D includes SBL lens as standard. One additional media may be used.
4. Elliptical lens not available with 17D optic options. Actual beam distributions [22D=
, 40D= 40° x 70° , 55D= 55° x 80°]
5. NL option does not meet requirements for AT/WET/NSF listings. Bezel lensing cannot be added in the field.
6. Cus tom set up fee plus minimum quantity required per color.
7. NCINH RETINH available in 07LM.
8. IC/IC AT/CP available in 07LM/10LM.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming
diffused lens
high efficiency textured lens, similar to Solite™
smoothing beam lens
TRIM COLOR
SEE PAGE 5 BK black
white MC matte chrome BZ bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Not applicable to trimless option. Do not include in trimless ordering code.
black
white
matte chrome
BEZEL COLOR
SEE PAGE 5
bronze
WT wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
1" Iolite IC Air-Tight New Construction Housing
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1 " Round Bullnose (BWF)
NIOB-1SNB WET 1 " Square Bullnose (BWF)
NIOB-1RNG WET 1 " Round Straight Regress (BWF)
NIOB-1SNG WET 1 " Square Straight Regress (BWF)
NIOB-1RPH WET 1 " Round Pinhole (BWF)
NIOB-1RSL 1 " Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1 " Round Bullnose (NTF)
NIO-1SNB WET 1 " Square Bullnose (NTF)
NIO-1RNG WET 1 " Round Straight Regress (NTF)
NIO-1SNG WET 1 " Square Straight Regress (NTF)
NIOP-1RCY 1 " iPOINT Cylinder
NIOP-1RTC 1 " iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
c ULus Listed for Damp Locations (Wet Locations when used with compatible trim)
5 -Year Limited Warranty
R oHS compliant
F CC compliant
P atent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT
ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
05LM420LM @30K/80CRI 150mA 5.5W
10LM765LM @30K/80CRI 300mA 11W
05LM360LM @30K/90CRI 150mA 5.5W
10LM650LM @30K/90CRI 300mA 11W
Notes Delivered lumens based on WW optic
DIMMING AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI 2 dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
FIXTURE HEIGHT
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment, see page 7
• Fixture is pre-set and shipped at 30deg tilt
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 05LM - 150mA
• 10LM - 300mA
Trim Trimless
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC AT Remodel, 120-277V; Triac/ELV/0-10V
0lm / 9W
/ 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Calculated Delivered Lumens = [Delivered Lumen Value] x [CCT Multiplier]
30K 3000K
3500K
4000K
80 80 CRI
90 CRI
wall
CC1 custom color, consult factory for details Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Not applicable to trimless option. Do not include in trimless ordering code.
wheat
CC1 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
MOUNTING
OPTIONS
WW BEAM ORDERING CODE
SEE PAGE 6 7 NC new construction with ceiling fitting plate
NCINH2 new construction with ceiling fitting plate, IC rated, inherently protected
IC2 insulation contact housing
ICAT2 insulation contact/airtight housing
CP2 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH2 retrofit, no ceiling fitting plate, IC rated, inherently protected remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING
ND No Driver Included. Customer to Supply PoE system components or order remote driver separately. Refer to POE/Remote Driver reference sheet for additional details.
Follow the steps to specify your fixture, example: NU1 -
1" Iolite IC Air-Tight New Construction Housing
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1 " Round Bullnose (BWF)
NIOB-1SNB WET 1 " Square Bullnose (BWF)
NIOB-1RNG WET 1 " Round Straight Regress (BWF)
NIOB-1SNG WET 1 " Square Straight Regress (BWF)
NIOB-1RPH WET 1 " Round Pinhole (BWF)
NIOB-1RSL 1 " Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1 " Round Bullnose (NTF)
NIO-1SNB WET 1 " Square Bullnose (NTF)
NIO-1RNG WET 1 " Round Straight Regress (NTF)
NIO-1SNG WET 1 " Square Straight Regress (NTF)
NIOP-1RCY 1 " iPOINT Cylinder
NIOP-1RTC 1 " iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
c ULus Listed for Damp Locations (Wet Locations when used with compatible trim)
5 -Year Limited Warranty
R oHS compliant
F CC compliant
P atent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT
ENGINE NOMINAL DELIVERED LUMENS DRIVE CURRENT LED WATTAGE
05LM420LM @30K/80CRI 150mA 5.5W
10LM765LM @30K/80CRI 300mA 11W
05LM360LM @30K/90CRI 150mA 5.5W
10LM650LM @30K/90CRI 300mA 11W
Notes Delivered lumens based on WW optic
DIMMING AND CONTROLS
• eldoLED flicker free 0-10V dimming to 0% and 1%
• eldoLED flicker free DALI 2 dimming to 0% and 1%
• Lutron Hi-lume Eco System dimming to 0.1% and 1.%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• All driver offerings are remote with above ceiling access, see page 3 for details.
• Refer to DX remote panels for additional options.
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
• IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• Declare. - LBC Red List Approved
• 5 Year Limited warranty
FIXTURE HEIGHT
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment, see page 7
• Fixture is pre-set and shipped at 30deg tilt
ELECTRICAL
• Low voltage luminaire: 36Vdc nominal
• 05LM - 150mA
• 10LM - 300mA
Trim Trimless
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC AT Remodel, 120-277V; Triac/ELV/0-10V
0lm / 9W
/ 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Calculated Delivered Lumens = [Delivered Lumen Value] x [CCT Multiplier]
30K 3000K
3500K
4000K
80 80 CRI
90 CRI
wall
CC1 custom color, consult factory for details Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Not applicable to trimless option. Do not include in trimless ordering code.
MOUNTING
OPTIONS
WW BEAM ORDERING CODE
SEE PAGE 6 7 NC new construction with ceiling fitting plate
NCINH2 new construction with ceiling fitting plate, IC rated, inherently protected
IC2 insulation contact housing
ICAT2 insulation contact/airtight housing
CP2 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH2 retrofit, no ceiling fitting plate, IC rated, inherently protected remote driver only
VOLTAGE LVL low voltage luminaire
DIMMING
ND No Driver Included. Customer to Supply PoE system components or order remote driver separately. Refer to POE/Remote Driver reference sheet for additional details.
Follow the steps to specify your fixture, example: NU1 -
CC1 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.

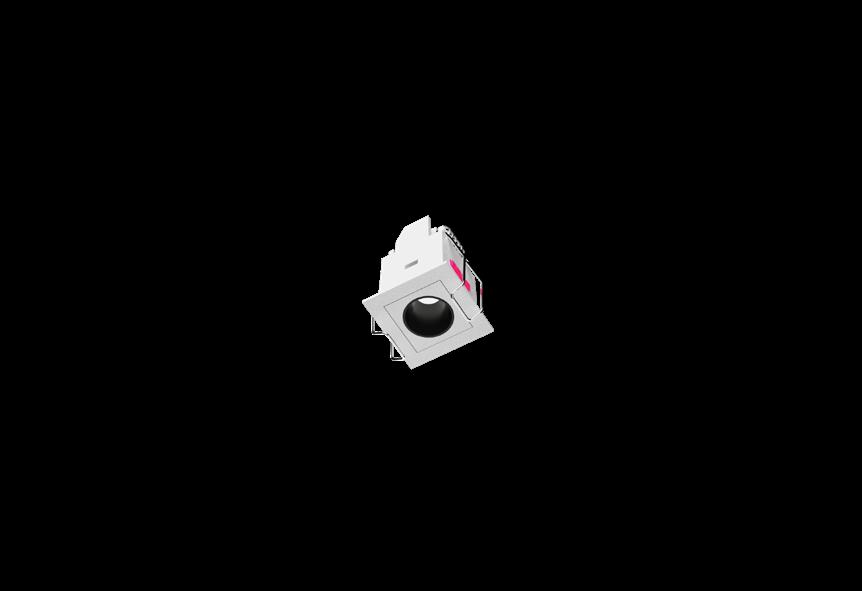

1" Iolite IC Air-Tight New Construction Housing
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1 " Round Bullnose (BWF)
NIOB-1SNB WET 1 " Square Bullnose (BWF)
NIOB-1RNG WET 1 " Round Straight Regress (BWF)
NIOB-1SNG WET 1 " Square Straight Regress (BWF)
NIOB-1RPH WET 1 " Round Pinhole (BWF)
NIOB-1RSL 1 " Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1 " Round Bullnose (NTF)
NIO-1SNB WET 1 " Square Bullnose (NTF)
NIO-1RNG WET 1 " Round Straight Regress (NTF)
NIO-1SNG WET 1 " Square Straight Regress (NTF)
NIOP-1RCY 1 " iPOINT Cylinder
NIOP-1RTC 1 " iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
c ULus Listed for Damp Locations (Wet Locations when used with compatible trim)
5 -Year Limited Warranty
R oHS compliant
F CC compliant
P atent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
Type Project Catalog No. Notes
PRODUCT IMAGES AND DIMENSIONS
PATENT No. D824567S
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Optional Accessories
REMOTE DRIVER - ORDERING CODE
SERIES DX-C compact driver box
NUMBER OF DRIVERS 1-5 number of drivers, 1-5
CURRENT
VOLTAGE
DIMMING
150 150mA
300 300mA
120 120V
UNV 120V-277V
DIM10 eldoLED flicker free 0-10V dimming to 1%
DIM10Z eldoLED flicker free 0-10V dimming to 0%
DALI eldoLED flicker free DALI-2 dimming to 1%
DALIZ eldoLED flicker free DALI-2 dimming to 0%
DMX-RJ451 DMX control dimming to 0.1% with RJ45 connection
DMX-WL1 DMX control dimming to 0.1% with wire lead connection
DMX-XLR1 DMX control dimming to 0.1% with XLR 5pin connection
LUT Lutron Hi-lume Ecosystem dimming to 1%, Soft-on & Fade-to-Black
LUTP Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black
ELV12 leading & trailing edge (Triac/ELV) dimming to 1%
NLT nLight control interface: standard Cat-5/RJ45 connection (female), dim to off
CAS3 Casambi control with flicker free 1% dimming
AWNR4 lutron athena wireless node
ELECTRICAL OPTIONS
EM7 5 remote emergency battery backup, 90 minutes at 7 watts to LED, Remote TS
YOUR COMPLETED ORDERING CODE
Follow the steps to specify your fixture, example: DX-C - 1 - 300 - UNV - DIM10 - EM7
NOTES
1. DMX available only in DX-C-1.
2. ELV available in 120V.
3. All drivers on single Casambi dimming circuit.
4. AWNR reference page 9 for product specification on Athena wireless node.
5. EM available only with DX-C-1. Box size same as DX-C-2, with one driver and one battery.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve, add “LIN” after dimming code, i.e. DIM10LIN.
WW BEAM
(Note: Specifications are subject to change without notice)
6mm COB PERFORMANCE DATA
LED LIGHT ENGINE
NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
05LM420LM @30K/80CRI8W
10LM765LM @30K/80CRI14W
05LM360LM @30K/90CRI8W
10LM650LM @30K/90CRI14W
Notes Delivered lumens based on WW optic
ELECTRICAL/CONTROLS
• 120V-277V, 120 only Triac / ELV
• Power factor ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 90min battery
• Max. ambient installation temperature 95°F (35°C)
• Maximum Remote mounting distance of EM driver shall be 50 feet
BLANK
Envelope IP66 Mini
General: With a simple, elegant, and minimalist design, Envelope is a family or round or square wall mounted step lights suitable for most projects (available for both indoor and outdoor applications). A recessed asymmetric optic that guarantees full cut-off while providing outstanding performances and a multitude of sizes and colors complete the range.
Fixture Body: Powder Coated Aluminum.
Diffuser: Silicone resin.
Mounting details: Wall mounted, semi-recessed. Black ABS housing available for both concrete and tile applications.
Dimensions/Weight: 1.6” (0.09 lbs)
Driver: Remote, 120-277V Dimmable 0-10V.
Wattage: 1W
Cable: Fixture comes with 3.28’ of power cable.
IP rating: IP66 for protection against dust and powerful water jets from any angle. IK rating: IK 10
ETL Certification: ETL, wet location
Optics: Fixed, Asymmetric.
Color temperatures: 2700K – 3000K – 3500K – 4000K.
CRI: 80+
Lumen Maintenance: L70 projections tested at Tj 65° C and Ta 25°.
Warranty: 5-year Limited Warranty on fixtures. 1-year Limited Warranty on Remote Drivers.
= Envelope
= Round Black
= Round Gray
RDB = Round Dark Brown RBR = Round Brass
= Round Black Gray
SWH = Square White
SBL = Square Black
SGR = Square Gray
SDB = Square Dark Brown
SBR = Square Brass
SBG = Square Black Gray
410 381 1497 inter-lux.com answers@inter-lux.com
Inter-lux reserves the right to make technical changes without notice.
STEP LIGHT SL2000 SERIES
DATE:
PROJECT:
FIRM:
CATALOG NO.: COMMENTS:
SL2000 from Lumux is an elegant architectural step light, precision engineered for durability and performance.
SL2000 o ers a distinctively minimalist ADA LED solution, ideal for illuminating steps, facades, and walls along access ways. SL2000Q o ers a square faceplate whereas SL2000S is round. SL2000 step lights are energy-e cient for long-lasting indoor and outdoor applications. SL2000 features a powder coated faceplate retaining a recessed impact-resistant glass di user, seamlessly integrated to a durable diecast aluminum housing, with a flush glare-hood to shield the light source.
BLANK
STEP LIGHT SL2000 SERIES
DATE: PROJECT: FIRM:
CATALOG NO.: COMMENTS:
SL2000 is an elegant ADA step and wall light with a modern design and faceplate finish options, perfect for campus, resort and residential use.
Ordering Guide
1Consult factory for additional options
2Consult factory for additional pricing
Performance Specifications
Flux 65 lm (4000K) LER 22 lm/W
Power 3W 120-277v input voltage
Starting temp. rated to -20˚F
0-10v Dimming Driver option
Lumen Maintenance*: tbd
Catalog No.:
BUG rating: tbd
CRI 80
IP65
Environmental Specifications
Amber-TF turtle-friendly option
Color temperature options
ETL listed for wet-locations
E ective Projected Area: n/a Marine Grade option
5-year limited warranty Made in the USA
Delivered Lumens & Wattage per color temperature:

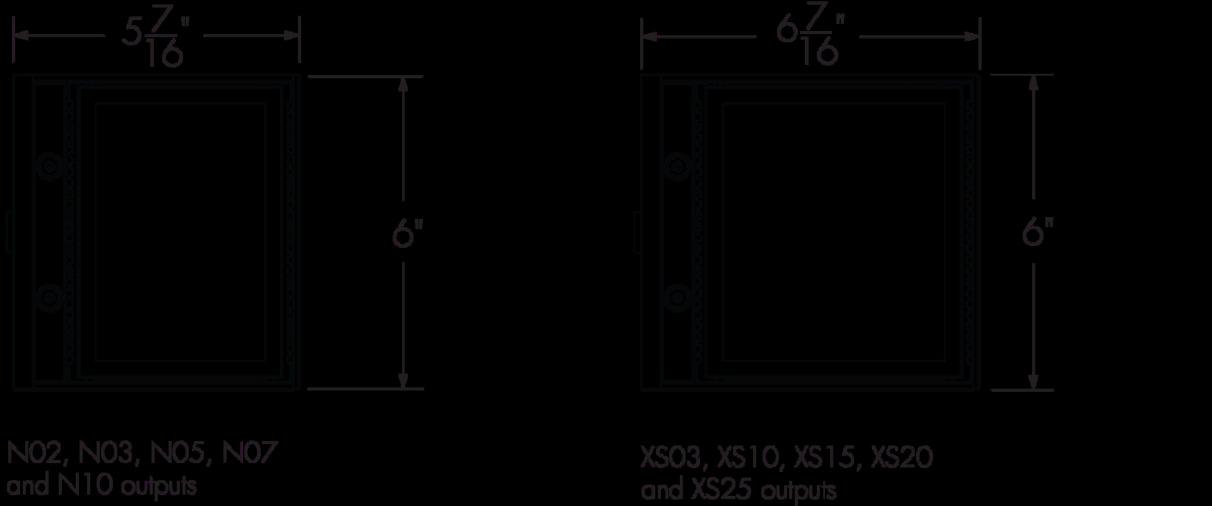

Dimensions
*Estimated lumens. For higher lumen packages, please consult the Lumux sales team.
Housing: SL2000 features a powder coated faceplate that is optionally square (SL2000Q) or round (SL2000R) mounted to a diecast low-copper aluminum housing with vandal-resistant stainless steel screws.
Lens: Sealed one-piece shatter-proof frosted glass di user.
Gasket: Closed-cell silicone foam gasket that seals out moisture, dust, and insects, for weather tight operation.
Mounting: Recessed mounted, with optional CPX concrete pour box provided.
Installation: Please refer to installation instructions.
Finish: Zinc-polyester powder coat finish in black, white, silver, bronze, or any custom RAL color. Consult factory for marine grade or anti-microbial finish.
Light Engine: Standard constant current non-dimming driver powering high quality LEDs. 0-10v dimming driver optional.
Content of specification sheet subject to change
Site and Area
OptiForm
OPF-S Small
Gardco OptiForm site and area luminaires are available in three sizes: small, medium and large. Featuring the latest in LED technology, OptiForm achieves up to 192 lumens per watt. Eleven optical distributions are available, suitable for a range of outdoor lighting applications. OptForm features a unique mounting system with a two-piece housing for hassle-free installation. Mounting options include a standard arm, mast arm, and wall mount bracket. Service Tag is a standard feature with every OptiForm luminaire, providing maintenance or upgrade assistance throughout the life of the product.
Ordering guide
none
DLEA5,10
FAWS5,6,10
0-10V dimming driver
Dimming leads externally accessible (controls by others)
Field adjustable wattage selector
PIR sensor, #2 lens (Required if BL50 is selected)
PIR sensor, #3 lens (Required if BL50 is selected)
The following options include SR/DALI Driver WIAP sensor options
WIAP5,8,13
SRDR5,8,13
Wireless Interact (includes SR drive and SR receptacle)
SR driver connected to Zhaga socket (D4i)
DynaDimmer: Automatic Profile Dimming
CS505,13
CM505,13
CS305,13
CM305,13
Security 50% dimming, 7 hours
Median 50% dimming, 8 hours
Security 30% dimming, 7 hours
Median 30% dimming, 8 hours
1. Extended leadtime applies. Consult factory for details.
Low (7'-15' mounting height) sensor, black color housing, wireless Interact, integral
Low (7'-15' mounting height) sensor, white color housing
High (15'-40' mounting height) sensor, black color housing
High (15'-40' mounting height) sensor, white color housing
2. Mounts to a square pole with knockout for 4-5" OD round pole.
3. Mounts to a horizontal 2-3/8" OD x 5" Long tenon.
4. Must be ordered with mounting accessory. Photocell option (TR7) must be selected with mounting accessory. See Page 2 for options
5. Not available with other dimming control options (mutually exclusive).
6. Not available with motion sensor (physical restriction).
7. Must be specified with a motion sensor lens (L2).
Meets the requirements of the Buy American Act of 1933 (BAA) EM12,14,15 Emergency
with
or RAL, consult factory
color (must supply color chip, requires factory quote)
13. Not available with lumen packages P01, P02 in UNV [120-277] and with lumen packages A01-A03, P01-P05 in HVU [347-480].
14. Not available for lumen packages P04-P09
15. Not available with Dynadimmer, SRDR, FAWS, FS1, FS2, DLEA, BL50 (physical restriction)
16. Precision Plus Optics (P01-P09) available only with T2M, T3M, T4M, and T5M optical distributions and are non-rotatable.
17. OPF-RMB accessory recommended for retrofit applications.
18. Failure to properly select the “BAC” suffix could result in you receiving product that is not BAA compliant product with no recourse for an RMA or refund. This BAC designation hereunder does not address (i) the applicability of, or availability of a waiver under, the Trade Agreements Act, or (ii) the “Buy America” domestic content requirements imposed on states, localities, and other non-federal entities as a condition of receiving funds administered by the Department of Transportation or other federal agencies.
OPF-S
VIENTO AREA LUMINARE
Project Name
APPLICATIONS
• Area Lighting
• Retail Spaces
• Street Lighting
APPROVALS
• EtL Listed
• Auto Dealerships & Sales Lots
• Parks & Recreation Areas
• Safety & Security
• Complies with UL 1598 and CSA C22.2
• Suitable for wet locations
• 3G vibration Rated
• IP66 Rated
• BAA Compliant
• RoHS Compliant
• AtAL tested www.ata-labs.com
• Select models DLC Premium. For a complete list of DLC Premium products visit: www.xtralight.com/dlc or qpl.designlights.org
FEATURES
• Lumen packages ranging from 5000L to 55000L.
• Outstanding photometric performance results in excellent uniformity, optimal pole spacing and lower power density.
• Low profile architectural design offers a contemporary appearance with excellent light output.
Tested to UL & CSA by Intertek For Use in USA & CANADA.
+ RGBW DMX
BLANK
Project Name Fixture Type
ZX16 Center Pivot
(includes former ZX16-CPV and ZX16-CPV-SOi models)
ACCENT & LANDSCAPE | ZX16 Series | 2.25"
7.5W (640lm) | 12V | SORAA, LED Lamp, Halogen
FEATURES
Versatile round, directional MR16 (GU 5.3) traditional Center Pivot accent light for architectural outdoor and landscape lighting environments.
Flexible lamp configurations include SORAA LED Lamp with patented Heat Sink or use your preferred LED or Halogen lamp.
Wet Location Listed, IP67 Standard.
• Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
240º vertical and 360º horizontal adjustment via locking swivel stem design.
• Field changeable optical lensing available.
Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
Every fixture tested end of line for water tightness and light quality.
Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
SPECIFICATIONS
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 for details).
Voltage

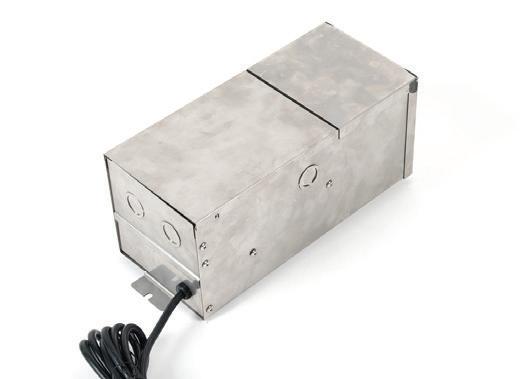

12V AC/DC. Requires remote step down transformer.
Wattage
Max. 9W for SORAA MR16 lamp with Thermobuster. Max. 50W for Halogen lamp.
Light Engine
MR16 Halogen lamp or MR16 SORAA LED lamp. Please refer to SORAA MR16 GU5.3 lamp selection.
Dimming
MLV, ELV Phase Control dimming. Please refer to website for SORAA MR16 dimmer compatibility.
Integral SORAA® Heat Sink
US patented Thermobuster™ provides extra heat dissipation that reduces the lamp junction temperature by 77°F(25°C). Enables even the highest wattage SORAA® lamps to be used in an enclosed fixture without sacrificing its performance or life expectancy.
Lamp Base/Socket
Standard bi-pin socket for GU5.3/G4/ GX5.3/GY6.35/GZ4.
Optics
Accepts up to 3 accessory pieces (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories (See page 4 for details).
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS:
Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
Readymade eligible configurations ship in 2 to 4 weeks
1 Consult factory for specialty finish quoting and lead times
• 20 standard colors in textured and gloss finish; custom or RAL colors also available
• Can be paired with complementary bevel recessed downlight, recessed adjustable and bevel lensed wallwash luminaries
Luminaire Type: Catalog Number:
Superior Performance
Nominal lumens 250500750100015002000
Delivered16334753172810911378
Wattage3.15.68.712.019.828.6 Efficacy536261605548
*Based on 3500K 80CRI WR
Coordinated Apertures | Multiple Layers of Light

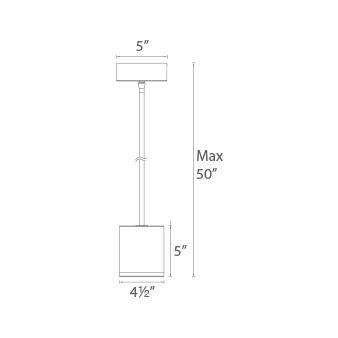

Tube Pendant Downlight
Ceiling Mount 3000K
Fixture Type:
Catalog Number:
Project:
Location:
Example: PD-W2605-AL
DESCRIPTION
Precision engineered using advanced proprietary LED technology with a builtin reflector. An appealing cylindrical profile with powerful LED lighting is perfect for accent down lighting applications. Five architectural metallic finishes offered.
FEATURES
• Hang-straight swivel
• Three 12" and one 6" down rods included
• Title 24 may not be available for all finishes, check for availability •Driver concealed within the canopy •5 year warranty
SPECIFICATIONS
Construction Die-cast Aluminum Power: 16W
Input: 120-277V,50/60Hz
Dimming: ELV: 100-10% , 0-10V: 100-5%
Light Source: Integrated LED
Rated Life: 70,000 Hours
Mounting: Mounts directly to junction box
Finish: Electrostatically Powder Coated: Powder Coat Graphite Graphite, Black, Powder Coat Bronze Bronze, Brushed Aluminum with Clear Powder Coat Brushed Aluminum, Powder Coat White White
ACCESSORIES — order as separate catalog numbers (shipped separately)
GCOLORS KIT Architectural colors chip kit, consisting of powder-coat and plated finishes.
ICO2OPTC XXD Additional optics for field installation. Replace "XX" with beam angle.
DDB Gloss Dark Bronze
DBL Matte Black
DWH Gloss White
DMB Matte Medium Bronze
DNA Gloss Natural Aluminum
DSS Gloss Sandstone
DGC Gloss Charcoal Grey
DTG Gloss Tennis Green
DBR Gloss Bright Red
DSB Gloss Steel Blue
ICO2OPTC KIT Kit including a field interchangeable optic for each of the 13 preset beam distribution patterns
HS234FL Hole saw for RGH option
SDT 347/120 75VA 347V/120V, 75VA step down transformer. Must be remote mounted.
ORDERING NOTES
1. 5000K CCT not available with 90CRI.
2. Refer to Tech 240 for compatible dimmers.
3. RGH with 2000LM option requires 120 or 277 (non-IC).
4. Stem section adjacent to cylinder can be cut in field to achieve non-uniform lengths. Order next highest even length for provisions (i.e. for a field cut 3' length, order 4' stem.)
5. Field installed. Access required to location of remote mounted device.
6. ER for use with generator supply power. Will require an emergency hot feed and normal hot feed.
DDBT Textured Dark Bronze
DBLB Textured Black
DWHG Textured White
DBNH Textured Bronze
DNAT Textured Natural Aluminum
DSST Textured Sandstone
DSPD Textured Dark Grey
DSPE Textured Green
DSPH Textured Light Red
DWHAMF Gloss White with Anti-microbial finish
7. Requires NLT or NLTER.
8. WL requires Lens.
9. Not available with SGBCC or JBXCC.
10. For details on RAL and Custom colors please see Architectural colors. DWH, DWHG, and DWHAMF will ship will WR trim, all other cylinder colors will ship with BR trim.
BLANK
Linear Downlight Features
• Flawless beam quality from a unique micro-linear form factor
• Narrow 15° TIR native beam is aimable +/- 30°
• Louvers available for 15°, 30°, and 60° beams
• Snap-on optics available to easily adjust beam angle in the field
• Available in three sizes and outputs, four CCTs
• For 1/2” to 2” ceiling thickness
• 24VDC Class 2
• L90 > 50K hours
• Wall Wash optic provides even illumination starting from the top of the wall to the bottom
• Wall Wash recommended spacing is 2ft from the wall and 2ft on-center
• Fixture is IC rated and does not require a housing or pan
Ordering Code | Linear Downlight Accessories

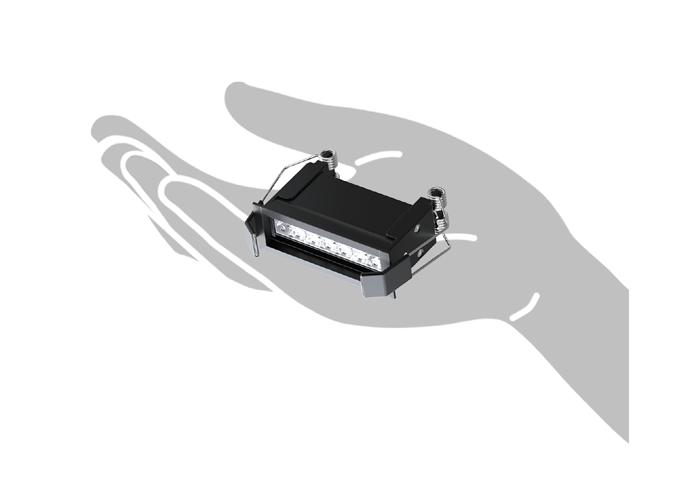

FUSION
Fixed Downlight
FUSION FIXED DOWNLIGHT
provides a low glare option for highlighting hallways, desks and other horizontal surfaces within commercial, hospitality and retail environments. It is easy to install and blends into existing ceiling architecture seamlessly.
FEATURES
Flangeless fixture installation provides a modern minimalist design concept
• Mix and match with other FUSION light fixtures for even more design options
• Wet location listing are avilable in 3 light, 5 light and 10 light fixture sizes
GOOD TO KNOW
Flangeless installation available in 5 light and 10 light sizes
• Produces a round beam pattern from a linear form factor fixture
• Small light apertures deliver “quiet ceiling” lighting with minimal glare.
SPECIFICATIONS
OPTICAL
• Install in ceilings between ½” and 1” Available in matte black, matte white or custom finish MECHANICAL
Die cast fixture body
End mounted mouse trap style springs Available in self-flanged or flangeless trim versions
Finish Specular Matte Black Custom Finish
• Beam Angle • Color Temperature
Universal 120-277V, 50/60Hz, 0-10V or 120V, 60Hz Triac/ELV dimming driver available Drivers connect to LED modules using plenum rated, quick connect cable ELECTRICAL 24° Narrow Flood
HOUSING
New construction steel frame supplied with universal bar hangers and butterfly brackets
• Bar hangers are adjustable from 13-1/4” to 24-1/2
• Fixture and driver are serviceable from below the ceiling
COMPLIANCE
Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
ETL listed for Damp locations Optional Wet location rated trim
5 Year limited parts warranty
Reflector
BLANK
FUSION

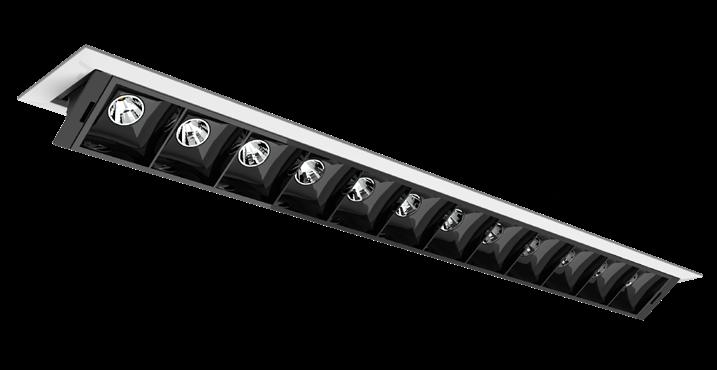

LINI™ LN1SQ A | 1" LINEAR RECESSED ACCENT
Adjustable Accent | 370 – 2230 Lumens
FEATURES
COMPREHENSIVE FAMILY WITH COORDINATED APERTURES
• Linear downlights, adjustable accent, and wall wash luminaires with coordinating apertures
• Available in 2, 4, 6, 8, 12 cell configurations
• Flanged, flangeless (gypsum), flangeless (millwork) available
SPOT-ON! PRECISION OPTICS
• Available with metalized reflectors or total internal reflection (TIR) optics in four distributions ranging from 15° to 50° FWHM.
• Ultra low glare optics deliver virtually zero aperture brightness and high CBCP.
• Exceptional shielding with 40° visual cutoff to source/source image
• +/-35° vertical aiming
EXCEPTIONAL PERFORMANCE
• Up to 2230 lumens delivered!
• Exceptionally consistent color with < 2 SDCM
• Excellent color rendition with 80+ CRI | 90+ CRI Available
PERFORMANCE
Performance shown is at 30K | 80CRI with reflector optics Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C
FUSION
Adjustable Downlight
FUSION DOWNLIGHT
provides a flexible, low glare option for highlighting pathways, artwork, walls and other surfaces within commercial, hospitality and retail environments. 20 degree aiming angle allows for easy in field adjustment to any lighting design. It is easy to install and blends into existing ceiling architecture seamlessly.
FEATURES
Fixture can tilt ± 20° to easily highlight horizontal and vertical surfaces
• Low glare fixtures delivers lighting precisely where intended
SPECIFICATIONS
Optical
Beam Angle
GOOD TO KNOW
Available in 5 light and 10 light self -flange configuration
• Produces a round beam pattern from a linear fixture
Small light apertures deliver “quiet ceiling” lighting designs with minimal glare
• Mix and match with other FUSION light fixtures for even more design options
Mechanical
Self-Flanged, die cast fixture body
End mounted mouse trap style springs
• Install in ceilings between ½” and 1” thick
LED module can tilt ± 20°
• Available in matte black, matte white or custom finish
Color Temperature
Housing
New construction steel frame
supplied with universal bar hangers and butterfly brackets
Bar hangers are adjustable from 13-1/4” to 24-1/2”
• Fixture and driver are serviceable from below the ceiling
Electrical
• Universal 120-277V, 50/60Hz, 0-10V or 120V, 60Hz Triac/ELV dimming driver available
• Drivers connect to LED modules using plenum rated, quick connect cable
Thermal
Die cast aluminum heat sink
Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
Compliance
ETL listed for Damp locations
Warranty
• 5 Year limited parts warranty
Build Your Specification A
1 Specify RAL # from K5 classic collection
LINI™ LN1SQ A | 1" LINEAR RECESSED ACCENT
Adjustable Accent | 370 – 2230 Lumens
FEATURES
COMPREHENSIVE FAMILY WITH COORDINATED APERTURES
• Linear downlights, adjustable accent, and wall wash luminaires with coordinating apertures
• Available in 2, 4, 6, 8, 12 cell configurations
• Flanged, flangeless (gypsum), flangeless (millwork) available
SPOT-ON! PRECISION OPTICS
• Available with metalized reflectors or total internal reflection (TIR) optics in four distributions ranging from 15° to 50° FWHM.
• Ultra low glare optics deliver virtually zero aperture brightness and high CBCP.
• Exceptional shielding with 40° visual cutoff to source/source image
• +/-35° vertical aiming
EXCEPTIONAL PERFORMANCE
• Up to 2230 lumens delivered!
• Exceptionally consistent color with < 2 SDCM
• Excellent color rendition with 80+ CRI | 90+ CRI Available
PERFORMANCE
Performance shown is at 30K | 80CRI with reflector optics Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C
FUSION
Adjustable Downlight
FUSION DOWNLIGHT
provides a flexible, low glare option for highlighting pathways, artwork, walls and other surfaces within commercial, hospitality and retail environments. 20 degree aiming angle allows for easy in field adjustment to any lighting design. It is easy to install and blends into existing ceiling architecture seamlessly.
GOOD TO KNOW
FEATURES
Fixture can tilt ± 20° to easily highlight horizontal and vertical surfaces
• Low glare fixtures delivers lighting precisely where intended
SPECIFICATIONS
Optical
Beam Angle
• Reflector Finish
• Color Temperature
Available in 5 light and 10 light self -flange configuration
• Produces a round beam pattern from a linear fixture
Small light apertures deliver “quiet ceiling” lighting designs with minimal glare
• Mix and match with other FUSION light fixtures for even more design options
Mechanical
Self-Flanged, die cast fixture body
• End mounted mouse trap style springs
Install in ceilings between ½” and 1” thick
LED module can tilt ± 20°
• Available in matte black, matte white or custom finish
Housing
New construction steel frame
supplied with universal bar hangers and butterfly brackets
Bar hangers are adjustable from 13-1/4” to 24-1/2”
Fixture and driver are serviceable from below the ceiling
Electrical
• Universal 120-277V, 50/60Hz, 0-10V or 120V, 60Hz Triac/ELV dimming driver available
• Drivers connect to LED modules using plenum rated, quick connect cable
Thermal
• Die cast aluminum heat sink
Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
Compliance
ETL listed for Damp locations
Warranty
5 Year limited parts warranty
Build Your Specification A
1 Specify RAL # from K5 classic collection
2" Round Downlight Standard White
FEATURES
• 1/4" bezel regress with 3/32" micro flange 20° - 55° optical beam control
• UGR < 17
• 100 LPW average
• Glare control, specialty optics, trim options, and custom finishes available
• Microban antimicrobial finish available on all exposed painted surfaces
• eldoLED flicker free 0-10V dimming to 0% and 1% eldoLED flicker free DALI dimming to 0% and 1%
• Lutron Hi-lumen 2-Wire (Eco System) dimming to 0.1% and 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• Casambi bluetooth dimming to 1.0%
• NLight control interface dimming to 0%
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0 IP65 with lens - Suitable for wet locations with lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• 5 Year Limi ted warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistanc e properties
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/2" to 1-1/4"
ELECTRICAL
• 120V-277V, 120 only Triac / ELV Power factor ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 9 0min battery
• Max. ambient installation temperature 95°F (35°C)
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available Flood optic, narrow flood and spot optics (included) 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
MOUNTING OPTIONS
SEE PAGE 5, 6
ORDERING CODE
NC new construction with ceiling fitting plate
IC3 insulation contact housing
ICAT3 insulation contact/airtight housing
CP3 chicago plenum housing
RET retrofit, no ceiling fitting plate
VOLTAGE 120 120V
UNV 120V-277V
DIM10 eldoLED flicker free 0-10V dimming to 1%
DIM10Z eldoLED flicker free 0-10V dimming to 0%
DALI eldoLED flicker free DALI 2 dimming to 1%
DALIZ eldoLED flicker free DALI 2 dimming to 0%
LUT Lutron Hi-lume Ecosystem dimming to 1%, Soft-on & Fade-to-Black
DIMMING
ELECTRICAL OPTIONS
LUTP4 Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black
ELV15 leading & trailing edge (Triac/ELV) dimming to 1%
NLT6 nLight control interface: standard Cat-5/RJ45 connection (female), dim to off
CAS Casambi Bluetooth control with flicker free 1% dimming
EM7 emergency battery backup, 90 minutes at 7W to LED
EM12 emergency battery backup, 90 minutes at 12W to LED
EM10CA20 emergency battery backup, 90 minutes at 10W to LED, CA title 20
2" Iolite Accessories
2" Iolite Round Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type Project Catalog No.
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trims. Dimensions: 7-7/8" diameter 1/2" thick
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available Flood optic, narrow flood and spot optics (included) 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trims. Dimensions: 7-7/8" diameter 1/2" thick
• eldoLED flicker free 0-10V dimming to 0% and 1% eldoLED flicker free DALI dimming to 0% and 1%
• Lutron Hi-lumen 2-Wire (Eco System) dimming to 0.1% and 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• Casambi bluetooth dimming to 1.0%
• NLight control interface dimming to 0%
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0 IP65 with lens - Suitable for wet locations with lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• 5 Year Limi ted warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistanc e properties
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/2" to 1-1/4"
ELECTRICAL
• 120V-277V, 120 only Triac / ELV Power factor ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 9 0min battery
• Max. ambient installation temperature 95°F (35°C)
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available · Flood optic, narrow flood and spot optics (included) 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
MOUNTING OPTIONS
SEE PAGE 5, 6
ORDERING CODE
NC new construction with ceiling fitting plate
IC3 insulation contact housing
ICAT3 insulation contact/airtight housing
CP3 chicago plenum housing
RET retrofit, no ceiling fitting plate
VOLTAGE 120 120V
UNV 120V-277V
DIM10 eldoLED flicker free 0-10V dimming to 1%
DIM10Z eldoLED flicker free 0-10V dimming to 0%
DALI eldoLED flicker free DALI 2 dimming to 1%
DALIZ eldoLED flicker free DALI 2 dimming to 0%
LUT Lutron Hi-lume Ecosystem dimming to 1%, Soft-on & Fade-to-Black
DIMMING
ELECTRICAL OPTIONS
LUTP4 Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black
ELV15 leading & trailing edge (Triac/ELV) dimming to 1%
NLT6 nLight control interface: standard Cat-5/RJ45 connection (female), dim to off
CAS Casambi Bluetooth control with flicker free 1% dimming
EM7 emergency battery backup, 90 minutes at 7W to LED
EM12 emergency battery backup, 90 minutes at 12W to LED
EM10CA20 emergency battery backup, 90 minutes at 10W to LED, CA title 20
2" Iolite Accessories
2" Iolite Round Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type Project Catalog No.
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trims. Dimensions: 7-7/8" diameter 1/2" thick
CATIRPEL is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required, ordered separately.
Wattage 3W per module (NSP only) – 3W
6W
Voltage 24V DC
Finish Matte smooth finish: Black Anodized
Power Connection
SOURCE High-Efficiency LED.
Textured finish: Ferrite Dark Grey Sandstone Grey
White Custom RAL
Black Heritage Brown Bronze
Pre-cabled with IN/OUT IP68 connections for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.
Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP67
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed. Tested in accordance with LM-79-08. Compliant for California installations. RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments.
Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
Efficacy 84Lm/W max. Refer to photometric graphs for specific values. Lifetime
CATIRPELTM is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required.
Wattage 3W per module (NSP only) – 3W Single / 9W Triple / 15W Quintet 6W per module – 6W Single / 18W Triple / 30W Quintet
Voltage 24V DC
Ambient Temp. -25ºC / +35°C (95°F)
Finish Matte smooth finish: Black Anodized Burnished Copper
Textured finish: Ferrite Dark Grey Sandstone Grey
Black Heritage Brown Bronze
Custom RAL
Dune Grey White Olive Green
Power Connection Pre-cabled with IN/OUT IP67 connectors for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.
Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP66
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed.
Tested in accordance with LM-79-08. Compliant for California installations.
RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments. Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
NSP version equipped with PMMA lens and holographic
/ GZ versions equipped with collimating acrylic lens and holographic
Efficacy 84Lm/W max. Refer to photometric graphs for specific values.
CATIRPEL is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required, ordered separately.
Wattage 3W per module (NSP only) – 3W
6W
Voltage 24V DC
Finish Matte smooth finish: Black Anodized
Power Connection
SOURCE High-Efficiency LED.
Textured finish: Ferrite Dark Grey Sandstone Grey
White Custom RAL
Black Heritage Brown Bronze
Pre-cabled with IN/OUT IP68 connections for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.
Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP67
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed. Tested in accordance with LM-79-08. Compliant for California installations. RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments.
Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
Efficacy 84Lm/W max. Refer to photometric graphs for specific values. Lifetime
CATIRPELTM is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required.
Wattage 3W per module (NSP only) – 3W Single / 9W Triple / 15W Quintet 6W per module – 6W Single / 18W Triple / 30W Quintet
Voltage 24V DC
Ambient Temp. -25ºC / +35°C (95°F)
Finish Matte smooth finish: Black Anodized Burnished Copper
Textured finish: Ferrite Dark Grey Sandstone Grey
Black Heritage Brown Bronze
Custom RAL
Dune Grey White Olive Green
Power Connection Pre-cabled with IN/OUT IP67 connectors for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.
Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP66
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed.
Tested in accordance with LM-79-08. Compliant for California installations.
RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments. Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
NSP version equipped with PMMA lens and holographic
/ GZ versions equipped with collimating acrylic lens and holographic
Efficacy 84Lm/W max. Refer to photometric graphs for specific values.
CATIRPEL is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required, ordered separately.
Wattage 3W per module (NSP only) – 3W
6W
Voltage 24V DC
Finish Matte smooth finish: Black Anodized
Power Connection
SOURCE High-Efficiency LED.
Textured finish: Ferrite Dark Grey Sandstone Grey
White Custom RAL
Black Heritage Brown Bronze
Pre-cabled with IN/OUT IP68 connections for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.
Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP67
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed. Tested in accordance with LM-79-08. Compliant for California installations. RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments.
Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
Efficacy 84Lm/W max. Refer to photometric graphs for specific values. Lifetime
CATIRPELTM is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required.
Wattage 3W per module (NSP only) – 3W Single / 9W Triple / 15W Quintet 6W per module – 6W Single / 18W Triple / 30W Quintet
Voltage 24V DC
Ambient Temp. -25ºC / +35°C (95°F)
Finish Matte smooth finish: Black Anodized Burnished Copper
Textured finish: Ferrite Dark Grey Sandstone Grey Black Heritage Brown Bronze
Custom RAL
Dune Grey White Olive Green
Power Connection Pre-cabled with IN/OUT IP67 connectors for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.
Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP66
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed.
Tested in accordance with LM-79-08. Compliant for California installations.
RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments. Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
NSP version equipped with PMMA lens and
GZ versions equipped with collimating acrylic lens and holographic
Efficacy 84Lm/W max. Refer to photometric graphs for specific values.
CATIRPEL is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required, ordered separately.
Wattage 3W per module (NSP only) – 3W
6W
Voltage 24V DC
Finish Matte smooth finish: Black Anodized
Power Connection
SOURCE High-Efficiency LED.
Textured finish: Ferrite Dark Grey Sandstone Grey
White Custom RAL
Black Heritage Brown Bronze
Pre-cabled with IN/OUT IP68 connections for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.
Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP67
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed. Tested in accordance with LM-79-08. Compliant for California installations. RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments.
Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
Efficacy 84Lm/W max. Refer to photometric graphs for specific values. Lifetime
CATIRPELTM is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required.
Wattage 3W per module (NSP only) – 3W Single / 9W Triple / 15W Quintet 6W per module – 6W Single / 18W Triple / 30W Quintet
Voltage 24V DC
Ambient Temp. -25ºC / +35°C (95°F)
Finish Matte smooth finish: Black Anodized Burnished Copper
Textured finish: Ferrite Dark Grey Sandstone Grey
Black Heritage Brown Bronze
Custom RAL
Dune Grey White Olive Green
Power Connection Pre-cabled with IN/OUT IP67 connectors for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.
Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP66
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed.
Tested in accordance with LM-79-08. Compliant for California installations.
RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments. Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
NSP version equipped with PMMA lens and holographic
/ GZ versions equipped with collimating acrylic lens and holographic
Efficacy 84Lm/W max. Refer to photometric graphs for specific values.
The Lumenpulse Lumenblade Nano is an outdoor LED luminaire that uses a rectilinear version of the Lumencentro light engine to create a continuous line of light. Side Mount or Wall Mount options are available. Its seen-but-not-seen, minimalist design is sustainable, blends with both contemporary and heritage architectures, provides a high level of security, and is sensitive to the natural environment with DarkSky approval, low outputs, and with a BUG rating of 0.
Type II, Type III or Type IV (with or without backlight shield), Type V, Type V square
Louver
Meets ANSI C136.31-2018 vibration rating for Bridge & Overpass applications
Vibration Rated for Bridge and Overpass
Corrosion-resistant Coating for Hostile Environments
5-year limited warranty
Minimum 200lm/ Maximum 2500lm
Up to 127 lm/W (XS10 lumen output, 4000K, CRI 70+, Type VS)
3 SDCM for CRI 70+, 2 SDCM for CRI 80+ and CRI 90+
TM-21 L70 > 145,000 hrs (reported, Ta 25 - 50 °C [77 - 122 °F])
DarkSky Approved (2200K, 2700K, 3000K and Amber color temperatures, BUG rating of U0)
W1H2 Wall Mount Option Shown
DATE:
PROJECT:
FIRM:
CATALOG NO: COMMENTS:
WS-PL2014 from Lumux is an elegant, architectural downlight wall sconce that excels at defining spaces, both during the day and at night.
Ideal for illuminating plazas and paths, WS-PL2014 is a powerful outdoor LED solution, with broad, mid, and narrow distribution patterns, designed to throw light forward while also accenting walls and facades. WS-PL2014 offers a distinctively modern, minimalist design constructed from heavy-duty aluminum extrusion, providing durability that meets the highest standards. Part of the Lumux lighting collection that includes BL350 bollards and PL2014 area lighting.
DATE:
PROJECT:
FIRM:
CATALOG NO: COMMENTS:
WALL SCONCE
WS-PL2014 is a plaza and path wall sconce, perfect for area lighting, with a modern design and forward beam angle options.
1Consult factory for additional options
2Consult factory for additional pricing
Ordering Guide Catalog No.:
Performance Specifications
Flux 8,500 lm (PL2014-T2 4000K) LER 104 lm/W
Power 82W 120-277v input voltage
Starting temp. rated to -20˚F Photocell & Sensor options
Gasket: Closed-cell silicone foam gasket seals out moisture, dust, and insects, for weather-tight operation. IP65 and ETL listed for wet locations.
Mounting: Secures with galvanized anchor bolts to contractor installed concrete footing.
Installation: Please refer to installation instructions.
Finish: Zinc polyester powder coat finish in black, white, silver, bronze, or any custom RAL color. Consult factory for marine grade or anti-microbial finish.
Light Engine: Constant Current driver powering high quality LEDs, with integrated 0-10v dimming.
Integral Battery Pack: Optional 10W IBP integral emergency battery pack provides 1,000 lumens with a 90 minute battery life.
Content of specification sheet subject to change
Description
Features
Mounting
Color and Color Temperature
Distributions
Optical Option (factory installed)
Vibration Rating
Option
Warranty
Performance
Output (Nominal Lumens)
Efficacy
Color Rendering
Lumen Maintenance
DarkSky
The Lumenpulse Lumenblade Nano is an outdoor LED luminaire that uses a rectilinear version of the Lumencentro light engine to create a continuous line of light. Side Mount or Wall Mount options are available. Its seen-but-not-seen, minimalist design is sustainable, blends with both contemporary and heritage architectures, provides a high level of security, and is sensitive to the natural environment with DarkSky approval, low outputs, and with a BUG rating of 0.
Type II, Type III or Type IV (with or without backlight shield), Type V, Type V square
Louver
Meets ANSI C136.31-2018 vibration rating for Bridge & Overpass applications
Vibration Rated for Bridge and Overpass
Corrosion-resistant Coating for Hostile Environments
5-year limited warranty
Minimum 200lm/ Maximum 2500lm
Up to 127 lm/W (XS10 lumen output, 4000K, CRI 70+, Type VS)
3 SDCM for CRI 70+, 2 SDCM for CRI 80+ and CRI 90+
TM-21 L70 > 145,000 hrs (reported, Ta 25 - 50 °C [77 - 122 °F])
DarkSky Approved (2200K, 2700K, 3000K and Amber color temperatures, BUG rating of U0)
W1H2 Wall Mount Option Shown
DATE:
PROJECT:
FIRM:
CATALOG NO: COMMENTS:
WS-PL2014 from Lumux is an elegant, architectural downlight wall sconce that excels at defining spaces, both during the day and at night.
Ideal for illuminating plazas and paths, WS-PL2014 is a powerful outdoor LED solution, with broad, mid, and narrow distribution patterns, designed to throw light forward while also accenting walls and facades. WS-PL2014 offers a distinctively modern, minimalist design constructed from heavy-duty aluminum extrusion, providing durability that meets the highest standards. Part of the Lumux lighting collection that includes BL350 bollards and PL2014 area lighting.
DATE:
PROJECT:
FIRM:
CATALOG NO: COMMENTS:
WALL SCONCE
WS-PL2014 is a plaza and path wall sconce, perfect for area lighting, with a modern design and forward beam angle options.
1Consult factory for additional options
2Consult factory for additional pricing
Ordering Guide Catalog No.:
Performance Specifications
Flux 8,500 lm (PL2014-T2 4000K) LER 104 lm/W
Power 82W 120-277v input voltage
Starting temp. rated to -20˚F Photocell & Sensor options
Gasket: Closed-cell silicone foam gasket seals out moisture, dust, and insects, for weather-tight operation. IP65 and ETL listed for wet locations.
Mounting: Secures with galvanized anchor bolts to contractor installed concrete footing.
Installation: Please refer to installation instructions.
Finish: Zinc polyester powder coat finish in black, white, silver, bronze, or any custom RAL color. Consult factory for marine grade or anti-microbial finish.
Light Engine: Constant Current driver powering high quality LEDs, with integrated 0-10v dimming.
Integral Battery Pack: Optional 10W IBP integral emergency battery pack provides 1,000 lumens with a 90 minute battery life.
Content of specification sheet subject to change
ALP2700TL
LED Wall Washer Profile
SPECIFICATIONS
TYPE
AVAILABLE LENGTHS
FINISH
LENS OPTIONS
TRANSFORMER
APERTURE
CHANNEL
LENS (INCLUDED)
Recessed mount
48” & 96”
Matte White Frosted Remote 1”
ALP2700TL
ALP2100TL-LN
Compatible with LED strips up to 23.7mm (0.93”) wide.
LED tape light sold separately.
Frosted Lens diffuser included w/ every channel
Custom color finishes available (powder-coating).
Remote mounted low-voltage power supply sold separately
JOB NAME: LOCATION: QUOTE/REF#:
The ALP-2700TL is an Architectural Grade, LED extrusion profile designed for recessed applications. Made from high quality aluminum, these extrusions provide superior thermal management for higher wattage LED strips prolonging the overall lifespan of of the lighting system. Manufactured with a patented frosted diffuser for maximum lumen output and a wider beam distribution.
FEATURES
■ Customizable
■ Field cuttable
■ 1” Aperture
■ Accomodates LED strips up to 23mm wide
■ Reces sed mount to fit flush onto installation surface
■ Fr osted Lens diffuser included
■ Matte white powder coated finish
■ Durable, anodiz ed aluminum
■ Protects LEDs from dust and other elements
■ Dissipates heat from LED
5450 PROFILE
5000 Series
PERFECT FOR CABINETRY
The 5450 is a compact recessed LED lighting profile for cabinetry and other wood furnishing projects, directing the light beam at a 25-degree angle which allows you to light the cabinet contents from the edge. This profile will fit in a 5/8 inch deep recess.
FEATURES
– Recessed installation inside a 3/4-inch (19mm) wide and 1/2-inch (13mm) deep recess.
– Custom length by sections of 96 inches (2.44m).
– Made of ALCOA 6063-T5 aluminum alloy increasing heat dissipation.
– Its use increases the lifetime of your LED engine.
– Designed to meet North American woodworking standards.
– Conforms to UL STD. 2108 for closet usage.
Cross-section dimensions:
IP22: Compatible with LED engines up to 10mm wide.
IP68: Compatible with LED engines up to 5mm wide. LINEAR WEIGHT
0.163 lbs/ft, 0.242 kg/m (without lens)
EX: ALP2700TL-48-FR
5450 Profile ordering sheet 5000 Series
5450 - 5450 Profile, alu
LENSES
- No
Custom length by sections of 2 to 96 inches (2.44m).
*NOTE: Follow this diagram to calculate the correct length
42 - 4200K LP4 - 488 LM / 5.8W FT / 90+CRI NO - No lead
Lumen Package selection is not available for WD, TW and RGB color options.
For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
- Non-dimming DC plug in
F - DMX
G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
J - Casambi CBU-PWM4-4CHBluetooth 100/277 VAC
K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC
RGB2 - RGB 19W/m NO - No driver
Luminaire -
Luminaire -
ALP-50C
SURFACE/ CORNER MOUNT PROFILE
The ALP-50C is an Architectural-grade LED extrusion designed for surface/ corner mount applications and can fit linear LED strips up to 16mm (0.63”) wide. Made from high quality aluminum and manufactured with a patented frosted diffuser for maximum lumen output and wider beam distribution.
SPECIFICATIONS
TYPE
AVAILABLE LENGTHS
FINISH LENS OPTION
CHANNEL
LENS
END CAP
MOUNTING CLIPS WARRANTY
Surface/ Corner Mount
48 in./ 84 in./ 98.5 in.
Black/ Silver
Frosted
ALP50C
ALP50C-LN (Frosted)
ALP50C-EC
ALP50C-CL 5 Years
FEATURES
Customizable
Durable, anodized aluminum
Protects LED systems from dust and other elements
Slim, low profile design
Dissipates heat from LED, prolonging its lifetime Compatible with LED strips up to 16mm (0.63 in.) wide
2000 PROFILE
WELL FOCUSED ON THE TASK!
Offering lighting without hot spots at a 45-degree angle from a corner, the 2000 Series excels at maximizing appeal of the products in POP stands, while maintaining a minimalist style.
FEATURES
–
Offers lighting with a beam oriented at 45 degrees.
– Designed to give a uniform light without hot spots with an opal or prime lens*.
– Custom length by sections of 2 to 240 inches (6m).
– Application guide for 10mm (3/8-inch) LED engine or less.
– Made of ALCOA 6063-T5 aluminum alloy increasing heat dissipation.
– Its use increases the lifetime of your LED engine.
– Designed to meet North American woodworking standards.
– Conforms to UL STD. 2108 for closet usage.
Cross-section dimensions:
IP22: Compatible with LED engines up to 14mm wide.
IP68: Compatible with LED engines up to 10mm wide. LINEAR WEIGHT
WD1 - 2200-2700K 14W/m Lumen Package selection is not available for WD, TW and RGB color options.
RGB2 - RGB 19W/m
RGBW2 - 3000K 4in1 14W/m
TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
The ALP-3450TL is an Architectural Grade, LED extrusion profile designed for linear LED strips up to 41mm (1.61 inches) wide and recessed applications. Made from high-quality aluminum, these extrusions provide superior thermal management for higher wattage LED strips prolonging the overall lifespan of the lighting system. Manufactured with a patented frosted diffuser for maximum lumen output and a wider beam distribution.
SPECIFICATIONS
TYPE LED STRIP
LENS OPTION
APERTURE
AVAILABLE LENGTHS
FINISH
CHANNEL
LENS
END CAP
STRAIGHT CONNECTOR
INTERNAL CONNECTOR
LED strips sold separately.
Recessed/ Corner Mount
Fits up 41mm (1.61”)
Frosted
1 Inch
42 in. / 84 in.
Matte White
ALP-3450TL
ALP-3450TL-LN (Included)
ALP-3450TL-EC (Sold Separately)
ALP-2000TL-STB
ALP-2000TL-INB
Remote mounted power supply sold separately.
FEATURES
Field Cuttable Accommodates LED strips up to 41mm (1.61”) wide 1” Aperture Suitable for corner installations/ applications Frosted Lens diffuser included Dissipates heat from LED, prolonging its lifetime
8550 PROFILE
The 8550 Pro profile is designed to disappear into the structure, merging the light source with the surface. Very versatile with 15 LED light sources to choose from 2400 K to 6200 K including WarmDim, Tunable White, RGB and RGB white. Its refined look harmonizes perfectly with any project.
FEATURES
– Available in 96 in (2.43 m) lengths including 3 straight Type C joiners; profile can be cut onsite for easy and accurate installation
– On each side of the extrusion, the edges have grooves that reduce the space between the screws and the surface
– Designed to give a uniform light without hot spots with a prime lens.
– 15 LED light sources to choose from 2400 K to 6200 K, including WarmDim, RGB and RGBW
– Made of ALCOA 6063-T5 aluminum alloy for increased heat dissipation
– Compatible with the HER Pro PVC reflector that provides maximum luminance.
– Indoor use
– Bonus : PVC protector included with each profile
Cross-section dimensions:
LED ENGINE COMPATIBILITY
Compatible with LED engines up to 14mm wide.
WEIGHT
(without lens)
BLANK
8550 Profile ordering sheet
Available in straight section of 8 feet (96 inches/2.4 m).
Series
WD3 - 2700-3500K 14W/m
COBWD - 2200-3200K 14W/m
TW1 - Tunable White 11W/m
LHP - 668 LM / 7.0W FT / 95+CRI F - DMX
WD1 - 2200-2700K 14W/m Lumen Package selection is not available for WD, TW and RGB color options.
G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
J - Casambi CBU-PWM4-4CHBluetooth 100/277 VAC
TW2 - Tunable White 19W/m K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC
62 - 6200K (LP only) For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
- 3000K 4in1 14W/m
Description
BrightLinx offers easy installation with a built-in cable raceway and a quick, plug-andplay connection system. With a polyurethane coating on top of our wash and graze lens options, this fixture is sure to withstand the elements and provide reliable performance for years to come.
Features
Built-in Raceway for Simple Wire Management
• Vandal Proof Polyurethane Lens Coating
• Grazing and Wash Lenses Available
• Matte Anodized Aluminum Housing IP67 and IK10 Ratings
Dimensions
6I(6.24"), 1(12.20″), 2(24.17"), or 4(48.27")
(18.0mm)
(27.0mm)
* Customizable – Consult Factory
§ Additional Accessories Needed
BrightLinx
Specifications
Series BTLX
Temp/Color 1800K–6500K, RGBW
Input Voltage 24V DC
Lumens per Foot 118–793
Watts per Foot 8 (Static White) 5 (Color Changing)
Beam Spread 35°, 45°, 120°
CRI* 90+
Diodes 2835 (Static White) 5050 (Color Changing)
Binning Tolerance 3 SDCM (Static White) -1 Bin
Length Options 6in, 1ft, 2ft, 4ft
Max Run Length 12ft (Static White) 20ft (Color Changing)
5.8W, 24VDC WALL GRAZING LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6” increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• 30° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens
SPECIFICATIONS
ELECTRICAL
•24VDC
•5.8 watts per foot
•90+ CRI
CERTIFICATION
•UL listed for US and Canada
•Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
•IP65
WARRANTY
•5-year warranty when paired with GM power supply
Note: Includes 48” leads. Factory sealed. *Reel Length: XX = per foot
CONTROLLERS
VTX-TTC6 6in tape to tape connector
VTX-TTC12 12in tape to tape connector
VTX-TTC24 24in tape to tape connector
VTX-PCHW8 8ft. hardwired power feed
VTX-EC Tape end cap
Note: For compatible channels, see next page. Accessories included in factory assembled components.
The ALP-20 is an Architectural-grade LED extrusion designed for surface mount applications and can fit linearLED strips up to 12mm (0.5”) wide. Made from high quality aluminum and manufactured with a patented frosted diffuser for maximum lumen output and wider beamdistribution.
FEATURES
■ Customizable
■ Durable, anodized aluminum
■ Protects LED systems from dust and other elements
■ Slim, low profile design
■ Dissipates heat from LED, prolonging its lifetime
DIMENSIONS
ALP20SPECSHEET P1
1100 PROFILE
1000 Series
THE THINNEST OF THE 1000 SERIES
This profile is the thinnest of the 1000 Series being only 6 mm (0.236 inch) thick and 18.7 mm (0.736 inch) wide, and is compatible with most of our LED engines. Perfect for tight spots, it will be very discreet and will stand out.
FEATURES
– The most compact profile of the 1000 Series, only 6mm thick.
– Custom length by sections of 2 to 240 inches (6m).
– Application guide for 10mm (3/8 inch) LED engine or less.
– Made of ALCOA 6063-T5 aluminum alloy increasing heat dissipation.
– Its use increases the lifetime of your LED engine.
– Compatible with multiple installation accessories.
– Designed to meet North American woodworking standards.
Cross-section dimensions:
Compatible with LED engines up to 14mm
0.060 lbs/ft, 0.089 kg/m (without lens)
Profile ordering sheet 1000 Series
F - DMX
62 - 6200K (LP only) DC9** -
G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W DCX** - DC plug custom FT
WD3 - 2700-3500K 14W/m I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
WD1 - 2200-2700K 14W/m Lumen Package selection is not available for WD, TW and RGB color options. NO - No lead For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
RGB2 - RGB 19W/m
K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC
• eldoLED flicker free 0-10V dimming to 0% and 1% eldoLED flicker free DALI dimming to 0% and 1%
• Lutron Hi-lumen 2-Wire (Eco System) dimming to 0.1% and 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• Casambi bluetooth dimming to 1.0%
• NLight control interface dimming to 0%
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0 IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• 5 Year Limi ted warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment
ELECTRICAL
• 120V-277V, 120 only Triac / ELV Power factory ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 9 0min battery
• Max. ambient installation temperature 95°F (35°C)
1" Round Downlight Standard White
NIOB-1RNB
1" Iolite BWF Round Bullnose
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Bullnose trim with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
6 00lm / 9W or 10W
2 700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
C omfort Dim (warm dimming) also available
F lood optic, narrow flood and spot optics (included)
5 -Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
L UMENS / WATTAGE
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV 6 00lm / 9W
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V 6 00lm / 10W
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV 6 00lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 6 00lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
c ULus Listed for Wet Locations
· 5 -Year Limited Warranty
R oHS Compliant
C ertified to the high efficacy requirements of California Title 24 JA8-2022
1" Iolite BWF Round Bullnose - Dedicated Housing Required Color Temperature Finish
NIOB-1RNB27 X = 2700K
NIOB-1RNB30X = 3000K
NIOB-1RNB35 X =
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
MOUNTING OPTIONS
SEE PAGE 5, 6
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH6 new construction with ceiling fitting plate, IC rated, inherently protected
IC insulation contact housing
ICAT insulation contact/airtight housing
CP chicago plenum housing
RET retrofit, no ceiling fitting plate
remote driver housing only VOLTAGE
120V
UNV 120V-277V
DIM10 eldoLED flicker free 0-10V dimming to 1%
DIM10Z eldoLED flicker free 0-10V dimming to 0%
DALI eldoLED flicker free DALI dimming to 1%
DALIZ eldoLED flicker free DALI dimming to 0%
LUT Lutron Hi-lume Ecosystem dimming to 1%, Soft-on & Fade-to-Black
DIMMING
ELECTRICAL OPTIONS
LUTP Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black
ELV1 7 leading & trailing edge (Triac/ELV) dimming to 1%
NLT nLight control interface: standard Cat-5/RJ45 connection (female), dim to off
CAS Casambi Bluetooth control with flicker free 1% dimming
EM7 emergency battery backup, 90 minutes at 7W to LED
EM12 emergency battery backup, 90 minutes at 12W to LED
EM10CA20 remote emergency battery backup, 90 minutes at 10W to LED, CA title 20
ADDITIONAL MOUNTING INFO
New Construction Bar Hangers (included) Mounting Length: 14-3/4" to 26"
Extension Kit p/n: K20266 (ordered separately, 1 per fixture)
Extends a pair of Bar Hangers Total Mounting Length: 29" to 48"
in trimless ordering code.
BEZEL
white
matte chrome
bronze
wheat
CC5 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Follow the steps to specify your fixture, example: NU1
NOTES
1. 12D available in 07LM.
2. NL option does not meet requirements for AT/DF/WET/NSF listings. Lensing cannot be added in the field.
3. Elliptical lens not available with 12D optic options. Actual beam distributions [20D= 25° x
40D= 40° x 70° , 55D= 55° x 80°]
4. HCL not available with lens.
5. Custom set up fee plus minimum quantity required per color.
6. NCINH available in 07LM.
7. ELV1 (120V)
1" Iolite IC Air-Tight New Construction Housing
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1 " Round Bullnose (BWF)
NIOB-1SNB WET 1 " Square Bullnose (BWF)
NIOB-1RNG WET 1 " Round Straight Regress (BWF)
NIOB-1SNG WET 1 " Square Straight Regress (BWF)
NIOB-1RPH WET 1 " Round Pinhole (BWF)
NIOB-1RSL 1 " Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1 " Round Bullnose (NTF)
NIO-1SNB WET 1 " Square Bullnose (NTF)
NIO-1RNG WET 1 " Round Straight Regress (NTF)
NIO-1SNG WET 1 " Square Straight Regress (NTF)
NIOP-1RCY 1 " iPOINT Cylinder
NIOP-1RTC 1 " iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
c ULus Listed for Damp Locations (Wet Locations when used with compatible trim)
5 -Year Limited Warranty
R oHS compliant
F CC compliant
P atent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
• eldoLED flicker free 0-10V dimming to 0% and 1% eldoLED flicker free DALI dimming to 0% and 1%
• Lutron Hi-lumen 2-Wire (Eco System) dimming to 0.1% and 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
• Casambi bluetooth dimming to 1.0%
• NLight control interface dimming to 0%
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0 IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• 5 Year Limi ted warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment
ELECTRICAL
• 120V-277V, 120 only Triac / ELV Power factory ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 9 0min battery
• Max. ambient installation temperature 95°F (35°C)
1" Round Downlight Standard White
NIOB-1RNB
1" Iolite BWF Round Bullnose
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Bullnose trim with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
6 00lm / 9W or 10W
2 700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
C omfort Dim (warm dimming) also available
F lood optic, narrow flood and spot optics (included)
5 -Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
L UMENS / WATTAGE
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV 6 00lm / 9W
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V 6 00lm / 10W
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV 6 00lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 6 00lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
c ULus Listed for Wet Locations
· 5 -Year Limited Warranty
R oHS Compliant
C ertified to the high efficacy requirements of California Title 24 JA8-2022
1" Iolite BWF Round Bullnose - Dedicated Housing Required Color Temperature Finish
NIOB-1RNB27 X = 2700K
NIOB-1RNB30X = 3000K
NIOB-1RNB35 X =
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
MOUNTING OPTIONS
SEE PAGE 5, 6
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH6 new construction with ceiling fitting plate, IC rated, inherently protected
IC insulation contact housing
ICAT insulation contact/airtight housing
CP chicago plenum housing
RET retrofit, no ceiling fitting plate
remote driver housing only VOLTAGE
120V
UNV 120V-277V
DIM10 eldoLED flicker free 0-10V dimming to 1%
DIM10Z eldoLED flicker free 0-10V dimming to 0%
DALI eldoLED flicker free DALI dimming to 1%
DALIZ eldoLED flicker free DALI dimming to 0%
LUT Lutron Hi-lume Ecosystem dimming to 1%, Soft-on & Fade-to-Black
DIMMING
ELECTRICAL OPTIONS
LUTP Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black
ELV1 7 leading & trailing edge (Triac/ELV) dimming to 1%
NLT nLight control interface: standard Cat-5/RJ45 connection (female), dim to off
CAS Casambi Bluetooth control with flicker free 1% dimming
EM7 emergency battery backup, 90 minutes at 7W to LED
EM12 emergency battery backup, 90 minutes at 12W to LED
EM10CA20 remote emergency battery backup, 90 minutes at 10W to LED, CA title 20
ADDITIONAL MOUNTING INFO
New Construction Bar Hangers (included) Mounting Length: 14-3/4" to 26"
Extension Kit p/n: K20266 (ordered separately, 1 per fixture)
Extends a pair of Bar Hangers Total Mounting Length: 29" to 48"
in trimless ordering code.
BEZEL
white
matte chrome
bronze
wheat
CC5 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
Follow the steps to specify your fixture, example: NU1
NOTES
1. 12D available in 07LM.
2. NL option does not meet requirements for AT/DF/WET/NSF listings. Lensing cannot be added in the field.
3. Elliptical lens not available with 12D optic options. Actual beam distributions [20D= 25° x
40D= 40° x 70° , 55D= 55° x 80°]
4. HCL not available with lens.
5. Custom set up fee plus minimum quantity required per color.
6. NCINH available in 07LM.
7. ELV1 (120V)
,
1" Iolite IC Air-Tight New Construction Housing
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1 " Round Bullnose (BWF)
NIOB-1SNB WET 1 " Square Bullnose (BWF)
NIOB-1RNG WET 1 " Round Straight Regress (BWF)
NIOB-1SNG WET 1 " Square Straight Regress (BWF)
NIOB-1RPH WET 1 " Round Pinhole (BWF)
NIOB-1RSL 1 " Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1 " Round Bullnose (NTF)
NIO-1SNB WET 1 " Square Bullnose (NTF)
NIO-1RNG WET 1 " Round Straight Regress (NTF)
NIO-1SNG WET 1 " Square Straight Regress (NTF)
NIOP-1RCY 1 " iPOINT Cylinder
NIOP-1RTC 1 " iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
c ULus Listed for Damp Locations (Wet Locations when used with compatible trim)
5 -Year Limited Warranty
R oHS compliant
F CC compliant
P atent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
Type Project Catalog No. Notes
PRODUCT IMAGES AND DIMENSIONS
PATENT No. D824567S
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Optional Accessories
1" Round Adjustable Standard White
FEATURES
• True 30° Tilt with <6% beam disruption (clipping)
• Zero ceiling line obstruction at Full Tilt
• Concentric Tilt Tracking ensures minimal light loss 17° - 55° optical beam control
• UGR < 19
• Glare control, specialty optics, trim options, and custom finishes available
• Microban® antimicrobial finish available on all exposed painted surfaces
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment , see page 9
ELECTRICAL
• Low voltage luminaire: 3 6Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 13LM - 300mA
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC AT Remodel, 120-277V; Triac/ELV/0-10V
0lm / 9W
/ 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
TYPE RA round adjustable RAT round adjustable trimless RATMW round adjustable trimless millwork
LED SW standard white
07LM 630 lm
DELIVERED LUMENS
MOUNTING OPTIONS
SEE PAGE 8 9
VOLTAGE
DIMMING
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8 insulation contact housing
ICAT8 insulation contact/airtight housing
CP8 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected remote driver only
LVL low voltage luminaire
ND No driver included. See page 3 for remote driver options.
Follow the steps to specify your fixture, example: NU1 - RA - SW - 10LM - 35K - 90 - 30D - NA - HET -
NOTES
1. 17D available in 07LM.
2. 17D & 22D not available with NL and CL options.
3. 17D & 22D includes SBL lens as standard. One additional media may be used.
4. Elliptical lens not available with 17D optic options. Actual beam distributions [22D= 25° x
30D= 30° x
, 40D= 40° x 70° 55D= 55° x 80°]
5. NL option does not meet requirements for AT/WET/NSF listings. Bezel lensing cannot be added in the field.
6. Custom set up fee plus minimum quantity required per color.
7. NCINH, RE TINH available in 07LM.
8. IC/ICAT/CP available in 07LM/10LM.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve, add “LIN” after dimming code, i.e. DIM10LIN.
BEZEL COLOR
SEE PAGE 5
CC6 custom color, consult factory for details
finish, add AM to black, white or matte chrome i.e. BKAM.
applicable to trimless option. Do not include in trimless ordering code.
black
white
matte chrome
bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
1" Iolite IC Air-Tight New Construction Housing
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1 " Round Bullnose (BWF)
NIOB-1SNB WET 1 " Square Bullnose (BWF)
NIOB-1RNG WET 1 " Round Straight Regress (BWF)
NIOB-1SNG WET 1 " Square Straight Regress (BWF)
NIOB-1RPH WET 1 " Round Pinhole (BWF)
NIOB-1RSL 1 " Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1 " Round Bullnose (NTF)
NIO-1SNB WET 1 " Square Bullnose (NTF)
NIO-1RNG WET 1 " Round Straight Regress (NTF)
NIO-1SNG WET 1 " Square Straight Regress (NTF)
NIOP-1RCY 1 " iPOINT Cylinder
NIOP-1RTC 1 " iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
c ULus Listed for Damp Locations (Wet Locations when used with compatible trim)
5 -Year Limited Warranty
R oHS compliant
F CC compliant
P atent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment , see page 9
ELECTRICAL
• Low voltage luminaire: 3 6Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 13LM - 300mA
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC AT Remodel, 120-277V; Triac/ELV/0-10V
0lm / 9W
/ 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
TYPE RA round adjustable RAT round adjustable trimless RATMW round adjustable trimless millwork
LED SW standard white
07LM 630 lm
DELIVERED LUMENS
MOUNTING OPTIONS
SEE PAGE 8 9
VOLTAGE
DIMMING
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8 insulation contact housing
ICAT8 insulation contact/airtight housing
CP8 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected remote driver only
LVL low voltage luminaire
ND No driver included. See page 3 for remote driver options.
Follow the steps to specify your fixture, example: NU1 - RA - SW - 10LM - 35K -
NOTES
1. 17D available in 07LM.
2. 17D & 22D not available with NL and CL options.
3. 17D & 22D includes SBL lens as standard. One additional media may be used.
4. Elliptical lens not available with 17D optic options. Actual beam distributions [22D= 25° x
30D=
x
, 40D= 40° x 70° 55D= 55° x 80°]
5. NL option does not meet requirements for AT/WET/NSF listings. Bezel lensing cannot be added in the field.
6. Custom set up fee plus minimum quantity required per color.
7. NCINH, RE TINH available in 07LM.
8. IC/ICAT/CP available in 07LM/10LM.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve, add “LIN” after dimming code, i.e. DIM10LIN.
BEZEL COLOR
SEE PAGE 5
CC6 custom color, consult factory for details
finish, add AM to black, white or matte chrome i.e. BKAM.
applicable to trimless option. Do not include in trimless ordering code.
black
white
matte chrome
bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
1" Iolite IC Air-Tight New Construction Housing
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1 " Round Bullnose (BWF)
NIOB-1SNB WET 1 " Square Bullnose (BWF)
NIOB-1RNG WET 1 " Round Straight Regress (BWF)
NIOB-1SNG WET 1 " Square Straight Regress (BWF)
NIOB-1RPH WET 1 " Round Pinhole (BWF)
NIOB-1RSL 1 " Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1 " Round Bullnose (NTF)
NIO-1SNB WET 1 " Square Bullnose (NTF)
NIO-1RNG WET 1 " Round Straight Regress (NTF)
NIO-1SNG WET 1 " Square Straight Regress (NTF)
NIOP-1RCY 1 " iPOINT Cylinder
NIOP-1RTC 1 " iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
c ULus Listed for Damp Locations (Wet Locations when used with compatible trim)
5 -Year Limited Warranty
R oHS compliant
F CC compliant
P atent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
• Accommodates ceiling thickness from 1/8" to 1-1/2", On-field thick ceiling adjustment , see page 9
ELECTRICAL
• Low voltage luminaire: 3 6Vdc nominal
• 07LM - 150mA
• 10LM - 200mA
• 13LM - 300mA
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC AT Remodel, 120-277V; Triac/ELV/0-10V
0lm / 9W
/ 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
TYPE RA round adjustable RAT round adjustable trimless RATMW round adjustable trimless millwork
LED SW standard white
07LM 630 lm
DELIVERED LUMENS
MOUNTING OPTIONS
SEE PAGE 8 9
VOLTAGE
DIMMING
ORDERING CODE
NC new construction with ceiling fitting plate
NCINH7 new construction with ceiling fitting plate, IC rated, inherently protected
IC8 insulation contact housing
ICAT8 insulation contact/airtight housing
CP8 chicago plenum housing
RET retrofit, no ceiling fitting plate
RETINH7 retrofit, no ceiling fitting plate, IC rated, inherently protected remote driver only
LVL low voltage luminaire
ND No driver included. See page 3 for remote driver options.
Follow the steps to specify your fixture, example: NU1 - RA - SW - 10LM - 35K -
NOTES
1. 17D available in 07LM.
2. 17D & 22D not available with NL and CL options.
3. 17D & 22D includes SBL lens as standard. One additional media may be used.
4. Elliptical lens not available with 17D optic options. Actual beam distributions [22D= 25° x
30D=
x
, 40D= 40° x 70° 55D= 55° x 80°]
5. NL option does not meet requirements for AT/WET/NSF listings. Bezel lensing cannot be added in the field.
6. Custom set up fee plus minimum quantity required per color.
7. NCINH, RE TINH available in 07LM.
8. IC/ICAT/CP available in 07LM/10LM.
* EldoLED uses logarithmic dimming curve as standard. For linear dimming curve, add “LIN” after dimming code, i.e. DIM10LIN.
BEZEL COLOR
SEE PAGE 5
finish, add AM to black, white or matte chrome i.e. BKAM.
applicable to trimless option. Do not include in trimless ordering code.
black
white
matte chrome
bronze
wheat
CC6 custom color, consult factory for details
Antimicrobial finish, add AM to black, white or matte chrome i.e. BKAM.
1" Iolite IC Air-Tight New Construction Housing
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1 " Round Bullnose (BWF)
NIOB-1SNB WET 1 " Square Bullnose (BWF)
NIOB-1RNG WET 1 " Round Straight Regress (BWF)
NIOB-1SNG WET 1 " Square Straight Regress (BWF)
NIOB-1RPH WET 1 " Round Pinhole (BWF)
NIOB-1RSL 1 " Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1 " Round Bullnose (NTF)
NIO-1SNB WET 1 " Square Bullnose (NTF)
NIO-1RNG WET 1 " Round Straight Regress (NTF)
NIO-1SNG WET 1 " Square Straight Regress (NTF)
NIOP-1RCY 1 " iPOINT Cylinder
NIOP-1RTC 1 " iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
c ULus Listed for Damp Locations (Wet Locations when used with compatible trim)
5 -Year Limited Warranty
R oHS compliant
F CC compliant
P atent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
• Maximum Remote mounting distance of EM driver shall be 50 feet
REMOTE SINGLE DRIVER BOX
REMOTE 2 TO 3 DRIVER BOX (2 Drivers for DIM10Z/DALI/DALIZ/LUT/LUTP) (1 Driver + EM)
REMOTE 4 TO 5 DRIVER BOX (3 Drivers for DIM10Z/DALI/DALIZ/LUT/LUTP)
BLANK
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
60 0lm / 9W or 10W
27 00K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Fl ood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DE SCRIPTION LUMENS / WATTAGE
NHIOICD-16LE3 IC AT New Construction, 120V; Triac/ELV
NHIOICD-16LE4 IC AT New Construction, 120-277V; Triac/ELV/0-10V
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V
NHRIOIC-16LE4 IC AT Remodel, 120-277V; Triac/ELV/0-10V
0lm / 9W
/ 10W
/ 9W
/ 10W
/ 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty
· RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1 " Round Bullnose (BWF)
NIOB-1SNB WET 1 " Square Bullnose (BWF)
NIOB-1RNG WET 1 " Round Straight Regress (BWF)
NIOB-1SNG WET 1 " Square Straight Regress (BWF)
NIOB-1RPH WET 1 " Round Pinhole (BWF)
NIOB-1RSL 1 " Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1 " Round Bullnose (NTF)
NIO-1SNB WET 1 " Square Bullnose (NTF)
NIO-1RNG WET 1 " Round Straight Regress (NTF)
NIO-1SNG WET 1 " Square Straight Regress (NTF)
NIOP-1RCY 1 " iPOINT Cylinder
NIOP-1RTC 1 " iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
c ULus Listed for Damp Locations (Wet Locations when used with compatible trim)
5 -Year Limited Warranty
R oHS compliant
F CC compliant
P atent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
• eldoLED flicker free 0-10V dimming to 0% and 1% eldoLED flicker free DALI 2 dimming to 0% and 1%
• Lutron Hi-lumen 2-Wire (Eco System) dimming to 0.1% and 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
LISTING
• ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0 IP44 with lens - Suitable for wet locations with lens - Suitable for damp locations without lens
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• 5 Year Limi ted warranty
CONSTRUCTION
• High-grade die-cast and cold forged aluminum alloy assembly that has superior thermal and corrosion resistance properties.
• Shatter proof acrylic bezel lens
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/8" to 1"
• Fixture is pre-set and shipped at 30deg tilt
ELECTRICAL
• 120V-277V, 120 only Triac / ELV Power factory ≥ 0.9
• 2kV driver input surge protection
• Remote emergency test switch
• 7W, 10W (T20 CEC) and 12W EM 9 0min battery
• Max. ambient installation temperature 95°F (35°C)
1" Round Wall Wash Standard White
NIOB-1RSL
1" Iolite BWF Round Slot Aperture
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF downlights can be specified for use with Iolite new construction or remodel housings. Adjustable slot aperture focus the beam spread through 1-1/8" x 1- 3/8 " opening.
FEATURES
6 00lm / 9W or 10W
2 700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
C omfort Dim (warm dimming) also available
F lood optic, narrow flood and spot optics (included)
5 -Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
L UMENS / WATTAGE
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV 6 00lm / 9W
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V 6 00lm / 10W
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV 6 00lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 6 00lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
c ULus Listed for Damp Locations
5 -Year Limited Warranty
· R oHS Compliant
C ertified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-1RSL50X = 5000K
NIOB-1RSLCDX = Comfort Dim (3000K-1900K)†
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
ELECTRICAL OPTIONS
chicago plenum housing
RET retrofit, no ceiling fitting plate
NCINH2 new construction with ceiling fitting plate, IC rated, inherently protected remote driver housing only
DIM10 eldoLED flicker free 0-10V dimming to 1%
DIM10Z eldoLED flicker free 0-10V dimming to 0%
DALI eldoLED flicker free DALI 2 dimming to 1%
DALIZ eldoLED flicker free DALI 2 dimming to 0%
LUT Lutron Hi-lume Ecosystem dimming to 1%, Soft-on & Fade-to-Black
LUTP Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black
ELV13 leading & trailing edge (Triac/ELV) dimming to 1%
EM7 emergency battery backup, 90 minutes at 7W to LED
EM12 emergency battery backup, 90 minutes at 12W to LED
EM10CA20 remote emergency battery backup, 90 minutes at 10W to LED, CA title 20
1" Iolite IC Air-Tight New Construction Housing
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Access above ceiling required (use remodel housing and frame-in for access from room side)
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL LE3 LE4
Input Voltage 120V 120-277V
Input Power 9W 10W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V
Operating Temp. 40°C max.
COMPATIBLE TRIMS & MONOPOINTS
CATALOG NO. DESCRIPTION
NIOB-1RNB WET 1 " Round Bullnose (BWF)
NIOB-1SNB WET 1 " Square Bullnose (BWF)
NIOB-1RNG WET 1 " Round Straight Regress (BWF)
NIOB-1SNG WET 1 " Square Straight Regress (BWF)
NIOB-1RPH WET 1 " Round Pinhole (BWF)
NIOB-1RSL 1 " Round Adj. Slot Aperture (BWF)
NIO-1RNB WET 1 " Round Bullnose (NTF)
NIO-1SNB WET 1 " Square Bullnose (NTF)
NIO-1RNG WET 1 " Round Straight Regress (NTF)
NIO-1SNG WET 1 " Square Straight Regress (NTF)
NIOP-1RCY 1 " iPOINT Cylinder
NIOP-1RTC 1 " iPOINT Cone
EMERGENCY
Pre-Wired: Housing can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with NHIOICDCP-16
Integrated: Compact emergency driver is mounted directly to the junction box. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
c ULus Listed for Damp Locations (Wet Locations when used with compatible trim)
5 -Year Limited Warranty
R oHS compliant
F CC compliant
P atent #D824567S
· Meets or exceeds ASTM-283 Air-Tight requirements
Innovative, first-of-its-kind technology in architectural downlights, Reflections combines decorative recessed domes with beautifully controlled, reduced-glare indirect LED illumination. Reflections domes (available in 5 , 8 and 12 diameters) are recessed into the ceiling plane and act as reflectors to a completely hidden ring of up-firing LEDs.
The decorative domes: Bloom, Dune, Fleur and Torus consist of beautiful molded geometry for dramatic visual interest with the subtle contrast of light and shadow. The smooth Skye dome creates soft, low-glare general illumination with a peaceful visual aesthetic.
Reflections offers two ceiling appearance options: Flanged for a more traditional ceiling appearance and a field-paintable flange ring, or flangeless for a smooth, mudded-in ceiling appearance.
Pristine design and illumination:
• Reduced glare, indirect illumination (dimmable for enhanced mood-setting options)
• Three aperture options: 5 , 8 and 12 (Flanged or Flangeless appearance)
• Beveled, rounded trim edges smoothly and seamlessly integrate into ceiling
• Housing and Trim/Dome sold separately.
• High quality LM80-tested LEDs for consistent long-life performance and color
SKYE SHOWN IN FLANGELESS
DUNE SHOWN IN FLANGED
SPECIFICATIONS
CCT OPTIONS 2700K, 3000K, 3500K or Warm Color Dimming (3000K-2000K)
VOLTAGE Universal 120V-277V
LIGHT DISTRIBUTION Lambertian
DIMMING1
0-10V, ELV, TRIAC (down to 5%) EldoLED 0-10V or DALI-2 (down to 0.1%) Lutron Hi-lume EcoSystem (down to 0.1%)
POWER SUPPLY Constant current driver with +.9 power factor and +85% efficiency. Serviceable from below the ceiling.
CEILING APPEARANCE Flanged or Flangeless
CEILING THICKNESS Flanged: 1/2" to 1" Flangeless: No ceiling thickness limitations
HOUSING IC Airtight, Chicago Plenum. IC suitable up to R60 spray foam insulation.
FINISH Flanged trim: White (paintable)
GENERAL LISTINGS ETL Listed. Damp Location.
CALIFORNIA TITLE 24 Registered CEC Appliance Database. Can be used to comply with CEC 2019 Title 24 Part 6 (JA8-2016, JA8-2019).
L70 50,000 hours min
WARRANTY2 5 years
Ordering grids available on page 2.
1See visualcomfort.com for dimmer compatibility.
2Visit visualcomfort.com for specific warranty limitations and details.
TORUS SHOWN IN FLANGELESS
FLEUR SHOWN IN FLANGED
BLOOM SHOWN IN FLANGELESS
UPDATED 3/10/23
Trimless Surface
J-Box or E26
LED-TSM-5R-12W-5CCT-WH
850 Lm • White Finish
LED-TSM-7R-15W-5CCT-WH
1,100Lm • White Finish
LED-TSM-9R-18W-5CCT-WH
1,300 Lm • White Finish
LED-TSM-11R-20W-5CCT-WH
1,500 Lm • White Finish
Introducing the EnVision LED Trimless Surface Mount: Crafted with precision, this cutting-edge luminaire boasts an ultra-thin profile, ensuring a sleek and unobtrusive appearance that seamlessly integrates into both residential and commercial recessed environments. This luminaire redefines modern lighting solutions, setting a new standard for sophistication and functionality in the realm of architectural lighting.
Detail Specifications:
•Finishes: White
•IP Rating: Wet Location
•Beam Angle: 100°
•Chip: SMD 2835, R9 >50, CRI >90
•3 Step MacAdam Ellipses
•Operating Temperature: -40° - 114° F
•Lens: Frosted Acrylic, non-yellowing
•Average life (L70) of 50,000 hours
Applications:
•General Recessed Lighting
•Residential & Multifamily
•Office and Meeting Rooms
•Education, Healthcare, Retail, Hospitality
Product Information:
•Available in 4 different sizes
•Battery backup module available in 7" and 9" models
•Extends to just 0.8” from the ceiling
•Standard white round trim included: optional trims available
Driver Options:
•120V Triac dimmable down to 5%
•THD: <15% (+/-5% tolerance), PF >0.9, 50/60Hz
•AC Driverless technology
•Flicker Free
Mounting & Installation:
•3O/4O Junction Box (including pancake j-box)
•Surface mount bracket included
•4” & 6” Recessed can converter
Certifications:
•ETL Listed for USA and CA
•Energy Star Certified
•CA Title 24 JA8-2022 CEC Listed
•5 Year Limited Warranty
•FCC CFR 47, GCC Part 15, Subpart B:2017
•IC Rated and ASTM-E283 Air-Tight
•Closet Rated
Accessories (Order Separately)
TSM-7R-EMB-UNV
7" Surface mount pancake EMB
TSM-7R-EMB-EMPTY-UN
7" Empty surface mount pancake EMB
TSM-9R-EMB-UNV
9" Surface mount pancake EMB
TSM-9R-EMB-EMPTY-UNV
9" Empty surface mount pancake EMB
LED-EMB-25W-HV-0/10V-2P
Remote EMB for fixtures up to 25W
STM-JBX-6-WH
6' Stem Mount (Adjustable length)
White Finish
STM-JBX-6-BLK
6' Stem Mount (Adjustable length)
Black Finish
INDIRECT DOWNLIGHT - NEW CONSTRUCTION
ORDERING GRIDS
TSM-7R-EMB-UNV
TSM-9R-EMB-UNV
TSM-7R-EMPTY-UNV
TSM-9R-EMPTY-UNV
LED-EMB-25W-HV-0/10V-2P
STM-JBX-6-WH
STM-JBX-6-BLK
Trimless Surface J-Box or E26
LED-TSM-5R-12W-5CCT-WH
LED-TSM-7R-15W-5CCT-WH
LED-TSM-9R-18W-5CCT-WH
>90
>90
>90 LED-TSM-11R-20W-5CCT-WH
EMERGENCY BACKUP
Accessory Description
TSM-7R-EMB-UNV 7” Surface mount pancake EMB
TSM-7R -EMB-EMPTY-UNV 7” Empty surface mount pancake EMB
TSM-9R -EMB-UNV 9” Surface mount pancake EMB
TSM-9R-EMB-EMPTY-UNV 9” Empty surface mount pancake EMB
LED-EMB-25W-HV-0/10V-2P Remote EMB for fixtures up to 25W
PENDANT STEM MOUNT
Accessory Description
STM-JBX-6-WH
STM-JBX-6-BLK
>90
6’ Stem Mount (Adjustable length) White Finish
6’ Stem Mount (Adjustable length) Black Finish
TESTED COMPATIBLE DIMMERS
Other dimmers may be compatible but have not been tested. Please contact us for more information.
Lutron
LUTRON PD-6WCL
LUTRON DVCL-153P
LUTRON CTCL-153P
LUTRON MACL-153M
LUTRON LECL-153
FORMERLY KNOWN AS TECH LIGHTING
REFLECTIONS
INDIRECT DOWNLIGHT - NEW CONSTRUCTION
Innovative, first-of-its-kind technology in architectural downlights, Reflections combines decorative recessed domes with beautifully controlled, reduced-glare indirect LED illumination. Reflections domes (available in 5 , 8 and 12 diameters) are recessed into the ceiling plane and act as reflectors to a completely hidden ring of up-firing LEDs.
The decorative domes: Bloom, Dune, Fleur and Torus consist of beautiful molded geometry for dramatic visual interest with the subtle contrast of light and shadow. The smooth Skye dome creates soft, low-glare general illumination with a peaceful visual aesthetic.
Reflections offers two ceiling appearance options: Flanged for a more traditional ceiling appearance and a field-paintable flange ring, or flangeless for a smooth, mudded-in ceiling appearance.
Pristine design and illumination:
• Reduced glare, indirect illumination (dimmable for enhanced mood-setting options)
• Three aperture options: 5 , 8 and 12 (Flanged or Flangeless appearance)
• Beveled, rounded trim edges smoothly and seamlessly integrate into ceiling
• Housing and Trim/Dome sold separately.
• High quality LM80-tested LEDs for consistent long-life performance and color
SKYE SHOWN IN FLANGELESS
DUNE SHOWN IN FLANGED
SPECIFICATIONS
CCT OPTIONS 2700K, 3000K, 3500K or Warm Color Dimming (3000K-2000K)
VOLTAGE Universal 120V-277V
LIGHT DISTRIBUTION Lambertian
DIMMING1
0-10V, ELV, TRIAC (down to 5%) EldoLED 0-10V or DALI-2 (down to 0.1%) Lutron Hi-lume EcoSystem (down to 0.1%)
POWER SUPPLY Constant current driver with +.9 power factor and +85% efficiency. Serviceable from below the ceiling.
CEILING APPEARANCE Flanged or Flangeless
CEILING THICKNESS Flanged: 1/2" to 1" Flangeless: No ceiling thickness limitations
HOUSING IC Airtight, Chicago Plenum. IC suitable up to R60 spray foam insulation.
FINISH Flanged trim: White (paintable)
GENERAL LISTINGS ETL Listed. Damp Location.
CALIFORNIA TITLE 24 Registered CEC Appliance Database. Can be used to comply with CEC 2019 Title 24 Part 6 (JA8-2016, JA8-2019).
L70 50,000 hours min
WARRANTY2 5 years
Ordering grids available on page 2.
1See visualcomfort.com for dimmer compatibility.
2Visit visualcomfort.com for specific warranty limitations and details.
TORUS SHOWN IN FLANGELESS
FLEUR SHOWN IN FLANGED
BLOOM SHOWN IN FLANGELESS
UPDATED 3/10/23
NIO-2RTLNDC
PRODUCT DESCRIPTION
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI Flood optic, narrow flood and spot optics (included) 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28
NHIOICDCP-28 Chicago Plenum
/ 14W
/ 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Die-cast Trim
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Module
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Die-cast Trim
TRIMLESS
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trimless downlights have no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Trimless Mount Mud Ring
NIO-TLMR-2RA
Mounts trimless downlight with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIO-2RTLNDC or NIO-2RTLA.
Assist removing trimless downlight from finished ceiling after installation. For maintenance on trimless downlight.
Hex Cell Louver
NIO-HC Black
Suction Cup
Mud Ring
LED Module
Optic
S Series
INSTALLATION
Ceiling Thickness
SurfaceFrame: 0" up to 1 1/2"
SurfaceFrame (Emergency): 1/2" up to 1 1/4"
Ceiling Material
Drywall
PHYSICAL
Housing 4" Round Junction Box
Application New Construction
Shape
8" Round & 18" x 4" Rectangle
Finish
White
Product Code:
Type:
Date:
8" Round & 18" Linear Surface Mount Downlights
F4NC 4" New Construction
Fire Rated Shallow Junction Box
• 8" round area light for lighting smaller spaces including bathrooms, closets and kitchens
• 18" x 4" rectangular area light perfect for narrow applications such as corridors or kitchen islands
• Extends just 0.6" below the ceiling plane to minimize visual profile
• Features multiple ratings to meet the demands of a wide range of situations
LIGHT OUTPUT & DISTRIBUTION
Module Downlight
Lumens (Power) 1500 lm (17.0W)
Color Quality
90+ CRI, <3-step SDCM
Color Temperature
2700K 3000K
POWER & CONTROLS
RATINGS & CERTIFICATIONS
Housing
IC (Insulation Contact) Rated
ASTM E283 Certified Air Tight
Code compliant for use in fire-rated assemblies up to a maximum of 2-hours
STC/IIC Sound Rated
RoHS Compliant
Module
UL Listed for Wet Location
Warranty
Input Voltage 120V only (TRIAC/ELV), 120/277V (0-10V)
Dimming TRIAC/ELV (5%), 0-10V (1%)
Emergency Lighting
Optional Emergency LED Driver with integrated Test Switch for lighting up to 90 minutes in event of power failure 3500K
5 year limited warranty; 50,000 hours
Trimless Surface
J-Box or E26
LED-TSM-5R-12W-5CCT-WH
850 Lm • White Finish
LED-TSM-7R-15W-5CCT-WH
1,100Lm • White Finish
LED-TSM-9R-18W-5CCT-WH
1,300 Lm • White Finish
LED-TSM-11R-20W-5CCT-WH
1,500 Lm • White Finish
Introducing the EnVision LED Trimless Surface Mount: Crafted with precision, this cutting-edge luminaire boasts an ultra-thin profile, ensuring a sleek and unobtrusive appearance that seamlessly integrates into both residential and commercial recessed environments. This luminaire redefines modern lighting solutions, setting a new standard for sophistication and functionality in the realm of architectural lighting.
Detail Specifications:
•Finishes: White
•IP Rating: Wet Location
•Beam Angle: 100°
•Chip: SMD 2835, R9 >50, CRI >90
•3 Step MacAdam Ellipses
•Operating Temperature: -40° - 114° F
•Lens: Frosted Acrylic, non-yellowing
•Average life (L70) of 50,000 hours
Applications:
•General Recessed Lighting
•Residential & Multifamily
•Office and Meeting Rooms
•Education, Healthcare, Retail, Hospitality
Product Information:
•Available in 4 different sizes
•Battery backup module available in 7" and 9" models
•Extends to just 0.8” from the ceiling
•Standard white round trim included: optional trims available
Driver Options:
•120V Triac dimmable down to 5%
•THD: <15% (+/-5% tolerance), PF >0.9, 50/60Hz
•AC Driverless technology
•Flicker Free
Mounting & Installation:
•3O/4O Junction Box (including pancake j-box)
•Surface mount bracket included
•4” & 6” Recessed can converter
Certifications:
•ETL Listed for USA and CA
•Energy Star Certified
•CA Title 24 JA8-2022 CEC Listed
•5 Year Limited Warranty
•FCC CFR 47, GCC Part 15, Subpart B:2017
•IC Rated and ASTM-E283 Air-Tight
•Closet Rated
Accessories (Order Separately)
TSM-7R-EMB-UNV
7" Surface mount pancake EMB
TSM-7R-EMB-EMPTY-UN
7" Empty surface mount pancake EMB
TSM-9R-EMB-UNV
9" Surface mount pancake EMB
TSM-9R-EMB-EMPTY-UNV
9" Empty surface mount pancake EMB
LED-EMB-25W-HV-0/10V-2P
Remote EMB for fixtures up to 25W
STM-JBX-6-WH
6' Stem Mount (Adjustable length)
White Finish
STM-JBX-6-BLK
6' Stem Mount (Adjustable length)
Black Finish
S Series
PRODUCT BUILDER - TRIAC/ELV, 0-10V
HOUSING
F4NC
8" ROUND MODULE
PRODUCT BUILDER - EMERGENCY LIGHTING
HOUSING
F4NC15OEMS
TSM-7R-EMB-UNV
TSM-9R-EMB-UNV
TSM-7R-EMPTY-UNV
TSM-9R-EMPTY-UNV
LED-EMB-25W-HV-0/10V-2P
STM-JBX-6-WH
STM-JBX-6-BLK
Trimless Surface J-Box or E26
LED-TSM-5R-12W-5CCT-WH
LED-TSM-7R-15W-5CCT-WH
LED-TSM-9R-18W-5CCT-WH
>90
>90
>90 LED-TSM-11R-20W-5CCT-WH
EMERGENCY BACKUP
Accessory Description
TSM-7R-EMB-UNV 7” Surface mount pancake EMB
TSM-7R -EMB-EMPTY-UNV 7” Empty surface mount pancake EMB
TSM-9R -EMB-UNV 9” Surface mount pancake EMB
TSM-9R-EMB-EMPTY-UNV 9” Empty surface mount pancake EMB
LED-EMB-25W-HV-0/10V-2P Remote EMB for fixtures up to 25W
PENDANT STEM MOUNT
Accessory Description
STM-JBX-6-WH
STM-JBX-6-BLK
>90
6’ Stem Mount (Adjustable length) White Finish
6’ Stem Mount (Adjustable length) Black Finish
TESTED COMPATIBLE DIMMERS
Other dimmers may be compatible but have not been tested. Please contact us for more information.
The STEP is a miniature die-cast discrete architectural accent light, STEP provides soft, even illumination for stairs, theater seating aisles and corridors. It can also be applied as a simple walkway marker light. With a CRI of 93 and an R9 value of 82, these LED sources provide exceptional color rendering. The color consistency is further ensured by 2-step MacAdam ellipse binning. Durable die-cast construction allows this product to be used in both interior and exterior IP65 applications. STEP is available in 6 standard finishes with the option to create a one-of-a-kind lighting element with a custom painted color. The classic Italian design of STEP combined with modern LED technology provides illumination and architectural integrity to any project.
Standard Finishes white painted corten painted shining palladium golden palladium natural copper zinc
JOB:
NOTES:
TYPE:QUANTITY:
3021
DU C T DESCRIPTIO N
Deck and patio light with superb forward-throw light distribution
FEATURE S
•IP66 rated, Protected against powerful water jets
• 6' lead wire included
•Translucent lens provides for
• Solid diecast brass or corrosion resistant aluminum alloy
• ADA compliant
• Maintains constant lumen output against voltage drop
• UL 1838 Listed
3021-________
Example:
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFI CATION S
Input:
Power:
Brightness: CRI: Rated Life:
9-15VAC (Transformer is required)
2.8W / 4.6VA (Use VA value for sizing the transformer and calculate voltage drop.)
Stainless Steel, 12-15V output, IP65 rated, UL 1838 listed See transformer spec sheet for details and its accessories
9150-TRN-SS 150W Max
9300-TRN-SS 300W Max
9600-TRN-SS 600W Max
DivaDVLV-600600W33% - 100% Output maxes at 50% dimming level
SkylarkSLV-600P 600W28% - 100%Output maxes at 50% dimming level
SkylarkS-10P 1000W Not recommended
*Low end of this range is determined by output current which may not directly translate to the perceived light output
to a number of factors. Exclusion from the list does not imply incompatibility, just that it has not been tested by WAC Lighting. Please reference the dimmer manufacturer’s instructions for installation, or contact a WAC lighting professional at 800-526-2588.
NO SPEC
3021
PRO DU C T D ESCRIPTIO N
Deck and patio light with superb forward-throw light distribution
FE ATURE S
• IP66 rated, Protected against powerful water jets
• 6' lead wire included
• Translucent lens provides for
• Solid diecast brass or corrosion resistant aluminum alloy
• ADA compliant
• Maintains constant lumen output against voltage drop
• UL 1838 Listed
3021-________
Example:
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFI CATION S
Input:
Power:
Brightness: CRI: Rated Life:
9-15VAC (Transformer is required)
2.8W / 4.6VA (Use VA value for sizing the transformer and calculate voltage drop.)
60 lm 90+
50,000 hours
BLANK
9075-TRN-SS 75W Max
Magnetic Transformers
Stainless Steel, 12-15V output, IP65 rated, UL 1838 listed See transformer spec sheet for details and its accessories
9150-TRN-SS 150W Max
9300-TRN-SS 300W Max
9600-TRN-SS 600W Max
DivaDVLV-600600W33% - 100% Output maxes at 50% dimming level
SkylarkSLV-600P 600W28% - 100%Output maxes at 50% dimming level
SkylarkS-10P 1000W Not recommended
*Low end of this range is determined by output current which may not directly translate to the perceived light output
to a number of factors. Exclusion from the list does not imply incompatibility, just that it has not been tested by WAC Lighting. Please reference the dimmer manufacturer’s instructions for installation, or contact a WAC lighting professional at 800-526-2588.
NO SPEC
Slim Profile Square Linear Vanity Light
DESCRIPTION
See yourself in the best light with the 4907 Series LED Slim Profile Square Linear Vanity Light - the perfect balance between LED energy efficiency and attractive modern style. This vanity will instantly update the decor near your mirrors in either vertical or horizontal mounting and adds a sophisticated finishing touch.
DESIGN FEATURES
Construction
• Durable Steel backplate and frame
• Diffused acrylic lens for uniform light distribution
• Vertical or Horizontal Wall Mount
Electrical
• 120V - 60 Hz
• Dimmable Triac or ELV, 10-100%
• 50,000 hour projected lamp life
• 3000K | 90 CRI
• Beam Angle: 120°
• Ambient Operating Temp.: -4F° (-20°C) to +104°F (+40°C)
