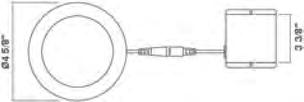

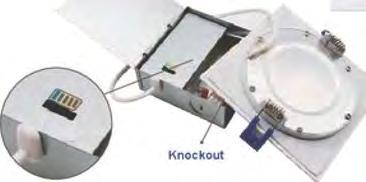

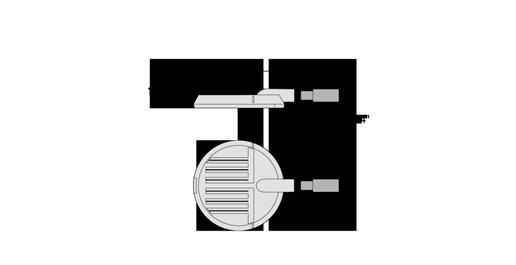

Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes a Selectable CCT switch located on the junction box. The deep reflector provides excellent glare control, quality of light, and efficiency.
FEATURES
Packaged in case quantities of 12
Five color temperatures in each fixture
(2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Gasket included for airtight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2 " and two 3/8 " knockouts and snap on cover. Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8 " to 5/16 ". New construction frame-ins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac or ELV
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: 20W Emergency with Remote Test Switch
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK drivers
NF-R246 : Universal New Construction Frame-In for 4" only
NFC-R430 : New Construction Frame-In with Collar for 4"
NFC-R55: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with 20W or 23W Emergency LED Driver (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the high efficacy requirements of California
Universal New Construction Frame-In for 4" Downlight only
NF-R246
New construction frame-in can be used to assist installing can-less recessed downlighting. Helps indicate wiring location and cutting guide.
New Construction Frame-In with Collar for 4" Downlight
NFC-R430
New construction frame-in can be used to assist installing can-less recessed downlighting.
NEPK-20LEDUNV
100-347V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to charge the battery.
NEPK-20LEDUNV
120-277V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to charge the battery.
New Construction Frame-In with Collar for 6" Downlight
NFC-R55
New construction frame-in can be used to assist installing can-less recessed downlighting.
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
Ribbon Test Switch for Remote Emergency LED Drivers
NEPKA-20/23LEDRTS
Ribbon test switch replaces remote test switch included with emergency driver. Double sided tape is pre-installed. Compatible with NEPK-20LEDUNV & NEPK-23LEDUNV.
NEFLINTW-EW-4
NEFLINTW-EW-20
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40’. For longer remote driver remote run length, consult factory.
20W Emergency LED Driver with Remote Test Switch
20W Emergency LED Driver with Remote Test Switch

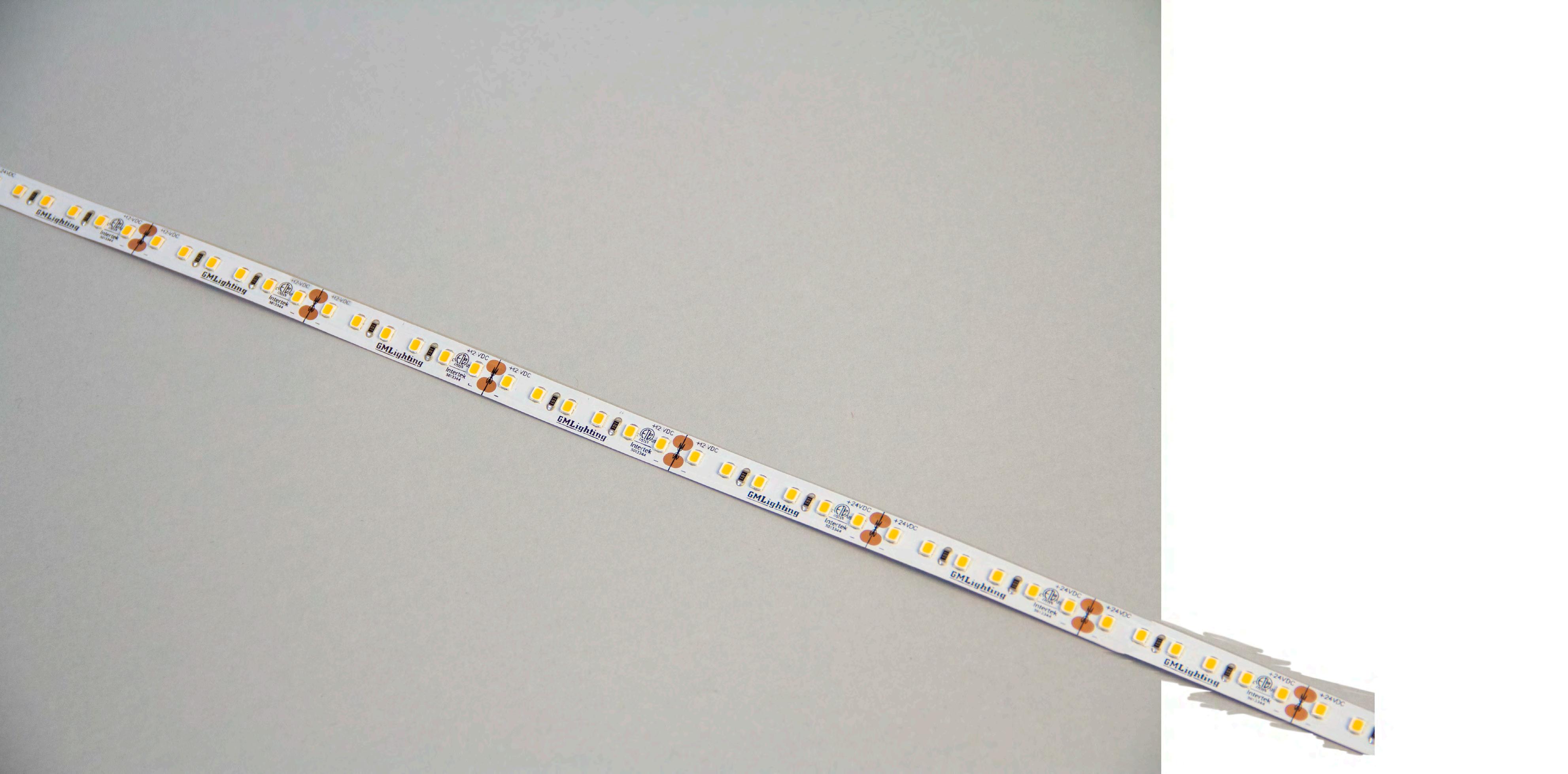

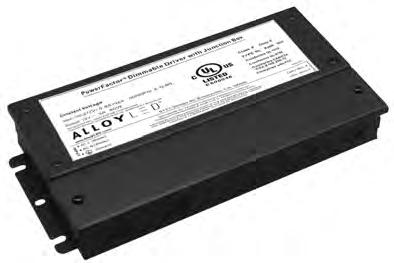

PrimaLine® 3 XT Long-Run LED Tape Light
Actual size shown
PrimaLine 3 XT is a high output, dimmable LED light that supplies the perfect level of brightness for task lighting, bright accent lighting, large coves, hallways, and long applications. This 3W per foot tape is Alloy LED’s most popular brightness level for general applications.
TECHNICAL INFORMATION
Color Temperature
2700K, 3000K, 3500K, 4200K, 5000K*
Power Consumption per Foot 2.88 Watts/120mA
Input Voltage 24V DC
Diodes per foot 36
Diode Spacing 0.325 inches
Tape Height 0.1 inches
Beam Angle 120°
Field Cuttable (UL 2108) Every 2 inches
Maximum Run Length 50 ft.
Dimmable Yes
Diode Type 3528 SMD
0.47 in. wide Cut point every 2 in.
• Extended maximum run length of 50 feet
• Saves installation costs by eliminating multiple home runs
• XT 3 and 4.4 models are manufactured exclusively for Alloy
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 20’
• Includes Sure-Tite connectors
SPECIFICATIONS
•4.5 watts per foot
•90+ CRI
•-4°F to 122°F
• For proper thermal management, we recommend to mount this product in a channel
VOLTAGE DROP GUIDANCE CHART
XT Long-Run 24V Voltage Drop and Wire Length Distance Chart (3% Drop or 24V)
Note: These tables provide general guidelines for determining Wire Gauge based on total load and distance from LED driver to beginning of luminaire.
ACCESSORIES (SOLD SEPARATELY)

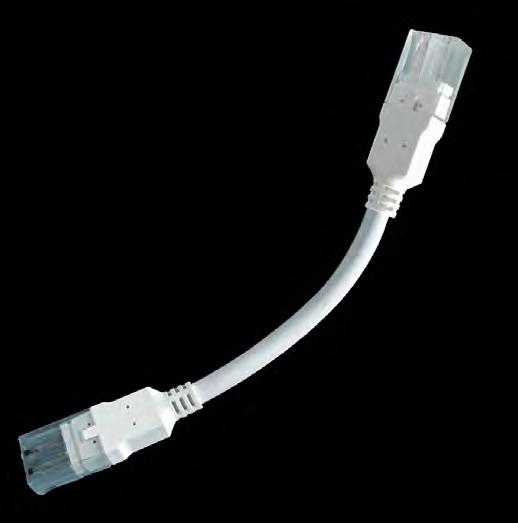

In-Wall-Rated Tape Light Connectors (20 AWG)
LTR-P Professional Series ®
4.5W, 24VDC LED Tape
Specification Sheet
Kelvin temperature (color) ±100K. 16’-4” and 100’ reel includes 48” lead affixed to tape. 16’-4” reel includes (3) ESTW-60 Sure-Tite connectors. 100’ reel includes (10) ESTW-60 Sure-Tite connectors
COMPATIBLE CONTROLLERS
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, see page 8 SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage, see page 8
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 12VDC see page 10
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 12VDC see page 10
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC see page 10
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC see page 10
RECOMMENDED DRIVERS
LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC 20W,
LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W,

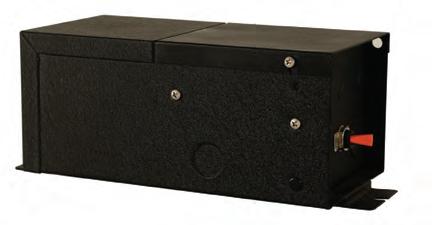

LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W,
LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
Electronic Dimmable Power Supply, 12VDC or 24VDC 15W,
INTENTIONALLY LEFT BLANK
LTR-P Professional Series ®
4.5W, 24VDC LED Tape Specification Sheet
LED-CHL-W Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-W-8 Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-W-AMC (2) Adjustable mounting brackets for LED-CHL-W
LED-CHL-W-EC (2) End caps for LED-CHL-W - one solid, one with hole.
LED-CHL-W-MC (2) Additional mounting clips for LED-CHL-W
LED-CHL2-ECG (2) End caps for LED-CHL2: light gray, one solid, one with hole
LED-CHL2-MC (2) Mounting clips and (2) screws
LED-CHL2-AMC (2) Adjustable mounting clips and (2) screws N/A
45º MINI ANGLE
LED-CHL-45-MINI Extruded angled (45°) silver channel. Includes white snap-on lens with (2) mounting clips and (2) screws.
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI light gray, one solid, one with hole
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI
NOT ON SCHEDULE
NOT ON SCHEDULE
NO SPEC
Recessed Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS UL Listed
State & Municipal
5-Year Limited Warranty
Certified to the energy efficiency standards of California Title 20
Optional Accessories
Lighting

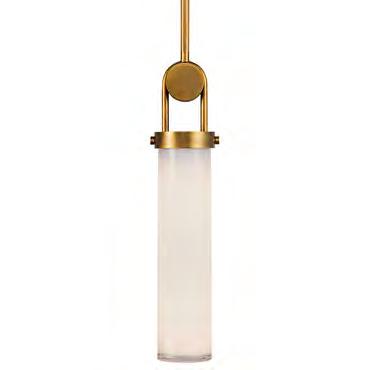

LED-40097 WH
Dimensions:
Lamping:
Voltage: 120-277V
Wattage: 14
Lumens: 1000
ColorTemperature: 3000k
CRI: ≥90
DimmableLEDModule: Y0-10V
RatedLife: 50,000hours
Diffuser:
Lens/DiffuserMaterial: Glass
Lens/DiffuserColor: FrostedWhite
Suggested Dimmers:
The LED-40097 WH is designed to operate with moststandrddimmers.Itisrecommendedtouse an LED dimmer. Fixture is confirmed to work with both TRICA and ELV dimmers. This does not imply any guarantee or warranty of compatibility with a particular application. Unlisteddimmersdonotimplynon-compatibility.
JobName: Location : Date : Quantity :
Finish Options:
Material: Glass, Acrylic Electrical Metal
Ratings & Certifications: Wet Location
Warranty:
Fixture: 1 Year Limited Warranty
Finish: 6 months in normal climatic conditions
LED Module: Rated for 5 years, 50,000 hours
/

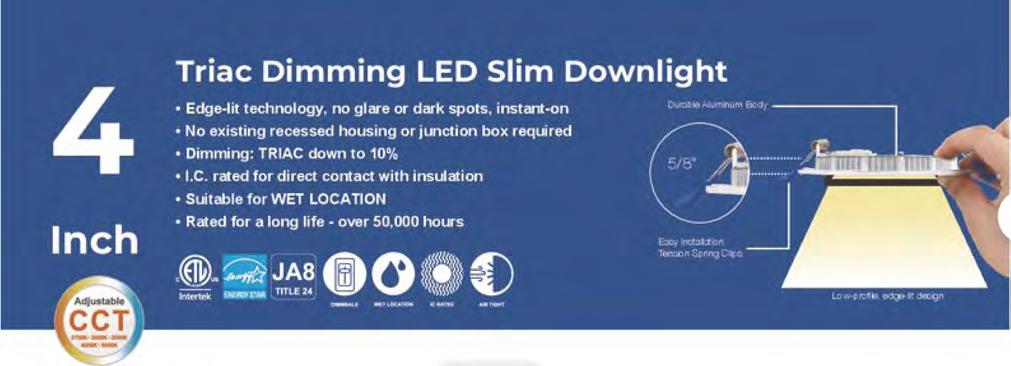

4" & 6" Can-less
PRODUCT DESCRIPTION
Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes a Selectable CCT switch located on the junction box. The deep reflector provides excellent glare control, quality of light, and efficiency.
FEATURES
Packaged in case quantities of 12
Five color temperatures in each fixture
(2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2" and two 3/8" knockouts and snap on cover.
Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/16". New construction frameins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac or ELV
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: Emergency Driver w/Remote Test Switch
NF-R246 : Universal New Construction Frame-In for 4" only
NFC-R430 : New Construction Frame-In with Collar for 4"
NFC-R55: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the high efficacy requirements of California
4" & 6" Can-less LED Downlight with Deep Reflector Accessories
Universal New Construction Frame-In for 4" Downlight only
NF-R246
New construction frame-in can be used to assist installing can-less recessed downlighting. Helps indicate wiring location and cutting guide.
New Construction Frame-In with Collar for 4" Downlight
NFC-R430
New construction frame-in can be used to assist installing can-less recessed downlighting.
Quick Connect Extension Linkable Cables
NEFLINTW-EW-4 4' Cable
NEFLINTW-EW-20 10' Cable
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In with Collar for 6" Downlight
NFC-R55
New construction frame-in can be used to assist installing can-less recessed downlighting.
Emergency Battery with Remote Test Switch
NEPK-20LEDUNV
120-277V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to for full charge.
DESCRIPTION

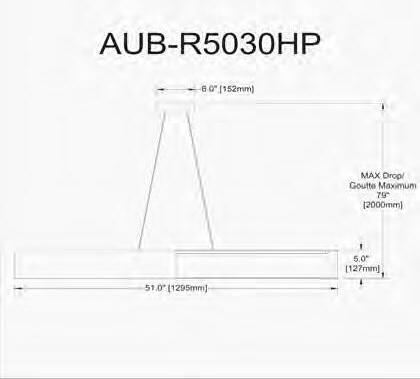

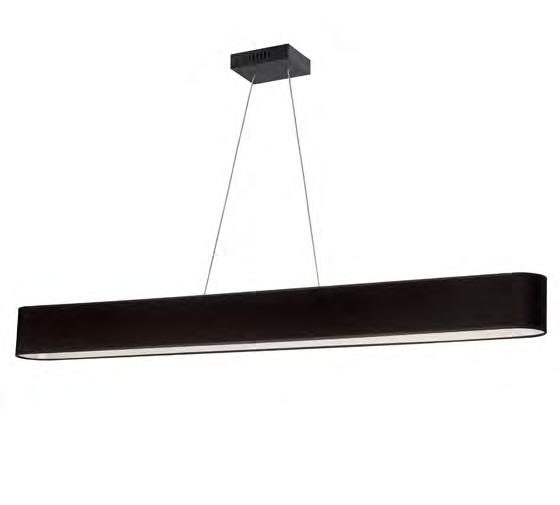

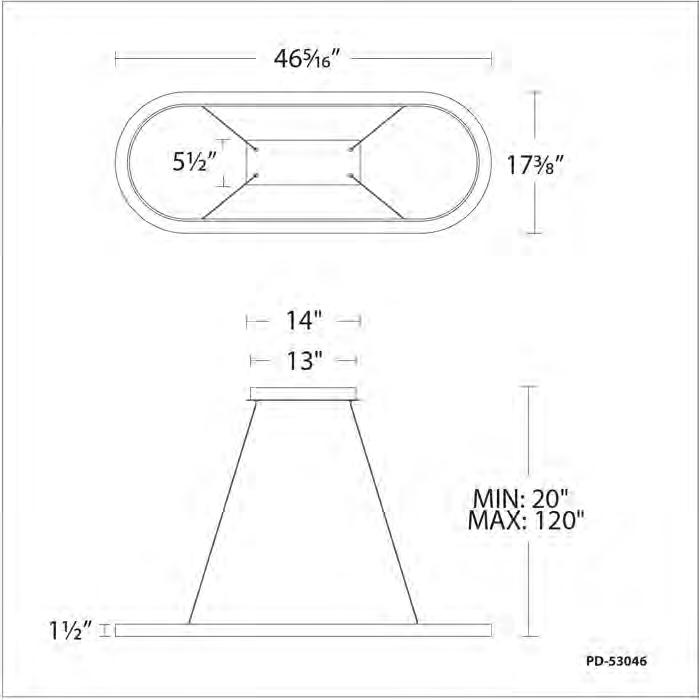

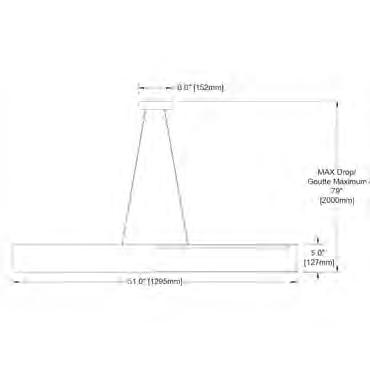

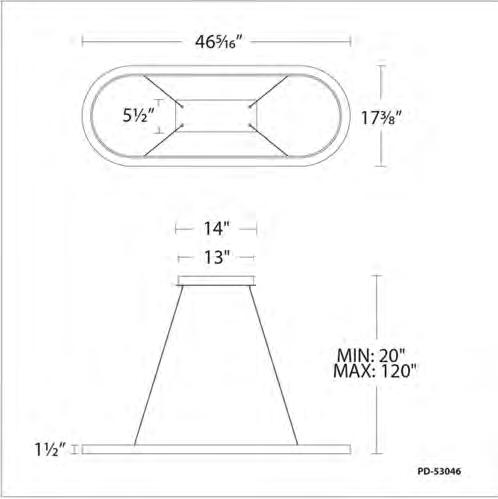

The Aubrey Oval Linear Pendant features an elongated fabric shade suspended by slim cables from a rectangular canopy. Integrated LED lights complement the contemporary design with modern function. Minimal and sophisticated, Aubrey would make a perfect accent above a dining table, bar, or kitchen island.
Aubrey Linear Pendant
BRAND
Dainolite
Shown in: Black / Matte Black
30W Horizontal Matte Black Pendant w/ Black Shade
Features
• A perfect complement to our Components suite of products
• Suitable for any living space, allowing you to create a cohesive design aesthetic throughout your home
• Dimmable, integrated LED emits beautiful ambient light at the perfect color temperature
• Can be positioned up or down depending upon room setting
• Suitable for damp locations, per UL 1598
Material
• Manufactured with quality materials and complemented with a meticulous finishing process
• Durable finishes engineered to last and designed to coordinate with KOHLER faucet finishes
Codes/Standards
California Energy Commission (CEC)
UL 1598
CSA C22.2 No. 250.0
CA Title 24 JA8 cETL Listed ETL Listed

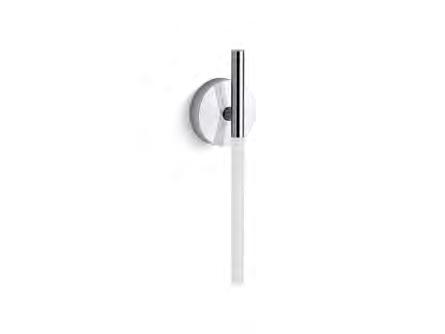

KOHLER® Indoor Lighting Fixtures
Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
ColorCodeDescription
SNLPolished Nickel
BNLBrushed Nickel
CPLPolished Chrome
BLLMatte Black
2GLBrushed Moderne Brass
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications. For the most current Specification Sheet, go to www.kohler.com USA or www.kohler.ca Canada 7-9-2024 23:08 - US
Kohler Co. reserves the right to make revisions without notice to product specifications. For the most current Specification Sheet, go to www.kohler.com USA or www.kohler.ca Canada 7-9-2024 23:08 - US
INTENTIONALLY LEFT BLANK

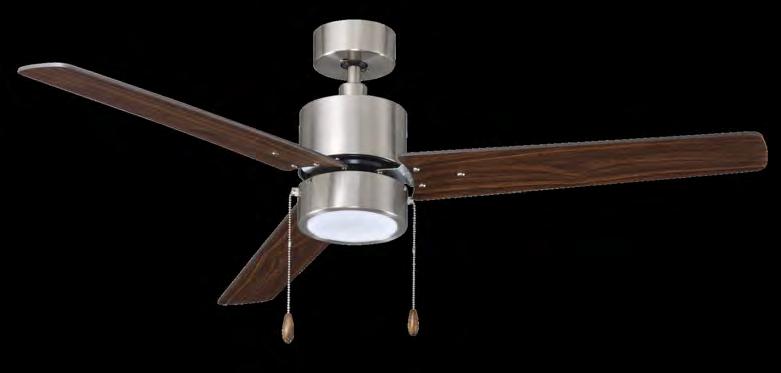

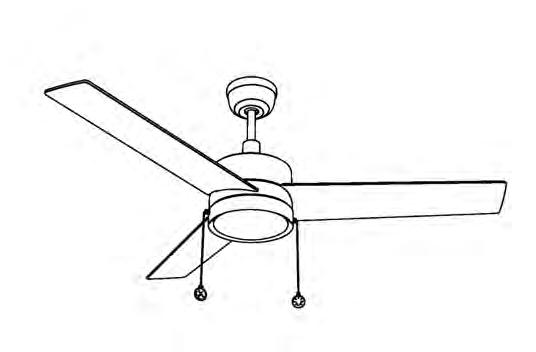

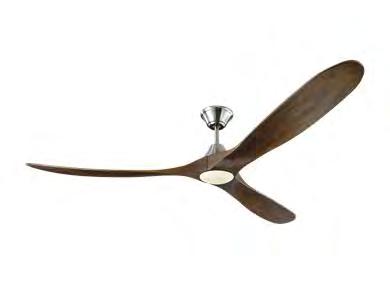

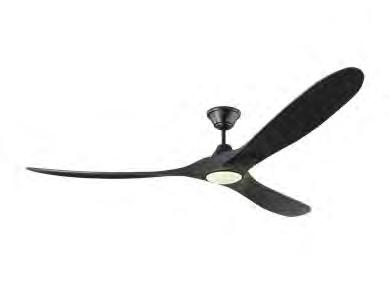

Aldea III - 3-Blade, 52” Sweep, AC Motor, Energy Star Listed
DESCRIPTION
The attractive design of this AC Motor, LED Aldea III Series fan adds style to any contemporary space. The efficient integrated LED light kit provides ample illumination and Energy Star listing allows for energy savings over traditional sources.
DESIGN FEATURES
Motor

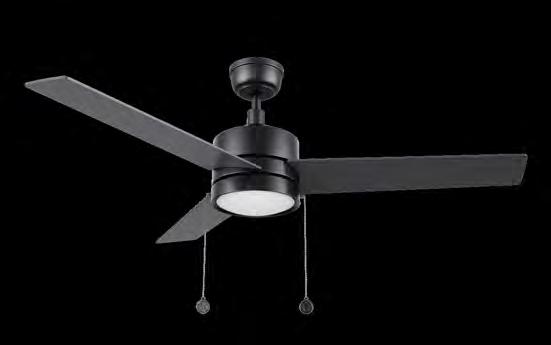

• 3 speed | Reversible
•AC Motor | 172 x 14 mm motor | 3 capacitors
• RPM: High: 198 Low: 81
• 5531 CFM | 50.22W | Efficiency = 110.1
•76” Lead wire | 4” down rod included
Blades
• 3-Blade, 52” sweep
• Blade Construction: Plywood1
• 11° blade pitch
Light Kit
•Integrated LED light kit
• 15W | 1251 lms (source) | 983 lms (delivered)
3000K, 90 CRI, Dimmable
•Acrylic lens replacement: 1071L
Dimensions
Controls:
• Pull Chain Standard
• Optional Remote Control (sold separately) RC-10
• Optional Wall Control (sold separately) WC-4, WC-8, WC-13 and WC-16
Certifications
• Energy Star Listed
• CEC JA8 Listed
• ETLus Listed for dry location
• Fan Motor: Limited Lifetime Warranty
• LED Light Kit: 5 Year Limited Warranty
• Non-Electrical: 1 Year Limited Warranty
NEED FINISH COLOR CHOICE
Brushed Nickel / Brushed Nickel
Brushed Nickel / Walnut
Matte Black / Matte Black
Oil Rubbed Bronze / Walnut
White / White
DC Motor
-3-Speed | Reversible
-Motor | 148 X 15mm
-RPM: High 215 Low 70
-4960 CFM | 22 W | Efficiency = 230 CFM / Watt
-4.5" Downrod Included
-Memory Function Enabled
Blade
-3-Blade | 52" Sweep
-Material: Highly-Compressed Plywood
-11° Pitch
Light Kit
-LED Light Board
-22 W 2116 Lumens
-Dimming: 3 Levels of Dimming
-Color Temperature: 3500K Neutral Light
-Lens: Glass
-Memory Function Enabled
Control
-Pull Chain (Standard)
-Wall Control (Optional*)
-Remote (Optional*)
Location
-Indoor / Outdoor (Damp Rated)
Certification
-ETL Listed
-Energy Star Certified
Warranty
-Fan Motor: Three-Year Limited Warranty
-LED Light Kit: Five-Year Limited Warranty
-Fan Blade: One-Year Limited Warranty
-Other: Three-Year Limited Warranty
Measurements
-Dimensions (in.):
15.1 H (to lowest point) x 8.8 W (housing) x 11.1 H (top of blade)
-Product Weight (lbs.): 11.9 N.W. | 15.9 G.W.
-Box (in.): 24 L X 10.8 W X 12 H
Shipping
-Container Loading:
3-Blade | 52" | Pull Chain
DC MOTOR 120V
Dimensions
Fan Control Features and Options
-Simple and intuitive design with standard layout.
-Multi-functional fan speed control with fan forward/reverse, light brightness adjustment, and fan/light on/off.
-Pull Chain (Standard)
-Hardwired Wall Control (Optional*)
•Single Live Wire No Neutral Needed
•Push Button or Knob design available
-Remote (Optional*)
*Optional controls at an additional cost
*Data subject to change without notice

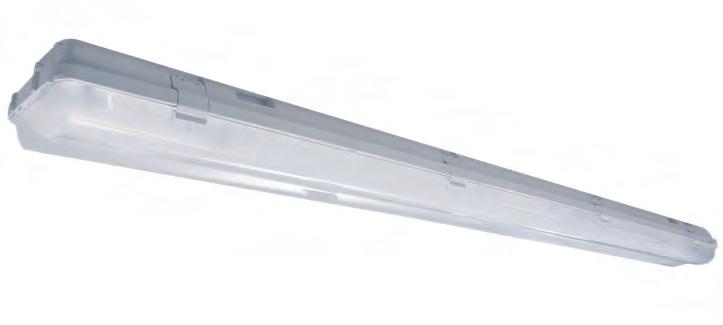

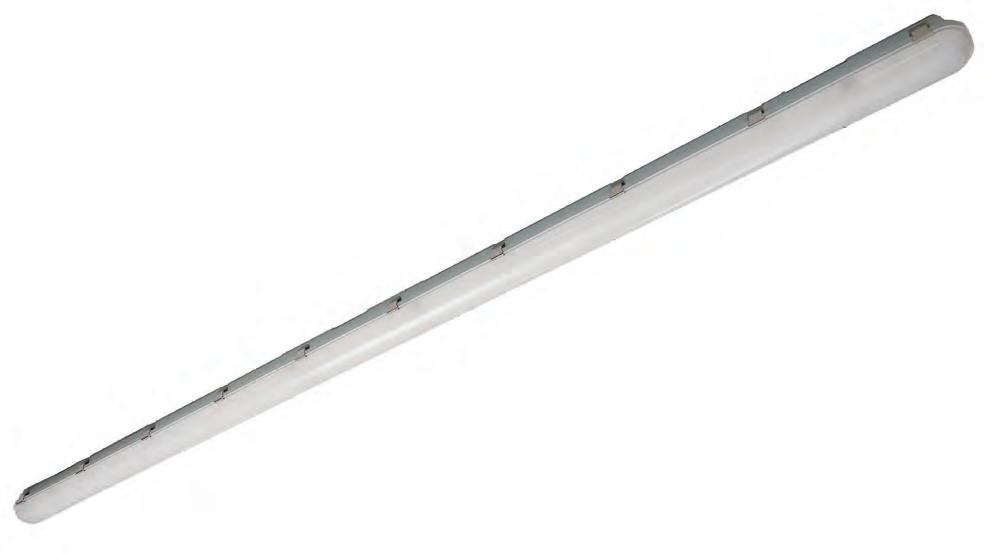

ILLUMINA® BS101LED ECO E
■ The ILLUMINA® BS101LED ECO E is an economical solution for wet location illumination and is corrosion, flame and vandal resistant.
■ DIFFUSER: The frosted UV stabilized polycarbonate diffuser eliminates glare and provides even light distribution.
■ LUMENS:
• 4000K: 4090 lm
• 5000K: 4156 lm
■ OPERATING TEMP:
• HT (AC Only) -40°F to 104°F (-25°C to 40°C)
• SA (AC & EM) 32°F to 104°F (0°C to 40°C)
■ WEIGHT: 9 lbs / 4.08 kg
ORDERING INFORMATION
APPLICATION: The ILLUMINA® BS101LED-ECO-E provides ideal illumination for canopies, warehouses, schools, breeze-ways and service corridors. It can be installed both indoor & outdoor.
CONTROLS & ACCESSORIES 1SPKxWBS143,4 (swivel pivot kit, white x=length
NOTE 1: Emergency pack 120-277V; 10W/1170 lm.
NOTE 2: JM direct j-box mount maintains fixtur3e's IP66 rating
NOTE 3: Standard pendant lengths "x" = 12 (12"), 24 (24"), and 48 (48")
NOTE 4: Consult factory for non-standard lengths
NOTE 5: Quick Mount bracket requires JM mount

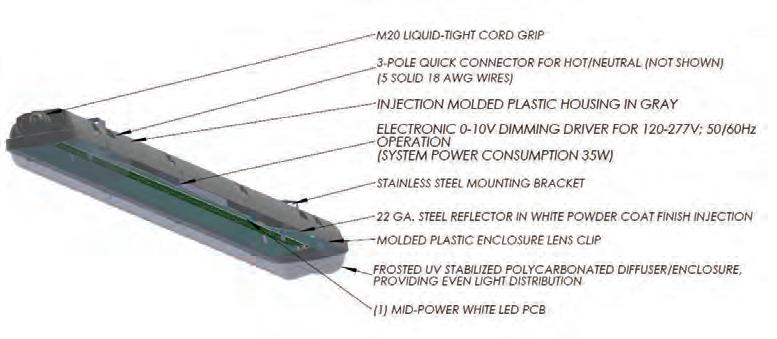

TECHNICAL INFORMATION
INTENTIONALLY LEFT BLANK

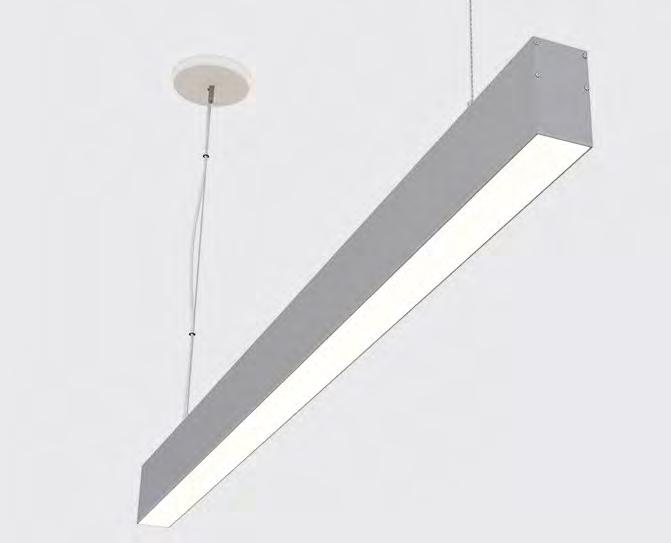

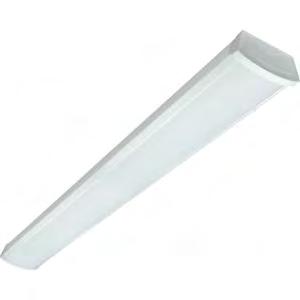

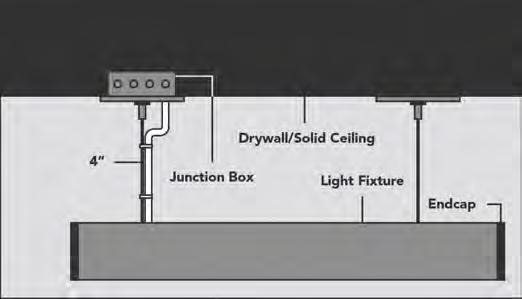

DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
LED96/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO+EM
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
ILLUMINA® BS101LED ECO E
■ The ILLUMINA® BS101LED ECO E is an economical solution for wet location illumination and is corrosion, flame and vandal resistant.
■ DIFFUSER: The frosted UV stabilized polycarbonate diffuser eliminates glare and provides even light distribution.
■ LUMENS:
• 4000K: 4090 lm
• 5000K: 4156 lm
■ OPERATING TEMP:
• HT (AC Only) -40°F to 104°F (-25°C to 40°C)
• SA (AC & EM) 32°F to 104°F (0°C to 40°C)
■ WEIGHT: 9 lbs / 4.08 kg
ORDERING INFORMATION
APPLICATION: The ILLUMINA® BS101LED-ECO-E provides ideal illumination for canopies, warehouses, schools, breeze-ways and service corridors. It can be installed both indoor & outdoor.
CONTROLS & ACCESSORIES 1SPKxWBS143,4 (swivel pivot kit, white x=length
NOTE 1: Emergency pack 120-277V; 10W/1170 lm.
NOTE 2: JM direct j-box mount maintains fixtur3e's IP66 rating
NOTE 3: Standard pendant lengths "x" = 12 (12"), 24 (24"), and 48 (48")
NOTE 4: Consult factory for non-standard lengths
NOTE 5: Quick Mount bracket requires JM mount
TECHNICAL INFORMATION
INTENTIONALLY LEFT BLANK
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
LED96/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
ILLUMINA® BS101LED ECO E
■ The ILLUMINA® BS101LED ECO E is an economical solution for wet location illumination and is corrosion, flame and vandal resistant.
■ DIFFUSER: The frosted UV stabilized polycarbonate diffuser eliminates glare and provides even light distribution.
■ LUMENS:
• 4000K: 4090 lm
• 5000K: 4156 lm
■ OPERATING TEMP:
• HT (AC Only) -40°F to 104°F (-25°C to 40°C)
• SA (AC & EM) 32°F to 104°F (0°C to 40°C)
■ WEIGHT: 9 lbs / 4.08 kg
ORDERING INFORMATION
APPLICATION: The ILLUMINA® BS101LED-ECO-E provides ideal illumination for canopies, warehouses, schools, breeze-ways and service corridors. It can be installed both indoor & outdoor.
CONTROLS & ACCESSORIES 1SPKxWBS143,4 (swivel pivot kit, white x=length
NOTE 1: Emergency pack 120-277V; 10W/1170 lm.
NOTE 2: JM direct j-box mount maintains fixtur3e's IP66 rating
NOTE 3: Standard pendant lengths "x" = 12 (12"), 24 (24"), and 48 (48")
NOTE 4: Consult factory for non-standard lengths
NOTE 5: Quick Mount bracket requires JM mount
TECHNICAL INFORMATION
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
Stonco LytePro LED large wall sconce LPW32 features outstanding value in a compact, architectural design. This powerful and precise combination offers outstanding energy savings with excellent photometric performance. LPW32 is ideal for building perimeters and corridors in addition to wall lighting applications requiring strong lateral spacing and forward pattern projection.
Ordering guide
FAWS Field Adjustable Wattage Selector4 BL Bi-level functionality 2, 4 IMRI3 Motion sensor #3 Lens2,5 PCB Photocontrol Button2,6 BAC8 Meets the requirements of the Buy American Act of 1933 (BAA)
Stocked luminaires – Ordering guide
Stocked accessories - Ordering guide (Must be ordered separately)9
1 Emergency battery backup (EBP) available with 50W configuration only
2 Not available in 347 or 480V
3 Not available with BL, FAWS or PCB
4 Not available with other control options.
5 Available only with BL diming option
6 Must specify voltage
7 Other colors available upon request as made-to-order
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
BK Black
White
Bronze
Dark Gray MGY Medium Gray Customer specified RAL Specify optional color or RAL (ex: OC-LGP or OC-RAL7024)
CC Custom color (Must supply color chip for required factory quote)
8 Failure to properly select the “BAC” suffix could result in you receiving product that is not BAA compliant product with no recourse for an RMA or refund. This BAC designation hereunder does not address (i) the applicability of, or availability of a waiver under, the Trade Agreements Act, or (ii) the “Buy America” domestic content requirements imposed on states, localities, and other non-federal entities as a condition of receiving funds administered by the Department of Transportation or other federal agencies.
9 Consult Signify to confirm whether specific accessories are BAA-compliant.

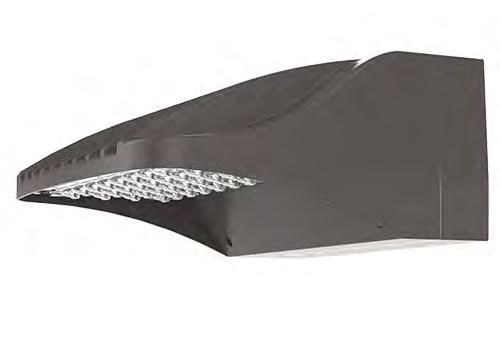

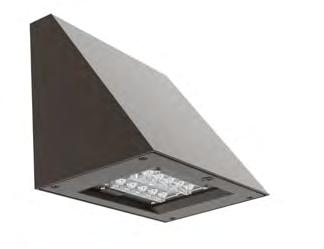

VIENTO WALL PACK
FEATURES
• Lumen packages ranging from 3000L to 15000L.
• Uniform light distribution, ideal for building facades, entry ways, sidewalks and general security or accent lighting.
• LED provides a significant energy savings over HID.
• Designed for ease of installation.
CONTROLS
• Smart sensor and button photocell control options available.
APPLICATIONS
• Exterior Lighting
• Safety & Security
APPROVALS
• EtL Listed
CONSTRUCTION
• Suitable for wet locations
• IP66 Rated
• BAA Compliant
• RoHS Compliant
• walkways
• Accent Lighting
• Complies with UL 1598 and CSA C22.2
• AtAL tested www.ata-labs.com
• two-piece die-cast aluminum with integral heat sink fins.
• Powder coat finish with custom colors are available (consult factory)
• Silicone gasket is included to prevent leakage and provide weather-tight protection.
• Driver: Class 2, constant current, calibrated to lumen packages (0-10v dimming standard)
WARRANTY
• Operating temperature: -40°C to +50°C (-40°F to +122°F)1,2
• Backed by XtraLight’s limited 5-year warranty.
• Select models DLC Qualified. For a complete list of DLC Qualified products visit: www.xtralight.com/dlc or qpl.designlights.org 1.
XtraLight® reserves the right to change specifications without notice.
Emergency Battery Back-up

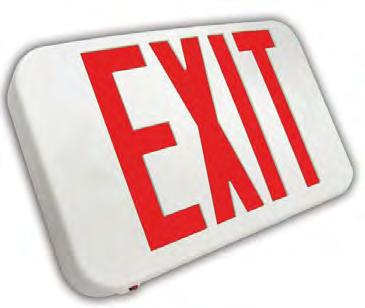

EPX EVERY PROJECT EXIT SIGN
Model: Job Name: Type: Date:
Most economical and versatile LED exit sign in a single SKU: red and green letters, single and double panels and universal mounting - Ideal for use on any job, big or small A Beghelli “Every Project” Solution
specifications: internal
• Ultra bright, energy efficient, long life LED
• Dual 120/277V
• 1.2V Long life, maintenance-free, rechargeable Ni-Cd battery
• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours
• Charge rate/power “ON” LED indicator light and push-totest switch for mandated code compliance testing
■ specifications: external
• Injection-molded, engineering grade, 5VA flame retardant, highimpact resistant, thermoplastic in standard white finish, black finish is optional
• Architectural curved face with rounded corner design
• Field selectable chevrons
■ universal mounting
• Quick-mount canopy included for top or end mount
• Universal knockout pattern on back plate for wall mount
■ weight: 1.3lb
■ ordering logic
autotest option (SA operation only)
• Autotest performs monthly, bi-annual and annual testing per code
• Available only in dedicated Red or dedicated Green letter models
• Universal 120-277V
certifications & warranty
• 5 year warranty on unit, battery prorated for 5 years
• UL Listed for Damp Locations (0°C – 40°C)
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
• Certified to CEC Title 20
2C (2-circuit)
ATG (autotest with green letters only)
ATR (autotest with red letters only)
B (black housing)
USA2 (assembled in USA)
WIREGUARD ACCESSORIES
WG10DX19LX7WWHT (surface ceiling mount, white)
WG6DX16.5LX14WWHT (surface wall mount, white)
WG14.5DX12.5LX6.5WWHT (surface end mount, white)
NOTE: EPX exit includes single and double panels, red and green letters, and universal mounting in a single SKU
(AT option is dedicated red or green letters)
NOTE 1: Applies to HT only, specify 120V or 277V
NOTE 2: Substantial transformation assembly in the U.S. complies with “Assembled in USA” under the Buy American Act
EXAMPLE:
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
• 11-13/16" Width X 7-1/4" Height X 1-13/16" Depth
• Injection-molded thermoplastic housing
• Black or White housing finish
FACE
• 6" high text with color diffusion
• Both double and a blank face are included
• Snap-in direction indicators
MOUNTING
• Wall, side, or ceiling
• Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
UL 924
Rated for Damp Locations (Wet Location when used with NEG-60)
5-Year Limited Warranty
NFPA
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com

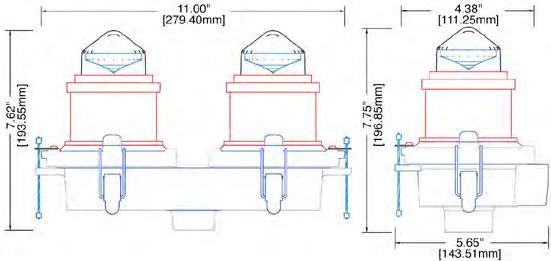

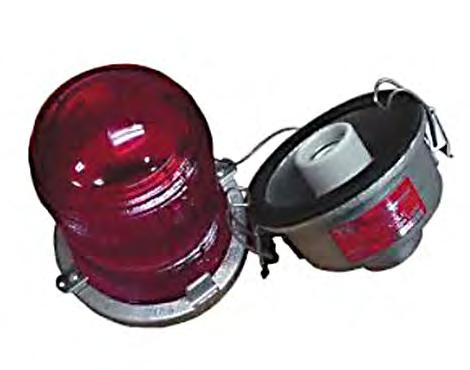

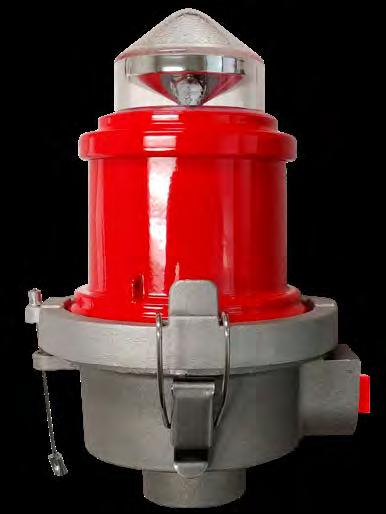

L-810 LED Night Vision Compatible Steady-Burning Red Obstruction Light
Compliance and Applications
• ETL Certified L-810: FAA AC 150/5345-43J; EB-67D
• IP67 Certified
• Certified FCC 47 CFR, Part 15:2020, §15.107 and §15.109, Class A
Compliant to:
• ICAO Annex 14, Low Intensity Obstacle Light, Type B
• DGAC of Mexico
• MIL-C-7989
Our Night Vision Compatible, omni-directional, red, steady-burning, LED obstruction light is designed for marking tall structures such as buildings, towers, masts, cranes, meteorological towers, chimneys and other hazards to aircraft. This energy-saving LED light is a direct replacement for incandescent fixtures, providing years of reliable and maintenance-free operation. Available in single, double, and retrofit configurations; optional solar drive package
What Does NVG Friendly Mean?
Both the FAA and Transport Canada have issued safety alerts warning that common LED obstruction lights pose a hazard to pilots using Night Vision Goggles (NVGs). This is due to the fact that NVGs typically use filters to block cockpit lighting from saturating the imaging system. This has the unintended effect of making LED obstruction lights invisible to pilots.
In response, we have incorporated NVG Friendly technology into our fixture (IR 860 nm peak intensity), giving pilots using night vision goggles unmatched visibility of airfield perimeters, buildings, and towers. The L810LEDNV light is the first LED L-810 available to ensure that your structure is visible to all pilots, making it the first true LED replacement for incandescent obstruction lights.
Why Our L810LEDNV is Better
• Direct replacement for existing incandescent light
• Lasts up to 10 times longer than an incandescent light
• Uses 96% less power than an incandescent light
• Night Vision Goggle & NVIS Compatible
• No regular maintenance
• Available in single and dual configurations with bottom or side conduit outlets
• Can be operated in steady-burning or flashing mode (controller not supplied)
Marine Treated Option:
• Recommended for harsh, high-salt coastal and marine environments.
• Protects fixture finish from salt damage and prevents corrosion.
• 3-Step Powder Coat: 1) Primer, 2) Epoxy powder base coat and glossy polyester gray (RAL 7030) powder finish coat, 3) Oven curing.
• Photocell option for automatic activation at night
• Wind Loading: Effective Projected Area of the L-810 with single mounting base is 23.125 square-inches
Night Vision Compatible Obstruction Light
Optional Low Surface Mount
Single L-810 LED Night Vision Compatible Obstruction Light
Shown with Riser, Frangible Coupling and Floor Flange
Optional 2" Pole Mount
INTENTIONALLY LEFT BLANK
Spare Parts
Part Number Description
FL-810LEDNV-AC 100-277 VAC LED NV
Replacement Light Head
FL-810LEDNV-DC 12-48 VDC LED NV
Replacement Light Head
Alarm Line Option:
For AC and DC model fixtures, the blue wire (18AWG) is defined as the Alarm Line. When the red LED fails, the fixture’s input voltage for the fixture will be present at this wire. For AC and DC model fixtures, during normal operation (LED ON), it will have 0 VAC and 0 VDC respectively at the blue wire; in case of LED failure (turning off), it will energize the blue wire to the fixture’s input voltage, 100-277 VAC for AC models and 12-48 VDC for DC model fixtures.
L-810 LED Ordering Codes
VDC
Red
Black
Green
Shipping Information:
Single: 3.2 lb. (1.45 kg); 10" x 10" x 10" Carton
Double: 7 lb. (3.17 kg); 15" x 15" x 10" Carton
1 1-1/2" Frangible Coupling (FL-FC1.5) UNF threads are not compatible with NPT threaded junction boxes. 2 For single option only. 3 For EMT pipe only. 4 CAUTION! For AC model fixtures, the Alarm Line (blue wire) will be energized to a high AC voltage (fixture’s input voltage 120-277VAC) during a failure of the LED.
Obstruction Lighting Controls
Lighting controls are designed for use when multiple obstruction light fixtures are to be controlled with common electronics. The electronic control module comes in a cast iron device box with threaded hubs on both top and bottom. Replacement modules (controls without device box) are also available upon request.
Photocells
• Model 81020: 105-305VAC, 1000W photocell. FAA style photocells activate at 35 ft-cd and turn off at 52 ft-cd. Instant ON photocell has 3-5 second time delay that prevents activation and de-activation from momentary light conditions. Does not come with device box, includes 1/2" threaded male fitting.
• Model 81021: 120/240VAC, 4800W photocell. Meets FAA/FCC requirements for obstruction lighting. Energized at 35 ft-cd and de-energized at 60 ft-cd. Time delay eliminates contact chatter. Contains dual 20A load contacts. Front plastic housing mounts to cast aluminum junction box (included).
• Model 81022: Hazardous Location Photocontrol Unit. Outdoor lighting control for exterior lighting in hazardous locations: explosion proof, dust-ignition proof, and weatherproof. Nominal Voltage 50/60 Hz: 120/208/240/277VAC. Voltage Range: 105-305. Housing: sand cast copper-free aluminum - epoxy powder coated.
Photocell Ordering Codes
Part
FL-81020
FL-81021
Photocell only (105-305VAC, 1000W max)
Photocell with aluminum box (120VAC, 4800W max)
FL-81021-2 Photocell with aluminum box (240VAC, 4800W max)
FL-81022 Hazardous Location Photocontrol Unit (120/208/240/277VAC)
Model 81020
Model 81021
Model 81022
Black
White
Green
100-277 VAC
Alarm Line: Blue
Alarm Line: Blue
Wire Color Guide
NOT ON SCHEDULE
Source: 2.2W
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
UL 924 Listed for Wet Locations · NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
• 11-13/16" Width X 7-1/4" Height X 1-13/16" Depth
• Injection-molded thermoplastic housing
• Black or White housing finish
FACE
• 6" high text with color diffusion
• Both double and a blank face are included
• Snap-in direction indicators
MOUNTING
• Wall, side, or ceiling
• Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
UL 924
Rated for Damp Locations (Wet Location when used with NEG-60)
5-Year Limited Warranty
NFPA
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com

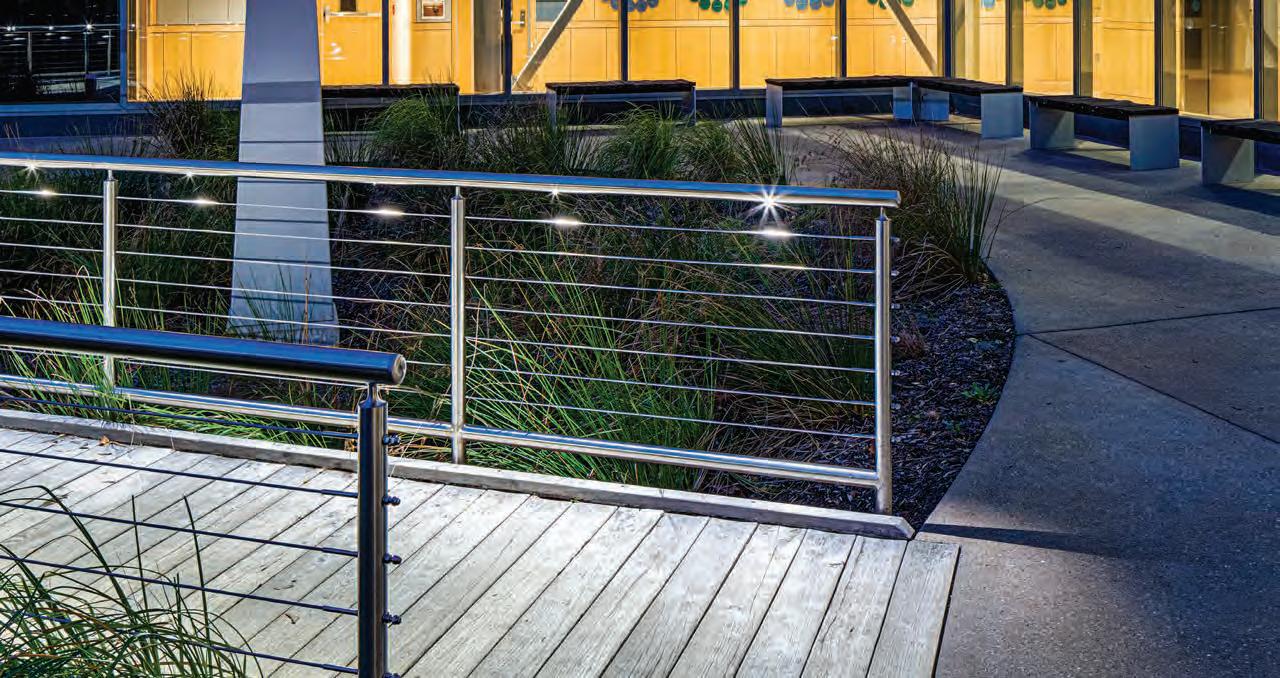

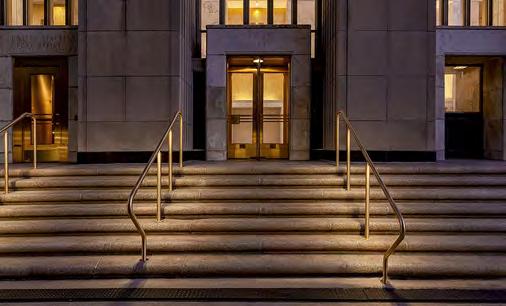

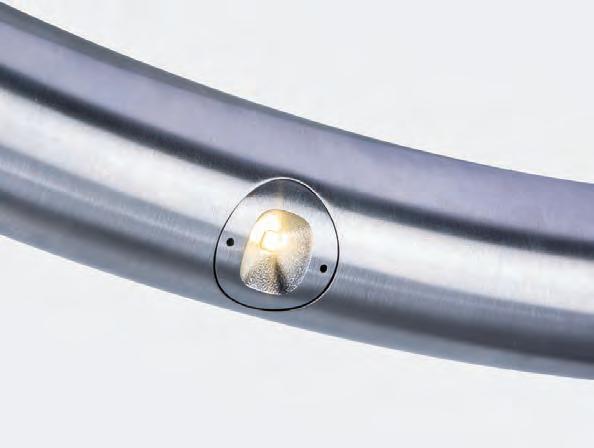

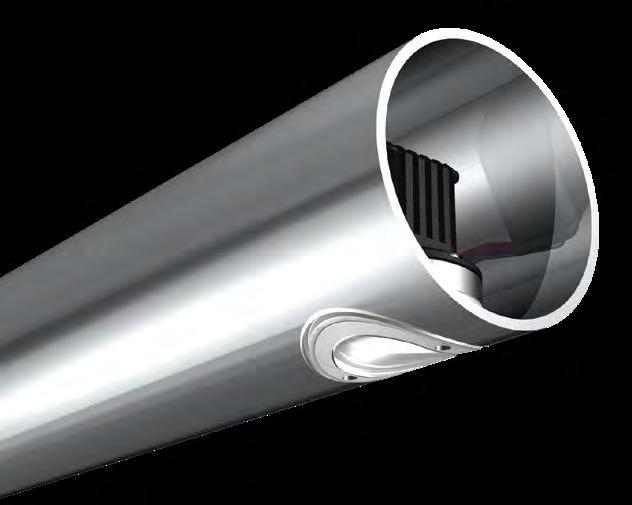

The evolution of the handrail point source from Wagner Architectural Systems has performance that leverages the latest LED technology and manufacturing techniques. This USA engineered and manufactured luminaire is designed for pathway, stair and ramp illumination. Both the asymmetric and symmetric versions have optical characteristics developed specifically for these applications. The Lumenpod 28 provides a flushprofile architectural solution for new or retrofit projects, including egress compliance opportunities. Superior harsh environment protection and vandal resistance are combined with a straight forward, push-in installation.

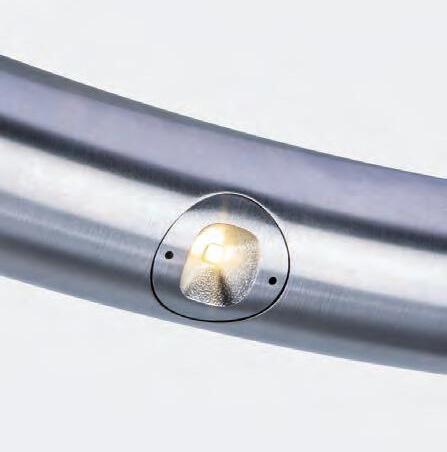

• Cast solid 316 stainless steel face
• Superior installation in a variety of rail diameters
• 122 lumens per watt LED
• Standard in 4 CCT whites and solid colors
• 93° optical distribution
• Rectilinear distribution promotes uniformity
• IK9 impact rating and secure installation
• 24VDC operation
• ETL wet location listed
• IP68 ingress protection
• L70 = 50,000 hours +
• US PAT. # 10,612,734 B2, USA Design, Manufacturing and Engineering
Discrete, seamless point source LED fixture for use in all codecompliant handrail, especially curving ramps and helical stairs as well as long runs on bridges and pedestrian paths. Asymmetric optic allows mounting at rail nadir, eliminating uncomfortable glare issues. Typical spacing between LEDpods on stairs is 24”, and on level runs is 48”.
HOUSING
Aluminum body has a fine 25-micron finish and is then hard-coat anodized, thus preventing galvanic corrosion. Silicone gasket seals the installation from water ingress and provides added means of electrical isolation to minimize potential for galvanic reaction.
MOUNTING
Patented attachment method offers unparalleled security and ease of mounting. Requires only a simple drilled hole in railing material. All conductors remain internal to railing to provide secure and safe wiring. IK10 Impact rating ensures vandal resistance.
• Tube Size: Ø 1.75” - 2.00”, Max. wall .22” Other sizes available upon request.
• Cut Out: 25mm
-Must use a 25mm annular cutter [NOT a 1” cutter].
ELECTRICAL/LED DRIVER
• Input Voltage: 24 VDC
• Driver: Must use class 2 driver
-Primary Driver: 110 - 277 VAC UL Listed Constant Voltage
-Secondary Driver: 350 - 700mA Constant Current (provided with fixture)
• Control: 0-10V, DALI, DMX
- DMX control for dimming only, not for individually addressed LEDpod
• Enclosure: Minimum NEMA2 for indoor, NEMA 3R for outdoor
Another Lumenrail® Component for Life Safety and Light SYMMETRIC
PROJECT NAME:
REP AGENCY:
APPROX. LINEAR FT:
SERVICE OPTIONS: Field Measure Job Site Support System Installation
PART NUMBER BUILDER
CONSTRUCTION
The Lumenpod 28’s machined aluminum body dissipates heat while the cast stainless face integrates seamlessly with the rail. A precisely engineered retention spring positions it perfectly flush with standard diameter handrail. Removal is achieved only with our unique tool, solidifying a tamper resistant installation. US PAT. # 10,612,734 B2
LUMENGEAR™ LED DRIVER & NEMA ENCLOSURE OPTIONS
Wagner offers multiple ETL listed options for both 24VDC power supplies and NEMA enclosures. Quantities and types will be configured based on your specifications and design. Additional specification options are available by request. Not all options apply to all products—please verify compatibility with the factory.
Specifications
SCAN QR CODE for technical information, downloads and instructions.
80+8”

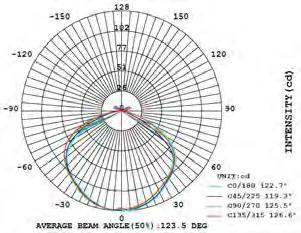

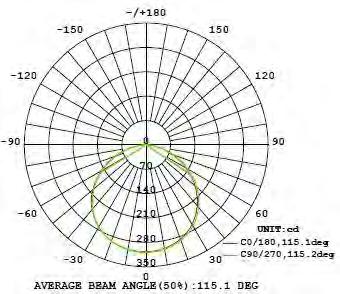

PHOTOMETRICS
Symmetric LCS Graph
CLASS II DRIVERS:
• STD 100W
• Dali, DMX, 0-10V Dimming Protocols
• Multiple Wattages
• Made in USA Units Available
Symmetric performance is design specific and provides superb illumination results in any application. IES reports to view or download are available by scanning the QR code or visiting our website.
NEMA ENCLOSURES: 4X - Polycarbonate, Painted Steel or Stainless Steel
LUMENPOST™: Integrated 100W, 0-10V DIM
KLIK LEDpodTM 50 Patented
Site and Area
EcoForm

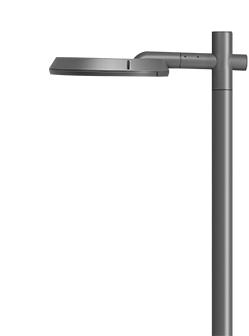

ECF-L large area luminaire
Gardco EcoForm Gen-2 combines economy with performance in an LED area luminaire. Capable of delivering up to 52,500 lumens or more in a compact, low profile LED luminaire, EcoForm offers a new level of customer value. EcoForm features an innovative retrofit arm kit, simplifying site conversions to LED by eliminating the need to drill additional holes in most existing poles. Integral control systems available for further energy savings. Includes Service Tag, our innovative way to provide assistance throughout the life of the product.
Ordering guide
WIAP4,6,16 Wireless Interact (includes SR driver and SR receptacledo NOT select SRDR) LB Low (7'-15' mounting height) sensor, Black color housing Wireless Interact, integral LW Low (7'-15' mounting height)
(120, 277, 347VAC)
(208, 240, 480VAC)
(120,
Project:
Location:
Cat.No:
Type:
Lamps: Qt y:
Notes:
1. BL-IMRI3/7 equipped with out-boarded sensor housing when voltage is HVU (347-480V)
2. Mounts to a 4" round pole with adapter included for square poles.
3. Limited to a maximum of 45 degrees aiming above horizontal.
4. Not available with other dimming control options.
5. Not available with motion sensor.
6. Not available with photocontrol.
7. BL must be combined with Motion sensing lens IMRI3 or IMRI7.
8. Not available in 347 or 480V.
9. Must specify input voltage.
10. TLRD5, TLRD7 and TLRPC receptacle pins 4 & 5 are capped off when ordered with any of the Dimming controls DD or FAWS or LLC.
11. Not available in 480V. Order photocell separately with TLRD5/7.
12. Not available with DCC.
13. Not available with SF and WS. RPAs provided with black finish standard.
14. HIS not available with Type 5, 5W, BLC, BLC-90, BLC-270, LCL or RCL optics.
15. Not available with DD, DCC, FAWS, SRDR, or WIAP dimming control options.
16. WIAP must be combined with Motion sensing lens LB or LW or HB or HW.
17. When ordering SRDR, controller (by others) to be used on socket must be SR compatible (See specifications for more details). Consult factory for lead time. All 7 pins in NEMA receptacle are connected to SR driver. SRDR not available with TLRD5 or TLRPC.
18. 0-10V dimming driver standard.
19. 120V or 277V only, not available with SRDR or any DynaDimmer options or WIAP (due to driver limitations).
20. Extended lead times apply. Contact factory for details.
21. Failure to properly select the “BAC” suffix could result in you receiving product that is not BAA compliant product with no recourse for an RMA or refund. This BAC designation hereunder does not address (i) the applicability of, or availability of a waiver under, the Trade Agreements Act, or (ii) the “Buy America” domestic content requirements imposed on states, localities, and other non-federal entities as a condition of receiving funds administered by the Department of Transportation or other federal agencies.

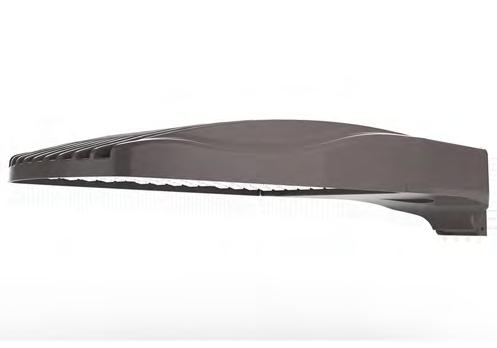

VIENTO AREA LUMINARE
APPLICATIONS
• Area Lighting
• Retail Spaces
• Street Lighting
APPROVALS
• EtL Listed
• Auto Dealerships & Sales Lots
• Parks & Recreation Areas
• Safety & Security
• Complies with UL 1598 and CSA C22.2
• Suitable for wet locations
• 3G vibration Rated
• IP66 Rated
• BAA Compliant
• RoHS Compliant
• AtAL tested www.ata-labs.com
• Select models DLC Qualified. For a complete list of DLC Qualified products visit: www.xtralight.com/dlc or qpl.designlights.org
FEATURES
• Lumen packages ranging from 5000L to 55000L.
• Outstanding photometric performance results in excellent uniformity, optimal pole spacing and lower power density.
• Low profile architectural design offers a contemporary appearance with excellent light output.
aluminum top plate, and faceplate with a powder coat finish. Includes COB LED, reflector, LED driver and a mounting plate. Top plate is secured to housing by threads. Mounting plate is secured to top plate with two (2) flat head phillips stainless steel screws and installs onto an electrical junction box. Consult factory for junction box mounting sizes.
sedulcni
a mounting bracket for installation directly to a 3-1/2" or 4" octagonal electrical junction-box. Can also be mounted as a 12" - 48" pendant (LPCMDL4).
derepmet raelc ,hsinif glass lens, and silicone o-ring. Faceplate is secured to the housing by threads.
USA. (IP65).
Finish: Finish:
A 7-stage electrostatic, polymer process provides a finish that delivers outstanding durability, superior anti-aging, resistance to corrosion and UV-degradation Standard fi nishes are White, Silver, Basic Bronze, Black. Special order finishes are Light Silver, Dark Grey, Metallic Gold and Metallic Black.
Beam Spread: Available in Wide Flood, 2° Pencil Beam, Narrow Spot, Spot, Flood and Wall Wash Optic.
thgiL DEL ralugniS )BOC( draoB-nO-pihC tneiciffe ygrenE :DEL
Reflector Construction: Reflector Construction: One piece, heavy-gauge aluminum reflector prevents ugly dents during shipping and installation. Deeply mounted singular LED provides 50 degree visual cutoff for a glare-free appearance.
Lumen Maintenance: Maintenance: Lumen Maintenance: Minimum 50,000 hours L70 life based on ANSI TM-21 calculations from LM80 standardized test results. See ordering guide for delivered lumens.
Factor > 0.90. For cold weather applications (-22°C and above) use -DUN driver option.
Emergency Options: Emergency Options: Options: Emergency LED Battery Back-up available, remotely mounted adjacent to housing by installer. When AC power fails, the device immediately switches to the emergency mode, operating the LEDs for a minimum of 90 minutes. Remote test switch, plate cover and junction box included.
.sgnisuoH DEL gniretne Surge damage is not covered by warranty.
dna slairetam craftsmanship. Fixture should not be installed in applications with ambient temperature above 60 degrees C. Doing so will result in reduced lamp life and voided warranty.
Source provides for smooth uniform light output, eliminating the multiple shadow effect seen by multiple LED Source products. Binned with 4-step MacAdam ellipses as recommended by ANSI Standard. Available in 4000K, 1700K*, 2500K*, 2700K, 2700K, 97CRI*, 3000K, 3000K, 97CRI*, 3500K, 5000K and 5600K.
:tifeneBtifeneBtifeneBtifeneB Energy efficient, low glare LED Chip-On-Board light engine Beam spreads include NS, SP, FL, WFL and 2° Pencil Beam Emergency back up available Singular COB Light Source 5 year limited warranty Exclusive Wall Wash optics 90 CRI Standard
ORDERING
EC265104-BKEC265104-WH Black White

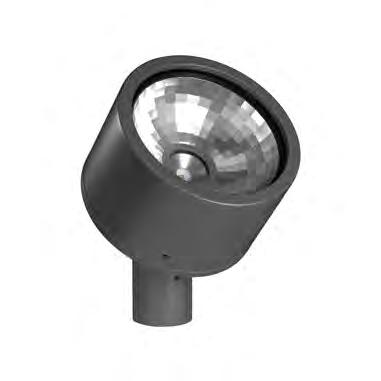

SPECIFICATION DETAILS
D5” x H4”

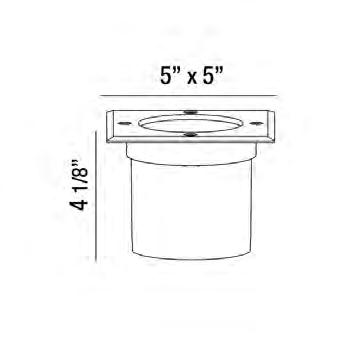

Fixture Dimensions
Wattage
Total Lumens
Delivered Lumens
Voltage
Color Temperature Light Source
CRI (Ra)
Optical Details
Lens Details
LED Rated Life
Dimming Percentage
Dimming Type
Location
Paint Finish
Material
Multi-Facetted Aluminum Reflector BK-1120lm; WH-1180lm ELV Dimmer (Not Included) 15W 50,000 hours 3000K AC LED Module Clear Glass 120V BK02; WH02 Aluminum + Glass 1575lm 100% - 10% Wet, IP65 90CRI Finish BK - Black WH - White
Threaded with 1/2” NPT. May be mounted into threaded hubs in junction boxes or mounting accessories. Heavy-duty composite stake included.
WIRING:
Pre-wired with a five-foot pigtail of 18/2 cable.
WARRANTY: 10-year warranty
Opt. 6” extended shroud 3W & 6W #490260
DIMENSIONS:
Opt. 6” extended shroud 8W, 12W & 16W #490261

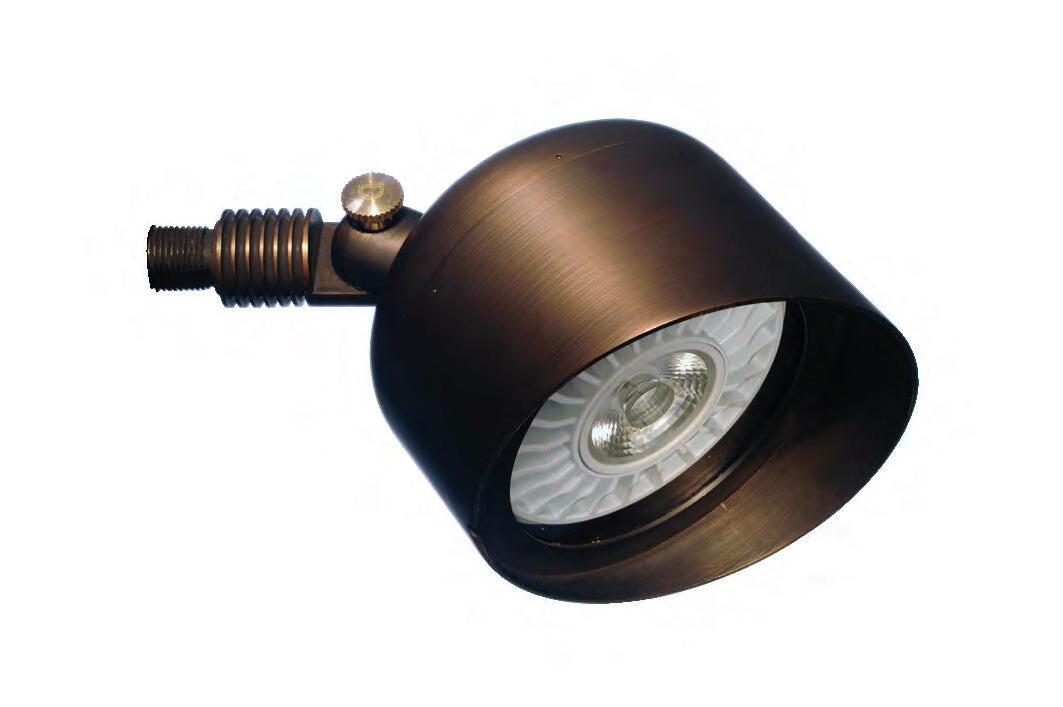

SPECIFICATION SHEET

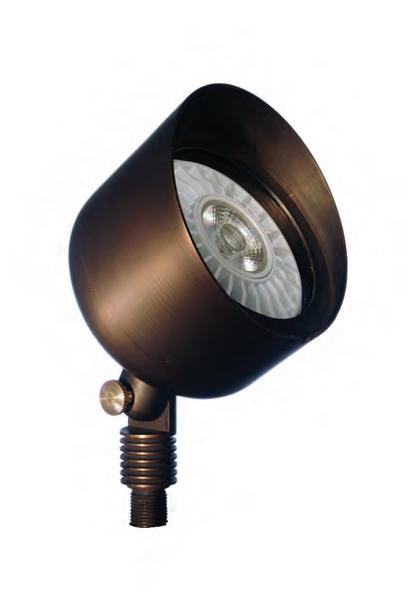

The Bodacious uplight features an integrated LED source available in 3, 8, 6,12 or 16 watts. 2700K, 3000K and 5000K options. 30-, 45-, 65- and 100-degree beam spreads.
INTENTIONALLY LEFT BLANK

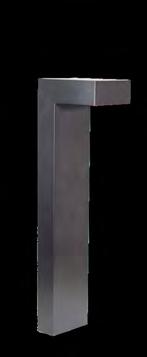

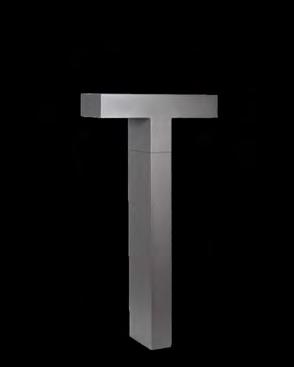

PSY424 LED
Bollards and Pathway Luminaires
WE-EF LIGHTING USA, LLC
410-D Keystone Drive, 15086 Warrendale, PA 15086 - Phone: +1 724 742 0030 customersupport.usa@we-ef.com - https://we-ef.com/us Subject to technical changes and errors. - Generated on 07/30/2024
Description
IP66. Class I. IK10. Marine-grade, all aluminum construction. Pole section features galvanized steel reinforcement core. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Polycarbonate main lens. CADoptimized optics for superior illumination and glare control. Integral driver. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire.
Pre-wired post complete with 10kV surge protector in cable connection box.
Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately.
Lumux BL350 Series bollards are elegant, architectural luminaires that excel at defining spaces, both during the day and at night.
Ideal for illuminating paths and plazas, BL350 is a powerful outdoor LED solution with a distinctive minimalistic design, offering broad, mid, and narrow light distribution patterns. BL350 is constructed from heavy-duty aluminum extrusion, providing durability that meets the highest standards. This luminaire is offered in single (BL350) or twin (BL350-2) versions, and the shorter BL350S-2 model. Part of the Lumux lighting collection that includes PL2014 light columns.
MARINE GRADE
DATE:
PROJECT:
FIRM:
CATALOG NO: COMMENTS:

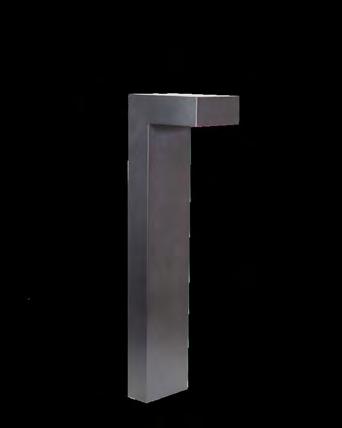

BOLLARD BL350 SERIES
The BL350 Series offers low and medium height gateway, path, and plaza luminaires with a modern design and forward beam angle options.
Ordering Guide
1Consult factory for additional options
2Consult factory for additional pricing; Emergency Battery and GFCI dual receptacle are not available for BL350S-2.

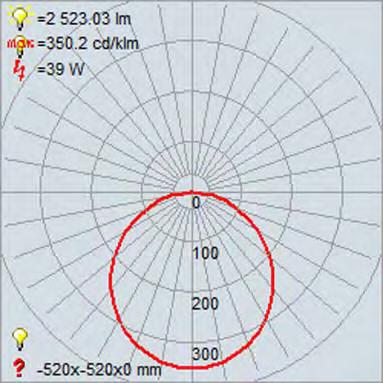

Performance Specifications
Up to: Flux 2,900 lm, 39W, LER 74 lm/W (4000K) per light source
120-277v input voltage Photocell option
Starting temp. rated to -20˚F Occupancy Sensor option
Catalog No.:
Integrated 0-10v Dimming Integral Emergency Battery option
For higher lumen packages, please consult the Lumux sales team.
Housing: Heavy-duty construction of corrosion resistant, lowcopper diecast aluminum, secured with vandal-resistant, stainless steel screws.
Lens: Sealed one-piece shatter-proof clear glass barrier over polycarbonate optics.
Gasket: Closed-cell silicone foam gasket seals out moisture, dust, and insects, for weather-tight operation. IP65 - ETL listed for wet-locations.
Mounting: Secures with galvanized anchor bolts to pre-installed concrete footing.
Finish: Zinc polyester powder coat finish in black, white, silver, bronze, or any custom RAL color. Consult factory for marine grade or anti-microbial finish.
Light Engine: Constant Current driver with integrated 0-10v dimming, powering high quality LEDs.
Emergency Battery Pack: Optional integral 10W emergency battery pack provides 1,000 lumens with a 90 minute battery life.
Content of specification sheet subject to change
7803 Industry Ave, Pico Rivera, CA 90660 sales@lumux.com
Bollards and Pathway Luminaires
Configurations
[S70] Type II Short
[A60] Type IV Very Short
[R65] Type IV Medium
114-0134LED-6/12W / 700 mA - 3000 K1367.814.5 W8052.91
114-0135LED-6/12W / 700 mA - 4000 K1462.214.5 W8052.91
114-0136LED-6/18W / 1050 mA - 3000 K2137.521 W8052.91
114-0137LED-6/18W / 1050 mA - 4000 K223721 W8052.91
114-0138LED-6/26W / 1400 mA - 3000 K2734.129 W8052.91
114-0139LED-6/26W / 1400 mA - 4000 K2858.329 W8052.91
114-0187LED-6/12W / 700 mA - 2700 K1273.514.5 W8052.91
114-0188LED-6/18W / 1050 mA - 2700 K2038.121 W8052.91
114-0189LED-6/26W / 1400 mA - 2700 K2584.929 W8052.91
114-0190LED-6/12W / 700 mA - 2700 K1325.714.5 W8033.22
114-0191LED-6/18W / 1050 mA - 2700 K1847.621 W8052.91
114-0192LED-6/26W / 1400 mA - 2700 K2343.329 W8052.91
114-9701LED-6/12W / 700 mA - 3000 K1423.914.5 W8052.91
114-9702LED-6/12W / 700 mA - 4000 K1522.114.5 W8052.91
114-9703LED-6/18W / 1050 mA - 3000 K1937.721 W8052.91
114-9704LED-6/18W / 1050 mA - 4000 K2027.821 W8052.91
114-9705LED-6/26W / 1400 mA - 3000 K2478.529 W8052.91
114-9706LED-6/26W / 1400 mA - 4000 K2591.129 W8052.91
114-0146LED-6/12W / 700 mA - 3000 K1229.614.5 W8052.91
114-0147LED-6/12W / 700 mA - 4000 K1314.414.5 W8052.91
114-0148LED-6/18W / 1050 mA - 3000 K1909.521 W8052.91
114-0149LED-6/18W / 1050 mA - 4000 K1998.321 W8052.91
114-0150LED-6/26W / 1400 mA - 3000 K2442.429 W8052.91
114-0151LED-6/26W / 1400 mA - 4000 K2553.429 W8052.91
114-0194LED-6/18W / 1050 mA - 2700 K1820.721 W8052.91
114-0195LED-6/26W / 1400 mA - 2700 K2309.229 W8052.91
WE-EF LIGHTING USA, LLC
410-D Keystone Drive, 15086 Warrendale, PA 15086 - Phone: +1 724 742 0030 customersupport.usa@we-ef.com - https://we-ef.com/us Subject to technical changes and errors. - Generated on 07/30/2024

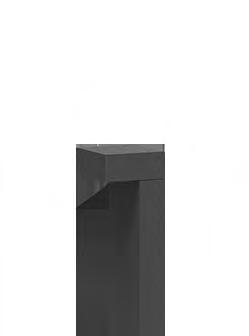

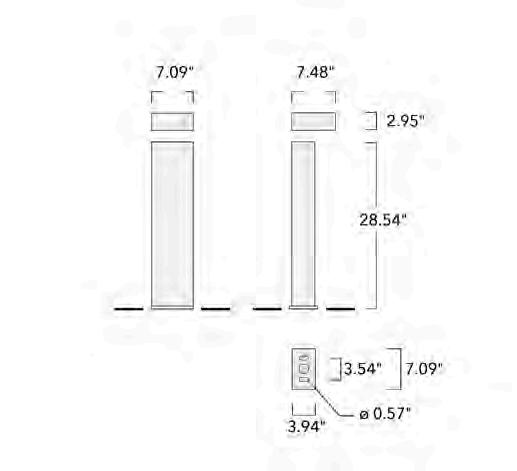

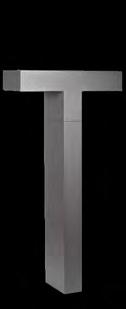

PSY414 LED

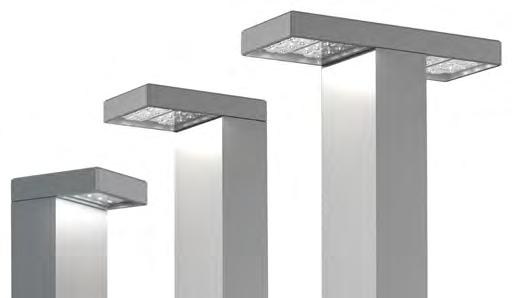

Bollards and Pathway Luminaires
Description
IP66. Class I. IK10. Marine-grade, all aluminum construction. Pole section features galvanized steel reinforcement core. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Polycarbonate main lens. CADoptimized optics for superior illumination and glare control. Integral driver. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire.
Pre-wired post complete with 10kV surge protector in cable connection box.
Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately.
114-0132LED-3/13W / 1400 mA - 3000 K1219.515 W8029.76
114-0133LED-3/13W / 1400 mA - 4000 K127515 W8029.76
114-0184LED-3/6W / 700 mA - 2700 K6067.5 W8029.76
114-0185LED-3/9W / 1050 mA - 2700 K909.111 W8029.76 rectangular asymmetric Type II [R45]
114-0186LED-3/13W / 1400 mA - 2700 K115315.8 W8029.76
WE-EF LIGHTING USA, LLC 410-D Keystone Drive, 15086 Warrendale, PA 15086 - Phone: +1 724 742 0030 customersupport.usa@we-ef.com - https://we-ef.com/us Subject to technical changes and errors. - Generated on 11/25/2024
Order Information
SAMPLE ORDER NUMBER: 303-B1-LEDB1-2700-120-T2-DIM10-BK-42-EDGE-PC1-RFL-LAB
(8)
[Blank]=Standard BAA=Buy American Act Preferences (2)
303-B1-LEDB1 One-direction head contains one (1) Mini LightBARTM
303-B1-LEDB2 One-direction head contains two (2) Mini LightBARTM
303-B2-LEDB4 Two-direction head contains four (4) Mini LightBARTM
(8) Only product configurations with this designated prefix are built to be compliant with the Buy American Act of 1933 (BAA). Please refer to DOMESTIC PREFERENCES website for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
Bollard
are
(shown in inches). (10) Only available on B1-LEDB1 model, not compatible with RIU or RFL options. (5) Add suffix in the
(6) Must specify voltage when ordering. (7) When specifying LAB option the anchor bolts and template need to be ordered seperately 7581-01PK. (9) 4-step MacAdam ellipse LED binning. Extended lead times may apply, see your Cooper Lighting Solutions representative for details. (11) Not available on B2-LEDB4 model
Product Specifications
Construction
The head of the 303-B1-LEDB1 is precision machined from corrosion resistant 6061-T6 aluminum
The extruded aluminum shaft mounts to an adjustable cast base, made from a corrosion resistant aluminum alloy
• Patented LumaLevel(TM) leveling system provides quick installation and adjustment while ensuring secure mounting and protection from vibration. Construction includes mounting base, 70 shore neoprene footing, and stainless steel hardware
• Stainless steel hardware is included
• Four (4) 3/8″ x 12″ galvanized anchor bolts and a galvanized steel anchor bolt template are standard
• Anchor bolts and template can be ordered separately for rough-in using catalog 7581-01PK. Specify fixture option -LAB
Electrical
• A universal input driver, compatible with ELV trailing edge phase dimming, is standard
• 0-10V dimming option is available
• The receptacle option incorporates a specification grade, 120V, 15A tamper proof and weather resistant duplex GFCI
• Photocell options available for either 120V or 277V inputs
Optical
• LightBAR™ and optical assembly are sealed by a clear, impact resistant tempered glass lens
Three optical distributions available: T2 (lateral throw), T4 (forward throw) and T5X (Flood)
Available in several color temperatures: 2700K, 3000K, 3500K, 4000K and TSAM (Amber)
• Both color temperature and distribution must be specified when ordering – see catalog logic for details
• Lit edge lens option is available
• Standard LED color binning is 5-step MacAdams Ellipse 4-step binning is available as an option
Finish
Luminaire and mounting base are double protected by a RoHS compliant chemical film undercoating and polyester powdercoat paint finish
• The mounting base is painted black
• The luminaire housing and head are available in a variety of standard colors
• RAL and custom colors also available. Additional charges and lead time apply
The LightBARTM cover plates are standard white
Compliance
• cULus Wet Location listed for up to 50°C ambient environments
• Tested according to IESNA LM-79 and LM-80 procedures
• RoHS Compliant
• BAA Compliant
IP66 rated
• Dark Sky Approved (3000K CCT and warmer only)
Warranty
Five-year limited warranty. Consult website for details www.cooperlighting.com/legal
Street and Area Lighting
Description
Wall and pole mounted LED luminaire.
IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Nonreflecting safety glass lens hinged, tool-less entry. CADoptimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Luminaire is factory-sealed and does not need to be opened during installation.
Recommended mounting height 10-30 ft, depending on wattage and light distribution selected.
Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately.
Subject to technical changes and errors. - Generated on 11/25/2024 1 of 18
ARO S
LUMINAIRE’S SPECIFICATIONS
Luminaire’s body
Weight 21 lbs
EPA 0.30
Protection index IP66
Materials Aluminium
Adjustable sleeve in 5° steps
Ø60 (Ø34/Ø42/Ø48 with reducing wedge in option) Ø76 (Top mounted only)
Tool-free opening trigger
Driver integrated in the luminaire
Standard color: Sanded grey 2900
hinge
White screen-printed
Optical unit & control gear
8 to 48 LED PCB in Zhaga standard - From 1000 to 19300 lm (see attached Aro datasheet for details on power, light intensity and photometry available). Integrated smart driver (control, automatic adjustment, CLO, graduation via voltage variation, DALI or Zhaga D4i). ULR 0% (LED) (ULR: Upward Light Ratio).
Materials
Tempered glass
Electric class I and II
Protection index IP66
Shock resistance IK09
Operating temperature: -13°F to +95°F (up to +50° under conditions).
Double
Street and Area Lighting
Configurations
Light distribution Part IDLight source
[A60] Type IV Very Short
[R65] Type IV Medium
WE-EF LIGHTING USA, LLC
111-0283LED-36/72W / 700 mA - 3000 K8675.279 W8033.00
111-0285LED-48/96W / 700 mA - 3000 K11566.9105.5 W8033.00
111-0357LED-36/72W / 700 mA - 4000 K9273.579 W8033.00
111-0359LED-48/96W / 700 mA - 4000 K12364.6105.5 W8033.00
111-0428LED-36/36W / 350 mA - 4000 K5353.139 W8033.00
111-0429LED-48/48W / 350 mA - 4000 K7137.552 W8033.00
111-0491LED-36/36W / 350 mA - 3000 K4880.839 W8033.00
111-0493LED-48/48W / 350 mA - 3000 K6507.752 W8033.00
111-0920LED-36/108W / 1050 mA - 3000 K13770.7119 W8033.00
111-0921LED-36/108W / 1050 mA - 4000 K14411.2119 W8033.00
111-0930LED-48/144W / 1050 mA - 3000 K18361159 W8033.00
111-0931LED-48/144W / 1050 mA - 4000 K19215159 W8033.00
111-1080LED-36/36W / 350 mA - 2700 K4565.939 W8033.00
111-1081LED-36/72W / 700 mA - 2700 K8076.979 W8033.00
111-1082LED-36/108W / 1050 mA - 2700 K13130.2119 W8033.00
111-1083LED-48/48W / 350 mA - 2700 K6087.852 W8033.00
111-1084LED-48/96W / 700 mA - 2700 K10769.2105.5 W8033.00
111-1085LED-48/144W / 1050 mA - 2700 K17507159 W8033.00
111-0430LED-36/36W / 350 mA - 4000 K5341.839 W8033.00
111-0431LED-36/72W / 700 mA - 4000 K9252.879 W8033.00
111-0432LED-48/48W / 350 mA - 4000 K7122.452 W8033.00
111-0433LED-48/96W / 700 mA - 4000 K12337.1105.5 W8033.00
111-0495LED-36/36W / 350 mA - 3000 K4870.539 W8033.00
111-0497LED-36/72W / 700 mA - 3000 K8655.979 W8033.00
111-0501LED-48/96W / 700 mA - 3000 K11541.2105.5 W8033.00
111-0922LED-36/108W / 1050 mA - 3000 K13586.1119 W8033.00
111-0923LED-36/108W / 1050 mA - 4000 K14218119 W8033.00
111-0932LED-48/144W / 1050 mA - 3000 K18114.8159 W8033.00
111-0933LED-48/144W / 1050 mA - 4000 K18957.3159 W8033.00
111-0944LED-48/48W / 350 mA - 3000 K649452 W8033.00
111-1074LED-36/36W / 350 mA - 2700 K4556.339 W8033.00
111-1075LED-36/72W / 700 mA - 2700 K8058.979 W8033.00
Subject to technical changes and errors. - Generated on 11/25/2024
of 18
WDGE2 LED Architectural
Introduction
The WDGE LED family is designed to meet specifier’s every wallmounted lighting need in a widely accepted shape that blends with any architecture. The clean rectilinear design comes in four sizes with lumen packages ranging from 1,200 to 25,000 lumens, providing a true site-wide solution. Embedded with nLight® AIR wireless controls, the WDGE family provides additional energy savings and code compliance.
WDGE2 with industry leading precision refractive optics provides great uniform distribution and optical control. When combined with multiple integrated emergency battery backup options, including an 18W cold temperature option, the WDGE2 becomes the ideal wall-mounted lighting solution for pedestrian scale applications in any environment.
Architectural wall spacer7 PBBW Surface-mounted back box (top, left, right conduit entry). Use when there is no junction box available7
E10WH Emergency battery backup, Certified in CA Title 20 MAEDBS (10W, 5°C min)
E20WC Emergency battery backup, Certified in CA Title 20 MAEDBS (18W, -20°C min)
PE Photocell, Button Type8
DMG 0-10V dimming wires pulled outside fixture (for use with an external control, ordered separately)9
BCE Bottom conduit entry for back box (PBBW). Total of 4 entry points.
CCE Coastal Construction7
Standalone Sensors/Controls
PIR Bi-level (100/35%) motion sensor for 8-15' mounting heights. Intended for use on switched circuits with external dusk to dawn switching.
PIRH Bi-level (100/35%) motion sensor for 15-30' mounting heights. Intended for use on switched circuits with external dusk to dawn switching
PIR1FC3V Bi-level (100/35%) motion sensor for 8-15' mounting heights with photocell pre-programmed for dusk to dawn operation.
PIRH1FC3V
Bi-level (100/35%) motion sensor for 15-30' mounting heights with photocell pre-programmed for dusk to dawn operation.
Networked Sensors/Controls
NLTAIR2PIR Embedded wireless controls by nLight with Passive Infrared Occ sensor and on/off photocell for 8-15' mounting heights.
NLTAIR2PIRH Embedded wireless controls by nLight with Passive Infrared Occ sensor and on/off photocell for 15-30' mounting heights.
NLTAIREM2PIR Embedded wireless controls by nLight with UL924 listed emegency operation, Passive Infrared Occ sensor and on/off photocell for 8-15' mounting heights
NLTAIREM2PIRH Embedded wireless controls by nLight with UL924 listed emegency operation, Passive Infrared Occ sensor and on/off photocell for 15-30' mounting heights. See page 4 for out of
Hit the Tab key or mouse over the page to see all interactive elements.
WDGE LED Family Overview
PRODUCT DESCRIPTION
DSWP LED WALL PACK
The dark sky wall pack features cutoff distribution in traditional appearance. Die-cast aluminum housing with integrated heat sink for superior heat dissipation , and options for Emergency back-up, photocontrol, and sensor. It is an ideal option for landscape, wall/ surface, low level pathway, apartment buildings, schools, and multi-use facilities.
LECTRICAL SYSTEM F EATURES
• • Photocontrol comes standard Die-cast aluminum cooling design
DIMENSION
• Sensor and emergency back-up optional Net. Weight: 4.28 lbs
1. Button photocontrol is with a cap for standard product. If need photocontrol function please remove the cap at site.
2. Emergency battery back-up is for ambient temperatures of 32˚F-86˚F(0 ˚C-30˚C). Emergency battery backup is available in 4W and works for a minimum of ninety (90) minutes.
3. Microwave dimming sensor for mounting height 40ft (12m) max. Different sensor setting can be set by the remote controller AAL-RC-100.
* Bronze finish is standard. Custom color is available at an additional charge.
A ccessories (Ordered separately)
AAL-RC-100
Remote control for sensor

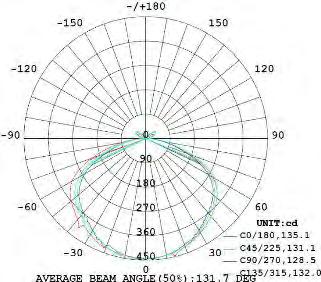

PHOTOMETRY
All published luminaire photo metric testing performed to IESNA LM-79-08 standards by a NVLAP certified laboratory.
PERFORMANCE DATA in accordance with IESNA LM-79-08 as well as Lighting Facts listed.
Lumen values are measured by third party certified laboratories performed
PrimaLine® 3 XT Long-Run LED Tape Light
Actual size shown
PrimaLine 3 XT is a high output, dimmable LED light that supplies the perfect level of brightness for task lighting, bright accent lighting, large coves, hallways, and long applications. This 3W per foot tape is Alloy LED’s most popular brightness level for general applications.
TECHNICAL INFORMATION
Color Temperature
2700K, 3000K, 3500K, 4200K, 5000K*
Power Consumption per Foot 2.88 Watts/120mA
Input Voltage 24V DC
Diodes per foot 36
Diode Spacing 0.325 inches
Tape Height 0.1 inches
Beam Angle 120°
Field Cuttable (UL 2108) Every 2 inches
Maximum Run Length 50 ft.
Dimmable Yes
Diode Type 3528 SMD
0.47 in. wide Cut point every 2 in.
• Extended maximum run length of 50 feet
• Saves installation costs by eliminating multiple home runs
• XT 3 and 4.4 models are manufactured exclusively for Alloy
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 20’
• Includes Sure-Tite connectors
SPECIFICATIONS
•4.5 watts per foot
•90+ CRI
•-4°F to 122°F
• For proper thermal management, we recommend to mount this product in a channel
VOLTAGE DROP GUIDANCE CHART
XT Long-Run 24V Voltage Drop and Wire Length Distance Chart (3% Drop or 24V)
Note: These tables provide general guidelines for determining Wire Gauge based on total load and distance from LED driver to beginning of luminaire.
ACCESSORIES (SOLD SEPARATELY)
In-Wall-Rated Tape Light Connectors (20 AWG)
LTR-P Professional Series ®
4.5W, 24VDC LED Tape
Specification Sheet
Kelvin temperature (color) ±100K. 16’-4” and 100’ reel includes 48” lead affixed to tape. 16’-4” reel includes (3) ESTW-60 Sure-Tite connectors. 100’ reel includes (10) ESTW-60 Sure-Tite connectors
COMPATIBLE CONTROLLERS
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, see page 8 SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage, see page 8
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 12VDC see page 10
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 12VDC see page 10
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC see page 10
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC see page 10
RECOMMENDED DRIVERS
LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC 20W,
LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W,
LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W,
LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
Electronic Dimmable Power Supply, 12VDC or 24VDC 15W,
RECOMMENDED POWER SUPPLIES (SOLD SEPARATELY)
Alloy LED PowerFactor™ Dimmable Power Supplies with Integrated UL Listed Junction Box
Compact, highly efficient, and code-compliant power supply with versatile and smooth dimming capabilities.
Wiring diagram is for reference only. Please refer to dimmer wiring specifications sheet for accurate directions.
Note: PowerFactor assumes 80% load. Inspectors prefer power supply to be used with junction box. For dimmer compatibility, refer to drivers specification sheet.
Specifications subject to change without notice.
LTR-P Professional Series ®
4.5W, 24VDC LED Tape Specification Sheet
LED-CHL-W Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-W-8 Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-W-AMC (2) Adjustable mounting brackets for LED-CHL-W
LED-CHL-W-EC (2) End caps for LED-CHL-W - one solid, one with hole.
LED-CHL-W-MC (2) Additional mounting clips for LED-CHL-W
LED-CHL2-ECG (2) End caps for LED-CHL2: light gray, one solid, one with hole
LED-CHL2-MC (2) Mounting clips and (2) screws
LED-CHL2-AMC (2) Adjustable mounting clips and (2) screws N/A
45º MINI ANGLE
LED-CHL-45-MINI Extruded angled (45°) silver channel. Includes white snap-on lens with (2) mounting clips and (2) screws.
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI light gray, one solid, one with hole
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI
Date:
Type:
Luminaire:
Project:
FCSL2040
SPECIFICATIONS
PHYSICAL
dimensions 13" W x 4.5" H x 3.9" D weight 5
housing
Approved:
FCSL2040 13” exterior die-cast aluminum step light with heavy walled die-cast faceplate, for masonry or drywall construction. IP68 rated for damp, dry or wet locations. Up to 128 lumens per Watt.
Marine grade, corrosion resistant, heavy walled, high pressure, die-cast aluminum with snap-in Screwless faceplate standard. Optional captive recessed stainless steel tamper resistant screws (TRS option). Back Box is high strength, black Polycarbonate with UV protection (UL 746C rated f1) and flame rated (UL94 5VA).
lens Clear, low iron tempered glass lens. Diffused internal reflector
mounting
ingress protection
faceplate finish
PERFORMANCE
ELECTRICAL
Concrete pour, masonry, solid composite, special construction, and drywall construction mounting kit included. Hanger bar mounting optional.
Optical / driver unit is IP68 rated dry, damp or wet locations. All seals are injection molded silicone.
Die cast aluminum faceplate. Six stage chemical iron phosphate conversion pre-treatment. Polyester powder coat finish, 18 µm minimum thickness, 5,000 hour salt spray test (ASTM B117) compliant with Florida, AAMA 2604 specification.
a n ultra-clean line, low profile, narrow aperture direct linear surface mount fixture utilizing high performance L e D boards and lenses. e xtruded aluminum housing with internal driver.
Features
- Starfire's proprietary e ven glow™ system provides uniform lens illumination from edge-to-edge without lamp imaging, bright spots or shadows at any length
- f ixtures fabricated to any specified length without custom engineering
- e xceptional lumen per watt efficiency
- high efficiency, low cost, dynamic tunable White option
- high performance acrylic flush diffusion lens
- f uture proof L e D boards sourced from world's leading suppliers
Fixture Specifications
- h ousing: h eavy-duty extruded aluminum
- f inish: White (std), custom available
- Weight: a pprox. 1.3 lbs per linear foot
- UL Listed, (indoor non-condensing)
Electrical
- Power consumption: Per specification based on L e D configuration
- i nput Voltage: 120-277V universal driver
- a mbient operating range: -4 ° f to +100 ° f
- Drivers with full dimming range at any output choice
- 1% Dimming: 0-10V standard (included), consult factory for other options
Mounting
- Screw mount housing to blocking. c onsult factory for special ceiling conditions
Options ( c onsult factory)
- Occupancy sensor, daylight control module
- e M pack in 4ft segments. Delivers 675 lumens for 90 mins. Specify location(+/- 2ft) at time of order
LED Specifications/Photomerty: Page 2

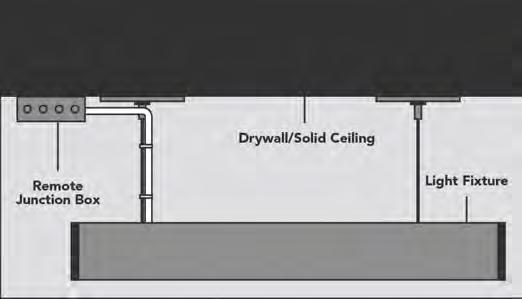

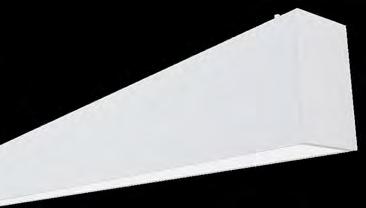

Carisma® 2”
Linear Direct
PROJECT:
Features
TYPE:
Carisma® Pendant is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . A tailored end cap design and Amerlux’s trusted catch-andlatch mechanism prevents all light leakage.
The Carisma® Pendant offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounting options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Pendant, Surface or Wall Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)

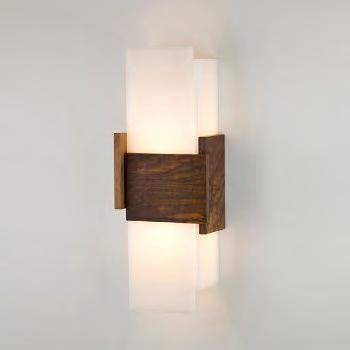

Your space may be very bright with just one lamp, which can easily be adjusted. The Modern LED Dog Bone Design Ceiling Lamp is beautifully crafted, comes in a sweet bone shape, and looks fantastic on your ceiling. These are composed of high-quality acrylic with wooden touch.
Features:
Material:Wood+Acrylic
Voltage: 110-240VAC
Light Source: LED
Colors: Blue,Yellow, Red,White
Share
Real Stories from Real People
Emily
The tree lights from Original Tree Lights are absolutely beautiful. I purchased the Sweet Cherry Original Tree Lights, and they have completelytransformed my living room with their soft, warm glow. The craftsmanship is excellent, and I love how durable and elegant they look. Highly recommended!
David L.
Original Tree Lights offers such awide variety of lighting options! From tree lights to elegant chandeliers, I was able to find exactlywhat I needed to elevate my home decor. Their products are perfect for adding a unique and calming atmosphere to any room.
Shoppingwith Original Tree Lights was a fantastic experience. The website was easyto navigate, and my order arrived quickly. The lights were packaged securely, and they look even better in person. I’m very happywith my purchase and will definitely shop here again. JoinUs&Get10%Off
1
Add to cart
Your space may be very bright with just one lamp, which can easily be adjusted. The Modern LED Dog Bone Design Ceiling Lamp is beautifully crafted, comes in a sweet bone shape, and looks fantastic on your ceiling. These are composed of high-quality acrylic with wooden touch.
Features:
Material:Wood+Acrylic
Voltage: 110-240VAC
Light Source: LED
Colors: Blue,Yellow, Red,White
Share
Real Stories from Real People
Emily
The tree lights from Original Tree Lights are absolutely beautiful. I purchased the Sweet Cherry Original Tree Lights, and they have completelytransformed my living room with their soft, warm glow. The craftsmanship is excellent, and I love how durable and elegant they look. Highly recommended!
David L.
Original Tree Lights offers such awide variety of lighting options! From tree lights to elegant chandeliers, I was able to find exactlywhat I needed to elevate my home decor. Their products are perfect for adding a unique and calming atmosphere to any room.
Shoppingwith Original Tree Lights was a fantastic experience. The website was easyto navigate, and my order arrived quickly. The lights were packaged securely, and they look even better in person. I’m very happywith my purchase and will definitely shop here again. JoinUs&Get10%Off
Shade: High Transmission Acrylic Create Excellent Light Distribution and Uniformity
LED: High Efficiency, High CRI, Binned and Mixed to Reach Uniform Light
Electrical
High Power Factor, Low THD
Lamp
Built-in LED Module
MCT Type: Get Preferable Fixture Color Temperature by Slide Switch on LED Board
Color Temperature Option – 3000K, 3500K, 4000K
Certifications
ETL/cETL Listed, Suitable for Damp Locations
Warranty
5 Years Warranty on Driver and LED Module
/
/
/
/

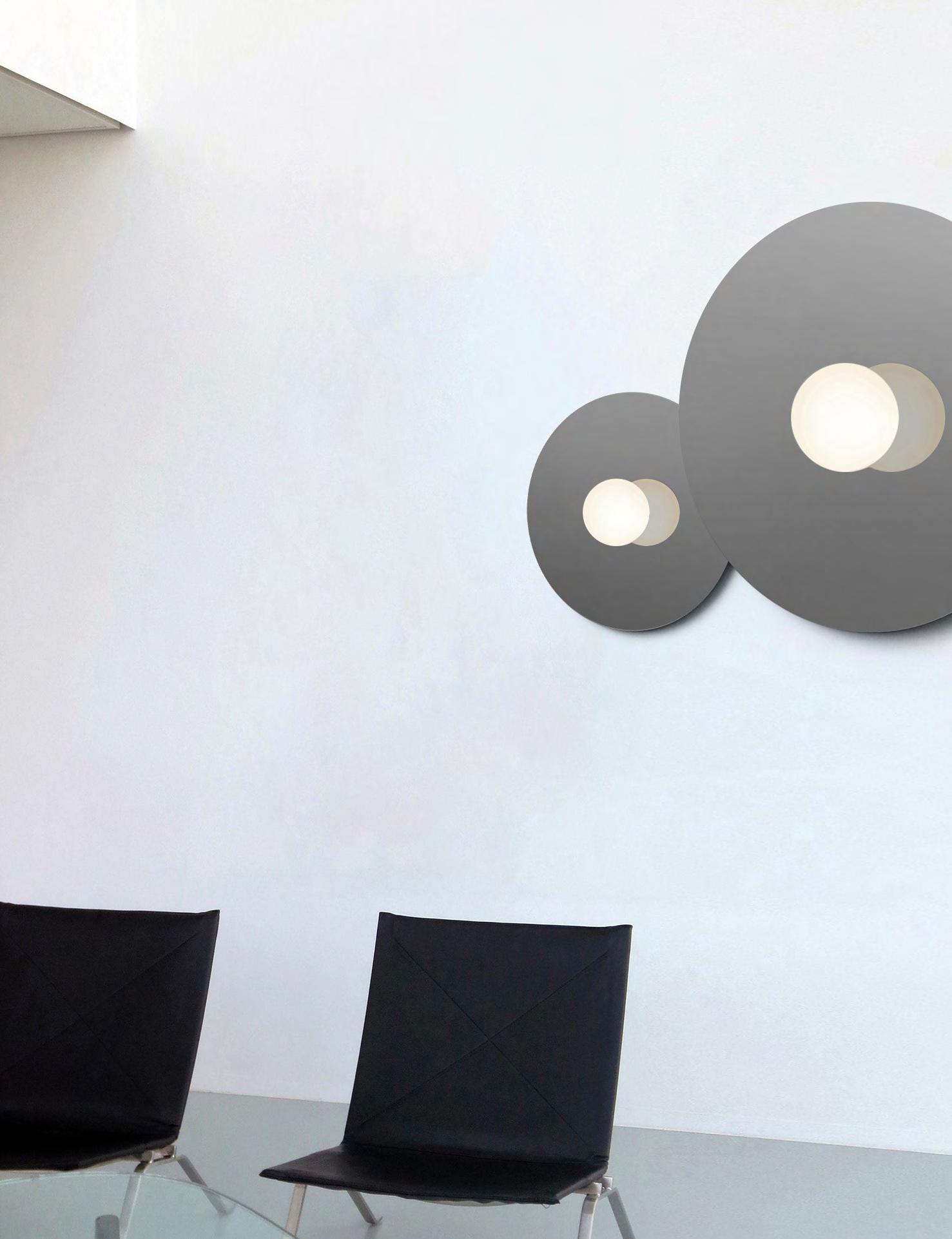

BOLA DISC FLUSH
DESCRIPTION
A study in refined simplicity, Bola Flush offers a magical combination of mirror and globe refined down to its bare essentials. The objective with the Bola Flush is to provide both direct and reflected light from either ceiling or wall mounted vantage points. Bola Flush brings elegance and refinement with four sizes and five finishes in chrome, brass, rose gold, gunmetal, white, and matte black. An ideal fixture for adding diffused and reflected light in hallway corridors, nooks, dining settings, bedrooms, or living areas. Stunning groupings can also be created by mixing different sizes together to form unique custom light displays.
FIXTURE TYPE
Wall/Ceiling
LIGHT SOURCE
Custom integrated LED, high-output chip on board
LIGHT CONTROL
Hard-wired, dimmable
Compatible with TRIAC/ELV and 0-10V dimmers
Dali compatability upon request
FEATURES
Warm Dim
SPECIFICATIONS
Voltage: 120V-277V 50/60Hz
Power Consumption: 6W (12”, 18”), 12W (22”), 20W (32”)
Bola Disc Flush ___ (Matte Black): BOLA FSH ___ BLK
Bola Disc Flush ___ (Matte White): BOLA FSH ___WHT
Bola Disc Flush Standoff BOLA FSH STAND
PACKAGING WEIGHT AND DIMENSIONS
Bola Disc 12 4LBS 15” X 15” X 7” (Steel Shade) 1.8KG 38cm X 38cm X 18cm
Bola Disc 12 2.4LBS 15” X 15” X 7” (White Aluminum Shade) 1.1KG 38cm X 38cm X 18cm
Bola Disc 18 8.6LBS 20.75” X 20.75” X 8” (Steel Shade) 3.9KG 53cm X 53cm X 20cm
Bola Disc 18 6.75LBS 20.75” X 20.75” X 8” (White Aluminum Shade) 3KG 53cm X 53cm X 20cm
Bola Disc 22 12.25LBS 24” X 24” X 10” (Steel Shade) 5.6KG 61cm X 61cm X 25cm
Bola Disc 22 9LBS 24” X 24” X 10” (White Aluminum Shade) 4.1KG 61cm X 61cm X 25cm
Bola Disc 32 23.8LBS 34.5” X 34.5” X 10.5”
(Steel Shade) 10.8KG 87.6cm X 87.6cm X 27cm
Bola Disc 32 17.5LBS 34.5” X 34.5” X 10.5”
(White Aluminum Shade) 7.9KG 87.6cm X 87.6cm X 27cm
NOTES
3000K and 3500K CCT Models Available Upon Request. (Please inquire for MOQ, Leadtime) Custom requests can be considered on volume orders.
DIMENSIONS

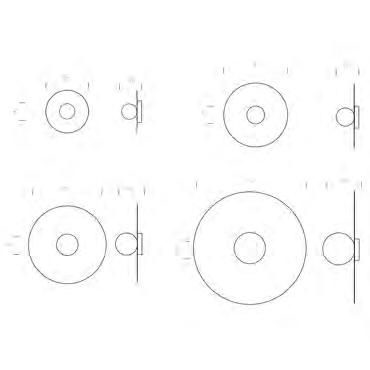

BOLA DISC FLUSH 12, 18, 22, 32
BOLA DISC FLUSH
DESCRIPTION
A study in refined simplicity, Bola Flush offers a magical combination of mirror and globe refined down to its bare essentials. The objective with the Bola Flush is to provide both direct and reflected light from either ceiling or wall mounted vantage points. Bola Flush brings elegance and refinement with four sizes and five finishes in chrome, brass, rose gold, gunmetal, white, and matte black. An ideal fixture for adding diffused and reflected light in hallway corridors, nooks, dining settings, bedrooms, or living areas. Stunning groupings can also be created by mixing different sizes together to form unique custom light displays.
FIXTURE TYPE
Wall/Ceiling
LIGHT SOURCE
Custom integrated LED, high-output chip on board
LIGHT CONTROL
Hard-wired, dimmable
Compatible with TRIAC/ELV and 0-10V dimmers
Dali compatability upon request
FEATURES
Warm Dim
SPECIFICATIONS
Voltage: 120V-277V 50/60Hz
Power Consumption: 6W (12”, 18”), 12W (22”), 20W (32”)
Bola Disc Flush ___ (Matte Black): BOLA FSH ___ BLK
Bola Disc Flush ___ (Matte White): BOLA FSH ___WHT
Bola Disc Flush Standoff BOLA FSH STAND
PACKAGING WEIGHT AND DIMENSIONS
Bola Disc 12 4LBS 15” X 15” X 7” (Steel Shade) 1.8KG 38cm X 38cm X 18cm
Bola Disc 12 2.4LBS 15” X 15” X 7” (White Aluminum Shade) 1.1KG 38cm X 38cm X 18cm
Bola Disc 18 8.6LBS 20.75” X 20.75” X 8” (Steel Shade) 3.9KG 53cm X 53cm X 20cm
Bola Disc 18 6.75LBS 20.75” X 20.75” X 8” (White Aluminum Shade) 3KG 53cm X 53cm X 20cm
Bola Disc 22 12.25LBS 24” X 24” X 10” (Steel Shade) 5.6KG 61cm X 61cm X 25cm
Bola Disc 22 9LBS 24” X 24” X 10” (White Aluminum Shade) 4.1KG 61cm X 61cm X 25cm
Bola Disc 32 23.8LBS 34.5” X 34.5” X 10.5”
(Steel Shade) 10.8KG 87.6cm X 87.6cm X 27cm
Bola Disc 32 17.5LBS 34.5” X 34.5” X 10.5”
(White Aluminum Shade) 7.9KG 87.6cm X 87.6cm X 27cm
NOTES
3000K and 3500K CCT Models Available Upon Request. (Please inquire for MOQ, Leadtime) Custom requests can be considered on volume orders.
DIMENSIONS
BOLA DISC FLUSH 12, 18, 22, 32

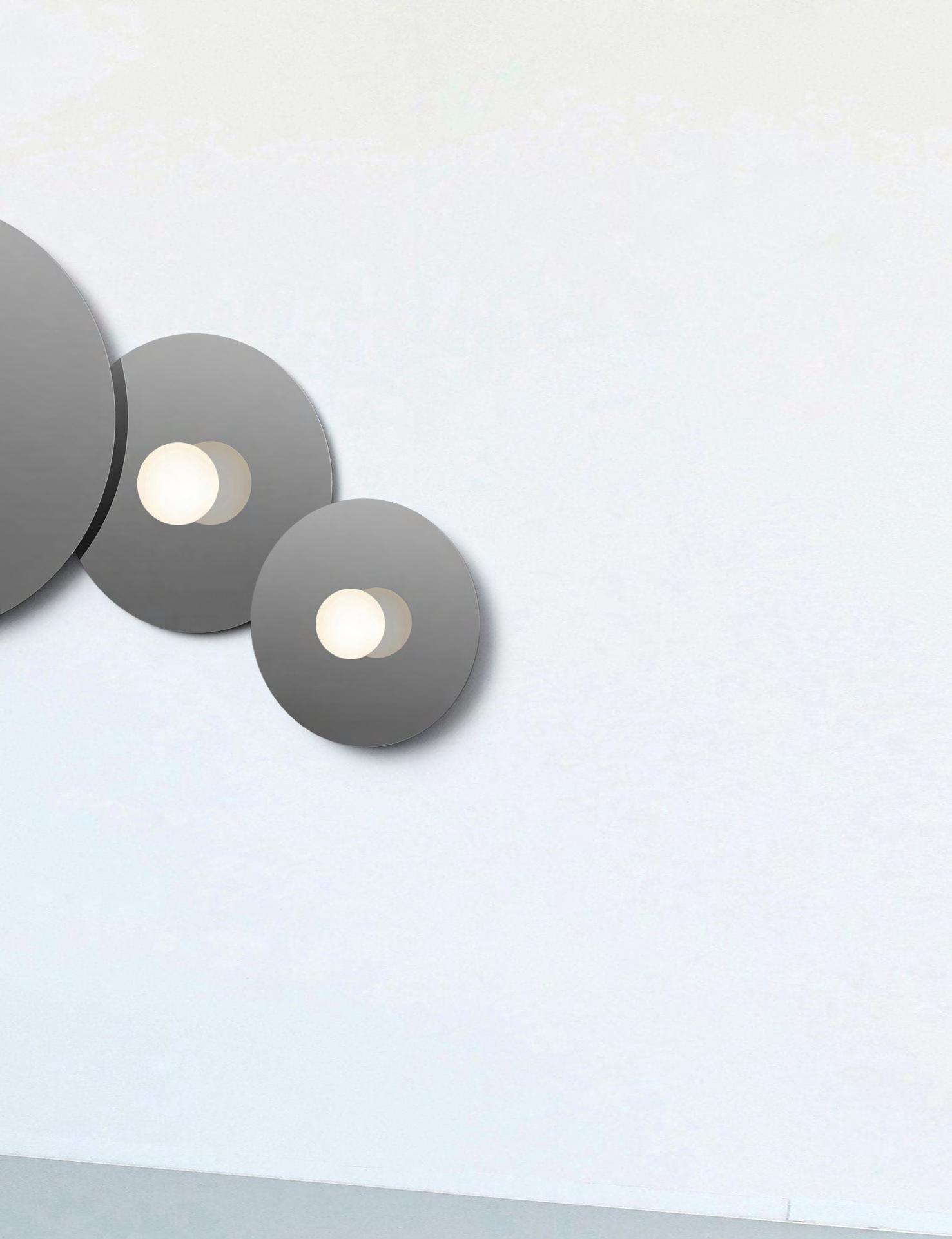

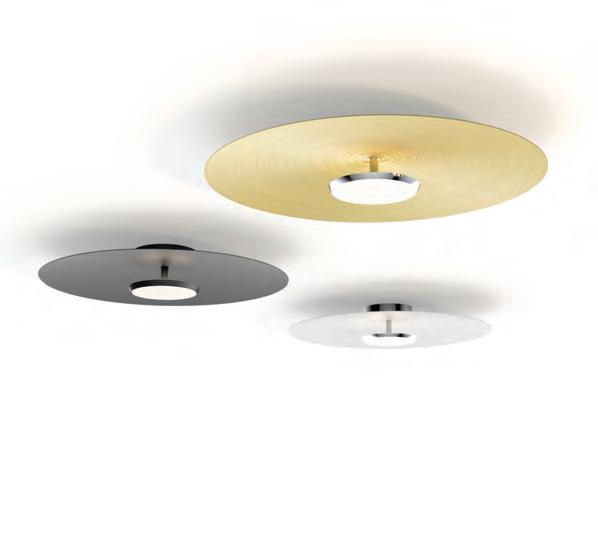

BOLA DISC FLUSH GROUPING
Stunning compositions can be created by mixing or matching different sizes and finishes together to form unique customized light clusters.
BOLA DISC FLUSH GROUPING
Stunning compositions can be created by mixing or matching different sizes and finishes together to form unique customized light clusters.
1” add-on standoff allows for overlapping disc groupings
PRODUCT CODE
BOLA FSH STAND
(23mm)
(38mm)
1” add-on standoff allows for overlapping disc groupings
PRODUCT CODE
BOLA FSH STAND
(23mm)
(38mm)

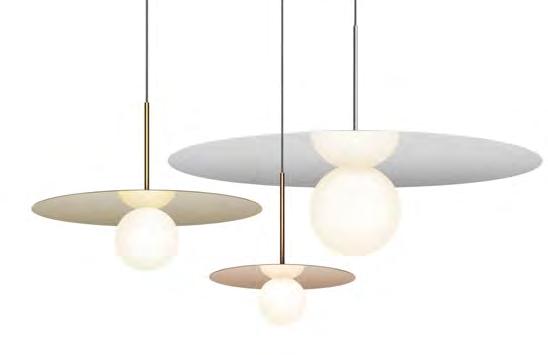

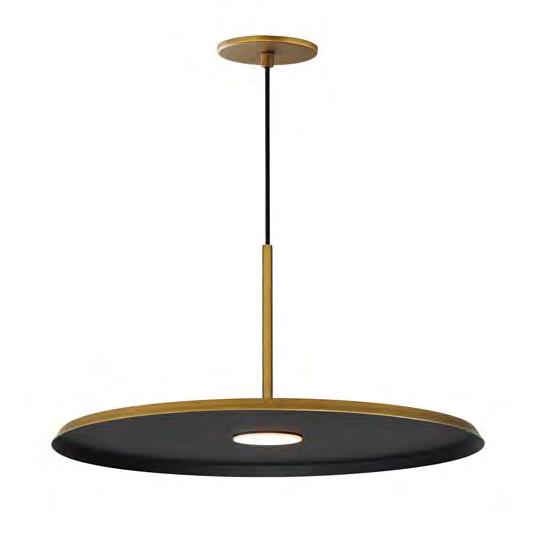

BOLA DISC PENDANT
DESCRIPTION
Bola Disc is a uniquely expressive LED Pendant system featuring a distinctive range of chromated disc reflectors that give the illusion of weightlessness by mirroring its surroundings. Available in 4 distinct sizes, Bola Disc pairs an elegant globe diffusor made of opaline glass with exquisitely polished stainless steel or aluminum discs in chrome, brass, rose gold lacquered white, and matte black to appease the most discerning tastes. Dependent on size, Bola provides up to 1625 lumens of warm ambient light and is fully dimmable, providing unparalleled illumination. Bola can be suspended individually, in series, or as striking chandelier groupings for residential, contract, and hospitality settings alike.
FIXTURE TYPE
Pendant
LIGHT SOURCE
Custom integrated LED, high-output chip on board
LIGHT CONTROL
Hard-wired, dimmable
Compatible with TRIAC/ELV and 0-10V dimmers
Dali compatability upon request
FEATURES
Warm Dim
SPECIFICATIONS
Voltage: 120V-277V 50/60Hz
Power Consumption: 6W (12”, 18”), 12W (22”), 20W (32”)
Bola Disc 18 8.6LBS 20.75” X 8” (Steel Shade) 3.9KG 53cm X 20cm
Bola Disc 18 6.75LBS 20.75” X 8” (White Aluminum Shade) 3KG 53cm X 20cm
Bola Disc 22 12.25LBS 24” X 10”
(Steel Shade) 5.6KG 61cm X 25cm
Bola Disc 22 9LBS 24” X 10”
(White Aluminum Shade) 4.1KG 61cm X 25cm
Bola Disc 32 23.8LBS 34.5” X 10.5” (Steel Shade) 10.8KG 87.6cm X 27cm
Bola Disc 32 17.5LBS 34.5” X 10.5”
(White Aluminum Shade) 7.9KG 87.6cm X 27cm
NOTES
3000K and 3500K CCT Models Available Upon Request.
(Please inquire for MOQ, Leadtime)
Custom requests can be considered on volume orders.
FINISHES
DIMENSIONS
BOLA DISC 12, 18, 22, 32
BOLA DISC PENDANT
DESCRIPTION
Bola Disc is a uniquely expressive LED Pendant system featuring a distinctive range of chromated disc reflectors that give the illusion of weightlessness by mirroring its surroundings. Available in 4 distinct sizes, Bola Disc pairs an elegant globe diffusor made of opaline glass with exquisitely polished stainless steel or aluminum discs in chrome, brass, rose gold lacquered white, and matte black to appease the most discerning tastes. Dependent on size, Bola provides up to 1625 lumens of warm ambient light and is fully dimmable, providing unparalleled illumination. Bola can be suspended individually, in series, or as striking chandelier groupings for residential, contract, and hospitality settings alike.
FIXTURE TYPE
Pendant
LIGHT SOURCE
Custom integrated LED, high-output chip on board
LIGHT CONTROL
Hard-wired, dimmable
Compatible with TRIAC/ELV and 0-10V dimmers
Dali compatability upon request
FEATURES
Warm Dim
SPECIFICATIONS
Voltage: 120V-277V 50/60Hz
Power Consumption: 6W (12”, 18”), 12W (22”), 20W (32”)
Custom Finish 100 Piece Minimum Order Quantity; Optional Color Tempature 100 Piece Minimum Order Quantity
Project Name:
Location:
Type:
Quantity:
Notes:
Voltage: 120v Print Name Signature:
In addition to Access Lighting's purchase and warranty terms and conditions, by signing below or placing an order, you agree that you are authorized to bind the entity placing any order and acknowledge the following: All of sizes and measurements are approximate and all images are for illustrative purposes only. In the event of an inconsistency, the "Product Measurements" section controls. There also may be slight differences in the colors and designs compared to the displayed and printed images.
Shade: High Transmission Acrylic Create Excellent Light Distribution and Uniformity
Electrical
High Power Factor, Low THD
Lamp
Built-in LED: High Efficiency, High CRI, Binned and Mixed to Reach Uniform Light Color Temperature Option – 3000K, 4000K
Certifications
ETL/cETL Listed, Suitable for Damp Locations
Warranty
5 Years Warranty on Driver and LED Module

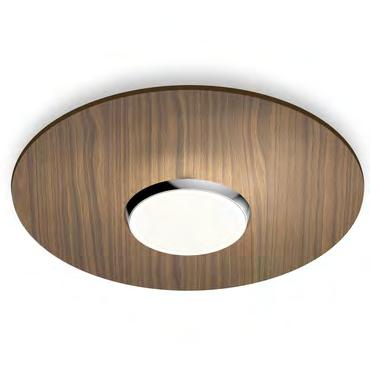

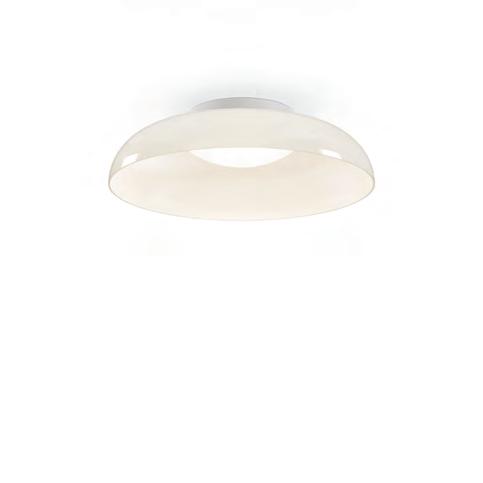

BRAND Pablo
DESCRIPTION
The Sky Dome Wall/Ceiling Light features a round reflector available in spun aluminum or pressed wood veneer. A two-sided integrated LED light source provides both direct lighting outwards as well as indirect light off the reflector disc. When mounted as a wall sconce, the Sky Dome light is ADA compliant at only 4 inch extension.Note: The Oak and Walnut finishes are not available in 32 inch diameter size.
Shown in: Polished Aluminum / Walnut
BRAND Pablo
DESCRIPTION
The Sky Dome Wall/Ceiling Light features a round reflector available in spun aluminum or pressed wood veneer. A two-sided integrated LED light source provides both direct lighting outwards as well as indirect light off the reflector disc. When mounted as a wall sconce, the Sky Dome light is ADA compliant at only 4 inch extension.Note: The Oak and Walnut finishes are not available in 32 inch diameter size.
Shown in: Polished Aluminum / Walnut
SEMIFLUSH
SF62014-BK/CH Black/Chrome
SF62014-BK/CP Black/Copper
SPECIFICATIONDETAILS
SF62014-BK/SM Black/Smoked
FixtureDimensions D14-1/4"xH7-5/8"
LightSource ACLEDModule
Wattage 21W
TotalLumens 1840lm
DeliveredLumens BK/CH-560lm;BK/CP-665lm;BK/SM-970lm; Voltage 120V

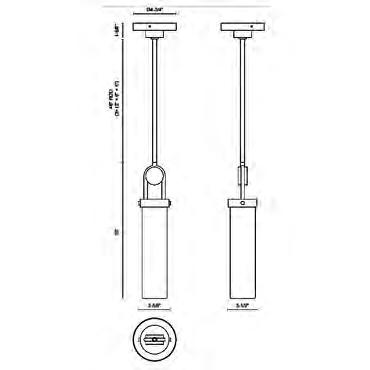

The ENTRA 2" Adjustable Cylinder provides a cost-effective option with a modern aesthetic for residential, hospitality and commercial applications. Engineered with a 0-45° tilt, 360° rotation and interchangeable optics, ENTRA 2" Adjustable Cylinders are a great solution for flexible illumination and aiming light where it’s needed. Mounting options include Flush Mount, Surface Mount, Pendant Mount and Conduit Mount. LED is recessed in the cylinder minimizing glare with warm dimming and static white options. Available in Black, Brushed Aluminum, and White (field paintable).
• Several lens and louver options including Solite Soft Focus
SPECIFICATIONS
3000K, or 3500K
VOLTAGE 120V or 277V
DIMMING1
POWER SUPPLY
BEAM SPREAD
ADJUSTABILITY
CEILING APPEARANCE
CONSTRUCTION
FINISH
GENERAL LISTINGS
Lumen output will vary by CCT and CRI. See photometric charts for output information. Data in chart reflects 3500K/80 CRI values, unless otherwise noted.
COLOR CONSISTENCY 1-step 2-step
Standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming down to 1% for 12W and 5% for 8W eldoLED 0-10V or DALI-2 down to 0.1% Lutron Hi-lume EcoSystem down to 0.1%
Constant current driver with +0.9 power factor and +80% efficiency
Interchangeable optics: 20°, 30°, 40°, or 60°
0-45° tilt, 360° rotation
Flush Mount
Surface Mount (Canopy)
Pendant Mount (Canopy)
Conduit Mount (J-Box)
Cylinder: Aluminum
Reflector: White, Black, or Brushed Aluminum
Cylinder: White, Black, or Brushed Aluminum
ETL Listed. Damp Location CALIFORNIA
Data in chart reflects 3500K/80 CRI values, unless otherwise noted. Ordering grids available on page 2.
1See visualcomfort.com for dimmer compatibility.
2Visit visualcomfort.com for specific warranty limitations and details.
DRIVERS 120V/277V -UNV UNIVERSAL PHASE/0-10V 1%/5%4 (AVAILABLE FOR SURFACE AND PENDANT MOUNT) REMOTE DRIVERS 120V/277V5 -ELD0 ELDOLED 0.1% 0-10V LINEAR -ELD0A ELDOLED 0.1% 0-10V LOGARITHMIC -ELDD ELDOLED 0.1% DALI-2 -UNV UNIVERSAL PHASE/0-10V 5%4 (AVAILABLE FOR FLUSH MOUNT AND CONDUIT MOUNT) -HLECO LUTRON HI-LUME 0.1% ECOSYSTEM
For dimming details, refer to dimmer compatibility chart.
Standard Cylinder reflectors do not accommodate any lens accessories. To use with lens accessories (max. 2), order the ENCY2LK Lens/Louver Kit.
1F - Flush Mount includes adapter plate to assemble to standard 4 square or octagonal junction box prior to ceiling install.
2C - Conduit Mount includes custom junction box assembled at/below the ceiling.
3P - Pendant Mount for use with ECPS Cylinders pendant stems.
4UNV - Universal dimming is reverse-phase, forward-phase, TRIAC, and 0-10V. 277V is only compatible with 0-10V dimming. The LED driver is housed within the junction box for Pendant and Surface Mount products and remotely for Flush and Conduit Mounted products. Dims down to 1% for 12W and 5% for 8W.
5Remote drivers ship in 4 x 8 x 1.8 black enclosure for remote location mounting.
REPLACEMENT OPTICS
PRODUCT BEAM SPREAD
REFLECTOR OPTIC TOOL
PRODUCT1
ENCY2TR ENTRA CYLINDERS 2 REFLECTOR TOOL
ENCY2TR
1It is highly recommended to order a reflector optic tool when purchasing lens/louver kits as this will make removal of the existing reflector significantly easier.
VAULTED CEILING ADAPTER
PRODUCT FINISH
ECVA PENDANT MOUNT1
ECVAD SURFACE MOUNT2 B BLACK W WHITE A BRUSHED ALUMINUM
LENS/LOUVER KIT
PRODUCT1 TYPE
SANDBLASTED
ENCY2LK -
1Required for use with lenses or louvers for Cylinders. Lens/louver kits include a reflector and 1 lens. To add additional lenses (max. 2), see accessories page. It is highly recommended to order a reflector optic tool when purchasing lens/louver kits as this will make removal of the existing reflector significantly easier.
1Required for Pendant
1For use with Pendant Mount. Adds 1.7 to the overall length of the stem. Accommodates slopes up to 45 degrees.
2For use with Surface Mount. Accommodates slopes up to 45 degrees.
FORMERLY KNOWN AS TECH LIGHTING

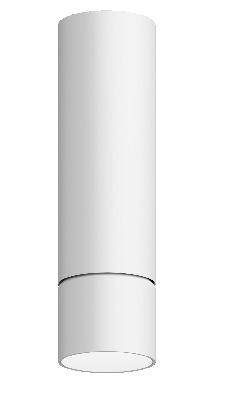

ENTRA™ 2" CYLINDER
ADJUSTABLE CYLINDER
The ENTRA 2" Adjustable Cylinder provides a cost-effective option with a modern aesthetic for residential, hospitality and commercial applications. Engineered with a 0-45° tilt, 360° rotation and interchangeable optics, ENTRA 2" Adjustable Cylinders are a great solution for flexible illumination and aiming light where it’s needed. Mounting options include Flush Mount, Surface Mount, Pendant Mount and Conduit Mount. LED is recessed in the cylinder minimizing glare with warm dimming and static white options. Available in Black, Brushed Aluminum, and White (field paintable).
• Several lens and louver options including Solite Soft Focus
SPECIFICATIONS
3000K, or 3500K
VOLTAGE 120V or 277V
DIMMING1
POWER SUPPLY
BEAM SPREAD
ADJUSTABILITY
CEILING APPEARANCE
CONSTRUCTION
FINISH
GENERAL LISTINGS
Lumen output will vary by CCT and CRI. See photometric charts for output information. Data in chart reflects 3500K/80 CRI values, unless otherwise noted.
COLOR CONSISTENCY 1-step 2-step
Standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming down to 1% for 12W and 5% for 8W eldoLED 0-10V or DALI-2 down to 0.1% Lutron Hi-lume EcoSystem down to 0.1%
Constant current driver with +0.9 power factor and +80% efficiency
Interchangeable optics: 20°, 30°, 40°, or 60°
0-45° tilt, 360° rotation
Flush Mount
Surface Mount (Canopy)
Pendant Mount (Canopy)
Conduit Mount (J-Box)
Cylinder: Aluminum
Reflector: White, Black, or Brushed Aluminum
Cylinder: White, Black, or Brushed Aluminum
ETL Listed. Damp Location CALIFORNIA
Data in chart reflects 3500K/80 CRI values, unless otherwise noted. Ordering grids available on page 2.
1See visualcomfort.com for dimmer compatibility.
2Visit visualcomfort.com for specific warranty limitations and details.
DRIVERS 120V/277V -UNV UNIVERSAL PHASE/0-10V 1%/5%4 (AVAILABLE FOR SURFACE AND PENDANT MOUNT) REMOTE DRIVERS 120V/277V5 -ELD0 ELDOLED 0.1% 0-10V LINEAR -ELD0A ELDOLED 0.1% 0-10V LOGARITHMIC -ELDD ELDOLED 0.1% DALI-2 -UNV UNIVERSAL PHASE/0-10V 5%4 (AVAILABLE FOR FLUSH MOUNT AND CONDUIT MOUNT) -HLECO LUTRON HI-LUME 0.1% ECOSYSTEM
For dimming details, refer to dimmer compatibility chart.
Standard Cylinder reflectors do not accommodate any lens accessories. To use with lens accessories (max. 2), order the ENCY2LK Lens/Louver Kit.
1F - Flush Mount includes adapter plate to assemble to standard 4 square or octagonal junction box prior to ceiling install.
2C - Conduit Mount includes custom junction box assembled at/below the ceiling.
3P - Pendant Mount for use with ECPS Cylinders pendant stems.
4UNV - Universal dimming is reverse-phase, forward-phase, TRIAC, and 0-10V. 277V is only compatible with 0-10V dimming. The LED driver is housed within the junction box for Pendant and Surface Mount products and remotely for Flush and Conduit Mounted products. Dims down to 1% for 12W and 5% for 8W.
5Remote drivers ship in 4 x 8 x 1.8 black enclosure for remote location mounting.
REPLACEMENT OPTICS
PRODUCT BEAM SPREAD
REFLECTOR OPTIC TOOL
PRODUCT1
ENCY2TR ENTRA CYLINDERS 2 REFLECTOR TOOL
ENCY2TR
1It is highly recommended to order a reflector optic tool when purchasing lens/louver kits as this will make removal of the existing reflector significantly easier.
VAULTED CEILING ADAPTER
PRODUCT FINISH
ECVA PENDANT MOUNT1
ECVAD SURFACE MOUNT2 B BLACK W WHITE A BRUSHED ALUMINUM
LENS/LOUVER KIT
PRODUCT1 TYPE
SANDBLASTED
ENCY2LK -
1Required for use with lenses or louvers for Cylinders. Lens/louver kits include a reflector and 1 lens. To add additional lenses (max. 2), see accessories page. It is highly recommended to order a reflector optic tool when purchasing lens/louver kits as this will make removal of the existing reflector significantly easier.
1Required for Pendant
1For use with Pendant Mount. Adds 1.7 to the overall length of the stem. Accommodates slopes up to 45 degrees.
2For use with Surface Mount. Accommodates slopes up to 45 degrees.
Second Finish/Color Polished Chrome Type of Finish Fabric Second Type of Finish Electroplated Light Qty 4 Rated For
Approval cUL or equivalent

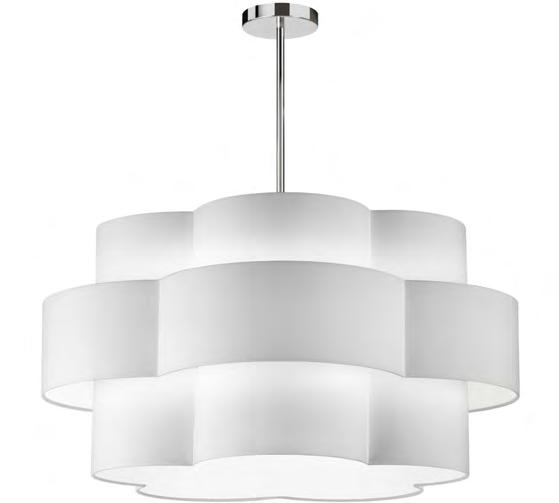

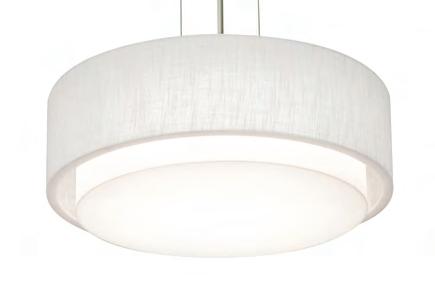

4 Light Incandescent Chandelier, Polished Chrome with White Shade
Body Material Fabric
Finish/Color White
Second Material Metal
Second Finish/Color Polished Chrome Type of Finish Fabric Second Type of Finish Electroplated
Approval cUL or equivalent
Warranty 1 Year Limited Install Position Ceiling

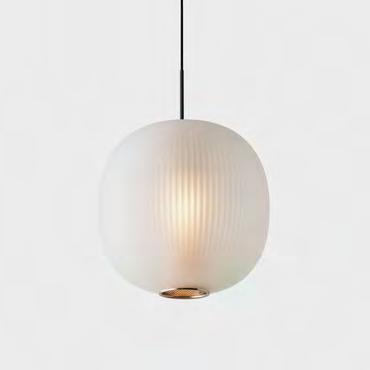

BRAND Resident Lighting
DESCRIPTION
The Bloom Pendant is inspired by the gentle dynamic flow of paper lanterns, resulting in transparency and light. Two contrasting materials, a finely perforated mesh core and frosted blown glass, combine to project a soft focus texture onto the inside of the shade. At the same time, an unobstructed pool of light is projected downwards onto objects below. Bloom's distinct character is evident both in its on and off state, creating a versatile piece. Available with a White or Textured Black shade and a Black cord in two sizes. 4.17 inch diameter canopy in Black finish. UL and CE listed.
Bloom Pendant
SHADE COLOR
BODY FINISH
DIMMER

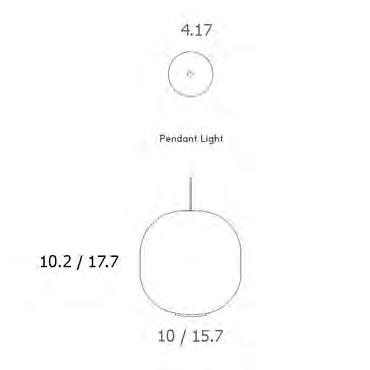

DIMENSIONS
BULB INCLUDED
x 17.7"H
LAMP 1 x A19/Medium (E26)/6W/120V LED
x A19/Medium (E26)/60W/120V Incandescent Technical
Shown in: Black / White
BRAND Resident Lighting
DESCRIPTION
The Bloom Pendant is inspired by the gentle dynamic flow of paper lanterns, resulting in transparency and light. Two contrasting materials, a finely perforated mesh core and frosted blown glass, combine to project a soft focus texture onto the inside of the shade. At the same time, an unobstructed pool of light is projected downwards onto objects below. Bloom's distinct character is evident both in its on and off state, creating a versatile piece. Available with a White or Textured Black shade and a Black cord in two sizes. 4.17 inch diameter canopy in Black finish. UL and CE listed.
Bloom Pendant
SHADE COLOR
BODY FINISH
DIMMER
DIMENSIONS
BULB INCLUDED
x 17.7"H
LAMP 1 x A19/Medium (E26)/6W/120V LED
x A19/Medium (E26)/60W/120V Incandescent Technical
Shown in: Black / White

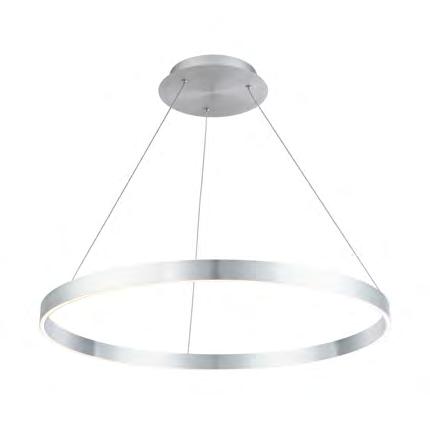

Sirius
Pendant 3000K
Example: PD-81131-WT
For custom requests please contact customs@waclighting.com
DESCRIPTION
Full circle. A simple glowing halo completes.
FEATURES
• Up and downlight with recessed silicone diffuser
• Low profile, adjustable powered aircraft cables for an ultra-clean look
• Quick spin-on canopy design with minimal hardware for easy installation
• Can be mounted on slope ceiling
• Spin-on round canopy with minimal hardware
• Driver concealed within the canopy
• 5 Year warranty
SPECIFICATIONS
Color Temp: 3000K
Input: 120 VAC,50/60Hz
CRI 90
Dimming: ELV: 100-10% , TRIAC: 100-10%
Rated Life: 50,000 Hours
Standards: ETL, cETL, Title 24 JA8 Compliant, Damp Location Listed Construction Aluminum body, silicone diffuser
REPLACEMENT PARTS (32 for ppid 1816)
HDW-SY21-CE - Hardware Pack
Fixture Type:
Catalog Number:
Project:
Location:
FINISHES:

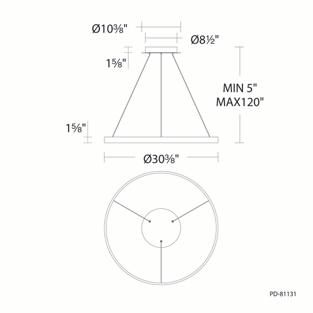

LINE DRAWING:
Sirius
Pendant 3000K
Example: PD-81131-WT
For custom requests please contact customs@waclighting.com
DESCRIPTION
Full circle. A simple glowing halo completes.
FEATURES
• Up and downlight with recessed silicone diffuser
• Low profile, adjustable powered aircraft cables for an ultra-clean look
• Quick spin-on canopy design with minimal hardware for easy installation
• Can be mounted on slope ceiling
• Spin-on round canopy with minimal hardware
• Driver concealed within the canopy
• 5 Year warranty
SPECIFICATIONS
Color Temp: 3000K
Input: 120 VAC,50/60Hz
CRI 90
Dimming: ELV: 100-10% , TRIAC: 100-10%
Rated Life: 50,000 Hours
Standards: ETL, cETL, Title 24 JA8 Compliant, Damp Location Listed Construction Aluminum body, silicone diffuser
REPLACEMENT PARTS (32 for ppid 1816)
HDW-SY21-CE - Hardware Pack
Fixture Type:
Catalog Number:
Project:
Location:
FINISHES:
LINE DRAWING:

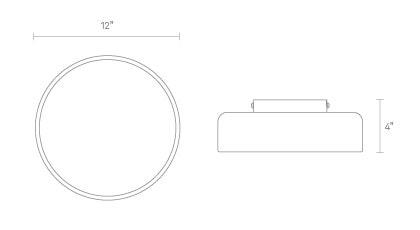

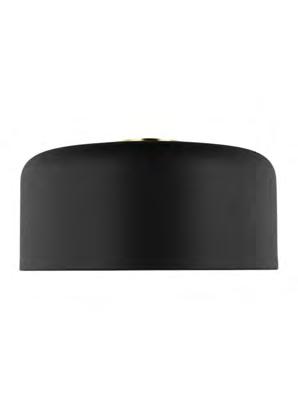

Bobber Small Flush Mount Light
Golden hour gets all the credit, but Bobber puts in some serious work to deliver light, beauty and unexpected hues. Features a dimmable, integrated LED light source to provide warmth and even enlightenment.
Product Details
Powder-coated steel
Integrated 22w LED light source, so no light bulbs are needed
Voltage: 120v
LED lifespan of 26k hours
LED color temp of 2700K
970 lumen output
UL listed
LEDs are dimmable when paired with a LED-dimmable light switch (not included)
Requires ceiling installation and mounting, we recommend you hire a professional electrician to install your light
Some assembly required
BP1-MOUNTS-BK BLACK
BP1-MOUNTS-GG GREY GREEN
BP1-MOUNTS-MU MUSTARD
BP1-MOUNTS-OX OXBLOOD
BP1-MOUNTS-WH WHITE
BLACK GREY GREENMUSTARD OXBLOOD WHITE
Bobber Small Flush Mount Light
Golden hour gets all the credit, but Bobber puts in some serious work to deliver light, beauty and unexpected hues. Features a dimmable, integrated LED light source to provide warmth and even enlightenment.
Product Details
Powder-coated steel
Integrated 22w LED light source, so no light bulbs are needed
Voltage: 120v
LED lifespan of 26k hours
LED color temp of 2700K
970 lumen output
UL listed
LEDs are dimmable when paired with a LED-dimmable light switch (not included)
Requires ceiling installation and mounting, we recommend you hire a professional electrician to install your light
Some assembly required
BP1-MOUNTS-BK BLACK
BP1-MOUNTS-GG GREY GREEN
BP1-MOUNTS-MU MUSTARD
BP1-MOUNTS-OX OXBLOOD
BP1-MOUNTS-WH WHITE
BLACK GREY GREENMUSTARDOXBLOODWHITE
TUBE ARCHITECTURAL DS-CD08
LED Ceiling Mounts
PRODUCT DESCRIPTION
The latest energy efficient LED technology in an appealing cylindrical profile delivers accent lighting. Comes in various light beam angle options.
FEATURES
• High performance exterior rated LED ceiling light
• Solid aluminum construction
• 5 year warranty
DS-CD0834 34W
Example: DS-CD08-N927-BK
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Input:
Standards: Operating Temp:
Reference Output 1
voltage 120V - 277VAC, 50/60Hz Electronic
(ELV) : 100% - 5%
0-10V: 100% - 1%
High output 3 Step Mac Adam Ellipse COB
Rated life of 60,000 hours at L70
Electrostatically powder coated, white, black, bronze and graphite
IP65 rated, ETL & cETL wet location listed, Energy Star® 2.2 rated Title 24 JA8-2016 Compliant -13°F to 122°F (-25°C to 50°C)
1Reference output shows 46W output. Multiply by 0.8 to determine output for 34W combinations.
TUBE ARCHITECTURAL DS-CD08 LED Ceiling Mounts
PRODUCT DESCRIPTION
The latest energy efficient LED technology in an appealing cylindrical profile delivers accent lighting. Comes in various light beam angle options.
FEATURES
• High performance exterior rated LED ceiling light
• Solid aluminum construction
• 5 year warranty
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Input:
Dimming:
Light Source: Finish:
0-10V: 100% - 1%
High output 3 Step Mac Adam Ellipse COB
Rated life of 60,000 hours at L70
Electrostatically powder coated, white, black, bronze and graphite
IP65 rated, ETL & cETL wet location listed, Energy Star® 2.2 rated Title 24 JA8-2016 Compliant -13°F to 122°F (-25°C to 50°C)
Standards: Operating Temp: Universal voltage 120V - 277VAC, 50/60Hz Electronic low voltage (ELV) : 100% - 5%

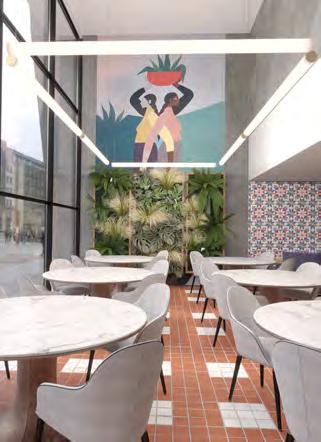

Linear direct surface mount fixture utilizing high performance L e D boards, flush snap-in acrylic lenses and full reflectors.
Features
- Starfire's proprietary e ven glow™ system provides uniform illumination from end-to-end without lamp imaging, bright spots or shadows at any length
- Fix tures fabricated to any length without custom engineering
- e xceptional lumen per watt efficiency
- high efficiency, low cost, Tunable White option
- high performance snap-in lenses; flush diffusion, flush batwing, or drop with illuminated end caps, plus white or specular louver options
- c ombine with welded corner c onnectors to form small or large scaled patterns of uniform light
Fixture Specifications
- h ousing/Trim: h eavy-duty extruded aluminum
- Finish: White (std), custom available
- Weight: a pprox. 3.4 lbs. per linear foot
- UL Listed, (indoor non-condensing)
Electrical
Power consumption: Per specification based on L e D configuration
- input Voltage: 120-277V universal driver
- a mbient operating range: -4 °F to +100 °F
- integral electronic drivers
- integral wiring bus between fixture sections
- Dri vers with full dimming range at any output choice
- Dimming: 0-10V 1% standard, contact factory for options
Mounting
- Scr ew mount housing to blocking
- c ontact factory for special ceiling conditions
Options ( c onsult factory)
- Occ upancy sensor, daylight control module
- e M pack (Delivers 800+ total lumens for 90 mins). Specify length and location (+/- 2ft) at time of order
LED Specifications/Photometry: Page 2
C132
Carisma® 2”
Linear Direct
PROJECT:
Features
TYPE:
Carisma® Pendant is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . A tailored end cap design and Amerlux’s trusted catch-andlatch mechanism prevents all light leakage.
The Carisma® Pendant offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounting options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Pendant, Surface or Wall Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
CartonCubic Feet: 2.185 Small Package Shippable: YES
Master Pack Width: Master Pack Height:
Master Pack Length:
Master Pack Weight: Master Cubic Feet:
Multi-Pack: 1
Master Pack: 1
WARNING:Handlingthisproductcanexposeyoutochemicalsincludinglead,whichisknowntotheStateofCaliforniato causecancerandbirthdefectsorotherreproductiveharm.Washhandswithsoapandwaterafterinstalling,handling, cleaning or otherwise touching thisproduct.For more information go to: www.P65Warnings.ca.gov.

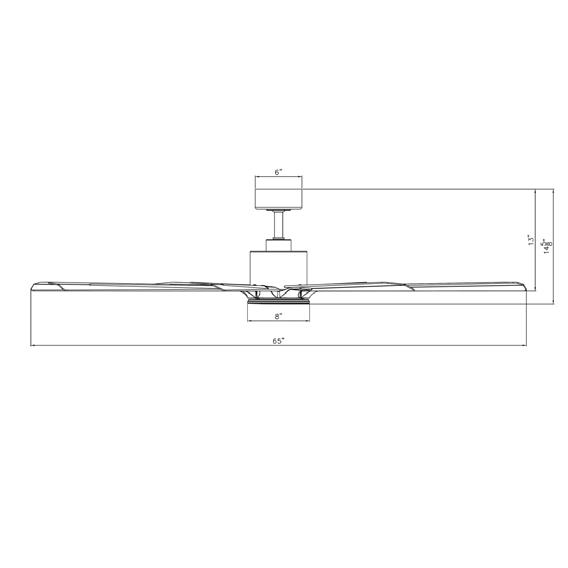

better. Offered in an impressive 65 and 84- inch sizes, the 8-blade Size Matters ceiling fan showcases elegant lines, sharply crafted blades and intelligent engineering. The motor is IPX4wet rated for outdoor use. The fan’s contemporary styling is finished in Matte Black complemented by Matte White blades. Control is easy with smart home ecosystems via the Modern Forms app.
FEATURES
• 6 fan speeds through both Summer and Winter Modes
•Silent DC motor
• LED luminaire is not included - only cover (purchase luminiare version if a light is needed)
• Includes remote control
•Optional wall control sold separately
•Compatible with Modern Forms app
AIRFLOW/ENERGY EFFICIENCY
Weighted-Average/High Airflow CFM:
Weighted-Average/High Energy Use (W):
Estimated Yearly Energy Cost ($):
Weighted-Average/High
ORDER NUMBER
Model Housing Blade
2403-65
Example: FR-W2403-60-MB
*Results may vary based on application and surroundings.
*This fan comes uni-pack - blade select options are not available
Wire:
Hanging
Standards:
Motor
UL/cUL Wet Location listed, Title 24 JA8-2016
Compliant, Title 20, Energy Star 165 x 30 sensorless DC motor
WIRELESS PERFORMANCE
Wi-Fi Range:
Bluetooth Range: Up to 150 ft* Up to 150 ft*
The Modern Forms app synchronizes seamlessly with smart home devices you already own
FR-W
Image File Name: F624-ABD.jpg
MEASUREMENTS
Blade Finish:
Blade Material: ABS CONSTRUCTION
Blade Sweep: 62"
No. of Blades: 3
Blade Pitch: 20 DEGREES
Reversible Blades: NO
Slope: YES
HangingWeight: 13.76
Downrod 1: 6
Downrod 1 Outside Dia: 0.75
Downroad2:
Downrod 2 Outside Dia:
CeilingtoLowest Point: (DimA):11.6
CeilingtoBlade (DimB): 10.6
LeadWire: 80
Power:
LAMPING
No. of Bulbs: 0
Max Bulb Wattage: Light Type:
Light Kit Optional: NO
Socket:
Integrated Light Kit: NO
Dimmable: NO
Ballast:
Rated LifeHours:
Uplight: NO
Bulb/LED Included:
Color Temp.:
CRI:
Initial Lumens:
Delivered Lumens:
RotoXL- 62" Ceiling Fan
Item #: F624-ABD
UPC Code: 706411054280
Product Family Name: Roto XL
Finish: Brushed Aluminum
Category: EXTERIOR FAN
Category Type: Ceiling Fan
Certification: 4000048
Patents: U.S. Patent(s): D750,221
Notes:
GLASS
Description: Material:
Part No.: Quantity: Width: Height: Length:
CONTROLS
Pull ChainControl: NO
WorkswithRemoteControl:NO
WorkswithWall Control: YES
Reversible: YES
Included RemoteControl: Included Wall Control: WC115
Like all our smart fans, Roboto is Wet Rated to be perfect for indoor and outdoor applications. Two size options are available to complete any deck, pergola, room or living space. The quiet DC motor is 70% more efficient than AC motors, and our free Modern Forms app lets you control fan speed, set schedules, and integrate with smart home devices.
FEATURES
• 6 fan speeds through both Summer and Winter Modes
• Silent DC motor
•Includes BT remote control
• Optional wall control sold separately
• Compatible with Modern Forms app
AIRFLOW/ENERGY EFFICIENCY
Weighted-Average/High Airflow CFM:
Weighted-Average/High Energy Use (W):
Estimated Yearly Energy Cost ($):
Weighted-Average/High Efficiency (CFM/W):
SPECIFICATIONS
Construction: Blade:
Downrod: Mounting Slope: Wire: Hanging Weight: Total Power: Standards:
Motor Type: Aluminum, ABS 14º Pitch, 52”sweep .75"W x 6"H included Up to 30° 80” 13 lbs 34W UL/cUL Wet Location listed, Title 24 JA8-2016 Compliant, Title 20, Energy Star rated 125 x 20 sensorless DC motor
WIRELESS PERFORMANCE
Wi-Fi Range: Bluetooth Range: Up to 150 ft* Up to 150 ft*
Example: FR-W1910-62-MB
*Results may vary based on application and surroundings. *This fan comes uni-pack - blade select options are not available
The Modern Forms app synchronizes seamlessly with smart home devices you already own
■ DIFFUSER: The frosted UV stabilized polycarbonate diffuser eliminates glare and provides even light distribution.
■ LUMENS:
• 4000K: 4090 lm
• 5000K: 4156 lm
■ OPERATING TEMP:
• HT (AC Only) -40°F to 104°F (-25°C to 40°C)
• SA (AC & EM) 32°F to 104°F (0°C to 40°C)
■ WEIGHT: 9 lbs / 4.08 kg
ORDERING INFORMATION
APPLICATION: The ILLUMINA® BS101LED-ECO-E provides ideal illumination for canopies, warehouses, schools, breeze-ways and service corridors. It can be installed both indoor & outdoor.
CONTROLS & ACCESSORIES 1SPKxWBS143,4 (swivel pivot kit, white x=length
NOTE 1: Emergency pack 120-277V; 10W/1170 lm.
NOTE 2: JM direct j-box mount maintains fixtur3e's IP66 rating
NOTE 3: Standard pendant lengths "x" = 12 (12"), 24 (24"), and 48 (48")
NOTE 4: Consult factory for non-standard lengths
NOTE 5: Quick Mount bracket requires JM mount
TECHNICAL INFORMATION
INTENTIONALLY LEFT BLANK
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
LED96/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO+EM
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS

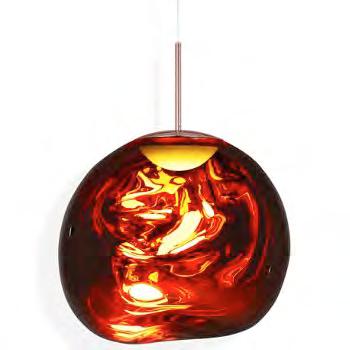

Melt LED Pendant
By Tom Dixon
By Tom Dixon
Product Options
Finish: Copper, Size: 19 Inch
NEEDS TO BE CONFIRMED
Details Gold, copper, and chrome options have matching canopy finishes Chrome ceiling canopy included with Smoke option Includes clear cable Replaceable LED Components
Dimensions
19 Inch Option Fixture: Height 19.7", Diameter 19.7",
Weight 5.4Lbs
19 Inch Option Maximum Hanging: Length Adjustable From 25.7", Adjustable To 91.7"

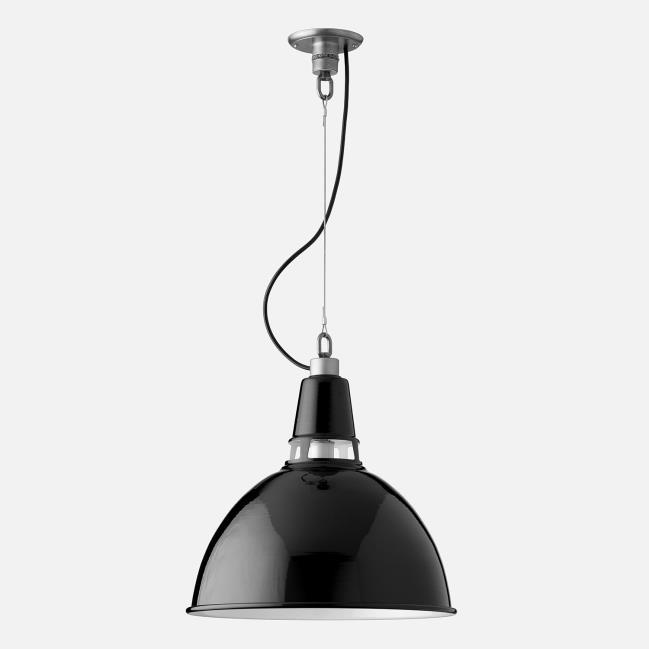

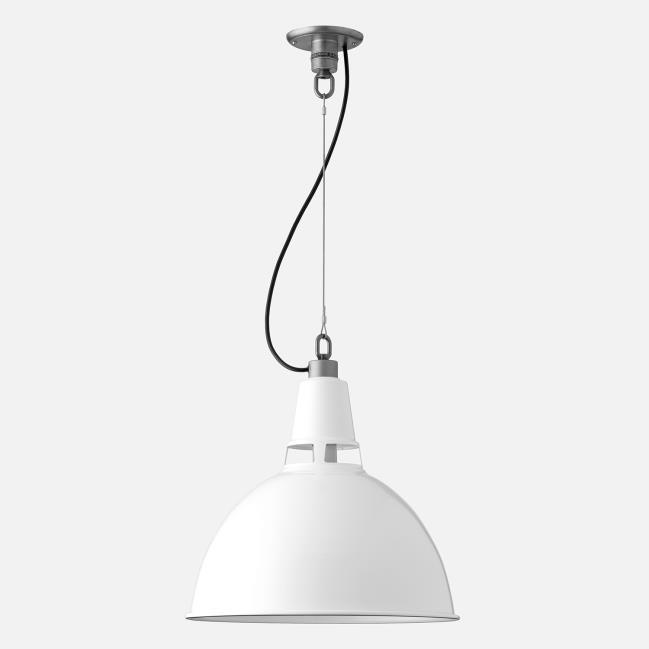

Joining the Seaside family of products, the Anchor Pendant expands hollis+morris’ material repertoire to include frosted-edge acrylic which amplifies the radiance of the LED within. Just as an anchor holds firmly to its post, serving to moor a vessel to the bottom of the sea, the generous solid wood shape and glowing acrylic disk provide the visual weight and prominence to tether one’s attention to it.
Single point suspension (per fixture) Single canopy connection 10’ cord length power cable * Custom lengths upon request
Canopy supplied with fixture Standard canopy finish: ceiling white
* Custom finish available upon request
FIXTURE WEIGHT
ANCHOR Pendant
Joining the Seaside family of products, the Anchor Pendant expands hollis+morris’ material repertoire to include frosted-edge acrylic which amplifies the radiance of the LED within. Just as an anchor holds firmly to its post, serving to moor a vessel to the bottom of the sea, the generous solid wood shape and glowing acrylic disk provide the visual weight and prominence to tether one’s attention to it.
Single point suspension (per fixture) Single canopy connection 10’ cord length power cable * Custom lengths upon request
Canopy supplied with fixture Standard canopy finish: ceiling white
* Custom finish available upon request
FIXTURE WEIGHT

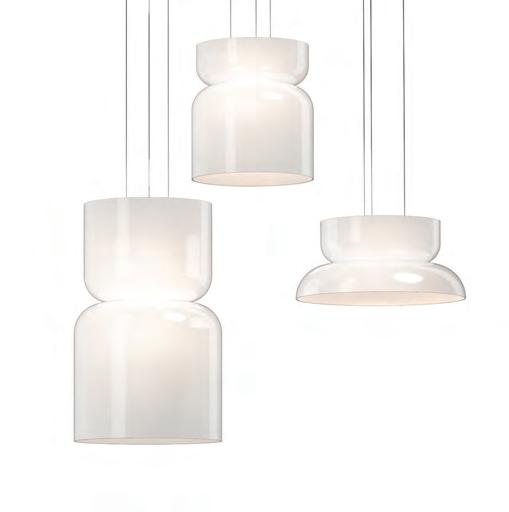

TOTEM UP/DOWN LIGHT
DESCRIPTION
Totem is a versatile pendant lighting collection comprised of exquisitely blown opal glass shades designed around a modular platform. Totem’s soft, pure white geometric forms provide a charming interplay of unique combinations to provide warmth and elegance to any space Users can select from 4 shade styles (A,B,C,D) to mix and match to create an ensemble of 20 unique pendant combinations. Totem provides both direct and indirect illumination by employing a two-part LED light engine that provides both uplight and downlight resulting in a warm and dimmable ambient glow projecting through its softly di used glass structure. Totem singles can be used in flush mount down-light only scenarios as well.
FIXTURE TYPE
Pendant
LIGHT SOURCE
High output LED array
LIGHT CONTROL
Fully dimmable
FEATURES
20 unique pendant combinations
Uplight/Downlight
SPECIFICATIONS
Voltage : 120-240V 50/60Hz
Power Consumption : 20W
Color Temperature : 2700-2200K DTW(Dim to Warm)
Luminosity : 1800 Lumens (1400 Down/400 Up)
Luminaire e icacy : 90 Lumens/Watt
Color Rendition Index: 90 CRI
Cable length: 10’ (3m)
CERTIFICATIONS
PRODUCT CODES
Totem Up/Down (AA):
Totem Up/Down (AB):
Totem Up/Down (AC):
Totem Up/Down (AD):
Totem Up/Down (BA):
Totem Up/Down (BB):
Totem Up/Down (BC):
Totem Up/Down (BD):
Totem Up/Down (CA):
Totem Up/Down (CB):
Totem Up/Down (CC):
Totem Up/Down (CD):
Totem Up/Down (DA):
Totem Up/Down (DB):
Totem Up/Down (DC):
Totem Up/Down (DD):

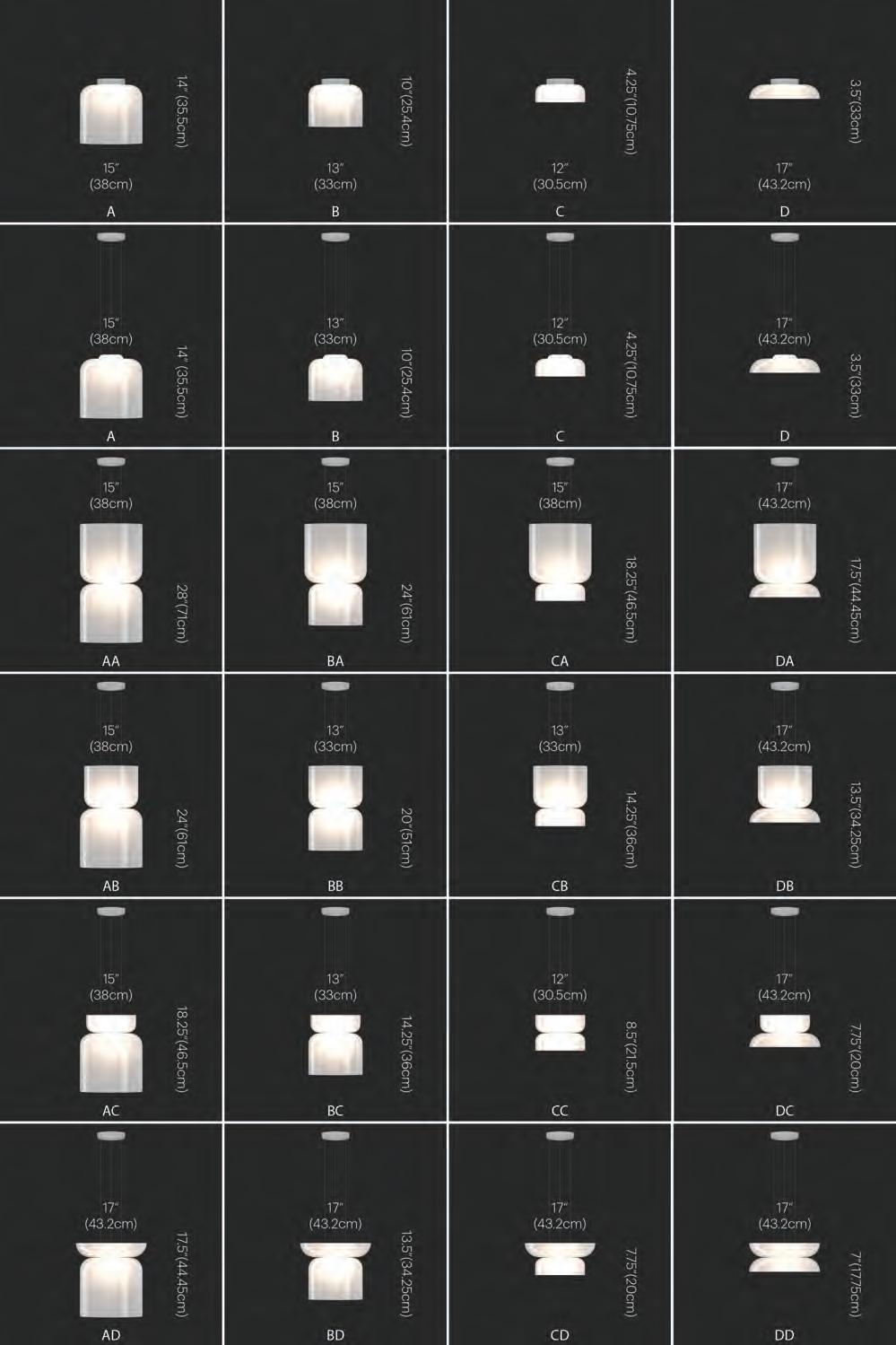

DIMENSIONS
TOTE UPDWN AA
TOTE UPDWN AB
TOTE UPDWN AC
TOTE UPDWN AD
TOTE UPDWN BA
TOTE UPDWN BB
TOTE UPDWN BC
TOTE UPDWN BD
TOTE UPDWN CA
TOTE UPDWN CB
TOTE UPDWN CC
TOTE UPDWN CD
TOTE UPDWN DA
TOTE UPDWN DB
TOTE UPDWN DC
TOTE UPDWN DD
PACKAGING WEIGHT AND DIMENSIONS
Totem A: (Shade)
Totem B: (Shade)
8LBS 20” X 20” X 20”
3.6KG 50cm X 50cm X 50cm
6.5LBS 17” X 17”X15”
3KG 39cm X 43cm X 43cm
Totem C: (Shade) 4LBS 16.5” X 16.5” X 10”
Totem D: (Shade)
NOTES
1.8KG 42cm X 42cm X 25cm
3.3LBS 22” X 22” X 9”
Custom requests can be considered on volume orders.
TOTEM UP/DOWN LIGHT
TOTEM UP/DOWN LIGHT
DESCRIPTION
Totem is a versatile pendant lighting collection comprised of exquisitely blown opal glass shades designed around a modular platform. Totem’s soft, pure white geometric forms provide a charming interplay of unique combinations to provide warmth and elegance to any space Users can select from 4 shade styles (A,B,C,D) to mix and match to create an ensemble of 20 unique pendant combinations. Totem provides both direct and indirect illumination by employing a two-part LED light engine that provides both uplight and downlight resulting in a warm and dimmable ambient glow projecting through its softly di used glass structure. Totem singles can be used in flush mount down-light only scenarios as well.
FIXTURE TYPE
Pendant
LIGHT SOURCE
High output LED array
LIGHT CONTROL
Fully dimmable
FEATURES
20 unique pendant combinations
Uplight/Downlight
SPECIFICATIONS
Voltage : 120-240V 50/60Hz
Power Consumption : 20W
Color Temperature : 2700-2200K DTW(Dim to Warm)
Luminosity : 1800 Lumens (1400 Down/400 Up)
Luminaire e icacy : 90 Lumens/Watt
Color Rendition Index: 90 CRI
Cable length: 10’ (3m)
CERTIFICATIONS
PRODUCT CODES
Totem Up/Down (AA):
Totem Up/Down (AB):
Totem Up/Down (AC):
Totem Up/Down (AD):
Totem Up/Down (BA):
Totem Up/Down (BB):
Totem Up/Down (BC):
Totem Up/Down (BD):
Totem Up/Down (CA):
Totem Up/Down (CB):
Totem Up/Down (CC):
Totem Up/Down (CD):
Totem Up/Down (DA):
Totem Up/Down (DB):
Totem Up/Down (DC):
Totem Up/Down (DD):
DIMENSIONS
TOTE UPDWN AA
TOTE UPDWN AB
TOTE UPDWN AC
TOTE UPDWN AD
TOTE UPDWN BA
TOTE UPDWN BB
TOTE UPDWN BC
TOTE UPDWN BD
TOTE UPDWN CA
TOTE UPDWN CB
TOTE UPDWN CC
TOTE UPDWN CD
TOTE UPDWN DA
TOTE UPDWN DB
TOTE UPDWN DC
TOTE UPDWN DD
PACKAGING WEIGHT AND DIMENSIONS
Totem A: (Shade)
Totem B: (Shade)
8LBS 20” X 20” X 20”
3.6KG 50cm X 50cm X 50cm
6.5LBS 17” X 17”X15”
3KG 39cm X 43cm X 43cm
Totem C: (Shade) 4LBS 16.5” X 16.5” X 10”
Totem D: (Shade)
NOTES
1.8KG 42cm X 42cm X 25cm
3.3LBS 22” X 22” X 9”
Custom requests can be considered on volume orders.
TOTEM UP/DOWN LIGHT
TOTEM DOWN LIGHT
DESCRIPTION
Totem is a versatile pendant lighting collection comprised of exquisitely blown opal glass shades designed around a modular platform. Totem’s soft, pure white geometric forms provide a charming interplay of unique combinations to provide warmth and elegance to any space Users can select from 4 shade styles (A,B,C,D) to mix and match to create an ensemble of 20 unique pendant combinations. Totem provides both direct and indirect illumination by employing a two-part LED light engine that provides both uplight and downlight resulting in a warm and dimmable ambient glow projecting through its softly di used glass structure. Totem singles can be used in flush mount down-light only scenarios as well.
FIXTURE TYPE
Pendant
LIGHT SOURCE
High output LED array
LIGHT CONTROL
Fully dimmable
FEATURES
20 unique pendant combinations
Uplight/Downlight
SPECIFICATIONS
Voltage : 120-240V 50/60Hz
Power Consumption : 13W
Color Temperature : 2700-2200K DTW(Dim to Warm)
Luminosity : 1400 Lumens
Luminaire e icacy : 107 Lumens/Watt
Color Rendition Index: 90 CRI
Cable length: 10’ (3m)
CERTIFICATIONS
PRODUCT CODES
FINISHES
PACKAGING WEIGHT AND DIMENSIONS
Totem A: (Shade)
Totem B: (Shade)
8LBS 20” X 20” X 20”
3.6KG 50cm X 50cm X 50cm
6.5LBS 17” X 17”X15”
3KG 39cm X 43cm X 43cm
Totem C: (Shade) 4LBS 16.5” X 16.5” X 10”
Totem D: (Shade)
NOTES
1.8KG 42cm X 42cm X 25cm
3.3LBS 22” X 22” X 9”
1.5KG 56cm X 56cm X 23cm
Custom requests can be considered on volume orders.
TOTEM DOWN LIGHT DIMENSIONS
CANOPY SHADE
TOTEM DOWN LIGHT
DESCRIPTION
Totem is a versatile pendant lighting collection comprised of exquisitely blown opal glass shades designed around a modular platform. Totem’s soft, pure white geometric forms provide a charming interplay of unique combinations to provide warmth and elegance to any space Users can select from 4 shade styles (A,B,C,D) to mix and match to create an ensemble of 20 unique pendant combinations. Totem provides both direct and indirect illumination by employing a two-part LED light engine that provides both uplight and downlight resulting in a warm and dimmable ambient glow projecting through its softly di used glass structure. Totem singles can be used in flush mount down-light only scenarios as well.
FIXTURE TYPE
Pendant
LIGHT SOURCE
High output LED array
LIGHT CONTROL
Fully dimmable
FEATURES
20 unique pendant combinations
Uplight/Downlight
SPECIFICATIONS
Voltage : 120-240V 50/60Hz
Power Consumption : 13W
Color Temperature : 2700-2200K DTW(Dim to Warm)
Luminosity : 1400 Lumens
Luminaire e icacy : 107 Lumens/Watt
Color Rendition Index: 90 CRI
Cable length: 10’ (3m)
CERTIFICATIONS
PRODUCT CODES
FINISHES
PACKAGING WEIGHT AND DIMENSIONS
Totem A: (Shade)
8LBS 20” X 20” X 20”
3.6KG 50cm X 50cm X 50cm
Totem B: (Shade) 6.5LBS 17” X 17”X15”
Totem C: (Shade)
Totem D: (Shade)
NOTES
3KG 39cm X 43cm X 43cm
4LBS 16.5” X 16.5” X 10”
1.8KG 42cm X 42cm X 25cm
3.3LBS 22” X 22” X 9”
1.5KG 56cm X 56cm X 23cm
Custom requests can be considered on volume orders.
TOTEM DOWN LIGHT DIMENSIONS
CANOPY SHADE
TOTEM FLUSH
DESCRIPTION
Totem is a versatile pendant lighting collection comprised of exquisitely blown opal glass shades designed around a modular platform. Totem’s soft, pure white geometric forms provide a charming interplay of unique combinations to provide warmth and elegance to any space Users can select from 4 shade styles (A,B,C,D) to mix and match to create an ensemble of 20 unique pendant combinations. Totem provides both direct and indirect illumination by employing a two-part LED light engine that provides both uplight and downlight resulting in a warm and dimmable ambient glow projecting through its softly di used glass structure. Totem singles can be used in flush mount down-light only scenarios as well.
FIXTURE TYPE
Pendant
LIGHT SOURCE
High output LED array
LIGHT CONTROL
Fully dimmable
FEATURES
20 unique pendant combinations
Uplight/Downlight
SPECIFICATIONS
Voltage : 120-240V 50/60Hz
Power Consumption : 13W
Color Temperature : 2700-2200K DTW(Dim to Warm)
Luminosity : 1400 Lumens
Luminaire e icacy : 107 Lumens/Watt
Color Rendition Index: 90 CRI
CERTIFICATIONS
PRODUCT CODES
FINISHES
DIMENSIONS
PACKAGING WEIGHT AND DIMENSIONS
8LBS 20” X 20” X 20”
3.6KG 50cm X 50cm X 50cm
Totem B: (Shade) 6.5LBS 17” X 17”X15”
3KG 39cm X 43cm X 43cm
Totem C: (Shade) 4LBS 16.5” X 16.5” X 10”
Totem D: (Shade)
NOTES
1.8KG 42cm X 42cm X 25cm
3.3LBS 22” X 22” X 9”
1.5KG 56cm X 56cm X 23cm
Custom requests can be considered on volume orders.
TOTEM FLUSH
CANOPY SHADE WHITE
Totem Flush (A):
Totem Flush (B):
Totem Flush (C): Totem Flush (D):
Totem A: (Shade)
TOTEM FLUSH
DESCRIPTION
Totem is a versatile pendant lighting collection comprised of exquisitely blown opal glass shades designed around a modular platform. Totem’s soft, pure white geometric forms provide a charming interplay of unique combinations to provide warmth and elegance to any space Users can select from 4 shade styles (A,B,C,D) to mix and match to create an ensemble of 20 unique pendant combinations. Totem provides both direct and indirect illumination by employing a two-part LED light engine that provides both uplight and downlight resulting in a warm and dimmable ambient glow projecting through its softly di used glass structure. Totem singles can be used in flush mount down-light only scenarios as well.
FIXTURE TYPE
Pendant
LIGHT SOURCE
High output LED array
LIGHT CONTROL
Fully dimmable
FEATURES
20 unique pendant combinations
Uplight/Downlight
SPECIFICATIONS
Voltage : 120-240V 50/60Hz
Power Consumption : 13W
Color Temperature : 2700-2200K DTW(Dim to Warm)
Luminosity : 1400 Lumens
Luminaire e icacy : 107 Lumens/Watt
Color Rendition Index: 90 CRI
CERTIFICATIONS
PRODUCT CODES
FINISHES
DIMENSIONS
PACKAGING WEIGHT AND DIMENSIONS
8LBS 20” X 20” X 20”
3.6KG 50cm X 50cm X 50cm
Totem B: (Shade) 6.5LBS 17” X 17”X15”
3KG 39cm X 43cm X 43cm
Totem C: (Shade) 4LBS 16.5” X 16.5” X 10”
Totem D: (Shade)
NOTES
1.8KG 42cm X 42cm X 25cm
3.3LBS 22” X 22” X 9”
1.5KG 56cm X 56cm X 23cm
Custom requests can be considered on volume orders.
TOTEM FLUSH
CANOPY SHADE WHITE
Totem Flush (A):
Totem Flush (B):
Totem Flush (C): Totem Flush (D):
Totem A: (Shade)

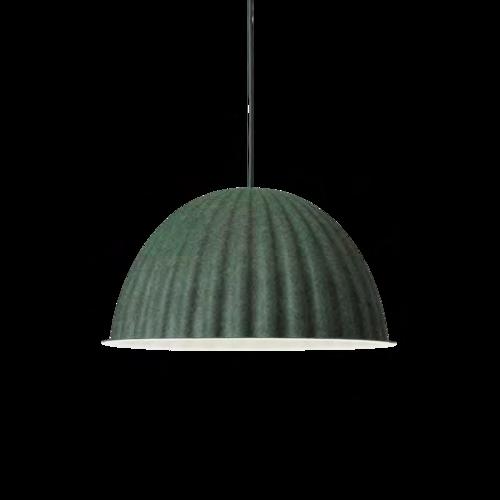

Under The Bell Pendant Lamp
“Under The Bell is more than just a lampshade—when situated over a table or in an open space, the bell-shaped light creates its own space within the environment. As such, the design embraces and shelters the people underneath, both in a physical and abstract manner, for an intimate atmosphere. The design is made using fibers from recycled plastic bottles that, along with its unique shape, enables Under The Bell to absorb sound and improve the acoustics of any room.”
— Iskos-Berlin
Designed
by Iskos-Berlin
About the Designer Iskos-Berlin is a Copenhagen-based design duo that has made international headlines within furniture, industrial and graphic design. The studio, formerly known as Komplot Design has collaborated with some of the world’s most prestigious manufacturers and their furniture, lighting and other design products are exhibited at numerous design museums around the world including MoMA and the Designmuseum Denmark.
Environment Indoor
Country of Production Germany
Preassembled Yes.
Description
Designed in a material that uses 49% fibers made from recycled plastic, the Under The Bell Pendant Lamp not only brings a tactile and modern expression to any space but also impacts the acoustics of a room through its soft shade, paired with its graphic lines and subtle color palette.
Material The shade is made using 49% recycled plastic. The recycled plastic comes from post-consumer waste. Rubber cord.
Cleaning & Care
Vacuum to remove dust. Clean off any marks with a clean moist cloth. Always switch off the electricity supply before cleaning.
Cord Length 500 cm / 196.9"
Light Source Included Ø 21.7", Ø 32.25": No.
Ceiling Cap Included Ø 21.7", Ø 32.25": Yes.
Dimmable Function Yes.
Under The Bell Pendant Lamp
“Under The Bell is more than just a lampshade—when situated over a table or in an open space, the bell-shaped light creates its own space within the environment. As such, the design embraces and shelters the people underneath, both in a physical and abstract manner, for an intimate atmosphere. The design is made using fibers from recycled plastic bottles that, along with its unique shape, enables Under The Bell to absorb sound and improve the acoustics of any room.”
— Iskos-Berlin
Designed
by Iskos-Berlin
About the Designer Iskos-Berlin is a Copenhagen-based design duo that has made international headlines within furniture, industrial and graphic design. The studio, formerly known as Komplot Design has collaborated with some of the world’s most prestigious manufacturers and their furniture, lighting and other design products are exhibited at numerous design museums around the world including MoMA and the Designmuseum Denmark.
Environment Indoor
Country of Production Germany
Preassembled Yes.
Description
Designed in a material that uses 49% fibers made from recycled plastic, the Under The Bell Pendant Lamp not only brings a tactile and modern expression to any space but also impacts the acoustics of a room through its soft shade, paired with its graphic lines and subtle color palette.
Material The shade is made using 49% recycled plastic. The recycled plastic comes from post-consumer waste. Rubber cord.
Cleaning & Care
Vacuum to remove dust. Clean off any marks with a clean moist cloth. Always switch off the electricity supply before cleaning.
Cord Length 500 cm / 196.9"
Light Source Included Ø 21.7", Ø 32.25": No.
Ceiling Cap Included Ø 21.7", Ø 32.25": Yes.
Dimmable Function Yes.
Under The Bell Pendant Lamp
Ready-to-Ship
30W; self-ballasted
60W; Incandescent, Type A
60W; Incandescent, Type A
Under The Bell Pendant Lamp
Ready-to-Ship
30W; self-ballasted
60W; Incandescent, Type A
60W; Incandescent, Type A

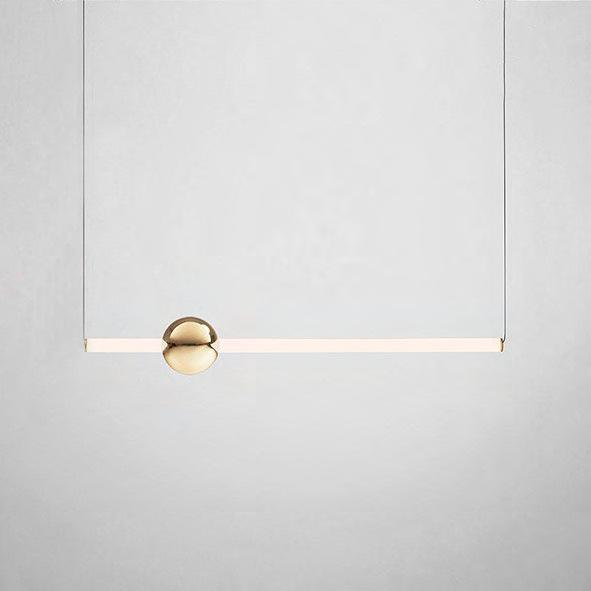

ORION TUBE LIGHT
Name
Orion Tube Light
Finish & Product Code
Polished Gold
Polished Gunmetal
Materials
Opal acrylic tube, steel globe
Illumination
ORI0020
ORI0021
16.8W, 2700k, 1069 lumen, 24VDC, CRI 85
Supplied with separate LED driver with 220-240V input.
Dimming
Dimmable. Recommended dimmer for up to 8 units: Varilight V-Pro JPQ401 (120w) For more than 8 units, please contact us.
Certi cation CE, CB
LED Driver Dimensions
10cm x 6cm x 3cm (3 7⁄8 in x 2 3⁄8 in x 1 1⁄8 in)
Suitable sized cavity / housing required for LED driver in ceiling or surface mounting. Alternatively use deep canopy to mount LED driver in canopy.
Year of Design 2018
Dimensions H 13cm x W 88.5cm
Suspension
Length: 500cm
1 x Adjustable steel tensile wire & 1 x Cord with transparent casing Kit to hang horizontally or vertically included.
Ceiling plate / Canopy
2 x mini canopies to enable LED driver to be surface mounted or installed in ceiling.
H 1.55cm (in ceiling) or H 3.1cm (surface) x Dia 4cm Also available is 1 x deep canopy that can mount LED driver in canopy if required (H 6.5cm x Dia 13cm). Round steel in polished gold nish.
Weight
Product (net): 1.75 kg
Boxed (gross): 2.66 kg
For more information please contact: US & Canada Inquiries: +1 212 804 8477 - sales@leebroom.com UK & Global Inquiries: +44 207 820 0742 - 95 Rivington Street, London, EC2A 3AY - info@leebroom.com www.leebroom.com
ORION TUBE LIGHT
Name
Orion Tube Light
Finish & Product Code
Polished Gold
Polished Gunmetal
Materials
Opal acrylic tube, steel globe
Illumination
ORI0020
ORI0021
16.8W, 2700k, 1069 lumen, 24VDC, CRI 85
Supplied with separate LED driver with 220-240V input.
Dimming
Dimmable. Recommended dimmer for up to 8 units: Varilight V-Pro JPQ401 (120w) For more than 8 units, please contact us.
Certi cation CE, CB
LED Driver Dimensions
10cm x 6cm x 3cm (3 7⁄8 in x 2 3⁄8 in x 1 1⁄8 in)
Suitable sized cavity / housing required for LED driver in ceiling or surface mounting. Alternatively use deep canopy to mount LED driver in canopy.
Year of Design 2018
Dimensions H 13cm x W 88.5cm
Suspension
Length: 500cm
1 x Adjustable steel tensile wire & 1 x Cord with transparent casing Kit to hang horizontally or vertically included.
Ceiling plate / Canopy
2 x mini canopies to enable LED driver to be surface mounted or installed in ceiling.
H 1.55cm (in ceiling) or H 3.1cm (surface) x Dia 4cm Also available is 1 x deep canopy that can mount LED driver in canopy if required (H 6.5cm x Dia 13cm). Round steel in polished gold nish.
Weight
Product (net): 1.75 kg
Boxed (gross): 2.66 kg
For more information please contact: US & Canada Inquiries: +1 212 804 8477 - sales@leebroom.com UK & Global Inquiries: +44 207 820 0742 - 95 Rivington Street, London, EC2A 3AY - info@leebroom.com www.leebroom.com
ORION TUBE LIGHT
Name
Orion Tube Light
Finish & Product Code
Polished Gold
Polished Gunmetal
Materials
Opal acrylic tube, steel globe
Illumination
ORI0020
ORI0021
16.8W, 2700k, 1069 lumen, 24VDC, CRI 85
Supplied with separate LED driver with 220-240V input.
Dimming
Dimmable. Recommended dimmer for up to 8 units: Varilight V-Pro JPQ401 (120w) For more than 8 units, please contact us.
Certi cation CE, CB
LED Driver Dimensions
10cm x 6cm x 3cm (3 7⁄8 in x 2 3⁄8 in x 1 1⁄8 in)
Suitable sized cavity / housing required for LED driver in ceiling or surface mounting. Alternatively use deep canopy to mount LED driver in canopy.
Year of Design 2018
Dimensions H 13cm x W 88.5cm
Suspension
Length: 500cm
1 x Adjustable steel tensile wire & 1 x Cord with transparent casing Kit to hang horizontally or vertically included.
Ceiling plate / Canopy
2 x mini canopies to enable LED driver to be surface mounted or installed in ceiling.
H 1.55cm (in ceiling) or H 3.1cm (surface) x Dia 4cm Also available is 1 x deep canopy that can mount LED driver in canopy if required (H 6.5cm x Dia 13cm). Round steel in polished gold nish.
Weight
Product (net): 1.75 kg
Boxed (gross): 2.66 kg
For more information please contact: US & Canada Inquiries: +1 212 804 8477 - sales@leebroom.com UK & Global Inquiries: +44 207 820 0742 - 95 Rivington Street, London, EC2A 3AY - info@leebroom.com www.leebroom.com
ORION TUBE LIGHT
Name
Orion Tube Light
Finish & Product Code
Polished Gold
Polished Gunmetal
Materials
Opal acrylic tube, steel globe
Illumination
ORI0020
ORI0021
16.8W, 2700k, 1069 lumen, 24VDC, CRI 85
Supplied with separate LED driver with 220-240V input.
Dimming
Dimmable. Recommended dimmer for up to 8 units: Varilight V-Pro JPQ401 (120w) For more than 8 units, please contact us.
Certi cation CE, CB
LED Driver Dimensions
10cm x 6cm x 3cm (3 7⁄8 in x 2 3⁄8 in x 1 1⁄8 in)
Suitable sized cavity / housing required for LED driver in ceiling or surface mounting. Alternatively use deep canopy to mount LED driver in canopy.
Year of Design 2018
Dimensions H 13cm x W 88.5cm
Suspension
Length: 500cm
1 x Adjustable steel tensile wire & 1 x Cord with transparent casing Kit to hang horizontally or vertically included.
Ceiling plate / Canopy
2 x mini canopies to enable LED driver to be surface mounted or installed in ceiling.
H 1.55cm (in ceiling) or H 3.1cm (surface) x Dia 4cm Also available is 1 x deep canopy that can mount LED driver in canopy if required (H 6.5cm x Dia 13cm). Round steel in polished gold nish.
Weight
Product (net): 1.75 kg
Boxed (gross): 2.66 kg
For more information please contact: US & Canada Inquiries: +1 212 804 8477 - sales@leebroom.com UK & Global Inquiries: +44 207 820 0742 - 95 Rivington Street, London, EC2A 3AY - info@leebroom.com www.leebroom.com
Irvine LED Pendant IRVP Series
Features
Contemporary design with perimeter illumiation. Includes 9 ft. adjustable cord. For use in kitchen, dining, foyers or anywhere general lighting is needed. Provides lighting in residential, commercial and hospitality applications. This fixture mounts to a standard junction box (not included).
Construction
Metal housing. The canopy fits over a standard junction box. Power supply connections must be made inside a junction box (not included).
Finish
Black, Light Antique Brass or Satin Nickel finish.
Diffuser
White frosted glass diffuser.
Electrical
Input 120-277 VAC / 60 Hz.
0-10V dimming (120-277V), TRIAC/ELV (120V).
LED
Integrated LED modules capable of producing: 15W = 1100 delivered lumens
All fixtures are cETLus listed for indoor damp locations. Title 24/JA8 Compliant
Warranty
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 year from date of purchase.
Specifications and dimensions subject to change without notice.
Ordering Information:
LOCATION
PREPARED BY
COMMENTS CATALOG NUMBER
LOCATION
PREPARED BY
COMMENTS
Irvine LED Pendant IRVP Series
Features
Contemporary design with perimeter illumiation. Includes 9 ft. adjustable cord. For use in kitchen, dining, foyers or anywhere general lighting is needed. Provides lighting in residential, commercial and hospitality applications. This fixture mounts to a standard junction box (not included).
Construction
Metal housing. The canopy fits over a standard junction box. Power supply connections must be made inside a junction box (not included).
Finish
Black, Light Antique Brass or Satin Nickel finish.
Diffuser
White frosted glass diffuser.
Electrical
Input 120-277 VAC / 60 Hz.
0-10V dimming (120-277V), TRIAC/ELV (120V).
LED
Integrated LED modules capable of producing: 15W = 1100 delivered lumens
All fixtures are cETLus listed for indoor damp locations. Title 24/JA8 Compliant
Warranty
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 year from date of purchase.
Specifications and dimensions subject to change without notice.
Ordering Information:

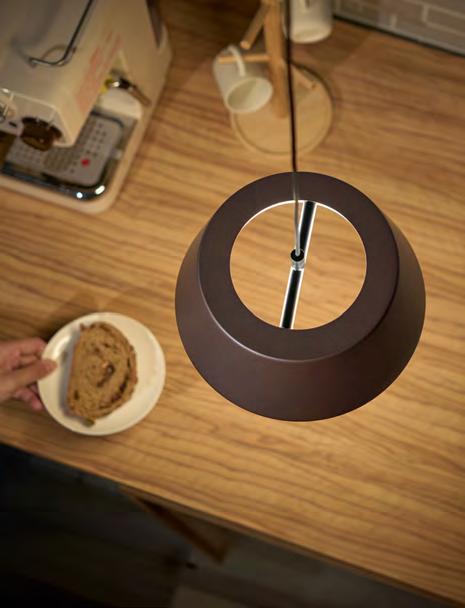

OLO XL
The OLO XL reimagines the classic OLO model with its bold, hollow lampshade that combines circles and lines to create a luminous canvas. Its larger head, equipped with an integrated LED, provides glare-free illumination that fosters a tranquil atmosphere.
With its expanded size and innovative design, the OLO XL encourages creative expression, enhancing a variety of spaces with both thoughtful design and practical functionality, offering endless opportunities for enjoyment and inspiration.
By Li, Hui Lun李慧倫
OLO XL
The OLO XL reimagines the classic OLO model with its bold, hollow lampshade that combines circles and lines to create a luminous canvas. Its larger head, equipped with an integrated LED, provides glare-free illumination that fosters a tranquil atmosphere.
With its expanded size and innovative design, the OLO XL encourages creative expression, enhancing a variety of spaces with both thoughtful design and practical functionality, offering endless opportunities for enjoyment and inspiration.
By Li, Hui Lun李慧倫
Measurement : centimeter / inches
Model SLD-132P
Material steel, PP
Light Source LED 14W CRI 90 3000K 938lm
Bracket A
OLO XL Pendant P1
champagne gold matt black oatmeal
matt pearl cocoa
coral orange
Measurement : centimeter / inches
Canopy A16
Model SLD-132P
Material steel, PP
Light Source LED 14W CRI 90 3000K 938lm
Bracket A
OLO XL Pendant P1
champagne gold matt black
matt pearl cocoa
coral orange
OLO Φ fuses the diameter symbol Φ into basic shapes of circles and lines. With an omnidirectional light rotation capability, the shade of the wall/ceiling lamp can be tilted vertically as well as horizontally, and for the pendant lamp, it can be rotated vertically. With a Saturn ring-like appearance, the supportive U-bend frame and round frame are exquisitely finished in Matt Black. Mood-inducing lighting always creates for instant ambiances.
By Li, Hui Lun 李慧倫
OLO Φ fuses the diameter symbol Φ into basic shapes of circles and lines With an omnidirectional light rotation capability, the shade of the wall/ceiling lamp can be tilted vertically as well as horizontally, and for the pendant lamp, it can be rotated vertically. With a Saturn ring-like appearance, the supportive U-bend frame and round frame are exquisitely finished in Matt Black. Mood-inducing lighting always creates for instant ambiances.

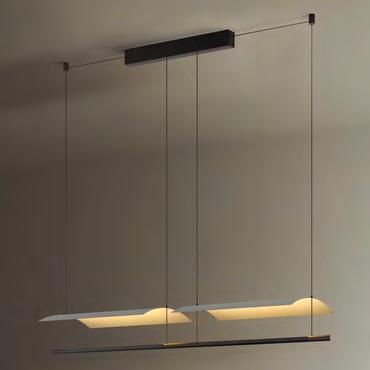

The Lamina Pendant exploits the virtues of reflected light with simple, clean lines in varying shades and sizes, laid bare and fully exposed. A thin metal sheet is softly bent to create a glowing and effective diffusion. Available with two, three, or four 18.7 inch lighting modules.Note: Includes junction box cover (not pictured) which will cover standard 4 inch junction boxes.
Sistema Lamina 45 Linear Pendant
INTEGRATED LED MODULE
1 x LED/36W/120V LED
Shown in: Black
DESIGNER
Antoni Arola BRAND Santa & Cole
DESCRIPTION
The Lamina Pendant exploits the virtues of reflected light with simple, clean lines in varying shades and sizes, laid bare and fully exposed. A thin metal sheet is softly bent to create a glowing and effective diffusion. Available with two, three, or four 18.7 inch lighting modules.Note: Includes junction box cover (not pictured) which will cover standard 4 inch junction boxes.

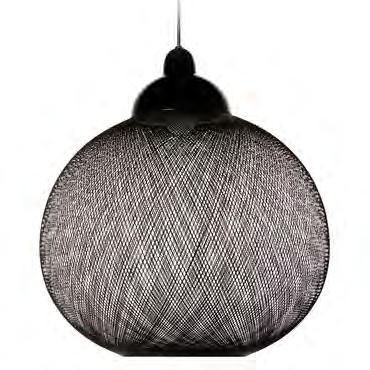

The Non Random Pendant features fiberglass soaked in epoxy resin witha powder coated aluminum cap, shiny anodized aluminum reflector, and steel chrome canopy. Made in Italy.
Non Random Pendant
SHADE COLOR
BODY FINISH Chrome
WATTAGE 60W
DIMMER Standard 120V
18.9"W x 21.25"H
DIMENSIONS
BULB NOT INCLUDED
LAMP 1 x A19/Medium (E26)/60W/120V Incandescent 1 x A19/Medium (E26)/120V LED
Shown in: Chrome / Black
DESIGNER Bertjan Pot BRAND Moooi
DESCRIPTION
The Non Random Pendant features fiberglass soaked in epoxy resin witha powder coated aluminum cap, shiny anodized aluminum reflector, and steel chrome canopy. Made in Italy.
Non Random Pendant
SHADE COLOR Black
BODY FINISH Chrome
WATTAGE 60W
DIMMER Standard 120V
18.9"W x 21.25"H
DIMENSIONS
BULB NOT INCLUDED
LAMP 1 x A19/Medium (E26)/60W/120V Incandescent 1 x A19/Medium (E26)/120V LED

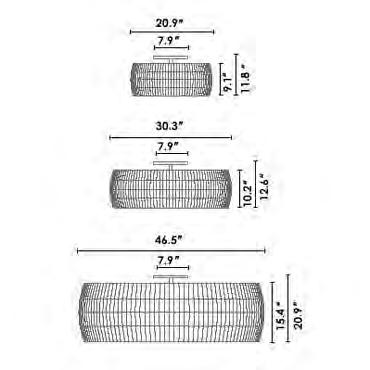

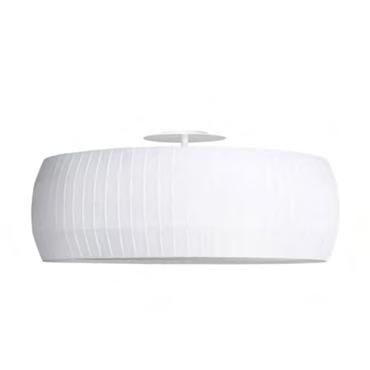

Isamu Ceiling Light features a bookbinding tape fabric shade with a polycarbonate diffuser, available in white, red or black color options. Available in three sizes.
SHADE COLOR
BODY FINISH
DIMMER Standard 120V
DIMENSIONS
BULB NOT INCLUDED
LAMP
30.3"W x 12.6"H x 30.3"D
2 x A19/Medium (E26)/100W/120V Incandescent 2 x A19/Medium (E26)/120V LED
BRAND Carpyen
Shown in: White
DESCRIPTION
Isamu Ceiling Light features a bookbinding tape fabric shade with a polycarbonate diffuser, available in white, red or black color options. Available in three sizes.
Isamu Ceiling Light
SHADE COLOR
BODY FINISH N/A
WATTAGE 200W
DIMMER Standard 120V
DIMENSIONS
BULB NOT INCLUDED
30.3"W x 12.6"H x 30.3"D
LAMP 2 x A19/Medium (E26)/100W/120V Incandescent 2 x A19/Medium (E26)/120V LED
BRAND Carpyen
Shown in: White
Sky LED Wall / Flushmount
By Pablo Designs
Sky LED Wall / Flushmount
By Pablo Designs
Product Options
Shade Finish: Black, Finish: Matte Black, Disc Size: 24 in
Details
2700K-2200K dim to warm 3000K/3500K models available upon request
The Sky Collection is a modular pendant lighting system featuring multiple shade reflector solutions for various decorative and performance benefits. Sky Dome Flush is available in both spun aluminum and pressed wood shade reflectors that when combined with their powerful 2-sided LED light source gives the lamp a weightless appearance while providing unparalleled illumination in all directions. Sky Dome combined form and function with unsurpassed quality and is available in 2 sizes : 18” (45.8cm) and 24” (61cm).
FIXTURE TYPE
Wall/Ceiling
LIGHT SOURCE
LED Flat-Panel downlight/High-output LED array uplight
LIGHT CONTROL
Fully dimmable Compatibe with TRIAC/ELV dimmers (0-10V dimming available upon request) Dali compatability upon request
Voltage: 120 or 240V 50/60Hz (100-277V 50/60Hz Available upon request)
Power Consumption: 18W MAX
Color Temperature: 2700-2200K (warm dim) or 3000K CCT, Note: 2700K CCT and 3500K CCT models Available Upon Request on volume orders Luminosity: 1250 Lumens (850 down/400 up) Luminaire e icacy: 58 Lumens/Watt
Color Rendition Index: 90 CRI
50K hour lifespan
CERTIFICATIONS
PRODUCT CODES (ENTER SHADE SIZE IN BLANK SPACE)
Sky Flush Dome ___ (Black/Black): SKY FSH ___ DOM BLK BLK
Sky Flush Dome ___ (Black/Brass): SKY FSH ___ DOM BLK BRA
Sky Flush Dome ___ (Black/White): SKY FSH ___ DOM BLK WHT
Sky Flush Dome ___ (Polished/Black): SKY FSH ___ DOM BLK
Sky Flush Dome ___ (Polished/Brass): SKY FSH ___ DOM BRA
Sky Flush Dome ___ (Polished/White): SKY FSH ___ DOM WHT COMING SOON!
Sky Flush Dome ___ (White/Black): SKY FSH ___ DOM BLK
Sky Flush Dome ___ (White/Brass): SKY FSH ___ DOM BRA
Sky Flush Dome ___ (White/White): SKY FSH ___ DOM WHT
PACKAGING WEIGHT AND DIMENSIONS
Sky Solo: 3.1LBS 10’’ X 19’’ X 2.4’’ (Lamp)
1.4KGS 26cm X 48cm X 6cm
Sky Dome Metal 18: 3.1LBS 21.3’’ X 20.4’’ X 2.9’’ (Shade) 1.4KGS 54cm X 52cm X 7.3cm
Sky Dome Metal 24: 5.1LBS 27.1’’ X 26.4’’ X 3.25’’ (Shade) 2.3KGS 69cm X 67cm X 8.2cm
Sky Dome Metal 32: 9.5LBS 35’’ X 34.8’’ X 3.9’’ (Shade) 4.3KGS 89cm X 88cm X 10cm
NOTES
Inquire for MOQ and leadtime for white lamps. Additional finishes can be considered on volume orders
FINISHES
DIMENSIONS
SKY DOME FLUSH METAL 18, 24, 32
BLACK WHITE SATIN BRASS
lightology.com 866-954-4489 06-26-25

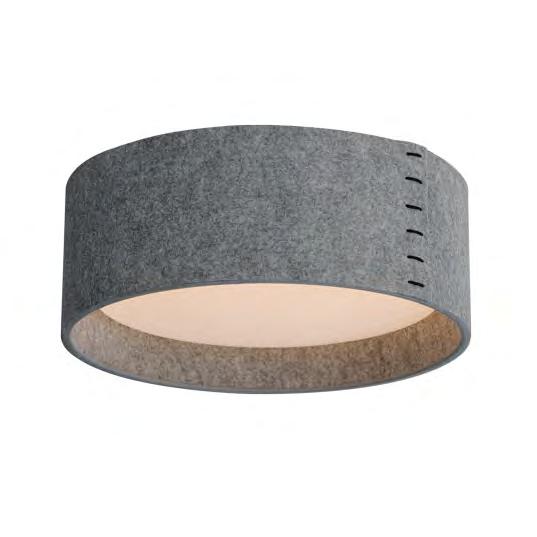

Sanibel
Ceiling
Light
By AFX
Description
The Sanibel Ceiling Light features a modern double layer drum design offering a dramatic look. Its Lumafuse laminated fabric and acrylic shade is durable and easy to clean. An acrylic diffuser on the bottom disperses light evenly. The Color-Select LED options can be selected between 3000K/3500K/4000K color temperature on the smaller sizes or 2700K/3000K/3500K/4000K/5000K color temperature on the 32 inch option. Color temperature adjustable using a switch inside the fixture. 120-277V dimmable with a 0-10V dimmer, or 120V dimmable with a TRIAC or ELV dimmer. A19 medium base LED dimmable with a Standard 120V dimmer. Note: Title 24 compliant on White Linen LED options only.
Specifications
TechnicalInformation COUNTRY
Project: Company:
Location: Fixture Type:
SPEC #: AFX870173
Approved On: Approved By:
NEED COLOR
CONFIRMED
IS THIS TO BE FLUSH OR PENDANT MOUNT
Notes:
Shown in white / jute

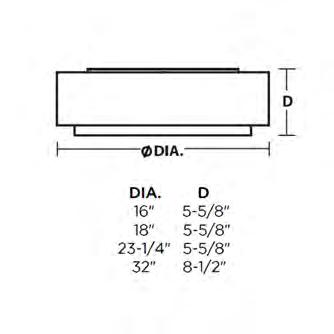

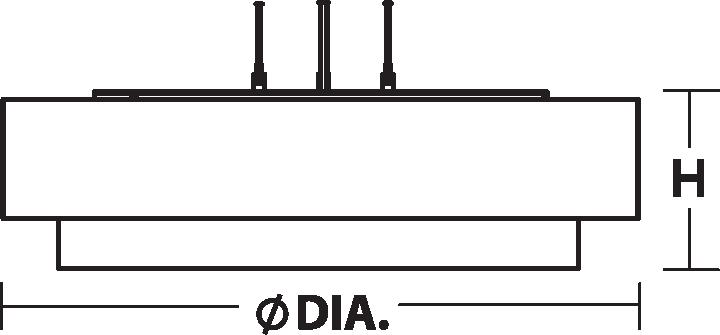

Sanibel LED Pendant
SAP Series
Features
This modern double layer drum design provides a dramatic look and features Lumafuse™ laminated fabric/acrylic shade in 2 colors. White bottom acrylic diffuser disperses the light. Includes (2) 6" and (2) 12" adjustable stems with swivel on canopy for 60 deg sloped ceiling
Construction
Metal housing and canopy. The canopy fits over a standard junction box. Power supply connections must be made inside a junction box (not included).
Finish
Black or Satin Nickel finish.
Diffuser
Utilizing Lumafuse™ laminated fabric to acrylic in Jute or Linen White. Matte white acrylic bottom diffuser.
Electrical
Input 120-277 VAC 60 HZ.
Compatible with residential (TRIAC/ELV) and commercial (0-10V) dimmers. TRIAC and ELV dimming only at 120 VAC.

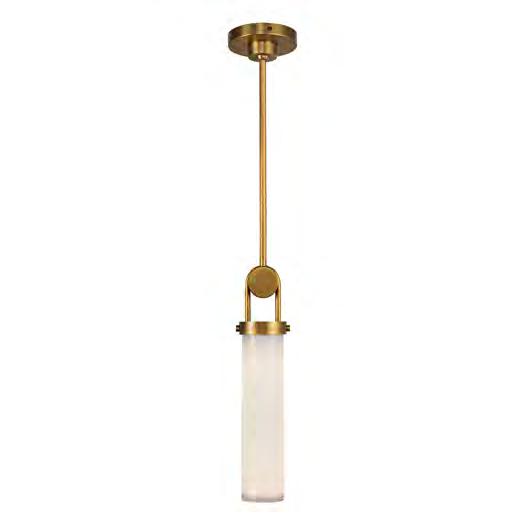

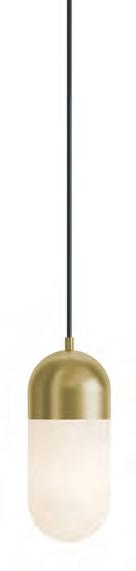

The Wynwood Pendant is inspired by vintage machinery, adding an industrial vibe to your interior space. The meticulous looped frame is complemented by glass, casting warm shadows across your room. Sloped ceiling compatible up to 15 degrees.
Wynwood Pendant
SHADE COLOR
Glossy Opal
BODY FINISH Vintage Brass
WATTAGE 60W
DIMMER Standard 120V
DIMENSIONS 3.5"W x 15"H
BULB NOT INCLUDED
LAMP 1 x A19/Medium (E26)/60W/120V Incandescent 1 x A19/Medium (E26)/120V LED
Technical Information
PRODUCT DIMENSIONS Downrods: One 4", One 6", and Three 12" Included
-Pendant Packaging (L x W x H): 11.4in x 11.4in x 13in
-Pendant Packaged Weight: 5.5lbs
Electrical
-cUL Certified
-Voltage: 110/120V, 50/60Hz
-E26 Lamp holder
-Maximum permitted bulb: 15W CFL / 10W LED - Bulb not included
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLEFINISHES:
Racetrack
PD-53046
PRODUCTDESCRIPTION
Example: PD-53046-35-BK For custom requests please contact customs@modernforms.com
A continuum of seamless LEDs in a shape reminiscent of the Roman Circus Maximus, where chariots created breathtaking spectacles. Available in three CCT options.
FEATURES
• Driver concealed within the canopy
• Silicon diffusers for even illumination
• Thin powered aircraft cables provide an ultra clean look for adjustable suspension height
• Built in color temperature adjustability. Switch from 2700K/3000K/3500K
• Can be mounted on a sloped ceiling
• Option to pre-select color temperature or adjust in the field
A continuum of seamless LEDs in a shape reminiscent of the Roman Circus Maximus, where chariots created breathtaking spectacles. Available in three CCT options.
FEATURES
• Driver concealed within the canopy
• Silicon diffusers for even illlumination
• Thin powered aircraft cables provide an ultra clean look for adjustable suspension height
• Built in color temperature adjustability. Switch from 2700K/3000K/3500K
• Can be mounted on a sloped ceiling
• Option to pre-select color temperature or adjust in the field
Introducing the Macaron Pendant Light, a stunning addition to your space that beautifully illuminates and modernizes any room. With its astonishing range of colorful finishes, this pendant light adds a touch of whimsy and playfulness to your decor.
The Macaron Pendant Light features an innovative glare-free shape and uniform illumination that sets it apart from ordinary lighting fixtures. Crafted with hightransparency acrylic and high-quality aluminum, the lampshade boasts a matte finish and visible texture, adding a touch of elegance to any space. Not only is it visually appealing, but it is also anti-corrosion, rustresistant, and built to last.
Designed with simplicity in mind, the Macaron Pendant Light effortlessly blends into any room, whether it's your living room, office, dining room, or kitchen. It also makes for a perfect gift for your loved ones.
Here are some key features of the Macaron Pendant Light:
-Fresh and simple design that complements any decor style.
-Colorful plug-in pendant light design that adds a playful touch to your space.
-Non-toxic and durable paint ensures safe use.
-Made of high-quality aluminum and acrylic for durability and longevity.
-Adjustable wire allows you to customize the height at
VARIANTS
NEED COLOR AND SIZE CHOICE
Size and Color: Small - Yellow and Pink - 7.1" x 9.4" / 18cm x 24cm, Small - Pink and Navy - 7.1" x 9.4" / 18cm x 24cm, Small - Yellow and Gray - 7.1" x 9.4" / 18cm x 24cm, Small - Navy and Yellow - 7.1" x 9.4" / 18cm x 24cm, Small - Orange and Blue - 7.1" x 9.4" / 18cm x 24cm, Small - Pink and Gray - 7.1" x 9.4" / 18cm x 24cm, Medium - Pink and Yellow - 8.7" x 8.7" / 22cm x 22cm, Medium - Blue and Orange - 8.7" x 8.7" / 22cm x 22cm, Medium - Blue and Yellow - 8.7" x 8.7" / 22cm x 22cm, Large - Gray and Navy - 11.4" x 11" / 29cm x 28cm, Large - Pink and Green - 11.4" x 11" / 29cm x 28cm, Large - Navy and Green - 11.4" x 11" / 29cm x 28cm, Large - Pink and Blue - 11.4" x 11" / 29cm x 28cm, Large - Grey and Yellow - 11.4" x 11" / 29cm x 28cm
Product Dimensions: 7.1" x 9.4", 11.4" x 11", 8.7" x 8.7"
Weight:
DESCRIPTION
Macaron Pendant Light
Introducing the Macaron Pendant Light, a stunning addition to your space that beautifully illuminates and modernizes any room. With its astonishing range of colorful finishes, this pendant light adds a touch of whimsy and playfulness to your decor.
The Macaron Pendant Light features an innovative glare-free shape and uniform illumination that sets it apart from ordinary lighting fixtures. Crafted with hightransparency acrylic and high-quality aluminum, the lampshade boasts a matte finish and visible texture, adding a touch of elegance to any space. Not only is it visually appealing, but it is also anti-corrosion, rustresistant, and built to last.
Designed with simplicity in mind, the Macaron Pendant Light effortlessly blends into any room, whether it's your living room, office, dining room, or kitchen. It also makes for a perfect gift for your loved ones.
Here are some key features of the Macaron Pendant Light:
-Fresh and simple design that complements any decor style.
-Colorful plug-in pendant light design that adds a playful touch to your space.
-Non-toxic and durable paint ensures safe use.
-Made of high-quality aluminum and acrylic for durability and longevity.
-Adjustable wire allows you to customize the height at
VARIANTS
Size and Color: Small - Yellow and Pink - 7.1" x 9.4" / 18cm x 24cm, Small - Pink and Navy - 7.1" x 9.4" / 18cm x 24cm, Small - Yellow and Gray - 7.1" x 9.4" / 18cm x 24cm, Small - Navy and Yellow - 7.1" x 9.4" / 18cm x 24cm, Small - Orange and Blue - 7.1" x 9.4" / 18cm x 24cm, Small - Pink and Gray - 7.1" x 9.4" / 18cm x 24cm, Medium - Pink and Yellow - 8.7" x 8.7" / 22cm x 22cm, Medium - Blue and Orange - 8.7" x 8.7" / 22cm x 22cm, Medium - Blue and Yellow - 8.7" x 8.7" / 22cm x 22cm, Large - Gray and Navy - 11.4" x 11" / 29cm x 28cm, Large - Pink and Green - 11.4" x 11" / 29cm x 28cm, Large - Navy and Green - 11.4" x 11" / 29cm x 28cm, Large - Pink and Blue - 11.4" x 11" / 29cm x 28cm, Large - Grey and Yellow - 11.4" x 11" / 29cm x 28cm
Product Dimensions: 7.1" x 9.4", 11.4" x 11", 8.7" x 8.7"
Weight:
which you want to hang the light.
- Equipped with a 90 - 260V LED for even and bright lighting.
- Certified by CCC, CE, and EMC for quality assurance.
Operating the Macaron Pendant Light is a breeze:
- Simply hang it from the ceiling like a chandelier.
- Install the mounting bracket to the electrical box.
- Includes a junction box for easy mounting.
Choose from three different sizes to suit your space:
- Small: 7.1" x 9.4" / 18cm x 24cm
- Medium: 11.4" x 11" / 29cm x 28cm
- Large: 8.7" x 8.7" / 22cm x 22cm
Create a playful aesthetic with the Macaron Pendant Light, as it adds a whimsical touch to your space. Its enticing colors and charming design will surely catch the eye of anyone who enters the room.
Let the Macaron Pendant Light light up your home and create a romantic ambiance in your room. Its soft and warm glow will instantly transform your space into a cozy haven.
With a wide selection of styles and colors to choose from, finding the perfect Macaron Pendant Light to complement your existing Contact customer service to customize your order | help@residencesupply.com USA: +1 (786) 269-2675 | Toll-Free: +1 (888) 533-4875 | 1582 NW 108th Ave, Miami, FL 33172
which you want to hang the light.
- Equipped with a 90 - 260V LED for even and bright lighting.
- Certified by CCC, CE, and EMC for quality assurance.
Operating the Macaron Pendant Light is a breeze:
- Simply hang it from the ceiling like a chandelier.
- Install the mounting bracket to the electrical box.
- Includes a junction box for easy mounting.
Choose from three different sizes to suit your space:
- Small: 7.1" x 9.4" / 18cm x 24cm
- Medium: 11.4" x 11" / 29cm x 28cm
- Large: 8.7" x 8.7" / 22cm x 22cm
Create a playful aesthetic with the Macaron Pendant Light, as it adds a whimsical touch to your space. Its enticing colors and charming design will surely catch the eye of anyone who enters the room.
Let the Macaron Pendant Light light up your home and create a romantic ambiance in your room. Its soft and warm glow will instantly transform your space into a cozy haven.
With a wide selection of styles and colors to choose from, finding the perfect Macaron Pendant Light to complement your existing Contact customer service to customize your order | help@residencesupply.com USA: +1 (786) 269-2675 | Toll-Free: +1 (888) 533-4875 | 1582 NW 108th Ave, Miami, FL 33172

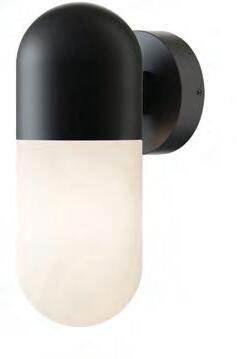

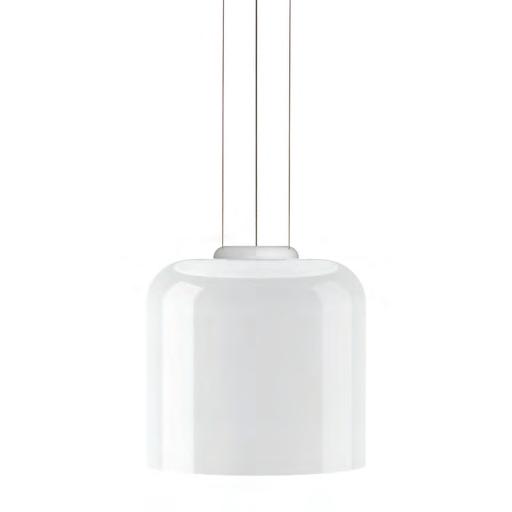

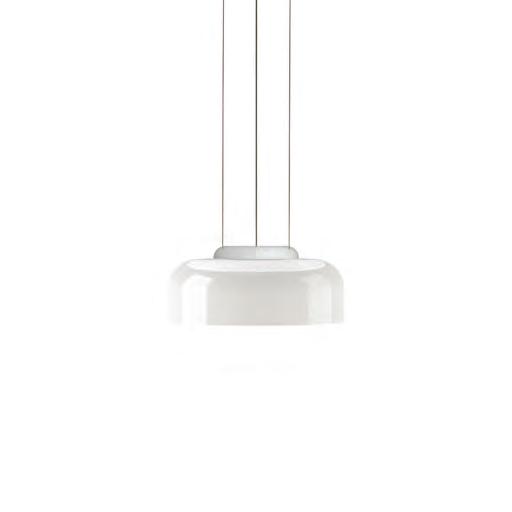

No need to complicate things. Handblown glass shades bedeck a sleek steel body to create linear forms that are lean and clean. It’s simple with a side of swagger.
Product Details
Handblown glass shades with opal finish
Powder-coated or black nickel-plated steel body with matching canopy
Metal wire ceiling supports
Recommended bulb size | G9 Base
Maximum wattage 4W LED bulbs or 20W halogen bulbs
Voltage: 120v
UL listed
Requires ceiling installation and mounting, we recommended you hire a professional electrician to install your light
Some assembly required
OBLIVION BLACK NICKEL
BLUE

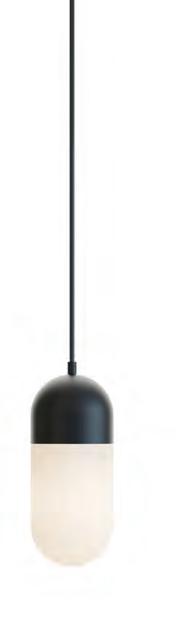

No need to complicate things. Handblown glass shades bedeck a sleek steel body to create linear forms that are lean and clean. It’s simple with a side of swagger.
Product Details
Handblown glass shades with opal finish
Powder-coated or black nickel-plated steel body with matching canopy
Metal wire ceiling supports
Recommended bulb size | G9 Base
Maximum wattage 4W LED bulbs or 20W halogen bulbs
Voltage: 120v
UL listed
Requires ceiling installation and mounting, we recommended you hire a professional electrician to install your light
Some assembly required
OBLIVION BLACK NICKEL SPACE BLUE
BRAND Alora
DESCRIPTION
The Wynwood Pendant is inspired by vintage machinery, adding an industrial vibe to your interior space. The meticulous looped frame is complemented by glass, casting warm shadows across your room. Sloped ceiling compatible up to 15 degrees.
Wynwood Pendant
SHADE COLOR
Glossy Opal
BODY FINISH Vintage Brass
WATTAGE 60W
DIMMER Standard 120V
DIMENSIONS 3.5"W x 15"H
BULB NOT INCLUDED
LAMP 1 x A19/Medium (E26)/60W/120V Incandescent 1 x A19/Medium (E26)/120V LED
Technical Information
PRODUCT DIMENSIONS Downrods: One 4", One 6", and Three 12" Included
Carisma® Pendant is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . A tailored end cap design and Amerlux’s trusted catch-andlatch mechanism prevents all light leakage.
The Carisma® Pendant offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounting options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Pendant, Surface or Wall Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)

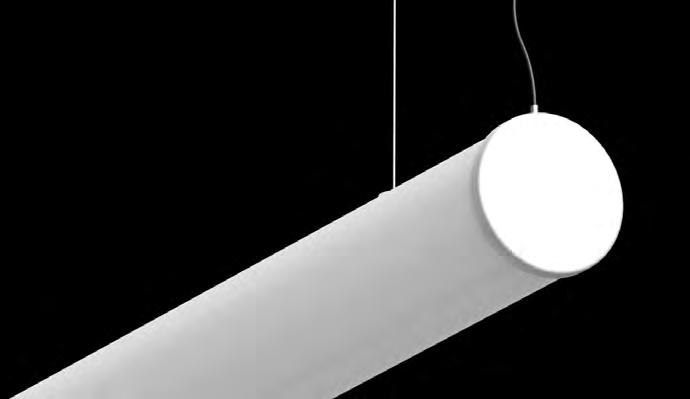

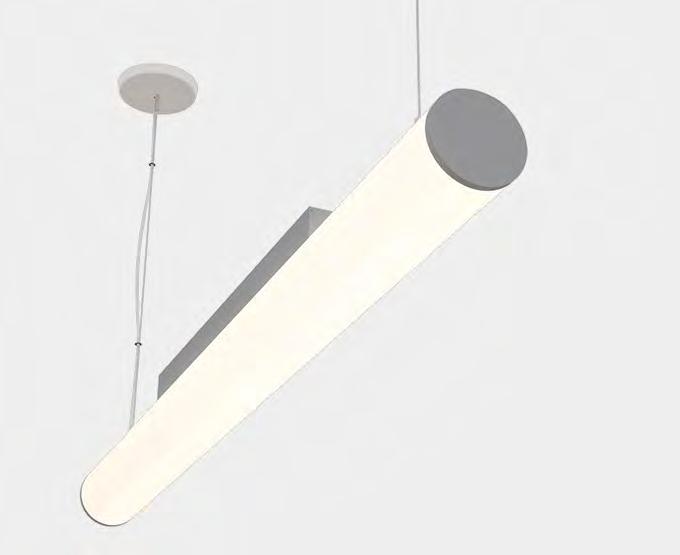

A beautiful linear tubular suspended pendant luminaire is available with our 3-inch acrylic tubes. With the Edge heatsink, a custom suspend fixture is available in lengths up to 8 feet. The Edge heatsink preserves the life of LED chips and provides 315 degrees of illumination. A wide range of color temperatures and light outputs are available, allowing you to vary the intensity, and color of the light. The fixture is powered by a remote driver. The acrylic tube delivers a beautiful custom suspended pendant.
FEATURES
– Custom length from 6 inches to 96 inches (2.44m)
– Edge heat sink lengthens the life of the LED
– Indoor usage for dry or damp location.
– Create striking lighting effects by varying angles or arranging tubes asymmetrically
6" Cobalt Dedicated High Lumen Square Reflector with Square Aperture
Source: 22W to 30W LED 1500lm or 2000lm
PRODUCT DESCRIPTION
6” Cobalt dedicated series is cULus listed for use in with Cobalt high lumens housings. 6" luminaires deliver over 2000 lumen s in a various color temperatures. Cobalt High Lumen Series intergrates a Cree ® COB family of LED arrays, giving bright spectacular light output and low power consumption.
FEATURES
1500lm or 2000lm LED packages
2700K, 3000K, 3500K or 4000K @ 90+ CRI Cree® COB LED Technology
5-year limited warranty
ENERGY STAR certified cULus listed for wet locations
SPECIFICATION
Trim: Die-cast aluminum reflector with deep set diffused lens for excellent visual comfort while providing high lumen output.
Mounting: Two torsion springs allow for easy and secure mounting in housing. Refer to housing for ceiling thickness.
ELECTRICAL
Lumens / Wattage:
15 = 1500lm / wattage varies by housing
20 = 2000lm+ / wattage varies by housing
(Delivered lumens will vary depending on CCT and finish)
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 25˚C
Lifetime: 50,000 hours @ L70
Dimming: Refer to housing for dimming
COMPATIBLE HOUSINGS
Trims are compatible with Cobalt High Lumen housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
NHICCB-615 6" IC New Construction (1500lm)
NHCB-615 6" Non-IC New Construction (1500lm)
NHCB-620 6" Non-IC New Construction (2000lm)
NHRCB-615 6" Non-IC Remodel (1500lm)
NHRCB-620 6" Non-IC Remodel (2000lm)
LABELS AND LISTINGS
cULus Listed for Wet Locations
ENERGY STAR certified 5-Year Limited Warranty Patent #D797,977S; D871,644S; D824,568S Certified to the high efficacy requirements of California Title 24 JA8-2022 (IC housing only) FCC Compliant
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
6" Cobalt Dedicated High Lumen Square Reflector with Square Aperture
Source: 22W to 30W LED 1500lm or 2000lm
PRODUCT DESCRIPTION
6” Cobalt dedicated series is cULus listed for use in with Cobalt high lumens housings. 6" luminaires deliver over 2000 lumen s in a various color temperatures. Cobalt High Lumen Series intergrates a Cree ® COB family of LED arrays, giving bright spectacular light output and low power consumption.
FEATURES
1500lm or 2000lm LED packages
2700K, 3000K, 3500K or 4000K @ 90+ CRI Cree® COB LED Technology
5-year limited warranty
ENERGY STAR certified cULus listed for wet locations
SPECIFICATION
Trim: Die-cast aluminum reflector with deep set diffused lens for excellent visual comfort while providing high lumen output.
Mounting: Two torsion springs allow for easy and secure mounting in housing. Refer to housing for ceiling thickness.
ELECTRICAL
Lumens / Wattage:
15 = 1500lm / wattage varies by housing
20 = 2000lm+ / wattage varies by housing
(Delivered lumens will vary depending on CCT and finish)
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 25˚C
Lifetime: 50,000 hours @ L70
Dimming: Refer to housing for dimming
COMPATIBLE HOUSINGS
Trims are compatible with Cobalt High Lumen housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
NHICCB-615 6" IC New Construction (1500lm)
NHCB-615 6" Non-IC New Construction (1500lm)
NHCB-620 6" Non-IC New Construction (2000lm)
NHRCB-615 6" Non-IC Remodel (1500lm)
NHRCB-620 6" Non-IC Remodel (2000lm)
LABELS AND LISTINGS
cULus Listed for Wet Locations
ENERGY STAR certified 5-Year Limited Warranty Patent #D797,977S; D871,644S; D824,568S Certified to the high efficacy requirements of California Title 24 JA8-2022 (IC housing only) FCC Compliant
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com

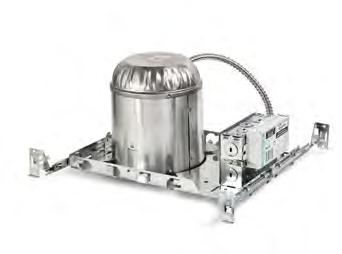

6" Cobalt Dedicated Non-IC High Lumen New Construction Housing Source: 22W or 30W LED
PRODUCT DESCRIPTION
Dedicated new construction housing for use where insulation can be kept 3" away from housing. The housing is dedicated and labeled for use with Cobalt High Lumens series.
CONSTRUCTION
Plaster Frame: High quality 0.040 aluminum die cut one piece frame.
Housing: 0.040 aluminum housing adjusts to a ceiling thickness from 1/2" to 1-1/4". Spring brackets accept torsion wing trim springs.
Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.
Junction Box: Prewired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four Romex ® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).
CLEARANCE
Non- insulated housings require a minimum clearance of 3" from thermal insulation and 1/2 " from adjacent building components.
ELECTRICAL
Input Voltage: 120-277V
Wattage: 22W or 30W
Operating Temperature: 0˚C to 30˚C
Dimming: 0-10V dimming down to 1%
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
Emergency LED Driver (NEPK-07LEDUNV)
Up to 7.5W emergency illumination with LEDs. Illumination Time: 90min
Voltage: 120/277 VAC, 60Hz
Output Voltage: 15.0-50.0 VDC
COMPATIBLE REFLECTORS
CATALOG NO. DESCRIPTION
NLCB2-651 6" Round Open Reflector
NLCB2-652 6" Round Baffle
NLCB2-653 6" Square Reflector with Round Aperture
NLCB2-656 6" Square Reflector with Square Aperture
LABELS AND LISTINGS
cULus Listed for Wet Locations (only w/designated reflectors) 5-Year Limited Warranty Meets or exceeds ASTM-283 Air-Tight Requirements FCC Compliant
PRODUCT IMAGES & DIMENSIONS
6" Cobalt Dedicated Non-IC High Lumen New Construction Housing - Compatible with Cobalt High Lumen Reflectors
Example: NHCB-620LE6 = 6" Cobalt Dedicated Non-IC High Lumen New Construction Housing, 30W, 120-277V Input
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com e-mail: nora@noralighting.com
NHCB-6
6" Cobalt Dedicated Non-IC High Lumen New Construction Housing Source: 22W or 30W LED
PRODUCT DESCRIPTION
Dedicated new construction housing for use where insulation can be kept 3" away from housing. The housing is dedicated and labeled for use with Cobalt High Lumens series.
CONSTRUCTION
Plaster Frame: High quality 0.040 aluminum die cut one piece frame.
Housing: 0.040 aluminum housing adjusts to a ceiling thickness from 1/2" to 1-1/4". Spring brackets accept torsion wing trim springs.
Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.
Junction Box: Prewired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four Romex ® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).
CLEARANCE
Non- insulated housings require a minimum clearance of 3" from thermal insulation and 1/2 " from adjacent building components.
ELECTRICAL
Input Voltage: 120-277V
Wattage: 22W or 30W
Operating Temperature: 0˚C to 30˚C
Dimming: 0-10V dimming down to 1%
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
Emergency LED Driver (NEPK-07LEDUNV)
Up to 7.5W emergency illumination with LEDs. Illumination Time: 90min
Voltage: 120/277 VAC, 60Hz
Output Voltage: 15.0-50.0 VDC
COMPATIBLE REFLECTORS
CATALOG NO. DESCRIPTION
NLCB2-651 6" Round Open Reflector
NLCB2-652 6" Round Baffle
NLCB2-653 6" Square Reflector with Round Aperture
NLCB2-656 6" Square Reflector with Square Aperture
LABELS AND LISTINGS
cULus Listed for Wet Locations (only w/designated reflectors) 5-Year Limited Warranty Meets or exceeds ASTM-283 Air-Tight Requirements FCC Compliant
PRODUCT IMAGES & DIMENSIONS
6" Cobalt Dedicated Non-IC High Lumen New Construction Housing - Compatible with Cobalt High Lumen Reflectors Installation Type Lumens / Wattage Driver / Dimming Optional Emergency Battery
Example: NHCB-620LE6 = 6" Cobalt Dedicated Non-IC High Lumen New Construction Housing, 30W, 120-277V Input
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com e-mail: nora@noralighting.com
4" Cobalt Dedicated Shallow Reflectors
Source: 13.5W to 16.5W LED 850lm to 1250lm
PRODUCT DESCRIPTION
4" Cobalt shallow reflectors are dedicated for Cobalt shallow housing. Available in multiple finishes and lumens outputs, also in round and square apertures. Cobalt family utilize Cree LED technology throughout, for a consistent and uniform appearance.
FEATURES
850lm or 1250lm LED packages
2700K, 3000K 3500K or 4000K @ 90+ CRI
Cree ® COB LED Technology
5-Year limited warranty
ENERGY STAR certified cULus listed for wet locations
ELECTRICAL
Delivered Lumens / Wattage:
85 = 1098lm / 13.5W @ 4000K
12 = 1330lm / 16.5W @ 4000K
(Delivered lumens will vary depending on reflector, CCT and finish)
Color Temperature: 2700K, 3000K, 3500K, 4000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0°C to 25°C
Dimming: Determined by housing
COMPATIBLE HOUSING
Shallow reflectors are compatible with Cobalt Shallow housing manufactured by Nora Lighting. CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHSIC-485LE3LT Shallow IC Air-Tight New Construction 850lm / 13.5W
NHSIC-412LE4LT Shallow IC Air-Tight New Construction 1250lm / 16.5W
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
Notes
PRODUCT IMAGES & DIMENSIONS
Square w/ Round Aperture
Square w/ Square Aperture
NLCBS-4W51 Round Reflector
Round Baffle
4" Cobalt Dedicated Shallow Reflectors
Source: 13.5W to 16.5W LED 850lm to 1250lm
PRODUCT DESCRIPTION
4" Cobalt shallow reflectors are dedicated for Cobalt shallow housing. Available in multiple finishes and lumens outputs, also in round and square apertures. Cobalt family utilize Cree LED technology throughout, for a consistent and uniform appearance.
FEATURES
850lm or 1250lm LED packages
2700K, 3000K 3500K or 4000K @ 90+ CRI
Cree ® COB LED Technology
5-Year limited warranty
ENERGY STAR certified cULus listed for wet locations
ELECTRICAL
Delivered Lumens / Wattage:
85 = 1098lm / 13.5W @ 4000K
12 = 1330lm / 16.5W @ 4000K
(Delivered lumens will vary depending on reflector, CCT and finish)
Color Temperature: 2700K, 3000K, 3500K, 4000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0°C to 25°C
Dimming: Determined by housing
COMPATIBLE HOUSING
Shallow reflectors are compatible with Cobalt Shallow housing manufactured by Nora Lighting. CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHSIC-485LE3LT Shallow IC Air-Tight New Construction 850lm / 13.5W
NHSIC-412LE4LT Shallow IC Air-Tight New Construction 1250lm / 16.5W
Shallow specification grade new construction housing that is only 2-5/8" tall. The housing is ideal for multi-family and residential applications. The driver is completely accessible from below the ceiling with a patent pending design.
FEATURES
Patented Design
Shallow 2-5/8" height
Complete access to driver from below
Adjustable collar for up to 1-1/2" ceiling thickness
5-Year limited warranty
cULus listed for wet locations
CONSTRUCTION
Housing: 0.04” steel housing with two inner boxes adjusts from 3/8" to a maximum ceiling thickness of 1-1/2". Heavy gauge welded steel suitable for contact with insulation. Meets ASTM-283 Air Tight requirements. Housing contains patent pending movable driver compartment for easy access to driver after installation. Fixture compartment contains quick connect for dedicated Cobalt trims. Spring brackets accept torsion wing trim springs.
Bar Hangers: Two 13-3/4" to 24-1/2" heavy duty adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. The housing is centered along the bar hangers at full extension, cannot be adjusted.
Junction Box: Prewired 25 cubic inch 0.075" thick galvanized steel, with four .88" Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the wiring compartment, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.
ELECTRICAL
Input Voltage: 120V or 120-277V (must specify)
Wattage: 13.5W or 16.5W
Operating Temperature: 0˚C to 25˚C
Dimming: Triac, ELV or 0-10V dimming (must specify)
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE REFLECTORS
CATALOG NO. DESCRIPTION
NLCBS-453 4" Square Reflector with Round Aperture
NLCBS-456 4" Square Reflector with Square Aperture
NLCBS-4W51 4" Round Reflector
NLCBS-4W52 4" Round Baffle
LABELS AND LISTINGS
cULus Listed for Damp Locations (wet location when used with compatible reflector)
Meets or exceeds ASTM-283 Air-Tight Requirements
Patent #D877,390S
Certified to the high efficacy requirements of California Title 24 JA8-2022
· 5-Year Limited Warranty
FCC Compliant
4" Cobalt Shallow IC Air-Tight Housing - Compatible with Cobalt Shallow Reflectors Housing Type
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com | e-mail: nora@noralighting.com
PRODUCT IMAGES & DIMENSIONS
NHSIC-4
4" Cobalt Shallow IC Air-Tight Housing
Source: 13.5W to 16.5W LED 850lm to 1250lm
PRODUCT DESCRIPTION
Shallow specification grade new construction housing that is only 2-5/8" tall. The housing is ideal for multi-family and residential applications. The driver is completely accessible from below the ceiling with a patent pending design.
FEATURES
Patented Design
Shallow 2-5/8" height
Complete access to driver from below
Adjustable collar for up to 1-1/2" ceiling thickness
5-Year limited warranty
cULus listed for wet locations
CONSTRUCTION
Housing: 0.04” steel housing with two inner boxes adjusts from 3/8" to a maximum ceiling thickness of 1-1/2". Heavy gauge welded steel suitable for contact with insulation. Meets ASTM-283 Air Tight requirements. Housing contains patent pending movable driver compartment for easy access to driver after installation. Fixture compartment contains quick connect for dedicated Cobalt trims. Spring brackets accept torsion wing trim springs.
Bar Hangers: Two 13-3/4" to 24-1/2" heavy duty adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. The housing is centered along the bar hangers at full extension, cannot be adjusted.
Junction Box: Prewired 25 cubic inch 0.075" thick galvanized steel, with four .88" Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the wiring compartment, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.
ELECTRICAL
Input Voltage: 120V or 120-277V (must specify)
Wattage: 13.5W or 16.5W
Operating Temperature: 0˚C to 25˚C
Dimming: Triac, ELV or 0-10V dimming (must specify)
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE REFLECTORS
CATALOG NO. DESCRIPTION
NLCBS-453 4" Square Reflector with Round Aperture
NLCBS-456 4" Square Reflector with Square Aperture
NLCBS-4W51 4" Round Reflector
NLCBS-4W52 4" Round Baffle
LABELS AND LISTINGS
cULus Listed for Damp Locations (wet location when used with compatible reflector)
Meets or exceeds ASTM-283 Air-Tight Requirements
Patent #D877,390S
Certified to the high efficacy requirements of California Title 24 JA8-2022
· 5-Year Limited Warranty
FCC Compliant
4" Cobalt Shallow IC Air-Tight Housing - Compatible with Cobalt Shallow Reflectors Housing Type
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com | e-mail: nora@noralighting.com
PRODUCT IMAGES & DIMENSIONS
PRODUCT DESCRIPTION

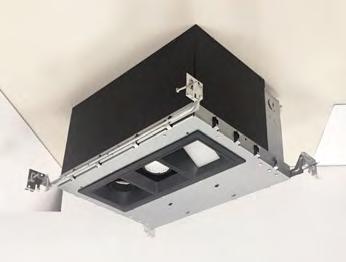

Endless possibilities with Iolite multiple’s functionality and architectural aesthetics. Iolite multiple recessed family consist of one to three independently adjustable heads, variety of beam distributions and multiple reflector options. Iolite multiple series is a perfect solution for most retail, hospitality and commercial applications.
FEATURES
Trimless of Flanged appearance
One to three head configurations
Three optics included with each trim type (Premium TIR optics available) Customizable reflector options
Housing includes individual drivers for each module Comfort Dim (warm dim) also available in 800lm only Triac, ELV or 0-10V dimming
SPECIFICATION
Housing: 0.0475" Galvanized steel housing with quick connects from each driver for ease of installation. Housing accepts standard ceiling thickness up to 1-1/2" may vary depending on ceiling type (up to 1" ceiling thickness when used with NMIO-W).
Clearance: “IC ” Insulated ceiling housings are direct contact rated; no minimum clearance is required. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 7/8" to 25" adjustable bar hangers with captive nails are included with the housing. Bar hangers are parallel to junction box, but can be repositioned 90˚ perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 40 cubic inch 0.0475" thick galvanized steel, with six 1/2 " knockouts. Leads are #18AWG wire. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box (max. of 4 with wall wash trims).
Trimless: Mud plate mounts inside Iolite Multiple Housing and screws into drywall to be flush. A professional drywall finisher floats the ceiling to blend in the mud plate, sands and paints. The trims are then inserted into the mud plate and the results are a spectacular, minimalist appearance with no flange.
ELECTRICAL
Voltage: 120/277V
Lumens / Wattage:
1000lm / 12W per head (Comfort Dim is 800lm per head) (Delivered lumens will vary depending on reflector, CCT, beam spread and finish)
Color Temperature:
2700K, 3000K, 3500K, 4000K or 5000K
Color Rendering Index: 90+CRI
Optics (included): 25° Spot, 38° Narrow Flood, 60° Flood Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Triac, ELV or 0-10V
Click Here or c heck complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab.
Optics: Each reflector includes field changeable optics (spot, narrow flood and flood - preinstalled). Premium 22° and 26° TIR optics are also available. (Note: TIR optics are not compatible with Comfort Dim)
TRIMS
Fixed Downlight: Fixed downlight delivers over 1300lm in four finishes; Black (B), Black interior / Matte Powder White (BMPW - Note: adjustable and wall wash reflectors mixed with BMPW will be MPW), Haze (HZ) or Matte Powder White (MPW).
Adjustable Snoot: Rotates 359° horizontally and pivots 20° while delivering over 1100 lumens.
Adjustable Gimbal: Rotates 359° horizontally and pivots 38° while delivering over 1300 lumens.
Wall Wash: Fixed wall wash reflector aims LED modules at optimal angle for maximum light distribution along wall surfaces.
Blank Plate: Blank plate is used in conjuction with two or three head configurations where a blank head is needed.
LABELS
AND LISTINGS
cULus Listed for Damp Location ENERGY STAR certified (wall wash not certified) 5-Year Limited Warranty Certified to the high efficacy requirements of California Title 24 JA8-2022
Endless possibilities with Iolite multiple’s functionality and architectural aesthetics. Iolite multiple recessed family consist of one to three independently adjustable heads, variety of beam distributions and multiple reflector options. Iolite multiple series is a perfect solution for most retail, hospitality and commercial applications.
FEATURES
Trimless of Flanged appearance
One to three head configurations
Three optics included with each trim type (Premium TIR optics available) Customizable reflector options
Housing includes individual drivers for each module Comfort Dim (warm dim) also available in 800lm only Triac, ELV or 0-10V dimming
SPECIFICATION
Housing: 0.0475" Galvanized steel housing with quick connects from each driver for ease of installation. Housing accepts standard ceiling thickness up to 1-1/2" may vary depending on ceiling type (up to 1" ceiling thickness when used with NMIO-W).
Clearance: “IC ” Insulated ceiling housings are direct contact rated; no minimum clearance is required. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 7/8" to 25" adjustable bar hangers with captive nails are included with the housing. Bar hangers are parallel to junction box, but can be repositioned 90˚ perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 40 cubic inch 0.0475" thick galvanized steel, with six 1/2 " knockouts. Leads are #18AWG wire. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box (max. of 4 with wall wash trims).
Trimless: Mud plate mounts inside Iolite Multiple Housing and screws into drywall to be flush. A professional drywall finisher floats the ceiling to blend in the mud plate, sands and paints. The trims are then inserted into the mud plate and the results are a spectacular, minimalist appearance with no flange.
ELECTRICAL
Voltage: 120/277V
Lumens / Wattage:
1000lm / 12W per head (Comfort Dim is 800lm per head) (Delivered lumens will vary depending on reflector, CCT, beam spread and finish)
Color Temperature:
2700K, 3000K, 3500K, 4000K or 5000K
Color Rendering Index: 90+CRI
Optics (included): 25° Spot, 38° Narrow Flood, 60° Flood Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Triac, ELV or 0-10V
Click Here or c heck complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab.
Optics: Each reflector includes field changeable optics (spot, narrow flood and flood - preinstalled). Premium 22° and 26° TIR optics are also available. (Note: TIR optics are not compatible with Comfort Dim)
TRIMS
Fixed Downlight: Fixed downlight delivers over 1300lm in four finishes; Black (B), Black interior / Matte Powder White (BMPW - Note: adjustable and wall wash reflectors mixed with BMPW will be MPW), Haze (HZ) or Matte Powder White (MPW).
Adjustable Snoot: Rotates 359° horizontally and pivots 20° while delivering over 1100 lumens.
Adjustable Gimbal: Rotates 359° horizontally and pivots 38° while delivering over 1300 lumens.
Wall Wash: Fixed wall wash reflector aims LED modules at optimal angle for maximum light distribution along wall surfaces.
Blank Plate: Blank plate is used in conjuction with two or three head configurations where a blank head is needed.
LABELS
AND LISTINGS
cULus Listed for Damp Location ENERGY STAR certified (wall wash not certified) 5-Year Limited Warranty Certified to the high efficacy requirements of California Title 24 JA8-2022
4" Iolite Wall wash reflectors can be specified for use with Iolite new construction housings. Wall wash reflector to illuminate a wall evenly at a fixed angle.
FEATURES
800lm, 1000lm, 1500lm or 2000lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included) 5-Year limited warranty
SPECIFICATION
Construction: Reflectors are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Reflector includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Each reflector includes field changeable optics (25° spot, 38° narrow flood and 60° flood - preinstalled). 1500-2000lm: Each reflector includes field changeable TIR optics (30° spot, 45° narrow flood - preinstalled and 65° flood).
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: 90+CRI
Operating Temp.: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Reflector s are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
Accessories: Flush mount mud ring is available to give the appearance of a trimless reflector.
LABELS AND LISTINGS
cULus Listed for Wet Locations · ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
4" Iolite Wall wash reflectors can be specified for use with Iolite new construction housings. Wall wash reflector to illuminate a wall evenly at a fixed angle.
FEATURES
800lm, 1000lm, 1500lm or 2000lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included) 5-Year limited warranty
SPECIFICATION
Construction: Reflectors are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Reflector includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Each reflector includes field changeable optics (25° spot, 38° narrow flood and 60° flood - preinstalled). 1500-2000lm: Each reflector includes field changeable TIR optics (30° spot, 45° narrow flood - preinstalled and 65° flood).
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: 90+CRI
Operating Temp.: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Reflector s are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
Accessories: Flush mount mud ring is available to give the appearance of a trimless reflector.
LABELS AND LISTINGS
cULus Listed for Wet Locations · ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box allowing below ceiling access. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3’ cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim)
ENERGY STAR certified
5-Year Limited Warranty
· RoHS compliant FCC compliant Patent #D824567S
Meets or exceeds ASTM-283 Air-Tight requirements
ELECTRICAL 28LE3 28LE4 28LUPEQ 28DAL
Input Voltage 120V 120-277V 120/277V 120-277V
Input Power 13W 12W 13W Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V Lutron EcoSystem DALI 2
Operating Temperature 40°C max.
4" Iolite IC Air-Tight New Construction Housing - Compatible with NIO-4 trims
/
/ 0-10V
= 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
NHIOICDCP-48 = Chicago Plenum 800lm or 1000lm
LE3 = 120V input; Triac / ELV dimming
LE4 = 120-277V input; Triac / ELV / 0-10V dimming
/PEM = Pre-Wired for Remote Emergency /EM2 = Integrated Emergency w/ Remote Test Switch
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
Example: NHIOICD-48LE3 = 4" Iolite IC Air-Tight New Construction Housing, 120V input; Triac / ELV dimming
NIO-4EXTC2 = Ceiling Extension Collar up to 2" NIO-4WCC2 = Wood Ceiling Collar up to 2"
NHIOICD-48 / NHIOICDCP-48
4" Iolite IC Air-Tight New Construction Housing
Source: 12W or 13W LED 800lm or 1000lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2 " knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box allowing below ceiling access. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3’ cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim)
ENERGY STAR certified
5-Year Limited Warranty
· RoHS compliant FCC compliant Patent #D824567S
Meets or exceeds ASTM-283 Air-Tight requirements
ELECTRICAL 28LE3 28LE4 28LUPEQ 28DAL
Input Voltage 120V 120-277V 120/277V 120-277V
Input Power 13W 12W 13W Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V Lutron EcoSystem DALI 2
Operating Temperature 40°C max.
4" Iolite IC Air-Tight New Construction Housing - Compatible with NIO-4 trims
/
/ 0-10V
= 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
NHIOICDCP-48 = Chicago Plenum 800lm or 1000lm
LE3 = 120V input; Triac / ELV dimming
LE4 = 120-277V input; Triac / ELV / 0-10V dimming
/PEM = Pre-Wired for Remote Emergency /EM2 = Integrated Emergency w/ Remote Test Switch
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
Example: NHIOICD-48LE3 = 4" Iolite IC Air-Tight New Construction Housing, 120V input; Triac / ELV dimming
NIO-4EXTC2 = Ceiling Extension Collar up to 2" NIO-4WCC2 = Wood Ceiling Collar up to 2"
FEATURES
Trim: Precision spun 0.050 aluminum high grade reflector. Gimbal ring allows lamp to be mounted on top of the trim and adjustable up to 35º. Separate trim ring available in metal, may also be used with custom combination of plastic or metal ring finishes.
Mounting: Trim includes three trim clips that securely mount trim in housing.
COMPATIBLE HOUSINGS
Compatible with Line Voltage and Low Voltage housings. See individual specification sheets for more information.
LABELS AND LISTINGS
cULus Listed for Damp Location when used with compatible housing.
NLR-405AT/20 = Non-IC AT Remodel / No Transformer / 20W max.
NLR-405AT/37 = Non-IC AT Remodel / No Transformer / 37W max.
NLR-405AT = Non-IC AT Remodel / No Transformer / 50W max. Line Voltage
NSEIC-407AT/20 = ICAT LED New Construction / 20W
NSERIC-407AT/20 = ICAT LED Remodel / 20W
NFBIC-401AT/25A = Fire Rated IC Air-Tight New Construction / 25W
NSLIC-401AT/10 = ICAT New Construction / 50W
NSL-401AT/10 = Non-IC Air-Tight
NSLR-404AT/10
= 4" Round Haze Reflector with White Metal Trim
NM4-RDC
4" M4 Round LED Recessed Downlight
Source:
PRODUCT DESCRIPTION
4" M4 Round LED downlight are ideal for remodel or new constructions in residential and light commercial applications. IC Air-Tight rated luminaires require no housing, making installation easy.
FEATURES
No housing required - IC Air-Tight rated
· Easy installation for remodel or new construction applications
Square trim available for an alternative appearance
Quick disconnect allows for extended lengths
2700K or 3000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims available in matte black or matte powder white finish. Optional field changeable square trim is available.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" trade size knockouts and snap on cover with 7" quick connect wire. Luminaire includes 6 1/2" quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-ins are available, see mounting accessories.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 1100lm / 15W
Color Temperature: 2700K or 3000K
Color Rendering Index: 90+CRI
Beam Spread: 37° Narrow Flood
Operating Temp.: 0°C to 25°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Dimmable down to 10% with Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL TRIM ACCESSORIES
NM4-SDT: Square Baffle Trim for NM4-RDC, Black or White
4" low voltage remodel housing for installation into existing sheet rock ceilings where access is only available from below the ceiling. A wide variety of attractive adjustable trims allows fine-tuned aiming of direction light sources.
CONSTRUCTION
Housing: 0.05 white baked enamel one-piece drawn aluminum housing. Housing terminates at a ¹/4" ceiling flange for even positioning of housing angle within the ceiling. Structural arm consists of 0.05 steel and connects to housing with junction box.
Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Note: 75W housings are not Air-Tight rated
Clearance: Non-IC housings require a minimum clearance of 3" from thermal insulation and ¹/2" from combustible material from above the fixture.
Mounting: Four high tension tempered steel springs secure remodel housing to ceiling thicknesses from ⁵/8" to 1-³/8" (Hole cutout template provided for convenience).
Junction Box: Prewired 15 cubic inch 0.06" thick galvanized steel, with six ¹/2" knockouts and four Romex pryouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.
ELECTRICAL
Input Voltage: 120V or 277V (must specify)
Output Voltage: 12V
Socket: Bi-Pin GU5.3 socket with heat shield
Wattage: 20W-75W (must specify)
Lamp: 12V MR16 (not inlcuded)
Dimming: MLV (with Magnetic Transformer) or ELV (with Electronic Transformer)
COMPATIBILE TRIMS
NL-410 = Adjustable Baffle
NL-411 = Black Adjustable Stepped Baffle
NL-413 = Black Adjustable Reflector
NL-414 = Specular Clear Adjustable Reflector
NL-416 = White Adjustable Reflector
NL-420 = White Pinhole with Black Baffle
NL-421 = White Pinhole with White Baffle
NL-422 WET = Albalite Lens with Reflector
NL-423 WET = Fresnel Lens with Reflector
NL-426 WET = Flat Frosted Lens with Reflector
NL-427 WET = Flat Frosted Lens with Clear Center
NL-432 = Round Deep Reflector
NL-440 = Metal Pinhole
NL-445 = Adjustable Slot Aperture
NL-452 = Natural Metal Adjustable Reflector with Ring
NL-463 = Adjustable Gimbal with Baffle
NL-465 = Surface Adjustable
NL-467 = Surface Adjustable with Baffle
NL-468= 45° Adjustable Stepped Baffle with Metal Ring
NL-469= 45° Adjustable Reflector with Metal Ring
NL-470 = Fully Adjustable Elbow
NL-4810 = Square Adjustable Stepped Baffle
NL-4826 WET = Square Frosted Flat Lens
NL-4855 = Square Pinhole with Adjustable Reflector
NL-4857 = Square Adjustable Reflector
NL-4865 = Square Surface Adjustable
OPTIONAL ACCESSORIES
NRA-36: Replacement socket with heat shield
LABELS AND LISTINGS
cULus Listed for Damp Location ( WET Wet Location when used with designated trims) Meets or exceeds ASTM-283 Air-Tight requirements (AT only)
Project
Catalog No.
Notes
5-⁵/8" (50W) 6-³/8" (75W)
4" Low
Voltage Non-IC Remodel Housing
Catalog No.
NLR-404QAT = 4" Air-Tight Low Voltage Housing, 120V/12V Magnetic Transformer, Rated for 50W max.
NLR-404QAT/XX = 4” Air-Tight Low Voltage Housing, 120V/12V Magnetic Transformer, labeled at lower wattage (Consult Factory)
NLR-404AT/1EL = 4" Air-Tight Low Voltage Housing, 120V/12V Electronic Transformer, Rated for 3-50W
NLR-404AT/1EL/XX = 4” Air-Tight Low Voltage Housing, 120V/12V Electronic Transformer, labeled at lower wattage (Consult Factory)
NLR-404AT/2EL = 4" Air-Tight Low Voltage Housing, 277V/12V Electronic Transformer, Rated for 3-50W
NLR-404AT/2EL/XX = 4” Air-Tight Low Voltage Housing, 277V/12V Electronic Transformer, labeled at lower wattage (Consult Factory)
NLR-404/75/2EL = 4” Low Voltage Housing, 277V/12V Electronic Transformer, Rated for 75W
NLR-404/75/2EL/XX = 4” Low Voltage Housing, 277V/12V Electronic Transformer, labeled at lower wattage (Consult Factory)
Example: NLR-404QAT= 4" Air-Tight Low Voltage Remodel Housing, 120V/12V Magnetic Transformer, Rated for 50W max.
Converts the round trim included with NM4-RDC downlight into a square trim
New Construction Frame-In with Collar
NFC-R375
For new construction pre-wiring and easier layout planning.
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com | e-mail: nora@noralighting.com
Type Project Catalog No. Notes
Quick Connect Extension Linkable Cables
NM2-EW-4 4’ Cable
NM2-EW-10 10’ Cable
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
NM2-2SDC
2" M2 Square LED Recessed Downlight
Source: 8W or 10W LED 600lm or 850lm
PRODUCT DESCRIPTION
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications.
FEATURES
No housing required - IC Air-Tight rated
Easy installation for remodel or new construction applications
Quick disconnect allows for extended lengths
600lm or 850lm LED packages
· 2700K or 3000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
ENERGY STAR certified
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims available in matte black or matte powder white finish.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire. Luminaire includes 5" (600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kits are available, see accessories.
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications.
FEATURES
No housing required - IC Air-Tight rated
Easy installation for remodel or new construction applications
Quick disconnect allows for extended lengths
600lm or 850lm LED packages
· 2700K or 3000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
ENERGY STAR certified
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims available in matte black or matte powder white finish.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire. Luminaire includes 5" (600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kits are available, see accessories.
NM2-2SDC 2" M2 Square LED Recessed Downlight Accessories
Universal New Construction Frame-In
NF-R246
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
New Construction Frame-In with Collar
NFC-R275
New construction frame-in can be used to assist installing can-less recessed downlighting.
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com | e-mail: nora@noralighting.com
Type Project Catalog No. Notes
Quick Connect Extension Linkable Cables
NM2-EW-4 4' Cable
NM2-EW-10 10' Cable
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
NM2-2SDC 2" M2 Square LED Recessed Downlight Accessories
Universal New Construction Frame-In
NF-R246
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
New Construction Frame-In with Collar
NFC-R275
New construction frame-in can be used to assist installing can-less recessed downlighting.
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com | e-mail: nora@noralighting.com
Type Project Catalog No. Notes
Quick Connect Extension Linkable Cables
NM2-EW-4 4' Cable
NM2-EW-10 10' Cable
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Description:
The 3" recessed round or square SUN3 LED has a 8.8 watt, high powered warm white LED and features a 16°, 23°, 36° or 47° precise focus, tempered glass lens with marine-grade aluminum beveled edge trim. The fixture is rated for outdoor/ ocean front environments using a wet location electrical box or indoor using a standard octagon electrical box. The trim accepts Dichronic color filters which are used with SUN3-LL(H). Order junction box cover, wood spring clips and remote transformer separately. Fixture includes 5 year warranty.
Finish: Satin Aluminum Weight: 1.8 lb (.82 kg)
Lamp Specification:
70% lumen maintenance based on 50,000 hours of operation. LED 8.8W Warm white, 2968K, 94+ CRI At 16 degrees, 49 lumens per watt: 427 total lumens
Transformers:
Electronic TE-60L-12; Magnetic T-150-12, T-300-12
Dimming:
Dimmable with electronic low voltage dimmer using TE-60L-12 (sold separately). Lutron dimmers recommended: Dims to 9% with Diva #DVELV-300P; 21% with Skylark #SELV-300P; 31% with Maestro #MAELV-600.
Dimmable with magnetic low voltage dimmer using T-150-12 (sold separately). Lutron dimmers recommended: Dims to 16% with Diva #DVLV-600P; 39% with Skylark #SLV-600P
Description:
The 3" recessed round or square SUN3 LED has a 8.8 watt, high powered warm white LED and features a 16°, 23°, 36° or 47° precise focus, tempered glass lens with marine-grade aluminum beveled edge trim. The fixture is rated for outdoor/ ocean front environments using a wet location electrical box or indoor using a standard octagon electrical box. The trim accepts Dichronic color filters which are used with SUN3-LL(H). Order junction box cover, wood spring clips and remote transformer separately. Fixture includes 5 year warranty.
Finish: Satin Aluminum Weight: 1.8 lb (.82 kg)
Lamp Specification:
70% lumen maintenance based on 50,000 hours of operation. LED 8.8W Warm white, 2968K, 94+ CRI At 16 degrees, 49 lumens per watt: 427 total lumens
Transformers:
Electronic TE-60L-12; Magnetic T-150-12, T-300-12
Dimming:
Dimmable with electronic low voltage dimmer using TE-60L-12 (sold separately). Lutron dimmers recommended: Dims to 9% with Diva #DVELV-300P; 21% with Skylark #SELV-300P; 31% with Maestro #MAELV-600.
Dimmable with magnetic low voltage dimmer using T-150-12 (sold separately). Lutron dimmers recommended: Dims to 16% with Diva #DVLV-600P; 39% with Skylark #SLV-600P
LED Uplight Or Step Light - Indoor/Outdoor: Mounting-Wall and Step
LED Uplight Or Step Light - Indoor/Outdoor: Mounting-Wall and Step
SUN3C
Uplight Or Step Light - Indoor/Outdoor: Components
LED Uplight Or Step Light - Indoor/Outdoor: Components
LED Uplight Or Step Light - Indoor/Outdoor: Components
Junction Cover
Junction Cover
Junction Cover
Use indoor with standard octagon electrical box or use outdoor with wet location electrical box.
Use indoor with standard octagon electrical box or use outdoor with wet location electrical box.
Use indoor with standard octagon electrical box or use outdoor with wet location electrical box.
Description
Spring Clip
Spring Clip
Use the Spring Clip to recess Sun3 into outdoor wood steps, decks, etc. without junction box.
Use the Spring Clip to recess Sun3 into outdoor wood steps, decks, etc. without junction box.
SPRING CLIP
LED Uplight Or Step Light - Indoor/Outdoor: Mounting-Wall and Step
LED Uplight Or Step Light - Indoor/Outdoor: Mounting-Wall and Step
SUN3C
Uplight Or Step Light - Indoor/Outdoor: Components
LED Uplight Or Step Light - Indoor/Outdoor: Components
LED Uplight Or Step Light - Indoor/Outdoor: Components
Junction Cover
Junction Cover
Junction Cover
Use indoor with standard octagon electrical box or use outdoor with wet location electrical box.
Use indoor with standard octagon electrical box or use outdoor with wet location electrical box.
Use indoor with standard octagon electrical box or use outdoor with wet location electrical box.
Description
Spring Clip
Spring Clip
Use the Spring Clip to recess Sun3 into outdoor wood steps, decks, etc. without junction box.
Use the Spring Clip to recess Sun3 into outdoor wood steps, decks, etc. without junction box.
SPRING CLIP
SUN3
SUN3 LED Uplight or Step Light - Indoor/Outdoor: Components
Sun3 Louver Lens Holder
Louver Lens Holders secure onto front of the lamp holding up two lenses or combination of a hexcell louver and lens. Required for securing louvers, lenses and filters in the Sun3.
Hexcell and Micro Louver
The Hexcell Louver eliminates glare from the light beam. The Micro Louver used in step lighting requires both the louver lens holder #SUN3-LLH and the 20 degree filter #LF2-20D.
Film Lenses and Filters
Add film lenses and filters to shape beam, change color or adjust color temperatures.
SUN3
SUN3 LED Uplight or Step Light - Indoor/Outdoor: Components
Sun3 Louver Lens Holder
Louver Lens Holders secure onto front of the lamp holding up two lenses or combination of a hexcell louver and lens. Required for securing louvers, lenses and filters in the Sun3.
Hexcell and Micro Louver
The Hexcell Louver eliminates glare from the light beam. The Micro Louver used in step lighting requires both the louver lens holder #SUN3-LLH and the 20 degree filter #LF2-20D.
Film Lenses and Filters
Add film lenses and filters to shape beam, change color or adjust color temperatures.
SUN3
Dichronic Glass Lens
Dichronic lenses operate on a passive-reflective basis, reflecting unused wavelengths while passing wanted portions of spectrum. Dichroics are high in transmission, producing brighter, cleaner, saturated colors. Louver lens holder #SUN3-LLH not required.
Optical Lens
The soft focus lens reduces lamp glare, spread lenses elongate and diffuser lenses diffuse the light beam. Louver lens holder #SUN3-LLH not required.
SUN3
Dichronic Glass Lens
Dichronic lenses operate on a passive-reflective basis, reflecting unused wavelengths while passing wanted portions of spectrum. Dichroics are high in transmission, producing brighter, cleaner, saturated colors. Louver lens holder #SUN3-LLH not required.
Optical Lens
The soft focus lens reduces lamp glare, spread lenses elongate and diffuser lenses diffuse the light beam. Louver lens holder #SUN3-LLH not required.
Uplight Or Step Light - Indoor/Outdoor: Transformers
SUN3 LED Uplight or Step Light - Indoor/Outdoor: Transformers
Low Voltage Feed Wire Size
Low Voltage Feed Wire Size
Low Voltage Feed Wire Size
Low Voltage Feed Wire Size Chart
Use to the chart below decide the correct copper wire size for a recommended 3 percent voltage drop. The length shown is the length of wire from the transformer to the power feed canopy/J-Box.
Use to the chart below decide the correct copper wire size for a recommended 3 percent voltage drop. The length shown is the length of wire from the transformer to the power feed canopy/J-Box.
Use to the chart below decide the correct copper wire size for a recommended 3 percent voltage drop. The length shown is the length of wire from the transformer to the power feed canopy/J-Box.
Use to decide the correct copper wire size for a recommended 3 percent voltage drop. The length shown is the length of wire from the transformer to the power feed canopy/J-Box.
Description:
Description
Description
Description
The 150 or 300 watt 12 volt magnetic remote mount transformers convert line voltage into 12 volt power and are protected by fast-acting circuit breakers. All 12 volt remote magnetic transformers are LED compatible with 12 volt AC LEDs.
The 150 or 300 watt 12 volt magnetic remote mount transformers convert line voltage into 12 volt power and are protected by fast-acting circuit breakers. All 12 volt remote magnetic transformers are LED compatible with 12 volt AC LEDs.
The 150 or 300 watt 12 volt magnetic remote mount transformers convert line voltage into 12 volt power and are protected by fast-acting circuit breakers. All 12 volt remote magnetic transformers are LED compatible with 12 volt AC LEDs.
The 150 or 300 watt 12 volt magnetic remote mount transformers convert line voltage into 12 volt power and are protected by fastacting circuit breakers. All 12 volt remote magnetic transformers are LED compatible with 12 volt AC LEDs.
Power Input
Power Input
Power Input
Power Input
Power Output
Power Output
Power Output
Power Output
Installation
Installation
Installation:
Installation
Remote magnetic transformers must be installed in an accessible location, such as an attic or in a closet, up to 20 feet from the power feed canopy. Outdoor version available.
Remote magnetic transformers must be installed in an accessible location, such as an attic or in a closet, up to 20 feet from the power feed canopy. Outdoor version available.
Remote magnetic transformers must be installed in an accessible location, such as an attic or in a closet, up to 20 feet from the power feed canopy. Outdoor version available.
Remote magnetic transformers must be installed in an accessible location, such as an attic or in a closet, up to 20 feet from the power feed canopy. Outdoor version available.
Dimming
Dimming
Dimming:
Dimming
Dims with Lutron Skylark or Diva magnetic low voltage dimmer. Compatible magnetic dimmers are connected on the line voltage side of transformers. Some buzzing may occur at low levels and may be reduced with a de-buzzing coil. Visit www.edgelighting.com for up-to-date LED dimming information.
Dims with Lutron Skylark or Diva magnetic low voltage dimmer. Compatible magnetic dimmers are connected on the line voltage side of transformers. Some buzzing may occur at low levels and may be reduced with a de-buzzing coil. Visit www.edgelighting.com for up-to-date LED dimming information.
Dims with Lutron Skylark or Diva magnetic low voltage dimmer. Compatible magnetic dimmers are connected on the line voltage side of transformers. Some buzzing may occur at low levels and may be reduced with a de-buzzing coil. Visit www.edgelighting.com for up-to-date LED dimming information.
Dims with Lutron Skylark or Diva magnetic low voltage dimmer Compatible magnetic dimmers are connected on the line voltage side of transformers. Some buzzing may occur at low levels and may be reduced with a de-buzzing coil. Visit www.edgelighting.com for up-to-date LED dimming information.
Dimensions
Dimensions
Dimensions
Dimensions:
8.75"(L) x 4.4"(D) x 3.8"(H) (22.2cm x 11.2cm x 9.7cm)
8.75"(L) x 4.4"(D) x 3.8"(H) (22.2cm x 11.2cm x 9.7cm)
8.75"(L) x 4.4"(D) x 3.8"(H) (22.2cm x 11.2cm x 9.7cm)
8.75”(L) x 4.4”(D) x 3.8”(H) (22.2cm x 11.2cm x 9.7cm)
Weight
Weight
Weight
lb (3.81 kg)
8.41 lb (3.81 kg)
8.41 lb (3.81 kg)
Weight: 8.41 lb (3.81 kg) SUN 3
Uplight Or Step Light - Indoor/Outdoor: Transformers
SUN3 LED Uplight or Step Light - Indoor/Outdoor: Transformers
Low Voltage Feed Wire Size
Low Voltage Feed Wire Size
Low Voltage Feed Wire Size
Low Voltage Feed Wire Size Chart
Use to the chart below decide the correct copper wire size for a recommended 3 percent voltage drop. The length shown is the length of wire from the transformer to the power feed canopy/J-Box.
Use to the chart below decide the correct copper wire size for a recommended 3 percent voltage drop. The length shown is the length of wire from the transformer to the power feed canopy/J-Box.
Use to the chart below decide the correct copper wire size for a recommended 3 percent voltage drop. The length shown is the length of wire from the transformer to the power feed canopy/J-Box.
Use to decide the correct copper wire size for a recommended 3 percent voltage drop. The length shown is the length of wire from the transformer to the power feed canopy/J-Box.
Description:
Description
Description
Description
The 150 or 300 watt 12 volt magnetic remote mount transformers convert line voltage into 12 volt power and are protected by fast-acting circuit breakers. All 12 volt remote magnetic transformers are LED compatible with 12 volt AC LEDs.
The 150 or 300 watt 12 volt magnetic remote mount transformers convert line voltage into 12 volt power and are protected by fast-acting circuit breakers. All 12 volt remote magnetic transformers are LED compatible with 12 volt AC LEDs.
The 150 or 300 watt 12 volt magnetic remote mount transformers convert line voltage into 12 volt power and are protected by fast-acting circuit breakers. All 12 volt remote magnetic transformers are LED compatible with 12 volt AC LEDs.
The 150 or 300 watt 12 volt magnetic remote mount transformers convert line voltage into 12 volt power and are protected by fastacting circuit breakers. All 12 volt remote magnetic transformers are LED compatible with 12 volt AC LEDs.
Power Input
Power Input
Power Input
Power Input
Power Output
Power Output
Power Output
Power Output
Installation
Installation
Installation:
Installation
Remote magnetic transformers must be installed in an accessible location, such as an attic or in a closet, up to 20 feet from the power feed canopy. Outdoor version available.
Remote magnetic transformers must be installed in an accessible location, such as an attic or in a closet, up to 20 feet from the power feed canopy. Outdoor version available.
Remote magnetic transformers must be installed in an accessible location, such as an attic or in a closet, up to 20 feet from the power feed canopy. Outdoor version available.
Remote magnetic transformers must be installed in an accessible location, such as an attic or in a closet, up to 20 feet from the power feed canopy. Outdoor version available.
Dimming
Dimming
Dimming:
Dimming
Dims with Lutron Skylark or Diva magnetic low voltage dimmer. Compatible magnetic dimmers are connected on the line voltage side of transformers. Some buzzing may occur at low levels and may be reduced with a de-buzzing coil. Visit www.edgelighting.com for up-to-date LED dimming information.
Dims with Lutron Skylark or Diva magnetic low voltage dimmer. Compatible magnetic dimmers are connected on the line voltage side of transformers. Some buzzing may occur at low levels and may be reduced with a de-buzzing coil. Visit www.edgelighting.com for up-to-date LED dimming information.
Dims with Lutron Skylark or Diva magnetic low voltage dimmer. Compatible magnetic dimmers are connected on the line voltage side of transformers. Some buzzing may occur at low levels and may be reduced with a de-buzzing coil. Visit www.edgelighting.com for up-to-date LED dimming information.
Dims with Lutron Skylark or Diva magnetic low voltage dimmer Compatible magnetic dimmers are connected on the line voltage side of transformers. Some buzzing may occur at low levels and may be reduced with a de-buzzing coil. Visit www.edgelighting.com for up-to-date LED dimming information.
Dimensions
Dimensions
Dimensions
Dimensions:
8.75"(L) x 4.4"(D) x 3.8"(H) (22.2cm x 11.2cm x 9.7cm)
8.75"(L) x 4.4"(D) x 3.8"(H) (22.2cm x 11.2cm x 9.7cm)
8.75"(L) x 4.4"(D) x 3.8"(H) (22.2cm x 11.2cm x 9.7cm)
8.75”(L) x 4.4”(D) x 3.8”(H) (22.2cm x 11.2cm x 9.7cm)
Weight
Weight
Weight
lb (3.81 kg)
8.41 lb (3.81 kg)
8.41 lb (3.81 kg)
Weight: 8.41 lb (3.81 kg) SUN 3
PALOMA – model: LED 4023
W Track System Luminaires
PRODUCT DESCRIPTION
Museum-quality LED luminaire with adjustable beam angle.
FEATURES
• Continuously adjustable beam angle between 15° - 45°
• Die-cast aluminum construction with rotatable front face
• Stealth armature with 365° horizontal rotation and 90° vertical aiming
• Beam alignment indicator
• Patents Pending
• 50,000 hour rated life
• 5 year warranty
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Construction: Die-cast aluminum with rotatable front face
Input: 120 VAC, 277VAC 50/60Hz
Power: 22W
Light Source: High output COB LED
Dimming: 100%-5% ELV and TRIAC (120V only)
Standards: UL & cUL Listed. Title 24 JA8-2016 Compliant.
Accommodates one lens accessory and one glare control accessory, or one framing projector.
LENS ACCESSORIES
Amber
LENS-16-AMB
LENS-16-BLU
LENS-16-GRN
LENS-16-RED
LENS-16-FR
LENS-16-SPR
LENS-16-BEL
FOCUSING FRAMING PROJECTOR ACCESSORIES
WTK-4023-930-____
Example: WTK-4023-930-BK
Source:
FEATURES
Over 75% energy savings when compared to incandescent 2700K, 3000K, 3500K or 4000K at 90 CRI
One or two circuit track capable
· Track adapters can be customized to J-Style or L-Style Dimmable
CONSTRUCTION
Housing: Die-cast aluminum construction dissipates heat for longer life.
Adjustability: 359° horizontal and 90° vertical adjustment
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 1000lm / 13W
Color Temperature: 2700K, 3000K, 3500K, 4000K
Color Rendering Index: 90+ CRI
Beam Spread: 41° Narrow Flood
Lifetime: 50,000 hours @ L70
Dimming: Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
One / Two Circuit Conversion: Positive contact (opposite neutral and ground contacts) is preset to “down” position at factory, but may be raised to the higher position to install onto the second circuit of Nora Lighting NT-2300 series two-circuit track.
OPTIONAL ACCESSORIES
NT-366: Round Monopoint Canopy
NT-319: Square Monopoint Canopy
LABELS AND LISTINGS
cETLus Listed for dry locations
5-Year Limited Warranty
· FCC compliant
Certified to the high efficacy requirements of California Title 24 JA8-2019
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
Performance Data
Part Number Lumens CCT
NTE-864L927NW 958lm 2700K
NTE-864L930NW 976lm3000K
NTE-864L935NW 985lm3500K
NTE-864L940NW 1006lm4000K
Delivered lumens will vary depending on finish
Optional Accessories Description
NT-366B = Round Monopoint Canopy,
= Round Monopoint Canopy,
= Square Monopoint Canopy, Black
= Square Monopoint Canopy,
Mini LED Track Head

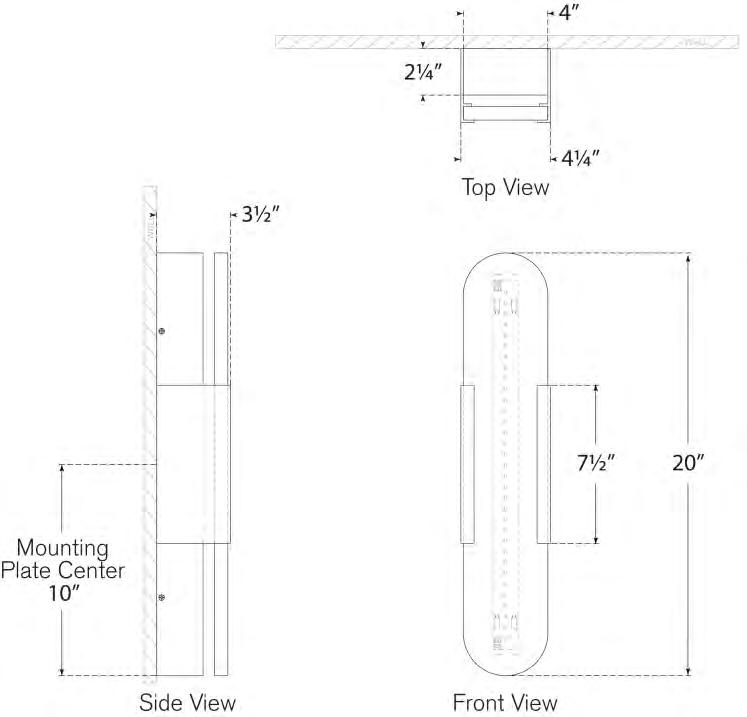

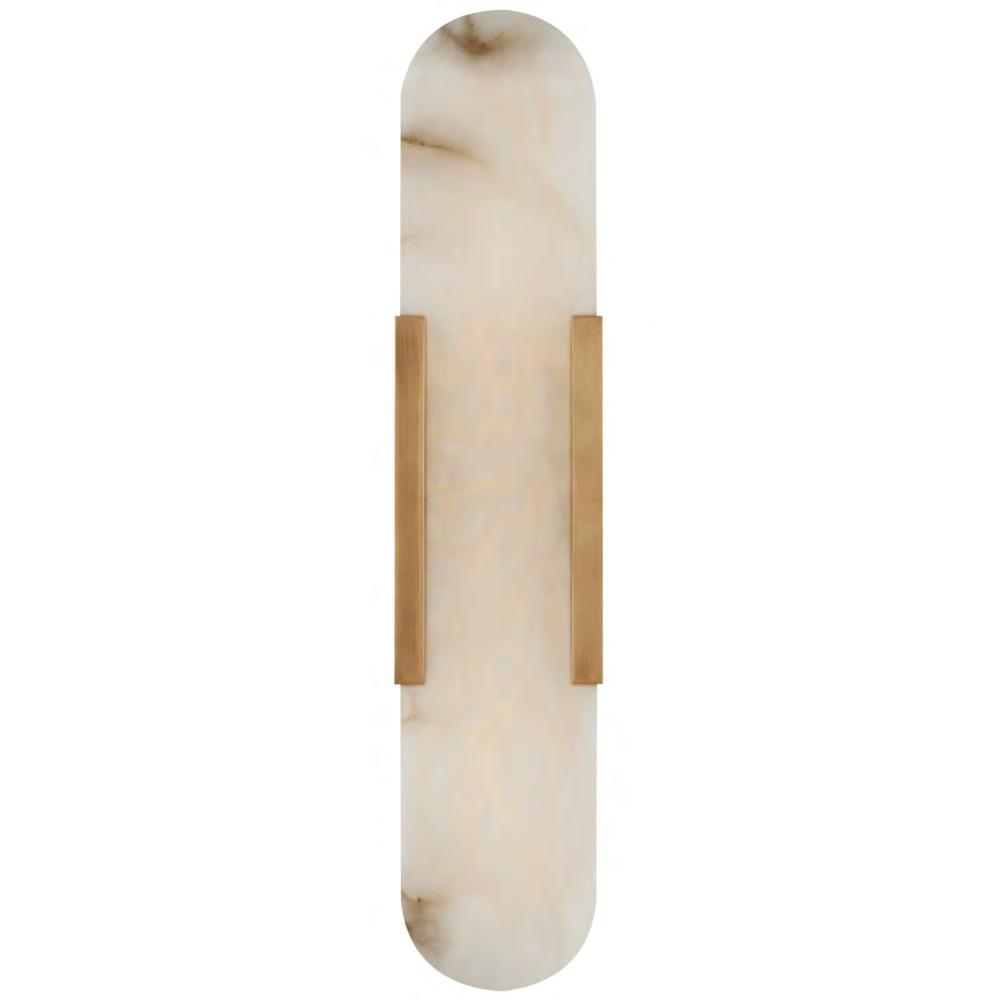

Melange 20" Elongated Sconce
Item # KW 2018AB-ALB
Designer: Kelly Wearstler
Height: 20"
Width: 4.25"
Extension: 3.5"
Backplate: 4.25" x 20" Oval
Finishes: AB, BZ, PN
Shade Treatments: ALB
Lightsource: Dedicated LED
Wattage: 20w (1650lm)
Weight: 13 Pounds
Note: Alabaster is a Natural Stone | Variations in Color and Texture are Expected
Melange 20" Elongated Sconce
Item # KW 2018AB-ALB
Designer: Kelly Wearstler
Height: 20"
Width: 4.25"
Extension: 3.5"
Backplate: 4.25" x 20" Oval
Finishes: AB, BZ, PN
Shade Treatments: ALB
Lightsource: Dedicated LED
Wattage: 20w (1650lm)
Weight: 13 Pounds
Note: Alabaster is a Natural Stone | Variations in Color and Texture are Expected
FINISHES
DIMENSIONS
Height:
Canopy/Backplate: 11" 5.5" 4.5"
Width/Diameter:
Attachment: Glass
LAMPING Bulb: Socket: G9LED•1•6WattMax
SHIPPING
18"x15"x18" 24lb Ground
GLASS
FINISHES
DIMENSIONS 4.34lb
Attachment: Glass
LAMPING
Bulb: Socket: G9LED•1•6WattMax
SHIPPING
18"x15"x18" 24lb Ground
GLASS
Monocle
Sconces
YOUR PRODUCTCODE
MNT- - -
DESCRIPTION
Monocle-a sleek, rotating sconce, with dimming control at the touch of a finger. Touch to cycle three levels of light, on, and off. Monocle’s pleasantly round demeanor and touch dimmer makes it an ideal lamp for a bedside or workstation.
MATERIALS
Cast aluminum, steel, TPE cord, molded plastic
PRODUCTDIMENSIONS
6 W x 5 H x 4 in D
2.2 lbs / 1 kg
PERFORMANCE Delivered Lumens 340 lm
Consumption 8.9W
Efficacy 38.2 lm/W 90 CRI Full detail in photometry summary
1% Dimming, 0-10V Control, 120V or 277V "Universal Input" (Driver
1% Dimming, TRIAC / Forward Phase Control, 120V
Low Voltage (Driver required, driver not included)
DRAWINGS

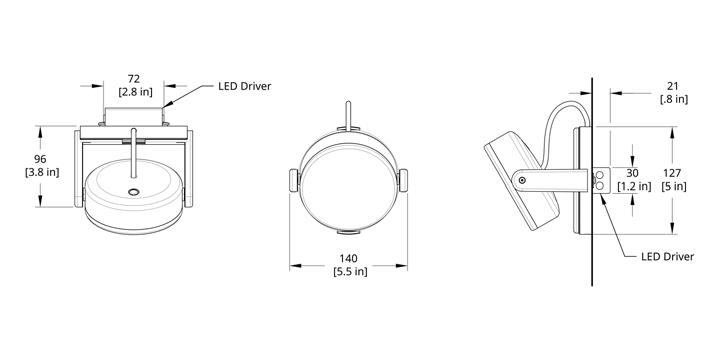

MNT Monocle Touch Sconce Dimension
Monocle
Sconces
YOUR PRODUCTCODE
MNT- - -
DESCRIPTION
Monocle-a sleek, rotating sconce, with dimming control at the touch of a finger. Touch to cycle three levels of light, on, and off. Monocle’s pleasantly round demeanor and touch dimmer makes it an ideal lamp for a bedside or workstation.
MATERIALS
Cast aluminum, steel, TPE cord, molded plastic
PRODUCTDIMENSIONS
6 W x 5 H x 4 in D
2.2 lbs / 1 kg
PERFORMANCE Delivered Lumens 340 lm
Efficacy 38.2 lm/W 90 CRI Full detail in photometry summary
1% Dimming, 0-10V Control, 120V or 277V "Universal Input" (Driver
1% Dimming, TRIAC / Forward Phase Control, 120V
Low Voltage (Driver required, driver not included)
DRAWINGS
MNT Monocle Touch Sconce Dimension

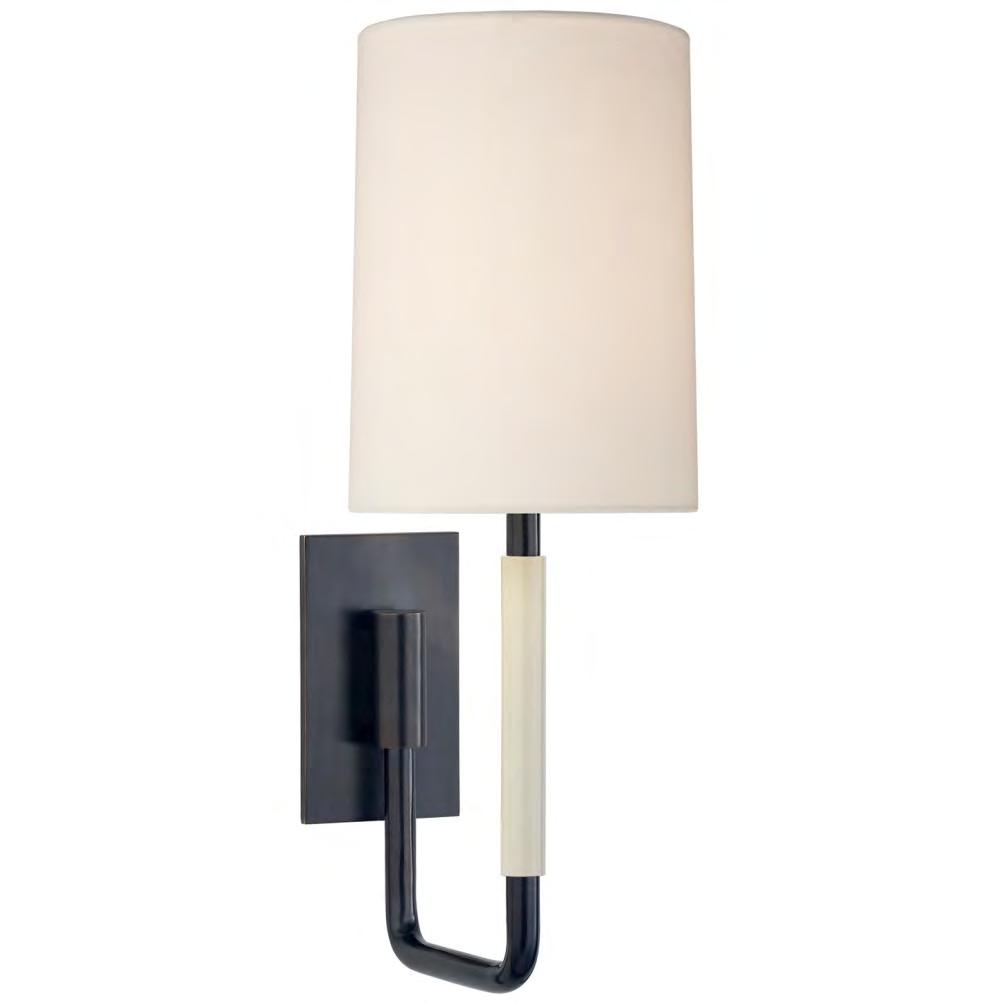

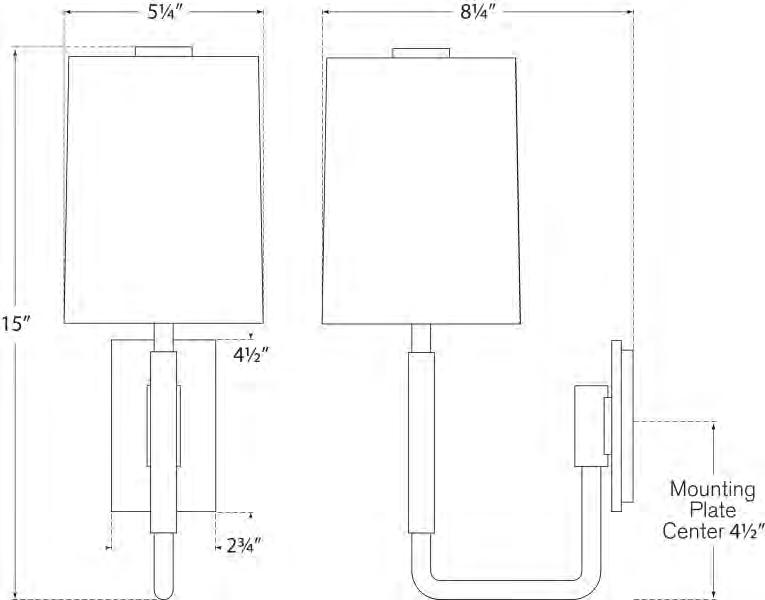

Clout Small Sconce
Item # BBL 2132BZ-L
Designer: Barbara Barry
Height: 15"
Width: 5.25"
Extension: 8.25"
Backplate: 2.75" x 4.5" Rectangle
Finishes: BZ, SB, SS
Shade Treatments: L
Shade Details: 5" x 5.25" x 7"
Socket: E12 Candelabra
Wattage: 60 B11
Weight: 3 Pounds
Note: Requires Smaller Outlet Box
Clout Small Sconce
Item # BBL 2132BZ-L
Designer: Barbara Barry
Height: 15"
Width: 5.25"
Extension: 8.25"
Backplate: 2.75" x 4.5" Rectangle
Finishes: BZ, SB, SS
Shade Treatments: L
Shade Details: 5" x 5.25" x 7"
Socket: E12 Candelabra
Wattage: 60 B11
Weight: 3 Pounds
Note: Requires Smaller Outlet Box

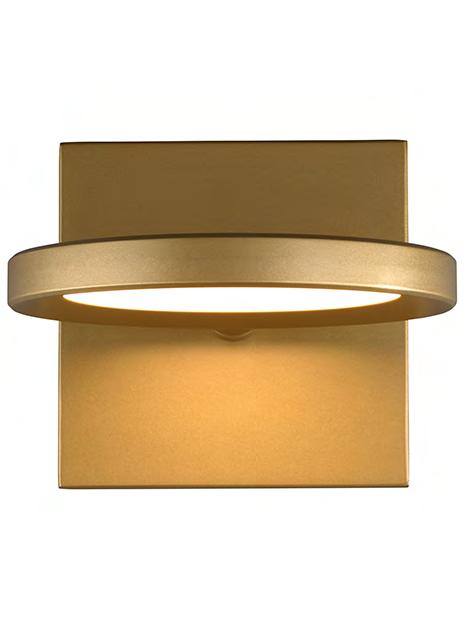

SPECTICA WALL
PRODUCT FEATURES
From the brand formerly known as Tech Lighting
Entirely modern take on the traditional wall sconce
Ideal for for hallway, bedrooms and bathrooms
Complenentary Linear Suspension and Chandelier also available by LBL Lighting
Fully dimmable unidirectional Integrated LED light source
•
• The LED Driver is housed within the junction box. (2.28" Dia | H. 1.25")
LAMPING
LED includes (1) 9 watt 606 total delivered lumens 90 CRI 3000K LED module. Dimmable with a low-voltage electronic dimmer. Can be mounted up or down.
ORDERING INFORMATION
Satin Gold
Satin Gold Matte Black Plated Brass
SPECTICA WALL
PRODUCT FEATURES
From the brand formerly known as Tech Lighting
Entirely modern take on the traditional wall sconce
Ideal for for hallway, bedrooms and bathrooms
Complenentary Linear Suspension and Chandelier also available by LBL Lighting
Fully dimmable unidirectional Integrated LED light source
•
• The LED Driver is housed within the junction box. (2.28" Dia | H. 1.25")
LAMPING
LED includes (1) 9 watt 606 total delivered lumens 90 CRI 3000K LED module. Dimmable with a low-voltage electronic dimmer. Can be mounted up or down.
ORDERING INFORMATION
Satin Gold
Satin Gold Matte Black Plated Brass
SPECTICA WALL
SPECIFICATIONS
LAMPING SPECIFICATIONS
* Dimming information available at www.techlighting.com/Downloads#dimming ** Visit techlighting.com for speci c warranty limitations and details.
T20 / T24 / JA8 INFORMATION
product can be used to comply with California Building Energy Ef ciency Standards 2016 Title 24 Part 6 / JA8. Yes This product can be used to comply with California Appliance Ef ciency Standards 2016 Title 20 and may be shipped to and sold in
* If a light xture or component does not include a
or light
it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
SPECTICA WALL
LAMPING SPECIFICATIONS
* Dimming information available at www.techlighting.com/Downloads#dimming ** Visit techlighting.com for speci c warranty limitations and details.
T20 / T24 / JA8 INFORMATION
product can be used to comply with California Building Energy Ef ciency Standards 2016 Title 24 Part 6 / JA8. Yes This product can be used to comply with California Appliance Ef ciency Standards 2016 Title 20 and may be shipped to and sold in
* If a light xture or component does not include a
or light
it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
OLO always originates from a circle or a line. Using the basic elements to create the picture of a light, Designer White challenges our every imagination by series that is designed to be limitless in possibilities.
Rotatable lamp shade embedded in cutting-edge design of hollow circle with glare-free LED lighting, the CRI 90 softened light can impressively create practical as well as ambient light. With an easy one-touch-dimmer, you are one fingertip away to letting your imagination can run loose and allowing the fun to begin.
By Li, Hui Lun李慧倫
OLO always originates from a circle or a line. Using the basic elements to create the picture of a light, Designer White challenges our every imagination by series that is designed to be limitless in possibilities.
Rotatable lamp shade embedded in cutting-edge design of hollow circle with glare-free LED lighting, the CRI 90 softened light can impressively create practical as well as ambient light. With an easy one-touch-dimmer, you are one fingertip away to letting your imagination can run loose and allowing the fun to begin.
By Li, Hui Lun李慧倫
champagne gold + matt black
shiny black + matt black
OLO Wall W2
champagne gold + matt black
black + matt black
OLO Wall W2

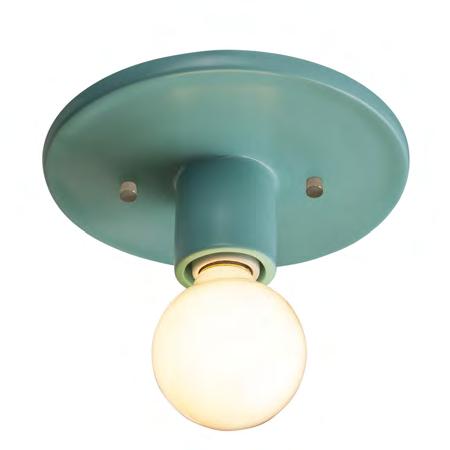

Ceramic Discus Flush-Mount
SOLID PAINT COLORS (GROUP 1):
Reflecting Pool (RFPL)
Lamping: Standard Incandescent
Justice Design Group, LLC. Los Angeles, California
Configured SKU: CER-6275-RFPL
Description : Discus Flush-Mount
Primary Shade Material : Ceramic
Frame Style : Discus Flush-Mount
Finish Groups : Bisque, 1, 2, 4
UL/ETL Listing : Suitable for Damp Locations
Feature : Ceramic, Made in USA
Standard Incandescent : (1) 100W E26 Max
Dimension : 5.75" H x 8" Dia.
Notes : Made in the USA, This item is available in up to 40 handpainted finishes, as well as unfinished ceramic bisque (BIS) which is paintable, Fixture height is based on G25 Globe lamp shown, Group 1 Two-tone finishes are unavailable
Justice Design Group, LLC. Los Angeles, California
Configured SKU: CER-6275-RFPL
Description : Discus Flush-Mount
Primary Shade Material : Ceramic
Frame Style : Discus Flush-Mount
Finish Groups : Bisque, 1, 2, 4
UL/ETL Listing : Suitable for Damp Locations
Feature : Ceramic, Made in USA
Standard Incandescent : (1) 100W E26 Max
Dimension : 5.75" H x 8" Dia.
Notes : Made in the USA, This item is available in up to 40 handpainted finishes, as well as unfinished ceramic bisque (BIS) which is paintable, Fixture height is based on G25 Globe lamp shown, Group 1 Two-tone finishes are unavailable

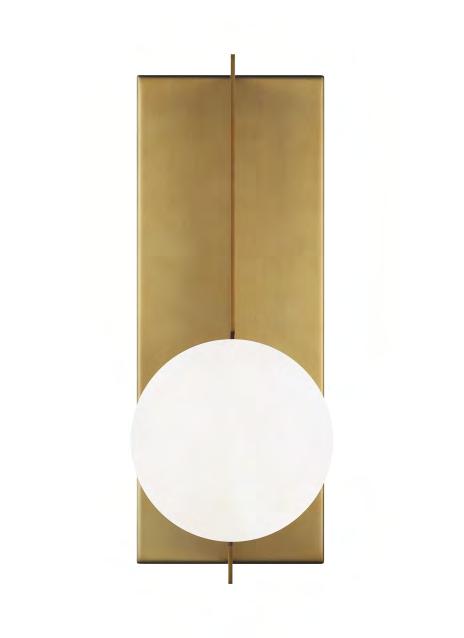

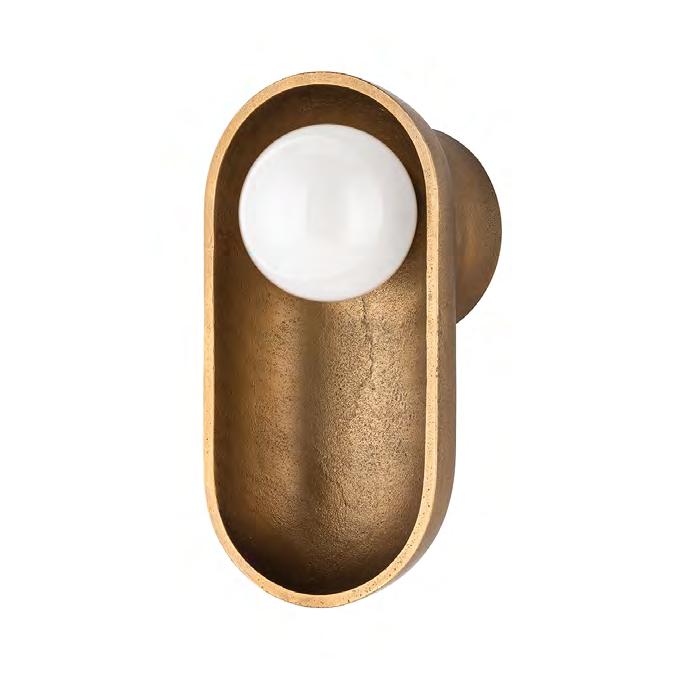

Inspired by Mid-Century modern art, the Orbel Wall Sconce features an elongated metal rectangle that supports a frosted sphere of light
13” tall and 5" wide
Available in modern nishes
Complete the look with other xtures in the Orbel Family, such as the Flush Mount, Bath Light and Pendants
Lamping options are compatible with most ELV and TRIAC dimmers •
LAMPING
Rated for (1) 5 watt max. G9 Bi-Pin lamp (Not Included). LED includes 3.8 watt, 319 total delivered lumens, 3000K, LED G9 Bi-Pin lamp. Dimmable with most LED compatible ELV and TRIAC dimmers. Mounts up or down.
ORDERING INFORMATION
700WSOBL FINISH LAMP R AGED BRASS B MATTE BLACK NBNATURAL BRASS N POLISHED NICKEL
NOTES
Aged Brass
Aged Brass Polished Nickel Matte Black
ORBEL WALL
PRODUCT FEATURES
From the brand formerly known as Tech Lighting
Inspired by Mid-Century modern art, the Orbel Wall Sconce features an elongated metal rectangle that supports a frosted sphere of light
13” tall and 5" wide
Available in modern nishes
Complete the look with other xtures in the Orbel Family, such as the Flush Mount, Bath Light and Pendants
Lamping options are compatible with most ELV and TRIAC dimmers •
LAMPING
Rated for (1) 5 watt max. G9 Bi-Pin lamp (Not Included). LED includes 3.8 watt, 319 total delivered lumens, 3000K, LED G9 Bi-Pin lamp. Dimmable with most LED compatible ELV and TRIAC dimmers. Mounts up or down.
ORDERING INFORMATION
700WSOBL FINISH LAMP R AGED BRASS B MATTE BLACK NBNATURAL BRASS N POLISHED NICKEL
NOTES
Aged Brass
Aged Brass Polished Nickel Matte Black
ORBEL WALL
/ VERTICAL WALL / CEILING MOUNT
LAMPING SPECIFICATIONS
T20 / T24 / JA8 INFORMATION
ORBEL WALL
/ VERTICAL WALL / CEILING MOUNT
LAMPING SPECIFICATIONS
T20 / T24 / JA8 INFORMATION
product can be used to comply with California Appliance Ef ciency Standards 2016 Title 20 and may be shipped to and sold in California.
PRODUCT DETAILS:
Distinctive mid-century modern elements merge with sleek and timeless forms for a vintage vibe with modern flair
Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards. ADA compliant

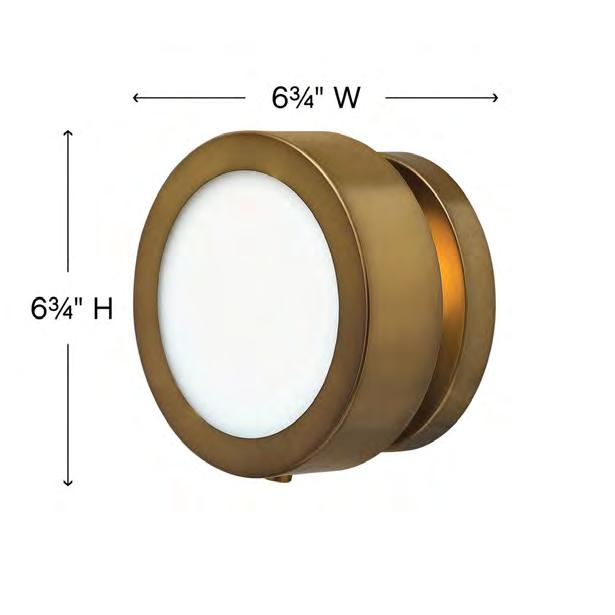

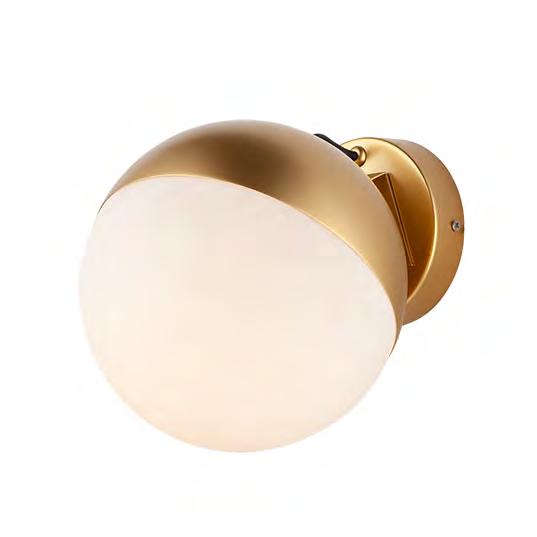

MERCER 3650HB
SMALL ADJUSTABLE SINGLE LIGHT SCONCE
Synonymous with vintage glamour, Mercer’s midcentury modern design has a cool simplicity that blends robust metal construction and circular glass shades that emit a soft glow, creating a perfect accent for any decor.
DETAILS
FINISH: Heritage Brass
MATERIAL: Steel
GLASS: Etched Opal
DIMMABLE: YES - WITH DIMMABLE LAMP (NOT INCLUDED)
DIMENSIONS
WIDTH: 6.8"
HEIGHT: 6.8"
WEIGHT: 2lb
BACK PLATE: 6.75" Dia.
EXTENSION: 4”
TOP TO OUTLET:3.5"
LIGHT SOURCE
LIGHT SOURCE: Socketed
WATTAGE: 1-5w Cand. LED, 60w Equiv.
VOLTAGE: 120v
SHIPPING
CARTON LENGTH:9.5
CARTON WIDTH:9.5
CARTON HEIGHT:6.5
CARTON WEIGHT:2.5
PRODUCT DETAILS:
Distinctive mid-century modern elements merge with sleek and timeless forms for a vintage vibe with modern flair
Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards. ADA compliant
MERCER 3650HB
SMALL ADJUSTABLE SINGLE LIGHT SCONCE
Synonymous with vintage glamour, Mercer’s midcentury modern design has a cool simplicity that blends robust metal construction and circular glass shades that emit a soft glow, creating a perfect accent for any decor.
ADA ADDITIONAL INSTALLUP/DOWN:Horizontal/Vert RATED LIFE35000Hours
OPERATINGTEMPERATURE: -20°C(-4°F),40°C(104°F)
Halftone 600
General
Location: Interior
Class: cULus (Class 1)
Location Rating: Dry
Driver Required: Mains 120V
Installation Orientation: Wall Mount
Fitting Method: Included 1/2” Stub Mount & 4” Octagon Box
Main Material: Metal - Mild Steel
Dimensions (mm): D: 67.2 Ø: 600
Dimensions (inch): D: 2.65 Ø: 23.62
Cut Out Hole (mm/inch): -
Recess Depth (mm/inch): -
Fire
Ada Compliant: Yes
Ic Rating:Lamp
Light Source: LED Strip
Wattage: 14.4W
Lamp Included: Yes (Integral)
Maximum Lamp Length (mm/inch): -
Luminous Flux (lm): 247 Colour Temp (K): 2700
Cri (Ra): 80
Macadam Ellipse: 2610-2710K
Tilt Adjustable Angle (°): -
Rotation Adjustable Angle (°): -
Average Lifetime (hrs): 53000
Beam Angle (°): -
Electrical
Switched: No
Dimmable: Yes
Dimming Method: 0-10V
Supply Frequency (Hz): 47/63
Driver / Ballast Voltage (V): 120-277
Driver Average Lifetime (hrs): 100000
Efficacy (lm/W): 17
1425006
Shade Included: -
Shade / Diffuser Material: Polycarbonate
Shade / Diffuser Finish: Clear
F Mark:Additional Information:
CODE:
FINISH: MATT WHITE
Halftone 600
General
Location: Interior
Class: cULus (Class 1)
Location Rating: Dry
Driver Required: Mains 120V
Installation Orientation: Wall Mount
Fitting Method: Included 1/2” Stub Mount & 4” Octagon Box
Main Material: Metal - Mild Steel
Dimensions (mm): D: 67.2 Ø: 600
Dimensions (inch): D: 2.65 Ø: 23.62
Cut Out Hole (mm/inch): -
Recess Depth (mm/inch): -
Fire
Ada Compliant: Yes
Ic Rating:Lamp
Light Source: LED Strip
Wattage: 14.4W
Lamp Included: Yes (Integral)
Maximum Lamp Length (mm/inch): -
Luminous Flux (lm): 247 Colour Temp (K): 2700
Cri (Ra): 80
Macadam Ellipse: 2610-2710K
Tilt Adjustable Angle (°): -
Rotation Adjustable Angle (°): -
Average Lifetime (hrs): 53000
Beam Angle (°): -
Electrical
Switched: No
Dimmable: Yes
Dimming Method: 0-10V
Supply Frequency (Hz): 47/63
Driver / Ballast Voltage (V): 120-277
Driver Average Lifetime (hrs): 100000
Efficacy (lm/W): 17
1425006
Shade Included: -
Shade / Diffuser Material: Polycarbonate
Shade / Diffuser Finish: Clear
F Mark:Additional Information:
CODE:
FINISH: MATT WHITE
Product Elevations
Please note that some dimensions may vary slightly due to manufacturing tolerances, this includes cable entry and fixing holes.
Ø290mm / 11.42“
Ø600mm / 23.62“
67.2mm / 2.65“
Ø89mm / 3.5“
Product Elevations
Please note that some dimensions may vary slightly due to manufacturing tolerances, this includes cable entry and fixing holes.
Ø290mm / 11.42“
Ø600mm / 23.62“
67.2mm / 2.65“
Ø89mm / 3.5“

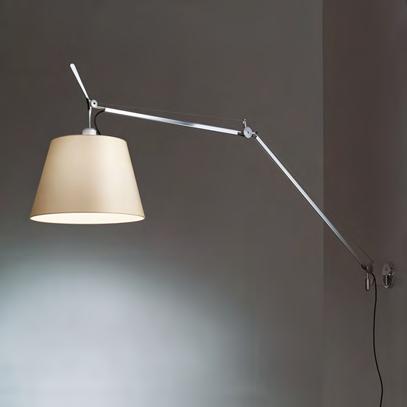

Tolomeo Mega Wall LED 3000K - with Dimmer on cable - Black - Body Lamp
Michele De Lucchi Giancarlo Fassina
LUMINAIRE
Watt: 31W
Voltage: 220V-240V
Delivered lumen output: 1914lm
CCT: 3000K
Efficiency: 66%
Efficacy: 61.76lm/W
CRI: 92
Dimmer Typology: Push button Dimmer su cavo
Notes
With dimmer. Diffuser available in three sizes. Complete lamp consists of body lamp + accessories
DESCRIPTION
Icon of Italian design and the result of the brainchild of designers Michele De Lucchi and Giancarlo Fassina, the Tolomeo lamp was launched on the market in 1987. It embodies the perfect balance between functionality and aesthetics.
The design of the Tolomeo is characterized by clean and minimalist lines, with a structure made of aluminum. This material gives the lamp not only a modern and sophisticated look but also remarkable lightness and robustness.
One of the distinctive elements of the Tolomeo is its articulated arm system. Thanks to an innovative spring mechanism, the lamp can be easily adjusted in height and tilt, ensuring great flexibility of use.
The timeless elegance and impeccable functionality have made it one of the most famous lamps in the world and it has received numerous international awards. This lamp is not just an object of illumination, but a true masterpiece of design that continues to inspire and fascinate generations of beauty lovers.
In the Mega version, the traditional aluminum head has been replaced by a version with a balanced diffuser in three different sizes that casts a soft glow into its surroundings.
FEATURES
Product Code: 0762030A
Colour: Black
Installation: Wall
Material: Fabric or satin or parchment paper, aluminum, steel
Series: Design Collection
design by: Michele De Lucchi, Giancarlo Fassina
DIMENSIONS
Height: 1100 mm
Tolomeo Mega Wall LED 3000K - with Dimmer on cable - Black - Body Lamp
Michele De Lucchi Giancarlo Fassina
LUMINAIRE
Watt: 31W
Voltage: 220V-240V
Delivered lumen output: 1914lm
CCT: 3000K
Efficiency: 66%
Efficacy: 61.76lm/W
CRI: 92
Dimmer Typology: Push button Dimmer su cavo
Notes
With dimmer. Diffuser available in three sizes. Complete lamp consists of body lamp + accessories
DESCRIPTION
Icon of Italian design and the result of the brainchild of designers Michele De Lucchi and Giancarlo Fassina, the Tolomeo lamp was launched on the market in 1987. It embodies the perfect balance between functionality and aesthetics.
The design of the Tolomeo is characterized by clean and minimalist lines, with a structure made of aluminum. This material gives the lamp not only a modern and sophisticated look but also remarkable lightness and robustness.
One of the distinctive elements of the Tolomeo is its articulated arm system. Thanks to an innovative spring mechanism, the lamp can be easily adjusted in height and tilt, ensuring great flexibility of use.
The timeless elegance and impeccable functionality have made it one of the most famous lamps in the world and it has received numerous international awards. This lamp is not just an object of illumination, but a true masterpiece of design that continues to inspire and fascinate generations of beauty lovers.
In the Mega version, the traditional aluminum head has been replaced by a version with a balanced diffuser in three different sizes that casts a soft glow into its surroundings.
FEATURES
Product Code: 0762030A
Colour: Black
Installation: Wall
Material: Fabric or satin or parchment paper, aluminum, steel
Series: Design Collection
design by: Michele De Lucchi, Giancarlo Fassina
DIMENSIONS
Height: 1100 mm
Accessories
Parchment paper diffuser ø 360 mm 0780020A
Black fabric diffuser ø 360 mm 0772020A
Wall support - Aluminium 0563050A
Black fabric diffuser ø 320 mm 0772010A
diffuser ø 420 mm 0781030A
diffuser ø 360 mm 0781020A
Parchment paper diffuser ø 320 mm 0780010A
Parchment paper diffuser ø 420 mm 0780030A
diffuser ø 320 mm 0781010A
fabric diffuser ø 420 mm 0772030A
Silk
Silk
Silk
Black
Accessories
Parchment paper diffuser ø 360 mm 0780020A
Black fabric diffuser ø 360 mm 0772020A
Wall support - Aluminium 0563050A
Black fabric diffuser ø 320 mm 0772010A
diffuser ø 420 mm 0781030A
diffuser ø 360 mm 0781020A
Parchment paper diffuser ø 320 mm 0780010A
Parchment paper diffuser ø 420 mm 0780030A
diffuser ø 320 mm 0781010A
fabric diffuser ø 420 mm 0772030A
Silk
Silk
Silk
Black
BRAND Pablo
DESCRIPTION
Bola Disc Wall / Ceiling Flush Light offers a magical combination of mirror and globe refined down to its bare essentials. The objective is to provide both direct and reflected light from where ever it is placed. Available in four sizes. Stand Off accessory is available, and sold separately, for overlapping and disc grouping. One needed for each overlapped product. Color Temperature: 2700K-1800K Dim to Warm or 3000K. Dimmable with an electronic low voltage (ELV) or 0-10V dimmer.
BODY
DIMMER Low Voltage Electronic
DIMENSIONS 12"W x 12"H x 6.2"D
INTEGRATED
Bola Disc Wall / Ceiling Light
Shown in: Brass / Opaline
SHADE
BOLA DISC FLUSH
DESCRIPTION
A study in refined simplicity, Bola Flush offers a magical combination of mirror and globe refined down to its bare essentials. The objective with the Bola Flush is to provide both direct and reflected light from either ceiling or wall mounted vantage points. Bola Flush brings elegance and refinement with four sizes and five finishes in chrome, brass, rose gold, gunmetal, white, and matte black. An ideal fixture for adding diffused and reflected light in hallway corridors, nooks, dining settings, bedrooms, or living areas. Stunning groupings can also be created by mixing different sizes together to form unique custom light displays.
FIXTURE TYPE
Wall/Ceiling
LIGHT SOURCE
Custom integrated LED, high-output chip on board
LIGHT CONTROL
Hard-wired, dimmable
Compatible with TRIAC/ELV and 0-10V dimmers
Dali compatability upon request
FEATURES
Warm Dim
SPECIFICATIONS
Voltage: 120V-277V 50/60Hz
Power Consumption: 6W (12”, 18”), 12W (22”), 20W (32”)
Bola Disc Flush ___ (Matte Black): BOLA FSH ___ BLK
Bola Disc Flush ___ (Matte White): BOLA FSH ___WHT
Bola Disc Flush Standoff BOLA FSH STAND
PACKAGING WEIGHT AND DIMENSIONS
Bola Disc 12 4LBS 15” X 15” X 7”
(Steel Shade) 1.8KG 38cm X 38cm X 18cm
Bola Disc 12 2.4LBS 15” X 15” X 7”
(White Aluminum Shade) 1.1KG 38cm X 38cm X 18cm
Bola Disc 18 8.6LBS 20.75” X 20.75” X 8” (Steel Shade) 3.9KG 53cm X 53cm X 20cm
Bola Disc 18 6.75LBS 20.75” X 20.75” X 8”
(White Aluminum Shade) 3KG 53cm X 53cm X 20cm
Bola Disc 22 12.25LBS 24” X 24” X 10”
(Steel Shade) 5.6KG 61cm X 61cm X 25cm
Bola Disc 22 9LBS 24” X 24” X 10”
(White Aluminum Shade) 4.1KG 61cm X 61cm X 25cm
Bola Disc 32 23.8LBS 34.5” X 34.5” X 10.5”
(Steel Shade) 10.8KG 87.6cm X 87.6cm X 27cm
Bola Disc 32 17.5LBS 34.5” X 34.5” X 10.5”
(White Aluminum Shade) 7.9KG 87.6cm X 87.6cm X 27cm
NOTES
3000K and 3500K CCT Models Available Upon Request. (Please inquire for MOQ, Leadtime)
Custom requests can be considered on volume orders.

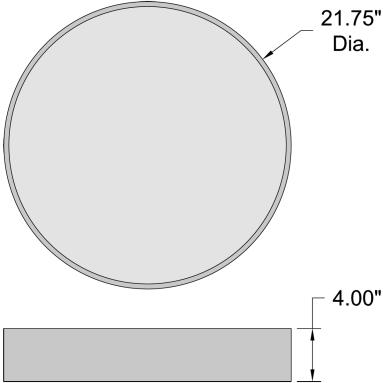

DIMENSIONS
BOLA DISC FLUSH 12, 18, 22, 32
Original 1227™ Brass Wall Light
Original 1227™ Brass Collection | Technical Sheet
Product
Launched In 2014 | Designed by George Carwardine
Description
Heritage inspired colors and authentic brass details create a new aesthetic for this iconic Anglepoise® design. The wall light features a discrete switch located on the back plate and has a flexible shade, so the light can be focused just where it’s needed.
-Light Packaging (L x W x H): 8.7in x 6.3in x 11.4in
-Light Packaged Weight: 3.2lbs
Electrical
-cUL Certified
-Voltage: 110/120V, 50/60Hz
-Push switch on wall plate
-Light can be wired to an external light switch
-E26 Lamp holder
-Maximum permitted bulb: 15W CFL / 10W LED
-Bulb not included
Wall Light - Elephant Grey Wall Light - Jet Black
Original 1227™ Brass Wall Light
Original 1227™ Brass Collection | Technical Sheet
Product
Launched In 2014 | Designed by George Carwardine
Description
Heritage inspired colors and authentic brass details create a new aesthetic for this iconic Anglepoise® design. The wall light features a discrete switch located on the back plate and has a flexible shade, so the light can be focused just where it’s needed.
-Light Packaging (L x W x H): 8.7in x 6.3in x 11.4in
-Light Packaged Weight: 3.2lbs
Electrical
-cUL Certified
-Voltage: 110/120V, 50/60Hz
-Push switch on wall plate
-Light can be wired to an external light switch
-E26 Lamp holder
-Maximum permitted bulb: 15W CFL / 10W LED
-Bulb not included
Wall Light - Elephant Grey Wall Light - Jet Black
OLO always originates from a circle or a line. Using the basic elements to create the picture of a light, Designer White challenges our every imagination by series that is designed to be limitless in possibilities.
Rotatable lamp shade embedded in cutting-edge design of hollow circle with glare-free LED lighting, the CRI 90 softened light can impressively create practical as well as ambient light. With an easy one-touch-dimmer, you are one fingertip away to letting your imagination can run loose and allowing the fun to begin.
By Li, Hui Lun李慧倫
OLO always originates from a circle or a line. Using the basic elements to create the picture of a light, Designer White challenges our every imagination by series that is designed to be limitless in possibilities.
Rotatable lamp shade embedded in cutting-edge design of hollow circle with glare-free LED lighting, the CRI 90 softened light can impressively create practical as well as ambient light. With an easy one-touch-dimmer, you are one fingertip away to letting your imagination can run loose and allowing the fun to begin.
Contemporary Design. Ideal use in hallways, entrances or anywhere general lighting is needed. Provides up/down lighting in residential, commercial and hospitality applications. Fixture mounts to standard junction box (not included).
Construction
Metal construction Standard mounting holes and hardware are included. Power supply connections must be made inside a junction box (not included).
All fixtures are cETLus listed for outdoor wet locations. Title 24/JA8 Compliant
Warranty
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 year from date of purchase. Restrictions apply based on location.
Specifications and dimensions subject to change without notice.
Ordering Information:
LOCATION
PREPARED BY
COMMENTS CATALOG
Irvine LED Outdoor Sconce IRVW Series
Features
Contemporary Design. Ideal use in hallways, entrances or anywhere general lighting is needed. Provides up/down lighting in residential, commercial and hospitality applications. Fixture mounts to standard junction box (not included).
Construction
Metal construction Standard mounting holes and hardware are included. Power supply connections must be made inside a junction box (not included).
All fixtures are cETLus listed for outdoor wet locations. Title 24/JA8 Compliant
Warranty
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 year from date of purchase. Restrictions apply based on location.
Specifications and dimensions subject to change without notice.
RATINGS cETLus DampLocation ADA ADDITIONAL INSTALLUP/DOWN:Up/Down RATEDLIFE50000Hours
OPERATINGTEMPERATURE: -20°C(-4°F),40°C(104°F)

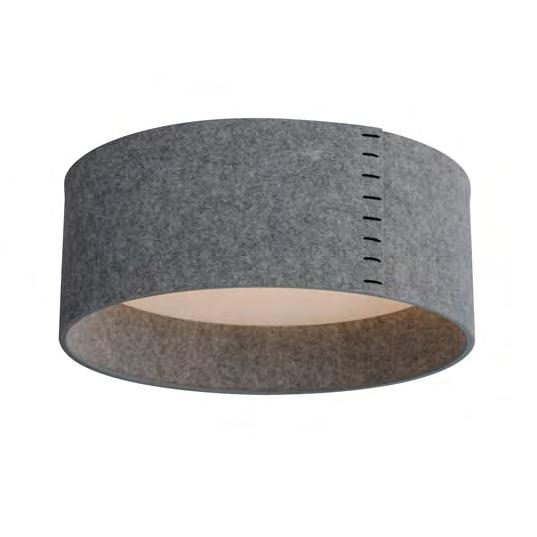

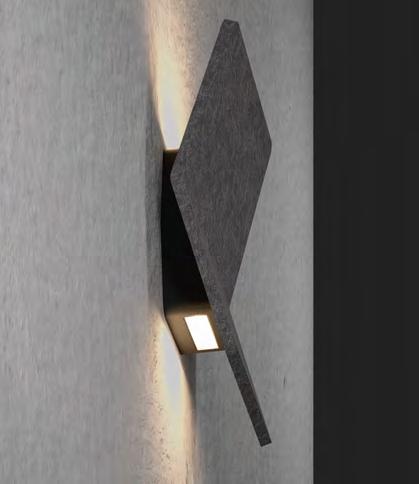

HUSH
Indirect Wall
FEATURES
- 2 sizes; 6 1/4" x 8 3/4" and 9 1/16" x 10 5/8"
- Light source: Direct / Indirect
- Acoustic Shade made in Germany
- Shade Options: green, blue, light grey, and dark grey
HOUSING
- Casted aluminum housing in anthracite.
MOUNTING
- Mount to 3-1/2" to 4" octagonal recessed junction box.
ELECTRICAL/CONTROLS
- Integrated LED Module
LISTING
- ETLus Listed to UL1598 (suitable for indoor use and dry locations only)
- cETL Listed to CSA C22.2 #250.0 - ADA Compliant
LED INFO
- -LED: BXEM-30G-12H-6C / BXEM-27G-12H-6C
- CCT: 2700K and 3000K
- CRI: 90 CRI
- SDCM: 3-step MacAdam Ellipse
- Lumen Maintenance: L80 > 50,000 hrs
- Warranty: 5 year limited warranty
HUSH
Indirect Wall
FEATURES
- 2 sizes; 6 1/4" x 8 3/4" and 9 1/16" x 10 5/8"
- Light source: Direct / Indirect
- Acoustic Shade made in Germany
- Shade Options: green, blue, light grey, and dark grey
HOUSING
- Casted aluminum housing in anthracite.
MOUNTING
- Mount to 3-1/2" to 4" octagonal recessed junction box.
ELECTRICAL/CONTROLS
- Integrated LED Module
LISTING
- ETLus Listed to UL1598 (suitable for indoor use and dry locations only)
- cETL Listed to CSA C22.2 #250.0 - ADA Compliant
LED INFO
- -LED: BXEM-30G-12H-6C / BXEM-27G-12H-6C
- CCT: 2700K and 3000K
- CRI: 90 CRI
- SDCM: 3-step MacAdam Ellipse
- Lumen Maintenance: L80 > 50,000 hrs
- Warranty: 5 year limited warranty
NOT ON SCHEDULE
PRODUCT DESCRIPTION
DSWP LED WALL PACK
The dark sky wall pack features cutoff distribution in traditional appearance. Die-cast aluminum housing with integrated heat sink for superior heat dissipation , and options for Emergency back-up, photocontrol, and sensor. It is an ideal option for landscape, wall/ surface, low level pathway, apartment buildings, schools, and multi-use facilities.
LECTRICAL SYSTEM F EATURES
• • Photocontrol comes standard Die-cast aluminum cooling design
DIMENSION
• Sensor and emergency back-up optional Net. Weight: 4.28 lbs
4" E-Series FLIN Round LED Downlight with Selectable CCT Source: 10.5W Up to
PRODUCT DESCRIPTION
E-Series FLIN is a thin recessed LED designed for easy installation into new construction or remodel applications. Luminaires include a selectable color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling.
FEATURES
No housing required and includes junction box with class 2 driver
Quick installation and cost savings Junction box includes kelvin temperature switch IC Air-Tight rated
Field selectable color temperature Triac or ELV dimming cETLus Listed for Wet Locations 5-year limited warranty
SPECIFICATION
Construction: Die-cast aluminum luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM E283 Air-Tight requirements.
Lens: Regressed lens with sharp baffle cuts reduces aperture brightness. Special polymer lens produces more usable light and lumens per watt.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2" trade size and two 3/8" trade size knockouts and snap on cover. Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 5" and Junction box wire length: 9"] Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 15/16". New construction framein kits are available, see accessories.
Minimum clearance: “IC” Insulated ceiling housings are direct contact rated; no minimum clearance is required.
ELECTRICAL
Voltage: 120VAC or 120-277VAC
Lumens / Wattage: Up to 950lm / 10.5W
Color Temperature: Selectable CCT
(2700K / 3000K / 3500K / 4000K / 5000K)
Color Rendering Index: 90+ CRI
Beam Spread: 115° Wide Flood
Operating Temperature: 0˚C to 35˚C
Lifetime: 50,000 hours @ L70
Dimming: Dimmable down to 10% with Triac or ELV dimmer
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-4OR-MPW: Oversize Ring
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NF-R246: Universal New Construction Frame-In
NFC-R430 : New Construction Frame-In with Collar
LABELS AND LISTINGS
cETLus Listed for Wet location
Certified to the high efficacy requirements of California Title 24 JA8-2022

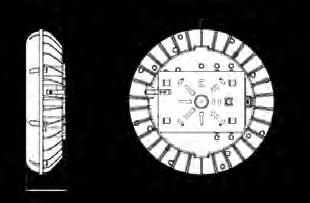

NEFLINTW-R4MPW 966lm5000K PRODUCT IMAGES AND DIMENSIONS
Optional Accessories
Description
NEFLINTW-4OR-MPW = Oversize Ring
NEFLINTW-EW-4 = 4' Quick Connect Extension Cable
NEFLINTW-EW-20 = 20' Quick Connect Extension Cable NF-R246 = Universal New Construction Frame-In
= New Construction Frame-In with Collar
INTENTIONALLY LEFT BLANK
NEFLINTW-R4
4" Round E-Series FLIN LED Downlight Accessories
Oversize Ring for Round
NEFLINTW-4OR-MPW
Oversize ring covers ceiling cut-outs up to 5-1/4”
Quick Connect Extension Cables
NEFLINTW-EW-4 4'
NEFLINTW-EW-20 20'
Use to extend the length between luminaire and driver box. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Type Project Catalog No. Notes
Universal New Construction Frame-In NF-R246
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
New Construction Frame-In with Collar
NFC-R430
New construction frame-in can be used to assist installing can-less recessed downlighting.
33 West Beaver Creek Road Richmond Hill, Ontario Canada L4B 1L8
PRODUCT DETAILS
No. : 32190-014
Product Color : STAINLESS STEEL
Shade / Accent Colour : STAINLESS STEEL
Length : 5"
Width : 5"
Height : 4.125"
Weight : 1.9LBS
LIGHT SOURCE DETAILS
Number of Bulbs :1
Light Source : LED
Light Source Type : INTEGRATED LED
Input Voltage : 120V
Bulb Voltage : 120V
Socket Type : LED
Wattage : 1 X 7W
Total Wattage : 7W
Delivered Lumens : 682LM
Kelvin : 3000K
CRI : 80
Bulb Included : YES
Dimmable : NO
TECHNICAL DETAILS
Driver : ELECTRONIC DRIVER 120V 50/60HZ
IP Rating : 67 Location : WET
Approval :
Title 24 : YES
Beam Angle : 25
Job Name: Date:
Comments:
Type:
OPTIONS AVAILABLE
33 West Beaver Creek Road Richmond Hill, Ontario Canada L4B 1L8
PRODUCT DETAILS
No. : 32190-014
Product Color : STAINLESS STEEL
Shade / Accent Colour : STAINLESS STEEL
Length : 5"
Width : 5"
Height : 4.125"
Weight : 1.9LBS
LIGHT SOURCE DETAILS
Number of Bulbs :1
Light Source : LED
Light Source Type : INTEGRATED LED
Input Voltage : 120V
Bulb Voltage : 120V
Socket Type : LED
Wattage : 1 X 7W
Total Wattage : 7W
Delivered Lumens : 682LM
Kelvin : 3000K
CRI : 80
Bulb Included : YES
Dimmable : NO
TECHNICAL DETAILS
Driver : ELECTRONIC DRIVER 120V 50/60HZ
IP Rating : 67 Location : WET
Approval :
Title 24 : YES
Beam Angle : 25
Job Name: Date:
Comments:
Type:
NOT ON SCHEDULE
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
PRODUCT OVERVIEW
A standard output, wet location flexible 120V plug-in or hardwire LED linear tape for architectural coves, indoor steps, bannisters, exterior recesses and other constructs where even, energy saving LED illumination is specified. 5 year warranty. Do not submerge. Factory cut only - cutting in field will void ETL label and warranty.
NOTE: Each run requires power connector (see Connectors and Accessories next page).
FEATURES
•120V operation (no power supply required)
•Wet location - IP65
•Cord and plug or hardwire power connector (replaceable fuse protected)
•Tape encased in UV inhibiting water resistant clear poly flexible sheath
•Maximum run: 163 feet (Limit of 4 sections for maximum run
Consult factory for other combinations)
•Mounting options: Clips or PVC / aluminum channel
•Frosted lens and channel covers available (see below)
SPECIFICATIONS
ELECTRICAL
•120V
•2.0 watts per foot OPTICS
•90+ CRI
LUMENS
• 27K (140lm/ft), 30K (150lm/ft), 40K (160lm/ft)
OPERATING TEMP
•-4 to 122°F (-20 to +50°C)
LABEL
ORDERING INFORMATION
•5 years
• Do not install in an application that is not easily accessed for service.
Standard Output (163’ Max.)
Specify by the foot / inches - minimum cut is 4”.
Example: To order an 8’-4” length of 2700K tape, specify: V120-SO-27-8-4
INTENTIONALLY LEFT BLANK
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
TAPE DIMENSIONS
Tape length is measured from end to end
Standard Output - Max. Run: 163 feet Cuttable by factory in 4 inch increments
CONNECTORS AND ACCESSORIES
V120-PC-4 4’ POWER CONNECTOR - CORD AND PLUG
V120-PC-8 8’ POWER CONNECTOR - CORD AND PLUG
V120-PCHW-4 4’ POWER CONNECTOR - HARDWIRE
V120-PCHW-8 8’ POWER CONNECTOR - HARDWIRE
V120-TTC-6 5-3/8” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-12 12-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-18 15-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-24 23-1/4” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-3M-VHB-15 15’ LONG X 1/2” WIDTH DOUBLE-SIDED MTG. TAPE
V120-CHL-4 4’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-4-LENS FROSTED LENS FOR 4’ ALUMINUM CHANNEL
V120-CHL-6 6’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-6-LENS FROSTED LENS FOR 6’ ALUMINUM CHANNEL
V120-CHL-P-4 VISION120 4’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-CHL-P-6 VISION 120 6’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-MC VISION 120 MOUNTING CLIPS - USE 1 PER FOOT MIN. (BAG OF 10)
V120-ECC END CAP COVERS (2) FOR ALUMINUM CHANNEL WITH LENS. WHITE
V120-90L VISION120 90° LEFT CONNECTOR
V120-90R VISION120 90° RIGHT CONNECTOR
NOT ON SCHEDULE
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
PRODUCT OVERVIEW
A standard output, wet location flexible 120V plug-in or hardwire LED linear tape for architectural coves, indoor steps, bannisters, exterior recesses and other constructs where even, energy saving LED illumination is specified. 5 year warranty. Do not submerge. Factory cut only - cutting in field will void ETL label and warranty.
NOTE: Each run requires power connector (see Connectors and Accessories next page).
FEATURES
•120V operation (no power supply required)
•Wet location - IP65
•Cord and plug or hardwire power connector (replaceable fuse protected)
•Tape encased in UV inhibiting water resistant clear poly flexible sheath
•Maximum run: 163 feet (Limit of 4 sections for maximum run
Consult factory for other combinations)
•Mounting options: Clips or PVC / aluminum channel
•Frosted lens and channel covers available (see below)
SPECIFICATIONS
ELECTRICAL
•120V
•2.0 watts per foot OPTICS
•90+ CRI
LUMENS
• 27K (140lm/ft), 30K (150lm/ft), 40K (160lm/ft)
OPERATING TEMP
•-4 to 122°F (-20 to +50°C)
LABEL
ORDERING INFORMATION
•5 years
• Do not install in an application that is not easily accessed for service.
Standard Output (163’ Max.)
Specify by the foot / inches - minimum cut is 4”.
Example: To order an 8’-4” length of 2700K tape, specify: V120-SO-27-8-4
INTENTIONALLY LEFT BLANK
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
TAPE DIMENSIONS
Tape length is measured from end to end
Standard Output - Max. Run: 163 feet Cuttable by factory in 4 inch increments
CONNECTORS AND ACCESSORIES
V120-PC-4 4’ POWER CONNECTOR - CORD AND PLUG
V120-PC-8 8’ POWER CONNECTOR - CORD AND PLUG
V120-PCHW-4 4’ POWER CONNECTOR - HARDWIRE
V120-PCHW-8 8’ POWER CONNECTOR - HARDWIRE
V120-TTC-6 5-3/8” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-12 12-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-18 15-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-24 23-1/4” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-3M-VHB-15 15’ LONG X 1/2” WIDTH DOUBLE-SIDED MTG. TAPE
V120-CHL-4 4’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-4-LENS FROSTED LENS FOR 4’ ALUMINUM CHANNEL
V120-CHL-6 6’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-6-LENS FROSTED LENS FOR 6’ ALUMINUM CHANNEL
V120-CHL-P-4 VISION120 4’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-CHL-P-6 VISION 120 6’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-MC VISION 120 MOUNTING CLIPS - USE 1 PER FOOT MIN. (BAG OF 10)
V120-ECC END CAP COVERS (2) FOR ALUMINUM CHANNEL WITH LENS. WHITE
V120-90L VISION120 90° LEFT CONNECTOR
V120-90R VISION120 90° RIGHT CONNECTOR
NOT ON SCHEDULE
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
PRODUCT OVERVIEW
A standard output, wet location flexible 120V plug-in or hardwire LED linear tape for architectural coves, indoor steps, bannisters, exterior recesses and other constructs where even, energy saving LED illumination is specified. 5 year warranty. Do not submerge. Factory cut only - cutting in field will void ETL label and warranty.
NOTE: Each run requires power connector (see Connectors and Accessories next page).
FEATURES
•120V operation (no power supply required)
•Wet location - IP65
•Cord and plug or hardwire power connector (replaceable fuse protected)
•Tape encased in UV inhibiting water resistant clear poly flexible sheath
•Maximum run: 163 feet (Limit of 4 sections for maximum run
Consult factory for other combinations)
•Mounting options: Clips or PVC / aluminum channel
•Frosted lens and channel covers available (see below)
SPECIFICATIONS
ELECTRICAL
•120V
•2.0 watts per foot OPTICS
•90+ CRI
LUMENS
• 27K (140lm/ft), 30K (150lm/ft), 40K (160lm/ft)
OPERATING TEMP
•-4 to 122°F (-20 to +50°C)
LABEL
ORDERING INFORMATION
•5 years
• Do not install in an application that is not easily accessed for service.
Standard Output (163’ Max.)
Specify by the foot / inches - minimum cut is 4”.
Example: To order an 8’-4” length of 2700K tape, specify: V120-SO-27-8-4
INTENTIONALLY LEFT BLANK
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
TAPE DIMENSIONS
Tape length is measured from end to end
Standard Output - Max. Run: 163 feet Cuttable by factory in 4 inch increments
CONNECTORS AND ACCESSORIES
V120-PC-4 4’ POWER CONNECTOR - CORD AND PLUG
V120-PC-8 8’ POWER CONNECTOR - CORD AND PLUG
V120-PCHW-4 4’ POWER CONNECTOR - HARDWIRE
V120-PCHW-8 8’ POWER CONNECTOR - HARDWIRE
V120-TTC-6 5-3/8” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-12 12-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-18 15-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-24 23-1/4” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-3M-VHB-15 15’ LONG X 1/2” WIDTH DOUBLE-SIDED MTG. TAPE
V120-CHL-4 4’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-4-LENS FROSTED LENS FOR 4’ ALUMINUM CHANNEL
V120-CHL-6 6’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-6-LENS FROSTED LENS FOR 6’ ALUMINUM CHANNEL
V120-CHL-P-4 VISION120 4’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-CHL-P-6 VISION 120 6’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-MC VISION 120 MOUNTING CLIPS - USE 1 PER FOOT MIN. (BAG OF 10)
V120-ECC END CAP COVERS (2) FOR ALUMINUM CHANNEL WITH LENS. WHITE
V120-90L VISION120 90° LEFT CONNECTOR
V120-90R VISION120 90° RIGHT CONNECTOR
NOT ON SCHEDULE
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
PRODUCT OVERVIEW
A standard output, wet location flexible 120V plug-in or hardwire LED linear tape for architectural coves, indoor steps, bannisters, exterior recesses and other constructs where even, energy saving LED illumination is specified. 5 year warranty. Do not submerge. Factory cut only - cutting in field will void ETL label and warranty.
NOTE: Each run requires power connector (see Connectors and Accessories next page).
FEATURES
•120V operation (no power supply required)
•Wet location - IP65
•Cord and plug or hardwire power connector (replaceable fuse protected)
•Tape encased in UV inhibiting water resistant clear poly flexible sheath
•Maximum run: 163 feet (Limit of 4 sections for maximum run
Consult factory for other combinations)
•Mounting options: Clips or PVC / aluminum channel
•Frosted lens and channel covers available (see below)
SPECIFICATIONS
ELECTRICAL
•120V
•2.0 watts per foot OPTICS
•90+ CRI
LUMENS
• 27K (140lm/ft), 30K (150lm/ft), 40K (160lm/ft)
OPERATING TEMP
•-4 to 122°F (-20 to +50°C)
LABEL
ORDERING INFORMATION
•5 years
• Do not install in an application that is not easily accessed for service.
Standard Output (163’ Max.)
Specify by the foot / inches - minimum cut is 4”.
Example: To order an 8’-4” length of 2700K tape, specify: V120-SO-27-8-4
INTENTIONALLY LEFT BLANK
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
TAPE DIMENSIONS
Tape length is measured from end to end
Standard Output - Max. Run: 163 feet Cuttable by factory in 4 inch increments
CONNECTORS AND ACCESSORIES
V120-PC-4 4’ POWER CONNECTOR - CORD AND PLUG
V120-PC-8 8’ POWER CONNECTOR - CORD AND PLUG
V120-PCHW-4 4’ POWER CONNECTOR - HARDWIRE
V120-PCHW-8 8’ POWER CONNECTOR - HARDWIRE
V120-TTC-6 5-3/8” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-12 12-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-18 15-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-24 23-1/4” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-3M-VHB-15 15’ LONG X 1/2” WIDTH DOUBLE-SIDED MTG. TAPE
V120-CHL-4 4’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-4-LENS FROSTED LENS FOR 4’ ALUMINUM CHANNEL
V120-CHL-6 6’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-6-LENS FROSTED LENS FOR 6’ ALUMINUM CHANNEL
V120-CHL-P-4 VISION120 4’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-CHL-P-6 VISION 120 6’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-MC VISION 120 MOUNTING CLIPS - USE 1 PER FOOT MIN. (BAG OF 10)
V120-ECC END CAP COVERS (2) FOR ALUMINUM CHANNEL WITH LENS. WHITE
V120-90L VISION120 90° LEFT CONNECTOR
V120-90R VISION120 90° RIGHT CONNECTOR
NOT ON SCHEDULE
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
PRODUCT OVERVIEW
A standard output, wet location flexible 120V plug-in or hardwire LED linear tape for architectural coves, indoor steps, bannisters, exterior recesses and other constructs where even, energy saving LED illumination is specified. 5 year warranty. Do not submerge. Factory cut only - cutting in field will void ETL label and warranty.
NOTE: Each run requires power connector (see Connectors and Accessories next page).
FEATURES
•120V operation (no power supply required)
•Wet location - IP65
•Cord and plug or hardwire power connector (replaceable fuse protected)
•Tape encased in UV inhibiting water resistant clear poly flexible sheath
•Maximum run: 163 feet (Limit of 4 sections for maximum run
Consult factory for other combinations)
•Mounting options: Clips or PVC / aluminum channel
•Frosted lens and channel covers available (see below)
SPECIFICATIONS
ELECTRICAL
•120V
•2.0 watts per foot OPTICS
•90+ CRI
LUMENS
• 27K (140lm/ft), 30K (150lm/ft), 40K (160lm/ft)
OPERATING TEMP
•-4 to 122°F (-20 to +50°C)
LABEL
ORDERING INFORMATION
•5 years
• Do not install in an application that is not easily accessed for service.
Standard Output (163’ Max.)
Specify by the foot / inches - minimum cut is 4”.
Example: To order an 8’-4” length of 2700K tape, specify: V120-SO-27-8-4
INTENTIONALLY LEFT BLANK
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
TAPE DIMENSIONS
Tape length is measured from end to end
Standard Output - Max. Run: 163 feet Cuttable by factory in 4 inch increments
CONNECTORS AND ACCESSORIES
V120-PC-4 4’ POWER CONNECTOR - CORD AND PLUG
V120-PC-8 8’ POWER CONNECTOR - CORD AND PLUG
V120-PCHW-4 4’ POWER CONNECTOR - HARDWIRE
V120-PCHW-8 8’ POWER CONNECTOR - HARDWIRE
V120-TTC-6 5-3/8” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-12 12-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-18 15-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-24 23-1/4” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-3M-VHB-15 15’ LONG X 1/2” WIDTH DOUBLE-SIDED MTG. TAPE
V120-CHL-4 4’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-4-LENS FROSTED LENS FOR 4’ ALUMINUM CHANNEL
V120-CHL-6 6’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-6-LENS FROSTED LENS FOR 6’ ALUMINUM CHANNEL
V120-CHL-P-4 VISION120 4’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-CHL-P-6 VISION 120 6’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-MC VISION 120 MOUNTING CLIPS - USE 1 PER FOOT MIN. (BAG OF 10)
V120-ECC END CAP COVERS (2) FOR ALUMINUM CHANNEL WITH LENS. WHITE
V120-90L VISION120 90° LEFT CONNECTOR
V120-90R VISION120 90° RIGHT CONNECTOR
NOT ON SCHEDULE
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
PRODUCT OVERVIEW
A standard output, wet location flexible 120V plug-in or hardwire LED linear tape for architectural coves, indoor steps, bannisters, exterior recesses and other constructs where even, energy saving LED illumination is specified. 5 year warranty. Do not submerge. Factory cut only - cutting in field will void ETL label and warranty.
NOTE: Each run requires power connector (see Connectors and Accessories next page).
FEATURES
•120V operation (no power supply required)
•Wet location - IP65
•Cord and plug or hardwire power connector (replaceable fuse protected)
•Tape encased in UV inhibiting water resistant clear poly flexible sheath
•Maximum run: 163 feet (Limit of 4 sections for maximum run
Consult factory for other combinations)
•Mounting options: Clips or PVC / aluminum channel
•Frosted lens and channel covers available (see below)
SPECIFICATIONS
ELECTRICAL
•120V
•2.0 watts per foot OPTICS
•90+ CRI
LUMENS
• 27K (140lm/ft), 30K (150lm/ft), 40K (160lm/ft)
OPERATING TEMP
•-4 to 122°F (-20 to +50°C)
LABEL
ORDERING INFORMATION
•5 years
• Do not install in an application that is not easily accessed for service.
Standard Output (163’ Max.)
Specify by the foot / inches - minimum cut is 4”.
Example: To order an 8’-4” length of 2700K tape, specify: V120-SO-27-8-4
INTENTIONALLY LEFT BLANK
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
TAPE DIMENSIONS
Tape length is measured from end to end
Standard Output - Max. Run: 163 feet Cuttable by factory in 4 inch increments
CONNECTORS AND ACCESSORIES
V120-PC-4 4’ POWER CONNECTOR - CORD AND PLUG
V120-PC-8 8’ POWER CONNECTOR - CORD AND PLUG
V120-PCHW-4 4’ POWER CONNECTOR - HARDWIRE
V120-PCHW-8 8’ POWER CONNECTOR - HARDWIRE
V120-TTC-6 5-3/8” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-12 12-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-18 15-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-24 23-1/4” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-3M-VHB-15 15’ LONG X 1/2” WIDTH DOUBLE-SIDED MTG. TAPE
V120-CHL-4 4’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-4-LENS FROSTED LENS FOR 4’ ALUMINUM CHANNEL
V120-CHL-6 6’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-6-LENS FROSTED LENS FOR 6’ ALUMINUM CHANNEL
V120-CHL-P-4 VISION120 4’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-CHL-P-6 VISION 120 6’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-MC VISION 120 MOUNTING CLIPS - USE 1 PER FOOT MIN. (BAG OF 10)
V120-ECC END CAP COVERS (2) FOR ALUMINUM CHANNEL WITH LENS. WHITE
V120-90L VISION120 90° LEFT CONNECTOR
V120-90R VISION120 90° RIGHT CONNECTOR
NOT ON SCHEDULE
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
PRODUCT OVERVIEW
A standard output, wet location flexible 120V plug-in or hardwire LED linear tape for architectural coves, indoor steps, bannisters, exterior recesses and other constructs where even, energy saving LED illumination is specified. 5 year warranty. Do not submerge. Factory cut only - cutting in field will void ETL label and warranty.
NOTE: Each run requires power connector (see Connectors and Accessories next page).
FEATURES
•120V operation (no power supply required)
•Wet location - IP65
•Cord and plug or hardwire power connector (replaceable fuse protected)
•Tape encased in UV inhibiting water resistant clear poly flexible sheath
•Maximum run: 163 feet (Limit of 4 sections for maximum run
Consult factory for other combinations)
•Mounting options: Clips or PVC / aluminum channel
•Frosted lens and channel covers available (see below)
SPECIFICATIONS
ELECTRICAL
•120V
•2.0 watts per foot OPTICS
•90+ CRI
LUMENS
• 27K (140lm/ft), 30K (150lm/ft), 40K (160lm/ft)
OPERATING TEMP
•-4 to 122°F (-20 to +50°C)
•5 years
• Do not install in an application that is not easily accessed for service.
ORDERING INFORMATION
Standard Output (163’ Max.)
Specify by the foot / inches - minimum cut is 4”.
Example: To order an 8’-4” length of 2700K tape, specify: V120-SO-27-8-4
INTENTIONALLY LEFT BLANK
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
TAPE DIMENSIONS
Tape length is measured from end to end
Standard Output - Max. Run: 163 feet Cuttable by factory in 4 inch increments
CONNECTORS AND ACCESSORIES
V120-PC-4 4’ POWER CONNECTOR - CORD AND PLUG
V120-PC-8 8’ POWER CONNECTOR - CORD AND PLUG
V120-PCHW-4 4’ POWER CONNECTOR - HARDWIRE
V120-PCHW-8 8’ POWER CONNECTOR - HARDWIRE
V120-TTC-6 5-3/8” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-12 12-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-18 15-1/2” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-TTC-24 23-1/4” TAPE TO TAPE FLEXIBLE CONNECTOR
V120-3M-VHB-15 15’ LONG X 1/2” WIDTH DOUBLE-SIDED MTG. TAPE
V120-CHL-4 4’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-4-LENS FROSTED LENS FOR 4’ ALUMINUM CHANNEL
V120-CHL-6 6’ ALUMINUM MOUNTING CHANNEL - LENS SOLD SEPARATELY
V120-CHL-6-LENS FROSTED LENS FOR 6’ ALUMINUM CHANNEL
V120-CHL-P-4 VISION120 4’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-CHL-P-6 VISION 120 6’ PVC MOUNTING CHANNEL (LENS NOT AVAILABLE)
V120-MC VISION 120 MOUNTING CLIPS - USE 1 PER FOOT MIN. (BAG OF 10)
V120-ECC END CAP COVERS (2) FOR ALUMINUM CHANNEL WITH LENS. WHITE
V120-90L VISION120 90° LEFT CONNECTOR
V120-90R VISION120 90° RIGHT CONNECTOR
NOT ON SCHEDULE
Vision120™ ®
90+ CRI Flexible LED Tape
Wet Location Standard Output
PRODUCT OVERVIEW
A standard output, wet location flexible 120V plug-in or hardwire LED linear tape for architectural coves, indoor steps, bannisters, exterior recesses and other constructs where even, energy saving LED illumination is specified. 5 year warranty. Do not submerge. Factory cut only - cutting in field will void ETL label and warranty.
NOTE: Each run requires power connector (see Connectors and Accessories next page).
FEATURES
•120V operation (no power supply required)
•Wet location - IP65
•Cord and plug or hardwire power connector (replaceable fuse protected)
•Tape encased in UV inhibiting water resistant clear poly flexible sheath
