2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
TYPE MFG PART NUMBER (HYPERLINK TO PAGE IN BLUE)
Nora Nora
Nora Carro
Nora Nora Sunpark
Nora Nora Sunpark
Kuzco
NELO-12RTWMPW
NELO-8RTWMPW
NELO-6RTWMPW
CFW524E5-L12-W1-1-FM
NELO-6RTWMPW
NLOPAC-R6509T24
3-4079D-05-3000K
NELO-8RTWMPW
NUDA-24TWMPW
P058-1-62-E26
WS63209-BG
Nora Nora Luxrite
Nora Nora
Nora Globalux
Exit Light Co
NLWPSW-4L334W/MS
NLWPSW-4L334W/EMMS

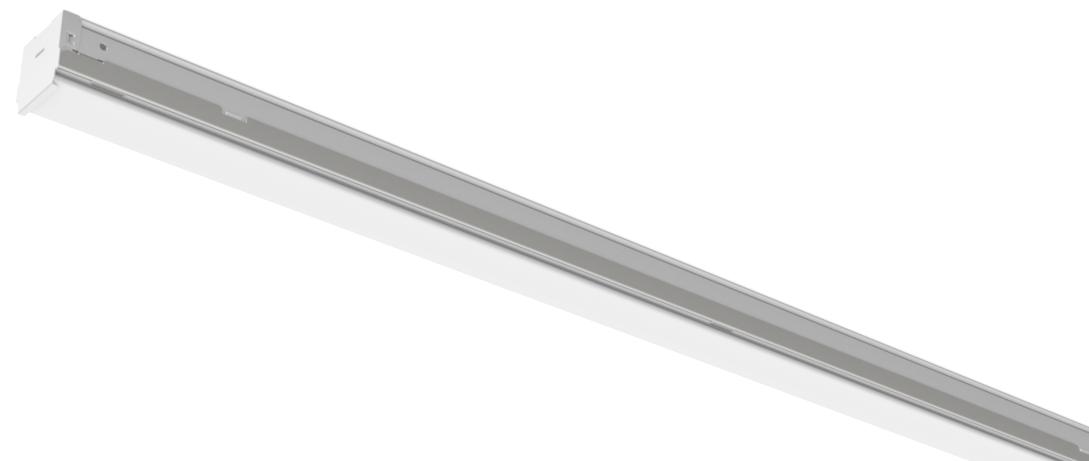

LR25185 LED48/LINEAR/3CCT/3WO/UNV/D/HO
NM4-RDC30MPW-LE4
NLOPAC-R6509T24

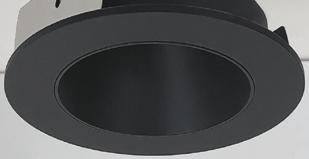

NIO-4RNDC30XHZMPW/HL / NHIOICD-415LE4
DOE-HO-W
EL-ARM-W-ST
F-11
F-12
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
Lithonia
Lithonia WAC
Lithonia
Lithonia
Lithonia
ALPHABET
WLTE-W-1-R-EL-TP
DMW2-L24-4000LM-ACL-WD-MVOLT-50K-80CRI

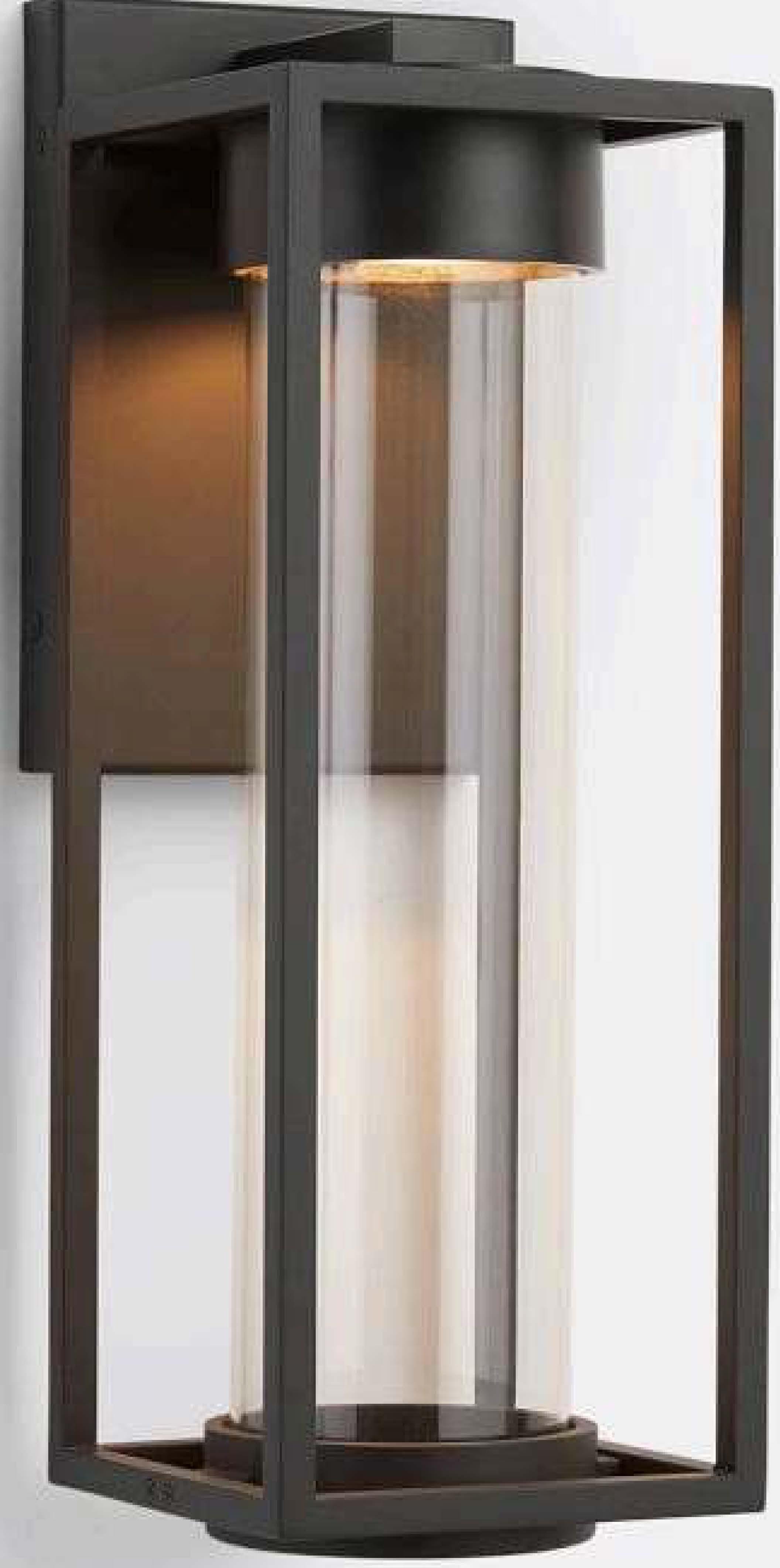

WS-W45714-3000K-BK

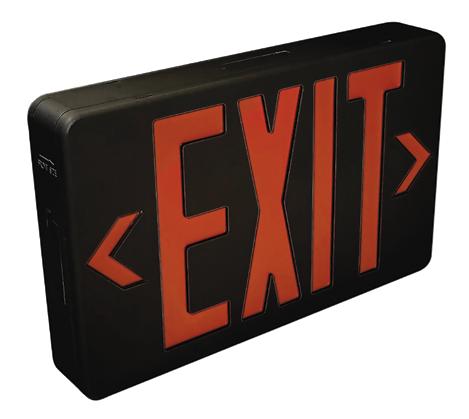

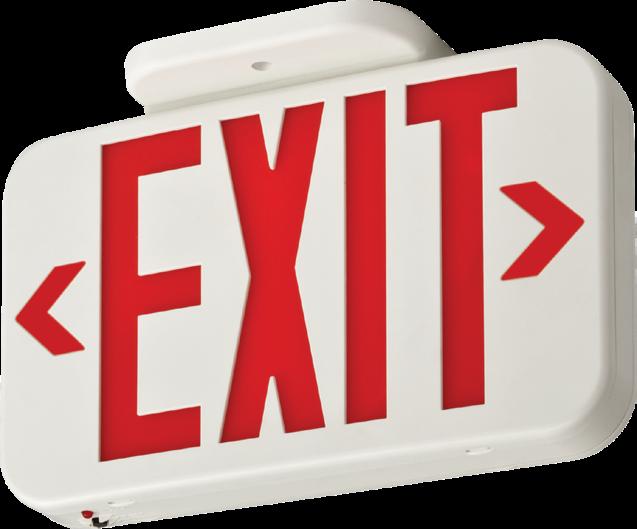

EXR-LED-W-EL-SD-MG
NO SPEC
VCPG LED
VCPG LED
750S
Rejuvination
Meyda
Bocci
Rejuvination
Luminaire Authentik
Scott & Nible
Currey
Regina Andrew
Shades of Light
Palecek
CB2 RBW
RAWLEY LED SCONCE 6702888

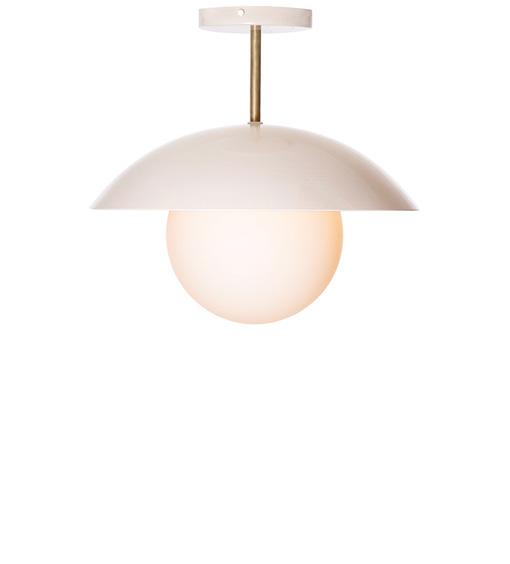

24" Square Kitzi Pendant 214258
14.1 White

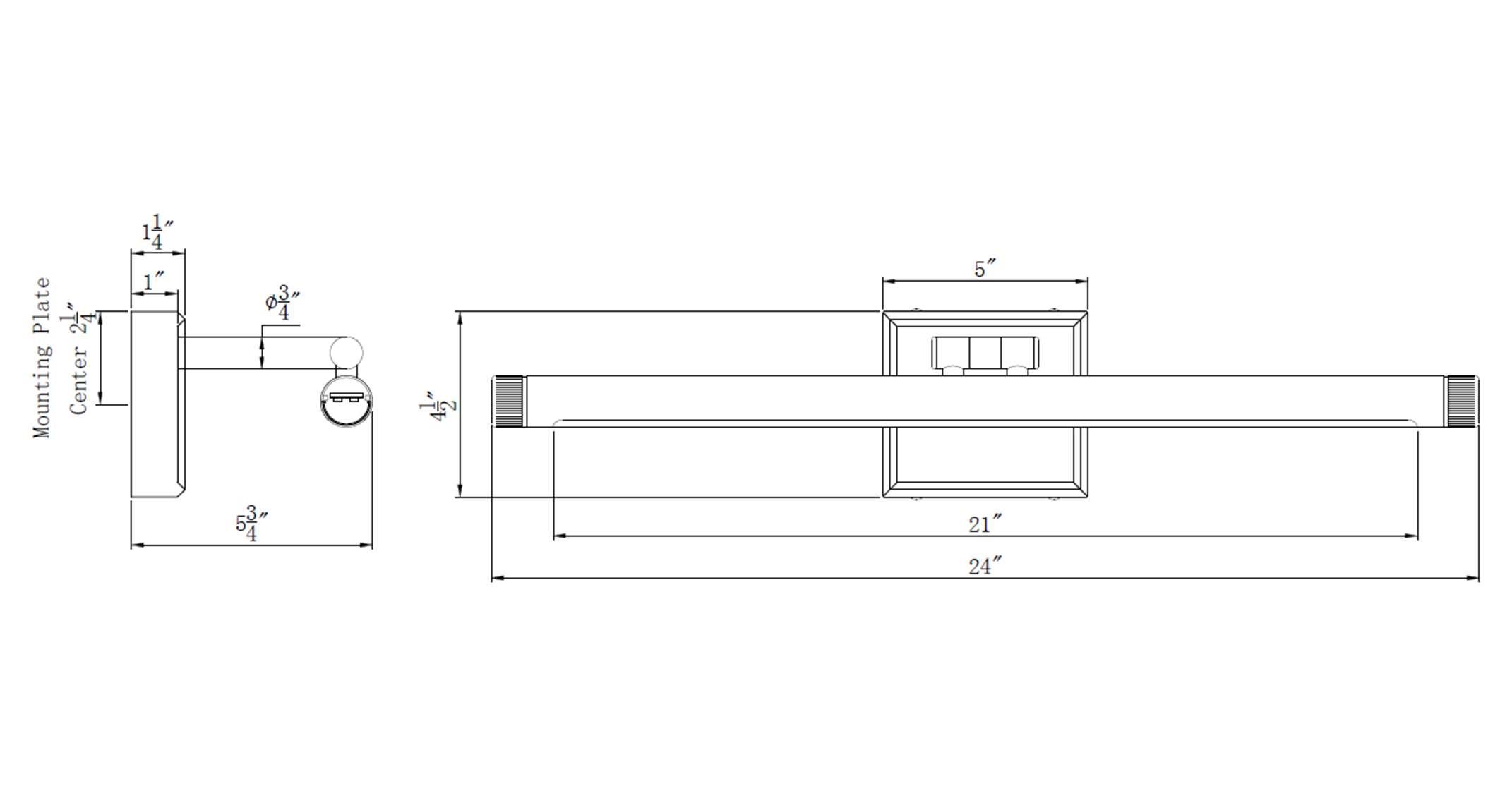

MERCER LED PICTURE LIGHT 2687377
Danoise 1508-LA04-CRL

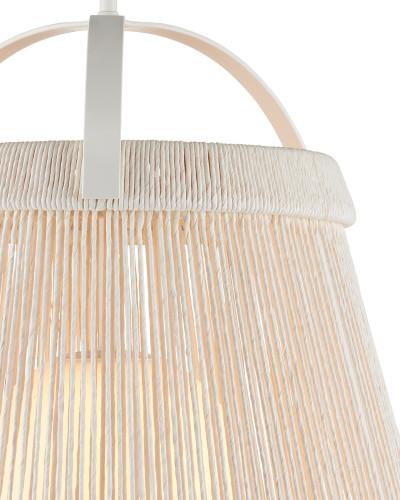

FILAMENT ROPE PENDANT JYLS5FILA-PEOW

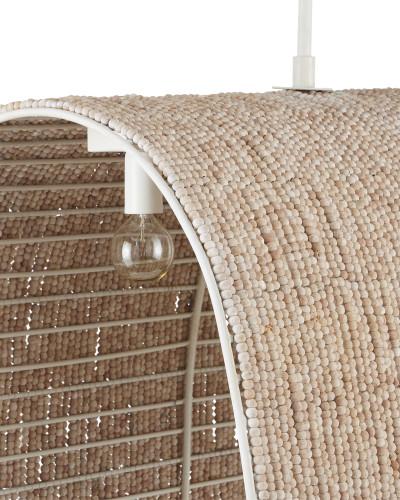

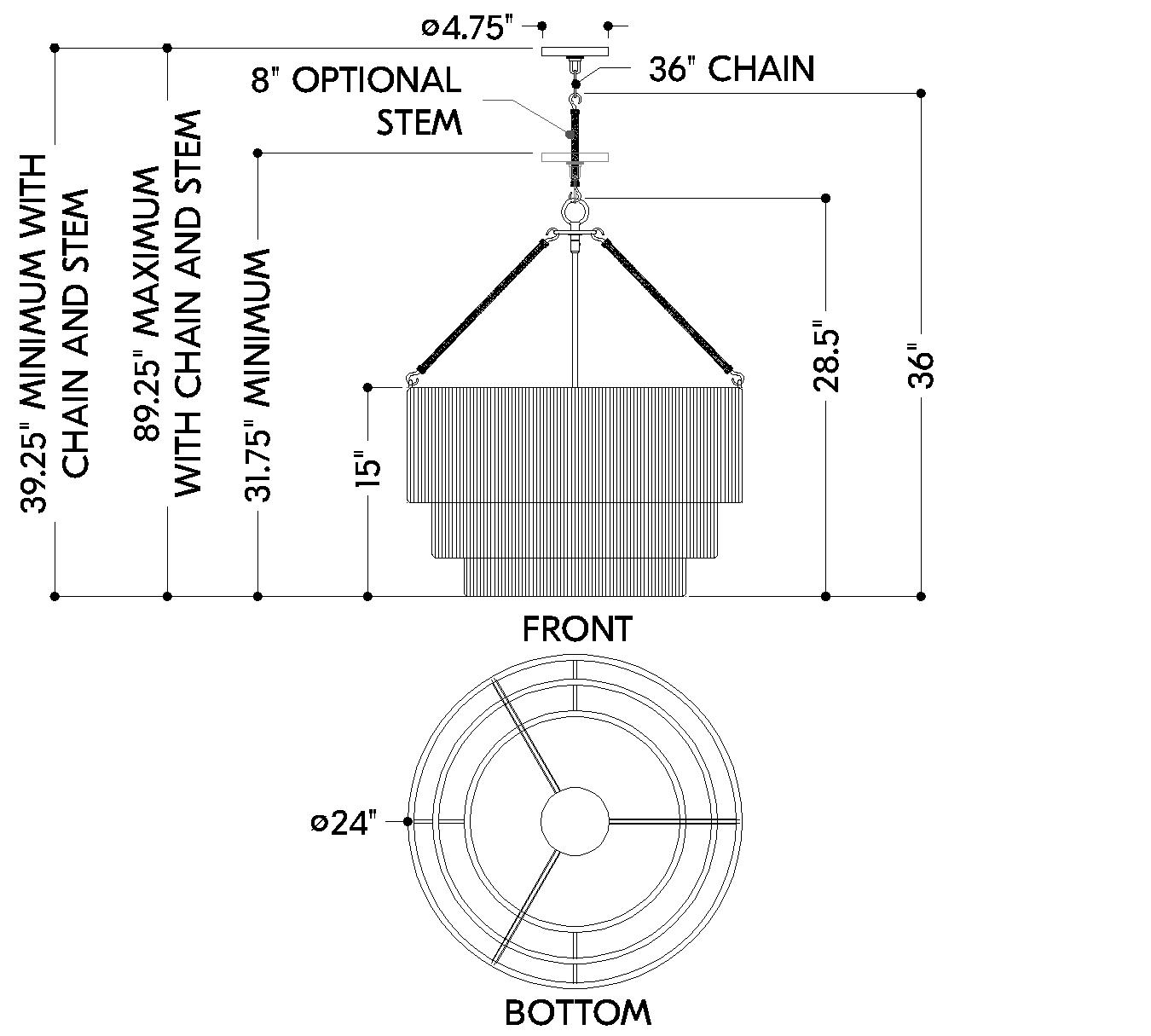

Boucle Chandelier 9000-1245

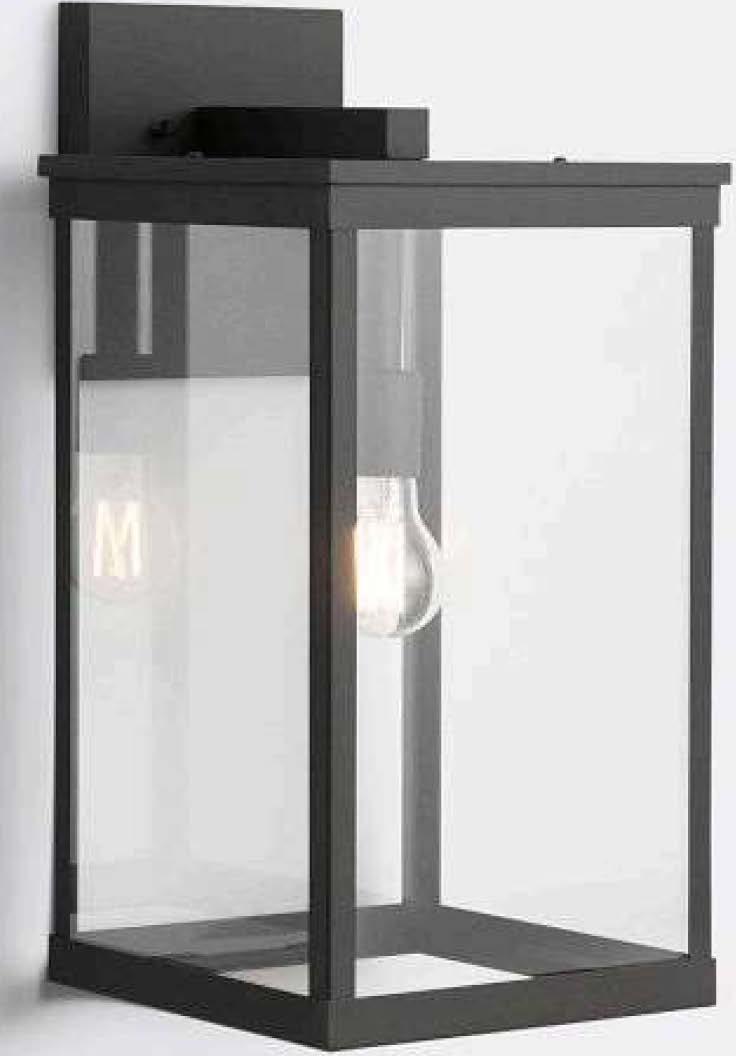

15-1144L-ORB
CERAMIC URCHIN PENDANT PE19219 WH

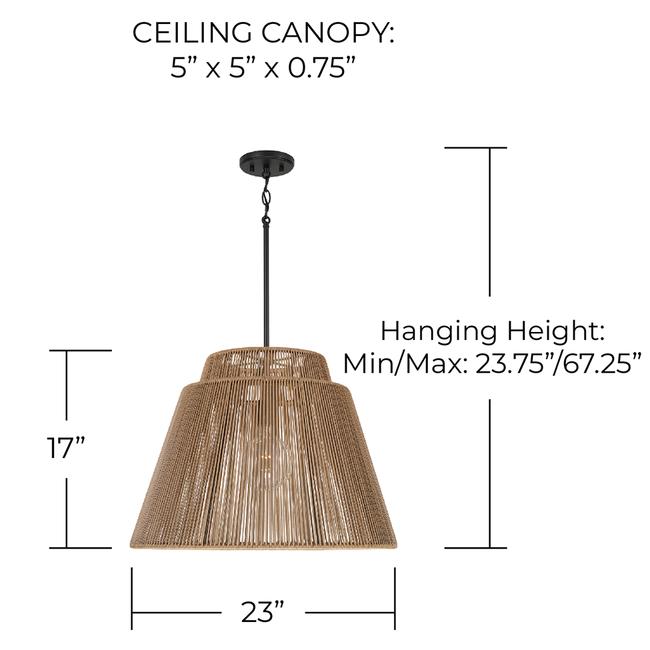

Veranda Woven Pendant 2997-79
Exposior Midnight Blue

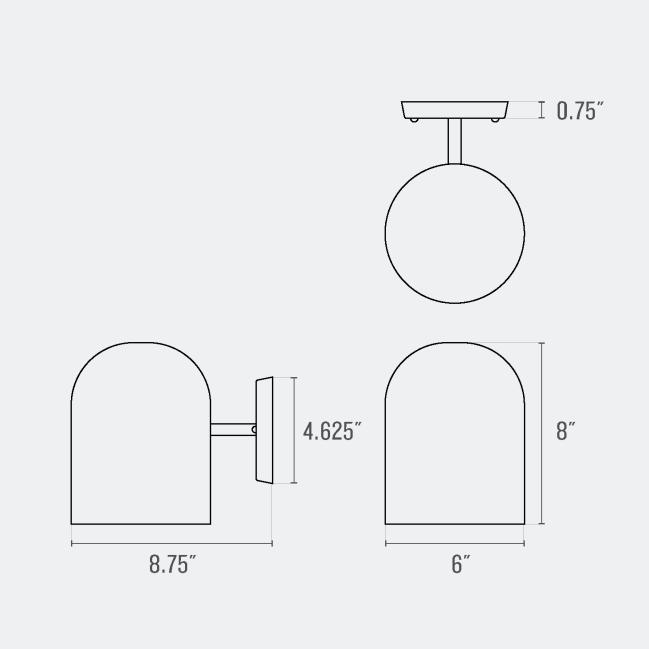

DIMPLE LED WALL SCONCE DP-WS-S2-AA04-30-1_10V_UNV
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377 TYPE MFG
Nora Sylvania WAC
Nora VersaLED VersaLED
Twice Bright
NX-617-LED/R
65699 VAPOR3A/S025UNHD8SC7/24/GR
WS-W45714-BK
NX-603D-LED
Allowance
GL9-MS-1L-QT-MCT
GL9-MS-1L-QT-MCT
RLR-242-A-830-17
F-12
Matteo Meyda Bocci WAC
Luminaire Authentik
Hudson Valley Currey
Mitzi
Shades of Light
Palecek
CB2
Dainolite
S03901MB
24" Square Kitzi Pendant 214258
14.1 White

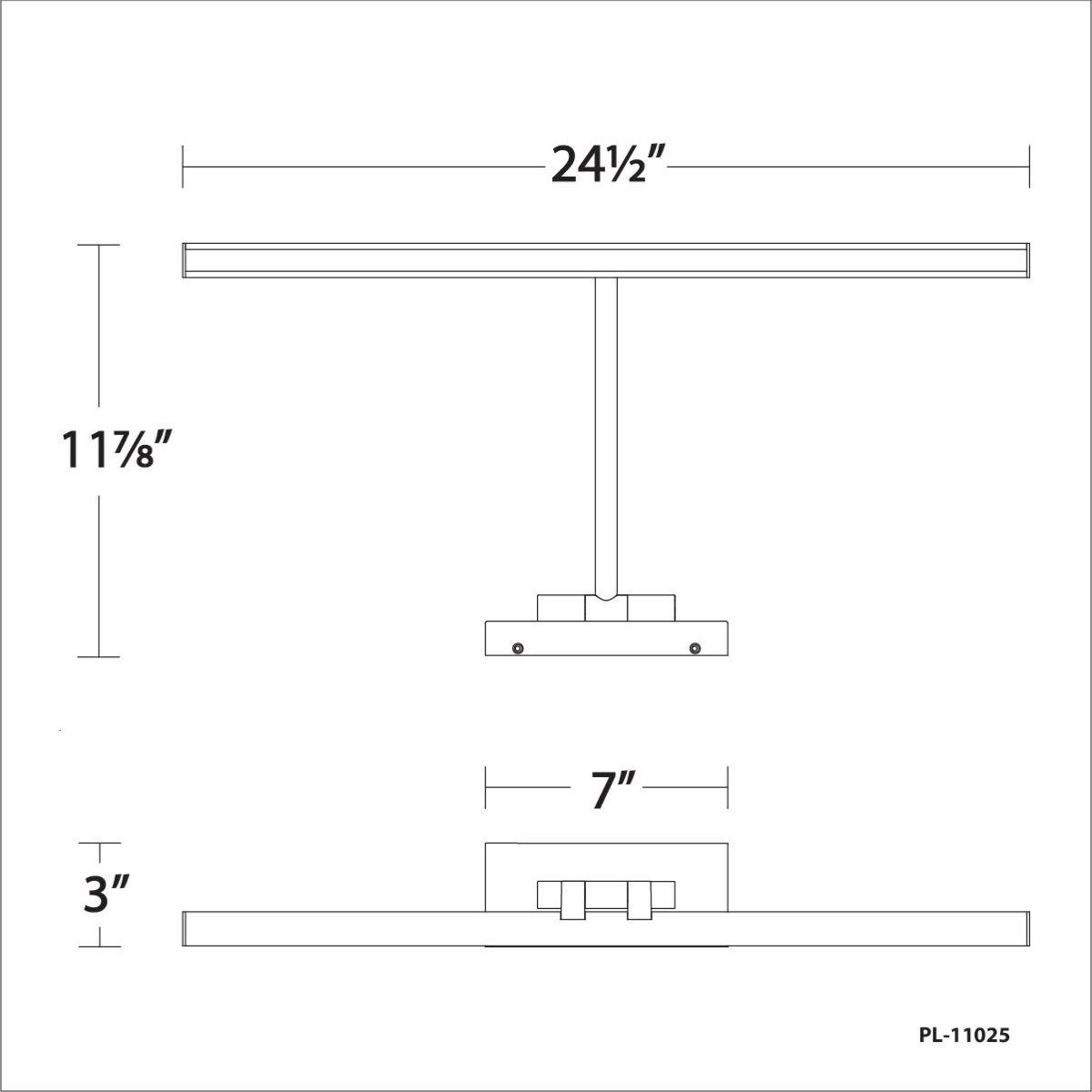

PL-11025-AB
Danoise 1508-LA04-CRL
Reza F5924-PBR
Boucle Chandelier 9000-1245

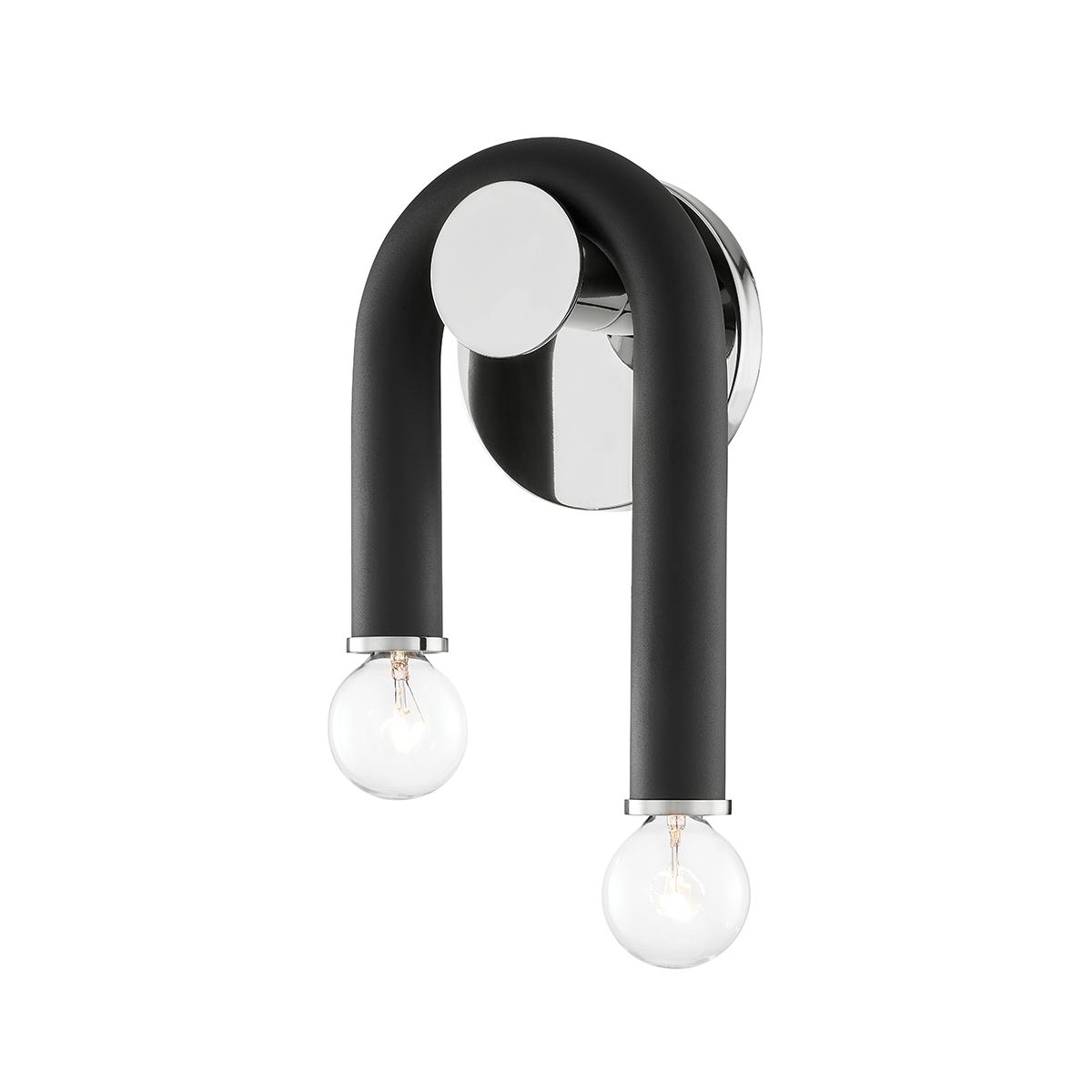

H382102-PN/BK
PE19219 WH
Veranda Woven Pendant 2997-79
Exposior Midnight Blue

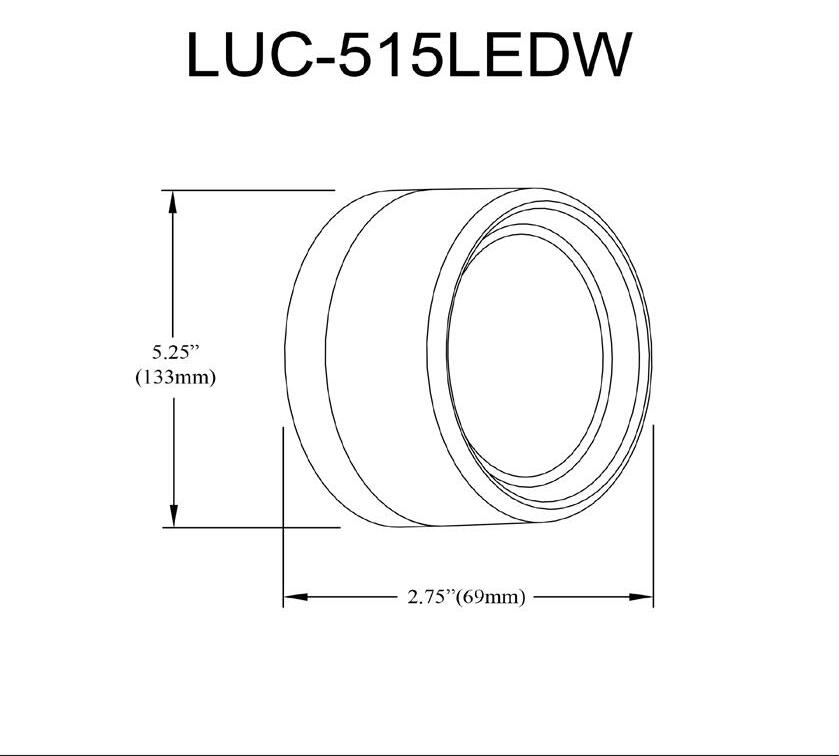

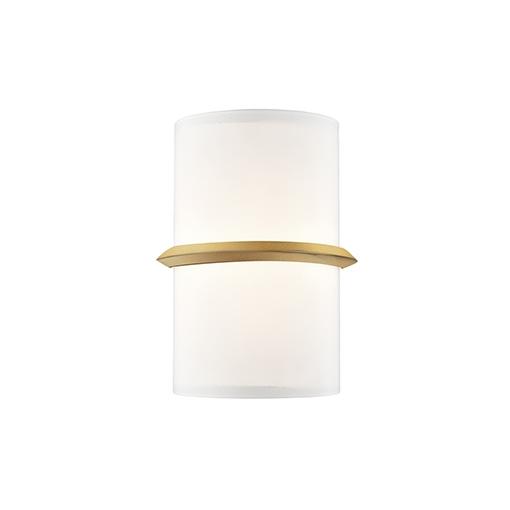

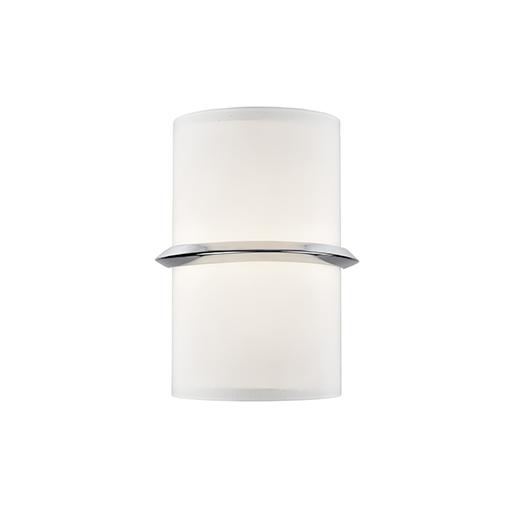

Lucia LUC-515LEDW-MB
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
TYPE MFG PART NUMBER
Minka
Currey
Luminaire Authentik
Crate & Barrel
Minka
Luminaire Authentik
Currey
Capital
Bocci
Luminaire Authentik
WAC
Mitzi
LIN PEND EXIT COVE
SITE/LANDSCAPE
Lithonia
Lithonia
Lithonia
Lithonia
Lithonia
F787L-CL
Aztec Rectangular Chandelier 9000-1095
Marguerite 1606-LA20/40-MGM

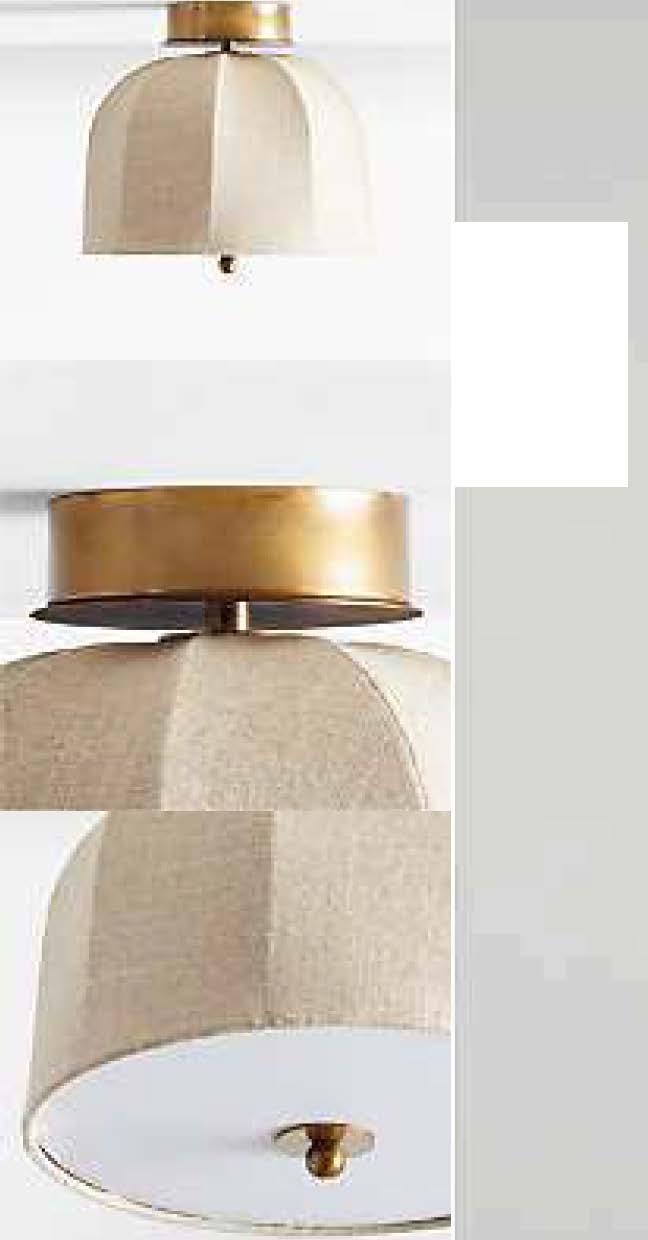

Allegra Large Linen Flush Mount
F896-65-CL

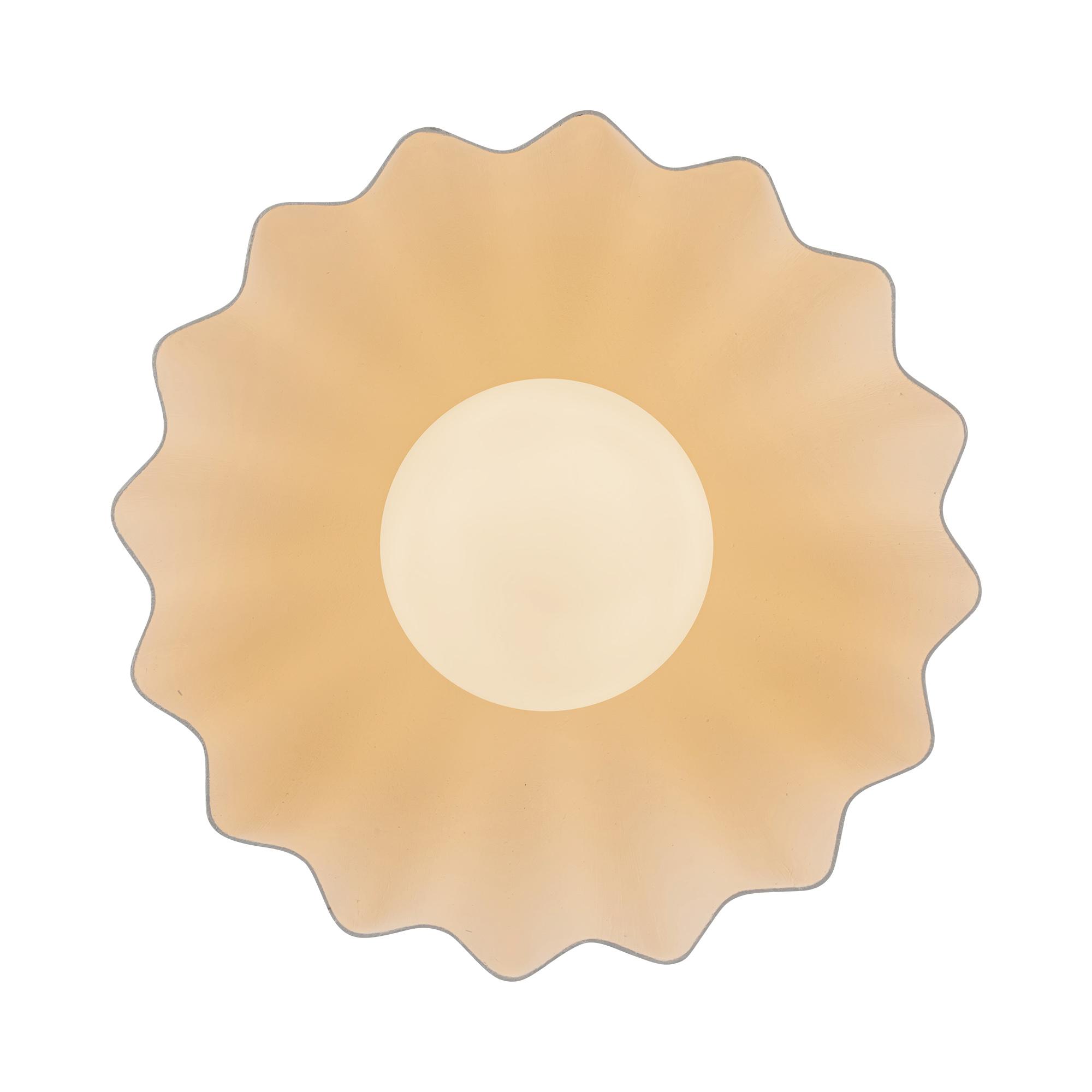

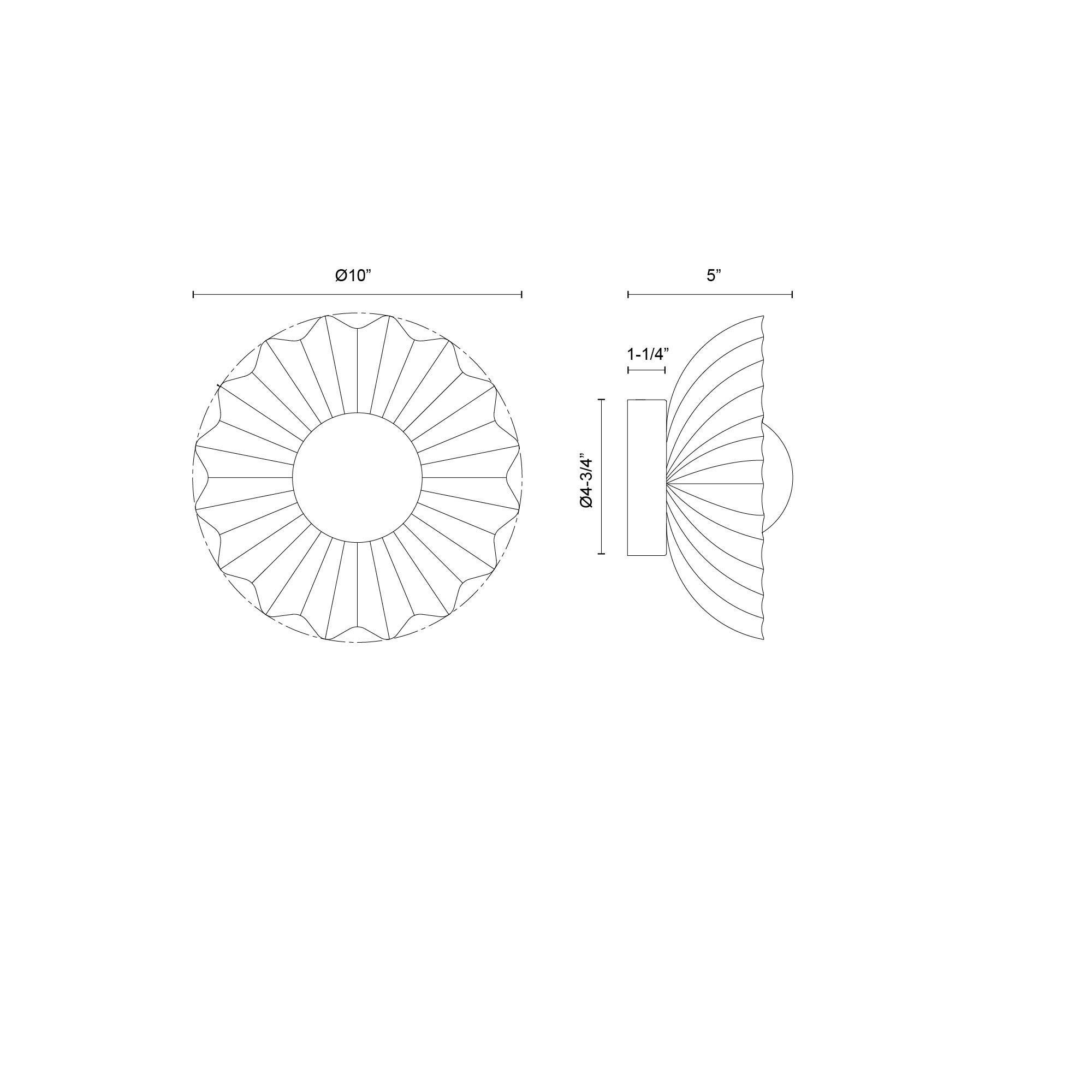

Seashell 1105-LA20/40-MGM
Parnell Medium White Pendant 9000-1302
Jasper Outdoor Pendant 956311SK
21.1 White

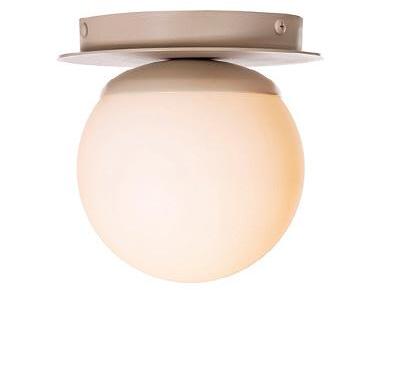

Krema 0605-LA20/40 LIM

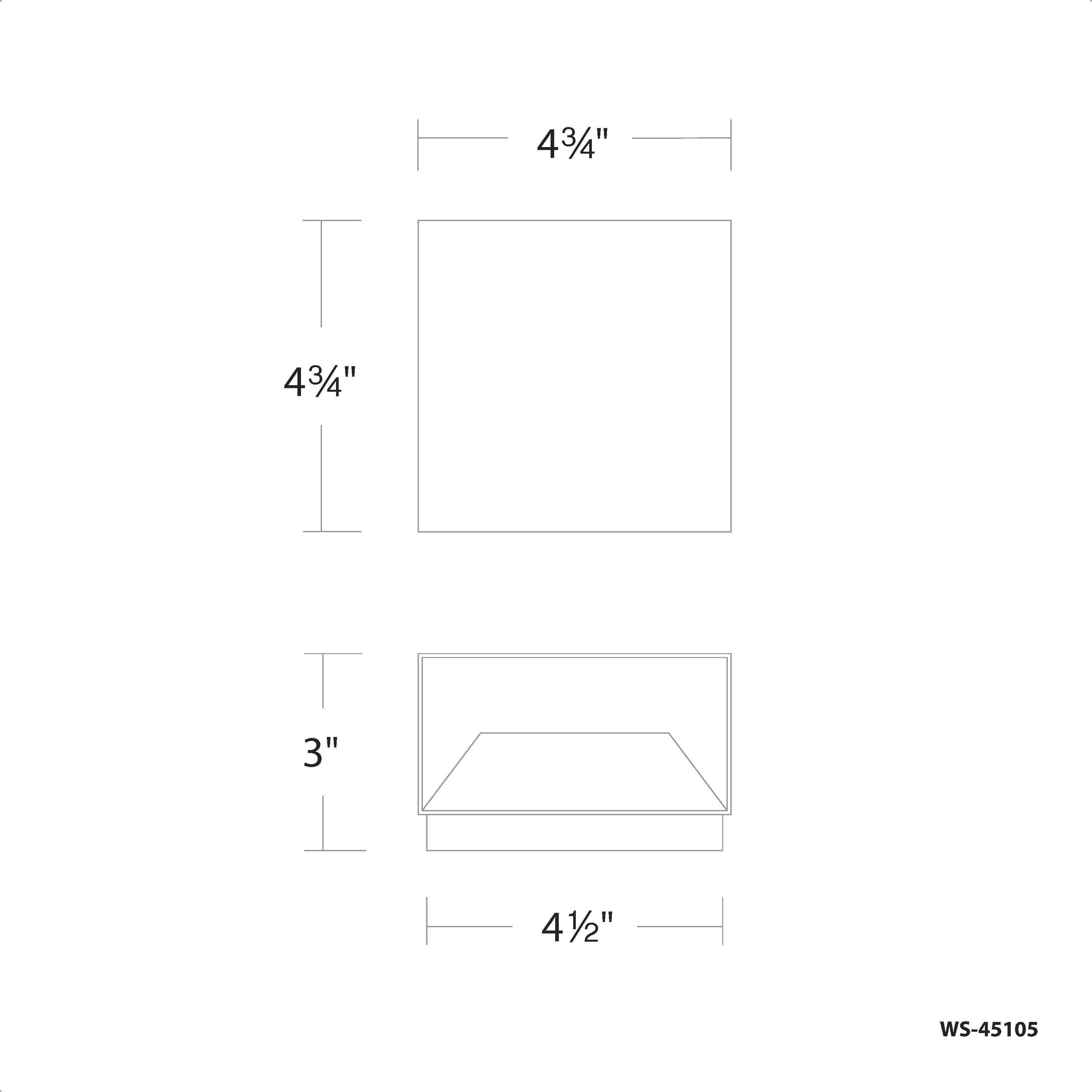

BOXI WALL SCONCE WS-45105-27-WT
DYLAN WALL SCONCE H185101-OB
NO SPEC
NO SPEC
NO SPEC

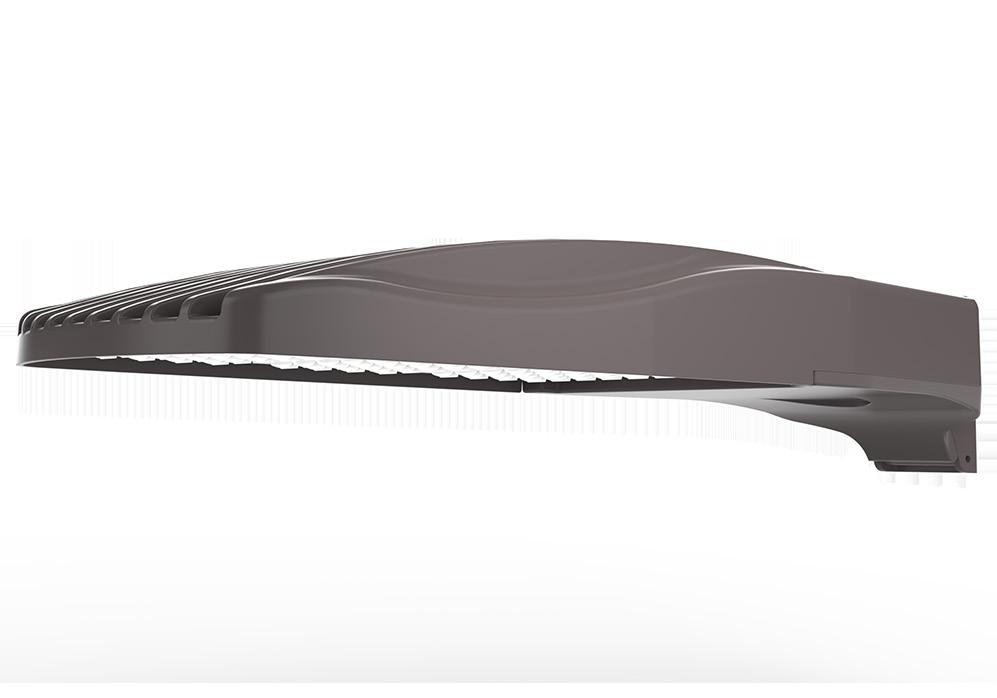

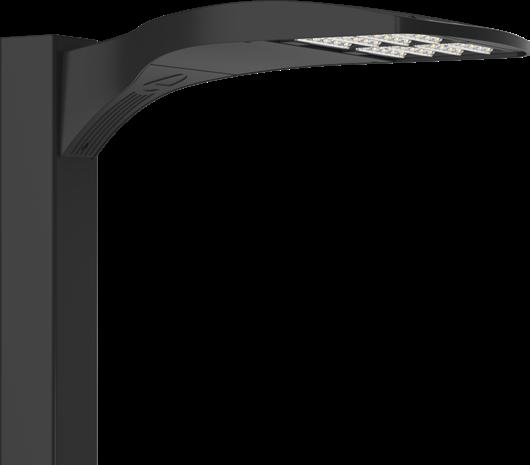

DSX1 LED-P9-30K-70CRI-TFTM-MVOLT-DWHXD
DSX1 LED-P3-30K-80CRI-BLC3-MVOLT-DWHXD

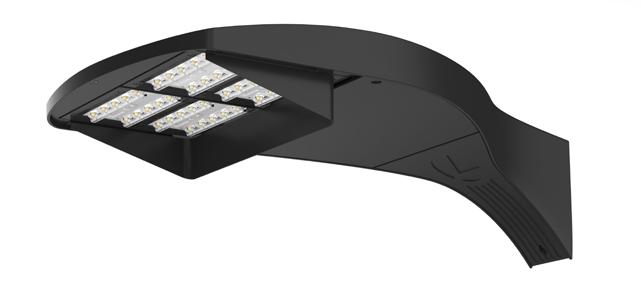

DSX1 LED-P3-30K-80CRI-BLC3-MVOLT-WBA-DWHXD
DSX1 LED-P7-30K-70CRI-T5W-MVOLT-DWHXD
DSX1 LED-P9-30K-70CRI-TFTM-MVOLT-DWHXD
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
TYPE MFG
Minka
Currey Kuzco
Crate & Barrel Minka
Luminaire Authentik
Currey
Capital Bocci
F-22
F-24
F-25 LIN PEND EXIT COVE
Luminaire Authentik
Livex
Mitzi Nora
GM
SITE/LANDSCAPE
Xtralite Xtralite Xtralite
Xtralite
Xtralite
PART NUMBER
F787L-CL
Aztec Rectangular Chandelier 9000-1095
Soleil WV436910MBOP-3WCCT-UNV
Allegra Large Linen Flush Mount
F896-65-CL
Seashell 1105-LA20/40-MGM
Parnell Medium White Pendant 9000-1302
Jasper Outdoor Pendant 956311SK
21.1 White
Krema 0605-LA20/40 LIM

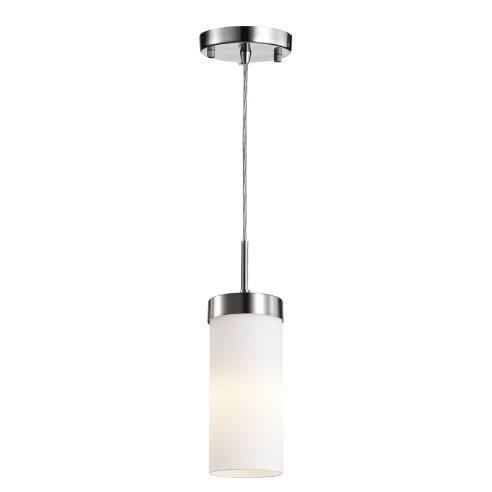

10101-04 Aero
H185101-OB
Allowance
NX-815-LEDGMA

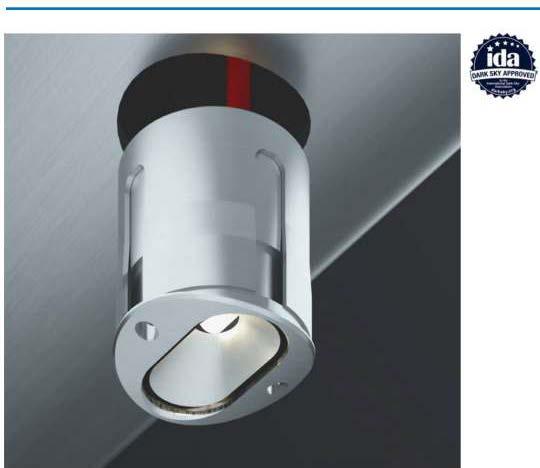

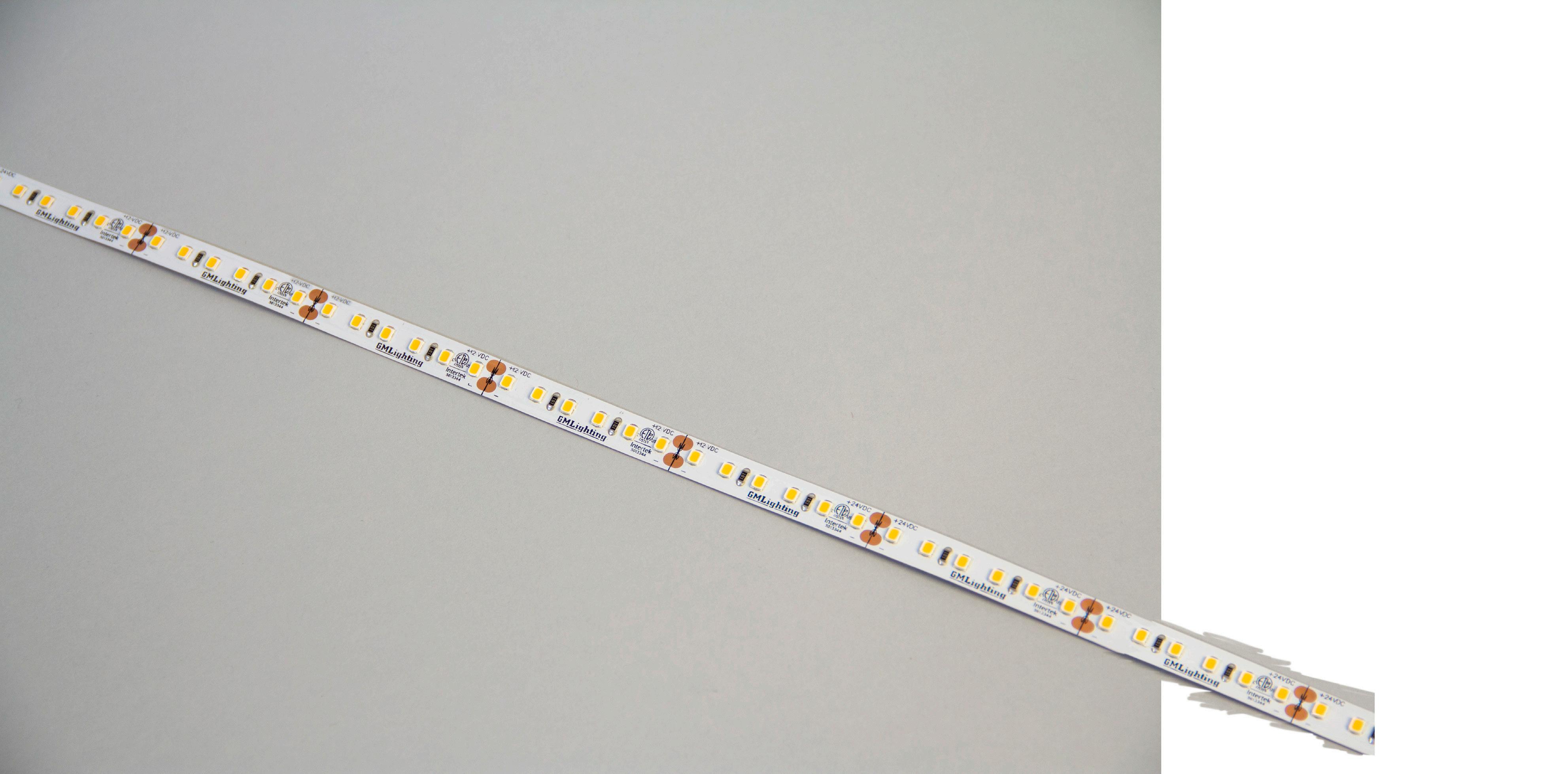

LTR-24V-3W-30K-100
VNTM-35000L-30K-DIM-2M-N-WH + VNT-RPA-WH
VNTS-10000L-30K-DIM-XM-X-WH + VNT-RPA-WH
VNTS-10000L-30K-DIM-XM-X-WH + VNT-WB-WH
VNTM-25000L-30K-DIM-5S-N-WH + VNT-RPA-WH
VNTM-25000L-30K-DIM-2M-N-WH + VNT-RPA-WH
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
TYPE MFG PART NUMBER
S4
S5 S6 S7 SW PAVILION
Lithonia
DSX0 LED-P1-30K-70CRI-T2M-MVOLT-HS-DWHXD
DSX0 LED-P2-30K-70CRI-BLC4-MVOLT-DWHXD
DSXB-12C-530-30K-ASY-MVOLT-DWHXD
DSX0 LED-P2-30K-70CRI-BLC4-MVOLT-DWHXD
WDGE1 LED-P2-30K-80CRI-VW-DWHGXD
LDN4-30/10-LD4-AR-LD-MVOLT-GZ10
CUS-1860-60/ NO SPEC WLTE
TYPE MFG
S4
S5 S6 S7 SW PAVILION C LS-6 EXP
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
PART NUMBER
Xtralite
Xtralite
Above All
Xtralite
Above All
Nora Dauer
Nora
VNTS-5000L-30K-DIM-2M-N-WH-HSS + VNT-RPA-WH
VNTS-5000L-30K-DIM-XM-X-WH + VNT-RPA-WH
PLUS-R-DC-24SPSW8-BK
VNTS-5000L-30K-DIM-XM-X-WH + VNT-RPA-WH
DSWP-18301-BZ
NIO-4RNDC30XHZMPW/10 / NHIOICD-48LE4

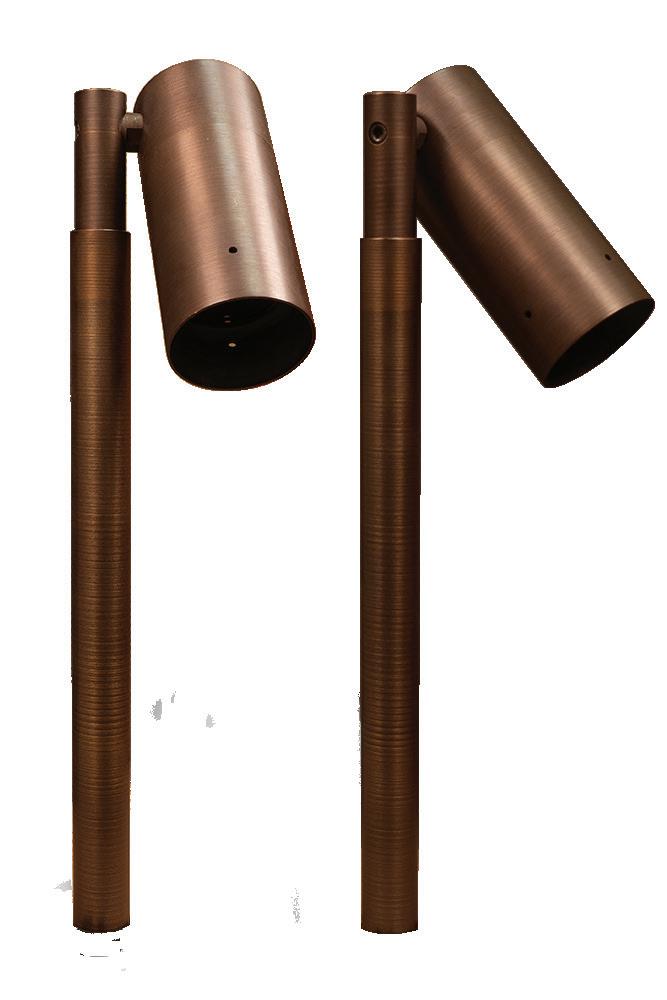

489917-P20-5W-40-3000K-MR-490048
NX-617-LED/R
TYPE UA SPEC ALTON DELRAY

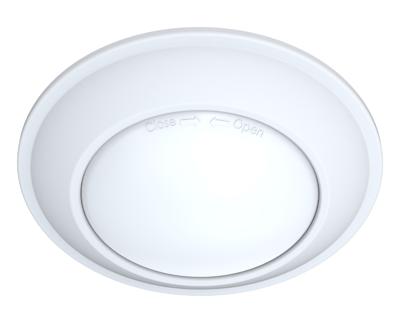

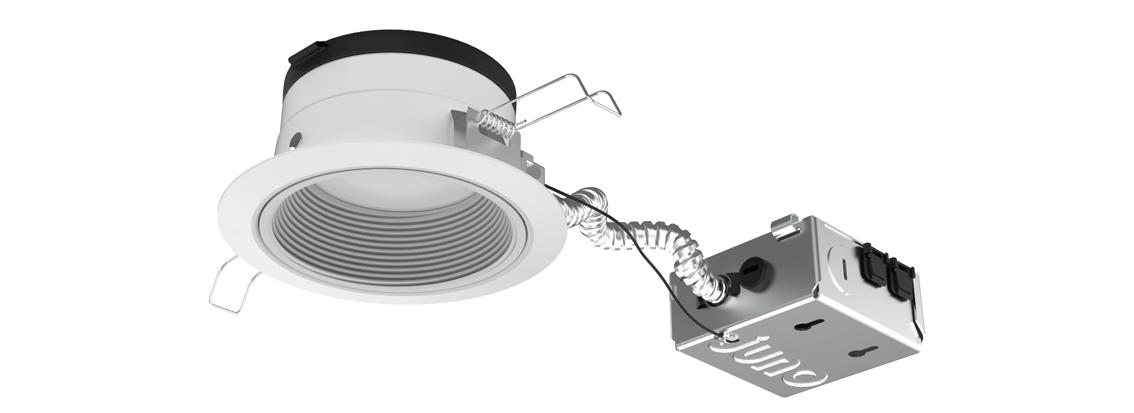

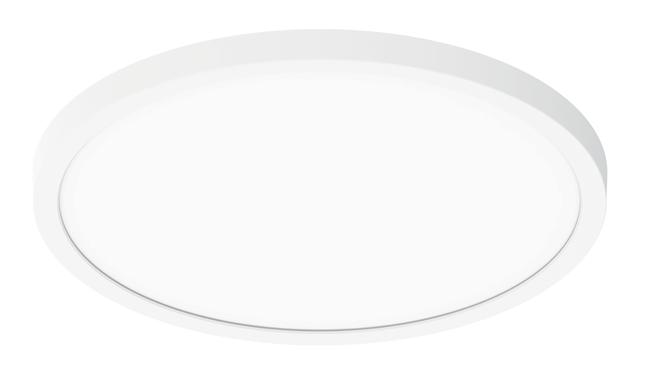

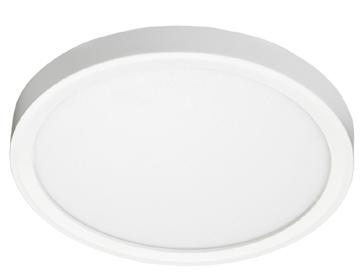

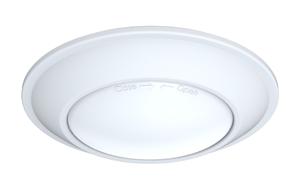

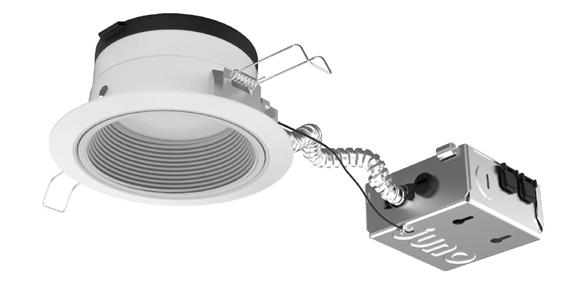

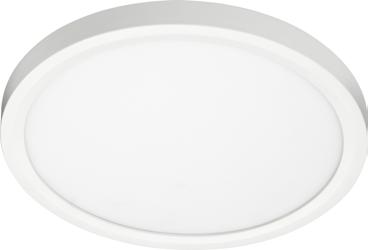

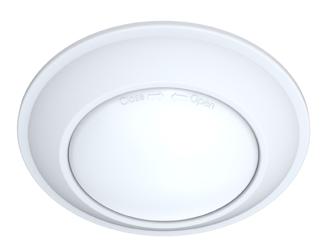

Juno SlimForm™ LED with Selectable CCT
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features

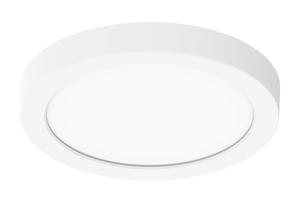

Sleek, ultra-low profile energy efficient LED surface mount downlights available in 11" and 13" sizes. Provides general illumination in residential and commercial applications including multi-family and hospitality. Ideal for use in corridors, living spaces, closets, hallways, pantries, stairways, outdoor covered areas with Emergency Option and much more. With the newly added selectable CCT switch, the JSF gives the ultimate in flexibility for both the distributor as well as the end user.
Applications
• Suitable for wet locations (indoor/outdoor covered ceilings): perfect for closets, showers, bathrooms, outdoor soffits, and covered ceiling applications.
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Led Color Temperature Switchable White (2700K, 3000K, 3500K, 4000K, 5000K) Default set at 3000K CRI 90+
Voltage Dedicated 120V and MVOLT (120V-277V)
Dimming Phase Dimming down to 10%. 0-10V and phase dimming available.
Specifications
(2.9) All dimensions are in Inches (centimeters unless otherwise indicated.
ALTON DELRAY TYPE UA ALT
NELO

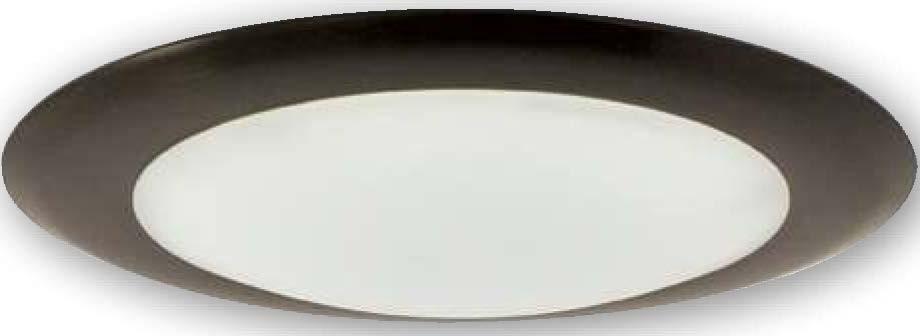

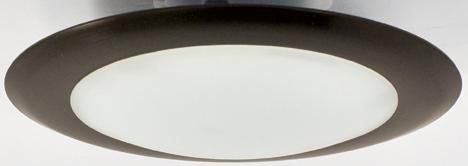

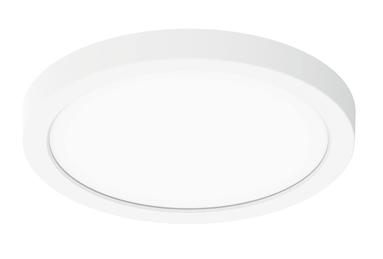

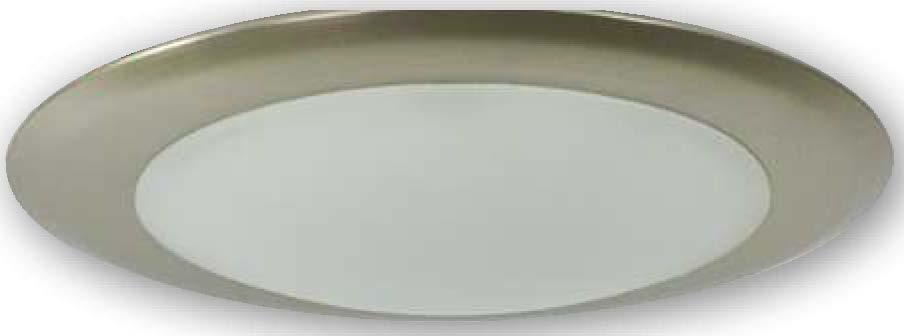

ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.

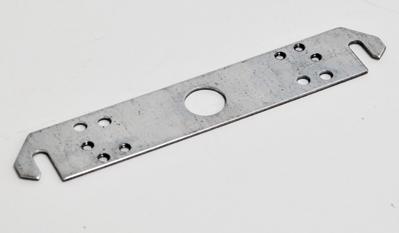

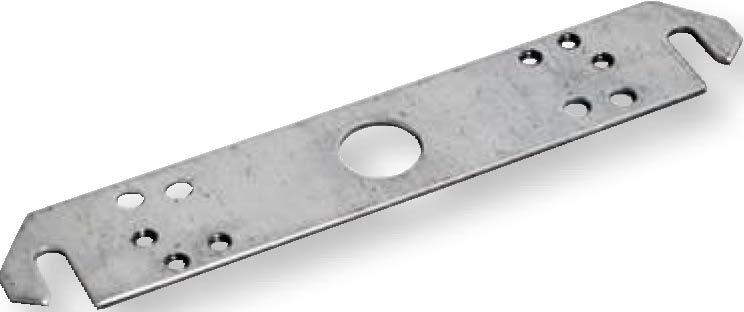

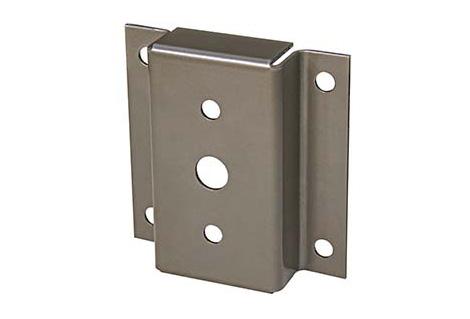

Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.

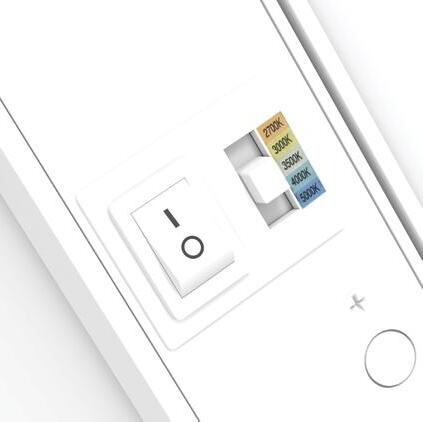

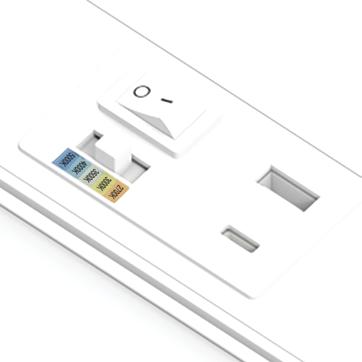

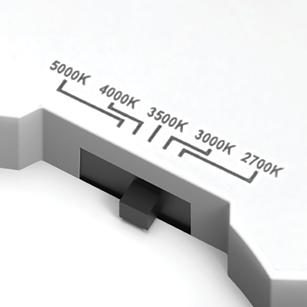

Five position sliding switch 27K / 30K / 35K / 40K / 50K

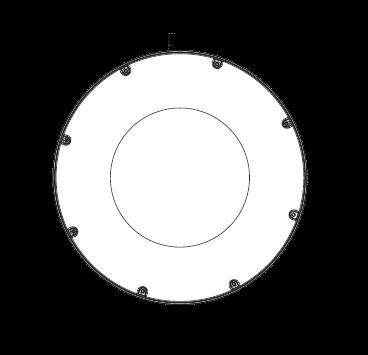

3/4"
Aperture
Diameter
Diameter:Aperture:
NELO-4RTW5-1/2"4-1/2"
NELO-6RTW7"6"
NELO-8RTW8-7/8"7-3/4"
NELO-12RTW12-1/4"11"
NSEM-6WDW

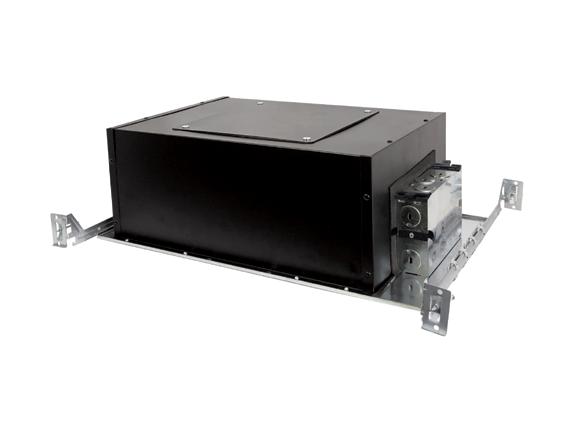

Surface Mount Enclosure with Emergency Driver for 6" only

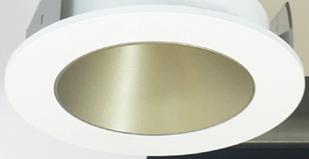

Decorative Ring
Optional Accessories
Description Finish
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
TYPE UA SPEC ALTON DELRAY
Juno SlimForm™ LED with Selectable CCT
PERFORMANCE DATA
11IN 13LM SWW5 - 3000K 143514.599
JSF 11IN 13LM SWW5 - 3500K 153214.3107.1
JSF 11IN 13LM SWW5 - 4000K 153214.4106.4
JSF 11IN 13LM SWW5 - 5000K 156014.6106.8
JSF 13IN 18LM SWW5 - 2700K 188419.994.7
JSF 13IN 18LM SWW5 - 3000K 194119.898
JSF 13IN 18LM SWW5 - 3500K 203519.5104.4
JSF 13IN 18LM SWW5 - 4000K 209119.6106.7
JSF 13IN 18LM SWW5 - 5000K 211019.9106
REMOTE EMERGENCY IOTA INVERTERS FOR FIELD INSTALLATION
Inverter Part Number Description IIS 25 I
(meets CA T20 efficiency requirement)
Must be ordered on a separate line. For Emergency Battery related questions contact us at techsupport@iotaengineering.com
BLANK
TYPE UB SPEC ALTON DELRAY
Juno SlimForm™ LED with Selectable CCT
5" and 7" Round Downlight for JBox Installation

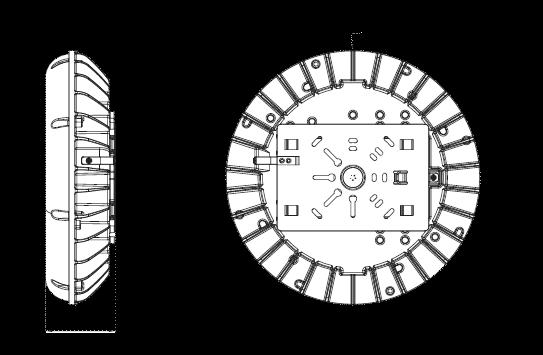

Dimensions
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features
Sleek, ultra-low profile energy efficient LED surface mount downlights available in 5" and 7" sizes. Optional finish trims available for custom, designer look similar to standard recessed downlights. Provides general illumination in residential and commercial applications including multifamily and hospitality. Ideal for use in corridors, living spaces, closets, hallways, pantries, stairways, outdoor covered areas and much more.

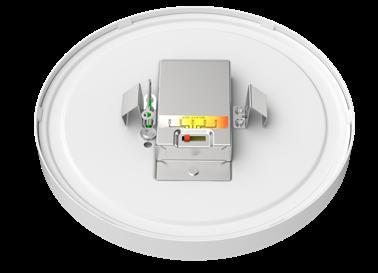

With the newly added selectable CCT switch, the JSF gives the ultimate in flexibility for both the distributor as well as the end user.
Applications
• Suitable for wet locations (indoor covered ceilings): perfect for closets, showers, bathrooms, outdoor soffits, and covered ceiling applications.
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Led Color Temperature Switchable White (2700K, 3000K, 3500K, 4000K, 5000K) Default set at 3000K
CRI 90+
Voltage Dedicated 120V and MVOLT (120V-277V)
Dimming Phase Dimming down to 10%. 0-10V and phase dimming available.
Specifications
All dimensions are in Inches (centimeters unless otherwise indicated.
ALTON DELRAY TYPE UB ALT
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.

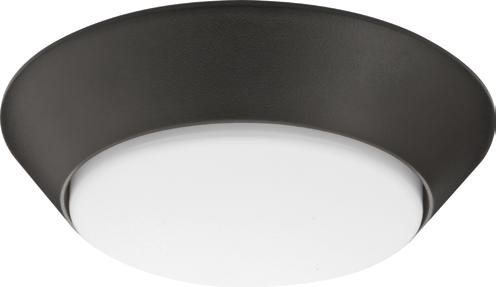

Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
Five position sliding switch 27K / 30K / 35K / 40K / 50K
3/4"
Aperture
Diameter
Diameter:Aperture:
NELO-4RTW5-1/2"4-1/2"
NELO-6RTW7"6"
NELO-8RTW8-7/8"7-3/4"
NELO-12RTW12-1/4"11"
NSEM-6WDW
Surface Mount Enclosure with Emergency Driver for 6" only
Decorative Ring
Optional Accessories
Description Finish
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
TYPE UB SPEC ALTON DELRAY
Juno SlimForm™ LED with Selectable CCT
Inverter, 50W output
Inverter, 35W output,High Efficiency (meets CA T20 efficiency requirement)
techsupport@iotaengineering.com
BRONZE SATIN NICKEL
BLANK
TYPE UC SPEC ALTON DELRAY
Juno SlimForm™ LED with Selectable CCT
5" and 7" Round Downlight for JBox Installation
Dimensions
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features
Sleek, ultra-low profile energy efficient LED surface mount downlights available in 5" and 7" sizes. Optional finish trims available for custom, designer look similar to standard recessed downlights. Provides general illumination in residential and commercial applications including multifamily and hospitality. Ideal for use in corridors, living spaces, closets, hallways, pantries, stairways, outdoor covered areas and much more.
With the newly added selectable CCT switch, the JSF gives the ultimate in flexibility for both the distributor as well as the end user.
Applications
• Suitable for wet locations (indoor covered ceilings): perfect for closets, showers, bathrooms, outdoor soffits, and covered ceiling applications.
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Led Color Temperature Switchable White (2700K, 3000K, 3500K, 4000K, 5000K) Default set at 3000K
CRI 90+
Voltage Dedicated 120V and MVOLT (120V-277V)
Dimming Phase Dimming down to 10%. 0-10V and phase dimming available.
Specifications
All dimensions are in Inches (centimeters unless otherwise indicated.
ALTON DELRAY TYPE UC ALT
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.

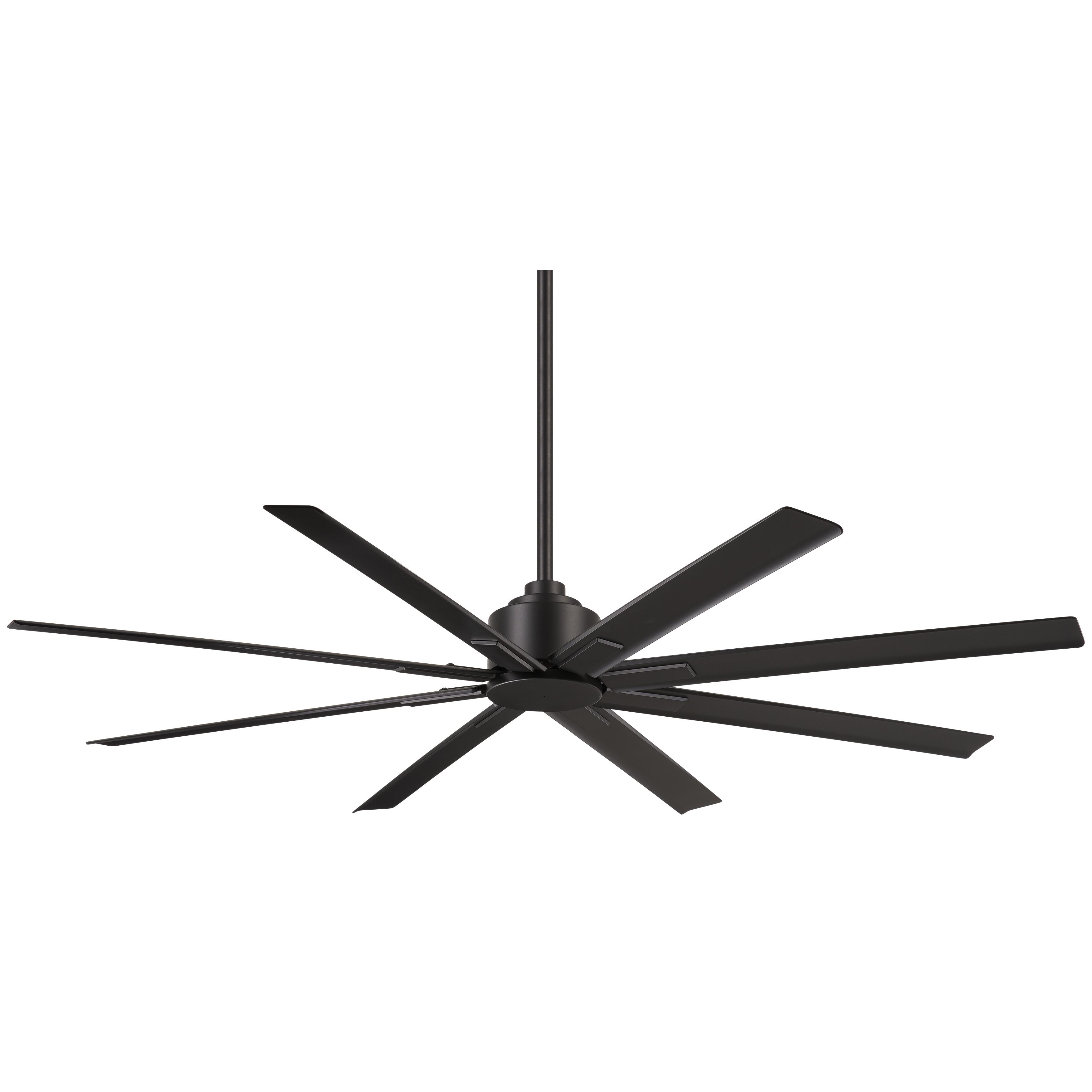

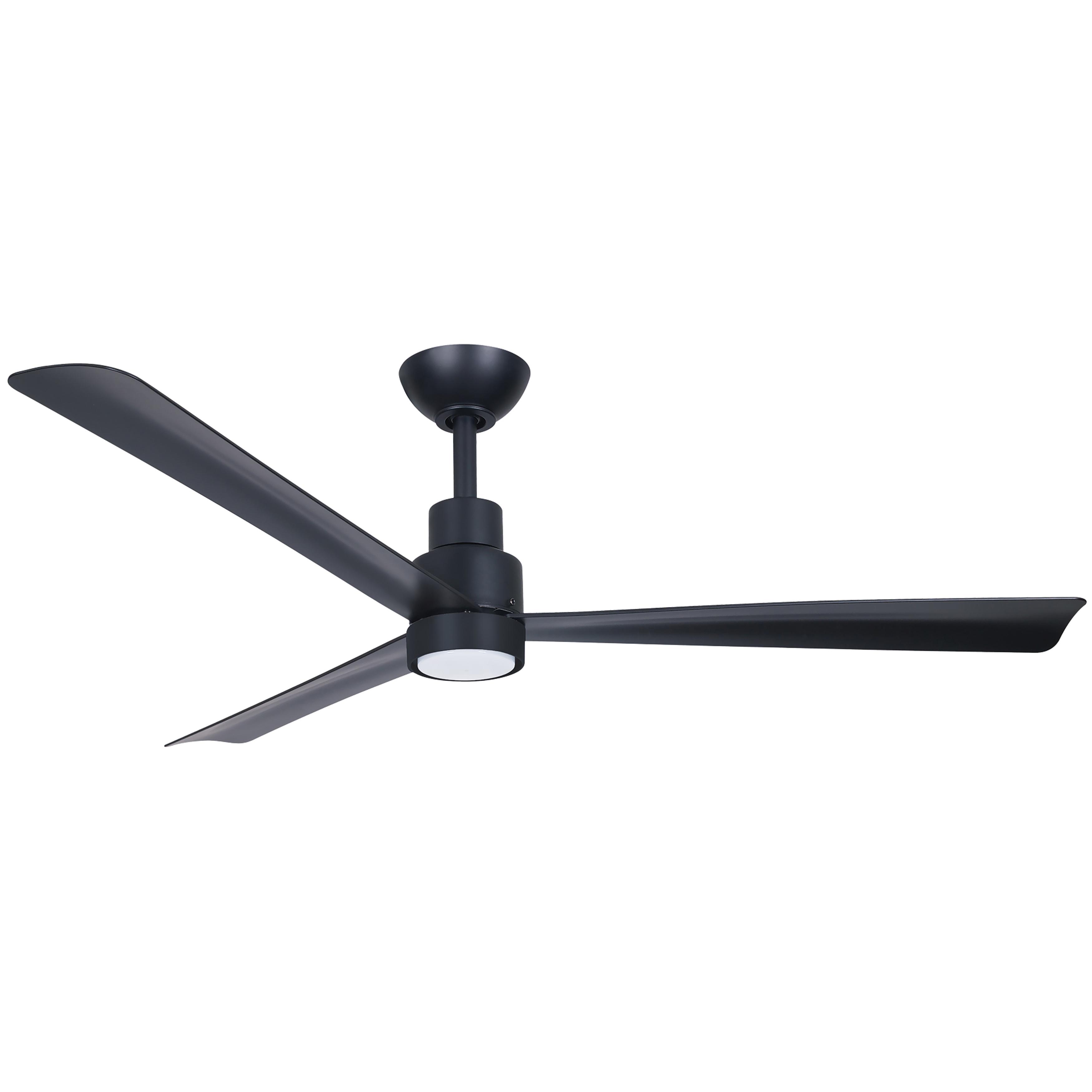

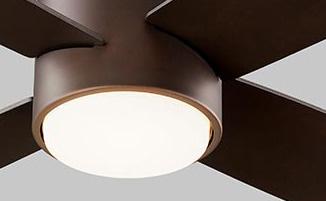

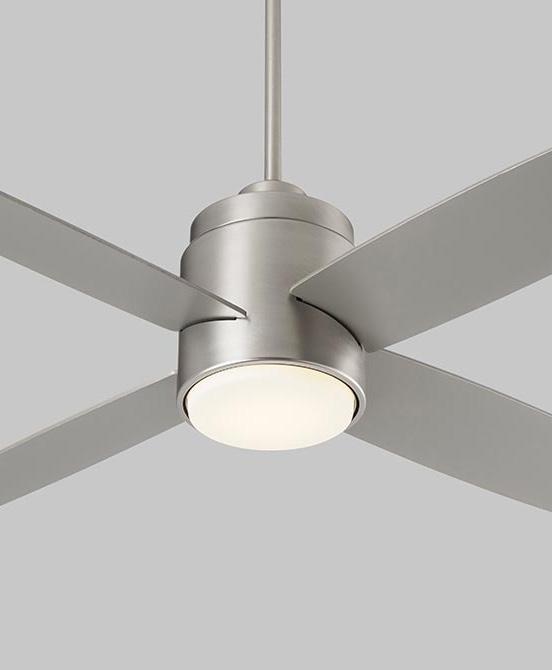

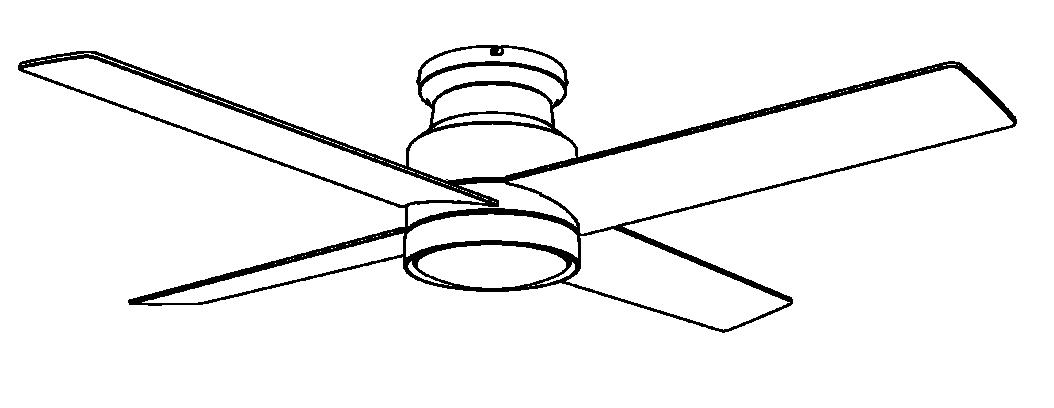

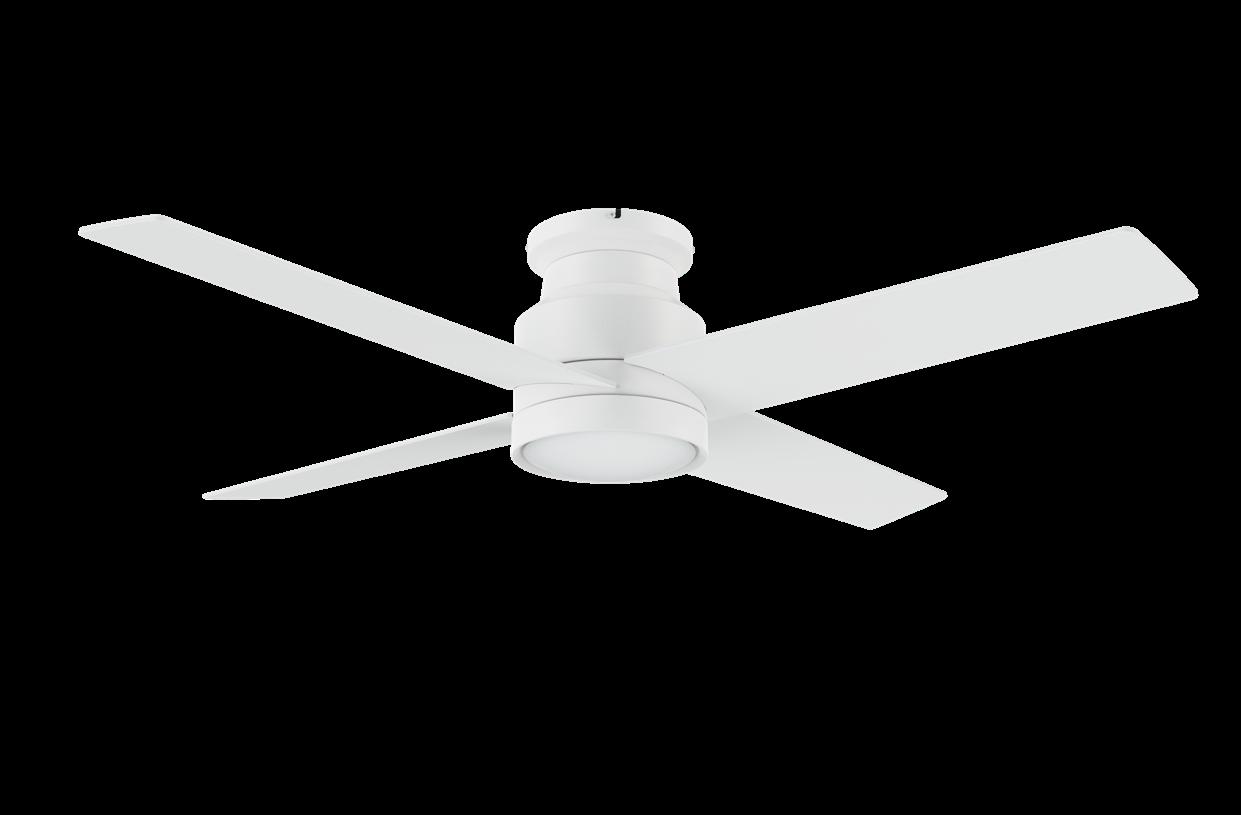

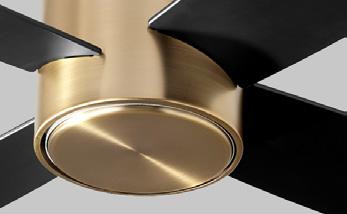

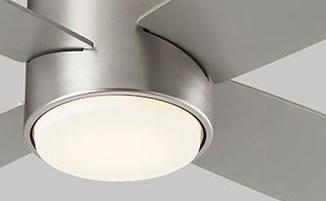

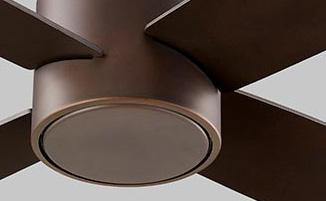

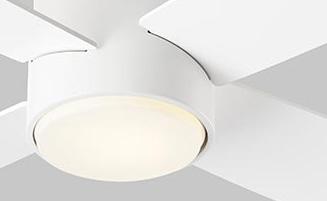

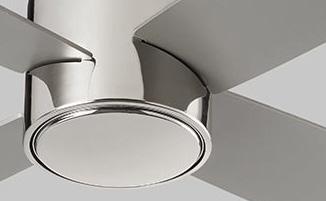

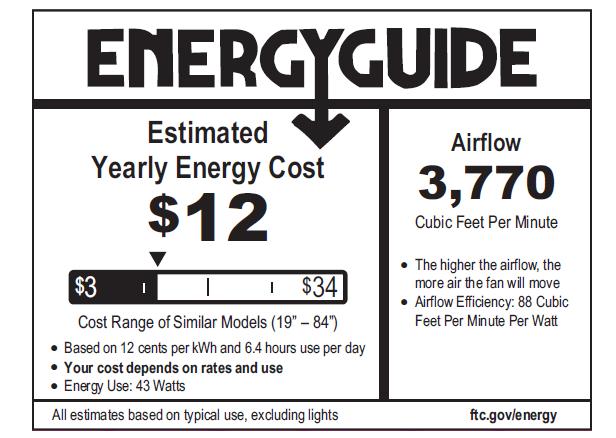

- Simple and intuitive design with standard layout.
- Multi-functional fan speed control with fan forward/reverse, light brightness adjustment, and fan/light on/off.
- Hardwired Wall Control (Standard)
• Single Live Wire No Neutral Needed
• Push Button or Knob design available
- Remote (Optional*)
- Pull Chain (Optional*)
* Optional controls at an additional cost
* Data subject to change without notice
CFW524E5-L12-W1-1-FMWhite
TYPE UG SPEC ALTON DELRAY
Juno SlimForm™ LED with Selectable CCT
5" and 7" Round Downlight for JBox Installation
Dimensions
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features
Sleek, ultra-low profile energy efficient LED surface mount downlights available in 5" and 7" sizes. Optional finish trims available for custom, designer look similar to standard recessed downlights. Provides general illumination in residential and commercial applications including multifamily and hospitality. Ideal for use in corridors, living spaces, closets, hallways, pantries, stairways, outdoor covered areas and much more.
With the newly added selectable CCT switch, the JSF gives the ultimate in flexibility for both the distributor as well as the end user.
Applications
• Suitable for wet locations (indoor covered ceilings): perfect for closets, showers, bathrooms, outdoor soffits, and covered ceiling applications.
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Led Color Temperature Switchable White (2700K, 3000K, 3500K, 4000K, 5000K) Default set at 3000K
CRI 90+
Voltage Dedicated 120V and MVOLT (120V-277V)
Dimming Phase Dimming down to 10%. 0-10V and phase dimming available.
Specifications
All dimensions are in Inches (centimeters unless otherwise indicated.
ALTON DELRAY TYPE UG ALT
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
Five position sliding switch 27K / 30K / 35K / 40K / 50K
3/4"
Aperture
Diameter
Diameter:Aperture:
NELO-4RTW5-1/2"4-1/2"
NELO-6RTW7"6"
NELO-8RTW8-7/8"7-3/4"
NELO-12RTW12-1/4"11"
NSEM-6WDW
Surface Mount Enclosure with Emergency Driver for 6" only
Decorative Ring
Optional Accessories
Description Finish
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
TYPE UG SPEC ALTON DELRAY
Juno SlimForm™ LED with Selectable CCT
Inverter, 50W output
Inverter, 35W output,High Efficiency (meets CA T20 efficiency requirement)
techsupport@iotaengineering.com
BRONZE SATIN NICKEL
BLANK
TYPE UH SPEC ALTON DELRAY
FEATURES & SPECIFICATIONS
INTENDED USE
Provides general illumination in commercial and residential applications. Use 3-position switch to select 3000K, 4000K or 5000K color temperature at time of installation. Ideal for use in closets, foyers, hallways, corridors, bedrooms, offices, utility work areas, stairways and much more.
CONSTRUCTION

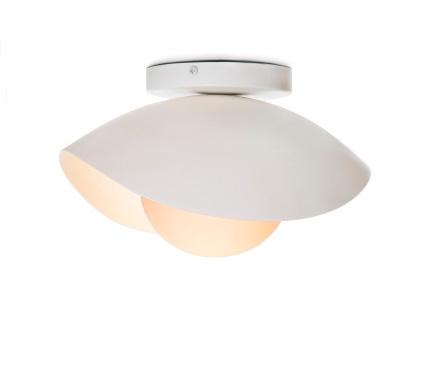

This contemporary shaped fixture features a matte white acrylic diffuser and a robust aluminum housing. OPTICS
50,000 hours life. Rated for 50,000 hours at >70% lumen maintenence. 90+ CRI
3000 K: 636 lumens
4000 K: 695 lumens
5000 K: 656 lumens
Factory set at 3000K CCT
ELECTRICAL
Fixture operates at 120 volts, 50/60 Hz. 7" Round standard input = 12.2 watts. Works with most standard incandescent dimmers (see list of suggested dimmers on page 2).
INSTALLATION
All mounting hardware included.
LISTINGS
CSA certified to UL standards for sale in the USA and Canada.
Certified for Damp or Wet Location.
Round Versi U.S. Patent No. D691,763.
Certified to the high efficacy requirements of California T24 JA8-2019 WARRANTY
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/customer-support/terms-andconditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
3-position switch for selecting 3000K, 4000K or 5000K located on top of fixture
Round Specifications
Height: 1-3/4 (4.4)
Width: 7-1/4 (18.4) Weight: 1.1 lbs (.5 kg)
All dimensions are inches (centimeters) unless otherwise indicated.

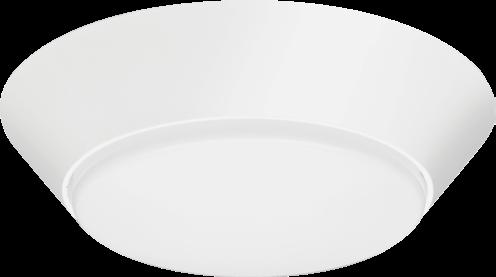

Versi Lite™
LED Switchable White
(4.4)
(18.4)
Textured White
Dark Bronze
Natural Aluminum
ALTON DELRAY TYPE UH

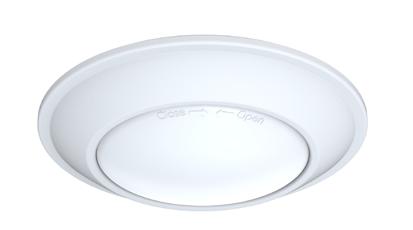

NLOPAC-R6509T24
6" AC Opal - LED Surface Mount
Source: 16.5W Up to 1150lm
PRODUCT DESCRIPTION
The AC Opal LED Series LED fixture is designed to surface mount over a standard junction box. The low profile dimmable luminaire produces even illumination and is cETLus listed for wet locations.
FEATURES
AC LED (No Driver)
Dimmable
2700K, 3000K or 4000K @ 90+ CRI
Mount on standard 4" junction box
Retrofit kit included for 5" or 6" recessed housings
SPECIFICATION
Construction: One piece aluminum die formed housing and trim. Aluminum body dissipates heat and extends life.
Mounting: Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes for ceiling or wall mount applications. Luminaires can also be retrofit over 5" or 6" recessed housings with retrofit kit (included).
Optics: Nora specified and designed precision molded lens for optimal lumen output and even distribution.
Finishes: Available in white, bronze and natural metal finishes.
Ratings: IC rated when used with a 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.
Retrofit: Each luminaire includes a retrofit kit with medium base socket adapter to mount over 5" or 6" recessed housings. Kit also includes torsion spring brackets that hold luminaire flush against ceiling. Retrofit kit is intended to be used with a lighting fixture as a lamp replacement.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: Up to 1150lm / 16.5W
Color Temperature: 2700K, 3000K, 4000K
Color Rendering Index: 90+ CRI
Operating temperature: 0-45°C
Lifetime: 50,000 hours @ L70
Dimming: 5% with Triac or 10% with ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
ACCESSORIES
NLOPAC-4BKT-2: Universal bracket for mounting to 3" or 4" junction boxes.
LISTING
cETLus Listed for wet locations
cETLus classified for retrofit 5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
· Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1) FCC Compliant
6" AC Opal - LED Surface Mount
Color Temperature / Finish
NLOPAC-R6509T2427BZ = 2700K / Bronze
NLOPAC-R6509T2427NM = 2700K / Natural Metal
NLOPAC-R6509T2427W = 2700K / White
NLOPAC-R6509T2430B = 3000K / Black (Discontinued, direct replacement: NLOPAC2-R6509T2430B)
NLOPAC-R6509T2430BZ = 3000K / Bronze (Discontinued, direct replacement: NLOPAC2-R6509T2430B)
NLOPAC-R6509T2430NM = 3000K / Natural Metal
NLOPAC-R6509T2430W = 3000K / White (Discontinued, direct replacement: NLOPAC2-R6509T2430W)
NLOPAC-R6509T2440BZ = 4000K / Bronze (Discontinued, direct replacement: NLOPAC2-R6509T2440B)
NLOPAC-R6509T2440NM = 4000K / Natural Metal
NLOPAC-R6509T2440W = 4000K / White (Discontinued, direct replacement: NLOPAC2-R6509T2440W)
NLOPAC-R6509T2450W = 5000K / White (Discontinued, direct replacement: NLOPAC2-R6509T2450W)
Example: NLOPAC-R6509T2440W = 6" AC Opal, 1150lm / 16.5W, 4000K, White finish
Finish Options: -05 Black, -30 Oil Rubbed Bronze, -08 Gray Good for Wet Location Applications
Optical Shade: Frosted Glass
Electrical 120V -277
High Power Factor, Low THD
Lamp
Integrated LED Module, Color Temperature Option 3000K or 4000K
Certification
ETL/cETL Listed, Suitable for Wet Locations, CEC Listed (JA8)
Warranty
5 Years Limited Warranty on Driver and LED
LED Type
TYPE UJ SPEC ALTON DELRAY
Juno SlimForm™ LED with Selectable CCT
5" and 7" Round Downlight for JBox Installation
Dimensions
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features
Sleek, ultra-low profile energy efficient LED surface mount downlights available in 5" and 7" sizes. Optional finish trims available for custom, designer look similar to standard recessed downlights. Provides general illumination in residential and commercial applications including multifamily and hospitality. Ideal for use in corridors, living spaces, closets, hallways, pantries, stairways, outdoor covered areas and much more.
With the newly added selectable CCT switch, the JSF gives the ultimate in flexibility for both the distributor as well as the end user.
Applications
• Suitable for wet locations (indoor covered ceilings): perfect for closets, showers, bathrooms, outdoor soffits, and covered ceiling applications.
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Led Color Temperature Switchable White (2700K, 3000K, 3500K, 4000K, 5000K) Default set at 3000K
CRI 90+
Voltage Dedicated 120V and MVOLT (120V-277V)
Dimming Phase Dimming down to 10%. 0-10V and phase dimming available.
Specifications
All dimensions are in Inches (centimeters unless otherwise indicated.
ALTON DELRAY TYPE UJ ALT
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
Five position sliding switch 27K / 30K / 35K / 40K / 50K
3/4"
Aperture
Diameter
Diameter:Aperture:
NELO-4RTW5-1/2"4-1/2"
NELO-6RTW7"6"
NELO-8RTW8-7/8"7-3/4"
NELO-12RTW12-1/4"11"
NSEM-6WDW
Surface Mount Enclosure with Emergency Driver for 6" only
Decorative Ring
Optional Accessories
Description Finish
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
techsupport@iotaengineering.com
Juno SlimForm™ LED with Selectable CCT
Inverter, 50W output
Inverter, 35W output,High Efficiency (meets CA T20 efficiency requirement)
BRONZE SATIN NICKEL
BLANK
TYPE UL SPEC ALTON DELRAY
Project:
Fixture Type:
Location:
Contact/Phone:
PRODUCT DESCRIPTION
Available in four lengths, the UPLD Swivel LED undercabinet includes an easily accessible switch to select 3000K, 3500K or 4000K color temperature with 50,000 hours of life. Provides task or accent lighting in commercial, retail, hospitality and residential applications. Ideal for use over and under cabinets, display cases, task lighting, office lighting, coves and utility/work areas. Warranty 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and- conditions
PRODUCT SPECIFICATIONS
LEDs Utilizes long-life, high-efficiency LEDs binned to within a 3-step MacAdam ellipse for excellent color consistency • Rated for 50,000 hours at 70% lumen maintenence • 90 CRI minimum • The UPLD uses an improved, recessed linking mechanism that allows two fixtures to connect together with virtually no gap between with included row connector.
Driver Integrated, high efficiency 120v, 60Hz driver • Dimmable • Works with most standard incandescent, magnetic low voltage or electronic low voltage dimmers • Compatible with most residential phase-cut dimmers.
Housing Slim 1" profile • Light bar has 20 degree swivel in each direction •Housing end caps can be pivoted for easy access to linking port • Linkable, plug-together design to connect fixture-to-fixture • Available in white or bronze finishes • Each fixture has an integrated ON/OFF switch for independent power control • Juno Pro-Series accessories are not compatible • For a complete list of compatible accessories, see below Diffuser Lightly frosted, acrylic diffuser for maximum light transmission and uniform light distribution • Swivel head allows light to be directed to desired area.
Labels cULus listed to US and Canadian safety standards • Listed for Damp Locations • Can be used to comply with 2019 Title 24, Part 6, JA8 high efficacy LED light source requirements.
Note: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
INSTALLATION
UPLD Series fixtures offer several convenient methods for installation and can be installed as direct wire or portable luminaires. Fixtures may be mounted flush to the backsplash or up against the front lip of the cabinetry using captive mounting screws.
Direct Wire
The UPLD 9", 14", 22" and 30" lengths have a rear wiring access compartment and push-in electrical connectors for direct-wire application • Each length includes a die cast fitting for 3/8" flexible metal conduit • Optional UCD JB Junction/Splice box (sold separately) is available to facilitate bringing power to front end of cabinetry and then using jumper cords to connect to fixtures (see installation diagram below) • All standard mounting hardware included • 17" jumper wire and straight joiner (row) connector are included accessories.
Electrically Connecting Multiple Fixtures Fixtures can be electrically joined together using either the straight joiner (row) connector supplied with each fixture or with the included 17" connector jumper cord or optional 24" UC ERC24 connecting cord. No more than 29 units of any size should be linked together.

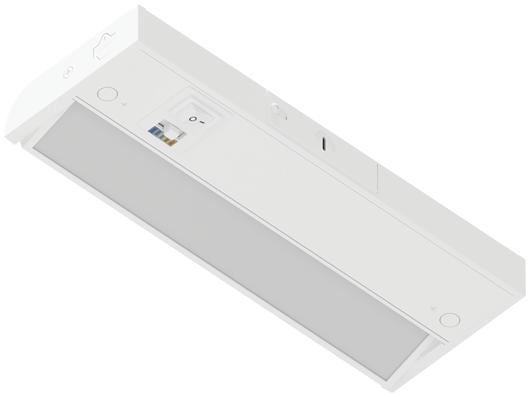

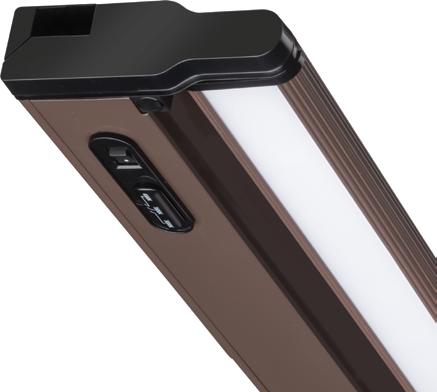

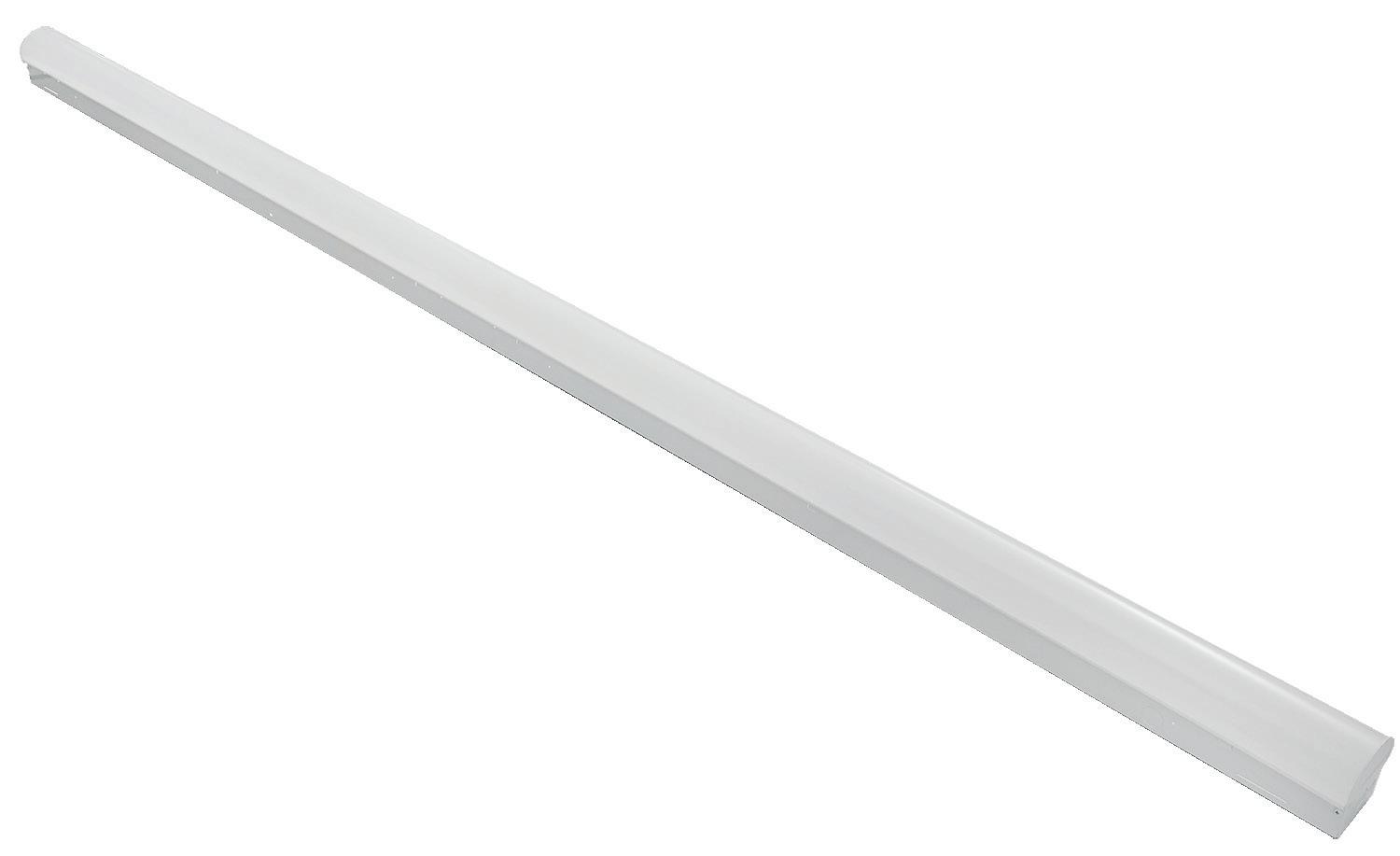

120V Adjustable LEDUR Under Cabinet with Selectable CCT
Source: 7W to 20W 600lm per foot
PRODUCT DESCRIPTION
120V Adjustable LED under cabinet luminaires include two switches to change the color temperature and On/Off switch. Each fixture includes five color temperature options and are linkable up to 150W. Luminaires produces an average of 550 lumens per foot. LEDUR uniform reflectance is excellent when used under cabinet over granite, polished stone or any reflective surface, additionally it is excellent in retail display lighting where diode image might distract from display merchandise.
FEATURES
Adjustable lens rotates up to 35°
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
Produces over 600 lumens per foot
Edge lit design eliminates LED diode image
Available in five different lengths
Black or Matte Powder White Finish
Built-in on/off rocker switch
USB-C & USB-A ports (NUDA-10 does not have USB ports)
Linkable up to 150 Watts
· 3 wire grounded electrical port on both ends for power or linking
(Note: USB charging performs best with a direct line/neutral connection. While it can also be used with a dimmer, charging performance is optimized when the dimmer is set to full output.)
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Operating Temperature: -20˚C to 40˚C ambient temperature
Maximum Run Length: 150W
Dimming: Dimmable down to 10% with Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab.
CONSTRUCTION
Housing: Rear wireway access cover with stab-in electrical connectors facilitate wiring without opening the fixture. Additional knock-outs for top and back wiring.
Installation: Mounting hardware is included with each unit. Captive screws allow for quick installation, simply wire using rear door and quick connects, and hold in place and drive captive screws into material. Captives screws are covered with an included cap for a beautiful finished look.
Included with every fixture: Mounting Hardware and 1/2 " die- cast metallic cable clamp and end to end connector.
LABELS AND LISTINGS
cETLus Listed for Damp Locations
5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
FCC Compliant
120V Adjustable LEDUR Under Cabinet with Selectable CCT Length
NUDA-10TW = 10"
NUDA-16TW = 16"
NUDA-24TW = 24"
NUDA-32TW = 32"
NUDA-42TW = 42"
= Black
= Matte Powder White (blank) = Not Included
B = Black MPW = Matte Powder White /USB = USB ports included
Type Project Catalog No. Notes
Performance Data Part Number
NUDA-16TW 827lm 852lm 888lm 903lm 895lm
NUDA-24TW 1270lm 1295lm 1357lm 1375lm 1359lm
NUDA-32TW 1323lm 1379lm 1425lm 1445lm 1440lm
NUDA-42TW 1507lm 1559lm 1620lm 1652lm 1655lm
Adjustable Lens ± 35 Adjustment
Captive Screws Covers included
& USB-C Ports included with 16", 24", 32" & 42"
Accessories
Description Finish

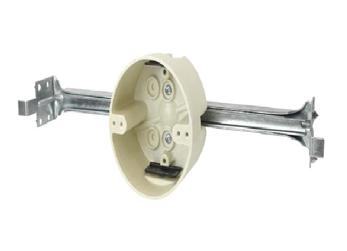

NUA-902 = Junction Box
NUDA-HW72 = 72" Hardwire Power Cord
NUDA-CP72 = 72" Cord & Plug
NUDA-END = End-to-End Connector
NUDA-JC06 = 6" Jumper Cable
NUDA-JC12 = 12" Jumper Cable
NUDA-JC24 = 24" Jumper Cable
NUDA-JC72 = 72" Jumper Cable
= Black
= Matte Powder White
Example: NUDA-24TWMPW/USB = 24" 120V Adjustable LEDUR Under Cabinet with Selectable CCT & USB ports, Matte Powder White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T8 lengths. Ideal for use in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install six-point row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), or matte black (MB). After fabrication, fivestage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications (see PLR_ ordering information on page 5). Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide 80CRI or 90 CRI at 3000 K, 3500 K,4000 K or 5000 K. Lumen output up to 1,500 lumens per foot. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Six-point aligner locks in place for easy continuous row mounting.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Buy American Act: This product is available in a version that qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. BABA – Build America Buy America: This product is available in a version that qualifies as produced in the United States under the definitions of the Build America, Buy America Act, as implemented by 2 C.F.R. Part 184 and other agency implementing regulations, including Department of Transportation regulations. Please refer to www.acuitybrands.com/resources/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
ALTON DELRAY TYPE A ALT
NLWPSW

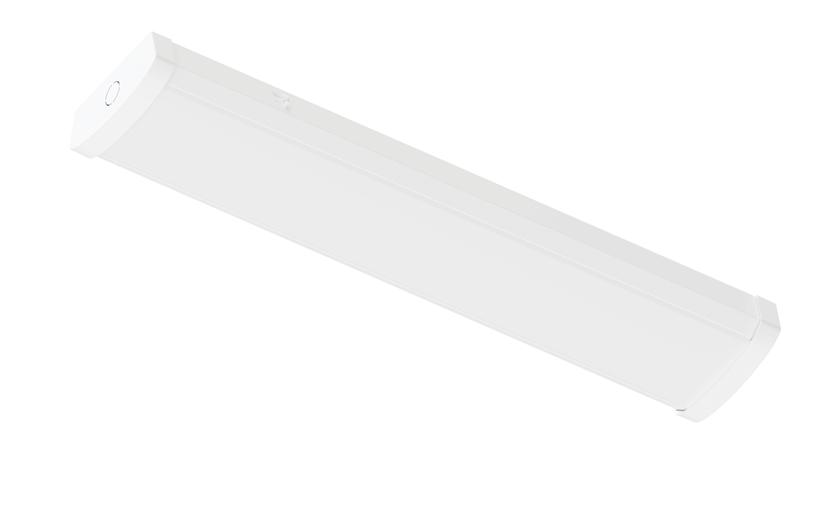

Wraparound with Selectable Lumens & CCT
Source: 16W to 65W LED 2000lm to 8100lm
PRODUCT DESCRIPTION
Wraparound luminaires includes an integral CCT switch to change the color temperature at any time! Surface mounted, it’s ideal for commercial, residential, industrial, and retail applications, such as stairwells, hallways, garages, schools, offices, and more. Easy to install and great for replacing outdated fluorescents with an energy efficient, cost saving alternative. The luminaire’s lens is designed to uniformly spread and soften the appearance of the light while maximizing its distribution and output. Each luminaire includes two switches; Selectable Lumens easily allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance so it is perfectly customized to your needs.
FEATURES
cULus Listed
Selectable Lumen switch changes lumen output and wattage
Selectable CCT switch changes the color temperature from 3000K / 3500K / 4000K 120-277V input; 0-10V dimming
DLC Listed
Optional emergency and/or motion sensor for 4' wraparound only
SPECIFICATION
Construction: Steel stamped body. Finished in white powder coat. Top, end and cap knockouts.
Switches: Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Selectable CCT switch changes the color temperature.
MOUNTING
2' Wrap: Luminaires can be surface mounted only.
4' Wrap: Luminaires can be surface mounted, wall mounted or suspended with pendant kit (ordered separately: NLWPSWA-PK).
ELECTRICAL
Input Voltage: 120-277VAC
Lumens / Wattage: See chart below
Color Temperature: Selectable CCT (3000K / 3500K / 4000K); Preset to 3000K
Color Rendering Index: 80+ CRI
Beam Spread: 100° Wide Flood
Operating Temperature: 0˚C to 45˚C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V
OPTIONAL ACCESSORY
NLWPSWA-PK : Pendant Kit for 4' only (canopy, 8' aircraft cable and hooks)
Optional motion sensor (4' only): Microwave motion sensor can detect motion up to 17' away and 120˚ under the luminaire. All MS are preset to dim from 100% to 50% after 1 minute, then turn off after another minute without detected motion. The light sensor is enabled to keep fixture inactive when detecting light levels of 50 Lux or higher for daylight savings. Dip switches can be used to change the motion sensor settings. After each power cycle, the fixture will perform a start-up cycle and resume normal operation. Note: 0-10V dimmer cannot be used with MS and EMMS configurations.
Emergency (4' only): Luminaire can be specified with an emergency battery with integral test switch Battery operates luminaire at 8W for 90-minute emergency operation on fully charged battery. Battery may take up to 24 hours to fully charge.
LABELS AND LISTINGS
DLC Listed (Direct Linear, Stairwell and Passageway)
cULus Listed for Damp Locations
· 5-Year Limited Warranty
FCC Compliant
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1)
Wraparound with Selectable Lumens & CCT
Length Option(s)
NLWPSW-2L334W = 2' Wraparound
NLWPSW-4L334W = 4' Wraparound
= Integral Emergency (available with 4' only)
= Integral Motion Sensor (available with 4' only) /EMMS = Integral Emergency & Motion Sensor (available with 4' only)
NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
Delivered lumens will vary depending on color temperature
PRODUCT IMAGES AND DIMENSIONS
Selectable Lumens
Three position sliding switch
Selectable CCT
Three position sliding switch
NLWPSW-2L334W 2' Wraparound
NLWPSW-4L334W 4' Wraparound
or 47-1/2"
NLWPSWA-PK Pendant Kit for 4' only
Optional Accessories for 4' Only Description
= Pendant Kit (canopy, 8' cable and hooks for 4' only)
TYPE A SPEC ALTON DELRAY

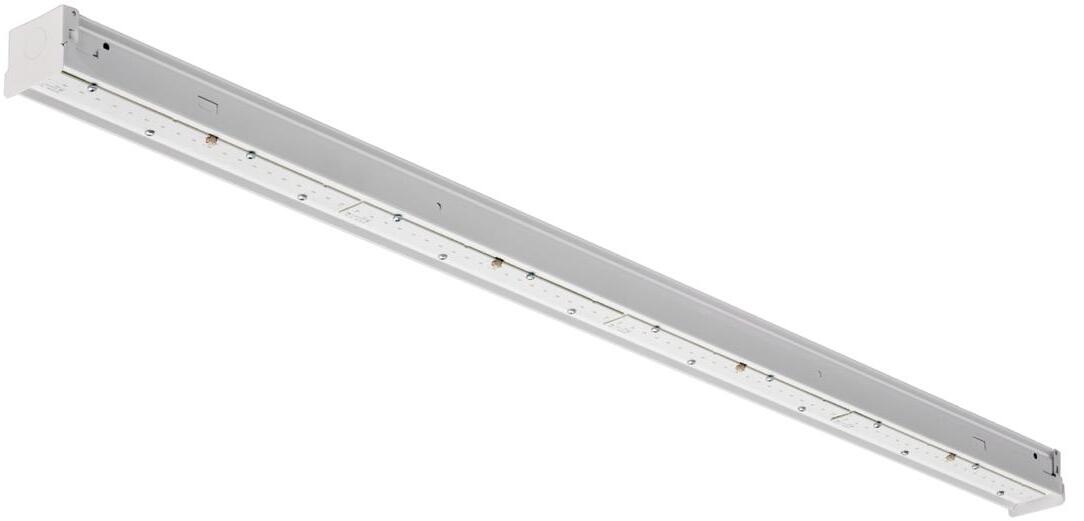

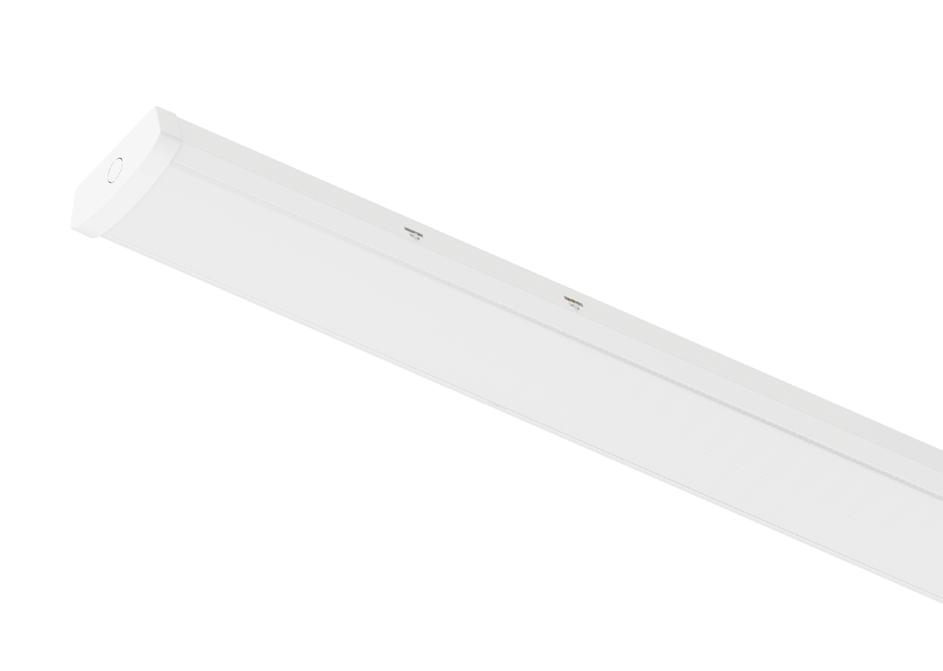

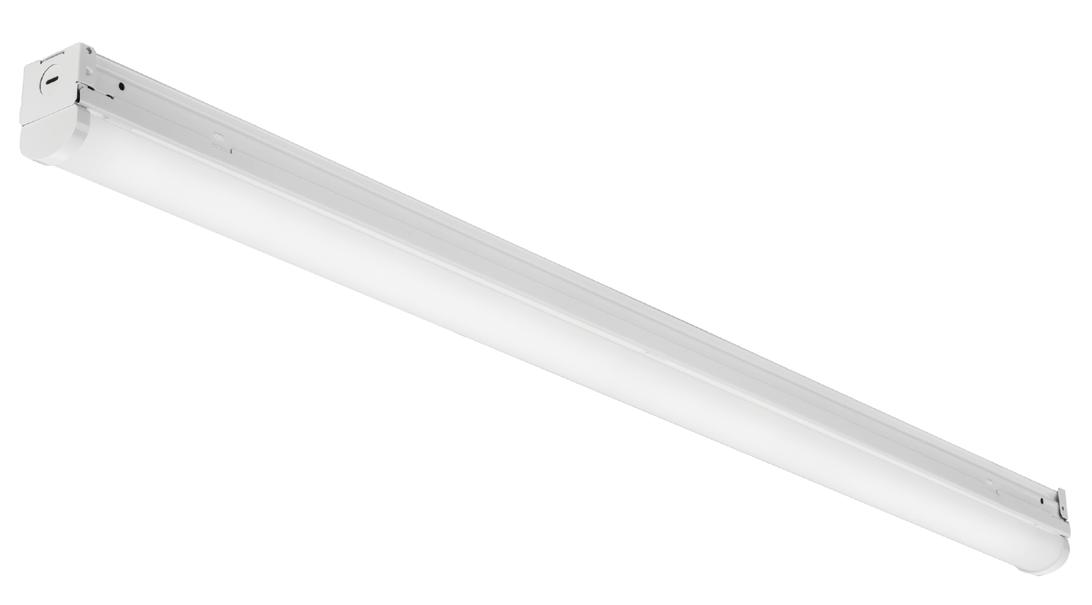

ZL1D LED Striplight
A+ Capable options indicated by this color background.
ORDERING
ZL1D LED striplight L24 24" ‡ (blank) Less reflector SMR Symmetric
2,500 lumens
3,500 lumens
BDP Disconnect Plug ‡
PLR__ Plug-in wiring ‡
PLR1LVG Plug-in wiring-low voltage ‡
E7W 7W Emergency battery pack, constant power, Certified in CA
Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E7W (2) 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E10W 10W Emergency battery pack, constant power, Certified in CA
Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E10W (2)10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E15WLCP Emergency battery pack, 15W Linear Constant Power, Certified in CA Title 20 MAEDBS ‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified nLight® Wireless
NLTAIR2 RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2 RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
Individual Controls ‡
LBOZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), ON/OFF occupancy, pre-wired (LINK ) ‡
LBH0SZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), high/low occupancy dimming, pre-wired (LINK ) ‡
LBPZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), ON/OFF photocell, pre-wired (LINK ) ‡
LBM0SZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), dimming and switching photocell, pre-wired (LINK ) ‡
Cord sets: ‡
CS1W Cord with NEMA 5-15P, 120V straight blade plug, 18 gauge, 3 conductors, white, 6ft
CS3W Cord with NEMA L5-15P, 120V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS7W Cord with NEMA 7-15P, 277V straight blade plug, 18 gauge, 3 conductors, white, 6ft
CS11W Cord with NEMA L7-15P, 277V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS25W Cord with NEMA L24-20P, 347V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS97W Cord with NEMA L8-20P, 480V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS93W Cord only (no plug), 18 gauge, 3 conductors, white, 6ft
WH White
MBMatte black
GALVB Galvanized fixture with black plastic lens endcaps
GALVW Galvanized fixture with white plastic lens endcaps
Accessories: Order as separate catalog number.
HC36 M12 Hanger chain, 36" (1 pair)
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T8 lengths. Ideal for use in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install six-point row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), or matte black (MB). After fabrication, fivestage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications (see PLR_ ordering information on page 5). Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide 80CRI or 90 CRI at 3000 K, 3500 K,4000 K or 5000 K. Lumen output up to 1,500 lumens per foot. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Six-point aligner locks in place for easy continuous row mounting.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Buy American Act: This product is available in a version that qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. BABA – Build America Buy America: This product is available in a version that qualifies as produced in the United States under the definitions of the Build America, Buy America Act, as implemented by 2 C.F.R. Part 184 and other agency implementing regulations, including Department of Transportation regulations. Please refer to www.acuitybrands.com/resources/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
ALTON DELRAY TYPE AE ALT
NLWPSW
Wraparound with Selectable Lumens & CCT
Source: 16W to 65W LED 2000lm to 8100lm
PRODUCT DESCRIPTION
Wraparound luminaires includes an integral CCT switch to change the color temperature at any time! Surface mounted, it’s ideal for commercial, residential, industrial, and retail applications, such as stairwells, hallways, garages, schools, offices, and more. Easy to install and great for replacing outdated fluorescents with an energy efficient, cost saving alternative. The luminaire’s lens is designed to uniformly spread and soften the appearance of the light while maximizing its distribution and output. Each luminaire includes two switches; Selectable Lumens easily allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance so it is perfectly customized to your needs.
FEATURES
cULus Listed
Selectable Lumen switch changes lumen output and wattage
Selectable CCT switch changes the color temperature from 3000K / 3500K / 4000K 120-277V input; 0-10V dimming
DLC Listed
Optional emergency and/or motion sensor for 4' wraparound only
SPECIFICATION
Construction: Steel stamped body. Finished in white powder coat. Top, end and cap knockouts.
Switches: Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Selectable CCT switch changes the color temperature.
MOUNTING
2' Wrap: Luminaires can be surface mounted only.
4' Wrap: Luminaires can be surface mounted, wall mounted or suspended with pendant kit (ordered separately: NLWPSWA-PK).
ELECTRICAL
Input Voltage: 120-277VAC
Lumens / Wattage: See chart below
Color Temperature: Selectable CCT (3000K / 3500K / 4000K); Preset to 3000K
Color Rendering Index: 80+ CRI
Beam Spread: 100° Wide Flood
Operating Temperature: 0˚C to 45˚C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V
OPTIONAL ACCESSORY
NLWPSWA-PK : Pendant Kit for 4' only (canopy, 8' aircraft cable and hooks)
Optional motion sensor (4' only): Microwave motion sensor can detect motion up to 17' away and 120˚ under the luminaire. All MS are preset to dim from 100% to 50% after 1 minute, then turn off after another minute without detected motion. The light sensor is enabled to keep fixture inactive when detecting light levels of 50 Lux or higher for daylight savings. Dip switches can be used to change the motion sensor settings. After each power cycle, the fixture will perform a start-up cycle and resume normal operation. Note: 0-10V dimmer cannot be used with MS and EMMS configurations.
Emergency (4' only): Luminaire can be specified with an emergency battery with integral test switch Battery operates luminaire at 8W for 90-minute emergency operation on fully charged battery. Battery may take up to 24 hours to fully charge.
LABELS AND LISTINGS
DLC Listed (Direct Linear, Stairwell and Passageway)
cULus Listed for Damp Locations
· 5-Year Limited Warranty
FCC Compliant
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1)
= Pendant Kit (canopy, 8' cable and hooks for 4' only)
TYPE AE SPEC ALTON DELRAY
ZL1D LED Striplight
A+ Capable options indicated by this color background.
ORDERING
ZL1D LED striplight L24 24" ‡ (blank) Less reflector SMR Symmetric
2,500 lumens
3,500 lumens
BDP Disconnect Plug ‡
PLR__ Plug-in wiring ‡
PLR1LVG Plug-in wiring-low voltage ‡
E7W 7W Emergency battery pack, constant power, Certified in CA
Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E7W (2) 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E10W 10W Emergency battery pack, constant power, Certified in CA
Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E10W (2)10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E15WLCP Emergency battery pack, 15W Linear Constant Power, Certified in CA Title 20 MAEDBS ‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified nLight® Wireless
NLTAIR2 RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2 RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
Individual Controls ‡
LBOZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), ON/OFF occupancy, pre-wired (LINK ) ‡
LBH0SZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), high/low occupancy dimming, pre-wired (LINK ) ‡
LBPZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), ON/OFF photocell, pre-wired (LINK ) ‡
LBM0SZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), dimming and switching photocell, pre-wired (LINK ) ‡
Cord sets: ‡
CS1W Cord with NEMA 5-15P, 120V straight blade plug, 18 gauge, 3 conductors, white, 6ft
CS3W Cord with NEMA L5-15P, 120V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS7W Cord with NEMA 7-15P, 277V straight blade plug, 18 gauge, 3 conductors, white, 6ft
CS11W Cord with NEMA L7-15P, 277V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS25W Cord with NEMA L24-20P, 347V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS97W Cord with NEMA L8-20P, 480V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS93W Cord only (no plug), 18 gauge, 3 conductors, white, 6ft
WH White
MBMatte black
GALVB Galvanized fixture with black plastic lens endcaps
GALVW Galvanized fixture with white plastic lens endcaps
Accessories: Order as separate catalog number.
HC36 M12 Hanger chain, 36" (1 pair)
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T5 and T8 lengths. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, cove and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare. L/LENS option available.
ELECTRICAL — L70>60,000hours. Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 2.) Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide nominal 80 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,000 lumens per foot. In 86°F (30°C) ambient environments. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Tool-less channel cover for easy installation.
Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Three-point aligner locks in place for easy continuous row mounting. LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
48" and 96" Lengths
L/Lens
Lensed
TYPE B SPEC ALTON DELRAY
ZL1N LED Striplight
A+ Capable options indicated by this color background.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
ZL1N LED striplight L24 24" ‡ (blank) Less reflector SMR Symmetric 1500LM 1,500 lumens
L46 46" L48 48" (blank) Less reflector ASR Asymmetric (L48 only) SMR Symmetric
2500LM 2,500 lumens
3500LM 3,500 lumens
5,000 lumens
Snap on frosted, diffuse L/LENS No diffuser SBL FST Straight blade louver with snap on frosted, diffuse
7,000 lumens TZL1N LED striplight ‡ L9292" L96 96" (blank) Less reflector SMR Symmetric
Plug-in wiring ‡
Plug-in wiring-low voltage ‡
10,000 lumens
14,000 lumens
Accessories: Order as separate catalog number.
HC36 M12 Hanger chain, 36" (1 pair)
E7W 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E7W 2) 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E10W (2) 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E15WLCP Power Sentry® PS1555LCP, 15 watt emergency battery, Certified in CA Title 20 MAEDBS (LINK )‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless ‡
NLTAIR2
RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2
RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
Canless low profile 4" LED recessed downlight with deeply regressed light source and technology rich features offers performance up to 1200L and installation solutions for both new construction and remodel applications.
Patented color temperature and intensity configurable lighting fixture (US Patent No. 11,259,377 B2)
• Integrated light engine offers switchable LED color temperature and adjustable lumen output directly on module for easy switching
• Advanced color mixing technology provides consistent color rendering on the black body curve at all LED color temperatures while maintaining a high 90+ CRI
• Warmdim™ setting provides performance similar to incandescent light sources and warms the LED color temperature over the dimming range from 2850K to 1900K
Installation flexibility and ease
• Low profile integrated LED downlight less than 3" in height fits virtually anywhere
• Installs directly into the plenum - eliminates need for typical recessed housing
• Installs into new construction or remodel applications
• Square Podz use a round ceiling opening (round hole in new construction frame) to make installation simple using common hole saws and guaranteed alignment of square fixtures in a space.
Applications
• Ideal for a breadth of residential and commercial applications
• Shallow plenum installations
• IC rated - for direct contact with insulation
• Wet location listed - for use in shower and outdoor covered ceiling applications
Performance
Switchable Delivered Lumens700L, 1000L, 1200L
Switchable LED Color Temperature27K, 30K, 35K, 40K, 50K
WarmDim Included as standard2850K - 1900K over dimming range
CRI 90+
Voltage Dedicated 120V or MVOLT (120-277V)
Dimming Forward/Reverse Phase or 0-10V Dimming range from 100% to 5%
Specifications (please reference page 4 for fixture line art/dimensions) Round Square
Aperture: 3.75" (9.53) 3.56" (9.04)
Ceiling Opening*:4.5" (11.43) 4.75" (12.07)
Overlap Trim: 5.05" (12.82) 5.5" (13.97)
Height: 2.32" (5.89) 2.44" (6.2)
All dimensions are in Inches (centimeters unless otherwise indicated). *Both round and square cutouts are round holes and use round opening new construction frames.
Round
ALTON DELRAY TYPE CS
NM4-RDC

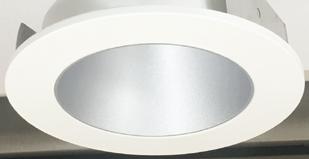

4" M4 Round LED Recessed Downlight
Source: 15W
PRODUCT DESCRIPTION
4" M4 Round LED downlight are ideal for remodel or new constructions in residential and light commercial applications. IC Air-Tight rated luminaires require no housing, making installation easy.
FEATURES
No housing required - IC Air-Tight rated · Easy installation for remodel or new construction applications
Square trim available for an alternative appearance
Quick disconnect allows for extended lengths
2700K or 3000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims available in matte black or matte powder white finish. Optional field changeable square trim is available.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" trade size knockouts and snap on cover with 7" quick connect wire. Luminaire includes 6 1/2" quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-ins are available, see mounting accessories.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 1100lm / 15W
Color Temperature: 2700K or 3000K
Color Rendering Index: 90+CRI
Beam Spread: 37° Narrow Flood
Operating Temp.: 0°C to 25°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Dimmable down to 10% with Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL TRIM ACCESSORIES
NM4-SDT: Square Baffle Trim for NM4-RDC, Black or White
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-23LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations
· 5-Year Limited Warranty
FCC compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Performance Data
NM4-RDC27BB 1027lm 2700K
NM4-RDC27MPW 1086lm 2700K
NM4-RDC30BB 1086lm3000K
NM4-RDC30MPW 1177lm3000K
4" M4 Round LED Recessed Downlight
Accessory
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
TYPE CS SPEC ALTON DELRAY

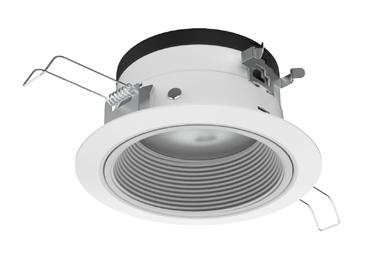

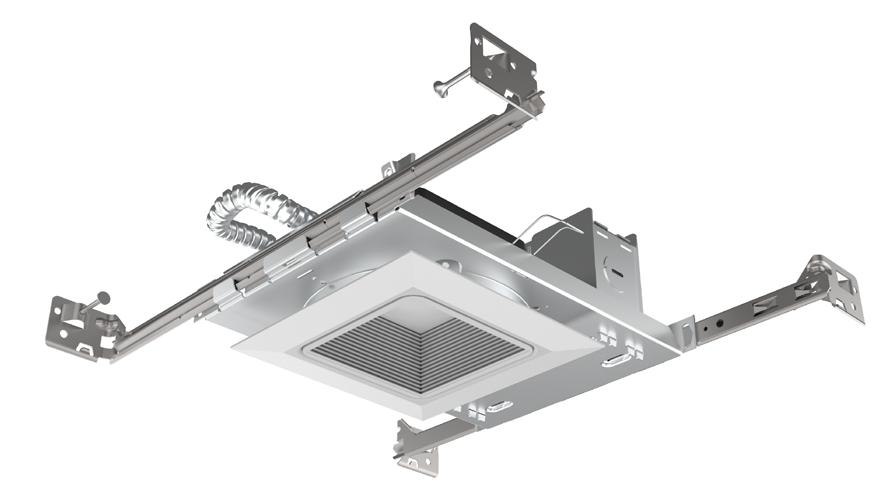

Podz™ LED Downlight Series
Two ways to order Podz:
CONSTRUCTION: (please reference page 4 for fixture line art/dimensions) HZWH 3 Haze, White Trim Ring
JPDZ4RDNCMF Juno Podz 4IN Round New Construction Mounting Frame
JPDZ4SQNCMF 6 Juno Podz 4IN Square New Construction Mounting Frame
6 Square frame has a round hole opening and the ceiling cutout is round. Trim Module Mounting Option or
3 Wheat Haze, White Trim Ring
NOTES
1 WWH is available with DB, SQDB, DC and SQDC.
2 BWH only available with DB and SQDB.
3 CWH, HZWH and WHZWH only available with DC and SQDC.
4 Not for use in an existing housing.
5 Square black baffle not T24 certified.

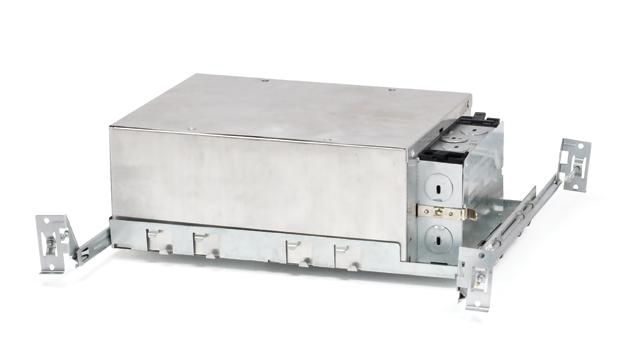

2. All-in-one box remodel downlight
EMERGENCY OPERATION OPTION
For use in Non-IC applications where insulation is spaced at least 3" away.
If installing from below the ceiling, minimum plenum depths required:
IIS 25 = 15 7/8" for JPDZ4 RD and 14 3/4" for JPDZ4 SQ
IIS 50 = 20 1/8" for JPDZ4 RD and 18 5/8" for JPDZ4 SQ
Iota IIS 25 I 25W Emergency Micro-Inverter
Iota IIS 50 I 50W Emergency Micro-Inverter
ACCESSORIES
Trim inserts are interchangeable and field installable to easily change the aesthetic of the Podz luminiare
RK3JPDZ4 DB BWH BFL4" Round Baffle Black Trim Insert
RK3JPDZ4 DB WWH BFL4" Round Baffle White Trim Insert

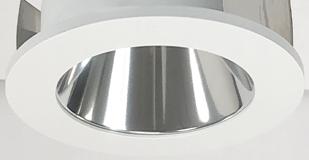

RK3JPDZ4 DC CWH RFL4" Round Cone Clear Trim Insert
RK3JPDZ4 DC HZWH RFL4" Round Cone Haze Trim Insert
RK3JPDZ4 DC WHZWH RFL4" Round Cone Wheat Haze Trim Insert
RK3JPDZ4 DC WWH RFL4" Round Cone White Trim Insert
RK3JPDZ4 SQDB BWH BFL4" Square Baffle Black Trim Insert
RK3JPDZ4 SQDB WWH BFL4" Square Baffle White Trim Insert
RK3JPDZ4 SQDC CWH RFL4" Square Cone Clear Trim Insert
RK3JPDZ4 SQDC HZWH RFL4" Square Cone Haze Trim Insert
RK3JPDZ4 SQDC WHZWH RFL4" Square Cone Wheat Haze Trim Insert
RK3JPDZ4 SQDC WWH RFL4" Square Cone White Trim Insert
ALTON DELRAY
NM4-RDC
4" M4 Round LED Recessed Downlight Accessories
Square Trim for NM4-RDC
NM4-SDTB Matte Black
NM4-SDTMPW Matte Powder White
Converts the round trim included with NM4-RDC downlight into a square trim

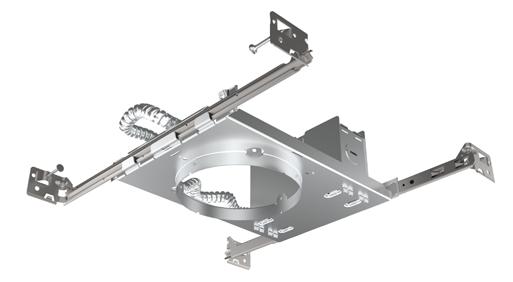

New Construction Frame-In with Collar
NFC-R375
For new construction pre-wiring and easier layout planning.
23W Emergency LED Driver with Remote Test Switch
NEPK-23LEDUNV
120-277V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to charge the battery.

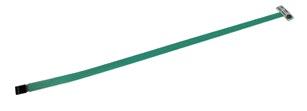

Ribbon Test Switch for NEPK-23LEDUNV
NEPKA-20/23LEDRTS
Ribbon test switch replaces remote test switch included with emergency driver. Double sided tape is pre-installed.
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
Type Project Catalog No. Notes
Quick Connect Extension Linkable Cables
NM2-EW-4 4’ Cable
NM2-EW-10 10’ Cable
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Juno SlimBasics JSBT Tapered LED
Surface Mount Disk Light 4" and 6" Round Disk Lights for JBox Installation
JSBT 4IN/6IN Series
Dimensions
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features
The SlimBasics™ JSBT Slim Tapered LED Disk Lights are low-profile and the perfect economic solution for any junction box installation. Available in 4in and 6in sizes, the JSBT mounts directly over standard junction boxes allowing the fixture to be installed below the ceiling resulting in a budget friendly install. Additionally, these surface mount disk lights bring an aesthetically pleasing design element that blends with any décor.
Applications
• Suitable for wet locations (indoor covered ceilings): perfect for closet, showers, bathrooms, and outdoor soffits and ceiling covering applications
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use in closets, compliant when installed to NFPA® 70 NEC® Section 410.16 (A)(1) and (C)(1)
Gayhart Street, Commerce, CA90040 TEL 323.767.2600 I www.noralighting.com I e-mail: nora@noralighting.com
Type Project Catalog No. Notes
PerformanceData PartNumber Lumens
NLOPAC-R6509T2427W 11091m
NLOPAC-R6509T2430W 10691m
NLOPAC-R6509T244OW 11221m
Optional Accessories Oescription
=UniversalBracketfor3"or4"JunctionBoxes
TYPE M SPEC ALTON DELRAY
Juno SlimBasics JSBT Tapered LED Surface Mount Disk Light 4"
and 6" Round Disk Lights for JBox Installation
BLANK
TYPE EL SPEC ALTON DELRAY
FEATURES & SPECIFICATIONS
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottomhinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment.
Two combination 1/2"-3/4" and four 1/2" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling. Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equeal to or less than 60deg per CIE 117-1996
Discomfort Galre in Interior Lighting. UGR FAQs
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LUMEN MAINTENANCE — 70% lumen maintenance at 60,000 hours.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are ROHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN4 STATIC WHITE

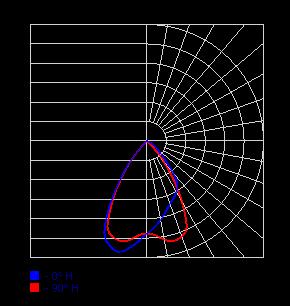

DISTRIBUTIONS
Tested in accordance with IESNA LM-79-08
Tested to current IES and NEMA standards under stabilized laboratory conditions
Based on LDN4 AR LSS 35K 80CRI
ALTON DELRAY TYPE EL ALT
NIO-4RNDC

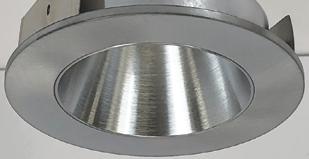

4" Iolite Round Reflector
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2025
†
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" &
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
& DIMENSIONS
Compatible Housings
Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
TYPE EL SPEC ALTON DELRAY
GZ10 0-10V driver dims to 10%
GZ10-10V driver dims to 1%
D10 Minimum dimming 10% driver for use with SSAIR
D1 Minimum dimming 1% driver for use with SSAIR
EZ10-10V eldoLED driver with smooth and flicker-free deep dimming performance down to 1%
EDAB eldoLED DALI SOLDRIVE dim to dark
(blank) No emergency option
EL Emergency battery pack with integral test switch. 10W
Constant Power, Not Certified in CA Title 20 MAEDBS
ELR Emergency battery pack with remote test switch. 10W
Constant Power, Not Certified in CA Title 20 MAEDBS
ELSD Emergency battery pack with self-diagnostics, 10W
Constant Power, integral test switch. Not Certified in CA Title 20 MAEDBS
ELRSD Emergency battery pack with self-diagnostics, 10W
Constant Power, remote test switch. Not Certified in CA Title 20 MAEDBS
E10WCP Emergency battery pack, 10W Constant Power with integral test switch. Certified in CA Title 20 MAEDBS
E10WCPR Emergency battery pack, 10W Constant Power with remote test switch. Certified in CA Title 20 MAEDBS
E10WRSTAR Emergency battery pack, 10W with remote test switch and Iota STAR technology
(blank) No control option
NPP16D nLight® network power/relay pack with 0-10V dimming for non-eldoLED drivers (GZ10, GZ1).
NPP16DER nLight® network power/relay pack with 0-10V dimming for non-eldoLED drivers (GZ10, GZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
SSAIR Wireless standalone embedded control by SensorSwitch
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ10, EZ1). ER controls fixtures on emergency circuit.
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
Options
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__ RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option value
Lumen Packages
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect *See ordering tree for details
(Maximum order quantity for design select lead times is 160.)
‡ Option Value Ordering Restrictions
Restriction
Overall height varies based on lumen package, refer to dimensional charts on page 4 WR, BR Not available with finish (LSS, LD, LS) TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TRW, TRBL Available with clear (AR) trim color only TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL
347 Not available with emergency options
All Emergency 12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER Not available with MVOLT. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed.
SF Must specify 120 or 277 volt N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ10 and EZ1 drivers. NPP16D, NPP16DER, NPPS80EZ, NPS80EZERSpecify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. NLTAIR2, NLTAIRER2, NLATAIREM2Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. Not recommended for metal ceiling installations. NLTAIR2 When combined with EZ1 or EZ10 drivers, can be used as a normal power
SSAIR Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
HAO Fixture height is 5-11/16" for all lumen packages with HAO.
CP Must specify voltage for 3000lm. Not available with emergency battery pack option.
E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/SSAIR. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch.
ALTON DELRAY TYPE EL ALT
NHIOICD-415 / NHIOICD-420 / NHIOICD-425
NHIOICDCP-415 / NHIOICDCP-420 / NHIOICDCP-425
4" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2 "
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air tight (AT) <2CFM (cubic feet per minute) in accordance to ASTM 283.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90 ° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) 5-Year Limited Warranty RoHS compliant FCC compliant
Airtight in accordance to ASTM E283 Patented (noralighting.com/patents)
Ceiling Cut-Out
4" Iolite ICAT High Lumen New Construction Housing - Compatible with NIO-4 trims (except PLUS square trims)
= IC Air-Tight, 1500lm / 20W
= Chicago Plenum, 1500lm / 20W
NHIOICD-420 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum, 2000lm / 24W
NHIOICD-425 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
DAL = 120-277V input; DALI 1% dimming
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
Example: NHIOICD-420LE4 = 4" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V input; Triac / ELV / 0-10V
NIO-4EXTC2 = Ceiling Extension Collar up to 2" NIO-4WCC2 = Wood Ceiling Collar up to 2"

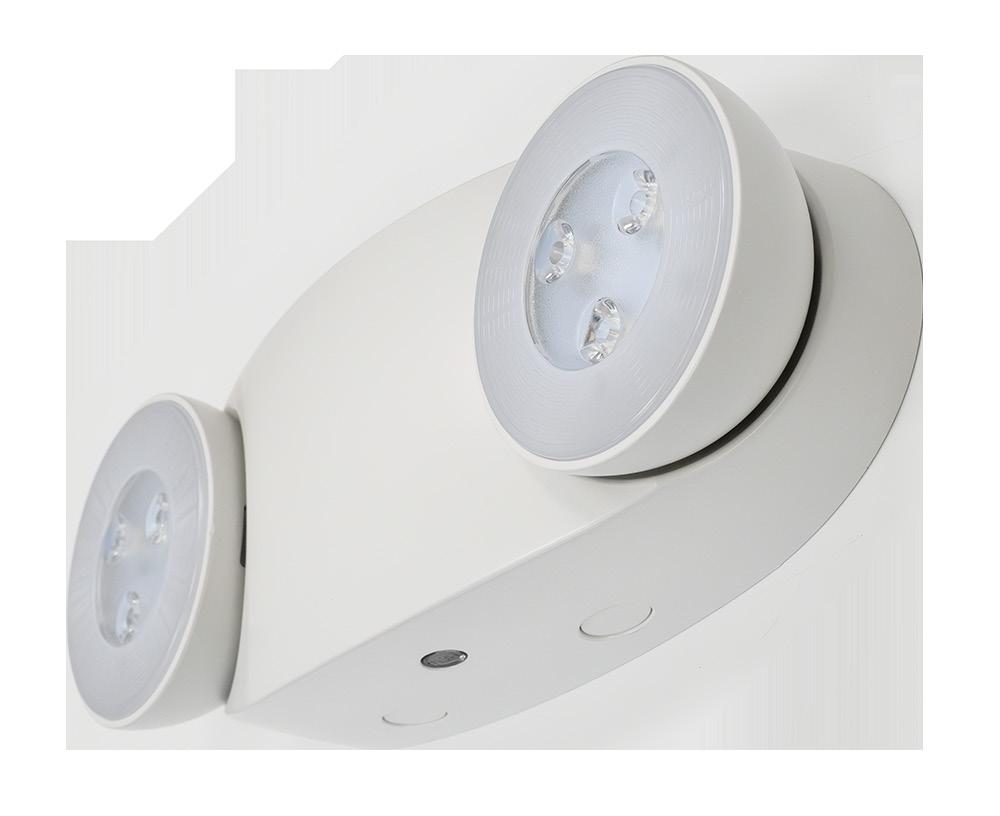

TYPE EMB SPEC ALTON DELRAY
FEATURES & SPECIFICATIONS
INTENDED USE — Provides a minimum of 90 minutes of illumination for the rated wattage upon loss of AC power. Ideal for applications requiring attractive unit equipment with quick installation.
CONSTRUCTION — White, compact, low-profile contemporary design. Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. UL94V-0 flame rating. UV-stable resin resists discoloration from natural and man-made light sources.
OPTICS — Two high-performance LED lamp heads rated at 3 watts each, delivering a total of 536 lumens (268 lumens per lamp). Two white LEDs per head provides a redundant light source that ensures emergency lighting performance. The typical life of an LED is 10 years.
Linear Pattern (LP) is designed for uniform emergency lighting applications.
Advanced electrical design provides constant light output throughout the entire discharge period.
Single fixture illuminates a 42’ long 6’ wide path of egress at a 12’ mounting height.
Thermal protection senses circuitry temperature and adjusts charge voltage termination to prevent overheating and charger failure.
Thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient temperature.
Low-profile, integrated test switch/pilot light. Easily visible bright red status indicator.
Battery: Sealed, maintenance-free lead acid (SLA) provides 9W rated capacity. Automatic 48-hour recharge after a 90-minute discharge. Low-voltage disconnect helps to prevent excessively deep discharge that can permanently damage the battery. Single-circuit battery connection. REM option available to provide support for one remote lamp head.
Regulated charge voltage maintains constant-charge voltage 120V and 277V. Prevents over/under charging that shortens battery life and reduces capacity.
Filtered charger input minimizes charge voltage ripple and extends battery life.
AC/LVD reset allows battery connection before AC power is applied and helps to prevent battery damage from deep discharge
Brownout protection is automatically switched to emergency mode when supply voltage drops below 80 percent of nominal.
Self Diagnostics: Single bi-color LED indicator to display two-state charging, test activation and threestate diagnostic status. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection. Self-diagnostic testing for five minutes every 30 days and 90 minutes annually. Diagnostic evaluation of LED light source, AC to DC transfer, charging and battery condition.
Continuously monitors AC functionality.
Diagnostic evaluation of lamp, AC to DC transfer, charging and battery condition.
Brownout protection is a standard feature of self-diagnostics.
Continuously monitors AC functionality.
Automatic test is easily postponed for eight hours by activating manual test switch.
INSTALLATION — Unique track-and-swivel arrangement permits full range of direction of lamp head adjustment. Universal J-box mounting pattern. Tool-less access for maintenance. Flexible conduit entry provision on top of the unit. Ceiling mount standard. US Patent No. D473,627.
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C. Specifications subject to change without notice. Thermoplastic Emergency Light
LISTINGS Meets UL924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards. Meets all applicable FCC requirements. WARRANTY — 3-year limited warranty. Complete warranty terms located at www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
For shortest lead times, configure product using standard options (shown in bold).
Accessories: Order as separate catalog number.
ELA VS Thermoplastic vandal shield 2
WG1 Wireguard, 15”W x 13-1/2”H x 6”D 3
4
5
6
3
2
DOE-HO
Dual Optics Emergency Light High Output

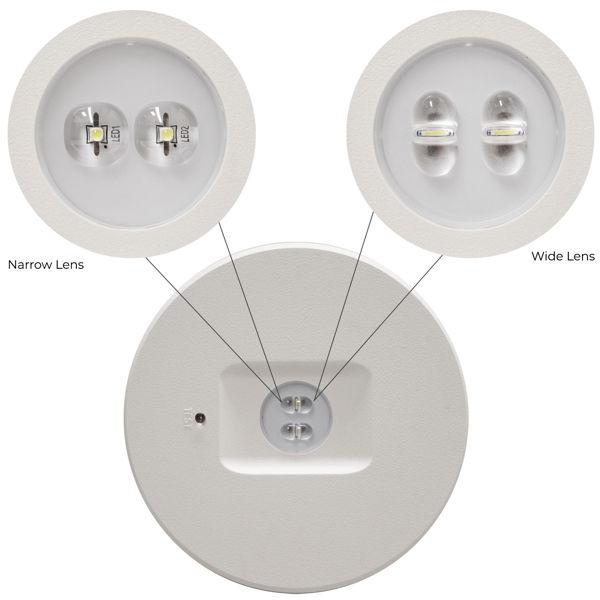

The DOE-HO series is a high lumen output LED emergency lighting unit, which provides industry leading 125’ path of egress spacing, at a maximum of 9’ mounting height, eliminating the need for multiple emergency lighting units. Suited for larger areas and agress paths such as large department stores, retailers and schools.
The EL-ARM series combinestraditionalemergencylighting and energyef ciencyLED performancefor a maintenancefree, dependable design.
Compatible Battery: 6.2V3200mAhLiFePO4
ORDERING INFORMATION
LEDRECESSEDARCHITECTURAL EMERGENCY LIGHT | CEILING MOUNT
Anycomponent thatfails due tomanufacturer’sdefect is guaranteedfor 1 year. The warrantyonly coversproducts installedand maintained in accordancewith the instructions provided bytheir respectivemanufacturer and no warrantyis made with respect toany of our products thatare otherwise installedormaintained. For full warrantydetails, visit our WarrantySection.
ConformancetoCodes and Standards
The EL-ARM seriesis UL listed and meets orexceeds the following: UL 924, NEC, OSHA and NFPA101 LifeSafety Code requirements.
The EL-ARM series combinestraditionalemergencylighting and energyef ciencyLED performancefor a maintenancefree, dependable design.
Compatible Battery: 6.2V3200mAhLiFePO4
ORDERING INFORMATION
LEDRECESSEDARCHITECTURAL EMERGENCY LIGHT | CEILING MOUNT
Anycomponent thatfails due tomanufacturer’sdefect is guaranteedfor 1 year. The warrantyonly coversproducts installedand maintained in accordancewith the instructions provided bytheir respectivemanufacturer and no warrantyis made with respect toany of our products thatare otherwise installedormaintained. For full warrantydetails, visit our WarrantySection.
ConformancetoCodes and Standards
The EL-ARM seriesis UL listed and meets orexceeds the following: UL 924, NEC, OSHA and NFPA101 LifeSafety Code requirements.

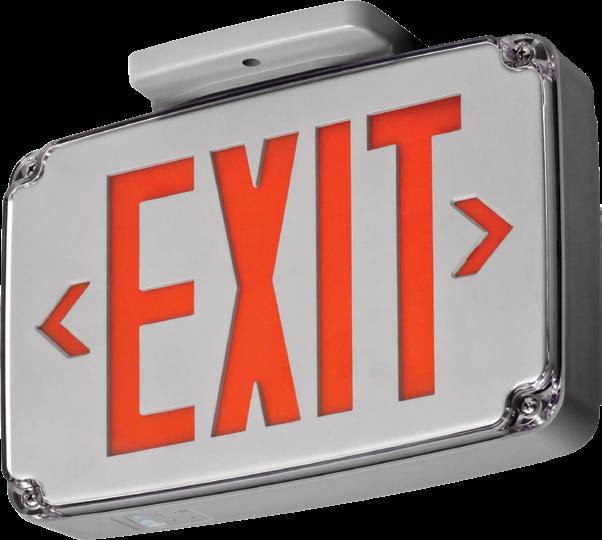

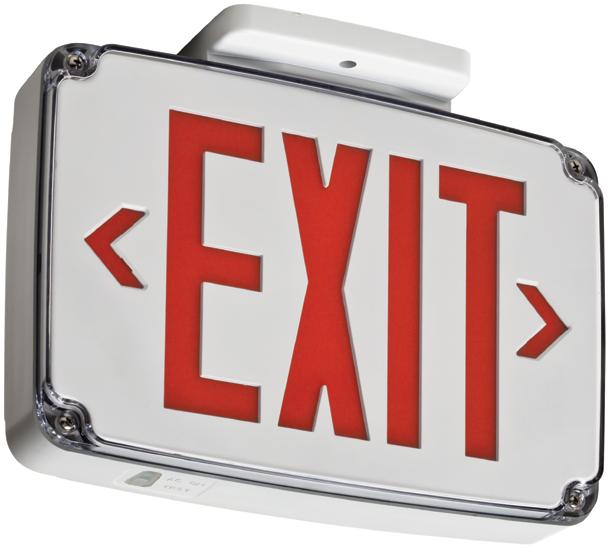

TYPE EMX SPEC ALTON DELRAY
FEATURES & SPECIFICATIONS
INTENDED USE — Ideal for wet location areas requiring exit signs for AC only or battery back-up power that are subject to saturation with non-mechanically delivered water. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — White, compact, contemporary design. Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. Universal directional Chevron inserts are easily removed and reinserted. UL94V-0 flame rating. UV-stable resin resists discoloration from natural and man-made light sources. Rugged, heavy-duty, polycarbonate clear housing lens. Housing also available in black or gray. Letters 6" high with 3/4" stroke, with 100 ft. viewing distance rating, based upon UL924 standards.
OPTICS — Low energy consumption — fewer than 5 watts. The typical life of the exit LED lamp is 5 years, based on 24/7 operation.
ELECTRICAL — Dual voltage input capacity (120/277V).
Battery: (EL Option) – Sealed, maintenance free nickel-cadmium battery delivers 90 minutes rated capacity. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection. Self-diagnostic testing (SD Option Only) for 30 seconds every 30 days, 30 minutes every 180 days and a 90-minute annual test. Diagnostic evaluation of LED light source, charging and battery condition.
INSTALLATION — Universal mounting canopy for top or end mount. Back mount standard for single face only. Junction box hole pattern for 4" octagon mounting. Flexible conduit entry.
LISTINGS — UL listed. Wet location listed. Standard cold temperature rating -4°F to 122°F (-20°C to 50°C). Meets UL 924, NFPA 101 (current Life Safety Code) and NFPA 70-NEC, Meets all applicable FCC Title 47, Part 15, Subpart B requirements.
WARRANTY — 5-year limited warranty. (Battery is prorated.) This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
† Exit Signs Certified in the CA Title 20 Appliance Efficiency Database.
Specifications
Length: 12-1/2 (31.8)
Depth: 2-1/2 (6.4)
Height: 8-1/8 (20.6)
Weight: 4.1 lbs (1.9 kg)
All dimensions are inches (centimeters) unless otherwise indicated.
ALTON DELRAY TYPE EMX
Source: 2.2W

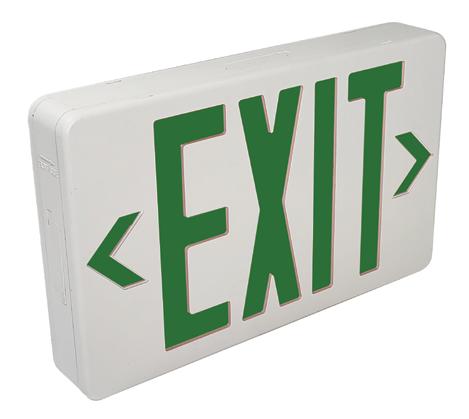

PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty
· UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
INTENDED USE —For areas that require good vertical illumination and excellent glare control at low mounting heights. Ideal for open areas, retail spaces and aisles. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION — One-piece 5VA rated fiberglass housing with integral perimeter channel utilizes continuous poured-in-place NEMA 4X gasket. Simple two-piece design consists of housing and optical assembly to streamline installation process. Polymeric latches positively attach to housing and keep from becoming a hindrance during install.
OPTICS — Injection-molded, acrylic lens (.080" thick), provides high impact-resistance comparable to 100% DR. F1 rated for outdoor use, lenses resist breaking, yellowing or becoming brittle over time. UV stabilized polycarbonate diffuser available (.080" thick) in clear or frosted for additional impact strength. Polycarbonate lens is recommend for lower mounting heights where vandal protection is desired.
ELECTRICAL — Tool-less one piece optical assembly combines LEDs and lens into one component. Optical assembly easily connects to housing with plug and play harness, eliminating time consuming wiring connections. High-efficiency drivers operate 120-480V offered with 0-10V dimming, allowing granular control when coupled with wireless networking controls. Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015. L85 at 60,000 hours.
INSTALLATION — Two-piece design makes installations faster than ever by simplifying wiring connections. Power connection is easily accommodated through pre-drilled holes at each end, optional wet location fittings available for maximum flexibility.
Stainless steel (#316) surface spring-mounting brackets with bail wires standard (2 included) allow for ceiling, wall or suspended mount.
Swivel stem(provided by others) when pendant mounting. Factory installed junction box option accommodates up to 4X4 sized boxes and includes integrated gasket to maintain wet location listings. Quick Mount Bracket (QMB) ships installed on fixture and is recommended for fastest surface mount installs, ideal for end to end installations or larger jobs.
LISTINGS — CSA Certified to UL and C-UL standards. NEMA 4X rated. IP ratings: IP65 and IP66 rated. See page 3 for ambients.
NSF listed for Splash Zone II.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
DIMENSIONS
All dimensions are shown in inches (centimeters) unless otherwise noted.
PHOTOMETRICS
Please see www.lithonia.com
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details
ALTON DELRAY TYPE J ALT
SYLVANIA Luminaires
UltraLED™ Dual Selectable Vapor Tight 3A
Application
Ideal in new construction and retrofit applications, the UltraLED Dual Selectable Vapor Tight 3A is offered in three sizes that all feature both lumen and CCT selectability. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
Benefits and Features
IP66 rated polycarbonate body and lens and a broad temperature range ensure a durable product
— Stainless steel lens clips
DLC 5.1 listing maximizes energy savings and rebate opportunities
Optional integrated motion/daylight sensor and emergency battery back-up offer further potential energy savings
— Dual selectability facilitated by the switches located inside the luminaire allows for customizable light
— Offered in three wattage selectable sizes
– 2ft: 15, 20, or 25W selectable
– 4ft: 30, 40, or 50W selectable
– 8ft: 70, 80, or 90W selectable
3500K, 4000K, and 5000K selectable color temperature
— Up to 144 LPW
— CRI >80 Energy savings up to 59%
Electrical
120-347Vac
— Power Factor >90%
— THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated Auxiliary 12V output
Rated Life
100,000 hours (L70)
Warranty 5-year
— NLB Trusted Warranty Program
Wattage Comparison
Operating Temperature
— -40°F to 122°F (-40°C to 50°C) for 2' and 4' models (chain mount)
— -40°F to 104°F (-40°C to 40°C) for 2', 4', and 8' models (surface mount)
— -40°F to 113°F (-40°C to 45°C) for 8' models (chain mount)
— -31°F (-35°C) minimum ambient for motion sensor models
32°F (0°C) minimum ambient for EMBB models
Certifications and Listings
Installation Fixture can be surface mounted or suspended. Stainless steel mounting brackets and V-hooks are included
TYPE J SPEC ALTON DELRAY
DMW2 LED Wet Location
ORDERING INFORMATION Lead times will vary
DMW2 LED wet location
L2424" 2000LM 2,000 lumens
3000LM 3,000 lumens
4000LM 4,000 lumens
Options
E10W IOTA 10W emergency battery pack, Constant Power, Certified in CA Title 20 MAEDBS, Selfdiagnostics (LINK ) ‡
PMP4X Pendant monopoint with NEMA4X fitting (not available with JSB option) ‡
WLFEND Wet location fitting (one fitting out end) ‡
WLFEND2 Wet location fitting (fittings out both ends) ‡
JSB Junction box snap-bracket ‡
QMB Quick-mount ceiling bracket ‡
CS896' white cord, 16/3, no plug, wet location ‡
CS89L1212' white cord, 16/3, no plug, wet location ‡
ACL Acrylic
AFL Frosted acrylic PCLPolycarbonate
PFL Frosted Polycarbonate
MD Medium distribution WD Wide distribution
CS88 6' Brad Harrison 16/3 cord and straight blade plug set, NEMA 4X rated ‡
CS88L12 12' Brad Harrison 16/3 cord and straight blade plug set, NEMA 4X rated ‡
CS88R Brad Harrison receptacle, NEMA 4X rated ‡
NOM Nom certified
TPS TorxT10 tamper-resistant screws
STSL Stainless steel latches
SPD10KV surge protection device ‡
BAABuy America(n) Act and/or Build America Buy America Qualified
MSI10NWLLow mount 360 integral motion sensor, wet location, On/Off operation ‡
MSI102L3VWL Low mount 360 integral motion sensor, wet location, High/Low operation (3 level) ‡
MSI10NWL DSCNWL low mount 360 integral motion sensor, wet location , On/Off operation for motion sensing, override Off due to daylight ‡
NLTAIR2 RSBOR10 nLight AIR Generation 2 enabled 360° low mount motion sensor ‡
NOTE: ‡ indicates option chosen has ordering restrictions. Please reference ordering restrictions chart. Options are sorted alphanumerically.
Accessories: Order as separate catalog number.
RK1 T10BIT W/PIN UHex-base driver bit, Torx TX10, for tamper-resistant screws with center reject pin
DMW2WLF Wet location fitting
DMW2QMBQuick-mount ceiling bracket
CS88, CS88L12
Receptacle only. Not available with E10W option.
CS88R Receptacle only. Not available with E10W option.
CS89, CS89L12 Not available with other cord sets. Not available with E10W option.
E10W Not available with JSB, PMP4X mounting options. Not available with CS88 cord sets or CS88R receptacle. Must specify voltage. Not available with 347, 480V. Maximum ambient temperature 25°C.
JSB Not available with other mounting options.
MSI102L3VWL, MSI10WL DSCNWLNot available with other external MSI sensors or WLFEND2. Must specify voltage.
MSI10WL Not available with other external MSI sensors or WLFEND2. Must specify voltage.
NLTAIR2 RSBOR10 Not available with other external MSI sensors or WLFEND2. Normal luminaires (non-emergency) can be used as a normal power sensing device for nearby nLight AIR devices and luminaires with EM emergency options.
PMP4X Not for field install. Not available with PS1050 option. Not available with QMB, JSB mounting options. QMB Not available with other mounting options.
Series Plastic latches supplied as standard. Provided with 2X KO plugs at both ends.
SPD Not available with MSI10NWL, MSI102L3VWL, MSI10NWL DSCNWL, NLTAIR2 RSBOR10. WLFEND Not available with WLFEND2. Not available with cordsets or sensors.
WLFEND2 Not available with WLFEND, cord sets, or MSI sensors.
LITHONIA-DMW2-LINEAR-SURFACE-LED-ENCLOSED AND GASKETED
ALTON DELRAY TYPE J
Catalog # Type Project Comments Prepared by
Ordering Guide
VAPOR = Vapor Tight luminaire
= Generation 3AS025 = wattage selectable 15, 20, or 25W S050 = wattage selectable 30, 40, or 50W S090 = wattage selectable 70, 80 or 90W
Ordering Information
62492
To Order
Information
TYPE KS SPEC ALTON DELRAY
Fixture Type:
Catalog Number:
Project:

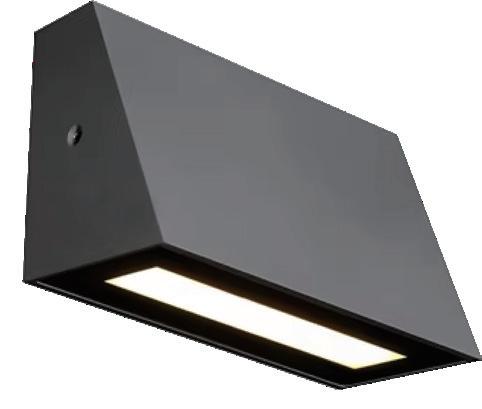

Oberon
Outdoor Wall Sconce 3000K
Location:
Example: WS-W45714-BK
•For 277V special order, add an "F" before the finish: WS-W45714F-BK
For custom requests please contact customs@waclighting.com
DESCRIPTION
A timeless contemporary guardian.
FEATURES
• Bent opal glass provides even illumination
• Weather resistant powder coated finish
• ACLED driverless technology
• 5 year warranty
SPECIFICATIONS
Color Temp: 3000K
Input: 120 VAC,50/60Hz
CRI 90
Dimming: ELV: 100-10%
Rated Life: 54,000 Hours
Mounting: Can be mounted on wall in all orientations
Construction Aluminum hardware with glass diffuser
FEATURES & SPECIFICATIONS
INTENDED USE — LED lighted exit signs for marking the means of egress in accordance with NFPA101 (current Life Safety Code).
CONSTRUCTION — Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components for easy installation. Universal J-box pattern. Universal chevrons are easily removed for directional indication. Fully assembled single face with extra faceplate for easy field-conversion to double face. Letters 6” high with 3/4” stroke, with 100 ft viewing distance rating, based on UL924 standards.
OPTICS — The typical life of the exit LED lamp is 5 years, based on 24/7 operation.
ELECTRICAL — Dual-voltage input 120V or 277V AC, 60Hz.
Battery: (EL models) maintenance-free ni-cad battery provides 90 minutes of emergency power. The emergency model includes the test switch, status indicator and rechargeable battery. Allow 24 hours to completely charge for full operation.
SELF-DIAGNOSTICS (SD option) — The self-diagnostic function is factory preset without any field adjustment. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection. Self-diagnostic testing for 30 seconds every 30 days, 30minute every 180 days, and 90 minutes every 365 days. Diagnostic evaluation of LED light source, AC to DC transfer, charging and battery condition. Continuously monitors AC functionality.
INSTALLATION — Universal (top-, end-, or back-) mounting (canopy included). Easily removed mounting knockouts. J-box pattern on back panel.
Ships standard with additional face plate.
LISTINGS — UL indoor damp location listed 32°-122°F (0°-50°C) standard. Meets UL924, NFPA 101 (current Life Safety Code), FCC Title 47, Part 15, Subpart B, NFPA 70-NEC and OSHA illumination standards.
WARRANTY — 2-year limited warranty. (Battery is prorated.) This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
† Exit Signs Certified in the CA Title 20 Appliance Efficiency Database.
Specifications
Length: 11.63 (29.5)
Depth: 1.63 (4.1)
Height: 7.2 (18.3)
Weight: 2.1 lbs
thermoplastic housing, Red Letters, LED, Nicad battery back-up, Master pack of 6
Black thermoplastic housing, Green Letters, LED, Nicad battery back-up, Master pack of 6
All dimensions are inches (centimeters) unless otherwise specified.
thermoplastic housing, Red Letters, LED, Nicad battery back-up, Self-diagnostics, Master pack of 6
thermoplastic housing, Green Letters, LED, Nicad battery back-up, Self-diagnostics, Master pack of 6
M6 Black thermoplastic housing, Red Letters, LED, Nicad battery back-up, Self-diagnostics, Master pack of 6 EXG
M6
Black thermoplastic housing, Green Letters, LED, Nicad battery back-up, Self-diagnostics, Master pack of 6
ALTON DELRAY TYPE X ALT
Type Project Catalog No.
Notes

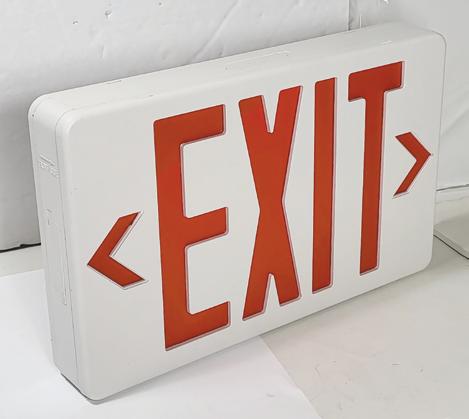

PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
11-13/16" Width x 7-1/4" Height x 1-13/16" Depth
· Injection-molded thermoplastic housing Black or White housing finish
FACE
6" high text with color diffusion
Both double and a blank face are included Snap-in direction indicators
MOUNTING
Wall, side, or ceiling
Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only

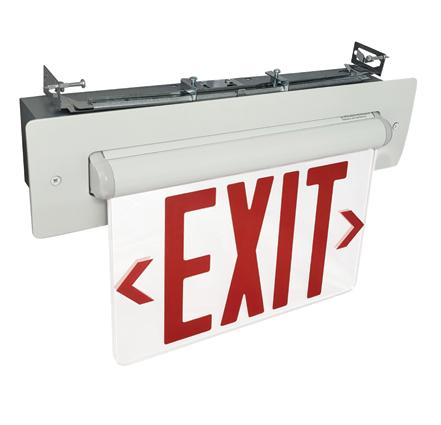

LABELS AND LISTINGS
5-Year Limited Warranty UL 924
Rated for Damp Locations (Wet Location when used with NEG-60) NFPA
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
A+ Capable options indicated by this color background.
Ordering Information
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately

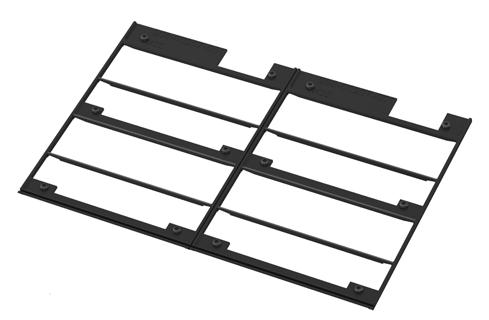

WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction

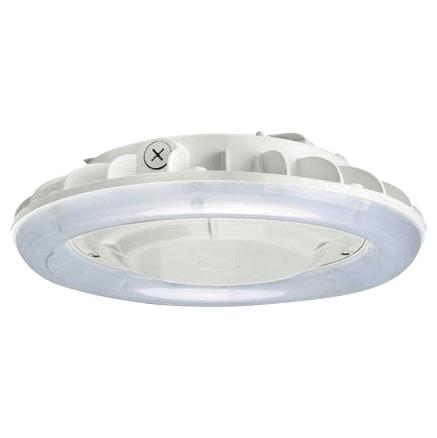

The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.

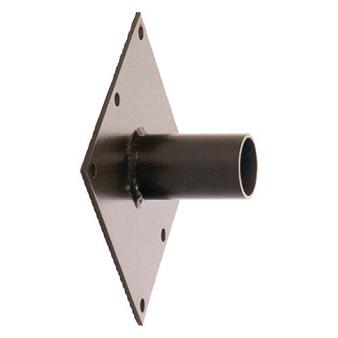

Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units)
U Unit packs only
ALTON DELRAY TYPE
SPECIFICATIONS
HOUSING
- Heavy duty sealed die cast aluminum housing
- Corrosion reistant powder coat
- White finish standard, black and dark bronze also available
A+ Capable options indicated by this color background.
Ordering Information
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units)
U Unit packs only
ALTON
SPECIFICATIONS
HOUSING
- Heavy duty sealed die cast aluminum housing
- Corrosion reistant powder coat
- White finish standard, black and dark bronze also available

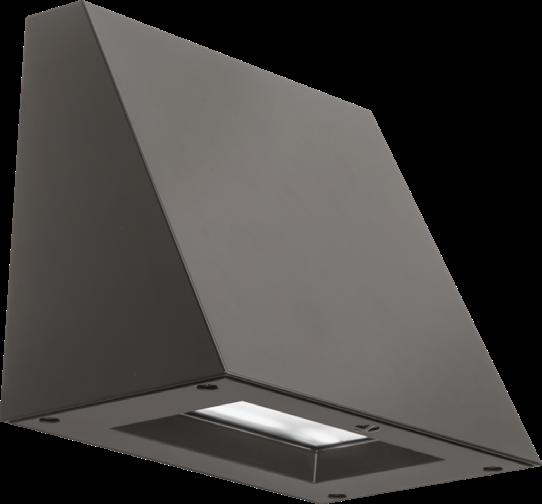

The WOGE LED family is designed to meet specifier's every wall-mounted lighting need in a widelyaccepted shape that blends with any architecture. The clean rectilinear design comes in four sizes with lumen packages ranging from 1,200 to 25,000 lumens, providing true site-wide solution.
WDGE1 delivers up to 2,000lumens with a soft, nonpixelated light source,creatinga visuallycomfortable environment.The compactsize ofWOGE1, with its integrated emergency batterybackup option, makes it an ideal over-the-door wall-mounted lighting solution.

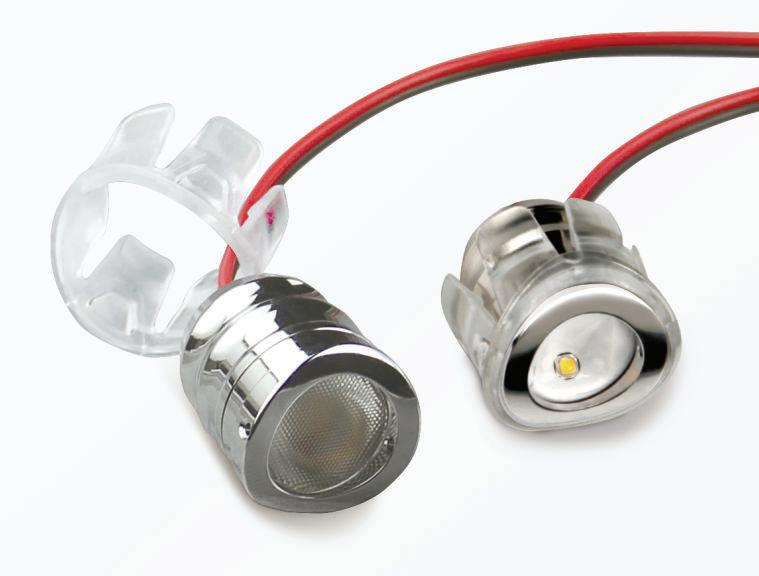

The RLR-242 handrail lights are designed for a variety of sizes of round handrails. They are a discreet in-rail lighting solution for walkways and stairs. Symmetric and asymmetric beam spreads along with static colors, including turtle friendly amber, as well as RGBW and self-addressing RGBDMX options cover most handrail applications.
RL SERIES LED Handrail Lights
TECHNICAL SPECIFICATIONS
Operating Voltage
Power ConsumptionSingle Color/RGBW/RGBDMX 1.5W/2.5W/2W
Canada: 100-1873 Forge Place Abbotsford, BC V2T 0L2 USA: 6875 Speedway Blvd. Ste 106 Las Vegas, NV 89115 Project: Company:

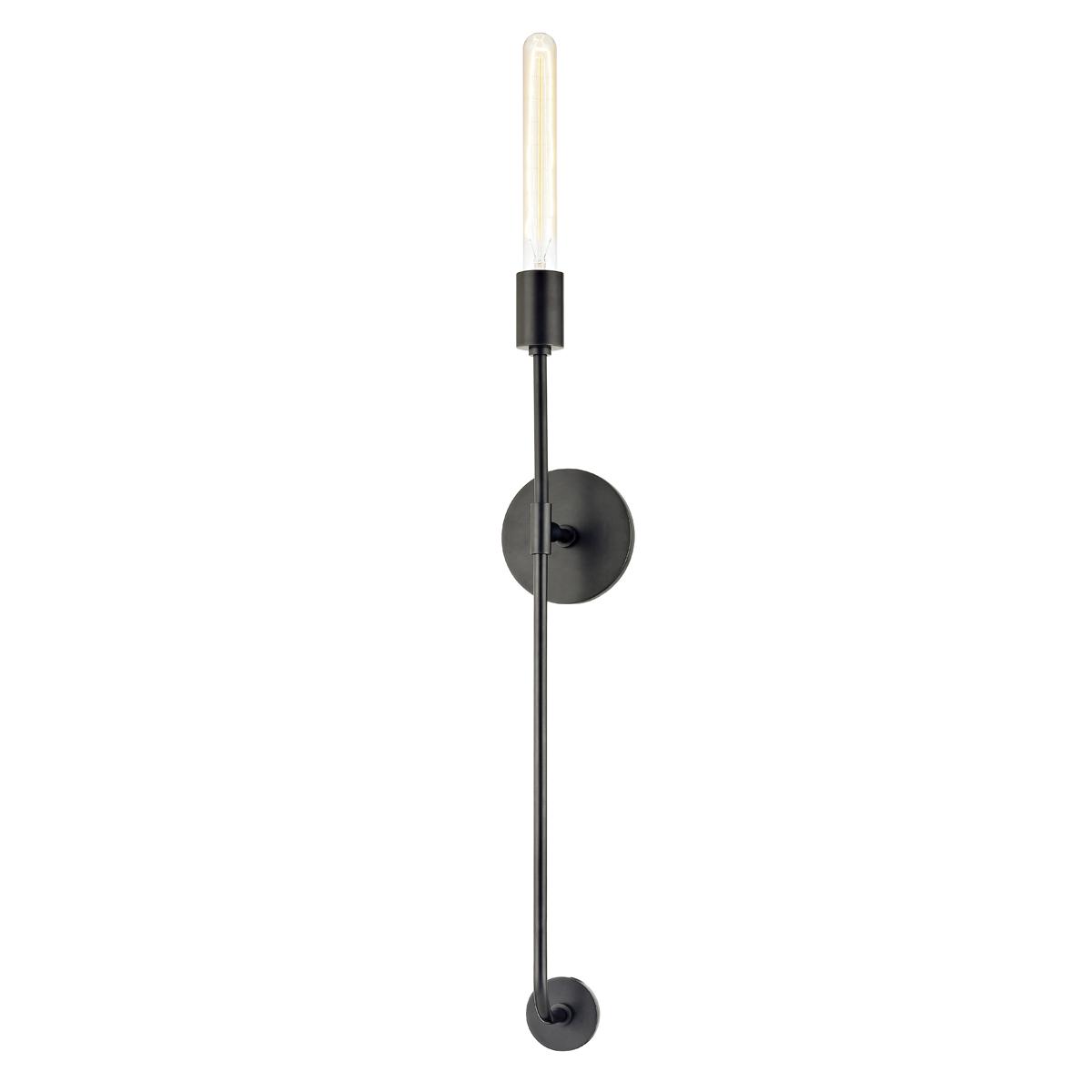

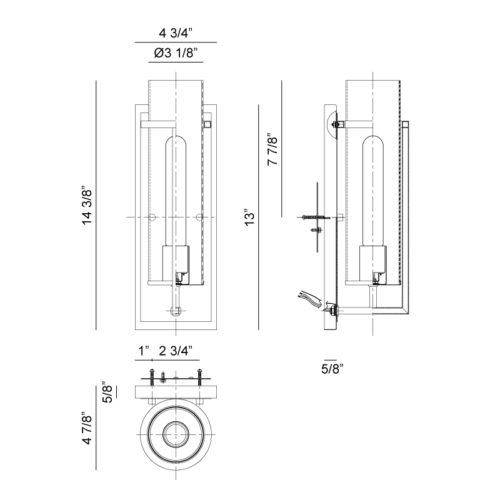

WALL SCONCE
S03901MB
Speci cations
Description

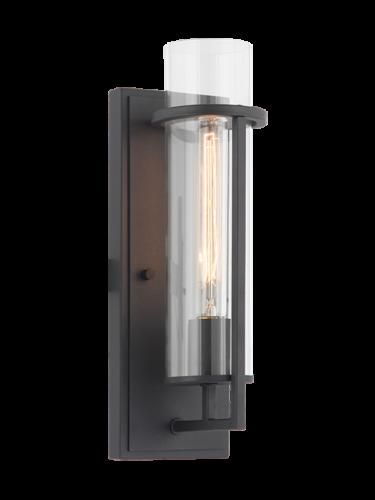

Tubulaire
A modern creation of the candle sconce. Tubulaire's clear glass highlights the basic form of this timeless wall sconce. Available in Chrome or Matte Black.
*LIGHTBULBS NOT INCLUDED
Notes FINISH Matte Black SHADE Glass
TYPE F-1 SPEC ALTON DELRAY

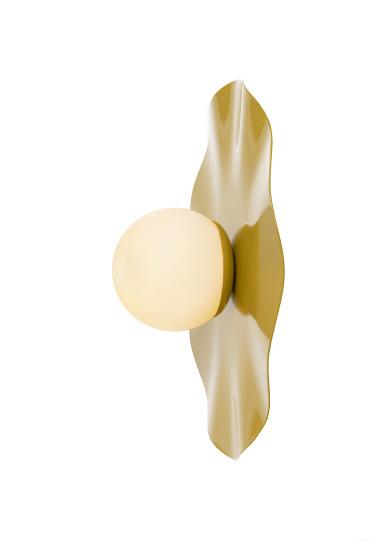

LED Sconce
SKU:6702888
OVERVIEW
DIMENSIONS
SHIPPING + RETURNS
ASSEMBLY INSTRUCTIONS
TEAR SHEET
DOWNLOADTEARSHEET
Similar Items
Callum
Ivon
BLANK

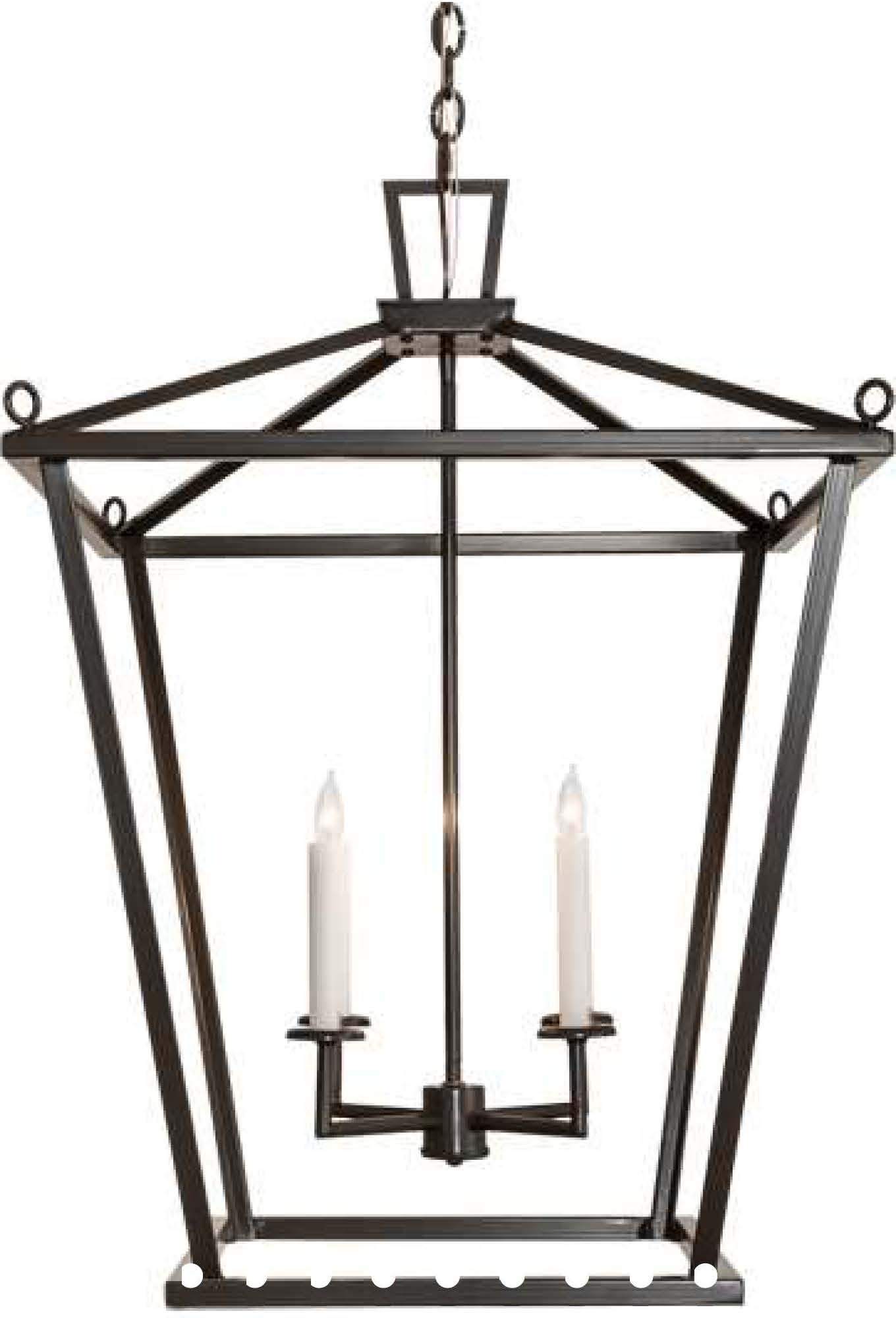

24" Square Kitzi Tapered Pendant
Item Number: 214258
A sophisticated architecturally styled fixture is designed with a pizazz that isunique, fresh and stylish. Give yourdecor an extra edge with this breathtaking fixture,whichishighlightedwith a solidstructure. Beautifulambientilluminationis revealedby four White faux candlelights.The hardware &frame are featured in a handsome Timeless Bronze finish. Overall height ranges from 37 to 67inches as chain length adjusts easilyin the field. Handmade by highlyskilled artisans in our 180,000sqftmanufacturingfacility inYorkville, New York. Lens materials &metal finishes can be customized to your requirements.UL &cULlisted for dry &damp locations.
Email sales@meyda.com to Request Pricing Details!
Availability: Custom Crafted In Yorkville, New York Please Allow 35 Days ✓
Dimensions ➔
Total Height: 37-67
Total Square: 24
Total Weight: 26 lbs.
Bulb Info
Bulb Type: E12
Bulb Wattage: 60
Bulb Quantity: 4
Finish & Lens ➔
Finish: Timeless Bronze And White
UL Damp Location - If you intend to utilize this product in a coastal or any other challenging damp location, please call us for a quote.
Related products
24" Square Kitzi Tapered Pendant
Item Number: 214258
A sophisticated architecturally styled fixture is designed with a pizazz that isunique, fresh and stylish. Give yourdecor an extra edge with this breathtaking fixture,whichishighlightedwith a solidstructure. Beautifulambientilluminationis revealedby four White faux candlelights.The hardware &frame are featured in a handsome Timeless Bronze finish. Overall height ranges from 37 to 67inches as chain length adjusts easilyin the field. Handmade by highlyskilled artisans in our 180,000sqftmanufacturingfacility inYorkville, New York. Lens materials &metal finishes can be customized to your requirements.UL &cULlisted for dry &damp locations.
Email sales@meyda.com to Request Pricing Details!
Availability: Custom Crafted In Yorkville, New York Please Allow 35 Days ✓
Dimensions
Total Height: 37-67
Total Square: 24
Total Weight: 26 lbs.
Bulb Info
Bulb Type: E12
Bulb Wattage: 60
Bulb Quantity: 4
Finish & Lens ➔
Finish: Timeless Bronze And White
UL Damp Location - If you intend to utilize this product in a coastal or any other challenging damp location, please call us for a quote.
Related products
Image shown above 14.1 with round canopy Weight (kg)
Series 14
Mounting Ceiling mounted
Glass Colours Clear, grey, sepia
Lamp
1W LED, 2700K, 100lm (2500K and 3000K options available)
10W Xenon, 2600K, 81lm
Coaxial Length 3000mm standard / up to 30500mm maximum
Adjustable length: 14.1 - 14.9
Non-adjustable length: 14.11 - 14.50
Canopy Finishes 14.1 - 14.7: white, black or brushed nickel canopy 14.1m: white, black, brushed nickel, or brushed brass canopy 14.9 - 14.50: white canopy
Bocci recommends remote mounting power supplies for ease of long-term maintenance.
Environment Indoor, dry location. IP30
Note Every single Bocci product is handmade. Each one is variously blown, poured, carved, polished, packed and dispatched directly by us. As such, no two products are identical; they are individual, irregular expressions of our research.
Registration ® 14 Series product design protected as U.S. Reg. No.
Certifications
7,129,209
Image shown above 14.1 with round canopy
Series 14
Mounting Ceiling mounted
Glass Colours Clear, grey, sepia
Lamp
1W LED, 2700K, 100lm (2500K and 3000K options available)
10W Xenon, 2600K, 81lm
Coaxial Length 3000mm standard / up to 30500mm maximum
Adjustable length: 14.1 - 14.9
Non-adjustable length: 14.11 - 14.50
Canopy Finishes 14.1 - 14.7: white, black or brushed nickel canopy 14.1m: white, black, brushed nickel, or brushed brass canopy 14.9 - 14.50: white canopy
Bocci recommends remote mounting power supplies for ease of long-term maintenance.
Environment Indoor, dry location. IP30
Note Every single Bocci product is handmade. Each one is variously blown, poured, carved, polished, packed and dispatched directly by us. As such, no two products are identical; they are individual, irregular expressions of our research.
Registration ® 14 Series product design protected as U.S. Reg. No.
Certifications
7,129,209
Weight (kg)
MercerPictureLights24”
Reed
Picture Light 3000K
Example: PL-11025-BN
For custom requests please contact customs@waclighting.com
DESCRIPTION
The perfect complement to any display piece. Conserves fine art while providing superior color rendering.
FEATURES
• Light source rotates 150 degrees
• Simple, elegant slim profile design
• Driver conceals within the canopy
• Conversion plate for 4” J box included.
• Trimless spackle cover available for 4" square junction box recessed in drywall thicknesses of 1/2", 5/8", 1", and 1-1/4"; accessory not included and can be ordered separately (model# CP-TL-WT)
Certification: Usage intérieur seulement/Indoor use only
Lien 3D/link: Cliquez ici/Click here
Select colors & finishes - Click here >
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
INCANDESCENT / LED
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
INCANDESCENT / LED
AMPOULE INCLUSE / BULB INCLUDED*
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
AMPOULE INCLUSE / BULB INCLUDED*
*Détail sur fiche technique / Details on spec sheet*
*Détail sur fiche technique / Details on spec sheet*
Certification: Usage intérieur seulement/Indoor use only
Lien 3D/link: Cliquez ici/Click here
Select colors & finishes - Click here >
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
INCANDESCENT / LED
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
INCANDESCENT / LED
AMPOULE INCLUSE / BULB INCLUDED*
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
AMPOULE INCLUSE / BULB INCLUDED*
*Détail sur fiche technique / Details on spec sheet*
*Détail sur fiche technique / Details on spec sheet*
USAGE INTÉRIEUR SEULEMENT, INDOOR USE ONLY
USAGE
UL # Certificat: 20150318-E475067
UL # Certificat: 20150318-E475067
TYPE F-5 SPEC ALTON DELRAY
Choisir
Choisir
Champs de Blé Lustré Glossy Wheatland WHL Yesterday Green Yesterday Green GYM
Ardoise Mat Matt Slate SLM
Beige Mat Matt Beige BGM
Glacier Lustré Glossy Iceberg WGL
Terracotta Lustré Glossy Terracotta TCT
Sahara Lustré Glossy Sahara RHL
Gris Lustré Glossy Grey GYL
Tournesol Lustré Glossy Sunfower SNL
Cactus Lustré Glossy Cactus CTL
Charcoal Mat Matt Charcoal CHM
Sable Mat Matt Sand SAM
Lin Mat Matt Linen LIM
Rouge Terreux Lustré Glossy Clay Red RCT
Porcelaine Mat Matt Porcelain POM
Pigeon Bleu Lustré Glossy Blue Pigeon PBL
Jaune Lustré Glossy Yellow YLL
Vert Classique Lustré Glossy Classic Green VCL
Noir Mat Matt Black BKM
Café Lustré Glossy Cafe CFL
Galet Mat Matt Pebble GLM
Rouge Lustré Glossy Red
Lavande Lustré Glossy Lavander LVL
Bleu Saphire Lustré Glossy Saphire Blue BSL
ALTON DELRAY TYPE
Choisir
Choisir
Champs de Blé Lustré Glossy Wheatland WHL Yesterday Green Yesterday Green GYM
Ardoise Mat Matt Slate SLM
Beige Mat Matt Beige BGM
Glacier Lustré Glossy Iceberg WGL
Terracotta Lustré Glossy Terracotta TCT
Sahara Lustré Glossy Sahara RHL
Gris Lustré Glossy Grey GYL
Tournesol Lustré Glossy Sunfower SNL
Cactus Lustré Glossy Cactus CTL
Charcoal Mat Matt Charcoal CHM
Sable Mat Matt Sand SAM
Lin Mat Matt Linen LIM
Rouge Terreux Lustré Glossy Clay Red RCT
Porcelaine Mat Matt Porcelain POM
Pigeon Bleu Lustré Glossy Blue Pigeon PBL
Jaune Lustré Glossy Yellow YLL
Vert Classique Lustré Glossy Classic Green VCL
Noir Mat Matt Black BKM
Café Lustré Glossy Cafe CFL
Galet Mat Matt Pebble GLM
Rouge Lustré Glossy Red REL
Lavande Lustré Glossy Lavander LVL
Bleu Saphire Lustré Glossy Saphire Blue BSL

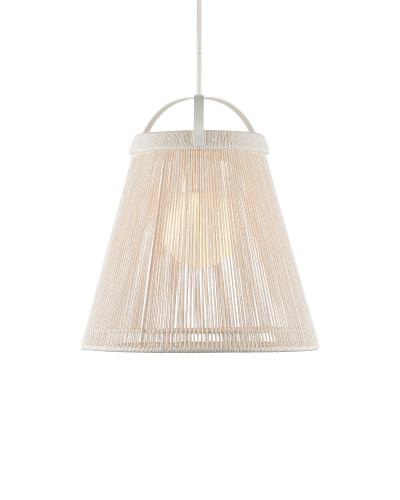

FIXTURE {PENDANT):
MANUFACTURER: SCOUT & NIMBLE
STYLE: FILAMENT ROPE PENDANT
MODEL#: JYLSSFILA-PEOW
LAMP {BULB):
MANUFACTURER: BULBRITE
MODEL#: B104140
LAMPING/WATT: 40 W
FIXTURE {PENDANT):
MANUFACTURER: CURREY & COMPANY
CTVI c. Df"'\1 1r1 C ru /\. l\lnCI ICD

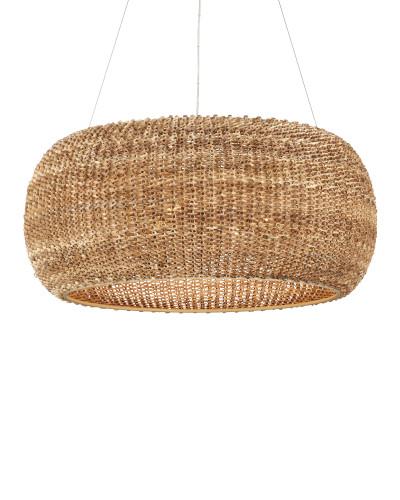

Boucle Chandelier
9000-1245
In Stock | Bestseller
Overall: 15.5"h x 36"dia.
Adjustable Height: 36" to 158"
Finish: Natural / Beige
Materials: Rattan / Wrought Iron
Item Weight: 20 lbs.
Number of Lights: 6
Suggested Bulb: G Globe
Socket Type: E12
60/360
Cord: 13' Clear Silver
Made from a process that is similar to quilling with paper, the Boucle Chandelier is fashioned from looping natural rattan that has textural curls on the edges. This is a complex weave that is incredibly time-consuming to achieve with the level of consistency that creates a seamless shade. Wrapped around a wrought iron frame in a beige nish, the rattan chandelier will bring great warmth to a space.
Boucle Chandelier
9000-1245
In Stock | Bestseller
Overall: 15.5"h x 36"dia.
Adjustable Height: 36" to 158"
Finish: Natural / Beige
Materials: Rattan / Wrought Iron
Item Weight: 20 lbs.
Number of Lights: 6
Suggested Bulb: G Globe
Socket Type: E12
60/360
Cord: 13' Clear Silver
Made from a process that is similar to quilling with paper, the Boucle Chandelier is fashioned from looping natural rattan that has textural curls on the edges. This is a complex weave that is incredibly time-consuming to achieve with the level of consistency that creates a seamless shade. Wrapped around a wrought iron frame in a beige nish, the rattan chandelier will bring great warmth to a space.
TYPE F-8 SPEC ALTON DELRAY

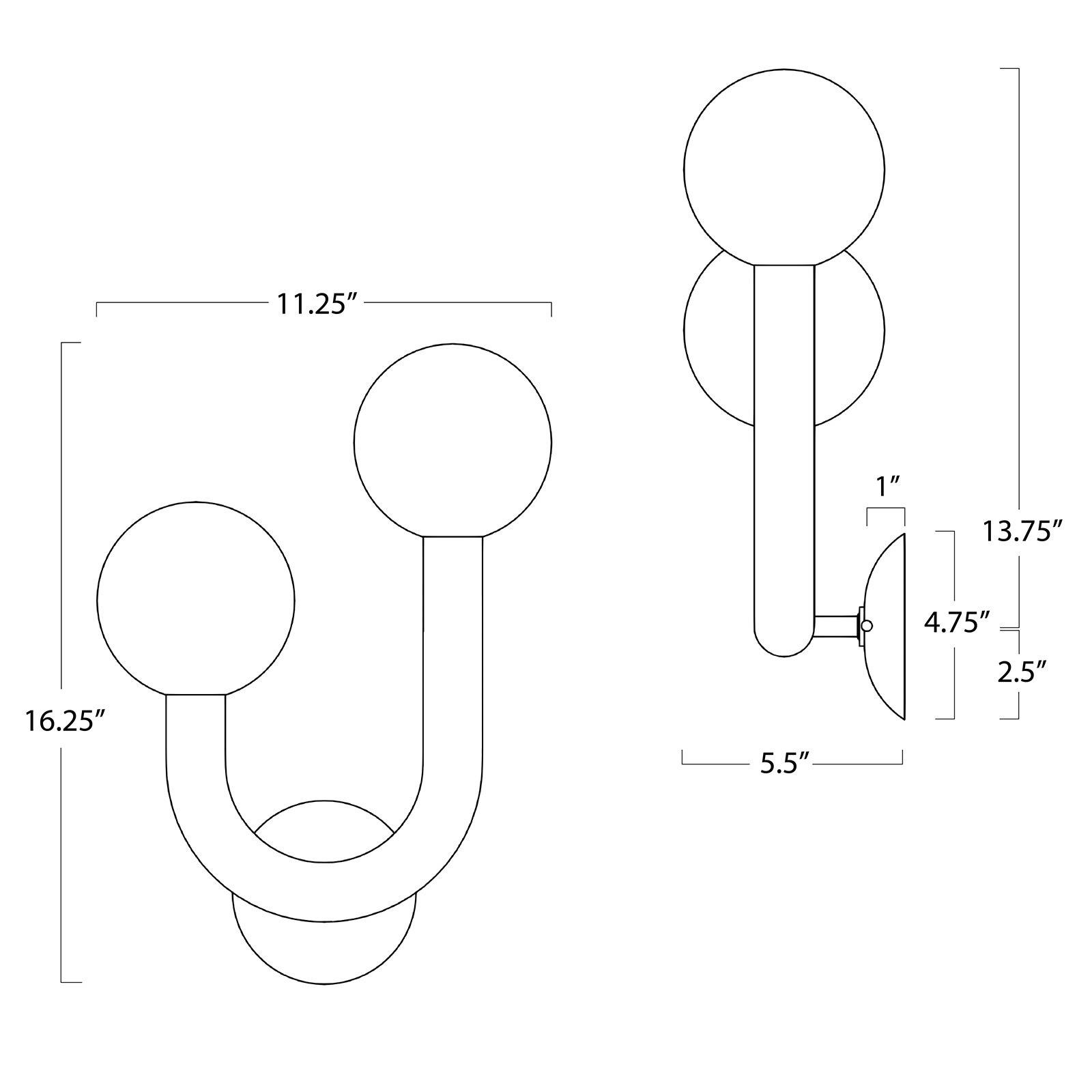

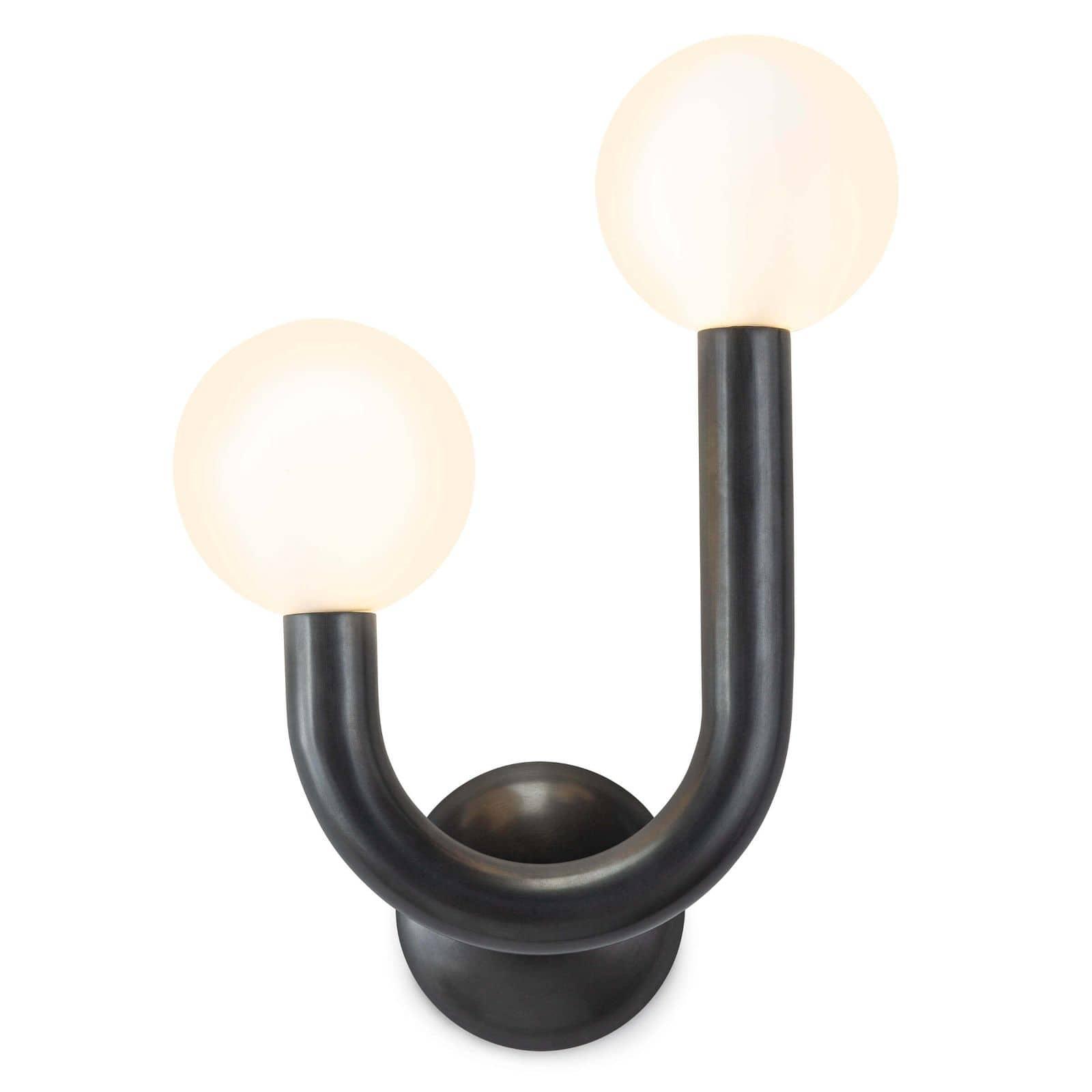

Happy Sconce Left Side (Oil Rubbed Bronze) 15-1144L-ORB
HEIGHT 16.25
WIDTH 11.25
DEPTH 5.5
SHADE DIMS N/A
SHADE COLOR N/A
BULB QTY 2
BULBTYPE G9 LED
SOCKET G 9
WATTAGE 5 Watt Max
WIRINGTYPE Hard Wire
BACKPLATE 4.75 x 4.75 x 1
JUNCTION BOX 13.75 in from top, 2.5 in from bottom
MATERIAL Nickel
FINISH Oil Rubbed Bronze
NOTES N/A
FREIGHT ONLY No
ALTON DELRAY TYPE
FINISHES
SHADES OF LIGHT
USECODE: CYBER25 • SALEENDSDECEMBER 1 •
20% LIGHTING & HOME DECOR SITEWIDE .... OFF
Home » Chandeliers & Pendants » Pendants » Pendant Lighting » WhiteCeramic Urchin Pendant
Share: f X @ � EJ
SHADES OF LIGHT
USECODE: CYBER25 • SALEENDSDECEMBER 1 •
20% LIGHTING & HOME DECOR SITEWIDE .... OFF
Home » Chandeliers & Pendants » Pendants » Pendant Lighting » WhiteCeramic Urchin Pendant
Share: f X @ � EJ
SHADES OF LIGHT
SKU: PE19219 WH
$289.00
Color: Brass/White
Actual Size: 5"Hx9.S"Wx9.5"D
Typically ships in 1-2 weeks.
20% OFFONTHISITEM WITH CODECYBER25 DURING CYBER SALE. OFFER ENDS 12/01/2025 Qty l Add to cart + Add to my List + Add to Gift Registry
Core rattan hand-wrapped with natural lampakanay rope. Pendant comes with a nickel finished chain and canopy hanging kit. Professional installation recommended.
SKU: 2997-79
PRICING SUBJECT TO CHANGE
01/29/2026 9:34 AM
VERANDA WOVEN PENDANT
Core rattan hand-wrapped with natural lampakanay rope. Pendant comes with a nickel finished chain and canopy hanging kit. Professional installation recommended.
SKU: 2997-79
PRICING SUBJECT TO CHANGE
01/29/2026 9:34 AM
VERANDA WOVEN PENDANT
PRODUCT SPECIFICATIONS
OVERALL DIMENSIONS: 30"D X 21"H + 22.75"CONNECTING ROPE
CANOPY DIMENSIONS: 5"D X 1"H
CANOPY FINISH: NICKEL
CHAIN LENGTH: 9'
CHAIN FINISH: NICKEL
ADJUSTABLE LENGTH - MIN: 48.25"
ADJUSTABLE LENGTH - MAX: 156.25"
SOCKET QTY: 3
SOCKET TYPE: E26
BULB TYPE: TYPE A
BULB WATTAGE: 60 WATT MAX
VOLTAGE: 120V
CORD LENGTH: 12'
CORD COLOR: CLEAR
CERTIFICATION: UL/CUL LISTED DRY LOCATION
WIRING: HARD WIRED
LED BULB COMPATIBLE: YES
SLOPED CEILING COMPATIBLE: YES
DIMMER SWITCH COMPATIBLE: YES
SHIPPING
BOX 1 SIZE - LENGTH: 39"
BOX 1 SIZE - WIDTH: 35"
BOX 1 SIZE - HEIGHT: 27"
BOX 1 WEIGHT - IN BOX: 38LBS
PRICING SUBJECT TO CHANGE 01/29/2026 9:34 AM
BOX 1 WEIGHT - OUT OF BOX: 19LBS
DELIVERY METHOD: TRUCK SHIP ONLY
VERANDA WOVEN PENDANT
PRODUCT SPECIFICATIONS
OVERALL DIMENSIONS: 30"D X 21"H + 22.75"CONNECTING ROPE

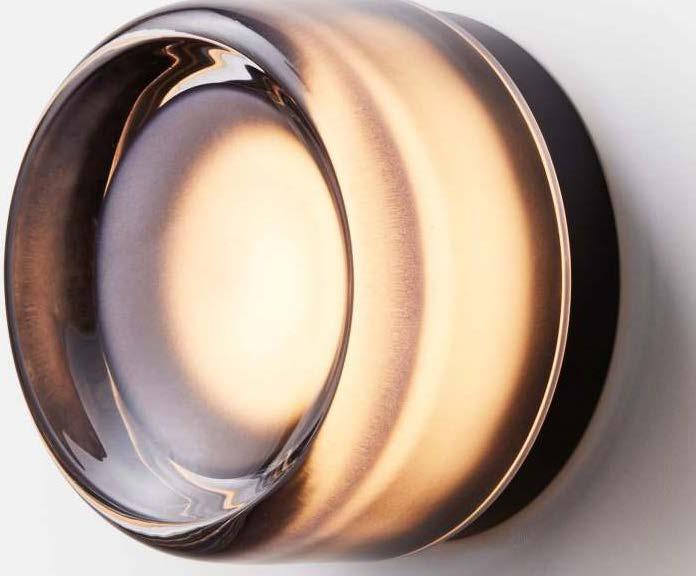

Dimple is a compact and flush-mounted sconce that casts a diffuse and soft, atmospheric light. It is cheekily named for the thick, domed circular diffuser embedded into its front face.
MATERIALS
Cast solid glass, aluminum
COLLECTION NOTES
Luminaire lumens listed are for AC input TRIAC control. DC input performance please see photometry downloads. Each form of cast glass is unique. We review each to ensure they conform to ASTM standards, which includes the presence of small air bubbles within the glass.

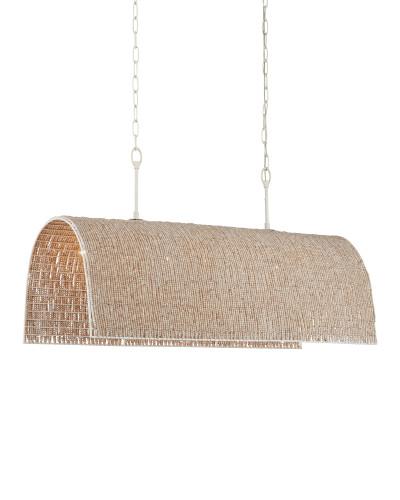

One of the most surprising inspirations, the Aztec Rectangular Chandelier is shaped like an inverted taco! The shade is covered in row upon row of small wood beads that have been whitewashed, staying true to the designer's desire to work with natural elements in unexpected ways. The distressed nish allows some of the wood tones to show through, adding warmth, while the iron frame and hardware, in a white nish, highlight the paler tones in the beads.
Aztec Rectangular Chandelier
Overall: 20.5"h x 48"w x 17.25"d
Adjustable Height: 27" to 95"
Finish: Natural / White
Materials: Wood / Metal
Item Weight: 37 lbs.
Number of Lights: 7
Suggested Bulb: G Globe
Socket Type: E12
60/420
Chain Included: 6' White
Cord: 11' Clear Silver
One of the most surprising inspirations, the Aztec Rectangular Chandelier is shaped like an inverted taco! The shade is covered in row upon row of small wood beads that have been whitewashed, staying true to the designer's desire to work with natural elements in unexpected ways. The distressed nish allows some of the wood tones to show through, adding warmth, while the iron frame and hardware, in a white nish, highlight the paler tones in the beads.
Ampoule/Bulb : Tala Sphere I 3.8 Watt • 220 Lumens • 2000K to 2800K Dim to warm
Poids/Weight : 3 lb.
Garantie/Warranty : 5 ans/years
Certification : Usage intérieur seulement/Indoor use only
Lien 3D/link : Cliquez ici/Click here
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
2in
3D: LIEN 3D
/ BULB :
INCANDESCENT / LED
INCANDESCENT / LED
/ BULB : TALA SPHERE - 4 WATT - 220 LUMENS2000K TO 2800K
Avant/Front Côté/Side
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
AMPOULE INCLUSE / BULB INCLUDED*
AMPOULE INCLUSE / BULB INCLUDED*
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
*Détail sur fiche technique / Details on spec sheet*
*Détail sur fiche technique / Details on spec sheet* LIEN 3D: LIEN 3D
Ampoule/Bulb : Tala Sphere I 3.8 Watt • 220 Lumens • 2000K to 2800K Dim to warm
Poids/Weight : 3 lb.
Garantie/Warranty : 5 ans/years
Certification : Usage intérieur seulement/Indoor use only
Lien 3D/link : Cliquez ici/Click here
Pour tous les fichiers 3D, incluant CAD, Revit et IES, visitez le www.luminaireauthentik.com / For 3D drawings of all products, including CAD, Revit and IES files, please visit www.luminaireauthentik.com
2in
3D: LIEN 3D
/ BULB :
INCANDESCENT / LED
INCANDESCENT / LED
/ BULB : TALA SPHERE - 4 WATT - 220 LUMENS2000K TO 2800K
Avant/Front Côté/Side
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
AMPOULE INCLUSE / BULB INCLUDED*
AMPOULE INCLUSE / BULB INCLUDED*
1 BASE E26 SOCKET, 120 VOLTS, DIMMABLE, 100W MAX
*Détail sur fiche technique / Details on spec sheet*
*Détail sur fiche technique / Details on spec sheet* LIEN 3D: LIEN 3D
Choisir la couleur de l’abat-jour / Choose shade colour
Choisir la couleur de l’abat-jour / Choose shade colour
Parnell Medium White Pendant
9000-1302
Overall: 29.75"h x 24"dia.
Adjustable Height: 32.75" to 74.75"
Finish: White / Frosted White / Gesso White
Materials: Kraft Paper Twine / Glass / Wrought Iron
Item Weight: 13 lbs.
Number of Lights: 1
Suggested Bulb: A Standard Bulb
Socket Type: E26
60/60
Rod Included: 6", 12", 12", 12" (1) Painted Gesso White
Cord: 13' Clear Silver
The Parnell Medium White Pendant resembles a bell made of Kraft Paper twine that is painstakingly double-wrapped on both the outside and the inside of the wrought iron frame in a gesso white nish. A frosted white glass globe holds the one light, which is dimmable, within the textured shade that ares to 24 inches in diameter at the bottom.
Parnell Medium White Pendant
9000-1302
Overall: 29.75"h x 24"dia.
Adjustable Height: 32.75" to 74.75"
Finish: White / Frosted White / Gesso White
Materials: Kraft Paper Twine / Glass / Wrought Iron
Item Weight: 13 lbs.
Number of Lights: 1
Suggested Bulb: A Standard Bulb
Socket Type: E26
60/60
Rod Included: 6", 12", 12", 12" (1) Painted Gesso White
Cord: 13' Clear Silver
The Parnell Medium White Pendant resembles a bell made of Kraft Paper twine that is painstakingly double-wrapped on both the outside and the inside of the wrought iron frame in a gesso white nish. A frosted white glass globe holds the one light, which is dimmable, within the textured shade that ares to 24 inches in diameter at the bottom.
TYPE F-20 SPEC ALTON DELRAY
lightology.com 866-954-4489 11-24-25
Jasper Indoor/Outdoor Pendant
By Capital Lighting
Description
The Jasper Indoor/Outdoor Pendant fuses elegant style with durable design. Weatherresistant hand-wrapped resin delivers a organic, textural aesthetic, while the matte black finish adds a modern touch.
Project:
Company:
Location: Fixture Type:
SPEC #: CPT1396568
Approved On: Approved By:
Specifications
BULB
COUNTRY
Technical Information
PRODUCT DIMENSIONSAdjustable Height: Includes 12" chain and rods 6"(1), 12"(1), & 18"(1)
Notes:
Shown in black / sienna
ALTON DELRAY TYPE F-20 ALT
lightology.com 866-954-4489 11-24-25
Jasper Indoor/Outdoor Pendant
By Capital Lighting
Description
The Jasper Indoor/Outdoor Pendant fuses elegant style with durable design. Weatherresistant hand-wrapped resin delivers a organic, textural aesthetic, while the matte black finish adds a modern touch.
Project:
Company:
Location: Fixture Type:
SPEC #: CPT1396568
Approved On: Approved By:
Specifications
BULB
COUNTRY
Technical Information
PRODUCT DIMENSIONSAdjustable Height: Includes 12" chain and rods 6"(1), 12"(1), & 18"(1)
Notes:
Shown in black / sienna
Image shown above 21.3 with round canopy
Series 21
Mounting Ceiling mounted
Glass Colour White
Lamp
1W LED, 2700K, 100lm (2500K and 3000K options available)
20W Xenon, 2600K, 196lm
Coaxial Length 3000mm standard / up to 30500mm maximum
Adjustable length: 21.1 - 21.7
Non-adjustable length: 21.11 - 21.50
Canopy Finish 21.1 - 21.7: white, black or brushed nickel canopy 21.1m: white, black, brushed nickel, or brushed brass canopy 21.11 - 21.50: white canopy
Material Porcelain, blown borosilicate glass, braided metal coaxial cable, electrical components, steel canopy
Power Supply Integral Remote mounted for 21.1m
Bocci recommends remote mounting power supplies for ease of long-term maintenance.
Environment Indoor, dry location. IP30
Note Every single Bocci product is handmade. Each one is variously blown, poured, carved, polished, packed and dispatched directly by us. As such, no two products are identical; they are individual, irregular expressions of our research.
Patent # Worldwide patents issued and pending.
Certifications
Weight (kg)
Image shown above 21.3 with round canopy
Series 21
Mounting Ceiling mounted
Glass Colour White
Lamp
1W LED, 2700K, 100lm (2500K and 3000K options available)
20W Xenon, 2600K, 196lm
Coaxial Length 3000mm standard / up to 30500mm maximum
Adjustable length: 21.1 - 21.7
Non-adjustable length: 21.11 - 21.50
Canopy Finish 21.1 - 21.7: white, black or brushed nickel canopy 21.1m: white, black, brushed nickel, or brushed brass canopy 21.11 - 21.50: white canopy
Material Porcelain, blown borosilicate glass, braided metal coaxial cable, electrical components, steel canopy
Power Supply Integral Remote mounted for 21.1m
Bocci recommends remote mounting power supplies for ease of long-term maintenance.
Environment Indoor, dry location. IP30
Note Every single Bocci product is handmade. Each one is variously blown, poured, carved, polished, packed and dispatched directly by us. As such, no two products are identical; they are individual, irregular expressions of our research.
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: Normal operation: 3.8W / Emergency operation: 0.7W
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery Back-Up (NX-815-LED): NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
Listed
· State & Municipal Certified to the energy efficiency standards of California Title 20
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
SPECIFICATIONS
ELECTRICAL
• 12V/24V
• 3 watts per foot
OPTICS
• 90+ CRI
CERTIFICATION
• ETL (12V) / UL (24V)
• Title 24 compliant when used with used with specific drivers. Consult factory.
• Class 2
• Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space
WARRANTY
• 5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for
only and does not cover any labor or incidental charges related to
or warranty.
TYPE S SPEC ALTON DELRAY

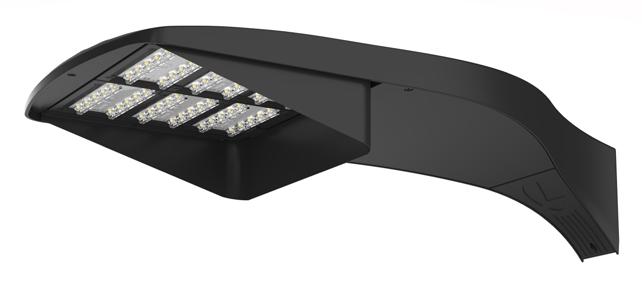

D-Series Size 1 LED Area Luminaire
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications with typical energy savings of 65% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc. 11, 12, 20, 21
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 20, 21
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate)14, 21
PER7 Seven-pin receptacle only (controls ordered separate) 14, 21
FAO Field adjustable output 15, 21
BL30 Bi-level switched dimming, 30% 16, 21
BL50 Bi-level switched dimming, 50% 16, 21
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
DS Dual switching 18, 19, 21
Shipped installed
SPD20KV 20KV surge protection
HS Houseside shield (black finish standard) 22
L90 Left rotated optics 1
R90 Right rotated optics 1
CCE Coastal Construction 23
HA 50°C ambient operation 24
BAA Buy America(n) Act and/or Build America Buy America Qualified
1 Rotated optics available with packages P10, P11, P12 and P13. Must be combined with option L90 or R90.
2 30K, 40K, and 50K available in 70CRI and 80CRI. 27K and 35K only available with 80CRI. Contact Technical Support for other possible combinations.
3 T3LG, T4LG, BLC3, BLC4, LCCO, RCCO not available with option HS.
4 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
5 HVOLT driver operates on any line voltage from 347-480V (50/60 Hz).
6 HVOLT not available with package P1 and P10 when combined with option NLTAIR2 PIRHN or option PIR.
7 XVOLT operates with any voltage between 277V and 480V (50/60 Hz).
8 XVOLT not available in packages P1 or P10. XVOLT not available with P1 ,P2, P5, P7, P9, P10, P11 and P13 when combined with option NLTAIR2 PIRHN or PIR. XVOLT not available with fusing (SF or DF).
9 SPA5 and RPA5 for use with #5 drilling only (Not for use with #8 drilling).
10 WBA cannot be combined with Type 5 distributions plus photocell (PER).
11 NLTAIR2 and PIRHN must be ordered together. For more information on nLight AIR2 visit this link
12 NLTAIR2 PIRHN not available with other controls including PIR, PER, PER5, PER7, FAO, BL30, BL50, DMG and DS. NLTAIR2 PIRHN not available with P1 and P10 using HVOLT.
13 PIR not available with NLTAIR2 PIRHN, PER, PER5, PER7, FAO BL30, BL50, DMG and DS.
14 PER/PER5/PER7 not available with NLTAIR2 PIRHN, PIR, BL30, BL50, FAO, DMG and DS. Photocell ordered and shipped as a separate line item from Acuity Brands Controls. See accessories. Shorting Cap included.
15 FAO not available with other dimming control options NLTAIR2 PIRHN, PIR, PER5, PER7, BL30, BL50, DMG and DS.
16 BL30 and BL50 are not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, FAO, DMG and DS. BL30 or BL50 must specify 120 or 277V.
17 DMG not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DS.
18 DS not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DMG.
19 DS requires (2) separately switched circuits. DS provides 50/50 fixture operation via (2) different sets of leads using (2) drivers. DS only available with packages P8, P9, P10, P11, P12 and P13.
20 Reference Motion Sensor Default Settings table on page 4 to see functionality.
21 Reference Controls Options table on page 4.
22 HS not available with T3LG, T4LG, BLC3, BLC4, LCCO and RCCO distribution. Also available as a separate accessory; see Accessories information.
23 CCE option not available with option BS and EGSR. Contact Technical Support for availability.
24 Option HA not available with performance packages P4, P5, P7, P8, P9 and P13.
25 Requires luminaire to be specified with PER, PER5 or PER7 option. See Controls Table on page 4.
Shield Accessories External Glare Shield (EGSR)
Drilling
26 Single fuse (SF) requires 120V, 277V, or 347V. Double fuse (DF) requires 208V, 240V or 480V. XVOLT not available with fusing (SF or DF). HANDHOLE ORIENTATION
Tenon Mounting Slipfitter
ALTON DELRAY TYPE S ALT
VIENTO AREA LUMINARE
ACCESSORIES (SOLD SEPARATELY)
VNT-ASF FINISH
BZ WH CC Bronze White Custom Color
VNT-RPA
BZ WH CC Bronze White Custom Color
VNT-WB FINISH
BZ WH CC Bronze White Custom Color
VNT-TWB
FINISH BZ WH CC Bronze White Custom Color
EPA RATINGS
DESCRIPTION
• Adjustable Slip Fitter
• Must select (ASF) in the order logic under the Options section.
• 180° range of motion in 10° increments.
• EPA: 0.127 sq. ft. - 6.0 LB
• viento must not be tilted more than 20° when using ASF
DESCRIPTION
• Round Pole Adaptor
• Allows up to four viento fixtures to be mounted to one pole.
• 3” to 5” Diameter
• EPA: 0.03 sq. ft. - 0.75 LB
DESCRIPTION

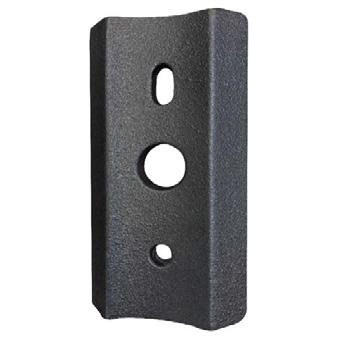

• Wall Bracket
DESCRIPTION
• tenon Wall Bracket Horizontal Mount
• 8” Square Plate - 2 3⁄8” OD
• Must be ordered with the Adjustable Slip Fitter (ASF) accessory.
• EPA calculated with the following:
• 4” square pole (Single, two At 90, two At 180, three At 90, Four At 90)
XtraLight® reserves the right to change specifications without notice.
TYPE S1 SPEC ALTON DELRAY
D-Series Size 1 LED Area Luminaire
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications with typical energy savings of 65% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc. 11, 12, 20, 21
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 20, 21
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate)14, 21
PER7 Seven-pin receptacle only (controls ordered separate) 14, 21
FAO Field adjustable output 15, 21
BL30 Bi-level switched dimming, 30% 16, 21
BL50 Bi-level switched dimming, 50% 16, 21
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
DS Dual switching 18, 19, 21
Shipped installed
SPD20KV 20KV surge protection
HS Houseside shield (black finish standard) 22
L90 Left rotated optics 1
R90 Right rotated optics 1
CCE Coastal Construction 23
HA 50°C ambient operation 24
BAA Buy America(n) Act and/or Build America Buy America Qualified
1 Rotated optics available with packages P10, P11, P12 and P13. Must be combined with option L90 or R90.
2 30K, 40K, and 50K available in 70CRI and 80CRI. 27K and 35K only available with 80CRI. Contact Technical Support for other possible combinations.
3 T3LG, T4LG, BLC3, BLC4, LCCO, RCCO not available with option HS.
4 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
5 HVOLT driver operates on any line voltage from 347-480V (50/60 Hz).
6 HVOLT not available with package P1 and P10 when combined with option NLTAIR2 PIRHN or option PIR.
7 XVOLT operates with any voltage between 277V and 480V (50/60 Hz).
8 XVOLT not available in packages P1 or P10. XVOLT not available with P1 ,P2, P5, P7, P9, P10, P11 and P13 when combined with option NLTAIR2 PIRHN or PIR. XVOLT not available with fusing (SF or DF).
9 SPA5 and RPA5 for use with #5 drilling only (Not for use with #8 drilling).
10 WBA cannot be combined with Type 5 distributions plus photocell (PER).
11 NLTAIR2 and PIRHN must be ordered together. For more information on nLight AIR2 visit this link
12 NLTAIR2 PIRHN not available with other controls including PIR, PER, PER5, PER7, FAO, BL30, BL50, DMG and DS. NLTAIR2 PIRHN not available with P1 and P10 using HVOLT.
13 PIR not available with NLTAIR2 PIRHN, PER, PER5, PER7, FAO BL30, BL50, DMG and DS.
14 PER/PER5/PER7 not available with NLTAIR2 PIRHN, PIR, BL30, BL50, FAO, DMG and DS. Photocell ordered and shipped as a separate line item from Acuity Brands Controls. See accessories. Shorting Cap included.
15 FAO not available with other dimming control options NLTAIR2 PIRHN, PIR, PER5, PER7, BL30, BL50, DMG and DS.
16 BL30 and BL50 are not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, FAO, DMG and DS. BL30 or BL50 must specify 120 or 277V.
17 DMG not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DS.
18 DS not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DMG.
19 DS requires (2) separately switched circuits. DS provides 50/50 fixture operation via (2) different sets of leads using (2) drivers. DS only available with packages P8, P9, P10, P11, P12 and P13.
20 Reference Motion Sensor Default Settings table on page 4 to see functionality.
21 Reference Controls Options table on page 4.
22 HS not available with T3LG, T4LG, BLC3, BLC4, LCCO and RCCO distribution. Also available as a separate accessory; see Accessories information.
23 CCE option not available with option BS and EGSR. Contact Technical Support for availability.
24 Option HA not available with performance packages P4, P5, P7, P8, P9 and P13.
25 Requires luminaire to be specified with PER, PER5 or PER7 option. See Controls Table on page 4.
Shield Accessories External Glare Shield (EGSR)
Drilling
26 Single fuse (SF) requires 120V, 277V, or 347V. Double fuse (DF) requires 208V, 240V or 480V. XVOLT not available with fusing (SF or DF). HANDHOLE ORIENTATION
Tenon Mounting Slipfitter
ALTON DELRAY TYPE S1 ALT
VIENTO AREA LUMINARE
ACCESSORIES (SOLD SEPARATELY)
VNT-ASF FINISH
BZ WH CC Bronze White Custom Color
VNT-RPA
BZ WH CC Bronze White Custom Color
VNT-WB FINISH
BZ WH CC Bronze White Custom Color
VNT-TWB
FINISH BZ WH CC Bronze White Custom Color
EPA RATINGS
DESCRIPTION
• Adjustable Slip Fitter
• Must select (ASF) in the order logic under the Options section.
• 180° range of motion in 10° increments.
• EPA: 0.127 sq. ft. - 6.0 LB
• viento must not be tilted more than 20° when using ASF
DESCRIPTION
• Round Pole Adaptor
• Allows up to four viento fixtures to be mounted to one pole.
• 3” to 5” Diameter
• EPA: 0.03 sq. ft. - 0.75 LB
DESCRIPTION
• Wall Bracket
DESCRIPTION
• tenon Wall Bracket Horizontal Mount
• 8” Square Plate - 2 3⁄8” OD
• Must be ordered with the Adjustable Slip Fitter (ASF) accessory.
• EPA calculated with the following:
• 4” square pole (Single, two At 90, two At 180, three At 90, Four At 90)
XtraLight® reserves the right to change specifications without notice.
TYPE S1W SPEC ALTON DELRAY
D-Series Size 1 LED Area Luminaire
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications with typical energy savings of 65% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc. 11, 12, 20, 21
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 20, 21
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate)14, 21
PER7 Seven-pin receptacle only (controls ordered separate) 14, 21
FAO Field adjustable output 15, 21
BL30 Bi-level switched dimming, 30% 16, 21
BL50 Bi-level switched dimming, 50% 16, 21
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
DS Dual switching 18, 19, 21
Shipped installed
SPD20KV 20KV surge protection
HS Houseside shield (black finish standard) 22
L90 Left rotated optics 1
R90 Right rotated optics 1
CCE Coastal Construction 23
HA 50°C ambient operation 24
BAA Buy America(n) Act and/or Build America Buy America Qualified
1 Rotated optics available with packages P10, P11, P12 and P13. Must be combined with option L90 or R90.
2 30K, 40K, and 50K available in 70CRI and 80CRI. 27K and 35K only available with 80CRI. Contact Technical Support for other possible combinations.
3 T3LG, T4LG, BLC3, BLC4, LCCO, RCCO not available with option HS.
4 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
5 HVOLT driver operates on any line voltage from 347-480V (50/60 Hz).
6 HVOLT not available with package P1 and P10 when combined with option NLTAIR2 PIRHN or option PIR.
7 XVOLT operates with any voltage between 277V and 480V (50/60 Hz).
8 XVOLT not available in packages P1 or P10. XVOLT not available with P1 ,P2, P5, P7, P9, P10, P11 and P13 when combined with option NLTAIR2 PIRHN or PIR. XVOLT not available with fusing (SF or DF).
9 SPA5 and RPA5 for use with #5 drilling only (Not for use with #8 drilling).
10 WBA cannot be combined with Type 5 distributions plus photocell (PER).
11 NLTAIR2 and PIRHN must be ordered together. For more information on nLight AIR2 visit this link
12 NLTAIR2 PIRHN not available with other controls including PIR, PER, PER5, PER7, FAO, BL30, BL50, DMG and DS. NLTAIR2 PIRHN not available with P1 and P10 using HVOLT.
13 PIR not available with NLTAIR2 PIRHN, PER, PER5, PER7, FAO BL30, BL50, DMG and DS.
14 PER/PER5/PER7 not available with NLTAIR2 PIRHN, PIR, BL30, BL50, FAO, DMG and DS. Photocell ordered and shipped as a separate line item from Acuity Brands Controls. See accessories. Shorting Cap included.
15 FAO not available with other dimming control options NLTAIR2 PIRHN, PIR, PER5, PER7, BL30, BL50, DMG and DS.
16 BL30 and BL50 are not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, FAO, DMG and DS. BL30 or BL50 must specify 120 or 277V.
17 DMG not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DS.
18 DS not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DMG.
19 DS requires (2) separately switched circuits. DS provides 50/50 fixture operation via (2) different sets of leads using (2) drivers. DS only available with packages P8, P9, P10, P11, P12 and P13.
20 Reference Motion Sensor Default Settings table on page 4 to see functionality.
21 Reference Controls Options table on page 4.
22 HS not available with T3LG, T4LG, BLC3, BLC4, LCCO and RCCO distribution. Also available as a separate accessory; see Accessories information.
23 CCE option not available with option BS and EGSR. Contact Technical Support for availability.
24 Option HA not available with performance packages P4, P5, P7, P8, P9 and P13.
25 Requires luminaire to be specified with PER, PER5 or PER7 option. See Controls Table on page 4.
Shield Accessories External Glare Shield (EGSR)
Drilling
26 Single fuse (SF) requires 120V, 277V, or 347V. Double fuse (DF) requires 208V, 240V or 480V. XVOLT not available with fusing (SF or DF). HANDHOLE ORIENTATION
Tenon Mounting Slipfitter
ALTON DELRAY TYPE S1W ALT
VIENTO AREA LUMINARE
ACCESSORIES (SOLD SEPARATELY)
VNT-ASF FINISH BZ WH CC Bronze White Custom Color
VNT-RPA
BZ WH CC Bronze White Custom Color
VNT-WB FINISH
BZ WH CC Bronze White Custom Color
VNT-TWB
FINISH BZ WH CC Bronze White Custom Color
EPA RATINGS
DESCRIPTION
• Adjustable Slip Fitter
• Must select (ASF) in the order logic under the Options section.
• 180° range of motion in 10° increments.
• EPA: 0.127 sq. ft. - 6.0 LB
• viento must not be tilted more than 20° when using ASF
DESCRIPTION
• Round Pole Adaptor
• Allows up to four viento fixtures to be mounted to one pole.
• 3” to 5” Diameter
• EPA: 0.03 sq. ft. - 0.75 LB
DESCRIPTION
• Wall Bracket
DESCRIPTION
• tenon Wall Bracket Horizontal Mount
• 8” Square Plate - 2 3⁄8” OD
• Must be ordered with the Adjustable Slip Fitter (ASF) accessory.
• EPA calculated with the following:
• 4” square pole (Single, two At 90, two At 180, three At 90, Four At 90)
XtraLight® reserves the right to change specifications without notice.
TYPE S2 SPEC ALTON DELRAY
D-Series Size 1 LED Area Luminaire
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications with typical energy savings of 65% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc. 11, 12, 20, 21
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 20, 21
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate)14, 21
PER7 Seven-pin receptacle only (controls ordered separate) 14, 21
FAO Field adjustable output 15, 21
BL30 Bi-level switched dimming, 30% 16, 21
BL50 Bi-level switched dimming, 50% 16, 21
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
DS Dual switching 18, 19, 21
Shipped installed
SPD20KV 20KV surge protection
HS Houseside shield (black finish standard) 22
L90 Left rotated optics 1
R90 Right rotated optics 1
CCE Coastal Construction 23
HA 50°C ambient operation 24
BAA Buy America(n) Act and/or Build America Buy America Qualified
1 Rotated optics available with packages P10, P11, P12 and P13. Must be combined with option L90 or R90.
2 30K, 40K, and 50K available in 70CRI and 80CRI. 27K and 35K only available with 80CRI. Contact Technical Support for other possible combinations.
3 T3LG, T4LG, BLC3, BLC4, LCCO, RCCO not available with option HS.
4 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
5 HVOLT driver operates on any line voltage from 347-480V (50/60 Hz).
6 HVOLT not available with package P1 and P10 when combined with option NLTAIR2 PIRHN or option PIR.
7 XVOLT operates with any voltage between 277V and 480V (50/60 Hz).
8 XVOLT not available in packages P1 or P10. XVOLT not available with P1 ,P2, P5, P7, P9, P10, P11 and P13 when combined with option NLTAIR2 PIRHN or PIR. XVOLT not available with fusing (SF or DF).
9 SPA5 and RPA5 for use with #5 drilling only (Not for use with #8 drilling).
10 WBA cannot be combined with Type 5 distributions plus photocell (PER).
11 NLTAIR2 and PIRHN must be ordered together. For more information on nLight AIR2 visit this link
12 NLTAIR2 PIRHN not available with other controls including PIR, PER, PER5, PER7, FAO, BL30, BL50, DMG and DS. NLTAIR2 PIRHN not available with P1 and P10 using HVOLT.
13 PIR not available with NLTAIR2 PIRHN, PER, PER5, PER7, FAO BL30, BL50, DMG and DS.
14 PER/PER5/PER7 not available with NLTAIR2 PIRHN, PIR, BL30, BL50, FAO, DMG and DS. Photocell ordered and shipped as a separate line item from Acuity Brands Controls. See accessories. Shorting Cap included.
15 FAO not available with other dimming control options NLTAIR2 PIRHN, PIR, PER5, PER7, BL30, BL50, DMG and DS.
16 BL30 and BL50 are not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, FAO, DMG and DS. BL30 or BL50 must specify 120 or 277V.
17 DMG not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DS.
18 DS not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DMG.
19 DS requires (2) separately switched circuits. DS provides 50/50 fixture operation via (2) different sets of leads using (2) drivers. DS only available with packages P8, P9, P10, P11, P12 and P13.
20 Reference Motion Sensor Default Settings table on page 4 to see functionality.
21 Reference Controls Options table on page 4.
22 HS not available with T3LG, T4LG, BLC3, BLC4, LCCO and RCCO distribution. Also available as a separate accessory; see Accessories information.
23 CCE option not available with option BS and EGSR. Contact Technical Support for availability.
24 Option HA not available with performance packages P4, P5, P7, P8, P9 and P13.
25 Requires luminaire to be specified with PER, PER5 or PER7 option. See Controls Table on page 4.
Shield Accessories External Glare Shield (EGSR)
Drilling
26 Single fuse (SF) requires 120V, 277V, or 347V. Double fuse (DF) requires 208V, 240V or 480V. XVOLT not available with fusing (SF or DF). HANDHOLE ORIENTATION
Tenon Mounting Slipfitter
ALTON DELRAY TYPE S2 ALT
VIENTO AREA LUMINARE
ACCESSORIES (SOLD SEPARATELY)
VNT-ASF FINISH
BZ WH CC Bronze White Custom Color
VNT-RPA
BZ WH CC Bronze White Custom Color
VNT-WB FINISH
BZ WH CC Bronze White Custom Color
VNT-TWB
FINISH BZ WH CC Bronze White Custom Color
EPA RATINGS
DESCRIPTION
• Adjustable Slip Fitter
• Must select (ASF) in the order logic under the Options section.
• 180° range of motion in 10° increments.
• EPA: 0.127 sq. ft. - 6.0 LB
• viento must not be tilted more than 20° when using ASF
DESCRIPTION
• Round Pole Adaptor
• Allows up to four viento fixtures to be mounted to one pole.
• 3” to 5” Diameter
• EPA: 0.03 sq. ft. - 0.75 LB
DESCRIPTION
• Wall Bracket
DESCRIPTION
• tenon Wall Bracket Horizontal Mount
• 8” Square Plate - 2 3⁄8” OD
• Must be ordered with the Adjustable Slip Fitter (ASF) accessory.
• EPA calculated with the following:
• 4” square pole (Single, two At 90, two At 180, three At 90, Four At 90)
XtraLight® reserves the right to change specifications without notice.
TYPE S3 SPEC ALTON DELRAY
D-Series Size 1 LED Area Luminaire
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications with typical energy savings of 65% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc. 11, 12, 20, 21
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 20, 21
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate)14, 21
PER7 Seven-pin receptacle only (controls ordered separate) 14, 21
FAO Field adjustable output 15, 21
BL30 Bi-level switched dimming, 30% 16, 21
BL50 Bi-level switched dimming, 50% 16, 21
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
DS Dual switching 18, 19, 21
Shipped installed
SPD20KV 20KV surge protection
HS Houseside shield (black finish standard) 22
L90 Left rotated optics 1
R90 Right rotated optics 1
CCE Coastal Construction 23
HA 50°C ambient operation 24
BAA Buy America(n) Act and/or Build America Buy America Qualified
1 Rotated optics available with packages P10, P11, P12 and P13. Must be combined with option L90 or R90.
2 30K, 40K, and 50K available in 70CRI and 80CRI. 27K and 35K only available with 80CRI. Contact Technical Support for other possible combinations.
3 T3LG, T4LG, BLC3, BLC4, LCCO, RCCO not available with option HS.
4 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
5 HVOLT driver operates on any line voltage from 347-480V (50/60 Hz).
6 HVOLT not available with package P1 and P10 when combined with option NLTAIR2 PIRHN or option PIR.
7 XVOLT operates with any voltage between 277V and 480V (50/60 Hz).
8 XVOLT not available in packages P1 or P10. XVOLT not available with P1 ,P2, P5, P7, P9, P10, P11 and P13 when combined with option NLTAIR2 PIRHN or PIR. XVOLT not available with fusing (SF or DF).
9 SPA5 and RPA5 for use with #5 drilling only (Not for use with #8 drilling).
10 WBA cannot be combined with Type 5 distributions plus photocell (PER).
11 NLTAIR2 and PIRHN must be ordered together. For more information on nLight AIR2 visit this link
12 NLTAIR2 PIRHN not available with other controls including PIR, PER, PER5, PER7, FAO, BL30, BL50, DMG and DS. NLTAIR2 PIRHN not available with P1 and P10 using HVOLT.
13 PIR not available with NLTAIR2 PIRHN, PER, PER5, PER7, FAO BL30, BL50, DMG and DS.
14 PER/PER5/PER7 not available with NLTAIR2 PIRHN, PIR, BL30, BL50, FAO, DMG and DS. Photocell ordered and shipped as a separate line item from Acuity Brands Controls. See accessories. Shorting Cap included.
15 FAO not available with other dimming control options NLTAIR2 PIRHN, PIR, PER5, PER7, BL30, BL50, DMG and DS.
16 BL30 and BL50 are not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, FAO, DMG and DS. BL30 or BL50 must specify 120 or 277V.
17 DMG not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DS.
18 DS not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50, FAO and DMG.
19 DS requires (2) separately switched circuits. DS provides 50/50 fixture operation via (2) different sets of leads using (2) drivers. DS only available with packages P8, P9, P10, P11, P12 and P13.
20 Reference Motion Sensor Default Settings table on page 4 to see functionality.
21 Reference Controls Options table on page 4.
22 HS not available with T3LG, T4LG, BLC3, BLC4, LCCO and RCCO distribution. Also available as a separate accessory; see Accessories information.
23 CCE option not available with option BS and EGSR. Contact Technical Support for availability.
24 Option HA not available with performance packages P4, P5, P7, P8, P9 and P13.
25 Requires luminaire to be specified with PER, PER5 or PER7 option. See Controls Table on page 4.
Shield Accessories External Glare Shield (EGSR)
Drilling
26 Single fuse (SF) requires 120V, 277V, or 347V. Double fuse (DF) requires 208V, 240V or 480V. XVOLT not available with fusing (SF or DF). HANDHOLE ORIENTATION
Tenon Mounting Slipfitter
ALTON DELRAY TYPE S3 ALT
VIENTO AREA LUMINARE
ACCESSORIES (SOLD SEPARATELY)
VNT-ASF FINISH
BZ WH CC Bronze White Custom Color
VNT-RPA
BZ WH CC Bronze White Custom Color
VNT-WB FINISH
BZ WH CC Bronze White Custom Color
VNT-TWB
FINISH BZ WH CC Bronze White Custom Color
EPA RATINGS
DESCRIPTION
• Adjustable Slip Fitter
• Must select (ASF) in the order logic under the Options section.
• 180° range of motion in 10° increments.
• EPA: 0.127 sq. ft. - 6.0 LB
• viento must not be tilted more than 20° when using ASF
DESCRIPTION
• Round Pole Adaptor
• Allows up to four viento fixtures to be mounted to one pole.
• 3” to 5” Diameter
• EPA: 0.03 sq. ft. - 0.75 LB
DESCRIPTION
• Wall Bracket
DESCRIPTION
• tenon Wall Bracket Horizontal Mount
• 8” Square Plate - 2 3⁄8” OD
• Must be ordered with the Adjustable Slip Fitter (ASF) accessory.
• EPA calculated with the following:
• 4” square pole (Single, two At 90, two At 180, three At 90, Four At 90)
XtraLight® reserves the right to change specifications without notice.
TYPE S4 SPEC ALTON DELRAY
Specifications
D-Series Size 0 LED Area Luminaire
Design Select options indicated by this color background.
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40' mounting height, ambient sensor enabled at 2fc. 11, 12, 18, 19
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 18, 19
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate) 14, 19
PER7 Seven-pin receptacle only (controls ordered separate) 14, 19
FAO Field adjustable output 15, 19
BL30 Bi-level switched dimming, 30% 16, 19
BL50 Bi-level switched dimming, 50% 16, 19
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17 Shipped installed
Houseside
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications, with typical energy savings of 70% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
1 Rotated optics available with packages P10, P11, P12 and P13. Must be combined with option L90 or R90.
2 30K, 40K, and 50K available in 70CRI and 80CRI. 27K and 35K only available with 80CRI. Contact Technical Support for other possible combinations.
3 T3LG, T4LG, BLC3, BLC4, LCCO, RCCO not available with option HS.
4 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
5 HVOLT driver operates on any line voltage from 347-480V (50/60 Hz).
6 HVOLT not available with package P1, P2 and P10 when combined with option NLTAIR2 PIRHN or option PIR.
7 XVOLT operates with any voltage between 277V and 480V (50/60 Hz).
8 XVOLT not available in packages P1, P2, or P10. XVOLT not available with fusing (SF or DF). XVOLT also not available in packages P3, P4, P5, P7, P11, P13 when combined with NLTAIR2 PIRHN or PIR.
9 SPA5 and RPA5 for use with #5 drilling only (Not for use with #8 drilling).
10 WBA cannot be combined with Type 5 distributions plus photocell (PER).
11 NLTAIR2 and PIRHN must be ordered together. For more information on nLight Air 2.
12 NLTAIR2 PIRHN not available with other controls including PIR, PER, PER5, PER7, FAO, BL30, BL50 and DMG. NLTAIR2 PIRHN not available with P1, P2 and P10 using HVOLT. NLTAIR2 PIRHN not available with P1 using MVOLT.
13 PIR not available with NLTAIR2, PER, PER5, PER7, FAO BL30, BL50 and DMG. PIR not available with P1, P2 and P10 using HVOLT.PIR not available with P1 using MVOLT.
14 PER/PER5/PER7 not available with NLTAIR2, PIR, BL30, BL50. Photocell ordered and shipped as a separate line item from Acuity Brands Controls. See accessories. Shorting Cap included.
15 FAO not available with other dimming control options NLTAIR2 PIRHN, PIR, PER5, PER7, BL30, BL50, or DMG.
16 BL30 and BL50 are not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, FAO and DMG. BL30 or BL50 must specify 120 or 277V.
17 DMG not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50 and FAO.
18 Reference Motion Sensor Default Settings table on page 4 to see functionality.
19 Reference Controls Options table on page 4.
20 Option HS not available with T3LG, T4LG, BLC3, BLC4, LCCO and RCCO distribution. Also available as a separate accessory; see Accessories information.
21 CCE option not available with option BS and EGSR. Contact Technical Support for availability.
22 Option HA not available with performance packages P6, P7, P12 and P13.
23 Requires luminaire to be specified with PER, PER5 or PER7 option. See Controls Table on page 4.
24 Single fuse (SF) requires 120V, 277V, or 347V. Double fuse (DF) requires 208V, 240V or 480V. XVOLT not available with fusing (SF or DF).
Tenon Mounting Slipfitter
ALTON DELRAY TYPE S4 ALT
VIENTO AREA LUMINARE
ACCESSORIES (SOLD SEPARATELY)
VNT-ASF FINISH
BZ WH CC Bronze White Custom Color
VNT-RPA
BZ WH CC Bronze White Custom Color
VNT-WB FINISH
BZ WH CC Bronze White Custom Color
VNT-TWB
FINISH BZ WH CC Bronze White Custom Color
EPA RATINGS
DESCRIPTION
• Adjustable Slip Fitter
• Must select (ASF) in the order logic under the Options section.
• 180° range of motion in 10° increments.
• EPA: 0.127 sq. ft. - 6.0 LB
• viento must not be tilted more than 20° when using ASF
DESCRIPTION
• Round Pole Adaptor
• Allows up to four viento fixtures to be mounted to one pole.
• 3” to 5” Diameter
• EPA: 0.03 sq. ft. - 0.75 LB
DESCRIPTION
• Wall Bracket
DESCRIPTION
• tenon Wall Bracket Horizontal Mount
• 8” Square Plate - 2 3⁄8” OD
• Must be ordered with the Adjustable Slip Fitter (ASF) accessory.
• EPA calculated with the following:
• 4” square pole (Single, two At 90, two At 180, three At 90, Four At 90)
XtraLight® reserves the right to change specifications without notice.
TYPE S5 SPEC ALTON DELRAY
Specifications
D-Series Size 0 LED Area Luminaire
Design Select options indicated by this color background.
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications, with typical energy savings of 70% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40' mounting height, ambient sensor enabled at 2fc. 11, 12, 18, 19
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 18, 19
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate) 14, 19
PER7 Seven-pin receptacle only (controls ordered separate) 14, 19
FAO Field adjustable output 15, 19
BL30 Bi-level switched dimming, 30% 16, 19
BL50 Bi-level switched dimming, 50% 16, 19
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17 Shipped installed
1 Rotated optics available with packages P10, P11, P12 and P13. Must be combined with option L90 or R90.
2 30K, 40K, and 50K available in 70CRI and 80CRI. 27K and 35K only available with 80CRI. Contact Technical Support for other possible combinations.
3 T3LG, T4LG, BLC3, BLC4, LCCO, RCCO not available with option HS.
4 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
5 HVOLT driver operates on any line voltage from 347-480V (50/60 Hz).
6 HVOLT not available with package P1, P2 and P10 when combined with option NLTAIR2 PIRHN or option PIR.
7 XVOLT operates with any voltage between 277V and 480V (50/60 Hz).
8 XVOLT not available in packages P1, P2, or P10. XVOLT not available with fusing (SF or DF). XVOLT also not available in packages P3, P4, P5, P7, P11, P13 when combined with NLTAIR2 PIRHN or PIR.
9 SPA5 and RPA5 for use with #5 drilling only (Not for use with #8 drilling).
10 WBA cannot be combined with Type 5 distributions plus photocell (PER).
11 NLTAIR2 and PIRHN must be ordered together. For more information on nLight Air 2.
12 NLTAIR2 PIRHN not available with other controls including PIR, PER, PER5, PER7, FAO, BL30, BL50 and DMG. NLTAIR2 PIRHN not available with P1, P2 and P10 using HVOLT. NLTAIR2 PIRHN not available with P1 using MVOLT.
13 PIR not available with NLTAIR2, PER, PER5, PER7, FAO BL30, BL50 and DMG. PIR not available with P1, P2 and P10 using HVOLT.PIR not available with P1 using MVOLT.
14 PER/PER5/PER7 not available with NLTAIR2, PIR, BL30, BL50. Photocell ordered and shipped as a separate line item from Acuity Brands Controls. See accessories. Shorting Cap included.
15 FAO not available with other dimming control options NLTAIR2 PIRHN, PIR, PER5, PER7, BL30, BL50, or DMG.
16 BL30 and BL50 are not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, FAO and DMG. BL30 or BL50 must specify 120 or 277V.
17 DMG not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50 and FAO.
18 Reference Motion Sensor Default Settings table on page 4 to see functionality.
19 Reference Controls Options table on page 4.
20 Option HS not available with T3LG, T4LG, BLC3, BLC4, LCCO and RCCO distribution. Also available as a separate accessory; see Accessories information.
21 CCE option not available with option BS and EGSR. Contact Technical Support for availability.
22 Option HA not available with performance packages P6, P7, P12 and P13.
23 Requires luminaire to be specified with PER, PER5 or PER7 option. See Controls Table on page 4.
24 Single fuse (SF) requires 120V, 277V, or 347V. Double fuse (DF) requires 208V, 240V or 480V. XVOLT not available with fusing (SF or DF).
Tenon Mounting Slipfitter
ALTON DELRAY TYPE S5 ALT
VIENTO AREA LUMINARE
ACCESSORIES (SOLD SEPARATELY)
VNT-ASF FINISH
BZ WH CC Bronze White Custom Color
VNT-RPA
BZ WH CC Bronze White Custom Color
VNT-WB FINISH
BZ WH CC Bronze White Custom Color
VNT-TWB
FINISH BZ WH CC Bronze White Custom Color
EPA RATINGS
DESCRIPTION
• Adjustable Slip Fitter
• Must select (ASF) in the order logic under the Options section.
• 180° range of motion in 10° increments.
• EPA: 0.127 sq. ft. - 6.0 LB
• viento must not be tilted more than 20° when using ASF
DESCRIPTION
• Round Pole Adaptor
• Allows up to four viento fixtures to be mounted to one pole.
• 3” to 5” Diameter
• EPA: 0.03 sq. ft. - 0.75 LB
DESCRIPTION
• Wall Bracket
DESCRIPTION
• tenon Wall Bracket Horizontal Mount
• 8” Square Plate - 2 3⁄8” OD
• Must be ordered with the Adjustable Slip Fitter (ASF) accessory.
• EPA calculated with the following:
• 4” square pole (Single, two At 90, two At 180, three At 90, Four At 90)
XtraLight® reserves the right to change specifications without notice.
TYPE S6 SPEC ALTON DELRAY
Specifications
Diameter: 8” Round (20.3 cm)
Height: 42” (106.7 cm)
Weight (max): 27 lbs (12.25 kg)

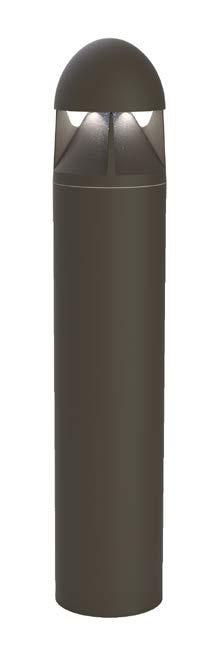

D-Series LED Bollard
Catalog Number
Notes
Type
Introduction
The D-Series LED Bollard is a stylish, energysaving, long-life solution designed to perform the way a bollard should—with zero uplight. An optical leap forward, this full cut-off luminaire will meet the most stringent of lighting codes.
The D-Series LED Bollard’s rugged construction, durable finish and long-lasting LEDs will provide years of maintenance-free service.
Ordering Information
Shipped installed PE Photoelectric cell, button type DMG 00-10v dimming wires pulled outside fixture (for use with an external control, ordered separately)
ELCW Emergency battery backup6
Shipped installed
SF Single fuse (120, 277, 347V) 4,7
DF Double fuse (208, 240V) 4,7
H24 24” overall height
H30 30” overall height
H36 36” overall height
FG Ground-fault festoon outlet
L/AB Without anchor bolts
L/AB4 4-bolt retrofit base without anchor bolts 8
Accessories
Ordered and shipped separately.
NOTES
1 Only available in the 12C, ASY version.
2 Only available in the 16C, SYM version.
3 Only available with 450 AMBLW version.
4 Not available with ELCW.
5 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz). Specify 120, 208, 240 or 277 options only when ordering with fusing (SF, DF options), or photocontrol (PE option).
6 Not available with 347V. Not available with fusing. Not available with 450 AMBLW.
7 Single fuse (SF) requires 120, 277, or 347 voltage option. Double fuse (DF) requires 208 or 240 voltage option.
8 MRAB U not available with L/AB4 option.
EXAMPLE:

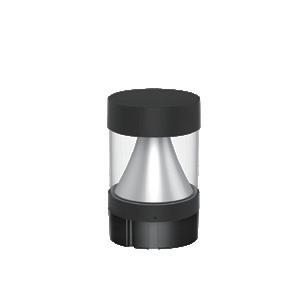

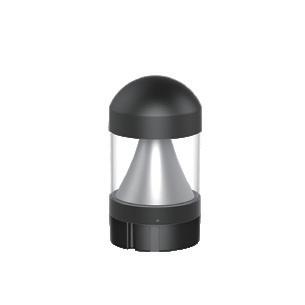

PLUS ROUND LED BOLLARD
Turtle-friendly Amber
The turtle-friendly amber (600-610nm) is a specialized CCT designed to protect sea turtles and marine life. Ideal for beachfront resorts, coastal homes, and other areas near turtle habitats.
The Plus Round LED Bollard is a high-performance outdoor luminaire featuring corrosion-resistant aluminum housing. It offers selectable wattage and CCT via DIP switches with photocontrol. Modular top heads enable customizable light distribution.
Certifications cUL listed Suitable for wet location RoHS compliant
Power Factor >0.9 at full load
Harmonic Distortion <20% at full load
Projected Lifetime L90 - 54,000 Hours
IP Rating 65
IK Rating 08-Standard
IK Rating 10-Optional
FEATURES
▪ Durable Design: Corrosion-resistant aluminum exterior with IP65/IK08 ratings for harsh environments.
▪ Flexible Lighting: Adjustable wattage and CCT via integrated DIP switches.
▪ Smart Controls: Photosensor and emergency back-up for automated operation and emergency lighting.
▪ Modularity: Interchangeable top heads (flat, dome, louvered) for various application.
TYPE S6 SPEC ALTON DELRAY
Performance Data
Lumen values are from photometric tests performed in accordance with IESNA LM-79-08. Data is considered to be representative of the configurations shown, within the tolerances allowed by Lighting Facts. Actual
Note: Available with phosphor-converted amber LED’s (nomenclature AMBPC). These LED’s produce light with 97+% >530 nm. Output can be calculated by applying a 0.7 factor to 4000 K lumen values and photometric files.
Projected LED Lumen Maintenance
Data references the extrapolated performance projections for the platforms noted in a 25°C ambient, based on 10,000 hours of LED testing (tested per IESNA LM-80-08 and projected per IESNA TM-21-11).
To calculate LLF, use the lumen maintenance factor that corresponds to the desired number of operating hours below. For other lumen maintenance values, contact factory.
Electrical Load
35016W0.1580.1180.1140.1090.105
53022W0.2170.1460.1360.1280.118
70031W0.2960.1850.1680.1530.139
Amber45016W0.1610.1200.1150.1100.106
35020W0.1970.1370.1280.1210.114
53028W0.2820.1780.1620.1480.135
70039W0.3850.2310.2070.1850.163
Amber45020W0.1990.1390.1300.1230.116
Photometric Diagrams
To see complete photometric reports or download .ies files for this product, visit Lithonia Lighting’s D-Series Bollard homepage
Isofootcandle plots for the DSXB LED 700 40K. Distances are in units of mounting height (3’).
53210
Test No. LTL24360-2 tested in accordance with IESNA
FEATURES & SPECIFICATIONS
INTENDED USE
The rugged construction and maintenance-free performance of the D-Series LED Bollard is ideal for illuminating building entryways, walking paths and pedestrian plazas, as well as any other location requiring a low-mounting-height light source.
CONSTRUCTION
One-piece 8-inch-round extruded aluminum shaft with thick side walls for extreme durability, and die-cast aluminum reflector and top cap. Die-cast aluminum mounting ring allows for easy leveling even in uneven areas and full 360-degree rotation for precise alignment during installation. Three ½” x 11” anchor bolts with double nuts and washers and 3-5/8” max. bolt circle template ensure stability. Overall height is 42” standard.
FINISH
Exterior parts are protected by a zinc-infused super durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering for maximum retention of gloss and luster. A tightly controlled multi-stage process ensures a minimum 3-mil thickness for a finish that can withstand the elements without cracking or peeling. Available in both textured and non-textured finishes.
OPTICS
Two 0% uplight optical distributions are available: symmetrical and asymmetrical. IP66 sealed LED light engine provides smoothly graduated illumination without uplight. Light engines are available in standard 4000 K (>70 CRI) or optional 3000 K (>80 CRI) or 5000 K (67 CRI). Limited-wavelength amber LEDs are also available.
Test No. LTL24368 tested in accordance with
ELECTRICAL
Light engines consist of high-efficacy LEDs mounted to metal-core circuit boards to maximize heat dissipation and promote long life (L95/100,000 hours at 700mA at 25°C). Class 2 electronic drivers are designed for an expected life of 100,000 hours with < 1% failure rate. Electrical components are mounted on a removable power tray.
LISTINGS
CSA certified to U.S. and Canadian standards. Light engines are IP66 rated. Rated for -40°C minimum ambient. Cold-weather emergency battery backup rated for -20°C minimum ambient.
GOVERNMENT PROCUREMENT
BAA – Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
Five-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.

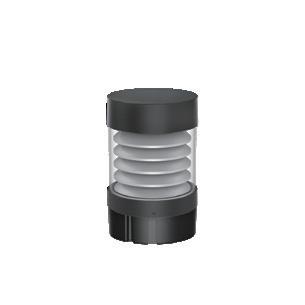

PLUS ROUND LED BOLLARD
ORDERING INFORMATION
EXAMPLE: PLUS-R-FC-24SPSW8-PC-BK
Turtle-friendly Amber (600-610nm) FC Flat Top Clear Shield FL Flat Top Louver Reflector

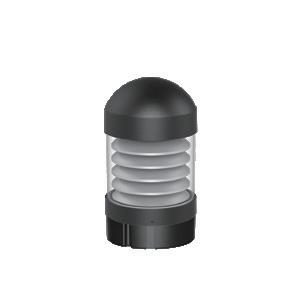

DC Dome Top Clear Shield DL Dome Top Louver Reflector
NOTE:
1.The default power setting is 24W.
2.The default CCT is 3000K.
3. The standard finish color is black; Custom finish colors are available at an additional charge. Please contact Customer Service for details.
ACCESSORIES (ORDERED SEPARATELY)
ABMK-PLUS-R

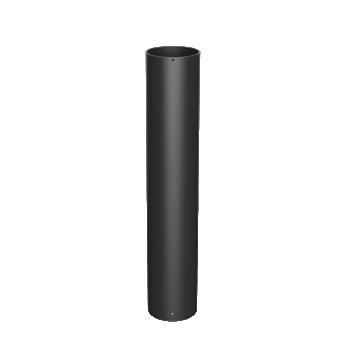

PLUS-R-34HP-BK
Anchor Bolts Mounting Kits for Plus Round Bollard. Bollard Pole , 33.66"(855mm) tall, Black finish.
PLUS-R-SS-BK Side Shield, Black finish.
TYPE S7 SPEC ALTON DELRAY
Specifications
D-Series Size 0 LED Area Luminaire
Design Select options indicated by this color background.
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications, with typical energy savings of 70% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40' mounting height, ambient sensor enabled at 2fc. 11, 12, 18, 19
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 18, 19
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate) 14, 19
PER7 Seven-pin receptacle only (controls ordered separate) 14, 19
FAO Field adjustable output 15, 19
BL30 Bi-level switched dimming, 30% 16, 19
BL50 Bi-level switched dimming, 50% 16, 19
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17 Shipped installed
1 Rotated optics available with packages P10, P11, P12 and P13. Must be combined with option L90 or R90.
2 30K, 40K, and 50K available in 70CRI and 80CRI. 27K and 35K only available with 80CRI. Contact Technical Support for other possible combinations.
3 T3LG, T4LG, BLC3, BLC4, LCCO, RCCO not available with option HS.
4 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
5 HVOLT driver operates on any line voltage from 347-480V (50/60 Hz).
6 HVOLT not available with package P1, P2 and P10 when combined with option NLTAIR2 PIRHN or option PIR.
7 XVOLT operates with any voltage between 277V and 480V (50/60 Hz).
8 XVOLT not available in packages P1, P2, or P10. XVOLT not available with fusing (SF or DF). XVOLT also not available in packages P3, P4, P5, P7, P11, P13 when combined with NLTAIR2 PIRHN or PIR.
9 SPA5 and RPA5 for use with #5 drilling only (Not for use with #8 drilling).
10 WBA cannot be combined with Type 5 distributions plus photocell (PER).
11 NLTAIR2 and PIRHN must be ordered together. For more information on nLight Air 2.
12 NLTAIR2 PIRHN not available with other controls including PIR, PER, PER5, PER7, FAO, BL30, BL50 and DMG. NLTAIR2 PIRHN not available with P1, P2 and P10 using HVOLT. NLTAIR2 PIRHN not available with P1 using MVOLT.
13 PIR not available with NLTAIR2, PER, PER5, PER7, FAO BL30, BL50 and DMG. PIR not available with P1, P2 and P10 using HVOLT.PIR not available with P1 using MVOLT.
14 PER/PER5/PER7 not available with NLTAIR2, PIR, BL30, BL50. Photocell ordered and shipped as a separate line item from Acuity Brands Controls. See accessories. Shorting Cap included.
15 FAO not available with other dimming control options NLTAIR2 PIRHN, PIR, PER5, PER7, BL30, BL50, or DMG.
16 BL30 and BL50 are not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, FAO and DMG. BL30 or BL50 must specify 120 or 277V.
17 DMG not available with NLTAIR2 PIRHN, PIR, PER, PER5, PER7, BL30, BL50 and FAO.
18 Reference Motion Sensor Default Settings table on page 4 to see functionality.
19 Reference Controls Options table on page 4.
20 Option HS not available with T3LG, T4LG, BLC3, BLC4, LCCO and RCCO distribution. Also available as a separate accessory; see Accessories information.
21 CCE option not available with option BS and EGSR. Contact Technical Support for availability.
22 Option HA not available with performance packages P6, P7, P12 and P13.
23 Requires luminaire to be specified with PER, PER5 or PER7 option. See Controls Table on page 4.
24 Single fuse (SF) requires 120V, 277V, or 347V. Double fuse (DF) requires 208V, 240V or 480V. XVOLT not available with fusing (SF or DF).
Tenon Mounting Slipfitter
ALTON DELRAY TYPE S7 ALT
VIENTO AREA LUMINARE
ACCESSORIES (SOLD SEPARATELY)
VNT-ASF FINISH
BZ WH CC Bronze White Custom Color
VNT-RPA
BZ WH CC Bronze White Custom Color
VNT-WB FINISH
BZ WH CC Bronze White Custom Color
VNT-TWB
FINISH BZ WH CC Bronze White Custom Color
EPA RATINGS
DESCRIPTION
• Adjustable Slip Fitter
• Must select (ASF) in the order logic under the Options section.
• 180° range of motion in 10° increments.
• EPA: 0.127 sq. ft. - 6.0 LB
• viento must not be tilted more than 20° when using ASF
DESCRIPTION
• Round Pole Adaptor
• Allows up to four viento fixtures to be mounted to one pole.
• 3” to 5” Diameter
• EPA: 0.03 sq. ft. - 0.75 LB
DESCRIPTION
• Wall Bracket
DESCRIPTION
• tenon Wall Bracket Horizontal Mount
• 8” Square Plate - 2 3⁄8” OD
• Must be ordered with the Adjustable Slip Fitter (ASF) accessory.
• EPA calculated with the following:
• 4” square pole (Single, two At 90, two At 180, three At 90, Four At 90)
XtraLight® reserves the right to change specifications without notice.
TYPE SW SPEC ALTON DELRAY
WDGE1 LED
Architectural Wall Sconce
Introduction
The WDGE LED family is designed to meet specifier’s every wall-mounted lighting need in a widely accepted shape that blends with any architecture. The clean rectilinear design comes in four sizes with lumen packages ranging from 1,200 to 25,000 lumens, providing true site-wide solution.
WDGE1 delivers up to 2,000 lumens with a soft, nonpixelated light source, creating a visually comfortable environment. The compact size of WDGE1, with its integrated emergency battery backup option, makes it an ideal over-the-door wall-mounted lighting solution.
WDGE LED Family Overview
Ordering Information
Photocell, Button Type 6
DS Dual switching (comes with 2 drivers and 2 light engines; see page 3 for details)7
DMG 0-10V dimming wires pulled outside fixture (for use with an external control, ordered separately)
BCE Bottom conduit entry for back box (PBBW). Total of 4 entry points.
DSLE Dual Switching (1 Driver, 2 Light Engines)
CCE Coastal Construction4
Textured sandstone
DSWP WALL PACK
The Dark Sky Wall Pack features cutoff distribution in traditional appearance. Die-cast aluminum housing with integrated heat sink for superior heat dissipation , and options for Emergency back-up, photocontrol, and sensor. It is an ideal option for landscape, wall/ surface, low level pathway, apartment buildings, schools, and multi-use facilities.
4 For PBBW and AWS with CCE option, require an RFA.
5 E4WH not available with PE or DS.
6 PE not available with DS.
7 DS is not available with P0.
Performance Data
Lumen Output
Lumen values are from photometric tests performed in accordance with IESNA LM-79-08. Data is considered to be representative of the configurations shown, within the tolerances allowed by Lighting Facts. Contact factory for performance data on any configurations not shown here.
Lumen Multiplier for 90CRI
Lumen Ambient Temperature (LAT) Multipliers
Projected LED Lumen Maintenance
Data references the extrapolated performance projections for the platforms noted in a 25°C ambient, based on 10,000 hours of LED testing (tested per IESNA LM-80-08 and projected per IESNA TM-21-11).
To calculate LLF, use the lumen maintenance factor that corresponds to the desired number of operating hours below. For other lumen maintenance values, contact factory.
1.0>0.96>0.95>0.91
DSWP WALL PACK
SPECIFICATION
Dimension
Net. Weight: 4.28lbs
ORDERING INFORMATION
EXAMPLE: DSWP-30301-PC-T5-BZ
Photocontrol1
PC-EBU
Photocontrol1 and Emergency Battery Backup2
PC-MSW
Photocontrol1 and Microwave Motion Sensor3
NOTE:
1.Button photocontrol is with a cap for standard product. If need photocontrol function please remove the cap at site.
2. Emergency battery back-up is for ambient temperatures of 32˚F to 86˚F(0 ˚C to 30˚C). Emergency battery backup is available in 4W and works for a minimum of ninety (90) minutes.
3.Microwave dimming sensor for mounting height 40ft (12m) max. Different sensor setting can be set by the remote controller AAL-RC-100.
4. Bronze and Black finish are standard. Custom color is available at an additional charge.
TYPE C SPEC ALTON DELRAY
FEATURES & SPECIFICATIONS
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottomhinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment.
Two combination 1/2"-3/4" and four 1/2" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling. Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equeal to or less than 60deg per CIE 117-1996
Discomfort Galre in Interior Lighting. UGR FAQs
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LUMEN MAINTENANCE — 70% lumen maintenance at 60,000 hours.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are ROHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN4 STATIC WHITE
DISTRIBUTIONS
Tested in accordance with IESNA LM-79-08
Tested to current IES and NEMA standards under stabilized laboratory conditions
Based on LDN4 AR LSS 35K 80CRI
ALTON DELRAY TYPE C ALT
NIO-4RNDC
4" Iolite Round Reflector
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W

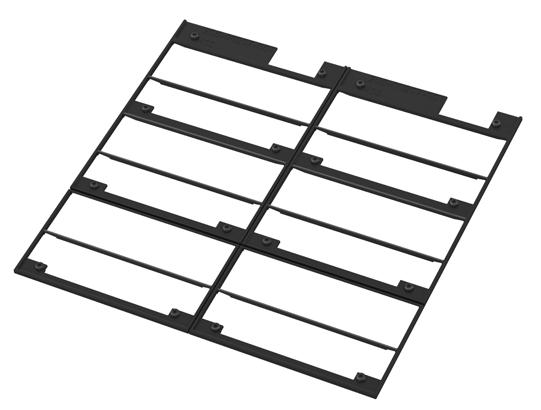

Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2025
Compatible Housings
Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
†
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
TYPE C SPEC ALTON DELRAY
GZ10 0-10V driver dims to 10%
GZ10-10V driver dims to 1%
D10 Minimum dimming 10% driver for use with SSAIR
D1 Minimum dimming 1% driver for use with SSAIR
EZ10-10V eldoLED driver with smooth and flicker-free deep dimming performance down to 1%
EDAB eldoLED DALI SOLDRIVE dim to dark
(blank) No emergency option
EL Emergency battery pack with integral test switch. 10W
Constant Power, Not Certified in CA Title 20 MAEDBS
ELR Emergency battery pack with remote test switch. 10W
Constant Power, Not Certified in CA Title 20 MAEDBS
ELSD Emergency battery pack with self-diagnostics, 10W
Constant Power, integral test switch. Not Certified in CA Title 20 MAEDBS
ELRSD Emergency battery pack with self-diagnostics, 10W
Constant Power, remote test switch. Not Certified in CA Title 20 MAEDBS
E10WCP Emergency battery pack, 10W Constant Power with integral test switch. Certified in CA Title 20 MAEDBS
E10WCPR Emergency battery pack, 10W Constant Power with remote test switch. Certified in CA Title 20 MAEDBS
E10WRSTAR Emergency battery pack, 10W with remote test switch and Iota STAR technology
(blank) No control option
NPP16D nLight® network power/relay pack with 0-10V dimming for non-eldoLED drivers (GZ10, GZ1).
NPP16DER nLight® network power/relay pack with 0-10V dimming for non-eldoLED drivers (GZ10, GZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
SSAIR Wireless standalone embedded control by SensorSwitch
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ10, EZ1). ER controls fixtures on emergency circuit.
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
Options
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__ RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option value
Lumen Packages
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect *See ordering tree for details
(Maximum order quantity for design select lead times is 160.)
‡ Option Value Ordering Restrictions
Restriction
Overall height varies based on lumen package, refer to dimensional charts on page 4 WR, BR Not available with finish (LSS, LD, LS) TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TRW, TRBL Available with clear (AR) trim color only TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL
347 Not available with emergency options
All Emergency 12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER Not available with MVOLT. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed.
SF Must specify 120 or 277 volt N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ10 and EZ1 drivers. NPP16D, NPP16DER, NPPS80EZ, NPS80EZERSpecify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. NLTAIR2, NLTAIRER2, NLATAIREM2Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. Not recommended for metal ceiling installations. NLTAIR2 When combined with EZ1 or EZ10 drivers, can be used as a normal power
SSAIR Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
HAO Fixture height is 5-11/16" for all lumen packages with HAO.
CP Must specify voltage for 3000lm. Not available with emergency battery pack option.
E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/SSAIR. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch.
ALTON DELRAY TYPE C ALT
NHIOICD-48 / NHIOICDCP-48
4" Iolite IC Air-Tight New Construction Housing
Source: 12W or 13W LED 800lm or 1000lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2 "
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90 ° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim) 5-Year Limited Warranty RoHS compliant FCC compliant Meets or exceeds ASTM-283 Air-Tight requirements Patented (noralighting.com/patents)
ELECTRICAL 48LE3 48LE4 48LUPEQ 48DAL
Input Voltage 120V 120-277V 120/277V 120-277V Input Power 13W 12W 13W
Power Factor ≥0.90
Dimming Triac / ELV Triac / ELV / 0-10V Lutron EcoSystem DALI 2
Operating Temperature 40°C max.
4" Iolite IC Air-Tight New Construction Housing - Compatible with NIO-4 trims
EcoSystem with Soft-On, Fade-to-Black (consult factory) DAL = 120-277V input; DALI 1% dimming /EM2 = Integrated Emergency w/ Remote Test Switch /PEM = Pre-Wired for Remote Emergency (not compatible with NHIOICDCP)
Example: NHIOICD-48LE3 = 4" Iolite IC Air-Tight New Construction Housing, 120V input; Triac / ELV dimming
NIO-4EXTC2 = Ceiling Extension Collar up to 2" NIO-4WCC2 = Wood Ceiling Collar up to 2"
NO SPEC CUSTOM MODEL NUMBER
GRILL LIGHT
Type:
Model:
ARIA 16” and 20” LED MR16 Path Light Fixture
ORDERING CODE:
489917-P16 (16”) 489917-P20 (20”)
SPECIFICATIONS
HOUSING:
Solid brass. Threaded with O-ring. Watertight and bug-tight.
FINISH:
Weathered brass. Architectural colors and custom powder coated colors available.
LENS:
Clear flat tempered glass.
SOCKET/LAMP HOLDER:
One fixed ceramic bi-pin socket with stainless steel retaining springs.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stake mount included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
ARCHITECTURAL COLORS:
FINE TEXTURE SILVER
FINE TEXTURE WHITE
FINE TEXTURE BLACK
DIMENSIONS:
Aria 16” Uplight (489917-P16-S)
Aria 20” Uplight (489917-P20-S)
Aria 16” Uplight (489917-P16-WH)
Aria 20” Uplight (489917-P20-WH)
Aria 16” Uplight (489917-P16-BLK)
Aria 20” Uplight (489917-P20-BLK)
SPECIFICATION SHEET
Standard colors: Bronze Aria 16” uplight (489917-P16) / Bronze Aria 20” uplight (489917-P20). Architectural colors and powder coated colors are also available.
BLANK
SPECIFICATION SHEET Page 2 ARIA 16” and 20” LED MR16 Path Light Fixture
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 120°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 489917-P16-4W-25-2700K-MS
489917-P16
489917-P16-S
489917-P16 -WH
489917-P16 -BLK
489917-P20
489917-P20-S
489917-P20 -WH
489917-P20 -BLK
MS Composite stake (incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048
MP PVC/Brass post stake 490037
TYPE EXP SPEC ALTON DELRAY
FEATURES & SPECIFICATIONS
INTENDED USE — Ideal for wet location areas requiring exit signs for AC only or battery back-up power that are subject to saturation with non-mechanically delivered water. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — White, compact, contemporary design. Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. Universal directional Chevron inserts are easily removed and reinserted. UL94V-0 flame rating. UV-stable resin resists discoloration from natural and man-made light sources. Rugged, heavy-duty, polycarbonate clear housing lens. Housing also available in black or gray. Letters 6" high with 3/4" stroke, with 100 ft. viewing distance rating, based upon UL924 standards.
OPTICS — Low energy consumption — fewer than 5 watts. The typical life of the exit LED lamp is 5 years, based on 24/7 operation.
ELECTRICAL — Dual voltage input capacity (120/277V).
Battery: (EL Option) – Sealed, maintenance free nickel-cadmium battery delivers 90 minutes rated capacity. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection. Self-diagnostic testing (SD Option Only) for 30 seconds every 30 days, 30 minutes every 180 days and a 90-minute annual test. Diagnostic evaluation of LED light source, charging and battery condition.
INSTALLATION — Universal mounting canopy for top or end mount. Back mount standard for single face only. Junction box hole pattern for 4" octagon mounting. Flexible conduit entry.
LISTINGS — UL listed. Wet location listed. Standard cold temperature rating -4°F to 122°F (-20°C to 50°C). Meets UL 924, NFPA 101 (current Life Safety Code) and NFPA 70-NEC, Meets all applicable FCC Title 47, Part 15, Subpart B requirements.
WARRANTY — 5-year limited warranty. (Battery is prorated.) This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
† Exit Signs Certified in the CA Title 20 Appliance Efficiency Database.
Specifications
Length: 12-1/2 (31.8)
Depth: 2-1/2 (6.4)
Height: 8-1/8 (20.6)
Weight: 4.1 lbs (1.9 kg)
All dimensions are inches (centimeters) unless otherwise indicated.
ALTON DELRAY TYPE EXP ALT
Source: 2.2W
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty
· UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
