2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
TYPE MFG PART NUMBER
AU-C10W-30-9-CO7W9H-XX-DE10A-BLK

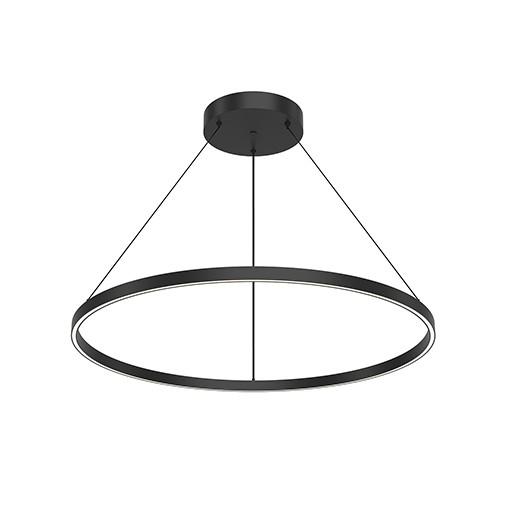

PD87748-BK
KUZCO KUZCO KUZCO KUZCO KUZCO
KUZCO
PD87736-BK
PD87724-BK
PD87748-BK
PD87736-BK
PD87724-BK
CUSTOM
2812.16-6
494502L-BK
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377

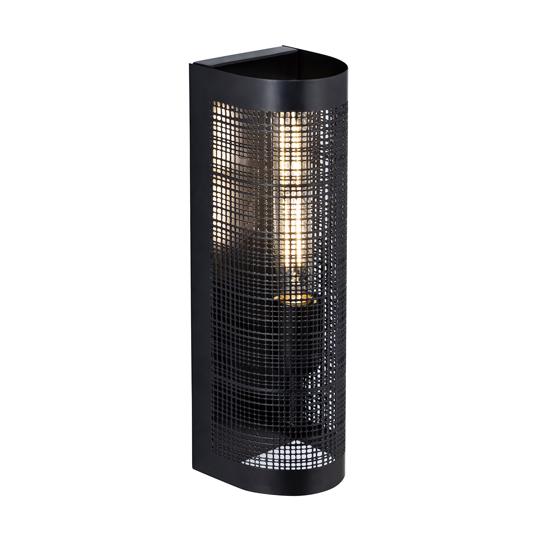

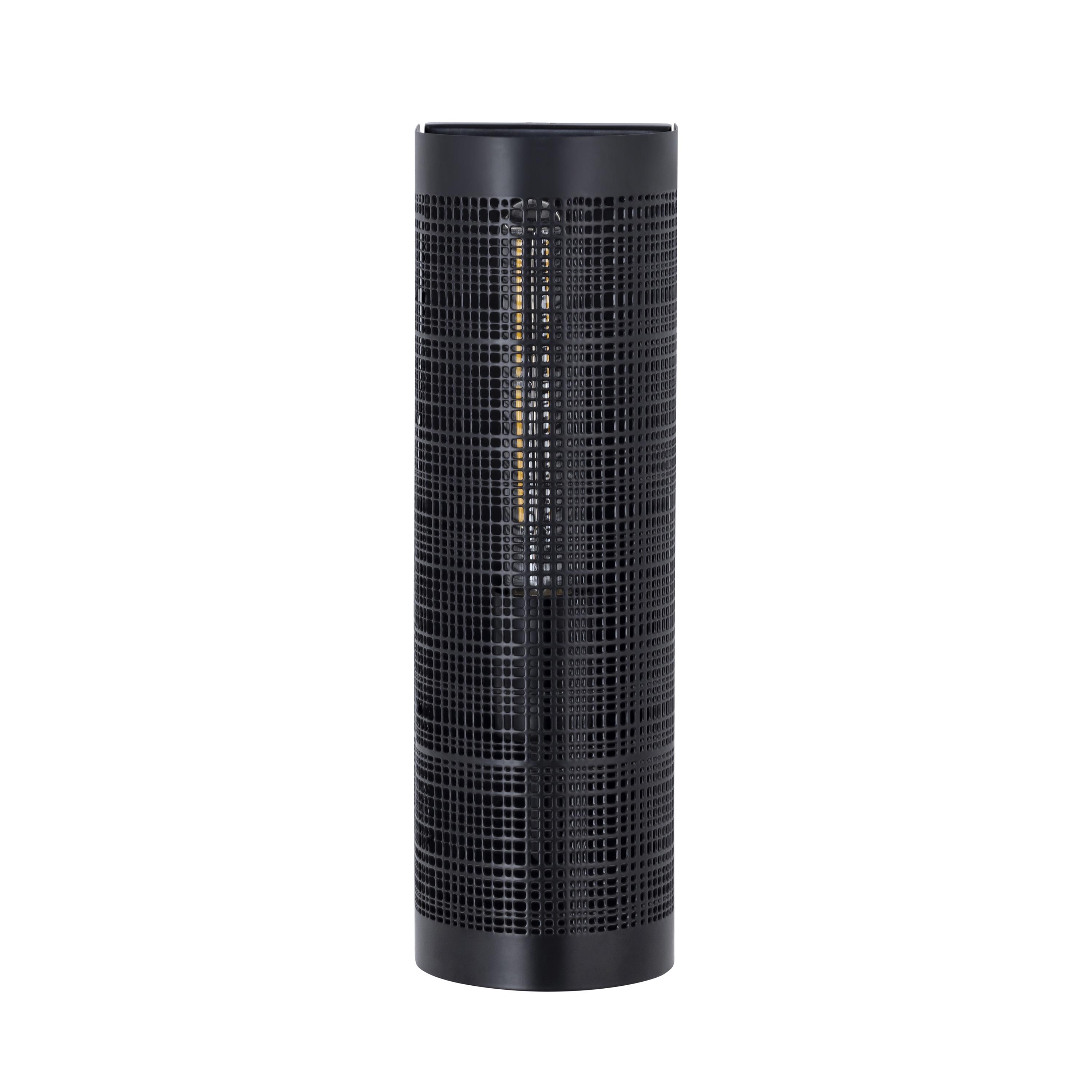

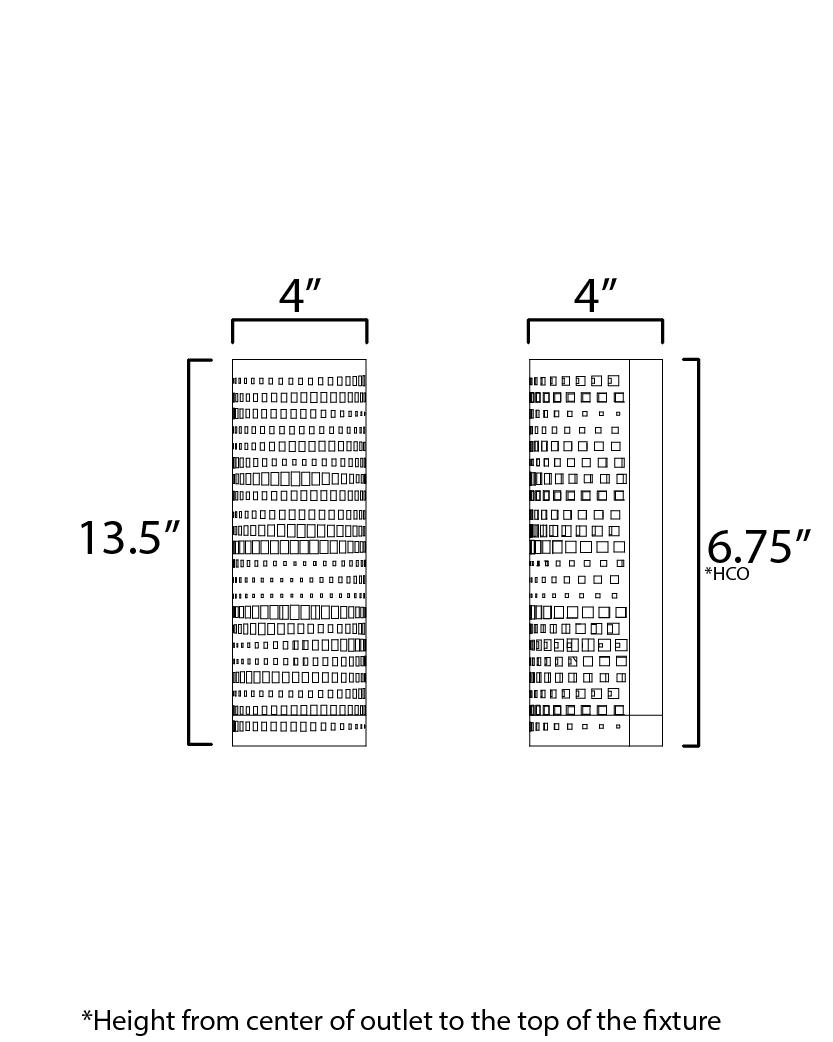

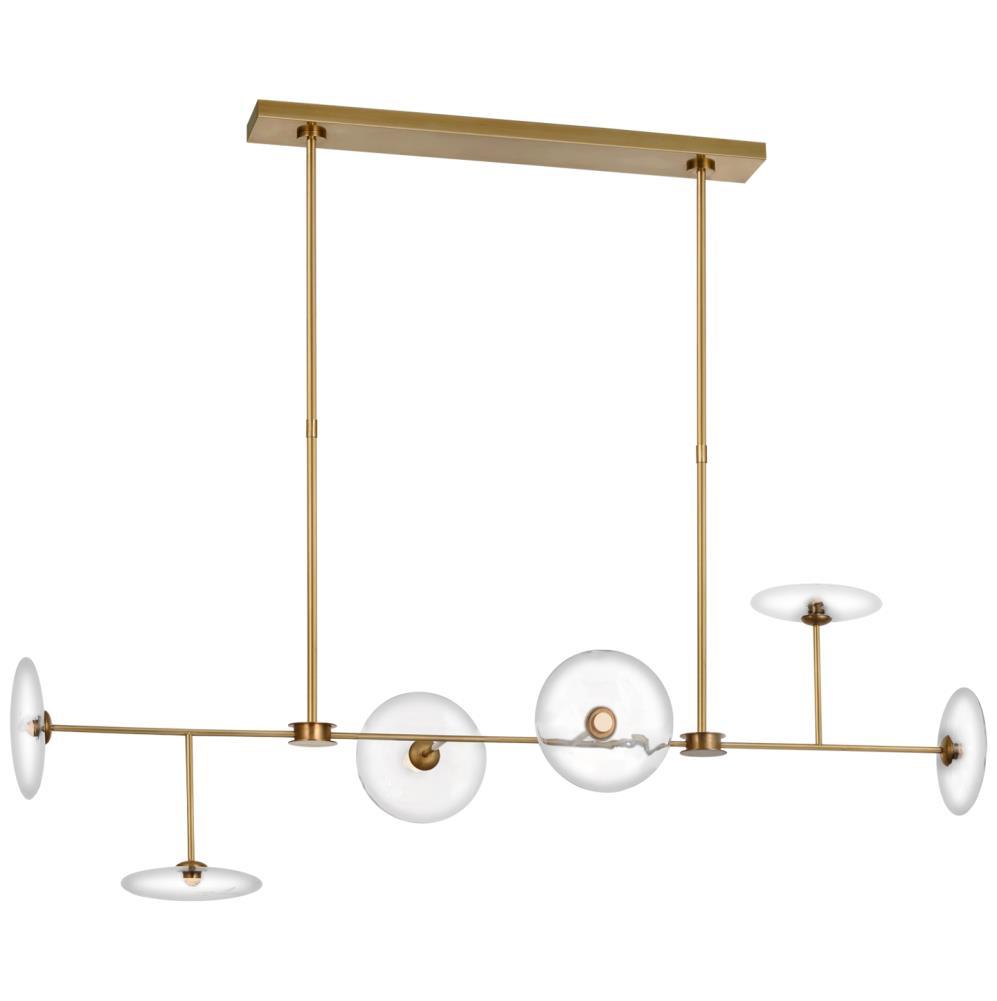

MAXIM KUZCO KUZCO KUZCO CENTURY

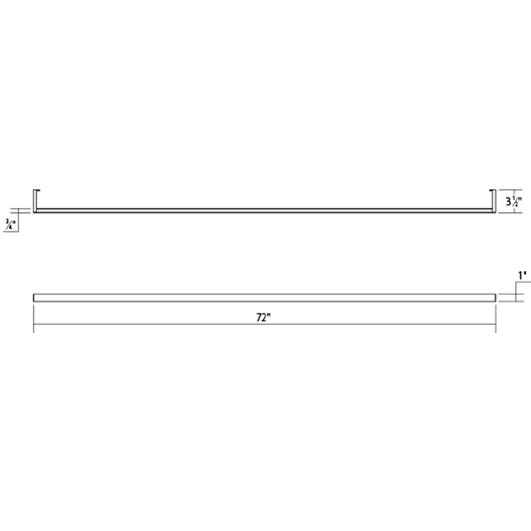

CENTURY CENTURY VIS COMFORT SONNEMAN
KUZCO
GLOBALUX CARRO
SUNPARK
NORA NORA
GLOBALUX SUNPARK
GLOBALUX NORA
GLOBALUX
SUNPARK
31220BK + BULB

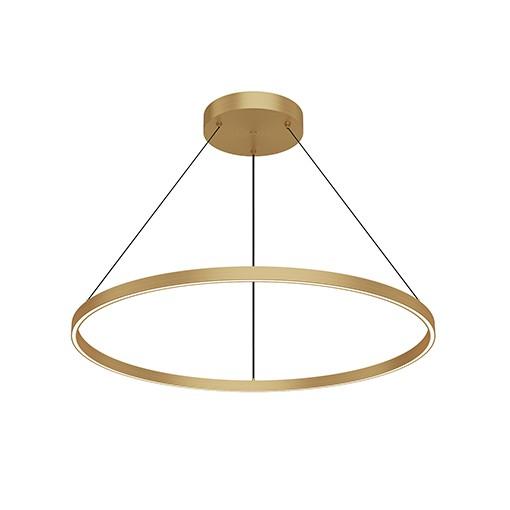

PD87748-BK
PD87736-BK
PD87724-BK

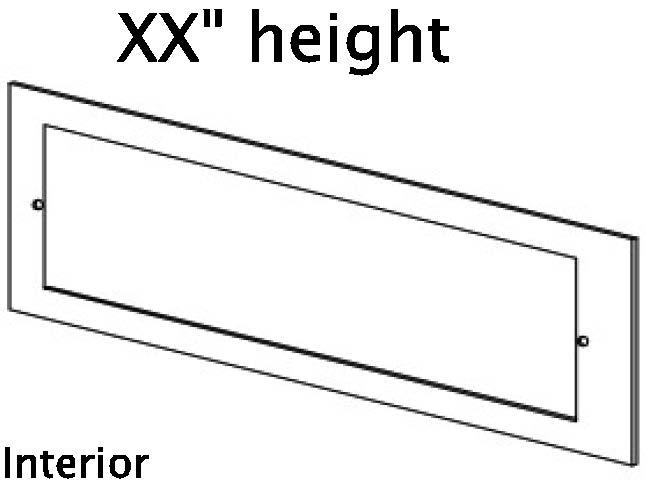

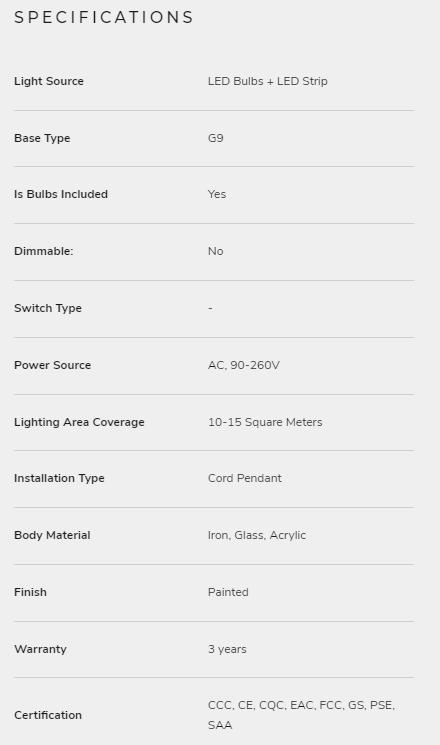

CUSTOM 48" LIT MIRROR HALF-LIT LED PENDANT
CUSTOM 36" LIT MIRROR HALF-LIT LED PENDANT
CUSTOM 24" LIT MIRROR HALF-LIT LED PENDANT

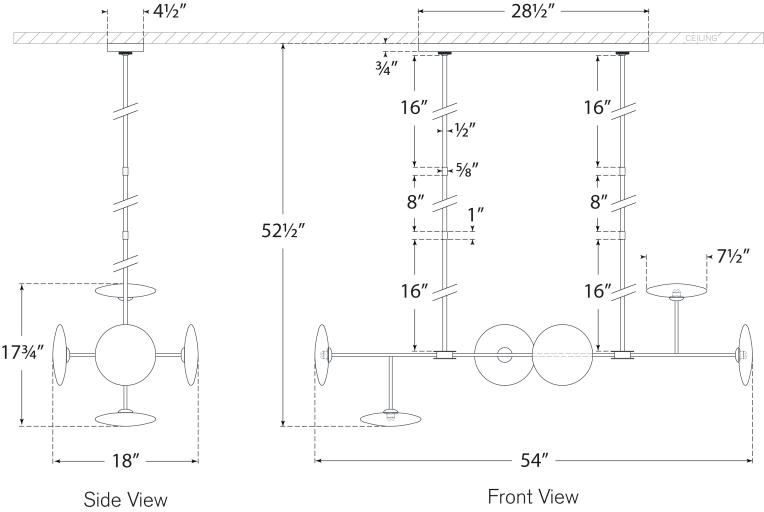

S 5695AI/HAB-CG
2812.16-6
494502L-BK
RDL-7-15-120D-930-WH
VWGA-524H2-L11-W1-1
FL5524D-K-MCT-05
NOXAC-43130WW/HL/NHIC-427LMRAT
NOXAC-43130WW/HL/NHIC-427LMRAT
RDL-9-18-120D-930-WH
3-4048D-30-3000K
RDL-5-10-120D-930-WH
NLOPAC-R6TWW
RDL-5-10-120D-930-WH
P609D-38-E26-05
VCPG LED Parking Garage
Specifications
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E8WC Emergency battery backup, Certified in CA Title 20 MAEDBS (8W,
E10WH Emergency battery backup, Certified in CA Title 20 MAEDBS (10W,
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ ambient sensor for 8-15' mounting heights 10
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ ambient sensor for 15'-30' mounting heights 10
separately YK Yoke/trunnion mount2
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black (blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units) U Unit packs only
A+ Capable options indicated by this color background.
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
OPTIONS (Factory Installed)
OCS -Occupancy Sensor
-Battery Backup (900 lumens)
VCPG LED Parking Garage
Specifications
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E8WC Emergency battery backup, Certified in CA Title 20 MAEDBS (8W,
E10WH Emergency battery backup, Certified in CA Title 20 MAEDBS (10W,
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ ambient sensor for 8-15' mounting heights 10
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ ambient sensor for 15'-30' mounting heights 10
separately YK Yoke/trunnion mount2
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black (blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units) U Unit packs only
A+ Capable options indicated by this color background.
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
OPTIONS (Factory Installed)
OCS -Occupancy Sensor
-Battery Backup (900 lumens)
VCPG LED Parking Garage
Specifications
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E8WC Emergency battery backup, Certified in CA Title 20 MAEDBS (8W,
E10WH Emergency battery backup, Certified in CA Title 20 MAEDBS (10W,
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ ambient sensor for 8-15' mounting heights 10
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ ambient sensor for 15'-30' mounting heights 10
separately YK Yoke/trunnion mount2
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black (blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units) U Unit packs only
A+ Capable options indicated by this color background.
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
OPTIONS (Factory Installed)
OCS -Occupancy Sensor
-Battery Backup (900 lumens)
VCPG LED Parking Garage
Specifications
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E8WC Emergency battery backup, Certified in CA Title 20 MAEDBS (8W,
E10WH Emergency battery backup, Certified in CA Title 20 MAEDBS (10W,
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ ambient sensor for 8-15' mounting heights 10
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ ambient sensor for 15'-30' mounting heights 10
separately YK Yoke/trunnion mount2
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black (blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units) U Unit packs only
A+ Capable options indicated by this color background.
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
OPTIONS (Factory Installed)
OCS -Occupancy Sensor
-Battery Backup (900 lumens)
FEATURES & SPECIFICATIONS
INTENDED USE — A general purpose and energy-efficient surface-mounted or suspended LED fixture, suitable for wet, damp and/or cold locations. For vapor-tight demanding environments where moisture or dust is a concern and where relatively low fixture mounting heights and wide fixture spacing are common. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Typical applications include industrial facilities, parking garages, retail malls, multi-purpose rooms, garden centers, and food processing. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for AcrylicPolycarbonate Compatibility table for suitable use.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION — One-piece 5VA fiberglass housing with integral perimeter channel utilizing continuous poured-in-place NEMA 4X gasket. Approved for through wiring. Captive polymeric latches are standard. Stainless steel latches (#316) available as an option for food processing or more demanding applications. Power connection is easily accomplished through pre-drilled holes.
OPTICS — Injection molded, acrylic lens (.080" thick) provides high impact-resistance comparable to 100% DR. A UV stabilized polycarbonate diffuser is available (.080" thick) in clear or frosted for additional impact strength where vandal protection is desired.
Expected service life of 60,000 hours at 80% lumen maintenance (L80); predicted life of more than 100,000 hours.
ELECTRICAL — Utilizes high-efficiency LEDs mounted to core circuit boards. High-efficiency drivers operate 120-277 (MVOLT) and 347-480 (HVOLT) offered with 0-10 volt dimming, dims to 10%. Standard Luminaire Surge Protection Level: 6kV/3kA Surge Rated per ANSI C82.77-5-2015.
INSTALLATION — A pair of stainless steel surface mount brackets (SMB) are included (unless another mounting option is chosen) allowing for surface (ceiling) or suspension mount applications using included bail with aircraft cable or chain. Optional pair of dual pendant mount brackets (DPMB) are available for surface (ceiling) or suspension mount applications using either 3/8" threaded rod or included bail with aircraft cable or chain. Optional pair of angle mounting brackets (ANGBKT) for horizontal wall mount applications. LISTINGS — CSA Certified to UL and C-UL Standards. Suitable for wet location. IP65, IP66, IP67 rated. NSF Splash Zone 2 and Non-Food Zone rated. NEMA 4X rated. Sensors maintain IP65 and IP66 only. See chart on page 5 for Ambient Temperatures.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Stock configurations are offered for shorter lead times:
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details

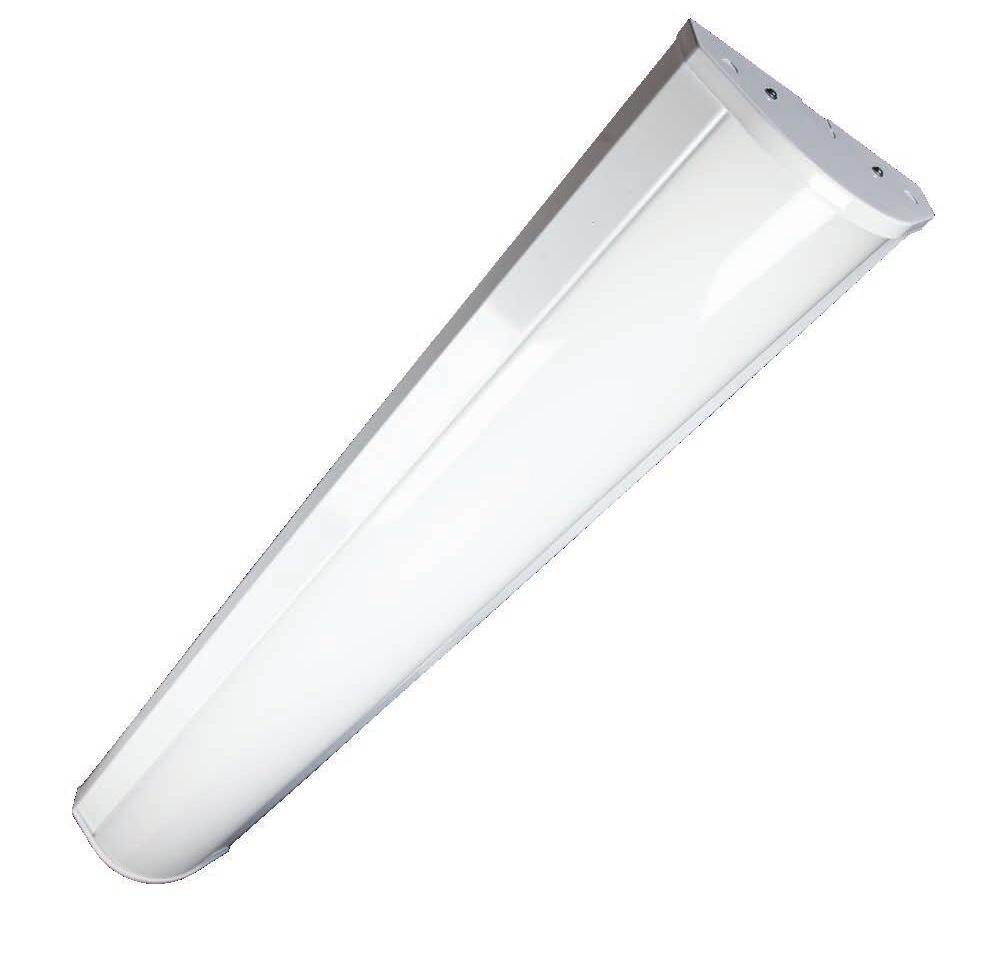

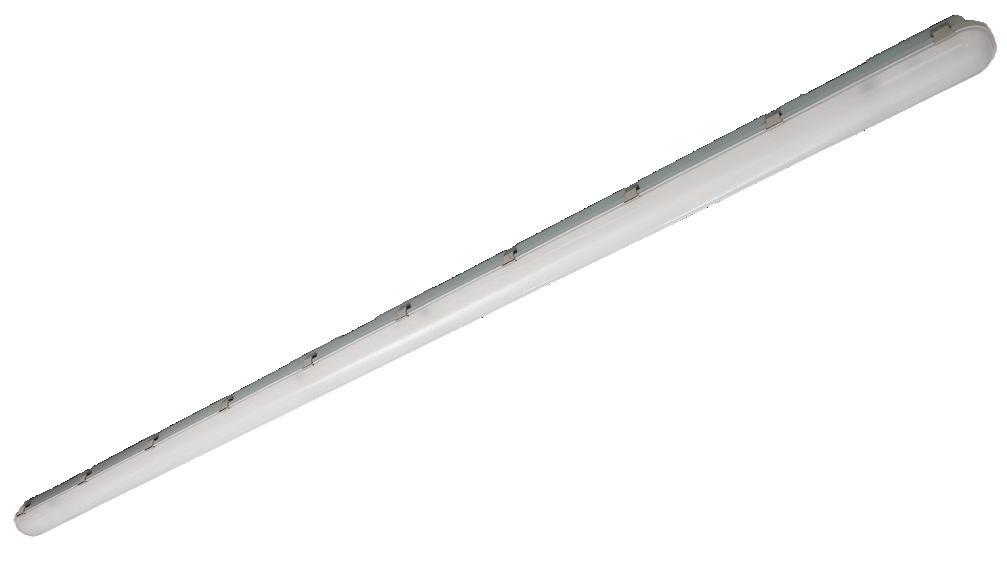

VAPOR TIGHT SERIES
Product Features:
• Wattage and Kelvin Selectable
• Wet Location
• 0–10V Dimming
• Robust Housing with Stainless Steel Tamper-Resistant Hardware
• Included Surface Mount Kit
• Hinged Easy-to-Install Design
Product Specifications:
Selectable Wattage: 20W—25W—30W
Selectable Kelvin: 3000K—4000K—5000K
Lumens: Up to 3,900
Efficacy: Up to 130 lm/W
Input Voltage Options: 120–277 VAC
Input Frequency: 50/60 Hz
Operating Temperature: -4ºF to 113ºF (-20ºC to 45ºC)
Dimming: 0–10V Dimmable
CRI: >80
Beam Angle: 110º
Warranty: 5 Years
L70 Lifetime 100,000 hrs Calculated per TM21
Dimensions: 5" x 24.8" x 3.6"
Weight (lbs): 4.41
Ordering Guide:
Project:
Catalog #: Notes:
Date:
FACTORY INSTALLED OPTIONS
EM5
5DHOC Bi-Level daylight harvesting and occupancy microwave sensor 12V–24VDC FIELD INSTALLED ACCESSORIES ESL-ACCS-JC-KIT-S2 V-hook with chains, set of 2, 3 feet ESL-ACCS-JC-KIT-S3 V-hook with chains set of 3, 3 feet ESL-ACCS-AC-10FT-S2 3M
FEM LED Low-Profile Enclosed and Gasketed
4000LM 4,000 lumens 6000LM 6,000 lumens
3000LM 3,000 lumens
4000LM 4,000 lumens
6000LM 6,000 lumens
8000LM 8,000 lumens
10000LM 10,000 lumens 12000LM 12,000 lumens
9000LM 9,000 lumens 12000LM 12,000 lumens
15,000 lumens
18,000 lumens
20,000 lumens
24,000 lumens
IMACD Acrylic, clear deep lens
IMAFD Acrylic, deep frosted lens
LPAFL Acrylic, low profile frosted lens
LPACL Acrylic, low profile clear lens
LPPCL Polycarbonate, low profile clear lens
LPPFL Polycarbonate, low profile frosted lens
Options
Emergency:
E10WMCP EM Self-diagnostics battery pack, MVOLT, 10W, Constant Power Certified in the California Title 20 Modernized Appliance Efficiency Database (MAEDBS) ‡
BE6WCP Cold Weather EM battery pack, 120/277V, 6W, Constant Power Certified in the California Title 20 Modernized Appliance Efficiency Database (MAEDBS) ‡
BGTDGenerator transfer device
Other Options:
ANGBKT Angle bracket shipped with fixture ‡
BAA Buy America(n) Act and/or Build America Buy America Qualified

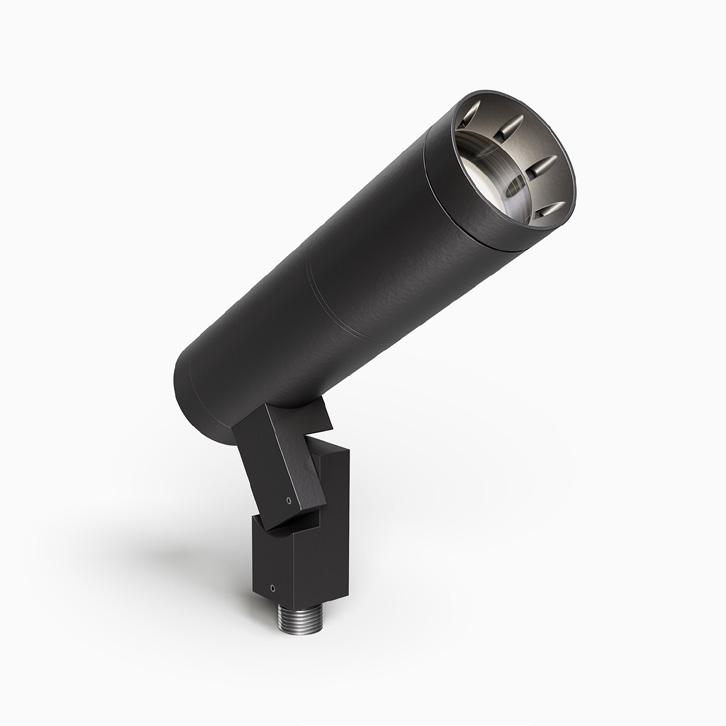

Versatile round, directional 120V-277V LED modern accent light for commercial and large residential architectural outdoor and landscape lighting environments.
• 5W, 7W, 10W, 14W integrated HK LED delivering 400-1400 lumens 2200-4000K CCT, including specialty Amber and RGBW options.
Wet Location Listed, IP67 Standard.
• Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
• 180º vertical and 360º horizontal adjustment via locking swivel stem design.
Modular components, field changeable LED optical beams, and lenses.
Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
Every fixture tested end of line for water tightness and light quality.
Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 for details). Voltage 120V - 277V AC
Wattage
5, 7, 10 or 14W HK LED delivers 400 - 1400 lumens.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGBW options available. Consult factory for specialty LED specification details.
Listngs
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Driver/ Dimming
Onboard, Integrated LED Driver Phase Control @ 120V, 0V-10V @120V-277V, DALI or DMX control available, consult factory for details.
Optics
Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 for details).
Type:
Model:

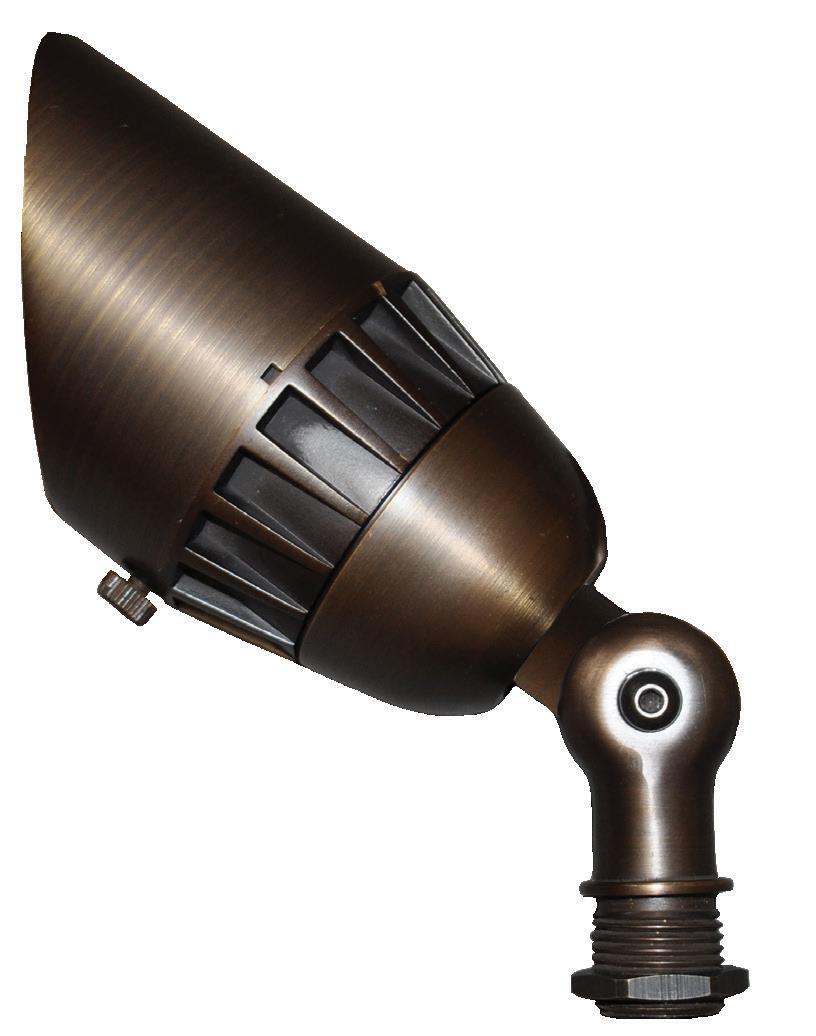

BODACIOUS Integrated LED Uplight
SPECIFICATIONS
VOLTAGE:
12V AC/DC
HOUSING:
Cast brass with removable 3” shroud. Optional 6” shroud available.
Threaded with 1/2” NPT. May be mounted into threaded hubs in junction boxes or mounting accessories. Heavy-duty composite stake included.
WIRING:
Pre-wired with a five-foot pigtail of 18/2 cable.
WARRANTY: 10-year warranty
Opt. 6” extended shroud 3W & 6W #490260
DIMENSIONS:
Opt. 6” extended shroud 8W, 12W & 16W #490261
SPECIFICATION SHEET
The Bodacious uplight features an integrated LED source available in 3, 8, 6,12 or 16 watts. 2700K, 3000K and 5000K options. 30-, 45-, 65- and 100-degree beam spreads.
STYLE S Standard F Finned VOLTAGE 120V 120V (Phase
Readymade eligible configurations ship in 2 to 4 weeks
1 Consult factory for specialty finish quoting and lead times
2 For Specialty AM (Amber LED) and RG (RGBW LED), select SPW (Specialty) for Wattage. Consult factory for LED technical details before Specification or Order.
Versatile round, directional 120V-277V LED modern accent light for commercial and large residential architectural outdoor and landscape lighting environments.
• 5W, 7W, 10W, 14W integrated HK LED delivering 400-1400 lumens 2200-4000K CCT, including specialty Amber and RGBW options.
Wet Location Listed, IP67 Standard.
• Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
• 180º vertical and 360º horizontal adjustment via locking swivel stem design.
Modular components, field changeable LED optical beams, and lenses.
Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
Every fixture tested end of line for water tightness and light quality.
Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 for details). Voltage 120V - 277V AC
Wattage
5, 7, 10 or 14W HK LED delivers 400 - 1400 lumens.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGBW options available. Consult factory for specialty LED specification details.
Listngs
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Driver/ Dimming
Onboard, Integrated LED Driver Phase Control @ 120V, 0V-10V @120V-277V, DALI or DMX control available, consult factory for details.
Optics
Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 for details).
Type:
Model:
BODACIOUS Integrated LED Uplight
SPECIFICATIONS
VOLTAGE:
12V AC/DC
HOUSING:
Cast brass with removable 3” shroud. Optional 6” shroud available.
Threaded with 1/2” NPT. May be mounted into threaded hubs in junction boxes or mounting accessories. Heavy-duty composite stake included.
WIRING:
Pre-wired with a five-foot pigtail of 18/2 cable.
WARRANTY: 10-year warranty
Opt. 6” extended shroud 3W & 6W #490260
DIMENSIONS:
Opt. 6” extended shroud 8W, 12W & 16W #490261
SPECIFICATION SHEET
The Bodacious uplight features an integrated LED source available in 3, 8, 6,12 or 16 watts. 2700K, 3000K and 5000K options. 30-, 45-, 65- and 100-degree beam spreads.
STYLE S Standard F Finned VOLTAGE 120V 120V (Phase
Readymade eligible configurations ship in 2 to 4 weeks
1 Consult factory for specialty finish quoting and lead times
2 For Specialty AM (Amber LED) and RG (RGBW LED), select SPW (Specialty) for Wattage. Consult factory for LED technical details before Specification or Order.
MS Heavy-duty slotted mounting stake (incl.) 490034
EX Excalibur Post Stake 490037
TR Trident HD 3-Prong Stake 490036
PM Pier Mount 490057
TSM Tapered Surface Mount 490048
EM Round Electrical Mounting Plate 490043
RMP Rectangular Electrical Mounting Plate 490044
BLANK
Specifications

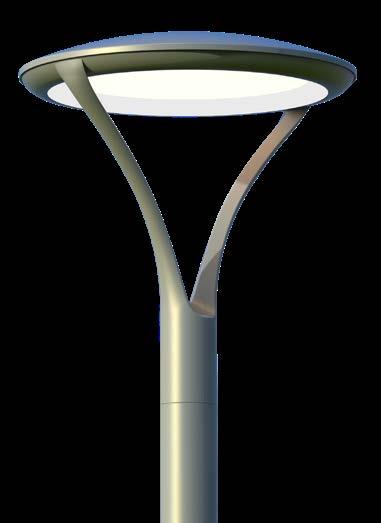

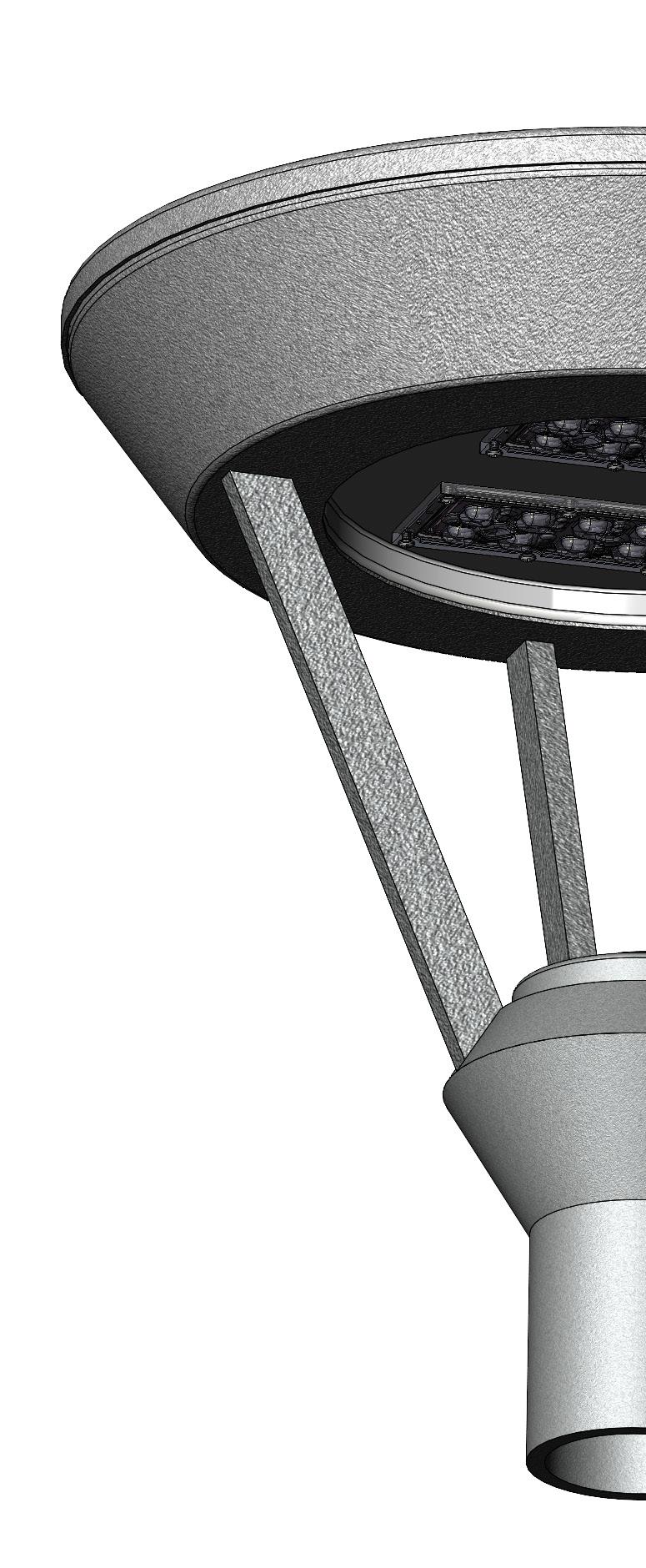

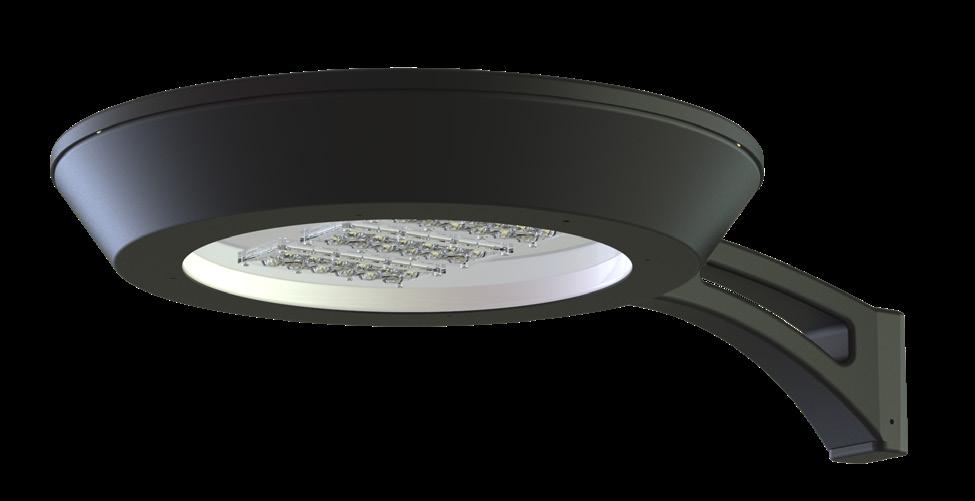

Radean Post Top LED Area Luminaire
Introduction
The architecturally-inspired shape of the RADEAN™ post top area luminaire embodies the grace and strength of the RADEAN family. The twin copper-core cast aluminum arms support the slender superstructure, creating a beautiful sculpture by day transforming into a beacon of comfort by night. Triangular arms redirect reflection maintaining its visually quiet appearance. With sleek lines and simple silhouettes, these LED luminaires use specialized lighting and visual comfort to transform common areas like courtyards, outdoor retail locations, universities and corporate campuses into pedestrian-friendly nighttime environments. EPA:
Ordering Information
Hit the Tab key or mouse over the page to see all interactive elements.

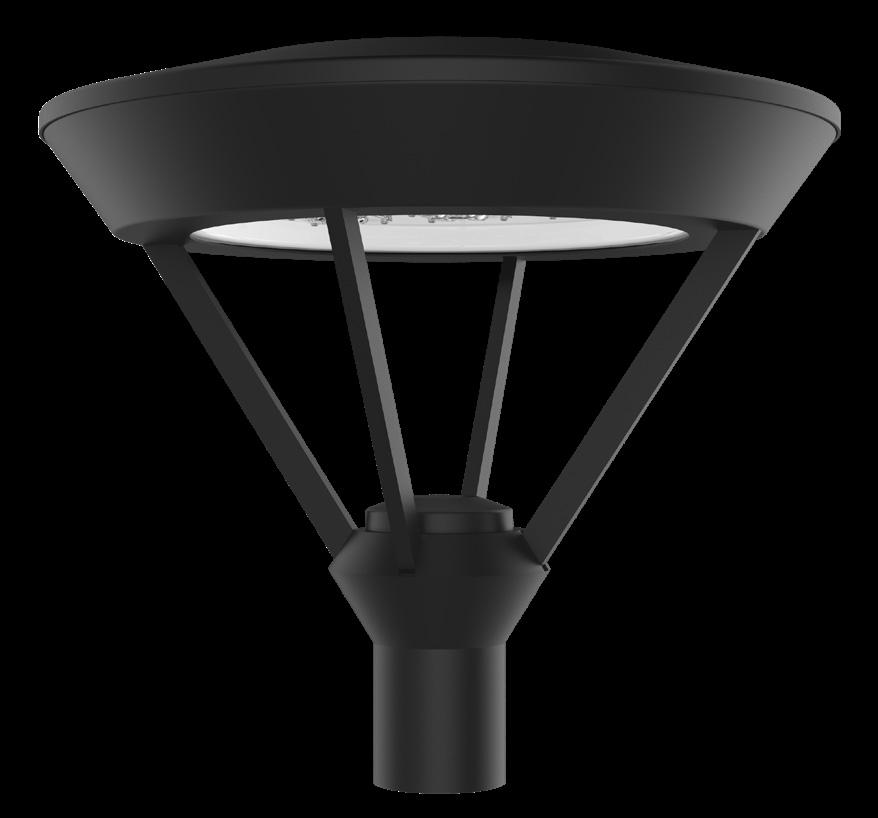

PULSAR Architectural LED Post Mount Luminaire, suitable for wet locations. Perfect for lighting up Residential Exteriors, Walkways, Perimeters, School Campuses, Industrial/Commercial Spaces, Parking Lots, Recreational Parks.
-Dark Sky compliant
-10 Year /100,000 warranty.
FEATURES:
•Energy Savings: Over 66% compared to HID light sources
•0-10V Dimming, occupancy sensors, photo cell or wireless controls (optional)
CONSTRUCTION:
•Housing is Heavy Duty Aluminum Spun.
•3 mil Powder Coat Finish.
•Clear Optics System.
•Silicone Gasket to prevent leakage and provide Weather-Tight Protection.
•Mounting: over of a 3” O.D Tenon or Pole (standard). Adapter is Required for other mounting sizes
OPTIC DISTRIBUTION
Example: PLSR-I-T3-20CLED-50K-MV-T3R-BZ-HSS
Application

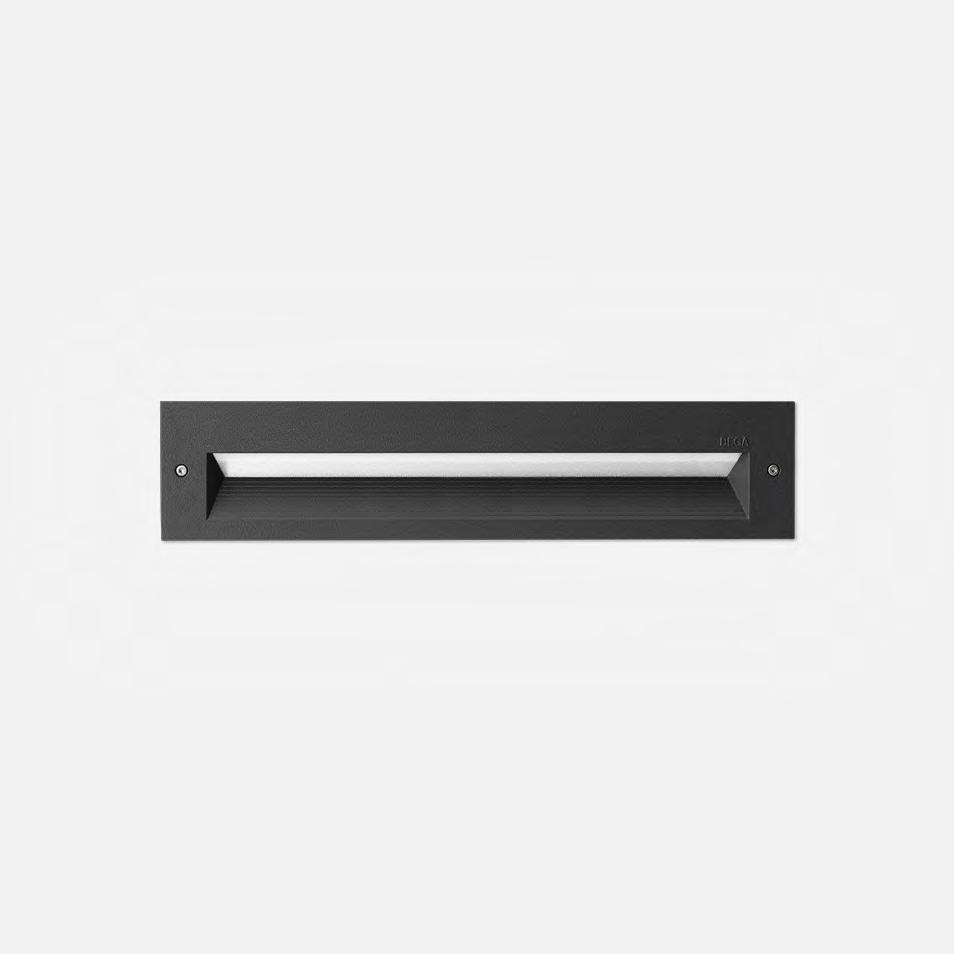

Recessed wall luminaire with asymmetric light distribution that is ideal for the illumination of ground surfaces, building entrances, stairs and footpaths. Separate installation housing allows for seamless coordination into construction and easy maintenance.
Materials
BEGA Tricoat ®, a 3-layer finishing technology for increased corrosion protection
Composite installation housing
Pure anodized aluminum reflector
NRTL listed to North American Standards, suitable for wet locations Protection class IP 65
Weight: 2.1 lbs.
Electrical
Operating voltage
120-277V AC
Minimum start temperature -30° C
LED module wattage 8.4 W
System wattage 11.0 W
Controllability
0-10V, TRIAC, and ELV dimmable
Color rendering index Ra > 80
Luminaire lumens 480 lm
LED service life (L70) 60000 hrs
LED color temperature
4000K (K4)
3500K (K35)
3000K (K3)
2700K (K27)
BEGA can supply you with suitable LED replacement modules for up to 20 years after the purchase of LED luminaires - see website for details
Finish
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL and custom color finishes provided in either polyester powder or liquid paint.
Available colors
Black (BLK) Bronze (BRZ) Silver (SLV) White (WHT) RAL: CUS:
wall luminaire · Directed light
Type: BEGA Product:
Project:
Modified:
Available options AMBAmber LED CUSCustom finish FSC Fusing MGUMarine grade undercoat RALRAL finish
Included (available for pre-shipment) BB24065Installation housing
INSERT+2

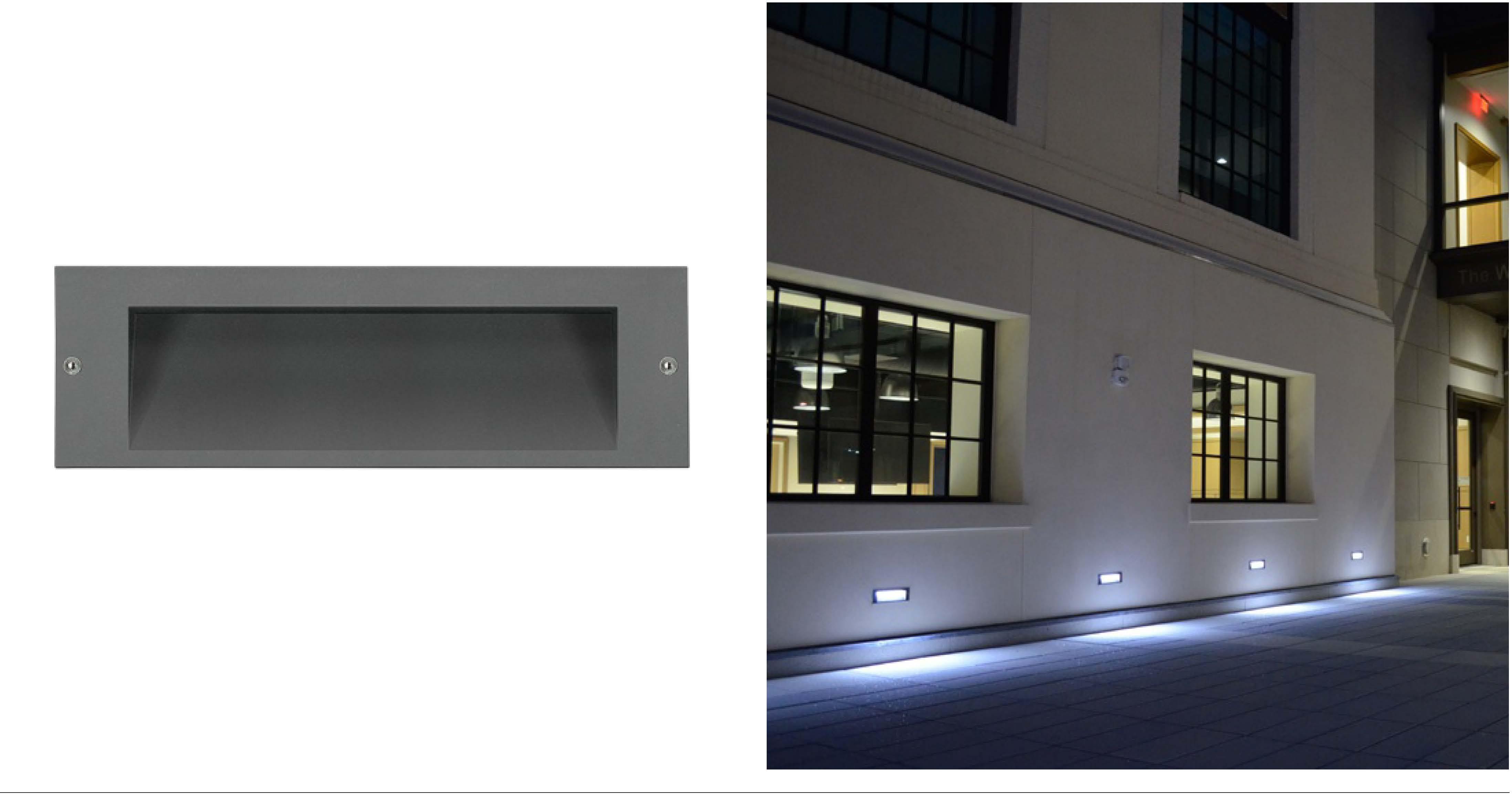

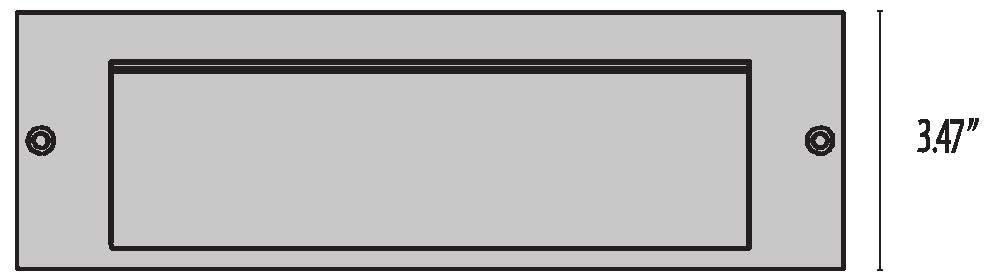

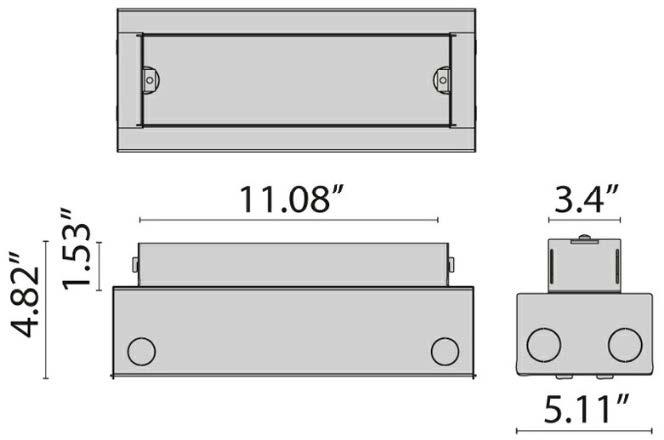

Recessed wallsteplight series. Fixturesconsistof:
-, Multi-steppowder-coatpaintingprocess,optimized against UVrays andcorrosion.
-, Copper-free precision die-cast aluminum housing and ring/faceplate.
-, Product meets Buy American Actrequirementswithin ARRA.
-, 5-year warranty.
-, Marine Grade finish.
� Suitable for Natatorium applications.
FINISHES
• AN-96/Irongray/Textured
0 GR-94/Aluminummetallic/Textured
0 WH-87/White/Textured
• BK-81/Black/Textured
• RB-10/Ironrust/Textured
BLANK
Order Guide - lnsert+2
Order code example

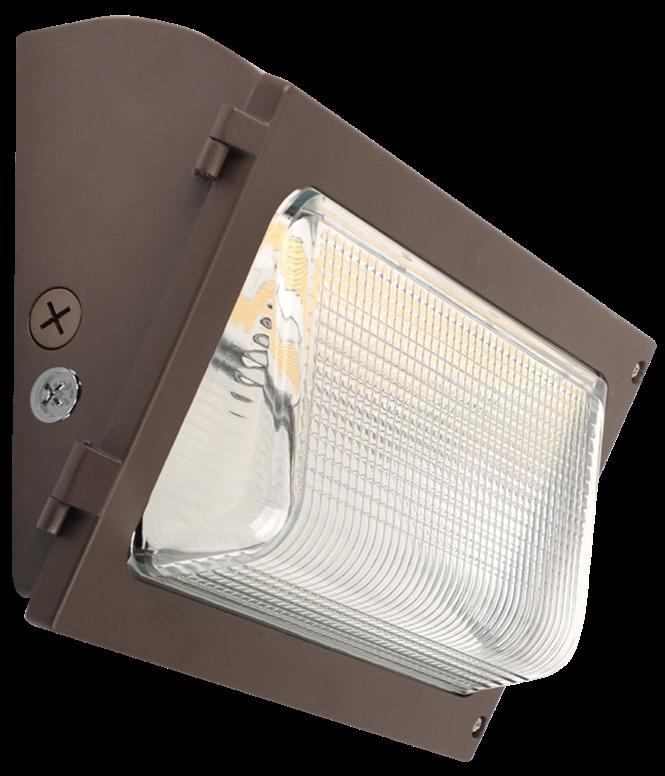

WDGE2 LED
Introduction
The WDGE LED family is designed to meet specifier’s every wallmounted lighting need in a widely accepted shape that blends with any architecture. The clean rectilinear design comes in four sizes with lumen packages ranging from 1,200 to 25,000 lumens, providing a true site-wide solution. Embedded with nLight® AIR wireless controls, the WDGE family provides additional energy savings and code compliance.
WDGE2 with industry leading precision refractive optics provides great uniform distribution and optical control. When combined with multiple integrated emergency battery backup options, including an 18W cold temperature option, the WDGE2 becomes the ideal wall-mounted lighting solution for pedestrian scale applications in any environment.
Ordering Information
Shipped separately AWS 3/8inch Architectural wall spacer7 PBBW Surface-mounted back box (top, left, right conduit entry). Use when there is no junction box available7
E10WH Emergency battery backup, Certified in CA Title 20 MAEDBS (10W, 5°C min)
E20WC Emergency battery backup, Certified in CA Title 20 MAEDBS (18W, -20°C min)
PE Photocell, Button Type8
DMG 0-10V dimming wires pulled outside fixture (for use with an external control, ordered separately)9
BCE Bottom conduit entry for back box (PBBW). Total of 4 entry points.
CCE Coastal Construction7
Standalone Sensors/Controls
PIR Bi-level (100/35%) motion sensor for 8-15' mounting heights. Intended for use on switched circuits with external dusk to dawn switching.
PIRH Bi-level (100/35%) motion sensor for 15-30' mounting heights. Intended for use on switched circuits with external dusk to dawn switching
PIR1FC3V Bi-level (100/35%) motion sensor for 8-15' mounting heights with photocell pre-programmed for dusk to dawn operation.
PIRH1FC3V Bi-level (100/35%) motion sensor for 15-30' mounting heights with photocell pre-programmed for dusk to dawn operation.
Networked Sensors/Controls
NLTAIR2 PIR Embedded wireless controls by nLight with Passive Infrared Occ sensor and on/off photocell for 8-15' mounting heights.
NLTAIR2 PIRH Embedded wireless controls by nLight with Passive Infrared Occ sensor and on/off photocell for 15-30' mounting heights.
NLTAIREM2 PIR Embedded wireless controls by nLight with UL924 listed emegency operation, Passive Infrared Occ sensor and on/off photocell for 8-15' mounting heights
NLTAIREM2 PIRH Embedded wireless controls by nLight with UL924 listed emegency operation, Passive Infrared Occ sensor and on/off photocell for 15-30' mounting heights.
Hit the Tab key or mouse over the page to see all interactive elements.
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLEFINISHES:

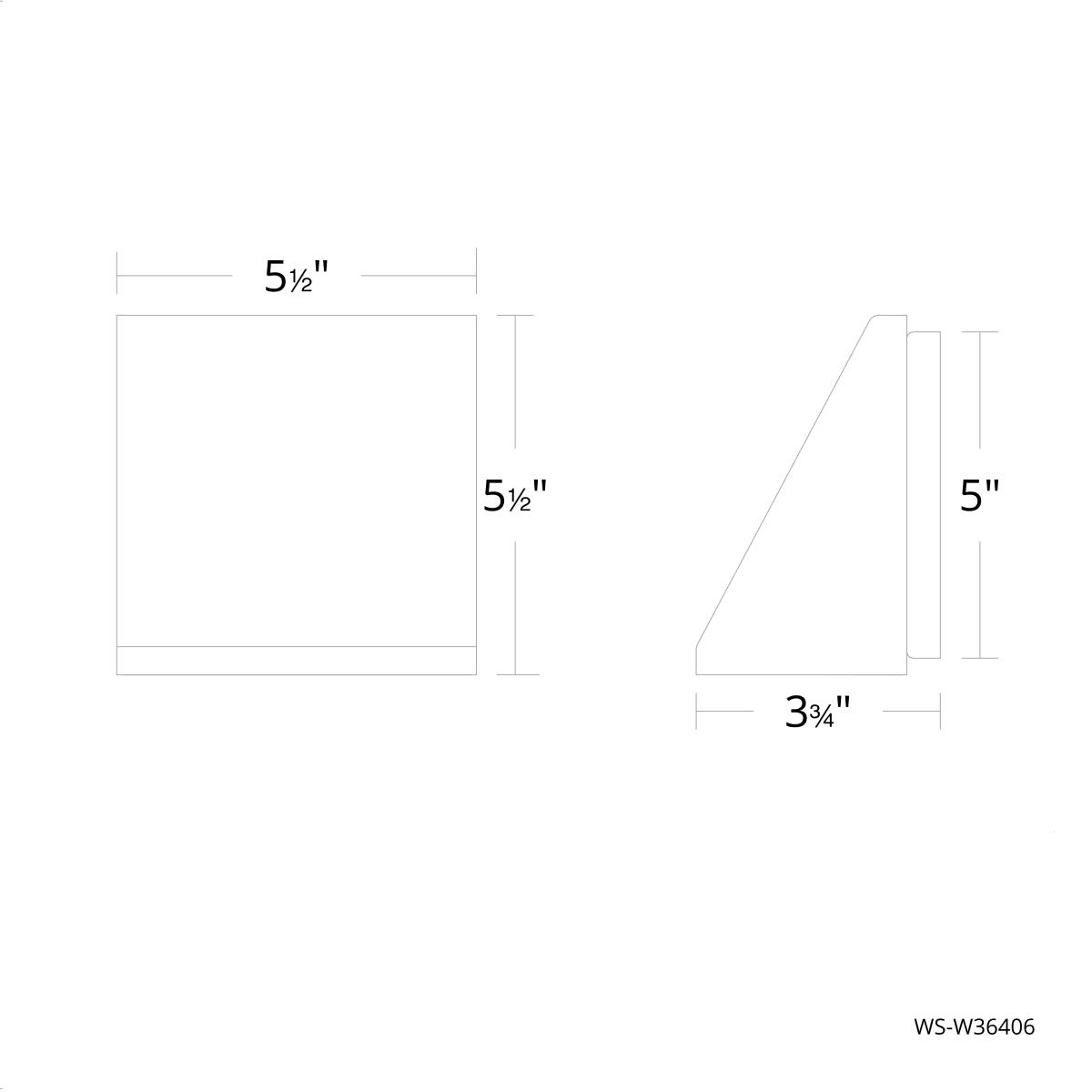

Flue
WS-W36406
PRODUCTDESCRIPTION

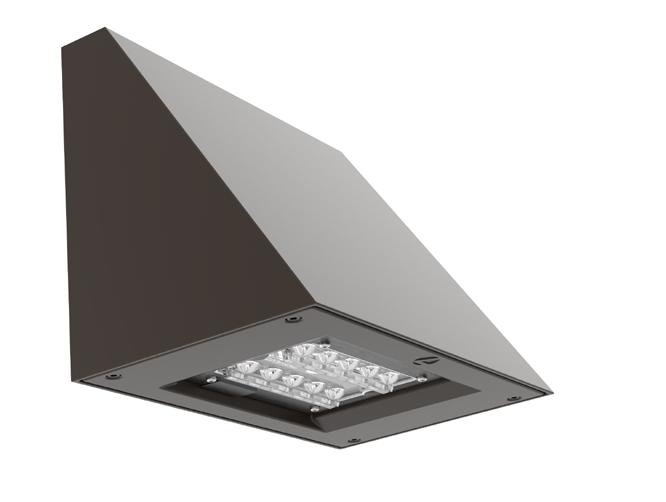

Fundamental geometry. An opaque triangular shade shelters LED light sources, providing diffused downward illumination while protecting the nighttime sky. FEATURES
• ACLED driverless technology
• Downward illlumination
• Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
• Option to pre-select color temperature or adjust in the field

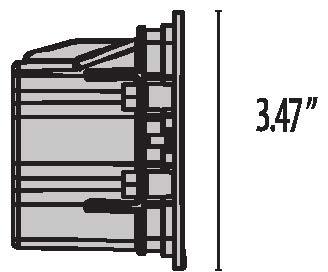

• 0-10V dimming option available (special order), unit dimensions: 3.4" x 1.2" x 0.5" (model#LDS065M010AFE-LO1)
• IDA Dark Sky compliant in color temperatures of 3000K or lower
Central Distribution Center: 1600 Distribution Ct, Lithia Springs, GA 30122
Distribution Center: 1750 Archibald Avenue, Ontario, CA 91760
WDGE2 LED
Introduction
The WDGE LED family is designed to meet specifier’s every wallmounted lighting need in a widely accepted shape that blends with any architecture. The clean rectilinear design comes in four sizes with lumen packages ranging from 1,200 to 25,000 lumens, providing a true site-wide solution. Embedded with nLight® AIR wireless controls, the WDGE family provides additional energy savings and code compliance.
WDGE2 with industry leading precision refractive optics provides great uniform distribution and optical control. When combined with multiple integrated emergency battery backup options, including an 18W cold temperature option, the WDGE2 becomes the ideal wall-mounted lighting solution for pedestrian scale applications in any environment.
Ordering Information
Shipped separately AWS 3/8inch Architectural wall spacer7 PBBW Surface-mounted back box (top, left, right conduit entry). Use when there is no junction box available7
E10WH Emergency battery backup, Certified in CA Title 20 MAEDBS (10W, 5°C min)
E20WC Emergency battery backup, Certified in CA Title 20 MAEDBS (18W, -20°C min)
PE Photocell, Button Type8
DMG 0-10V dimming wires pulled outside fixture (for use with an external control, ordered separately)9
BCE Bottom conduit entry for back box (PBBW). Total of 4 entry points.
CCE Coastal Construction7
Standalone Sensors/Controls
PIR Bi-level (100/35%) motion sensor for 8-15' mounting heights. Intended for use on switched circuits with external dusk to dawn switching.
PIRH Bi-level (100/35%) motion sensor for 15-30' mounting heights. Intended for use on switched circuits with external dusk to dawn switching
PIR1FC3V Bi-level (100/35%) motion sensor for 8-15' mounting heights with photocell pre-programmed for dusk to dawn operation.
PIRH1FC3V Bi-level (100/35%) motion sensor for 15-30' mounting heights with photocell pre-programmed for dusk to dawn operation.
Networked Sensors/Controls
NLTAIR2 PIR Embedded wireless controls by nLight with Passive Infrared Occ sensor and on/off photocell for 8-15' mounting heights.
NLTAIR2 PIRH Embedded wireless controls by nLight with Passive Infrared Occ sensor and on/off photocell for 15-30' mounting heights.
NLTAIREM2 PIR Embedded wireless controls by nLight with UL924 listed emegency operation, Passive Infrared Occ sensor and on/off photocell for 8-15' mounting heights
NLTAIREM2 PIRH Embedded wireless controls by nLight with UL924 listed emegency operation, Passive Infrared Occ sensor and on/off photocell for 15-30' mounting heights.
Hit the Tab key or mouse over the page to see all interactive elements.
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLEFINISHES:
Flue
WS-W36406
PRODUCTDESCRIPTION

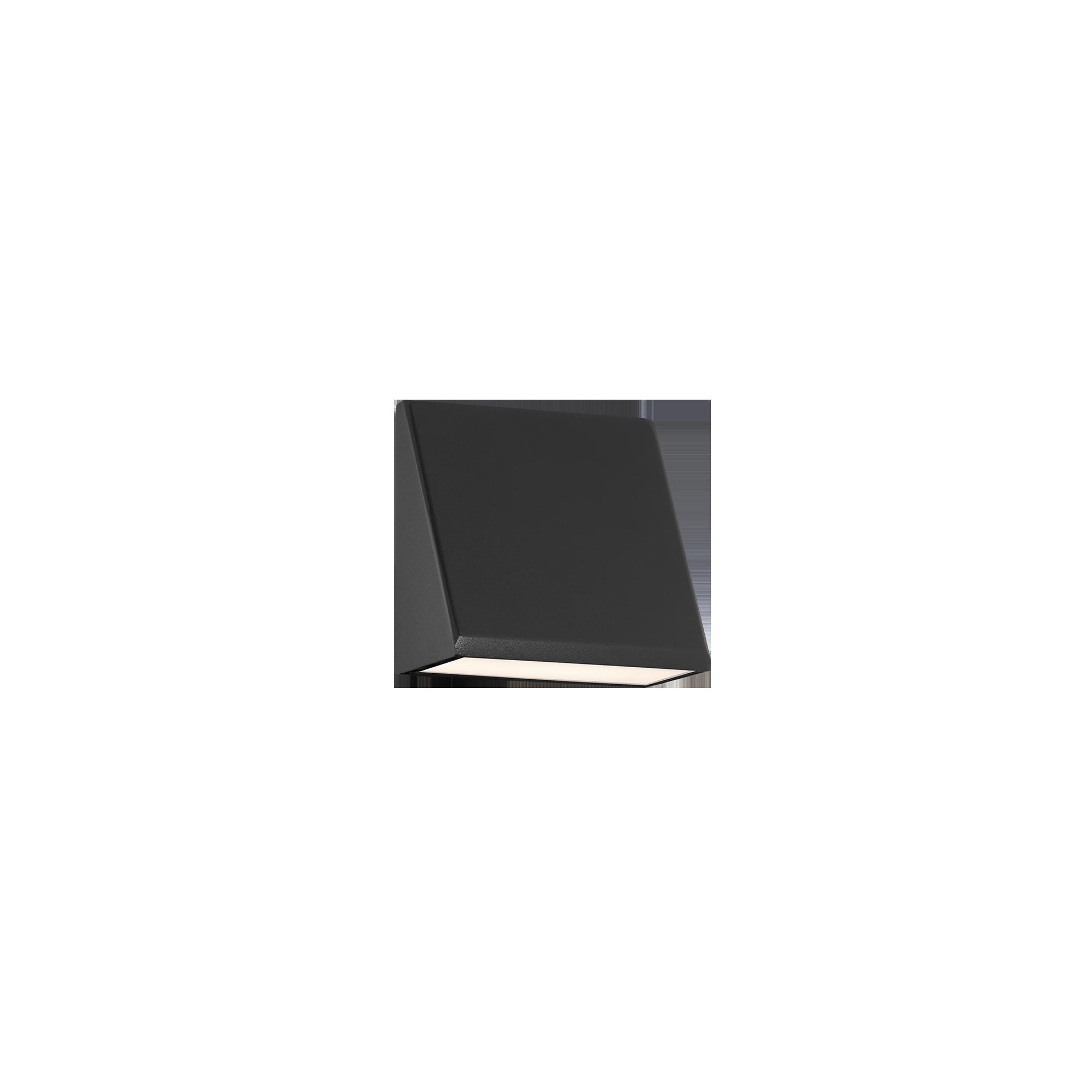

Fundamental geometry. An opaque triangular shade shelters LED light sources, providing diffused downward illumination while protecting the nighttime sky. FEATURES
• ACLED driverless technology
• Downward illlumination
• Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
• Option to pre-select color temperature or adjust in the field
• 0-10V dimming option available (special order), unit dimensions: 3.4" x 1.2" x 0.5" (model#LDS065M010AFE-LO1)
• IDA Dark Sky compliant in color temperatures of 3000K or lower
Central Distribution Center: 1600 Distribution Ct, Lithia Springs, GA 30122 Western Distribution Center: 1750 Archibald Avenue, Ontario, CA 91760
Specifications

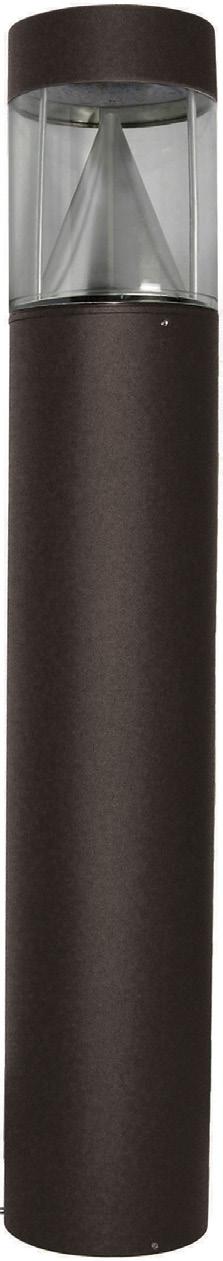

KBR8 LED LED Specification Bollard
Ordering Information
Type
Introduction
The KBR8 Bollard is a stylish, fully integrated LED solution for walkways. It features a sleek, modern design and is carefully engineered to provide long-lasting, energy-efficient lighting with a variety of optical and control options for customized performance.
With an expected service life of over 20 years of nighttime use and up to 70% in energy savings over comparable 100W metal halide luminaires, the KBR8 Bollard is a reliable, low-maintenance lighting solution that produces sites that are exceptionally illuminated.
Shipped installed PE Photoelectric cell, button type DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) ELCW Emergency battery backup, CA Title 20 Noncompliant 6
Shipped installed SF Single fuse (120, 277, 347V) 4,7 DF Double fuse (208, 240V) 4,7 H24 24” overall height H30 30” overall height H36 36” overall height FG Ground-fault festoon outlet L/AB Without anchor bolts (3 bolt base) L/AB4 4 bolt retrofit base without anchor bolts 8
1 Only available in the
DWHXD White DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
DDBTXD Textured dark bronze
DBLBXD Textured black
DNATXD Textured natural aluminum
DWHGXD Textured white
2 Only available in the 16C, SYM version.
3 Only available with 450 AMBLW version.
4 Not available with ELCW.
5 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz). Specify 120, 208, 240 or 277 options only when ordering with fusing (SF, DF options), or photocontrol (PE option).
6 Not available with 347V. Not available with fusing. Not available with 450 AMBLW.
7 Single fuse (SF) requires 120, 277, or 347 voltage option. Double fuse (DF) requires 208 or 240 voltage option.
8 MRAB U not available with L/AB4 option.
ThermaLED Round Flat
Top Bollards
The Eco-Revolution ThermaLED Bollards with choice of optics and lenses are designed to replace HID lighting systems up to 70w MH or HPS. These fixtures are ideal for retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.
Housing:
Listing & Ratings:
Finish:
Extruded Aluminum Housing with Flush Mounting Base & Vandal-Resistant Screws, Flat Top, Internal Ballast Tray for Easy Maintenance. Bollards Can Be Cut to Custom Lengths Upon Request.
ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP65 Sealed LED Compartment.
Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Style: Clear Prismatic Borosilicate Glass Refractor, Specially Designed Cone Reflector or Internal Louvers
Electronic Driver, 120-277V, 50/60Hz or 347V, 50/60Hz (15w Only); Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Fixtures Ordered with Factory-Installed Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with Eco-Revolution Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty: 5-Year Warranty for -40°C to +40°C Environment.
Certification & Listings:
Specifications subject to change without notice.
Shown with GFCI
Shown with "S5" Sensor
SoftLED LumaLens Opal Array Lens
(Dome Top Shown for Visual Concept)
BLANK
ThermaLED Round Flat
Mounting Accessories (Order Separately, Field Installed)
ECBOLAN4 Mounting Kit, Includes Bracket & Three (3) 4˝ Zinc-Plated Anchor Bolts
ECBOLAN8 Mounting Kit, Includes Bracket & Three (3) 8˝ Zinc-Plated Anchor Bolts
ECBOLAN12 Mounting Kit, Includes Bracket & Three (3) 12˝ ZincPlated Anchor Bolts
ECBOLAN15 Mounting Kit, Includes Bracket & Three (3) 15˝ ZincPlated Anchor Bolts
ECBREBASE* Bollard Retrofit Base Kit Adapts New Bollards to Most Existing Bolt Patterns. Fits all Eco-Revolution Bollards. Die Cast with Powdercoat Finish, Hardware Included. 11½ Dia. x 1½ H
Accessories & Replacement Parts:
*Specify Color: Z=Bronze, B=Black, C=Custom (Consult Factory) Accessories (Order Separately, Field Installed) ECP17126 Remote Programming Tool for ECP17125 ECBOLAN ECBREBASE*
ECBORBASE* Die Cast Base Plate with Powdercoat Finish Over a Chromate Conversion Coating.
ECBOADP1 Adapter Plate with Gaskets for Outlet Boxes. Fits Eco-Revolution Round Bollards. Die Cast with Bronze Powdercoat Finish.
*Specify Color: Z=Bronze, B=Black, C=Custom (Consult Factory) For Replacement Battery Backup, see the Eco-Revolution LED Battery Backup Specification Sheet.
ECBOLPCLL
AREA & ROADWAY LIGHTING
GLR SERIES - LED
Luminaire
Prismatic borosilicate glass refracting lens. Heavy gauge, corrosion resistant cast aluminum base. Top is hinged for access. Luminaire base has 3” I.D. opening for tenon. All hardware is stainless steel.
LED Power Array
Array of individual LED Tubes fastened to retaining plates. Each LED Tube consists of circuit board populated with a multiple of LED’s covered with a gasketed acrylic lens and mechanically fastened to an extruded aluminum heatsink. Tubes are sealed to a an IP65 Standard. Power Array emits a symmetric, radial distribution which is optically controlled by the refracting globe to provide Type-III or Type-V distributions.
LED Emitters
High Power White LED’s are driven between 350mA and 700mA for a maximum output of 2 Watts nominal. LED’s are available in standard Warm White (2700K & 3000K), Neutral White (4000K), or Cool White (5000K) . All Standard LED’s have a minimum of 70 CRI. Consult Factory for other LED options. Lumen Maintenance of L93 at 100,000 hours (TM-21 calculated at 6x Test Time).
LED Driver
Constant current electronic with a power factor of >0.90 and a minimum operating temperature of -40°F/-40°C. Driver(s) is/are UL and cUL recognized. Drivers accept an input of 120-277V, 50/60Hz or 347V-480V, 50/60Hz. 0-10V dimmable driver is standard. Driver has a minimum of 3KV internal surge protection. Luminaire supplied with 20KV surge protector for field installation.
True Amber LED’s: TRA-True Amber LED’s emit light in the amber spectral bandwidth centered on 585-595nm. True Amber has neglible blue light and is suitable for wildlife.
Finish
Super TGIC polyester powder coating is applied onto a metal substrate this has been pretreated with a four-stage process for maximum adhesion and color retention. The top coat is baked at 400° F for maximum hardness and exterior durability.
PROJECT NAME:
PROJECT TYPE: 2023173
w/ -YD Fitter)
w/ -YD Fitter)
AREA & ROADWAY LIGHTING
GLR SERIES - LED
Luminaire
Prismatic borosilicate glass refracting lens. Heavy gauge, corrosion resistant cast aluminum base. Top is hinged for access. Luminaire base has 3” I.D. opening for tenon. All hardware is stainless steel.
LED Power Array
Array of individual LED Tubes fastened to retaining plates. Each LED Tube consists of circuit board populated with a multiple of LED’s covered with a gasketed acrylic lens and mechanically fastened to an extruded aluminum heatsink. Tubes are sealed to a an IP65 Standard. Power Array emits a symmetric, radial distribution which is optically controlled by the refracting globe to provide Type-III or Type-V distributions.
LED Emitters
High Power White LED’s are driven between 350mA and 700mA for a maximum output of 2 Watts nominal. LED’s are available in standard Warm White (2700K & 3000K), Neutral White (4000K), or Cool White (5000K) . All Standard LED’s have a minimum of 70 CRI. Consult Factory for other LED options. Lumen Maintenance of L93 at 100,000 hours (TM-21 calculated at 6x Test Time).
LED Driver
Constant current electronic with a power factor of >0.90 and a minimum operating temperature of -40°F/-40°C. Driver(s) is/are UL and cUL recognized. Drivers accept an input of 120-277V, 50/60Hz or 347V-480V, 50/60Hz. 0-10V dimmable driver is standard. Driver has a minimum of 3KV internal surge protection. Luminaire supplied with 20KV surge protector for field installation.
True Amber LED’s: TRA-True Amber LED’s emit light in the amber spectral bandwidth centered on 585-595nm. True Amber has neglible blue light and is suitable for wildlife.
Finish
Super TGIC polyester powder coating is applied onto a metal substrate this has been pretreated with a four-stage process for maximum adhesion and color retention. The top coat is baked at 400° F for maximum hardness and exterior durability.
PROJECT NAME:
PROJECT TYPE: 2023173
w/ -YD Fitter)
w/ -YD Fitter)
GLR SERIES - LED SUN VALLEY LIGHTING
ORDERING INFORMATION Spec/Order Example: GLR/PA-V/32LED/175mA/27K/UNV/WM/RAL-7005-T/CA/HS
RAL-8019-T
GLR SERIES - LED SUN VALLEY LIGHTING
ORDERING INFORMATION Spec/Order Example: GLR/PA-V/32LED/175mA/27K/UNV/WM/RAL-7005-T/CA/HS
RAL-8019-T
WDGE2 LED
Introduction
The WDGE LED family is designed to meet specifier’s every wallmounted lighting need in a widely accepted shape that blends with any architecture. The clean rectilinear design comes in four sizes with lumen packages ranging from 1,200 to 25,000 lumens, providing a true site-wide solution. Embedded with nLight® AIR wireless controls, the WDGE family provides additional energy savings and code compliance.
WDGE2 with industry leading precision refractive optics provides great uniform distribution and optical control. When combined with multiple integrated emergency battery backup options, including an 18W cold temperature option, the WDGE2 becomes the ideal wall-mounted lighting solution for pedestrian scale applications in any environment.
Ordering Information
Shipped separately AWS 3/8inch Architectural wall spacer7 PBBW Surface-mounted back box (top, left, right conduit entry). Use when there is no junction box available7
E10WH Emergency battery backup, Certified in CA Title 20 MAEDBS (10W, 5°C min)
E20WC Emergency battery backup, Certified in CA Title 20 MAEDBS (18W, -20°C min)
PE Photocell, Button Type8
DMG 0-10V dimming wires pulled outside fixture (for use with an external control, ordered separately)9
BCE Bottom conduit entry for back box (PBBW). Total of 4 entry points.
CCE Coastal Construction7
Standalone Sensors/Controls
PIR Bi-level (100/35%) motion sensor for 8-15' mounting heights. Intended for use on switched circuits with external dusk to dawn switching.
PIRH Bi-level (100/35%) motion sensor for 15-30' mounting heights. Intended for use on switched circuits with external dusk to dawn switching
PIR1FC3V Bi-level (100/35%) motion sensor for 8-15' mounting heights with photocell pre-programmed for dusk to dawn operation.
PIRH1FC3V Bi-level (100/35%) motion sensor for 15-30' mounting heights with photocell pre-programmed for dusk to dawn operation.
Networked Sensors/Controls
NLTAIR2 PIR Embedded wireless controls by nLight with Passive Infrared Occ sensor and on/off photocell for 8-15' mounting heights.
NLTAIR2 PIRH Embedded wireless controls by nLight with Passive Infrared Occ sensor and on/off photocell for 15-30' mounting heights.
NLTAIREM2 PIR Embedded wireless controls by nLight with UL924 listed emegency operation, Passive Infrared Occ sensor and on/off photocell for 8-15' mounting heights
NLTAIREM2 PIRH Embedded wireless controls by nLight with UL924 listed emegency operation, Passive Infrared Occ sensor and on/off photocell for 15-30' mounting heights.
Hit the Tab key or mouse over the page to see all interactive elements.
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLEFINISHES:
Flue
WS-W36406
PRODUCTDESCRIPTION
Fundamental geometry. An opaque triangular shade shelters LED light sources, providing diffused downward illumination while protecting the nighttime sky.
FEATURES
• ACLED driverless technology
• Downward illumination
• Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
• Option to pre-select color temperature or adjust in the field
• 0-10V dimming option available (special order), unit dimensions: 3.4" x 1.2" x 0.5" (model#LDS065M010AFE-LO1)
SPECIFICATIONS
Rated Life 54000 Hours
Standards ETL, cETL,Wet Location Listed,IP65,ADA
Input 120 VAC,50/60Hz
Dimming ELV: 100-5%,TRIAC: 100-10%
Mounting Can be mounted on wall vertically or upside down
Color Temp 2700K,3000K,3500K,4000K
CRI 90
Construction
Aluminum body with silk screened diffuser
Example: WS-W36406-40-BK
For custom requests please contact customs@modernforms.com
NO SPEC

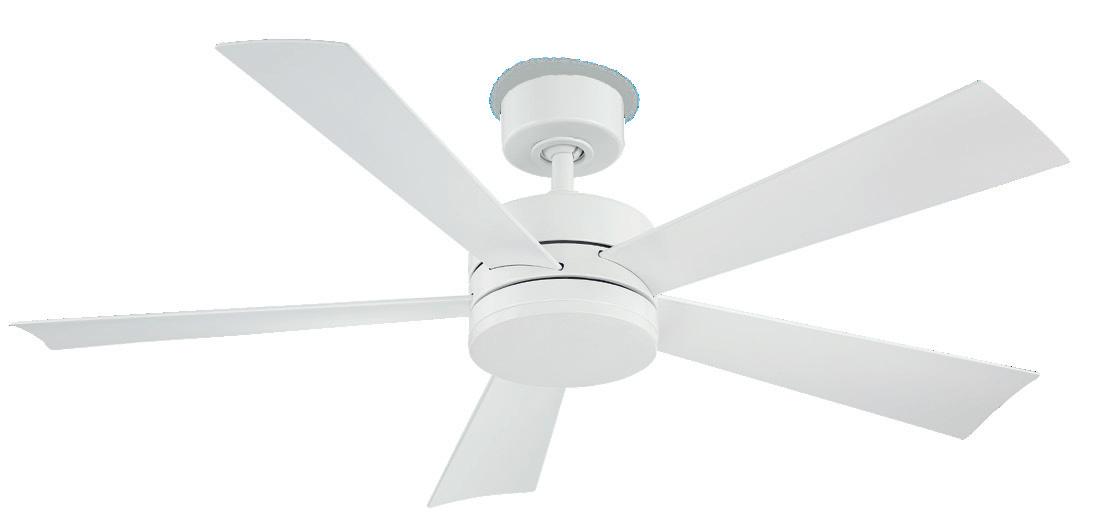

WYND
FR-W1801-52l
52” Ceiling Fan
PRODUCT DESCRIPTION
Transitional style meets smart technology with this versatile smart fan available in four weather-resistant finishes as well as a 316 marine-grade stainless steel for harsh outdoor climates. The 42” style is ideal for patios and breakfast nooks, while the 52” and 60” versions are perfect for living rooms and large bedrooms. The LED luminaire, powered by WAC, takes this design from beautiful to brilliant. Connect with our exclusive Modern Forms app for even more life enhancements.
FEATURES
• 6 fan speeds through both Summer and Winter Modes
• Silent DC motor
• Includes BT remote control
• Optional wall control for 3, 4-way control sold separately
• Compatible with Modern Forms app
AIRFLOW/ENERGY EFFICIENCY
Weighted-Average/High Airflow CFM:
Weighted-Average/High Energy Use (W):
Estimated Yearly Energy Cost ($):
Weighted-Average/High Efficiency (CFM/W): Max RPM:
ORDER NUMBER
Model Housing Blade
SPECIFICATIONS
Construction: Blade:
Downrod: Mounting Slope: Wire:
Hanging Weight: Total Power:
Standards:
Motor Type: Aluminum, ABS 13º Pitch, 52” sweep .75"W x 4.5"H included Up to 30° 80” 17.5 lbs 54.5W
UL/cUL Wet Location listed, Title 24 JA8-2016 Compliant, Title 20, Energy Star rated 125 x 30 sensorless DC motor
WIRELESS PERFORMANCE
Wi-Fi Range: Bluetooth Range: Up to 150 ft* Up to 150 ft
Color Temperature: Rated Life: LED 19.5W 1600/846 Integrated 90 3000K (2700K/3500K options available) 50,000 hours
Example: FR-W1801-52L-MW
For 2700K add "-27" ; for 3500K add "-35" before the finish: FR-W1801-52L-27-MW
*Results may vary based on application and surroundings.
*This fan comes uni-pack - blade select options are not available
The Modern Forms app synchronizes seamlessly with smart home devices you already own
Phone (800) 526.2588 Fax (800) 526.2585
FR-W1801-52L
NO SPEC
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
COLOR TEMPERATURE (K): WATTAGE (W): VOLTAGE (V): CRI:
DIMMING:
DELIVERED LUMENS: DIMENSIONS: D: 11.75" L: 11.75"
RATED LIFE (Y): CONSTRUCTION: FRAME: PLASTIC MOUNTING:
CERTIFICATIONS
W: 11.75" H: 5/8" 50,000
LENS: POLYCARBONATE HARDWIRED
TECHNICAL DRAWING
DIMENSIONS
NO SPEC
BLANK
LED48/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO

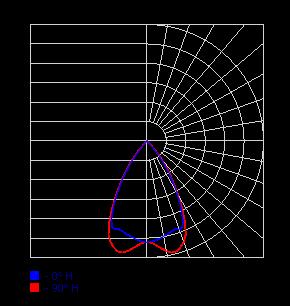

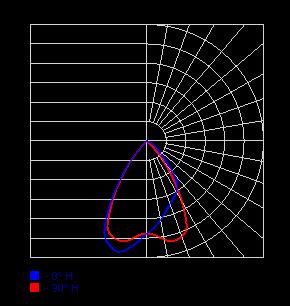

PHOTOMETRIC
- 137 3500K - 132
- 133 5000K - 134
3500K - 4692
4000K - 4726
5000K - 4760
3500K - 5130
4000K - 5168
5000K - 5206
3500K - 5940
4000K - 5985
5000K - 6030
NO SPEC
BLANK
LED48/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO
PHOTOMETRIC
- 137 3500K - 132
- 133 5000K - 134
3500K - 4692
4000K - 4726
5000K - 4760
3500K - 5130
4000K - 5168
5000K - 5206
3500K - 5940
4000K - 5985
5000K - 6030

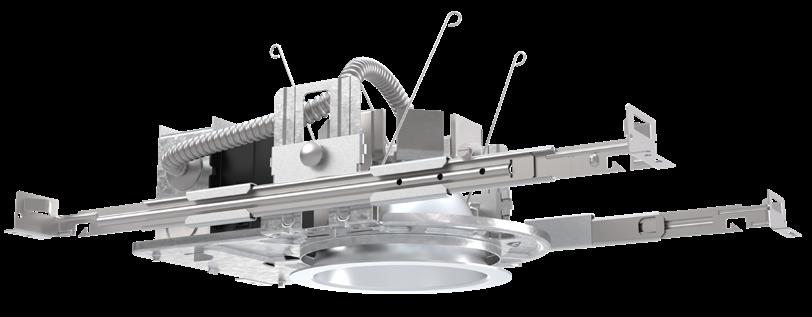

FEATURES & SPECIFICATIONS
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottomhinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment.
Two combination 1/2"-3/4" and four 1/2" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional. LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equeal to or less than 60deg per CIE 117-1996
Discomfort Galre in Interior Lighting. UGR FAQs
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LUMEN MAINTENANCE — 70% lumen maintenance at 60,000 hours.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated.
ENERGY STAR® certified product. Drivers are ROHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.

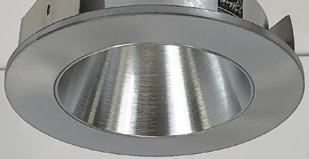

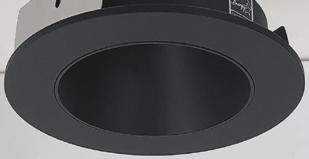

LDN4 STATIC WHITE
DISTRIBUTIONS
DIMENSIONS
Notes
Tested in accordance with IESNA LM-79-08
Tested to current IES and NEMA standards under stabilized laboratory conditions
Based on LDN4 AR LSS 35K 80CRI
TYPE D/DE SPEC
301 MADEIRA
GZ10 0-10V driver dims to 10%
GZ1 0-10V driver dims to 1%
D10 Minimum dimming 10% driver for use with JOT
D1 Minimum dimming 1% driver for use with JOT
EZ1 0-10V eldoLED driver with smooth and flicker-free deep dimming performance down to 1%
EDAB eldoLED DALI SOLDRIVE dim to dark
(blank) No emergency option
EL Emergency battery pack with integral test switch. 10W
Constant Power, Not Certified in CA Title 20 MAEDBS
ELR Emergency battery pack with remote test switch. 10W Constant Power, Not Certified in CA Title 20 MAEDBS
ELSD Emergency battery pack with self-diagnostics, 10W
Constant Power, integral test switch. Not Certified in CA Title 20 MAEDBS
ELRSD Emergency battery pack with self-diagnostics, 10W
Constant Power, remote test switch. Not Certified in CA Title 20 MAEDBS
E10WCP Emergency battery pack, 10W Constant Power with integral test switch. Certified in CA Title 20 MAEDBS
E10WCPR Emergency battery pack, 10W Constant Power with remote test switch. Certified in CA Title 20 MAEDBS
E10WRSTAR Emergency battery pack, 10W with remote test switch and Iota STAR technology
(blank) No control option
NPP16D nLight® network power/relay pack with 0-10V dimming for non-eldoLED drivers (GZ10, GZ1).
NPP16DER nLight® network power/relay pack with 0-10V dimming for non-eldoLED drivers (GZ10, GZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
JOT Wireless room control with “Just One Touch” pairing
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ10, EZ1). ER controls fixtures on emergency circuit.
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
Options
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified 90CRI High CRI (90+)
SF ‡ Single fuse
Option value
Lumen Packages
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect *See ordering tree for details
(Maximum order quantity for design select lead times is 160.)
‡ Option Value Ordering Restrictions
Restriction
Overall height varies based on lumen package, refer to dimensional charts on page 4
WR, BR Not available with finish (LSS, LD, LS)
TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. TRW, TRBL Available with clear (AR) trim color only TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details
347 Not available with emergency options
All Emergency 12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER Not available with MVOLT. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed.
SF Must specify 120 or 277 volt N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ10 and EZ1 drivers. NPP16D, NPP16DER, NPPS80EZ, NPS80EZERSpecify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. NLTAIR2, NLTAIRER2, NLATAIREM2Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. Not recommended for metal ceiling installations. NLTAIR2 When combined with EZ1 or EZ10 drivers, can be used as a normal power
JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
HAO Fixture height is 5-11/16" for all lumen packages with HAO.
CP Must specify voltage for 3000lm. Not available with emergency battery pack option. E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch.
301 MADEIRA
LED48/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO
PHOTOMETRIC
- 137 3500K - 132
- 133 5000K - 134
3500K - 4692
4000K - 4726
5000K - 4760
3500K - 5130
4000K - 5168
5000K - 5206
3500K - 5940
4000K - 5985
5000K - 6030
NO SPEC
BLANK
LED48/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO
PHOTOMETRIC
- 137 3500K - 132
- 133 5000K - 134
3500K - 4692
4000K - 4726
5000K - 4760
3500K - 5130
4000K - 5168
5000K - 5206
3500K - 5940
4000K - 5985
5000K - 6030
NO SPEC

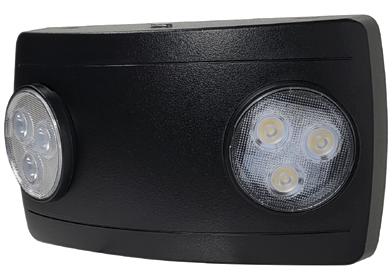

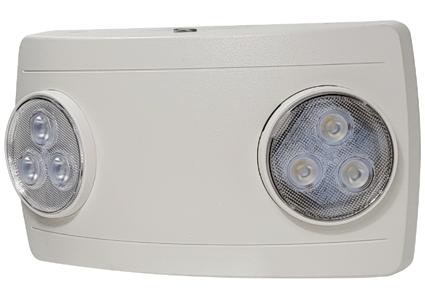

NE-612LED
Compact Dual Head LED Emergency Light with Optional Remote Capability
Source: (2) 0.9W or 1W LED (2)90lm to 150lm
PRODUCT DESCRIPTION
Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power. Emergency unit is available in higher lumen output and remote capability.
FEATURES
Compact housing with (2) adjustable LEDs Lightweight snap together design
Self-diagnostic and self-testing option available Ceiling or wall mounted
Universal 120/277VAC input
Remote capability
SPECIFICATION
Construction: Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Quick connector design for easy installation. Two fully adjustable glare-free round heads for emergency lighting.
Mounting: Plastic enclosure includes a top and side knockout for conduit application. Suitable for wall mounting or ceiling mounting. Waterproof vandal resistant enclosure available, must specify NEG-602.
Operation: Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time per battery.
ELECTRICAL
Input Voltage: 120/277VAC 60Hz
Lumens / Wattage:
NE-612LED: (2) 110lm / 0.9W
NE-612LEDRC: (2) 90lm / 0.9W
NE-612LEDHORC: (2) 150lm / 1W
Color Temperature: 5700K
Operating Temperature: 10˚C to 40˚C ambient temperature (-25°C to 50°C when used with NEG-602)
Batteries: NiMH 3.6V 2W maintenance-free
Remote Option: Luminaire is capable of including an additional 3.6V / 4W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, each additional battery requires an additional 24 hours to recharge.
LABELS AND LISTINGS
· cULus Listed for Damp Locations (Wet Location Listed when used with NEG-602)
Meets or exceeds all requirements in NFPA 70, NFPA 101 life safety code 3-Year Limited Warranty
Notes
PRODUCT IMAGES & DIMENSIONS
NFPA 101 requires 1.0 foot-candle average and 0.1 foot-candle minimum with a 40:1 maximum/minimum ratio. Below is a recommended mounting height and spacing on surface with reflectance at 80% ceiling, 50% walls, and 20% floor.
Compact
Dual Head LED Emergency Light Optional Accessory
Description
NE-612LEDB = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, Black Finish
NE-612LEDW = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, White Finish
NE-612LEDRCW = (2) 0.9W / 90lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
NE-612LEDRCW
= (2) 1W /
with
/ 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
NE-612LEDHORCW = (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish

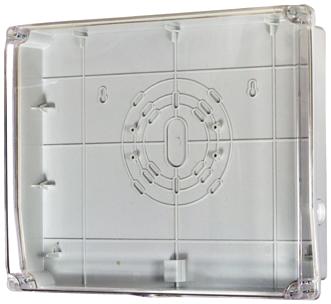

= Waterproof Vandal Resistant Enclosure
= Replacement Battery for
with Remote (RC)
Example: NE-612LEDHORCW = Compact Dual Head LED Emergency Light with (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White finish
This outdoor LED light is ideal for security and general lighting. 3 in 1 color temperature adjustable option. Provides down-light illumination for outdoor or indoor residential, commercial, and hospitality applications. Fixture mounts to a standard junction box (not included).
Construction
Die-cast aluminum housing. Standard mounting holes and hardware are included. Power supply connections must be made inside a junction box (not included).
Finish
Black powder coated finish.
Diffuser
Solid acrylic diffuser.
Electrical
Input 120-277 VAC / 60 Hz.
0-10V dimming (120-277V)
TRIAC and ELV dimming (120V only)
Minimum starting temp -4° F/ -20°C.
LED
Integrated LED modules capable of producing:
15W = 845 delivered lumens
20W = 1125 delivered lumens
Adjustable CCT - 3000K/4000K/5000K
Rated for 50,000 Hrs. 90 CRI.
Certification
All fixtures are cETLus listed for wet locations. Title 24/JA8 Compliant
Warranty
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 years from date of purchase.
Specifications and dimensions subject to change without notice.
Ordering Information:
LOCATION
PREPARED BY
COMMENTS CATALOG NUMBER
NO SPEC
301 MADEIRA TYPE G
LOCATION PREPARED BY

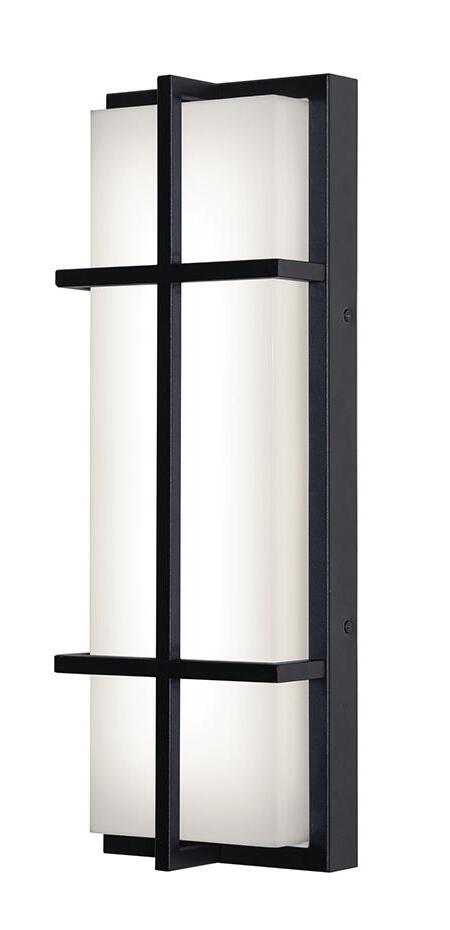

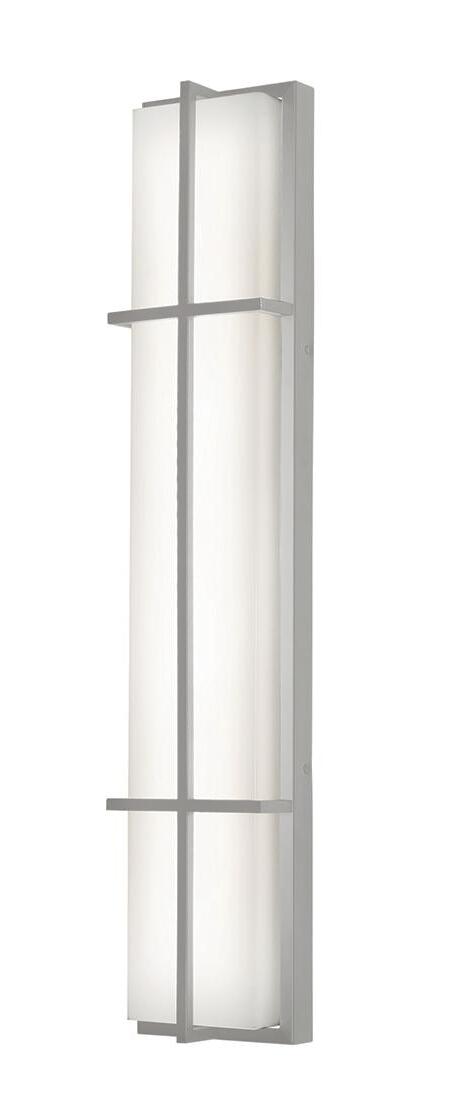

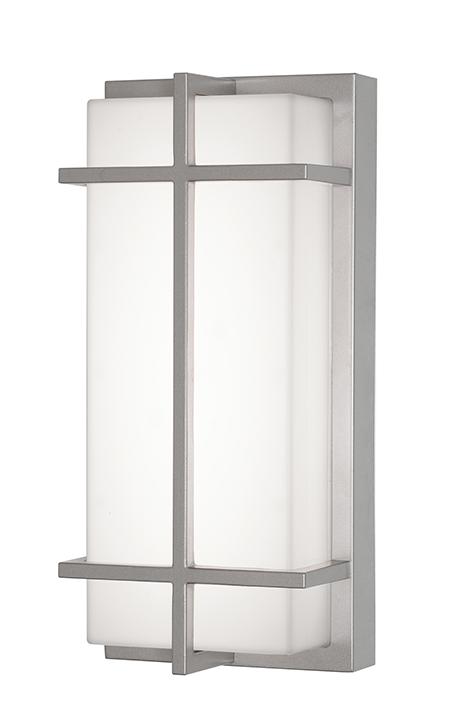

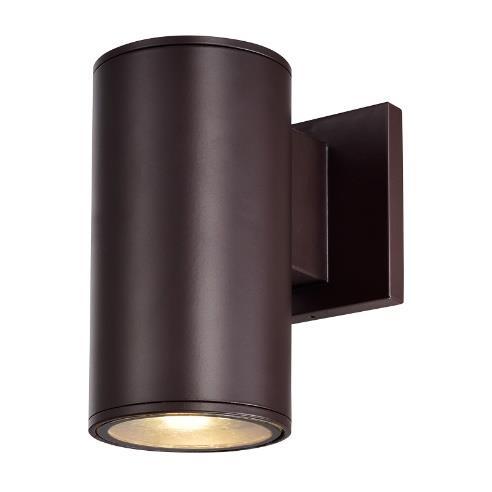

August LED Outdoor Sconce
AUGW Series
Features
Ideal use for general lighting in indoor or outdoor residential, commercial, and hospitality applications. Fixture can be mounted to a standard junction box (not included).
Construction
Stainless steel housing with aluminum die-cast trim and painted in weather resistant powder coating. Back pan is made from 12 gauge stamped aluminum material with matching powder coat finish. Power supply connections must be made inside a junction box (not included).
All fixtures are cETLus listed for outdoor wet locations. Title 24/J8A Compliant
ADA
Option
Integrated Dusk to Dawn photcell (-PC)
Warranty
5 Year Limited Warranty: Restrictions apply based on location.
Specifications and dimensions subject to change without notice.
Ordering Information:
NO SPEC
301 MADEIRA TYPE G
LOCATION PREPARED BY
August LED Outdoor Sconce
AUGW Series
Features
Ideal use for general lighting in indoor or outdoor residential, commercial, and hospitality applications. Fixture can be mounted to a standard junction box (not included).
Construction
Stainless steel housing with aluminum die-cast trim and painted in weather resistant powder coating. Back pan is made from 12 gauge stamped aluminum material with matching powder coat finish. Power supply connections must be made inside a junction box (not included).
All fixtures are cETLus listed for outdoor wet locations. Title 24/J8A Compliant
ADA
Option
Integrated Dusk to Dawn photcell (-PC)
Warranty
5 Year Limited Warranty: Restrictions apply based on location.
Specifications and dimensions subject to change without notice.
Ordering Information:
NO SPEC
301 MADEIRA TYPE
LOCATION PREPARED BY
August LED Outdoor Sconce
AUGW Series
Features
Ideal use for general lighting in indoor or outdoor residential, commercial, and hospitality applications. Fixture can be mounted to a standard junction box (not included).
Construction
Stainless steel housing with aluminum die-cast trim and painted in weather resistant powder coating. Back pan is made from 12 gauge stamped aluminum material with matching powder coat finish. Power supply connections must be made inside a junction box (not included).
All fixtures are cETLus listed for outdoor wet locations. Title 24/J8A Compliant
ADA
Option
Integrated Dusk to Dawn photcell (-PC)
Warranty
5 Year Limited Warranty: Restrictions apply based on location.
Specifications and dimensions subject to change without notice.
Ordering Information:
NO SPEC
301 MADEIRA TYPE
LOCATION PREPARED BY
August LED Outdoor Sconce
AUGW Series
Features
Ideal use for general lighting in indoor or outdoor residential, commercial, and hospitality applications. Fixture can be mounted to a standard junction box (not included).
Construction
Stainless steel housing with aluminum die-cast trim and painted in weather resistant powder coating. Back pan is made from 12 gauge stamped aluminum material with matching powder coat finish. Power supply connections must be made inside a junction box (not included).
All fixtures are cETLus listed for outdoor wet locations. Title 24/J8A Compliant
ADA
Option
Integrated Dusk to Dawn photcell (-PC)
Warranty
5 Year Limited Warranty: Restrictions apply based on location.
Specifications and dimensions subject to change without notice.
Ordering Information:
NO SPEC
301 MADEIRA
PROJECT: DATE:
FEATURES
IP RATING:
WEATHER RESISTANT POWDER COATING:
DAYLIGHT SENSOR:
FINISHES:
DIMMABLE:
5-YEAR WARRANTY: LIGHT SOURCE:
SPECIFICATIONS
COLOR TEMPERATURE (K):
WATTAGE (W):
VOLTAGE (V):
CRI:
DIMMING:
FINISHES:
PRODUCT DIMENSION: D: L: W: H:
RATED LIFE (Y):
CONSTRUCTION:
MOUNTING:
CERTIFICATIONS

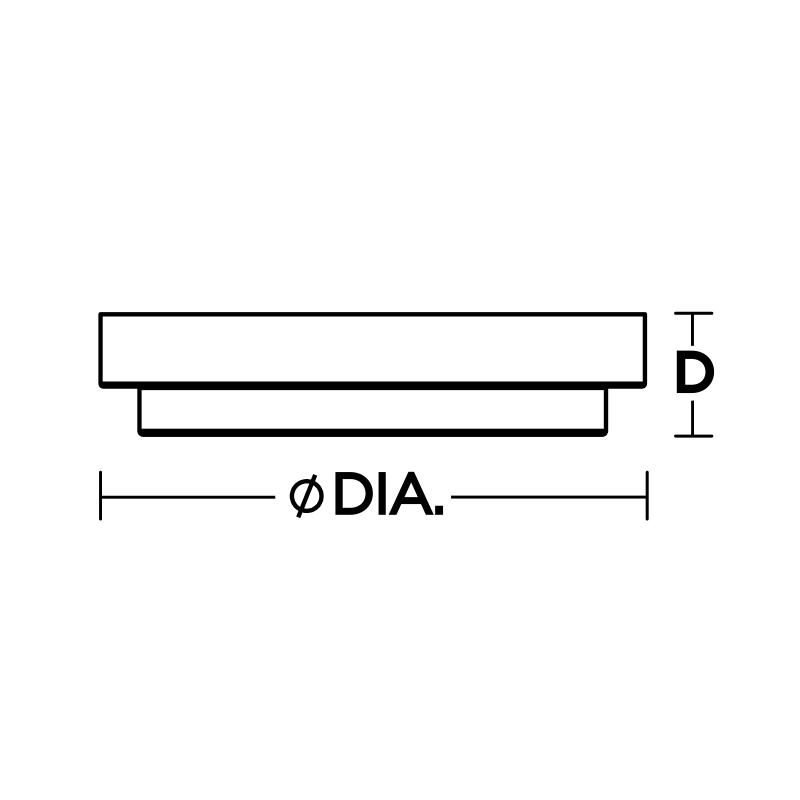

TECHNICAL DRAWING
NOTES:
reserves the right to modify its products from time to time as part of our continuous improvement program.
Model & Size CRI Kelvins Watts LED Lumens Delivered
Artika
NO SPEC

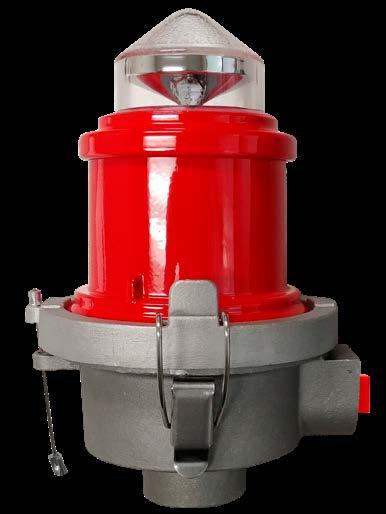

L-810 LED Night Vision Compatible Steady-Burning Red Obstruction Light
Compliance and Applications
• ETL Certified L-810: FAA AC 150/5345-43J; EB-67D
• IP67 Certified
• Certified FCC 47 CFR, Part 15:2020, §15.107 and §15.109, Class A
Compliant to:
• ICAO Annex 14, Low Intensity Obstacle Light, Type B
• DGAC of Mexico
• MIL-C-7989
Our Night Vision Compatible, omni-directional, red, steady-burning, LED obstruction light is designed for marking tall structures such as buildings, towers, masts, cranes, meteorological towers, chimneys and other hazards to aircraft. This energy-saving LED light is a direct replacement for incandescent fixtures, providing years of reliable and maintenance-free operation. Available in single, double, and retrofit configurations; optional solar drive package
What Does NVG Friendly Mean?
Both the FAA and Transport Canada have issued safety alerts warning that common LED obstruction lights pose a hazard to pilots using Night Vision Goggles (NVGs). This is due to the fact that NVGs typically use filters to block cockpit lighting from saturating the imaging system. This has the unintended effect of making LED obstruction lights invisible to pilots.
In response, we have incorporated NVG Friendly technology into our fixture (IR 860 nm peak intensity), giving pilots using night vision goggles unmatched visibility of airfield perimeters, buildings, and towers. The L810LEDNV light is the first LED L-810 available to ensure that your structure is visible to all pilots, making it the first true LED replacement for incandescent obstruction lights.
Why Our L810LEDNV is Better
• Direct replacement for existing incandescent light
• Lasts up to 10 times longer than an incandescent light
• Uses 96% less power than an incandescent light
• Night Vision Goggle & NVIS Compatible
• No regular maintenance
• Available in single and dual configurations with bottom or side conduit outlets
• Can be operated in steady-burning or flashing mode (controller not supplied)
Marine Treated Option:
• Recommended for harsh, high-salt coastal and marine environments.
• Protects fixture finish from salt damage and prevents corrosion.
• 3-Step Powder Coat: 1) Primer, 2) Epoxy powder base coat and glossy polyester gray (RAL 7030) powder finish coat, 3) Oven curing.
• Photocell option for automatic activation at night
• Wind Loading: Effective Projected Area of the L-810 with single mounting base is 23.125 square-inches

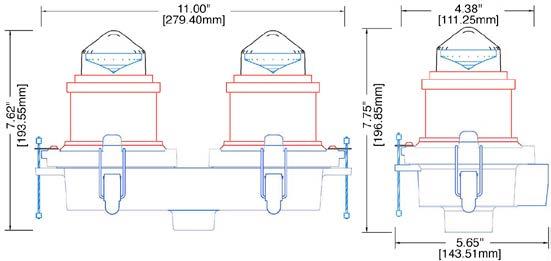

Night Vision Compatible Obstruction Light
Optional Low Surface Mount
Single L-810 LED Night Vision Compatible Obstruction Light
Shown with Riser, Frangible Coupling and Floor Flange
Optional 2" Pole Mount
BLANK
301 MADEIRA
Spare Parts
Part Number Description
FL-810LEDNV-AC 100-277 VAC LED NV
Replacement Light Head
FL-810LEDNV-DC 12-48 VDC LED NV
Replacement Light Head
Alarm Line Option:
For AC and DC model fixtures, the blue wire (18AWG) is defined as the Alarm Line. When the red LED fails, the fixture’s input voltage for the fixture will be present at this wire. For AC and DC model fixtures, during normal operation (LED ON), it will have 0 VAC and 0 VDC respectively at the blue wire; in case of LED failure (turning off), it will energize the blue wire to the fixture’s input voltage, 100-277 VAC for AC models and 12-48 VDC for DC model fixtures.
L-810 LED Ordering Codes
VDC
Red
Black
Green
Shipping Information:
Single: 3.2 lb. (1.45 kg); 10" x 10" x 10" Carton
Double: 7 lb. (3.17 kg); 15" x 15" x 10" Carton
1 1-1/2" Frangible Coupling (FL-FC1.5) UNF threads are not compatible with NPT threaded junction boxes. 2 For single option only. 3 For EMT pipe only. 4 CAUTION! For AC model fixtures, the Alarm Line (blue wire) will be energized to a high AC voltage (fixture’s input voltage 120-277VAC) during a failure of the LED.
Obstruction Lighting Controls
Lighting controls are designed for use when multiple obstruction light fixtures are to be controlled with common electronics. The electronic control module comes in a cast iron device box with threaded hubs on both top and bottom. Replacement modules (controls without device box) are also available upon request.
Photocells
• Model 81020: 105-305VAC, 1000W photocell. FAA style photocells activate at 35 ft-cd and turn off at 52 ft-cd. Instant ON photocell has 3-5 second time delay that prevents activation and de-activation from momentary light conditions. Does not come with device box, includes 1/2" threaded male fitting.
• Model 81021: 120/240VAC, 4800W photocell. Meets FAA/FCC requirements for obstruction lighting. Energized at 35 ft-cd and de-energized at 60 ft-cd. Time delay eliminates contact chatter. Contains dual 20A load contacts. Front plastic housing mounts to cast aluminum junction box (included).
• Model 81022: Hazardous Location Photocontrol Unit. Outdoor lighting control for exterior lighting in hazardous locations: explosion proof, dust-ignition proof, and weatherproof. Nominal Voltage 50/60 Hz: 120/208/240/277VAC. Voltage Range: 105-305. Housing: sand cast copper-free aluminum - epoxy powder coated.
Photocell Ordering Codes
Part
FL-81020
FL-81021
Photocell only (105-305VAC, 1000W max)
Photocell with aluminum box (120VAC, 4800W max)
FL-81021-2 Photocell with aluminum box (240VAC, 4800W max)
FL-81022 Hazardous Location Photocontrol Unit (120/208/240/277VAC)
Model 81020
Model 81021
Model 81022
Black
White
Green
100-277 VAC
Alarm Line: Blue
Alarm Line: Blue
Wire Color Guide
NO SPEC
BLANK

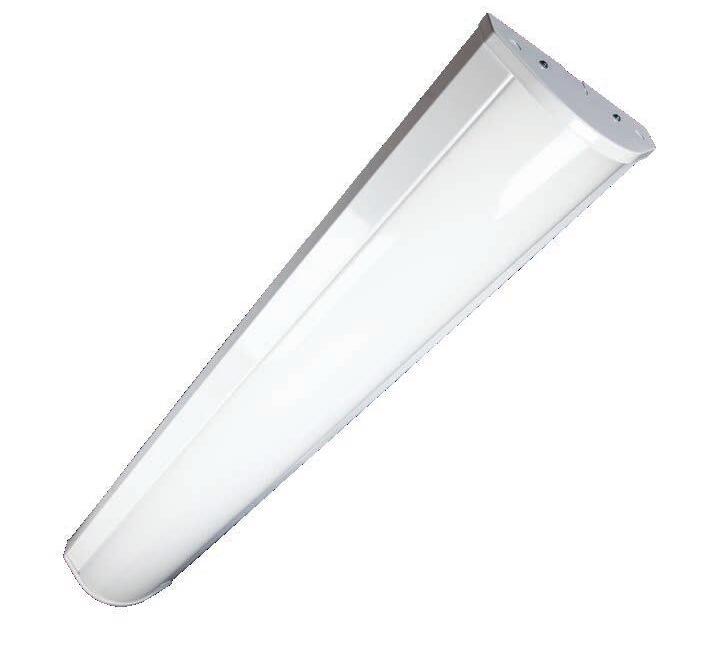

DESCRIPTION
LEDSWP75/3WO/3CCT/B/D
LEDSWP120/3WO/3CCT/B/D
DESCRIPTION
LEDSWP75/3WO/3CCT/B/D
LEDSWP120/3WO/3CCT/B/D
PHOTOMETRIC
5625 - (3000K)
6075 - (4000K)
5850 - (5000K)
7500 - (3000K)
8100 - (4000K)
7800 - (5000K)
9375 - (3000K)
10125 - (4000K)
9750 - (5000K)
9000 - (3000K)
9720 - (4000K)
9360 - (5000K)
12000 - (3000K)
12960 - (4000K)
12480 - (5000K)
15000 - (3000K) 16200 - (4000K) 15600 - (5000K)
NO SPEC
BLANK
DESCRIPTION
LEDSWP75/3WO/3CCT/B/D
LEDSWP120/3WO/3CCT/B/D
DESCRIPTION
LEDSWP75/3WO/3CCT/B/D
LEDSWP120/3WO/3CCT/B/D
PHOTOMETRIC
5625 - (3000K)
6075 - (4000K)
5850 - (5000K)
7500 - (3000K)
8100 - (4000K)
7800 - (5000K)
9375 - (3000K)
10125 - (4000K)
9750 - (5000K)
9000 - (3000K)
9720 - (4000K)
9360 - (5000K)
12000 - (3000K)
12960 - (4000K)
12480 - (5000K)
15000 - (3000K) 16200 - (4000K) 15600 - (5000K)
WDGE2 LED
Introduction
The WDGE LED family is designed to meet specifier’s every wallmounted lighting need in a widely accepted shape that blends with any architecture. The clean rectilinear design comes in four sizes with lumen packages ranging from 1,200 to 25,000 lumens, providing a true site-wide solution. Embedded with nLight® AIR wireless controls, the WDGE family provides additional energy savings and code compliance.
WDGE2 with industry leading precision refractive optics provides great uniform distribution and optical control. When combined with multiple integrated emergency battery backup options, including an 18W cold temperature option, the WDGE2 becomes the ideal wall-mounted lighting solution for pedestrian scale applications in any environment.
Ordering Information
Shipped separately AWS 3/8inch Architectural wall spacer7 PBBW Surface-mounted back box (top, left, right conduit entry). Use when there is no junction box available7
E10WH Emergency battery backup, Certified in CA Title 20 MAEDBS (10W, 5°C min)
E20WC Emergency battery backup, Certified in CA Title 20 MAEDBS (18W, -20°C min)
PE Photocell, Button Type8
DMG 0-10V dimming wires pulled outside fixture (for use with an external control, ordered separately)9
BCE Bottom conduit entry for back box (PBBW). Total of 4 entry points.
CCE Coastal Construction7
Standalone Sensors/Controls
PIR Bi-level (100/35%) motion sensor for 8-15' mounting heights. Intended for use on switched circuits with external dusk to dawn switching.
PIRH Bi-level (100/35%) motion sensor for 15-30' mounting heights. Intended for use on switched circuits with external dusk to dawn switching
PIR1FC3V Bi-level (100/35%) motion sensor for 8-15' mounting heights with photocell pre-programmed for dusk to dawn operation.
PIRH1FC3V Bi-level (100/35%) motion sensor for 15-30' mounting heights with photocell pre-programmed for dusk to dawn operation.
Networked Sensors/Controls
NLTAIR2 PIR Embedded wireless controls by nLight with Passive Infrared Occ sensor and on/off photocell for 8-15' mounting heights.
NLTAIR2 PIRH Embedded wireless controls by nLight with Passive Infrared Occ sensor and on/off photocell for 15-30' mounting heights.
NLTAIREM2 PIR Embedded wireless controls by nLight with UL924 listed emegency operation, Passive Infrared Occ sensor and on/off photocell for 8-15' mounting heights
NLTAIREM2 PIRH Embedded wireless controls by nLight with UL924 listed emegency operation, Passive Infrared Occ sensor and on/off photocell for 15-30' mounting heights.
Hit the Tab key or mouse over the page to see all interactive elements.
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLEFINISHES:
Flue
WS-W36406
PRODUCTDESCRIPTION
Fundamental geometry. An opaque triangular shade shelters LED light sources, providing diffused downward illumination while protecting the nighttime sky. FEATURES
• ACLED driverless technology
• Downward illlumination
• Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
• Option to pre-select color temperature or adjust in the field
• 0-10V dimming option available (special order), unit dimensions: 3.4" x 1.2" x 0.5" (model#LDS065M010AFE-LO1)
• IDA Dark Sky compliant in color temperatures of 3000K or lower
Central Distribution Center: 1600 Distribution Ct, Lithia Springs, GA 30122 Western Distribution Center: 1750 Archibald Avenue, Ontario, CA 91760
WDGE2 LED
Introduction
The WDGE LED family is designed to meet specifier’s every wallmounted lighting need in a widely accepted shape that blends with any architecture. The clean rectilinear design comes in four sizes with lumen packages ranging from 1,200 to 25,000 lumens, providing a true site-wide solution. Embedded with nLight® AIR wireless controls, the WDGE family provides additional energy savings and code compliance.
WDGE2 with industry leading precision refractive optics provides great uniform distribution and optical control. When combined with multiple integrated emergency battery backup options, including an 18W cold temperature option, the WDGE2 becomes the ideal wall-mounted lighting solution for pedestrian scale applications in any environment.
Ordering Information
Shipped separately AWS 3/8inch Architectural wall spacer7 PBBW Surface-mounted back box (top, left, right conduit entry). Use when there is no junction box available7
E10WH Emergency battery backup, Certified in CA Title 20 MAEDBS (10W, 5°C min)
E20WC Emergency battery backup, Certified in CA Title 20 MAEDBS (18W, -20°C min)
PE Photocell, Button Type8
DMG 0-10V dimming wires pulled outside fixture (for use with an external control, ordered separately)9
BCE Bottom conduit entry for back box (PBBW). Total of 4 entry points.
CCE Coastal Construction7
Standalone Sensors/Controls
PIR Bi-level (100/35%) motion sensor for 8-15' mounting heights. Intended for use on switched circuits with external dusk to dawn switching.
PIRH Bi-level (100/35%) motion sensor for 15-30' mounting heights. Intended for use on switched circuits with external dusk to dawn switching
PIR1FC3V Bi-level (100/35%) motion sensor for 8-15' mounting heights with photocell pre-programmed for dusk to dawn operation.
PIRH1FC3V Bi-level (100/35%) motion sensor for 15-30' mounting heights with photocell pre-programmed for dusk to dawn operation.
Networked Sensors/Controls
NLTAIR2 PIR Embedded wireless controls by nLight with Passive Infrared Occ sensor and on/off photocell for 8-15' mounting heights.
NLTAIR2 PIRH Embedded wireless controls by nLight with Passive Infrared Occ sensor and on/off photocell for 15-30' mounting heights.
NLTAIREM2 PIR Embedded wireless controls by nLight with UL924 listed emegency operation, Passive Infrared Occ sensor and on/off photocell for 8-15' mounting heights
NLTAIREM2 PIRH Embedded wireless controls by nLight with UL924 listed emegency operation, Passive Infrared Occ sensor and on/off photocell for 15-30' mounting heights.
Hit the Tab key or mouse over the page to see all interactive elements.
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLEFINISHES:
Flue
WS-W36406
PRODUCTDESCRIPTION
Fundamental geometry. An opaque triangular shade shelters LED light sources, providing diffused downward illumination while protecting the nighttime sky. FEATURES
• ACLED driverless technology
• Downward illlumination
• Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
• Option to pre-select color temperature or adjust in the field
• 0-10V dimming option available (special order), unit dimensions: 3.4" x 1.2" x 0.5" (model#LDS065M010AFE-LO1)
• IDA Dark Sky compliant in color temperatures of 3000K or lower
Central Distribution Center: 1600 Distribution Ct, Lithia Springs, GA 30122 Western Distribution Center: 1750 Archibald Avenue, Ontario, CA 91760
NO SPEC

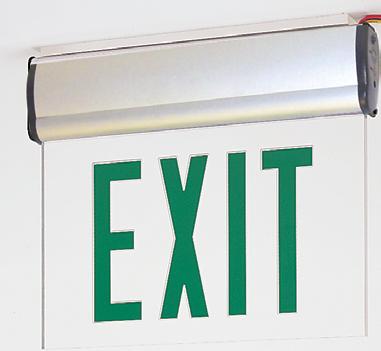

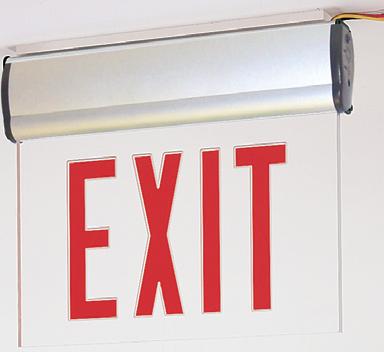

NX-810-LED / NX-811-LED / NX-812-LED
Surface Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Extruded aluminum housing and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Face is constructed with 0.40 clear acrylic with rounded and finished edge for attractive appearance. Face contains red or green 6” high and 3/4” thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications.
MOUNTING
Mounting hardware consist of 0.06 steel universal junction box bracket, 7/8” profile 0.11 die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected.
ELECTRICAL
Voltage: Dual 120V/277V (0.038A / 0.017A)
LED Wattage: 3 Watts normal / 5 Watts emergency operation
Emergency Circuit (NX-811-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-812-LED): Replaceable Ni-Cad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
UL Listed
State & Municipal
5-Year Limited Warranty
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail: nora@noralighting.com
Type Project
Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
Optional Accessories
NO SPEC

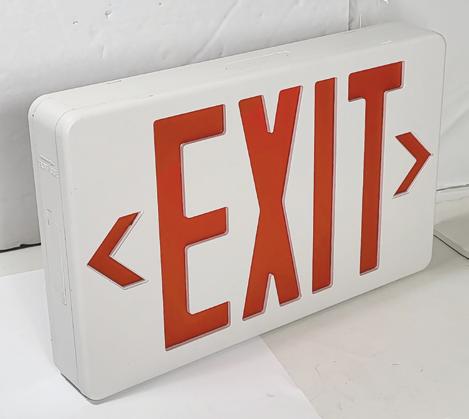

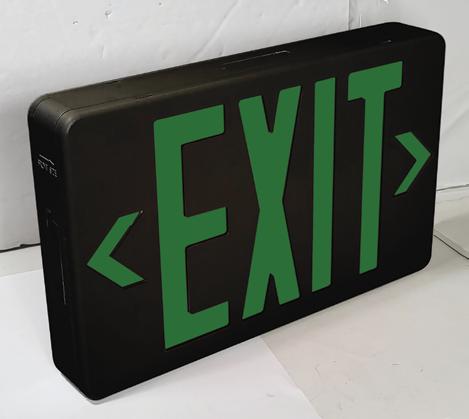

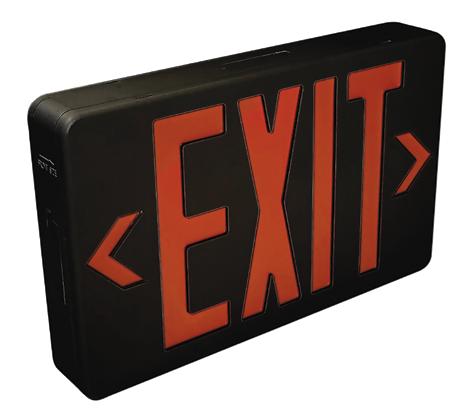

NX-603D-LED
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
• 11-13/16" Width X 7-1/4" Height X 1-13/16" Depth
• Injection-molded thermoplastic housing
• Black or White housing finish
FACE
• 6" high text with color diffusion
• Both double and a blank face are included
• Snap-in direction indicators
MOUNTING
• Wall, side, or ceiling
Type Project Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
Dual Color (Red/Green) LED Exit Sign with Battery Backup NX-603D-LED
• Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
UL 924
Rated for Damp Locations (Wet Location when used with NEG-60)
5-Year Limited Warranty
NFPA
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
· S elf-Diagnostic Testing
P olycarbonate plastic enclosure with flame retardant and wet location rated
P ush-To-Test Switch
High temperature maintenance free NiCad battery
1 20/277VAC input
6 " Letters and 3/4" stroke
C old weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code C alifornia Energy Commission (CEC) Compliant · T itle 20 Compliant
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
· S elf-Diagnostic Testing
P olycarbonate plastic enclosure with flame retardant and wet location rated
P ush-To-Test Switch
High temperature maintenance free NiCad battery
1 20/277VAC input
6 " Letters and 3/4" stroke
C old weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code C alifornia Energy Commission (CEC) Compliant · T itle 20 Compliant

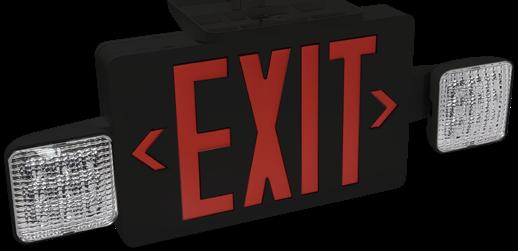

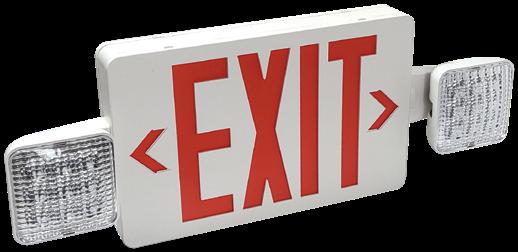

LED Exit and Emergency Combination with Remote Capability and Self Diagnostics
Source: 3.8W Luminaire
PRODUCT DESCRIPTION
LED exit sign with dual fully rotatable lamp heads for maximized adjustability. Exit sign is powered by LED source for maximum life without maintenance; emergency fixtures utilize high performance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes.
FEATURES
• Fully adjustable 1.5W high-intensity LED heads
• Universal Mounting - Wall or ceiling
• UL Listed and meets or exceeds UL924, NEC, OSHA and NFPA 101 Life Safety Code requirements
• Injection molded high impact and scratch resistant corrosion-proof and UL94 5V-O flame retardant housing.
• Manual test switch and indicator
• Maintenance free NiCad battery
• 1 20 or 277 VAC input
• F ield selectable Chevrons
• 6 " High and 3/4" Stroke letters
• E xternal LED Status indicator
• Available in Red or Green lettering
ELECTRICAL
Voltage: 120V or 277V Input
Wattage: 3.8W
Lumens: 150lm total output, 75lm per emergency head
Color Temperature: 5700K
Light Source:
Exit: LED strip for normal operation
Emergency: LED Strip and 2 wedge base LED lamps
Operating Temperature: 10°C-40°C
Batteries: (2) 3.6V 900mAh Ni-Cad battery operates integral heads, exit LED sources and remote head. 90 minute emergency operation with internal solid state charging circuit.
BODY
• Injection-molded dual housing
FACE
• S ingle or dual configuration. Optional solid face panel is included.
• 6 " high text with color diffusion
• K nockout directional chevrons
• B lack or White finish
EMERGENCY
• Two easy snap-on, fully rotatable and adjustable l amp heads
• E mergency heads can be mounted only on the sides of exit sign
REMOTE CAPABILITY
Luminaire includes two 3.6V 900mAh batteries to power a remote emergency light. Upon power failure, battery requires 24 hours to recharge.
MOUNTING
• Wall or Ceiling
• Mounting hardware included
BATTERIES
• High temperature rated Ni-cad batteries
• L ow voltage protection
• Test switch and battery charging indicator
• 24-hours recharge, more than 90 minutes discharge
TESTING
• High-charge/ready operation indicator light
• Manual test switch and indicator
• S elf-testing and self-diagnostics
• Isolated surge/short circuit protection
LABELS AND LISTINGS
• UL Listed for Damp locations
• 5 -Year Limited Warranty
LED Exit and Emergency Combination with Remote Capability and Self Diagnostics
Type Project Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
NEX-712-LED/G Green Letters / White Housing
NEX-712-LED/R Red
NEX-712-LED/RB Red Letters / Black Housing
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com | e-mail: nora@noralighting.com

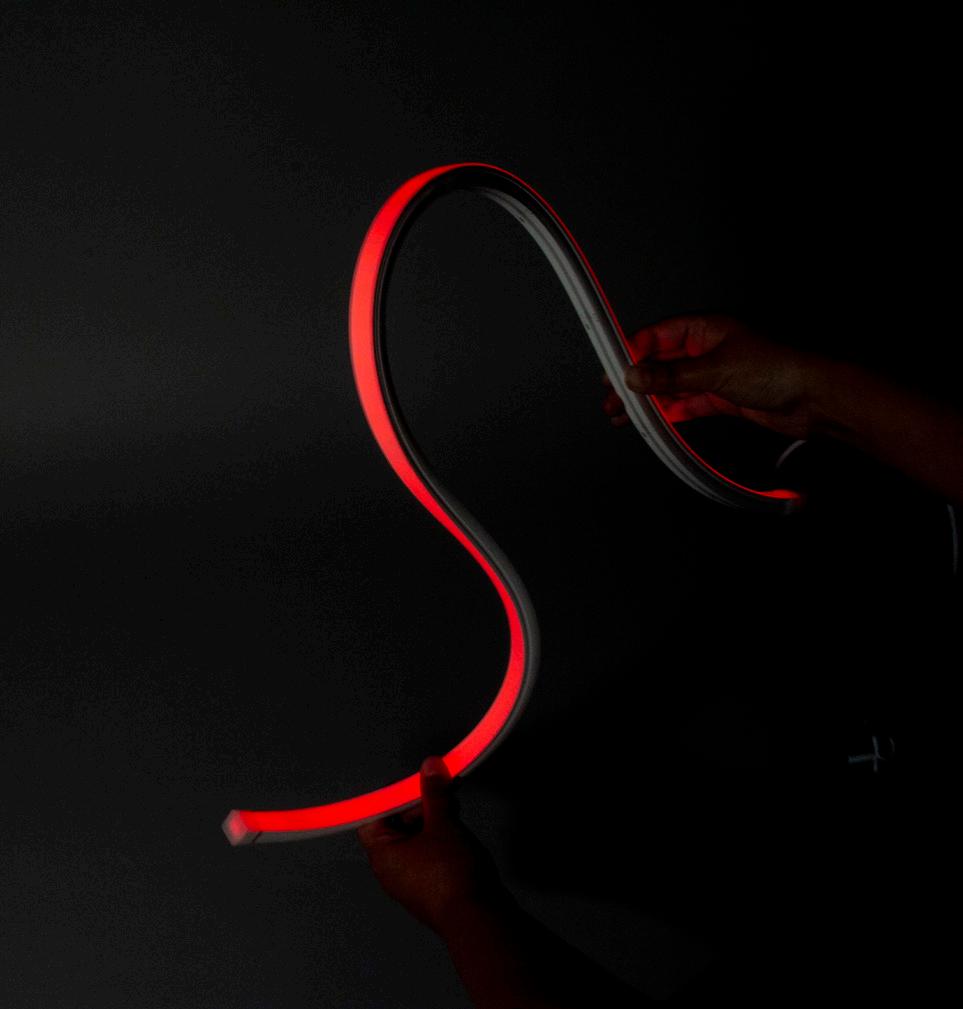

A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables vertical bending that conforms tape around curvilinear surfaces.
FEATURES
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Wireless control with LUXcontrol App and controller
•2700K, 3000K, 4000K / Amber, Blue, Green or Red
•120° viewing angle
•Maximum run: 32'-8"
•Cuttable and joinable in two inch increments
•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use one per foot)
SPECIFICATIONS
ELECTRICAL
•24VDC
•3W per foot
PHOTOMETRIC
•90+ CRI
AMBIENT OPERATING TEMP
•-13°F - 131°F
NV24T-3W-40K-16 16'-4" 215lm 4000K
Colors
NV24T-3W-AM-16
NV24T-3W-AM-32
N/A Amber
N/A Amber
NV24T-3W-BL-16 16'-4" N/A Blue
NV24T-3W-BL-32 32'-8" N/A Blue
NV24T-3W-GR-16 16'-4" N/A Green
NV24T-3W-GR-32 32'-8" N/A Green
NV24T-3W-RD-16 16'-4" N/A Red
NV24T-3W-RD-32 32'-8" N/A Red
Max Run: 32'-8"
Kelvin temperature (color) ±100K.
NOTE: Every reel includes (1) NV24T-PF-EF (tape-to-power feed with 48" of lead). 16' reel includes (16) NV24T-MC-A mounting clips and screws. 32' reel comes with (32) NV24T-MC-A mounting clips and screws.
Amber Red
Blue
Green 3000K

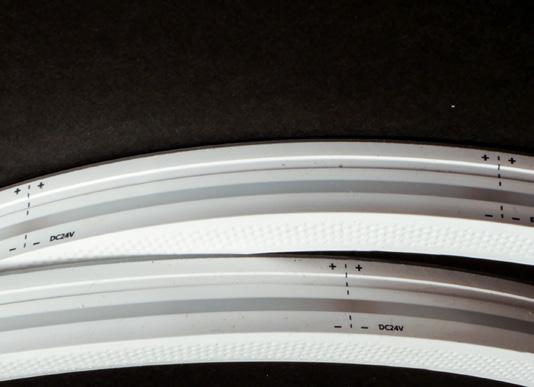

TopFlex Cutaway
BLANK
NeoVision24 TopFlex
Flexible Neon LED Tape Specification
Sheet
CONNECTORS AND ACCESSORIES
NV24T-PF-EF8
NV24T-PF-BF8
NV24T-SP
NV24T-CHL-A4
NV24T-CHL-A8
NV24T-MC-A
Tape-to-Power Flexible End Feed, 8 ft.
Tape-to-Power Flexible Bottom Feed, 8 ft.
Tape-to-Tape Splice Connector
Aluminum Channel, 4 ft.
Aluminum Channel, 8 ft.
Aluminum Mounting Clips (set of 20)
Product
NV24T-TTC6
NV24T-TTC12
NV24T-TTC24
NV24T-FLEX-CHL
Tape-to-Tape Flexible Connector, 6"
Tape-to-Tape Flexible Connector, 12"
Tape-to-Tape Flexible Connector, 24"
Flexible Mounting Channel, 39.5"
NV24T-EC End Cap
NV24-CT
Tape Cutting Tool
The above connectors, channels, mounting clips and caps are for the exclusive use of NeoVision24 TopFlex Neon Tape and are ordered separately.
End Feed
NV24T-PF-EF8
Bottom Feed
NV24T-PF-BF8
Tape Configuration Example
NV24T-EC
NV24T-CHL-A4
NV24T-CHL-A8
2-1/2" Minimum Bend Radius
Splice Connector
NV24T-SP
Aluminum Channel
NV24T-CHL-A4
NV24T-CHL-A8
NOTE: Each run requires an end cap (sold separately)
NV24T-FLEX-CHL
End Cap
NV24T-EC
Mounting Clips
NV24T-MC-A
Tape-to-Tape Connector
NV24T-TTC6
NV24T-TTC12 | NV24T-TTC24
Flexible Mounting Channel
NV24T-FLEX-CHL
NV24T-PF-EF8
NV24T-EC
NV24T-MC-A
NV24T-FLEX-CHL
NV24T-TTC6
NV24T-TTC12
NV24T-TTC24
NV24T-PF-BF8
NV24T-CHL-A4
NV24T-CHL-A8
NV24T-SP
NO SPEC
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available in 800lm only
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail: nora@noralighting.com
Compatible Housings
NHIOICD-48 = ICAT
/
/ 14W NHIOICDCP-48 = Chicago Plenum /
/ 14W NHRIOIC-48 = ICAT Remodel / 800-1000lm
NO SPEC
301 MADEIRA
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available in 800lm only
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
with Round Aperture - Dedicated Housing Required
= Bronze / Bronze
= Champagne / Matte Powder White
= 3000K
NIO-4RNDC35 X = 3500K NIO-4RNDC40X = 4000K NIO-4RNDC50X = 5000K
= Specular Clear / Matte Powder White
Example: NIO-4RNDC50XWW = 4" Iolite Round Reflector with Round Aperture, 5000K, White finish, 800lm
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail: nora@noralighting.com
Compatible Housings
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm
NO SPEC

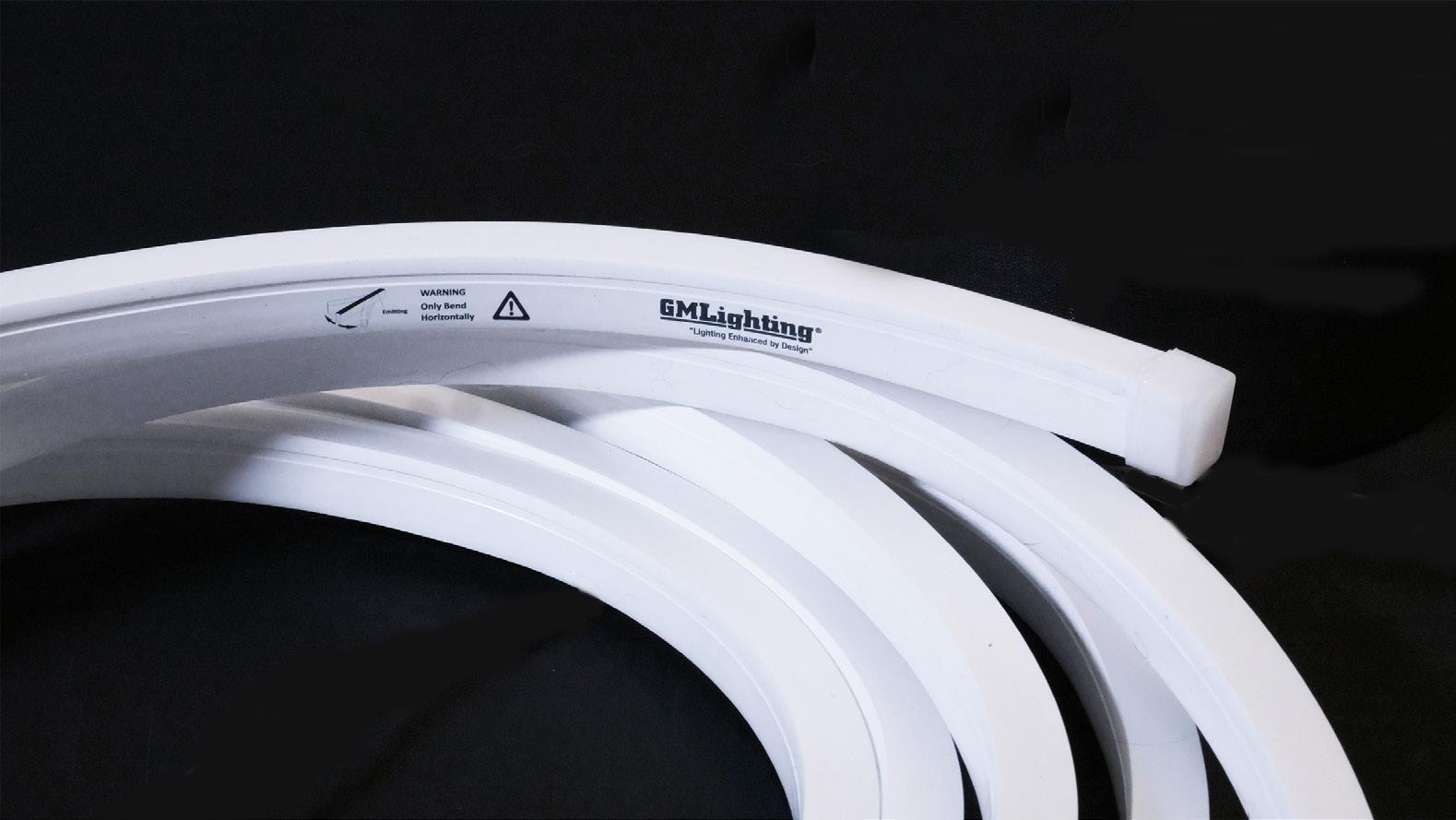

NeoVision24 SideFlex ®
24VDC 3W LED Tape Specification Sheet
PRODUCT OVERVIEW
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables horizontal bending that conforms tape around curvilinear surfaces.
FEATURES
•24VDC operation
•Wet location - IP65
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Dimmable
•Wireless control with LUXcontrol App and controller
•3000K or 4000K / Amber, Blue, Green or Red
•120° viewing angle
•Maximum run: 32’-8”
•Field cuttable and joinable in 2 inch increments while retaining IP65
•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use 1 per foot)
SPECIFICATIONS
ELECTRICAL
•24VDC
•3.0 watts per foot
OPTICS
•90+ CRI
WARRANTY
•5-year warranty when paired with GM power supply
CERTIFICATION
•24VDC UL compliant
•IP65
ACCESSORIES
•LineDRIVE 24V Power
Supplies
•Aluminum Channels (below)
•Connectors (below)
•Tape Cutting Tool (below)
(AM) Blue (BL)
CONTROLLERS
NV24S-FLEX-CHL
NV24-CT
NV24S-EC
MODULE Field Replaceable C10W LED module
SHADE IK10 UL Certified high impact resin

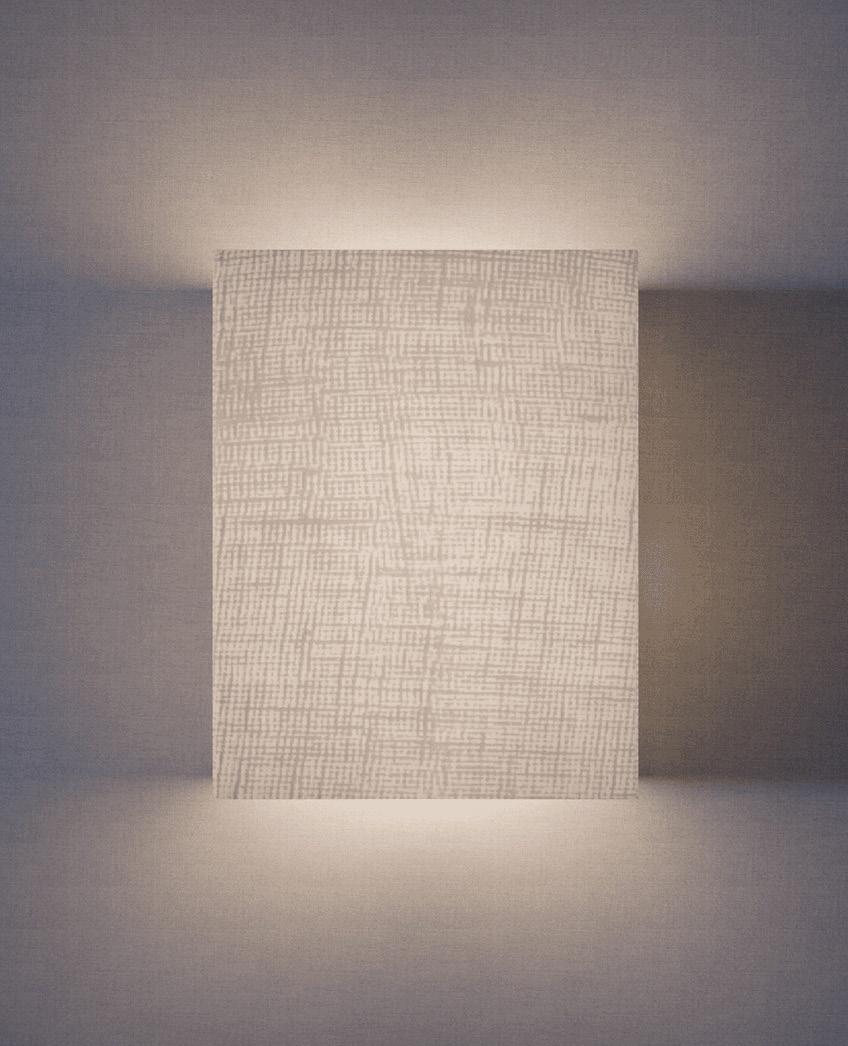

Rectangle 7”W x 9”H
RE7W9H is a personal approach to building the perfect fixture for your project. Sconce can be ordered as a stand alone fixture or you can add one of our decorative elements.
IES FILES AVAILABLE
AVAILABLE WITH OPTIONAL DECORATIVE ELEMENTS See website for all options
CERTIFICATIONS UL Damp Listed, RoHS, IK10 UL Certified, Title24 JA8 Certified
WARRANTY 5 Years
WATTAGE 10W
INPUT VOLTAGE 120* or UNV
CRI 90+
DIMMING Triac/ELV (120V only)
WEIGHT 3 LBS
PROJECTION 4”, ADA Compliant
FIXTURE MODULE WATTS
Note: For Gold Shimmer, Linear Cross, and Cayenne resin, multiply delivered lumens by .8 *Typical wattage 10W without dimmer; Max.
Sconce can be ordered as a stand alone fixture or paired with a decorative element. For full selection of current available DEs please visit alvalight.com/design-your-light
DE10A
DE3A
DP3A
DP6A
DP9A
DP12A
Modern Armature 5”W x 5”H Face Plate, 12”H Wood U-Channel, Small 6.5”W x 3”H x 1.75”D 4” Door Panel, 6.5”W x 3.5”H 6” Door Panel, 6.5”W x 6”H
DP18A DP24A DP36A ELPS ELPL
9” Door Panel, 6.5”W x 9”H 12” Door Panel, 6.5”W x 12”H
Decorative Element Finish Options
Optional Door Panel Plaques
18” Door Panel, 6.5”W x 18”H
24” Door Panel, 6.5”W x 24”H 36” Door Panel, 6.5”W x 36”H Ellipse Short Ellipse Long
Wood Finishes (U-Channel & Door Panel Decorative Elements Only)
Lens Options
Door Panel Plaques are for Door Panel Decorative Elements only. Door number plaque can be personalized by Finish, Logo/Branding, Font Style, Font Size, Braille, Size of Plaque.
DE3A,
DP24A,
Metal Powder Coat Finishes
DARK BRONZE, DB WHITE, WHT BLACK, BLK
Custom RAL Powdercoat Colors also available (CP), MOQ may apply.
SKU: 2812.16-6Learn more at: https://sonnemanlight.com/thin-line-led-wall-bar
Description:
A system of minimally scaled LED uplight/downlight wall bars, indirect light wall bars , and pendants, Thin-Line is offered in a variety of lengths, finishes, and lighting configurations. One-sided configurations direct light in a single direction, and can be mounted in an uplight or downlight orientation. Two-sided configurations direct light both up and down.
Type #: Dimensions
Extends: 3.5"
Minimum Extension: 3.5"
Maximum Extension: 3.5"
Size: 6' Two-Sided
Canopy/Backplate/Base Width: 1
Canopy/Backplate/Base Height: 1
Electrical Specs
Bulb(s) Included?: Yes
Bulb 1 Type: Integral LED
Bulb Quantity: 2
Input Voltage: 120VAC
Wattage: 72
Initial Lumens: 4440
Delivered Lumens: 2700
Color Temperature: 3000K
CRI: 90
Power Supply Type: Driver
Power Supply Quantity: 2
Power Supply Location: Remote
Dimming Type: TRIAC/ELV
Bulb Max Wattage: 72
Installation
General Listings
Installation: Licensed electrician required
Installation Orientation: Any Orientation
Shipping
Carton 1 L x W x H: 75" X 7" X 4" Carton 1 Gross Weight: 7 LBS
Shade
Shade 1 Material: Aluminum w/Optical Acrylic
Available Finishes
Available Finishes: Bright Satin Aluminum (.16), Satin Black (.25), Satin White (.03)
Single lamp pendant with steel cylindrical shade embellished by stacked tubular slices. Primary color configurations include black, gray, brushed nickel or gold with a matching interior. Suspended by a black Teflon cable
Ø4-7/8”
CANADA: 19054 28TH AVENUE - SURREY, BC V3Z 6M3
USA: 3035 E. LONE MOUNTAIN ROAD - LAS VEGAS, NV 89081
RDL series LED Disk Light provides versitile lighting on standard line voltage, yet produces the high energy savings you desire from LED fixtures. The RDL series allows for easy upgrade to your downlighting from the traditional recessed cans to a more modern looking, energy efficient solution. This Disk Light can be mounted on to a junction box or retrofitted into an existing recessed can with the optional hardware mounting adapter (not included).
Shade: High Transmission Glass Create Excellent Light Distribution and Uniformity
LED: High Efficiency, High CRI, Binned and Mixed to Reach Uniform Light
Electrical
High Power Factor, Low THD
Lamp
LED Module: Multiple Color Temperature Type (MCT, 3000K, 3500K, 4000K)
Certification
ETL/cETL Listed, Damp Rated
Warranty
5 Years Warranty on Driver and LED Module
LED Type
16200 S. Figueroa St., Gardena, CA90248 Fax: (310) 324-4020
NO SPEC
NOXAC-431
4" AC Onyx LED Retrofit Reflector
Source: 10.5W or 15W Up to 700lm or 1000lm
PRODUCT DESCRIPTION
4" AC Onyx Retrofit Series requires no driver and allow for a sleek design . Spun aluminum construction provides clean sharp edges and is suitable for use with most 4" recessed housings. Deep regressed optics and round aperture deliver even and glare-free illumination.
FEATURES
Up to 7 00 or 1000 delivered lumens
2 70 0K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Dimmable AC LED
Inc ludes medium base socket adapter for easy retrofitting in 4" recessed housings
Q uick connector is compatible with dedicated LED housings
5 -y ear limited warranty
· C la ssified for wet locations
E NE RGY STAR certified
SPECIFICATION
Reflector: One piece, spun aluminum construction dissipates heat and extends life. Unitized Thermal Management, UTM, provides exceptional cool operation.
Mounting: Two steel, spring mounting blades allow for easy and secure mounting in most 4" housings.
Retrofit: Luminaires include a medium base screw-socket adapter (NRA-211SM) for retrofitting into medium base downlight housings. Intended to be used as a LED lamp replacement. GU24 socket adapter (NRA-212SM) is available
ELECTRICAL (blank) /HL
Input Voltage 120VAC
Frequency 60Hz
Input Power 10.5W 15W
Color Temperature
2700K, 3500K, 4000K, 5000K
2700K, 3000K, 3500K, 4000K, 5000K
Dimming Triac / ELV
Operating Temp. 35°C max.25°C max.
COMPATIBLE HOUSINGS
Onyx retrofits are compatible with most 4" IC and Non-IC housings by Nora and others. Fire Box
NFJB-R4* ICAT Junction Box (700lm only)
NFBIC-4LMRATA* IC Air-Tight Dedicated LED Firebox
NFBIC-427LMRATA* Shallow ICAT Dedicated LED Firebox
NOX-4REFLB = 4" Black Reflector Insert for NOXAC-431
NOX-4REFLD = 4" Diffused Clear Reflector Insert for NOXAC-431
NOX-4REFLHZ = 4" Haze Reflector Insert for NOXAC-431
NOX-4BAFB = 4" Black Baffle Insert for NOXAC-431
NOX-4BAFW = 4" White Baffle Insert for NOXAC-431
NOX-4EYELIDW = 4" Round White Eyelid
NOX-4OR-W = 4" Round White Oversize Ring
NRA-211SM = Medium base screw-in socket (included w/ each)
NRA-212SM = Socket adapter for use with GU24 housings
032224P1
NO SPEC
4" AC Onyx LED Retrofit Reflector
Source: 10.5W or 15W
Up to 700lm or 1000lm
PRODUCT DESCRIPTION
4" AC Onyx Retrofit Series requires no driver and allow for a sleek design . Spun aluminum construction provides clean sharp edges and is suitable for use with most 4" recessed housings. Deep regressed optics and round aperture deliver even and glare-free illumination.
FEATURES
Up to 700 or 1000 delivered lumens
2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Dimmable AC LED
Includes medium base socket adapter for easy retrofitting in 4" recessed housings
Quick connector is compatible with dedicated LED housings
5-year limited warranty
· Classified for wet locations
ENERGY STAR certified
SPECIFICATION
Reflector: One piece, spun aluminum construction dissipates heat and extends life. Unitized Thermal Management, UTM, provides exceptional cool operation.
Mounting: Two steel, spring mounting blades allow for easy and secure mounting in most 4" housings.
Retrofit: Luminaires include a medium base screw-socket adapter (NRA-211SM) for retrofitting into medium base downlight housings. Intended to be used as a LED lamp replacement. GU24 socket adapter (NRA-212SM) is available
NHRIC-427LMRAT* Shallow IC Air-Tight Dedicated LED
NSR-404QAT Air-Tight Line Voltage
NSRIC-404QAT IC Air-Tight Line Voltage
* Nora LED Dedicated housings are listed for use only with Nora LED Retrofits.
ACCESSORIES
NOX-4REFL: Round reflector insert used to convert the reflector finish for NOXAC-431. Available in black, haze or diffused clear.
NOX-4BAF: Round baffle insert used to convert the reflector for NOXAC-431. Available in black or white.
NOX-4EYELIDW: White round eyelid used to convert round reflector or baffle to half moon wall wash trim.
NOX-4OR-W: White round oversize ring used to cover ceiling cut-outs up to 5- 7/8 ".
LABELS AND LISTINGS
700lm luminaires are cULus classified for Wet Locations 1000lm luminaires are cETLus classified for Wet Locations ENERGY STAR certified 5-Year Limited Warranty Meets ASTM-E283 Air-Tight requirements
· FCC compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
4" AC Onyx LED Retrofit Reflector
Lumens / Wattage / Color Temperature / Finish
NOXAC-43127WW = 664lm / 10.5W / 2700K, White
NOXAC-43135WW = 723lm / 10.5W / 3500K, White
NOXAC-43140WW = 714lm / 10.5W / 4000K, White
NOXAC-43150WW = 733lm / 10.5W / 5000K, White
NOXAC-43127WW/HL = 971lm / 15W / 2700K, White
NOXAC-43130WW/HL = 952lm / 15W / 3000K, White
NOXAC-43135WW/HL = 969lm / 15W / 3500K, White
NOXAC-43140WW/HL = 1025lm / 15W / 4000K, White
NOXAC-43150WW/HL = 1018lm / 15W / 5000K, White
Example: NOXAC-43130WW/HL = 4" AC Onyx LED Round Retrofit Reflector, 3000K, White Reflector / White Flange, 952lm / 15W
NOX-4REFLB = 4" Black Reflector Insert for NOXAC-431
NOX-4REFLD = 4" Diffused Clear Reflector Insert for NOXAC-431
NOX-4REFLHZ = 4" Haze Reflector Insert for NOXAC-431
NOX-4BAFB = 4" Black Baffle Insert for NOXAC-431
NOX-4BAFW = 4" White Baffle Insert for NOXAC-431
NOX-4EYELIDW = 4" Round White Eyelid
NOX-4OR-W = 4" Round White Oversize Ring
NRA-211SM = Medium base screw-in socket (included w/ each)
NRA-212SM = Socket adapter for use with GU24 housings
032224P1
NO SPEC
FINISH OPTIONS ON PAGE 2
RDL
LED Round Low Profile Flush
RDL series LED Disk Light provides versitile lighting on standard line voltage, yet produces the high energy savings you desire from LED fixtures. The RDL series allows for easy upgrade to your downlighting from the traditional recessed cans to a more modern looking, energy efficient solution. This Disk Light can be mounted on to a junction box or retrofitted into an existing recessed can with the optional hardware mounting adapter (not included).
Finish Options: -05 Black, -30 Oil Rubbed Bronze Good for Wet Location Applications
Optical Shade: Clear Glass
Electrical
120V – 277V, Built-in Photo Cell Option High Power Factor, Low THD
Lamp
Integrate LED Module: Color Temperature Option 3000K, 3500K, 4000K, 5000K
Certification
ETL/cETL Listed, Suitable for Wet Locations, CEC Listed
Warranty
5 Years Limited Warranty on Driver and LED
LED Type
JA8 Type
Note: LED Driver, 120V Triac Dimming
NO SPEC
FINISH OPTIONS ON PAGE 2
RDL
LED Round Low Profile Flush
RDL series LED Disk Light provides versitile lighting on standard line voltage, yet produces the high energy savings you desire from LED fixtures. The RDL series allows for easy upgrade to your downlighting from the traditional recessed cans to a more modern looking, energy efficient solution. This Disk Light can be mounted on to a junction box or retrofitted into an existing recessed can with the optional hardware mounting adapter (not included).

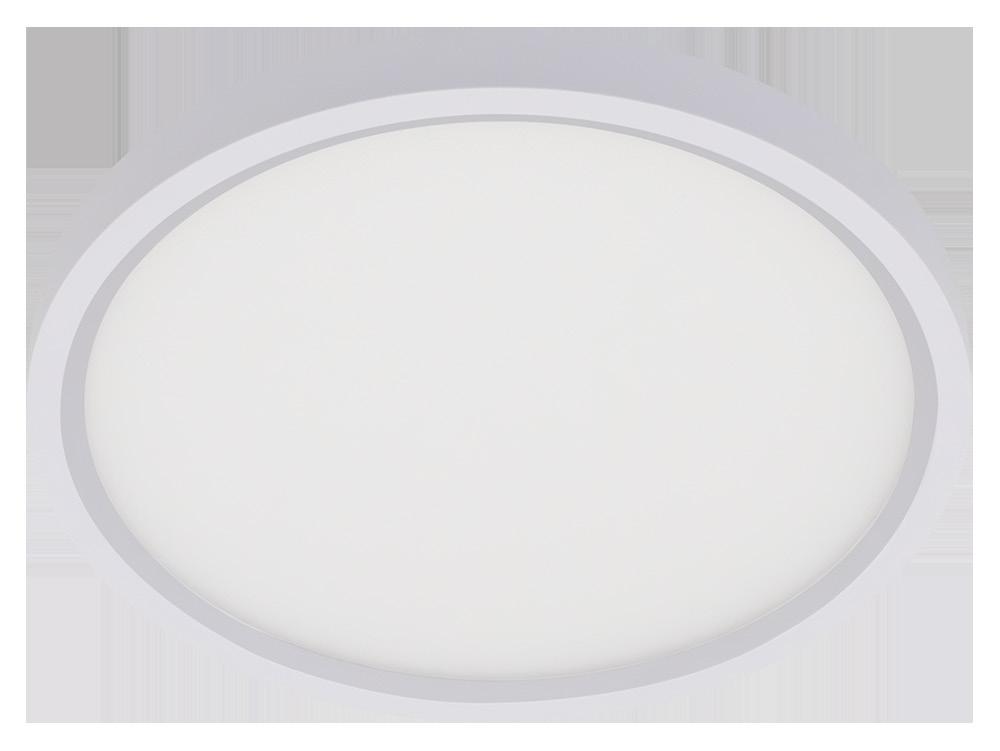

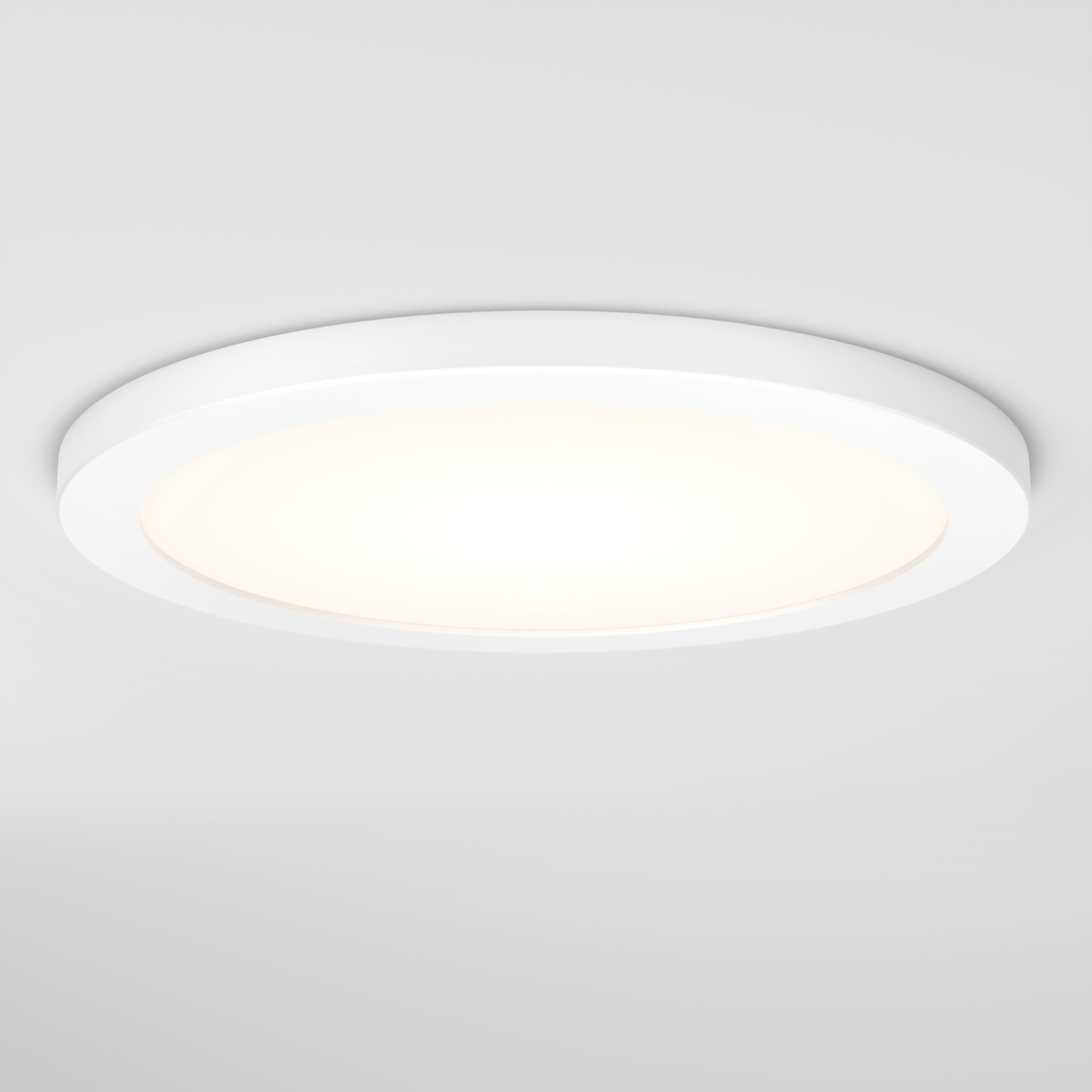

The AC Opal LED luminaire is designed to surface mount over a standard junction box. The low-profile dimmable luminaire produces even illumination and is cETLus listed for wet locations.
FEATURES
AC LED (No Driver)
Dimmable
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
Mount on standard 4" junction box
Retrofit kit included for 5" or 6" recessed housings
SPECIFICATION
Construction: One piece aluminum die formed housing and trim. Aluminum body dissipates heat and extends life.
Mounting: Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes for ceiling or wall mount applications. Luminaires can also be retrofit over 5" or 6" recessed housings with retrofit kit (included).
Optics: Nora specified and designed precision molded lens for optimal lumen output and even distribution.
Finishes: Available in white or natural metal finish.
Ratings: IC rated when used with a 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.
Retrofit: Each luminaire includes a retrofit kit with medium base socket adapter to mount over 5" or 6" recessed housings. Kit also includes torsion spring brackets that hold luminaire flush against ceiling. Retrofit kit is intended to be used with a lighting fixture as a lamp replacement.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 1200lm / 16W
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Operating temperature: 0-45°C
Lifetime: 50,000 hours @ L70
Dimming: 5% with Triac or 10% with ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
LISTING
cETLus Listed for wet locations
cETLus classified for retrofit
5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1)
FCC Compliant
6" AC Opal LED Surface Mount with Selectable CCT
Description
NLOPAC-R6TWNM = Natural Metal Finish
NLOPAC-R6TWW = White Finish
Example: NLOPAC-R6TWW = 6" AC Opal LED Surface Mount with Selectable CCT, 1200lm / 16W, White finish
RDL series LED Disk Light provides versitile lighting on standard line voltage, yet produces the high energy savings you desire from LED fixtures. The RDL series allows for easy upgrade to your downlighting from the traditional recessed cans to a more modern looking, energy efficient solution. This Disk Light can be mounted on to a junction box or retrofitted into an existing recessed can with the optional hardware mounting adapter (not included).
