SPECS
R1 ENVISION LED-TSM-7R-15W-5CCT-WH
R2 KUZCO FM48610
R3 KUZCO WS74122-CH
R5 KUZCO LP70130-BK
VE OPTIONS
P4536D-3000K-05
Trimless Surface
LED-TSM-5R-12W-5CCT-WH
850 Lm • White Finish
LED-TSM-7R-15W-5CCT-WH
1,100Lm • White Finish
LED-TSM-9R-18W-5CCT-WH
1,300 Lm • White Finish
LED-TSM-11R-20W-5CCT-WH
1,500 Lm • White Finish

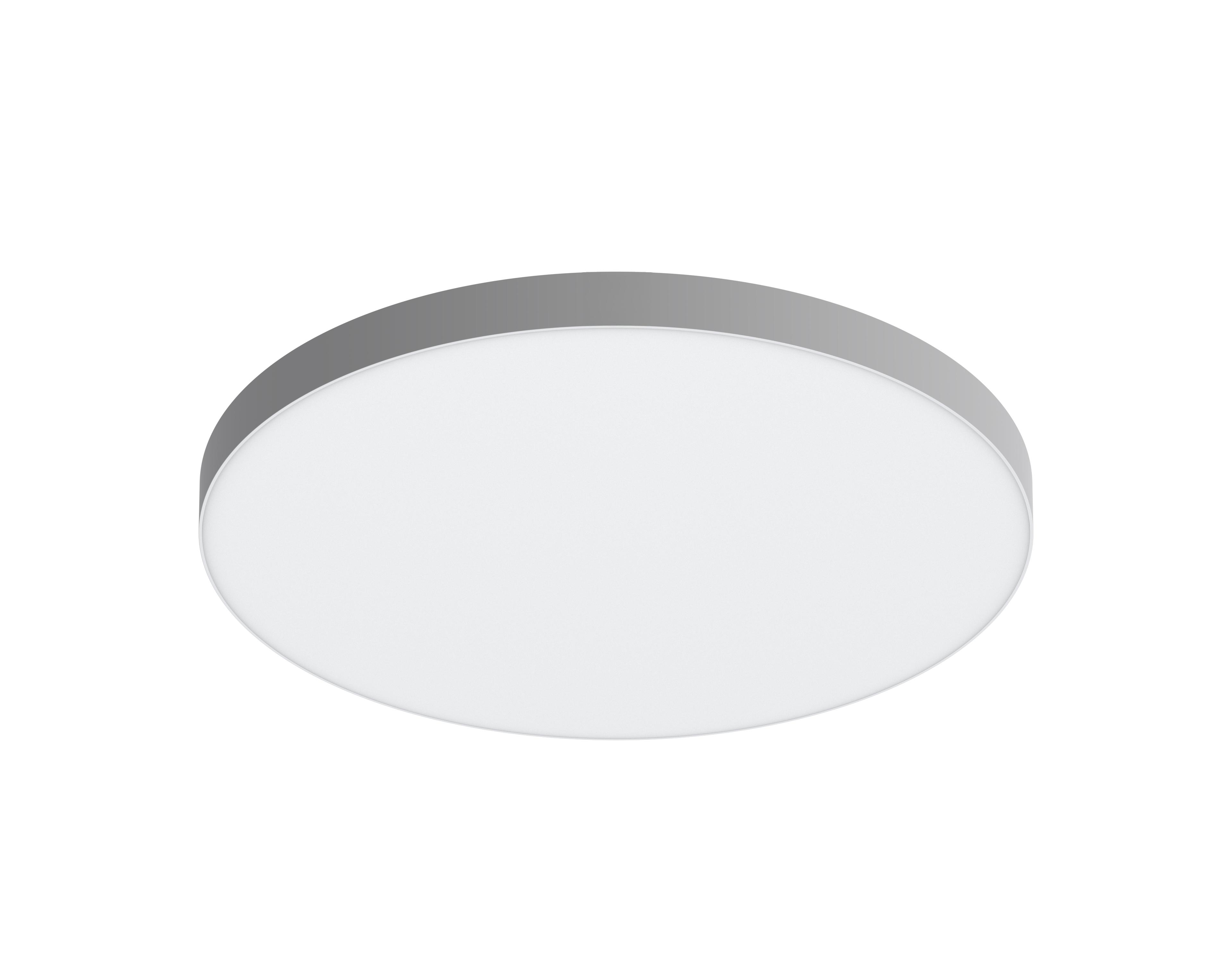

Introducing the EnVision LED Trimless Surface Mount: Crafted with precision, this cutting-edge luminaire boasts an ultra-thin profile, ensuring a sleek and unobtrusive appearance that seamlessly integrates into both residential and commercial recessed environments. This luminaire redefines modern lighting solutions, setting a new standard for sophistication and functionality in the realm of architectural lighting.
Detail Specifications:
• Finishes: White
• IP Rating: Wet Location
• Beam Angle: 100°
• Chip: SMD 2835, R9 >50, CRI >90
• 3 Step MacAdam Ellipses
• Operating Temperature: -40° - 114° F
• Lens: Frosted Acrylic, non-yellowing
• Average life (L70) of 50,000 hours
Applications:
• General Recessed Lighting
• Residential & Multifamily
• Office and Meeting Rooms
• Education, Healthcare, Retail, Hospitality
Product Information:
• Available in 4 different sizes
• Battery backup module available in 7" and 9" models
• Extends to just 0.8” from the ceiling
• Standard white round trim included: optional trims available
Driver Options:
• 120V Triac dimmable down to 5%
• THD: <15% (+/-5% tolerance), PF >0.9, 50/60Hz
• AC Driverless technology
• Flicker Free
Mounting & Installation:
• 3O/4O Junction Box (including pancake j-box)
• Surface mount bracket included
• 4” & 6” Recessed can converter
Certifications:
• ETL Listed for USA and CA
• Energy Star Certified
• CA Title 24 JA8-2022 CEC Listed
• 5 Year Limited Warranty
• FCC CFR 47, GCC Part 15, Subpart B:2017
• IC Rated and ASTM-E283 Air-Tight
• Closet Rated
TSM-7R-EMB-UNV
7" Surface mount pancake EMB
TSM-7R-EMB-EMPTY-UN
7" Empty surface mount pancake EMB
STM-JBX-6-WH
6' Stem Mount (Adjustable length)
White Finish
STM-JBX-6-BLK
6' Stem Mount (Adjustable length) Black Finish Emergency Backup Pendant Stem Mount
TSM-9R-EMB-UNV
9" Surface mount pancake EMB
TSM-9R-EMB-EMPTY-UNV
9" Empty surface mount pancake EMB
LED-EMB-25W-HV-0/10V-2P
Remote EMB for fixtures up to 25W
Specs and model numbers are subject to change with or without notice. Customization of product is available.

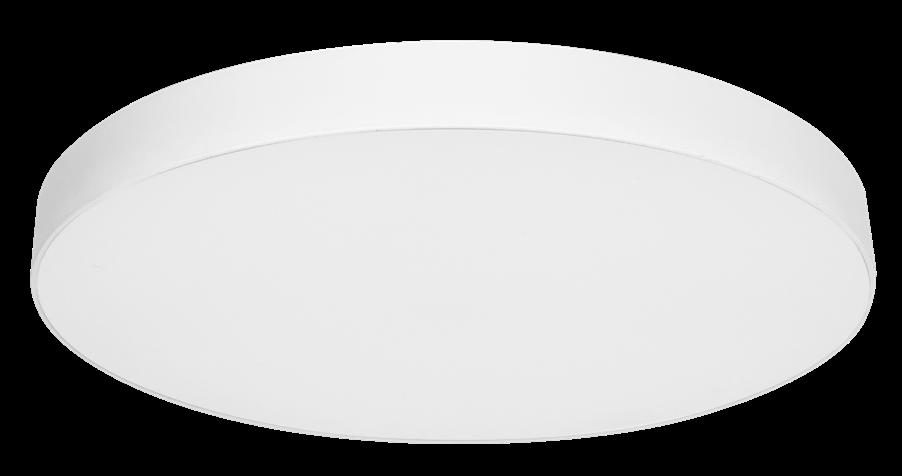

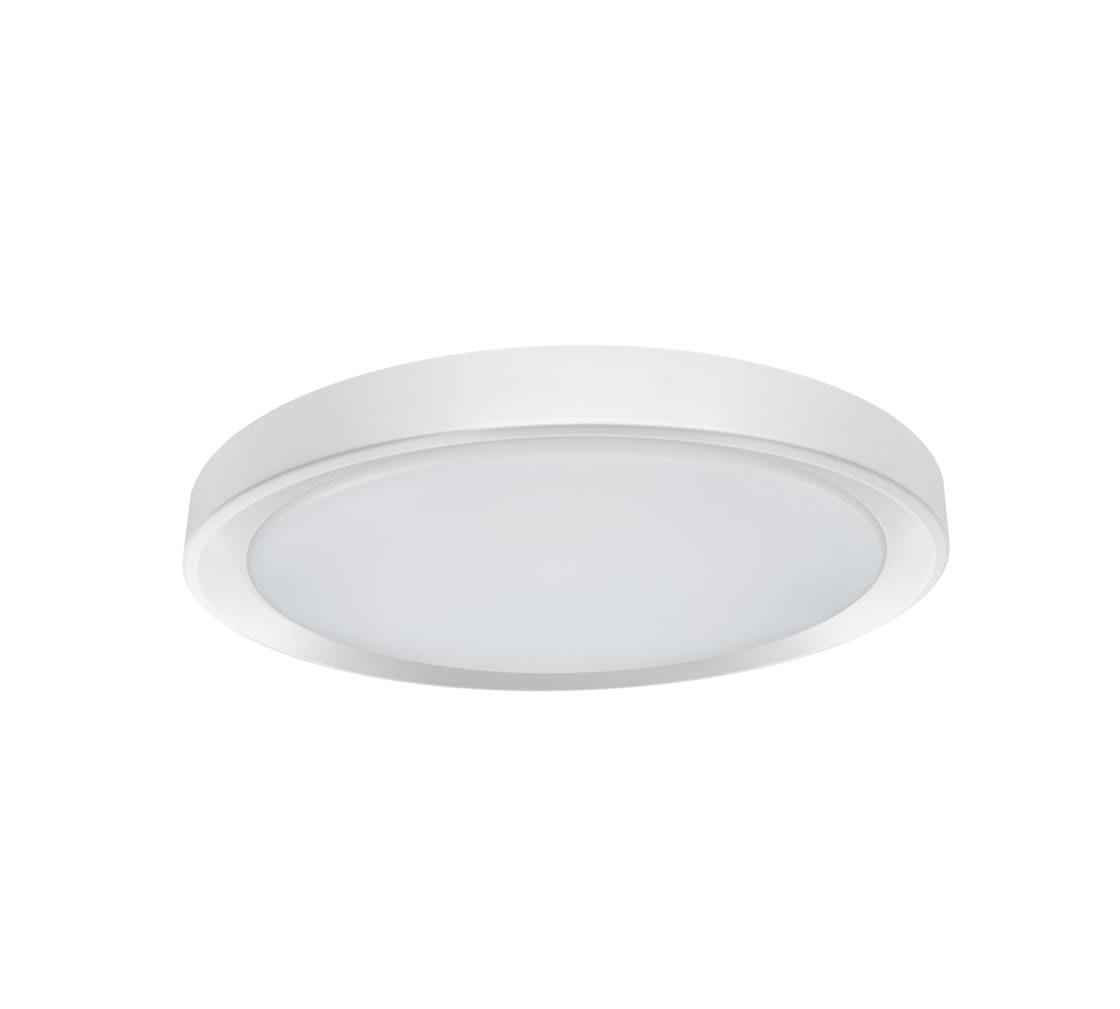

Brim Round LED Surface Mount Disc Light
BRMF Series
Features
This ultra low profile design provides a dramatic look and frameless construction. Products can be used in various applications including corridors, closets, hallway, kitchen and anywhere general lighting is needed.
Indoor use only - Wall or ceiling mount.
Outdoor use only - Covered ceiling mount.
Construction
Edge-lit technology housing is injection molded with aluminum backplate.
Twist-N-Lock
Mounts to standard junction box (not included).
Power supply connections must be made inside junction box.
Finish White finish.
Diffuser
White acrylic diffuser.
Electrical
Input 120 VAC 60 HZ. (D1)
Input 120-277V (D4)
Compatible with residential (TRIAC/ELV) dimmers.
LED
Fixture includes a LED modules capable of producing:
9W = 550 delivered lumens
11W = 1200 delivered lumens
18W = 1600 delivered lumens
24W = 2150 delivered lumens
28W = 2500 delivered lumens
Adjustable 2700K, 3000K, 3500K, 4000K, 5000K (CCT).
Rated for 50,000 Hrs. 90 CRI.
Certification
cETLus listed
Title 24/JA8 Compliant
Wet location rated for indoor use. Outdoor wet location rated for covered ceiling mount applications ONLY (not recommended for any other outdoor use).
Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
Warranty
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 years from date of purchase.
Specifications and dimensions subject to change without notice.
Ordering Information:
BRMF05LAJD1WH 9W 2700K/3000K/3500K/4000K/5000K 5-3/8"
BRMF07LAJD4WH 2700K/3000K/3500K/4000K/5000K 7"
BRMF09LAJD4WH 18W 2700K/3000K/3500K/4000K/5000K 8-7/8" Delivered
BRMF12LAJD4WH 2700K/3000K/3500K/4000K/5000K 11-3/4" BRMF14LAJD4WH 2700K/3000K/3500K/4000K/5000K 13-7/8"
11W 24W 28W 550 1200 1600 2150 2500

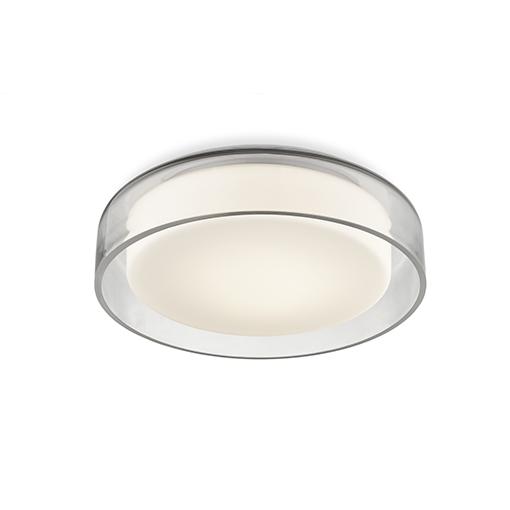

ASTON FM48610
FLUSH MOUNT PROJECT
SPECIFICATION DETAILS
Fixture Dimensions D10" x H3"
Light Source AC LED Module
Wattage 13W
Total Lumens 800lm
Delivered Lumens 660lm
Voltage 120V
Color Temperature 3000K
CRI (Ra) 90CRI
Optional Color Temps 2700K - 5000K Available, Minimum Order Quantities Apply
LED Rated Life 50,000 hours
Dimming 100% - 10%, ELV Dimmer (Not Included)
Shade Details Clear Glass Shade
Glass Details Opal Glass
Location Dry
Illumination Direction Downlight
CEC Title 24 JA8 Yes, JA8-2022
Paint Finish WH01
Finish Option(s) Clear
*For custom options, consult factory for details.
*For warranty information, please visit www.kuzcolighting.com/warranty
DESCRIPTION
Clear round aesthetic glass. Opal glass cylindrical diffuser. Powder-coated white steel ceiling plate. Down light. Custom options available.

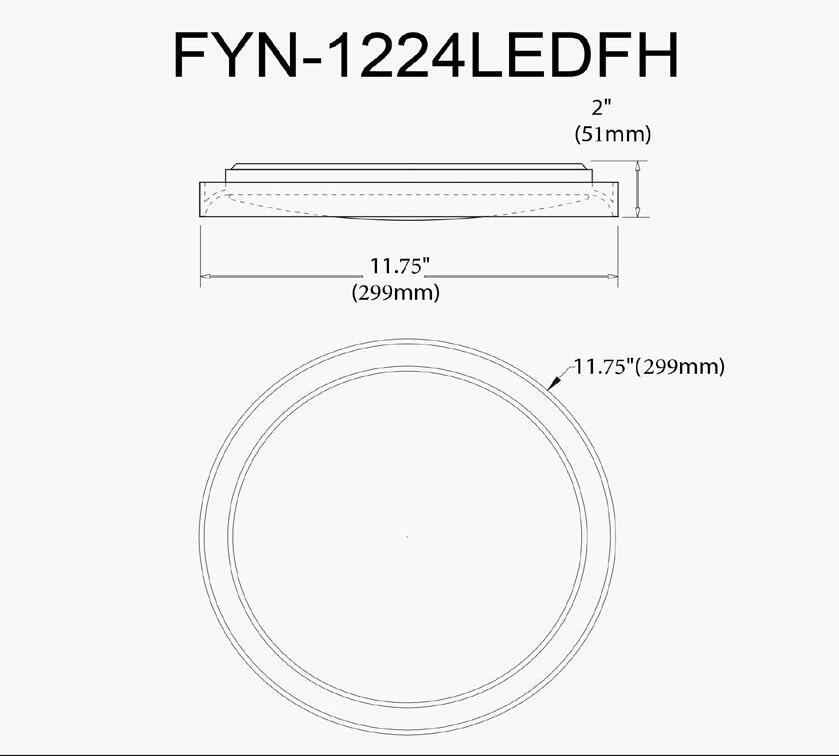

24W Flushmount Matte White with White Diffuser Height 2''
Width/Length 11.75'' LED Compatible Integrated LED Depth 11.75'' Total Wattage 24W
2 lbs
Body Material Metal
Finish/Color Matte White
Second Material Plastic
Second Finish/Color White Type of Finish Painted
Light Qty 1
Rated For
Damp Location
Light Base LED Voltage 120V
Light Max Watt 24
Light Inc Yes
Approval cUL or equivalent
Light Lumens 2000-2100 (Initial), 1200-1300 (Delivered) Warranty 3 Years Limited
Light CRI 80+
Light CCT 3000K,4000K,5000K
Light Life 30000 Hours
Date:
Notes: Fixture Type: Job Name:
Install Position Ceiling

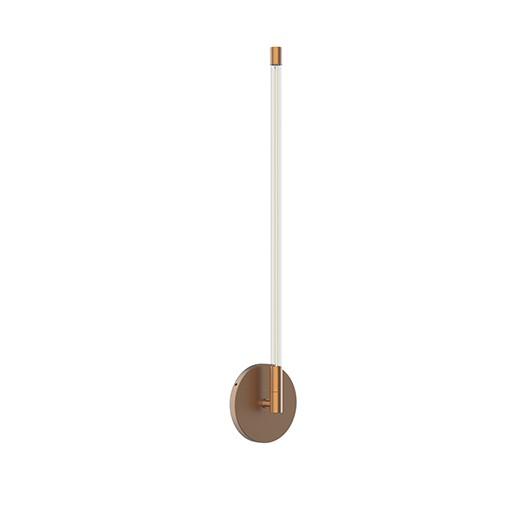

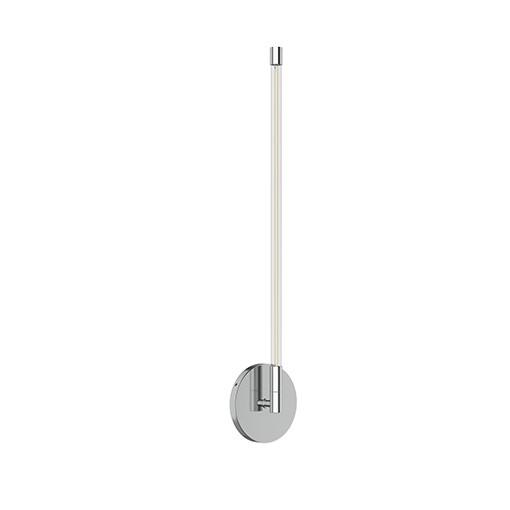

MOTIF WS74122
WALL
WS74122-CH Chrome
WS74122-BK Black
SPECIFICATIONDETAILS
WS74122-BG BrushedGold
FixtureDimensions W3/4"xH22-1/2"xE1-3/4"
LightSource LEDwithDCDriver
Wattage 8W
TotalLumens 840lm
DeliveredLumens BG-543lm|BK-521lm|CH-600lm*
Voltage 120V
ColorTemperature 2700K
CRI(Ra) 90CRI
OptionalColorTemps 2700K-5000KAvailable,MinimumOrderQuantities Apply
LEDRatedLife 50,000hours
Dimming 100%-10%,TRIACorELVDimmer(NotIncluded)
GlassDetails ClearGlass
ADACompliant Yes
Location Dry
MountingStyle AllOrientation;Wall; CECTitle24JA8 Yes,JA8-2022
CanopyDimensions D4-5/8"xE1/2"
PaintFinish BG01;BK02;CH01;
*Forcustomoptions,consultfactoryfordetails. *Forwarrantyinformation,pleasevisitwww.kuzcolighting.com/warranty
CANADA: 19054 28TH AVENUE - SURREY, BC V3Z 6M3
USA: 3035 E. LONE MOUNTAIN ROAD - LAS VEGAS, NV 89081
WWW.KUZCOLIGHTING.COM
©2021KUZCOLIGHTING.ALLRIGHTSRESERVED.
DESCRIPTION
TheMotifCollectionisinspiredbythemultitudeofconfigurationsin whichitcancreate.Eachfixtureiscomprisedofthinlinesoflightina refractivecylinder,creatingbothcleanlinesandmodernelegance.This collectionfeaturesthelatestinmodernLEDfilamenttechnology,creating awarmglowoflightthroughouteachfixturethatisbothvintageand modernatonce.
Ø4-5/8”
COMMENT
Finish
BK-Black(textured) CH-Chrome BG-BrushedGold

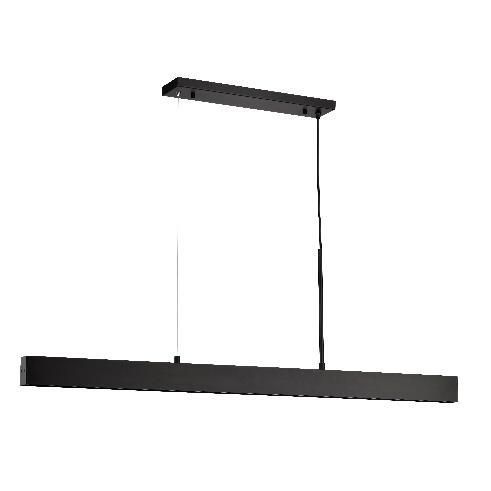

GRAMERCY LP70130
PENDANTS PROJECT
SPECIFICATIONDETAILS
FixtureDimensions L30-1/4"xW2-5/8"xH4-5/8"
LightSource LEDwithDCDriver
Wattage 30W
TotalLumens 2125lm
DeliveredLumens 2338lm
Voltage 120V
ColorTemperature 3000K
CRI(Ra) 90CRI
OptionalColorTemps
2700K-5000KAvailable,MinimumOrderQuantities Apply
LEDRatedLife 50,000hours
Dimming 100%-10%,TRIACorELVDimmer(NotIncluded)
GlassDetails FrostedGlass
Adjustable Yes
WireLength 120"Max
WireType BlackWire
SlopedCeilingAdaptable Yes
Location Dry
CECTitle24JA8 Yes,JA8-2022
EnergyStarCertified EnergyStarCompliant
CanopyDimensions D5"xH1-3/8"
MinimumHangHeight 9"
FinishOption(s) Black
PaintFinish BK02
*Forcustomoptions,consultfactoryfordetails.
*Forwarrantyinformation,pleasevisitwww.kuzcolighting.com/warranty
DESCRIPTION
Glasscylinderwithfrostedwhiteinteriorcoatingandaluminumdie-cast body
CANADA: 19054 28TH AVENUE - SURREY, BC V3Z 6M3
USA: 3035 E. LONE MOUNTAIN ROAD - LAS VEGAS, NV 89081
WWW.KUZCOLIGHTING.COM
©2020KUZCOLIGHTING.ALLRIGHTSRESERVED.
COMMENT
P4524D P4536D P4548D
Pendant
Features
Housing
UP and Down Light
Finish Option: -06 White, -09 Silver, -22 Gold, -23 Light Gold, -30 Oil Rubbed Bronze Pendant Mount by 6 Feet Hanging cable
Canopy Size: 18.1”L x 4.3”W x 1.0”H
Optical
Shade: High Transmission Acrylic Create Excellent Light Distribution and Uniformity LED: High Efficiency, High CRI, Binned and Mixed to Reach Uniform Light
Electrical
High Power Factor, Low THD
Lamp
LED Type: Built-in (Color Temperature Option – 3000K, 4000K)
Certifications
ETL/cETL Listed
Warranty
5 Years Warranty on Driver and LED Module
~
Hanging Cable Length (H1): 6’, Adjustable
