4.4.5 OTHER CONSTRUCTION CONSIDERATIONS

Bentonite dirt is the elective that is nearest to ideal on the natural scale. It is normally happening and self-mending. The disadvantage to this framework is that it is substantial and hard for the proprietor/manufacturer to introduce and expose to termite harm. Bi-films have been utilized widely all through Australia where 2 layers are matched together —commonly 2 layers of water-based epoxy as a 'sealer' and stop the inside fume weight of the wet cement detonating air pockets of fume up underneath the film when presented to sweltering sun. The bond quality of epoxy to concrete is more grounded than the inside bond quality of cement so the layers won't 'blow' odd in the sun. Epoxies are extremely fragile so they are matched up with a jacket of a high-form adaptable water-based acrylic layer in numerous layers of various hues to guarantee movie inclusion—this is fortified with nonwoven polypropylene material in corners and alters in course.

Insulation

Outwardly of the solid, a waterproofing framework is applied. The most regularly utilized waterproofing framework incorporates a layer of fluid black-top onto which an overwhelming evaluation waterproof film is attached, trailed by a last fluid water sealant which might be showered on. It is imperative to ensure that the entirety of the creases are deliberately fixed. It is exceptionally hard to find and fix spills in the waterproofing framework after the structure is finished. A few layers are utilized for waterproofing in earth cover development. The main layer is intended to seal any splits or pores in the auxiliary materials, additionally filling in as a cement for the waterproof film. The film layer is regularly a thick adaptable polyethylene sheeting called EPDM. EPDM is the material generally utilized in a water nursery, lake and pool development. This material additionally keeps roots from tunneling through the waterproofing. EPDM is overwhelming to work with and can be bitten through by some regular bugs like fire ants. It is likewise produced using petrochemicals, making it not exactly impeccably ecologically cordial.

There are different cementitious coatings that can be utilized as waterproofing. The item is showered legitimately onto the unprotected surface. It dries and acts like a tremendous earthenware layer between the divider and earth. The test with this strategy is, if the divider or establishment moves in any capacity, it splits and water can enter through it without any problem.

Bituthene (enrolled name) is fundamentally the same as the three-coat layering process just in one stage. It comes previously layered in sheets and has a self-glue backing. The test with this is equivalent to with the manual layering technique, likewise, it is sun touchy and must be secured not long after application.

Eco-Flex is an ecologically amicable waterproofing film that appears to work very well on establishments, however very little is thought about its viability in earth shielding. It is among

a gathering of fluid paint-on waterproofing items. The primary difficulties with these are they should be painstakingly applied, ensuring that each territory is secured to the correct thickness, and that each split or hole is firmly fixed.

Bentonite dirt is the elective that is nearest to ideal on the natural scale. It is normally happening and self-mending. The disadvantage to this framework is that it is substantial and hard for the proprietor/manufacturer to introduce and expose to termite harm.

Bi-films have been utilized widely all through Australia where 2 layers are matched together —commonly 2 layers of water-based epoxy as a 'sealer' and stop the inside fume weight of the wet cement detonating air pockets of fume up underneath the film when presented to sweltering sun. The bond quality of epoxy to concrete is more grounded than the inside bond quality of cement so the layers won't 'blow' odd in the sun. Epoxies are extremely fragile so they are matched up with a jacket of a high-form adaptable water-based acrylic layer in numerous layers of various hues to guarantee movie inclusion—this is fortified with nonwoven polypropylene material in corners and alters in course.

Backfilling

After past development stages are finished, the earth is inlayed against the outside dividers to make the embankment. Contingent upon the waste qualities of the earth may not be appropriate to put in direct contact with the outside divider. Some counsel that topsoil and turf (grass) be set beside the underlying exhuming and be utilized for the grass rooftop and to put as the highest layer on the embankment.

Finishing

In the earth houses structured by Vetsch, inside dividers are outfitted utilizing soil rendering which gives prevalent moistness remuneration. The soil rendering is at last covered with limewhite concrete paint. Image Source: Earth Shelter Housing, Max R. Terman

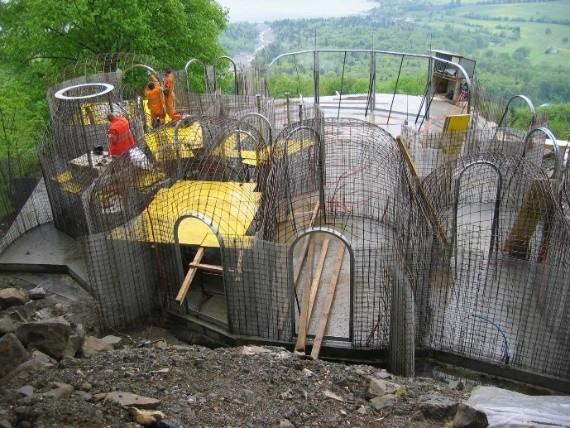

Meshed metal stretch net construction Waterproofing Techniques

PSP-Low cost

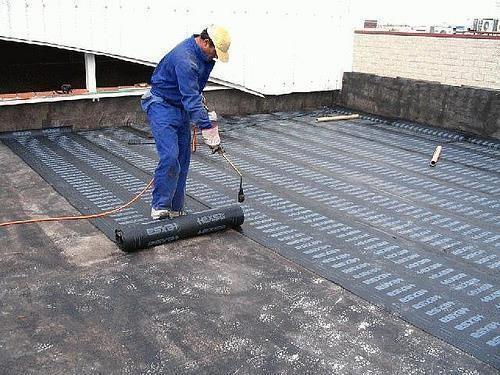

Eco-flex liquid rubber waterproofing EPDM waterproofing sheet

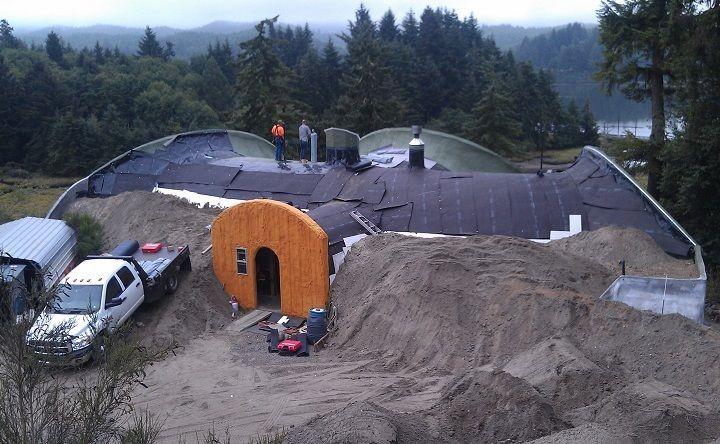

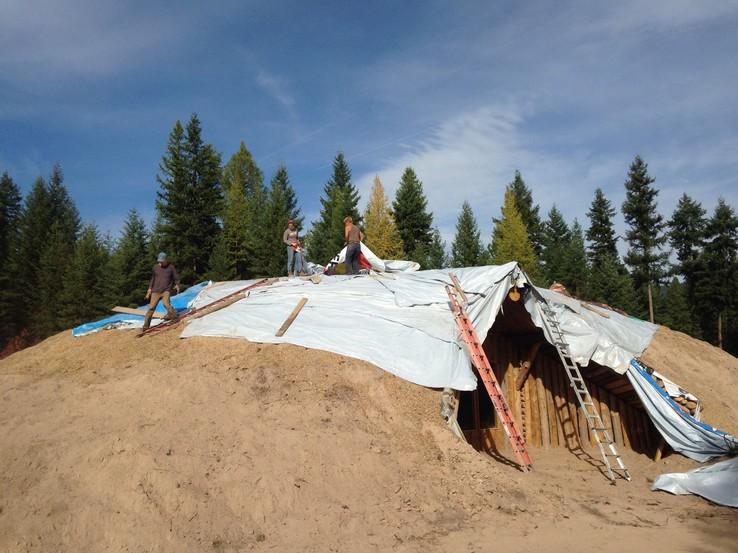

Bermed earth shelter construction covering the outer structure with waterproofing sheet and finally covering it with earth. Image Source: Earth Shelter Housing, Max R. Terman

4.4.4 SOIL SUITABILITY ANALYSIS

The decision of building site is for the most part controlled by the dirt sort accessible in a given geological zone for issues of wellbeing against avalanches and other dampness began perils. A few sorts of soil are more appropriate than others in the development of sub-grade structures. The quality of the dirt must be resolved for the proposed profundity of working subterranean level. In spite of the fact that might be covetous, unearthing’s in an extremely solid soil might be troublesome and on account of rough ground, may demonstrate outlandish. Then again, in extremely frail soils the unearthing’s are simple. In the initial two cases, the capital expense and the vitality uses engaged with development need cautious assessment. For the third case, be that as it may, the unearthing might be troublesome in light of the fact that high horizontal earth pressure requires development of substantial dividers (holding dividers), ideally made of fortified solid, which infers expanded capital expenses and vitality utilization. In present day earth protected home development, compaction and porousness esteems are the most basic measures considered in the refill procedure when assembling an embankment or elevational type development. Review has distinguished that perfect locales are those of uneven or sloping landscape. The in part covered (bermed-elevational) earth-shielded home is recognized as generally appropriate for augmenting aloof sun powered warming in chilly atmospheres, anyway since water will in general channel down the slope toward the structure and off the rooftop toward the rear of the home, it is fitting to work in profoundly waterpenetrable soils and to introduce water waste frameworks around the border of the covered dividers. Hydrology talks about penetration as the rate at which water goes into the dirt. This is additionally influenced by the proportion of large scale to small scale pores of the dirt being referred to.

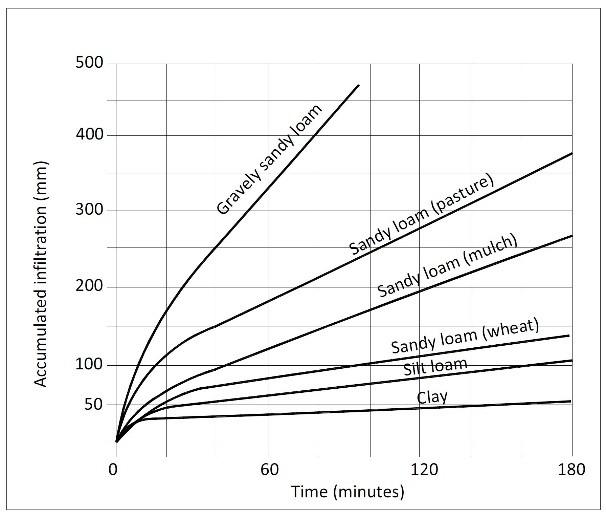

Figure 13. Infiltration curves for different soil textures

4.4.5 OTHER CONSTRUCTION CONSIDERATIONS

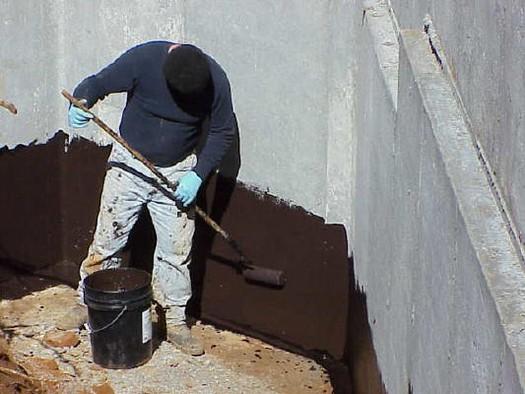

Waterproofing

Waterproofing can be a test in earth-protected development. Remember these three different ways to diminish the danger of water harm in your home: pick the site cautiously, plan the waste both at and beneath the outside of the house, and waterproof your home.

Waterproofing frameworks to consider include:

• Rubberized black-top consolidates a limited quantity of manufactured elastic with black-top and is covered with a polyethylene layer to shape sheets. It tends to be applied straightforwardly to dividers and rooftops and has a long-future.

• Plastic and vulcanized sheets are among the most well-known sorts of underground waterproofing. Plastic sheets incorporate high-thickness polyethylene, chlorinated polyethylene, polyvinyl chloride, and chloro-sulfonated polyethylene. Reasonable vulcanized films or engineered rubbers incorporate isobutylene isoprene, ethylene propylene diene monomer, polychloroprene (neoprene), and polyisobutylene. For every one of these materials, the creases must be fixed appropriately to make preparations for spills.

• Liquid polyurethanes are regularly utilized in places where it is unbalanced to apply a layer, and are at times utilized as a covering over protection on underground structures. Note that climate conditions must be dry and generally warm during their application.

• Bentonite is a characteristic dirt shaped into boards that are nailed to dividers or applied as a fluid splash. At the point when the bentonite interacts with dampness, it extends and seals out dampness.

Humidity

Moistness levels may increment in earth-protected houses throughout the late spring, which can cause buildup on the inside dividers. Introducing protection outwardly of the dividers will keep the dividers from chilling off to earth temperature, however can likewise diminish the mid year cooling impact of the dividers. Cautious arranging by an originator acquainted with earth-shielded home plan can shield stickiness from turning into an issue.

Insulation

In spite of the fact that protection in an underground structure shouldn't be as thick as that in an ordinary house, it is important to make an earthen house agreeable. Protection is typically positioned on the outside of the house subsequent to applying the waterproofing material, so the warmth created, gathered, and consumed inside the earth-shielded envelope is held inside the structure's inside. In the event that protecting outside the divider, a defensive layer of board ought to be added to shield the protection from reaching the earth.

Air Exchange/Air Quality

Sufficient ventilation must be deliberately arranged in an earth-protected house. Ignition machines ought to be fixed burning units that have an immediate wellspring of outside air for burning and vent burning gases straightforwardly to the outside. Likewise, maintaining a strategic distance from indoor contaminations, for example, formaldehyde from froth protection, compressed wood, and a few textures can help keep indoor air sound. A vitality recuperation ventilator, which trades heat in the active fumes air with approaching outside air, limits heat misfortune while guaranteeing great indoor air quality and is a valuable expansion to any vitality proficient home.

CHAPTER FIVE: CASE STUDY

5.1 A CASE STUDY OF DOBRACA VILLAGE HOUSE NEAR KRAGUJEVAC, SERBIA

5.1.1 INTRODUCTION

The contextual investigation of an earth-protected house in Village Dobraca close Kragujevac, Serbia, with regards to advancement and some warm properties of the underground lodging. The authentic knowledge, in a nutshell, gives a superior comprehension of the purposes behind their cutting edge use as vitality proficient and feasible structures. It shows that underground houses even today are more thermally proficient than over the ground houses since, other than earth, there is no requirement for new extra warm layers. The article additionally incorporates an audit of the agent physical types of the underground lodging through various periods, with the aftereffect of estimation of their fundamental properties.

The bermed underground earth-protected house was planned and motivated by the early Neolithic house (Figure 5a) from the archeological site Lepenski Vir in Serbia. The estimation of the house from Lepenski Vir was a similar one that we utilized for plan of the earth shielded house, on account of the Dobraca House in Serbia (Figure 5b).

(a) (b)

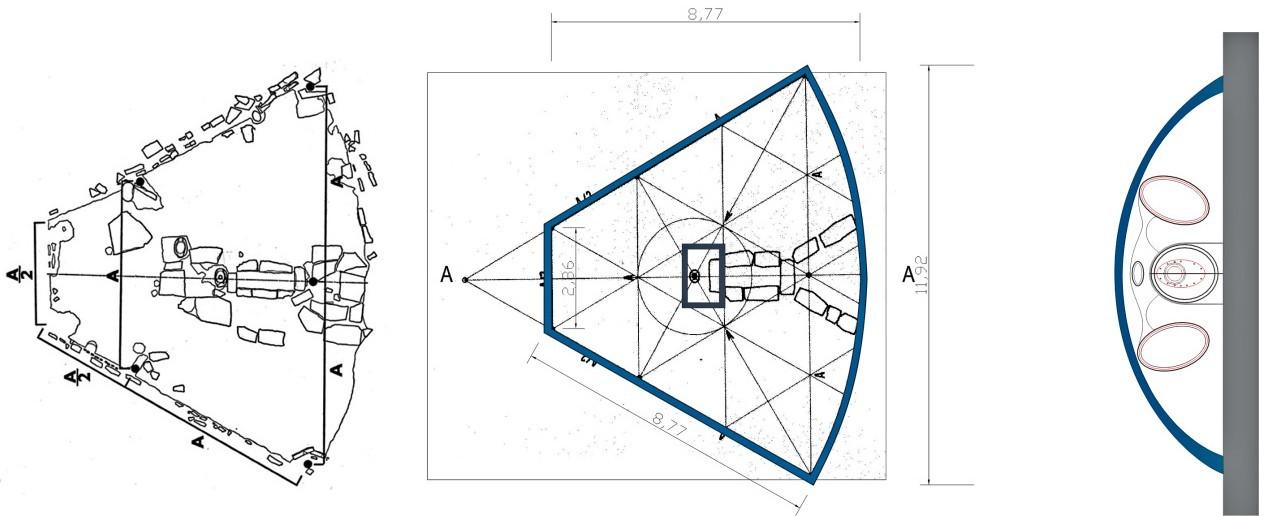

Figure 5. (a) Lepenski Vir: floor plane of the house; (b) floor plane and elevation of Dobraca house.

The landscape was appropriate for actualizing this sort of structure. The house (Figure 6) was done in 2008 and the checking of normal temperature and wind was taken quarterly during the 2012 and 2016.

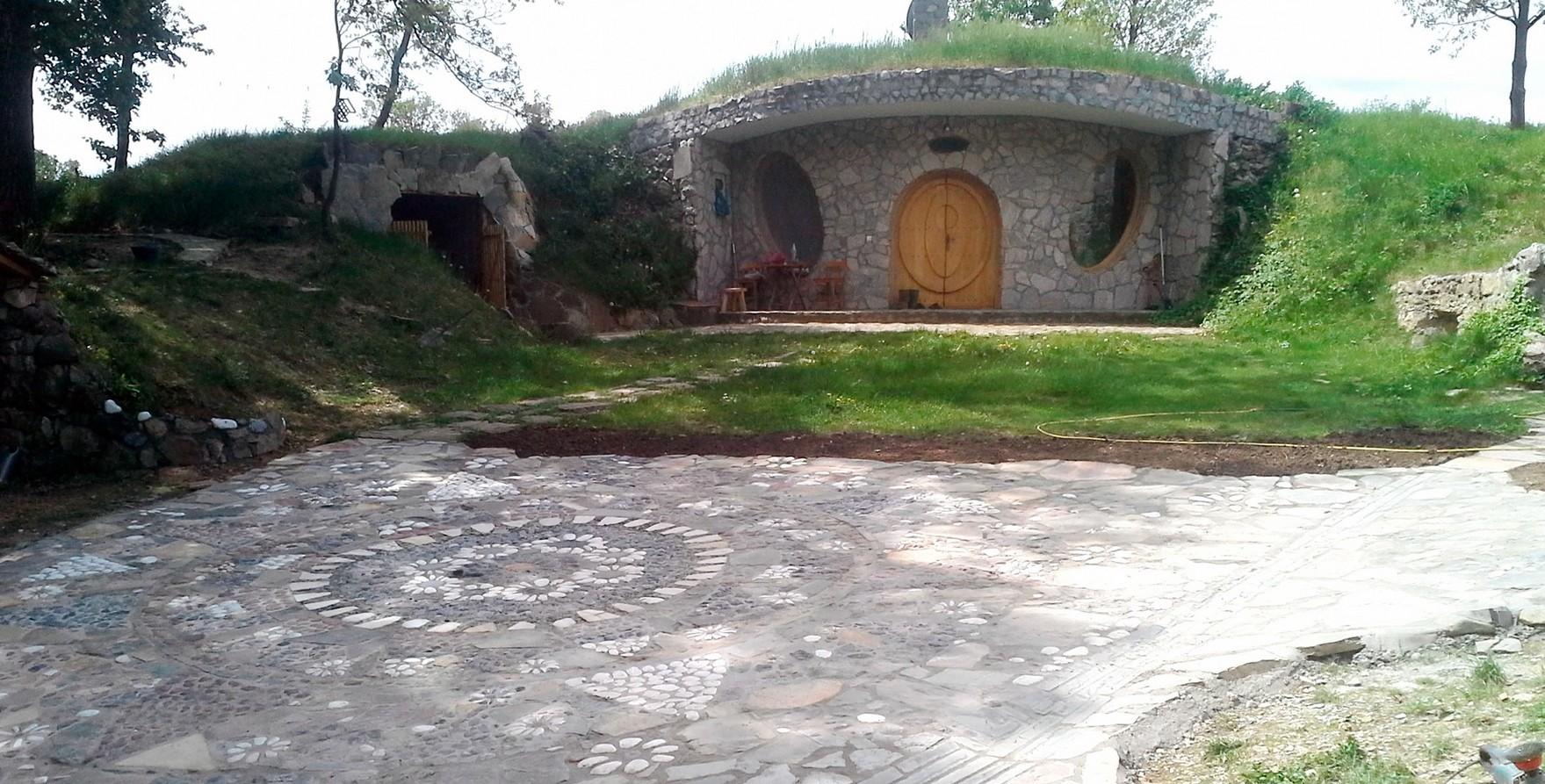

Figure 6. Dobraca bermed earth-sheltered house.(source: arch daily)

Monitoring Some Parameters

The day by day temperature inside and outside the bermed-earth shielded house in Dobraca was dissected with extraordinary accentuation on the protection layers and wind speed during 2012 and 2016. As per the introduced estimation (Tables 1 and 2), the temperature inside this bermed-earth shielded house was in the range from at least 15.8 ◦C to greatest 20.6 ◦C (even on the coldest winter day in 2012), which is near the perfect human needs temperature.

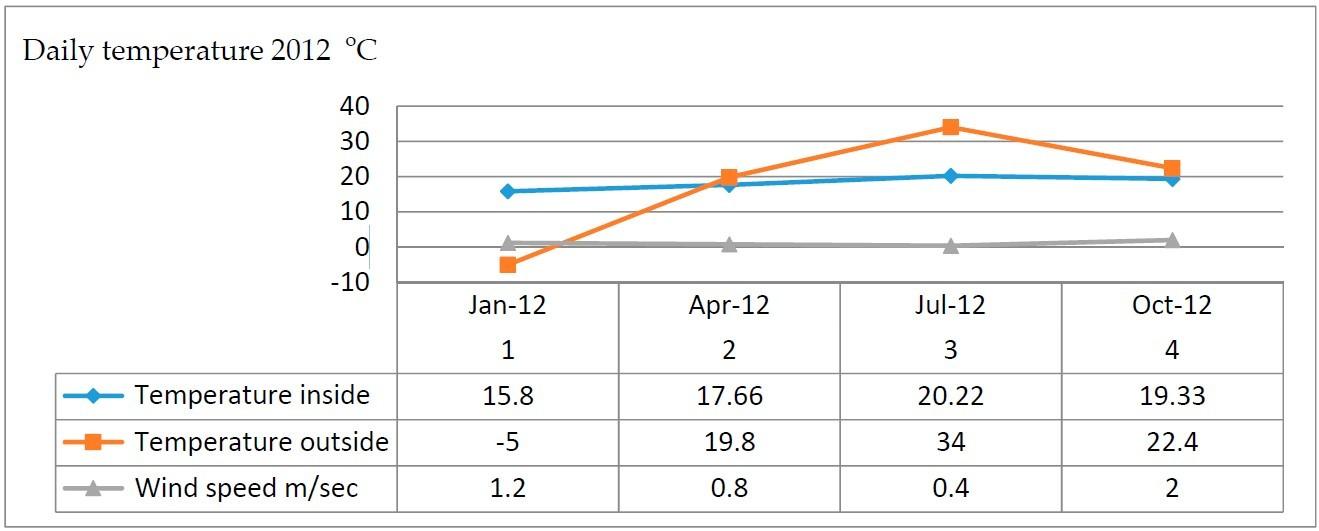

Table 1. Quarterly measured of daily temperature (14 h) during 2012 (Source: authors).

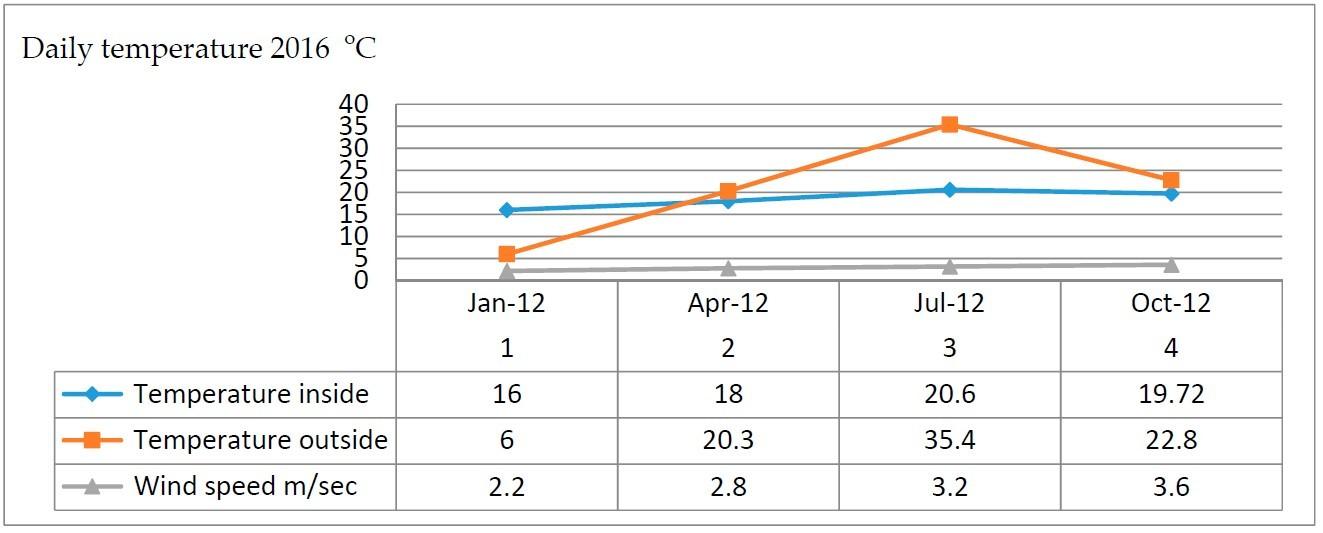

Table 2. Quarterly measured of daily temperature (14 h) during 2016 (Source: authors).

What's more, a few creators reasoned that underground houses confronting eastwards could make a huge warmth decrease, and we have additionally seen that the certified Lepenski Vir neolithic house on the Danube River has a similar direction as the Dobraca house in Kragujevac. As was normal, the solid shell structure, with simply bituminous coatings and green rooftop about 0.4 m thickness gives almost fulfills the temperature to happy with living inside the house.

At the Dobraca house area, the breeze arrives at the working rate of the little wind turbine as an elective vitality asset. The little wind turbine introduced at a tallness of 10 m over the ground could deliver around 2406 kWh of wind vitality every year. Since the vitality utilization of this little house in Dobraca with around 50 m2 floor space is beneath 2000 kWh, the breeze turbine could give all the fundamental electric vitality for this house in future. At present, the Dobraca house utilizes electrical vitality from Kragujevac lowvoltage vitality arrange as a piece of the Serbian high-voltage power transmission framework.

As per the information introduced in Master plan for mountain Rudnik, the normal breeze speed around there is between 2.6–4 m/s (Figure 7).

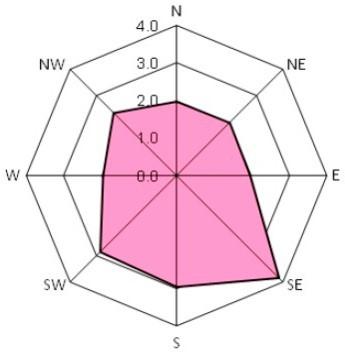

Figure 7. Wind rose graph of wind speed and direction at Rudnik mountain.

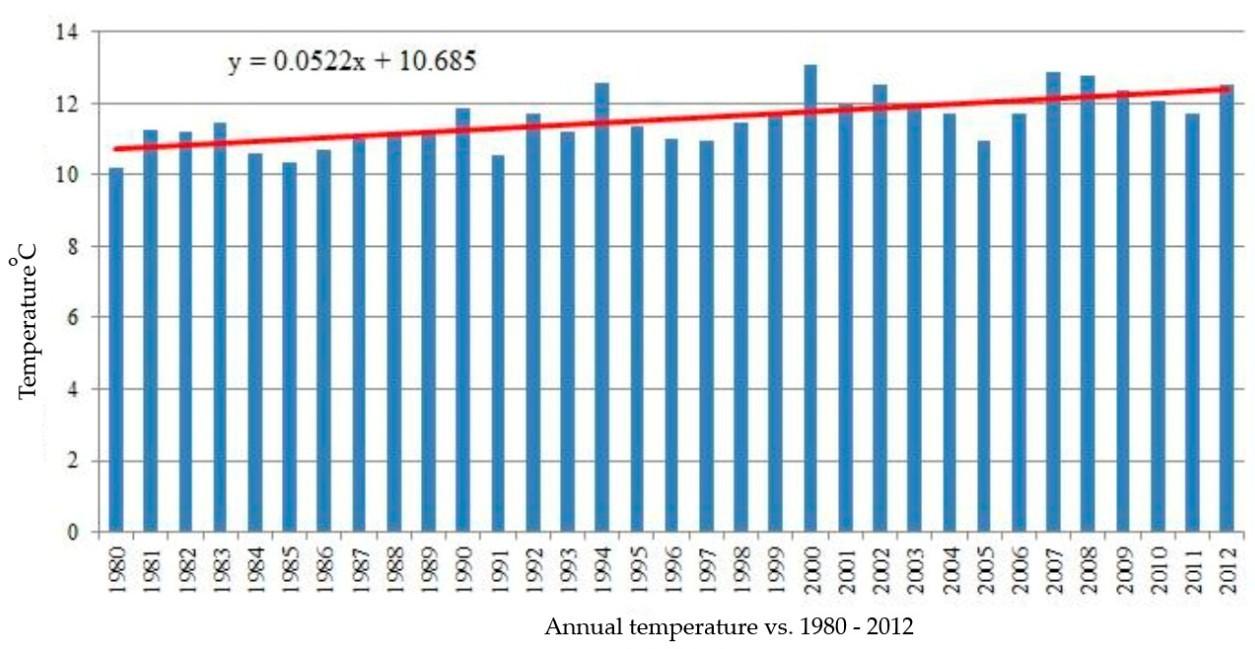

Figure 9. Annual temperature in Kragujevac, Serbia in the period 1980–2012.

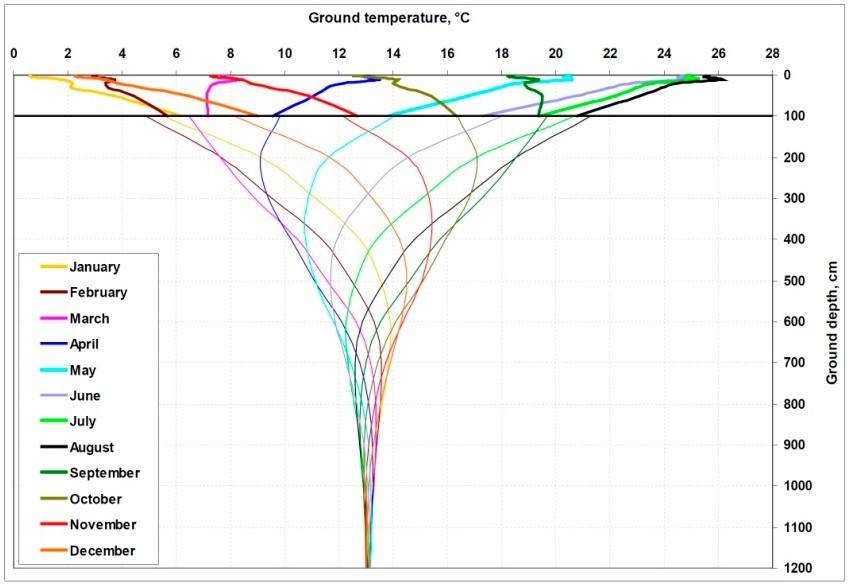

Figure 10. Temperature regarding soil depth in the same climate zone as Case Study house.

It very well may be presumed that while observing month to month soil temperature at four m profundity in the mild zone, it is in the range 12–15 ◦C, which is near the normal yearly temperature in Kragujevac, Serbia.

Figure 11 shows the situation of the 75 m profound well, found 50 m South-West of the house, with drinking water, yet additionally for non-drinking necessities.

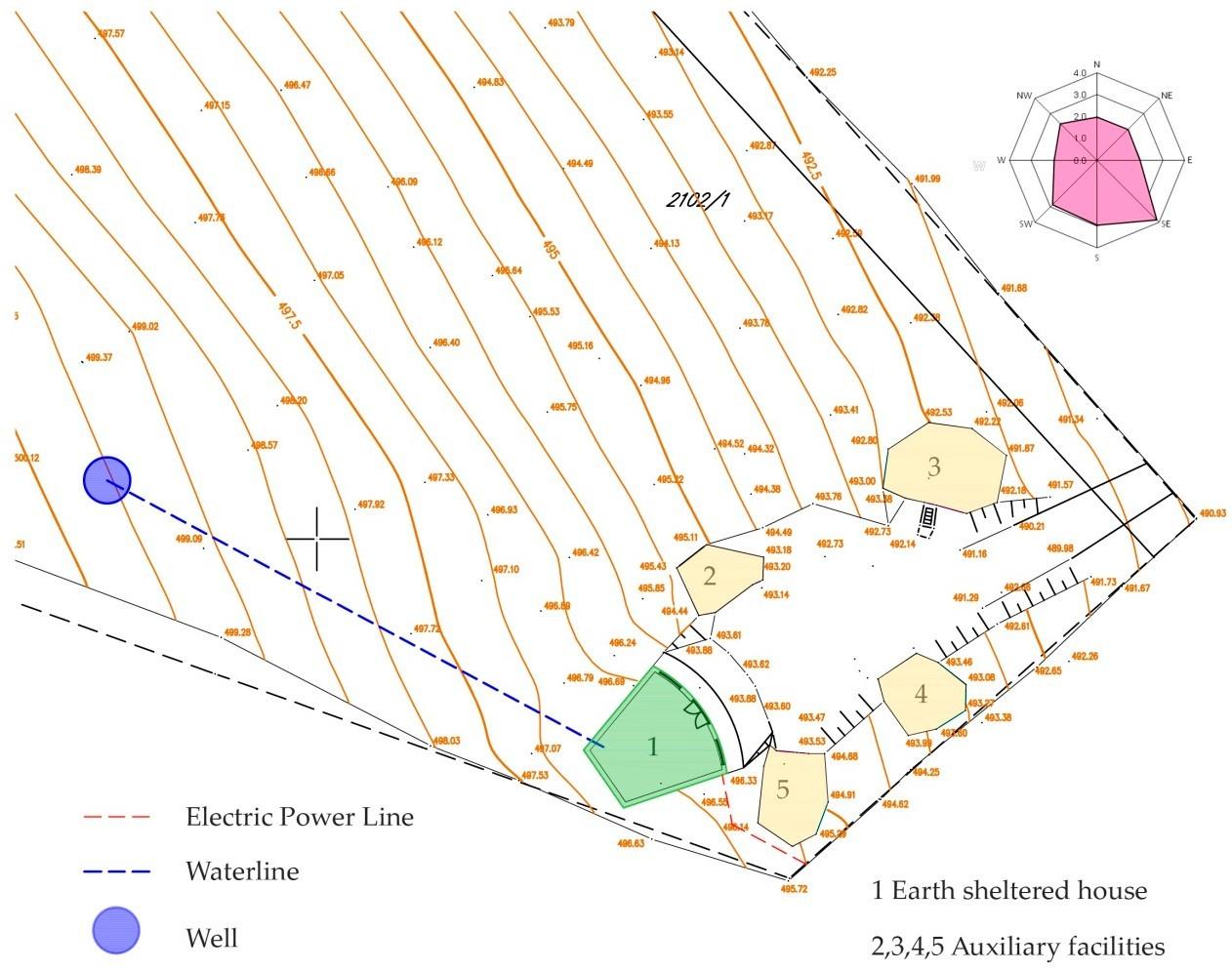

Figure 11. Site plan of the Dobraca house with all the auxiliary facilities.

The water from the well could likewise be utilized as isolated open circle VSWC frameworks with water for warming and cooling the house, or as a coordinated mixture framework associated with sun oriented PV boards. In future, there is a possibility for introducing the waterproof layer on the rooftop for downpour reaping with the likelihood to reuse that water for all non-savoring prerequisites the house.

The Dobraca house was worked at the 12% landscape incline (Figure 12). That slant gives 3.8 m of soil over the outside dividers that are situated at the rear of the structure, and 4.05 m of bermed soil layers on the went out.

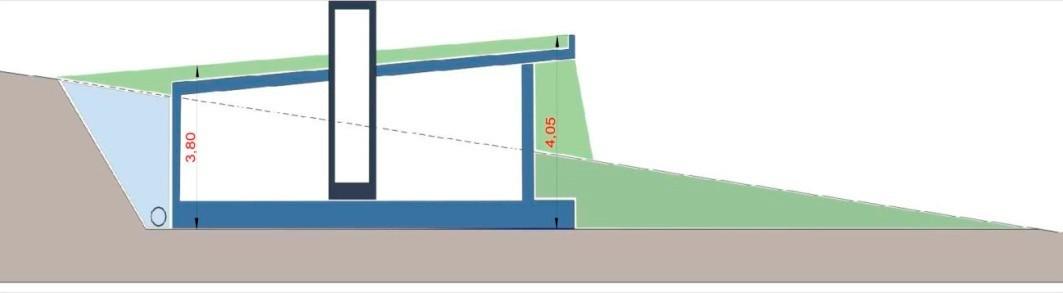

Figure 12. Cross section of Dobraca house with the soil cover measure.

5.2 EARTH SHELTERED PASSIVE SOLAR HOME CASE STUDY

Property

Owner: The Clarks Type: Single-Family Residence Address: Angola, NY 14006 Size: 2,040 sq. ft Energy need met: 50% to 74% of space heating 100% or more of air conditioning Designations: Passive house Event Participation: NESEA Green Buildings Open House 2012 Host NESEA Green Buildings Open House 2013 Host

Technology

Type: Energy Efficiency Installed: January 1991 Purposes: For space heating, For air-conditioning

Financial Details

Annual Savings: $1,500 Additional Financial Notes: Energy saving probably significantly more when comparing to conventional homes. Monthly gas bill under $30., monthly electric $55.-$60.

Professionals & Suppliers

Builders:

Self

Description:

Earth Sheltered/passive solar. Continuous pour of concrete, water- proofed, insulated and back filled with earth. Windows face south and east. Sunlight warms floors in winter. Over hangs prevent heat in summer.

Other Benefits:

Stone mass under floors hold heat in winter. Clean environment. Constant comfort of low 70degree temperatures.

Maintenance Requirements:

No maintenance.

Efficiency or Sustainability Improvements:

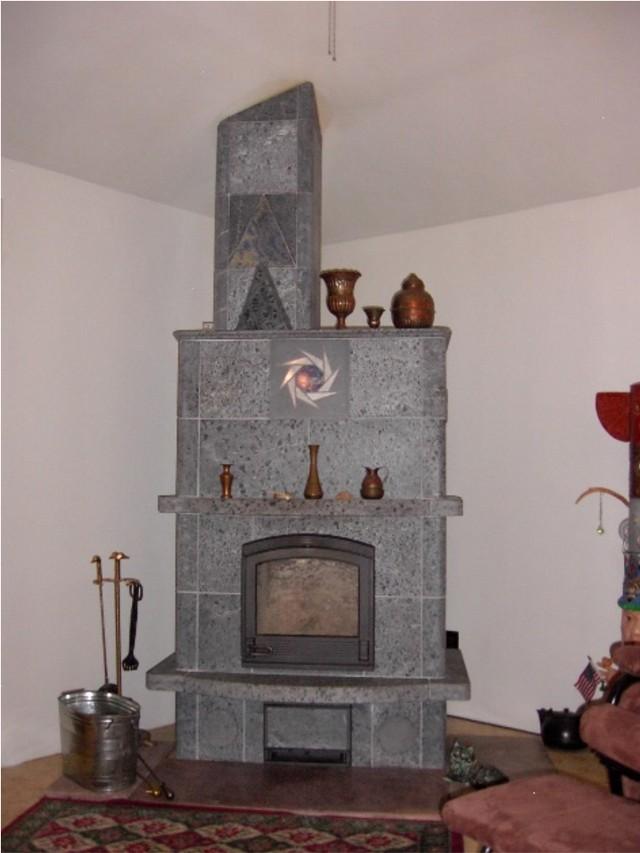

Tulikivi soapstone fireplace. Solar tubes.

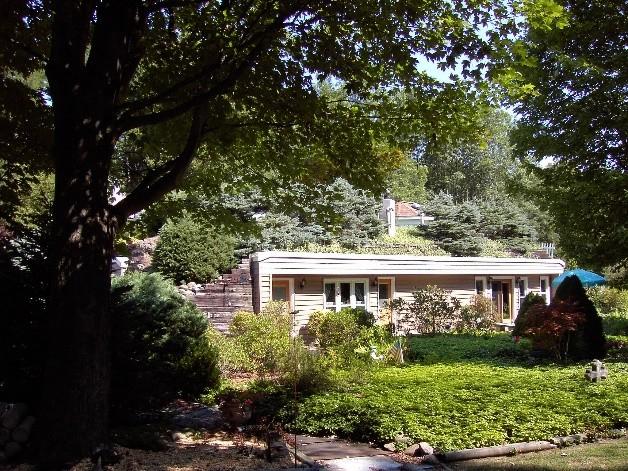

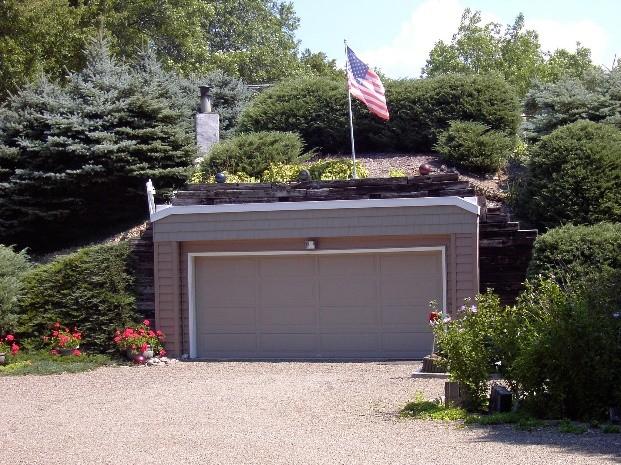

Front view Parking

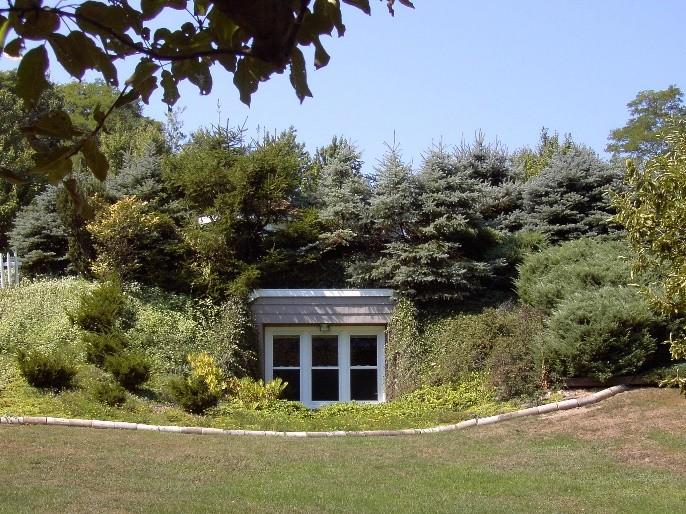

South Bedroom window Image Source: Getty images Fireplace

CHAPTER SIX: ANALYSIS

6.1 ADVANTAGES OF EARTH SHELTER

On the in addition to side, an earth-protected home is less helpless to the effect of extraordinary outside air temperatures than a traditional house. Earth-shielded houses likewise require less outside upkeep, and the earth encompassing the house gives soundproofing. Furthermore, plans for most earth-protected houses "mix" the structure into the scene more amicably than a customary home. At long last, earth-shielded houses can cost

less to guarantee since they offer additional security against high breezes, hailstorms, and cataclysmic events, for example, tornados and tropical storms.

Stylishly an earth shielded home mixes with the indigenous habitat, leaving more yard space and more space for natural life. Covering structures with vegetation decreases site disintegration, sedimentation and stormwater spillover. Earth shields additionally give protection from neighbors, just as soundproofing and decreased light contamination.

Homes made with the earth normally accompany numerous ecological advantages. What's more, earth protected homes are incredible for preserving vitality and setting aside cash after some time.

6.1.1 ENVIRONMENTAL BENEFITS

Earth sheltered homes have a lower environmental impact because they are created in natural surroundings. This helps the natural ecosystem thrive since it’s not interrupted by the presence and construction of a traditional building. Take a look below to see just how the environment benefits from a sheltered home.

Biodiversity: A study from Eastern Mediterranean University explains that a couple advantages to earth sheltered homes include a small environmental footprint and preservation of the natural landscape. These homes coexist with the surrounding natural habitat better than traditionally built homes since the earth is incorporated in its construction. The natural incorporation helps sustain existing flora and fauna in the area. Drainage: The National Park Service (NPS) explains that green roofs in particular absorb and filter rainwater and return it to the atmosphere via evaporation. This absorption helps slow the flow of rainwater to sewer systems and prevents flooding. Green roofs captured up to 80 percent of rainfall compared to 24 percent captured by typical roofs.

6.1.2 SAFETY

Earth homes are great at protecting the home structures and can withstand extreme weather conditions better than normal homes. Certain styles of homes also offer more seclusion.

Durability: The vegetation and soil on living roofs can withstand the elements much better than normal roofs. It protects things like the waterproofing membrane that keeps outside forces from penetrating the home. Having a living room that can better withstand UV rays and temperature fluctuations can double or triple a roof ’s lifespan according to the British

Columbia Institute of Technology. This level of protection also applies to the earth surrounding the rest of the home. Privacy: Depending on the style of home, earth sheltered houses can offer more privacy compared to traditional homes. Underground homes offer the most privacy since it’s difficult for passersby to peer inside.

6.1.3 COST

Initial construction expenses for an earth sheltered home can be costly, sometimes costing about 20 percent more than the cost of building a traditional house. However, living in an earth sheltered home can save money over time. Take a look at the different ways earth home dwellers save money over time.

Insulation: The earth surrounding these homes absorbs and slowly releases heat instead of attracting and trapping heat like a typical roof. Additionally, the earth reduces outside air infiltration and results in a more maintained indoor climate. Stable indoor temperatures reduce the need to use central heating or cooling, therefore reducing overall energy usage and costs over time. A case study from Energy Sage found that energy savings were significantly higher compared to conventional homes. The home featured in the case study cited warmed floors from sunlight in the winter, less exposure to heat because of the home’s overhang and a constant low of 70 degrees Fahrenheit in the home. Low maintenance: After construction is complete, earth sheltered homes are relatively low maintenance and don’t require much upkeep if correctly constructed. Noise control: Earth homes provide natural soundproofing. This saves on the cost of soundproofing rooms and is especially helpful for homes built near noisy areas. Cheaper Insurance: Many insurance companies offer incentives and discounts for having “green” features in your home. Insurance may also cost less since these types of homes can better withstand the elements compared to traditional homes. Your exact cost savings depends on the state the home is located, building codes in your area and the insurance policy. Earth sheltered homes can result in many environmental, safety and financial benefits when correctly built. Taking on a project like this is no easy task and requires proper investment in the right equipment, contractors and more to create a safe home.

6.2 DISADVANTAGES OF EARTH SHELTER

The important drawbacks to earth-shielded houses are the underlying expense of development, which can be up to 20% in excess of a customary house, and the expanded degree of care required to maintain a strategic distance from dampness issues, both during development and over the life of the house. It can likewise take more perseverance to exchange an earth-shielded home, and purchasers may have more obstacles to clear in the home loan application process.

The Earth does not insulate well, but absorbs and stores heat, with its thermal mass. Fifteen feet below ground the soil maintains a fairly constant temperature equal to the annual average temperature of the area’s surface air. With adequate insulation, assuming an average of about 55 degrees would mean it keeps warm from chilling winds and freezing temperatures in winter and cool during the blazing afternoons of summer. Many earth homes incorporate passive solar designs lessening even further the necessity for fuel for heating or cooling. An earth-covered concrete roof rather than shingles cuts maintenance and costs. The reduction of air infiltration within an earth shelter can help maintain temperatures, as little structure surface is exposed to the outside air. This alleviates the problem of warm air escaping the house through gaps around windows and doors. Indoor air pollution can become a problem without constant fresh air circulation.

Problems of water seepage, internal condensation, and bad acoustics can occur if an earth shelter has not been properly designed. Issues also include the sustainability of building materials. Earth sheltering often requires heavier construction than conventional building

Image Source:https://www.bigrentz.com/blog/earth-sheltered-homes

techniques, and lots of companies have limited or no experience with earth sheltering, potentially compromising the physical construction of even the best designs.

6.3 CHALLENGES OF EARTH SHELTERING

While there are heaps of favorable circumstances of building earth protected homes, there are likewise a couple of difficulties required, with the strong earthen dividers of earth shields regularly bringing about decreased air dissemination and issues with indoor air quality. Making a sound air dissemination into the plan is crucial, and what are known as Earthtubes can be utilized to attract natural air, with exhaust vents put high in the structure.

Water leakage can likewise be an issue in earth shielded lodging, and legitimate waterproofing should be executed into the plan. Non-biodegradable materials are frequently utilized in earth shielding development to keep water out, including the two plastics and vitality concentrated solid, one of the least naturally reasonable structures materials accessible. In the event that earth shielding is to be executed as a green structure practice in the cutting edge world, increasingly reasonable items should be actualized and testing is progressing around there.

It's basic that before developing an earth protected structure that the site is painstakingly studied, with angles, for example, atmosphere, soil type and water table all affecting essentially on the plan and application. The uncovering of the site itself is tedious and work concentrated, and in spite of the fact that it requires less completing and support than regular development techniques, the underlying expenses can be more.

Finding a structure organization with satisfactory involvement with earth shielded development may likewise be testing, and considering all the dynamic elements included, this is basic to abstain from bargaining the final product. In light of the eccentric techniques included, those hoping to manufacture an earth haven can here and there face difficulties during the home loan application procedure, and it might take altogether more persistence to tie down the vital way to construct.

6.4 EARTH SHELTERING IN DEVELOPING COUNTRIES

While the utilization of vitality escalated and non-biodegradable materials in its cutting-edge application may not make it the most feasible structure choice, the notable act of earth protecting shows that it could be a practical arrangement all through the creating scene. In zones of outrageous temperatures which need present day warming and cooling machines,

working underneath the surface and using the warm mass of the earth could be a moderate other option.

The low effect plan of earth shielding can work in congruity with the encompassing indigenous habitat and give a practical structure technique as our green spaces are everlessening. Further examination into ecologically neighborly basic help is important, in any case, to guarantee the vitality required to assemble abodes is kept at any rate. As we look towards the eventual fate of building and meeting stricter guidelines for green homes, it might simply be our cavern and underground-staying precursors who will give us the appropriate responses.

CHAPTER SEVEN: CONCLUSION

7.1 COMPARISON WITH STANDARD HOUSING

Budgetary expense

Three fundamental elements impact by and large expense of home development, to be specific, plan intricacy, materials utilized, and whether the owner(s) does a few or the entirety of the development or pays others to do it. Custom houses with complex structures will in general be more costly and take more time to work than stock houses. Houses which utilize costly materials will be more costly than houses which utilize minimal effort materials. Proprietor work can drastically cut development costs.

Both earth shielded tasks and development of normal houses have huge fluctuation in the structure, materials and work included. As such it is hard to make a general examination of cost between the two. For instance, a little "underground home" worked in the style of Oehler would will in general be essentially less expensive than a normal house since this methodology accentuated the owner(s) doing a significant part of the removal and work themselves and utilizing reused materials, for example for windows. In this way, earth shielded houses can be less expensive, with some asserting up to 30% less expenses, yet they can likewise be progressively costly. A custom undertaking with an unpredictable structure from a recruited modeler, with costly materials and includes, and built by a master contractual worker might be fundamentally more costly than a normal house.

A specific factor that emphatically impacts the expense of an earth cover is the measure of earth that covers it. The more earth covering the structure, the more prominent the cost is required in having a structure fit for withstanding the heap (see additionally: Roof). Another significant cost factor that will in general be remarkable to earth covers is site unearthing and refilling. The measure of waterproofing is additionally increasingly exorbitant. Then again, earth asylums ought to have lower support costs since they are generally secured with minimal uncovered outside. Numerous money related organizations inside and out prohibit financing on earth-shielded homes, or require this sort of property to be normal for the territory.

7.2 DISCUSSION

Earth-protecting is a conventional term with the general significance: building structure in which soil has an indispensable influence. A structure can be portrayed as earth-protected when it has a thermally noteworthy measure of soil or substrate in contact with its outside envelope. There are 3 significant sorts of Earth Shelters – bermed, in-slope and underground. Their are numerous preferences of earth shielded structures they are viewed as more vitality proficient and practical, requires less upkeep and cost relies upon what kind of development is utilized. The low effect structure of earth protecting can work in agreement with the encompassing regular habitat and give a supportable structure technique as our green spaces are ever-

lessening. Further investigation into earth cordial basic help is vital, in any case, to guarantee the vitality required to fabricate homes is kept at the very least. Earth protected homes have a lower ecological effect since they are made in characteristic environmental factors. This enables the regular biological system to flourish since it's not hindered by the nearness and development of a customary structure. Investigate see exactly how the earth profits by a shielded home. As there are experts of earth protected engineering, it additionally has cons like normal light and ventilation issue as the vast majority of the sides are secured with earth so there are less openings. Huge scope structures can't succumb to this style on account of significant expense and less space, this style of design need minimized structures as air and daylight may not arrive at all aspects of room.

7.3 CONCLUSION

Despite several limitations, Earth Sheltered Buildings can be a futuristic and sustainable approach in Architectural development. Through this research it would be hoped that the successful nature of earth sheltered space would establish the underground as a viable building type for various programs, while being seen to actively contribute to it above ground environment. Having glanced through the advantages and possibilities of earth and the general comprehension of its potential for vitality protection through earth-shielded development, it is trusted that this survey adds to the data accessible so far on methods for evaluating the presentation of earth protects and related warm properties that influences it. It is then feasible for originators and organizers in various areas to approach a straightforward structure for evaluating its proficiency at the underlying arranging stages. The subsequent yields would then be able to be utilized for the warmth move and vitality preservation investigation inside the structure units. Results from this investigation will gives understanding into the level of inactive warming and cooling or decrease in heat stream that the dirt atmosphere can give when contrasted with the surface atmosphere just as proposing parameters for profundity situation of earth cover structures for increasingly productive outcomes.

REFRENCES

 Natural lighting in underground space, Ana Lura Mohirta, 2012.  Demonstrating the viability and growing acceptability of Earth Sheltered buildings in the UK,

J Harral, 2012.  Earth Shelter Housing, Max R. Terman.  Earth Shelters; A Review of Energy Conservation Properties in Earth Sheltered Housing,

Akubue J Anselem 2012.

 Earth Sheltered Design: Guidelines, Examples, and References Paperback;

Underground Space Center, Minnesota, Van Nostrand Reinhold Company: New York,

NY, USA, 1979; ISBN 0442261578.  Hassan, H.; Sumiyoshi, D. Earth-sheltered buildings in hot-arid climates: Design guidelines. Beni-Suef Univ.J. Basic Appl. Sci. 2017.  Mirrezaei, S.A. An Ecological Study on Earth Sheltered Housing in Different

Climates. Master of Science in Architecture, Eastern Mediterranean University,

Gazimag ˘ usa, North Cypress.  Bauer, M.; Mösle, P.; Schwarz, M. Green Building: Guidebook for Sustainable

Architecture; Springer: Berlin, Germany, 2009.  Labs, K. The Architectural Underground, Underground Space.  Van Dronkelaar, C.; Costola, D.; Mangkuto, R.A.; Hensen, J.L.M. Heating and

Cooling Energy Demand in Underground Buildings: Potential for Saving in Various

Climates and Functions.
