Engine - Engine and crankcase

74. Attach proper lifting equipment the lifting brackets the Carefully remove the engine while making certain all lines and hoses have been

Advertisement

Remove the right rear engine Inspect for wear and / Replace Repeat for the left

Remove the four bolts (1) securing the brackets (2) for the front engine mount.

Remove the bolt (3) securing the front engine mount (4)

Inspect mount for wear and / Replace required.

79. Release the tension the fan drive belt (1) and engage the Check for wear and / place

80. Repeat for the accessory drive belt (2) .

T ractors equipped with front O / hitch

T mark the front O / hitch hoses and nect from each side the support

NOTE: Be prepared collect some hydraulic

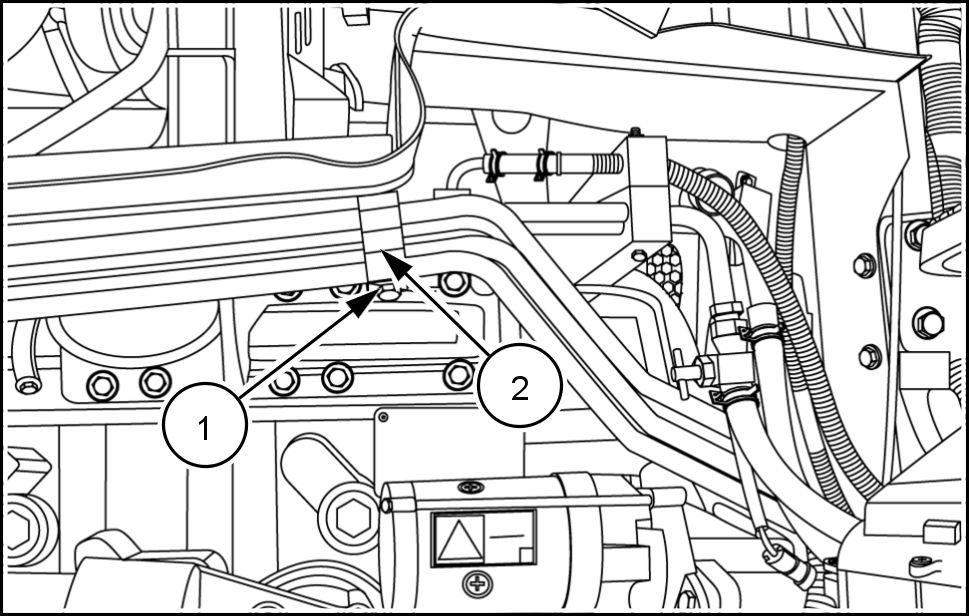

Remove the bolt (1) securing the tube clamps (2) Remove the clamps and set aside. Move tube / hose assembly f the

83. Disconnect the inlet and outlet hoses (1) the oil cooler for the front

Remove the bolts (1) securing the cooler brackets (2) Remove the cooler and set

Remove the four bolts (1) from the drive shaft (2) between the drop box and output

86. Remove the six bolts (1) from the stub shaft cover . Remove the cover

RCPH10CCH077BAB

Thread a M12 bolt (1) into the end the stub

RCPH10CCH922AAB

88. Pull out the stub shaft disconnect the engine drive.

RCPH10CCH923AAB
