Welcome

You will find many new products brought to you through our ongoing innovation and market research.

With our considerable experience in the packaging consumables industry we offer our customers a packaging consultancy service, and we have a proven track record in providing solutions that save our customers time and money. We are pleased to be able to tell you more about how we operate, our commitment to the environment, and the products we supply.

We would like to thank you, our loyal customers for your business throughout the past 12 months. Many of you have given positive reviews of Test Valley, some of which are included in this catalogue, and they clearly endorse Test Valley’s dedication to customer service.

Our promise to the customer is... We will focus on your needs and ensure that we always have sufficient resources to provide you with a service that exceeds expectations. You can be confident that Test Valley Packaging operates in accordance with the various accreditations and is regularly audited to ensure compliance to the required standards.

What our customers say… Testimonials… Our Accreditations

ISO 9001 Quality Systems

Test Valley Packaging has been ISO9001 accredited since 1997 and this governs our commitment to maintain consistent standards of product quality and service. Our corrective action procedure ensures that the root cause of any problem is identified and resolved quickly and effective

BRC Global Standard for Storage and Distribution

We are fully approved by the British Retail Consortium (BRC) to supply packaging materials to the food industry. BRC Global Standards guarantee the standardization of quality, safety and operational criteria and ensure that manufacturers, and companies in the supply chain, fulfill their legal obligations and provide protection for the end consumer.

ISO 14001 Environmental System

Our ISO14001 accreditation means we are committed to find ways to reduce the impact of our activities on the environment on a year to year basis. This flows naturally from our vision of promoting a culture of continuous improvement, and so minimizing resources will always be a key driver in the design and delivery of packaging for you.

The Sedex code of practice

Test Valley Packaging subscribes to the Sedex code of practice which offers you peace of mind that products we supply are ethically sourced and produced.

“I requested data regarding packaging and it was supplied by return. Very efficient.”

“Excellent products, fantastic customer service. Always willing to help us out.”

"Great service and very pleased with range of goods supplied. Very helpful staff always willing to go the extra mile to supply for my business."

"Test Valley are a great company to work with. Responsive, reliable and always willing to work on a solution if there’s a problem (which are very few and far between). Great communication between the two teams as well.“

“Great Service, Great Quality, Competitive prices, innovative and very helpful.”

“Every email and query is responded to extremely quickly, and delivery is always very prompt.”

Professional, reliable company. Helpful and friendly people.

“Always a helpful, friendly and efficient service that's good value for money.”

Computer hardware company…

“As a national distributor of computer hardware it is essential our products reach our clients in the the same condition as when they leave us. Test Valley helped us to design custom made boxes for our own brand of PC’s, and with Test Valley’s help, have reduced courier induced damages by over 90%.”

97.6% of our products delivered on time in full.

Over 64% of our customers gave us 10/10 in a recent satisfaction survey.

A homeware company…

“We were introduced to Test Valley Packaging when our product breakages in transit were hitting 5%, within a short period of consutation Test Valley were able to supply innovative solutions which reduced this figure to an average of 0.5% maximising our profit margins and minimising the ammount of tme spent dealing with returns”

Innovation

With our knowledge and experience, we offer innovative solutions that reduce costs and packing times, reduce environmental impacts, improve the protection of your products, and enhance the ‘open box’ experience for your customer.

We have decades of experience in the packaging industry which our customers can benefit from. There are many aspects we consider on your behalf, including various packaging regulations and the performance of different specifications of packaging.

In-house Design

Sample Production

Working with our Customers

Cost Effective Production

products combining innovation and quality

Our

Dynabox

Dynabox corrugated cartons all have a Kraft paper outer liner which gives added strength to the box and allows better tape adhesion. They are manufactured from 70% recycled board and are 100% recyclable.

Read more on pages 11 to 13

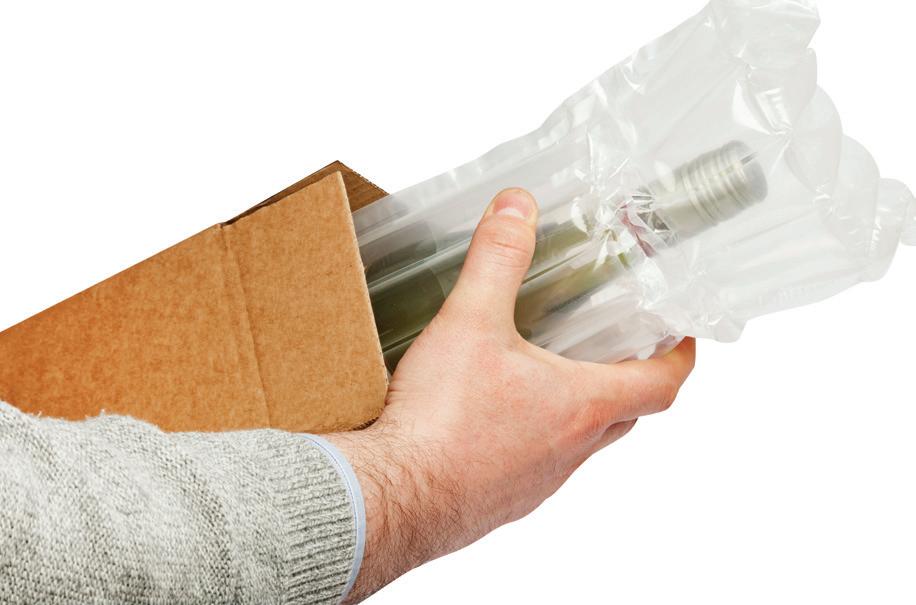

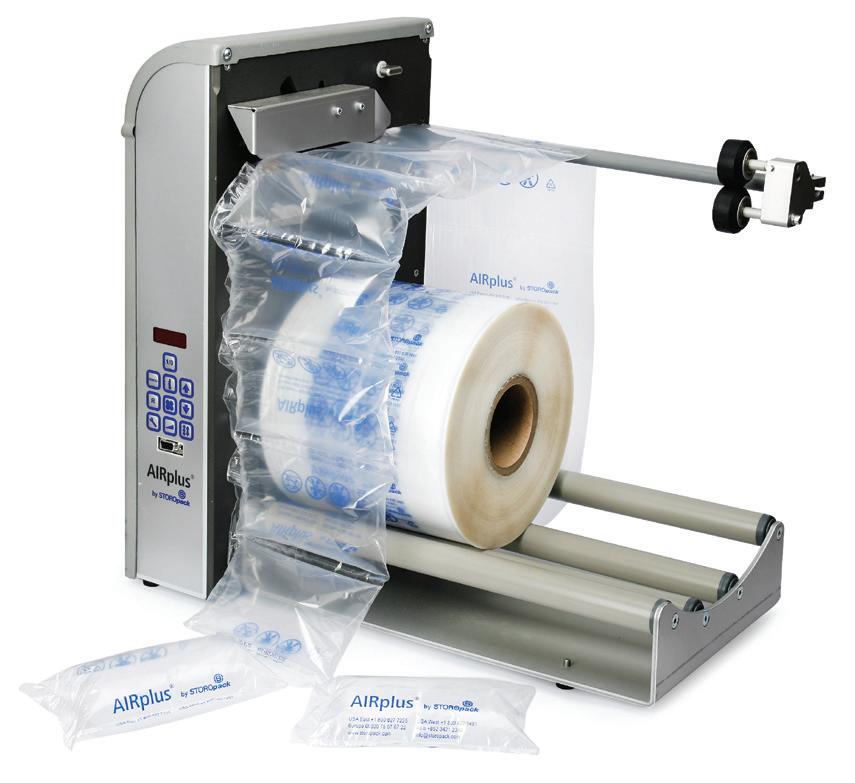

Dynapouch

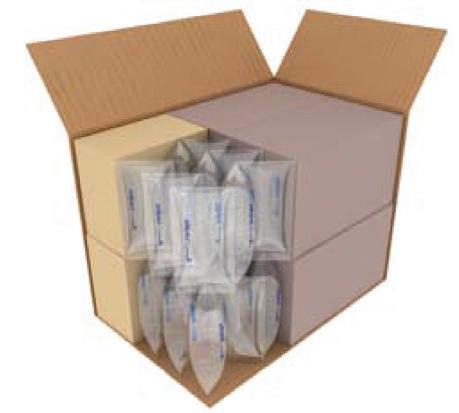

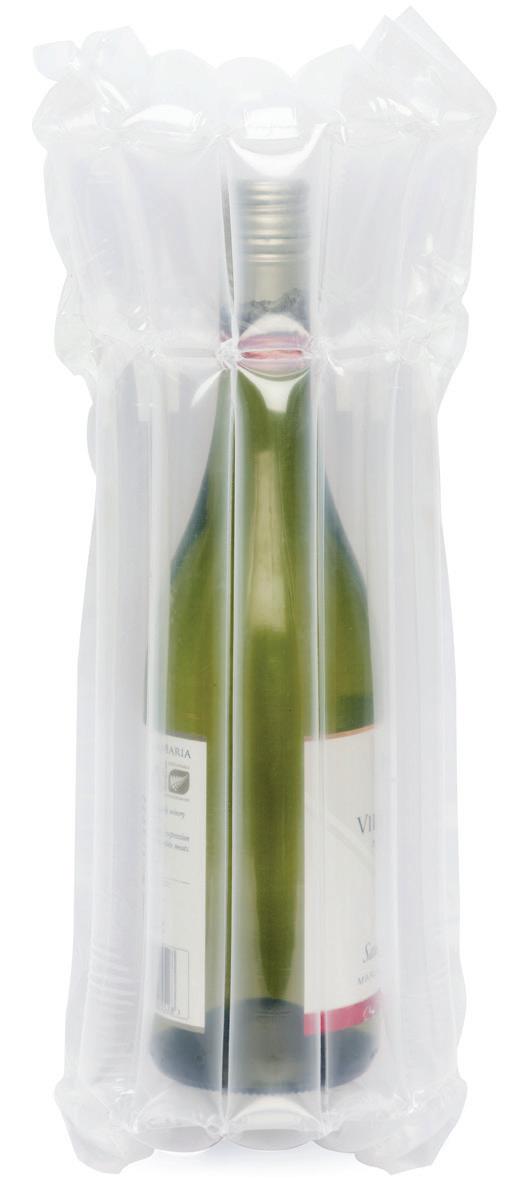

Dynapouch air pouches give excellent protection for smaller high value products. They are available in a range of sizes and require a small compressor to inflate once the product has been inserted into the pouch.

Read more on pages 48 to 49

Dynawrap

Dyna-board is 30% more compressed than ‘BC’ flute and the perfect product for customers who are looking to cut their costs, make better use of their warehouse space, plus enhance their environmental and sustainability commitments.

Read more on page 16

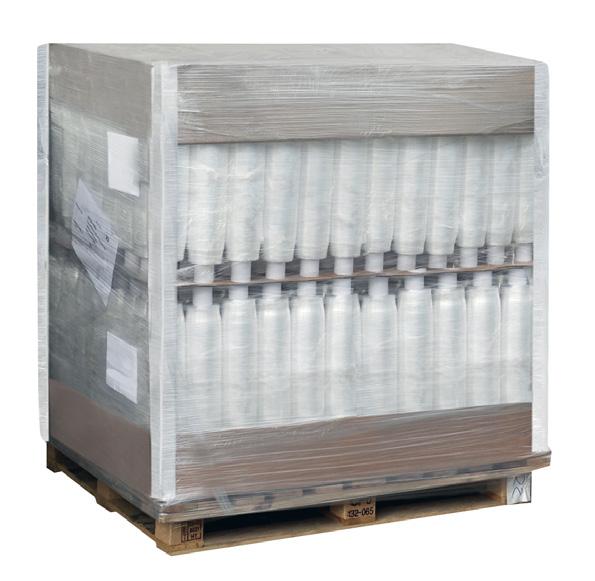

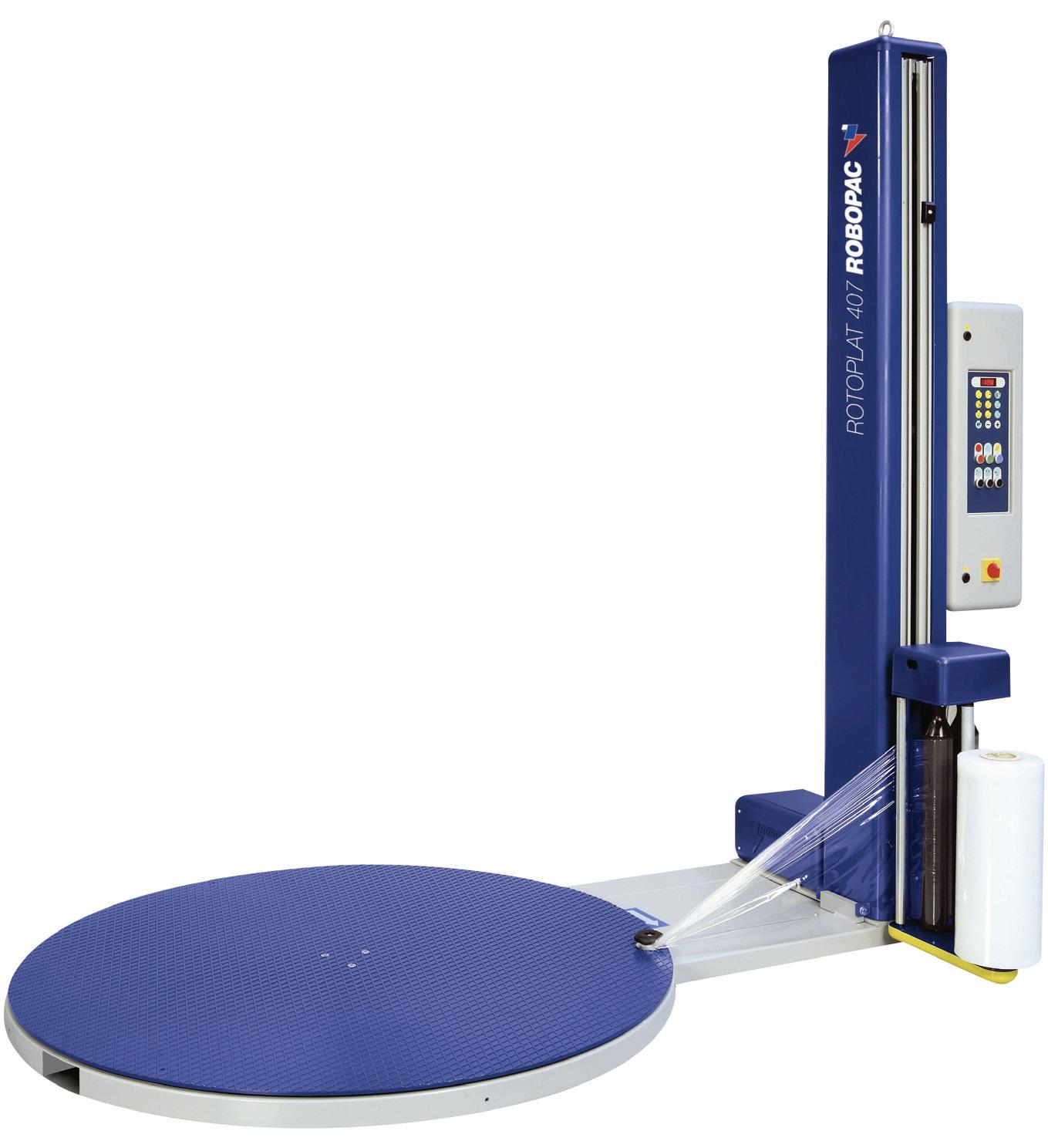

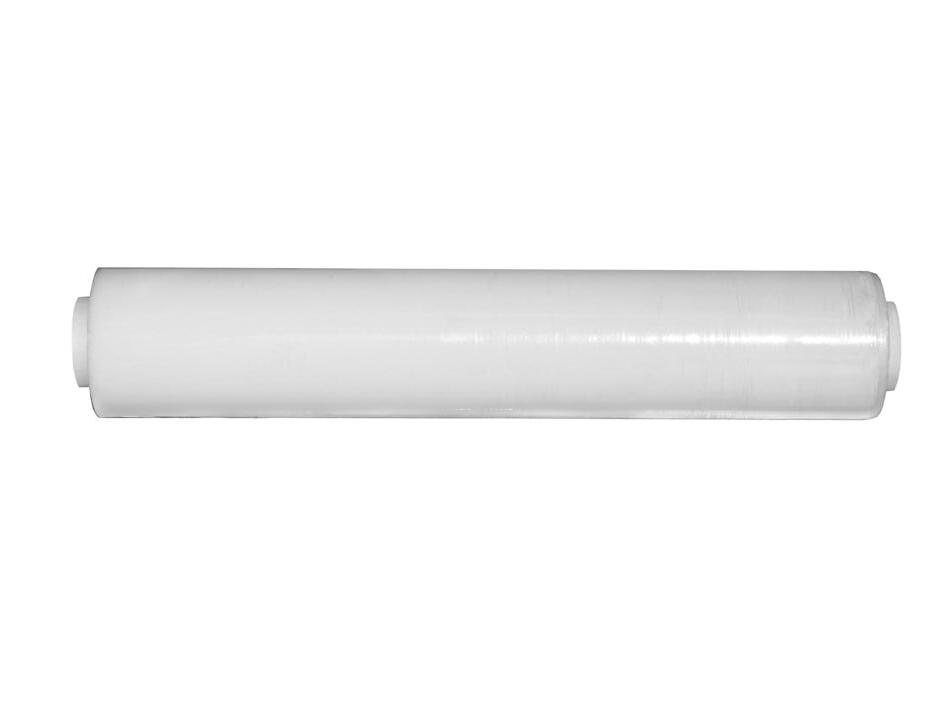

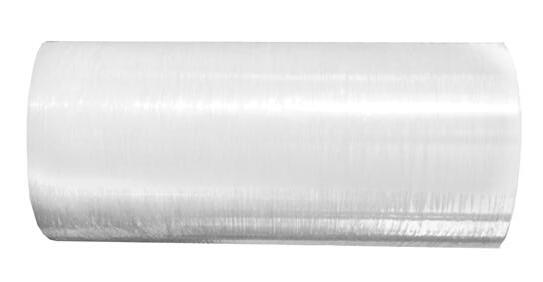

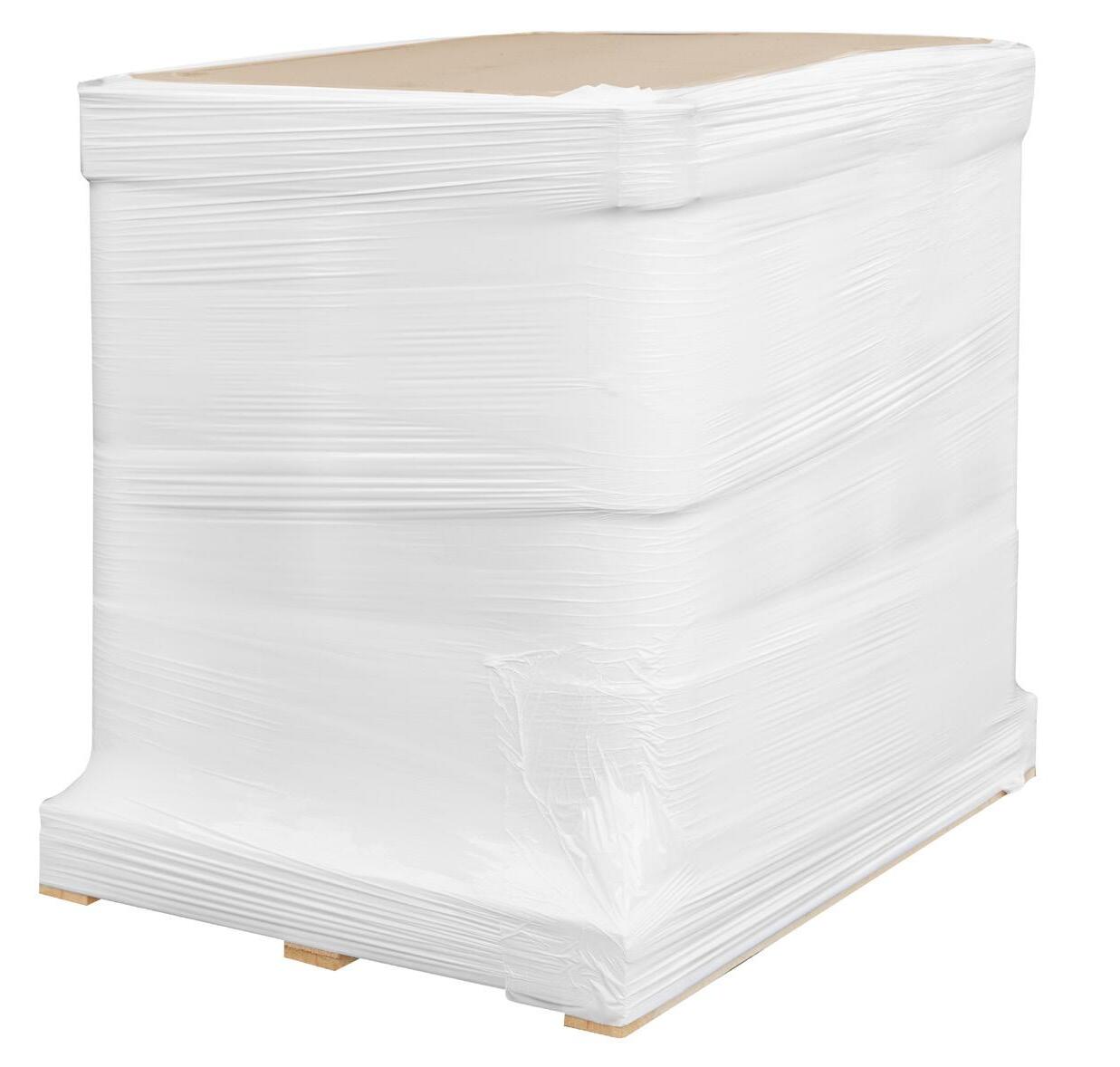

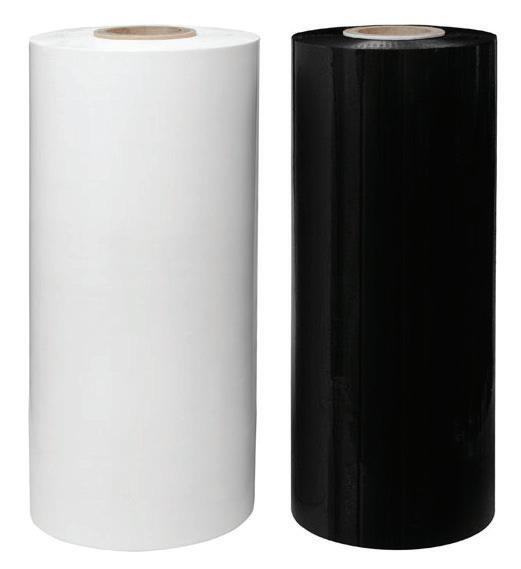

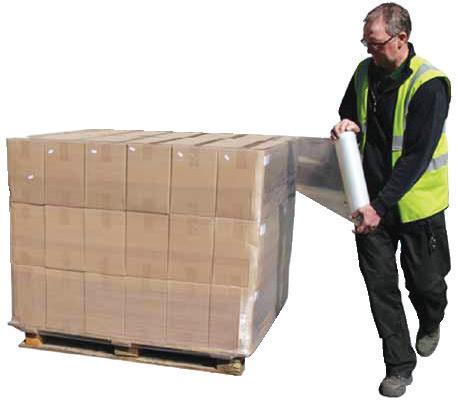

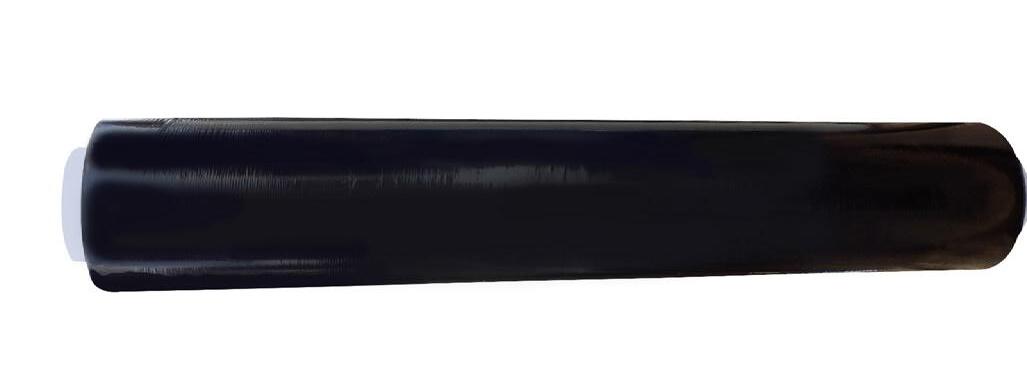

Dynawrap is a high performance pre-stretched pallet-wrap film that improves load retention and stability and is up to 60% lighter than conventional stretch pallet-wrap films which reduces packaging waste and environmental impact.

Read more on pages 54 to 55

You may also be interested in...

Dynasafe is a unique packaging system for the transport of fragile products. Products are suspended between two layers of flexible film giving excellent protection from shock and impact.

Read more on pages 14 to 15

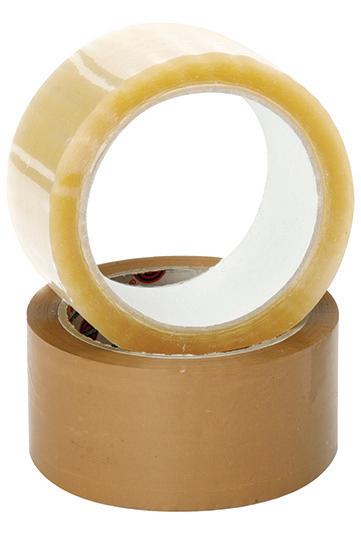

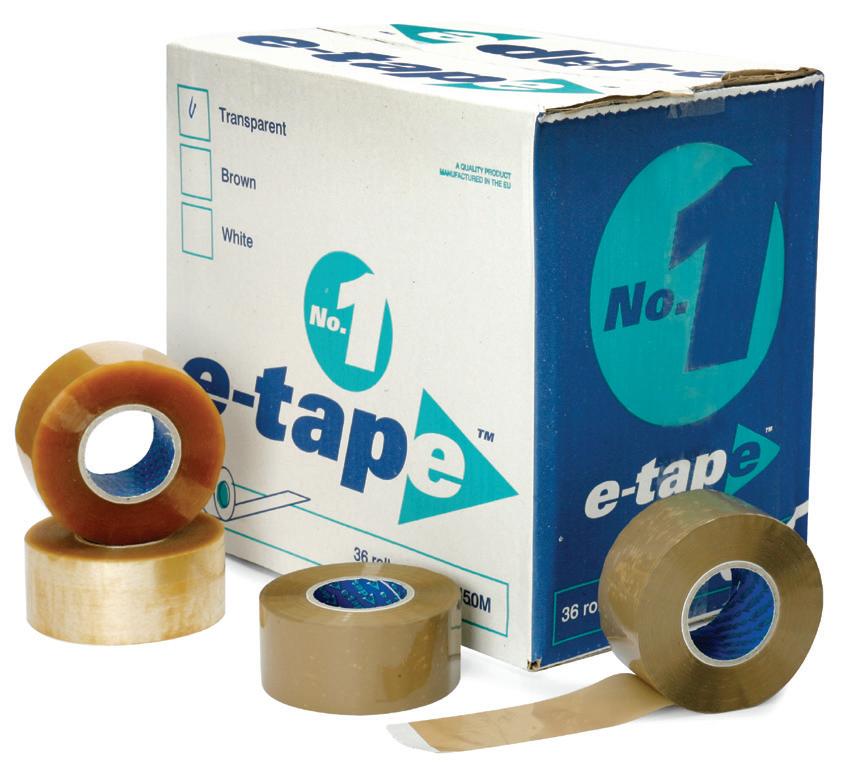

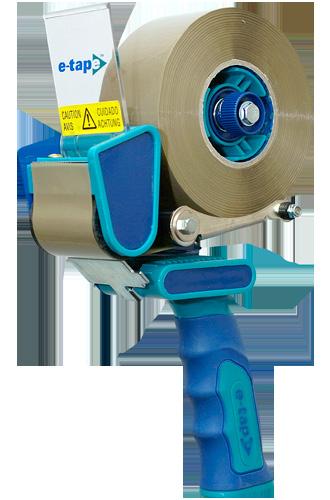

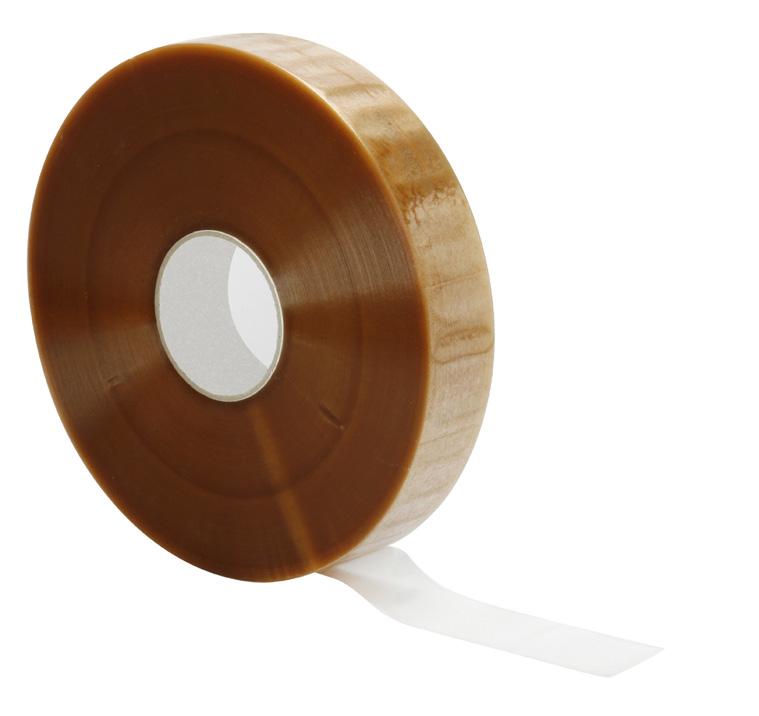

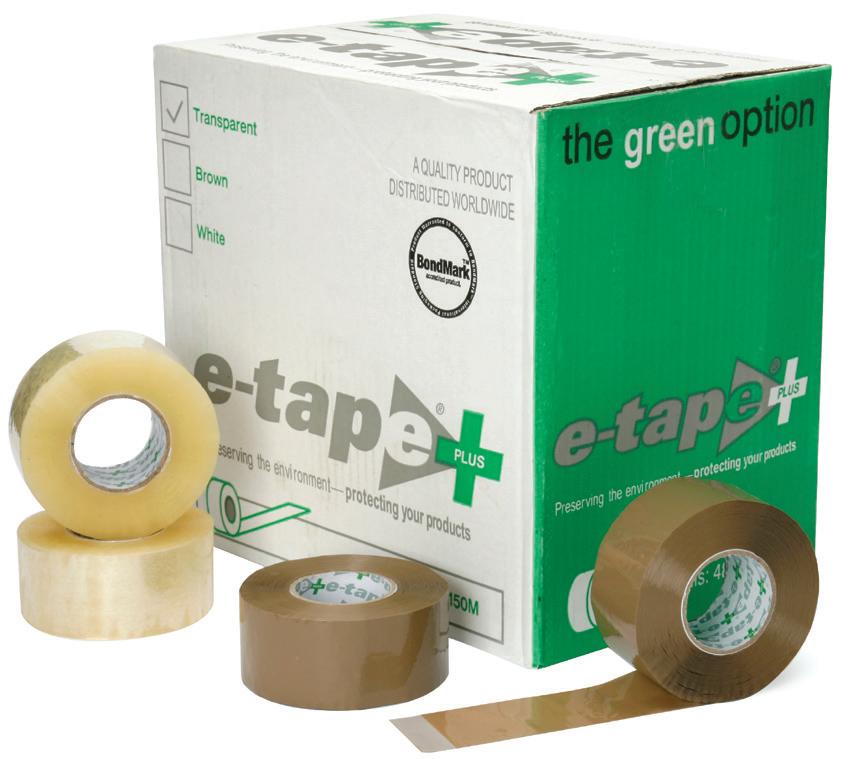

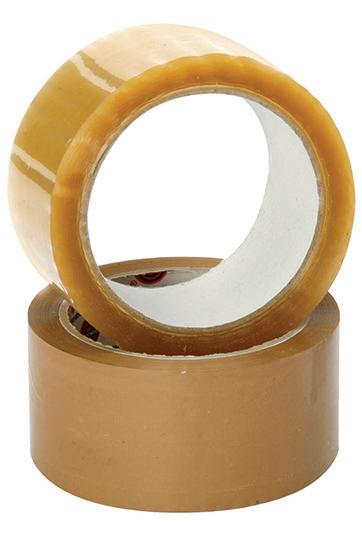

E-Tape has a unique 150 metre roll. Combined with superb dispensing technology it offers unparalleled performance in tape sealing solutions.

Read more on pages 72 to 73

family of Dyna

Dynabox

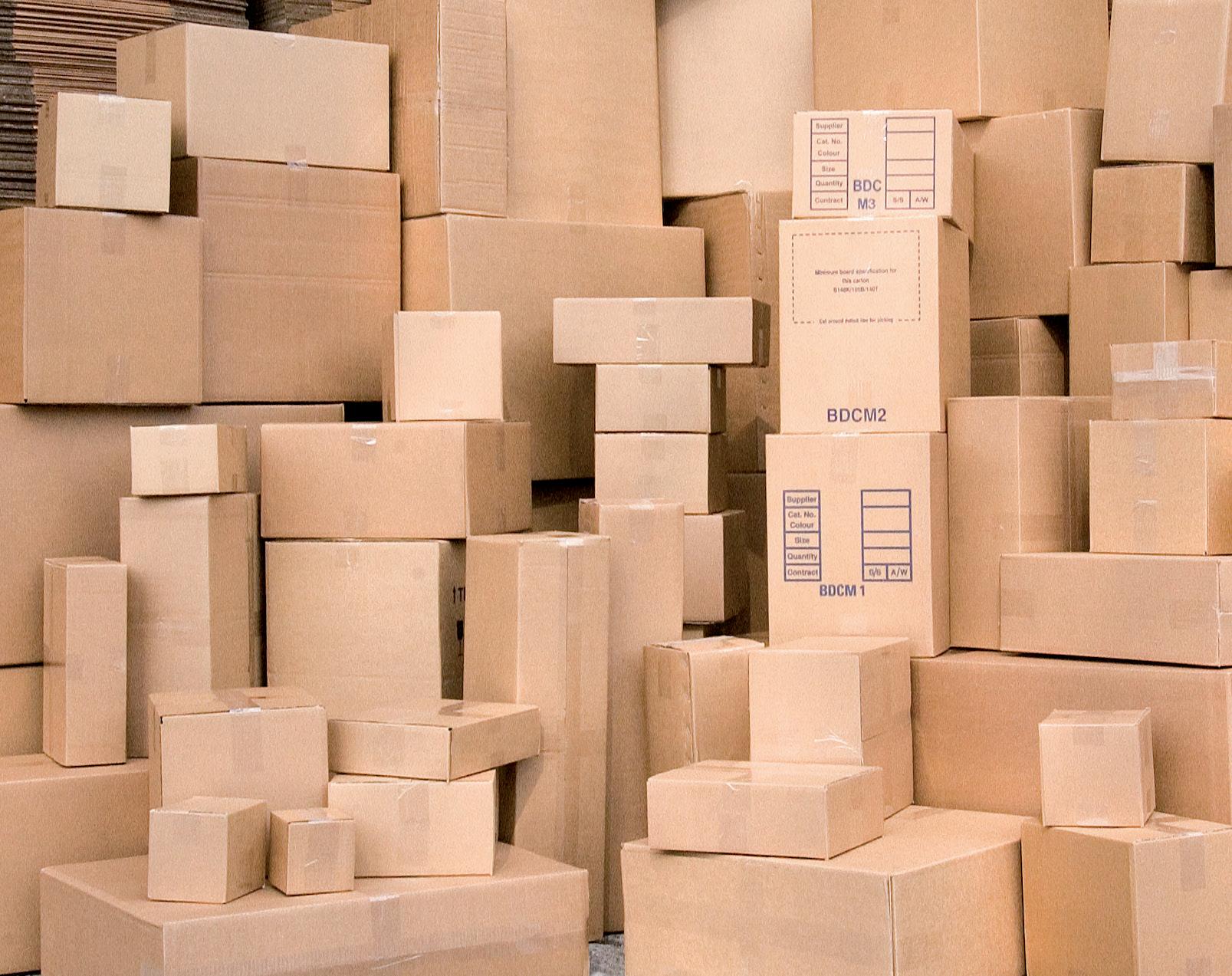

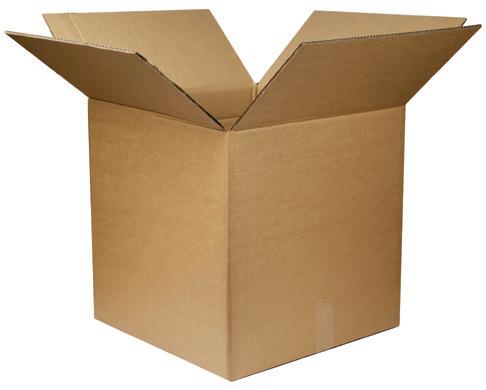

SINGLE WALL CARTONS

Test Valley Packaging exclusively supply Dynabox single wall cartons. The superior kraft gives each carton better water resistance, strength and delivers a professional look.

SINGLE WALL CARTONS

70% recycled 100% recyclable

This symbol represents cartons which have the added feature of being vari-depth. See page 7 for details.

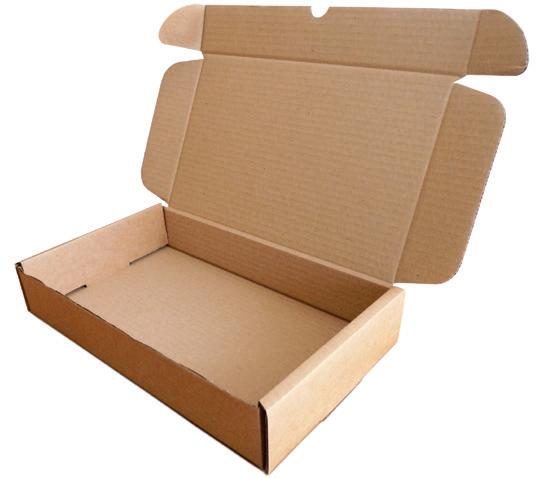

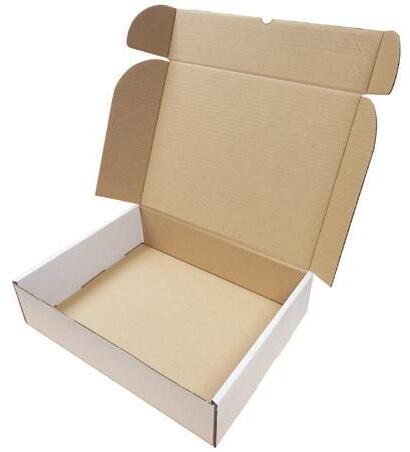

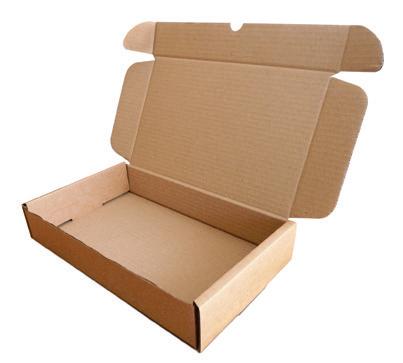

CORRUGATED POSTAL BOXES

This popular type of self locking single wall carton comes with a white outer face and is an excellent item for postal requirements.

WHITE SINGLE WALL CARTONS

0427

with

VARI-DEPTH CARTONS

Varidepth cartons have horizontal score lines that allow the carton height to be easily reduced. Simply fill the carton to the required depth, cut the corners of the box to the nearest score line and fold over to reduce voidfill and transport costs.

SINGLE

WALL

VARI-DEPTH CARTONS

Vari-depth cartons have extra scores to enable you to easily reduce the height of a carton.

SINGLE WALL VARI-DEPTH CARTONS

DOUBLE WALL VARI-DEPTH CARTONS

Vari-depth

reduce the height of a carton.

DOUBLE WALL VARI-DEPTH CARTONS

This symbol represents cartons which have the added feature of being vari-depth. See next page for details.

More sizes are available

our Dynaboard range of heavy duty single wall cartons on page 16.

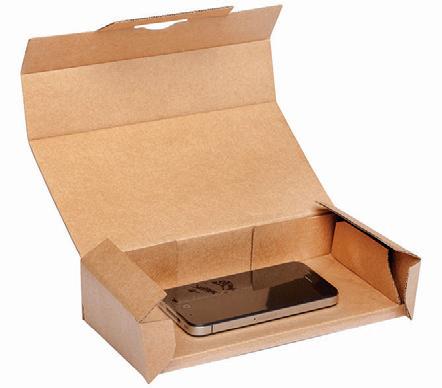

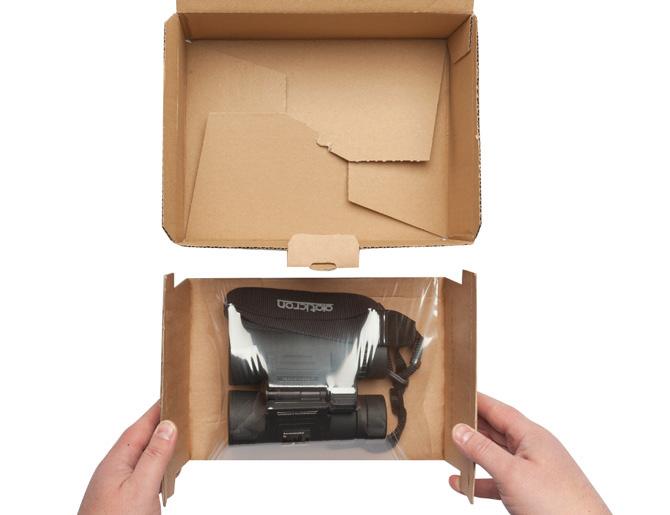

DYNASAFE ONE PIECE RETENTION

When using Dynasafe, the average packing time per order is reduced from 3 minutes to only 30 seconds!

Dynasafe is a leading brand of innovative suspension and retention packaging. The package contents are held firmly in place by a strong, transparent film. This removes the need for bubble wrap and void fill.

DYNASAFE BENEFITS

• Packing time rate increased up to 6x per hour per person

• No need for bubble wrap or loose fill

• Reduced storage space (flat pack boxes)

• High level of protection against shock and vibrations

• Re-usable and recyclable

• Anti-static versions available

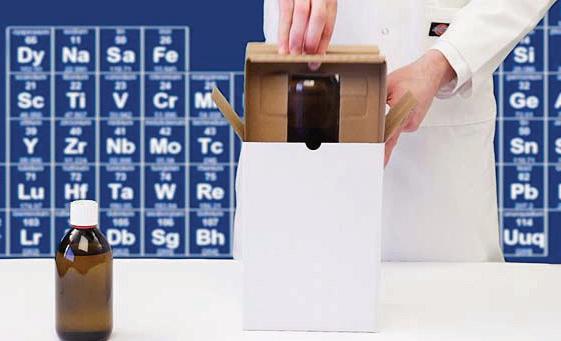

DYNASAFE TWO PIECE RETENTION

2 piece retention packaging comprises of a quick self-assembly carton with a crashlock base, and a retention insert which secures your product very simply and easily, reducing your packing times.

Dynasafe offers amazing versatility, providing packing solutions for an incredibly diverse range of products. Dynasafe is ideally suited to the technology & pharmaceutical markets.

For demonstration videos of the Dynasafe products, please scan with your smart phone or tablet

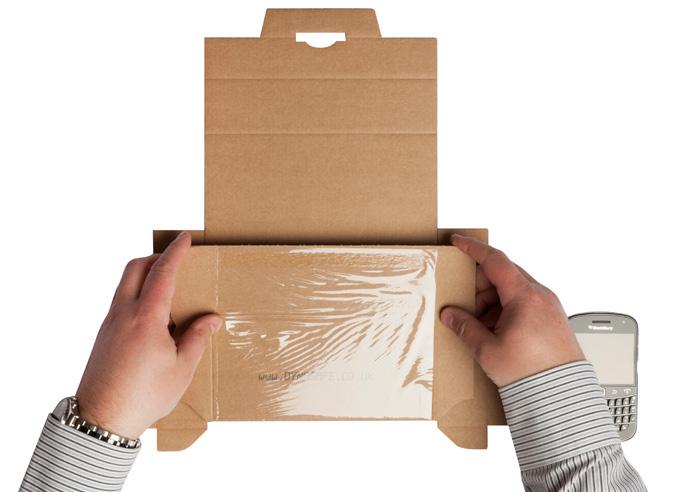

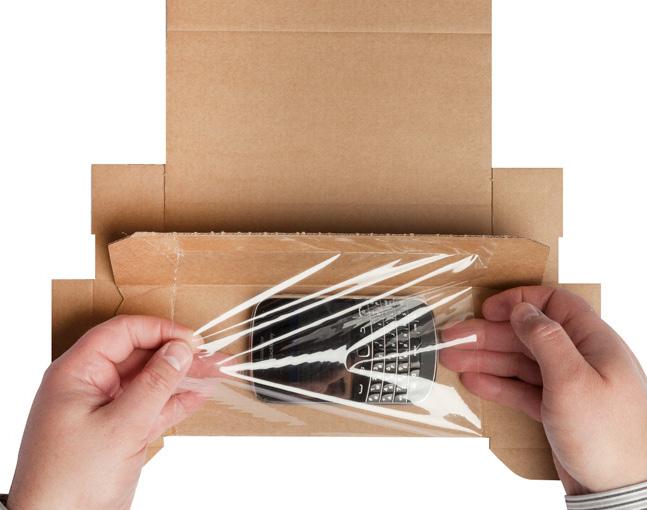

Fold the flap to loosen the film.

Place the retention pack with the side down on the table.

Insert your item under the layer of film in a central position.

fold up the lid.

Wrap the lid around the product.

Secure the locking flap to complete the safe packing of your product.

Fold over the flap to tension the film.

Automotive Pharmaceutical

Place the retention pack with the film side up on the table.

Fold the flap to loosen the film. Insert your item under the layer of film in a central position.

Fold the side flaps away from you to tension the film.

Fold up the end flaps on the crease.

Fold the side flaps around behind the board to fully secure the product. Like so.

Place the retention pack in the box and fold the top flaps over.

Secure the locking flap to finish the safe packing of your product.

These double wall cartons have been specially designed to fit a standard size UK pallet (1200 x 1000 mm) this will maximize a pallets footprint and bring your costs down.

A HEAVY DUTY SINGLE WALL CARTON

Dynaboard is our exciting new alternative to standard Double wall ‘BC’ flute grades. Dynaboard is 30% more compressed than ‘BC’ flute and the perfect product for customers who are looking to cut their costs, make better use of their warehouse space, plus enhance their environmental and sustainability commitments.

MAJOR BENEFITS

• 30% more cartons per delivery = reduced carbon footprint

• Enhanced print quality = a better perception of your quality and capabilities to your customers

• Heavier Kraft both inside and outside the box = improved appearance

• Reinforced fluting = greater moisture resistance

• The bottom line! approximately 20% direct cost savings!

DYNABOARD CARTON SIZES

Please note that Test Valley Packaging can create bespoke carton sizes in Dynaboard with your company branding.

DYNA-BOARD CARTON SIZES

CODE SIZE (Inches) SIZE (mm) Pk PALLET C18 18 x 13 x 6 457 x 330 x152 20 280 CB16 16 x 16 x 16 356 x 356 x 356 20 280 C14 14 x 10 x 12½ 350 x 254 x325 25 600 C12B 12 x 8½ x 12 305 x 215 x 300 25 560 T10087 10½ x 6½ x 9 270 x 165 x 225 25 900 T10086 6 x 4¾ x 8 150 x 120 x 200 25 1800

Quali y& P r ormance Dynaboard

Dynaboard Environmen a yFriendly

DX24 x 16 on a standard UK pallet (1200 x 1000 mm) DUK24 x 8 on a standard UK pallet (1200 x 1000

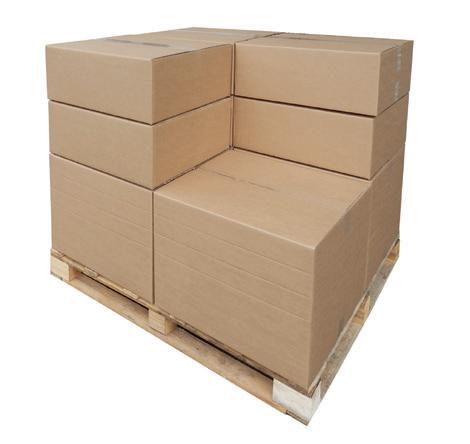

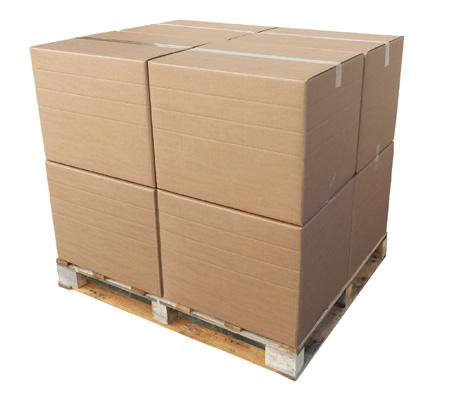

UK MODULAR PALLET CARTONS

*DUK24 has the added feature of being a vari-depth carton.

EURO MODULAR PALLET CONTAINERS & CARTONS

(Please note timber pallets are not included in the prices, containers and lids sold separately)

The range of boxes, containers and lids in this section are designed to fit onto a Euro pallet (size: 1200 x 800 mm). And they will also fit inside this export container if you need extra protection for your products.

EURO MODULAR PALLET CARTONS

CODE DESCRIPTION SIZE (mm) 2 x 2 EURO - 2 PER LAYER FEFCO 0201 Glued 783 x 570 x 490 4 x 2 EURO - 4 PER LAYER FEFCO 0201 Glued Plain Extra Score 295mm High 570 x 370 x 490 6 x 2 EURO - 6 PER LAYER FEFCO 0201 Glued Plain (Fits inside a 1/1 Export) 370 x 370 x 325 D14 - 8 PER LAYER FEFCO 0201 Glued plain 350 x 254 x 325 CODE DESCRIPTION SIZE (mm) 1/2 EXPORT LID FEFCO 0911 Lid Unjoined 850 x 810 x 130 1/2 EXPORT CONTAINER FEFCO 0201 Heavy Duty Double Wall 850 x 630 x 490 CODE SIZE (Inches) SIZE (mm) Pk PALLET DUK24 23 x 19 x 18 580 x 480 x 450 10 100 DX24 23 x 19 x 9 580 x 480 x 225 10 180

Fefco 0201

Products

Cushioning

Fefco 0911

Fefco 0201

& Papers Void fill & Protection Load Stability Adhesives & Tapes Mailing Products Packing Equipment & Tools Cartons CARTONS www.testvalleypkg.co.uk sales@testvalleypkg.co.uk 01722 414 800 17 16

EXPORT & TRANSIT CARTONS

Euro Cartons are easy to assemble as the sequence of images below show. Simply take off the lid open up the contents and put the lid back on to create a carton ready to transport your goods.

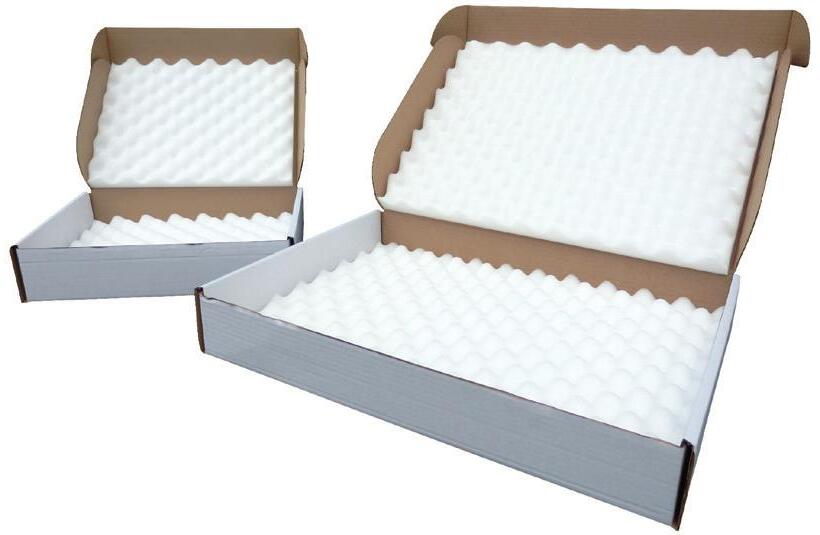

FOAM FILLED CARTONS

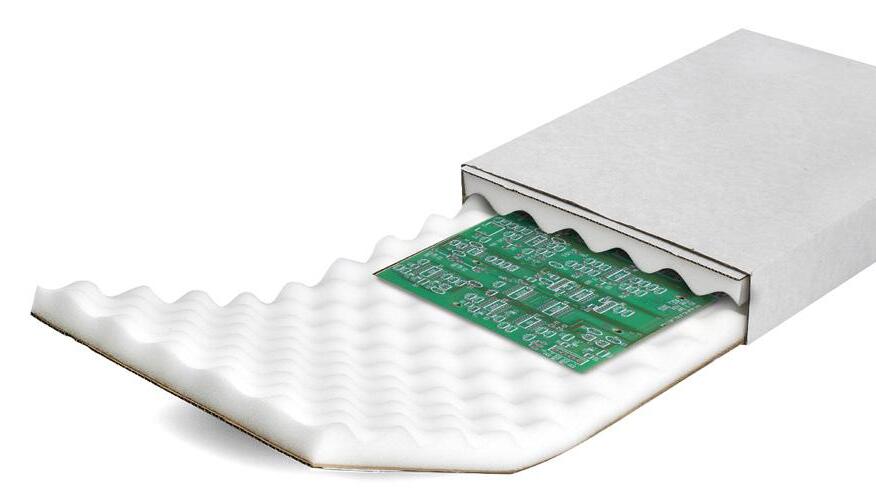

These mailing boxes are supplied with protective foam inserts that hold and protect your fragile products in transit. A range of other sizes are available. Test Valley Packaging can offer a bespoke service for these packaging products where your branding or message can be printed.

SLIDE & SLEEVE FOAM PACKS

Foam packs are extremely effective in the protection of high value goods in transit and storage. An easy to handle product that makes for swift packing times and a professional finish.

HINGED CARTONS

White cartons with the foam supplied.

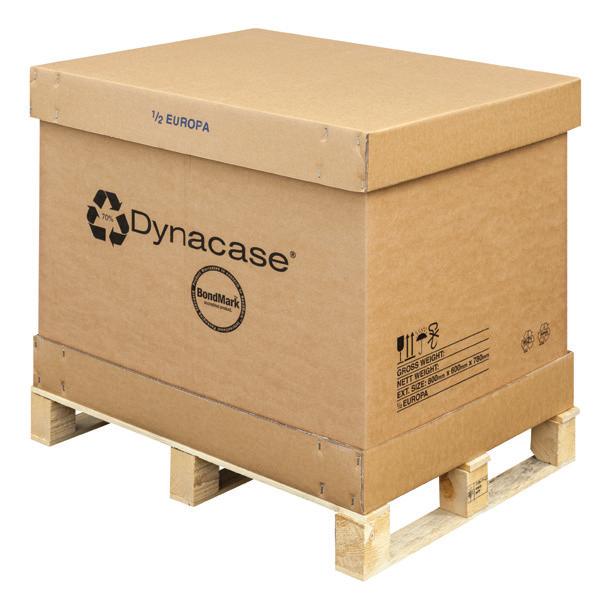

EURO MODULAR LIDS AND CASE

A compatable lid and case available to be ordered separately.

PRESSWOOD PALLETS

All timber pallets have been heat treated and certified to meet the ISPM15 regulations for the export of timber.

Brown hinged cartons.

Presswood pallets are made from reconstituted waste wood and conform to ISPM15 regulations for export. Their unique design allows the pallets to be nested together, taking less than half the space used by conventional pallets. PRESSWOOD

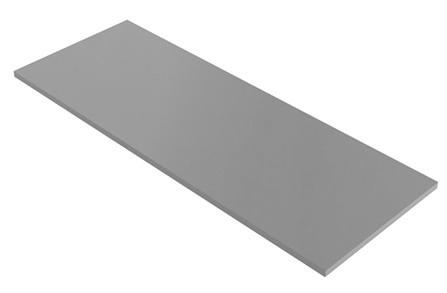

FOAM INSERTS

See Grip Sheets on page 58

White profiled foam available to fit into TF11 and TF7 brown hinged cartons.

INNOVATION IN CORRUGATED

We work with your budget to design, manufacture and supply bespoke and printed cartons that optimize use of resources.

Test Valley Packaging understands that great packaging starts with intelligent design, one which reflects both the needs of the user and the constraints of manufacturing.

Our team of graphic and structural design experts will help your project every step of the way, whether you need to design a carton from scratch, or develop an existing idea, we can advise.

Whatever the carton, we can supply the development tools you need, from colour matched structural samples right through to 3D graphic prototypes.

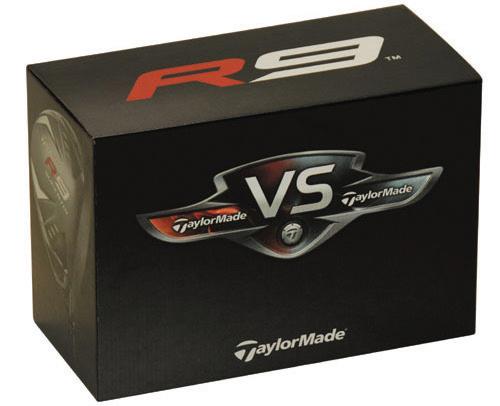

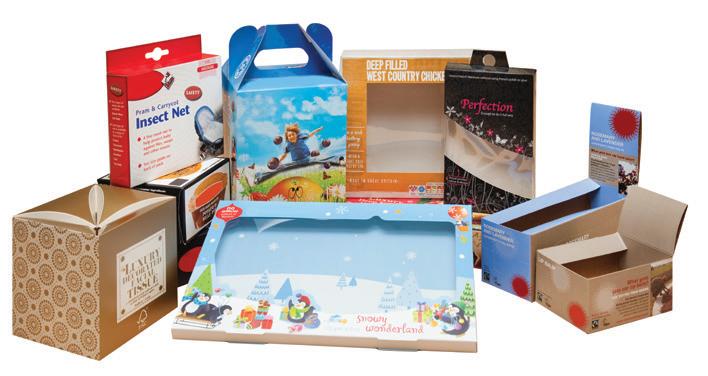

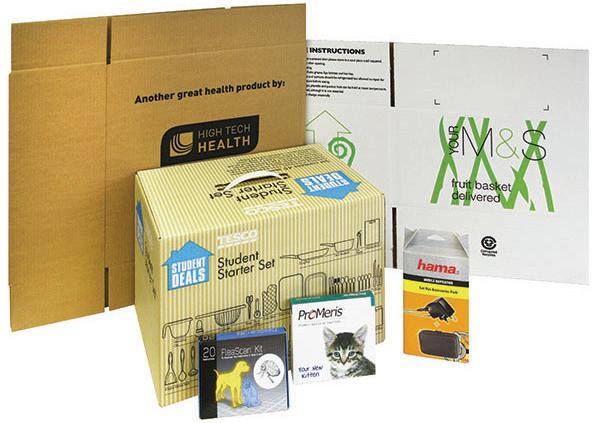

Custom Printed cartons

We produce printed cartons in a multitude of sizes and styles for clients who require packaging solutions across multiple industries. (See FEFCO styles on the opposite page).

Methods of print available:

• Flexographic print

• Screen Print

• Litho-laminating

(See pages 20 - 21 for more details on printing methods mentioned above).

How to order:

Very easy to order, just send us a copy or description of your logo/design and pantone numbers if colour is required to one of our in-house designers.

Delivery:

Delivery is usually within 14 days of art work approval and order confirmation.

To help you in identifying the correct cartons for your requirements we have detailed some of the most popular carton styles below recognized by FEFCO, the recognized standard for carton design. If the design you require is not on this page visit www.fefco.org to see the full range of carton styles available.

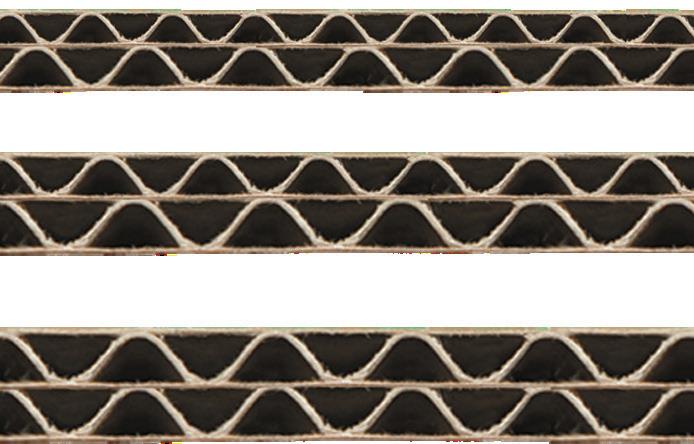

Board Grades

Illustrated below are the most common board grades used in corrugated carton and sheet products. We can advise you on the best board grade for your application.

Standard Single Wall Grades

Standard Double Wall Grades

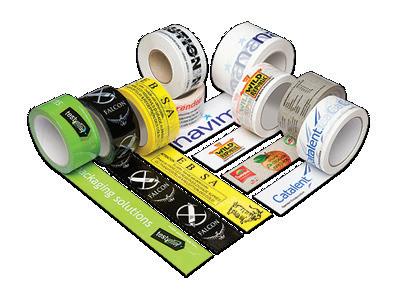

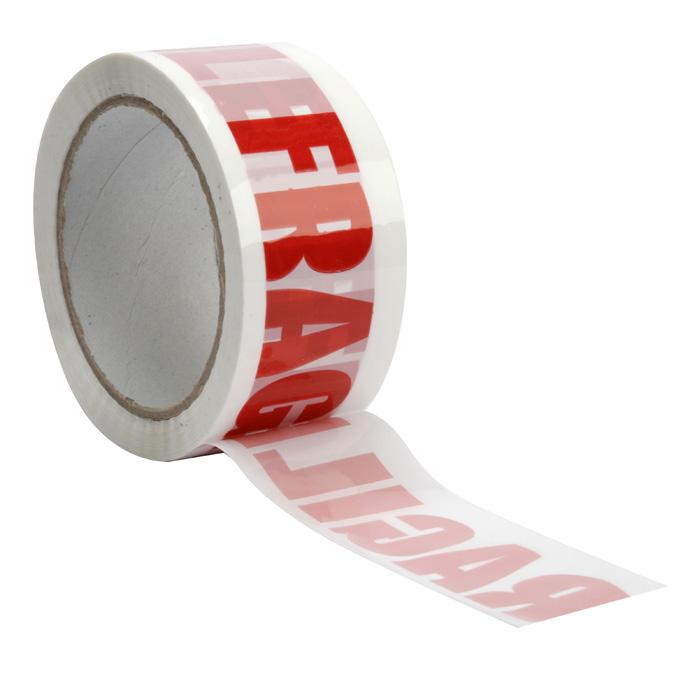

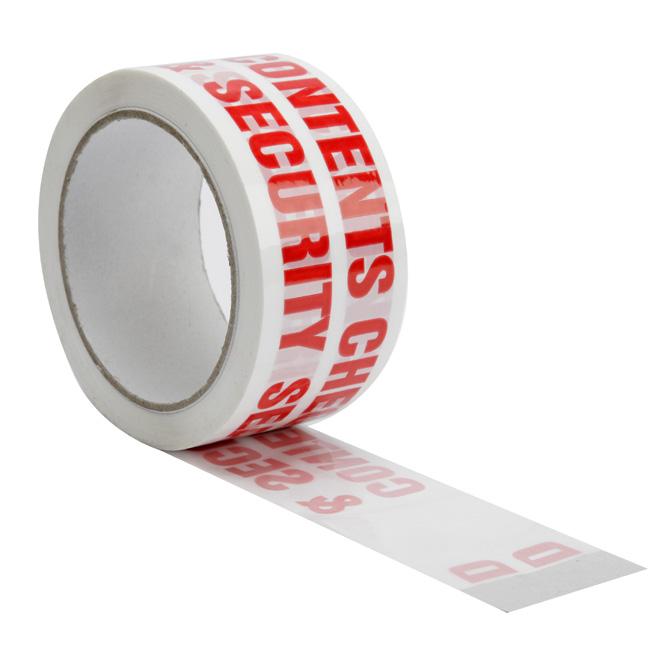

Test Valley Packaging also design and supply bespoke printed tape. See the website for details.

There are three principal methods of applying printed images to corrugated boxes:

Flexographic Printing, Screen Printing and Litho-Laminating.

All three methods are commonly used, but serve different purposes and budgets. In this section a brief summary of each printing method is outlined to allow you a greater understanding of which printing process serves your needs best.

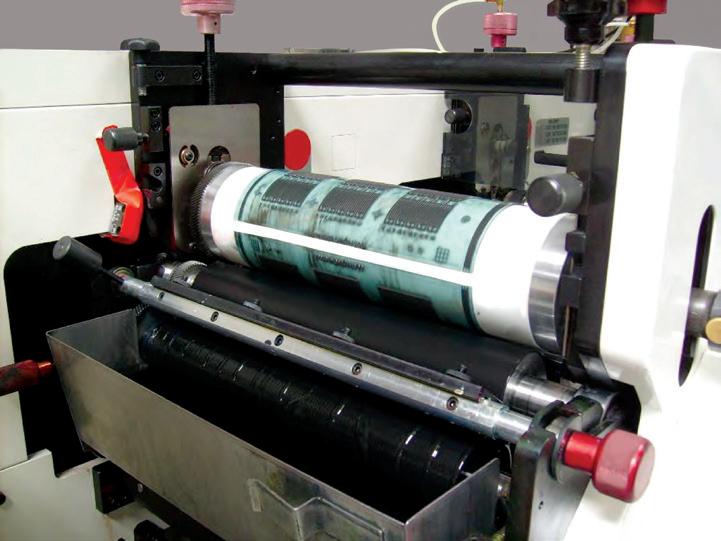

Flexographic Printing

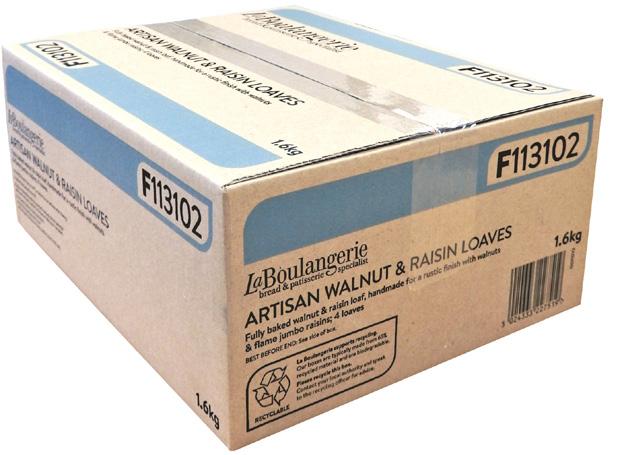

This is the most common method of printing on corrugated board and is often executed on the same machine and at the same time in-line as it converts a corrugated pad into a box. Flexographic printing is very economical and is utilized in large or small production runs.

Flexography uses flexible rubber or polymer plates to transfer an image onto corrugated material much like a mechanized rubber stamp. Fast-drying, water-based inks are generally used, which allow for fast running speeds.

SCREEN PRINTING

This method is ideal for those who desire a higher resolution image than flexo-printing provides. Full colour graphics are available using screen printing and are ideal for higher quality display, point-of-sale, and retail in-store cartons.

Screen printing is a process of forcing ink through a tight screen which is mounted on a frame. The screen carries a stencil which defines the image area and is made of porous material which allows for full ink coverage on corrugated board.

The board is generally screen printed prior to its conversion into a box or display.

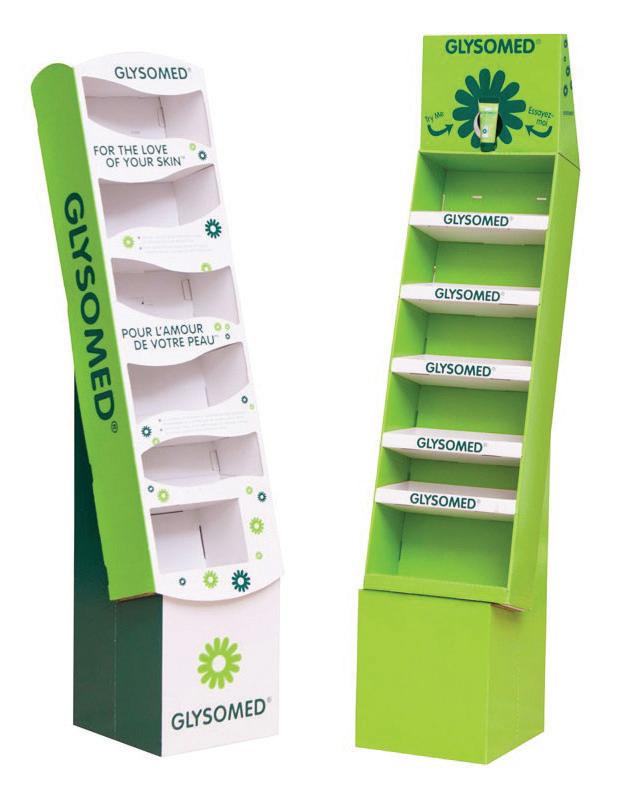

This method is often used for retail packaging or POP displays and is appropriate for small or medium sized production runs.

Litho-Laminating

The process of litho-Laminating produces a photographic finish. For high value goods and presentation. What you get is very high definition, sharp images with the ability to produce bright colours.

The flexible plate is attached to a roller in which the carton is fed through, applying the ink on each pass. For each colour a separate plate is used meaning that the less colours used the more economical the cost, this is why other printing methods are used when using multiple colours. this method is ideal for straight text or 1-2 colour graphical images.

The method of litho-laminating involves the printing of a sheet of paper by an offset printer. The printed paper is later glued to the corrugated board using a water-based adhesive. The litho-laminated board is then converted into the box.

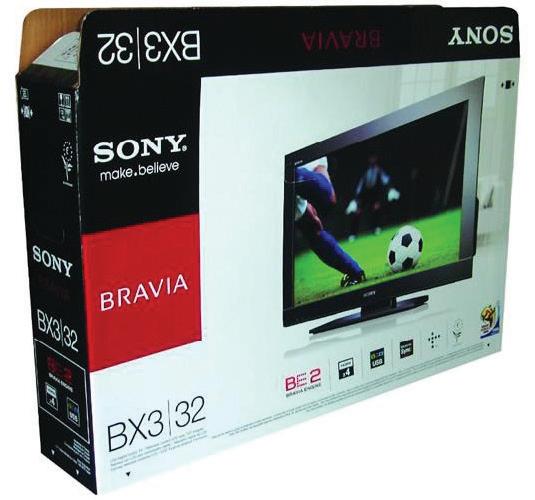

Litho-laminated boxes are appropriate for those who are looking for a high quality finish to their corrugated packaging and is often used for retail packaging or Point-of-Sale displays. This method is most suited to larger production runs.

Corrugated material is highly absorbent and thus flexo printing is not recommended for high definition graphics. The print quality is dependent on many variables, and is influenced by the absorbency of the material being printed.

Folding Box Board (Litho-Laminated)

This is otherwise known as solid board, and usually used for smaller boxes as it isn’t as strong as corrugated board. Up to certain board thicknesses it can be litho printed prior to manufacture giving a very professional finish. Solid board boxes can be supplied plain or printed and they are ideally suited for higher quantity print runs. The main benefit is superior presentation

Trade Specification Terminology

Reference Terms

PE Polythene

LDPE Low Density Polythene

LLDPE Linear Low Density Polythene

MDPE Medium Density Polythene

HDPE High Density Polythene

TINTED Non-opaque PE with 1-4%

Master-batch Colour

VIRGIN Extruded from New PE Polymer

REGRAN Recycled from Existing Polythene

REPRO From In-House PE Extrusion Waste

BESPOKE POLYTHENE PRODUCTS

As well as offering a wide range of standard size polythene bags, we produce polythene bags, liners, covers and sheets to whatever dimensions or thickness you require. Along with this we can offer:

• Colour tinting - to aid with easy identification

• Anti-Static additive - particularly essential in the packing of computer components

• UV additive to protect the product in storage and prevent breakdown of the polythene

• Perforations

• Resealable bags

• Bags ‘on-the-roll’ or wicketed

BLOCKING PE Walls Stick Together

GUSSETED Width folded within the newly blown tube

SWN Standard Warning Notice

(Child Suffocation)

SHRINK Suitable for Shrinking When Heat Applied

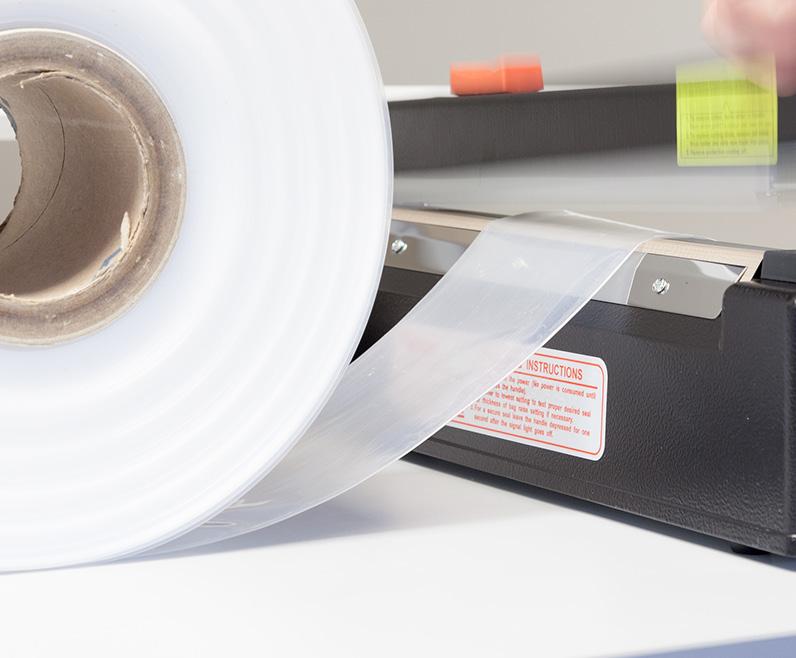

LFT Lay-flat Tubing

CFS Centre Fold Sheeting

MFS Multi-fold Sheeting

PRINTED POLYTHENE

We can print your polythene products in up to four colours on both sides to provide the professional finish.

Technical Information Explained

Although polythene is a very simple product, when it comes to manufacturing there are a number of terms for different formats of product style, packing and measuring. Here we explain just some of the most common terms used:

Thickness is expressed in microns or in gauge.

• Micron - 1 micron is 1/1000th of a millimetre.

• Gauge - 4 gauge = 1 micron eg: 500g = 125mų

Natural is used to describe the material colour without any colour additives. (Ostensibly it is clear although it can become more translucent depending on thickness and amount of recycled material used.)

Virgin material is derived from Polymer which contains no recycled content.

Regran is material which is either 100% recycled or contain recycled material.

Tint relates to colour additives. If you do not have solid colour you have a “tint” of colour to distinguish it.

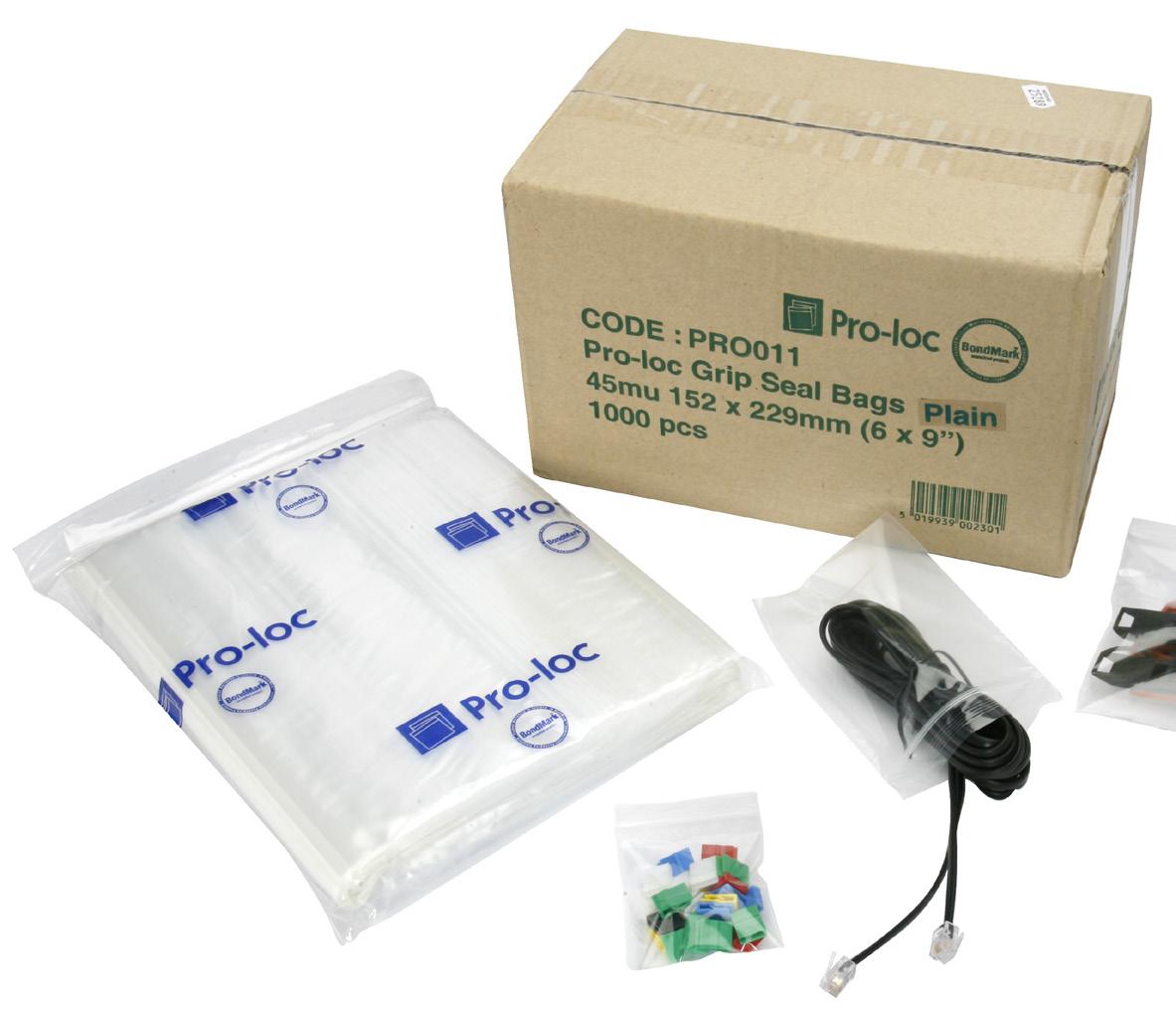

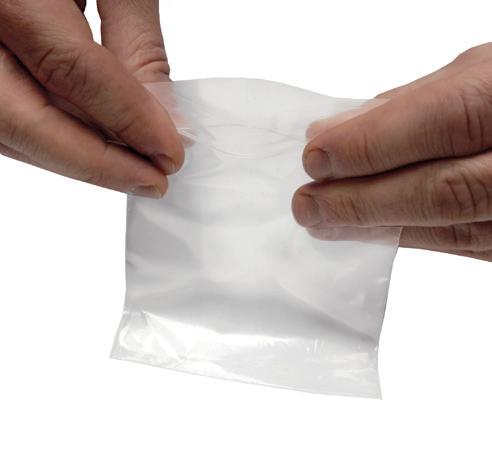

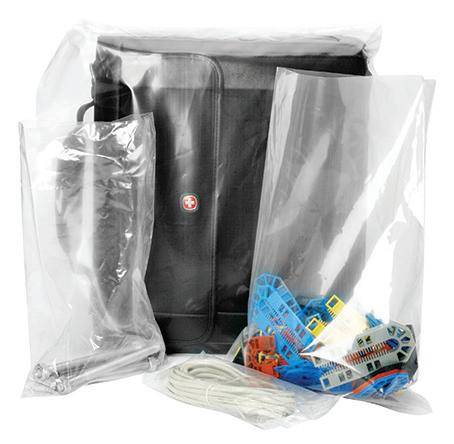

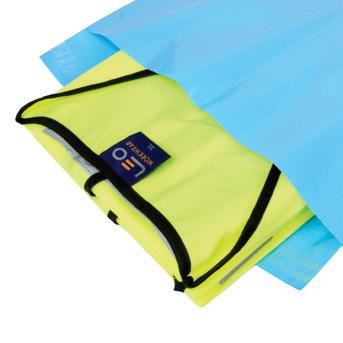

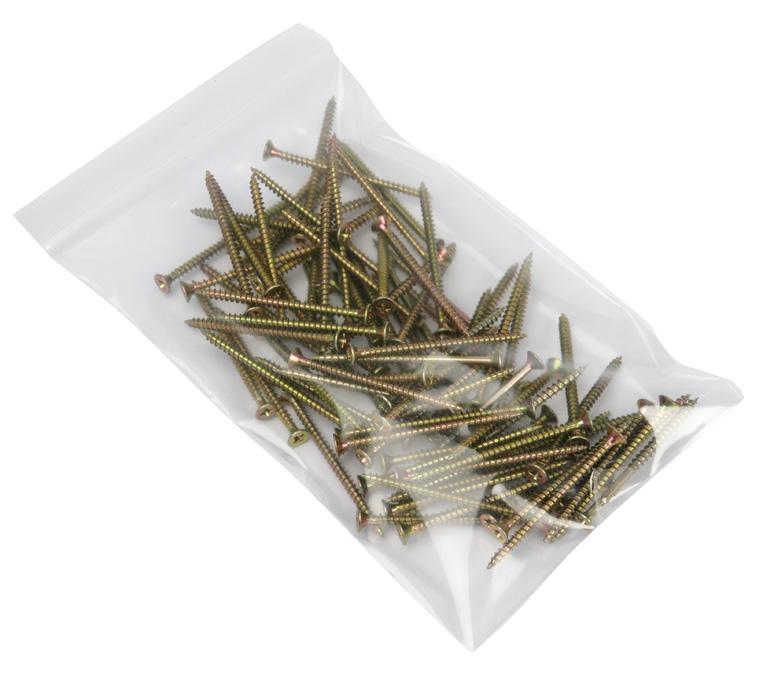

POLYTHENE BAGS

Our Low Density polythene bags are excellent for packing virtually any product for transport, presentation or simply as a dust cover. Available in a wide range of sizes and thicknesses, we can also produce LD polythene bags to your size and colour, as well as providing a complete design and print service.

This product product is suitable for food use.

All special production runs of polythene bags can be produced as Anti-Static or printed with your own design

POLYTHENE BAGS

/ 25 Micron CLEAR-150 GAUGE / 37.5 Micron

CLEAR-100

CLEAR-200 GAUGE / 50 Micron

BOX LINERS & GUSSETED BAGS

Box liners & Gusseted bags prevent product spillage or protect products from air and moisture. These liners are an excellent accompaniment to a corrugated box.

All special production runs of polythene bags can be produced as Anti-Static or in different colours

POLYTHENE LAYFLAT TUBING

Layflat tubing, known as polythene tubing, is a continuous length of polythene tubing that creates custom bags of almost any shape and size. This product is used to improve presentation and add security. The polythene can be sealed with either heat sealers or bag ties.

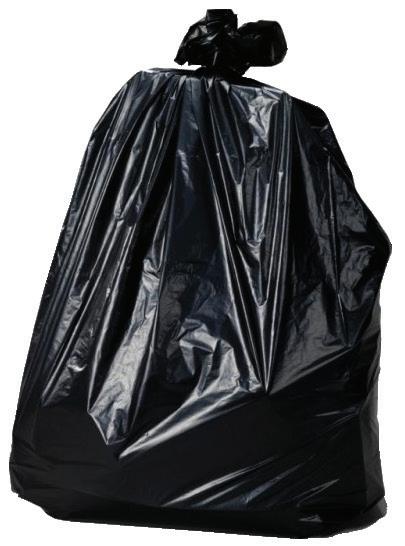

REFUSE SACKS

High quality sacks ideal for disposal or refuse. Available in various thicknesses and colours for light or heavy materials.

LAYFLAT TUBING

LAYFLAT TUBING

How to measure a refuse sack

The diagrams to the right show the dimensions relating to the Sizes (mm) and (in) in the table above. For example: size 1 x size 2 x size 3 on Code RS1BSQ = 450 x 730 x 990

If you require a specific width or thickness of film, please ask our sales team as we can produce any combination, subject to minimum order quantities.

Below is a key which relates to the typical usage of the refuse sacks in the table above.

Layflat tubing is sealed with heat-sealers found on pages 30-34

RESEALABLE BAGS

Plain, Clear 160-180 gauge 40-45 micron

Resealable polythene bags provide an economical solution to countless packaging applications. This type of clear grip-seal bag stays firmly shut when sealed and ensures that your products stay protected.

PLAIN, CLEAR 160-180 GAUGE / 40 - 45 Micron

HEAVY DUTY RESEALABLE BAGS

A heavy duty 75 micron selection of resealable polythene bags provide an economical solution to countless packaging applications. This type of clear grip-seal bag stays firmly shut when sealed and ensures that your products stay protected.

HEAVY DUTY PLAIN, CLEAR 300 GAUGE/75 MICRON

RESEALABLE BAGS - WRITE ON PANEL

Resealable polythene bags with additional write on panels in matt white, allowing the bag to be written on with a pen or marker. These bags are available in 40-45 micron.

ON PANEL, 160-180 GAUGE/40-45 MICRON

See layflat tubing on page 29 if you require the flexibility of heat sealing your products.

HEAT-SEALERS

Heat-Sealers can be used with either Polythene Layflat Tubing or PVC/Polyolafin shrinkfilm, just by using a different heat element - flatwire for Layflat Tubing and roundwire for shrinkfilm.

The most common version is the bar sealer which has a spring loaded hinge at one end and an adjustable heat controller for different thicknesses of film. You can also have the sealer complete with a film cutter to ensure that your seals are always neatly finished.

Where fast packing is required or both hands are needed to hold the package, we supply a foot operated magnet sealer which can be either a manually activated or automatic seal. This version of sealer can be supplied either on a height adjustable stand or as bench mounted. Highly efficient, reliable and very tidy, our Heat-Sealers will help you to cut down on packing time.

HAND HELD HEAT-SEALERS

Constant heat sealer tongs for PE/PP/PVC 150mm x 2mm

Light but robust with adjustable temperature control from 30°C to 220°C, and 25 watt power, seals most films up to 2 x 600 gauge, weighs 650g.

Constant heat crimp sealer for cellophane/foil 150mm x 15mm seal

Crimp seals cellophane and most foils with adjustable temperature control from 30°C to 220°C, and 50 watt power, weighs 770g.

CRIMP

Hand Operated Heat Sealers

The most popular version is the bar sealer. We supply this style of heat sealer in numerous sizes see table below.

HAND OPERATED HEAT-SEALER’S

P200 Impulse Heat-Sealer, hand operated 200mm

P200C Impulse Heat-Sealer, hand operated - with film cutter 200mm

P300 Impulse Heat-Sealer, hand operated 300mm

P300C Impulse Heat-Sealer, hand operated - with film cutter 300mm

P400 Impulse Heat-Sealer, hand operated 400mm

P400C Impulse Heat-Sealer, hand operated - with film cutter 400mm

P500 Impulse Heat-Sealer, hand operated 500mm

P500C Impulse Heat-Sealer, hand operated - with film cutter 500mm

Electro-Magnetic Heat-Sealers

The electro-magnetic heat sealer can be operated using a foot pedal and is ideal for jobs that require both hands.

ELECTRO-MAGNETIC

CODE DESCRIPTION

SMS350 Magnet Release Semi-Auto Impulse Sealer with Safety Cutter - 560 watt, 330mm x 4mm Seal

SMS500 Magnet Release Semi-Auto Impulse Sealer with Safety Cutter - 890 watt, 680mm x 4mm Seal

SMS700 Magnet Release Semi-Auto Impulse Sealer with Safety Cutter - 890 watt, 680mm x 4mm Seal

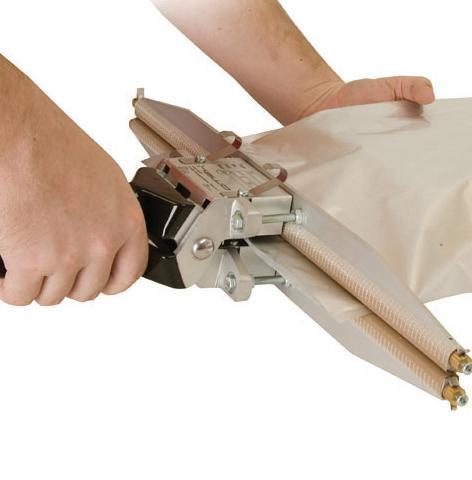

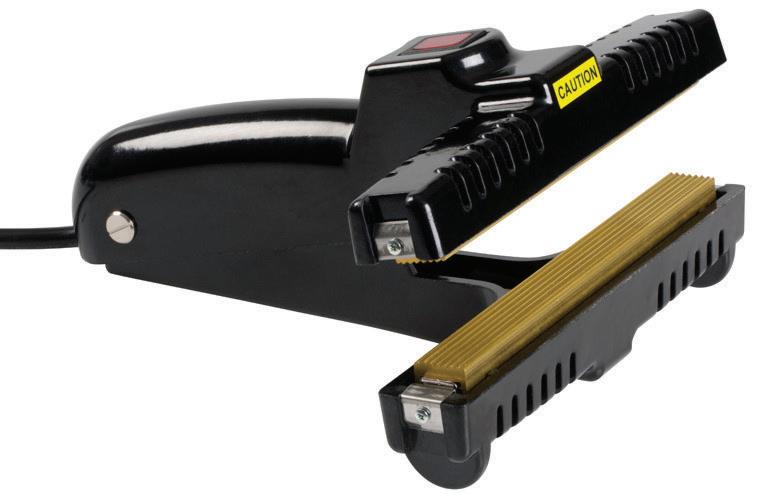

Impulse sealing tongs including transformer 450mm x 3mm seal

Effective for film thickness 2 x 500 micron, aluminium barrier foil and thermoplastics. Adjustable weld time.

Versatile, heavy duty tongs make light work of the heaviest sealing jobs. The comfortable grips and high power output ensure effective sealing of materials up to 2 x 500 microns thick

IMPULSE SEALING TONGS

Impulse sealing tong spares Kit

Prolong the life of your sealing tongs with our maintenance kits.

SPARES KIT

Engineered for both safety and efficiency. Convenient hooks allow the tongs to be safely hung and stored, allowing residual heat to dissipate.

MAGNET RELEASE IMPULSE SEALER WITH DOUBLE ELEMENT AND INDUSTRIAL STAND

Industrial Model

MAJOR BENEFITS

Industrial Model Features

• Designed to efficiently seal heavy duty bags made from almost any heat seal-able material

• Upper/lower 4mm wide heating elements (“on off” facility for upper), seal bags up to 680mm wide

• Electrical seal arm motor for manual or foot operation has timed release for consistent seal quality

• Mounted on mobile industrial stand with lockable castors, allowing adjustable heavy duty work table which can hold up to 50kg

• Dimensions: L770mm x W470mm x H1090mm

Weight: 18.8kgs

Mounted on an industrial mobile stand with lockable castors that allows the sealer angle to be adjusted.

HEAT SEALER ACCESSORIES

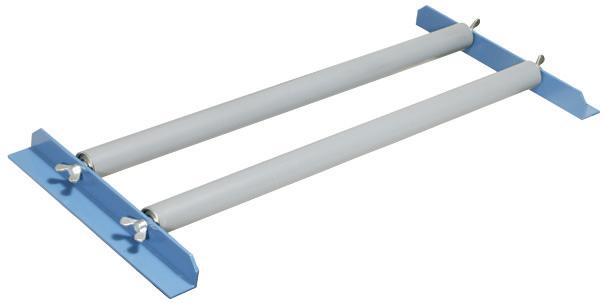

Heavy Duty Unrolling Devices

This unrolling device lines up your polythene roll and allows you to unroll with ease.

HEAVY DUTY UNROLLING DEVICES

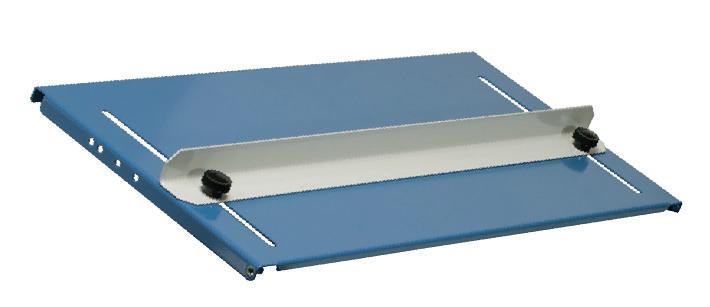

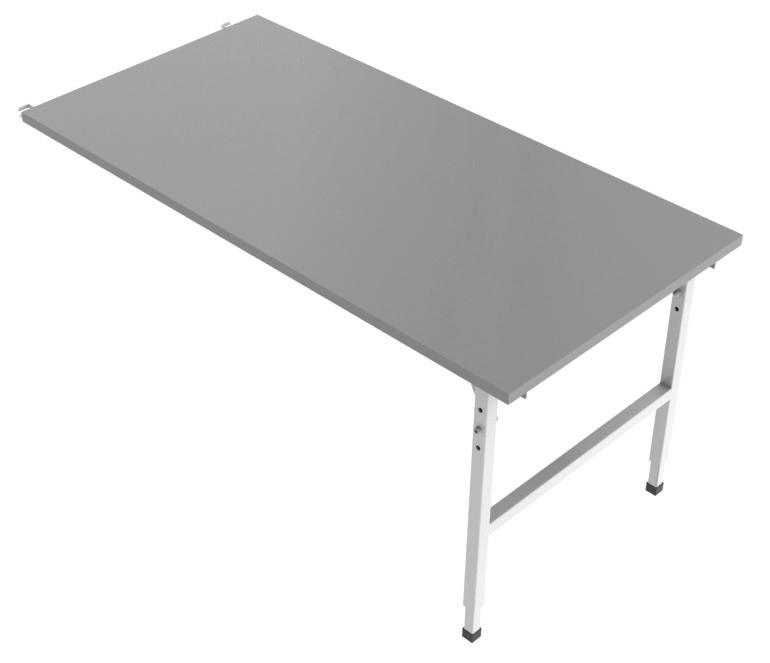

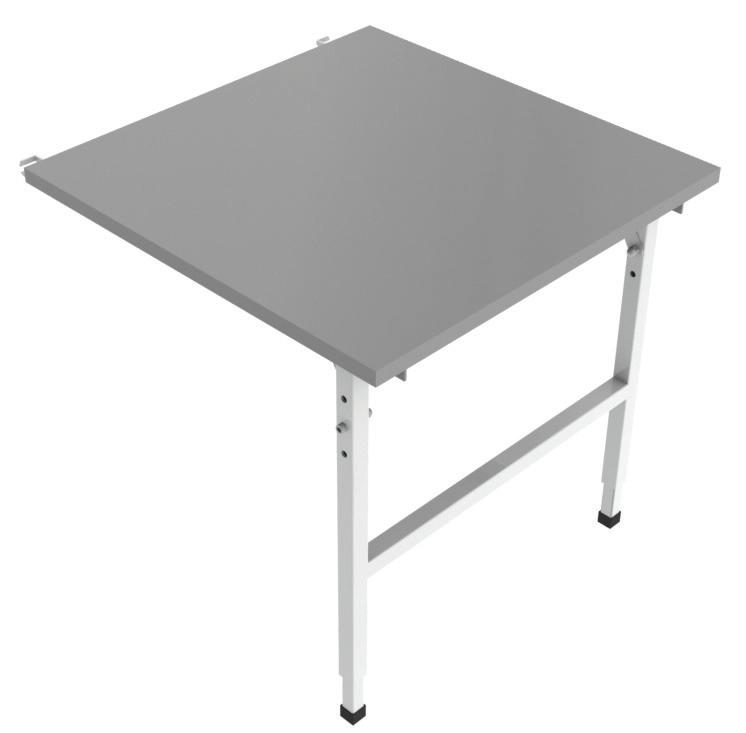

Adjustable Tables

This adjustable table allows a pre-determined length of polythene to be measured accurately during a repetitive process.

ADJUSTABLE TABLES

INDUSTRIAL MODEL

CODE DESCRIPTION

SMS700 D2-EM-IST-WTS Magnet Release Impulse Sealer with double element and industrial stand

MAGNET RELEASE IMPULSE SEALER WITH FOOT PEDAL

• Hand or foot operated, factory fitted electric seal arm for faster action and less operator fatigue

• Safety cutter fitted

• Dual timers for heating & cooling

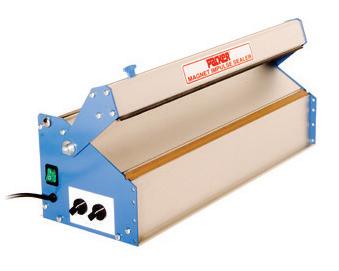

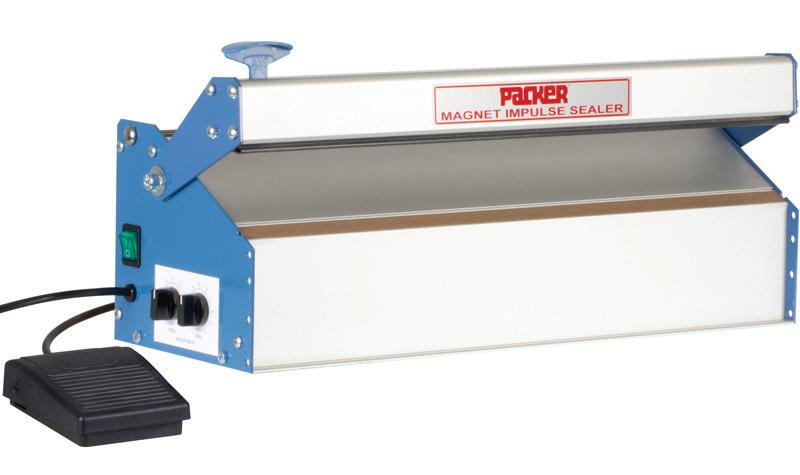

MAGNETIC RELEASE IMPULSE SEALER

CODE DESCRIPTION

SMS500-EM Magnet Release Impulse Sealer with electric foot pedal 660 watt 480mm x 4mm seal

Dual timers for heating & cooling.

Foot Pedal

This product allows the operator to operate the Heat-Sealers sealing arm using a foot pedal. A great product for when two hands are needed as part of an operation.

FOOT PEDAL

REPAIR & MAINTENANCE KITS

Prolong the life of your bag sealer with our maintenance kits.

REPAIR KITS

More options are available to help you tackle heavy duty jobs. Including double 8mm width seals, top and bottom elements, filling chutes for repeated packs and heavy duty machine stands.

HEATSEALER MAINTENANCE KITS

*2 upper Teflons, 2 lower Teflons, 2 heat elements

BUBBLE WRAP

Used as surface protection, void fill or for interleaving, Airsafe bubble wrap provides a multipurpose solution for small and large users.

Small Bubble wrap - 10 mm Bubble

Large Bubble wrap - 25 mm Bubble

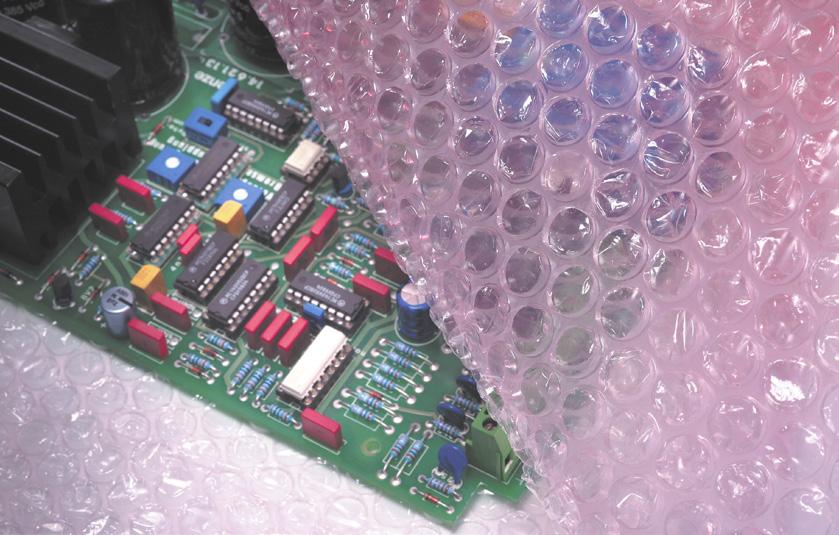

Anti-Static Bubble wrap - 10 mm Bubble

Used as a anti-static surface protector, for void fill or interleaving, this bubble wrap provides a good multipurpose solution for small and large users.

ANTI-STATIC

- 10 mm

BUBBLE WRAP & POUCHES

Double Laminated Small Bubble wrap - 10mm

Airsafe double laminated small bubble wrap has the cells between 2 tough layers of polythene providing a robust alternative to traditional bubble wrap.

DOUBLE LAMINATED BUBBLE WRAP

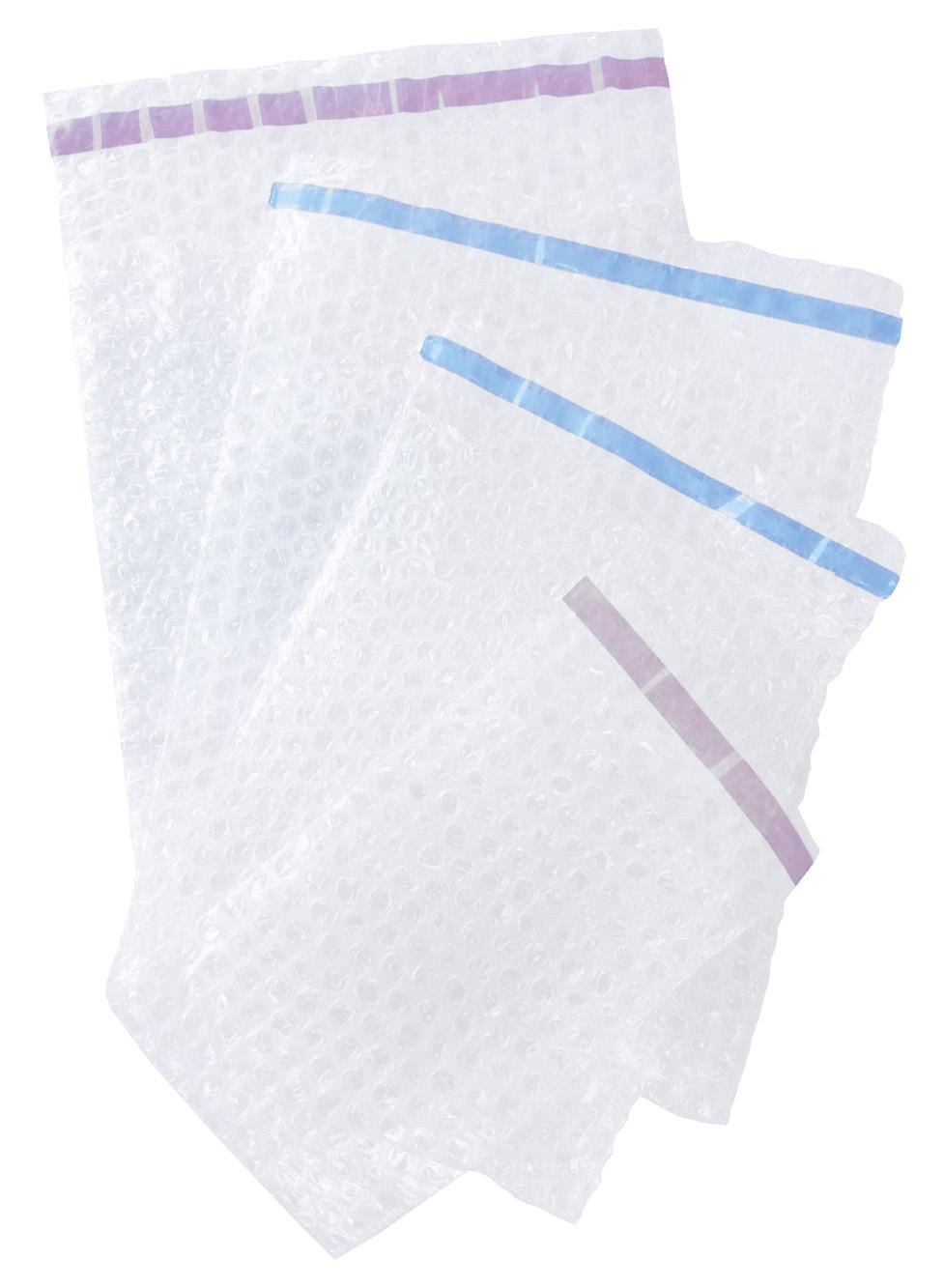

Standard Pouches with Self Seal Flap

Test Valley’s bubble pouches are manufactured from small bubble wrap and come as standard with a self-seal flap.

SELF-SEAL BUBBLE POUCHES

Can’t see the size you want? Bubble pouches can be produced in whatever size, in standard, anti-static or metallised film and with either a self-seal flap or flush edge.

POLYETHYLENE FOAM

Protects against scuffing, scratching and abrasion. Foam can be supplied in cut sheet and pouches to suit your requirements.

Anti-Static Pouches with Self Seal Flap

Our traditional protective Anti-Static packaging is manufactured in transparent pink. An easy to handle and flexible product makes these pouches ideal for sensitive components used in static controlled environments.

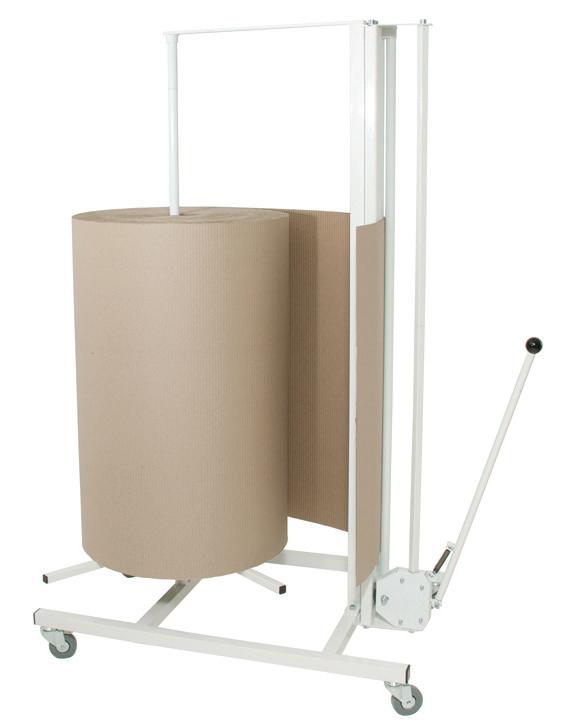

CORRUGATED PAPER

A traditional and economical surface protection material. Corrugated Paper is an excellent packaging solution for interleaving, spacing, pallet base sheeting and for wrapping of oily metal components.

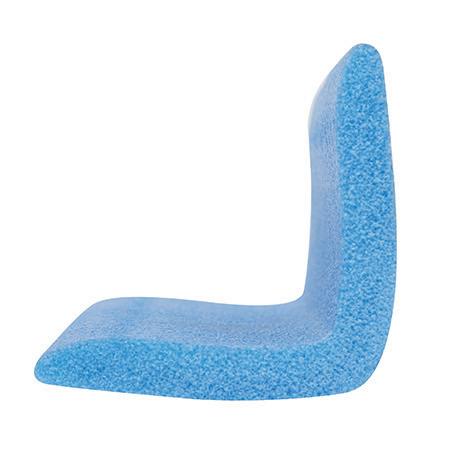

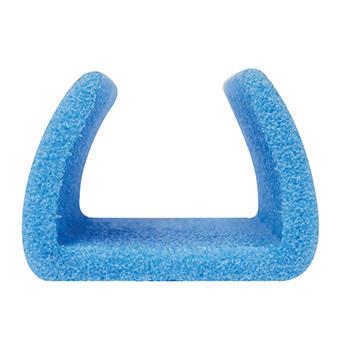

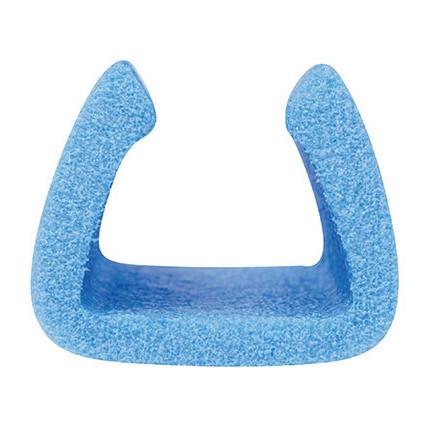

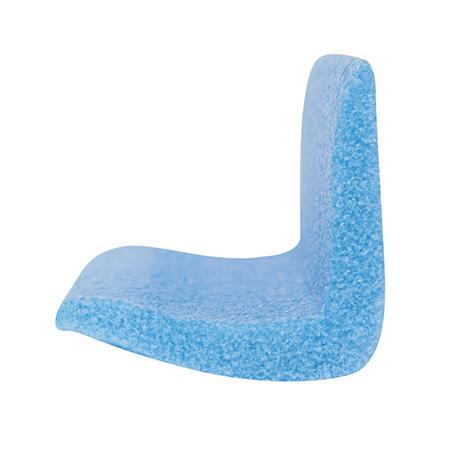

FOAM PROFILES & EDGE PROTECTION

Polyethylene foam profiles are excellent for protecting products from repeated impact and heavy loads. Ideal for finished goods and fragile material such as glass, worktops and furniture. Some of the sizes below are subject to a lead times.

FOAM PROFILES TECHNICAL SPECIFICATION

Please Note: All foam profiles are supplied in 2 metre lengths

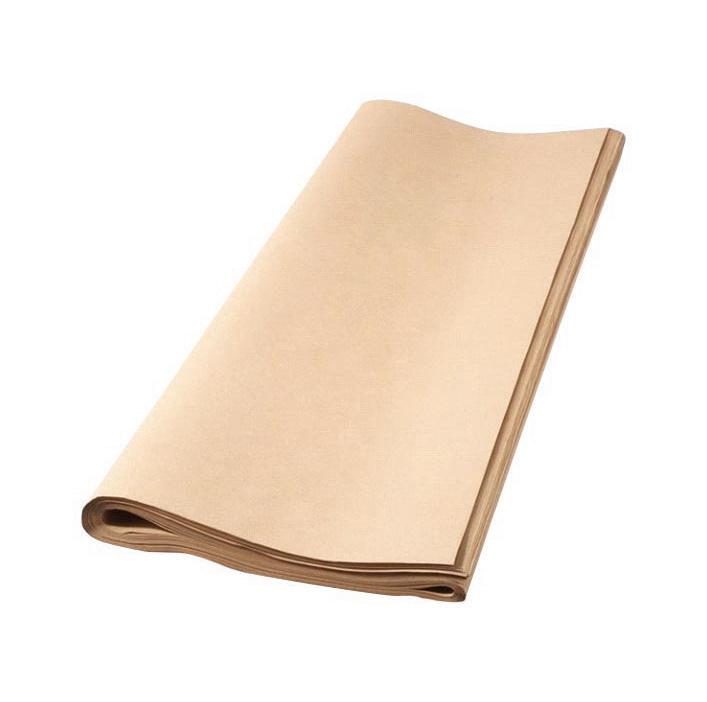

KRAFT WRAPPING PAPERS

PURE

CODE: FPU32

PACK QTY (METRES): 500m

CODE: FPU35

PACK QTY (METRES): 280m

CODE: FPU43

PACK QTY (METRES): 180m

PURE

CODE: FPU64

PACK QTY (METRES): 100m

CODE: FPU101

PACK QTY (METRES): 80m

CODE: FPL50

PACK QTY (METRES): 480m

CODE: FPU49

PACK QTY (METRES): 160m

IMITATION

Furniture Blanket

Furniture Blankets are a 4 ply paper pad. The central layers are made of 100% recycled, embossed paper to give the blanket body and create a tough construction. The outer layers are smooth Kraft paper to provide a safe, scratch free surface when protecting finished furniture.

CODE: FPL75

PACK QTY (METRES): 210m

All foam profiles pictured here are available for order.

BARRIER PAPERS GREASEPROOF & WAXPROOF

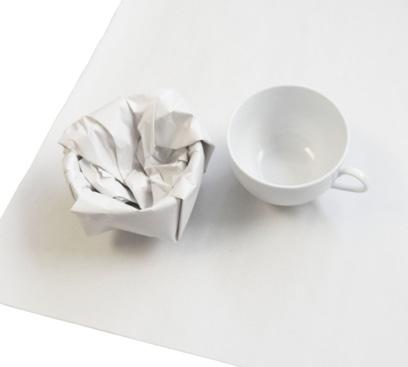

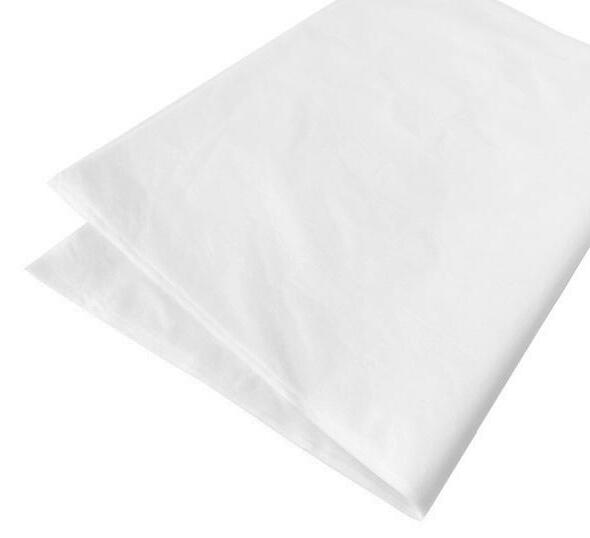

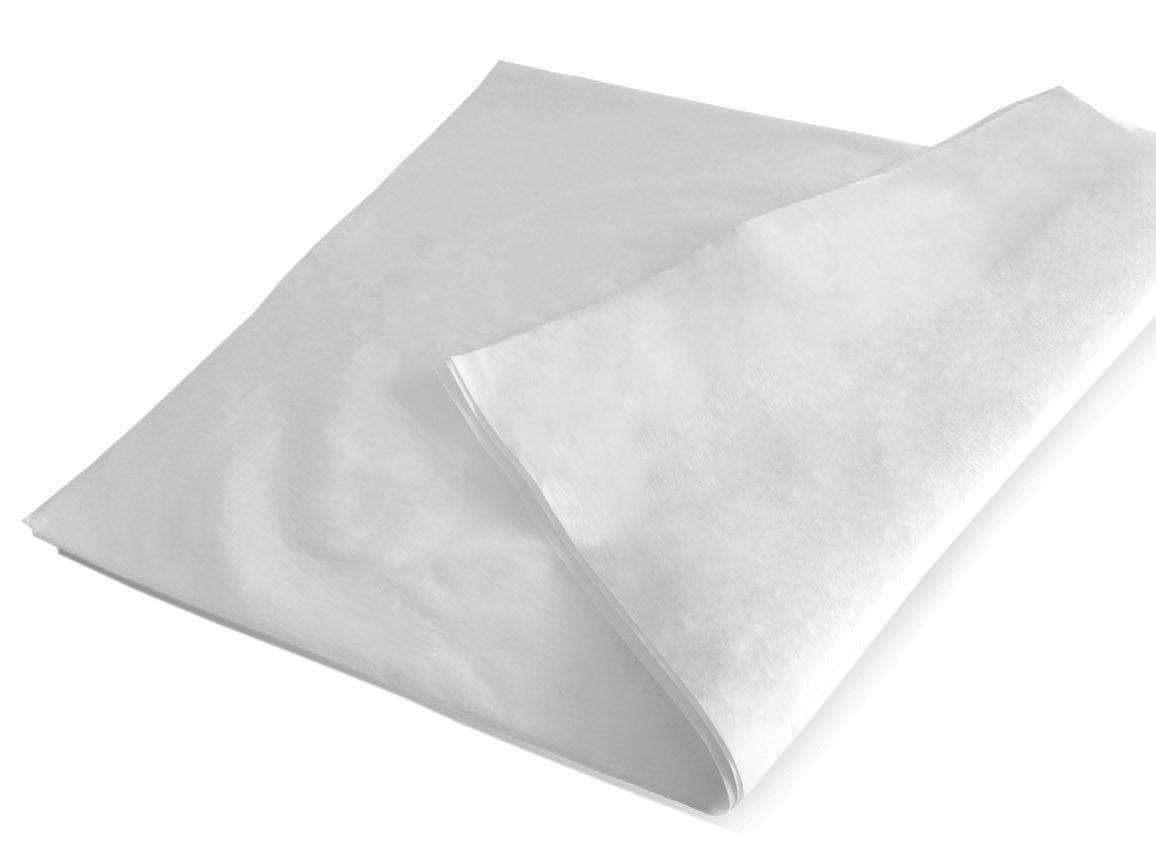

TISSUE & WRAPPING MATERIAL

The traditional wrapping material for delicate items and clothing. We have a range of Standard Cap and Acid free tissues which can also be printed with your own design subject to minimum order quantities.

Bitumen Kraft Union Rolls

Constructed from a layer of bitumen between two layers of Kraft paper, Bitumen Kraft Union paper can be used as a barrier for water, oil or grease making it ideal for the engineering sector. Can also be used for lining export crates to prevent moisture penetration.

BITUMEN

Chinese Machine Glazed Tissue

The general purpose Chinese machine glazed tissue suitable for most applications with exception of the wrapping of goods liable to tarnish.

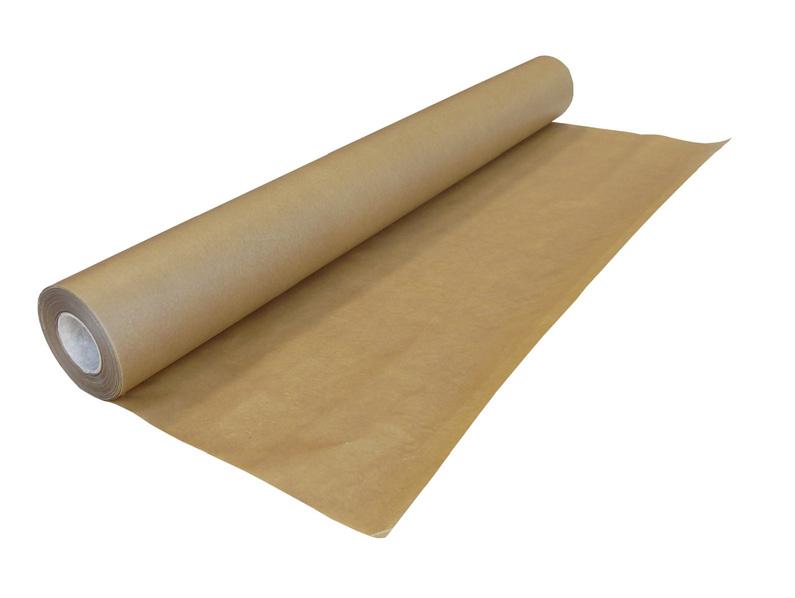

Waxed Kraft Paper Rolls

Coated kraft paper is a commercial quality wax coated paper, suitable as a primary wrap for greasy or oily products such as car and machinery parts. The wax coated roll of kraft paper provides a moisture barrier, offering water repellent protection to the item wrapped within the kraft paper.

WAXED

Anti-Rust Paper Rolls

A damp proofing paper which prevents rust migration. The VCI forms an invisible protective film on metals which have been packaged. The VCI chemicals give protection for many manufactured metal components for storage and transit.

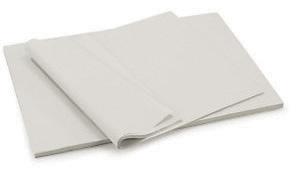

Machine Finished (Uncoated) Acid Free Tissue

Acid free tissue is used for wrapping items which are susceptible to tarnishing.

Machine Glazed Acid Free Tissue

Ideal for gift wrapping products after sale. Non-corrosive and acid free will not cause damage to delicate items.

Goods after transport with VCI protection.

News Offcuts Paper

MACHINE GLAZED ACID FREE TISSUE NEWS OFFCUTS PAPER

Polythene Products Cushioning & Papers Void fill & Protection Load Stability Adhesives & Tapes Mailing Products Cartons CUSHIONING & PAPERS www.testvalleypkg.co.uk sales@testvalleypkg.co.uk 01722 414 800 Packing Equipment & Tools 43 42

LOOSE

FILL & PROTECTION

Fastfil and Biofil are easy to use to protect products and fill the gaps when packing boxes. The shape of the loose fill chips enables them to lock together to improve protection.

Loose Fill provides fast, economical and secure protective packaging for:

• Household goods

• Handicraft supplies

• Books, stationery, office supplies toys

• Pharmaceutical products

• Drugstore goods, cosmetics

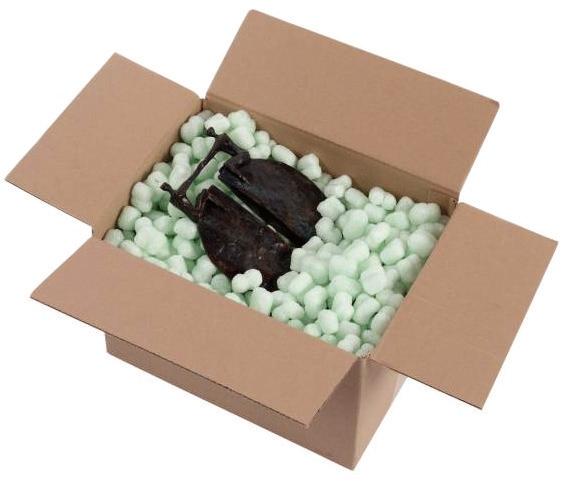

Fastfil Polystyrene loose fill

• Made from 100% recycled material

• Fully recyclable

• Fully re-usable

• Free of CFCs

• Clean

• Lightweight

• Good memory - ability to go back to original shape when pressure removed

Biofil Biodegradable loose fill

• Produced from fully biodegradable materials

- vegetable or wheat starch

• Environmentally Friendly (will dissolve in water)

• Fully re-usable

• Clean

• Lightweight

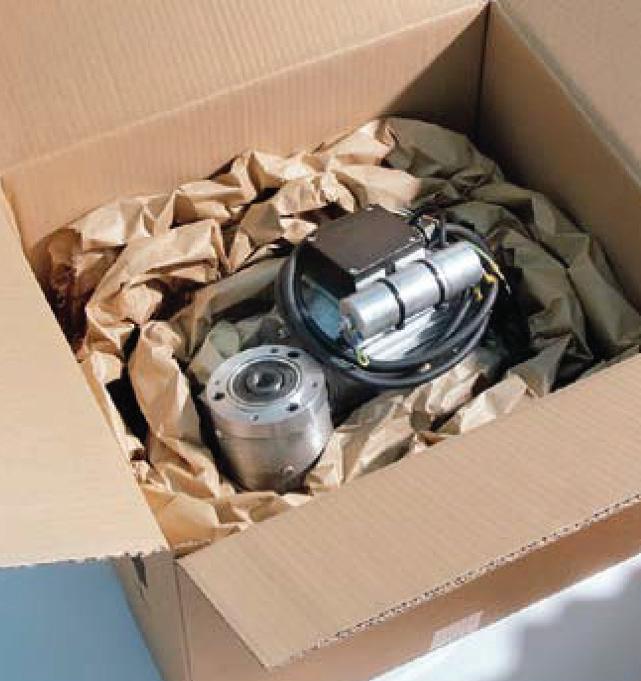

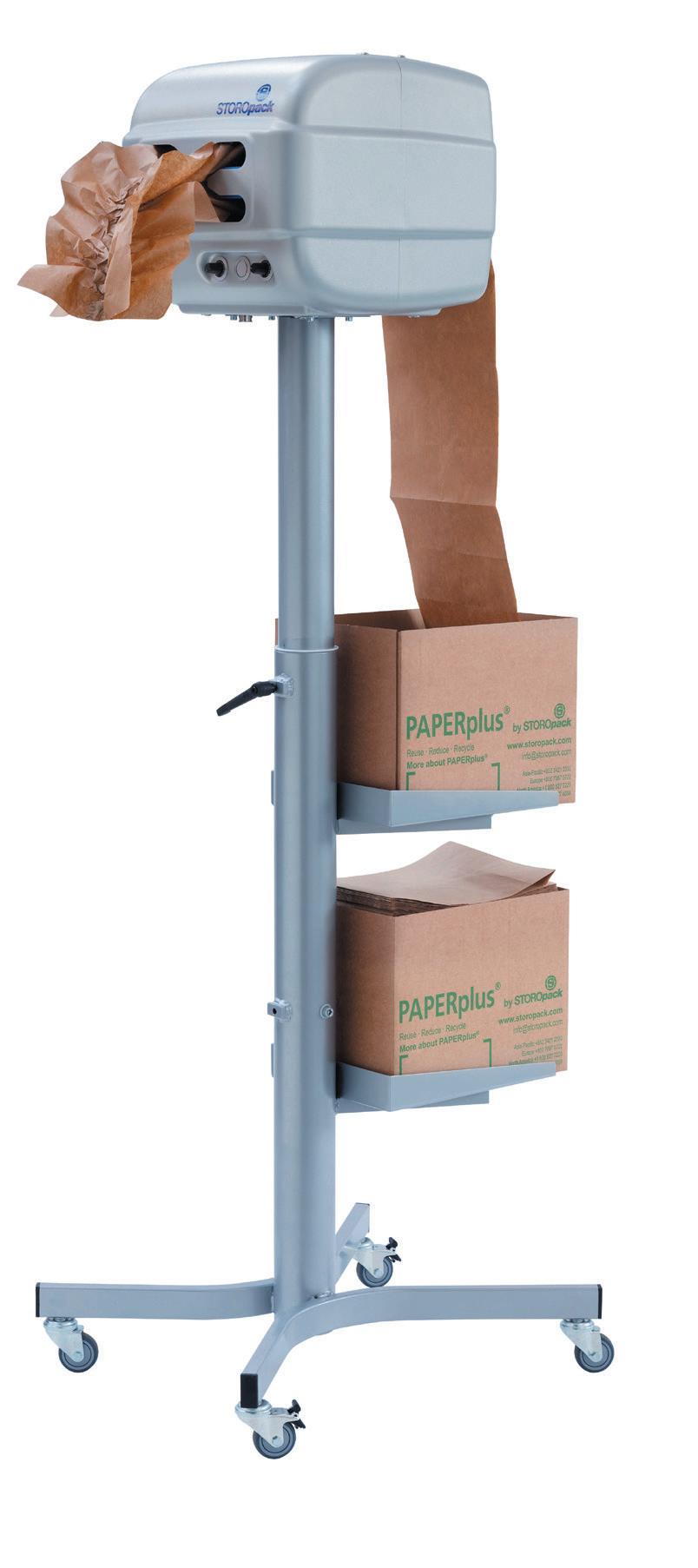

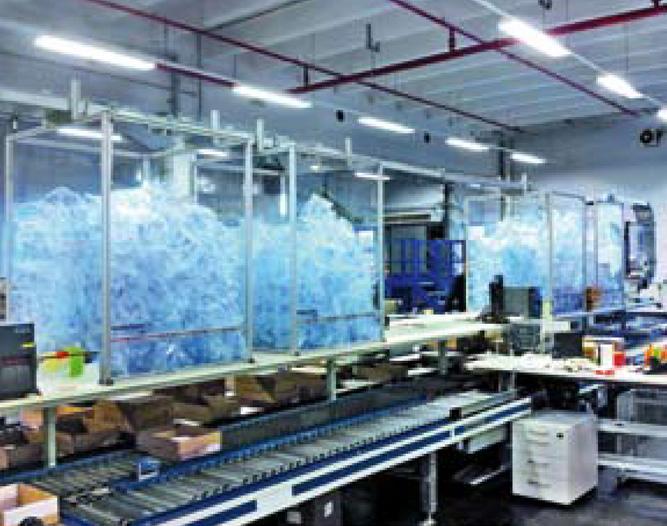

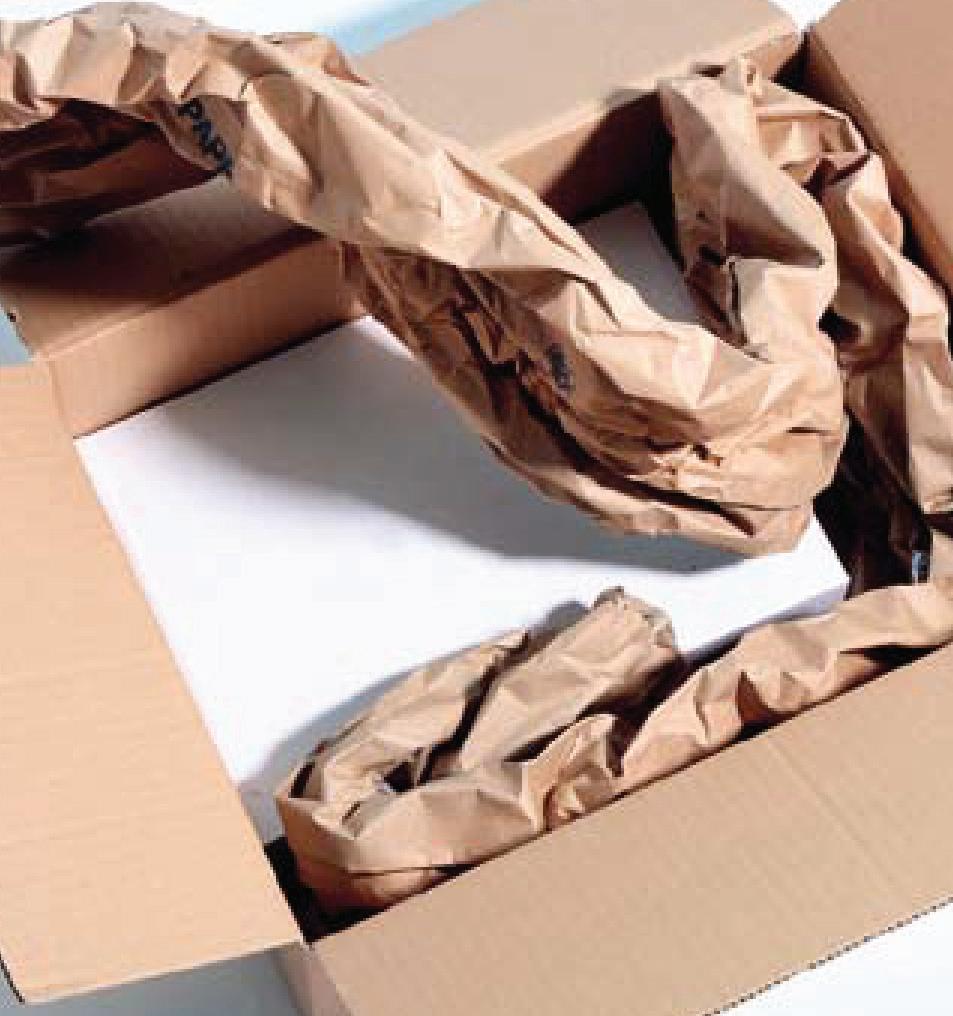

PAPER VOIDFILL SYSTEM

Our paper system provides a superb variety of solutions from complete all round protection to lightweight top fill. The papers are highly developed to provide maximum yield from environmentally friendly papers, while operating at high speed. Integratable into virtually any packing station, paper protection can be used for any product.

The new Papillon top fill paper system

AIR BAG VOID FILL SYSTEM

Air cushions are excellently suited for quickly and economically filling empty space in one simple step. Equipped with this protective packaging, the goods are fixed in the package preventing migration. Our void fill air cushion application is an ideal solution for pre packaged products with minimal risk of breakages.

The advantages of paper void fill:

• Versatile

A large range of paper systems suitable for packing of light, medium and heavy weight items.

• Flexible

Multiple machine configurations allow for easy integration into packing processes with the most efficient production methods.

• Cuts Costs

Due to the compact nature of the rolls and the ingenuity of the machine functions, pre use void fill storage is minimal.

• Effective

Offers the best and most effective form of product protection in terms of shock resistance, product migrations and stability.

• Environmental

The paper contains recycled content and is fully reusable and recyclable. It gives off no harmful substances in production or during use.

The advantages of air cushioning:

• Reliable

Constant film quality from the company‘s own production facilities.

• Diverse There is an air cushion type for every application.

• Economical Reduction in raw materials due to multi-layer CO extrusion.

• Durable

Excellent mechanical properties.

• Environmental

Air pouch film types can be recycled and Biodegradable film is compostable in accordance with DIN Certco EN 13432.

• Saves space

On-demand system for minimal storage.

• Integrates

Compact, user-friendly devices for key packing areas.

• Practical disposal

One step and all that remains is the empty film.

Integration

Void fill machines offer sustainable cost savings through intelligent integration solutions.

Our packaging experts are on hand to help advise on strategies which develop packaging systems proven to achieve considerable productivity improvements through ergonomic awareness.

Protective Function: Block & Brace

Cartons

Polythene Products

Cushioning & Papers

Void fill & Protection

Load Stability

Adhesives & Tapes

Mailing Products

Packing Equipment & Tools

Protection

DYNA-POUCH AIR PROTECT POCKETS

Air packs designed to mold around fragile items by being inflated, proven to reduce damage and are 100% recycle-able.

Air bag/pouches are inflatable packaging products designed to provide cost-effective and efficient void fill and protective packaging for a wide variety of products. These relatively new packing materials are actually plastic bags and pouches with built-in columns of air to provide cushioning and protection.

A variety of sizes are available and can be used for different items such as bottles, ceramics, laptops, hard disk drives, mobile phones, cameras, tablets and computer parts.

Below are the key benefits of using Dyna-pouch:

• All bags come flat until inflated so can save up to 90% of your storage space

• All bags are 100% recyclable

• Dyna-pouch can speed up your packaging processes

• No expensive start-up costs, just a small air compressor or air line

• Manufactured from co extruded plastic

DYNA-POUCH EASY TO USE

Dyna-Pouch is designed to reduce the packing time of traditional packaging materials and allow for a tidier packaging environment.

Just simply inflate and pack your item.

Dyna-Pouch wine bottle protectors are designed to hold one standard size wine bottle of 750ml. Dyna-Pouch wine bottle protectors are also available to hold two or three bottles of wine please call our sales team for more information on lead times.

DYNA-POUCH WINE BOTTLE

Dyna-Pouch small bottle protectors are a popular protective solution for pharmaceutical companies. This product offers the safe transportation for glass bottles in the standard sizes of 500ml and 300ml

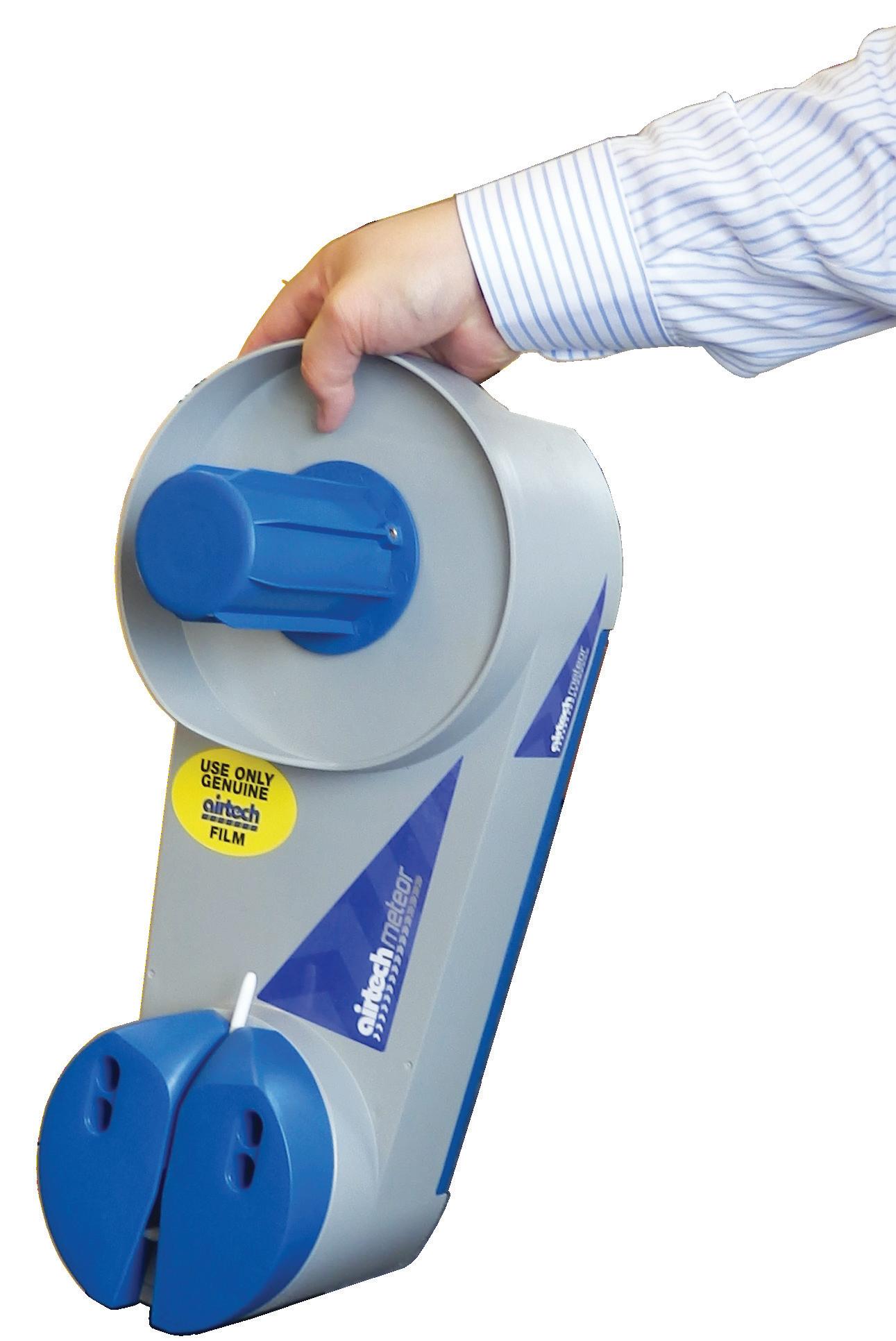

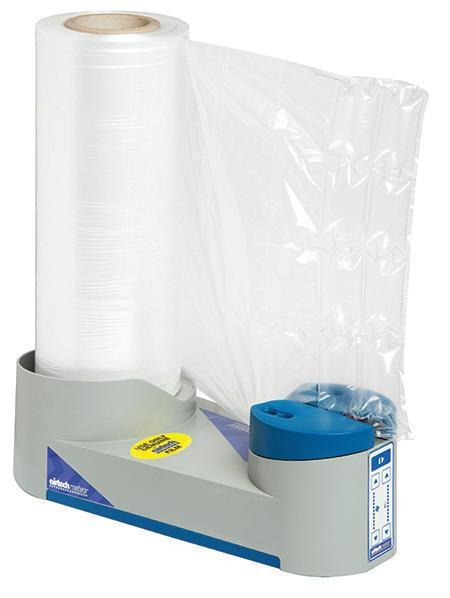

The Airtech-Meteor machine

This high quality machine creates pockets of air to protect your products. A perfect product for small operations that need to utilize space. This virtually silent machine is easy to use and is almost maintenance free.

Below are the key benefits of using Dyna:

• Effective

Its strength and durability offer reliable protection for your products.

• Cut costs

Reduction in storage expense plus the lightweight product keeps your shipping costs down.

• Flexible

Our varying film sizes can be used on the entire machine range.

• Easy

The rolls of film are light and easy to handle. The machines are easy to operate, fast and reliable.

• Environmental

Airplus is reusable and the film is recyclable.

• Versatile

Airplus machines are compact and portable, allowing them to integrate easily into your packaging area.

Airtech-Meteor machine/Starter Kits

AIRTECH-METEOR MACHINE

CODE Description

AM1 Airtech-Meteor

AM1-HT Airtech-Meteor Starter Kit (2 x Pillow Film)

AMI-CF Airtech-Meteor Starter Kit (2 x Cushion Film)

Airtech-Meteor machine Film

Two styles of cushion film can be created by the Airtech-Meteor machines. They have easy to tear perforations along the length making it easy to break off different lengths you need for each application.

AIRTECH-METEOR MACHINE FILM

BESPOKE FITTINGS

Choose from a selection of materials to suit your bespoke needs.

Our packaging design experts can create solutions for your needs. Samples can be produced before production stage for you to carry out trials.

Corner Protectors

Expandable corner protectors offer excellent impact protection and are designed to fit a variety of panel thicknesses. Whether your goods are posted, sent via courier or even if you deliver yourself, protecting your products will avoid costly replacements. Robust and easy to fit, these corner protectors are ideal for transit and storage.

Foam

Available in varying grades, providing a durable and reliable protection, ensuring a longer life span than polystyrene. The natural ‘give’ in foam means that unusual shaped products can be easily incorporated without complicated cutting patterns. This also provides a high level of shock absorbency.

Specifications

Airtech Meteor Pillow Film

Ideal protection for products that need void-fill protection.

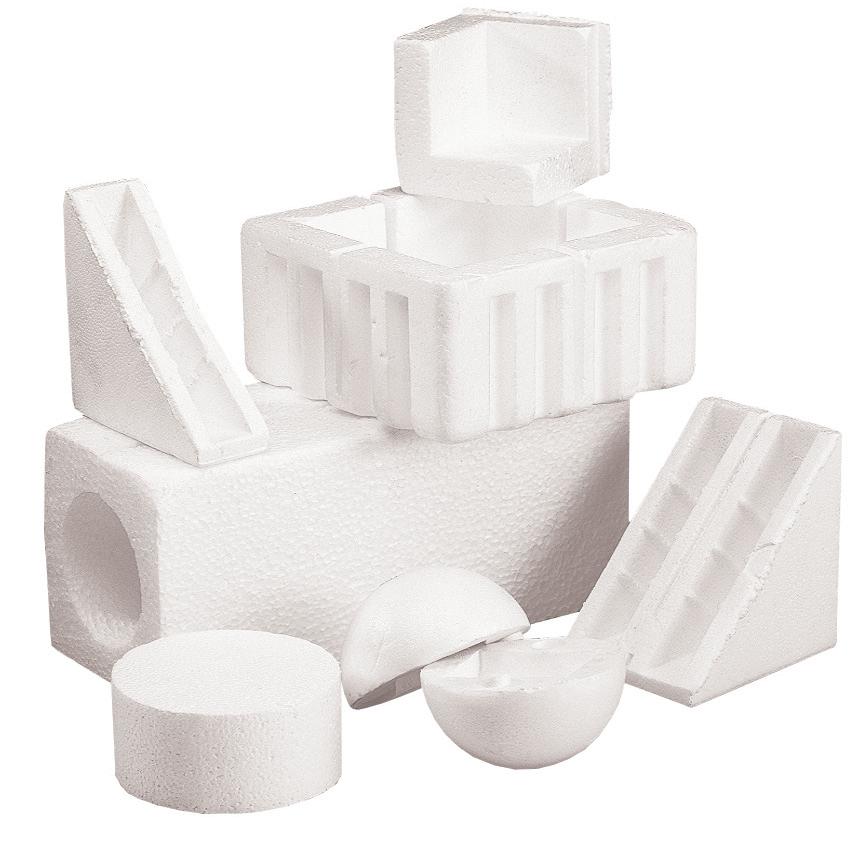

Polystyrene

Economical and very light weight, fittings can be produced easily from polystyrene. Polystyrene is primarily used in a disposable application where packaging is not returned.

For more information on how foam profiles can help protect your product see page 42.

Airtech-Meteor Cushion film

Small air pockets make this the film of choice for wrapping around products to protect them in transit.

Corrugated Cardboard

Extremely versatile innovative designs can incorporate multiple items within an outer carton. Corrugated cardboard provides extra rigidity and prevents crushing providing an environmental alternative to foam and polystyrene. It also provides opportunities for enhanced presentation of your goods with options of board colours, grades and printing.

CONVENTIONAL PALLET WRAP FILMS

Cast Hand rolls

We stock hand pallet wrap in various widths, microns and lengths. Cast hand rolls are produced to create a natural cling.

Excellent cling properties, silent unwind

Blown Hand rolls

We stock hand pallet wrap in various widths, microns and lengths. Blown hand rolls are produced to make the inside stick to the surface.

Good puncture resistance - added tackifier to create cling.

Cast Machine Rolls: 200% Stretch

Power pre-stretch film which stretches up to 200%. For use on all types of turntable machines from core brake to power pre-stretch machines.

CAST MACHINE ROLLS: 200% STRETCH

Cast Machine Rolls: 250 – 270% Stretch

Power pre-stretch film which stretches between 250 and 300%. For use on all types of turntable machines.

CAST MACHINE ROLLS: 250 - 270% STRETCH

Cast Machine Rolls: 300% Stretch

CAST MACHINE ROLLS: 300% STRETCH

Stabilising Dynamic Loads

The non-stretch pallet wrap which combines ease of use with superior load stability.

Dynawrap pre-stretched pallet wrap can save tonnes of waste pallet wrap film, cardboard cores and cartons every year, preserving the environment and keeping costs down.

PALLET WRAP FILMS

DYNAWRAP MACHINE WRAP

DYNAWRAP FLUSH CORE

The classic pre-stretched pallet wrap.

Peace of mind... Eliminate load movement in transit

Dynawrap is a pre-stretched 3-layer co-extruded material, virtually all stretch is removed ensuring minimal movement in transit.

Prevent pallets sticking together

Dynawrap has a 100% one side cling which prevents pallets sticking together in transit or in storage, this reduces breakages and the risk of lost loads.

Reduce operator fatigue

Dynawrap is not a stretch film; operators merely have to hold the film taut as they wrap the pallet which significantly reduces back strain and physical exertion.

Reduce your packaging waste

From only 7 micron, Dynawrap is a lightweight but very strong performance film. A constant width when applied means a reduction in packaging waste by up to 70%.

Eliminate roll waste caused by edge damage

Dynawrap has reinforced edges eliminating roll edge damage as well as providing extra strength to the film.

Reduce your wrapping costs

Less film is required using Dynawrap than the conventional stretch film to stabilize loads. Dynawrap offers the lowest wrapping cost per pallet... guaranteed.

DYNAWRAP EXTENDED CORE

Allows the operator to grip the core extension for easy application.

film = 130 grams

= 39 grams

DYNA-BLUE

A pre-stretched wrap used mainly for wrapping food related items or in the protection of high value goods.

DYNAWRAP CORELESS

The ultimate environmentally friendly product. With a unique manufacturing process, the film is wound without a core and is applied with a reusable dispenser, eliminating cardboard and ‘end of roll’ wastage.

WHITE PALLET WRAP

Available as hand or machine wrap

White security stretch film disguises your palletised goods to reduce risk of theft while providing excellent load stability.

VENTED MACHINE AND HAND FILM

As well as securing loads Vented pallet wrap offers your products the ability to breathe during transport and storage.

Vented machine wrap is a popular product for cold storage distribution centres, Agricultural transportation and forestry industries.

The benefits:

Air Flow Stretch Wrap permits condensation to leave the pallet, as a result protecting your goods.

Die cut holes allow for products to cool faster and evenly which reduces cooling costs

Unlike any other stretch film, Air Flow Stretch Wrap does not have a freeze breaking point

Bespoke Printed Hand & Machine Wrap

Make your pallets stand out by having your company logo, or unique message printed on your pallet wrap.

Simply let the Test Valley design team know what your specifications are and we will get your design made to order.

Elasticity up to 70% 100% Recyclable

Please note printed machine film is not recommended for use on a power pre-stretch machine as the stretching of the film through the rollers can distort the print.

Test Valley introduce Dyna-Grip

Dyna-Grip has been developed to increase stability and the safety of pallets by reducing or eliminating movement of goods during shipment. This has been achieved by coating both sides of the paper with a water based acrylic to give the non-slip characteristics.

With a high coefficient of friction and ample thickness, Dyna-grip enables use as both a pallet liner and an interleaving paper.

Dyna-grip can be palletized with up to 5000 sheets per pallet thus improving the operating efficiency as well as creating a reduction in the storage area for pallet liners of up to 90%.

The advantages of Dyna-grip

Stabilizes your palletized loads by increasing the coefficient of friction.

A low unit cost. It compares well with cardboard separator sheets or corner boards.

Can be reused for your internal handling needs. Waterproof and therefore protect your products from humidity rising out of the pallet.

Grip Sheets can be used manually as a conventional separator sheet or in some cases used with robot palletizers allowing for separator sheet pick-up by suction cups.

Grip Sheet is effective whatever the weight, type of load or nature of the packaging (film, paper, plastic, cardboard). It will protect your packages without soiling or tearing.

Protects your load from potential damage that may occur from protruding nails or exposed splinters of wood on the pallet.

HANDIWRAP

Small scale handfilm for collating, bundling and securing everything from small boxes or parcels. Applies quickly with ease leaving no residue on the product. This product is an economical alternative to tape, strap, twine.

• Good cling - adheres to itself

• No sticky residue left on product surface

• 150 metres of film, stretchable to over 300m in use

• Protects against dust, moisture and abrasions

• Quick and easy to use

Dyna-grip is available in bespoke quantities and sizes. Contact the sales team for more information.

Handiwrap Dispenser

Bundling enables the rapid application of Handiwrap in a bundling application. Simply pushes through the core and clicks into place. Designed to allow tension control

Heavy Duty Dispenser

This ergonomic heavy duty dispenser has a robust tubular construction and adjustable tension control, weighs 1.80kg. Ideal for wrapping standard core pallet stretch film.

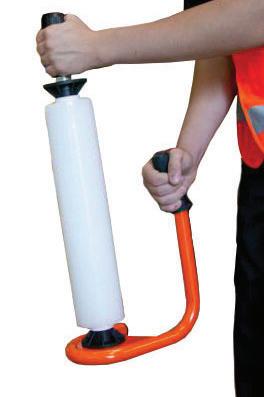

Pallet wrap Dispenser

Our most popular tool for dispensing pallet wrap, with an extending function to allow either 400 or 500mm core lengths. Easy to hold and to operate, the top handle winds in and out to provide tension to the unwind.

PALLET WRAPPING MACHINERY

Test Valley Packaging works in partnership with Aetna UK in finding the best solutions for your pallet wrapping needs.

Aetna UK have been established in the United Kingdom for over 20 years and in that time have become market leaders in the automatic stretch and shrink pallet wrapper production. In association with Aetna carry out all their own installations as well as preventative maintenance, emergency cover, and spare parts supply on all systems using UK based engineers.

Aetna supply a very wide range of machinery for pallet wrapping and other wrapping applications.

We

• Free demonstration

• Installation & Training

• Quality UK built machines

• Wide range of machinery

• Free consultation Contact

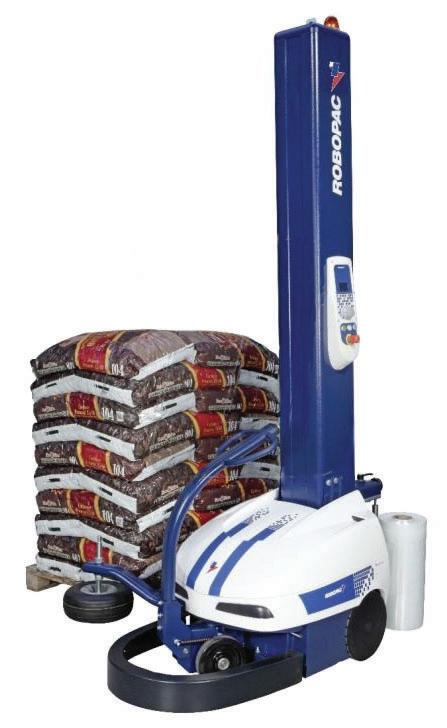

ROBOPAC SISTEMI, is a brand of automatic wrapping machines established by Aetna, established in 1985, is world leader in the production of systems and fully automatic stretch film wrapping machines for palletized loads. The Company stands out for its great capacity to provide customized and innovative solutions in both performance and reliability.

TWO TYPES OF WRAPPING MACHINES

As well as being a market leader in supplying traditional pallet wrap machines Aetna have developed two styles of automatic wrapping machines. Below are just two examples of the different styles of machine available. The Helix 3 which is an automatic rotating arm stretch wrapping machines and the Rotoplat 3000 which is a automatic turntable wrapping machine.

Automatic rotating arm stretch wrapping machines

Helix machines represent the ideal solution for wrapping light, easily deformable, unstable loads and are present in most market segment fields.

For

example the HELIX 3

PGSM CARRIAGE

• single motor on board

• fixed pre-stretch up to 340%

• optional kits for different pre-stretch ratios

• up to 12 containment force values on the same load

• Containment force/corner compensation: load cell

• Can be equipped with reels h. 500 mm – 20” (STD) or h. 750 mm. – 30” (OPT)

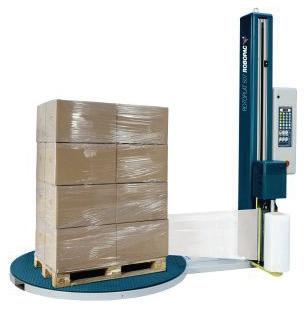

Automatic turntable wrapping machines

Platform rotation speed, acceleration and deceleration are controlled by a frequency inverter; this guarantees that the turntable always stops in correct position regardless of the load weight and ensures it is always aligned with the infeed and outfeed conveyors, assuring correct pallet supply and unloading. This soft start and soft stop also helps with wrapping unstable loads.

For example the ROTOPLAT 3000

PGS CARRIAGE

• Single motor on board

• Fixed pre-stretch up to 300%

• Optional kits for different pre-stretch ratios

• Up to 12 containment force values on the same load

• Containment force/corner compensation: load cell

• Can be equipped with reels h. 500 mm – 20”(STD). Or h. 750 mm. – 30” (OPT)

HEAT SHRINK SYSTEMS

Heat shrunk polythene provides a very strong and secure load, and can be applied in virtually any situation. Heat is applied by the operator with a gas fuelled heat gun and the material shrinks around the load holding it in place.

POLYTHENE SHRINK FILM COVERS

Polythene shrink film

(LDPE) is still a relatively inexpensive method of packaging most goods that need to be transported, the shrink film covers are supplied perforated on a roll for quick application This extremely light product adds very little to the weight of the product, offers excellent protection from the elements and displays a degree of puncture resistance.

Width

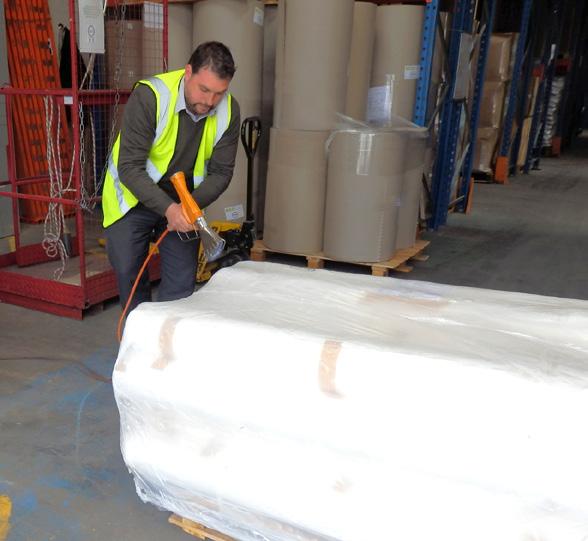

RIPACK 2000 HEAT GUN

Code: RHG

The Ripack Heat gun is a professional tool and is highly developed to give users greater control and increased safety.

The key features are:

• Double safety adjustable regulator

• Cold touch flame guard

• 8 metre hose with swivel connectors

• Very short shrinking time due to wide span of the flame

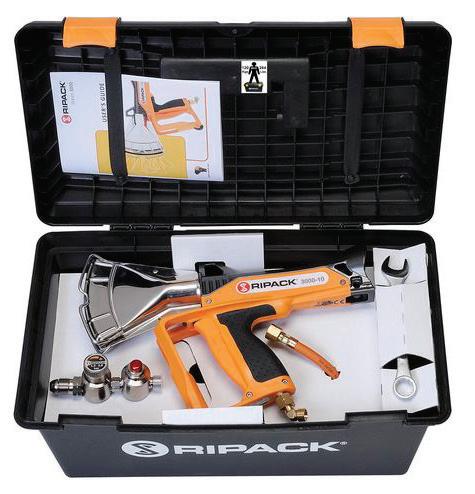

RIPACK 3000 HEAT GUN

Code: RHG3000

The new Ripack 3000 Propane Gas Shrink System offers all the features of the 2000 model plus:

Ripack 2000

The key features are:

• Ability to safely touch and rotate the nozzle

• Increased power increases productivity

• More comfort, improved handle grip

• Large suspension ring for hanging the gun from

• Comes complete with robust carry case

• Carrying case/footboard elevating the operator by 10" (27cm)

• A spare igniter is now stored in the handle and can be replaced without tools in less than a minute

• Weight of gun only 1.2kgs

Heat shrink guns can be used with polythene shrinkfilm covers see next page.

Ripack 3000

Length

Pallet Shrink

covers are

from a choice of high quality 400 or 600 gauge polythene.

Polythene Pallet Top Covers: Black/Clear

For general use on any type of pallet, these polythene top covers are a popular warehouse solution for pallet protection.

Widely used to protect the top of pallets from moisture and dirt. The pallet is then machine wrapped which holds the pallet top cover in place.

250 perforated sheets per roll.

Perforated, easy to tear off the roll.

POLYTHENE PALLET TOP COVERS: BLACK/CLEAR

This product requires the use of a heat shrink system see previous page. Test Valley Packaging can supply Polythene aircraft cargo sheeting. Contact our sales team for more information.

Gusset (fully open)

Cartons

Polythene Products

Cushioning & Papers

Void fill & Protection

Load Stability Adhesives & Tapes

Mailing Products

Packing Equipment & Tools

Pallet

made

POLYPROPYLENE STRAPPING

Wound on a cardboard core. Suitable for all semi and fully automatic strapping machines and hand held devices.

Resistant to abrasion, moisture, chemicals, ageing and scuffing yet flexible enough to mould over edges and rough surfaces - making it ideal for shipping and export.

Polypropylene strapping is perfect for strengthening pallets and making parcels more secure. It can be safely used on pallets that will be stored for long periods, or moved over long-distances.

POLYPROPYLENE STRAPPING MACHINES

Semi-Automatic - for medium parcel volume

CODE: TB201

The Semi-Automatic machine is very simple to use with the strap being passed around the parcel, inserted into the sealer head and the machine tensions up the strap, seals and cuts to present a tight and neat band.

Features

• Dimensions - 920mm width x 595mm depth x 785mm height

• Tension - 15-45kgs

• Strap Width - 12mm as standard (can be modified to accept 6mm -15.5mm)

• Strapping Speed - 2.5 seconds / cycle (60Hz)

• Power Supply - 230v / 50Hz

• Power Consumption - 0.3kw

• Weight - 100kg

TB201 Semi Automatic Strapping Machine

POLYPROPYLENE HAND STRAPPING SYSTEMS

When strapping pallets, irregular sized parcels or when your demand for strapping is not constant, then hand strapping systems are able to provide a solution. All hand strapping systems in this section are easy to use and designed for durability.

CODE: P230

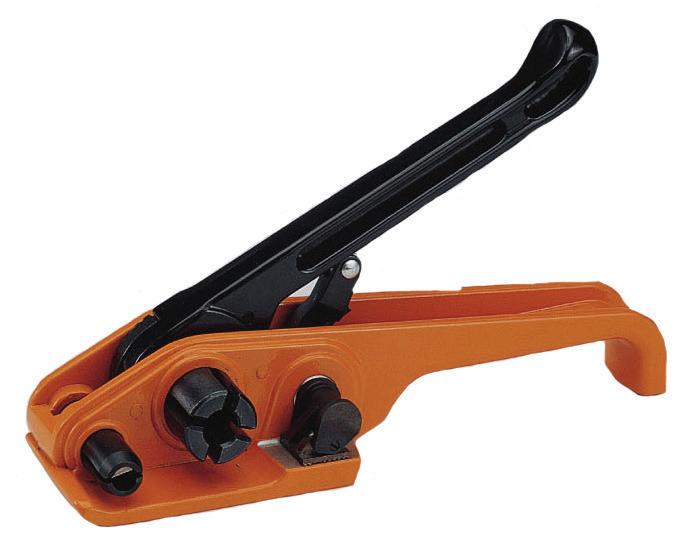

Strongly constructed hand tensioner which takes strap 1216mm in width. The simple ratchet action tensions up to the level you require and holds it while a seal is put round the straps to hold in place.

CODE: P380

A heavy duty hand tensioner which takes strap 12-16mm in width. Being virtually unbreakable, this tensioner works well in open yards and in areas of rough treatment.

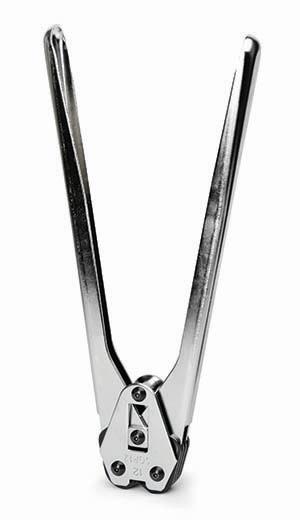

CODE: C3014

Strapping sealer with high powered jaws to crimp the seals around the straps. Designed to be used with semi-open seals.

CODE: PSD

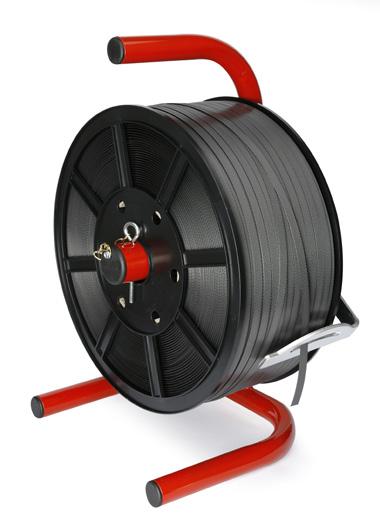

A static strapping dispenser with a feed arm which controls dispensing of the strap.

CODE: PMD

A mobile strapping dispenser with a feed arm which controls dispensing of the strap. The unit includes a tray for storing strapping seals.

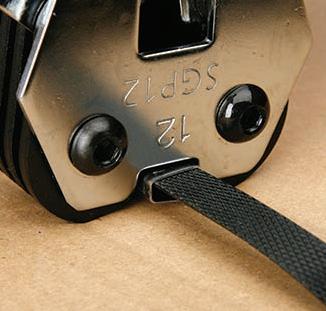

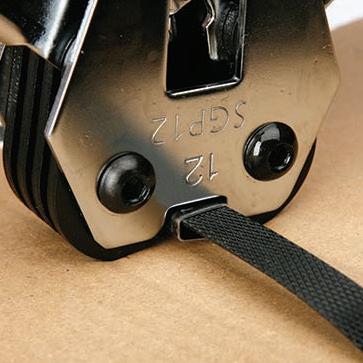

CODE: SPC12

The standard combination tool which combines the tensioning and sealing actions all in one, providing a solution for most industrial applications. To be used with 12-16mm strap.

Polypropylene strapping can also be printed with your message.

POLYPROPYLENE MACHINE STRAP

STANDARD HAND TENSIONER HEAVY DUTY HAND TENSIONER

STATIC STRAPPING DISPENSER MOBILE STRAPPING DISPENSER

STRAPPING SEALER

STANDARD COMBO TOOL

POLYPROPYLENE HAND STRAP

Strong, light and flexible, conforms to awkward shapes. Ideal for most strapping applications from cartons to light pallets.

HAND STRAP

POLYPROPYLENE STRAPPING ACCESSORIES

Strapping Seals

Steel crimp seals used in conjunction with a strapping sealer or combination tool.

STRAPPING SEALS

STRAPPING

Narrow strap Fibre based webbing strap

• Very high tensile strength and more absorbent to dynamic stress

• No sharp edges to affect load and can be re-tensioned if load settles

• Very versatile; can be used in multiple ways on virtually any material

• Much lighter and easier to handle than steel strapping

• Does not cut hands and doesn’t require protective clothing to use it.

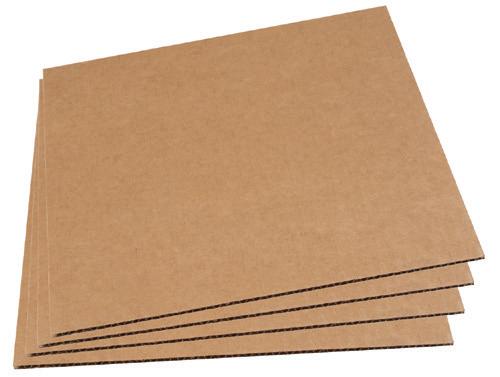

SHEET BOARD

Sheet board can be produced in any size and used as dividers, pallet stabilizers, base protectors and top boards. We also hold a range in stock for call off in pallet quantities.

Plastic Corner Protector

Plastic corners to prevent crushing or cutting where the strap is tensioned on the corner.

Strapping Buckles

Self-securing buckles which remove the need for seals. Feed the strap through the buckle and tension - job done.

CARDBOARD EDGE PROTECTION

PLASTIC CORNER PROTECTORS STRAPPING BUCKLES

PALLET PROTECTION

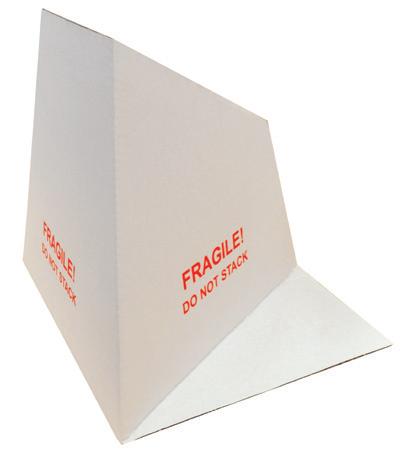

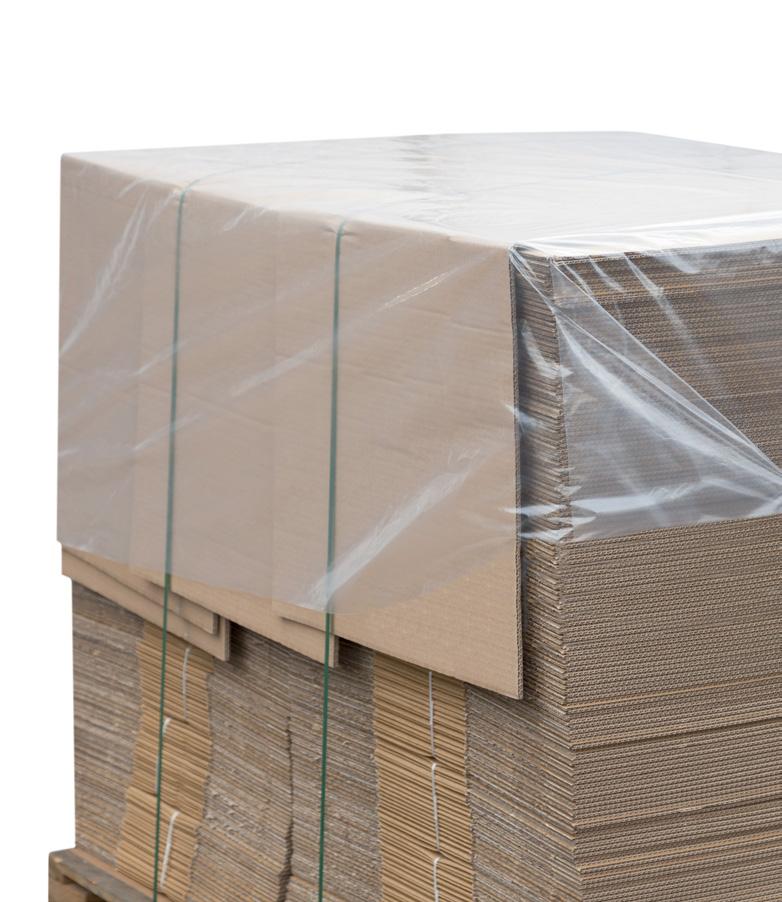

Pallet Top Insert

Designed to protect products from being stacked upon. Flaps allow the upright insert to be stabilized with shrink wrap.

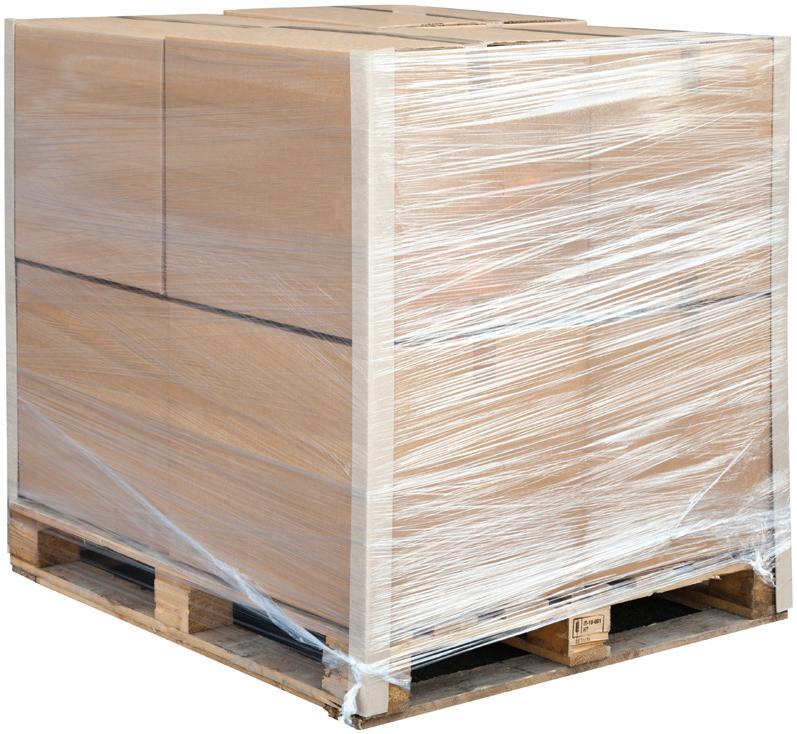

Edge protectors can be used to aid protection of loads under stretch film or strapping on the pallet vertically or horizontally for complete all round protection.

• Stabilise

• Protect

• Reinforce

Edge protectors: Pallet loads during transit and storage.

EDGE PROTECTION

SHEET BOARD

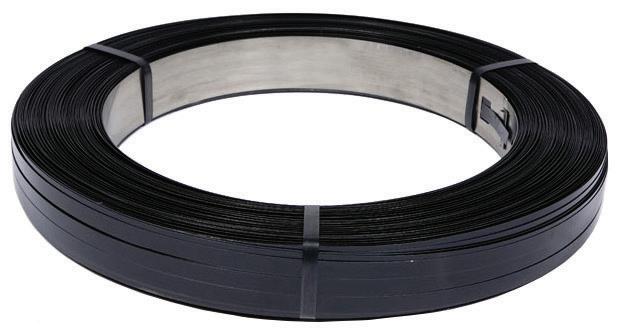

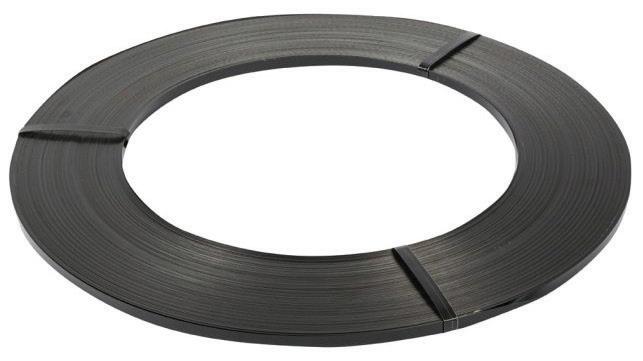

Steel Strapping

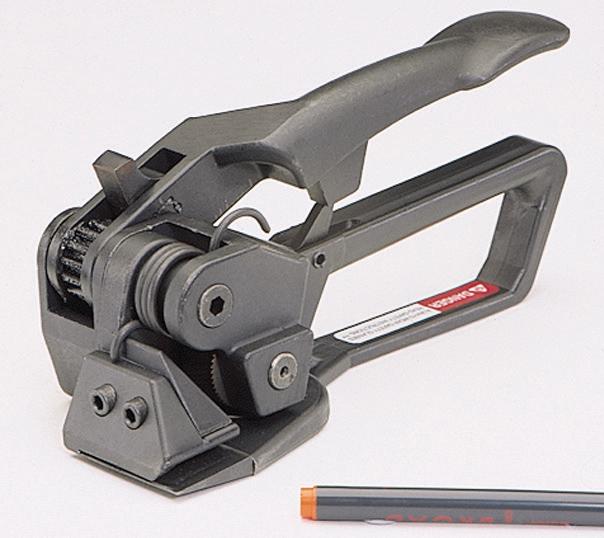

Steel Strapping Equipment

Steel Strapping Tools for use with cold rolled steel straps. Quality categories are mid range for low to medium usage, and premier range tools manufactured to last many years in high usage applications.

PRO-SERIES TENSIONER

PRO-SERIES SEALER OPTIMAX COMBINATION

Strapping Seals

Our seals are made from strong galvanized steel and are one of the more practical choices for those using steel strapping.

Lap-over Seals

Provides a strong joint when securing loads with steel strapping.

Snap Seals

Provides a strong joint when securing loads with steel strapping.

Packing Twines

Polypropylene Twine

A lightweight white reel of twine that is used mainly for packaging and gift wrapping.

Rayon string

Traditionally used in the butchery industry, has, due to its incredible strength found uses outside of its traditional market.

RAYON STRING

CODE: TLS20

The standard tensioner for steel strapping, designed for flat surfaces. With a capacity up to 19mm strap width, the Pro-Series tensioner has a strong steel construction and a reliable operation.

A strong, simple design with a good lever action to provide a simple sealing process. Produced in three sizes for the most common strap widths.

CODE: TS13 13mm

CODE: TS16 16mm

CODE: TS19 19mm

CODE: SC1219

A superb combination tool which not only combines the tensioning and sealing, but applies a seamless joint eliminating the need for seals. It is designed to take all three standard widths of strap, 13, 16 and 19mm.

RIBBONBOUND

CODE: SSC06

Cutting steel straps on a tensioned load has always been a risky process, however these simple tools have rubber pads that grip the strap tightly and then shears the strap. This removes the lash back normally experienced when opening steel straps

CODE: SD32

A mobile coil holder for ribbon wound steel strap allowing straps up to 32mm to be dispensed. This dispenser maintains the coil during use and ensures a smooth unwind.

CODE: MW60

A mobile coil holder for the oscillating steel strapping. The coil is firmly clamped between plates and the unwind is regulated by a feeder arm.

STEEL STRAP CUTTER

DISPENSER OSCILLATING DISPENSER

CASE SEALING TAPES

PVC TAPE 66 METRE ROLLS

A PVC backed box sealing tape with a solvent natural rubber resin adhesive primarily used for single strip box closure.

POLYPROPYLENE TAPES

Solvent Low Noise has an excellent grab & resistance to temperature fluctuations ideal for busy packing departments where noise can be a problem. 28 micron film and acrylic or solvent adhesive for low cost volume usage ideal adhesive tape for carton sealing and general packaging.

Solvent adhesive will stick to most surfaces in a wide range of temperatures as low as minus 20° Celsius so it is ideal for use in chilled environments such as in some areas of the food industry.

Hot melt based adhesive provides a strong adhesion to corrugated cases and general packaging. A general purpose, cost effective packaging tape available in both clear and tan.

Pressure sensitive adhesive coating makes this tape ideal for corrugated packing, bundling and sealing.

Acrylic adhesives are a cost effective alternative to solvent based and hot melt tapes. A water based eco-friendly adhesive tape with excellent U.V. resistance. Acrylic adhesives provide excellent environmental resistance and faster setting times than other resin systems.

A unique 150 metre roll, combined with a superb dispenser, offering unparalleled performance in tape sealing solutions. E-tape gives you less roll changes and consistent quality.

A unique 150 metre roll, combined with a superb dispenser, offering unparalleled performance in tape sealing solutions. E-tape gives you less roll changes and consistent quality.

1

A strong robust tape made from polypropylene, that has a solvent adhesive, giving excellent strength and adhesive qualities.

E-TAPE BENEFITS

Excellence - Quality range and performance

Efficiency - Less roll changes, reduced operator downtime

Economic - 56% less storage space needed, exceptional pricing

Ergonomic - Designed with operator comfort in mind

Loading your e-tape dispenser

2

A strong, economical version of e-tape 1, that is made from polypropylene and has a hotmelt adhesive.

E-tape plus has been developed to overcome the traditional problems of acrylic tape, with a 25% increase of adhesive! The adhesion of E-tape plus compares favourably with solvent tapes.

SPECIALIST TAPES

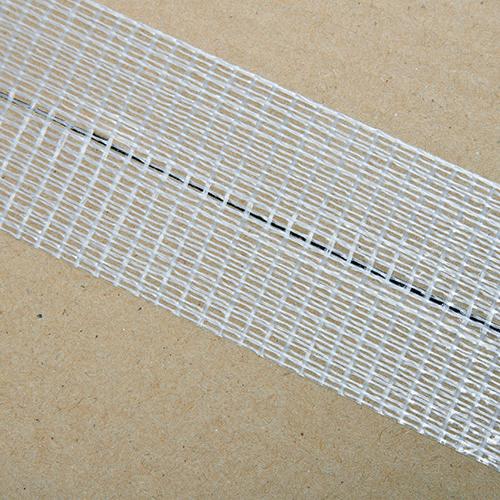

Crossweave Tape

Crossweave Tape is manufactured from polypropylene, reinforced with glass fibre filaments to provide a high tensile strength. With its abrasion, scuff and moisture resistance, Cross Weave Tape is particularly suited for heavy duty applications including strapping, multi carton binding and bundling pipes.

DOUBLE SIDED TISSUE TAPE

High quality double sided tape which is easy to peel, super strong and comes in various widths. Finger Lift Tapes are double sided tapes that offer a dry edge backing on both sides making backing removal fast and easy.

Fingerlift (50M)

DOUBLE SIDED FINGER LIFT TAPE (50M)

Flush Edge (50M)

DOUBLE SIDED FLUSH EDGE TAPE (50M)

Premium Quality Masking Tape

A high quality solvent based masking tape with superior grab and increased adhesion power.

Transfer Tape (33M)

Effectively glue on a roll. Transfer tape can be used to bond virtually all substrates with its high powered adhesion. Excellent for use in cardboard assemblies, print finishing or presentation mounting.

TRANSFER TAPE (33M)

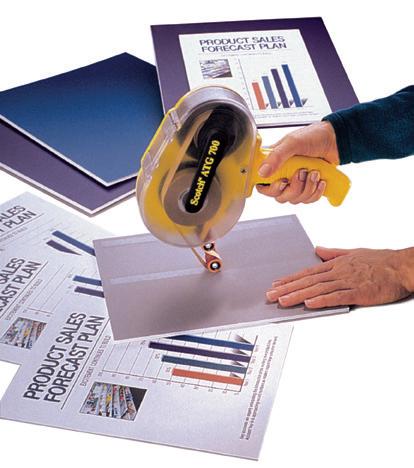

Transfer Tape Dispenser

Waterproof Cloth Tape

Versatile and robust cloth tape has an excellent adhesion for interior and exterior use. Withstands temperatures from -5°C to 60°C. Waterproof with a toughened plastic layer. Cloth tape is a very good product for sealing awkward materials in whatever situation.

The transfer tape has to be applied with a transfer tape gun and we recommend optimum results with our 3M branded gun which combines ease of use with consistent performance

CODE: 3MATG700

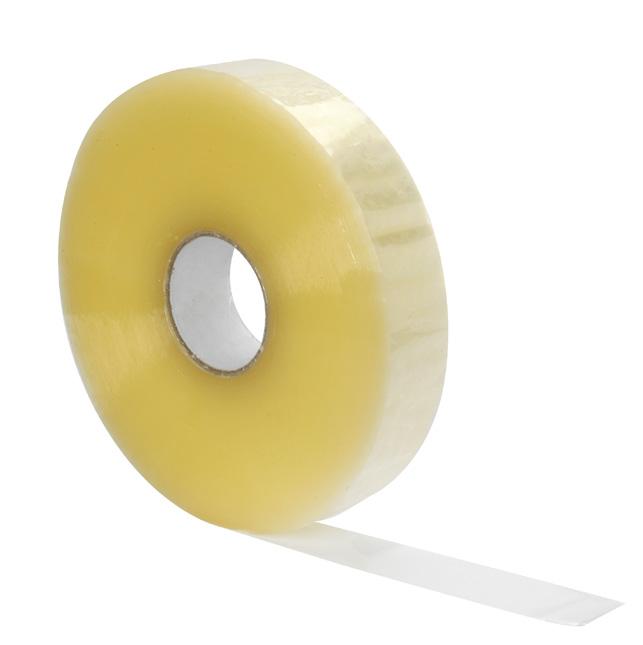

MACHINE POLYPROPYLENE 990 METRE ROLLS

Machine tape helps to increase the efficiency in sealing of regular sized cartons. Case sealing machinery can be integrated into a packing line as manual or automatic feed providing a consistent tape application.

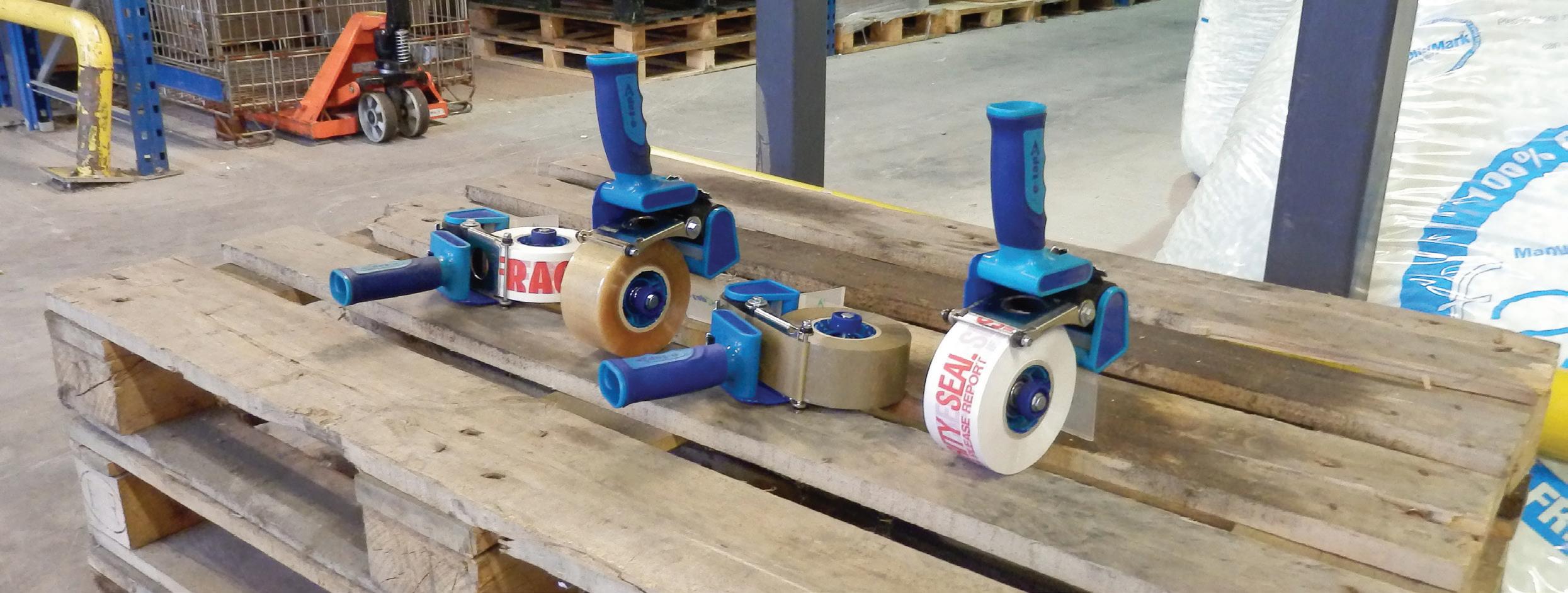

TAPE DISPENSERS

CODE: PD712

50mm pistol grip dispenser for standard tapes. Provides a good solid operation and easy application.

PRINTED TAPES

Standard Text 66 Metre Rolls (Low Noise)

Packing/Warning Tape 48mm X 66m (per roll). Large core perfect for tape gun, ideal tape for warehouse, office, or home.

STANDARD TEXT 66 METRE ROLLS (low noise)

Bespoke tape available (get your branding seen)

We can produce custom made professional standard printed tape in a wide range of materials and in large format with multi coloured printing. This approach can strengthen your brand, reduce bespoke carton costs and improve the security of goods in transit.

Call Test Valley Packaging on: 01722 414 800 for more details on how we can produce what you require with a competitive price guaranteed.

CODE: PD782

A deluxe 75mm version of the PD712/PD742 with a steel construction and safety blade feature.

CODE: PD742

75mm pistol grip dispenser for standard tapes. Provides a good solid operation and easy application.

CODE: PD702

A 50mm deluxe version of the PD712/PD742 with a steel construction and safety blade feature.

Test Valley Packaging are experts in creating bespoke printed: Tape, Cartons and Polythene Bags. We can help you develop your brand as well as protect your goods in transit.

CODE: PD221

A bag sealing dispenser which takes 9mm tape. The gathered bag head is pushed down through the mechanism which binds it tightly with a tape band.

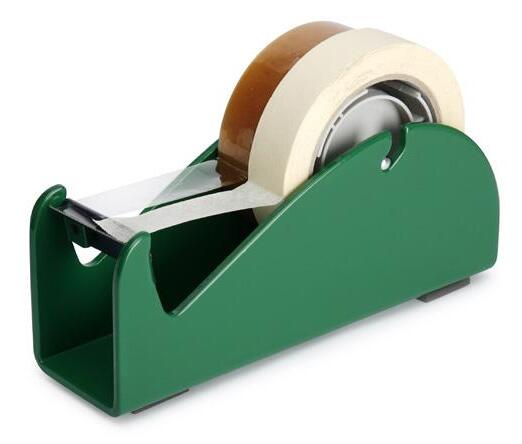

CODE: PD327

A 25mm bench dispenser for assembly and packing lines. Easy one handed operation and mobile.

50mm Crossweave Dispenser (Fully Enclosed)

CODE: PD150R

A fully enclosed 50mm crossweave tape dispenser with cutter.

CODE: PD332

A 50mm bench dispenser with a heavy duty plastic construction and extra strong core holder. Ideal for more demanding packing situations where extra heavy use is expected.

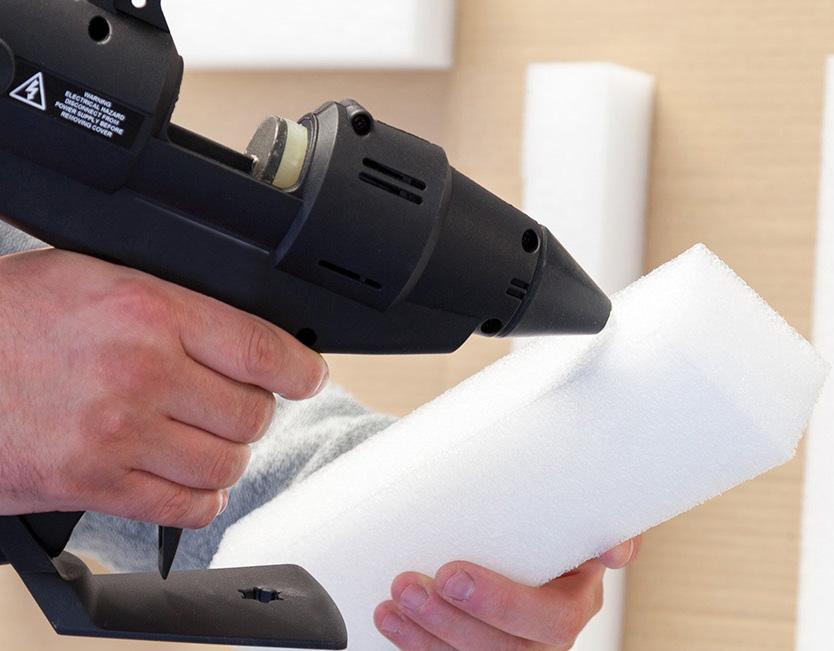

HOTMELT GLUE SYSTEMS

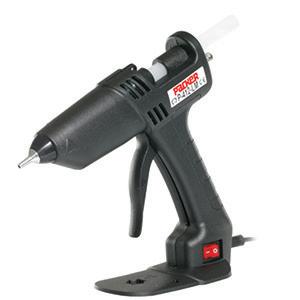

CODE: P-412

Glue gun for light industrial uses. 12mm Low melt glue sticks. Operates from 100-240v AC.

CODE: P-912-ECO

Economically priced blister packed tool powered by a self-regulating PTC heater allowing an adhesive output of up to 1.8kg/ hr. Tool weighs 450gms. Operates from 100-240v AC

CORDLESS GLUE GUN BUTANE POWERED

CODE: P-600G

Fully portable, powered with butane gas filled LEC™ cartridges giving about 1.5 hours use, refillable with standard cigarette lighter gas canisters. USES 12mm hot melt glue sticks. Piezo ignition with visible ignition indicator adhesive output up to 1.7kg/hr, weighs 390gms and has flip-up stand tool is blister packed and comes supplied with 2 refillable (LEC™) gas cartridges (empty)

Invaluable where no power source is available!!

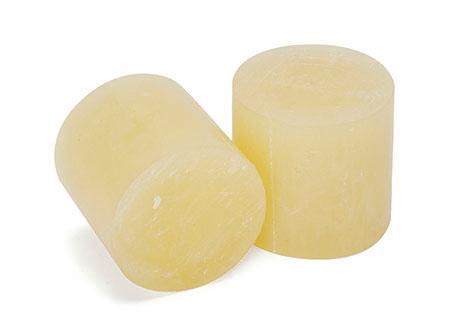

GLUESTICKS

All configurations and sizes of glue sticks and slugs are available in 2-3 days and can be put into stock when usage permits.

MANUAL STAPLING EQUIPMENT

HAND HELD STAPLERS

Test Valley Packaging are able to offer a variety of robust and reliable hand held staplers in various styles and sizes to suit many applications.

CODE: P543-ECO

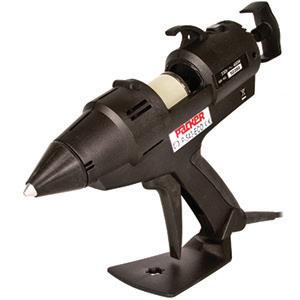

A professional, high capacity glue gun designed to take 43mm glue slugs. Extremely robust, all electric industrial glue gun with removable integral stand incorporating a nozzle spanner. The powerful 300 watt cartridge heater gives adhesive output up to 3.0kg/hr Weight: 1.15kg.

CODE: R31

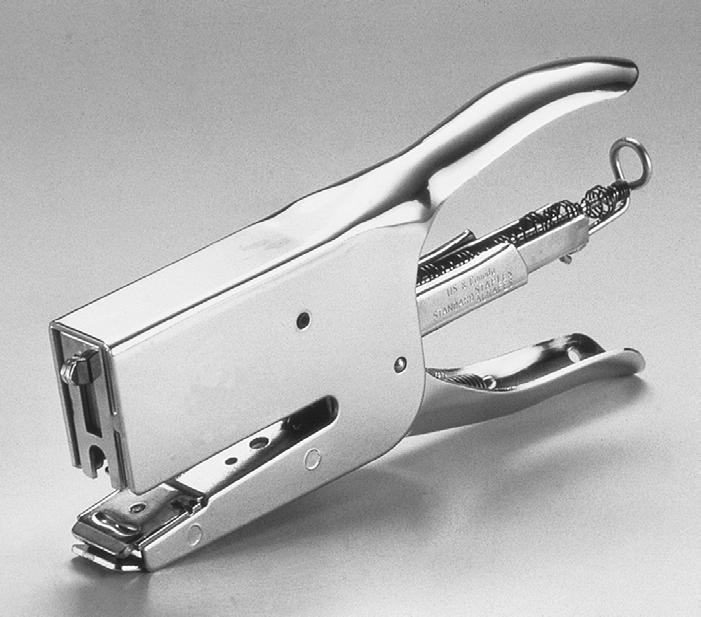

Heavy duty pliers with a capacity up to 70 sheets of paper. Ideal for use with cartons and mailing bags. Uses 78/8, 73/10 and 73/12 staples.

CODE: R1/24

General purpose stapling pliers with a capacity up to 50 sheets of paper. Uses 24/6 and 24/8 staples.

CODE: R13

Lightweight hand tacker for lighter duty applications. Ergonomically designed for easy use. Uses 13/4, 13/6, 13/8 and 13/10 staples.

STAPLES Hand Staples

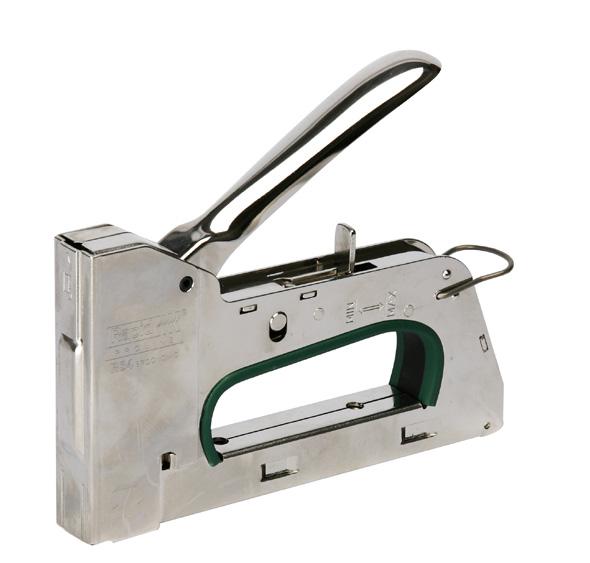

CODE: R34

Heavy duty hand tacker for stapling Cardboard, polythene and most fabrics. Fitted with a pressure adjustment to allow firing through tough materials. Uses 140/6, 140/8, 140/10 and 140/12 staples.

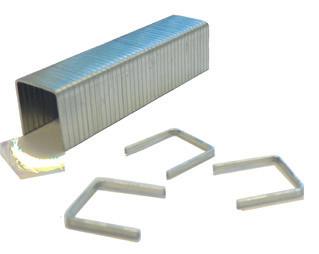

Wide Crown Staples

MACHINE STAPLING EQUIPMENT

Foot Operated Stapling Equipment

B561PN

A foot operated carton base stapler to complement the carton top stapler. With a long base arm to keep the operation at a comfortable operator height, this tool can be used to secure the base of cartons, staple large trays and join boards together where both hands are required.

Hand Operated Stapling Equipment

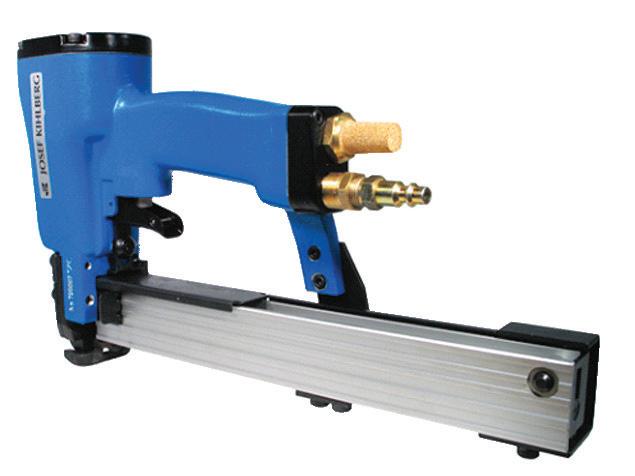

JK35-590

An excellent pneumatic, heavy duty hand tacker which provides an instant fixing solution for many materials.

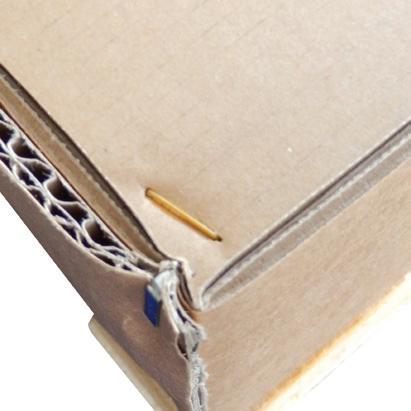

The wide crown staples used ensure that materials are not punched through but are secured to maximum effect. Widely used in securing cardboard packaging to wooden pallets to help secure loads in transit and prevent migration of large cartons.

COMPLETE PACKING LINES

C561

With perfect poise, a comfortable grip and a half-kilo (one pound) overall weight this tool is very easy to handle. One squeeze on the trigger always makes for perfect stapling, at any speed.

This extremely strong tool is made of fibre reinforced plastic, and all moving parts are metal. The rounded, clean lines are ergonomic, giving you get maximum efficiency job after job.

Select the staples and leg lengths

The C561 top stapler is available in two variants; with leg lengths of 15-18 mm (5/8" to 3/4") and for 22 mm (7/8") leg length. The stapling depth is set by means of a simple knob on the front of the tool (which has five Positions). The change between 15 and 18 mm (5/8" and 3/4") leg lengths is made by a screw at the front.

Test Valley supply automatic packing equipment For large scale packaging operations. These include: Case Erectors, Case Sealers and Case loaders.

A range of modular machines that provide a range of semi–automatic and fully automatic solutions, including turnkey lines are available to order.

We offer complete packing lines incorporating either robotic or cartesian pick and place case loading devices. These products are designed to simultaneously address customer demand for improved product protection while delivering substantial reductions in packaging and product waste.

Case Erectors

An extensive range of case erecting machinery is available to order. Delivering a high quality of performance, reliability and usability.

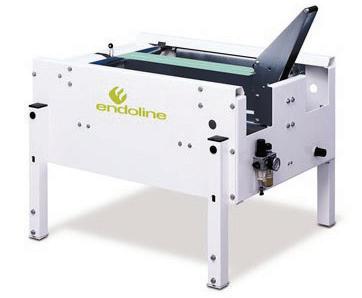

Case Sealers

Our high specification case sealers are designed to increase the productivity and efficiency of your case sealing operation.

Case Loaders

Our case loading and packing machinery offers a highly efficient solution for packing products into cases, trays or crates.

C561

JK35-590

B561PN

BUBBLE LINED MAILING ENVELOPES

Bubble lined mailing bags are a lightweight economical packaging solution that provide tear, puncture and impact protection along with strong, tamper proof, self seal closure.

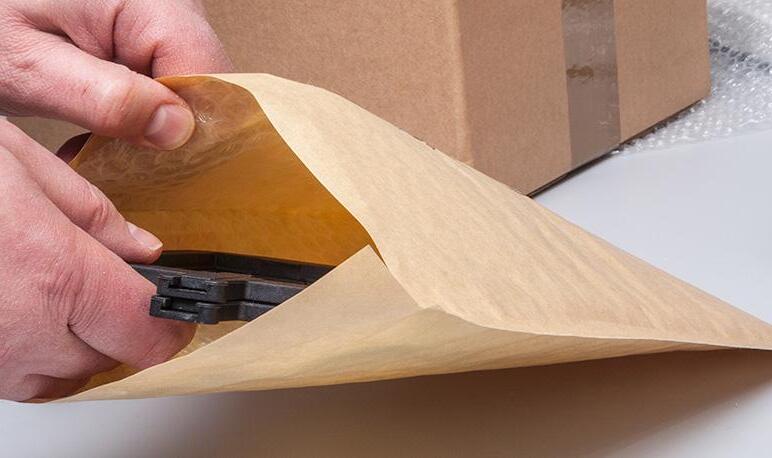

Envosafe Secure 140gsm Kraft

These premium mailing bags provide a strong and secure method of mailing items. They come with a self-seal strip for easy packing.

Envosafe Protect 100gsm Kraft

Robust mailing bags for the easy mailing of lightweight products, complete with a self-seal strip.

ENVOSAFE PROTECT 100gsm KRAFT

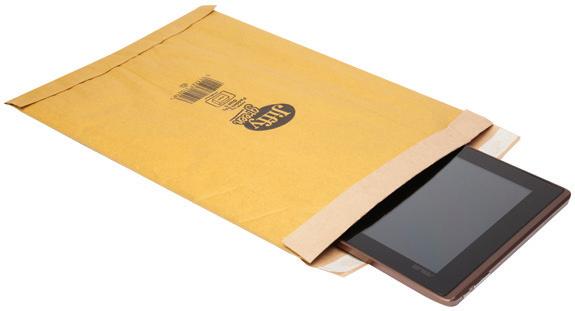

JIFFY PADDED MAILING ENVELOPES

Very strong mailing envelopes for the transportation of heavy products.

The traditional mailing bag which has a tough kraft outer and a 100% recycled material inside liner.

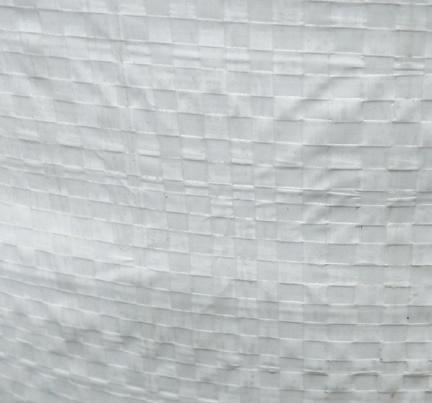

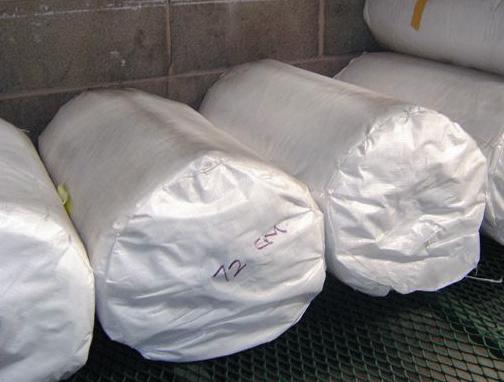

WHITE WOVEN POLYPROPYLENE

Durable, scuff resistant material ideal for covering heavy products or fabrics in transit or storage. Used extensively in industry.

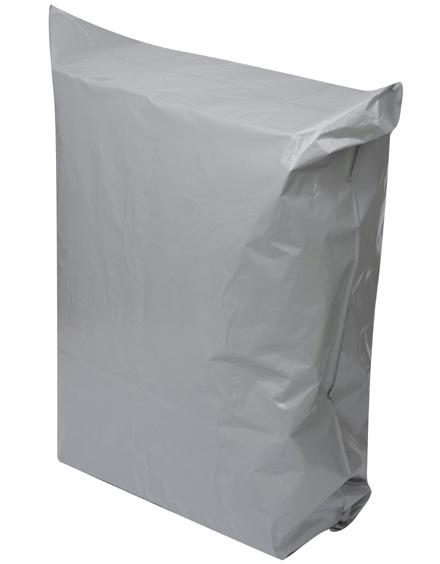

POLYTHENE MAILING BAGS

Polythene mailing bags which are very tough and puncture resistant. Complete with an extended lip and permanent self-seal strip.

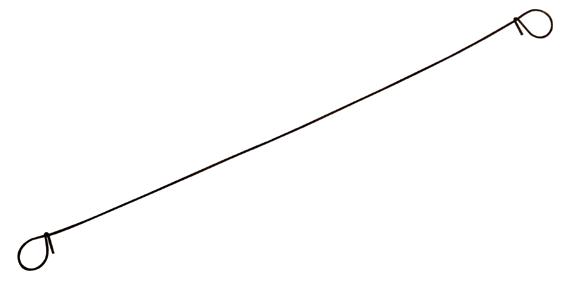

Wire Ties

High tensile, wire ties for securing polypropylene tubing, paper sacks and binding metal components.

Ratchet Twist Tie Tool

Specially designed to secure wire ties

POSTAL TUBES

The original postal tube provides excellent protection for a whole range of products. Available in various lengths, diameters and wall thicknesses and can be supplied with end plugs or folded ends.

DOCUMENT ENVELOPES

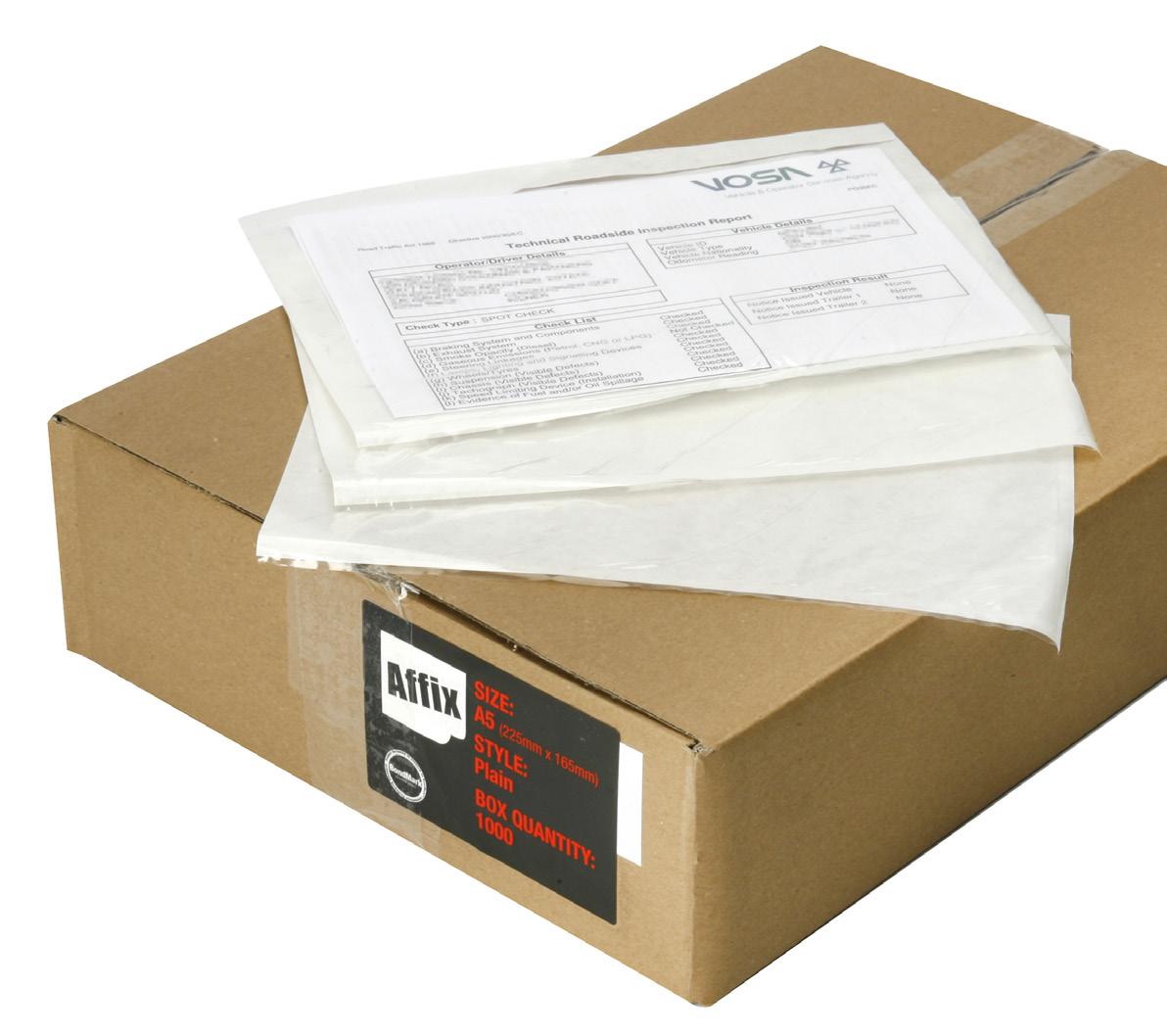

Plain Document Envelopes

Durable polythene envelopes with white, selfadhesive backing and clear front. This product offers maximum visibility for delivery notes.

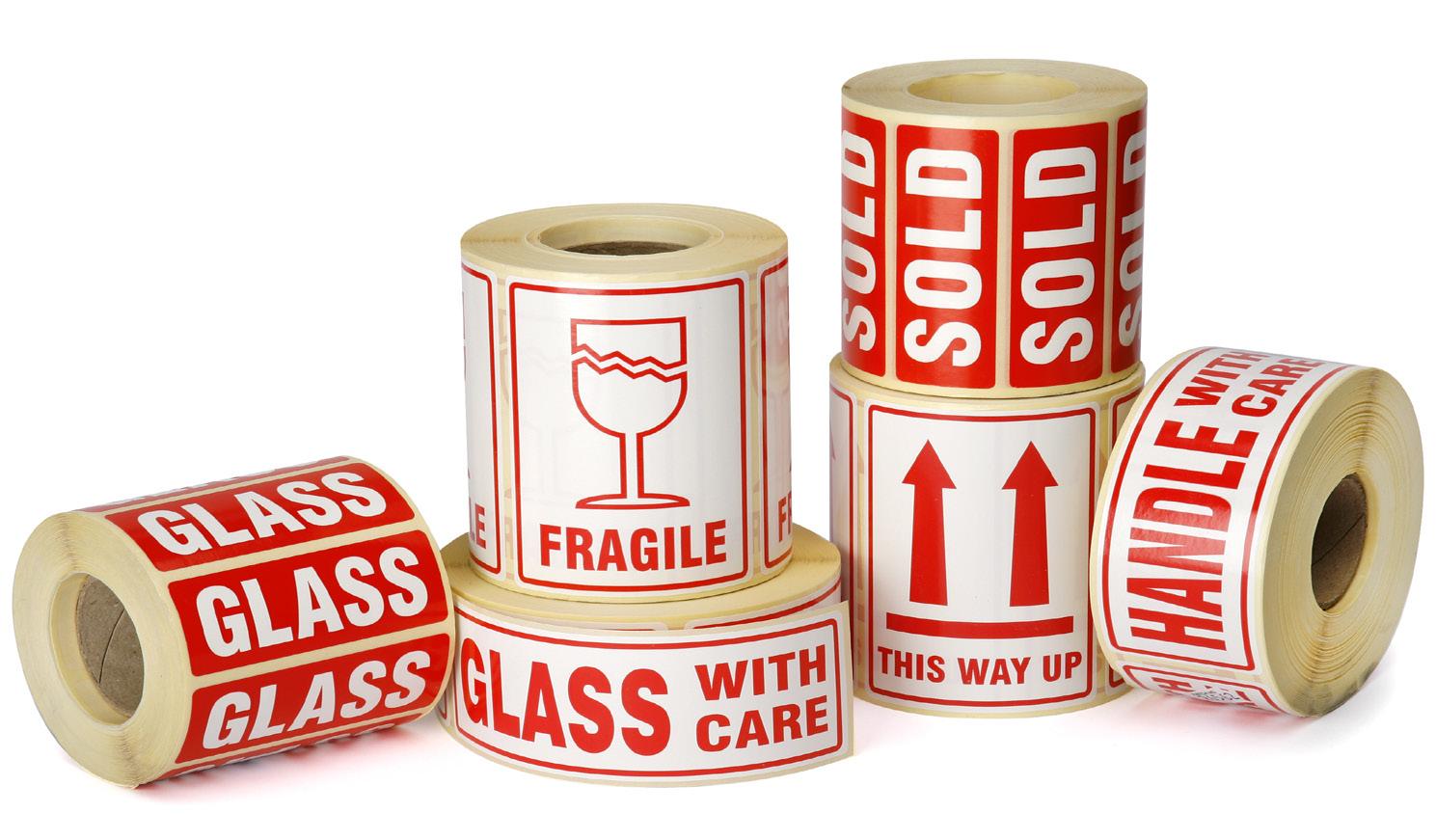

PARCEL LABELS

Ensure that your product arrives in the best condition possible with our range of bold and easy to read packaging labels which provide a cautionary message. These easy to use parcel labels come with permanent peel-and-stick adhesive to attach securely to cartons and pallets.

Printed Document Envelopes

Durable polythene envelopes with white, self-adhesive backing and clear front, printed ‘DOCUMENTS ENCLOSED’ in red.

Printed Self Adhesive Pouch Tape

Printed, clear self-adhesive tape with a low tack panel for your documents. For use with a dispenser for easy application.

Document Pouch Tape Dispenser

A Tape Dispenser which dispenses the pouches quickly, easily and effectively. Fully adjustable and simple to use product that can be fixed to a table or wall mounted.

PACKAGING LABELS 89 x 32

PACK Qty

VL89DE 89 x 32 DOCUMENTS ENCLOSED 1000

VL89FR 89 x 32 FRAGILE 1000

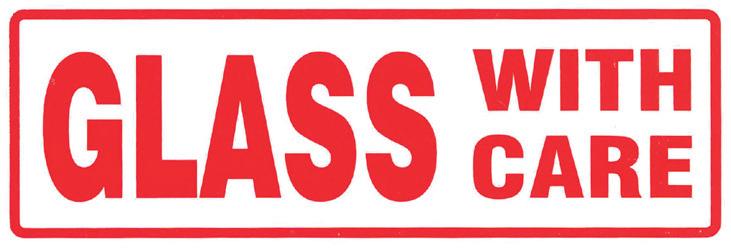

VL89GL 89 x 32 GLASS 1000

CUTTING TOOLS

RETRACTABLE KNIFE

ECONOMICAL KNIFE

with a holster so that your knife can be stored safely, just at hand.

CODE: K100

HEAVY DUTY KNIFE

The traditional retractable knife in an ultra slim metal case which

An economical, plastic cased retractable knife with a snap-off

CODE: CK18

RETRACTABLE KNIFE

ECONOMICAL KNIFE

A unique corner-cutting knife for accurate cutting of cartons. The 90° guide ensures protection for the goods within the box.

CODE: ACK

HEAVY DUTY KNIFE

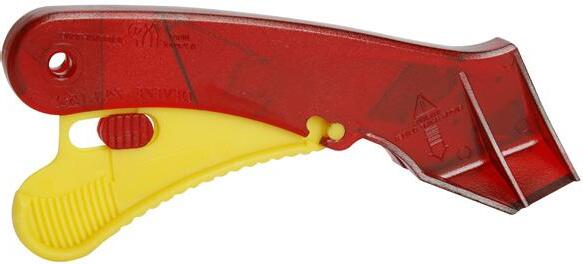

A lightweight stretchfilm cutter which ensures protection for the user and the products.

CODE: EFC12

REPLACEMENT BLADES

Keep your knives in the best possible working order with a selection of replacement blades.

CK18B HDK2B

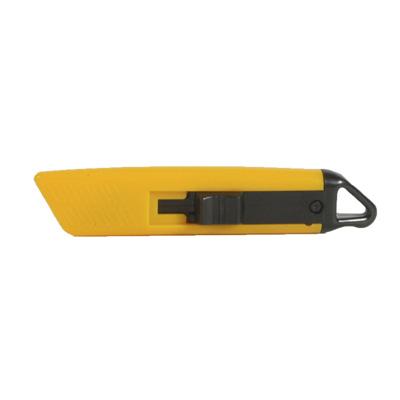

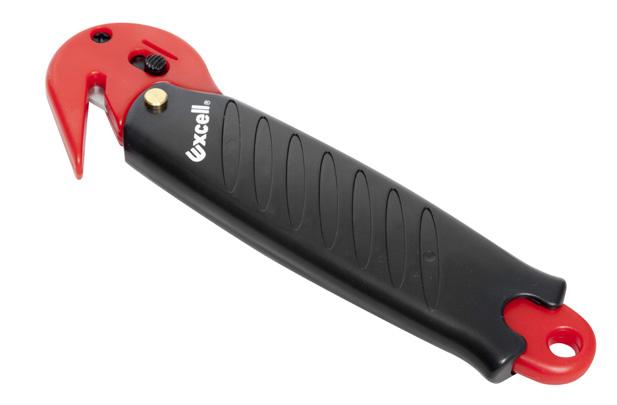

A robust safety cutter ideal for opening cartons and strapping.

CODE: MA1

18mm spare snap off blades pack quantity 10, compatible with the CK18 knife.

CODE: CK18B

The classic double pointed blade pack quantity 5, compatible with the K100 and the K200 knife.

CODE: HDK2B

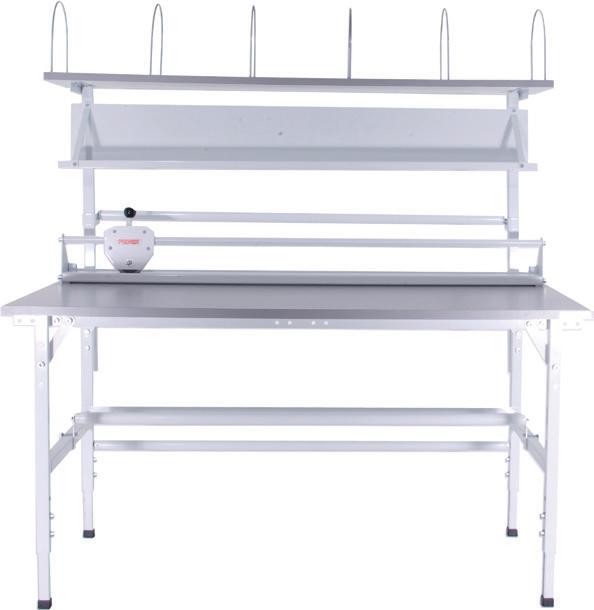

PACKING STATIONS

We supply complete packing stations and modular units which can be assembled to maximize the efficiency of your packing operation creating extra working and storage area space.

All packing stations are high quality and robustly constructed from 27mm thick heavy-duty work tops with ABS edged grey laminate surfaces, supported on white coated steel frames that can carry up to 400kg evenly spread.

The tables are height adjustable between 70cm to 92cm as standard. Supplied flat packed with assembly instructions.

PACKING STATIONS

CODE: 60-253

CODE: 60-254

CODE: 60-252

CODE: 60-251

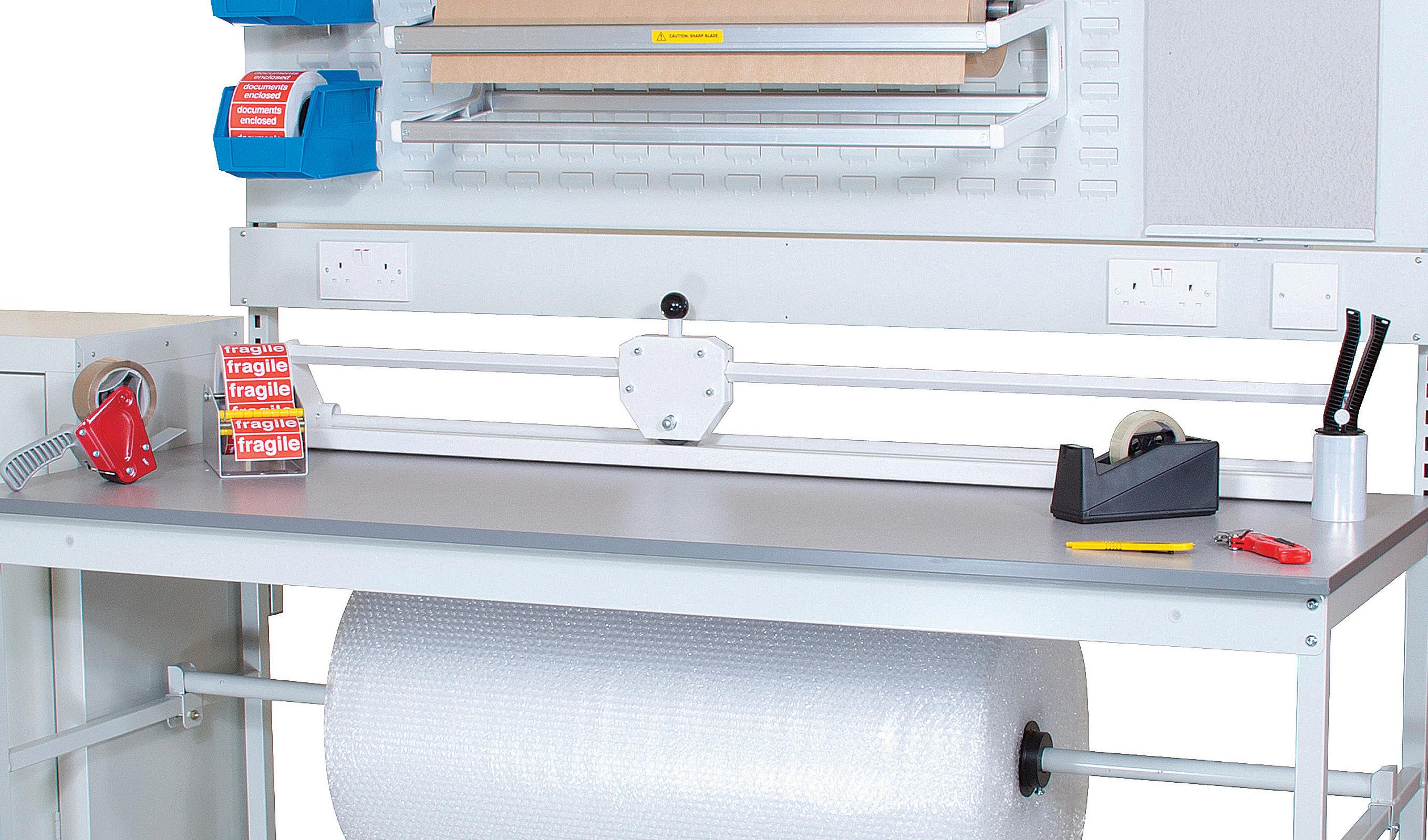

Complete wrapping bench W160cm x D80cm x H70-92cm

• Sturdy, adjustable height, work table can hold up to 400kg evenly spread

• 120cm cutter under table roller for Kraft, corrugated or bubble film

Complete work station W160cm x D160cm x H70-92cm

• Sturdy, height adjustable tables can hold 400kgs evenly spread

• Comprises of full size table with half table extension

• Incorporates handy equipment drawer

CODE: 60-256

CODE: 60-257

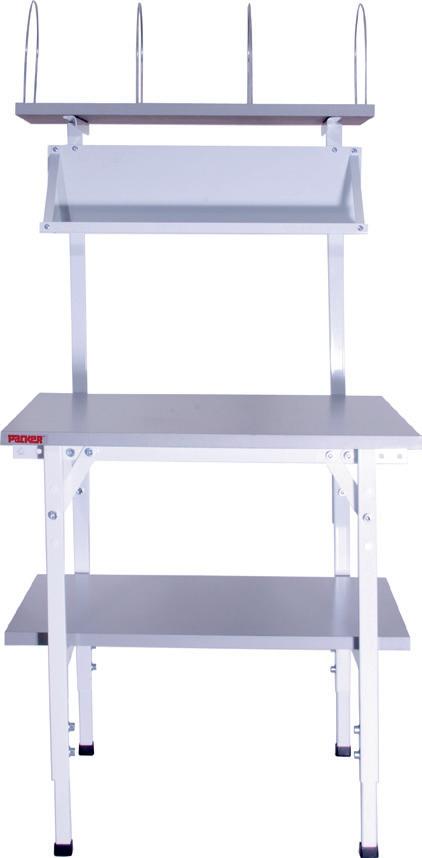

CODE: 60-252 Complete space saver packing station W80cm x D80cm x H162184cm

All that is needed for speedy and efficient packing for dispatch where space is a premium, includes storage for cartons and equipment

Sturdy construction and ergonomic design with height adjustable table self assembly, supplied with easy to follow instructions.

CODE: 60-251 Complete packing station W160cm x H162-184cm

All that is needed for speedy and efficient packing for dispatch, with storage for cartons, wrappings and equipment Includes 120cm cutter for Kraft, corrugated or bubble film

Sturdy construction, tables can support up to 400kgs evenly spread ergonomic design with height adjustable table

Self assembly, supplied with easy to follow instructions.

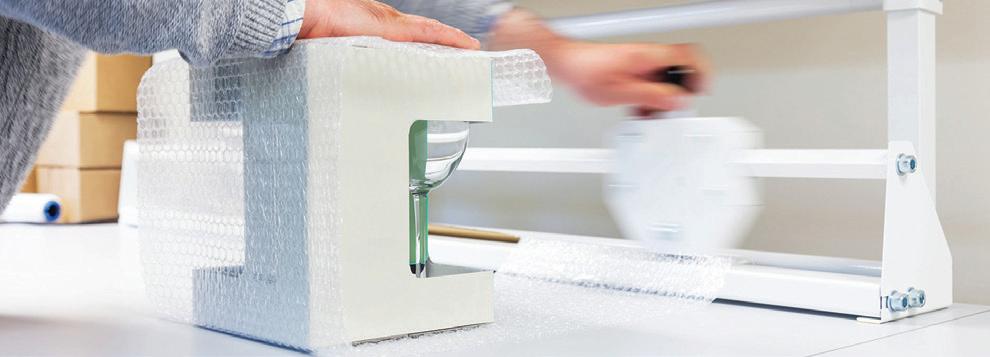

Complete mobile 120cm cutter station W154cm x D71cm x H117cm

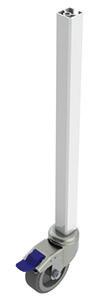

• Locking castors on each leg for easy mobility

• Separating bars to facilitate feeding and cutting of Kraft, corrugated and bubble film

• Replacement cutter blades available

Complete mobile 150cm cutter station W184cm x D71cm x H117cm

• Locking castors on each leg for easy mobility

• Separating bars to facilitate feeding and cutting of Kraft, corrugated and bubble film

• Replacement cutter blades available

COUNTER ROLL HOLDERS

Robustly constructed with white enamelled die-cast chassis, designed to keep the roll positioned for easy cutting. Fitted with a serrated blade to tear Kraft, wrapping films and foils of a maximum 240 mm roll diameter. Free-standing as standard or with brackets for under counter hanging, wall-mounting or stacking available as accessories. Supplied flat packed with easy to follow assembly instructions.

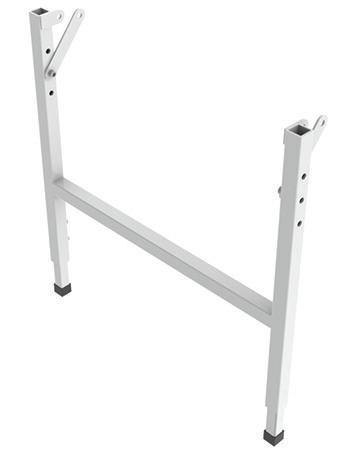

WORK STATION COMPONENTS

CUSTOMISE your packing operations to utilize your working and storage space with these high quality, robust INTER-CONNECTING UNITS. Build to suit your needs from easily assembled components constructed from 27mm thick heavy-duty work tops, with ABS edged grey laminate surfaces supported on white coated steel frames that can carry up to 400kg evenly spread.

TABLE HEIGHTS are adjustable between 70 cm to 92 cm as standard. Designed to allow easy layout change and additions to facilitate a packing operation that is able to develop alongside your business. Supplied flat packed with assembly instructions.

CODE: 60-331

CODE: 60-105 LOOSEFILL HOPPER

Stacking brackets for all models

Allows stacking of two holders for space saving. Two brackets required for holder widths up to 800 mm and three brackets required if stacking two 1000 mm width holders

Hanging brackets (pack of 3) for all CRH models

Allows under counter hanging of holder to save space on working surface

Have you seen? Kraft Paper, page 35.

Vertical, mobile cutter H162cm x L117cm x D86cm

Lockable Castors Suitable for Kraft, corrugated, bubble film and similar

Loosefill table and with hopper scaffold for use with LH2 (Dispenser bag sold separately)

Packed 1 x 30kg carton –900mm x 850mm x 120mm

(Dispenser Bag for use with Code: 60-105)

CODE: LH2

2 bags 30cu capacity

CODE: LH4

4 bags 60cu capacity

Wall brackets (pack of 3) for all CRH models

Allows holder to be wall hung to save space

CODE: 60-102 CODE: 60-102 CODE: 60-200

Extension table with legs one end only.

W80cm x D80cm x H70-92cm

Allows extension to table length or can be fitted at right angle to main table, all fixing brackets provided.

Packed 1 x 23kg carton900mm x 850mm x 120mm from table level

Extension table with legs one end only.

W160cm x D80cm x H70-92cm

Allows extension to table length or can be fitted at right angle to main table, all fixing brackets provided.

Packed 1 x 40kg carton –1750mm x 850mm x 120mm

Table W160cm x D80cm x H70-92cm

Packed 1 x 45kg carton –1750mm x 850mm x 120mm

Allows for a completely free standing table.

WORK STATION MODULES

Customise your packing operation to utilise working and storage space with high quality, robust inter-connecting PACKING STATION & BENCH MODULES , Supplied flat packed and easily assembled.

Constructed from 27mm thick heavy-duty work tops, with ABS edged grey laminate surfaces supported on white coated steel frames that can carry up to 400kg evenly spread. Table heights are adjustable between 70 cm to 92 cm as standard.

CODE: 60-906

Top shelf accessory for space saver table

ANTI-FATIGUE MATS

CODE: 60-914

Leg extensions 10cm Incl castors (Pair)

CODE: 60-915

Leg extensions 10cm Incl locking castors (pair)

CODE: 60-703

Roller kit Table accessory

CODE: 60-900

Roller & top shelf accessories

CODE: 60-901

Table legs (Pair)

CODE: 60-301

Mobile stand for 120cm cutter

CODE: 60-302

Mobile stand for 150cm cutter

CODE: 60-955

Lower shelf for 60-200 table W160cm x D60cm

A CHOICE OF TWO...

A Patented foam construction for use in dry environments. Prompts natural flexing of muscles. Excellent resilience, long lasting wear.

Multi-purpose robust construction for use in dry environments. Chequer plate patterned wear surface. High density foam backing

CODE: 60-956

Lower shelf for space saver W80cm x D60cm

CODE:

PLD-FLEX60 60 x 91 cm

PLD-FLEX60 91 x 150 cm

CODE:

PCX-HD60 60 x 91 cm

PCX-HD60 91 x 150 cm

CODE: 60-931

Storage drawer with fittings

CODE: 60-932

Replacement blade for rotary cutter

CODE: 60-940

Table top Kraft/bubble rotary cutter W120cm

CODE: 60-941

Table top Kraft/bubble rotary cutter W150cm
