BUILDING ELEVATIONS
SOUTH TOWER ELEVATIONS
Advertisement
ELEVATED
NORTH TOWER ELEVATIONS
Chinatown Market Scan For Video
CLASS: ARCH 544 - ARCH. STUDIO IV | PROFESSOR: ANDY METTER, DAVID BRININSTOOL
PROJECT TEAM: TUCKER TOUCHETTE, BELINDA ZHENG, JACOB SAVAGE LOCATION: CHINATOWN, CHICAGO, ILLINOIS | DATE: MAY, 2022
THE GOAL OF THIS STUDIO WAS TO DESIGN A 170,000 SF MARKETPLACE IN CHICAGO’S CHINATOWN ON A SITE LOCATED UNDER THE CTA REDLINE. THE CONCEPT BEGAN BY DEVELOPING A DESIGN THAT IS REPRESENTATIVE OF EQUITY ON RANGING SCALES, THE MOST PROMINENT BEING BALANCE AND PROGRAMMATIC ACCESS. THE MARKET ACTS AS A GATEWAY TO THE CHINATOWN NEIGHBORHOOD, WHICH ENGORCES EQUITY AS A DRIVER FOR DESIGN.
1 CONCEPT: EQUITY
2 STRATEGY: TEMPORALITY
GRID 1
3 EXPRESSION: MARKET
STRUCTURE 2
MANIPULATE 3
ELEVATE 4
POPULATE 5
OUTDOOR MARKET
INDOOR MARKET
MUSEUM
CTA STATION
COOKING SCHOOL
TOILET ROOMS
MECH. ROOMS
RESTAURANTS OFFICES
GREENHOUSE FOOD COURT YOGA STUDIO

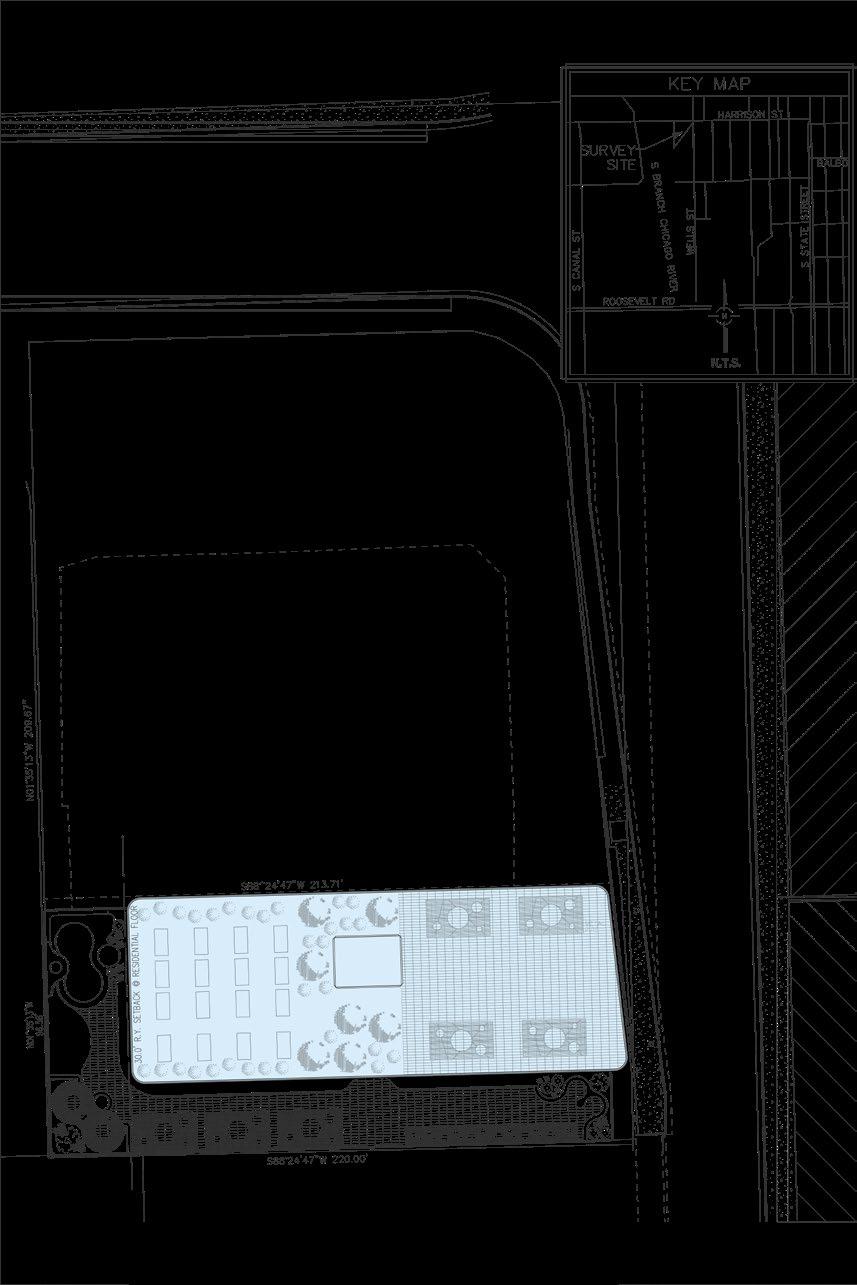

Ground Floor Plan
THE CAP SUPPORTS MECHANICALLY CONTROLLED WINDOWS FOR NATURAL VENTILATION.
CALLOUT: A
CALLOUT: B
BUILDING CORE
CALLOUT: A
THE CURVED GLASS BUILDING ENVELOPE IS STRUCTURALLY SUSPENDED BY SPIDER CLIPS FASTENED TO PURLINS. THE PURLINS THEN TRANSFER THE LOAD TO THE PRIMARY STRUCTURE WHERE IT IS TRANSFERRED TO THE GROUND VIA ARCHES.
THE INDOOR MARKET IS PARTIALLY CONDITIONED DURING THE WINTER SEASON AND FULLY VENTILATED WITH OUTDOOR AIR DURING THE SUMMER SEASON. THE OUTDOOR MARKET IS AVAILABLE DURING THE SUMMER MONTHS.
MEUSEUM GALLERY ENCLOSURE YOGA STUDIO ENCLOSURE
SCATTERED THROUGHOUT THE MARKET SPACE ARE MUSEUM ENCLOSURES. THE PRIMARY HUB OF THE MUSEUM LIES IN THE SOUTHWEST CORNER OF THE BUILDING
THE MUSEUM DISPLAYS CULTURALLY IMPORTANT ICONOGRAPHY AND HISTORICAL DOCUMENTS ABOUT CHICAGO’S CHINATOWN.
CONSTELLATION CAMPUS: RESIDENCE
CLASS: ARCH 545 - ARCH. STUDIO V | PROFESSORS: PAUL ENDRES, SUSAN CONGER-AUSTIN
PROJECT TEAM: TUCKER TOUCHETTE, SPENCER GOFF
LOCATION: MIAMI, FLORIDA | DATE: JANUARY, 2022

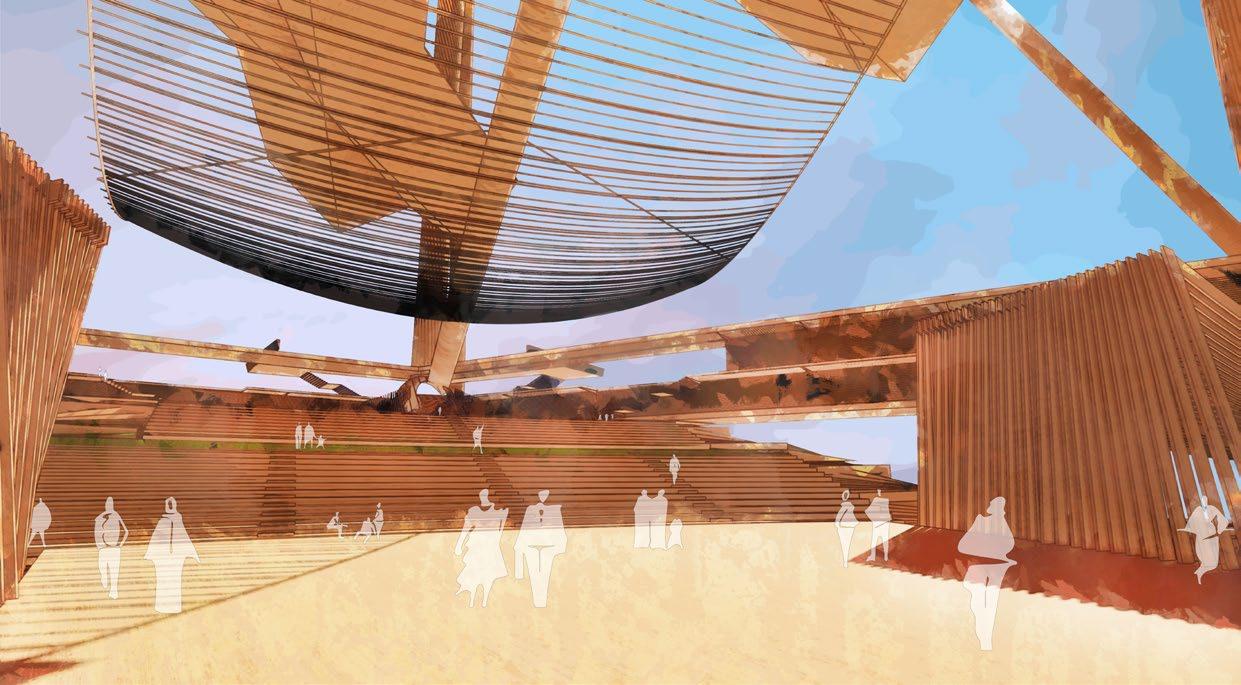

THIS IS AN EXPERIMENTAL SOCIETY TO TEST THE FUNDAMENTALS AND STRUCTURE OF THE EDUCATION SYSTEM ACROSS A 100 YEAR TIMELINE. THE CONSTELLATION CAMPUS SERVES AS A LEARNING ESTABLISHMENT FOR THE ADVANCEMENT OF AGRICULTURAL, ENVIRONMENTAL, ECOLOGICAL, AND SOCIAL SCIENCES IN THE CONTEXT OF POSTANTHROPOGENIC HUMAN LIFE. MIAMI IS THE PRIME LOCATION FOR THIS PROJECT DUE TO ITS CONVERGENCE OF IMMIGRANTS THEREFORE EFFECTS OF CLIMATE CHANGE GIVE THE OPPORTUNITY TO EDUCATE THE GLOBAL MASSES.
MODEL
CREATING OF OVER 50 MODELS TO UNDERSTAND SPACE AND STRUCTURE
2
1 3
SURFACE REFINE
USE OF PAPER FOLDING TO CREATE SPACE AND UNDERSTAND PROPERTIES OF WOOD
CONSTELLATION CAMPUS: INFRASTRUCTURE
CLASS: ARCH 546 - ARCH. STUDIO VI | PROFESSORS: PAUL ENDRES, SUSAN CONGER-AUSTIN
TEAM: TUCKER TOUCHETTE, SPENCER GOFF, NISHA KAKDE, CALEB SHEMMEL, CHRISTINE
JEUNG, NISHA KAKDE | LOCATION: MIAMI, FLORIDA | DATE: JANUARY, 2022

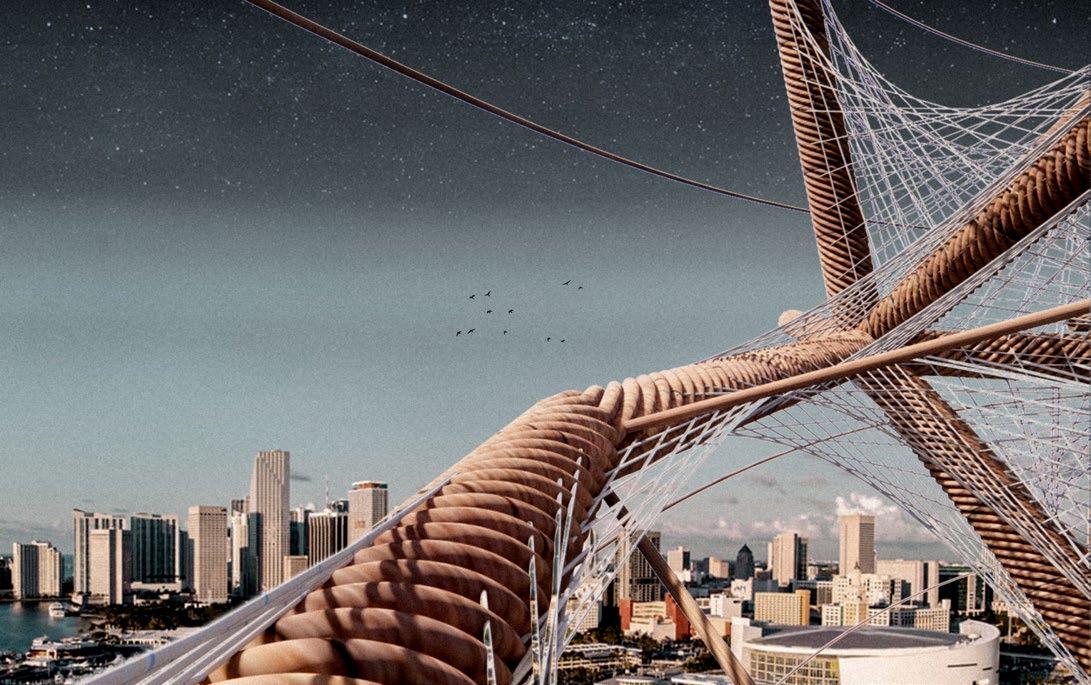

THE TOWER WILL BE DIVIDED INTO FOUR NEIGHBORHOODS WITH EACH FUNCTIONING AS AN INDIVIDUAL CAMPUS. CONTEMPORARY SOCIETY IS DIVIDED ALONG NEIGHBORHOOD BOUNDARIES, FUTURE DISTINCTIONS WILL BE NEIGHBORHOODS SEPARATED BY INTEREST. THE NEIGHBORHOOD WILL BE WHERE YOU SPEND YOUR DAY, WORKING AND LEARNING, PUTTING LESS EMPHASIS ON SEMINAR ROOMS, LECTURE HALLS, AND THE HIERARCHY OF TRADITIONAL INSTITUTIONS AND MORE EMPHASIS ON “THIS IS OUR LIFE AND THIS IS HOW WE DO IT.”
ACADEMIC
INDUSTRIAL PRODUCTION ADMINISTRATION AND ECONOMY SOCIAL ACADEMIC
PROGRAM CONNECTIVITY
WATER IS SIPHONED UP THE TOWER TO A LARGE RESERVOIR AT THE TOP OF THE TOWER. SMALLER RESERVOIRS (DIAGRAMMED BELOW) ARE LOCATED NEAR RESIDENCES AND AGRICULTURAL REGIONS.
ELECTRIC UTILITY
COMPOST WATER UP WATER DOWN
600 GALLONS 50 GALLONS PER PERSON 12 PERSONS PER RESERVOIR
CLASS: ARCH 497 - ENTREPENEURSHIP DEVELOPMENT| PROFESSOR: DAVID KLEIMAN
PROJECT TEAM: TUCKER TOUCHETTE
LOCATION: PRINTERS ROW, CHICAGO, ILLINOIS | DATE: MAY, 2022
I BELEIVE THAT ARCHITECTURE SCHOOL SHOULD BETTER PREPARE STUDENTS FOR THE ARE AND PRACTICING IN A PROFESSIONAL CAPACITY. I PURSUED THIS INTEREST BY DEVELOPING A CLASS PERTAINING TO PROFESSIONAL PRACTICE. I ASSEMBLED A GROUP OF STUDENTS AND OUTLINED A COURSE THAT REQUIRED STUDENTS TO DESIGN A BUILDING TO CHICAGO BUILDING AND ZONING CODE. ONCE THE BUILDING WAS DESIGNED, STUDENTS WERE REQUIRED TO PERFORM A PRO FORMA AND CODE/ZONING ANALYSIS TO UNDERSTAND THE FINANCES AND LEGALITY OF BUILDING A HIGH-RISE.

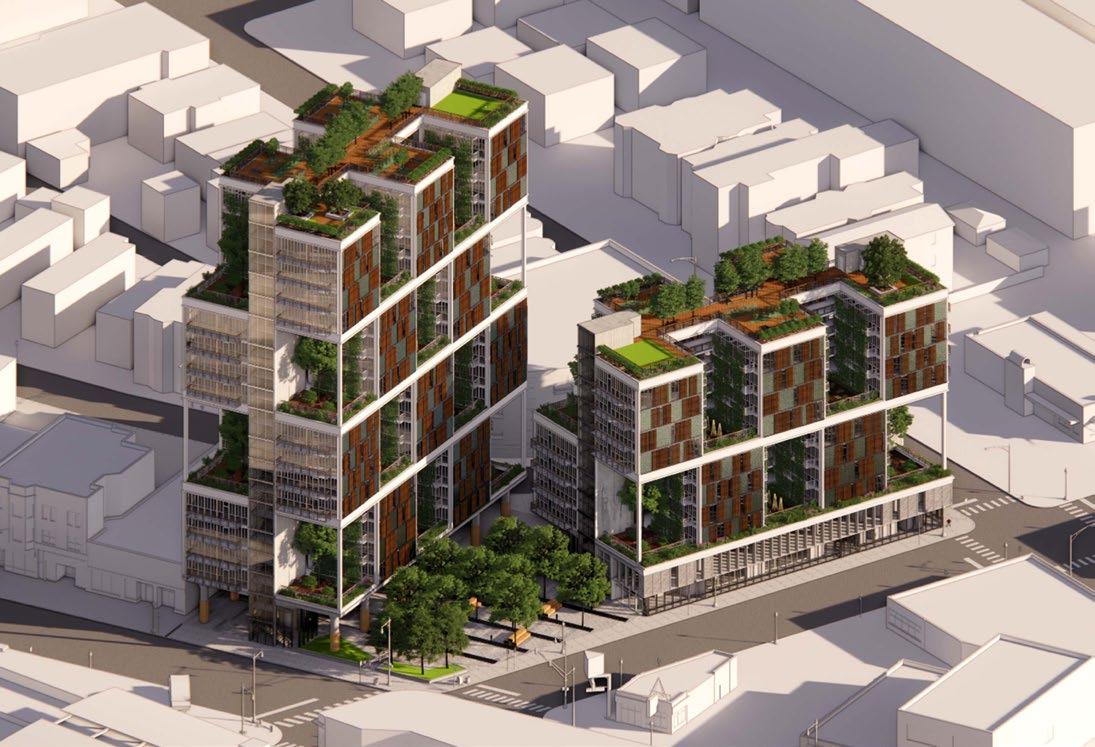

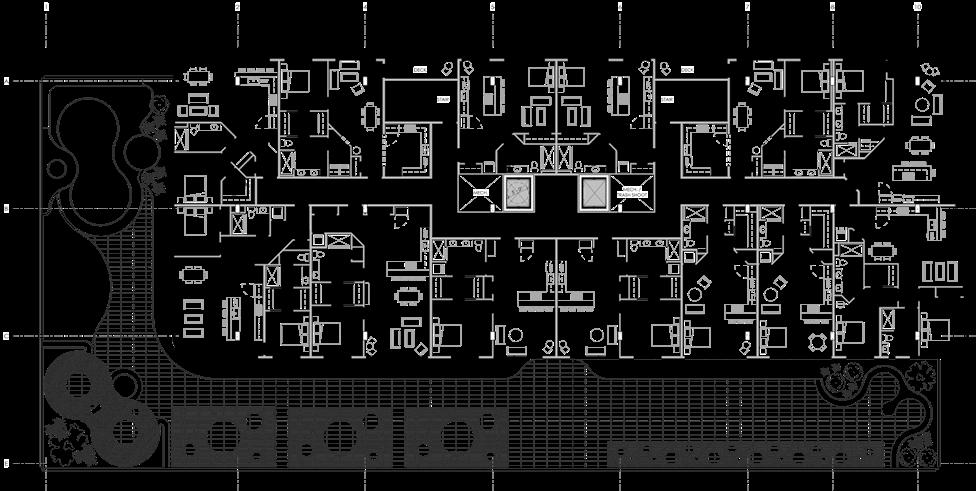

Orange Line Residences
CHICAGO RIVER

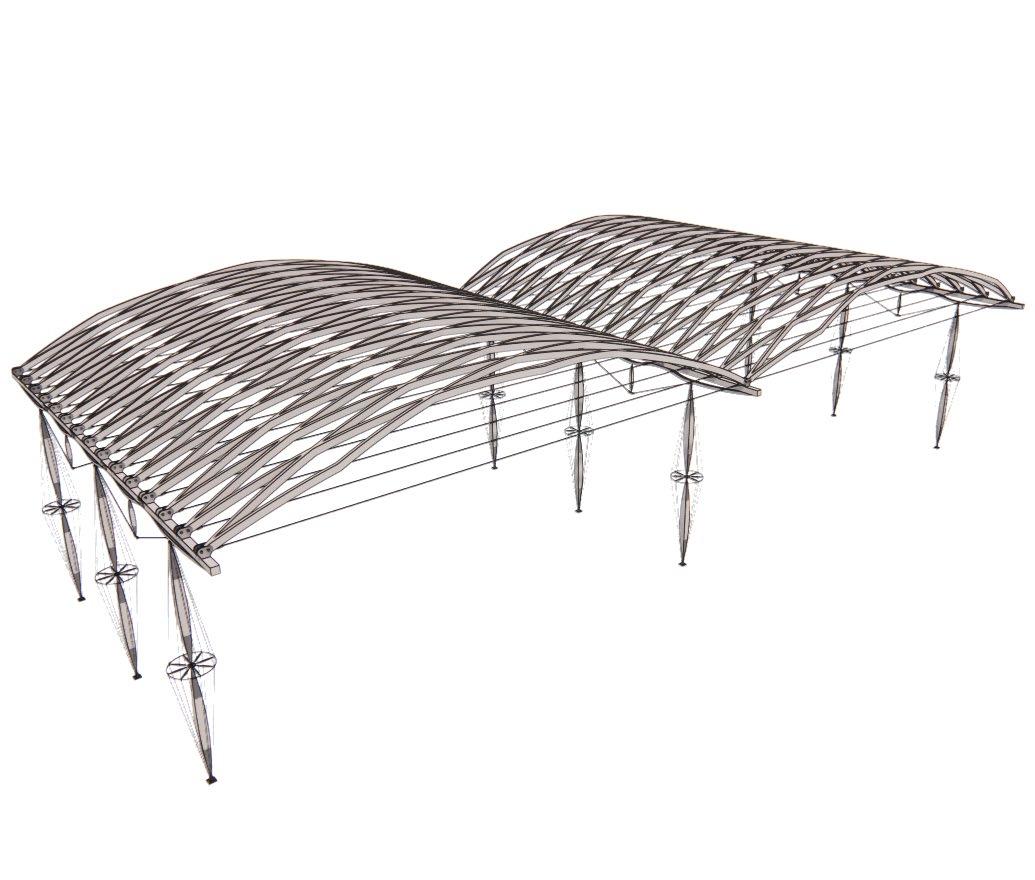

STRUCTURAL DESIGN: COLUMN, BEAM AND ROOF
CLASS: ARCH 482 - ARCH. MATERIALS: FIBROUS | PROFESSOR: PAUL ENDRES
TEAM: TUCKER TOUCHETTE | LOCATION: N/A|
DATE: JANUARY, 2022
ARC. 482 WAS A CAPSTONE ARCHITECTURE STRUCTURES CLASS WITH AN EMPHASIS ON WOOD DESIGN. IN THIS COURSE STUDENTS WERE REQUIRED TO DESIGN A COLUMN, BEAM, AND SURFACE TO BE ELEGANT AND STRUCTURALLY EFFICIENT. IN THIS DESIGN, THE BEAM AND COLUMN ARE DESIGNED AS A CABLE-STAY SYSTEM TO PREVENT BUCKLING AND DEFLECTION. IN THE COLUMN, THE CABLE-STAY SYSTEM ALLOWS FOR AN 18 KIP LOAD ON A 4X4 TAPERED WOOD COLUMN. THIS SYSTEM CONTAINS A CONNECTION WITH 13 ELEMENTS COMING TO ONE POINT, 10 ELEMENTS COMING TO ONE POINT, AND 9 ELEMENTS COMING TO ONE POINT, CREATING A COMPLICATED AND DELICATE SYSTEM OF DETAILING.
NECKAR VIADUCT BY FRITZ LEONHARDT A COMPREHENSIVE STRUCTURAL ANALYSIS OF THE UNDERDECK CABLE STAY BRIDGE LED TO INSPIRATION FOR THE STRUCTURAL DESIGN

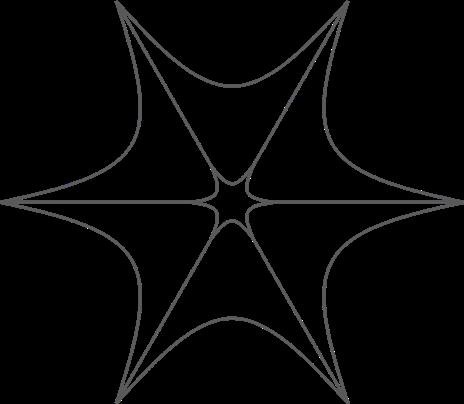

COLUMN SECTION VIEW (CALLOUT 1
COMPETITION:
PROJECT TEAM: TUCKER TOUCHETTE, LUKE LAGESON, SPENCER GOFF
LOCATION: BRONZEVILLE CHICAGO, ILLINOIS | DATE: JANUARY, 2023

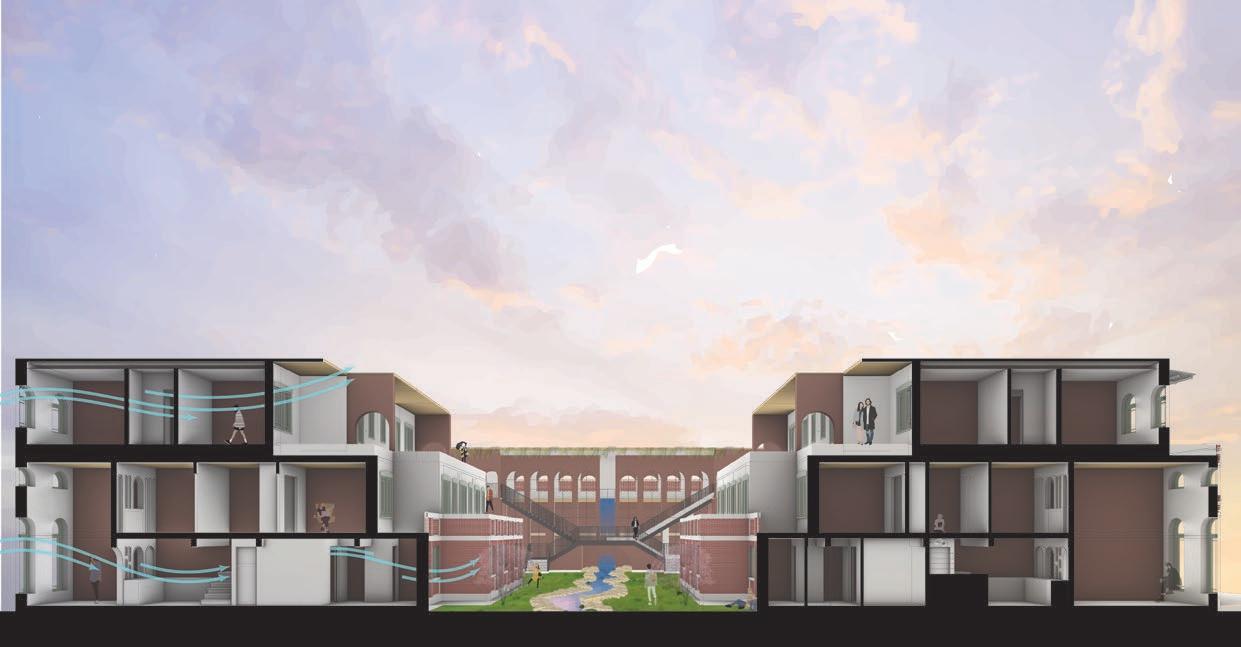

THE COMPETITION WAS TO CREATE A BIOPHILIC RESIDENCE IN AN URBAN CONTEXTTHERE WAS NO PROGRAM OR SCOPE REQUIREMENTS. MY TEAM CREATED A MODULAR COMPLEX THAT COULD BE BUILT UP OVER TIME. CONNECTED TO A HISTORIC CHURCH WITH THE GOAL OF REVITALIZING THE CHICAGO BRONZEVILLE NEIGHBORHOOD, THE INTENTION OF THIS PROJECT WAS TO GIVE A PLAZA, PARK AND EVENT SPACE BACK TO THE COMMUNITY. THERE IS NO INTERIOR HALLWAY, SO EACH RESIDENCE IS REACHED THROUGH THE COURTYARD THROUGH A SERIES OF TRAILS IN THE GARDEN.
HAND DRAWN AXON
4
GROWTH
EXISTING BUILDING
OCCUPATION
STRUCTURAL GRID
