ARCHITECTURE

PORTFOLIO TSHIRING TAMANG

I’m Tshiring Tamang, an aspiring architect currently in my 4th year. I am seeking an internship in an architecture firm that provides me with a platform to expand my knowledge.

+977-9860063006 tshiringtamang3@gmail.com Gongabu, kathmandu

EDUCATION 2018-2023 BACHELOR IN ARCHITECTURE ACME Engineering College

2015-2018 DIPLOMA IN ARCHITECTURE Asian Engineering College

SKILL AND ABILITIES • HAND DRAFTING • MODEL MAKING • MS OFFICE • AUTO CAD • SKETCHUP • LUMION • PHOTOSHOP • PREMIERE PRO

EXPERIENCES • Intern at LWA(during diploma) Period : 6 month • drafter at Blinqlab Period : 6 month

COMPETITION • ‘SONA’ sustainable housing design competition Participitation • ‘Utsarga’ Electric charging station design competition 3rd place

CONTENT

01

02

03

04

01

PRIMARY SCHOOL ACADEMIC PROJECT 2ND year/4TH semester

Location : Sitapaila, kathmandu Total site area: 9079.77 sq.m 1.

2.

Primary School | studio 4th sem

1.

4.

x

6. x 2.

5.

3.

Legend 1. parking 2. sports playground 3. primary group play area

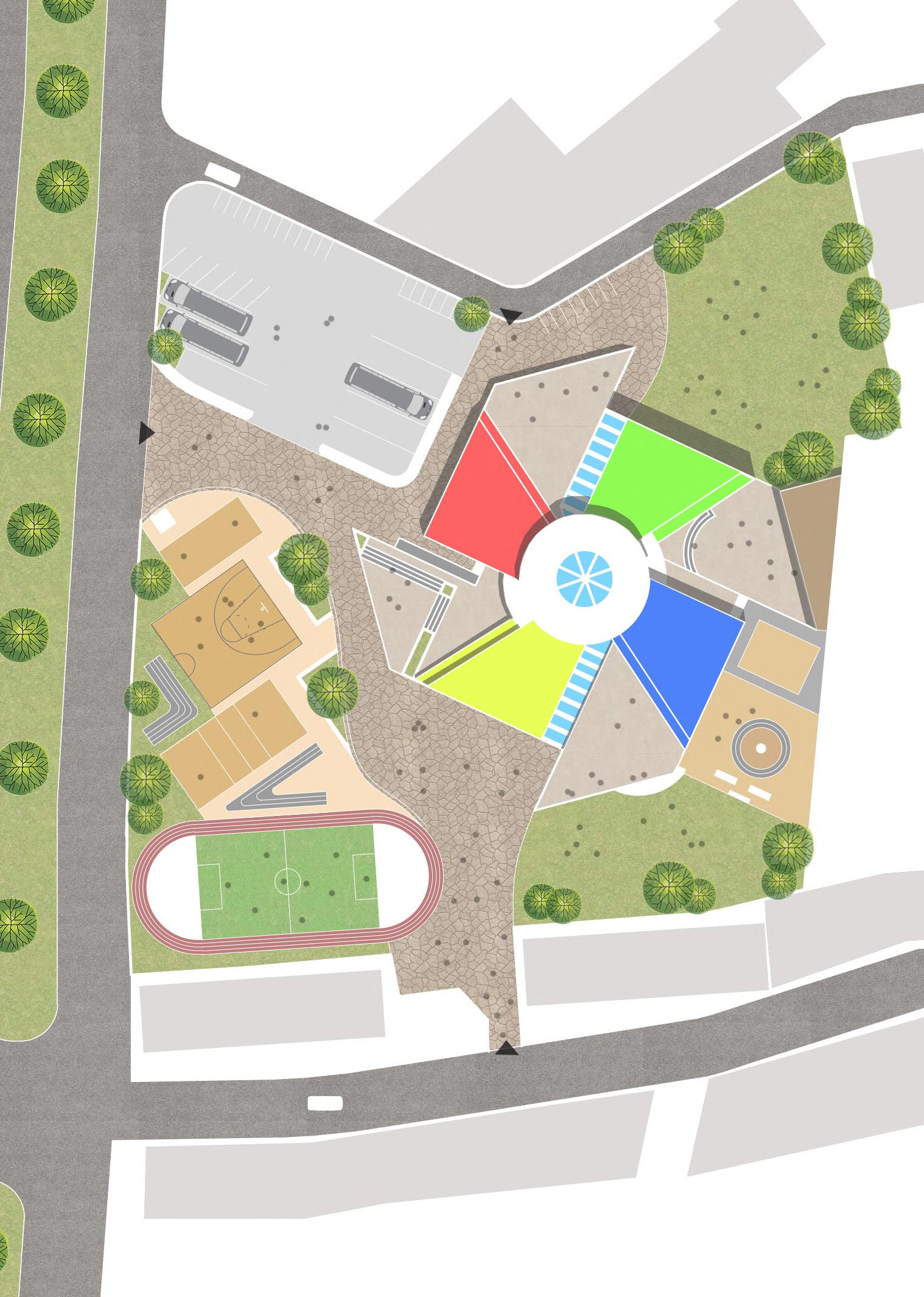

SITE PLAN

3.

4. pre-primary group play area 5. amphitheater 6. sand pit

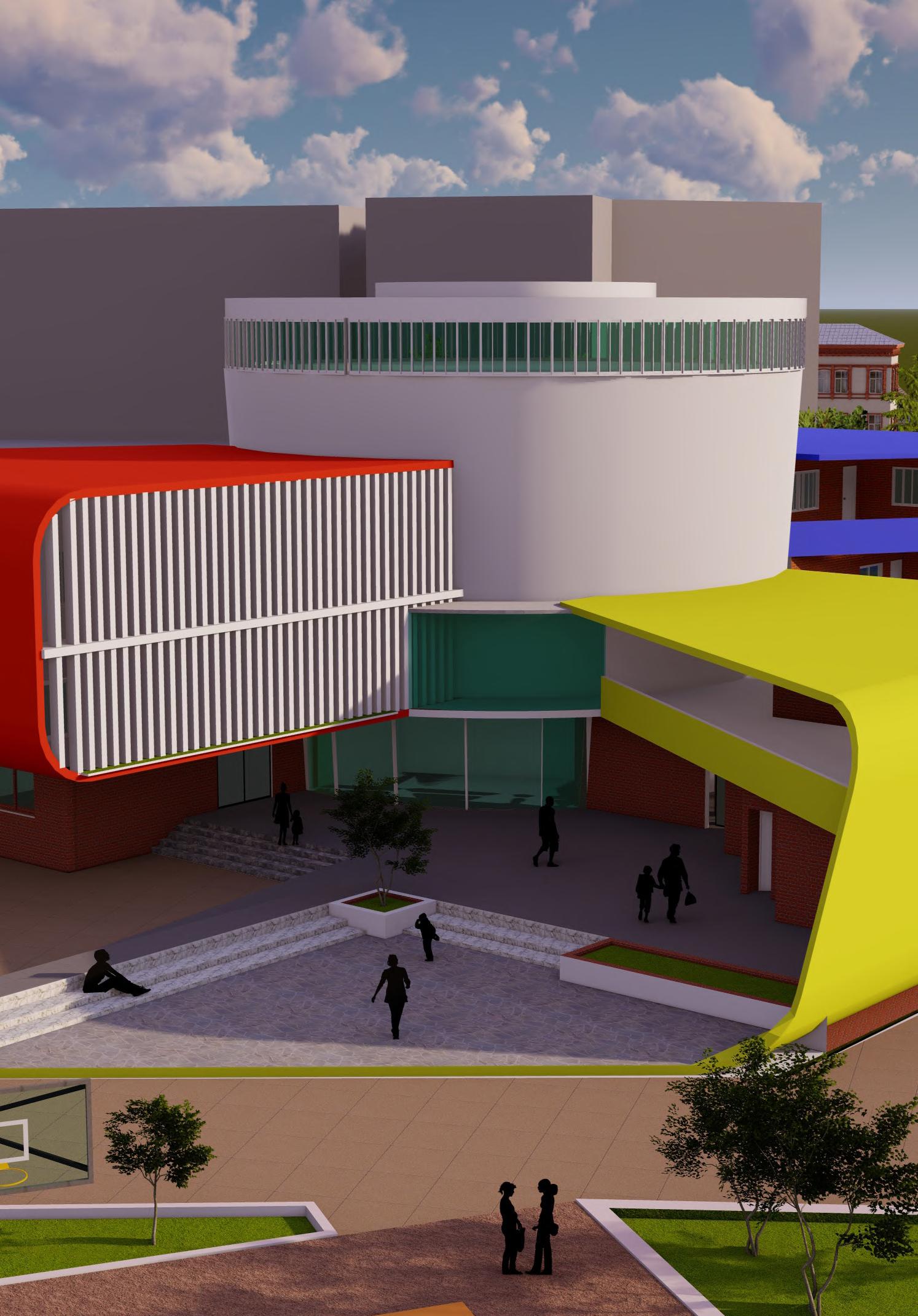

DESIGN APPROACH Primary school should have an environment that is safe, welcoming, and conducive to learning and development for young children. Taking inspiration from the paper windmill, a form that every child can relate. Like paper windmill consists of a central axis and rotating blades, it has a main staircase in centre which is connected to different wing. Bright and vibrant color emphasis the form and make visually appealing and inviting to young children

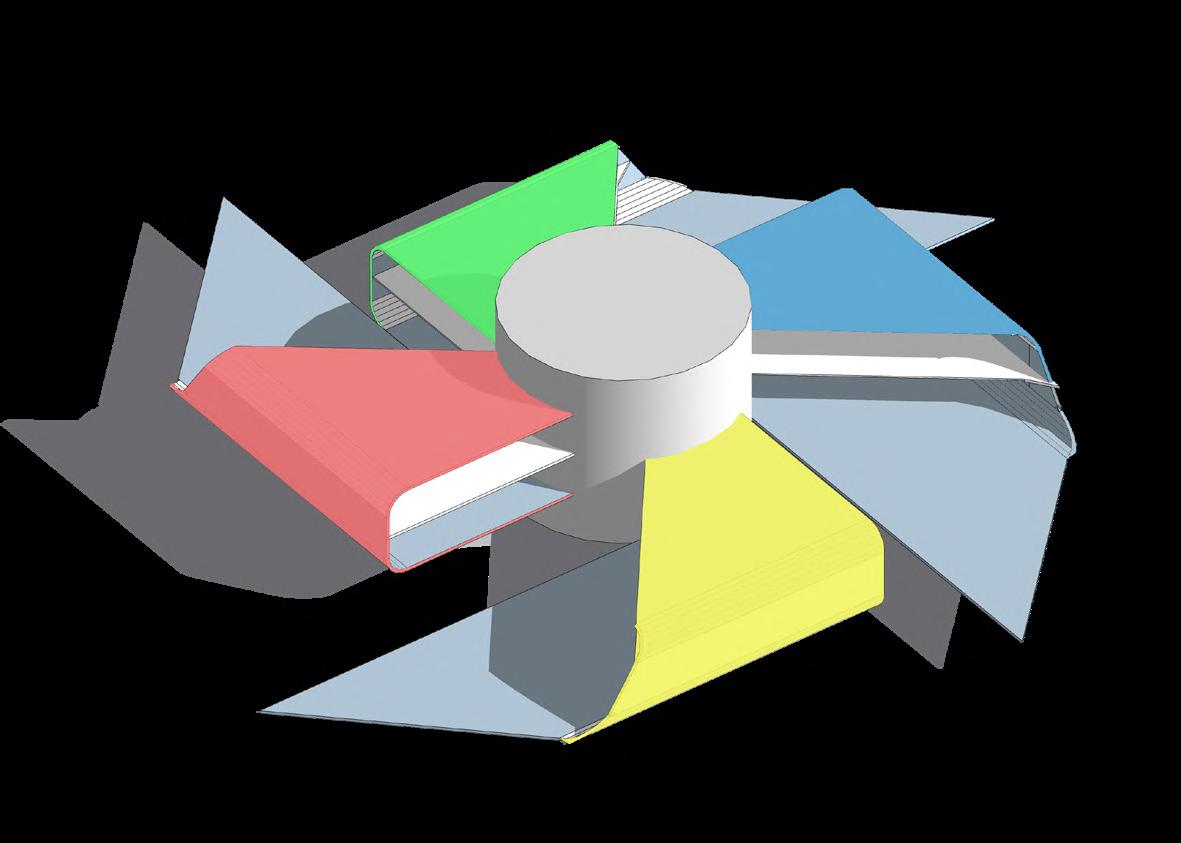

Inspiration : paper windmill

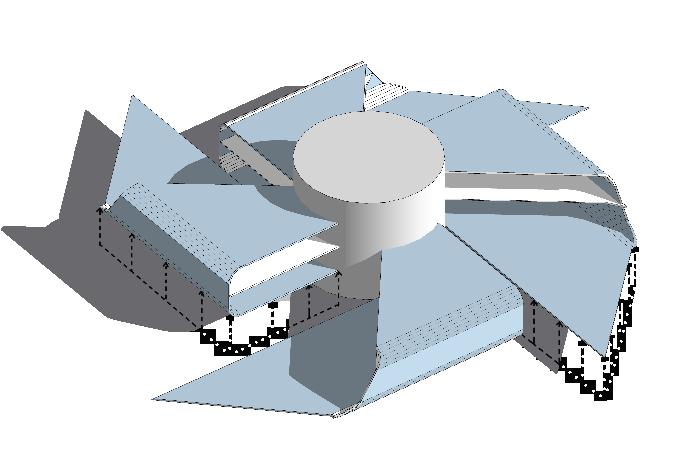

Transformation : The two wing were lifted above to fulfill the need of space

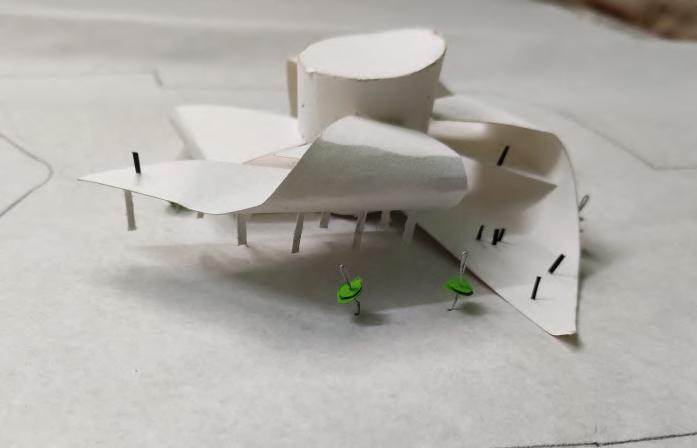

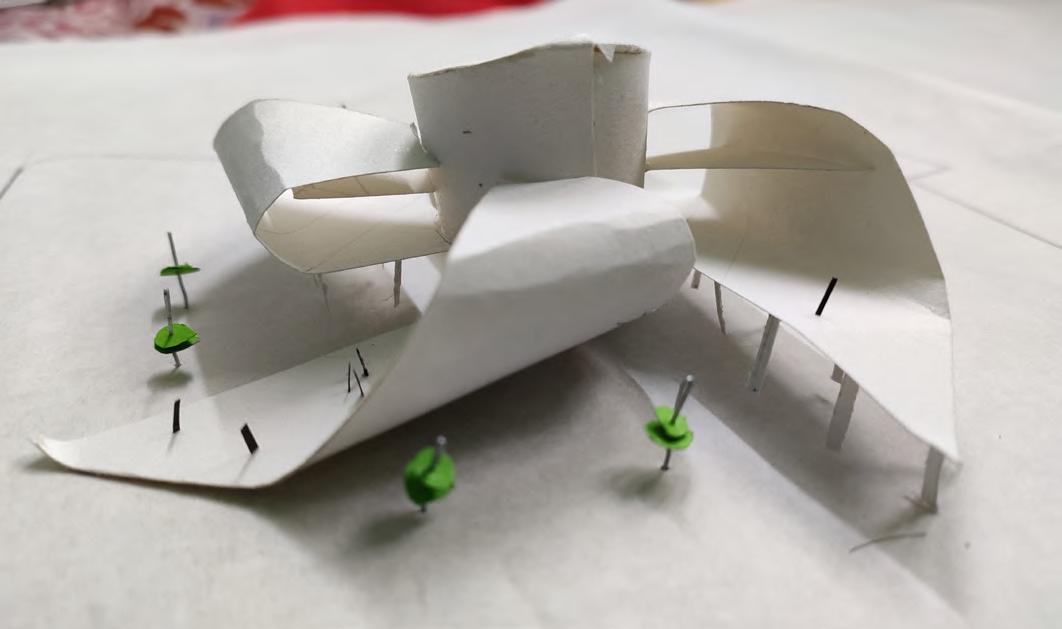

Conceptual model

Colors : Each wing have a different bright and vibrant color to make visually appealing and inviting to young children

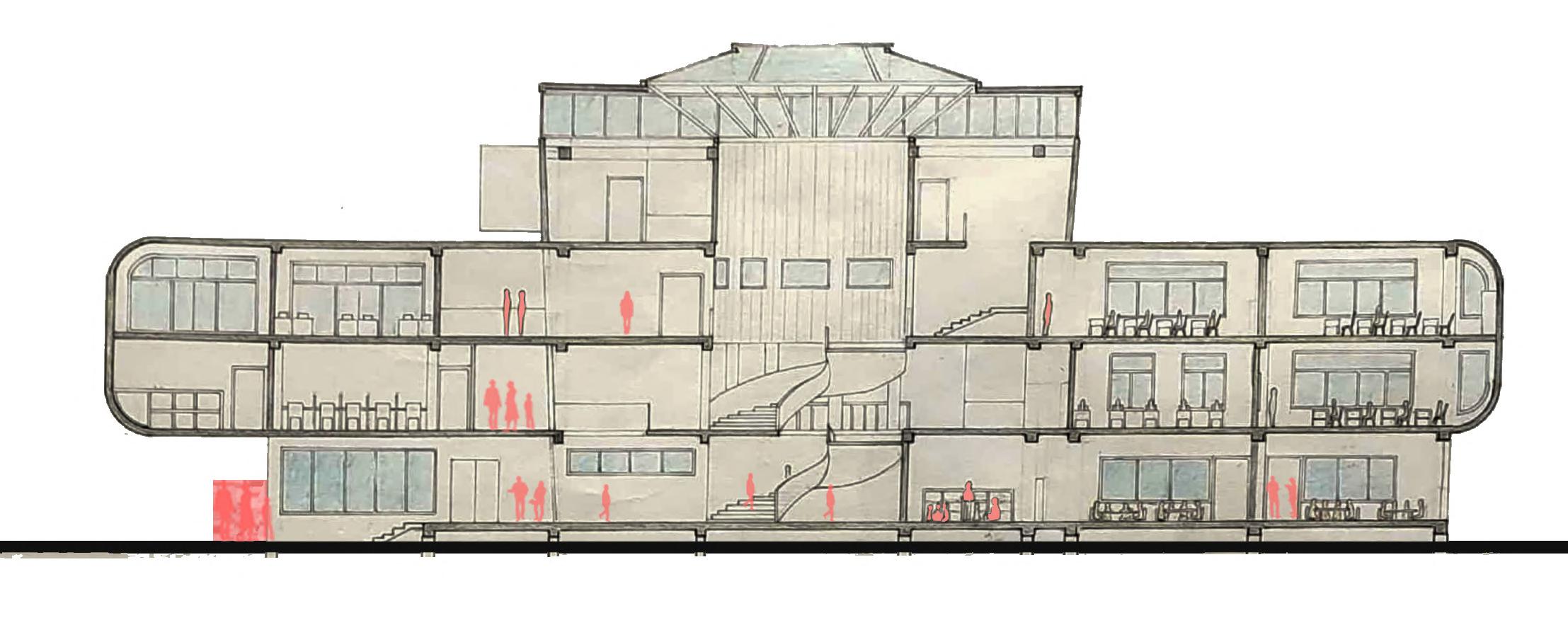

SECTION AT X-X 4.

Primary School | studio 4th sem

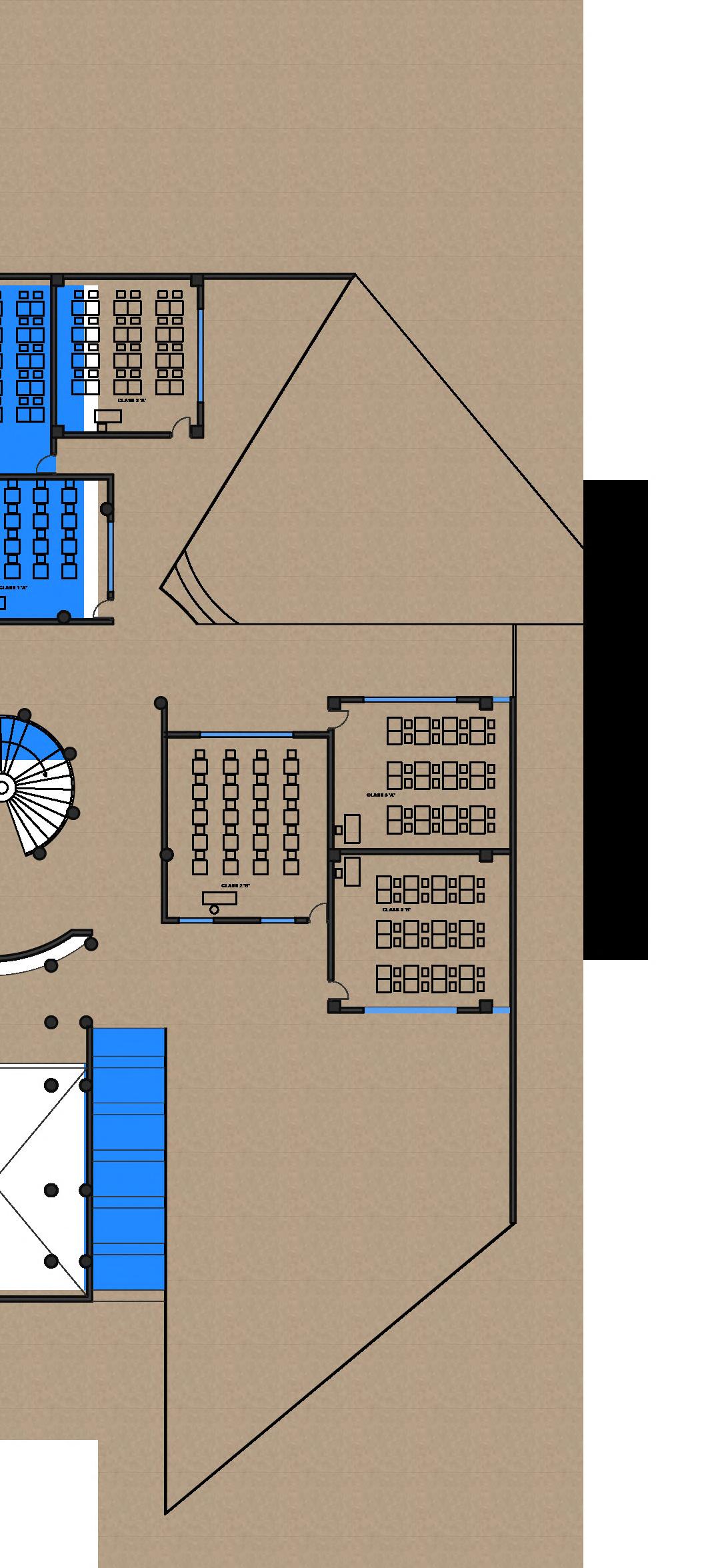

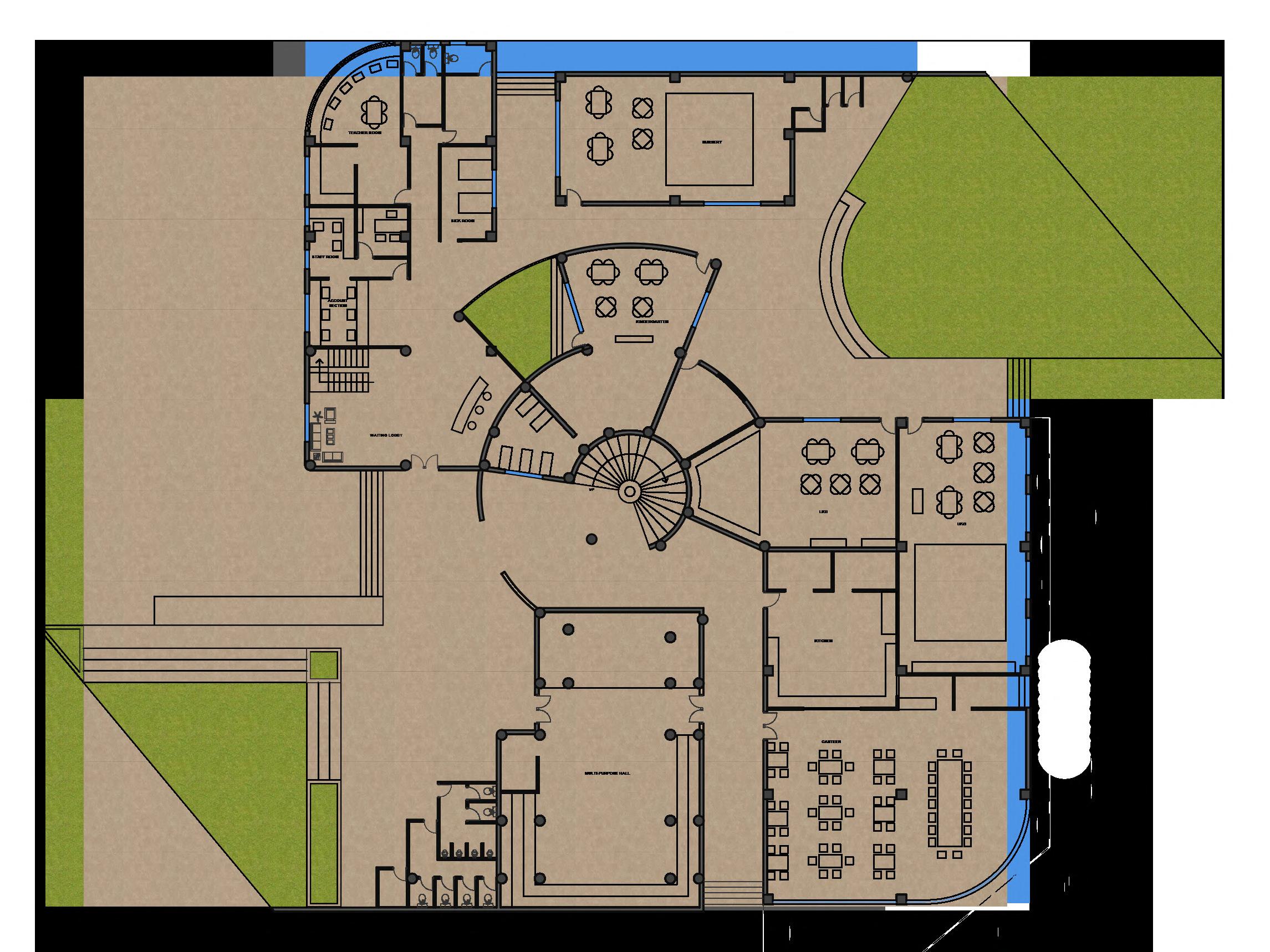

GROUND FLOOR PLAN

5.

FIRST FLOOR PLA

AN

SECOND FLOOR PLAN

6.

Primary School | studio 4th sem

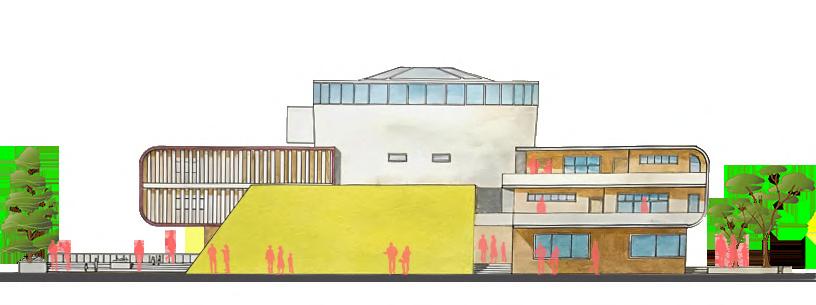

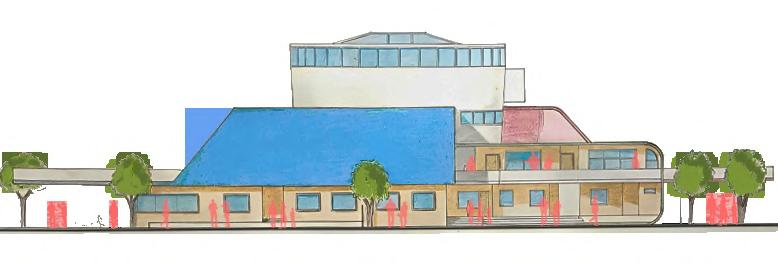

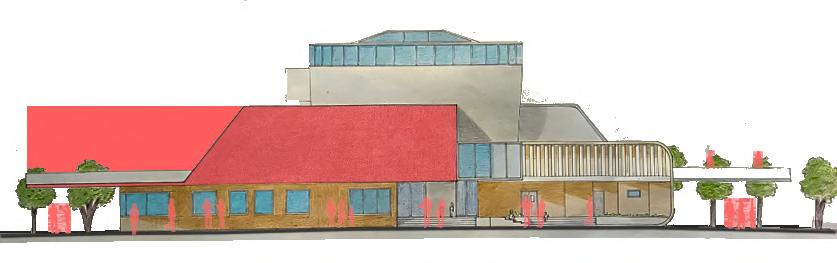

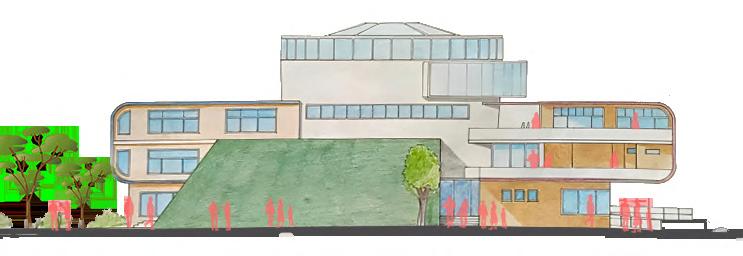

NORTH ELEVATION

SOUTH ELEVATION

WEST ELEVATION

EAST ELEVATION

7.

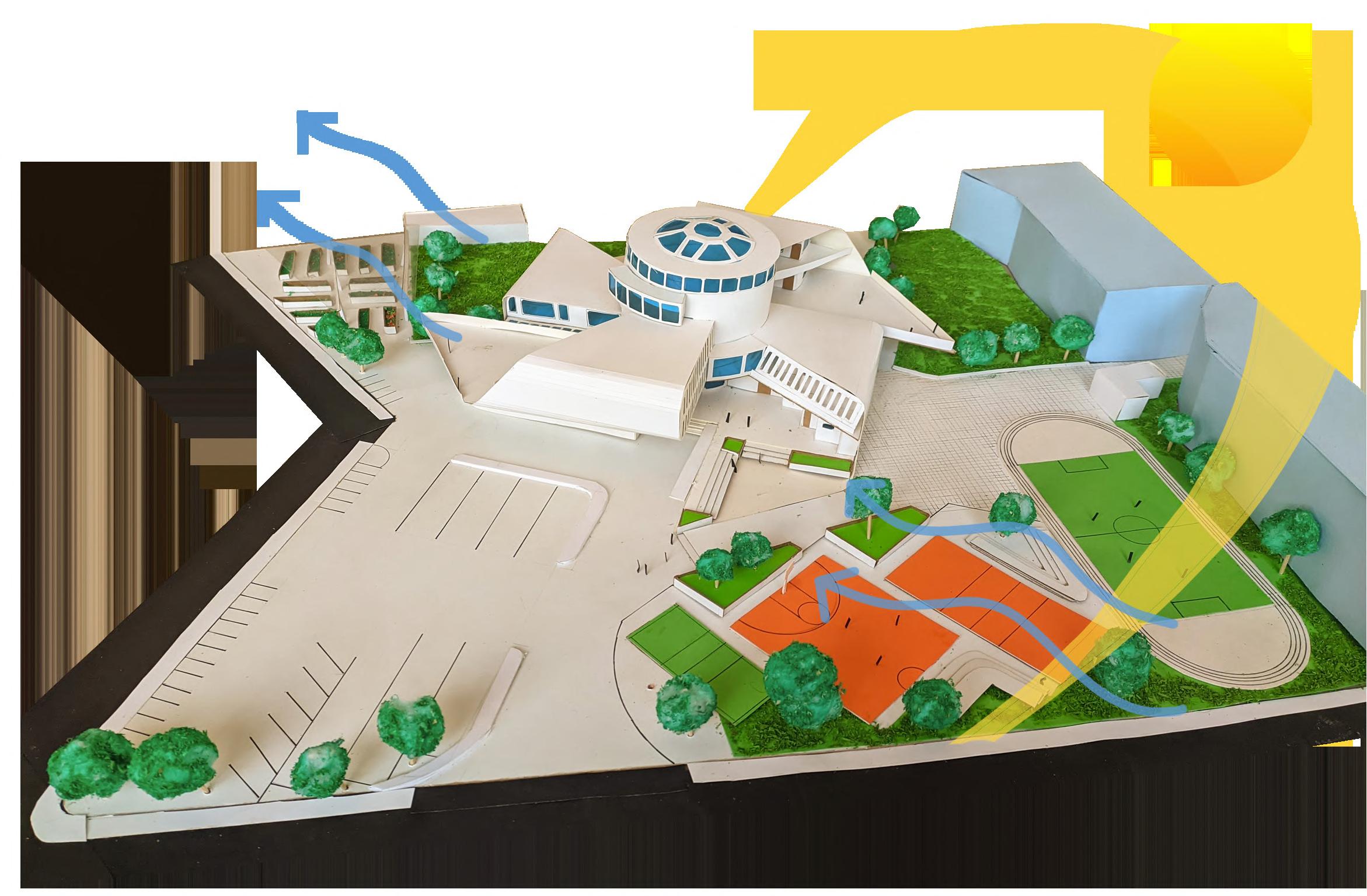

MODEL AT 1:200

PRE-PRIMARY PLAY AREA

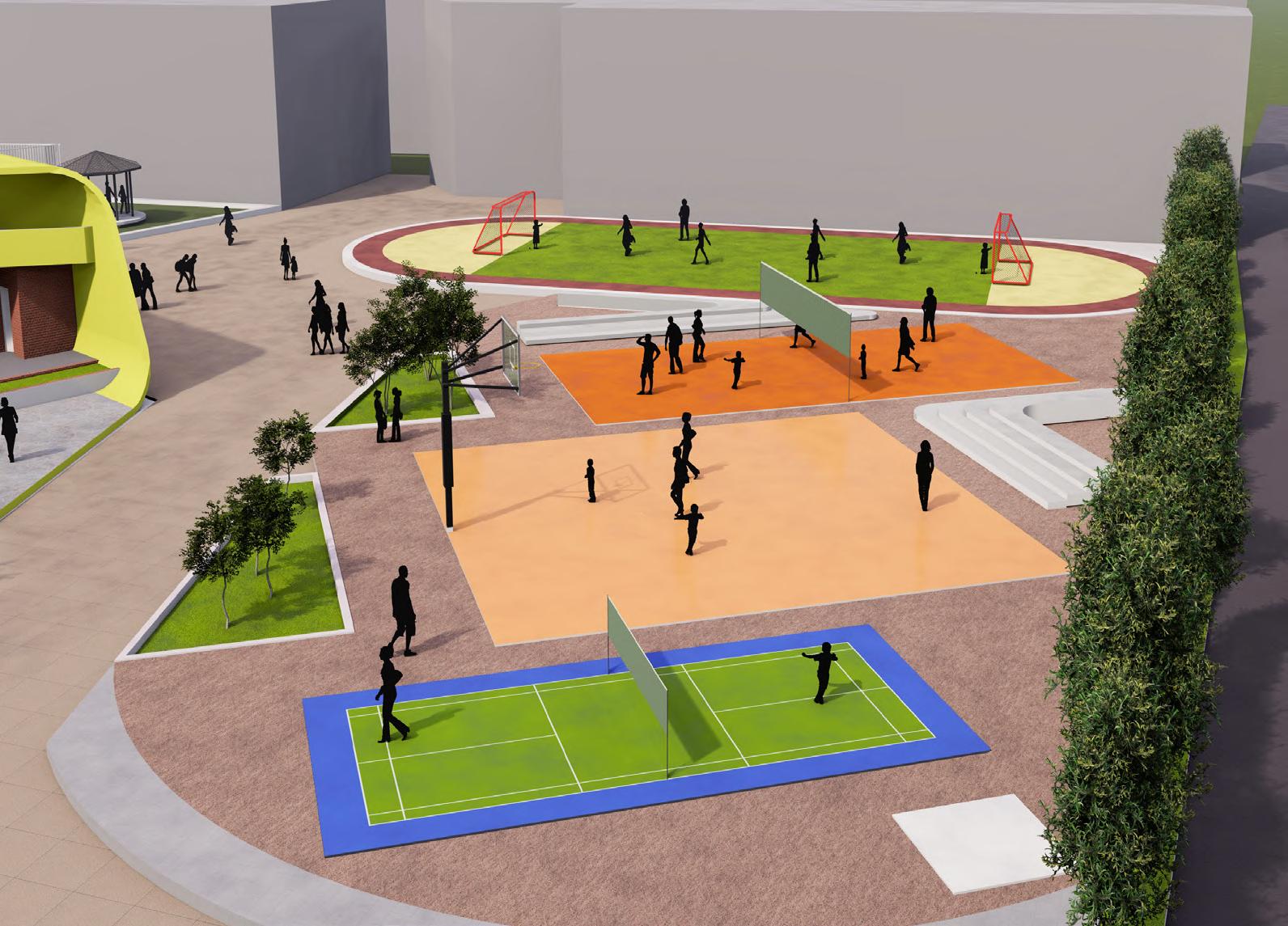

SPORTS PLAYGROUND

8.

02

SERVICES APARTMENT ACADEMIC PROJECT 3rd year/ 6th semester

SITE OVERVIEW Location : dhumbarahi. kathmandu Total site area: 1017 sq.m Total builtup area: 3053.52 sq.m

9.

PROJECT OVERVIEW Services apartment are fully furnish apartment which are available for short term and long term stay. Short term stay unit are mainly focus on tourist whereas long term unit are for family and student. There should be included essential services like grocery store, fitness, cafe etc within the building. because of the congested site, it was challenging to create a communal space.

LOCATION

10.

Services apartment | studio 6th sem

Long term Short term Amenities

CONCEPT The problem with a high rise building is less interaction between the user due to busy in their own life and also not providing proper socializing sapce. The site itself was a constraints to provide communal space outside the building. So the idea was to provide socialzing space within the building.

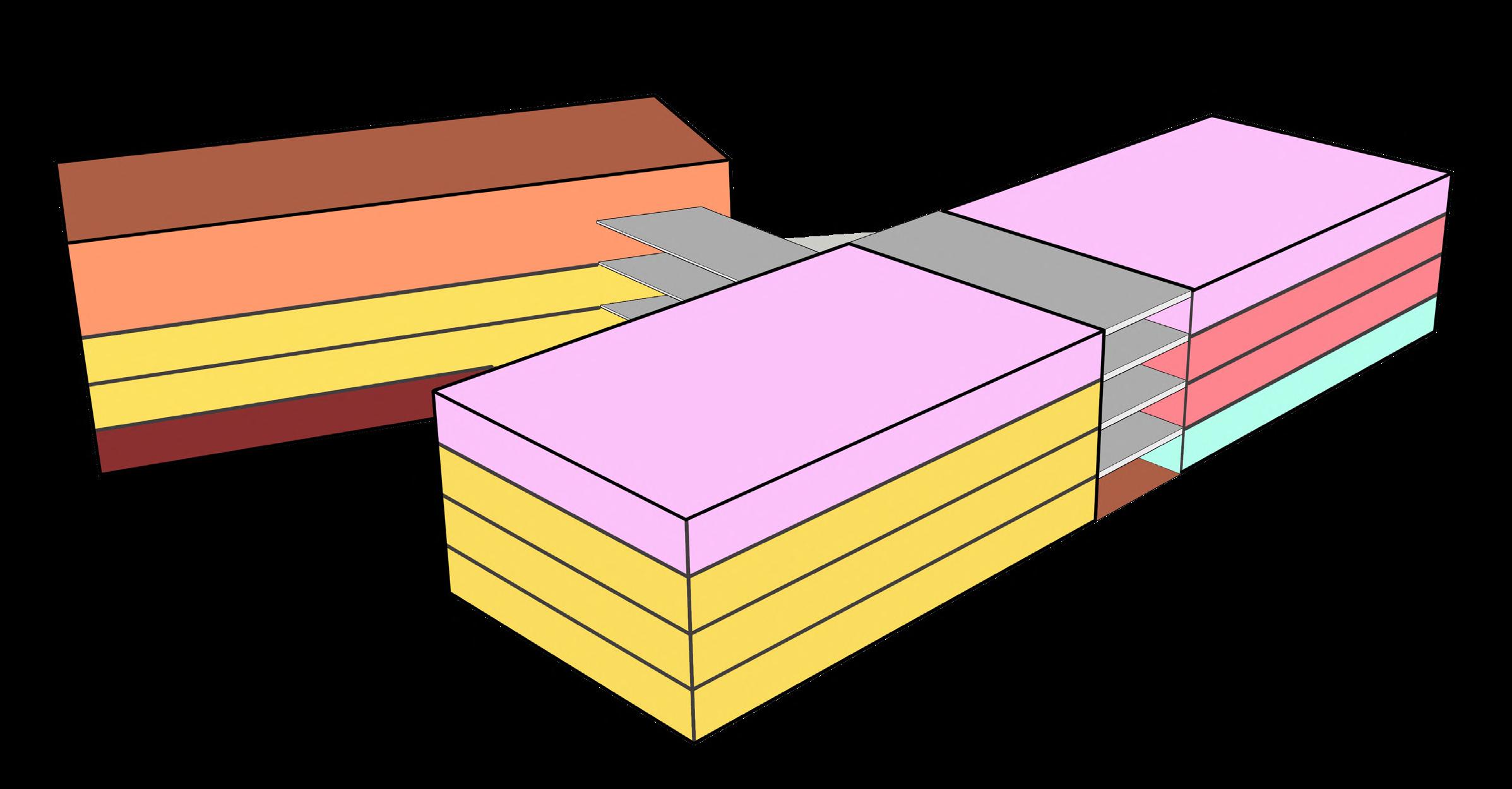

Zoning according to the need of user and creating communal space within a building

Block transformation to provide maximum natural light and ventilation

Open up in a cardial point for a view

11.

Short term = communication

Long term = privacy

Detail of balcony with green shade

12.

Services apartment | studio 6th sem

SITE PLAN

13.

Floor has been divided according to building function.

Ground floor include all the essential amenities require for the apartment like grocery, gym, laundry etc.

Lower level floor are provided for short term stay with studio and 1bhk unit. Above third floor are mostly provide for the long term stay with mostly 2bhk and 3bhk.

FIRST AND SECOND FLOOR PLAN

STUDIO

1 BHK

THIRD FLOOR PLAN

2 BHK

3 BHK

FOURTH TO NINTH FLOOR PLAN

14.

Services apartment | studio 6th sem

SECTION AT X-X

15.

MODEL AT 1:100

16.

Services apartment | studio 6th sem

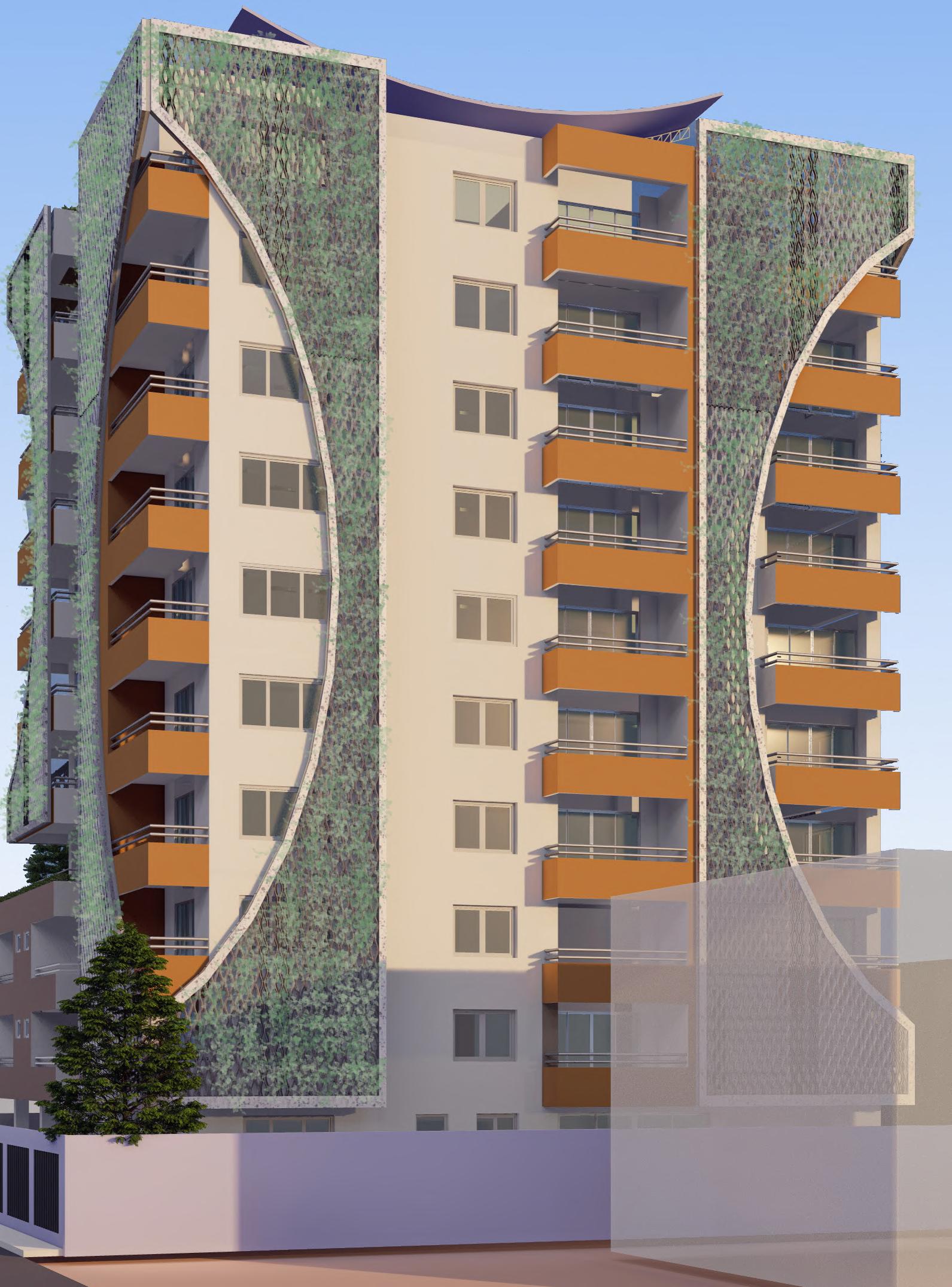

SOUTH ELEVATION 17.

EAST ELEVATION 18.

03

ELECTRIC CHARGING STATION NATIONAL STUDENT COMPETITION (3rd place) Member : Tshiring Tamang, Poonam Rana & Sushan Shrestha

Electric charging station design competition was organize by utgarsa 079 for all nepal architecture student. The main theme of design is to think beyond the practicality of simply filling up your car’s battery and consider how these spaces can also serve as a hub for relaxation, entertainment, and socialization. The proposed site is a spacious 3806.28 sq. m. located in the vibrant neighborhood of Lainchaur, Kathmandu.

19.

20.

Electric charging station| Design competition

CONCEPT The charging station is design for a future as more electric vehicle are becoming popular in nepalese people. So, the initial idea was to have futursitic design which looks different from a surrounding building.

Mass of 1154.5 sq.m built on given site

With all the surrounding building being rectilinear form, the first step was to go with curvilinear design. To promote electric vehicles or in other words to promote the use of renewable sources for the longterm,the form was developed from an infinity shape which represents the infinite energy(electricity) one can get from the sun.

The key of the design concept was to go far beyond its built borders and integrate into the communityserving not only as a charging station but as a public space too. As in design, the ground floor serves different amenities and open spaces whereas the first floor serves as the park.

Mass is separated into two wings according to its function and connected by circle-shaped mass. The courtyard is provided in each wing for natural ventilation, daylight and leisure space.

Roof is shaped like a ramp to allow full accessibility roof garden as well as socializing space.

SECTION 21.

MASTER PLAN

FIRST FLOOR PLAN

N AT X-X 22.

Electric charging station| Design competition

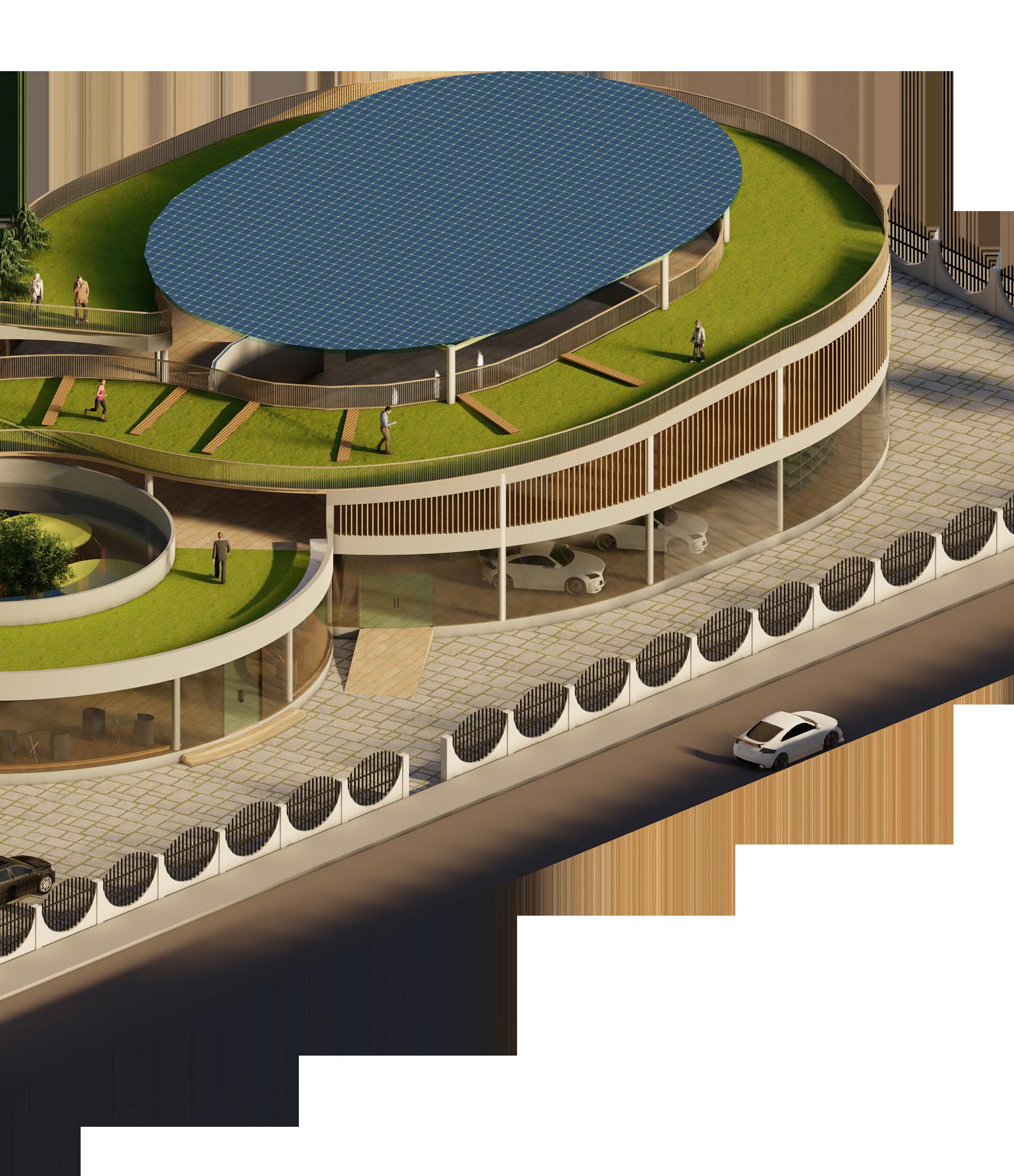

EXPLODED AXONOMETRIC VIEW

23.

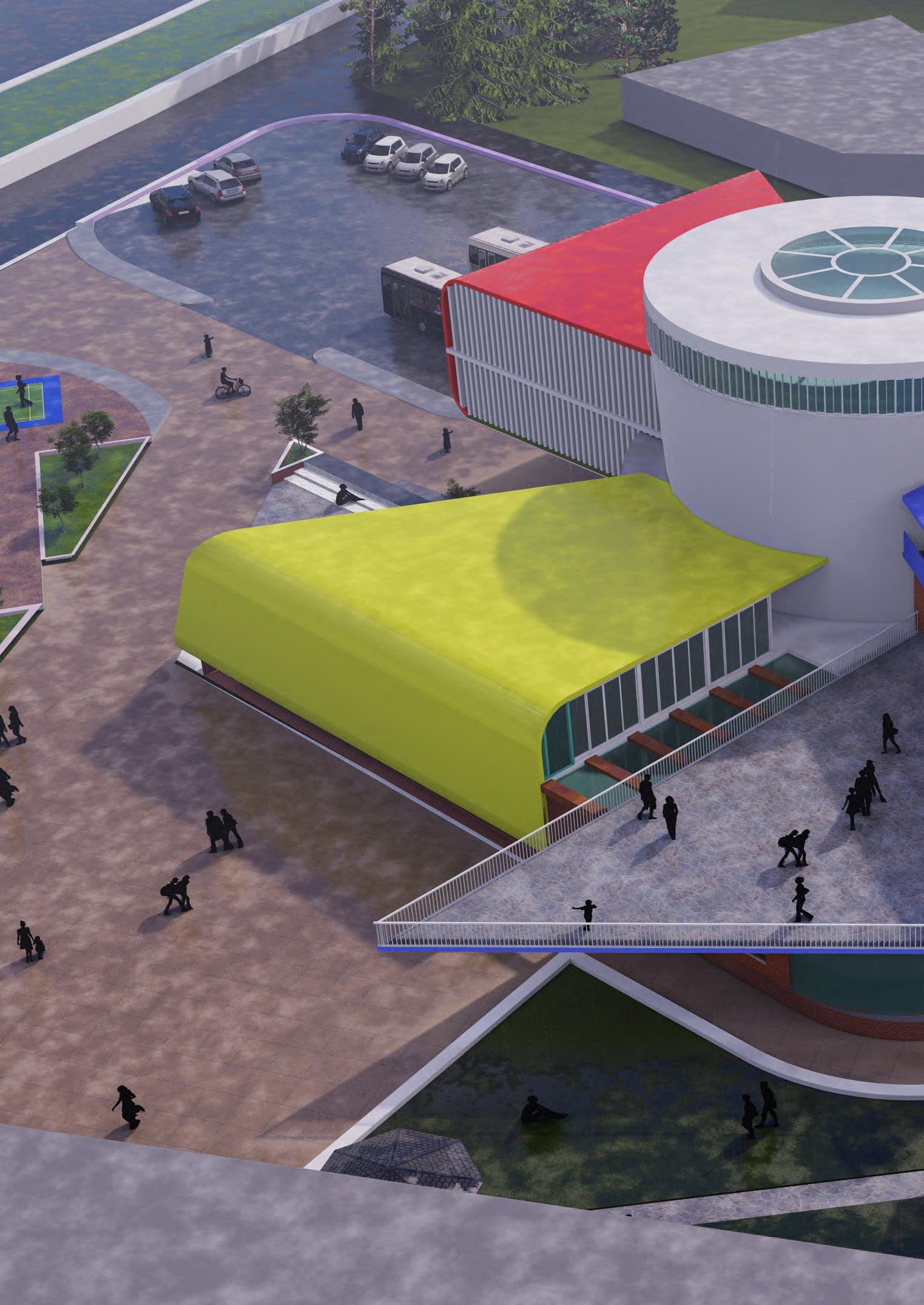

RAMP WALKWAY FROM SOUTH VIEW

FUTURE MASTER PLAN

24.

04

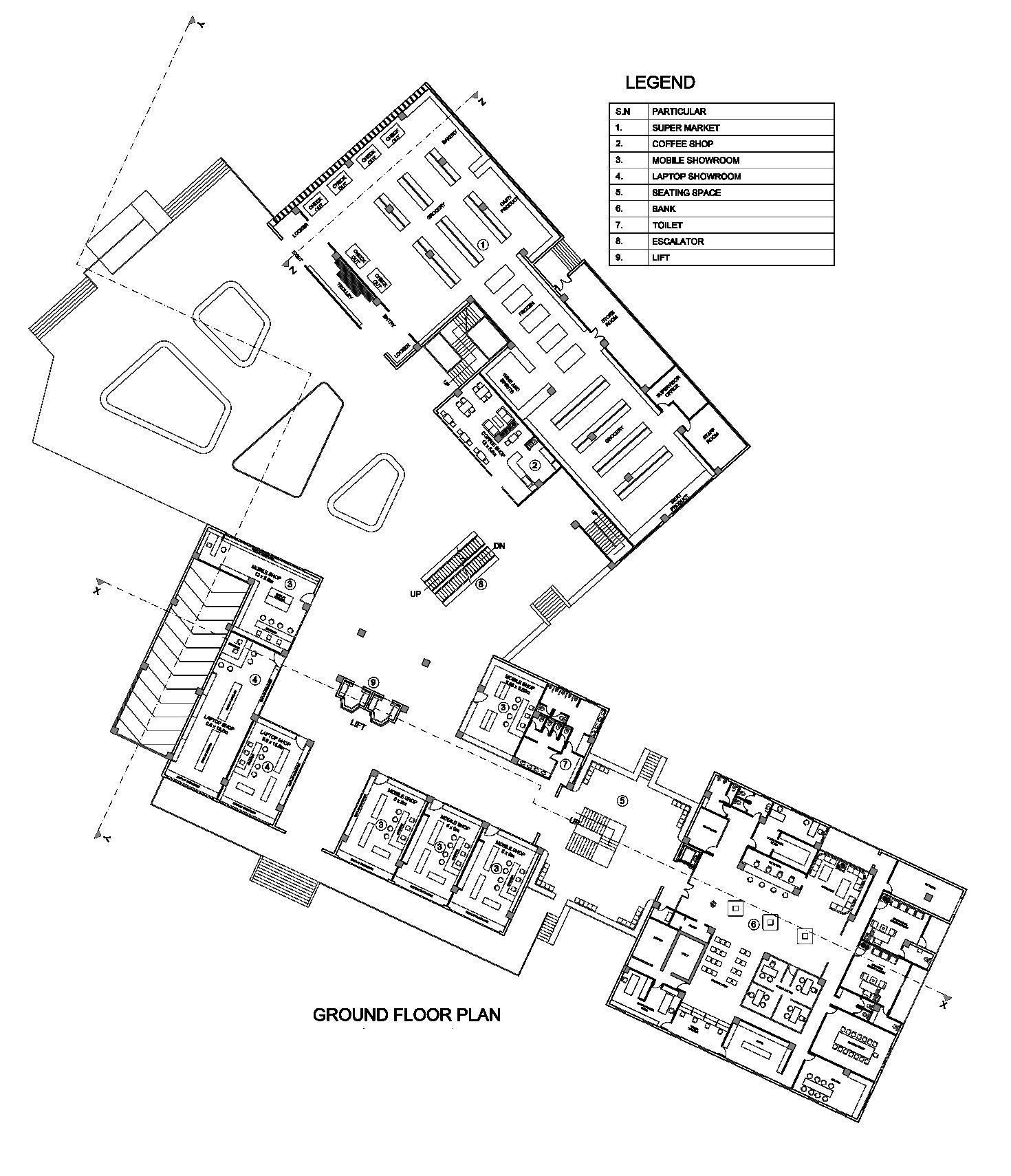

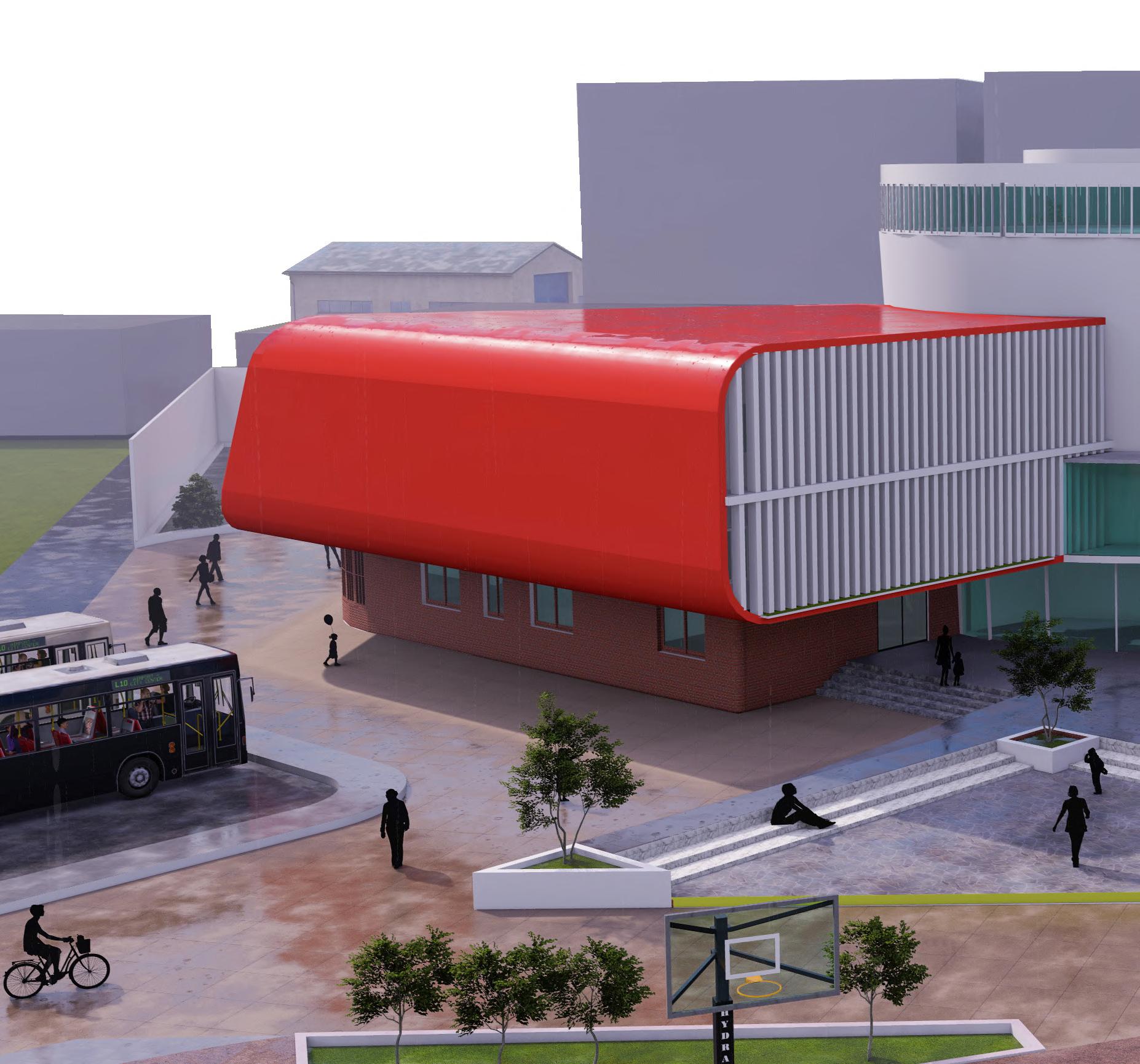

COMMERCIAL COMPLEX ACADEMIC PROJECT 3rd year/5TH semester

SITE OVERVIEW Location : Maharajgunj, kathmandu Total site area: 8073 sq.m

25.

26.

Commercial complex| studio 5th sem

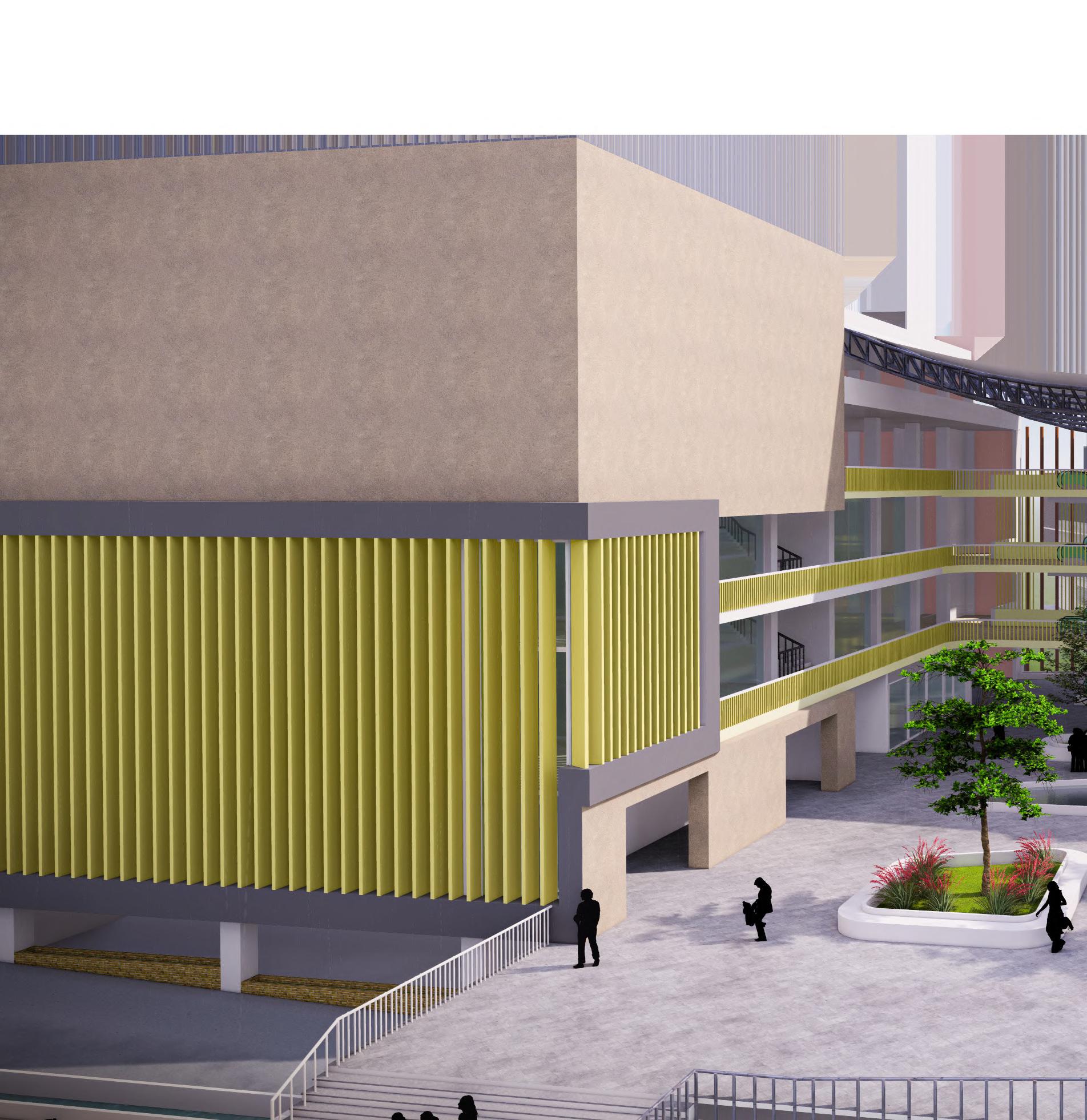

CONCEPT The existing site has an irregular shape, which poses a unique challenge for the proposed building design. Buildings are align with site considering public space and maximizing natural light. Plaza in the center of the building serves a dual purpose: not only does it provide a communal gathering space for visitors and occupants, but it also injects a sense of vibrancy and life into the area. The plaza becomes a focal point, drawing people in with its inviting atmosphere and serving as a hub of activity.

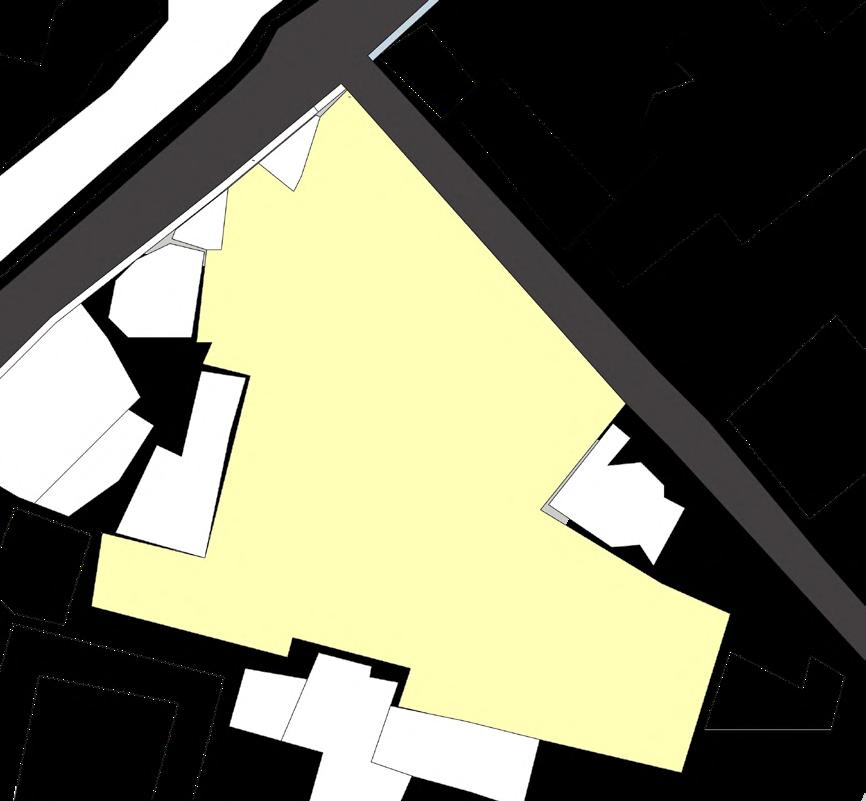

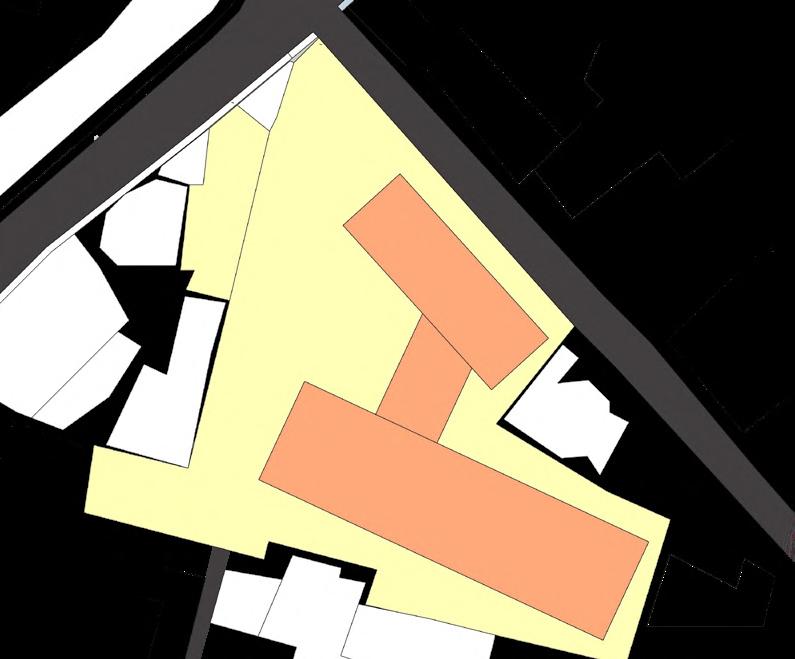

Existing site

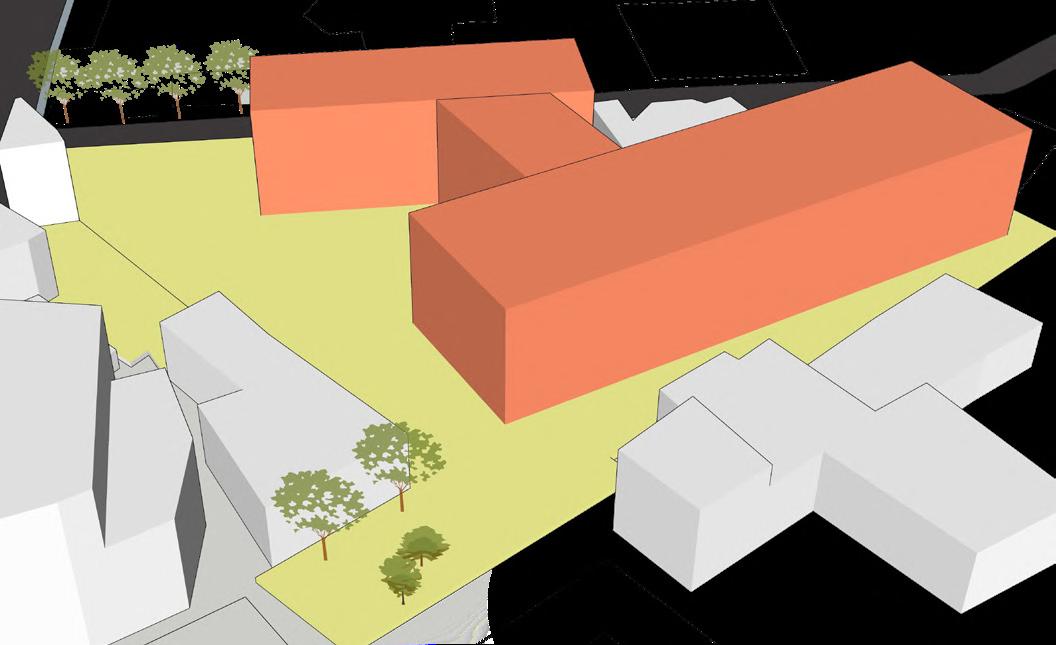

Aligning with site considering public space

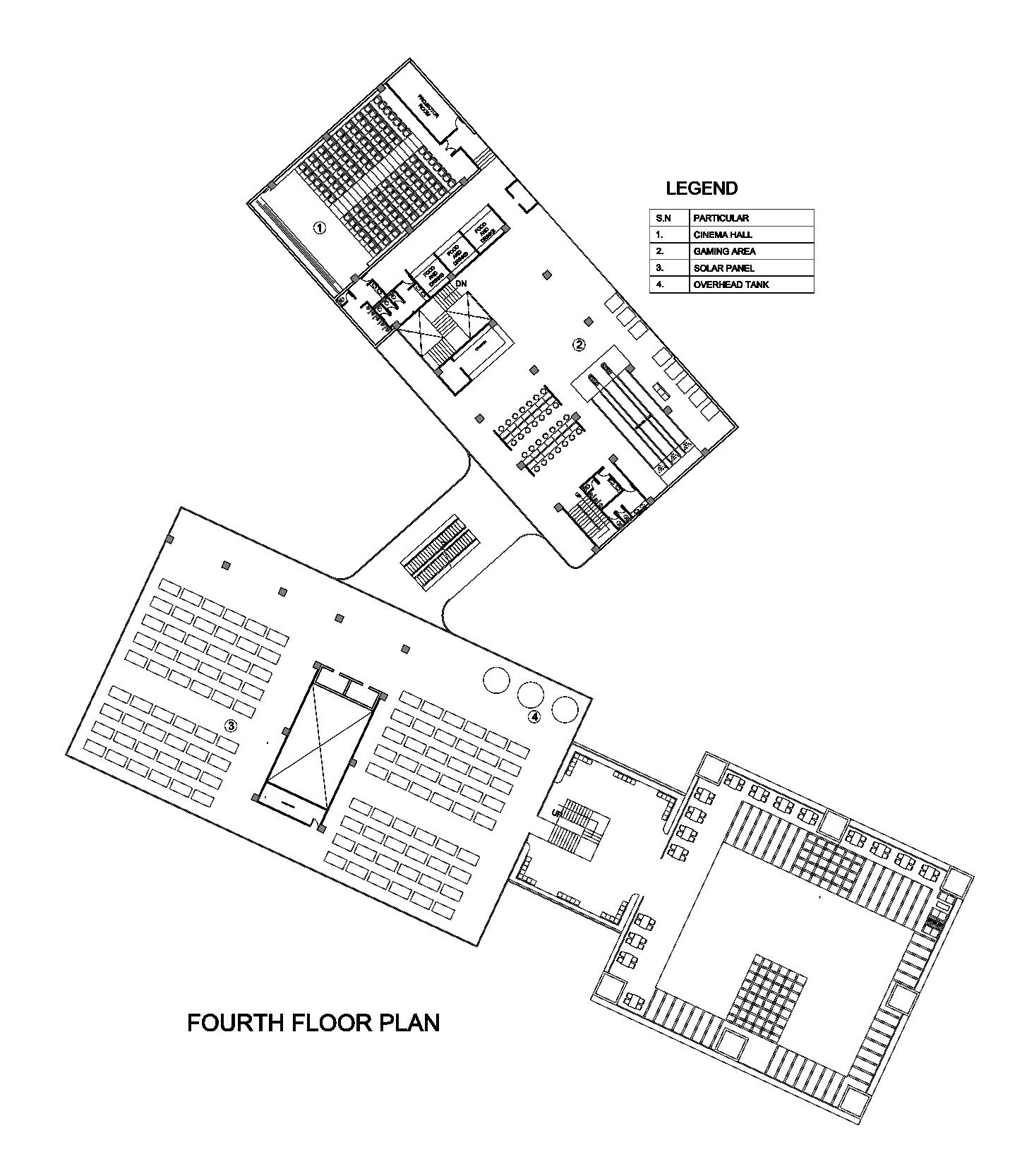

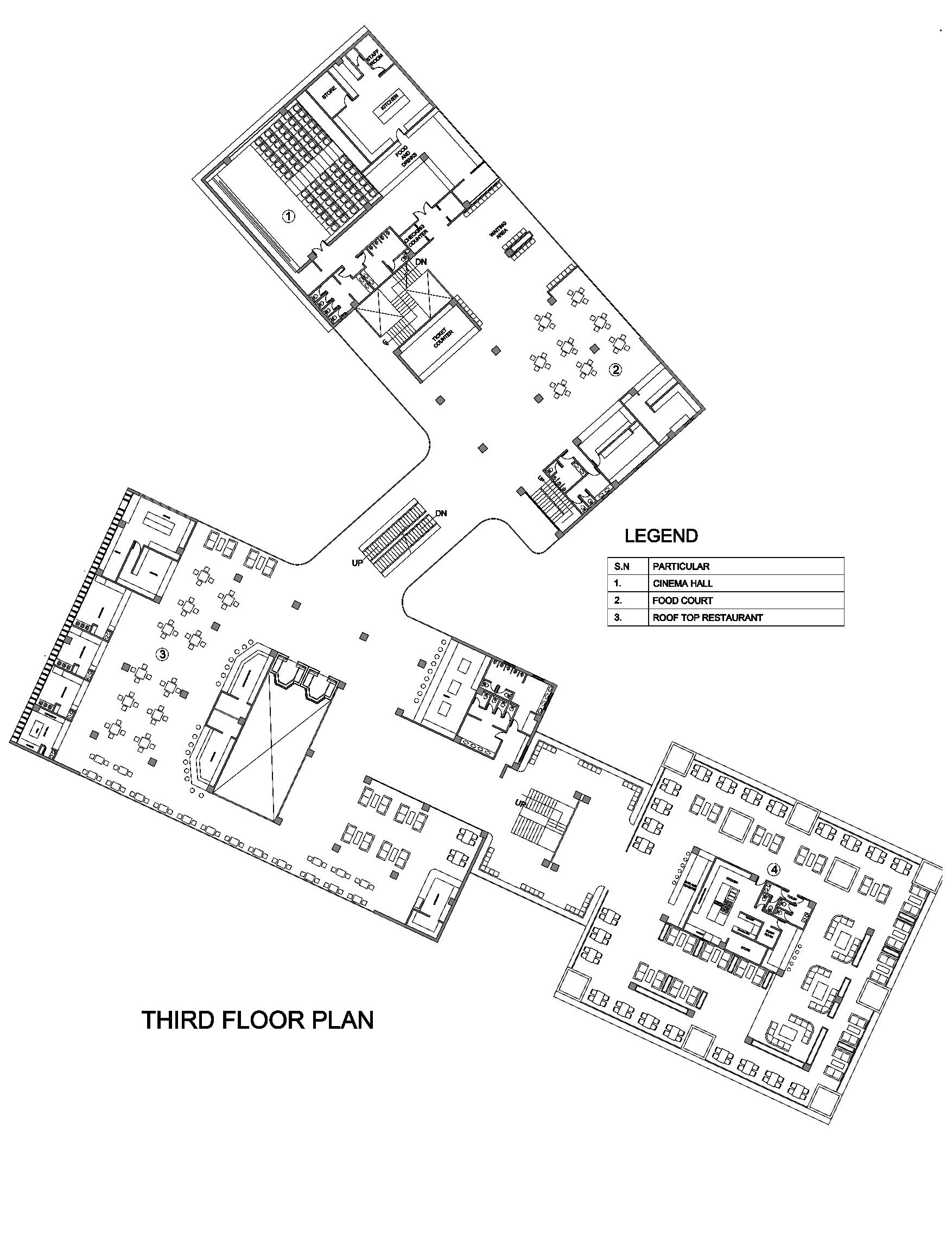

Food hub Shops Office Bank Cinema hall Super Market

27.

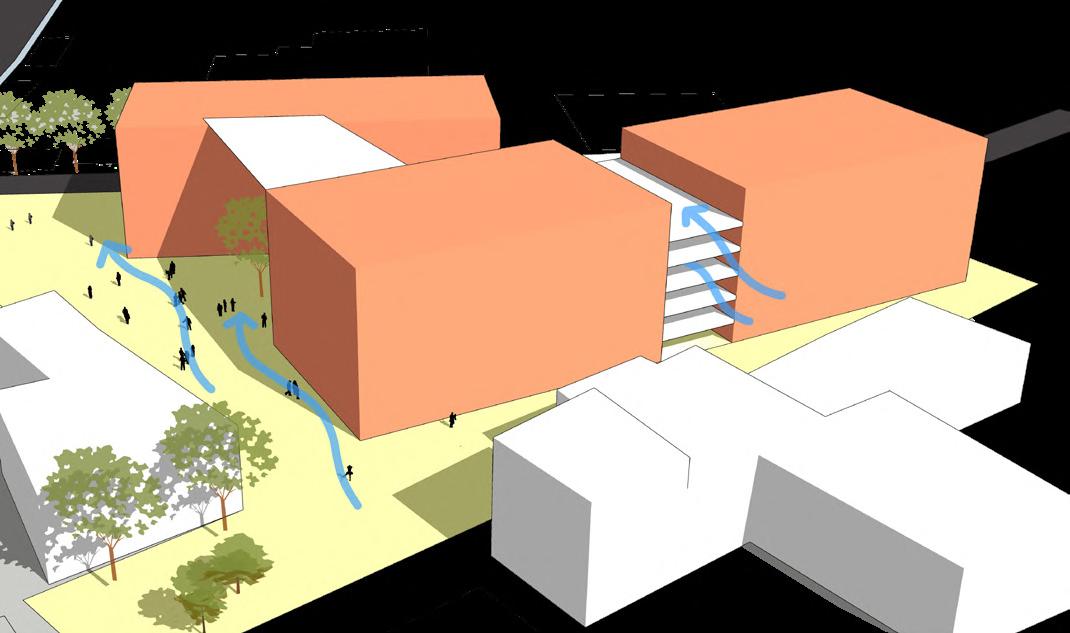

Form : Maximize natural light(north and south facade)

Divide : To strengthing the structure and increase airflow

SITE PLAN

28.

Commercial complex| studio 5th sem

Plantation detail

29.

SECTION AT X-X

30.

Commercial complex| studio 5th sem

Vertical louvre detail

SECTION AT Y-Y 31.

32.

THANKYOU +977-9860063006 tshiringtamang3@gmail.com
