TLED-DL3X
AMBER/RED TURN & MARKER
TLED-DL3XC AMBER/RED TURN & MARKER
TLED-DS3X1 AMBER/RED STOP, TURN & TAIL
TLED-DS3XC1 AMBER/RED STOP, TURN & TAIL
TLED-DS3X2
AMBER/RED STOP, TURN & TAIL
TLED-DS3XC2 AMBER/RED STOP, TURN & TAIL
TLED-DL3XB
AMBER/RED TURN & MARKER TO BLUE AUXILIARY
TLED-DL3XG AMBER/RED TURN & MARKER TO GREEN AUXILIARY
TLED-DS3XB1
AMBER/RED STOP, TURN & TAIL TO BLUE AUXILIARY
TLED-DS3XG1
AMBER/RED STOP, TURN & TAIL TO GREEN AUXILIARY
TLED-DS3XB2
AMBER/RED STOP, TURN & TAIL TO BLUE AUXILIARY
TLED-DS3XG2
AMBER/RED STOP, TURN & TAIL TO GREEN AUXILIARY

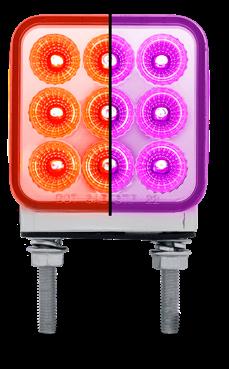

TLED-DL3XP
AMBER/RED TURN & MARKER TO PURPLE AUXILIARY
TECHNICAL SPECIFICATIONS
COMPLIANCE DOT & DOT to Aux DIODES 28 Diodes
OPERATING VOLTAGE 12.8 Volts
CURRENT DRAW @ 12.8 VOLTS DOT: 130 mA / Aux: 250 mA
LENS MATERIAL Polycarbonate WARRANTY 3 Years
TLED-DL3XR AMBER/RED TURN & MARKER TO RED AUXILIARY “OFF”
TLED-DS3XP1
AMBER/RED STOP, TURN & TAIL TO PURPLE AUXILIARY
TECHNICAL SPECIFICATIONS
TLED-DS3XR1
AMBER/RED STOP, TURN & TAIL TO RED AUXILIARY
COMPLIANCE DOT & DOT to Aux
DIODES 30 Diodes
OPERATING VOLTAGE 12.8 Volts
CURRENT DRAW @ 12.8 VOLTS DOT: 150 ~ 230 mA / Aux: 330 mA
LENS MATERIAL Polycarbonate WARRANTY 3 Years
TLED-DS3XP2
AMBER/RED STOP, TURN & TAIL TO PURPLE AUXILIARY
TECHNICAL SPECIFICATIONS
TLED-DS3XR2
COMPLIANCE DOT & DOT to Aux DIODES 30 Diodes
OPERATING VOLTAGE 12.8 Volts
CURRENT DRAW @ 12.8 VOLTS DOT: 150 ~ 230 mA / Aux: 330 mA
LENS MATERIAL Polycarbonate WARRANTY 3 Years
AMBER/RED STOP, TURN & TAIL TO RED AUXILIARY “OFF”
