Thaina Rongmai
P O R T F O L I O
Selected Works | 2020 - 2022
HELLO
NAME
AGE YEAR CONTACT
EMAIL SCHOOL ADDRESS
Thaina Rongmai 22 4th Year 9365910619
thainarongmei5@gmail.com
NIT Calicut
Nutan Ramnagar Pt 1, Sonai, Cachar, Assam
“Architecture, to me, is a medium to connect my dreams to realities. It is a language to explore the possibilities of humane design and it’s very impact upon the world us. Owing to Architecture, I can now dream with my eyes closed and my eyes open.”
p. 2 Curriculum Vitae
THAINA RONGMAI | CURRICULUM VITAE
EDUCATION
2019-Present National Institute of Technology | Calicut, Kerela Bachelor of Architecture
2016-2018 Jawahar Navodaya Vidyalaya | Pailapool,Cachar,Assam Senior Secondary Education
2014-2016 Jawahar Navodaya Vidyalaya | Pailapool,Cachar,Assam Secondary Education
EXPERIENCE
2022 Three Month summer Internship at Dept.of Architecture and Planning NIT, Calicut
2021 Documentation of Santhal and Munda Settlements , Jarkhand Team Member
LANGUAGE Hindi English
Bengali (Basic)
Rongmai Naga (Native)
SOFTWARE
2D Drawing Autocad | Revit
3D Modeling Sketchup
Rendering Lumion | Enscape | Vray
Adobe cc Photoshop | Illustrator | InDesign
MS Office Word | Powerpoint | Excel
p. 3
p. 4 Contents
O
p. 5 2020 | Artist Residence 06 - 15 Silchar, Assam 2021 | Low Rise Apartment 16 - 23 Silchar, Assam 2021 | Commercial Complex 24 - 27 Calicut, Kerela 2022 | Eco Resort 28 - 37 Wayanad, Kerela 2022 | Administrative block 38 - 39 NIT, Calicut - | Working Drawing & 40-41 Hand Drafting
C
N T E N T S

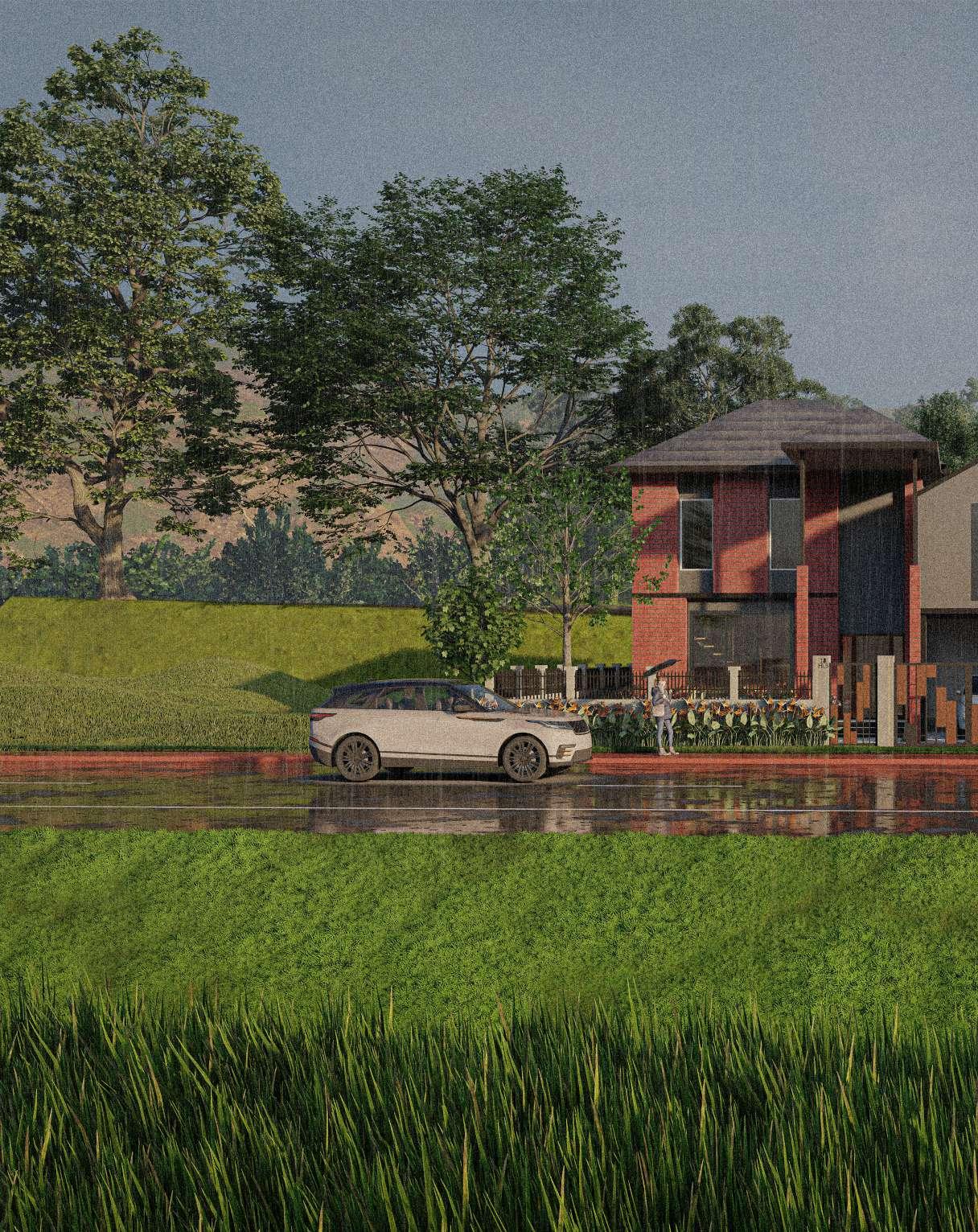

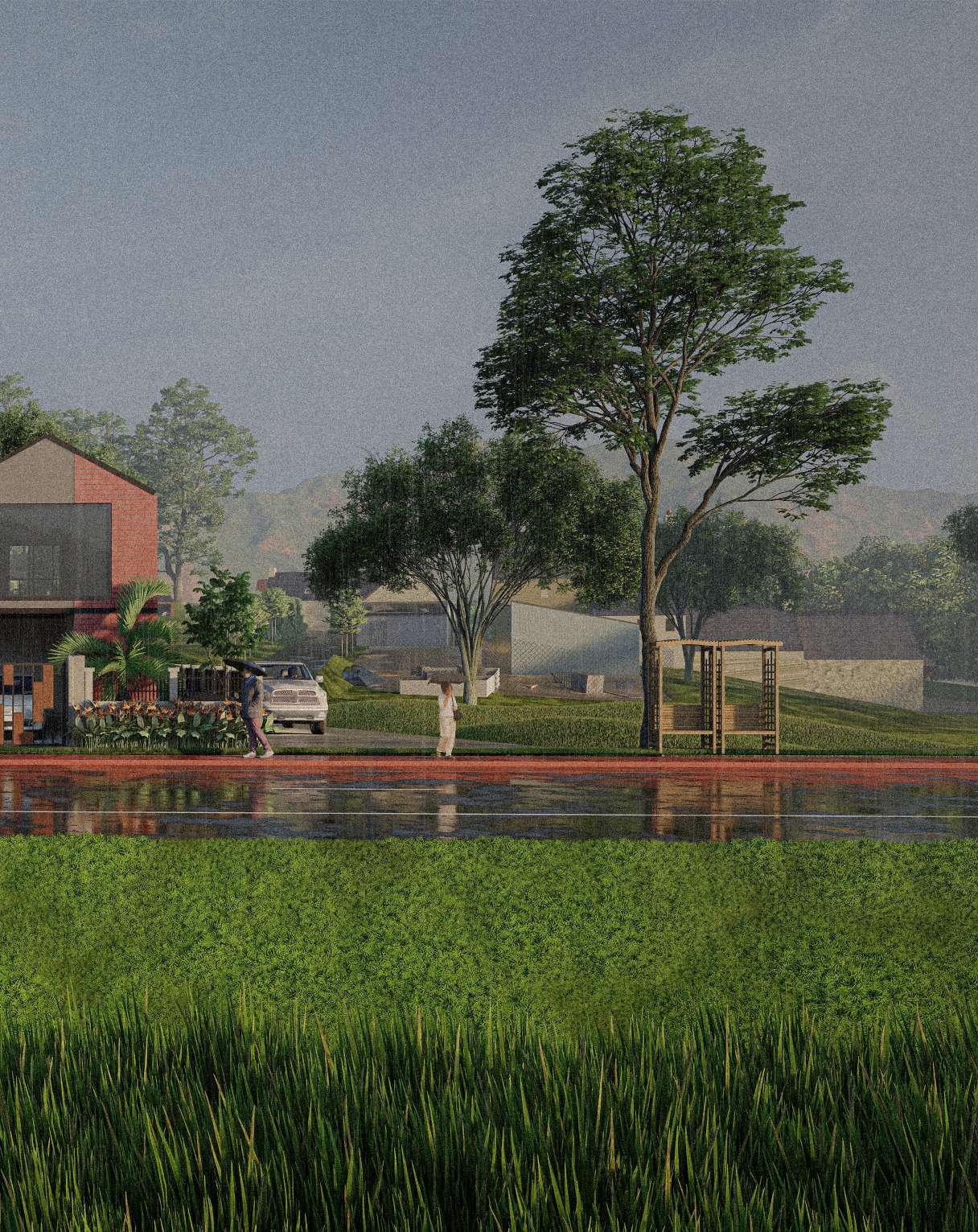

LOCATION : Silchar, Assam
TYPE : Academic Project
YEAR : 2020
SEMESTER : 3rd

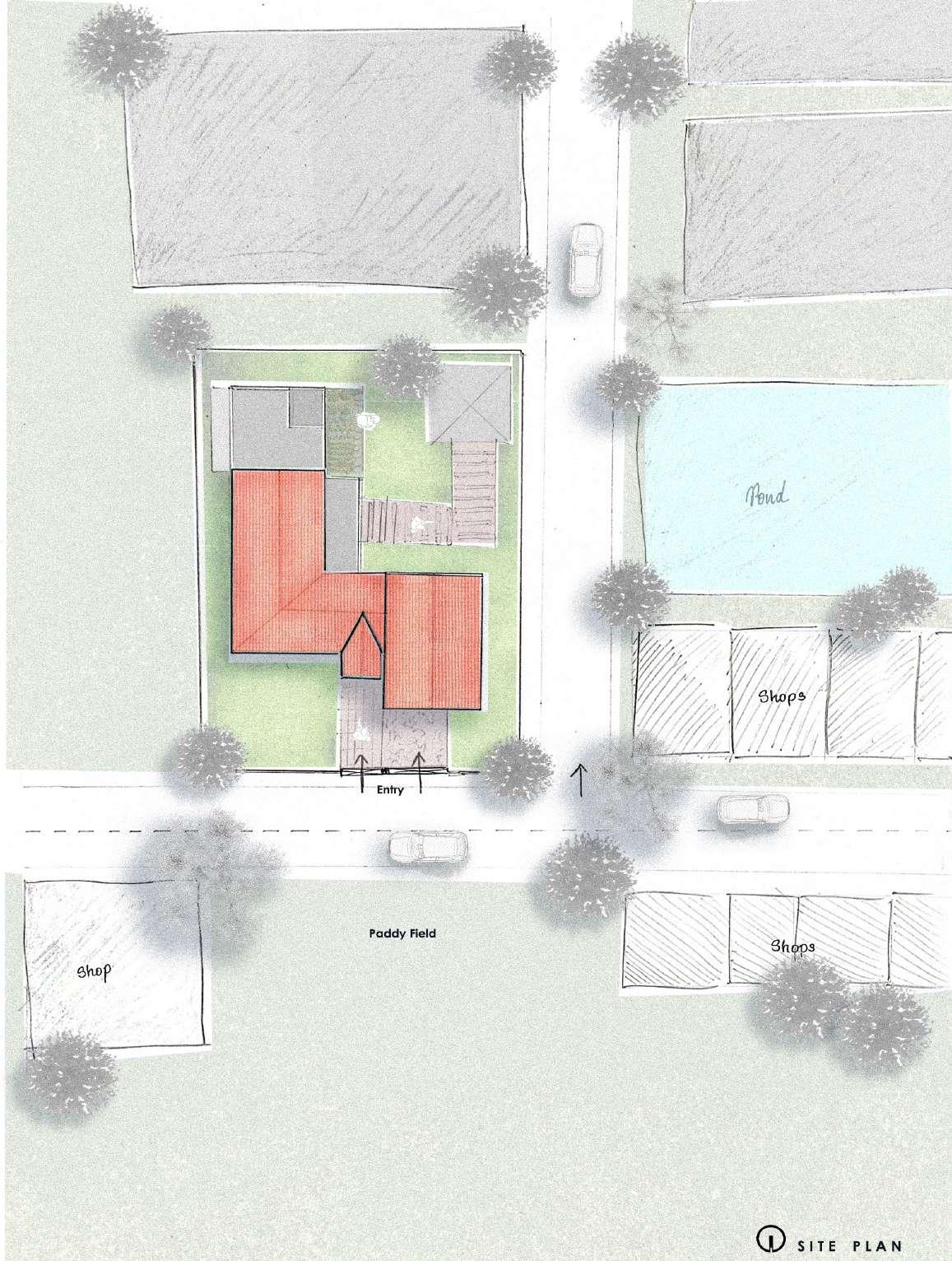

SITE CONTEXT
The site is located in perifhery of Silchar town which is a rural locality, Surrounded by small village in the south and lush paddy field in the north.The site is also favoured with scenic hill views all around. It has a tropical humid climate.
DESIGN
The design is primarily based on fuctionalism which is a concept associated with mordernism. Here the view of Louis H. Sullivan “form follows function” is been used to define the shape and form of the structure. The space is divided into two parts, the formal area for the artist and his Visitors and the informal area for the family,
DESIGN BRIEF
The Brief was to design a residence for an artist who has two small kids providing a personal workspace.
The facade material, brick is been used as due to its availability and it fits well for the climatic context of the region.
PLOT AREA : 16 x 22 m (352 msq.)
FOOT PRINT AREA : 117.5msq.
COVERAGE : 33.38%
BUILT-UP AREA : 235 msq.
F.A.R. : 0.66

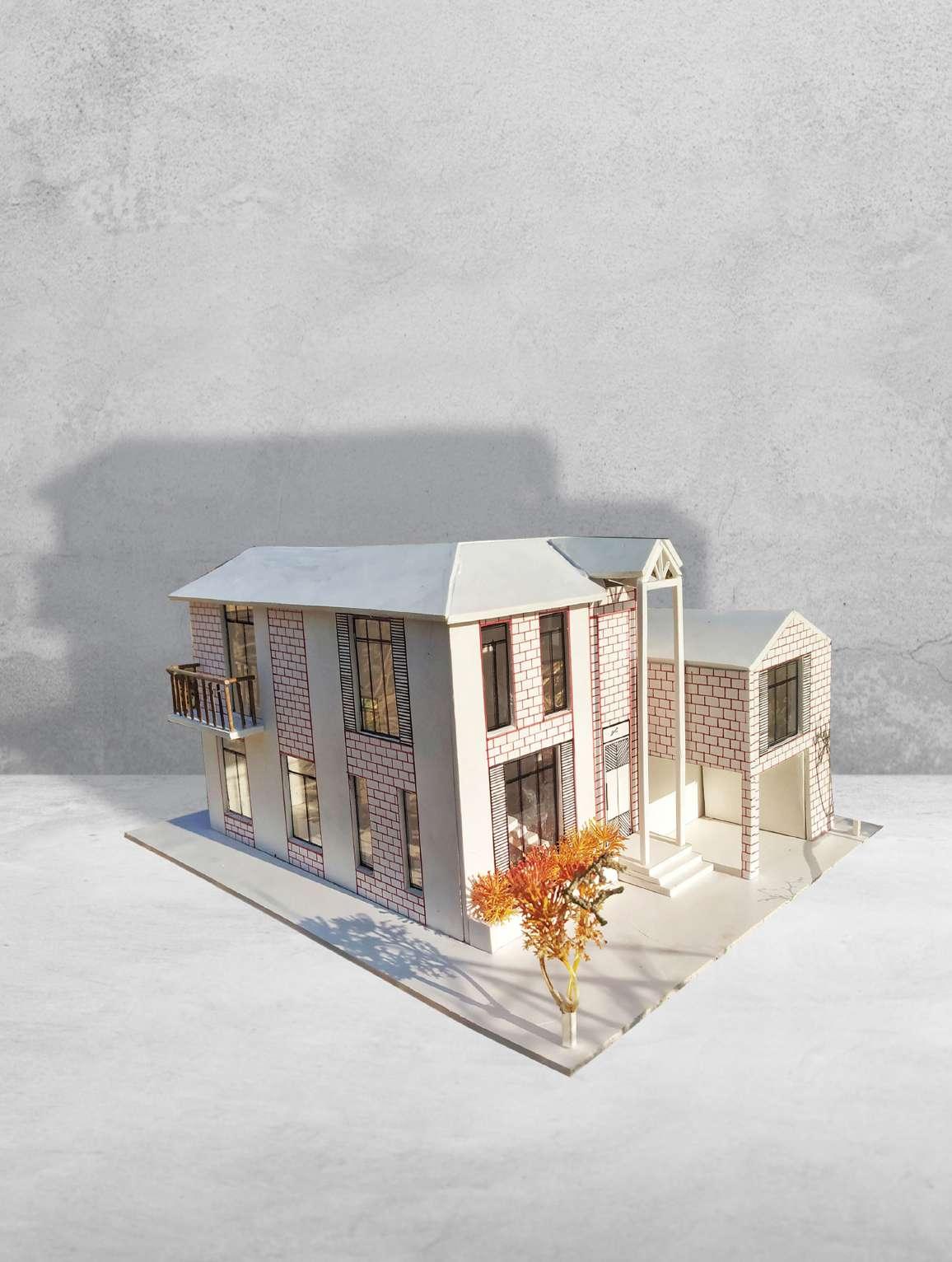

A R T I S T R E S I D E N C E
p. 6 Artist Residence | Silchar, Assam
p. 7
p. 8 Artist Residence |
Silchar, Assam
p. 9

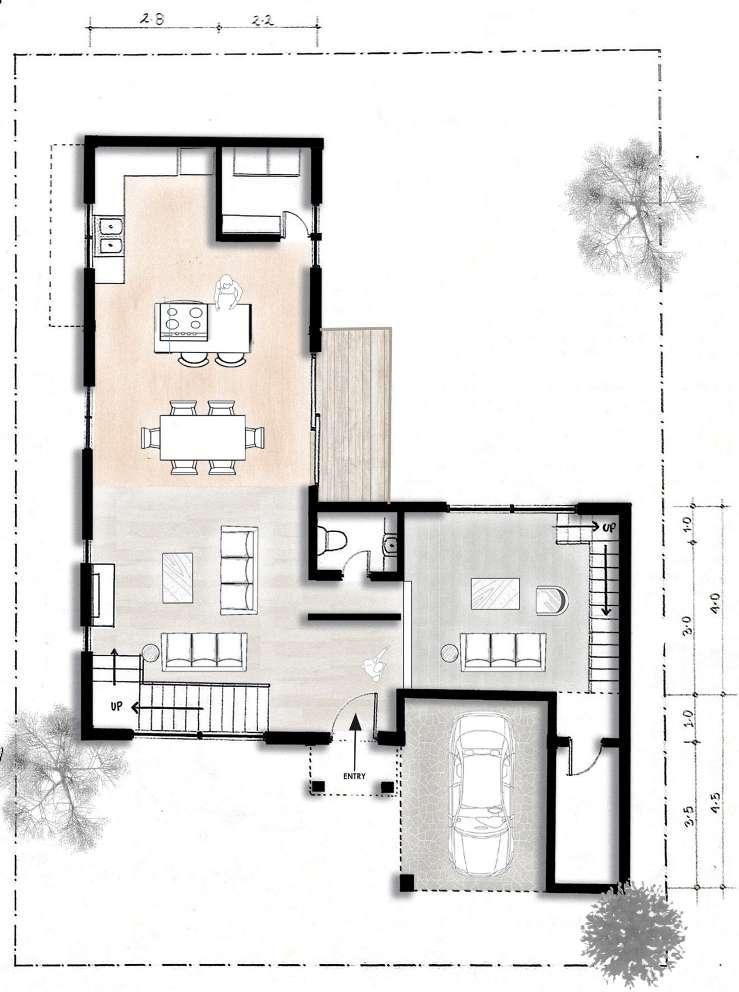

08 09 07 05 06 04 03 02 01 11 10 0 1 Front Yard 0 2 Parking 0 3 Storage 0 4 Formal Living (double height) 0 5 Informal Living 0 6 Washroom 0 7 Dining 0 8 Kitchen 0 9 Utility Room 1 0 Wooden Deck 1 1 Back Yard Ground floor Plan p. 10 Artist Residence | Silchar, Assam

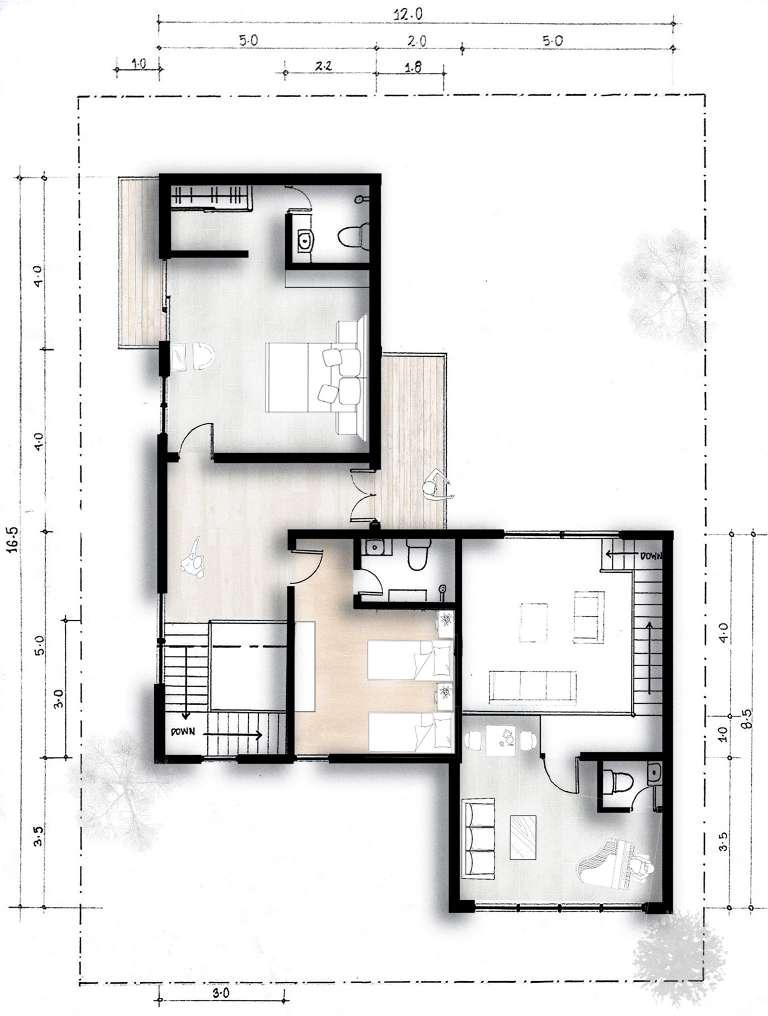

0 1 Master Bedroom 0 2 Walk in closet 0 3 Washroom 0 4 Balcony 0 5 Common Balcony 0 6 Children Bedroom 0 7 Work space First floor Plan 01 04 05 06 03 07 02 03 p. 11

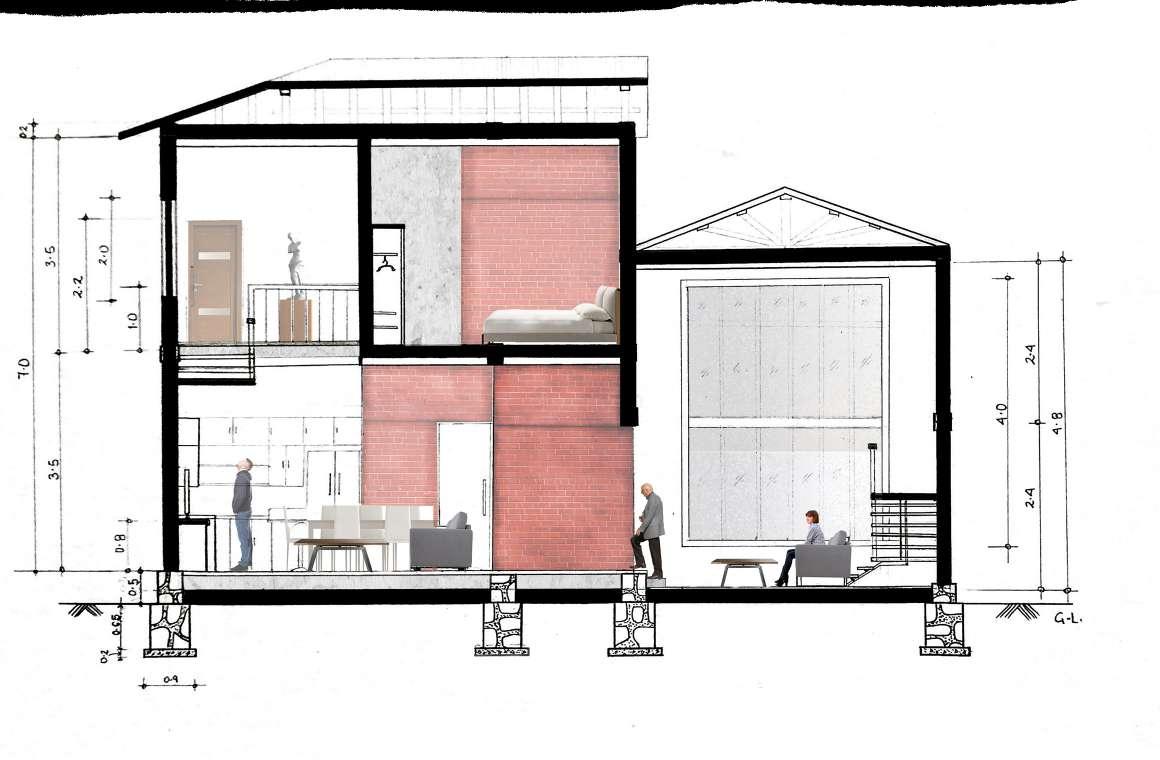

Section AA`

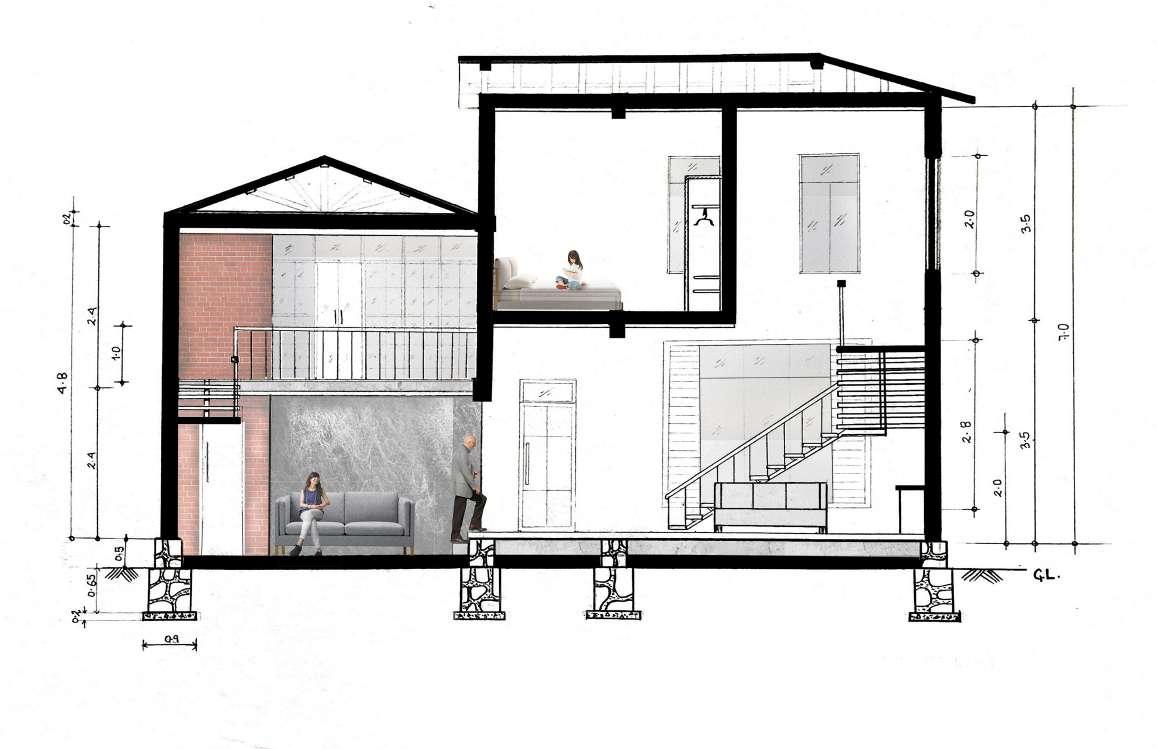

Section BB`
p. 12 Artist Residence | Silchar, Assam
p. 13

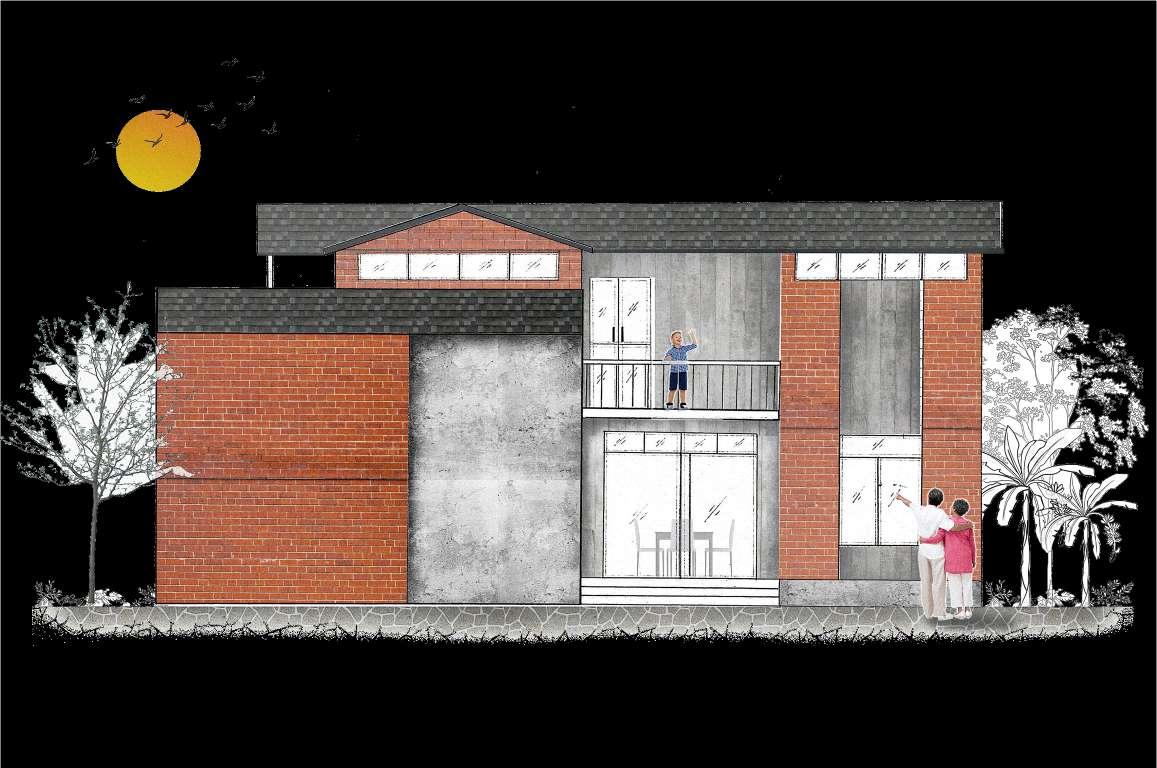

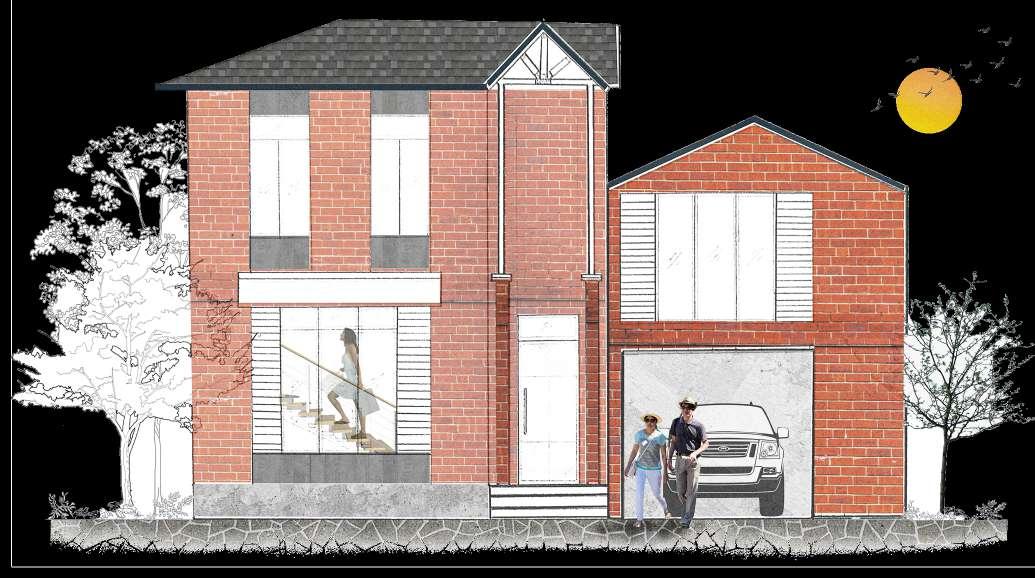

Elevation 01 (Front)
p. 14 Artist Residence | Silchar, Assam
Elevation 02 (side)
p.15

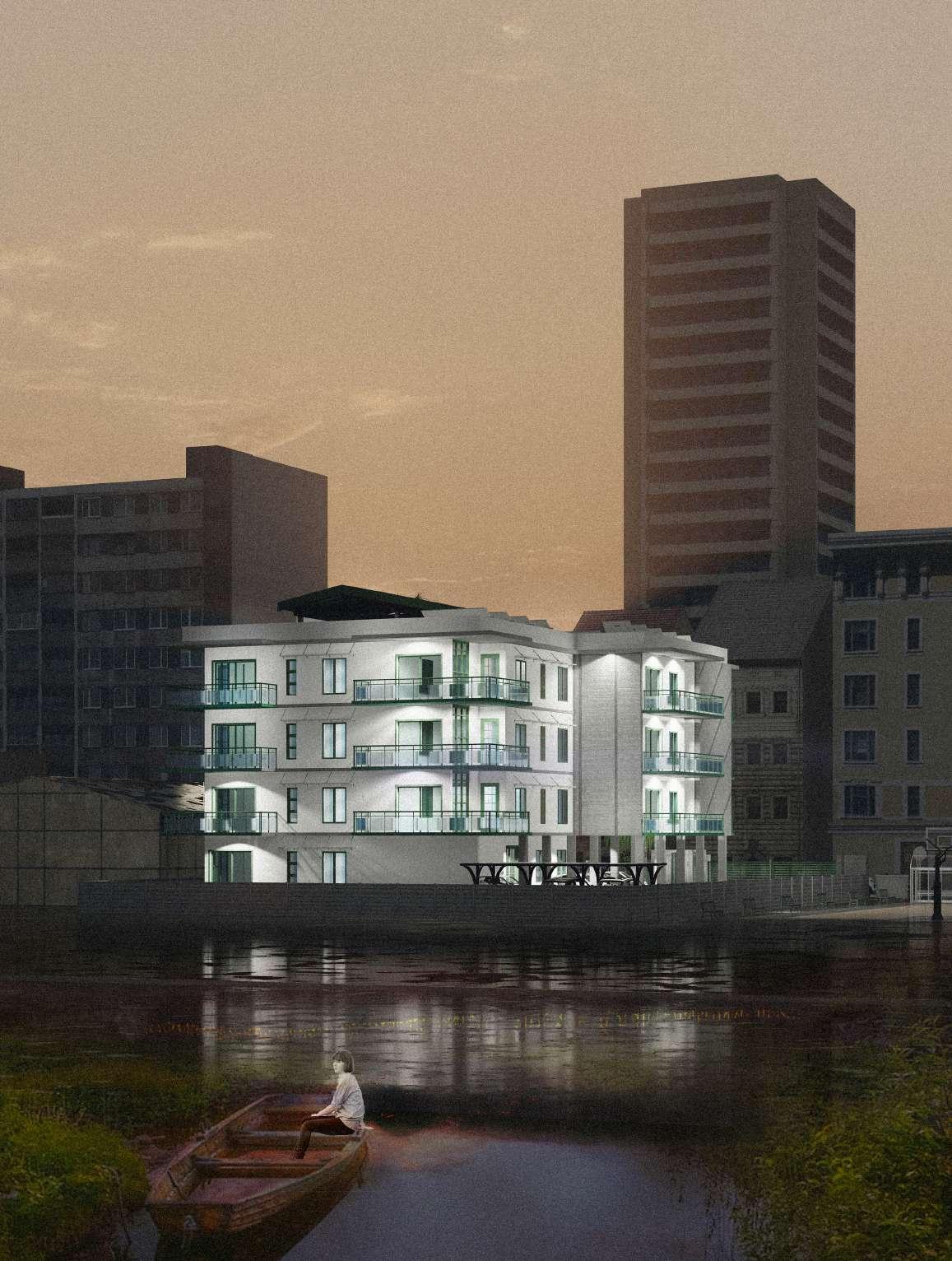

LOCATION : Silchar, Assam
TYPE : Academic Project
YEAR : 2021
SEMESTER : 4th

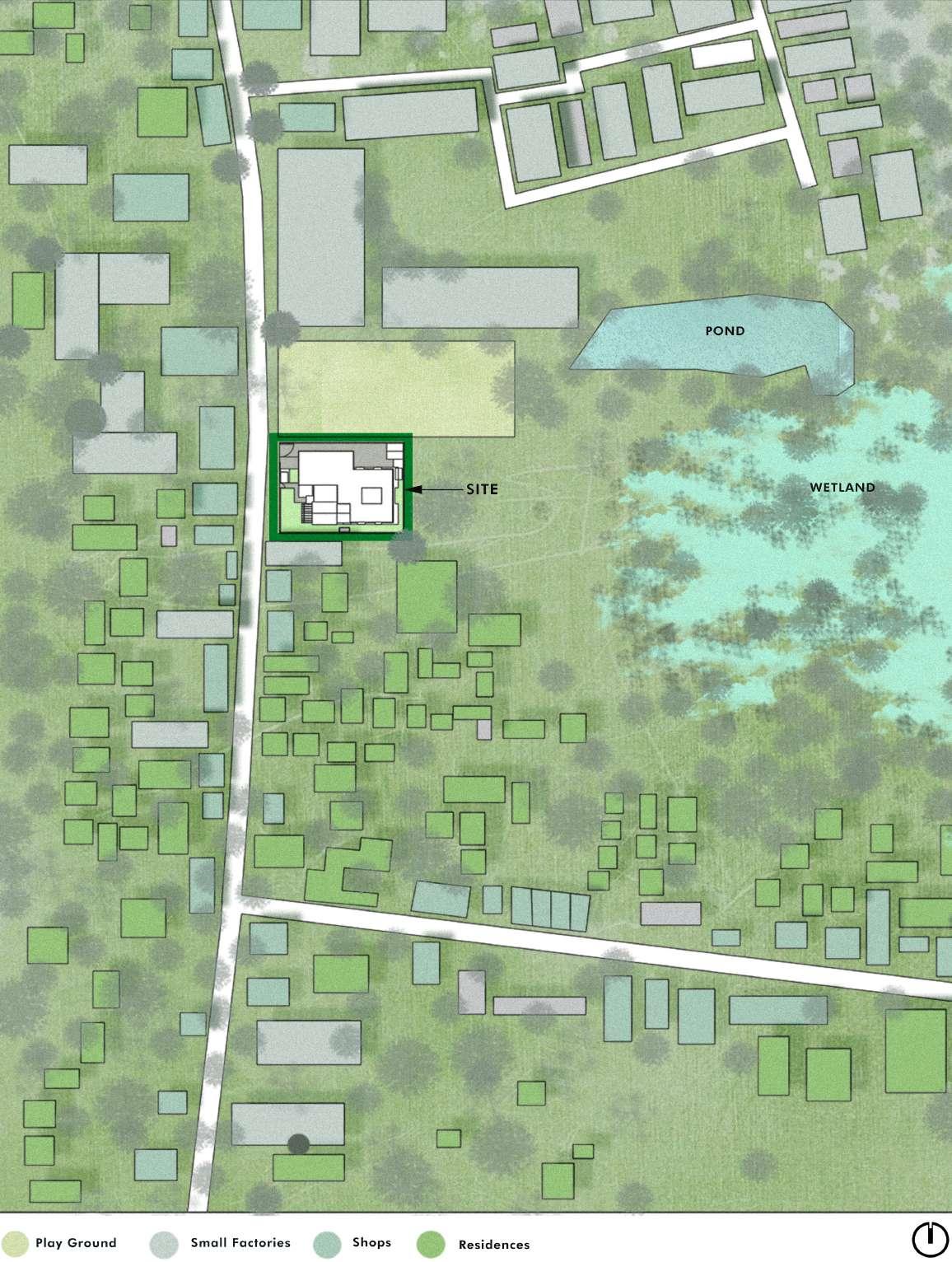

SITE CONTEXT
The site is located in perifhery of Silchar town which is a sub-urban locality, Surrounded by small factories, godowns, residences and a wetland in the east.The site is also favoured with cool breeze and great view of the wetland. It also have a playground in the north.
DESIGN BRIEF
The Brief was to design a ten units appartment building containing seven 2BHK and three 3BHK unit.
DESIGN

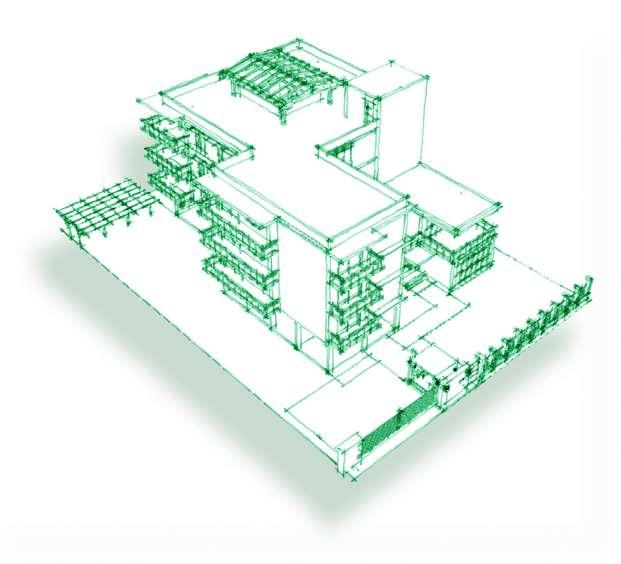

The design is very straight forward and simple. It uses the site strength to lead the design forward, the view of the wetland and the cool breeze coming from it act as the main focal point. Most of the openings and balconies are provided in the east. Each and every apartment units have a view of the wetland without compromising of the privacy by providing each units apart from each other. It is done so by giving a courtyard in between two 2bhk units and also by creating a different block for 3bhk units.
PLOT AREA : 25 x 37 m (1036 msq.)
FOOT PRINT AREA : 510msq.
COVERAGE : 49.22%
BUILT-UP AREA : 1952 msq.
F.A.R. : 1.88
FLOOR : G+3
UNITS : 7-2BHK (95.5 msq.) 3-3BHK (124 msq.)
L O W R I S E A P A R T M E N T
p. 16 Low Rise Apartment | Silchar, Assam
p.17
p. 18 Low Rise Apartment |
Assam
Silchar,
p.19

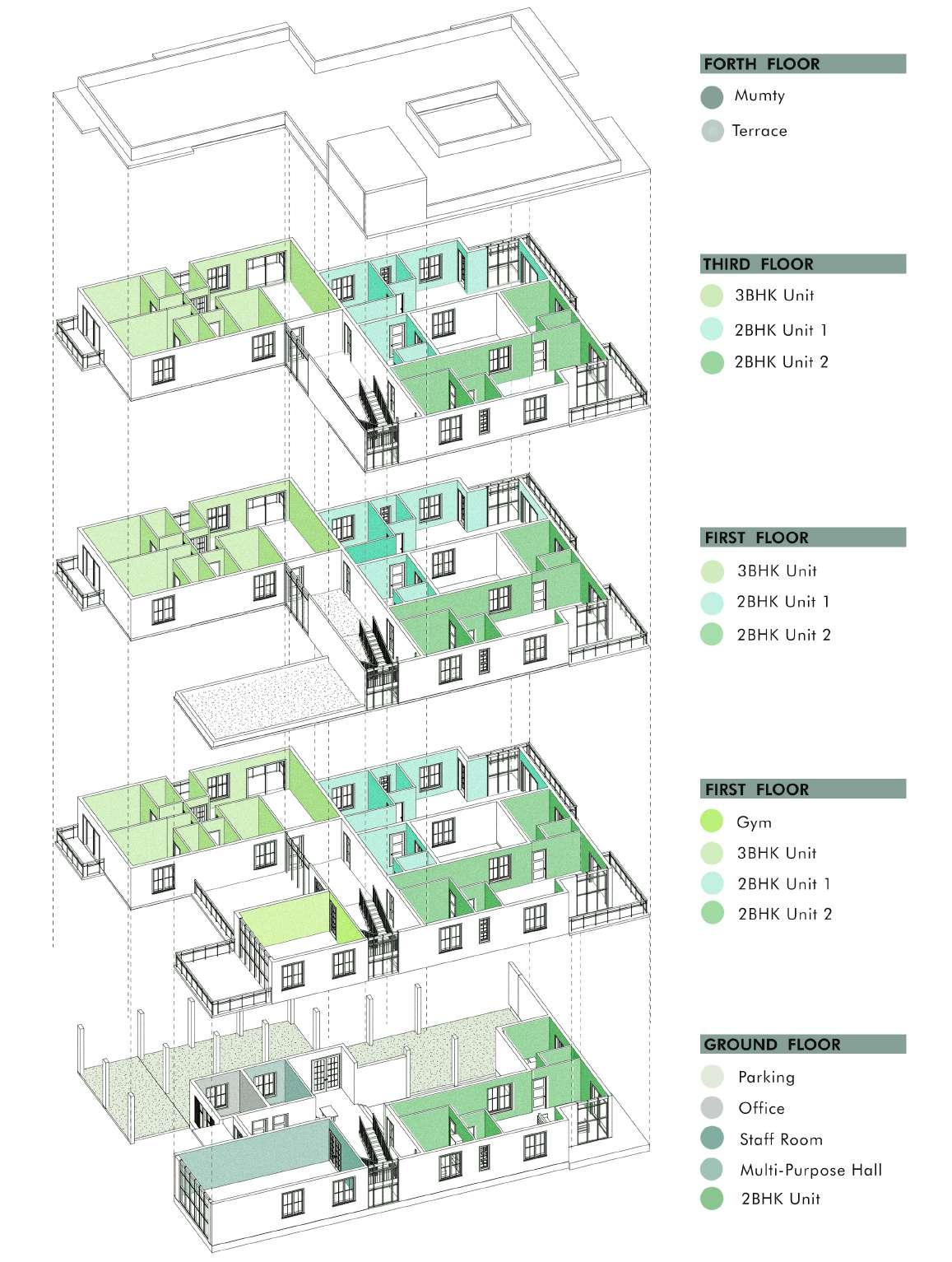

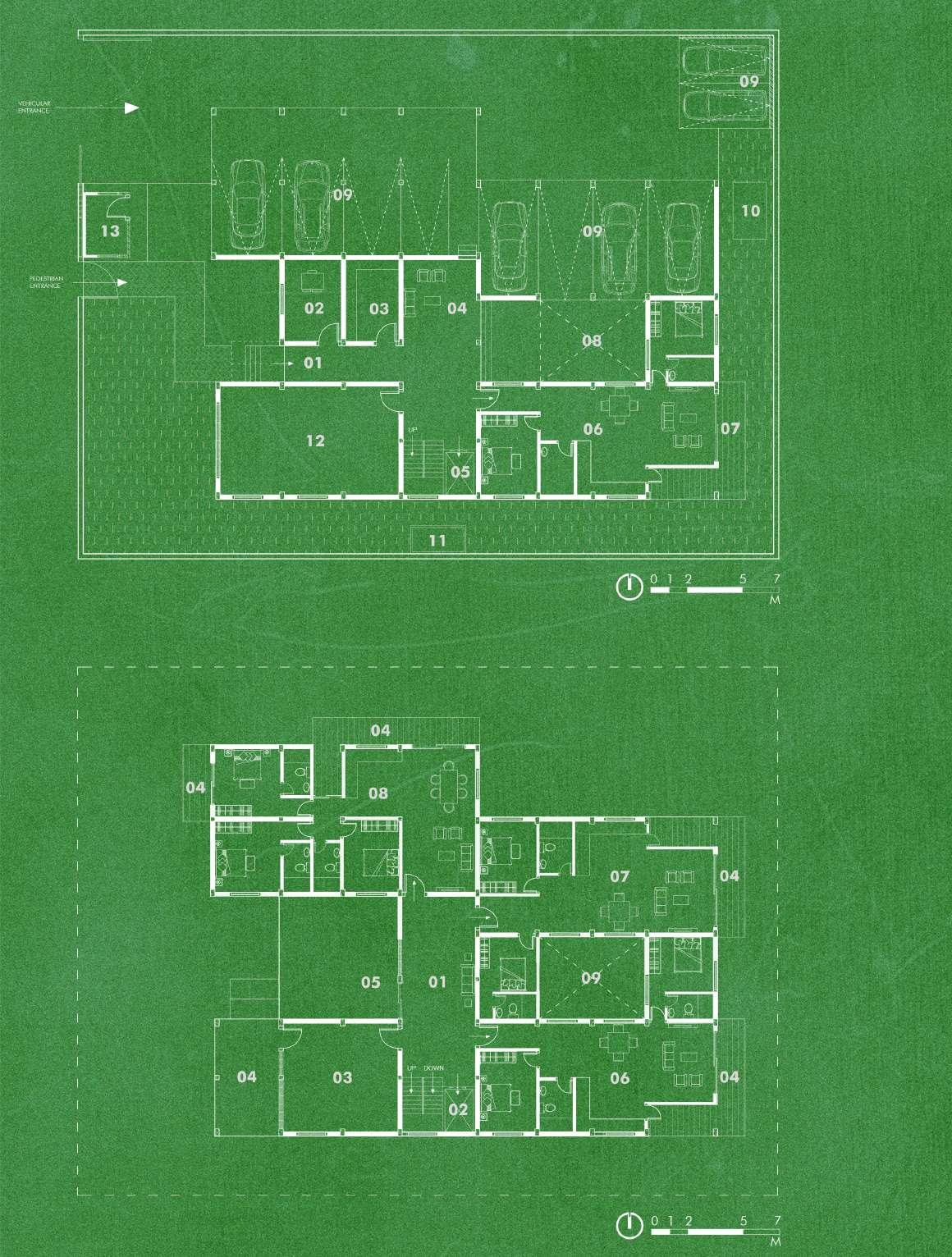

p. 20 Low Rise Apartment | Silchar, Assam First Floor Plan (Typical) Ground Floor Plan 01 Main Entry 02 Office 03 Staff Room 04 Lobby space 05 Lift 06 2BHK Unit 07 Deck 08 Courtyard 09 Parking 10 Septic tank 11 Rain Water storage tank 12 Multy-purpose hall 13 Security kiosk 01 Lobby space 02 Lift 03 Gym 04 Balcony 05 Green Space 06 2BHK Unit 1 07 2BHK Unit 2 08 3BHK Unit 09 Courtyard
p.21
p. 22 Low Rise Apartment | Silchar, Assam

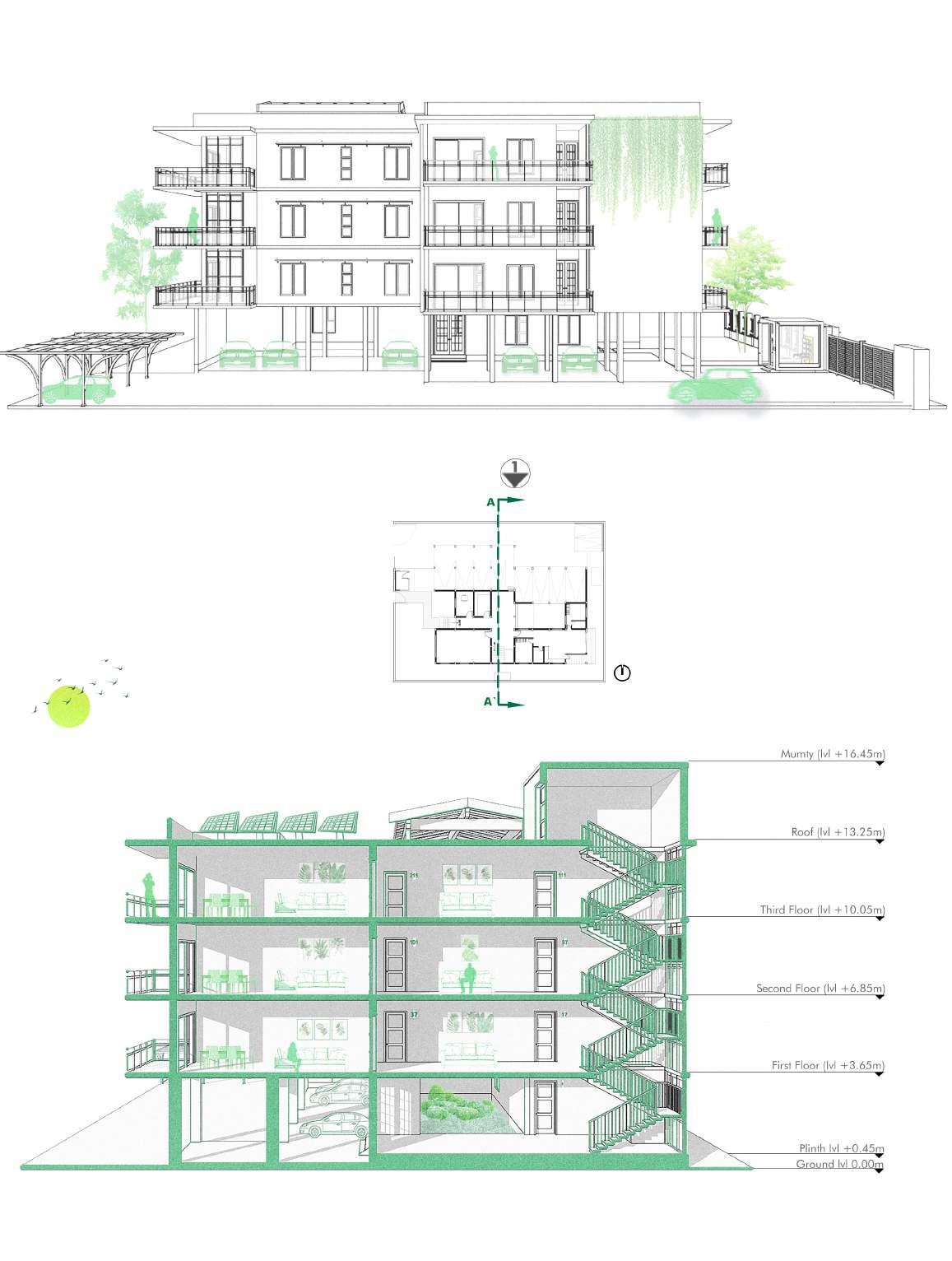

North Elevation 1
Section AA`
p.23

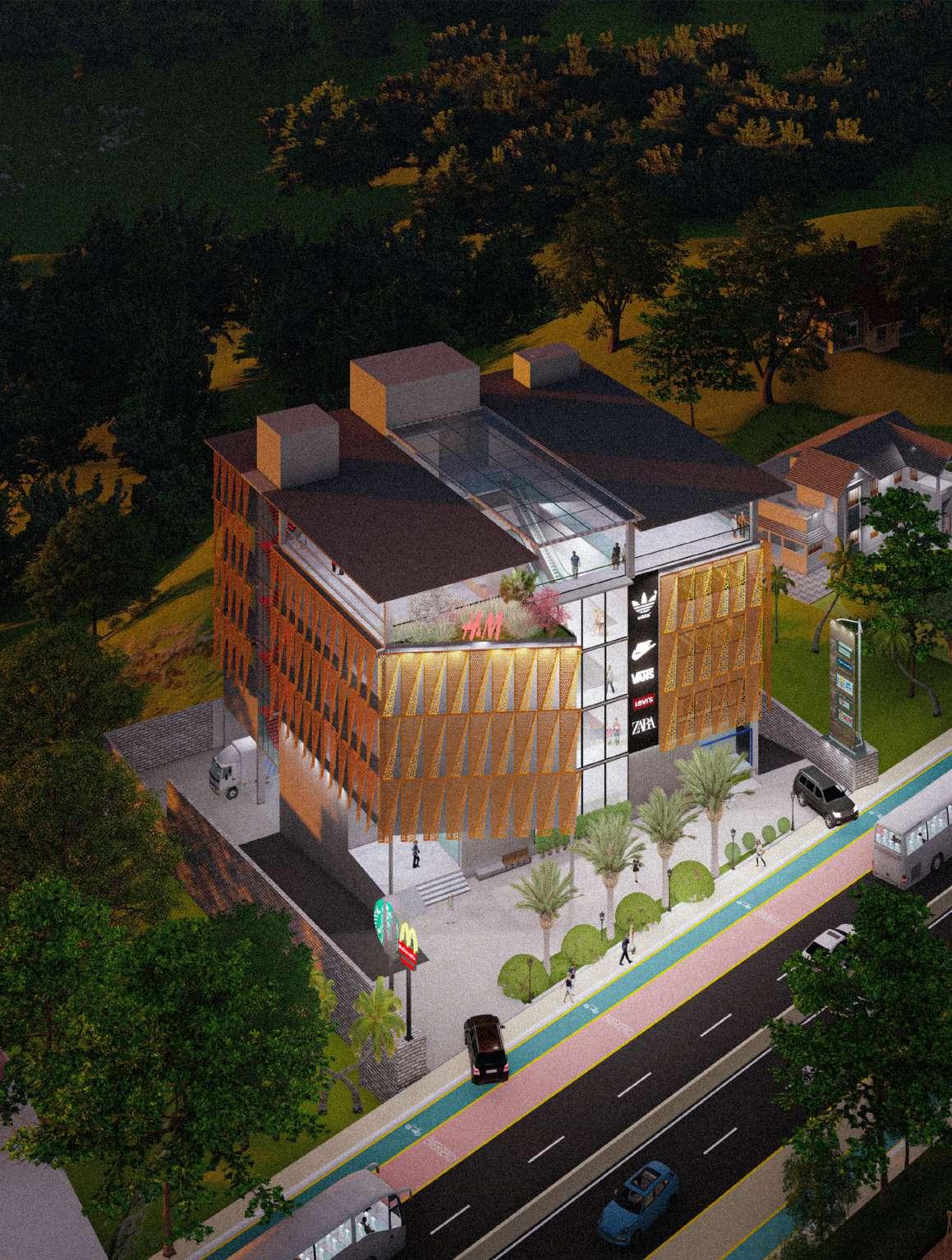

LOCATION : Calicut, Kerela
TYPE : Academic Project
YEAR : 2021
SEMESTER : 5th
SITE CONTEXT
The site is located in calicut near thondayad bypass, a suburban locality. Surrounded by upper middle class families, which is rapidly growing, making it a perfect location for comercial complex. Its a contour site. The site is also favoured with scenic lowland views on the back side.
DESIGN BRIEF
The Brief was to design a shoping complex for the area which will attract people perticularly upper middle class, who are dominant there. Providing high quality service with out compromising the profits of the owner.
DESIGN

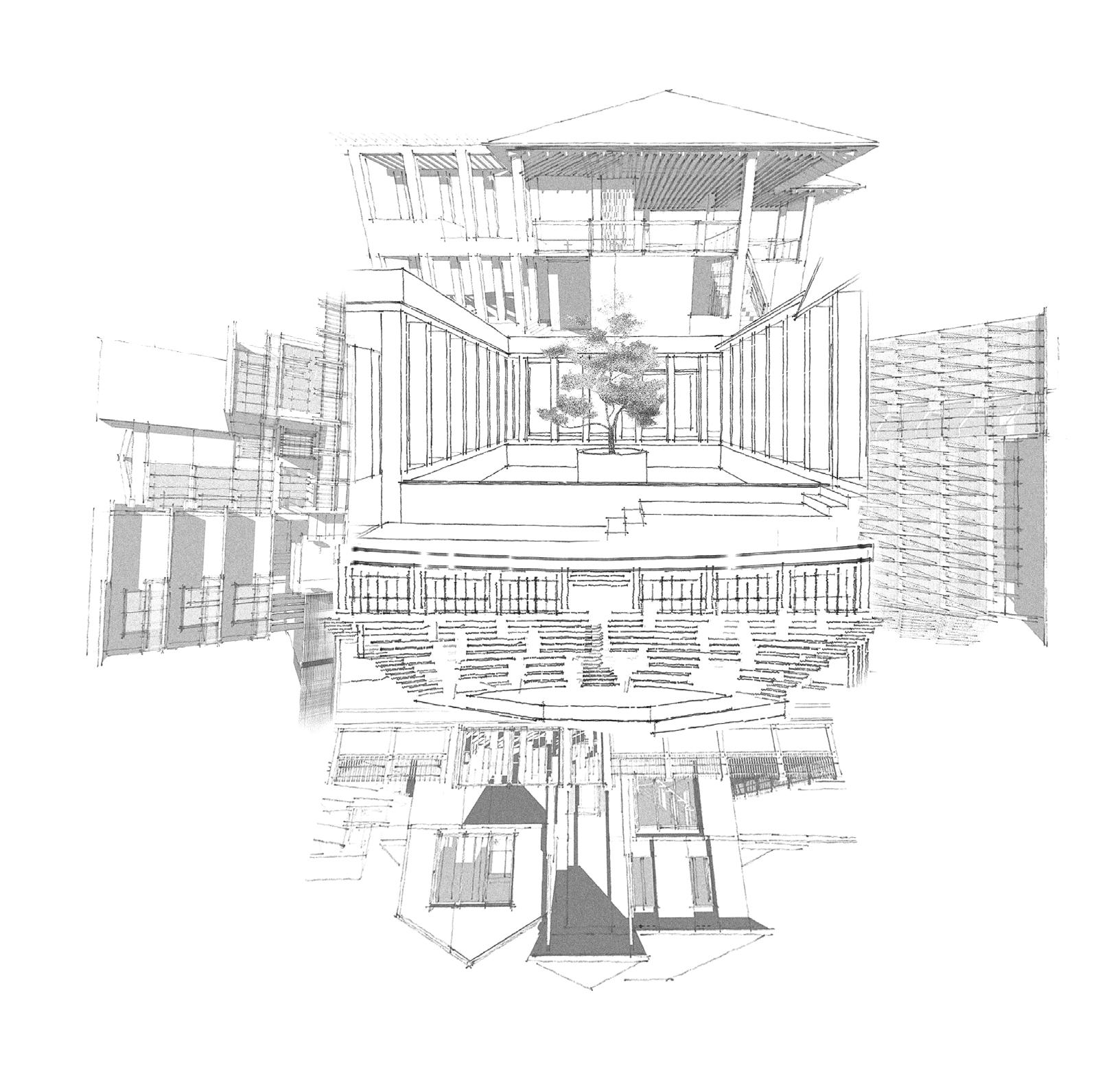

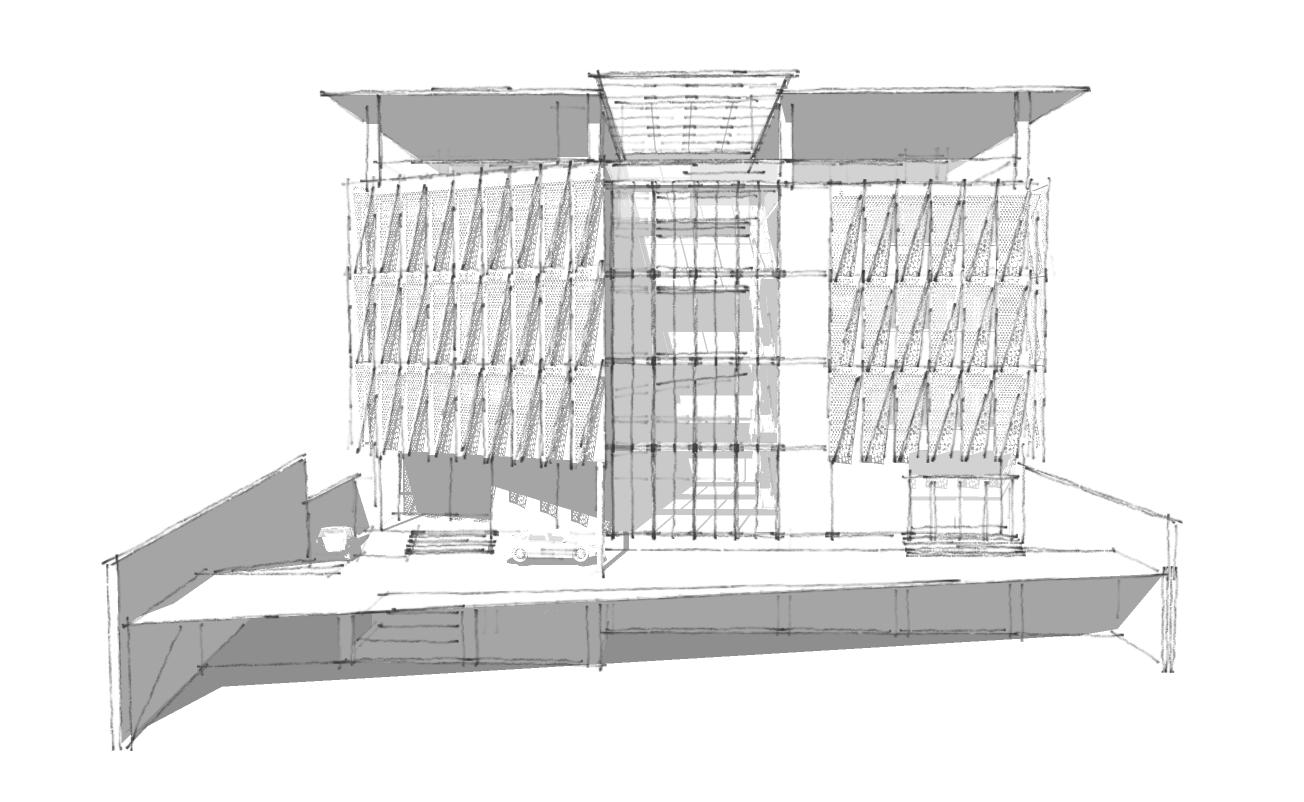

The mail concept is to blend tranparency and lightness into the structure. It is achieve so by maximizing the flow of air and light by restricting the use of bulky block, thus spliting it into three blocks. It is not leterally a seperate entity but a main functional block connecting all with corridoor and atrium giving the feel of segregation. And through which it allows light and air to spread all over the structure.
The facade is done with perforated aluminium panels in order to provide privacy as well as illumination.
PLOT AREA : 1375.79 msq.(34 cents)
FOOT PRINT AREA : 753 msq
COVERAGE : 54.73%
BUILT-UP AREA : 3765 msq.
F.A.R. : 2.73
FLOOR : G+4 (2 basement)

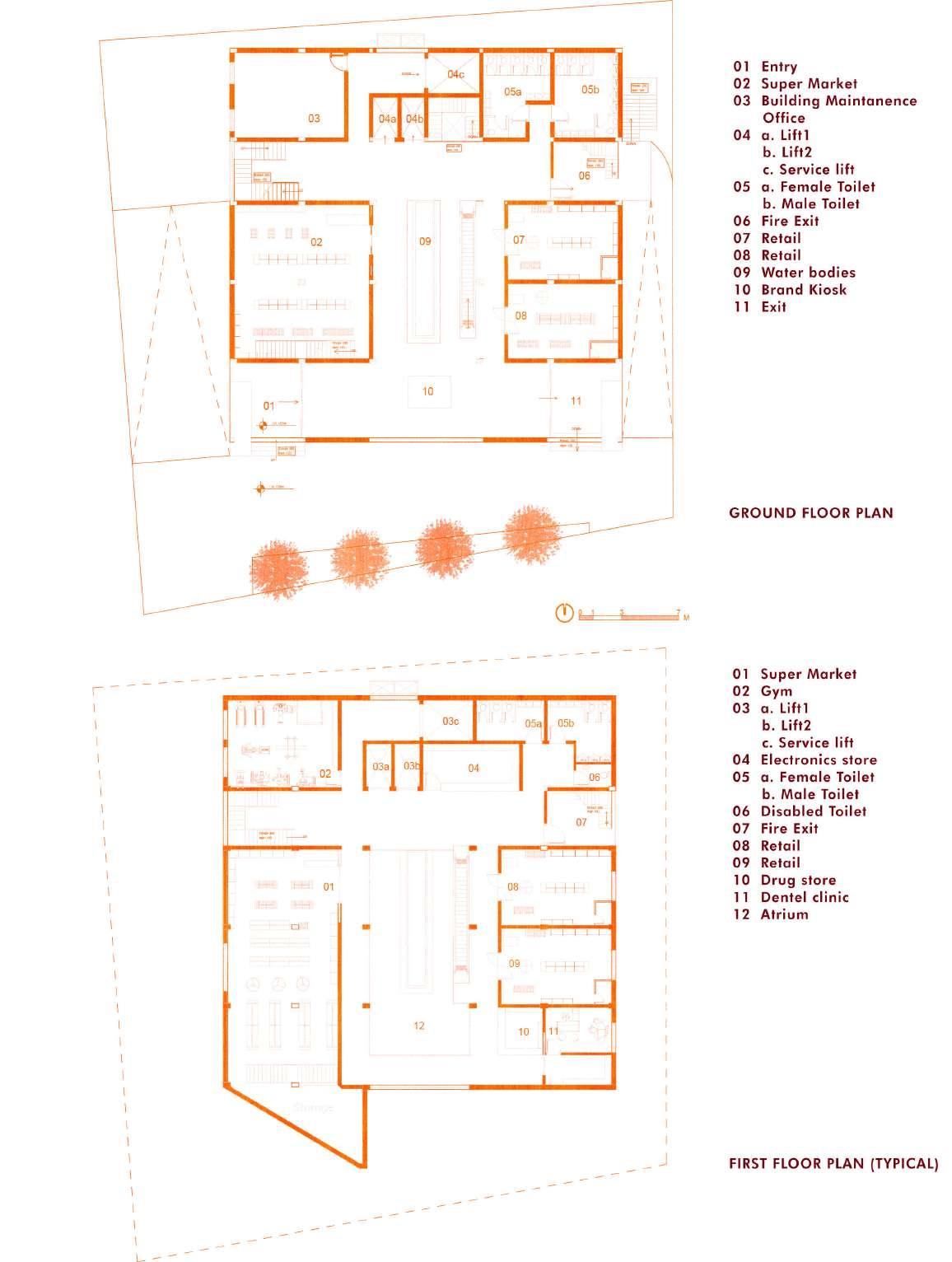

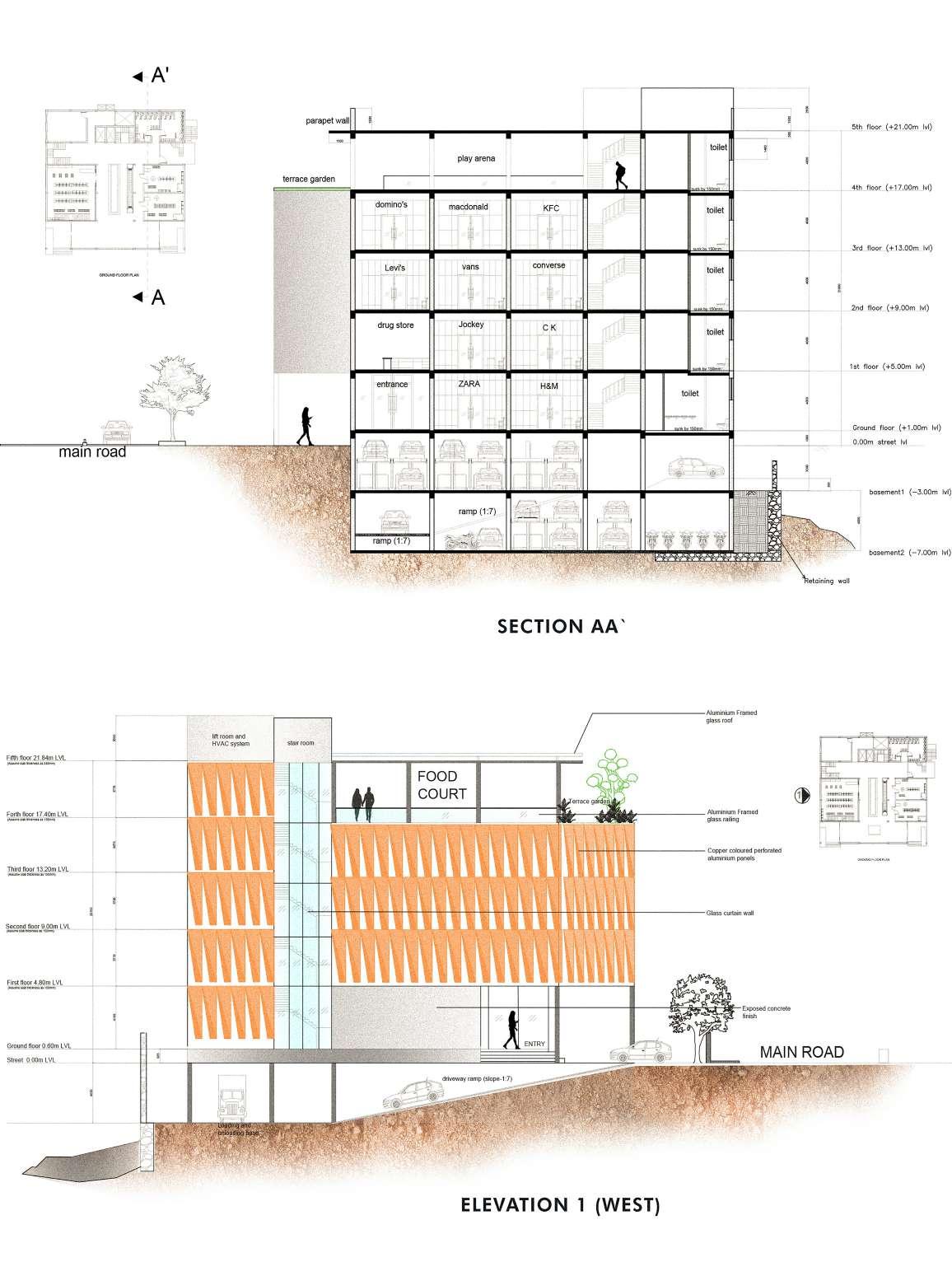

p. 24 Comercial Complex | Calicut, Kerela COMERCIAL COMPLEX
p.25
p. 26 Comercial Complex | Calicut, Kerela
p.27

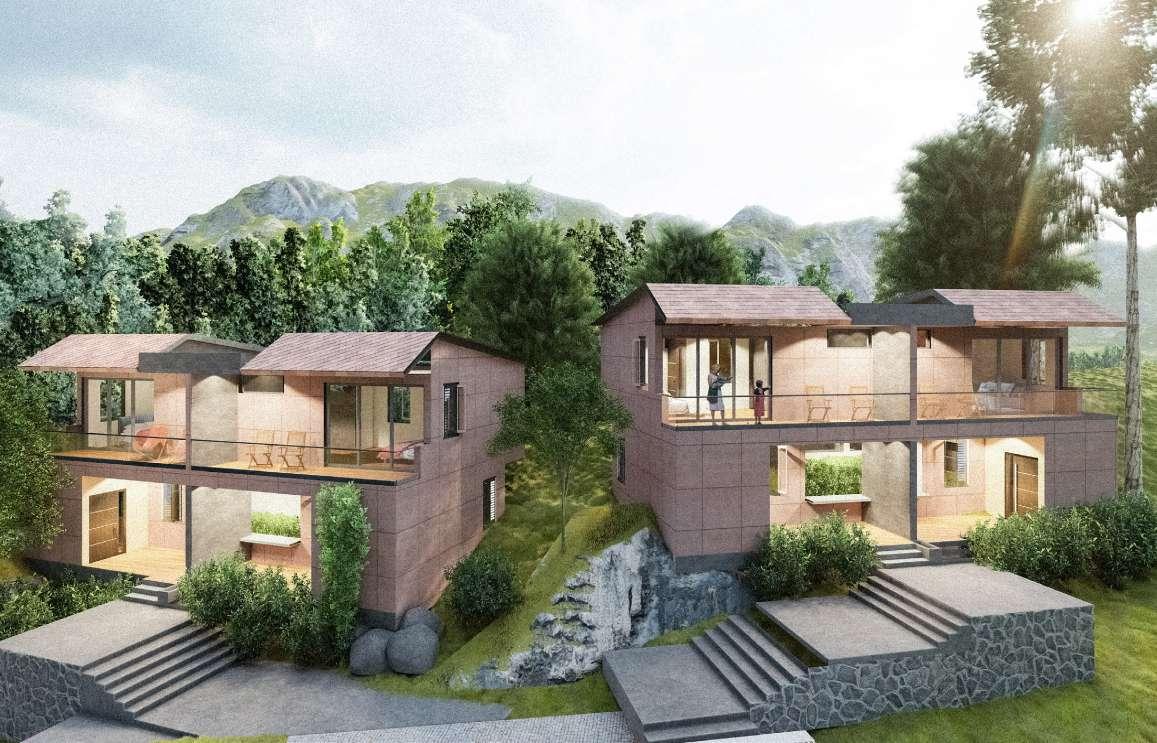

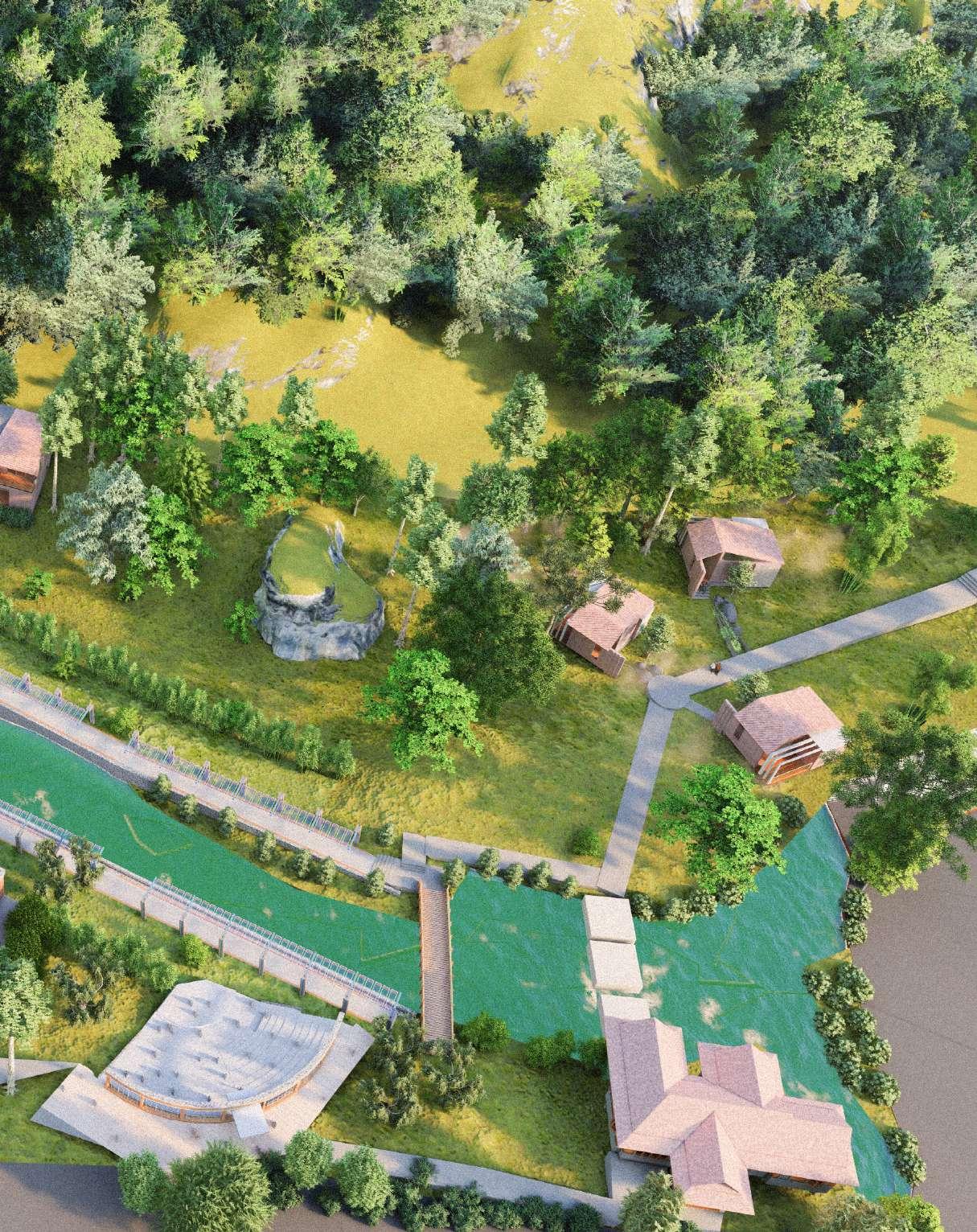

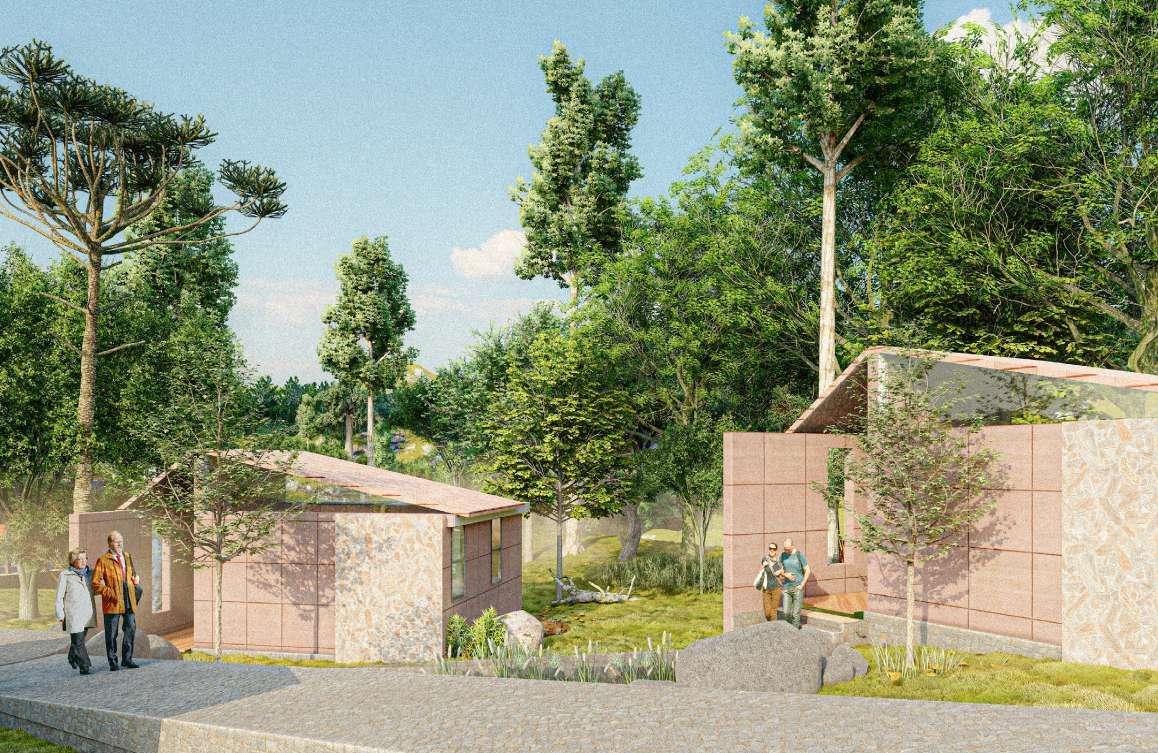

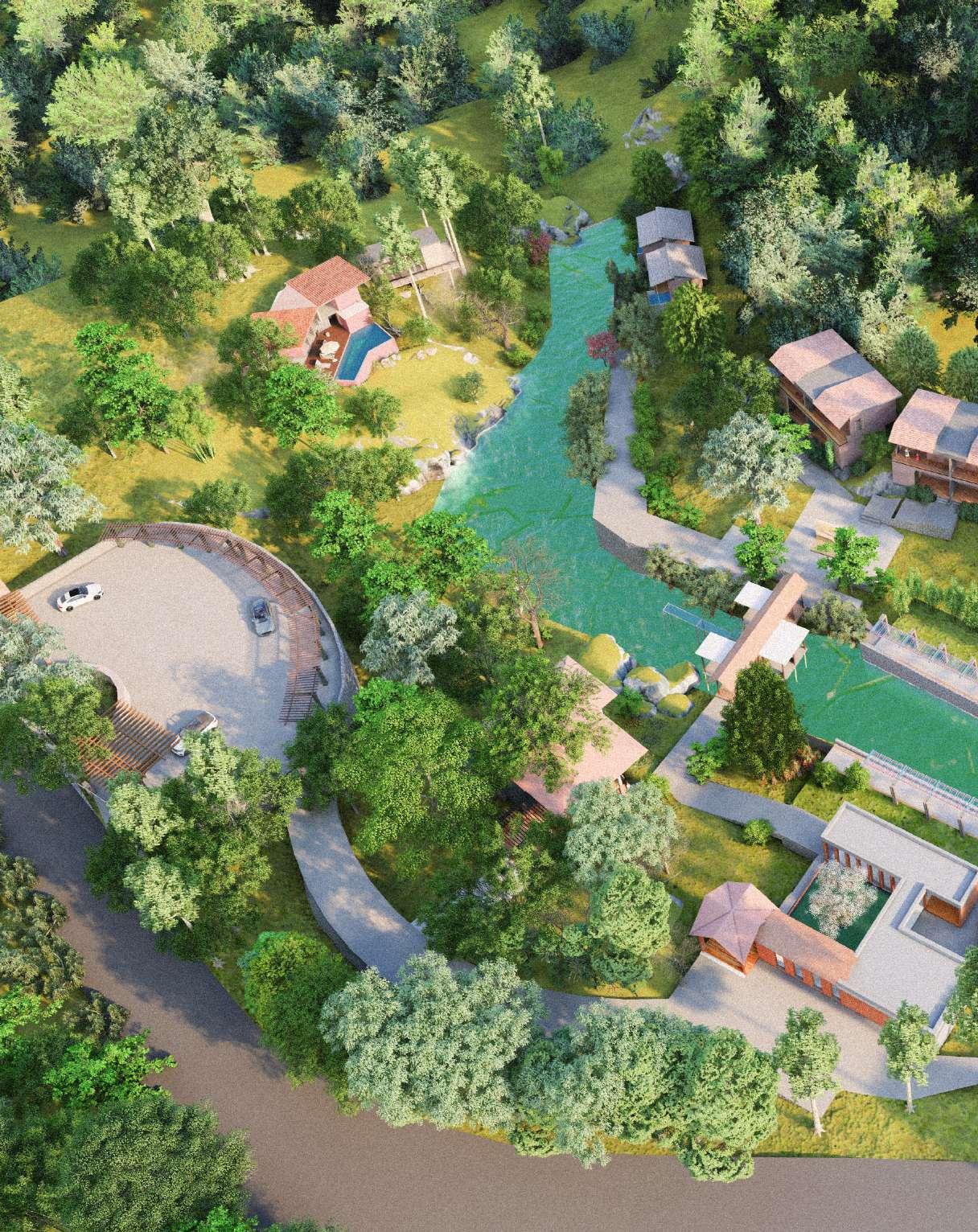

LOCATION : Wayanad, Kerela
TYPE : Academic Project
YEAR : 2022
SEMESTER : 6th
SITE CONTEXT
The 2 acre site consists of coffee, pepper and areca-nut plantations located 3 km uphills from vellamunda town. The area is a sloping terrain bounded by scenic hills and having non perineal streams. The adjoining areas has been inhabited by tribal communities which has been allocated by the government.
DESIGN BRIEF
To prepare a master plan for the full-fledged unique Eco resort with all major amenities. The surrounding scenic views, ecology, contours and vegetation of the site to be utilised to its fullest to develop this land as an environment friendly resort to serve as a retreat to any visitor to be with nature.
DESIGN
The main concept of the design is to create mysteriousness in the space. It is done so by using the principle -not showing all. It is said that restricting the views make users curious and create a sense to explore more, what lies beyond. Walls, trees, rocks etc are use to block or control what users are seeing.
The site features such as water bodies, rocks and existing vegetation is utilised to achieve an environment friendly and sustainable Architecture.

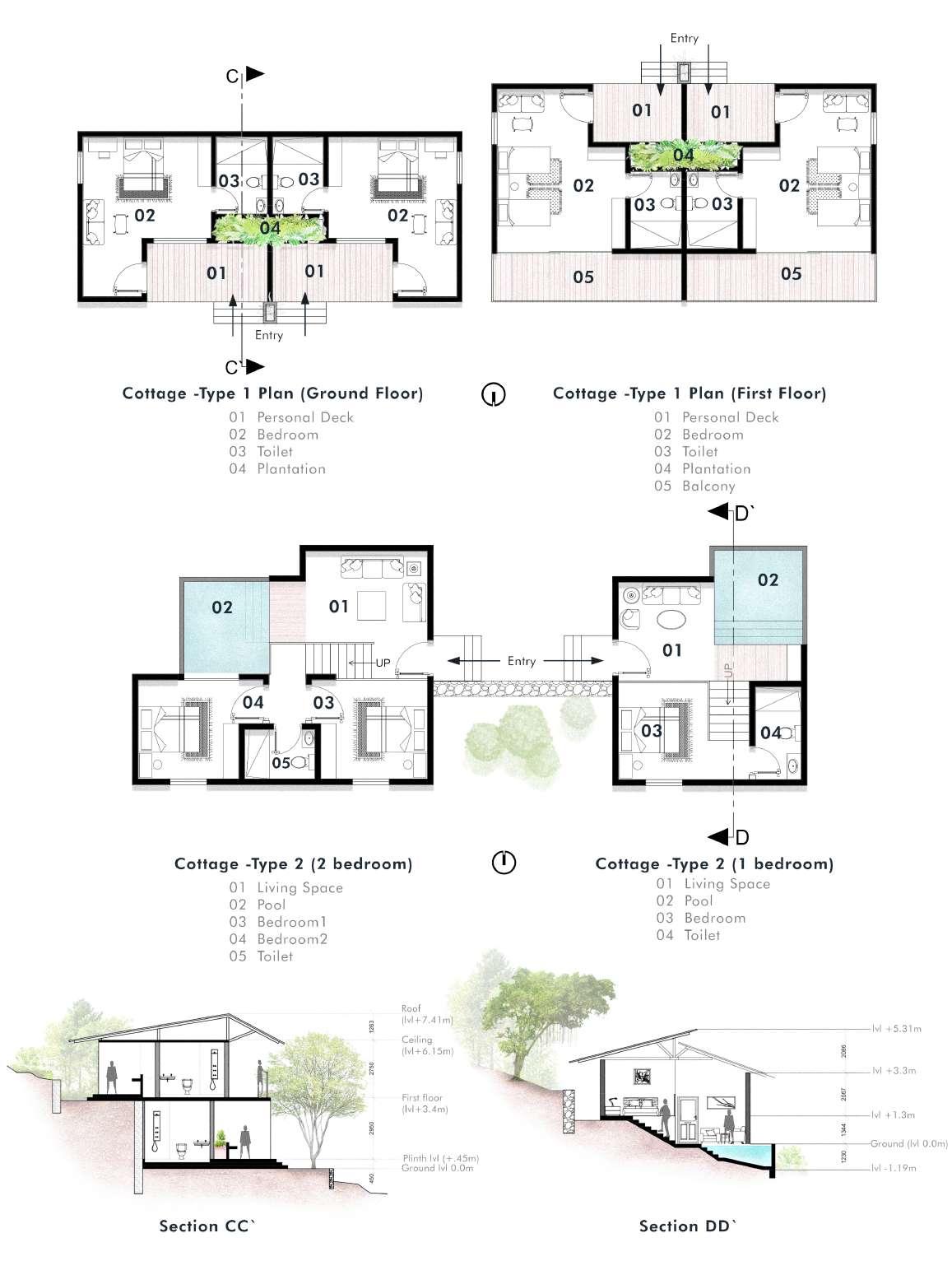

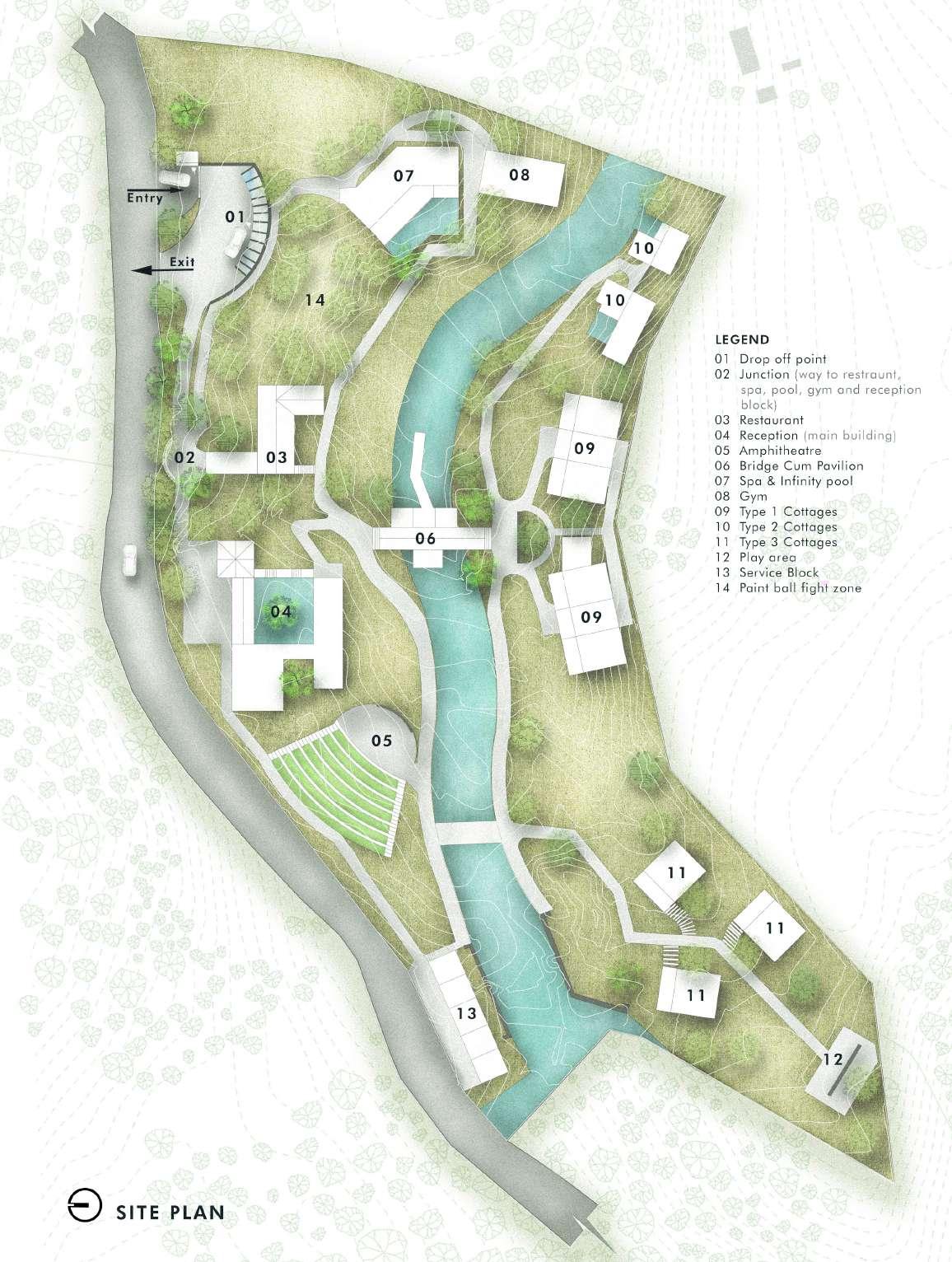

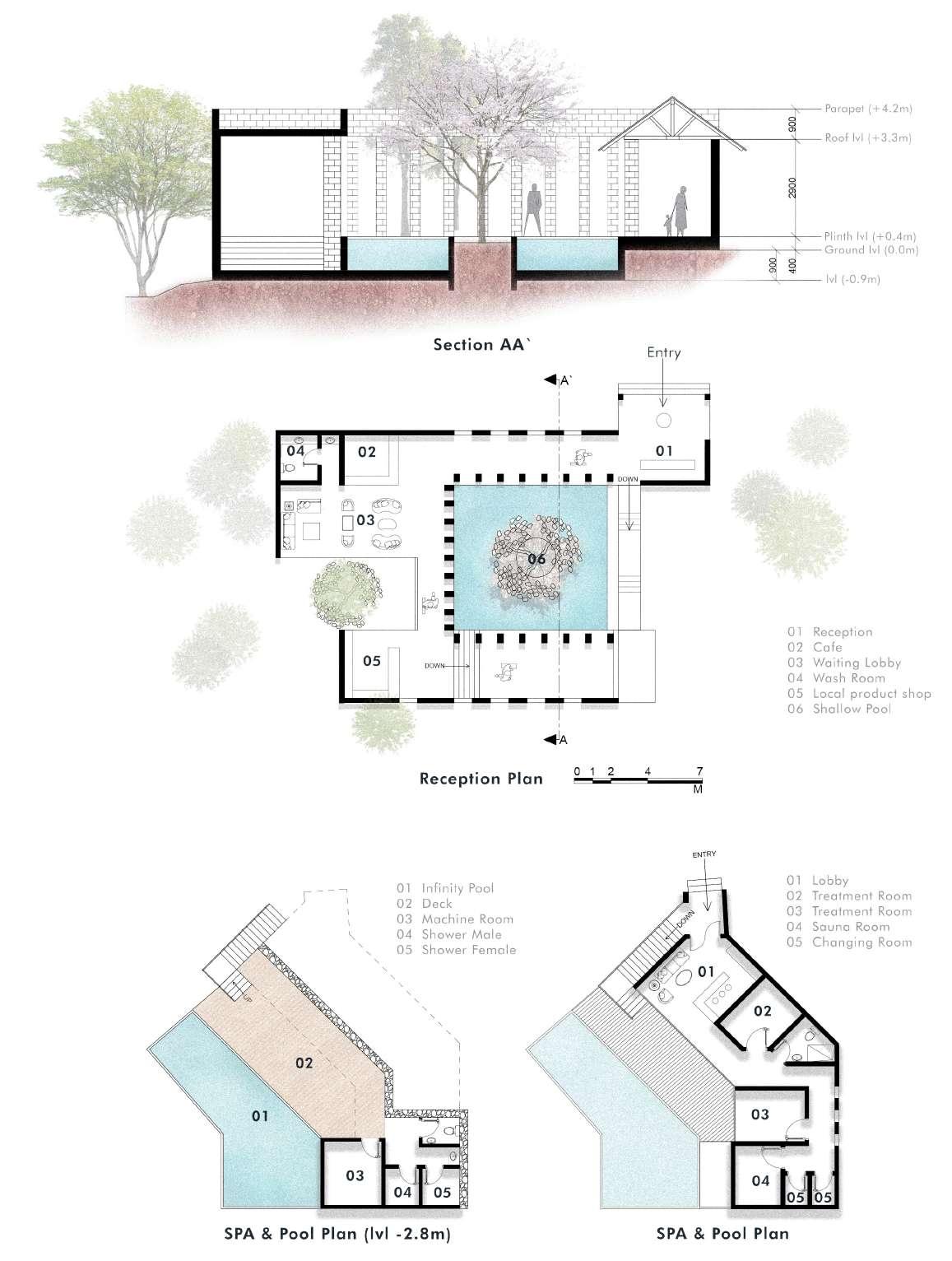

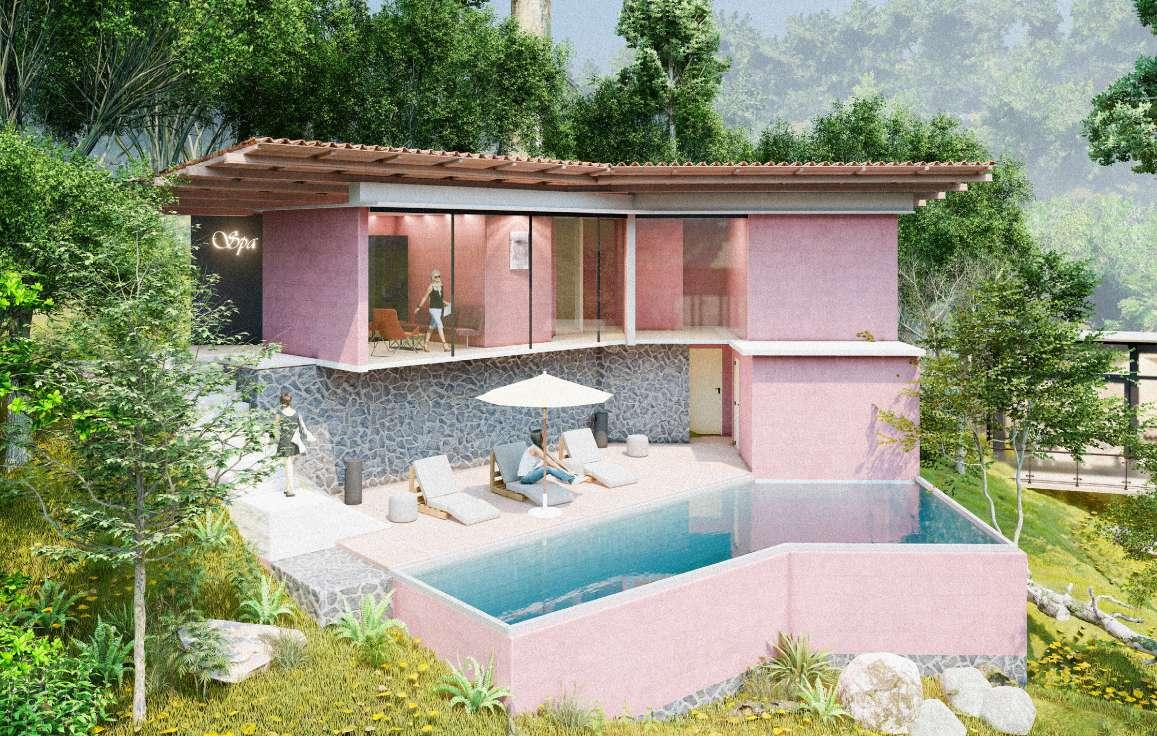

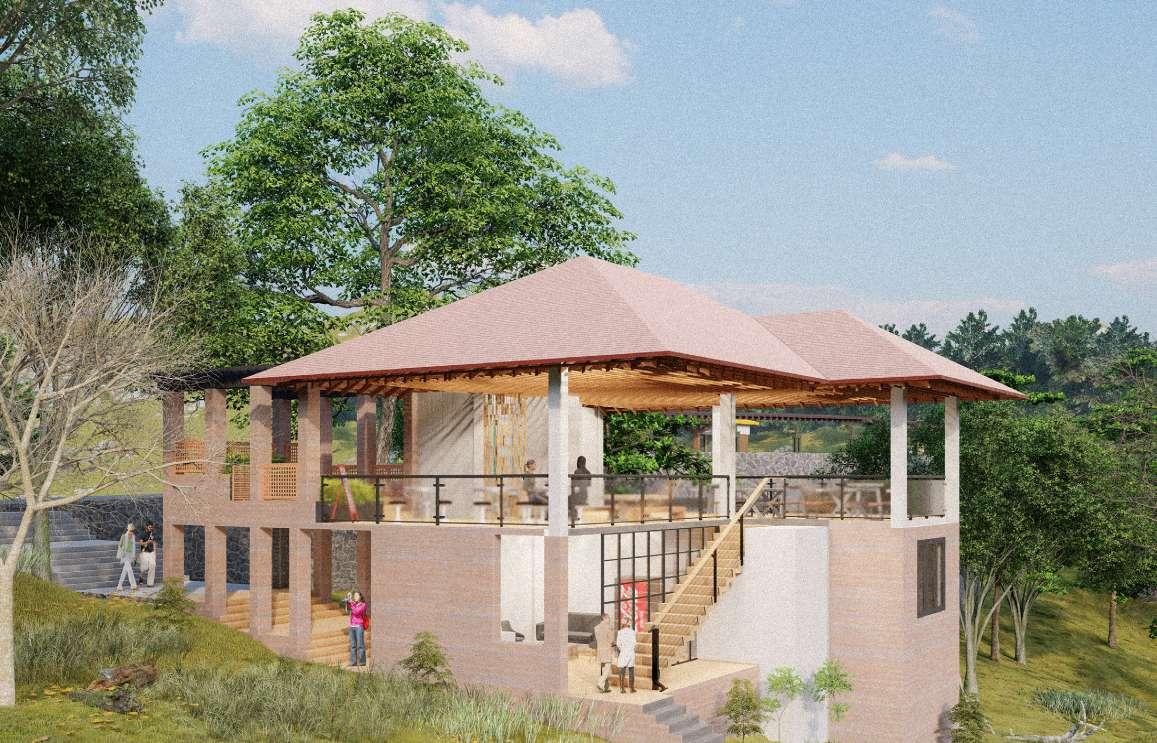

Basicaly the site is divided into two parts by the stream, Northern part contain all the public spaces (reception, service block, restaurant, spa, Gym, amphitheatre etc), whie the southern part contain private spaces (cottages, Childrens play ares).
PLOT AREA : 8093.71 msq.
FOOT PRINT AREA : 1407 msq.
COVERAGE : 17.37%
BUILT-UP AREA : 1710 msq.
F.A.R. : 0.21

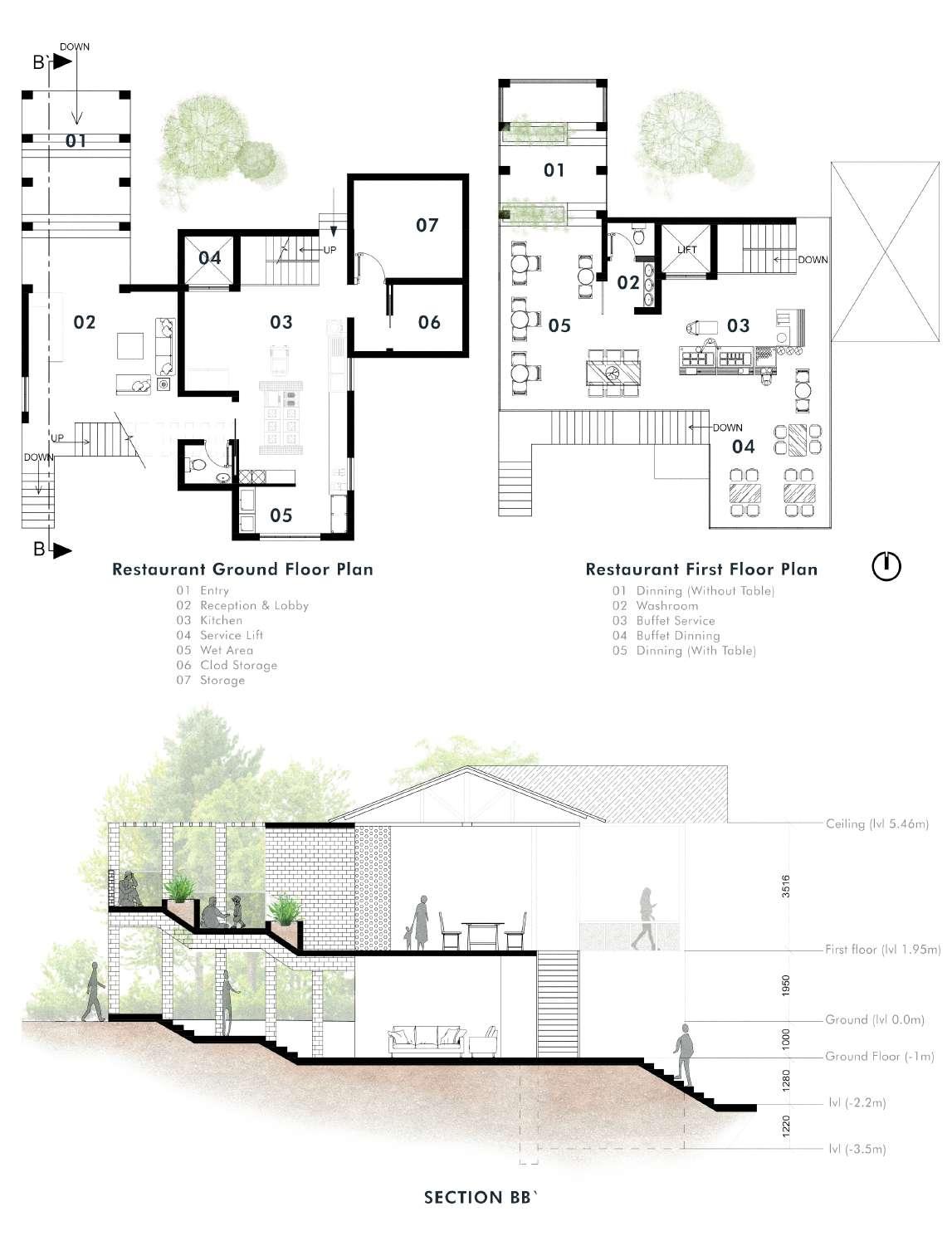

p. 28 Eco Resort | Wayanad, Kerela
ECO RESORT
p.29
p. 30 Eco Resort | Wayanad, Kerela
p.31
p. 32 Comercial Complex | Wayanad, Kerela
p.33
p. 34 Comercial Complex | Wayanad, Kerela
p.35
p. 36 Eco Resort |
Wayanad, Kerela
p.37

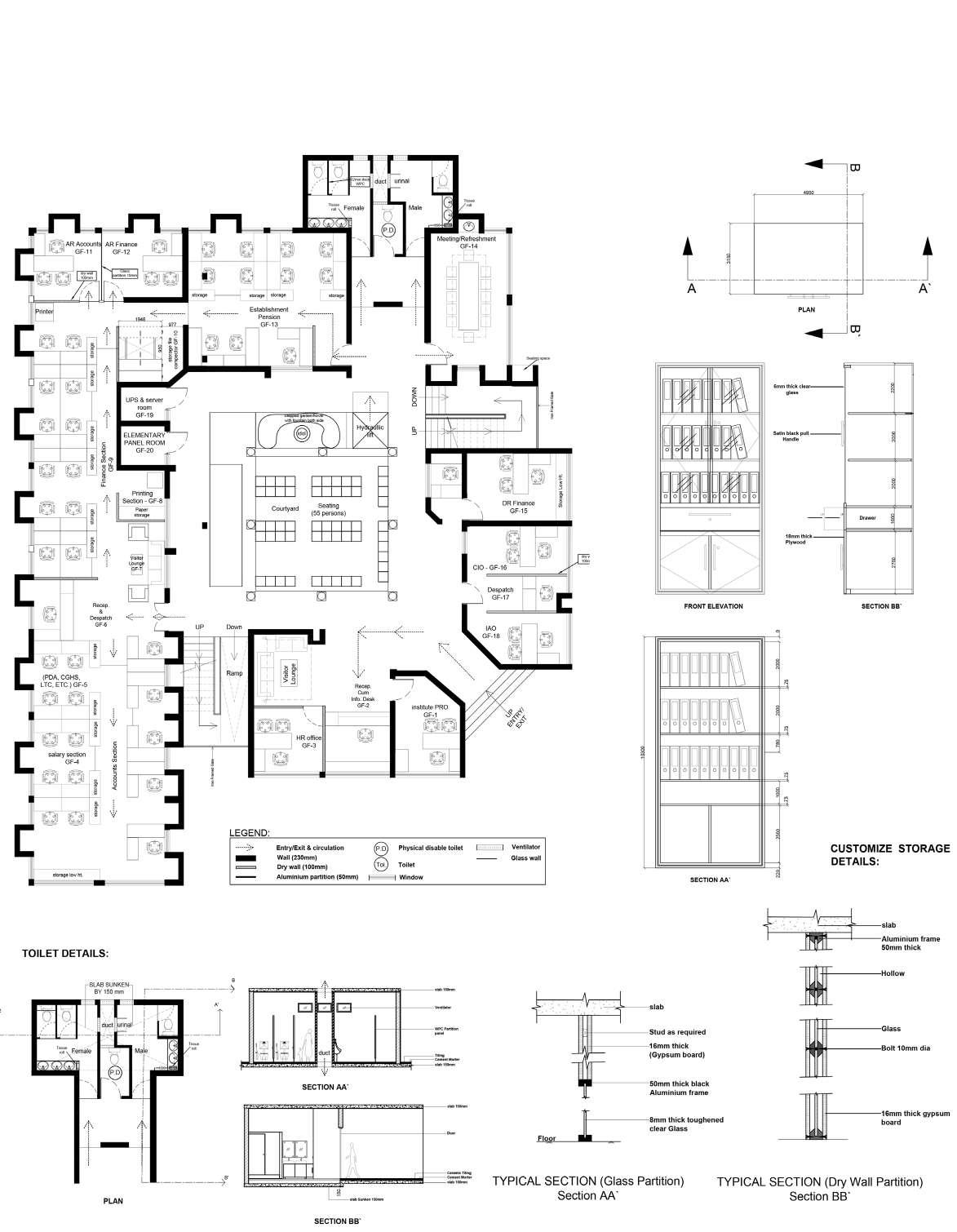

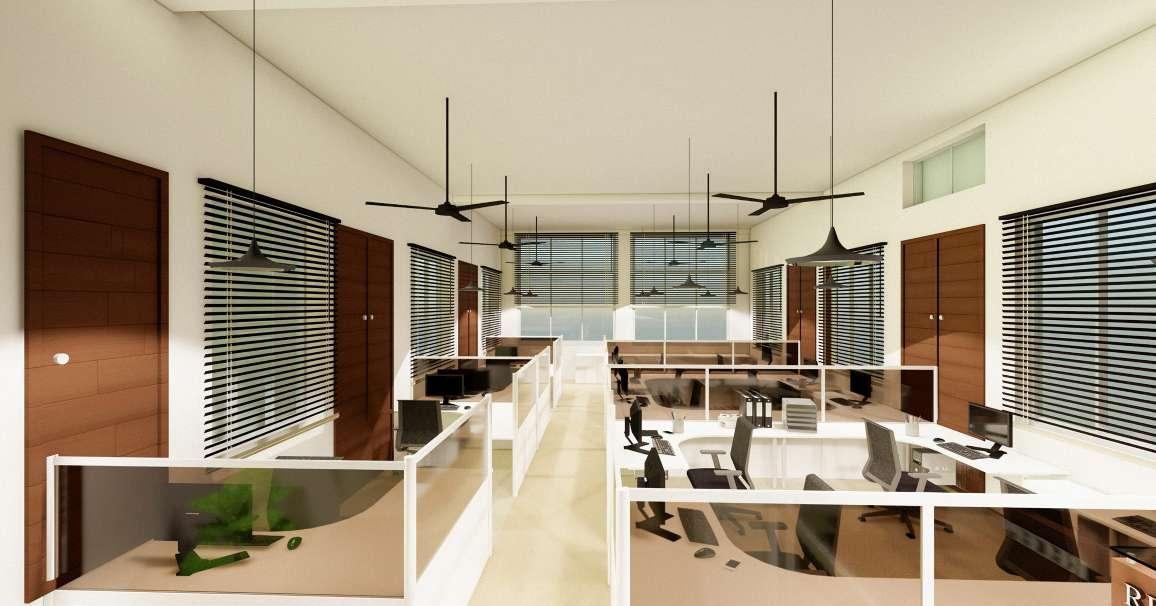

ADMINISTRATIVE BLOCK
PROJECT - Proposed revovation and upgrade of the interior of old adminiatrative block A, which constitute Finance, Accountant, Establishment, Registrar office,Deputy Director office, Media cell etc.
CLIENT - National Institute of Technology ,Calicut
YEAR - 2022
p. 38 Administrative Block | NIT Calicut, Kerela
Proposed

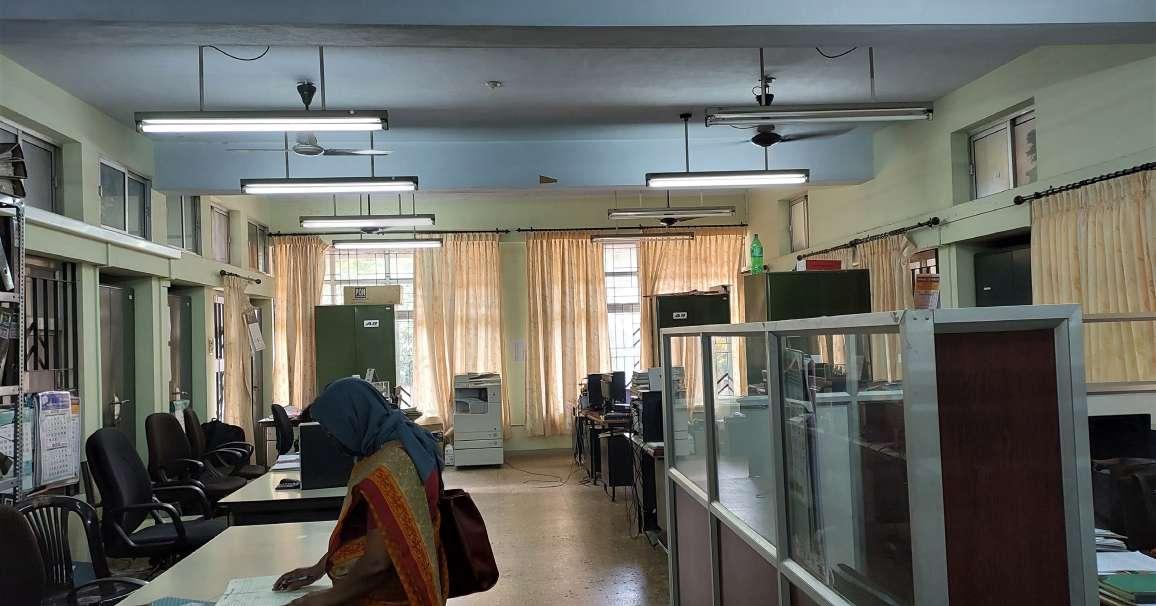

Existing
SCAN
https://drive.google.com/drive/folders/1zjY2lOkyh5B9Agf701_nKPPSMCacxmJZ?usp=sharing
p.39

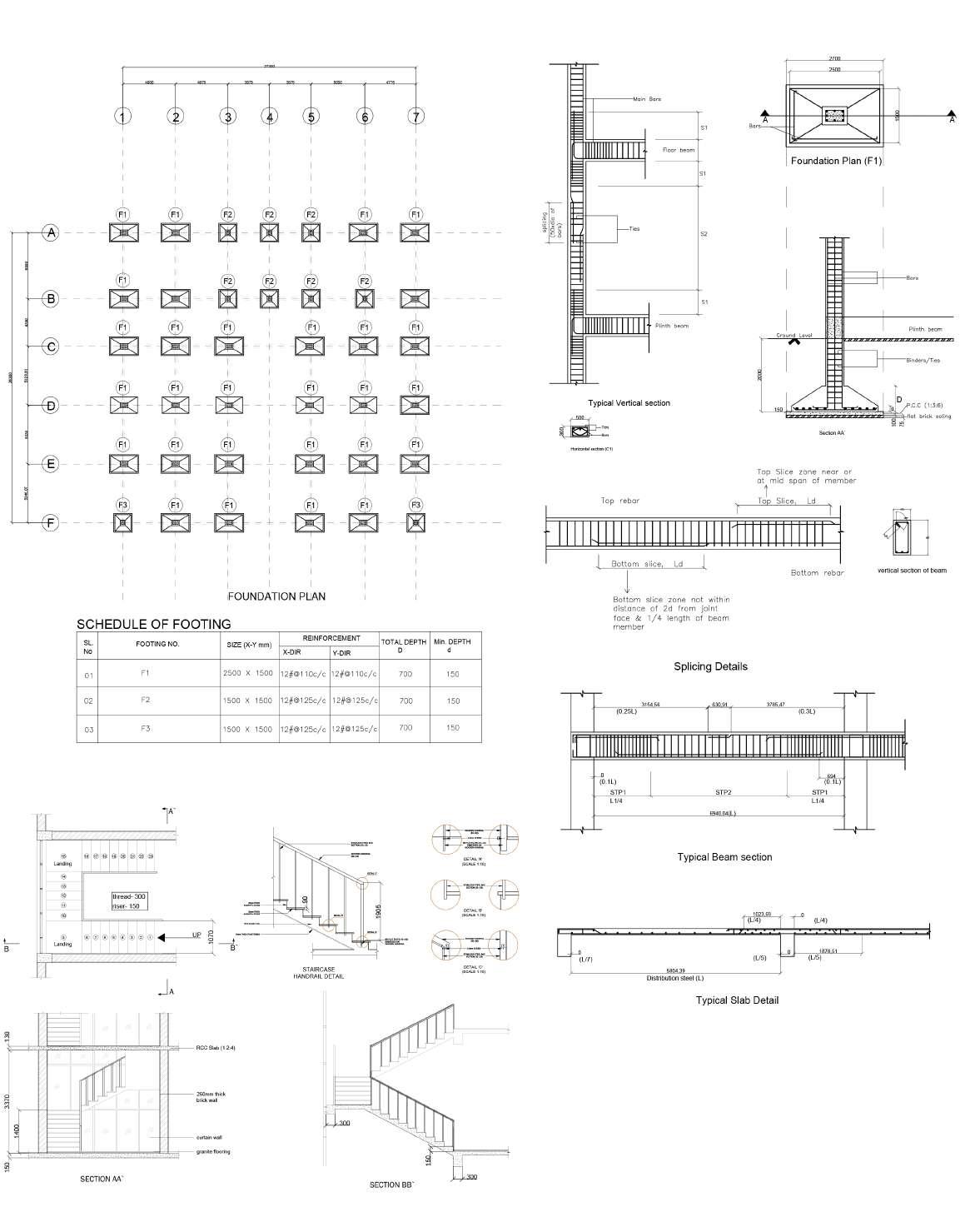

WORKING DRAWING
For working drawing of my projects scan here.
p. 40 Working Drawing | Building Construction & Material
SCAN

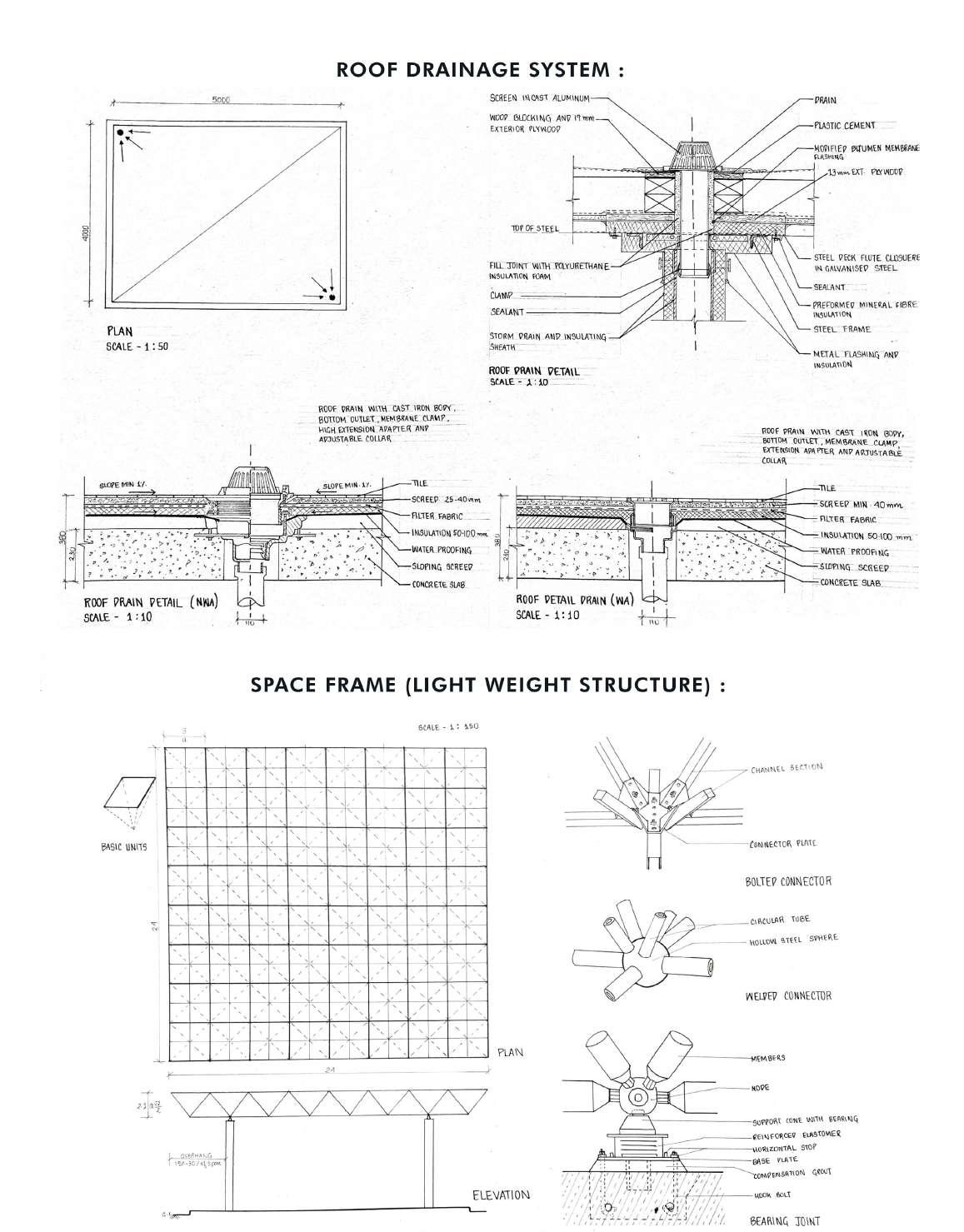

HAND DRAFTING p.41
Thaina Rongmai | 9365910619 | thainarongmei5@gmail.com
