Power Distribution Unit (PDU) Box Manufacturer and Supplier In India

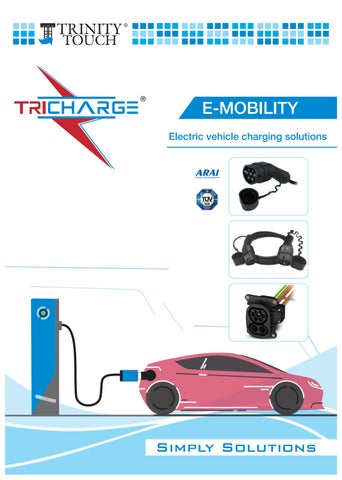

TRICHARGE

®

E-MOBILITY Electric vehicle charging solutions

Type 2 Charging Inlet CHARX connect, Set, Combination of infrastructure charging socket, protective cover, and rear protective cap for strain relief and touch protection, rear protective cover screw connection, with temperature sensors, with LED status indicator within the protective cover, can be reconnected, For charging electric vehicles (EV) with alternating current (AC), compatible with infrastructure charging plugs, Type 2, IEC 62196-2, 32 A / 480 V (AC).

Type 2 AC Inlet

DC Vehicle Charging Inlet CHARX connect, Vehicle charging inlet, Locking actuator, left, for charging with alternating current (AC) and with direct current (DC), for installation in electric vehicles (EV), Combined Charging System, CCS type 2, IEC 62196-2, IEC 62196-3, 250 A / 1000 V (DC).

Type 2 DC Inlet

CCS Type 2 Connector CHARX connect, DC charging cable with vehicle charging connector and open cable end, Housing color black-black, with replaceable mating face frame, with connected PP contact, for charging electric vehicles (EV) with direct current (DC), for installation at charging stations for electro mobility (EVSE), Combined Charging System, CCS type 2, IEC 62196-3, 250 A / 1000 V.

CCS Type 2

Type 2 Connector • As per IEC 62196-2 standards.

• Customisation available.

• Compatible with - CCS Type 2 - Type 2 AC • Completely Indigenised.

Certificate No. B115847 0001

TRICHARGE

®

CCS Type 2

Description

Rated Current (A)

011710081

TTEV20A-1P5T2

20

011710082

TTEV20A-3P5T2

20

011710083

TTEV32A-1P5T2

32

011710084

TTEV32A-3P5T2

32

Article

Rated voltage (AC)

Power (kW)

Cable size (mm2)

Cable Length (M)

1

250

3.6

2.5

5

3

480

11

2.5

5

1

250

7.2

6

5

3

480

22

6

5

Phase

# Multiple cable lengths available

Type 2 Plug (EVSE) + Type2 Vehicle Connector (EV) Combo • The charging plugs at both ends meet the IEC 62196-2

charging connector standards.

• Type 2 to type 2 charging cables are mainly two current

options of 16A and 32A, (single-phase and three-phase versions).

• IEC62196-2 female Connector (Connect to car charging Inlet).

• IEC62196-2 male Plug (Connect to charger’s socket outlet).

TRICHARGE

Description

Rated Current (A)

011710090

TTEV-P-20A-1P5T2

20

011710091

TTEV-P-20A-3P5T2

20

011710092

TTEV-P-32A-1P5T2

32

011710093

TTEV-P-32A-3P5T2

32

Article

Rated voltage (AC)

Power (kW)

Cable size (mm2)

Cable Length (M)

1

250

3.6

2.5

5

3

480

11

2.5

5

1

250

7.2

6

5

3

480

22

6

5

Phase

®

Power Distribution Unit

Trinity Touch has a rich experience in manufacturing of power distribution box for industrial application. We have a dedicated skilled technical engineering team for PDU designing as per customer requirement.

PDU supports function converting and power distribution to every systematic unit such as Motor controller, Battery cooling system, Charging system, DC to DC system, Air conditioning system, Electric steering auxiliary unit and Brake system.

Interface Specification

PDU categories:

Signal Voltage

9V ~ 36V

Number of inputs

up to 4

Operating Voltage

Up to 800V

Number of outputs

up to 7

Current Rating

DC Upto 250A Per String

Voltage range

500-800 V DC

Battery String

Upto 4 String

Current range

up to 250 A per string

Operating temperature

-40° C ~ 80° C
