Reliable Connections Start with Clean Cable Surfaces

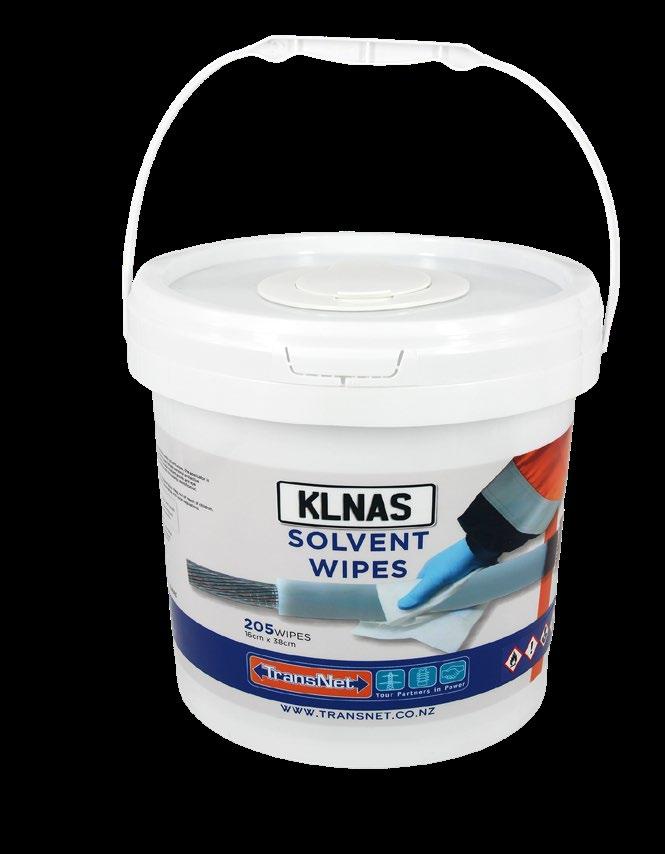

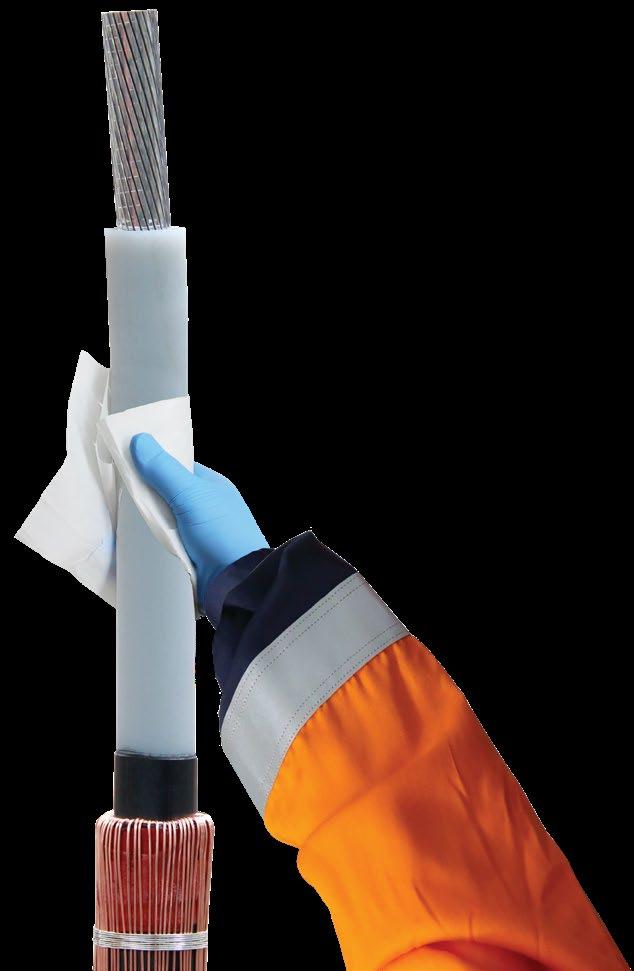

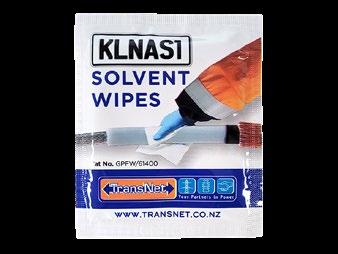

KLNAS Solvent Wipes deliver powerful, efficient cleaning to prepare cable surfaces for jointing. They are suitable for use on both static and live cables, removing bitumen, tar, oils, greases, and general surface contamination without leaving fibres or residue.
KLNAS wipes are also ideal for the cleaning and degreasing of electrical equipment, making them a versatile tool for day‑to‑day field and maintenance applications.
FEATURES:
• High flash point, residue free solvent cleaner
• High strength, low lint wipe compliant with AMS 3819C & BMS 15 5F

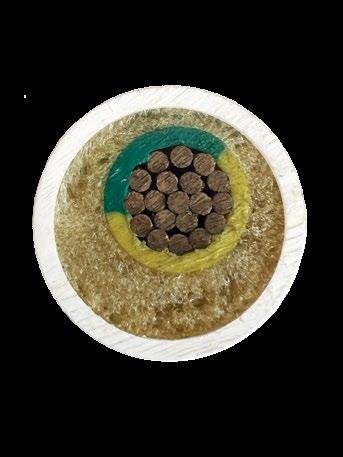

• Clean whole diameter of cable, without contact, using one wipe
• Suitable for LV, MV and HV applications
• Tested Dielectric strength between 25kV – 39kV
• Compatible with most materials found in power networks including insulations, joints, metal, varnish, baked enamel and resins
• Available in bulk bucket or individual packs
CAT No.
KLNAS 205pc Bucket GPFW/61400 1pc pack (MOQ 180)

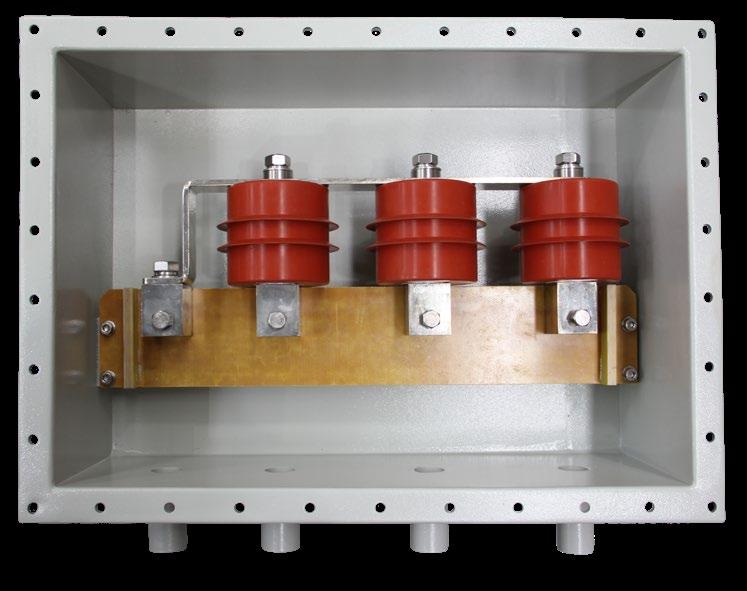

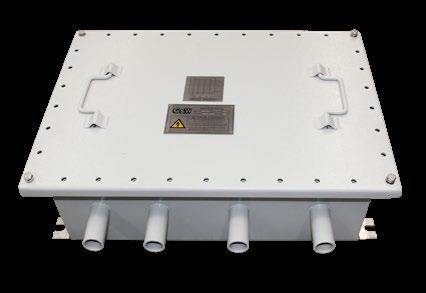

G&W Electric Grounding Link Boxes up to 500kV
Protect HV Cable Systems – When long‑term reliability matters, G&W Link Boxes deliver uncompromising performance in demanding electrical environments. Designed for durability, safety and simplicity, these enclosures provide dependable protection while remaining cost‑effective and fast to install – keeping projects on schedule and on budget
FEATURES
Fast Delivery to site
Link boxes of all types for Single core and Coax bonding cables available
Bolt‑secured lid design allows quick disassembly, making inspection & maintenance straightforward
True IP68 waterproof rating, ensuring long‑term, reliable operation under rated load
SS316 Construction
Suitable for above and below ground applications
Ultra‑low contact resistance (≤ 20 μΩ) for consistent, high‑integrity electrical connections
Full range of SVL's available
Outstanding electrical isolation between enclosure and conductors, delivering insulation resistance of ≥ 20 MΩ for enhanced safety
Fast, simple installation reduces labour time and site complexity
Non‑standard configurations are available to exact project requirements

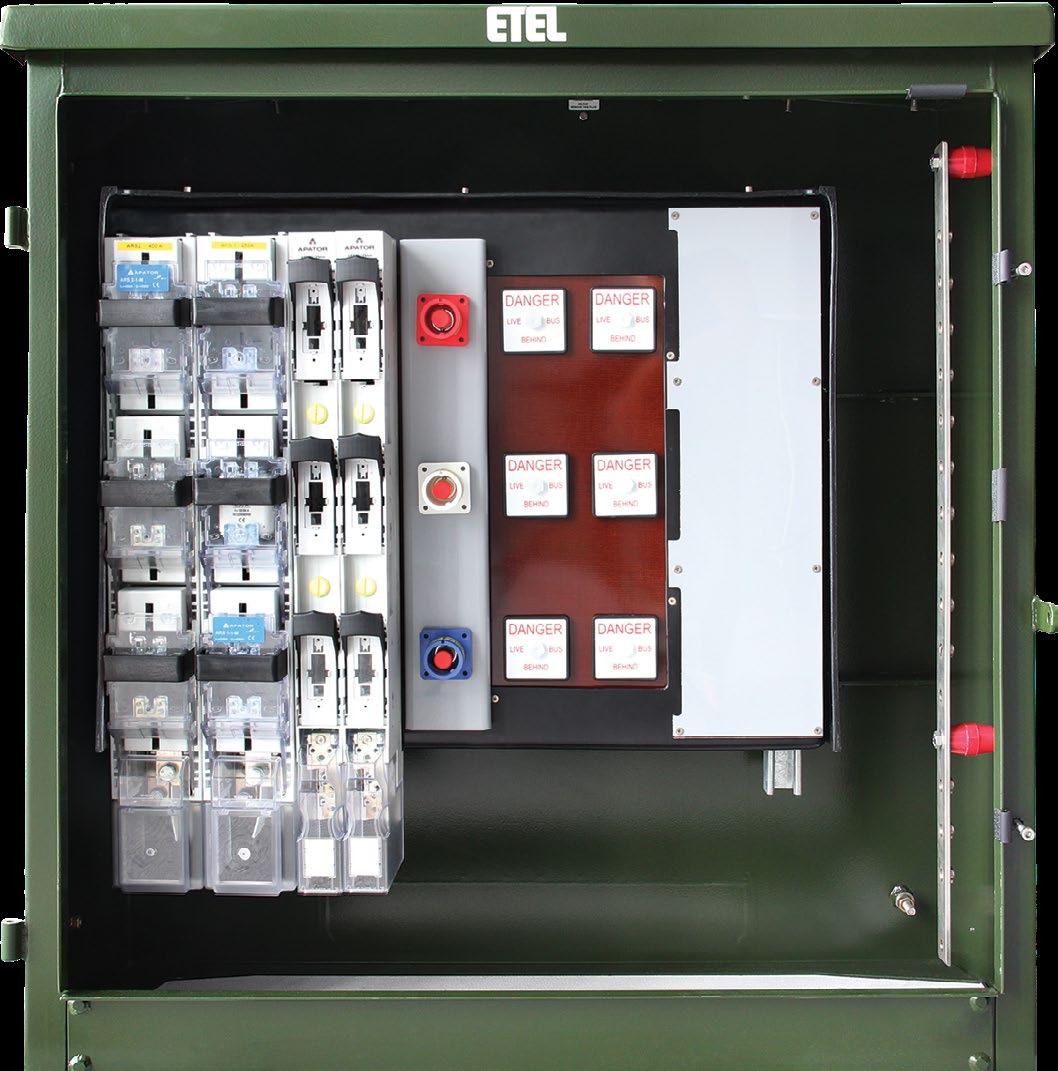

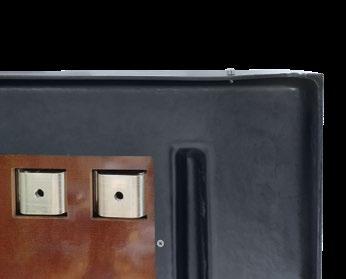

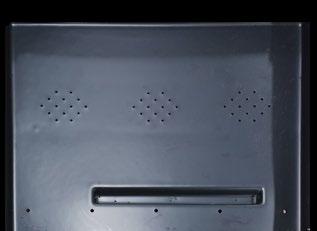

Eliminate The Risk Of LV Frame Flashovers

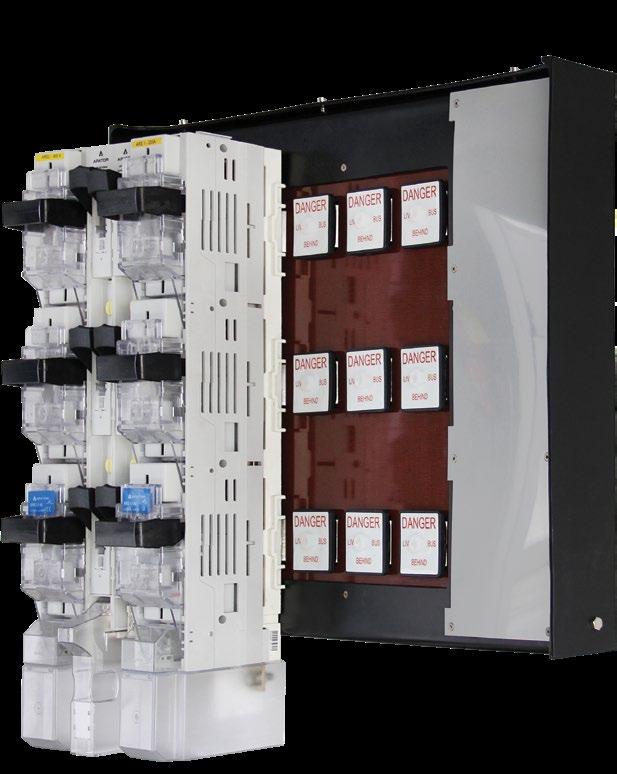

TXLVR6WAY – Improves the safety of your staff without compromising the functionality of your installation.
Features
Fully enclosed bus system – no
bare live parts
800 amp rated, 6 way frame
Access covers for unused terminals
Top or bottom supply
Can be fitted with generator ports
Increased clearance from live terminals
Comes with accessory board Fits industry standard switchgear
Fully encapsulated for added safety
Applications
LV side of transformers
LV distribution boards / kiosks
Wall mounting
LV cabinets
A single glove specification across AC & DC applications*
*Certified to ASTM D120 and IEC/EN 60903

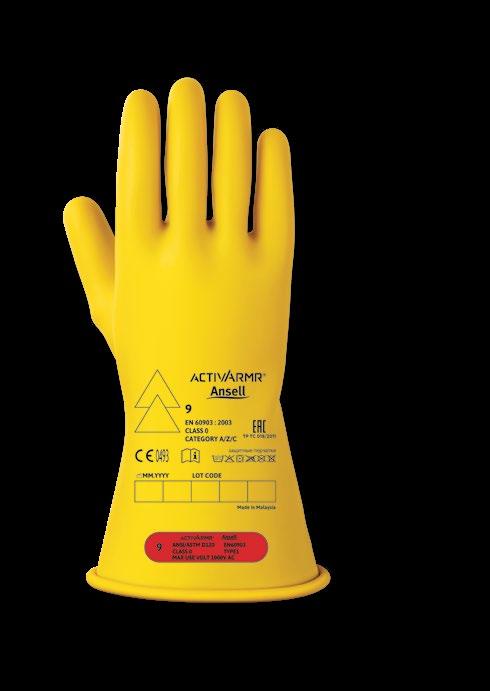

ActivArmr Class 0 Rubber Insulating Gloves are not only perfect for up to 1000V AC also certified for 1500V DC.
Features important to DC applications:
Verified dielectric insulation under sustained DC stress
Protection against continuous contact or touch voltage
Safety margins confirmed by formal laboratory testing
No chance of selecting incorrect gloves for AC or DC installations
Perfect for:

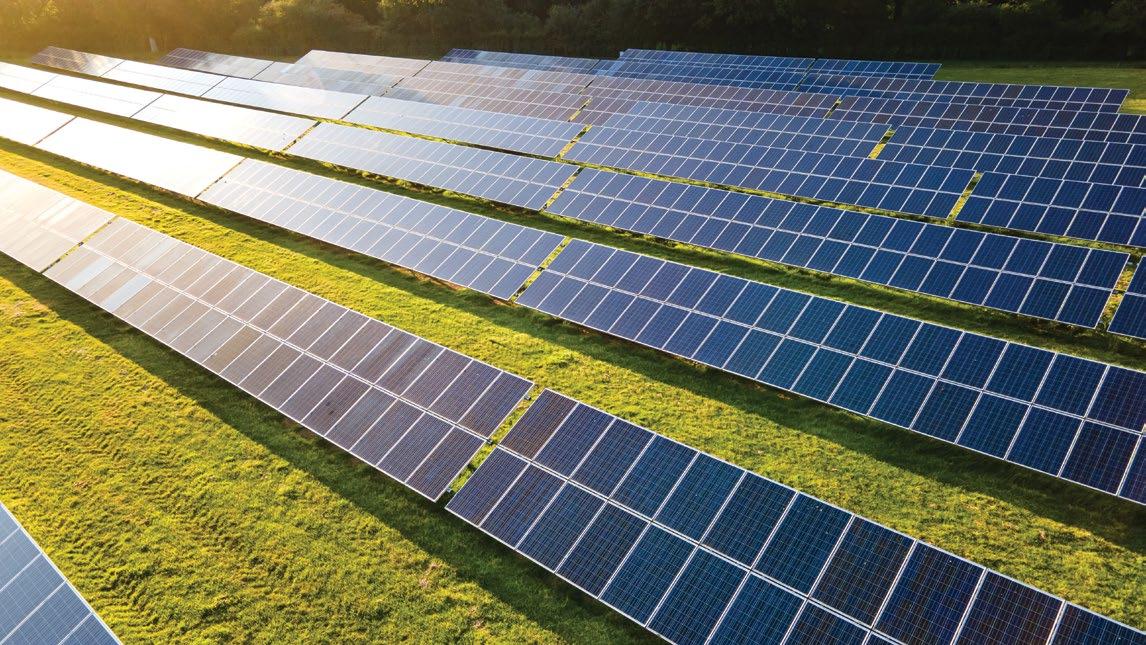

Solar PV systems (often up to 1,500V DC strings)
Electric vehicle charging and traction systems
Battery energy storage systems (BESS)
DC substations and industrial control circuits
Fire Mitigation Solution
– 25.8kV, 25kA, 1‑20A for MV networks

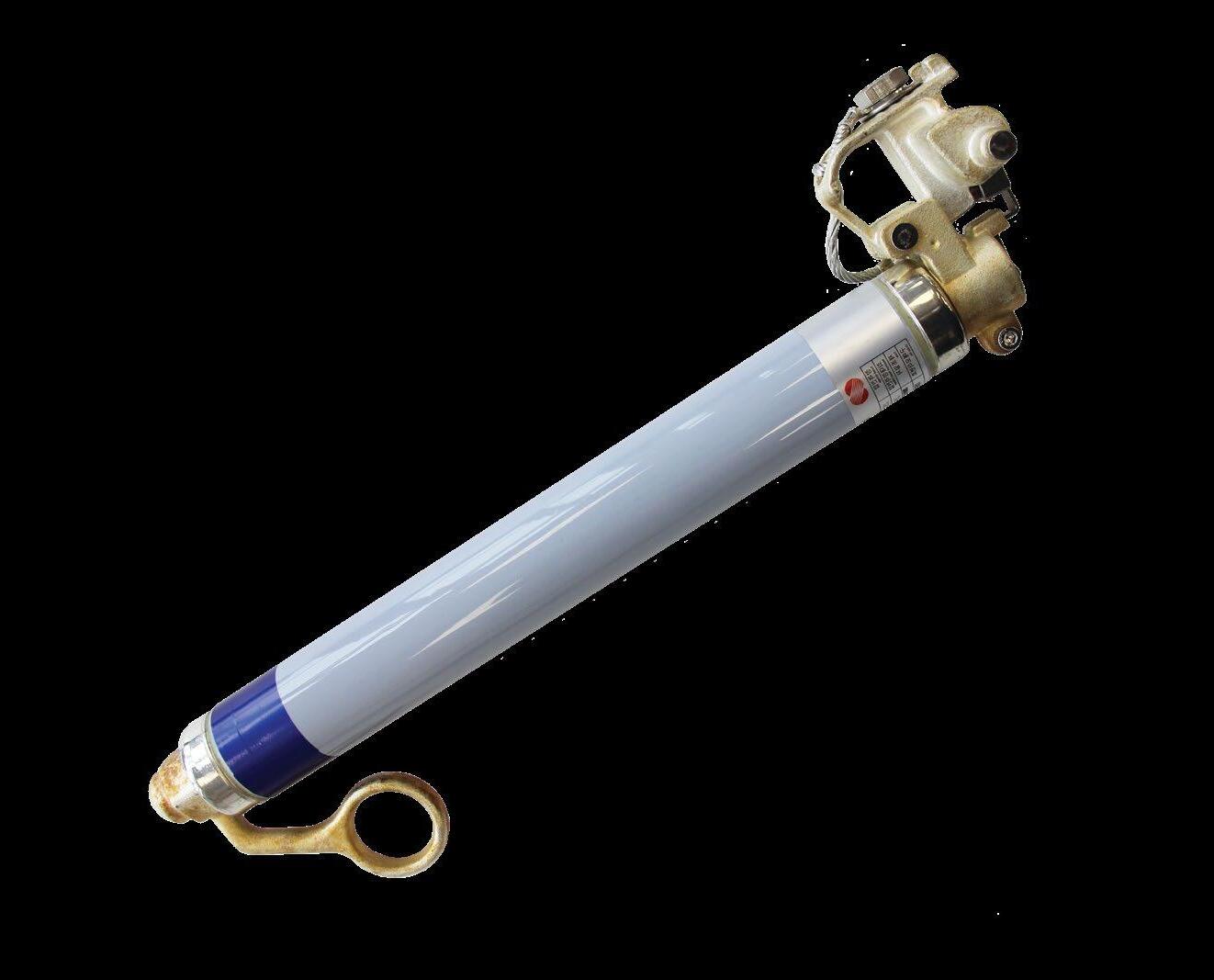

Our Current Limiting EDO Fuses are designed to eliminate fire risk, prevent sparks and explosions, and provide reliable circuit protection under both high‑fault and low‑overload conditions. With a ceramic body, reusable end caps, and compliance with IEC 60282 1(2009), they deliver superior safety, efficiency, and sustainability.
Reliable disconnection: Handles high fault currents on overhead lines and low overload currents for transformers
No sparks or explosions: Eliminates fire risk during operation
Ceramic body: Excellent thermal properties with fire resistance
Reusable end caps: Cost‑effective and sustainable IEC compliant: Meets IEC 60282 1(2009) safety standard
Universal Fit: Easy retrofit into industry standard interchangeable cutouts
REUSABLE END CAPS FIRE RISK ELIMINATED
Fire Resistant Ceramic Body
INSULATED TORQUE WRENCHES
For Torque That Really Delivers
PERFECT TORQUE EVERY TIME
Easily adjustable, precise increments.
HIGH QUALITY PRODUCTS
Engineered in Germany.

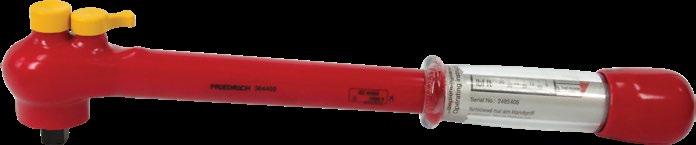

364492 – 1000V VDE 1/2" DRIVE TORQUE WRENCH
• Torque Range: 5 – 50 Nm
• Length: 371mm
• Drive: ½”
• Accuracy: 4% of taken measurement
• Adjustable via button at handle end
COMPREHENSIVE PRODUCT RANGE
A wrench for every application.
• Slight bend of head when measurement is reached
• IEC 60900:2004, each piece is tested with 10,000V

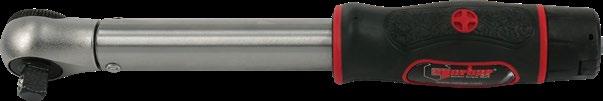

TN13831 – 3/8" DRIVE TORQUE WRENCH
This Norbar TTi Torque Wrench is accurate, easy to set, and comfortable to use. Finished in a durable satin chrome plate with a 3/8” reversible ratchet.
• Accuracy: ±3%
• Operates between: 4 – 20 Nm (0.05 Increment)
• 35 – 180 lbf in (0.50 Increment)
• Length: 230mm, Square Size: 3/8”
• Ratchet Diameter: 30mm
• Engagements per Revolution: 72
• Scale Increments: (N m) 0.1, (lbf in) 10
ADJUSTABLE RATCHET TORQUE WRENCHES
• Eight turns covers entire scale
• Hanger for tool storage, aids unlocking & adjustment
• Push through ratchets with a narrow 5° engagement angle for tight spaces
• Micrometer scale for primary torque units (N m on dual scale wrench) for simple, error free setting
• Push/pull lock prevents accidental adjustment
• Fast, light adjustment saves operator time & effort
• Meets ISO 6789 1:2017 TN130101
60.00 Nm
–
Nm
–
Square Drive: 3/8” (c/w ½” sq. dr. adaptor) Square Drive: ½” (c/w 3/8” sq. dr. adaptor) Square Drive: ½”
Ratchet Dia: 36mm
Scale Increments: 0.5Nm
Ratchet Dia: 45mm
Scale Increments: 1Nm
Ratchet Dia: 45mm
Scale Increments: 1Nm
Built In Safety, Ready To Perform
1000V Certified for Serious Electrical Work!
TransNet’s 1000V VDE Adjustable Wrenches are carefully sourced from reputable international manufacturers and selected to meet the demands of professional electricians. Designed to deliver confidence and control on every job, each wrench is 1000V VDE rated and compliant with IEC 60900.
Comprehensive Range.
Reputable International Brands.
Available Ex Stock
Made In Germany

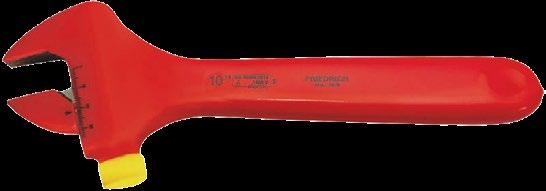

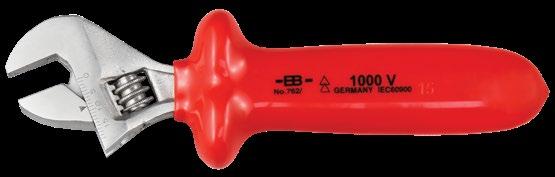

STANDARD 1000V VDE ADJUSTABLE WRENCHES
FEATURES
Made from a combination of special steel, hardened and tempered
Finished with 2 layered security dipped insulations
1000V, IEC 60900

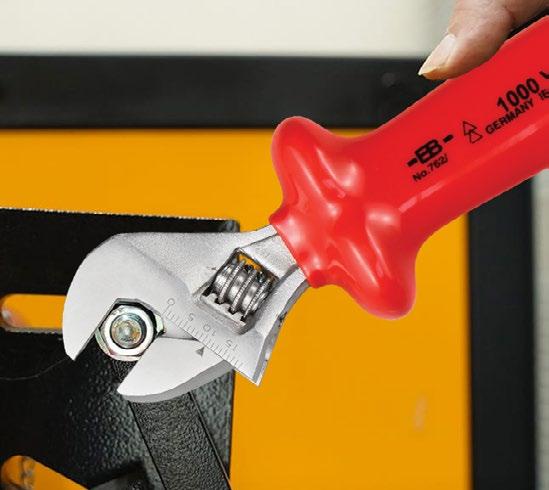

FULLY INSULATED 1000V VDE ADJUSTABLE WRENCHES
FEATURES
Fully insulated adjustable wrench with jaw adjustment dial
Made from alloy hardened steel
Finished with 2 layered security dipped insulation
1000V, IEC 60900

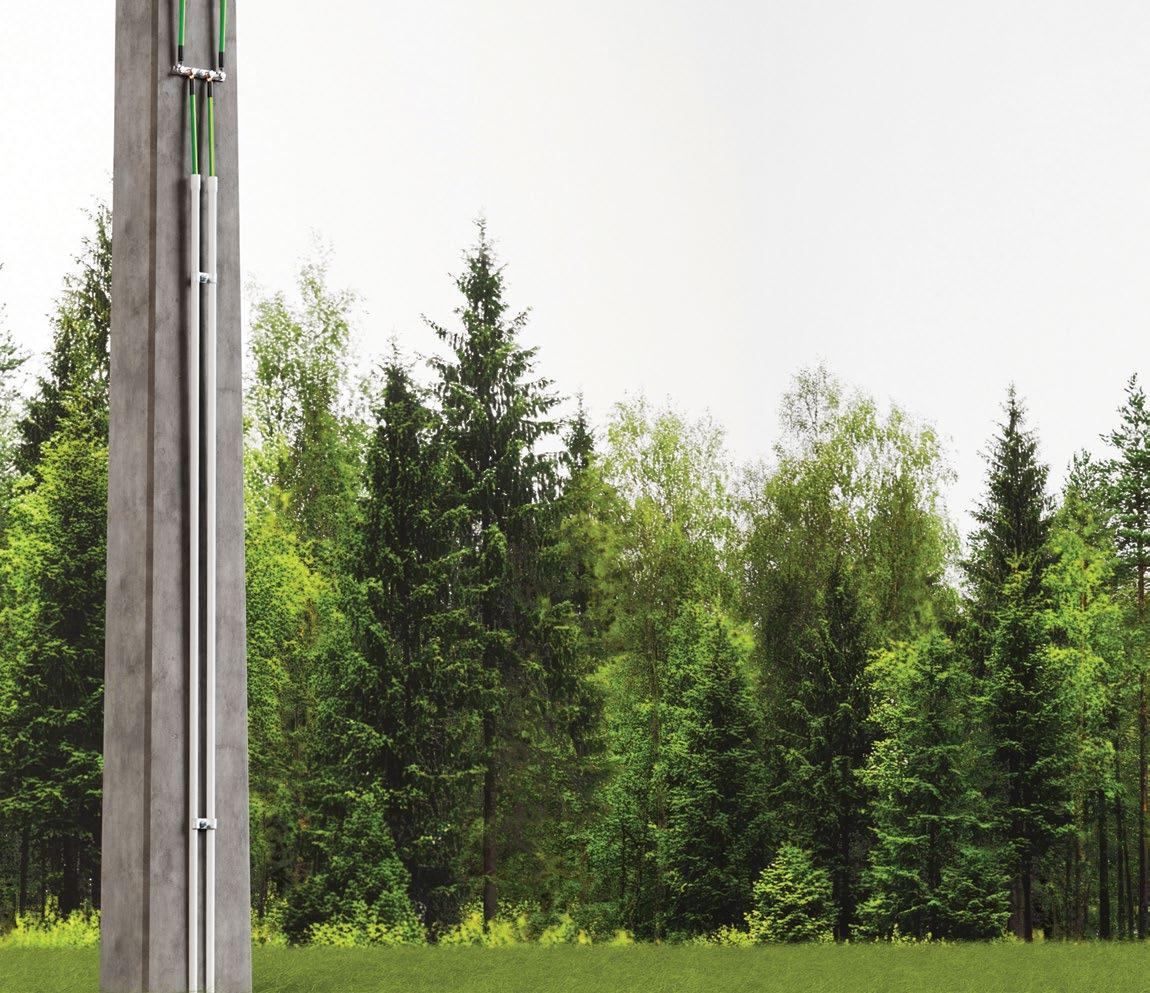

The Connection That Doesn't Compromise.

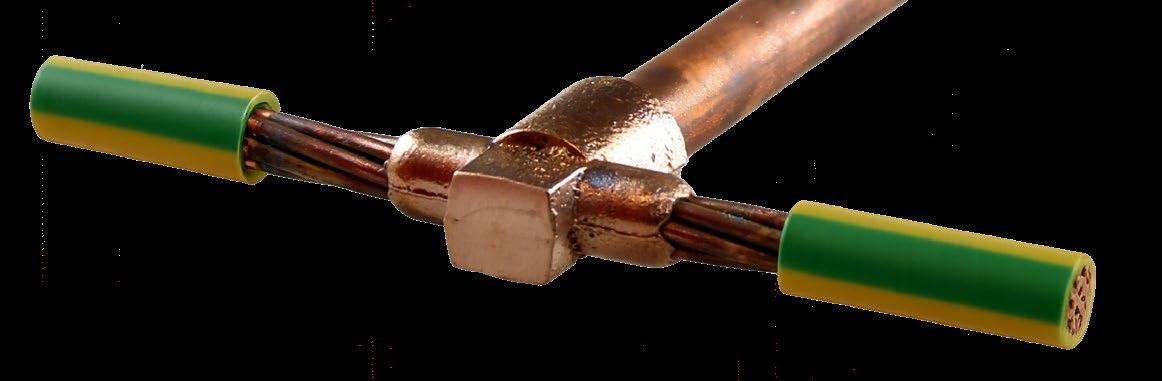

CADWELD® PLUS is faster, easier and more reliable than other earthing connections. An exothermic reaction creates an IEEE 837 compliant connection. Using a tamper‑proof, moisture resistant integrated welding material cup, CADWELD® PLUS creates a permanent connection that will not loosen, corrode, or increase in resistance over time.
Features
Exothermic welded connection creates IEEE 837 compliant molecular bond between conductors and/or metal substrates
Integrated, tamper‑proof welding material cup contains the welding material and ignition source in a single, moisture‑resistant, disposable steel cup
No external heat source required, battery‑powered electronic ignition from 6 15ft away for safer operation
Compatible with standard CADWELD molds including CADWELD MULTI, supporting a wide range of connection types
Colour‑coded weld material cups quick visual identification reducing the risk of incorrect application
Benefits
Permanent molecularly bonded connection won't loosen or corrode
Electrical performance equal to or better than the conductor
Withstands repeated high fault and surge events without failure
The integrated cup and electronic ignition reduce installation steps and setup time
Certified training available at your site contact us!

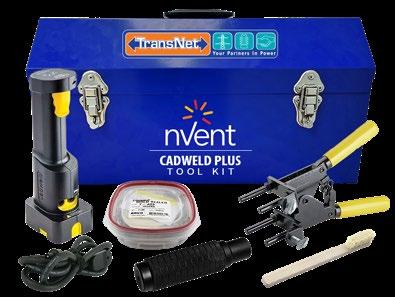

NEED NVENT CADWELD PLUS TOOLING?
OR ACCESSORIES?
Check out the range on our website!

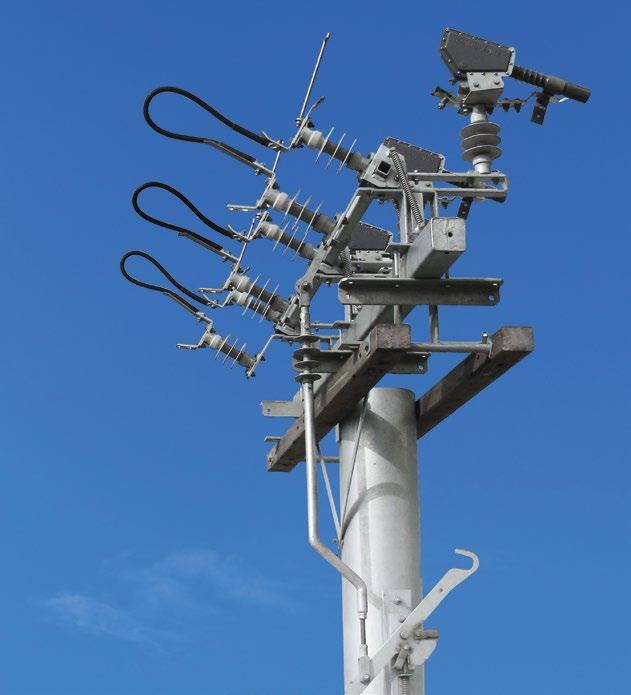

The Smarter Choice for NZ Utility Networks
Quick & Easy to install - Saves Time & Frustration for Installers
11kV to 33kV, up to 630A
Plain break Arcing Horns or Load Break Interrupter Heads
11kV ABS has 330mm open contact clearance as per EEA
SM-EI Part 3, Section 7.703
Fully Customisable to your Network specifications / build requirements, by the local team right here in NZ
High creepage Polymer or Porcelain insulators
Pole top or underhung
Manufactured and tested in accordance with IEC 30265-1, IEC 60694, IEC 62271, BS EN 60129 and ENATS 41-36
The only 11kV ABS with 330mm contact clearance per EEA standards
Safe Cuts. Every Time.

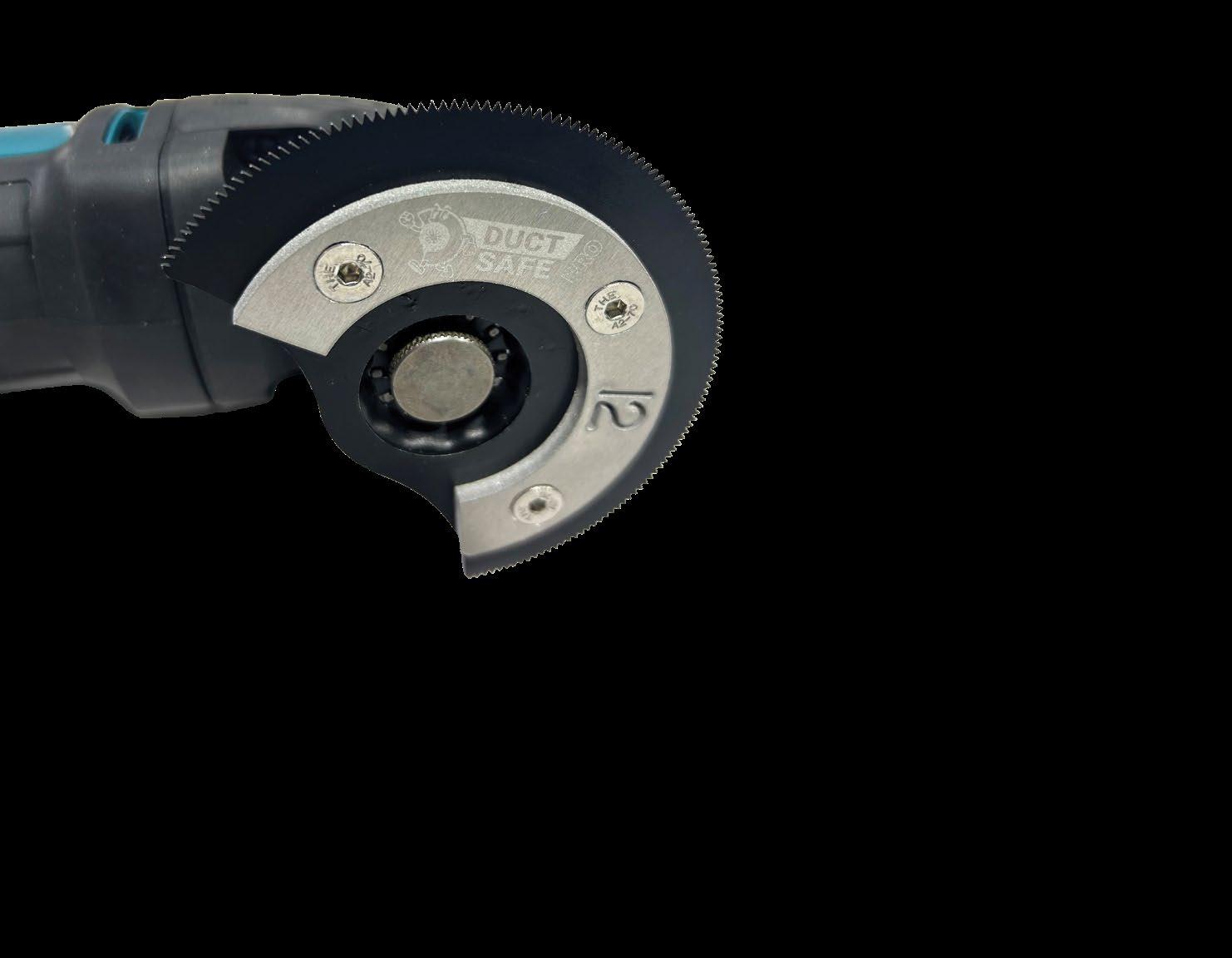

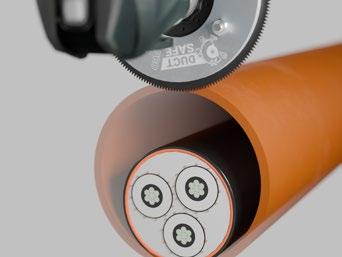

DUCTSAFE PRO Depth Limiting Cutting Saw
TransNet Tonga
Nuku'alofa
Lakalakaimonu Multi Utility Complex
Taufa'ahau Road
Poutaha Nuku'alofa
TONGA
Ph +67 627 939 PO Box 2932
Nuku'alofa
TONGA
transnet@kalianet.to Cut depth clearly labelled
DUCTSAFE PRO Depth Limiting Cutting Saw—safer, faster, more precise duct work. Fixed cutting depths prevent cable damage, ensuring controlled cuts that protect workers, cables, and customers. 8 standard depths available (custom sizes available).
