Temporary Earthing & Bonding Solutions

EARTHING & BONDING SOLUTIONS FOR HV & LV EARTHING & BONDING

www.transnet.co.nz

2

CONTENTS CONTENTS

3

ABOUT TRANSNET NZ LIMITED COMPANY OVERVIEW ENVIRONMENTAL RESPONSIBILITY

4 4 4

THE TRANSNET DIFFERENCE WHENEVER, WHEREVER, WE'VE GOT IT - PRODUCT RANGE

5 5

HV OVERHEAD EARTHING TEMPORARY 11/33KV EARTH SETS TEMPORARY 11/33KV EARTH SETS - SNAP ON CLAMP TRIPLEX EARTH KIT TRIDENT EARTH KIT CUTOUT EARTH CLAMP HV OVERHEAD ELECTRIC TRACTION LINE EARTHING

6 6 7 8 9 10 11

HV GROUND MOUNT EARTHING

12

TRAVIS BALL SOCKET EARTHIN SET 12

LV OVERHEAD BONDING

13

LV JUMPERS - CUSTOM MADE 13 LV JUMPER CABLE - CLEAR SHEATH 13 LV JUMPER CLAMPS 13 TEMPORARY LV EARTH SETS 14 SINGLE LV EARTH / BONDING LEAD 15 LV OVERHEAD BONDING LEAD 25MM2, 5 CLAMP 16 INSULATION PIERCING CONNECTOR FOR MEASURES & SHORT CIRCUITING 17 ABC BONDING DEVICE 18 NEUTRAL TAG 18 EQUIPOTENTIAL BONDING COMPONENTS 19

LV GROUND MOUNT BONDING EQUIPOTENTIAL BONDING MAT TEMPORARY CONTINUITY CONNECTORS LV DIN EARTH SET LV SERVICE FUSE BONDING SETS COMPLETE LV BONDING KITSET K199 LV BONDING SET

20 20 21 23 24 25 25

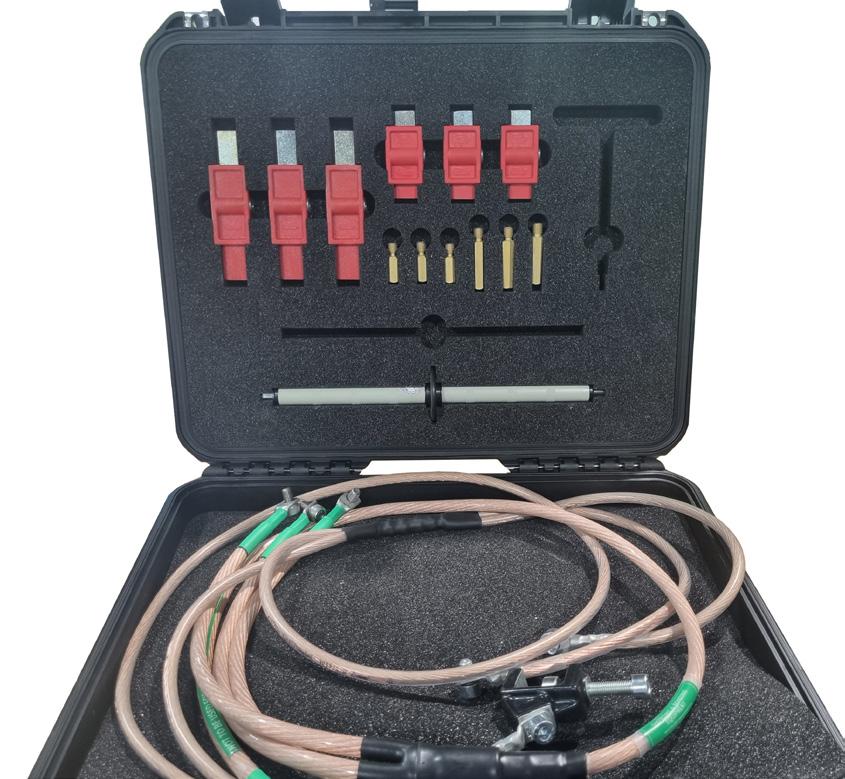

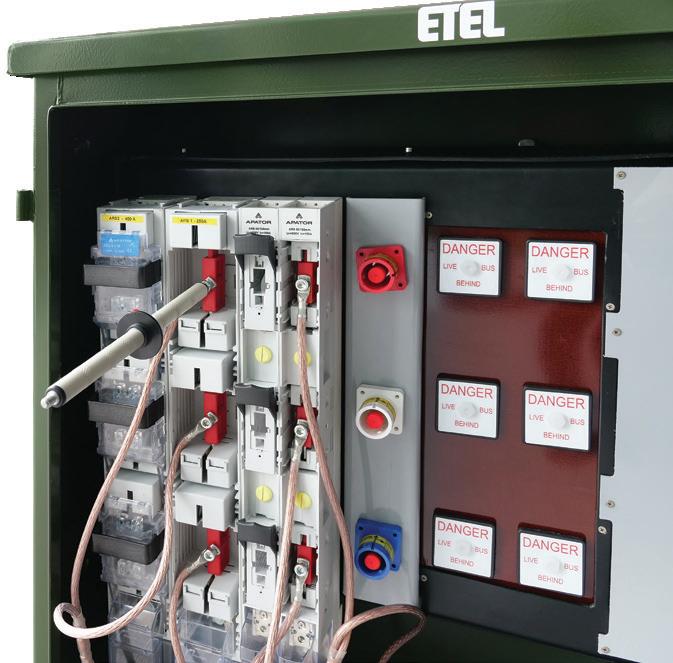

USER GUIDE USER GUIDE – LV UNDERGROUND NETWORK BONDING EQUIPMENT RANGE

26 26

3

ABOUT TRANSNET NZ LIMITED TRANSNET COMPANY OVERVIEW At TransNet we offer a large range of products to the Electrical Distribution, Transmission, Rail, OEM and Wholesale industry. We have the expertise and knowledge to assist with equipment specification as well as providing hands on service and support in the field.

With three stocking distribution facilities in Australasia, and 24hr contact, TransNet is able to offer local support and fast delivery.

TransNet is one of the largest suppliers to our industry in Australasia, offering the most diverse range of products and support. We have a switchgear workshop, an R&D workshop and a Raychem kitting room on site in our Auckland Head Office and we are well equipped to offer training and support for all our products.

At TransNet we pride ourselves on the ability to react quickly to any situation and have product to you whenever and wherever you need it. Our staff are knowledgeable and happy to help, we have a number of technical specialists in a range of product areas, all ready to assist if and when required.

As the sole New Zealand Distributor of TE Connectivity Energy products including brands such as Raychem, Utilux, AMP and Guro, we have the local and international support and expertise of one of the largest manufacturers in our business. TE Connectivity Energy has a research and development programme second to none, continuously improving existing products, while designing and testing new products to improve network reliability. We are proud to offer an extensive range of quality brands from around the globe for a holistic approach to supply in the electricity industry.

ENVIRONMENTAL RESPONSIBILITY At TransNet we take environmental responsibility seriously and as part of our commitment to the environment we have implemented a range of policies and practices to do our part in protecting the environment.

We have achieved and maintained ISO 14001 - Environmental Management System certification since 2017, an achievement we're immensly proud of. In addition to this, we have the first and only fully functioning Micro Grid of its kind in New Zealand right here at our head office, with 150kW of solar generation and a 30kW/130kWh smart storage system, we're able to power our entire operation for most of the day.

We're already moving to reduce our impact even more by adding electric vehicles to our fleet and using our solar farm to charge them.

4

THE TRANSNET DIFFERENCE WHENEVER, WHEREVER, WE'VE GOT IT - PRODUCT RANGE • • • • • • •

More than 20 years supplying to the electrical industry 100% privately New Zealand owned and operated IANZ accredited HV Test Lab, ISO 14001 Certification & Environmental Management System Three stocking locations in Australasia R&D workshop, Switchgear workshop & Raychem kitting room Extensive stock holding for superior emergency response Quality products sourced from reputable brands from around the world

See below for some of the product ranges we can offer your business.

Asset Protection

Cable Accessories

Cable Management

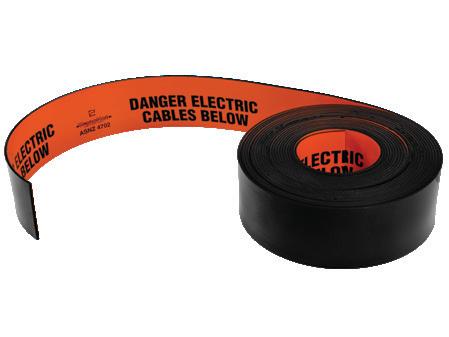

Cable Protection

Circuit Protection

Connectors

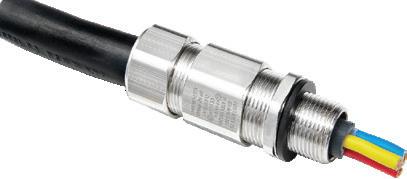

Duct Seals & Glands

Earthing

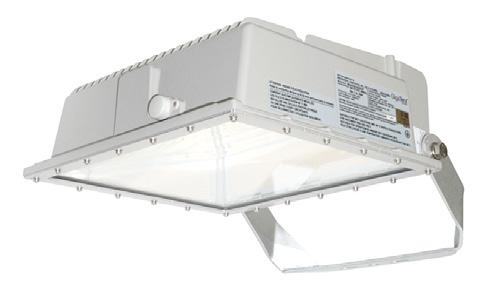

ECOLight LED Lights

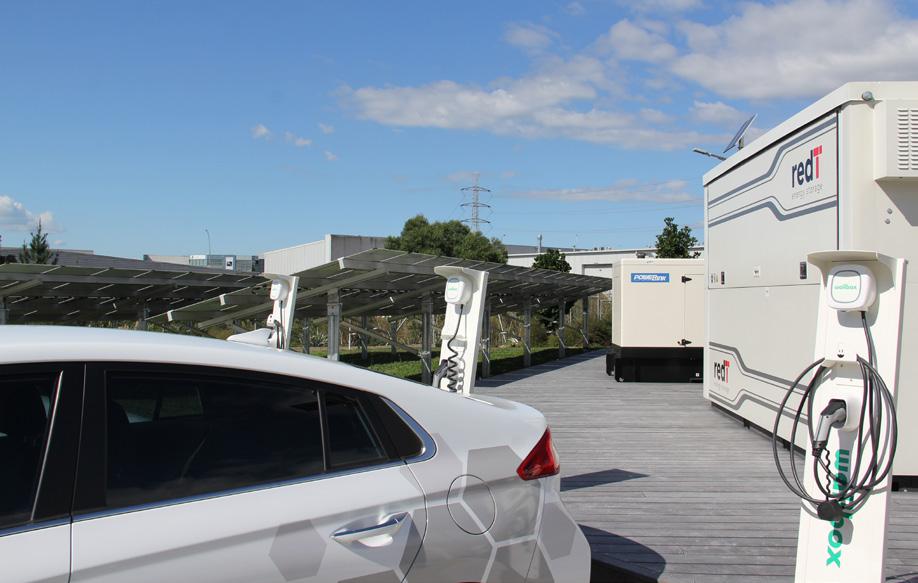

EVSE

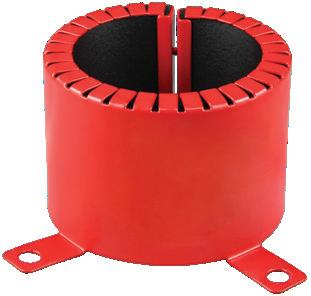

Fireproofing

Hazardous Area Solutions

Heatshrink

Insulators

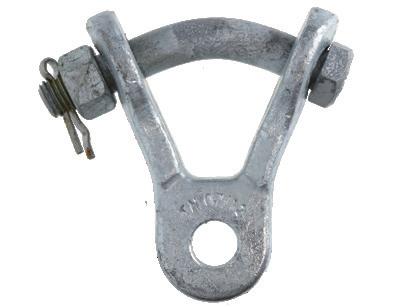

Line Hardware

Monitoring

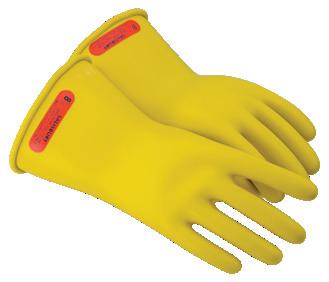

Safety Equipment & Testing Facilities

Switchgear

Test & Measurement

Tools

5

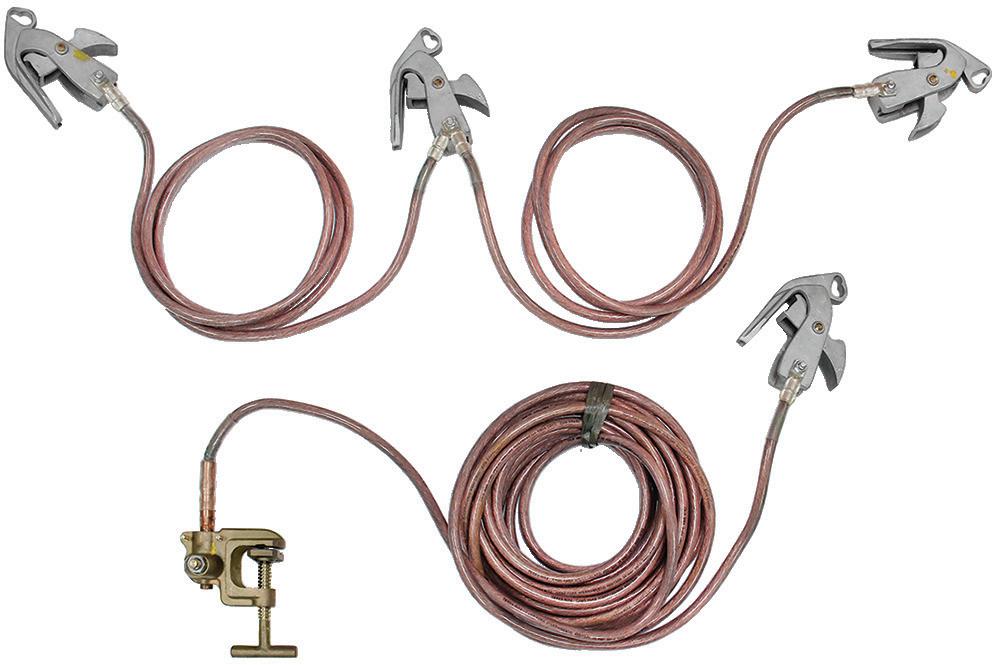

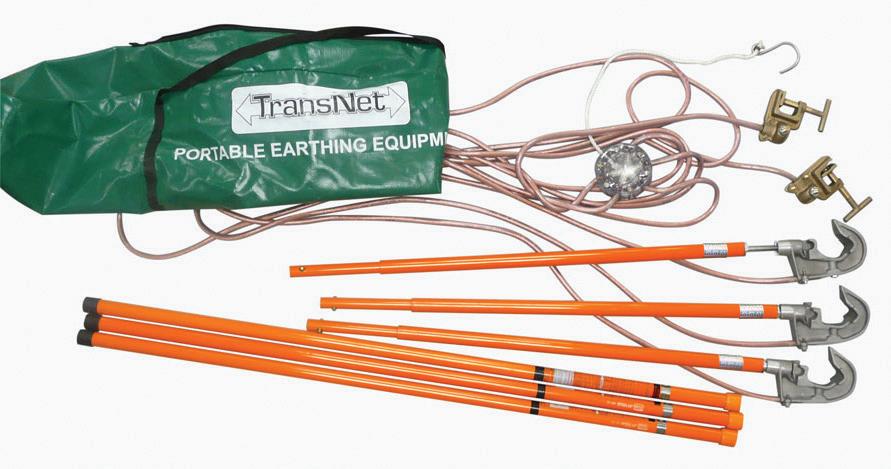

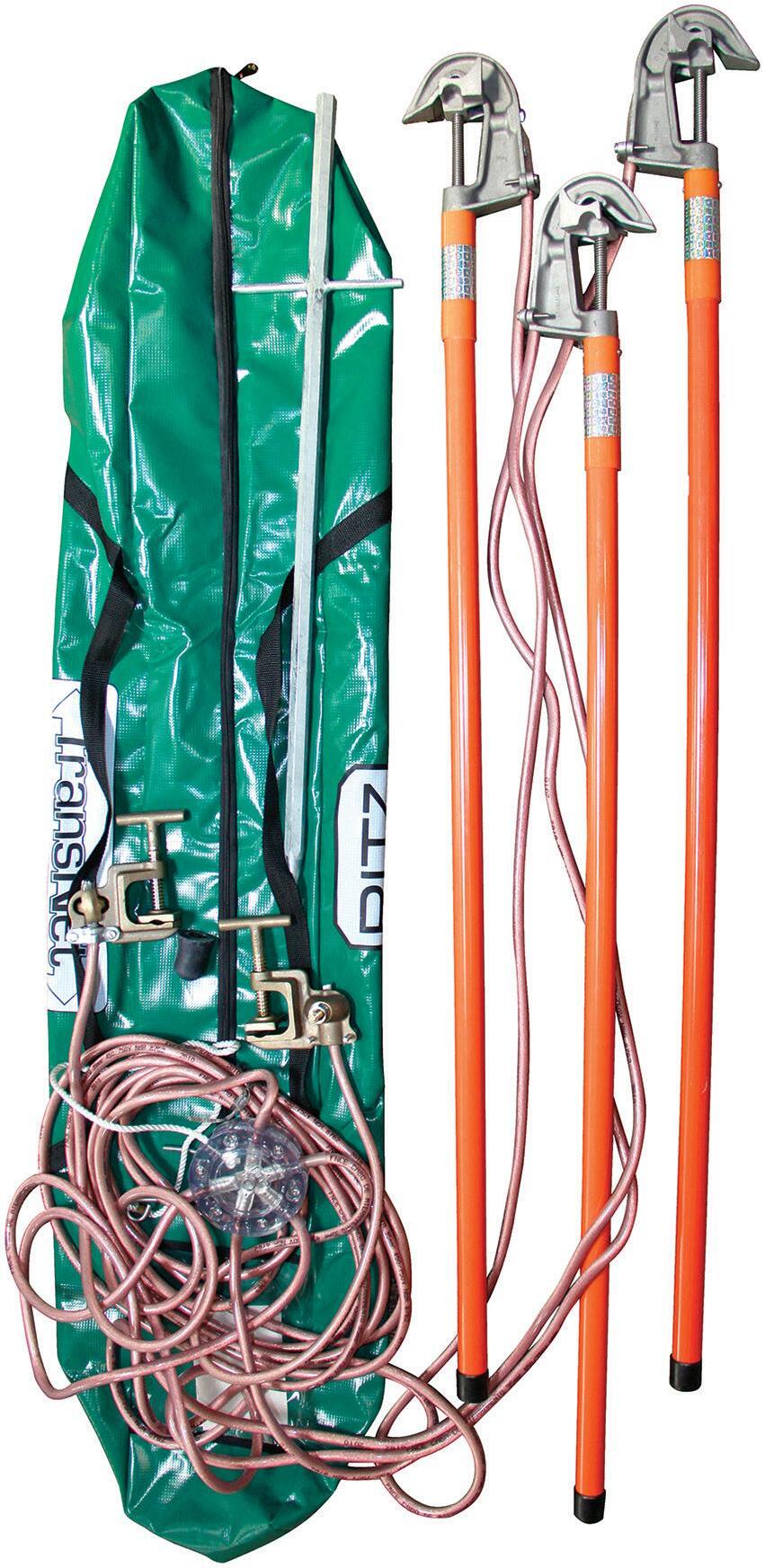

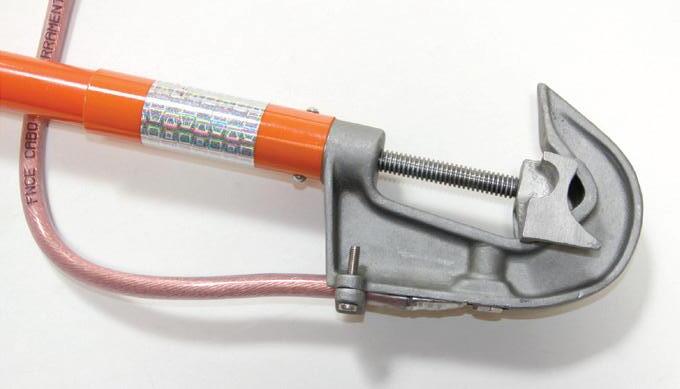

HV OVERHEAD EARTHING TEMPORARY 11/33KV EARTH SETS Temporary earth sets with attached earth stick for visual confirmation of earth set installation. These earths are a well known and extensively used design here in New Zealand.

The set is made up of the following; • 3 x 3m leads attached to fully insulated line clamp hotsticks • 1 x 9m lead from cluster to ground with ground clamp • 1 x 1m lead from cluster to pole with ground clamp to bond pole metal work • 1 x heavy duty storage bag • 1 x 1m earth stake • 1 x Acrylic cluster cover for easy fast inspection of connections FEATURES • Reflector at the top of each stick for night time visual check • Factory test report supplied with every set • Unique serial number for traceability • Inspected and tested to IEC 61230 standard ALSO AVAILABLE • Longer 2 piece sticks • 50mm² conductor for higher fault current applications

Extendable Hotsticks

Cat No.

Description

Fault Rating

CAR/ST-NZ-HG14880

RITZ PORTABLE EARTH SET, 35MM²

10kA / 0.5 Sec

CAR/ST-NZ-HG14880-5

RITZ PORTABLE EARTH SET, 50MM²

15kA / 0.5 Sec

RITZ PORTABLE EARTH SET, 35MM², 2 PIECE STICKS

10kA / 0.5 Sec

TN11-33KV/SET

6

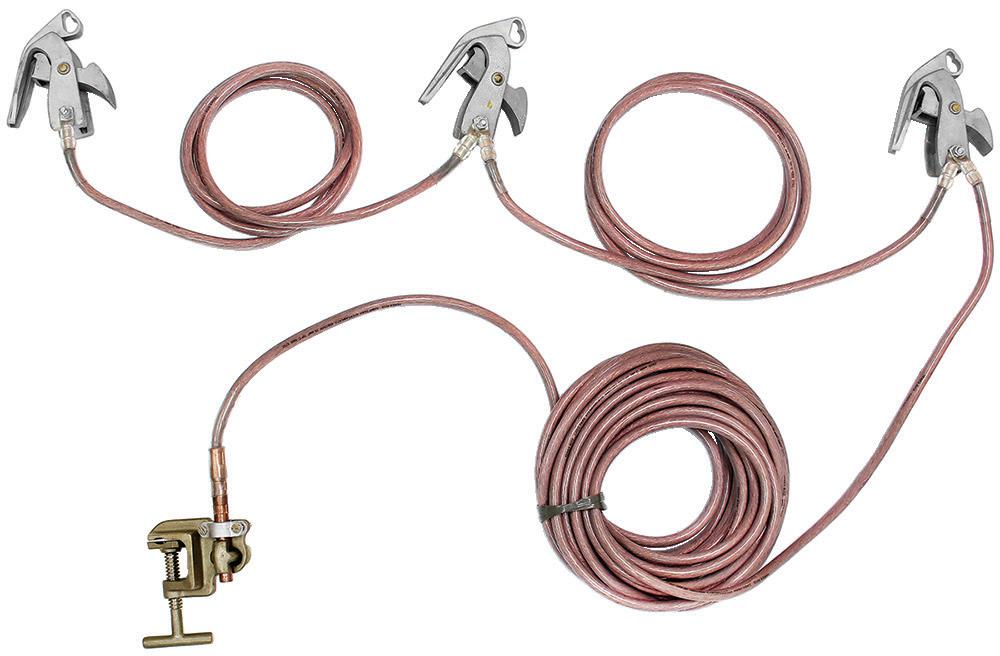

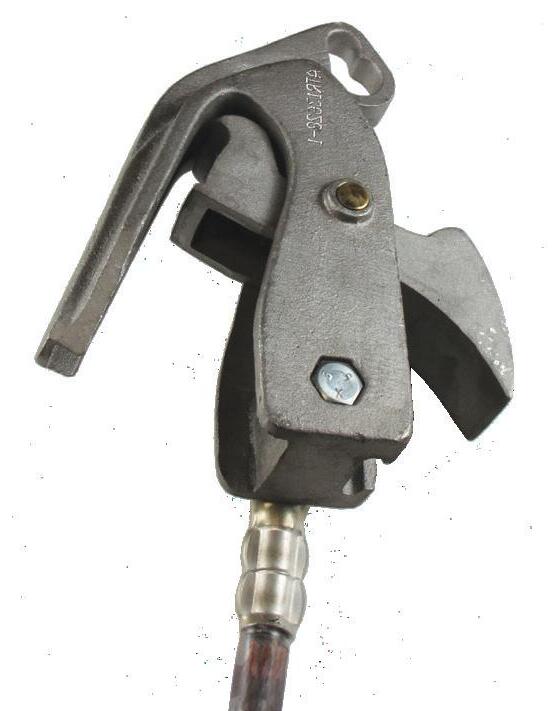

HV OVERHEAD EARTHING TEMPORARY 11/33KV EARTH SETS - SNAP ON CLAMP Temporary earth sets with "snap on clamps" are available with a separate earth lead or with the earth looped into the set.

These spring loaded clamps make it extremely fast and easy to install the earths on overhead lines, the operator simply sets the preloaded jaw of each clamp and mounts them onto the application plate which is connected to a hotstick. Once the clamps are mounted to the application plate they are lifted above the conductor and pulled back down over it to snap into place.

These clamps are equally easy to remove, simply pull each clamp from the conductor with the clamp removal tool specifically

designed for use with these clamps.

A three phase set with separate earth lead helps to reduce the amount of weight being lifted into the air while the looped shorting and earth set offers the convenience of everything already being connected (this is ideal for urban applications).

ACCESSORIES • Application platform – to attach snap on clamps to overhead lines, comes with universal hotstick attachment • Clamp removal tool – to remove snap on clamps from overhead lines, comes with universal hotstick attachment

ATR-C-01400

Cat No.

Snap Clamp

Ground Clamp

ATR-C-01401

Description

Fault Rating

ATR-C-01400

RITZ SNAP CLAMP PORTABLE EARTH SET WITH SEPARATE GROUND LEAD, 35MM² CU

8kA / 1 Sec

ATR-C-01401

RITZ PORTABLE SNAP CLAMP EARTH SET WITH COMBINED GROUND LEAD, 35MM² CU

8kA / 1 Sec

ATR13628-1

RITZ SNAP CLAMP

N/A

ATR1442-1

RITZ SNAP CLAMP REMOVAL TOOL

N/A

ATR04694-1

RITZ ALUMINIUM UNIVERSAL CLUSTER FOR INSTALLING & REMOVING GROUND CLAMPS

N/A

7

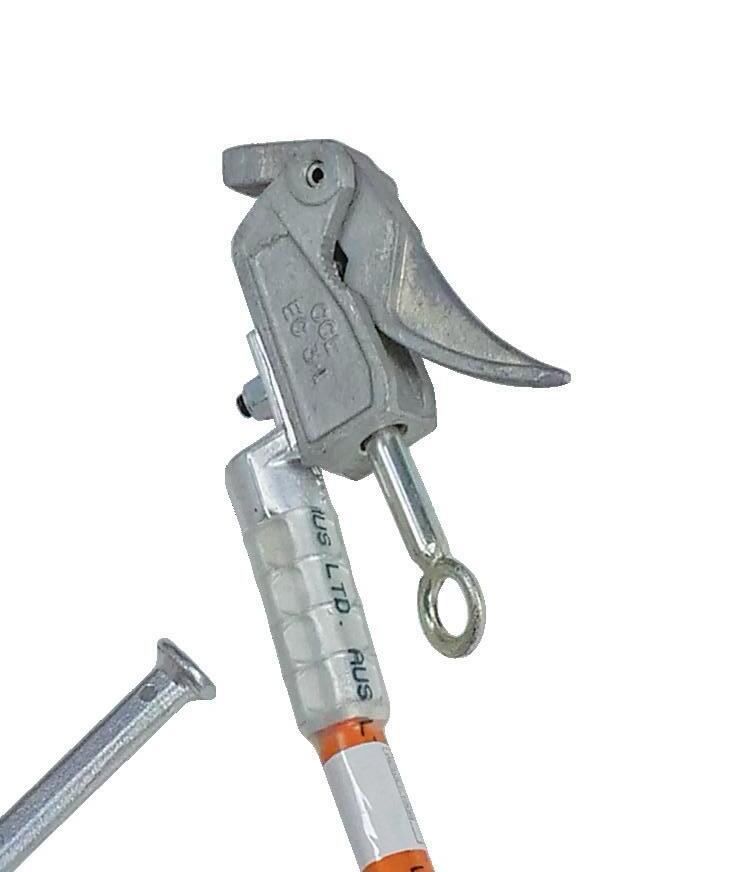

HV OVERHEAD EARTHING TRIPLEX EARTH KIT Mosdorfer HVE015 Earth Leads with Screw On Head Clamps •

Phase to Phase / Phase to Ground 120mm2 Aluminium Fault Current Rating of 17.5kA/1 Sec Phase to Ground 50mm2 Aluminium Fault Current Rating of 7.5kA/1 Sec Total weight of 11kg Can be used with existing Universal Sticks and an adapter

• • •

Fully customisable to suit your networks' individual requirements.

Talk to your local TransNet Account Manager to find out more.

Customisation Examples

Cat No.

Description

MOSCCL-HVE015

MOSDORFER CCL TRIPLEX EARTH KIT INCLUDES ROD021 STICK, CARRY BAG & E ADAPTOR

MOSCCL-HVE015-010

MOSDORFER CCL TRIPLEX EARTH KIT WITH EC3.1E LINE CLAMPS, 2x3m x 120mm2 ORANGE PHASE LEADS JOINED WITH PARKING BAR & CARRY BAG

MOSCCL-ADPE

MOSDORFER CCL E-ADAPTOR

MOSCCL-RAIN001

MOSDORFER CCL RAIN SHIELD

MOSCCL-ROD021

MOSDORFER CCL 4 TO 8FT TELESCOPIC ROD

8

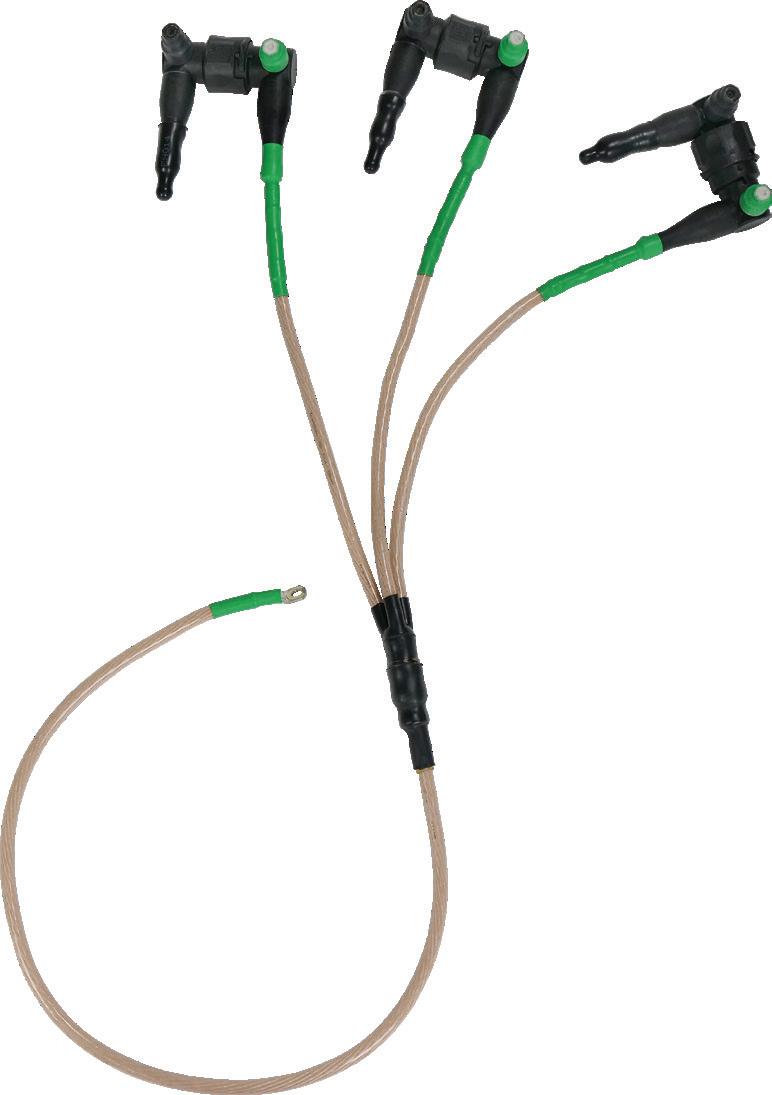

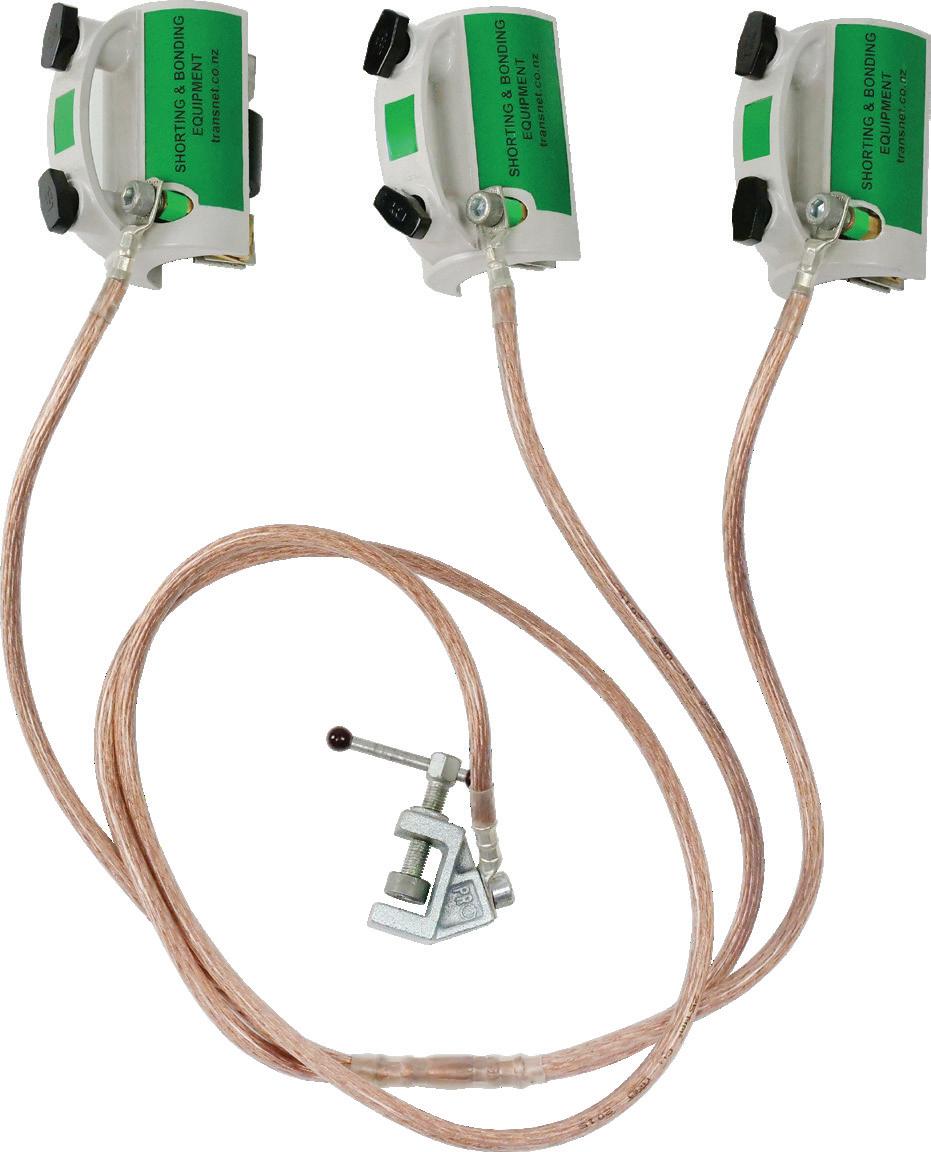

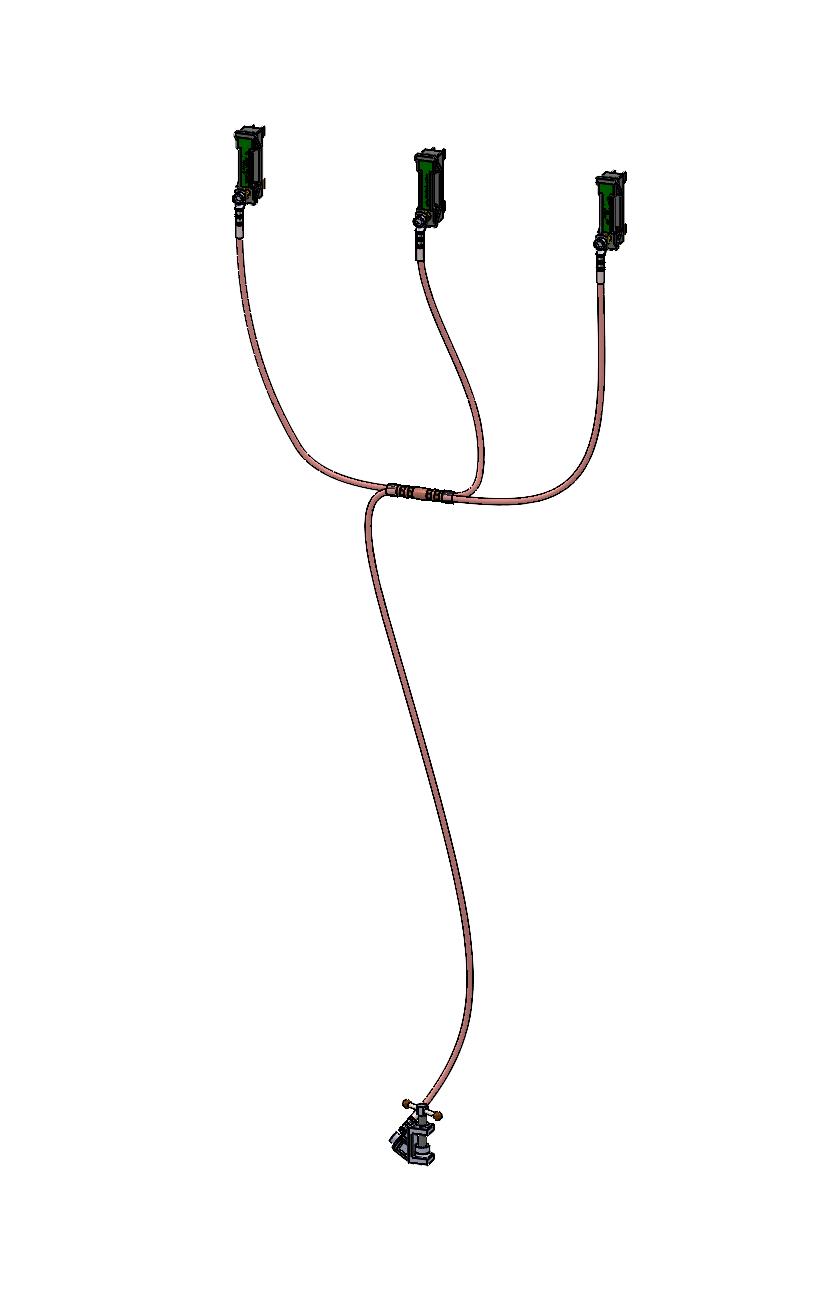

HV OVERHEAD EARTHING TRIDENT EARTH KIT Mosdorfer HVE040 with Snap On Head Clamps • • • • • •

Phase to Phase Fault Current Rating of 12.5kA/1 Sec Phase to Phase Conductor 120mm² Aluminium Phase to Ground Fault Current Rating of 7.5kA/1 Sec Phase to Ground Conductor 50mm² Aluminium Total weight: 11kg Can be used with existing Universal Sticks and the attachment of an adapter

Fully customisable to suit your networks' individual requirements. Contact us for information.

Customisation Example

Cat No. MOSCCL-HVE040 MOSCCL-HVE040-011 MOSCCL-ADP0D MOSCCL-ROD021

Description MOSDORFER CCL TRIDENT EARTH KIT MOSDORFER CCL TRIDENT EARTH KIT INCLUDES CARRY BAG & D ADAPTOR MOSDORFER CCL D-ADAPTOR MOSDORFER CCL 4 TO 8FT TELESCOPIC ROD

9

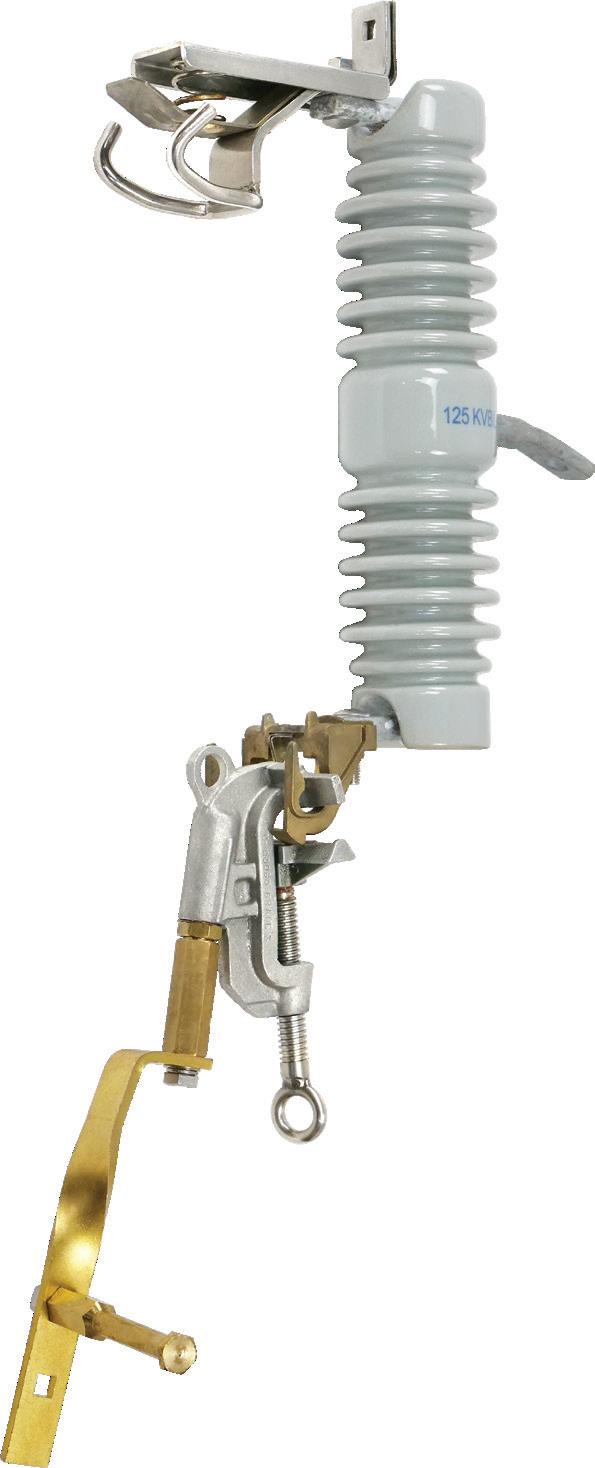

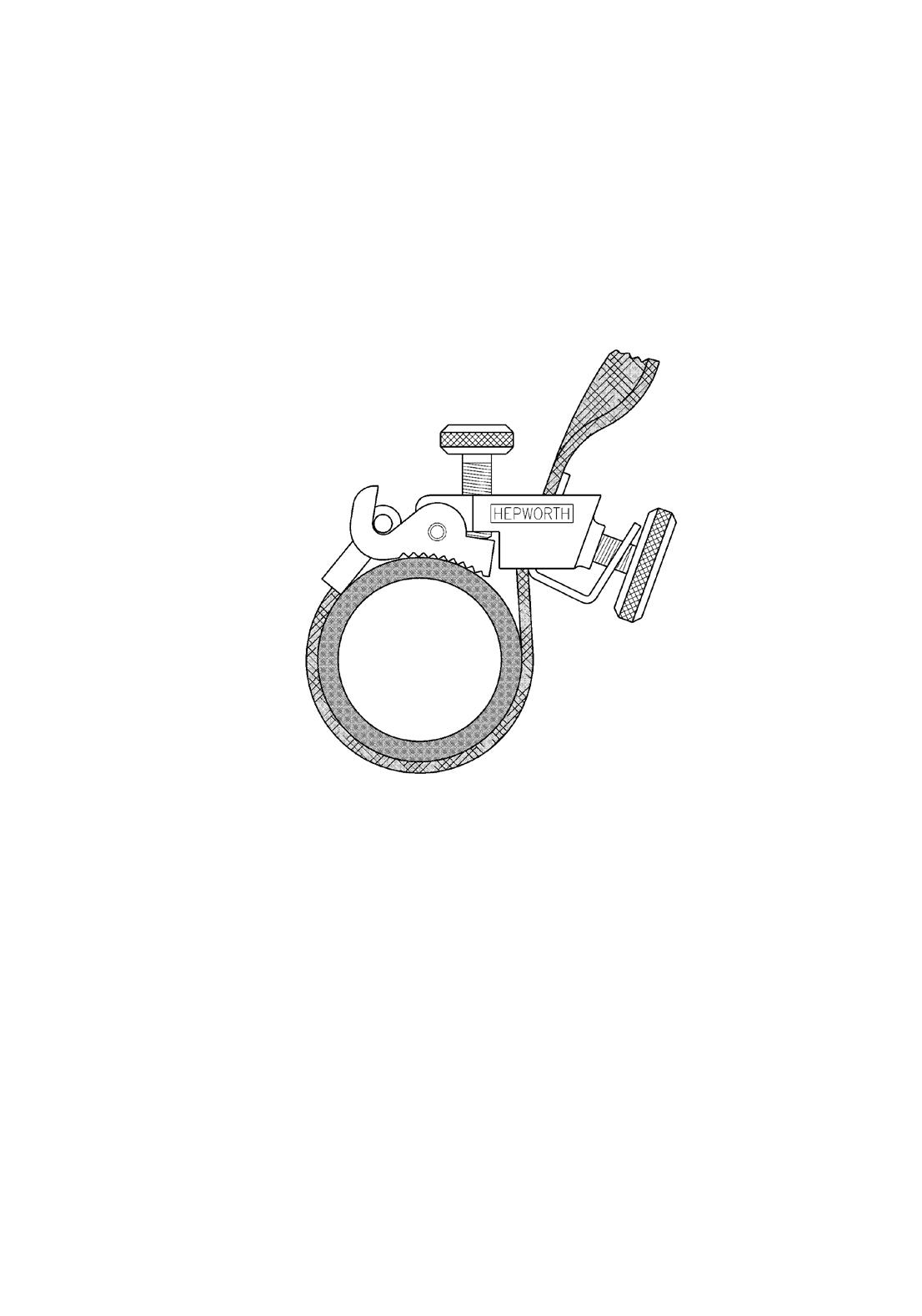

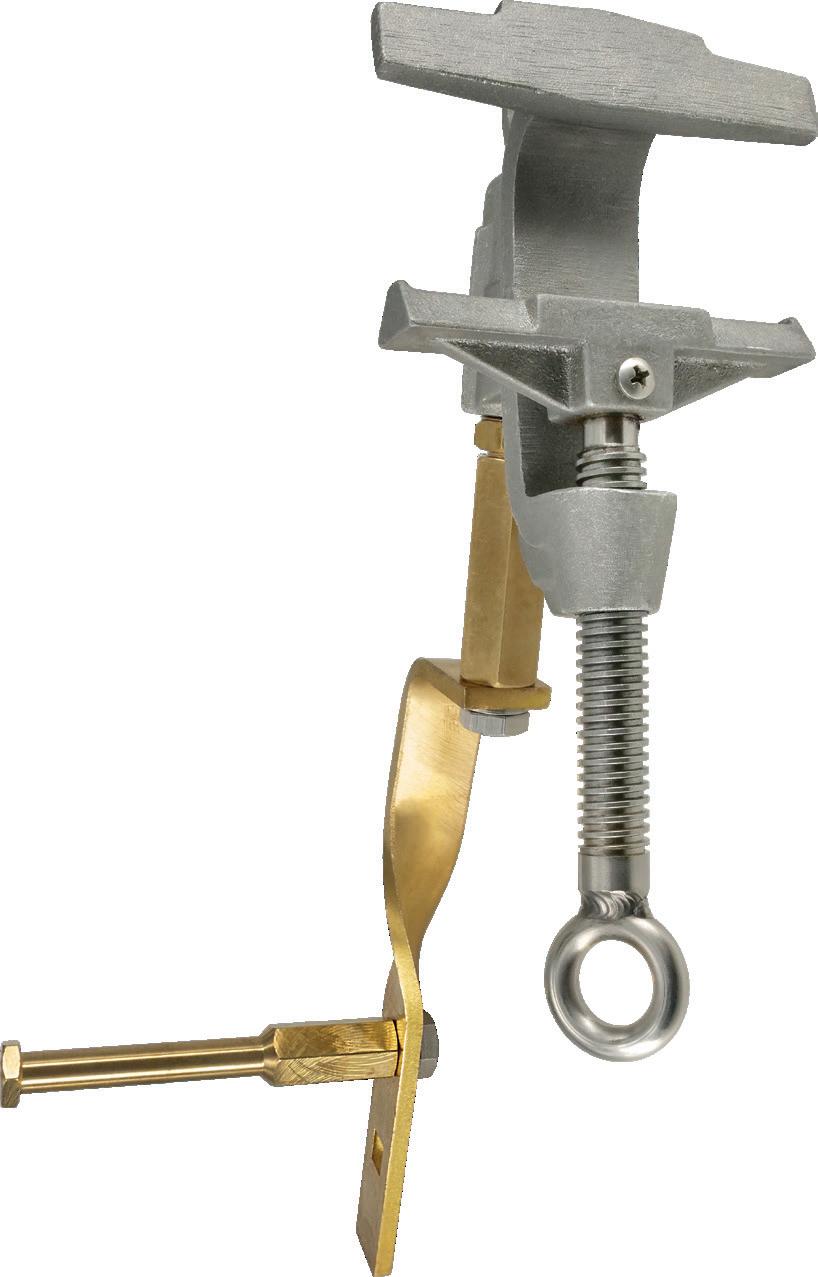

HV OVERHEAD EARTHING CUTOUT EARTH CLAMP Designed to attach to the bottom contact of an EDO and allow Temporary Earths to be safely applied when the EDO isn't fitted with an Earth Spigot.

Earthing attachment is easily applied with a Shot Gun Stick.

Fits both existing and new DDO versions.

350mm

Cat No.

TPACCT15 TPACCT15-2PS

10

Description

Max Current Fault Rating

AL CUTOUT CLAMP, THREADED 15 DEGREE

GRADE 3 - 27KA @ 15 CYCLES, SYMMETRICAL

AL CUTOUT CLAMP, THREADED 15 DEGREE WITH GRADE 3 - 27KA @ 15 CYCLES, SYMMETRICAL 3/4" PARKING DOUBLE STUD

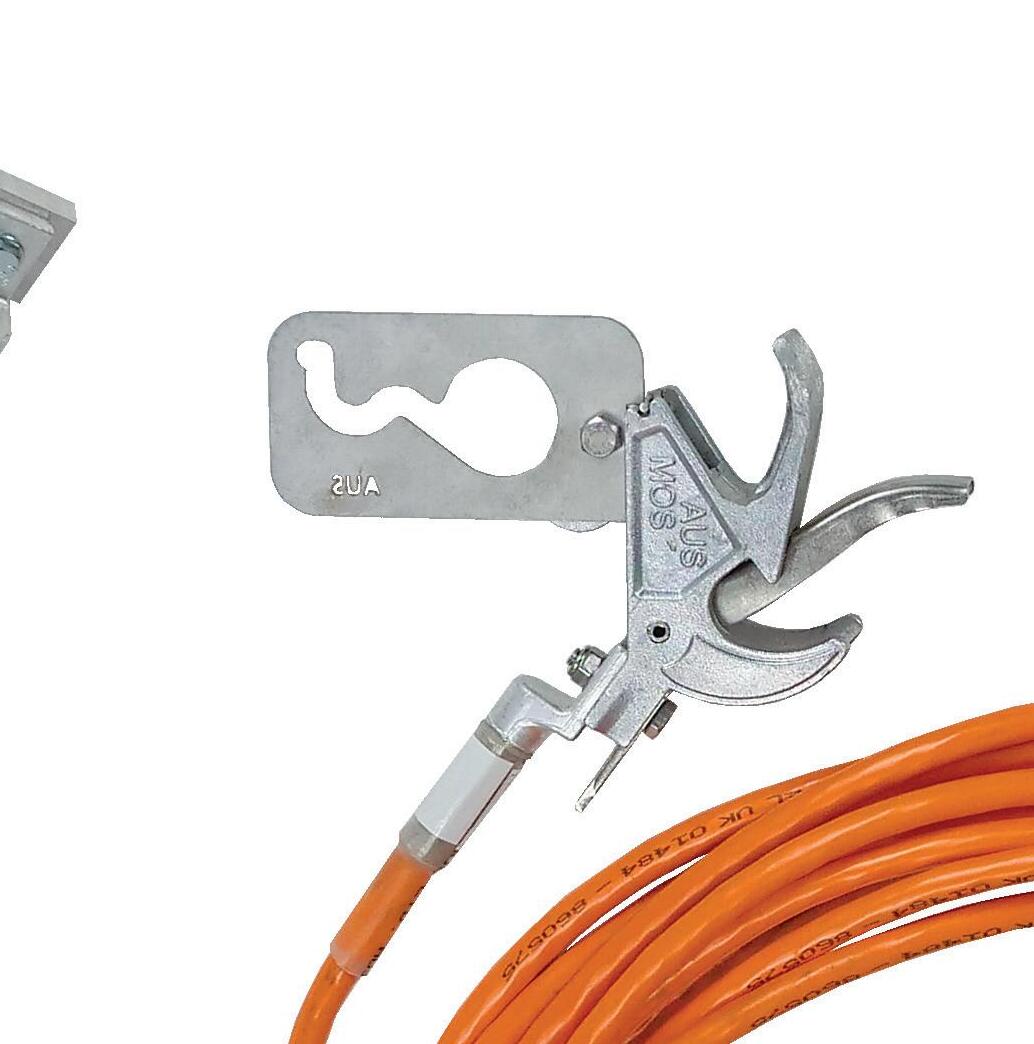

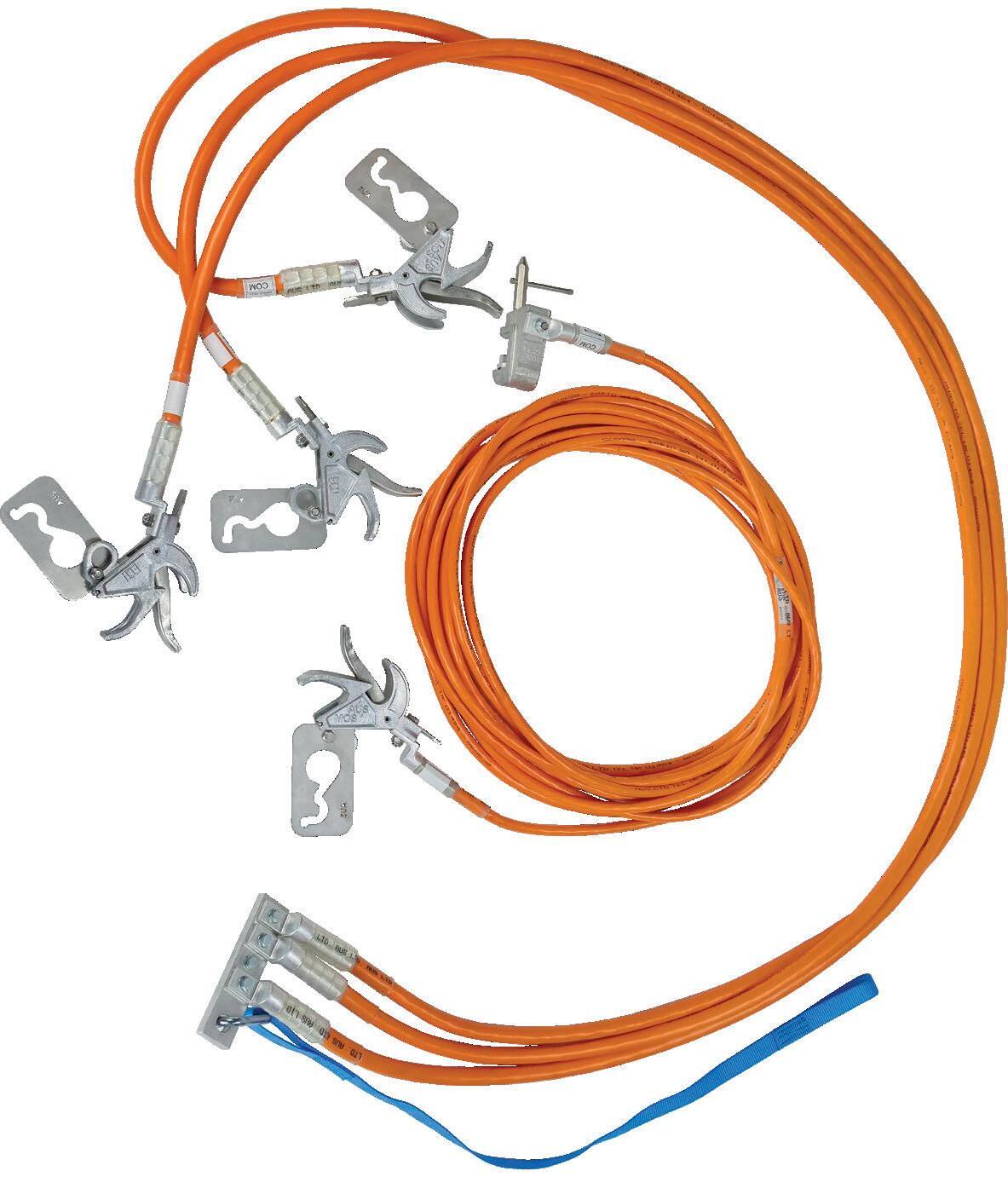

HV OVERHEAD EARTHING HV OVERHEAD ELECTRIC TRACTION LINE EARTHING Mosdorfer EC1.1-1525 Traction Earths for 1.525kV systems.

Standard equipment used by many railway companies throughout the world for providing temporary earth bonds between overhead catenary or contact conductors and the earthed rail line or designated earth points.

This equipment incorporates the EC1.1-'D' snap-on line clamp for rapid engagement and disengagement from the line conductor.

EC1.1 clamp must be applied using Type 'D' dispenser head fitted to the operating rod.

'Traction' equipment is supplied contained in a heavy duty PVC carry bag with shoulder strap for easy handling. Cable leads to interconnecting clamps are flexible aluminium braid, arctic grade PVC sheathed - (bright orange) for maximum visability when installed at the point of work.

Rating 7.5kA/1 sec (tested to British Rail Standard). TD Ref 272/60, available on request.

Recommended operating rod GF1-1.2 with 'D' adaptor.

Fig. 1

FEATURES • Made using 50mm² Al Flex to keep lead set as light as possible.

• Rating 7.5kA/1 Sec • Designed to be used with Standard Extension Sticks fitted with Universal Head.

OPTIONAL EXTRAS EC1.1 adaptor plate to assist disengagement of overhead line clamp from ground level.

Example earth set shown in Fig. 1. Contact your local TransNet Account Manager to find out more about this range and the flexibility associated with customisation to suit your application.

11

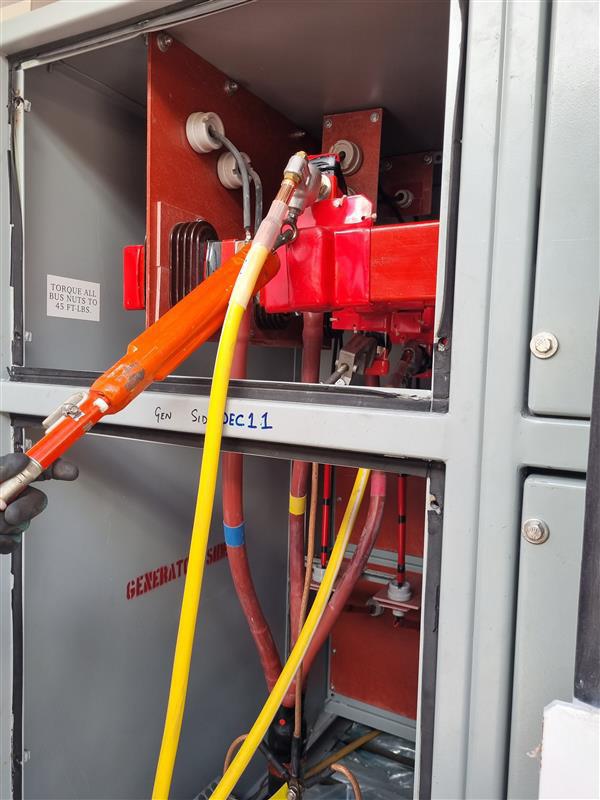

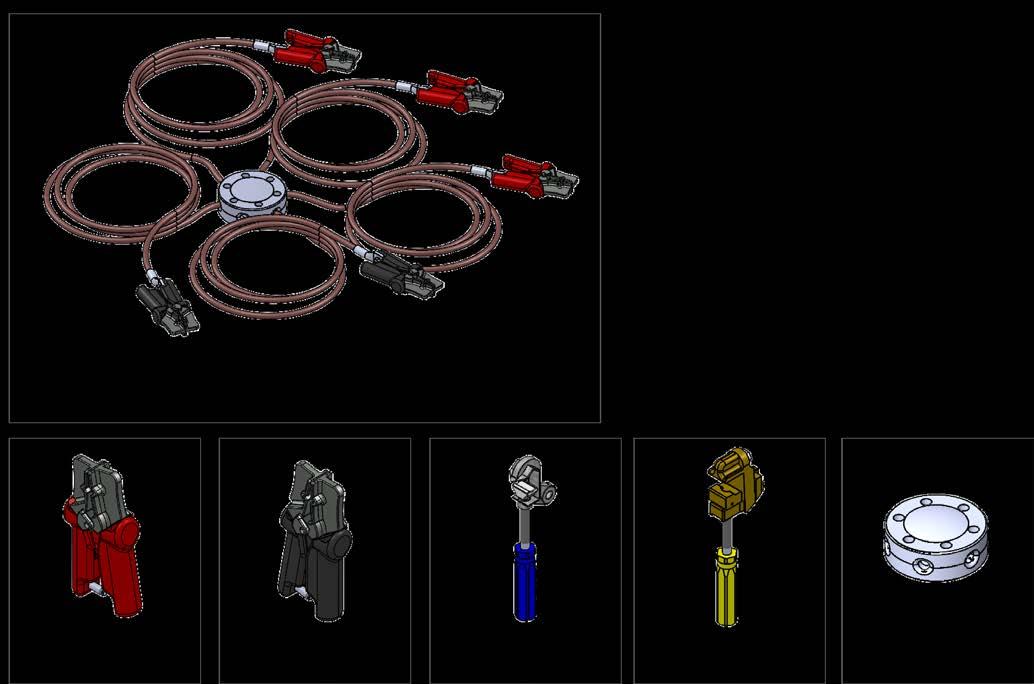

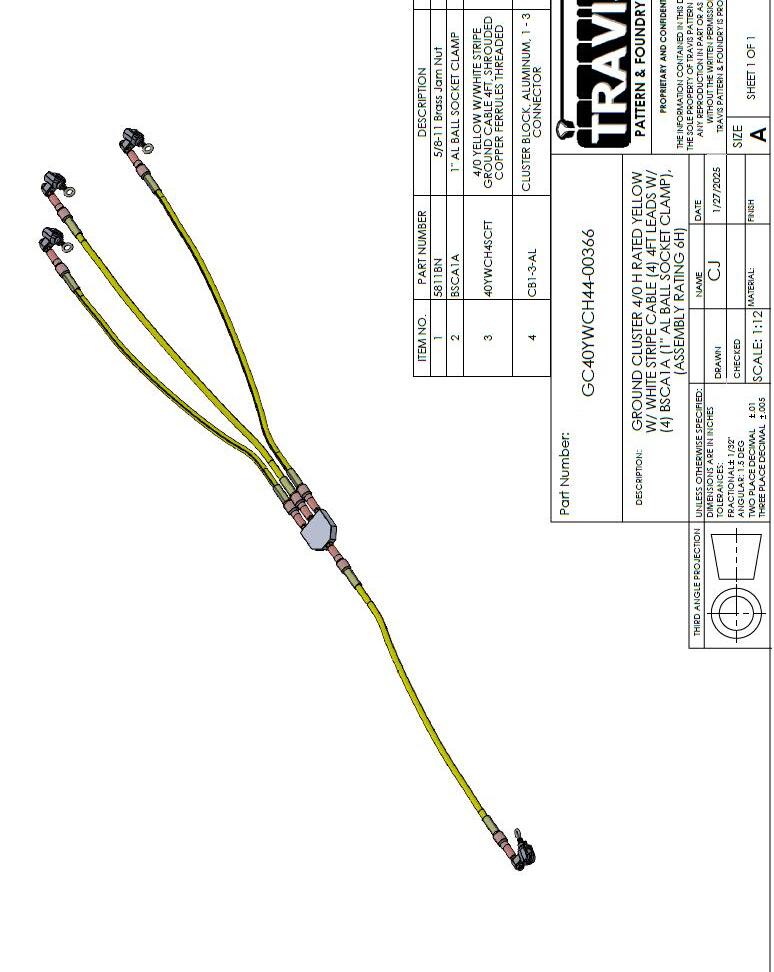

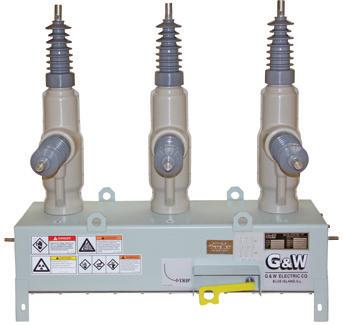

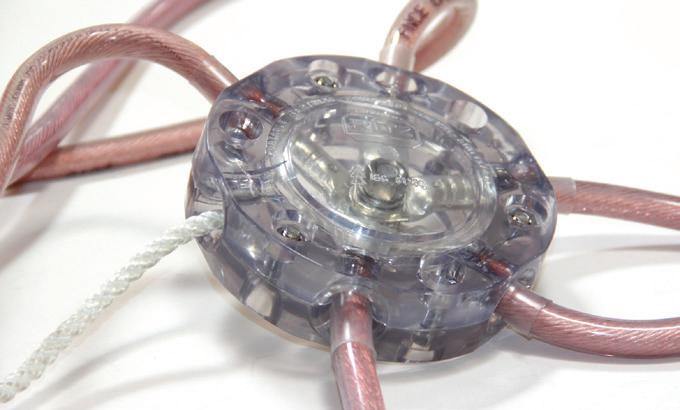

HV GROUND MOUNT EARTHING TRAVIS BALL SOCKET EARTHING SET The ball socket clamps make this earth set fast and easy to install using gripall hotsticks or bayonet stick attachments on regular hotsticks.

With 4ft long yellow/white insulated leads there is a generous amount of space for attaching to an overhead installation.

FEATURES • 4 leads at 4ft long attach to central cluster block • 3 leads in one direction, with the other in the opposite direction for balance • 4/0 yellow with white strip insulated copper flex cable • Ball socket clamps for use with gripall or bayonet hotstick attachment for application & removal • Rated at 6H: 55kA @ 15 cycles (250ms)

Cat No.

GC40YWCH44-00366

12

Description HV OVERHEAD EARTH SET WITH 4 CLAMPS, 4FT LEADS RATED AT 6H: 55KA @ 15 CYCLES (250MS)

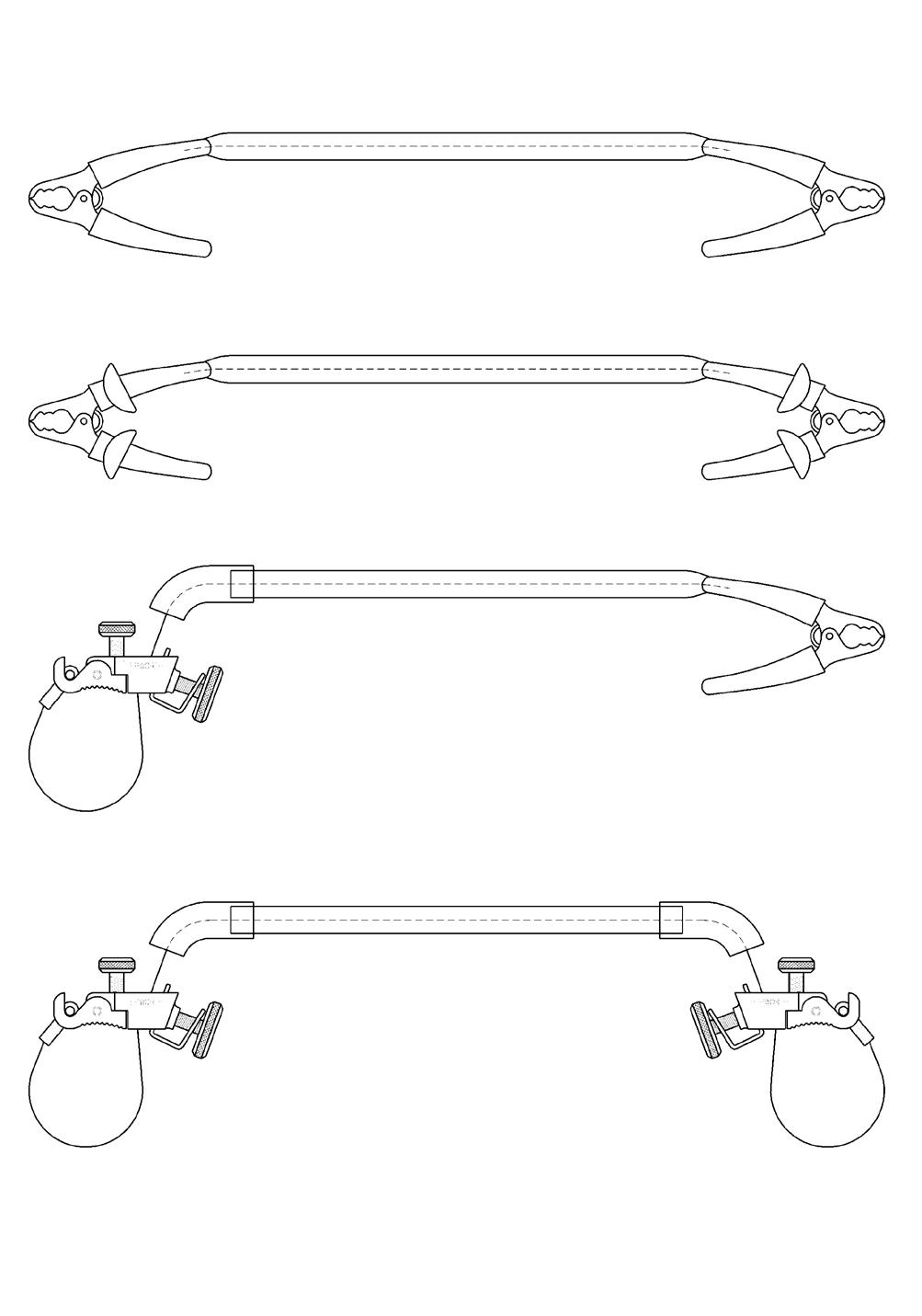

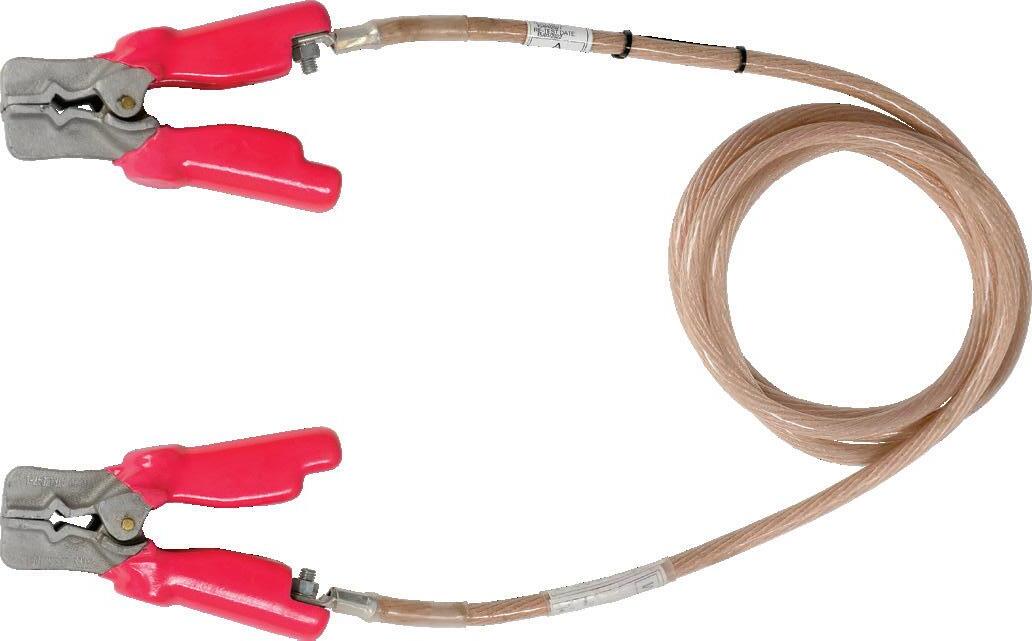

LV OVERHEAD BONDING LV JUMPERS - CUSTOM MADE WHEN ORDERING PLEASE SPECIFY: • Conductor Size • Jumper Lead Length *Made to order, choice of clamp, conductor size and length CONDUCTOR SIZES

35mm²

50mm² 70mm² 95mm² LENGTH 0.5m increments CLAMP ACCOMMODATES

5-19mm OD (Blue handle)

0-27mm OD (Yellow handle) 6.5-12.5mm OD (Red/Black handle)

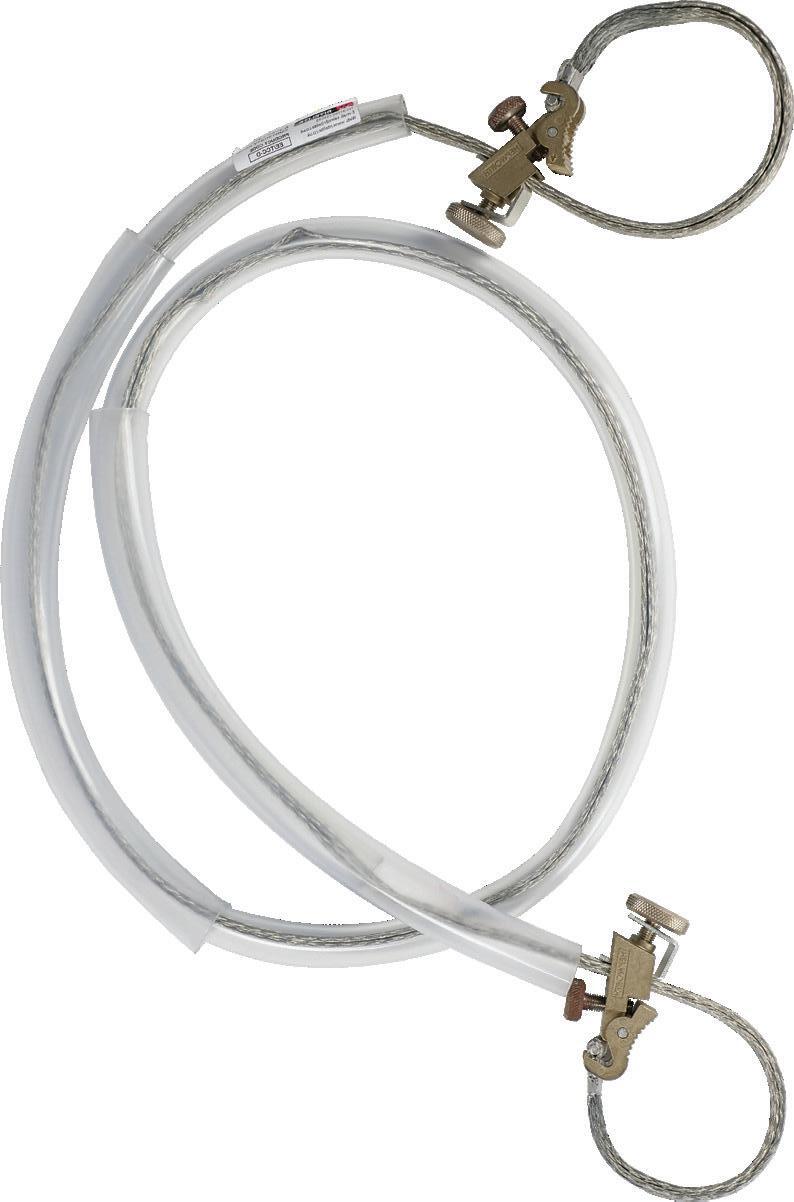

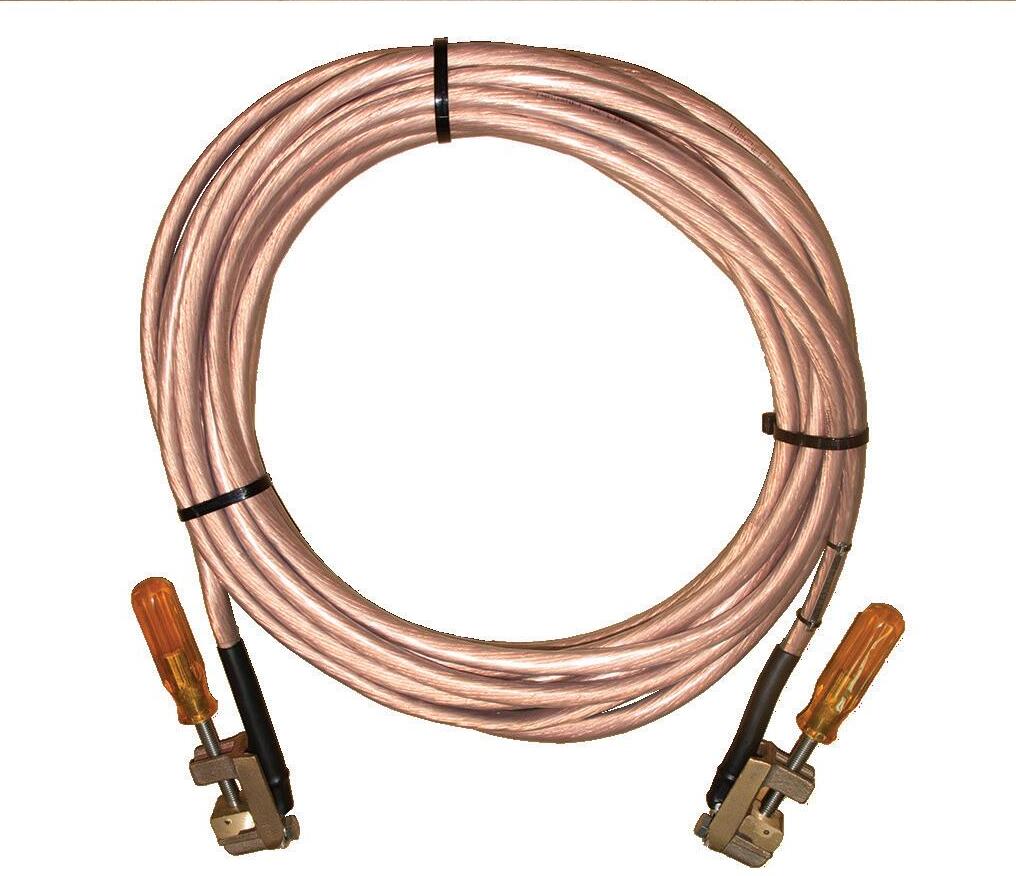

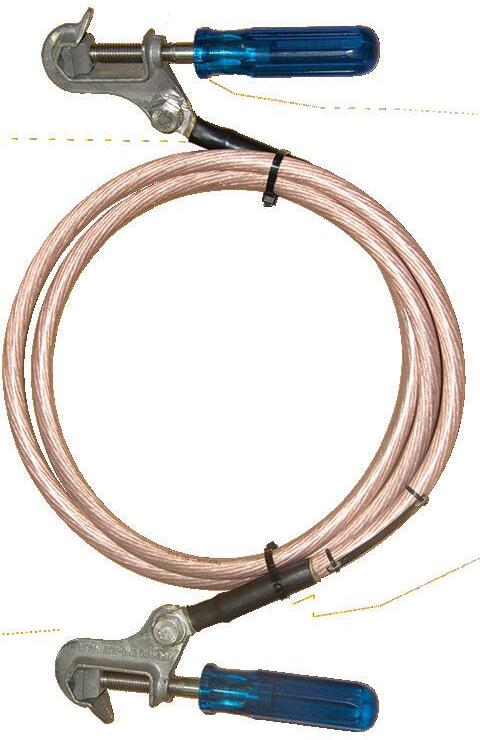

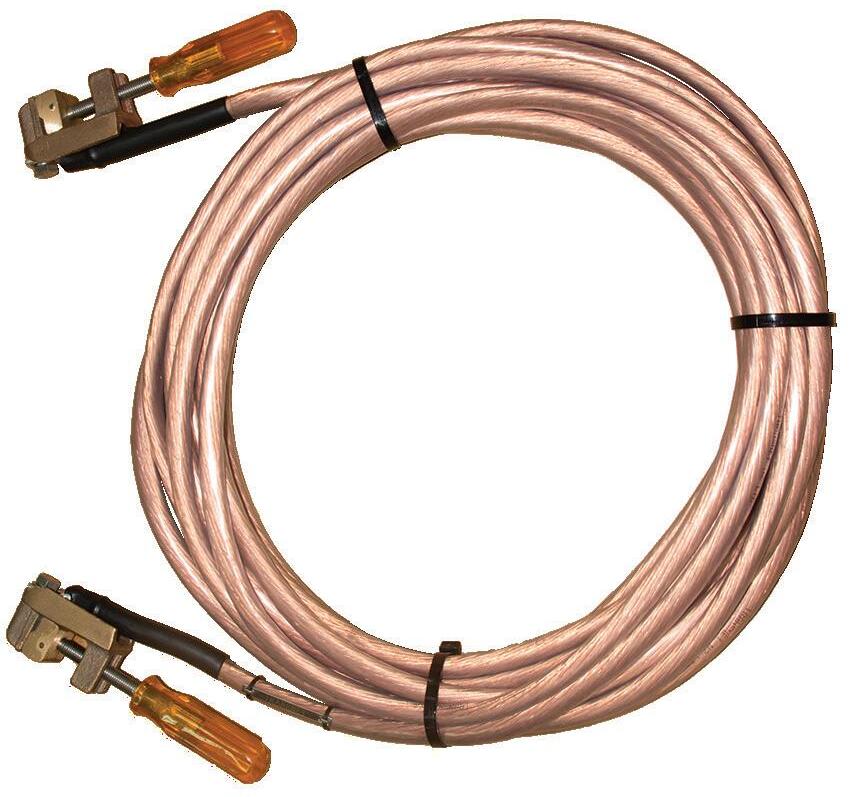

LV JUMPER CABLE - CLEAR SHEATH Extra flexible electrolytic copper cable, with 750V insulated protection made of crystal clear PVC, for visual inspection of the copper filaments, suitable for grounding equipment and terminals.

Size (mm2)

ISC Cap. (Symmetric kA) 30 Cycles (0.5X)

CTC-35

35

10

CTC-50

50

15

CTC-70

70

20

CTC-95

95

30

Cat No.

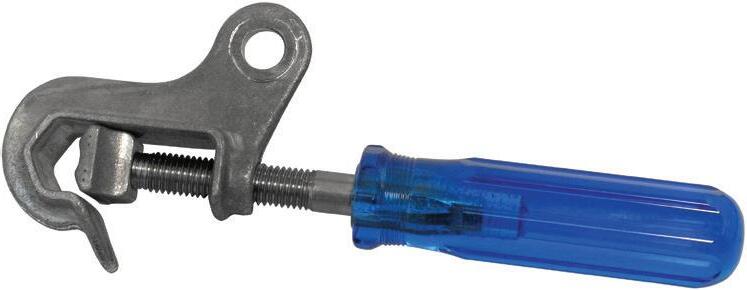

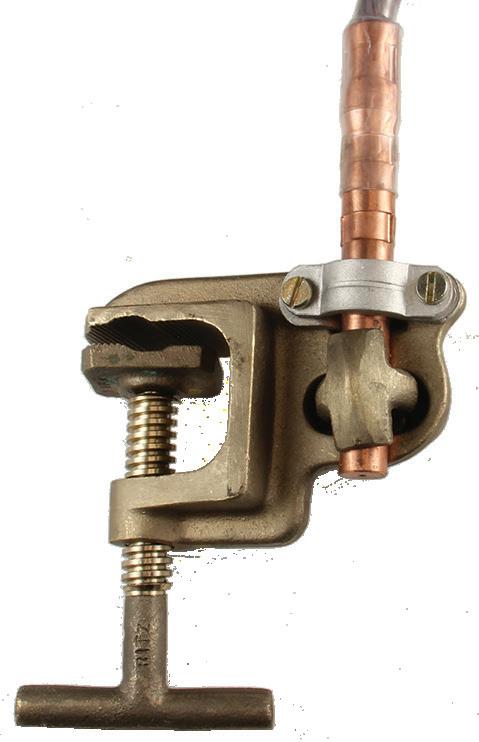

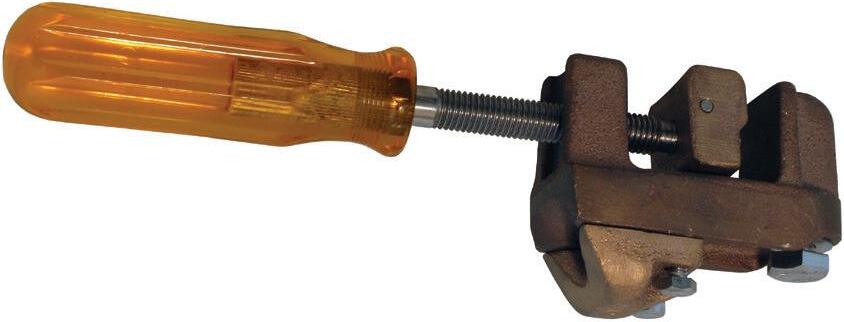

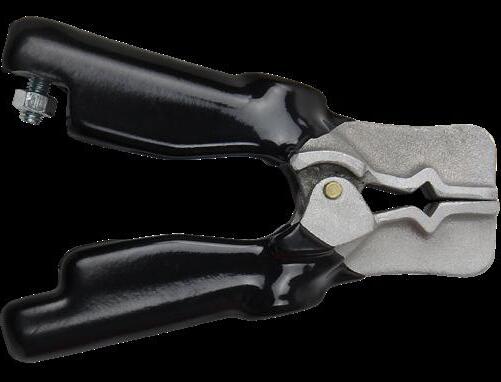

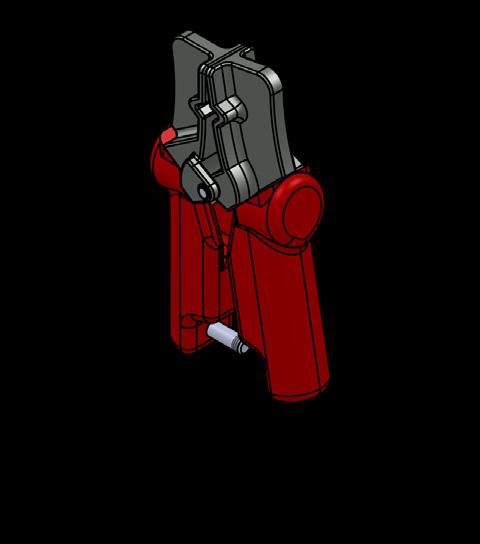

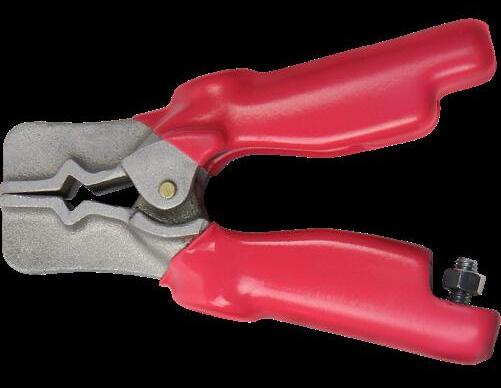

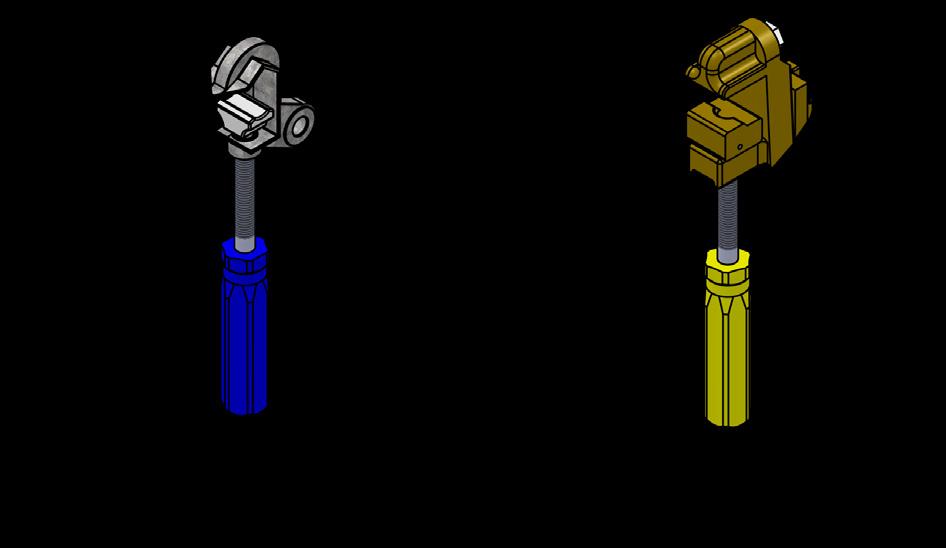

LV JUMPER CLAMPS Perfect for LV Jumper leads or Truck earths, these clamps are easy to use and robust to offer a long service life.

Cat No. BPL12-TIN SC-P101559-02

Description S/DRIVER CLAMP (BLUE) JAW OPENING 5–19MM OD S/DRIVER CLAMP (YELLOW) JAW OPENING 0–27MM OD, STRAIN RELIEF FITS CABLE 25-35MM²

ATR13047-1

SPRING LOADED GROUNDING CLAMP (RED) JAW OPENING 6.5–12.5MM OD

ATR13047-2

SPRING LOADED GROUNDING CLAMP (BLACK) JAW OPENING 6.5–12.5MM OD

13

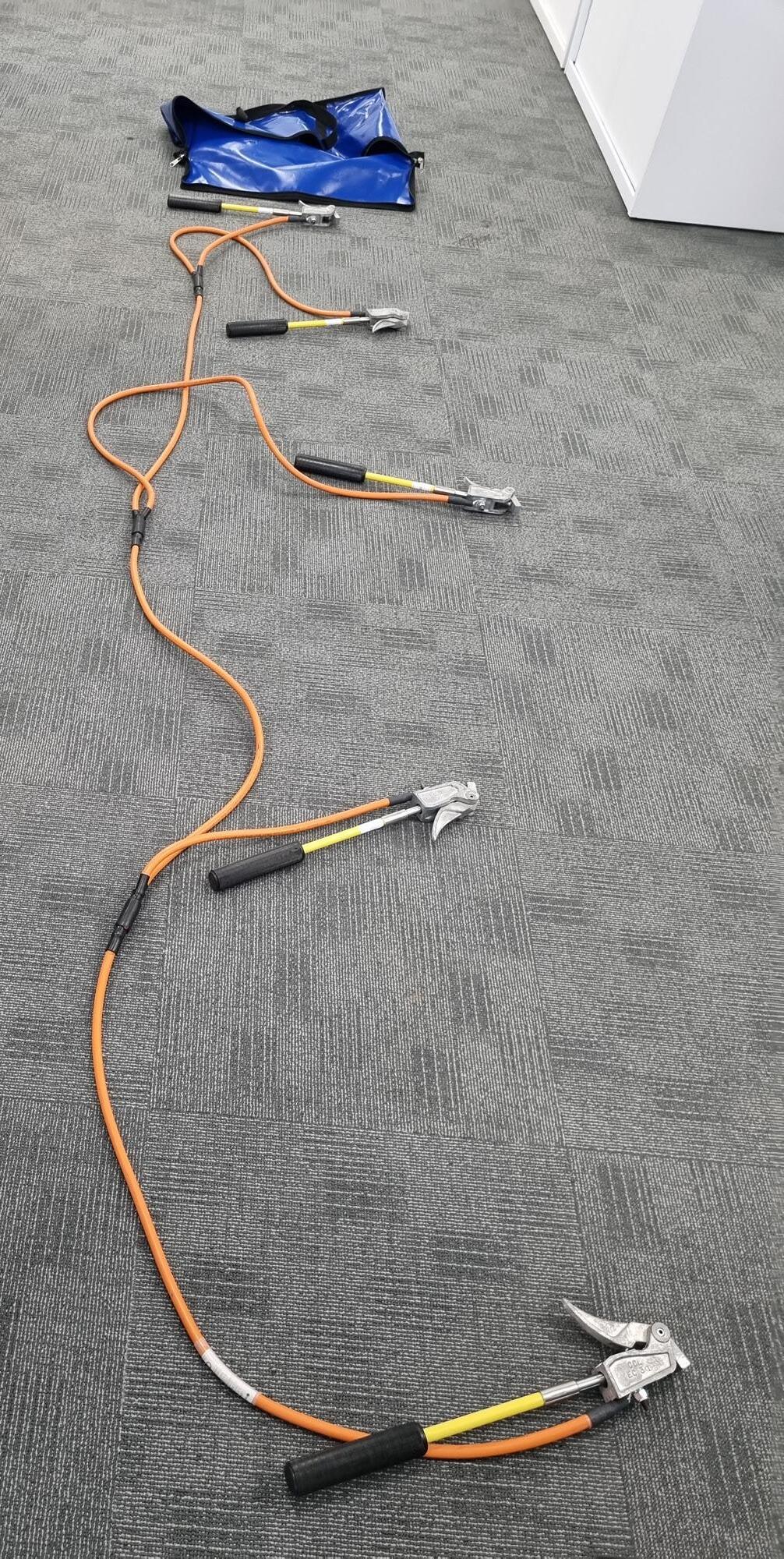

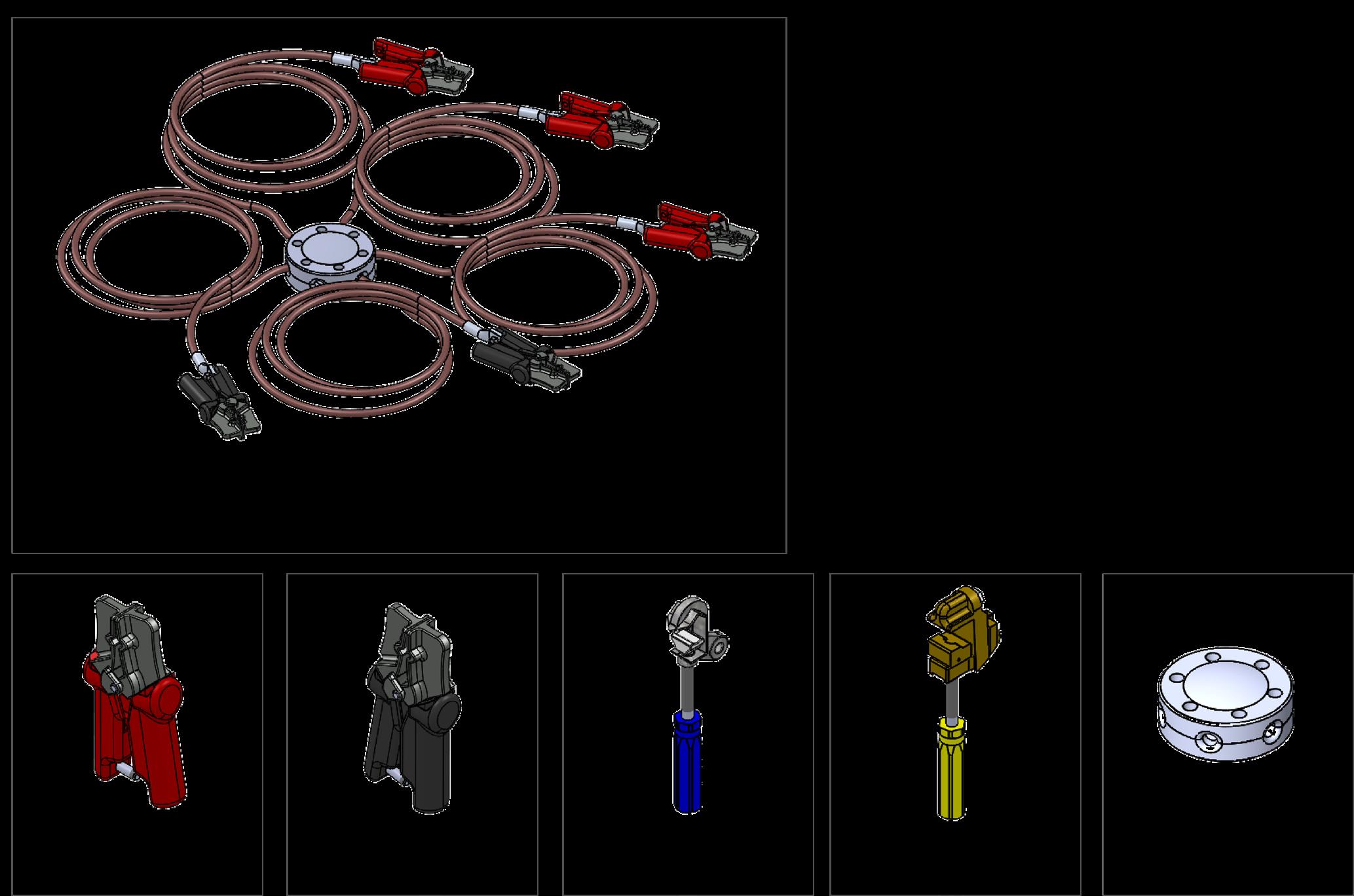

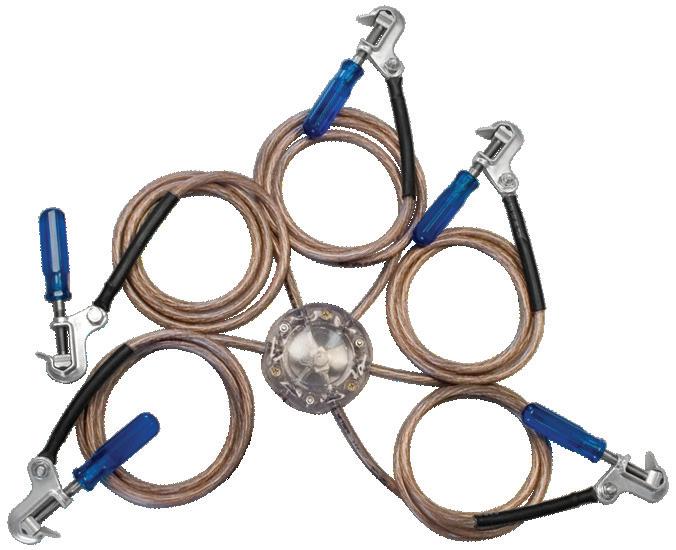

LV OVERHEAD BONDING TEMPORARY LV EARTH SETS •

Flexible Copper Conductor with a clear sheath for ease of visual inspections • Screwdriver handle clamps mean no tools are required for installation • Reusable, these jumpers are for temporary use and can be used over and over again • Strain relief applied to connection point for longevity of unit • Designed for low voltage applications only • Clear centre cluster for visual inspection of connection integrity • Available with 35mm², 50mm² or 70mm² conductor Common/standard sets outlined in table below. Custom earth sets available, please contact us with your requirements.

Product Code

Number of Leads with Handles

Length of Leads

LVE/SET6X2M35Mm2LEAD

6

2M

LVE/SET35MM1.5M10M

5

4 × 1.5m, 1 × 10m

JUMPSETLV5WAY2MTR

5

2M

LVE/SET35MM1.5M5M

5

4 × 1.5m, 1 × 5m

LVE/SET35MM2M

4

2M

LVE/SET35MM5x1.5/10m

6

5 × 1.5m, 1 × 10m

14

Features

Comes in Carry Bag

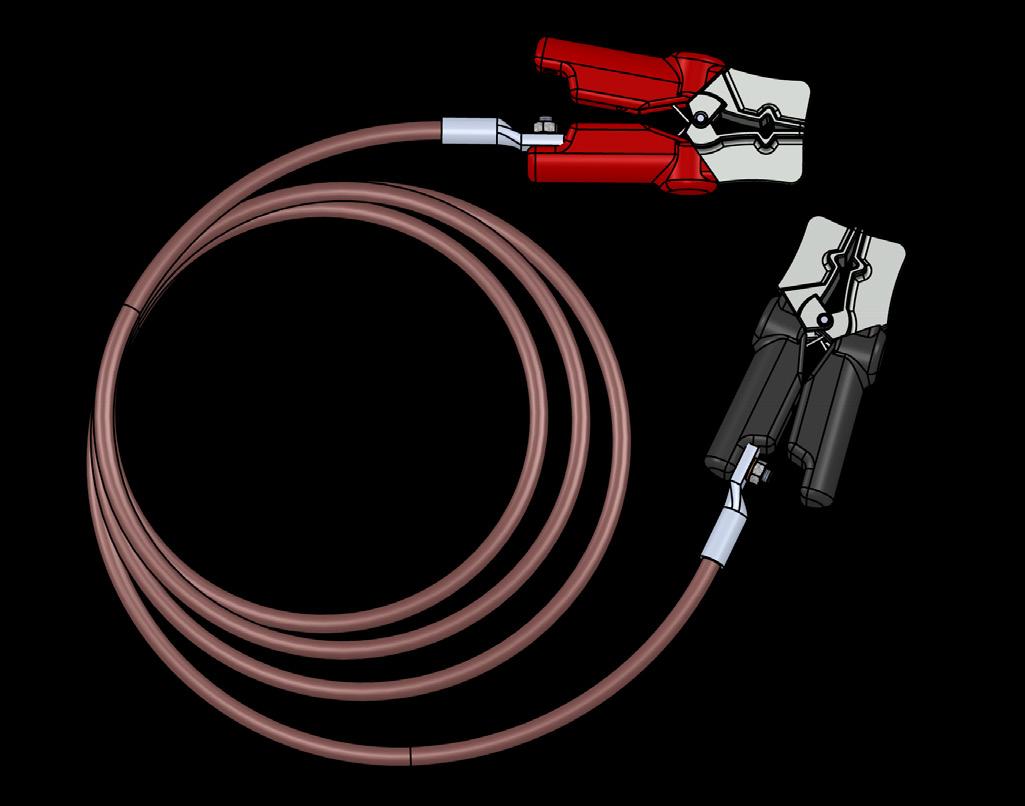

LV OVERHEAD BONDING SINGLE LV EARTH / BONDING LEAD WHEN ORDERING PLEASE SPECIFY: • Conductor Size • Jumper Lead Length *Made to order, choice of clamp, conductor size and length CONDUCTOR SIZES

35mm²

50mm² LENGTH 0.5m increments CLAMP ACCOMMODATES

5-19mm OD (Blue handle)

0-27mm OD (Yellow handle) 6.5-12.5mm OD (Red/Black handle)

Cat No. CTC-35 CTC-50 Cat No.

ATR13047-1 ATR13047-2 BPL12-TIN

SC-P101559-02

Type CONDUCTOR

Type

Size (mm2)

ISC Cap. (Symmetric kA) 30 Cycles (0.5X)

35

10

50

15 Description

SPRING LOADED GROUNDING CLAMP (RED) JAW OPENING 6.5–12.5MM OD CLAMP

SPRING LOADED GROUNDING CLAMP (BLACK) JAW OPENING 6.5–12.5MM OD S/DRIVER CLAMP (BLUE) JAW OPENING 5–19MM OD S/DRIVER CLAMP (YELLOW) JAW OPENING 0–27MM O.D., STRAIN RELIEF FITS CABLE 25-35MM²

15

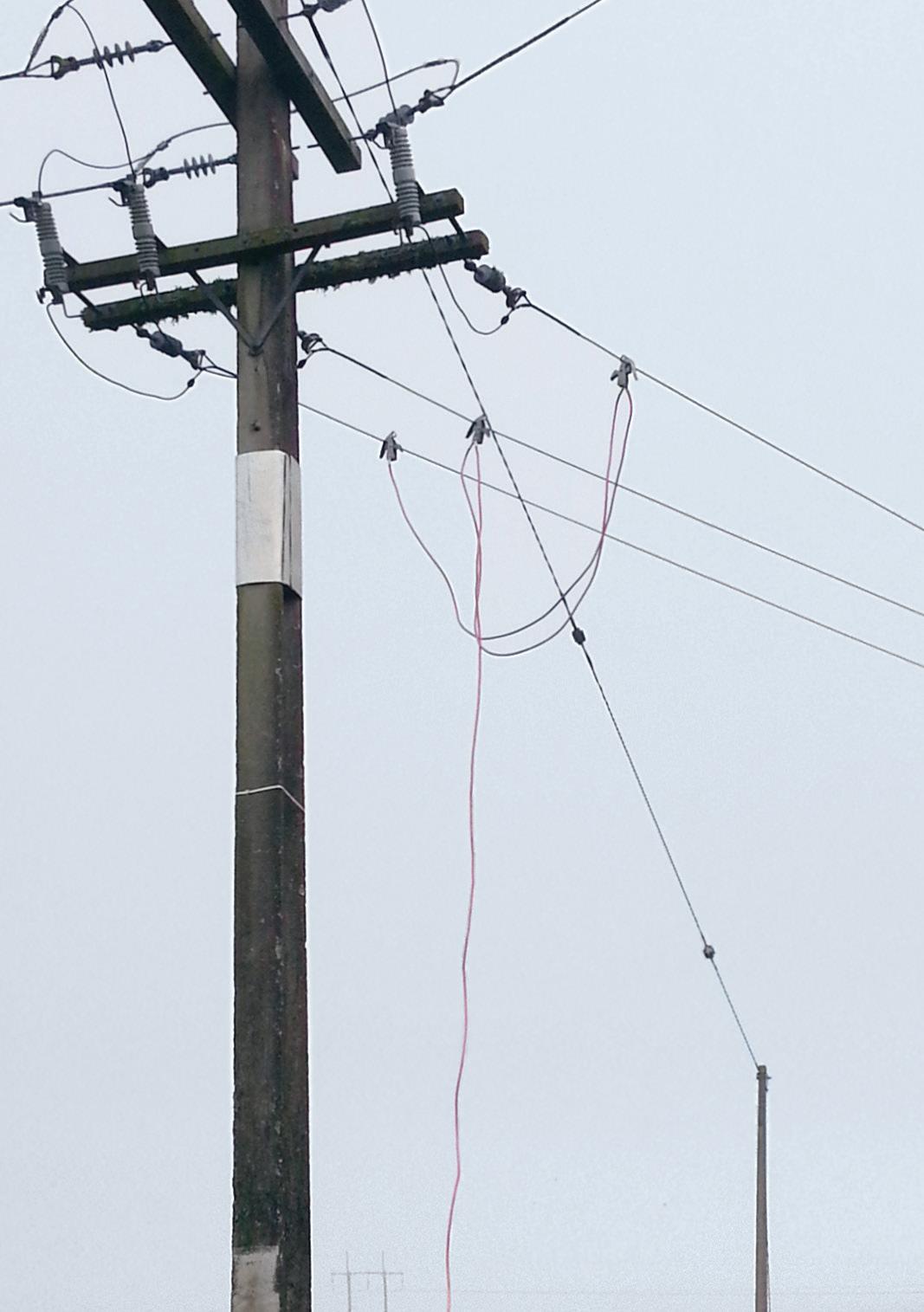

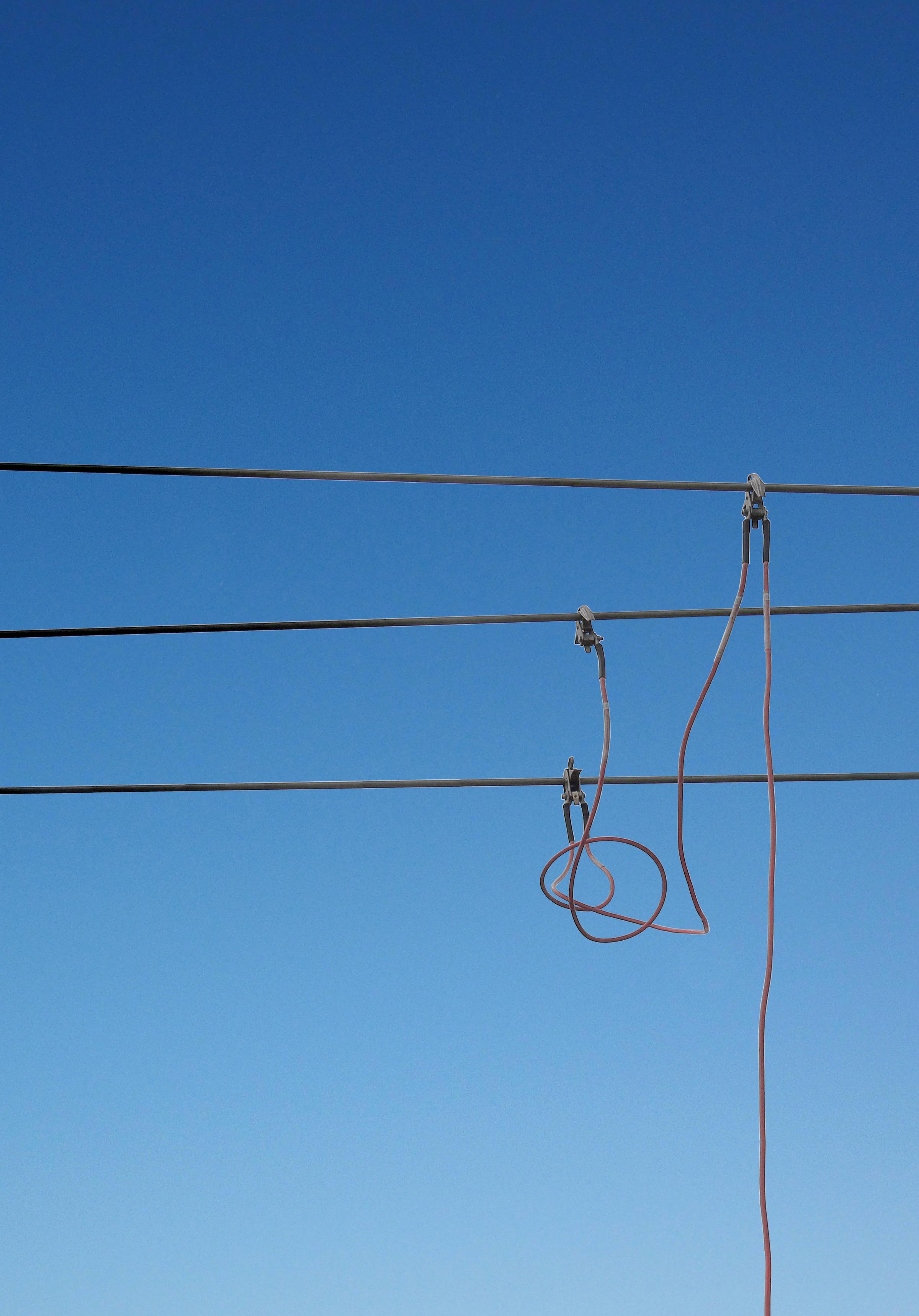

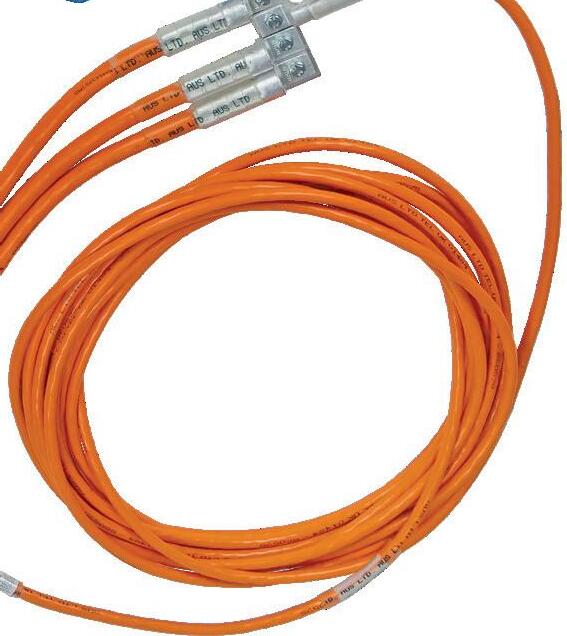

LV OVERHEAD BONDING LV OVERHEAD BONDING LEAD 25MM2 5 CLAMP LV Bonding lead with 5 screw on head clamps. The leads are joined together permanently for ease of use and no need to create a bond between all connection points.

FEATURES • 25mm2 orange sheathed flexible copper conductor • Mosdorfer screw on head clamps • 5 Clamps daisy chained together to bond the entire space with one unit

Fully customisable to suit your networks' individual requirements. Talk to your local TransNet Account Manager to find out more.

Cat No.

LVBONDLEAD

16

Description LV OVERHEAD BONDING LEAD 25MM2 ORANGE FLEX, 5 CLAMPS & STORAGE BAG

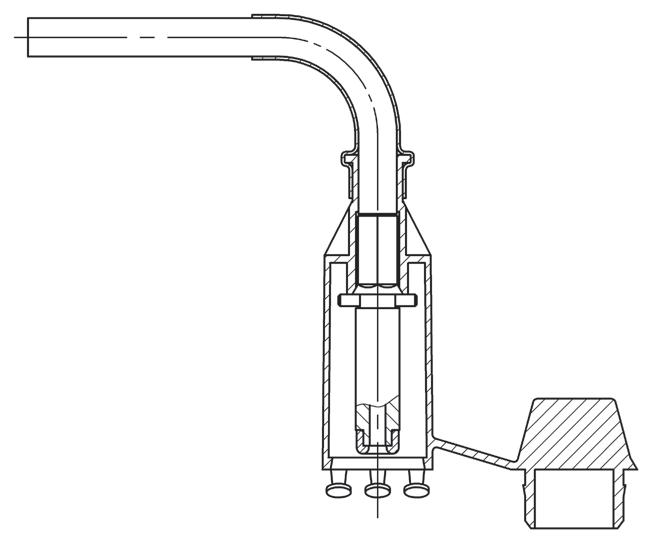

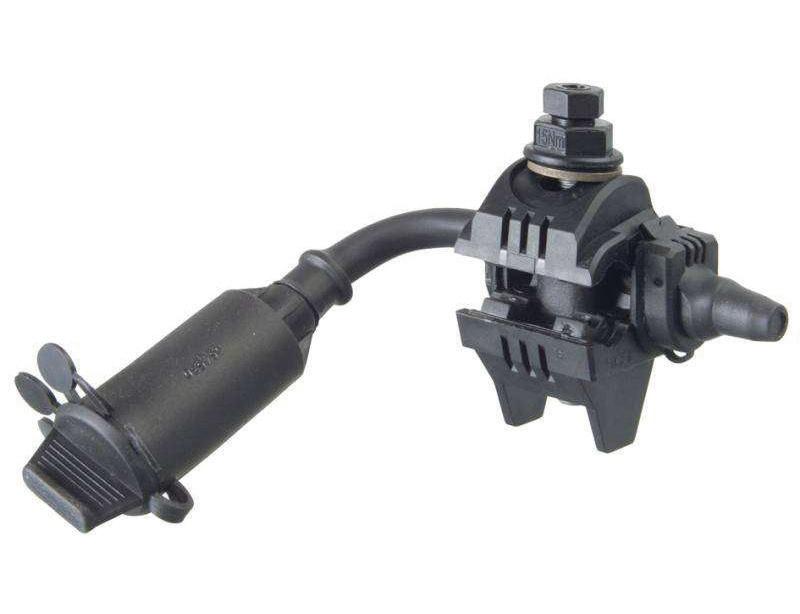

LV OVERHEAD BONDING INSULATION PIERCING CONNECTOR FOR MEASURES & SHORT CIRCUITING This IPC (Insulation Piercing Connector) is used for shortcircuiting or earthing of low voltage ABC networks. It also enables voltage measurements.

FEATURES • Connection is established by insulation piercing • Dielectric strength in water is over 6kV • Tightening screw, which is the only accessible metal part, is potential free • Tightening efficiency is ensured by shear head screw • End socket is protected by an integral cap avoiding corrosion and water penetration • This IPC meets the requirements of the NF C 33-020 and EN 50-483 standards K368 (PMCC)

INSTALLATION • Check that the tap plug is completely inserted in the connector • Position the connector on the main conductor • Using a 13mm hex spanner, tighten the connector onto the conductor until shear head breaks • The 17mm permanent head is only provided for eventual disassembly, do not use it to tighten the screw further after the shear head has snapped

The PMCC socket can be sold separately. It can be used with the whole 6 kV CBS/CT connector range.

Description

ERDF Conductor Range Main Line Insulated Al-Cu (mm2)

Real Conductor Range Main Line Insulated Al-Cu (mm2)

Weight (g)

K362

CONNECTOR ERDF CMCC/CT 25 ZF

16-25

16-25

225

K363

CONNECTOR ERDF CMCC/CT 70 ZF

35-70

16-70

226

K361

CONNECTOR CMCC/CT 95 ZF

-

16-95

228

K364

CONNECTOR ERDF CMCC/CT 150 ZF

54-150

16-150

234

K368

PMCC SOCKET

-

-

102

Cat No.

17

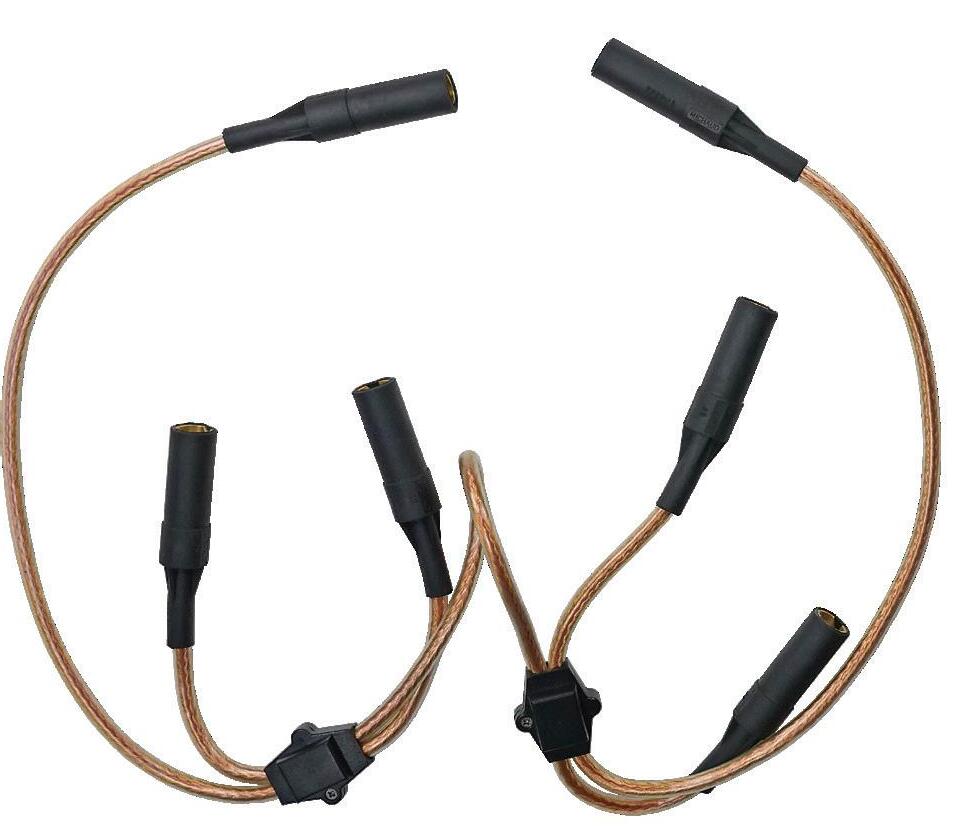

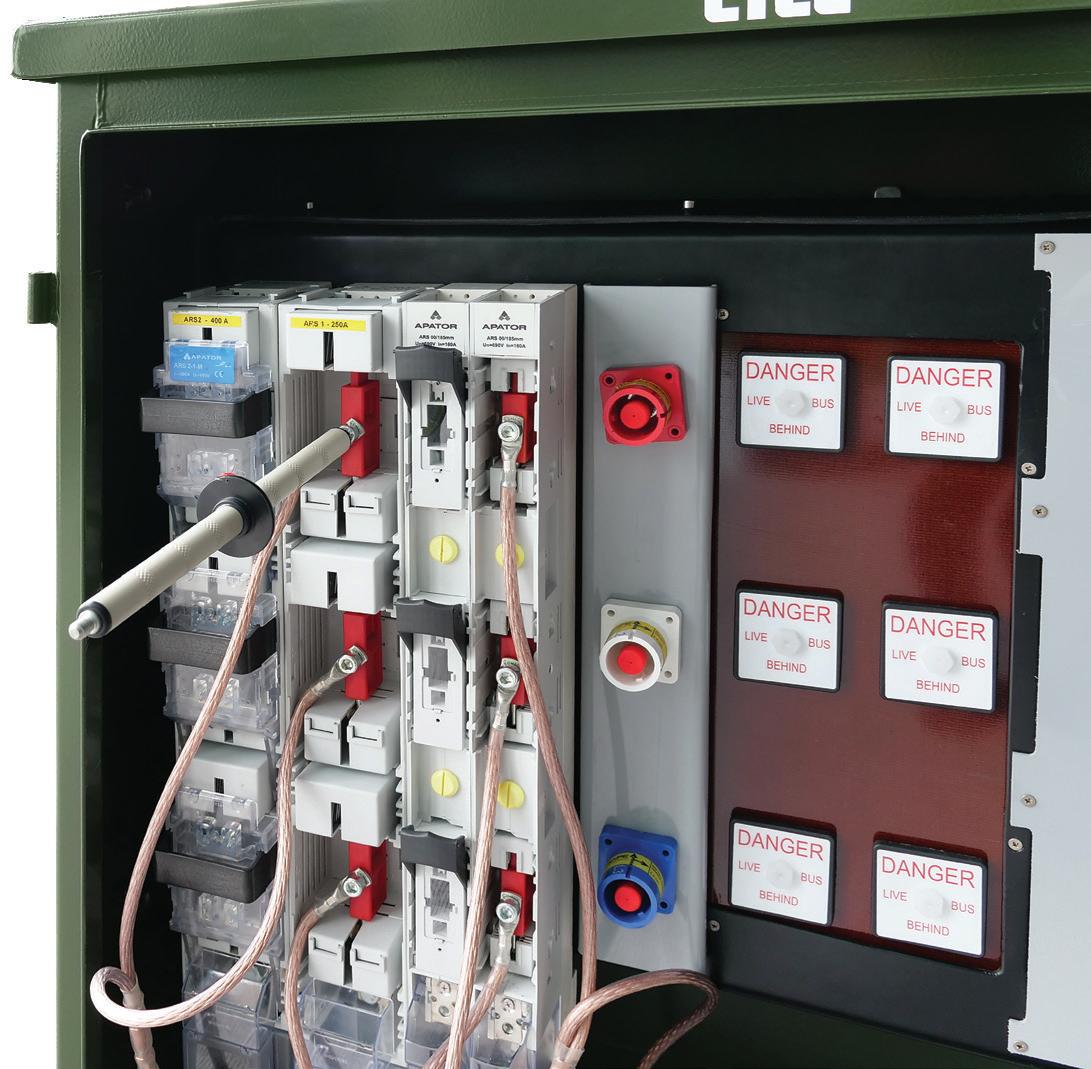

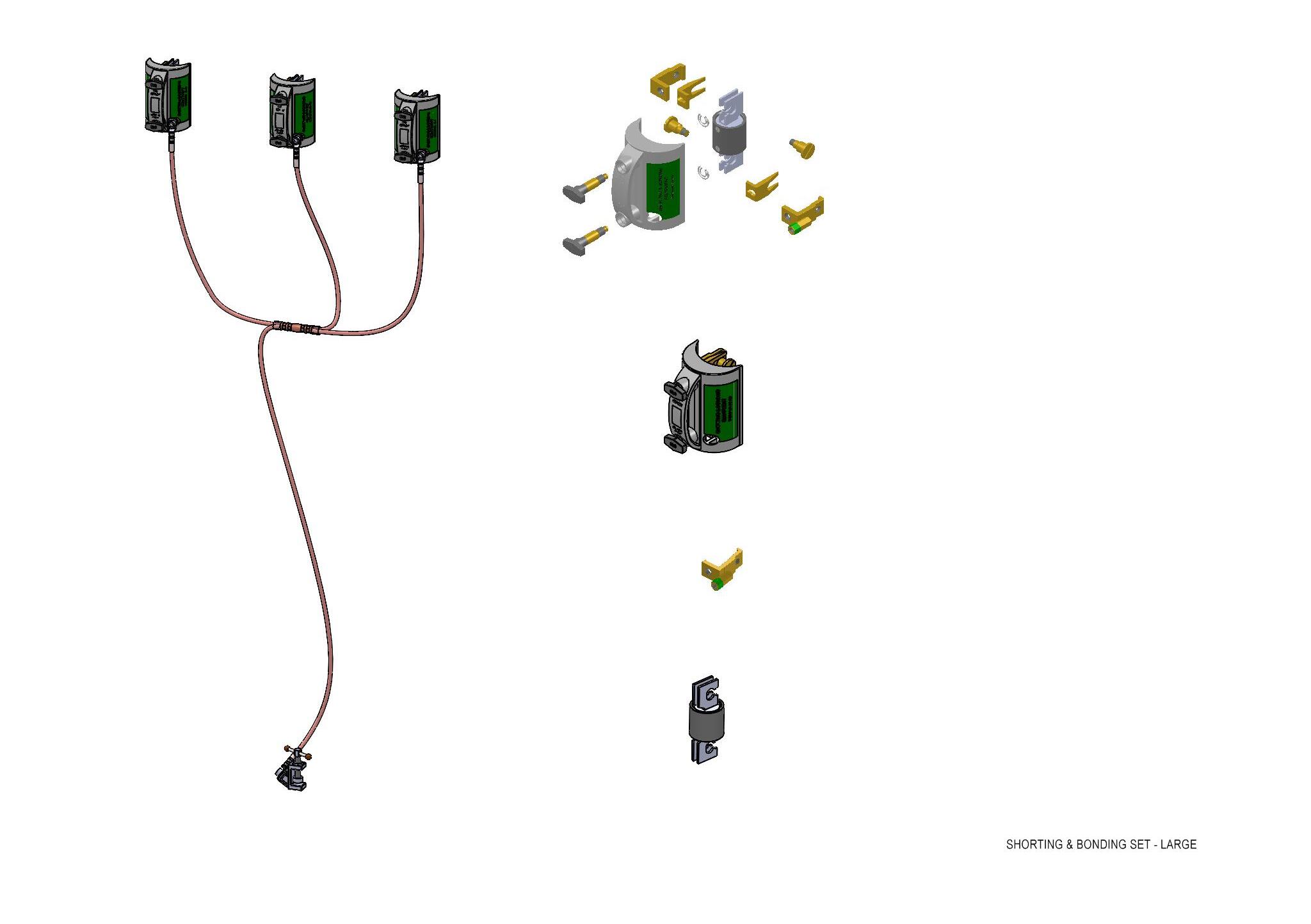

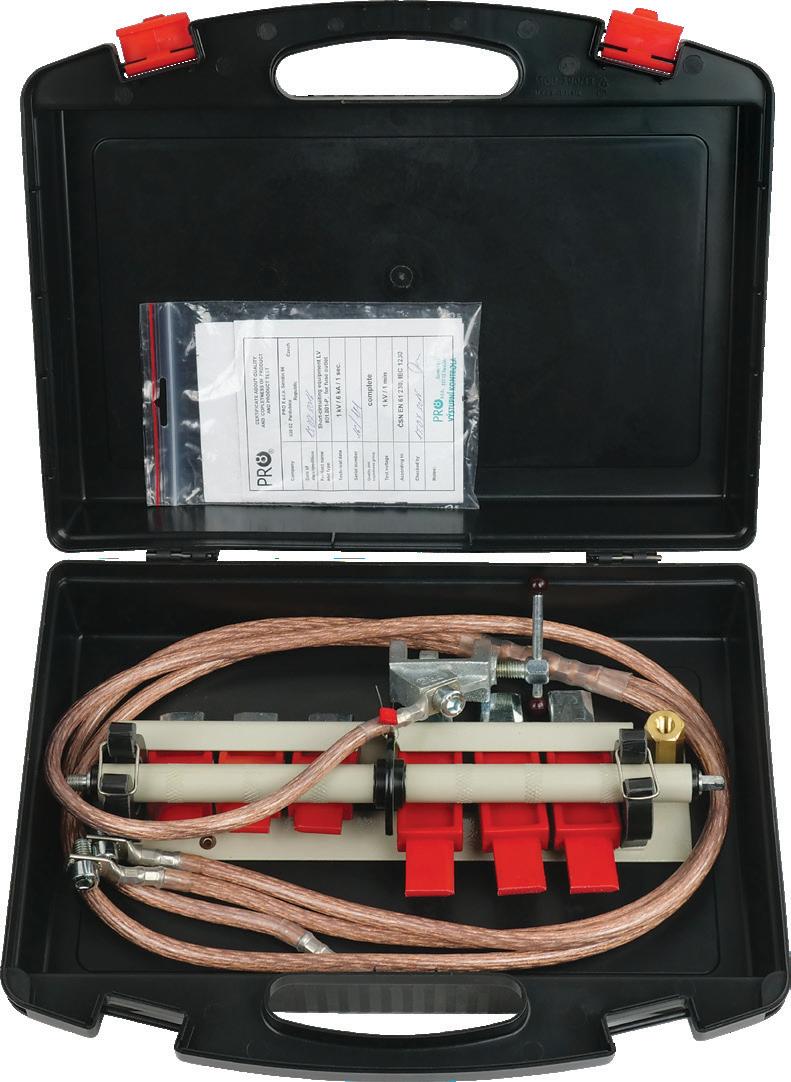

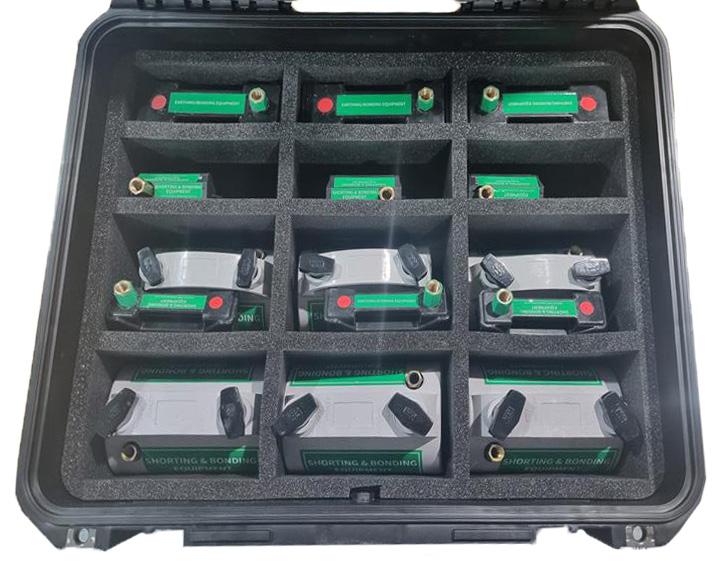

LV OVERHEAD BONDING ABC BONDING DEVICE Designed for short-circuiting and eventually earthing of a low voltage ABC. It is connected on CMCC type connectors.

• • • • •

Connected using CMCC Type Connectors Composed of 6 or 7 Insulated Sockets using Bayonet System 25mm² Copper Leads 200A Continuous Rating, 4kA/ 1 Sec Fault Rating Optional 10m, 25mm² Copper Dropper Lead

K006

Cat No.

Description

K008

SHORT CIRCUITING EQUIPMENT 6 SOCKETS

K009

SHORT CIRCUITING EQUIPMENT 7 SOCKETS

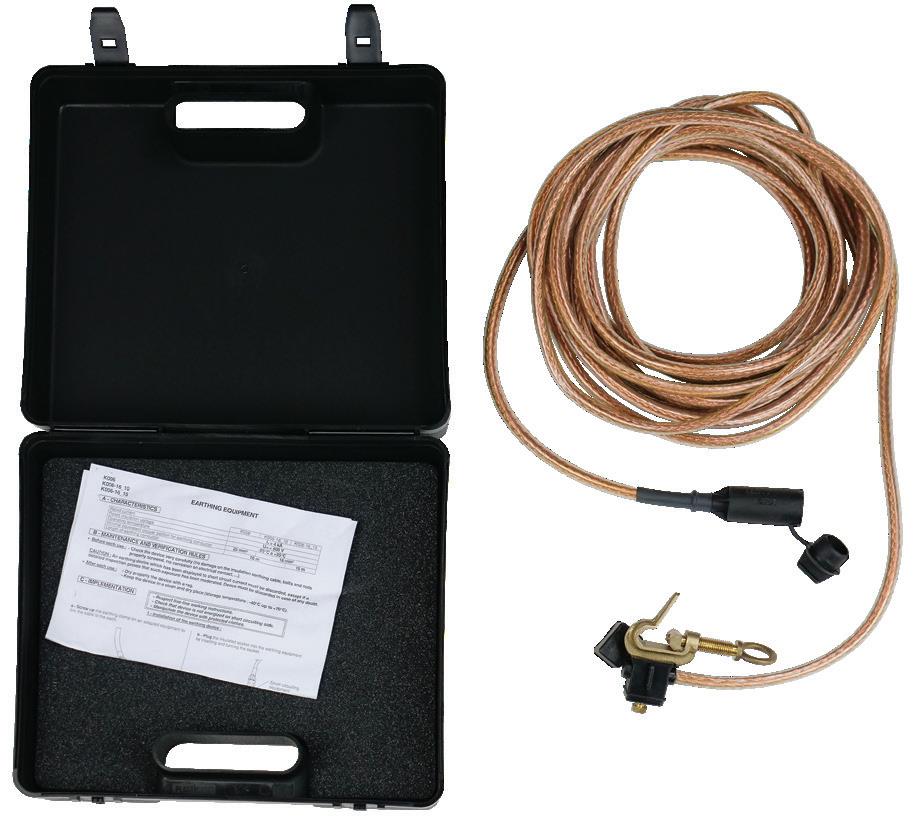

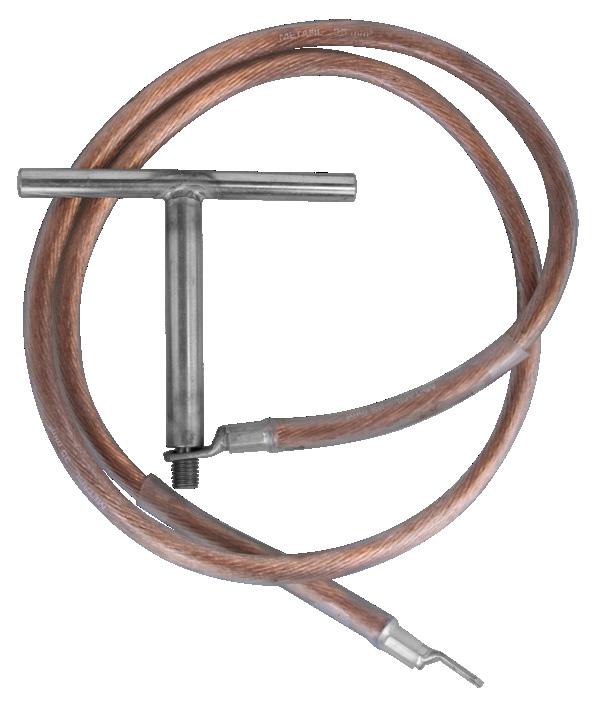

K006

OPTIONAL 10m, 25mm2 DROPPER LEAD

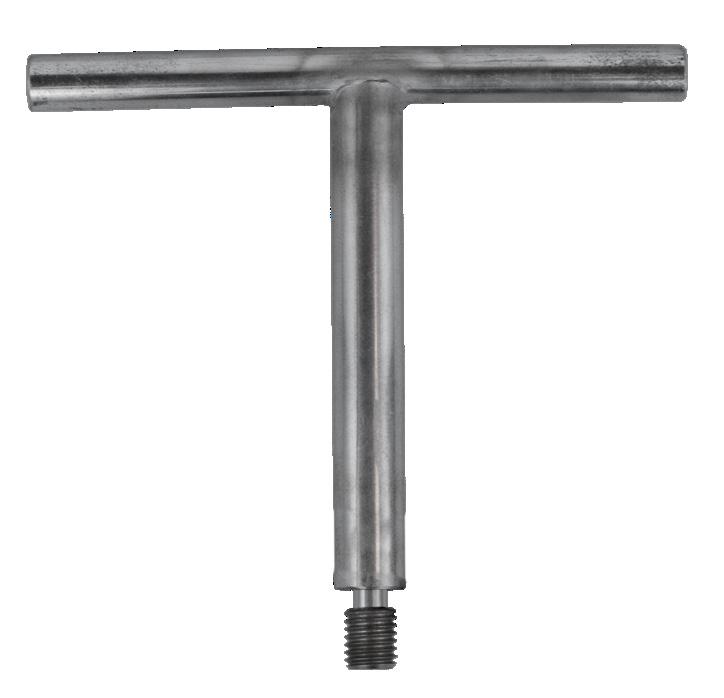

F243

EARTHING ROD, ROUND 1M

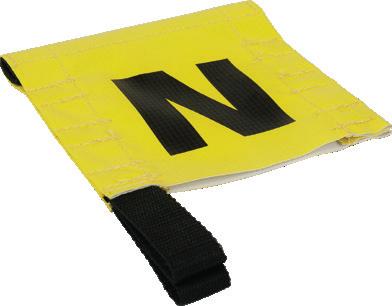

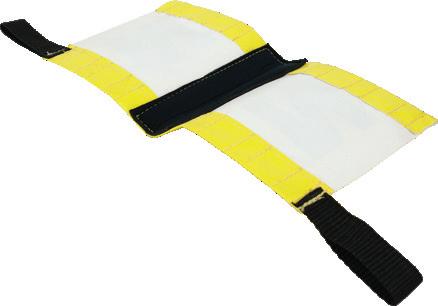

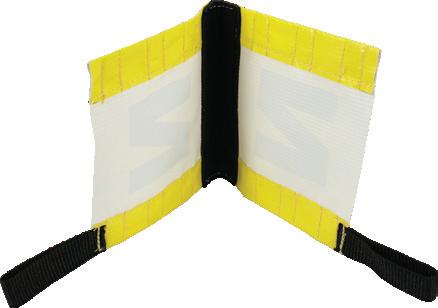

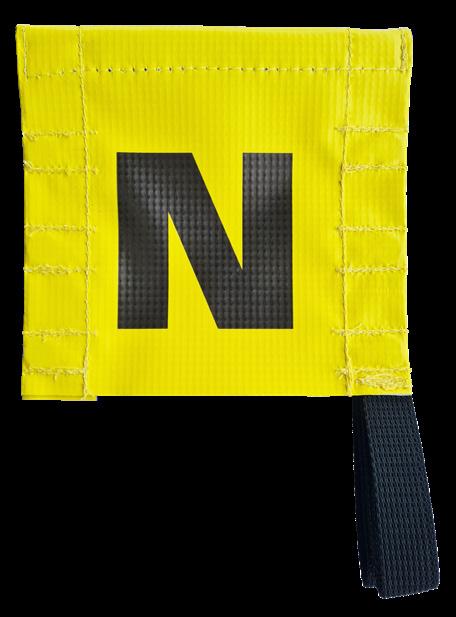

NEUTRAL FLAG Used to identify the Neutral conductor when working on overhead lines.

Made of sturdy PVC to withstand outdoor elements, it has neoprene on the inside to avoid slipping down the wire and 12 magnets secured in the material to keep it in place.

The black loop at the corner gives an easy access point to remove it while wearing gloves.

Cat No. NEUTRAL-FLAG

18

Description STURDY YELLOW PVC NEUTRAL FLAG WITH MAGNET FASTENING

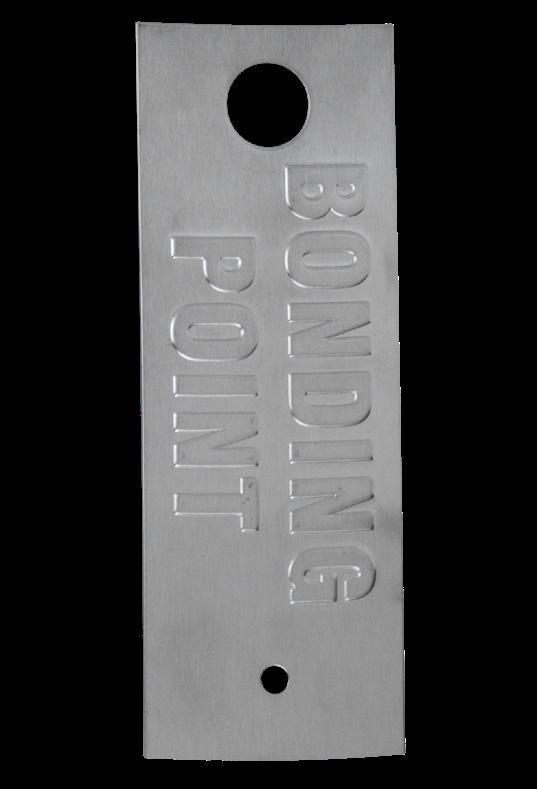

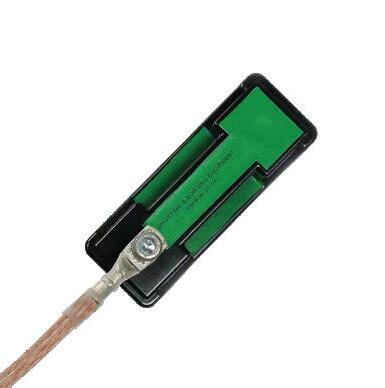

LV OVERHEAD BONDING EQUIPOTENTIAL BONDING COMPONENTS Working with local pole suppliers and asset owners we developed a 316 Stainless Steel T Handle to screw directly into the internal thread of the bonding point on new generation concrete poles. The standard T bar has enough room for two clamps, and the longer version has enough space for 3. There is also an option to permanently fix a lead from the T bar handle directly to the central cluster of your portable earth set.

If you're working on wooden poles there won't be an existing bonding point, so for wooden poles we have a 316 stainless steel coach screw with an internal thread the same as that found in the new generation concrete poles. The coach screw is designed to accept the same T bar handle. Once installed, this coach screw becomes a permanent fixture. In order to identify this coach screw is in fact a bonding point, we have a 316 Stainless Steel Bonding Point sign which is fitted when the coach screw is installed.

We also have the ability to cater for your company's custom requirements, contact us for more information.

EPBCS316M16X150

Cat No.

IP0150 EBTBARM12 EBTBARM12-1M EPBCS316M16X150

IP0150

EBTBARM12

Description STAINLESS STEEL EMBOSSED BONDING POINT SIGN THREADED EQUIPOTENTIAL BONDING T BAR THREADED EQUIPOTENTIAL BONDING T BAR WITH 1M COPPER LEAD AND LUG END COACH SCREW FOR BONDING ON WOODEN POLES

19

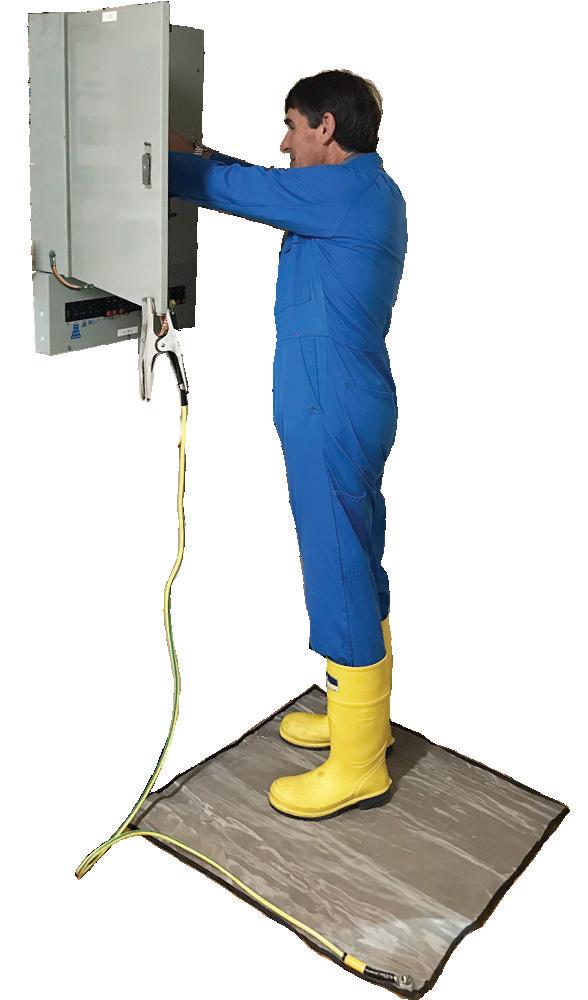

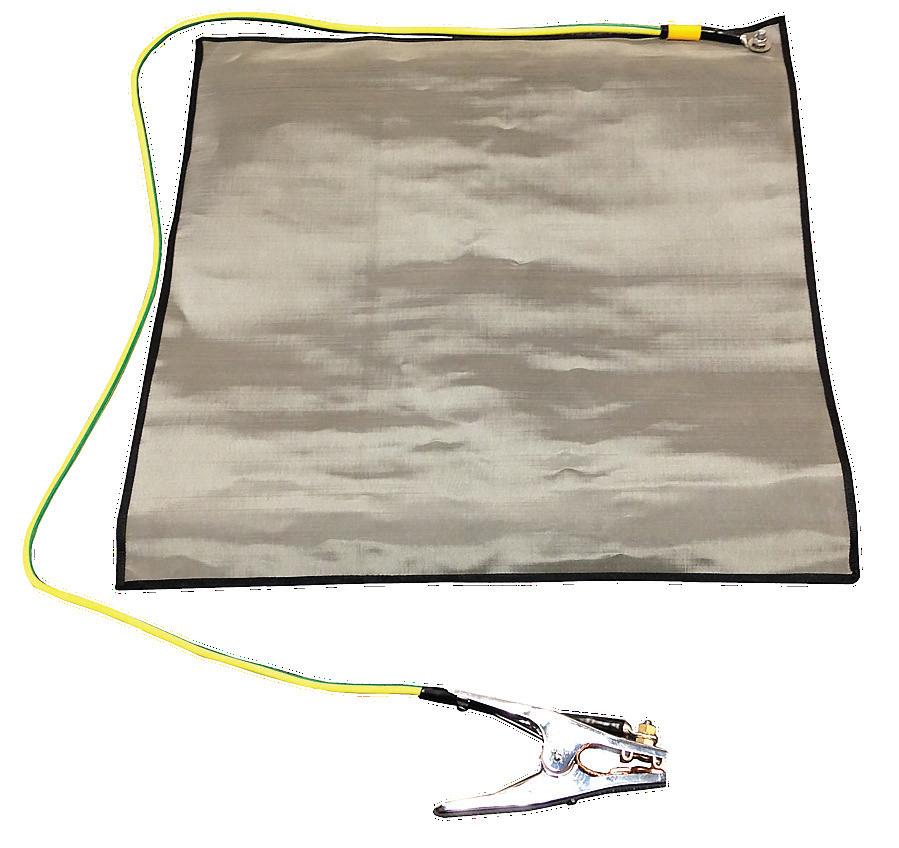

LV GROUND MOUNT BONDING EQUIPOTENTIAL BONDING MAT Designed to assist in de-energised work by eliminating step and touch potential voltages, by establishing an equal voltage potential between personnel using the Mat and the clamped object.

•

770mm x 770mm Mat size (custom sizes available)

•

35mm² Weldflex cable with heavy duty insulation

•

400 Amp welding clamp – heavy duty spring with Copper contacts (lower or higher current clamps available)

•

Stainless Steel mesh

•

All Stainless Steel and Brass hardware to prevent corrosion

•

Bound edges

•

Cable affixed to Mat to prevent fatigue

•

Comes as a kit with protective carry bag

Cat No.

181EP-1

20

Description 770 x 770mm Equipotential Mat in Carry Bag

LV GROUND MOUNT BONDING SAFETY EQUIPMENT

Temporary Continuity Connectors

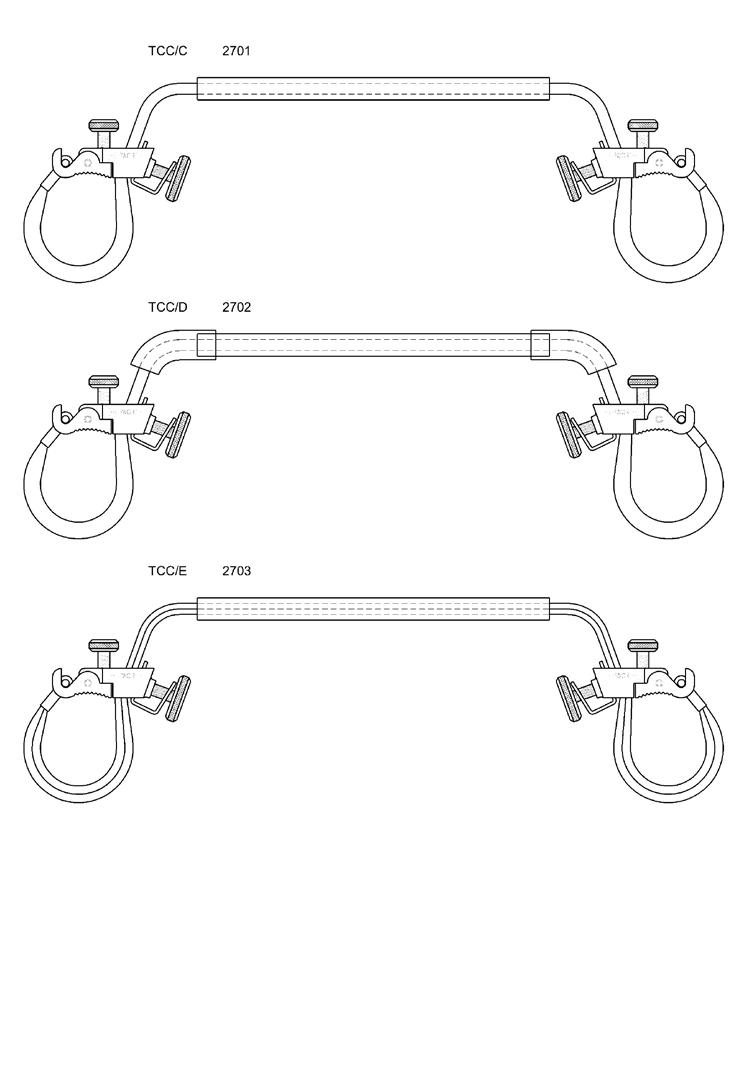

TEMPORARY CONTINUITY CONNECTORS TCC Connectors

N° of Braids

Type

(Part Number)

Secondary Insulation

Primary Insulation O/A (Min. Span)

Length O/A

1.22m

1.83m

1.22m

1.83m

Temporary continuity connectors for Metallic Cable Armour or Sheathing.

TCC/C

2

TCC/D

2

TCC/E

3

1.22m

1.83m

TCC/G

2

1.37m

1.98m

2

2.44m

3.05m

2.44m

3.05m

1.37m

1.98m

(52484-65)

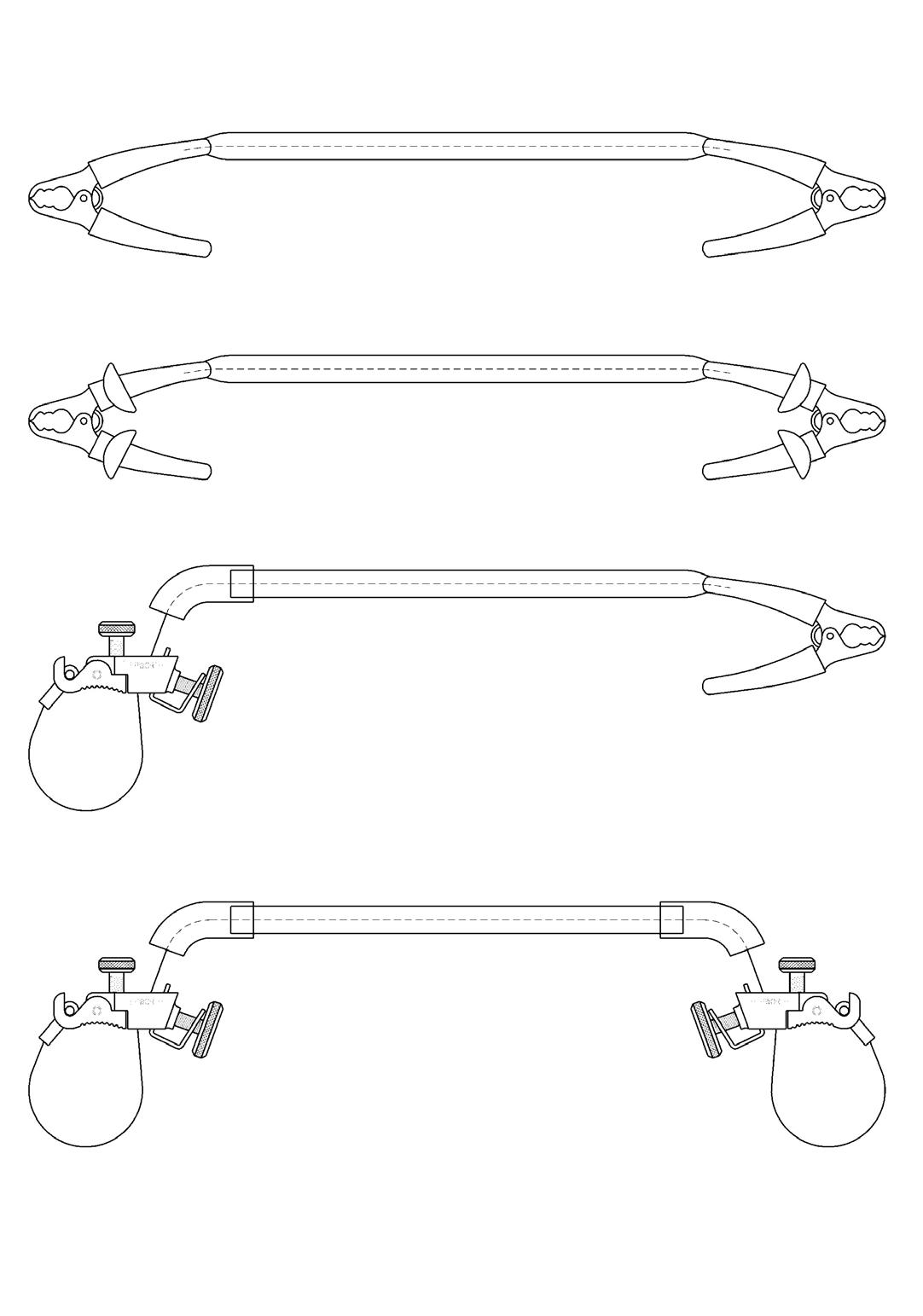

Straight-through Joints (Two-Way connectors)

*

Developed over many years in co-operation with the industry. These connectors are designed to offer protection to personnel by maintaining electrical continuity across breaks in metallic armour and sheathing during jointing or repair operations on underground distribution cables.

They consist of cross bonds of flexible tinned copper braid which are connected to the armour or sheath by special clamps. The braid has a clear polythene tubing insulation and certain connector designs have an adjustable secondary insulation in the form of a sliding outer sleeve.

(52484-89) (52481-65)

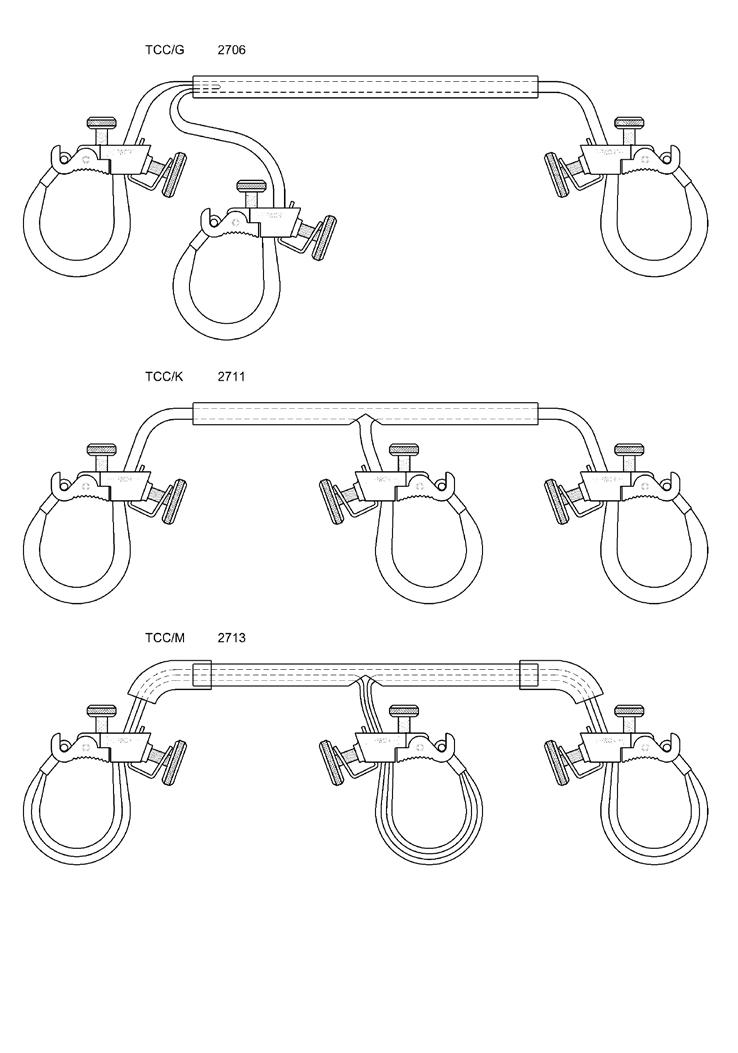

Breech Joint (Three-Way connectors)

(52484-66)

TCC/K

(52481-76)

Tee Joints (Three-Way connectors)

TCC/M

3

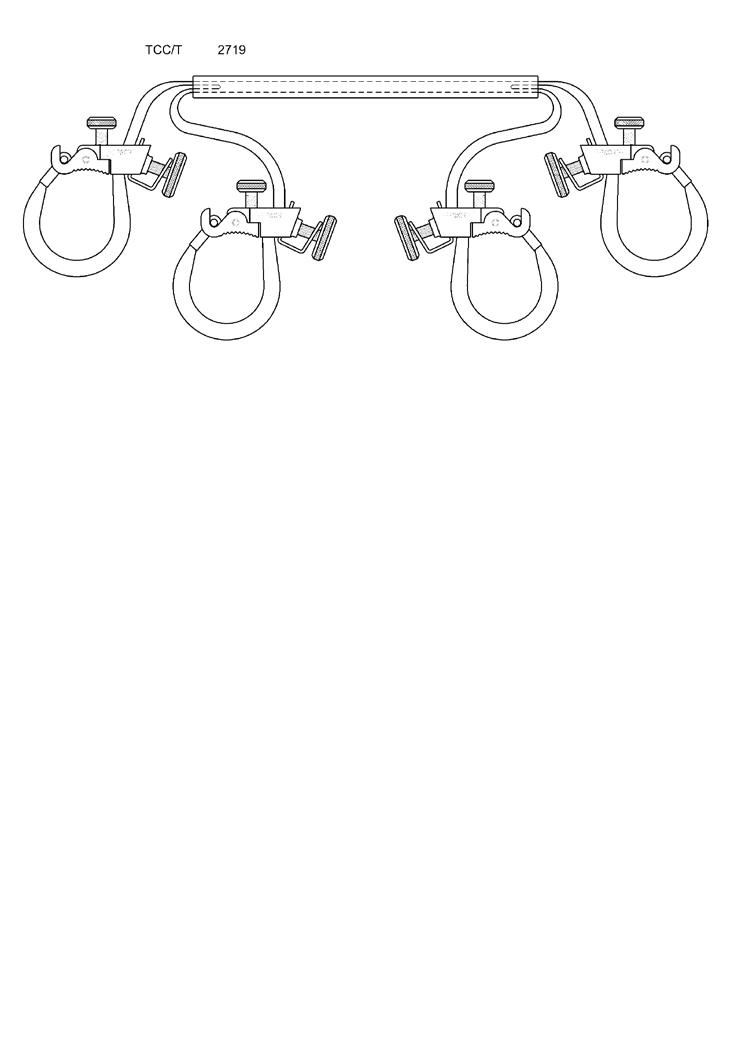

TCC/T

2

(52484-75)

Double Breech Joints (Four-Way connectors)

(52481-69)

*

Straight-Through Joint (Two-Way connectors)

TCC/C

Number of Braids: Minimum Span:

2 1.22m (4’)

Straight-Through Joint (Two-Way connectors) TCC/D

Temporary Continuity Connectors

With SecondarySAFETY Insulation Sleeves Number of Braids: 2 EQUIPMENT Minimum Span: 1.22m (4’)

TCC Connectors

©COPYRIGHT

Sicame UK Ltd operates a continuous product design development and improvement programme and offers active co-operation establishing satisfactory procedures and systems to meet new or unusual jointing situations. The

company reserves the right to introduce modifications to the above designs and specifications without prior notice.

Straight-Through Joint (Two-Way connectors)

5.02

The range covers a wide variety of joint configurations, and the necessary cross-sectional area of the SAFETY EQUIPMENT bond to meet anticipated fault levels Temporary Continuity Connectors

TCC/E

TCC Connectors

Number of Braids: Minimum Span:

Tee Joint (Three-Way connectors)

3 1.22m (4’)

TCC/M

Breech Joint (Three-Way connectors) TCC/G

Successfully tested to a short circuit withstand of 6KA @ 1 SEC (Test Certificate available on request)

With Secondary Insulation Sleeves Number of Braids: 3 Minimum Span: 2.44m (8’)

Number of Braids: Minimum Span:

Double Breech Joint (Four-Way connectors)

2 1.37m (4’ 6”)

TCC/T

Specialised connectors can be made to order, and lengths varied to suit individual requirements.

Tee Joint (Three-Way connectors) TCC/K

Number of Braids: Minimum Span:

Number of Braids: Minimum Span:

2 2.44m (8’)

Standard parts listed in table below, fully customised solutions available, contact us for information.

2 1.37m (4’ 6”)

©COPYRIGHT

Sicame UK Ltd operates a continuous product design development and improvement programme and offers active co-operation establishing satisfactory procedures and systems to meet new or unusual jointing situations. The company reserves the right to introduce modifications to the above designs and specifications without prior notice.

Cat No.

is achieved by means of permutations of tinned copper braids, the basic product having a crosssectional area of 22mm² (2 x 11mm² CSA).

5.03

Joint Type

No of Braids

©COPYRIGHT

Primary Insulation O/A (min. span)

Sicame UK Ltd operates a continuous product design development and improvement programme and offers active co-operation establishing satisfactory procedures and systems to meet new or unusual jointing situations. The company reserves the right to introduce modifications to the above designs and specifications without prior notice.

5.04

Secondary Insulation

Length O/A

MAY 2020

TCC/C TCC/D TCC/E TCC/G TCC/K TCC/M TCC/T

STRAIGHT THROUGH Two way connectors BREECH JOINT Three way connectors TEE JOINT Three way connectors DOUBLE BREECH JOINTS Four way connectors

2

1.22m

1.83m

2

1.22m

3

1.22m

1.83m

2

1.37m

1.98m

2

2.44m

3.05m

3

2.44m

2

1.37m

*

*

1.83m

3.05m 1.98m

21

LV GROUND MOUNT BONDING TEMPORARY CONTINUITY CONNECTORS Temporary continuity connectors are designed to meet the basic requirements for cross bonding pipe diameters or combinations of diameters within the normal service range.

Temporary Continuity Custom units can be manufactured to network specifications on request.

Please contact usSAFETY for further information.

Connectors (Temporary

EQUIPMENT

Earth Safety Loops)

TCC/W consists of two heavy duty, plated steel, spring loaded clamps with insulated grips, joined by 4 metres of insulated flexible tinned copper braid of 11mm2 C.S.A. A 4 metre flexible bond has been used so that it can easily be lead away from the immediate area of work on a pipe, and where possible laid outside the excavation. Longer or shorter versions can be produced to meet customers own requirements.

TCC/SW is identical in specification and application to TCC/W, but is fitted with additional insulation in the form of a protective hilt intended to prevent physical contact with the bare metal of the clamp jaws. It is designed in accordance with the safety requirements of the Scottish Association of Directors of Water and Sewage Services (SADWSS).

Suitable for all metal pipes up to 45mm diameter. Span 4 metres.

TCC/HW Is a hybrid device designed to bond between pipes of widely dissimilar diameters beyond the range of TCC/W or TCC/ SW e.g. where a small service pipe up to 45mm (1 3/4”) is taken via a ferrule from a larger pipe in excess of 45mm, up to 457mm (18”) o/d.

It consists of a TCC/W-type spring loaded clamp at one end connected by a tinned copper braid of 11mm2 C.S.A. (or 22mm2 as specified in “Code of Practice on Electrical Earthing Nov 1991”), length o/a 5 metres, to an infinitely adjustable clamping arrangement. Electrical contact is established by means of a circumferential wrap around the pipe, the braid being tensioned by the specially designed clamp. The braid has a clear polythene primary insulation fixed at the spring loaded clamp end, and a sliding, adjustable length of secondary insulation sleeve at the adjustable clamp end to give protection on exposed braid up to the clamping point on the pipe.

TCC/BW consists of a tinned copper braid of 11mm2 C.S.A. (or 22mm2 as specified in “Code of Practice on Electrical Earthing Nov 1991”), length o/a 6 metres, with a infinitely adjustable clamping arrangement at each end to accommodate pipes of up to and including 457mm (18”) outside diameter. Electrical contact is established by means of a circumferential wrap around the pipe, the braid being tensioned by a clamp specially designed for this purpose.

22

TCC/W & TCC/SW Connectors TCC/W Temporary Continuity Connectors (Temporary Earth Safety Loops)

SAFETY EQUIPMENT

TCC/W & TCC/SW Connectors TCC/W TCC/SW

Suitable for all metal pipes up to 45mm diameter. Span 4 metres.

TCC/SW TCC/W consists of two heavy duty, plated steel, spring loaded clamps with insulated grips, joined by 4 metres of insulated flexible tinned copper braid of 11mm2 C.S.A. 2 (or 22mm as specified in code of practice on Electrical Earthing Nov 1991, Part No. Temporary Continuity SAFETY Connectors (Temporary TCC/W/22).

Earth Safety Loops)

EQUIPMENT

A 4 metre flexible bond has been used so that it can easily be lead away from the immediate of work on up a pipe, and where possible outside the excavation.

Suitable forarea all metal pipes to 45mm diameter.

Spanlaid 4 metres.

Longer or shorter versions can be produced to meet customers own requirements.

TCC/W & TCC/SW Connectors TCC/W consists of two heavy duty, plated steel, spring loaded clamps with with insulated Principle Application: TCC/SW is identical in specification and application to TCC/W, but is fitted grips, joined by 4 metres of insulated flexible tinned copper braid of 11mm2 C.S.A. additional 2insulation in the form of a protective hilt intended to prevent physical TCC/HW Is a hybridin device designed to bond betweenEarthing pipes of widely dissimilar (or 22mm as specified code of practice on Electrical Nov 1991, No. contact with the bare metal of the clamp jaws. It is designed in accordance Part with the diameters beyond the range of TCC/W or TCC/SW e.g. where a small service pipe TCC/W/22). safetyuprequirements of the Scottish Directors Sewage to 45mm (1 3/4”) is taken via aAssociation ferrule fromof a larger pipeof in Water excessand of 45mm, up Services (SADWSS). to 457mm (18”) o/d. has been used so that it can easily be lead away from the A 4 metre flexible bond immediate area of work on a pipe, and where possible laid outside the excavation.

Fitting Instructions: TCC/HW Longer or shorter versions can be produced to meet customers own requirements.

The clamps are placed on the pipe at either side of the existing or intended break in TCC/SW identical possible in specification TCC/W, but isfitting fittedwhere with continuity,iswherever beyondand theapplication outermost to union or elbow additional insulation in the form ofelectrical a protective hilt intended to made prevent already fitted, and a satisfactory connection may be byphysical moving the contact with the bare metal of the clamp jaws.

It is designed in accordance the Temporary Continuity closed clamp around the pipe until the serrations in the jaws provide a brightwith metal SAFETY Connectors (Temporary safety requirements of the Scottish of Directors Water and Sewagefor contact, exercising care where leadAssociation pipeEQUIPMENT is concerned.

The of connector is suitable Earth Safety Loops) Services (SADWSS). bonding together pipes of different diameters within the stated range.

Temporary Continuity SAFETY Suitable for use between pipes of dissimilar diameters above Connectors (Temporary Fitting Instructions: In clamping to 15mm (1/2”) 45mm. pipe, the profile across the end of 3.5 themetres. jaw is used, the and below Minimum Cross-Bond Span EQUIPMENT Earth Safety Loops) TCC/W TCC/SW Connectors clamps being&attached at an angle to the line of the pipe.

The clamps are placed on the pipe at either side of the existing or intended break in It consists of a TCC/W-type spring loaded clamp atunion one end connected bywhere a tinned Principle Application: continuity, wherever possible beyond the outermost or elbow fitting 2 2 TCC/HW & TCC/BW Connectors copper braid ofa11mm C.S.A.electrical (or 22mmconnection as specified in “Code of Practice on the already fitted, and satisfactory may be made by moving TCC/HW Is a hybrid device designed to between pipes of widely dissimilar Electrical Earthing Nov 1991”), length o/abond 5 metres, to jaws an infinitely adjustable closed clamp around the pipe until the serrations in the provide a bright metal ©COPYRIGHT diameters beyond the range of TCC/W or TCC/SW e.g. where a small service pipe Sicame UK Ltd operates a continuous product design development and improvement programme and offers active clamping arrangement.

Electrical contact is establishedsituations. by connector means of a is suitable contact, exercising care where lead pipe istoconcerned. for co-operation establishing satisfactory procedures and systems meet new or unusual jointingThe The reserves is the right to introduce modifications to the above designs and specifications without up to 45mm company (1 3/4”) taken via a ferrule from abeing largertensioned pipepriorinnotice. excess ofspecially 45mm, up circumferential wrap around the pipe, the braid by the bonding together pipes to 457mm (18”) o/d. of different diameters within the stated range.

Tensioning-screw ‘B’ has a clear polythene primary insulation fixed at the designed clamp. The braid spring loaded clamp end, and a sliding, adjustable length of secondary insulation

5.10

In clamping tothe 15mm (1/2”) pipe, the on endexposed of the jaw is up used, the Braid TCC/HW sleeve at adjustable clampthe endprofile to giveacross protection braid to the clamps being attached at pipe. an angle to the line of the pipe. clamping point on the TCC/BW ©COPYRIGHT

Sicame UK Ltd operates a continuous product design development and improvement programme and offers active co-operation establishing satisfactory procedures and systems to meet new or unusual jointing situations. The company reserves the right to introduce modifications to the above designs and specifications without prior notice.

5.10

Water Pipe Suitable for use between pipes of dissimilar diameters above

and below 45mm. Minimum Cross-Bond Span 3.5 metres.

Clamping screw ‘A’

Suitable forspring all metal mains and service pipes up to It consists of a TCC/W-type loaded clamp at one end connected by a tinned o/d.(or Minimum Cross-Bond Span: 3 metres. copper braid of457mm 11mm2(18”) C.S.A. 22mm2 as specified in “Code of Practice on Electrical Earthing Nov 1991”), length o/a 5 metres, to an infinitely adjustable clamping arrangement. Electrical contact is established by means of a TCC/BW consists of a tinned copper braid of 11mm2 C.S.A. (or 22mm2 as specified circumferential wrap around the pipe, the braid being tensioned by the specially inFitting “CodeInstructions: of Practice on Electrical Earthing Nov 1991”), length o/a 6 metres, with a designed clamp. The braid has a clear polythene primary insulation fixed at the infinitely adjustable clamping arrangement at each end to accommodate pipes of up spring loaded clamp end, and a sliding, adjustable length of secondary insulation is attached by (18”) passing the free end of exposed braid aroundisthe pipe, toThe andclamp including 457mm outside diameter.

Electrical contact established by sleeve at the adjustable clamp end protection on braid up the to the engaging transverse retaining pinto in give thethe claw, pulling theexposed braid tight around means of athe circumferential wrap around pipe, the braid being tensioned by a clamping point on by themeans pipe. of clamping screw ‘A’. Intimate contact under tension pipe and securing clamp specially designed for this purpose. is established by tightening tensioning screw ‘B’ across the clamp hinge. It is

essential that the braid around the pipe is in contact with bare metal, dirt and TCC/BW ©COPYRIGHT

protective coatings be aremoved using wireandbrushes, files, or active other suitable Sicamemust UK Ltd operates continuous product design development improvement programme and offers co-operation establishing satisfactory procedures and systems to meet new or unusual jointing situations. The company reserves right to introduce modifications the above designsup and specifications prior notice. position at tools. As a final step, thethesliding sleeve isto pushed to thewithout clamping each end.

Important:

Observe any local safety procedures. Remember that you may be working in the presence of an electrical current of unknown magnitude.

Suitableconnector for all metal mains and service up to electrical The temporary continuity must be attached, and apipes satisfactory 457mm (18”)the o/d.

Minimum Cross-Bond Span: 3 are metres. contact established, before pipe is cut. Additional precautions necessary when carrying out repairs on accidentally separated pipes.

TCC/BW consists of a tinned copper braid of 11mm2 C.S.A. (or 22mm2 as specified is to be used across a previously completely separated joint, the inWhere “CodeTCC/HW of Practice on Electrical Earthing Nov 1991”), length o/a 6 metres, with a connector should be secured to the larger pipe before contact is established on the infinitely adjustable clamping arrangement at each clamp. end to accommodate smaller pipe by means of the insulated spring-loaded Removal shouldpipes be a of up toreverse and including 457mm of this procedure.(18”) outside diameter. Electrical contact is established by means of a circumferential wrap around the pipe, the braid being tensioned by a clamp specially designed for this purpose. ©COPYRIGHT

Sicame UK Ltd operates a continuous product design development and improvement programme and offers active co-operation establishing satisfactory procedures and systems to meet new or unusual jointing situations. The company reserves the rightatocontinuous introduce modifications to the above designs specifications without prior notice.

Sicame UK Ltd operates product design development andand improvement programme and offers active

©COPYRIGHT

co-operation establishing satisfactory procedures and systems to meet new or unusual jointing situations. The

5.11

LV GROUND MOUNT BONDING LV DIN EARTH SET This earthing set is designed for earthing of LV DIN fuses.

The set consists of short-circuiting cartridges, shortcircuiting Cu cables in transparent insulation, earthing Cu cable, earthing clamp and insulating pole enabling you to safely attach the set. The insulating pole is made of glass fibre laminate which is suitable for its high electrical and mechanical resistance and stability. The set is suitable for indoor and outdoor use and is produced according to standards CSN EN 61230, IEC 1230, PNE 35 9705, DIN 46 235.

PACKING

This earthing set is delivered in a sturdy plastic storage box. Included in the box are instructions for use, function description and the quality and test certificate.

STORAGE

This unit must be stored in a clean dry place in its plastic storage box to protect against mechanical damage.

WARRANTY

A 24 month warranty is provided on this product. The warranty is limited to manufacturing defects only.

TECHNICAL DATA Climatic group

Normal from -25 to +55°C

Pole material

Glass fibre laminate

Rated short-time withstanding current

6 kA/1s

25 mm² short-circuiting

Length of pole

350 mm

Cross section of cable

Length of handle

160 mm

Equipment versions

Cat No. 1115281041T

8.5 kA/0.5s

801.001 - P (with insulating pole) - H (with fuse handle)

Length of cable

25 mm² earthing 500 mm short-circuiting 1500 mm earthing

Weight of equipment 4.5kg

Description LV DIN EARTH SET FOR INDOOR & OUTDOOR USE

23

LV GROUND MOUNT BONDING LV SERVICE FUSE BONDING SETS Designed with the idea of creating an LV Underground Bonding Kit which includes Fuse Base attachments for fast and easy installation. Several different types of fuse, commonly found in Underground LV Transformers, Cabinets and Pillars have been selected for the standard sets.

12/10/2022 RP RD DATE DRAWN APPR'D

IPDBONDSET

1

TNFC100AFWD

2

111BSO25

2

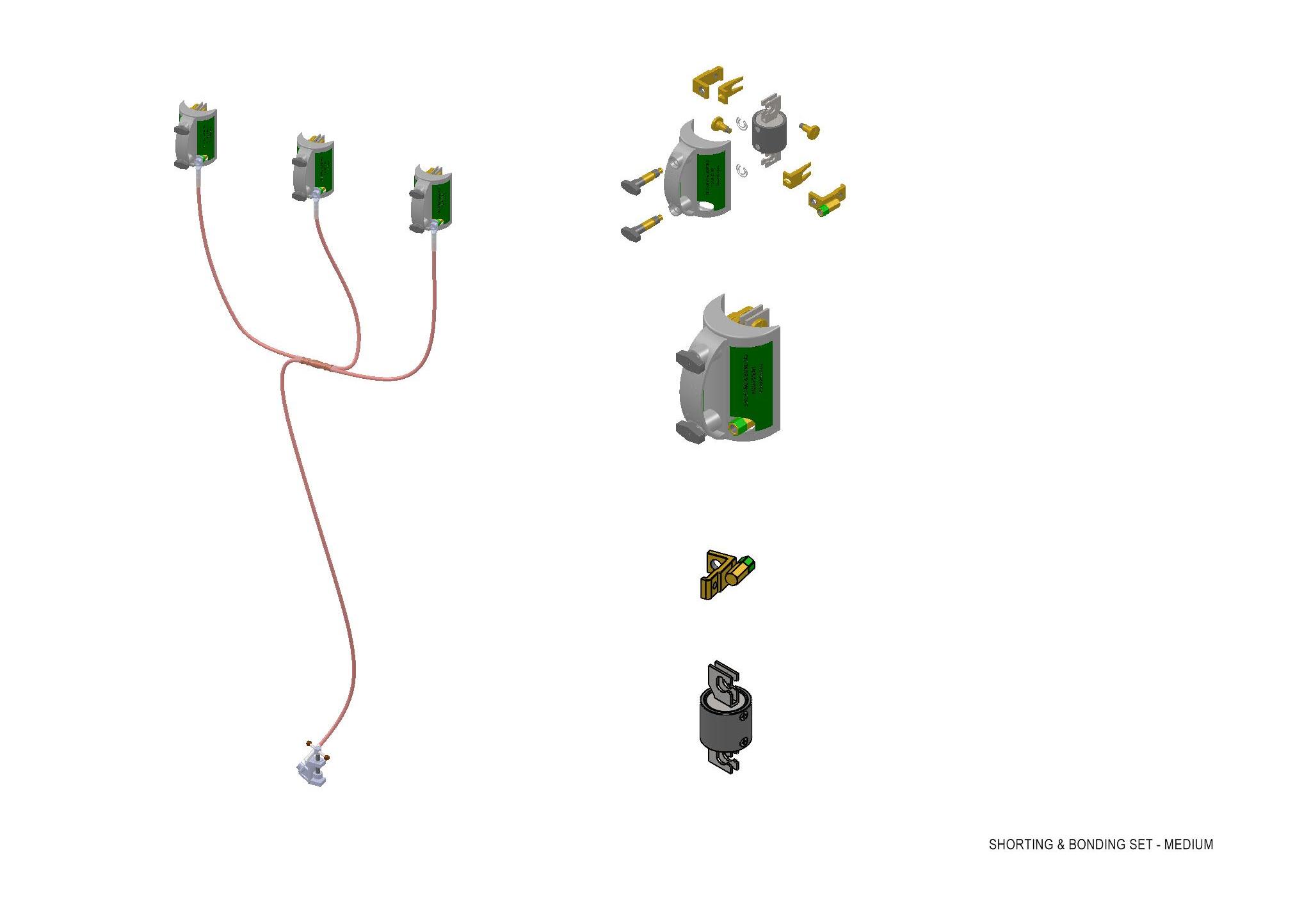

EXPLODED VIEW

A

INITIAL RELEASE

REV.

DESCRIPTION

DATE

RP

RD

DRAWN APPR'D

3 1

BACK VIEW

1C 1A

1D 1E

1C

ITEM NO.1

3 X 63A EARTH STUD FUSE HOLDER (REFER DWG TNF63ES)

1A 1B 1C 1D 1E

111BSO25 TN-622904 -

DESCRIPTION 63A FUSE CARRIER FITTED WITH EARTH 1C STUD 63A FRONT FUSE COMPARTMENT BRASS STAND OFF (M8) 63A FRONT BRACKET EARTH TAG 40mm M5 X 8 CAP HEAD SLOT BOLT, BRASS

2

TNFC100ES

100A FUSE CARRIER FITTED WITH EARTH STUD

3

2A 2B 2C 2D 2E

111BSO25 TN-622904 -

100A FRONT FUSE COMPARTMENT BRASS STAND OFF (M8) 100A FRONT BRACKET EARTH TAG 40mm 1B M6 X 20 ROUND HEAD PHILIPS, 316SS

3 3 6 3 3

PART NUMBER

3 3 6 3 3

IPD FU

58424-56-JTMBH-PART6 J TYPE

1C

TNJPU100-JTMBH

100A

ITEM 1 J TYPE MEDIUM BONDING HOLDER

J

2

FRONT VIEW

BACK VIEW

2C

2D

2A

2E

2B

2C ITEM NO.2

1 of 1

3 X 100A EARTH STUD FUSE HOLDER (REFER DWG TNF100ES)

INITIAL RELEASE S&BS-IPD DESCRIPTION

Drawing N°.

Description

Drawn By: Rich Poi Approved By: Rob Dickerson Scale at A3: 1:10 REV: Date: 12/10/2022 12/10/2022 RP RD Material: A DATE DRAWN APPR'D Finish: ALL DIMENSIONS IN mm UNLESS STATED OTHERWISE

ITEM 1A REFER DWG 58424-56-JTMBH

ITEM 1B REFER DWG 58424-56-JTMBH-PART6

ITEM 1C REFER DWG TNJSU100-JTMBH Drawn By: Rich Poi Scale at A3: 1:10

Title:

A

REV. Sheet:

1 of 1

Approved By: Rob Dickerson Date: 12/10/2022

INITIAL RELEASE RP RD Material: SHORTING & BONDING12/10/2022 SET DESCRIPTIONFinish: DATE DRAWN APPR'D RED DOT CARRIER (63A -100A ALL DIMENSIONS IN mm FUSES) UNLESS STATED OTHERWISE Drawing N°.

S&BS-RDC

REV:

A

LV BONDING SET WITH 3 X IPD STYLE FUSE CONNECTIONS

32ASLHWBONDSET

LV BONDING SET WITH 1 X 32A FUSE CONNECTION

63AREDDOTBONDSET

LV BONDING SET WITH 3 X 63A RED DOT STYLE FUSE CONNECTIONS

100AREDDOTBONDSET

LV BONDING SET WITH 3 X 100A RED DOT STYLE FUSE CONNECTIONS

TNRS63/100BONDKIT

LV BONDING SET FOR 63A & SMALL BODY 100A FUSE CONNECTIONS

JTYPEBONDSET76

LV BONDING SET WITH 3 X 76MM J TYPE STYLE FUSE CONNECTIONS

JTYPEBONDSET82

LV BONDING SET WITH 3 X 82MM J TYPE STYLE FUSE CONNECTIONS

JTYPEBONDSET92

LV BONDING SET WITH 3 X 92MM J TYPE STYLE FUSE CONNECTIONS

24

J TYPE

1B

JTYPEBONDSET

Title: Drawn By: Rich Poi Approved By: Rob Dickerson Scale at A3: 1:20 Date: 12/10/2022 Material: A Sheet: Finish: ALL DIMENSIONS IN mm UNLESS STATED OTHERWISE REV.

12/10/2022

BRASS STAND OFF (M8)

1B

TNFC63ES

QTY

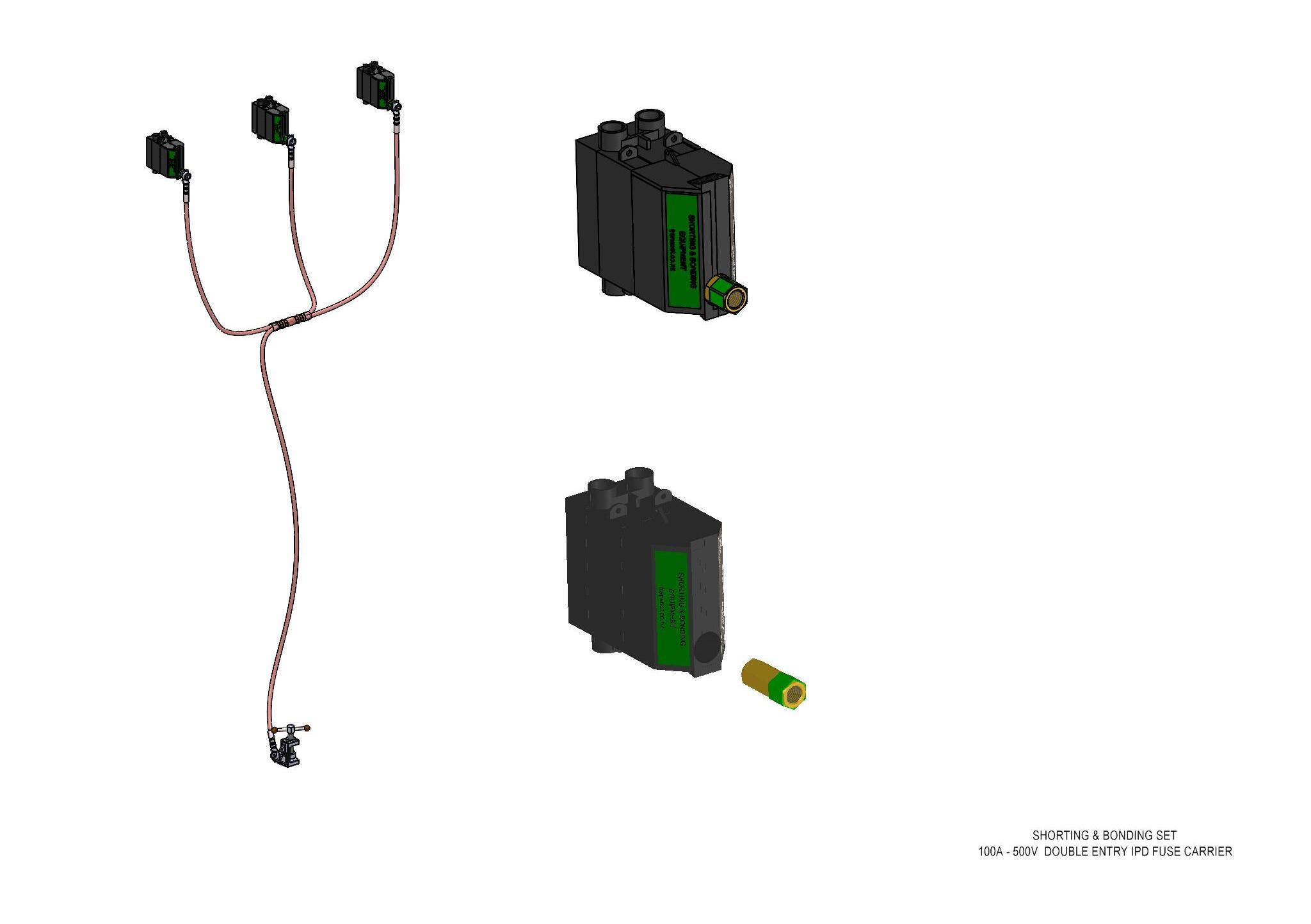

1IPD FUSE CARRIER 100A 22X56 BARREL FUSE ENTRY

FRONT VIEW

REDDOTBONDSET

1

DESCRIPTION

ITEM NO. PART NUMBER QTY 1 58424-56-JTMBH 3 1A 58424-56

ITEM NO. 1

Solidworks File Name ----TNFC63ES ---- PRINTED ON Wednesday, 12 October 2022

Cat No.

PART NUMBER

COPYRIGHT. This drawing and designs are the property of TRANSNET N.Z. LTD and may not be reproduced in whole or part without the written permission of:- TRANSNET N.Z. LTD. P.O. Box 39 383, Howick, Auckland, New Zealand.

INITIAL RELEASE DESCRIPTION

ITEM NO.

Solidworks File Name ----FG22FW100A-500V-BONDINGSET ---- PRINTED ON Wednesday, 12 October 2022

A REV.

COPYRIGHT. This drawing and designs are the property of TRANSNET N.Z. LTD and may not be reproduced in whole or part without the written permission of:- TRANSNET N.Z. LTD. P.O. Box 39 383, Howick, Auckland, New Zealand.

IPDBONDSET

COPYRIGHT. This drawing and designs are the property of TRANSNET N.Z. LTD and may not be reproduced in whole or part without the written permission of:- TRANSNET N.Z. LTD. P.O. Box 39 383, Howick, Auckland, New Zealand.

COPYRIGHT. This drawing and designs are the property of TRANSNET N.Z. LTD and may not be reproduced in whole or part without the written permission of:- TRANSNET N.Z. LTD. P.O. Box 39 383, Howick, Auckland, New Zealand.

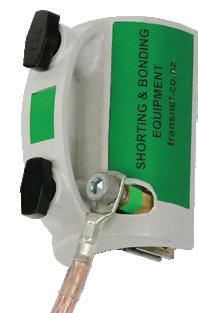

FEATURES • Allows Bonding Leads to be safely applied to 100A IPD, 63A & 100A Red Dot, 76, 82mm & 92mm J Type Fuses • Uses the same Bonding Harness as LV DIN Set • Bonding Leads can be installed using the Insulated Installation Pole from the LV DIN Set • Bonding Harness can easily be customised to single leads if required, ie for Bonding Street Light circuits • Standard lead set is 25mm² Flex which maintains flexibility for installation on LV Frames with very restricted Space • Keeps all connections within the foot print of the fuse base where fuses are in very close proximity to each other

R

Title:

Sheet:

1 of 1

Drawing N°.

S&

LV GROUND MOUNT BONDING COMPLETE LV BONDING KITSET Customised complete kitsets comprise all the LV bonding devices required by individual networks on a case by case basis. Housed in a sturdy plastic case with foam cutouts to protect and safely store each device. Please discuss with our team, what your requirements are.

Inclusions can include (not limited to): •

J Type Fuses

•

Red Dot Fuses

•

IPD Fuses

•

K199 Fuses

•

Henley Fuses Cat No.

Description

LVBONDKITCASE

CUSTOMISED LV BONDING SOLUTION - ALL PACKED IN STURDY PLASTIC STORAGE CASE

K199 LV BONDING SET Bonding for TUDS and pillar installations.

•

Allows Bonding Leads to be safely attached to the Load Side of the Fuse and Gelport.

Supply Side of the Fuse can be capped.

IP Rating of Fuse and Gelport is maintained allowing the equipment to be put back into the TUDS and the Lid closed.

ITEM NO.

CARRIER BONDING SET

• •

7

9

PART NUMBER

DESCRIPTION

QTY

MICHAUD 100A IP68 PIT FUSE 650MM2 K199-35 BONDING K199 BONDING LEADS LEADS

3

2 3

CG35M10

CU LUG 35mm2 STUD 10MM

2

4

CG35M6

CU LUG 35mm2 STUD 6MM

3

5A

TNGPEPINBOLT

GELPORT EARTHING PIN BOLT

1

5B

-

O RING LUBRICANT

1

5C

-

PLASTIC CONTAINER

1

6

IT/360/8MM

1

7

TNFC63ES

8

TNFC100ES

ISO 8MM X 160MM ALLEN KEY TBAR INSULATED 1000V VDE 63A FUSE CARRIER FITTED WITH EARTH STUD 100A FUSE CARRIER FITTED WITH EARTH STUD

9

TN-622904

EARTH TAG 40mm

3

210-10

ISO 10MM OFFSET RING SPANNER 1000V VDE

1

1

10

K199

3 X 63A EARTH STUD FUSE HOLDER

2

3 3

8

K199 & FUSE CARRIER BONDING SET BAG

3 X 100A EARTH STUD FUSE HOLDER

10

ISO 10MM OFFSET RING SPANNER 1000V VDE

Drawn By: Rich Poi Approved By: Rob Dickerson Scale at A3: 1:10 Date: 16/08/2021 Material: Finish: ALL DIMENSIONS IN mm UNLESS STATED OTHERWISE

Title:

K199 & FUSE CARRIER BONDING SET

Sheet:

1 of 1

Drawing N°.

K199&FUSECARRIER-BONDINGSET_S

Cat No.

K199BONDSET

REV:

A

Solidworks File Name ----K199-EARTHSET ---- PRINTED ON Monday, 16 August 2021

9

Description K199 UNDERGROUND LV BONDING SET

25

USER GUIDE USER GUIDE – LV UNDERGROUND NETWORK BONDING EQUIPMENT RANGE Note: This document is intended as a Guide only for the safe use of TransNet’s range of Low Voltage Underground Network Bonding Equipment and does not replace any Network or Company Operating Standards or Procedures.

STEPS 1. Check Bonding Equipment is in good condition and in test.

The Bonding Set may include Bonding Leads, Inserts and any Insulated Application Tools.

2. Check LV Voltage Testers in good condition, in test and working.

(Preferably use Contact Type Voltage Tester.).

3. Check all Bonding Leads are disconnected from all Bonding Inserts.

4. Remove all Fuses/Links as necessary to isolate the circuit to be Bonded.

5. Test both sides of Fuse Base to determine which side is DEENERGISED using PROVE – TEST – PROVE method to ensure your tester is working correctly.

6. If both sides of the Fuse base

are Live DO NOT INSTALL THE BONDING INSERT. 7. Once one side of the Fuse Base is proven DE-ENERGISED you can install the Bonding Insert with Lead Connection Point to DEENERGISED Side of Fuse Base.

8. Test the Bonding Insert Lead Connection Point to prove the insert has been installed correctly and the Bonding Lead Connection Point is DEENERGISED. 9. If the Bonding Lead Connection Point is live, the Bonding Insert may have been installed with the Bonding Lead Connection Point to the Live Side of the fuse base.

10. If this happens remove the Bonding Insert, turn 180°, reinstall and re-test to prove Bonding Lead Connection Point

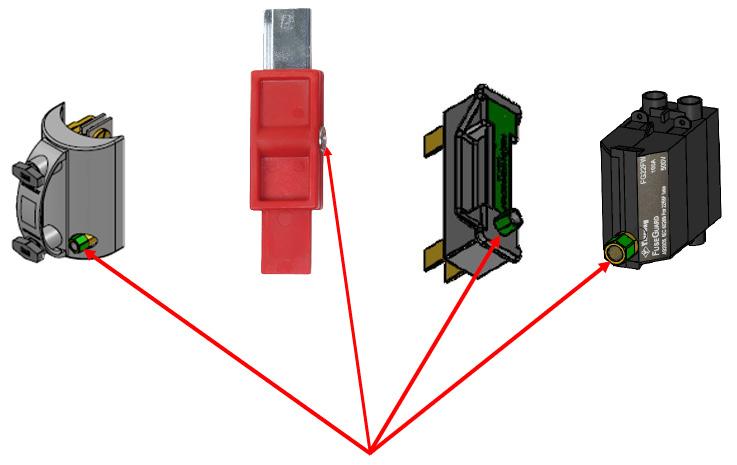

DIN Type Bonding Insert

J Type Bonding Insert

is DE-ENERGISED. 11. DO NOT CONNECT ANY BONDING LEADS IF THE BONDING LEAD CONNECTION POINT IS LIVE. 12. Once the Bonding Insert Lead Connection Point has been proven DE-ENERGISED the Bonding Leads can be connected, firstly making sure the Bonding Lead Tail Clamp is connected to Neutral/Earth Point before connecting to the Bonding Insert Lead Connection Points.

13. Once all leads are connected a DO NOT OPERATE TAG should be attached to the Bonding Device.

Red Dot Bonding Insert

IPD Bonding Insert

BONDING LEAD CONNECTION POINTS. MUST TEST AT THIS POINT AND PROVE DE-ENERGISED BEFORE CONNECTING BONDING LEADS.

26

TRANSNET NEW ZEALAND LTD ISO 14001 CERTIFIED ISO 14064-1 CERTIFIED CARBON CONSCIOUS COMPANY

0800 442 182 +64 9 274 3340 sales@transnet.co.nz

Auckland 78 Cryers Road East Tamaki Auckland NEW ZEALAND Ph 0800 442 182 Fax 0800 442 183 PO Box 39 383 Howick, Auckland NEW ZEALAND

Wellington 10 Petone Ave Petone Wellington NEW ZEALAND Ph 04 576 2530 Fax 04 576 0040 PO Box 39 383 Howick, Auckland

www.transnet.co.nz

TRANSNET TONGA

TransNet NZ Ltd has made every reasonable effort to ensure the accuracy of this information and it is to the best of our knowledge correct and reliable. Under no circumstances does this constitute an assurance of any particular quality or performance and users should independently evaluate the suitability of products for their desired application. All information in this publication including pricing, drawings, illustrations, images and graphic designs are reflections of our current understanding. TransNet NZ Ltd reserves the right to make any adjustment to this information at any time. Our liability for the products outlined in this publication is set forth in our standard terms and conditions of trade. In case of any potential ambiguities or questions, please contact us for clarification.

Nuku'alofa Lakalakaimonu Multi Utility Complex Taufa'ahau Road, Poutaha Nuku'alofa TONGA Ph +67 627 939 Fax +67 627 976 PO Box 2932 Nukualofa TONGA TransNet@kalianet.to Edition: 002-09/25
