SERIES 9 TTV

Minimises the work effort, maximises the result.

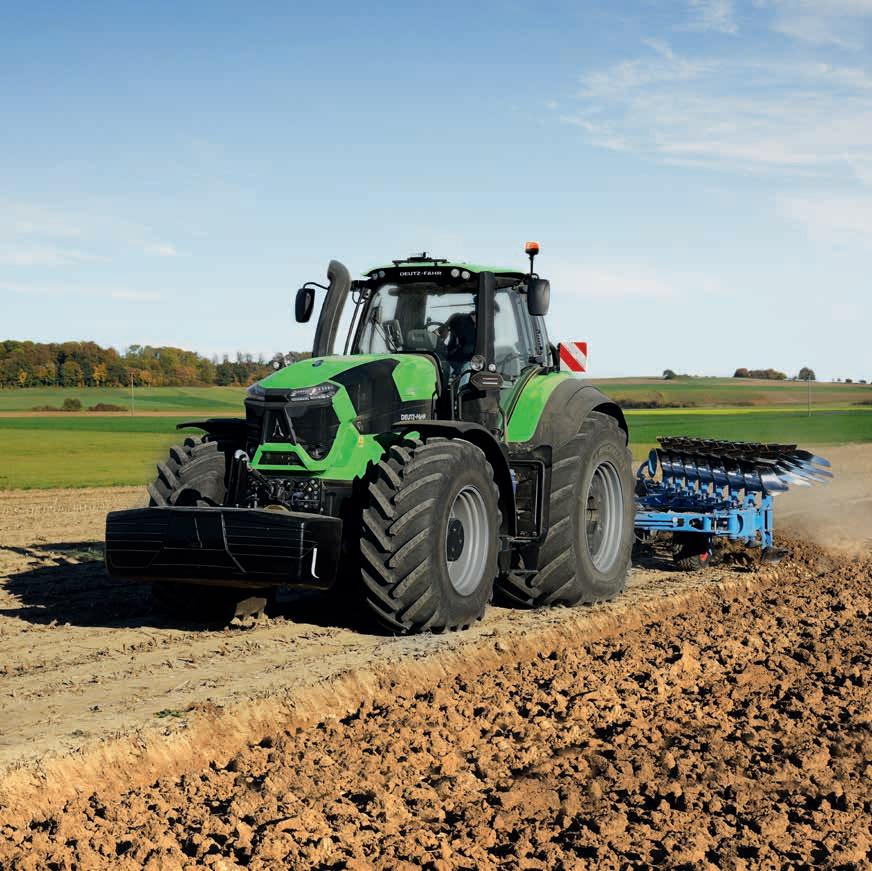

With the 9 Series DEUTZ-FAHR engineers have developed a highly intelligent, high-horsepower tractor, which facilitates and accelerates all work tasks thanks to unique operating comfort, automated routine functions and the most innovative technologies – and all this while having less fuel consumption. LED working lights, MaxiVision 2 cab with 12" iMonitor and the most innovative Smart Farming Solutions, highly efficient engines from 295 to 336Hp, TTV continuosly variable transmission for precise speeds from 0.2 to 60 kph at reduced engine speed, newly developed axle suspension system with dry disc brakes for maximum safety, 12000Kg lift capacity at the rear and electric opening bonnet for the fastest and most comfortable access to all maintenance points. Each individual component of the 9 Series is highly innovative and is among the best in the market. With the 9 Series, DEUTZ-FAHR offers three perfectly balanced and highly attractive high-performance tractor models that enable farmers and contractors to achieve the best results.

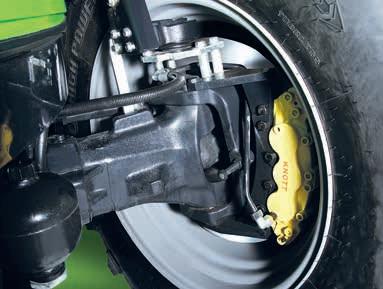

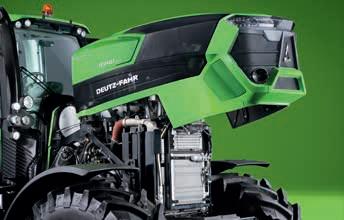

Features • Deutz 7.8 TTCD Stage V Common Rail, 6-cylinder, twin-turbo intercooled engine with SCR system and passive DPF • TTV continuously variable transmission • Maximum speed: 60kph (where permitted) • Powerbrake servo-assisted braking system and automatic Electric Parking Brake (EPB) • Front axle with suspension and external dry disc brakes • 210l/min load-sensing hydraulic system • MaxiVision 2 cab with interior trims in high quality materials, maximum ergonomics and comfort • MaxCom armrest with integral joystick for control of the main tractor functions • iMonitor with integrated ISOBUS controls and SFS functions • One-piece, electric opening bonnet and LED light clusters

Technical data SERIES 9 TTV 9290 TTV 9310 TTV 9340 TTV

Engine Emission level Cylinders/Displacement Max. power (ECE R120) Power at rated speed (ECE R120) Rear linkage lifting capacity (max.) Wheelbase Total unladen weight n°/cc kW/Hp kW/Hp Kg mm Kg 217/295 204/277 Deutz 7.8 TTCD Stage V 6/7755 229/312 218/296 12000 3135 12000 247/336 232/316
