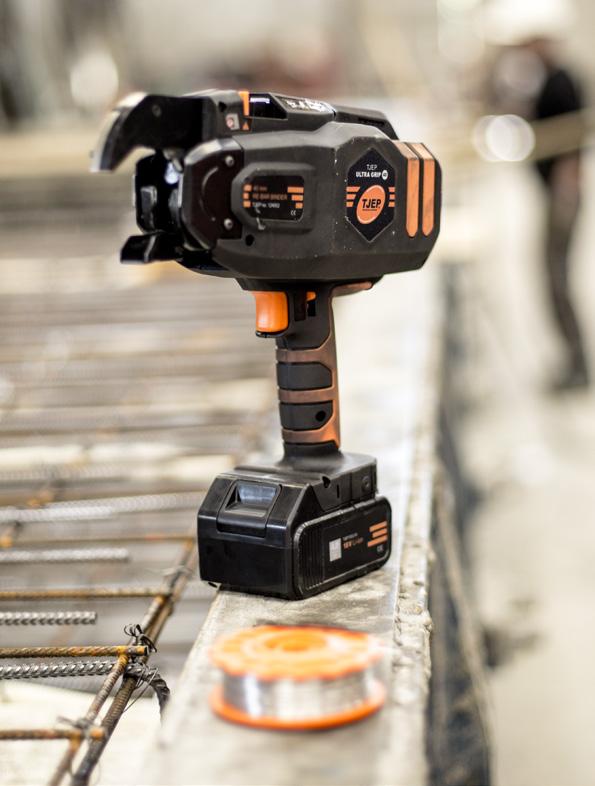

Brushless motors Faster and tighter ties Optimised ergonomics More power: 18V 4Ah slide-in battery www.tjep.eu TJEP ULTRA GRIP REBAR TYING SYSTEMS
TJEP ULTRA GRIP RE-BAR BINDERS The ultra-strong solution! ALL
MOTOR TECHNOLOGY KYOCERA UNIMERCO FASTENING A/S D REJERVEJ 2, DK-7451 S UNDS 2 www.tjep.eu
BRUSHLESS
■ Faster and tighter ties
■ Optimised and robust design ensures easy access to the item and long life.
■ Approx. 3200–5000 ties per charge.

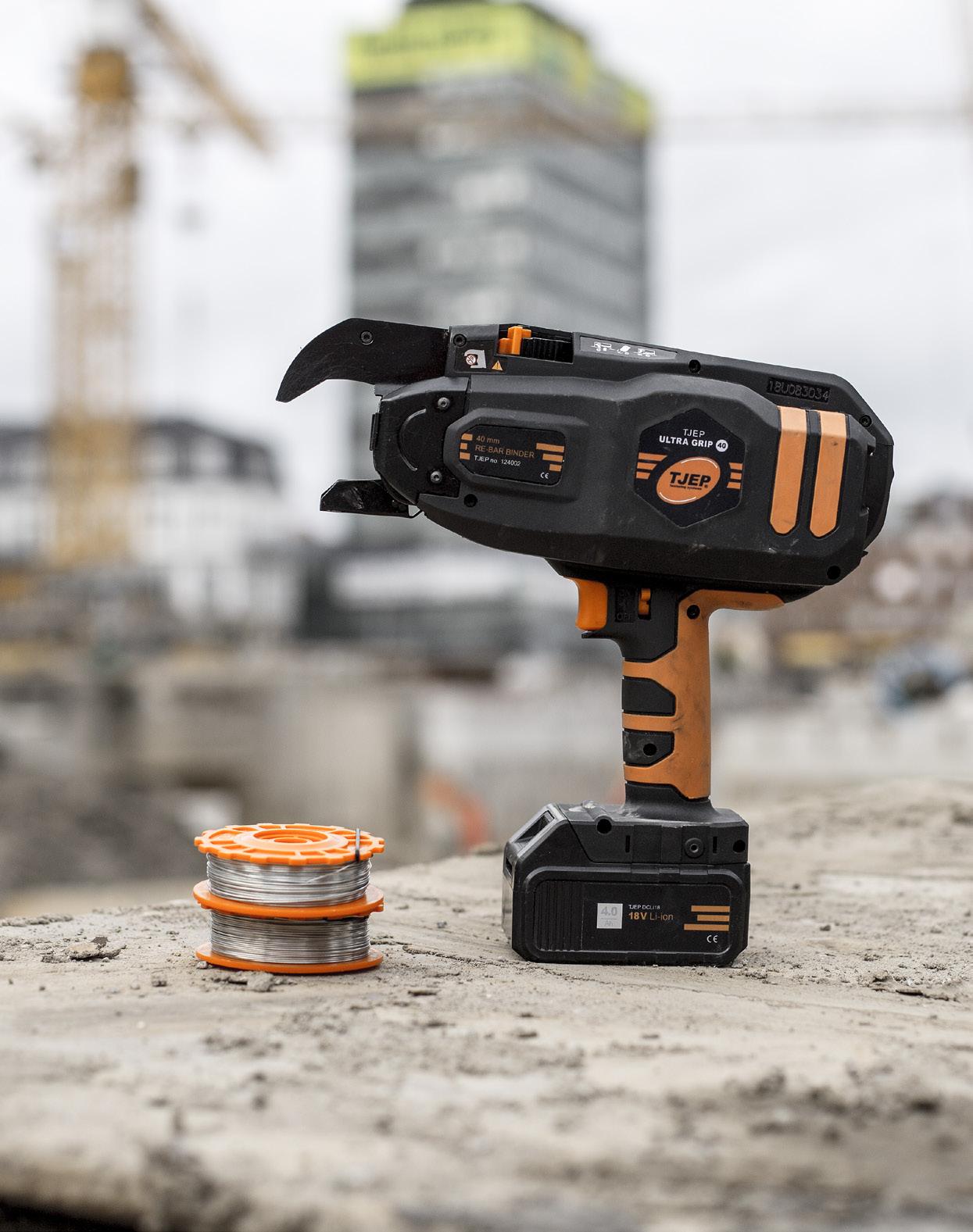

■ Supplied with two Li-ion batteries, charger and two coils of wire in a robust plastic case.
■ Use TJEP ULTRA GRIP WIRE
Increase efficiency with TJEP ULTRA GRIP

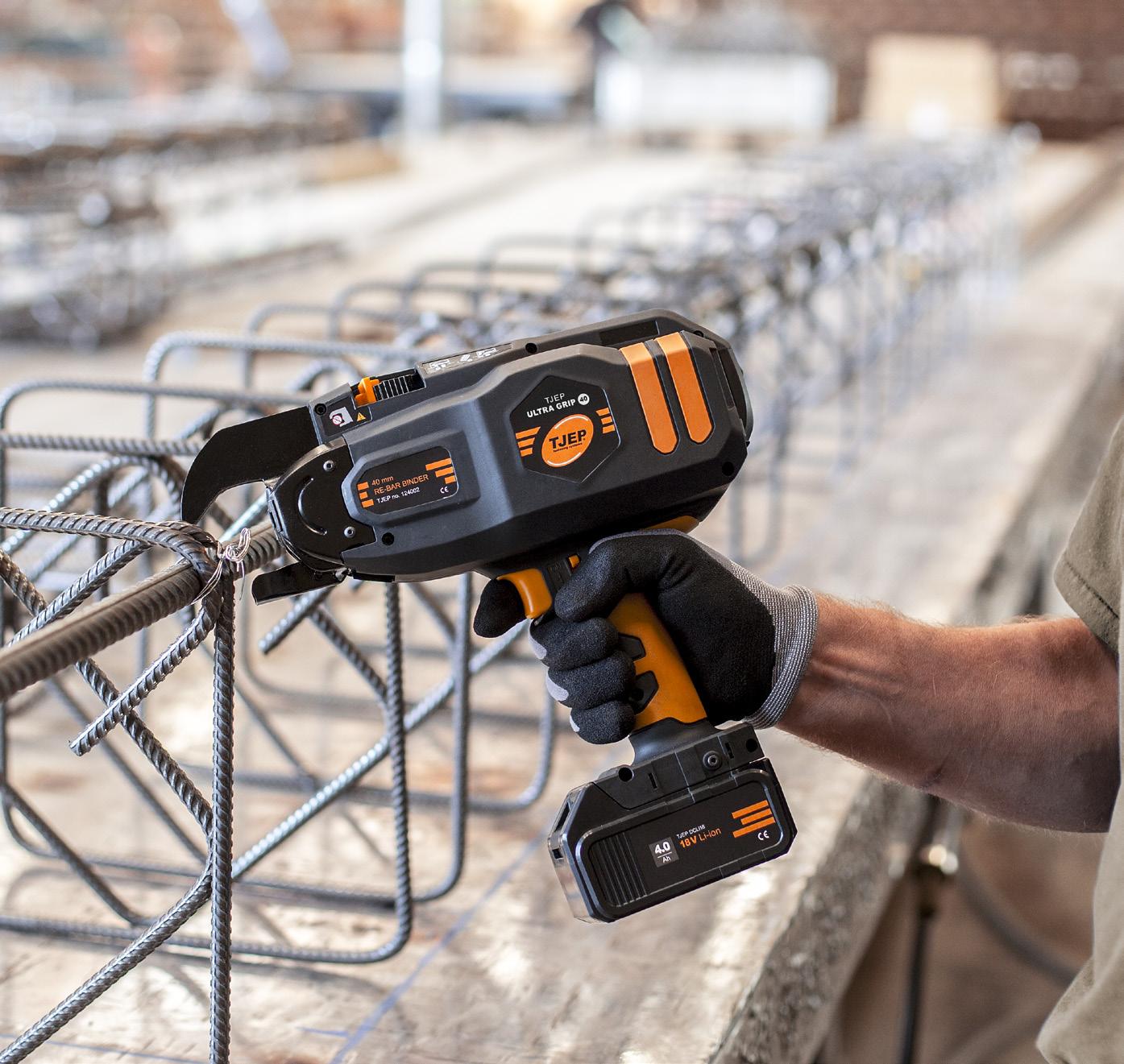

TJEP ULTRA GRIP re-bar binder increases your efficiency and improves your work environment significantly compared to the physically demanding, monotonous and time-consuming work of manual tying.

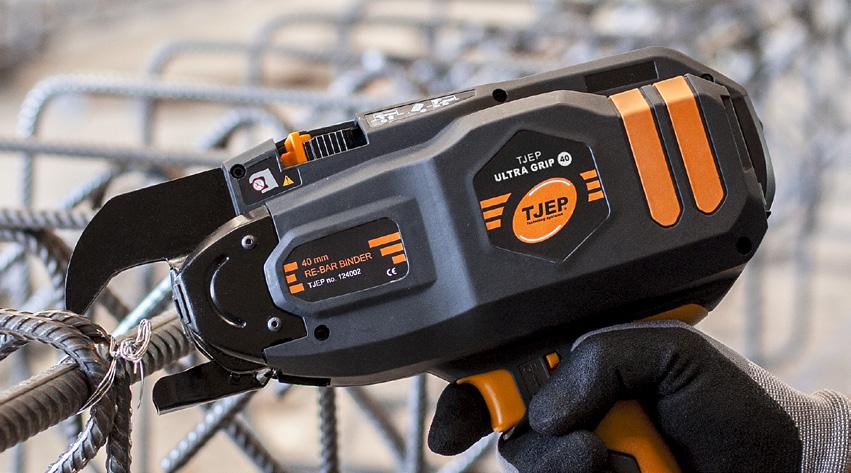

TJEP ULTRA GRIP is the third generation of re-bar binders from TJEP and is a further development of our popular XP re-bar binders. The know-how gained from previous generations has been incorporated into the new ULTRA GRIP series, which sets new standards in tying speed and quality.

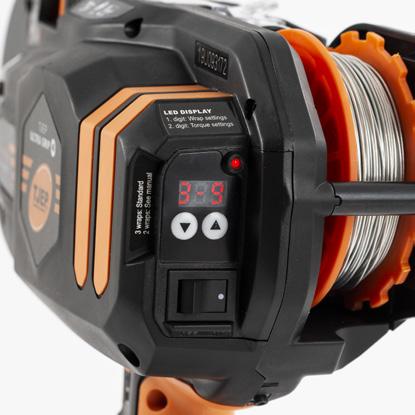

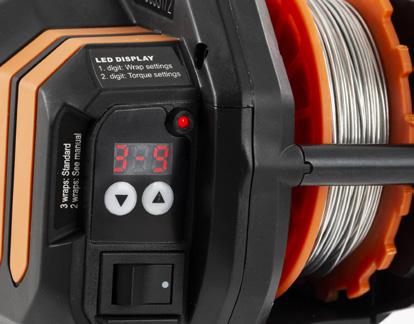

The new digital control panel ensures easy and fast torque adjustments, while the clear display gives you a quick overview of the current torque setting and number of wraps.
■ The newly developed nose and handle design optimises access to the point you want to tie.
■ The powerful 18V 4Ah Li-ion slide-in battery ensures long operating time.
■ The brushless motors ensure faster and efficient tying, with only 0.6-0.8 sec. per tie – making you more efficient on the job.
■ The tight and uniform tying ensures the work can be executed without interruptions.
In other words, the TJEP ULTRA GRIP series is your guarantee for the market’s best overall budget when it comes to tying reinforcement rods or similar items.
To learn more about TJEP re-bar binders, wire and accessories, go to www.tjep.eu. You can also contact us by telephone on +45 97 14 14 40 – we are ready to answer your questions
EASY AND FAST TORQUE ULTRA STRONG AND TIGHT TIES
TJEP ULTRA GRIP RE-BAR BINDERS
and
download brochures,
images
USE THE INTERNET ...
TJEP
ULTRA GRIP Visit www.tjep.eu
learn about the new TJEP ULTRA GRIP series,
videos,
and much more ...

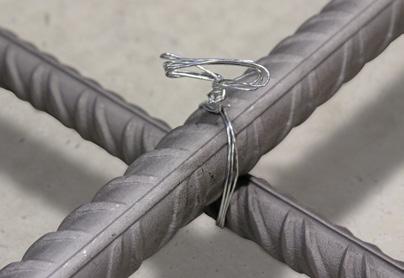

2 wraps 3 wraps
www.tjep.eu 3 TJEP@KYOCERA-UNIMERCO.COM T EL . +45 97 14 14 40
TJEP ULTRA GRIP RE-BAR BINDERS SPECIFICATIONS
Dimensions
×
×
281 × 109 × 300 mm Weight
Tie
Tie
0.6
Ties
160 225 Wraps

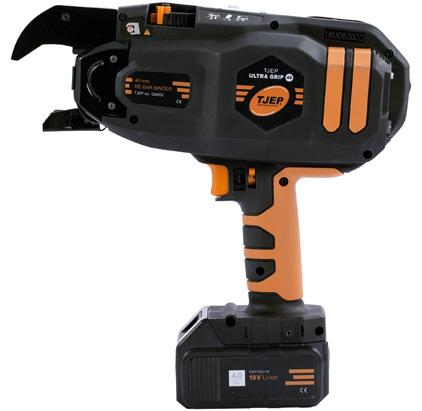

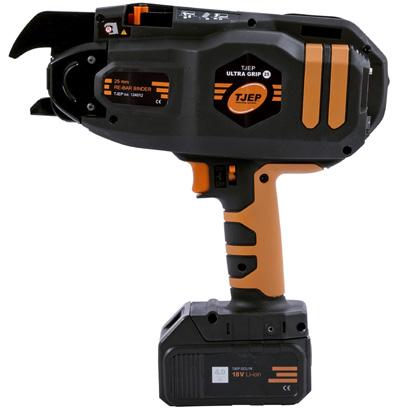

tie 2 or 3 Ties per charge +5,000 (with 3 wraps) 2 1 2 1 ACCESSORIES Description Item no. TJEP battery charger for TJEP ULTRA GRIP 124205 TJEP extension bar 124202 TJEP holster 124203 TJEP lithium Ion battery 4,0Ah 124204 APPLICATION ■ Pre-fab ■ Roads and bridges TJEP ULTRA GRIP 25 RE - BAR BINDER 1 18V brushless motors 2 Sealed gearbox for extra power 3 Optimised nose design with long lifetime, ensuring easier access to the point you want to tie 4 Longer and narrower handle for better ergonomics 5 18V 4Ah Li-ion
battery 6 Connector for electronic extension 1 18V brushless motors 2
3
4
5
6
L: 100 m Ø: 0.8 mm ULTRA GRIP WIRE
Dimensions (L × W × H) 297 × 109 × 300 mm Weight 2.6 kg Tie point thickness 12 40 mm Tie speed 0.7 sek. Ties per coil 120 160 Wraps per tie 2 or 3 Ties per charge +4,500 (with 3 wraps) 2 1 2 1 ACCESSORIES Description Item no. TJEP battery charger for TJEP ULTRA GRIP 124205 TJEP extension bar 124202 TJEP holster 124203 TJEP lithium Ion battery 4,0Ah 124204 APPLICATION ■ Pre-fab ■ Foundations and footing ■ Roads and bridges ■ Swimmingpools ■ Floor heating TJEP ULTRA GRIP 40 RE - BAR BINDER L: 100 m Ø: 0.8 mm ULTRA GRIP WIRE 6 4 3 1 6 4 3 1 2 2 5 5 KYOCERA UNIMERCO FASTENING A/S D REJERVEJ 2, DK-7451 S UNDS 4 www.tjep.eu
Item no. 124012 EAN no. 5702551240120
(L
W
H)
2.5 kg
point thickness 8 25 mm
speed
sek.
per coil
per
slide-in
Sealed gearbox for extra power
Optimised nose design with long lifetime, ensuring easier access to the point you want to tie
Longer and narrower handle for better ergonomics
18V 4Ah Li-ion slide-in battery
Connector for electronic extension
SPECIFICATIONS Item no. 124002 EAN no. 5702551240021

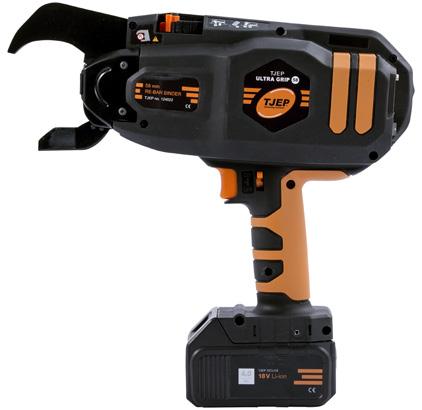

Item no. 124204 EAN no. 5702551242049 SHEATH FOR TJEP ULTRA GRIP Item no. 124203 EAN no. 5702551242032 Item no. 124205 EAN no. 5702551242056 TJEP ELECTRICAL EXTENSION ARM Item no. 124202 EAN no. 5702551242025 1 18V brushless motors 2 Sealed gearbox for extra power 3 Optimised nose design with long lifetime, ensuring easier access to the point you want to tie 4 Longer and narrower handle for better ergonomics 5 18V 4Ah Li-ion slide-in battery 6 Connector for electronic extension SPECIFICATIONS Item no. 124022 EAN no. 5702551240229 Dimensions (L × W × H) 312 × 109 × 310 mm Weight 2.8 kg Tie point thickness 30 58 mm Tie speed 0.8 sek. Ties per coil 80 96 Wraps per tie 3 or 4 Ties per charge +3,200 (with 4 wraps) 2 1 2 1 ACCESSORIES Description Item no. TJEP battery charger for TJEP ULTRA GRIP 124205 TJEP extension bar 124202 TJEP holster 124203 TJEP lithium Ion battery 4,0Ah 124204 APPLICATION ■ Pre-fab ■ Foundations and footing ■ Roads and bridges ■ Swimmingpools TJEP ULTRA GRIP 58 RE - BAR BINDER L: 100 m Ø: 0.8 mm ULTRA GRIP WIRE 6 4 3 1 2 5 www.tjep.eu 5 TJEP@KYOCERA-UNIMERCO.COM T EL . +45 97 14 14 40
ULTRA GRIP WIRE 124156 40 48
ULTRA GRIP WIRE 124152 20 96
ULTRA GRIP WIRE 124153 40 48 ULTRA GRIP WIRE 124157 40 48 ULTRA GRIP WIRE 124155 40 48

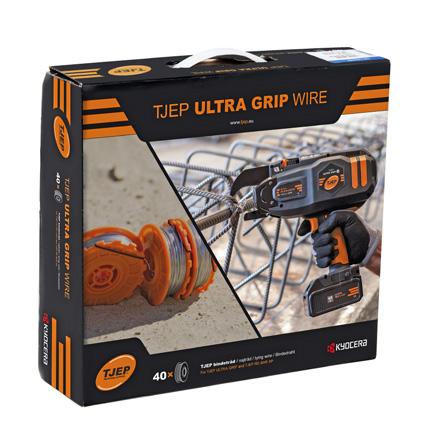

The TJEP ULTRA GRIP WIRE has high tensile strength and is very flexible and ductile – a specific combination that provides a perfect and efficient procedure, and a very strong tie. It ensures that reinforcement rods are tied tightly and securely.
TJEP ULTRA GRIP RE-BAR BINDERS
SUITABLE FOR TJEP RE-BAR XP 25 Binder, RE-BAR XP 40 Binder, ULTRA GRIP 25, ULTRA GRIP 40, ULTRA GRIP 58

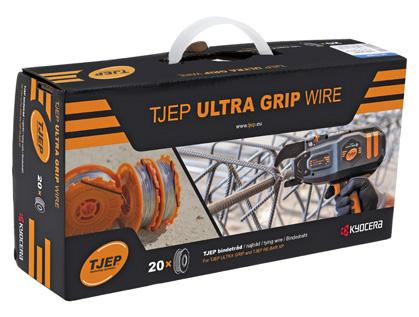

TJEP ULTRA GRIP WIRE
ULTRA GRIP WIRE
Dimension Item no. Pcs./box Box/pal.
BRIGHT GALV. STAINLESS A4 POLYESTER KYOCERA UNIMERCO FASTENING A/S D REJERVEJ 2, DK-7451 S UNDS 6 www.tjep.eu

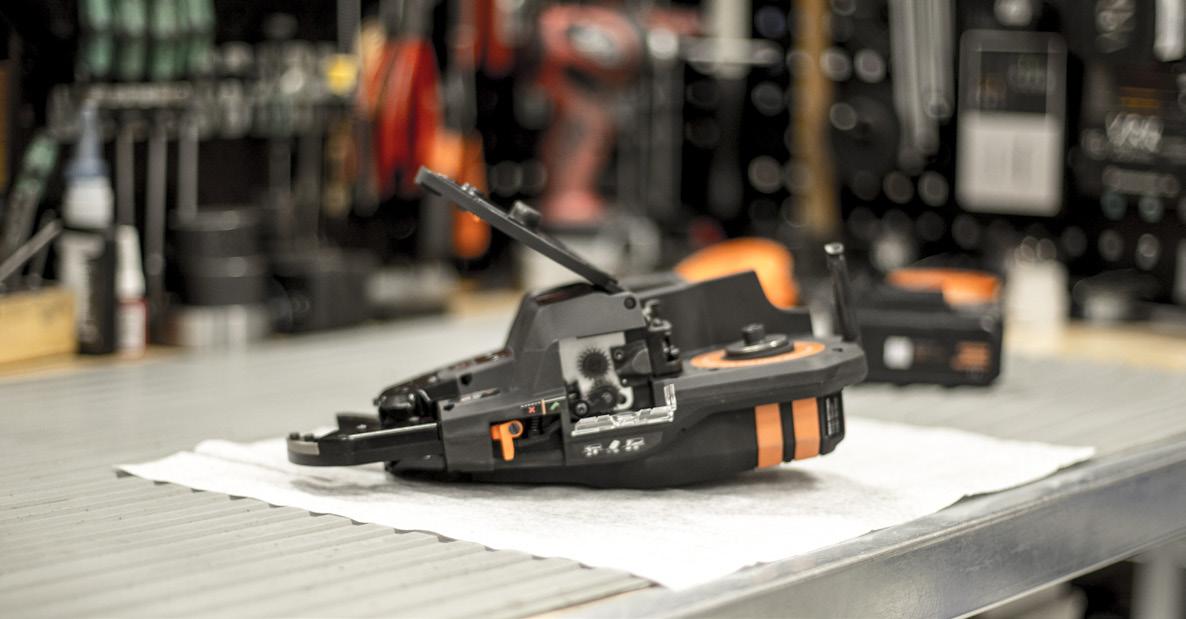

AUTHORISED TJEP SERVICE CENTRE
The TJEP service centre has extensive experience and expertise, having repaired and serviced many thousands of tools. This experience combined with continuous technical updating means that at all times you are ensured that your tools receive the best professional service. In other words, when your tool is returned, you can be completely certain that it is fully functional.
■ Free estimate before repair (all types)*
■ Fast and professional service with the industry’s most experienced service team.
■ Service history.
■ Guarantee for 100% functionality.
■ Repair/service of TJEP binders on an hourly basis (only original TJEP spare parts).
To learn more about TJEP repair and maintenance service, visit www.tjep.eu or telephone us on +45 97 14 14 40.
*NB: Repairs for a value of less than EUR 100 are carried out without further agreement.
TJEP ULTRA GRIP RE-BAR BINDERS
www.tjep.eu 7 TJEP@KYOCERA-UNIMERCO.COM T EL .
14
40
+45 97
14
THE PERFECT CHOICE ...
An experienced partner
KYOCERA UNIMERCO Fastening A/S has extensive experience in providing advice, and in the sales and servicing of re-bar binders. The product range includes TJEP re-bar binders, tying wires and accessories that are well-suited to the tying of reinforced rods, underfloor heating pipes and more.
A wide range
For more than 50 years we have been a leading supplier of nail guns, nails and accessories in Europe. Today, the TJEP series has more than 70 different models of compressed air and gaspowered nail guns, staplers and finish nailers with an associated wide range of fasteners. The TJEP series also includes a number of compressors, re-bar binders, cutting and bending machines and more.
Details that make all the difference
We believe in doing things well and exceeding expectations. Therefore, high quality, professional advice and good service are cornerstones of our business philosophy.
DEALER © KYOCERA UNIMERCO 09.22 016_3059 KYOCERA UNIMERCO Fastening A/S Drejervej 2 · DK-7451 Sunds Tlf. +45 97 14 14 40 · Fax +45 97 14 14 86 tjep@kyocera-unimerco.com To learn more, visit www.tjep.eu or telephone us on +45 97 14 14 40
