TJEP HYDRA CUTTERS
CUTTING MACHINES
TJEP HC-18B
TJEP HCS-20B
www.tjep.eu 1 TJEP@KYOCERA-UNIMERCO.COM · TEL. +45 97 14 14 40 www.tjep.eu
–
–
experience
RE-BAR
– a cable- and spark-free cutting
SPEED AND PRECISION:
Experience swift cutting with an impressive speed of 3 to 5 seconds, ensuring optimal efficiency and productivity.
MANEUVERABILITY:
Enjoy enhanced maneuverability with 360° rotatable cutting heads, allowing you flexibility in cutting from various angles.
SAFETY FIRST:
Both hydraulic cutters are equipped with a non-return valve, ensuring safety and user-friendly operation during cutting processes.
DURABLE DESIGN:
Built to last, our Hydra Cutters are durable re-bar cutters with blades that can be used on multiple sides, providing flexibility in their applications.

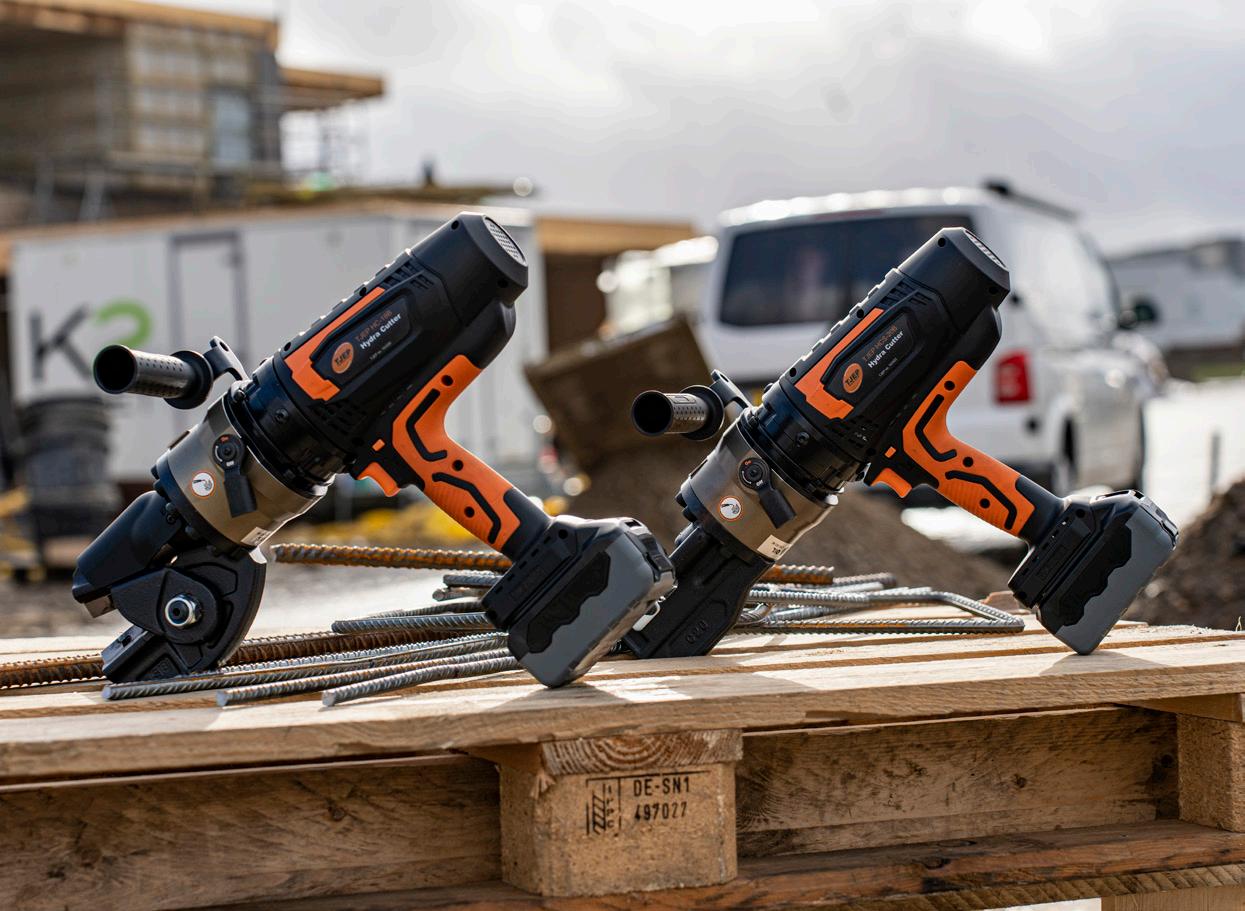

NEW TJEP HYDRA CUTTERS FOR UNPARALLELED CUTTING PERFORMANCE!
The new battery-powered hydraulic cutters from TJEP offers a cable-free cutting experience!

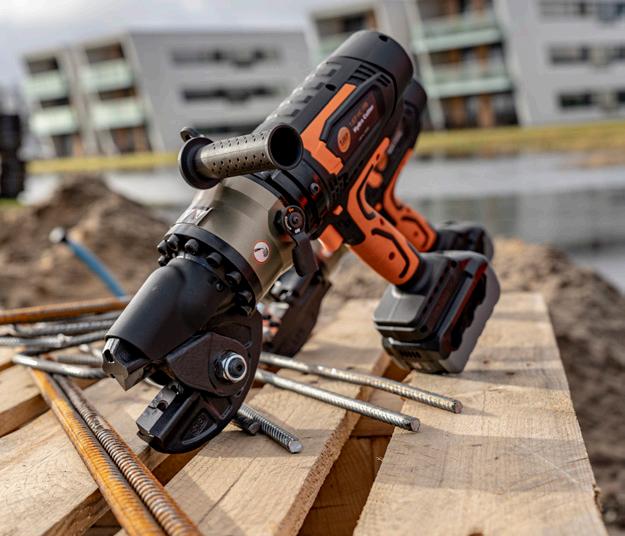

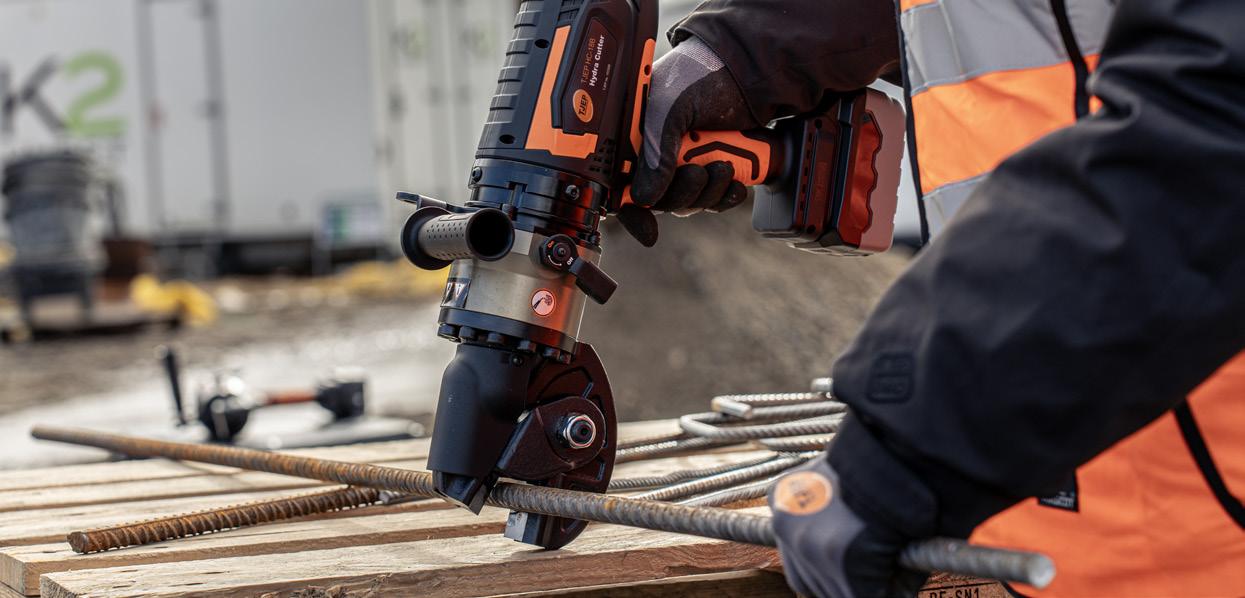

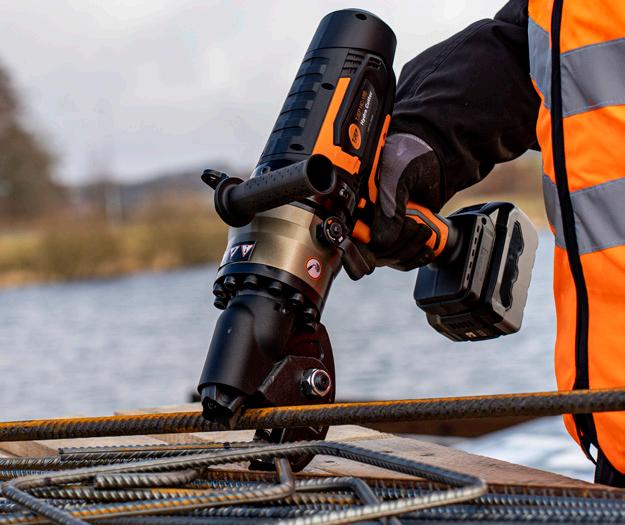

The TJEP HC-18B Hydra Cutter achieves the perfect cut with its scissor-shaped cutting head, capable of handling re-bar and mesh of up to Ø18 mm!

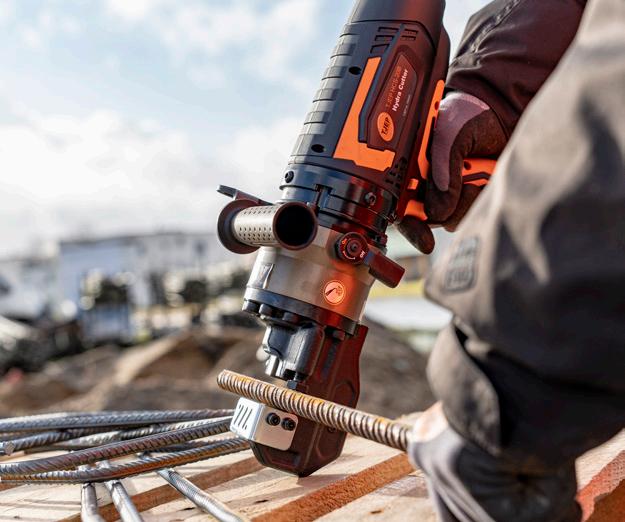

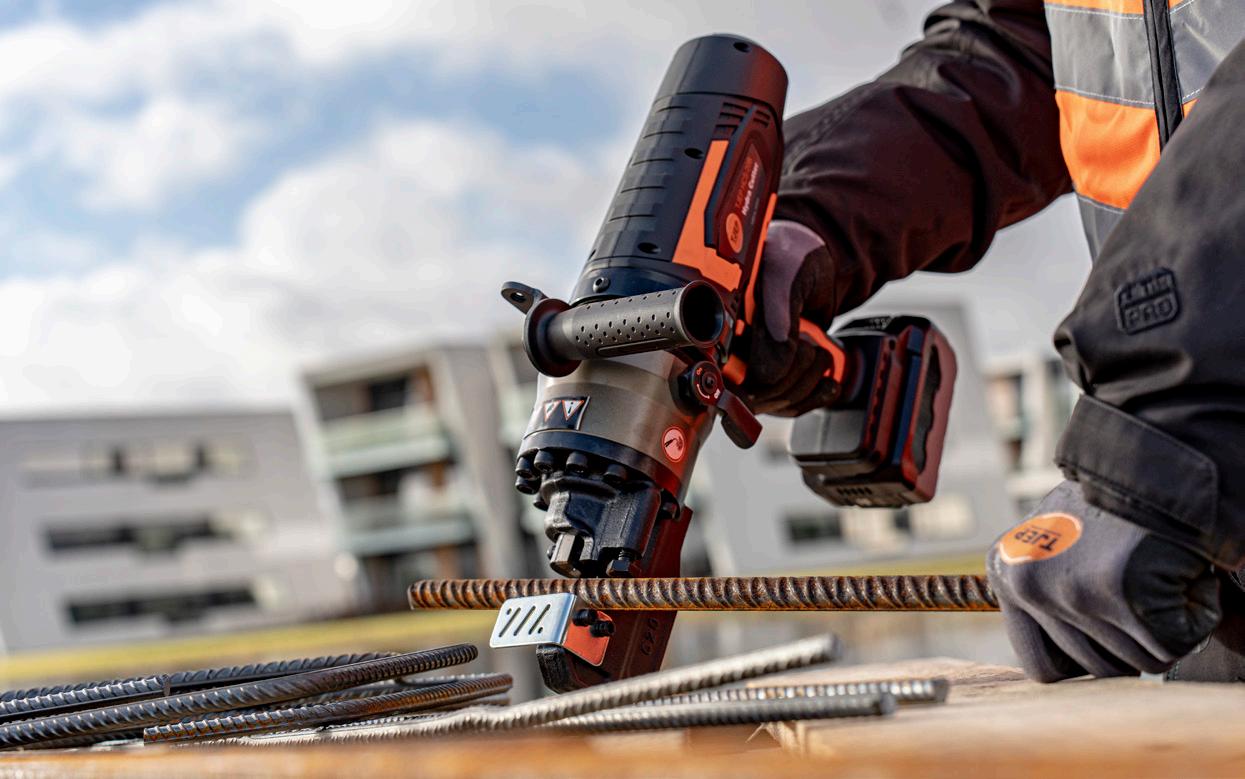

The TJEP HCS-20B Hydra Cutter features a high-power piston mounted with a blade, that interacts with the blade mounted on the light-weight shear cutting head. This way the workpiece of up to Ø20 mm is cut in a shear action without generating sparks.
DURABLE RE - BAR CUTTER FOR FLEXIBLE USE
Experience swift cutting with a remarkable speed of 3 to 5 seconds, ensuring efficiency and productivity, and enjoy enhanced maneuverability with 360° rotatable cutting heads, allowing flexibility in cutting from various angles.
The inclusion of a non-return valve in both hydraulic cutters ensure safety and user-friendly operation during cutting processes. The TJEP Hydra Cutters are designed to be durable cutters, providing flexibility in their applications, with blades that can be used on multiple sides.
Embark on a new era of cutting technology with TJEP Hydra Cutters, where precision, efficiency, and flexibility converge to redefine the standards of cable-free cutting.
2 www.tjep.eu KYOCERA UNIMERCO FASTENING A/S · DREJERVEJ 2 · DK-7451 SUNDS

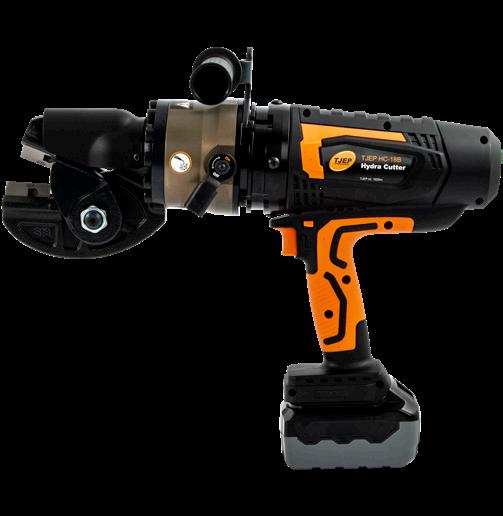

TJEP HC -18B
1 Scissor-shaped
2
3
4
5
6
SPECIFICATIONS
4
5
SPECIFICATIONS
EAN no.
Size (L×W×H)
www.tjep.eu 3 TJEP@KYOCERA-UNIMERCO.COM · TEL. +45 97 14 14 40 H yd RA CUTTERS RA
Item no. 103320 EAN no. 5702551033203 Size (L×W×H) 418 × 113 × 305 mm Weight 7.25 kg Cutting capacity Φ 5 - 18 mm Material tensile strength 400 - 500 MPa Cuts per battery charge Approx. 159 (Φ 16 mm) Approx. 321 (Φ 12 mm) Cutting speed 3 - 5 sec. Head rotation 360° Power supply Battery Motor 18V brushless motor 2 1 1 ACCESSORIES description Item no. TJEP UniKIT Battery, 18V 4,0 Ah 103410 TJEP UniKIT Charger 103412 TJEP Blades for TJEP HC-18B 103420 USED FOR Cutting re-bars, carbon steel, hot-rolled round steel etc
cutting head
360° rotatable scissor-shaped cutting head
Non-return valve
Trigger lock
18V 4Ah Li-ion slide-in battery
Cutting speed of 3 to 5 sec.
shear cutting head 2 360° rotatable light-weight shear cutting head
1 Light-weight
valve
3 Non-return
lock
Trigger
18V 4Ah Li-ion slide-in battery
6 5 4 3 2 1
6 Cutting speed of 3 to 5 sec.
103322
Item no.
5702551033227
405
6.05 kg
capacity Φ 5
20 mm
tensile strength 400 - 500 MPa
per battery charge Approx. 109 (Φ 20 mm) Approx. 210 (Φ 16 mm) Approx. 392 (Φ 12 mm) Cutting speed 3 - 5 sec. Head rotation 360° Power supply Battery Motor 18V brushless motor 2 1 1 ACCESSORIES description Item no. TJEP UniKIT Battery, 18V 4,0 Ah 103410 TJEP

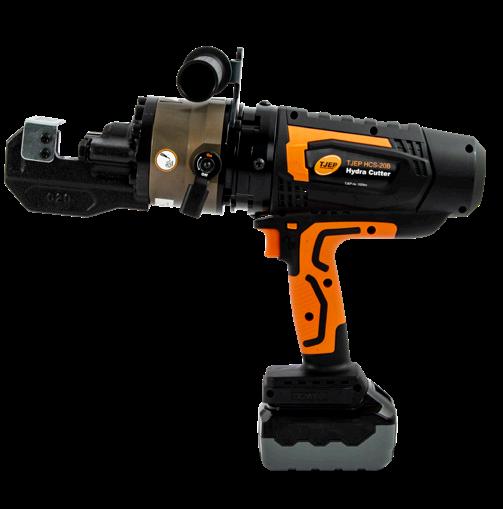

Charger 103412 TJEP Blades for TJEP HCS-20B 103517 USED FOR Cutting re-bars, carbon steel, hot-rolled round steel etc TJEP HCS -20B 6 5 4 3 2 1
× 113 × 305 mm Weight
Cutting
-
Material
Cuts
UniKIT
4 www.tjep.eu KYOCERA UNIMERCO FASTENING A/S · DREJERVEJ 2 · DK-7451 SUNDS BINDETRÅD TJEP ULTRA GRIP WIRE Elgalvaniseret, 40 ruller pr. krt. Varenr. 124153 / DB nr. 2027482 dealer: © KYOCERA UNIMERCO 06.24 016_3699 KyOCERA UNIMERCO Fastening A/S drejervej 2 · dK-7451 Sunds Tel. +45 97 14 14 40 tjep@kyocera-unimerco.com LEARN MORE AT WWW.TJEP.EU
