Faster and tighter ties
More power: 18V 4Ah slide-in battery
Brushless motors
Optimised ergonomics
ALL BRUSHLESS MOTOR TECHNOLOGY
■ Faster and tighter ties
■ Optimised and robust design ensures easy access to the item and long life.
■ Approx. 3200–5000 ties per charge.
■ Supplied with two Li-ion batteries, charger and two coils of wire in a robust plastic case.
■ Use TJEP ULTRA GRIP WIRE

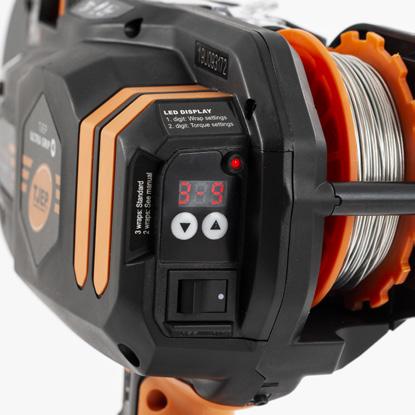

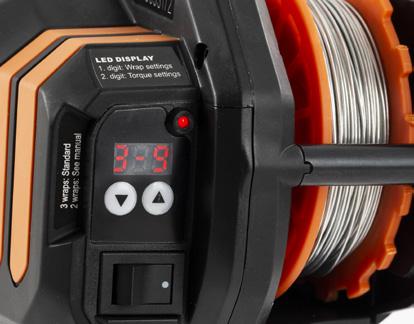

EASY AND FAST TORQUE
The new digital control panel ensures easy and fast torque adjustments, while the clear display gives you a quick overview of the current torque setting and number of wraps.
Visit www.tjep.eu and learn about the new TJEP ULTRA GRIP series, download brochures, videos, images and much more ... USE THE INTERNET ...
Increase efficiency with TJEP ULTRA GRIP

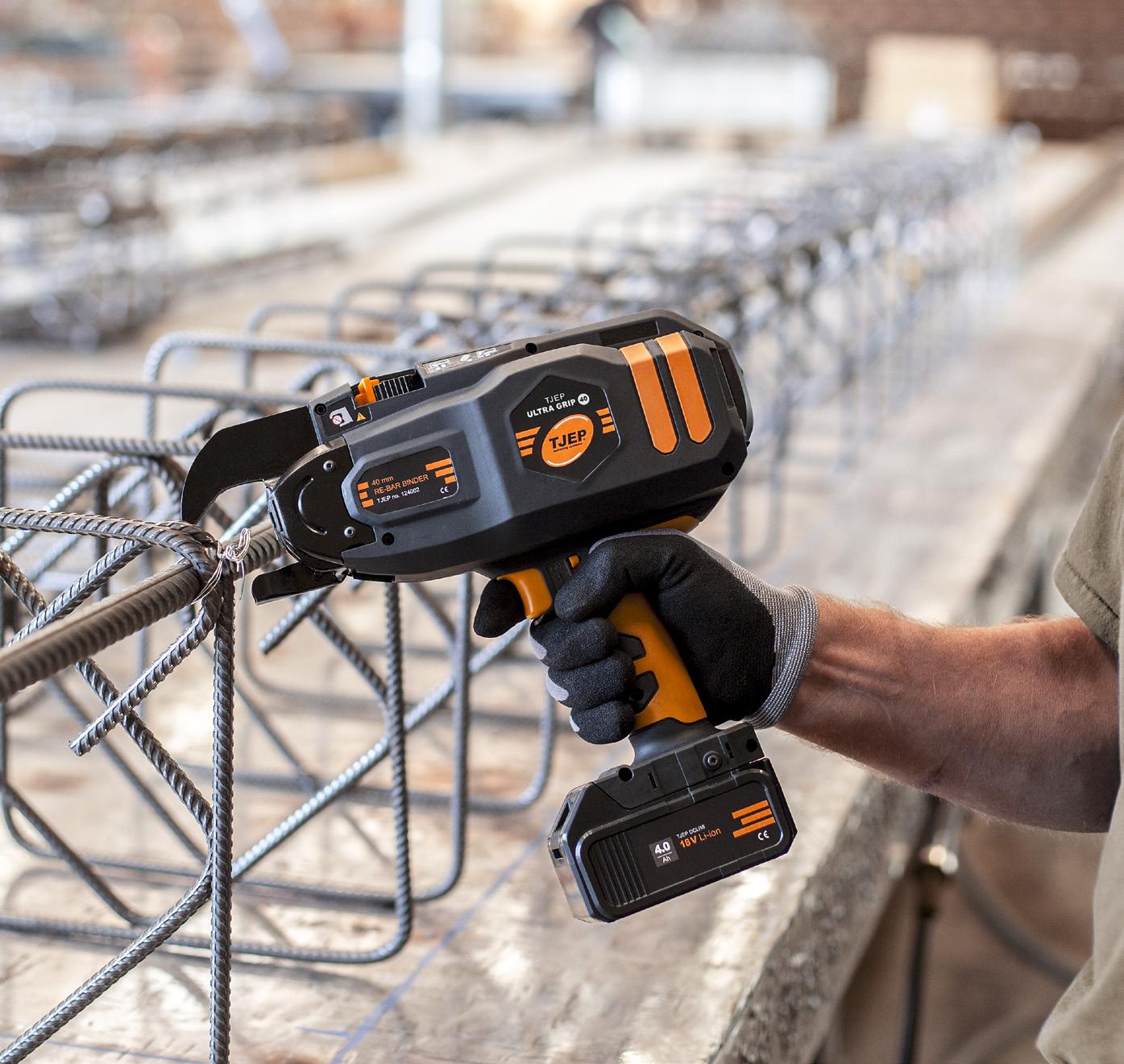

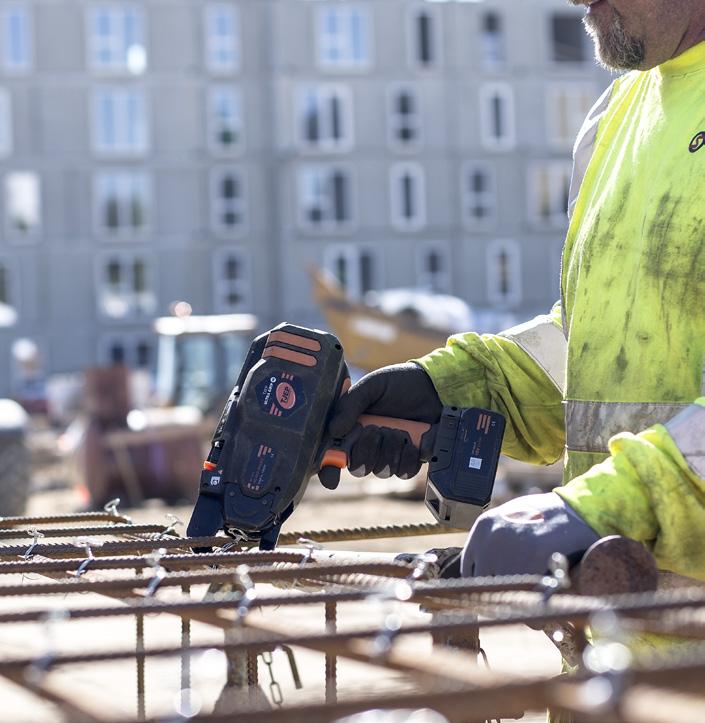

TJEP ULTRA GRIP re-bar binder increases your efficiency and improves your work environment significantly compared to the physically demanding, monotonous and time-consuming work of manual tying.
TJEP ULTRA GRIP is the third generation of re-bar binders from TJEP and is a further development of our popular XP re-bar binders. The know-how gained from previous generations has been incorporated into the new ULTRA GRIP series, which sets new standards in tying speed and quality.
■ The newly developed nose and handle design optimises access to the point you want to tie.
■ The powerful 18V 4Ah Li-ion slide-in battery ensures long operating time.
■ The brushless motors ensure faster and efficient tying, with only 0.6-0.8 sec. per tie – making you more efficient on the job.
■ The tight and uniform tying ensures the work can be executed without interruptions.
In other words, the TJEP ULTRA GRIP series is your guarantee for the market’s best overall budget when it comes to tying reinforcement rods or similar items.
To learn more about TJEP re-bar binders, wire and accessories, go to www.tjep.eu.
You can also contact us by telephone on +45 89 87 80 10 – we are ready to answer your questions

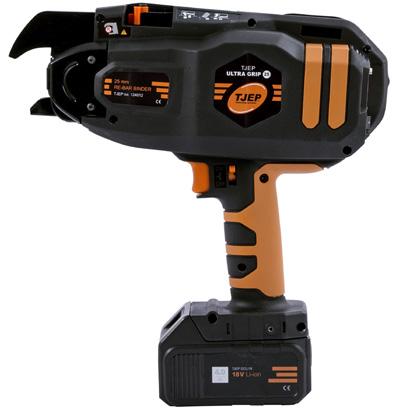

TJEP ULTRA GRIP 25 RE - BAR BINDER
1 18V brushless motors
2 Sealed gearbox for extra power
L: approx. 95 m Ø: 0.8 mm
ULTRA GRIP WIRE
SPECIFICATIONS
Dimensions
Tie
Tie
Ties
Wraps
Ties
ACCESSORIES
APPLICATION
■ Pre-fab
■ Roads and bridges
3 Optimised nose design with long lifetime, ensuring easier access to the point you want to tie
4 Longer and narrower handle for better ergonomics
5 18V 4Ah Li-ion slide-in battery
6 Connector for electronic extension

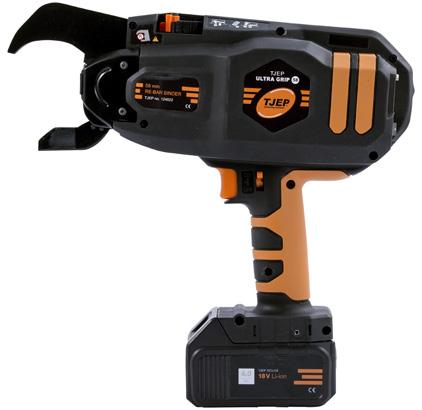

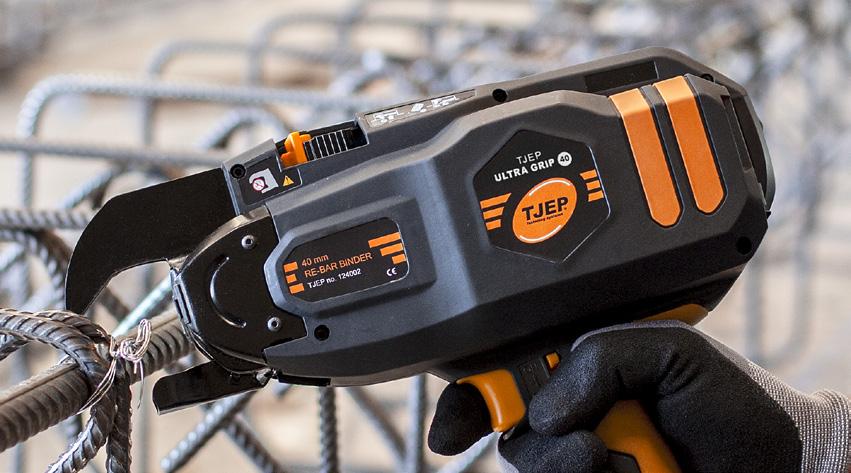

TJEP ULTRA GRIP 40 RE - BAR BINDER
1 18V brushless motors
2 Sealed gearbox for extra power
L: approx. 95 m Ø: 0.8 mm
ULTRA GRIP WIRE
SPECIFICATIONS
3 Optimised nose design with long lifetime, ensuring easier access to the point you want to tie
4 Longer and narrower handle for better ergonomics
5 18V 4Ah Li-ion slide-in battery
6 Connector for electronic extension
Item no. 124002
EAN no. 5702551240021
Dimensions (L × W × H) 297 × 109 × 300 mm
Weight 2.6 kg
Tie point thickness 12 - 40 mm
Tie speed 0.7 sek.
Ties per coil 120 - 160
Wraps per tie 2 or 3
Ties per charge +4,500 (with 3 wraps) 2 1 2 1
ACCESSORIES
Description
TJEP
TJEP
APPLICATION
■ Pre-fab
■ Foundations and footing
■ Roads and bridges
■ Swimmingpools
■ Floor heating

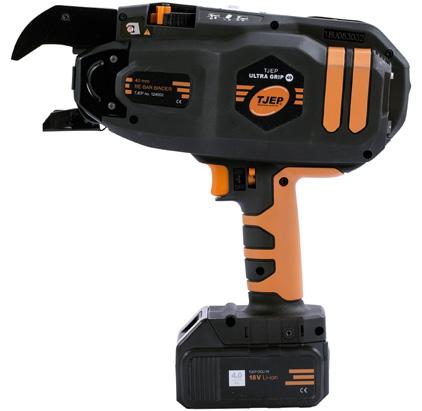

- BAR BINDER
1 18V brushless motors
2 Sealed gearbox for extra power
L: approx. 95 m Ø: 0.8 mm
ULTRA GRIP WIRE
SPECIFICATIONS
3 Optimised nose design with long lifetime, ensuring easier access to the point you want to tie
4 Longer and narrower handle for better ergonomics
5 18V 4Ah Li-ion slide-in battery
6 Connector for electronic extension
SHEATH FOR TJEP ULTRA GRIP Item no. 124203
EAN no. 5702551242032

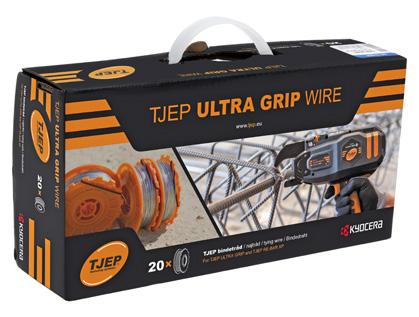

TJEP ULTRA GRIP WIRE
SUITABLE FOR
TJEP RE-BAR XP 25 Binder, RE-BAR XP 40 Binder, ULTRA GRIP 25, ULTRA GRIP 40, ULTRA GRIP 58

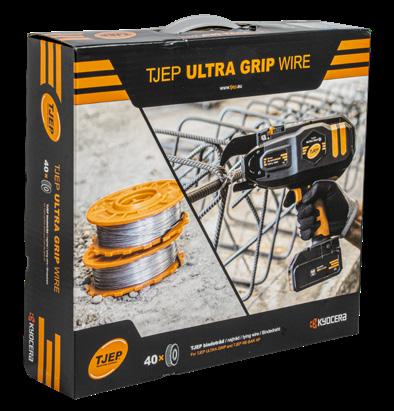

ULTRA GRIP WIRE
The TJEP ULTRA GRIP WIRE has high tensile strength and is very flexible and ductile – a specific combination that provides a perfect and efficient procedure, and a very strong tie. It ensures that reinforcement rods are tied tightly and securely.

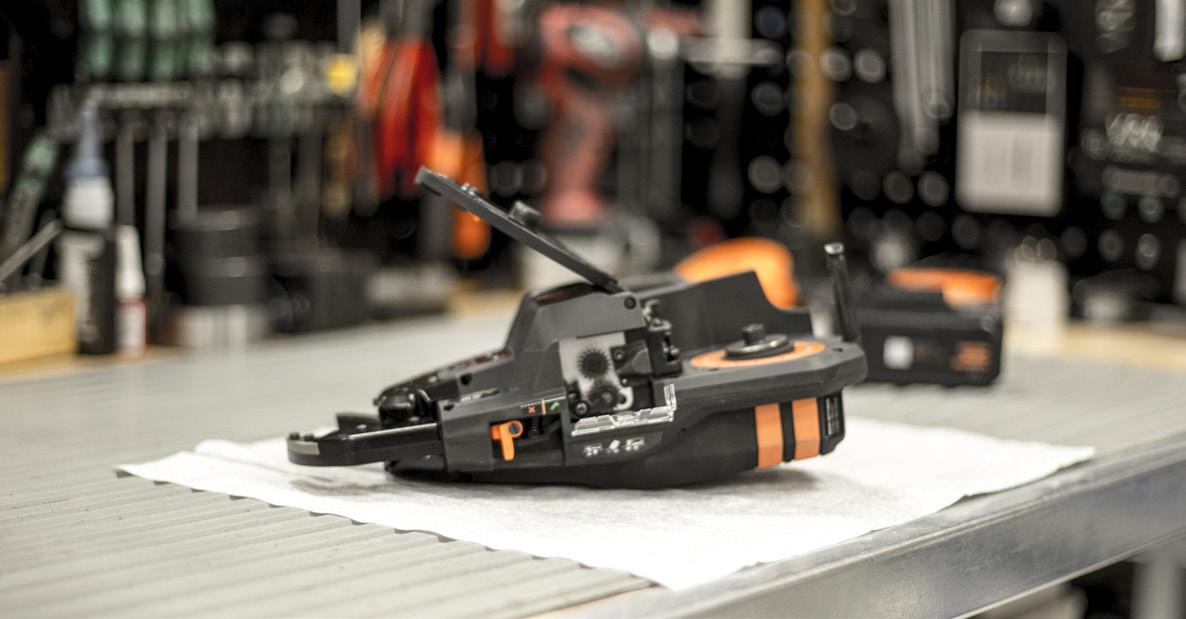

AUTHORISED TJEP SERVICE CENTRE
The TJEP service centre has extensive experience and expertise, having repaired and serviced many thousands of tools. This experience combined with continuous technical updating means that at all times you are ensured that your tools receive the best professional service. In other words, when your tool is returned, you can be completely certain that it is fully functional.
■ Free estimate before repair (all types)*
■ Fast and professional service with the industry’s most experienced service team.
■ Service history.
■ Guarantee for 100% functionality.
■ Repair/service of TJEP binders on an hourly basis (only original TJEP spare parts).
To learn more about TJEP repair and maintenance service, visit www.tjep.eu or telephone us on +45 89 87 80 10.
THE PERFECT CHOICE ...
An experienced partner
KYOCERA UNIMERCO Fastening A/S has extensive experience in providing advice, and in the sales and servicing of re-bar binders. The product range includes TJEP re-bar binders, tying wires and accessories that are well-suited to the tying of reinforced rods, underfloor heating pipes and more.
A wide range
For more than 60 years we have been a leading supplier of nail guns, nails and accessories in Europe. Today, the TJEP series has more than 70 different models of compressed air and gaspowered nail guns, staplers and finish nailers with an associated wide range of fasteners. The TJEP series also includes a number of compressors, re-bar binders, cutting and bending machines and more.
Details that make all the difference We believe in doing things well and exceeding expectations. Therefore, high quality, professional advice and good service are cornerstones of our business philosophy.
