CONCRETE CATALOGUE
Re-bar binders
Re-bar cutters
Duplex nailer
Concrete nailers
High pressure
www.tjep.eu
A GLOBAL COLLABORATION PARTNER
About Kyocera Unimerco
Kyocera Unimerco is a global manufacturer, distributor and service company.
The group includes a Tooling Division, which deals with consultancy and sales of tool solutions for machining and measurement and checking tools for the manufacturing industry, and a Fastening Division, which supplies a wide range of standard, brad and finish nailers, staplers, compressors, re-bar binders and cutters, and accessories for the construction industry.
More than 55 years of experience
The Danish company was founded in 1964 under the name UNIMERCO where the head office is in Sunds, near Herning, Denmark
In 2011, all activities were taken over by the Japanese company KYOCERA. This has created an even stronger company with an expanded product range, a wide network of companies and dealers throughout the world, and an ambitious growth plan.
The KYOCERA Corporation comprises more than 290 companies, 75.000 employees and generates sales of approximately EUR 13 billion.
1 18v brushless motors
2 sealed gearbox for extra power
3 Optimised nose design with long lifetime, ensuring easier access to the point you want to tie
4
5
SPECIFICATIONS
Item no.
EAN no.
size (L×W×H) 281 × 109 × 300 mm
2.50 kg
Workpc. thickness 8 - 25 mm

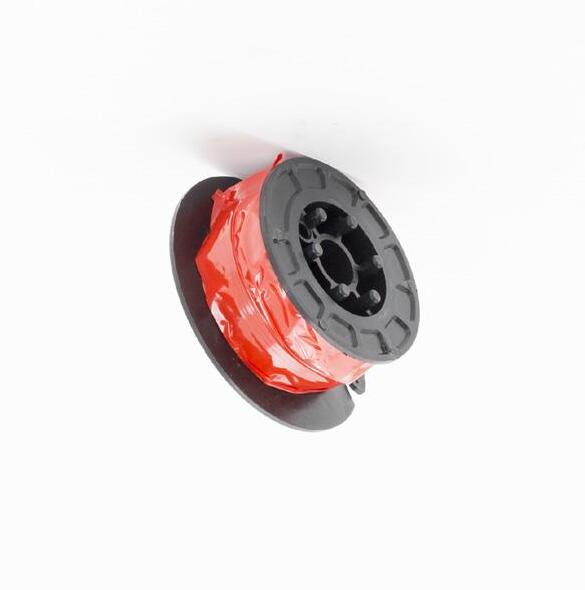

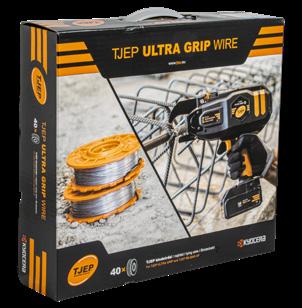

Ties per coil
Ties
- 3
- 220
1
2
3
4
5
SPECIFICATIONS
Item no. 124002
EAN no. 5702551240021
size (L×W×H) 297 × 109 × 300 mm
Weight 2.60
USED FOR
Floor Heating, Pre-fab, Rebar, Roads and bridges.

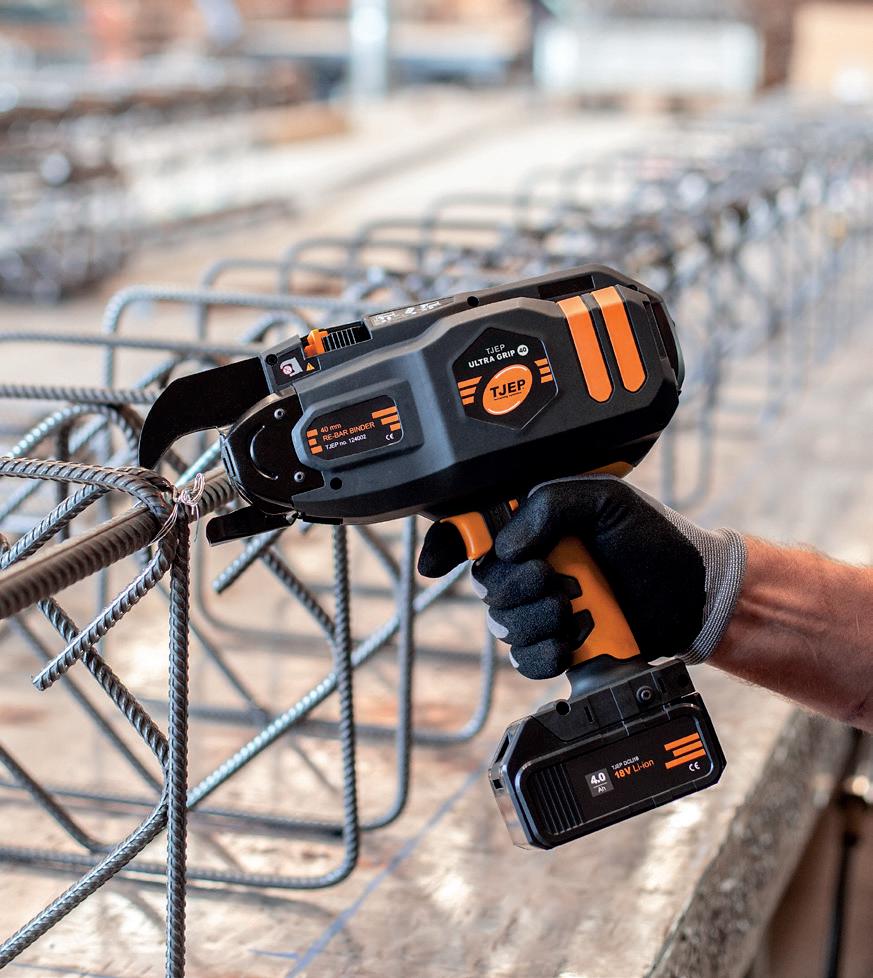

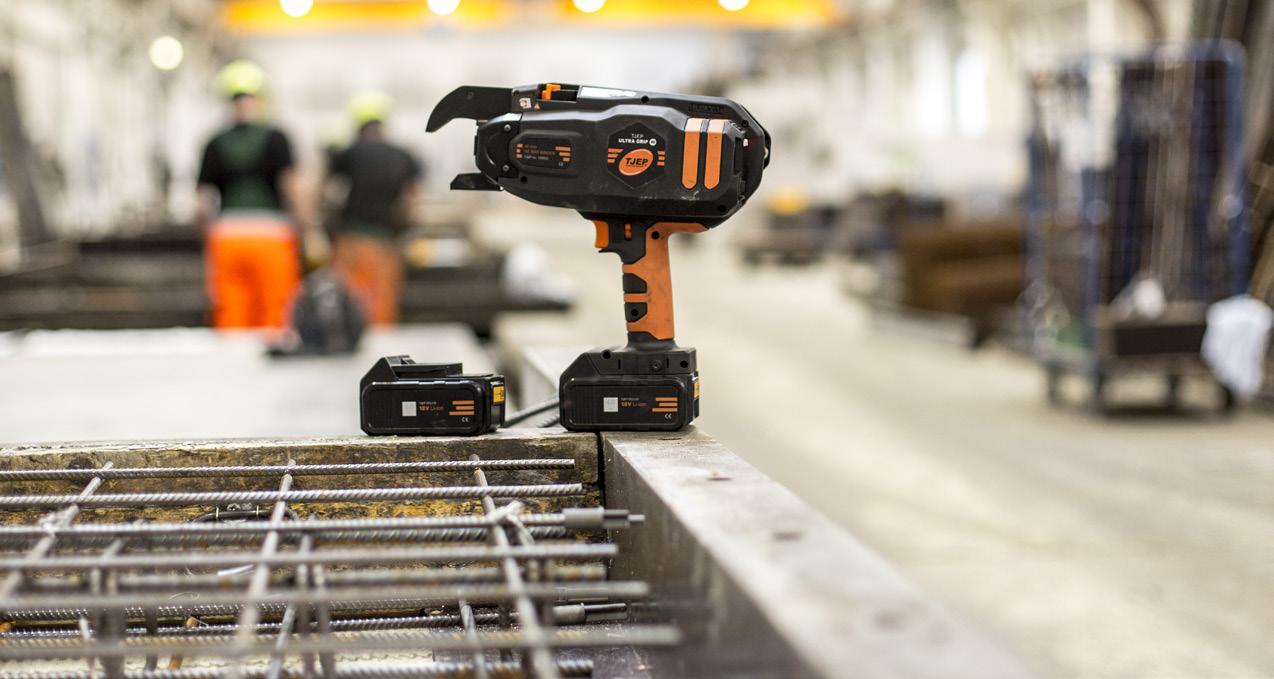

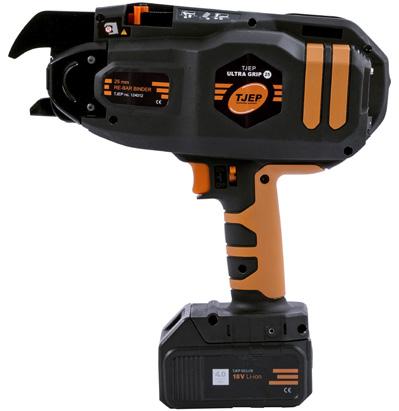

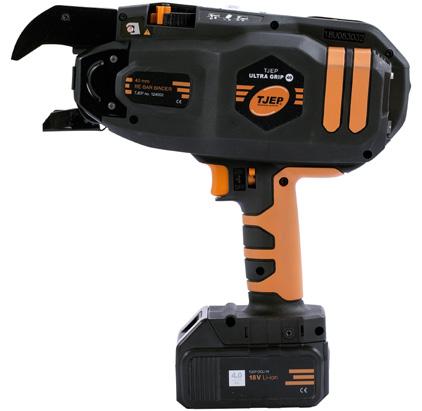

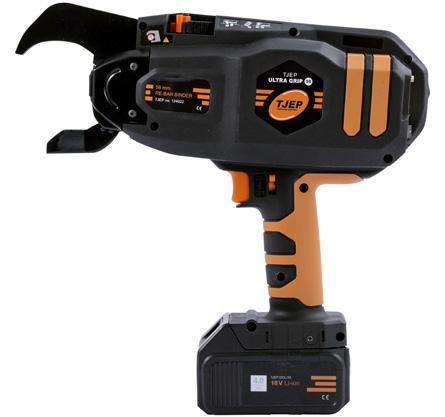

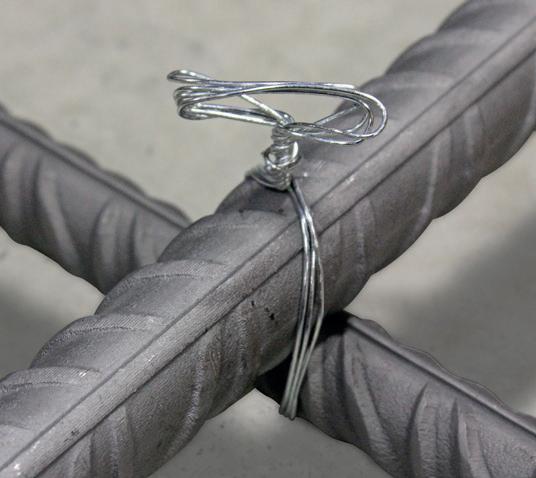

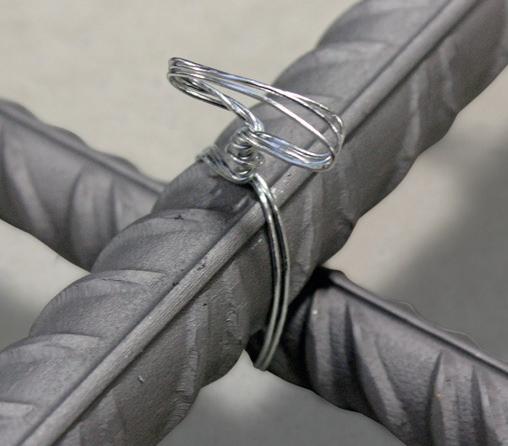

INCREASE EFFICIENCY WITH TJEP ULTRA GRIP

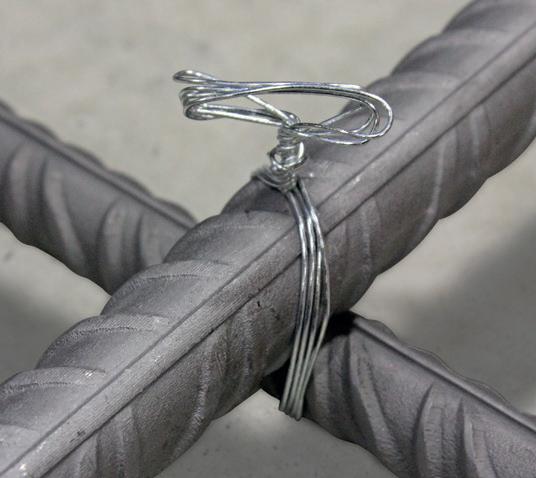

TJEP ULTRA GRIP re-bar binder increases your efficiency and improves your work environment significantly compared to the physically demanding, monotonous and time-consuming work of manual tying.
TJEP ULTRA GRIP is the 3. generation of re-bar binders from TJEP and is a further development of our popular XP re-bar binders. The knowhow gained from previous generations has been incorporated into the new ULTRA GRIP series, which sets new standards in tying speed and quality.
Easy and fast torque adjustment
1 18v brushless motors
2 sealed gearbox for extra power
3 Optimised nose design with long lifetime, ensuring easier access to the point you want to tie
4 Longer and narrower handle for better ergonomics
5 18v 4Ah Li-ion slide-in battery

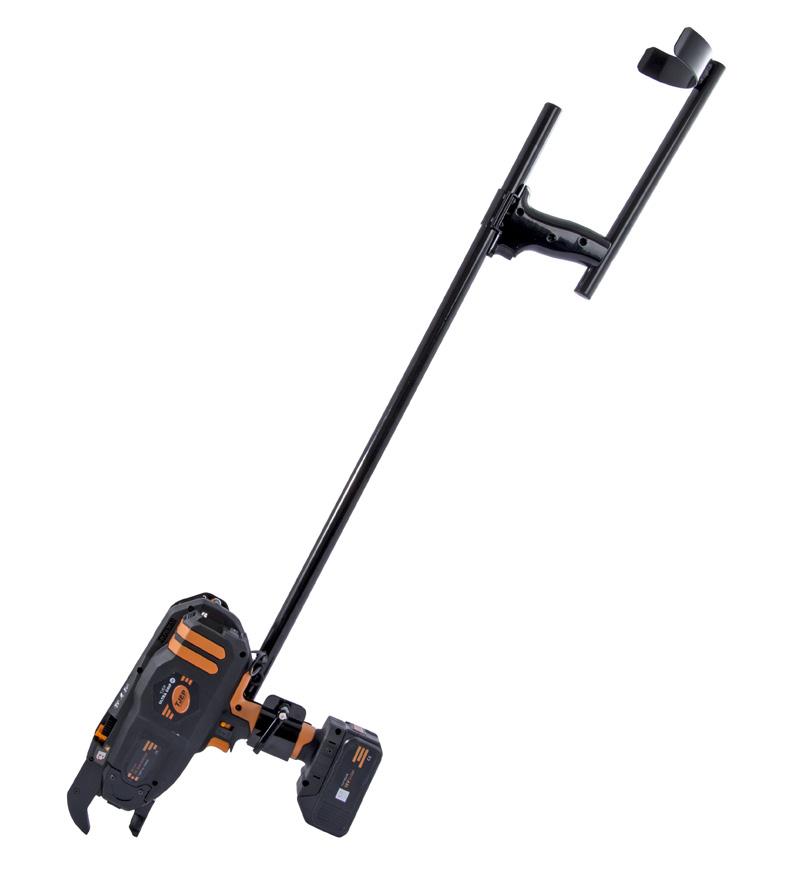

Connector for electronic extension
SPECIFICATIONS

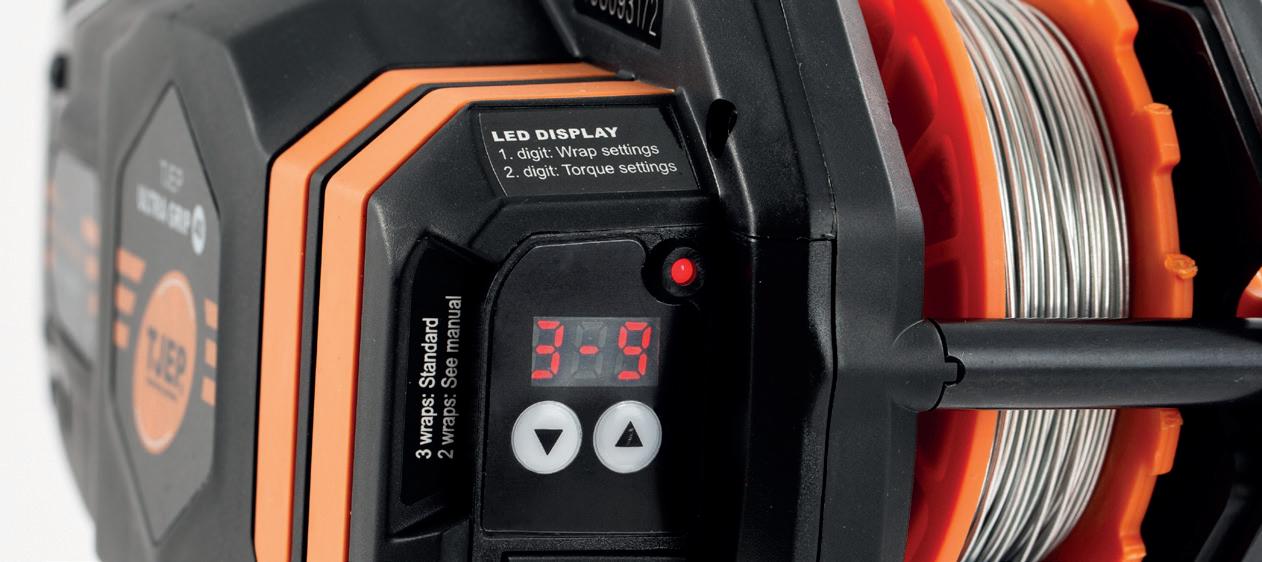

The new digital control panel ensures easy and fast torque adjustments, while the clear display gives you a quick overview of the current torque setting and number of wraps.
USED FOR
Foundations and footing, Pre-fab, Rebar, Roads and bridges, swimmingpools.
TJEP ULTRA GRIP 58
ACCEss ORIEs
Bag for collecting burrs
Low weight, fast and efficient
Removable side handle
SPECIFICATIONS
Item no. 102944
EAN no. 5702551029442 size (L×W×H) 438 × 133 × 83 mm Weight 3.50 kg
Workpc. thickness 10 - 20 mm
No-load blade speed Max. 2.000 rpm voltage 24V / 4Ah 2 2 1
ACCESSORIES
Description
TjEP Battery 4,0 Ah Li-ion 103900
TjEP battery charger for TjEP RC20A & RC30A 103965
TjEP RC20 Blade 102942
USED FOR Pipes, Rebar, Threaded rods.

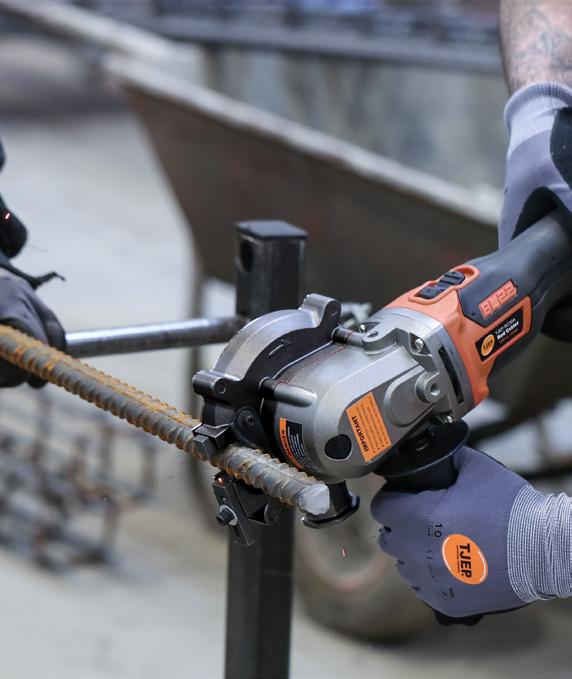

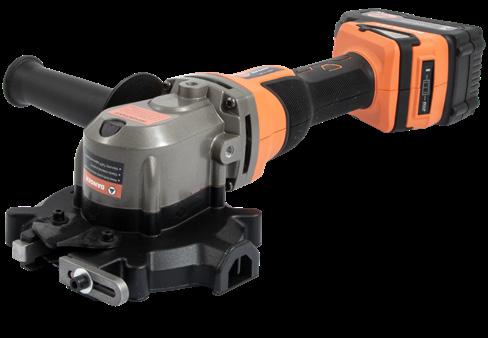

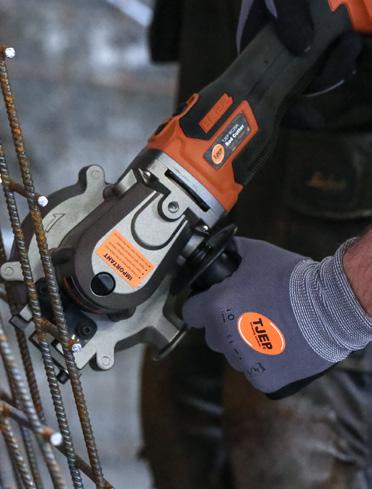

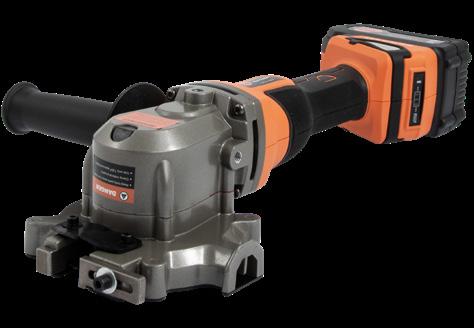

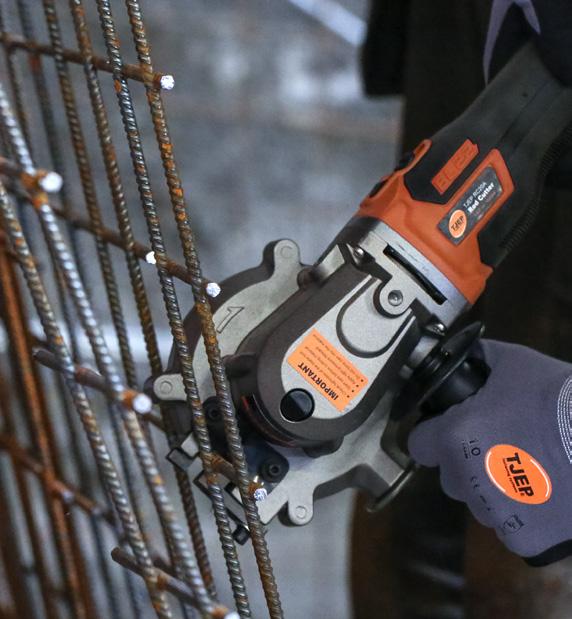

Tj EP RC20A / RC30A ROD CUTTER
Rod cutting of re‑bars up to Ø30 mm
Minimum of sparks
Low weight, fast and efficient
Removable side handle
SPECIFICATIONS
Item no. 102946
EAN no. 5702551029466
size (L×W×H) 445 × 133 × 83 mm
Weight 3.50 kg
Workpc. thickness 10 - 30 mm
No-load blade speed Max. 2000 rpm voltage 24V / 4Ah 2 2 1 1
ACCESSORIES
Description Item no.
TjEP Battery 4,0 Ah Li-ion 103900
TjEP battery charger for TjEP RC20A & RC30A 103965
TjEP RC30 Blade 102948
USED FOR Pipes, Rebar, Threaded rods.

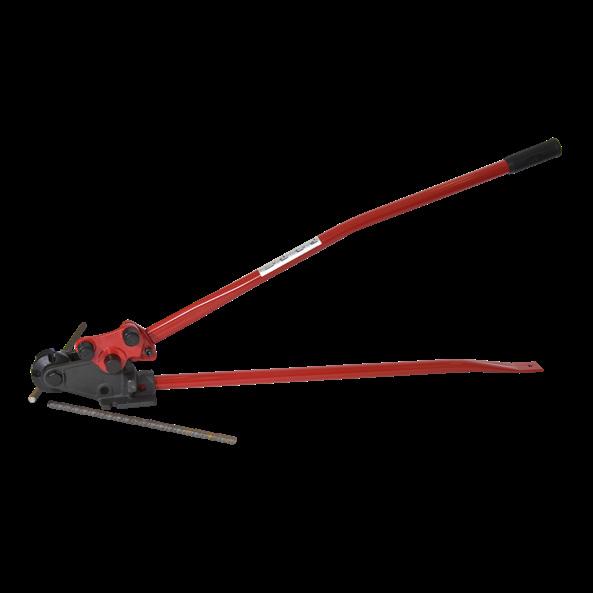

Cutterandbendertool!
Cuts and bend steel and re-bars, without tool change. special designed head makes the knife last longer.
SPECIFICATIONS
Item no. 102960
EAN no. 5702551029602
size 1320 × 120 mm
Weight 14.00 kg
Workpc. thickness 16 mm
Cutting capacity max. 16 mm 450 N / mm²
Bending capacity max. 16 mm 450 N / mm²
Bending angle max. 180°
Bending 1 max. 90°
Bending 2 max. 90°
USED FOR Rebar.
TJEP RC30A
Strongandreliable powerhouse!

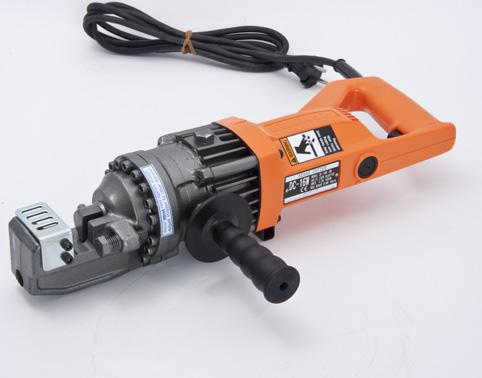

DIAMOND DC -16W
Cutting force: 13 t
Cutting speed: approx. 2,5 sec.
Cutter blades: Reversible
SPECIFICATIONS
Item no. 102970
EAN no. 5702551029701
size (L×W×H) 460 × 270 × 115 mm
Weight 8.00 kg
Workpc. thickness 0 - 16 mm
steel strength Max. 650 N / mm² Motor power 1,050W / 230V
USED FOR Rebar.

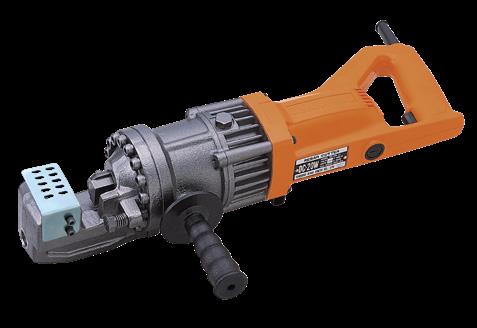

Thestrongestrebar cutter in its class!
DC -20W
Cutting force: 15 t
Cutting speed: approx. 3 sec.
Cutter blades: Reversible
SPECIFICATIONS
Item no. 102971
EAN no. 5702551029718
size (L×W×H) 500 × 150 × 135 mm
Weight 10.50 kg
Workpc. thickness 0 - 20 mm
steel strength Max. 650 N / mm² Motor power 2,500W / 230V 2 1
USED FOR Rebar.
DIAMOND
1
2
3
4
SPECIFICATIONS
of 3 to 5 sec.
SPECIFICATIONS
Item no. 103322
EAN no. 5702551033227 size (L×W×H) 405 × 113 × 305 mm
Weight 6.05 kg
Cutting capacity Φ 5 - 20 mm
Material tensile strength 400 - 500 MPa
Cutting speed 3 - 5 sec.
Cuts per battery charge
Approx. 109 (Φ 20 mm)
Approx. 210 (Φ 16 mm) Approx. 392 (Φ 12 mm)
USED FOR Cutting re-bars, carbon steel, hot-rolled round steel etc

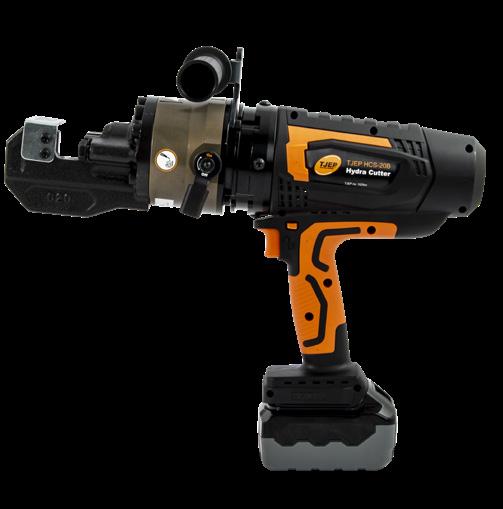

TJEP HCS -20B

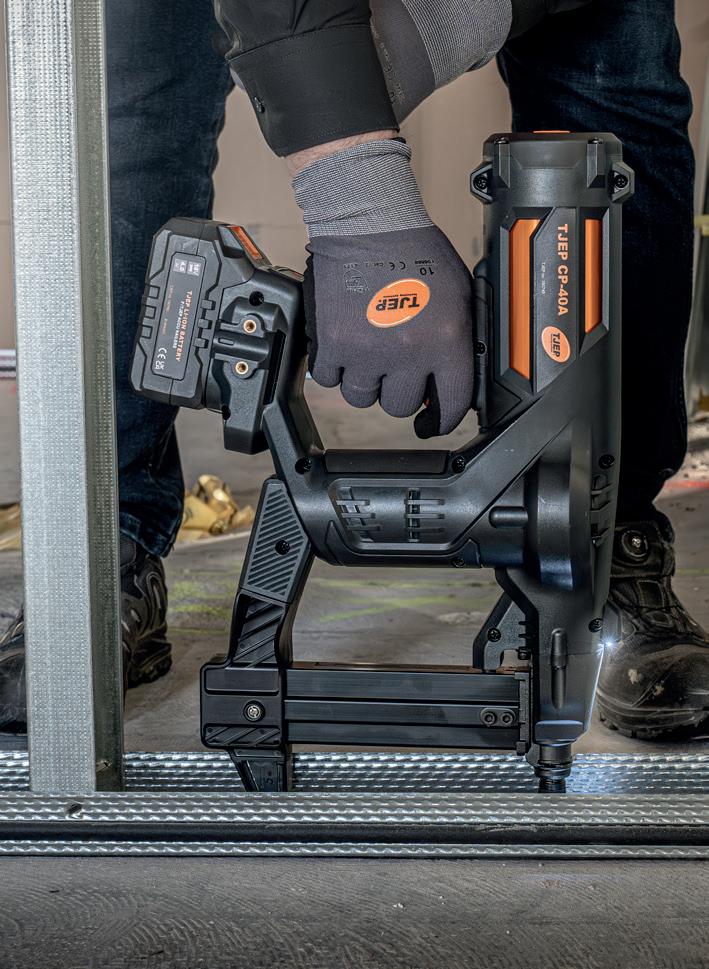

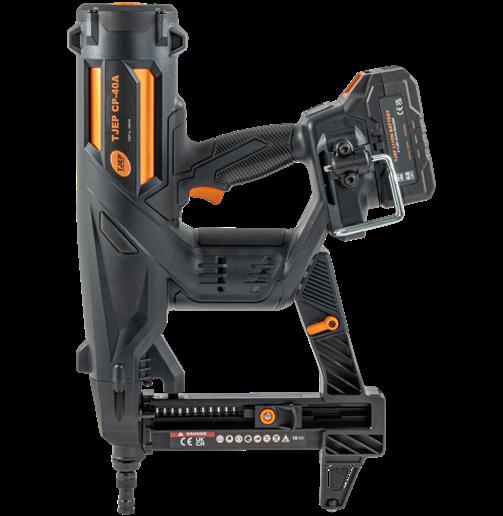

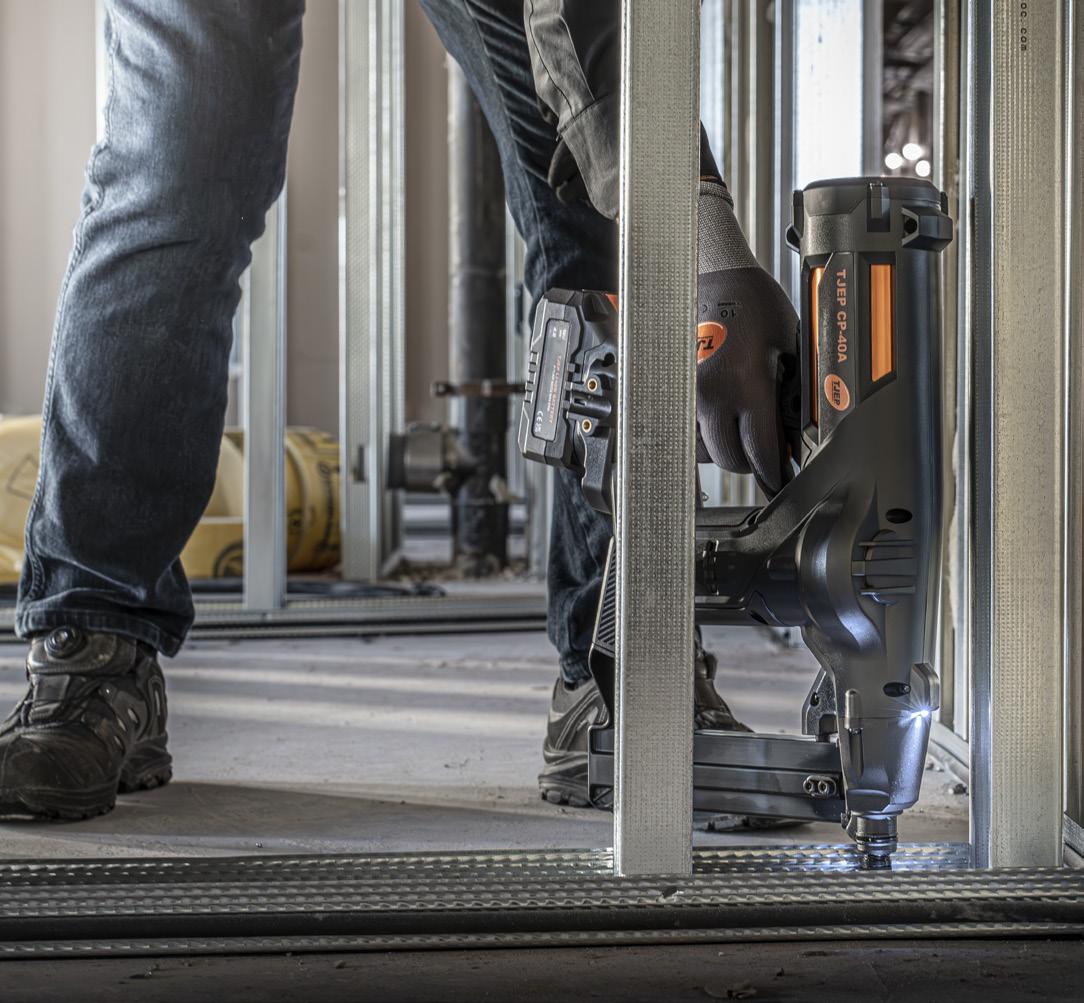

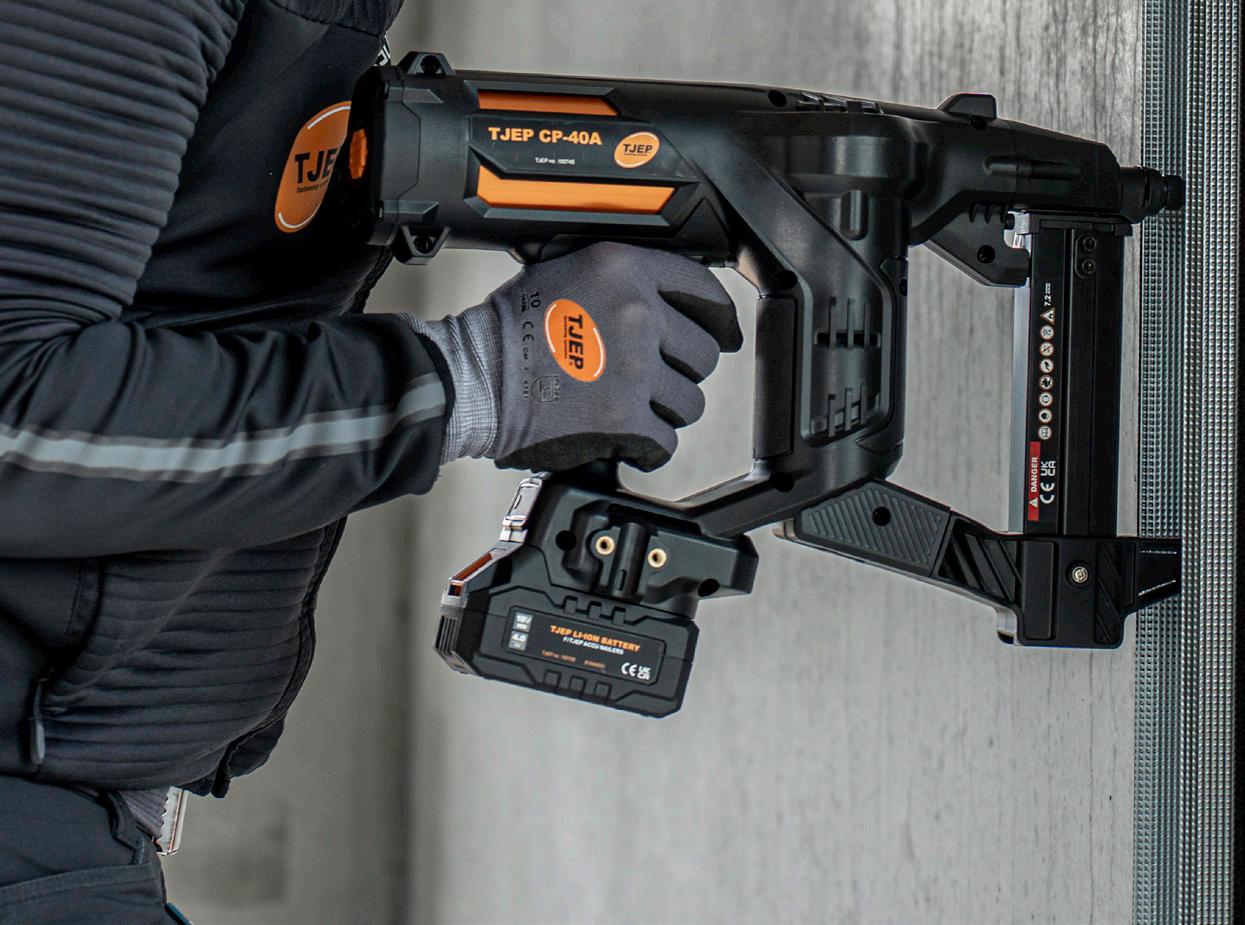

TJEP CP - 40A
3
6
CORDLE ss CONCRETE NAILER
18v Li-Ion battery, 4.0 Ah capacity. This ensures sufficient power to shoot approx. 700 shots per battery charge.
TJEP CONDUITE STRAP

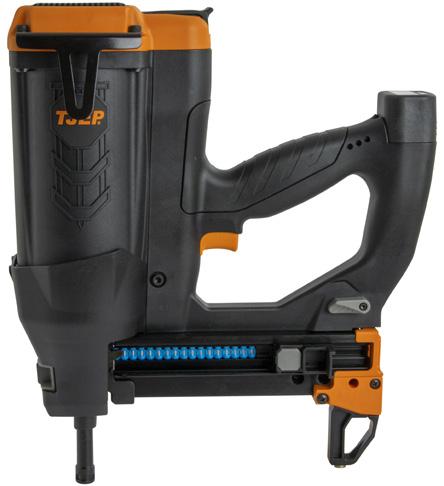

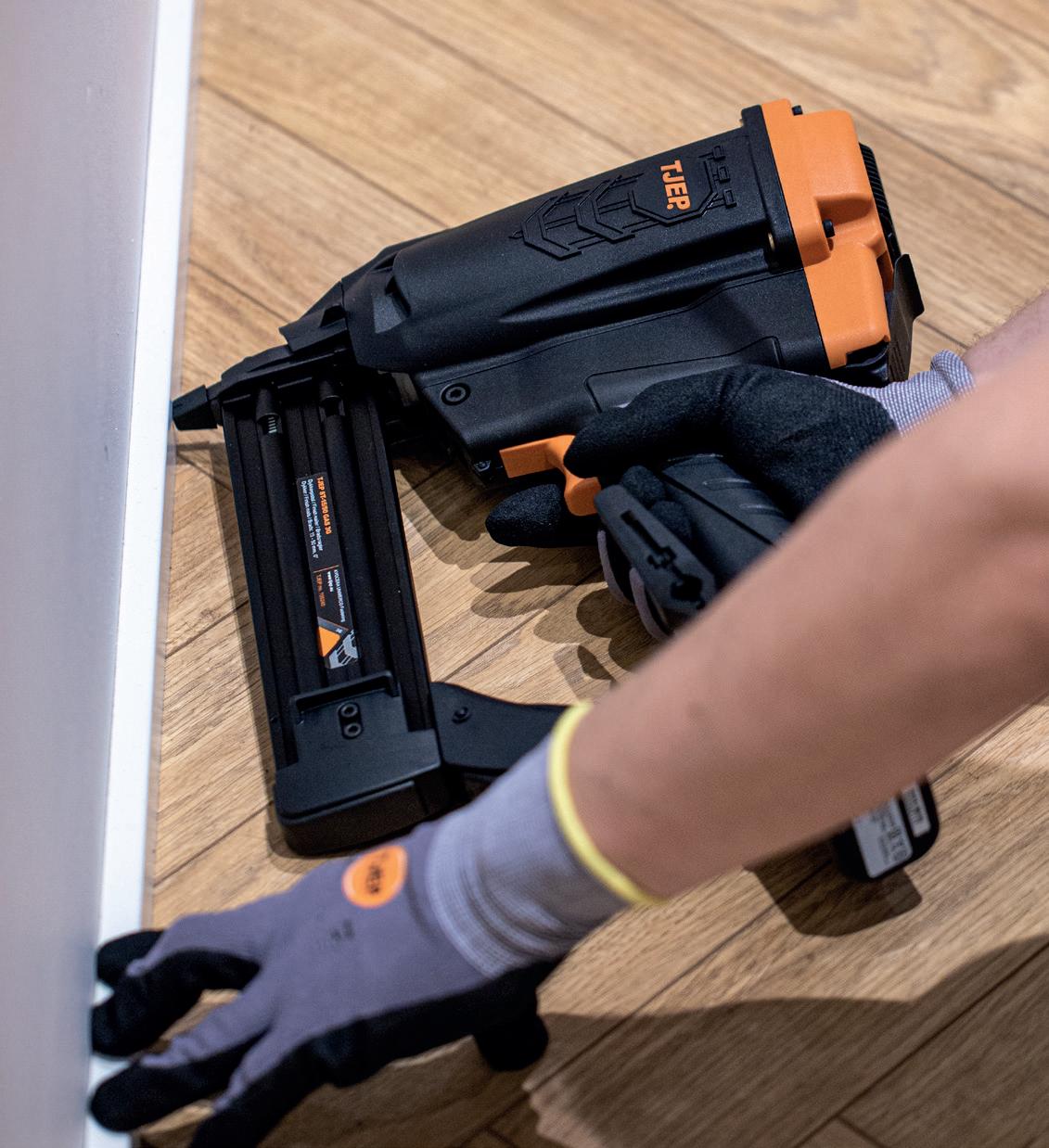

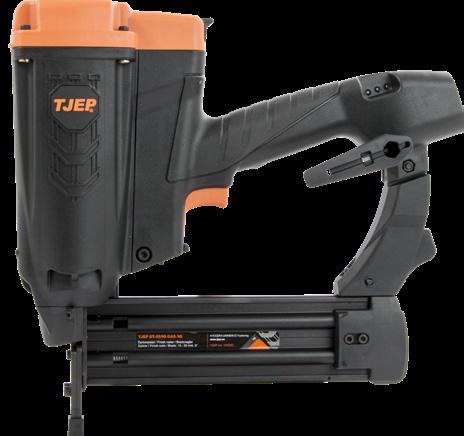

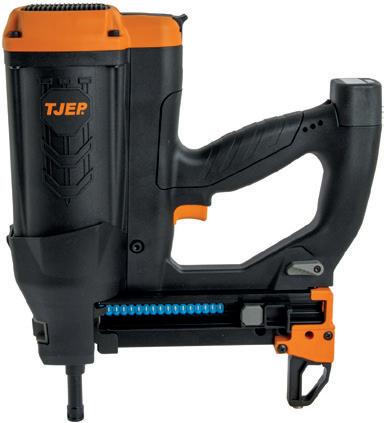

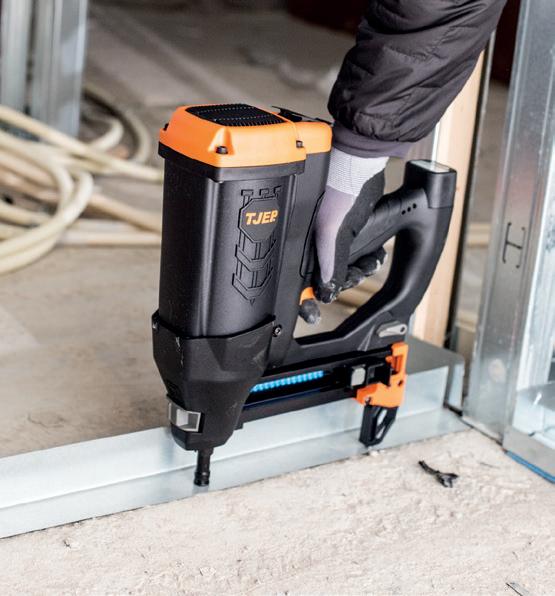

TJEP ST-15/50 GAS 3G CONCRETE FINISH NAILER
Smart design.
Excellent ergonomics and balance. Long battery lifetime with Li-Ion.
TJEP ST-15/50 GAS 3G
1 No-mark nose 2 safety bracket integrated in nose
Adjustable depth control
Non-slip grip

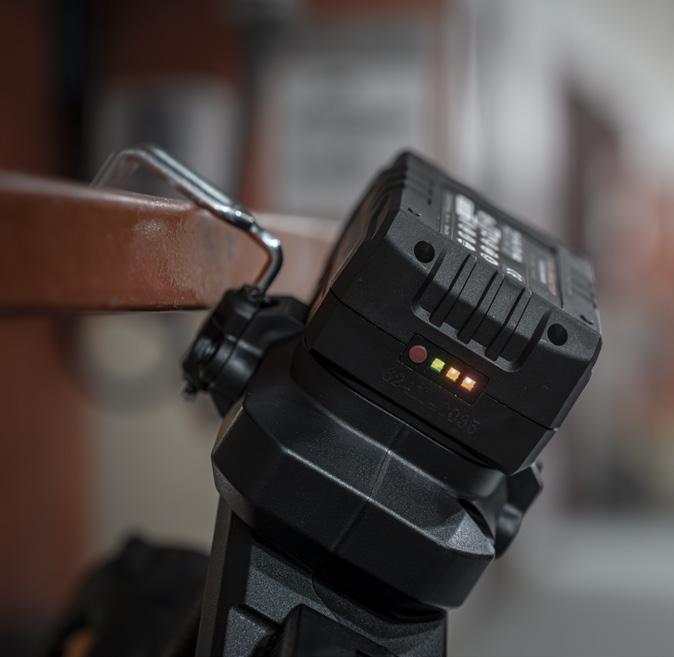

Rafter/belt hook
Battery indicator and quick charge function
QUICK - GUIDE
USED FOR Architraves, skirting.
Fordouble‑headnails!
Withplasticwasher –forconcrete!

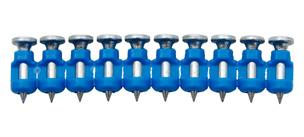

CPPW CONCRETE-/STEELPIN

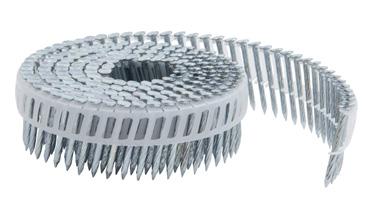

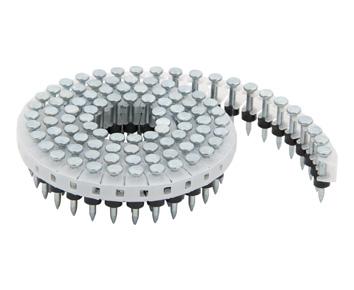

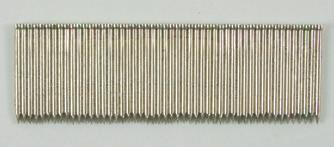

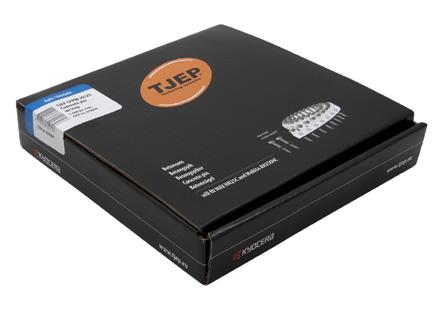

CPPW Concrete Pins
EAN no. 0088381605106
length 15 - 25 mm
(L×W×H) 295 × 128 × 291 mm
TjEP HP airhose, 15 m
TjEP HP hose reel, 30 m
WILL FIT MAX HN120
CPPW CONCRETE-/STEELPIN, STEPPOINT
CPPW TWISTED CONCRETE-/STEELPIN
*Mounting on a foundation of 1-4 mm steel or on concrete.

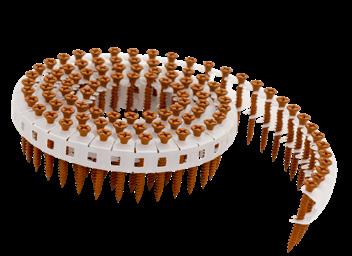

HP SCREWS FINE THREAD, HARD DRYWALL
*With CE approval EN 14566
HP SCREWS COMBI, DRYWALL/STEEL/WOOD
All tools supplied by TjEP are quality products, that are manufactured from high-grade materials and are subject to stringent checks with a view to ensuring that the tools can be used for many years without problems. However, professional service and maintenance of your tools are necessary to ensure effective and continuous operation on the construction site.
Should the tool be sent for service?
We have a dedicated team ready to service your tools, but as there are many issues that can be resolved over the telephone, we recommend that you call us on one of the contact numbers on this page, before you send the tool for repair. By doing so, you avoid being without the tool unnecessarily.
CE approval EN 14566
Where should tools be sent to?
TJEP/MAKITA NAILERS, TJEP HP COMPRESSOR*,
TJEP RE - BAR BINDERS AND CUTTERS: Kyocera Unimerco Fastening A/s, Drejervej 2, 7451 sunds Tlf. +45 89 87 80 10
TJEP HP SCREWS, 0°
