119016 - Sigma 2598-LB / 119011 - Sigma 2598-SB

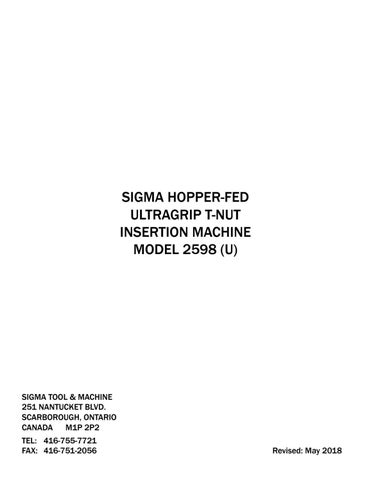

SIGMA HOPPER-FED ULTRAGRIP T-NUT INSERTION MACHINE MODEL 2598 (U)

SIGMA TOOL & MACHINE 251 NANTUCKET BLVD. SCARBOROUGH, ONTARIO CANADA M1P 2P2 TEL: 416-755-7721 FAX: 416-751-2056

Revised: May 2018

REVISED MAY 2018

Contents 1.

SIGMA MODEL 2598 T-NUT DRIVE MACHINE...................................................................................... 5

2.

SIGMA ULTRAGRIP AND COUNTERBORE T-NUTS................................................................................ 6

3. INSTALLATION........................................................................................................................................ 7 4.

SAFETY FEATURES................................................................................................................................. 8

5.

MACHINE SET UP................................................................................................................................... 9 5.1 Overview.............................................................................................................................................. 9 5.2 Guide Pin........................................................................................................................................... 10 5.3 Anvil Locating Pin..............................................................................................................................11 5.3.1 Standard Anvil Locating Pin (Non Rivetting)....................................................................................11 5.3.2 Rivet Anvil Locating Pin.....................................................................................................................12 5.5 Height Adjustment............................................................................................................................ 14 5.6 Drive Cylinder....................................................................................................................................15 6.

MACHINE OPERATION......................................................................................................................... 16 6.1 Start-up.............................................................................................................................................. 16 6.2 Operation........................................................................................................................................... 17 6.3 Drive Pressure...................................................................................................................................18 6.4 Safe Operating Procedures..............................................................................................................19 6.5 Drain Air-Line Filter............................................................................................................................20 6.6 Check Air-Line Lubrication................................................................................................................ 21 6.7 Adjusting Anvil Air..............................................................................................................................22 7. MAINTENANCE..................................................................................................................................... 23 7.1 Guide Pin/Drive Rod Spring.............................................................................................................23 7.2 Anvil Locating Pin.............................................................................................................................. 24 7.3 Escapement Finger Springs............................................................................................................. 24 7.4 Drive Cylinder....................................................................................................................................25 7.5 Correcting Alignment ......................................................................................................................26 7.5.1 Track Alignment.................................................................................................................................26 7.5.2 Feed Bowl Alignment........................................................................................................................28 7.5.3 Anvil Alignment..................................................................................................................................29 7.6 Feed Bowl Adjustment......................................................................................................................30 7.6.1 Feed Bowl Magnet............................................................................................................................30 7.6.2 Track Proximity Sensor......................................................................................................................30 7.6.3 Feed Bowl Control............................................................................................................................. 31 7.7 The Pneumatic Circuit.......................................................................................................................32 7.7.1 Overview............................................................................................................................................32 REVISED MAY 2018

7.7.2 7.7.5 8.

8.1 8.2 8.3

Control Circuit....................................................................................................................................33 Troubleshooting Pneumatic Circuit Problems.................................................................................36 OPTIONAL EQUIPMENT........................................................................................................................ 37 3/8 or 10mm Conversion Kit........................................................................................................... 37 High Capacity Hopper....................................................................................................................... 37 Work Table......................................................................................................................................... 37

9.

TROUBLE SHOOTING............................................................................................................................ 38 9.1 T-Nuts are Jamming in the Feed Bowl.............................................................................................38 9.2 Machine Will Not Drive.....................................................................................................................38 9.3 Chip in Thread of T-nut.....................................................................................................................38 9.4 T-Nuts are driven in on their side.....................................................................................................38 9.5 Machine Misfires...............................................................................................................................38 9.6 Damaged T-Nut Threads...................................................................................................................39 9.7 T-Nut not Flush with workpiece........................................................................................................39 9.8 T-nuts Jamming in Track...................................................................................................................39 9.9 Air Escaping from Foot Pedal Continously.......................................................................................39 9.10 Drive Rod Does not Return after Driving T-nut................................................................................39 10.

TOOLS AND SPARE PARTS.................................................................................................................. 40

11. SPECIFICATIONS.................................................................................................................................. 41 12. APPENDIX............................................................................................................................................. 42

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

1.

PAGE 5

SIGMA MODEL 2598 T-NUT DRIVE MACHINE

The Sigma 2598 Hopper-fed T-nut Drive Machine locates and inserts t-nuts into wood, plastic or fibreboard workpieces. The t-nuts are loaded into a vibratory feed bowl and are fed automatically into position under a pneumatically operated driver. The operator locates a hole in the workpiece under the driver and depresses a foot pedal to activate the driver and insert the t-nut.

The Model 2598 is suitable for a wide variety of t-nut insertion applications. The rugged design has a number of outstanding features: (1) Powerful steel frame that is built to withstand the punishment of rivetting or flaring applications. The Sigma flaring system provides extreme resistance to push-out by rivetting the t-nut into place.

(2) Flexible design that allows for quick access to components for easy maintenance and fast changeover between different t-nuts.

(3) High performance feed system that keeps up with the fastest operator without jamming.

(4) Lower noise level as a result of the heavy steel frame which absorbs the shock of impact.

(5) Choice of drive system that allows machine to be tailored to virtually any application.

REVISED MAY 2018

PAGE 6

2.

MODEL 2598(U) T-NUT DRIVE MACHINE

SIGMA ULTRAGRIP AND COUNTERBORE T-NUTS

Sigma patented Ultragrip and Counterbore t-nuts have been specifically engineered for trouble-free operation. A patented shoulder design [1] prevents them from shingling in the machine track to eliminate jamming. Superior holding power for the Ultragrip t-nuts is provided by long serrated prongs [2].

The Sigma Counterbore t-nuts have all the same features as Ultragrip, but have an unthreaded portion [3] at the top of the barrel which can be flared open. When configured with special tooling, the barrel is flared open slightly during insertion to create extra holding power in the workpiece [4].

Sigma Ultragrip and Counterbore t-nuts come in a wide variety of inch and metric sizes suitable to virtually all applications. Small base t-nuts for the 2598-S are available in thread sizes from 8-32 to 1/4-20 (4mm to 6mm). Large base t-nuts for the 2598-L are available in thread sizes from 1/4-20 to 3/8-16 (6mm to 10mm).

Consult a Sigma representative to recommend the suitable t-nut size for any application, and also provide you with additional information about the following options for special requirements: (1) Special Finishes. Various special finishes are available that can provide increased rust protection if required. A range of options the equivalent of 50 to 1000 hours of salt spray protection are available.

(2) Torq-Loq T-Nuts. This optional locking feature on the barrel increases resistance to bolt turnout. Small indentations on the outside of the barrel deform the threads on the inside resulting in increased holding power available in varying amounts, depending upon application and desired effect.

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 7

3. INSTALLATION The Model 2598 Drive Machine requires compressed air and a single phase electrical connection for the vibratory feed bowl. The shipping crate contains the following: - 2598 Drive Machine - tool box - wedge anchors for mounting machine - allen keys and spare parts - bottle of air-line lubricating oil (1) Select a location with good clearance all around. There should be enough space so that workpieces can be kept within easy reach of the operator.

(2) Bolt machine to floor. 1/2 x 3 inch wedge anchors have been provided to mount the machine to the floor.

(3) Plug power cord for vibratory feed bowl into standard single phase outlet.

(4) Connect compressed air using 3/8 inch (10mm) minimum diameter hose and a quick disconnect air fitting.

Warning: Make certain that anvil is clear before connecting air (5) To prevent spillage of oil, machines may be shipped with no oil in air-line lubricator. Check level of oil in lubricator and add oil if necessary (a bottle of oil is shipped with every machine).

Refer to section 6.6 for detailed instructions.

REVISED MAY 2018

PAGE 8

4.

MODEL 2598(U) T-NUT DRIVE MACHINE

SAFETY FEATURES

The Model 2598 Drive Machine is equipped with a number of safety features to enhance the security of the operator using the machine.

Anvil Safety. The anvil safety valve [1] prevents the machine from driving unless the workpiece located on the anvil pin is pressed down [2].

Drive Rod Guard & Safety Arm. The drive rod guard [3] and the steel cage of the safety arm [4] enclose the path of the drive rod to protect the operator during the drive operation.

Covered Foot Switch. A covered foot switch [5] reduces the risk of unintentional cycling of the machine.

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

5.

PAGE 9

MACHINE SET UP

5.1 Overview

To obtain the highest performance and productivity, the Model 2598 T-nut Drive Machine must be properly set up for each application. The following points need to be considered: (1) T-nut Selection. The style, size and height of the t-nuts must be chosen depending on the requirements of the application. A Sigma representative can assist you in selecting the most appropriate t-nut for your application.

(2) Hole Size in Workpiece. Use the hole diameter recommended for the particular t-nut used in the application. Undersized holes may result in chips of workpiece material blocking the thread of the t-nut after insertion. Where the hole is tapered, the minimum hole diameter must be larger than the barrel diameter of the t-nut. Refer to Table in Appendix see page 49.

(3) Guide Pin. The guide pin is the spring loaded pin located at the tip of the drive rod. The guide pin must be chosen to match the t-nut to be used.

(4) Anvil Locating Pin. The anvil locating pin is located in the centre of the anvil. The anvil pin should be chosen to suit the size and type of hole in the workpiece. A different style of pin is required to flare or rivet t-nuts in place.

(5) Feed Track Sensor. The feed track sensor is a proximity sensor that is mounted directly in the feed track. It detects the presence of a tnut in the track to command the feeder cube on/off to keep the track full of tnuts. An led light indicates proper function of the system. Ensure it is flush with the bottom of the track, and always kept clean.

(6) Work Height. The height of the frame can be raised or lowered to suit the operator or to accommodate specific workpieces.

(7) Drive Cylinder Size. Several sizes of drive cylinder are available. Each offers a different range of power. Factors affected by the choice of cylinder include noise, impact shock, and cycling speed.

REVISED MAY 2018

PAGE 10

5.2

MODEL 2598(U) T-NUT DRIVE MACHINE

Guide Pin

The Guide Pin [1] is a spring loaded pin located at the lower tip of the drive rod [2]. Its purpose is to keep the t-nut positioned on the guide rod during the downward stroke of the piston.

The diameter of the pin should be slightly less than the inside diameter of the t-nut, and the t-nut should slide easily over the pin without binding.

If the Guide Pin is broken or damaged, if the Spring is broken, or if the incorrect size of pin is being used, the Guide Pin or Spring must be replaced.

Refer to Section 7.1 for instructions on removing the drive rod and changing the Guide Pin or Spring.

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

5.3

PAGE 11

Anvil Locating Pin

The anvil locating pin [1] is located in the centre of the anvil. Its primary purpose is to accurately locate the hole in the workpiece prior to driving the t-nut. In a rivetting application, the anvil pin also provides the bearing surface on which the t-nut is flared open. A spring retaining pin [2] locks the anvil in the anvil holder. Air supplied to the anvil body [3] prevents build-up of wood chips.

A wide variety of standard anvil pins are available for different applications. In some cases, a custom made pin will be required. A Sigma representative can assist you selecting the appropriate anvil pin for your application. Refer to section 7.2 for instructions on removing the anvil pin.

5.3.1 Standard Anvil Locating Pin (Non Rivetting)

Standard anvil locating pins are used in non-rivetting applications. Select a pin which is slightly smaller than the diameter of the hole into which the t-nut is to be inserted [1]. The tip of the pin should fit easily into the hole without binding. However, if the pin is too small, the workpiece may not be properly located when the t-nut is inserted, and the t-nut can catch the side of the hole, causing a chip to be lodged in the thread of the t-nut.

Holes that have been punched or moulded rather than drilled are often tapered. To locate such holes reliably, a custom made pin may be required. Contact a Sigma representative for a consultation and test pieces if required.

REVISED MAY 2018

PAGE 12

MODEL 2598(U) T-NUT DRIVE MACHINE

5.3.2 Rivet Anvil Locating Pin

The rivet anvil locating pin rivets a counter-bore rivet style t-nut (CR) into the workpiece by flaring open the un-threaded portion of the CR t-nut [1] to significantly increase the resistance to pushout during assembly operations. This flaring action is adjustable to either flush on the surface of the workpiece [2] or inside the hole [3] depending upon the application.

The amount of flaring or rivetting action is adjusted by raising or lowering the rivet anvil pin in the holder. Adjust the height of the pin by releasing the locknut with a wrench [4] and turning the adjustment screw with a hex key [5]. Turning the screw counter-clockwise will raise the pin in the holder and increase the amount of flaring, while turning the screw clockwise will lower the pin and reduce flaring. Always secure the lock-nut tightly after making adjustments.

Note: Do not over flare the CR t-nut or damage to threads is possible. Always periodically check the set-up with a bolt.

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

5.4

PAGE 13

Feed Track Sensor

The feed bowl sensor [1] is mounted on the track, as shown in the figure below. The sensor sends a signal to the vibratory feed control box [2] to keep the track full of t-nuts.

Note: Only use a soft cloth to clean the track otherwise damage to sensor may occur.

REVISED MAY 2018

PAGE 14

5.5

MODEL 2598(U) T-NUT DRIVE MACHINE

Height Adjustment

The height of the 2598 steel frame is adjustable to suit the operator and the application. By adjusting the machine to the appropriate level, operator performance and quality of work will be optimized.

Note: To safely perform this procedure, always use a hoist or forklift as a lifting device.

(1) Carefully loop a sling securely around the upper frame of the machine (2) Remove only the front bolts [1] attaching the frame to the front leg.

(3) Raise the machine to the desired height and replace the bolts to the correct holes.

(4) Then repeat the procedure for the rear bolts.

Note: Ensure all 4 bolts are secure before operating machine.

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

5.6

PAGE 15

Drive Cylinder

A number of drive cylinders [1] of different heights are available with the Model 2598 T-nut Insertion Machine. The taller the cylinder, the more power it provides at a given drive pressure.

Consider using a shorter cylinder if an application requires drive pressure below 20 PSI (1.3 bar). If a workpiece consists of soft material, it may be essential to use the shorter cylinder to achieve consistent depth of drive.

Use a taller cylinder if an application requires drive pressure above 90 PSI (6 bar). The taller cylinder will provide the same power at a lower pressure setting, while also reducing the noise level.

When specifying the cylinder, measure the height from above the upper cap [2] to under the lower plate [3].

REVISED MAY 2018

PAGE 16

6.

MODEL 2598(U) T-NUT DRIVE MACHINE

MACHINE OPERATION

6.1 Start-up

Prior to commencing work with the Model 2598 t-nut drive machine, the operator should follow these steps: (1) Check that the feed bowl is approximately half full of t-nuts.

(2) Switch feed bowl toggle [1] to ON. Bowl will start to feed only if track is not filled with t-nuts up to the feed track sensor. Adjust knob [2] on feed control box to control feed rate of bowl.

(3) Make certain that the feed bowl stops vibrating once the t-nuts have filled the track. If the bowl keeps running it may indicate that the shut-off sensor is not in the correct position, and this could cause t-nuts to jam repeatedly in the feed bowl.

(4) Connect air pressure only when anvil is clear.

(5) Check that the anvil safety is working properly. Connect the air, and hold down foot pedal without locating a workpiece on the anvil. If the machine cycles, then the safety is ineffective, and the machine should not be used until the problem has been corrected. If air escapes continuously from safety valve [3] while the foot pedal is being held down, then the connection hoses to the safety valve have been reversed in error (Sect 7.7.3).

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 17

6.2 Operation

Slide the workpiece under the safety arm and locate the hole over the anvil pin. The grated area of the safety arm allows visibility to assist the operator in locating the hole.

Once over the hole, the operator must apply a slight downward force to depress the anvil safety. When the anvil safety has been pressed, the operator must press the foot pedal to drive a t-nut into the hole.

Note: Periodically check t-nuts with a bolt after inserting into workpiece.

It is good practice to periodically check the t-nuts after they have been inserted with a bolt.

If it is difficult to start the bolt because of chips of material have become lodged in the thread or some other reason, the setup of the machine should be adjusted to correct the problem. With rivetting or flaring t-nut, it is particularly important to be sure that the threads are not being collapsed by over-rivetting.

REVISED MAY 2018

PAGE 18

6.3

MODEL 2598(U) T-NUT DRIVE MACHINE

Drive Pressure

The main pressure regulator [1] and gauge [2] provide precise control of the force used to drive the t-nut. To drive the t-nut deeper into the workpiece, increase the drive pressure.

Note: It is recommend to check t-nut insertion periodically both visually & with a bolt to ensure the drive pressure is properly set for the application.

Between the main pressure regulator and the main valve is the return regulator [3]. This regulator controls the air pressure used to return the piston back to the top of the cylinder after the drive stroke. It is not recommended that the pressure of the return regulator exceeds 25psi.

Note: When rivetting t-nuts check the t-nut after insertion with a bolt periodically to ensure that no over-flaring is occurring

Behind the main valve is the smaller return regulator [3]. This regulator controls the air pressure used to return the piston to its raised position after a t-nut has been inserted. The return regulator [3] is factory set and should not be adjusted. If the return pressure is set too high, it will steal power away from the drive stroke (see Section 7.7.4)

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

6.4

PAGE 19

Safe Operating Procedures

Caution should be exercised at all times when working with the machine. Safe work practices must be instituted and enforced. Following is a general guide to safe operation of the machine.

(1) Compressed air should be disconnected when machine is not being used.

(2) The machine should not be operated if the safety features have been removed, disabled or are not working.

(3) The anvil safety [1] should be checked daily to ensure that it is functioning correctly (Section 6.1).

(4) Operators should never place their hands between the safety arm [2] and the anvil unless the compressed air is disconnected.

(5) When clearing any jam from the under the drive cylinder, the compressed air must be disconnected.

(6) Prior to performing any maintenance compressed air should be disconnected and power to the feed bowl removed.

(7) Operators should be trained on the proper use of foot-pedals. When a piece is finished or the work flow is interrupted, the operator should completely remove his or her foot from the foot-pedal.

REVISED MAY 2018

PAGE 20

6.5

MODEL 2598(U) T-NUT DRIVE MACHINE

Drain Air-Line Filter

The air-line filter [1] removes water and particles from the compressed air supplying the machine. The water should be drained regularly and the filter cleared to ensure proper functioning of all valves and controls.

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 21

6.6

Check Air-Line Lubrication

Note:Failure to maintain air-line lubrication can cause unpredictable machine behaviour.

The manual lubricator [1] provides lubrication to all necessary components of the pneumatic system.

Periodically pull the handle [2] to inject oil into the machine. Periodically check the oil level in the lubricator [3] and fill with only air tool oil [4] that is supplied in the toolbox.

The frequency of both of these steps is dependant upon the workload of the machine, however at least a daily check is recommended.

REVISED MAY 2018

PAGE 22

6.7

MODEL 2598(U) T-NUT DRIVE MACHINE

Adjusting Anvil Air

The anvil holder on the Model 2598 T-nut Drive Machine is connect to a compressed air line [1].

When the operator presses the foot pedal, a blast of compressed air keeps the holder clear of chips to allow the anvil to travel up & down to activate the anvil safety.

The needle valve [2] adjusts the air flow to the anvil. Adjust the anvil air to elevate the anvil pin above the anvil safety ring to help the operator locate the workpiece hole.

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 23

7. MAINTENANCE 7.1

Guide Pin/Drive Rod Spring

The spring loaded guide pin is located inside the drive rod and keeps the t-nut properly aligned with the anvil pin during the drive stroke. If either the guide pin and/or drive rod spring are broken, the machine can misfire and the broken parts must be replaced. Also changing to different size tnuts may require a different guide pin.

To change either the pin or the spring, the recommended procedure as follows; (1)

Disconnect main air supply. Remove the front shield [1], and relocate the safety arm [2].

(2)

Separate drive rod from piston shaft using tools supplied in toolbox. Placing tools on flats provided, keep bottom wrench stationary, and turn upper wrench counterclockwise [3].

(3)

Once the drive rod and piston are separate, the spring [4] can be removed, inspected and replaced if necessary.

(4)

If necessary to replace the guide pin, proceed to remove the front plate using tools supplied in toolbox [5].

Note: Never apply a wrench or a vice to the polished ground finish of the piston rod.

REVISED MAY 2018

PAGE 24

7.2

MODEL 2598(U) T-NUT DRIVE MACHINE

Anvil Locating Pin

The anvil locating pin is located in the center of the anvil body [1]. This pin locates the hole in a workpiece to the desired location for the tnut to be driven. A compressed air line enters the anvil pin holder to keep it clear of chips [2]. If the pin is damaged, broken or needs to be changed for a different size of tnut, it can easily be changed. Disconnect the main air supply to ensure safety.

Then remove the screw [3] to allow the anvil pin holder to be removed from the anvil body [4] . Then remove the 2 smaller screws [5] on the cap to remove and replace the pin as required. It is recommended at this point to check and replace the anvil body spring, if necessary.

7.3

Escapement Finger Springs

These flat shaped springs [1] are located on either side of the drive rod and hold the escapement fingers closed which keeps the t-nut located in proper position to be driven into the workpiece.

When the operator cycles the machine, the drive stroke forces the front fingers open slightly to allow the t-nut to pass. If one or more finger springs are broken, damaged or misaligned, misfiring of t-nuts could result. Remove the front safety shield (already removed) to access the screws [2] to replace.

When replacing with new fingers note the springs for the rear fingers are shorter than the fingers for the front fingers.

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

7.4

PAGE 25

Drive Cylinder

The drive cylinder has been designed and to be virtually maintenance free. Never apply a wrench or vice to the piston rod [1] which could damage the surface and shorten seal life. Flats have been specially provided to allow clamping of the rod when necessary [2].

Should service become necessary, the entire piston assembly should be returned to Sigma or a Sigma distributor for repair. The drive cylinder is easily removed by unscrewing four bolts [3], and loosening hose clamps [4] and [5].

REVISED MAY 2018

PAGE 26

7.5

MODEL 2598(U) T-NUT DRIVE MACHINE

Correcting Alignment

7.5.1 Track Alignment

Correct track alignment is important to the proper functioning of the t-nut feed system. If t-nuts are getting stuck at the top or bottom, re-aligning of the track is recommended as follows; (1)

Disconnect main air supply and electrical supply.

(2)

Remove front safety shield and lower safety arm [1]

(3)

Remove all t-nuts from the track.

(4)

To adjust the lower track front to back, loosen screws [2] and adjust as required.

(5)

To adjust the lower track side to side, loosen screws [3] and adjust as required.

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 27

(6)

If properly adjusted, the drive rod can be moved freely up and down without contact.

(7)

To adjust the upper track, loosen screw [4] and ensure proper alignment and gap [5] between the track and the feed bowl, which must not be touching the track.

(8)

Ensure all screws are tight before resuming operation.

REVISED MAY 2018

PAGE 28

MODEL 2598(U) T-NUT DRIVE MACHINE

7.5.2 Feed Bowl Alignment

Confirm the track is properly aligned before adjusting the position of the feed bowl. If necessary, adjust the alignment as follows; (1) Loosen feed bowl center bolt [1] to allow the bowl to swivel.

(2) Loosen the feeder base bolt [2] to allow the bowl to slide front to back and side to side.

(3) Adjust the bowl position until the top of the track is aligned with the feed bowl exit. Ensure a gap of .100 to .125 (2 to 3 mm) between the bowl and the track [3].

(4) Tighten all bolts securely and ensure the bowl is not touching the track when vibrating.

Note: Manually pass a short row of tnuts back and forth several times to confirm properly alignment.

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 29

7.5.3 Anvil Alignment

The anvil body is located in the anvil housing [1]. The housing is attached to the machine by four screws [2] which also allow a small amount of adjustment. The anvil pin assembly must be properly aligned with the guide pin in order to drive t-nuts precisely into the workpiece. Adjust the anvil housing as follows: (1) Press and hold the foot pedal to lower the drive rod and hold it in the down position (2) While continuing to depress the foot pedal switch, disconnect main air supply and drive rod will stay down.

(3) Loosen all 4 screws [2].

(4) Adjust position of the housing until the anvil pin is directly lined up with guide pin [3].

(5) Tighten all screws, reconnect air supply and test fire samples to ensure the alignment is correct.

REVISED MAY 2018

PAGE 30

7.6

MODEL 2598(U) T-NUT DRIVE MACHINE

Feed Bowl Adjustment

The Vibratory Feed Bowl advances, sorts, and selects t-nuts and guides them into the track ready for use. The Model 2598 T-nut Drive Machine has been designed to accommodate a variety of t-nuts of different sizes and barrel lengths.

The operation of the feed bowl is controlled by three components: an electromagnet located under the feed bowl, a control box, and a proximity sensor located on the track. Each of these must be set correctly to ensure optimum performance of the feed bowl.

7.6.1 Feed Bowl Magnet

The electromagnet [1] drives the feed bowl. The magnet is turned rapidly on and off, causing the feed bowl to vibrate and advance the t-nuts. The small upper portion of the magnet is mounted to the vibrating bowl, and the more substantial lower portion is attached to the base of the feed unit.

For best performance, the upper and lower portions of the magnet must be separated by a uniform gap [2] of .040 - .060 inch (1 - 1.2 mm). The gap is adjusted by raising or lowering the lower part of the magnet which is mounted on four threaded studs mounted on a adjustable bracket.

7.6.2 Track Proximity Sensor The track proximity sensor [3] commands the feeder cube to start/stop the bowl by sensing the presence of t-nuts in the track. Since it is fixed mounted to the track it should not need adjustment.

Ensure the sensor is flush to the bottom of the track, and periodically clean it to ensure the track is always full of t-nuts.

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 31

7.6.3 Feed Bowl Control

The feeder cube controls the rate at which the t-nuts are fed into the track. To operate machine effeciently ensure the feeder cube is plugged in to appropriate receptacle, turned to ON [1] position, and the vibratory feed dial [2] is set at a rate high enough to feed t-nuts and keep track full, but not too high that caused them to excessively tumble in the bowl and not orient properly. If switching t-nut sizes, adjust the feed rate as required.

The feeder cube comes with separate instructions from the manufaturer that are included in the Appendix section of this manual. Several switches and adjustment pots are located on a circuit board inside the control box.

The following are recommended settings: (1) 60 Pulse Operation (2) ON DELAY = 3 seconds (3) OFF DELAY = 1/2 - 1 second (4) INPUT SWITCH = N.O. (Normally Open)

Note: Only qualified electrical personel should adjust these factory settings

REVISED MAY 2018

PAGE 32

7.7

MODEL 2598(U) T-NUT DRIVE MACHINE

The Pneumatic Circuit

7.7.1 Overview

All main functions of the 2598 t-nut machine operate on compressed air, except for the feed bowl which is single phase electric.

Compressed air enters the machine via quick disconnect fitting at the manifold [1] and then filtered [2] and regulated [3] to the main valve [4].

When the operator presses the foot pedal [5], air pressure activates the drive cyclinder [6] and the tnut is driven into the workpiece. This action also sends compressed air to the lower track to feed assist the t-nuts [7], as well as to the anvil holder to keep it clear of chips [8]. Compressed air then exits the system by the exhaust muffler [9].

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 33

7.7.2 Control Circuit

The control circuit directs compressed air to the machine components during the drive and return cycle.

Between the air filter and drive pressure regulator is a small takeoff port [1] that supplies air at full pressure to the control manifold via port [2]. Compressed air exits the control manifold via port [3] and enters the anvil safety valve [4].

When the operator presses the workpiece down on the anvil and triggers the anvil safety valve, this allows compressed air to exit the anvil safety valve [5] and return to the control manifold via port [6]. Compressed air then exits the control manifold via port [7] and enters the foot pedal [8]. When the operator presses the foot pedal down compressed air returns from the pedal [9] to the control manifold via port [10].

The control manifold is also connected to the blower valve [11] which supplies compressed air via line [12] to the anvil holder [13] to keep it clear of chips, and via line [14] to the lower track [15] to assist feeding the t-nuts.

The length of time of the blower valve air blast can be adjusted with the blower needle valve [16].

Compressed air exits the needle valve and enters the main valve pilot via port [17] and then returns to the control manifold via port [18].

REVISED MAY 2018

PAGE 34

MODEL 2598(U) T-NUT DRIVE MACHINE

7.7.3 The Drive Stroke

When the operator locates a workpiece activating the anvil safety, and then presses the footpedal, compressed air acts on the drive cylinder to insert the t-nut into the workpiece.

Compressed air exits the safety valve via port [5] and enters the control manifold via port [6]. Compressed air then exits the manifold via port [7] to the foot pedal via port [8]. When the foot pedal is pressed down, compressed air exits the foot pedal via port [9] and then returns to the control manifold via port [10]. Compressed air then exits the manifold via port [18] and is then directed to the pilot of the main valve via port [17]. This causes an internal spool to shift which directs the compressed air to the upper port of the drive cylinder [19] at the pressure displayed on the main pressure gauge [20]. Air is exhausted through the bottom port of the cylinder [21] allowing the piston to drive the t-nut into the workpiece.

Note: Adjust main pressure no higher than required to suit the application.

During this drive sequence, compressed air is also directed to the blower valve [11]. Compressed air in the upper line [14] goes to the track to assist the t-nut feed system [15]. Compressed air in the lower line [12] goes to the anvil holder to keep it clear of chips [13].

Note: The amount of air flow for both is factory set but can be adjusted as necessary with knob [16].

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 35

7.7.4 The Return Stroke

When the operator releases the footpedal and removes the workpiece, compressed air is exhausted from the system, and the return drive pressure causes the piston to return to the top of the drive cylinder.

When the foot pedal is released, a spring in the pilot of the main valve [17] causes the internal spool to shift back to its original position and compressed air is released from the main valve to the control manifold via port [18] and then to the foot pedal exhaust.

At the same time, compressed air is directed from the main valve to the bottom port of the drive cylinder [21] at pressure displayed on the return pressure gauge[22]. Air is released from the upper port of the drive cylinder [19] and exhausted through the main valve to the muffler. This allows the piston to return back to the top of drive cylinder.

The compressed air pressure for the return stroke is factory set at 25psi. and should not need adjustment. Never exceed 25psi return pressure or damage to cylinder could result.

Note: When removing hoses to service pneumatic components, ensure they are replaced in proper position or unpredictable machine behavior may result.

REVISED MAY 2018

PAGE 36

MODEL 2598(U) T-NUT DRIVE MACHINE

7.7.5 Troubleshooting Pneumatic Circuit Problems

When faced with a problem in the pneumatic circuit, it is important to follow a systematic procedure for locating the source of the trouble. Never disconnect more than a single hose connection at a time. Instead, test a specific area of the pneumatic circuit by disconnecting a single hose connection at a time, and checking the result. After each test, replace the hose connection, and try another one until the problem is located.

As an example, consider a case where the air was applied, a workpiece is in place releasing the anvil safety, but nothing happened when the foot pedal is depressed. A good place to start is to disconnect the hose connected to the pilot [1] of the main valve [2] which comes from the safety valve by way of hose [3]. Once the hose is disconnected, attempt to cycle the machine. With the foot pedal depressed and a workpiece in position, there should be a strong flow of air through the hose.

If the strong flow of air is present, then the control circuit is working properly and the problem lies somewhere in the drive circuit. If there is no air flow or one that is very weak, the problem lies in the control circuit, perhaps with the safety valve or the foot valve. In either case, reconnect the line, and work forward or backwards through the circuit to locate the problem.

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

8.

OPTIONAL EQUIPMENT

8.1

3/8 or 10mm Conversion Kit

PAGE 37

The 3/8 or 10mm conversion kit is available for the model 2598-L machine (large base). It consists of a drive rod and guide pin for 3/8 or 10mm t-nuts.

8.2

High Capacity Hopper

This add-on hopper can hold over 5,000 t-nuts to allow extended machine operation before refilling. The hopper is bolted on the frame of the machine with an automatic feed mechanism to fill the feed bowl with t-nuts.

8.3

Work Table

Consult with a Sigma representative with any special application to design

REVISED MAY 2018

PAGE 38

MODEL 2598(U) T-NUT DRIVE MACHINE

9.

TROUBLE SHOOTING

9.1

T-Nuts are Jamming in the Feed Bowl

1)

Feed bowl and upper track are not properly aligned causing t-nuts to get backed up. See section 7.5.2

2)

The OFF delay of the Feeder Cube is too long causing the feed bowl to keep running after the track is full. See section 7.6.3

3)

Track sensor is dirty causing bowl to keep feeding after track is full. See section 7.6.2

9.2

Machine Will Not Drive

1)

Check the air lines to the foot pedal are not kinked or cut

2)

Ensure the anvil safety is released when the workpiece is positioned on the anvil

9.3

Chip in Thread of T-nut

1)

Hole in workpiece is too small for t-nut. Top of the barrel of the t-nut should fit easily into the hole. See Section 5.1

2)

The anvil pin is too small and the hole is not properly located. See section 5.3

3)

Workpiece not held straight while driving t-nut.

9.4

T-Nuts are driven in on their side

1)

Guide pin is too large. See section 5.2

2)

Guide pin is damaged or broken. See section 7.1

3)

Drive rod spring is damaged or broken. See section 7.1

4)

Escapement spring is broken. See section 7.1

9.5

Machine Misfires

1)

There are not sufficient t-nuts in the track. Confirm feed bowl and upper track are aligned.

2)

Broken or damaged guide pin. See section 7.1

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

9.6 1)

9.7 1) 9.8 1) 9.9 1)

PAGE 39

Damaged T-Nut Threads When driving or flaring operation, threads are damaged. Adjust drive pressure and/or flare pin.

T-Nut not Flush with workpiece Adjust drive pressure and/or flare pin. See sect. 6.3 T-nuts Jamming in Track Track may be dirty with dust or chips. Periodically clean track with cloth and cleaner.

Air Escaping from Foot Pedal Continously Hoses to and from the foot pedal have been reversed. See section 7.7.2

9.10 Drive Rod Does not Return after Driving T-nut 1)

Main valve could be defective and must be replaced. See section 7.7.4

2)

Return pressure set too low, or defective regulator. See section 7.7.4

REVISED MAY 2018

PAGE 40

MODEL 2598(U) T-NUT DRIVE MACHINE

10. TOOLS AND SPARE PARTS Tool Box Containing;

1 Machine Documentation (Machine Record / Final Inspection / Spare Parts List)

1 Set of Allen Wrenches 1/8, 5/32, 3/16, ¼, 5/16, 3/8

4 Wedge Anchors 1/2” x 3”

1 Bottle of Air Tool Oil

1 10” Adjustable Wrench

1 8” Adjustable Wrench

REPLACEMENT PARTS

1 Guide Pin

(to suit)

1 Anvil Pin

(to suit)

1 Drive Rod Spring

(to suit)

2 S.H.C.S. 6-32 X 3/4”

#95201

2 S.H.C.S. 10-32 X 1/2”

#95004

2 S.H.C.S. 1/4-20 X ¾”

#95033

2 S.H.C.S. 1/4-20 X 1”

#95034

2 S.H.C.S. 5/16-18 X 1”

#95011

2 S.H.C.S. 5/16-24 X 1 ¼”

#95013

1 #138 O-Ring FRL Bowl

#95457

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 41

11. SPECIFICATIONS Dimensions Weight

600 lbs

273 kg

780 lbs

311 kg

With optional hopper

Height 84 in

215 cm

With optional hopper

87 in

220 cm

Floor area

40 x 25 in2

100 x 62 cm2

90 - 120 psi

6 - 8 bar

Air Pressure Line Pressure

Max. Recommended Drive Pressure 90 psi

6 bar

Air Consumption per Cycle

1.2 l @ 2 bar

0.05 cf @ 30 psi

Electrical Power Requirements

USA & Canada

120Volt

1-Phase 60 Cycle

Europe

240 Volt

1-Phase 50 Cycle

REVISED MAY 2018

PAGE 42

MODEL 2598(U) T-NUT DRIVE MACHINE

12. APPENDIX

EC Declaration of Conformity

Exploded Part Drawing and Parts List

Pneumatic Part Drawing and Parts List

Recommended Hole Sizes

RODIX FC-98 Plus 240V Feed Control

‘WEEE’ Compliance

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 43

EC Declaration of Conformity Manufacturer:

SIGMA TOOL & MACHINE 251 Nantucket Blvd.

Scarborough Ontario M1P 2P2 Canada Tel: +1 (416) 755-7721 Fax:+1 (416) 751-2056

Hereby declare the machines listed below under the sole responsibility of the manufacturer: 1) Are manufactured in conformity with the COUNCIL DIRECTIVE 2014/35/EU of 20 April 2016 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits.

2) Are made according to the provisions in the COUNCIL DIRECTIVE 2006/42/EC of May 17, 2006 on the approximation of the laws of Member States relating to machinery with special reference to Annex 1 of the Directive on essential safety and health requirements relating to the design and construction of machinery.

3) Are manufactured in conformity with the national standard EN ISO:12100 (Safety of Machinery – General principles for design – Risk assessment and risk reduction) that implements a harmonized standard in accordance with Article 7.2: EN ISO 12100:2011

Safety of Machinery – General principles for design – Risk assessment and risk reduction

Machine Type:

T-NUT DRIVE MACHINE

Machine Model:

2598 HOPPER-FED

Machine Serial: Signed: _____________________________

Date: _____________________________

PETER FIRTH (Quality Coordinator) Authorized contact in EU to compile the Technical File:

Kyocera Unimerco Fastening A/S Drejervej 2 DK-7451 Sunds Denmark Tel: +45 97 14 14 11 Mr. John Erik Foxby

REVISED MAY 2018

PAGE 44

ID

2598

100 101

MODEL 2598(U) T-NUT DRIVE MACHINE

2598-S

2598-L

DESCRIPTION

ID

2598

2598-S

92800

FRAME BASE

141

92347

FEED BASE SHOULDER BOLTS

92801

FRAME BODY

142

95371

SOLENOID 110V 60CYC (BOTTOM)

103

95074

HARD WASHER 1/2

142

95372

SOLENOID 220V 50CYC (BOTTOM)

104

95077

LOCK-NUT 1/2-13

143

95014

SOC HD CAP SCREW UNC 5/16-18 X 3/4

107

95240

HEX HD CAP SCREW UNC 5/8-18 X 2

144

95371

SOLENOID 110V 60CYC (TOP)

108

95027

SOC HD CAP SCREW 1/2-13 X 1 1/2

144

95372

SOLENOID 220V 50CYC (TOP)

109

95074

HARD WASHER 1/2

145

92338

FEED BOWL SPRING 120V

110

95239

HEX HD CAP SCREW UNC 1/2-13 X 1 1/4

145

92339

FEED BOWL SPRING 220V

111

95074

HARD WASHER 1/2

146

92345

113

92810

BOWL MOUNTING PLATE

147

DESCRIPTION

120

95008

MOTOR MOUNTS UNF 10-32

148

95243

SOC HD CAP SCREW UNC 1/2-13 X 2

121

95313

RODIX 110V 60CYC FEED CUBE & SENSOR

149

95076

WASHER 1 1/8

121

95314

RODIX 220V 50CYC FEED CUBE & SENSOR

150

95235

SOC HD CAP SCREW UNC 5/16-18 X 1 1/2

122

95036

SOC HD CAP SCREW UNC 1/4-20 X 1 1/2

151

95059

SOC HD CAP SCREW 1/4-20 X 1 1/4

123

92831

UPPER TRACK MOUNTING ARM

152

95052

HEX NUT 1/4-20

124

95316

TRACK SENSOR

153

95012

SOC HD CAP SCREW 5/16-18 X 1 1/4

132

95012

SOC HD CAP SCREW UNC 5/16-18 X 1 1/4

154

95074

HARD WASHER 1/2

133

95072

HARD WASHER 5/16

155

95074

HARD WASHER 1/2

134

95060

HEX NUT UNF 10-32

156

95073

HARD WASHER 3/8

135

95063

LOCK WASHER #10

157

95038

SOC HD CAP SCREW 1/4-20 X 1 1/4

136

95078

HEX HD CAP SCREW UNC 1/2-13 X 2

158

95016

LOCK WASHER 1/4

137

92349

BOWL SUBPLATE

159

95036

SOC HD CAP SCREW 1/4-20 X 1 1/2

138

92348

BOWL SUBPLATE LUG NUT

160

95017

HARD WASHER 1/4

139

92333

RUBBER FEET FOR FEED BASE

161

92832

TRACK MOUNTING BRACKET

140

92346

FEED BOWL BASE

162

95570

MANUAL LUBRICATOR

FEED BASE UPPER DRIVE PLATE 92340

REVISED MAY 2018

2598-L

92341

FITTED FEED BOWL

MODEL 2598(U) T-NUT DRIVE MACHINE

ID

2598

2598-S

2598-L

PAGE 45

DESCRIPTION

ID

2598

2598-S

2598-L

DESCRIPTION

200

92845

ANVIL BASE BRACKET

233

95006

SOC HD CAP SCREW UNF 10-32 X 3/4

201

95071

HARD WASHER 1/4

234

95034

SOC HD CAP SCREW UNC 1/4-20 X 1

202

95036

SOC HD CAP SCREW 1/4-20 X 1 1/2

235

95521

ANVIL SAFETY VALVE (CLIPPARD)

215

95223

SOC HD CAP SCREW 5/16-18 X 4

236

92990

MOUNTING PLATE

219

95038

SOC HD CAP SCREW 1/4-20 X 1 1/4

237

95004

SOC HD CAP SCREW UNF 10-32 X 1/2

220

95071

HARD WASHER 1/4

238

95200

SOC HD CAP SCREW UNF 6-32 X 7/8

222

92876

SAFETY ARM COUNTER-WEIGHT

239

92991

SAFETY ARM SHAFT

223

92878

SAFETY ARM

240

95013

SOC HD CAP SCREW 5/16-24 X 1 1/4

224

92880

SAFETY SHIELD

241

95224

FLAT HEAD CAP SCREW 1/4-20 X 1/2

225

95003

BUTTON HD CAP SCREW 10-32 X 3/8

242

92326

“U” SUPPORT

227

95004

SOC HD CAP SCREW UNF 10-32 X 1/2

243

95048

LOCK NUT 5/16-24

228

92859

LOCATER PIN RETAINER

244

92325

CONNECT SHAFT

229

92970

LOCATER PIN #8, M4

245

95032

SOCKET HEAD CAP SCREW 1/4-20 X 5/8

229

92971

LOCATER PIN #10, M5

246

95061

HEX LOCK NUT 5/16-18

229

92972

92972

LOCATER PIN #1/4, M6

247

95041

SOC HD CAP SCREW 5/16-18 X 1 1/4

229

92973

LOCATER PIN #5/16, M8

248

92856

LOCATER PIN HOLDER SPRING

229

92974

LOCATER PIN #3/8, M10

251

92324

1/2” SPLIT SHAFT COLLED

230

92858

LOCATER PIN SPRING

252

92846

ANVIL BRACKET SUPPORT

231

92857

LOCATER PIN HOLDER

253

92847

ANVIL MOUNTING BRACKET

232

92855

ANVIL BODY

REVISED MAY 2018

PAGE 46

ID

2598

300

MODEL 2598(U) T-NUT DRIVE MACHINE

2598-S

2598-L

DESCRIPTION

ID

2598

92900

92901

SQUARE DRIVE ROD

313

95034

92902

SQUARE DRIVE ROD 3/8

314

#8, M4 GUIDE PIN

315

95303

SOC HD CAP SCREW 1/4-20 X 3/4

300

2598-S

2598-L

DESCRIPTION

92930

92931

TRACK

SOC HD CAP SCREW 1/4-20 X 1

301

92003

301

92002

#10, M5 GUIDE PIN

316

92904

FRONT SPRING BRACKET

301

92001

92011

1/4, M6 GUIDE PIN

317

92942

SPRING BLADES FOR FRONT FINGERS

301

92005

92013

1/4, M6 TORQ LOC GUIDE PIN

318

92943

SPRING BLADES FOR REAR FINGERS

92012

5/16, M8 GUIDE PIN

319

95059

HEX NUT UNC 5/16-18

92023

3/8, M10 GUIDE PIN

320

97517

97518

ESCAPEMENT MOUNTING PLATE

95451

DRIVE ROD SPRING

321

92952

92951

REAR ESCAPEMENT FINGERS

92962

92961

FRONT ESCAPEMENT FINGERS

92954

92955

FRONT STOP

301 301 302

95450

303

95241

SOC HD CAP SCREW 3/8-16 X 2”

322

304

95073

HARD WASHER 3/8

323

305

95401

L10 CYLINDER ASSEMBLY 10” (254 MM)

324

92965

ESCAPEMENT SHOULDER BOLT

305

95402

L13 CYLINDER ASSEMBLY 13” (330 MM)

325

95005

SOC HD CAP SCREW 10-32 X 5/8

305

95403

L16 CYLINDER ASSEMBLY 16” (406 MM)

326

95072

HARD WASHER 5/16

306

95900

DOWEL PIN 1/4 X 3/4

327

95011

SOC HD CAP SCREW UNC 5/16-18 X 1

307

95011

SOC HD CAP SCREW 5/16-18 X 1

330

92883

FRONT SHIELD

308

95325

SOC HD CAP SCREW 5/16-18 X 1 1/2

331

95033

SOC HD CAP SCREW 1/4-20 X 3/4

309

95072

HARD WASHER 5/16

332

95071

HARD WASHER 1/4

310

92921

LOWER TRACK MOUNTING PLATE

333

97535

T-NUT TOP GUIDE

311

95038

HEX HD CAP SCREW UNC 5/16-18 X 1 1/4

334

95005

SOC HD CAP SCREW 10-32 X 5/8

312

92922

FRONT TRACK MOUNTING BRACKET

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 47 124

126

100 123 (4)

111

102 (4)

112 120 121 122

104

113 114 105 115 L10 10"(254mm) L13 13"(330mm) L16 16"(406mm) 116 106 125 (2) 107 117

118 103 (4) 119

101 (4)

110 109

108

CYLINDER ASSEMBLY INTERNAL

CYLINDER ASSEMBLY EXTERNAL 2598-CYLINDER-ASSY-R1

ID

SIZE OF CYLINDER L10

L13

L16

100

95401

95402

95403

NA

95439

DESCRIPTION

ID

SIZE CYLINDER L10

CYLINDER ASSEMBLY COMPLETE

113

95430

SEAL KIT

114

95427

DESCRIPTION

L13

L16

95428

95429

PISTON O-RING (#409) PISTON (AIR CUSHION)

101

95049

HEX NUT UNC 7/16-14

115

95432

PISTON WEAR RING

102

95064

WASHER 7/16

116

95434

PISTON ROD O-RING (#022)

103

95065

LOCK WASHER 7/16

117

95433

CYLINDER SLEEVE O-RING (#040)

104

95419

CYLINDER CAP (AIR CUSHION)

118

95424

CYLINDER ROD BUSHING

105

95416

95417

95418

TIE ROD

119

95431

CYLINDER ROD CUP SEAL

106

95411

95412

95413

CYLINDER SLEEVE

120

95435

ENDCAP O-RING (#325)

107

95422

CYLINDER BASE

121

95433

CYLINDER SLEEVE O-RING (#040)

108

95423

LOWER CYLINDER COVER

122

95435

PISTON AIR CUSHION O-RING (#325)

109

95420

CYLINDER ROD

122

95437

PISTON AIR CUSHION O-RING (#325U90)

110

95211

SOC HD CAP SCREW UNF 10-32 X 5/8

123

95255

7/16-14 L.C. ACORN NUT

111

95248

SOC HD CAP SCREW UNC 5/8-11 X 4

124

95256

D115-A 1/8 NPT ELBOW FITTING

SOC HD CAP SCREW UNC 5/8-11 X 7

125

95257

D125-10D 1/2 NPT X 5/8 HOSE FITTING

SOC HD CAP SCREW UNC 5/8-11 X 10

126

95258

FHLB HYDRAULIC HOSE CYL-ASSY-R1

111

95249

111 112

95250 95069

LOCK WASHER 5/8

REVISED MAY 2018

PAGE 48

MODEL 2598(U) T-NUT DRIVE MACHINE

ID

PART#

DESCRIPTION

ID

PART#

DESCRIPTION

1

95513

AIR LINE FILTER (NORGREN)

8

95590

CONTROL MANIFOLD (SIGMA)

2

95570

MANUAL LUBRICATOR CTA-8-R-U-1

9

95529

BLOWER VALVE (NUMATICS)

3

95515

DRIVE PRESSURE REGULATOR (NORGREN)

10

95563

FLOW CONTROL VALVE (SMC)

4

95501

DRIVE PRESSURE GAUGE (WIKA)

11

95521

ANVIL SAFETY VALVE (CLIPPARD)

5

95545

MAIN DRIVE VALVE (NUMATICS)

12

95552

FOOT PEDAL COMPLETE (LINEMASTER)

6

95515

RETURN PRESSURE REGULATOR (NORGREN)

12

95553

FOOT PEDAL VALVE ONLY (LINEMASTER)

7

95516

RETURN PRESSURE GAUGE (WIKA)

13

95594

AIR INTAKE MANIFOLD

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 49

ID

PART#

DESCRIPTION

ID

PART#

DESCRIPTION

1

95513

AIR LINE FILTER (NORGREN)

8

95590

CONTROL MANIFOLD (SIGMA)

2

95570

MANUAL LUBRICATOR CTA-8-R-U-1

9

95529

BLOWER VALVE (NUMATICS)

3

95515

DRIVE PRESSURE REGULATOR (NORGREN)

10

95563

FLOW CONTROL VALVE (SMC)

4

95501

DRIVE PRESSURE GAUGE (WIKA)

11

95521

ANVIL SAFETY VALVE (CLIPPARD)

5

95545

MAIN DRIVE VALVE (NUMATICS)

12

95552

FOOT PEDAL COMPLETE (LINEMASTER)

6

95515

RETURN PRESSURE REGULATOR (NORGREN)

12

95553

FOOT PEDAL VALVE ONLY (LINEMASTER)

7

95516

RETURN PRESSURE GAUGE (WIKA)

13

95594

AIR INTAKE MANIFOLD

REVISED MAY 2018

PAGE 50

MODEL 2598(U) T-NUT DRIVE MACHINE

RECOMMENDED DRILL HOLES SIZES SIGMA 4 PRONG ULTRAGRIP AND CR T-NUTS T-NUT THREAD SIZE 8-32 10-24 10-32 1/4-20 5/16-18 3/8-16 M4 M5 M6 M8 M10

DRILL HOLE SIZE INCH DEC. METRIC 15/64” (.234) 6mm 17/64” (.266) 7mm 17/64” (.266) 7mm 5/16” (.312) 8mm 13/32” (.406) 10mm 15/32” (.469) 12mm 15/64” (.234) 6mm 17/64” (.266) 7mm 5/16” (.312) 8mm 13/32” (.406) 10mm 15/32” (.469) 12mm

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 51

Rodix Feeder Cube FC-98 Plus FEEDER CUBE ® FC-98 Plus , P/N 121-000-8340 OIL RESISTANT MODEL Input: 240 VAC, 50/60 HZ. (Operating range 180-250 VAC) Single Unit Fuse Size: 8 AMPS Output: 0-240 VAC 100% Duty Cycle 0.6-6.4A, 80% for 7-8A Circuit Board P/N 24-491 Model Information: The feeder control is based on the FC-90 Plus Series Part Sensing Feeder Cube®.

REVISED MAY 2018

PAGE 52

MODEL 2598(U) T-NUT DRIVE MACHINE

Rodix Feeder Cube FC-98 Plus Wiring Diagram

REVISED MAY 2018

MODEL 2598(U) T-NUT DRIVE MACHINE

PAGE 53

Rodix Feeder Cube FC-98 Plus Circuit Board Part Numbers: 24-490 (120V) 24-491 (240V)

The FC-90 Plus Series Controls are used to operate vibratory bowls with parts sensors and storage hoppers fitted with electronic bowl level detectors. The 12VDC power supply and sensor time delays are provided by the control. The demand cycling of the bowl is controlled by the parts sensor’s output and the control’s On and Off time delay settings.

Settings for FC-98 For Sigma 2598 Machine SIGMA 2598 SWITCH SETTINGS S1 SWITCH SETTING 1 60 2 INV 3 PNP 4 CFR 5 LVC 6 OFF 7 OFF 8 OFF 9 OFF 10 OFF

TRIM POT SETTINGS OFF ON SOFT MIN MAX

2 SEC (OFF DELAY) 3 SEC (ON DELAY) 0 0% 75%

WARNING: Fuses should be replaced with Bussman ABC or Littelfuse 3AB “Fast Acting” type or equivalent of manufacturer’s original value.

For troubleshooting help, download the FC-90 Plus Troubleshooting Guide at rodix.com OR contact your Kyocera/Unimerco representative.

REVISED MAY 2018

PAGE 54

MODEL 2598(U) T-NUT DRIVE MACHINE

‘WEEE’ Compliance This machine is constructed with electrical components that are marked with the a crossed-out wheeled bin. This symbol indicates that waste electrical and electronic equipment (WEEE) should not be discarded together with regular waste, but instead should be collected separately. It is up to the end user of this equipment to contact the technical administration of the relevant local authority for more detailed information regarding disposal.

REVISED MAY 2018
