3 ELECTRIC SHEARMU16 SPARE PARTS MANUAL
MU 16 230V 2 0INDEXSPARE PARTS AND ACCESSORIES CATALOGUE.................3 0.01 ORDERING INFORMATION....................................................................................................3 0.02 MECHANICAL AND ELECTRICAL COMPONENTS...............................................................3 COMPONENTS OF ELECTRIC SHEAR MU16 P/N 1.50.1838.............4 GUARD ASSEMBLY PLUS SCREWS FOR ALL MU16 SHEARS (P/N 1.50.2160)......7
MU 16 230V 3 0 SPARE PARTS AND ACCESSORIES CATALOGUE THE COMPANY DECLINES ALL LIABILITY FOR INJURY TO PEOPLE OR DAMAGE TO PROPERTY IF TECHNICAL ASSISTANCE IS NOT PERFORMED BY QUALIFIED AND AUTHORISED STAFF. FOR TECHNICAL ASSISTANCE AND MAINTENANCE, CONTACT AN AUTHORISED SERVICE CENTRE OR WRITE TO cut@edilgrappa.com. 0.01 ORDERING INFORMATION For technical assistance and spare parts, both during and after the period of warranty, quote the data indicated on the ID plates and the serial number punched on the tool body (fig. 1) Fig.1 Orders for spare parts must be accompanied by the following information: 1. Type of equipment 2. Serial number 3. Part number or position in exploded drawing 4. Quantity 5. Revision status indicated on the back cover of the manual. The Manufacturer can only supply the appropriate spare part if the required data is complete, since subsequent improvements may have entailed structural variations to the equipment and therefore to the spare parts. 0.02 MECHANICAL AND ELECTRICAL COMPONENTS The following page contains an exploded diagram of the machine, complete with the part numbers, descriptions and quantities of each component
MU 16 230V 4 COMPONENTS OF ELECTRIC SHEAR MU16 P/N 1.50.1838
MU 16 230V 5 COMPONENTS OF ELECTRIC SHEAR MU16 P/N 1.50.1838 POS P/N ITEM PCS 1 1.10.233 LOWER BLADE 1 2 1.60.829 THREADED DOWEL 2 3 1.60.2056 SCREW 2 4 1.10.3557 TOOL HOLDER HEAD 1 5 1.10.3559 PIN 1 6 1 60.112 SCREW 11 7 1.30.070 GASKET 1 8 1.10.231 PISTON RETURN SPRING 1 9 1.50.619 PISTON ASSEMBLY 1 10 1.30.032 GASKET 1 11 1.30.045 O-RING 1 12 1.30.225 O RING 1 13 1.10.248 SPRING 1 14 1.50.1942 ASSEMBLYCYLINDER 1 15 1.50.1932 MANUAL RETURN VALVE ASSEMBLY)(VALVE 1 16 1.50.1933 MANUAL RETURN VALVE ASSEMBLY)(LEVER 1 17 1.10.269 UPPER BLADE 1 18 1.10.3558 TOOL HOLDER HEAD 1 19 1.60.201 SELF LOCKING NUT 1 20 1.60.900 WASHER 1 21 1 60 3013 SCREW 2 22 1.10.230 HEAD SPRINGRETURN 1 23 1.10.624 THRUST CAM 1 24 1.10.579 HEAD SCREWADJUSTMENTOPENING 1 25 1.30.046 O RING 1 26 1.30.017 O RING 3 27 1.50.511 PUMP ASSEMBLY 1 POS P/N ITEM PCS 28 1.60.937 SCREW 2 29 1.30.546 PROTECTION 1 30 1.10.1726 TANK COVER 1 31 1.30.276 MEMBRANE 1 32 1.60.014 OIL GUARD 1 33 1.10.1725 OIL TANK 1 34 1.60.337 CAP GASKET 1 35 1.50.506 CAP MAGNETICWITH FILTER 1 36 1.60.013 BEARING 1 37 200.009 ROTOR ASSEMBLY WITH FAN 1 38 1.60.142 SCREW 2 39 1.60.382 TOOTHED WASHER 2 40 1.40.016 STATOR STACK 1 41 1.60.003 BEARING 1 42 1.60.324 ADJUSTING RING 2 43 1.30.034 MOTOR COVER 1 44 1.10.811 WASHER 2 45 1 60 207 NUT 2 46 1.60.151 SELF SCREWTAPPING 4 47 1.60.314 SPRING WASHER 4 48 1.60.410 WASHER 4 49 1.60.3021 SCREW 4 50 1.40.012 CABLE WITH PLUG 1 51 1.30.020 PLASTIC CABLE CLAMP 1 52 1.60.129 SELF SCREWTAPPING 2 53 1.40.002 FILTERDISTURBANCEANTI 1 54 1.40.020 SWITCH 1 55 1.50.1943 HALF SCRASSEMBLYSHELLWITHEWS 1 56 1.30.021 CABLE HOLDER 1
MU 16 230V 6 POS P/N ITEM PCS 57 1.50.1936 BRUSH HOLDER KIT 2 58 1.30.005 MOTOR BRUSH 2 59 1.50.1391 BRUSH ASSEMBLYCOVER 2

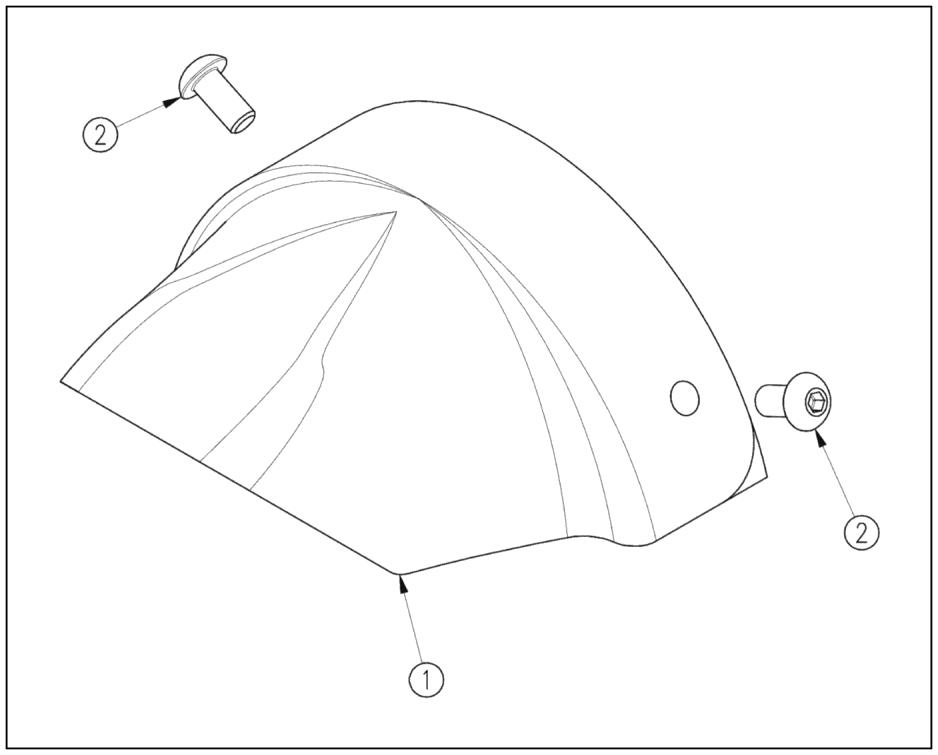

MU 16 230V 7 GUARD ASSEMBLY PLUS SCREWS FOR ALL MU16 SHEARS (P/N 1.50.2160) POS P/N ITEM PCS 1 1.30.546 PROTECTION 1 2 1.60.937 SCREW 2
MU 16 230V 8 NOTES
MU 16 230V 9
MU 16 230V 10
MU 16 230V 11
MU 16 230V 12 LANGUAGEITALIANINSTRUCTIONSORIGINALTHEOFTRANSLATIONFROM FORBIDDENREPRODUCTION20110714Revision Srl MACHINES AND EQUIPMENT FOR THE BUILDING TRADE, INDUSTRY AND RESCUE 31030 BORSO DEL GRAPPA (TV) ITALY Via Callesello, 4 Tel. 0423 910122 Fax 0423 542122 E mail: cut@edilgrappa.com http: //www.edilgrappa.com
