Model No AR412HR AIR SCREW DRIVER
Model No AR412HR AIR SCREW DRIVER
Model No AR412HR AIR SCREW DRIVER

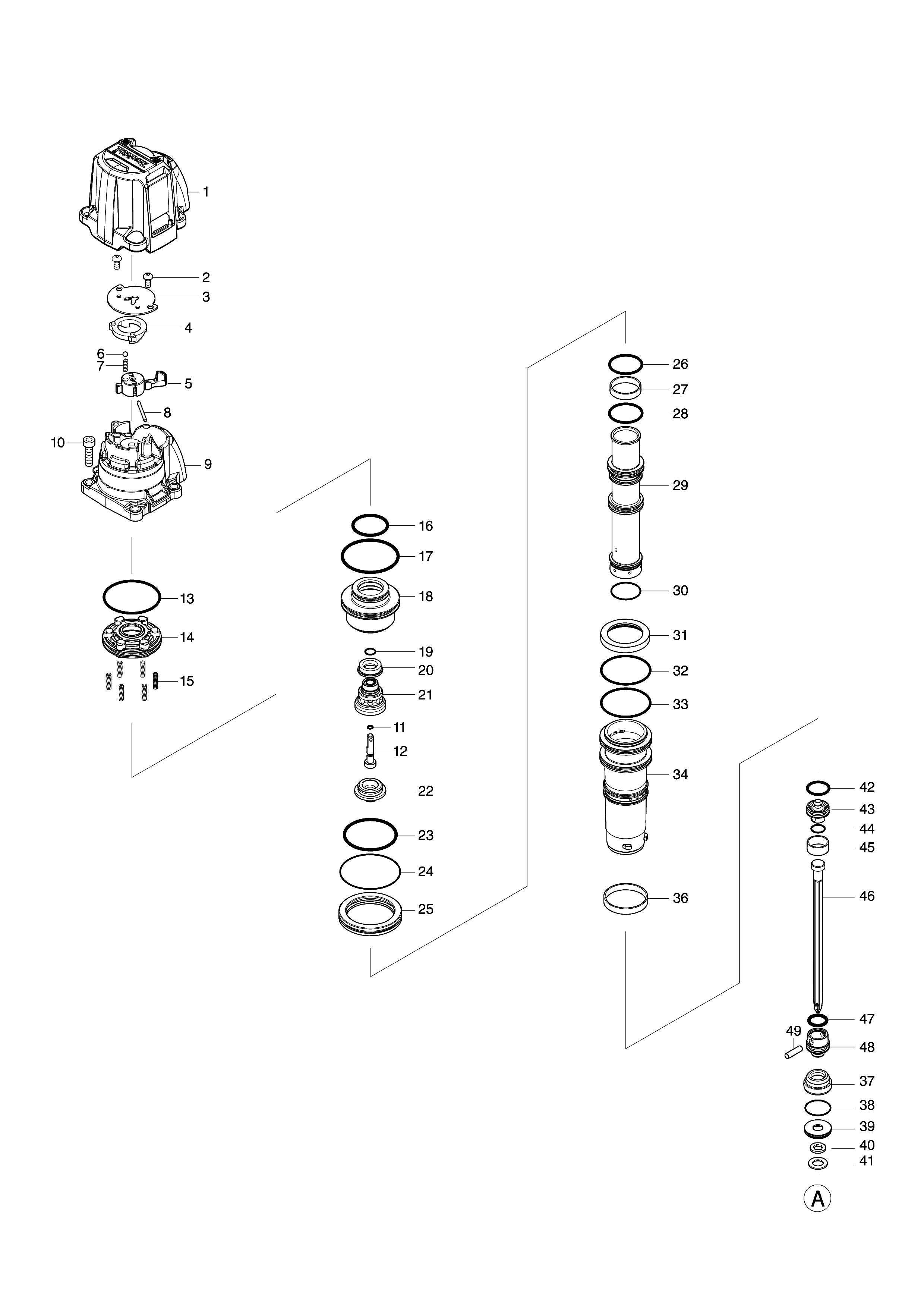

Artikel Reservedelsnummer Beskrivelse I/C Qty New/Old Opt 1 Opt 2 Note 001 422898-9 TOP CAP COVER 1 * 001-1 136863-9 TOP CAP COVER ASSEMBLY < 1 C10 8059V0-1 INDICATION LABEL 1 002 266430-7 H S BUTTON HEAD BOLT M4X8 2 003 347A00-8 TOP CAP PLATE 1 004 413H51-6 PISTON PIN GUIDE 1 005 413H50-8 CHANGE LEVER 1 006 216001-0 STEEL BALL 3 5 1 007 232803-6 COMPRESSION SPRING 3 1 008 256595-3 PIN 2 1 009 312D04-7 TOP CAP 1 010 265C65-9 H S H BOLT M5X20 4 011 213245-3 O-RING 22 1 012 327A04-6 PISTON PIN 1 013 213507-9 O RING 40 1 014 413H53-2 SPRING GUIDE 1 015 232403-2 COMPRESSION SPRING 3 6 016 213393-8 O RING 23 1 017 213532-0 O-RING 39 1 018 413H52-4 HEAD VALVE 1 019 213A19-8 O-RING 7 1 020 422891-3 SEAL RING 1 021 327997-1 REAR CUSHION GUIDE 1 022 422890-5 REAR CUSHION 1 023 213523-1 O RING 36 1 024 213579-4 O-RING 44 1 025 413H54-0 HEAD VALVE GUIDE 1 026 213382-3 O-RING 22 1 027 422899-7 RUBBER RING 21 1 028 213382-3 O-RING 22 1 029 327995-5 CYLINDER 1 030 213310-8 O RING 20 1 031 422894-7 VALVE SEAT 1 032 213991-8 O-RING 35 1 033 213991-8 O-RING 35 1 034 413H55-8 CYLINDER GUIDE 1 035 422895-5 RUBBER PIPE 1 036 422893-9 RUBBER RING 31 1 037 422889-0 FRONT CUSHION 1 038 213275-4 O RING 18 1 039 327996-3 BIT GUIDE 1 040 347999-1 BIT GUIDE RING 1 * 040-1 347B88-4 BIT GUIDE RING < 1 041 253835-0 FLAT WASHER 8 1 042 213A20-3 O-RING 14 1 043 327999-7 PISTON CAP 1 Please order the parts with part number Print Date 13/3/2023
Model No AR412HR AIR SCREW DRIVER
Artikel Reservedelsnummer Beskrivelse I/C Qty New/Old Opt 1 Opt 2 Note 044 213062-1 O RING 9 1 045 422892-1 RUBBER RING 14 1 046 1910Y2-3 DRIVER BIT SET 1 047 213105-9 O RING 11 1 048 327998-9 PISTON 1 049 256092-9 PIN 4 1 050 286280-4 CAP 9 1 051 922232-8 HEX SOCKET HEAD BOLT M5X20 2 052 122C42-3 INLET CAP ASSEMBLY 1 053 162B66-1 INLET CAP GASKET 1 054 858U66-8 AR412HR NAME PLATE 1 055 162B65-3 TOP CAP GASKET 1 056 183W90-7 HOUSING SET 1 D10 INC 57,58 057 808D53-5 INDICATION LABEL 1 058 8057L2-5 MAKITA LOGO LABEL 1 059 951069-6 SPRING PIN 3-20 1 060 951078-5 SPRING PIN 3-32 3 063 213022-3 O RING 3 1 064 265C67-5 H S BUTTON HEAD SCREW M5X8 1 065 413H60-5 STOP VALVE COVER 1 066 265C67-5 H S BUTTON HEAD SCREW M5X8 1 067 911117-3 PAN HEAD SCREW M4X12 1 068 413H70-2 CONTACT ARM COVER 1 069 257395-4 RETAINING RING (INT)R-24 1 070 344452-8 CUP WASHER 5 1 071 232766-6 COMPRESSION SPRING 9 1 072 262208-6 URETHANE RING 15 5 1 073 213255-0 O RING 18 1 074 327A05-4 PISTON 1 075 213054-0 O RING 9 1 076 213021-5 O RING 5 1 077 312D03-9 PISTON CYLINDER 1 078 922212-4 HEX SOCKET HEAD BOLT M5X12 2 079 232765-8 COMPRESSION SPRING 3 1 080 232765-8 COMPRESSION SPRING 3 1 081 262130-7 URETHANE RING 4 1 082 347A01-6 CONTACT STOPPER 1 083 313423-6 FEEDING CLAW 1 084 256A16-1 FLAT FILLISTER HD PIN 4 5 1 085 413H68-9 LOCK LEVER 1 086 234003-4 COMPRESSION SPRING 5 1 087 413H67-1 DOOR 1 088 262187-8 URETHANE RING 3 1 089 347A07-4 CHECK CLAW 1 Please order the parts with part number Print Date 13/3/2023
Model No AR412HR AIR SCREW DRIVER

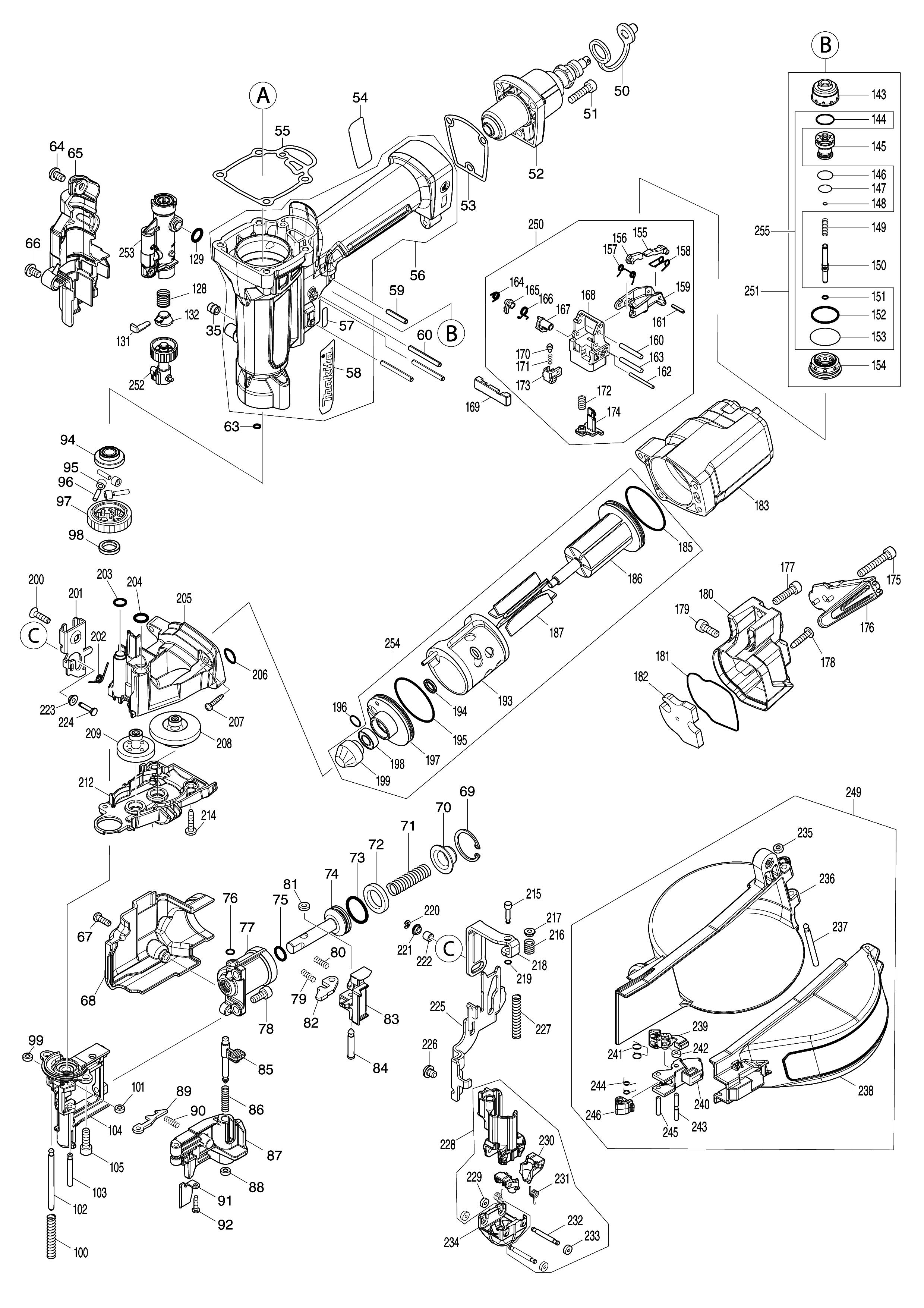

Artikel Reservedelsnummer Beskrivelse I/C Qty New/Old Opt 1 Opt 2 Note 090 232768-2 COMPRESSION SPRING 4 1 091 347A02-4 DOOR PLATE 1 092 266556-5 TAPPING SCREW 3X12 1 094 141K06-6 ROLLER COVER COMPLETE 1 095 327A17-7 ROLLER 3 3 096 256255-7 PIN 3 3 097 227971-8 SPUR GEAR 20 1 098 214214-7 PLANE BEARING 10 1 099 262187-8 URETHANE RING 3 1 100 232764-0 COMPRESSION SPRING 6 1 101 262187-8 URETHANE RING 3 1 102 256A21-8 SHOULDER PIN 3-4 1 103 256A18-7 SHOULDER PIN 3-4 1 104 313425-2 DRIVER GUIDE 1 105 265C66-7 H S H BOLT M5X16 2 128 232762-4 COMPRESSION SPRING 9 1 129 213007-9 O RING 8 1 131 162B64-5 STOPPER PLATE 1 132 313430-9 PLATE GUIDE 1 143 413H78-6 TRIGGER VALVE GUIDE 1 144 213134-2 O-RING 11 1 145 326240-5 PILOT VALVE 1 146 213985-3 O-RING 8 1 147 213985-3 O-RING 8 1 148 213986-1 O-RING 2 1 149 234270-1 COMPRESSION SPRING 4 1 150 327A57-5 TRIGGER VALVE STEM 1 * 150-1 327C78-9 TRIGGER VALVE STEM < 1 151 213034-6 O RING 3 1 152 213275-4 O RING 18 1 153 213310-8 O RING 20 1 154 326239-0 TRIGGER VALVE CASE 1 155 310196-2 TRIP LEVER 1 156 313440-6 LEVER 1 157 233503-1 TORSION SPRING 4 1 158 231699-2 TORSION SPRING 4 1 159 310676-8 TRIGGER 1 160 268168-0 PIN 3 1 161 951007-8 SPRING PIN 2-12 1 162 256595-3 PIN 2 1 163 268168-0 PIN 3 1 164 233501-5 TORSION SPRING 5 1 165 310199-6 STOPPER PLATE 1 166 233502-3 TORSION SPRING 6 1 167 310310-0 LEVER 1 168 413H75-2 TRIGGER BASE 1 169 310293-4 CHANGE ROD 1 Please order the parts with part number Print Date 13/3/2023
Model No AR412HR AIR SCREW DRIVER
Please order the parts with part number
Artikel Reservedelsnummer Beskrivelse I/C Qty New/Old Opt 1 Opt 2 Note 170 326144-1 LOCK PIN 1 171 233490-4 COMPRESSION SPRING 2 1 172 234269-6 COMPRESSION SPRING 5 1 173 413H76-0 HOLDER 1 174 313433-3 UPPER YOKE 1 175 922252-2 HEX SOCKET HEAD BOLT M5X30 1 176 413H69-7 HOOK 1 177 922232-8 HEX SOCKET HEAD BOLT M5X20 2 178 266326-2 TAPPING SCREW 4X18 2 179 922217-4 HEX SOCKET HEAD BOLT M5X14 1 180 413H63-9 EXHAUST COVER 1 181 422888-2 SEAL RING 1 182 422897-1 FILTER 1 183 413H62-1 MOTOR HOUSING 1 185 213508-7 O RING 38 1 186 141K09-0 OUTLET DRUM CAP COMPLETE 1 187 413H64-7 BLADE 6 193 141K08-2 DRUM COMPLETE 1 194 213A24-5 X-RING 8 1 195 213508-7 O RING 38 1 196 213011-8 O RING 7 1 197 413H77-8 INLET DRUM CAP 1 198 211343-7 BALL BEARING 688ZZ 1 199 227969-5 STRAIGHT BEVEL GEAR 13 1 200 266630-9 +COUNTERSUNK TAPPING SCREW4X16 1 201 347A04-0 BASE PLATE 1 202 232756-9 TORSION SPRING 5 1 203 213036-2 O-RING 7 1 204 213007-9 O RING 8 1 205 413H66-3 MOTER COVER 1 206 422903-2 SEAL RING 1 207 266324-6 TAPPING SCREW 4X22 4 208 141G96-5 STRAIGHT BEVEL GEAR 30 COMPL 1 209 141K05-8 SPUR GEAR 17 COMPLETE 1 212 136832-0 GEAR COVER ASSEMBLY 1 214 266326-2 TAPPING SCREW 4X18 2 215 256A20-0 SHOULDER PIN 3-5 1 216 232763-2 COMPRESSION SPRING 6 1 217 253563-7 SHOULDER WASHER 1 218 347A05-8 LINK ARM 1 219 213999-2 O-RING 2 1 220 257939-0 STOP RING E-2 3 1 221 253563-7 SHOULDER WASHER 1 222 327A18-5 ROLLER 3 1
Print Date 13/3/2023
Model No AR412HR AIR SCREW DRIVER
Artikel Reservedelsnummer Beskrivelse I/C Qty New/Old Opt 1 Opt 2 Note 223 253563-7 SHOULDER WASHER 1 224 256A19-5 FLAT FILLISTER HD PIN 3 1 225 347A03-2 CONTACT ARM 1 226 265C68-3 H S BUTTON HEAD SCREW M5X6 1 227 232764-0 COMPRESSION SPRING 6 1 228 136833-8 CONTACT TOP ASSEMBLY 1 D10 INC 229-233 229 261118-4 URETHANE WASHER 2 230 313427-8 CHUCK 2 231 232755-1 TORSION SPRING 4 2 232 256A17-9 SHOULDER PIN 2 5-3 2 233 261118-4 URETHANE WASHER 2 234 422896-3 NOSE ADAPTER S 1 235 262187-8 URETHANE RING 3 1 236 413H48-5 MAGAZINE 1 237 256321-0 PIN 4 1 238 141D54-3 MAGAZINE CAP COMPLETE 1 C10 8058L5-5 INDICATION LABEL 1 239 413H71-0 FLAG 1 240 413H73-6 LATCH HOLDER 1 241 232758-5 TORSION SPRING 6 1 242 261118-4 URETHANE WASHER 1 243 256A22-6 SHOULDER PIN 2 5-3 1 244 232757-7 TORSION SPRING 4 1 245 256104-8 PIN 3 1 246 413H72-8 LATCH 1 249 136807-9 MAGAZINE ASSEMBLY 1 D10 INC 235-246 250 136775-6 TRIGGER ASSEMBLY 1 D10 INC 155-168,170-174 251 136776-4 TRIGGER VALVE ASSEMBLY 1 * D10 INC 143-154 * 251-1 136979-0 TRIGGER VALVE ASSEMBLY < 1 D10 INC 143-154 252 136777-2 ADJUSTER ASSEMBLY 1 253 136778-0 STOP VALVE ASSEMBLY 1 254 136779-8 AIR MOTOR ASSEMBLY 1 D10 INC 185-187,193-195,197199 255 196170-2 REPAIR KIT FOR TRIGGER 1 D10 INC 144,146-148,151-153 A01 1910Y2-3 DRIVER BIT SET 1 A02 199109-4 OIL SUPPLY SET 1 A04 783202-0 HEX WRENCH 4 1 A05 821886-7 PLASTIC CASE 1 C10 162315-4 LATCH 2 C20 452137-3 HANDLE 1 Please order the parts with part number Print Date 13/3/2023
Model No AR412HR AIR SCREW DRIVER
Please order the parts with part number. Print Date 13/3/2023
Reservedelsnummer Beskrivelse I/C Qty New/Old Opt 1 Opt 2 Note
LABEL 2
1
Artikel
A06 8057J0-5 AR412HR PLASTIC CASE
A07 422901-6 NOSE ADAPTER L
