Titus USA Concealed Hinges and Soft Closing EN

Titus Group Technical catalogue

Concealed Hinges Soft Closing Systems

2022

Important Information

Technical information While every effort has been made in the production of this catalogue to ensure the accuracy of information, our products are continually being revised and users should confirm the up to date specification before ordering. Due to constant improvement of products presented in the catalogue, we can make changes at any time and without notice.

Responsibility It is the responsibility of the user to ensure the fitness of hardware for the intended purpose. We recommend assessment by appropriate testing in the application and by technical enquiry to our representatives.

Intellectual property Titus Group owns the intellectual property rights in its products worldwide whether as trademarks, patents, intellectual, copyright, designs, illustrations, drawings and the ‘know how’ contained in their design and production. Titus Group respects the equivalent rights in competitors and all other relevant product design rights. To our knowledge our products do not infringe any intellectual property rights of competitors or other parties. Titus Group takes infringements of its rights seriously and will rigorously defend these rights to the full extent of the law. *Non preferred articles All Item numbers in the catalogue marked with * are for non preferred items available on extended delivery times.

Trademarks Titus and Titusonic are registered trademarks of Titus International Ltd. Lama is a registered trademark of Titus d.o.o. Dekani, WoodWelding is a registered trademark of WW SA.

0.3

Concealed hinges

Concealed Hinges

0.6

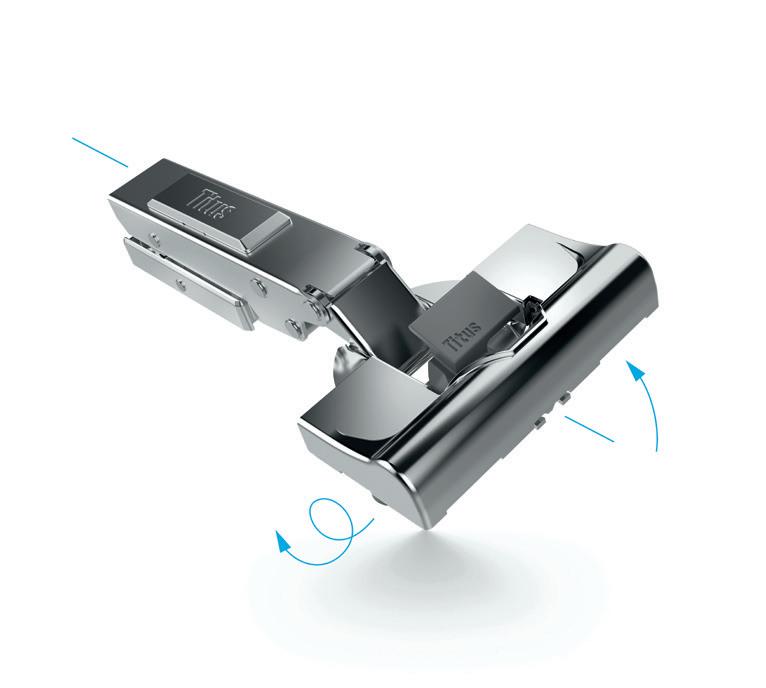

ConfidentClose The hinge is designed to provide consumer preferred way of soft closing action.

• Fast closing • Late start of deceleration action • Quiet landing with SoftTouch Based on independent consumer researches.

One-for-All • Damping on the hinge cup • Damper, positioned transversal to the hinge allows for easy introduction of various hinge versions • Damped and non-damped version on one mounting plate platform

Adjustable Damping Flexibility to tune performance to wide range of applications • Consistent performance over a wide range of doors of different sizes and weights • Easy accessible button for intuitive and quick adjustment

Titus Damper Inside • Efficient damping at any closing speed • Reliable closing • Damping force consistency

0.7

Concealed Hinges Door Overlay

How to Achieve the Desired Door Overlay?

By choosing the hinge of appropriate cranking

Concealed hinges with specific hinge arms are available for different door overlays. The most common overlays are:

Cabinet side Door

1. Full overlay Use a hinge with 0mm cranking

2. Partial overlay for double doors Use a hinge with 5mm or 9mm cranking

3. Inset door Use a hinge with 15mm or 17mm cranking

By choosing the mounting plates of appropriate thickness

To achieve the desired overlay (x) while using a determined drilling distance (K), a mounting plate of appropriate

thickness (D) must be chosen from the enclosed table or calculated with given formula. x

D

3

4

5

6

7

3

2

1

0

3

M

K 4 5

x K

S

D=4+K-x

By choosing the appropriate drilling distance K

To achieve the desired door overlay (x) while using a determined mounting plate thickness (D), an appropriate drilling distance K must be chosen.

x

D

5

x K

1 2 3

3 3

S

4

A

P

E

9

L

2

1

0

3

2

1

0

6

7

8

9

3

L

0 D

1.5

4

A

8

P

3

4

4

5

M

5

4

D

E

5

5

K

Side adjustment is made by rotating the appropriate screw on the hinge arm.

Door clearance and gap

Door clearance (F≥Fmin) and gap (Z) represent the minimal necessary space needed for the correct opening and closing of the door. The minimal required values depend on the cup drilling distance (K), door thickness (V)

Concealed Hinges

Through side adjustment

and the type of hinge. The minimum clearance scale can be found on product pages > see Door clearance chart. When using hinges with partial overlay the door clearance must be twice as large (F≥2Fmin).

V

16 17 18 19 20 21 22

L

E

3 0.3 0.5 0.7 1.0 1.3 1.7 2.5

V

Z K F

M

P

K 4 0.3 0.5 0.7 0.9 1.2 1.6 2.1

A

5 0.3 0.5 0.7 0.9 1.2 1.5 2.0 FMIN Gap ZMIN=0

S

1.6

Concealed Hinges Hinge Cup Types

How to Mount the Hinge on the Door?

There are cup type symbols listed on product pages beside item numbers.

Below you can find their explanation.

No pre-mounting

The hinge is fixed on the door with two screws.

3mm pilot holes recommended.

EasyFix

Quarter turn fixing for 8mm holes (interaxis 45/9.5) or 10mm holes (interaxis 48/6 and 52/5.5).

90º

Machine insertion ready hinge cup

1.7

Pre-mounted dowels suitable for machine insertion into 8mm holes

1.8

Concealed Hinges

Concealed Hinges Boring Details

Drilling Patterns for Hinge Cup Interaxis 45mm · T-type · S-type

Interaxis

45mm 45 9.5

*Available on special request > see page 0.3

Ø 35 Hinge cup type

Drilling pattern

45

35

Screw-on ready

Machine insertion ready

Easy-fix system

45

35

8

9.5

9.5

Interaxis is the distance between two holes center for fixing screws on the hinge cup.

1.9

Concealed Hinges

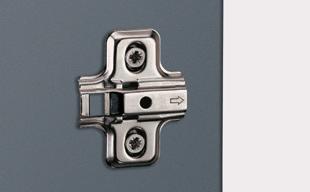

Concealed Hinges Mounting Plate Type

How to Fix the Mounting Plate on the Cabinet Side?

There are mounting plate type symbols listed on product pages beside item numbers. Below you can find their explanation.

Chipboard screw-on ready

Mounting plate is fixed with two chipboard screws or equivalent.

3mm pilot holes recommended.

Euro screw ready

Fixing with 6.3mm euro screws into pre-drilled 5mm holes. To choose appropriate head and length for use with this mounting plate is recommended.

Machine insertion ready

Pre-mounted dowels for machine insertion into pre-drilled holes.

Pre-mounted euro screws

Euro screws for 5mm holes are pre-mounted on the mounting plate.

Available lengths: 11mm, 13mm and 15mm

Pre-mounted expanding dowels

Pre-mounted expanding dowels for 5mm holes.

Available lengths: 7.5mm and 10.5mm

Pre-mounted Ø4.5mm screws

Mounting plate is fixed with two pre-mounted chipboard screws.

3mm pilot holes recommended.

1.10

Concealed Hinges Hinge-to-plate Mounting

How to Assemble the Hinge and the Mounting Plate?

T-type 3Way snap-on

3Way snap-on mounting for intuitive hinge-to-plate assembly in three directions:

front assembly

rear assembly

top assembly

disassembly: for disassembly press rear lever on the hinge arm.

1.11

· from the hinge arm front · from the hinge arm rear · from the top

Door is assembled on the cabinet side simply by positioning the two hooks under the hinge arm on the outer part of the mounting plate and pressing gently on the rear part of the hinge arm.

For disassembly press the rear button on the hinge arm.

assembly

disassembly

1.12

Concealed Hinges

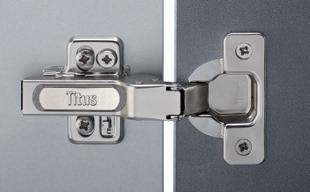

S-type snap-on

Concealed Hinges Loadings

How Many Hinges per Door?

Check the enclosed recommendation for the number of recommended hinges per door by considering door height and weight.

Recommendation: Use the appropriate number of hinges, not exceeding door height and weight as shown below.

Concealed hinges with Ø 35mm hinge cup diameter · Standard

hinges

height (cm)

height (cm)

250

250

5

200

4

150

weight (kg)

2-8

with integrated damping

8-15 13-20 17-25

250

5

200

4

150

3

100

2

50

2-8

8-15 13-20 17-25

T-type-i

Hinges with integrated damping can be combined with non-damped hinges from standard hinge range.

A trial mounting is always recommended.

1.13

weight (kg)

4-7

S-type

height (cm)

weight (kg)

2

50

T-type

· Hinges

3

100

2

50

4

150

3

100

5

200

8-12 13-16 17-22

i

Adjustment range can be found on the product pages.

Concealed Hinges

Concealed Hinges Adjustment

Side Adjustment Side adjustment aligns the door with the side of the cabinet.

By rotating the adjustment screw

Side adjustment is made by rotating the screw on the hinge arm.

· T-type · S-type

Adjustment range

1.14

Concealed Hinges Adjustment

Height Adjustment

Height adjustment is made by rotating the cam adjuster on the mounting plate.

-2 -2

By rotating the cam adjuster

-2 -2

Height adjustment is necessary to achieve optimal vertical door position.

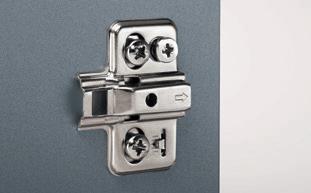

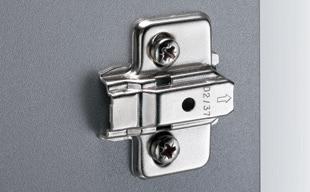

T-type with cam adjustable cruciform mounting plate

+2 +2

+2 +2 +2-2 +2 +2

S-type with cam adjustable cruciform mounting plate

-2 -2

+2 -2

T-type with cam adjustable horizontal mounting plate

By releasing the fixing screws

+2

-2

· T-type and S-type with cruciform mounting plate

For height adjustment the two mounting plate fixing screws have to be temporarily released while making the manual adjustment.

1.15

Concealed Hinges

Concealed Hinges Adjustment

Depth Adjustment The system enables easy adjustment of the gap between door and cabinet.

By rotating the cam adjuster

Rotate the cam adjuster on the hinge arm.

Adjustment range +4/-1 +4/-1

-2 -2

· T-type

· S-type

The depth adjustment is made by temporarily releasing the adjustment screw.

After the adjustment is made the screw has to be re-tightened.

+2 +2

By releasing the fixing or adjustment screw

1.16

Concealed Hinges Damping Adjustment

Damping Adjustment T-type-i

The damping action can be adjusted to fit different door weights and sizes which enables optimal door functioning.

Damping is factory pre-set to the medium damping value.

Turn towards ‘+’ to increase and ‘-’ to decrease the damping.

1.17

Concealed Hinges

Titus damping solutions

Key Design Choices ConfidentClose

Key choices Thedesign hinge is designed to provide consumer preferred way of soft closing action.

Damping in the hinge cup

Based on results of Titus researches made in UK, Germany and Slovenia

One-for-all efficiency principle

Damper is positioned transversal on the hinge cup · Allows for an easy and quick introduction Fast closing Late start of of various hinge versions: ST ‘snap-on’ deceleration action and Basic ‘slide-on’ with different hinge arm crankings and angles · Standard hinge cup drilling depths: requires no changes in drillings for hinge cup Damping on the hinge cup · Standard mounting plates Damper, positioned transversal to the hinge cup allows for easy introduction of hinge versions

Quiet landing with SoftTouch

Damped and non-damped version on one mounting plate platform

Adjustable damping force

Adjustable damping

Flexibility to 'tune' performance for all applications · Optimal damping on various door weights and sizes Flexibility to tune performance · Intuitive and quick adjustment for all applications · Easily accessible adjustment button · Consistent performance over a wide range of doors of different sizes and weights · Easy accessible adjustment button for intuitive and quick adjustment Adjustable damping damping zone andand forceforce Adjustable zone

Titus Damper Inside

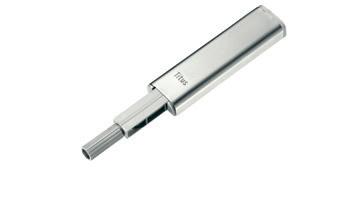

Titus hydraulic damper

· Efficient damping at any closing speed · Reliable closing · Damping force consistency

Titus hydraulic damper, designed and produced in-house · Reliable and consistent life-long damping · Minimum damper rebounce · Dampers’ consistency over high volume production runs assured

1.18

‘3Way’ snap-on · ·

Allows for intuitive hinge-to-plate mounting in three directions Enhanced mounting experience

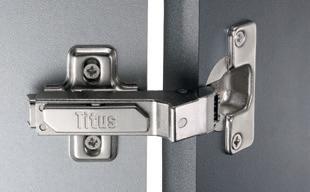

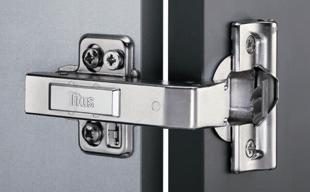

T-type Hinges

Easy door installation even in cases of 4-5 hinges per door

Easy door installation even in cases of 3-5 hinges per door ·E asy and quick assembly and disassembly

1.19

Highly tolerant Efficient performance in marginal values of tolerances Highly tolerant ·

Reliable door closing in case of misalignment ·E fficientaccidental performance in edge · of ‘ConfidentClose’ assured value tolerances

·R eliable door closing in case of accidental misalignment ·C onfidentClose assured

Rigidity ·

Hinge-to-plate attachment assures

·

Smooth performance

stability and rigidity Rigidity

· Rigid hinge-to-plate attachment assures door stability ·T ight hinge-to-plate joint improves hinge stability and reduces door sag · Smooth performance

T-Type Hinges

‘Titus Damper Inside’

Low hinge cup drilling depth Enables application on door thicknesses from 15mm on Adjustable damping

·C onsistent performance on doors of different dimensions and weights · I ntuitive adjustment

·

Titus proprietary multi-purpose damping technology Inside Titus Damper · Reliable and consistent life-long damping ·T itus proprietary multi-purpose · No rebounce

damping technology ·R eliable and consistent life-long damping

Proven Glissando concept ·

Damper is positioned

·

Reliable performance

transversal on the hinge concept cup Proven Glissando

· Damper is positioned transversal on the hinge cup · Reliable performance

1.20

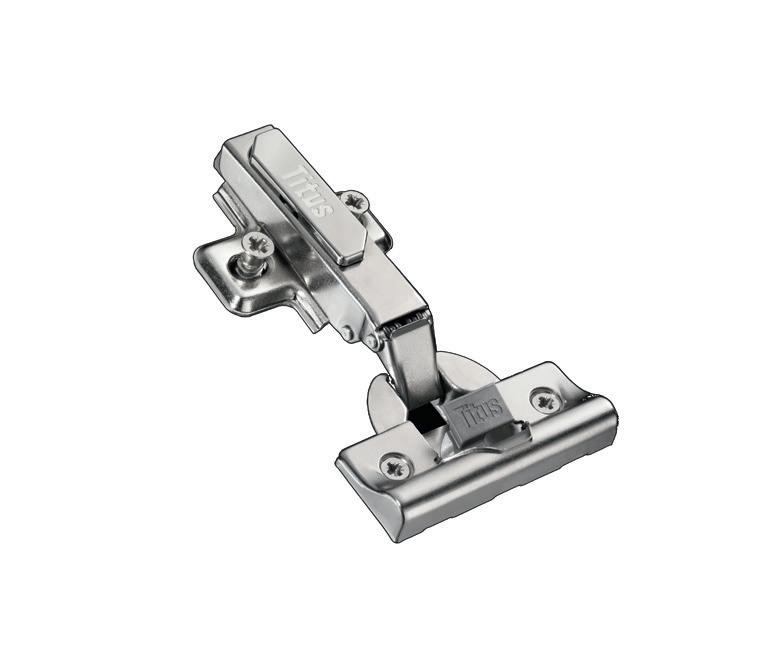

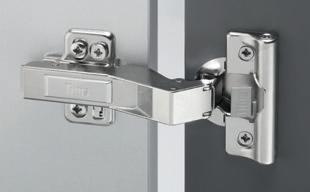

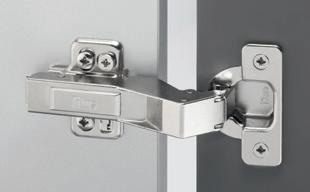

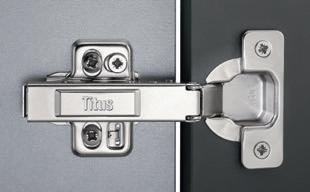

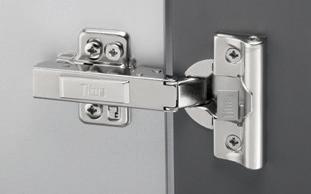

T-type-i 110

For wood doors

· · · ·

110°

Opening angle Drilling diameter for hinge cup Drilling depth Hinge on plate mounting system

110˚ 35mm 12mm 3Way snap-on Interaxis

45mm 9.5

45

Ø 35

Technical details

Cup type

Cranking

Item number

701.0AT0.054 11.7 11.4

0mm

701.0AT1.054 EasyFix

K

42.5

701.0AT4.054

Drilling patterns for hinge cups > see page 1.9

65.4

26.1

150 Pcs

Made of steel

Cranking

701.0BT0.054 11.7 11.4

5mm

701.0BT1.054 EasyFix

K

42.5

701.0BT4.054

Drilling patterns for hinge cups > see page 1.9

65.4

26.1

150 Pcs

Made of steel

Mounting plates Cam adjustable cruciform mounting plate > see page 1.37

7.5

Cruciform mounting plate > see page 1.39

Accessories

Cam adjustable linear mounting plate > see page 1.37 Face frame adapter plate > see page 1.39

1.21

Hinge cup screws If not pre-mounted

4

Legend of hinge cup symbols

820.6328.050

16

10000 Pcs

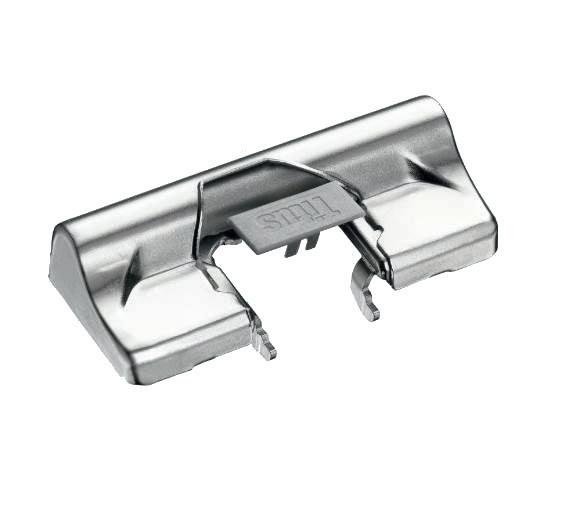

Cover caps for hinge arm > see page 1.63 Hinge angle restrictor > see page 1.61

Screw-on ready > screws

Machine insertion ready

EasyFix system

Damping adjustment

Door adjustment

Side adjustment +3/-1mm

Depth adjustment +4/-1mm

For further explanation > see pages 1.14-1.16

Concealed Hinges

For further explanation > see page 1.17

Height adjustment +2/-2mm

Mounting details

Mounting plate thickness table For further explanation > see page 1.5

X

S

13

14

15

16

17

18

19

3

3

2

1

0

4

4

3

2

1

0

4

3

2

1

0

4

3

2

1

0

12

13

14

D

37

67.5

18.5

Mounting plate drilling distance

Z

K K

F>Fmin

5

37

X

6 10.6

V

D

D=13+K-X Drawings show application on D=0mm mounting plate

X 23.5

8

9

10

11

3

3

2

1

0

4

4

3

2

1

0

4

3

2

1

0

4

3

2

1

0

S

67.5

D

K

37

K 5

Z

37

6

F>Fmin X 15.6

V

D

D=8+K-X

Drawings show application on D=0mm mounting plate

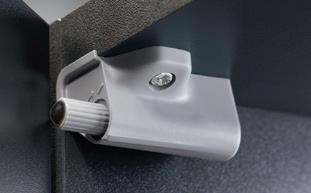

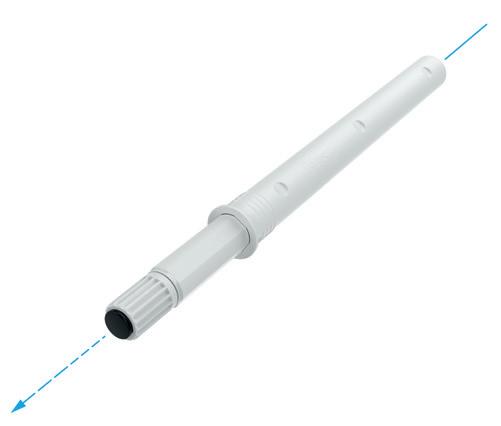

Touch opening solution Push Latch > see page 1.59

Door clearance at R=1mm For further explanation > see page 1.6

V

16

17

18

19

20

21

22

23

24

25

26

3

0.5

0.7

0.8

1

1.2

1.5

1.7

2.1

2.8

4.1

5.5

4

0.4

0.7

0.8

1

1.2

1.5

1.7

2.1

2.3

3.1

4.5

5

0.4

0.6

0.7

0.9

1.1

1.4

1.6

2

2.2

2.6

3.5

6

0.4

0.6

0.7

0.9

1.1

1.4

1.6

2

2.2

2.6

2.9

K

FMIN

Gap ZMIN=0

1.22

T-type-i 110

For wood doors

· · · ·

110°

Opening angle Drilling diameter for hinge cup Drilling depth Hinge on plate mounting system

110˚ 35mm 12mm 3Way snap-on Interaxis

45mm 9.5

45

Ø 35

Technical details

Cup type

Cranking

Item number

701.0CT0.054 11.7 11.4

9mm

701.0CT1.054 EasyFix

K

42.5

701.0CT4.054

Drilling patterns for hinge cups > see page 1.9

65.4

26.1

150 Pcs

Made of steel

Cranking

701.0DT0.054 11.7 11.4

17mm

701.0DT1.054 EasyFix

K

42.5

701.0DT4.054

Drilling patterns for hinge cups > see page 1.9

65.4

26.1

150 Pcs

Made of steel

Mounting plates Cam adjustable cruciform mounting plate > see page 1.37

7.5

Cruciform mounting plate > see page 1.39

Accessories

Cam adjustable linear mounting plate > see page 1.37 Face frame adapter plate > see page 1.39

1.23

Hinge cup screws If not pre-mounted

4

Legend of hinge cup symbols

820.6328.050

16

10000 Pcs

Cover caps for hinge arm > see page 1.63 Hinge angle restrictor > see page 1.61

Screw-on ready > screws

Machine insertion ready

EasyFix system

Damping adjustment

Door adjustment

Side adjustment +3/-1mm

Depth adjustment +4/-1mm

For further explanation > see pages 1.14-1.16

Concealed Hinges

For further explanation > see page 1.17

Height adjustment +2/-2mm

Mounting details S

Mounting plate thickness table For further explanation > see page 1.5

X

D

K

Z 37

67.5

27.5

Mounting plate drilling distance

4

5

6

7

8

9

10

3

3

2

1

0

4

4

3

2

1

0

4

3

2

1

0

4

3

2

1

0

D

Z

K 5

37

F>2Fmin X

6

19.6

D=4+K-X

V

Drawings show application on D=0mm mounting plate

S

V

D

37

68.5

37.5

16

17

18

19

20

21

22

23

24

3

0

0

0

0

1

1

1

1

2

4

1

1

1

1

2

2

2

2

3

5

2

2

2

2

3

3

3

3

4

6

3

3

3

3

4

4

4

4

K

K 37+V

F>Fmin 29.6

D

D= -4+K+F

V

Drawings show application on D=2mm mounting plate

Touch opening solution Push Latch > see page 1.59

Door clearance at R=1mm For further explanation > see page 1.6

V

16

17

18

19

20

21

22

23

24

25

26

3

0.5

0.7

0.8

1

1.2

1.5

1.7

2.1

2.8

4.1

5.5

4

0.4

0.7

0.8

1

1.2

1.5

1.7

2.1

2.3

3.1

4.5

5

0.4

0.6

0.7

0.9

1.1

1.4

1.6

2

2.2

2.6

3.5

6

0.4

0.6

0.7

0.9

1.1

1.4

1.6

2

2.2

2.6

2.9

K

FMIN

Gap ZMIN=0

1.24

T-type-i 120

For wood doors

· · · ·

120°

Opening angle Drilling diameter for hinge cup Drilling depth Hinge on plate mounting system

120˚ 35mm 12mm 3Way snap-on Interaxis

45mm 9.5

45

Ø 35

Technical details

Cup type

Cranking

Item number

701.0UT0.054 11.9 11.4

0mm

701.0UT1.054 EasyFix

K

42.5

701.0UT4.054

Drilling patterns for hinge cups > see page 1.9

65.4

26.1

150 Pcs

Made of steel

Mounting plates Cam adjustable cruciform mounting plate > see page 1.37

7.5

Cruciform mounting plate > see page 1.39

Accessories

Cam adjustable linear mounting plate > see page 1.37 Face frame adapter plate > see page 1.39

1.25

Hinge cup screws If not pre-mounted

4 16

Legend of hinge cup symbols

820.6328.050 10000 Pcs

Cover caps for hinge arm > see page 1.63

Screw-on ready > screws

Machine insertion ready

EasyFix system

Damping adjustment

Door adjustment

Side adjustment +3/-1mm

Depth adjustment +4/-1mm

For further explanation > see pages 1.14-1.16

Concealed Hinges

For further explanation > see page 1.17

Height adjustment +2/-2mm

Mounting details

S

Mounting plate thickness table For further explanation > see page 1.5

X

D

K

Z

37

67.5

18.5

Mounting plate drilling distance

13

14

15

16

17

18

3

3

2

1

0

4

4

3

2

1

0

4

3

2

1

0

4

3

2

1

19

K 37

5

F>Fmin X 10.1

V

6

0

D

D=13+K-X

Drawings show application on D=0mm mounting plate

Touch opening solution Push Latch > see page 1.59

Door clearance at R=1mm For further explanation > see page 1.6

V

K

16

17

18

19

3

1.1

0.4

0

0

4

2

1.4

0.7

0.1

5

3

2.3

1.6

1

FMIN

Gap Zmin =2

1.26

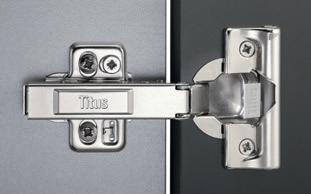

T-type 110

For wood doors

· · · ·

110°

Opening angle Drilling diameter for hinge cup Drilling depth Hinge on plate mounting system

110˚ 35mm 12mm 3Way snap-on Interaxis

45mm 9.5

45

Ø 35

Technical details

Cup type

Cranking

Item number

702.0AK0.054 11.7 3.2

0mm

702.0AK1.054 EasyFix

K

37.4

702.0AK4.054

62.1

Drilling patterns for hinge cups > see page 1.9

150 Pcs

Made of steel

Cranking

702.0BK0.054 11.7 3.2

5mm

702.0BK1.054 EasyFix

K

37.4

702.0BK4.054

62.1

Drilling patterns for hinge cups > see page 1.9

150 Pcs

Made of steel

Mounting plates Cam adjustable cruciform mounting plate > see page 1.37

7.5

Cruciform mounting plate > see page 1.39

Accessories

Cam adjustable linear mounting plate > see page 1.37 Face frame adapter plate > see page 1.39

1.27

Hinge cup screws If not pre-mounted

4

Legend of hinge cup symbols

820.6328.050

16

10000 Pcs

Cover caps for hinge arm > see page 1.63 Hinge angle restrictor > see page 1.61

Screw-on ready > screws

Machine insertion ready

EasyFix system

Door adjustment

Side adjustment +3/-1mm

Height adjustment +2/-2mm

Depth adjustment +4/-1mm

Concealed Hinges

For further explanation > see pages 1.14-1.16

Mounting details 18.5

Mounting plate drilling distance

Mounting plate thickness table For further explanation > see page 1.5

D

S

X

D

37

67.5

67.5

S

14

15

16

17

18

19

3

3

2

1

0

4

4

3

2

1

0

4

3

2

1

0

4

3

2

1

0

12

13

14

K

37

K

13

5

K

37

F>Fmin F>Fmin 10.6 V

6

X

X

V

D

D=13+K-X

Drawings show application on D=0mm mounting plate

23.5

S

x

8

9

10

11

3

3

2

1

0

4

4

3

2

1

0

4

3

2

1

0

4

3

2

1

0

K

37

67.5

37

67.5

S

K

5

K

37

6

X 15.6

V

D=8+K-X

X

V

D

Drawings show application on D=0mm mounting plate

Soft closing systems Glissando TT > see page 2.5

Door clearance at R=1mm For further explanation > see page 1.6

V

Touch opening solution Push Latch > see page 1.59

16

17

18

19

20

21

22

23

24

25

26

3

0.5

0.7

0.8

1

1.2

1.5

1.7

2.1

2.8

4.1

5.5

4

0.4

0.7

0.8

1

1.2

1.5

1.7

2.1

2.3

3.1

4.5

5

0.4

0.6

0.7

0.9

1.1

1.4

1.6

2

2.2

2.6

3.5

6

0.4

0.6

0.7

0.9

1.1

1.4

1.6

2

2.2

2.6

2.9

K

FMIN

Gap ZMIN=0

1.28

T-type 110

For wood doors

· · · ·

110°

Opening angle Drilling diameter for hinge cup Drilling depth Hinge on plate mounting system

110˚ 35mm 12mm 3Way snap-on Interaxis

45mm 9.5

45

Ø 35

Technical details

Cup type

Cranking

Item number

702.0CK0.054 11.7 3.2

9mm

702.0CK1.054 EasyFix

K

37.4

702.0CK4.054

62.1

Drilling patterns for hinge cups > see page 1.9

150 Pcs

Made of steel

Cranking

702.0DK0.054 11.7 3.2

17mm

702.0DK1.054 EasyFix

K

37.4

702.0DK4.054

62.1

Drilling patterns for hinge cups > see page 1.9

150 Pcs

Made of steel

Mounting plates Cam adjustable cruciform mounting plate > see page 1.37

7.5

Cruciform mounting plate > see page 1.39

Accessories

Cam adjustable linear mounting plate > see page 1.37 Face frame adapter plate > see page 1.39

1.29

Hinge cup screws If not pre-mounted

4

Legend of hinge cup symbols

820.6328.050

16

10000 Pcs

Cover caps for hinge arm > see page 1.63 Hinge angle restrictor > see page 1.61

Screw-on ready > screws

Machine insertion ready

EasyFix system

Door adjustment

Side adjustment +3/-1mm

Height adjustment +2/-2mm

Depth adjustment +4/-1mm

Concealed Hinges

For further explanation > see pages 1.14-1.16

Mounting details 27.5

Mounting plate drilling distance

Mounting plate thickness table For further explanation > see page 1.5

S 27.5

X

D

S

4

5

6

7

8

9

10

3

3

2

1

0

4

4

3

2

1

0

4

3

2

1

0

4

3

2

1

0

D

K

37

K

37

67.5

67.5

D

K 5

37

F>2Fmin

.6 19.6

V

V

6

F>2Fmin

X X

D=4+K-X

Drawings show application on D=0mm mounting plate

D 37.5

V

S D

16

17

18

19

20

21

22

23

24

3

0

0

0

0

1

1

1

1

2

4

1

1

1

1

2

2

2

2

3

5

2

2

2

2

3

3

3

3

4

6

3

3

3

3

4

4

4

4

S

37

K

K

37

68.6

68.6

37.5

K

37+V F>Fmin F>Fmin

29.6 V V

D

D=-4+K+F

Drawings show application on D=2mm mounting plate

Soft closing systems Glissando TT > see page 2.5

Door clearance at R=1mm For further explanation > see page 1.6

V

Touch opening solution Push Latch > see page 1.59

16

17

18

19

20

21

22

23

24

25

26

3

0.5

0.7

0.8

1

1.2

1.5

1.7

2.1

2.8

4.1

5.5

4

0.4

0.7

0.8

1

1.2

1.5

1.7

2.1

2.3

3.1

4.5

5

0.4

0.6

0.7

0.9

1.1

1.4

1.6

2

2.2

2.6

3.5

6

0.4

0.6

0.7

0.9

1.1

1.4

1.6

2

2.2

2.6

2.9

K

FMIN

Gap ZMIN=0

1.30

T-type 120

For wood doors

· · · ·

120°

Opening angle Drilling diameter for hinge cup Drilling depth Hinge on plate mounting system

120˚ 35mm 12mm 3Way snap-on Interaxis

45mm 9.5

45

Ø 35

Technical details

Cup type

Cranking

Item number

702.0UK0.054 11.9 3.2

0mm

702.0UK1.054 EasyFix

K

37.4

702.0UK4.054

62.1

Drilling patterns for hinge cups > see page 1.9

150 Pcs

Made of steel

Mounting plates Cam adjustable cruciform mounting plate > see page 1.37

7.5

Cruciform mounting plate > see page 1.39

Accessories

Cam adjustable linear mounting plate > see page 1.37 Face frame adapter plate > see page 1.39

1.31

Hinge cup screws If not pre-mounted

4 16

Legend of hinge cup symbols

820.6328.050 10000 Pcs

Cover caps for hinge arm > see page 1.63

Screw-on ready > screws

Machine insertion ready

EasyFix system

Door adjustment

Side adjustment +3/-1mm

Height adjustment +2/-2mm

Depth adjustment +4/-1mm

Concealed Hinges

For further explanation > see pages 1.14-1.16

Mounting details

13

14

15

16

17

18

3

3

2

1

0

4

4

3

2

1

0

4

3

2

1

0

4

3

2

1

19

D

K

37

K 37

F>Fmin 10.1

Mounting plate thickness table For further explanation > see page 1.5

X

S

67.5

18.5

Mounting plate drilling distance

6

X

V

5

0

D

D=13+K-X

Drawings show application on D=0mm mounting plate

Soft closing systems Glissando TT > see page 2.5

Touch opening solution Push Latch > see page 1.59

Door clearance at R=1mm For further explanation > see page 1.6

V

K

16

17

18

19

3

1.1

0.4

0

0

4

2

1.4

0.7

0.1

5

3

2.3

1.6

1

FMIN

Gap Zmin =2

1.32

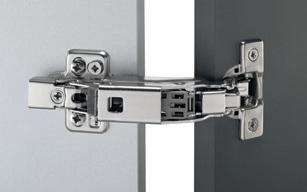

T-type 170

For wood doors

· · · ·

170°

Opening angle Drilling diameter for hinge cup Drilling depth Hinge on plate mounting system

165˚ 35mm 12mm 3Way snap-on Interaxis

45mm 9.5

45

Ø 35

Technical details

Cup type

Cranking

Item number

702.0EK0.054

0mm

702.0EK1.054 EasyFix

702.0EK4.054

Drilling patterns for hinge cups > see page 1.9

50 Pcs

Made of steel and zinc

Cranking

702.0GK0.054

9mm

702.0GK1.054 EasyFix

702.0GK4.054

Drilling patterns for hinge cups > see page 1.9

50 Pcs

Made of steel and zinc

Mounting plates Cam adjustable cruciform mounting plate > see page 1.37

7.5

Cruciform mounting plate > see page 1.39

Accessories

Cam adjustable linear mounting plate > see page 1.37 Face frame adapter plate > see page 1.39

1.33

Hinge cup screws If not pre-mounted

4

Legend of hinge cup symbols

820.6328.050

16

10000 Pcs

Hinge angle restrictor > see page 1.61

Screw-on ready > screws

Machine insertion ready

EasyFix system

Door adjustment

Side adjustment +3/-1mm

Height adjustment +2/-2mm

Depth adjustment +4/-1mm

Concealed Hinges

For further explanation > see pages 1.14-1.16

Mounting details

Mounting plate drilling distance 52

Mounting plate thickness table For further explanation > see page 1.5

S

X

13

14

15

16

17

18

3

3

2

1

0

4

4

3

2

1

0

4

3

2

1

0

4

3

2

1

19

37

67

D

V

F>Fmin

37

K

37

5

90

°

-1.4

6

Drawings show application on D=0mm mounting plate No door protrusion in 90° position

C

70

90

˚

70 S

S

6

S

3

4

5 79 6

79

79 S

3

S

7

S

8

9

10 11

2

1

0

3

2

1

0

3

2

1

0

3

2

1

0

3

2

1

37

67 67 V V

5

67 V

67 V

67 V

4

V

F>2Fmin F>2Fmin

˚

˚

2

6

F>2Fmin

90 90

3

1

37

F>Fmin F>Fmin

67

67

F>Fmin

V

37

37

x

70

X S

37

C

61 S D D

67

67

x

V

K

19

K

67 19

x

C

D

37

61

S

61 61 19 D D

S

D

67

61

19

D

V

61

K

0

D=13+K-X

67

7

C

V

K

K

7.6

6

6

6

7.6 7.6

Drawings show application on D=0mm mounting plate

Soft closing systems Glissando TL 170 > see page 2.7

Touch opening solution Push Latch > see page 1.59

6

7

Drawing show application on D=0mm mounting plate

D

0

D=4+K-X Door clearance at R=1mm For further explanation > see page 1.6

V

K

16

17

18

19

20

21

22

23

24

3

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.0

4

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.0

5

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.0

6

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.0

2.6

7

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.0

5.1

FMIN

Gap ZMIN=0.5

1.34

T-type for Pie-cut Corner Cabinet

For wood doors

· · · ·

Opening angle Drilling diameter for hinge cup Drilling depth Hinge on plate mounting system

70˚ 35mm 11mm 3Way snap-on Interaxis

45mm 9.5

45

Ø 35

Cup type

Corner cabinet

Item number

721.0PK0.650 EasyFix

721.0PK4.650

Drilling patterns for hinge cups > see page 1.9

100 Pcs

Cup made of zinc, arm made of steel

Mounting plates Cam adjustable cruciform mounting plate > see page 1.37

7.5

Cruciform mounting plate > see page 1.39

Accessories

Cam adjustable linear mounting plate > see page 1.37

1.35

Hinge cup screws If not pre-mounted

4 16

Legend of hinge cup symbols

820.6328.050 10000 Pcs

Cover caps for hinge arm > see page 1.63

Screw-on ready > screws

EasyFix

Door adjustment

Side adjustment +2.5/-2.5mm

Height adjustment +2/-2mm

Depth adjustment +3/-1mm

Concealed Hinges

For further explanation > see pages 1.14-1.16

Mounting details

Mounting plate drilling distance

Adjustments

+3

32

-1 +2.5

-6 +6

D=2 19

37

V V=16-25mm V = 16 - 22 mm K=3-6 K = 3 - 5 mm

-2.5

K

35

19

Any T-type mounting plate can be used

The adjustment of the gap between two doors is done by rotating the adjustment screw as shown on the drawing

+6

v

-2 11.5 +3 70° -1 +5

-1.5

25°

D=3

Touch opening solution Push Latch > see page 1.59

1.36

T-type Mounting Plates

3Way snap-on mounting

Drilling pattern

Cam adjustable cruciform mounting plate 37mm

Dimensions

57.2

53

32

37

150 Pcs

Made of steel

Cam adjustable cruciform mounting plate

67.7

44

32

37

150 Pcs

Made of steel

Cam adjustable linear mounting plate

65.2

20 19.9

32

150 Pcs

Made of steel and zinc

Fixing screw for cruciform mounting plate If not pre-mounted

7.5

4 16

Chipboard screws

820.6328.050 10000 Pcs

1.37

D

Height adjustment +2/-2mm

15

10.5

Concealed Hinges

Height adjustment +2/-2mm

Mounting plate type

Mounting plate thickness

15 no pre-drilling required

min 15

Item number

Item number

Item number

Item number

Item number

0mm

700.0NA0.054

700.0KC0.054

700.0KB0.054

700.0KF0.054

700.0KA0.054

3mm

700.0NA3.054

700.0KC3.054

700.0KB3.054

700.0KF3.054

min 700.0KA3.054 11.5

0mm

700.0625.650

3mm

700.0667.650

0mm

700.0LC0.650

700.0LB0.650

700.0LF0.650

2mm

700.0LC2.650

700.0LB2.650

700.0LF2.650

3mm

700.0LC3.650

700.0LB3.650

700.0LF3.650

15

Mounting plate thickness (D)

min 10.5

3.9

min 11.5

Ø5

min 10.5

Ø10

Ø5

Ø5

min 10.5

Legend of mounting plate type symbols

15 Screw-on ready for chipboard screws < screws

Pre-mounted 15mm euro screws

10.5 Machine insertion ready

Pre-mounted 10.5mm expanding dowels

15 Pre-mounted chipboard screw

1.38

T-type Mounting Plates

3Way snap-on mounting

Drilling pattern

Dimensions

Cruciform mounting plate 37mm

57.2

53

32

37

150 Pcs

Made of steel

Cam adjustable face frame mounting plate 56.8

57

40

Ø3

9.5

150 Pcs

Made of steel and zinc

Fixing screw for cruciform mounting plate If not pre-mounted

7.5

4 16

Chipboard screws

820.6328.050 10000 Pcs

1.39

D

Height adjustment +2/-2mm

10.5

14.5

min 14.5

15

15

min 10.5

min 10.5

min 11.5

Mounting plate thickness (D)

min 12

Item number

Item number

Item number

Item number

Item number

0mm

700.0NA0.054

700.0NC0.054

700.0NB0.054

700.0NF0.054

700.0NE0.054

3mm

700.0NA3.054

700.0NC3.054

700.0NB3.054

700.0NF3.054

700.0NE3.054

3.9

Ø5

Ø10

Concealed Hinges

Height adjustment +2/-2mm

Mounting plate type

Mounting plate thickness

Ø5

Ø3 Item number

0mm

700.0KW0.054

3mm

700.0KW3.054

Legend of mounting plate type symbols

15 Screw-on ready for chipboard screws < screws

Pre-mounted 15mm euro screws

10.5 Machine insertion ready

Pre-mounted 10.5mm expanding dowels

15 Pre-mounted chipboard screw

14.5 Pre-mounted chipboard screw

1.40

S-type Hinges

1

Snap-on mounting system ·E asy and quick assembly and disassembly ·F lexibility for the furniture user · Tight hinge-to-plate joint improves hinge stability and reduces door sag

1.41

Easily accesible height adjustment with cam · I ntuitive and quick height adjustment ·C onsumer friendly

2

3

ConfidentClose · 1 Fast closing · 2 Late start of deceleration action · 3 Quiet landing with SoftTouch

Push

Soft closing options

Touch opening

·H inge integrated ·A dd-on with Glissando ready hinge cup ·S tand-alone

· Guarantees effortless opening · Elegant cabinet design · Doors without handles

1.42

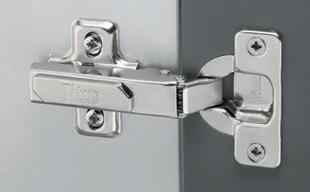

S-type 110

For wood doors

· · · ·

110°

Opening angle Drilling diameter for hinge cup Drilling depth Hinge on plate mounting system

110˚ 35mm 11.5mm snap-on Interaxis

45mm 9.5

45

Ø 35

Cup type

Cranking

Item number

248.0535.050

0mm

248.0171.050 248.0186.050 Drilling patterns for hinge cups > see page 1.9

200 Pcs

Made of steel

Cranking

248.0536.050

9mm

248.0279.050 248.0482.050 Drilling patterns for hinge cups > see page 1.9

200 Pcs

Made of steel

Cranking

248.0537.050

15mm

248.0280.050 248.0487.050 Drilling patterns for hinge cups > see page 1.9

200 Pcs

Made of steel

Mounting plates

Hinge cup screws If not pre-mounted

Cam adjustable cruciform mounting plate > see page 1.51

6.9

Cruciform mounting plate > see page 1.53

Accessories

3.5

Legend of hinge cup symbols

820.6308.050

15

10000 Pcs

Cover caps for hinge arm > see page 1.63 Face frame adapter > see page 1.55

1.43

Hinge angle restrictor > see page 1.61

Screw-on ready > screws

Machine insertion ready

EasyFix system

Door adjustment

Side adjustment +3/-1mm

Height adjustment +2/-2mm

Depth adjustment +5/-1.5mm

Concealed Hinges

For further explanation > see pages 1.14-1.16

Mounting details

Mounting plate drilling distance

Mounting plate thickness table For further explanation > see page 1.5

17.8

S

X

D

14

15

16

17

18

3

2

1

0

3

2

1

0

3

2

1

0

8

9

V

4

37

F>Fmin

x 7

K

z

K

37

63

3

13

5

Drawings show application on D=0mm mounting plate

D=13+K-X X

26.7 D

S

D

37

5

6

7

3

2

1

0

3

2

1

0

3

2

1

0

37

63

3

4

4

K

z

K

16

V

37

F>2Fmin

x

5

Drawings show application on D=0mm mounting plate S

D

37

D=4+K-X 16

17

18

19

20

21

3

2

2

2

3

3

3

4

3

3

3

5

3

V

35.7

63

D

37

K

F>Fmin 25

K 37+V

Drawings show application on D=3mm mounting plate

Soft closing systems Glissando TL3 > see page 2.5

D

37+V

D=-2+K-F

Touch opening solution

Door clearance For further explanation > see page 1.6

Push Latch > see page 1.59

V

K

16

17

18

19

20

21

22

3

0.3

0.5

0.7

1.0

1.3

1.7

2.5

4

0.3

0.5

0.7

0.9

1.2

1.6

2.1

5

0.3

0.5

0.7

0.9

1.2

1.5

2.0

FMIN

Gap ZMIN=0

1.44

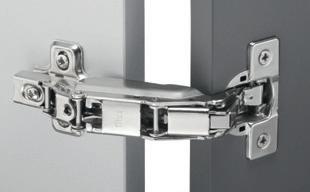

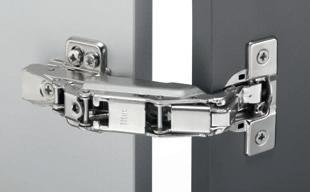

S-type 170

For wood doors

· · · ·

170°

Opening angle Drilling diameter for hinge cup Drilling depth Hinge on plate mounting system

170° 35mm 12mm snap-on Interaxis

45mm 9.5

45

Ø 35

Cup type

Cranking

Item number

248.0R14.050

0mm

248.0M73.050 Drilling patterns for hinge cups > see page 1.9

Cranking

248.0R18.050

0mm

With adjustable opening angle

50 Pcs

Drilling patterns for hinge cups > see page 3.15 * Available upon special request > see page 0.3

Adjustable opening angle 135°

Made of steel and zinc

Mounting plates

Hinge cup screws If not pre-mounted

Cam adjustable cruciform mounting plate > see page 1.51

6.9

Cruciform mouting plate > see page 1.53

Accessories

3.5

Legend of hinge cup symbols

820.6308.050

15

10000 Pcs

Hinge angle restrictor > see page 1.61 Face frame adapter > see page 1.55

1.45

Screw-on ready > screws

Machine insertion ready

Door adjustment

Side adjustment +3/-1mm

Height adjustment +2/-2mm

Depth adjustment +5/-1.5mm

Concealed Hinges

For further explanation > see pages 1.14-1.16

Mounting details

Mounting plate drilling distance

Mounting plate thickness table For further explanation > see page 1.5

X 52

19

10

11

12

13

14

15

16

6

5

4

3

2

1

0

6

5

4

3

2

1

0

6

5

4

3

2

1

0

6

5

4

3

2

1

0

6

5

4

3

2

1

0

21

22

23

24

3

D

18

19

20

19

37

67

4

17

K

C

7

F>Fmin

K 37

37

5 6

90

°

7

-1.4

D=13+K-X

Drawings show application on D=0mm mounting plate No protrusion in 90° position

C value with D=0 mounting plates K C

Soft closing systems Glissando TL 170 > see page 2.7

D

Touch opening solution

3

4

5

6

7

-9.0 -8.1 -7.1 -6.1 -5.2

D

Door clearance For further explanation > see page 1.6

Push Latch > see page 1.59

16

V

K

17

18

19

20

3

0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

4

0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

5

0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

6

0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 2.6

7

0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 5.1 FMIN

Gap ZMIN=0.5

1.46

S-type 170

For wood doors

· · · ·

170°

Opening angle Drilling diameter for hinge cup Drilling depth Hinge on plate mounting system

170° 35mm 12mm snap-on Interaxis

45mm 9.5

45

Ø 35

Cup type

Cranking

248.0162.050

9mm

Drilling patterns for hinge cups > see page 1.9

50 Pcs

Made of steel and zinc

Mounting plates

Hinge cup screws If not pre-mounted

Cam adjustable cruciform mounting plate > see page 1.51

6.9

Cruciform mouting plate > see page 1.53

Accessories

3.5

Legend of hinge cup symbols

820.6308.050

15

10000 Pcs

Hinge angle restrictor > see page 1.61 Face frame adapter > see page 1.55

1.47

Item number

Screw-on ready > screws

Door adjustment

Side adjustment +3/-1mm

Height adjustment +2/-2mm

Depth adjustment +5/-1.5mm

Concealed Hinges

For further explanation > see pages 1.14-1.16

6

3

6

V

K

90˚

C

˚

70

3

S

S

5 2

6

7

1

0

79

8

79 S

9

S

10

3

11

2

1

0

2

1

0

3

2

1

0

3

2

1

0

21

22

23

24

V

4 F>2Fmin

F>2Fmin

90

70

4

67

67

F>Fmin

F>Fmin

3

37

2

37

1

67

X

V

19 K

C

x

37 37

67 67

x

19

K

D

S

S

V

19

D

67

61

67

D

19

Mounting plate thickness table For further explanation > see page 1.5

67

61

D

61

V

61

Mounting plate drilling distance

V

Mounting details

6

5

3

37 7.6

6

6

7.6

6

7 Drawings show application on D=0mm mounting plate

D

D=4+K-X C value with D=0 mounting plates

S70 S

S

67

67 67

67

V V

V

7979

V

7070

3

C

0

79 SS

4

6

7

0.9 1.9 2.9 3.8

D

S

37 37 V V

F>Fmin F>Fmin F>Fmin

5

37

S

67 67

D

V V

61 SS

37

37 37

x

DD

67

6161

19

V

D

67 67

61 9

K

F>2Fmin F>2Fmin F>2Fmin

Drawing shows application on D=0mm mounting plate 7.6

Soft closing systems Glissando TL 170 > see page 2.7

Drawing shows application on D=9mm mounting plate Touch opening solution

Drawing shows application on D=18mm mounting plate Door clearance For further explanation > see page 1.6

Push Latch > see page 1.59

16

V

K

17

18

19

20

3

0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

4

0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

5

0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

6

0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 2.6

7

0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 5.1 FMIN

Gap ZMIN=0.5

1.48

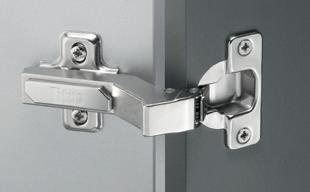

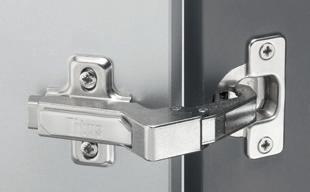

S-type for Pie-cut Corner Cabinet

For wood doors

· · · ·

Opening angle Drilling diameter for hinge cup Drilling depth Hinge on plate mounting system

110˚ 35mm 11.5mm snap-on

Interaxis

Interaxis

45mm

48mm 48

Cup type

Corner cabinet

6

9.5

45

Ø 35

Ø 35

Item number

Item number

248.0U21.050

248.0U16.050

248.0U22.050

248.0V15.050

Drilling patterns for hinge cups > see page 1.9

100 Pcs

Cup made of steel, arm made of zinc

Mounting plates

Hinge cup screws If not pre-mounted

Cam adjustable cruciform mounting plate > see page 1.51

6.9

Cruciform mouting plate > see page 1.53

Accessories

3.5 15

Legend of hinge cup symbols

820.6308.050 10000 Pcs

Cover caps for hinge arm > see page 1.63

1.49

Screw-on ready > screws

Machine insertion ready

Door adjustment

Side adjustment +3/-1mm

Height adjustment +2/-2mm

Depth adjustment +5/-1.5mm

Concealed Hinges

For further explanation > see pages 1.14-1.16

Mounting details

Mounting plate drilling distance

Adjustments

V

37

32

V = 16 - 22 mm K = 3 - 5 mm

K

35

The diagonal adjustment is made by rotating the appropriate screw as shown on the drawing

+6

v

-2

+3 -1 +5

-1.5

D=3

Touch opening solution Push Latch > see page 1.59

1.50

S-type Mounting Plates

S-type snap-on mounting

Drilling pattern

Dimensions

Cam adjustable cruciform mounting plate 37mm 58

53

32

37

200 Pcs

1.51

Made of steel

D

Height adjustment +/- 2mm

13

15

Concealed Hinges

Mounting plate type

Mounting plate thickness

10.5

min 11.5

min 11.5

min 10.5

min 10.5

Mounting plate thickness (D)

min 9.5

15

13

15

Ø4.5

Item number

Item number

Item number

0mm

244.0258.050

244.0261.050

*244.0264.050 *244.0342.050

244.0270.050

3mm

244.0260.050

244.0263.050

*244.0266.050 *244.0344.050

244.0272.050

Ø5

Ø5

Ø3

Ø10

Item number

Ø5

Item number

* Available upon special request > see page 0.3

Legend of mounting plate type symbols

13

15

Pre-mounted 13mm euro screws

Pre-mounted 15mm euro screws

10.5 Pre-mounted chipboard screws

Machine insertion ready

Pre-mounted 10.5mm expanding dowels

1.52

S-type Mounting Plates

S-type snap-on mounting

Drilling pattern

Dimensions

Cruciform mounting plate

58

32

52

37

200 Pcs

Made of steel

Zinc diecast cruciform mounting plate 37mm 60

32

50

37

200 Pcs

Made of zinc

Fixing screws for mounting plates If not pre-mounted

8

6.3 L

Euro screws

821.6304.050 L=11 821.6323.050 L=13 821.6332.050 L=15 5000 Pcs

1.53

7.5

4 16

Chipboard screws

820.6328.050 10000 Pcs

D

min 10.5

min 11

15

min 10.5

Ø4.5

Ø6.3 min 12

min 10

11

Ø6.3

10.5

Mounting plate thickness (D)

min 8

Ø6.3

15

15

13

13

Mounting plate type

11

Concealed Hinges

Height adjustment +/- 2mm

Mounting plate thickness

Item number

0mm

244.1136.050 *244.1233.050 244.0Z26.050 244.0134.050 244.0118.050 *244.0136.050 *244.0166.050 244.0P26.050

3mm

244.1139.050 *244.1234.050

6mm

244.1645.050

3.9

5.8

Ø5

Item number

Item number

Item number

Ø5

Ø5

Item number

Ø3

Item number

Item number

Ø10

Ø5

Item number

244.0135.050 244.0119.050 *244.0137.050 *244.0167.050 244.0P27.050 244.0Z51.050

* Available upon special request > see page 0.3 Mounting plates with premounted 7.5mm expanding dowels available

9mm

244.3651.650

244.0M33.650 244.0P29.650

18mm

244.3016.650

244.0085.650 244.0095.650

Legend of mounting plate type symbols

11 Screw on ready for euro screws < screws

Screw-on ready for chipboard < screws

Pre-mounted 11mm euro screws

13 Pre-mounted 13mm euro screws

15 Pre-mounted 15mm euro screws

10.5 Pre-mounted chipboard screws

Machine insertion ready

Pre-mounted 10.5mm expanding dowels

1.54

S-type Face Frame Mounting Plates

S-type snap-on mounting

Drilling pattern

Face frame adapter for S-type hinges

Dimensions

9

36

57

64

200 Pcs

Ø3

Made of zinc alloy

Face frame adapter for S-type hinges

10

36

61

59

200 Pcs

Ø3

Made of zinc alloy

Face frame adapter for S-type hinges cam adjustable

10

200 Pcs

Made of zinc alloy

Fixing screw for mounting plates If not pre-mounted

7.5

4 16

Chipboard screws

820.6328.050 10000 Pcs

1.55

55

36

59

Ø3

D

Height adjustment +/- 2mm

Mounting plate thickness (D)

Mounting plate type

Concealed Hinges

Mounting plate thickness

Item number

0mm

244.1638.050

3mm

244.1639.050

6mm

244.1640.050

0mm

244.3653.650

3mm

244.3603.650

6mm

244.3655.650

0mm

244.3600.650

3mm

244.3603.650

Legend of mounting plate type symbols

Screw-on ready for chipboard screws < screws

1.56

Face frame hinges 6-way adjustment hinge

For wooden doors on face frame cabinets

Interaxis

9.5

45 [1¾"]

[3/8"]

45mm

Ø 35x10.5 [13/8"x 7/16"]

Technical details

½" overlay

300 Pcs

Cup type

Item number

½"

970.9816.050

½"

970.9812.050

1¼"

970.9822.050

1¼""

970.9819.050

Made of steel and zinc

1¼" overlay

300 Pcs

Overlay

Made of steel and zinc Legend of hinge cup symbols

Screw-on ready > screws

1.57

Machine insertion ready

Door adjustment

Height adjustment ±2.5mm (± 7/64")

Depth adjustment +1-8/-0-7mm (± 1/16" / 1/32" )

Concealed Hinges

Side adjustment ± 1.2mm (± 3/64")

Mounting details

Minimum reveal

A

12.7

[1/2"]

door thickness

90°

2 (3/32")

4.9

[3/16"]

B

11

K 2.5 (7/64")

105°

[3/8"] K

3 (1/8")

16 (5/8")

17 (43/64")

18 45/16")

19 (3/4")

4 (5/32")

4.8 (3/16")

5.6 (7/32")

6.4 (1/4")

4.3 (11/46") 5.1 (7/32")

5.9 (15/64") 6.7 (17/64")

4.6 (3/16")

6.2 (1/4")

5.4 (7/32")

7 (9/32")

F

F=minimum reveal

door protrusion (B) = 4.2mm (11/64") arm protrusion (A) = 7.8mm (5/16")

A 32

door thickness

90°

[11/4"] 4.9

2 (3/32")

[3/16"] 11

B 105°

[3/8"]

K 2.5 (7/64")

16 (5/8")

17 (43/64")

18 45/16")

19 (3/4")

3 (6/32")

4.6 (3/16")

5.4 (7/32")

6.2 (1/4")

2.5 (6/32")

4.9 (3/16")

5.9 (7/2")

6.5 (1/4")

3 (1/8")

5.2 (11/64") 6 (16/64")

K

3 (1/8")

6.8 (17/64")

F

F=minimum reveal

door protrusion (B) = 15.8mm (5/8") arm protrusion (A) = 13mm (33/64") Number of hinges per door height (inches) 250

5

200

4

150

3

100 50 50

weight (kg)

2 4-7

8-12 13-16 17-22

The number of hinges is determined by the door height and door weight. For the user safety please don't exceed the recommended number of hinges in the chart.

1.58

Push Latch

For wood doors and drawers

With bumper

10

20

915.0X59 >

381 383

With bumper

13

27

915.0320 >

381

With magnet

10

20

915.0D22 >

381

Linear m. plate

915.4175 >

381

Cruciform m. plate

915.4183 >

381 383

Push Latch

TeraBlack

Item number

Chrome

Spring force [N] (loaded)

Push

Spring force [N] (released)

Push

Push Latch

Sets:

With bumper

Cruciform m. plate

Linear m. plate

915.0X59.381.K1

915.0X59.381.K2 915.0X59.383.K2

+

Cruciform mounting plate

Linear mounting plate With magnet

+

200 Sets

200 Sets

915.0D22.381.K1

915.0D22.381.K2

+

200 Pcs

200 Sets

Made of steel and plastic

Fixing screws for mounting plates

+

200 Sets

Accessories for Push Latch with magnet (Nickel plated steel) Counter plate self adhesive

8

6.3 13 L

Euro screws

A = Ø15

915.7159.050

500 Pcs

A = Ø10 B = Ø5

915.7196.050

500 Pcs

A = Ø15 B = Ø8

915.7190.050

500 Pcs

A = Ø10 B = Ø2.8 915.7199.050

500 Pcs

821.6323.050 Counter plate

A 10.5 B

5000 Pcs

7.5

4 12 16

Chipboard screws

820.6328.050

A

1

Knock-in Counter plate 11 B

10000 Pcs

A

1.59

0.8

· Effortless opening with just a light touch · Depth adjustment ensures reliable closing and consistent performance in case of inaccurate drilling · ‘Safety click’ feature for easy detachment of the mechanism from its mounting plate

Door adjustment

Push Latch with bumper works

with standard hinge

Push Latch with magnet works

with reverse spring or unsprung hinges

i

Concealed Hinges

Depth adjustment +4.5/-1mm

Drilling pattern

Ø

Dimensions

Depth adjustment

37

6.

4

20

(3

x)

Minimum activation gap required 32

.2

11

22

37 Ø6

.4

16.5

32

43

Ø5

Adjustment range +4.5/-1mm

.4

Ø6

Positioning

Close to the ‘touch opening point’ on the side opposite to hinges

On the cabinet side; gap between drawer and cabinet side 12mm min

On the drawer bottom; in the middle of drawer

1.60

Hinge Angle Restrictors

135°

Technical details

Item number

80° Hinge Angle Restrictor T-type

Light grey

80°

For all Titus Hinges with 110° and 170° opening angle

For all T-type 110°

728.4669 >

380

For all S-type 110° and B-type 110°

248.4668 >

380

For all 170° hinges

248.4672 >

380

16

200 Pcs

Made of plastic

80° Hinge Angle Restrictor S-type, B-type 12

200 Pcs

Made of plastic

135° Hinge Angle Restrictor

13.5

200 Pcs

1.61

Made of plastic

Concealed Hinges

· Hinge angle restrictor limits opening angle · Prevents door damage · Easy and quick mounting and dismounting

Mounting details

75° 75°

75°

Open the door to approximately 75° and position angle restrictor to follow the hinge cup form

Slightly open the door to hear the click meaning angle restrictor is in the right position

Close the door to remove the restrictor holder (cracks by itself while closing the door)

Hinge has to be in closed position

Insert angle restrictor into the hinge cup

When angle restrictor is in the right position push it down

Recommended to inserat angle restrictor while doors are not mounted on the cabinet

1.62

Cover Caps

Technical details

12

T-type

Plate type

Material/ surface

Item number

Nickel plated

For hinge arms

Titus

steel

728-1286 >

054

neutral

steel

728-1283 >

054

Only for T-type 110 0mm, 120 0mm, 110/15°, 110/30°, 110/45° 9mm, 17mm and 23mm, 110/90° 17mm

36.5

5000 Pcs

Made of steel

10.6

T-type

Titus

steel

728-1287 >

054

neutral

steel

728-1284 >

054

Titus

steel

248-1646 >

050

neutral

steel

248-1712 >

050

For all T-type range

34.1

5000 Pcs

Made of steel

11.7

S-type B-type

43.8

4000 Pcs

1.63

Made of steel

Joining Plates

Item number

Technical details

Made of steel

3.5

054

360.1230

>

054

85 105 85 105

3

3.5

3.5

20 43

3 3 Ø4.5 Ø4.5

20 43

2

2

Joining plate 43mm

1000 Pcs

>

Ø4.5

Ø4.5

3

500 Pcs

360.1222

2

2

Joining plate 105mm

3.5

Made of steel

Fixing screw for cruciform mounting plate If not pre-mounted

7.5

4 16

Chipboard screws

820.6328.050 10000 Pcs

1.64

Concealed Hinges

Rigid and strong No pre-drilling Spacer pegs provide an even 2mm gap Sleek design

Nickel plated

· · · ·

Soft Closing Systems

Glissando Soft Closing Systems for Hinges

1

2

5

3

kg

15 kg

ConfidentClose ·1 Fast closing ·2 Late start of deceleration action · 3 Quiet landing with ‘SoftTouch’

2.3

Tool-less mounting

Consistent Performance

·R educed assembly time ·F lexible usage also as a retrofit option

· Only one Glissando for two to three hinges · Allows for consistent performance on a wide range of door dimensions and weights

One-for-all

Titus Damper Inside

·O ne item fits multiple applications ·S ame item can be used on all crankings and angled hinges

·T itus proprietary multi-purpose damping technology ·R elaible and consistent damping

2.4

Glissando TT Glissando TL3 Add-on Hinge Damper

For 110° and 120° hinges

110°

Technical details

Glissando TT · T-type 110 · T-type 120

200 Pcs

2.5

Item number

95°, 110°, 120° 729.0K71.054

Made of steel and plastic

Glissando TL3 · S-type 110

200 Pcs

Hinge opening angle

110°

Made of steel and plastic

951.0X94.050

Soft Closing Systems

· Same item can be used on most of crankings and angled hinges · Intuitive snap-on mounting · Low protrusion in cabinet interior · Consistent performance across a broad range of furniture doors

Mounting details Tool-less mounting

Insert Glissando TL into the holes on the hinge

Press down

Dismounting details

Use flat screwdriver

A trial mounting is always recommended.

Recommended number of Glissandos per door No. of hinges

Glissando TT

No. of hinges

Glissando TL3

5

5

4

4

3

3

2

2

1-2

1-2

2-3

2-3

No. of Glissando TT

1

1-2

2

2

No. of Glissando TL3

2.6

Glissando TL 170 Add-on Hinge Door Soft Close

For T-type 170, S-type 170

Hinge opening angle

Glissando TL 170

Technical details 24

170°

170° 951.0F15.650

Item number

88.5

Box content 100 pcs soft closing mechanisms 100 pcs striking plates

41

Soft closing mechanism

12.4

K

Striking plate

100 Pcs

2.7

Made of steel and plastic

52.5

· Gentle and reliable soft closing on doors with wider opening angle · ConfidentClose · Tool-less mounting

Damping adjustment

Soft Closing Systems

Turn towards ‘+’ to increase and ‘-’ to decrease the damping

Mounting details Tool-less mounting

Insert Glissando TL 170 into the holes on the hinge cup

Press down

Place the striking plate into the hole on the hinge arm

Press down Recommended number of Glissandos per door No. of hinges

Glissando TL 170

5 4 3 2

1

1-2

2

2

No. of Glissando TL 170

No additional drilling is required

2.8

Titusoft Door

972.0F09 >

Nickel plated

Titusoft Door

Item number

Grey housing

Technical details

White housing

For overlay doors on frame and frameless cabinets

350

380

650

Nominal 11 (Adjustment: Nominal + 5mm) 48 Adjustment range

16

100 Pcs

Made of plastic

Titusoft Door Pro

972.0X21 >

48 16

100 Pcs

2.9

Made of plastic

380

· Intuitive ‘place and fix’ installation in the corner of the cabinet · Tool-less damping adjustment · One item for a wide range of doors · Reliable performance

Damping adjustment

3+ 3+ 33

–

22 11

1-2

Turn towards ‘+’ to increase and towards ‘-’ to decrease the damping

Mounting details

Fixing

Mount Titusoft Door on the hinged side of the cabinet

One screw fixing

Mount Titusoft Door on the hinged side of the cabinet

One screw fixing

A trail mounting is always recommended.

Please contact Titus Group or your local distributor for further technical assistance.

No. of hinges

Titusoft Door

3+ 3+ 33 22 11

1-2

22

No. of Titusoft Door Recommended number per door

2.10

22

Soft Closing Systems

+

Titusoft MD Soft Closing System for Metal Box

Titusoft MD

Titusoft mechanism for factory mounting

973.0X95

>

380

Titusoft mechanism for retrofit mounting

973.0X39

>

380

Activator

973.4125

>

Mounting jig

973.4126

>

Light blue

Item number

White

Grey

For metal boxes

309 350

Titusoft mechanism

Bag of 1 973.0X39.380.K2

90 Bags

Bag of 2 973.0X39.380.K1

60 Bags

· · · · · Activator

250 Pcs 150 Pcs (973.0X39 + activator)

Mounting jig

· · · · ·

Made of plastic

1 Titusoft mechanism 1 activator 1 mounting jig 4 screws 1 mounting instruction sheet

2 Titusoft mechanisms 2 activators 1 mounting jig 8 screws 1 mounting instruction sheet

Technical details Retrofit mounting

Factory mounting (system holes)

9 9

32.5

213.5 1

0.6 6

6

192 225

4

4

225

40.5 42.4

2.11

Ø4

Ø4 213

30

42.4

30

Ø4

3.2

Ø4

9

3.2

ø6

(32.5 0.6)

213.5 1

Capacity chart

· One-for-all soft closing for single skin metal boxes · Allows for easy factory mounting or retrofit application · Intuitive positioning · Preserve the life-time of the drawer

load (kg)

Mounting details Retrofit mounting

2.

1.

3.

5.

4.

For retrofit mounting

For factory mounting

8.8

30

97.5

Factory mounting

Marked line

46

Marked line

58

130

13.5

18.5

5

103.5

46

192

A trial mounting is always recommended. Please contact Titus Group or your local distributor for further technical assistance.

2.12

Soft Closing Systems

width (mm)

Mount 1 or 2 Titusoft mechanisms depending on drawer weight and width

Titusoft FF

Item number

Technical details

Titusoft FF

Titusoft mechanism Activator

10.1 192 7

3.2

Ø

41.5

Ø

Titusoft mechanism

213

.7 Ø3

24

Ø

18

3.

5

78

10

Ø3

.7

Activator

250 Pcs

2.13

Made of plastic

53

20

3.2

973.0M99 973.4451

· · · · ·

380

>

380 350

>

Bag of 1 973.0M99.380.K1

White

Soft Closing System for Face Frame Cabinets with Wooden Drawer

Grey

For wooden drawer with roller runners

300 Bags

1 Titusoft mechanism 1 activator grey 2 screws Ø3.5mm x 25mm 2 screws Ø3.5mm x 12mm 1 mounting instruction sheet

· Easy, intuitive mounting · Universal application will fit most standard drawers · Smooth, soft closing action independent of drawer hardware · Non-handed design

Capacity chart

load (kg) 20

Mount 1 or 2 Titusoft mechanisms depending on drawer weight and width

Mounting details

1.

2.

b a

b

a

Position the Titusoft on the top of a drawer slide

Screw the Titusoft mechanism to the face frame

3.

4.

b

Align the activator with the top of the Titusoft mechanism and fix with two screws

Fix with 2 (3) screws L=12mm

A trial mounting is always recommended. Please contact Titus Group or your local distributor for further technical assistance.

2.14

Soft Closing Systems

width (mm)

3.1

The Titus Group Profile

3.2

Titus Group

Titus focuses on the design, manufacture and distribution of connectors, concealed hinges drawers and soft closing mechanisms in furniture and household appliances.

1973 Titus established

2005 Titusonic ultrasound fastening technology

2017 Launch of T-type full hinge programme

3.3

Titus Group is owned and managed from its headquarters in United Kingdom. We are able to provide products and services to every customer around the world based on manufacturing facilities in Europe, North America, China, SE Asia, Australia and New Zealand.

1975 evolution in R particleboard panel processing productivity

2006 Merger with Lama d.d.

Launch of Glissando

2019 Launch of TeraBlack product range

1977 Titus launches concealed cabinet connector

2007 Titus becomes Titus+ Specialist in precision components’ engineering

2020 Acquisition of Simon Kinetics

Quickfit technology makes Titus the World leader in connectors for RTA furniture

1980 Titus USA office and manufacturing established

2009 Damper’s development and engineering

1990 I novative Quickfit technology launched

2014 Acqusition of Tekform, Australia

Vision

Mission

The world’s best engineering for precision components

To provide manufacturers with components’ solutions that improve competitiveness

Titus Business Philosophies and Principles · Gain total knowledge of our customers and their markets · Focus on identifying and creating high volume component niches · Meet our customers’ expectations with global consistency · Build long term associations with customers, suppliers, colleagues and shareholders · Invest in the abilites of individuals at every level · Continuously enhance input efficiency and sustainability

mp on isi

Drawers

Connectors

Pr

ec

Automated assembly systems

Damped hinges

ies

Dampers

log

Co

Tooling

no

Damped components

ch

Te

on

en

ts

Die casting

Titusonic FastFit

Furniture Hardware

Furniture Hardware

Components

Technologies

· Cabinet connectors · Concealed hinges · Soft closing systems · Drawers and drawer systems · Kitchen accessories · RV hardware

· Hydraulic dampers · Precision components · Precision die castings · Damped mechanisms

· Automated assembly systems · Die casting technologies · Tooling · Titusonic - Ultrasound fastening · FastFit technology

3.4

‘Totally Integrated Engineering’

Product Design Design and engineering of unique components Consistent and repeatable product quality

Manufacturing Technologies

Manufacturing Operations

To improve productivity and product quality

A wide array of technologies and services required for high volume production of precision components available in-house

ies

log

no

Pr

ch

od

Te

uc

ing

tD

es

tur

ign

fac

nu Ma

Precision Components

Die casting

Forging

Combi casting

Surface treatment

Conventional casting

Heat treatment

Stamping

Assembly

Moulding

Packing

Manufacturing Operations

Fittings for purpose Unique product advantages for better value for money and lower ‘total installed cost’

3.5

Innovations that improve With less parts, less different parts, less preparation actions, faster assembly

Fast time-to-market

Quality

Continuous Improvement The Titus Group Mission, to improve the competitiveness of our customers, encourages us to continuously improve our products, services, processes and competencies of our employees.

Quality

Products

We believe that the Titus Mission is achieved most effectively through the management of our design, manufacturing and service activities in conformance with the ISO 9001 standard for quality management.

Quality has a broad meaning for us: it is our guide to the selection of materials, work, processes, internal relations and cooperation with partners.

Our integrated quality system produces technically optimized products of high quality. They are assessed regularly in our own test labs as well as by internationally renowned institutions, such as LGA from Germany, CTBA from France, FIRA from United Kingdom, CATAS from Italy, AIDIMA from Spain, and others.

3.6

Worldwide Design, Manufacturing and Distribution Capabilities United Kingdom

Slovenia

Titus International Ltd., London

Titus d.o.o., Dekani

Titus Tool Company Ltd, Sherburn in Elmet

Titus Technologies d.o.o., Dekani

China / Hong Kong SAR Titus Hong Kong Ltd., Hong Kong

Germany

Poland

Titus GmbH, Herford

United States Titus Tool Company Inc., Seattle

Titus Polska Sp. z o.o., Suchy Las, Poznan

Titus Furniture Fittings Trading (Shenzhen) Co. Ltd., Shenzhen Titus Shenzhen Components Co. Ltd., Shenzhen

Spain TitusPlus Iberia S.L.U., Les Franqueses del Valles, Barcelona

Titus Tool Company Inc., Chicago

Croatia

Malaysia

CRO LAMA d.o.o., Zagreb

Italy

Titus Tekform (Malaysia) SDN. BHD., Johor Bahru Singapore

TitusPlus Italia S.r.l., San Biagio di Callalta (TV)

Indonesia

Titus Tool Co. Pte. Ltd., Singapore

PT Titus Tekform Indonesia, Tangerang

Australia Titus Tekform, Pty. Ltd., Sydney Titus Tekform: Melbourne Sydney Wodonga Newcastle Hobart Brisbane Canberra Townsville Perth Adelaide ModulR Plus Pty. Ltd., Sydney

Headquarters Distribution point Production

Europe Titus d.o.o. Dekani Dekani 5 SI-6271 Dekani Slovenia +386 5 6690 213 +386 5 6690 205 Fax info@titusplus.com Titus Technologies d.o.o.

Dekani 5 SI-6271 Dekani Slovenia +386 5 6690 000 technologies@titusplus.com Titus Tool Company Ltd. 10 Blackburn Industrial Estate Enterprise Way Sherburn in Elmet LS256NA United Kingdom +44 1977 682582 +44 1977 680481 Fax uk@titusplus.com CRO LAMA d.o.o.

Kreše Golika 3 HR-10000 Zagreb Croatia +385 1 3323 033 +385 1 3323 233 Fax croatia@titusplus.com

3.7

Titus Polska Sp. z o.o. ul. Stefańskiego 17 A PL-62-002 Suchy Las/Poznań Poland +48 61 811 5402 Phone/Fax +48 61 811 5684 Phone/Fax +48 61 821 9362 poland@titusplus.com TitusPlus Italia S.r.l.

Via Aquileia 9 Frazione Olmi IT-31048 San Biagio di Callalta (TV) Italy +39 04 221 650 120 +39 04 221 650 136 Fax italia@titusplus.com TitusPlus Iberia S.L.U. C/ Luxemburg 16 ES-08520 Les Franqueses del Valles (Barcelona) Spain +34 938 715 404 +34 938 605 498 Fax iberia@titusplus.com Titus GmbH, Herford Lübberlindenweg 12 DE-32049 Herford Germany + 49 5221 102488-0 germany@titusplus.com

New Zealand Stefano Orlati Ltd., Auckland Stefano Orlati Ltd., Christchurch

America

Asia

Titus Tool Company Inc. 2800 156th Avenue SE Suite 135 Bellevue, WA 98007 USA +1 800 762 1616 Toll free +1 425 746 2080 +1 425 746 2344 Fax

Titus Tool Co. Pte. Ltd. 5004 Ang Mo Kio Ave 5 Techplace II #04-01 Singapore 569872 Singapore +65 6383 3922 +65 6383 3178 Fax singapore@titusplus.com

Titus Tool Company Inc. 11056 W. Addison Street Franklin Park, IL 60131 USA +1 800 762 1616 Toll free +1 425 746 2080 +1 425 746 2344 Fax usa@titusplus.com

Titus (Shenzhen) Components Co. Ltd. 1st Floor Building No. 2 Heng Changrong High-tech Industrial Park ShangNan South Road Shangjin Street Baoan District Shenzhen Province China +86 755 8348 0916 +86 8359 2676 Fax china@titusplus.com

Australia and New Zealand Titus Tekform Pty Ltd 83 Jedda Road Prestons NSW 2170 Australia +61 2 9286 0007 +61 2 9826 0074 Fax www.titustekform.com.au info@titustekform.com.au Stefano Orlati Ltd 34 Waipareira Avenue Henderson Auckland New Zealand +64 9 837 0886 +64 9 837 8003 Fax www.stefano-orlati.co.nz stefano-orlati@titusplus.com

Titus Tekform Indonesia, PT Taman Teknoblok L2 No. 7 Bumi Serpong Damai Sektor XI 15314 Tangerang Indonesia +62 21 75873578 +62 21 75873574 Fax indonesia@titusplus.com Headquarters Titus International Ltd 28 Fitzroy Square London W1T 6DD United Kingdom info@titusplus.com www.titusplus.com info@titusplus.com

Notes

3.8

Notes

3.9

3.10

Your authorized dealer Titus Group www.titusplus.com Concealed Hinges Soft Closing Systems 01.1 USA Sep21

3.11
