Adjustable Cabinet Legs
Simplified cabinet construction for efficient production and installation
A better foundation for cabinet manufacturing and installation

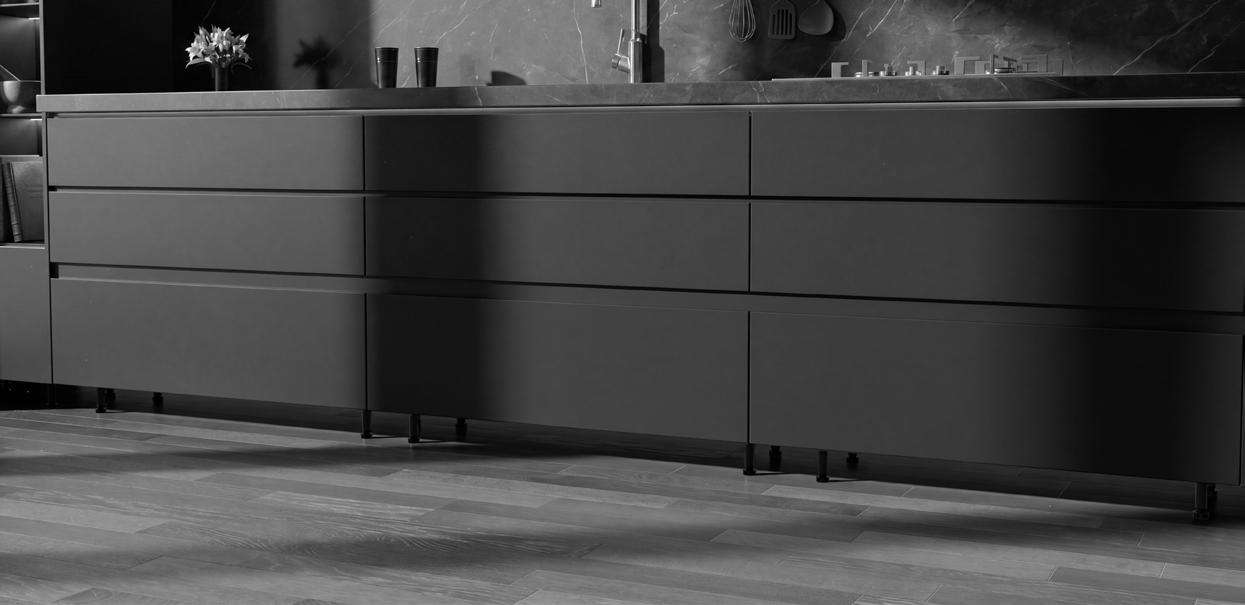

Adjustable cabinet legs provide an efficient alternative to traditional toe-kick cut-outs, helping manufacturers simplify cabinet construction. By replacing complex cut-out panels with a legs-based design, cabinet production can be standardised, streamlined and adapted across a wide range of cabinetry applications.
For installers, the system enables fast positioning, precise levelling and easier access for plumbing and electrical routing. The result is a more efficient process from manufacturing through to final installation, delivering consistent results and long-term cabinet performance.

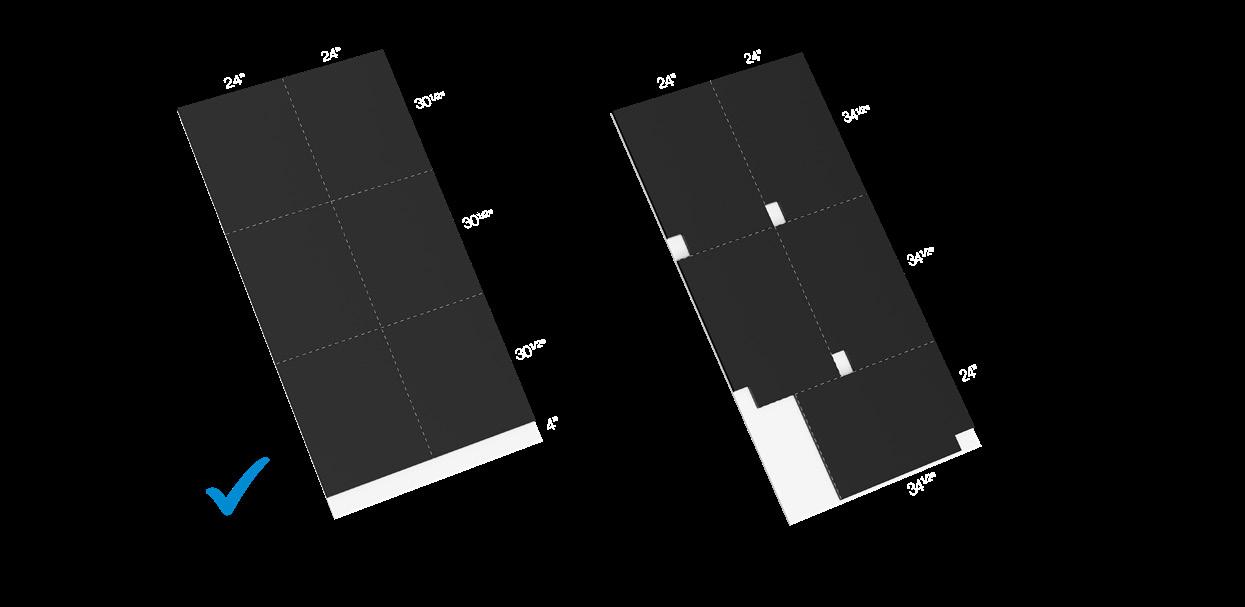

With legs - 6 Panels
Traditional - 5 Panels
Optimized cabinet design
• Simplifies end-panel construction and reduces production complexity
• Maximizes material yield
• Improves manufacturing consistency

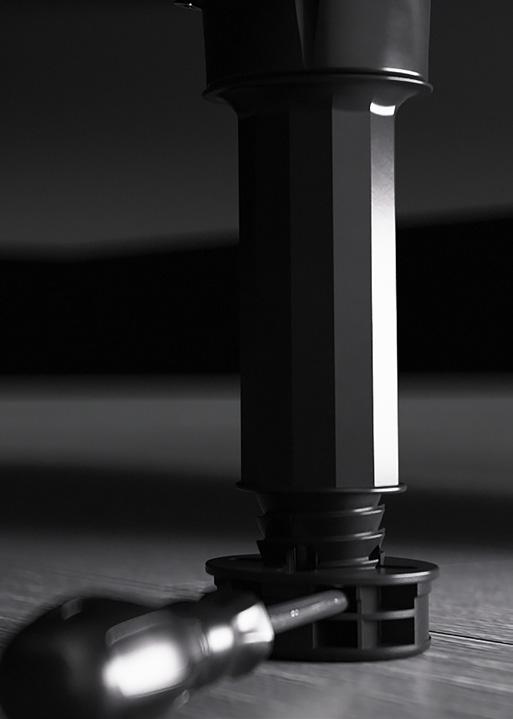

Fast and secure installation
• Fast height adjustment
• Adjustment by hand or screwdriver
• Accurate cabinet alignment

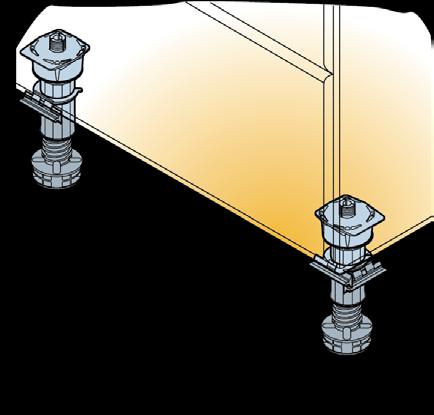

Toe-kick mounting

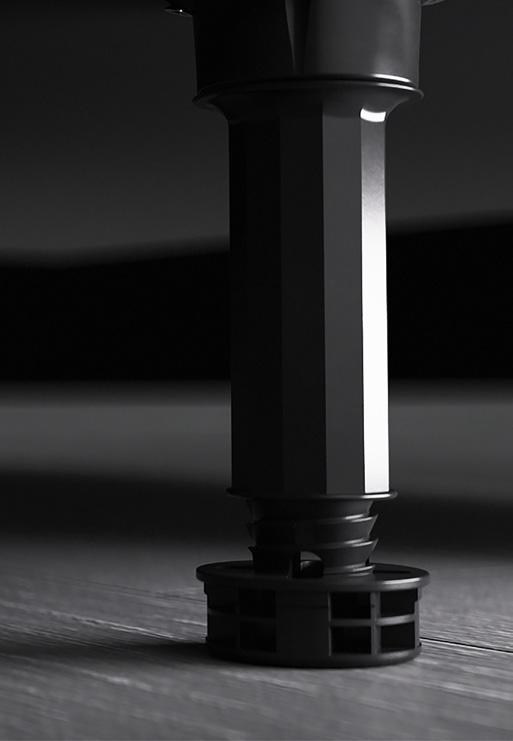

Precise levelling
• Fast height adjustment
• Adjustment by hand or screwdriver
• Accurate cabinet alignment

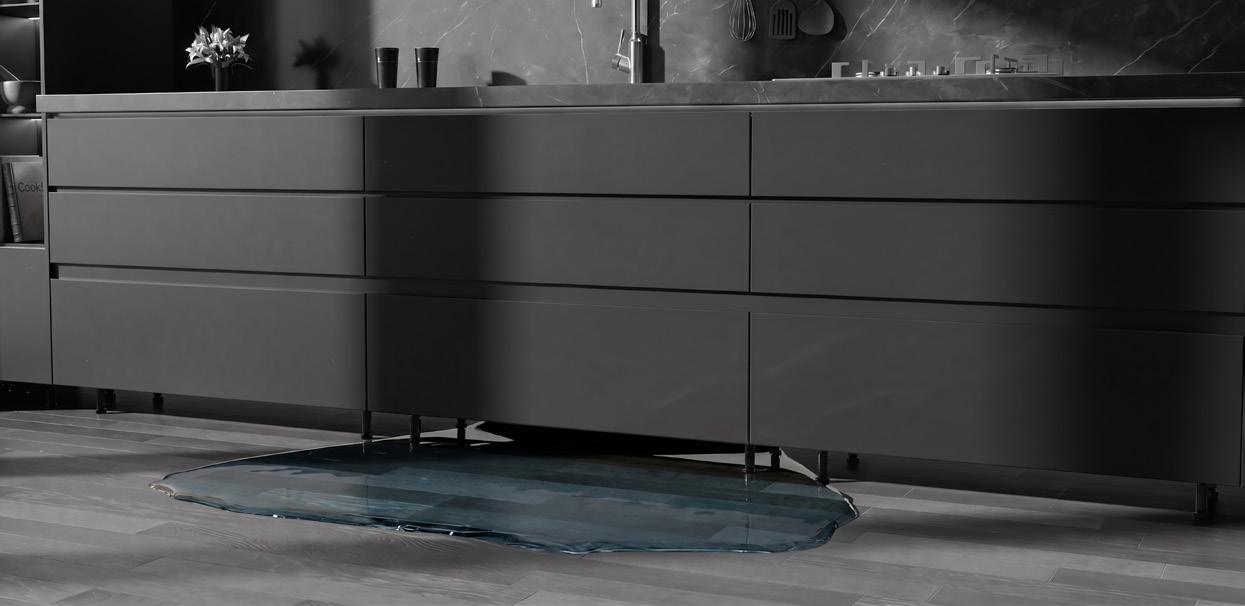

Long-term cabinet protection
• Protects cabinet edges during handling and installation
• Helps prevent damage from spills and moisture
• Simplifies plumbing and electrical routing
Technical details and system range
Legs, sockets, toe-kick clips and accessories for efficient cabinet manufacturing and installation.
• Simplified cabinet construction
• Fast and easy assembly
• Precise on-site leveling
• Supports up to 800 lbs per leg

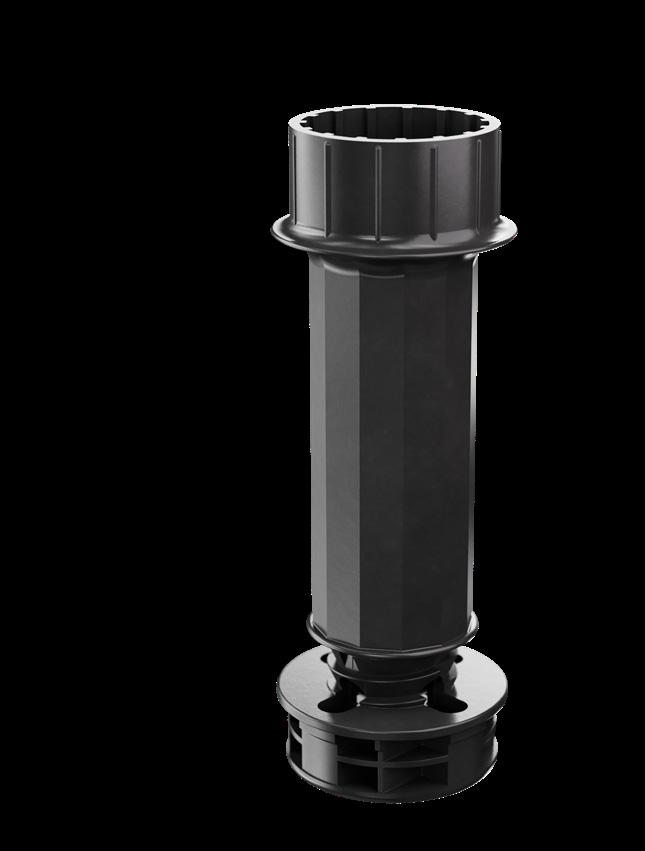

Adjustable cabinet legs
Multiple height options
• H = 60–90mm (2 3/8”–3 1/2”)
• H = 92.5–150mm (3 5/8”–5 7/8”)
• H = 125–185mm (4 7/8”–7 1/4”)
• Load capacity up to 800 lbs per leg
Socket range
Mounting solutions for various applications:
• 10mm knock-in socket
• 15mm expansion dowel socket
• Screw-mount socket
Toe-kick clips
Fast toe-kick attachment and removal
• Screw-in and groove-mount options
• Flexible positioning
• Reversible for corner applications
Accessories
Add-on 50mm leg extension for increased cabinet height
