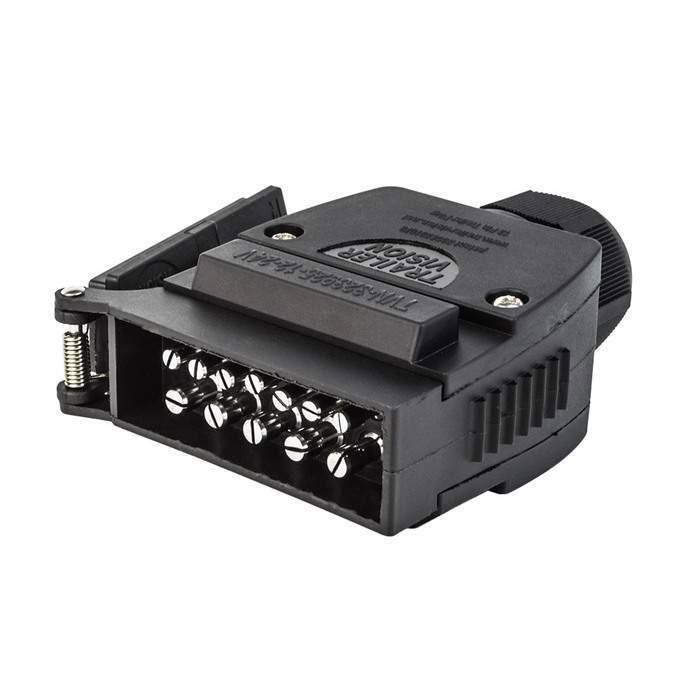

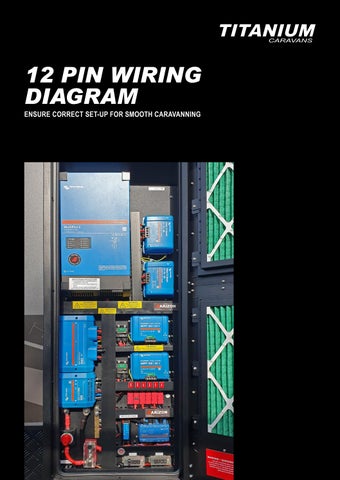

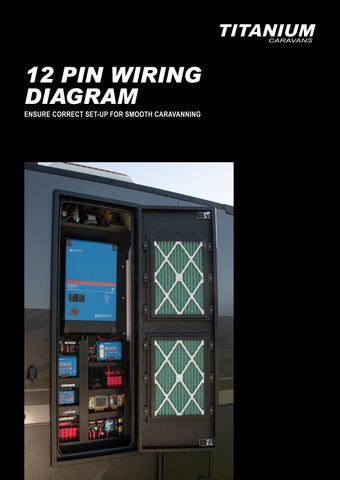

12 PIN WIRING DIAGRAM
ENSURE CORRECT SET-UP FOR SMOOTH CARAVANNING
PINPOINTING THE RIGHT PIN 12V WIRING
NO. CIRCUIT
LEFT-HAND TURN - 4MM YELLOW
BREAK SAFE = AUX - 4MM BLACK
EARTH RETURN - 4MM WHITE
RIGHT-HAND TURN - 4MM GREEN
ELECTRIC BRAKES - 5MM BLUE
STOP LAMPS - 4MM RED 7. REAR LAMPS, CLEARANCE & SIDE MARKER LAMPS - 4MM BROWN
SPARE - 8MM
3-WAY FRIDGE ONLY - 10MM
10. COMMON EARTH - 10MM BLACK
IGNITION D+ TRIGGER - 6MM (START ALTERNATOR ONLY) RED
REVERSING LIGHT PURPLE
IMPORTANT: The below information applies to 12V power systems only.
If you’re unsure which power system your caravan has, please refer to your spec sheet or contact your dealer.
Please note: 50 AMP Vehicle Anderson MUST be wired in a MINIMUM of 13.5mm twin cable to provide adequate supply to DC2DC. Always refer to wiring specifications of braking system before connection of service. Dexter / Tyson ESC powered by house battery.

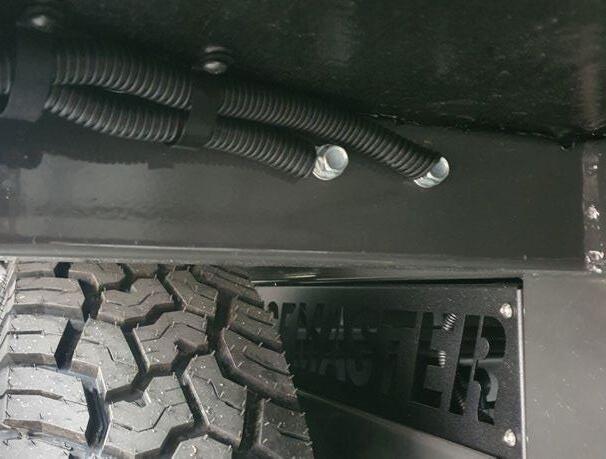

CHASSIS ‘A’ FRAME
Your Caravan is equipped with a 50Amp BLUE Anderson Plug on the ‘A’ Frame that has been wired for constant 12 Volt Power (OUTPUT). FOR THE CONNECTION OF 12VOLT EQUIPMENT. eg: CHEST FRIDGES OR JOCKEYWHEELS
Your caravan is equipped with a 50Amp GREY Anderson Plug on the ‘A’ frame that has been wired to the DC2DC.
FOR VEHICLE - CARAVAN CHARGING ONLY.

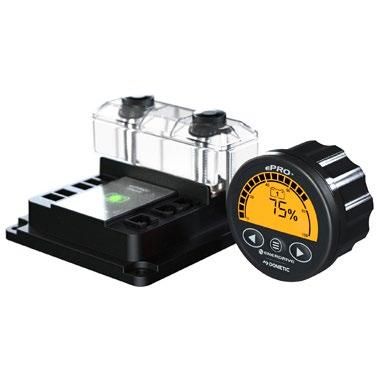

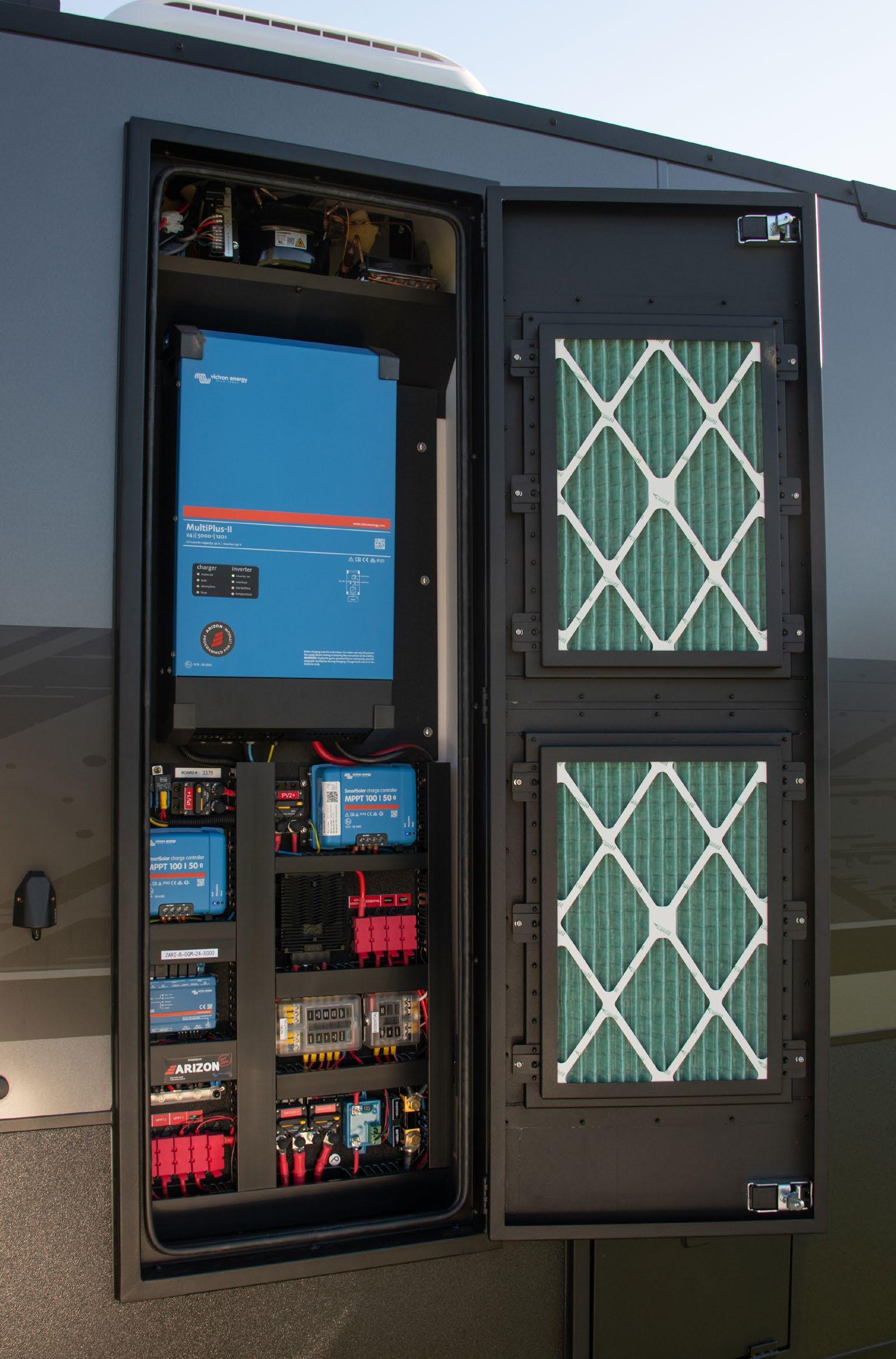

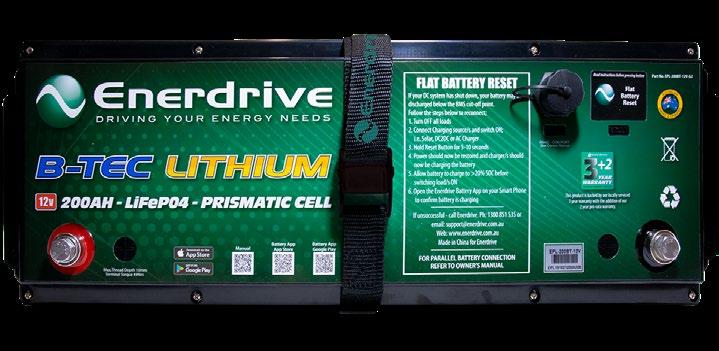

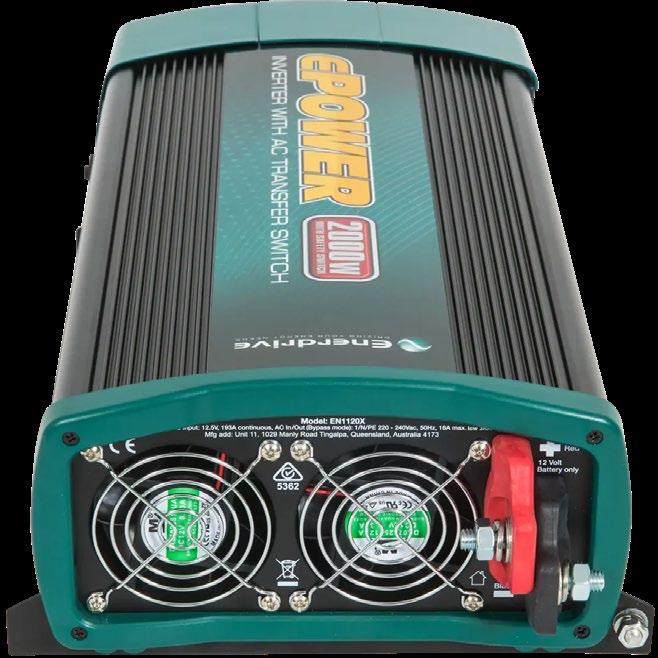

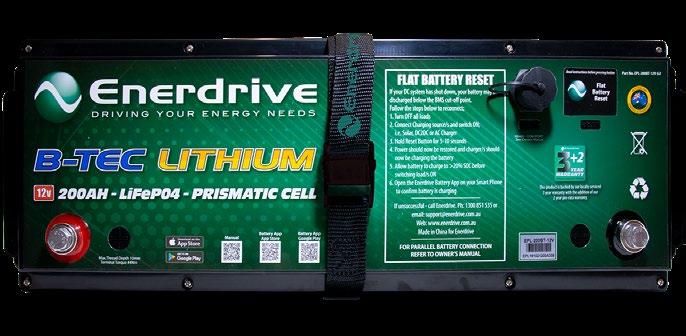

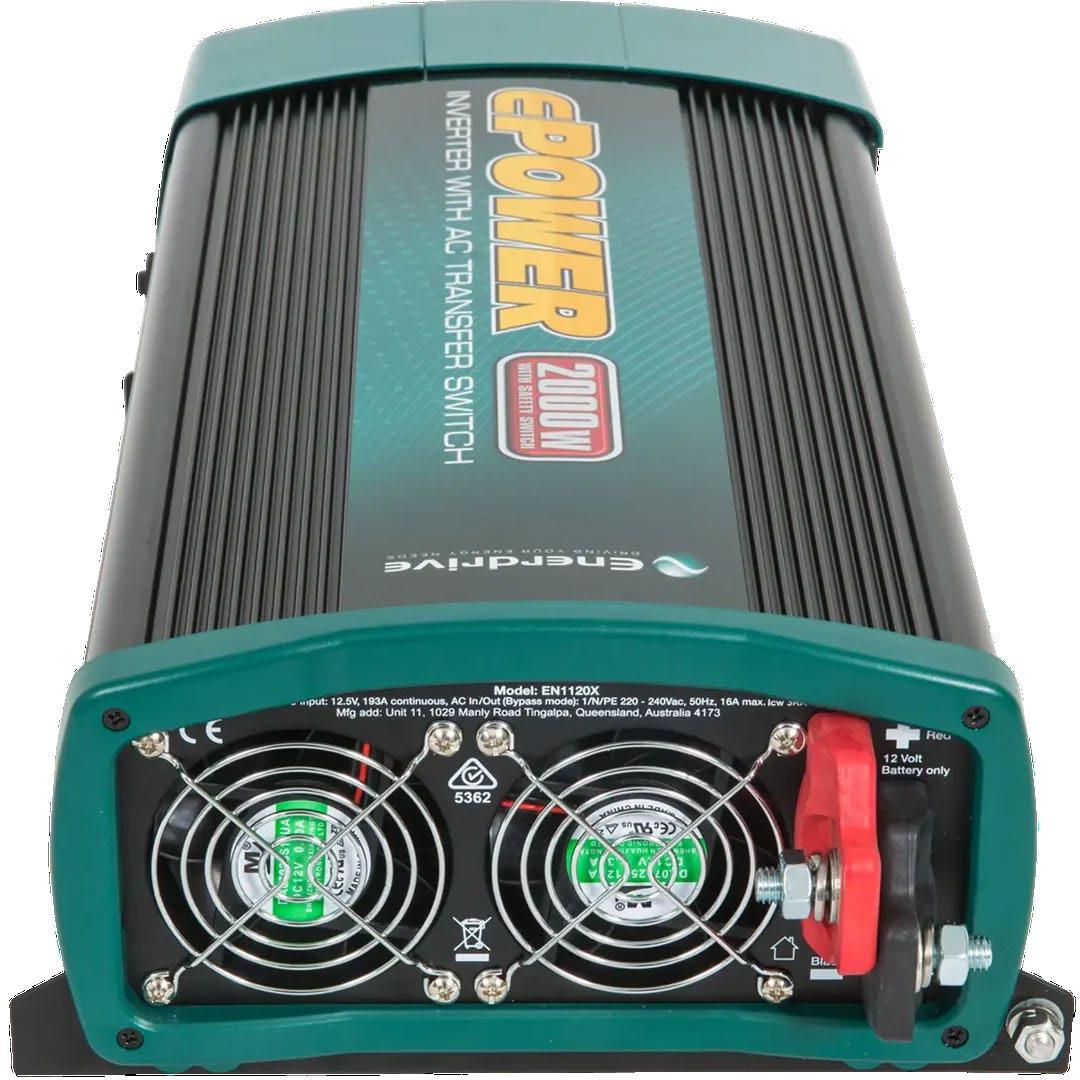

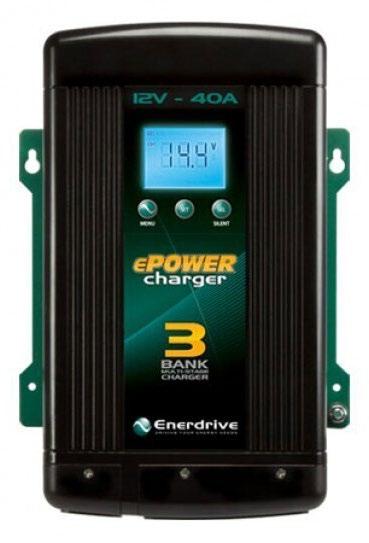

Your caravan is equipped with a 50Amp RED Anderson Plug on the ‘A’ frame that has been wired to the DC2DC for Enerdrive and wired to the MPPT for Victron.
FOR PORTABLE UNREGULATED SOLAR CONNECTION ONLY.

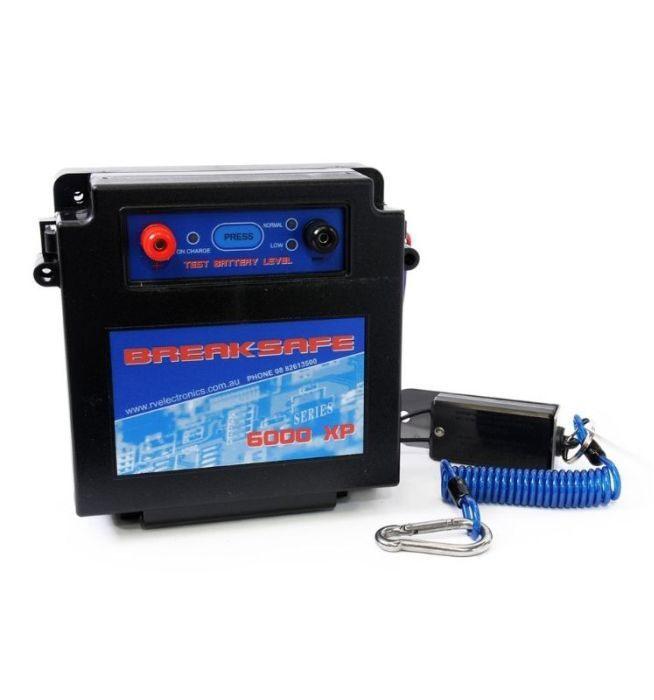

Breakaway Switch wired to breaksafe 6000.

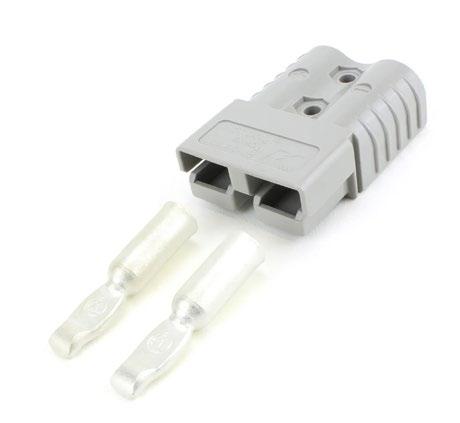

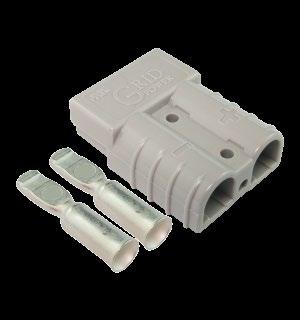

GREY ANDERSON PLUG

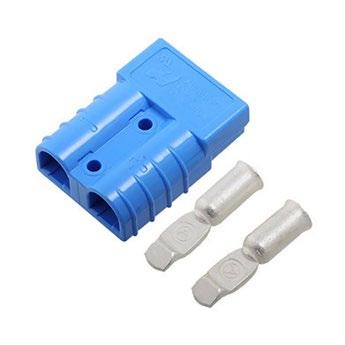

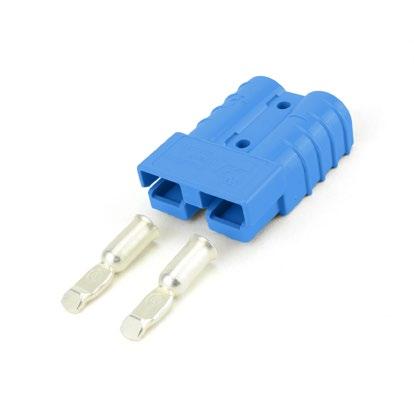

BLUE ANDERSON PLUG

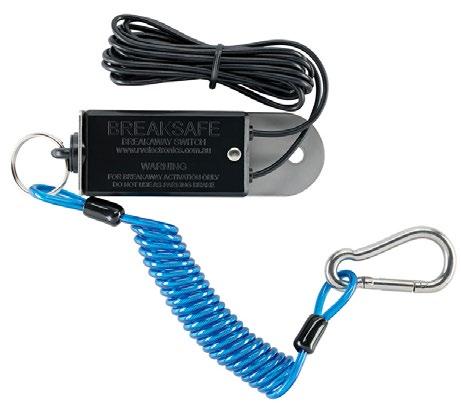

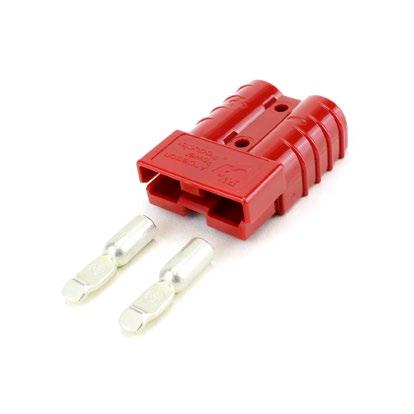

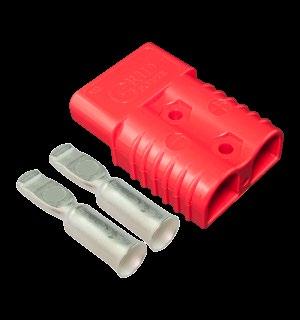

RED ANDERSON PLUG BREAKAWAY SWITCH
PINPOINTING THE RIGHT PIN 24V WIRING
NO. CIRCUIT
LEFT-HAND TURN - 4MM YELLOW
BREAK SAFE = AUX - 4MM BLACK
EARTH RETURN - 4MM WHITE
RIGHT-HAND TURN - 4MM GREEN
ELECTRIC BRAKES - 5MM BLUE
STOP LAMPS - 4MM RED 7. REAR LAMPS, CLEARANCE & SIDE MARKER LAMPS - 4MM BROWN
SPARE - 8MM
3-WAY FRIDGE ONLY - 10MM
COMMON EARTH - 10MM BLACK
IGNITION D+ TRIGGER - 6MM (START ALTERNATOR ONLY) RED
REVERSING LIGHT PURPLE
IMPORTANT: The below information applies to 24V power systems only. If you’re unsure which power system your caravan has, please refer to your spec sheet or contact your dealer.
Please note: 120 AMP Vehicle Anderson MUST be wired in a MINIMUM of 32.07mm twin cable to provide adequate supply to DC2DC. Always refer to wiring specifications of braking system before connection of service. Dexter / Tyson ESC powered by house battery.
CHASSIS ‘A’ FRAME
Your Caravan is equipped with a 50Amp BLUE Anderson Plug on the ‘A’ Frame that has been wired for constant 12 Volt Power (OUTPUT). FOR THE CONNECTION OF 12VOLT EQUIPMENT. eg: CHEST FRIDGES OR JOCKEYWHEELS

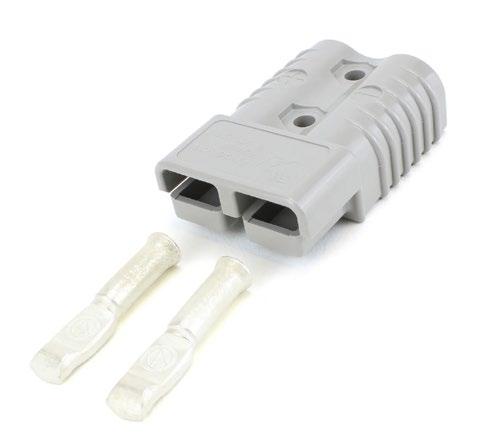

Your caravan is equipped with a 120Amp GREY Anderson Plug on the ‘A’ frame that has been wired to the DC2DC.
FOR VEHICLE - CARAVAN CHARGING ONLY.
Your caravan is equipped with a 50Amp RED Anderson Plug on the ‘A’ frame that has been wired to the DC2DC for Enerdrive and wired to the MPPT for Victron.
FOR PORTABLE UNREGULATED SOLAR CONNECTION ONLY.
Breakaway Switch wired to
PINPOINTING THE RIGHT PIN 48V WIRING
NO. CIRCUIT
LEFT-HAND TURN - 4MM YELLOW
BREAK SAFE = AUX - 4MM BLACK
EARTH RETURN - 4MM WHITE
RIGHT-HAND TURN - 4MM GREEN
ELECTRIC BRAKES - 5MM BLUE
STOP LAMPS - 4MM RED 7. REAR LAMPS, CLEARANCE & SIDE MARKER LAMPS - 4MM BROWN
SPARE - 8MM
3-WAY FRIDGE ONLY - 10MM
COMMON EARTH - 10MM BLACK
IGNITION D+ TRIGGER - 6MM (START ALTERNATOR ONLY) RED
REVERSING LIGHT PURPLE
IMPORTANT: The below information applies to 48V power systems only.
If you’re unsure which power system your caravan has, please refer to your spec sheet or contact your dealer.
Please note: 175 AMP Vehicle Anderson MUST be wired in a MINIMUM of 49mm twin cable to provide adequate supply to DC2DC. Always refer to wiring specifications of braking system before connection of service. Dexter / Tyson ESC powered by house battery.
CHASSIS ‘A’ FRAME
Your Caravan is equipped with a 50Amp BLUE Anderson Plug on the ‘A’ Frame that has been wired for constant 12 Volt Power (OUTPUT). FOR THE CONNECTION OF 12VOLT EQUIPMENT. eg: CHEST FRIDGES OR JOCKEYWHEELS
Your caravan is equipped with a 175Amp GREY Anderson Plug on the ‘A’ frame that has been wired to the DC2DC.
FOR VEHICLE - CARAVAN CHARGING ONLY.
Your caravan is equipped with a 50Amp RED Anderson Plug on the ‘A’ frame that has been wired to the DC2DC.
FOR PORTABLE UNREGULATED SOLAR CONNECTION ONLY. Breakaway Switch wired to breaksafe 6000.

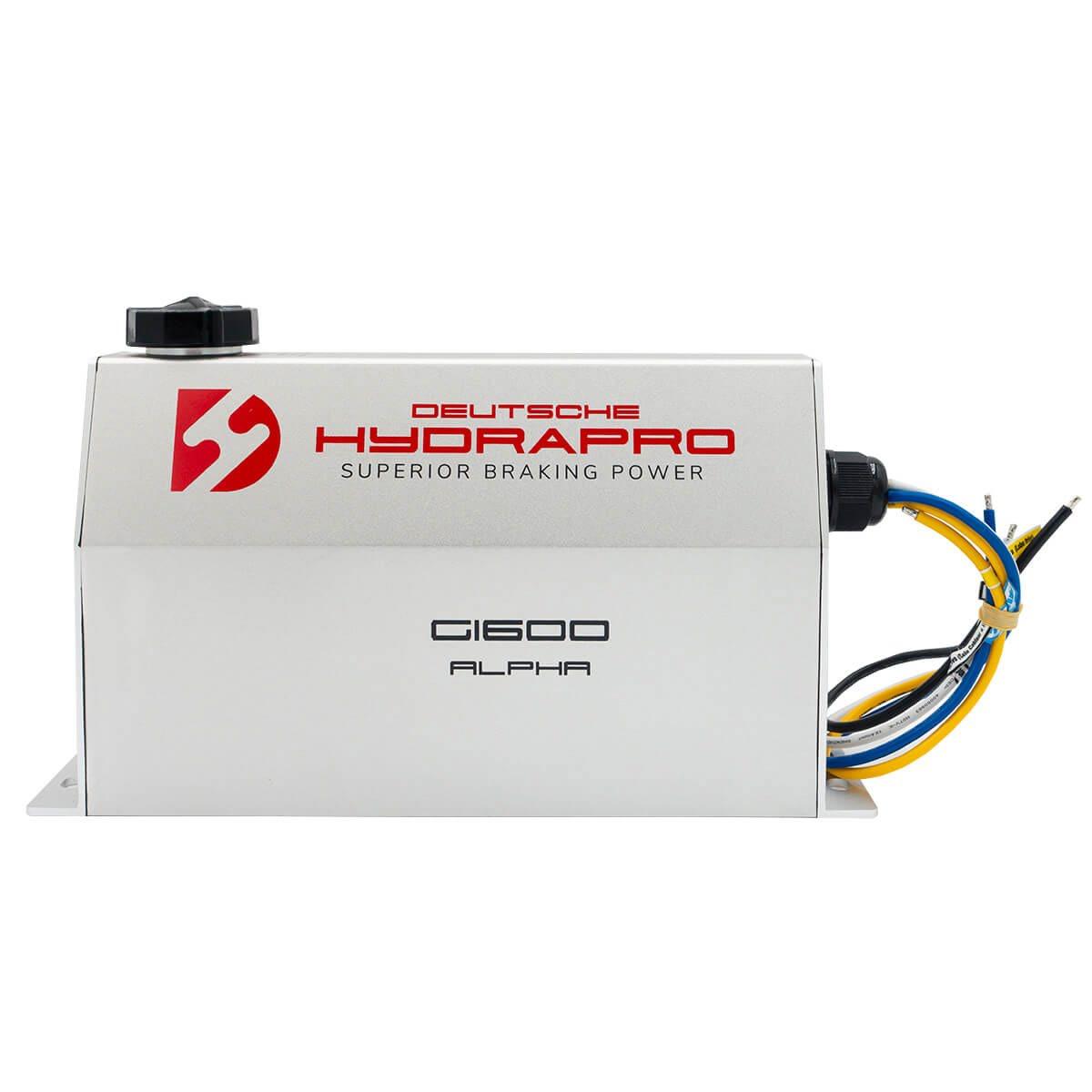

BRAKE SYSTEM WIRING

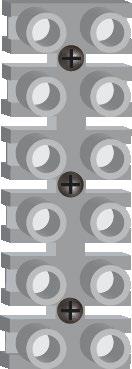

SCREW TERMINAL
PIN
PIN
2 - 12V AUX (4MM)
PIN 5 - ELEC BRAKE (6MM)
10 - EARTH RETURN (10MM)

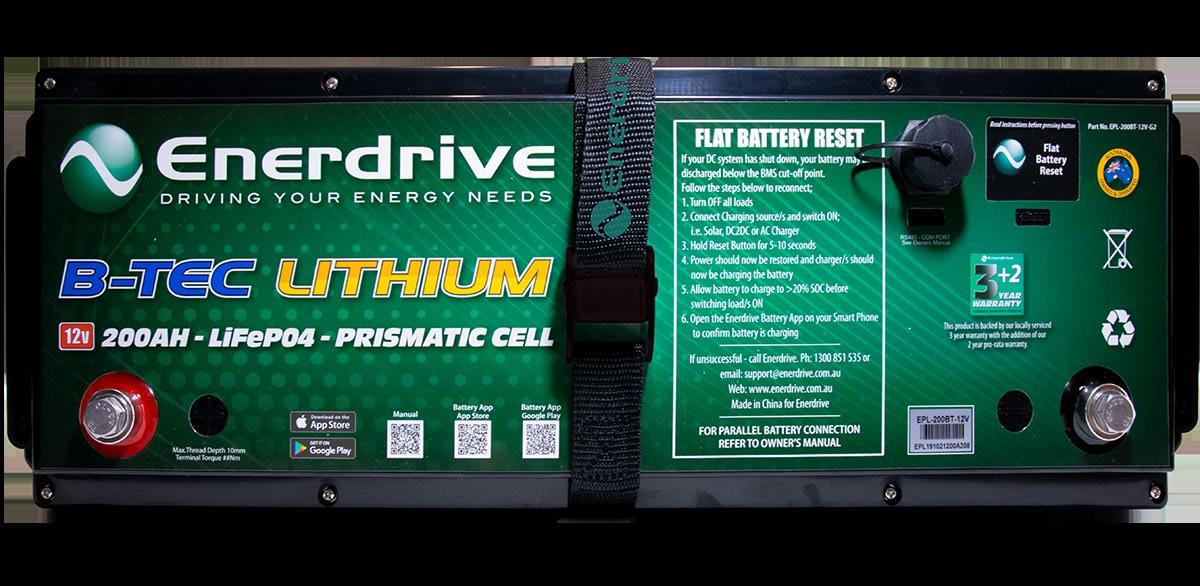

BATT

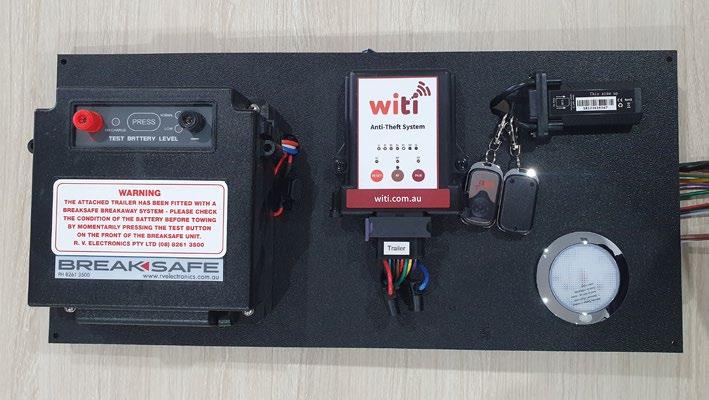

BREAKSAFE / WITI SYSTEM WIRING
AUX 4MM BRAKE
EARTH 4MM WHITE
WITI ONLY ELEC BRAKE 4MM BLUE
ELEC BRAKE 6MM YELLOW
STOP 4MM RED
BREAKE AWAY COLD 4MM ORANGE/GREEN
BREAKE AWAY HOT 4MM ORANGE
TAIL 4MM BROWN
LEFT 4MM YELLOW
RIGHT 4MM GREEN
LED + GREY/WHITE FIG 8
LED- GREY FIG 8
HORN - GREEN/BLACK FIG 8
HORN + GREEN FIG 8
12V POWER + BROWN FIG 8
12V POWER - BROWN/WHITE FIG 8
BOOT LIGHT - 4MM RED/BLACK FIG 8
BOOT LIGHT + 4MM RED FIG 8
6.5MTRS
6.5MTRS
6.5MTRS
6.5MTRS
6.5MTRS
6.5MTRS
6.5MTRS
6.5MTRS
6.5MTRS
6.5MTRS
12 MTRS
12 MTRS
6.5MTRS
6.5MTRS
6.5MTRS
6.5MTRS
2.5MTRS
2.5MTRS

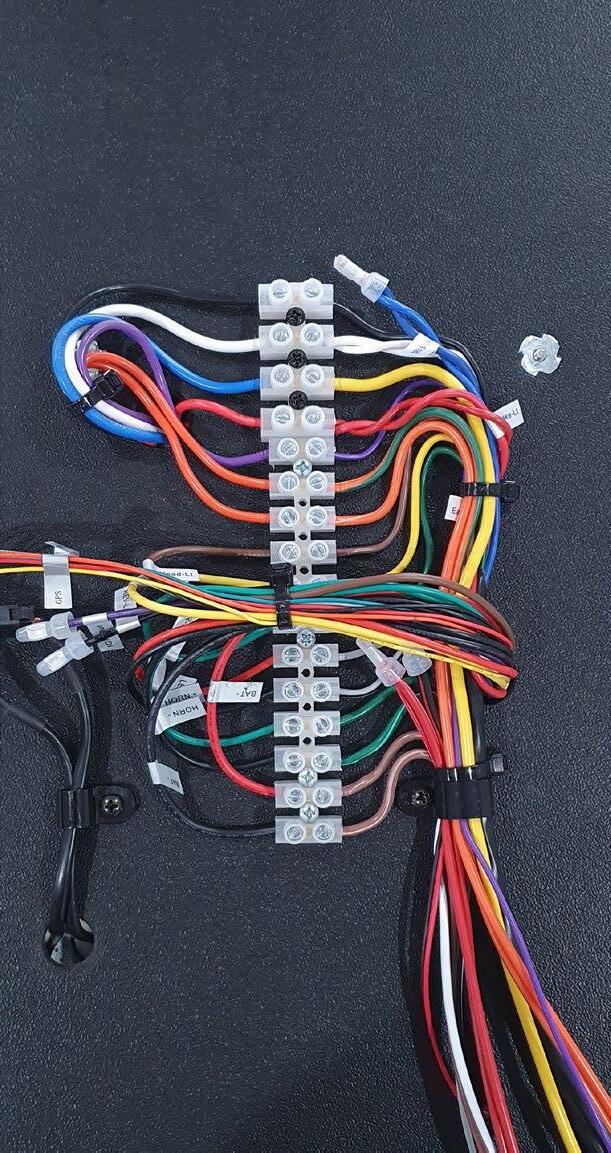

TERMINATION POINT FOR ALL CONNECTIONS INSIDE POWER SYSTEM TRUNKING OR BEHIND FRIDGE ON THE DIN RAIL.
TO LED DOORSIDE NEAR GRAB HANDLE.
TO ALARM HORN ROADSIDE FRONT OF AXLE.

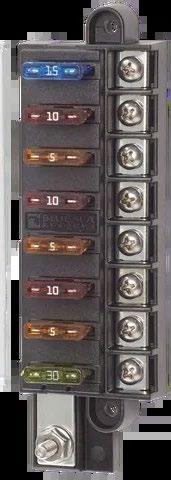

TO 12V POWER SOURCE 8 WAY FUSE.
TO CLOSEST 12V POWER SOURCE E.G: R/LIGHT.

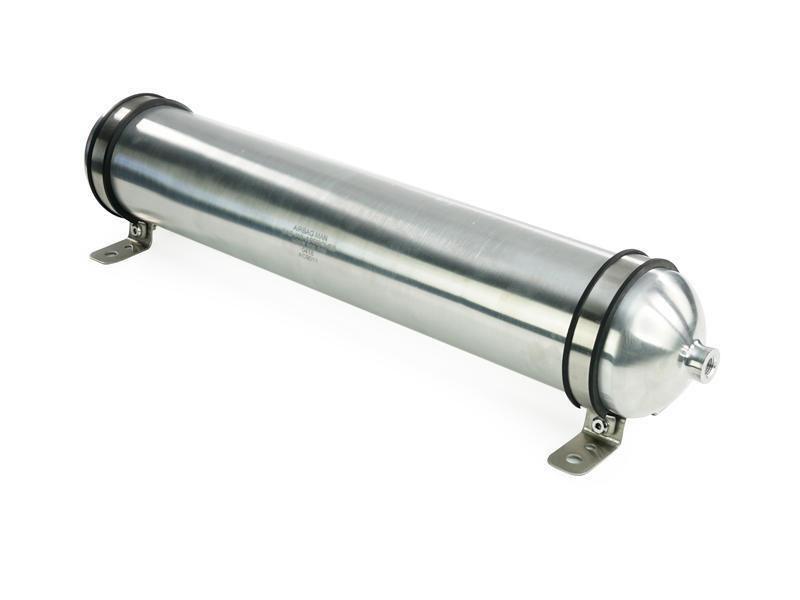

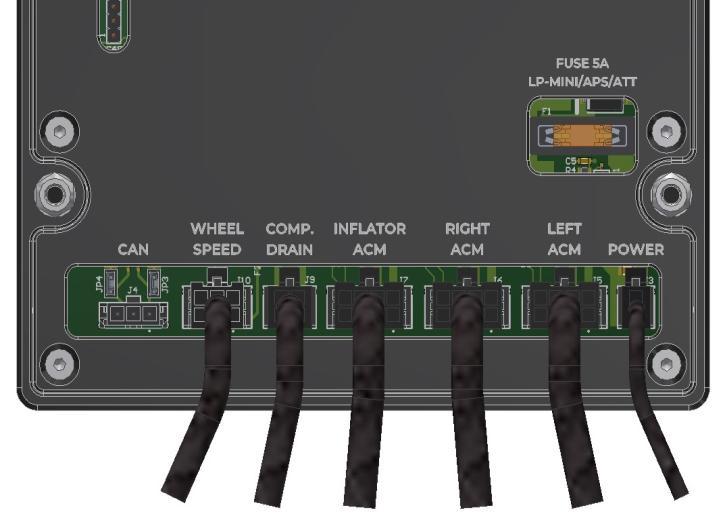

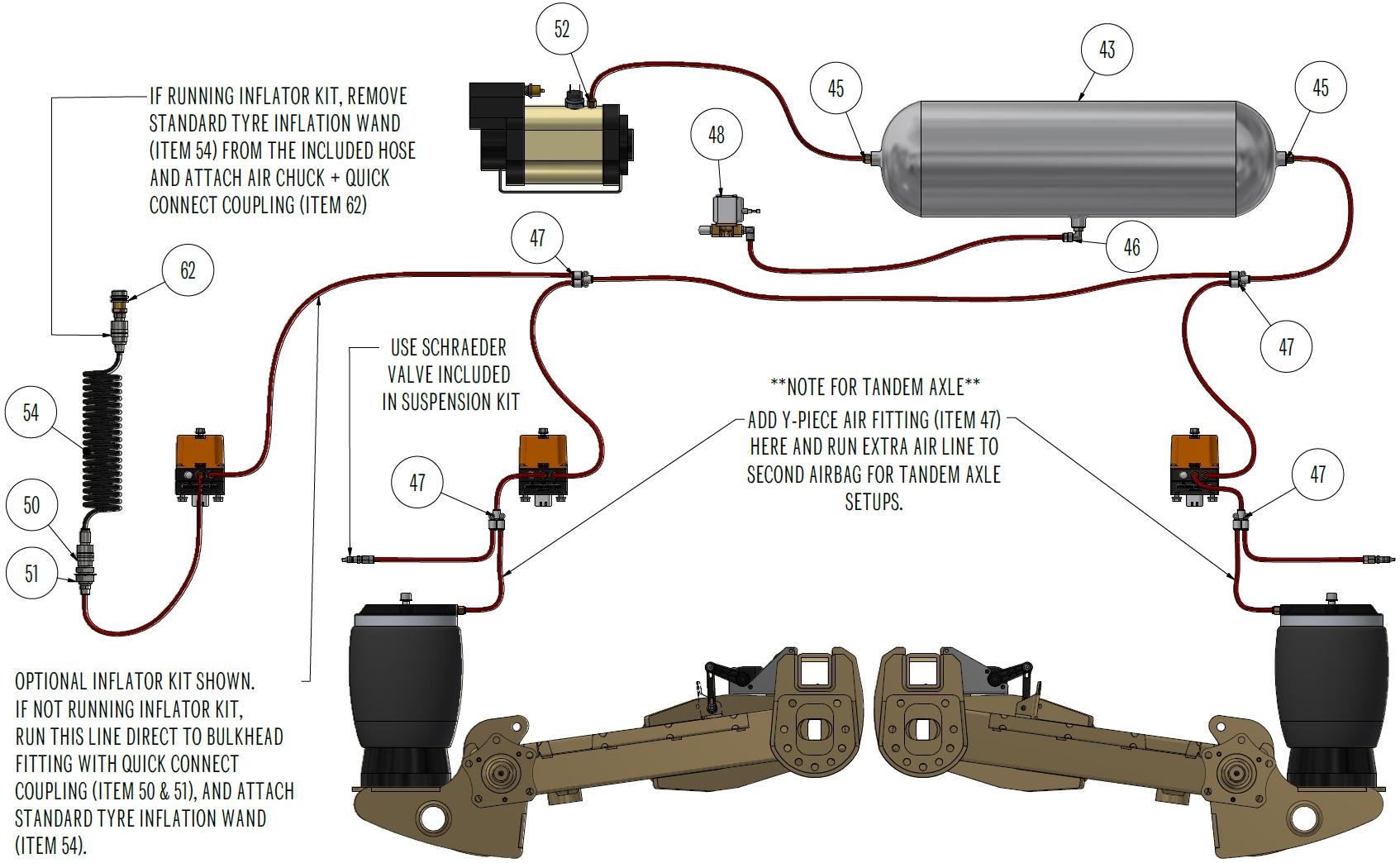

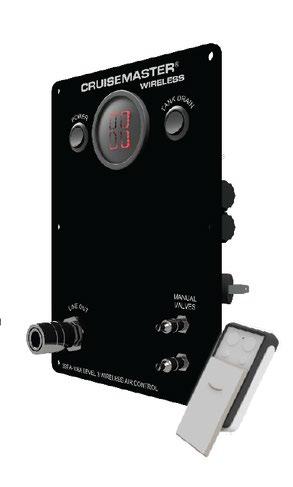

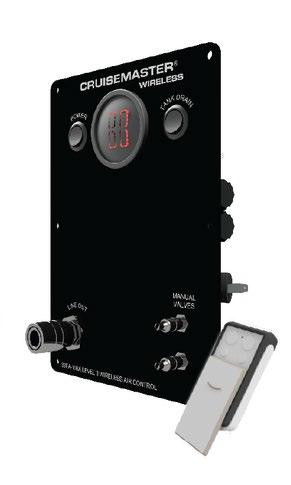

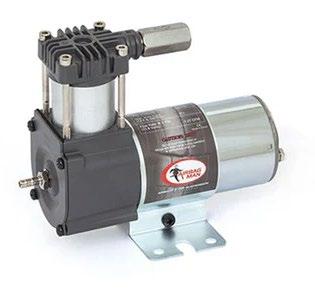

AIRBAG SYSTEM WIRING

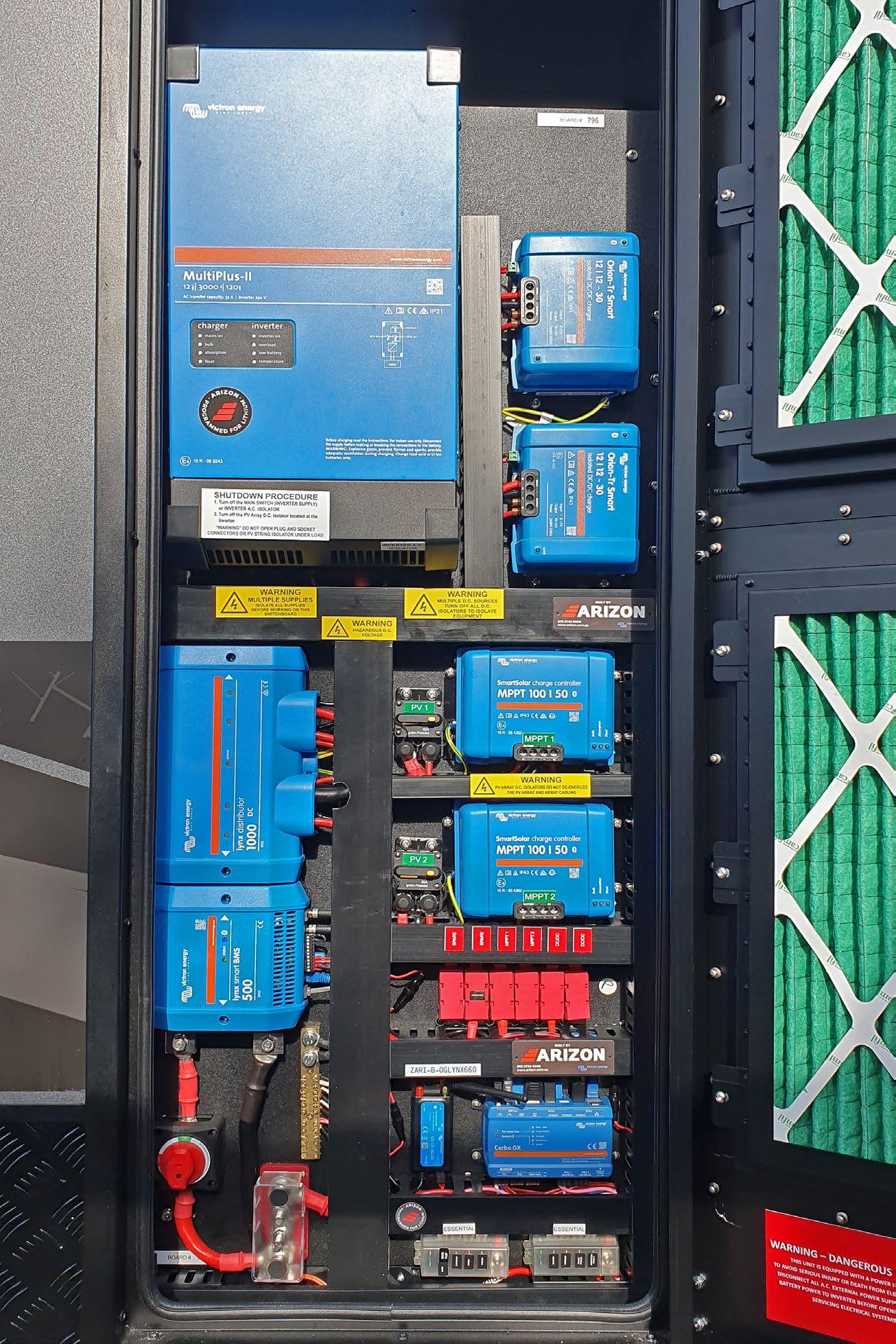

Electrical System Diagram
EARTHING SYSTEM

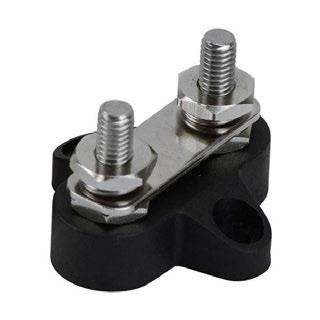

CHASSIS EARTH POINT
13.5MM 2 BLACK
