HARDCORE
STRIKING THE PERFECT BALANCE BETWEEN CAPABILITY AND FUNCTIONALITY, THE HARDCORE BOASTS RUGGED LOOKS, SUPERB BUILD QUALITY AND ALL THE COMPONENTS YOU NEED TO EXPLORE AUSTRALIA’S HIDDEN BEAUTY.
Start with a 6-inch A-frame with strengthener T-piece bars, 4X4 chassis, Cruisemaster XT Coil suspension and 4-inch chassis raiser. Add our interlocking Henrob riveted aluminium frame and one-piece roof system, and you’ve got yourself one Hardcore caravan. One that will withstand stones, hail, harsh Australian sun, and tackle off-road challenges without breaking a sweat.
With heaps of battery, 255 litres of water storage in our Australian-made poly tanks, plus 600 watts of solar, you’re all set to drive off into the sunset.

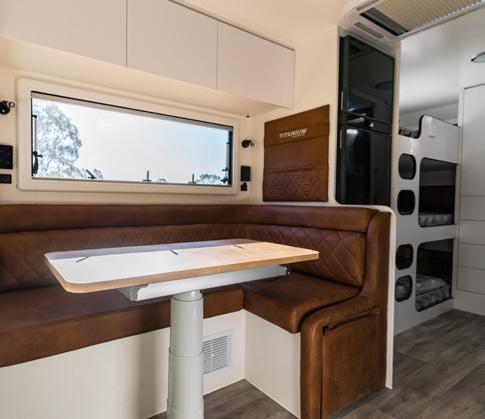

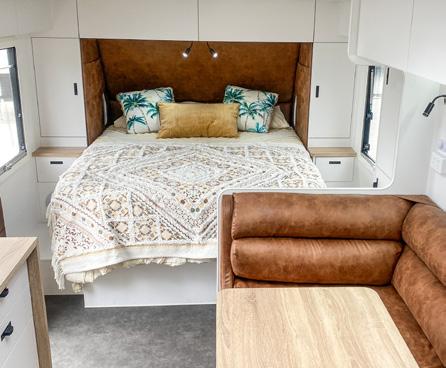

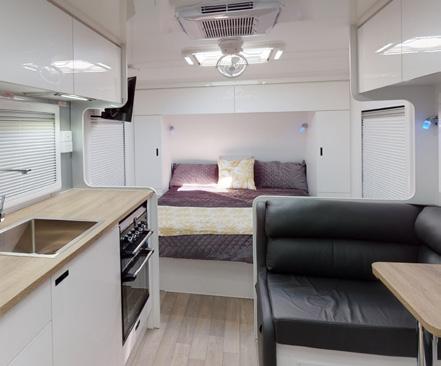

Choose one of our beautiful layouts, recline in the cafe lounge, or enjoy a good night’s rest on our premium mattresses. Packed with all the creature comforts and the option of a full ensuite, you can see why the Hardcore was voted Australia’s Best Off-Road Caravan.
Enjoy the peace of mind that your caravan is manufactured in Australia using Australian-made components. Together with Titanium’s great factory warranty – the Hardcore is built to stand the test of time and be there for you on your journey through the outback.
LAYOUT 3 (I2)
19’6” FRONT DOOR
DOOR LAYOUT 4 (M2)
LAYOUT 5 (R1)
21’6” CLUB 22’6” ADU 19’6” BUNK 21’6” BUNK 21’6” FRONT DOOR
More layouts are available upon request.
EXCLUSIVE TO TITANIUM CARAVANS
Titanium Caravans is one of the few caravan manufacturers with their own in-house fabrication team. Our designers have spent countless hours improving many of the commonly used components in our vans. Not only do these optional extras have unparalleled build quality and look awesome but are also exclusive to customers who join the Titanium family!
Please note these optional extras are subject to model, layout, weight and towing requirements.
PREMIUM BAR TWIN SPARE
Our state-of-the-art premium rear bars can be optioned to carry one or two spare wheels, come with two jerry can holders, have integrated LED tail lights and extra drawer storage. Constructed with a 2mm thick aluminium black powder-coated body, they’re aesthetically unparalleled.
TITANIUM DUST REDUCTION (TDR) SYSTEM
With a sleek military look, our black powder-coated dust reduction system will ensure that dust stays out of your van. The TDRs powerful twin-fan cabin compression system keeps the whole family clean and comfortable for the entire journey.
TOOLBOXES TB68+ AND SUPER
Our toolboxes come in two spacious sizes and both are designed with a heavy duty weber and generator slides. We build them with heavy duty runners, and full length storage suitable for table and camping chair.
SLIDE OUT KITCHEN
Our slide out kitchen comes with 304 stainless steel grade construction and can be optioned for either gas or induction cooking. Bottle opener latch, fold out shelf for weber and fabricated sink with mixer taps. The Titanium slide out kitchen is unrivalled in the industry for quality and functionality.
10
REASONS WHY YOU’LL BE DELIGHTED WITH YOUR NEW TITANIUM CARAVAN

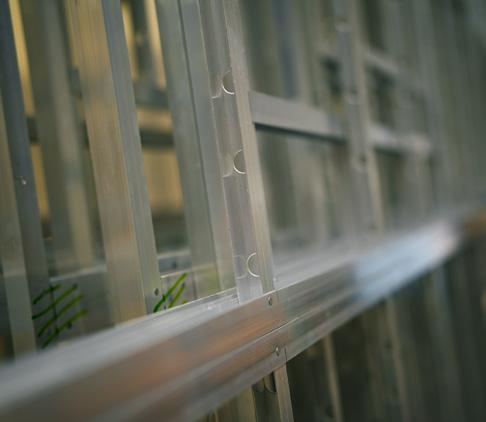

Designed to last well past the life of a traditional timber frame caravan, being impervious to rot, moisture and termites. Hand built interlocking frame with thicker 24mm insulation.
All of our caravans are purpose built for Australia’s uncompromised conditions and guaranteed to turn heads at every camp site.
roof is constructed with a unique one piece fibreglass roof sheet that eliminates potential water leak points and is also hail resistant.
2 year manufacturer and 5 year structural warranty as standard.
All of our qualified in-house tradespeople are highly experienced and dedicated to producing consistently high quality caravans, each and every time.
We are here to assist every step of the way. Just look at our Google and Facebook reviews!
Vans are cladded with a 3mm hail resistant RV composite cladding and 600mm high Checker Plate around the exterior.
Where possible, we source premium Australian made and owned components and support local industry.
Our product designers have developed precise tongue-in-groove furniture, installed throughout your caravan to ensure everything remains rock solid, no matter the terrain.
1. ALUMINIUM FRAME
5. HAIL RESISTANT CLADDING
9. AUSTRALIAN MADE AND OWNED
6. RUGGED BUILD AND LOOKS
10. INTERLOCKING FURNITURE
7. SUPERIOR WARRANTY
8. INDUSTRY LEADING CUSTOMER SERVICE
2. ONE PIECE ROOF
3. HEAVY DUTY CHASSIS
4. IN-HOUSE ELECTRICIANS AND PLUMBERS
The
Built with heavy duty Australian made chassis manufactured using Australian steel.
CHASSIS PLUMBING APPLIANCES ELECTRICAL INTERNAL EXTERNAL
• Supergal chassis
• Single axle or tandem axle
• 4” x 4” Chassis
• Extended ‘A’ frame for maximum storage
• Cruisemaster DO35V3 coupling with integrated handbrake
• 8” Adjustable jockey wheel
• Aluminium pull out step
• Drop down stabilizer legs
• 2 x Rear recovery points
• 16” Method Race Wheels
• 285 / 75 / R16” mud terrain tyres
• Cruisemaster XT coil suspension up to 3500kg
• 12” Drum brakes
• Large aluminium toolbox on A-frame
• Stone deflector
• Jack and wheel brace
• 160L Exclusive poly rotomoulded water tank exclusive to Titanium
• 85L Exclusive poly rotomoulded water tank exclusive to Titanium
• 85L Grey water tank
• Water level gauge
• 12V Water pump
• Lockable water fillers
• Water tap on A-frame
• Mains pressure inlet
• Gas bayonet
• 2 x 9KG Gas bottles
• Gas and electric hot water service
• Modern matte black tapware throughout
• Thetford ceramic bowl toilet
• Fibreglass shower
• Dometic Ibis 4 reverse cycle air conditioner
• Dometic 224L compressor fridge
• 3 Gas and 1 electric cook top with fan forced oven
• 12V Slim line rangehood
• Flatbed microwave
• Washing machine
• 24” HD smart LED TV
• Fusion Bluetooth audio system
• 12 Pin flat trailer plug
• Red anderson plug on A-frame for solar blanket input
• 50amp anderson plug to car
• Front and rear STEDI work lights
• 2 x Anti-dazzle annex lights
• LED tail lights
• 2 x LED lights in tunnel boot
• External LED grab handle
• TV antenna
• LED down lights throughout
• LED reading lights throughout
• USB and USB-C throughout
• 240V Power outlets throughout
• LED light over sink
• Black Sirocco fan
• Smoke detector
• 2 x Internal speakers
• Level 1 lithium battery management system
• 1 x 200AH Enerdrive lithium B-TEC battery
• 3 x 200W Solar panels
• 40A Enerdrive AC charger
• 40A Enerdrive DC-DC charger with built in solar regulator
• E-Pro battery monitor
• Black internal grab handle at entry
• Fire extinguisher
• Pillow top mattress
• 3 Way interlocking CNC cabinetry throughout
• Slimline soft close drawer runner system
• Drawers under bunk beds (double bunks only)
• Mirrored medicine cabinet (layout dependent)
• Telescopic table leg (layout dependent)
• Modern benchtops
• Acrylic splashback
• Ceramic vanity basin
• Black granite kitchen sink
• 2 x Black towel rails
• Interlocking aluminium Henrob riveted wall frames
• One piece fibreglass composite roof panel 30mm
• Under body protection
• 4 Arm rear bumper bar
• Spare wheel and carrier
• Roll out canvas awning
• Double glazed tinted windows
• Triple compression locking entry door with security screen
• Full width chequer plate lined tunnel boot
• Coast to coast access doors
• External entertainment hatch
• Fold down picnic table
• High quality vinyl decals
• 2 x 700mm x 500mm Roof hatches
• 12V Shower hatch with fan
