TIMBERLAB PRODUCT GUIDE GLULAM

2025

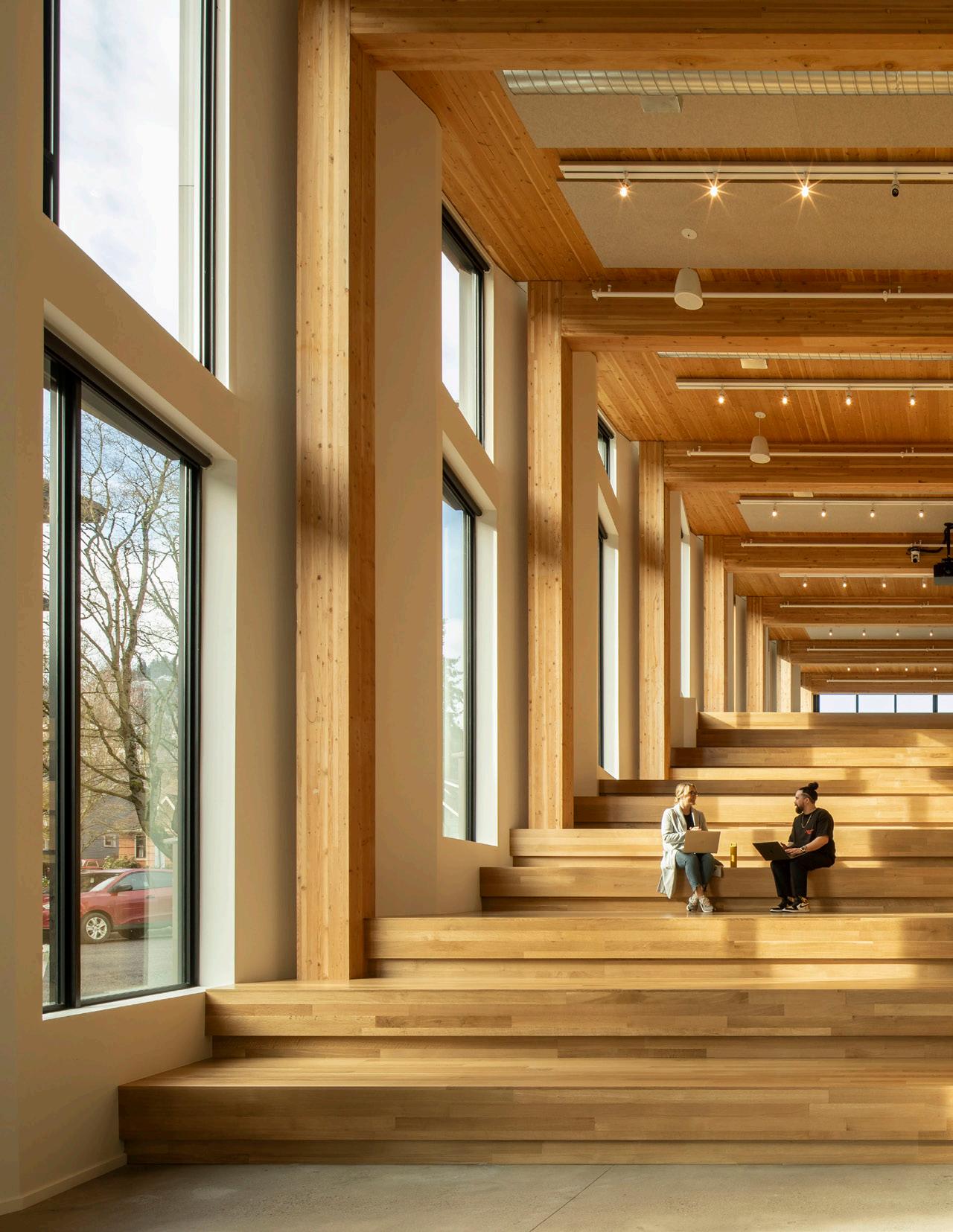

THESIS HEADQUARTERS Portland, Oregon 2

GLULAM PRODUCT GUIDE

GLULAM PRODUCT GUIDE

3

TA B L E O F C O N T E N T S 1. INTRODUCTION

5

Our Ethos

6

Our Roots

7

Our Evolution

8

Mass Timber Facilities

10

2. WOOD SOURCING

14

Species Offerings

16

Targeted Sourcing

24

3. TIMBERLAB GLULAM

26

4

Product Certifications + Characteristics

27

Layup Combinations

28

Standard Sizes

29

Column + Beam Layups

30

Split Lamination Layups

35

Camber

36

Curved Members

37

Appearance Classifications

38

Adhesives

39

Preservative Treatments

40

Shop Sealers + Finish Coatings

41

GLULAM PRODUCT GUIDE

INTRODUCTION

1. INTRODUCTION Thank you for picking up this guide! We invite you to keep it by your side as you develop, design, engineer, and prepare to build the next mass timber library, school, apartment building, office building, warehouse, hotel, laboratory, hospital, and beyond. Inside, you will find our current product offerings, ideas for system design, considerations for high-quality construction, and insights into how we operate.

The guide is meant to be a tool for understanding both product and process.

Whether this is your first experience with mass timber, or you are a seasoned expert, we offer our approach to decision-making in a sequential manner that mirrors the design and procurement phases of a project and will keep you on track toward achieving your project schedule. Read the guide cover-to-cover to comprehend the complete project development cycle, and then revisit specific sections as your work progresses.

This guide offers common glulam applications that will apply to most projects.

It is not meant to be a substitute for conversation, as we know every project has unique qualities and conditions. We are passionate about serving our customers and encourage you to contact us with general questions and project-specific inquiries.

Enjoy the process and know that our team is here to assist at every step.

In gratitude, Timberlab

Disclaimer: The information in this mass timber product guide is intended to be a technical document aimed to assist the user through the range of products and services for Timberlab's engineered wood products. Our Technical and Engineering departments are not responsible for any final mass timber design and engineering services as it pertains to the application of Timberlab's glulam and cross-laminated timber. This guide is intended for preliminary designs and may be subject to change without notice. Anyone making use of the information provided in this document assumes all liability. Timberlab will not be held legally liable for any external use of the information published in this mass timber guide.

GLULAM PRODUCT GUIDE

5

INTRODUCTION OUR ETHOS

OUR ETHOS We are experienced builders on a bold mission: to innovate, produce, and deliver mass timber solutions like no other — transforming the built environment and changing the planet’s future.

With a deep understanding of how buildings are constructed and where there is room for improvement and innovation, Timberlab works at the forefront of a movement rooted in sustainability through renewable materials, quality through precision manufacturing, and cost certainty through prefabrication.

As a team of architects, engineers, and builders, we see every project from multiple vantage points. We provide solutions that result in the highest value for the owner and occupant and

6

offer services to support your team throughout the project life cycle. We’re driven to test new ideas and reach new heights through transparency, collaboration, and creativity – breaking boundaries and pushing forward with inspired motivation.

We view our work as a practical and scientific endeavor constantly evolving to respond to ever-changing climate, societal pressures, and mass timber supply chain landscape. With curiosity and passion, we are alert to the needs of our partners in the architecture, engineering, and construction community, as well as the owners, developers, and facility managers responsible for real estate investments.

GLULAM PRODUCT GUIDE

INTRODUCTION OUR ROOTS

OUR ROOTS Timberlab was born out of and is a subsidiary of Swinerton, a company known for excellence and innovation for over 135 years. With a history and culture of entrepreneurship and innovation, Swinerton is no stranger to working on the frontier – pioneering steel-reinforced concrete following the 1906 San Francisco earthquake, and one hundred years later, incubating one of the top industrial solar contractors in the United States (now SOLV Energy).

As the first mass timber buildings were being built in the Pacific Northwest, Swinerton’s Portland office recognized the opportunity to reduce their impact on the natural environment, deliver projects with improved quality and safety outcomes, support rural economies, and create beautiful spaces by bringing the outside in.

GLULAM PRODUCT GUIDE

Swinerton Mass Timber, an operating group within Swinerton, was formed in 2018 to provide turnkey mass timber systems to general contractors across the country. In January of 2021, Timberlab was launched as a separate business entity within the Swinerton Incorporated family of companies.

To this day, our foundation as a general contractor enables us to support projects holistically, focusing not only on the mass timber, but on the harmonious integration of the structure with all other building systems. Through proactive problem solving, we offer solutions that result in the highest value for the owner and occupant and are committed to being a partner in the success of the entire project.

7

INTRODUCTION OUR EVOLUTION

OUR EVOLUTION From our early days of providing mass timber installation services to the commercial construction market, to our latest step into manufacturing, we have endeavored to close the gaps in the supply chain. We focused first on providing installation services, and then layered on fabrication modeling, CNC machining, and timber engineering. As the demand for mass timber continues to rapidly increase, we hope that the manufacturing branch of our business will augment the existing production capacity in the United States and give owners and developers further confidence that the supply chain can support their vision – at any scale.

2017

FIRST TECH FEDERAL CREDIT UNION

2019

HIDDEN CREEK COMMUNITY CENTER

2021

ASCENT

2023

HEARTWOOD

2023

LIVE OAK BANK

2024

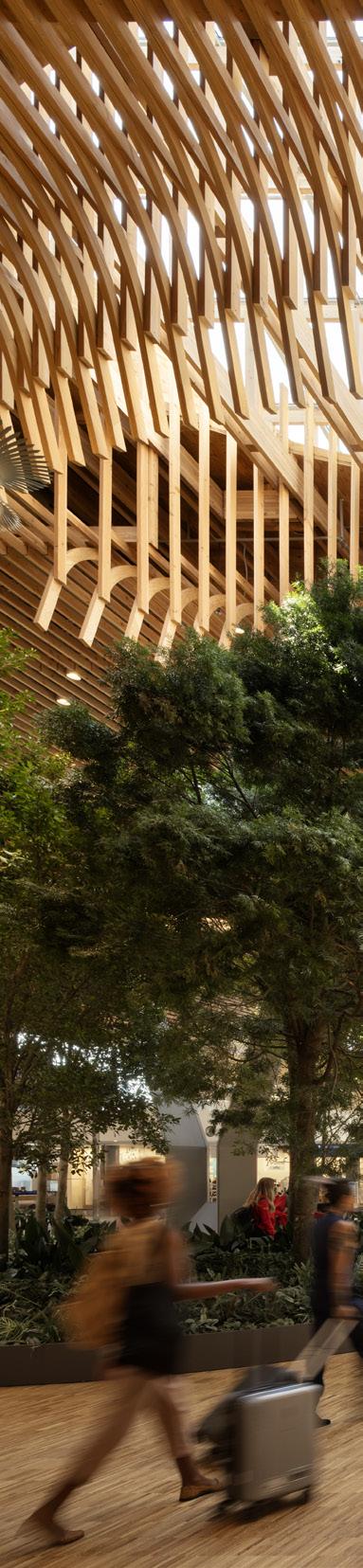

PORTLAND INT'L AIRPORT

8

GLULAM PRODUCT GUIDE

INTRODUCTION OUR EVOLUTION

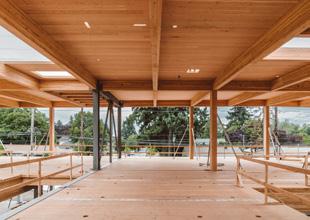

FIRST TECH FEDERAL CREDIT UNION Hillsboro, OR

We take our first step to expand the market for installation of mass timber commercial buildings, erecting a beautifully engineered and coordinated structure provided by Structurlam.

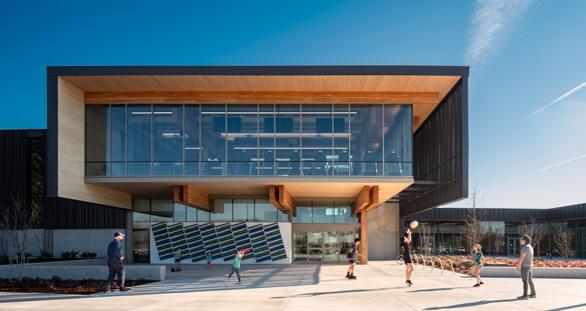

HIDDEN CREEK COMMUNITY CENTER Hillsboro, OR

Suppor ted by the exper tise and experience of KLH, and inspired by the fabrication business of CutMyTimber, we invite long - standing regional manufacturers Calvert and American Laminators into the burgeoning mass timber industry by connecting them with new CNC fabrication capacity at Vaagen Timbers.

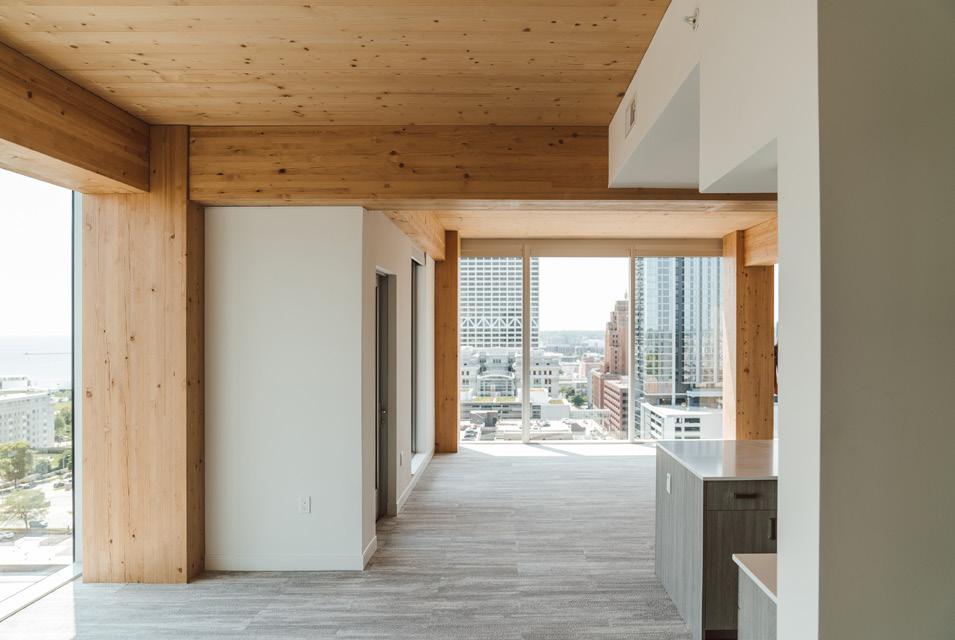

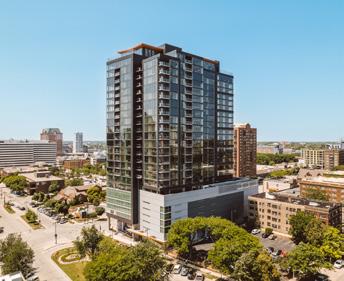

ASCENT Milwaukee, WI

We deliver this record-breaking timber tower with the excellence and expertise of our Austrian partners, KLH and Wiehag.

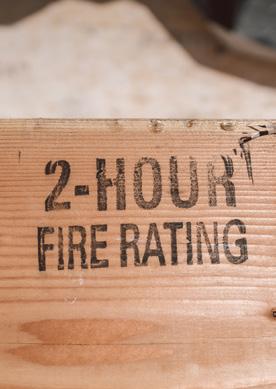

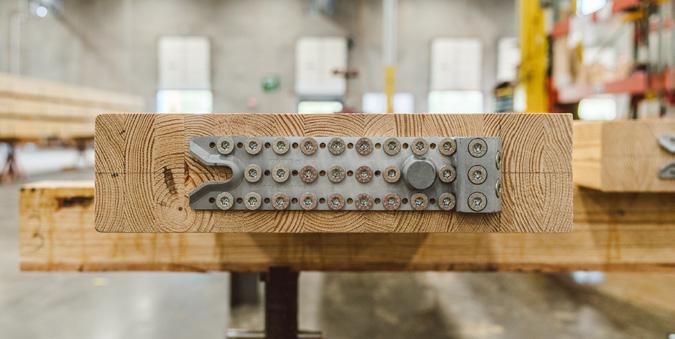

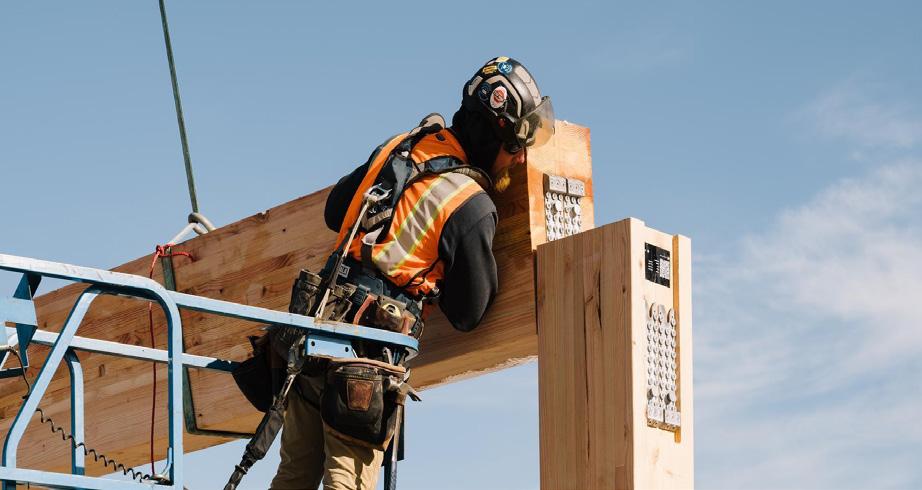

We become aware of the need for 2-hour rated glulam connections, and continued automation and innovation in US manufacturing, especially as it pertains to larger members required for high-rise construction.

GLULAM PRODUCT GUIDE

9

INTRODUCTION M A S S T I M B E R FA C I L I T I E S

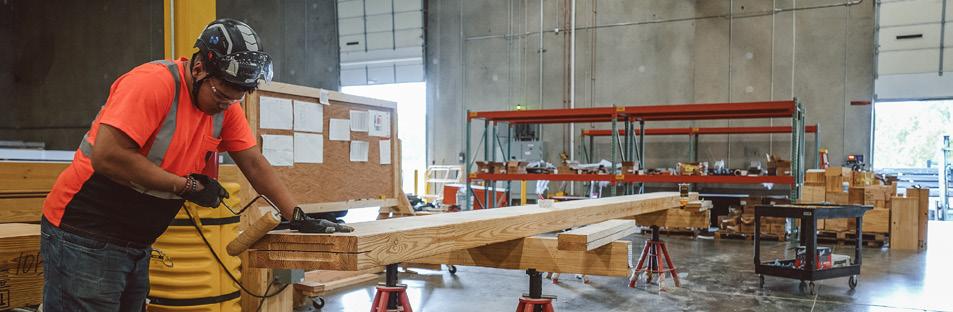

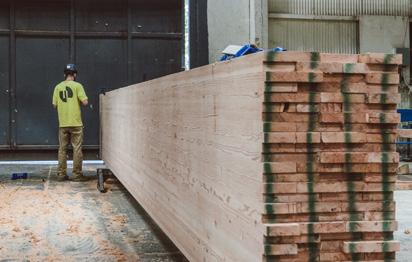

M A S S T I M B E R FA C I L I T I E S Timberlab maintains production facilities in both the western and eastern United States to service our clients across the country. With each operation, our team aims to expand the supply chain for mass timber by strategically positioning our facilities near the highest grade lumber in the country.

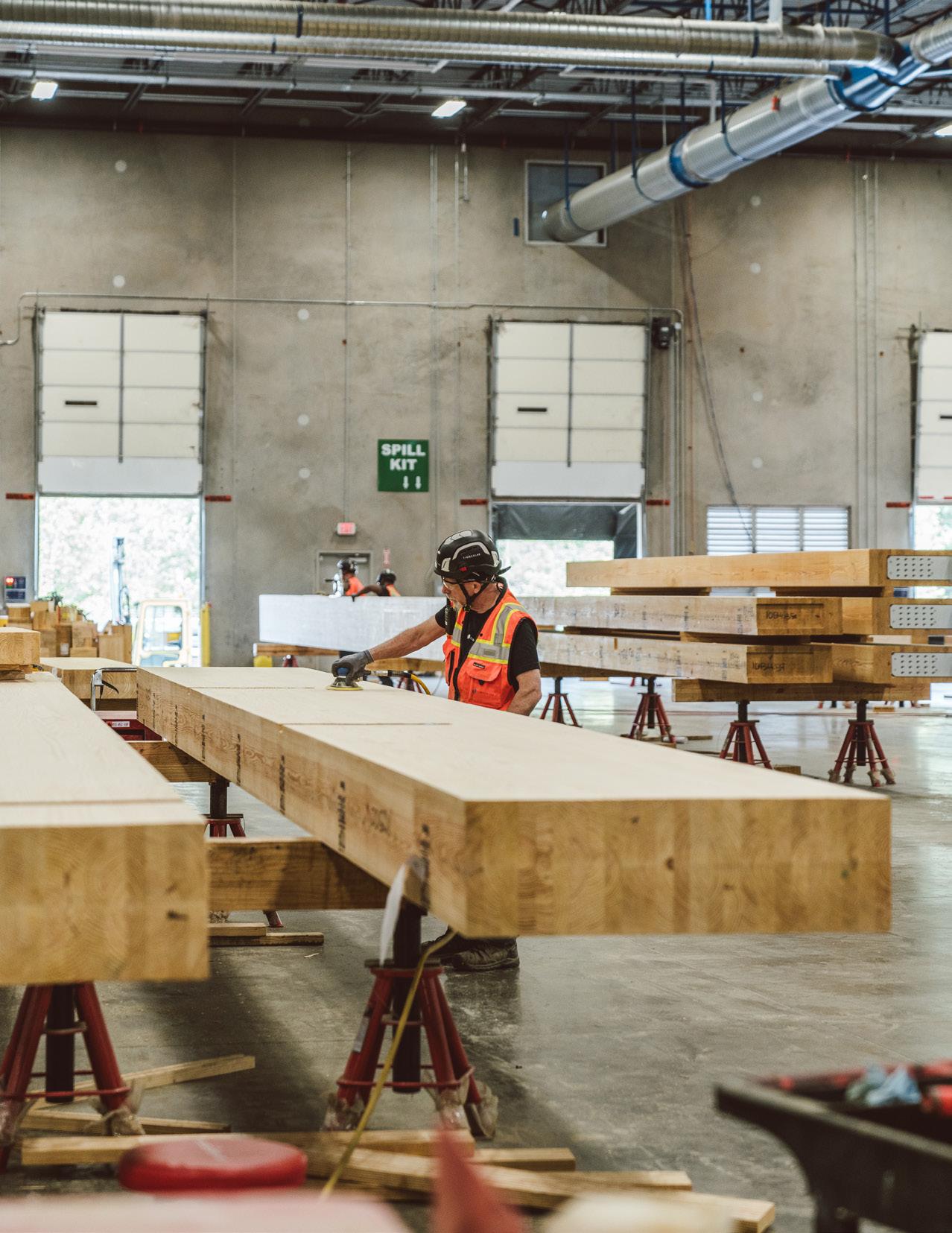

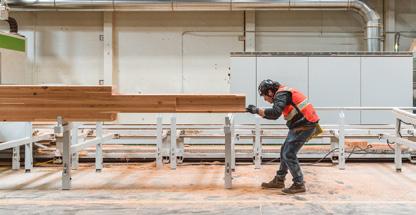

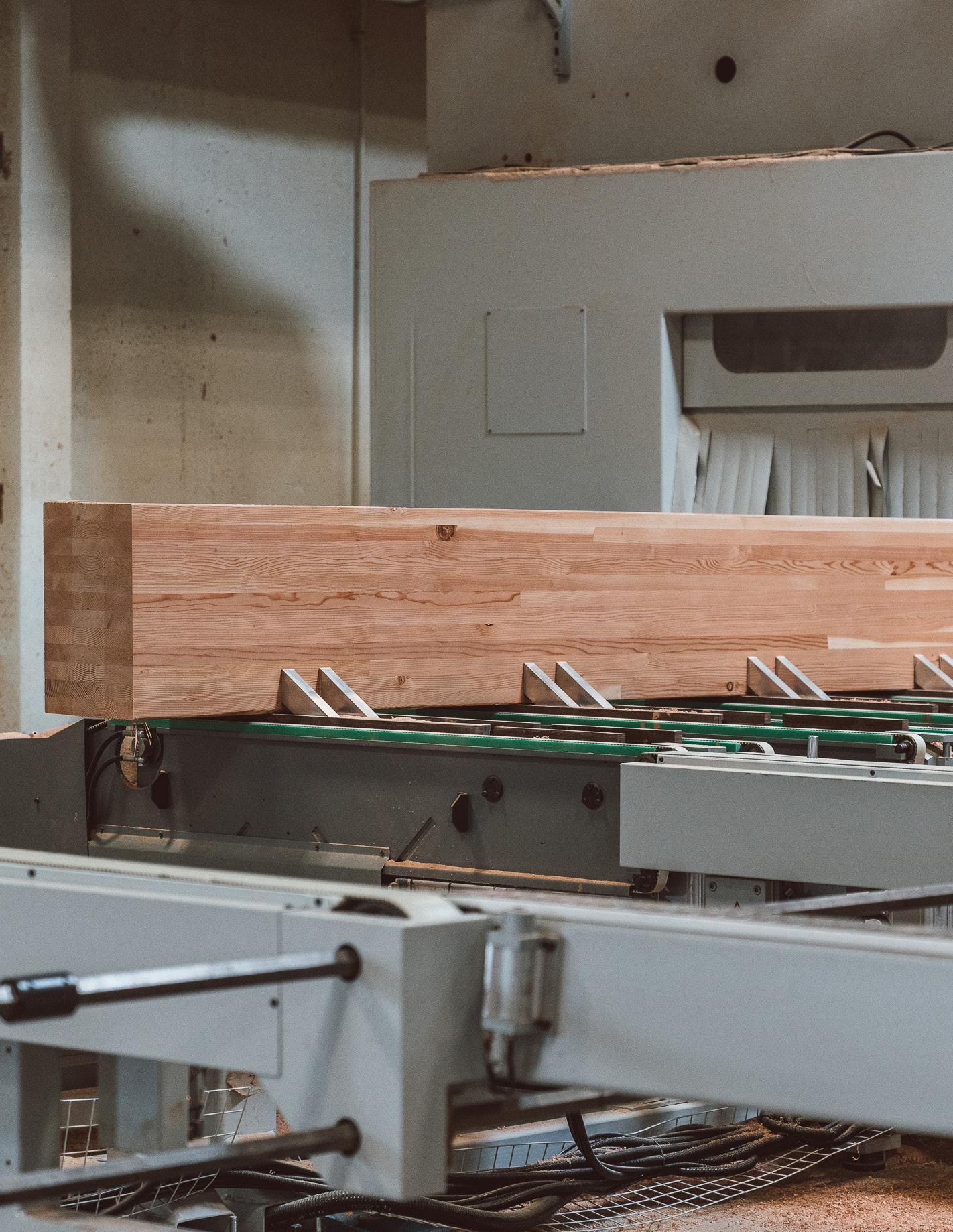

PO RTL AN D, O R EGON MAS S TI M B E R FAB R I CATI O N Our Portland, Oregon facility provides custom fabrication services for glulam, with state-of-the-art CNC machining, finishing, and connection hardware installation to provide a holistic kit of parts. Opened in 2020, the Portland Fabrication Facility was our team's first operation, providing custom CNC services for projects across the U.S.

MILLERS BURG, OR EGON CLT MAN U FACTU R I N G Timberlab's CLT manufacturing plant in Millersburg, Oregon will serve the U.S, commercial market with high-quality CLT panels. The manufacturing facility is highly automated and climate controlled, ensuring a consistently high-quality product. This facility will lead North American CLT manufacturing both with the volume of production and process control to ensure the highest level of quality is achieved. The facility is on a rail spur, enabling rail transport of products across the country, resulting in lower shipping costs and embodied carbon related to transportation emissions.

DRAIN + SWISSHOME, OREGON GLULAM PRODUCTION In operation since 1962 (acquired by Timberlab in 2024), the Drain and Swisshome facilities have produces the highest quality of custom glulam in the country. Utilizing Douglas Fir, Southern Yellow Pine, and Alaska Cedar, these operations account for an annual capacity of 20 million board feet.

10

GLULAM PRODUCT GUIDE

PORTLAND

MILLERSBURG

SWISSHOME

DRAIN

OREGON GLULAM PRODUCT GUIDE

11

INTRODUCTION M A S S T I M B E R FA C I L I T I E S

12

GLULAM PRODUCT GUIDE

GREENVILLE

SOUTH CAROLINA

M A S S T I M B E R FA C I L I T I E S GREENVILLE, SOUTH CAROLINA MAS S TI M B E R FAB R I CATI O N Our Greenville, South Carolina facility provides custom fabrication services for glulam, with state-of-the-art CNC machining, hand fabrication, and connection hardware installation. The Greenville facility fabricates material from our Oregon manufacturing facilities and other manufacturers. The Greenville facility is near a rail spur, able to receive manufactured products by rail transport and deliver fully fabricated products by rail closer to your

GLULAM PRODUCT GUIDE

13

WOOD SOURCING

2. WOOD SOURCING

14

GLULAM PRODUCT GUIDE

WOOD SOURCING

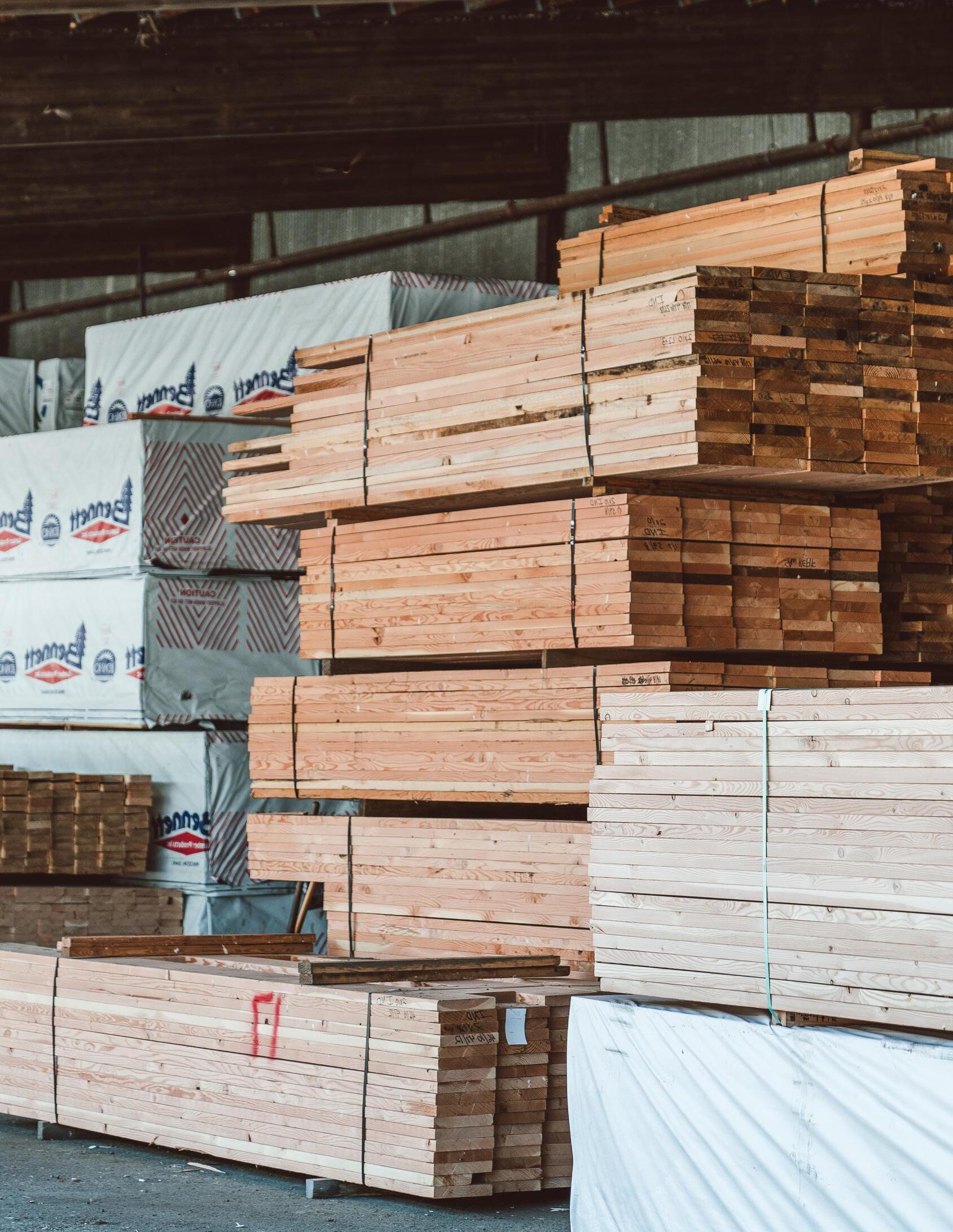

Timberlab is committed to responsible wood sourcing for our projects and offers creative solutions to meet sustainability and wood procurement goals. We prioritize working with suppliers and land owners who adhere to rigorous environmental standards and promote responsible forest management practices. By carefully selecting our timber sources, we aim to minimize our ecological footprint and contribute to the preservation of our planet’s precious resources. Through our dedication to sustainable timber procurement, we strive to create a positive impact, not only in the construction industry but also in the preservation of forests for future generations.

F O R E S T M A N A G E M E N T C E R T I F I C AT I O N S : We maintain chain of custody certification for FSC®, SFI® Standard, and PEFC forest management standards. Please let us know early if you are interested in sourcing wood for your project with any of these certifications, as species can impact availability of material. There may be cost premiums for certified products due to supply chain limitations.

Third party verified forest management and wood fiber certifications are one way that project teams can ensure their input fiber meets rigorous environmental, health, and social standards. The three most commonly known and widely accepted forest management certification organizations are Forest Stewardship Council (FSC), Sustainable Forestry Initiative (SFI), and Programme for the Endorsement of Forest Certification (PEFC).

Timberlab holds and actively maintains certificiations for each of these organizations. Our certifications include: FSC Chain of Custody - SCS-COC-007899 | Trademark: FSC-C162183 SFI Chain of Custody - SCS-SFI-COC-007899 | Trademark: SFI-01976 SFI Certified Sourcing - SCS-SFI-CS-10010 | Trademark: SFI-01976 PEFC Chain of Custody - SCS-PEFC-COC-007899 | Trademark: PEFC/29-31-395 Certified lamstock (glulam input lumber) can be difficult to procure due to current supply chain limitations. Maintaining certification also requires investments in human and physical capital by the landowner, mill, and manufacturer. This in turn can lead to a premium associated with certified wood fiber. It is best to have conversations about certified wood early in the design process to ensure project teams can achieve sustainability goals while adhering to schedules and overall project costs.

TA R G E T E D S O U R C I N G Our relationships with forest landowners and sawmills enable us to offer transparent and targeted wood sourcing in support of a variety of ecological and social equity values. While specific priorities may change over time, we remain committed to supporting our customers in selecting where their wood their wood comes from, if they so choose, and insofar as sourcing goals align with our product specifications.

We are flexible in our procurement, capable of segregating lumber within our facility, and are a trusted partner in helping your team achieve its triple bottom line objectives.

Mass timber construction is unique in its ability to tell the story of the material itself. When you leave your structure exposed, it gives end users the opportunity to ask questions such as: Where does this wood come from? Why does it look this way? Or why use wood instead of an alternative building material?

Our relationships with forest landowners and sawmills enable us to offertransparent and targeted wood sourcing in support of a variety of regional, ecological, and social equity values. While specific priorities may change over time, we remain committed to supporting our customers in selecting where their wood their wood comes from, if they so choose, and insofar as sourcing goals align with our product specifications. We are flexible in our procurement, capable of segregating lumber within our facility, and are a trusted partner in helping your team achieve its triple bottom line objectives.

GLULAM PRODUCT GUIDE

15

WOOD SOURCING SPECIES OFFERINGS

SPECIES OFFERINGS

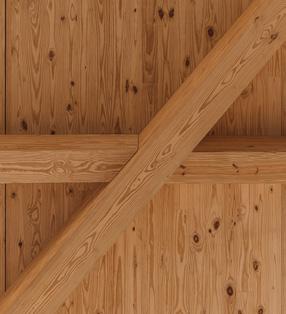

DOUGLAS FIR-LARCH Species

Douglas fir (Pseudotsuga menziesii) Western larch (Larix occidentalis)

Bioregion

Central British Columbia south along Pacific Coast to central California, central Mexico , also Rocky Mountains to Arizona,

Appearance

Sapwood is generally a light straw color. Heartwood is a deep russet brown. Grain is straight or slightly wavy.

Density

32 - 35 lb/ft³ (at 15% moisture content) 510 - 560 kg/m³ (at 15% moisture content)

Notable Characteristics

Stiff and strong for its weight, among the most dense softwoods in North America. Dimensionally stable, glues well, and machines well.

Durability

Requires preservative treatment for wet service conditions. Pressure treatment options both with and without incising of the wood to achieve durability requirements are available.

Availability

Douglas-fir accounts for 37% of forest land in Oregon, with 10.9 million acres of cover. While Douglas fir populations are sensitive to increasing temperatures that produce drought events and higher pest infestations, it is the most prevalent tree species in the Pacific Northwest.

16

GLULAM PRODUCT GUIDE

GLULAM PRODUCT GUIDE

17

18

GLULAM PRODUCT GUIDE

WOOD SOURCING SPECIES OFFERINGS

SOUTHERN PINE Species

Longleaf pine (Pinus palustris) Shortleaf pine (Pinus echinata) Loblolly pine (Pinus taeda) Slash pine (Pinus elliotti)

Bioregion

Southeastern United States

Appearance

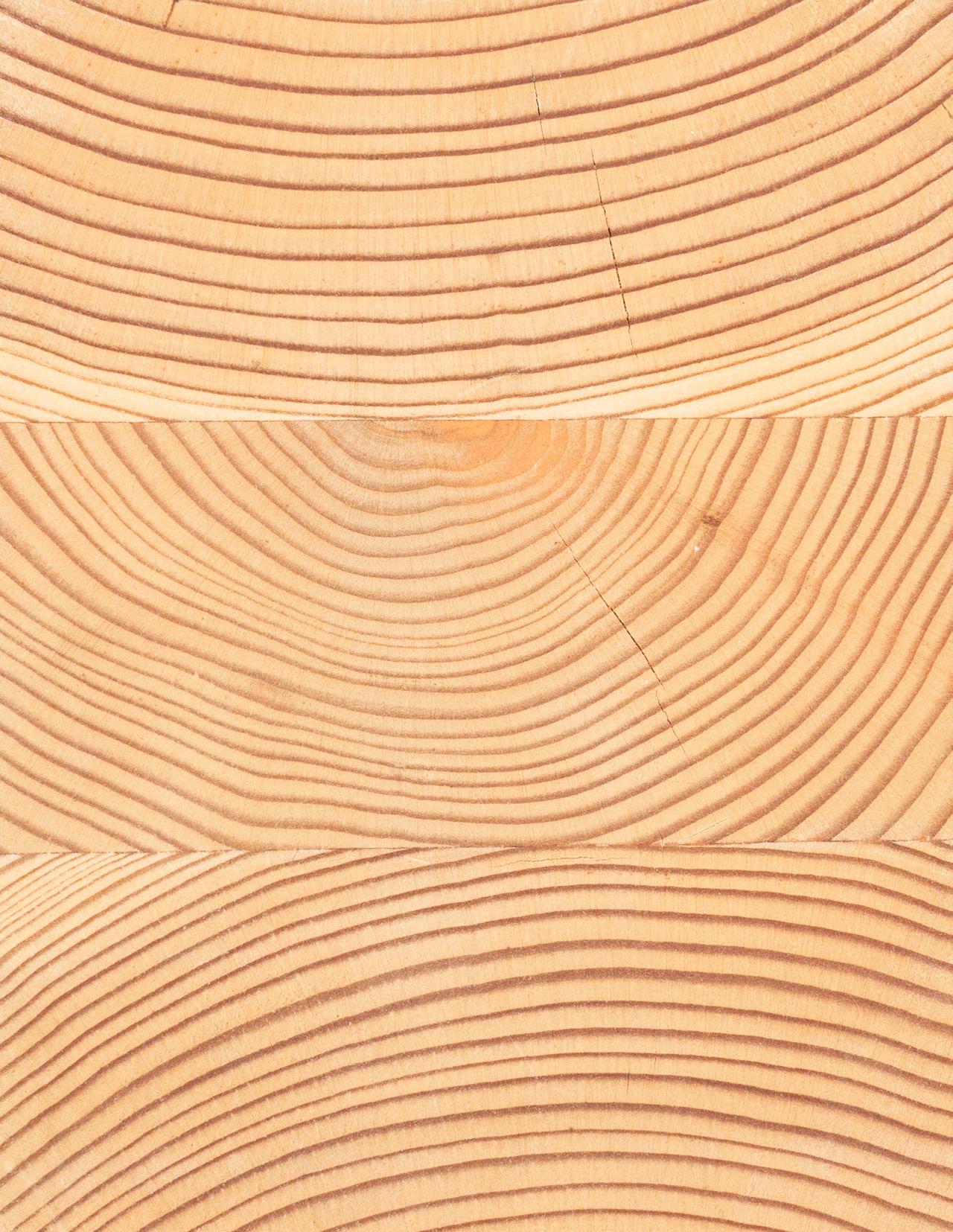

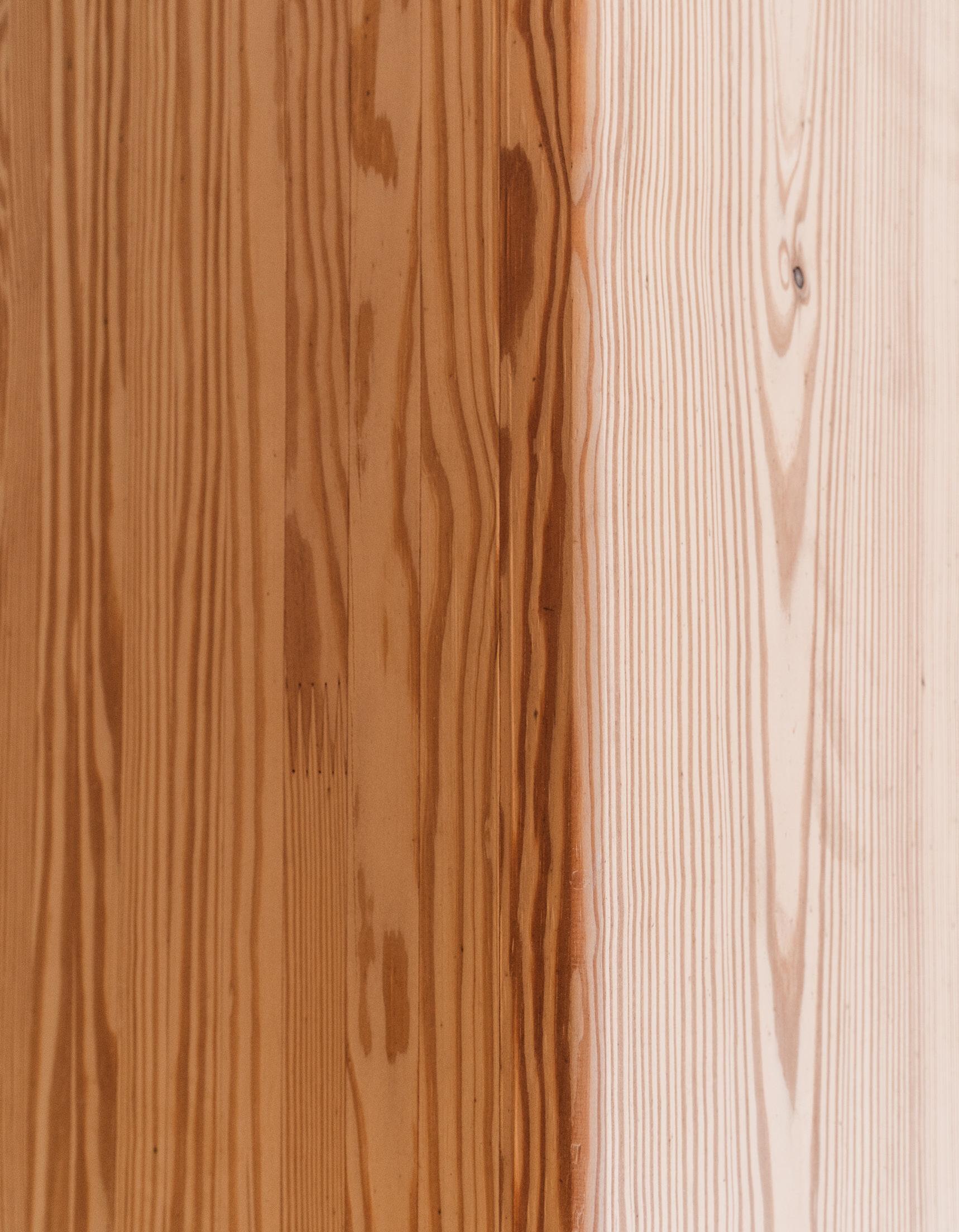

Sapwood ranges from white to yellow or golden. Heartwood from yellow to reddish-brown. Distinct grain pattern.

Density

33 - 39 lb/ft³ (at 15% moisture content) 530 - 625 kg/ m³ (at 15% moisture content)

Notable Characteristics

Highest specific gravity of all common softwoods.

Durability

Requires preservative treatment for wet service conditions.

Pressure treatment options to achieve durability requirements are available.

Availability

Widely available, Southern Pine forests are some of the most productive in the world. Grown in a vast band in the southern United States, near sawmills.

GLULAM PRODUCT GUIDE

19

WOOD SOURCING SPECIES OFFERINGS

ALASKA CEDAR Species

Alaska Cedar (Chamaecyparis nootkatensis)

Bioregion

Coastal regions of Alaska, British Columbia, and the Pacific Northwest of the United States

Appearance

Lightness color, with straight grain. Sapwood is whitishyellow and not distinct from heartwood. When left exposed outdoors, weathers to a uniform gray.

Density

26 - 31 lb/ft³ (at 15% moisture content) 420 - 500 kg/ m³ (at 15% moisture content)

Notable Characteristics

The heartwood is naturally durable due to natural extractives that also provide a pleasant aroma.

Durability

Heartwood is naturally durable. Resistant to decay, insects, and fungi.

Common Applications

The heartwood can be used in exterior above ground applications that are exposed to moisture.

20

GLULAM PRODUCT GUIDE

GLULAM PRODUCT GUIDE

21

WOOD SOURCING ADDITIONAL OFFERINGS

ADDITIONAL OFFERINGS Timberlab works closely with a diverse range of suppliers across the timber industry, including Canada and Europe.

With decades-long relationships with these providers, we ensure that we procure the high quality timber products across all species. If you are looking for a unique aesthetic or an alternative material type, our team is here to help procure the right material for your next mass timber structure.

22

GLULAM PRODUCT GUIDE

WOOD SOURCING ADDITIONAL OFFERINGS

HEM FIR: Western Hemlock (Tsuga heterophylla) provides exceptional structural integrity due to its high strengthto-weight ratio. Often used in large-span and load-bearing applications, Hemlock Fir is also known for offering a fine, even grain which ensures dimensional stability and surface finish.

CANADIAN SPRUCE PINE (CSP): Canadian Spruce Pine (CSP) is a popular material choice for engineered wood products, comprised of established species like Lodgepole Pine and Engelmann Spruce. CSP is sourced from Canadian Forests and is used in many glulam products across North America for its impressive strength-to-weight ratio. This material generally has a lighter color tone and uniform texture when compared to Douglas Fir.

EUROPEAN SPRUCE: European Spruce is a premier species for glulam mass timber products. Having moderate density allows this material type to be more easily handled and transported when compared to its counterparts. Timberlab works closely with our European Spruce suppliers and can ensure the procurement, fabrication, and delivery of this international species.

GLULAM PRODUCT GUIDE

23

WOOD SOURCING TA R G E T E D S O U R C I N G

TA R G E T E D S O U R C I N G Our relationships with forest landowners and sawmills enable us to offer transparent and targeted wood sourcing in support of a variety of ecological and social equity values. While specific priorities may change over time, we remain committed to supporting our customers in selecting where their wood comes from, if they so choose, and insofar as sourcing goals align with our product specifications. We are flexible in our procurement, capable of segregating lumber within our facility, and are a trusted partner in helping your team achieve its triple bottom line objectives.

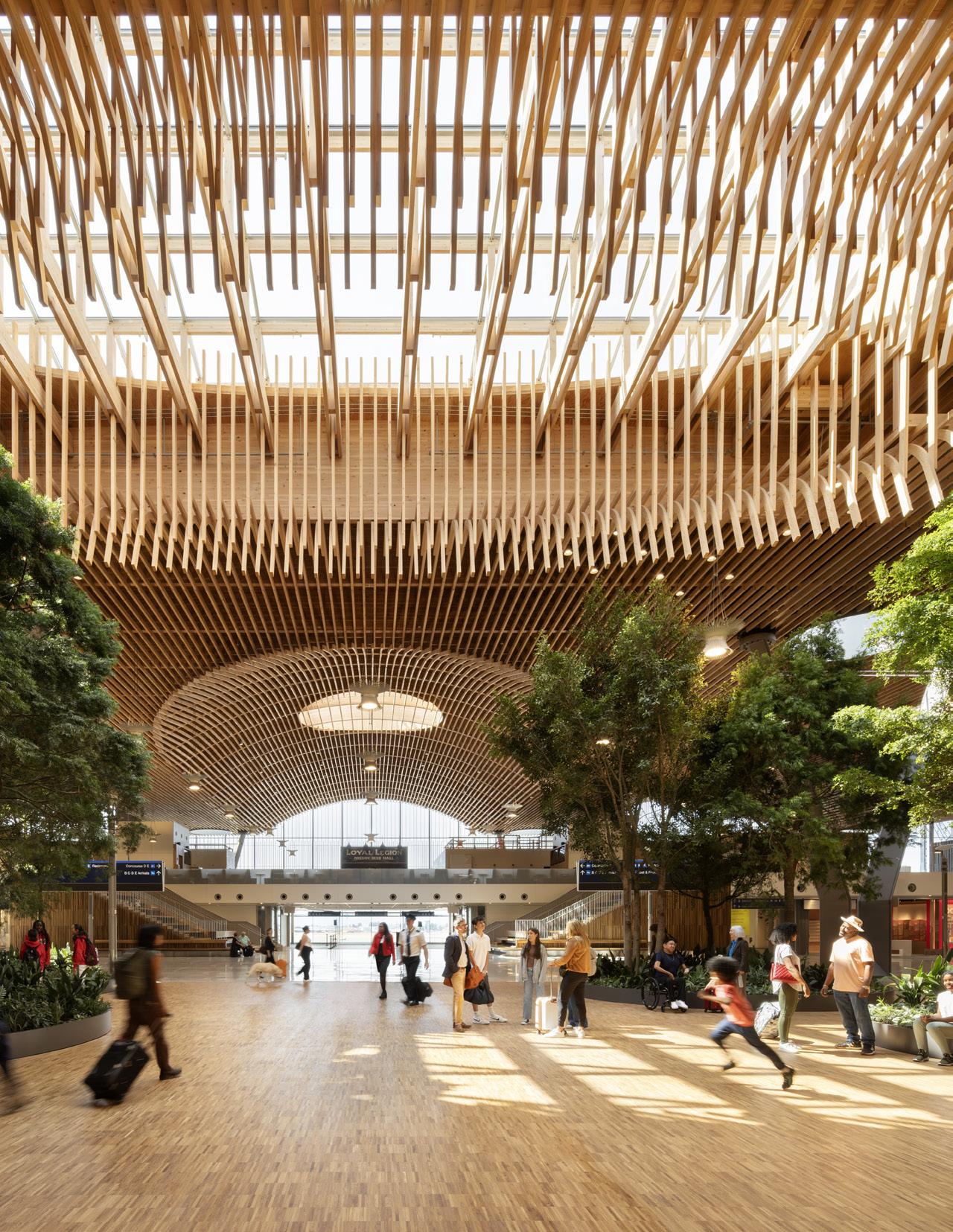

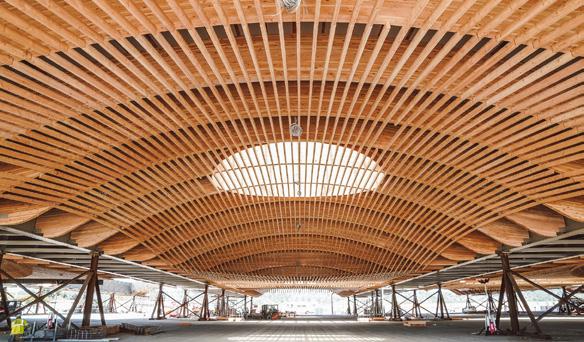

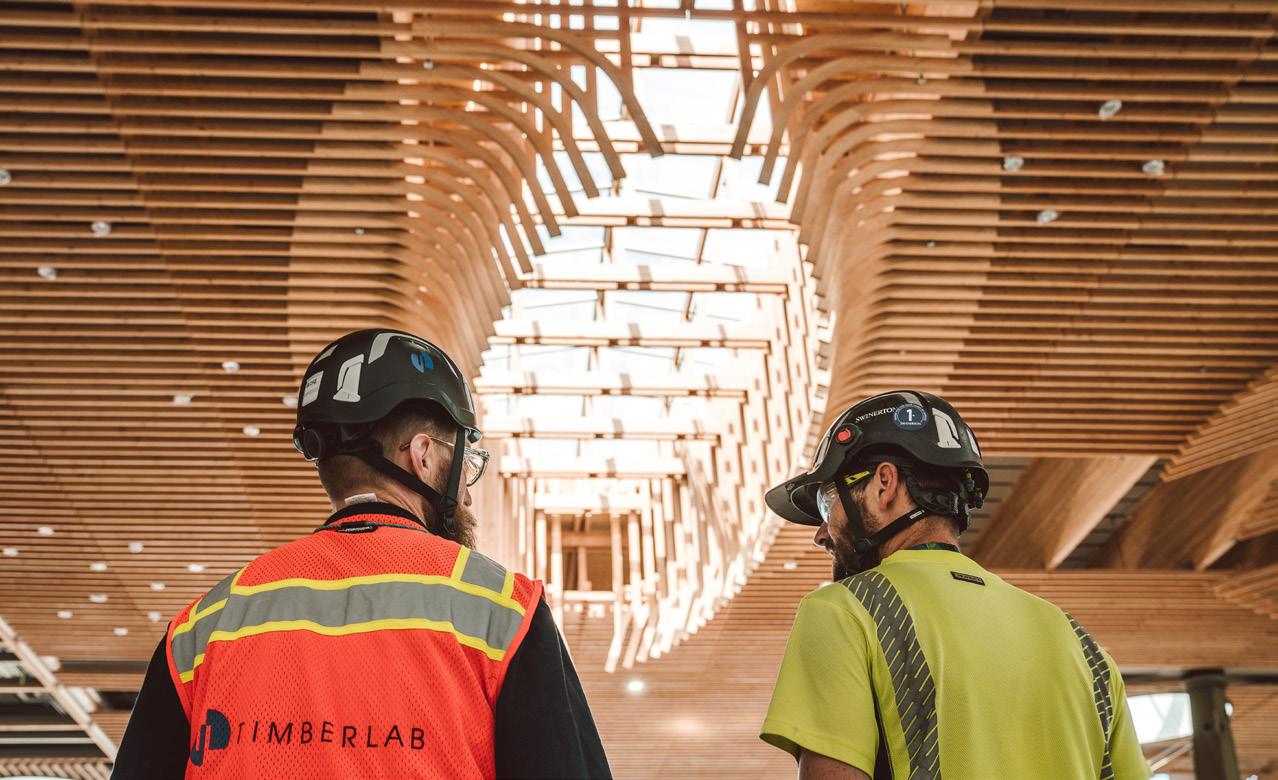

CASE STUDY Portland International Airport - Portland, OR

The comprehensive scale of the timber sourcing for the PDX Airport is unprecedented—from the forest of origin to the mills, buyers and transport practices. Historically, there were boundaries between interactions, from mill to forest, and another from mill to buyer. The project team was able to reduce the building's carbon footprint.

GLULAM PRODUCT GUIDE

24

25

GLULAM PRODUCT GUIDE

TIMBERLAB GLULAM

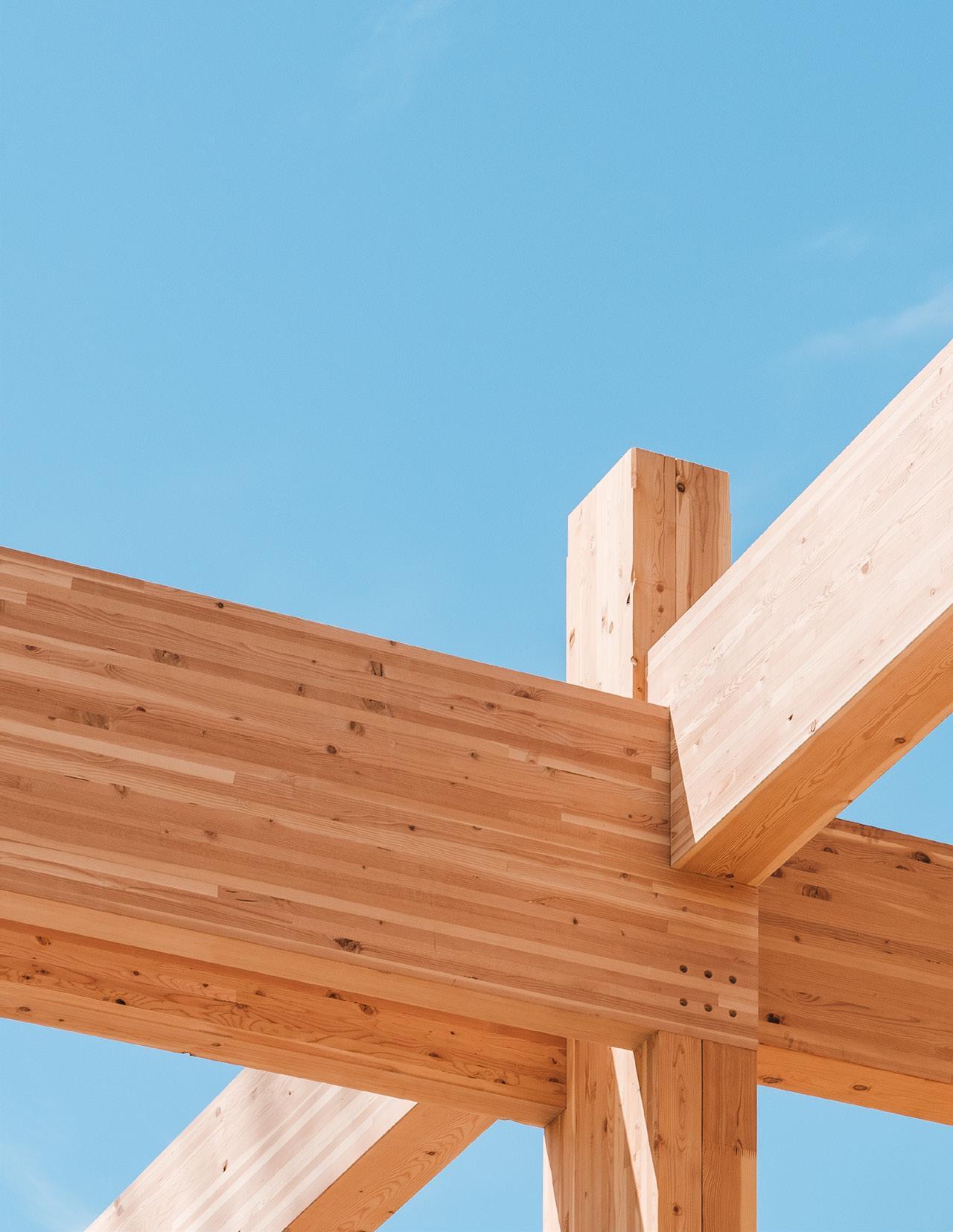

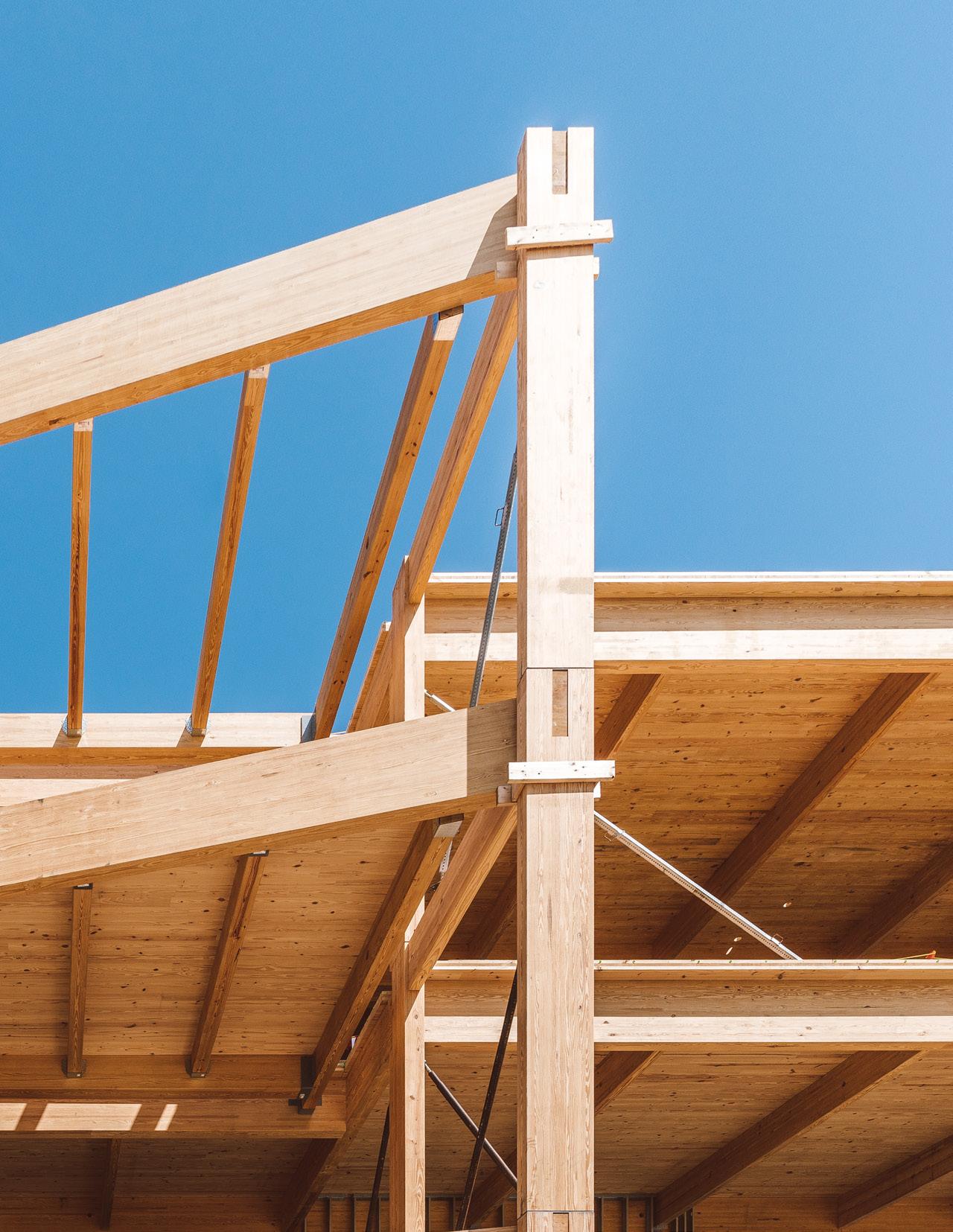

3. TIMBERLAB GLULAM

26

GLULAM PRODUCT GUIDE

TIMBERLAB GLULAM P R O D U C T C E R T I F I C AT I O N S + C H A R A C T E R I S T I C S

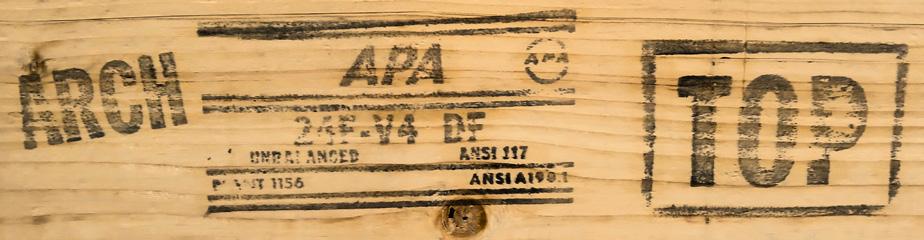

TIMBERLAB GLULAM PRODUCT C E R T I F I C AT I O N S Timberlab Glulam is certified by APA - The Engineered Wood Association.

We manufacture to the ANSI A190.1 (2022) Product Standard for Structural Glued Laminated Timber.

Timberlab produces glulam layup combinations with design values that conform to ANSI 117 (2020) Standard Specification for Structural Glued Laminated Timber of Softwood Species.

The information provided in this product guide applies to glulam designed to the National Design Specification for Wood Construction (2018) and Supplement developed by the American Wood Council. In addition our manufacturing facilities maintain a certification to manufacture glulam to the current edition of Canadian Standards - CSA O122 & CSAO177. Please contact Timberlab for additional information.

PRODUCT OVERVIEW Member Finished Dimensions

Lumber for Laminating Adhesives Finishing

Member Tolerances

Straight + Cambered Members

Length: up to 135'-0" Width: 31/8” to 30” Depth: 6" - 72" (Note 1)

Curved Members

Max height (depth + camber): 16'-0" for lengths up to 60ft.

12'-0" for lengths over 60ft.

Species

Douglas fir-larch, Southern Pine, Alaska Cedar

Moisture Content

Not exceeding 16% at time of manufacturing.

Face Bond Adhesive

Clear MF standard. Brown PRF available when specified.

Appearance Classifications Special Surfacing

Framing, Industrial, Architectural, Premium in accordance with ANSI A190.1 Rough sawn texture upon request.

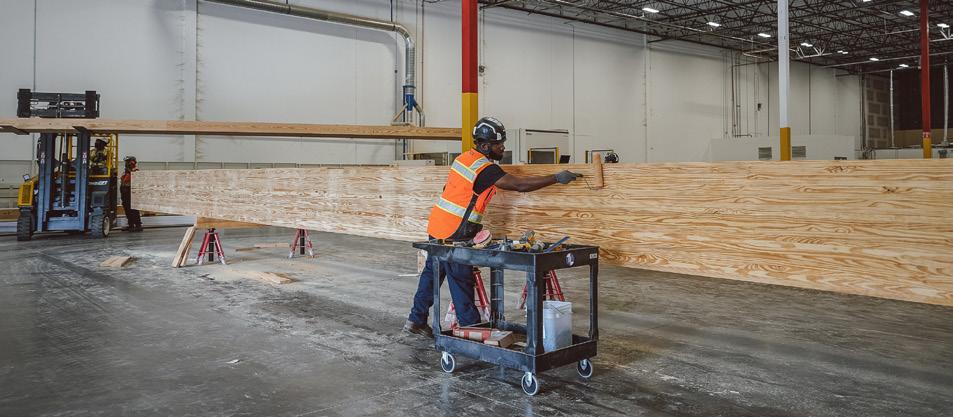

Standard Shop Sealer

Yes.

Coatings

Available upon request.

Width

1/16” +/- (2mm)

Depth

+1/8” +/- (3mm) per foot (305 mm) of depth. -3/16” (5 mm) or 1/16” (2 mm) per foot of depth, whichever is larger Up to 20’ (6.1 m), +/- 1/16” (2 mm). Over 20’ (6.1 m), +/- 1/16” (2 mm) per 20’ (6.1 m) of length or fraction thereof.

Tolerances for camber are applicable at the time of manufacture without allowance for dead load deflection.

Up to 20’ (6.1 m), the tolerance is +/- 1/4” (6 mm). Over 20’ (6.1 m), the tolerance shall increase 1/8” (3 mm) per additional 20’ (6.1 m) or fraction thereof, but not to exceed 3/4” (19 mm).

The tolerances are intended for use with straight or slightly cambered members and are not applicable to curved members such as arches.

The tolerance for squareness shall be within +/- 1/8” (3 mm) per foot (305 mm) of specified depth unless a specially shaped section is specified. Squareness shall be measured by placing one leg of a square across a top and/or bottom face and measuring the offset from the other leg of the square to the member at the opposite face of the beam.

Length Camber Or Straightness

Squareness

1. Depths noted are standard, depths up to 118" are possible. Please contact Timberlab for additional information.

GLULAM PRODUCT GUIDE

27

TIMBERLAB GLULAM L AY U P C O M B I N A T I O N S

L AY U P C O M B I N A T I O N S Timberlab provides glulam beam and columns in the most commonly specified stress classes and grades as provided in the table below. We are certified to manufacture glulam to other stress classes and grades provided in the NDS Supplement Tables 5A and 5B. Please contact us for additional information.

S TA N DA R D O P T I O N S Douglas Fir (DF) Stress Class / Grade

Combination Symbol

Layup

Typical Application

24F-V4

Unbalanced

Single span beam

24F-V8

Balanced

Multi- supported beam, Cantilever beam

L2

2

Uniform

Column (standard)

L2D

3

Uniform

Column, truss member

L1

5

Uniform

Column, truss member

24F-1.8E

Southern Pine (SP) Stress Class / Grade

Combination Symbol

Layup

Typical Application

24F-V3

Unbalanced

Single spam beam

24F-V8

Balanced

Multi-span beam, Cantilever beam

N2D12

48

Uniform

Column, Truss member

N1D14

50

Uniform

Column, Truss member

24F-1.8E

Alaska Cedar (AC) Stress Class / Grade

20F-1.5E

L2

Combination Symbol

Layup

Typical Application

20F-V12

Unbalanced

Single spam beam

20F-V13

Balanced

Multi-span beam, Cantilever beam

70

Uniform

Column, Truss member

Note: See the NDS Supplement Tables 5A and 5B for structural design values.

28

GLULAM PRODUCT GUIDE

TIMBERLAB GLULAM S TA N D A R D S I Z E S

S TA N D A R D S I Z E S Standard finished widths are the same for all appearance classifications (industrial, architectural, and premium) and are the total dressed laminating lumber widths in a layer minus an allowance to account for planing both side faces after pressing. Standard widths and depths are shown below.

S TA N D A R D W I D T H S 1 Nominal Width (In)

Douglas Fir (in)

Alaska Cedar (in)

Southern Pine (in)

4

3 1/8

3 1/8

3 1/8

6

5 1/8

5 1/8

5 1/8

8

6 3/4

6 3/4

6 3/4

10

8 3/4

8 3/4

8 1/2

12

10 3/4

10 3/4 3

10 1/2

10 1/4

10 1/4

10 1/4

12 1/4

12 1/4

12 1/4

14 1/4

14 1/4

14 1/4

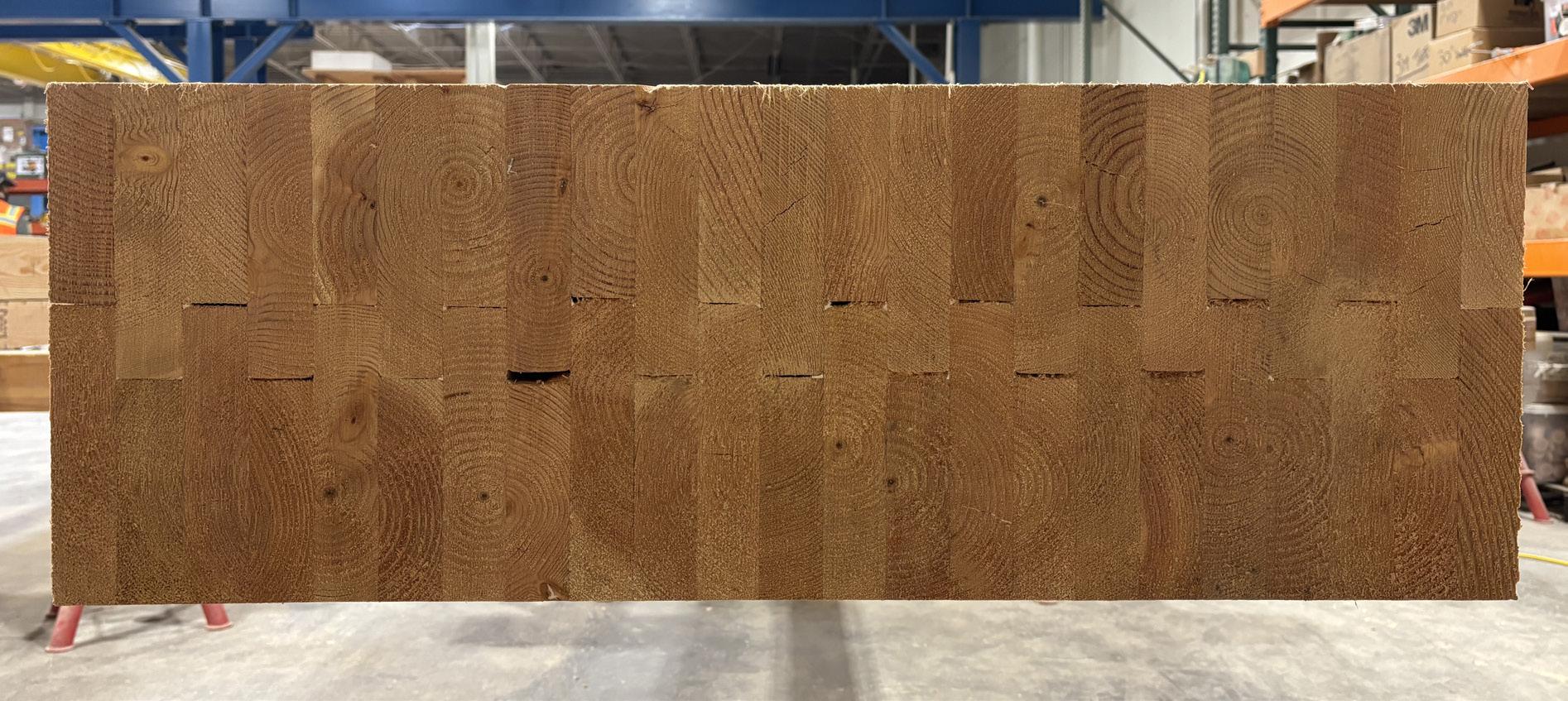

SL 2

16 1/4

16 1/4

15 7/8

18 1/4

>16 4

18

20

-

>184

-

-

-

-

21 1/2 >21 1/2

4

1. Different widths may be considered on a case-by-case basis. Contact Timberlab for additional information.

2. SL = Split Lamination layups 3. Sizes utilizing 2x12 AC can only be produced in limited quantities.

4. Timberlab has the ability to manufacture up to 30 inches in width. Contact Timberlab for preferred widths.

S TA N D A R D D E P T H S Standard depths are in multiples of the standard lamination thickness.

Douglas Fir, Alaska Cedar

1-1/2 inches

Southern Pine 1-3/8 inches Glulam depths can be a minimum of (2) laminations, although our standard depths start at a minimum of (4) laminations. Our maximum standard glulam depth is 72 inches. Please contact us for information about producing glulam up to a maximum depth of 118 inches.

GLULAM PRODUCT GUIDE

29

TIMBERLAB GLULAM C O L U M N + B E A M L AY U P S

C O L U M N + B E A M L AY U P S

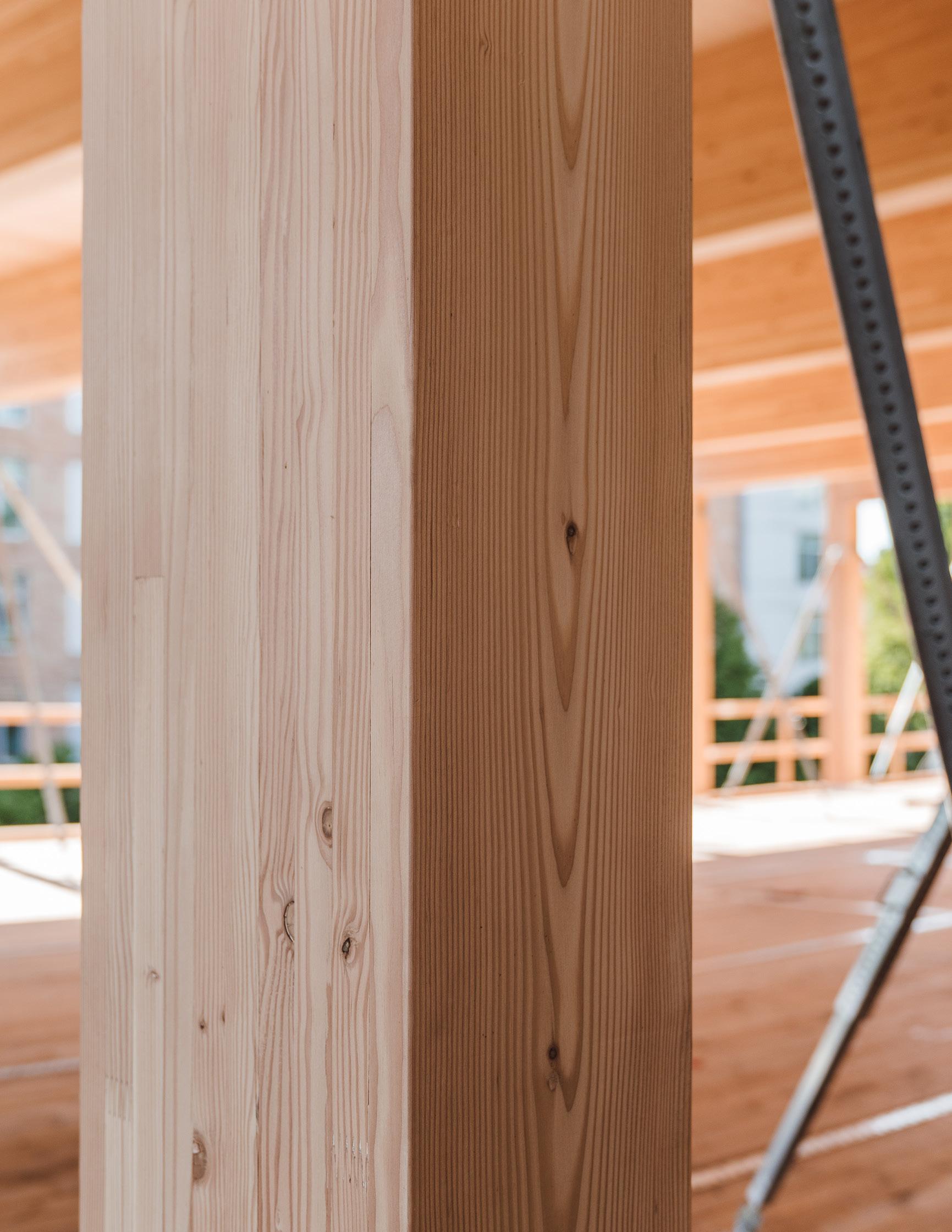

COLUMNS Glulam columns, either square or rectangular in cross-section, are subjected to stresses primarily in axial tension or compression and are most effectively manufactured with lumber of uniform grade. While we can produce glulam with many different grades of lumber, higher strength lumber intended to reduce the cross-sectional dimensions of the member will have a higher cost and may be subject to longer lead times to gather wood of this grade.

UNBALANCED BEAMS Unbalanced beams are intended for use in simple-span applications loaded in positive bending, producing the greatest tension stress on the bottom of the beam. To resist such stresses, unbalanced beams are manufactured with the highest strength laminations on the bottom of the member. Importantly, the asymmetry of unbalanced beams results in a significantly reduced bending capacity if installed upside down – the top side of the beam is so indicated with a stamp.

BALANCED BEAMS Balanced beams are intended for use in multi-span or cantilevered applications. As either the top or bottom of the member are stressed in tension due to applied loads, balanced beams are manufactured with high-strength tension laminations on both the top and bottom.

Un b a lance d

Ba l a nc e d

L2 D

ST

L2

L1

L2

L2

L3

L2

L3

L3

L3

L3

L3

L3

L3

L3

L2

L2

L2

L2

L1

L1

ST

ST

An example of different laminating lumber grades in an unbalanced and balanced glulam beam and a uniform grade layup used for columns.

Example of stamps used for glulam beams.

30

GLULAM PRODUCT GUIDE

TIMBERLAB GLULAM C O L U M N + B E A M L AY U P S

FI R E R AT ED B E A M S In applications where glulam beam fire rating is achieved via wood char, it is required to specify and manufacture beams with layups in accordance with ANSI 117 so they maintain their structural capacity in the event of a fire. For beams that will be exposed to fire on three sides, this is accomplished by adding one tension lamination to the bottom of the beam for each hour of fire resistance required, and removing a corresponding number of inner laminations, so that the beam depth remains the same.

For beams designed for fire exposure on four sides (as in the case of a beam without a CLT floor fastened to its top side), both the top and bottom of the layup shall be modified in accordance with ANSI A190.1.

Beams with fire rated layups are marked with “1-hour fire rating” or “2-hour fire rating” for quality assurance.

These special layup requirements do not apply to columns because they are manufactured with a uniform grade of laminations. Specifying a fire rated layup must be done in conjunction with structural calculations by the engineer, to ensure the charred beam cross section has sufficient strength for the required fire exposure duration. Please reference APA Technical Note Y245 Calculating Fire Resistance of Glulam Beams and Columns, for additional guidance.

T H R E E S I D E S O F B E A M E X P O S E D TO F I R E ( TO P S I D E P R OT E CT E D) U N B A L A N C E D L AY U P

B A L A N C E D L AY U P

Outer Compression

Outer Compression

Outer Tension

Outer Tension

Inner Compression

Inner Compression

Inner Tension

Inner Tension

Inner Compression

Inner Compression

Inner Tension

Inner Tension

Core

Core

Core

Core

Core

Core

Core

Core

Core

Core

Core

Core

Core

Core

Core

Core

Core

Inner Tension

Core

Inner Tension

Inner Tension

Inner Tension

Inner Tension

Inner Tension

Inner Tension

Additional Outer Tension

Inner Tension

Additional Outer Tension

Additional Outer Tension

Additional Outer Tension

Additional Outer Tension

Additional Outer Tension

Outer Tension

ONE HOUR

Outer Tension

T WO HOUR

Outer Tension

ONE HOUR

Outer Tension

T WO HOUR

FOU R S I D ES O F B E AM E XPOS ED TO FI R E U N B A L A N C E D L AY U P

B A L A N C E D L AY U P

Outer Compression

Outer Compression

Outer Tension

Outer Tension

Additional Outer Compression

Additional Outer Compression

Additional Outer Tension

Additional Outer Tension

Inner Compression

Additional Outer Compression

Inner Tension

Additional Outer Tension

Inner Compression

Inner Compression

Inner Tension

Inner Tension

Core

Inner Compression

Core

Inner Tension

Core

Core

Core

Core

Core

Core

Core

Core

Core

Inner Tension

Core

Inner Tension

Inner Tension

Inner Tension

Inner Tension

Inner Tension

Inner Tension

Additional Outer Tension

Inner Tension

Additional Outer Tension

Additional Outer Tension

Additional Outer Tension

Additional Outer Tension

Additional Outer Tension

Outer Tension

ONE HOUR

Outer Tension

T WO HOUR

Outer Tension

ONE HOUR

GLULAM PRODUCT GUIDE

Outer Tension

T WO HOUR

31

TIMBERLAB GLULAM C O L U M N + B E A M L AY U P S

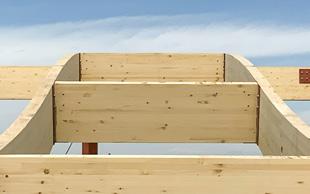

TA PER ED B E A M S + CO LU M N S Tapered members are manufactured with lamination layups that meet the requirements of ANSI 117 Section 5.6 unless project specific lamination layups are specified.

In accordance with the standard, this allows tapered members to be designed to the requirements of the NDS, including the structural design values found in the NDS Supplement.

Alternatively, when a glulam beam is cut to a tapered shape during secondary manufacturing or fabrication by removing material from the compression face, it is acceptable to specify the standard full depth prismatic beam layup as long as the reduced design values in accordance with ANSI 117 Section 4.12 are used.

Profiles varry Compression Lams Standard Layup

Compression Lams Standard Layup

bb

aa

B-B

A-A

Standard Layup

Standard Layup

Tension lams carry through

Compresion lams carry through

Standard Continuous/ Cantilevered Layup

32

GLULAM PRODUCT GUIDE

TIMBERLAB GLULAM C O L U M N + B E A M L AY U P S

BEVELED BEAMS Glulam beams can be bevel cut on their compression face to accommodate building design needs such as sloped roofs. Beveled beams are manufactured with lamination layups so that the grade of laminations in the outer compression zone is maintained throughout the entire depth of the bevel cut, meeting the requirements of ANSI 117 Section 5.8.

L 2D

L2D

L 2D

L2D

L2

L2D

L3

L2

L3

L3

L3

L3

L3

L3

L3

L3

L3

L3

L3

L3

L2

L2

L1

L1

ST

ST L AY U P W I TH O U T

L AY U P W I T H

BEVEL CUT

B E V EL C U T

B E V E L C U T P R O F I L E EX A M P L ES

GLULAM PRODUCT GUIDE

33

TIMBERLAB GLULAM M U LT I P L E P I E C E L A M I N AT I O N M E M B E R S ( S P L I T L A M I N AT I O N )

S P L I T L A M I N AT I O N L AY U P S We offer multiple piece lamination (split lamination) layups as a cost-effective and sustainable alternative for producing wide members. In this process, described in ANSI A190.1, Section 10.3, we stagger adjacent laminations of two or more boards in a brick-like pattern to achieve larger widths. Typically, for members wider than 10 3/4, we provide split lamination layups.

As an option, Architectural and Premium classification glulam produced with the split laminations include a clear wood inlay on visual faces to disguise the joint. Inlays on exposed faces are recommended for split laminated glulam used in exterior applications where water may accumulate.

34

GLULAM PRODUCT GUIDE

TIMBERLAB GLULAM M U LT I P L E P I E C E L A M I N AT I O N M E M B E R S ( S P L I T L A M I N AT I O N )

1 / 4 ” m a x a t o u t e r l am i n a t i o n s .

O c c as i o n a l 3 / 8 ” p e r m i t t e d .

B o t t o m d e t ai l s h o w s i n l a y s .

1/4” max at out e r lamin at ion s.

Occasion al 3/8” p e r mit t e d.

B ot t om de t ail sh ow s in lays.

Nominal B o ard W i d t h :

M ax I n t. G a p :

1N0omin ” o al r less 3/8” oard Max 1 I n/t.2 Gap 1B 2 ” W idt h : ” : 110” 4 ” or le ss 3/8” 5 / 8 ” 112” 6 ” a n d w i d e r 1/2” 5 / 8 ” x ( N o m i n a l W i d t h ) / 1 4 14” 16” an d w ide r

5/8” 5/8”x (N omin al W idt h )/14

1/2” wide x 1/4-1/2” deep glued 1/2” w ide x 1/4- 1/2” de e p glue d iinnlays l a y sofolike f l i ke m at e r i al w h e n mat e rial w h e n ssppeecifie c i fid. e dTop . Tode pt ail d esh t ai owl ssnhoo w s n o iinnlays. lays.

Mi ni m um ove r l a p =

Min im u ml ao e rt la =c k ne s s mv i na i onpthi ( 1” la m in a tio nm thi n) ic k n e s s (1 ” m in )

10-1/2

12-1/4

10-1/2

14- 1/ 4

12- 1/4

2x4 + 2x8

2 x4 + 2 x8

1 4 -1 / 4

2x6 + 2x8

18-1/4

2x 6 + 2x 10

2 0- 1/ 4

2x 6 + 2 x 8

18-1/4

1 6 -1 / 4

2x 8 + 2x 10

Custom

2x6 + 2x10

20- 1/ 4

2x8 + 2x12

16-1/ 4

2x10 + 2x 12

2x8 + 2x10

C ustom

2x 4 min - 2x 12 max

5/31/2024 Split lamination layup examples. See "Standard Sizes" page for a complete list of glulam member sizes

2 x 8 + 2x 12

2 x 10 + 2 x 1 2

2 x 4 m i n - 2 x 1 2 m ax

5/31/2024

GLULAM PRODUCT GUIDE

35

TIMBERLAB GLULAM CAMBER

CAMBER For long span applications where design is controlled by deflection, a small amount of upward curvature can be built into a glulam to offset anticipated deflection and creep. In many construction projects where the structure is rarely subjected to specified design live loads and the deflection due to dead loads is relatively small, camber may result in unwanted crown in the floor and constructability challenges. Below, we offer our rules of thumb for incorporating camber into glulam design: • Camber should be specified for long-span members of at least 40 feet in length.

• Cambered beams are best paired with seated bucket or knife plate connections with more forgiving tolerance to allow for beam deflection over time and hand fabrication methods.

• Camber should not be used with proprietary concealed beam hangers or other systems that require tight tolerances for fit-up, such as large groups of bolts or drift pins.

• Camber is not recommended for beams with multiple connection points.

• Camber is not recommended for continuous span applications.

CAMBER (INCHES) Span (ft) 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130

1000 1.35 1.84 2.40 3.04 3.75 4.54 5.40 6.34 7.35 8.44 9.60 10.84 12.15 13.54 15.00 16.54 18.15 19.84 21.60 23.44 25.35

2000 0.68 0.92 1.20 1.52 1.88 2.27 S PA N L E N2.70 G TH 3.17 3.68 4.22 4.80 5.42 6.08 6.77 7.50 8.27 9.08 9.92 10.80 11.72 R A D I U12.68 S

Radius (ft) 3000 0.45 0.61 0.80 1.01 1.25 1.51 1.80 2.11 2.45 2.81 3.20 3.61 4.05 4.51 5.00 5.51 6.05 6.61 7.20 7.81 8.45

4000 0.34 0.46 0.60 0.76 0.94 1.13 1.35 1.58 1.84 2.11 2.40 2.71 3.04 3.38 3.75 4.13 4.54 4.96 5.40 5.86 6.34

5000 0.27 0.37 0.48 0.61 0.75 0.91 1.08 1.27 1.47 1.69 1.92 2.17 2.43 2.71 3.00 CAMBER 3.31 3.63 3.97 4.32 4.69 5.07

Reference APA Technical Note S550 Glulam Beam Camber, for additional guidance in determining beam camber requirements.

C A L C U L AT I N G B E A M C A M B E R As an alternative to using the table above to specify camber, the following formula may be used to calculate the approximate radius of curvature given the beam span and camber desired.

S PA N L E N G TH

R = 3L2 / 2∆

HEIGHT

DEPTH RA D I U S

36

GLULAM PRODUCT GUIDE

Where: R = approximate radius of curvature L = span (ft) ∆ = desired camber (in)

TIMBERLAB GLULAM CURVED MEMBERS

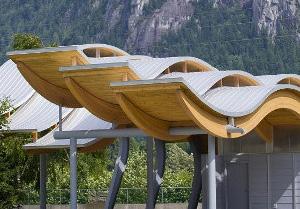

CURVED MEMBERS Timberlab glulam can be manufactured into PA N arches L E N GTH curved shapes for use Sas or meet other expressive architectural requirements. Design requirements for curved glulam members is covered in the NDS. Multiple curves or straight and curved segments can be constructed into one member as required. The minimum radius that can be achieved is presented in the table below. The maximum member height is 16'-0" for lengths up R A DI U S to 60ft, and 12'-0" for lengths over 60ft.

CA MBER

S PA N L E N GTH

DEPT H

HEI G HT

R A DI U S

Lamination Thickness

Minimum radius of curvature (at the inside face) Douglas Fir

Alaska Cedar

Southern Pine

1 - 1/2"

32'-0" (Note 2)

9/23/2024 27'-6"

-

1 - 3/8"

-

-

18'-0"

3/4”

9'-4”

9'-4”

7'-0”

1/2"

6'-0”

6'-0”

6'-0”

Notes: 1. For radius less than 22ft, maximum member width is 10 3/4".

2. A tighter radius of 27'-6" may be possible, please contact us.

3. Radial reinforcing (not shown in figures) may be required.

GLULAM PRODUCT GUIDE

37

TIMBERLAB GLULAM A P P E A R A N C E C L A S S I F I C AT I O N S

A P P E A R A N C E C L A S S I F I C AT I O N S Timberlab glulam can be specified and manufactured to the (4) appearance classifications listed in the table below. These classifications comply with ANSI A190.1.

Characteristic

Framing

Industrial

Architectural

Premium

Surface Finish

Surfaced on two sides, on which the cumulative depth of misses, low laminations, and wane shall not exceed 10% of beam width at any bond line.

Maximum area of low laminations shall not exceed 25% of the surface area of a side. Surfaced to meet conventional framing sizes.

Surfaced on two sides, on which the cumulative depth of misses, low laminations, and wane shall not exceed 10% of beam width at any bond line.

Maximum area of low laminations shall not exceed 5% of the surface area of a side, and no more than two low laminations shall be adjacent to one another.

Exposed faces shall be surfaced smooth .

No misses, wane, low laminations permitted.

Exposed faces shall be surfaced smooth .

No misses, wane, low laminations permitted.

Architectural glulam is not sanded but can be added for an additional cost.

Laminations shall be selected to minimize loose knots, unsound knots, knotholes, pencil wane, bark inclusions, and voids that will be visible after final surfacing.

Not filled

Not filled

Voids

As an option, Architectural and Premium glulam produced with the split lamination technique can come with a clear wood inlay on visual faces to disguise the joint.

Voids over ¾” long shall be filled with woodtone colored filler or with wood inserts. A void can exceed ¾” in length if area does not exceed ½ in2.

In exposed surfaces, voids over 3/4” long (or longer if its area does not exceed 1/2 in²) shall be filled with a woodtone colored filler or with clear wood inserts selected for similarity to the grain and color of the adjacent wood.

Knots

—

—

Wide face shall be free of loose knots, and open knots shall be filled.

On the wide face, knots shall be limited to 20% of the net face width of the lamination, and not over two maximum size knots or their equivalent shall occur in a 6 ft length.

Knot Holes

—

Loose knots and knot holes appearing on exposed face layers are not filled

—

—

Pencil wane permitted, not limited in length, but limited to one in ten pieces of lumber used.

Pencil wane permitted, not limited in length, but limited to one in ten pieces of lumber used.

Pencil wane shall be repaired, regardless of length. Wane ≤ 8” to be filled. Wane > 8” to receive wood inserts.

Pencil wane shall be repaired, regardless of length. Wane ≤ 8” to be filled. Wane > 8” to receive wood inserts.

Edge Gaps

—

—

Edge voids over 1/16” in wide faces exposed to view shall be filled.

Edge voids over 1/16” in wide faces exposed to view shall be filled.

Eased Edges

—

—

The edges of the member exposed to view in the final structure shall be eased with a minimum radius of 1/8” or equivalent chamfer.

The edges of the member exposed to view in the final structure shall be eased with a minimum radius of 1/8” or equivalent chamfer.

Wane

38

GLULAM PRODUCT GUIDE

GLULAM ADHESIVES

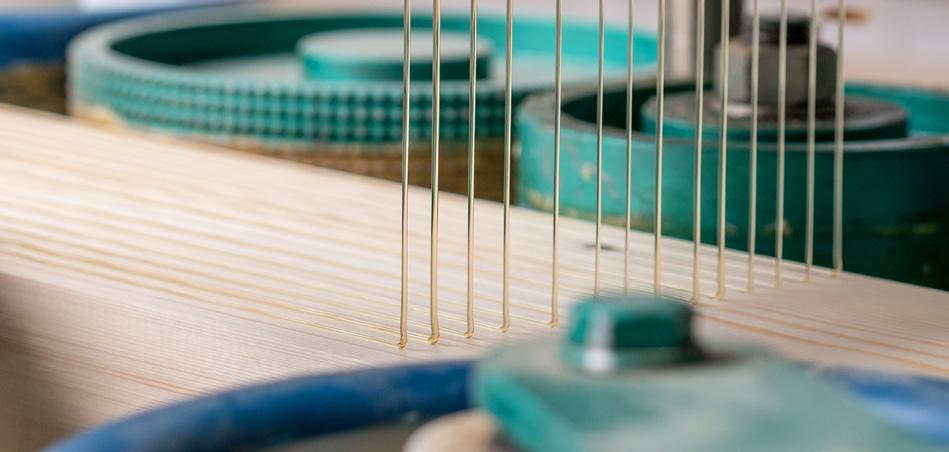

ADHESIVES Adhesives are a small (less than 1 percent by volume) but essential component of glulam which allow the use of lumber sawn from smaller diameter trees to bonded together to form large high performance structural members. All adhesives suitable for use in structural glulam are required to undergo comprehensive performance testing to ASTM standards to ensure they have sufficient strength, moisture durability, and fire endurance equivalent to solid sawn timber.

Adhesives are used at two locations in Timberlab Glulam: 1) at the end-to-end finger joints of each lamination, and 2) at the bond of the wide faces of laminations to each other. The glued bonds glulam are required to be sampled and tested daily as quality assurance for strength and moisture durability.

The adhesives we use are moisture resistant conforming to the requirements of ANSI A190.1, ANSI 405, and ASTM D2559. Unless specified otherwise, we use a clear face bond adhesive. We are qualified to use the following adhesives manufactured by Hexion: • Face Bond (Clear): Ecobind 6500 and Wonderbond M-650Y • Face Bond (Brown): Cascophen LT-75 and Cascoset FM-260, or FM-282 • Fingerjoints: Cascomel 4720 with Wonderbond Hardener 5025A (Radio Frequency)

LOW CH EM ICAL EM I S S ION S Current standards for green building design, such as United States Green Building Council LEED v4, include eligible points for low emitting materials. Timberlab Glulam meets these requirements, ensuring the product has minimal adverse indoor environmental quality impacts. In addition, the Hexion Ecobind 6500 and Wonderbond M-650Y adhesive has a UL Green Guard Gold Certificate of Compliance (Certificate Number: 97465-420) based on testing in accordance with UL 2818-2022 GREENGARD Certification Program for Chemical Emissions for Building Materials, Finishes And Furnishings.

GLULAM PRODUCT GUIDE

39

TIMBERLAB GLULAM P R E S E R VA T I V E T R E A T M E N T S

P R E S E R VA T I V E T R E A T M E N T S P R E S E R VAT I V E T R E AT M E N T S Glulam members are preservative treated when required for protection from decay and termites. Typically, glulam does not need to be preservative treated when used as follows: • Dry service conditions where the moisture content does not exceed 16%, as in most covered structures • Site locations and applications where the termite hazard is not known to be very high and it is not required by local building codes • When a naturally durable species such as the heartwood of Alaska Cedar is used.

PRO PER S PECI FI CAT I O N When preservative treatment is required, applicable provisions in Chapter 23 of the International Building Code (IBC) may apply to your project, including: • Identify the specific glulam members that require treatment.

• The AWPA U1 Use Classification.

• When incising of the wood surfaces is required.Corrosion resistance requirements for metal hardware and fasteners in contact with treated wood.

• Identification/quality marking requirements for the preservative treatment.

T R E AT M EN T A PPL I CAT I O N Timberlab has supply partners that apply proprietary preservative treatments with independent 3rd party evaluation reports that are equivalent to AWPA above ground use classifications referenced in the IBC. These treatments have the aesthetic advantage of not requiring incising of Douglas Fir glulam, limited discoloring of the wood, and being compatible with finish coatings. Please contact us for additional information.

Timberlab does not apply preservative treatments. Typically, finished glulam members without any shop sealer are transported from our fabrication facilities to companies that specialize in the treatment of wood products. Metal hardware and fasteners for the member are installed after treatment.

Please contact us for additional information.

40

GLULAM PRODUCT GUIDE

TIMBERLAB GLULAM S E A L E R S + F I N I S H C O AT I N G S

S H O P S E A L E R S + F I N I S H C O AT I N G S SHOP SEALERS It is customary for a shop sealer to be applied to glulam prior to shipping. Unless noted otherwise, we will provide a one-coat clear penetrating sealer formulated for wood surfaces to all surfaces of the member.

This product is intended to provide temporary protection during storage, transport, and construction that minimizes checking, splitting, and moisture damage.

FI N I S H COAT I N GS It is recommended that finish coatings for either an interior or exterior glulam application be applied in the field at the appropriate stage of construction. The designer should ensure the specified finish coatings are compatible with any shop sealer or preservative treatment previously applied to the glulam. Finish coatings, with a regular maintenance schedule, are highly recommended for glulam applications where the wood surfaces is exposed to the exterior environment and subject to weathering.

GLULAM PRODUCT GUIDE

41

LIVE OAK BANK Wilmington, North Carolina 42

GLULAM PRODUCT GUIDE

GLULAM PRODUCT GUIDE

43

MAIN OFFICE 850 NW 13th Avenue Portland, OR 97209 503.749.7500

MASS TIMBER FACILITIES 1601 NE Columbia Blvd.

2360 Conser Road

600 Applegate Avenue

12796 Hwy 36

1610 Old Grove Road

Portland, OR 97211

Millersburg, OR 97321

Drain, OR 97435

Swisshome, OR 97480

Piedmont, SC 29360

TIMBERLAB.COM
