CIVIL DRAINAGE SOLUTIONS

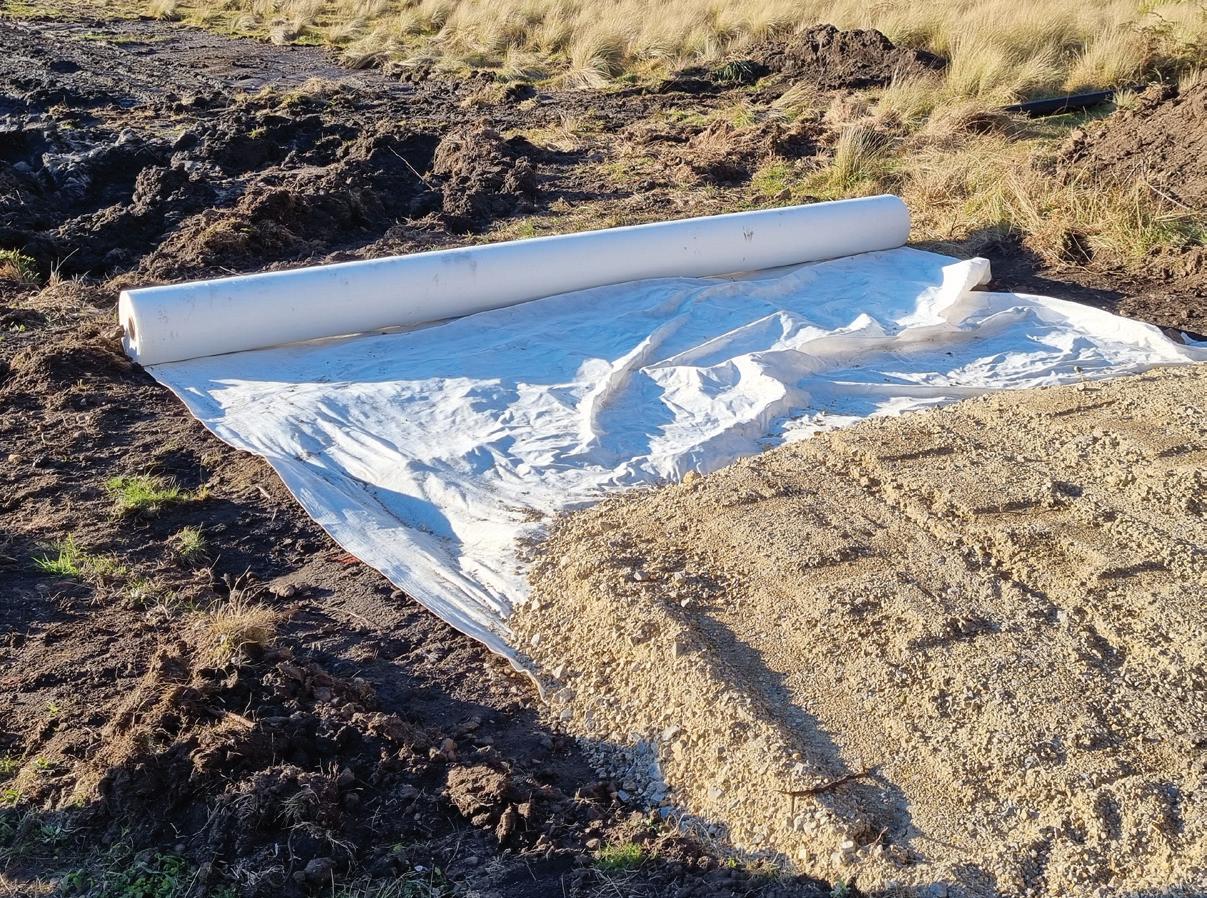

GEOTEXTILES

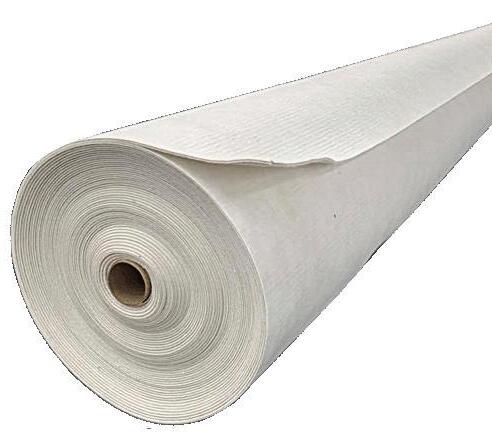

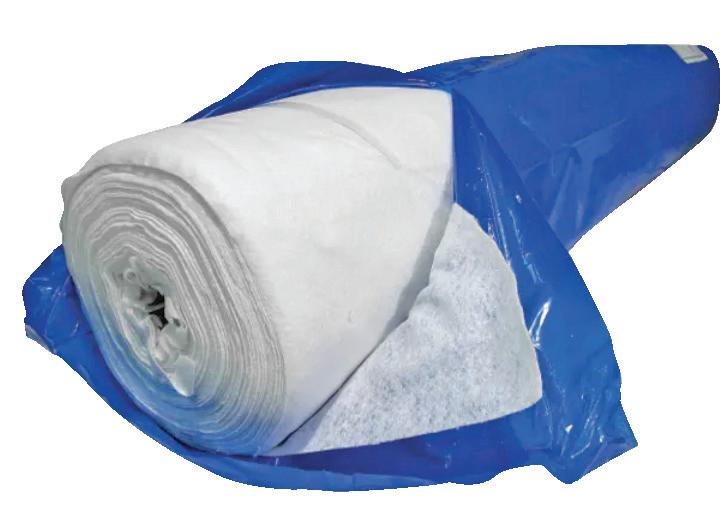

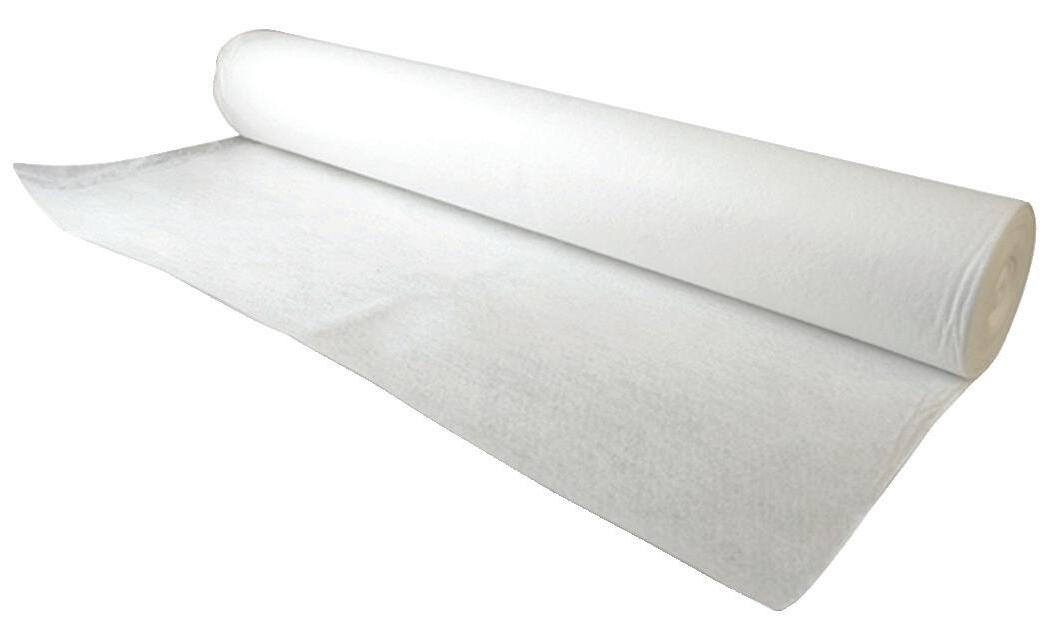

GEOTEXTILE ROLLS
FOR
DRAINAGE,
FILTRATION AND SOIL SEPARATION
Non-woven geotextiles are comprised of polyester fibers needled together into a stable matrix that provides excellent physical and hydraulic properties.
Manufactured to Australian standards & ISO 9002 quality procedures. Strong enough to withstand severe installation stresses. Chemically resistant to naturally occurring soil alkalis and acids.
Cost effective alternative to graded aggregate filters.
• Trench drains
• Light separation
• Transpiration trenches
• Retaining wall filter systems
• Many other drainage and landscaping applications
EZI ORDER WIDTH
GEOTEXT1 1mtr x 50mtr
GEOTEXT2 2mtr x 50mtr
GEOTEXT4 4mtr x 100mtr AS150 Grade
GEOTEXT6 6mtr x 100mtr AS150 Grade

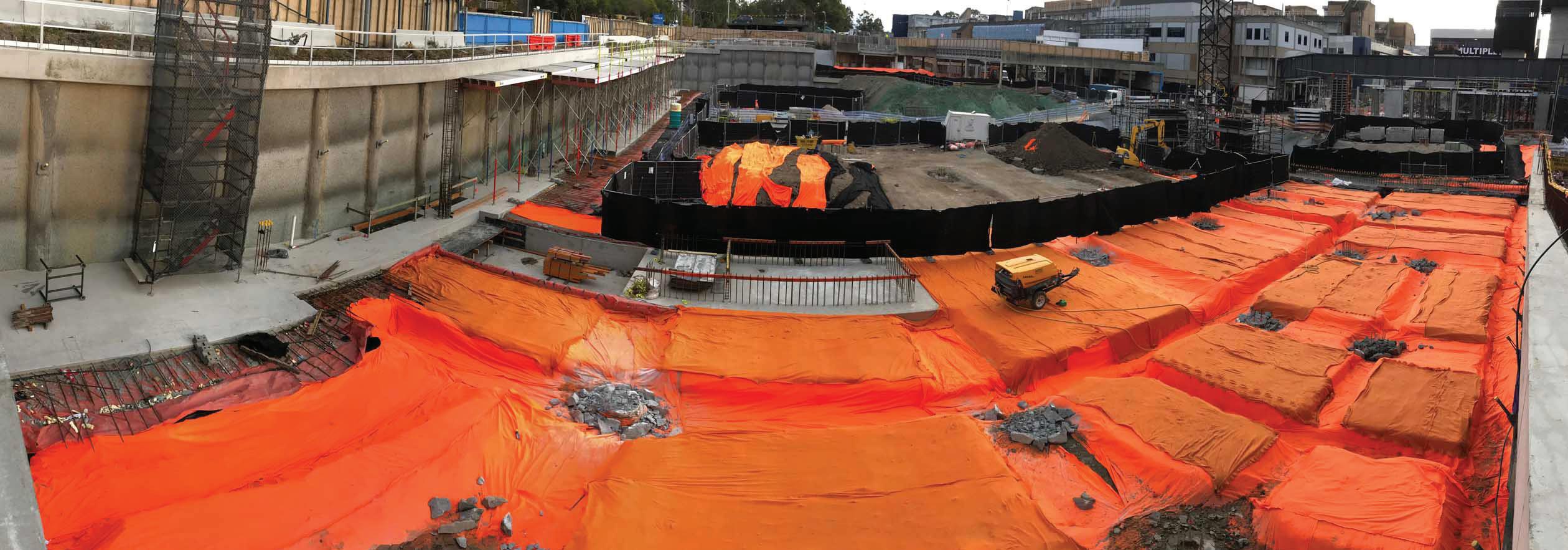

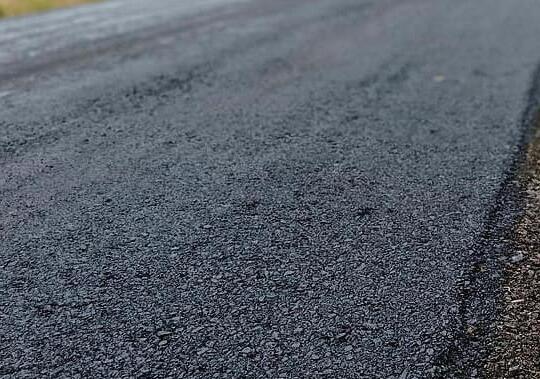

AS150 GRADE FOR ROADS
EZI ORDER PRODUCT SIZE

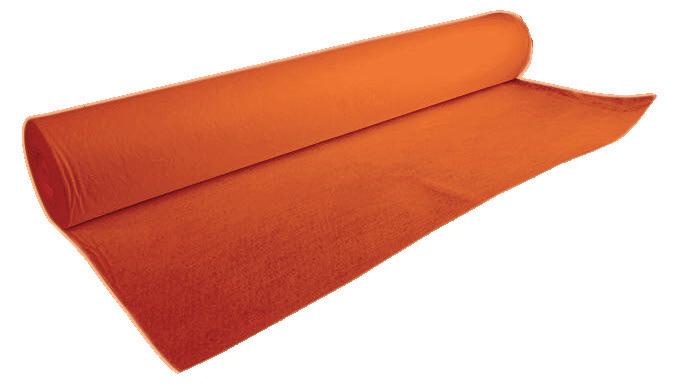

ORGEOTEXT4100 4mtr x 100mtr Orange Geotextile Fabric
ORGEOTEXT6100 6mtr x 100mtr Orange Geotextile Fabric
Comprised of a stable matrix of needled fibres, these geotextiles provide excellent physical and hydraulic properties, produced at time of manufacture in Hi-Vis Orange.
USE & PURPOSES
• Warning Layer
• Filtration
• Protection
• Separation
HIGHLIGHTS
• High visibility (orange)
• Quality Certified
• Stocked in Australian warehouses
• Variety of roll sizes available
CIVIL DRAINAGE SOLUTIONS

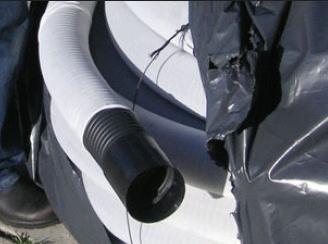

CLASS 1000 AG PIPE
Corrugated Ag Pipe and its use in groundwater management application has increased dramatically based on factors such as pipe’s strength, durability, joint integrity and long-term costeffectiveness. Corrugated Ag-pipe is the proven, reliable, costeffective and safe solution for long-term drainage needs.
A flexible pipe system that performs well in both high cover and low cover applications, that enables this product to meet almost every product installation condition.
Supplied with a filter sock to minimise long term infiltration of finer materials within the pipe system, it is extremely resistant to most chemicals and is corrosion resistant which is a long term advantage over concrete and metal pipes when placed in such environments.
EZI ORDER PRODUCT SIZE
HDAGPIPE100F 100mm x 100Mtr Socked AG Pipe

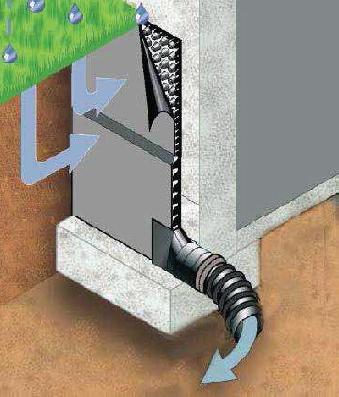

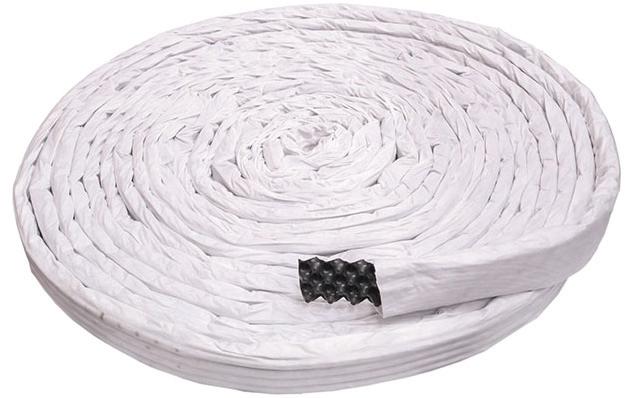

STRIP FILTER DRAIN
ADVANTAGES
The most important characteristic of any subsurface drainage system is its ability to collect water from the surrounding soil. Pipe and stone systems have major limitations when compared to Fredrain Strip Filter. the open area in FreDrain Strip filter (60%) far exceed that of a perforated pipe (1.1%) and rigid strip filters (2.5%)
• Subsoil drains in roads, railways, sports field and building foundations.

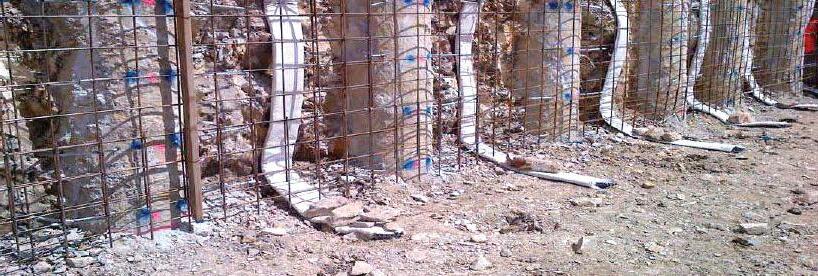

• Behind shotcrete walls, between concrete piles, tunnels and embarkments.
• Mining industry for slope drainage, dewatering tailings
STRIPD20100 Strip Drain 20mm x 100mm x 50m
STRIPD20200 Strip Drain 20mm x 200mm x 50m
STRIPD20300 Strip Drain 20mm x 300mm x 50m
STRIPD25100
STRIPD25200
STRIPD25300
STRIPD40100
STRIPD40200
STRIPD40300
Drain 25mm x 100mm x 50m
Drain 25mm x 200mm x 50m
Drain 25mm x 300mm x 50m
Drain 40mm x 100mm x 50m
Drain 40mm x 200mm x 50m
Drain 40mm x 300mm x 50m
CIVIL DRAINAGE SOLUTIONS

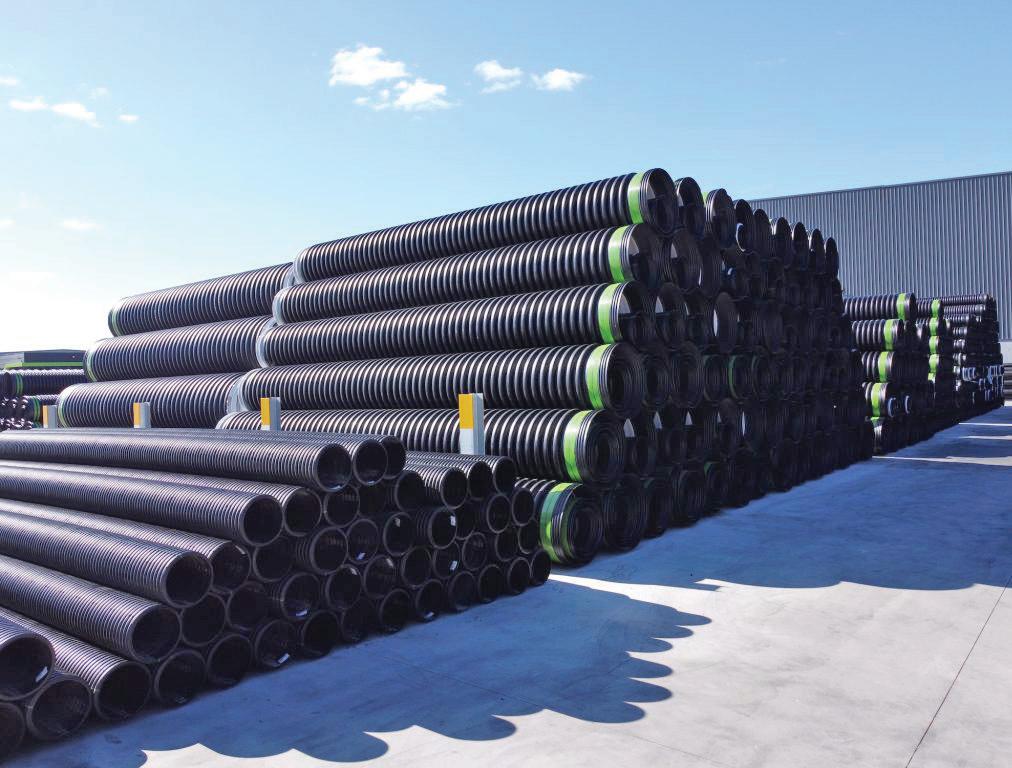

HDPE STORMWATER PIPE
APPLICATION:
• Railways
• Mine sites
• Civil stormwater
• Irrigation
• Stormwater reuse
FEATURES:
• Supports AS5100.2 highway and railway loads.
• Light weight and robust and easy to install
CIVIL DRAINAGE SOLUTIONS

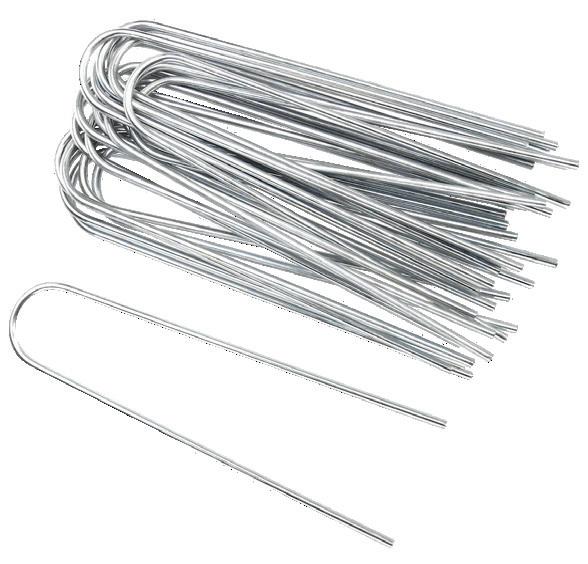

JUTE PINS
EZI ORDER SIZE QTY GEOPIN150 150mm Geotextile Pin Box 500
GEOPIN300 300mm Geotextile Pin Box 150
Used for pinning geotextile fabric for temporary application

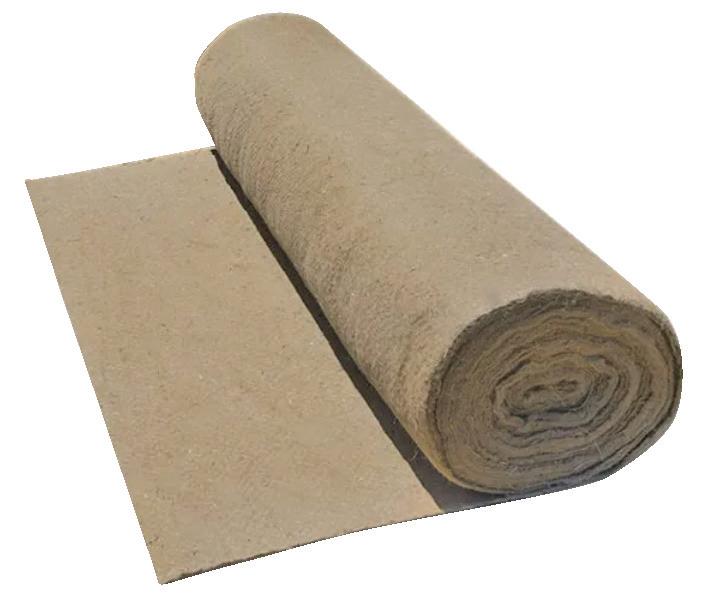

JUTE MESH & MAT
EZI ORDER SIZE
JUTEMATF
1.895 X 50mm Fine Jute Mat (Light grade erosion control)
JUTEMESHM 1.83m x 25m Medium Duty 450g/m²

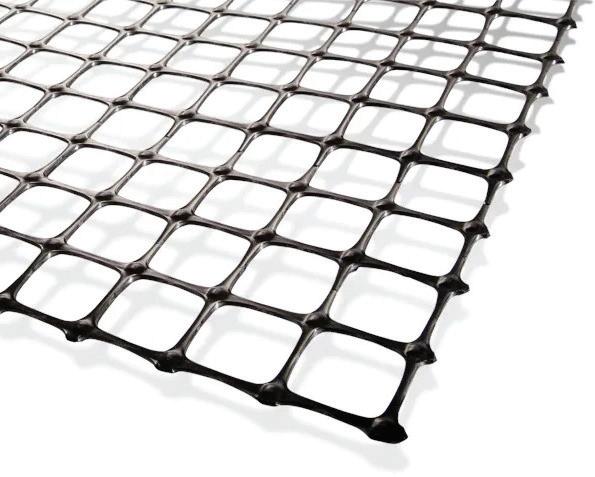

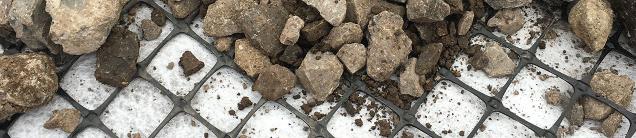

GEOGRID
• Sub Base Reinforcement
• Road Reinforcement
In the application of base reinforcement in pavements there is the design intention of improving the bearing capacity of an existing sub-grade by including one or more geogrid layers above.
The inclusion of a biaxial geogrid generally permits a reduction in granular base course thickness.
EZI ORDER DESCRIPTION
GRID SIZE: 40mm x 40mm
GEOGRID450 4Mtr x 50Mtr Progrid 30KN Biaxial Geogrid Roll
GEOGRIDCOMP 4.75Mtr x 100Mtr 30KN / M Geocomposite Biaxial Geogrid
