Drainage Solutions Brochure from TFX - August 2023

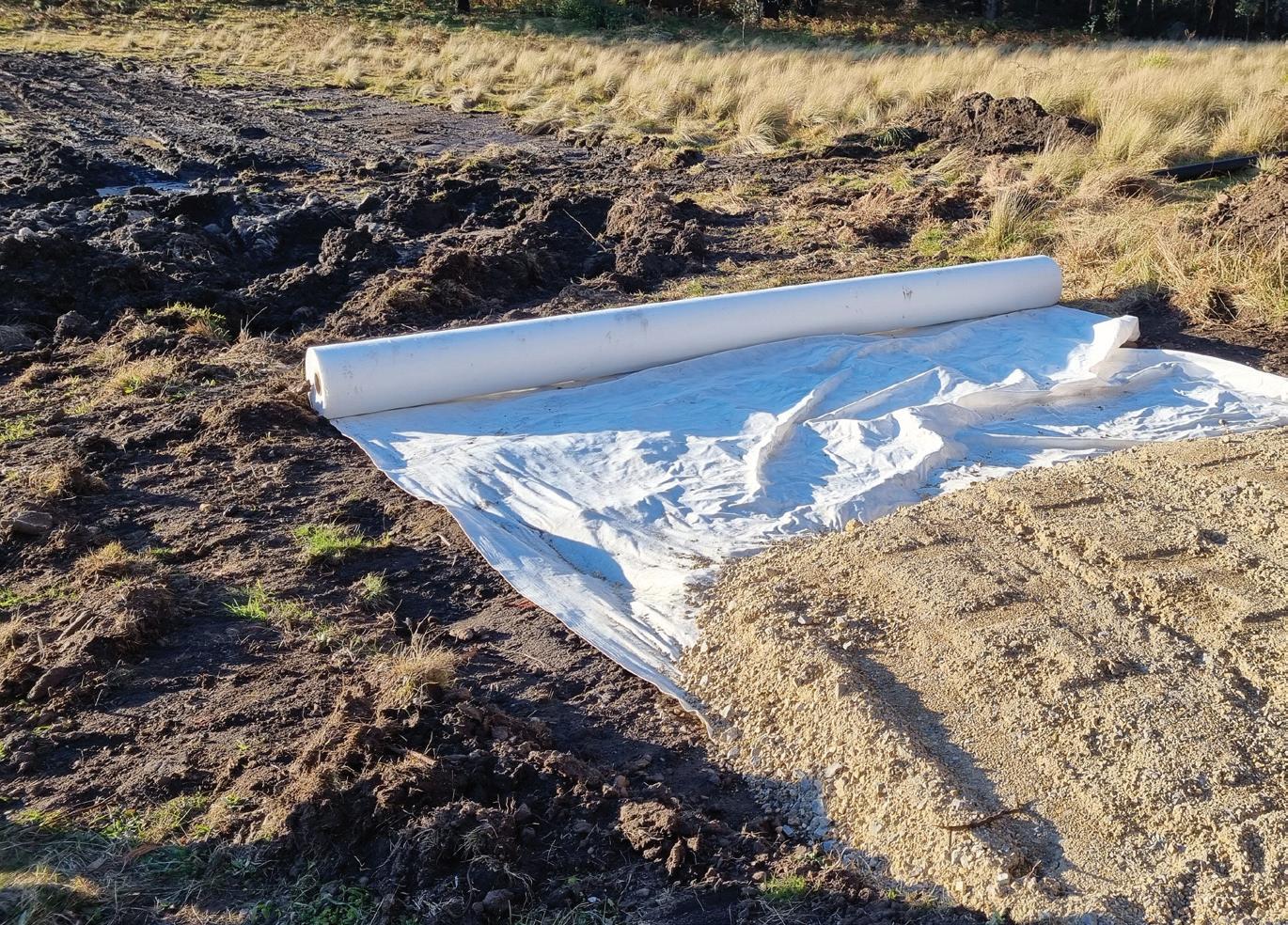

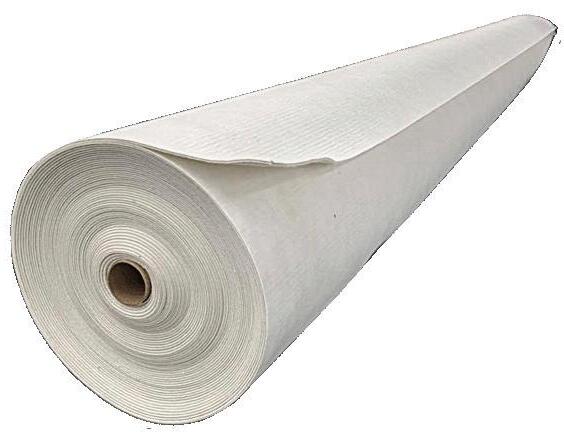

GEOTEXTILE ROLLS

FOR DRAINAGE, FILTRATION AND SOIL SEPARATION

Non-woven geotextiles are comprised of polyester fibers needled together into a stable matrix that provides excellent physical and hydraulic properties.

Manufactured to Australian standards & ISO 9002 quality procedures. Strong enough to withstand severe installation stresses. Chemically resistant to naturally occurring soil alkalis and acids.

Cost effective alternative to graded aggregate filters.

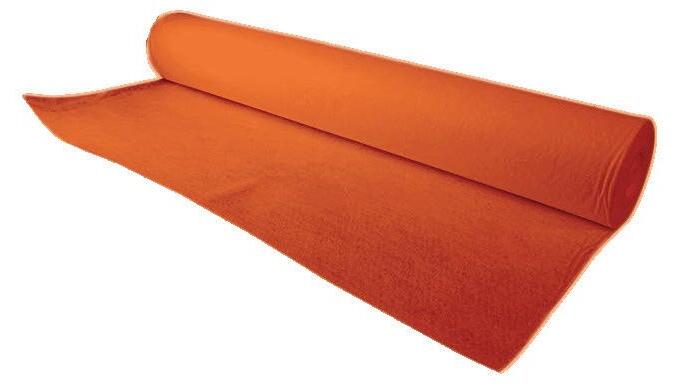

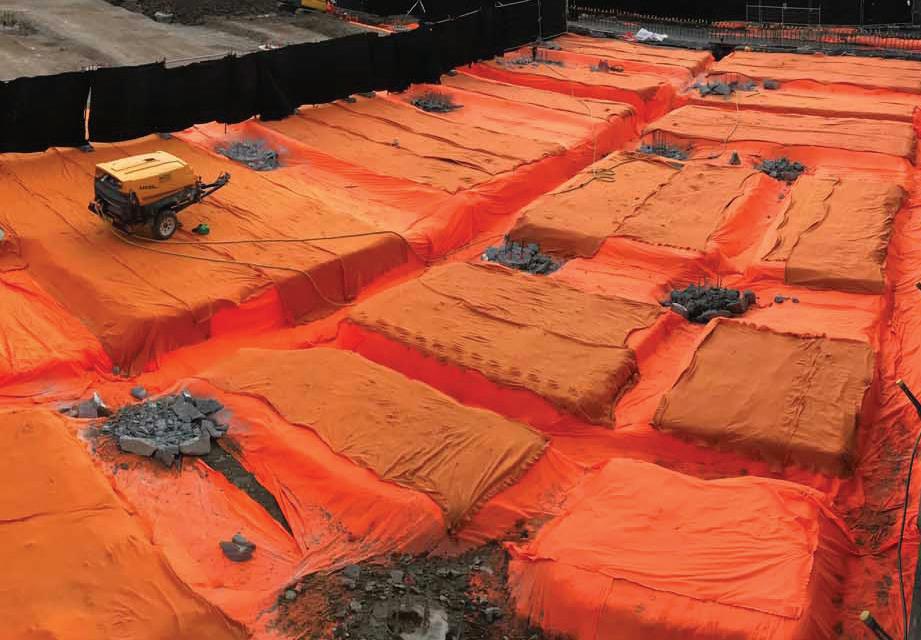

GEOTEXTILE FOR ROADS

Comprised of a stable matrix of needled fibres, these geotextiles provide excellent physical and hydraulic properties, produced at time of manufacture in Hi-Vis Orange.

USE & PURPOSES

• Warning Layer

• Filtration

• Protection

• Separation

HIGHLIGHTS

• High visibility (orange)

• Quality Certified

• Stocked in Australian warehouses

• Variety of roll sizes available EZI

ORGEOTEXT4100 4mtr x 100mtr Orange Geotextile Fabric

ORGEOTEXT6100 6mtr x 100mtr Orange Geotextile Fabric

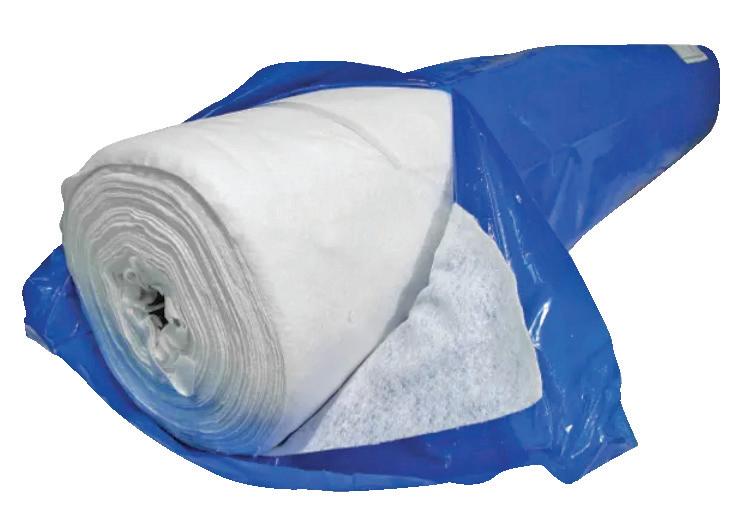

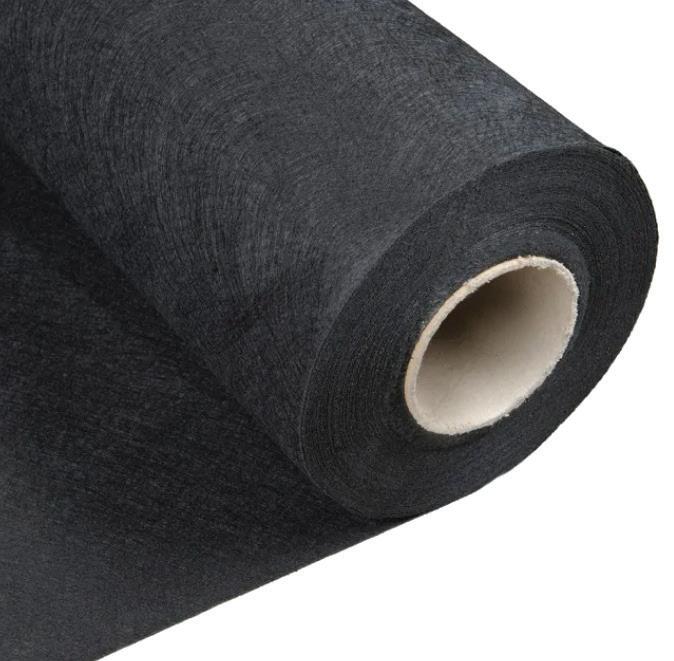

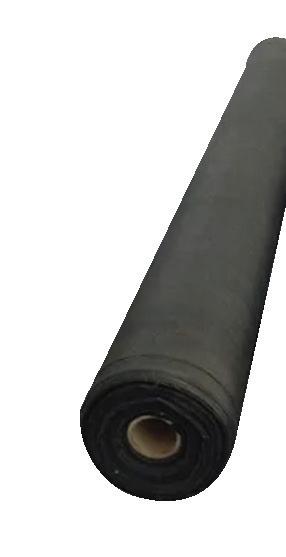

Non-woven black Geotextiles will efficiently collect surplus water from structures, such as rainwater or surplus water, from the soil and discharge it. Provides superior hydraulic flow and soil retention, which makes them well suited for filtration in subsurface drainage applications and under hard armour systems.

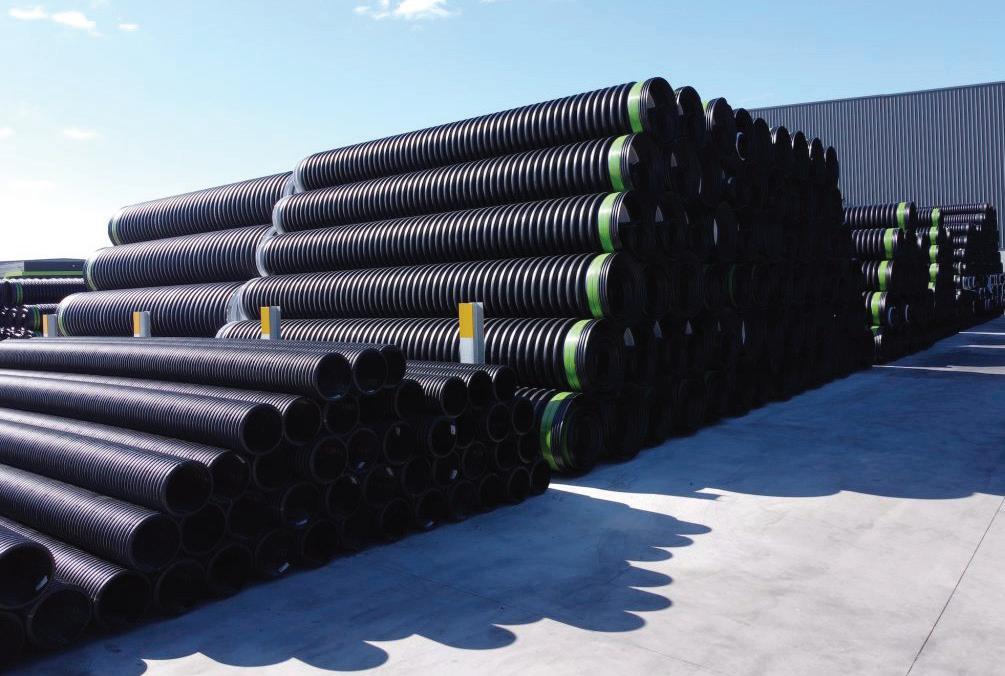

HDPE STORMWATER PIPE

APPLICATION:

• Railways

• Mine sites

• Civil stormwater

• Irrigation

• Stormwater reuse

FEATURES:

• Supports AS5100.2 highway and railway loads.

• Light weight and robust and easy to install

Outer corrugated & inner smooth wall

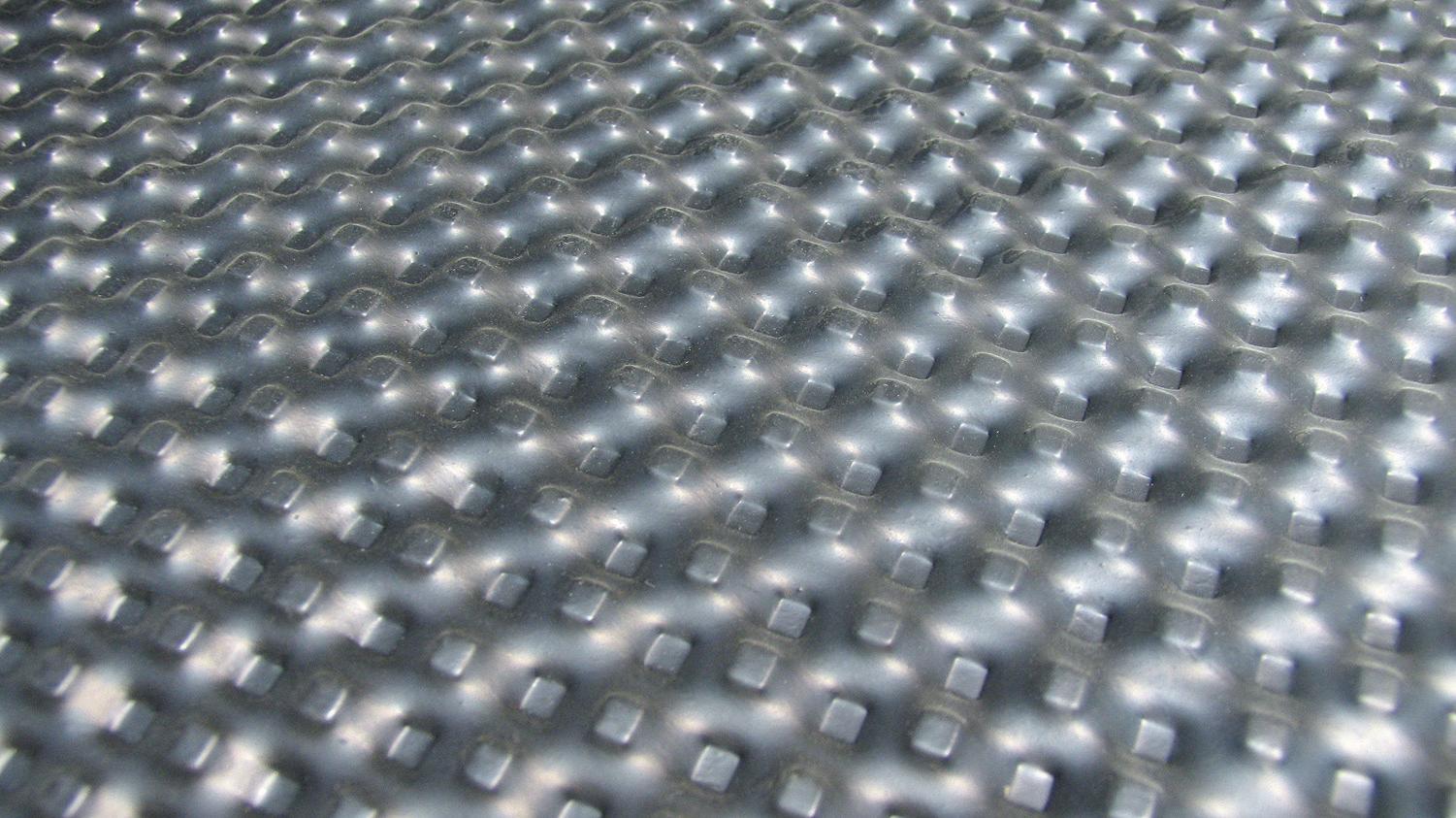

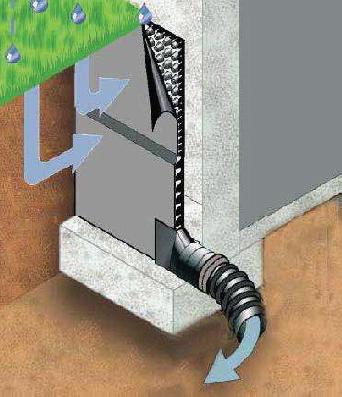

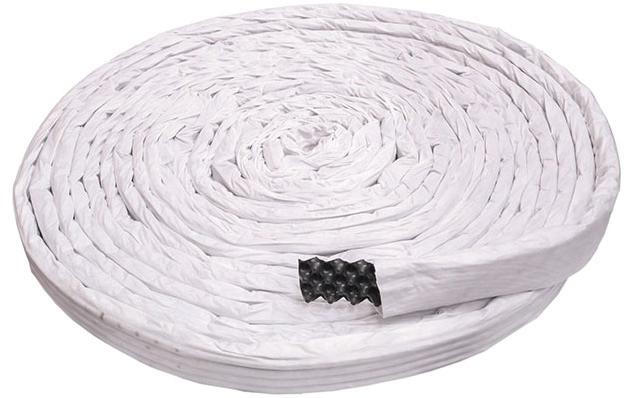

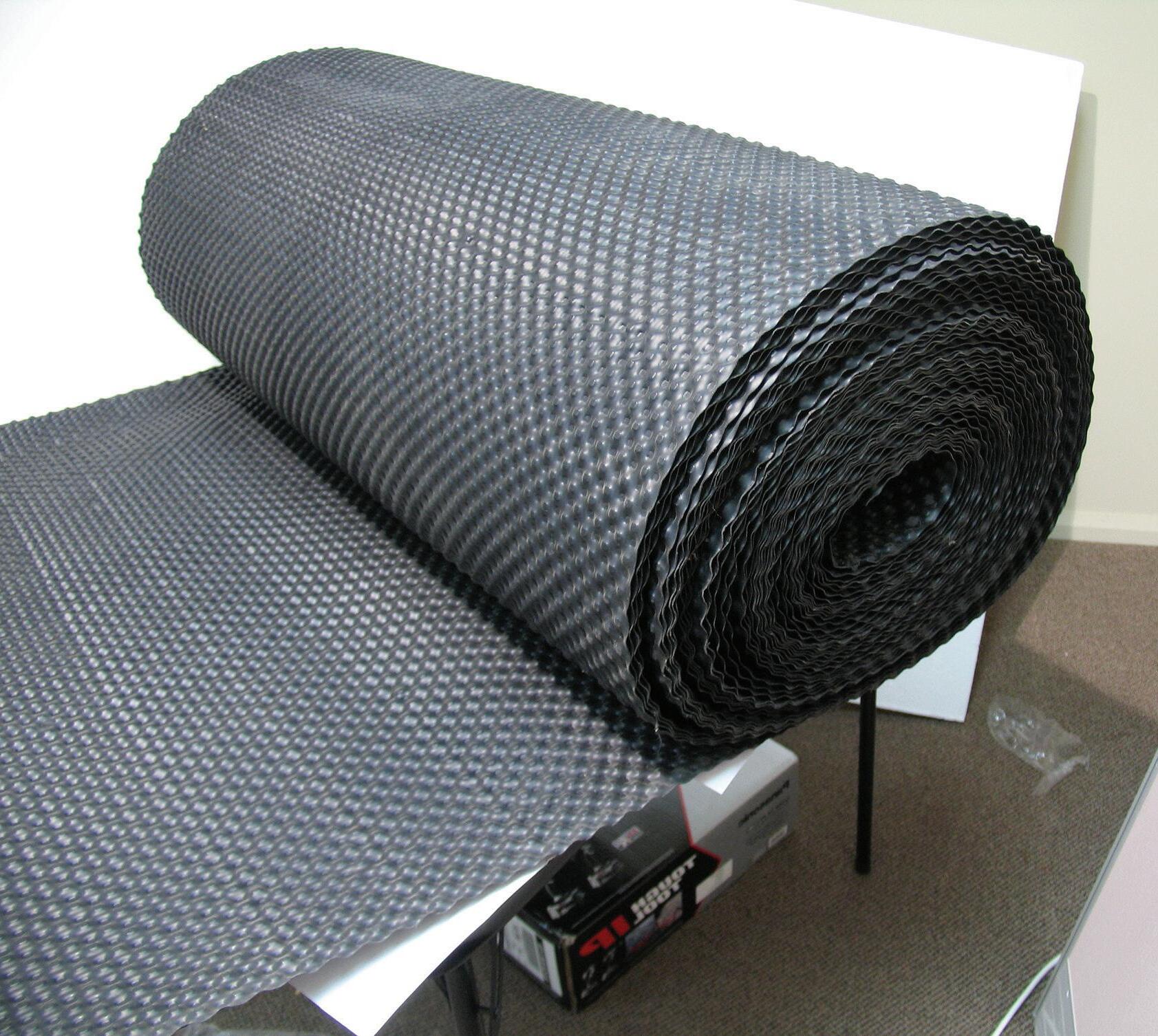

STRIP FILTER DRAIN

ADVANTAGES

The most important characteristic of any subsurface drainage system is its ability to collect water from the surrounding soil. Pipe and stone systems have major limitations when compared to Fredrain Strip Filter. the open area in FreDrain Strip filter (60%) far exceed that of a perforated pipe (1.1%) and rigid strip filters (2.5%)

• Subsoil drains in roads, railways, sports field and building foundations.

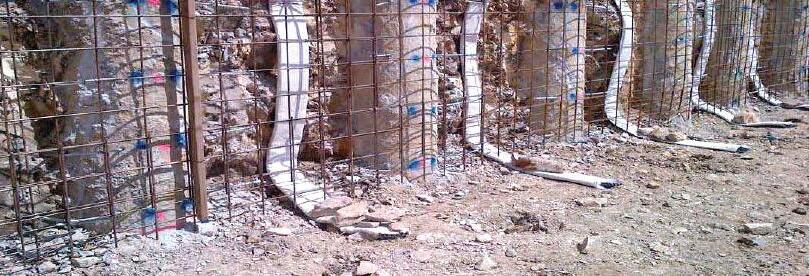

• Behind shotcrete walls, between concrete piles, tunnels and embarkments.

• Mining industry for slope drainage, dewatering tailings

STRIPD20100 Strip Drain 20mm x 100mm x 50m

STRIPD20200 Strip Drain 20mm x 200mm x 50m

STRIPD20300 Strip Drain 20mm x 300mm x 50m

STRIPD25100 Strip Drain 25mm x 100mm x 50m

STRIPD25200 Strip Drain 25mm x 200mm x 50m

STRIPD25300 Strip Drain 25mm x 300mm x 50m

STRIPD40100 Strip Drain 40mm x 100mm x 50m

STRIPD40200 Strip Drain 40mm x 200mm x 50m

STRIPD40300 Strip Drain 40mm x 300mm x 50m

EZI ORDER DESCRIPTION

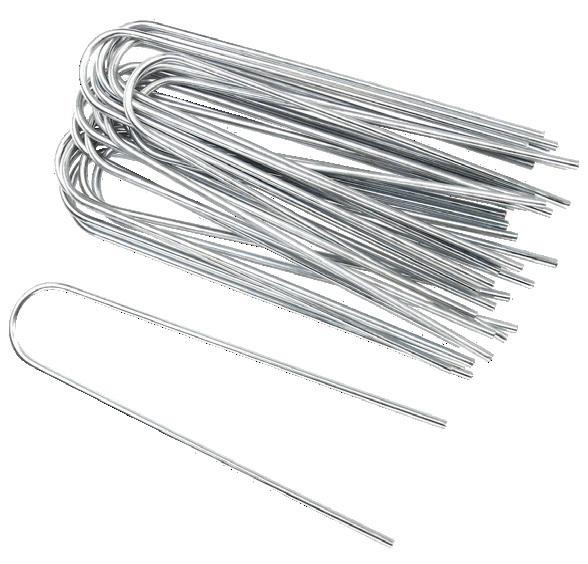

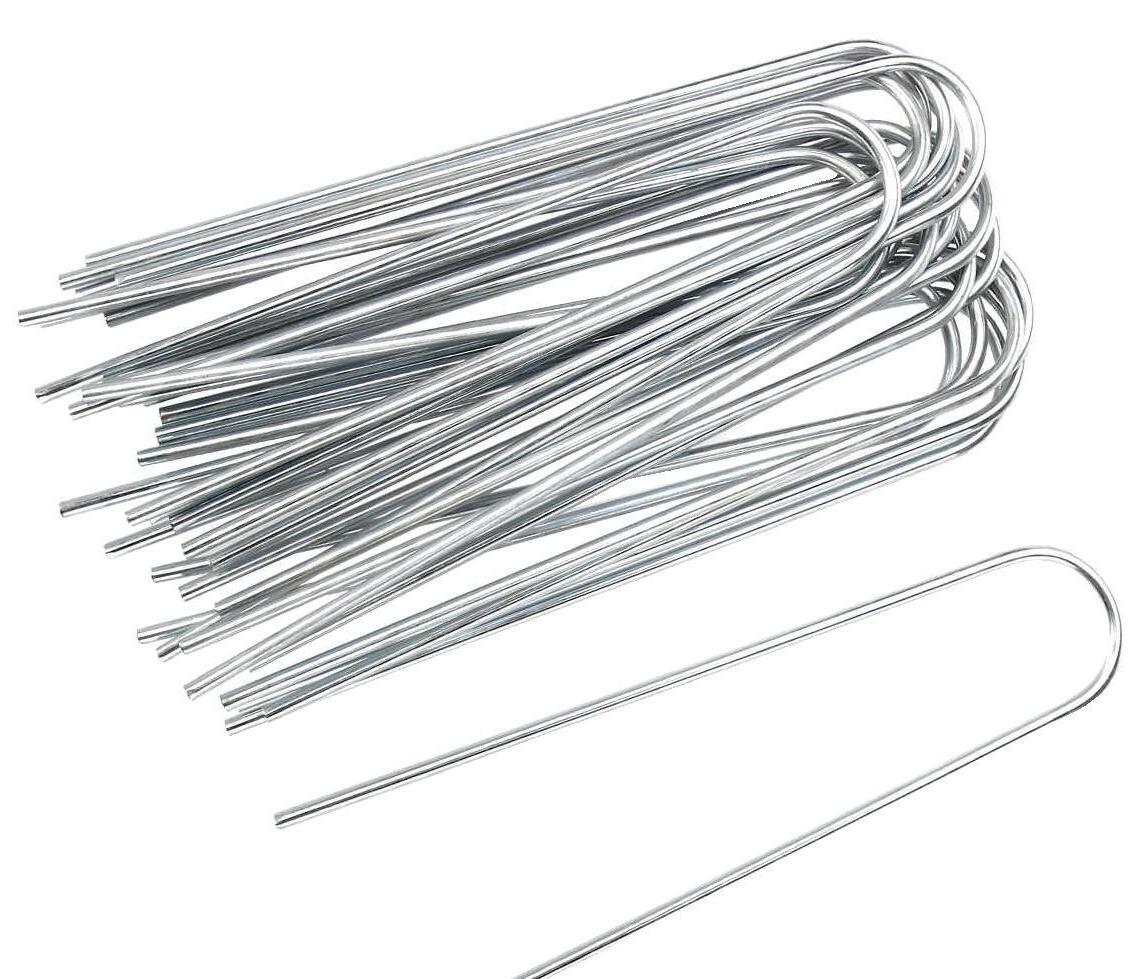

JUTE PINS

EZI

GEOPIN150 150mm Geotextile Pin Box 500

GEOPIN300 300mm Geotextile Pin Box 150

Used

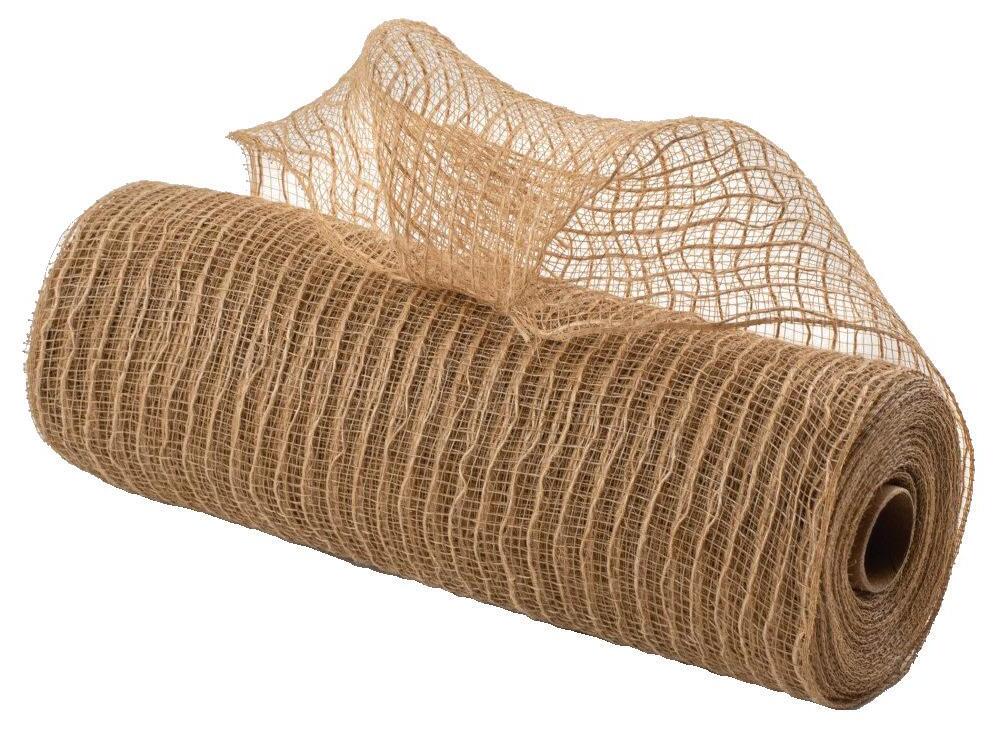

JUTE MESH & MAT

EZI ORDER SIZE

JUTEMATF 1.895 X 50mm Fine Jute Mat (Light grade erosion control)

JUTEMESHM 1.83m x 25m Medium Duty 450g/m²

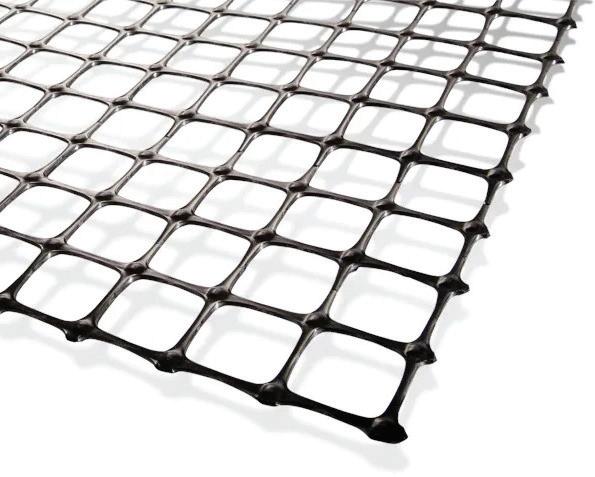

GEOGRID

In the application of base reinforcement in pavements there is the design intention of improving the bearing capacity of an existing sub-grade by including one or more geogrid layers above.

The inclusion of a biaxial geogrid generally permits a reduction in granular base course thickness.

EZI ORDER DESCRIPTION

GRID SIZE: 40mm x 40mm

GEOGRID450 4Mtr x 50Mtr Progrid 30KN Biaxial Geogrid Roll

• Sub Base Reinforcement

• Road Reinforcement

GEOGRIDCOMP 4.75Mtr x 100Mtr 30KN / M Geocomposite Biaxial Geogrid
