R case 2

Rcase condensi n g units with Cop eland sc ro l l com pressors

w w w.re f ra . e u

JSC “ REFR A“ D a ri a us & Gi re n o st r. 1 7 3 LT - 02189, Vilnius Li t huanuia

w w w. re f ra . e u

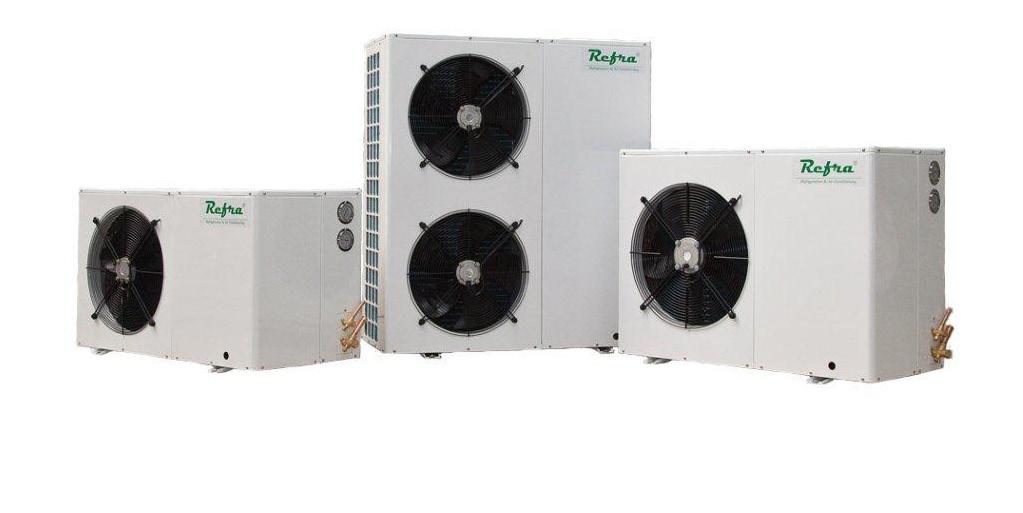

Rcase condensing units with Copeland scroll compressors

R404a

R410a

R407c

R404a

Scroll

R410a

Reciprocating

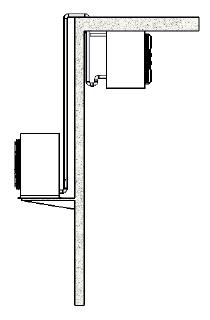

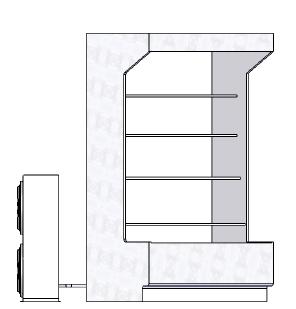

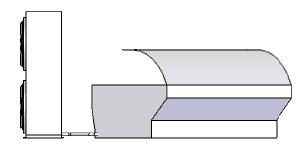

Some examples where Rcase units could be used

2

R407c

Rcase condensing units with Copeland scroll compressors

STANDARD SET OF PARTS:

FEATURES:

» Galvanized body with extra-coated polymeric coating » Air cooled condenser with Axial fans » Compressor » Liquid receiver » Filter drier and contol sight glass » Shut off valves with service valves on liquide and suction lines » High and low pressure relay » Solenoid valve » Electrical terminal connectors

» Compact unitary structure » Low level of noise and vibration » Provided with a cover box protecting from a harmful environmental influence » All the components of the refrigeration unit, including an air cooled cond. unit, are installed within the housing » Light weight and compact design allow installation of this type of refrigeration units indoor and outdoor as well as on the roofs of buildings » Provided with all the necessary and required documents, and certificats of European Union » Modern and sophisticated components are used in wiring and the control system » A wide option of the unit models, set of parts and accessories.

ADDITIONAL OPTIONS: » Fan speed controller (FSC) or » High pressure relay (HP); » Pump down control LP switch (LP); » Sound jacket for compressor (SJ); » Control board (P).

Technical data Cooling capacity *1 Nominal power input *1 COP Sound level*2 (dbA) Compressor Quantity Max. operating current Tubes connection (suc/liq) Liquid receiver Fans Quantity Diameter Power input Operating current Standard Voltage

kW kW dBa Type Nr A mm dmi Nr mm W A V/ph/Hz

Rcase 19

Rcase 21

4,2 2,1 2,00 44

5 2,5 2,00 45

Rcase 30

Rcase 38

Rcase 45

1 6,5 22/12 2.0

6,9 8,5 3,3 4,2 2,09 2,02 45 46 Scroll Copeland 1 1 1 7,2 10,3 12,8 22/12 22/12 22/12 2.0 2,8 5,6

1 13,1 22/12 5,6

1 450 160 1,1

1 450 160 1,1

2 450 160 x 2 0,8 x 2

1 500 220 1,1 380/3/50

2 450 160 x 2 0,8 x 2

10,1 4,8 2,10 46

*1 Colculations are made according condensing temperature +45°C, evaporating temperature -10°C, liquid subcooling 0K, suction gas temperature 20°C, Ambient T + 30°C, refrigerant – R404A *2 Sound pressure level indicated in 10 meters

3

Rcase condensing units with Copeland scroll compressors

Additional options, EXW Vilnius

GROSS Prices and accesories Unit price, EXW Vilnius FSC HP LP SJ P

EUR EUR EUR EUR EUR EUR

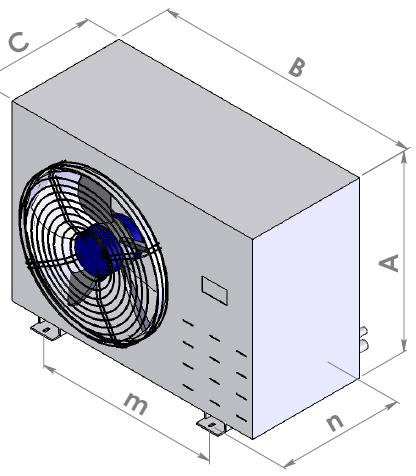

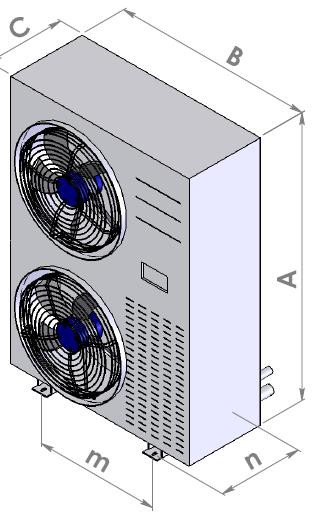

Weight and dimentions Distance between legs m/n A – Heigh B – Length C – Width Weight

mm mm mm mm kg

Rcase 19

Rcase 21

Rcase 30

Rcase 38

Rcase 45

2505 110 65 65 188 505

2790 110 65 65 188 505

3170 110 65 65 188 505

3400 110 65 65 188 505

3630 110 65 65 188 505

Rcase 19

Rcase 21

Rcase 30

Rcase 38

Rcase 45

710/540 650 1150 570 85

710/540 650 1150 570 90

710/540 800 1150 570 100

710/540 1250 1150 570 115

710/540 1250 1150 570 138

THE UNITS CONFORM TO THE FOLLOWING DIRECTIVES:

» EC Machines Directive 98/37/EC » EC Low Voltage Directive 73/27/EEC » EC Pressure Equipment Directive 97/23 (PED) » EMC Directive 89/336/EEC » The refrigeration units have been designed and manufactured in conformity to European Standards EN349, EN378, EN12263, EN60204-1 and other normative requirements. » The refrigeration units are certified and conform to all the requirements of the European Union.

4
