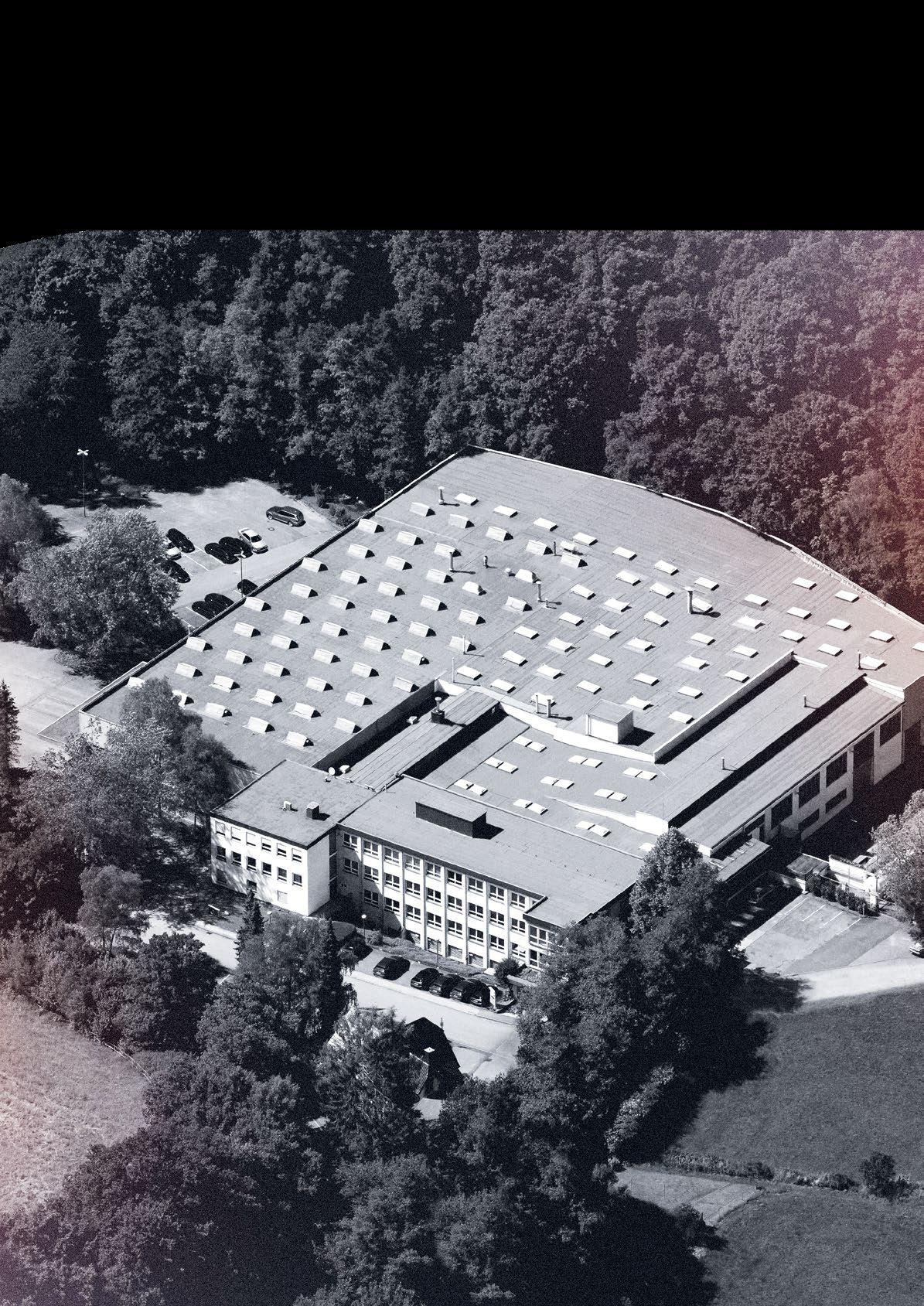

Surrounded by forests, meadows, and nature, THUN‘s offices and production facilities are located right by the river in a natural reserve belonging to the town of Ennepetal in North Rhine-Westphalia, Germany. Here, a team consisting of roughly 50 skilled employees handles the production of up to several ten thousand bicycle components per day. The company has been run as a family business since its foundation in 1919. Everyday business is strictly process and KPI driven with the entire production being managed with lean concepts and tools and advanced MES software. Cutting-edge technology and powerful validation methods like optical and sensory 3D measurement are used to guarantee the quality of any product leaving production. THUN’s sophisticated quality and process management is certified as per ISO 9001. Due to an excellent production and supply capacity, THUN is capable of producing and shipping orders in a matter of only a few days.
COMPANY PROFILE

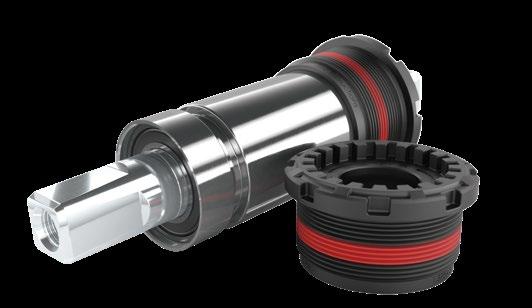

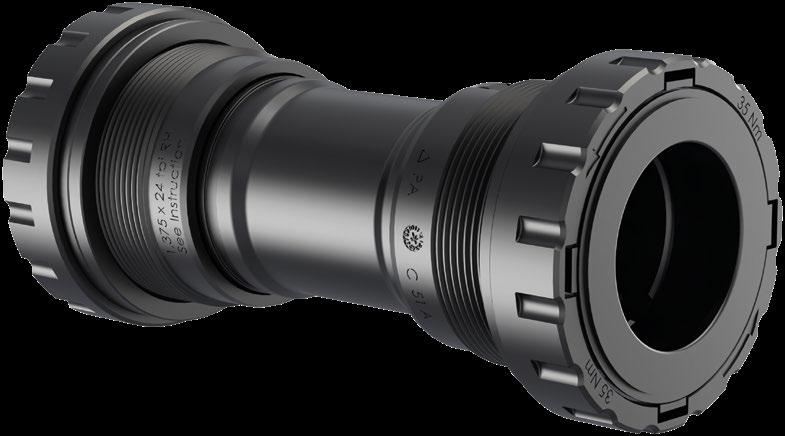

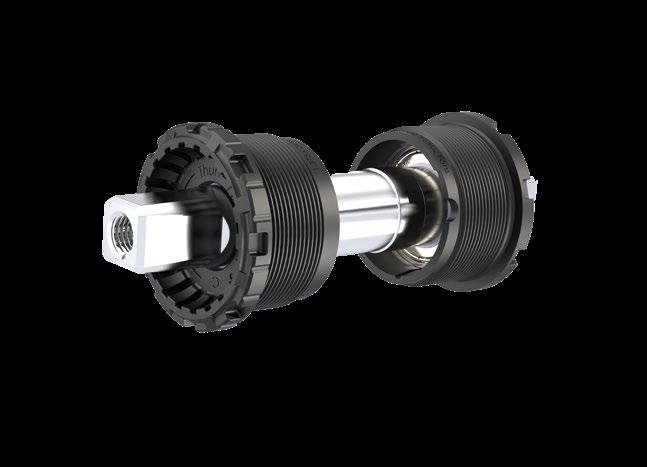

BOLERO
ISO 4210-8 racing bikes (BOLERO-ML SL)
Cold-forged and ZN-coated (A2B) steel spindle
2RS ball bearings
Composite sleeve
Composite cups
LH cup available with and without shoulder
RH cup or both cups compatible with PEDRO’S® key
Selection of extra-short spindle sizes
Deep-drilled SL (super light) spindle (BOLERO-ML SL)

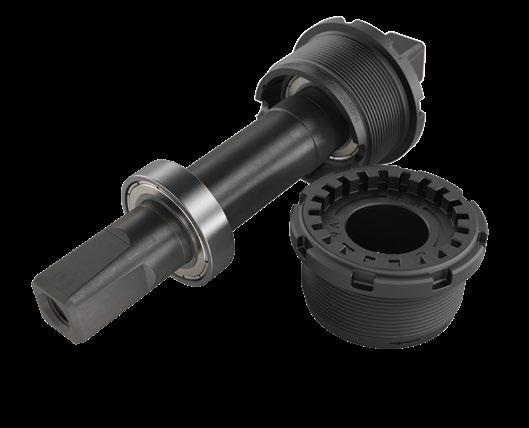

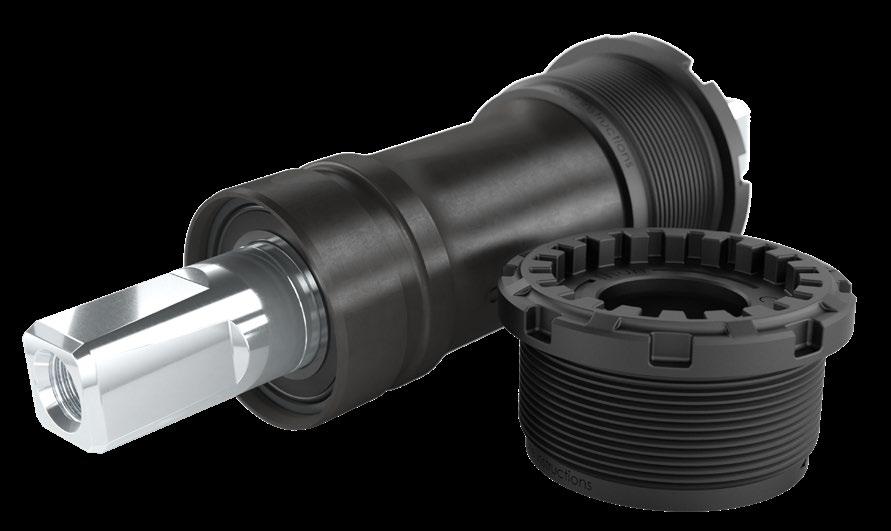

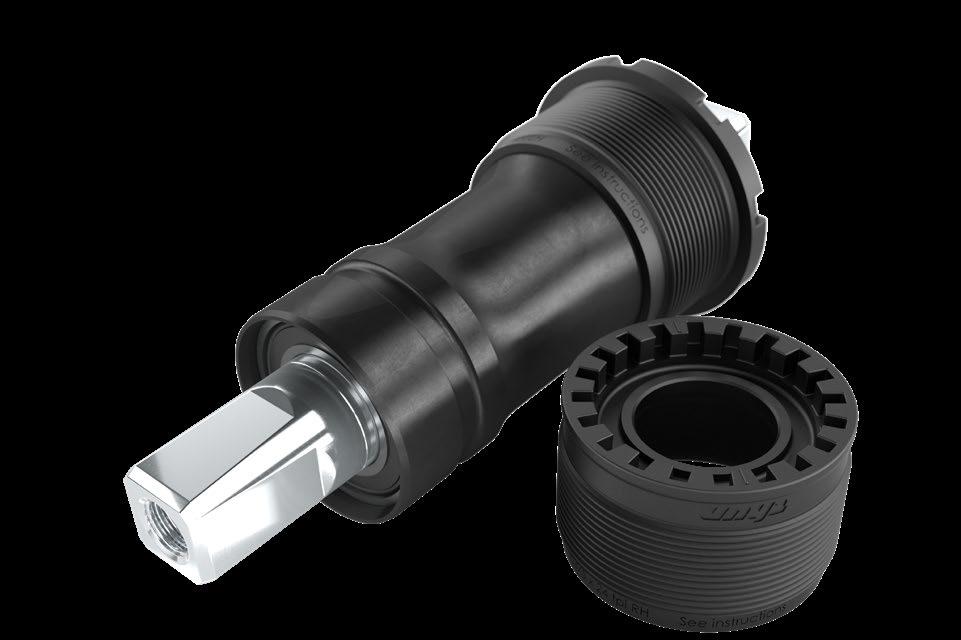

ENTRYLEVEL BOTTOM BRACKETS
DINKY
DINKY
ISO 8098 bicycles for young children
Compatible bb-housings (mm): 68, 73
Cold-forged and phosphated steel spindle
ZZ ball bearings
Composite cups
Both cups compatible with PEDRO'S® key
HULA
ISO 8098 bicycles for young children
Compatible bb-housings (mm): 68
Cold-forged and phosphated steel spindle
ZZ ball bearings
Composite cups
Both cups compatible with PEDRO‘S® key
Selection of extra-short spindle sizes
GOAL
ISO 4210-8 city-trekking bikes
Compatible bb-housings (mm): 68, 73
Cold-forged and blackened steel spindle
ZZ ball bearings
Composite cups
Both cups compatible with PEDRO'S® key
ISO 4210-8 city-trekking bikes
Compatible bb-housings (mm): 68
TWIST LIMBO
Cold-forged and blackened steel spindle
ZZ ball bearings
Composite cups
Both cups compatible with PEDRO‘S® key
Selection of extra-short spindle sizes
ISO 4210-8 city-trekking bikes (TWIST)
ISO 4210-8 mountain bikes (TWIST-ML)
Compatible bb-housings (mm): 68, 73
Cold-forged and ZN-coated (A2B) steel spindle
ZZ ball bearings
Composite cups
Both cups compatible with PEDRO'S® key
ISO 4210-8 city-trekking bikes (MAMBO)
ISO 4210-8 mountain bikes (MAMBO-ML SL)
Compatible bb-housings (mm): 68
Cold-forged and ZN-coated (A2B) steel spindle
ZZ ball bearings
Composite cups
Both cups compatible with PEDRO‘S® key
Selection of extra-short spindle sizes
Deep-drilled SL (super light) spindle (MAMBO-ML SL)

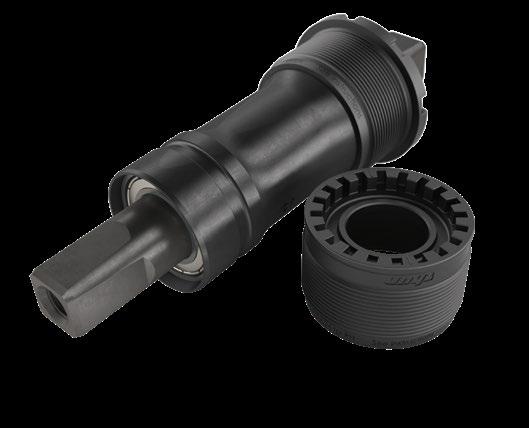

BASIC
ISO 4210-8 city-trekking bikes
Compatible bb-housings (mm): 68, 73
Cold-forged and blackened steel spindle
ZZ ball bearings
Composite sleeve
Composite cups
RH cup compatible with PEDRO'S® key
PASO
ISO 4210-8 mountain bikes (PASO-ML)
Compatible bb-housings (mm): 68, 73
Cold-forged and ZN-coated (A2B) steel spindle
ZZ ball bearings
Composite sleeve
Composite cups
RH cup compatible with PEDRO'S® key

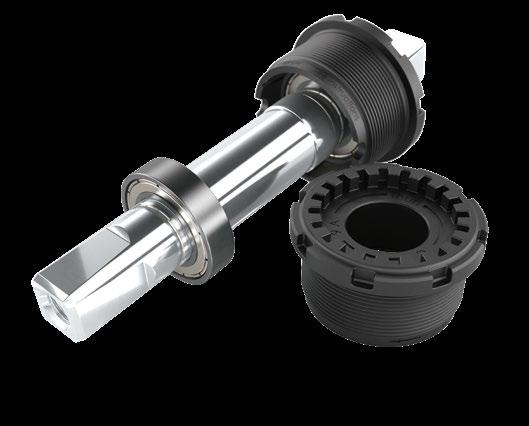

PREMIUM BOTTOM BRACKETS
SHORTY
ISO 4210-8 city-trekking bikes (SHORTY)
ISO 4210-8 mountain bikes (SHORTY-ML SL)
Cold-forged and ZN-coated (A2B) steel spindle
2RS ball bearings
Composite sleeve
Composite cups
Selection of extra-short spindle sizes
Deep-drilled SL (super light) spindle (SHORTY-ML SL)
RH cups: With regular shoulder or
LH cup without shoulder
LH cup +5 with shoulder
SHORTY(-ML)/68 1S
(ONE SHOULDER)
Suitable for 68 mm bb-housings
RH cup with shoulder*
LH cup without shoulder
* Compatible with PEDRO’S® key
SHORTY(-ML)/68 2S
(TWO SHOULDERS)
Suitable for 68 mm bb-housings
RH cup with shoulder*
LH cup +5 with shoulder*
* Compatible with PEDRO’S® key
IBEX
ISO 4210-8 city-trekking bikes (IBEX)
ISO 4210-8 mountain bikes (IBEX-ML)
Cold-forged and ZN-coated (A2B) steel spindle
2RS ball bearings
Composite sleeve
Composite cups
RH cups: With regular shoulder or
LH cup with shoulder
LH cup +5 with shoulder/ LH cup +5 SC with shoulder
LH cup without shoulder
LH cup SC with shoulder
LH cup SC without shoulder
NOT COMPATIBLE WITH PEDAL ASSIST SENSORS (PAS)
IBEX(-ML)/68 1S
(ONE SHOULDER)
Suitable for 68 mm bb-housings
RH cup with shoulder*
LH cup without shoulder
* Compatible with PEDRO’S® key
IBEX-ML/73 1S
(ONE SHOULDER)
Suitable for 73 mm bb-housings
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup without shoulder
* Compatible with PEDRO’S® key
IBEX-ML/83 1S
(ONE SHOULDER)
Suitable for 83 mm bb-housings
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup without shoulder
* Compatible with PEDRO’S® key
IBEX(-ML)/68 2S
(TWO SHOULDERS)
Suitable for 68 mm bb-housings
RH cup with shoulder*
LH cup with shoulder*
* Compatible with PEDRO’S® key
IBEX-ML/73 2S
(TWO SHOULDERS)
Suitable for 73 mm bb-housings
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup +5 with shoulder*
* Compatible with PEDRO’S® key
IBEX-ML/83 2S
(TWO SHOULDERS)
Suitable for 83 mm bb-housings
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup with shoulder*
* Compatible with PEDRO’S® key

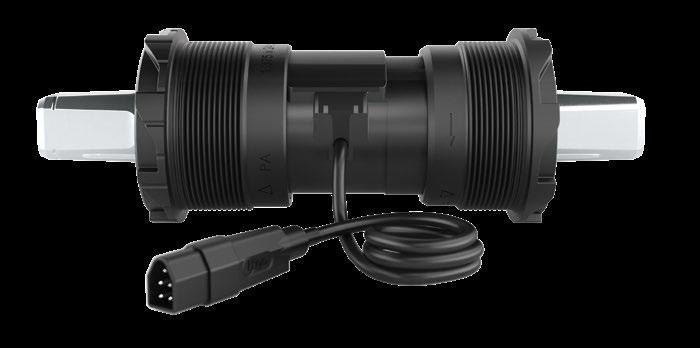

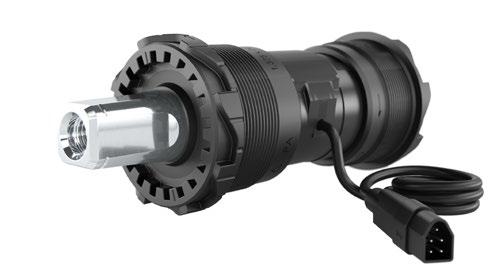

COMPATIBLE WITH PEDAL ASSIST SENSORS (PAS)
IBEX-ML/68
1S SC
(SENSOR COMPATIBLE)
Suitable for 68 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup SC without shoulder
* Compatible with PEDRO’S® key
IBEX-ML/73
1S SC
(SENSOR COMPATIBLE)
Suitable for 73 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup SC without shoulder
* Compatible with PEDRO’S® key
IBEX-ML/83 1S SC
(SENSOR COMPATIBLE)
Suitable for 83 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup SC without shoulder
* Compatible with PEDRO’S® key
IBEX-ML/68
2S SC
(SENSOR COMPATIBLE)
Suitable for 68 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup SC with shoulder*
* Compatible with PEDRO’S® key
IBEX-ML/73
2S SC
(SENSOR COMPATIBLE)
Suitable for 73 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup +5 SC with shoulder*
* Compatible with PEDRO’S® key
IBEX-ML/83
2S SC
(SENSOR COMPATIBLE)
Suitable for 83 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup SC with shoulder*
* Compatible with PEDRO’S® key
ISO 4210-8 city-trekking bikes (JIVE)
ISO 4210-8 mountain bikes (JIVE-ML)
Cold-forged and ZN-coated (A2B) steel spindle
2RS ball bearings
CNC-machined and zinc-coated (A2B) steel sleeve
Composite cups
LH cup without shoulder
LH cup +5 with shoulder/
LH cup +5 SC with shoulder
LH cup with shoulder
RH cups: With regular shoulder or
LH cup SC without shoulder
LH cup SC with shoulder
NOT COMPATIBLE WITH PEDAL ASSIST SENSORS (PAS)
JIVE(-ML)/68 1S
(ONE SHOULDER)
Suitable for 68 mm bb-housings
RH cup with shoulder*
LH cup without shoulder
* Compatible with PEDRO’S® key
JIVE-ML/73 1S
(ONE SHOULDER)
Suitable for 73 mm bb-housings
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup without shoulder
* Compatible with PEDRO’S® key
JIVE-ML/83 1S
(ONE SHOULDER)
Suitable for 83 mm bb-housings
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup without shoulder
* Compatible with PEDRO’S® key
JIVE(-ML)/68 2S
(TWO SHOULDERS)
Suitable for 68 mm bb-housings
RH cup with shoulder*
LH cup with shoulder*
* Compatible with PEDRO’S® key
JIVE-ML/73 2S
(TWO SHOULDERS)
Suitable for 73 mm bb-housings
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup +5 with shoulder*
* Compatible with PEDRO’S® key
JIVE-ML/83 2S
(TWO SHOULDERS)
Suitable for 83 mm bb-housings
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup with shoulder*
* Compatible with PEDRO’S® key
COMPATIBLE WITH PEDAL ASSIST SENSORS (PAS)
JIVE-ML/68 1S SC
(SENSOR COMPATIBLE)
Suitable for 68 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup SC without shoulder
* Compatible with PEDRO’S® key
JIVE-ML/73 1S SC
(SENSOR COMPATIBLE)
Suitable for 73 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup SC without shoulder
* Compatible with PEDRO’S® key
JIVE-ML/83 1S SC
(SENSOR COMPATIBLE)
Suitable for 83 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup SC without shoulder
* Compatible with PEDRO’S® key
JIVE-ML/68 2S SC
(SENSOR COMPATIBLE)
Suitable for 68 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup SC with shoulder*
* Compatible with PEDRO’S® key
JIVE-ML/73
(SENSOR COMPATIBLE)
2S SC
Suitable for 73 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup +5 SC with shoulder*
* Compatible with PEDRO’S® key
JIVE-ML/83 2S SC
(SENSOR COMPATIBLE)
Suitable for 83 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup SC with shoulder*
* Compatible with PEDRO’S® key
TANGO
ISO 4210-8 city-trekking bikes (TANGO)
ISO 4210-8 mountain bikes (TANGO-ML)
Cold-forged and ZN-coated (A2B) steel spindle
2RS ball bearings
CNC-machined and zinc-coated (A2B) steel sleeve
Composite cups
Sleeve allows cables to pass by easily
LH cup without shoulder
LH cup +5 with shoulder/
LH cup +5 SC with shoulder
RH cups: With regular shoulder or
Regular design for 68 mm and 73 mm
LH cup with shoulder
LH cup SC with shoulder
LH cup SC without shoulder
NOT COMPATIBLE WITH PEDAL ASSIST SENSORS (PAS)
TANGO(-ML)/68 1S
(ONE SHOULDER)
Suitable for 68 mm bb-housings
RH cup with shoulder*
LH cup without shoulder
* Compatible with PEDRO’S® key
TANGO-ML/73 1S
(ONE SHOULDER)
Suitable for 73 mm bb-housings
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup without shoulder
* Compatible with PEDRO’S® key
TANGO-ML/83 1S
(ONE SHOULDER)
Suitable for 83 mm bb-housings
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup without shoulder
* Compatible with PEDRO’S® key
TANGO(-ML)/68 2S
(TWO SHOULDERS)
Suitable for 68 mm bb-housings
RH cup with shoulder*
LH cup with shoulder*
* Compatible with PEDRO’S® key
TANGO-ML/73 2S
(TWO SHOULDERS)
Suitable for 73 mm bb-housings
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup +5 with shoulder*
* Compatible with PEDRO’S® key
TANGO-ML/83 2S
(TWO SHOULDERS)
Suitable for 83 mm bb-housings
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup with shoulder*
* Compatible with PEDRO’S® key
COMPATIBLE WITH PEDAL ASSIST SENSORS (PAS)
TANGO(-ML)/68 1S SC
(SENSOR COMPATIBLE)
Suitable for 68 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup SC without shoulder
* Compatible with PEDRO’S® key
TANGO-ML/73 1S SC
(SENSOR COMPATIBLE)
Suitable for 73 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup SC without shoulder
* Compatible with PEDRO’S® key
TANGO-ML/83 1S SC
(SENSOR COMPATIBLE)
Suitable for 83 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup SC without shoulder
* Compatible with PEDRO’S® key
TANGO(-ML)/68 2S SC
(SENSOR COMPATIBLE)
Suitable for 68 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup SC with shoulder*
* Compatible with PEDRO’S® key
TANGO-ML/73 2S SC
(SENSOR COMPATIBLE)
Suitable for 73 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup +5 SC with shoulder*
* Compatible with PEDRO’S® key
TANGO-ML/83 2S SC
(SENSOR COMPATIBLE)
Suitable for 83 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup SC with shoulder*
* Compatible with PEDRO’S® key

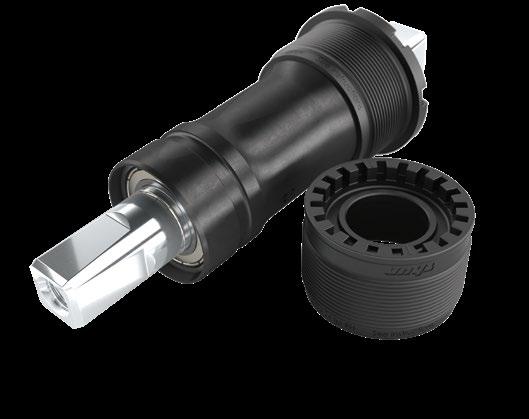

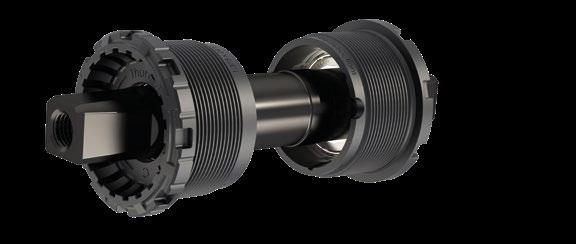

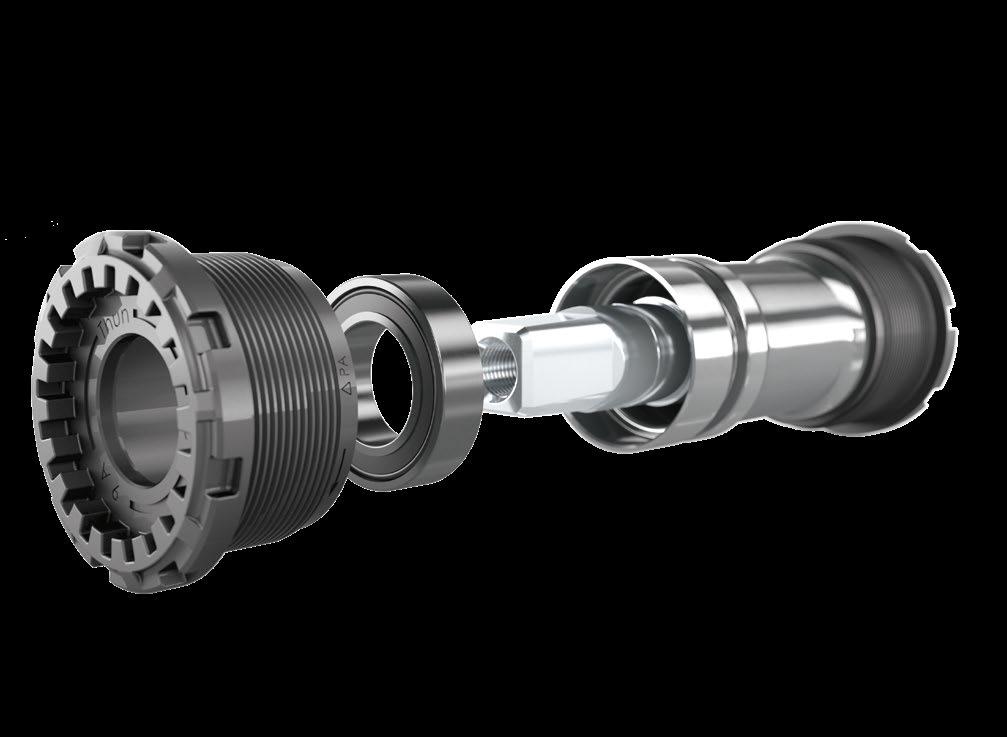

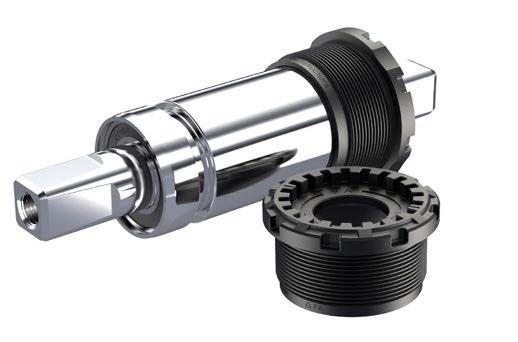

ZUMBA
ISO 4210-8 city-trekking bikes (ZUMBA)
ISO 4210-8 mountain bikes (ZUMBA-ML)
Cold-forged and zinc-coated (A2B) steel spindle
2RS ball bearings
CNC-machined and ZN-coated (A2B) steel sleeve
Composite cups
Sleeve allows cables to pass by easily
Engineered to perfectly match Gates Carbon Drive
LH cup without shoulder
LH cup +5 with shoulder/
LH cup +5 SC with shoulder
LH cup with shoulder
RH cups: With regular shoulder or
Regular design for 68 mm and 73 mm
LH cup SC with shoulder
LH cup SC without shoulder
NOT COMPATIBLE WITH PEDAL ASSIST SENSORS (PAS)
ZUMBA(-ML)/68 1S
(ONE SHOULDER)
Suitable for 68 mm bb-housings
RH cup with shoulder*
LH cup without shoulder
* Compatible with PEDRO’S® key
ZUMBA-ML/73 1S
(ONE SHOULDER)
Suitable for 73 mm bb-housings
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup without shoulder
* Compatible with PEDRO’S® key
ZUMBA-ML/83 1S
(ONE SHOULDER)
Suitable for 83 mm bb-housings
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup without shoulder
* Compatible with PEDRO’S® key
ZUMBA(-ML)/68 2S
(TWO SHOULDERS)
Suitable for 68 mm bb-housings
RH cup with shoulder*
LH cup with shoulder*
* Compatible with PEDRO’S® key
ZUMBA-ML/73 2S
(TWO SHOULDERS)
Suitable for 73 mm bb-housings
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup +5 with shoulder*
* Compatible with PEDRO’S® key
ZUMBA-ML/83 2S
(TWO SHOULDERS)
Suitable for 83 mm bb-housings
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup with shoulder*
* Compatible with PEDRO’S® key
COMPATIBLE WITH PEDAL ASSIST SENSORS (PAS)
ZUMBA-ML/68
1S SC
(SENSOR COMPATIBLE)
Suitable for 68 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup SC without shoulder
* Compatible with PEDRO’S® key
ZUMBA-ML/73 1S SC
(SENSOR COMPATIBLE)
Suitable for 73 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup SC without shoulder
* Compatible with PEDRO’S® key
ZUMBA-ML/83 1S SC
(SENSOR COMPATIBLE)
Suitable for 83 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup SC without shoulder
* Compatible with PEDRO’S® key
ZUMBA-ML/68 2S SC
(SENSOR COMPATIBLE)
Suitable for 68 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup SC with shoulder*
* Compatible with PEDRO’S® key
ZUMBA-ML/73 2S SC
(SENSOR COMPATIBLE)
Suitable for 73 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
RH cup with shoulder*
LH cup +5 SC with shoulder*
* Compatible with PEDRO’S® key
ZUMBA-ML/83 2S SC
(SENSOR COMPATIBLE)
Suitable for 83 mm bb-housings
Compatible with PAS on LH side
Distinct selection of spindle sizes
Extra-long sleeve
RH cup with shoulder*
LH cup SC with shoulder*
* Compatible with PEDRO’S® key

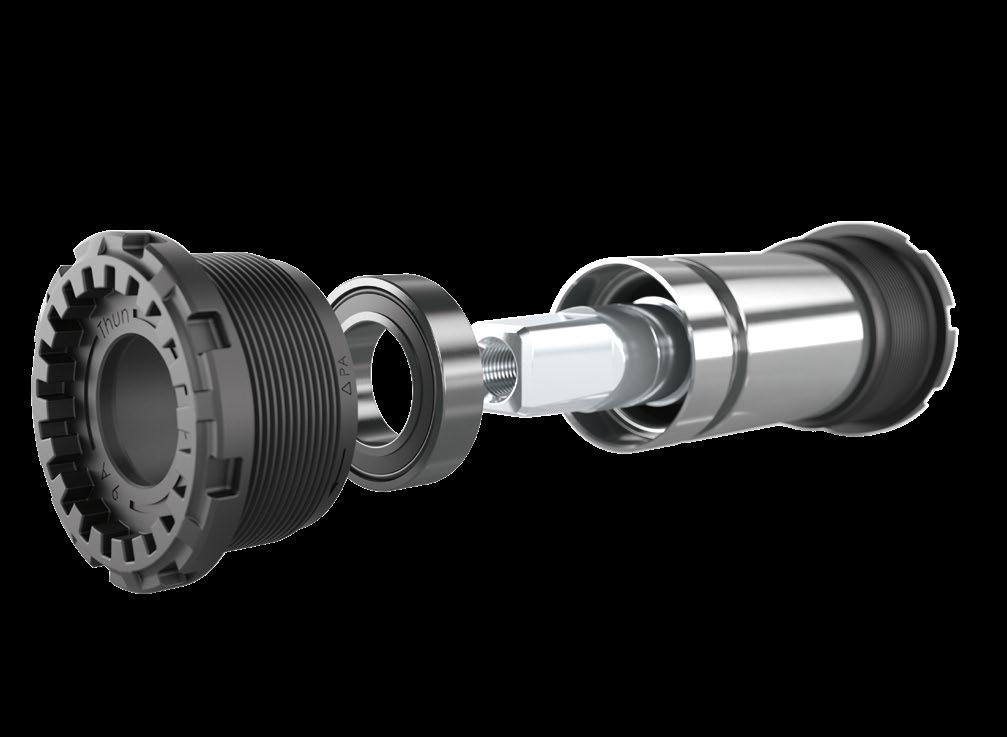

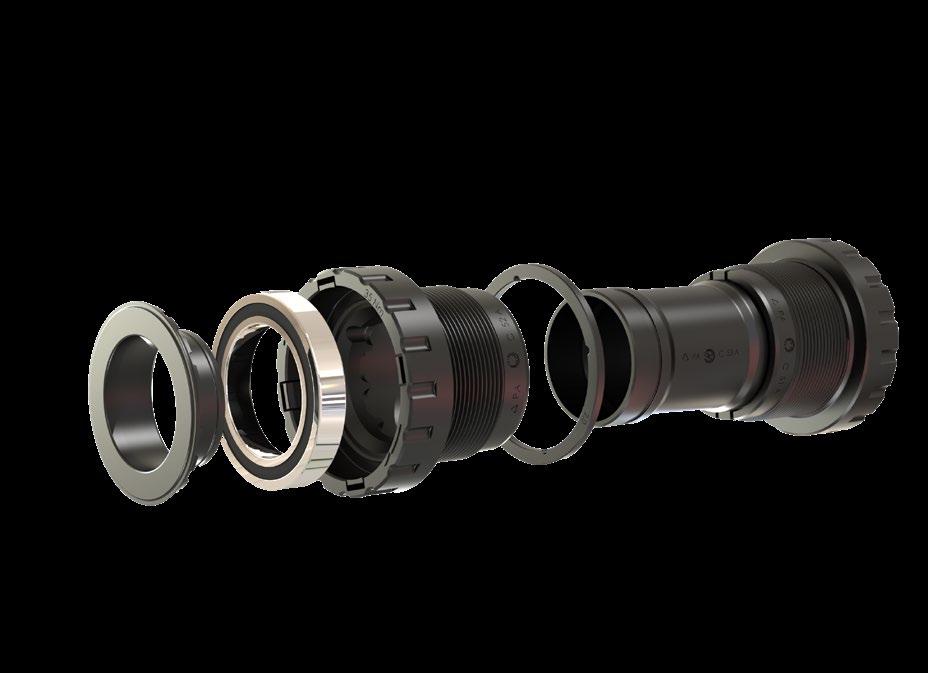

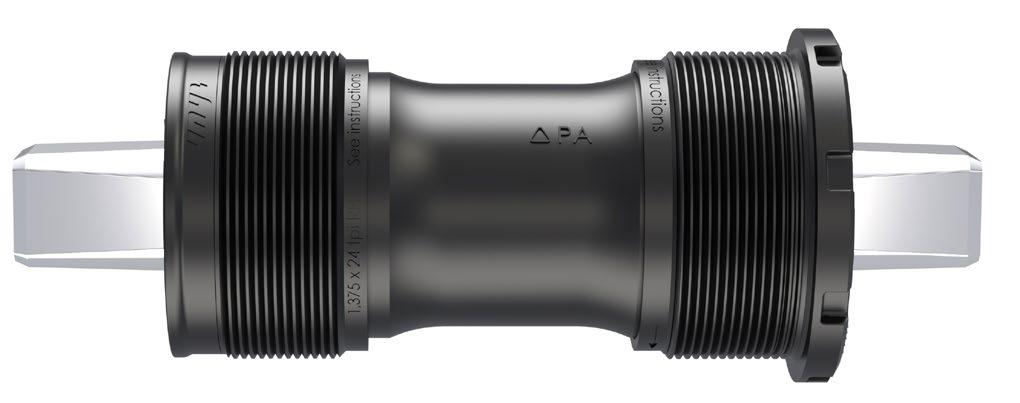

RUMBA
ISO 4210-8 City and trekking bicycles*
ISO 4210-8 Mountain bicycles*
ISO 4210-8 Racing bicycles*
For cranksets with a spindle diameter of (mm): 24
Compatible BB-housings (mm): 68, 73
2RS ball bearings
Composite sleeve
Composite cups
Various composite spacers
* RUMBA is designed to pass certification tests as per this standard whereas additional certification tests need to be commissioned with cranksets chosen by our customers.
Diameter reduction ring
Available spacers:
Ball bearing either made in China or made in Germany
Individual spacer configuration (in this case a single 2 mm spacer)
Spacer 2 mm
Spacer 0,8 mm
Spacer 2,5 mm
Spacer 1,6 mm
E-BIKE SENSORS

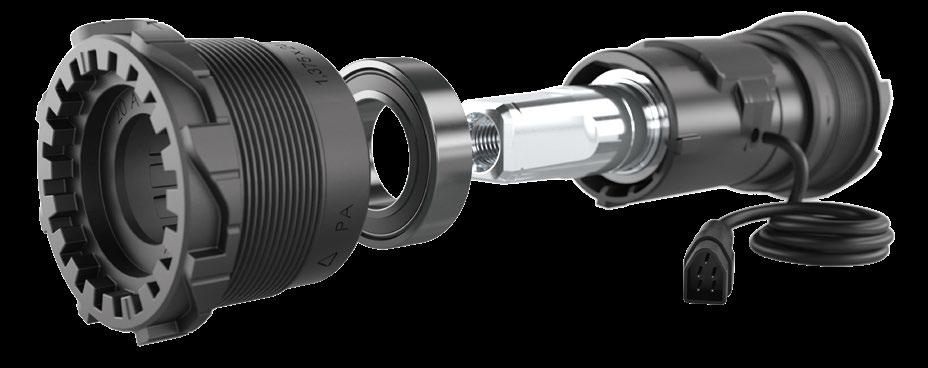

X-CELL
RT 3.0
Magnetoelastic bottom bracket torque and cadence sensor
Senses rotation, rotational direction and torque
EN 15194 and Part 2, ISO 4210-8 mountain bikes
Compatible bb-housings (mm): 68, 73, 83
CNC-machined and zinc-coated (A2B) steel spindle
2RS ball bearings
Composite and Macromelt® sleeve including sensor technology
Composite cups
Both cups compatible with PEDRO'S® key
Nano-coated PCB
IP 55 rating of sensor*
Equipped with STANDARDIZED INTERFACE SYSTEM
Other cable and connector options on demand
Compatible with Gates Carbon Drive products

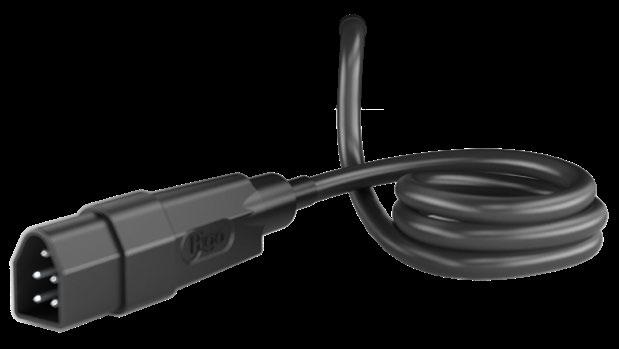

STANDARDIZED INTERFACE SYSTEM
FOR X-CELL RT 3.0
The Standardized Interface System consists of a standardized cable (cable length: 220 mm) and a standardized connector (Higo Mini Z509 FG Male or Julet L610 AM Female). This cable and connector form the interface. When OEM customers require a different connector or cable length to connect the XCELL RT 3.0 to their controller, they will need an extension cable with a Standardized Interface Systemcompliant connector on one side (Higo Mini Z509 FM Female or Julet L610 AM Male) and their desired controller-compliant connector on the other side. Such extension cables can be sourced globally from several of THUN‘s cooperation partners. Further details are available upon request.
THE STANDARDIZED INTERFACE SYSTEM …
... allows the perfect blend of cable and connector standardization and customization ... drastically reduces lead times ... guarantees availability of spare parts
BOLTS AND ADD-ONS

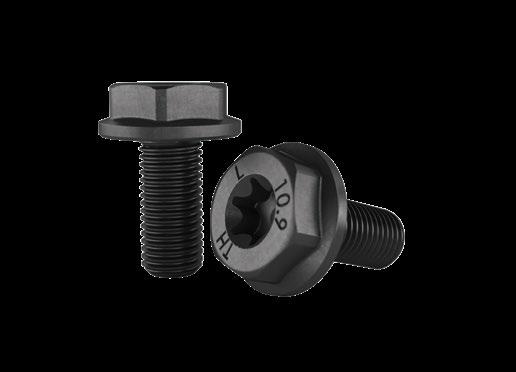

BOLTS

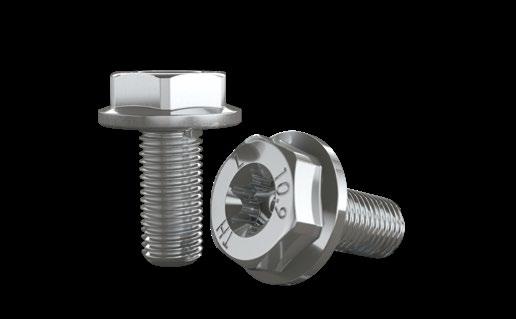

HEX TORX
M8X1, 10.9, HEX (OUTSIDE), T40 (INSIDE), BLACKENED
HEX TORX
Silver
M8X1, 10.9, HEX (OUTSIDE), T40 (INSIDE), ZN-FE-COATED (SILVER)

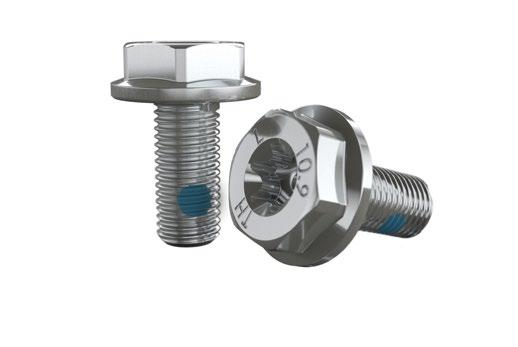

HEX TORX
Silver Lock
M8X1, 10.9, HEX (OUTSIDE), T40 (INSIDE), ZN-FE-COATED (SILVER), THREAD-LOCK

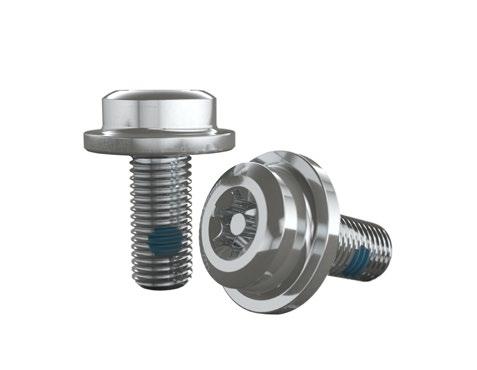

ROUND PIN TORX
Silver Lock
M8X1, 10.9, ROUND-HEAD (OUTSIDE), T40 + PIN (INSIDE), ZN-FE-COATED (SILVER), THREAD-LOCK - RECOMMENDED FOR RENTAL AND SHARE BIKES

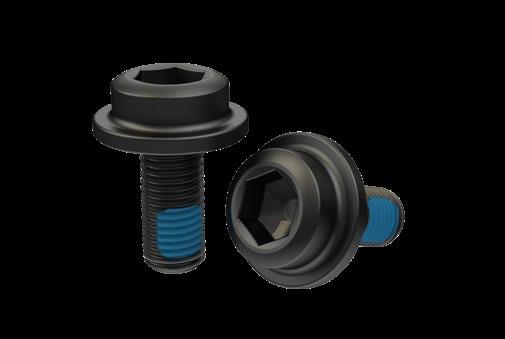

ROUND ALLEN
Black Lock
M8x1, 10.9, ROUND-HEAD (OUTSIDE), ALLEN (INSIDE), ZN-FE-COATED (BLACK), THREAD-LOCK

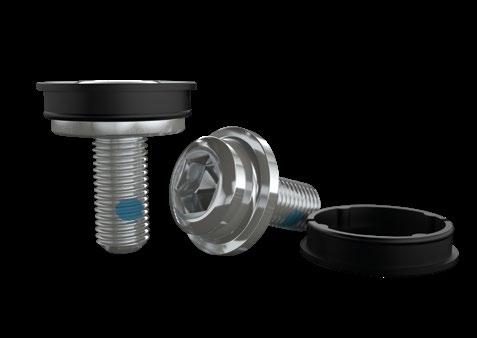

COVER RING
COMPOSITE COVER RING AVAILABLE FOR ALL ROUND-HEAD BOLTS
ROUND ALLEN
Silver Lock
M8X1, 10.9, ROUND-HEAD (OUTSIDE), ALLEN (INSIDE), ZN-FE-COATED (SILVER), THREAD-LOCK
ADDONS
P19
ADDITIONAL THREAD-LOCKING COMPOUND APPLIED TO THE RH AND/OR LH CUP PREVENTING IT/THEM FROM LOOSENING
365 GREASE
ADDITIONAL COATING APPLIED TO ZN-COATED (A2B) SPINDLES INCREASING PROTECTION AGAINST CORROSION EXPONENTIALLY
ADDITIONAL GREASE SEALS APPLIED TO BALL BEARINGS - AVAILABLE FOR ALL PREMIUM BB-SETS AND RECOMMENDED FOR RENTAL, SHARE, AND CARGO BIKES
365 RUBBER
ADDITIONAL RUBBER SEALS PRESSED INTO COMPOSITE CUPS FOR X-CELL RT 3.0 - RECOMMENDED FOR E-RENTAL, E-SHARE, E-CARGO AND E-MOUNTAIN BIKES
RH CUP +1
WITH EXTRA-WIDE SHOULDER EXTENDING CHAINLINE (+1 MM)
PRESS-FIT CUP D35
AVAILABLE FOR JIVE, TANGO AND FAT JIVE
PRESS-FIT CUP D40
AVAILABLE FOR JIVE, TANGO AND FAT JIVE

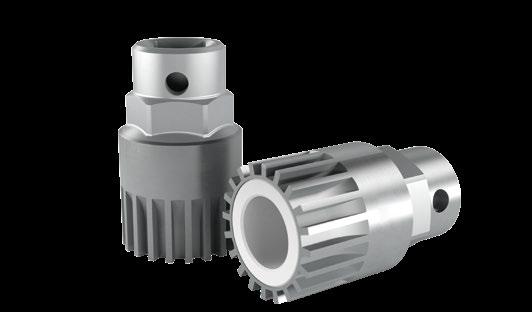

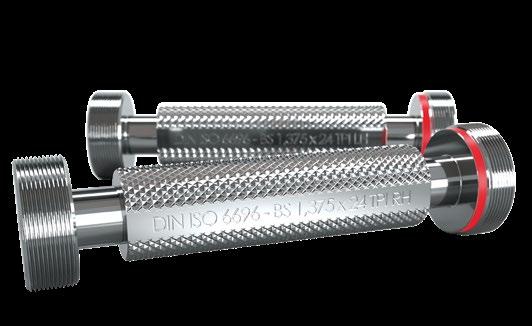

EASY FIT THREAD GAUGES
TOOL DESIGNED SPECIFICALLY FOR THE ASSEMBLY OF THUN BB-SETS
SET OF PLUG-IN GAUGES FOR BB-HOUSING THREADS CERTIFIED AS PER ISO 6696:1986
GET IN TOUCH.
ALEX THUN
CO-CEO
Market(s): Global large-scale accounts
Email: alexander.thun[at]thun.de
Office: +49 (0) 2333 836 167
Mobile/WhatsApp: +49 171 4420429
CARINA FÜLLBECK
VICE PRESIDENT SALES
Market(s): Global large-scale accounts
Email: carina.fuellbeck[at]thun.de
Office: +49 (0) 2333 836 122
Mobile/WhatsApp: +49 (0) 171 8300983
GUNNAR LUBAHN
DIRECTOR OF INTERNATIONAL SALES AND BUSINESS DEVELOPMENT
Market(s): Global accounts (except Eastern Europe)
Email: gunnar.lubahn[at]thun.de
Mobile/WhatsApp: +49 (0) 151 25776691
DALIBOR HORVACKI
COMMERCIAL AGENT
Market(s): Eastern Europe
Email: dalibor.horvacki[at]thun.de
Mobile/WhatsApp: +381 (0) 63 8311581
HOLGER PAYK
SALES BACK OFFICE TEAM LEADER
Email: payk[at]thun.de
Office: +49 (0) 2333 836 163
BEATE HENKEL
SALES BACK OFFICE MANAGER
Email: beate.henkel[at]thun.de
Office: +49 (0) 2333 836 134
ANDREAS KLIEM
PRODUCT MANAGER
Email: andreas.kliem[at]thun.de
Office: +49 (0) 2333 836 155
Mobile/WhatsApp: +49 (0) 151 21204585
IMPRINT
Alfred Thun GmbH
Peddenöde 6
58256 Ennepetal Germany
Tel.: +49 (0) 2333 836 0
Fax: +49 (0) 2333 836 184
info[at]thun.de www.thun.de
Graphic and brand design: helloyou. studio GmbH
3D renderings: Medienrausch GmbH & Co. KG, Alfred Thun GmbH
Images: Adobe Stock, iStock
Rev. 001/06.2025
© Alfred Thun GmbH. All rights reserved.
Any reprinting/redistribution of this work without the express written consent is prohibited.
Errors and omissions excepted.
MADE IN EUROPE
