2023 Westbrass Catalog

TABLE OF CONTENTS

BATH

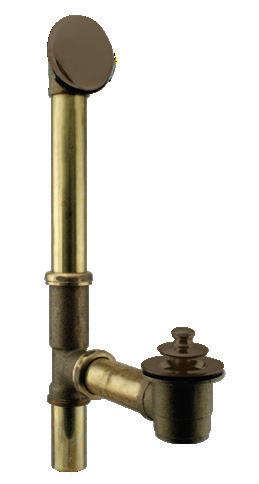

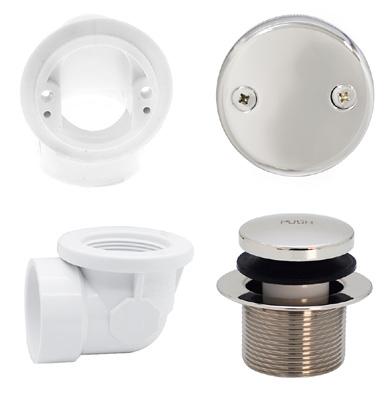

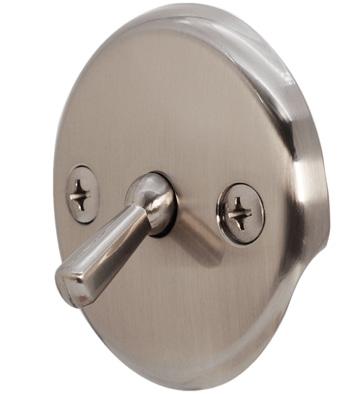

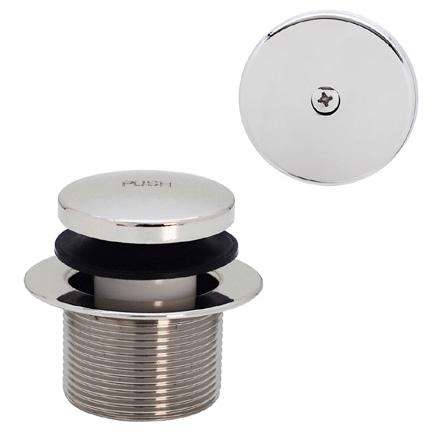

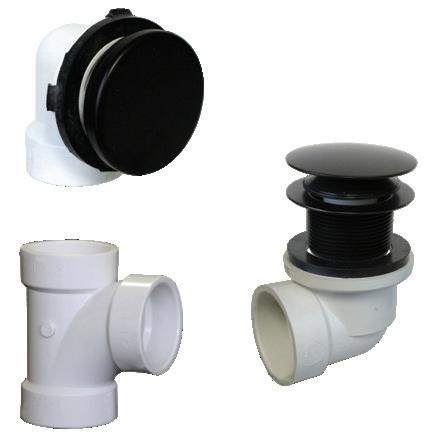

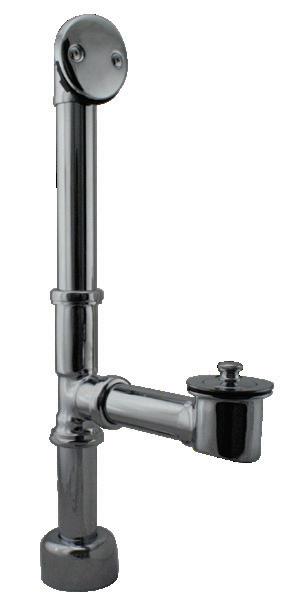

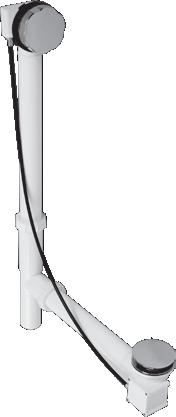

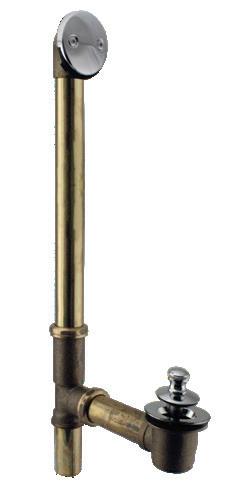

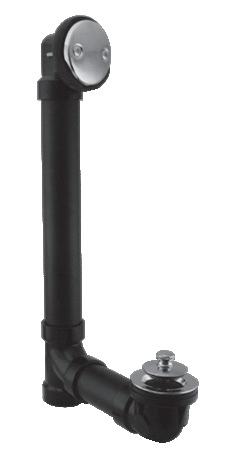

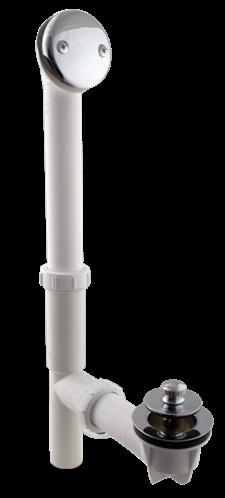

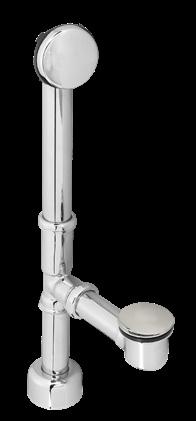

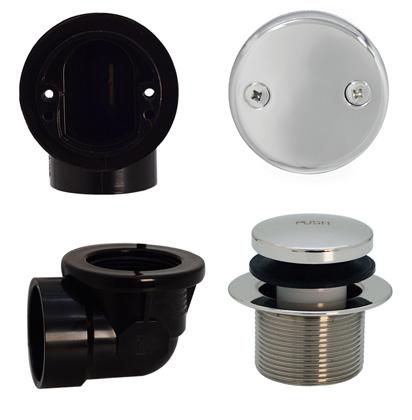

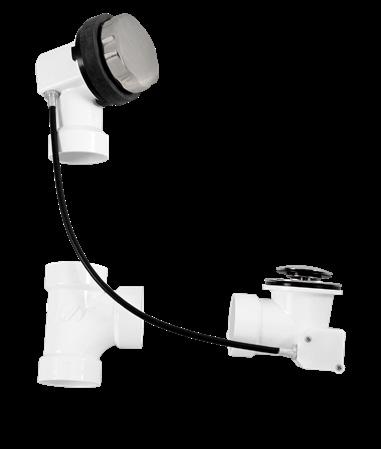

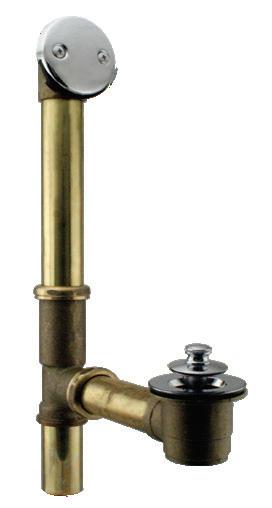

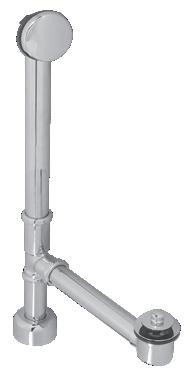

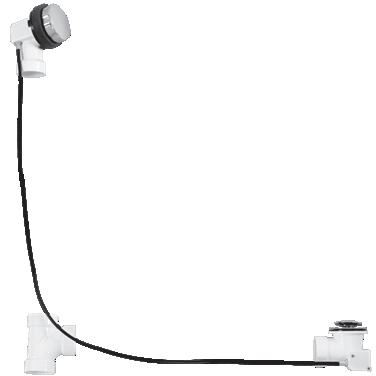

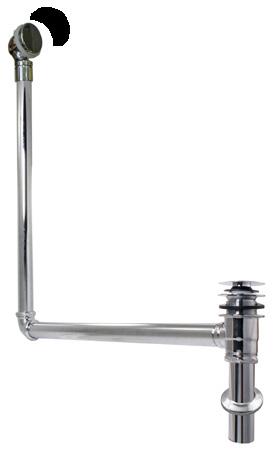

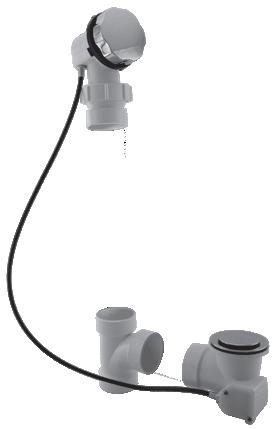

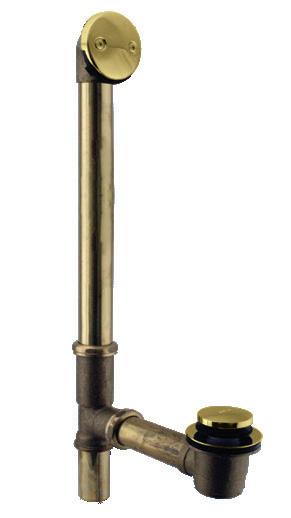

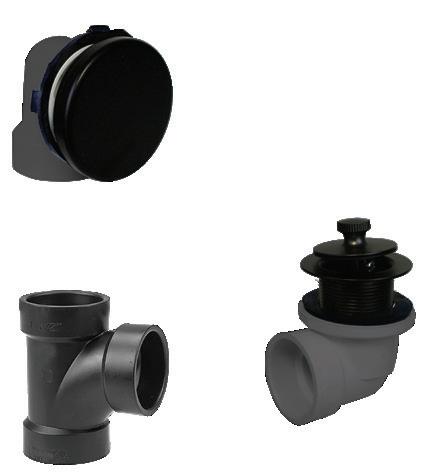

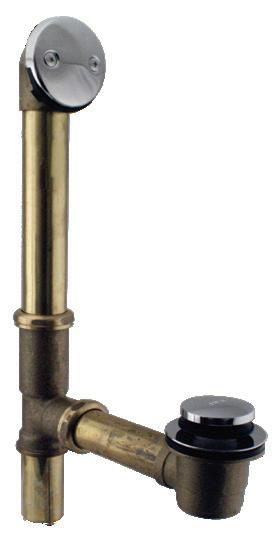

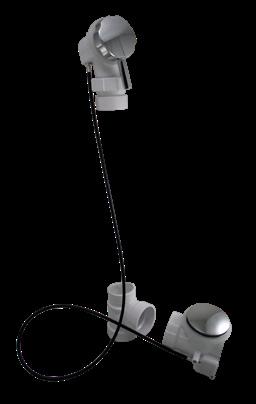

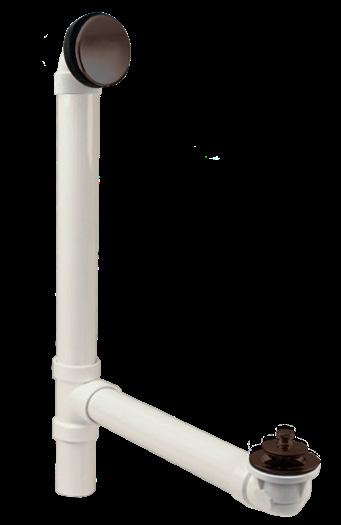

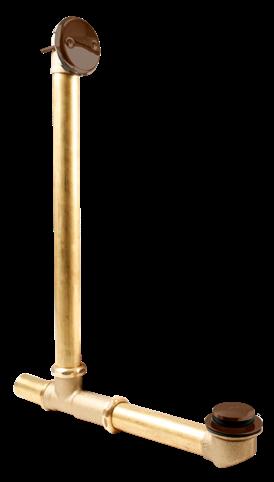

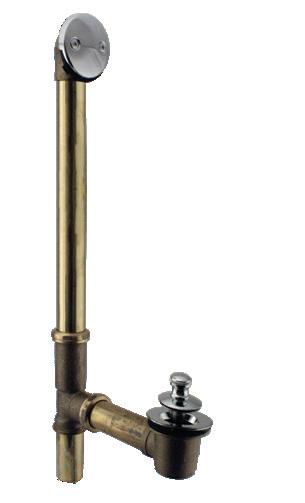

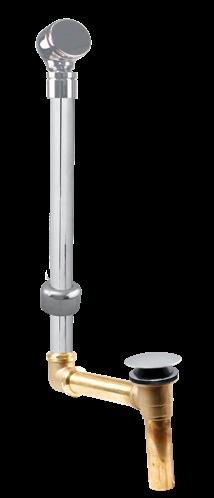

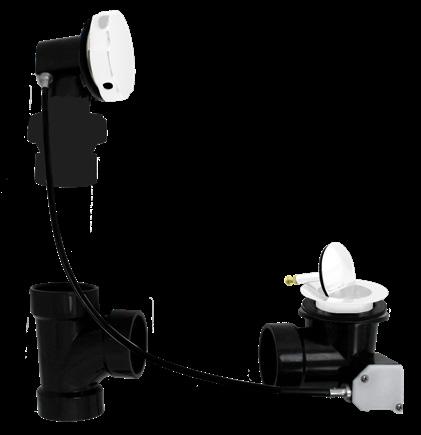

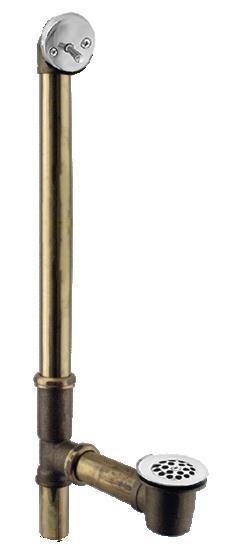

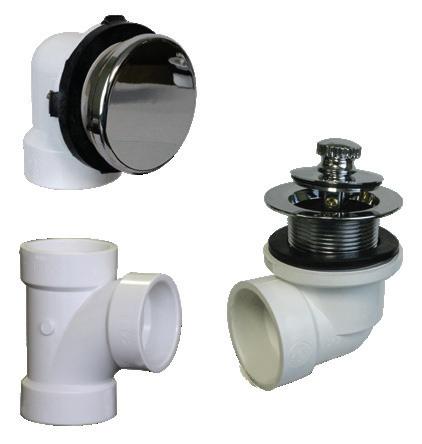

BATH TUB WASTES &

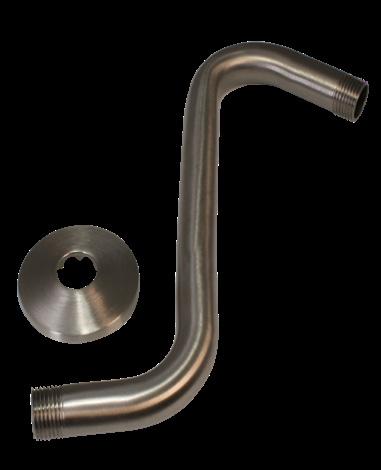

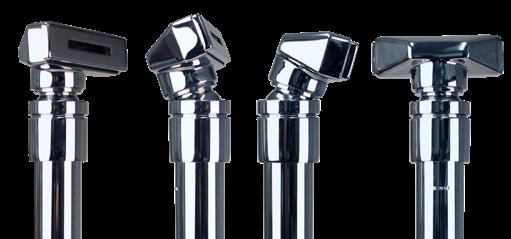

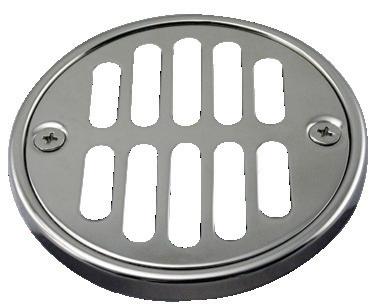

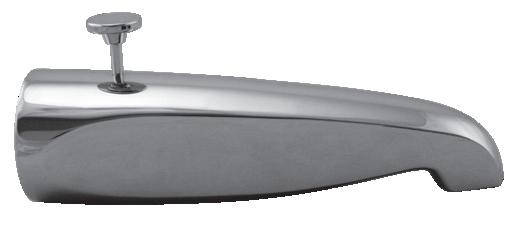

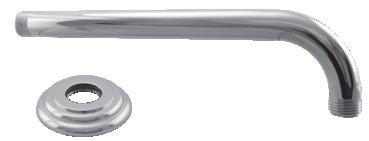

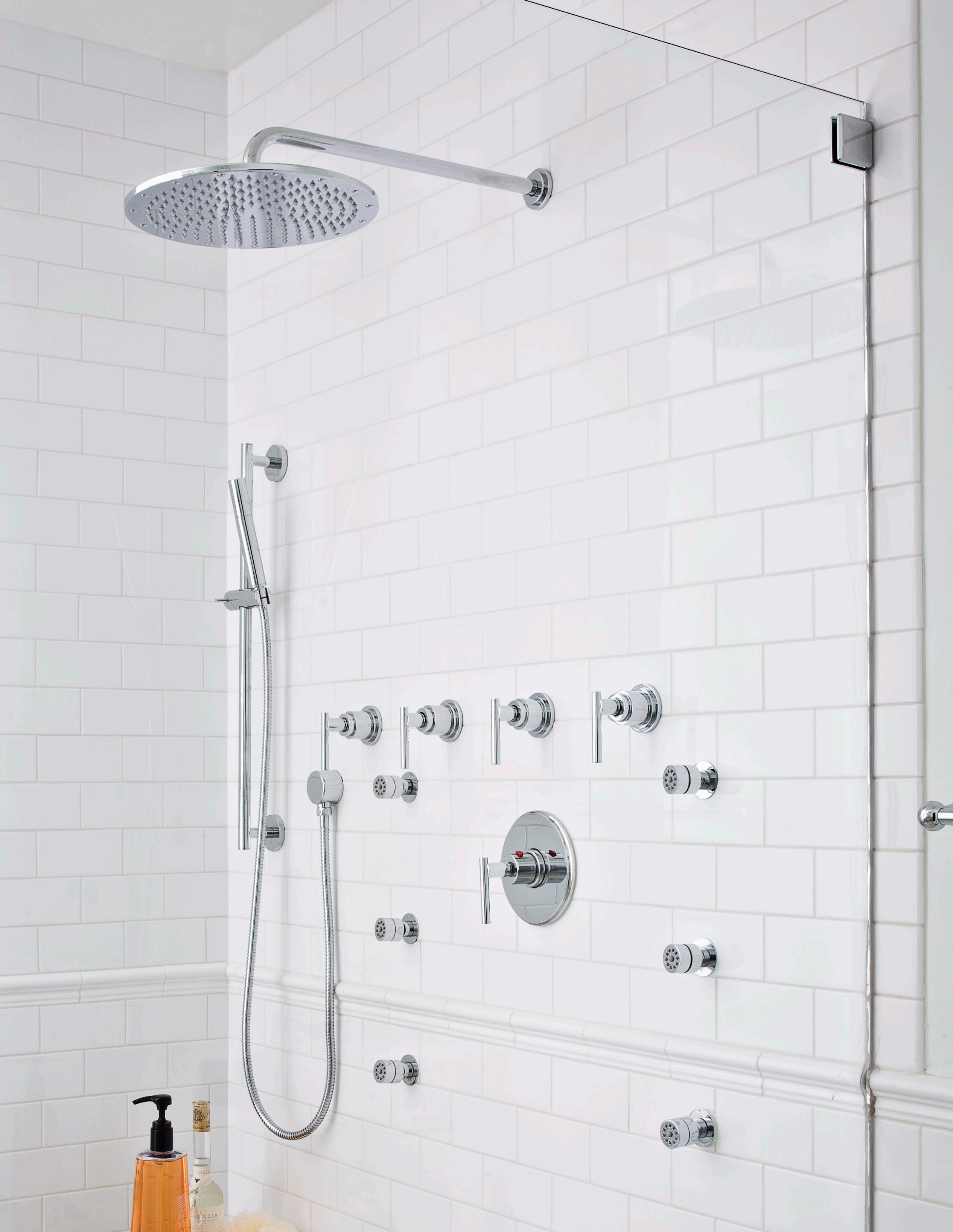

SHOWERS

ADDITIONAL

FINISH & PRICING GROUP CHART

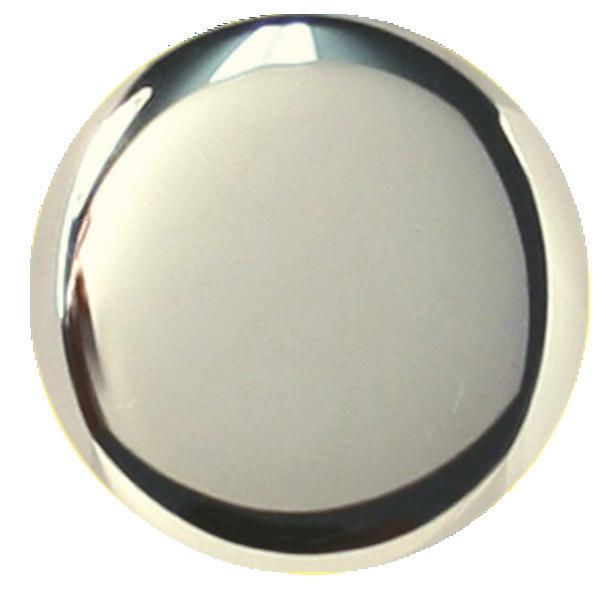

Polished Chrome

01 PVD Polished Brass

03 Polished Brass 05 Polished Nickel

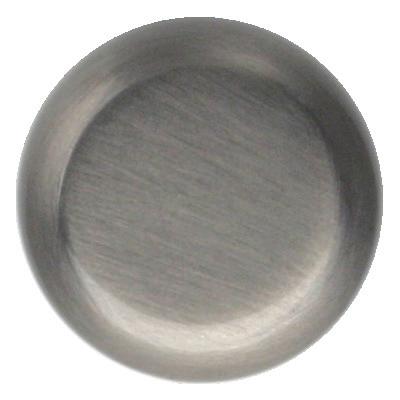

07 Satin Nickel

11 Antique Copper

12 Oil Rubbed Bronze

Stainless Steel

Powder Coat White

Matte Black

KITCHENS

4in1 & 3in1 KITCHEN FAUCETS

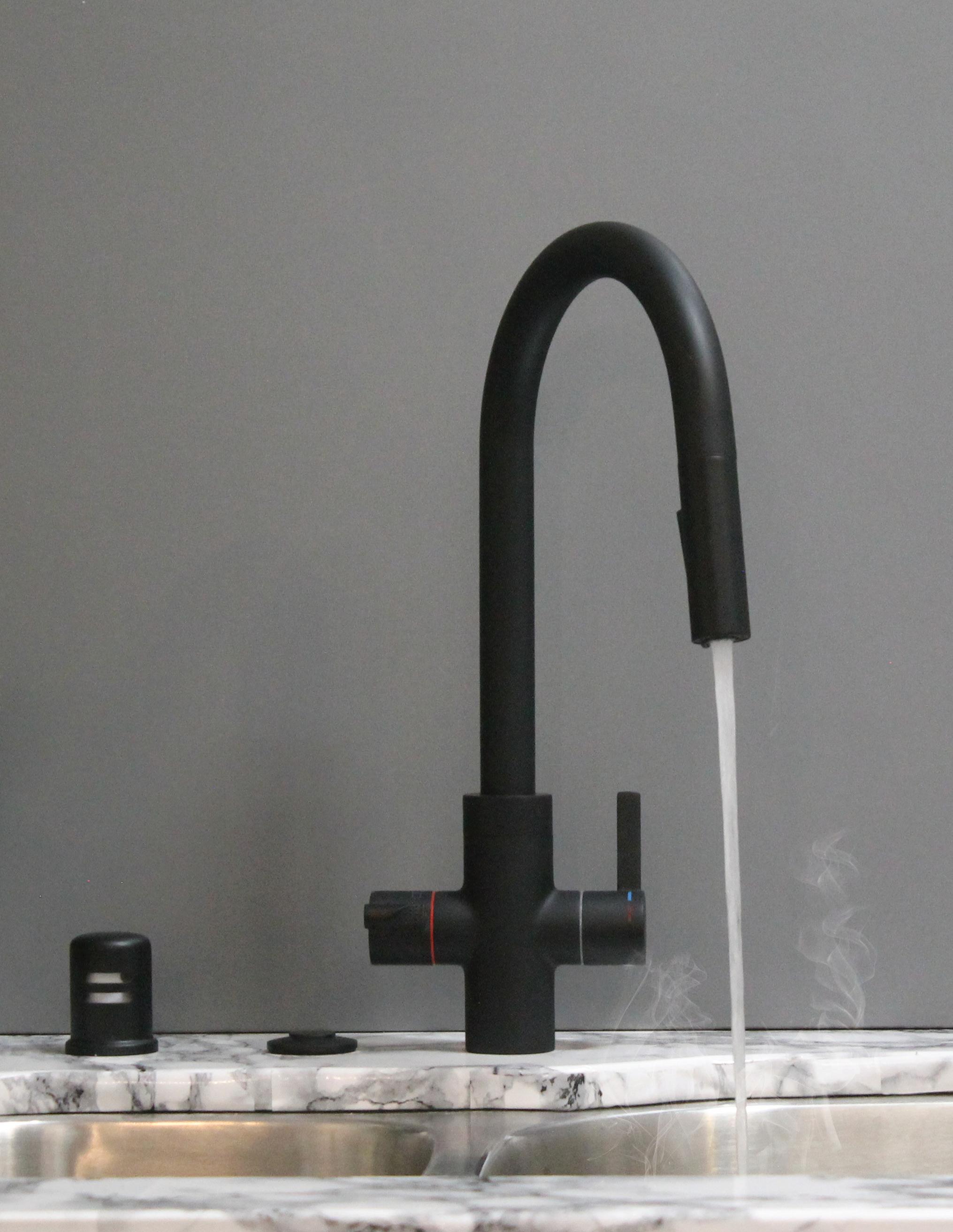

4in1 DigiHot APPLIANCE KIT

KH41AK

• Pull-down adjustable spray hand shower

• Zero clearance rotary valve mixer handle

• Rotate left handle backwards for pure water

• Pull button, rotate forward for instant hot

• Exceeds AB1953/NSF lead regulations

• Requires 3/8” comp. water supply connections

• Includes 2 ea. F400 filters

• Includes HotMaster DigiHot tank unit

• UL registered CSA-C22.2

Polished Chrome: $1,633.50 Special Finishes: $1,694.00

Available

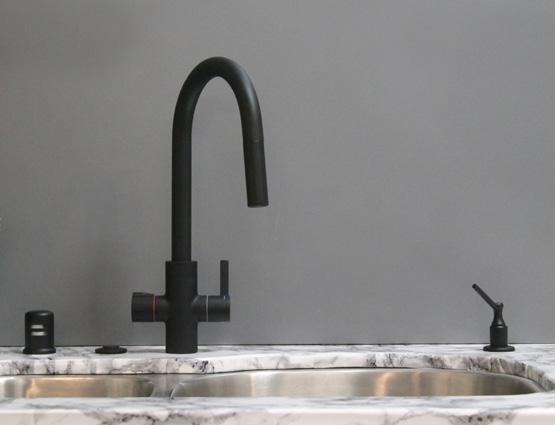

4in1 KITCHEN APPLIANCE ACCESSORY KIT

KH41AKC

• Pull-down adjustable appliance (KH41AK-**)

• DigiHot digital tank (DT18)

• 2 ea. Carbon Block Filters (F400)

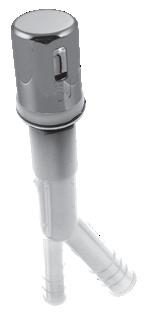

• Includes dishwasher air gap (D200-1-**)

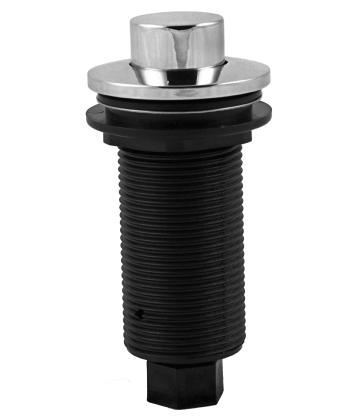

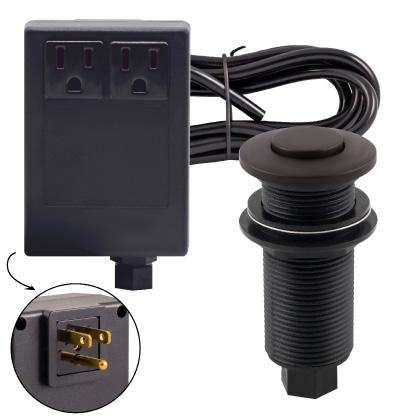

• Includes disposal air switch (ASB-2B3-**)

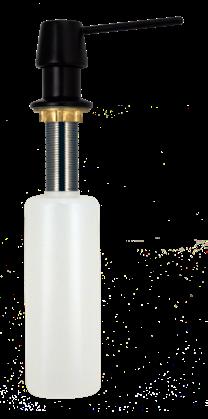

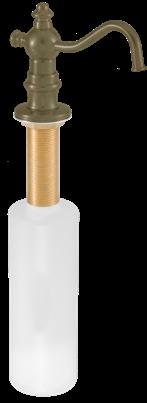

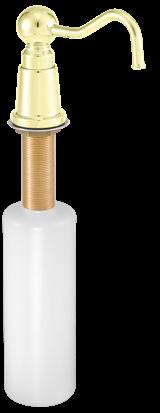

• Includes soap/lotion dispenser (D217-**) Polished Chrome: $1,917.85 Special Finishes: $2,069.10

Available

3in1 DigiHot SINGLE HANDLE KITCHEN APPLIANCE

KH31BK

• Single handle kitchen faucet adjustable volume and temperature

• Spout swivels 360 degrees

• Trouble-free patented installation scheme

• Dual waterway design isolates pure hot water from dish water

• Press safety button to rotate handle to make Instant Hot water

• Includes DigiHot DT18 digital tank unit

• Includes F400 water filter

• Requires 3/8 in. compression valves Polished Chrome: $1,208.79 Special Finishes: $1,300.75

Available

3in1 DigiHot APPLIANCE WITH ACCESSORIES

KH31BKC

• 3in1 single handle appliance (KH31BK-**)

• DigiHot digital tank (DT18)

• Carbon Block Filter (F400)

• Includes dishwasher air gap (D200-1-**)

• Includes disposal air switch (ASB-2B3-**)

• Includes soap/lotion dispenser (D217-**)

Polished Chrome: $1,494.35 Special Finishes: $1,675.85

Available

DUAL FUNCTION KITCHEN FAUCET

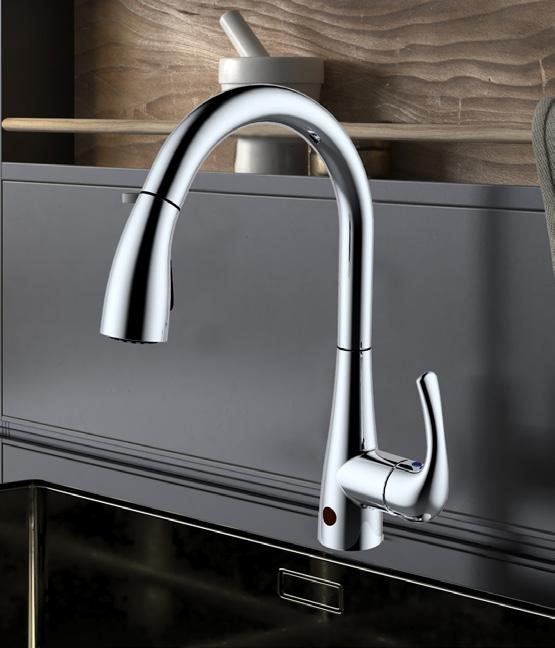

DUAL SENSOR AUTOMATIC TOUCH KITCHEN FAUCET

KA03A

• Pull wand to turn faucet on

• Wave hand in front of faucet to start

• Wave hand again to stop

• ADA compliant handle

• Allows manual or automatic operation

• Requires 3/8 in. compression valves

• Exceeds AB 1953 lead regulations

• Requires 4-AA Batteries for operation (Not Included)

Polished Chrome: $579.59

Special Finishes: $640.09

Available Finishes: Standard Finish 26 Polished Chrome

Special Finishes

PULL-DOWN SPRAY KITCHEN FAUCETS

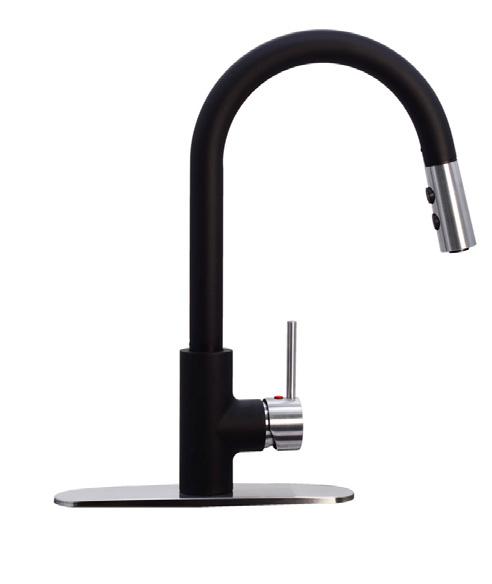

PULL-DOWN SPRAY SINGLE HANDLE WITH PLATE

KD08B

• Pull-down spray kitchen faucet

• Single handle ceramic disk valve

• Wand toggles between spray and stream

• 3/8 in. compression supply lines

• Quiet, fiber reinforced pull-down hose

• ADA compliant stylish handle

• Lead free non-metallic waterways

• Use for 1 or 3-hole installations

• Requires 1-3/8 in. sink hole Polished Chrome: $264.99 Special Finishes: $301.29

Available Finishes:

Standard Finish 26 Polished Chrome

2062 Stainless Steel/Matte Black

6220 Matte Black /Stainless Steel

2662 Polished Chrome/ Matte Black

6226 Matte Black/ Polished Chrome

SPRING SPOUT SINGLE HANDLE SPRAY WITH PLATE

KS18A

• Single handle kitchen faucet

• Neoperl and AntiCalc adjustable spray

• Wand toggles between spray and stream

• 3/8 in. compression supply lines

• Quiet, fiber reinforced pull-down hose

• ADA compliant handles

• Ceramic disc cartridge

• Lead free nonmetallic waterways

• Use for 1 or 3-hole installations

• Requires 1-3/8 in. sink hole Polished Chrome: $325.49 Special Finishes: $361.79

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

12 Oil Rubbed Bronze

20 Stainless Steel

62 Matte Black

1220 Stainless Steel/Matte Black

2012 Matte Black /Stainless Steel

1226 Polished Chrome/ Matte Black

2612 Matte Black/ Polished Chrome

2062 Stainless Steel/Matte Black

6220 Matte Black /Stainless Steel

2662 Polished Chrome/ Matte Black

6226 Matte Black/ Polished Chrome

INSTANT HOT WATER DISPENSER KITS

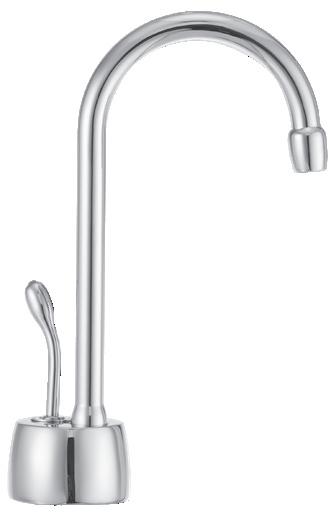

CALORAH HOT WATER DISPENSER KIT

D261HFP

• Single handle hot water dispenser & tank

• With ShokBlok valve

• Traditional styling

• Auto-off handle function

• Santoprene hot water tube

• 1/4 in. copper supply lines

• 5/8 gallon tank with 60 cups/hour delivery Polished Chrome: $1,128.44 Special Finishes: $1,193.95

DT1F261

• Add F400 filter and DT18N digital tank

Polished Chrome: $1,278.97 Special Finishes: $1,439.90

Available

DOCALORAH HOT/COLD WATER DISPENSER KIT

D262HFP

• Two handle hot/cold water dispenser & tank

• With ShokBlok valve

• Traditional styling

• Auto-off hot and locking cold handles

• Santoprene hot water tube

• 1/4 in. copper supply lines

• 5/8 gallon tank with 60 cups/hour delivery Polished Chrome: $1,248.00 Special Finishes: $1,288.95

DT1F262

• Add F400 filter and DT18N digital tank Polished Chrome: $1,398.76 Special Finishes: $1,439.90

Available

VELOSAH HOT WATER DISPENSER KIT

D271HFP

• Single handle hot water dispenser & tank

• With ShokBlok valve

• Contemporary styling

• Auto-off handle function

• Santoprene hot water tube

• 1/4” copper supply lines

• 5/8 gallon tank with 60 cups/hour delivery Polished Chrome: $1,125.17 Special Finishes: $1,193.95

DT1F271

• Add F400 filter and DT18N digital tank

Polished Chrome: $1,275.34 Special Finishes: $1,344.31

Available

INSTANT HOT WATER DISPENSER KITS

DEVELOSAH HOT/COLD WATER DISPENSER KIT

D272HFP

• Two handle hot/cold water dispenser & tank

• With ShokBlok valve

• Contemporary styling

• Auto-off hot and locking cold handles

• Santoprene hot water tube

• 1/4” copper supply lines

• 5/8 gallon tank with 60 cups/hour delivery

Polished Chrome: $1,248.23

Special Finishes: $1,288.95

DT1F272

• Add F400 filter and DT18N digital tank

Polished Chrome: $1,398.76

Special Finishes: $1,439.90

Available Finishes:

VICTORIAN HOT WATER DISPENSER KIT

D204HFP

• 5-1/2” spout projection, 9-1/4” overall height

• With Shock Block valve

• Single lever handle, hot water faucet

• 1-3/8” hole size

• 1/4-turn ceramic disc cartridge

• Includes QHT-1 hot water tank

• Solid brass faucet with stainless steel tank Polished Chrome: $1,171.02

Special Finishes: $1,306.96

DT1F204

• Add F400 filter and DT18N digital tank Polished Chrome: $1,321.32

Special Finishes: $1,458.05

Available

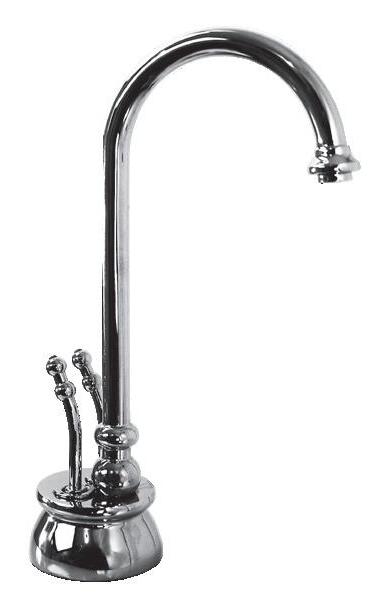

VICTORIAN HOT/COLD WATER DISPENSER KIT

D205HFP

• 5-1/2” spout projection, 9-1/4” overall height

• With Shock Block valve

• Dual lever handle, hot & cold water faucet

• 1-3/8” hole size

• 1/4-turn ceramic disc cartridges

• Includes QHT-1 hot water tank

• IWC-1 chiller is optional

• Solid brass faucet with stainless steel tank Polished Chrome: $1,302.05 Special Finishes: $1,482.20

DT1F205

• Add F400 filter and DT18N digital tank

Polished Chrome: $1,407.23

Special Finishes: $1,609.30

Available Finishes:

INSTANT HOT WATER DISPENSER KITS

CONTEMPORARY HOT WATER DISPENSER KIT

D2041HFP

• 5” spout projection, 10-3/4” overall height

• With Shock Block valve

• Single lever handle

• 1-3/8” hole size

• 1/4-turn ceramic disc cartridge

• Includes QHT-1 hot water tank

• Solid brass faucet with stainless steel tank Polished Chrome: $1,171.02 Special Finishes: $1,306.96

DT1F2041

• Add F400 filter and DT18N digital tank Polished Chrome: $1,321.32 Special Finishes: $1,458.05 Available

CONTEMPORARY HOT/COLD WATER DISPENSER KIT

D2051HFP

• 4” spout projection, 10-5/8” overall height

• With Shock Block valve

• Dual lever handles

• 1-3/8” hole size

• 1/4-turn ceramic disc cartridges

• Includes QHT-1 hot water tank

• IWC-1 chiller is optional

• Solid brass faucet with stainless steel tank Polished Chrome: $1,256.19 Special Finishes: $1,367.56

DT1F2051

• Add F400 filter and DT18N digital tank Polished Chrome: $1,407.23 Special Finishes: $1,518.55

CONTEMPORARY HOT/COLD WATER FAUCET KIT

D282HFP-26

• 3-1/4 in. spout projection, 10-5/8 in. overall height

• ADA approved lever handle controls hot and cold, dish water

• Fits in 1-3/8 in. hole size

• Lever operated instant hot switch, prevents tender hands from inadvertent scalding

• Includes QHT-1 hot water tank with ShokBlok valve

• Swivel spout for easy access to pots and pans

• Solid brass faucet with stainless steel tank

• F400 filter included for purified hot water Polished Chrome: $1,189.64

INSTANT HOT WATER DISPENSER KITS

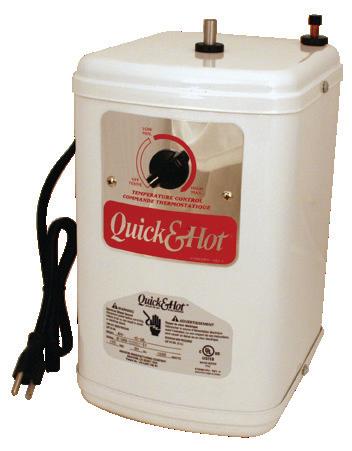

QUICK HEATING TANK - ENAMELED - SHOCK BLOCK

QHT-1FPV

• Quick & Hot instant hot water tank

• With Shock Block valve

• 5/8 gallon stainless steel tank

• 1300 Watts - delivers up to100 cups per hour

• Plugs into standard (115V) wall outlet

• 140° - 190° fingertip temperature adjustable

• Required for all hot or hot/cold water dispensers

$627.28

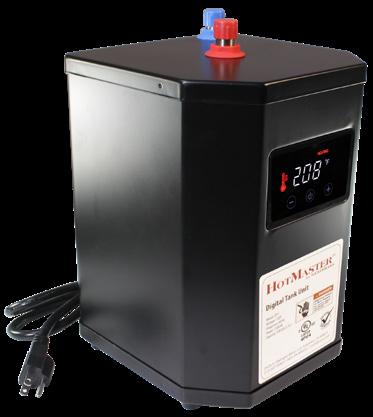

HOTMASTER DigiHot DIGITAL TANK UNIT

DT18

• Instant hot water tank

• With ShokBlok valve

• 5/8 gallon stainless steel tank

• 1500 Watts - delivers up to100 cups per hour

• Plugs into standard (115V) wall outlet

• 167° - 208° temperature adjustable

• Required for hot or hot/cold water dispensers

$647.35

FILTER ACCESSORIES

CARBON BLOCK FILTER

F400

• Filter housing and mounting bracket

• With carbon block antibacterial filter medium

• Economical element replacement

• Save Landfill - only replace cartridge without disposing of the plastic housing

• Anti-scale filter treatment

• Quick connect cartridge housing removal

• Filter lasts 6 months or 2000L of water

$164.36

REPLACEMENT CARBON BLOCK FILTER CARTRIDGES

F400R

• Replacement filter element for F400

• Pair of replacement filter cartridges for 1 year’s worth of filtration or 4000L of water

$142.89

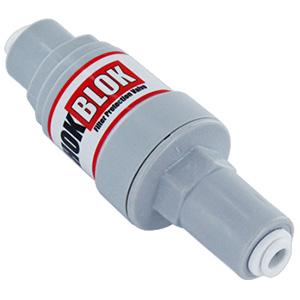

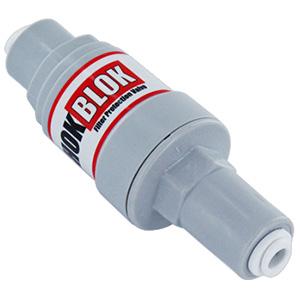

SHOKBLOK FAUCET AND FILTER PROTECTION

• Regulates water to 40 psi water

• Creates water hammer protection

• Designed for filters, ice makers, coffee and espresso machines and instant hot appliances

• Extends life of appliance by reducing water hammer

FPV-40-38

• Acetyl body with 3/8 in. insert fittings

$24.20

FPV-40

• Acetyl body with 1/4 in. insert fittings

$24.20

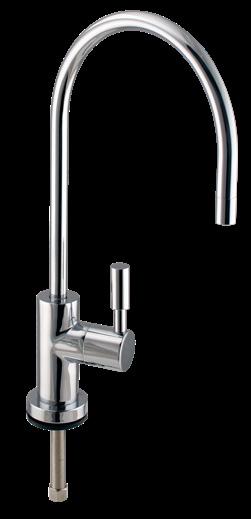

PURE WATER TAPS

6” TOUCH-FLO PURE WATER DISPENSER

D203-NL

• Touch-Flo style pure water faucet

• 2-5/8” spout projection

• 6-1/2” overall height

• 1/4” compression tube inlet

• Single black plastic handle

• Spring piston handle assembly

• Cannot be installed with hot water tank

• Brass construction

$162.14

45° TOUCH-FLO PURE WATER DISPENSER

D2031-NL

• Touch-Flo style pure water faucet

• 5-1/2” 45-degree extended spout projection

• 8” overall height

• 1/4” compression tube inlet

• Spring piston handle assembly

• Cannot be installed with hot water tank

• Brass construction Polished Chrome: $117.92 Special Finishes: $178.52

CLASSIC LEVER HANDLE COLD WATER DISPENSER

D2033-NL

• Ceramic disc pure water faucet

• 10” classic lever handle design

• 1/4” compression tube inlet

• 1/4-turn ceramic disc cartridge

• Cannot be installed with hot water tank

• Brass construction Polished Chrome: $244.03 Special Finishes: $325.92

Available Finishes:

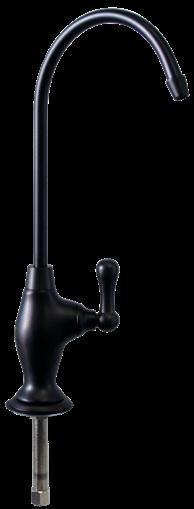

VICTORIAN 1-LEVER HANDLE COLD WATER DISPENSER FAUCET

D2035-NL

•Victorian single lever handle cold water dispenser faucet. 9 in. Overall height with 5 in.

•Gooseneck spout projection

•Solid brass construction

•Can be installed with water filter (F400) and/or in-line chiller; cannot be modified to use with hot water tank

•Single lever handle with 1/4-turn ceramic disc cartridge. 1/4 in. Compression tube inlet

•Do not use plumber’s putty for installation use silicone seal

Polished Chrome: $107.64 Special Finishes: $143.64

PURE WATER TAPS

CONTEMPORARY COLD WATER DISPENSER

D2036-NL

• 5 in. spout projection, 11-1/4 in. height

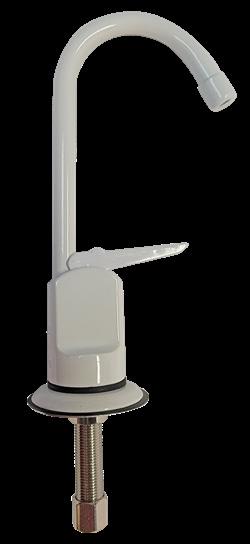

• Single lever handle, cold water faucet

• 1/4” compression tube inlet

• 1/4-turn ceramic disc cartridge

• Cannot be installed with hot water tank

• Brass construction

Polished Chrome: $244.03

Finishes: $325.92

Available

CONTEMPORARY COLD WATER EXTENSION

D203-ADAPT

• 3 in. spout extension for thicker counter tops

• 1/4” compression tube inlet

• Fits D203, D2031, D2033 and D2036

Polished Chrome: $30.25

Available

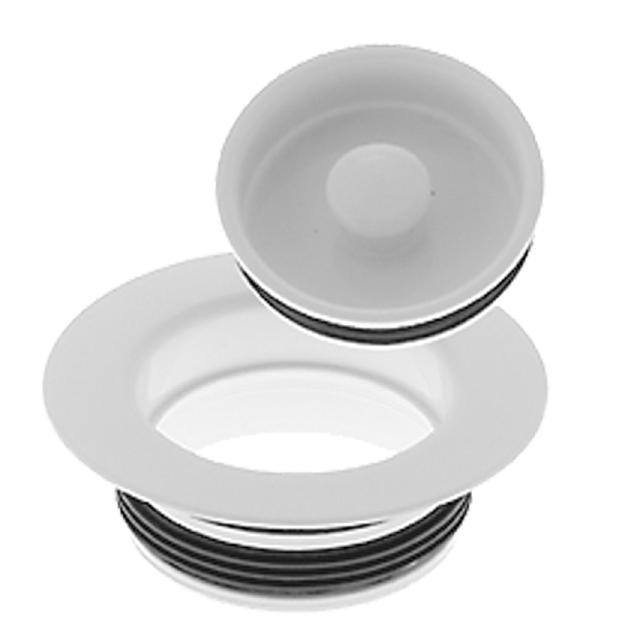

DISPOSAL REPLACEMENT COVERS UNIVERSAL REPLACEMENT TRIM

D2091

• Replacement Styrene disposal flange

• Stopper included

• Pushes into existing disposal flange without removing the disposal

All Finishes: $49.13

Available Finishes:

GARBAGE DISPOSAL FLANGES & STOPPERS

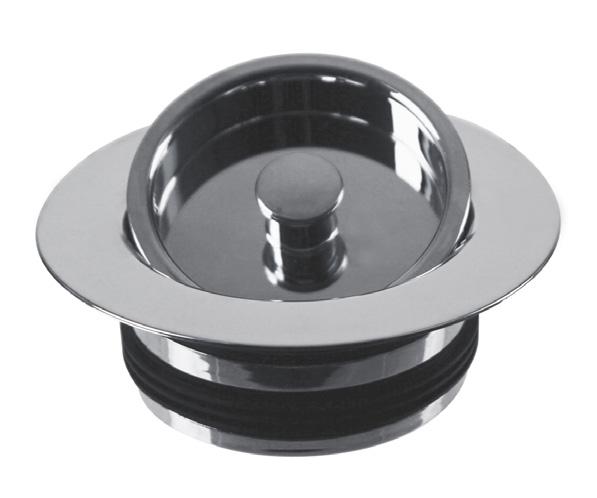

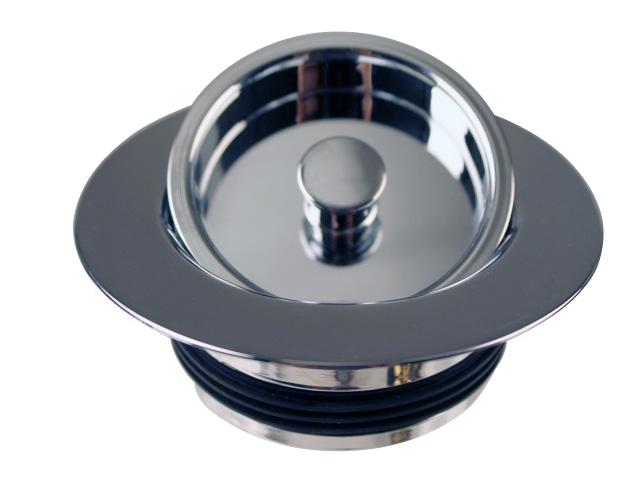

DISPOSAL FLANGE & STOPPER

D2089

• ISE style disposal trim set

• Flange and stopper (D208 & D209)

• 1-5/8” deep flange

• Fits most ISE, Emerson, Kenmore, Joneca and Grainger waste disposals

• Brass construction

MOUNT DISPOSAL FLANGE & STOPPER

D2089SEV

• ISE style disposal trim set

• Flange and strainer (D208 & D209S)

• 1-5/8” deep flange

• Fits most ISE, Emerson, Kenmore, Joneca and Grainger waste disposals

• Push/pull removable stopper stainer Polished Chrome: $111.37 Special Finishes: $170.33

EXTRA DEEP ISE DISPOSAL FLANGE & STOPPER

D2082

• ISE style extra deep disposal trim set

• Flange and stopper (D2081 & D209)

• 2-5/8” deep flange

• Fits most ISE, Emerson, Kenmore, Joneca and Grainger waste disposals

• Brass construction

Chrome: $88.44

$106.50

EXTRA DEEP ISE DISPOSAL FLANGE & STRAINER

D2082S

• ISE style extra deep disposal trim set

• Flange and strainer (D2081 & D209S)

• 2-5/8” deep flange

• Fits most ISE, Emerson, Kenmore, Joneca and Grainger waste disposals

• Removable stopper for easy cleaning Polished Chrome: $129.39

Special Finishes: $198.17

DISPOSAL STOPPER FOR 3-BOLT MOUNT FLANGES

D209

• ISE style disposal topper only

• Fits D208, D2081, D2082 and D2089 styles

• Fits most ISE, Emerson, Kenmore, Joneca and Grainger waste disposals

• Brass construction

Polished Chrome: $29.48

Special Finishes: $49.31

GARBAGE DISPOSAL FLANGES & STOPPERS

EZ-MOUNT DISPOSAL FLANGE & STOPPER

D2105

• Waste King style brass disposal trim set

• Flange and strainer (D2103 & D2104)

• Fits sinks up to 1 inch thick

• Fits continuous feed units from Waste King, G.E., Eliminator, Frigidaire, Tappan, Whirlaway Joneca Commodore, Titan, Waste Made, and Westinghouse disposals

Polished Chrome: $129.39 Special Finishes: $198.17

DISPOSAL TRIM & SINK STRAINERS

TWO PACK D213 BASKET STRAINERS

D2135

• Large wing nut style kitchen sink basket and strainer

• Brass nuts and washers included

• Fits 3-1/2” opening - 4-3/8” rim diameter

• 2-9/16” tall

• Solid brass construction

• Turn wing nut to restrict draining Polished Chrome: $232.57 Special Finishes: $276.79

Available Finishes:

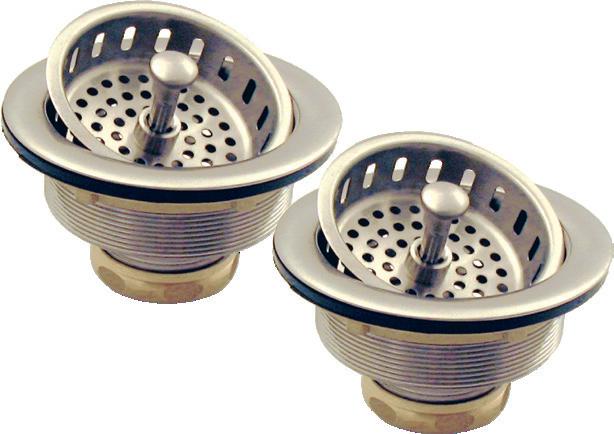

TWO PACK D214 BASKET STRAINERS

D2145

• Large post style kitchen sink basket and strainer

• Brass nuts and washers included

• Fits 3-1/2” opening - 4-3/8” rim diameter

• 2-9/16” tall

• Solid brass construction

• Turn post and push to restrict draining Polished Chrome: $211.28 Special Finishes: $242.39

Available Finishes:

Finishes

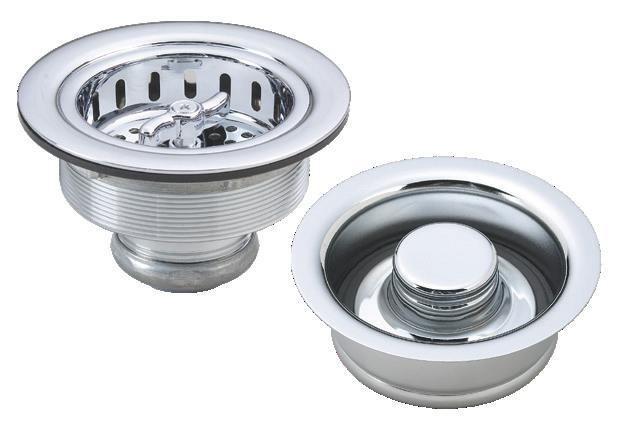

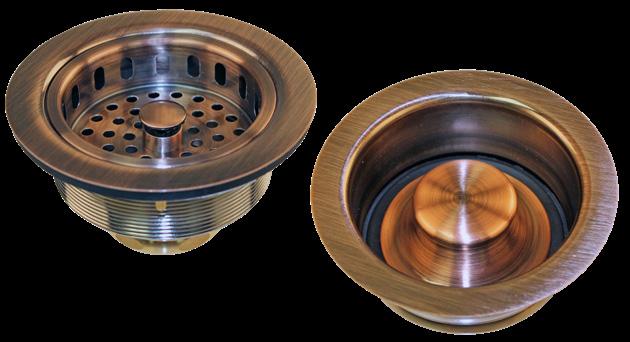

TWO PACK D213 BASKET & D2089 DISPOSER

D2155

• Large wing nut style kitchen sink basket

• Brass nuts and washers included

• Fits 3-1/2” opening - 4-3/8” rim diameter

• Turn wing nut to restrict draining

• In-Sink-Erator style disposal trim set

• Fits most ISE, Emerson, Kenmore, and Grainger waste disposals Polished Chrome: $183.43 Special Finishes: $219.46

Finishes:

DISPOSAL TRIM & SINK STRAINERS

TWO PACK D214 BASKET & D2089 DISPOSER

D2165

• Large wing nut style kitchen sink basket

• Brass nuts and washers included

• Fits 3-1/2” opening - 4-3/8” rim diameter

• Turn post and push to restrict draining

• In-Sink-Erator style disposal trim set

• Fits most ISE, Emerson, Kenmore, and Grainger waste disposals

Polished Chrome: $194.90 Special Finishes: $206.36

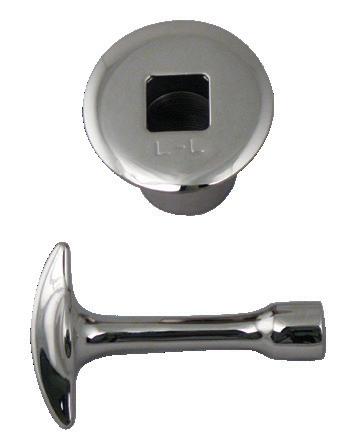

LOG LIGHTER TRIM KIT

R500

• Log lighter key and flange

• Arrowhead brass style

• 5/16” square key size

• 2-1/2” key length

• Fits 3/4” NPSM valve bodies

$98.27

Available

Available

KITCHEN & BAR SINK STRAINERS

WING NUT BASKET STRAINER

D213

• Large wing nut style kitchen sink strainer

• Brass nuts and washers included

• Fits 3-1/2” opening - 4-3/8” rim diameter

• 2-9/16” tall

• Solid brass construction

• Turn wing nut to restrict draining Polished Chrome: $122.75 Special Finishes: $145.76

POST BASKET STRAINER

D214

• Large post style kitchen sink basket strainer

• Brass nuts and washers included

• Fits 3-1/2” opening - 4-3/8” rim diameter

• 2-9/16” tall

• Solid brass construction

• Turn post and push to restrict draining Polished Chrome: $114.65 Special Finishes: $134.30

Available Finishes:

Available Finishes:

KITCHEN & BAR SINK STRAINERS

PLASTIC BASKET STRAINER

D2143P

• Large polypropylene post style kitchen sink basket and strainer

• All sink basket and strainer

• Fits 3-1/2” opening - 4-3/8” rim diameter

All Finishes: $65.51

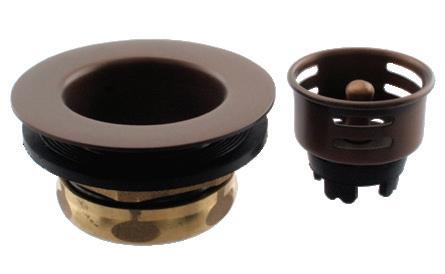

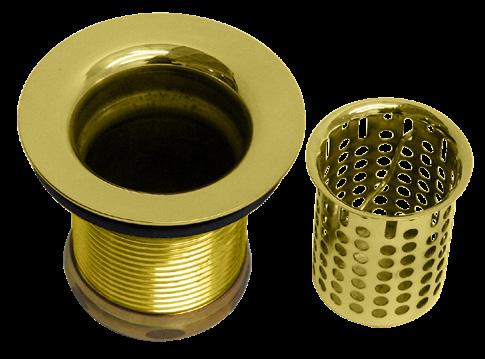

JUNIOR BASKET STRAINER

D218

• Junior basket strainer for bar sink

• Brass basket, nuts and washers included

• Fits 2-1/4” opening - 2-15/16” rim diameter

• 2-5/8” tall

• Solid brass Polished Chrome: $65.51

Special Finishes: $85.17

MIDGET DUO POST STRAINER

D220

• Midget duo basket strainer for bar sink

• Post style basket, nuts and washers included

• Fits 2-1/4” opening

• 2-7/8” rim diameter

• 1-3/8” tall brass construction Polished Chrome: $52.41 Special Finishes: $72.06

Available Finishes:

Available Finishes:

GRID STYLE JUNIOR BASKET STRAINER

D2181

• Junior grid strainer for bar sink

• Brass snap in grid

• Fits 2-1/4” opening

• 2-15/16” rim diameter

• 2-5/8” tall

• Solid brass Polished Chrome: $62.24 Special Finishes: $81.89

Available Finishes:

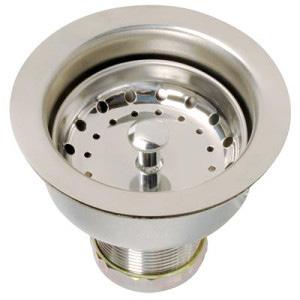

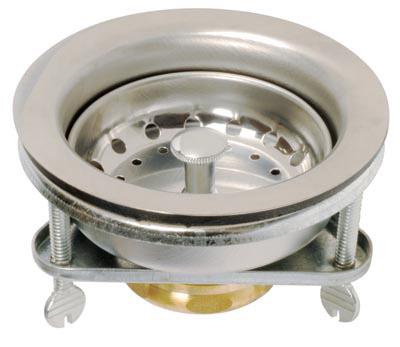

EASY CONNECT STAINLESS STEEL BASKET STRAINER

IEODS (EODBS)

• Large push style kitchen sink strainer

• Brass slip joint nuts and washers included

• Fits 3-1/2” opening

• 4-1/2” rim diameter

• Stainless Steel construction

Stainless Steel: $24.56

Available Finishes:

DOUBLE CUP CHROME BASKET STRAINER

DCBS

• Large push style kitchen sink strainer

• Zinc slip joint nuts and washers included

• Fits 3-1/2” opening

• 4-1/2” rim diameter

• Stainless Steel construction

Stainless Steel: $29.48

Available Finishes:

CONSTRUCTION ACCESSORIES

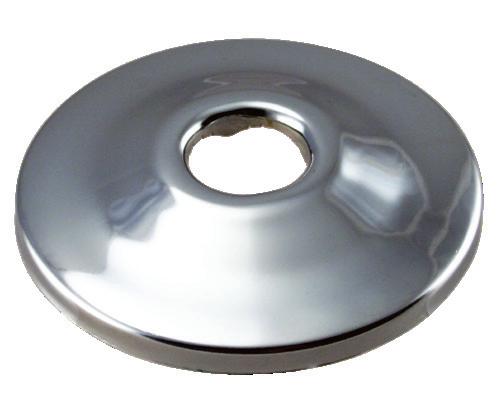

1/2” COPPER PIPE SURE GRIP FLANGE

D128

• Low Pattern Flange

• For 1/2 in. copper pipe 5/8 in. OD

• Steel stamped

• 2-1/2 in. exterior diameter

Chrome: $6.55

Finishes: $19.65

1/2” IPS SURE GRIP FLANGE

D129

• Low pattern flange

• For 1/2 in. IPS brass or galvanized pipe

• Steel stamped

• 2-1/2 in. exterior diameter

Chrome: $6.55

Finishes: $19.65

1/2” IPS SURE GRIP BELL FLANGE

D1291

• Bell pattern flange

• For 1/2 in. IPS brass or galvanized pipe

• 2-1/2 in. exterior diameter

$21.30

Available

Available

1/2” COPPER PIPE SURE GRIP FLANGE

D1281

• Bell pattern flange

• For 1/2 in. copper pipe 5/8 in. OD

• Steel stamped

• 2-1/2 in. exterior diameter Polished Chrome: $14.74

Finishes: $21.30

AIR GAP KITS

AIR GAP KIT WITH STANDARD BRASS CAP

D200

• Standard air gap cap with plastic body included

• 1-5/8” cap diameter

• 2-1/4” cap height

• 9” overall height with plastic body

• Stamped brass cap with plastic body

Chrome: $29.48

Finishes: $44.22

Available

AIR GAP KITS

STANDARD BRASS AIR GAP ONLY

D201

• Standard air gap cap only

• 1-5/8” cap diameter

• 2-1/4” cap height

• Stamped brass

$29.48

Available Finishes:

AIR GAP KIT WITH SKIRTED BRASS CAP

D200-1

• Heavy duty air gap cap with plastic body included

• 1-3/4” cap diameter and 2-3/4” cap height

• 9” overall height with plastic body

• Cap covers entire air gap body and installs flush to sink

• Hides nut on sink for a cleaner finish

$39.31

$49.13

Available Finishes:

Rubbed Bronze 20 Stainless Steel 50 Powder Coat White

62 Matte Black

SKIRTED BRASS AIR GAP CAP ONLY

D201-1

• 1-3/4” cap diameter

• 2-3/4” cap height

• Fits all standard air gap bodies

• Cap covers entire air gap body to install flush to sink

• Hides nut on sink Polished Chrome: $34.39 Special Finishes: $40.94

PLASTIC AIR GAP KIT WITH CAP

D200P

• Plastic air gap cap with plastic body included

• 1-3/4” cap diameter and 2-3/4” cap height

• 9” overall height with plastic body

All Finishes: $16.38

SINK HOLE COVER

D202

• Heavy brass top disk

• Solid 2” threaded rod with wing nut

• Reversible washer fits thin or thick sinks

• 2” cover diameter

• Covers unused sink holes

• Low profile easier to clean than deck plates

Polished Chrome: $16.38 Special Finishes: $29.48

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes 01 PVD Polished Brass

Polished Nickel

Satin Nickel

Antique Copper 12 Oil Rubbed Bronze 20 Stainless Steel

50 Powder Coat White

62 Matte Black

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes 50 White 51 Almond

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

01 PVD Polished Brass 05 Polished Nickel 07 Satin Nickel 11 Antique Copper

12 Oil Rubbed Bronze

20 Stainless Steel

50 Powder Coat White

62 Matte Black

• Sink top disposal switch

AIR SWITCHES

• Single outlet remote on/off switch

• Heavy duty button and flange

• No-shock control box and 6 foot hose

• Improves safe disposal operation

• Eliminates shock hazard

AIR SWITCH & DUAL OUTLET CONTROL BOX

ASB-2B3

• Sink top disposal switch

• Dual outlet remote on/off switch

• Heavy duty button and flange

• Control box toggles between two outlets

• Improves safe disposal operation

• Eliminates shock hazard

Chrome: $162.14

Finishes: $211.28

ASB-2RB3

• Sink top disposal switch

• Dual outlet remote on/off switch

• Heavy duty button and flange

• Control box toggles between two outlets

• Eliminates shock hazard for safe disposal operation

• Raised button makes operation easier

• ADA compliant

Chrome: $204.72

$235.84

AIR SWITCH TRIM

ASB-B3

• Garbage disposal air bellows and trim

• Metal button and flange

• 3” shaft fits 2-1/2” thick decks

• Replaces most manufacturers including: Franke, In-Sink-Erator, G.E., and Waste King Polished Chrome: $72.06

$103.18

ASB-RB3

• Garbage disposal air bellows and trim

• Heavy duty button and flange

• Raised button makes operation easier

• 3” shaft fits 2-1/2” thick decks

• Replaces most manufacturers including: Franke, In-Sink-Erator, G.E., and Waste King

• ADA compliant

SOAP/LOTION DISPENSERS

STANDARD SOAP/LOTION DISPENSER

D217

• Standard style soap and lotion dispenser

• 3” dispenser height

• 2-1/2” center-to-center spout

• 1-3/8” sink hole size

• 12 oz. plastic bottle included

• Solid brass head & body with plastic pump Polished Chrome: $75.34 Special Finishes: $99.91

Available Finishes:

HEAVY DUTY SOAP/LOTION DISPENSER

D2171

• Heavy duty style soap and lotion dispenser

• 2-1/4” dispenser height

• 3-1/2” center-to-center spout

• 1-3/8” sink hole size

• 12 oz. plastic bottle included

• Solid brass head & body with plastic pump

Polished Chrome: $176.88

Finishes: $208.00

Available

COUNTRY SOAP/LOTION DISPENSER

D2175

• Ball head with curved spout

• 3-1/2” dispenser height

• 4” center-to-center spout

• 1-3/8” sink hole size, fits thick countertops

• 12 oz. plastic bottle included

• Solid brass head & body with plastic pump

Polished Chrome: $180.18

Special Finishes: $216.19

Available Finishes:

VICTORIAN SOAP/LOTION DISPENSER

D2176

• Decorative finial style head

• 3-1/4” dispenser height

• 3-1/2” center-to-center spout

• 1-3/8” sink hole size

• 12 oz. plastic bottle included

• Solid brass head & body with plastic pump

Polished Chrome: $189.98

Special Finishes: $214.55

Available Finishes:

CONTEMPORARY SOAP/LOTION DISPENSER

D2178

• Heavy duty soap and lotion dispenser

• 3-3/8” dispenser height

• 3-1/8” center-to-center spout

• 1-3/8” sink hole size

• 12 oz. plastic bottle included

• Solid brass head & body with plastic pump

Polished Chrome: $176.88

Special Finishes: $208.00

Available Finishes:

Finish

Polished Chrome

Finishes

Polished Nickel

BATHROOMS

BATHROOM FAUCETS

HIGH-ARC 4” CENTERSET LAVATORY FAUCET

WAS00X

• Ergonomic blade handles for easy control

• Hi-Arc rotating spout for superior accessibility

• 3-Hole, 4 inch centerset with pop-up

• ADA compliant

• Water efficient, meeting CALGreen standards

• Washerless cartridge application, repairs using Peerless brand parts

• Maximum deck: 1 inch - 1-1/4 inch hole size

Polished Chrome: $119.79

Special Finishes: $143.99 Available

STOPS & SUPPLIES

STRAIGHT STOP, 1/2" COPPER SWEAT WITH BELL

D1114 (D1114X - Cross Handle)

• 1/2” nominal copper sweat inlet

• 3/8” OD compression outlet

• 11/16” ID bell flange (D12912) included

Polished Chrome: $81.89 (D1114X - $134.30) Special Finishes: $114.65 (D1114X - $167.06)

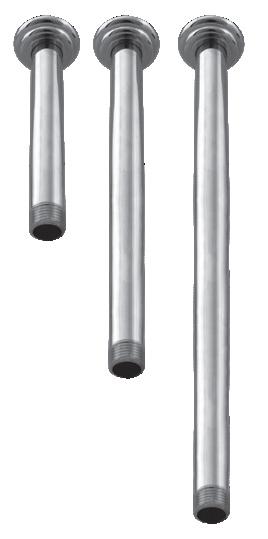

1/2" IPS PIPE NIPPLES

D12104

• 1/2” x 4” IPS Pipe Nipple Polished Chrome: $27.84 Special Finishes: $36.03

D12106

• 1/2” x 6” IPS Pipe Nipple

Polished Chrome: $37.67 Special Finishes: $49.13

D12108

• 1/2” x 8” IPS Pipe Nipple

Polished Chrome: $65.51 Special Finishes: $85.17

D12112

• 1/2” x 12” IPS Pipe Nipple Polished Chrome: $81.89 Special Finishes: $98.27

D12119

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes 01 PVD Polished Brass 05 Polished Nickel

12 Oil Rubbed Bronze

• 1/2” x 19” IPS Pipe Nipple Polished Chrome: $142.49 Special Finishes: $209.64

D12124

• 1/2” x 24” IPS Pipe Nipple

Polished Chrome: $208.00

Special Finishes: $240.76

D12136

• 1/2” x 36” IPS Pipe Nipple

Polished Chrome: $255.50 Special Finishes: $289.89

D12148

• 1/2” x 48” IPS Pipe Nipple

Polished Chrome: $375.06 Special Finishes: $507.72

FLAT HEAD TOILET SUPPLY RISERS

D123

• 3/8” x 12” Supply Tube Polished Chrome: $22.93 Special Finishes: $31.12

D124

• 3/8” x 20” Supply Tube

Polished Chrome: $26.20 Special Finishes: $34.39

D125

• 1/2” x 12” Supply Tube Limited Supply

Polished Chrome: $29.48 Special Finishes: $40.94

Available Finishes: Standard Finish

Polished Chrome

Special Finishes

PVD Polished Brass

Polished Nickel

Satin Nickel

Antique Copper

Oil Rubbed Bronze

Powder Coat White 62 Matte Black

Available Finishes: Standard Finish

Polished Chrome

Special Finishes

PVD Polished Brass

Polished Nickel

Satin Nickel

Antique Copper

Oil Rubbed Bronze 50 Powder Coat White 62 Matte Black

STOPS & SUPPLIES

BULLNOSE FAUCET SUPPLY RISERS

D119

• 3/8” x 12” Supply Tube

Polished Chrome: $19.65

Special Finishes: $27.84

D120

• 3/8” x 20” Supply Tube

Polished Chrome: $20.84

Special Finishes: $28.29

D121

• 1/2” x 12” Supply Tube Limited Supply

Polished Chrome: $26.20

Special Finishes: $39.31

D122

• 1/2” x 20” Supply Tube Limited Supply

Polished Chrome: $29.48

Special Finishes: $44.22

CORRUGATED FAUCET SUPPLY RISERS

D113

• 3/8” x 12” Supply Pipe

Polished Chrome: $22.93

Special Finishes: $31.12

D1131

• 3/8” x 15” Supply Pipe Limited Supply

Polished Chrome: $24.57

Special Finishes: $32.76

D114

• 3/8” x 20” Supply Pipe

Polished Chrome: $26.20

Special Finishes: $34.39

D116

• 1/2” x 12” Supply Pipe Limited Supply

Polished Chrome: $27.84

Special Finishes: $39.31

D117

• 1/2” x 15” Supply Pipe Limited Supply Polished Chrome: $29.48

Special Finishes: $40.94

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes 01 PVD Polished Brass 05 Polished Nickel

Satin Nickel 11 Antique Copper 12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

Available Finishes:

Standard Finish 26 Polished Chrome

Special Finishes

PVD Polished Brass

Polished Nickel

Satin Nickel

Antique Copper 12 Oil Rubbed Bronze

Includes 1/2” Faucet Cone, 1/2” Thread-on and 7/8” Toilet Ballcock Washer

1/4-TURN ANGLE STOP, 1/2" IPS - LEVER HANDLE

D103BL

• 1/4-turn ball valve angle stop

• 1/2” IPS inlet

• 3/8” OD compression outlet

• Lever handle

• Lead free brass construction

Polished Chrome: $72.06 Special Finishes: $91.72

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

62 Matte Black

1/4-TURN ANGLE STOP, 5/8" OD - LEVER HANDLE

D105BL

• 1/4-turn ball valve angle stop

• 1/2” copper pipe compression (5/8” OD) inlet

• 3/8” OD compression outlet

• Lever handle

• Lead free brass construction

Polished Chrome: $72.06

Special Finishes: $91.72

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

62 Matte Black

STOPS & SUPPLIES

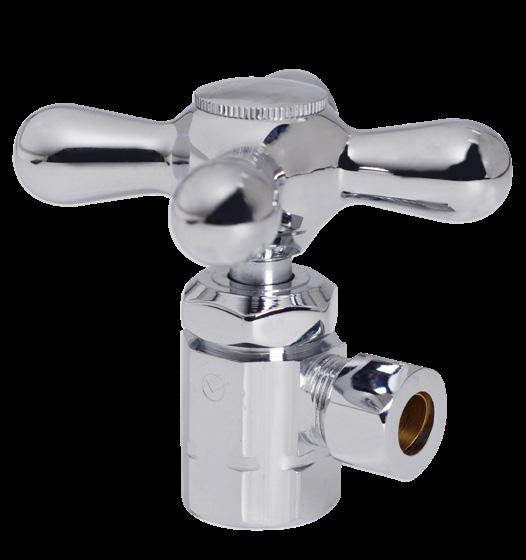

1/4-TURN ANGLE STOP, 1/2" IPS - CROSS HANDLE

D103BX

• 1/4-turn ball valve angle stop

• 1/2” IPS inlet

• 3/8” OD compression outlet

• Cross handle

• Lead free brass construction

Polished Chrome: $72.06

Finishes: $91.72

1/4-TURN ANGLE STOP, 5/8" OD INLET - CROSS HANDLE

D105BX

• 1/4-turn ball valve angle stop

• 1/2” copper pipe compression (5/8” OD) inlet

• 3/8” OD compression outlet

• Cross handle

• Lead free brass construction

Polished Chrome: $72.06 Special Finishes: $91.72

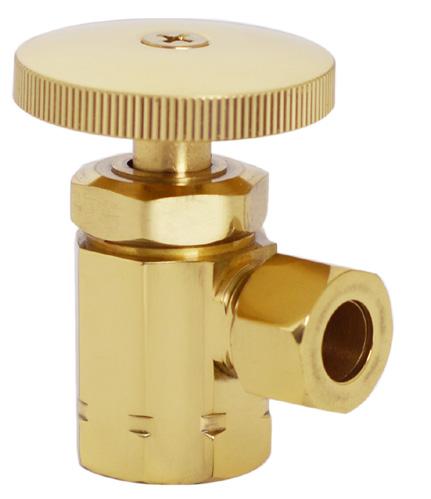

ANGLE STOP, 1/2" IPS - ROUND HANDLE

D103

• Angle stop

• 1/2” IPS pipe inlet

• 3/8” OD compression outlet

• Round Handle Polished Chrome: $57.32

Finishes: $80.25

ANGLE STOP, 1/2" NOM. COPPER - ROUND HANDLE

D105

• Angle stop

• 1/2” nominal compression inlet (5/8” OD)

• 3/8” OD compression outlet

• Round Handle Polished Chrome: $57.32

Finishes: $80.25

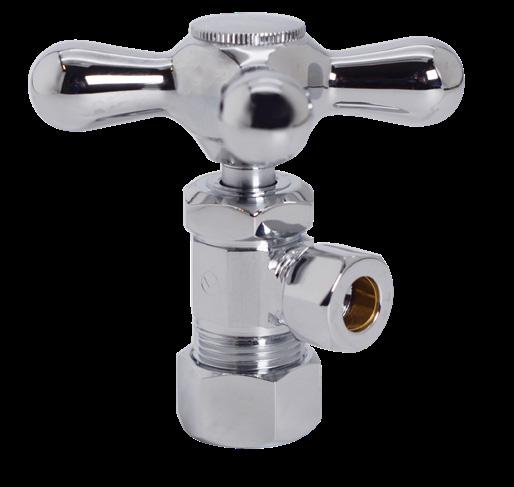

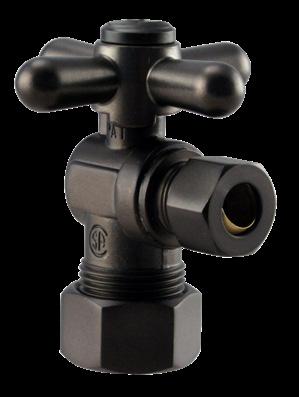

COMP. ANGLE STOP, 1/2" IPS - CROSS HANDLE

D103X

• Compression style angle stop

• 1/2 in. IPS inlet for iron pipe

• 3/8 in. OD compression outlet

• Forged cross handle

• Lead free brass construction

Chrome: $109.73

Finishes: $132.66

STOPS & SUPPLIES

COMP. ANGLE STOP, 5/8” OD - CROSS HANDLE

D105X

• Compression style angle stop

• 1/2 in. copper pipe compression (5/8” OD) inlet

• 3/8 in. OD compression outlet

• Forged cross handle

• Lead free brass construction

Polished Chrome: $109.73

Special Finishes: $132.66

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes 01 PVD Polished Brass 05 Polished Nickel

Satin Nickel 11 Antique Copper 12 Oil Rubbed Bronze 20 Stainless Steel 62 Matte Black

1/4-TURN ANGLE STOP, 5/8" OD INLET - ROUND HANDLE

D105QR

• 1/4-turn ceramic valve angle stop

• 1/2 in. copper pipe compression (5/8” OD) inlet

• 3/8 in. OD compression outlet

• Round lever handle

• Lead free brass construction

Polished Chrome: $102.28 Special Finishes: $128.18

Available Finishes:

Standard Finish 26 Polished Chrome

Special Finishes 01 PVD Polished Brass 05 Polished Nickel

Satin Nickel 12 Oil Rubbed Bronze 62 Matte Black

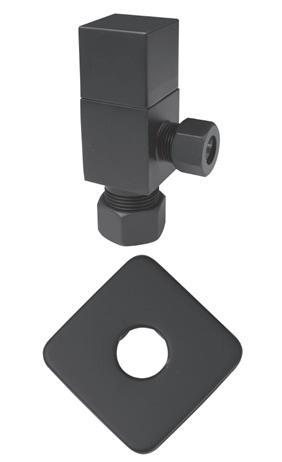

1/4-TURN ANGLE STOP, 5/8” OD INLET - SQUARE HANDLE

D105QS

• 1/4-turn ceramic valve angle stop

• 1/2 in. copper pipe compression (5/8” OD) inlet

• 3/8 in. OD compression outlet

• Square stop and handle

• Lead free brass construction

Polished Chrome: $141.12 Special Finishes: $174.78

Available Finishes:

Polished Chrome

Finishes

PVD Polished Brass

Oil Rubbed Bronze

1/4-TURN ANGLE STOP, ROUND TOILET SUPPLY

D105QRT

• 1/4-turn ceramic valve angle stop

• 1/2 in. copper pipe compression (5/8” OD) inlet

• 3/8 in. OD compression outlet

• Round lever handle

• 3/8 in. x 20 in. flat end toilet supply

Polished Chrome: $128.18 Special Finishes: $154.07

Available Finishes: Standard Finish 26 Polished Chrome

Special Finishes

PVD Polished Brass 05 Polished Nickel

Satin Nickel

12 Oil Rubbed Bronze 62 Matte Black

1/4-TURN ANGLE STOP, SQUARE TOILET SUPPLY

D105QST

• 1/4-turn ceramic valve angle stop

• 1/2 in. copper pipe compression (5/8” OD) inlet

• 3/8 in. OD compression outlet

• Square stop and handle

• 3/8 in. x 20 in. flat end toilet supply

Polished Chrome: $176.08

Special Finishes: $205.86

Available Finishes: Standard Finish 26 Polished Chrome

Special Finishes

01 PVD Polished Brass 05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

62 Matte Black

D1612TBL

• 3/8” comp. x 7/8” ballcock x 12” stainless steel braided flex line

• 1/2” nom. comp. x 3/8” comp. angle stop (D105BL)

• 5/8” ID sure grip brass flange (D128)

• Flanged urethane wax ring (D6033-40)

• 2 ea. brass closet bolts, nuts, and washers

Polished Chrome: $122.83 Special Finishes: $149.04

D1613TBL

• 3/8” comp. x 7/8” ballcock x 12” stainless steel braided flex line

• 1/2” IPS x 3/8” comp. angle stop (D103BL)

• 1/2” IPS sure grip brass flange (D129)

• Flanged urethane wax ring (D6033-40)

• 2 ea. brass closet bolts, nuts, and washers

Polished Chrome: $122.83 Special Finishes: $149.04

D1614TBL

• 3/8” comp. x 7/8” flat head ballcock x 20” annealed brass toilet supply line (D124)

• 1/2” nom comp. x 3/8” comp. angle stop (D105BL)

• 1/2” IPS sure grip brass flange (D128)

• Flanged urethane wax ring (D6033-40)

• 2 ea. brass closet bolts, nuts and washers

Polished Chrome: $122.83 Special Finishes: $149.04

D1615TBL

• 3/8” comp. x 7/8” Flat Head ballcock x 20” annealed brass toilet supply line (D124)

• 1/2” IPS x 3/8” comp. angle stop (D103BL)

• 1/2” IPS sure grip brass flange (D129)

• Flanged urethane wax ring (D6033-40)

• 2 ea. brass closet bolts, nuts and washers Polished Chrome: $122.83

Special Finishes: $149.04

D0133-40

• Urethane wax ring toilet bowl gasket

• With universal 3” or 4” rubber boot

$14.75

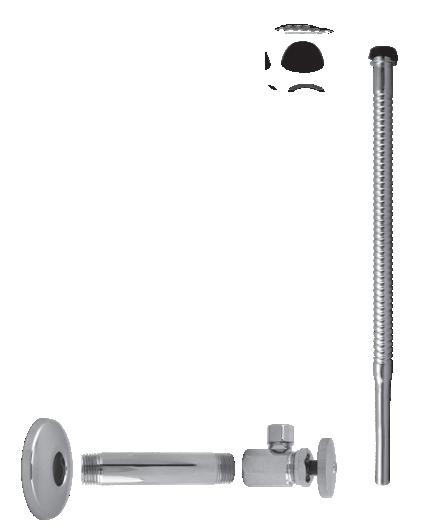

D1712T

Universal traditional style toilet kit includes:

• 1/2” OD x 12” corrugated riser (D116)

• 5/8” ID sure grip brass flange (D128)

• 1/2” IPS sure grip brass flange (D129)

• 1/2” IPS x 1/2” OD comp. angle stop (D1021X)

• 1/2” IPS x compression adapter

Available Finishes:

Finishes

Available Finishes:

CROSS HANDLE 1/4 - TURN ANGLE STOP KITS

CROSS HANDLE BALL VALVE TOILET KIT & WAX RING

D1612TBX

• 3/8” comp. x 7/8” ballcock x 12” stainless steel braided flex line

• 1/2” nom. comp. x 3/8” comp. angle stop (D105BX)

• 5/8” ID sure grip brass flange (D128)

• Flanged urethane wax ring (D6033-40)

• 2 ea. brass closet bolts, nuts and washers

Polished Chrome: $122.83

Special Finishes: $149.04

Available Finishes:

CROSS HANDLE BALL VALVE TOILET KIT & WAX RING

D1613TBX

• 3/8” comp. x 7/8” ballcock x 12” stainless steel braided flex line

• 1/2” IPS x 3/8” comp. angle stop (D103BX)

• 1/2” IPS sure grip brass flange (D129)

• Flanged urethane wax ring (D6033-40)

• 2 ea. brass closet bolts, nuts and washers

Polished Chrome: $122.83

Special Finishes: $149.04

Available

CROSS HANDLE BALL VALVE TOILET KIT & WAX RING

D1614TBX

• 3/8” comp. x 7/8” ballcock x 12” stainless steel braided flex line

• 1/2” nom. comp. x 3/8” comp. angle stop (D105BX)

• 5/8” ID sure grip brass flange (D128)

• Flanged urethane wax ring (D6033-40)

• 2 ea. brass closet bolts, nuts and washers

Polished Chrome: $122.83 Special Finishes: $149.04

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

62 Matte Black

CROSS HANDLE BALL VALVE TOILET KIT & WAX RING

D1615TBX

• 3/8” comp. x 7/8” ballcock x 12” stainless steel braided flex line

• 1/2” IPS x 3/8” comp. angle stop (D103BX)

• 1/2” IPS sure grip brass flange (D129)

• Flanged urethane wax ring (D6033-40)

• 2 ea. brass closet bolts, nuts and washers Polished Chrome: $122.83 Special Finishes: $149.04

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

62 Matte Black

WAX RING WITH FLANGE AND CLOSET BOLTS

D6033-40

• Urethane wax ring toilet bowl gasket

• With universal 3” & 4” rubber boot

• Brass oval head closet bolts included $19.65

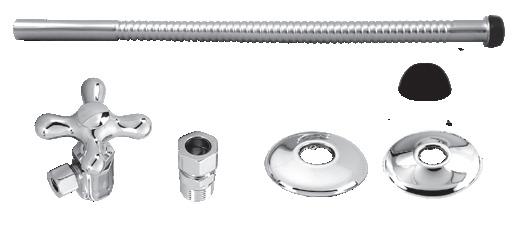

UNIVERSAL TOILET KIT WITH CROSS HANDLE

D1812T

Universal traditional style toilet kit includes:

• 1/2” OD x 12” flat head riser (D125)

• 5/8” ID sure grip brass flange (D128)

• 1/2” IPS sure grip brass flange (D129)

• 1/2” IPS x 1/2” OD comp. angle stop (D1021X)

• 1/2” IPS x compression adapter

Polished Chrome: $170.33

Special Finishes: $235.84

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

01 PVD Polished Brass

05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

ROUND HANDLE IPS ANGLE STOP KITS

1/2" IPS X 3/8" FLAT HEAD RISER TOILET KIT - ROUND

D103KFH

• 1/2” IPS inlet

• 3/8” OD compression outlet

• Round handle compression stop (D103)

• 3/8” x 20” flat head toilet riser (D124)

• 1/2” IPS x 4” nipple (D12104)

• 1/2” IPS sure grip flange (D129)

Polished Chrome: $111.37

Special Finishes: $160.50

Available Finishes: Standard Finish

Polished Chrome

Special Finishes

PVD Polished Brass

Polished Nickel

Satin Nickel 12 Oil Rubbed Bronze 50 Powder Coat White

Matte Black

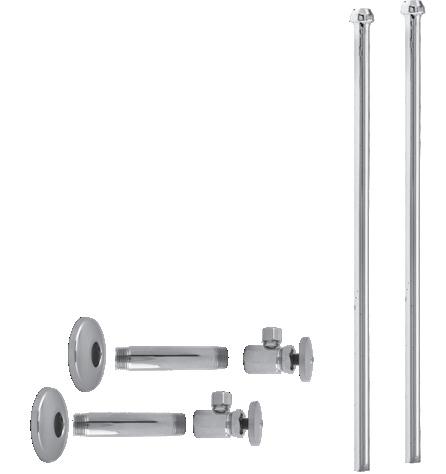

1/2" IPS X 3/8" BULLNOSE RISER FAUCET KIT - ROUND

D103KBN

• 1/2” IPS inlet

• 3/8” OD compression outlet

• 2 ea. round handle compression stops (D103)

• 2 ea. 3/8” x 20” bullnose faucet risers (D120)

• 2 ea. 1/2” IPS x 4” nipples (D12104)

• 2 ea. 1/2” IPS sure grip flanges (D129)

Polished Chrome: $221.10

Special Finishes: $317.73

1/2" IPS X 3/8"

D103K12

• 1/2” IPS inlet

Available Finishes: Standard Finish

Special Finishes

X

12" CORRUGATED RISER KIT - ROUND

Available Finishes:

Finish

• 3/8” OD compression outlet

• Round handle compression stop (D103)

• 3/8” x 12” corrugated riser (D113)

• 1/2” IPS x 4” nipple (D12104)

• Includes 1/2” faucet and 7/8” toilet cone washers

• 1/2” IPS sure grip flange (D129)

Polished Chrome: $109.73

Special Finishes: $153.95

Polished Chrome

Special Finishes

PVD Polished Brass

Polished Nickel

Satin Nickel 12 Oil Rubbed Bronze

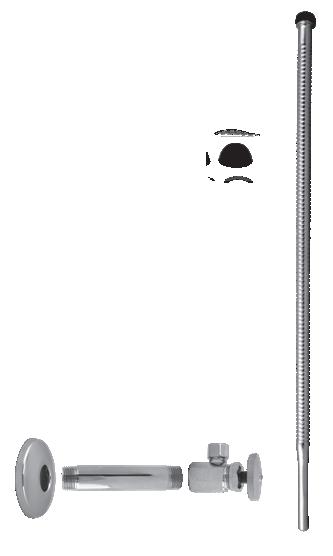

1/2" IPS X 3/8" X 20" CORRUGATED RISER KIT - ROUND

D103K20

• 1/2” IPS inlet

• 3/8” OD compression outlet

• Round handle compression stop (D103)

• 3/8” x 20” corrugated riser (D114)

• 1/2” IPS x 4” nipple (D12104)

• Includes 1/2” faucet and 7/8” toilet cone washers

• 1/2” IPS sure grip flange (D129) Polished Chrome: $113.01

Special Finishes: $157.23

Available Finishes:

Finish 26 Polished Chrome

Special Finishes

PVD Polished Brass 05 Polished Nickel

Satin Nickel 12 Oil Rubbed Bronze

CROSS HANDLE IPS ANGLE STOP KITS

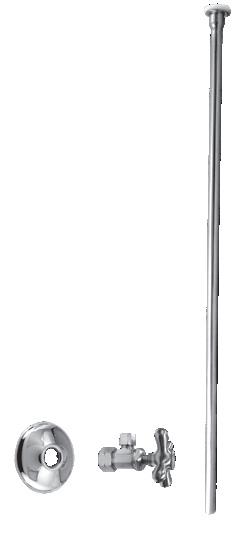

1/2" IPS X 3/8" FLAT HEAD RISER TOILET KIT - CROSS

D103KFHX

• 1/2” IPS inlet

• 3/8” OD compression outlet

• Cross handle compression stop (D103X)

• 3/8” x 20” flat head toilet riser (D124)

• 1/2” IPS x 4” nipple (D12104)

• 1/2” IPS sure grip flange (D129)

Polished Chrome: $162.14

Special Finishes: $221.10

1/2" IPS X

D103KBNX

• 1/2” IPS inlet

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

01 PVD Polished Brass

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

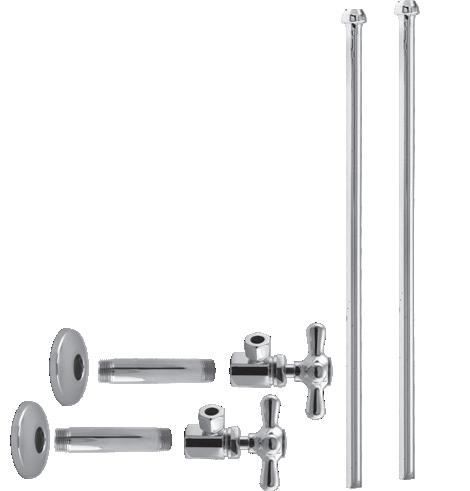

3/8" BULLNOSE RISER FAUCET KIT - CROSS

• 3/8” OD compression outlet

• 2 ea. cross handle compression stops (D103X)

• 2 ea. 3/8” x 20” bullnose faucet risers (D120)

• 2 ea. 1/2” IPS x 4” nipples (D12104)

• 2 ea. 1/2” IPS sure grip flanges (D129)

Polished Chrome: $325.92

Special Finishes: $445.48

Available Finishes: Standard Finish 26 Polished Chrome

Special Finishes

PVD Polished Brass

Polished Nickel

Satin Nickel 12 Oil Rubbed Bronze 50 Powder Coat White

62 Matte Black

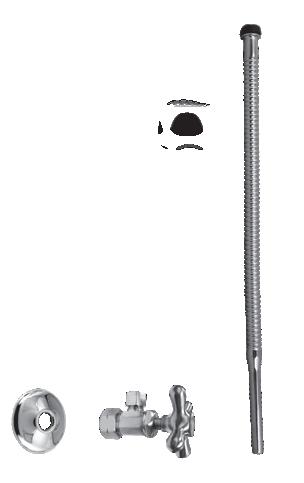

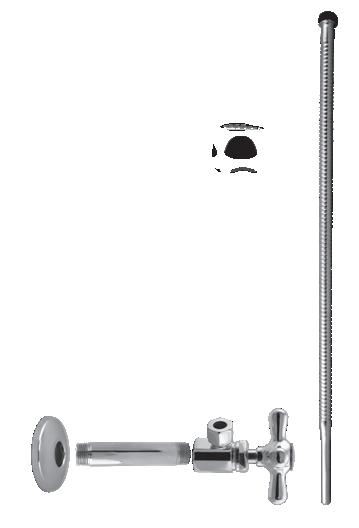

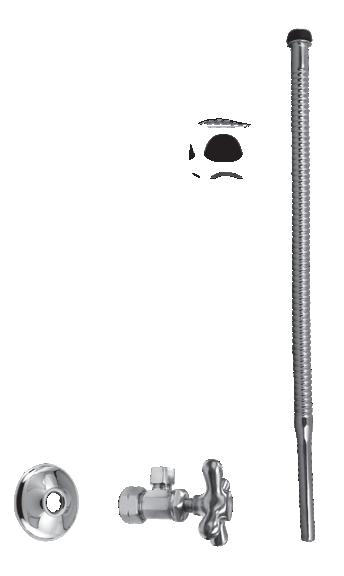

1/2" IPS X 3/8" X 12" CORRUGATED RISER KIT - CROSS

D103K12X

• 1/2” IPS inlet

• 3/8” OD compression outlet

• Cross handle compression stop (D103X)

• 3/8” x 12” corrugated riser (D113)

• 1/2” IPS x 4” nipple (D12104)

• Includes 1/2” faucet and 7/8” toilet cone washers

• 1/2” IPS sure grip flange (D129)

Polished Chrome: $155.59

Special Finishes: $214.55

1/2" IPS X 3/8" X 15" CORRUGATED

D103K15X

• 1/2” IPS inlet

• 3/8” OD compression outlet

• Cross handle compression stop (D103X)

• 3/8” x 15” corrugated riser (D1131)

• 1/2” IPS x 4” nipple (D12104)

• Includes 1/2” faucet and 7/8” toilet cone washers

• 1/2” sure grip IPS flange (D129)

Polished Chrome: $157.23 Special Finishes: $216.19

Available Finishes:

Standard Finish 26 Polished Chrome

Special Finishes 01 PVD Polished Brass

Polished Nickel 07 Satin Nickel 12 Oil Rubbed Bronze

RISER KIT - CROSS

Available Finishes:

Standard Finish

26 Polished Chrome Special Finishes 01 PVD Polished Brass 05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

1/2" IPS X 3/8" X 20" CORRUGATED RISER KIT - CROSS

D103K20X

• 1/2” IPS inlet

• 3/8” OD compression outlet

• Cross handle compression stop (D103X)

• 3/8” x 20” corrugated riser (D114)

• 1/2” IPS x 4” nipple (D12104)

• Includes 1/2” faucet and 7/8” toilet cone washers

• 1/2” IPS sure grip flange (D129)

Polished Chrome: $158.87 Special Finishes: $229.29

Available Finishes: Standard Finish 26 Polished Chrome

Special Finishes 01 PVD Polished Brass 05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

ROUND HANDLE COMPRESSION INLET ANGLE STOP KITS

1/2" NOM. X 3/8" FLAT HEAD RISER TOILET KIT - ROUND

D105KFH

• 1/2” nominal compression (5/8” OD) inlet

• 3/8” OD compression outlet

• Round handle compression stop (D105)

• 3/8” x 20” flat head toilet riser (D124)

• 1/2” nominal sure grip flange (D128)

Polished Chrome: $68.79

Special Finishes: $94.99

Available Finishes:

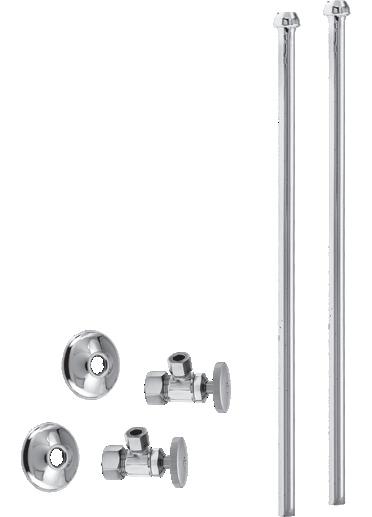

1/2" NOM. X 3/8" BULLNOSE RISER FAUCET KIT - ROUND

D105KBN

• 1/2” nominal compression (5/8” OD) inlet

• 3/8” OD compression outlet

• 2 ea. round handle compression stops (D105)

• 2 ea. 3/8” x 20” bullnose faucet risers (D120)

• 2 ea. 1/2” nominal sure grip flanges (D128)

Polished Chrome: $137.57 Special Finishes: $155.59

Available

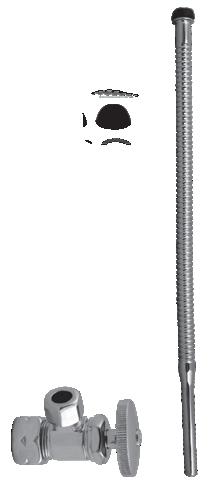

1/2" NOM. X 3/8" X 12" CORRUGATED RISER KIT

D105K12

• 1/2” nominal compression (5/8” OD) inlet

• 3/8” OD compression outlet

• Round handle compression stop (D105)

• 3/8” x 12” corrugated riser (D113)

• Includes 1/2” and 7/8” cone washers

• Use for faucet or toilet

• 1/2” nominal sure grip flange (D128) Polished Chrome: $68.79

Special Finishes: $94.99

- ROUND

Available Finishes:

1/2" NOM. X 3/8" X 15" CORRUGATED RISER KIT - ROUND

D105K15

• 1/2” nominal compression (5/8” OD) inlet

• 3/8” OD compression outlet

• Round handle compression stop (D105)

• 3/8” x 15” corrugated riser (D1131)

• Includes 1/2” and 7/8” cone washers

• Use for faucet or toilet

• 1/2” nominal sure grip flange (D128)

Polished Chrome: $70.43

Special Finishes: $96.63

Available Finishes:

Finish

Polished Chrome

Special Finishes

1/2" NOM. X 3/8" X 20" CORRUGATED RISER

D105K20

• 1/2” nominal compression (5/8” OD) inlet

• 3/8” OD compression outlet

• Round handle compression stop (D105)

• 3/8” x 20” corrugated riser (D114)

• Includes 1/2” and 7/8” cone washers

• Use for faucet or toilet

• 1/2” nominal sure grip flange (D128) Polished Chrome: $72.06

Special Finishes: $98.27

Available

KIT - ROUND

CROSS HANDLE COMPRESSION INLET ANGLE STOP KITS

1/2" NOM. X 3/8" FLAT HEAD RISER TOILET KIT - CROSS

D105KFHX

• 1/2” nominal compression (5/8” OD) inlet

• 3/8” OD compression outlet

• Cross handle compression stop (D105X)

• 3/8” x 20” flat head toilet riser (D124)

• 1/2” nominal sure grip flange (D128)

Polished Chrome: $135.94

Special Finishes: $170.33

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

01 PVD Polished Brass

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

1/2" NOM. X 3/8" BULLNOSE RISER FAUCET KIT - CROSS

D105KBNX

• 1/2” nominal compression (5/8” OD) inlet

• 3/8” OD compression outlet

• 2 ea. cross handle compression stops (D105X)

• 2 ea. 3/8” x 20” bullnose faucet risers (D120)

• 2 ea. 1/2” nominal sure grip flanges (D128)

Polished Chrome: $266.96

Special Finishes: $342.30

Available Finishes:

Special Finishes

Chrome

PVD Polished Brass

Polished Nickel

Satin Nickel 12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

1/2" NOM. X 3/8" X 12" CORRUGATED RISER KIT - CROSS

D105K12X

• 1/2” nominal compression (5/8” OD) inlet

• 3/8” OD compression outlet

• Cross handle compression stop (D105X)

• 3/8” x 12” corrugated riser (D113)

• Includes 1/2” and 7/8” cone washers

• Use for faucet or toilet

• 1/2” nominal sure grip flange (D128)

Polished Chrome: $127.75

Special Finishes: $180.16

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

01 PVD Polished Brass

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

1/2" NOM. X 3/8" X 15" CORRUGATED RISER KIT - CROSS

D105K15X

• 1/2” nominal compression (5/8” OD) inlet

• 3/8” OD compression outlet

• Cross handle compression stop (D105X)

• 3/8” x 15” corrugated riser (D1131)

• Includes 1/2” and 7/8” cone washers

• Use for faucet or toilet

• 1/2” nominal sure grip flange (D128)

Polished Chrome: $129.39

Special Finishes: $181.80

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

01 PVD Polished Brass

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

1/2" NOM. X 3/8" X 20" CORRUGATED RISER KIT - CROSS

D105K20X

• 1/2” nominal compression (5/8” OD) inlet

• 3/8” OD compression outlet

• Cross handle compression stop (D105X)

• 3/8” x 20” corrugated riser (D114)

• Includes 1/2” and 7/8” cone washers

• Use for faucet or toilet

• 1/2” nominal sure grip flange (D128) Polished Chrome: $131.02

Special Finishes: $183.43

Available Finishes:

PEDESTAL LAVATORY KITS

ROUND HANDLE CORRUGATED PEDESTAL KIT

D1538L

• 2 ea. 1/2” nom. x 3/8” OD comp. stops (D105)

• 2 ea. 3/8” OD x 20” corrugated risers (D114)

• 2 ea. faucet cone washers

• 2 ea. thread-on faucet cone washers

• 2 ea. 5/8” ID sure grip brass flanges (D128)

• 1-1/2” x 1-1/2” or 1-1/4” P-trap & flange (D400-1)

Polished Chrome: $406.16

Special Finishes: $514.27

Available Finishes: Standard Finish

Special Finishes

CROSS HANDLE VICTORIAN PEDESTAL KIT

D1738L

• 2 ea. 3/8” OD x 20” corrugated risers (D114)

• 2 ea. 5/8” ID sure grip brass flanges (D128)

• 2 ea. 1/2” IPS sure grip brass flanges (D129)

• 2 ea. 1/2” IPS x 3/8” OD comp. angle stops (D103X)

• 2 ea. 1/2” IPS x compression adapters

• 1-1/2” x 1-1/2” or 1-1/4” P-trap & flange (D400-1) Polished Chrome: $406.17

Special Finishes: $514.27

Available Finishes:

Special Finishes

CROSS HANDLE TRADITIONAL PEDESTAL KIT

D1838L

• 2 ea. 3/8” OD x 20” bullnose risers (D120)

• 2 ea. 5/8” ID sure grip brass flanges (D128)

• 2 ea. 1/2” IPS sure grip brass flanges (D129)

• 2 ea. 1/2” IPS x 3/8” OD comp. angle stops (D103X)

• 2 ea. 1/2” IPS x compression adapters

• 1-1/2” x 1-1/2” or 1-1/4” P-trap & flange (D400-1)

Polished Chrome: $406.17

Special Finishes: $514.27

Available Finishes:

Special Finishes

CROSS HANDLE EUROPEAN PEDESTAL KIT

D1938L

• 2 ea. 3/8” OD x 20” bullnose risers (D120)

• 2 ea. 5/8” ID sure grip brass flanges (D128)

• 2 ea. 1/2” IPS sure grip brass flanges (D129)

• 2 ea. 1/2” IPS x 3/8” OD comp. angle stops (D103X)

• 2 ea. 1/2” IPS x compression adapters

• 1-1/4” x 1-1/4” European flat trap (D4053-1)

Polished Chrome: $422.55

Special Finishes: $538.83

Available Finishes:

Standard Finish 26 Polished Chrome

Special Finishes 01 PVD Polished Brass 05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

62 Matte Black

PEDESTAL LAVATORY KITS

EUROPEAN IRON PIPE LEVER HANDLE PEDESTAL KIT

D19103BLK

• 2 ea. 3/8” OD x 20” bullnose risers (D120)

• 2 ea. 1/2” IPS sure grip brass flanges (D129)

• 2 ea. 1/2” IPS x 3/8” OD 1/4-turn angle stops (103BL)

• 1-1/4” x 1-1/4” European flat trap (D4053-1)

Polished Chrome: $322.38 Special Finishes: $361.22

Available Finishes:

Special Finishes

EUROPEAN IRON PIPE CROSS HANDLE PEDESTAL KIT

D19103BXK

• 2 ea. 3/8” OD x 20” bullnose risers (D120)

• 2 ea. 1/2” IPS sure grip brass flanges (D129)

• 2 ea. 1/2” IPS x 3/8” OD 1/4-turn angle stops (D103BX)

• 1-1/4” x 1-1/4” European flat trap (D4053-1)

Polished Chrome: $322.38 Special Finishes: $361.22

Available Finishes:

Special Finishes

EUROPEAN COPPER LEVER HANDLE PEDESTAL KIT

D19105BLK

• 2 ea. 3/8” OD x 20” bullnose risers (D120)

• 2 ea. 5/8” sure grip brass flanges (D128)

• 2 ea. 1/2” Copper x 3/8” OD 1/4-turn lever handle angle stops (D105BL)

• 1-1/4” x 1-1/4” European flat trap (D4053-1) Polished Chrome: $322.38 Special Finishes: $361.22

Available Finishes:

Finish

Finishes

Polished Nickel

EUROPEAN COPPER CROSS HANDLE PEDESTAL KIT

D19105BXK

• 2 ea. 3/8” OD x 20” bullnose risers (D120)

• 2 ea. 1/2” IPS sure grip brass flanges (D128)

• 2 ea. 1/2” IPS x 3/8” OD 1/4-turn cross handle angle stops (D105BX)

• 1-1/4” x 1-1/4” European flat trap (D4053-1)

Polished Chrome: $322.38

Special Finishes: $361.22

1-1/4” X 1-1/4” FLAT

D1938QRL

• European low profile flat trap

Available Finishes:

Standard Finish

26

TRAP PEDESTAL KIT

Available Finishes:

• 1-1/4 in. x 1-1/4 in. OD cast brass trap

• High box flange included

• 3/8 in. x 20 in. bullnose supply tubes

• Ceramic disk copper compression angle stops Polished Chrome: $471.27

Special Finishes: $563.19

1-1/2” X 1-1/2” P-TRAP

D1838QRL

• 1/2 in. copper pipe (5/8 in. OD)

• 1-1/2 in. x 1-1/2 in. OD P-trap 17 ga.

• High box flange included

PEDESTAL KIT

Available Finishes:

• 3/8 in. x 20 in. bullnose supply tubes

• Ceramic disk copper compression angle stops

Polished Chrome: $361.22

Special Finishes: $451.85

PEDESTAL LAVATORY KITS

1-1/4” X 1-1/4” ROUND TRAP PEDESTAL KIT

D1438QRL

• European low profile flat trap

• 1-1/4 in. x 1-1/4 in. OD cast brass trap

• High box flange included

• 3/8 in. x 20 in. bullnose supply tubes

• Ceramic disk copper compression angle stops

Polished Chrome: $542.48

Special Finishes: $640.80

1-1/4” X 1-1/4”

D1338QSL

Available

SQUARE TRAP PEDESTAL KIT

• European low profile flat trap

• 1-1/4 in. x 1-1/4 in. OD cast brass trap

• High box flange included

• 3/8 in. x 20 in. bullnose supply tubes

• Ceramic disk copper compression angle stops

Polished Chrome: $620.16 Special Finishes: $739.27

1-1/4”

X 1-1/4”

FLAT P-TRAP

D4053-1

• European low profile flat trap

• 1-1/4 in. x 1-1/4 in. OD cast brass trap

• High box flange included Polished Chrome: $194.90 Special Finishes: $244.03

Available Finishes:

1-1/4”

X 1-1/4” ROUND TRAP WITH CLEANOUT

D4054R-1

• Cylindrical trap

• 1-1/4 in. x 1-1/4 in. OD tubular

• Low flange included

• Cast brass trap

• 17 ga. brass tube

• Cleanout port in trap bottom Polished Chrome: $309.43 Special Finishes: $348.27 Available

1-1/4”

X 1-1/4” SQUARE TRAP

D4054S-1

• Square trap

• 1-1/4 in. x 1-1/4 in. OD tubular

• Low flange included

• Cast brass trap

• 17 ga. brass tube

• Elegant trap design with UPC barriers

Polished Chrome: $361.22

Special Finishes: $387.12

Available Finishes:

P-TRAPS WITH BOX FLANGES

1-1/2” X 1-1/2” P-TRAP WITH BOX FLANGE

D400-1

• Standard P-trap with flange

• 1-1/2” x 1-1/2”

• D409 high box flange included

• 17 gauge brass

• Slip joint nuts included

Polished Chrome: $135.94

Special Finishes: $170.33

Available Finishes:

1-1/4” X 1-1/4” P-TRAP WITH BOX FLANGE

D401-1

• Standard P-trap with flange

• 1-1/4” x 1-1/4”

• D4091 high box flange included

• 17 gauge brass

• Slip joint nuts included

Polished Chrome: $135.94 Special Finishes: $170.33

Available Finishes:

LA CODE 1-1/2” TRAP & WASTE ELL

D402LA

• New England style P-trap

• Ground joint trap adapter

• 1-1/2” x 1-1/2” J-bend

• 1-1/2 in. FIP inlet

• Cast brass with brass slip joint nuts

RAW: $52.41 Polished Chrome: $68.79

Available Finishes:

1-1/2” X 1-1/2” GROUND JOINT P-TRAP & FLANGE

D400G (502800G)

• Ground joint P-trap with bell flange

• 1-1/2” x 1-1/2” 17 gauge brass

• Brass slip joint nuts included

RAW: $47.49

Polished Chrome: $60.60

Available Finishes:

CONSTRUCTION ACCESSORIES

1-1/2 X 1-1/2 OR 1-1/4 P-TRAP CORROSION PROOF

D401-PF

• Corrosion resistant ABS construction

• 1-1/2” x 1-1/2” or 1-1/4 with poly washer

• Lustrous exterior finish

• Color matched slip joint nuts & escutcheon Great for decorative sinks at a bargain price

Polished Chrome: $35.09

Special Finishes: $47.19

1-1/2" FEMALE DESANKO FITTING

112FDF Female End

112MDF Male End

• 1-1/2 Cast brass trap adapter fitting

• Brass ferrule and nut included

RAW: $22.93

Available Finishes: Standard Finish

Polished Chrome

Special Finishes

PVD Polished Brass

Satin Nickel

Oil Rubbed Bronze

Available Finishes: Rough Brass

1-1/2" 2-PART CONTINUOUS WASTE

D430 (549800)

• Side outlet waste fitting

• 1-1/2” x 1-1/2”

• 17 gauge brass

• Brass slip joint nuts & poly washers included

RAW: $65.51 Polished Chrome: $75.34

LA CODE

Available Finishes: Standard Finish

Polished Chrome

1-1/2" SLIP JOINT WYE WITH 7/8" BRANCH

D432 1-1/2” Slip Joint (705820)

D422T-26 1-1/4” Thread One End (Chrome Only)

• 7/8” brass branch, 20 gauge brass tube

RAW: $29.48 Polished Chrome: $34.39

Available Finishes: Standard Finish

1-1/2" X 16" DOUBLE END SLIP JOINT EXTENSION

D42116 1-1/4”

D42316 1-1/2” (796962B or 584850)

• Cut length to fit

• 17 gauge brass tube

• Brass slip joint nuts & poly washers included

RAW: $45.86 Polished Chrome: $55.69

1-1/2" X 16”

Available Finishes:

Polished Chrome

FLANGED TAILPIECE EXTENSIONS

D416 1-1/4” x 8”

RAW: $27.84 Polished Chrome: $39.31

D417 1-1/4” x 12”

RAW: $29.48 Polished Chrome: $45.86

D4171 1-1/4” x 16” Double End (789982 or 578870)

RAW: $47.50 Polished Chrome: $52.41

• Cut length to fit

• 17 gauge brass tube

Available Finishes:

Polished Chrome

TUBULAR DRAIN PRODUCTS

1-1/4"

D420

X 8" OD SLIP JOINT EXTENSION TUBE

• 1-1/4” OD Tubular

• 8” Long

• Slip Joint Nut and Washer

•

• All exposed

•

Available

1-1/4" X 12" OD SLIP JOINT EXTENSION TUBE

D421

• 1-1/4” OD Tubular

• 12” Long

• Slip Joint Nut and Washer

• Solid Brass

• All exposed style

• 17 gauge tube

1-1/2" X 8" FINISHED EXTENSION

D422

• 1-1/2” OD Tubular

• 8” Long

• Slip Joint Nut and Washer

• Solid Brass

• All exposed style

• 17 gauge tube Polished Chrome: $63.88 Special Finishes: $96.62

1-1/2" X 12"

D423

FINISHED EXTENSION

• 1-1/2” OD Tubular

• 12” Long

• Slip Joint Nut and Washer

• Solid Brass

• All exposed style

• 17 gauge tube Polished Chrome: $67.15 Special Finishes: $101.54

1-1/4" OD X 12" TAILPIECE

D419

• Tailpiece with both ends threaded

• 1-1/4” OD tubing

• 12” length

• Brass Polished Chrome: $60.60

1-1/2" OD X 12" TAILPIECE

D41912

• Tailpiece with threaded end

• 1-1/2” OD tubing

• 12” length

• Brass Polished Chrome: $60.60 Special Finishes: $91.72

Available Finishes:

Available Finishes:

Matte Black

Available

Available Finishes:

LAVATORY SINK DRAINS

HIGH-FLOW GRID DRAIN WITH OVERFLOW HOLES

D411A

• Rapid draining raised grid design

• Fully finished for exposed installation

• With overflow holes

• Fits 1-1/2” opening with 1-1/4” tailpiece

• 3-1/2” threading for thick sinks

• Brass construction

$198.17 Available

HIGH-FLOW GRID DRAIN, NO OVERFLOW HOLES

D411A-1

• Rapid draining raised grid design

• Fully finished for exposed installation

• Without overflow holes

• Fits 1-1/2” opening with 1-1/4” tailpiece

• 3-1/2” threading for thick sinks

• Brass construction

Chrome: $134.30

$198.17 Available

LIFT & TURN LAV DRAIN WITH OVERFLOW HOLES

D410-2

• Lift & turn lavatory drain

• Fully finished for exposed installation

• With overflow holes

• Fits 1-1/2” opening with 1-1/4” tailpiece

• Use D410SP for thin sink applications

• Brass construction Polished Chrome: $152.31 Special Finishes: $186.71

Available Finishes:

LIFT & TURN LAV DRAIN, NO OVERFLOW HOLES

D410-12

• Lift & turn lavatory drain

• Fully finished for exposed installation

• Without overflow holes

• Fits 1-1/2” opening with 1-1/4” tailpiece

• Use D410SP for thin sink applications

• Brass construction

Polished Chrome: $152.31 Special Finishes: $186.71

Available Finishes:

LAVATORY SINK DRAINS

POP-UP LAV DRAIN, NO OVERFLOW HOLES

D412-12

• Pop-up style lavatory drain

• Fully finished for exposed installation

• Strap, horizontal rod, and lift rod included

• Without overflow holes

• Fits 1-1/2” opening with 1-1/4” tailpiece

• Brass construction

Polished Chrome: $198.17

Special Finishes: $214.55

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

01 PVD Polished Brass

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

POP-UP LAV DRAIN WITH OVERFLOW HOLES

D412-2

• Pop-up style lavatory drain

• Fully finished for exposed installation

• Strap, horizontal rod, and lift rod included

• With overflow holes

• Fits 1-1/2” opening with 1-1/4” tailpiece

• Brass construction Polished Chrome: $198.17

Special Finishes: $214.55

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

01 PVD Polished Brass

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

GRID STRAINER LAV DRAIN, NO OVERFLOW HOLES

D411-12

• Grid style lavatory drain

• 19 hole grid

• Fully finished for exposed installation

• Without overflow holes

• Fits 1-1/2” opening with 1-1/4” tailpiece

• Brass construction Polished Chrome: $119.56

Finishes: $170.33

Available Finishes: Standard Finish 26 Polished Chrome Special Finishes

PVD Polished Brass

Polished Nickel

Satin Nickel

Oil Rubbed Bronze

Powder Coat White 62 Matte Black

GRID STRAINER LAV DRAIN WITH OVERFLOW HOLES

D411-2

• Grid style lavatory drain

• 19 hole grid

• Fully finished for exposed installation

• With overflow holes

• Fits 1-1/2” opening with 1-1/4” tailpiece

• Brass construction Polished Chrome: $119.56 Special Finishes: $170.33

Available Finishes:

Finish

Polished Chrome Special Finishes

PVD Polished Brass

Polished Nickel

Satin Nickel

Oil Rubbed Bronze

Powder Coat White 62 Matte Black

LAVATORY SINK DRAINS

EURO MUSHROOM LAV DRAIN WITH OVERFLOW

D410A

• European mushroom push-down lavatory drain

• Push in stopper to seal water

• Fully finished for exposed installation

• With overflow holes

• Fits 1-1/2” opening with 1-1/4” tailpiece

• Brass construction

EURO MUSHROOM LAV DRAIN, NO OVERFLOW

D410A-1

• European mushroom push-down lavatory drain

• Push in stopper to seal water

• Fully finished for exposed installation

• Without overflow holes

• Fits 1-1/2” opening with 1-1/4” tailpiece

• Brass construction

D410E

• European umbrella push-down stopper

• Fully finished for exposed installation

• Fits extra-thin sheet metal sinks

• Fits sinks up to 2-3/4” thick

• Fits 1-1/2” to 1-5/8” opening

• Uses 1-1/4” tailpiece

• Heavy brass construction Polished Chrome: $189.98 Special Finishes: $283.34

Available Finishes:

TOILET INDEX TRIP LEVERS

FRONT MOUNT INDEX TRIP LEVER

D4142

• Heavy brass Index rod

• Zinc lever housing with metal nut

Polished Chrome: $14.75 Special Finishes: $34.40

Available Finishes:

ECONOMY FRONT MOUNT INDEX TRIP LEVER

815-DN

• Metal housing with metal nut

• 100 pieces per case

Polished Chrome: $1,146.43

815-D

• Plastic housing and nut

• 100 pieces per case Polished Chrome: $1,055.73

Available

SHOWERS

TUB & SHOWER WALL COVER TRIMS

1-HOLE REMODEL PLATE FOR MOEN & DELTA

D502

• 1-hole remodel plate

• Fits Moen and Delta single handle valves

• Includes two screws and mounting bars

• 13” overall width

• 7-1/2” at tallest point

• 9-1/2” screw-to-screw

• 5-1/2” diameter hole Polished Chrome: $80.25

1-HOLE REMODEL PLATE FOR MIXET

D503

• 1-hole remodel plate

• Fits Mixet only

• Includes two screws and mounting bars

• 13” overall width

• 7-1/2” at tallest point

• 9-1/2” screw-to-screw

• 3-3/4” diameter hole

2-HOLE REMODEL PLATE

D504

• 2-hole remodel plate

• Fits two valve unit

• 13” overall width

• 7-1/2” at tallest point

• 1-1/2” diameter holes

• 8” center to center of holes

Polished Chrome: $80.25 Special Finishes: $162.14

3-HOLE REMODEL PLATE

D505

• 3-hole remodel plate

• Fits three valve unit with diverter

• 13” overall width

• 7-1/2” at tallest point

• 1-1/2” diameter holes

• 8” center to center of outside holes Polished Chrome: $80.25

Special Finishes: $162.14

Available Finishes:

Available Finishes:

SHOWER ARMS WITH FLANGES

1/2" X 6" SHOWER ARM WITH SURE GRIP FLANGE

D300-1

• Wall mounted 6” shower arm with flange

• 2-1/2” diameter sure grip flange (D304)

• 1/2” IPS inlet and outlet

• 6” length arm

• Lead-free brass

Available

1/2" X 8" SHOWER ARM WITH SURE GRIP FLANGE

D301-1

• Wall mounted 8” shower arm with flange

• 2-1/2” diameter sure grip flange (D304)

• 1/2” IPS inlet and outlet

• 8” length arm

• Lead-free brass

1/2" X 10" SHOWER ARM WITH SURE GRIP FLANGE

D302-1

• Wall mounted 10” shower arm with flange

• 2-1/2” diameter sure grip flange (D304)

• 1/2” IPS inlet and outlet

• 10” length arm

• Lead-free brass

Polished Chrome: $45.86 Special Finishes: $60.60

Available Finishes:

1/2" X 8" S-SHOWER ARM WITH SURE GRIP FLANGE

D303-81

• Wall mounted “S” shaped shower arm with flange

• 2-1/2” diameter sure grip flange (D304)

• 1/2” IPS inlet and outlet

• Arm raises shower head 8”

• Lead-free brass

Polished Chrome: $109.73 Special Finishes: $139.21

Available Finishes:

Finish

Polished Chrome Special Finishes

PVD Polished Brass

Polished Nickel

Satin Nickel 12 Oil Rubbed Bronze

Powder Coat White

Matte Black

1/2" X 10" S-SHOWER ARM WITH SURE GRIP FLANGE

D303-1

• Wall mounted “S” shaped shower arm with flange

• 2-1/2” diameter sure grip flange (D304)

• 1/2” IPS inlet and outlet

• Arm raises shower head 10”

• Lead-free brass

Polished Chrome: $109.73 Special Finishes: $139.21

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes 01 PVD Polished Brass 05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

90° RAIN SHOWER ARMS

1/2” X 10” 90° RAIN SHOWER ARM & FLANGE

D3700-1 (Formerly D3710)

• Wall mounted 90-degree rain shower arm with decorative flange

• 1/2” male IPS inlet and outlet

• 10” length arm

• Heavy duty decorative flange included (D3800)

• Lead-free brass

1/2”

X 19”

90° RAIN SHOWER ARM & FLANGE

D3703-1 (Formerly D3719)

• Wall mounted 90-degree rain shower arm with decorative flange

• 1/2” male IPS inlet and outlet

• 19” length arm

• Heavy duty decorative flange included (D3800)

• Lead-free brass

SQUARE CEILING SHOWER ARM & FLANGE

D3609S

• 9 in. long square ceiling shower arm

• 1/2 in. male IPS inlet and outlet

• 1in. square tube

• Matching square shower flange

• Lead-free brass shower arm Polished Chrome: $121.20 Special Finishes: $155.59

Available Finishes:

1/2" CEILING ARMS WITH HEAVY DUTY FLANGES

D3604A

• 1/2” x 4” ceiling arm & D3800 flange

Polished Chrome: $55.69

Special Finishes: $73.70

D3606A

• 1/2” x 6” ceiling arm & D3800 flange

Polished Chrome: $65.51

Special Finishes: $90.08

D3608A

• 1/2” x 8” ceiling arm & D3800 flange

Polished Chrome: $81.89 Special Finishes: $113.01

D3612A

• 1/2” x 12” ceiling arm & D3800 flange Polished Chrome: $98.27

Special Finishes: $134.30

D3619A

• 1/2” x 19” ceiling arm & D3800 flange Polished Chrome: $162.14 Special Finishes: $240.76

D3624A

• 1/2” x 24” ceiling arm & D3800 flange Polished Chrome: $237.48

Special Finishes: $257.13

D3636A

• 1/2” x 36” ceiling arm & D3800 flange

Polished Chrome: $273.51

Special Finishes: $302.99

D3648A

• 1/2” x 48” ceiling arm & D3800 flange

Polished Chrome: $386.52

Special Finishes: $499.53

Available Finishes: Standard Finish

26 Polished Chrome Special Finishes

01 PVD Polished Brass

05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

SHOWER HEADS

CHATHAM STYLE 2-1/4” DIAMETER SHOWER HEAD

D306

• Chatham style small spray diverter shower head

• 2-1/4” diameter

• 1/2” IPS inlet with pivot

• 6 spray holes and 1-1/2” spray ring

• 2.5 gallons per minute restrictor

Polished Chrome: $73.70

Special Finishes: $96.63

Available

ADJUSTABLE STYLE 6-JET SHOWER HEAD

D308

• Medium spray diverter shower head

• 2-1/4” diameter

• 1/2” IPS inlet with pivot

• 6 spray jets

• 2.5 gallons per minute with restrictor

• Adjusts from full spray to narrow stream

• Replaceable nozzles

Polished Chrome: $171.97 Special Finishes: $319.37

SQUARE THIN RAIN SHOWER HEAD 8”

SHS88

• Polished welded stainless steel construction

• 1/2 in. Female IPS brass swivel ball for shower head positioning

• 2 mm thick 304 stainless steel for superior durability

• 1.8 gpm restrictor disk to meet EPA WaterSense compliance

• AntiCalc silicone nozzles allow shower head to maintain a clean and efficient stream

• Sleek flat finish edge to maintain the clean bathroom appearance

• Square corners and edges provide a superior style and function

Polished Chrome: $192.39 Special Finishes: $216.59

Available Finishes:

SQUARE THIN RAIN SHOWER HEAD 12”

SHS1212

• Polished welded stainless steel construction

• 1/2 in. Female IPS brass swivel ball for shower head positioning

• 2 mm thick 304 stainless steel for superior durability

• 1.8 gpm restrictor disk to meet EPA WaterSense compliance

• AntiCalc silicone nozzles allow shower head to maintain a clean and efficient stream

• Sleek flat finish edge to maintain the clean bathroom appearance

• Square corners and edges provide a superior style and function

Polished Chrome: $240.79 Special Finishes: $301.29

Available Finishes:

SHOWER HEADS

SQUARE THIN RAIN SHOWER HEAD 16”

SHS1616

• Polished welded stainless steel construction

• 1/2 in. Female IPS brass swivel ball for shower head positioning

• 2 mm thick 304 stainless steel for superior durability

• 1.8 gpm restrictor disk to meet EPA WaterSense compliance

• AntiCalc silicone nozzles allow shower head to maintain a clean and efficient stream

• Sleek flat finish edge to maintain the clean bathroom appearance

• Square corners and edges provide a superior style and function

Polished Chrome: $543.29 Special Finishes: $603.79

ROUND THIN RAIN SHOWER HEAD 8” DIAMETER

SHR8

• Polished welded stainless steel construction

• 1/2 in. Female IPS brass swivel ball for shower head positioning

• 2 mm thick 304 stainless steel for superior durability

• 1.8 gpm restrictor disk to meet EPA WaterSense compliance

• AntiCalc silicone nozzles allow shower head to maintain a clean and efficient stream

• Sleek flat finish edge to maintain the clean bathroom appearance

• Sharp edges provide a superior appearance

• 91 Individual nozzles Polished Chrome: $216.59 Special Finishes: $240.79

ROUND THIN RAIN SHOWER HEAD 12” DIAMETER

SHR12

• Polished welded stainless steel construction

• 1/2 in. Female IPS brass swivel ball for shower head positioning

• 2 mm thick 304 stainless steel for superior durability

• 1.8 gpm restrictor disk to meet EPA WaterSense compliance

• AntiCalc silicone nozzles allow shower head to maintain a clean and efficient stream

• Sleek flat finish edge to maintain the clean bathroom appearance

• Sharp edges provide a superior appearance

• 91 Individual nozzles

Polished Chrome: $301.29 Special Finishes: $361.79 Available Finishes:

SHOWER HEADS

ROUND THIN RAIN SHOWER HEAD 16” DIAMETER SHR16

• Polished welded stainless steel construction

• 1/2 in. Female IPS brass swivel ball for shower head positioning

• 2 mm thick 304 stainless steel for superior durability

• 1.8 gpm restrictor disk to meet EPA WaterSense compliance

• AntiCalc silicone nozzles allow shower head to maintain a clean and efficient stream

• Sleek flat finish edge to maintain the clean bathroom appearance

• Sharp edges provide a superior appearance

• 127 Individual nozzles

Polished Chrome: $579.59

Special Finishes: $664.29

Available Finishes:

NO-DRILL CONVERSION SLIDE BAR WITH PANDA HAND SCH700P

• Drill free adjustable shower bar for fixed and hand shower installation for increased height adjustment

• Diverts water between shower head and hand shower using a rotating valve

• Adjustable height hand shower bar mounts to shower arm outlet, no plumbing required

• 5-Function generous fixed shower head easily adjusts vertically with cam assembly and ball socket

• 1/2 in. Shower hose outlet and tapered holder on Panda rain hand shower

Polished Chrome: $306.90

Special Finishes: $328.90

5 FUNCTION SHOWER KIT WITH SCH800

• Drill free adjustable shower bar for fixed and hand shower installation for increased height adjustment

• Diverts water between shower head and hand shower using a rotating valve

• Adjustable height hand shower bar mounts to shower arm outlet, no plumbing required

• Generous fixed shower head easily adjusts vertically using a cam assembly and ball socket

• 1/2 in. Shower hose outlet and tapered holder for 5-function adjustable hand shower

Polished Chrome: $328.90

Special Finishes: $361.90

6 FUNCTION SHOWER KIT WITH SCH900

• Drill free adjustable shower bar for fixed and hand shower installation for increased height adjustment

• Diverts water between shower head and hand shower using a rotating valve

• Adjustable height hand shower bar mounts to shower arm outlet, no plumbing required

• Generous fixed shower head easily adjusts vertically using a cam assembly and ball socket

• 1/2 in. Shower hose outlet and tapered holder for 5-function adjustable hand shower

Polished Chrome: $328.90

Special Finishes: $361.90

Available Finishes:

Available Finishes:

Available Finishes:

SHOWER HEADS

NO-DRILL CONVERSION SLIDE BAR WITH DIVERTER

SB1520

• Drill free adjustable shower bar for fixed and hand shower installation

• Diverts water between shower head and hand shower using a rotating valve

• Adjustable height hand shower bar mounts to shower arm outlet

• Fixed shower head easily adjusts vertically using a cam assembly and ball socket

• 1/2 in. Shower hose outlet and tapered holder on slide bar

Polished Chrome: $185.90

Special Finishes: $218.90

5-FUNCTION

HS5601

ADJUSTABLE

• 5-function adjustable hand shower only

• 5 in. diameter spray face

• Adjustable spray face controls regulation

• Optimum angle for comfort and usability

Polished Chrome: $53.90

Special Finishes: $64.90

SPRAY HAND SHOWER

5-FUNCTION ADJUSTABLE SPRAY HAND SHOWER

SH5601

• 5-function adjustable shower head

• 5 in. diameter spray face

• Adjustable spray face controls regulation

• ABS ball joint for usability

Polished Chrome: $53.90

Special Finishes: $64.90

PANDA RAIN HAND SHOWER WITH HOSE

PANDA

• PANDA rain spray shower wand with hose

• Make showers fun again

• Clean, easy to control saturating stream

Polished Chrome: $75.90

Special Finishes: $97.90

6-FUNCTION ADJUSTABLE SPRAY HAND SHOWER

HS6700

• 6-function adjustable spray hand shower

• 5 in. diameter spray face

• Adjustable spray face controls regulation

• Longer hand shower handle for added usability

Polished

$58.90

Finishes: $64.90

6-FUNCTION ADJUSTABLE SPRAY

SH5700

• 5-Function adjustable spray shower head

• 6 in. diameter spray face

• Adjustable spray face controls regulation

• Brass ball joint for durability

Polished Chrome: $64.90 Special Finishes: $75.90

HAND SHOWER

HAND SHOWER ACCESSORIES & HOSES

SHOWER ARM VOLUME CONTROL

D309

• 1/2” IPS female x 1/2” IPS male

• Adjusts flow from drizzle to full on

• Drizzle protects from scalding - will not shut off

• Cannot be used as a positive shut off valve by law

• Excellent water saving device

Polished Chrome: $68.79

Special Finishes: $80.25

Available

1/2” DIVERTER VALVE FOR SHOWER ARM

D348

• Diverter valve for shower arm

• 1/2” IPS inlet mounts to shower arm

• 1/2” IPS outlet in front for shower head

• 1/2” IPS outlet on side for hand shower hose

• Slide switch selects between shower heads

Polished Chrome: $94.99 Special Finishes: $129.39

72” BRASS SHOWER HOSE

D355

• Double-crimped brass hose exterior

• Knurled 1/2” cone fittings for secure mounting

• PVC liner for maximum durability Polished Chrome: $90.08 Platinum: $90.08

Available

Available Finishes:

72” SUPERFLEX PLASTIC SHOWER HOSE

D355P

• Easily cleaned smooth hose exterior

• 1/2 in. cone fittings for secure mounting

• Kink free hose with swivel ends White: $12.75

Finishes: $39.31

Available Finishes:

72” SUPERFLEX EXTENDABLE SHOWER HOSE

D355E

• Easily cleaned smooth hose exterior

• 1/2 in. cone fittings for secure mounting

• Kink free hose with swivel ends

• Extends from 60 - 82 in. with EPDM liner

• SS202 stainless steel double crimped hose

Polished Chrome: $37.55

Special Finishes: $69.91

Available Finishes:

FRP REINFORCED ACRYLIC SHOWER PANS

36 X 36 3-WALL SHOWER PAN

• 3 wall flanges with threshold

• Anti-skid surface floor

• Center drain with acrylic surface

• Warm to the touch

• Fiberglass and resin reinforced backing Available Finishes:

SP3636WP Plastic Body

Polished Chrome: $601.59 Special Finishes: $634.59

SP3636WB Brass Body

Polished Chrome: $627.99 Special Finishes: $664.29

48 X 36 3-WALL SHOWER PAN

• 3 wall flanges with threshold

• Anti-skid surface floor

• Center drain with acrylic surface

• Warm to the touch

• Fiberglass and resin reinforced backing

SP4836WP Plastic Body

Polished Chrome: $710.49 Special Finishes: $721.49

SP4836WB Brass Body

Polished Chrome: $736.89 Special Finishes: $773.19

60 X 36 3-WALL SHOWER PAN

• 3 wall flanges with threshold

• Anti-skid surface floor

• Center drain with acrylic surface

• Warm to the touch

• Fiberglass and resin reinforced backing Available Finishes:

SP6036WP Plastic Body

Polished Chrome: $783.09 Special Finishes: $831.49

SP6036WB Brass Body

Polished Chrome: $809.49 Special Finishes: $845.79

72 X 36 3-WALL SHOWER PAN

• 3 wall flanges with threshold

• Anti-skid surface floor

• Center drain with acrylic surface

• Warm to the touch

• Fiberglass and resin reinforced backing

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

SP7236WP Plastic Body

Polished Chrome: $904.09 Special Finishes: $948.09

01 PVD Polished Brass

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

SP7236WB Brass Body

Polished Chrome: $930.49 Special Finishes: $966.79

HPG3636-WH Pan Only

Special Finishes: $579.59

HPG4836-WH Pan Only

Special Finishes: $688.49

HPG6036-WH Pan Only

Special Finishes: $761.09

HPG7236-WH Pan Only

Special Finishes: $882.09

FRP REINFORCED ACRYLIC SHOWER PANS

60 X 34 RIGHT HAND PAN

• 3 wall flanges with threshold

• Anti-skid surface floor

• Right hand drain outlet

• Warm to the touch

• Fiberglass and resin reinforced backing

Available Finishes:

SP6034RWP Plastic Body

Polished

SP6034RWB Brass Body

60 X 34 LEFT HAND PAN

• 3 wall flanges with threshold

• Anti-skid surface floor

• Left hand drain outlet

• Warm to the touch

• Fiberglass and resin reinforced backing Available Finishes:

SP6034LWP Plastic Body

Polished Chrome: $807.29 Special Finishes: $840.29

SP6034LWB Brass Body

Polished Chrome: $833.69 Special Finishes: $869.99

SHOWER DRAINS

BRASS COMPRESSION SHOWER DRAIN

D206B

• Brass body shower drain

• Brass or stainless steel grate

• Fits 2” ABS or PVC pipe

• Uses keyed rubber compression gasket

• Drain rim fully covered by grate Polished Chrome: $119.56

Finishes: $162.14

Available

PVC COMPRESSION SHOWER DRAIN

D206P

• Plastic body shower drain

• Brass or stainless steel grate

• Fits 2” ABS or PVC pipe

• Uses keyed rubber compression gasket

• Drain rim fully covered by grate Polished Chrome: $40.94 Special Finishes: $78.61

BRASS SWEDGE-LOCK SHOWER DRAIN

D206B-LAS

• Brass body shower drain

• Brass or stainless steel grate

• Fits 2” ABS or PVC pipe

• Uses driven no-caulk rubber swedge lock

• Drain rim fully covered by grate

Chrome: $119.56

$162.14

SQUARE PVC COMPRESSION SHOWER DRAIN

D206PS

• Square brass grate pushes onto body

• Fits 2” ABS or PVC pipes

• Uses keyed rubber compression gasket

• Drain rim fully covered by grate

• Solid brass grate and PVC body Polished Chrome: $52.40 Special Finishes: $94.99

SQUARE CAST BRASS COMPRESSION SHOWER DRAIN

D206BS

• Square brass grate pushes onto body

• Fits 2” ABS or PVC pipes

• Uses keyed rubber compression gasket

• Drain rim fully covered by grate

• Solid brass grate and body

Chrome: $129.39

Finishes: $171.97

SQUARE SHOWER DRAIN COVER

D206-SQG

• Square solid brass grate pushes onto body

• Fits 2” 206-B drains

$42.58

$85.17

SHOWER DRAIN COVER TRIMS

FLAT SNAP-IN SHOWER STRAINER

D316

• Fiat style snap-in shower strainer

• 4-1/2” x 4-1/2”

• 3-1/8” prong-to-prong

• Brass Polished Chrome: $58.96 Special Finishes: $80.25

D318

• Casper no. D109 style snap-in shower strainer

• 3-1/4” OD

• 2-7/8” prong-to-prong

• Brass Polished Chrome: $40.94 Special Finishes: $55.69

Available Finishes: Standard Finish 26 Polished Chrome

Special Finishes 01 PVD Polished Brass

Polished Nickel

Satin Nickel

Oil Rubbed Bronze

Powder Coat White 62 Matte Black

CASPER SNAP-IN SHOWER STRAINER

Available Finishes: Standard Finish

Polished Chrome

Special Finishes 01 PVD Polished Brass

Polished Nickel

Satin Nickel 12 Oil Rubbed Bronze

Powder Coat White 62 Matte Black

CASPER SNAP-IN SHOWER STRAINER

D319

• Casper no. 129 style snap-in shower strainer

• 4-1/4” OD

• 2-7/8” prong-to-prong

• Brass Polished Chrome: $34.39

Finishes: $50.77

Available Finishes:

FLORESTONE SNAP-IN SHOWER STRAINER

D3191

• Florestone style snap-in shower strainer

• 4-1/4” OD

• 3” prong-to-prong

• Brass Polished Chrome: $32.76

Special Finishes: $49.13

PLASTIC

D3192

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

01 PVD Polished Brass

05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

ODDITIES SHOWER STRAINER

Available Finishes: Standard Finish

• Plastic Oddities style shower strainer

• Screws included

• 4” OD

• 3-3/8” hole-to-hole

Polished Chrome: $34.39

Special Finishes: $49.13

26 Polished Chrome

Special Finishes

01 PVD Polished Brass

05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

SHOWER DRAIN COVER TRIMS

PLASTIC ODDITIES SHOWER STRAINER

D3193

• Plastic Oddities style shower strainer

• Screws included

• 4-1/4” OD

• 2-5/8”

AB&A SNAP-IN SHOWER STRAINER

D3198

• American Brass & Aluminum style snap-in shower strainer

• 4-1/4” OD

• 2-7/8” prong-to-prong

• Brass

Available

SHOWER STRAINER SET GRILL & CROWN

D312

• Deluxe shower drain trim with screws

• 2-7/8” hole-to-hole in grate

• 3-1/2” OD crown

• Fits Plumbing Products brand and similar 4T style drains

Polished Chrome: $49.13 Special Finishes: $67.15

Available Finishes:

SHOWER STRAINER SET WITH TILE SQUARE

D313

• Deluxe shower drain trim with screws

• 4-1/4” OD square

• 2-7/8” hole-to-hole in grate

• 3-1/2” OD crown

• Fits Plumbing Products brand and similar 4T style drains

SNAP-IN SHOWER STRAINER GRILL & CROWN

D317

• Frank pattern deluxe shower drain trim with crown,

• 3-1/2” OD crown

• 2-7/8” prong-to-prong of grate

• Brass Polished Chrome: $45.86 Special Finishes: $63.87

SHOWER DRAIN COVER TRIMS

SNAP-IN SHOWER STRAINER GRILL, CROWN & SQUARE

D3171

• Frank pattern deluxe shower drain trim with crown, square and strainer

• 4-1/4 in. outside square

• 3-1/2” OD crown

• 2-7/8” prong-to-prong of grate

• Brass Polished Chrome: $70.43 Special Finishes: $86.80

ROMAN TUB DRAIN

D320

• Roman tub drain top only

• 2-7/8” hole center to center

• Two 8-32 x 1/2” screws included

• Solid brass

• Fits Oatey #151, Casper #140, and Plumbing Products EZ-Test 2 or equivalent drains

Polished Chrome: $129.39

Special Finishes: $162.14

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

01 PVD Polished Brass

05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes 01 PVD Polished Brass 05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

ROMAN TUB DRAIN WITH D315 TILE SQUARE

D3201

• Roman tub drain top only with tile square

• 2-7/8” hole center to center

• Two 8-32 x 1/2” screws included

• 4-1/4” square (D315)

• Fits Oatey #151, Casper #140, and Plumbing Products

EZ-Test 2 or equivalent drains

Polished Chrome: $135.94

Special Finishes: $188.35

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

01 PVD Polished Brass

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

BATH TUBS

SOLID SURFACE BATH TUBS

FREE STANDING OVAL BATH TUBS

FSO6433W 64 x 33 x 23

FSO5831W 58 x 31 x 23

• Shipped palletized in plywood crate FSO6935W 69 x 35 x 23

S801W

• White matte mineral filled acrylic bench $295.90

• White matte mineral filled acrylic solid surface finish

• Stone free standing bath tub with integral overflow

• Integrated lumbar support to buoy the body and relax the soul

• White matching 100 mm flat stone ADA compliant pop-up drain

• Drain cap sits flush with bath tub when shut

FREE STANDING RECTANGLE BATH TUBS

FSS6935W 69 x 35 x 23

$6,048.79

FSS6433W 64 x 33 x 23 $5,806.79

FSS5831W 58 x 31 x 23 $5,685.79

• White matte mineral filled acrylic solid surface finish

• Stone free standing bath tub with integral overflow

• Integrated lumbar support to buoy the body and relax the soul

• White matching 100 mm flat stone ADA compliant pop-up drain

• Drain cap sits flush with bath tub when shut

• Shipped palletized in plywood crate

FREE STANDING TUB KITS

OVAL SOLID SURFACE BATH TUB KITS

• White Solid Surface Bath Tub

• White Stone Covered Tip-Toe Drain D98LTB-W

• Free Standing Tub Filler DF02043

• Island Drain TC3P

• Solid Surface Bathing Bench S801W

Available Finishes:

Special Finishes

FSOTK69 69 x 35 x 23

Polished Chrome: $7,621.79

Special Finishes: $7,742.79

FSOTK64 64 x 33 x 23

Polished Chrome: $7,379.79 Special Finishes: $7,500.79

RECTANGLE SOLID SURFACE BATH TUB KITS

• White Solid Surface Bath Tub

• White Stone Covered Tip-Toe Drain D98LTB-W

• Free Standing Tub Filler DF02043

• Island Drain TC3P

• Solid Surface Bathing Bench S801W

Available Finishes:

Finish

FSSTK69 69 x 35 x 23

Polished Chrome: $7,621.79 Special Finishes: $7,742.79

FSOTK58 58 x 31 x 23

Polished Chrome: $7,258.79 Special Finishes: $7,379.79

FSSTK64 64 x 33 x 23

Polished Chrome: $7,379.79 Special Finishes: $7,500.79

ADDED ACCESSORIES FOR THIS KIT

D98LTC-W Self Leveling Tip-Toe Drain

FSSTK58 58 x 31 x 23

Polished Chrome: $7,258.79 Special Finishes: $7,379.79

ISLAND TUB DRAINS FOR INTEGRATED OVERFLOW BATH TUBS

INTEGRATED OVERFLOW TIP-TOE TUB DRAIN

D98LTB

• 1-1/2” NPSM tip-toe tub drain

• Requires integrated overflow tubs

• Includes nut, tapered and sponge washers and friction fiber washer

Polished Chrome: $187.05

Special Finishes: $219.51

Available Finishes:

INTEGRATED OVERFLOW TIP-TOE TUB WITH ADAPTER

D98LTBPA For PVC Adapter

• 1-1/2” NPSM tip-toe tub drain

• Use “P” for PVC and “A” ABS glue in fitting

• Requires integrated overflow tubs

Polished Chrome: $193.10

Special Finishes: $225.56

D98LTBAA For ABS Adapter

INTEGRATED OVERFLOW TIP-TOE

D98LTBT

• 1-1/2” NPSM tip-toe tub drain

• 1-1/2 in x 6 in. tubular 17 ga brass extension

• Designed for slip joint or island drain installation

• Requires integrated overflow tubs

Polished Chrome: $193.10

Special Finishes: $225.56

Available Finishes:

TUB WITH TUBE

Available Finishes:

26 Polished Chrome

Finishes

PVD Polished Brass

Polished Nickel

Satin Nickel

Oil Rubbed Bronze

Stainless Steel

Powder Coat White 62 Matte Black

INTEGRATED ILLUSIONARY CHANNEL TIP-TOE

D980LTBPA For PVC Adapter

• 1-1/2” NPSM tip-toe tub drain

• Illusionary overflow cover for round overflows

• Use “P” for PVC and “A” ABS glue in fitting

• Requires integrated overflow tubs

Polished Chrome: $193.10

Special Finishes: $225.56

D980LTBAA For ABS Adapter

Available Finishes: Standard Finish

Polished Chrome

Finishes

PVD Polished Brass

Powder Coat White 62 Matte Black

ISLAND DRAIN FOR INTEGRATED OVERFLOW TUBS

TC3A

• ABS

• Includes flanged and threaded tube

• Silicone grease

• 2 in. x 1-1/2 in. reducer bushing

• 6 stainless steel screws

• Trap adapter with nut and gasket

Standard Finish: $240.79

TC3P

• PVC

• Includes flanged and threaded tube

• Silicone grease

• 2 in. x 1-1/2 in. reducer bushing

• 6 stainless steel screws

• Trap adapter with nut and gasket

Standard Finish: $240.79

TUB FILLERS

FREE STANDING TUB FILLERS

DF02043

• Ergonomic blade handles for easy control of faucet fill and hand shower

• Hi-Arc rotating spout for superior accessibility

• 1-Hole rough mounting to floor using provided expansion screws

• ADA compliant handles

• Ceramic disc hand shower valve meets water standards and operates precisely

• High-flow tub filler valve rapidly fills bathtubs wells

• Easily adjusts using cover escutcheon Polished Chrome: $1,450.79

Special Finishes: $1,656.49

WESTBRASS 2429 E. Olympic Blvd., Los Angeles, CA 90021 (213)-627-8441 fax:(213) 627-2844 orders@westbrass.com www.westbrass.com

BRASS TUB SPOUTS

5-1/2” BRASS TUB SPOUT

D310

• Tub spout

• 5-1/2” reach

• Rear threads

• Fits 1/2” IPS

• Brass construction

Polished Chrome: $101.54

Special Finishes: $135.94

Available Finishes:

5” BRASS NOSE DIVERTER TUB SPOUT

D311

• Diverter tub spout

• 5” reach

• Nose threads

• Fits 1/2” IPS

• Brass construction Polished Chrome: $119.56 Special Finishes: $153.98

Available Finishes:

Polished Chrome Special Finishes

5-1/2” BRASS REAR DIVERTER TUB SPOUT

D3112

• Tub spout

• 5-1/2” reach

• Rear threads

• Fits 1/2” IPS or 3/4” IPS with brass bushing

• Brass construction Polished Chrome: $211.28 Special Finishes: $293.17

Available Finishes:

Polished Chrome

PVD Polished Brass

8-1/2” BRASS REAR DIVERTER TUB SPOUT

D3111

• Diverter tub spout

• 8-1/2” reach

• Rear threads

• Fits 1/2” IPS or 3/4” IPS with brass bushing

• Brass construction

Polished Chrome: $260.41 Special Finishes: $325.92

Available Finishes:

Polished Chrome Special Finishes

Matte Black

7 INCH TUB SPOUTS

7” EXTENDED TUB SPOUT

E507-1F

• Tub spout, 7 inch reach

• 1/2 in. IPS front threads

• Fits 1/2 in. nipple

• Zinc construction

Polished Chrome: $60.60 Special Finishes: $82.01

7” EXTENDED TUB SPOUT FOR COPPER PIPE

E5074-1F

• Tub spout, 7 inch reach

• 1/2 in. copper nipple

• Fits 1/2 in. copper stub out

• Zinc construction

Polished Chrome: $60.60 Special Finishes: $82.01

7” EXTENDED DIVERTER TUB SPOUT

E507D-1F

• Diverter tub spout, 7 inch reach

• 1/2 in. IPS front threads

• Fits 1/2 in. nipple

• Zinc construction

$81.89

$114.65

7” EXTENDED DIVERTER TUB SPOUT FOR COPPER

E5074D-1F

• Diverter tub spout, 7 inch reach

• 1/2 in. copper nipple

5” ZINC TUB SPOUT FOR IPS CONNECTION

E531-1F

• Tub spout, 5 inch reach

• 1/2 in. copper nipple

• Fits 1/2 in.

•

5” ZINC DIVERTER TUB SPOUT FOR IPS CONNECTION

E531D-1F

• Diverter tub spout, 5 inch reach

• 1/2 in. copper nipple

• Fits 1/2 in. copper stub out

• Zinc construction

Available

BATH TUB WASTES & OVERFLOWS

BATH TUBS

LINEAR OVERFLOW BATH WASTE

22” LINEAR OVERFLOW BATH WASTE

7931817LD

This exquisite brass drain features a linear overflow shape, allowing the tub to maintain that modern elegance reflected by true lines and curves. The tub drain uses a European tip-toe drain for a stylish, modern, and classic overflowing appearance

Press drain to close, press again to open. 17 gauge brass tubes making this ideal for extra deep or very long tub runs. Finished trim - unfinished rough-in.

• 1-1/2” unfinished brass tubular bath waste assembly

• 22” maximum make-up with 17 gauge brass tubes

• European tip-toe push drain for tub closure

• Low profile for narrow tub rims

• Fits a standard bath drain with a linear overflow

• Finished trim - unfinished rough-in

• Includes 3” tailpiece, cast brass tee and elbows

• ADA approved drain closure

Polished Chrome: $293.17 Special Finishes: $325.48

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

22” BALL JOINT LINEAR OVERFLOW BATH WASTE

7931817BJLD

This exquisite brass drain features a linear overflow with Ball Joint, allowing the tub to effectively seal and maintain that modern elegance reflected by true lines and curves. The tub drain uses a European tip-toe drain for a stylish, modern, and classic overflowing appearance.

Press drain to close, press again to open. 17 gauge brass tubes making this ideal for extra deep or very long tub runs. Finished trim - unfinished rough-in.

• 1-1/2” unfinished brass tubular bath waste assembly

• 22” maximum make-up with 17 gauge brass tubes

• European tip-toe push drain for tub closure

• Low profile for narrow tub rims

• Fits a standard bath drain with a linear overflow

• Finished trim - unfinished rough-in

• Includes 3” tailpiece, cast brass tee and elbows

• ADA approved drain closure

Polished Chrome: $388.23 Special Finishes: $416.06

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

22” FULLY FINISHED LINEAR BALL JOINT TIP-TOE BATH WASTE & OVERFLOW

D3261BJLD

The Linear bath waste overflow by Westbrass features a sleek, linear overflow cover which beautifully finishes the inside of the tub rim. The ADA approved toe tap drain is easy to operate; press once to close, and again to open the drain. This drain type is the easiest to use for all bathers.

Fully finished on its exterior, this drain is designed to stand out and accent the bathing well for all exposed installations. The finished ball joint allows the overflow elbow to neatly meet the exterior of the tub, and the hidden screws make the exterior look truly elegant.

• Fully exposed bath waste ball joint elbow

• Concealed silicone gasket familiar to plumbers

• Low profile for narrow tub rims

• Overflow plate seals to bathtub using concealed screws for polished appearance

• Ball joint flexes to a wide variety of angles for perfect installations

• ADA approved oversized tip-toe drain stopper for easy use

• 6” finished tailpiece trims to floor using a hi-box flange for easier installation

Polished Chrome: $571.59 Special Finishes: $604.35

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

LINEAR OVERFLOW LOW PROFILE

LINEAR SCH 40 PVC WASTE & OVERFLOW

493244SLD

• 22-1/2” maximum make-up tub waste

• 1” overflow tube with linear spacer

• ADA approved tip-toe drain trim for easy sealing

• Sleek, oversized tip-toe cover

• Includes 19”, 12” and 4” cut able pipes

Polished Chrome: $137.11 Special Finishes: $152.14

LINEAR SCH 40 PVC HIDDEN WASTE & OVERFLOW

493244HLD

• 22-1/2” maximum make-up tub waste

• 1” overflow tube with linear spacer

• ADA approved tip-toe drain trim for easy sealing

• Sleek, oversized tip-toe cover

• Includes 19”, 12” and 4” cut able pipes

Polished Chrome: $139.21

Finishes: $171.97

LINEAR SCH 40 PVC WASTE & OVERFLOW

D493244LD

• Stylish, Modern, Linear Drain

• Classic, clean overflow appearance

• Modern styling fits today’s hi-end tubs

• 3/8 x 3-1/2” tub groove required

• Solvent weld using Primer and PVC Cement

• European tip-toe push drain for tub closure

• Easy to use, press once to close and again to open

• ADA approved drain closure

• Sch. 40 PVC non-corroding pipe

• Glue in pipe with finished trim

Polished Chrome: $139.21 Special Finishes: $171.97

Available

LINEAR WASTE & OVERFLOW PLUMBER’S PACK

D560RK

• Stylish, Modern, Linear Drain

• Classic, clean overflow appearance

• Modern styling fits today’s hi-end tubs

• 3/8 x 3-1/2” tub groove required

• Solvent weld using Primer and PVC Cement

• European tip-toe push drain for tub closure

• Easy to use, press once to close and again to open

• ADA approved drain closure

• Sch. 40 PVC non-corroding pipe

• Glue in pipe with finished trim

Polished Chrome: $122.84 Special Finishes: $155.62 Available Finishes:

DEEP SOAK DRAINS

PATENTED DEEP SOAK-CLOSING OVERFLOW

D493244CHM

This exquisite PVC drain features a closing overflow, allowing the tub to be, “overfilled” for that extra deep soak; required to ease both mind and body.

The drain can be used in 3 ways. Fill your tub and use as normal overflow (Fig. 1). Rotate the overflow once and your tub can fill higher (Fig. 2). Rotate again, and the water can completely cover the overflow for the ultimate in luxurious bathing (Fig. 3). The tub drain uses a European tip-toe drain. Easy to use: press once to close and again to open. Sch. 40 PVC non-corroding fittings and pipes glue together for complete adjustability, making this ideal for extra deep or very long runs.

• 1-1/2” Sch. 40 PVC pipes and fittings

• European tip-toe push drain for tub closure

• Fits standard tub openings

• Glue in pipe with finished trim

• Rotating overflow for extra-deep tub soak

• ADA approved drain closure

• No-hole round overflow faceplate

Polished Chrome: $145.76

Special Finishes: $194.90

7931817BJCHM

This ball joint bath waste overflow by Westbrass features our unique patented no-hole closing overflow (D493244CHM), which beautifully finishes the inside of the tub rim and allows the tub to be over-filled”, for that extra deep soak. The drain can be used as a normal overflow, or can be rotated once to fill your tub higher, and rotated again to allow water to completely cover the overflow, for the ultimate in luxurious bathing.

Polished Chrome: $407.81

Special Finishes: $440.57

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

07 Satin Nickel

12 Oil Rubbed Bronze

26 Polished Chrome

50 Powder Coat White

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

PATENTED DEEP SOAK-CLOSING OVERFLOW BRASS BATH WASTE

D3261KCHM

• Fully-finished for all-exposed installations

• Rotate overflow to partially or fully close the overflow

• ADA approved drain closure

• 17 gauge brass tubing with cast brass fittings

Polished Chrome: $434.02

Special Finishes: $515.91

D3261KBJCHM

• With ball joint

Polished Chrome: $473.32

Special Finishes: $538.84

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

Figure

DEEP SOAK DRAINS

DEEP SOAK BRASS WITH TIP-TOE OVERFLOW

7931817CHM

• Rotating overflow for extra-deep tub soak

• Turn once to partially close and again to completely close the overflow

• Overflow plate seals to bathtub using concealed screws for a more polished appearance.

• ADA approved oversized tip-toe drain stopper for easy use, press once to close and again to open drain.

Polished Chrome: $302.99

Special Finishes: $335.75

Available Finishes:

28” ILLUSIONARY TIP-TOE WITH BALL JOINT

D326HBJ (7982420HBJ)

• 28” maximum make-up tub waste

• Ball Joint for overflow adjustability

• Illusionary faceplate - No Holes

• 1-1/2” oversized tip-toe drain plug

• ADA approved drain plug

• Trim parts finished & includes 3” tailpiece

• 17 ga. brass tubes & cast brass fittings

Polished Chrome: $302.99

Special Finishes: $335.75

Available Finishes:

28” FINISHED ILLUSIONARY TIP-TOE WITH BALL JOINT

D326124HKBJ

• 28” maximum make-up tub waste

• 24” trimmable overflow and waste tube

• Ball Joint for overflow adjustability

• Elbow hides overflow screws - finished look

• Illusionary faceplate - No Holes

• 1-1/2” oversized tip-toe drain plug

• ADA approved drain plug

• Fully finished, includes 6” tailpiece & flange

• 17 ga. brass tubes & cast brass fittings

Polished Chrome: $440.57 Special Finishes: $473.32

Available Finishes:

SEMI-EXPOSED BRASS BATH WASTE

SEMI-EXPOSED TIP-TOE DIRECT CONNECT

7932420HRDC

• 24” maximum make-up tub waste

• 1-1/2” tip-toe drain plug

• Illusionary faceplate - No-holes

• Semi-Exposed style

• All exposed parts finished

• 17 gauge brass for under floor drain

• Includes high box flange for arm

$427.46

$465.13

SEMI-EXPOSED BALL JOINT TIP-TOE DIRECT CONNECT

7932420BJHRDC

• 24” maximum make-up tub waste

• 1-1/2” tip-toe drain plug

• Illusionary faceplate - No-holes

• Semi-Exposed style

• All exposed parts finished

• 17 gauge brass for under floor drain

• Includes high box flange for arm

Chrome: $555.21

$587.97

SEMI-EXPOSED TIP-TOE BW&O

493144HRH

• 22-1/2” maximum make-up tub waste

• 1-1/2” tip toe drain plug

• Illusionary faceplate - No Holes

• Semi-exposed style

• All exposed parts finished

• ABS under floor drain

• 17 gauge exposed brass tube

• ABS pipe not included

Chrome: $224.38

Finishes: $257.13

SEMI-EXPOSED BALL JOINT TIP-TOE BW&O

493144HRHBJ

• 22-1/2” maximum make-up tub waste

• 1-1/2” tip toe drain plug

• Illusionary faceplate - No Holes

• Semi-exposed style

• All exposed parts finished with ball joint

• ABS under floor drain

• 17 gauge exposed brass tube

• ABS pipe not included

Chrome: $358.68

$391.43

ILLUSIONARY BRASS BATH WASTE & OVERFLOW

14” ILLUSIONARY TIP-TOE

D325H (79317H)

• 14” maximum make-up tub waste

• Illusionary faceplate - No Holes

• 1-1/2” oversized tip-toe drain plug

• ADA approved closure

• Trim parts finished

• Includes 3” tailpiece

• 17 ga. brass tubes

• Cast brass tee and elbows Polished Chrome: $252.22 Special Finishes: $284.98

22” ILLUSIONARY TIP-TOE

D326H (7931817H)

• 22-1/2” maximum make-up tub waste

• Illusionary faceplate - No Holes

• 1-1/2” oversized tip-toe drain plug

• ADA approved closure

• Trim parts finished & includes 3” tailpiece

• 17 gauge brass tubes

• Cast brass tee and elbows

Polished Chrome: $275.15 Special Finishes: $307.91

14” ILLUSIONARY LIFT & TURN

D321H (79417H)

• 14” maximum make-up tub waste

• 1-1/2” lift & turn plug

• Illusionary faceplate - No Holes

• Trim parts finished

• Includes 3” tailpiece

• 17 gauge brass tubes

• Cast brass tee and elbows

Polished Chrome: $252.22

Special Finishes: $284.98

22” ILLUSIONARY LIFT & TURN

D322H (7941817H)

• 22-1/2” maximum make-up tub waste

• 1-1/2” lift & turn plug

• Illusionary faceplate - No Holes

• Trim parts finished

• Includes 3” tailpiece

• 17 gauge brass tubes

• Cast brass tee and elbows

Polished Chrome: $275.15 Special Finishes: $307.91

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes 01 PVD Polished Brass

05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes 01 PVD Polished Brass 05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze 50 Powder Coat White

62 Matte Black

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

01 PVD Polished Brass

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

Available Finishes:

Standard Finish

26 Polished Chrome

Special Finishes

01 PVD Polished Brass

05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

ILLUSIONARY SCH. 40 WASTE & OVERFLOWS

ABS ILLUSIONARY TIP-TOE

493144H

• 14” maximum make-up tub waste

• Illusionary faceplate - No Holes

• 1-1/2” oversized tip-toe drain plug

• ADA approved stopper

• Trim parts finished

• Includes 4” tailpiece

• Sch. 40 ABS tee, pipe and elbows

PVC ILLUSIONARY TIP-TOE

493244H

• 14” maximum make-up tub waste

• Illusionary faceplate - No Holes

• 1-1/2” oversized tip-toe drain plug

• ADA approved stopper

• Trim parts finished

• Includes 4” tailpiece

• Sch. 40 PVC tee, pipe and elbows

ABS ILLUSIONARY LIFT & TURN

494144H

• 14” maximum make-up tub waste

• Illusionary faceplate - No Holes

• 1-1/2” pull & drain plug

• Positive drain seal

• Trim parts finished

• Includes 4” tailpiece

• Sch. 40 ABS tee, pipe and elbows Polished Chrome: $122.83 Special Finishes: $155.59 Available

PVC ILLUSIONARY LIFT & TURN

494244H

• 14” maximum make-up tub waste

• Illusionary faceplate - No Holes

• 1-1/2” pull & drain plug

• Positive drain seal

• Trim parts finished

• Includes 4” tailpiece

• Sch. 40 PVC tee, pipe and elbows Polished Chrome: $122.83 Special Finishes: $155.59

ALL EXPOSED ILLUSIONARY BRASS BATH WASTE

22” ALL EXPOSED ILLUSIONARY TIP-TOE

D3261HKBJ

• 22-1/2” maximum make-up - 17 gauge brass tubes

• Oversized tip-toe drain plug for sleek coverage

• ADA approved drain closure

• Illusionary faceplate - No ugly holes

• All exposed style with all parts finished

• Includes 6” tailpiece

• High box sure-grip flange for base

• Cast brass drain elbow, tee and nuts

• Machined brass ball-joint adjusts to any tub

• Cast brass overflow elbow with hidden silicone washer

Polished Chrome: $489.70

Special Finishes: $522.46

Available Finishes:

Standard Finish 26 Polished Chrome

Special Finishes

Polished Brass

Polished Nickel

Powder Coat White

Matte Black

22” ALL EXPOSED ILLUSIONARY TIP-TOE

D3261HK

• 22-1/2” maximum make-up - 17 gauge brass tubes

• 1-1/2” tip toe drain plug - ADA approved

• Illusionary faceplate - No Holes

• All exposed style with all parts finished

• Includes 6” tailpiece

• High box flange for base Polished Chrome: $383.24 Special Finishes: $424.19

22” ALL EXPOSED PULL & DRAIN

D3265HK

• 22-1/2” maximum make-up - 17 gauge brass tubes

• 1-1/2” pull & drain plug

• Illusionary faceplate - No Holes

• All exposed style - all parts finished

• Includes 6” tailpiece

• High box flange for base

Polished Chrome: $383.24

Special Finishes: $424.19

14” ALL EXPOSED TIP-TOE

D3251HK

• 14” maximum make-up - 17 gauge brass tubes

• Illusionary faceplate - No Holes

• 1-1/2” oversized tip-toe drain plug

• ADA approved drain plug

• All exposed style - all parts finished

• Includes 6” tailpiece and high box flange for base Polished Chrome: $358.68

Available Finishes: Standard Finish

Polished Chrome

Special Finishes

Polished Brass

Polished Nickel

Satin

Available Finishes:

Chrome Special Finishes

Polished Brass

Oil Rubbed Bronze

Special Finishes: $424.19 Available Finishes:

14” ALL EXPOSED PULL & DRAIN

D3263HK

• 14” maximum make-up - 17 gauge brass tubes

• 1-1/2” pull & drain plug

• Illusionary faceplate - No Holes

• All exposed style - all parts finished

• Includes 6” tailpiece

• High box flange for base

Polished Chrome: $358.68 Special Finishes: $391.44

SOLDER IN WASTE & OVERFLOWS

SOLDER IN TIP-TOE WASTE & OVERFLOW

79317SWH

• 19” maximum vertical make-up tub waste

• 11” maximum horizontal rough-in

• 17 gauge brass telescoping fittings for ultimate adjustment

• Illusionary no-hole faceplate give elegant tub wall finish

• ADA tip-toe tub drain trim for easy sealing and use

• Does not require access panel for most tub installations

Polished Chrome: $284.98

Special Finishes: $296.98

SOLDER IN WASTE & OVERFLOW

79417SWH

• 19” maximum vertical make-up tub waste

• 11” maximum horizontal rough-in

• 17 gauge brass telescoping fittings for ultimate adjustment

• Illusionary no-hole faceplate give elegant tub wall finish

• Lift and turn drain trim for easy sealing

• Does not require access panel for most tub installations

Polished Chrome: $248.58

Special Finishes: $296.85

79317SW-LT (Rough Only)

Rough Finish: $216.59

Available

Available

SPECIALTY BRASS BATH WASTE & OVERFLOW

ILLUSIONARY

ALL EXPOSED WASTE & OVERFLOW

D326124HRBJDC

• 18” maximum make-up tub waste

• Modern elbow for exposed installation

• Direct connect shoe outlet with flange

• ADA approved tip-toe drain trim for easy sealing

• 17 gauge fully finished brass tubes

Polished Chrome: $471.00

Special Finishes: $487.05

ILLUSIONARY PULL & DRAIN WASTE & OVERFLOW

D3211HK

• 14” maximum make-up tub waste

• 17 gauge brass above floor tee outlet

• Uses two-hole top elbow and no-hole cover

• Lift and turn closure for positive sealing

• 6” tailpiece and flange included Polished Chrome: $359.08 Special Finishes: $391.45

ILLUSIONARY PULL & DRAIN WASTE & OVERFLOW

D3221HK

• 22” maximum make-up tub waste

• 17 gauge brass above floor tee outlet

• Uses two-hole top elbow and no-hole cover

• Lift and turn closure for positive sealing

• 6” tailpiece and flange included Polished Chrome: $359.08

Special Finishes: $391.45

Available Finishes:

DIRECT CONNECT WASTE & OVERFLOW

7931817-DC

• 18” maximum make-up tub waste

• Direct connect shoe outlet

• ADA approved tip-toe drain trim for easy sealing

• 17 gauge brass tubes

Polished Chrome: $224.38 Special Finishes: $242.39

7931817LT-DC (Rough Only)

Rough Finish: $216.19

ABOVE FLOOR WASTE & OVERFLOW

7931817-AF

• 18” maximum make-up tub waste

• 17 gauge brass above floor tee outlet

• Uses two-hole faceplate

• ADA approved tip-toe drain trim for easy sealing Polished Chrome: $224.38 Special Finishes: $242.39

7941817LT-AF (Rough Only) Rough Finish: $216.19

D321 (79417)

• 14” maximum make-up tub waste

• 1-1/2” twist & close drain plug

• Two-hole faceplate

• Trim only

•

•

20 GAUGE TWIST & CLOSE BATH WASTE

D321-20G (79420)

• 14” maximum make-up tub waste

• 1-1/2” twist & close drain plug

• Two-hole faceplate

• Trim only

•

• 20 gauge

FULLY FINISHED 17 GAUGE TWIST & CLOSE BATH WASTE

D3211K

• 14” maximum make-up tub waste

• 1-1/2” twist & close drain plug

• Two hole faceplate

• All exposed style

• All parts finished

• Includes 6” tailpiece

• High box flange

• 17 gauge brass tubes

TWIST & CLOSE BATH WASTE & OVERFLOW

17 GAUGE TWIST & CLOSE BATH WASTE

D322 (7941817)

• 22-1/2” maximum make-up tub waste

• 1-1/2” twist & close drain plug

• Two-hole faceplate

• Trim only finished

• Heavy duty metal construction

• 17 gauge brass tubes

Polished Chrome: $221.10 Special Finishes: $253.86

Available

20 GAUGE TWIST & CLOSE BATH WASTE

D322-20G (7941820)

• 22-1/2” maximum make-up tub waste

• 1-1/2” twist & close drain plug

• Two-hole faceplate

• Trim only finished

• Heavy duty metal construction

• 20 gauge brass tubes Polished Chrome: $188.35

Finishes: $244.03

FULLY FINISHED 17 GAUGE TWIST & CLOSE BATH WASTE

D3221K

• 22-1/2” maximum make-up tub waste

• 1-1/2” twist & close drain plug

• Two-hole faceplate

• All exposed style

• All parts finished

• Includes 6” tailpiece

• High box flange

• 17 gauge brass tubes

Polished Chrome: $325.92 Special Finishes: $361.95

Available Finishes:

TRIP LEVER BATH WASTE & OVERFLOW

D323 (79217)

• 14” maximum make-up tub waste

• 1-1/2” beehive grid drain plug

• Trip lever faceplate

• Trim only finished

•

• 17 gauge

D323-20G (79220)

• 14” maximum make-up tub waste

• 1-1/2” beehive grid drain plug

• Trip lever faceplate

• Trim only finished

•

• 20 gauge

D3231K

• 14” maximum make-up tub waste

• 1-1/2” beehive grid drain plug

• Trip lever faceplate

• All exposed style

• All parts finished

• Includes 6” tailpiece

• High box flange

• 17 gauge brass tubes

TRIP LEVER BATH WASTE & OVERFLOW

17 GAUGE TRIP LEVER BATH WASTE

D324 (7921817)

• 22-1/2” maximum make-up tub waste

• 1-1/2” beehive grid drain plug

• Trip lever faceplate

• Trim only finished

• Heavy duty metal construction

• 17 gauge brass tubes

Polished

20 GAUGE TRIP LEVER BATH WASTE

D324-20G (7921820)

• 22-1/2” maximum make-up tub waste

• 1-1/2” beehive grid drain plug

• Trip lever faceplate

• Trim only finished

• Heavy duty metal construction

• 20 gauge brass tubes

Polished

FULLY FINISHED 17 GAUGE TRIP LEVER BATH WASTE

D3241K

• 22-1/2” maximum make-up tub waste

• 1-1/2” beehive grid drain plug

• Trip lever faceplate

• All exposed style

• All parts finished

• Includes 6” tailpiece

• High box flange

• 17 gauge brass tubes Polished

TIP-TOE BATH WASTE & OVERFLOW

D325 (79317)

• 14” maximum make-up tub waste

• 1-1/2” tip toe drain plug

• Two-hole faceplate (D329)

• Trim only finished

•

• 17 gauge brass tubes

D325-20G (79220)

• 14” maximum make-up tub waste

• 1-1/2” tip toe drain plug

• Two-hole faceplate (D329)

• Trim only finished

•

• 20 gauge

D3251K

• 14” maximum make-up tub waste

• 1-1/2” tip toe drain plug

• Two-hole faceplate (D329)

• All exposed style

• All parts finished

• Includes 6” tailpiece

• High box flange

• 17 gauge brass tubes

TIP-TOE BATH WASTE & OVERFLOW

17 GAUGE TIP-TOE BATH WASTE

D326 (7931817)

• 22-1/2” maximum make-up tub waste

• 1-1/2” tip toe drain plug

• Two-hole faceplate (D329)

• Trim only finished

• Heavy duty metal construction

• 17 gauge brass tubes

Polished

Available

20 GAUGE TIP-TOE

BATH

D326-20G (7931820)

• 22-1/2” maximum make-up tub waste

• 1-1/2” tip toe drain plug

• Two-hole faceplate (D329)

• Trim only finished

• Heavy duty metal construction

• 20 gauge brass tubes Polished

Available

D3261K

• 22-1/2” maximum make-up tub waste

• 1-1/2” tip toe drain plug

• Two-hole faceplate (D329)

• All exposed style

• All parts finished

• Includes 6” tailpiece

• High box flange

• 17 gauge brass tubes Polished

Available

PULL & DRAIN BATH WASTE & OVERFLOW

17 GAUGE PULL & DRAIN BATH WASTE

D3262 (79717)

• 14” maximum make-up tub waste

• 1-1/2” tip toe drain plug (D3324)

• Two-hole faceplate (D329)

• Trim only finished

• Heavy duty metal construction

• 17 gauge brass tubes

D3262-20G (79720)

• 14” maximum make-up tub waste

• 1-1/2” tip toe drain plug (D3324)

• Two-hole faceplate (D329)

• Trim only finished

• Heavy duty metal construction

• 20 gauge brass tubes

D3263K

• 14” maximum make-up tub waste

• 1-1/2” tip toe drain plug (D3324)

• Two-hole faceplate (D329)

• All exposed style

• All parts finished

• Includes 6” tailpiece

• High box flange

• 17 gauge brass tubes

PULL & DRAIN BATH WASTE & OVERFLOW

17 GAUGE PULL & DRAIN BATH WASTE

D3264 (7971817)

• 22-1/2” maximum make-up tub waste

• 1-1/2” pull & drain plug (D3324)

• Two-hole faceplate (D329)

• Trim only finished

• Heavy duty metal construction

• 17 gauge brass tubes

Polished Chrome: $229.29

Special Finishes: $262.05

Available Finishes: Standard Finish 26 Polished Chrome

Special Finishes 03 Polished Brass 05 Polished Nickel

Satin Nickel 12 Oil Rubbed Bronze 50 Powder Coat White 62 Matte Black

20 GAUGE PULL & DRAIN BATH WASTE

D3264-20G (7971820)

• 22-1/2” maximum make-up tub waste

• 1-1/2” pull & drain plug (D3324)

• Two-hole faceplate (D329)

• Trim only finished

• Heavy duty metal construction

• 20 gauge brass tubes

Polished Chrome: $196.54

Special Finishes: $252.22

Available Finishes:

Finish 26 Polished Chrome

Special Finishes

Polished Brass

Polished Nickel

Satin Nickel 12 Oil Rubbed Bronze 50 Powder Coat White 62 Matte Black

FULLY FINISHED 17 GAUGE PULL & DRAIN BATH WASTE

D3265K

• 22-1/2” maximum make-up tub waste

• 1-1/2” pull & drain plug (D3324)

• Two-hole faceplate (D329)

• All exposed style

• All parts finished

• Includes 6” tailpiece

• High box flange

• 17 gauge brass tubes

Polished Chrome: $375.06

Special Finishes: $394.71

Available Finishes: Standard Finish 26 Polished Chrome Special Finishes 03 Polished Brass 05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

BLACK TUBULAR BATH WASTE & OVERFLOW

1-1/2” BLACK TUBULAR TRIP LEVER BW&O

592144

• 1-1/2” coarse beehive drain plug (D3311)

• Trip lever faceplate with screws (D330)

• Black poly tubes with poly slip joint washers

•

Polished

Available

1-1/2” BLACK TUBULAR TIP-TOE BW&O

593144

• 1-1/2” tip toe drain plug (D3322)

• 2-hole faceplate with screws (D329)

• Black poly tubes with poly slip joint washers

• Heavy duty metal trim

Polished Chrome: $67.15

Available

1-1/2” BLACK TUBULAR TWIST & CLOSE BW&O

594144

• 1-1/2” twist & close drain plug (D331)

• 2-hole faceplate with screws (D329)

• Black poly tubes with poly slip joint washers

• Heavy duty metal trim

Chrome: $67.15

Finishes: $106.46

1-1/2” BLACK TUBULAR PULL & DRAIN BW&O

597144

• 1-1/2” pull & drain plug (D3324)

• 2-hole faceplate with screws (D329)

• Black poly tubes with poly slip joint washers

• Heavy duty metal trim

Polished Chrome: $67.15 Special Finishes: $106.46

1-1/2” BLACK BATH WASTE EXTENSION TUBE

109606

• 1-1/2” poly slip joint tube

• Extends top tube length

• With poly slip joint washer and nut Special Finish: $11.46

WHITE TUBULAR BATH WASTE & OVERFLOW

1-1/2” WHITE TUBULAR TRIP LEVER BW&O

592244

• 1-1/2” coarse beehive drain plug (D3311)

• Trip lever faceplate with screws (D330)

• White poly tubes with poly slip joint washers

• Heavy duty metal trim Polished Chrome: $67.15

Finishes: $106.46

Available Finishes:

1-1/2” WHITE TUBULAR TIP-TOE BW&O

593244

• 1-1/2” tip toe drain plug (D3322)

• 2-hole faceplate with screws (D329)

• White poly tubes with poly slip joint washers

• Heavy duty metal trim Polished Chrome: $67.15 Special Finishes: $106.46

Available Finishes:

1-1/2” WHITE TUBULAR TWIST & CLOSE BW&O

594244

• 1-1/2” twist & close drain plug (D331)

• 2-hole faceplate with screws (D329)

• White poly tubes with poly slip joint washers

• Heavy duty metal trim

Polished Chrome: $67.15 Special Finishes: $106.46

Available Finishes:

Polished Chrome

Finishes

Polished Brass

Polished Nickel

Satin Nickel

Oil Rubbed Bronze

Stainless Steel

Powder Coat White

1-1/2” WHITE TUBULAR PULL & DRAIN BW&O

597244

• 1-1/2” pull & drain drain plug (D3324)

• 2-hole faceplate with screws (D329)

• White poly tubes with poly slip joint washers

• Heavy duty metal trim

Polished Chrome: $67.15 Special Finishes: $106.46

Available Finishes: Standard Finish 26 Polished Chrome Special Finishes

Polished Brass

Polished Nickel

Satin Nickel

Oil Rubbed Bronze

Stainless Steel

Powder Coat White

1-1/2” WHITE BATH WASTE EXTENSION TUBE

109606W

• 1-1/2” poly slip joint tube

• Extends top tube length

• With poly slip joint washer and nut

Special Finish: $11.46

ABS BATH WASTE & OVERFLOW

1-1/2” SCH. 40 ABS TIP-TOE BW&O

D49311

• 1-1/2” tip toe drain plug (D3322)

• 1-hole faceplate with screw (D328)

• 12” x 4” ABS tubes, elbow, tee, and shoe

• Heavy duty metal trim

1-1/2” SCH. 40 ABS TIP-TOE BW&O

D4931

• 1-1/2” tip toe drain plug (D3322)

• 2-hole faceplate with screws (D329)

• 12” x 4” ABS tubes, elbow, tee, and shoe

• Heavy duty metal trim

Polished Chrome: $67.15 Special Finishes: $106.46 Available Finishes:

1-1/2” SCH. 40 ABS TWIST & CLOSE BW&O

D49411

• 1-1/2” twist & close drain plug (D331)

• 1-hole faceplate with screw (D328)

• 12” x 4” ABS tubes, elbow, tee, and shoe

• Heavy duty metal trim

Polished Chrome: $67.15 Special Finishes: $106.46

1-1/2” SCH. 40 ABS TWIST & CLOSE BW&O

D4941

• 1-1/2” twist & close drain plug (D331)

• 2-hole faceplate with screws (D329)

• 12” x 4” ABS tubes, elbow, tee, and shoe

• Heavy duty metal trim

Polished Chrome: $67.15

Special Finishes: $106.46

Available

1-1/2” SCH. 40 ABS PULL & DRAIN BW&O

D49711

• 1-1/2” pull & drain plug (D3324)

• 1-hole faceplate with screws (D328)

• 12” x 4” ABS tubes, elbow, tee, and shoe

• Heavy duty metal trim

Polished Chrome: $67.15 Special Finishes: $106.46

1-1/2” SCH. 40 ABS PULL & DRAIN BW&O

D4971

• 1-1/2” pull & drain plug (D3324)

• 2-hole faceplate with screws (D329)

• 12” x 4” ABS tubes, elbow, tee, and shoe

•

PVC BATH WASTE & OVERFLOW

1-1/2” SCH. 40 PVC TIP-TOE BW&O

D49321

• 1-1/2” tip toe drain plug (D3322)

• 1-hole faceplate with screw (D328)

• 12” x 4” PVC tubes, elbow, tee, and shoe

• Heavy duty metal trim

Available

1-1/2” SCH. 40 PVC TIP-TOE BW&O

D4932

• 1-1/2” tip toe drain plug (D3322)

• 2-hole faceplate with screws (D329)

• 12” x 4” PVC tubes, elbow, tee, and shoe

• Heavy duty metal trim

Polished Chrome: $67.15 Special Finishes: $106.46

Available Finishes:

Standard Finish

26 Polished Chrome Special Finishes 01 PVD Polished Brass 05 Polished Nickel

Satin Nickel

12 Oil Rubbed Bronze

20 Stainless Steel

50 Powder Coat White

62 Matte Black

1-1/2” SCH. 40 PVC TWIST & CLOSE BW&O

D49421

• 1-1/2” tip toe drain plug (D3322)

• 2-hole faceplate with screws (D329)

• 12” x 4” PVC tubes, elbow, tee, and shoe

• Heavy duty metal trim

Polished Chrome: $67.15

Special Finishes: $106.46

Available Finishes:

Standard Finish

26 Polished Chrome Special Finishes 01 PVD Polished Brass 05 Polished Nickel 07 Satin Nickel

12 Oil Rubbed Bronze

20 Stainless Steel

50 Powder Coat White

62 Matte Black

1-1/2” SCH. 40 PVC TWIST & CLOSE BW&O

D4942

• 1-1/2” tip toe drain plug (D3322)

• 2-hole faceplate with screws (D329)

• 12” x 4” PVC tubes, elbow, tee, and shoe

• Heavy duty metal trim

Polished Chrome: $67.15

Special Finishes: $106.46

Available Finishes: Standard Finish

Polished Chrome Special Finishes

PVD Polished Brass

Polished Nickel

Satin Nickel

Oil Rubbed Bronze

Stainless Steel

Powder Coat White

Matte Black

1-1/2” SCH. 40 PVC PULL & DRAIN BW&O

D49721

• 1-1/2” tip toe drain plug (D3322)

• 1-hole faceplate with screws (D328)

• 12” x 4” PVC tubes, elbow, tee, and shoe

• Heavy duty metal trim

Polished Chrome: $67.15 Special Finishes: $106.46

Available Finishes:

1-1/2” SCH. 40 PVC PULL & DRAIN BW&O

D4972

• 1-1/2” tip toe drain plug (D3322)

• 2-hole faceplate with screws (D329)

•

• 12” x 4” PVC tubes, elbow, tee, and shoe

BATH WASTE & OVERFLOW TRIM KITS

TIP TOE UNIVERSAL TRIM SET, 1-HOLE

D931K

• One-hole faceplate (D328)

• Tip toe mechanism

• 1-3/8”-16 fine thread strainer (D3323)

• 1-1/2” x 1-3/8” adapter bushing & converter bracket included

• Heavy duty metal trim Polished Chrome: $70.43

Finishes: $103.18 Available

D93K

• Two-hole faceplate (D329)

• Tip toe mechanism

• 1-3/8”-16 fine thread strainer (D3323)

• 1-1/2” x 1-3/8” adapter bushing included

• Heavy duty metal trim

Polished Chrome: $75.34

Special Finishes: $108.09

TIP TOE UNIVERSAL TRIM SET, 2-HOLE ILLUSIONARY TIP-TOE UNIVERSAL TRIM SET

D98HRK

• No-hole faceplate (D980R)

• ADA approved Tip-toe mechanism

• 1-3/8”-16 fine thread strainer (D331-F) exterior with adapter busing

• 1-1/2” x 1-3/8” adapter bushing included

• Heavy duty metal trim

Available Finishes:

TWIST & CLOSE UNIVERSAL TRIM SET, 1-HOLE

D941K

• One-hole faceplate (D328)

• Twist & close mechanism

• 1-3/8”-16 fine thread strainer (D331-F)

• 1-1/2” x 1-3/8” adapter bushing and converter bracket included

• Heavy duty metal trim

TWIST & CLOSE UNIVERSAL TRIM SET, 2-HOLE

D94K

• Two-hole faceplate (D329)

• Twist & close mechanism

• 1-3/8”-16 fine thread strainer (D331-F)

• 1-1/2” x 1-3/8” adapter bushing included

• Heavy duty metal trim

TWIST & CLOSE UNIVERSAL TRIM SET, HIDDEN

D94HK

• No-hole faceplate (D980R)

• Twist & close mechanism

• 1-3/8”-16 fine thread strainer (D331-F) exterior with adapter busing

• 1-1/2” x 1-3/8” adapter bushing included

• Heavy duty metal trim

BATH WASTE & OVERFLOW TRIM KITS

TIP TOE TRIM SET WITH COARSE THREAD STRAINER

D93

• One-hole faceplate (D328)

• Tip toe mechanism (D3322)

• Coarse thread

• 1-1/2” NPSM (1-7/8” - 11-1/2 UNC) exterior

• Heavy duty metal construction

TIP TOE TRIM SET WITH

D93-2

• Two-hole faceplate (D329)

• Tip toe mechanism (D3322)

• Coarse thread

Available

COARSE THREAD STRAINER

Available Finishes:

Standard Finish

26 Polished Chrome Special Finishes

01 PVD Polished Brass

• 1-1/2” NPSM (1-7/8” - 11-1/2 UNC) exterior

• Heavy duty metal construction

Polished Chrome: $73.70 Special Finishes: $106.46

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

50 Powder Coat White

62 Matte Black

ROUND MUSHROOM TIP TOE TRIM SET

D398RK

• No-hole round faceplate (D980R)

• Round mushroom tip toe drain (D398R)

• Coarse thread

• 1-1/2” NPSM (1-7/8” - 11-1/2 UNC) exterior

• Heavy duty metal construction Polished Chrome: $122.83 Special Finishes: $147.40

Available Finishes:

Standard Finish

26 Polished Chrome Special Finishes

01 PVD Polished Brass

05 Polished Nickel

07 Satin Nickel

12 Oil Rubbed Bronze

20 Stainless Steel

50 Powder Coat White

62 Matte Black

TWIST & CLOSE TRIM SET WITH COARSE THREAD STRAINER

D94

• One-hole faceplate (D328)

• Twist & close mechanism (D331)

• Coarse thread

• 1-1/2” NPSM (1-7/8” - 11-1/2 UNC) exterior

• Heavy duty metal construction Polished Chrome: $67.15 Special Finishes: $99.91

Available Finishes:

Standard Finish

26 Polished Chrome Special Finishes

PVD Polished Brass

Polished Nickel

Satin Nickel

Oil Rubbed Bronze

Powder Coat White

Matte Black

TWIST & CLOSE TRIM SET WITH COARSE THREAD STRAINER

D94-2

• Two-hole faceplate (D329)

• Twist & close mechanism (D331)

• Coarse thread

• 1-1/2” NPSM (1-7/8” - 11-1/2 UNC) exterior

• Heavy duty metal construction

Polished Chrome: $70.43

Finishes: $103.18

Available Finishes:

TWIST & CLOSE TRIM SET WITH HIDDEN OVERFLOW

D94H

• No-hole faceplate (D980R)

• Twist & close mechanism (D331)

• Coarse thread

• 1-1/2” NPSM (1-7/8” - 11-1/2 UNC) exterior

•

BATH TUB STRAINERS

D92

• One-hole faceplate (D330)

• Beehive grid drain (D327)

• Plated brass screws

• Heavy duty metal construction

TRIP LEVER UNIVERSAL TRIM SET

D92K

• Trip lever faceplate (D330)

• Shoe strainer with grid and screw (D3311-F)

• 1-3/8”-16 fine thread strainer

• 1-1/2” x 1-3/8” adapter bushing

• Heavy duty metal construction

Available

1-1/2” BATH DRAIN WITH GRID & SCREW

D3311-C

• 1-1/2” beehive strainer style bath drain

• Coarse thread

• 1-1/2” NPSM (1-7/8” - 11-1/2 UNC) exterior

• #10 - 24 x 1-5/8” oval head brass screw

• Heavy duty metal construction

1-3/8” BATH DRAIN WITH GRID & SCREW

D3311-F

• 1-3/8” beehive strainer style bath drain

• Fine thread

• 1-3/8” NPSM (1-5/8” - 16 UNC) exterior

• #10 - 24 x 1-5/8” oval head brass screw

• Heavy duty metal construction

$55.69

$88.44 Available

1-1/2” TWIST & CLOSE BATH DRAIN

D331

• 1-1/2” twist & close style bath drain

• Coarse thread

• 1-1/2” NPSM (1-7/8” - 11-1/2 UNC) exterior

• Heavy duty metal construction

Polished Chrome: $55.69

$88.44

1-3/8” TWIST & CLOSE BATH DRAIN

D331-F

• 1-3/8” twist & close style bath drain

• Fine thread

• 1-3/8” NPSM (1-5/8” - 16 UNC) exterior

• Heavy duty metal construction

Polished Chrome: $55.69

BATH TUB STRAINERS

1-1/2” ROUND MUSHROOM TIP-TOE BATH DRAIN

D398R 1-1/2” NPSM (1-7/8” - 11-1/2 UNC)

D398R-F 1-1/4” NPSM (1-5/8” - 16 UNC)

• Tip-Toe style bath drain

• European style full cover mushroom cap

• Sizes as marked above

Polished Chrome: $73.70 Special Finishes: $106.46

1-1/2” TIP-TOE BATH DRAIN

D3322

• 1-1/2” tip-toe style bath drain

• Coarse thread

• 1-1/2” NPSM (1-7/8” - 11-1/2 UNC) exterior

• Heavy duty metal construction Polished Chrome: $55.69 Special Finishes: $88.44

1-3/8” TIP-TOE BATH DRAIN

D3323

• 1-3/8” tip-toe style bath drain

• Fine thread

• 1-3/8” NPSM (1-5/8” - 16 UNC) exterior

• Heavy duty metal construction

Polished Chrome: $55.69 Special Finishes: $88.44

TIP-TOE PLUNGER ONLY

Available Finishes:

Available Finishes:

Satin Nickel

Oil Rubbed Bronze

Powder Coat White

Matte Black

Available Finishes:

79338MO (3/8 Thread) -OR- 793516MO (5/16 Thread)

• Replacement plunger for D3322, D3323, D398R and D98R

• Less Cap Special Finish: $16.38

TIP-TOE PLUNGER AND PLASTIC CUP

79338MO**

• Replacement plunger for D3322 and D3323

• With Plastic Cap

Polished Chrome: $22.93 Special Finishes: $29.78

Available Finishes: Standard Finish 26 Polished Chrome Special Finishes 01 PVD Polished Brass

Satin Nickel

BRASS ADAPTER WITH D98 BRASS COVER

D398RB-1

• Replacement Plunger and Cover

• Fits D398 and D98LT Drains

• Brass stopper with 3/8 in. tapping

Polished Chrome: $71.21

Special Finishes: $72.44

Available Finishes: Standard Finish

26 Polished Chrome Special Finishes 01 PVD Polished Brass

Polished Nickel

Satin Nickel 12 Oil Rubbed Bronze 50 Powder Coat White

62 Matte Black

BATH WASTE & OVERFLOW TRIM KITS

ONE-HOLE FACEPLATE WITH SCREW

D328

• One-hole overflow faceplate

• 1/4” - 20 brass screw included

• Heavy duty metal construction Polished Chrome: $10.99

$31.12

TWO-HOLE FACEPLATE WITH SCREWS

D329

• Two-hole overflow faceplate

• Two 1/4” - 20 brass screws included

• Heavy duty metal construction Polished Chrome: $19.65 Special Finishes: $39.31

TRIP LEVER FACEPLATE WITH SCREWS

D330

• Trip lever overflow faceplate

• Two 1/4” - 20 brass screws included

• Heavy duty metal construction Polished Chrome: $36.03

ROUND FLOATING FACEPLATE

D980R

• No-hole round overflow faceplate

• Adapter fits integrated overflow tubs

• Fits two hole top elbow overflows

• Two screws and mounting ring included

• Solid brass Polished Chrome: $73.70

$96.63

BEEHIVE STYLE TUB WITH SCREW

D327

• Gerber style tub waste grid

• #10 - 24 x 1-5/8” oval head brass screw

• Heavy duty metal construction Polished Chrome: $19.65

Finishes: $39.31

BATH WASTE & OVERFLOW TRIM KITS

STRAIGHT ADAPTER - 1-1/2”

442P (PVC) -OR- 442A (ABS)

• 1-1/2” NPSM (1-7/8” - 11.5 UNC-2B)

• Attaches integrated drain to plumbing

• Sch 40 Pipe Fitting

CLOSING NO HOLE OVERFLOW

PATENTED CLOSING METALLIC OVERFLOW COVER

D493CHM

• Fits 2-hole overflow faceplate

• Replaces traditional overflow cover

• Heavy metallic construction

• Easily installs using a screwdriver

CLOSING METALLIC OVERFLOW COVER PLUMBER’S PACK

D493CHPM

• Fits 2-hole overflow faceplate

• Replaces traditional overflow cover

• Heavy metallic construction

• Oversized tip-toe coverplate

• ADA approved drain

• Tee included

• Solvent weld using primer & PVC cement

Polished Chrome: $109.73

Finishes: $139.21 Available Finishes:

ILLUSIONARY OVERFLOW PLUMBER’S PACKS

D593AHRK (D593ARK)

• Fits 2-hole overflow faceplate

• Replaces traditional overflow cover

• Heavy metallic construction

•

•

•

•

ILLUSIONARY OVERFLOW PVC PLUMBER’S PACK

D593PHRK (D593PRK)

• Fits 2-hole overflow faceplate

• Replaces traditional overflow cover

• Heavy metallic construction

• Oversized tip-toe coverplate

• ADA approved drain

• Tee included

• Solvent weld using primer & PVC cement Polished Chrome: $109.73 Special Finishes: $139.21

ILLUSIONARY OVERFLOW ABS PLUMBER’S PACK

D594AHRK

• Fits 2-hole overflow faceplate

• Replaces traditional overflow cover

• Heavy metallic construction

• Pull & Drain tub seal

• Tee included

• Solvent weld using primer & ABS cement

Polished Chrome: $109.73 Special Finishes: $139.21 Available

ILLUSIONARY OVERFLOW PVC PLUMBER’S PACK

D594PHRK

• Fits 2-hole overflow faceplate

• Replaces traditional overflow cover

• Heavy metallic construction

• Pull & Drain tub seal

• Tee included

•

PVC & ABS PLUMBER’S PACKS

1-1/2” SCH. 40 PVC TIP TOE PLUMBER’S PACK

D532

• 1-1/2” tip toe style drain (D3322)

• Two-hole faceplate (D329)

• PVC top elbow and shoe elbow included

• Heavy duty metal construction

• Tubing & tee not included

Polished Chrome: $63.87 Special Finishes: $96.63

Available Finishes:

1-1/2” SCH. 40 ABS TIP TOE PLUMBER’S PACK

D534

• 1-1/2” tip toe style drain (D3322)

• Two-hole faceplate (D329)

• ABS top elbow and shoe elbow included

• Heavy duty metal construction

• Tubing & tee not included Polished Chrome: $63.87 Special Finishes: $96.63

Available

1-1/2” SCH. 40 PVC TWIST & CLOSE PLUMBER’S PACK

D542

• 1-1/2” twist & close style drain (D331)

• Two-hole faceplate (D329)

• PVC top elbow and shoe elbow included

• Heavy duty metal construction

• Tubing & tee not included

Polished Chrome: $63.87

Special Finishes: $96.63

Available Finishes: Standard Finish 26 Polished Chrome

Finishes 01 PVD Polished Brass

Polished Nickel

Satin Nickel

Oil Rubbed Bronze

Stainless Steel

Powder Coat White

Matte Black

1-1/2” SCH. 40 ABS TWIST & CLOSE PLUMBER’S PACK

D544

• 1-1/2” twist & close style drain (D331)

• Two-hole faceplate (D329)

• ABS top elbow and shoe elbow included

• Heavy duty metal construction

• Tubing & tee not included Polished Chrome: $63.87

Special Finishes: $96.63

Available Finishes:

Polished Chrome

Finishes

PVD Polished Brass

Polished Nickel

Satin Nickel

Oil Rubbed Bronze

Matte Black

1-1/2” SCH. 40 PVC PULL & DRAIN PLUMBER’S PACK

D572

• 1-1/2” pull & drain style drain

• Two-hole faceplate (D329)

• PVC top elbow and shoe elbow included

• Heavy duty metal construction

• Tubing & tee not included Polished Chrome: $63.87

Special Finishes: $96.63 Available

1-1/2” SCH. 40 ABS PULL & DRAIN PLUMBER’S PACK

D574

• 1-1/2” pull & drain style drain

• Two-hole faceplate (D329)

• ABS top elbow and shoe elbow included

• Heavy duty metal construction

• Tubing & tee not included Polished Chrome: $63.87 Special Finishes: $96.63

Available Finishes:

BATH WASTE & OVERFLOW

BRASS ADAPTER BUSHING

792BB

• Converts 1-3/8” fine to 1-1/2” coarse thread

• 1-7/8” - 11-1/2 x 1-5/8” - 16 adapter bushing

Special Finish: $19.65

LONG BRASS ADAPTER BUSHING

792BB-2

• Converts 1-3/8” fine to 1-1/2” coarse thread

• 1-7/8” - 11-1/2 x 1-5/8” - 16 adapter bushing

• 2 in. long bushing

Special Finish: $34.39

LONG BRASS ADAPTER BUSHING

792BB-4

• Converts 1-3/8” fine to 1-1/2” coarse thread

• 1-7/8” - 11-1/2 x 1-5/8” - 16 adapter bushing

• 4 in. long bushing

Special Finish: $96.63

TOP ELBOW CONVERTER BRACKET

792BR

• Converts two hole elbow for 1-hole faceplates

Special Finish: $10.99

BRASS HALF FERRULE

818-F

• Brass compression ferrule

• Can be soldered for commercial applications

• Can be used in all brass tube kits

Special Finish: $11.46

ABS CABLE DRIVEN BATH WASTE & OVERFLOWS

1-1/2” SCH. 40 ABS CABLE DRIVEN BW&O

D50A27

• 1-1/2” schedule 40 ABS cable driven bath waste

• 27” cable - trim includes brass handle, back plate, pop-up, and strainer plate

• All glue type - tubes not included

D50A27-LT (Less Trim):

Available

1-1/2” SCH. 40 ABS BALL JOINT CABLE DRIVEN BW&O

D50A27BJ

• 1-1/2” schedule 40 ABS cable driven bath waste

• 27” cable - trim includes brass handle, back plate, pop-up, and strainer plate

• All glue type - tubes not included

D50A27BJ-LT (Less

Powder Coat White 62 Matte Black

1-1/2” SCH. 40 ABS CABLE DRIVEN BW&O

D50A35

• 1-1/2” schedule 40 ABS cable driven bath waste

• 35” cable - trim includes brass handle, back plate, pop-up, and strainer plate

• All glue type - tubes not included

Polished Chrome: $234.20 Special Finishes: $298.08

D50A35-LT (Less Trim): $111.37 Available

Rubbed Bronze

Stainless Steel

Powder Coat White

Matte Black

1-1/2” SCH. 40 ABS BALL JOINT CABLE DRIVEN BW&O

D50A35BJ

• 1-1/2” schedule 40 ABS cable driven bath waste

• 35” cable - trim includes brass handle, back plate, pop-up, and strainer plate

• All glue type - tubes not included

Polished Chrome: $244.03

Special Finishes: $307.91

D50A35BJ-LT (Less Trim): $121.20

Available Finishes:

1-1/2” SCH. 40 ABS CABLE DRIVEN BW&O

D50A45

• 1-1/2” schedule 40 ABS cable driven bath waste

• 45” cable - trim includes brass handle, back plate, pop-up, and strainer plate

• All glue type - tubes not included

Polished Chrome: $244.03

Special Finishes: $307.91

D50A45-LT (Less Trim): $121.20

1-1/2” SCH. 40 ABS BALL JOINT CABLE DRIVEN BW&O

D50A45BJ

• 1-1/2” slip joint tubular cable driven bath waste

• 27” cable - slip joint adjustability

• Trim includes brass handle, back plate, large stopper, and strainer plate

D50A45BJ-LT (Less Trim):

PVC CABLE DRIVEN BATH WASTE & OVERFLOWS

1-1/2” SCH. 40 PVC CABLE DRIVEN BW&O

D50P27

• 1-1/2” schedule 40 PVC cable driven bath waste

• 27” cable - trim includes brass handle, back plate, pop-up, and strainer plate

• All glue type - tubes not included

1-1/2” SCH. 40 PVC BALL JOINT CABLE DRIVEN BW&O

D50P27BJ

• 1-1/2” schedule 40 PVC cable driven bath waste

• 27” cable - trim includes brass handle, back plate, pop-up, and strainer plate

• All glue type - tubes not included

D50P27BJ-LT (Less

1-1/2” SCH. 40 PVC CABLE DRIVEN BW&O

D50P35

• 1-1/2” schedule 40 PVC cable driven bath waste

• 35” cable - trim includes brass handle, back plate, pop-up, and strainer plate

• All glue type - tubes not included

Polished Chrome: $234.20 Special Finishes: $298.08

D50P35-LT (Less Trim): $111.37

1-1/2” SCH. 40 PVC BALL JOINT CABLE DRIVEN BW&O

D50P35BJ

• 1-1/2” schedule 40 ABS cable driven bath waste

• 35” cable - trim includes brass handle, back plate, pop-up, and strainer plate

• All glue type - tubes not included

1-1/2” SCH. 40 PVC CABLE DRIVEN BW&O

D50P45

• 1-1/2” schedule 40 PVC cable driven bath waste

• 45” cable - trim includes brass handle, back plate, pop-up, and strainer plate

• All glue type - tubes not included

1-1/2” SCH. 40 ABS PVC JOINT CABLE DRIVEN BW&O

D50P45BJ

• 1-1/2” schedule 40 PVC cable driven bath waste

• 45” cable - trim includes brass handle, back plate, pop-up, and strainer plate

• All glue type - tubes not included Polished Chrome:

Special Finishes:

POLY - CABLE DRIVEN BATH WASTE & OVERFLOWS

TUBULAR CABLE DRIVE BW&O

D50P27TLE

• 1-1/2” slip joint tubular cable driven bath waste

• 27” cable - slip joint adjustability

• Trim includes brass handle, back plate, large stopper, and strainer plate

Available

TUBULAR CABLE DRIVE BW&O

D50P35TLE

• 1-1/2” slip joint tubular cable driven bath waste

• 35” cable - slip joint adjustability

• Trim includes brass handle, back plate, large stopper, and strainer plate

Polished Chrome: $244.03

Stainless Steel 50 Powder Coat White 62 Matte Black

EUROPEAN TRIM FOR CABLE DRIVE BW&O

D50TE

• Trim kit for European cable driven bath waste

• Cable, tubes, and rough not included

• Includes brass handle

• Large European stopper and strainer plate

• Metal handle and stopper

• Fits all 1-1/2” Westbrass cable drives

Available Finishes:

Steel

Powder Coat White 62 Matte Black

LEVER ASSISTED TRIM FOR CABLE DRIVE BW&O

D50TP

• Lever assisted trim for cable driven bath waste

• Cable, tubes, and rough not included

• Includes brass handle

• Large European stopper and strainer plate

• Metal handle and stopper

• Fits all 1-1/2 in. Westbrass cable drives

LEVER ASSISTED 2” CABLE DRIVE BW&O

D52P45BJH

• 2” slip joint Sch 40 cable driven bath waste

• 45” cable assembly for deep tubs

• Includes brass handle, back plate, large stopper, and strainer plate with handle

• Large stopper for improved drainage

Available Finishes:

Finish

Polished Chrome

Finishes

PVD Polished Brass

Polished Nickel

ADDITIONAL INFORMATION

KITCHEN SPECIFICATIONS

Page 4

PULL-DOWN SPRAY KITCHEN FAUCETS

KITCHEN SPECIFICATIONS

D272HFP Page 7 Develosah

D204HFP Page 7

Page 7

D2041HFP Page 8

D2051HFP Page 8

KITCHEN SPECIFICATIONS

D203-NL Page 10 6”

D2031-NL Page 10

D2036-NL Page

PULL-DOWN SPRAY KITCHEN FAUCETS

KITCHEN SPECIFICATIONS

DISPOSAL FLANGES & STOPPERS

D2082S Page 12

D209 Page

D2105 Page 13

D2135

D2165 Page 14 Two Pack D214 Basket & D2089 Disposer

D2155

KITCHEN SPECIFICATIONS

KITCHEN & BAR SINK STRAINERS

D218 Page 15

D220 Page 15

D128 Page

D129

D1291

KITCHEN SPECIFICATIONS

D201-1 Page 17

Skirted

D200P Page 17

D202 Page 17

KITCHEN SPECIFICATIONS

SOAP/LOTION DISPENSERS

D2176 Page 19

D2178 Page 19

BATHROOM SPECIFICATIONS

BATHROOM FAUCETS

WAS00X Page 21

STOPS & SUPPLIES

D1112 Page 22

D12104 Page

BATHROOM SPECIFICATIONS

D12106

D12119

D12148 Page

D12108

D12112 Page 22

D12136

D124

D119 Page

D120 Page

BATHROOM SPECIFICATIONS

STOPS & SUPPLIES

D121

D113 Page 23

D122 Page 23 Bullnose Faucet

D112 Page 23

D118 Page 23

Faucet Supply Risers

D103BL

D105BL Page

BATHROOM SPECIFICATIONS

STOPS & SUPPLIES

D103BX Page 24

1/4-Turn Angle Stop, 1/2” IPS - Cross Handle Polished Chrome: $72.06 | Special Finishes: $91.72

D105BX Page 24

1/4-Turn Angle Stop, 5/8” OD Inlet - Cross Handle Polished Chrome: $72.06 | Special Finishes: $91.72

D103 Page 24

Angle Stop, 1/2” IPS - Round Handle Polished Chrome: $57.32 | Special Finishes: $80.25

D105 Page 24

Angle Stop, 1/2” Nom. Copper - Round Handle Polished Chrome: $57.32 | Special Finishes: $80.25

D103X Page 24

Comp Angle Stop, 1/2” IPS - Cross Handle Polished Chrome: $109.73 | Special Finishes: $132.66

D105X Page 25

Comp Angle Stop, 5/8” OD - Cross Handle Polished Chrome: $109.73 | Special Finishes: $132.66

BATHROOM SPECIFICATIONS

LEVER HANDLE 1/4 - TURN ANGLE STOP KITS

D1612TBL Page 26

Lever

D1615TBL Page 26 Lever

D1613TBL Page

BATHROOM SPECIFICATIONS

ROUND HANDLE IPS ANGLE STOP KITS

D103KFH Page

1/2”

CROSS HANDLE IPS ANGLE STOP KITS

D103KFHX Page 29 1/2”

BATHROOM SPECIFICATIONS

ROUND HANDLE COMPRESSION INLET ANGLE STOP KITS

D105KFH Page 30

1/2”

D105KBN Page 30

D105K12 Page 30

D105K15 Page 30 1/2”

CROSS HANDLE COMPRESSION INLET ANGLE STOP KITS

D105KFHX Page 31

1/2” Nom. x 3/8”

D105KBNX Page 31

BATHROOM SPECIFICATIONS

PEDESTAL LAVATORY KITS

D1538L Page 32

Round Handle Corrugated Pedestal Kit Polished Chrome: $406.16 | Special Finishes: $514.27

D1838L Page 32

Cross Handle Traditional Pedestal Kit Polished Chrome: $406.16 | Special Finishes: $514.27

D1638L Page 32

Cross Handle LA Pedestal Kit Polished Chrome: $406.16 | Special Finishes: $514.27

D1738L Page 32

Cross Handle Victorian Pedestal Kit Polished Chrome: $406.16 | Special Finishes: $514.27

D19103BXK Page

D19105BLK

BATHROOM SPECIFICATIONS

PEDESTAL LAVATORY

KITS

D1338QSL Page 34 1-1/4”

D4054S-1 Page

P-TRAPS WITH BOX FLANGES

D4054R-1 Page 34 1-1/4” x 1-1/4” Round Trap with

D400-1 Page 35 1-1/2” x 1-1/2” P-Trap with Box Flange Polished Chrome: $135.94 | Special Finishes: $170.33

D401-1 Page 35 1-1/4” x 1-1/4” P-Trap with Box Flange Polished Chrome: $135.94 | Special Finishes: $170.33

D402NE-1 Page 35 1-1/2” x 1-1/2” or 1-1/4” x 1-1/4” P-Trap for PVC or ABS Polished Chrome: $147.40 | Special Finishes: $186.71

BATHROOM SPECIFICATIONS

CONSTRUCTION ACCESSORIES

D401-PF Page 36

1-1/2” x 1-1/2” or 1-1/4” P-Trap Corrosion Proof Polished Chrome: $35.09 | Special Finishes: $47.19

D430 (549800) Page 36

1-1/2” 2-Part Continuous Waste LA Code RAW: $65.51 | Polished Chrome: $75.34

112FDF Female End Page 36 1-1/2” Female Desanko Fitting RAW: $22.93

112MDF Male End Page 36 1-1/2” Female Desanko Fitting RAW: $22.93

D432 1-1/2” Slip Joint (705820) Page 36

D422T-26 1-1/4” Thread One End 1-1/2” Slip Joint WYE with 7/8” Branch RAW: $29.48 | Polished Chrome: $34.39

CONSTRUCTION ACCESSORIES

D42316 1-1/2” (796962B or 584850) Page 36

1-1/2” x 16” Double End Slip Joint Extension

$45.86 | Polished Chrome: $55.69

D416 1-1/4” x 8” Page 36 1-1/2” x 16” Flanged

x 12” Page 36

x 16” Flanged Tailpiece Extension

BATHROOM SPECIFICATIONS

D420 Page

LAVATORY SINK DRAINS

BATHROOM SPECIFICATIONS

LAVATORY SINK DRAINS

D411-12 Page 39

Grid Strainer Lav Drain, No Overflow Holes Polished Chrome: $119.56 | Special Finishes: $170.33

D411-2 Page 39

D410A Page 40

D410A-1

SHOWER SPECIFICATIONS

& SHOWER WALL COVER TRIMS

1-Hole

D502 Page 42

D503 Page 42

1-Hole

SHOWER ARMS WITH FLANGES

D300-1 Page 43

D301-1 Page 43

D504 Page 42

2-Hole

D303-81 Page

D303-1 Page 43

D302-1 Page 43

SHOWER SPECIFICATIONS

90° RAIN SHOWER ARMS

D3700-1 Page 44

1/2”

1/2”

D3604A Page 44

D3703-1 Page 44

D3609S Page 44 Square Ceiling Shower Arm & Flange Polished Chrome: $121.20 | Special Finishes: $155.59

D3612A

D3606A Page 44 1/2”

D3608A Page 44 1/2” x 8” Ceiling Arm with Heavy Duty Flange Polished Chrome: $81.89 | Special Finishes: $113.01

D3636A Page 44

1/2”

SHOWER SPECIFICATIONS

SHOWER HEADS

D306 Page

Chatham

HS6700

SHOWER SPECIFICATIONS

SHOWER HEADS

SHOWER ACCESSORIES & HOSES

SHOWER SPECIFICATIONS

SHOWER SPECIFICATIONS

SHOWER DRAIN COVER TRIMS

D3191 Page 53

Florestone Snap-In Shower Strainer Polished Chrome: $32.76 | Special Finishes: $49.13

D3192 Page 53

D3193 Page 54

$49.13

BATH TUB SPECIFICATIONS SOLID

SURFACE BATH TUBS

BATH TUB SPECIFICATIONS

ISLAND TUB DRAINS FOR INTEGRATED OVERFLOW BATH TUBS

TC3A /TC3P Page 59

Island Drain for Integrated Overflow Tubs Standard Finish: $240.79

TUB FILLERS

DF02043

BRASS TUB SPOUTS

D310

D3101

D311

BATH TUB SPECIFICATIONS

7 INCH TUB SPOUTS

E507-1F Page

E5074-1F Page

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

PROFILE

493244SLD Page 65

Page

DEEP SOAK DRAINS

493244HLD Page 65

D493244LD

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

DRAINS

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

ILLUSIONARY BRASS BATH WASTE & OVERFLOW

D325H Page 69 14” Illusionary Tip-Toe Polished Chrome: $252.22 | Special Finishes: $284.98

D326H Page 69

D321H Page 69

D322H Page 69 22” Illusionary Lift & Turn Polished Chrome: $275.15 | Special Finishes: $307.91

ILLUSIONARY SCH. 40 WASTE & OVERFLOWS

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

BRASS BATH WASTE

D3261HKBJ Page 71

D3261HK Page 71

D3265HK Page

D3251HK Page

D3263HK Page 71

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

TWIST & CLOSE BATH WASTE & OVERFLOW

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

D323-20G

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

BLACK TUBULAR BATH WASTE & OVERFLOW

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

1-1/2”

592244

593244 Page

ABS BATH WASTE & OVERFLOW

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

1-1/2”

D49321 Page 85

1-1/2”

D4932 Page 85

BATH WASTE & OVERFLOW TRIM KITS

D49421 Page 85

1-1/2”

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

TRIM KITS

BATH TUB STRAINERS

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

BATH TUB

STRAINERS

D398R

D398RB-1 Page 89 Brass Adapter with D98

BATH WASTE & OVERFLOW TRIM KITS

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

OVERFLOW TRIM KITS

CLOSING NO HOLE OVERFLOW

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

PVC & ABS PLUMBER’S

PACKS

D532

D534 Page 93

D542 Page 93 1-1/2”

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

D50A27 Page 95

1-1/2”

D50A27BJ-LT Page

D50A27-LT Page 95

1-1/2”

D50A35-LT

Page 95

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

D50P27

D50P27BJ-LT Page

D50P27-LT Page 96

D50P35BJ-LT Page 96 1-1/2”

BATH TUB WASTES & OVERFLOWS SPECIFICATIONS

NUMERICAL INDEX

NUMERICAL INDEX

NUMERICAL INDEX

NUMERICAL INDEX

NUMERICAL INDEX

NUMERICAL INDEX

TERMS & CONDITIONS

PRICING

Prices indicated are Manufacturer Suggested Retail Prices. Due to increasing costs of brass, raw and finishing materials, prices and specifications are subject to change without notice. Westbrass notifies all customers of pricing errors upon purchase order entry. Any pricing disputes must be settled before the product has shipped. All prices are indicated in United States currency and will be invoiced at prices prevailing at the time of order. Price Lists are available by contacting Westbrass.

TERMS

Net 30 days. A service charge of 1.5% per month (18% APR) will be charged on all invoices outstanding over 30 days.

FREIGHT

All orders will be shipped prepaid and billed except for COD customers; unless the customer wishes to use third party billing. Shipments are F.O.B. Los Angeles, CA. Full freight is allowed on shipments of $1200.00 net invoice value, within the continental USA. Full freight is allowed on shipments of $1,500.000 net invoice value to Hawaii and Alaska. Freight is not allowed on shipments of displays. Shipper reserves the right to ship by method of our choosing.

MINIMUM ORDER

Our minimum order is $50.00 net per order. Charges will be added to orders of less than $50.00 to bring the order to the minimum billing of not more than $10.

LIABILITY

Our liability on any claim, including claims of defective design, workmanship or materials is limited to replacement by shipment of items from our plant, refund or a combination thereof as we determine. Buyer agrees irrevocably to the jurisdiction of the California Courts over its person in the event of litigation. Service of process may be made as provided by California Law or shall be considered effective if sent by certified or registered mail, return receipt requested, postage prepaid.

CLAIMS

Please check your order immediately upon receipt. All claims for shortages, overages, incorrect product, billing errors, etc., must be made within 5 business days of receipt of goods.

RETURNS

Goods cannot be returned without prior authorization and must have a Returned Materials Authorization Number (RMA #) attached with the product. Items sent back to Westbrass without prior authorization will be rejected and returned at the customer’s cost. Returns for non-defective merchandise are subject to a minimum 25% restocking fee. Returns Materials Authorization (RMA) must be requested in writing by fax, email or mail within 30 days of delivery. All refunds are subject to inspection of the returned merchandise. Credit will not be issued, under any circumstances, until after the item has been received and inspected. Non-defective returns must be received in saleable condition. No returns on special or custom orders. All returns must be made freight prepaid by sender and the sender must assume all responsibility for shipping. Westbrass reserves the right to limit and/or refuse any returns at their discretion.

DAMAGED OR LOST SHIPMENTS

Items damaged in transit must be rejected upon delivery and immediately returned to Westbrass in its original box. Westbrass will be responsible for filing claims with the carrier. Damaged or lost shipments must be reported within 72 hours of receipt to the shipper of the product in question.

CARE & MAINTENANCE

With the exception of living finishes, all Westbrass decorative finishes are protected by the strongest finish treatments available while maintaining their luxurious appearance. While some finishes are more durable than others, no finish is indestructible. Polished Chrome, Satin Nickel and PVD Polished Brass finishes are the most durable. All other finishes are electroplated; some are then coated to enhance the gloss and durability. “Living” finishes are uncoated, designed to be exposed to the air and other elements, with the intention to age and change in their natural beauty. All of our finishes, plated and living, require some care in use.

TO CLEAN

Do not allow your product to come into contact with any cleansers fortified with ammonia, bleach, grease - cutters or other surfactant chemicals. Soft Scrub®, Dawn Liquid Soap®, Palmolive® or any other combined cleaners contain certain chemical components that will dissolve and remove the finish’s protective coating, and eventually the finish itself. Use only plain warm water and mild soap on a soft cloth or sponge. Avoid using any sponge with a scouring pad to clean your product. It is not necessary to rub hard to remove spots.

TO PROTECT

An occasional application of Carnauba wax (without cleaners), like that found in Flitz Faucet Wax®, Turtle Wax for Clear Coat Car Finishes® or McGuire’s Premium Wax®, will enhance the finish lustre, reduce hard water spots and add an extra layer of protection to your finish.

WARRANTY

DRAIN & STRAINER FINISHES

All sink and tub/shower drains, strainers and other trims have a 1 year warranty: (01) PVD Polished Brass (07) Satin Nickel (26) Polished Chrome (03) Polished Brass (12) Oil Rubbed Bronze (50) Powder Coat White (05) Polished Nickel (20) Stainless Steel (62) Matte Black (11) Antique Copper

FUNCTIONAL WARRANTY

The functionality of all products is warranted for a period of one year. All warranties are guaranteed to the original purchaser only. Product problems attributable to abuse, misuse, improper installation, hard water, neglected maintenance or accidental damage are not covered by this warranty. Modifying the product in any way voids the warranty. The use of plumber’s putty on our products also voids the warranty. Silicone sealing compounds should be used instead. No repairs or replacements will be made under such circumstances except at customer’s expense. Liability under warranties expressed or implied is limited to repair or replacement of defective goods only. In no event will Westbrass be liable for incidental or consequential damages (such as labor charges). This warranty does not cover labor charges, whether based on breach of express or implied warranty, breach of contract, negligence or any other legal theory.
