OEM PRODUCT BROCHURE SEASON 2022

SMART SANITATION SYSTEM

More

convenience.

More

hygiene.

More

freedom. iNDUS is not just a new product but a complete smart sanitation system, offering RV users more convenience, more hygiene and more freedom. With iNDUS RV users can be off-grid up to 7 days*.

The system consists of 5 different modules:

The benefits of iNDUS

From discharging average 5 times a week to only one efficient action*

From walking around with your waste-holding tank to one-stop-discharging

From the risk of bad smells and splashes to a hygienic way of discharging

From positioning your vehicle exactly on top of a discharge grid to a flexible way of discharging

From guessing when and where to discharge to exactly knowing it

From regularly dosing your additives to a full automatic dosing system

From running out of fresh water to re-using grey water for toilet flushing and saving fresh water

* Depending on tank volumes and user behaviour

Learn more on how the system works: https://youtu.be/k5tFUCnnbUQ

* Depending on tank volumes and user behaviour*

Page 2

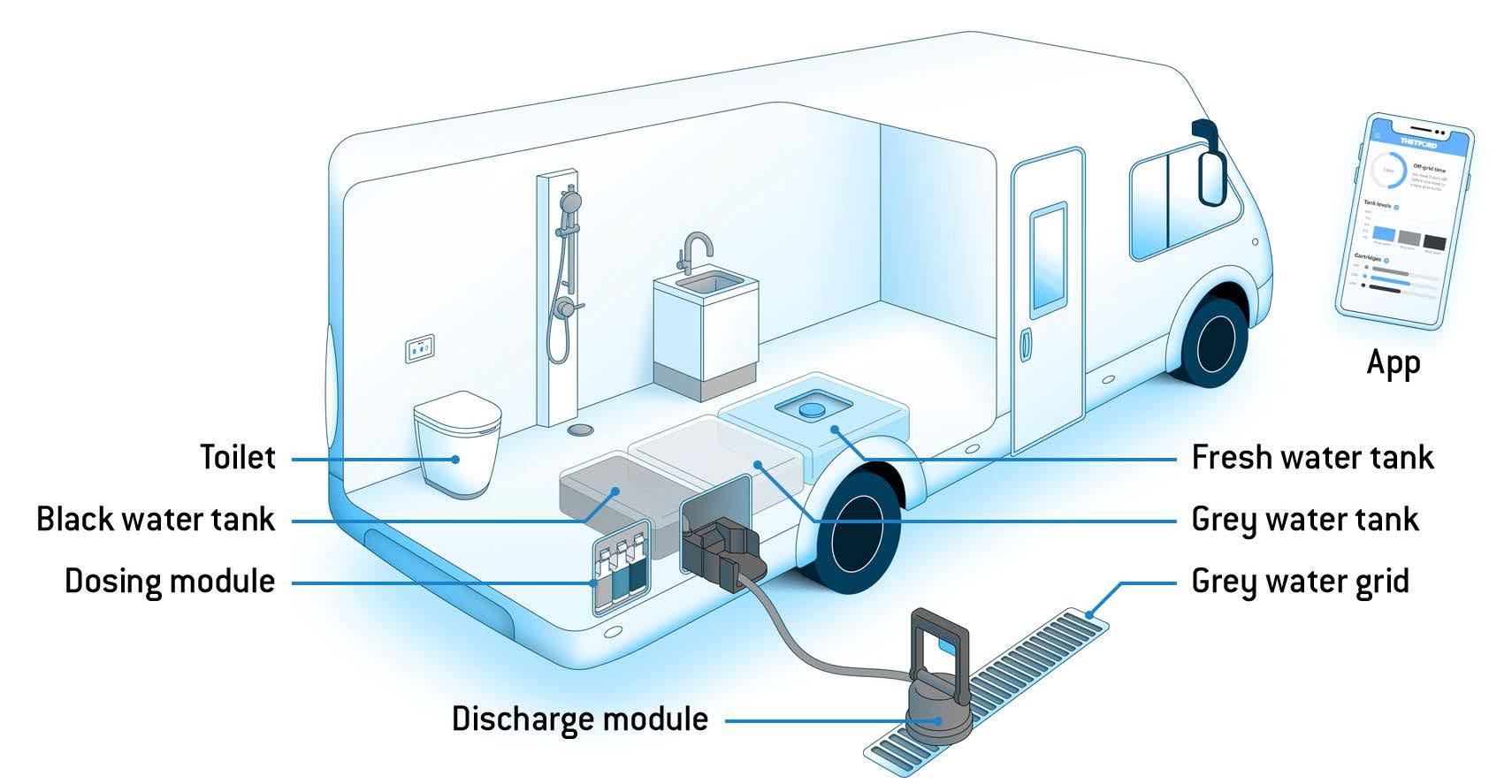

1. Toilet 2. Dosing module 3. Black and grey water tank, fresh water tank is optional 4. Discharge module 5. App
1 2 3 3 4 5
3

I can save water by re-using grey water for flushing?

BENEFITS

Powerful two-step macerator toilet

Re-use of grey water for flushing

Flush with fresh water when grey water is not available

Small (200ml) and large (500ml) flush

Soft close seat and cover

Lightweight

COMPARED TO ACTUAL MACERATOR TOILETS

Small diameter waste hoses

Low water usage

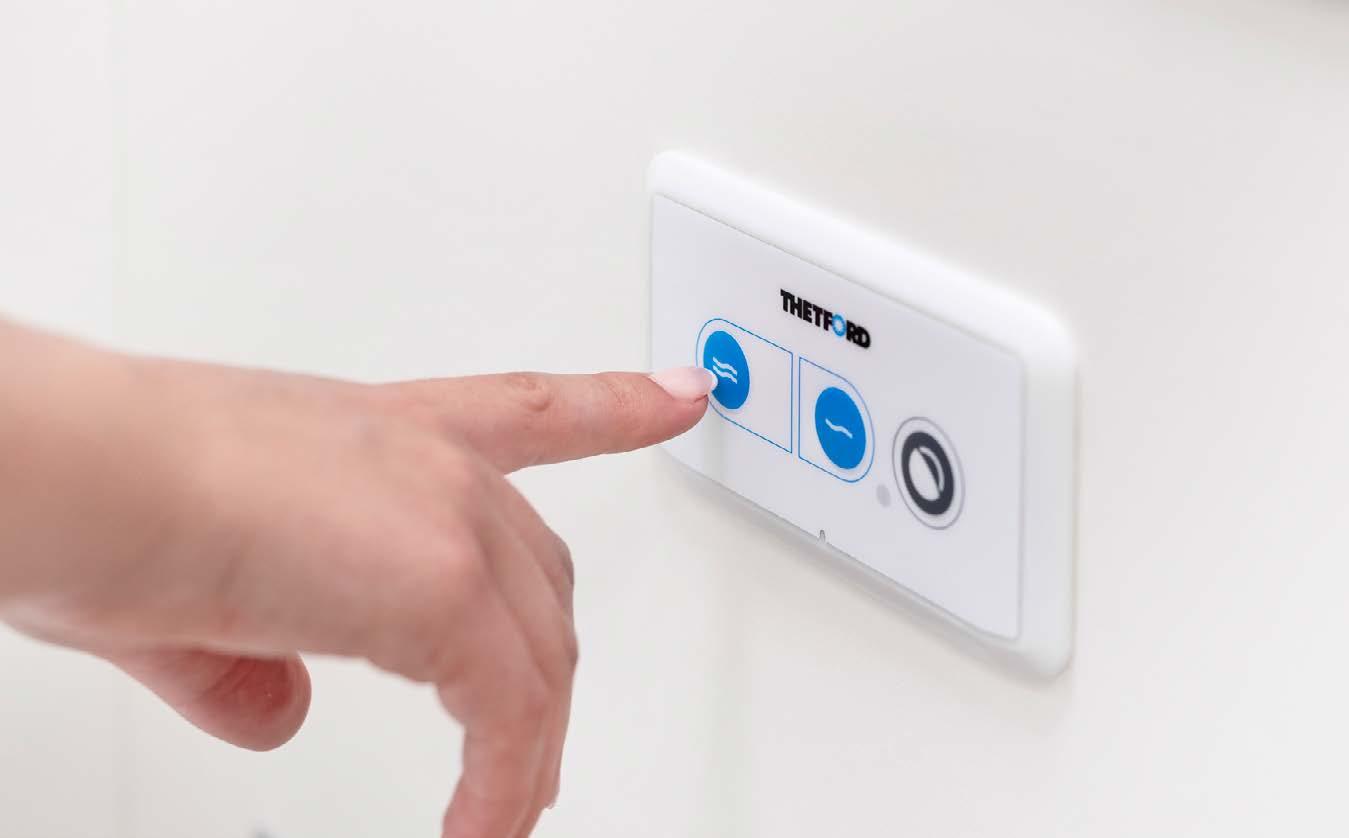

iNDUS toilet user interface

Big flush (500 ml*)

Small flush (200 ml*)

Bowl valve open/close (no macerating function, ideal for night use)

Page 3
pairing 1 2 3
Bluetooth
1 2 3 1 2
What if...

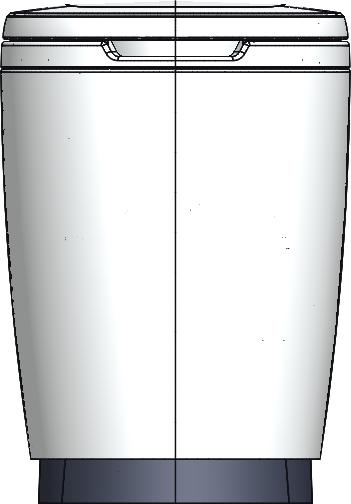

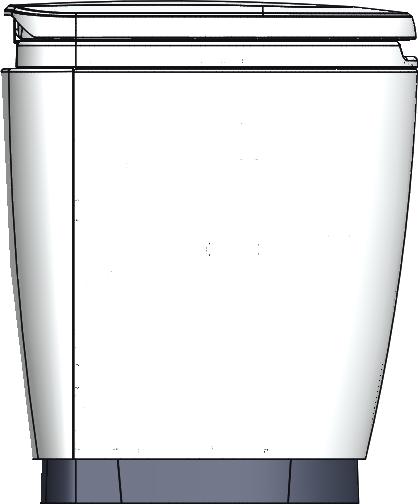

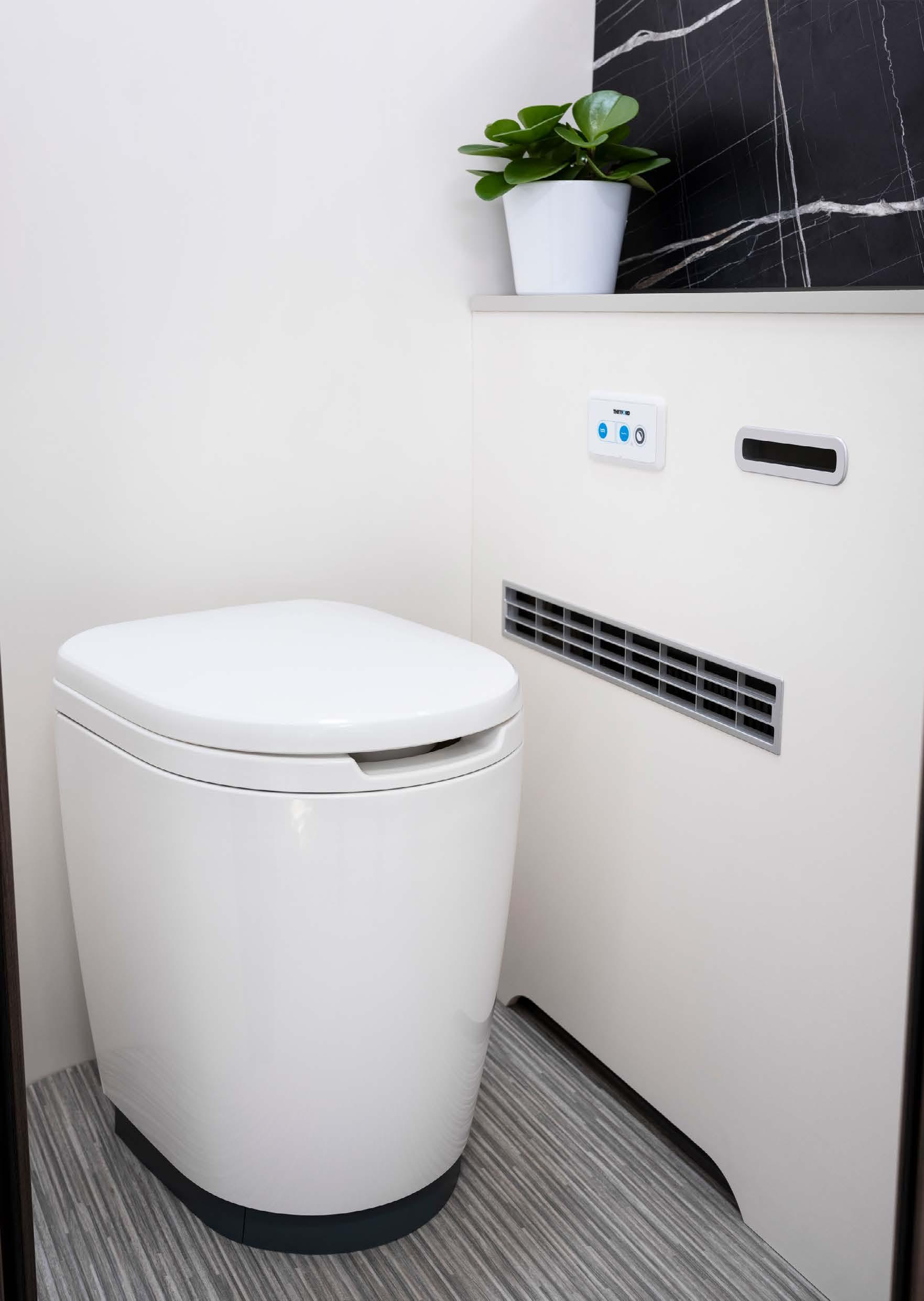

TOILET

SPECIFICATIONS

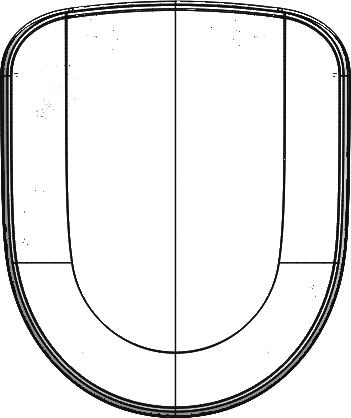

Page 4 i105-S i105-CS Main dimensions (HxWxD) 500 x 350 x 415 mm 500 x 350 x 450 mm Seat height 485 mm 485 mm Weight 7,5 kg 7,5 kg Toilet placement Freestanding Against the wall Shower tray connection Yes Yes Console No Yes Grey water flush Yes Yes Fresh water flush Yes Yes Fresh water supply Central fresh water tank Central fresh water tank Water usage - big flush (average) 500 ml 500 ml Water usage - small flush (average) 200 ml 200 ml Amount of flush water adjustable via app Yes Yes Flush water tank volume (buffer) 1,2 L 1,2 L Dimensions control panel (HxWxD) 68 x 125 x 35 mm 68 x 125 x 35 mm Cut-out dimensions control panel (HxW) 88 x 39 mm 88 x 39 mm Volume macerator house 1,8 L 1,8 L Material toilet bowl Plastic Plastic Material seat and cover Plastic Plastic Cable length control panel - toilet 3,5 m 3,5 m Inner diameter fresh water tube connection 10 mm 10 mm Inner diameter grey water tube connection 10 mm 10 mm Connection position wiring and tubing Bottom / through floor Back
i105-CS i105-S
TOILET

What if...

I don’t have to manually dump my cassette?

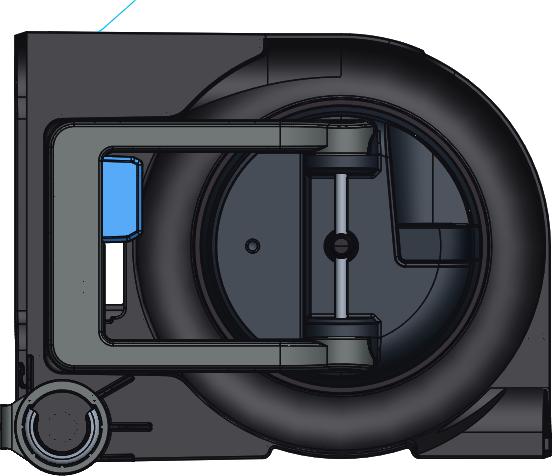

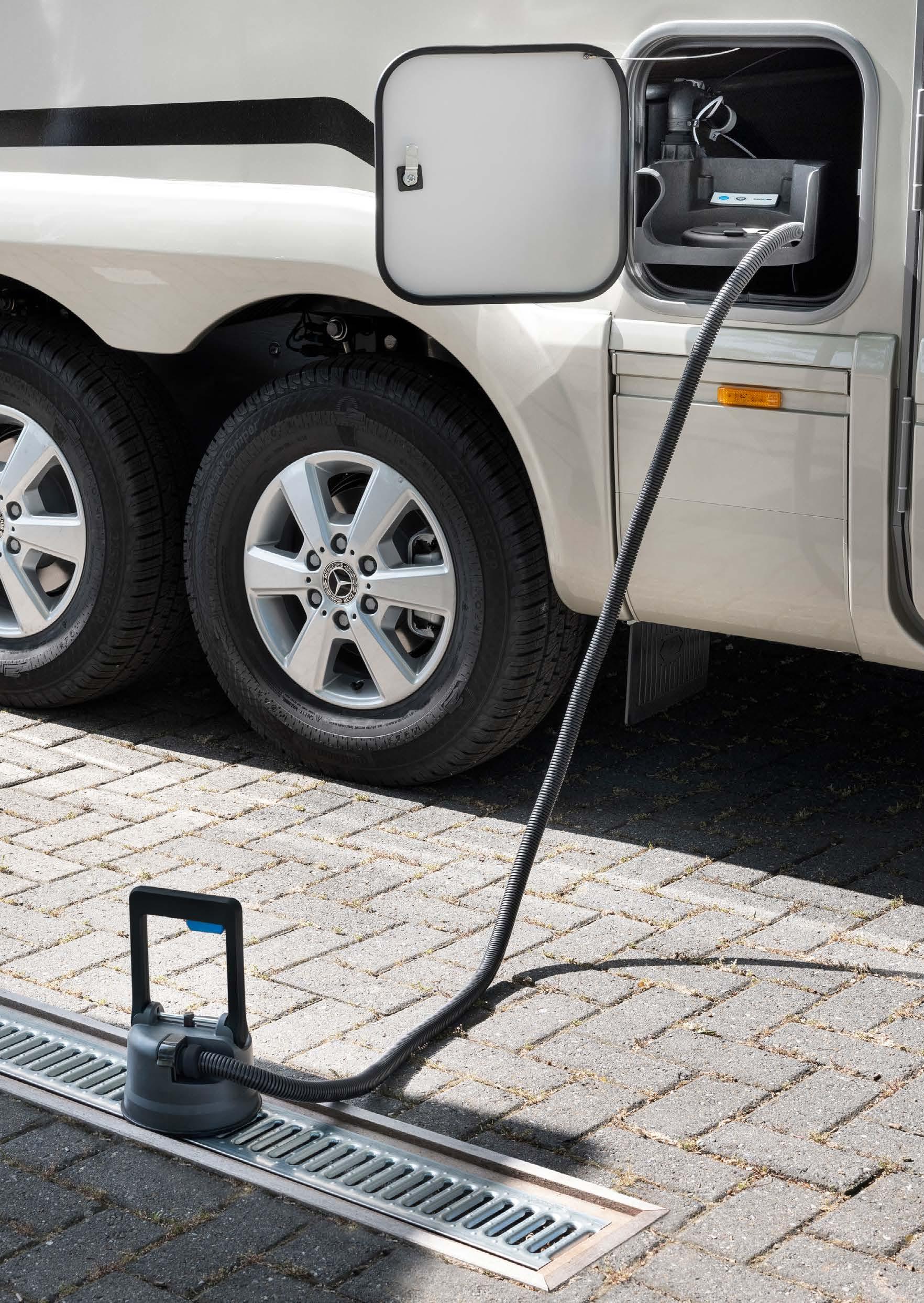

DISCHARGE DEVICE

BENEFITS

One stop discharging of both grey and black water

Flexible, hygienic and easy

No more manual discharging

Touching unhygienic components becomes a thing of the past

Discharge at most grey water locations

Discharge process: empty the black and grey water tank

Winterizing process: empty the system completely, including the flush water tank in the toilet

Page 5
1 2

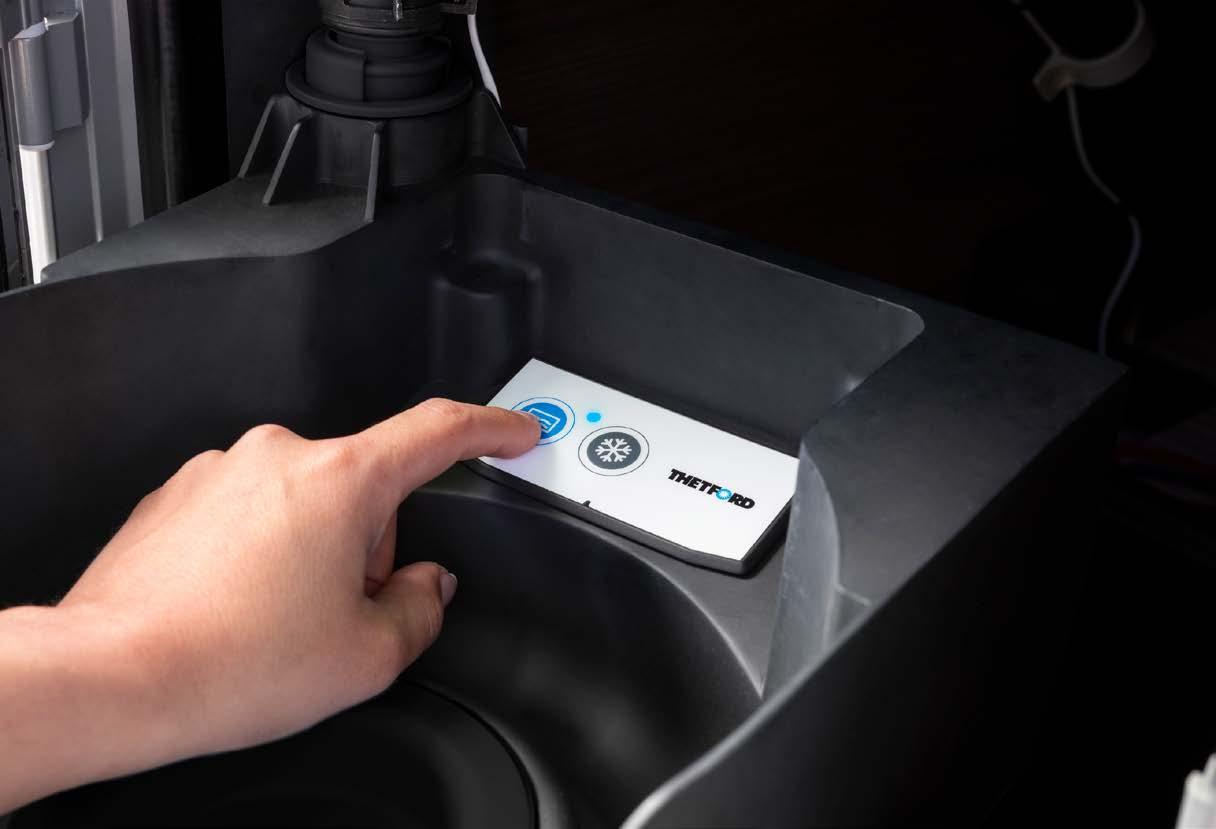

iNDUS discharge device user interface
1 2

DISCHARGE DEVICE

SPECIFICATIONS

Main dimensions (HxWxD) 200 x 240 x 340 mm

Main dimensions discharge device (HxDia) 275 x ø168 mm

Weight 1,7 kg

Hose length 2,3 m

Installation behind Thetford Service Door 3 Yes

Discharge speed 30-40 L/min

Valve opening Manual

Discharge process Electric

Removable discharge device Yes

Possibility to discharge in mobile waste holding tank Yes

Page 6

What if...

I don’t have to manually add additives after each discharge?

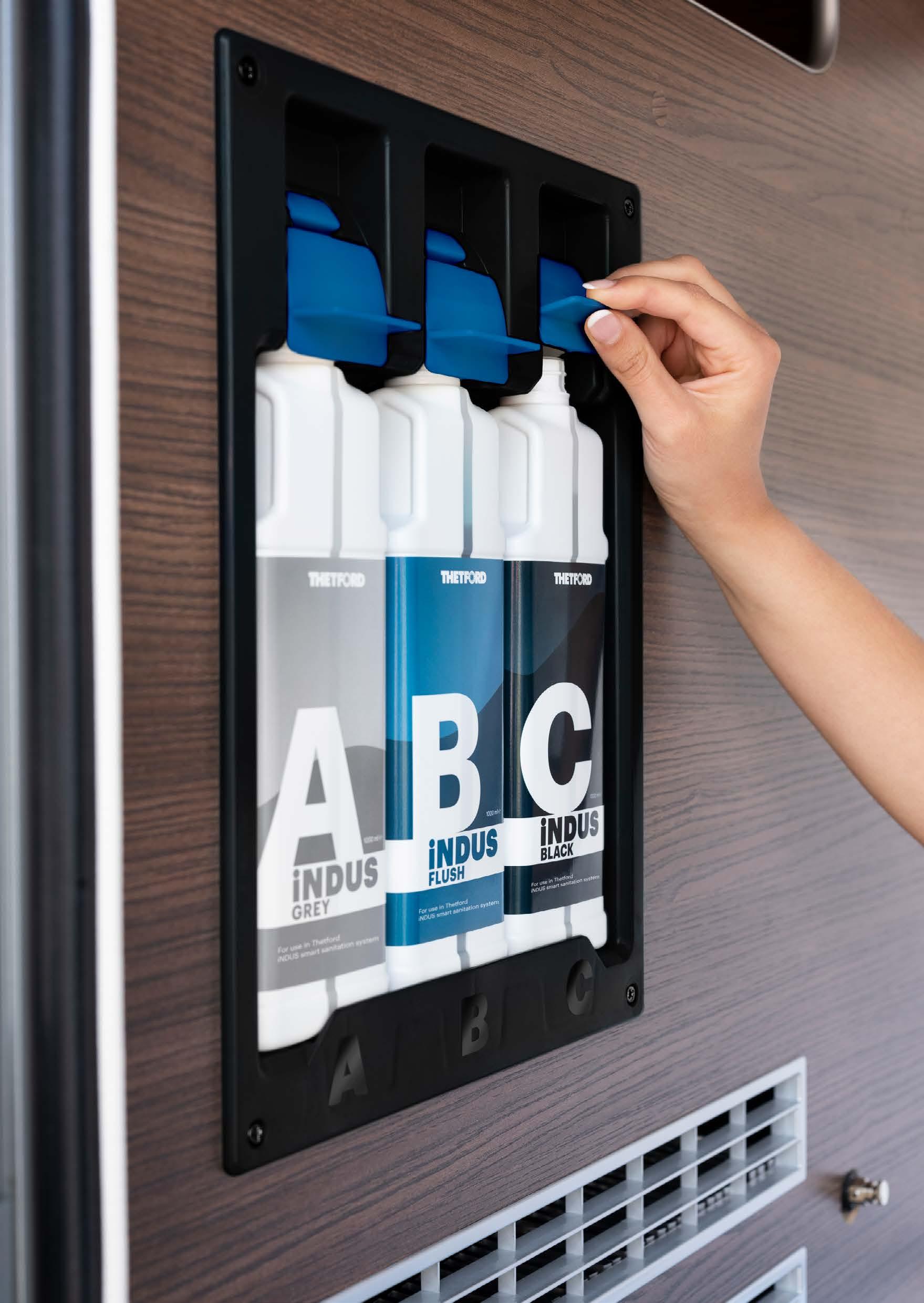

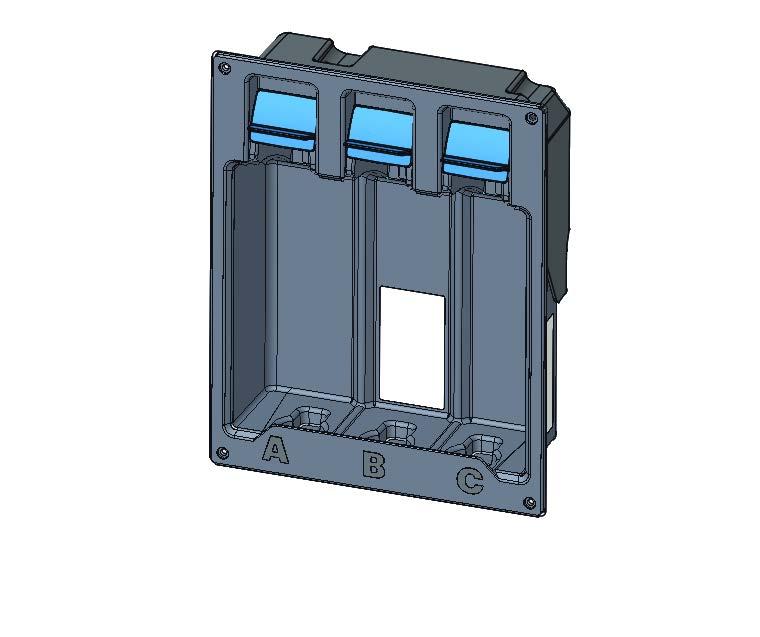

DOSING DEVICE

BENEFITS

Fully automatic additive dosing for grey, black and flush water

Doses exactly what is needed

Secures hygienic and odor free discharging

Ensures trouble-free operation

4 weeks of average use

Page 7

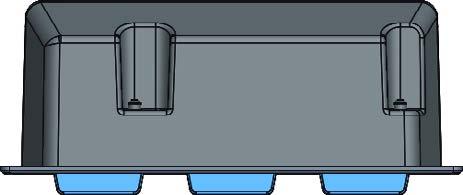

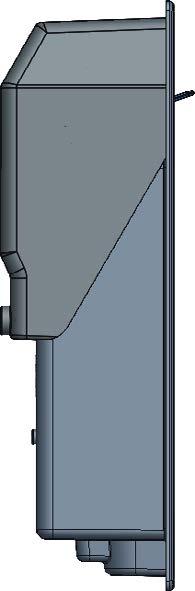

DOSING DEVICE

SPECIFICATIONS

Page 8 Main dimensions (HxWxD) 360 x 280 x 110 mm Weight (excl. additives) 1,1 kg Weight (incl. additives) 4,7 kg Grey water additive Yes Flush water additive Yes Black water additive Yes Cut-out dimensions (HxW) 345 x 263 mm

What if...

I don’t have to take care of the additives for 4 weeks?

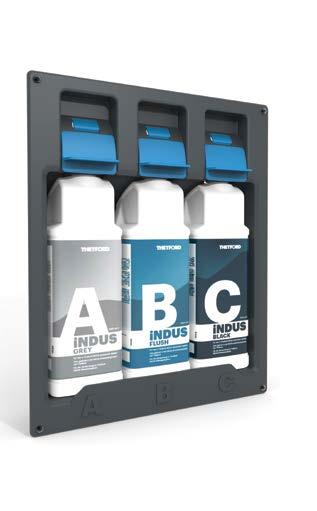

ADDITIVES

The iNDUS sanitation system requires specially developed, fully compatible and complementary interacting additives for Grey Water (A), Flush Water (B) and Black Water (C):

• To ensure human safety and hygiene in general and specifically a safe and hygienic toilet flush and a safe and hygienic discharging

• To control malodour formation for an odor free experience in general and specifically odor free discharging

• To prevent mineral scaling and deposits of grease in tanks and tubing

• To prevent unwanted system degradation and unscheduled maintenance

Availability: Set with 1x GREY (A), 1x FLUSH (B), 1x BLACK (C) Separate bottles of GREY (A), FLUSH (B), BLACK (C)

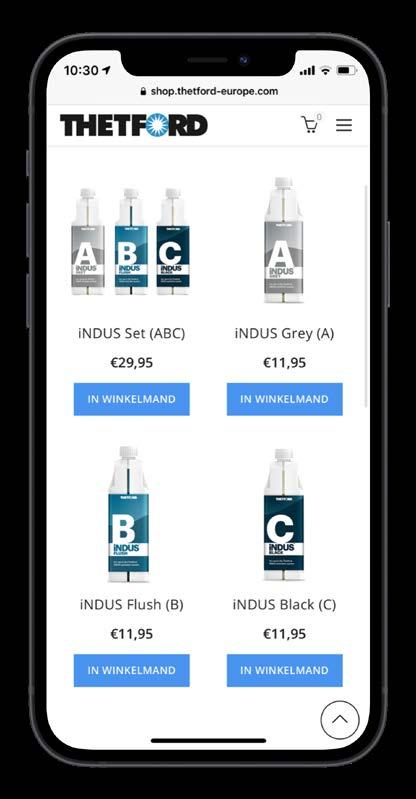

Consumer webshop for additives, reachable via iNDUS user app

Page 9

What if... my off grid time for black water is extended up to 7 days?*

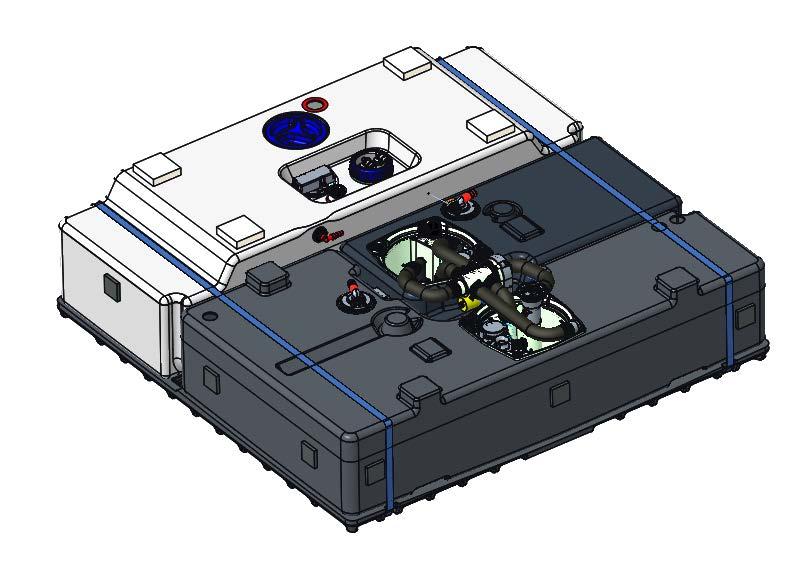

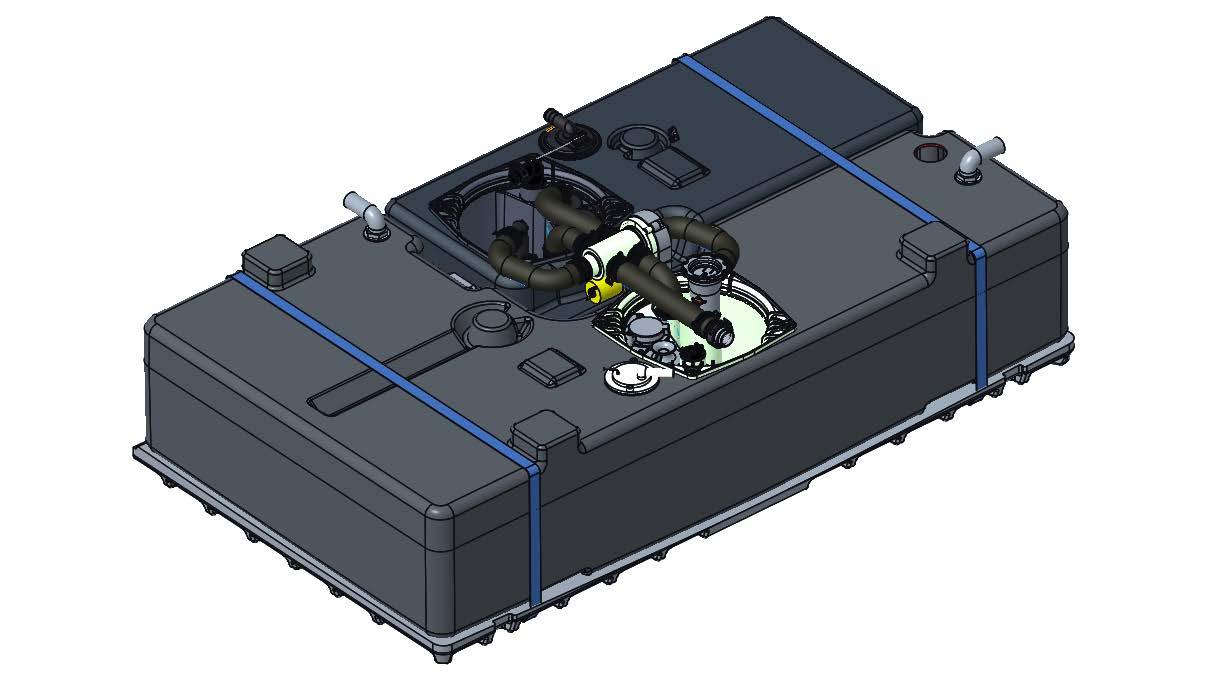

TANKS

BENEFITS

Integrated in vehicle

Extended off grid time

Waste water is auto-circulated 4 times/day for easy discharging

Grey water rinses black water tank, hoses and discharge grid

Discharge speed 40-60L/min

* Depending on tank volumes and user behaviour*

Page 10

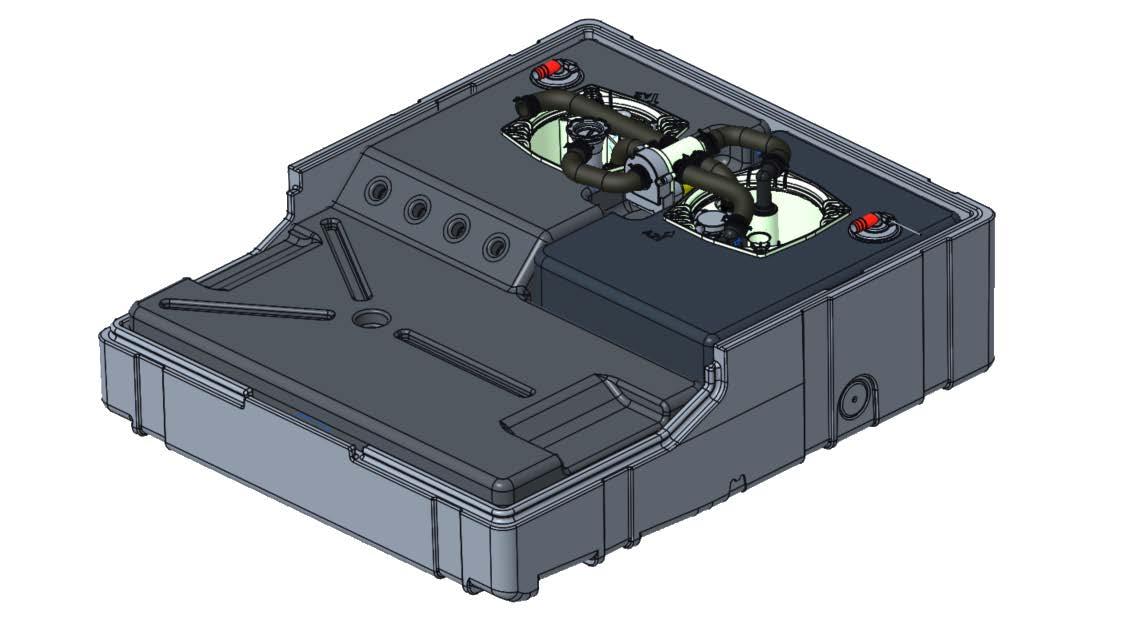

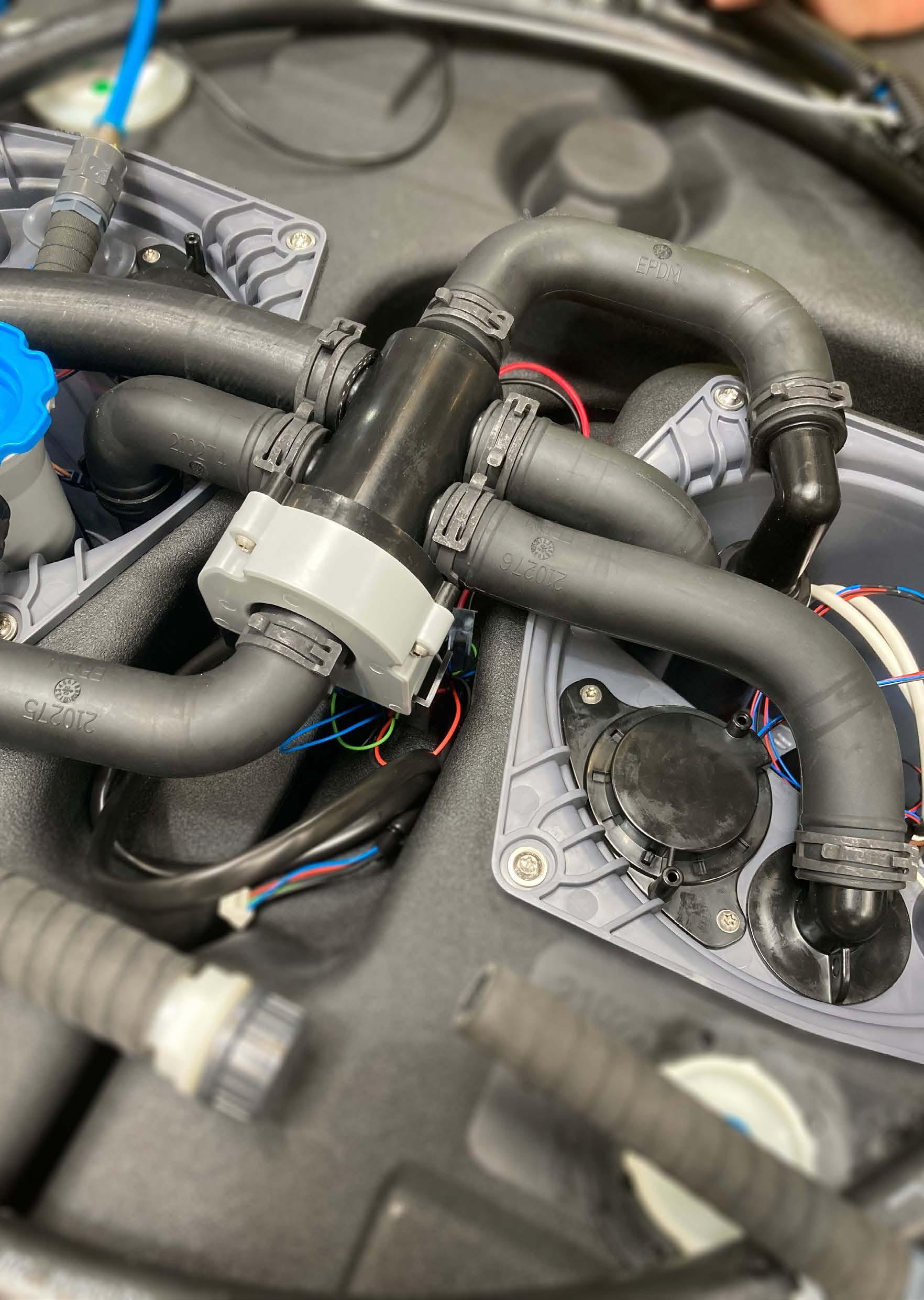

TANKS

SPECIFICATIONS TANKS SINGLE FLOOR

Tank set single floor 1

Length waste tube toilet - black water tank

Length additive hose dosing - grey water tank

Length additive hose dosing - toilet (flush water)

Length additive hose dosing - toilet (black water)

Length communication cable discharge - black water tank

Length communication cable toilet - black water tank

Power requirement 12V DC

Insulation bottom

Insulation top Option

ALDE Water heating hose

Page 11
dimensions
350 x 1125 x 950mm Overflow volume black water tank 45L Overflow volume grey water tank 100L
volume fresh water tank n.a. Weight 32,5 kg
Main
(HxWxD)
Overflow
2,2m
1,9m
Length waste tube black water tank - discharge
3m
6m
6m
6m
6m
10.4
16.0V
-

TANKS

SPECIFICATIONS DOUBLE FLOOR

Tank set double floor 1

Tank set double floor 2

ALDE Water heating hose

Page 12
Tank set double floor 1 Tank set double floor 2 Main dimensions (HxWxD) 360 x 1245 x 1180mm 360 x 1230 x 696mm Overflow volume black water tank 55L 55L Overflow volume grey water tank 120L 120L Overflow volume fresh water tank 150L n.a. Weight 38,5 kg 20 kg Length waste tube toilet - black water tank 2,2m 2,4m Length waste tube black water tank - discharge 1,9m 1,6m Length additive hose dosing - grey water tank 3m 3m Length additive hose dosing - toilet (flush water) 6m 6m Length additive hose dosing - toilet (black water) 6m 6m Length communication cable discharge - black water tank 6m 6m Length communication cable toilet - black water tank 6m 6m Power requirement 12V DC 10.4 - 16.0V 10.4 - 16.0V Insulation bottom Insulation top n.a. n.a.
Option

What if... the system advises me what to do when and where?

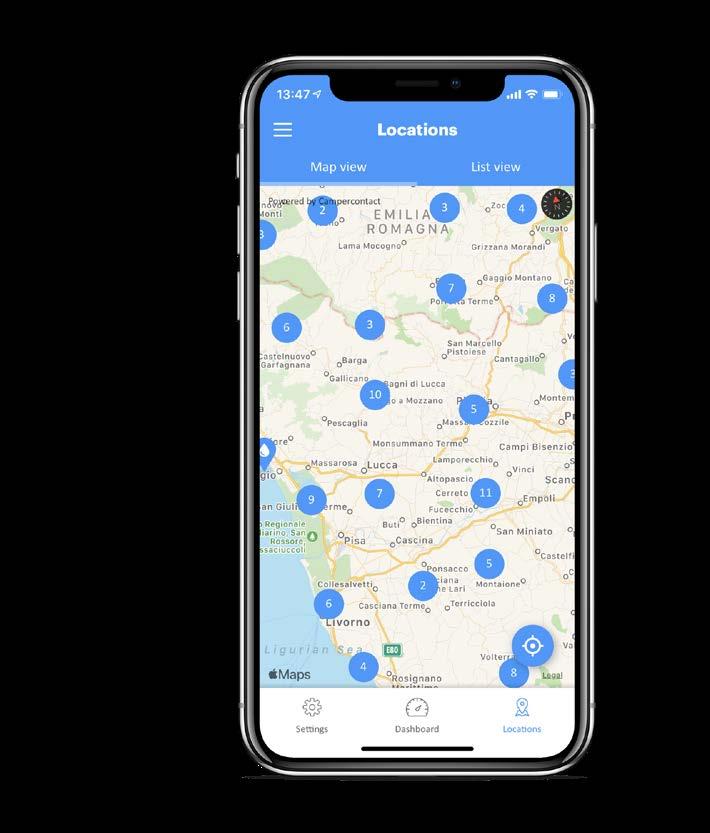

USER APP

BENEFITS

Complete overview in one app

Real time information on:

Off-grid time

Tank levels

Cartridge levels

Nearest discharge locations

System settings and notifications

Remote software updates

Webshop for additives

CONNECTION TO iNDUS SYSTEM

Bluetooth low energy 4.0 or higher

Page 13

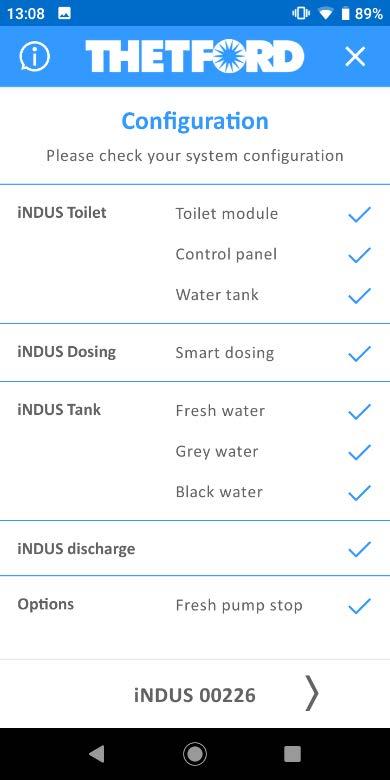

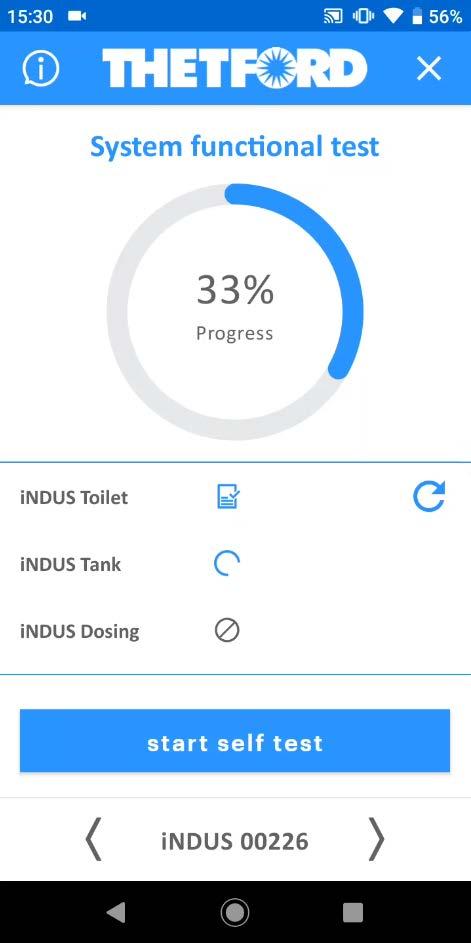

What if... the system checks functionality and installation for me?

BENEFITS

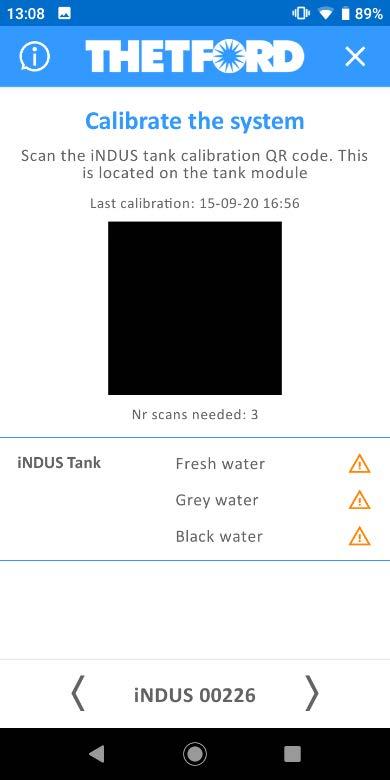

End of line (EOL) app for:

Configuration check

Calibration of level indicators and volume of the (waste) water tanks

Verification if all modules are electronically correctly connected

Functional test

Store results

SYSTEM REQUIREMENTS

Android 9+ (and above) recommended

Bluetooth low energy 4.0 or higher

Wi-Fi or 4G (internet connection)

Camera 8MP or more

Page 14
EOL APP (OEM)

What if...

I don’t have to move my vehicle to empty the waste tanks?

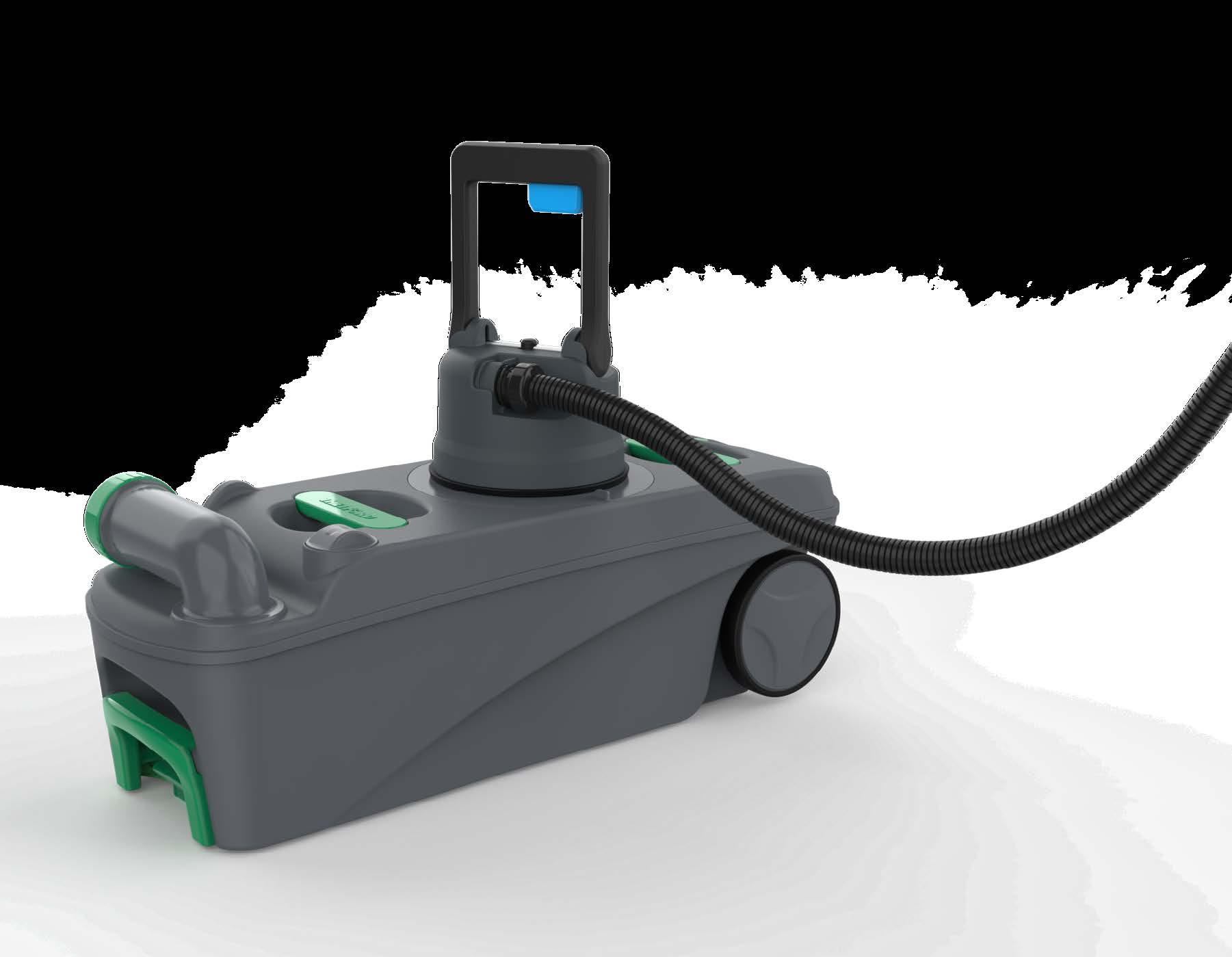

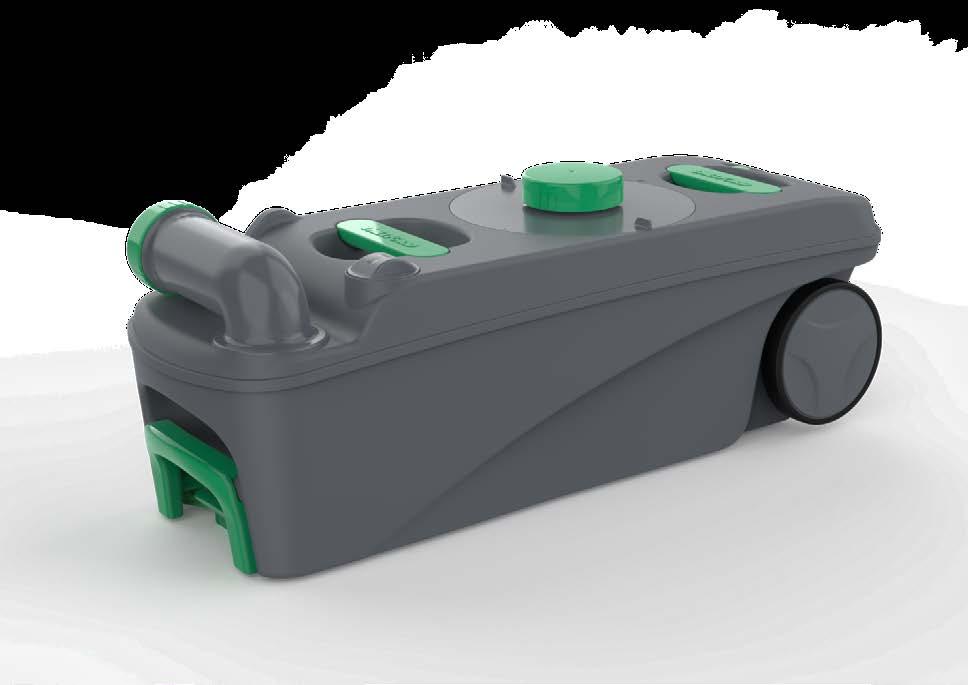

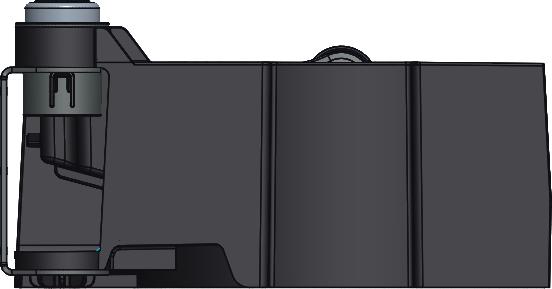

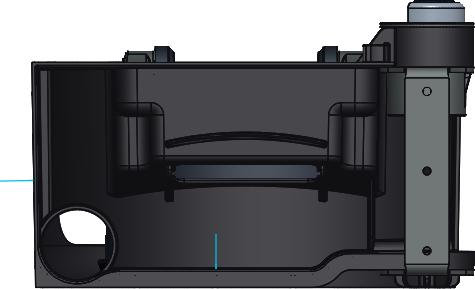

MOBILE TANK

BENEFITS

Extended freedom for 2-3 day without the need to move your vehicle

iNDUS discharge device perfectly fits to the iNDUS mobile tank

19L mobile tank that can be discharged at black water disposal points

Including wheels and handle for easy transport of a full tank

Level indicator to show when the tank is full

Page 15

MOBILE TANK

SPECIFICATIONS

Page 16 Main dimensions (HxWxD) 245 x 226 x 661 mm Volume 19L Weight 2,2 kg Wheels Transport handle

MODULE OVERVIEW

Not delivered by Thetford

• Power cable from external power supply to toilet

• Power cable from external power supply to tank

• Flush water hose between toilet and grey water tank

• Flush water hose between toilet and fresh water tank

• Vent hoses

• Display for tank and additive levels

• Tank and additive levels are visible in the iNDUS app

• iNDUS offers CI-BUS connectivity to show information on the central display in the vehicle

• Tank fixation

Page 17 Module # Module Includes MOQ Quantity per box Pallet quantity Part number Description 1 iNDUS toilet - iNDUS toilet i105-S - Toilet user interface 5 n.a. 5 210801 iN-TOILET i105S-N150A01X 2 iNDUS discharge - iNDUS discharge device - Discharge storage bin - Discharge user interface 5 5 20 (4 boxes) 210802 iN-DISCHARGE i1RD001-N001A01X 3 iNDUS dosing - iNDUS dosing module - excluding iNDUS additives 5 5 20 (4 boxes) 210803 iN-DOSING i1ABC001-N090X00X 4 iNDUS tanks - Black Water Tank 55L - Grey Water Tank 120L - Fresh Water Tank 150L Incl. multi valve, pumps, drain, level indicator etc 2 n.a. 2 210806 iN-TANK i1BWT055-N001A01B+i1GWT120-N002A00B+i1FWT150-N003B00B - Black Water Tank 45L - Grey Water Tank 100L Incl. multi valve, pumps, drain, level indicator etc 2 n.a. 2 210808 iN-TANK i1BWT045-N004A01D+iGWT100-N005A00D - BWT 55L - GWT 120L Incl. multi valve, pumps, drain, level indicator etc 2 n.a. 2 210809 iN-TANK i1BWT055-N001A01B+i1GWT120-N002A00B 5 iNDUS additives 1 set includes: 1x GREY, 1x FLUSH, 1x BLACK 2 sets 2 sets n.a. 30680DE iNDUS SET GREY/FLUSH/BLACK 1L (2PCS) ENGGER-DUT-FRE-ITA iNDUS additives 1 set includes: 1x GREY, 1x FLUSH, 1x BLACK 2 sets 2 sets n.a. 30680DF iNDUS SET GREY/FLUSH/BLACK 1L (2PCS) SPADAN-NOR-SWE-FIN Options 6 iNDUS mobile tank - 19L mobile tank 20 1 20 21081006 iNDUS MOBILE HOLDING TANK 19L

INSTALLATION GUIDELINES

Maximum distance 1. Toilet - tank: 4m

4. Tank - discharge: 3,5m

Maximum height difference

A. Toilet - tank: equal level or below toilet

B. Dosing - tank : 1,5m

C. Tank - discharge: 0,75m above tanks

NOTE: Positions of connection points are purely indicative! They do not reflect the actual position on the tank

Page 18
iNDUS Toilet iNDUS (waste) water tanks
Max. 4 m iNDUS Dosing iNDUS Discharge Max. 6m Max. 3m Max. 3,5m Equal or below toilet Max. 1,5m above tanks Max. 0,75m above tanks LE1513 - iNDUS INSTALLATION GUIDELINES 3 2 4 1 B A C
2. Dosing - toilet: 6m 3. Dosing - tank: 3m

(WASTE) WATER & ADDITIVE CONNECTIONS

Already

Hose

Hose

Additives

Page 19
Flush water supply
1. Fresh water tank - toilet (ID 10mm) 2. Grey water tank - toilet (ID 10mm)
Waste water connections
3. Toilet - Black water tank 4. Black water tank - discharge device 5. Dosing module - Grey water tank 6. Dosing module - Toilet 7. Dosing module - Toilet Venting 8. Black water tank 9. Grey water tank
Water tube Fresh water flush Water tube Grey water flush Waste water hose Toilet
Vent tube Black
tank iNDUS Dosing module iNDUS
iNDUS
device (iNDUS) Fresh water tank (op�onal) Waste water hose Black
water
Addi�ve tube Grey water addi�ve Addi�ve tube Black water addi�ve Addi�ve tube Flush water addi�ve
10. Fresh water tank
- black water tank
water
Toilet
Discharge
water tank - discharge device iNDUS Grey
tank iNDUS Black water
tank
Connec�on
connected
to be made by OEM
at tank
delivered by The�ord, assembled
NOTE: Positions of connection points are purely indicative! They do not reflect the actual position on the tank Vent tube Grey water tank Vent tube Fresh water tank 1 2 3 4 5 6 7 8 9 10 LE1512 - iNDUS (WASTE) WATER, ADDITIVE and VENT CONNECTIONS
not delivered by The�ord

ELECTRICAL CONNECTIONS

1. 12 AWG, Power ground

2. 14-16 AWG, Fresh water pump relay

3. 14-16 AWG, CIBUS ground*

4. 12 AWG, Power +12VDC (10A max. 12VDC power input, 10A fused)

5. 14-16 AWG, Fresh water pump relay

6. 14-16 AWG, CIBUS communica�on

External connection

1. External power supply to toilet

2. External power supply to tank

6. Fresh water pump - Tank module (optional)

Communication

3. Dosing - Toilet (or tank) module

3. Toilet - Tank module

3. Fresh water tank - Tank module (optional)

User interface

4. Toilet user interface - Toilet module

5. Discharge user interface - Tank module

1. 12 AWG, Power Ground

2. 14-16 AWG, D+ Ground

3. 12 AWG, Power +12VDC (20A max. 12VDC power input, 20A fused)

4. 14-16 AWG, D+ Posi�ve

Page 20
5 C A D B E 4 F 1 2 2 3 3 3 3 3 3 3 3 3 1 6 6 5 4 6 5 4 3 2 1 4 3 2 1 Similar connec�on points Posi�on can be freely chosen
connec�on,
iNDUS Dosing module iN-DOSING i1 iNDUS Toilet module iN-TOILET i1 iNDUS Fresh water module iNDUS Toilet UI iN-TOILET i1 iNDUS Discharge UI iN-DISCHARGE i1 iNDUS Waste tank module iN-TANK i1 Toilet main input Tank main input External connec�on, not delivered
The�ord
Posi�on can be freely chosen Fresh water pump Op�on Fresh water tank
System
delivered by The�ord
by
Similar connec�on points

Where can the system be discharged?

The system can be discharged at all grey water discharge locations as long as they are conected to the general sewage infrastructure.

Is the iNDUS smart sanitation system septic tank safe? No.

What kind of electronic connections are needed?

- 1x 10A for the Toilet

- 1x 20A for the Tank module

- 1x D+ connection

Is the system ready for an integration in the vehicle infrastructure?

Yes, the iNDUS smart sanitation system is ready to communicate over the CI-BUS interface, giving the possibility to display tank levels, cartridge levels, notification codes and more on an external display.

How can we check if the system is correctly connected in our production?

A specific End Of Line (EOL) application is available for OEMs to check and register the iNDUS system.

Can the system be used when the CI-BUS interface is not working?

Yes, the Thetford app can always be used to control the iNDUS application.

How can a fault be detected?

The system has a full self-diagnoses integrated to check the system and indicate the faults.

Can the service hatch be made smaller or in a different shape?

The service hatch for the tanks must provide enough space to service the tanks of the iNDUS smart sanitation system. For example, it must be possible to remove the buckets from the tanks via this service hatch.

Can changes be made to the tanks, the length or sizes of the tubes?

All modification requests must be assessed by Thetford upfront. Any change to the existing system will impact the timing for implementation and the price of the system.
