W E L C O M E . . . . . .

Hi! I’m Theo. An Architecture graduate (S.Ars) from Universitas Sumatera Utara, Medan.

Hereby, i’m presenting my architecture design portfolio journey. I believe architecture may give a big impact and problem solving towards human and nature

This portfolio are some selected work projects from my previous work and my 4 years as student studying architecture that possibly can represent my interest in architecture.

- Aespa in Life Too Short (2022)

“ I don’t care what other people say, I’ma do it any way that i want. I’m having all this fun, so why would i ever stop? “
TABLE OF CONTENTS
01.
02. academic studio
• THE PLANNING OF ANIMAL HOSPITAL IN MEDAN CITY....................................... • USU STUDENT CENTER................................................................................................... 31 03 • GAPURA PANTAI PASIR PUTIH PARBABA, SAMSOSIR.................................................. • INTERIOR OF RAMADDIAN’S TOILET.............................................................................. • INTERIOR OF MR. X TOILET............................................................................................ • INTERIOR OF VET HOSPITAL EXAMINATION ROOM...... • INTERIOR OF BATUBARA’S BEDROOM HOTEL............................................................... 09 11 17 19 21 23 25 27 • TOILET WISATA DI BUKIT HOLBUNG, SAMOSIR............................................................ • INTERIOR OF ARIF MUHAMMAD’S PLAYROOM KID...................................................... • INTERIOR OF RAMADDIAN’S GYM & SAUNA................................................................. 33
work project
03. competition & research project

c o m p e t i t i o n / r e s e a r c h p r o j e c t

T
01. 1

This chapter is all about competitions and research projects that has been choosen from 2017-2022, both regionally, nationally and internationally which were carried out individually or in a team.

2

EXAMINATION ROOM

THEME : FUNCTIONAL ARCHITECTURE

AREA : 30 M 2

CATEGORY : THE 17TH INTERNATIONAL CONFERENCE ON QUALITY IN RESEARCH BY FAKULTAS TEKNK, UNIVERSITAS INDONESIA (INTERIOR)

LOCATION : MEDAN LABUHAN

YEAR : 2021

Abstract.

The city of Medan is the 3rd largest city in Indonesia. The increasing public interest in pets does not have enough knowledge of caringfor animals, such as when animals are sick and need special care.

One of the best solutions is visiting a veterinary hospital. A hospital is a particular animal health care center where the room and facilities must be complete according to applicable regulations,

of the Minister of Agriculture No.2/Permentan/OT.140/1/20.

Following these regulations, in an animal hospital facility, of course, there is an examination room for animals. The examination room handles the initial examination of animals before the animal is diagnosed with an infectious disease.

Peraturan Menteri Pertanian No.2/Permentan/OT.140/1/20 could be applied in the interior design of the examination room of a veterinary hospital by following the standard completeness set the form of the room following the function, or “form follows function,” which results in a better space design.

INTERIOR
OF THE VET HOSPITAL
01. A NAME :
PLANNING
3

Maximizing

space in the arrangement of furniture, materials, colors used, and simplicity in functional architecture is an added value to interior design, which means that beauty arises because of the functions and elements applied in the space or what is called “Less Is More.”

Implementing the functional architectural approach is very suitable for applying the interior design of the veterinary hospital examination room in this study. The main reason is that form must follow function in interior design.

This approach creates an efficient, simple, and attractive space. According to Ludwig Mies van der Rohe, in functional architecture, simplicity is an added value, or beauty will appear because of the functions and elements in space.

Changes and developments in interior design change from time to time. The application of functional architecture responds to change and development challenges by planning a solid basic layout with large furniture and then to the small interior accents.

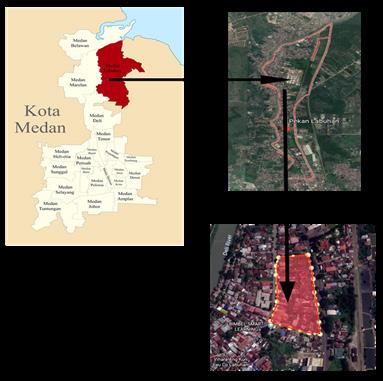

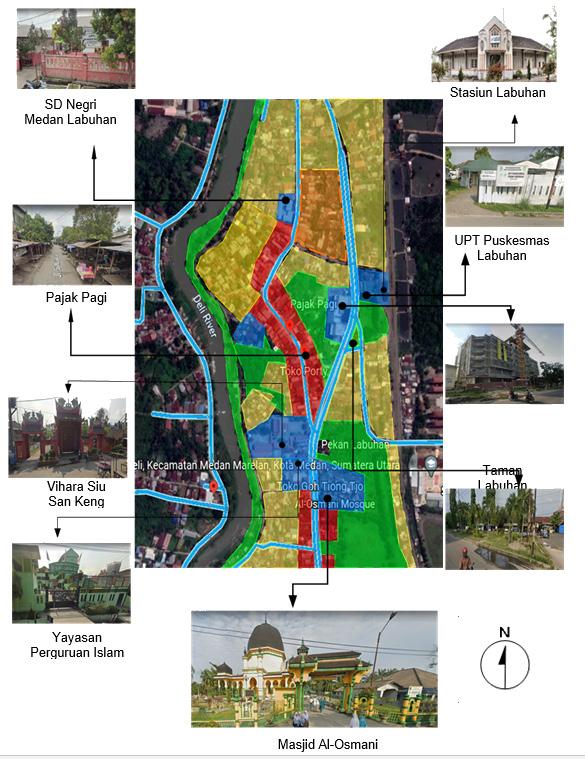

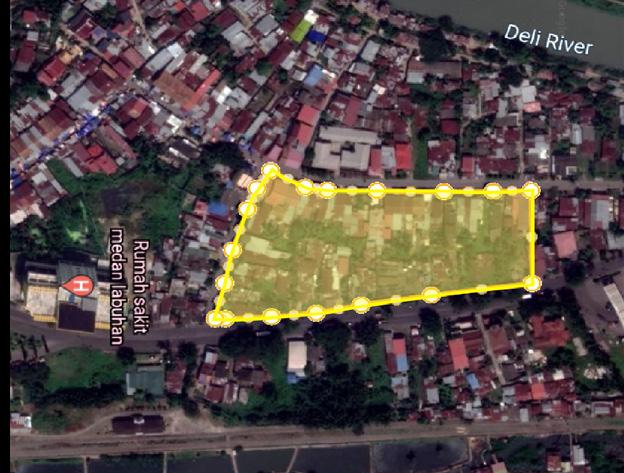

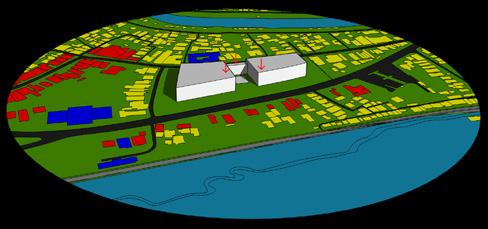

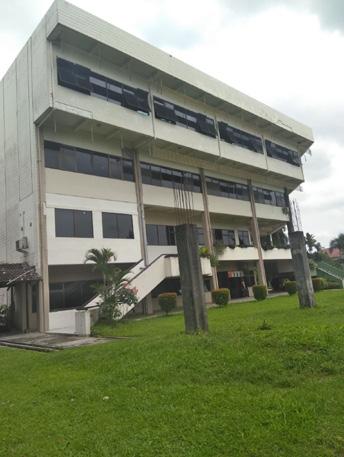

From the results of the assessment and site selection, the location that meets the criteria is located on Jalan Kol. Yos Sudarso, Pekan Labuhan Village, Medan Labuhan District.

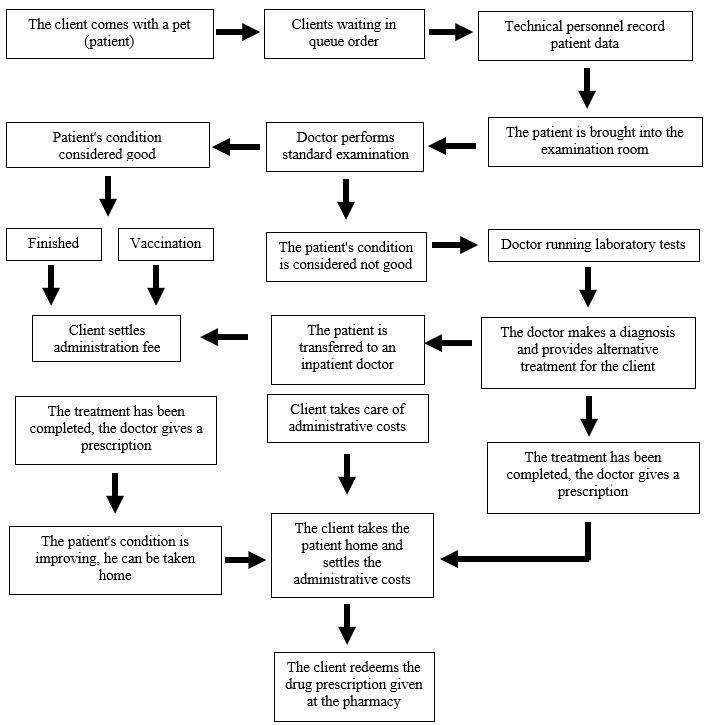

From the scheme we can see how the flow happening in a pet examination room.

By that flow we can take the idea about what furniture should be in the room.

The furniture must be followed by the Minister of Agricutural regulation about the Vet Hospital

4

Ascan be seen in the table beside, all the room equipmennt must be provide in the room to met the standard set by the Minister of Agricultural of Indonesia about Veterinary Hospital for Examination Room.

The result can be seen in the picture below. All the requirements have been met according to the rules. From the consulation desk till x-ray reviewer has been met

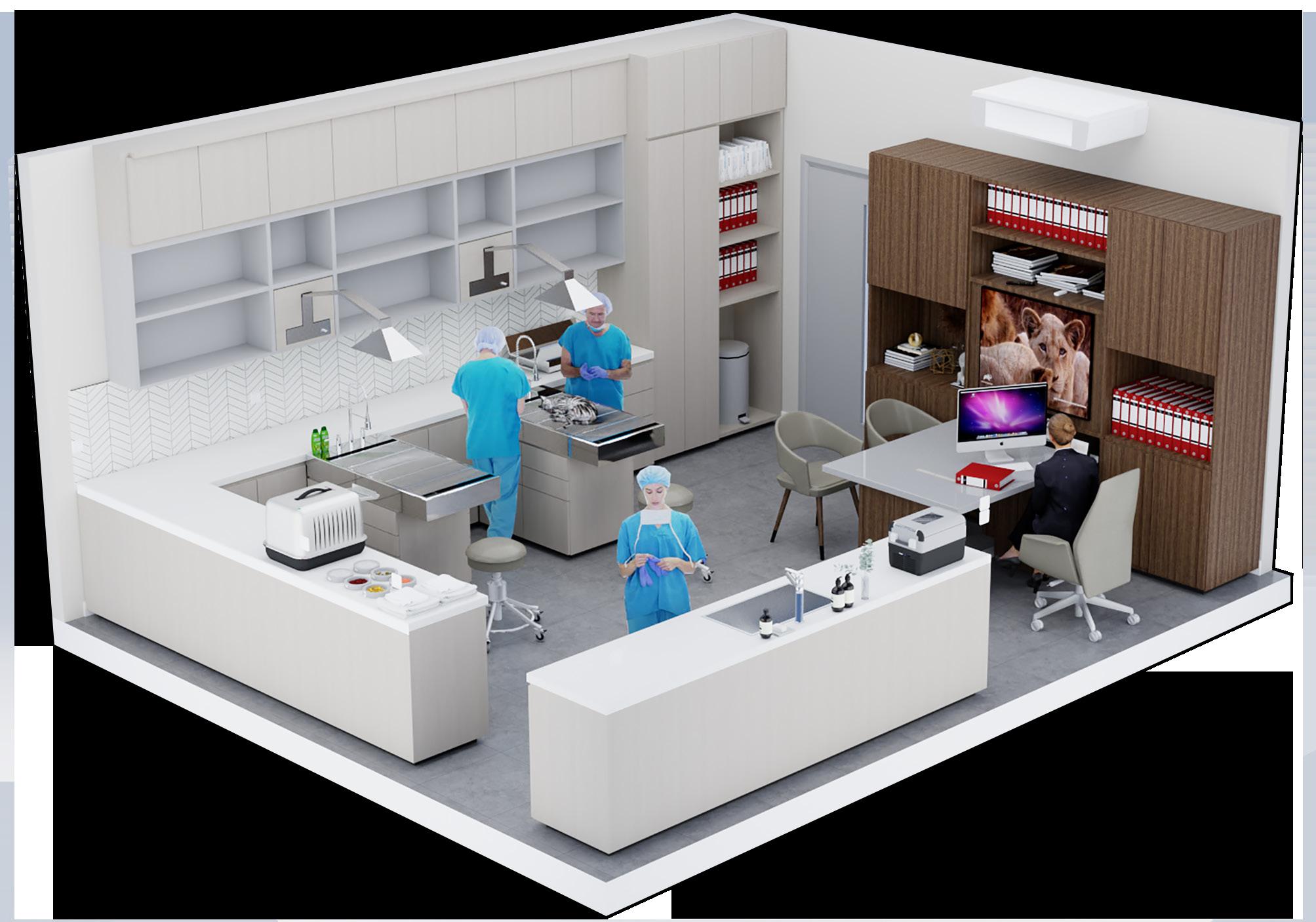

The room isometry (requirements based on the table)

Room Type Room Name Room Equipment Helath Service Room Examination Room 1.
Consultation Desk 2. Medicine & tool cabinet
3.Baby Scales 4.Digital Scales 5. Cooler box/ refrigerator 6. Operating Table 7. Medical Records 8. Operation Lamp 9.X-Ray Viewer
1 2 2 4 5 6 6 7 8 8 9
5
color pallate

In conclusion from the research and architectural design, functional architecture can be applied to the examination room in a veterinary hospital. The implementation applied in space, the arrangement of forms, and the materials used and with due observance of government regulations in Indonesia. The material used is accordance with the function of space and materials that exist in the modern era now

User activities that occur in this animal hospital building are very diverse, from humans to pets. Therefore, the pattern of space placement is arranged sequentially based on activities that occur in the building based on user activities and space requirements. The application of functional architecture in this building plan can meet the needs of all user activities and circulation in the building so that all spaces in the building can be well integrated.

6
02. 7
w o r k p r o j e c t s

This chapter is all about work project that has been choosen from 2017-2022. This chapter as work projects consist of such as interior, landscape, public spaces and layouting. Some projects may still on progress or still being developed

8

CATEGORY : INTERIOR

LOCATION : -

AREA : 4,5 M2

YEAR : 2022

This toilet was my first project as bachleor degree in architecture for interior.

The toilet was designed by an architect in my office and I made it in 3d based on requests and existing plans. Add little idea in the design with a minimalist impression, soft colors and gray accents.

02. G

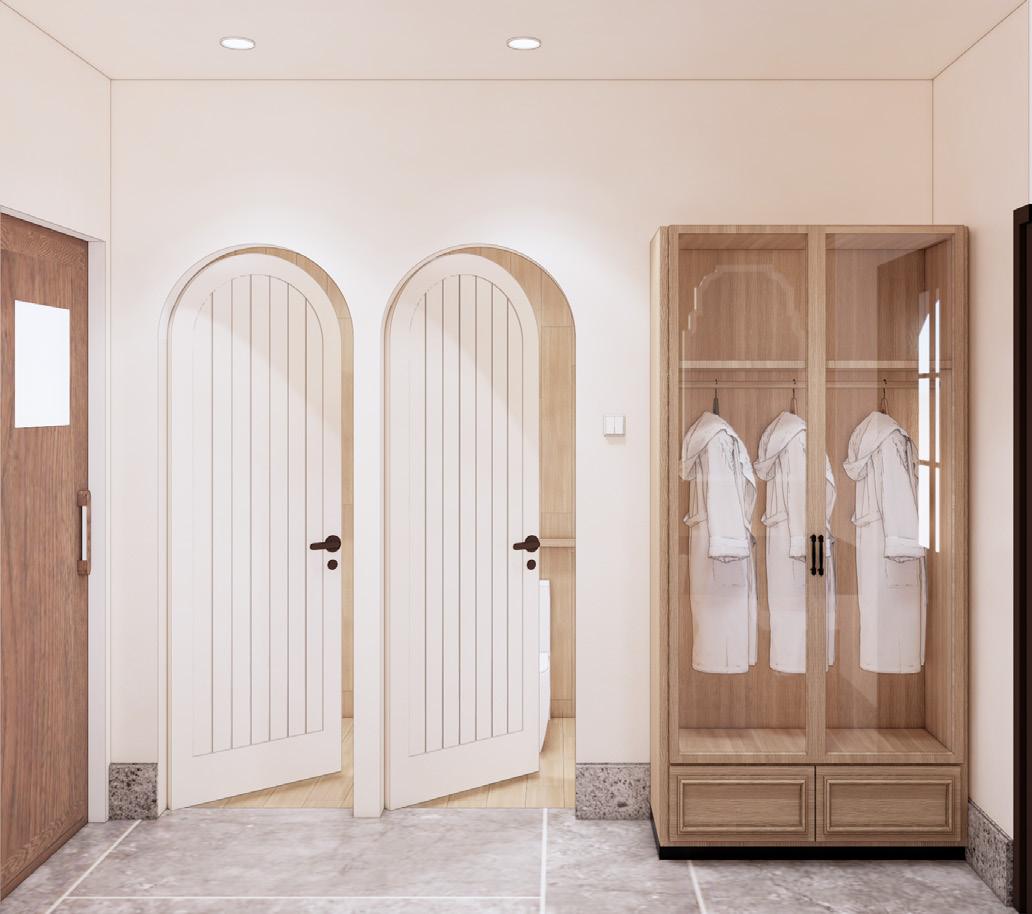

Bathroom Ambiences

NAME : MR. X TOILET
09
Ambiences
Ambiences 10
color pallate

CATEGORY : PUBLIC SPACE

LOCATION : BUKIT HOLBUNG, SAMOSIR REGENCY

AREA : 211 M2

YEAR : 2022

Overview. According to the residents and tourists who travel to the Bukit Holbung area, Samosir Regency really need proper public toilets. This Holbung tourist toilet is intended for tourists visiting the Holbung hill.

This toilet provides facilities such as toilet/toilet, shower area, ablution area, outside lavatory and special room for people with disabilities.

There is a rooftop garden area on the 2nd floor surrounded by plants on the tubs. Visitors can take a break and enjoy the view towards Lake Toba and the hills.

NAME : TOURISM TOILET
11
color pallate.

The implementation of this concept is the reuse of rainwater as a flush toilet and watering plants and solar power on the protective roof on the 2nd floor which is used as a source of electricity in public toilet building.

toilet plan.

existing.

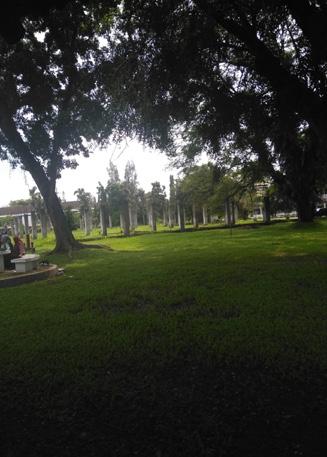

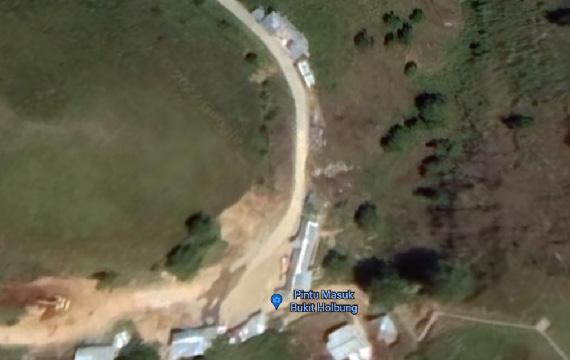

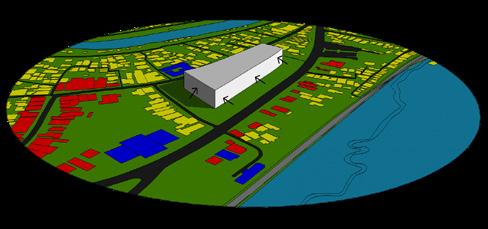

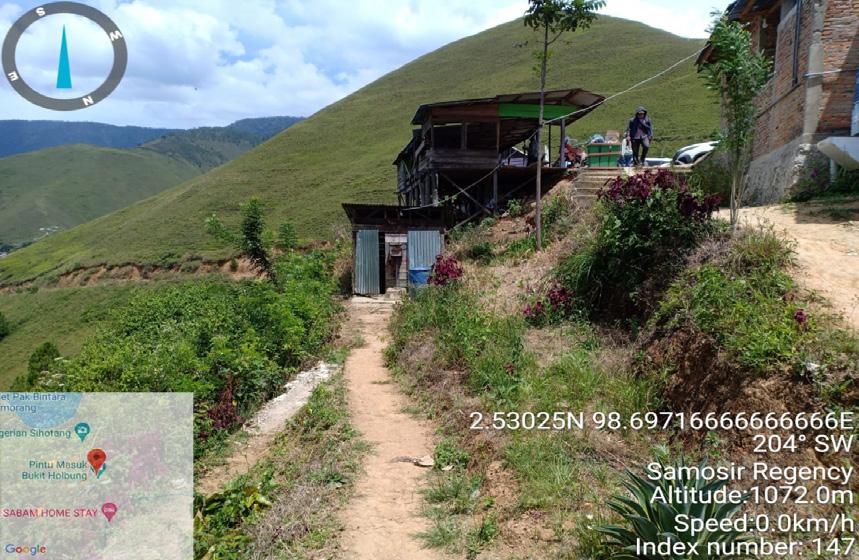

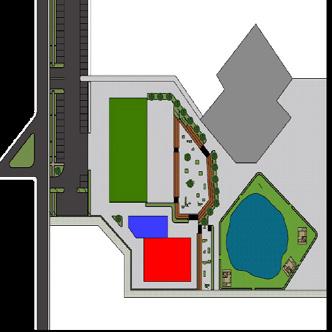

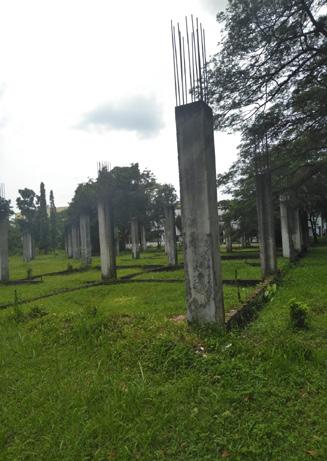

The design location is at the foot of the Holbung hill which is still surrounded by grass and is rather steep.

Therefore, before the building is built, it is necessary to apply a retaining wall structure. Red signage stand where the building will stand to be built.

location.

East : Toba Lake – Holbung Hill

West : Home Village

North : Toba Lake

South : Pedestrian Area

concept. open space public toilet difabel green architecture solar power water tank
WOMEN’S TOILET WUDHU
LAVATORY WATER TANK UP TO ROOFTOP
SHOWER AREA
DIFABEL TOILET MEN’S TOILET DIFABEL TOILET
12
WUDHU

AXONOMETRY

pucuk merah

railing rooftop

beam 15/30

beam 15/30

man’s shower

stair to roofman’s toilet

disabled toilet (women)

water tank column 25/25

water tank panel door

stair wall

toilet floor: ceramics (gray) size. 60x60 cm

13

solar power

gutter rain

lee kwan yu

plant tub with “gorga” pattern

women shower disabled toilet (wanita) women toilet

aluminium sliding window aluminium door mirror lavatory

3R Rubbish Basket

14
INTERIOR AMBIENCES 01 . 02 . 03 . 04 . 05 . 15
EXTERIOR AMBIENCES 01 . 03 . 02 . 16

NAME : GAPURA PARBABA

CATEGORY : LANDMARK/SIGNAGE

LOCATION : PASIR PUTIH, KABUPATEN SAMOSIR

AREA : 40,7 M2

YEAR : 2022

The gate is not only a physical building but has its own function as a gate. Gapura Parbaba designed as a sign of the gateway to the Parbaba Beach area, Samosir. According to tradition, the gate is an expression of welcome to guests who will visit the place. The shape of the gate is designed by taking the local wisdom element. The shape of the gate is taken from the Batak Toba traditional hat that has been composed. At the top of the triangular gate is found a solar.

02. B

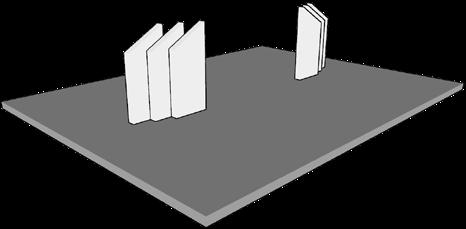

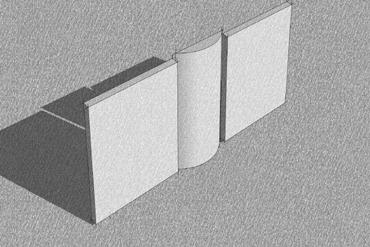

The shape is subtracted (cut) into two equal parts in the middle

Ambiences

The triangular shape is transformed become new form as trapezoid

The gate is formed and added aesthetic elements such as potted plants underneath and Batak patterns as local localities.

The solar system energy was placed on the sloping side of the gate to illuminate the gate at night.

(Green Architecture)

5
The shape is inspired by the traditional Batak men's triangular hat

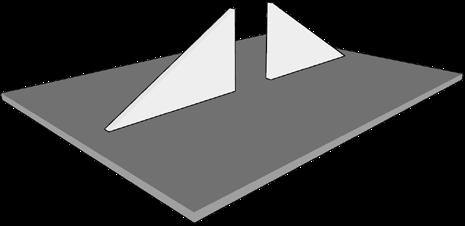

3 Mass Transform
1

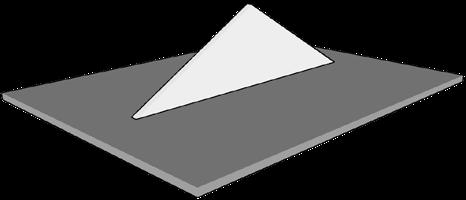

The basic triangular shape of the traditional Batak hat
2

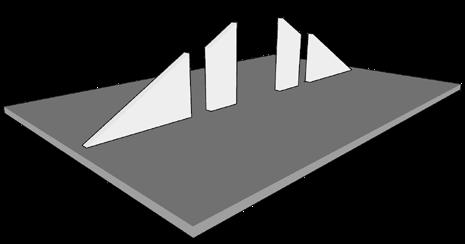

the form is formed on the left and right like the entrance gate
4 6 17 01 . 02 .
01 . 02 . 04 . 18 03 .

NAME : BATUBARA BEDROOM HOTEL

CATEGORY : INTERIOR

LOCATION : BATUBARA

AREA : 20,4 M2

YEAR : 2022

Thishotel is located in the Batubara area, North Sumatra with a room area of 20.4 m2. This room type is “Deluxe Type Room” which has shower facilities. water closet, king size bed, TV, AC and wardrobe.

The interior approach of this hotel room is “American Style” with the dominant color white and 1 secondary color as a marker of the desired type of hotel that is “tosca” color. The selection paint color of this hotel was a soft color. This choice of this color makes visitors feel so comfortable when they feel so tired of traveling and they need rest for a while or day.

color pallate

Bathroom Ambiences

02.

02. C
19
01.

Bedroom Ambiences

Based on the ambiences and plan, the element of interior such as:

King size bed

TV

Wardrobe

Mini-refrigerator

TV

Work desk

Air conditioner

Bathroom

01. 20

02. D

NAME : ARIF MUHAMMAD’S PLAYROOM KID

CATEGORY : INTERIOR

LOCATION : BINJAI

AREA : 22,56 M2

YEAR : 2022

Thischildren’s play area has an area of 20.4 m2 and has a mezzanine. The design approach applied is a futuristic architectural concept. Where this approach is implemented in unique forms such as sharp triangular lines in the space and the furniture, the choice of colors and materials used. The choice of bright colors gives an elegant impression. This space has 1 primary color, namely blue and 1 secondary color green. Prioritizing minimalist principles in spaces that give a broad impression. The use of smooth and shiny materials as drawn to create a futuristic and elegant impression such as glass, paint and concrete

color pallate

01.

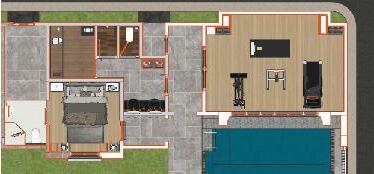

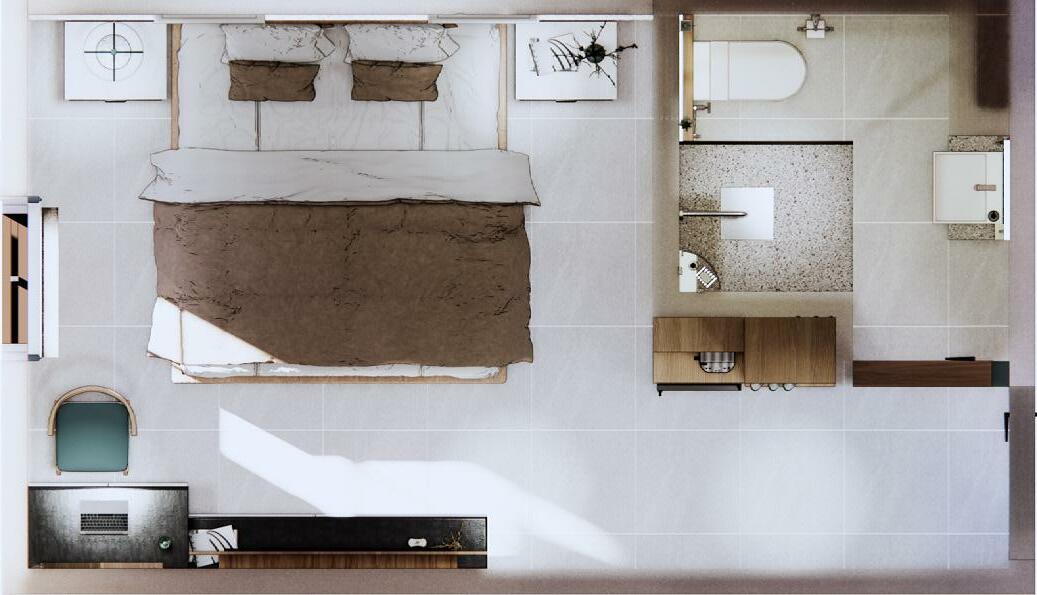

Floor Plan
21
Mezanine Plan
02. 03. 04. 22

NAME : RAMADDIAN TOILET

CATEGORY : INTERIOR

LOCATION : MEDAN

AREA : 18,4 M2

YEAR : 2022

This project implements the Mediterranean Architecture, both exterior and interior. All interior have dominant white, pastel, soft brownwood color, wall without finishing and stone material

The floor material used is tiles that pattern or mosaics. All the color elements are inspired by nature

01. Paviliun Bathroom
02. E
color pallate 02. Workroom’s Bathroom
1 2 3 1 2
23
color pallate 02. Guest’s Room Bathroom 04. Driver’s Bathroom 03. Sauna’s Bathroom
1 2 1
As shown on the picture, all the toilets implements the Mediterannean “Architecture” approach. Toilets material uses the soft wood colors, wall without finishing and stone material. The shape of furniture like mirror is designed with curve from wood material
2 1 2 3 24 c o l o r p a l l a t e c o l o r p a l l a t e
color pallate

02. F

NAME : RAMADDIAN GYM, BEDROOM & SAUNA

CATEGORY : INTERIOR

LOCATION : MEDAN

AREA : 59,5 M2

YEAR : 2022

01. GYM

color pallate

Asin the picture, we can see the implementation of Mediterranean architecture in the gymhouse area.

The white dominant paint and soft wood vinyl flooring as the material gives a simple impression. Sufficient natural light from the windows gives the room a spacious impression.

The triangular ceiling and roof form are characteristic of Mediterranean architecture

The gym equipment is arranged in such a way according to the desired needs. On the left and right side of the room designed cupboards. On the left side is for storing equipment or gym items and on the right side for drinking water needs such as dispensers and glasses when finished doing sports activities

25

This guest bedroom space is the same as other interiors, implementing Mediterranean architecture. With soft wood accents and dominant white paint, it gives a minimalist impression. To fulfill the elements of nature, a few plants on the bedside table, hanging lamps and rattan accents in the interior are applied to this space.

The sauna designed with woods material on the walls and floor and furniture like seats also made of wood material too as the Mediterranean architecture and consider because softwood can absorb heat better than steam. In addition, this wood will not be too hot to touch. The color of the lights are selected warm colors to give a warm and soothing vibes in the room.

02. Guest’s Room Bedroom
02. Sauna
c o l o r p a l l a t e
SAUNA BEDROOM BATHROOM SAUNA LAVATORY GYM gym & sauna plan. c o l o r p a l l a t e 26
03
S T
D
27
A C A D E M I C
U
I O

This chapter is all about the academics studio projects as an architecture student. The selected project has been choosen from 2017-2021 and located on a real site in North Sumatera. The projects mostly consist housing, commercial building, public health service facilities, public spaces, and education centre

28

03. A

NAME : STUDENT CENTER OF USU

THEME : FUNGSIONALISM ARCHITECTURE

AREA : 0,5 HA

CATEGORY : ARCHITECTURE STUDIO 3

LOCATION : MEDAN BARU

YEAR : 2019

This project took place at the large campus in North Sumatera, Universitas Sumatera in Kota Medan with so many students study here from various races, culture and region. But are their needs as students completed with all the facilities? from this design that problem will be solved.

In this project i have 3 goals to achived based on the analysis of the problem, gather the data as i’m a student and other student studied here.

• As a student of USU, needed a space to gather with all other students to achive the social value and place to channel our inspirations

• To support the extracurricular activities available on campus, from the case study it was found that each extracurricular is not in one place, so the response from this design collects all extracurriculars in one place to make it more efficient

• There is no food court available on this campus that reaches all students, some students go out to buy their lunch, in this design the response of the location is very strategic in the middle of the campus and is very suitable for providing facilities such as a food court.

Adress: Jl. Perpustakaan No.1, Padang Bulan, Kec. Medan Baru, Kota Medan, Sumatera Utara 20155

29

Land Area : 1,9 Ha

Border:

East : Parking

West : Parking

North : USU Library

South : Master of Economy

03. Concept Implementation

A. User Activity

extracurricular activity food court student hall student goverment functional architecture approach form follows function open Area

With all these activities that have been described, the functional architectural approach is very suitable to accommodate all the activities that take place in the building. The open area designed with a type of Japan concept called “Sunken Plaza” aims to create space boundaries, to get comfortable and fresh air atmosphere. The sunken will be planted with several trees. This sunken expected as the gathering point and interact space for all students.

B. Material Used

• Laminated Glass

This material is applied to the roof of the extracurricular activities building and the curtain wall of the hall building because this glass has a high level of security and protection.

01.Mass Transform

the mass is divided into 2 according to the functions and activities that occur in it, and in the middle is a public space area

• Roof - bitumen-Asphalt

This asphalt roof is lightweight but durable and follows the shape of the building. This roof also has the ability to properly dampen the sound of rain, wind or noise from outside the building. considering the student building must be quiet and comfortable

• Concrete

Implementation of functional architecture closely with concrete materials. This material capable of carrying heavy loads & resistant to high temperatures The application of this material can be seen in the beams, column of building columns and the student hall roof

Yellow - food court

Red - student hall

Blue - student goverment

Orange - co-working space

Green - extracurricular activity

Red - student hall

Orange - co-working space

Green - extracurricular activity

The

02. Existing
The mass is raised to 1 level as: Yellow - food court Green - extracurricular activity The mass is raised to 2 level as: Yellow - food court The mass is raised to 2 level as: The open space called “sunken” like in Japan as the students gathering points and scoial activities
1 2 3 4 5 6 30
mass was designed into final design with functional architecture approach method with “form follows function”

Building B - Rooftop

3st Floor: Building A - Roof

Building B - Co-working space, student hall (long-span building), student goverment

Building A - Co-working space, student hall (longspan building)

Building B - Extracurricular activity: futsal, football, volleyball, basketball, badminton, robotics, table tennis, tennis, martial arts, archery, scouts, marching band

Building A - USU Foodcourt & Toilet Toilet, religion organization, extracurricular activity: photography, Kompas (Magazine), Theather 0

Building B - USU Foodcourt, coffee shop, USU merch store & toilet

Views Floor Plan
A B C D 1 2 3 4 5 6 7 B A C C E F G H 1 2 3 4 5 6 7
Sections
B A
B A A
B A Front View Right View Left View Back View Site Sections A-A B-B A1 B1 A2 B2 1 st FL 2 nd FL 3 rd FL RT 31

Exterior Ambiences

Interior Ambiences

32

NAME : THE PLANNING OF ANIMAL HOSPITAL

IN MEDAN CITY

THEME : FUNCTIONALISM ARCHITECTURE

CATEGORY : FINAL STUDIO PROJECT

LOCATION : MEDAN LABUHAN

YEAR : 2021

Abstract.

The increasing community interest in pet is not accorded with knowledge about how to care and properly keep animal, which may create an transmission disease (zoonosis) and refer to law number 18 year 2009 concerning livestock and animal health, the animal care facilities as animal hospital in the city of Medan, is really needed.

This research objects to design an animal hospital in accordance with the regulation of the “Peraturan Menteri Pertanian No.2/PERMENTAN/OT.140/1/20 about “Pedoman Pelayanan Jasa Medik Veteriner” and requirements for building an animal hospital by implementing functionalism modern architecture.

Background.

• People’s interest in pets has not been accompanied by knowledge about caring for animals.

• Animal health facilities are still rarely found, which is only available as “UPT Rumah Sakit Hewan” on Jalan Gatot Subroto, Medan Helvetia District.

• The journal study “The Healing Power of Pets: A Look at Animal-assisted Therapy” by Larry Dossey, suggests that animals can reduce stress levels “Pets as Stress Reducer”.

Purposes and Objectives

• Accommodating the functions of animal hospitals, namely pet health services (main), health service, animal care, educational facilities, and recreation.

• Implementing functional architecture in the design plan so that the space in the building can be well integrated according to the user activities that occur in it.

• Improve and develop the northern of Medan, “Medan Labuhan”.

Land Area : 1,9 Ha

Border :

• North : Jalan Kol. Yos Sudarso

• West : Jalan Baginda Siregar

• South : Jalan Syahbudin Yatim

• East : Residents

03. B
Address: Jalan Kolonel Yos Sudarso, Medan Labuhan, Pekan Labuhan.
33
Surrounding Area Index Site Commercial/Service Area Public Service Green Area Residents 34

• Place the Masses According to Their Function

Index

Animal Museum

Skybridge

Sunken/Garden

Animal Hospital

Dog Yard & House

Residents

Mass Form

• Geometric Shapes

Raising Mass by follows the shape area and the remain as parking and green area

Building mass follows by geometric shape according to the theme and road angle

The subtractive form applied to the mass according to the function (zoning applied)

Material
Theme Implementation. •
Use
• Concrete • Light steel • Laminated Glass • Concrete on the skybridge wall • Laminated Glass as curtain wall material Skin Facade on Animal Museum Skin Facade on Animal Health Service Skin Facade
34
• Light Steel & Laminated Glass on the

• Animal Museum with “Lion” as the symbol means of “King of the Forest”

• Animal Health Service with “Cat & Dog” as the symbol means mostly people pets these kind of animals

• Eagle on the Sunken means “King of Bird” and the Dolphin on the fountain as one of the friendly animal

Parking System

• Animal painting can be found in the middle of entrance. This mural giving a “instagramable” vibes to the visitor as a spot photos and also there was seating area both left and right of the entrance.

Circulation & Pedestrians Concept

All parking for vehicle is available on the site. Arranged as follows by the site form, so the parking area divide equally for all the visitors with vehicle

The pedestrians around the site be fixed, so the visitors can be convenient when walking around it. There is also a stop for visitors who want to wait for their vehicle to arrive

All the motorcycle parking for visitors available on the site and shared by the building function. The parking for Animal Museum available on the corner of Jalan Kol. Yos Sudarso and Baginda Siregar (South) as employee parking

The pedestrian and green area follow by the shape of the site to maximize for the building area by the government guideline. Higher site levels to reach the building, therefore a stairs is needed for pedestrians.

• Symbol (Sculpture) • Animal Mural Wall Art
35

Views.

Examination Room Interior Ambiences. • 6-7 Section • 17-18 Section • West View • East View • South View • North View Section. • C - D Section
35
Operation Preparation Room (Steril)

Utilities Support Room, Lift House, Rooftop

Animal Museum: Outdoor Seating Area, Employee Room, Convention Hall, Backstage, R. Audio, Convention Kitchen, & Animal Equipment Warehouse. Animal Hospital: Receptionist, Employee Canteen, Library, Manager Room, Administration Room

Animal Museum: Food Court, Foodcourt Special Outdoor Seating Area, Kitchen, Chef Room, Employee Room, Café & Skybridge. Animal Hospital: Animal Data Collection Room, Waiting Room, Animal Inpatient Room, Animal Isolation Room, Animal Intensive Room, Laboratory, Cadaver Room, Animal Kitchen Room, Animal Feed Warehouse Room, Doctor Room.

Animal Museum: Museum area, Animal Online Library, & Workshop. Animal Hospital: Veterinary Polyclinic, Waiting Room, Operation Room, Laboratory, Receptionist, Break Room, Warehouse, Doctor Room, Paramedic Room, Doctor, Co-Ass Room & Employee Room.

Animal Museum: Museum area, Receptionist, & Animal Museum Office.

Animal Hospital: Pet Shop, Animal Pharmacy, Dog Trainer Room, R. Animal Grooming Waiting Room, Employee Room, Pray Room & Emergency Room.

Laundry, Medical Waste Management, Employee Room, Laundry, Utilities, Employee Canteen, Warehouse, Employee Changing Room and Grocery Storage.

Floor Plan. • Axonometry
Exterior Ambiences. 01. 02. 03. 04. 05. 06. 07. 08. 09. 36
Contact: email : theofidelis@gmail.com phone : 0878 - 6821 - 1444 LinkedIn : https://linktr.ee/theofidelis thank you......... Medan - Indonesia 02.02.2023 https://issuu.com/theofidelis/docs/porto_theo_2023_2

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
