David Anderson Folio

1

glasgow school of art portfolio

david anderson

filling the void

2

PROJECT INTRODUCTION - 4 T E C H N I C A L D R AW I N G S - 1 0

Contents

GROUND FLOOR - 16 VOID - 20 A PA R T M E N T S - 2 6 ROOF - 34 R E TA I L U N I T S - 4 0 C O N TA C T I N F O R M AT I O N - 4 4

3

I want to create sustainable a affordable homes that combine great quality living, excellent communal spaces and immunities that would traditionally be unavailable to affordable developments using my location of 300 Cathedral Street, Charles Oakley Building. In the concept I intend on celebrating the building architecture and implementing it into the overall concept, as a historically important building I believe this to be a key factor going into the project.

Introduction

My ambition for the interior is to create generously size family homes, in a range of con configurations that can be designed around the resident’s requirements. I also do not intend this project to be for one specific age or user type, rather a proposal that would work for all ages, backgrounds and people. My firm belief is that affordable housing should be available to all that need it.

In terms of the housing I will include a variety of apartment styles, for example, two, three and four bed room homes that will be at an affordable rent. Communal spaces will have a focus on community, health and well-being. In these spaces I will I hope to include, quiet reading spaces, communal kitchens and shared gym and exercise facilities.

My proposal incorporates green spaces and small stress free outdoor areas that Are secure and sheltered, both at ground level and also on the roof areas, as I believe greenery is a very important part of my concept.

The design content supports sustainable living with an emphasis of energy efficiency and carbon neutral processes. With solar panels and green methods of energy output and consumption, on car and bike sharing and using local transport.

4

PROJECT High density living across multiple floors that combines residential living and communal shared area.

Ground Floor has shared communal space with access to outdoor gardens and terraces as well as stair and lift access to upper floors.

Upper levels, mix residential living with different apartment types and sizes to suit peoples needs and requirements.

Roof top terrace provides an residents garden and access to gym and indoor communal areas.

Project Brief

SITE AND LOCATION 300 Cathedral Street, Glasgow. Charles Oakley Building.

Urban area with high door fall, traffic and in close proximity to city centre and major transport links.

EXPECTED OUTPUTS • Significant research into typology and environmental impact • Understanding of the site and challenges of the location • A complete concept that addresses all areas of the site • Developed interior and exterior landscaping • Considered and planned communal spaces

5

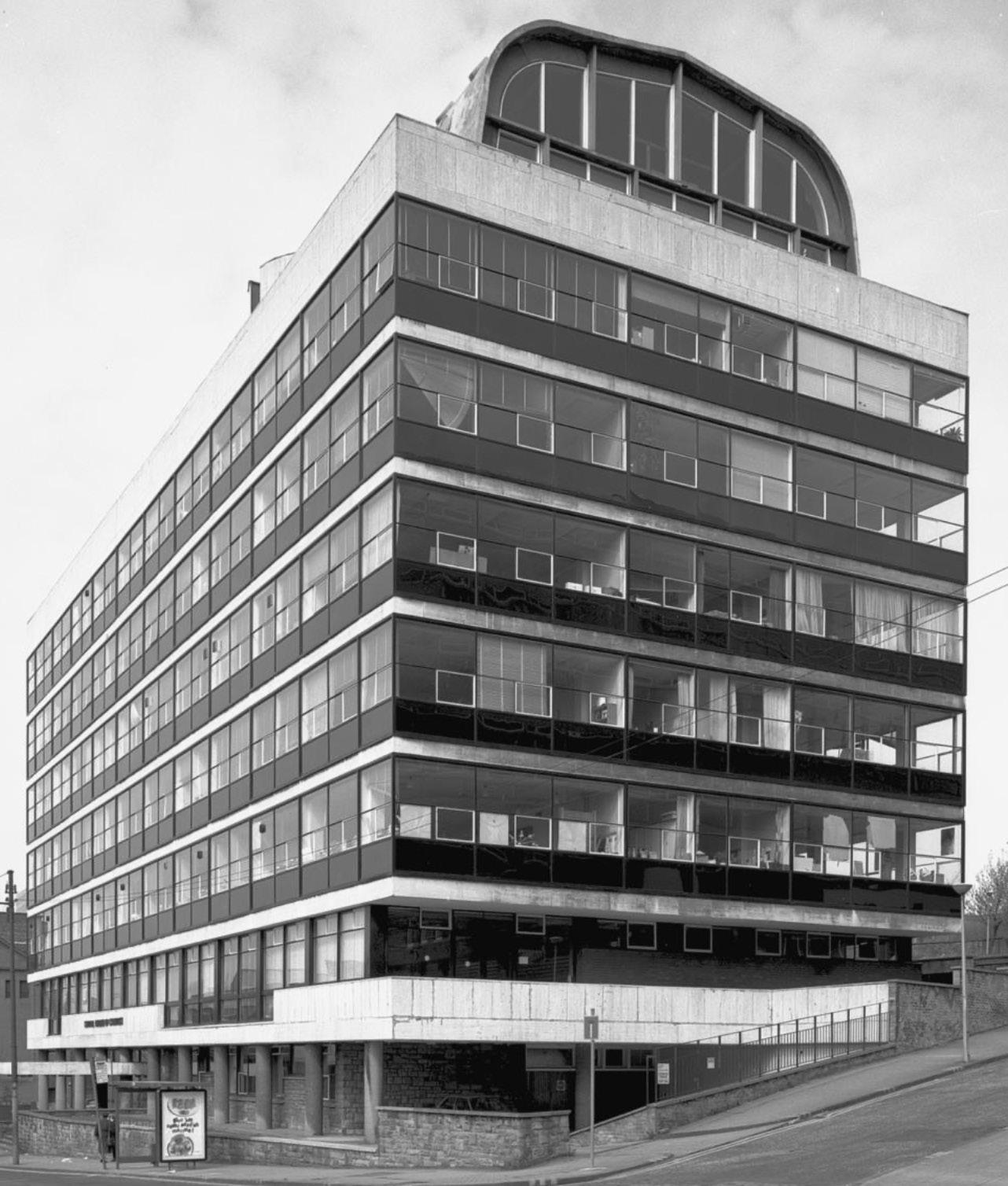

Charles Oakley Building 300 Cathedral Street Glasgow Built between 1959-1961 Architect: Peter Williams of Wylie, Shanks & Underwood

An important example of post-war tertiary educational architecture and an integral part of Glasgow Corporation’s re-establishment of educational facilities as part of the rehabilitation of the city-centre.

Built as Stow College of Distributive Trades for Glasgow Corporation Education Department. The earliest drawings date from July 1957 but Dean of Guild approval was not granted until 27th February, 1959. The building was officially opened by Lord Craigton on 24th May, 1963.

The design bears comparison with Le Corbusier’s Unité d’Habitation, Marseilles 1947-53, with pilotis and a roof terrace housing gymnasium and sculptural ventilator stack as well as horizontal concrete bands (replaced here by Vitrolite). Plan form and functionality are, however, challenged by today’s educational requirements, with areas no longer functioning well as contained working spaces lead to restrictions in class size and difficult working practice.

Cathedral Street, view going down towards Buchanan street. Date unknown.

6

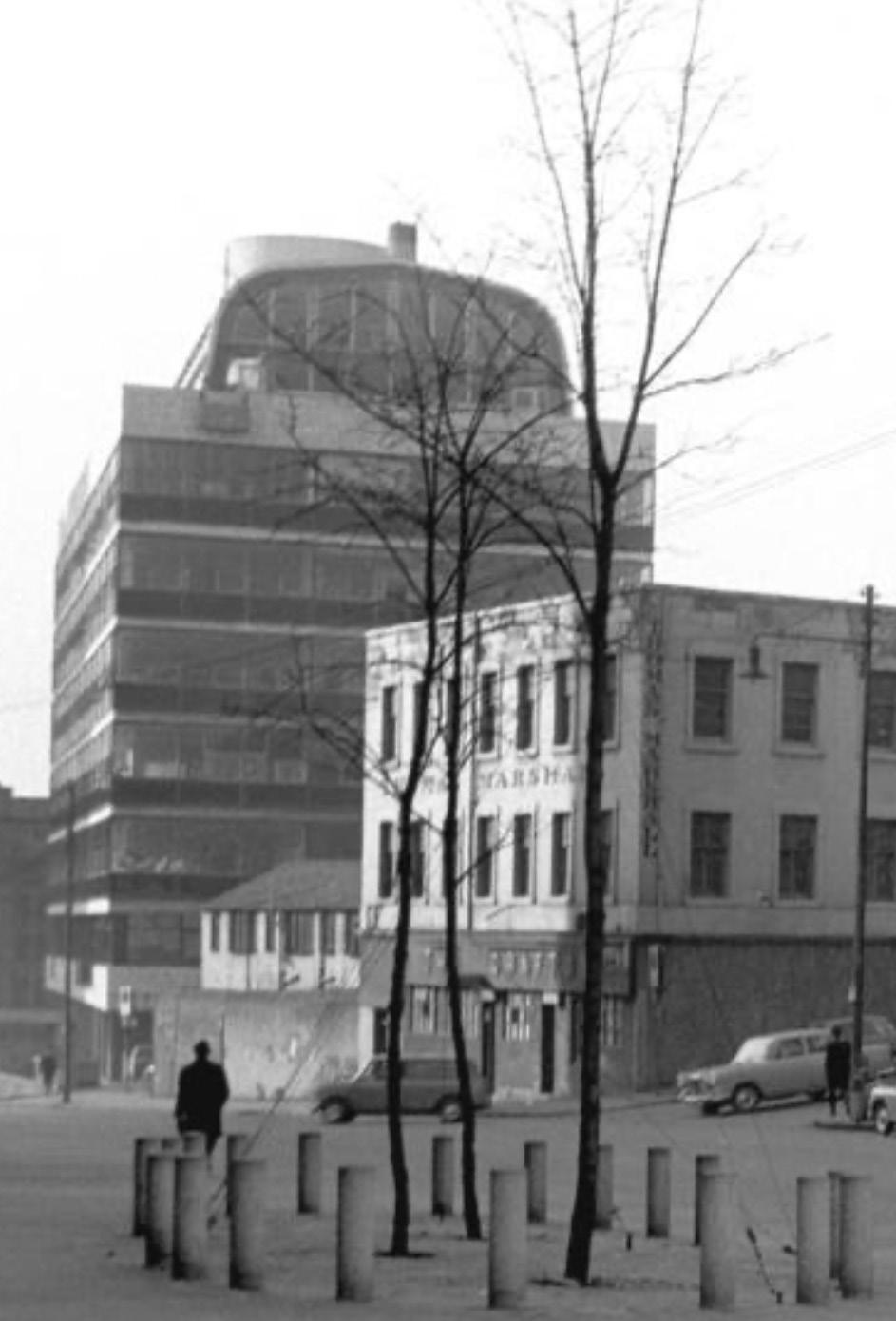

Cathedral Street, view going down towards the site.

Circa 1965

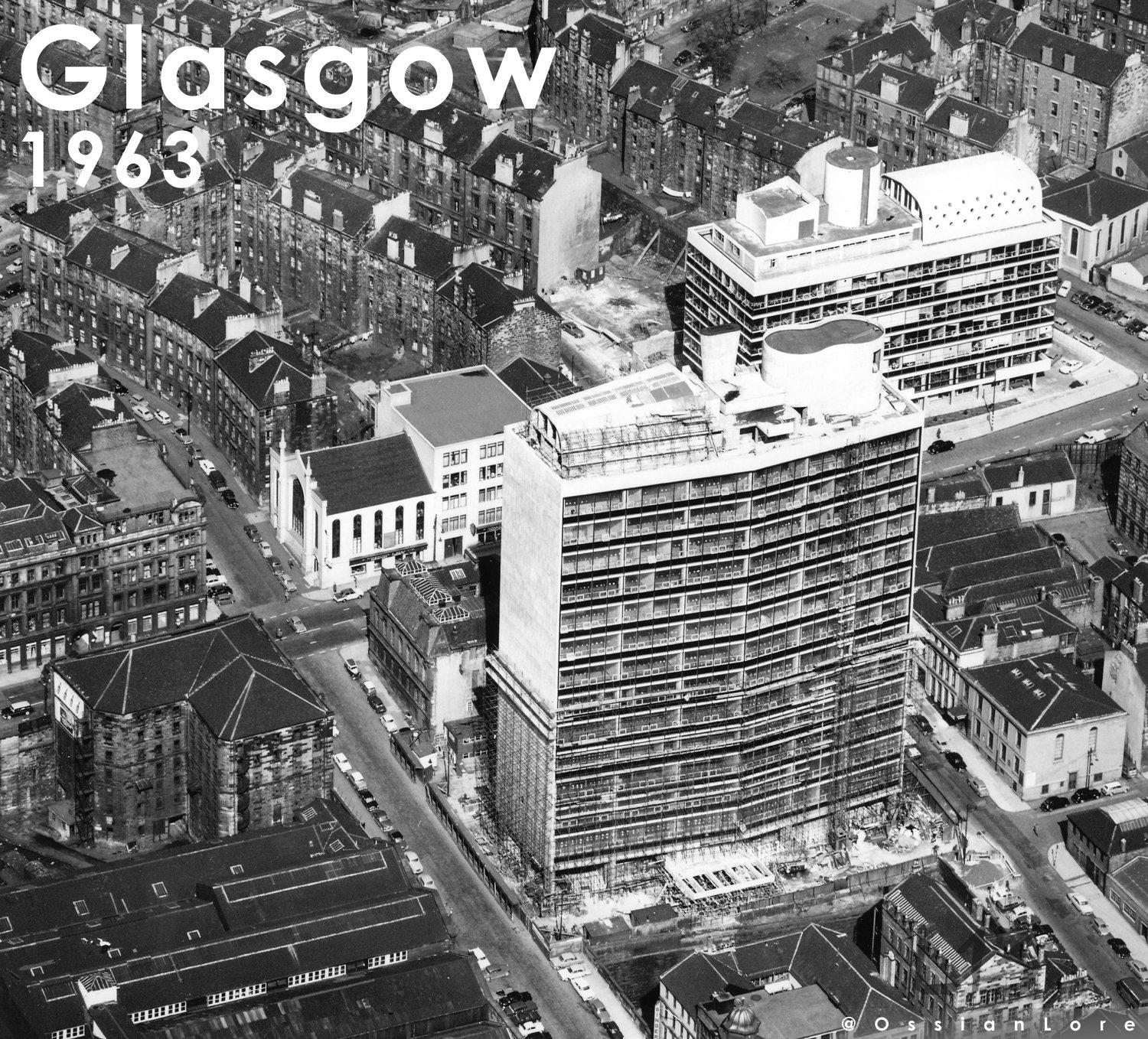

Ariel view of North Hanover Street and Cathedral Street with the Charles Oakley building complete and the larger College of Building and Printing nearing completion.

Circa 1963

7

1 - Charles Oakley Building

2- Cathedral Street

3 - City of Glasgow College

4- Strathclyde University

5- Glasgow Necropolis 16 6- Glasgow Cathedral

17 10 7

3 1 11

9

2

4

7- Glasgow Royal Infirmary

6

5

8- George Square

9- Queen Street Station 8 10- Buchanan Galleries

11- Buchanan Street

12- St Enoch Centre

15 14 12

13- Argyle Street

13 14- Merchant City

15- Central Station

16- Buchanan Bus Station

17- Sauchiehall Street 8

Project Typology

Who’s living here

My typology is an affordable living concept that takes inspiration from current Viennese social housing. It will be rented accommodation with communal areas and excellent amities for the residents. There will also be a strong emphasis on providing a project that is sustainable.

The houses are available to anyone who needs them and are assessable to users with wheel chairs.

1. To create a high density, environmentally conscious, communal living project that encourages social interaction and a community to form whilst retaining the character of the site.

2. To provide clever and innovative living spaces.

3. A Vienna approach to communal area, like a shared gym and gardens.

Develop 3 apartments styles, a ground floor communal space as well as a roof top garden and gym. I will also aim to includes new outdoor garden spaces that will re-purpose the existing parking zones.

An example of some of the residents living here; 1 - intergenerational family who need a 4 bedroom flat. One young child along with two adults and one elderly resident with limited mobility. They require a flexible space with access to communal areas and garden space.

2 - young couple both working in the city centre and don’t need access to a car. Looking for a development in the centre of the city with access to public transport and on-site facilities. The couple require a second bad room for visiting family and friends as well as expansive outdoor space which can be hard to find in the centre of Glasgow.

Further content reguarding users can be found in the ‘user” journel.

9

Exterior Drawings

10

Front Elevation Not to scale Facing North

Building located on Cathedral Street, on a gradual incline.

Architectural style of the building is international modernism.

11

Rear Elevation Not to scale Facing South

+3200mm AFFI

+0.000 AFFI

Building built split between two levels giving the buildings two main entrance points from street level.

12

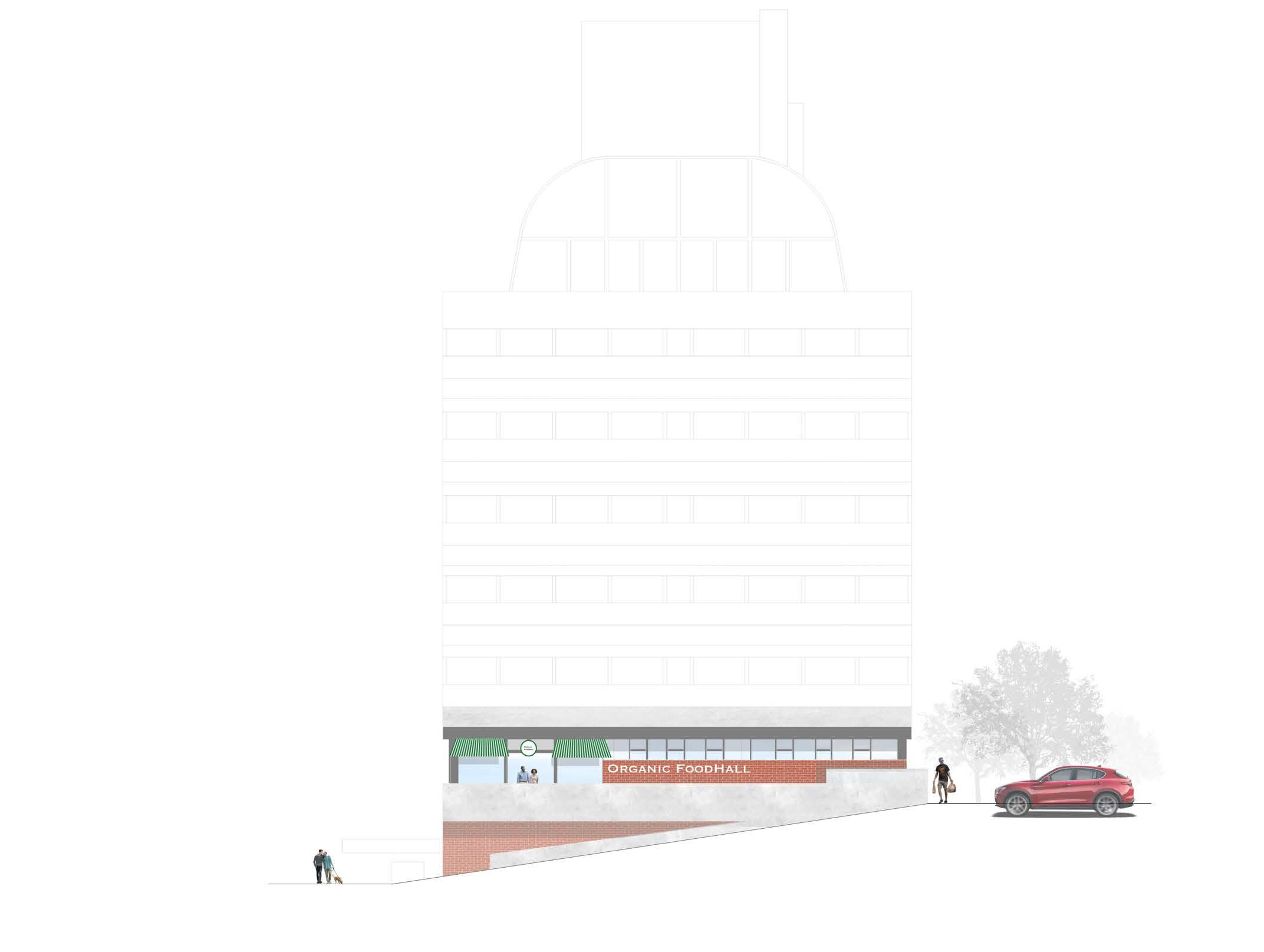

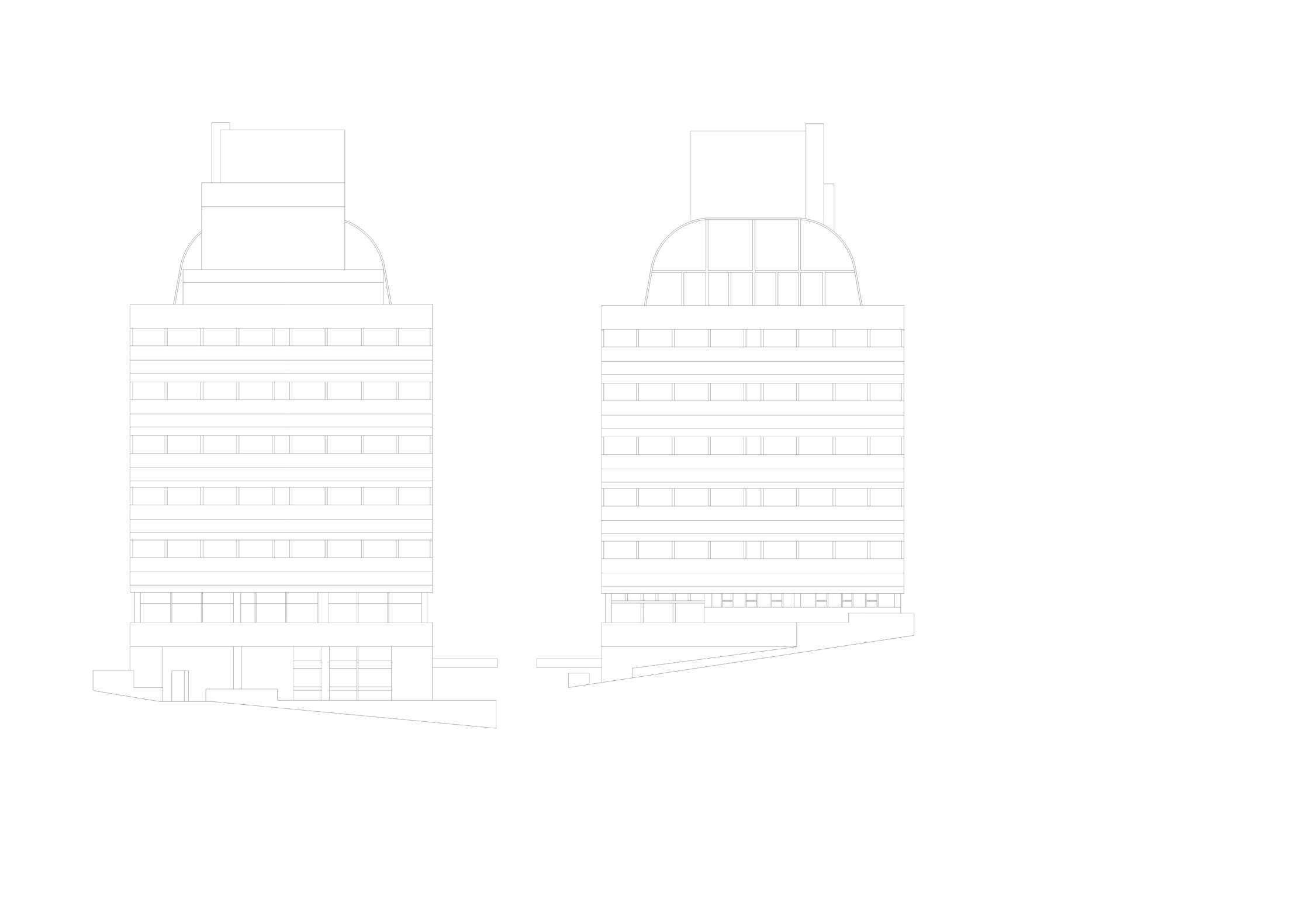

West Elevation

East Elevation

Not to scale

Not to scale

Side elevations show the difference ground level with the building two side elevations.

13

Proposed building layout.

Roof- main gym, co-working space & reading space.

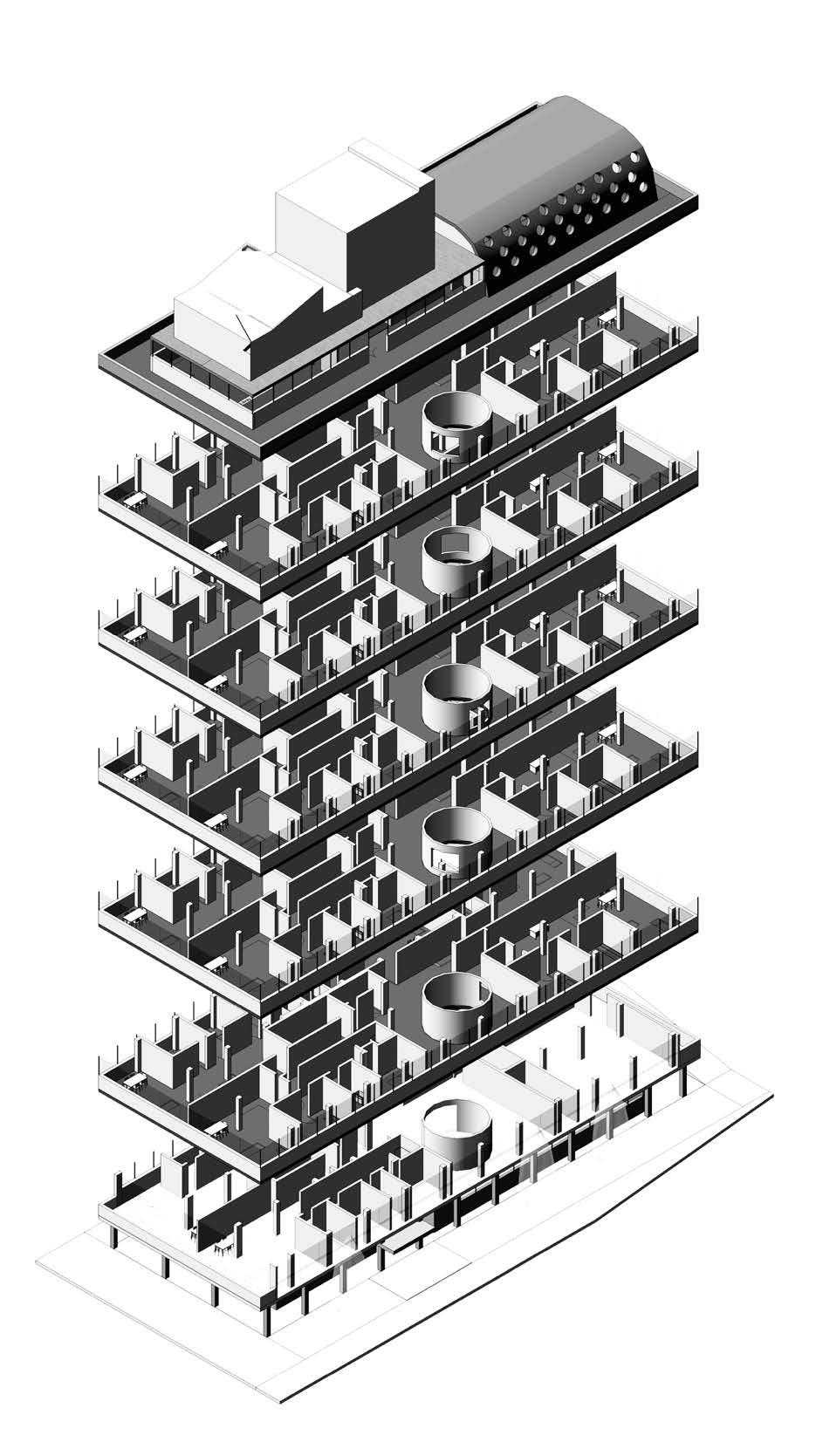

Exploded isometric, illustrates the breakdown of each floor and the central void.

Floors two to six - continuation of the void space & mixed apartment types.

First floor - secondary retail space, void entrance and two balcony apartments.

Ground floor - main entrance, seating area & cafe.

14

The buildings original layout has been ostensibly changed from top to bottom allowing the building to thrive in it’s new form. Major aspect that have charged the building include, but not limited to the large central void running down the front of the building and the new retail spaces that now activate the building on Cathedral Street allowing it to be more that just one thing.

Some aspect of the buildings original design have been maintained, the gym on the roof for example has always been a feature of the structure and something I wanted to retain in my design.

Proposed building layout.

1 6 2

3

5

4

Charles Oakley Building

300 Cathedral Street

1- Gym

4- Small Retail Unit

2- Roof Garden

5- Cafe

3- Main Apartment Levels

6- Communal Roof Spaces

15

Ground Floor General Key 1- Communal Gardens 2- Main Entrance 3- Co-working space 4- Communal

1

5- Stairs 6- Lifts

15

13

10

16

14 8

7- Cafe

12

11 5

6

6

17

8- EV parking space 7

4

4 3

9- Cathedral Street 2

10- North Fredrick Street

1

1

11- College Way Path 9

12- WC 13- Kitchen 14- Bins

Ground floor plan, main communal entrance.

Not to scale.

15- Bike storage 16- Residents Storage Locker 17- Wardens Desk & Post Collection

16

8

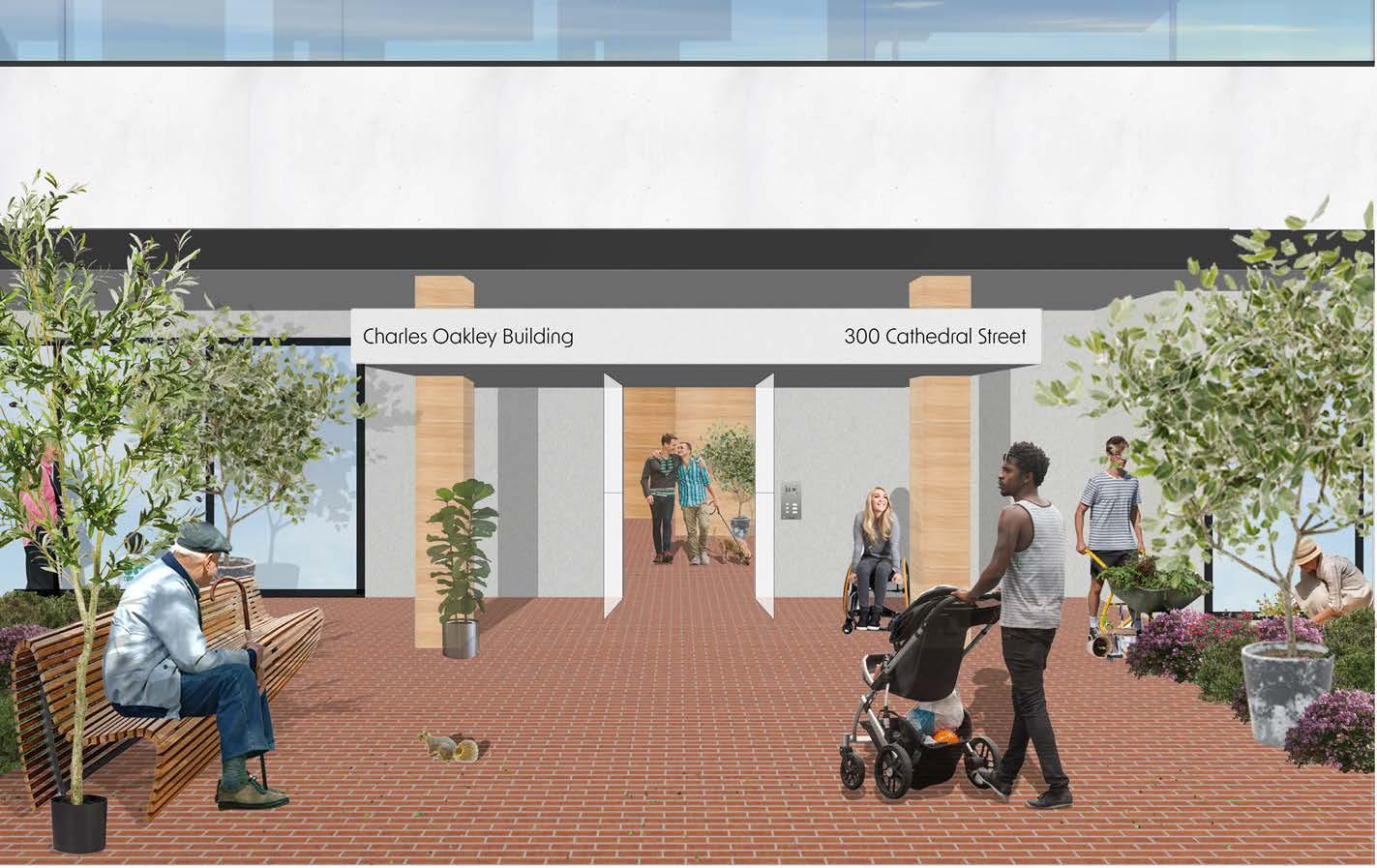

Main Entrance :

The impression of the space is an open, light filled area with small dedicated seating areas for residents to talk. While this space is primarily a transitional space for it’s residents it is also an area where members of the public also have some engagement with, therefore the aesthetic ambition and concept for the space must be clearly visible in its layout and design.

17

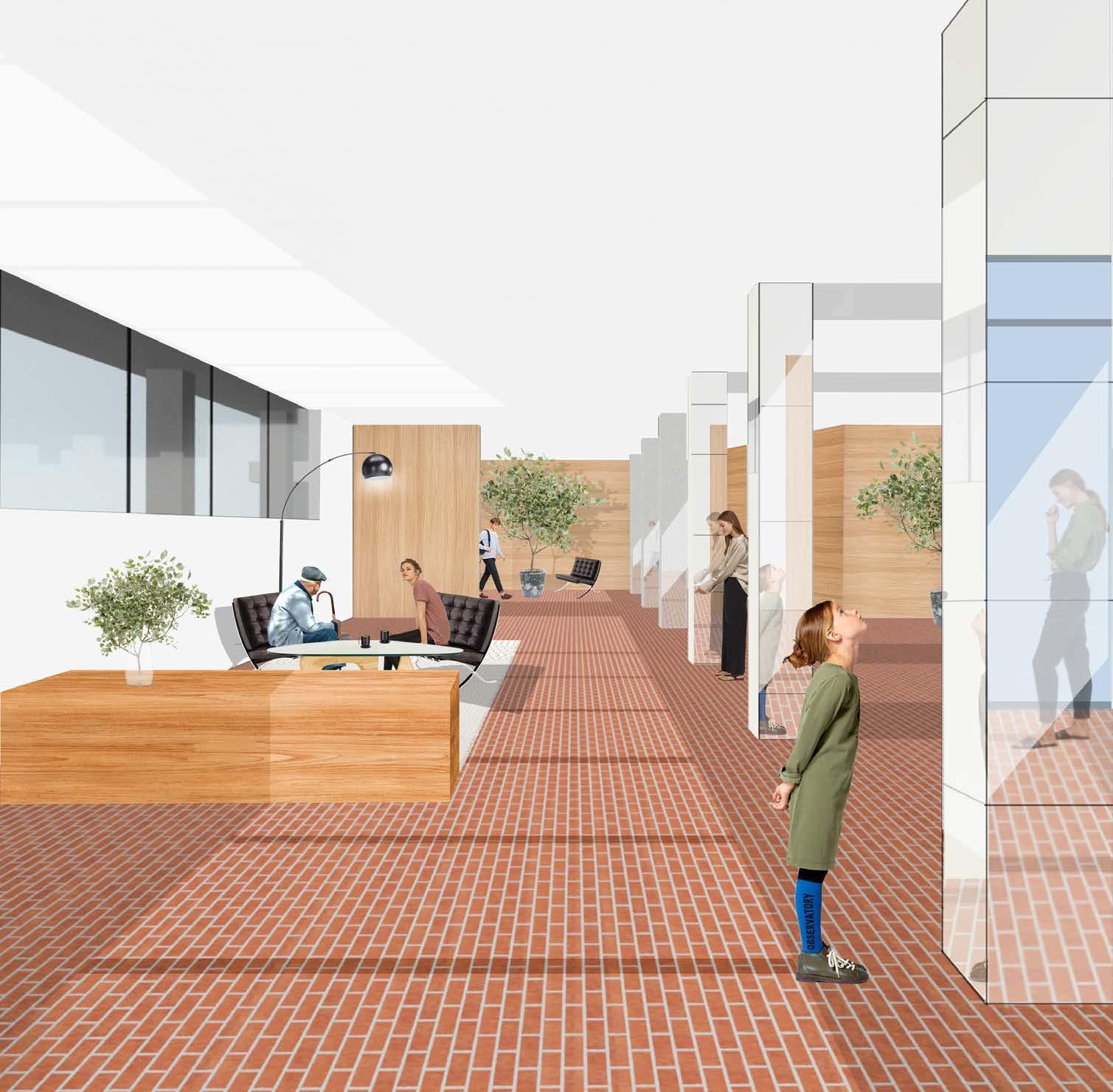

Communal Lobby :

The main ground floor entrance had various points for relaxed seating where residents can meet and chat.

These spaces could also be used as meeting places for friends of people living in the building to come and relax while they wait.

The space throughout uses a reclaimed brick flooring with timber accents across the walls.

This is softened with the introduction of carpeted section around where loose seating can be found. To connect the space with the outside gardens the brick flooring carries right through with trees and plants also introduced.

One aspect of the buildings structure that I have tried to integrate are the support columns running the length of the space. These have been panelled with mirrors to hide their mass and allow light to bounce off them.

Materials; Reclaimed brick flooring, Mirrored columns, reclaimed wood wall panels, painted white plaster.

Furniture; vintage mid-century chairs, vintage mid century coffee table, wooden side board & planted trees.

18

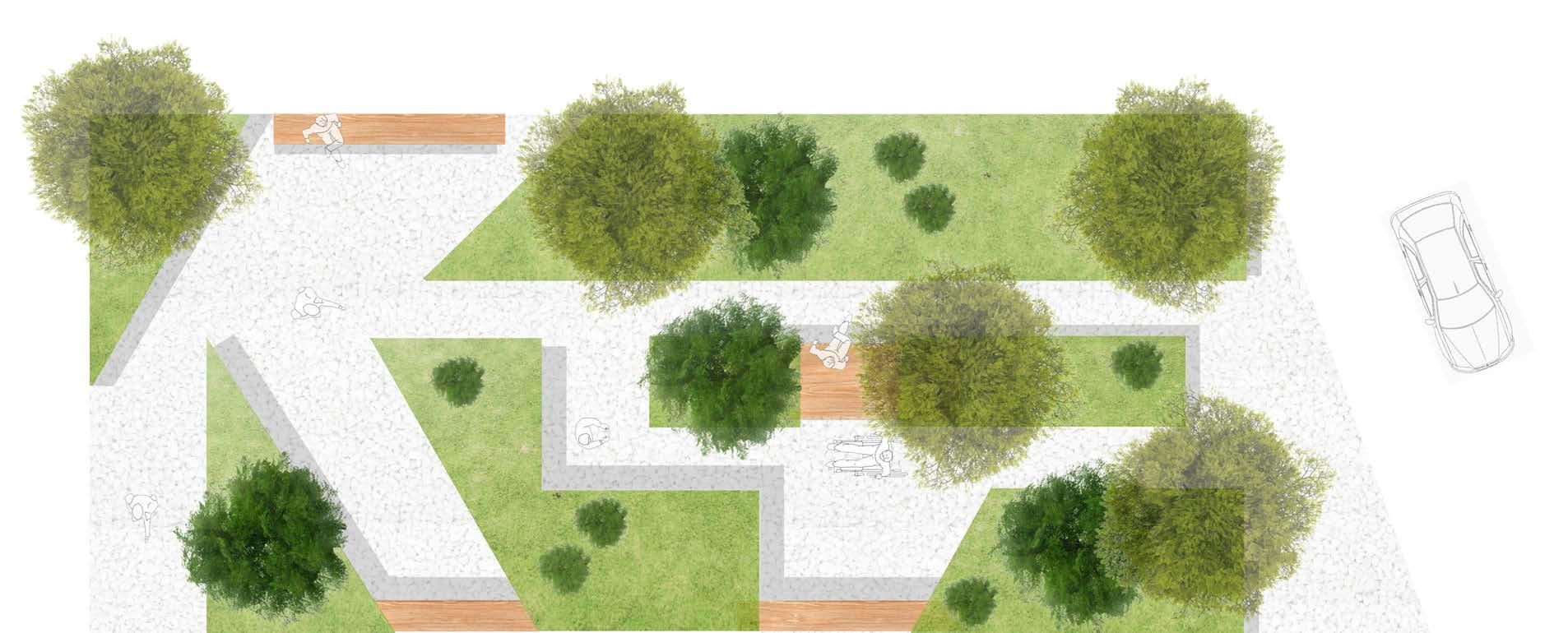

Surrounding the building was originally a series of concrete parking areas that the building no longer needed. As a result these have been reclaimed and turned into communal garden spaces for residents to use and enjoy. Seating areas are found across the gardens.

The gardens are fully wheelchair accessible and have been designed for all residents to enjoy.

Privacy is another aspect I was keen to maintain.

These gardens can only be assessed by the residents and their guests, creating a stress free zone in the middle of an urban environment.

19

The void

First floor; void entrance highlighted in red.

Not to scale.

20

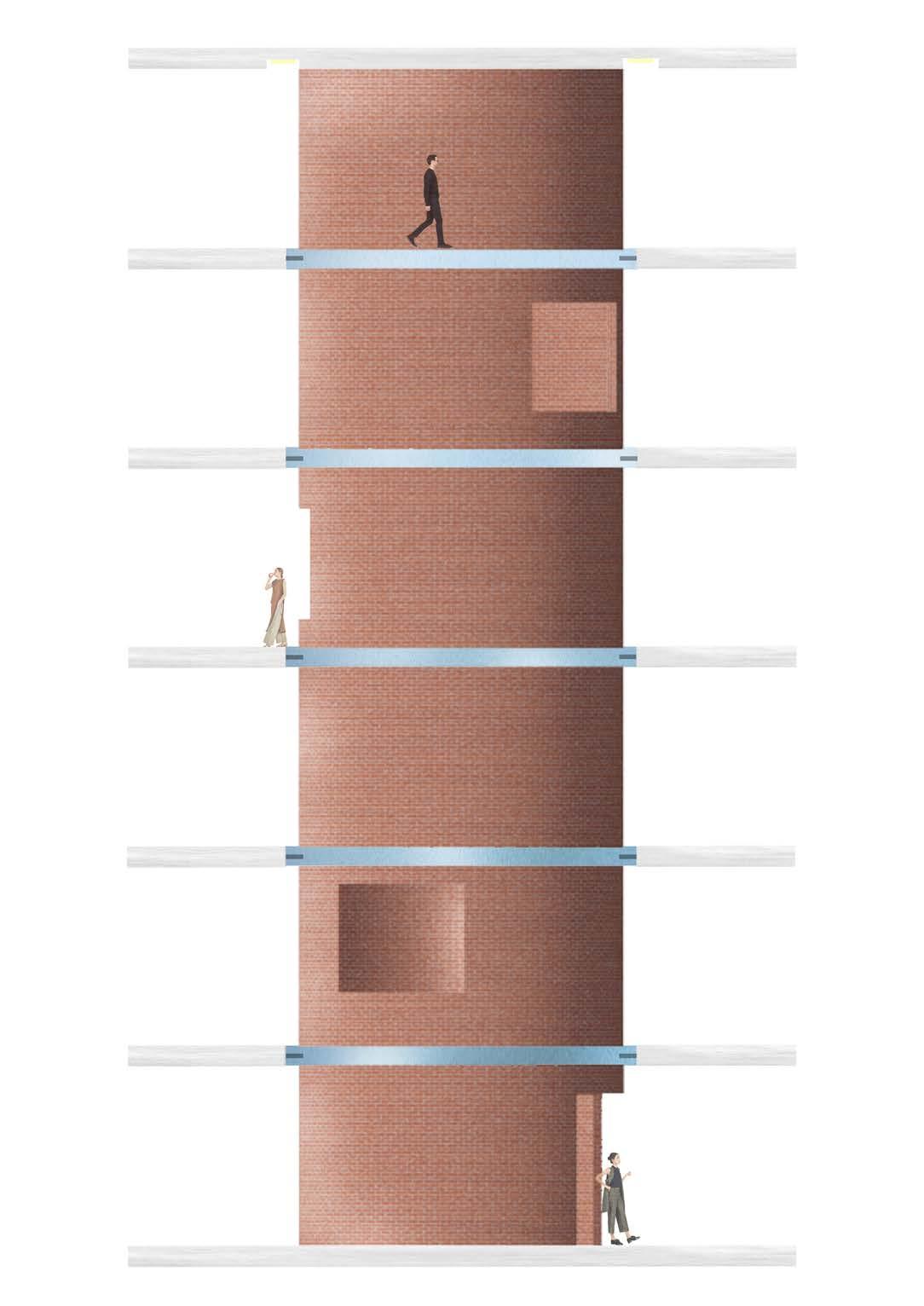

Central Void

Materials; reclaimed brick used across the main void space, timber oak flooring.

The void serves as a focal point in the centre of the building creating links between floors and the residents allowing for the building to integrate the people and the wider community within the building The void is clad in red brick creating texture to the space and furthering the vertical impact the space has.

The void is cut by massive portals on each floor allowing light to pass through the void.

21

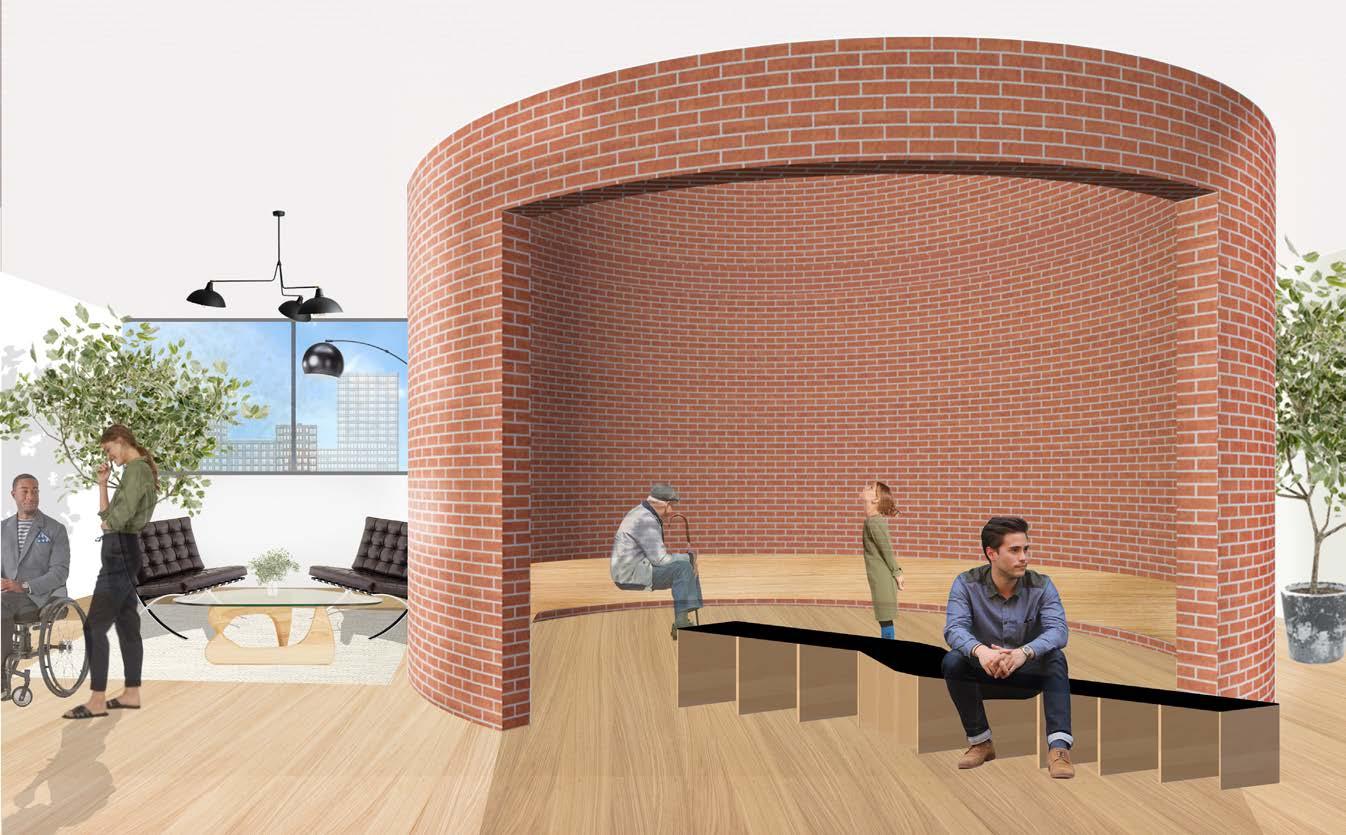

View of the void from the first floor.

The first floor has access the void allowing people to walk inside this space and use it as a meeting space, seating area or a focal point for community arranged events.

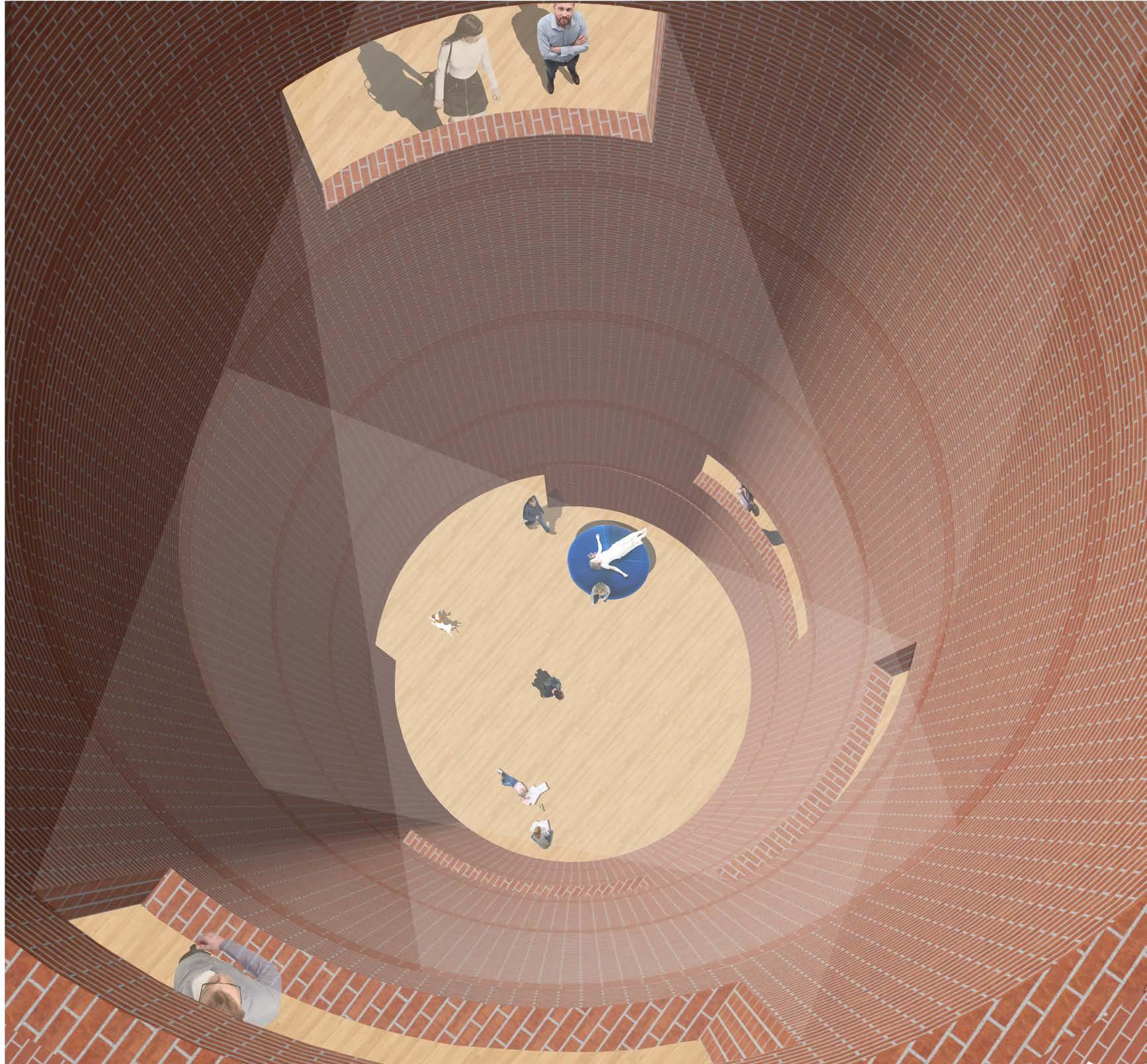

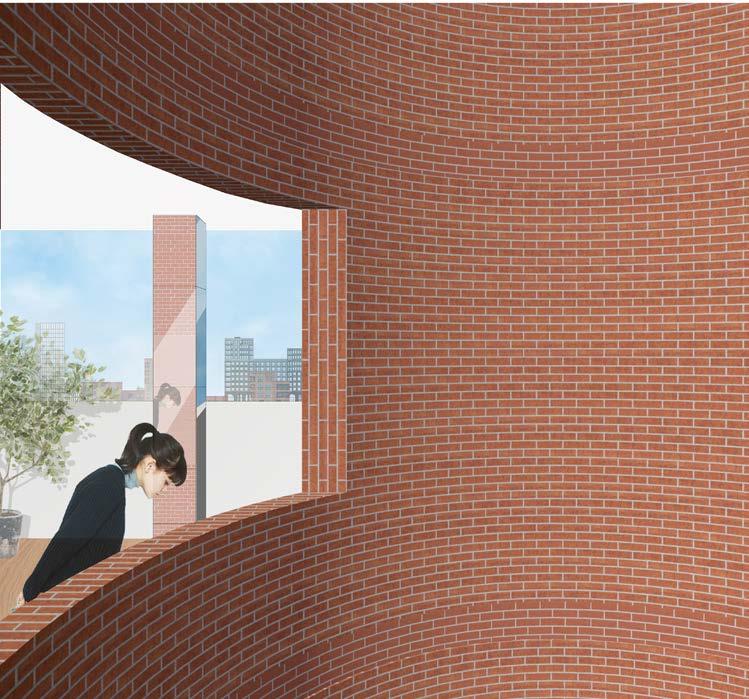

View of the void from 3rd floor portal.

These open apertures into the void allow the space to as light filled as the rest of the building while also providing a connection between individual floors and the void. Each level has a portal where residents from the 5th floor can see what’s going on in every other floor.

22

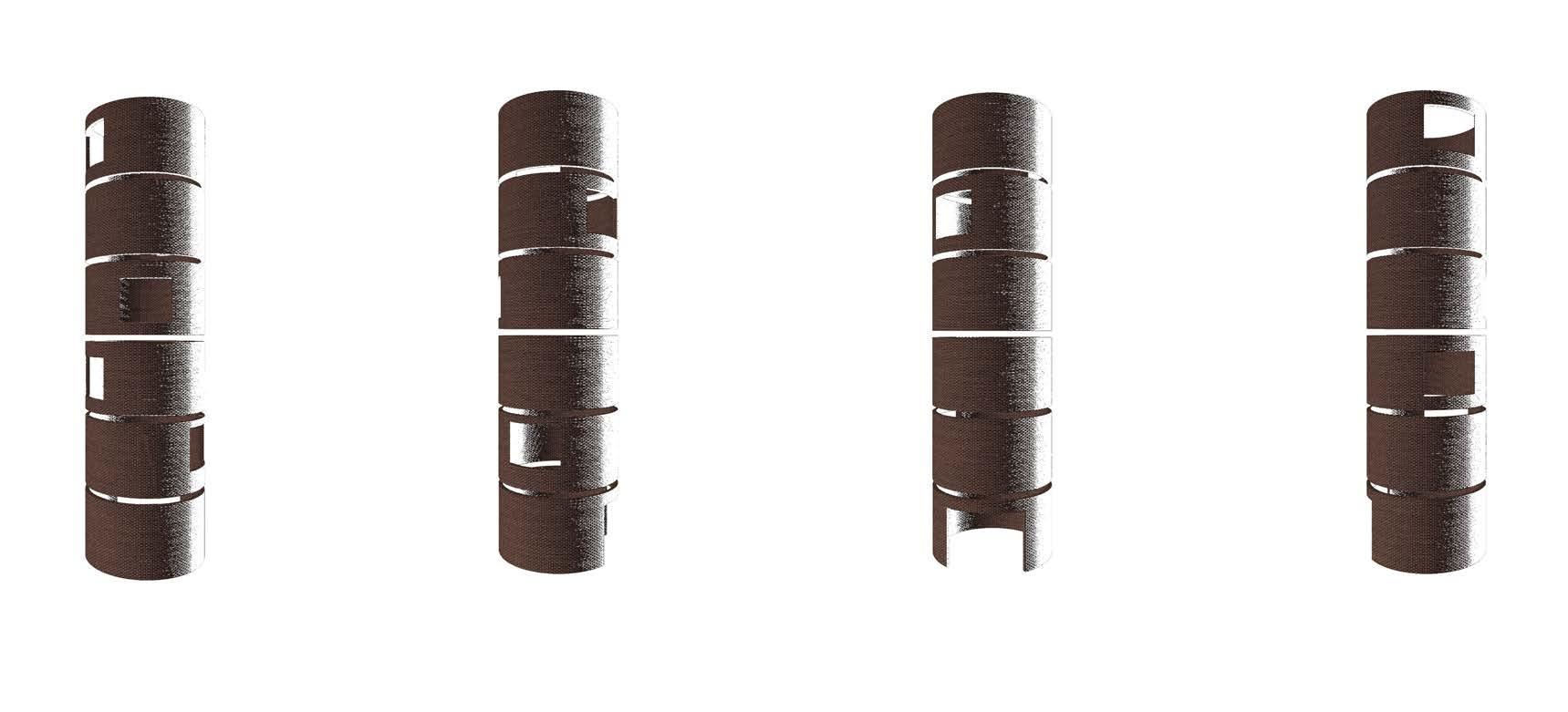

Isometric of Void This series of images is to show the void form all angles, allowing the structure to be fully explored form all angles. The void has points across each floor which open up to the space inside the void.

Front

Left

Rear

Right

Experience the void in 3D Scan QR code with your phone camera and go inside the void to experience the verticality of the space.

23

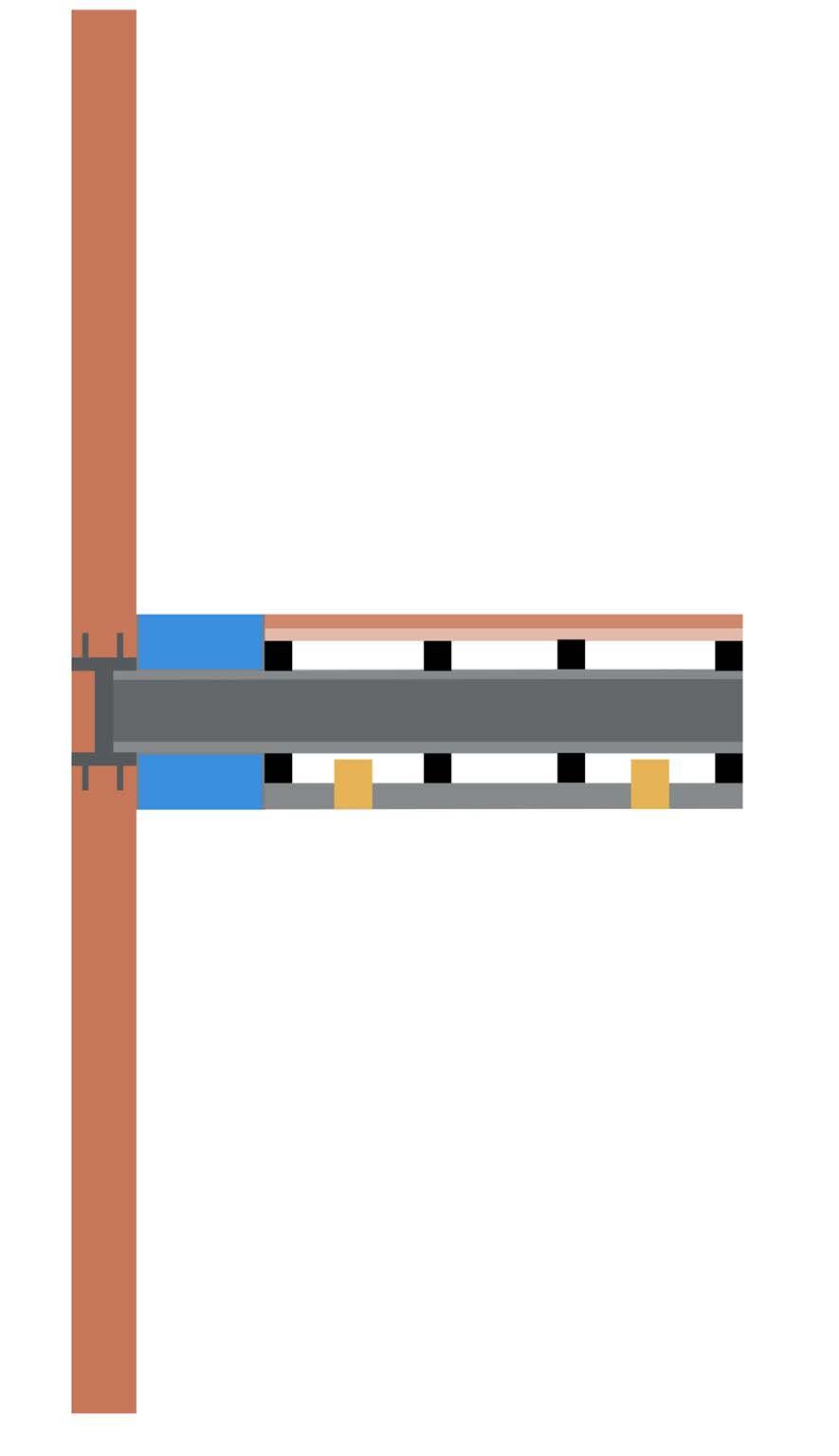

Red Brick void wall

3rd floor

I-Beam

Glass light channel

Oak Hard wood floor MDF boards Durabella baton Steel I Beam

Recessed lighting Plaster finish to ceiling

2nd floor

Steel bolts

24

Reassessed lighting

Glass floor inserts

Steel beams

Existing concrete floor plate Glass floor inserts

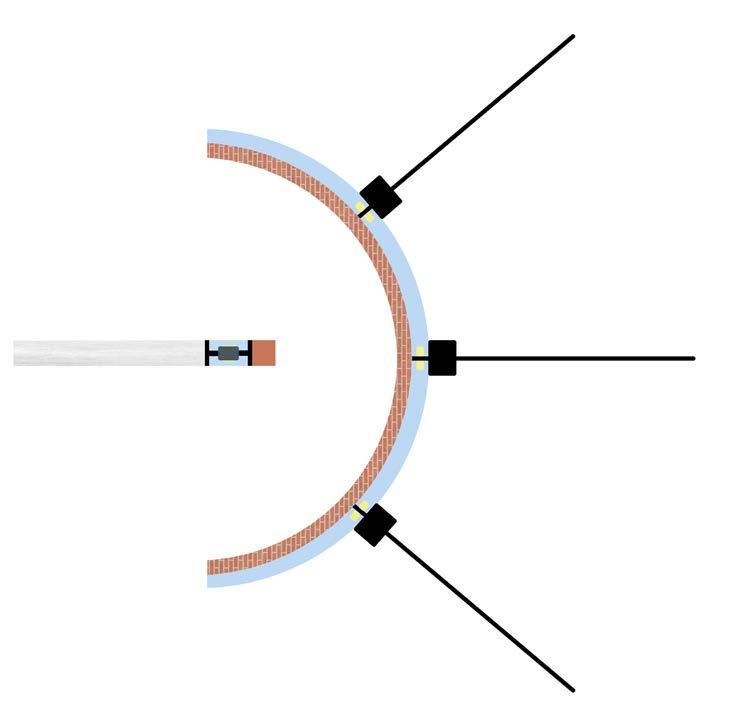

Void Steel brackets Reseeded lighting Void made from red clay brick Brick

Metal brackets fixing floor plate to glass & void structure

Diameter 5200mm of void 25

Apartments General Key

1

Apartment Key

10

2

1- Communal Gardens

1- Apt 1/1 (3 bedroom)

2- Balcony

2- Apt 1/2 (2 bedroom)

3- Void

3- Apt 2/1 (2 bedroom)

5

7

2

8

7

4

9

1

4- Communal

4- Apt 2/2 (3 bedroom)

5- Children play room

5- Apt 2/3 (2 bedroom)

6- Retail Unit

6- Apt 2/4 (2 bedroom)

7- Storage Space

7- Apt 2/5 (2 bedroom)

2

3

Floor one; balcony apartments Not to scale.

8- Stairs 9- Elevator 10- Baby Changing 5

4

3

Floors 2-6, five apartments on each floor.

Not to scale.

26

8

6 9

4

7

3

6

Apartment 6/5

Apartment 3/1

Apartment 1/1

27

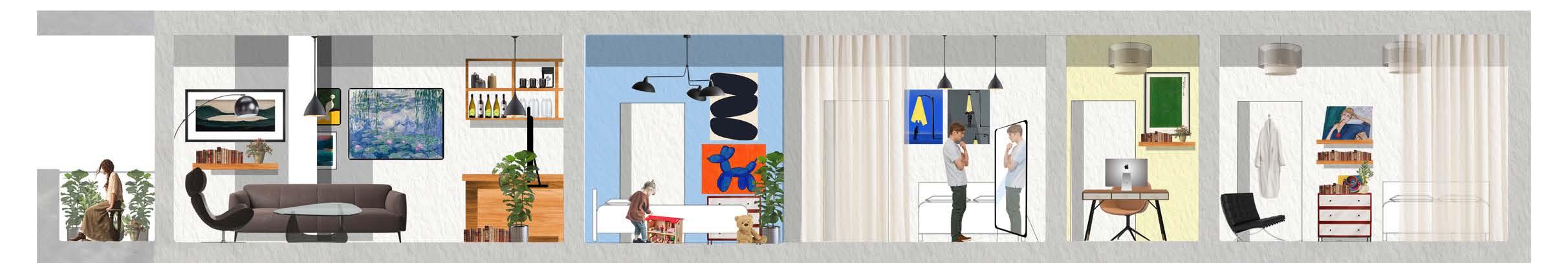

Second bedroom with storage

Second bedroom with storage space and seating area

Living room with seating set up and TV stand

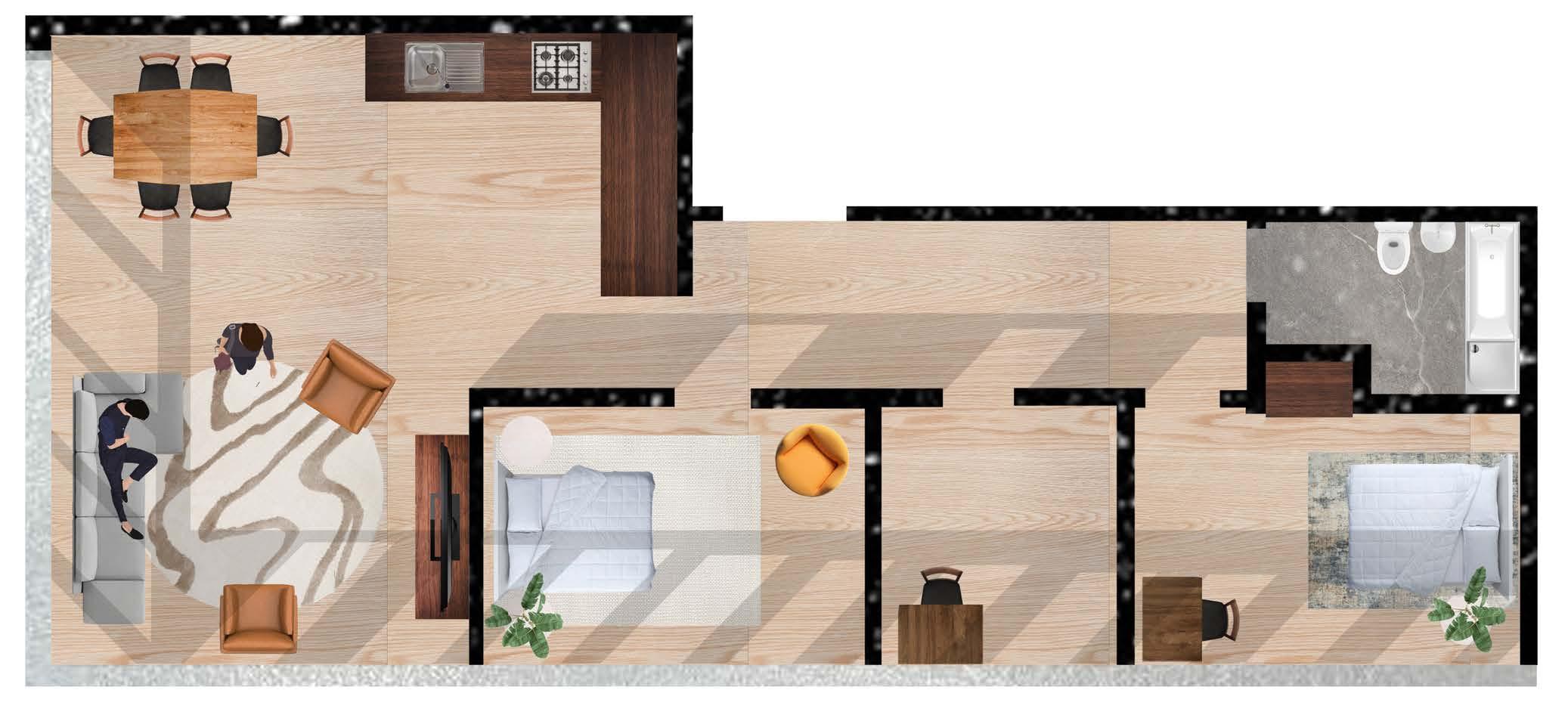

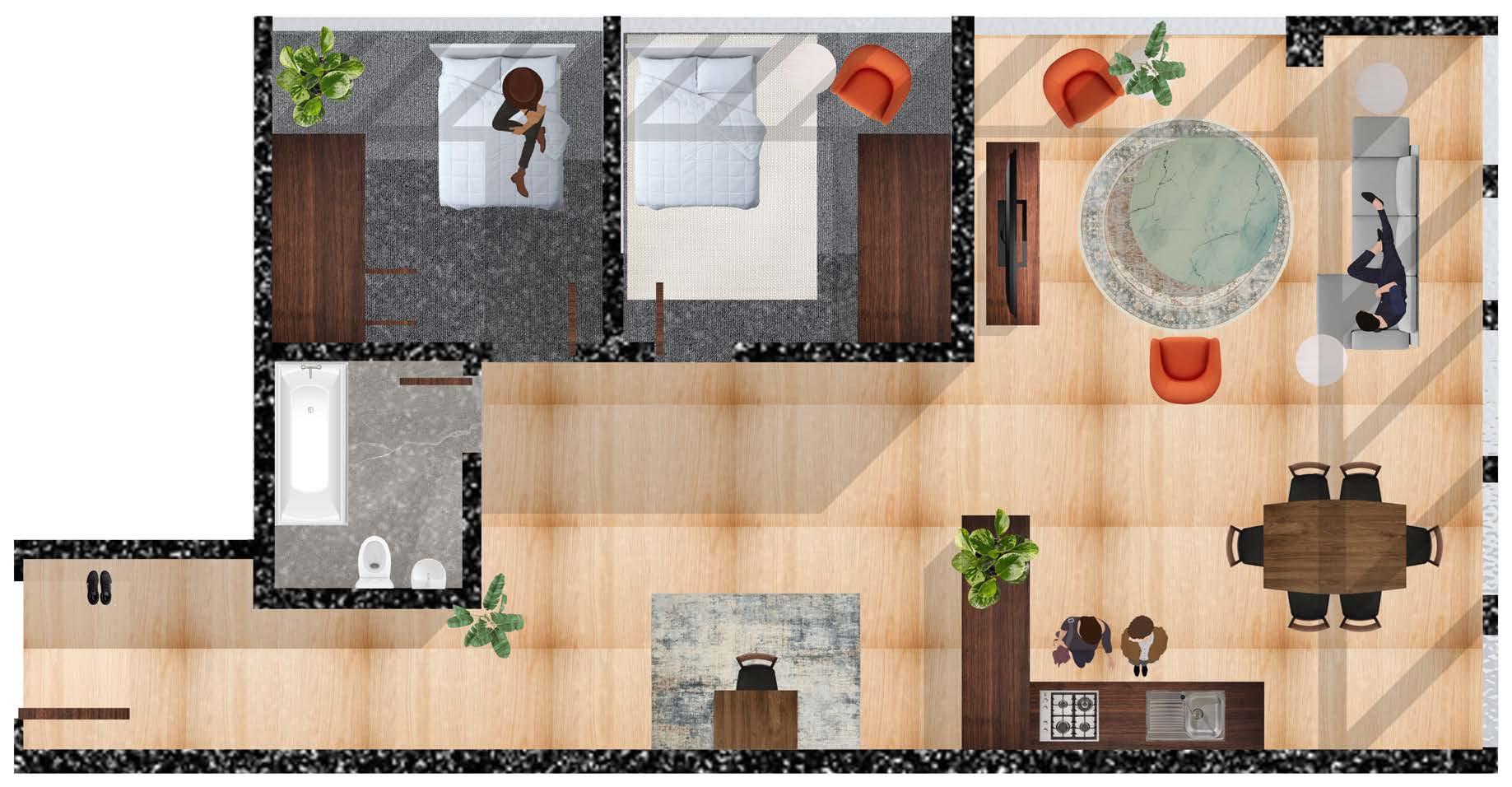

Plan view of apartment 2/2

Accessible bathroom

Open plan living room & dinning room

Entrance

28

Home office

Hard wood kitchen, kitchens consistent throughout building

Open plan living room & dinning room

Hard wood kitchen, kitchens consistent throughout building

Plan view of apartment 2/4

Entrance

Living room with seating set up and TV stand

Bedroom with large double bed

Accessible bathroom, bath and shower

Home office

Second bedroom with storage space and work station

29

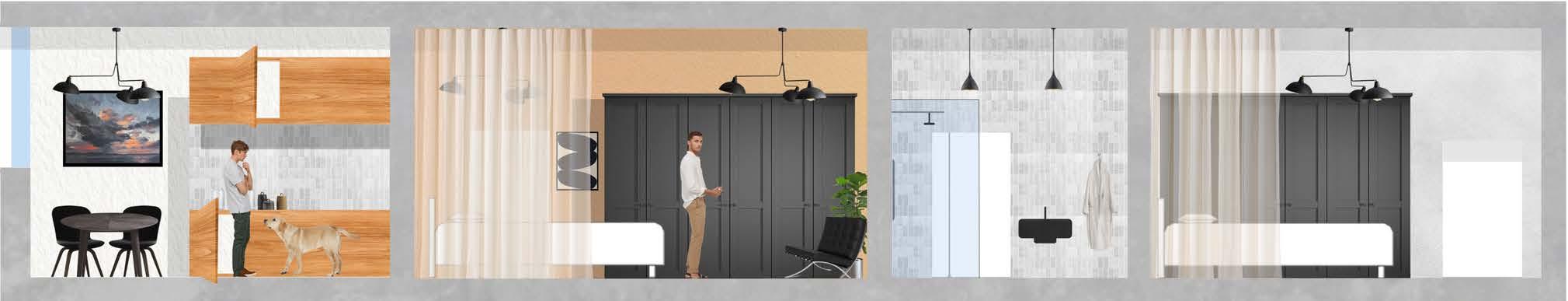

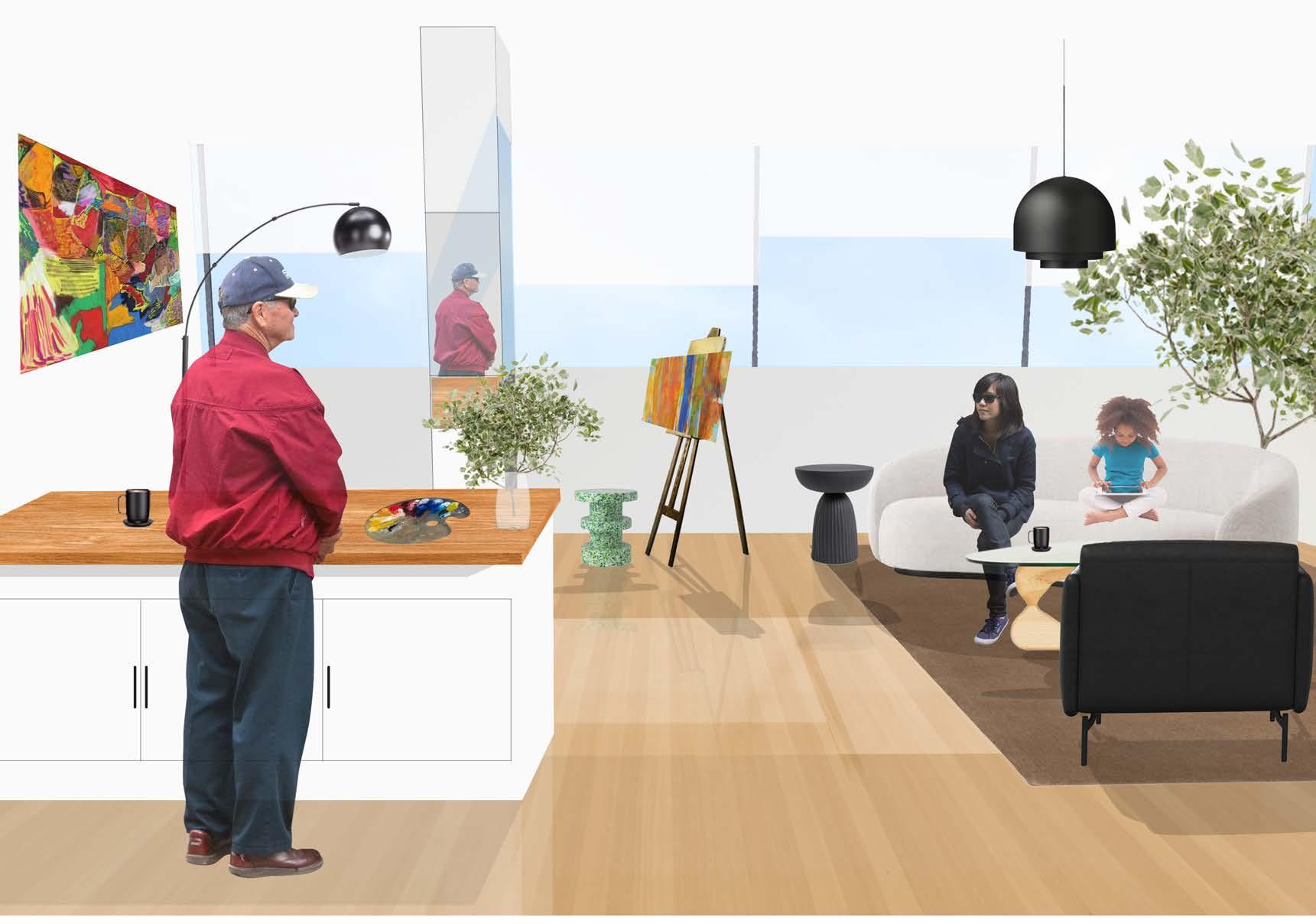

Living & Kitchen Apartment 3/1

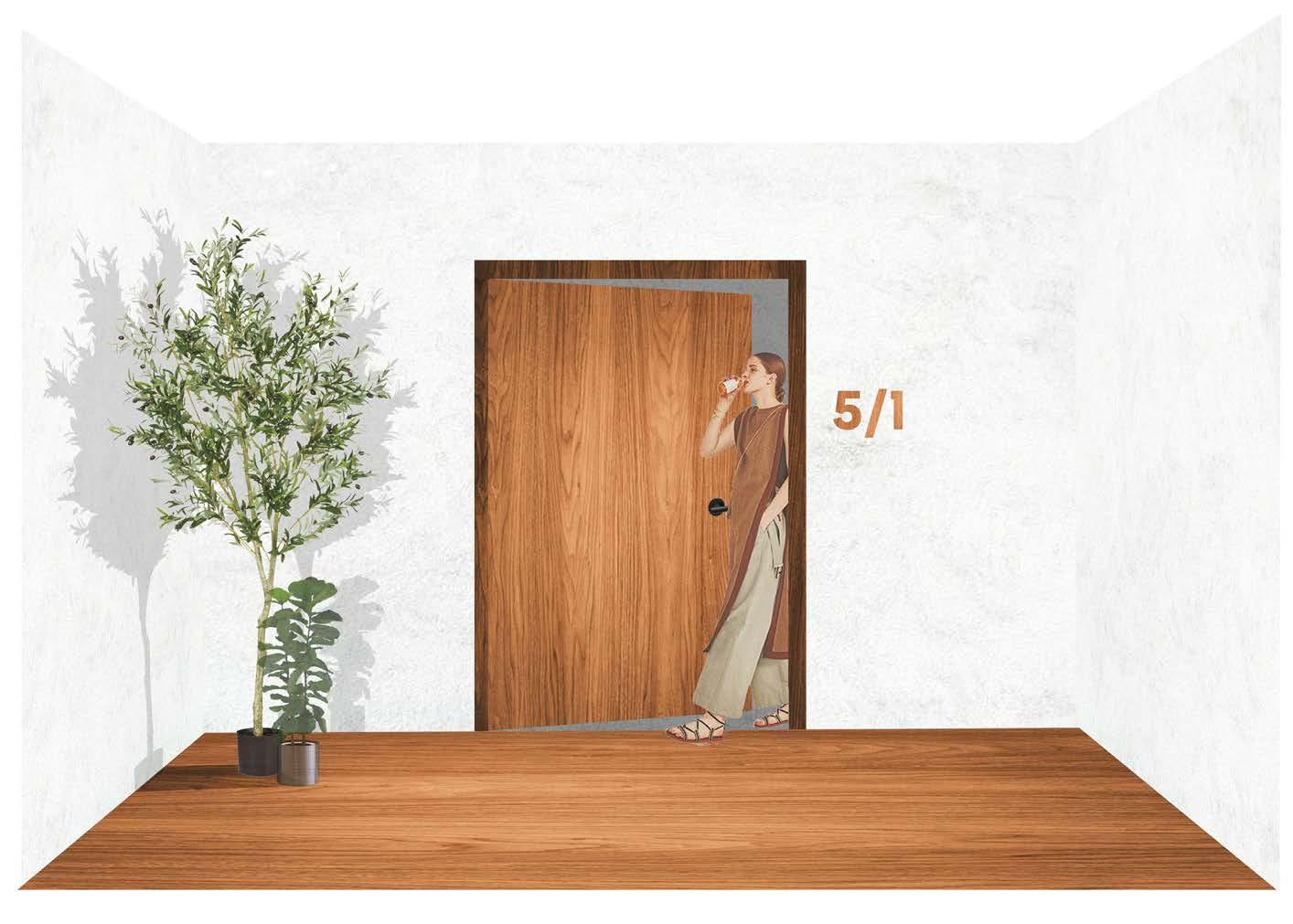

Visual showing example of front door entrance to apartment.

The entrances are consistent throughout the building, wooden doors and flat number signs.

Residents have the opportunity to add trees, door mats or small lights to their front doors to individualise them.

30

Bedroom 1

WC & Shower

Bedroom 2

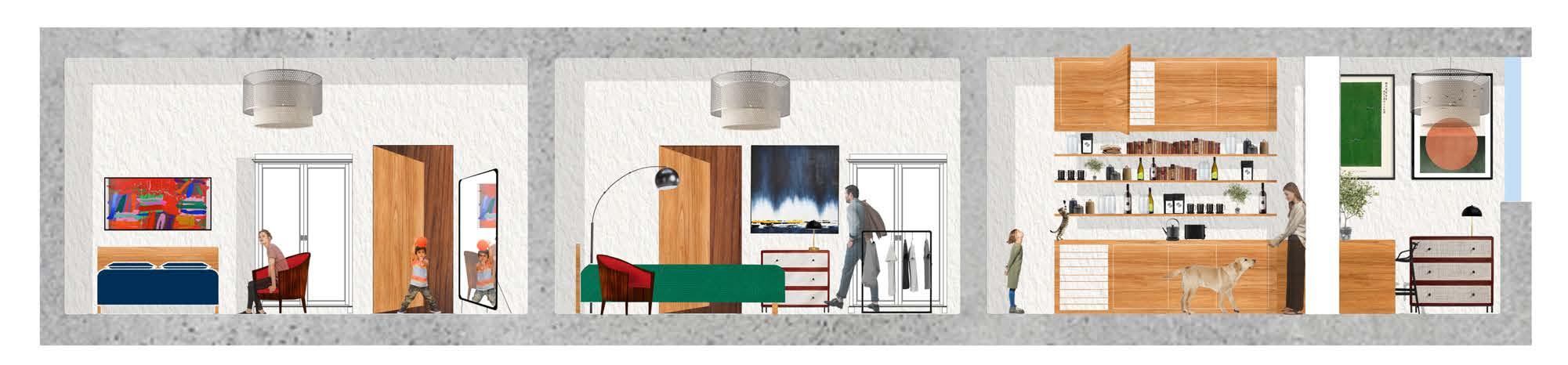

Visual Showing of the apartments; Kitchen, Living These apartments are the places where residents can call their own, design their own spaces, meet with friends and family, practice hobbies and relax. Solar blinds across every window pull down to help energy loss during the hight of winter and summer. They will be uniform across the building creating a consistent appearance from the outside

Materials; All apartment types will have a constant pallet when residents first enter, this includes the wood flooring and the kitchen.

Residents can then choose to add their own personality to the space.

31

Bedroom 1

Bedroom 2

Living & Kitchen

Apartment 6/5

Balcony Apartment 1/1

32

Living & Kitchen

Bedroom 1

Bedroom 2

Study

Bedroom 3

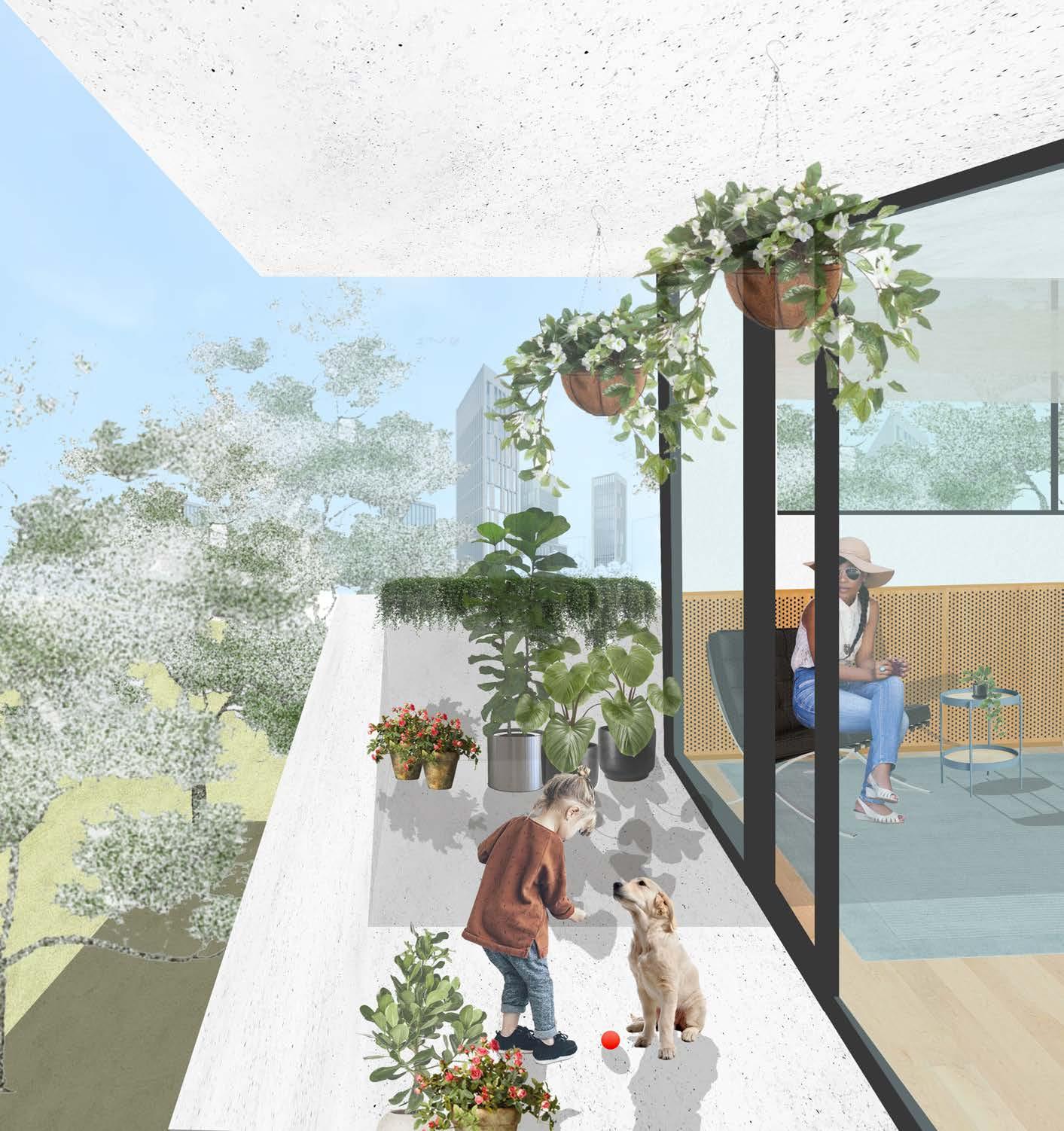

Visual showing first floor apartment 1/1 balconies with views across the local area.

First floor apartments have access to private balcony spaces where they can set up their own seating or create small garden spaces for the house to enjoy.

33

The Roof 8

9

1- Communal Gym 9 2- Reading room 3- Co-working space

3 8

6

5

5

4- Toilet 4

1

5- Lifts

4

2

6- Stairs 7- Communal roof garden

7 8

9

9

8- Landscaping 9- Seating

Roof & communal roof garden.

Not to scale.

34

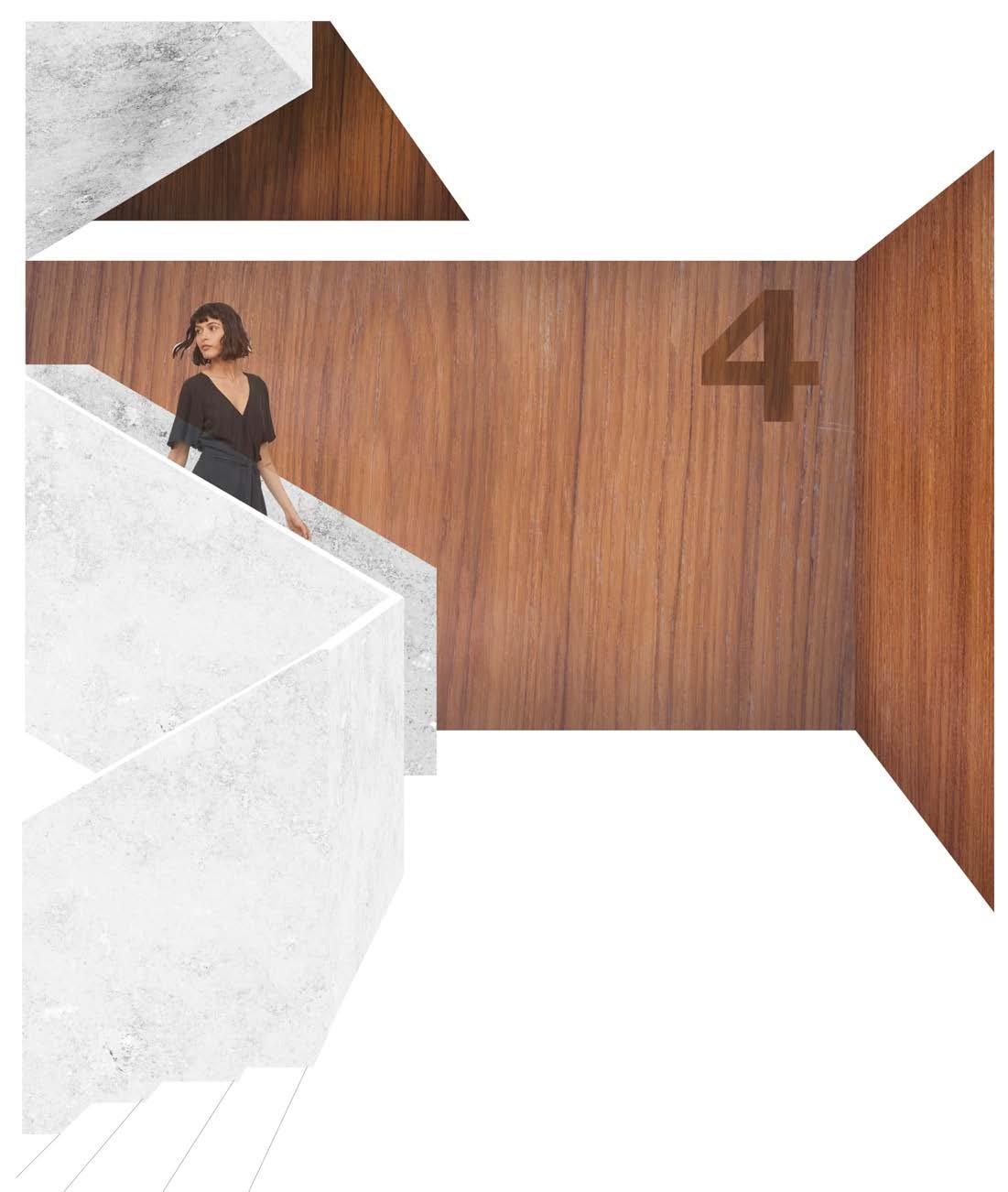

Stairs leading up to the roof area, showing the materiality in these circulation spaces spaces

Materials: Reclaimed hard wood wall panels (stained oak) concrete handrails & painted white concrete floor.

35

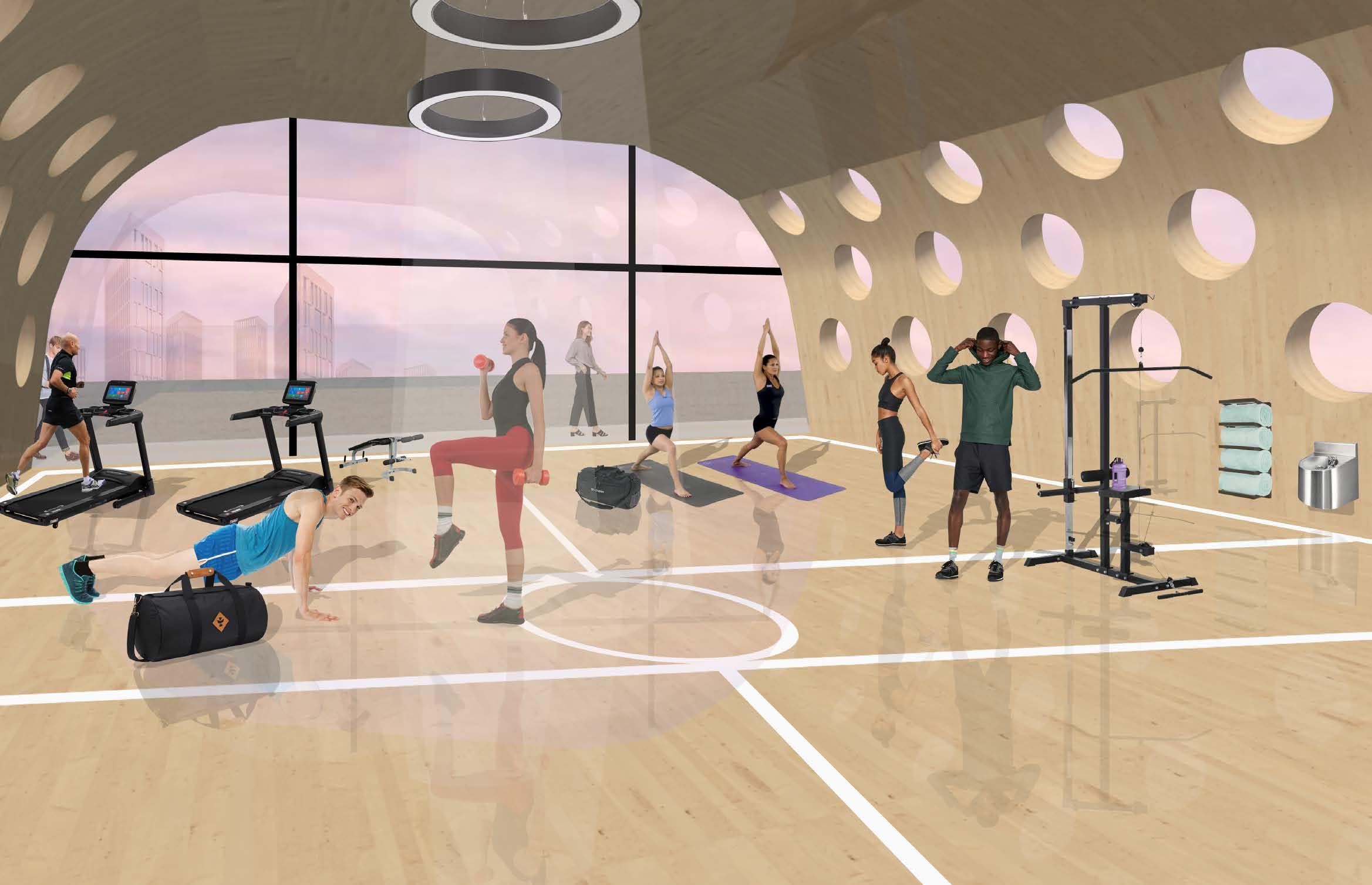

Visual of the roof top gym. Maintained the original wood cladding.

36

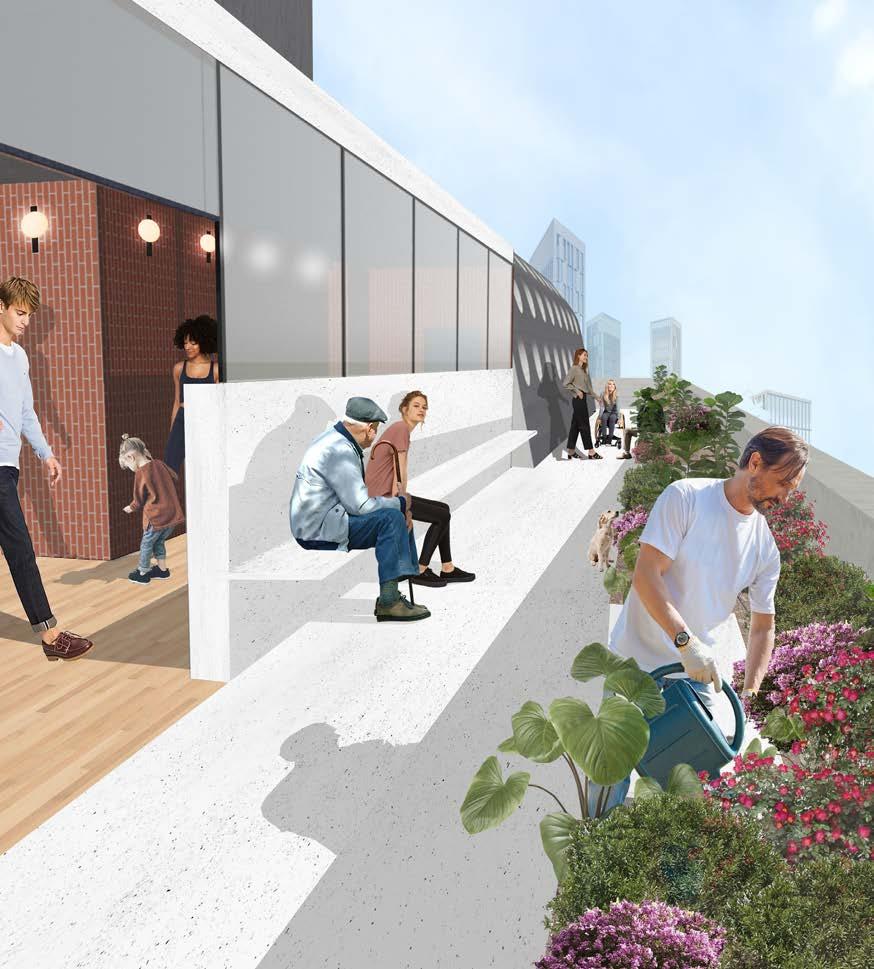

Visual showing the roof top garden area.

Solar Panels.

The roof garden is designed for residents to pant their own plants and cultivate a garden that brings the community together. It’s a space where all generations living in the buildings can use and engage with. I believe offering these spaces will enhance the community living in this buildings, enriching the relationships the residents have with one and other.

On the top of the building solar panels have been placed at each end to capture sunlight, these can would angle themselves in line with the direction of the sun.

37

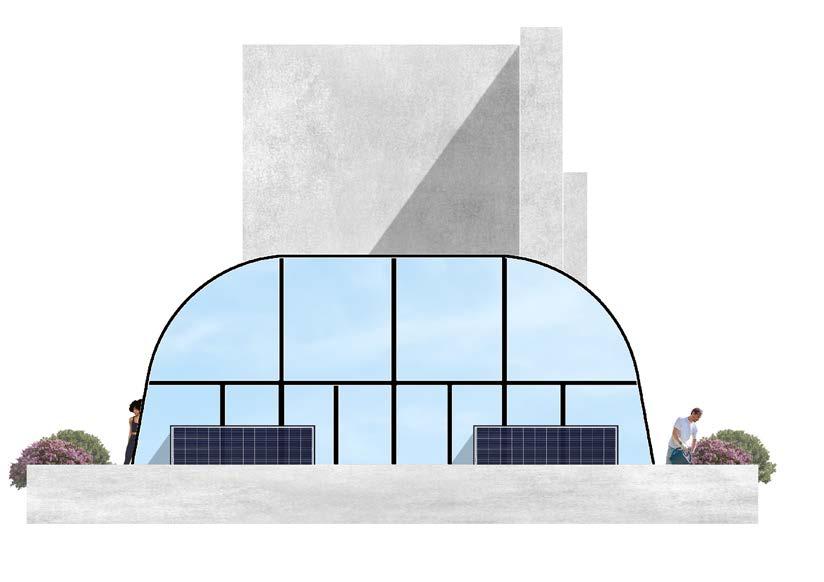

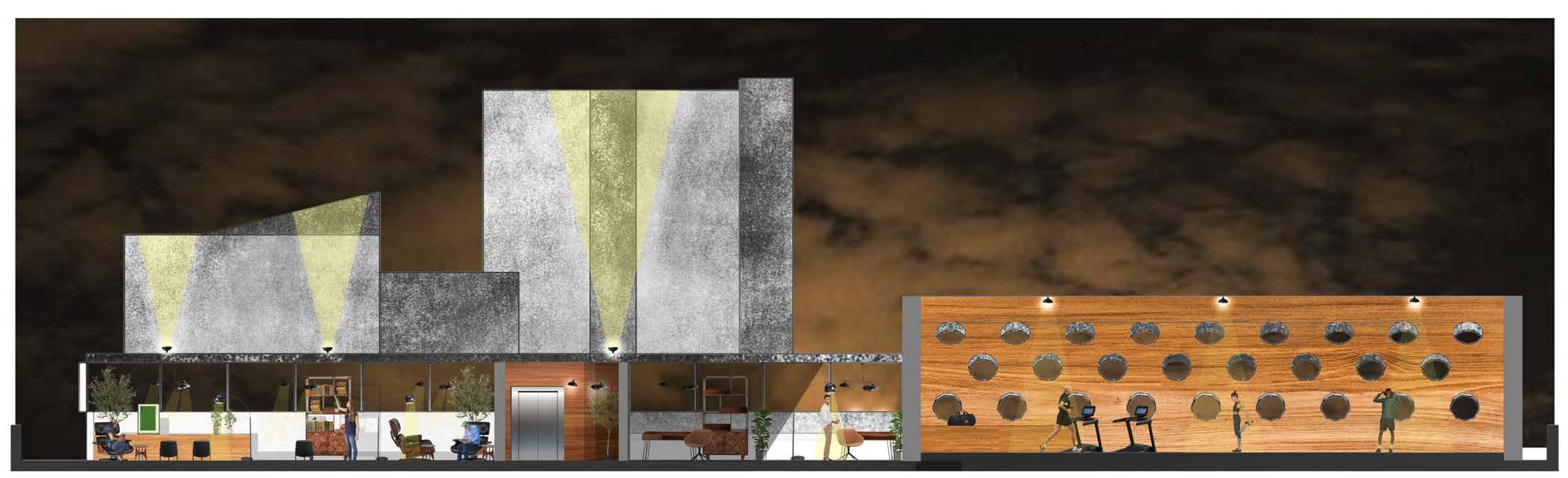

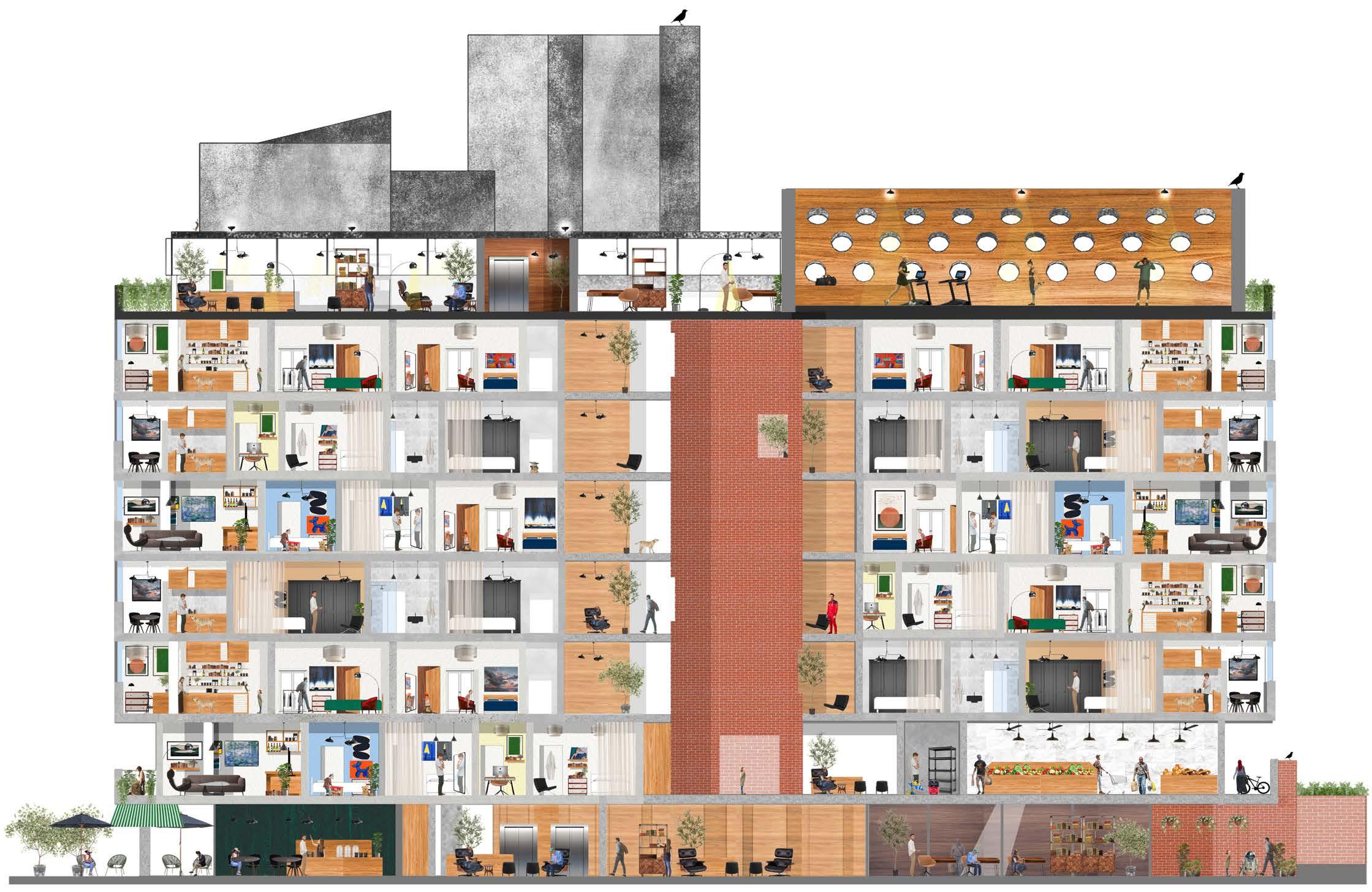

Section of the exterior roof design.

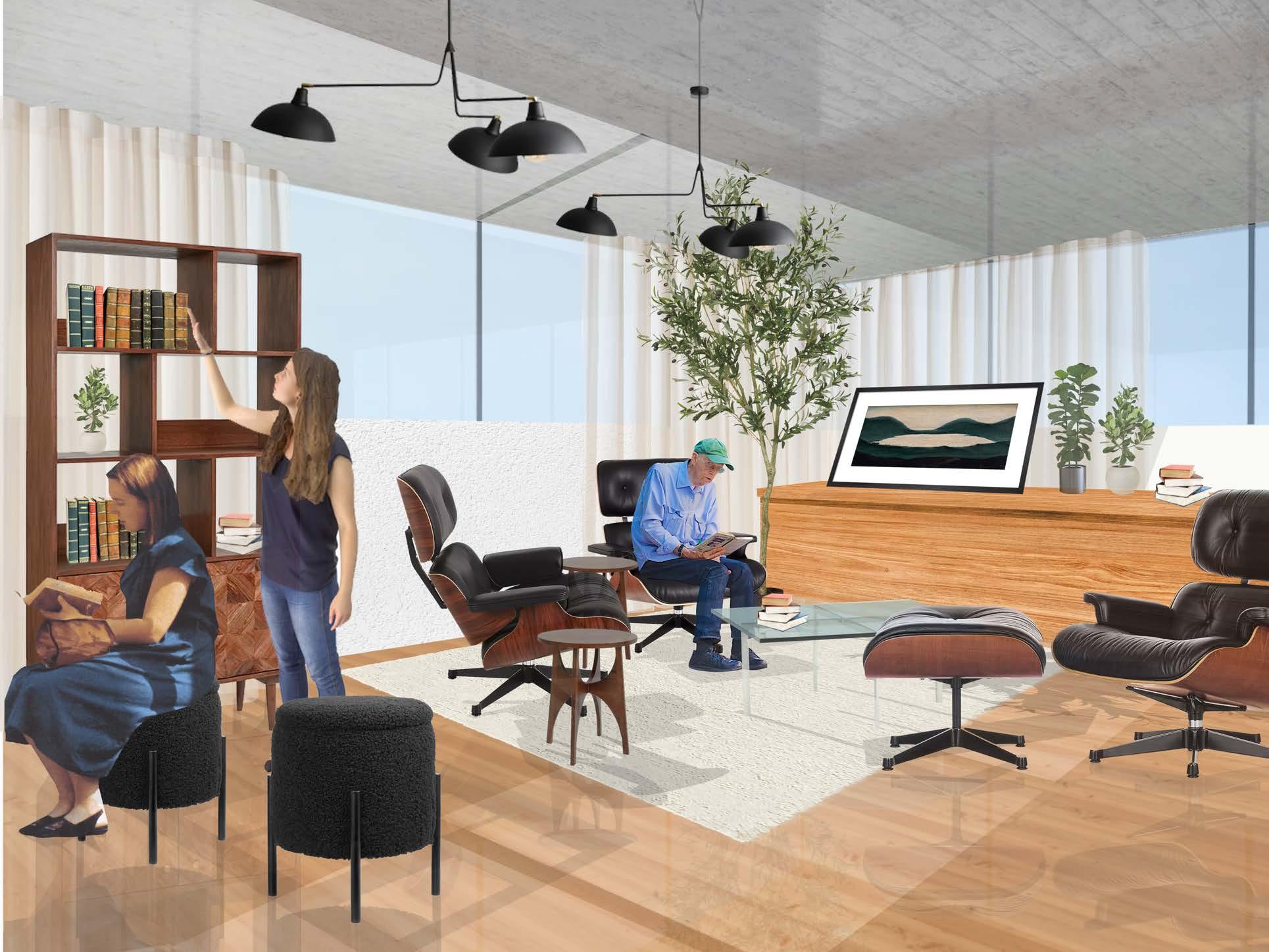

The communal reading room is a space for residents to retreat to, its also a space for learning.

Children can use this space for homework in the same way older residents can use it to sit back and read a novel.

38

Next to the communal reading space is a the co-working room.

This space allows residents to work from home, letting home remain home and not an extension of the work place

The roof top gym has been a feature of this building since it was first design and maintaining that originality was something I felt very strongly about. Allowing this space to be given back the residents further encourages a healthier lifestyle.

Reading room 39

Retail Units

40

Ext of the cafe

The store front is activated by large signage and owning. The space is accessed via College Way Path as the gradual incline leads to an entry point into the first floor.

This allows the space to remain separate from the residential areas of the building, with minimal impact to the residents.

Cathedral Street

College Way

41

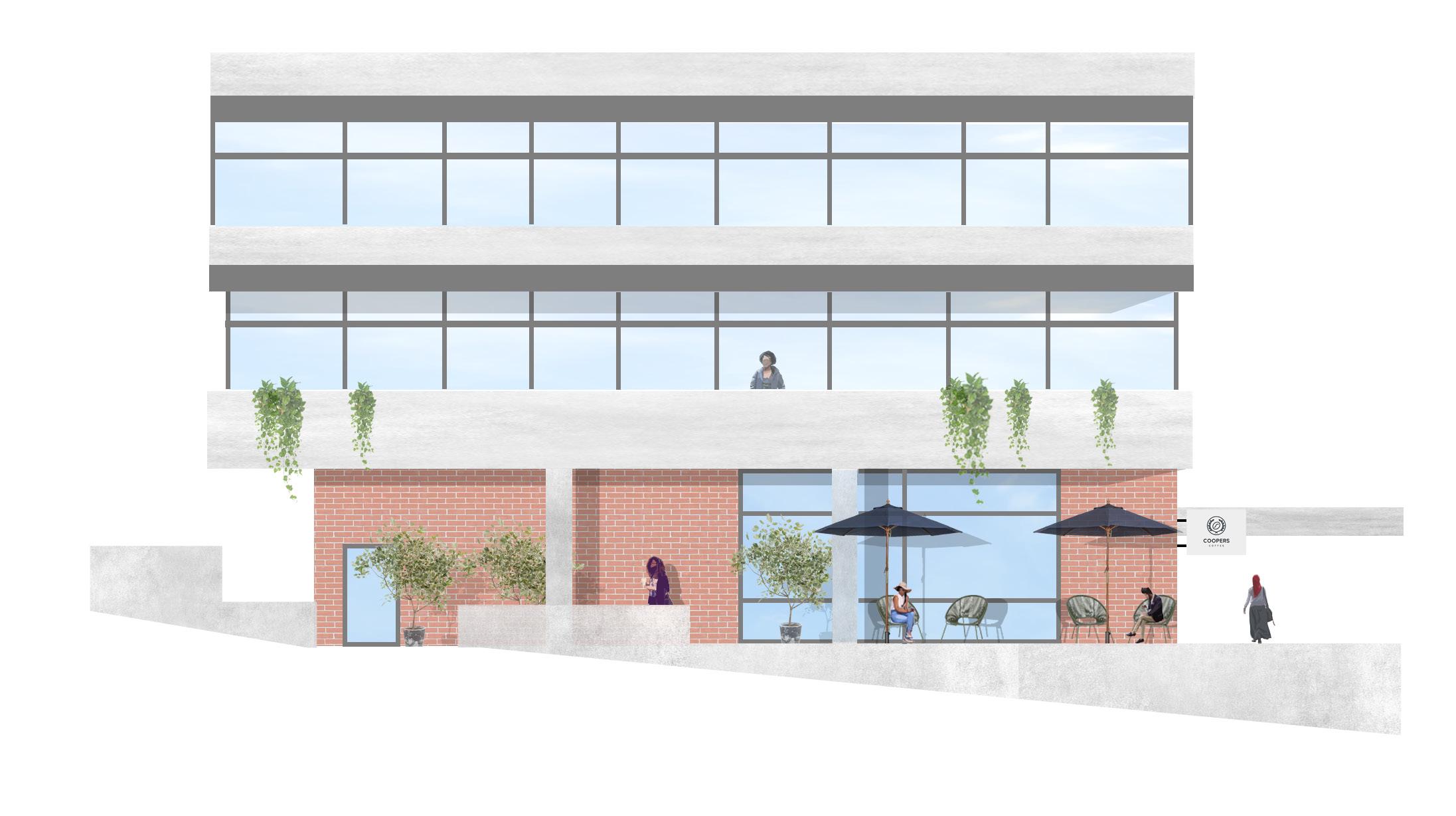

Ext of the cafe

The cafe is located on the ground floor of the complex adjacent though separate from the main residential building. Above sits the apartments of the building.

Umbrellas and outdoor seating areas encourage the space to be used during the whole year.

The brick detailing and use of plants creates a clear reference to the buildings it is apart of.

N. Fredrick Street

42

Cathedral Street

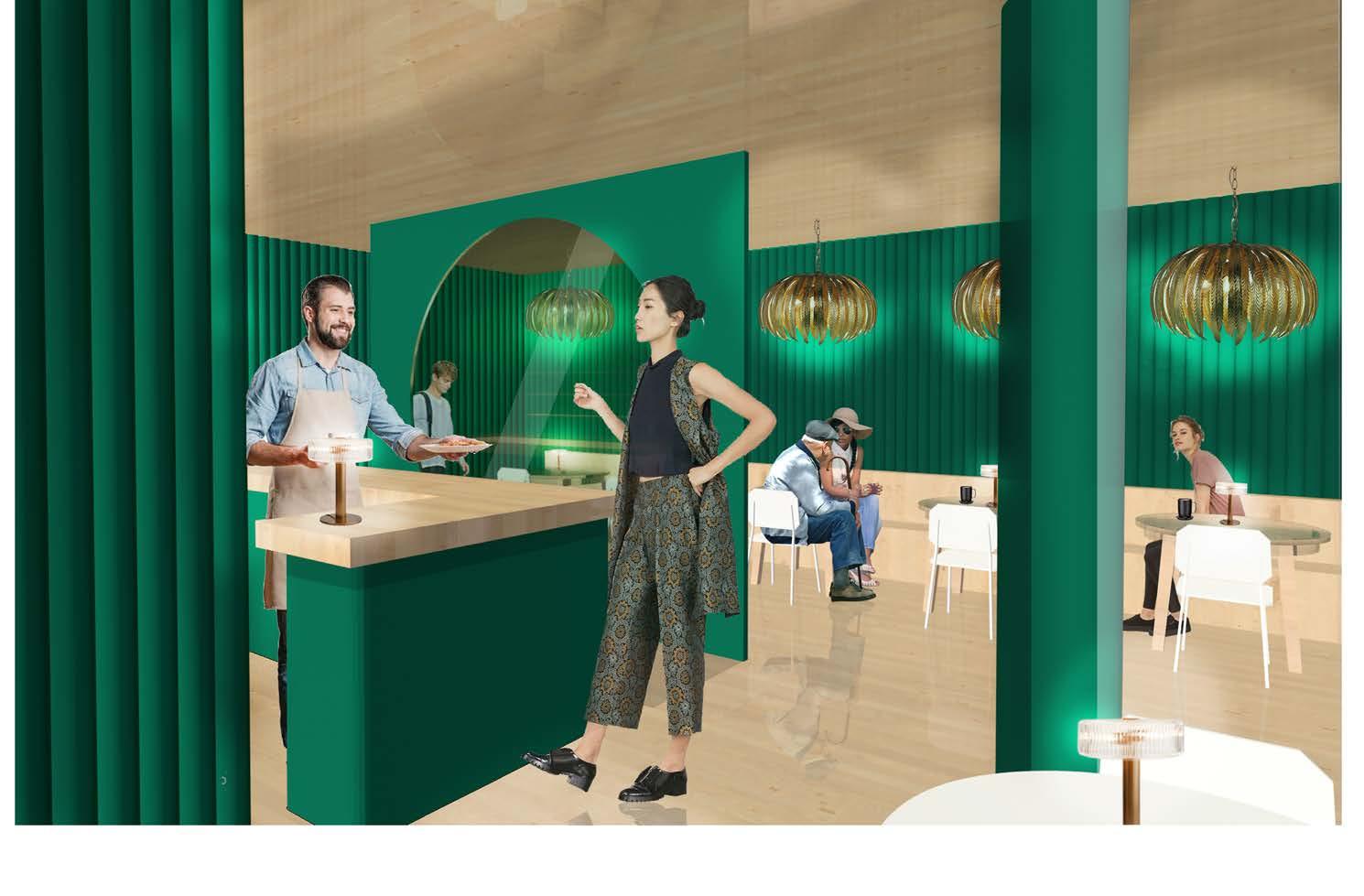

Visual Showing Coffee shop interior

43

Contact Information Email - daviddanderson2811@gmail.com

GSA Email - d.anderson1@student.gsa.ac.uk

Instagram - @davidandersoninteriordesign

Twitter - @DavidA_Interior
