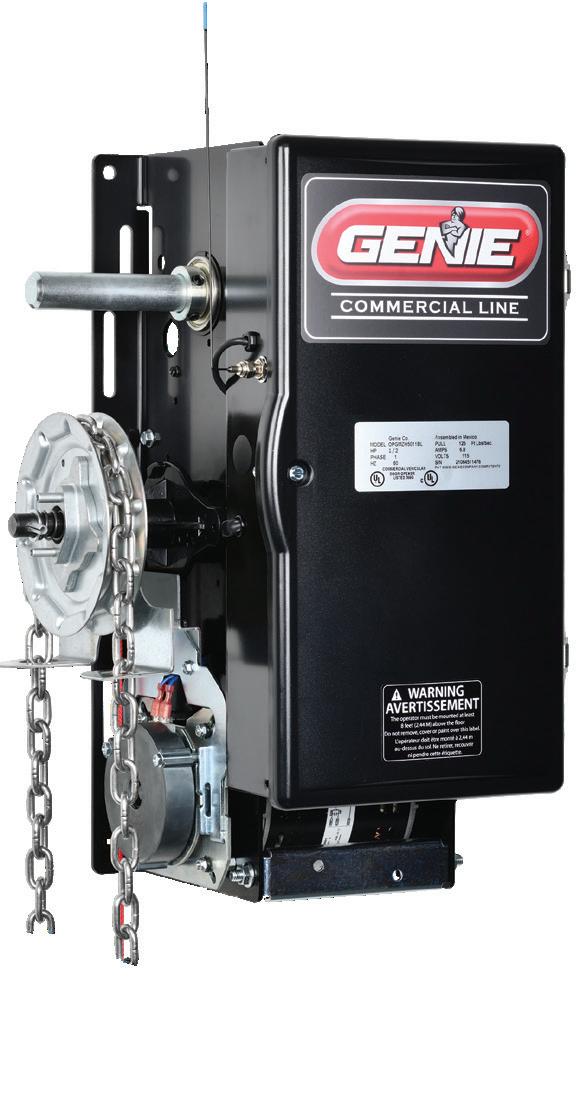

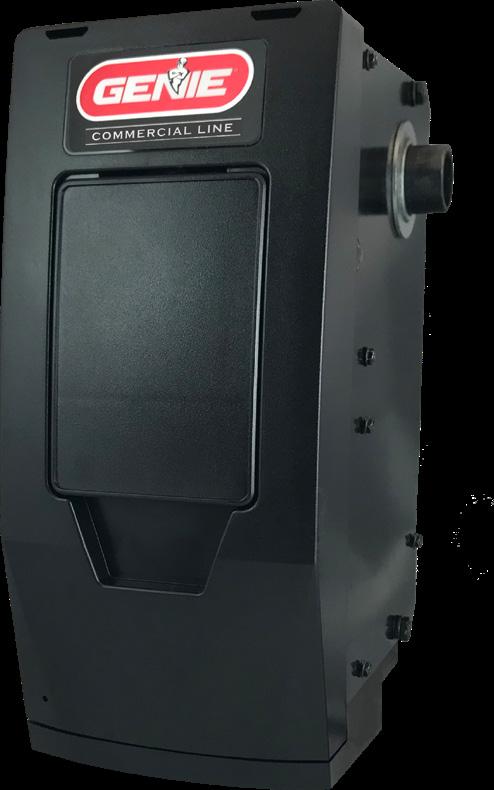

HOIST
GCL-GH
Heavy-Duty Hoist
Standard Features
• EZ Limit ® electro-mechanical limits
• MultiVolt ® voltage simplification (1 PH 115/208/230 VAC3 PH 208/230/460 VAC)
• Max run timer automatically adjusts to up and down run time
• Heavy-duty worm gearbox for primary reduction
• Delay on reverse
• 16-character LCD display
• UL 325 Listed
• Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen
• 3-button control station
• 2-year/20,000-cycle warranty
• Programmable mid-stop
• Emergency hoist for manual operation; easily changed in field from left to right hand
• DC disc brake with progressive braking for smooth stopping
• On-board timed close
• Cycle count available via LCD screen
GCL-H
Standard-Duty Hoist
Standard Features
• EZ Limit ® electro-mechanical limits
• MultiVolt ® voltage simplification (1 PH 115/208/230 VAC-
3 PH 208/230/460 VAC)
• Max run timer automatically adjusts to up and down run time
• TensiBelt ® primary reduction
• Delay on reverse
• 16-character LCD display
• UL 325 Listed
• Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen
• 3-button control station
• 2-year/20,000-cycle warranty
• Programmable mid-stop
• Emergency hoist for manual operation; available in right or left hand
• DC disc brake with progressive braking for smooth stopping
• On-board timed close
• Cycle count available via LCD screen
GCL-MH
Medium-Duty Hoist - NEW Z Series Model
Standard Features
• EZ Limit electro-mechanical limits
• Max run timer automatically adjusts to up and down run time
• Available in 120 VAC 1 PH
• Delay on reverse
• 16-character LCD display
• UL 325 Listed
• 3-button control station
• 2-year/20,000-cycle warranty
• Programmable mid-stop
• Emergency hoist operation; available in left or right hand
• Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen
• Cycle count available on LCD screen
• 24 VDC disc brake
• Motor isolated from frame for quiet operation
JACKSHAFT (½, ¾, 1 HP) (½ HP)
GCL-J
Standard-Duty Jackshaft
Standard Features
• EZ Limit ® electro-mechanical limits
• MultiVolt ® voltage simplification (1 PH 115/208/230 VAC3 PH 208/230/460 VAC)
• Max run timer automatically adjusts to up and down run time
• TensiBelt ® primary reduction
• Delay on reverse
• 16-character LCD display
• UL 325 Listed
• Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen
• 3-button control station
• 2-year/20,000-cycle warranty
• Programmable mid-stop
• Pull cord release for emergency manual operation
• DC disc brake with progressive braking for smooth stopping
• On-board timed close
• Cycle count available via LCD screen
GCL-LJ
Light-Duty Jackshaft for Sectional Doors
GCL-MJ
Medium-Duty Jackshaft
NEW Z Series Model
Standard Features
• EZ Limit electro-mechanical limits
• Max run timer automatically adjusts to up and down run time
• Available in 120 VAC 1 PH
• Delay on reverse
• 16-character LCD display
• UL 325 Listed
• 3-button control station
• 2-year/20,000-cycle warranty
• Programmable mid-stop
• Pull cord release for emergency manual operation
• Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen
• Cycle count available on LCD screen
• 24 VDC disc brake
• Motor isolated from frame for quiet operation
Standard Features
• Quiet, powerful 24 VDC motor
• Push-to-set electronic limits
• Safe-T-Pulse ® - Internal slack cable detection eliminates external cable monitoring devices
• Soft start and soft stop
• Max run timer automatically adjusts to up and down run time
• UL 325 Listed
• Open/Close/Stop control station can be used to toggle work light on and off
• Time-to-close can be set between 15 seconds and 5 minutes at specific intervals
• Pull cord release for emergency manual operation
• Intellicode ® 315/390 MHz receiver can store up to 255 standard and/or open/close/stop transmitters
• Programmable mid-stop
• Interlock circuit with pre-installed jumper
• Optional Accessories: Aladdin Connect ®, battery backup, LED light fixture, and door lock can easily be purchased and installed at anytime
TROLLEY
GCL-GT
Heavy-Duty Trolley
Standard Features
• 11.5 inches per second door speed
• EZ Limit
• MultiVolt (1 PH 115/208/230 VAC3 PH 208/230/460 VAC)
• Multiple max run timer automatically adjusts to up and down run time
• Quiet trolley carriage standard
• Heavy-duty worm gearbox for primary reduction
• Delay on reverse
• 16-character LCD display
• UL 325 Listed
• Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen
• 3-button control station
• 2-year/20,000-cycle warranty
• Programmable mid-stop
• Drawbar disconnect for emergency manual operation
• DC disc brake with progressive braking for smooth stopping
• On-board timed close
• Cycle count available via LCD screen
GCL-MT
(½ HP)
Medium-Duty Trolley - NEW Z Series Model
Standard Features
• 11.5 inches per second door speed
• EZ Limit electro-mechanical limits
• Max run timer automatically adjusts to up and down run time
• Available in 120 VAC 1 PH
• Delay on reverse
• 16-character LCD display
• UL 325 Listed
• 3-button control station
• 2-year/20,000-cycle warranty
• Programmable mid-stop
•
•
•
•
•
transmitter ID number on the LCD screen
• 3-button control station
• 2-year/20,000-cycle warranty
• Programmable mid-stop
• Drawbar disconnect for emergency manual operation
• 24 VDC disc brake
• Motor isolated from frame for quiet operation
GCL-H GCL-J FIRE DOOR OPERATOR EGRESS OPERATOR
(½, ¾, 1 HP)
Standard-Duty Hoist
The GCL Fire Door Operator is designed for rolling fire doors that have a 30 cycle/hour or less duty requirement. Advanced features and robust mechanical design combine to provide the next evolution in fire door operators.
Standard Features
• Floor level auto-reset
• Accepts fire alarm input
• Time delay close on alarm
• 24 hour battery backup
• Governor controlled door descent
• 16-character LCD display
• Auto-open after test operation
• Remote test/reset key switch standard
• Horn/strobe standard
• Easy limit setting with EZ Limit ®
• Advanced radio receiver system
• MultiVolt ® voltage simplification (1 PH 115/208/230 VAC, 3 PH 208/230/460 VAC or 3PH 575 VAC)
• Auto-tensioning TensiBelt ®
• DC disc brake with progressive braking for smooth stopping
• Versatile mounting options
• UL 325 Listed
• Factory Mutual Approved
• Accepts fusible link/sash chain connection ready
• Cycle count available via LCD screen
GCL-GCX
(½ HP)
(½, 1 HP)
Standard-Duty Jackshaft
The GCL Egress Operator is designed for applications where access-controlled egress opening is required for emergency response or exit. Advanced features and options provide considerable flexibility meeting job specific configuration needs. The GCL Egress Operator works with emergency egress grilles having 30 cycle/hour or less duty requirement.
Standard Features
• Floor level auto-reset
• Accepts normally closed alarm input
• Governor controlled door ascent
• 16-character LCD display
• Remote test key switch standard
• Easy limit setting with EZ Limit ®
• Advanced radio receiver system
• MultiVolt ® voltage simplification (1 PH 115/208/230 VAC, 3 PH 208/230/460 VAC or 3PH 575 VAC)
• Auto-tensioning TensiBelt ®
• DC disc brake with progressive braking for smooth stopping
• Versatile mounting options
• UL 325 Listed
• Cycle count available via LCD screen
Standard Features
• Limited-duty 4 cycles per hour rating
• Max run timer automatically adjusts to up and down run time
• Available in 115 VAC 1 PH
• Worm gear primary reduction
• Delay on reverse
• 16-character LCD display
• UL 325 Listed
• 3-button control station
• 2-year/20,000-cycle warranty
• Programmable mid-stop
• Pull cord release for emergency manual operation
• Cycle count available via LCD screen
• Fire counter door model also available
Rolling Counter Door OperatorGCL-GH

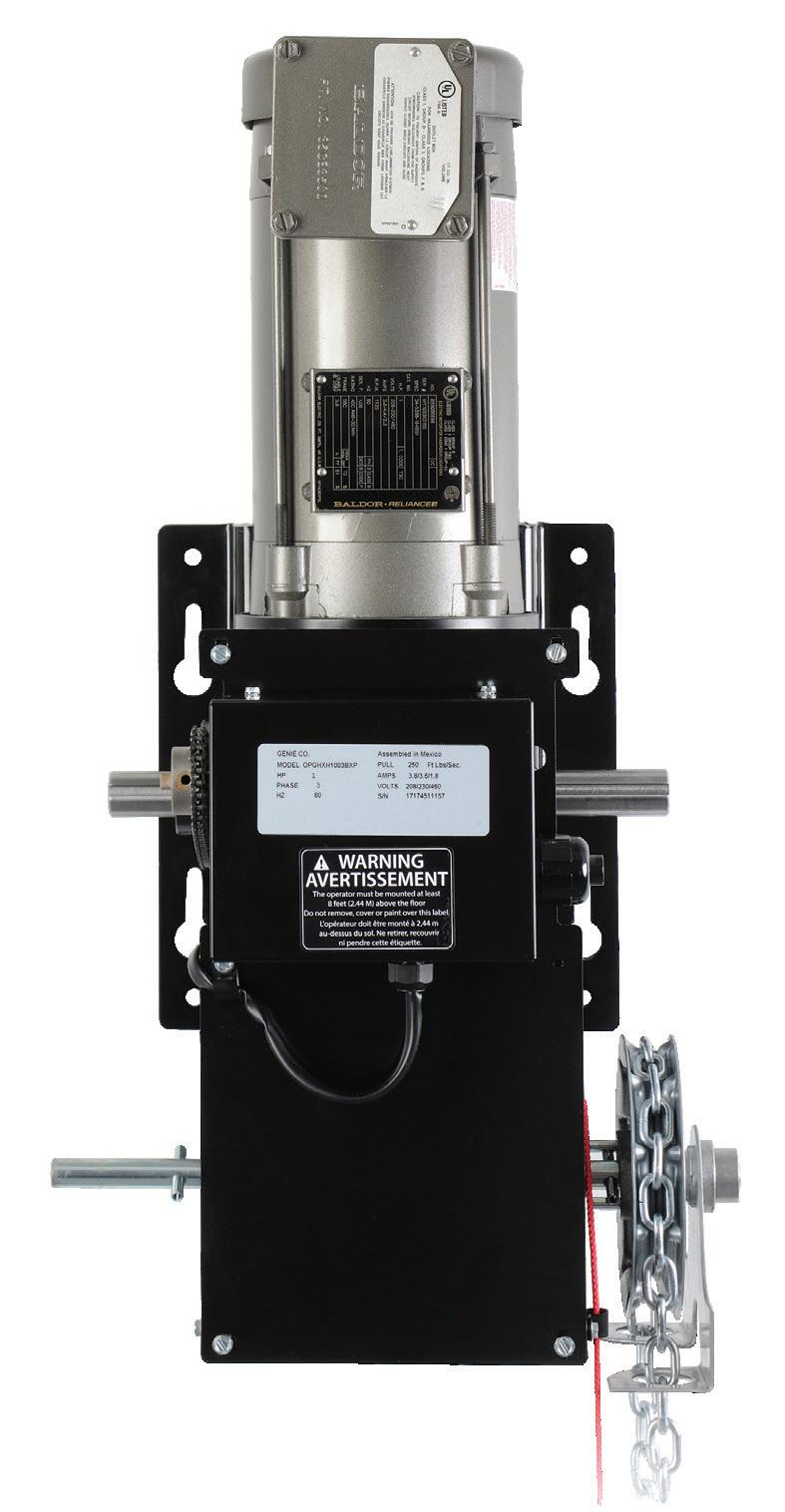

EXPLOSION-PROOF
OPERATOR
Heavy-Duty Hoist
The GCL-GH explosion proof operator is designed for high or full-lift sectional and rolling doors that have up to 60 cycle/hour duty requirement. Advanced features and robust mechanical design combine to provide a heavy-duty operator that sets a new standard in productivity for hazardous location rated operators.
Standard Features
• Factory Mutual Approved
• Intrinsically safe control circuits
• Available in 1/2 HP 1 PH 115/208/230 VAC, 1 HP 3PH 208/230/460 VAC, 3 HP 3PH 208/230/460 VAC models
• Explosion-proof rated motor
• Dynamic braking
• Worm gear in oil bath reduction
• Voltage flexibility
• Momentary or constant contact close operation
GCL-GT
EXPLOSION-PROOF
Heavy-Duty Trolley (½, 1, 3 HP) (½, 1 HP)
OPERATOR
• On-board open/close/stop switch
• Diagnostic LEDs
• Maximum run timer
• Cycle count available via LCD screen
• Timed close
NEMA 7/9 rated for the following applications:
Flammable Gases:
• Class I,Division 1, Group D, T2C
Combustible Dust
• Class II, Division 1, Group F and G, T2C
The GCL-GT explosion-proof operator is designed for standard lift doors that have up to 60 cycle/hour duty requirement. Advanced features and robust mechanical design combine to provide a heavy-duty operator that sets a new standard in productivity for hazardous location rated operators.
Standard Features
• 11.5 inches per second door speed
• Factory Mutual Approved
• Intrinsically safe control circuits
• Available in 1/2 HP 1 PH 115/208/230 VAC, and 1 HP
3PH 208/230/460 VAC models
• Explosion-proof rated motor
• Dynamic braking
• Worm gear in oil bath reduction
On-board open/close/stop switch
• Diagnostic LEDs
• Maximum run timer
• Cycle count available via LCD screen
• Timed close
• Quiet trolley carriage standard
Genie offers a full range of accessories designed specifically to meet the demands of commercial applications.
To learn more about specific accessories and parts, please visit the Parts and Accessories page at: www.geniecompany.com/commercial
RADIO CONTROLS
PUSH BUTTONS: INTERIOR
PUSH BUTTONS: EXTERIOR
KEY SWITCHES
PULL SWITCHES
DOOR INTERLOCK SWITCHES
SIGNALS: AUDIO / VISUAL
VEHICLE / MOTION DETECTION
ACCESS CONTROLS
PHOTOEYES
EXPANSION MODULES / MONITORED EDGE INTERFACE MODULE
GENIE MONITORED RETRO-REFLECTIVE PHOTOEYE
In addition to designing great end-user features into our operators, Genie Engineers work hard to make sure our Commercial models incorporate many Installer-friendly benefits that also help with the overall efficiency of your business.
Here is a comprehensive picture of how Genie can make life easier for your Installers and more efficient for your Commercial operations.
Fast & Easy Installation
1. Ready to mount on the door right out of the box. GCL packaging is designed so that operators can be lifted right out of the outer carton using the provided handles on the inner insert. This allows for easy and fast removal of the operator from the box.
2. Never lose time with mounting orientation again. Genie Commercial standard and heavy-duty operators allow for the ultimate out-of-the box installation flexibility. With a single change to the attachment point for the release cable, these operators can be mounted to meet job site needs. The covers are even designed to be flipped upside down easily and quickly.
3. Three phase power connections can be made and never have to be swapped for direction. GCL programming makes motor direction problems on three phase installs a thing of the past. Once wired, GCL operators have a single menu item at the beginning of set-up that sets the correct motor direction each time an operator is installed. Fast and easy.
4. TensiBelt ® primary drive reduction eliminates the need to adjust belt tension. GCL medium and standard-duty operators come with auto-adjusting belts. The days of lost time loosening motor bolts and tightening belts are over. The patented auto-tensioning belt system adjusts to the load carrying capacity required – and keeps that belt tension maintained for the life of the operator.
5. Voltage Selection – MultiVolt ® allows voltage selection at the job site. When wiring the operator just select the correct voltage: 120 or 115/208/230 V on single phase operators, 208/230/240 V for three phase operators. With the correct incoming voltage selected, the operator takes care of everything else, saving time and money.
6. Installation and lock-down holes are easily accessible with power tools. The mounting slots and lock-down holes on GCL operators sit further out from the side walls of the operator, allowing power tools to be used straight-on, eliminating the need to “angle” fasteners in and wasting time.
7. Photoeyes with built-in mounting flexibility. The standard photoeyes provided with GCL operators include brackets which allow for adjustment out to 8 inches off the wall for wide door track and thick sectional doors. The standard photoeye can also be mounted directly to the door track for a quick and clean-looking installation.
8. GCL trolley operators come with pre-assembled chain guide wear blocks and brackets. Simply bolt each side into a rail.
9. Common terminal strip for control wiring. All control wiring is completed through via the same style terminal strip in all GCL operators. This makes connections quick and familiar to installers. Each terminal is identified with easy-to-read text, not just a number which has to be looked up somewhere else.
10. Receivers are built-in on medium, standard, and heavy-duty GCL operators. On-Board Radio Receiver saves having to install an external receiver and related wiring when more than one transmitter is needed. Added bonus – the receivers will handle up to 50 transmitters! The built-in receivers come with a whip antenna which provides for long range performance at 315 MHz. The GCL internal receiver is compatible with single through four channel, and open/close/stop GCL transmitters.
Easy Set-Up
11. User Interface – LCD display with intuitive menu for quick setup. All GCL operators include a 16 digit LCD display which removes the guess work when setting-up the operator. Step through the set-up of the operator menu and see your changes as you make them. Never worry about counting blinks or waiting for beeps again. GCL operators with built-in LCD displays take the wait and guesswork out of setting up commercial operators.
12. Direction Setting – Adjust the direction of the motor during setup with the push of a button. When setting-up a new GCL operator the first menu item ensures that the motor direction is correct, and all limits and safety cut-outs are automatically adjusted as needed. Fast and easy.
13. EZ Limit ® – Electro-mechancial limits available for most GCL operators. Using the LCD, quickly and accurately set the up and down limits by moving the door to the desired limits and pressing a button. Setting limits has never been easier.
14. Learn transmitters and get unique ID numbers assigned. The internal GCL receiver is programmed using the LCD. Upon learning a new transmitter the operator will assign a unique ID. Every subsequent activation of the operator by that transmitter will display and log that transmitter ID. Transmitters can also be removed individually by scrolling down a list and selecting the transmitter by ID to remove.
15. On-board timed close functionality – standard and heavy-duty GCL operators include the ability to set a specific time delay prior to closing using most activation inputs. The LCD includes a menu where a user can set the time directly, in seconds and minutes, to get exactly the delay required for the job.
16. DC disc brake with progressive braking – GCL standard and heavy-duty operators include the ability to adjust the braking rate right from the LCD! By adjusting the braking rate, GCL operators can bring large, heavy doors to a nice smooth stop, reducing wear and tear on both the door and operator.
17. Plug and play compatibility with expansion modules. Modular expansion boards are available for auxiliary contact status and advanced timed close functionality. The LCD menu structure updates to include menus for any new boards plugged in.
Ease of Service
18. Diagnostics – GCL operators keep track of what it is doing, and what it has been asked to do at all times. The LCD readout displays the last ten operations and last ten error codes to reduce troubleshooting time.
19. Not sure which input opened or closed a door? GCL operators can answer that for you – all GCL operators keep track of each activation input separately, along with unique transmitter IDs, so there is no more need to guess what activated the door.
20. Get to the right service part, right now. GCL operators were designed to make servicing quick and easy. That means common tools for removing many parts, and well thought-out access to critical components.
21. Built-in cycle counter. The LCD on GCL includes a menu which will display the cycles for each and every cycle the operator has made.
22. Medium, standard, and heavy-duty trolley models have quiet trolley carriage with high strength wear pads which eliminate noise and need to grease trolley rails.
Technical Support
23. Online manuals, drawings, and specifications.
24. One-stop shopping with a full line of commercial and residential operators and accessories.
25. Commercial Technical Service support from highly trained technicians is just a phone call away. Our staff prides itself on guiding you through any installation or service issue you may have, whether it’s in the field or at the shop. We’ll make sure you get all the attention you need to ensure a successful install or service call. Just call our Dealer exclusive number at 1-800-843-4084, Option 4 from Monday through Friday, 8am-7pm ET. (Note – Residential Technical Service support is the same number and hours but Option 3 instead.)
GENIE COMMERCIAL OPERATOR MODIFICATIONS OPTIONS
Manual Hoist for Model
Side-Mount Trolley Standard-Duty
Side-Mount Trolley Heavy-Duty
Side-Mounted Dual Trolley Standard-Duty
Side-Mount Dual Trolley Heavy-Duty
Dual Trolley Standard-Duty
Dual Trolley Heavy-Duty
Center Mount Standard-Duty
Center Mount Heavy Duty, GCL-GH
Center Mount Heavy Duty, GCL-GH 3HP
Friction Clutch
Emergency Egress, Flush 15’
Emergency Egress, Flush 30’
Emergency Egress, ADA Compliant, 15’
Emergency Egress, ADA Compliant, 30’
Hand Crank, GCL-GCX
Hand Crank, GCL-GH
Extended Limit Kit, GCL-GH
Extended Limit Kit, GCL-GH 3 HP
