AR1329 Task 1 Report

Group 4-7 Year 2 | Semester 2 BA Arch Department of Architecture School of Design and Environment National University of Singapore AY2022/2023

Task 1.

Measuring & Experiencing

AR1329 | Climate. Ecology & Architecture Prof. Heinzelmann Florian Mr. Joel Lau Huang Zitao A0239208A Xu Chenxiao A0239094X Wang Tianyun A0238022R Zhang Xuanqi A0236544A

SECTION 1 | SITE ANALYSIS Oasis Terraces

SECTION 2 | 4 CONDITIONS Forest Park

CONTENTS

Aircon Alley Sealed Surface

SECTION 3 | INDIVIDUAL ROOM Zitao's Room at PGPR Chenxiao's Room at RVRC Tianyun's Room at RC4 Xuanqi's Room at Jurong East HDB

SECTION 1 | SITE ANALYSIS

Oasis Terraces

Site Location

The new neighbourhood centre and polyclinic at Punggol was envisioned together by, “Serie Architects” and “Multiply Architects” in 2017.

The design concept is to construct a light and open frame that accommodate multiple programs and functionalities, in conjunction with the slopped terrace that knit together the community and the landscape.

Punggol Waterway

50m+ HDB Blocks

Sitting among high-rise HDB blocks, Oasis Terraces faces the Punggol waterway and link up with the free large green land on its west.

Free Green Land

N

Builing Massing and Design Concept

Rendered view of 11am on Jan 27, 2023, the date of site visit

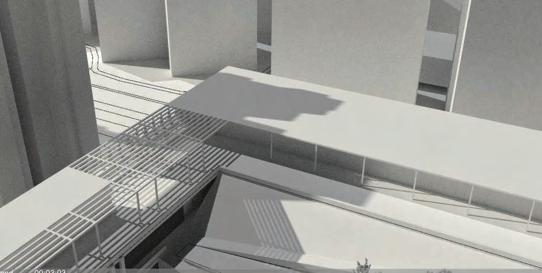

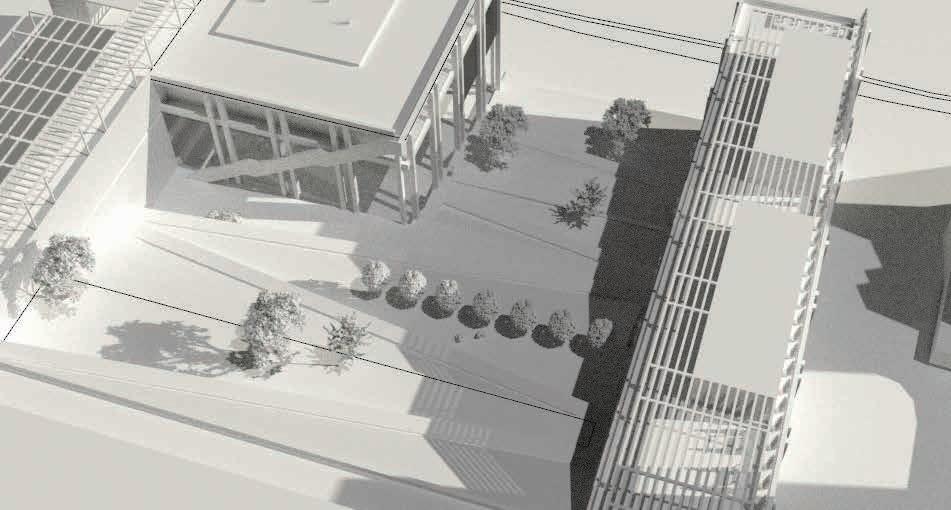

The C-shape massing creates a self-shading effect for the central "courtyard".

The central green area slopes down towards the waterway, allowing for light and air to penetrate the building.

On the waters edge is an 800sqm sheltered community plaza with a 4-storey-tall column-free clear space.

Programs and Facilities

A

Garden Cabana Deck

Jumping Water Jets Community Plaza B

Hammock Deck

Rain Garden

Water Playground

Polyclinic

Foodcourt

Shops

A

B

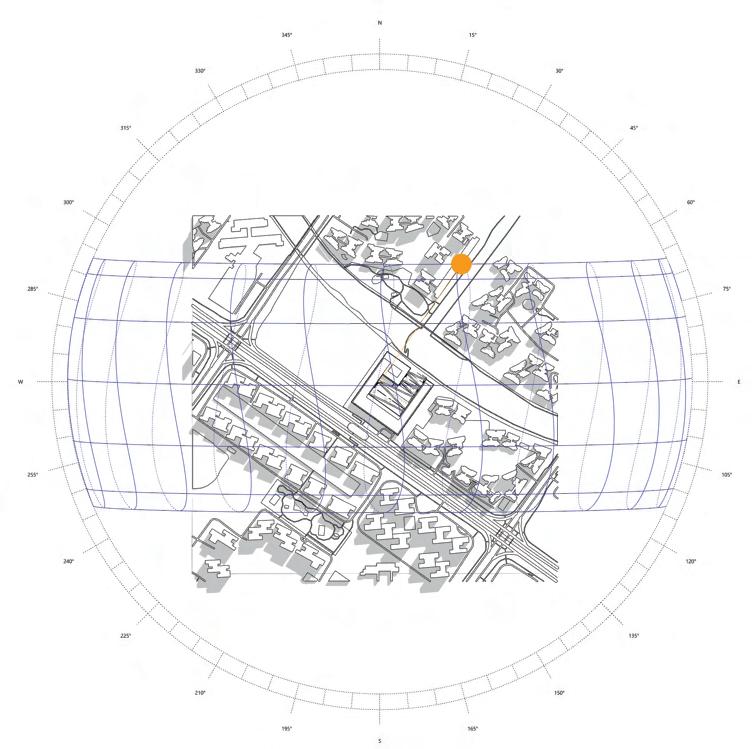

Annual Sunpath and Shadow Patterns

September 1700

Oberservation and Findings: In March and September, the sun is exactly above the Equator and travels along a similar sunpath. The terrace and roof experiences more direct and stronger sunlight, and are expected to have higher luminance and temperature. Throughout the year, the east facade of Oasis Terraces is shaded by its neighbouring buildings in the morning. In June, when the Earth's north pole is at its maximum tilt, Oasis Terraces's west facade has a longer exposure to the sun.

Building Orientation and Monthly Solar Exposure

Summer Solstice June 21 9 am

Summer Solstice June 21 noon

Summer Solstice June 21 3 pm

N Jun Mar - Jun - Sep First half of the year

35 °

Mar /Sep Dec

Sep - Dec - Mar Second half of the year

Dec

Vernal/ Autumnal Equinox Mar 20/ Sep 22 9 am

Vernal/ Autumnal Equinox Mar 20/ Sep 22 noon

Vernal/ Autumnal Equinox Mar 20/ Sep 22 3 pm

Due to the building's orientation, the west facade of Oasis Terraces is heated more by the afternoon sun in the first half of the year (from March to September). Especially in June, from 4pm to 6pm, the west facade is fully exposed to the sun.

The south side of the building is connected to Oasis LRT station. Yet in December, there would be some sun glare at noon.

The presence of neighboring HDBs blocks Oasis Terraces and prevents it from the morning sun glare especially in the second half of the year (from September to next year March).

Winter Solstice Dec 21 9 am

Winter Solstice Dec 21 noon

Winter Solstice Dec 21 3 pm

xxxx

Facade Material Consideration

0900 Using January as an example

1000

1100

1200

1300

1600

1700

1800

West Facade 1700

West Facade 1800

East Facade

East Facade 0900

East Facade 1000

East Facade 1100

East Facade 1200

East Facade 1300

West Facade

West Facade 1600

East facade with full glazing

East facade with solid concrete wall

West facade with solid concrete wall

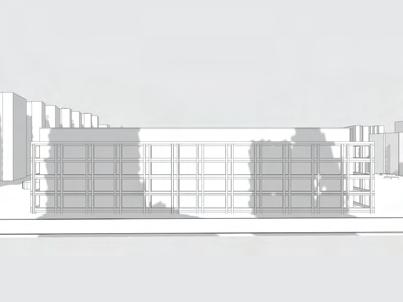

As the neighboring buildings cast shadow on the east facade of Oasis Terraces, we expect it to be have less sun glare. However, the annual glare simulation shows otherwise. The luminance level is still too high to be tolerable.

Thus there is still a need for sun shading.

Both east and west facades actually use concrete wall rather than full glazing for a more comfortable working environment of 500 lux.

The simulation of both facades with the solid concrete wall justifies its effectiveness.

Wind Speed and Direction

Annual wind rose shows that prevailing winds come from northeast and south, which correspond to Oasis Terraces' orientation and typology. Together with the south wind, it appears that cross-ventilation is likely to form to cool the entire atrium.

Thus we hypothetise that Oasis Terraces is designed such that the slope increases wind velocity and drives air flow especially at the ground floor.

January wind direction tallies with site visit measurements and experiences.

Fluid Dynamics Analysis In order to verify our hypothesis on the massing strategy, we compared the terrace slope with a void and a rectangular box on the site location respectively.

Test 1: No building on the existing terrain

Test 3: Actual design, which contains a slope Top View (left) Isometric View (right)

Test 2: Building massing as a 6-storey-high flat rectangle Observation: Wind speed increases dramatically and abruptly around the borders of the rectangular massing.

Observation: The increase in air velocity along the terraces is more gradual. A low pressure zone down the atrium is also created to draw air in, evident in the less dense tracing lines that envelope the rectangular massing.

Conclusion: The slope facilitate air flow and venturi effect is set up on the ground floor.

Site Visit Measuring Locations

xxxx

Rooftop East End (02)

Corridor (01)

Garden (03)

Equpment Room (04) 6th Storey

Water Playground (08)

5th Storey

Rain Garden (09)

4th Storey 3rd Storey 2nd Storey 1st Storey Basement

Section AA

Staircase (11)

Shopping Mall

Rooftop East Side (01-03)

Rooftop Gym (05) Rooftop West Sealed Surface (06)

Level 5 East Corridor (06) LRT Entrance (10) Four-storey high Atrium (12)

Section BB

Water Playground (08)

Rain Garden (09)

Staircase to Shopping Mall (11)

xxxx

Measurements at 12 Locations

01

Level 6 (Rooftop) East Corridor

02

Level 6 (Equipment room) Along South Corridor

05

Level 5 East Corridor

08

Level 3 (LRT Entrance) Sheltered Sealed Surface Temperature: 28°C Relative Humidity: 61.4% Wind Speed: 0.6m/s Luminance: 36 klux

06

Level 5 (Terrace) Water Playground

11

Level 2 (Staircase) towards Shopping Mall Temperature: 27°C Relative Humidity: 71.5% Wind Speed: 1m/s Luminance: 100 lux

Level 6 (Rooftop) Sealed Surface, West End Temperature: 31°C Relative Humidity: 61.4% Wind Speed: 2.4 -5.5m/s Luminance: 61.4 klux

09

Temperature: 29.5-31°C Relative Humidity: 70% Wind Speed: 2.3 -3.3m/s Luminance: 60 klux (20 klux under the trees)

Temperature: 30°C Relative Humidity: 63% Wind Speed: 1.2m/s Luminance: 500 lux

10

Level 6 (Rooftop) Gym, West Side

Level 6 (Rooftop) East Garden Temperature: 29.8°C Relative Humidity: 66% Wind Speed: 3.9m/s Luminance: 10.7 klux

Temperature: 31.4°C Relative Humidity: 62.8% Wind Speed: 0.5m/s Luminance: 4779 lux -53.6 klux

Temperature: 30°C Relative Humidity: 68.9% Wind Speed: 2.1m/s Luminance: 7831 lux -69 klux

07

03

Temperature: 30°C Relative Humidity: 68.2% Wind Speed: 2.3m/s from the river Luminance: 16.7-41.1 klux

Temperature: 28.5°C Relative Humidity: 70.9% Wind Speed: 1.2-2.5m/s Luminance: 35 klux (10 klux under the shade) 04

Level 6 (Rooftop) East End, towards the River

Level 4 (Terrace) Rain Garden Temperature: 30°C Relative Humidity: 65% Wind Speed: 4m/s Luminance: 20 klux

12

Level 1 (Atrium) Community Plaza Temperature: 26.7°C Relative Humidity: 70.7% Wind Speed: 1.5m/s Luminance: 13.4 klux

xxxxww

Radar Diagram In order to make climatic data more visually readable and easier to understand, we have created radar diagrams and defined five dimensions.

The four measurable dimensions are luminance, wind speed, temperature and humidity. The fifth dimension is green-to-sealed surface ratio. It is estimated and added so as to differentiate data collected from green space and sealed man-made visually.

Being inside and outside the community plaza have different experiences. Near the river bank, the wind speed is higher and temperature is lower.

The radar diagram is meant to describe the differences visually using shapes or patterns.

xxxx

Data Visualization

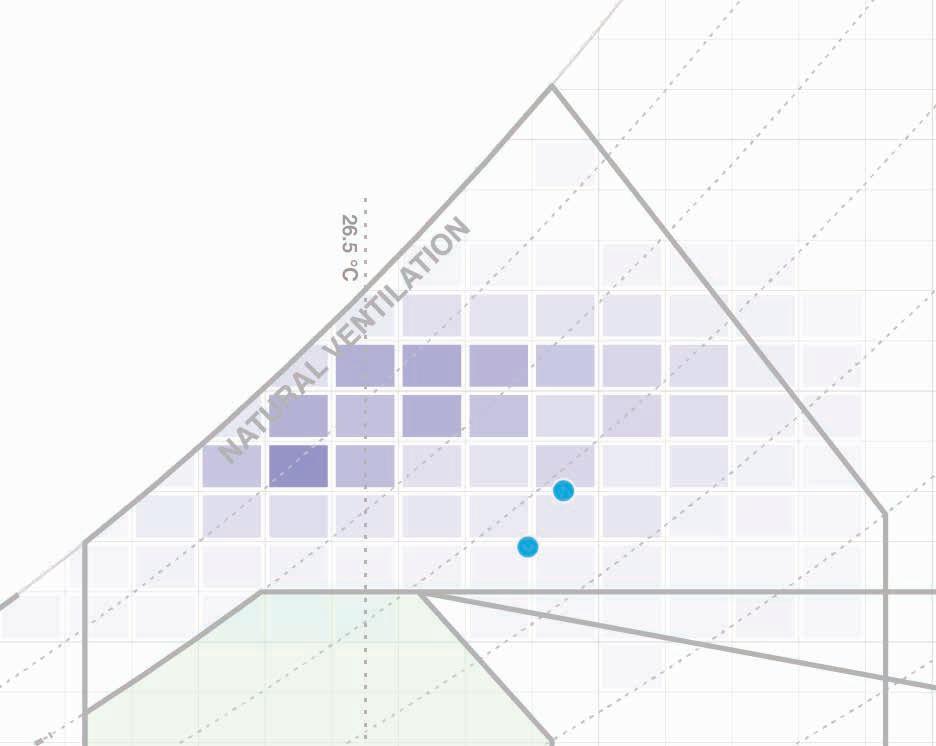

Data on Psychometric Chart

The sets of data collected at Oasis Terraces tally with the general environmental condition in Singapore, where better natural ventilation is needed for optimal comfort. In other words, higher wind speed is needed to lower the high humidity level.

Among all the locations, rooftop park and gym are closest to the comfort zone. Here, a link between activity and choice is location is drawn. The rooftop with good natural ventilation fulfill the requirements for exercising, to bring in fresh air and take away excess heat and water vapor.

Purple Squares: Singapore's Condition

Rooftop Garden and Gym

Increase in Temperature

Increase in Relative Humidity

Climate-Responsive Design Strategies Fixed Shading Devices --- Effective

Mobile Shading Devices --- Unsatisfactory

Rooftop Sealed Surface

Rooftop Gym

Level 5 East Corridor

Ground Floor Atrium

Rooftop South Corridor

Rooftop Garden at Southeast Corner

Level 5 East Corridor

Ground Floor Atrium

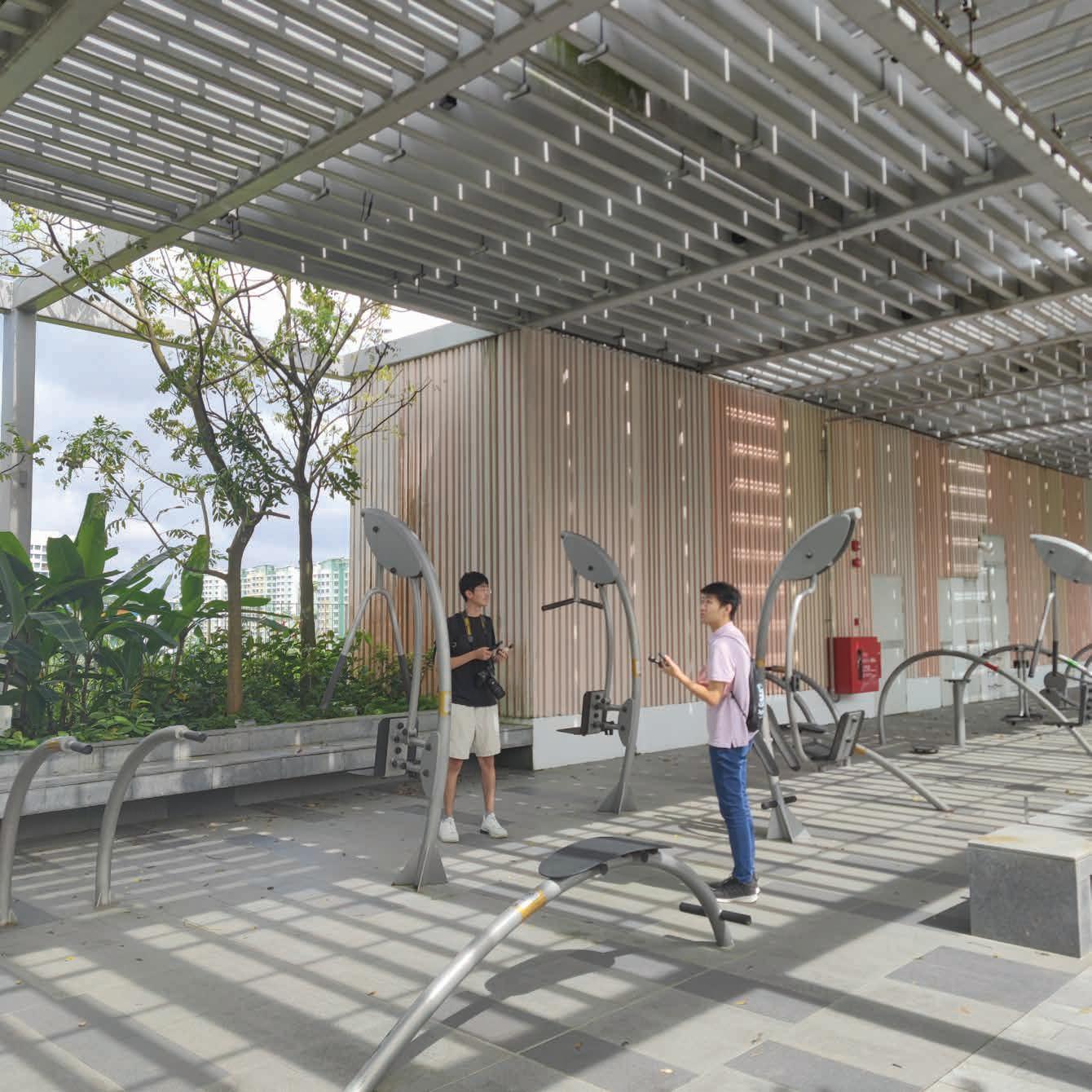

Oasis Terraces has a characteristic and consistent use of pergola on its rooftop as a replacement of conventional fully-covered shelter.

Gym and east garden are the top two most comfortable places among all, largely due to the pergola that provide shade and also facilitate air flow.

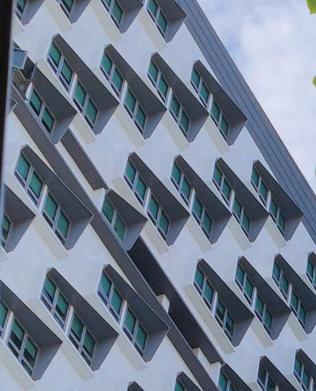

Wall are recessed to create corridor or balcony so as to reduce sun glare. Yet the additional layer of translucent black roller blind makes the space gloomy and somewhat depressing.

Atrium or community plaza does not perform as good as we expected. The 4-storey high space is stuffy and warm because the full-height glass panel between plaza and terraces hinders the air flow.

To improve, operable louvres could be used to cature the beauty of light and shades.

A possible solution is to use monsoon window to replace the glass, so that the plaza is protected from rain and has good ventilation.

Although not protective from the rain, such device can reduce sun glare up to 80% based on measurements.

The design leverages on the high wind speed at rooftop to evaporate humid air generated at gym and greeneries.

Climatic Performance Test @Rooftop 4000-30000

Annual Average Luminance of Selected Regions: 26882 lux

2000

Annual Average Luminance of Entire Rooftop: 32156 lux

Jan 0900

Rooftop Sealed Surface 6500-65000 2500

Jan 1100 Through it is still bright at rooftop especially in the afternoon, the pergola shading devices have effectively reduce a significant percentage of sun glare, as evident in the clear color distinction between the shaded and unshaded areas.

5500-57000 3500

Jan 1600 Rooftop Gym 30000

Rooftop South Corridor

28000

1500-5000 2900

Jan 0900 5600

64000

Rooftop Garden at Southeast Corner 2000-3900

24000 3000

Jan 1100

58000

1300-5400

Jan 1600

6000

Climatic Performance Test @Terraces

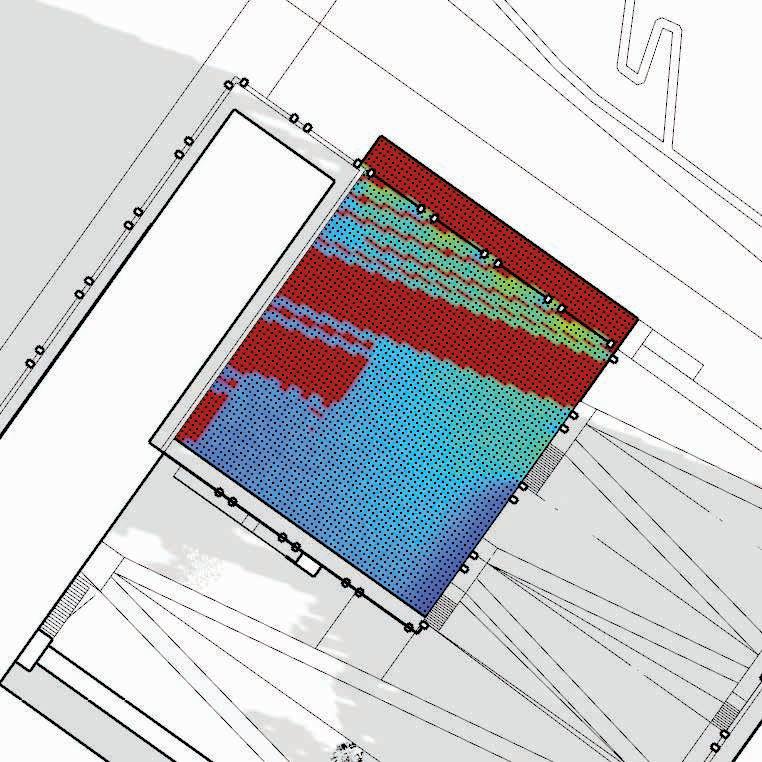

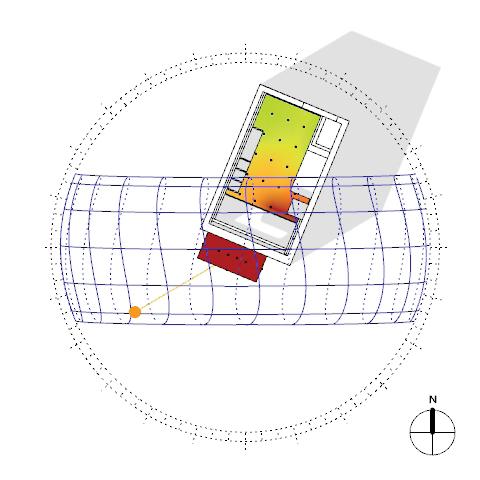

Self-shading effect of the C-shape massing is justified, as shown in blue regions. While unshaded terraces appear very bright and hot in the simulation result, the actual situation is better with the trees.

30000

Annual Average Luminance: 23978 lux

4000

2000

2700

28000-34000

Jan 0900

5500

65000

3100 60000

Jan 1100

4100-5400

31000

Jan 1600

flat surface 59000

Climatic Performance Test @East Corridor

Recession in facade reduces a portion of sun glare but black blinds are still needed mainly in the afternoon.

The necessity of using blinds is illustrated on the left, as they lower the brightness by over 80%.

Annual Average Luminance without Blinds: 10717 lux Annual Average Luminance with Blinds: 1871 lux

Recessed wall 900-1400

Jan 0900 with blinds half-open

1100-1800

Jan 1100 with blinds half-open

3000-56000

Jan 1600 with blinds half-open

Climatic Performance Test @Community Plaza

Annual Average Luminance without Blinds: 9438 lux

31000

26000 28500 3000

Jan 0900

400

64000

2200

6200

750

Annual Average Luminance without Blinds: 7733 lux 60900

Jan 1100

3500

4200 1600 450

22000 18500 900

Jan 1600 Inside and outside the plaza has a large difference in luminance level. Thus the plaza may feel dark due to such comparison, though it is mostly above 1000 lux. Similar to corridors, blinds are incorporated but this time the shading effect of blinds is less obvious as they can only cover two fifths of the height.

Park

Sealed Surface

Forest 2

SECTION 2 | 4 CONDITIONS

Forest Bukit Timah Nature Reserve Pulau Ubin

Park Bishan Park

Aircon Alley Little India Chinatown

Sealed Surface Bayfront

Forest 1

Aircon Alleys

Forest @ Bukit Timah

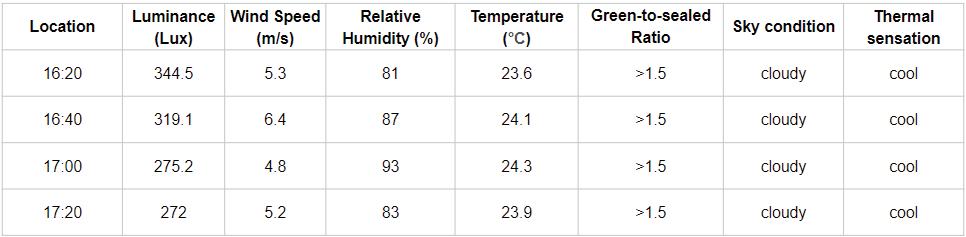

Windy and Drizzly, Measured on Jan 25
