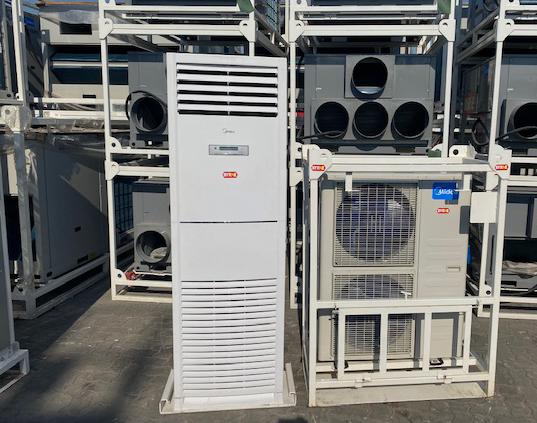

Climate Control 5TR / 18kW Split AC Unit

Equipment Overview

Byrne’s rental fleet has a full range of air-conditioning units ranging from 2TR – 50TR (7kW – 176kW) in 50Hz & 60Hz. Our units come in split or package type and support our clients with spot & comfort cooling.

We have an in-house design team that can calculate the heat load & air flow requirements along with selecting the best equipment to suit our clients site conditions.

Our units are skid-mounted with frame for ease of loading & unloading and come with cable, hose (if applicable) and cable to plug-and-play for quick installation.

Byrne’s climate control division can also provide auxiliary power including generators, secondary distribution & accessories to provide a one stop shop product offering.

Description & Specifications

* Due to high ambient temperatures in the GCC, please consult your local sales representative

Description Specifications Product Air Conditioner Type Split AC Size 5TR / 18kW BTU/h 60,000 Air Flow 0.64m3/s Power Supply 380-415V / 3ph / 50Hz Rated Current (A) 8.66 - 11.59 Unit Indoor Outdoor Dimensions 0.61m (w) x 0.39m (d) x 1.93m (h) 1.03m (w) x 0.44m (d) x 1.31m (h) Noise 59.5 dB(A) 63 dB(A) Weight 79kg 110kg Cooling Area 80m2 - 117m2* Recommended Generator 30kVA
