MEGA RANGE
20ft Mega
2 or 3 20ft containers joined to create a larger storage area
2 in 1
19no. Euro pallets shown (can hold 17no. UK Pallets)
EXTERNALDIMENSIONS: 6.09(L)x4.93(W)x2.90(H)m
INTERNALDIMENSIONS: 5.46(L)x4.54(W)x2.52(H)m
INTERNALAREA: 24.8m²
INTERNALVOLUME: 62.5m³
PALLETCAPACITY: 19no.0.8x1.2m(17no.1.0x1.2m)pallets
POWER: 1no.32ASP&2no.32ATPNE
DOORDIMENSIONS: 1.6(W)x2.3(H)m
WEIGHT: 7,000kg(Approx.totalemptyweight)
3 in 1
29no. Euro pallets shown (can hold 26no. UK Pallets)
EXTERNALDIMENSIONS: 6.09(L)x7.42(W)x2.90(H)m
INTERNALDIMENSIONS: 5.46(L)x6.81(W)x2.52(H)m
INTERNALAREA: 37.2m²
INTERNALVOLUME: 93.7m³
PALLETCAPACITY: 29no.0.8x1.2m(26no.1.0x1.2m)pallets
POWER: 1no.32ASP&3no.32ATPNE
DOORDIMENSIONS: 1.6(W)x2.3(H)m
WEIGHT: 10,500kg(Approx.totalemptyweight)
40ft Mega
Multiple 40ft containers joined to create a larger storage area
45no. Euro pallets shown (can hold 39no. UK Pallets)
EXTERNALDIMENSIONS: 12.19(L)x4.93(W)x2.90(H)m
INTERNALDIMENSIONS: 11.60(L)x4.54(W)x2.52(H)m
INTERNALAREA: 52.7m²
INTERNALVOLUME: 132.7m³
PALLETCAPACITY: 45no.0.8x1.2m (39no.1.0x1.2m)pallets
POWER: 1no.32ASP&2no.32ATPNE
DOORDIMENSIONS: 1.6(W)x2.3(H)m
WEIGHT: 11,000kg
68no. Euro pallets shown (can hold 59no. UK Pallets) 2 in 1 3 in 1
(Approx.totalemptyweight)
EXTERNALDIMENSIONS: 12.19(L)x7.42(W)x2.90(H)m
INTERNALDIMENSIONS: 11.60(L)x6.1(W)x2.52(H)m
INTERNALAREA: 79.0m²
INTERNALVOLUME: 199.1m³
PALLETCAPACITY: 68no.0.8x1.2m (59no.1.0x1.2m)pallets
POWER: 1no.32ASP&3no.32ATPNE
DOORDIMENSIONS: 1.6(W)x2.3(H)m
WEIGHT: 16,500kg (Approx.totalemptyweight)
40ft Mega Options
Build to your desired size by combining these 4 elements. Add the information below to calculate the area, pallet space and power requirements for your design.
LEFT BOX WITH DOOR
22no. Euro pallets shown (can hold 19no. UK Pallets)
EXTERNALDIMENSIONS: 12.19(L)x2.44(W)x2.90(H)m
INTERNALDIMENSIONS: 11.60(L)x2.27(W)x2.52(H)m
INTERNALAREA: 26.3m²
INTERNALVOLUME: 66.4m³
PALLETCAPACITY: 22no.0.8x1.2m (19no.1.0x1.2m)pallets
POWER: 1no.32ASP&1no.32ATPNE
DOORDIMENSIONS: 1.6(W)x2.3(H)m
WEIGHT: 5,500kg
(Approx.totalemptyweight)
MIDDLE BOX, NO DOOR
23no. Euro pallets shown (can hold 20no. UK Pallets)
EXTERNALDIMENSIONS: 12.19(L)x2.49(W)x2.90(H)m
INTERNALDIMENSIONS: 11.60(L)x2.27(W)x2.52(H)m
INTERNALAREA: 26.3m²
INTERNALVOLUME: 66.4m³
PALLETCAPACITY: 23no.0.8x1.2m (20no.1.0x1.2m)pallets
POWER: 1no.32ATPNE
WEIGHT: 5,500kg
(Approx.totalemptyweight)
40ft Mega Options
MIDDLE BOX WITH DOOR
22no. Euro pallets shown (can hold 19no. UK Pallets)
EXTERNALDIMENSIONS: 12.19(L)x2.49(W)x2.90(H)m
INTERNALDIMENSIONS: 11.60(L)x2.27(W)x2.52(H)m
INTERNALAREA: 26.33m²
INTERNALVOLUME: 66.36m³
PALLETCAPACITY: 22no.0.8x1.2m (19no.1.0x1.2m)pallets
POWER: 1no.32ATPNE
DOORDIMENSIONS: 1.6(W)x2.3(H)m
WEIGHT: 5,500kg (Approx.totalemptyweight)
RIGHT BOX, NO DOOR
23no. Euro pallets shown (can hold 20no. UK Pallets)
EXTERNALDIMENSIONS: 12.19(L)x2.49(W)x2.90(H)m
INTERNALDIMENSIONS: 11.60(L)x2.27(W)x2.52(H)m
INTERNALAREA: 26.33m²
INTERNALVOLUME: 66.36m³
PALLETCAPACITY: 23no.0.8x1.2m (19no.1.0x1.2m)pallets
POWER: 1no.32ATPNE
WEIGHT: 5,500kg (Approx.totalemptyweight)
Features & Optional Extras
• Onehandedoperationwithergonomicpullhandle.
• Traceheaterinboththedoorleafandthedoorframetopreventthedoorfromfreezingshut.
• Pressureequalisationtoensureitiseasytoopenregardlessoftheinternalandexternaltemperatures.
• Lockinghandlepreventsoutsideaccessmeaningcargocanbekeptsecure,butitcanstillbeopenedontheinsideevenwhenlockedtoensurenooneis accidentallylockedinside.
• Doortiebacktopreventdooraccidentallyclosingduringloading.
• Lightweight,timberfreedoorwithcorrosionresistanthingestoensurerobustnessandlongevity.
• Doorswitchtoshuto coolingunitwhenthedoorisopenedtopreventicebuildupandtoreduceenergycosts.
CONTAINER
• Intermodalcontainerbodyforeasytransport.
• ClearPVCcurtainsatdoor.
• Nonslipaluminium oor.
• Corrosionresistantsteelexterior.
• Paintedwhiteasstandard(forheatre ectionproperties).
• Easytoclean,hygienicinterior.
• InternalLEDlights,includingbackupLEDemergencylights(230VACwiredtoEuropeancolourcodes).
• Trappedpersonnelalarm&emergencymachineshutdown.
OPTIONAL EXTRAS

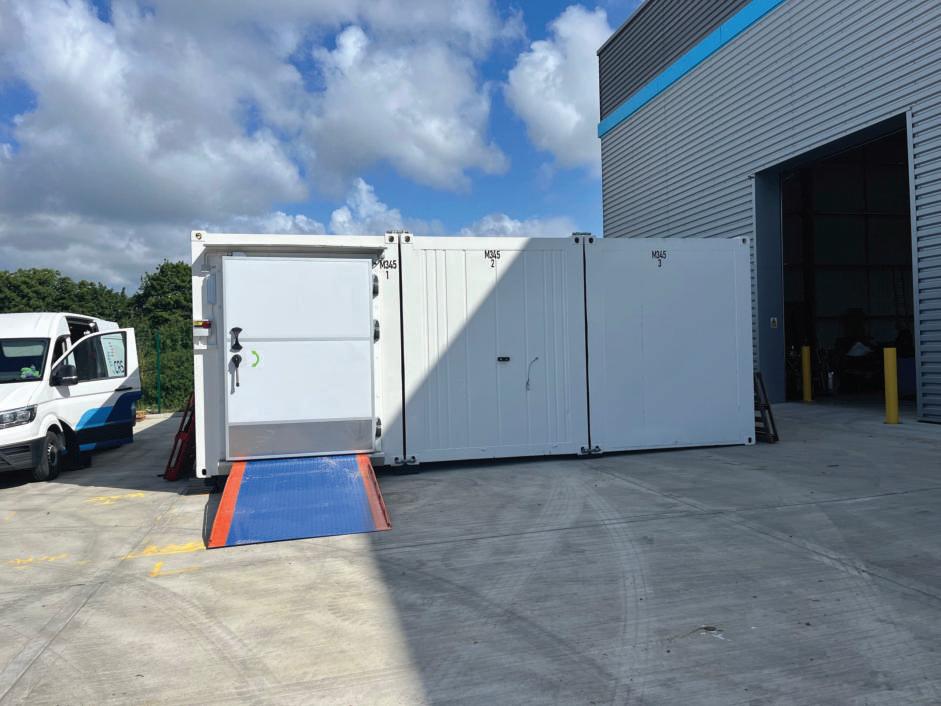

• Heavyduty,doorwidesteelramp.Dooropens&closeswithrampinplace.
• HighLowtemperaturealarm(localsirenandbeacon)withvoltfreeconnectionsforBMSintegration.Optionforintegrateddooropenalarm.
• SamplePorttoallowprobesandcablestobebroughtinsidethecontainer.
• AntiTampercoverstopreventaccesstocoolingunitcontroller.
• Noiseattenuationoptionswithabilitytoreducesoundlevelsbyupto25dB(A).
• PlasticShelving.Hygienic:EasytocleanPVC.MoistureResistant:Willnotrust,rotorcorrode.NoToolsRequired:Easytoassembleanddisassembleby hand.
• Energye cientinsulatedCurtains5-6timeslongerlifespanthanPVCstripcurtains.3timesmoree cientthanPVCstripcurtains.Reduceswearon evaporatorallowingoptimalsettingstobereachedquicker.Providesavapourbarrierwhichreducescondensation, ooriceandassociatedhazards.
• Adjustableplatformavailablefor40ft’sonly(700mmto1050mmheight).
Power Requirements
Every cooling unit is equipped with 1 plug per unit.

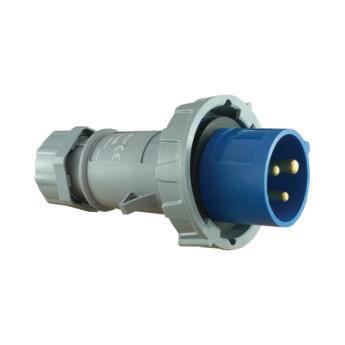

TYPICAL PLUG PROVIDED BY COOLWORLD
32A 400V AC 3P+N+E (5 pin)
IP67 IEC 60309 (Commando)
15m power cord length
Distribution Board Power requires 1 plug per Mega unit.
This supplies power to the lights and alarms.
TYPICAL PLUG PROVIDED BY COOLWORLD
32A 230V SP (3 pin)
IP67 IEC 60309 (Commando) 15m power cord length

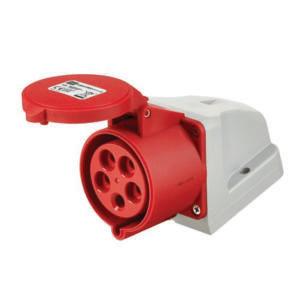

MATCHING SOCKET NEEDS TO BE PROVIDED BY THE CLIENT
32A 400V AC 3P+N+E (5 pin) IEC 60309 (Commando)
Type C circuit breaker (Motor Rated)
MATCHING SOCKET NEEDS TO BE PROVIDED BY THE CLIENT
32A 230V AC SP (3 pin) IEC 60309 (Commando)
Fridge Speci cation
Fridge Type
Temperature Range
Refrigerant
Carbon Dioxide Equivalent
THERMO KING CFF (PER FRIDGE UNIT)
-30°C to +45°C
R134A (1430 GWP)
7.44 Tonnes
Refrigerant Amount 5.2kg
Information per cooling unit:
• Maximum Electrical Power: 12kW.
• Power Consumption: 0.94kWh for -22°C setpoint, 10°C ambient frozen load, no air exchange.
• Sound level at 10m: 67dB(A).
• 1m access required for air ow and maintenance.
Cooling Capacity* 6.32kW
* At 38°C Ambient-18°C Internal.

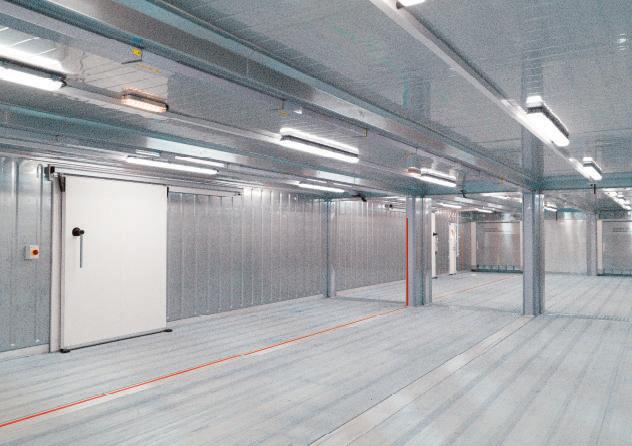

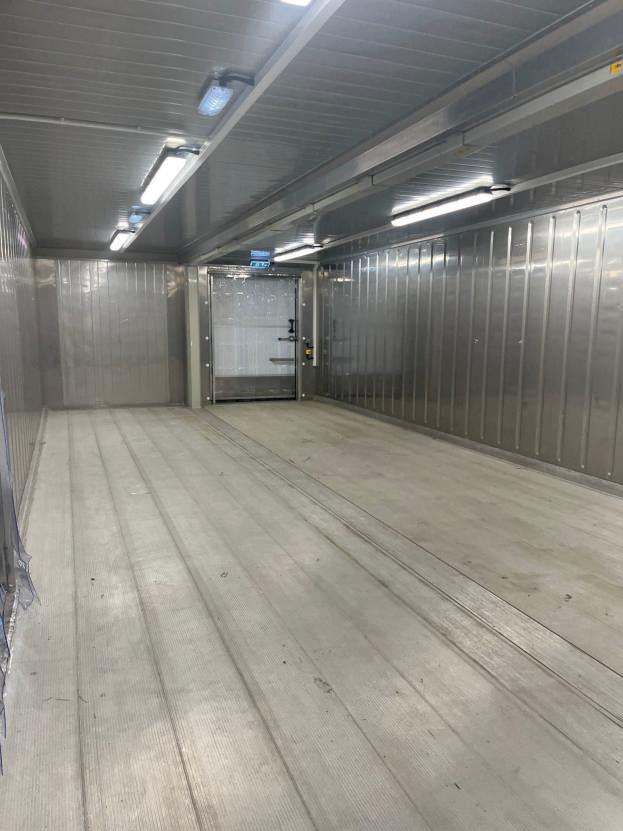

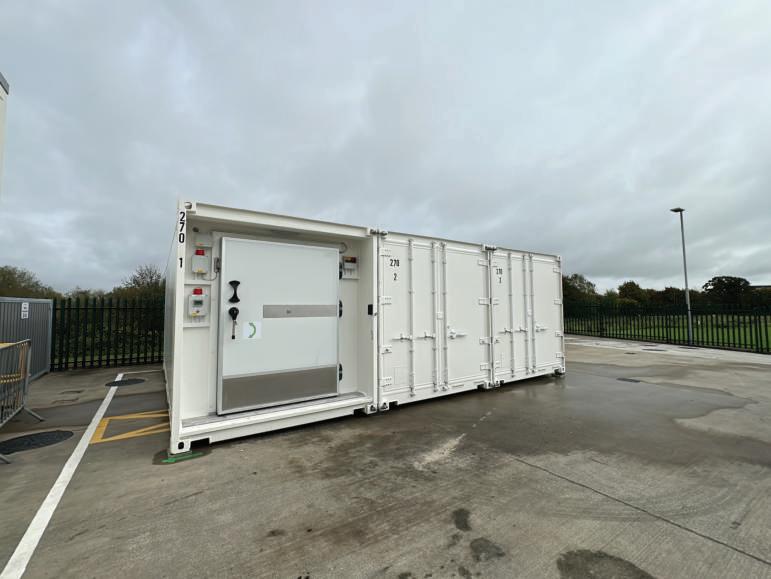

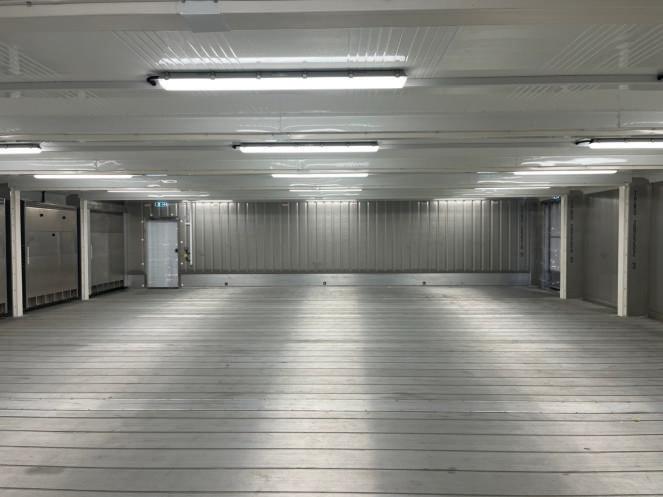

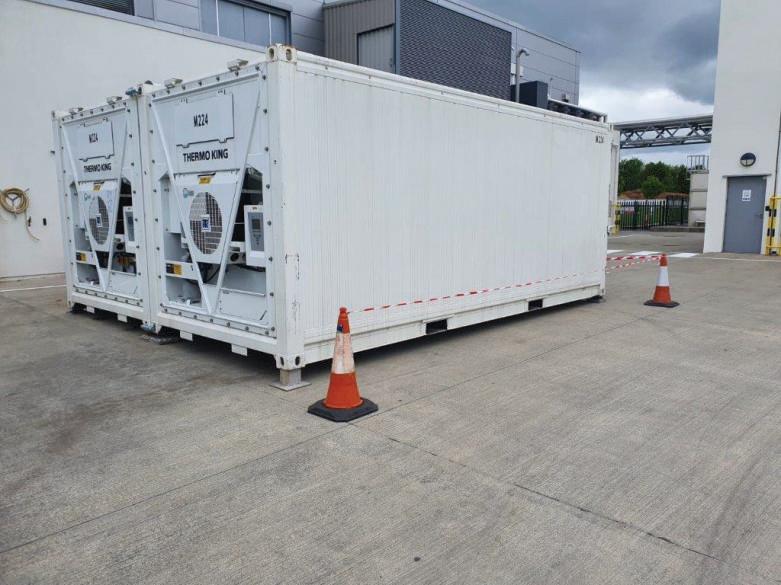

Mega 20 Photos

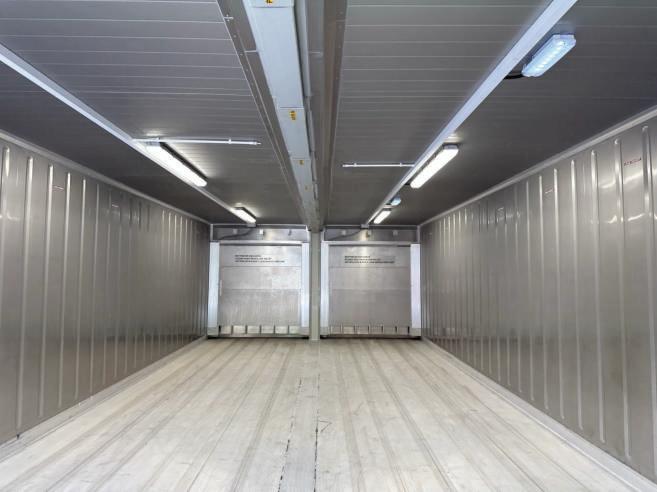

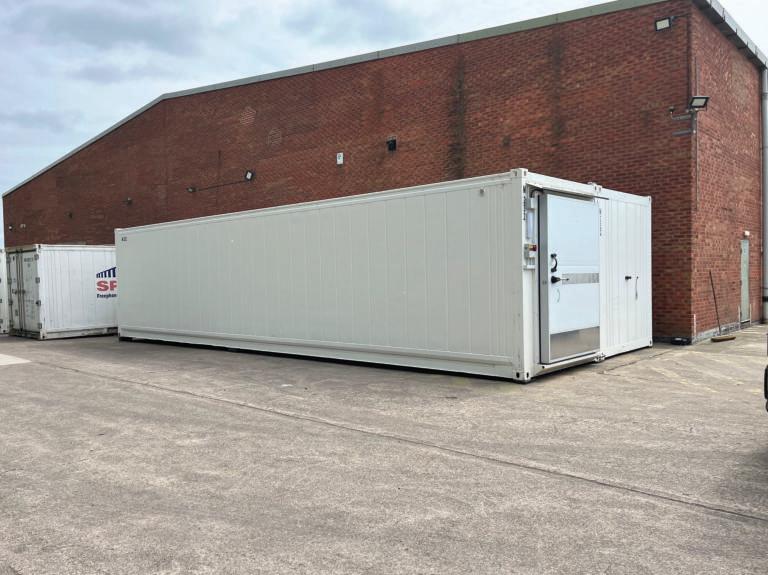

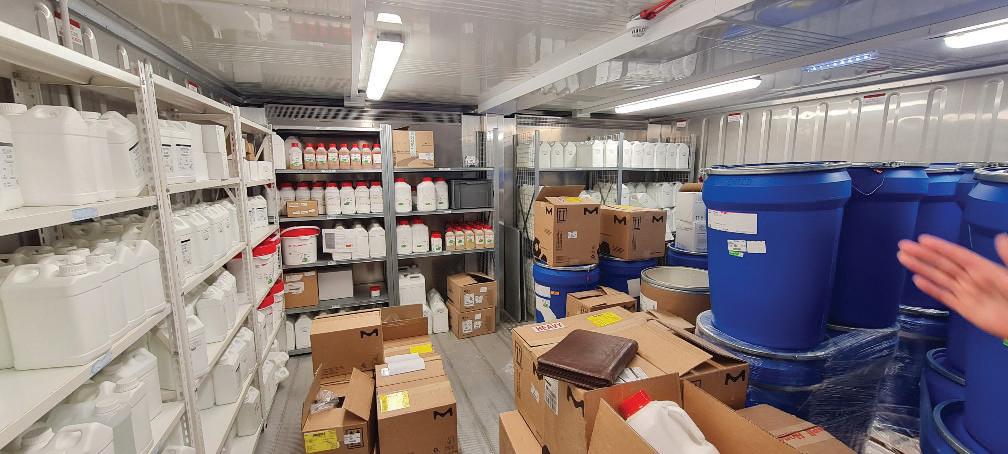

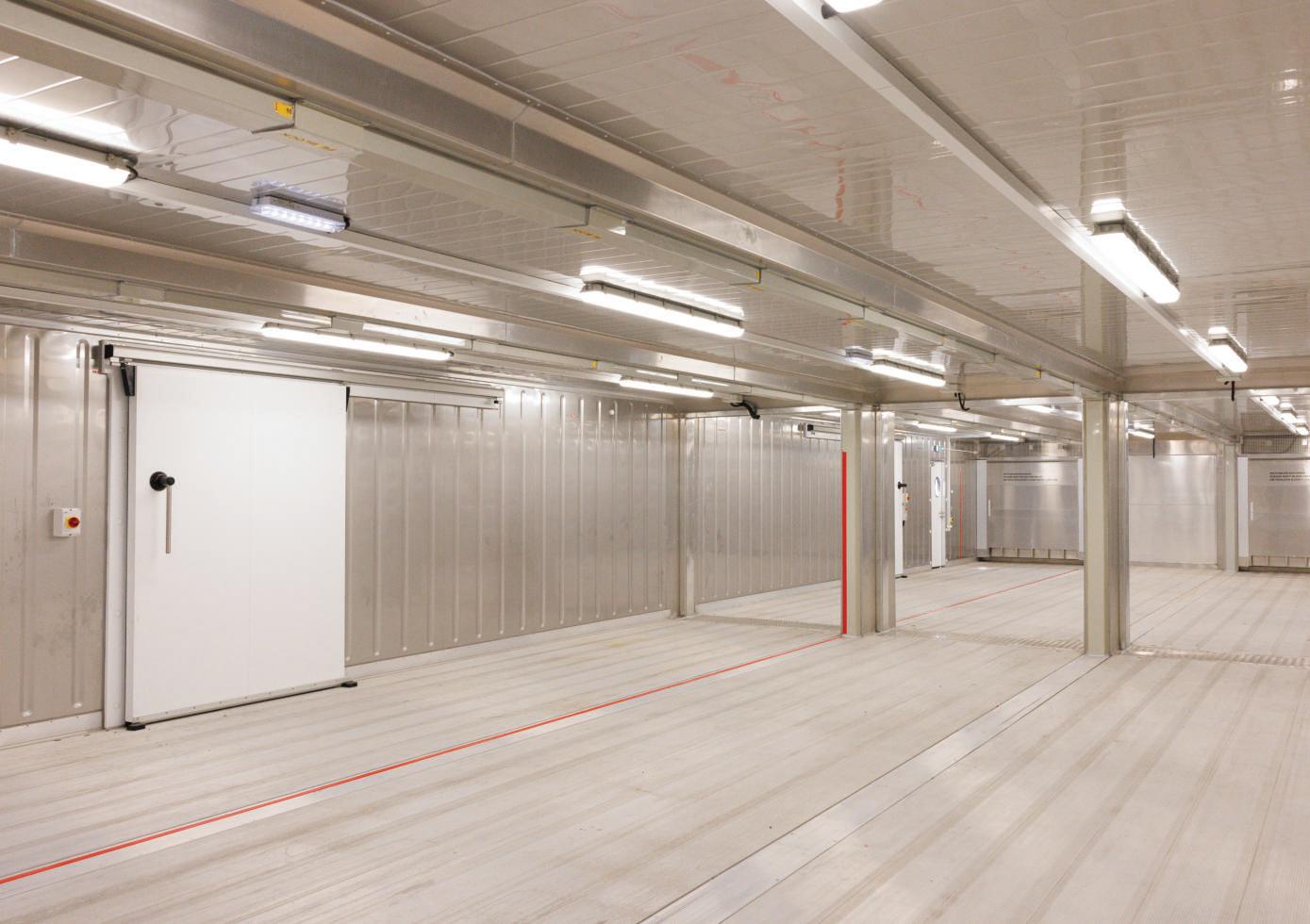

Mega 40 Photos
