Plus Cold Storage
High-spec cold storage container, expertly designed and engineered by Coolworld
10ft
3no. Euro pallets shown (can hold 3no. UK Pallets)
EXTERNAL DIMENSIONS: 3.05(L) x 2.44(W) x 2.59(H) m
INTERNAL DIMENSIONS: 2.18(L) x 2.27(W) x 2.21(H) m
INTERNAL AREA: 4.95 m²
INTERNAL VOLUME: 10.94 m³
PALLET CAPACITY: 3no. 0.8 x 1.2 m (3no. 1.0 x 1.2 m) pallets
POWER: 1no. 32A 400V AC 3P+N+E (5 pin)
DOOR DIMENSIONS: 1.4(W) x 2.0(H) m
WEIGHT: 2,500 kg (Approx. total empty weight))
20ft
9no. Euro pallets shown (can hold 8no. UK Pallets)
EXTERNAL DIMENSIONS: 6.09(L) x 2.44(W) x 2.59(H) m
INTERNAL DIMENSIONS: 5.05(L) x 2.27W) x 2.21(H) m
INTERNAL AREA: 11.46 m²
INTERNAL VOLUME: 25.33 m³
PALLET CAPACITY: 9no. 0.8 x 1.2 m (8no. 1.0 x 1.2 m) pallets
POWER: 1no. 32A 400V AC 3P+N+E (5 pin)
DOOR DIMENSIONS: 1.4(W) x 2.0(H) m
WEIGHT: 3,500 kg (Approx. total empty weight)
Plus Cold Storage
21no. Euro pallets shown (can hold 19no. UK Pallets) 40ft
EXTERNAL DIMENSIONS: 12.19(L) x 2.44(W) x 2.90(H) m
INTERNAL DIMENSIONS: 11.14(L) x 2.27(W) x 2.52(H) m
INTERNAL AREA: 25.29 m²
INTERNAL VOLUME: 63.73 m³
PALLET CAPACITY: 21no. 0.8 x 1.2 m (19no. 1.0 x 1.2 m) pallets
POWER: 1no. 32A 400V AC 3P+N+E (5 pin)
DOOR DIMENSIONS: 1.6(W) x 2.3(H) m
WEIGHT: 5,500 kg (Approx. total empty weight)
Standard Cold Storage
Containerised temperature controlled cold storage
20ft
10no. Euro pallets shown (can hold 9no. UK Pallets)
EXTERNAL DIMENSIONS: 6.09(L) x 2.44(W) x 2.59(H) m
INTERNAL DIMENSIONS: 5.46(L) x 2.27(W) x 2.21(H) m
INTERNAL AREA: 12.39 m²
INTERNAL VOLUME: 27.39 m³
PALLET CAPACITY: 10no. 0.8 x 1.2 m (9no. 1.0 x 1.2 m) pallets
POWER: 1no. 32A 400V AC 3P+N+E (5 pin)
DOOR DIMENSIONS: 2.27(W) x 2.21(H) m
WEIGHT: 3,500 kg (Approx. total empty weight))
40ft
23no. Euro pallets shown (can hold 20no. UK Pallets)
EXTERNAL DIMENSIONS: 12.19(L) x 2.44(W) x 2.90(H) m
INTERNAL DIMENSIONS: 11.60(L) x 2.27(W) x 2.52(H) m
INTERNAL AREA: 26.33 m²
INTERNAL VOLUME: 66.36 m³
PALLET CAPACITY: 23no. 0.8 x 1.2 m (20no. 1.0 x 1.2 m) pallets
POWER: 1no. 32A 400V AC 3P+N+E (5 pin)
DOOR DIMENSIONS: 2.27(W) x 2.52(H) m
WEIGHT: 5,500 kg (Approx. total empty weight)
Features & Optional Ex tras
COLDSTORE PLUS STANDARD COLD STORE

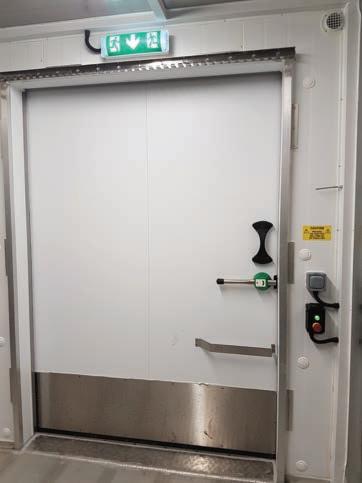

• Lightweight, timber free door with corrosion resistant hinges to ensure robustness and longevity.
• One handed operation with ergonomic pull handle.
• Locking handle prevents outside access meaning cargo can be kept secure, but it can still be opened on the inside even when locked to ensure no one is accidentally locked inside.
Door
• Door tie back to prevent door accidentally closing during loading.
build up and to reduce energy costs.
• Trace heater in both the door leaf and the door frame to prevent the door from freezing shut.
• Pressure equalisation to ensure it is easy to open regardless of the internal and external temperatures.
• Intermodal container body for easy transpor t.
• Clear PVC cur tains at door.
• Corrosion resistant steel exterior.
Container
• Easy to clean, hygienic interior.
• Internal LED lights, including back up LED emergency lights (230V AC wired to European colour codes).
• Trapped Personnel Alarm with emergency machine shut down

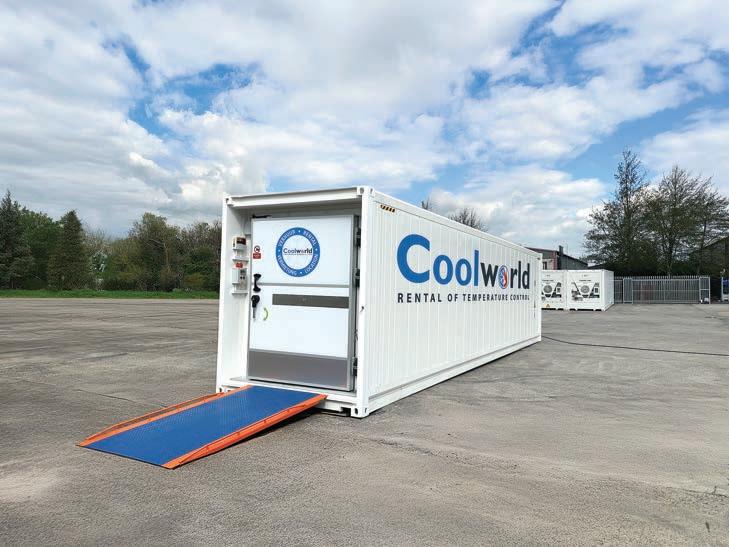

• Heavy duty, door wide steel ramp. Door opens & closes with ramp in place.
• Adjustable platform available for 40ft’s only (700 mm to 1050 mm height).
wear on evaporator allowing optimal settings to be reached quicker. associated hazards.
• High Low temperature alarm (local siren and beacon) with volt free connections for BMS integration. Option for integrated door open alarm.
• Sample Por t to allow probes and cables to be brought inside the container.
• Anti Tamper covers to prevent access to cooling unit controller.
• Plastic Shelving. Hygienic: Easy to clean PVC. Moisture Resistant: Will not rust, rot or corrode. No Tools Required: Easy to assemble and
• disassemble by hand.
• Noise attenuation options with ability to reduce sound levels by up to 25dB(A).
• Standard container door.
• One third, two third and inset door options available.
• Original container lights and alarms (24V DC).
• Aluminium ramp (must be removed when closing door).
Power Requirements
Every cooling unit is equipped with 1 plug per unit.
TYPICAL PLUG PROVIDED BY COOLWORLD
32A 400V AC 3P+N+E (5 pin)
IP67 IEC 60309 (Commando)
15m power cord length
MATCHING SOCKET NEEDS TO BE PROVIDED BY THE CLIENT
32A 400V 3P+N+E (5 pin)
IEC 60309 (Commando)
Type C circuit breaker (Motor Rated)
Information per cooling unit:
•Maximum Electrical Power: 12kW.
•Power Consumption: 0.94kWh for -22°C setpoint, 10°C ambient frozen load, no air exchange.
•Sound level at 10m: 67dB(A).
•1m access required for air ow and maintenance.
Fridge Speci cation
Carbon Dioxide Equivalent THERMO KING CFF -30°C to +45°C
Fridge Type Refrigerant
THERMO KING MAGNUM PLUS
Temperature Range
(1430 GWP) 7.44 Tonnes
*At 38°C Ambient-18°C Internal per fridge unit. Refrigerant Amount
to +45°C
(2140 GWP)
Tonnes

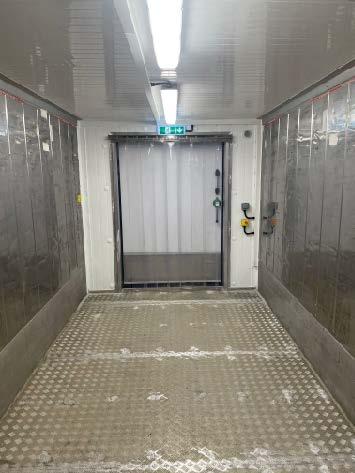

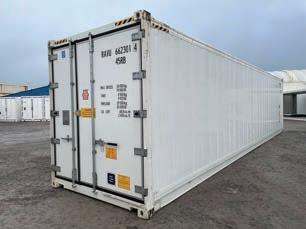

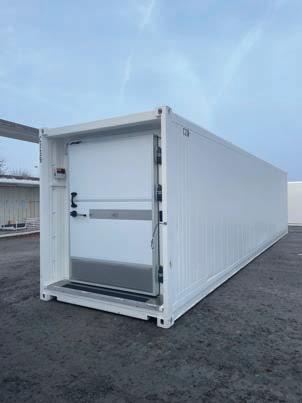

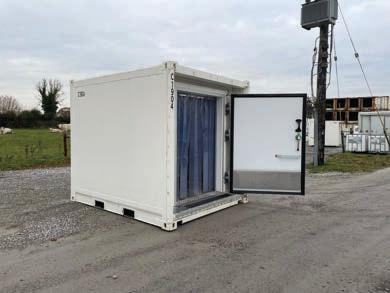

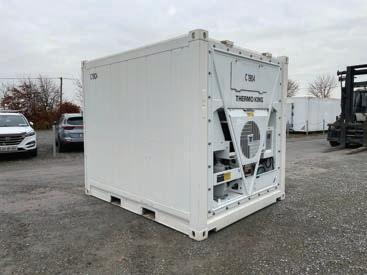

Plus Cold Store Photos - 10ft

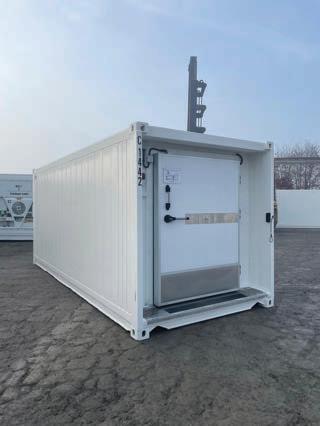

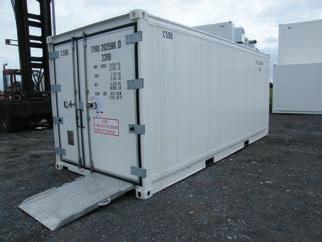

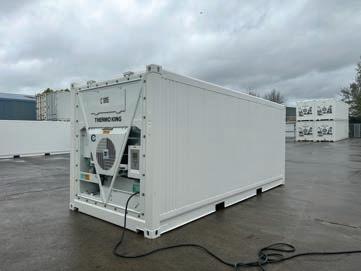

Plus Cold Store Photos - 20ft
Plus

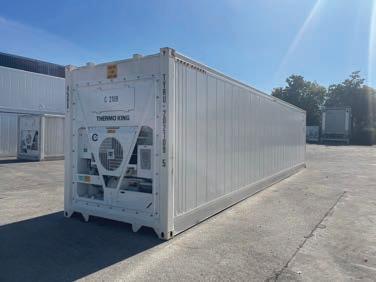

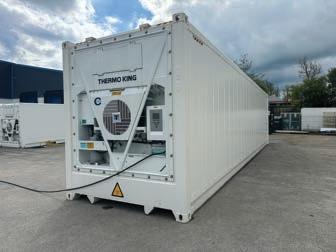

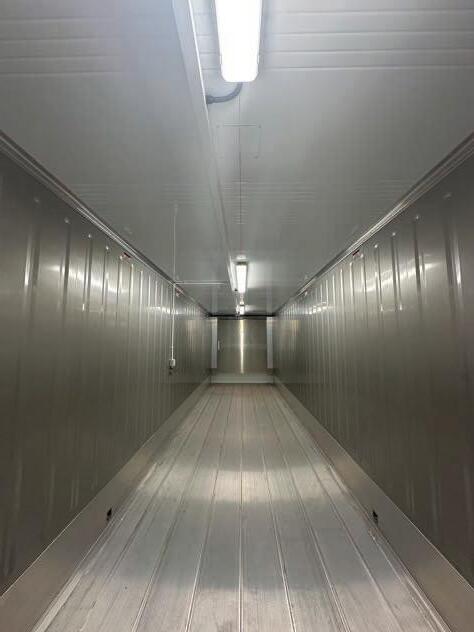

Cold Store Photos - 40ft

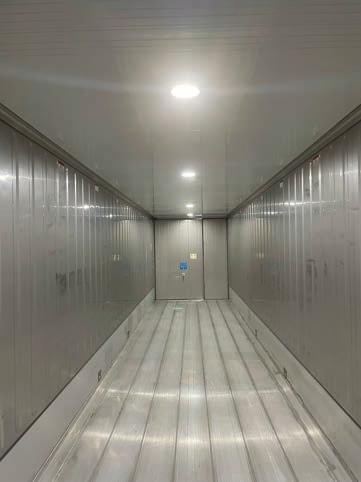

Standard

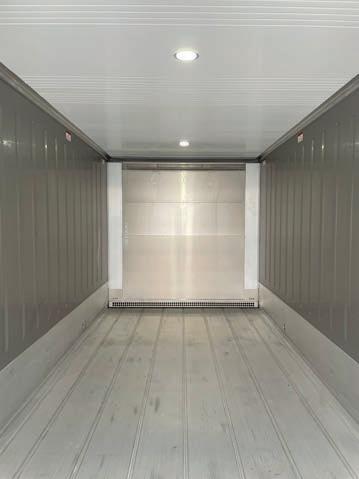

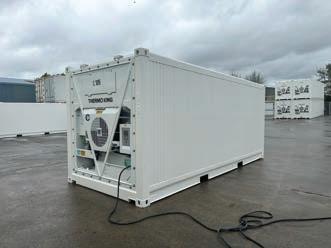

Cold Store Photos - 20ft
