BLAST FREEZERS

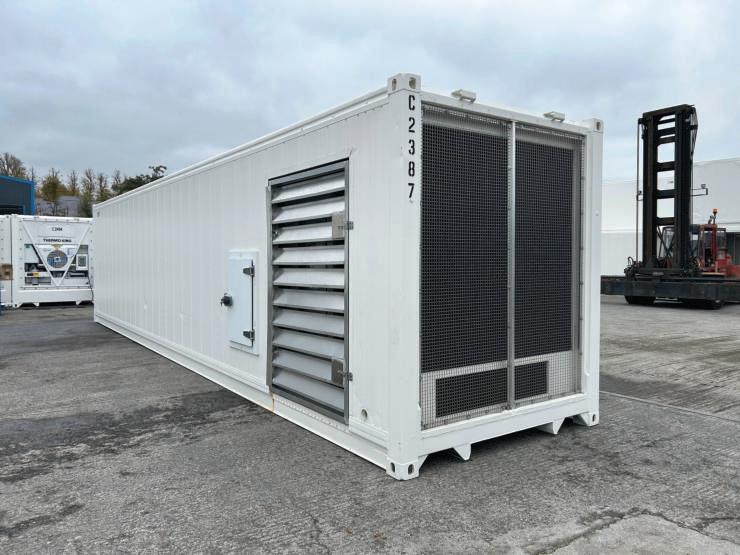

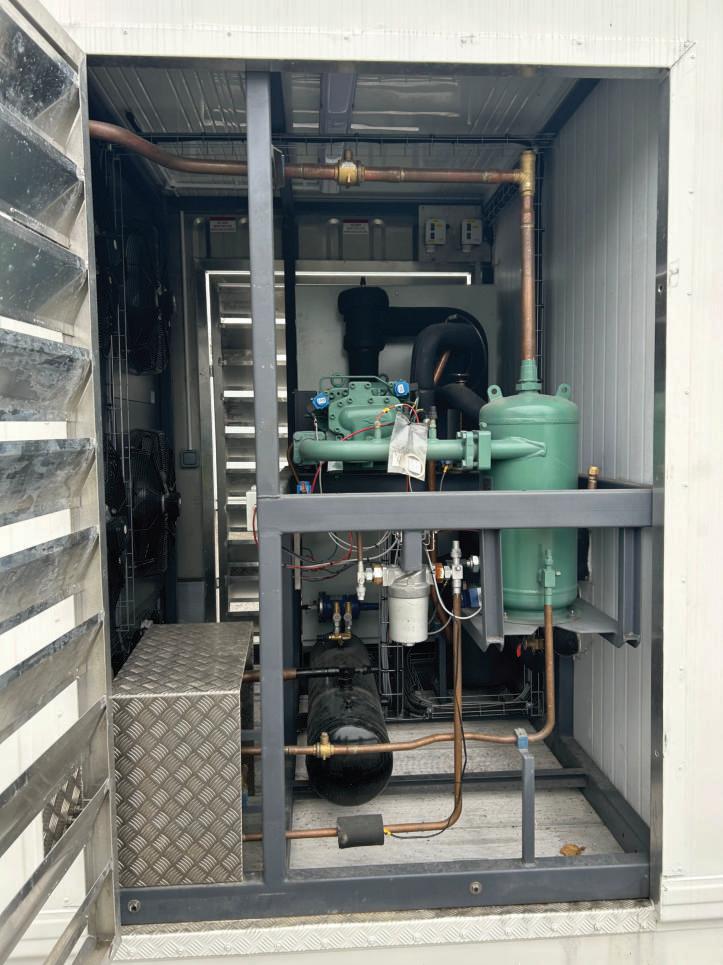

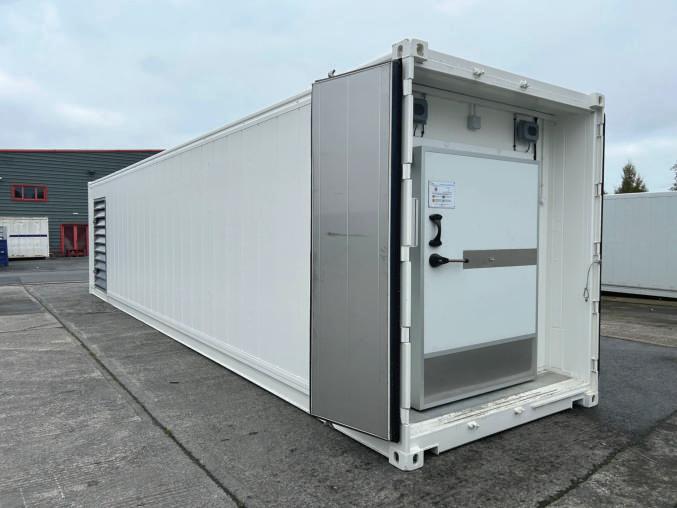

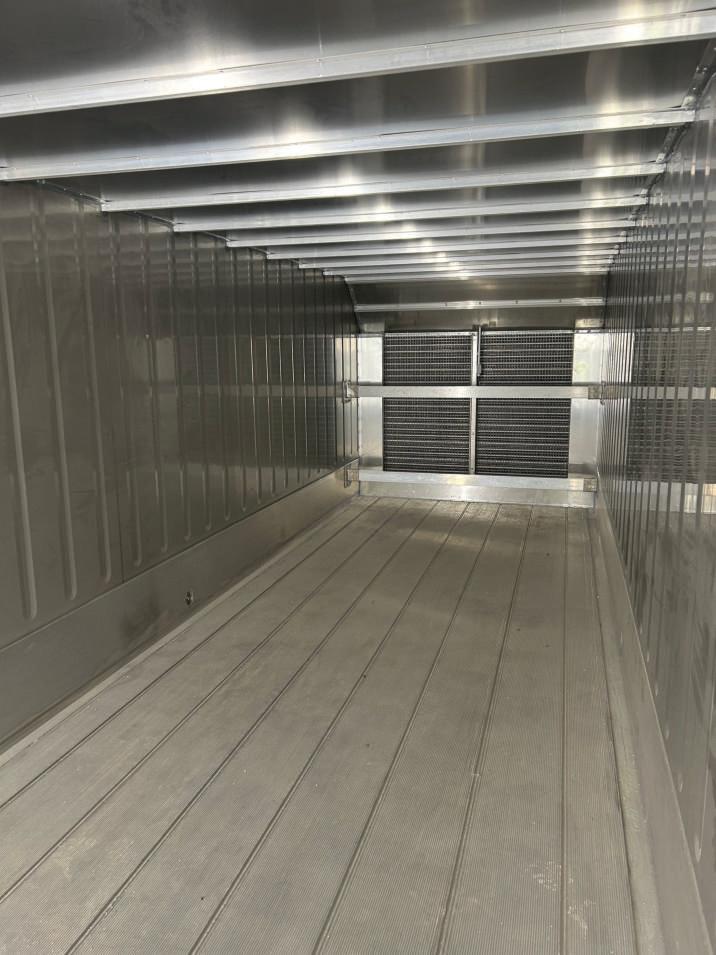

60kW Power Blast Freezer

High power blast freezing in an intermodal container body for easy transport

Key Features:

Internal false ceiling to ensure focused load penetration by cold air mass.

Wide n spacing of cooling coils to prevent ice build up.

High-capacity air circulation fans.

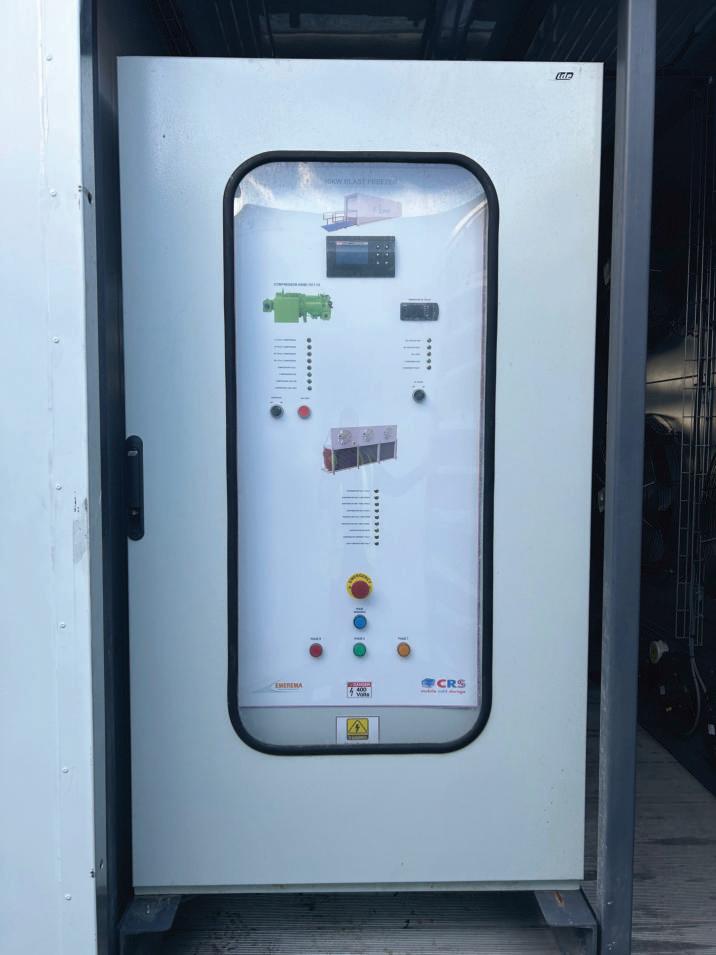

Visual and audio alarms tted.

The 60kW must be hardwired into a 250A switched isolator. It has a max draw of 180A capable of bringing loads to -28°C.

Refrigerant: 70kg R452A (equivalent to 149.9 tonnes of carbon dioxide).

Approximate time for bringing 10 tonnes of beef from chill to frozen 24-36 hours. *

13no. Euro pallets shown (can hold 12no. UK Pallets)

EXTERNAL DIMENSIONS: 12.19(L) x2.44(W) x2.90(H) m

INTERNAL DIMENSIONS: 7.04(L) x2.30(W) x2.16(H) m

INTERNAL AREA: 16.19 m²

INTERNALVOLUME: 34.97 m³

PALLETCAPACITY: 13no.0.8 x1.2 m (12no.1.0 x1.2 m) pallets

DOORDIMENSIONS: 1.4(W) x2.0(H) m

PLAN DRAWING (SHOWING AIR INTAKE & EXHAUST)

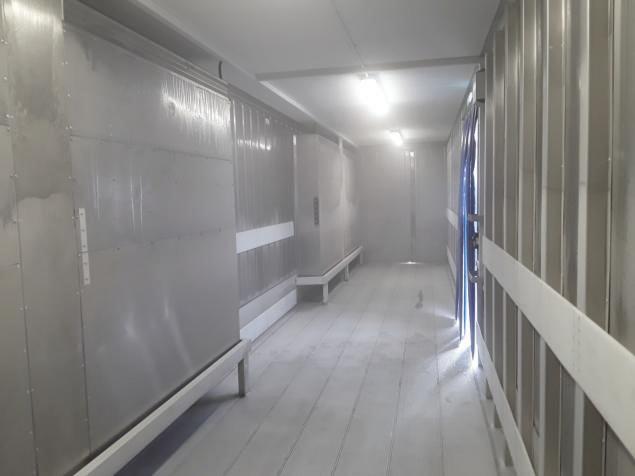

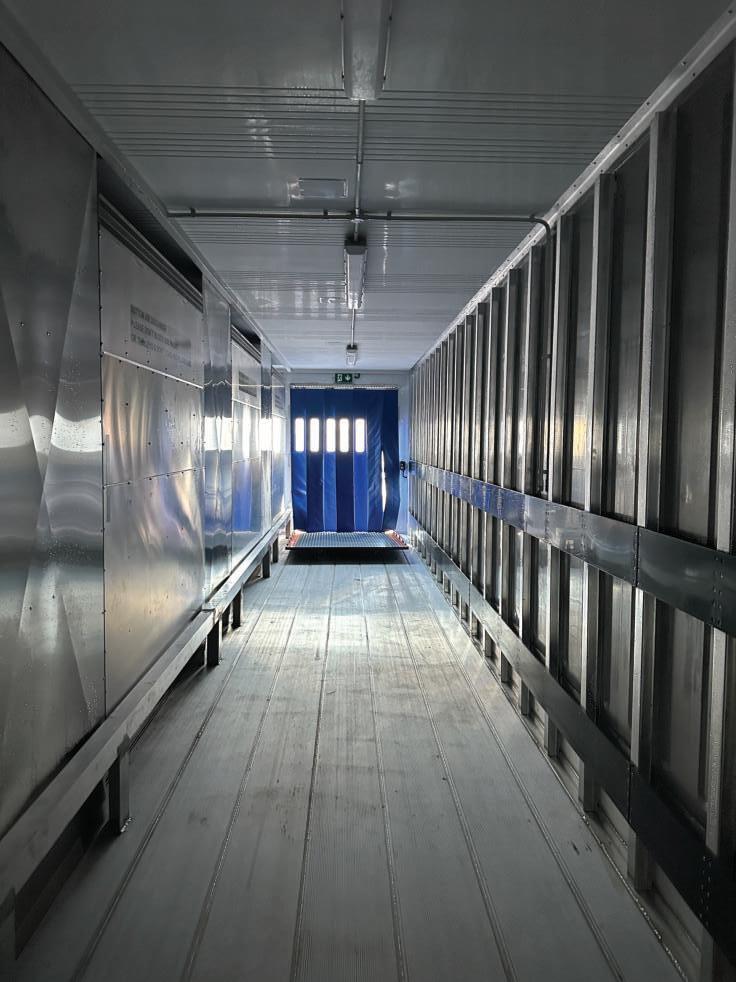

Multiple Cooling Units

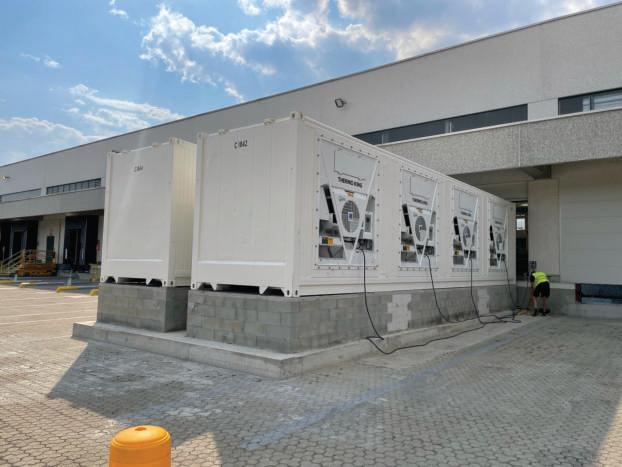

Dock Style (fridges can be located on the opposite side).

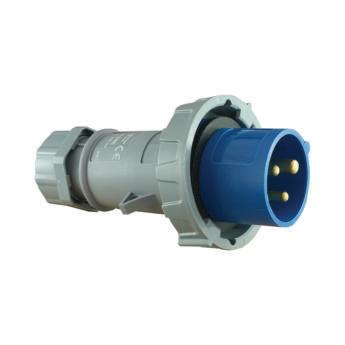

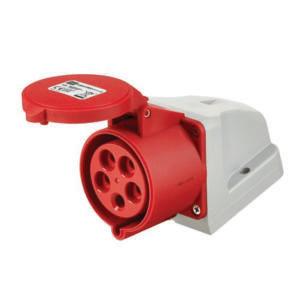

Manylocations do not have the poweravailable to run our60kw Blast Freezer. We developed ourmultiple unit freezers forthese locations which are speciallysuited to PCM (Phase Changing Material) packs and dryproducts that do not perspire. These products provide extracooling powercompared to ourGrade Arange,but can still be powered byIEC 60309 (Commando) plugs.

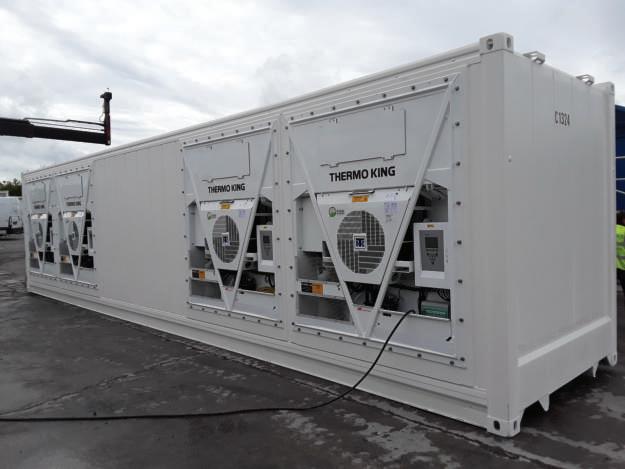

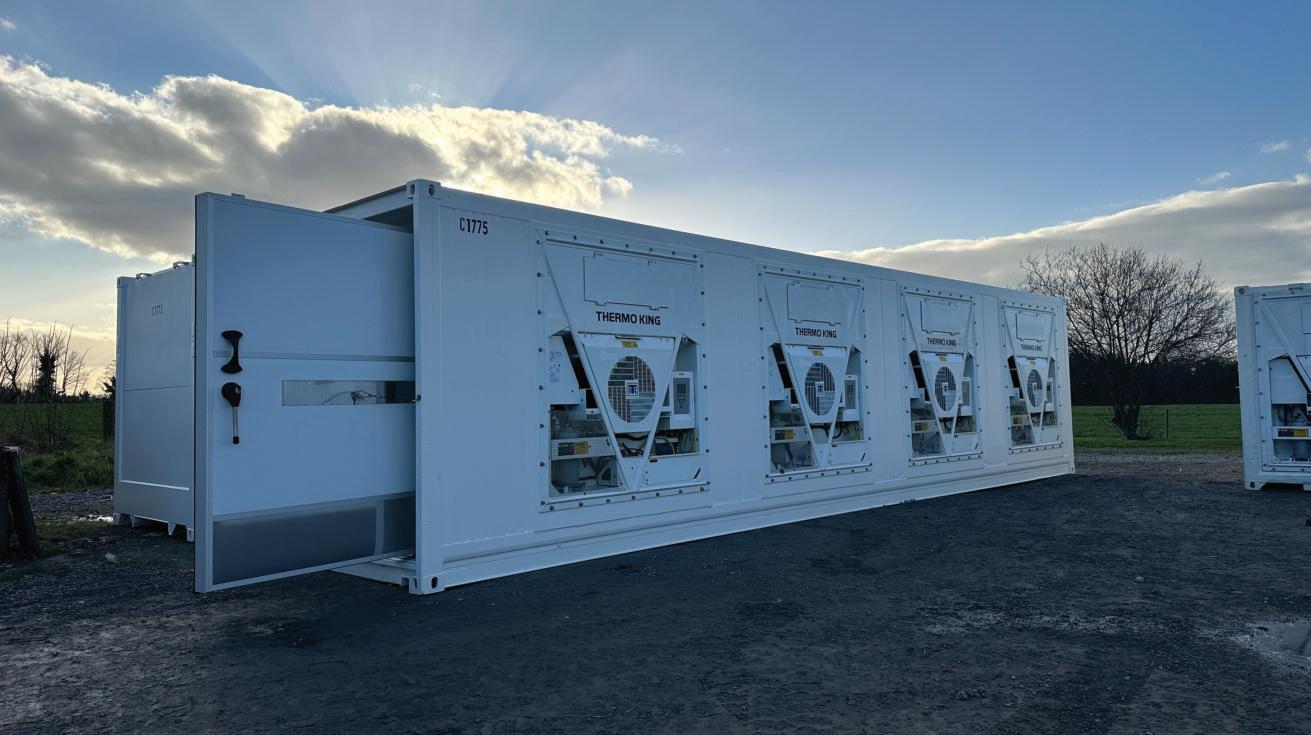

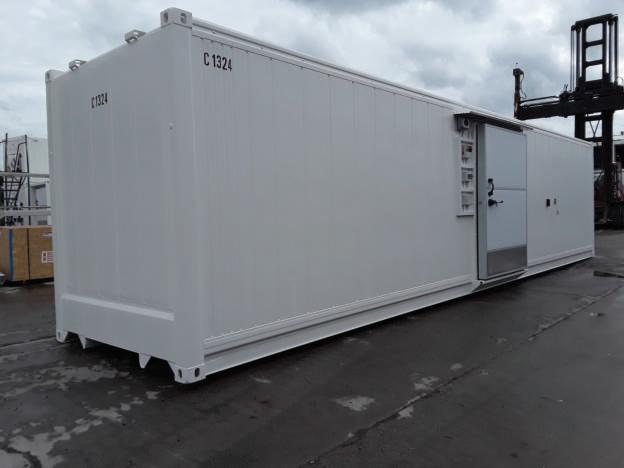

40ft Multiple Cooling Unit Freezer

EXTERNAL DIMENSIONS: 12.19(L) x2.44(W) x2.90(H) m

INTERNAL DIMENSIONS: 11.47(L) x1.80(W) x2.61(H) m

INTERNAL AREA: 20.65 m²

INTERNALVOLUME: 53.88 m³

PALLETCAPACITY: 18no.0.8 x1.2 m (11no.1.0 x1.2 m) pallets

POWER: 1no.32ASP&4no.32ATPNE

DOORDIMENSIONS: 1.6(W) x2.3(H) m

WEIGHT: 6,900 kg

(Approx.total emptyweight)

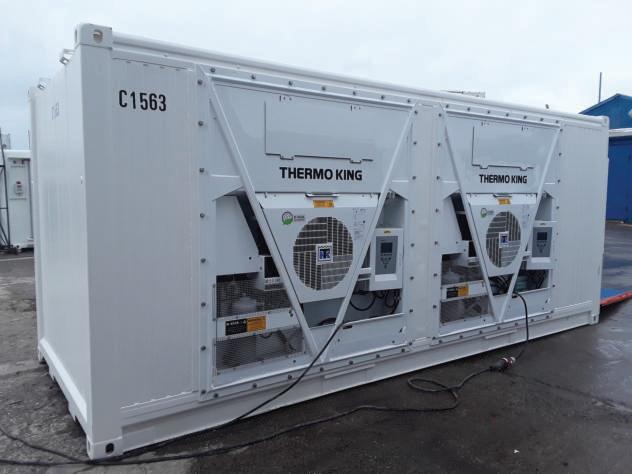

20ft Multiple Cooling Unit Freezer

EXTERNAL DIMENSIONS: 6.09(L) x2.44(W) x2.59(H) m

INTERNAL DIMENSIONS: 5.37(L) x1.80(W) x2.30(H) m

INTERNAL AREA: 9.67 m²

INTERNALVOLUME: 22.23 m³

PALLETCAPACITY: 8no.0.8 x1.2 m

(5no.1.0 x1.2 m) pallets

POWER: 1no.32ASP&2no.32ATPNE

DOORDIMENSIONS: 1.4(W) x2.0(H) m

WEIGHT: 4,000 kg

(Approx.total emptyweight)

18no. Euro pallets shown (can hold 11no. UK Pallets)

8no. Euro pallets shown (can hold 5no. UK Pallets)

Multiple Cooling Units

Standard Style (perfect for rst in rst out product loading).

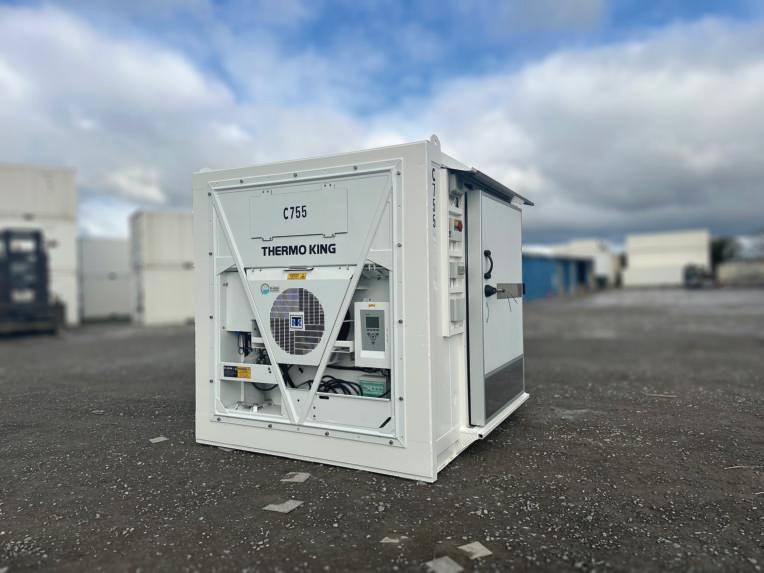

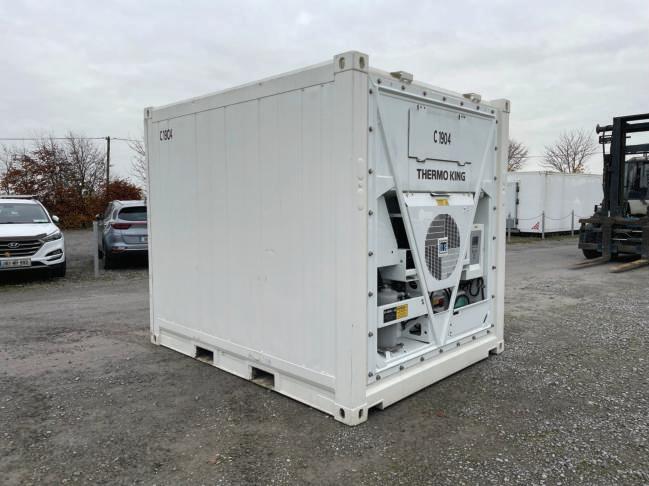

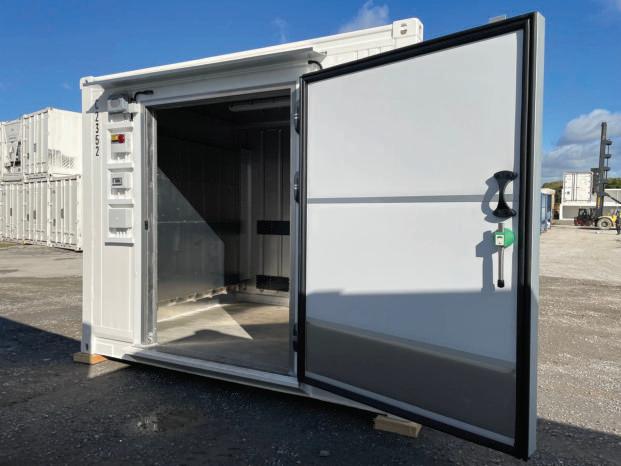

10ft Multiple Cooling Unit Freezer

3no. Euro pallets shown (can hold 3no. UK Pallets)

EXTERNAL DIMENSIONS: 3.05(L) x2.44(W) x2.59(H) m

INTERNAL DIMENSIONS: 2.13(L) x2.27(W) x2.21(H) m

INTERNAL AREA: 4.84 m²

INTERNALVOLUME: 10.69 m³

PALLETCAPACITY: 3no.0.8 x1.2 m (3no.1.0 x1.2 m) pallets

POWER: 1no.32ASP&2no.32ATPNE

DOORDIMENSIONS: 1.4(W) x2.0(H) m

WEIGHT: 2,950 kg

(Approx.total emptyweight)

20ft Multiple Cooling Unit Freezer

9no. Euro pallets shown (can hold 8no. UK Pallets)

EXTERNAL DIMENSIONS: 6.09(L) x 2.44(W) x 2.59(H) m

INTERNAL DIMENSIONS: 5.18(L) x 2.27(W) x 2.21(H) m

INTERNAL AREA: 11.76 m²

INTERNALVOLUME: 25.99 m³

PALLET CAPACITY: 9no. 0.8 x 1.2 m (8no. 1.0 x 1.2 m) pallets

POWER: 1no. 32A SP & 2no. 32ATPNE

DOOR DIMENSIONS: 1.4(W) x 2.0(H) m

WEIGHT: 3,950 kg

(Approx. total empty weight)

Multiple Cooling Units

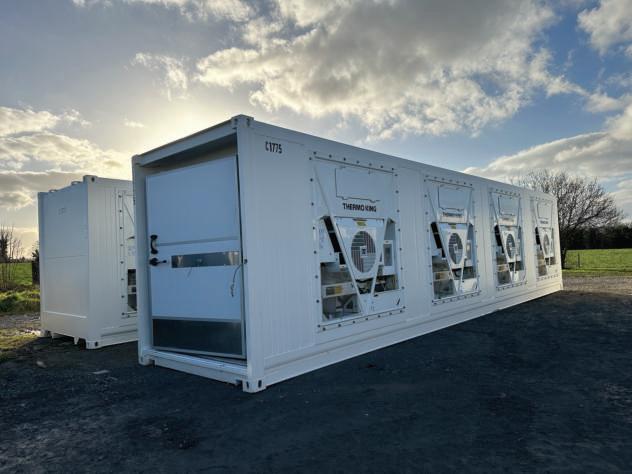

40ft Multiple Cooling Unit Freezer

18no. Euro pallets shown (can hold 11no. UK Pallets)

EXTERNAL DIMENSIONS: 12.19(L) x2.44(W) x2.90(H) m

INTERNAL DIMENSIONS: 11.96(L) x1.80(W) x2.61(H) m

INTERNAL AREA: 21.53 m²

INTERNALVOLUME: 56.19 m³

PALLETCAPACITY: 18no.0.8 x1.2 m (11no.1.0 x1.2 m) pallets

POWER: 1no.32ASP&4no.32ATPNE

DOORDIMENSIONS: 1.6(W) x2.3(H) m

WEIGHT: 6,850 kg

(Approx.total emptyweight)

Features & Optional Extras

•One handed operation with ergonomic pull handle.

•Trace heater in both the door leaf and the door frame to prevent the door from freezing shut.

•Pressure equalisation to ensure it is easy to open regardless of the internal and external temperatures.

•Locking handle prevents outside access meaning cargo can be kept secure, but it can still be opened on the inside even when locked to ensure no one is accidentally locked inside.

•Door tie back to prevent door accidentally closing during loading.

•Lightweight, timber free door with corrosion resistant hinges to ensure robustness and longevity.

•Door switch to shut o cooling unit when the door is opened to prevent ice build up and to reduce energy costs.

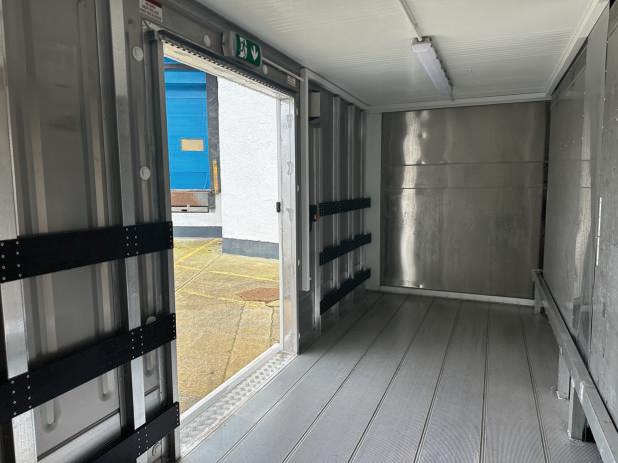

CONTAINER

• Intermodal containerbodyforeasytransport.

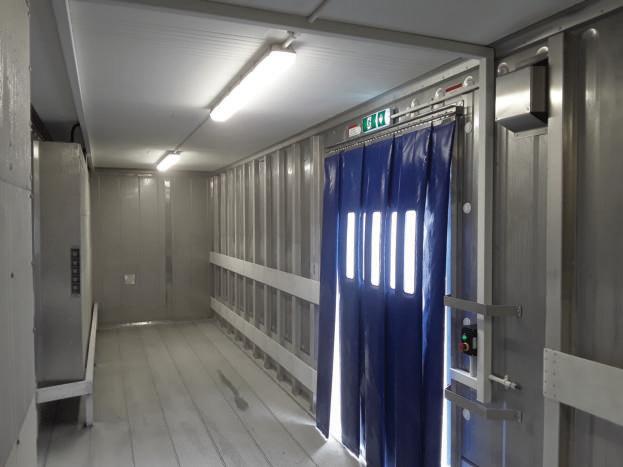

• ClearPVC curtains at door.

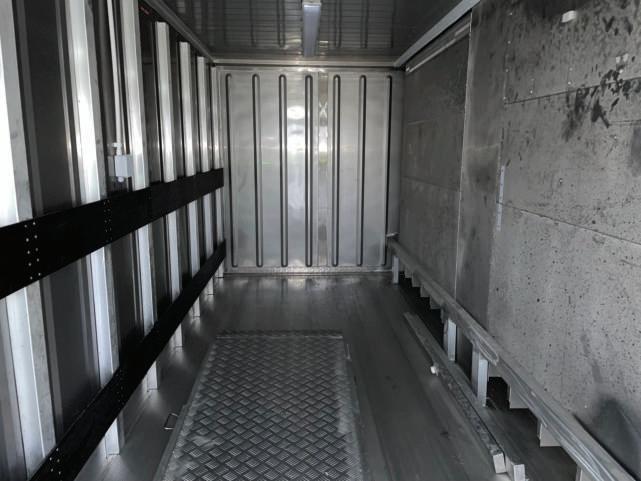

• Non slip aluminium oor.

• Corrosion resistant steel exterior.

• Painted white as standard (forheat re ection properties).

• Easyto clean,hygienic interior.

• Internal LED lights,including backup LED emergencylights (230VAC wired to European colourcodes).

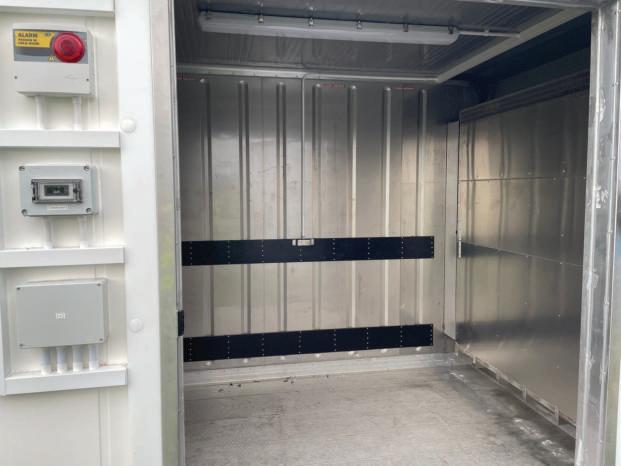

• Trapped personnel alarm &emergencymachine shut down.

OPTIONAL EXTRAS

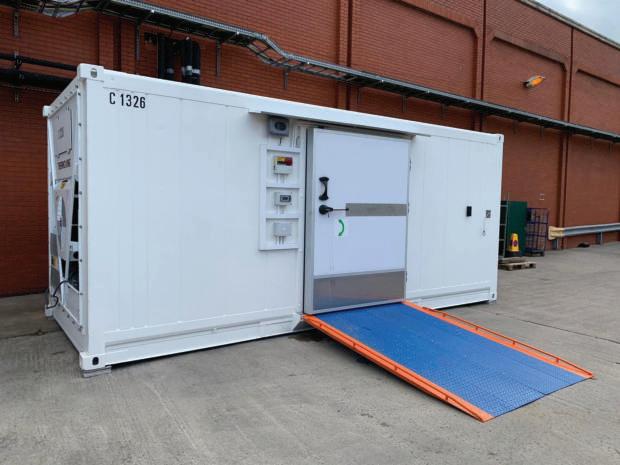

•Heavy duty, door wide steel ramp. Door opens & closes with ramp in place.

•High Low temperature alarm (local siren and beacon) with volt free connections for BMS integration. Option for integrated door open alarm.

•Sample Port to allow probes and cables to be brought inside the container.

•AntiTamper covers to prevent access to cooling unit controller.

•Noise attenuation options with ability to reduce sound levels by up to 25dB(A).

•Plastic Shelving. Hygienic: Easy to clean PVC. Moisture Resistant:Will not rust, rot or corrode. NoTools Required: Easy to assemble and disassemble by hand.

•Energy e cient insulated Curtains 5-6 times longer life span than PVC strip curtains. 3 times more e cient than PVC strip curtains. Reduces wear on evaporator allowing optimal settings to be reached quicker. Provides a vapour barrier which reduces condensation, oor ice and associated hazards.

•Adjustable platform available for 40ft’s only (700 mm to 1050 mm height).
