P O R T F O L I O
NGUYEN
THANH TRUC
LANDSCAPE ARCHITECT
NGUYEN THANH TRUC
LANDSCAPE ARCHITECT
ABOUT ME
I am currently a freelance landscape architect and facilitator in VietNam. I graduated with a bachelor’s degree in Landscape Architecture from the Ho Chi Minh City University of Architecture. I have more than 2 years of experience working in Vietnam on landscape architectural.
I am particularly interested in sustainable design to create a greener and better living environment. Landscape architecture is an all-encompassing concept learning in many different aspects each other. I want to broaden my horizons and discover the creativity of myself in the environment active learning.
INFO & CONTACT
19 October 1997
+84 901894220
thanhtruc.kts19@gmail.com
Nationality: Viet Nam citizenship LINKEDIN: https://www.linkedin.com/in/truc-thanh-nguyen-964bbb224/
EDUCATION
2015 - 2020
Viet Nam
2012 - 2015
Viet Nam
University of Achitecture Ho Chi Minh City - GPA 2.74/4.00 http://www.uah.edu.vn/
Nguyen Van Troi, Nha Trang, Khanh Hoa, Viet Nam http://nvtroi.khanhhoa.edu.vn/
AWARDS AND ACHIEVEMENTS
2018 - 2019 Scholarship of University of Architecture
GPA 3.06/4.0
2016 - 2017 Scholarship of University of Architecture
GPA 3.40/4.0
INTERESTS
Ho Chi Minh full-tuition in Fall Semester
Ho Chi Minh full-tuition in Fall Semester
DRAWING - PLANTS - LEARNING LANGUAGES - HANDMADE MAKING - MEDITATION
COMPUTER SKILLS
AUTOCAD
ADOBE PHOTOSHOP
ADOBE INDESIGN
SKETCHUP
LUMION
PROCREATE
POWERPOINT MICROSOFT OFFICE
SOFT SKILLS
CREATIVITY - EFFICIENT ORGANISED
MODEL MAKING - HAND DRAWING - RESEARCH
POSITIVE VISUAL REPRESENTATION
LANGUAGES
ENGLISH (Good)
VIETNAM (Native)
2 Portfolio - NGUYEN THANH TRUC
HIGH SCHOOL LANDSCAPE ARCHITECTURE DEGREE
EMPLOYMENT
2020 - 2022
Oct 2020 - now
Full-time job
https://talavn.com.vn/
LANDSCAPE ARCHITECT | TA LANDSCAPE ARCHITECTURE
Worked closely with landscape architects and managers in designing landscape architectural projects. Specializes in Photoshop masterplan modelling and provides Autocad production support during concept and schematic design, design development, and construction document phases. Conducted design proposal by working closely with the team leader to generate ideas in terms of landscape design including: public garden, landscape resorts, street landscape, residential complex, floral street... from concepts to details.
Complete major projects with the landscape architectural team.
Main Projects:
• Bato Floral Street, Quang Ngai, VietNam (November 2020 - construction drawing)
• Vinhomes Wonder Park Residential complex, Ha Noi, VietNam (June 2021 - 3D rendering stage)
• Nguyen Hue Floral Street, Ho Chi Minh City, VietNam (October 2021 - construction drawing)
• Residential complex Thanh Long Bay Urban Area, Ke Ga, Binh Thuan, VietNam (December 2021 - concept design and construction drawing)
• 175 Hospital, 786 Nguyen Kiem, Go Vap District, VietNam (January 2022 - concept design and construction drawing)
• Arena Resort, Cam Ranh, Khanh Hoa, VietNam (November 2020 - construction drawing)
Assisted in producing visualizations with the landscape architectural team.
Support Projects:
• Landscape garden Vung Tau Pearl Luxury Apartment, Vung Tau, VietNam (April 2021 - construction drawing)
• Me Linh Public Park, District 3, Ho Chi Minh City, VietNam (March 2021 - Concept Drawing)
• Tam Linh Ha Giang, Hai Giang, Quy Nhon, VietNam (April 2021 - Concept Drawing)
2020 - 2022 FACILITATOR | ARKKI VIETNAM CREATIVE EDUCATION FOR FUTURE INNOVATION
Oct 2020 - now
Part-time job
https://www.arkki.vn/en/
2017
Working as a Facilitator, creating a very happy and exciting classroom asmosphere in training design thinking, multi-disciplinary education - STEAM (Science, Technology, Engineering, Arts, Math) and 21st Century skills system from the world’s leading education – Finland, children and young people will be empowered to be creative.
• At Tran Dai Nghia High School for the gifted, District 1, Ho Chi Minh City, Viet Nam.
• At Vo Truong Toan Primary school, District 11, Ho Chi Minh City, Viet Nam.
• At Luong The Vinh Primary school, Binh Tho Ward, Thu Duc City, Viet Nam.
- 2018 PROJECT INTERN | TA LANDSCAPE ARCHITECTURE
Jan 2017 & Jan 2017
https://talavn.com.vn/hiepphuoc-flower-street
2017 - 2019
2 years
https://www.facebook.com/ boxyfoxy
2017 - 2018
6 months
Colaborating with a team landscape architects and undergrated students in physical model and architectural photography of projects in Floral Street Design in Lunar New Year holiday in 2017 and 2018.
DESIGNER | BOXY FOXY HANDMADE SHOP
Working as a designer at shop handmade in Ho Chi Minh, Viet Nam
Designed handmade boxs, offers assistance and sells products to customers in a shop. Primary duties include arranging products on the display shelves, processing payments and keeping the shop clean.
ARTIST
| ‘NAMO ITALIAN RESTAURANT
Working as a Artist in ‘Namo Italian Restaurant, Ho Chi Minh, Viet Nam
Decorated wall and board of weekly dishes.
EXTRA - CURRICULAR
2020 - 2022 WORKSHOPS
2 years
• TA Training - Weekly activity to introduce and equip designers and architects of the company with helpful knowledge.
https://talavn.com.vn/ta-trainning
• Participated in the opening ceremony of “Dream Library” in 2020 with Ben Tre Provincial Youth Union in coordination with the Asia-Pacific organization Gloria Jean’s Coffees and Vietnamese SME community
http://www.tuoitrexudua.vn/noi-dung/le-khai-truongthu-vien-uoc-mo-tai-tieu-hoc-chau-binh-2-huyen-giong-trom
2015 - 2018 EVENT ORGANISER | AYP - AWAKE YOUR POWER SKILL ACADEMY
2 years
2015 - 2020
5 years
• Organized seminars for students to learn about 7 habits of successful people.
• Completed 10km in Ho Chi Minh City Marathon, Ho Chi Minh City, Viet Nam.
• Completed 21km in Da Nang City Marathon, Da Nang City, Viet Nam.
UNIVERSITY OF ARCHITECTURE HO CHI MINH CITY
• Volunteer to distribute late-night porridge to the homeless
• Visit and have fun with the orphans at the orphanage
• Participate in organizing traditional festivals yearly
01.
LANDSCAPE DESIGN OF THE COASTAL RESORT
Thanh Long Bay - Ke Ga, Binh Thuan, VietNam
ZONE C1-C2
- Location: C1 - C2 Garden of Thanh Long Bay, Ke Ga, Binh Thuan, VietNam
- Size: 2160 m2
- Project type: Landscape garden of the coastal resort
- Client: NAM GROUP Corporation
This project is a courtyard for residential use.
The main idea behind the design is to create an interactive space between the blocks, which is a space for cargo transportation and parking.

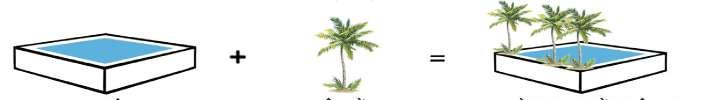

Use specialized marine plants such as sea water spinach, bougainvillea, date palm..
SCOPE OF WORK
LANDSCAPE CONCEPT DESIGN - 3D MODELLING AND RENDERING - CONSTRUCTION DOCUMENTS
CONSTRUCTION DESIGN
https://issuu.com/thanhtruc.kts19/docs/tlb_ta_2022_02_18_dd_court_c1
12 Portfolio - NGUYEN THANH TRUC

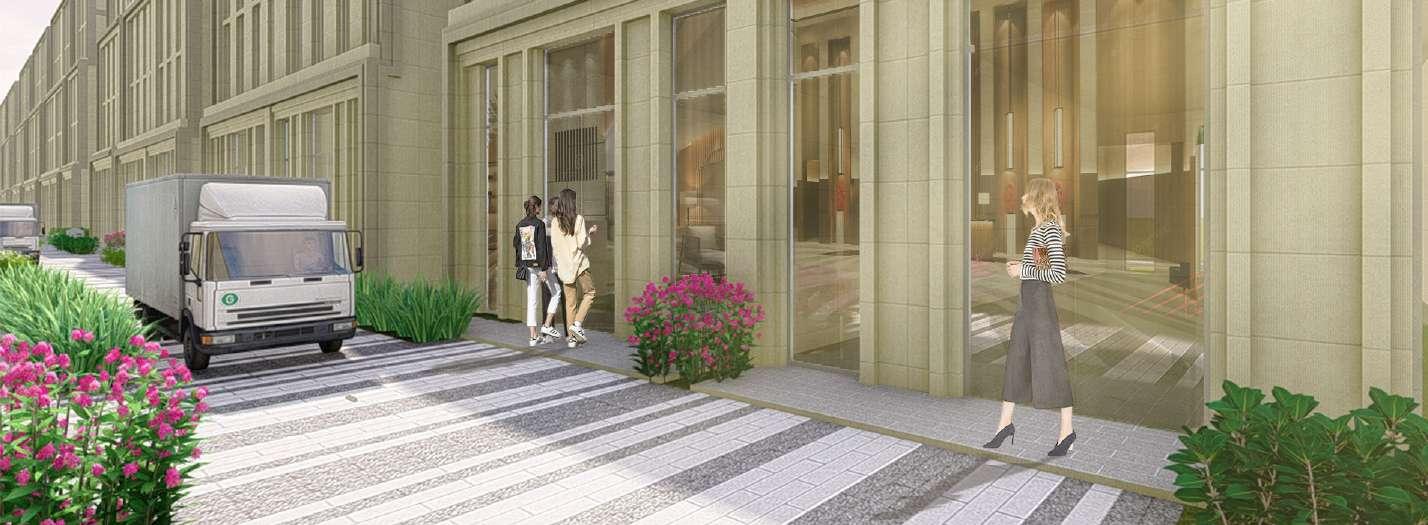

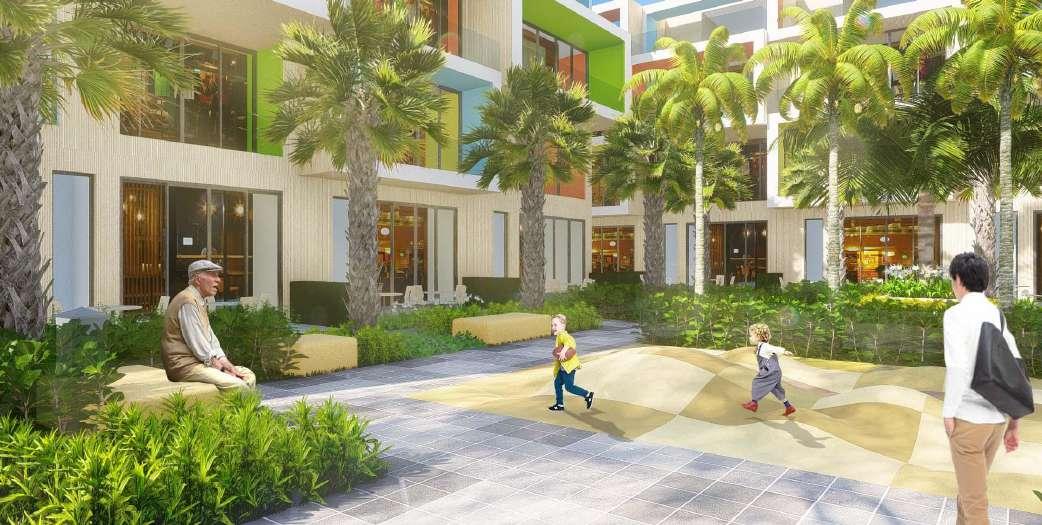

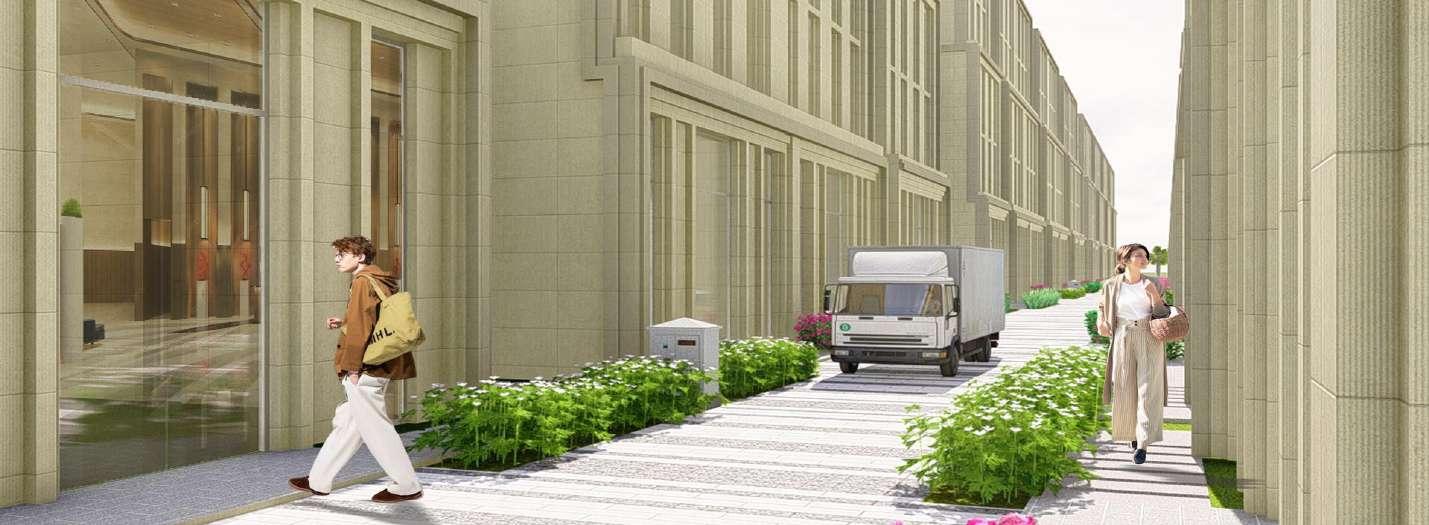

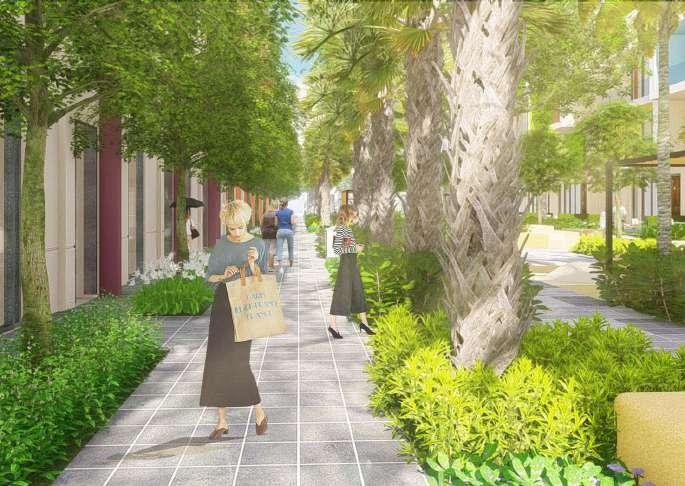

View of the entrance of shophouse

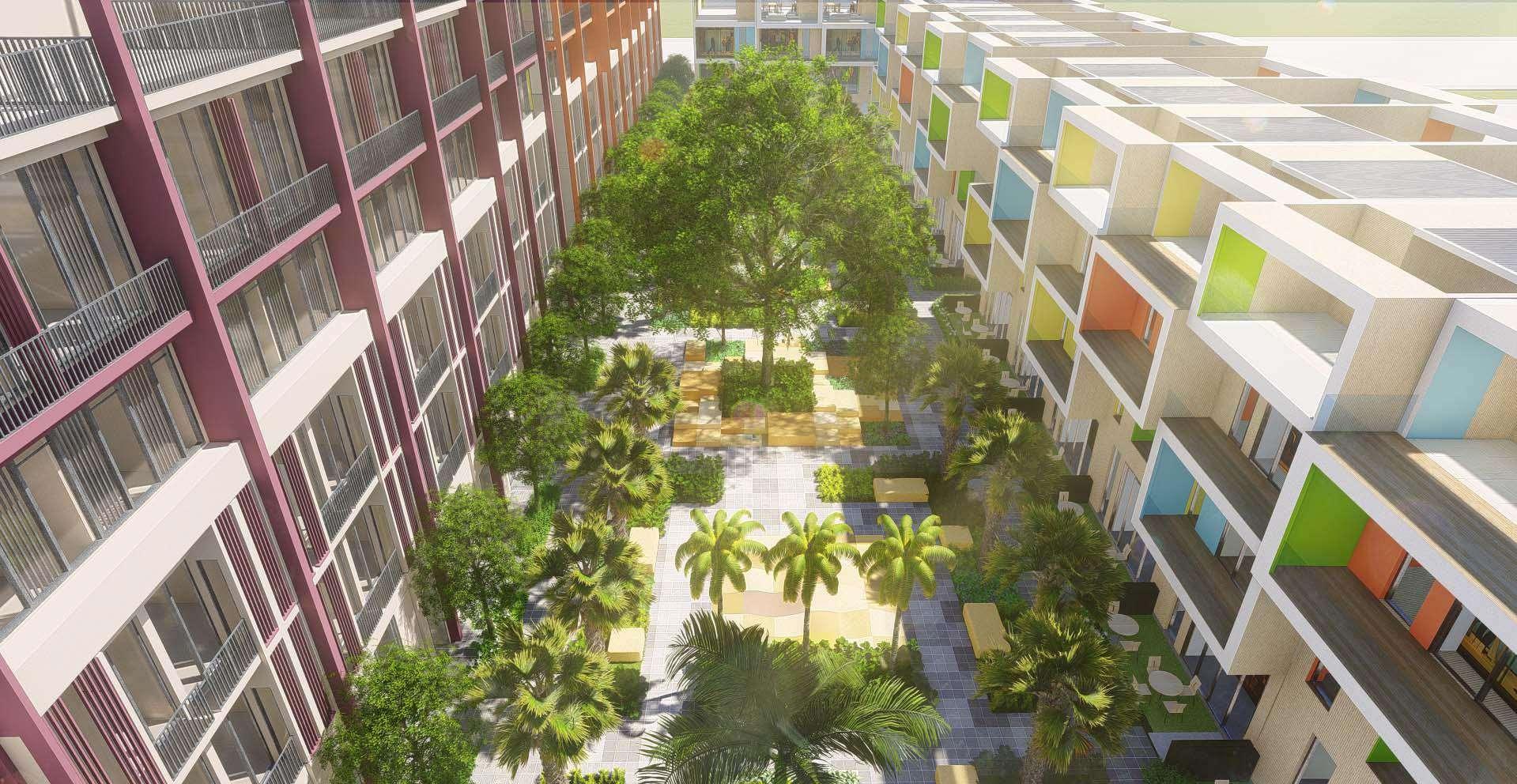

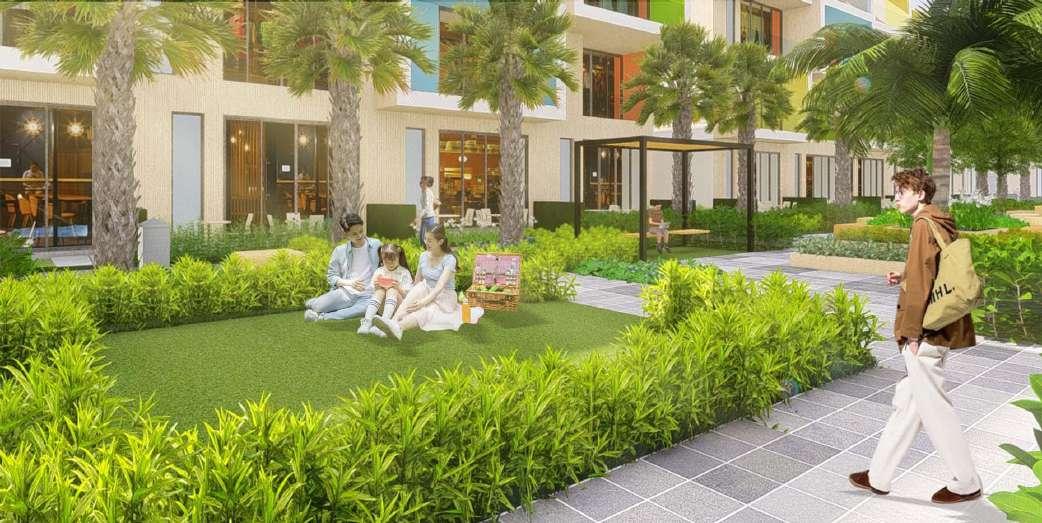

PERSPECTIVE
View of the parking lot

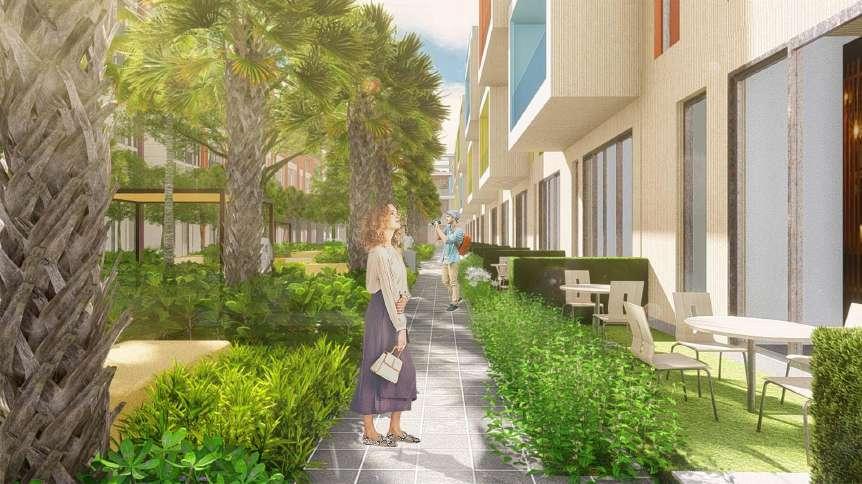

View of the entrance of shophouse

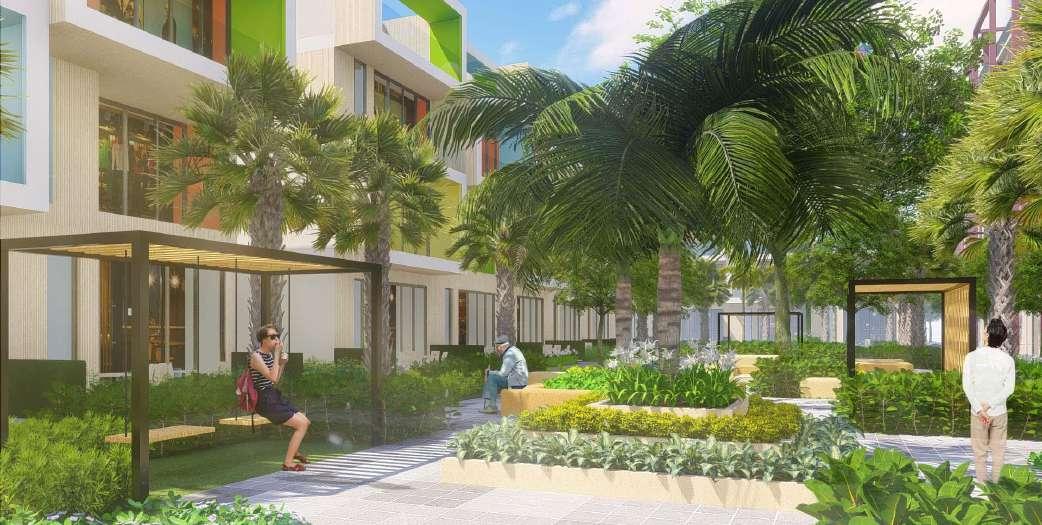

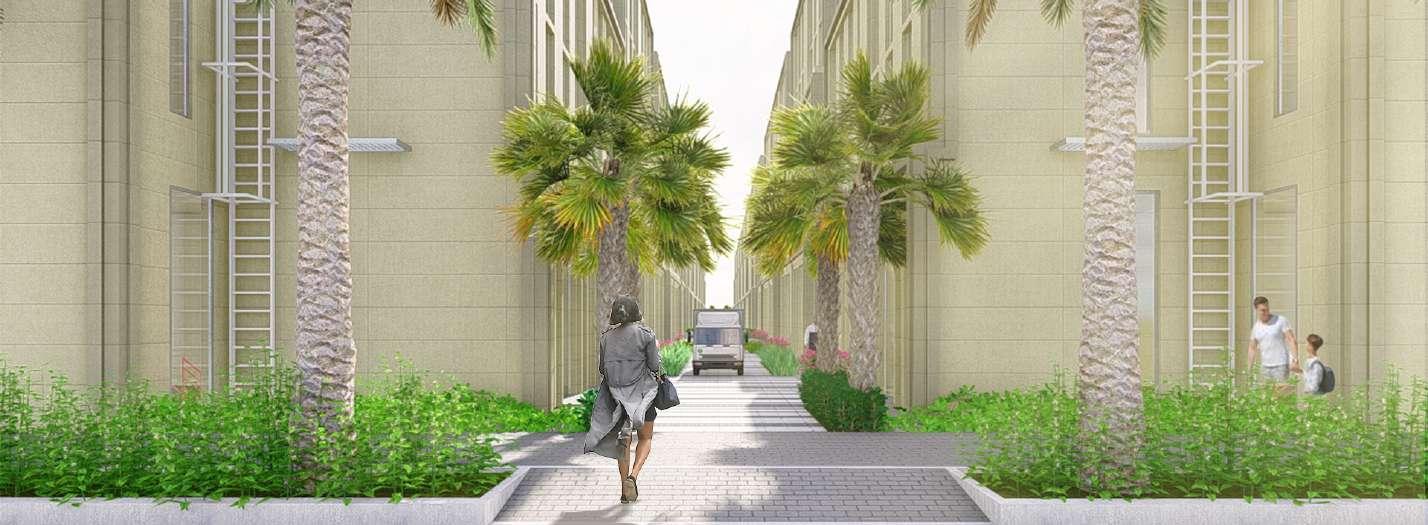

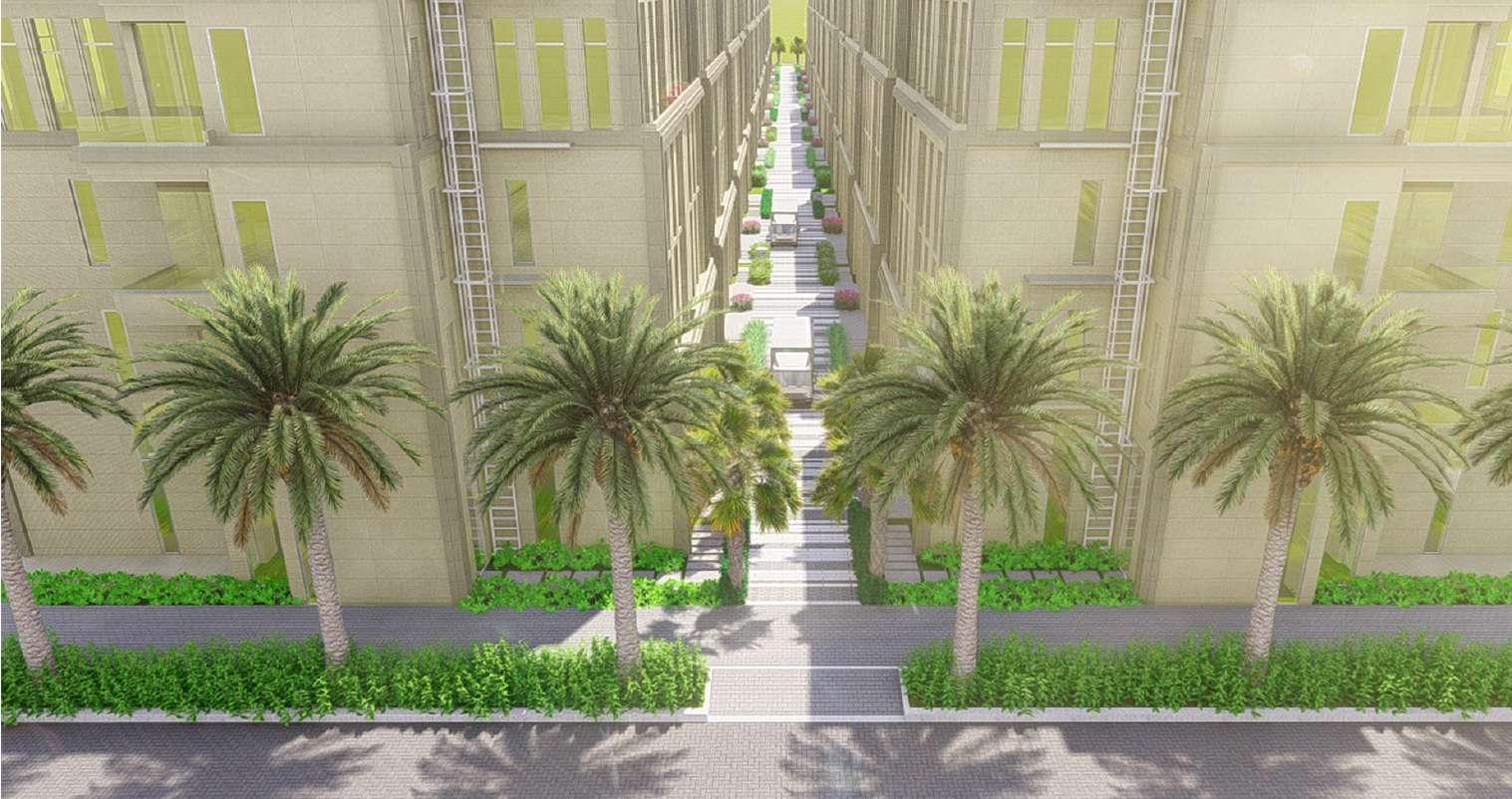

View of the street road

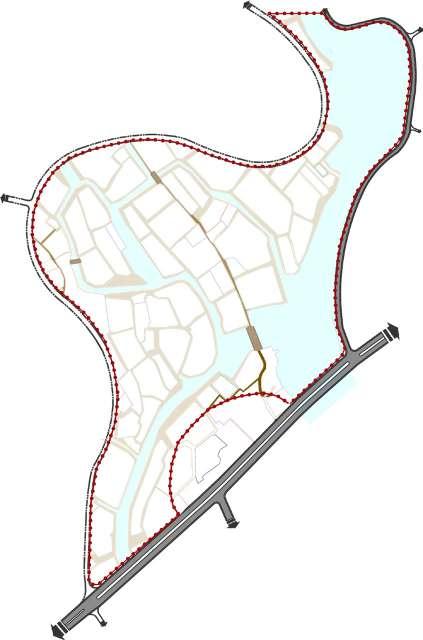

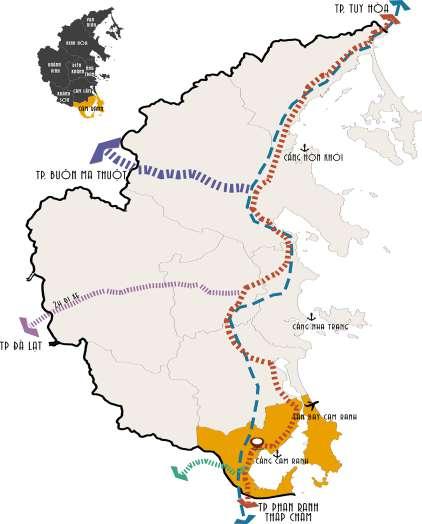

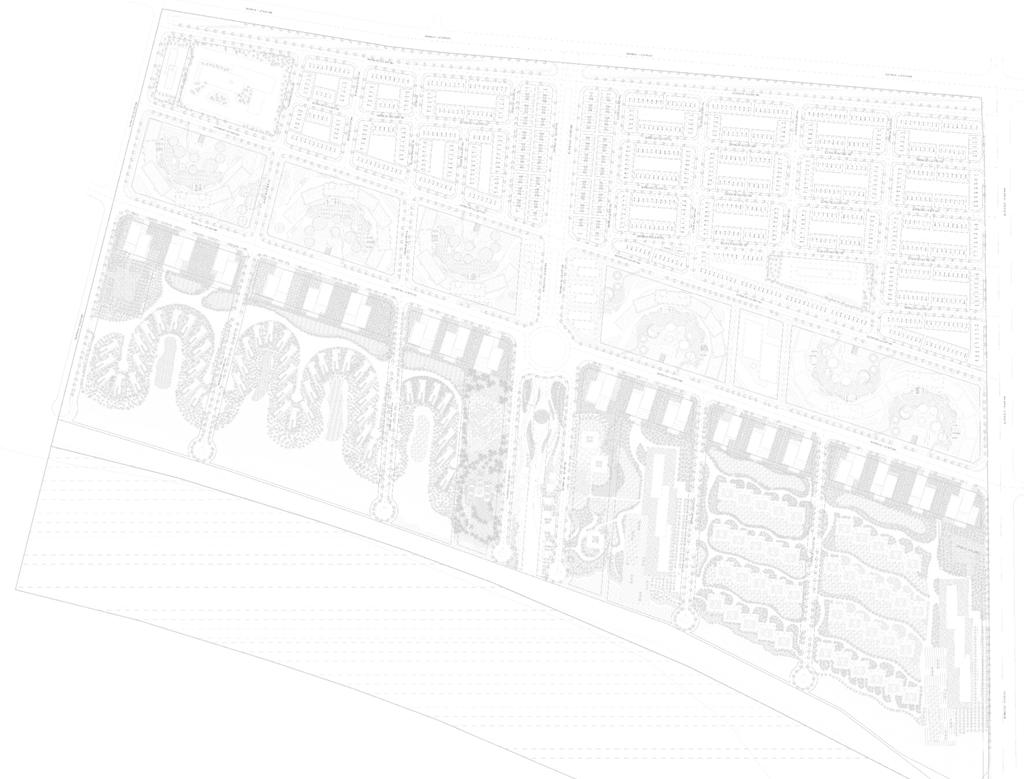

SITE LOCATION

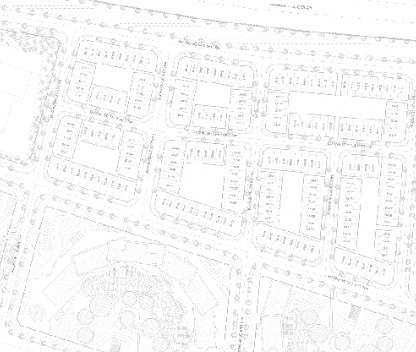

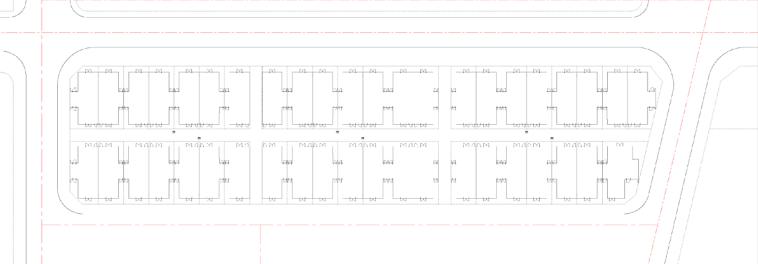

The design scope is the space limited by the back of 2 blocks (including internal alleys) with each rear facade being accessible to the design space.

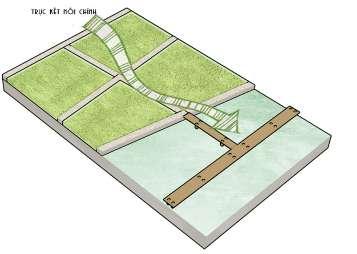

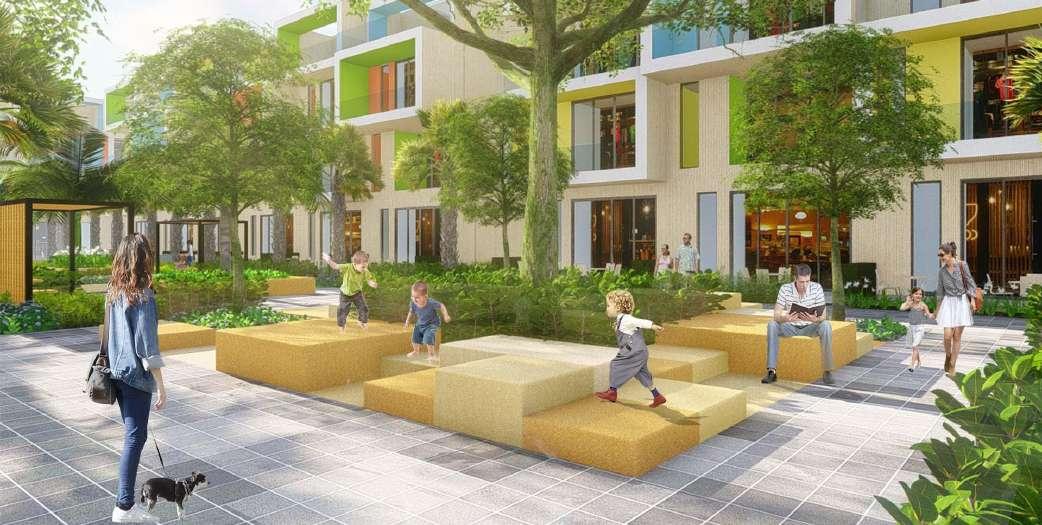

The main idea behind the design is to create a space for interaction between the blocks of house

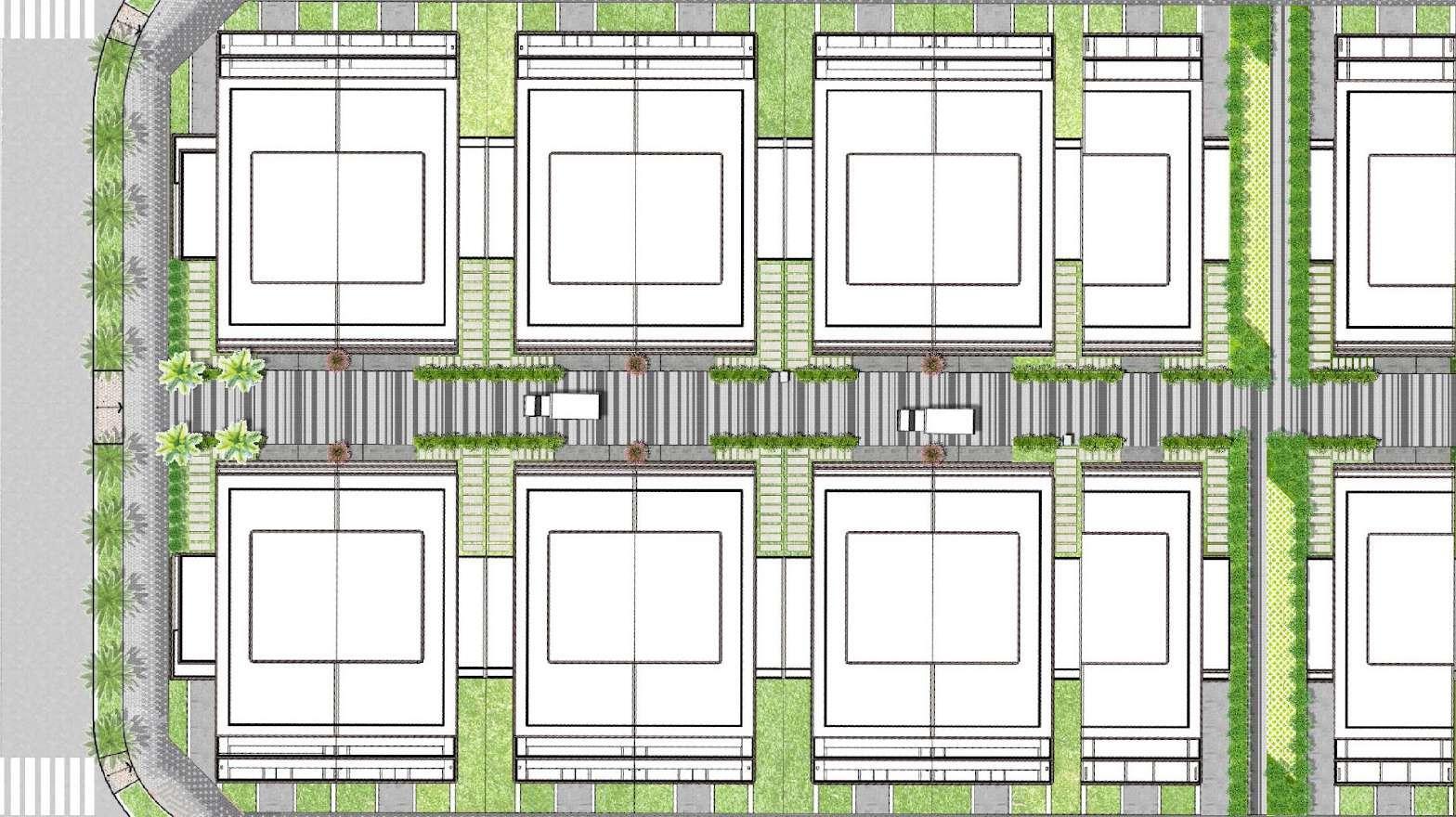

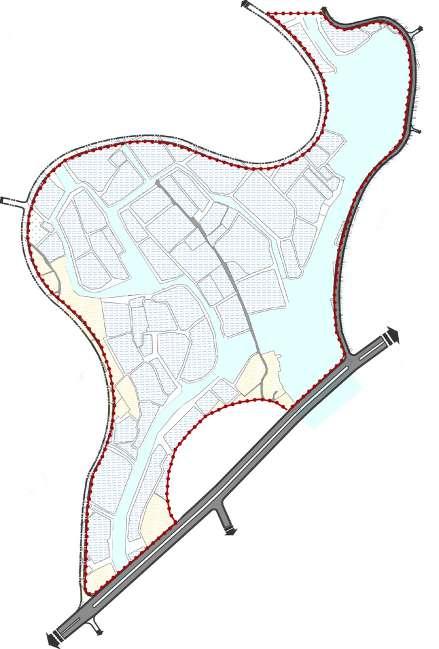

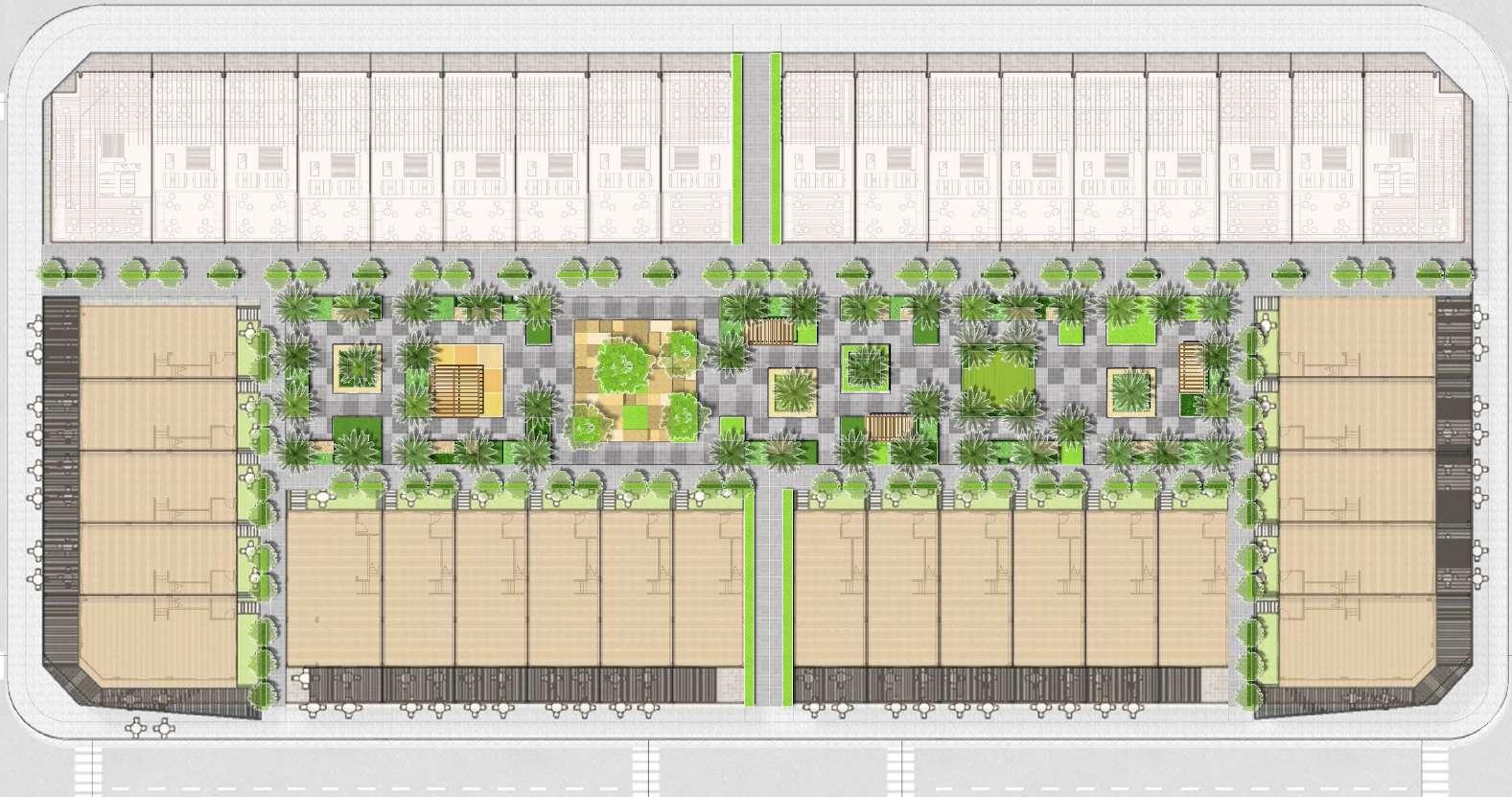

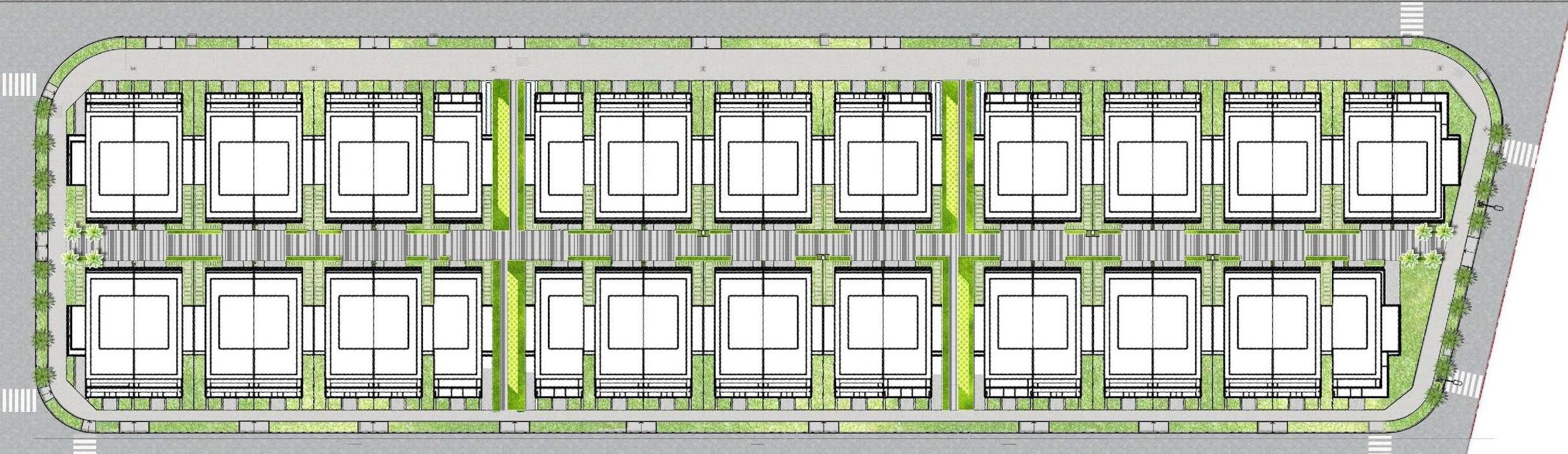

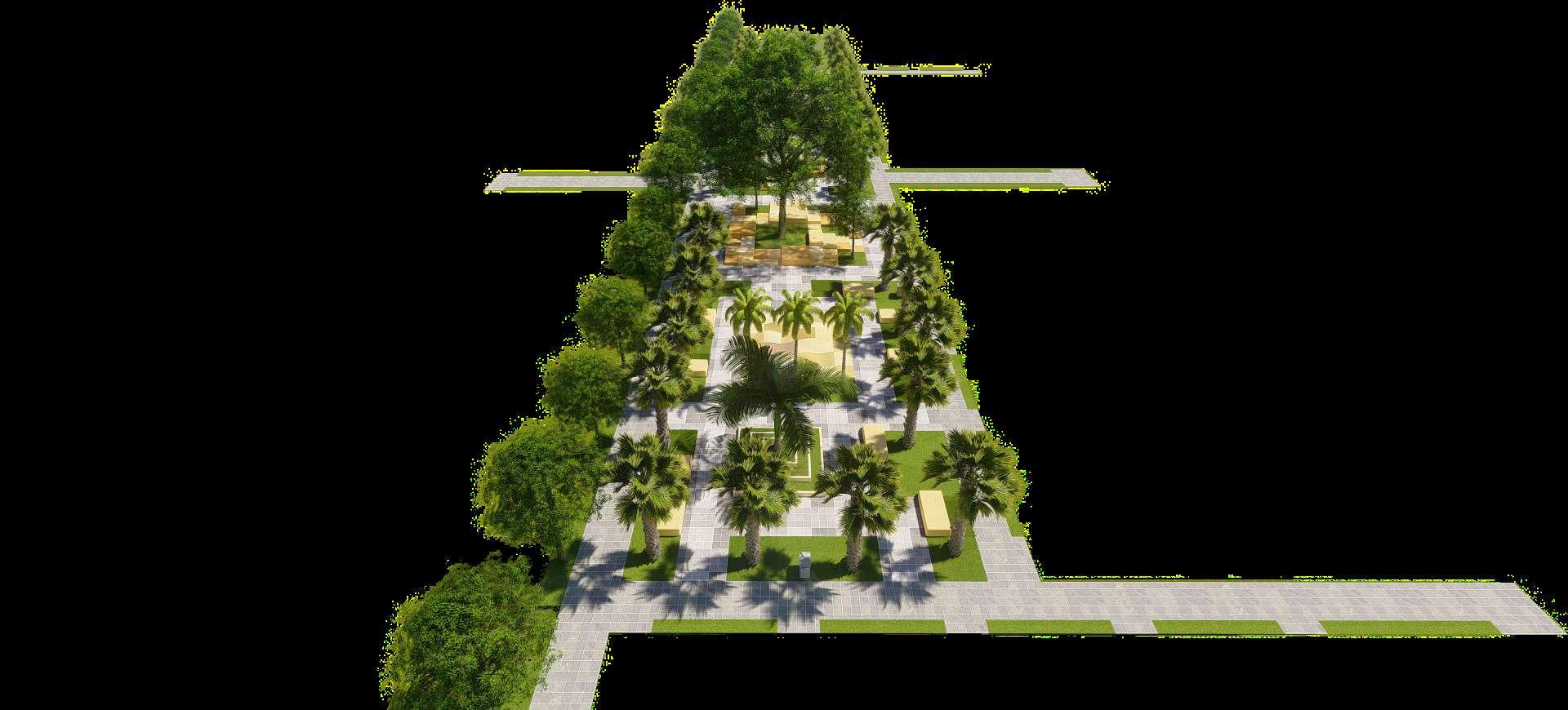

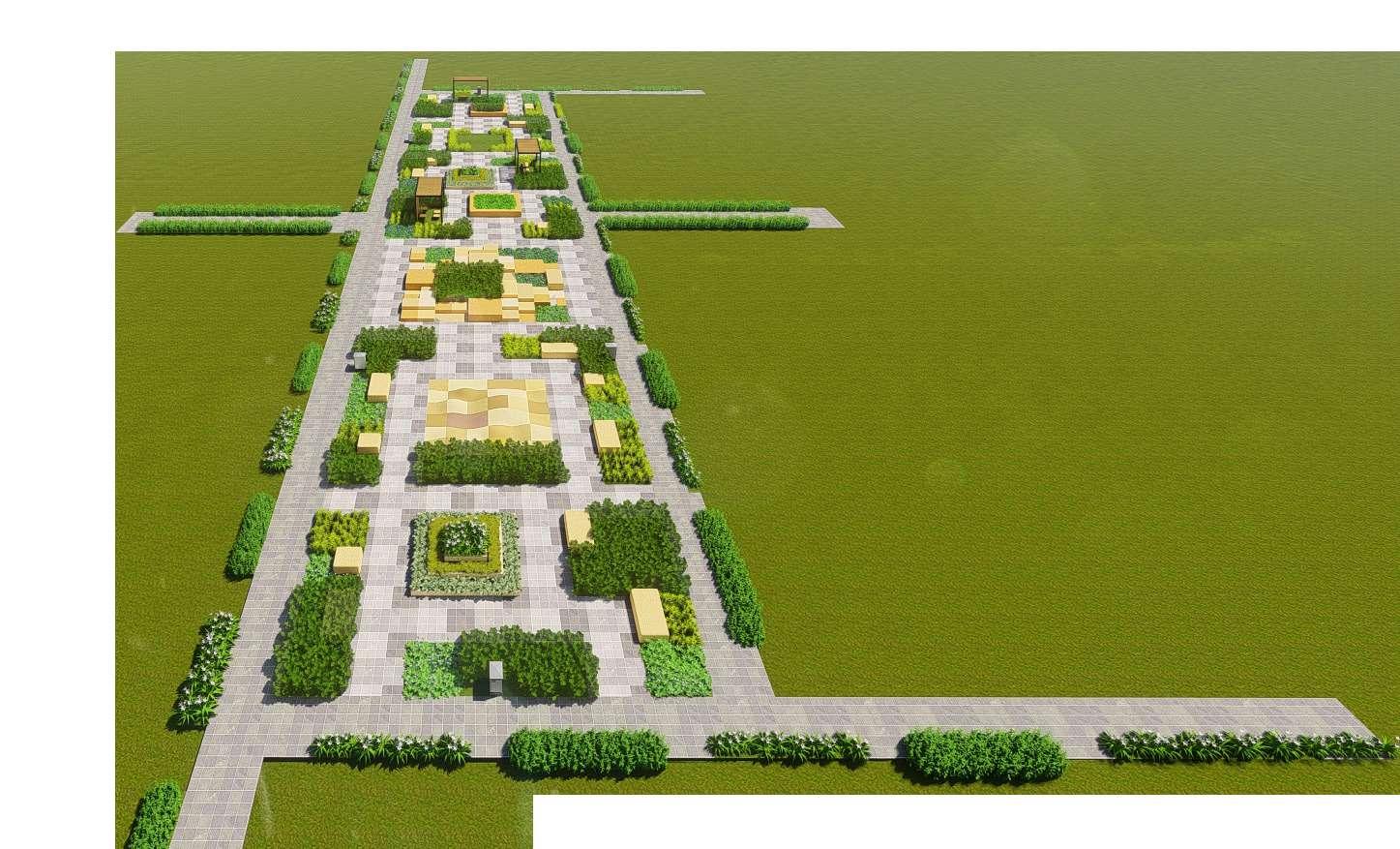

MASTER PLAN ZONE E
From the need to supply goods and utilities for apartment users, the space is divided into the main traffic axis to ensure access and the landscapes on both sides to enhance the green space.
GREEN CORRIDOR FUNCTION

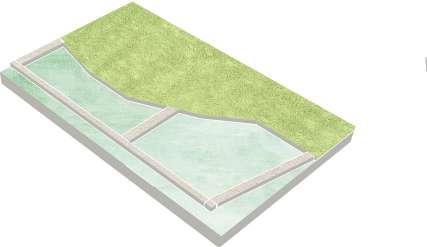

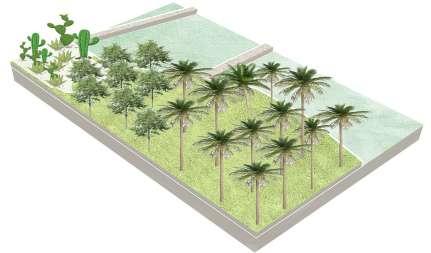

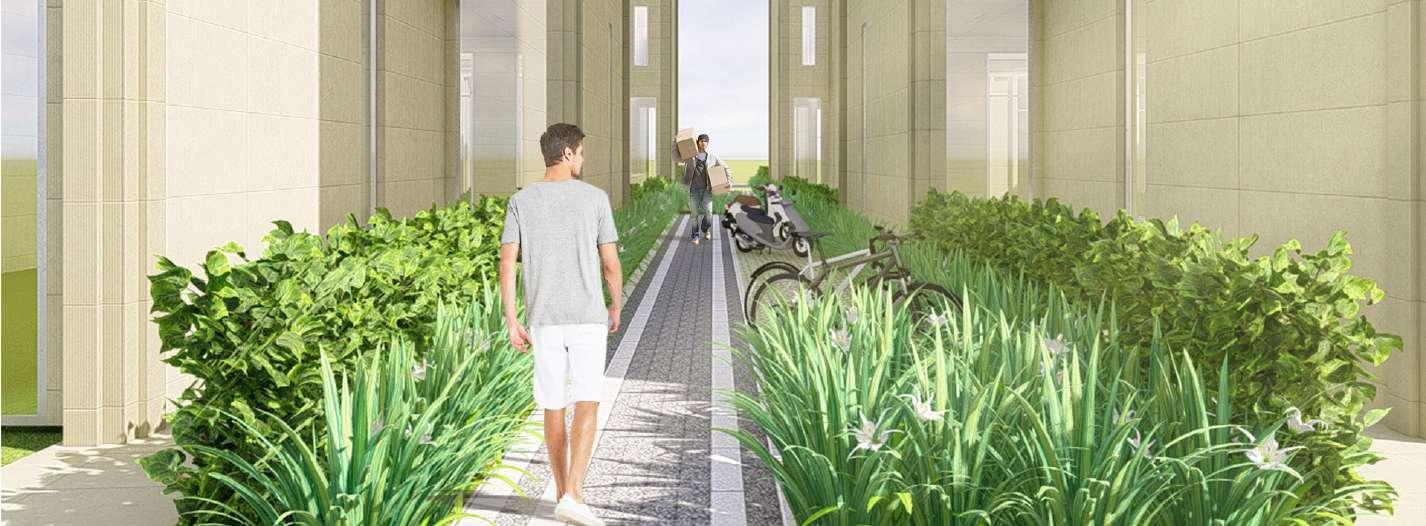

Arrange functional spaces parking lot interspersed with the landscape in the alley to ensure circulation and utility
14 Portfolio - NGUYEN THANH TRUC

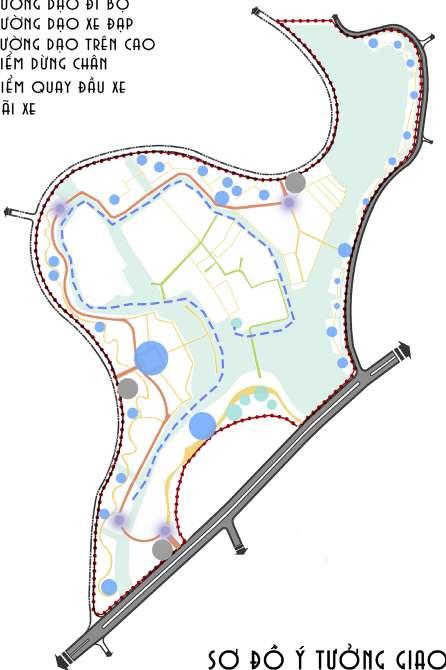

LỐI ĐI BỘ LỐI XE 2 BÁNH LỐI XE CHỞ HÀNG Footpath Bike path Trucker path

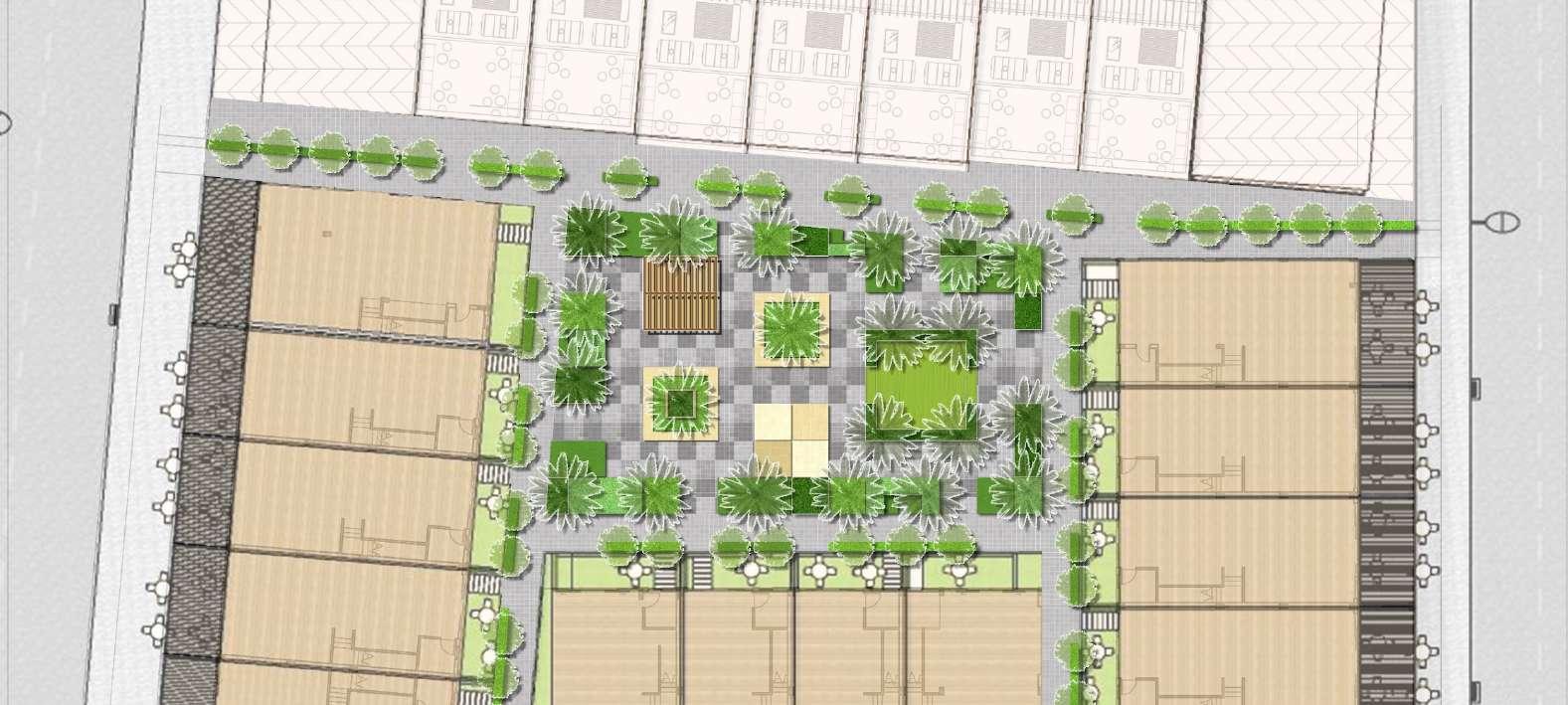

SNIPPETS PLAN
LANDSCAPE DESIGN OF THE PUBLIC PARK

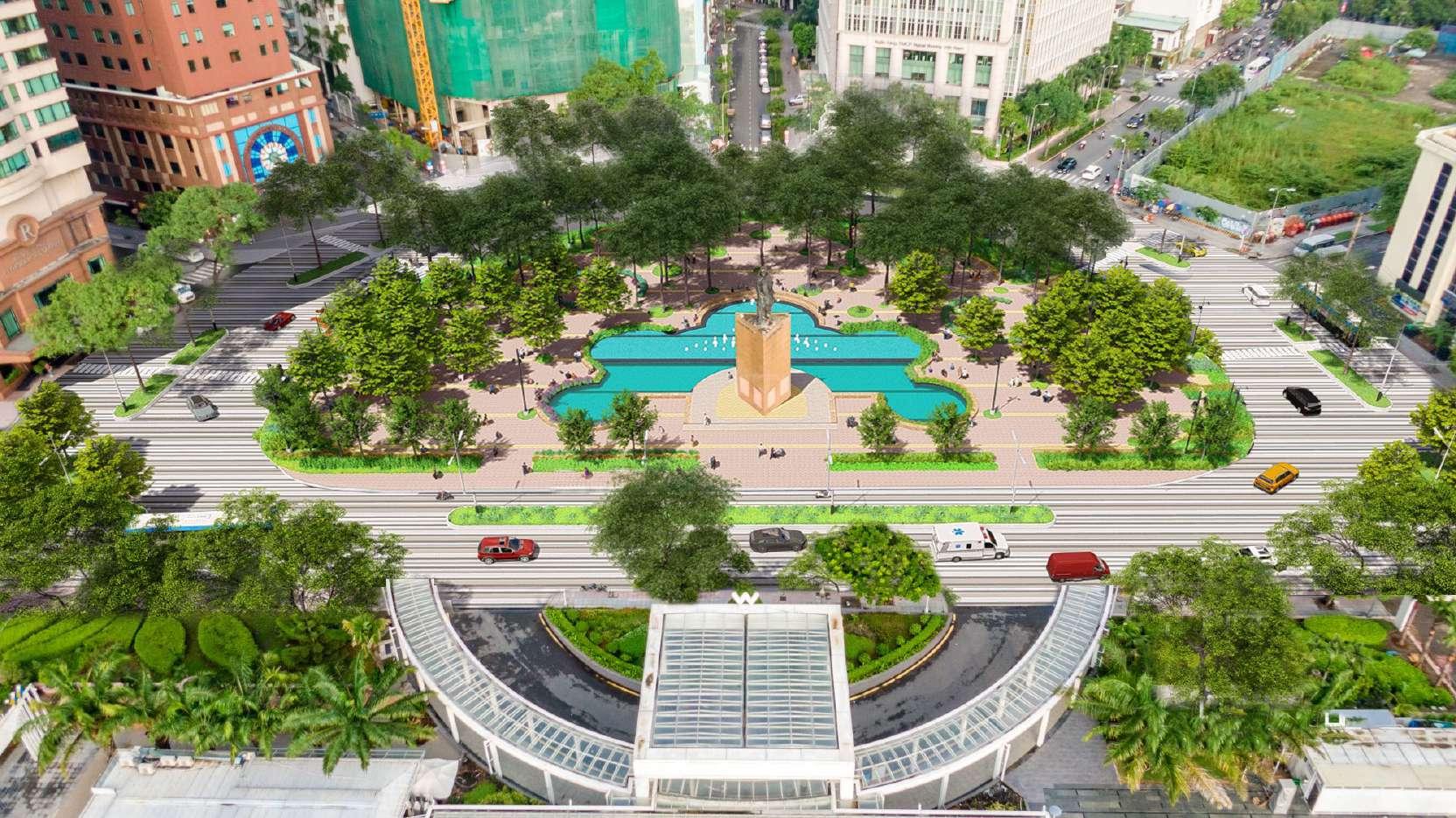

Me Linh Square - District 1, Ho Chi Minh City, VietNam
- Location: Traffic roundabout located in District 1, Ho Chi Minh City, Vietnam.
- Size: 3300 m2
- Project type: Landscape public space of the traffic roudabout
- Client: Ho Chi Minh City’s Government
The embellishment follows the motto of keeping the architecture intact. In which the restoration of the statue of Saint Tran Hung Dao is the most important. The park area around the 3,300m2 monument is proposed to replace the floor tiles with natural granite. The park was planted with more trees and renewed the lighting system.
SCOPE OF WORK
LANDSCAPE CONCEPT DESIGN - 3D MODELLING AND RENDERING
16 Portfolio - NGUYEN THANH TRUC
02.

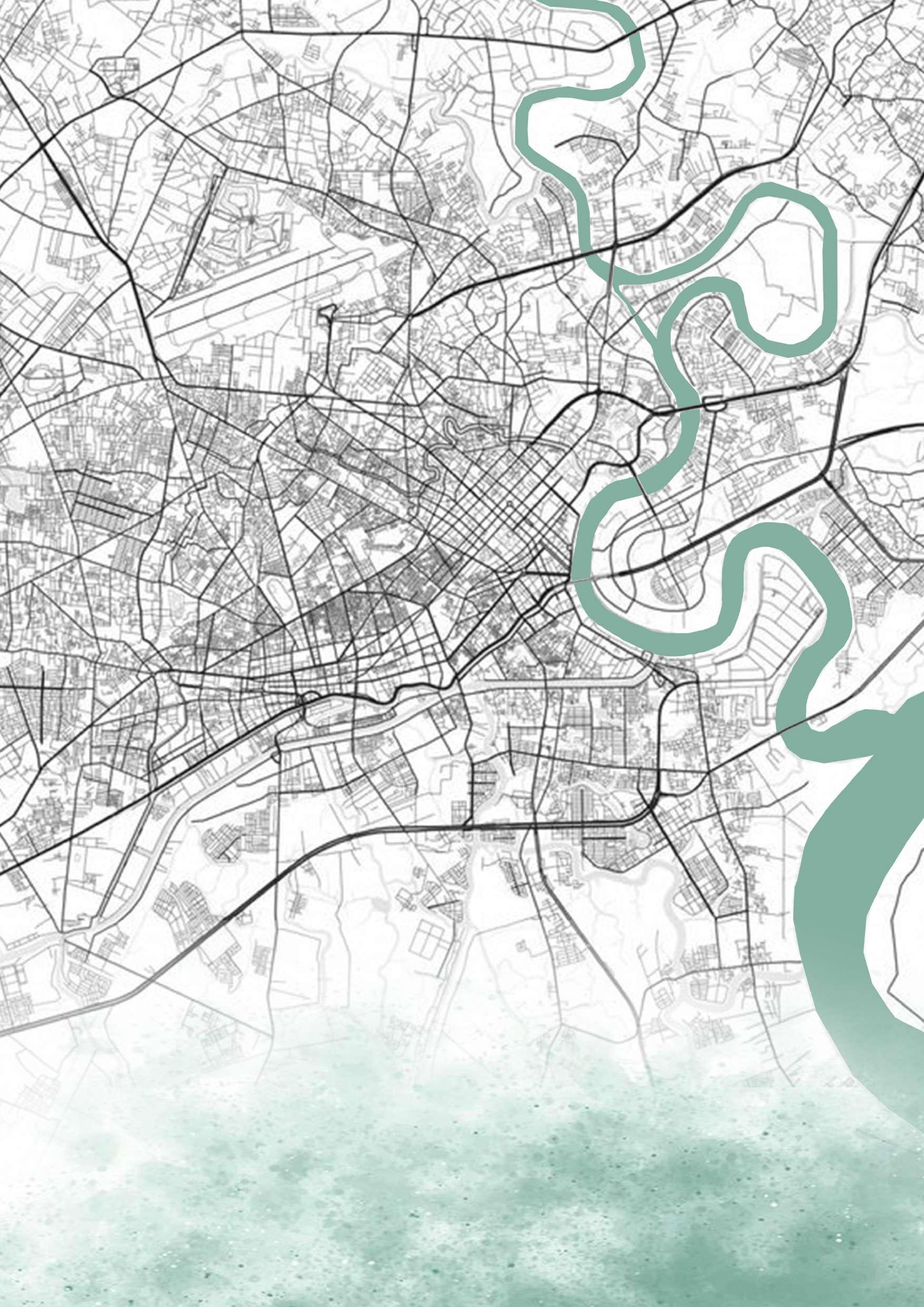

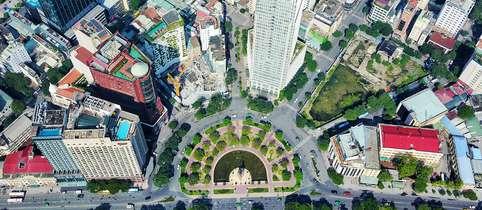

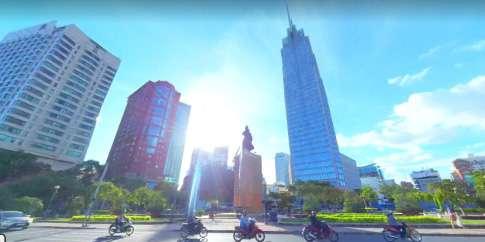

SITE LOCATION

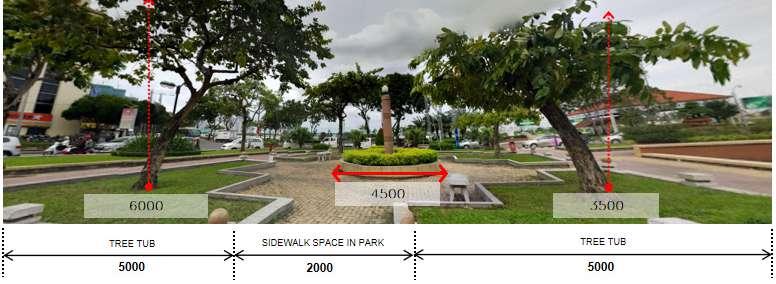

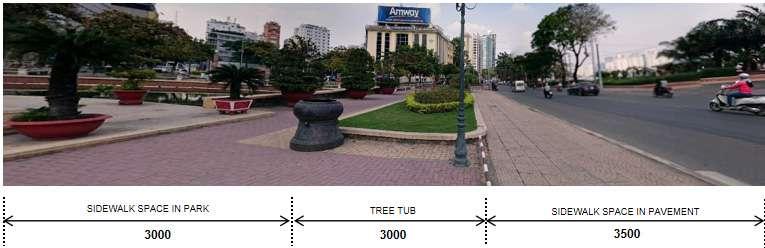

TYPICAL CROSS-SECTION
MOOD FUNCTION

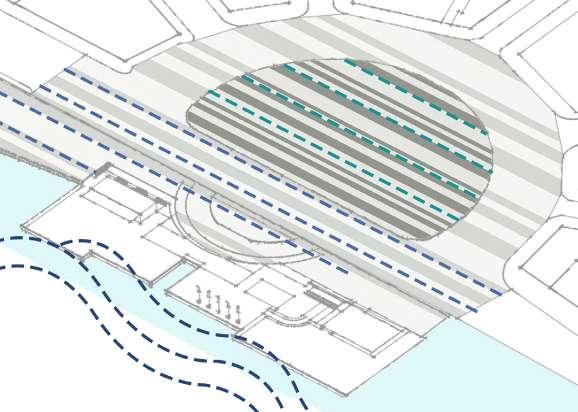

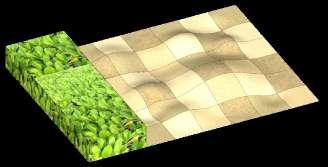

Create paving lines throughout the space
DESIGN IDEA

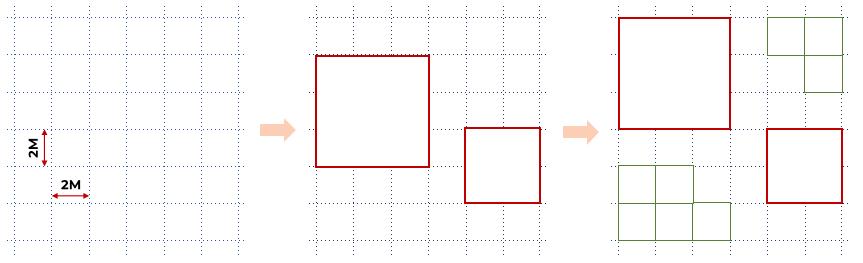

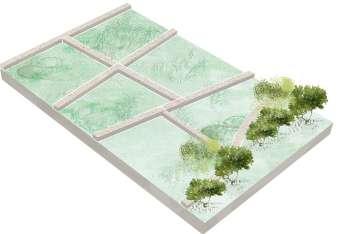

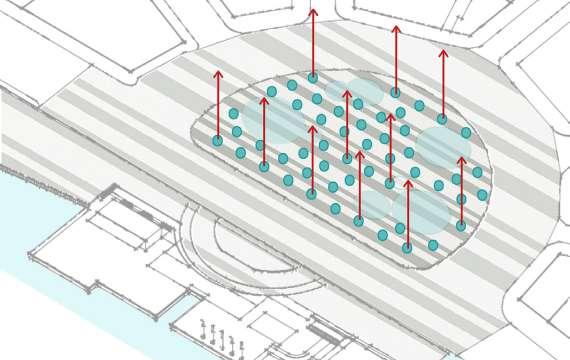

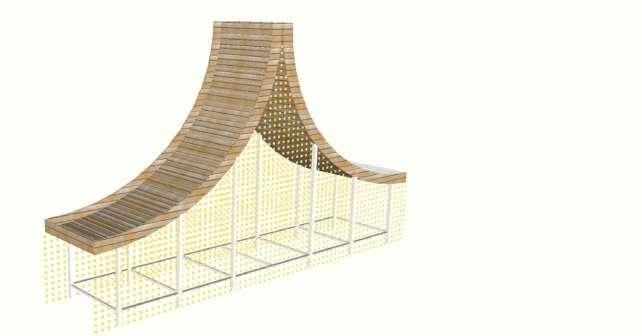

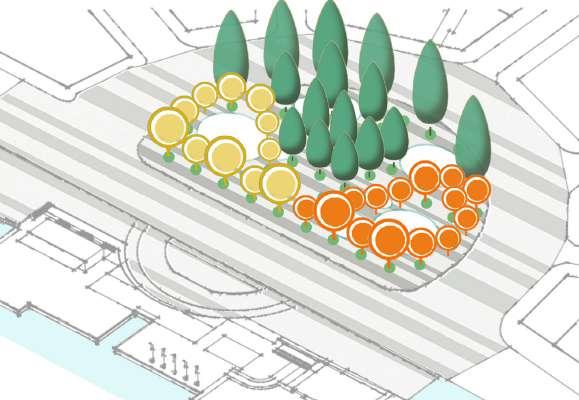

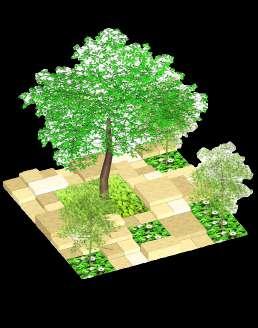

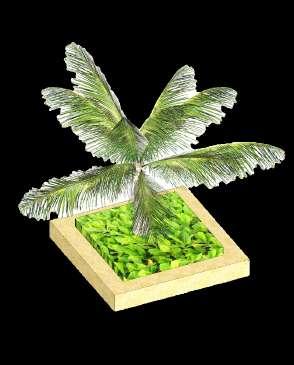

Forms of space for planting trees => Trees + sitting platforms
Create planting spaces from small dots
Create diverse spaces, for many groups of users (1-2 people / 3-5 people)

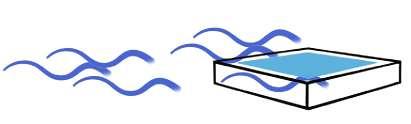

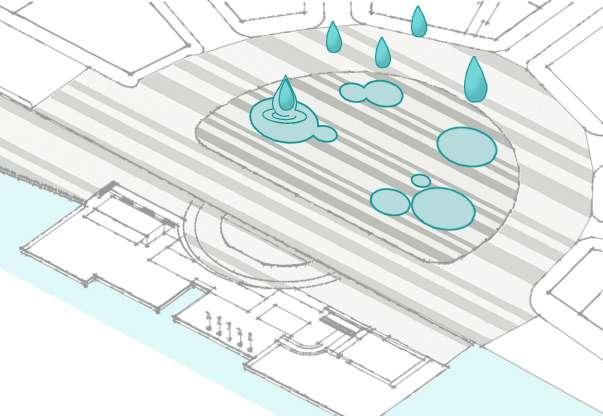

The image of the Bach Dang river flow moves throughout, rhythmically changes shape from the outside to the inside, intersects, develops continuously into an urban flow.
The image of a drop of water falling from a stream breaks into functional spatial bubbles - woven into the rhythms of the flow.
The bursting water bubbles seep into the soil and grow to form young shoots. Growth and development are formed.
Young shoots develop into mature, diverse, distinct patches
This is the intersection of six roads, in the middle there is an artificial lake with a statue of Tran Hung Dao
18 Portfolio - NGUYEN THANH TRUC
PERSPECTIVE 4 7 7 7 9 5 6 4

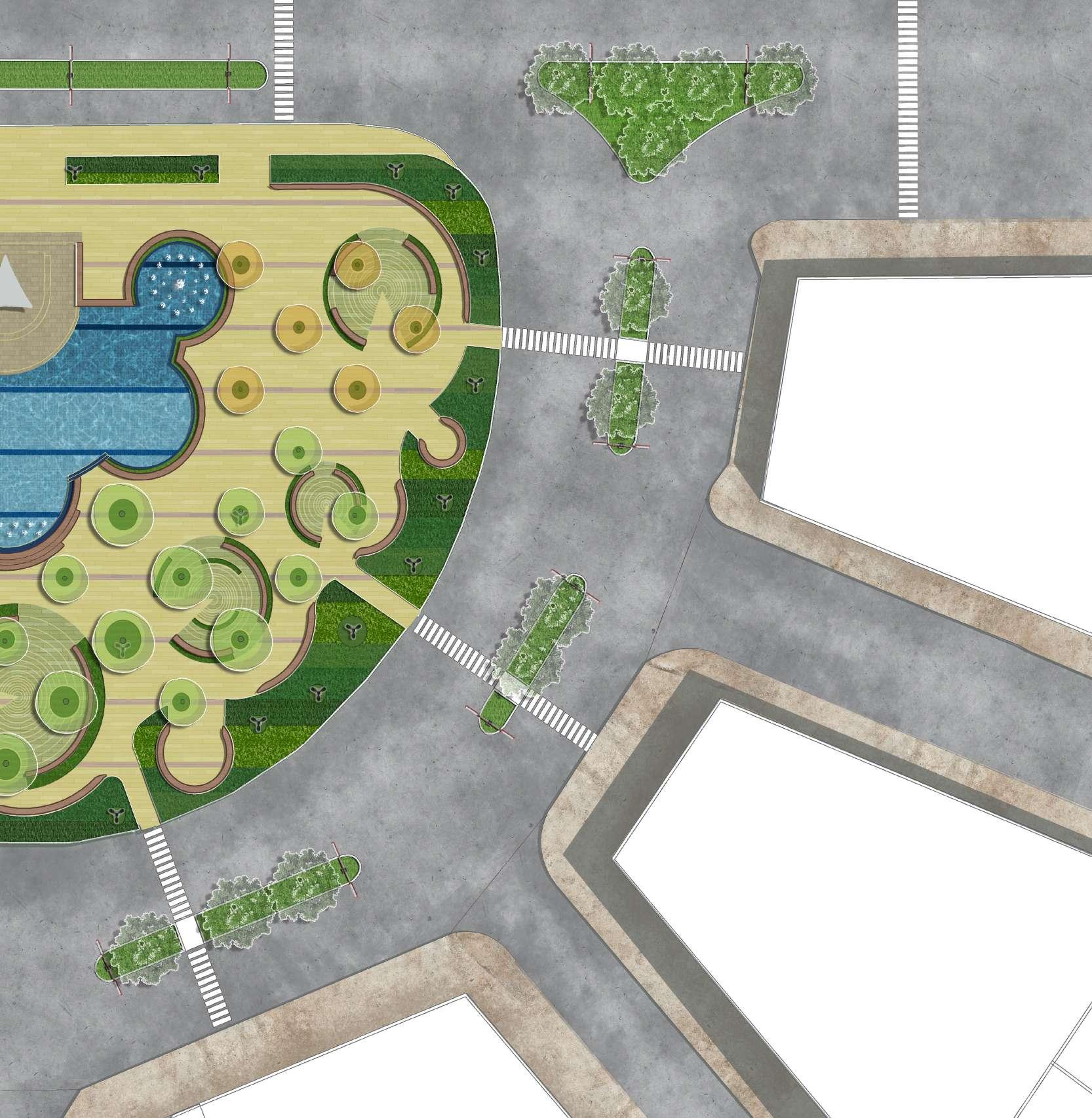

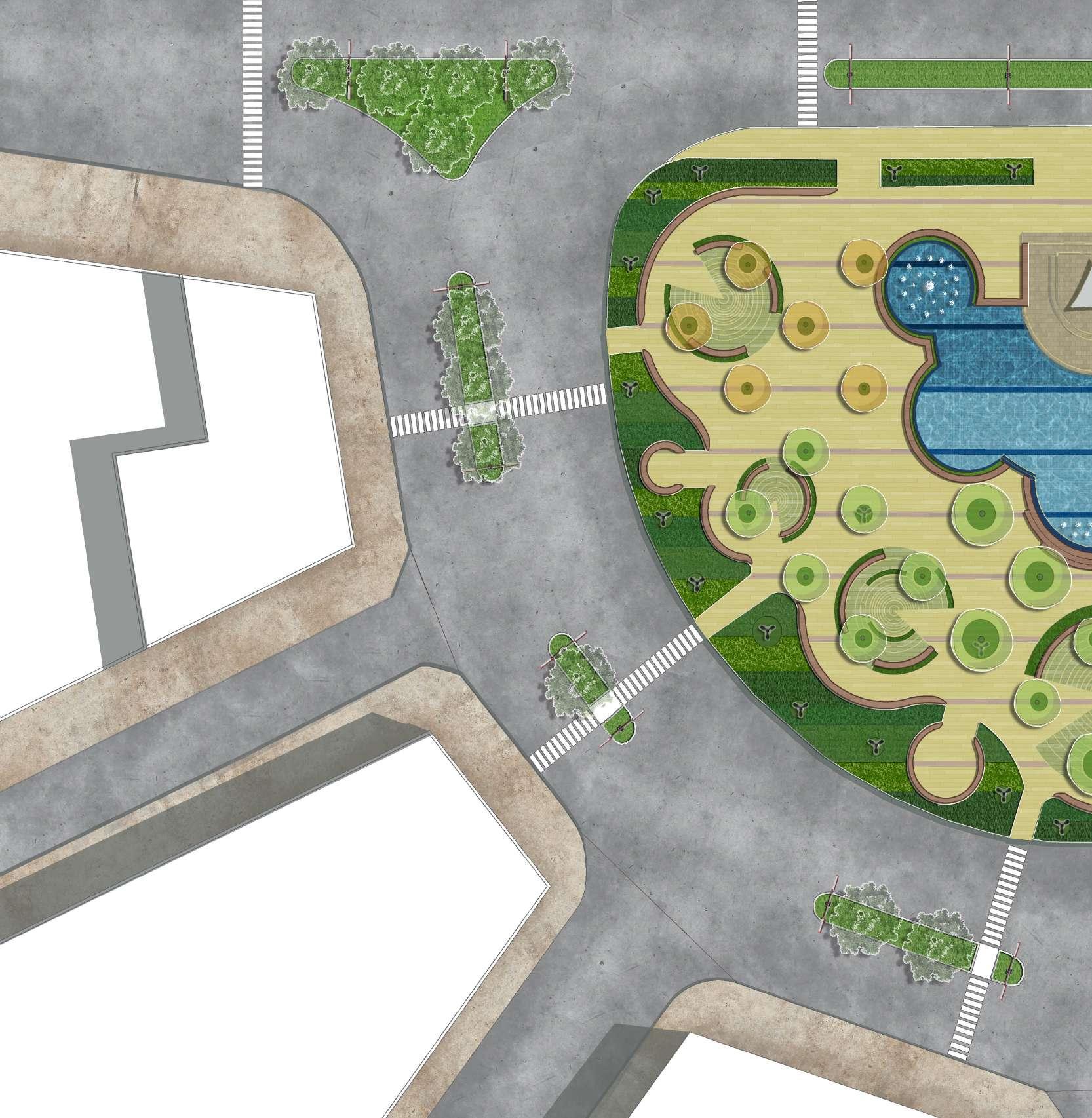

MASTER PLAN
1. Statue artwork
2. Water music lake
3. Shallow water surface
4. Bench
5. Shrubs
6. Large yard space
7. Crosswalk
8. Roadway
9. Shrubs

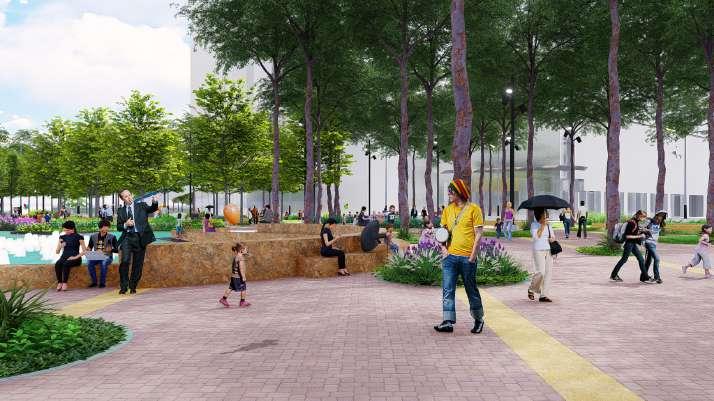

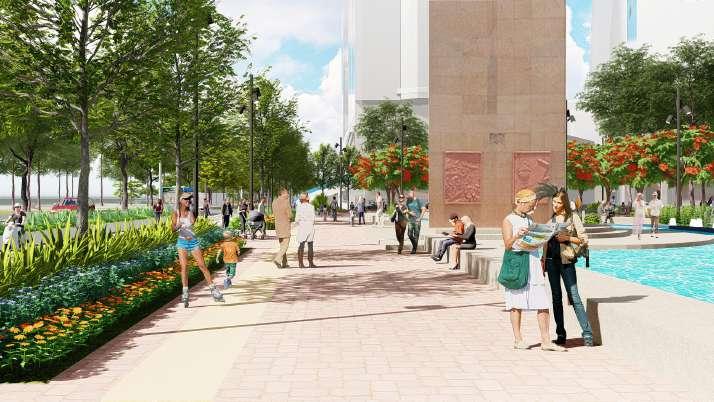

View of the walk
View of the water lake
1 2 3 7 7 8 9 5 6 6 6

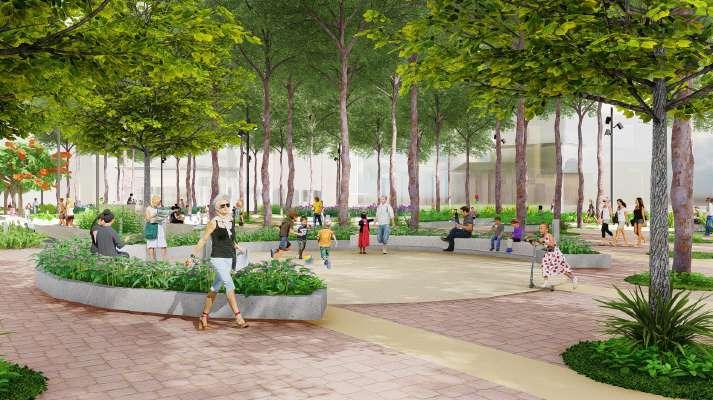

View of the bench

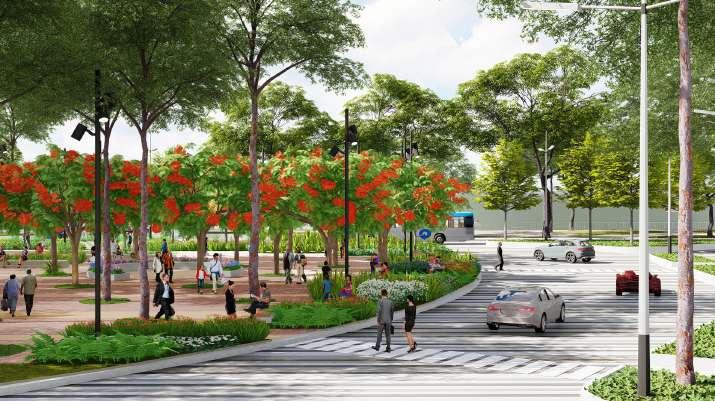

View of the street road
LANDSCAPE DESIGN OF HOSPITAL GARDEN
Military 175 Hospital - District Go Vap, Ho Chi Minh City, VietNam
LỐI RA PHỤ
LỐI RA PHỤ
EXTRA ENTRANCE
SẢNH CẤP CỨU
SẢNH CẤP CỨU
LỐI RA CHÍNH
MAIN ENTRANCE
LỐI RA CHÍNH
1. Canteen
2. Processing store
3. Minibar
3. WC
5. Therapy garden
6. Outdoor terrace yard
- Location: 786 Nguyen Kiem, Ward 3, Go Vap District, Ho Chi Minh City, VietNam
- Size: 3000 m2
- Project type: Landscape garden of the hospital
- Client: MILITARY HOSPITAL 175

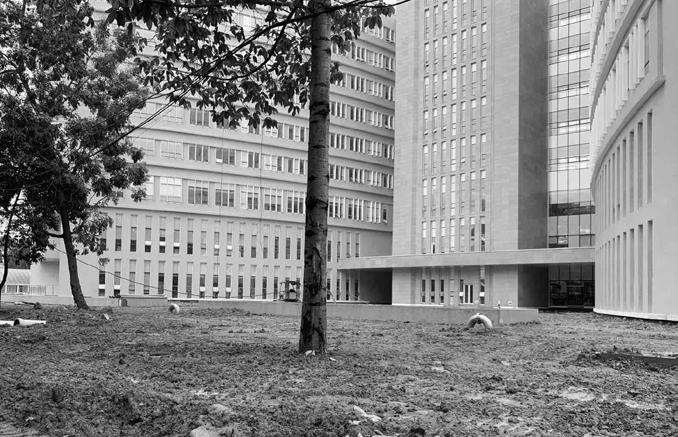

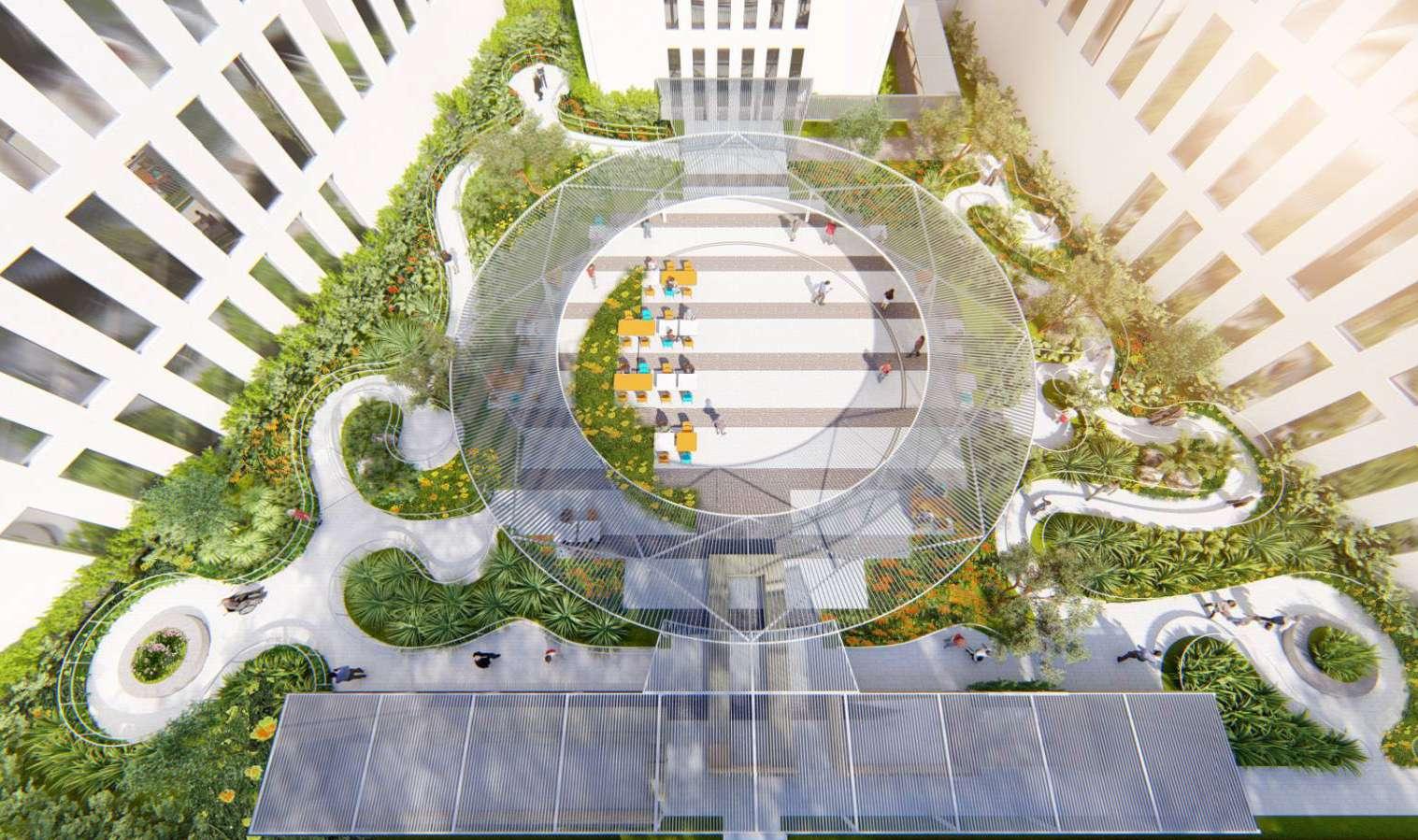

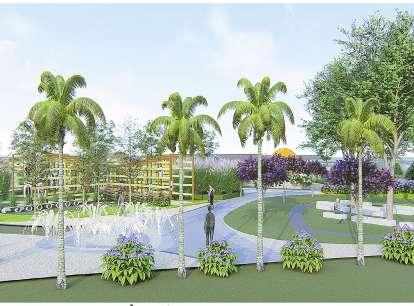

The 175 Hospital garden - Healing Garden offers a natural space within a healthcare facility for patients, family, and hospital staff. Its design aims to bring the benefits of the outdoors into the hospital, adding to the physical, psychological, emotional, and social elements of wellbeing and maximizing patients’ recovery.

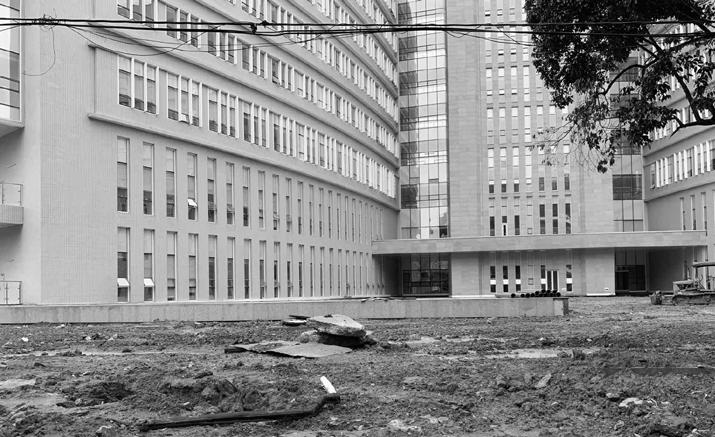

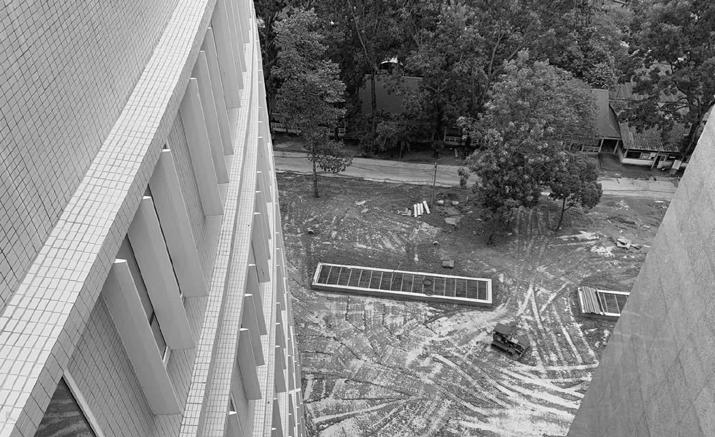

The design area has a carport located directly below, so I applied the rules to design the roof garden to ensure that the depth of the green trees in the area does not affect the underground parking area. Chosing the plants harbor a connection with the local community and the incorporation of local flora into landscape garden.
The garden has an area of ramps with different heights for patients to practice physiotherapy. Surrounded by arrays of medicinal plants suitable for the nature of the garden. This not only provides an educational experience for the patients, but also allows them to develop their motor and sensory skills.
SCOPE OF WORK
20 Portfolio - NGUYEN THANH TRUC 03.
1 2 5 3 4 5 6 6 6 8 7
DOCUMENTS
CONSTRUCTION
SITE PLAN GRADING & LEVEL PLAN SCALE 1:250 1 GRADING & LEVEL PLAN SCALE 1:250 1 GRADING & LEVEL PLAN SCALE 1:250 1
22 Portfolio - NGUYEN THANH TRUC PLANTING TREES/ SHRUBS PLAN SCALE 1:250 2 TREES/ SHRUBS PLAN PLANTING TREES/ SHRUBS PLAN SCALE 1:250 2 PLANTING TREES/ SHRUBS PLAN SCALE 1:250 2 PLANTING TREES/ SHRUBS PLAN SCALE 1:250 2

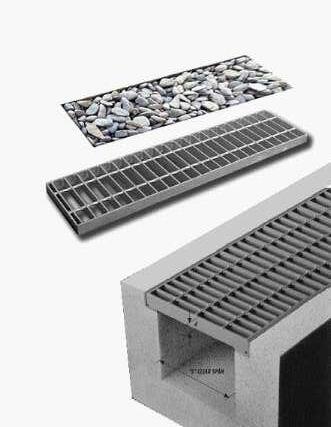

GUTTER DETAIL
PERFORATED TUBE DETAIL
ROOF RAIN WITH PVC Ø90
DRAINAGE PLAN SCALE 1:250 3
GUTTER DETAIL
PERFORATED TUBE DETAIL
ROOF RAIN WITH PVC Ø90
DRAINAGE PLAN SCALE 1:250 3
DRAINAGE PLAN SCALE 1:250 3
1:250 3
DRAINAGE PLAN SCALE
24 Portfolio - NGUYEN THANH TRUC 32525 THERAPY GARDEN FFL +4.800 FFL +3.280 FFL +2.430 FL 9.93 FL 10.23 FFL ±0.000 CONSTRUCTION GRASS GUTTER DETAIL - 30MM - 20MM - MAIN - WATERPROOF - DRAINAGE - CONCRETE - SOIL 90 350 90 530 35115 300 115 600 SURFACE FINISHING GRANITE SURFACE REMOVAL THICK 30MM SPECIFICATION 300X800MM 15MM MORTAR MARK 75 LAYER 50MM MARK 150 CONCRETE BY ENGINEERS 100MM MACADAM 0 – 40mm 50MM K>0.9 COMPACTED HARDCORE LAYER SOIL LAYER I=1% 300 100 110MM PERFORATED PIPE GEOTEXTILE FABRIC MINIMUM 200MM COVERING FABRIC 100M SANDY SOIL SOIL LAYER 300 MIN.200MM MIN.100MM PEBBLE-DASH LAYER 42100 CENTRAL OF THERAPY GARDEN 7040 1500 2190 5000 17000 WALKWAY LAWN - SHRUBS - TREES AREA THERAPY GARDEN WALKWAY LAWN - SHRUBS - TREES AREA THERAPY GARDEN FL 9.93 FL 10.41 SECTION 5-2 SCALE 1:100 8 SECTION 5-2 SCALE 1:100 7 GUTTER DETAIL 1:25 5 TYPICAL DETAIL WALKWAY SECTION WITH PERFORATED TUBE 1:10 4 04
56420 BUS STATION WALKWAY RAMP CANTEEN 6495 8000 2500 6900 FL 9.71 FL 9.8 FL 9.78 FL 9.71 FL 9.65 FL 9.65 GRASS 30MM PEBBLE FINISHED 20MM INOX GRATING DRAINAGE DITCH WATERPROOF MORTAR DRAINAGE DITCH CONCRETE LINING LAYER 90 400 100 50 550 50 115 35 50 DRAINAGE CAO ĐỘ HOÀN THIỆN 115 35 500 50 135 500 500 500 i% DIRECTION OF DRAINAGE 50 50 - 30MM PEBBLE FINISHED - 20MM INOX GRATING - MAIN DRAINAGE DITCH - WATERPROOF MORTAR - DRAINAGE DITCH - CONCRETE LINING - SOIL LAYER SURFACE FINISHING GRANITE SURFACE REMOVALTHICK 30MM SPECIFICATION 300X800MM 15MM MORTAR MARK 75 LAYER50MM MARK 150 CONCRETE BY ENGINEERS100MM MACADAM 0 – 40mm50MM K>0.9 COMPACTED HARDCORE LAYERSOIL LAYER5900 1500 1980 WALKWAY LAWN - SHRUBS - TREES AREA THERAPY GARDEN SHRUBS - TREES AREA THERAPY GARDEN FL +9.99 08 07 IMAGE FROM THE MANUFACTURER GUTTER DETAIL 1:25 6
LANDSCAPE DESIGN OF FLORAL STREET
Nguyen Hue Floral Street - District 1, Ho Chi Minh City, VietNam
- Location: Nguyen Hue, Ward Ben Nghe, District 1, Ho Chi Minh City
- Size: Length 600m , wide 15m
- Project type: Landscape design of the floral street
- Client: SAIGON TOURIST

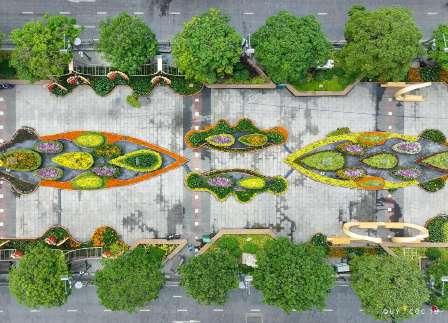

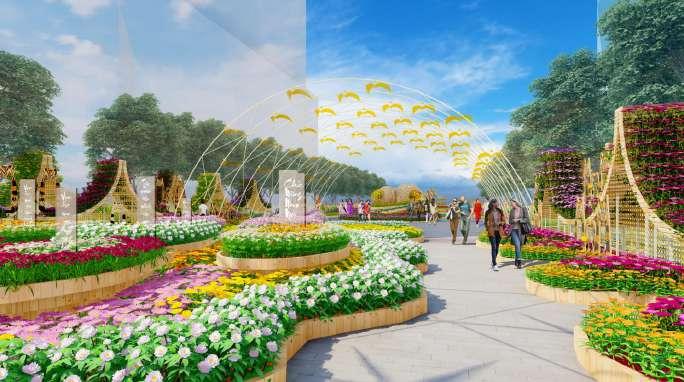

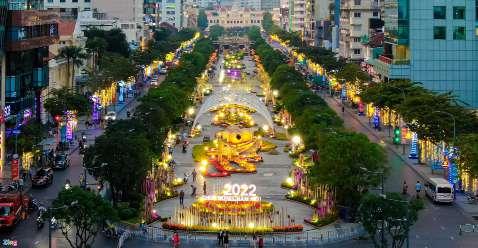

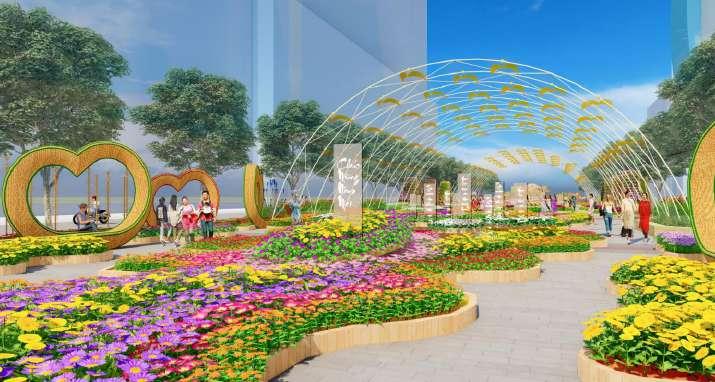

Stretching over 600m, Nguyen Hue Flower Street 2022 is divided into 3 segments: “Going to the deep forest - Fresh green nature”
“Spring of love - Proud of Vietnam”
“To the big sea - New water meets”
Nguyen Hue Flower Street for Tet 2022 uses many environmentally friendly and reusable materials such as metal, foam, rattan, bamboo, bricks, nets, knitting ropes, etc., and about 80 kinds of flowers, nearly 97,000 pots , flower baskets of all kinds.
SCOPE OF WORK
LANDSCAPE CONCEPT DESIGN - 3D MODELLING AND RENDERING - CONSTRUCTION DOCUMENTS - CONSTRUCTION
https://www.sggp.org.vn/duong-hoa-nguyen-hue-2022-doc-dao-moi-la-791642.html
https://thanhnien.vn/duong-hoa-nguyen-hue-2022-doc-dao-y-nghia-cong-chao-cac-hinh-thai-linh-vat-post1425762.html
26 Portfolio - NGUYEN THANH TRUC
04.
6160 MẶT ĐỨNG KHUNG CỬA TRÁI TIM D3-1B-1 1:50 02 MẶT ĐỨNG KHUNG CỬA TRÁI TIM D3-1B-1 1:50 01 ±0.000 +0.600 +2.200 +3.400 28° 27° 560 3370 390 1000 1400 6150 560 950 560 2140 DÁN DÂY THỪNG VIỀN QUANH MÀU XANH LÁ CÂY THEO TK 01 XXXX BỀ MẶT ỐP PHÈN TRE 1040 1800 1500 1820 3720 1300 1370 2330 2240 1400 1130 960 850 530 600 260 920 1040 1790 1290 600 100 460 MẶT BÊN KHUNG CỬA TRÁI TIM D3-1B-1 1:50 04 560 560 1020 THÉP UỐN TẠO HÌNH ỐP MÀNH TRE DÁN DÂY THỪNG VIỀN QUANH MÀU XANH LÁ CÂY THEO TK 2140 ±0.000 +0.600 +2.200 +3.400 MẶT
1:50 03 MẶT CẮT 2 KHUNG CỬA TRÁI TIM D3-1B-1 1:50 05 ±0.000 +0.600 +2.200 +3.400 ±0.000 +0.600 +2.200 +3.400 02 XXXX DÁN DÂY THỪNG MÀU XANH LÁ CÂY 1090 3750 3130 2240 930 910 1120 560 560 1020 2140 THÉP ỐNG PHI 42 UỐN TẠO HÌNH DÁN DÂY THỪNG VIỀN QUANH MÀU XANH LÁ CÂY THEO TK 700 2000 500 70 70 70 70 500 2000 1780 550 THÉP PHI 8 KHUNG THÉP HỘP 40 x 40mm THÉP ỐNG PHI 42 UỐN TẠO HÌNH KHUNG THÉP HỘP 670 KHUNG THÉP HỘP 40 x 40mm CHÂN ĐẾ KHUNG THÉP HỘP 40 x 40mm 40 670 670 670 670 GHẾ ỐP TẤM GIẢ GỖ 25mm THÉP TRÁNG KẼM 1.4mm, 30x30mm GHẾ ỐP TẤM GIẢ GỖ 25mm THÉP TRÁNG KẼM 1.4mm, 30x30mm GHẾ ỐP TẤM GIẢ GỖ 25mm THÉP TRÁNG KẼM 1.4mm, 30x30mm GHẾ ỐP TẤM GIẢ GỖ 25mm THÉP TRÁNG KẼM 1.4mm, 30x30mm GHẾ ỐP TẤM GIẢ GỖ 25mm THÉP TRÁNG KẼM 1.4mm, 30x30mm THÉP ỐNG PHI 42 UỐN TẠO HÌNH THÉP PHI 8 CHÂN ĐẾ KHUNG THÉP HỘP 40 x 40mm THÉP PHI 8
CẮT 1 KHUNG CỬA TRÁI TIM D3-1B-1

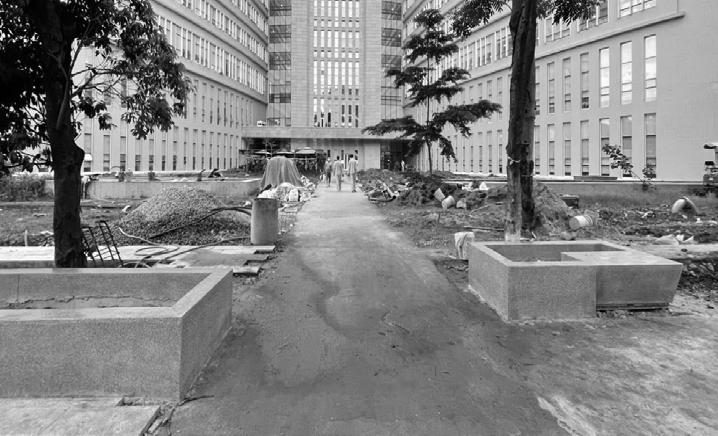

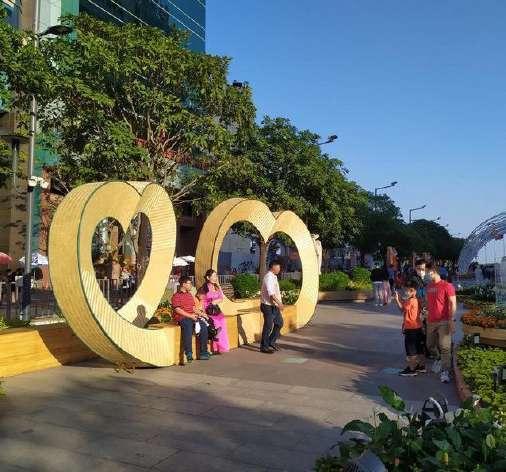

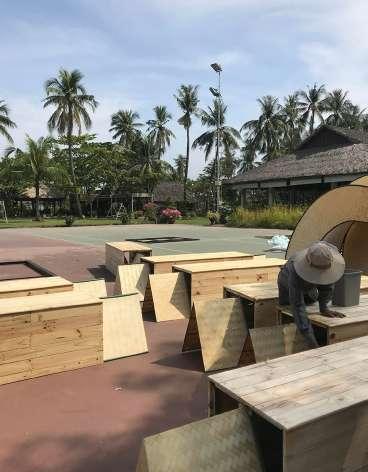

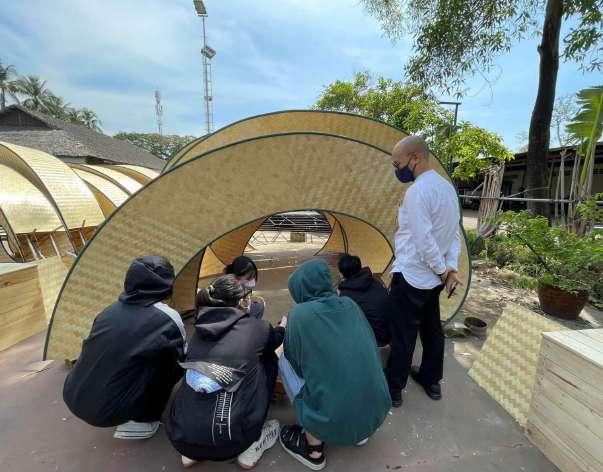

Image of checking the construction with design team

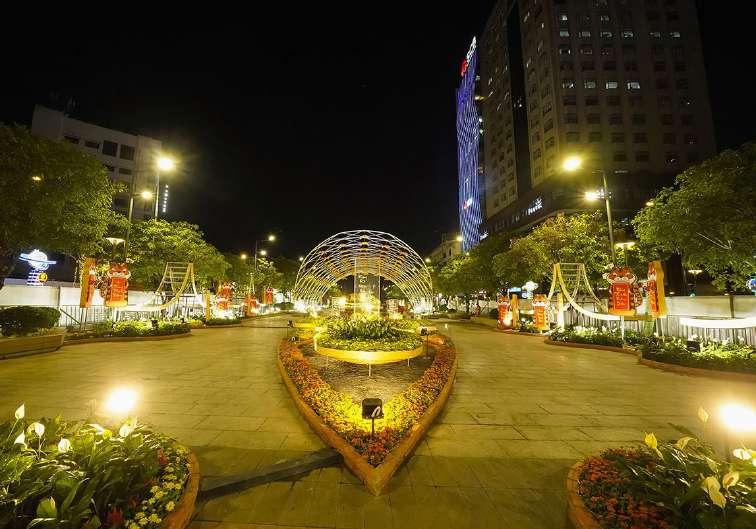

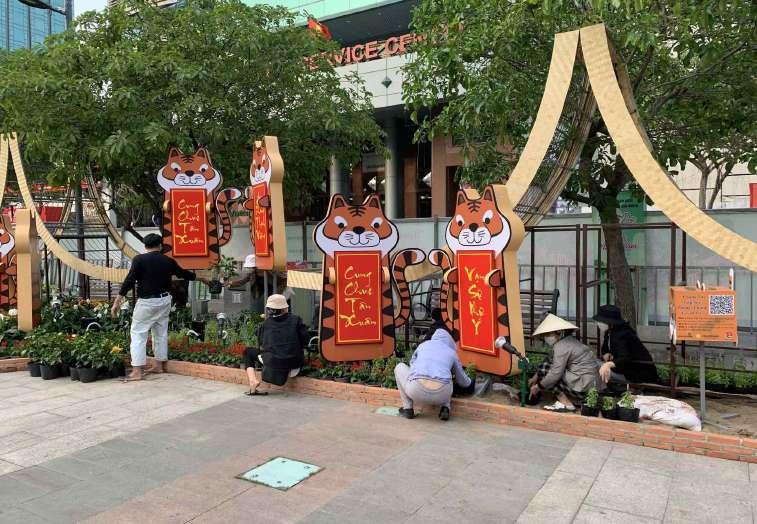

Image on Lunar New Year’s holiday

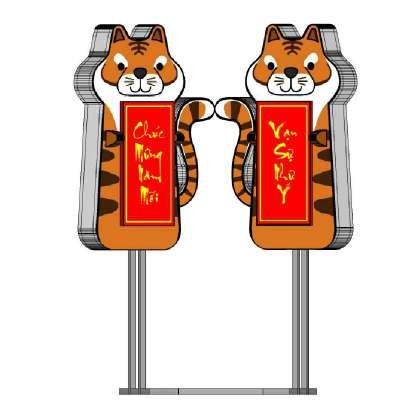

28 Portfolio - NGUYEN THANH TRUC D3-3B-1 D3-3B-1 D3-3B-2 D3-3B-2 D3-3B-2 D3-3B-1 D3-3B-1 D3-3B-2 V_HDuong Đ_XPhao C_SDoi ĐƯỜNG GẠCH XÂY ĐƯỜNG GẠCH XÂY 3680 6400 6400 1640 1640 780 6400 1340 6400 1340 H_HCho 5700 3880 3920 3510 4630 D3-3A D3-3A D3-3A D3-3A D3-3B-1 BẢNG THỐNG KÊ VẬT CẢNH STT KÝ HIỆU CHI TIẾT SỐ LƯỢNG 1 2 3 D3-3A D3-3B1 D3-3B2 THUYỀN RA KHƠI MẶT NẠ HỔ 1 MẶT NẠ HỔ 2 4 5 4 ±0.300 ±0.000 +3.070 +3.780 ±1.200 ±2.170 ±0.000 +3.070 +3.780 ±1.200 ±0.300 ±2.170 HÀM CHÓ HỖN HỢP TÍM, HỒNG SỐNG ĐỜI CAM CAM 180 KÝ HIỆU CHỦNG LOẠI MÀU SẮC BẢNG THỐNG KÊ HOA VẬT CẢNH THUYỀN RA KHƠI D3 - 3A SỐ LƯỢNG (chậu/toàn khu) HƯỚNG DƯƠNG LÙN VÀNG C_SDoi H_HCho V_HDuong 180 180 XÁC PHÁO ĐỎ ĐỎ 180 Đ_XPhao MẶT BẰNG ĐỊNH VỊ VẬT CẢNH THUYỀN RA KHƠI D3-3A - MẶT NẠ HỔ D3-3B 1 : 200 02 MẶT ĐỨNG 1 ĐỊNH VỊ VẬT CẢNH THUYỀN RA KHƠI D3-3A - MẶT NẠ HỔ D3-3B 1 : 100 03 MẶT ĐỨNG 2 ĐỊNH VỊ VẬT CẢNH THUYỀN RA KHƠI D3-3A - MẶT NẠ HỔ D3-3B 1 : 100 04
Image of checking the construction with design team
Image on Lunar New Year’s holiday at night
Image of flowers on the Lunar New Year
MẶT ĐỨNG THUYỀN RA KHƠI D3-3A 1:50 03 MẶT BẰNG THUYỀN RA KHƠI D3-3A 1:50 05 MẶT BÊN THUYỀN RA KHƠI D3-3A 1:50 04 1000 200 SẮT HỘP VUÔNG 50x50mm 50 1000 50 950 50 1650 50 950 50 900 50 350 350 200 200 HỆ KHUNG SẮT ĐỠ GIỎ HOA 50x50mm ỐP MÀNH TRE TẠO HÌNH 6400 3000 200 3000 1140 50 200 +1.050 ±0.000 +1.320 +1.920 +3.780 +0.170 +1.050 ±0.000 +1.320 +1.920 +3.780 +0.170 50 ỐP TẤM VẬT LIỆU XUYÊN SÁNG MICA MÀU VÀNG NHẠT SẮT HỘP VUÔNG 50x50mm ỐP TẤM MICA MÀU VÀNG NHẠT VÀO KHUNG SẮT HỆ KHUNG SẮT ĐỠ GIỎ HOA 50x50mm ỐP MÀNH TRE TẠO HÌNH SẮT HỘP VUÔNG 50x50mm ỐP TẤM MICA MÀU VÀNG NHẠT VÀO KHUNG SẮT HỆ KHUNG SẮT ĐỠ GIỎ HOA 40x40mm ỐP MÀNH TRE TẠO HÌNH PHỐI CẢNH THUYỀN RA KHƠI D3-3A 06 1240 50 MẶT CẮT 2 THUYỀN RA KHƠI D3-3A 1:50 01 1030 CHÂN ĐỠ SẮT HỘP VUÔNG 50x50mm 170 50 1000 950 50 950 1650 50 50 900 50 350 350 200 200 HỆ KHUNG SẮT ĐỠ GIỎ HOA 50x50mm ỐP MÀNH TRE TẠO HÌNH +1.320 +1.050 ±0.000 +1.920 +3.780 +0.170 50 1000 50 950 50 1650 50 950 50 50 350 350 6400 6400 1240 2580 3780 2580 3780 MẶT CẮT 1 THUYỀN RA KHƠI D3-3A 1:50 02 +1.050 ±0.000 +1.320 +1.920 +3.780 +0.170 SẮT HỘP VUÔNG 50x50mm ỐP TẤM MICA MÀU VÀNG NHẠT VÀO KHUNG SẮT HỆ KHUNG SẮT ĐỠ GIỎ HOA 50x50mm ỐP MÀNH TRE TẠO HÌNH 1240 2580 3780 1000 200 1000 200 1000 200 2580 3780 02 XXXX 01 XXXX DIỆN TÍCH HOA: 6.75 m2 900 GHI CHÚ: DIỆN TÍCH HOA/ VẬT CẢNH SỐ LƯỢNG VẬT CẢNH D3 TỔNG SỐ HOA VẬT CẢNH CHỦNG LOẠI HOA: 180 GIỎ 180 GIỎ 180 GIỎ 180 GIỎ 5° 5° 5° 5° 5° 5°5°5°5°5° 5° 5° 5° 5° 5° 5° 5° 5° 5° 5° 5° 5°5°5°5°5°5° 5° 5° 5° 5° 5° 5° 5° 5° 5° CHỦNG LOẠI HOA: SỐNG ĐỜI CAM HÀM CHÓ HỖN HỢP HƯỚNG DƯƠNG LÙN XÁC PHÁO ĐỎ CHỦNG LOẠI HOA: SỐNG ĐỜI CAM HÀM CHÓ HỖN HỢP HƯỚNG DƯƠNG LÙN XÁC PHÁO ĐỎ CHỦNG LOẠI HOA: SỐNG ĐỜI CAM HÀM CHÓ HỖN HỢP HƯỚNG DƯƠNG LÙN XÁC PHÁO ĐỎ CHỦNG LOẠI HOA: SỐNG ĐỜI CAM HÀM CHÓ HỖN HỢP HƯỚNG DƯƠNG LÙN XÁC PHÁO ĐỎ KÝ HIỆU BẢNG THỐNG KÊ C_SDoi H_HCho V_HDuong Đ_XPhao MẶT ĐỨNG MẶT NẠ HỔ D3-3B-2 1:50 04 1200 MẶT BÊN MẶT NẠ HỔ D3-3B-2 1:50 05 1820 3020 1630 770 PHỐI CẢNH MẶT NẠ HỔ D3-3B 06 1210 660 3070 1200 ỐP FORM 5mm HAI MẶT SƠN PHỦ THEO TK FORM - DÁN VẢI NHUNG VIẾT CHỮ NHỦ VÀNG HỆ KHUNG THÉP SẮT HỘP VUÔNG 50x50mm ỐP MÀNH TRE ỐP FORM 5mm HAI MẶT SƠN PHỦ THEO TK HỆ KHUNG THÉP SẮT HỘP VUÔNG 50x50mm
LANDSCAPE DESIGN OF WETLAND PARK
- Location: Nhon Trach Wards, Dong Nai Province, Viet Nam
- Size: 20ha
- Project type: Landscape design of wetland park
- 4th year student project

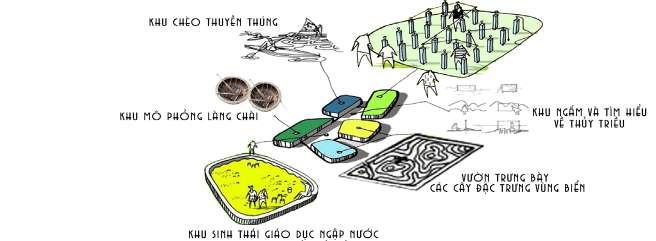

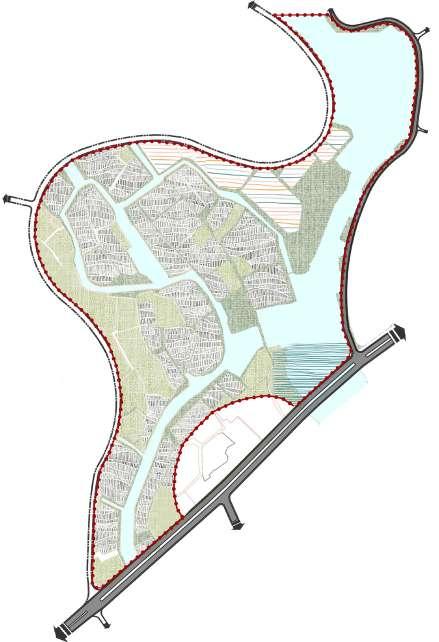

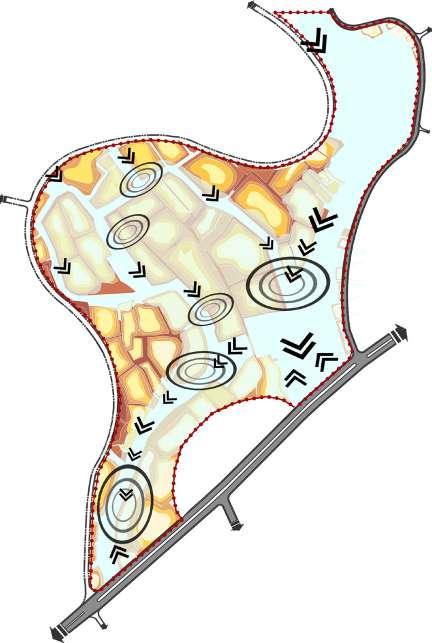

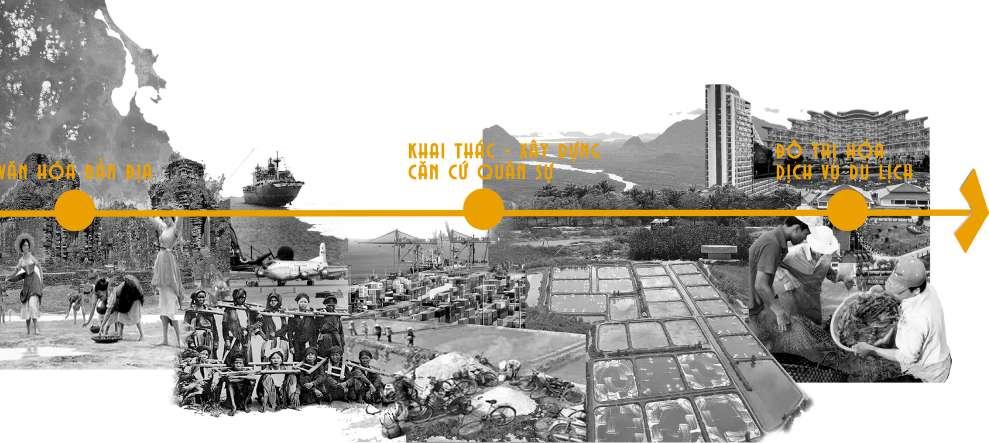

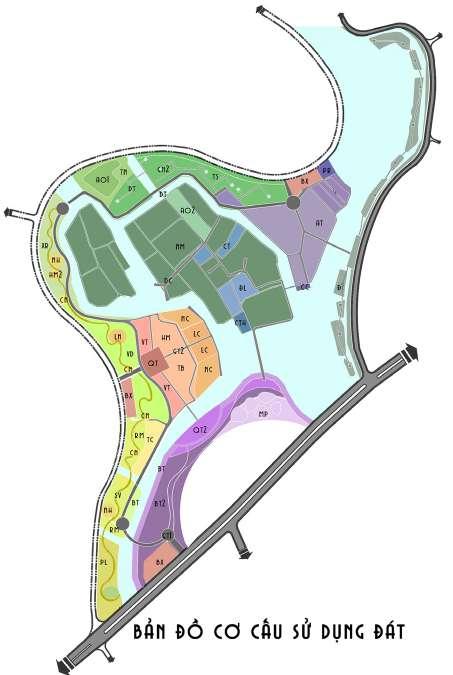

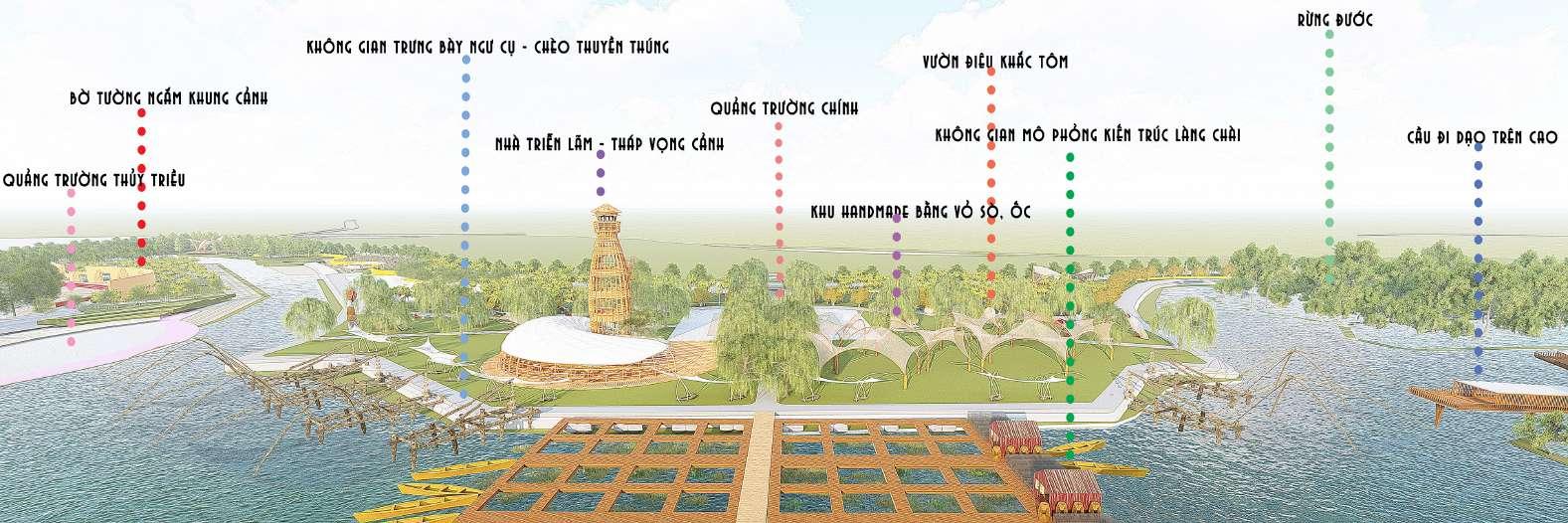

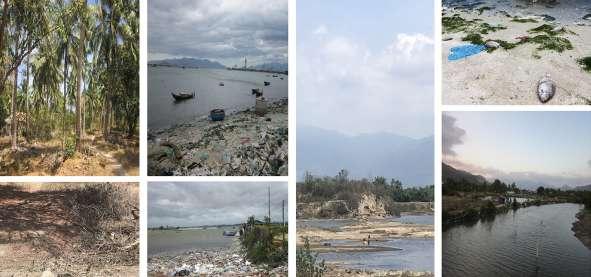

The area is a buffer position for the landscape is a green lung from Can Gio district to Ho Chi Minh City With the aim of retaining the original natural ecosystem of the area, integrated with commercial tourism activities.

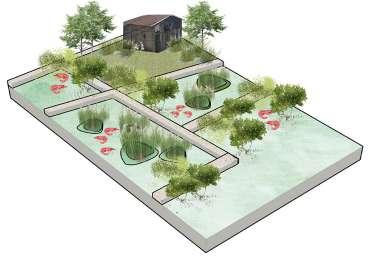

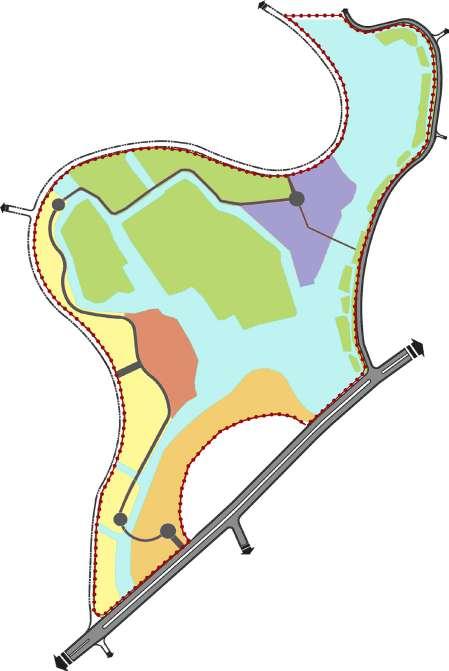

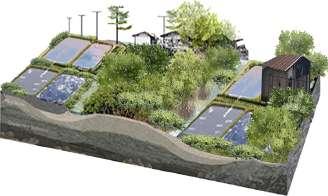

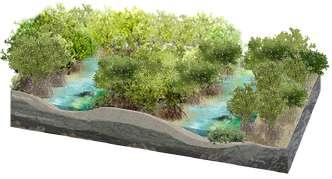

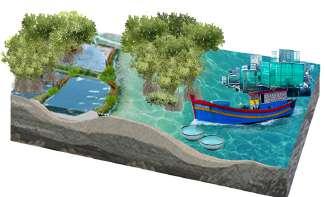

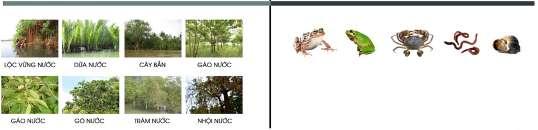

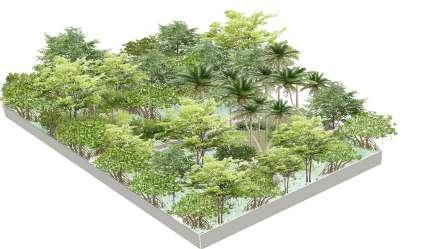

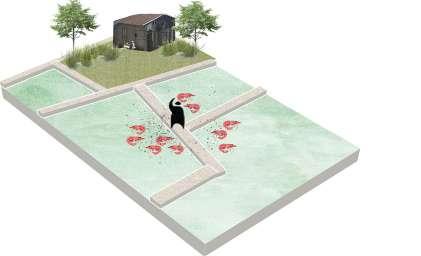

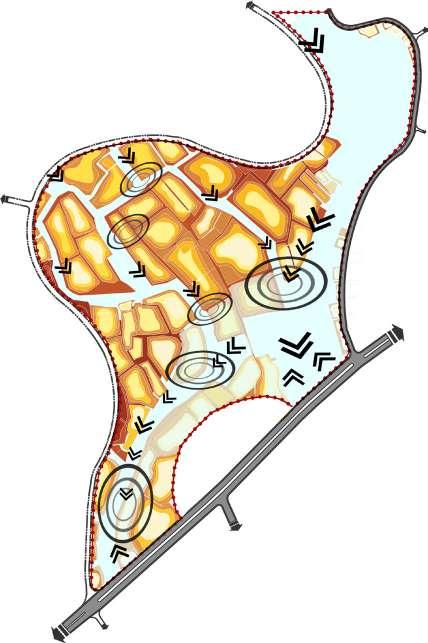

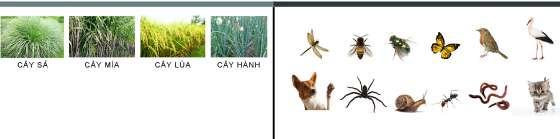

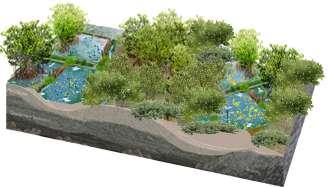

Ecosystem: mainly mangrove ecosystem, with main types of inundation such as nipa, melaleuca, mangrove, tea tree...
Aquatic plants Underwater animals

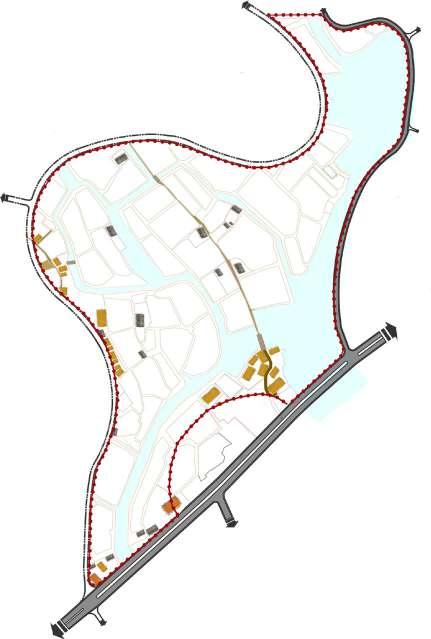

Nhon Trach Wards, Dong Nai Province, Viet Nam NOTE
Woody, Semi-submerged tree Amphibians Agricultural crops, trees Terrestrial animals
30 Portfolio - NGUYEN THANH TRUC 05.
1. Pavilions
2. Wet rice growing area
3. Boating
4. Campground
5. Plant specimen gallery
6. The promenade on the water
7. Coffee and dining area
8. Community vegetable garden
9. Rest hut + scenic bridge
10. Floating water raft area
11. Aquatic flower garden
12. Aquarium

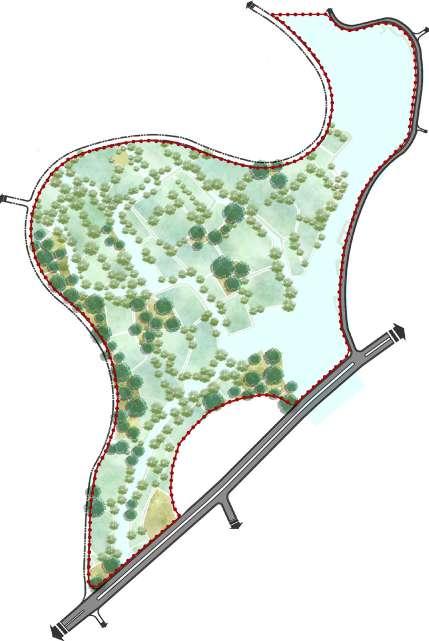

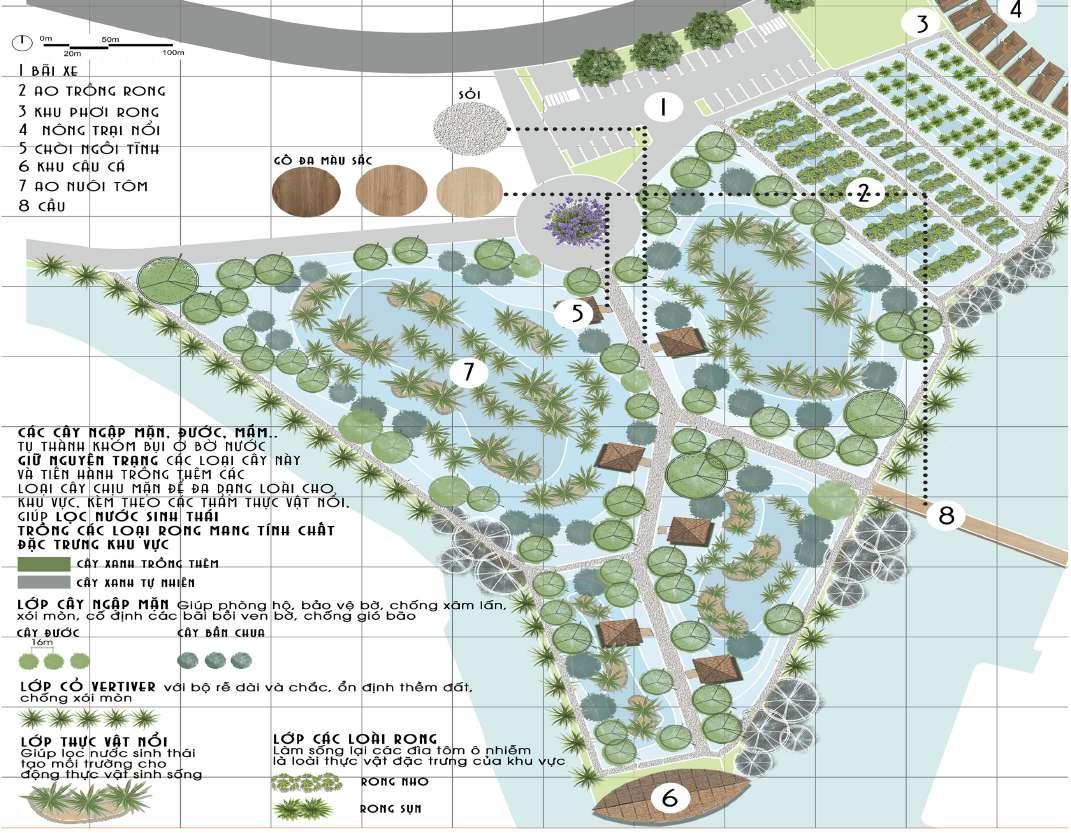

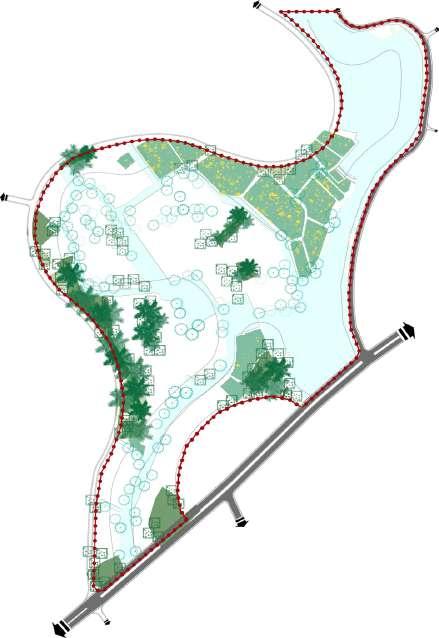

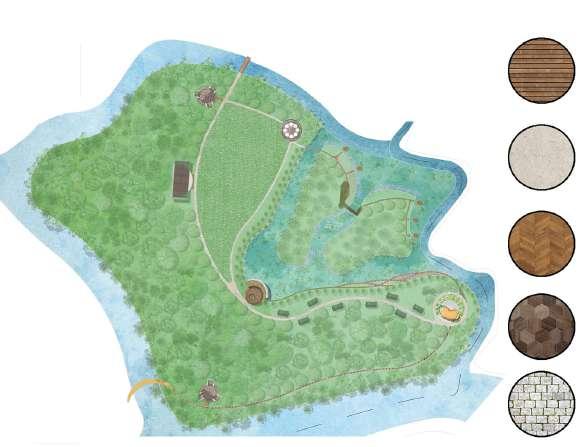

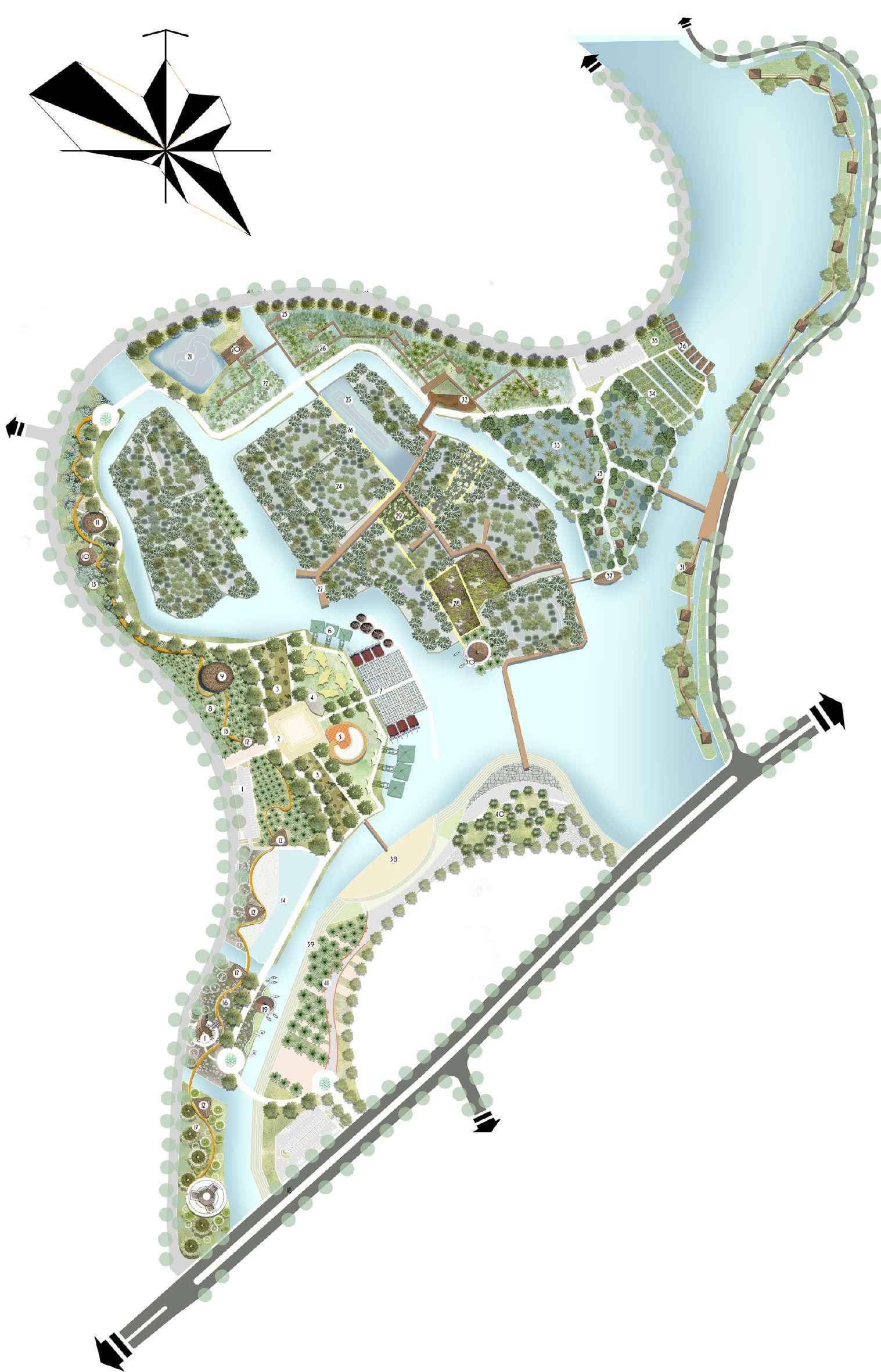

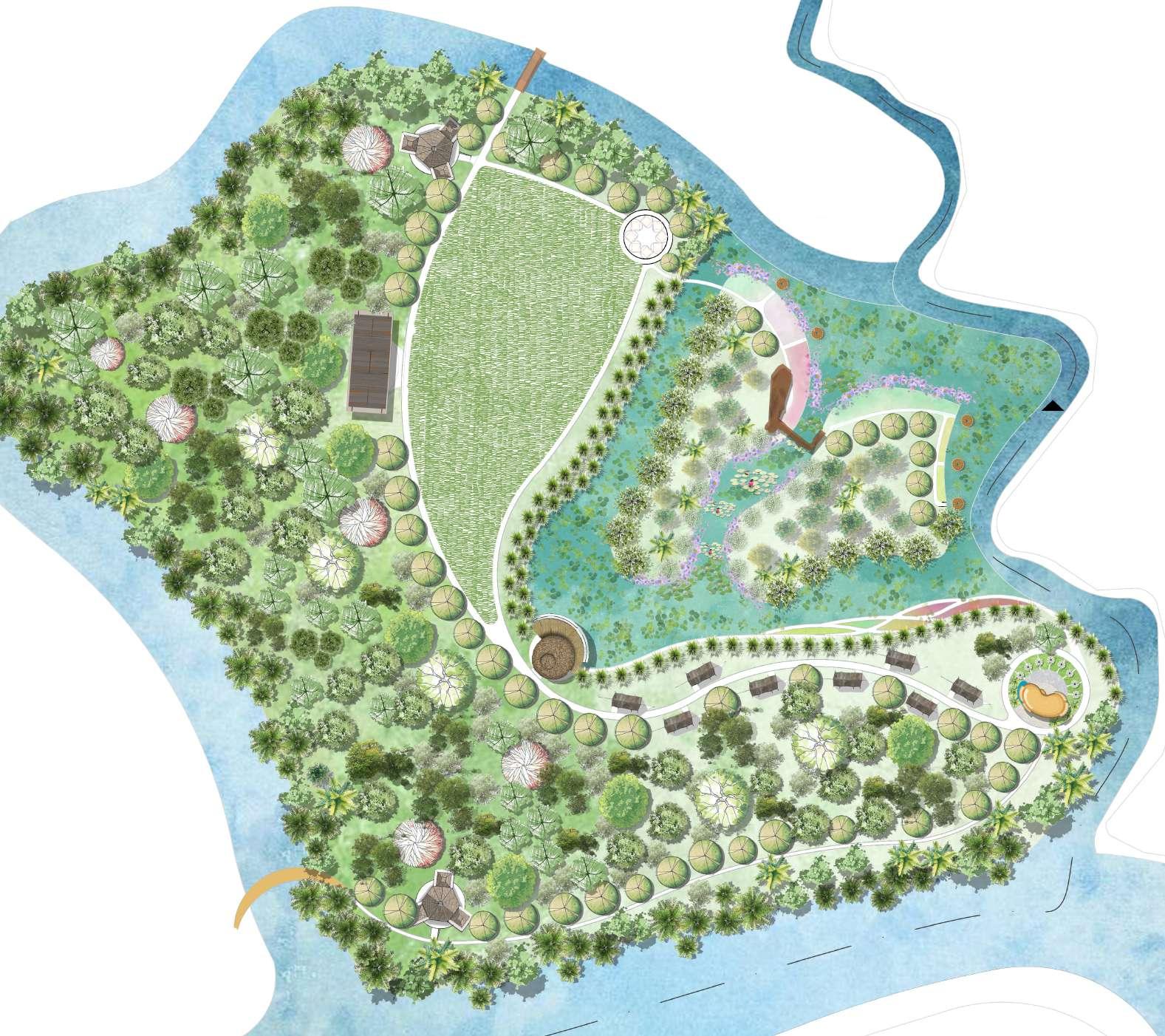

13. Natural woody area MASTER PLAN
1 13 3 2 4 6 7 8 1 1 5 9 10 11 12 A’ A B B’
PLAN CAMPING AREA - COFFEEHYDROPONIC VEGETABLE GARDEN
PLAN OF AQUATIC AREA
LIGHT DESIGN
MATERIAL DESIGN
B-B’
Aquarium

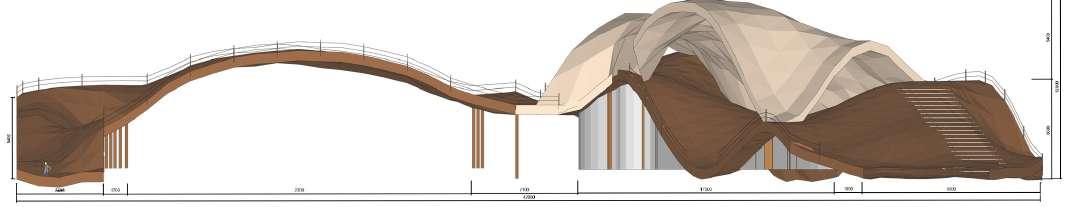

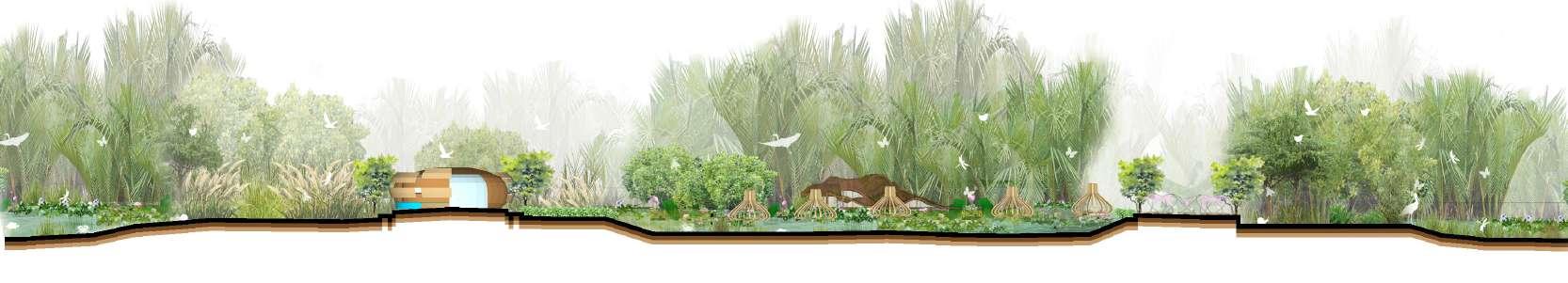

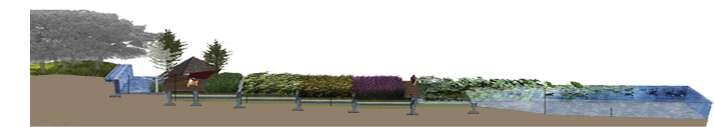

SECTION

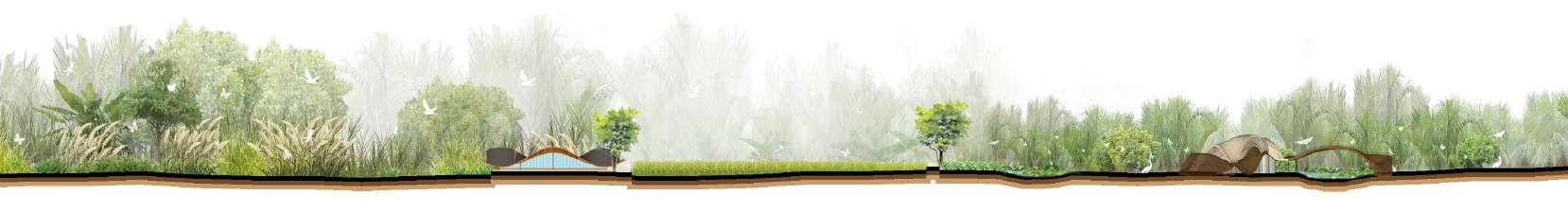

SECTION A-A’ Coffee and dining area Aquarium Aquarium
Natural woody area Pavilions Aquarium Aquarium
Natural woody area Plant specimen gallery Rest hut + scenic bridge Wet rice growing area

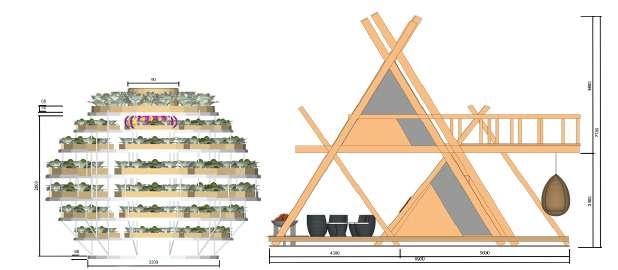

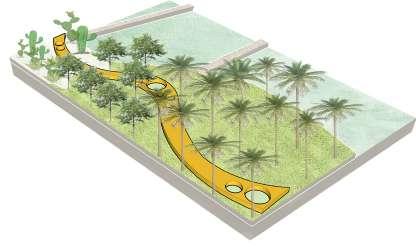

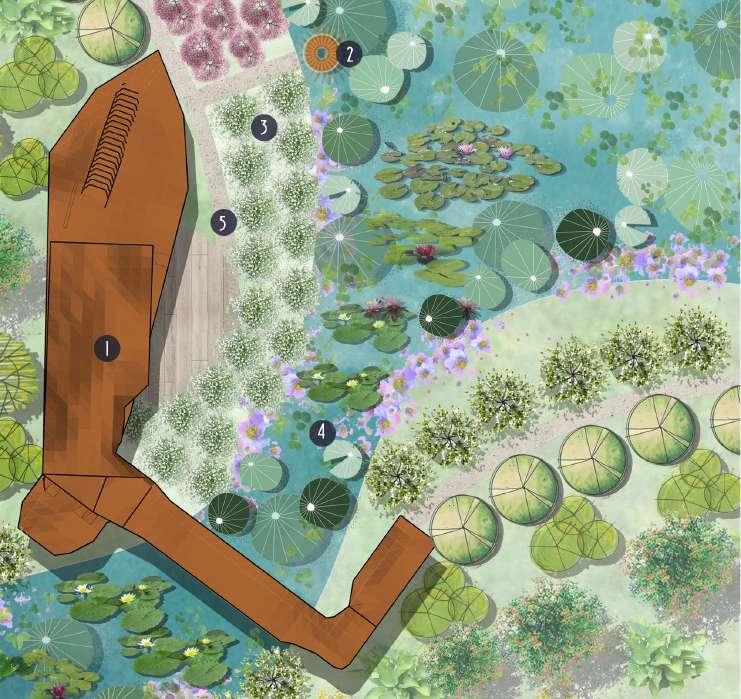

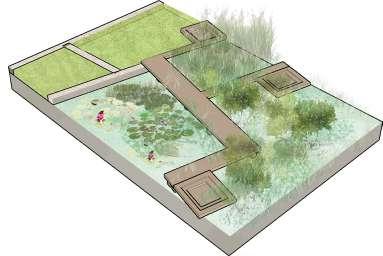

DETAILS Rest hut + scenic bridge
Aquatic flower garden Campground
1. Campground
2. Coffee + Dining area
3. Community vegetable garden
4. Promenade area
5. Main axis promenade

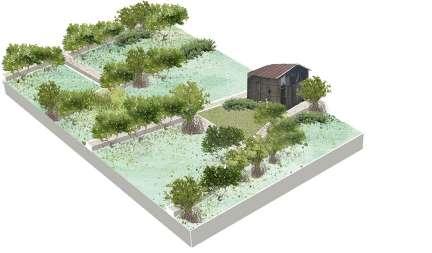

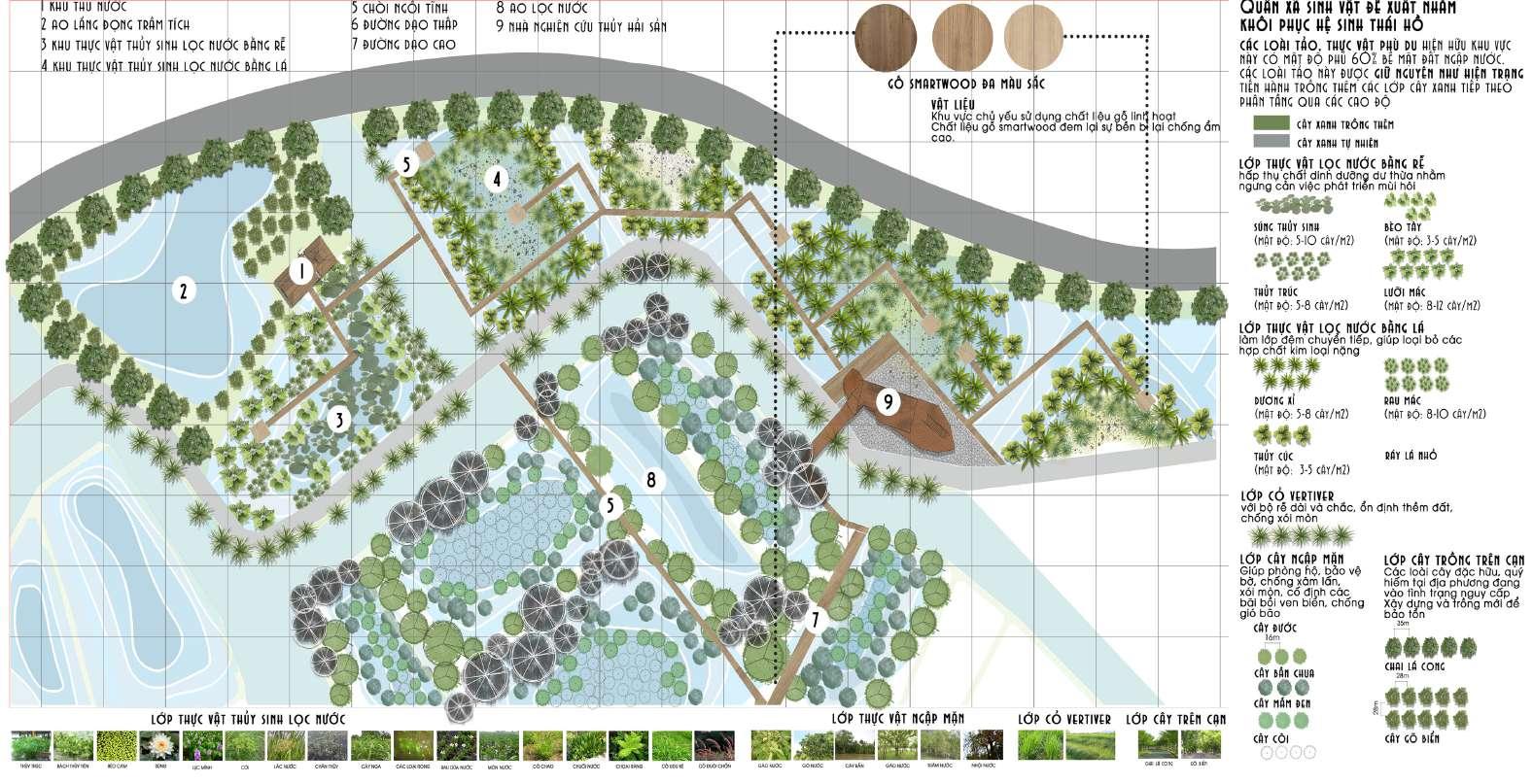

6. Vetiver grass growing area

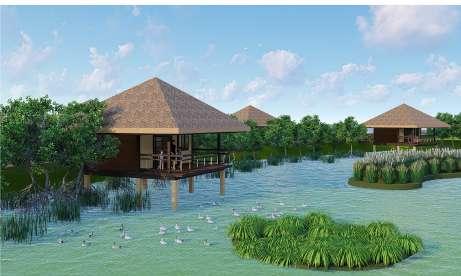

1. Rest hut + scenic bridge
2. Floating raft on the aquarium

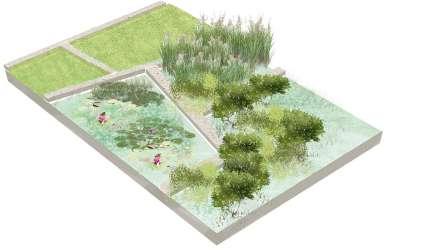

3. Aquatic flower garden

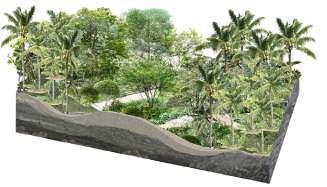

4. Waterweed, water lily, floating grass

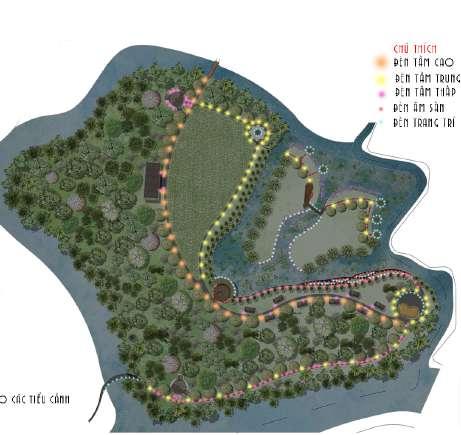

Well lights Lighting the aquarium area Bollard lights Lighting natural areas, ensuring that the light density is not too large to affect animals Path lights Height of 2-3M Illuminate functional areas, open spaces, walkways Decoration lights used to create accents for miniatures Pole-Mounted Lighting Used for street lighting. Light density gradually decreases when coming to natural areas.
Lighting Path lights Bollard lights Well lights Decoration lights
5. Aquatic promenade
Pole-Mounted
Horizontal wood
Granite stone Wood
Hexagons wood
Grass cubic stone
LANDSCAPE DESIGN OF ECOLOGICAL PARK
Ecological Park of Thuy Trieu Swamp, Cam Lam Wards, Khanh Hoa Province, Viet Nam
- Location: Thuy Trieu Swamp, Cam Lam Wards, Khanh Hoa Province, Viet Nam
- Size: 36ha
- Project type: Ecological Park of Thuy Trieu Swamp
The design concept is inspired by the rhythmic of the flow of the area’s tides and the square of the existing shrimp ponds. Design area aim to create public space with eco environment unique cultural language, conservation and improvement of point water environment in the regional context and recovery and protection of plant, animal to increase biodiversity.
32 Portfolio - NGUYEN THANH TRUC
06.
Cam
PROBLEM
Arid
Agricultural land
Religious land
Public land
Isolated green land
Park green land
Railway
Tourist land
Ecological green land
Residential land
Mountain Sea

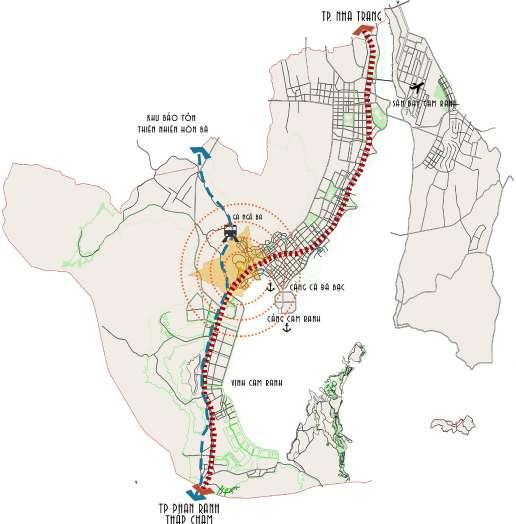

Location of the site
The research area in the center of Cam Ranh city is planned to become a vertical ecological green area. The location of the land is next to the tourist area and residential area The research area plays a role in renovating the estuary ecosystem flowing into the sea and is the typical face of the ecosystem of the center of Cam Ranh city.
The native culture
Contruct military base
Urbanization travel services
Wooden bridge
Lakeside road
Dirt road
Asphalt paver road
ACCOMMODATION
Picture of household knitting nets, buying and selling seafood
Picture of shrimp farming
Picture of lakeside road
Picture of dirt road
Residential house + business
Residential house
Shrimp farming households
Planning Road
Highway Design Boundary
Picture of asphalt paver road
Picture of wooden bridge

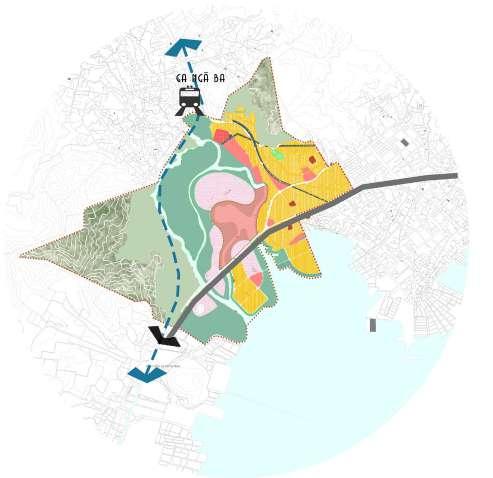

Viet Nam LOCATION
Khanh Hoa Province
Ranh City
ecosystem CLIMATE CURRENT SITUATION HISTORY
Highway Planning Road Design Boundary INFRASTRUCTURE
pollution Waste pollution
of community space
Water
Lack

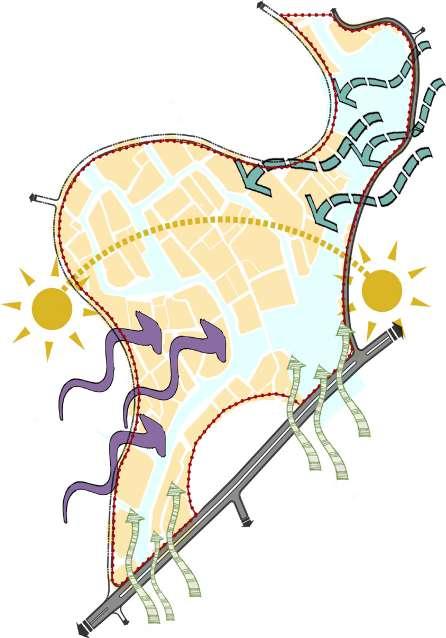

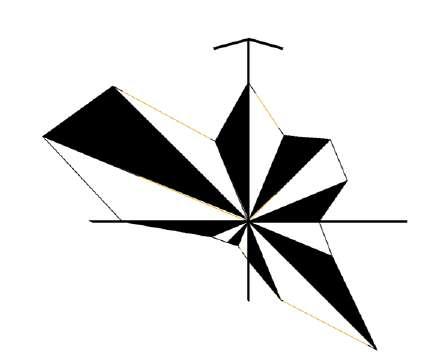

Sun Seabreeze Northeasterly Wind Southwest Wind Planning Road Design Boundary
CURRENT SITUATION
ELEVATION
TIDE +1m2
TIDE +2m

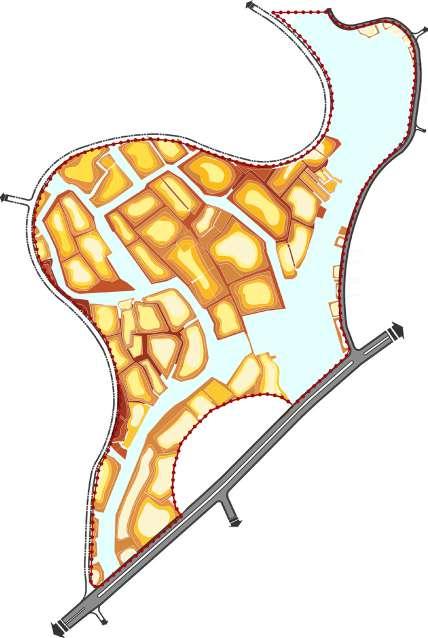

The topography of the area is different shrimp plates, ponds, lakes and different degrees of difference
- Highest point: +2.2m
- Lowest point: -2m
The shrimp beds have a depth of about 1-2m. The estuary flows into the lagoon with a depth of about 4.5m.
The area has topography of ponds, shrimp ponds, aquatic ponds with canals flowing inside the land, which is a factor that makes the area unique. The water level is almost stable every day. High tide covers about 30% of the area. Incoming tides bring salt water into the area, causing the estuary area to lack fresh water in the dry season. Besides, the transmission of tides into the river also enriches aquatic life in the estuary LAND
TYPICAL MORPHOLOGIES
System of canal branches, water running along alternately with trees, shrubs, spreading mangroves. Create a linear landscape form for the area
PLANT
Shrimp and snail ponds with rectangular and square land forms. It is the main typical landscape form of the area.
Adjacent to the river branch
Shrimp ponds
Adjacent to the sea estuary
Aquatic lagoons
Tall trees, coconut trees areas
HABITAT FRAGMENTATION
The estuary area that flows into the sea has the form of raising fish and shrimp on floating rafts, typically with floating fishing boats. The area has wide views, seeing the sea, river, and mountains.
Coconut trees
Wilted grass
Shrubs
Tall trees
Aquatic plant
Mangrove tree
Aquatic patches grow floating in ponds and lakes. However, there is a lot of garbage in the lake. Potential to improve and promote indigenous ecosystems.
Coconut gardens, tall tree gardens, are planted scatteredly. The lawn was damaged, wither a lot. Should protect and restore.
34 Portfolio - NGUYEN THANH TRUC
Grass Tall trees Shrubs Planning Road Design Boundary
Lake
USE STATUS Sign Residential land Aquaculture land Type Water Plants Highway Total: Ha %
FORMING A PARK TO PERSERVE THE ECOSYSTEM AND TIDAL LANDSCAPE OF CAM RANH CITY TO PROMOTE ITS UNIQUE VALUE TO ATTRACT TOURISTS IN ORDER TO DEVELOP THE LOCAL ECONOMY
IDEA
ECO CULTURING (SHRIMP + MANGROVES)
CREATING PUBLIC GREEN SPACE WITH ECO ENVIRONMENT SPECIAL CULTURAL LANDSCAPE
PLANT CONSERVATION AREA
HEALTHY SEAGRASS
Shrimp farm Mangroves Seagrass
Inspired by the flow rhythms of the regional tides and the square shape of the shrimp plots. Rhythmic processes of flows support the relationship of mangrove ecosystems inside the land and the seagrass bed ecosystem at the estuary. Each ecosystem has its own functions to harmonize the geomorphology of the land. It is mutually supportive to have its own benefits for the harmonious living of the area.
Under the influence of water currents and tides. Formation of ecological farming zones. Supplemening nutrients for flora and fauna.
DESIGN LANGUAGE
The curve is taken from the shape of the tidal waves that hit the shrimp plots.
Curves and squares are the dominant language in the design of the site.

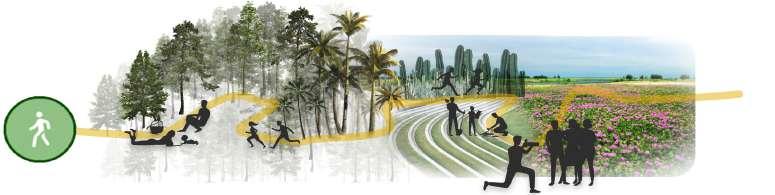

PATHS IDEA

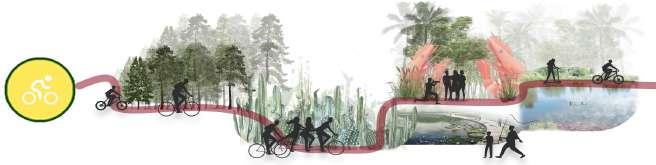

By boat By foot By bike Elevated promenade Traffic roundabout Parking
CONSERVING AND IMPROVING POINTED WATER ENVIRONMENT IN THE REGIONAL CONTEXT
RECOVERY AND PROTECTION OF FLORA AND FAUNA. INCREASE BIODIVERSITY
CONNECTING: COMMUNITY + ENVIRONMENT
1 2 3 1 2 3
Farmers + Native people Farmers + Tourists Native people + Tourists
RECOVERY: PROTECTION OF FLORA AND FAUNA SYSTEM
Shrimp farm Mangroves Mangroves areas
Shrimp farm Coconut trees Coconut corridor
Shrimp farm Aquatic plant Ecological aquarium

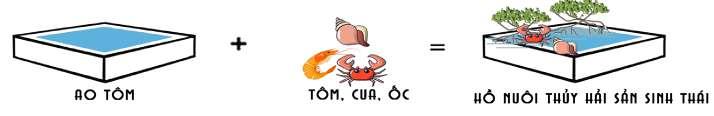

Shrimp farm shrimp, crab, snail Ecological aquaculture pond
RENOVATIONS: CONTAMINATED WATER ENVIRONMENT
Water purification system with biological green plants
ZONING DIAGRAM LAND USE STRUCTURE DIAGRAM
- GOAL
VISION
basket
area fishing village simulation area ecological wetlands exhibition space tide viewing and learning area SEA CULTURAL AREA 1. Parking 2. Main square 3. Shrimp and snail sculpture garden 4. Handmade area with snail shells 5. Exhibition area - observatory tower 6. Fishery tools display space 7. Fishing village 8. Coconut garden 9. Souvenir shop - selling seeds 10. Handmade cactus area 11. Coffee area - scenic restaurant 12. Pavilions 13. Cactus garden 14. Experience game in water 15. Yellow wave 16. Sea water spinach garden 17. Casuarina garden 18. Staff house 19. Boat dock 20. Water collection area 21. Sediment deposition pond 22. Aquatic plant area 23. Water filter pond 24. Mangroves area 25. Sitting hut 26. Walkway 27. Elevated promenade 28. Swamp garden 29. Insect garden 30. Boating area explore ecosystem 31. Sand Island DISCOVERY AREA - SEE THE TIDE 32. Seafood research house 33. Shrimp pond 34. Algae pond 35. Seaweed drying area 36. Floating farm 37. Fishing area 38. Square 39. The terraced area to watch the tide 40. Tidal mechanism simulation area 41. Sightseeing wall frame 42. Main promenade 43. Promenade THEMATIC GARDEN AQUATIC AREA - MANGROVE AQUACULTURE AREA Sea culture area Thematic garden Aquatic area - mangrove Aquaculture area Discovery area - See the tide Canal Transport area % Zoning area
boating
ZONING IDEA
SEA CULTURAL LANDSCAPE AREA
main connecting shaft
Current status: is a combination of square and rectangular shrimp plots with an area of 0.5 to 1ha

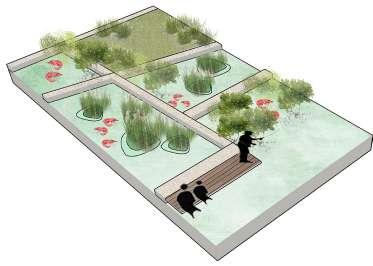

AQUACULTURE AREA
Create a main connection axis linking between functional areas. Layout of walkways based on the existing road system.
Create a community space of marine cultural landscape:
- Re-enactment of coastal fishing village
- The display area of fishing tools and methods of fishing
- Sculpture area of sea creatures
Current status: shrimp farming area in the form of industry, production has not treated wastewater well, causing environmental pollution

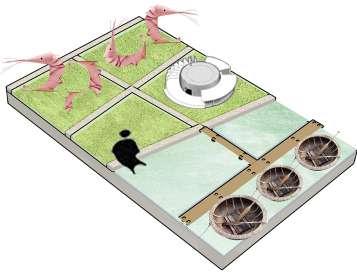

Solution: raising shrimp and snails in a natural form, planting mangroves, floating vegetation to filter natural water
AQUATIC AREA - MANGROVE FOREST - WATER PURIFICATION
Current status: areas with patches of algae in ponds and lakes
Solution:create promenades from the existing road

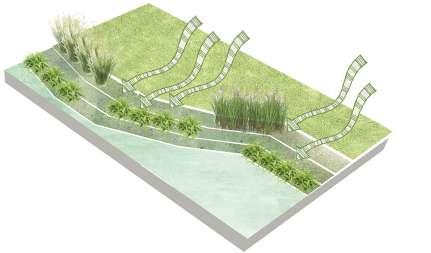

Ecological water purification solution: forming layers of aquatic plants according to each water purification function in the lagoons to improve water quality
Arrange static activities: rest huts, fishing spaces, walking paths. Increase the experience and practical education of aquaculture
Arrange educational spaces: learn about ecological water filtration to create quiet promenade spaces
Current status:the area has a lot of flooded trees, mangroves living along the shoreline

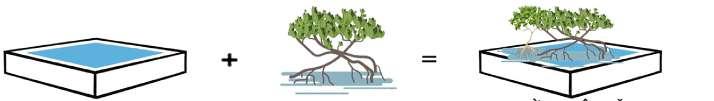

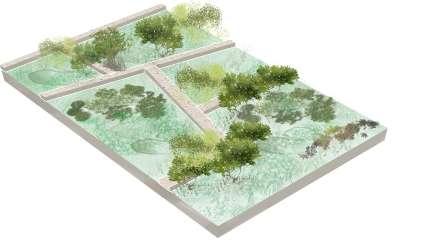

Solutions for planting mangroves: retaining the soil morphology of shrimp plots, planting mangrove trees into zones
THE TYPICAL LANDSCAPE VEGETATION AREA
Current status: features coconut gardens, acacia and mango trees. Patches of cactus grow scattered throughout the area.

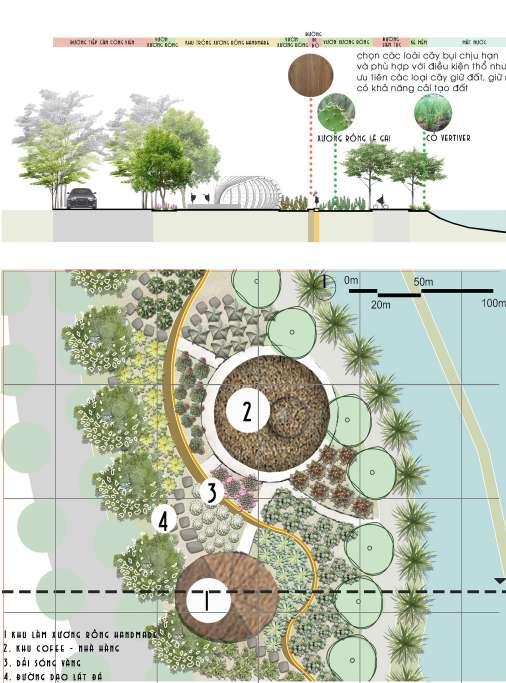

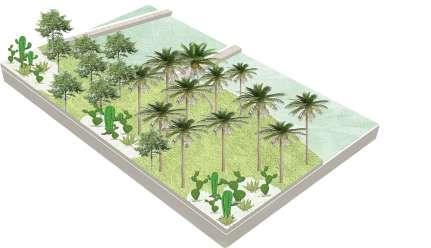

Solutions: divided into characteristic tree space regions Cactus Garden, coconut garden, sea water spinach garden, seaweed garden
THE AREA TO LEARN AND EXPERIENCE THE TIDES
Current status: the area adjacent to the sea mouth, affected by the tides
Solutions: Create stairs with descending elevation towards the water surface. Formation of tidal viewing spaces
Arrange promenades, improve living environment: enhance interaction of water and nature to educate ecological environment
Creating golden silk stretches along the orchards. Integrated walkway, lighting, seating
Create simulated community spaces to learn and learn about tidal phenomena
36 Portfolio - NGUYEN THANH TRUC
SEA CULTURAL AREA
1. Parking
2. Main square
3. Shrimp and snail sculpture garden
4. Handmade area with snail shells
5. Exhibition area - observatory tower
6. Fishery tools display space
7. Space to simulate the architecture of a fishing village
THEMATIC GARDEN OF TYPICAL MARINE PLANTS
8. Coconut garden
9. Souvenir shop - selling seeds
10. Handmade cactus area
11. Coffee area - scenic restaurant
12. Pavilions
13. Cactus garden
14. Experience game area with water surface
15. Yellow wave
16. Sea water spinach garden
17. Casuarina garden
18. Staff house
19. Boat dock
AQUATIC AREA - MANGROVE FOREST
20. Water collection area
21. Sediment deposition pond
22. Aquatic plant area 23. Water filter pond 24. Mangroves area 25. Sitting hut 26. Walkway 27. Elevated promenade 28. Swamp garden 29. Insect garden 30. Boating area to explore the ecosystem 31.
AQUACULTURE AREA
32.
Seafood research house 33.
Sand Island
Shrimp
pond
Seaweed
farm
Fishing area
Square
The terraced
Tidal mechanism simulation area
DISCOVERY AREA - SEE THE TIDE Sightseeing wall frame
pond 34. Algae
35.
drying area 36. Floating
37.
38.
39.
area to watch the tide 40.
41.

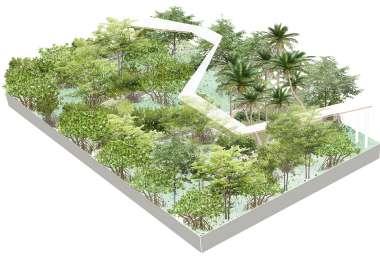

DESIGN OF TREES AND MATERIALS OF AQUATIC AREA - MANGROVES
38 Portfolio - NGUYEN THANH TRUC

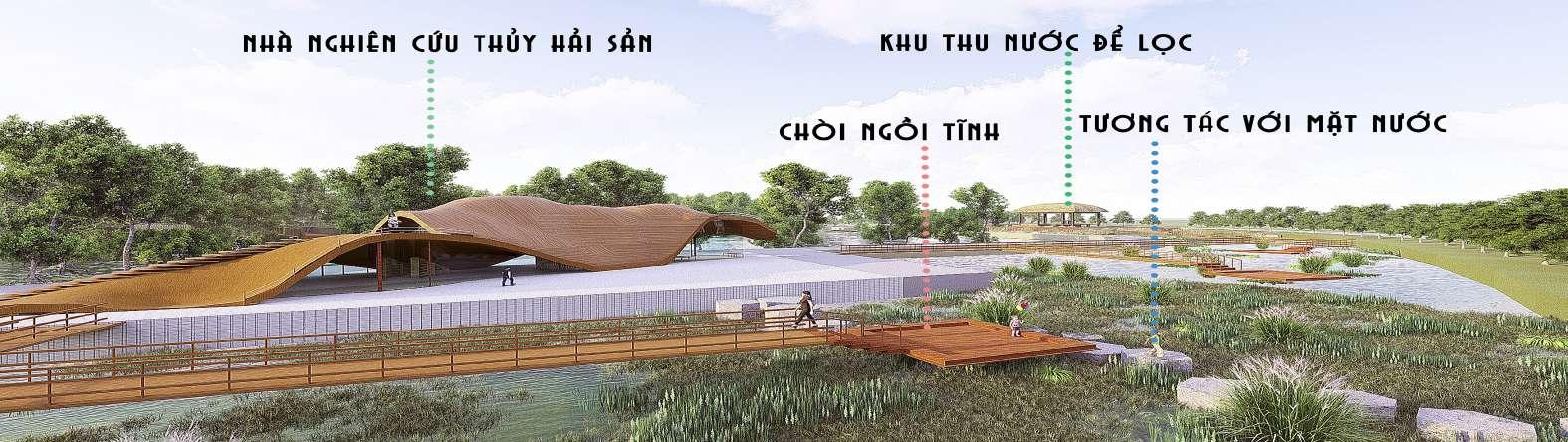

View of Seafood research house PERSPECTIVE SEA CULTURAL AREA
Overall of sea cultural area

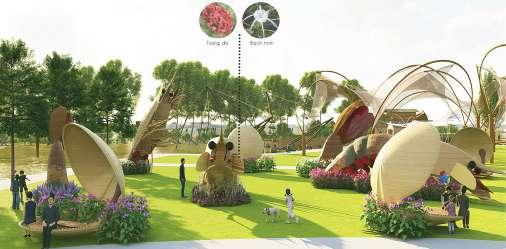

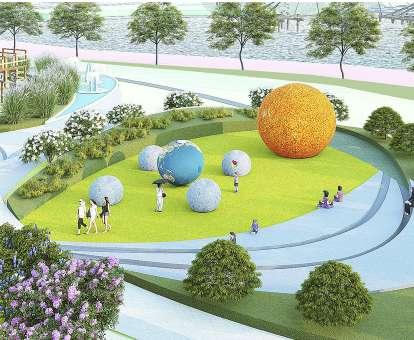

View of sculpture garden

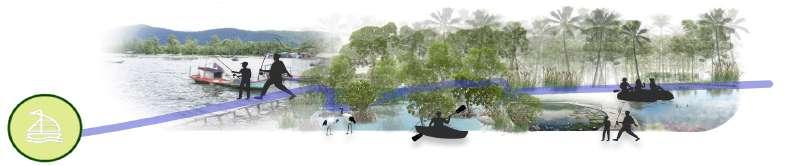

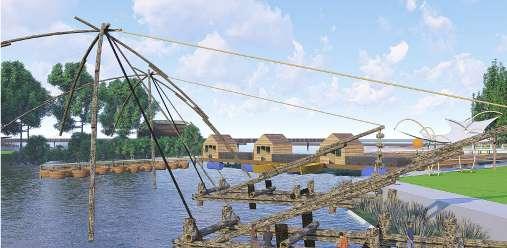

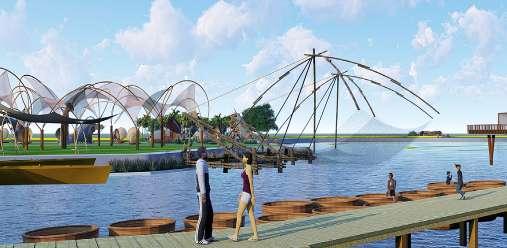

View of fishing village
View of Fishery tools display space
DESIGN OF TREES AND MATERIALS OF AQUACULTURE AREA
PERSPECTIVE THEMATIC GARDEN - DISCOVERY AREA - SEE THE TIDE

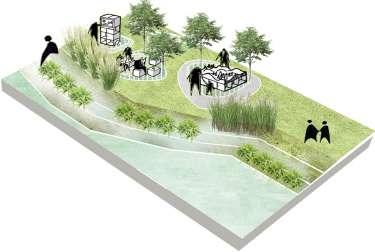

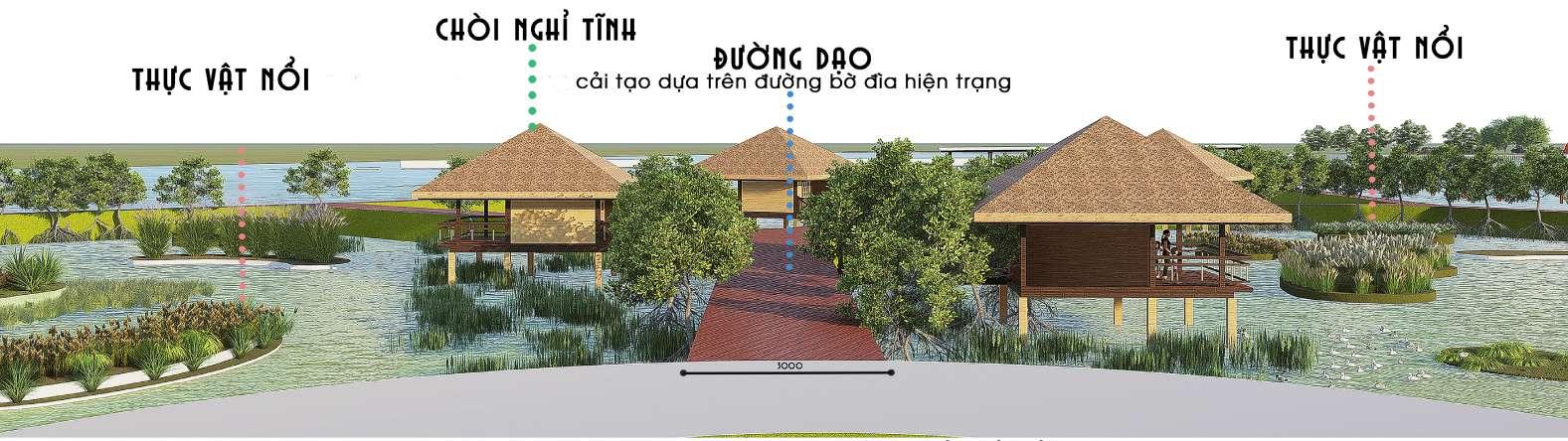

View of Sitting hut

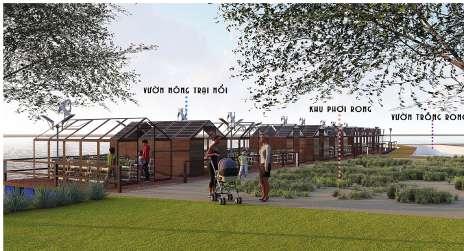

View of Seaweed drying area
View of Sitting hut
Detail of floating farm
Detail of floating farm

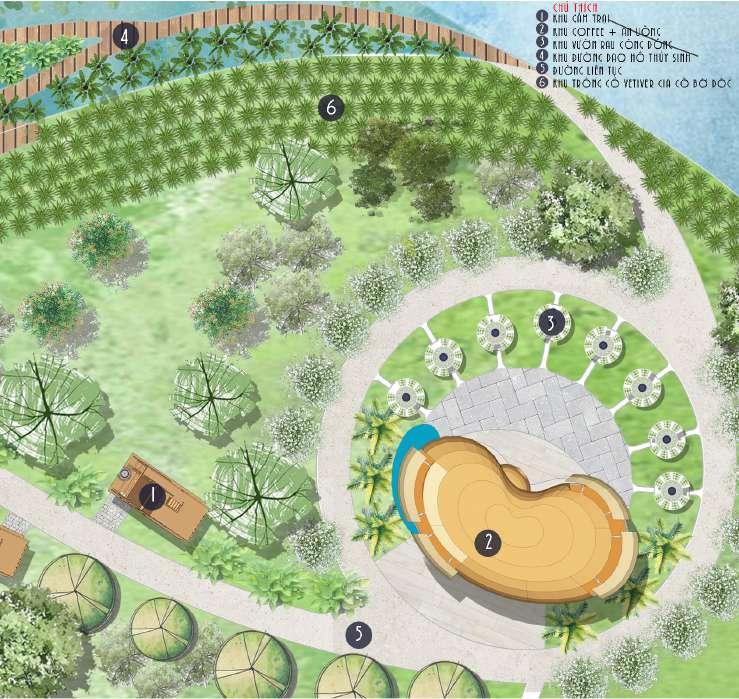

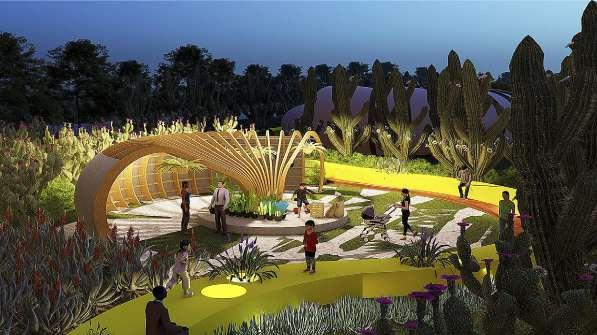

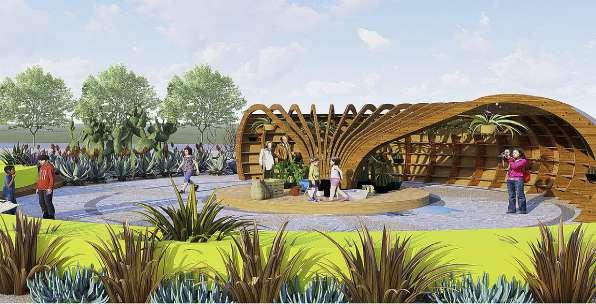

View of Cactus garden
View of Cactus garden
View of Sightseeing wall frame
View of Tidal mechanism simulation

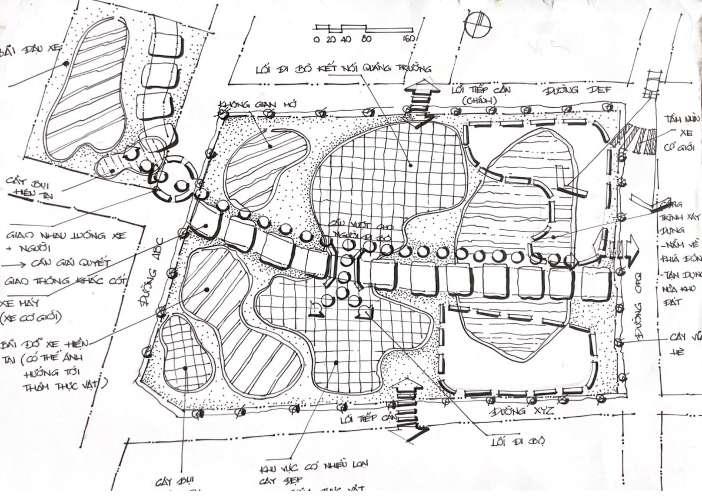

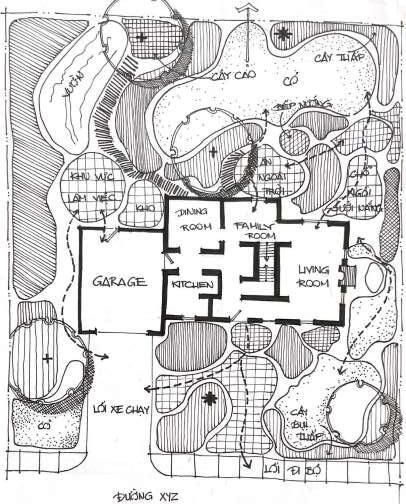

HAND DRAFTING
WATERCOLOR PAINTING
40 Portfolio - NGUYEN THANH TRUC
07. INTEREST
FACILITATOR | ARKKI VIETNAM CREATIVE EDUCATION FOR FUTURE INNOVATION
Working as a Facilitator, creating a very happy and exciting classroom asmosphere in training design thinking, multi-disciplinary education - STEAM
THANK YOU +84 901894220 thanhtruc.kts19@gmail.com Nguyen Thanh Truc - Viet Nam
