Ac/Dc Central Battery Units

Overview All Channel Safety Central Battery Units (CBU) are bespoke designs with a range of standard features and benefits providing a robust solution to meet specific customer requirements, supplied in wall mounted and free standing cabinets with options for high ingress protection.

Features

• Bespoke designs • Ventilated mild steel cabinets • Maintained and Non-Maintained options available • 12 / 24 / 36 / 48 / 50 / 110 / 220Vdc output options • Extensive range of Slave Luminaires available • Various back up runtimes to suit specifications • Options for self-contained battery compartments

AC/DC Central Battery Slave Light Fittings

Overview AC/DC Central battery units require the use of special lights known as ‘slave fittings’. The slave fittings obtain their emergency power supply from a separate central bank of batteries. The central battery system makes maintenance and testing easier, and fittings are available in 24V, 50V, 110V and 230V AC/DC.

Features

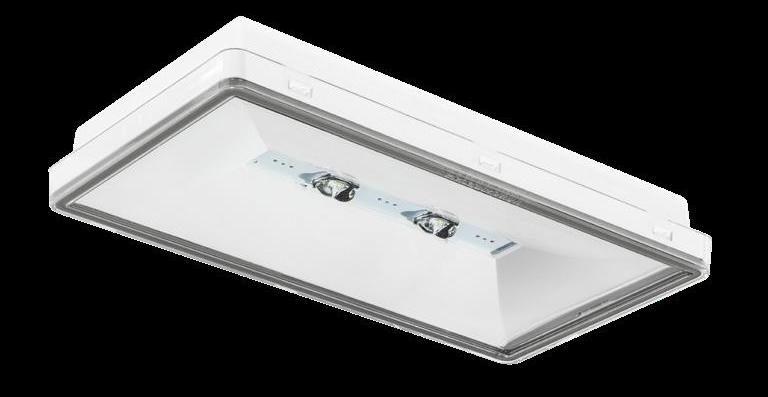

Stratos Slave Fittings

The Stratos range of slave fittings offers a slimline profile in contemporary design. Each light is supplied with a legend pack as standard. Optional drop down exit blades and semi-recessing kits are available. (see page 16 for full details). As the name implies a central battery emergency light is one where it’s power comes from one source. The central battery slave fittings do not have an integral battery but rely on the central battery to supply them. Central battery systems come in either maintained or non-

maintained. They must be wired in fire rated cables.

Product Code

E/STRATOS/24 E/STRATOS/50 E/STRATOS/110 E/STRATOS/230 E/STRATOS/REC/KIT E/STRATOS/PIC/KIT

Description

Stratos 7x LED - 1W, IP65, 24 V AC/DC slave bulkhead c/w exit sign pictogram (1W 198lm IP65) Stratos 7x LED - 1W, IP65, 50 V AC/DC slave bulkhead c/w exit sign pictogram (1W 198lm IP65) Stratos 7x LED - 1W, IP65, 110 V AC/DC slave bulkhead c/w exit sign pictogram (1W 198lm IP65) Stratos 7x LED - 1W, IP65, 230 V AC/DC slave bulkhead c/w exit sign pictogram (1W 198lm IP65) Stratos Semi Recessing Kit Stratos Hanging Blade legend c/w exit sign pictogram
