01 EMERGENCY LIGHTING
IN THIS SECTION
01
EMERGENCY LIGHTING Led Bulkheads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Led Exit Signage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Led Twinspot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Self Powered Exit Signage . . . . . . . . . . . . . . . . . . . 29 Led Downlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Led Track Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Dali Addressable Emergency Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Wireless Dali Addressable Emergency Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
01 EMERGENCY LIGHTING
IN THIS SECTION
Featured products
We are proud to introduce many new and exciting products to our range, four are shown below, keep an eye out for the NEW icon throughout our latest catalogue.
Solent
Stratos Ultra
NEW PAGE 15
PAGE 17
NEW
IP65 weatherproof rated and suitable for both internal & external environments. The SOLENT LED Bulkhead is designed to provide high light output in the event of a lighting power failure.
Ultra High output (1500lm) Emergency light Ideal for high risk task lighting or high level mounting applications, the STRATOS-ULTRA offers a stylish solution to meet the higher lighting level required in BS5266 2016.
Grove Ultra
Azelio Surface
NEW
NEW
PAGE 26
PAGE 30
Ultra High Output Emergency Twinspot. The Grove Ultra LED twinspot is ideal for use in area with high ceilings or areas requiring high emergency lux levels- The Grove Ultra gives 1800 lumen output in the emergency mode! It also offers a maintained operation!
+44 (0) 2890 326822
Supplied with both open area and escape route lenses, our new Azelio Surface emergency downlight offers a high performance, costeffective emergency lighting downlight for indoor use where aesthetics are of prime importance.
+44 (0) 2890 333439
sales@eadltd.com
9
CHANNELSmartTest
CHANNELSmartTest
SIMPLE IS SMARTER Introducing
CHANNEL SmartTest Emergency light remote testing at the touch of a button At Channel, we’re constantly working to give our customers the edge. With our unique system, any number of our compatible emergency lights can be individually tested with just one universal remote tester (Ref E/EM/RC), saving time and money:
Minimises Disruption
No need to switch off local lighting circuit during monthly 5-second and annual 3-hour tests
No hanging around for test to finish Any faults indicated by flashing red LED
Easy Access
Fitting tested from up to 7m
Saves time and money No need for a key switch
10
PRODUCT CODE
DESCRIPTION
E/EM/RC
Optional Remote Control
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
CHANNELSmartTest
CHANNELSmartTest
AS SIMPLE AS... 1
Point the Remote Tester at the compatible emergency fitting.
1 click for the monthly 5-second test
2
2 clicks for the Annual 3 hour test.
3
Any issues will be indicated by a flashing red LED until the fault is rectified and the light retested.
(One further click aborts test if necessary)
LOOK FOR THE SYMBOL SmartTest is compatible with the following products: Meteor Maxi™ LED . . . . . . . . . . . . . . . . . . 13 Brook 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Alpine™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Alpine Slim . . . . . . . . . . . . . . . . . . . . . . . . . 18 5-in-1 Emergency Exit Sign . . . . . . . . . 21
Grove™ Twinspot - IP65 . . . . . . . . . . . . 25 Azelio Surface . . . . . . . . . . . . . . . . . . . . . 30 Azelio Recessed . . . . . . . . . . . . . . . . . . . . 31 Milan Range . . . . . . . . . . . . . . . . . . . . . . . . 43 SoHo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Get in touch today for a personal product demonstration or quotation: 0845 884 7000 or visit our website
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
11
01
LED BULKHEADS
EMERGENCY LIGHTING
Meteor™ LED
SELF TEST
LED
3W
52lm
IP65
2
YEARS
0.36Kg
Overview This popular fitting is now available with a self-test option. Weighing in at only 360g and measuring 260x100x61mm the Meteor LED fitting has a lumen output of 52 in emergency mode from a 10 LED array, a hinged gear tray allows for easy installation. The unit boasts an aesthetically pleasing design and is virtually maintenance free. The biggest success, as with the majority of our LED products, is that it operates on 20% of the power that a standard 8W fluorescent would consume. Convert your Meteor Bulkhead fitting into an attractive emergency exit sign with a blade and diffuser kit.
Features
136mm
• Dimensions: 100mm (W) 260mm (L) 61mm (D) • Cut out dimensions: 230mm (L) 85mm (W) • Light source: LED • Power consumption: 3W • Uses typically 80% less power than that of an 8W fluorescent • Maintained or non-maintained 3 hour emergency backup • Weight: 0.36Kg • Compliance: BS EN 60598-2-22 and other relevant standards • Other accessories: Semi-recessing kit and diffuser with legend Photometric Spacing Data (1 Lux) Mounting height 2.5m 4m
230m
m
2.4 1.0
5.8 4.9
5.4 5.2
2.4 1.0
ABOVE: E/PIC/ME/LED/BLADE - Bulkhead shown with NEW Blade & Diffuser Kit
PRODUCT CODE
DESCRIPTION
E/ME/M3/LED/IP65
Meteor low profile LED bulkhead complete with 10 LED array, IP65 version
E/ME/M3/LED/IP65/ST
Meteor IP65 low profile LED Bulkhead complete with 10 LED array, self test version
Accessories E/ME/LED/SRK/1
Meteor LED semi-recessing kit
E/PIC/ME/LED/PACK
Meteor LED sticker pictogram pack - (AD, AL, AR & AU) - Viewing distance 20m
E/PIC/ME/LED/BLADE
Meteor LED Blade and Diffuser kit (Achieving IP65 rating) Light fitting not included- Viewing distance 20m
Replacement Parts B/BATT/METEOR/LED
12
Meteor LED battery - 3 cell stick AA NiCd 0.Ah
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
Meteor Maxi™ LED
LED
5W
124lm
IP65
3
YEARS
0.75Kg
PICTOGRAMS INCLUDED
Overview The Meteor Maxi benefits from higher lumen output and a larger housing, making it a true 8W replacement. Now with optional remote control! Measuring 110mm (W) 352mm (L) 68mm (D) the Meteor Maxi LED fitting has a lumen output of 140Lm in emergency mode from a 10 LED array, a hinged gear tray allows for easy installation. The unit boasts an aesthetically pleasing design and is virtually maintenance free. The biggest success, as with the majority of our LED products, is that it operates on 20% of the power that a standard 8W fluorescent would consume.
Features
160mm
• Dimensions: 110mm (W) 352mm (L) 64mm (D) • Dimensions: Blade 160mm (H) + fitting • Light source: LED • Power consumption: 5W • Uses typically 80% less power than that of an 8W fluorescent • Maintained or non-maintained 3 hour emergency backup • Compliance: BS EN 60598-2-22 and other relevant standards • Other accessories: Semi-recessing kit and diffuser with legend • Now with optional remote control • Complete with exit legend kit • Incorporates remote control testing facility • Allows testing without disruption • Unit automatically tests • Universal remote control with approx range of 10m • 31m viewing distance
320mm
ABOVE: E/MM/BLADE
Photometric Spacing Data (1 Lux) Meteor Maxi Mounting Height 2.5m 4m 6m
Transverse to Wall 0.5 Lux 1 Lux 3.30 3.25 4.00 3.60 3.70 N/A
Transverse to Transverse 0.5 Lux 1 Lux 6.60 6.50 8.00 7.20 7.40 N/A
Axial To Axial 0.5 Lux 4.90 6.00 6.15
1 Lux 4.35 4.55 N/A
Product Code
Description
E/MM/M3/LED
Meteor Maxi LED 3 Hour Maintained Emergency Light C/W Remote Control Facility
E/EM/RC
Optional Remote Control
E/BEZ/MM
Meteor Maxi Semi Recessing Bezel
B/BATT/MM
Meteor Maxi LED Battery 3.6V 1500mAH with connector
E/PIC/ME/LED/PACK
Meteor Maxi Pictogram Pack - (AD, AL, AR & AU)
E/MM/BLADE
Meteor Maxi Blade kit (IP65 rated, 31m viewing distance, full legend pack supplied)
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
Axial to Wall 0.5 Lux 2.45 3.00 3.10
1 Lux 2.20 2.30 N/A
13
EMERGENCY LIGHTING
01
LED BULKHEADS
01
LED BULKHEADS
EMERGENCY LIGHTING
Brook 2
SELF TEST
LED
7.3W
210lm
IP65
0.95Kg
3
YEARS
Features • Now with increased light output • Dimensions: 115mm (W) 350mm (L) 75mm (D) • Cut out dimensions for bezel: 100mm - 337mm • Light source: LED (20 in unit) • Power consumption: 7.3W • Uses typically 80% less power than that of an 8W fluorescent • Lumen output: 320 lm (210lm emergency mode) • Material: Polycarbonate diffuser and body • IP Rating: IP65 • Maintained or non-maintained 3 hour emergency backup • Weight: 0.95Kg • Compliance: BS EN 60598-2-22 and other relevant standards • Other accessories: Semi-recessing bezel available Photometric Spacing Data (1 Lux) Mounting height 2.5m 4m
2.6 2.6
7.7 4.9
8.9 8.9
2.9 2.7
Product Code
Description
E/BK/M3/LED/2
Brook self contained, 3 hour maintained emergency LED light (Comes with remote control option)
E/BK/M3/LED/2/ST
Brook self contained, self-test 3 hour maintained emergency LED light
E/BZ/KIT/BROOK/WH
Brook semi-recessing bezel
E/PIC/ME/LED/PACK
Brook pictogram pack - AD/AL/AR/AU
E/EM/RC
Optional Remote Control
Replacement parts B/BATT/BROOK/2
Brook battery - 3 cell NiCd
LOOKING FOR A HIGHER OUTPUT FITTING? Please see Grove Ultra and Stratos Ultra Grove Ultra page 26
14
Stratos Ultra page 17
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
Solent
NEW
LED
3W
150lm
IP65
0.95Kg
2
YEARS
Overview IP65 weatherproof rated and suitable for both internal & external environments. The SOLENT LED Bulkhead is designed to provide high light output in the event of a lighting power failure.
68mm
• Long life LED technology • Maintained / Non-maintained operation • Can be ceiling or wall mounted • Comes with Pictogram Pack • Sleek and minimalistic design • Polycarbonate construction • Lightweight and easy to install • NiCd battery • Semi-recessing kit available • Low environmental impact & running costs • Meets BS EN 60598-1:2008 and other relevant standards • IP65 weatherproof • 150 lm emergency output • Hinged screwless gear tray • 16mm or 20mm conduit entry
35 2m m
Features
110
mm
Photometric Spacing Data (1 Lux) Mounting height 2.5m 4m
2.4 1.0
5.8 4.9
5.4 5.2
2.4 1.0
Specifications Light Source
White LED
IP Rating
IP65
Emergency Duration 3 hours (minimum)
3 hours (minimum)
Lumen Output 150 lm Maintained & Emergency output (6000K)
150 lm Maintained & Emergency output (6000K)
Mains Current (max) 50mA (max) 35mA quiescent (3W)
(max) 50mA (max) 35mA quiescent (3W)
Recharge Period Less than 24 hours
Less than 24 Hours
Charge Indicator
Integral green LED Red LED fault indicator
Changeover Voltage
As per requirements of BS EN 60598-1:2008
Battery
3.6V 1.5Ah Ni-Cd
Product Code
Description
E/SOLENT/M3
Solent LED 3 Hour maintained emergency light with Pictogram Pack
E/BEZ/SOL
Solent Semi Flushing Bezel
B/BATT/SOL
Solent Battery - 3.6v 1.5Ah Ni-Cd
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
15
EMERGENCY LIGHTING
01
LED BULKHEADS
01
LED BULKHEADS
EMERGENCY LIGHTING
Stratos
PICTOGRAMS INCLUDED
LED
1-2W
129-522Lm
IP65
0.4Kg
3
YEARS
Overview The Stratos range of slave fittings for central battery & static inverter units is available in 24v, 50v & 110v 230v AC/DC versions. The Stratos range offers a slimline profile in a contemporary design. Each light benefits from an IP65 housing and comes with a legend pack as standard. Stratos
Features
145mm
• Light source: LED • Dimensions: Stratos 145mm (W) 265mm (L) 40mm (D), Blade 145mm (H). Stratos Round 170mm (Dia) x 67mm (D) • Power consumption: 1-2W • Uses typically 80% less power than that of an 8W fluorescent • Lumen output: 193-235lm • IP Rating: IP65 • Maintained or non-maintained 3 hour emergency backup • Compliance: BS EN 60598-2-22 and other relevant standards
260m
Drop Down Blade Option
Cold
Round/Round Hi/ Round Cold
Round (recessed)
145mm
High output
m
260mm
Legend
Product Code
Description
E/STRATOS/24
Stratos 7x LED- 1W, IP65, 24 V AC/DC slave bulkhead c/w exit sign pictogram (1W 198lm IP65)
E/STRATOS/50
Stratos 7x LED- 1W, IP65, 50 V AC/DC slave bulkhead c/w exit sign pictogram (1W 198lm IP65)
E/STRATOS/110
Stratos 7x LED- 1W, IP65, 110 V AC/DC slave bulkhead c/w exit sign pictogram (1W 198lm IP65)
E/STRATOS/230
Stratos 7x LED- 1W, IP65, 230 V AC/DC slave bulkhead c/w exit sign pictogram (1W 198lm IP65)
E/STRATOS/M3
Stratos 7x LED- 1W, IP65, 3 hr maintained bulkhead c/w exit sign pictogram (1W 198lm maintained / 129lm Emergency IP65)
E/STRATOS/M3/2W
Stratos 7x LED- 2W, IP65, 3 hr maintained bulkhead c/w exit sign pictogram (2W 235lm maintained / 238lm Emergency IP65)
E/STRATOS/HI
Stratos High output 2xLED - 5W 210/250V AC 50/60hz (522lm)
E/STRATOS/COLD
Stratos for temp range -20 °C to +40 °C 214 LED /2W 210/250 V AC 50/60hz; 186/254 V DC
E/STRATOS/RD/HI
Stratos Round High output 2xLED - 5W 210/250V AC 50/60hz (223/475lm)
E/STRATOS/RD/COLD
Stratos Round for temp range -20 °C to +40 °C 1 LED /2W 210/250 V AC 50/60hz
E/STRATOS/REC/KIT
Stratos Semi Recessing Kit
E/STRATOS/PIC/KIT
Stratos Hanging Blade legend c/w exit sign pictogram
16
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
Stratos Ultra
NEW
LED
18W
2Kg
1500lm
IP65
3
YEARS
Overview Ultra High output (1500lm) Emergency light Ideal for high risk task lighting or high level mounting applications, the STRATOS-ULTRA offers a stylish solution to meet the higher lighting level required in BS5266 2016. The Stratos Ultra gives amazing spacing even at very high mounting heights.
• Approximately 15x the light output of a typical LED bulkhead • Long life LED technology • Maintained or non-maintained operation • Polycarbonate construction with clear diffuser • Hinged gear tray for easy installation • Cable entry: rear, end & side of fitting • Easy to install • Low environmental impact • Low running costs • Low maintenance • Meets BS EN 60598-2-22 and other relevant standards
168mm
75 m m
338mm
Features
Photometric Spacing Data (1 Lux) Lux
Mounting height
Transverse Distance to Wall
Transverse Between Lights
Axial Distance to wall
Axial Distance between lights
1500lm
3m
8.40
14.30
8.30
14.00
1500lm
6m
11.40
20.30
9.20
19.70
1500lm
10m
11.30
20.60
11.10
20.10
1500lm
15m
12.85
26.10
10.30
25.80
1500lm
18m
13.10
31.40
12.60
27.30
Specifications Light Source
42x SMD 2835 White LED
IP Rating
IP65
Emergency Duration 3 hours (minimum)
3 hours (minimum)
Lumen Output
1500 lm Maintained & Emergency output (6000K)
Mains Current
(max) 100mA (max) 78mA quiescent (18W)
Recharge Period
Less than 24 Hours
Charge Indicator
Integral green LED
Changeover Voltage
As per requirements of BS EN 60598-1:2008
Battery
9.6V 4.5Ah Ni-Cd
Product Code
Description
E/STRATOS/ULTRA
Stratos Ultra - High output IP65 3 hour maintained bulkhead
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
17
EMERGENCY LIGHTING
01
LED BULKHEADS
01
LED EXIT SIGNAGE
EMERGENCY LIGHTING
Alpine Slim
PICTOGRAMS INCLUDED
3
LED
4W
IP50
29m
0.95Kg
YEARS
LED
1.9W
IP50
32m
0.8Kg
YEARS
Overview The more athletic younger brother of our Alpine fitting, this is a more streamlined LED Emergency exit sign which like the original is IP50 rated and compatible with our unique Remote Control Testing system - and this iteration is supplied complete with a full legend set.
Features • Dimensions: 185mm (H) 317mm (W) 29mm (D) • IP Rating- IP50 • Maintained or Non-maintained 3 hour emergency back-up • 5 downward pointing LEDs to illuminate exit door. • Low environmental impact
• Minimal maintenance • Meets BS EN 60598-2-22 and other relevant standards • Lightweight & easy to install • Minimal maintenance • Light Source - SMT LED 4W
Product Code
Description
E/AL/M3/SL/RC
Alpine Slim LED exit sign c/w full legend set
E/EM/RC
Optional Remote Control
Alpine™
3
Features • Dimensions: 210mm (H) 405mm (W) 55mm (D) • Light source: LED • Power consumption: 1.9W • Uses typically 80% less power than that of an 8W fluorescent • 1.9 LED equivalent to 8W fluorescent • Material: White polycarbonate • IP Rating: IP50 • Maintained or non-maintained 3 hour emergency backup • Viewing distance: 32m
• Compliance: BS EN 60598-2-22 and other relevant standards • Incorporates remote control testing facility • Allows testing without disruption • Unit tests for seconds or 3 hours • Universal remote control with approx range of 10m
Product Code
Description
E/AL/M3/LED
Alpine LED exit sign (Comes complete with Arrow Up legend)
E/EM/RC
Optional Remote Control
Additional Legends E/PIC/AL/AD
Alpine pictogram - arrow down
E/PIC/AL/AL
Alpine pictogram - arrow left
E/PIC/AL/AR
Alpine pictogram - arrow right
E/PIC/AL/AU
Alpine pictogram - arrow up
Replacement Parts B/BATT/ALPINE
18
Alpine battery - 3 cell NiCd
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
Alpine Large
SELF TEST
NEW
7.9W
LED
IP20
80m
6Kg
Overview The Alpine Large offers the option of self test emergency exit signs for larger areas. With viewing distances up to 80m the Alpine large is suitable for almost any application where longer viewing distances are required.
m m .5 38
• Brushed Stainless Steel Housing • 822mmW x 434mmH x 38.5mm deep • IP20 • Long life LED technology • Maintained operation • Metal body -Polycarbonate legend plate • Self test technology • Cable entry: rear, end & side of back box • Low environmental impact • Low running costs • Low maintenance • Meets BS EN 60598-2-22 and other relevant standards
434mm
Features
822mm
Specifications Light Source
SMT LED
IP Rating
IP20
Emergency Duration 3 hours (minimum)
3 hours (minimum)
Lumen Output
368Lm
Mains Current
(max) 150mA (max) 40mA quiescent (3W)
Recharge Period
Less than 24 hours
Charge Indicator
Integral green charge & Red fault LED
Changeover Voltage
As per requirements of BS EN 605981:2008
Battery
3.6V 3000mAh Nickel Cadmium
Product Code
Description
E/ALPINE/LARGE
Alpine Large maintained self-test exit sign 80m viewing distance
E/AL/LEG/LARGE/AU
Alpine Large - legend - Arrow UP
E/AL/LEG/LARGE/AD
Alpine Large - legend - Arrow DOWN
E/AL/LEG/LARGE/AL
Alpine Large - legend - Arrow LEFT
E/AL/LEG/LARGE/AR
Alpine Large - legend - Arrow RIGHT
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
19
EMERGENCY LIGHTING
01
LED EXIT SIGNAGE
01
LED EXIT SIGNAGE
EMERGENCY LIGHTING
Razor™
PICTOGRAMS INCLUDED
LED
Overview
2W
IP40
28m
0.8Kg
3
YEARS
290mm
The ultra slim-line Razor LED emergency exit sign range offering hanging, recessed, flush mounted and wall/ ceiling mounted versions. This compact range of LED exit signs comes complete with universal legend pack (other arrow options available).
Features
160mm
• Light source: LED 2W • Uses typically 80% less power than that of an 8W fluorescent • Material: Polycarbonate / Aluminium • IP Rating: IP40 • Maintained 3 hour emergency backup • Weight: 0.8Kg • Compliance: BS EN 60598-2-22 and other relevant standards • Viewing Distance 28 metres • Comes complete with universal legend pack • Comes with legend blank for single siding
360mm Hanging
Wall/Ceiling
Product Code E/RZ/M3/LED/H E/RZ/M3/LED/R E/RZ/M3/LED/F E/RZ/M3/LED/W
Recessed
Hanging Recessed
Description Razor 3 hour maintained LED exit sign hanging - Maintained only Comes complete with universal legend pack (arrows left/right, up/down, blank) Razor 3 hour maintained LED exit sign hanging recessed - Maintained only Comes complete with universal legend pack (arrows left/right, up/down, blank) Razor 3 hour maintained LED exit sign flush recessed - Maintained only Comes complete with universal legend pack (arrows left/right, up/down, blank) Razor 3 hour maintained LED exit sign wall/ceiling fitting - Maintained Comes complete with universal legend pack (arrows left/right, up/down, blank)
Replacement Parts E/PIC/RZ/PACK
Razor pictogram Set
B/BATT/RAZOR/W
Battery for Razor (Wall only)
B/BATT/RAZOR/F/H/R
Battery Pack for Razor
20
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
5-in-1 Exit Sign
PICTOGRAMS INCLUDED
LED
3W
Overview
30m
0.8Kg
3
YEARS
344mm
The 5-in-1 emergency exit sign means you will always have the correct mounting method. The 5-in-1 is supplied with a full legend set and is further enhanced by our unique remote control testing option. It can be installed in both switchable maintained or nonmaintained option.
1000mm max
5 Mounting options supplied as standard • Wall • Ceiling • Flag • Recessed • Suspended
155mm
• Maintained or Non-maintained 3 hour emergency back-up • Incorporates 3.6V 1.5Ah NiCd battery • 30m viewing distance • Low environmental impact • Minimal maintenance • Meets BS EN 60598-2-22 and other relevant standards • Full legend set included
237mm
42 m m
Features
IP50
Suspended
Ceiling
Flag
Wall
Recessed
Product Code
Description
E/5IN1
5-in-1 LED exit sign c/w full legend set and five mounting option brackets
E/EM/RC
Remote Control Test Unit (Optional)
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
21
EMERGENCY LIGHTING
01
LED EXIT SIGNAGE
01
LED EXIT SIGNAGE
EMERGENCY LIGHTING
Forest
SELF TEST
LED
Overview
2.1W
IP40
32m
3
YEARS
1.5Kg
Adjustable up to 1m
54 m m
Our Forest self-test range offers an LED exit sign in white, brass, chrome & satin chrome finishes.Our Forest self-test range offers an LED exit sign in white, brass, chrome & satin chrome finishes. The Forest comes with 1M chains which can be shortened or extended to suit the installation requirements. Other mounting options are available using the wall or flag mounting brackets.
180mm
• Light source: LED 2W • Uses typically 80% less power than that of an 8W fluorescent • Material: Polycarbonate / Aluminium • IP Rating: IP40 • Maintained 3 hour emergency backup • Weight: 0.8Kg • Compliance: BS EN 60598-2-22 and other relevant standards • Viewing Distance 28m • Comes complete with universal legend pack • Comes with legend blank for single siding • Self test as standard
250mm
Features
360mm Forest fitting showing arrow up
Product Code
Description
E/CHFO/M3/L/WHST
Forest LED 3 hour maintained in white (Self-test complete with arrow up legend)
E/CHFO/M3/L/BRST
Forest LED 3 hour maintained in brass (Self-test complete with arrow up legend)
E/CHFO/M3/L/CHST
Forest LED 3 hour maintained in chrome (Self-test complete with arrow up legend)
E/CHFO/M3/L/SAST
Forest LED 3 hour maintained in satin (Self-test complete with arrow up legend)
Additional legends S/LEG/FO/AU
Double sided arrow up legend for Forest (insert only)
S/LEG/FO/ALR
Double sided arrow left/right for Forest (insert only)
S/LEG/FO/AD
Double sided arrow down legend for Forest (insert only)
Mounting brackets E/CHFO/WMB/SI
Forest Satin Silver Wall Mounting Bracket
E/CHFO/WMB/WH
Forest White Wall Mounting Bracket
E/CHFO/WMB/BR
Forest Brass Wall Mounting Bracket
Flag Mounting Brackets E/CHFO/FMB/WH
Forest white flag mounting bracket
E/CHFO/FMB/SI
Forest satin silver flag mounting bracket
E/CHFO/FMB/BR
Forest brass flag mounting bracket
Replacement Parts Please contact Channel Please note: The Forest fitting is supplied as standard with 1m hanging chain and fixing bracket but is also available for supply with ceiling pole brackets or as a flag mounted fitting.
22
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
Camber
SELF TEST
PICTOGRAMS INCLUDED
LED
4W
IP20
1.3Kg
30m
3
YEARS
193mm
• Light source: LED SMD3528 • Power consumption: 4W • 50% energy saving over conventional fluorescent • Self-test versions available • Comes complete with universal legend pack • Material: Polycarbonate housing • IP Rating: IP20 • Maintained switchable and self-test versions available • Viewing distance: 30m • Weight: 1.3kg • Compliance: BS EN 60598-2-22 and other relevant standards • Comes with legend blank for single siding
251mm
Features
330mm
Camber surface fitting
Camber hanging fitting Adjustable to 1 metre
Camber wall fitting
Product Code E/CAMBER/WALL E/CAMBER/WALL/ST E/CAMBER/SURF E/CAMBER/SURF/ST E/CAMBER/HANG E/CAMBER/HANG/ST
Description Camber LED wall mounted exit sign 3hr maintained Comes complete with pictogram pack (arrows left/right and up and down) Camber LED wall mounted exit sign 3hr maintained self-test Comes complete with pictogram pack (arrows left/right and up and down) Camber LED surface exit sign 3hr maintained Comes complete with pictogram pack (arrows left/right, up/down, blank) Camber LED surface exit sign 3hr maintained self-test Comes complete with pictogram pack (arrows left/right, up/down, blank) Camber LED hanging exit sign 3hr maintained Comes complete with pictogram pack (arrows left/right, up/down, blank) Camber LED hanging exit sign 3hr maintained self-test Comes complete with pictogram pack (arrows left/right, up/down, blank)
Replacement Parts B/BATT/CAMBER
Battery for Camber
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
23
EMERGENCY LIGHTING
01
LED EXIT SIGNAGE
01
LED EXIT SIGNAGE
EMERGENCY LIGHTING
Vale
SELF TEST
LED
2.1W
IP20
32m
1.5Kg
3
YEARS
Features • Dimensions: 230mm (H) 355mm (W) 115mm • Cut out dimensions: (L) 335mm (W) 95mm (D) 60mm • Light source: LED • Power consumption: 2.1W • Uses typically 80% less power than that of an 8W fluorescent • Material: White, brass and chrome • IP Rating: IP20
• Self test as standard • Can be switched internally to maintained or non-maintained operation • Viewing distance: 32m • Weight: 1.5Kg • Compliance: BS EN 60598-2-22 and other relevant standards • Other accessories: Double sided pictograms available
Vale fitting showing arrow up
Product Code
Description
E/CHVL/M3/L/WHST
Vale LED 3 hour maintained white (Self-test complete with legend arrow up)
E/CHVL/M3/L/BRST
Vale LED 3 hour maintained brass (Self-test complete with legend arrow up)
E/CHVL/M3/L/CHST
Vale LED 3 hour maintained chrome (Self-test complete with legend arrow up)
ADDITIONAL LEGENDS S/LEG/VL/AD
Vale double sided pictograms arrow down legend (insert only)
S/LEG/VL/ALR
Vale double sided arrow pictograms left/right (insert only)
S/LEG/VL/AU
Vale legend arrow up insert pictograms only (insert only)
REPLACEMENT PARTS B/BATT/DA/FO/VL/NIHM
Battery for Vale - NiMH New style 2 cell
Dale
SELF TEST
LED
2.1W
IP40
32m
1.0Kg
3
YEARS
Features • Dimensions: 175mm (H) 335mm (W) 38mm (D) • Light source: LED • Power consumption: 2.1W • Uses typically 80% less power than that of an 8W fluorescent • Material: White mild steel • IP Rating: IP40 • Self test as standard
• Can be switched internally to maintained or non-maintained operation • Viewing distance: 32m • Weight: 1.0Kg • Compliance: BS EN 60598-2-22 and other relevant standards • Other accessories: Pictograms available
Dale fitting showing arrow up
Product Code
Description
E/DA/M3/LED/3/ST
Dale LED 3 hour maintained self-test complete with arrow up legend
Additional legends S/LEG/DA/AL/3
Pictogram arrow left
S/LEG/DA/AR/3
Pictogram arrow right
S/LEG/DA/AD/3
Pictogram arrow down
S/LEG/DA/AU/3
Pictogram arrow up
Replacement parts B/BATT/DA/FO/VL/NIHM
24
Battery for dale - NiMH
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
Grove™ Twinspot Range Overview
Features
We are excited to bring you vastly improved lumen outputs with our new generation Grove twinspot fittings! Both fittings now boast an impressive 720lm output! The Grove range has new & improved head design and is also available as an IP65 Self Test Version.
• Grove IP20 Dimensions: 260mm(H) 300mm(W) 70mm(D) • Grove IP65 Dimensions: 285mm(H) 280mm(W) 75mm(D) • No of LEDs per head: 15 | Low maintenance • Power consumption: 15W (emergency mode) • Uses 50% power than that of a Tungsten halogen • Material: White metal body/polycarbonate lamps & lenses • IP Rating: IP20 & IP65 | Non-maintained mode only • Weight: IP20 - 1.89Kg & 1.85Kg • Compliance: BS EN 60598-2-22 and other relevant standards
GROVE IP20
GROVE IP65
LED
15W
720lm
IP20
1.89Kg
3
YEARS
720lm
IP65
1.85Kg
Grove IP20
SELF TEST
3
Grove IP65
Photometric Spacing Data (1 Lux)
Mounting height
Mounting height 4.4 - 4.0m - 9.0m 4.7m - 5.2m - 10.8m 6.2m - 6.6m - 12.2m
Product Code
13.2m 15.0m 17.0m
Description
4m 6m 8m
4.4 - 4.0m - 9.0m 4.7m - 5.2m - 10.8m 6.2m - 6.6m - 12.2m
Product Code
Grove ip20 Version E/GR/NM3/LED/2
13.2m 15.0m 17.0m
Description
Grove ip65 Version Grove Twin 15 x LED floodlight, 3 hour non-maintained white lamps
E/GR/NM3/LED/IP65/RC
9.6V Battery pack for Grove
E/GR/NM3/LED/IP65/2/ST
Replacement Parts B/BATT/GROVE/3
15W
YEARS
Photometric Spacing Data (1 Lux)
4m 6m 8m
LED
E/EM/RC
Grove Twin 2 x LED floodlight 3 hour non-maintained with white lamps Remote Control Test Version Grove Twin 2 x LED floodlight 3 hour non-maintained with white lamps Self Test Version Optional Remote Control
Replacement Parts B/BATT/GROVE/3
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
9.6V Battery pack for Grove
25
EMERGENCY LIGHTING
01
LED TWINSPOT
01
LED TWINSPOT
EMERGENCY LIGHTING
Grove Ultra
NEW
LED
1800lm
18W
IP65
2.4Kg
3
YEARS
Overview Ultra High Output Emergency Twinspot. The Grove Ultra LED twinspot is ideal for use in areas with high ceilings or areas requiring high emergency lux levels - The Grove Ultra gives 1800 lumen output in the emergency mode! It also offers a maintained operation!
Features • Approximately 3x the light output of a typical LED twinspot • Long life LED technology • Maintained or non-maintained operation • Polycarbonate body with metal lamps • May be mounted in any orientation • Cable entry: rear, end & side of fitting • Easy to install • Low environmental impact • Low running costs • Low maintenance • Meets BS EN 60598-2-22 and other relevant standards
1 Lux
Mounting height
Transverse Distance to Wall
Transverse Detween Lights
Axial Distance to opposite Lights
1800lm
10m
12m
36m
35m
1800lm
15m
12m
30m
38m
1800lm
18m
12m
23m
29m
285mm
Photometric Spacing Data (1 Lux)
2(5x3w) Osram
IP Rating
IP65
Emergency Duration
3 hours (minimum)
Mains Voltage
230V 50Hz ± 10%
Mains Current
(max) 90mA (18W)
Recharge Period
Less than 24 hours
Charge Indicator
Integral green LED
Changeover Voltage
As per the requirements of BS EN 60598-2-22
Temperature Range
-5°C to 40°C
Weight
2.4Kg
Battery
9.6V 4.5Ah Nickel Cadmium
Product Code
Description
E/GR/M3/ULTRA
Grove Ultra self contained 3 hour maintained emergency LED light
26
284m
73
m
m
Light Source
m
Specifications
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
GU32 - IP65 Twinspot
NEW
368lm
3W
LED
IP65
2
YEARS
Our new GU32 IP65 twinflood offers a high performance, cost-effective emergency lighting in warehouses, factories, atriums, exterior escape routes & large open areas. The GU32 IP65 gives 368Lm in the emergency mode. High specification optic design and performance allows increased spacing providing reduced cost. Supplied with hanging kit for downward pointing installation & integral driver and NiCd battery pack.
279mm
Overview
Features
68
m
m
• Versatile multi-functional use, interior & exterior • May be mounted in any orientation • Tough polycarbonate housing • Carrying handle for portability • Non-maintained • Minimal maintenance • Easy installation • IP65 ingress protection • RoHS compliant • Excellent luminaire spacings • 3 Watt power consumption
292mm
1m included
Spacing Data Mounting height
Transverse to wall
Square Spacing
Axial to wall (front)
Axial to wall (rear)
2.5m 4m 2.5m 4m
2.5 2.7 3.4 4.3
6.6 8.7 10 11.2
5 6 7.2 8
2.7 2.9 3 4
Product Code
Description
E/GU32/IP65
IP65 3 Hour Non-Maintained emergency twinflood
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
27
EMERGENCY LIGHTING
01
LED TWINSPOT
01
LED TWINSPOT
EMERGENCY LIGHTING
GU 32
NEW
368lm
LED
3.2W
1.1Kg
IP20
2
YEARS
280mm
m
• IP20 • Long life LED technology • Non-maintained operation • Polycarbonate construction • May be mounted in any orientation • Cable entry: rear, end & side of fitting • Easy to install • Low environmental impact • Low running costs • Low maintenance • Meets BS EN 60598-2-22 and other relevant standards
m
Features
70
The GU32 LED twinspot offers a Non-Maintained IP20 LED Twin Spot for interior installations provides up to three hours of emergency lighting thanks to the 1 x 3.6V, 4.5Ah battery. The polycarbonate body, in a white finish provides the ideal choice for warehouses, factories, open areas & corridors.
310mm
Overview
Photometric Spacing Data (1 Lux) Mounting height 2.5m 4m 6m
3.0m 3.5m 4.0m
8.5m 10.5m 11.5m
Specifications Light Source
SMT LED 2 x 30pcs
IP Rating
IP20
Emergency Duration 3 hours (minimum)
3 hours (minimum)
Lumen Output
368Lm
Mains Current
(max) 150mA (max) 40mA quiescent (3W)
Recharge Period
Less than 24 hours
Charge Indicator
Integral green charge & lamp healthy LEDs
Changeover Voltage
As per requirements of BS EN 60598-1:2008
Battery
3.6V 3000mAh Nickel Cadmium
Product Code
Description
E/GU32
3 Hour Non-Maintained emergency twinflood
28
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
Betalux
3
YEARS
Overview No power needed! With its self-luminous tritium power, easy installation and sleek design, the Betalux exit sign is revolutionizing the emergency exit industry. The Betalux is vandal resistant, waterproof, explosion proof and incapable of generating sparks, making it ideal in harsh and dangerous environments such as offshore oil rigs, mines, refineries, munitions plants and chemical factories. Having no wires it is an ideal choice where architectural integrity is a priority, such as heritage sites, hotels, office buildings, theatres and restaurants.
Features • Dimensions: 218mm (H) 396mm (W) 28mm (D) • Last up to 20 years based on initial brightness option • Single or double faced • Recessed Mount • Aluminum frame in polycarbonate window • Wire Guard Illumination source - Betalux tubes manufactured from borosilicate (hard) glass internally coated with zinc sulfide phosphor and filled with tritium gas. No electrical energy source required. Brightness - Minimum initial brightness at time of manufacture of 0.15 foot lambert. Brightness variation between letters does not exceed ratio of 3 to 2. Construction - Cased in high impact ABS fire-retardant plastic. Legend covers: red, green, or black. Frame colors: Aluminum, white or black. • 6” high letters with 3/4” stroke • Flush, Pendant or Flag Mount • Field selectable directional indicators Product Code
Description
SP/BX/AU/DG/EN

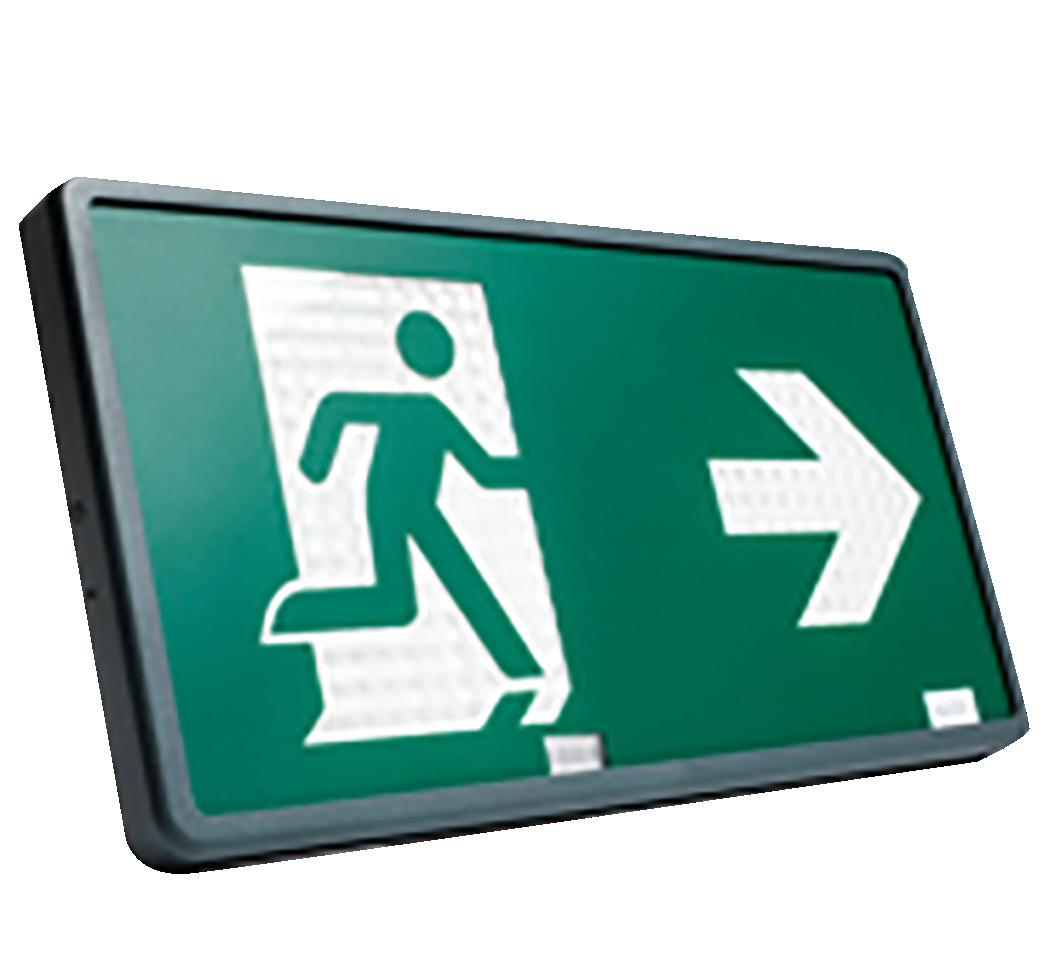

Self Powered Exit Sign c/w Arrow Up Legend
SP/BX/AD/DG/EN
Self Powered Exit Sign c/w Arrow Down Legend
SP/BX/AL/DG/EN
Self Powered Exit Sign c/w Arrow Left Legend
SP/BX/AR/DG/EN
Self Powered Exit Sign c/w Arrow Right Legend
SP/BX/AD/DG
Self Powered Exit Sign c/w Arrow Down Legend – Grey Trim
SP/BX/AL/DG
Self Powered Exit Sign c/w Arrow Left Legend – Grey Trim
SP/BX/AR/DG
Self Powered Exit Sign c/w Arrow Right Legend – Grey Trim
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
29
EMERGENCY LIGHTING
01
SELF POWERED EXIT SIGNAGE
01
LED DOWNLIGHTS
EMERGENCY LIGHTING
Azelio Surface
NEW
3W
137-150lm
Overview
IP20
0.95Kg
TWIN LENS
LED
150mm dia
40mm
Azelio Surface is a compact, high specification surface mounted emergency LED downlight supplied with both open area and escape route lenses, our new Azelio Surface emergency downlight offers a high performance, cost-effective emergency lighting downlight for indoor use where aesthetics are of prime importance. The Azelio Surface comes with two lens options, open area (150lm) & corridor (137lm), it is further enhanced by the addition of a remote-control testing option, which ensures simple & cost-effective testing. High specification optic design and performance allows increased spacing providing reduced cost, with up to 15m spacing between fittings (3m mounting height). Supplied with integral driver and NiCd battery pack.
3
YEARS
Features • Versatile multi-functional use (escape and open area anti-panic) • Supplied with both open area & corridor lenses • Remote Control test facility (Additional control unit required) • Tough polycarbonate housing • Suitable for surface mounting • Two types of high performance • lenses for escape route or open area illumination • Non-maintained • Minimal maintenance • Easy installation • IP20 ingress protection • RoHS compliant • Excellent luminaire spacings of up to 15m for corridor version • BESA Box fixings Corridor Lens 50 mm dia
Azelio Surface Open Area
Photometric Spacing Data (1 Lux) Mounting height 2.4m 3.0m 4.0m Lux
4.50 4.70 4.60 0.5
3.40 3.65 3.45 1
9.25 10.10 9.80 0.5
7.40 8.60 8.40 1
4.50 10.10 9.80 0.5
3.40 8.60 8.40 1
4.50 4.70 4.60 0.5
3.40 3.65 3.45 1
14.45 13.90 16.60 0.5
13.50 13.10 16.00 1
8.83 7.60 9.00 0.5
5.80 6.70 7.20 1
Azelio Surface Corridor
Photometric Spacing Data (1 Lux) Mounting height 2.4m 3.0m 4.0m Lux
3.25 2.35 3.00 0.5
2.20 2.15 2.50 1
4.80 4.65 5.50 0.5
4.50 4.40 3.80 1
Product Code
Description
E/AZELIO/S/RC
Surface mounted emergency down light C/W open area and corridor lenses - Remote Control option
E/AZELIO/S/ST
Surface mounted emergency downlight C/W open area & corridor lenses - Self-Test
E/EM/RC
Remote control test unit (Optional)
30
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
Azelio Recessed
SELF TEST
NEW
LED
TWIN LENS
3W
143- 158Lm
IP20
0.67Kg
3
YEARS
85mm dia.
Azelio Recessed is a compact, Self test or remote control. 3w high specification recessed emergency LED downlight supplied with both open area and escape route lenses, our new Azelio recessed emergency downlight offers a high performance, cost-effective emergency lighting downlight for indoor use where aesthetics are of prime importance. The Azelio Recessed comes with two lens options, open area (158lm) & corridor (143lm). High specification optic design and performance allows increased spacing providing reduced cost, with up to 15m spacing between fittings (3m mounting height). Supplied with integral driver and NiCd battery pack.
50mm Lense plate dia.
Overview
Open Area Lens
Features • Versatile multi-functional use (escape and open area anti-panic) • Supplied with both open area & corridor lenses • Auto self test • Tough polycarbonate housing • Suitable for recessed mounting • Non-maintained • Minimal maintenance • Easy installation • IP20 ingress protection • RoHS compliant • Excellent luminaire spacings of up to 15m for corridor version • 70-75mm cutout
Corridor Lens
Azelio Recessed Open Area Photometric Spacing Data (1 Lux) Mounting height 2.4m Lux
n/a 0.5
3.75 1
n/a 0.5
8.25 1
n/a 0.5
8.25 1
n/a 0.5
3.75 1
n/a 0.5
13.00 1
n/a 0.5
6.50 1
Azelio Recessed Corridor
Photometric Spacing Data (1 Lux) Mounting height 2.4m Lux
n/a 0.5
2.10 1
n/a 0.5
4.20 1
Product Code
Description
E/AZELIO/R/COA/ST
Recessed 3W auto self test emergency downlight. c/w open area & corridor lens
E/AZELIO/R/RC
Recessed 3W non-maintained emergency downlight c/w open & corridor lenses & remote control option
E/EM/RC
Remote control test unit (Optional)
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
31
EMERGENCY LIGHTING
01
LED DOWNLIGHTS
01
LED DOWNLIGHTS
EMERGENCY LIGHTING
Azelio Downlight NEW
LED
3W
158-176lm
IP20
0.28Kg
3
YEARS
80mm
Offering open area and escape route lenses our Azelio emergency downlight offers a simple & cost effective emergency lighting solution for most applications. The 95-100mm cut out makes it ideal to replace existing tungsten / dichroic downlights. High specification optic design and performance allows increased spacing providing reduced cost, with up to 15m spacing between fittings (3m mounting height). Supplied with integral driver and lithium battery pack Pre-wired for easy installation.
108mm
Overview
110mm Cut Out 95-100mm
Features • Pre-wired for easy installation • ideal size to replace existing downlights • High output LED light source = less fittings • Intergrated long life lithium battery • Open area & corridor comes supplied as standard • Built in ‘push to test’ switch • Non-Maintained • Input Voltage: 220-240V 50/60Hz • Light Source: SMD LED • LED Wattage: 3w LED • IP Rating: IP20 • 6000k- 7000k • Weight: Azelio/OA: 280g Azelio/C: 282g • Bezel Dia 110mm • Lumen output corridor: 176lm Open Area: 158lm
Open Area option
Azelio- Corridor
Photometric Spacing Data (1 Lux) Mounting height 2.4m 3m 4m Lux
n/a n/a n/a 0.5
6.50 7.50 9.00 1
n/a n/a n/a 0.5
13.00 15.00 18.00 1
n/a n/a n/a 0.5
4.20 4.50 5.00 1
n/a n/a n/a 0.5
2.10 2.25 2.50 1
n/a n/a n/a 0.5
8.25 8.50 9.25 1
n/a n/a n/a 0.5
3.75 4.00 4.12 1
Corridor option
Azelio- Open Area
Photometric Spacing Data (1 Lux) Mounting height 2.4m 3m 4m Lux
n/a n/a n/a 0.5
3.75 4.00 4.12 1
n/a n/a n/a 0.5
8.25 8.50 9.25 1
Extension Bezel to 165mm dia
Product Code
Description
E/AZELIO/COA
Azelio Emergency LED Downlight non-maintained C/W Open Area & corridor lenses
E/AZELIO/BEZEL
Azelio Bezel to expand the bezel size to 165mm
32
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
Ceilo
SELF TEST
LED
5W
3
0.32Kg
YEARS
0.25/0.78kg
YEARS
150lm
IP20
• Dimensions: Downlight: 50mm(Ø) 25mm(D) • Cut Out: 40mm(Ø) • Maintained and non-maintained • Self test as standard • Power consumption: 5W • Lumen Output: 150lm • Weight: 0.32Kg • Compliance: BS EN 60598-2-22 Photometric Spacing Data (1 Lux) Mounting height 2.5m 4m
3.0 3.45
5.8 6.4
Product Code
Description
E/CEILO/LED/ST
Ceilo downlight 5W, maintained and non-maintained self-test version
Glade
NEW
LED
1/5W
IP40
60-415Lm
3
Features • Dimensions: 1W: 44mm(Ø) 34mm(H) 5W: 70mm(Ø) 60mm(H) • Cut out dimensions: 1W: 35-38mm(Ø) 5W: 50-60mm(Ø) • Light source: LED • Power consumption: 1W or 5W versions • Lumen output: 60 lm or 415lm • IP Rating: IP40 • 1W non-maintained, 5W maintained/non-maintained • Weight: 1W: 0.254Kg 5W: 0.785Kg • Compliance: BS EN 60598-2-22 and other relevant standards
5W
1W
GLADE 1W
GLADE 5W
Photometric Spacing Data (1 Lux)
Photometric Spacing Data (1 Lux)
Mounting height
Mounting height
2.5m 4m
2.4 1.0
5.8 4.9
5.4 5.2
2.4 1.0
2.5m 4.0m 6.0m Lux
5.70 7.40 8.10 0.5
4.50 5.10 5.80 1
Product Code
Description
E/GL/LED/NM3/1W/WH
Glade 1W non-maintained LED mini down light - white
E/GL/LED/M3/5W/WH
Glade 5W maintained LED mini down light - white
+44 (0) 2890 326822
+44 (0) 2890 333439
10.70 14.20 13.70 0.5
9.00 10.10 11.60 1
sales@eadltd.com
10.70 14.20 13.70 0.5
9.00 10.10 11.60 1
5.70 7.40 8.10 0.5
4.50 5.10 5.80 1
33
EMERGENCY LIGHTING
01
LED DOWNLIGHTS
EMERGENCY LIGHTING
Azelio Emergency Track Exit/ Open area LEDs
PICTOGRAMS INCLUDED
LED
2W
IP20
0.67Kg
3
YEARS
40mm
LED TRACK LIGHTING
150mm
01
Overview Azelio Track emergency LED available as an open area downlight or exit sign. High specification track mounted emergency LED downlight supplied with a full set of legends, our new Azelio Track mounted exit sign offers cost-effective emergency lighting where track lighting is installed. It is supplied with a 3 circuit Global Track adapter Available in black or white (green exit legend) Supplied with integral driver and NiCd battery pack Track adapter can be easily swapped to match almost any track profile.
300mm
Features
125mm dia.
32.5mm
110mm
• Track mounted 3 hour Emergency LED • Supplied with full legend set (exit sign only) • Quick & simple to install • Suitable for Global track mounting • Maintained • Minimal maintenance • Easy installation • IP20 ingress protection • RoHS compliant • White & black options
31.5mm
Product Code
Description
E/AZ/TRACK/EXIT
Azelio Track exit sign c/w 4 legends & blank legend
E/AZ/TRACK/EXIT/BK
Azelio Track exit sign c/w 4 legends & blank legend - BLACK
E/AZ/TRACK/COA
Azelio track downlight with corridor & open area lenses - White
E/AZ/TRACK/COA/BK
Azelio track downlight with corridor & open area lenses - Black
34
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
Azelio Emergency Track LED
LED
3W
IP20
0.28Kg
3
YEARS
Overview The Track emergency light is a Non-Maintained Emergency Light. It is supplied with a 3 circuit Global Track adapter. It is designed to provide high light output in the event of an emergency. Track adapter can be easily swapped to match almost any track profile.
Features
32.5mm
• Dimensions: 320mm (L) 67mm (W) 40mm (D), excludes track adapter • Pre-wired for easy installation • Long Life LED technology • Quick & simple to install • Line Voltage: 220-240Vax, 50~60Hz • Lamp Type: 3W White LED • 3 hr emergency lighting duration • Non-maintained operation • Monitoring Battery Connection • CE Approved
31.5mm
Shown with black cover
Photometric Spacing Data (1 Lux) Mounting height 2.4m
3.50
3.10
6.00
5.80
6.0
5.80
3.00
3.10
3m
3.50
3.25
7.00
6.50
7.00
6.50
3.5
3.25
4m
4.50
4.00
9.00
8.00
9.00
8.00
4.50
4.00
lux
0.5
0.5
1
0.5
1
0.5
1
1
Product Code
Description
E/AZELIO/TRACK
Azelio Emergency Track Light: Supplied with 3 circuit GLOBAL TRACK Adapter
S/AZ/BK/COV
Azelio Emergency Track Light Black Cover (Cover only, E/AZELIO/TRACK required)
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
35
EMERGENCY LIGHTING
01
LED TRACK LIGHTING
01
DALI ADDRESSABLE EMERGENCY LIGHTING
EMERGENCY LIGHTING
i-Monitor DALI Emergency Light Testing System
3
YEARS
Overview The i-monitor Emergency is a comprehensive DALI based emergency light testing system. i-Monitor Emergency has been designed to provide a flexible, powerful and user friendly emergency lighting testing and reporting system. The i-Monitor control panels are standard Apple iPad devices utilising a specific ‘App’ which is intuitive and very easy to use for both the commissioning engineer as well as well as a user. The ‘App’ is used to configure all the connected DALI emergency devices.
Features • App based Emergency Light testing system • Simple emergency duration & function test scheduling • System diagnostic information • Control Hubs connect up to 128 DALI lights • I-Pad can control 10 hubs (1280 DALI lights) • Simple menu navigation • Records results & sends notification emails • Scalable to 10,240 DALI Lights • Air print compatible • Master i-Pad can control 10 hubs • Each hub has 2 outputs • Up to 8 x iPads can be networked giving a total of 10,240 DALI lights • iPad can be moved to log on to any hub with a wireless access point, or additional iPads can be used
i-Monitor PRO DALI Lighting Control & Emergency Light Test The i-Monitor Pro uses a PC or laptop for the control & monitoring of the system. It is simply linked to any Multi-Controller. Featuring an intuitive graphic user interface and commissioning tool, coupled with a very powerful database engine, the system provides an intuitive and simple way to initially set-up the system, as well as presentation of live real time status. A wide range of sensors, switch input interfaces and scene button panel options ensure market leading functionality and flexibility.
System Architecture The i-Monitor PRO offers a solution for Commercial applications such as offices, schools, universities, hotels, airports etc The simple display provides clear and concise visualisation of the lighting control scheme. Unlimited control groups, system Diagnostics, alert messages power consumption data, & emergency light test reports further enhance the benefits of the system. The Monitor Pro software can be used to configure any connected DALI device to form local control groups. DALI devices do not need to be physically in the same DALI field network to function as part of a control group. Thus a control
36
ChannelSafety
group can be as simple as a single switch controlling one local light, right up to say, a switch controlling the whole building. The i-Monitor PRO offers a sophisticated lighting control & emergency light monitoring system. Any DALI type 8 light can be monitored & controlled.
Multi Controller Each Multi-Controller can control 10 hubs. Each hub has 2 outputs. Each output can control 64 lights (128 per hub) 128 x 10 hubs= 1280 lights The i-Monitor Pro uses a simple graphical display designed to provide clear and simple visualisation and management of lighting control systems. Icons representing system elements can be overlaid on building schematics and incorporated into a site plan. These icons are dynamic and allow the state of the system and current output levels to be viewed at a glance giving a real-time system wide view.
@channelsafety
channel safety channelsafety.co.uk
i-Monitor DALI Emergency Light Testing system
3
YEARS
We are able to offer a wide range of compatible emergency lights; the most popular types are shown below.
E/EXDA/1
E/EXDA/2
E/EXDA/3
E/EXDA/4
E/EXDA/5
E/DLDA/1
E/DLDA/2
E/DLDA/3
E/BHDA/1
E/BHDA2
E/TSDA/1
E/SOHO/M3/DA
Product Code
Description
Exit Signs E/EXDA/1**
DALI Maintained/Non-Maintained Recessed mounted LED Exit sign-White ** add AU, AD, ALR
E/EXDA/2**
DALI Maintained/Non-Maintained surface mounted LED Blade Exit sign-White ** add AU, AD, ALR
E/EXDA/3**
DALI Maintained/Non-Maintained Suspended mounted LED Exit sign-White ** add AU, AD, ALR
E/EXDA/4
DALI emergency Maintained/Non-Maintained IP65 3w exit sign c/w full legend pack
E/EXDA/5
DALI Maintained/Non-Maintained Wall mounted LED Exit sign-White c/w full legend pack
Downlights E/DLDA/1/**
DALI Emergency 3w Circular LED surface mounted ** add open or corridor lens OA/CO
E/DLDA/2/**
DALI Emergency 3w Square LED surface mounted ** add open or corridor lens OA/CO
E/DLDA/3/**
DALI 3w LED emergency downlight-Recessed ** add open or corridor lens OA/CO
Bulkheads E/BHDA/1
DALI Emergency 2w LED DALI Emergency Bulkhead Non-Maintained 288 Lumens-Clear lens
E/BHDA/2
DALI 3W IP65 bulkhead
Twinspots E/TSDA/1
DALI IP65 6w LED Twinspot Emergency providing 610 Lumen output
Ceiling Light E/SOHO/M3/DA
DALI Soho 21w maintained ceiling light
Ordering Details: Please contact us with your requirements for us to provide a customised solution to meet your system requirements.
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
37
EMERGENCY LIGHTING
01
DALI ADDRESSABLE EMERGENCY LIGHTING
01
WIRELESS DALI ADDRESSABLE EMERGENCY LIGHTING
EMERGENCY LIGHTING
iD-Mesh Wireless DALI emergency lighting testing system NEW
Cloud
WIFI
Overview We are proud to introduce our new iD-Mesh wireless DALI emergency lighting testing system. iD-Mesh offers a cost effective solution which overcomes the issue of installing a data network. Each emergency light is incorporated in to a wireless data network and forms part of the transmit/receive mesh. System monitoring & reports are all via the cloud and can be viewed on any internet connected device. This ensures that your emergency lighting is functioning & compliancy data is available. Any issues are immediately reported advising the exact location & nature of the fault, ensuring a first time fix.
Features • Each iD-Mesh hub can control up to 239 lights • Multiple –iD-Mesh hubs can be used to create systems WITH NO LIMIT ON SIZE • ID-Mesh hubs have a range of up to 500m line of sight and up to 100m within a building • The iD-Mesh wireless nodes can be fitted in to any suitable DALI emergency light • Each hub reports to the cloud platform which can be viewed at any location via a web browser
• The nodes have an approximate range of 50m • The mesh technology enables all nodes to both receive & transmit data to the hub, this ensures that signals have multiple paths to/from the node. • Persistent gateways mean that if communication is lost, data is stored until communication is re-established. • Transmits at Long Range 868Mhz • Commissioning & system changes are carried out using an “iD-Mesh Works” robust tablet • The iD-Mesh Works tablet builds the mesh at the push of a button
PART CODE E/ID/MESH/WORKS
PART CODE E/ ID/MESH/HUB
Including the gateway, the maximum for each mesh is 240 points
i 38
To find out more information on our iD-Mesh System, please contact a member of our sales team on 0845 884 7000 or email customerservices@channelsafety.co.uk
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
We are able to offer a wide range of iD-Mesh compatible emergency lights; the most popular are shown below.
Cloud
WIFI
E/EXDA/1/ID
E/EXDA/2/ID
E/EXDA/3/ID
E/EXDA/4/ID
E/EXDA/5/ID
E/DLDA/1/ID
E/DLDA/2/ID
E/DLDA/3/ID
E/BHDA/1/ID
E/BHDA2/ID
E/TSDA/1/ID
E/SOHO/M3/DA/ID
Product Code
3
YEARS
Description
Exit Signs E/EXDA/1/ID/**
DALI Maintained/Non-Maintained Recessed mounted LED Exit sign-White ** add AU, AD, ALR
E/EXDA/2/ID**
DALI Maintained/Non-Maintained surface mounted LED Blade Exit sign-White ** add AU, AD, ALR
E/EXDA/3/ID**
DALI Maintained/Non-Maintained Suspended mounted LED Exit sign-White ** add AU, AD, ALR
E/EXDA/4/ID**
DALI emergency Maintained/Non-Maintained IP65 3w exit sign c/w full legend pack
E/EXDA/5/ID**
DALI Maintained/Non-Maintained Wall mounted LED Exit sign-White c/w full legend pack
Downlights E/DLDA/1/ID/**
DALI Emergency 3w Circular LED surface mounted ** add open or corridor lens OA/CO
E/DLDA/2/ID/**
DALI Emergency 3w Square LED surface mounted ** add open or corridor lens OA/CO
E/DLDA/3/ID/**
DALI 3w LED emergency downlight-Recessed ** add open or corridor lens OA/CO
Bulkheads E/BHDA/ID/1
DALI Emergency 2w LED DALI Emergency Bulkhead Non-Maintained 288 Lumens-Clear lens
E/BHDA/ID/2
DALI 3W IP65 bulkhead
Twinspots E/TSDA/ID/1
DALI IP65 6w LED Twinspot Emergency providing 610 Lumen output
Ceiling Light E/SOHO/M3//ID/DA
DALI Soho 21w maintained ceiling light
Control Equipment E/ID/MESH/HUB
WiFi Hub – Controls up to 239 lights
E/ID/MESH/WORKS
ID-Mesh system tablet used to commission & amend the system
E/ID/MESH/NODE
WiFi Node – fitted to suitable DALI light
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
39
EMERGENCY LIGHTING
01
XXXXXXXXXXX WIRELESS DALI ADDRESSABLE XXXXXXXXXXX EMERGENCY XXXXXXXXXXX LIGHTING
01
DALI ADDRESSABLE EMERGENCY LIGHTING
EMERGENCY LIGHTING
A guide to DALI controls What is DALI?
The DALI system at work
DALI stands for Digital Addressable Lighting Interface. In other words, it is a worldwide standardised digital lighting interface. The DALI standard, specified in IEC standard 60929, ensures interchange ability and compatibility of lighting products from different manufacturers. The DALI system was created by leading lighting manufacturers who recognised the need for a common interface. DALI was engineered to meet the new challenges of lighting control – more flexibility, greater scalability of control and faster installation.
Basic Rules for DALI products & systems There are a few basic rules to take into account when planning and wiring a DALI system. Max. Addresses per system (subnet) - 63 It’s officially 64, but you need to leave one free, to make system updates easier. Polarity - DALI connections are not polarity sensitive. Max. DALI current per system (subnet) - 250mA DALI supply. The total current that is supplied by all sources of the control system must not be more than 250mA. DALI wiring safety rating DALI wiring and connections should be treated like Mains voltage wiring. Though the signal is 16 volts the hardware is not SELV rated (Safety Extra Low Voltage). Which wire for DALI cable? You must use 2-conductor, mains rated wire.
Traditional DALI allows for individual light fittings to be controlled and grouped together into logical areas. The DALI protocol allows for a maximum of 64 fittings on a single network and the network can be broken up into 16 different possible areas.
DALI enables total control Compared to a fixed output installation, the dimming and individual control capability provided by DALI enables considerable energy savings. In combination with dimmable drivers, presence and daylight sensors, energy savings of up to 80 per cent can be achieved. If the operation of the lighting is to be rearranged or regrouped, the costs per circuit in a fixed output system could be four times higher than those in a DALI system. The ability to send queries and obtain replies – two-way communication – can greatly reduce maintenance costs. For example, DALI allows automatic testing and reporting of monthly function tests of emergency lighting. In addition, energy consumption and lamp condition can be checked for each luminaire, very easily and at no additional cost.
Other Features of using DALI • Simplicity & Robustness • Scalability & Flexibility • Energy and cost-saving • DALI creates potential for connectivity • DALI is a global standard
Maximum cable length DALI Cable length
Recommended minimum conductor size for DALI wiring
Less than 100 meters
0.5 mm2
100 to 150 meters More than 150 meters More than 300 meters
0.75 mm2 1.5 mm2 Not recommended, avoid runs over 300 meters
Emergency Lighting Test Switch
3
YEARS
Features • Dimensions: 86mm(W) x 86mm(H) x 19mm(D) • Material: Flame retardant ABS • Weight: 0.14Kg • Compliance: EMC - 89/336/EEC LVD-73/23/EEC • Suitable for maintained & non-maintained luminaires
Product Code
Description
E/CH/ELTS
Surface mounted test switch
40
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
02 COMMERCIAL& SECURITY LIGHTING
IN THIS SECTION XXXXXXXXXXX XXXXXXXXXXX XXXXXXXXXXX
02
COMMERCIAL & SECURITY LIGHTING Led Luminaires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Led Floodlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Hazardous Area Lighting . . . . . . . . . . . . . . . . . . . . . . 46
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
41
COMMERCIAL& SECURITY LIGHTING
02
IN THIS SECTION
Featured products We are proud to introduce innovative enhancements to both our Milan & Soho ranges. We have added our SmartTest option to the emergency versions & further enhanced the product range with three selectable colour temperature options.
Milan Range
NEW
A complete range of 15w circular LED low profile polycarbonate IP65 light fittings. 3 x Options
Supplied as standard with selectable 3 colour temperature options, 3000K, 4200K & 6000K
Now includes Channel emergency light remote testing at the touch of a button. See page 10.
PAGE 43
Soho The SoHo LED luminaire is a true 2D 28W replacement and boasts a high lumen output giving it a top tier market performance. Now with the added benefit of corridor function (microwave versions) and colour changes. 3 x Options
NEW
Supplied as standard with selectable 3 colour temperature options, 3000K, 4200K & 6000K Now includes Channel emergency light remote testing at the touch of a button. See page 10.
PAGE 44
42
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk

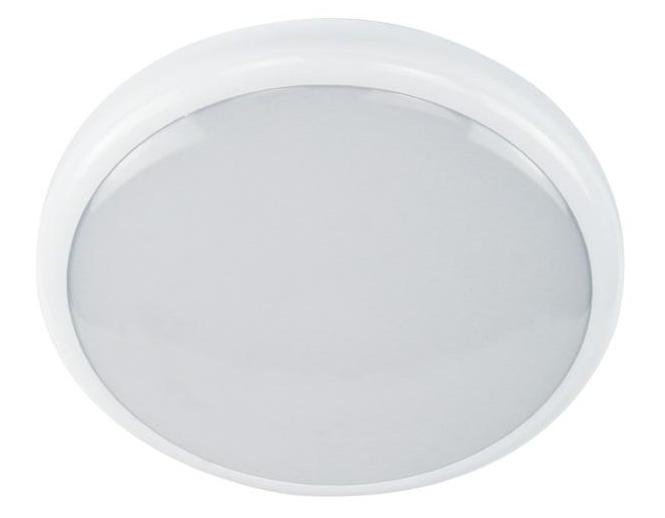

Milan LED Luminaire
NEW
LED
15W
3 x Options
1400lm
IP65
1.08Kg
3
YEARS
Overview The Milan range of 15w circular LED Lumiaires offers a complete range of low profile polycarbonate IP65 light fittings. It is supplied as standard with selectable 3 colour temperature options, 3000K, 4200K & 6000K. The Milan range comes in a white finish as standard but is further enhanced with, black, chrome or brass coloured bexel options. The Milan range is further enhanced with the option of remote control testing on the emergency versions.
Features
• Tough polycarbonate housing • May be mounted in any orientation • Twist on diffusser. • Mains only & Maintained emergency options • Minimal maintenance • Easy installation • IP65 ingress protection • RoHS compliant • Excellent luminaire spacings
• Selectable 3 colour temperature options 3000k, 4200k &6000k • Mains output 1400Lm Emergency output 132Lm • Microwave with corridor function options • Versatile multi-functional use, interior & exterior
White
Black
Chrome
Photometric Spacing Data (1 Lux) Mounting height 2.5m 4m
4.3 4.8
10.00 11.40
10.00 11.40
4.3 4.8
Brass
68mm
Product Dimensions
Black eyelid
305mm dia.
White eyelid
Product Code
Description
E/MILAN
Milan LED 15w Mains only Light
E/MILAN/M3
Milan LED 15w 3 Hour Maintained Emergency Light
E/MILAN/MW
Mains LED 15w Mains only Light c/w Microwave Sensor
E/MILAN/M3/MW
Milan LED 15w Emergency Microwave 3 Hour Maintained Emergency Light
E/MILAN/M3/RC
Milan LED 15w 3 Hour Maintained Emergency Light – Remote Control
E/MILAN/M3/MW/RC
Milan LED 15w Emergency Microwave 3 Hour Maintained Emergency Light – Remote Control Option
E/EM/RC
Remote Control Option
E/MILAN/BEZ/CH
Milan Chrome bezel
E/MILAN/BEZ/BR
Milan Brass bezel
E/MILAN/BEZ/BK
Milan Black bezel
E/MILAN/EYE/WH
Milan White eyelid bezel
E/MILAN/EYE/BK
Milan Black eyelid bezel
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
43
COMMERCIAL& SECURITY LIGHTING
02
LED LUMINAIRES
02
LED LUMINAIRES
COMMERCIAL& SECURITY LIGHTING
SoHo
SELF TEST
NEW
LED
21W
3 x Options
2100lm
IP65
1.45Kg
3
YEARS
Overview The SoHo LED luminaire is a true 2D 28W replacement and boasts a high lumen output giving it a top tier market performance. Now with the added benefit of corridor function (microwave versions) and three colour temperature options, 3000K, 4200K & 6000K. The Soho is also available with our optional remote control emergency testion function. Finished with a white base and a high light transmission polycarbonate diffuser which is held securely in place by a single clip system. Now with benefit of corridor function, (microwave versions), colour change & remote control testing option on the emergency version.
Features • SoHo Dimensions: 325mm(Ø) • Mains Output 2100Lm Emergency Output 287Lm • Light source: Epistar LED • Three colour temperature options • Power consumption: 21W Circuit Watts • Typical power saving: 35-40% over conventional 2D luminaires • Now with ‘corridor function’ (microwave option only)
• IP Rating: IP65 • Weight: 1.45 Kg • Material: Polycarbonate base, high light transmission polycarbonate diffuser • Mains or emergency 3 hour maintained and microwave options available • Compliance: BS EN 605982-22 • 3 colour temperature selection, 3000k, 4200k & 6000k
Photometric Spacing Data (1 Lux) Mounting height 2.5m 4m
4.3 4.8
10.00 11.40
10.00 11.40
4.3 4.8
Photometric spacing data soho mini (1 lux) Mounting height 2.5m 4m
4.8 6.0
11.00 12.40
11.00 12.40
4.8 6.0
Now with corridor function, three colour temperature selection & remote control option. • The CorridorFUNCTION enures that light is produced only when actually needed. This saves energy usage & possible light polution • When a person enters a corridor or room, the light will come on/ increase to full brightness • When the person leaves the corridor/room, a presence detector will dim the light after a preset period. After a further preset period, if no movement is detected the light will switch off completely • The light also incorporates a daylight sensor so it only illuminates if the ambient light is below a pre-set level The setting available are: Distance (sensitivity) setting - The detector has a maximum range of 10M. Distance detected range can be adjusted to 100%, 75%, 50% & 0% of the maximum range (approx 6m radius mounted at 3m height).
Hold Time Setting - The ‘Hold time’ is the period the lamp remains at 100% once movement has ceased. The sensor can be adjusted to 5s, 30s, 60s, 5min, 10min, 20min and 30min. Daylight Setting - Day light value can be adjusted to 2 lux, 10 lux, 50 lux and disabled. If you choose ‘Disabled’ then the light will operate all the time no matter how bright the ambient light level is. Stand-By Period (corridor function) - This is the time period the light will remain at the dimmer light level. Once the chosen time has elapsed the light will turn off. This can be over ridden so the light remains at the dimmed level until movement is detected. Stand-by Dimming Level - This is the level the light dims to once movement has ceased & the hold time setting has elapsed, this can be set to 10%, 20%, 30% or 50% of the full light level. Choice of three colour temperatures, 3000k, 4200k & 6000k.
Product Code
Description
E/SOHO
Soho-21 watt mains version :2100 lm
E/SOHO/M3/RC
Soho - 21W mains version 3hr emergency light with remote control option, 2100 lm
E/SOHO/MW
SoHo - 21W mains complete with microwave sensor, 2100 lm - Corridor function
E/SOHO/M3/MW/RC
Soho - 21W mains version 3hr emergency light with microwave sensor remote control option, 2100 lm
SP/SOHO/M3/ST
SoHo - 21W mains 3hr emergency version, 2100 lm (Self test, made to order)
SP/SOHO/M3/MW/ST
SoHo - 21W mains 3hr emergency version complete with microwave sensor, 2100 lm - Corridor function (Self test, made to order)
E/EM/RC
Optional Remote Control
44
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
Comet Floodlight Range
LED
IP65
100W-300W
8500lm-24000lm
9kg -16.6kg
1.08Kg
3
YEARS
Overview The Comet collection ranges from the small but powerful 100w option, with an impressive 8500Lm output. up to the 24000Lm 300w version. All IP65 rated and packing enough punch to be used in a variety of situations.
Features • Slim body to minimise wind resistance • Die cast aluminium body with integrated cooling • Black powder coated • 5mm thick thermal shock and impact resistant tempered glass • Integral adjustable stirrup mounting bracket • Supplied with 1m power lead • Fixed output LED driver • Suitable for ambient temperatures -20 to +40°C • Shock and vibration resistant • Colour temperature 5000K
100W
200W
300W
• Lumen Output: 8500lm • Input Current: 0.43A (@230V) • Input Power: 100W • Dimensions: 281.6 x 320.9 x 38mm • Weight: 9kg
• Lumen Output: 17000lm • Input Current: 0.87A (@230V) • Input Power: 200W • Dimensions: 385 x 470 x 51mm • Weight: 12.2kg
• Lumen Output: 24000lm • Input Current: 1.37A (@230V) • Input Power: 300W • Dimensions: 428.6 x 470.6 x 70mm • Weight: 16.6kg 70mm (D)
51mm (D) 38mm (D)
300W
320.9mm
470mm
100W
470.6mm
200W
281.6mm
385mm
Product Code
Description
E/COM/100W
Comet 100W Floodlight
E/COM/200W
Comet 200W Floodlight
E/COM/300W
Comet 300W Floodlight
+44 (0) 2890 326822
+44 (0) 2890 333439
428.6mm
sales@eadltd.com
45
COMMERCIAL& SECURITY LIGHTING
02
LED FLOODLIGHTS
02
HAZARDOUS AREA LIGHTING
COMMERCIAL& SECURITY LIGHTING
Commando Explosion Proof Hazardous Area NEW
LED
36W-110W
IP67
4000
IK10
3
YEARS
Overview The Commando HAZARDOUS AREA range offers a versatile selection of extremely robust, vandal resistant die cast aluminium body fittings with poly¬carbonate diffuser, making it suitable for the harshest environments. Certified to Class 1, Division 2 Explosion Proof Hazardous Location (ATEX Zone 2 Equivalent) The Commando range includes three different sizes and optional wall mounting brackets. The range can be further enhanced with the use of eyelid covers (22 & 37w) & brackets.
112w & 136w Commando EXP
Features Wall Mounting Bracket
• Housing: Heavy-duty die cast aluminium housing and top frame with powder coat finish. • Lens: Opal polycarbonate vandal-resistant lens. • Mounting: Surface mount with included surface mount bracket, or use optional adjustable bracket. • Environmental: IP67, IK10 • Operating Temperatures: -40°C to +40°C Specifications Wattage
Delivered Lumen
Dimensions
22W
2,828lm
309 x 178 x 102mm Deep
37W
4,750lm
309 x 178 x 102mm Deep
47W
5,695lm
614 x 178 x 102mm Deep
68W
8,021lm
614 x 178 x 102mm Deep
112W
13,172lm
1247 x 178 x 102mm Deep
136W
15,930lm
1247 x 178 x 102mm Deep
Product Code
Description
E/COM/EXP/22W
Commando 22w 309mm long 2,828Lm
E/COM/EXP/22W/EYE
Commando 22w Eyelid cover 309mm long 2,274Lm
E/COM/EXP/22W/HOOD
Commando 22w Hood cover 309mm long 2,597Lm
E/COM/EXP/37W
Commando 37w 309mm long 4,750Lm
E/COM/EXP/37W/EYE
Commando 37w Eyelid cover 309mm long 3,908Lm
E/COM/EXP/37W/HOOD
Commando 37w Hood cover 309mm long 4,223Lm
E/COM/EXP/47W
Commando 47w 614mm long 5,695Lm
E/COM/EXP/68W
Commando 68w 614mm long 8,021Lm
E/COM/EXP/112W
Commando 122w 1247mm long 13,172Lm
E/COM/EXP/136W
Commando 136w 1247mm long 15,930Lm
E/COM//BKT/1
Commando wall bracket, 2 required for 112w & 136w
46
ChannelSafety
Eyelid
22w & 36w Commando EXP
Hood
47w & 68w Commando EXP
@channelsafety
channel safety channelsafety.co.uk
03 CENTRAL BATTERY UNITS AND STATIC INVERTERS
IN THIS SECTION XXXXXXXXXXX XXXXXXXXXXX XXXXXXXXXXX
03
CENTRAL BATTERY UNITS AND STATIC INVERTERS AC/DC Central Battery Units . . . . . . . . . . . . . . . . . 48 Mini Static Inverters . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Static Inverters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Specialist Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Sealed Lead Acid Batteries . . . . . . . . . . . . . . . . . . 52 NiCd Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
47
03
AC/DC CENTRAL BATTERY UNITS
CENTRAL BATTERY UNITS AND STATIC INVERTERS
AC/DC Central Battery Units Overview All Channel Safety Central Battery Units (CBU) are bespoke designs with a range of standard features and benefits providing a robust solution to meet specific customer requirements, supplied in wall mounted and free standing cabinets with options for high ingress protection.
Features • Bespoke designs • Ventilated mild steel cabinets • Maintained and Non-Maintained options available • 12 / 24 / 36 / 48 / 50 / 110 / 220Vdc output options • Extensive range of Slave Luminaires available • Various back up runtimes to suit specifications • Options for self-contained battery compartments
AC/DC Central Battery Slave Light Fittings Overview
Features
AC/DC Central battery units require the use of special lights known as ‘slave fittings’. The slave fittings obtain their emergency power supply from a separate central bank of batteries. The central battery system makes maintenance and testing easier, and fittings are available in 24V, 50V, 110V and 230V AC/DC.
As the name implies a central battery emergency light is one where it’s power comes from one source. The central battery slave fittings do not have an integral battery but rely on the central battery to supply them. Central battery systems come in either maintained or nonmaintained. They must be wired in fire rated cables.
Stratos Slave Fittings The Stratos range of slave fittings offers a slimline profile in contemporary design. Each light is supplied with a legend pack as standard. Optional drop down exit blades and semi-recessing kits are available. (see page 16 for full details).
48
Product Code
Description
E/STRATOS/24
Stratos 7x LED - 1W, IP65, 24 V AC/DC slave bulkhead c/w exit sign pictogram (1W 198lm IP65)
E/STRATOS/50
Stratos 7x LED - 1W, IP65, 50 V AC/DC slave bulkhead c/w exit sign pictogram (1W 198lm IP65)
E/STRATOS/110
Stratos 7x LED - 1W, IP65, 110 V AC/DC slave bulkhead c/w exit sign pictogram (1W 198lm IP65)
E/STRATOS/230
Stratos 7x LED - 1W, IP65, 230 V AC/DC slave bulkhead c/w exit sign pictogram (1W 198lm IP65)
E/STRATOS/REC/KIT
Stratos Semi Recessing Kit
E/STRATOS/PIC/KIT
Stratos Hanging Blade legend c/w exit sign pictogram
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
Mini Static Inverters
1
YEARS
Overview The STI-LED range of Mini Static Inverters have been engineered with the LED lighting market in mind offering a cost effective solution to powering unmodified LED luminaires in the event of mains failure the unit is a pure sine wave inverter with a 230v ac output.
Features • Pure Sine Wave • 32 bit Micro-controller • Multi Fucntion LCD Display • 3 Hour Duration
• Overload & Short Circuit Protection • Compatible with optional remote hold off relays
Tecnical specifications C/STI-LED-200
C/STI-LED-400
Input Voltage
230V 50Hz +/- 10%
230V 50Hz +/- 10%
Input Current
<5.0A
<5.0A
Output Voltage
230V 50Hz +/- 10%
230V 50Hz +/- 10%
Output regulation
1-5% dependent on load
1-5% dependent on load
Output power
200W
400W
Output capacity
120%
120%
No. of maintained outlets
1
1
Output
Pure Sine Wave
Pure Sine Wave
Battery type & capacity
SLA 12V/38AH
SLA 12V/38AH
Invertor H x W x D
305 x 472 x 66mm
305 x 472 x 66mm
Invertor weight
16.5Kg
16.5Kg
Battery cabinet H x W x D
1 x 238 x 472 x 174mm
2 x 238 x 472 x 174mm
Battery cabinet weight
34.5Kg
2 x 34.5Kg
Fixing locations
Wall or free standing
Wall or free standing
Product Code
Description
C/STI-LED-200
200 Watt LED Static Inverter
C/STI-LED-400
400 Watt LED Static Inverter
C/STI-LED-COR
Change over relay- used as hold off relay or as non maintained output.
i
To find out more information on our replacement batteries, please contact a member of our sales team on 0845 884 7000 or email customerservices@channelsafety.co.uk
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
49
CENTRAL BATTERY UNITS AND STATIC INVERTERS
03
MINI STATIC INVERTERS
03
STATIC INVERTERS
CENTRAL BATTERY UNITS AND STATIC INVERTERS
Static Inverters
1
YEARS
Overview The PowerPro EL Ranges are Static Inverter Systems designed specifically for emergency lighting applications according to European BS EN50171 specification. A highly versatile range, not only providing capacity up to 160kVA Allowing Channel to provide an all-inclusive selection of reliable and cost effective products to meet the most challenging of lighting applications.
Features
No-break
• Remote Alarm Panel - External panel for monitoring the static inverter • Output Distribution - Internal distribution of the lighting circuits, standard in EL100XA & EL100, multiple outputs are optional • Maintenance Bypass Panel - to provide flexibility during maintenance, service and/or repairs to the equipment. The bypass can ensure that the system is isolated from the critical load whilst work can be carried out • Phase Failure Monitoring - Factory fitted relats to ensure that the system monitors all three phases. Failure of any phase activates the emergency lights. • Sub-Circuit Monitoring - Factory Fitted relays monitor external lighting circuits, if any of the external circuits fail the emergency lights are activiated • Lighting Control Interface - Allows communication via a node/ module to the testing and monitoring systems. • Fire Alarm monitoring - An alarm condition from the fire alarm panel will activate the emergency lights • Night-Watchmen Switch - Enables switching of the emergency lightsfrom a remote location, fail safe in an emergency condition • Timer Control - Solar dials or 24hour timers can be used to activate the non-maintained contractor. • Earth Fault Alarm - Monitoring of battery positive and negative for earth leakage
We manufacture a “No-Break” Emergency Lighting Static Inverter System that guarantees there will be no changeover switching of the supply to the load on mains failure. The load is totally unaffected by supply variation and is constantly fed with stabilised, smoothed and conditioned power.
Our Static Inverter Systems are able to provide the following input and output configurations: • Single Phase Input : Single Phase Output • Three Phase Input : Single Phase Output • Three Phase Input : Three Phase Output On Mains failure, the system converts DC power from the central battery to AC output. Our systems allow the use of our modern energy efficient luminaires, while our on-line ‘NO BREAK’ inverter systems enable the use of high-pressure discharge lighting.
Conforms with all current relevant harmonised European standards.
i
50
Static inverter systems for emergency lighting A totally integrated, energy efficient cost-effective and unobtrusive solution for all Emergency Lighting situations: • Passive Standby • Active Standby • No-Break for ALL lighting loads including high pressure discharge • All systems can be configured 1:1, 3:1 or 3:3 • Integration with our complementary products for Emergency Lighting • Optional output current limiters
Passive standby Our low cost flexible Passive Standby Static Inverter System is ideal for use with fluorescent and incandescent lighting sources. Traditional technology provides proven reliability with one of the lowest component counts in the industry. Low heat output, high efficiency (typically greater than 95% AC-AC).
Active standby “Active Standby” is our constantly running, off load, Static Inverter which can be monitored for function at all times – reassuring to know that the system will work when an emergency load is applied.
To find out more information on our replacement batteries, please contact a member of our sales team on 0845 884 7000 or email customerservices@channelsafety.co.uk
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
03 CENTRAL BATTERY UNITS AND STATIC INVERTERS
SPECIALIST BATTERIES
Replacement Batteries Features • In critical standby applications the battery can be a large integral part of the system and can also be an unpredictable element of the design • Depending on models, batteries are either 3 to 5 year or 8 to 10 year design life. There are six key factors that can affect UPS battery life-the placement, ambient temperature, cycling, maintenance, battery chemistry and battery storage. It is important that sufficient maintenance is carried out to extend the life of your battery to the fullest
i
To find out more information on our replacement batteries, please contact a member of our sales team on 0845 884 7000 or email customerservices@channelsafety.co.uk
Small Office UPS Features • Channel Safety can offer a wide range of Small Office/Home Office related line interactive UPS products, designed to offer total power protection to a broad range of applications. • Our PowerStar and PowerPrem+ ranges will provide clean and reliable backup power to ensure continued data integrity and optimum performance under a wide range of mains power conditions.
PowerStar- Line Interactive UPS Available from 650VA - 3kVA • • • •
Fully intelligent line interactive Microprocessor based design Overload protection Boost & buck AVR voltage stabilisation
PowerPrem+ - Line Interactive UPS Available from 800VA - 5kVA • Microprocessor-based line interactive technology • Built-in boost and buck AVR • Tower and rackmount convertible design (1-3kVA) • Hot swappable battery design (1-3kVA)
PowerOn - Online Double Conversion UPS Available from 1kVA - 3kVA • Digital Signal Processor (DSP) technology • Tower and rackmount convertible design • Hot swappable battery design • Multiple communication ports
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
51
03
SEALED LEAD ACID BATTERIES
CENTRAL BATTERY UNITS AND STATIC INVERTERS
Sealed Lead Acid Batteries Features
Length (± 1)
Width (± 1)
Height (over terminals) (± 2)
Weight - typical (kg)
Impendance at 1kHz mOhms
1 Second rate (Amps)
Terminal Type
Layout (see page 19)
B/12V/0.8AH/SLA
12
0.8
0.7
96
25
61.5
0.35
180
24
H
6
B/12V/1.2AH/SLA
12
1.2
1.1
97
48
54.5
0.58
110
36
A
3
B/12V/2.1AH/SLA
12
2.1
1.9
178
34
64
0.82
65
63
A
1
B/12V/2.3AH/SLA
12
2.3
2.1
178
34
64
0.95
65
69
A
1
B/12V/2.8AH/SLA
12
2.8
2.5
134
67
64
1.12
60
84
A
3
B/12V/3.2AH/SLA
12
3.2
2.9
134
67
64
1.2
50
96
A
3
B/12V/4AH/SLA
12
4.0
3.7
90
70
106
1.75
40
120
A/C
1
B/12V/7AH/SLA
12
7.0
6.4
151
65
97.5
2.65
23
210
A/C
4
B/12V/12AH/SLA
12
12.0
11.1
151
98
97.5
4.05
16
360
C
4
B/12V/17AH/SLA
12
17.0
15.7
181
76
167
6.1
15
510
D
2
B/12V/24AH/SLA
12
24.0
2.3
166
175
125
9
11
720
D
2
B/12V/38AH/SLA
12
38.0
5.3
197
165
170
14.2
9
1140
D
2
B/12V/65AH/SLA
12
65.0
0.5
350
166
174
23
7
1950
E
2
Nominal Voltage (Volts)
10-hr rate to 10.8V at 20°C (Ah)
Dimensions (mm)
20-hr rate to 10.5V at 20°C (Ah)
Capacity
Watts per cell 10 min to 1.6VPC at 20 ° (watts)
• Superb recovery from deep discharge • Electrolyte suspension system • Gas recombination / Multipurpose: float or cyclic use • Superior energy density / Visible status indication • Lead calcium grids for extended life
Product Code
Product Code
Description
B/12V/0.8AH/SLA
12 Volt 0.8Ah sealed lead acid battery (1 block)
B/12V/1.2AH/SLA
12 Volt 1.2Ah sealed lead acid battery (1 block)
B/12V/2.1AH/SLA
12 Volt 2.1Ah sealed lead acid battery (1 block)
B/12V/2.3AH/SLA
12 Volt 2.3Ah sealed lead acid battery (1 block)
B/12V/2.8AH/SLA
12 Volt 2.8Ah sealed lead acid battery (1 block)
B/12V/3.2AH/SLA
12 Volt 3.2Ah sealed lead acid battery (1 block)
B/12V/4AH/SLA
12 Volt 4Ah sealed lead acid battery (1 block)
B/12V/7AH/SLA
12 Volt 7Ah sealed lead acid battery (1 block)
B/12V/12AH/SLA
12 Volt 12Ah sealed lead acid battery (1 block)
B/12V/17AH/SLA
12 Volt 17Ah sealed lead acid battery (1 block)
B/12V/24AH/SLA
12 Volt 24Ah sealed lead acid battery (1 block)
52
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
NiCd Batteries Features
Standard charge characteristics Voltage (V)
• Available exclusively from channel safety systems • High quality 4.0Ah nickel cadmium batteries • Complete with connector and lead • 1.2V per cell • 55°C high temperature • Dimensions: Each cell 33mmØ x 60mmL (approx) • Weight: 0.125 Kg per cell • Compliance: IEC 61951 - 2003 Clause 7.4.2.3 • Endurance test - 3rd party certified Standard charge characteristics 1.6 1.5 1.4 1.3 1.2 1.1 1.0
Charge: 0.1°C x 15hrs 10°C 55°C 70°C
0
2
4
6 8 10 Charge duration (hours)
12
14
Electrical characteristics per cell Nominal Voltage (V)
1.20
Nominal Capacity (mAh) @ 25˚C
4000
Maximum Continuous Discharge Current (A)
2.4
16
Charge conditions
Capacity (%)
Charge efficiency after different charge rates 120 100 80 60 40 20 0
No.1 No.2 Charge: 0.1°C (No.1) Charge: 0.25°C (No.2) Discharge: 0.25°C to 1.0V -20
-10
0
10
20 30 40 Cell temperatures (°C)
50
60
70
Capacity retainment (%)
Charge: 0.5°C Charge: 0.25°C to 1.0V Temp: 55°C 0
4
8
12
16
24 28 32 Number of months
36
40
44
Temp
Charge (mA)
Standard
16hrs
0-45˚C
400mA (0.1C)
Trickle
24hrs
0-70˚C
200mA (0.05C)
Maintenance
∞
0-55˚C
200mA (0.05C)
80
Charge change in permanent charge 120 100 80 60 40 20 0
Time
48
52
Dimensions per cell
Storage
Diameter (mm)
32.5 +/- 0.5
Height (mm)
59 +/- 1.0
Storage Temperature
Weight (g)
125 approx.
0 to +25˚C
Battery configurations B
C
D
E
F
G
H
I
Voltage (V)
Discharge characteristics 1.5 1.4 1.3 1.2 1.1 1.0 0.9
0.5°C
0
20
40
0.2°C
60 80 100 Charge duration (hours)
Battery configurations
120
140
Product Code
Description
A
B/1.2V/4AH/NICD
NiCd 4.0Ah High Temperature D Cell Tags
B
B/2.4V/4AH/NICD
NiCd 2 Cell 4.0Ah High Temperature D Cell Leads
C
B/2.4V/4AH/NICD/S
NiCd 2 Cell 4.0Ah High Temperature D Cell Leads Side-By-Side
D
B/3.6V/4AH/NICD
NiCd 3 Cell 4.0Ah High Temperature D Cell Leads
E
B/3.6V/4AH/NICD/S
NiCd 3 Cell 4.0Ah High Temperature D Cell Leads Side-By-Side
F
B/4.8V/4AH/NICD
NiCd 4 Cell 4.0Ah High Temperature D Cell Leads
G
B/4.8V/4AH/NICD/S
NiCd 4 Cell 4.0Ah High Temperature D Cell Leads Side-By-Side
H
B/6V/4AH/NICD
NiCd 5 Cell 4.0Ah High Temperature D Cell Leads
I
B/6V/4AH/NICD/S
NiCd 5 Cell 4.0Ah High Temperature D Cell Lead Side-By- side
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
53
CENTRAL BATTERY UNITS AND STATIC INVERTERS
03
NICD BATTERIES
04 EQUALITY ACT & ASSISTANCE
IN THIS SECTION
04
EQUALITY ACT & ASSISTANCE Toilet Alarm Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
54
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
04 EQUALITY ACT & ASSISTANCE
TOILET ALARM KITS
HARK™ and HARK+ Features The Hark Help and Assistance Response Kit is simple to install and provides peace of mind wherever an indication of ‘assistance required’ is called for. Meeting the BS Standard requirement for all disabled toilets to be fitted with an emergency toilet alarm. Available in kit solutions finished in white or stainless steel, to fit discreetly into any decor or environment. The unit benefits from a reassuring audible sound from within the reset unit which confirms that assistance is on the way in addition the unit has braille text. • Only 3 points to install on a standard system, and can be simply linked and expanded to other systems • Simple to expand as requirements increase • Sounder within the reset unit to give audible reassurance that assistance is on the way • Kits supplied with Twin pull cord rings, Braille text on the reset unit as well as a Disabled Persons sticker • Multi-way remote indicator units available • Assists in compliance with the DDA, BS8300 & other care standards • Suitable for commercial and public buildings as well as specialist areas such as hospitals, restaurants, nursing and retirement homes • Call acknowledge on Hark+
Additional Options
Pull Cord Units
The Help Alarm Response Kit can be linked to a remote multiway indicator panel (for use in a reception or staffed area). A 12 volt relay unit can be used to interface the unit to a wide range of equipment such as. • BMS • Fire alarms • Intruder Alarms • Paging transmitters Additional pull cord units can be added to the system to allow for larger rooms or multi area coverage. Please note that additional pull cords will operate and be reset by the same unit as the initial pull cord.
Alarm Indicator Units The Indicator Units are simple to install and meet the BS requirement for all disabled toilets to be fitted with an emergency toilet alarm. 75 db at 1metre These units can be purchased as either 1 or up to 11 indicators and come finished in either White Polycarbonate or Stainless Steel. Custom engraving is available.
Push Button The HARK Push Button can be used instead of a hanging pull cord to notify that the user is in distress.
+44 (0) 2890 326822
N/HARK/1 – Complete toilet alarm kit, comprising Pull cord, Reset unit, Power supply unit and Indicator finished in white polycarbonate
The pull cord unit is supplied with a red plastic ring. An extra ring is supplied to conform to ‘Approved Document M’. The second ring should be fitted lower down near floor level. Activating a call is simply made by pulling the cord. This will activate the re-assurance indicator on the pull cord unit. In turn this will also illuminate the reset unit and trigger the internal sounder. At the same time the Overdoor indicator/sounder unit will illuminate and trigger it’s own internal sounder.
Reset Units The reset unit has a blue engraved legend ‘RESET’. When a call is activated the reset switch illuminates and the internal sounder activates. The call is reset by simply pressing the reset switch. The reset switch is supplied with Braille legend on the switch piece.
Indicator / Sounder Units The Overdoor indicator/Sounder unit is supplied with an integral Power supply unit. A fused spur should be fitted nearby and wired to this unit to provide power. The unit will illuminate and sound as soon as a call is activated. The unit will cease once the reset switch is pressed. HARK includes a variety of different accessories to work in compliance for a professional end result. These accessories combine modern aesthetics and high functionality providing you with the ideal solution for the most demanding installations. HARK assists with compliance with the DDA, BS8300 & other care standards.
+44 (0) 2890 333439
sales@eadltd.com
55
04
TOILET ALARM KITS
EQUALITY ACT & ASSISTANCE
HARK™ and HARK+
2
YEARS
N/HARK+ – Stainless steel kit option complete with battery back up and “call acknowledge” feature
HARK™ Pull cord units and Push Button Option Available in Stainless steel or white polycarbonate
Product Code N/HARK/1 N/HARK+
HARK™ Indicator / Sounder units
HARK™ Alarm Indicator unit in Stainless Steel finish and Reset unit
Description
Product Code
Complete kit with pull cord, reset, PSU/ Indicator Stainless steel option complete with battery back up (battery included) & Call Acknowledge option
Indicator Units, Panels and Accessories (Special Engraving Available P.O.A)
Push Button
Description
N/HARK/RI/1
HARK 1-way indicator unit
N/HARK/RI/1/SS
HARK 1-way indicator unit stainless steel
N/HARK/RI/2
HARK 2-way indicator unit
N/HARK/1/PB
HARK 1 push button
N/HARK/RI/2/SS
HARK 2-way indicator unit stainless steel
N/HARK+/PB/SS
HARK Stainless Steel Push Button
N/HARK/RI/3
HARK 3-way indicator unit
N/HARK/RI/3/SS
HARK 3-way indicator unit stainless steel
Pull Cords N/HARK/1/PC
HARK 1 pull cord
N/HARK/RI/4
HARK 4-way indicator unit
N/HARK+/PC/SS
HARK pull cord stainless steel
N/HARK/RI/4/SS
HARK 4-way indicator unit stainless steel
Power Supply/Indicator Units
N/HARK/RI/5
HARK 5-way indicator unit
N/HARK/1/PSU
HARK 1 power supply unit
N/HARK/RI/5/SS
HARK 5-way indicator unit stainless steel
N/HARK+/PSU/SS
HARK power supply unit stainless steel
N/HARK/RI/6
HARK 6-way indicator unit
Sounder Beacon
N/HARK/RI/6/SS
HARK 6-way indicator unit stainless steel
N/HARK/RI/7
HARK 7-way indicator unit
N/CHWB/BN/12V/DB Reset Units N/HARK/1/RS
HARK 1 reset unit
N/HARK/RI/7/SS
HARK 7-way indicator unit stainless steel
N/HARK+/RS/SS
HARK reset unit stainless steel
N/HARK/RI/8
HARK 8-way indicator unit
N/HARK/RI/8/SS
HARK 8-way indicator unit stainless steel
N/HARK/RI/9
HARK 9-way indicator unit
N/HARK/RI/9/SS
HARK 9-way indicator unit stainless steel
N/HARK/CA
Call Acknowledge Button on remote indicators (Hark+ ONLY)
56
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
05 THE KNOWLEDGE
IN THIS SECTION XXXXXXXXXXX XXXXXXXXXXX XXXXXXXXXXX
05
THE KNOWLEDGE Emergency Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Emergency Lighting Specifications Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Quick Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
57
THE KNOWLEDGE
05
EMERGENCY LIGHTING
A GUIDE TO EMERGENCY LIGHTING
Emergency Lighting – An Overview
System Design Guide Continued...
Lighting makes up approximately 20% of the UK’s energy consumption and non-domestic lighting shamefully accounts for approximately 24 million tonnes of CO2 per annum. As we all know, LED technology is rapidly taking over the lighting business, providing not only an attractive alternative to its conventional counterparts but also proving to provide long term savings in energy and subsequent replacement costs. In addition to energy savings, LEDs in general illumination applications provide longer operating life (in the region of up to 50,000 hours), directionality, compact size, ease of control and dimmability compared to incumbent technologies they replace.
• At each exit door intended to be used in an emergency • Near stairs so that each flight of stairs receives direct light Near any other change in level • Mandatory emergency exits and safety signs • At each change of direction • At each intersection of corridors • Outside and near to each final exit • Near first Aid Post • Near fire fighting equipment • Near escape equipment for the disabled • Near disabled refuge and call points
Contractors should be advising about the benefits of LED lighting solutions...
Exit Signage Requirements
The LED has many benefits that should be highlighted to customers during a site survey, such as:Reduced air conditioning costs as LED lights have a lower heat output LED lights last longer than conventional lighting. They create less waste and boast more easily recycled components Cost saving over a longer period of time The LED pros outweigh the cons when it comes to choosing efficient, cost effective lighting solutions for commercial, residential or industrial properties.
System Design Guide The British Standard BS5266 has been revised to conform with the European Standard EN1838 (issued in the UK under reference BS EN1838/BS5266 Part 7) which specifies luminous requirements for emergency systems installed in premises. It also now calls up the luminaire product standard BS EN60598-2-22. An escape lighting luminaire complying with EN 60598-2-22 shall be sited to provide appropriate illuminance near each exit door and at positions where it is necessary to emphasise potential danger or safety equipment. The positions to be emphasised shall include the following:
58
ChannelSafety
• Safety signs shall be illuminated to at least 50% of the required luminance within 5 seconds and full required luminance within 60 seconds. • The colours shall conform to the requirements of ISO 3864. • The luminance of any area of safety colour of the sign shall be at least 2 cd/m2 in all relevant viewing directions. • The ratio of the maximum to the minimum luminance within either white or the safety colour shall be not greater than 10:1. • All signs must be of the same type within a building and not mixed For further information review the Technical Statement published by ICEL (ICEL TS03 Issue 1 – 12/12) on Emergency Exit “Clear” Signs.
@channelsafety
channel safety channelsafety.co.uk
05 THE KNOWLEDGE
EMERGENCY LIGHTING SPECIFICATIONS HELP
HELP & ASSISTANCE WHEN SPECIFYING EMERGENCY LIGHTING Emergency Escape Lighting To provide visibility for evacuation purposes lighting is required in the volume of the space. In this standard the recommendation is filled by the mounting of luminaires at least 2m above the floor. Signs which are provided at all exits intended to be used in an emergency and along escape routes shall be illuminated to indicate unambiguously the route of escape to a point of safety. Where direct sight of an emergency exit is not possible, an illuminated directional sign (or series of signs) shall be provided to assist progression towards the emergency exit. An escape lighting luminaire complying with EN 6059-2-22 shall be sited to provide appropriate illuminance near each exit door and at positions where it is necessary to emphasise potential danger or safety equipment. The positions to be emphasised shall include the following (see opposite page): • At each exit door intended to be used in an emergency • Near stairs so that each flight of stairs receives direct light • Near any other change in level • Mandatory emergency exits and safety signs • At each change of direction • At each intersection of corridors
• Outside and near to each final exit • High risk task areas Various specific locations now require additional emergency illumination: 5 Lux - Refuge Areas, Panic Bars, Swimming Pool Areas 15 Lux - Kitchens, First Aid Rooms, Plant Rooms, Fire Alarm Control Equipment, Reception Areas 50 Lux - Treatment Rooms
Escape Route Lighting • For escape routes up to 2m in width, the horizontal illuminances on the floor along the centre line of an escape route shall be not less than 1 Ix and the central band consisting of not less than half of the width of the route shall be illuminated to a minimum of 50% of that value.
Open Area (Anti-Panic) Lighting • The horizontal illuminance shall be not less than 0.5 Ix at the floor level of the empty core area which excludes a border of 0.5 m of the perimeter of the area. • High risk task areas
At each door
Outside each final exit and near any obstructions
Near any changes of direction
Near each intersection
At each change of floor level
On each staircase so that all treads and risers receive direct light
To illuminate all exit and safety signs and first aid points
Near each fire alarm call point
Near fire fighting equipment
Inside disabled toilets
In toilets with a total floor area of 8m2 or more / with no natural light
Near lift cars and inside
Escalators and moving walkways
Control and plant rooms and electrical cupboards
Room with no natural lights
A minimum of two fittings per fire compartment
+44 (0) 2890 333439
sales@eadltd.com
+44 (0) 2890 326822
59
THE KNOWLEDGE
05
QUICK GUIDE
A GUIDE TO BUIDLING REGUALTIONS, IP RATINGS AND KELVIN LIGHT SCALE BUILDING REGULATIONS
To ensure specified luminairs meet the requirements of the current building regulations it is important to consider the legislation contained within the Building Regulations. The most relevant of these are:
Approved Document B • Approved Document B (Fire safety) - Volume 1: Dwellinghouses (2006 Edition) • Approved Document B - Volume 2: Buildings other than dwellinghouses (2006 Edition) Part B deals with the fire safety requirements for emergency lights and the use of thermoplastic materials.
Approved Document L • Approved Document L 1A: Conservation of fuel and power (New Dwellings) (2006 Edition) • Approved Document L 1 B: Conservation of fuel and power (Existing Dwellings) (2006 Edition) • Approved Document L2A: Conservation of fuel and power (New buildings other than dwellings) (2006 Edition)
• Approved Document L2B: Conservation of fuel and power (Existing buildings other than dwellings) (2006 Edition) Part L requires that energy efficient lighting is installed in both domestic and nondomestic dwellings, existing, new & refurbished (over 100m2) Part L gives design information for the following (non-domestic dwellings). • Selection of lamp types • Effective use of daylight • Control gear & power factor correction • Use of lighting controls • Luminaire efficiency It is our recommendation that reference be made to the latest version of the Approved Documents. Full details can be found on: www.planningportal.gov.uk
IP RATINGS
The International Protection code, commonly known as the Ingress Protection code (IP) indicates the protection afforded by an enclosure against the ingress of foreign (solid) bodies and ingress of moisture and liquids. The IP rating also classifies the protection given by an enclosure against touching live or moving parts. The IP rating is given by the use of two numbers
First Digit
Second Digit
Protection Against Ingress Of Solid Objects
Protection Against Ingress Of Liquids
0
No protection
0
No protection
1
Protection against large sized bodies such as hands
1
Protection against vertically falling drops of water
2
Protection against medium sized bodies such as fingers
2
Protection against drops of water up to 15° from the vertical
Protection against small sized bodies 2.5mm dia. or larger such as tools & wires Protection against very small sized bodies 1 mm dia. or greater
3
Protection against rain falling up to 60° from the vertical
4
Protection against splashed water from any angle
5
Protection against jets of water from any angle
6
Protection against water from heavy seas
7
Protection against immersion for a defined period
8
Protection against immersion for an indefinite period
3 4 5
Protection against harmful deposits of dust. (Dust proof)
6
Complete protection against deposits of dust. (Dust tight)
KELVIN COLOUR TEMPERATURE SCALE Candlelight Tungsten Light Early Sunrise Household Light Bulb
1,000k
60
2,000k
3,000k
Electoronic Flash Noon Daylight
4,000k
5,000k
ChannelSafety
6,000k
Overcast Daylight
7,000k
@channelsafety
8,000k
9,000k
10,000k
channel safety channelsafety.co.uk
PRODUCT NAME INDEX
PRODUCT NAME INDEX Product Name
Page
5-in-1 Exit Sign
21
AC/DC Central Battery Slave Light Fittings
48
AC/DC Central Battery Units
48
A guide to DALI controls
40
Alpine Large 19 Alpine Slim
18
Product Name
Page
SoHo 44 Solent 15 Static Inverters 50 Stratos 16 Stratos Ultra 17 Vale 24
Alpine™ 18 Azelio Downlight
32
Azelio Emergency Track Exit/Open area LEDs
34
Azelio Emergency Track LED 35 Azelio Recessed 31 Azelio Surface
30
Betalux
29
Brook 2
14
Camber
23
Ceilo 33 Comet Floodlight Range
45
Commando Explosion Proof Hazardous Area
46
Dale
24
Emergency Lighting Test Switch
40
Forest
22
Glade 33 GROVE IP20
25
GROVE IP65
25
Grove™ Twinspot Range
25
Grove Ultra
26
GU 32
28
GU32 - IP65 Twinspot 27 ™ HARK and HARK+ 55 HARK™ and HARK+ 56 iD-Mesh Wireless DALI emergency lighting testing system
38
i-Monitor DALI Emergency Light Testing system 37 i-Monitor DALI Emergency Light Testing System 36 Meteor Maxi™ LED 13 Meteor™LED
12
Milan LED Luminaire
43
Mini Static Inverters
49
NiCd Batteries 53 Razor™ 20 Replacement Batteries 51 Sealed Lead Acid Batteries
52
Small Office UPS 51
+44 (0) 2890 326822
+44 (0) 2890 333439
sales@eadltd.com
61
PRODUCT NAME INDEX
PART CODE INDEX
PART CODE INDEX Product Code
Page
Product Code
Page
Product Code
Page
B/1.2V/4AH/NICD 53
B/BATT/RAZOR/W
20
E/CHFO/M3/L/BRST
22
B/2.4V/4AH/NICD 53
B/BATT/SOL 15
E/CHFO/M3/L/CHST
22
B/2.4V/4AH/NICD/S 53
C/STI-LED-200
49
E/CHFO/M3/L/SAST
22
B/3.6V/4AH/NICD 53
C/STI-LED-400
49
E/CHFO/M3/L/WHST
22
B/3.6V/4AH/NICD/S 53
C/STI-LED-COR
49
E/CHFO/WMB/BR
22
B/4.8V/4AH/NICD 53
E/5in1
21
E/CHFO/WMB/SI
22
B/4.8V/4AH/NICD/S 53
E/AL/LEG/LARGE/AD 19
E/CHFO/WMB/WH
22
B/6V/4AH/NICD 53
E/AL/LEG/LARGE/AL 19
E/CHVL/M3/L/BRST
24
B/6V/4AH/NICD/S 53
E/AL/LEG/LARGE/AR 19
E/CHVL/M3/L/CHST
24
B/12V/0.8AH/SLA
52
E/AL/LEG/LARGE/AU 19
E/CHVL/M3/L/WHST
24
B/12V/0.8AH/SLA
52
E/AL/M3/LED
18
E/COM/100W
45
B/12V/1.2AH/SLA
52
E/AL/M3/SL/RC
18
E/COM/200W
45
B/12V/1.2AH/SLA
52
E/ALPINE/LARGE 19
E/COM/300W
45
B/12V/2.1AH/SLA
52
E/AZELIO/BEZEL
32
E/COM//BKT/1
46
B/12V/2.1AH/SLA
52
E/AZELIO/COA
32
E/COM/EXP/22W
46
B/12V/2.3AH/SLA
52
E/AZELIO/R/COA/ST 31
E/COM/EXP/22W/EYE
46
B/12V/2.3AH/SLA
52
E/AZELIO/R/RC 31
E/COM/EXP/22W/HOOD
46
B/12V/2.8AH/SLA
52
E/AZELIO/S
E/COM/EXP/37W
46
B/12V/2.8AH/SLA
52
E/AZELIO/TRACK 35
E/COM/EXP/37W/EYE
46
B/12V/3.2AH/SLA
52
E/AZ/TRACK/COA
34
E/COM/EXP/37W/HOOD
46
B/12V/3.2AH/SLA
52
E/AZ/TRACK/COA/BK
34
E/COM/EXP/47W
46
B/12V/4AH/SLA
52
E/AZ/TRACK/EXIT
34
E/COM/EXP/68W
46
B/12V/4AH/SLA
52
E/AZ/TRACK/EXIT/BK
34
E/COM/EXP/112W
46
B/12V/7AH/SLA
52
E/BEZ/MM 13
E/COM/EXP/136W
46
B/12V/7AH/SLA
52
E/BEZ/SOL 15
E/DA/M3/LED/3/ST
24
B/12V/12AH/SLA
52
E/BHDA/1 37
E/DLDA/1/** 37
B/12V/12AH/SLA
52
E/BHDA/2 37
E/DLDA/1/ID/** 39
B/12V/17AH/SLA
52
E/BHDA/ID/1 39
E/DLDA/2/** 37
B/12V/17AH/SLA
52
E/BHDA/ID/2 39
E/DLDA/2/ID/** 39
B/12V/24AH/SLA
52
E/BK/M3/LED/2
14
E/DLDA/3/** 37
B/12V/24AH/SLA
52
E/BK/M3/LED/2/ST
14
E/DLDA/3/ID/** 39
B/12V/38AH/SLA
52
E/BZ/KIT/BROOK/WH
14
E/EM/RC
B/12V/65AH/SLA
52
E/CAMBER/HANG
23
E/EM/RC 13
B/BATT/ALPINE
18
E/CAMBER/HANG/ST
23
E/EM/RC
14
B/BATT/BROOK/2
14
E/CAMBER/SURF
23
E/EM/RC
18
B/BATT/CAMBER
23
E/CAMBER/SURF/ST
23
E/EM/RC
18
B/BATT/DA/FO/VL/NIHM
24
E/CAMBER/WALL
23
E/EM/RC
21
B/BATT/DA/FO/VL/NIHM
24
E/CAMBER/WALL/ST
23
E/EM/RC
25
B/BATT/GROVE/3
25
E/CEILO/LED/ST 33
E/EM/RC
30
B/BATT/GROVE/3
25
E/CH/ELTS
40
E/EM/RC 31
B/BATT/METEOR/LED
12
E/CHFO/FMB/BR
22
E/EM/RC
43 44
30
10
B/BATT/MM 13
E/CHFO/FMB/SI
22
E/EM/RC
B/BATT/RAZOR/F/H/R
E/CHFO/FMB/WH
22
E/EXDA/1** 37
62
20
ChannelSafety
@channelsafety
channel safety channelsafety.co.uk
Product Code
Page
E/EXDA/1/ID/** 39 E/EXDA/2** 37 E/EXDA/2/ID** 39 E/EXDA/3** 37 E/EXDA/3/ID** 39 E/EXDA/4 37 E/EXDA/4/ID** 39 E/EXDA/5 37 E/EXDA/5/ID** 39 E/GL/LED/M3/5W/WH 33 E/GL/LED/NM3/1W/WH 33 E/GR/M3/ULTRA 26 E/GR/NM3/LED/2 25 E/GR/NM3/LED/IP65/2/ST 25 E/GR/NM3/LED/IP65/RC 25 E/GU32 28 E/GU32/IP65 27 E/ID/MESH/HUB 39 E/ID/MESH/NODE 39 E/ID/MESH/WORKS 39 E/ME/LED/SRK/1 12 E/ME/M3/LED/IP65 12 E/ME/M3/LED/IP65/ST 12 E/MILAN 43 E/MILAN/BEZ/BK 43 E/MILAN/BEZ/BR 43 E/MILAN/BEZ/CH 43 E/MILAN/EYE/BK 43 E/MILAN/EYE/WH 43 E/MILAN/M3 43 E/MILAN/M3/MW 43 E/MILAN/M3/MW/RC 43 E/MILAN/M3/RC 43 E/MILAN/MW 43 E/MM/BLADE 13 E/MM/M3/LED 13 E/PIC/AL/AD 18 E/PIC/AL/AL 18 E/PIC/AL/AR 18 E/PIC/AL/AU 18 E/PIC/ME/LED/BLADE 12 E/PIC/ME/LED/PACK 12 E/PIC/ME/LED/PACK 13 E/PIC/ME/LED/PACK 14 E/PIC/RZ/PACK 20 E/RZ/M3/LED/F 20 E/RZ/M3/LED/H 20 E/RZ/M3/LED/R 20
+44 (0) 2890 326822
Product Code
Page
E/RZ/M3/LED/W 20 E/SOHO 44 E/SOHO/M3/DA 37 E/SOHO/M3//ID/DA 39 E/SOHO/M3/MW/RC 44 E/SOHO/M3/RC 44 E/SOHO/MW 44 E/SOLENT/M3 15 E/STRATOS/24 16 E/STRATOS/24 48 E/STRATOS/50 16 E/STRATOS/50 48 E/STRATOS/110 16 E/STRATOS/110 48 E/STRATOS/230 16 E/STRATOS/230 48 E/STRATOS/COLD 16 E/STRATOS/HI 16 E/STRATOS/M3 16 E/STRATOS/M3/2W 16 E/STRATOS/PIC/KIT 16 E/STRATOS/PIC/KIT 48 E/STRATOS/RD/COLD 16 E/STRATOS/RD/HI 16 E/STRATOS/REC/KIT 16 E/STRATOS/REC/KIT 48 E/STRATOS/ULTRA 17 E/TSDA/1 37 E/TSDA/ID/1 39 N/CHWB/BN/12V/DB 56 N/HARK+ 56 N/HARK+/PB/SS 56 N/HARK+/PC/SS 56 N/HARK+/PSU/SS 56 N/HARK+/RS/SS 56 N/HARK/1 56 N/HARK/1/PB 56 N/HARK/1/PC 56 N/HARK/1/PSU 56 N/HARK/1/RS 56 N/HARK/CA 56 N/HARK/RI/1 56 N/HARK/RI/1/SS 56 N/HARK/RI/2 56 N/HARK/RI/2/SS 56 N/HARK/RI/3 56 N/HARK/RI/3/SS 56 N/HARK/RI/4 56
+44 (0) 2890 333439
Product Code
Page
N/HARK/RI/4/SS 56 N/HARK/RI/5 56 N/HARK/RI/5/SS 56 N/HARK/RI/6 56 N/HARK/RI/6/SS 56 N/HARK/RI/7 56 N/HARK/RI/7/SS 56 N/HARK/RI/8 56 N/HARK/RI/8/SS 56 N/HARK/RI/9 56 N/HARK/RI/9/SS 56 S/AZ/BK/COV 35 S/LEG/DA/AD/3 24 S/LEG/DA/AL/3 24 S/LEG/DA/AR/3 24 S/LEG/DA/AU/3 24 S/LEG/FO/AD 22 S/LEG/FO/ALR 22 S/LEG/FO/AU 22 S/LEG/VL/AD 24 S/LEG/VL/ALR 24 S/LEG/VL/AU 24 SP/BX/AD/DG 29 SP/BX/AD/DG/EN 29 SP/BX/AL/DG 29 SP/BX/AL/DG/EN 29 SP/BX/AR/DG 29 SP/BX/AR/DG/EN 29 SP/BX/AU/DG/EN 29 SP/SOHO/M3/MW/ST 44 SP/SOHO/M3/ST 44
sales@eadltd.com
63
PART CODE INDEX
PART CODE INDEX
About us: EAD are a long established lighting distributor in Ireland with over 50 years’ experience. Working with CSS over the last 10 years providing successful emergency lighting & safety solutions throughout Ireland.
Contact Details: Office Telephone: +44 (0) 2890 326822
Northern Ireland Office:
ROI Office:
Ken Dougan
Joe Dowling
Mobile: +44 (0) 7760626254 Email: ken.dougan@eadltd.com
Mobile: +353 (0) 85 8053525 Email: joe.dowling@eadltd.com
www.ead.com
