THE BRICK

BA Year 3 Semester 2: ‘The Third Space’ Comprehensive Design Project

1

Tom Fenwick 2025 Portfolio

The Third Space Design a library or ‘third space’ for the community around 1 of the 2 sites, Great George Square or Lodge Lane Library.

The Brick is an apprenticeship learning building for young adults who aren’t interested in university for further education and development and need some guidance on what to do next.

“Libraries are the only sheltered public spaces where you are not a consumer, but a citizen instead.” - Caitlin Moran

2025 Portfolio Tom Fenwick

2

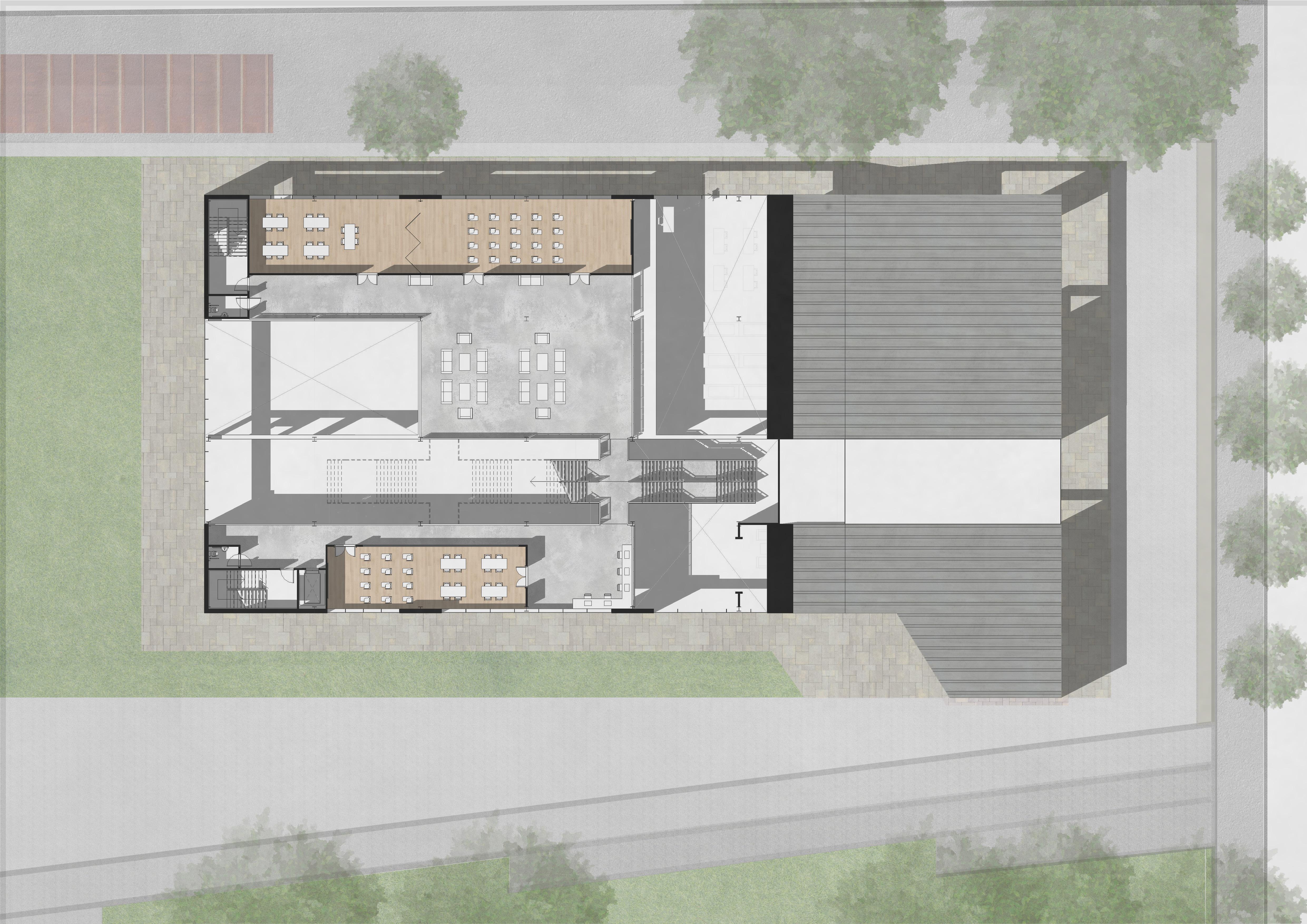

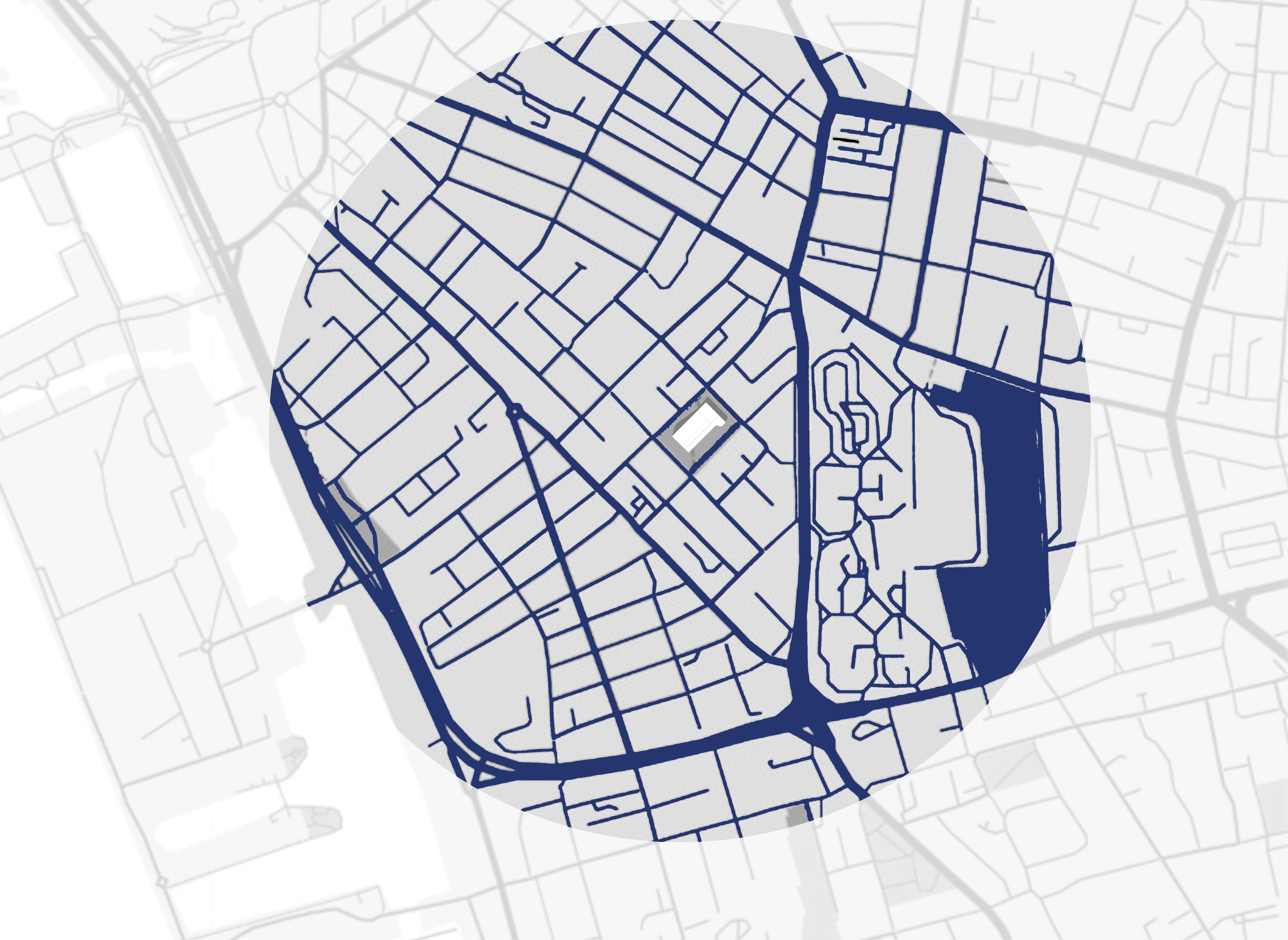

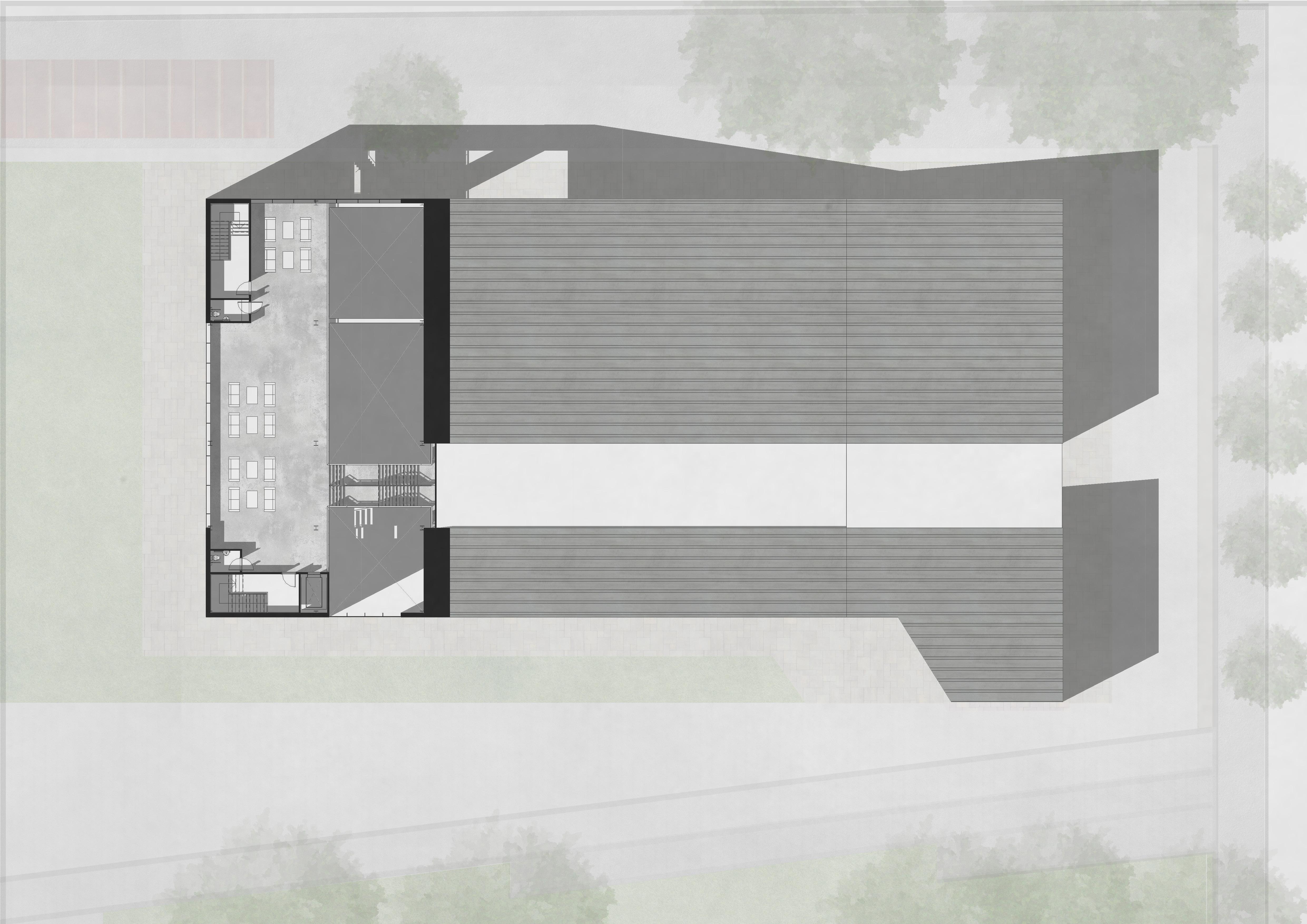

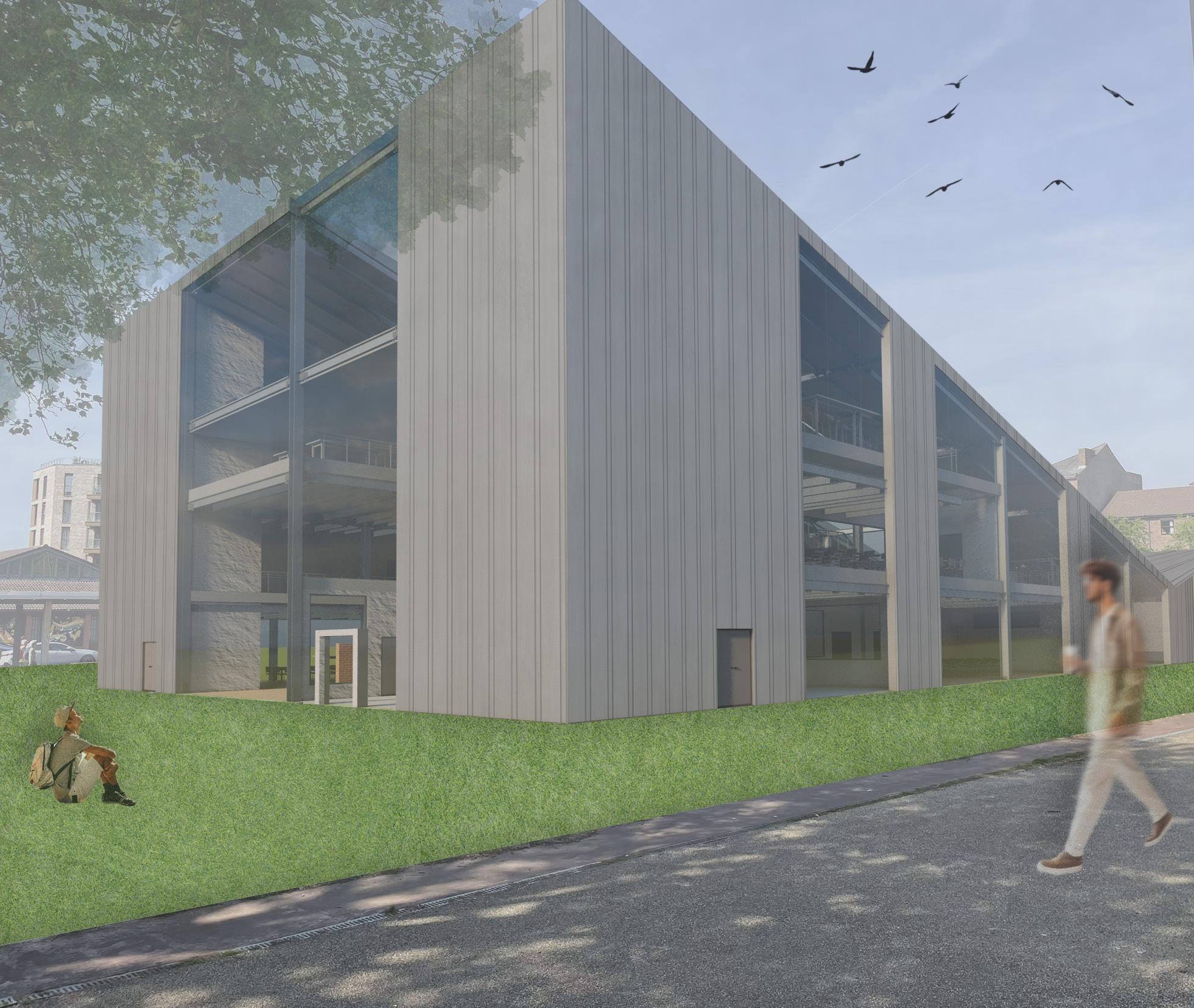

Located on Great George Square, The Brick is an apprenticeship learning and exhibition centre with 4 floors that contain multiple and teaching rooms, relaxation areas, a cafe and PC areas. The building aims to teach, support and guide young adults who hav completed GCSEs or A-Levels and don’t see university as the next part of their development. Liverpool being a heavily uni influe different unis as well as multiple performing arts schools and colleges, a lot of people may not see many options in the city or can elsewhere. The building along with its support and guidance, aims to help get people the training they need, put them in contact who want to work with them, and show them how to achieve a rewarding career in terms of satisfaction and income.

3 - 4 Tom Fenwick 2025 Portfolio

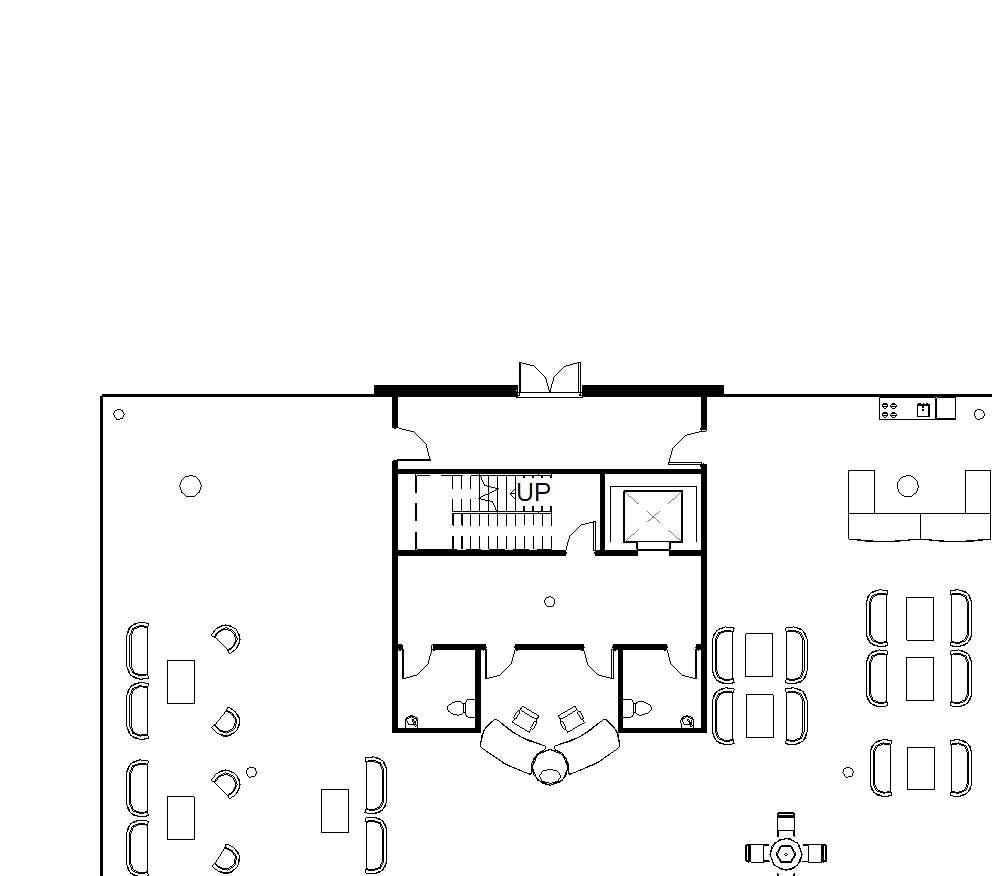

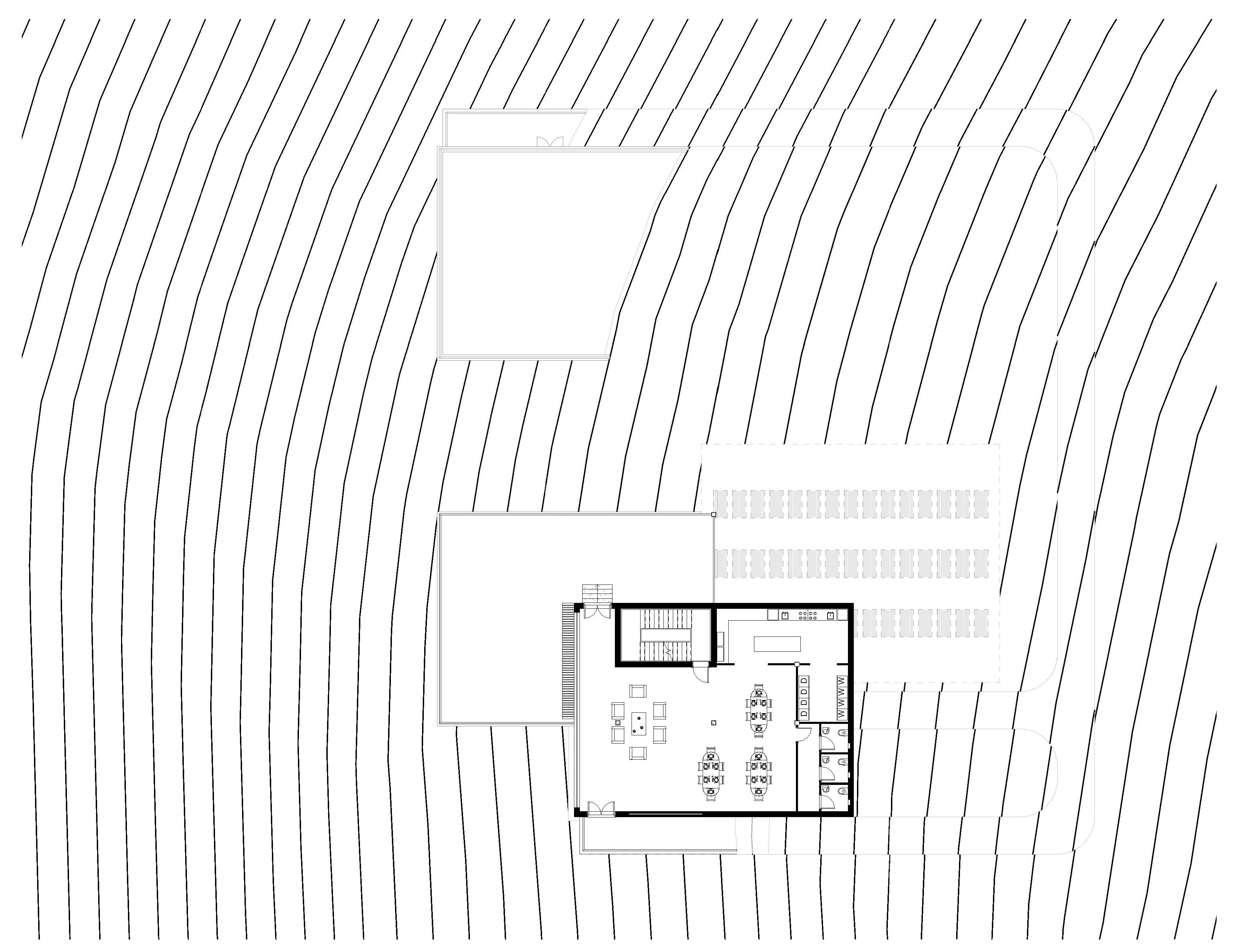

GROUND FLOOR

FIRST FLOOR

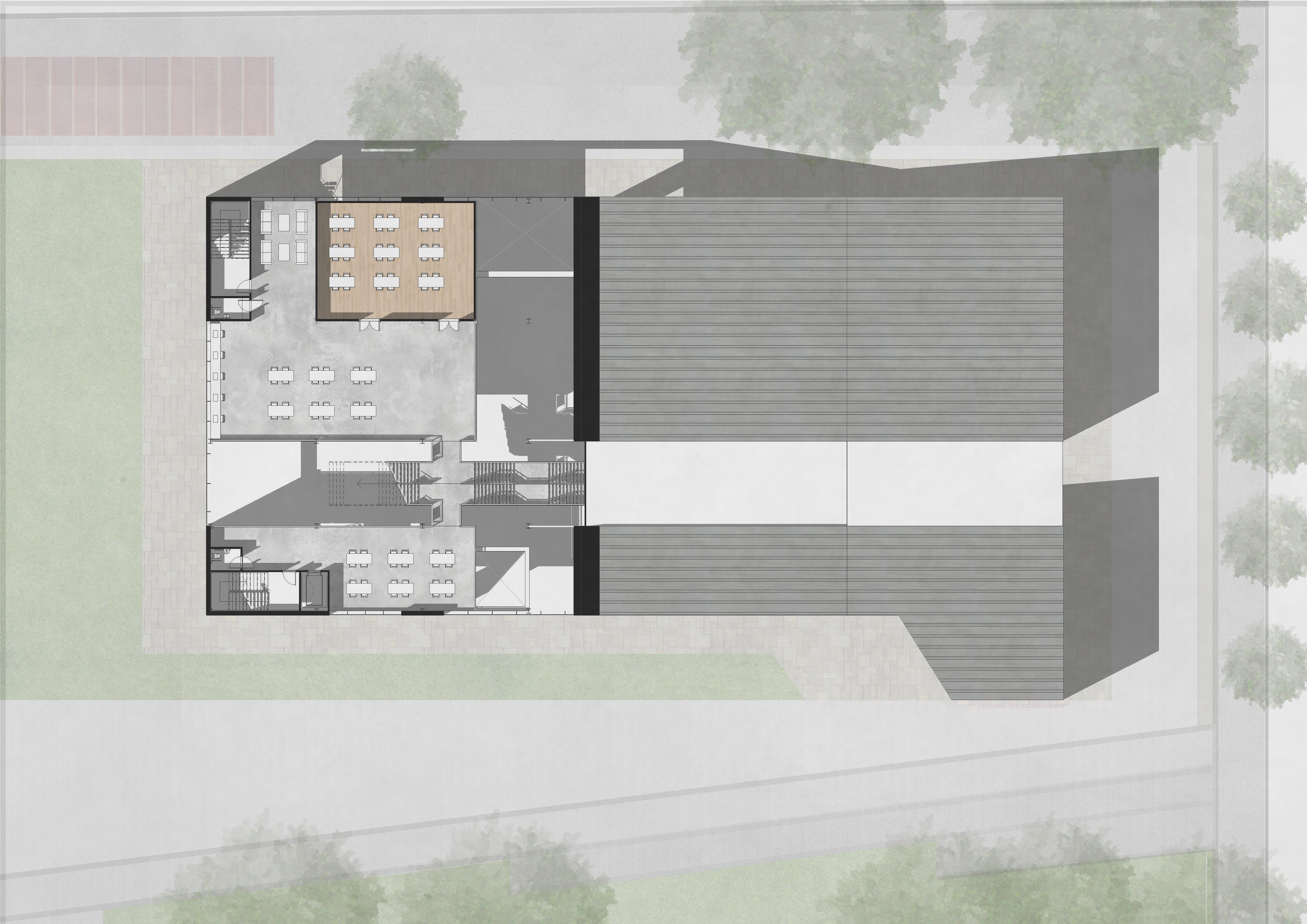

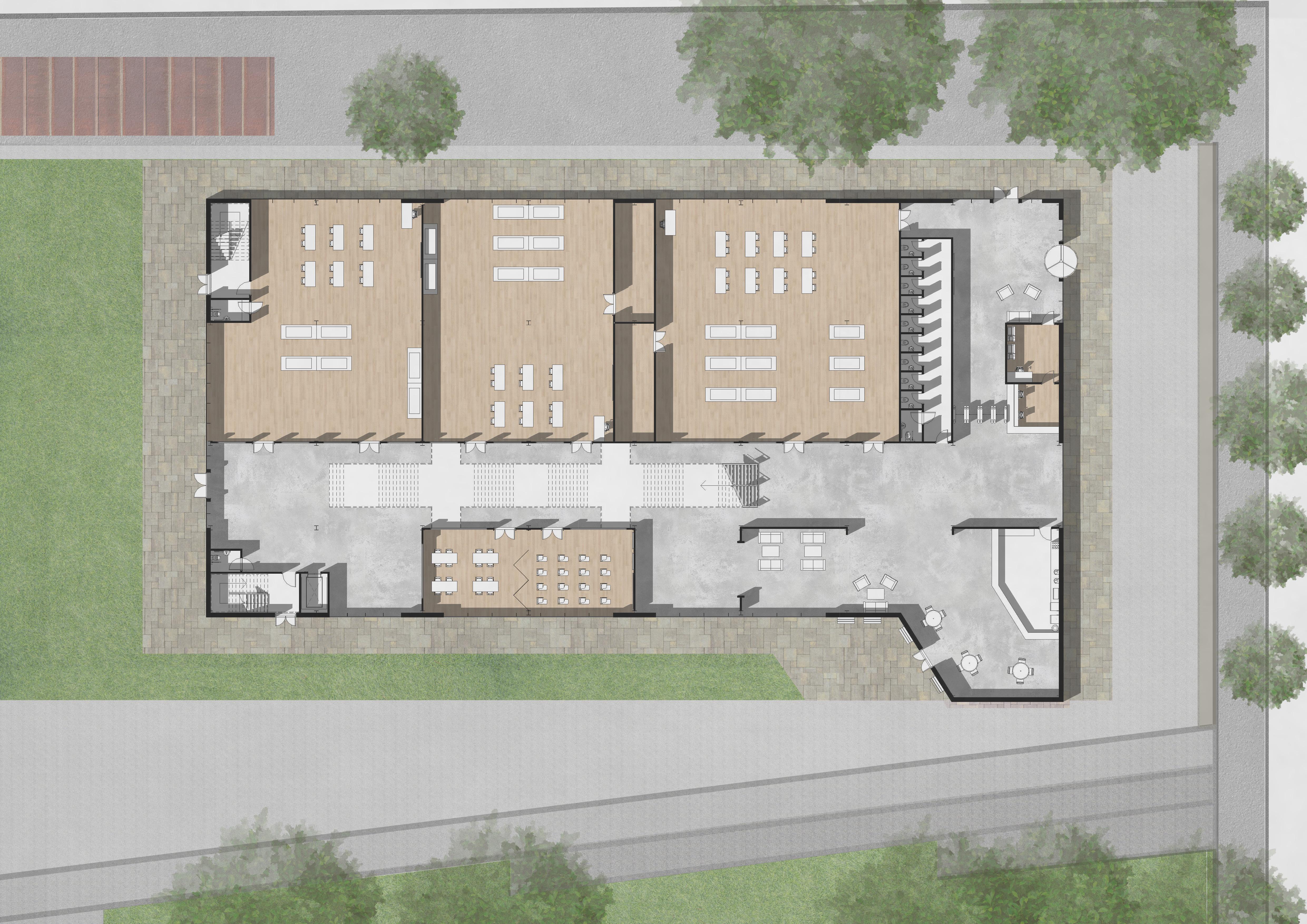

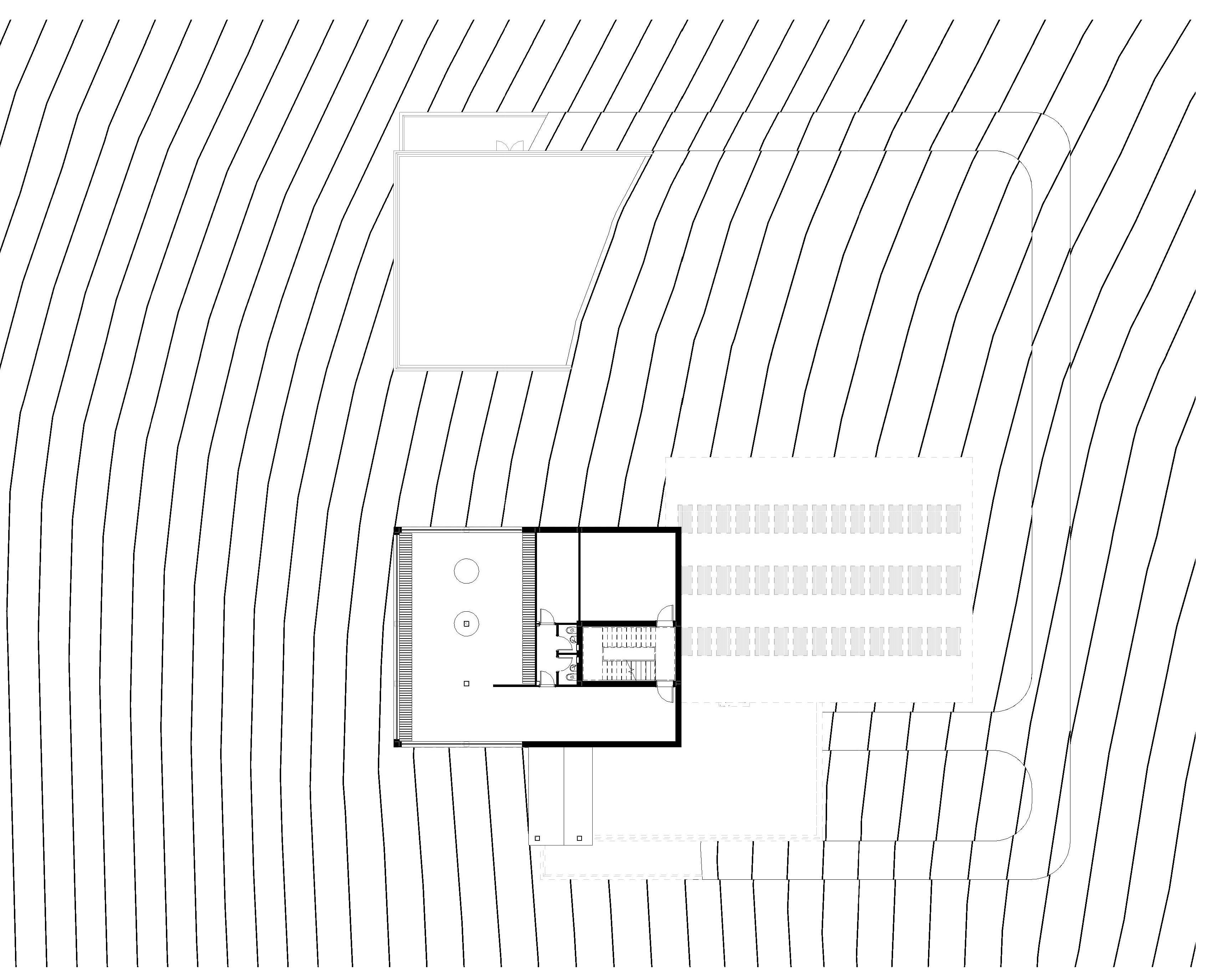

GROUND FLOOR: - 3 Workshops - Lecture room with moveable split wall - 9 WCs - 3 Disabled WCs - 2 Fire stairs - Main stair - Lift - Cafe with seating area

SECOND FLOOR: - Teaching room - 2 Disabled WCs e workshops - 2 Fire stairs ve just enced city, with 4 - 1 Main stair nnot afford to go - Lift with companies - 2 Seating areas - PC area

FIRST FLOOR: - Large lecture room with moveable split wall - Lecture room - 2 Disabled WCs - 2 Fire stairs - 1 Main stair - Lift - PC area - Seating area

SECOND FLOOR

THIRD FLOOR: - Large seating area spanning whole floor - 2 Disabled WCs - 2 Fire stairs - 1 Main stair - Lift THIRD FLOOR

5 Tom Fenwick 2025 Portfolio

2025 Portfolio Tom Fenwick

6

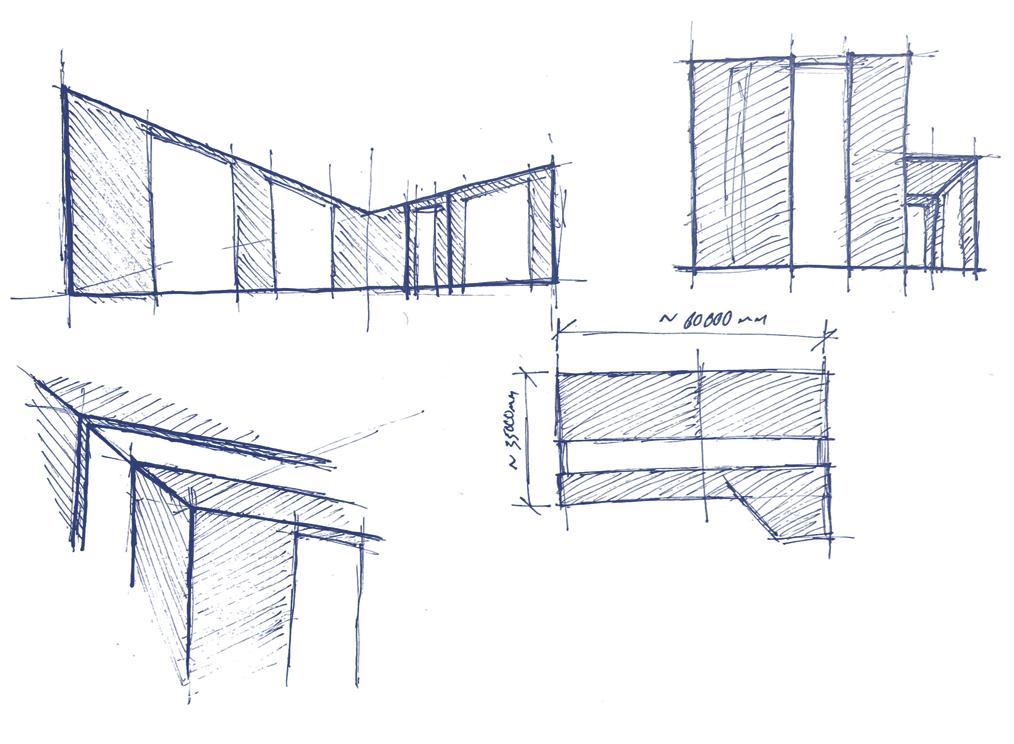

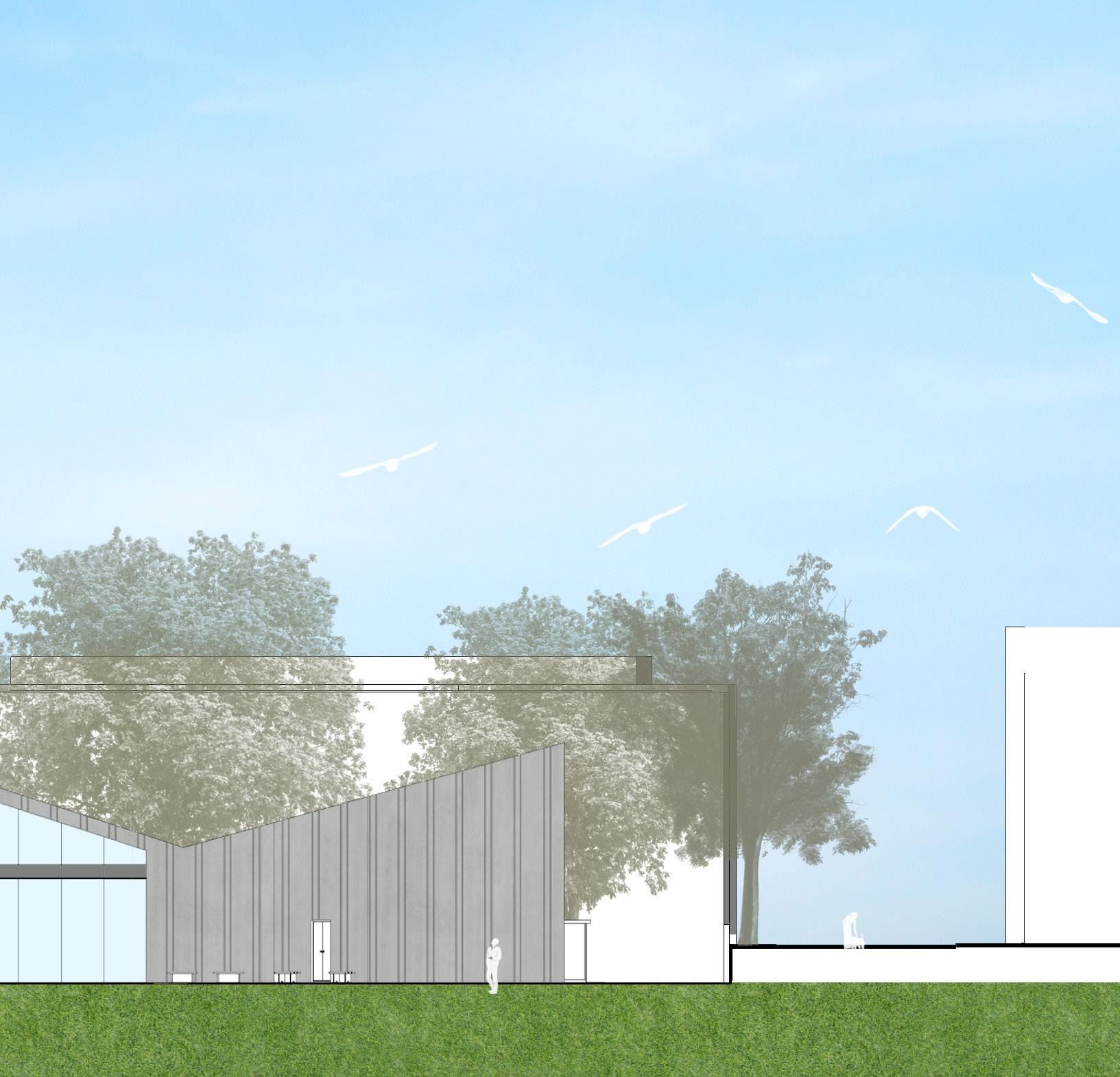

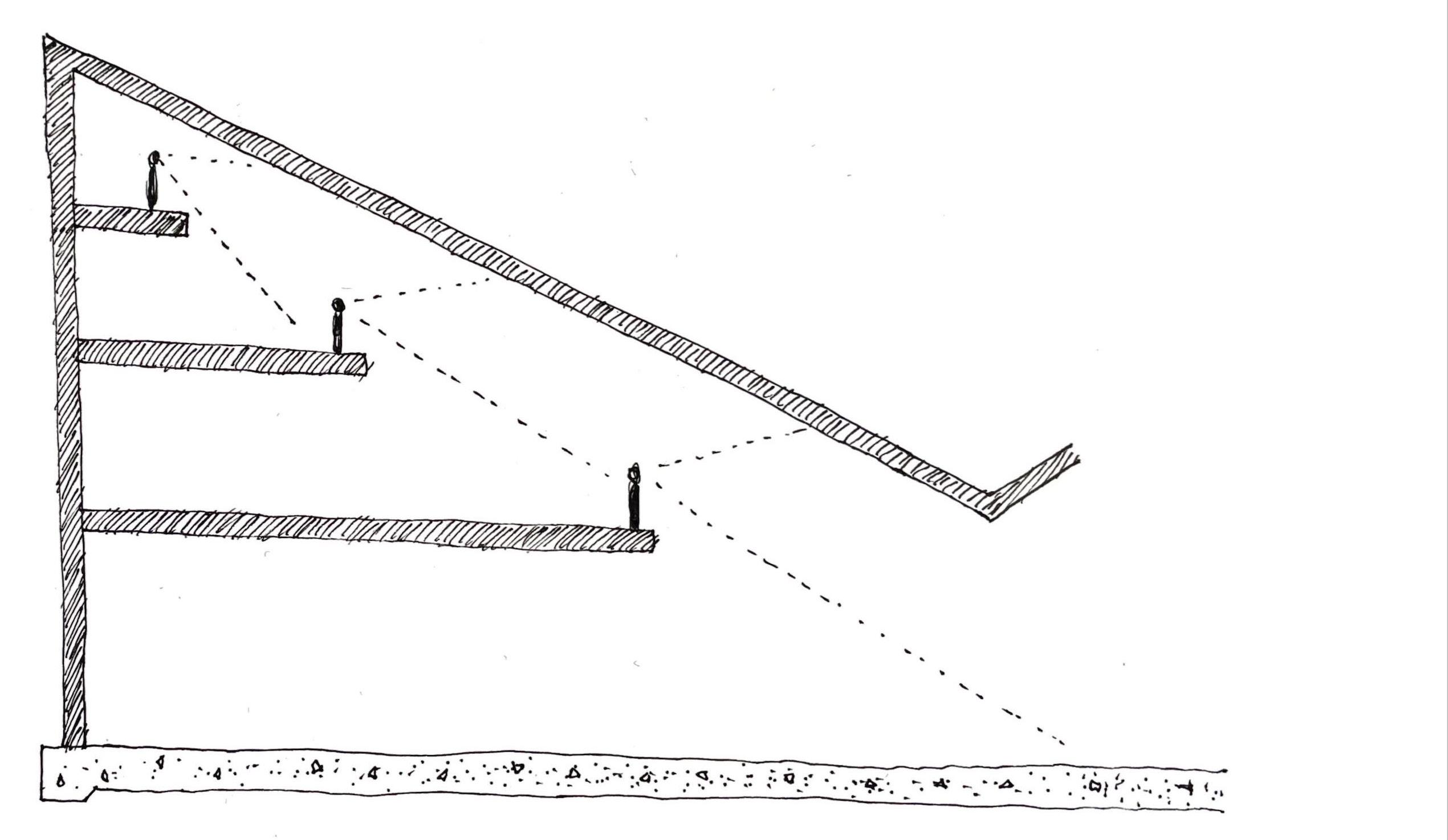

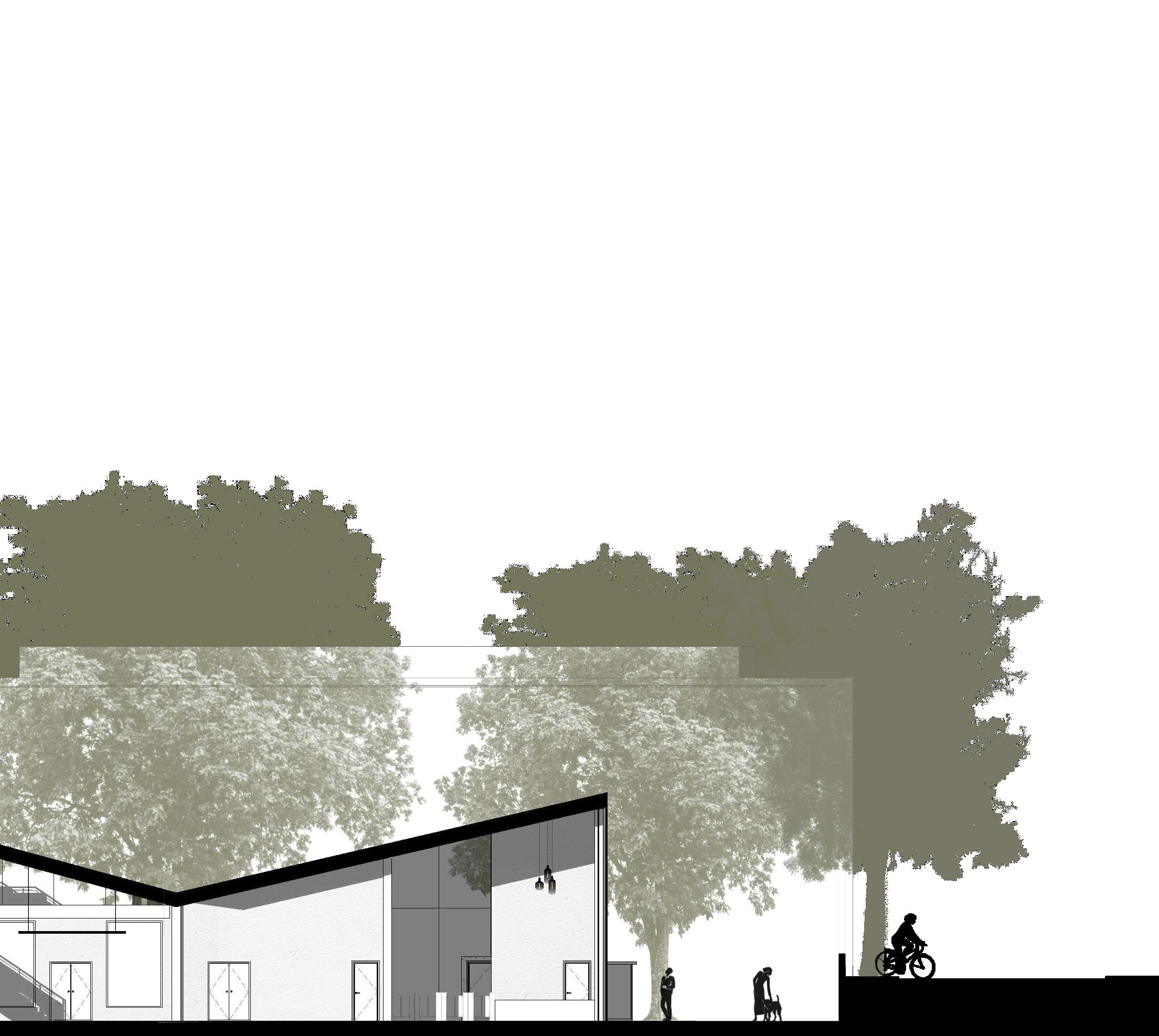

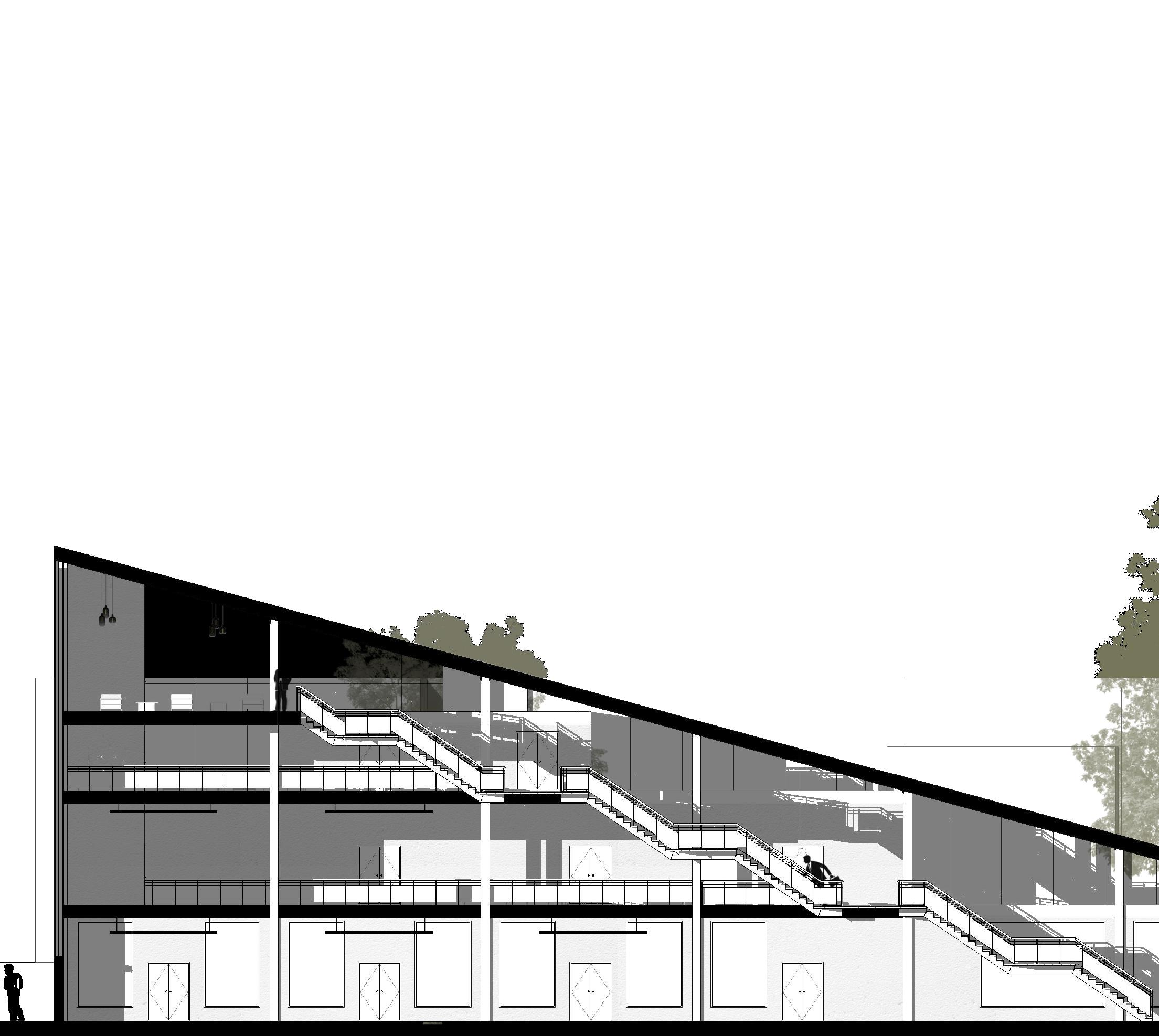

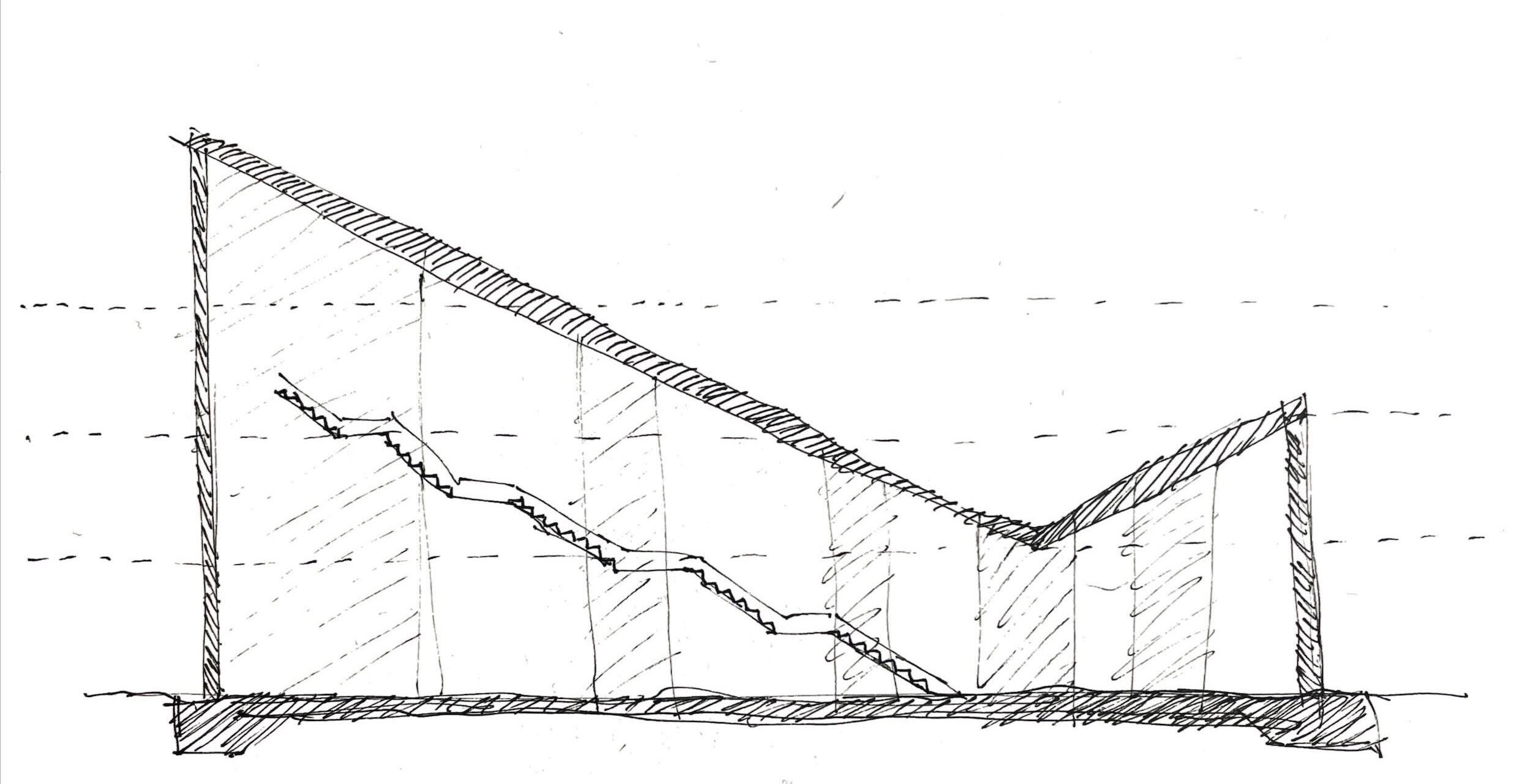

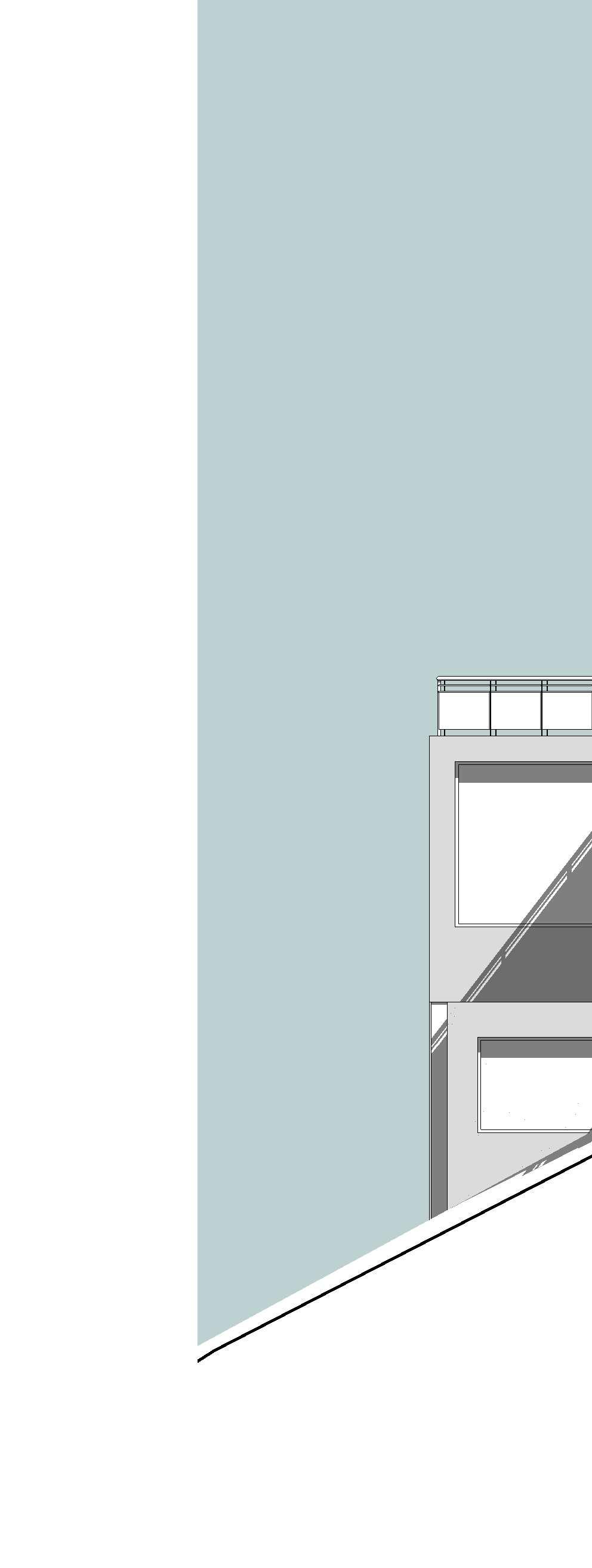

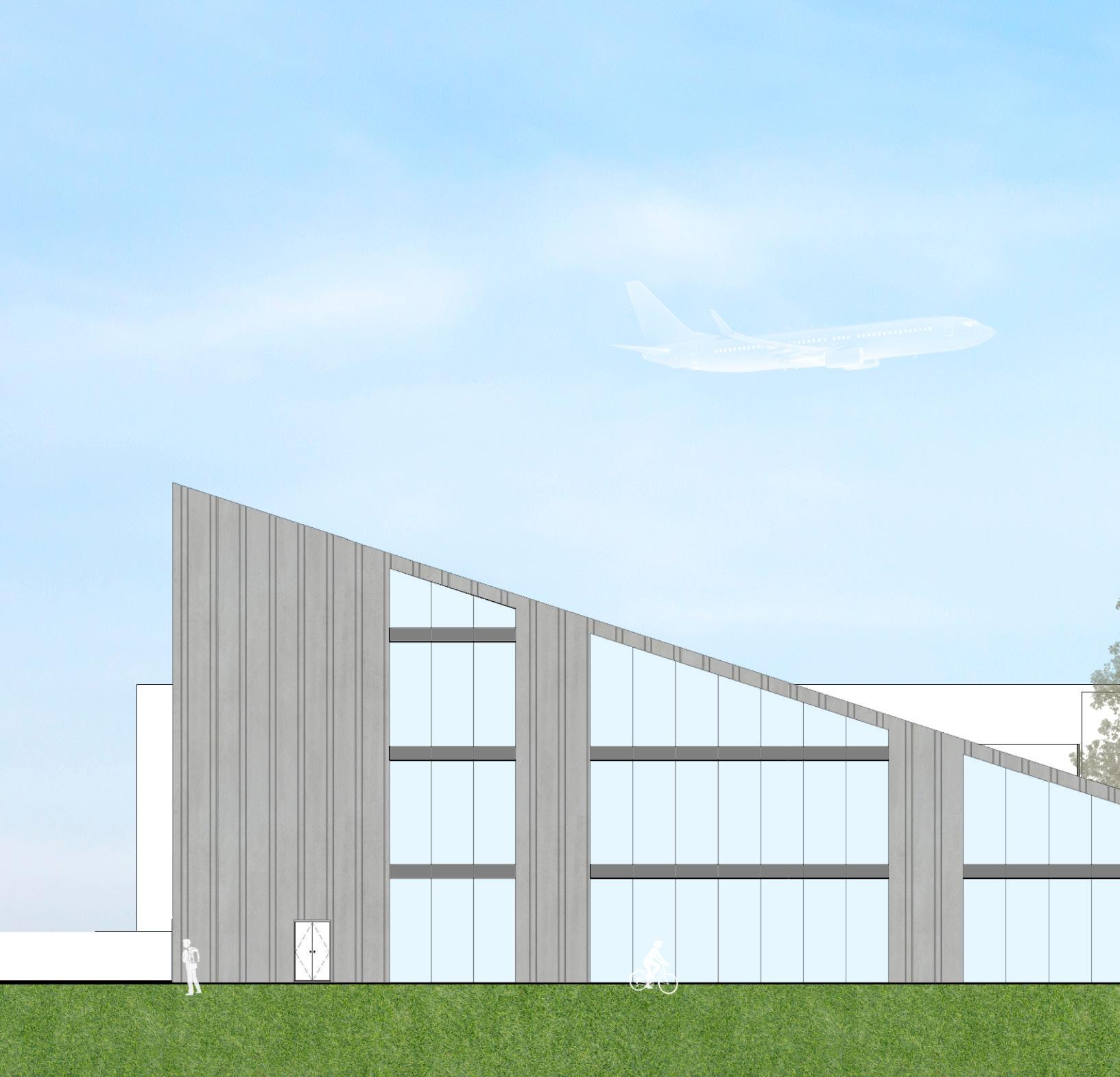

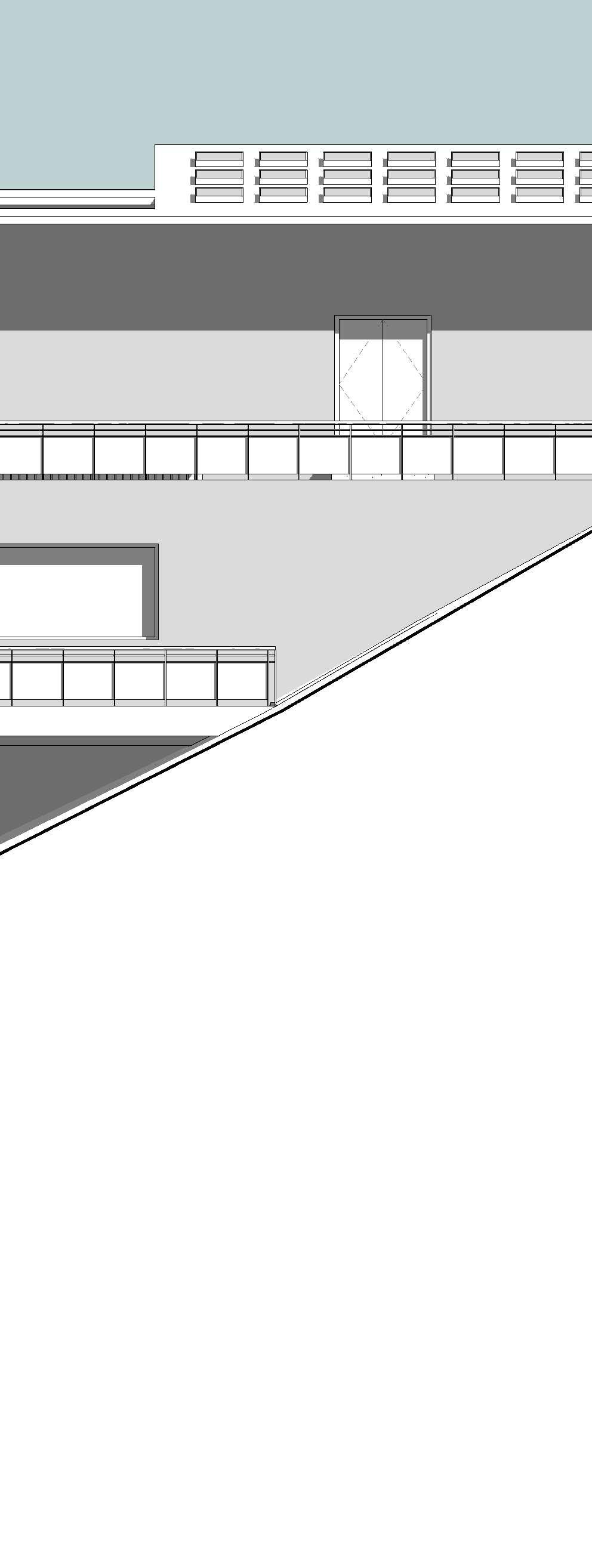

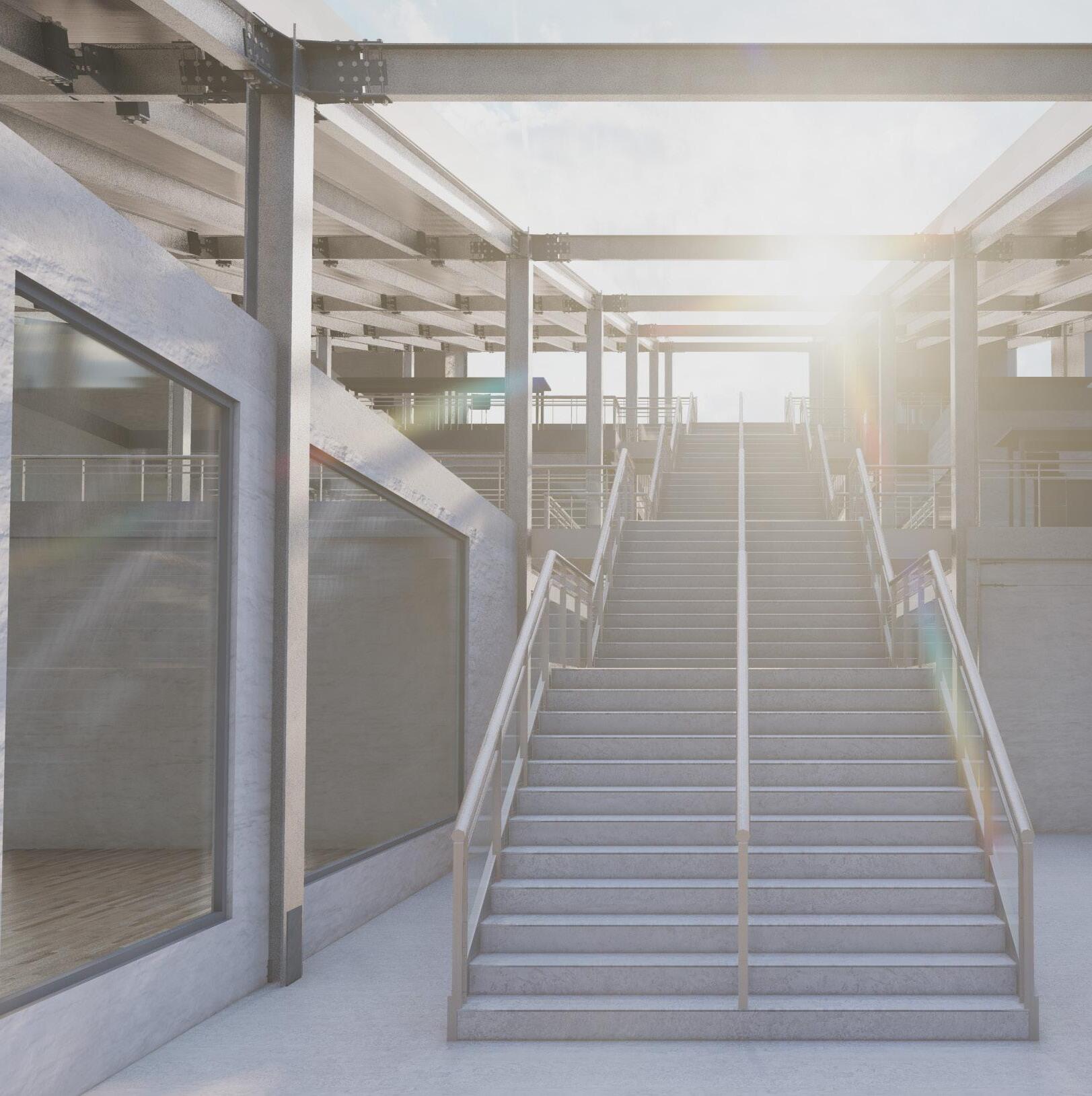

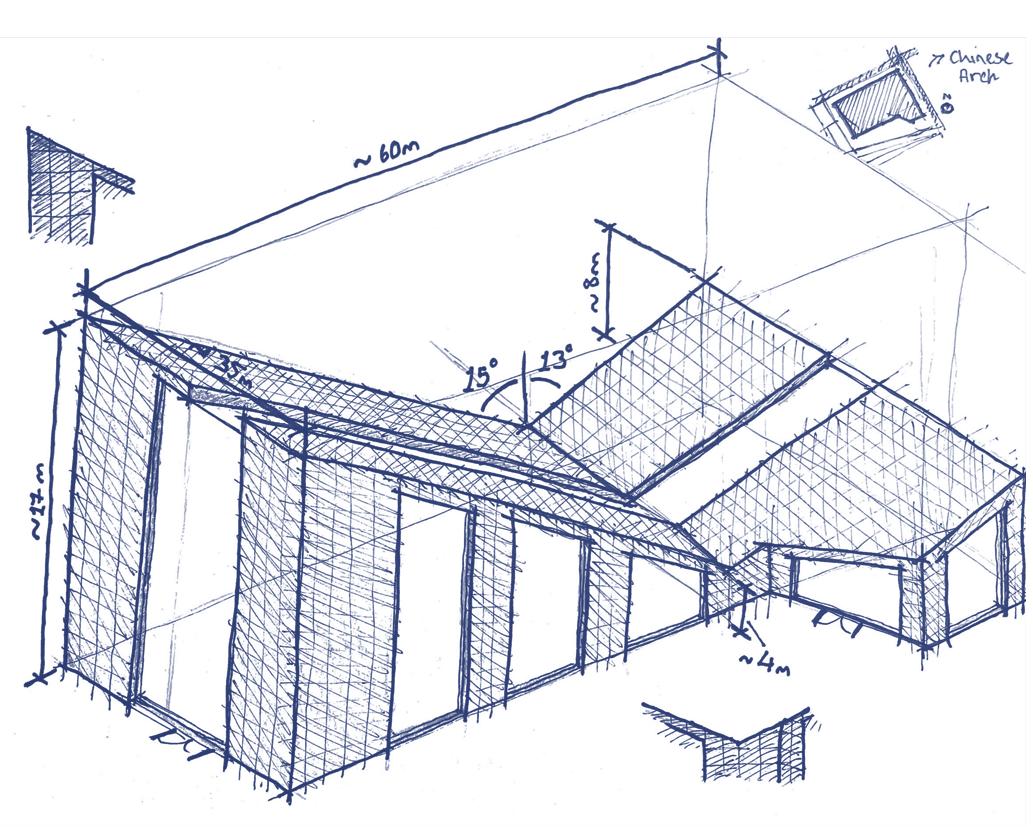

The shape of the building means that if you come through the main entrance on the right hand side, once you reach the section with the lowest part of the roof, you feel compressed to an extent so that when you pass through into the atrium and the roof opens up again the space feels a lot bigger, and due to the floors layouts, when you stand on the 3rd floor you are able to look all the way down the building, into every floor.

7 Tom Fenwick 2025 Portfolio

2025 Portfolio Tom Fenwick

8

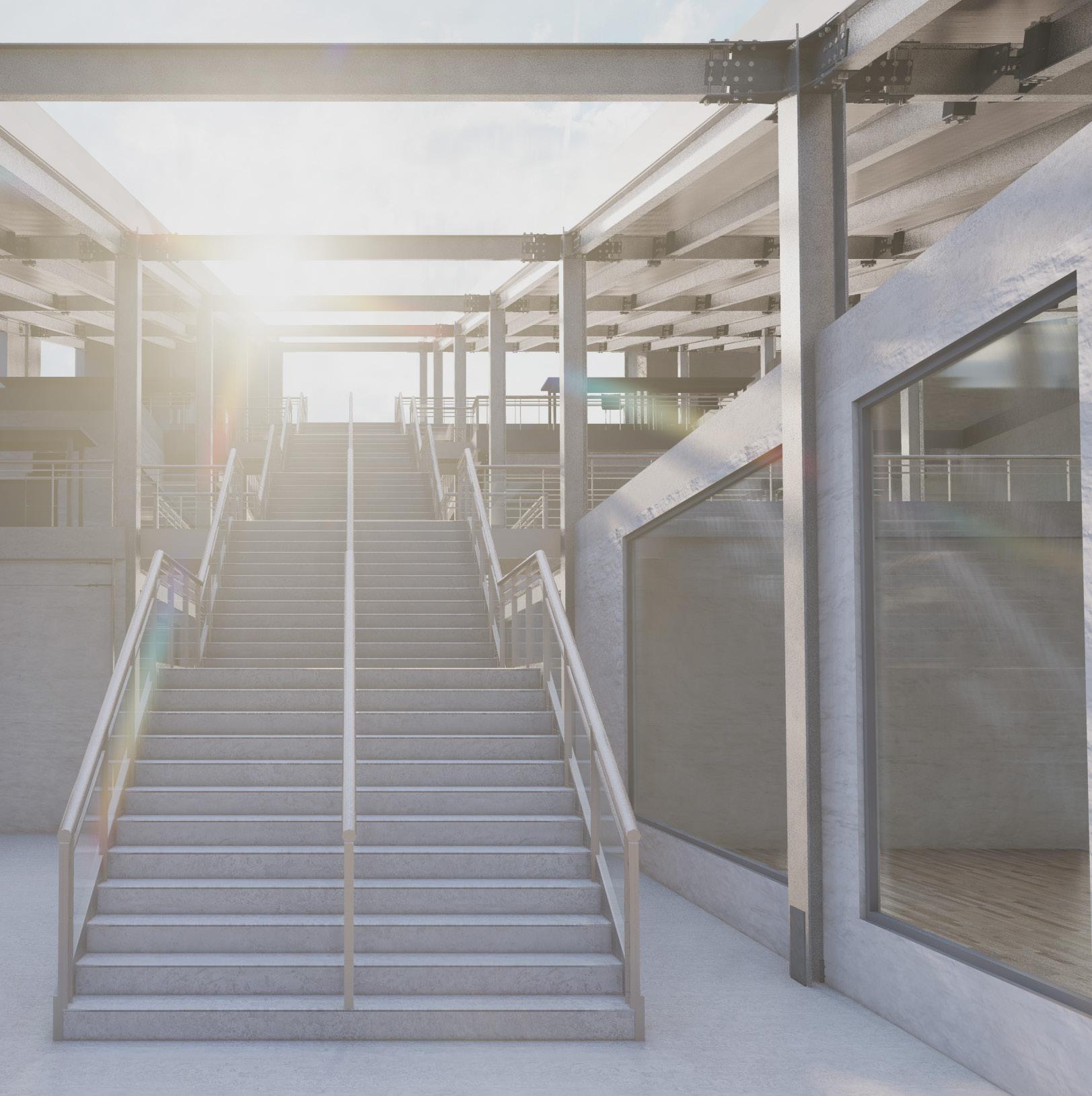

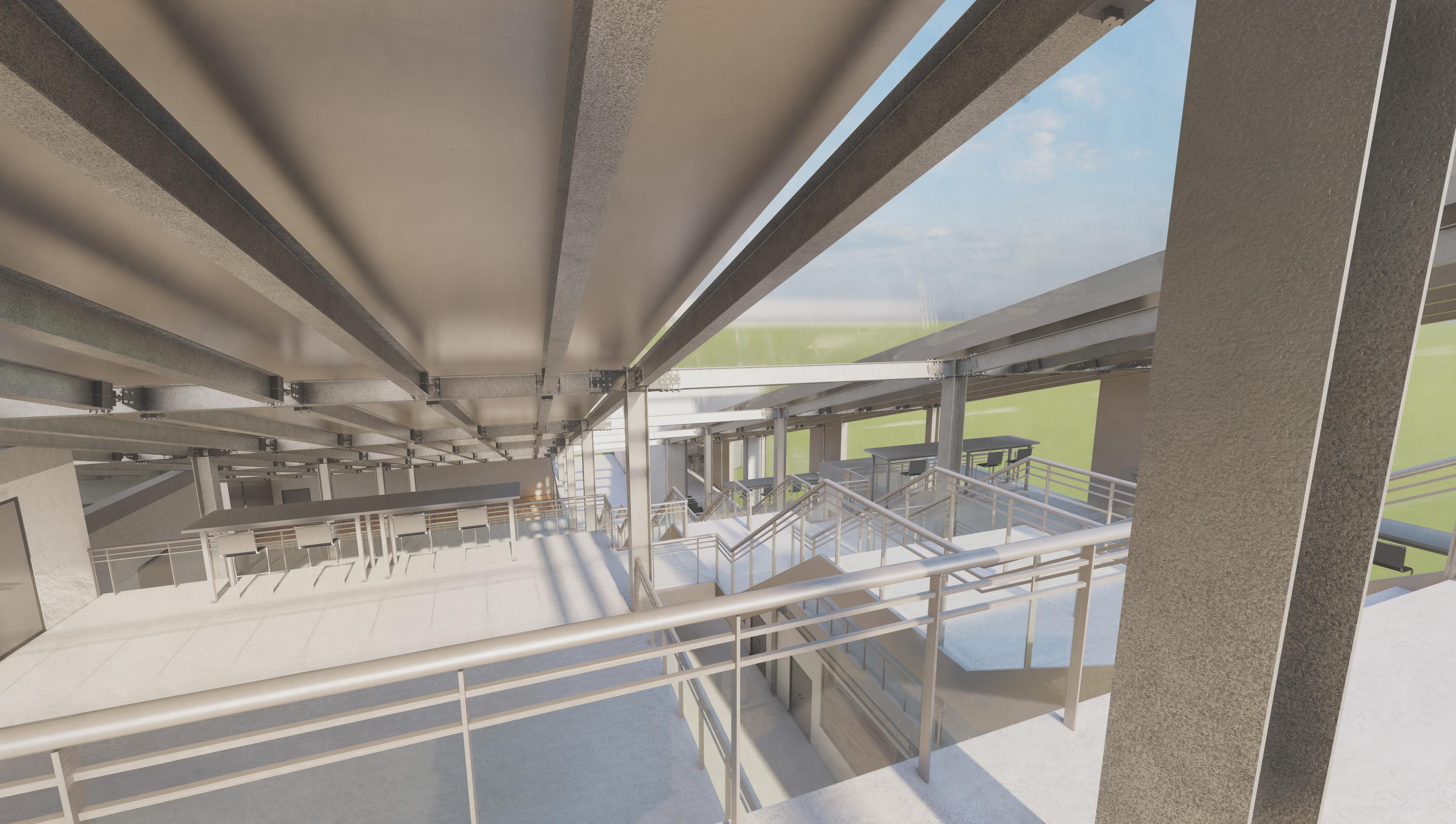

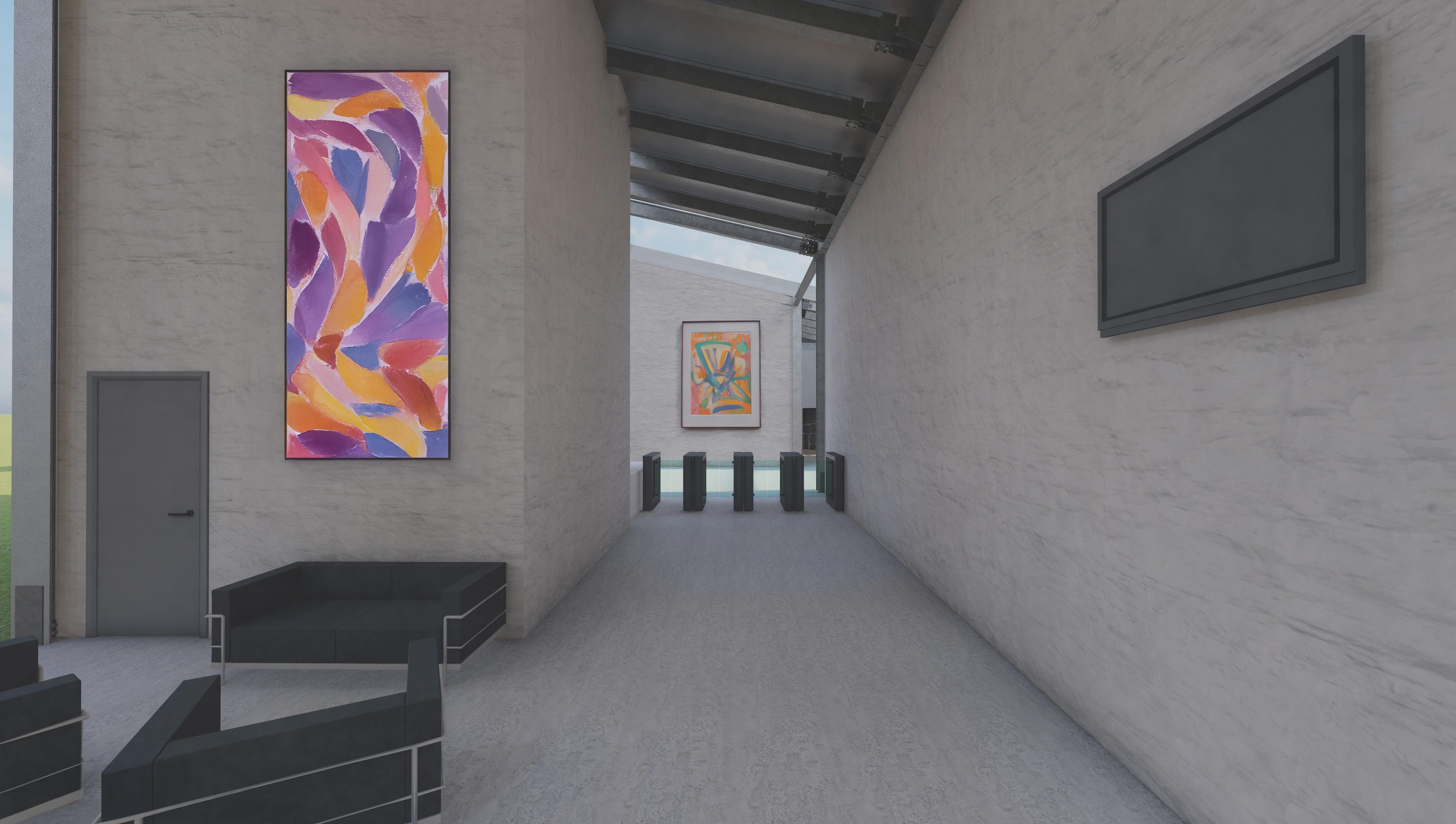

The first key space, and the first space you enter as you get into the building is the lobby and reception area, so it is arguably one of the most important areas in the building, it needs to make an impression, hence the artwork, TV’s, sofas and a mind trick that occurs once youre through the barriers where the roof dips rapidly from double story height to single story and then up to 4 stories in a instant. The idea is to make you feel compressed so that when you enter the atrium that accommodates the staircase, it will feel a lot bigger.

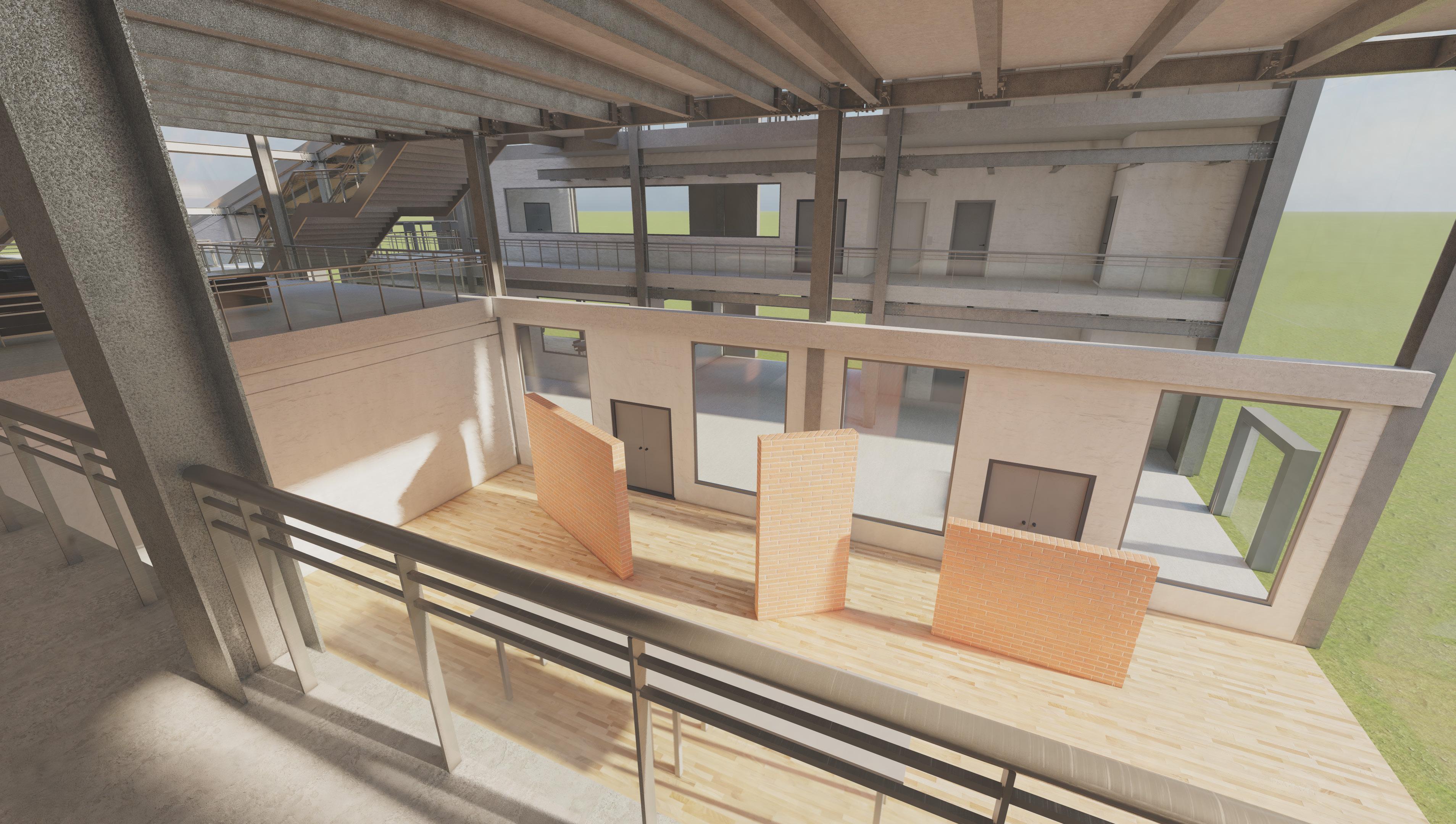

The second space is on the first floor, where there is the first of many voids that look into a workshop. Whats special about this one though is that its completely open allowing the students to build test walls as high as they need to, and the visitors on the first floor get to share that experience with them and feel like a part of the learning.

Finally one you’ve climbed the many steps, you’ll reach the 3rd floor where if you turn around you’ll be able to see back down the entirity of the building and onto every floor.

9 Tom Fenwick 2025 Portfolio

1 2 3

1

4 5

2 3 4

5

6 8 7

6

7 8 9

9

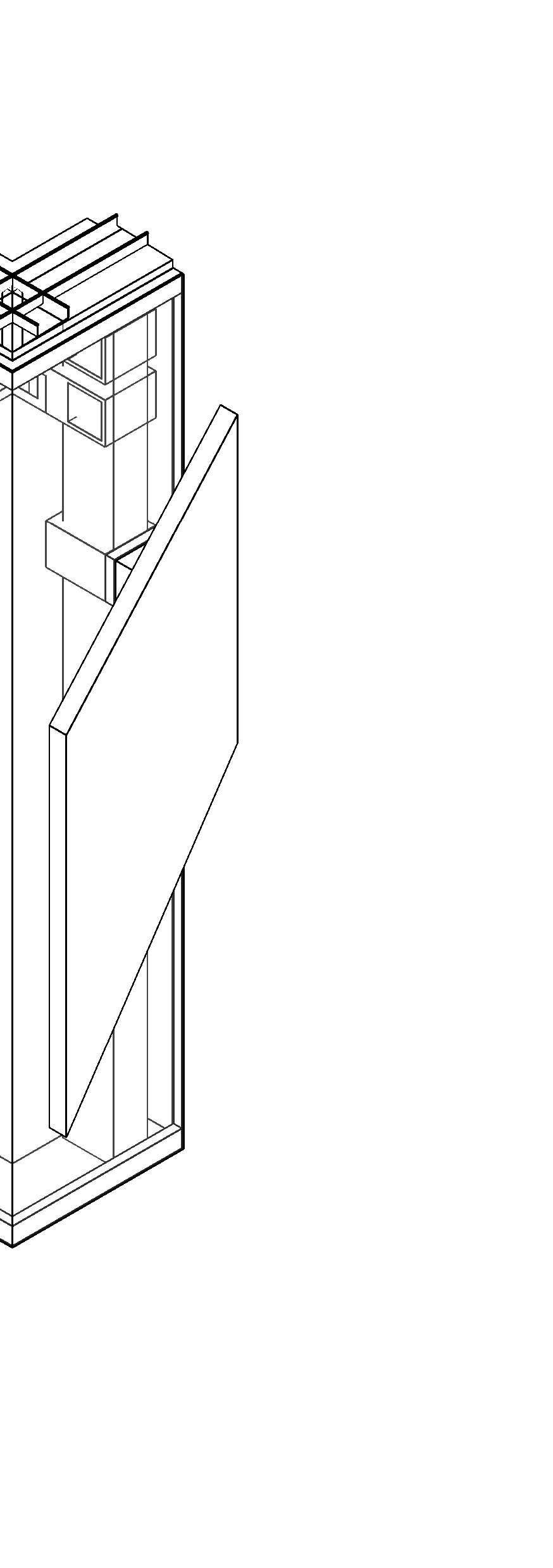

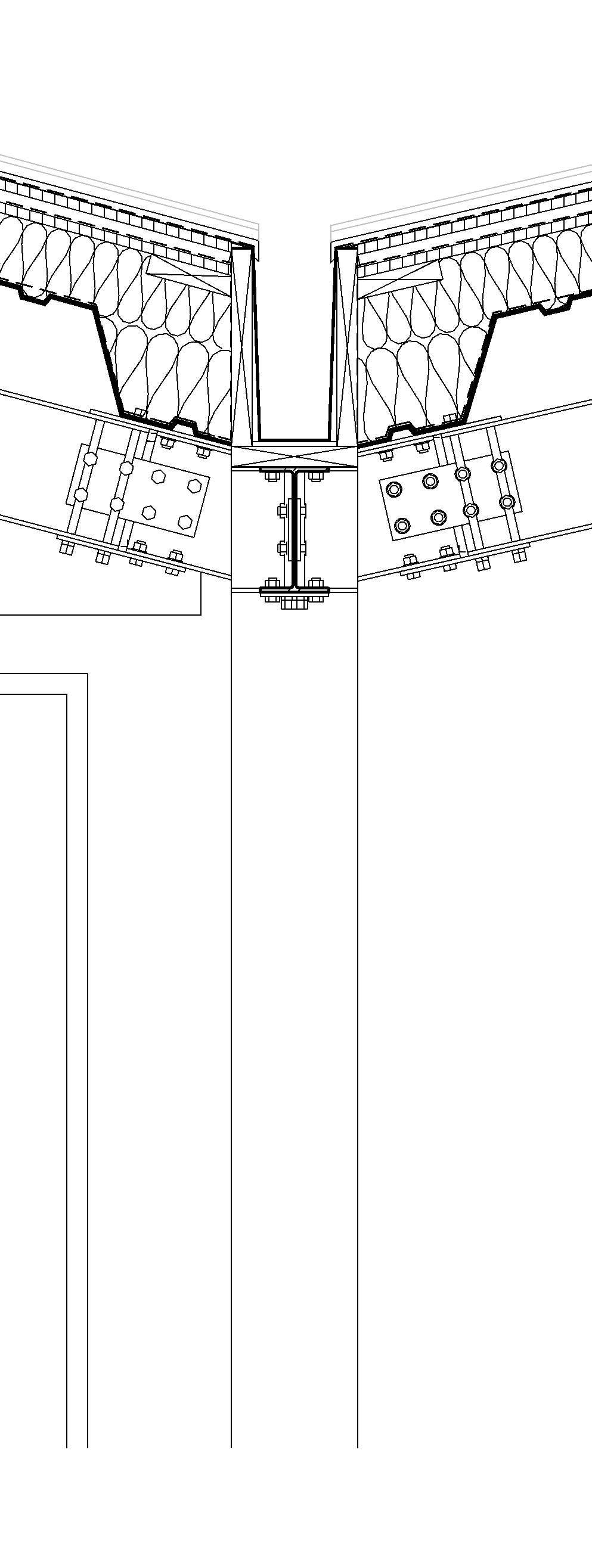

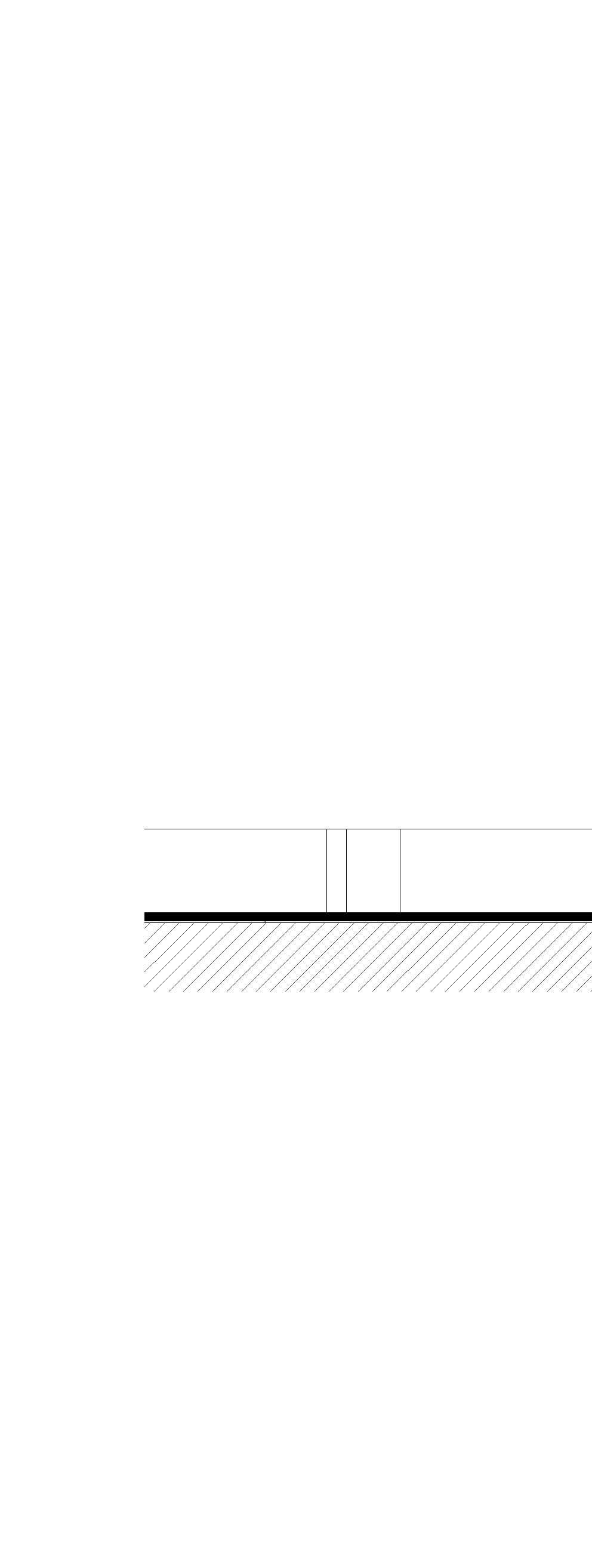

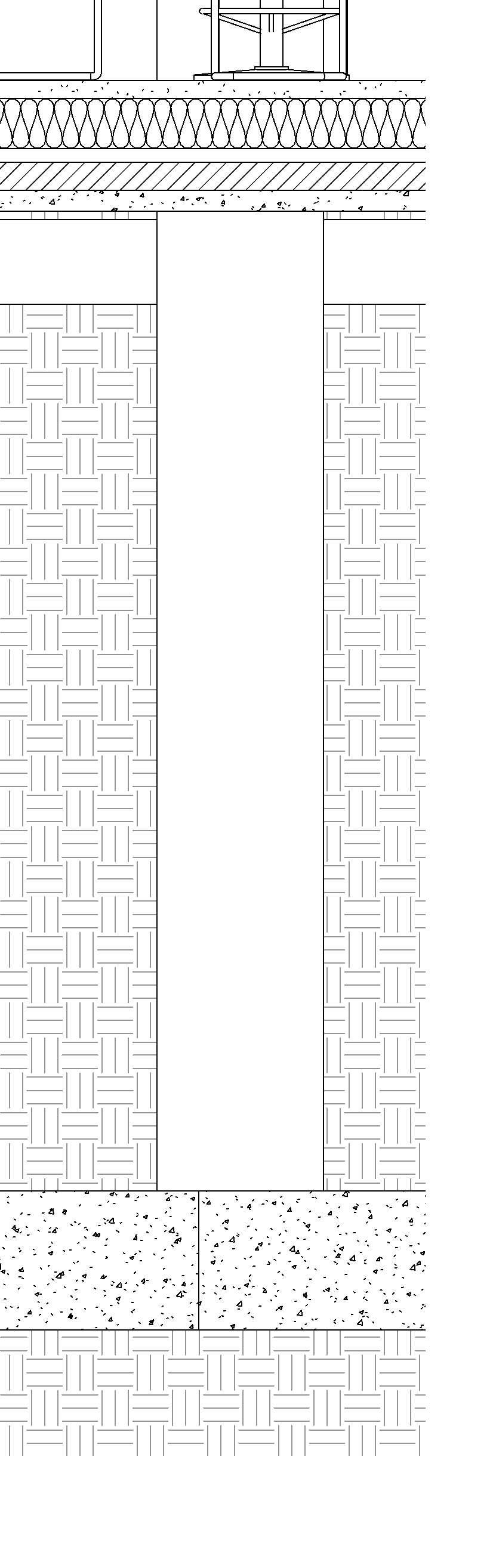

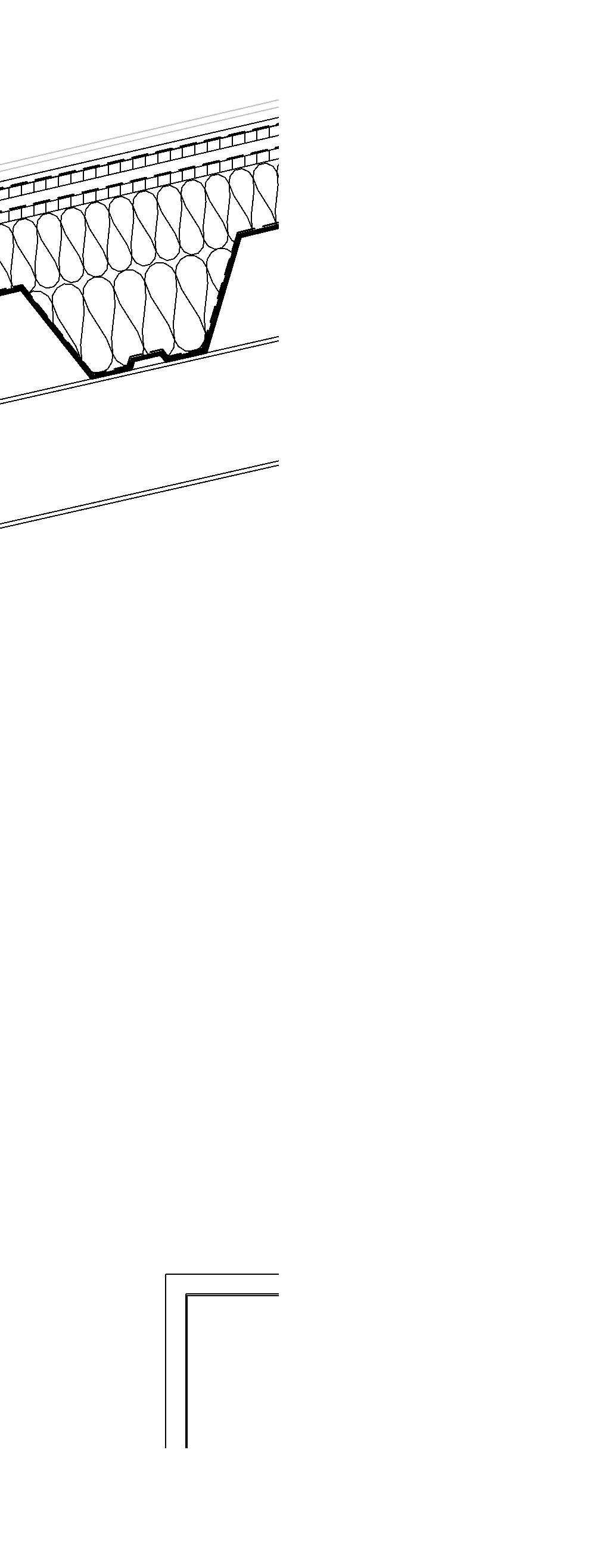

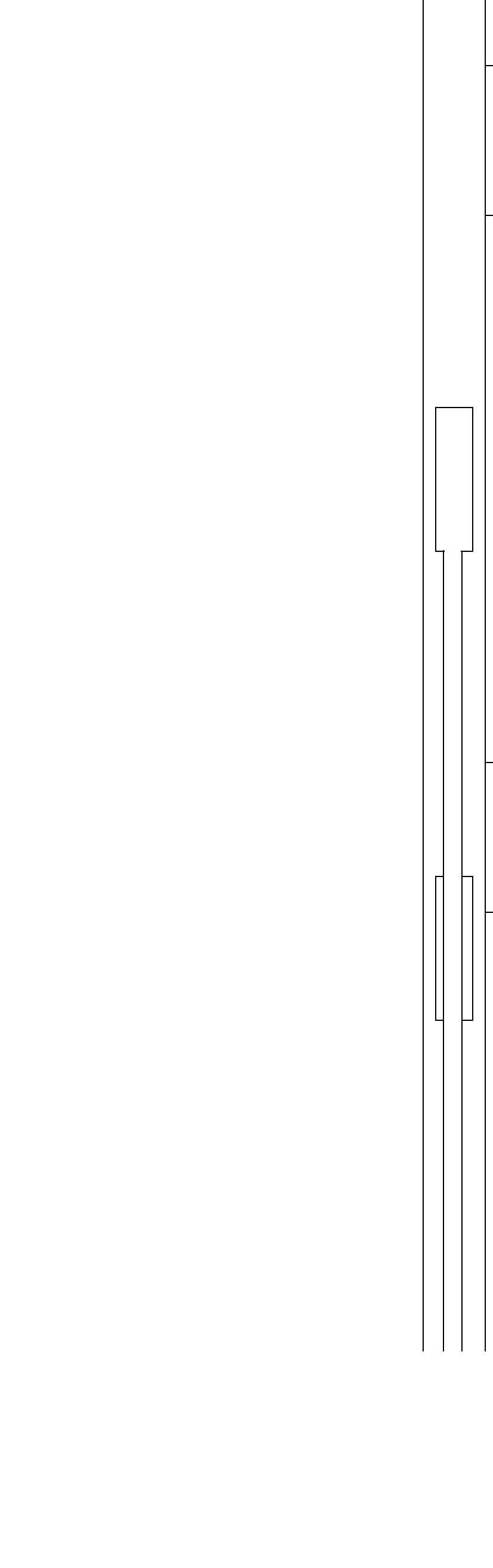

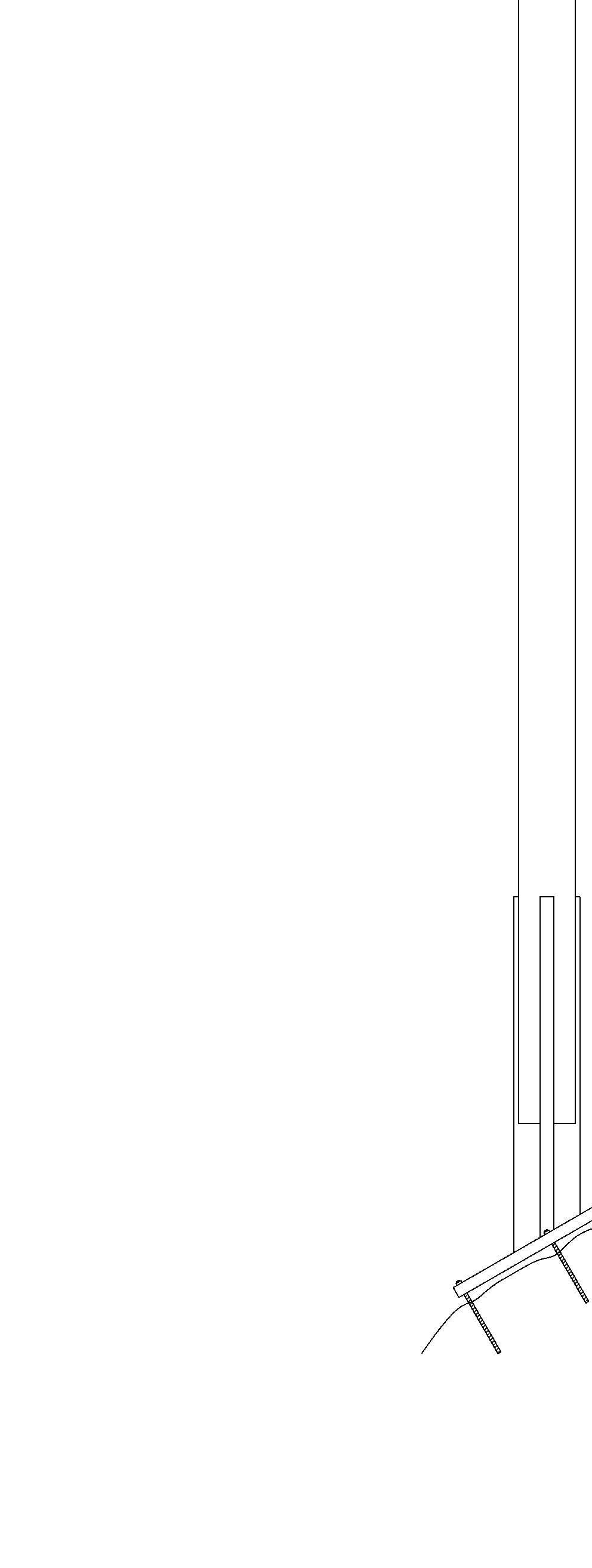

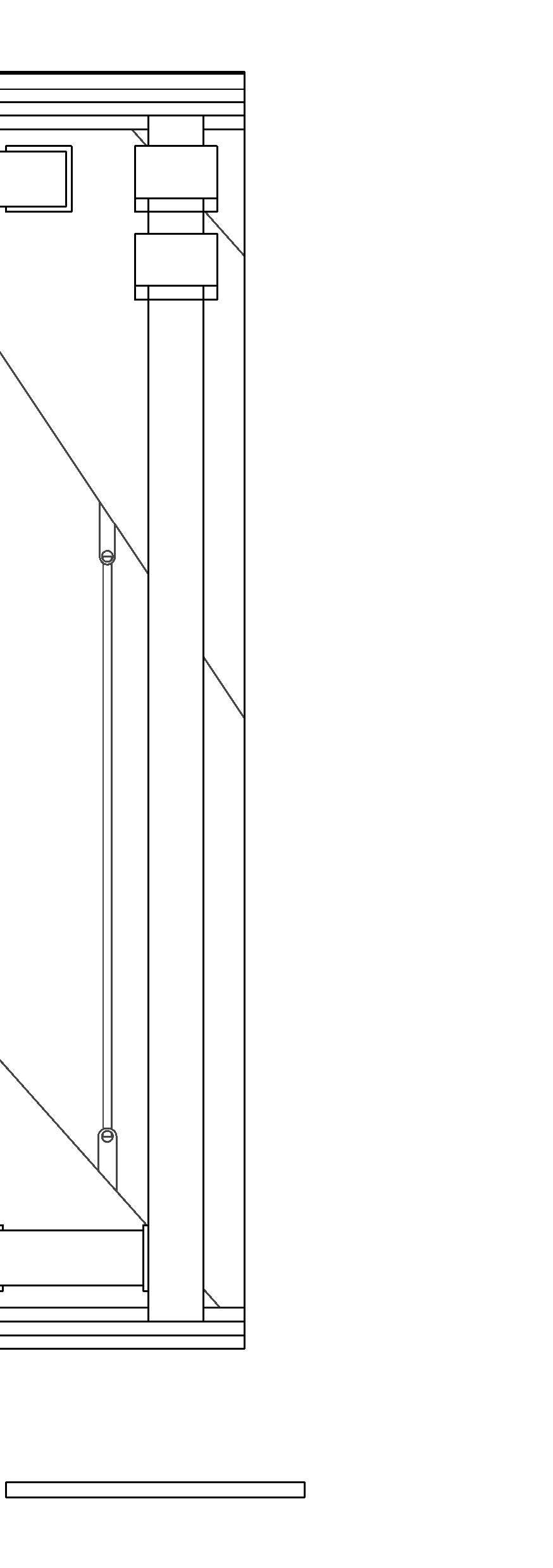

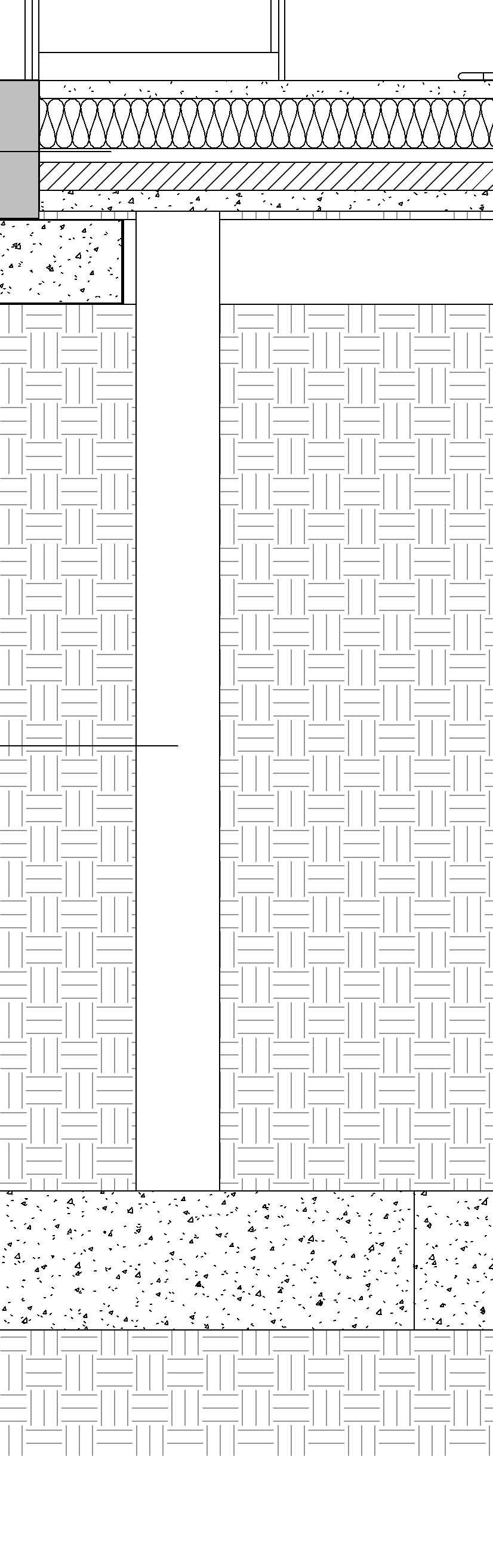

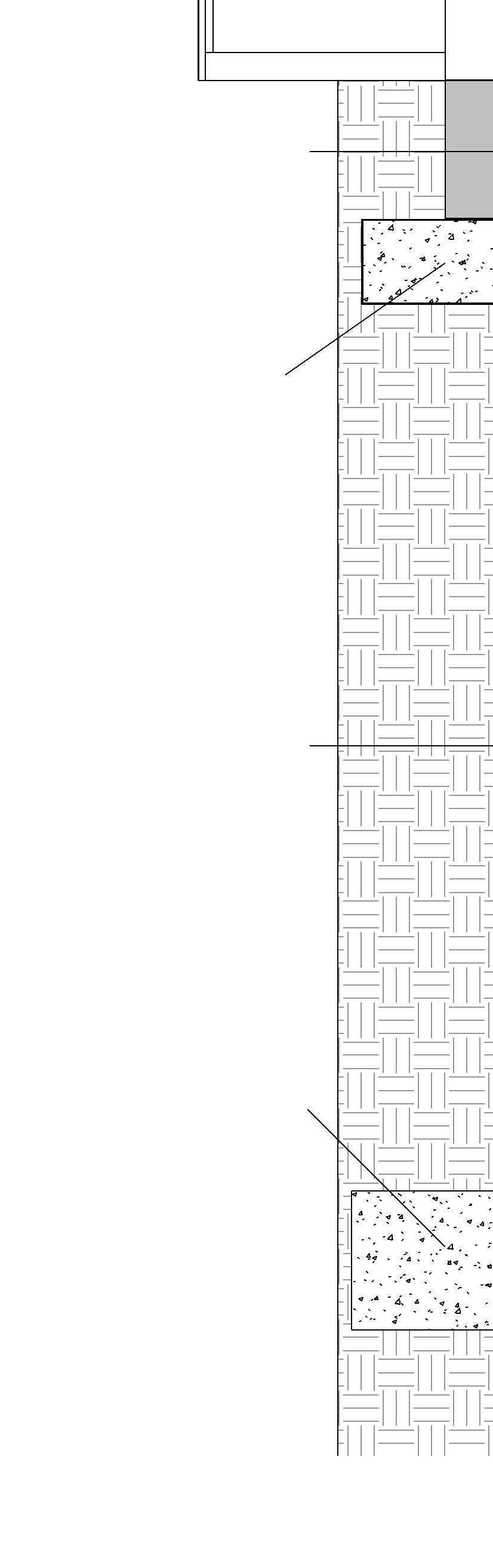

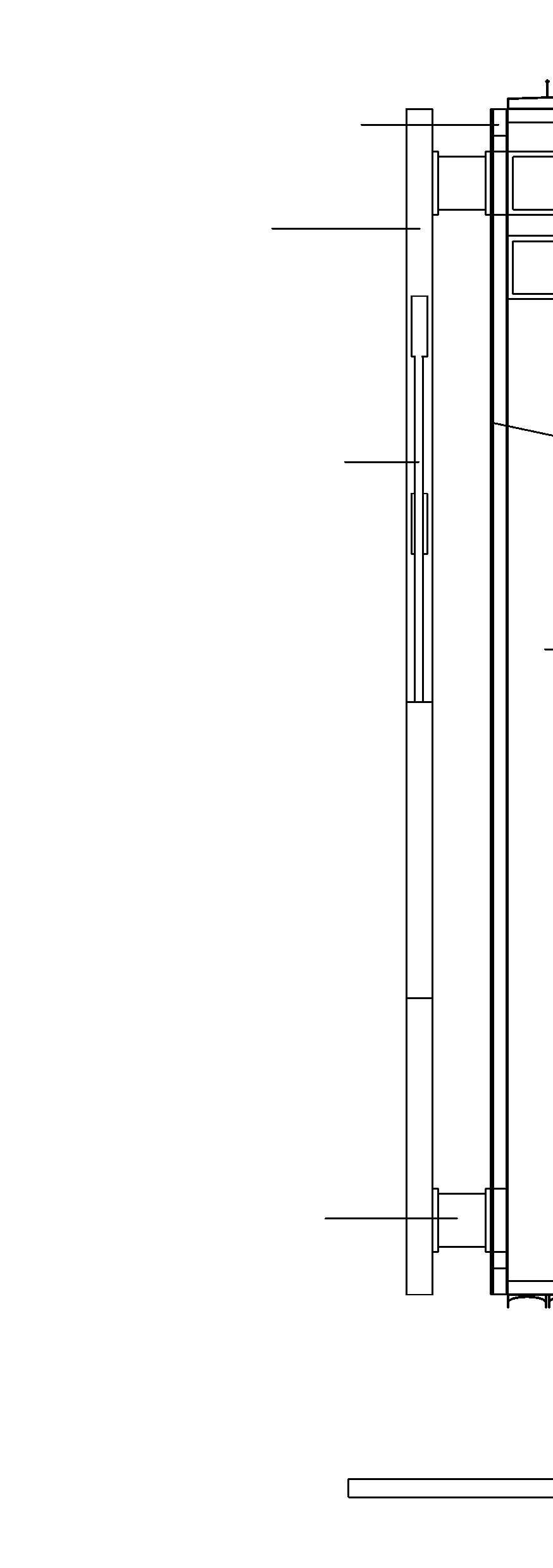

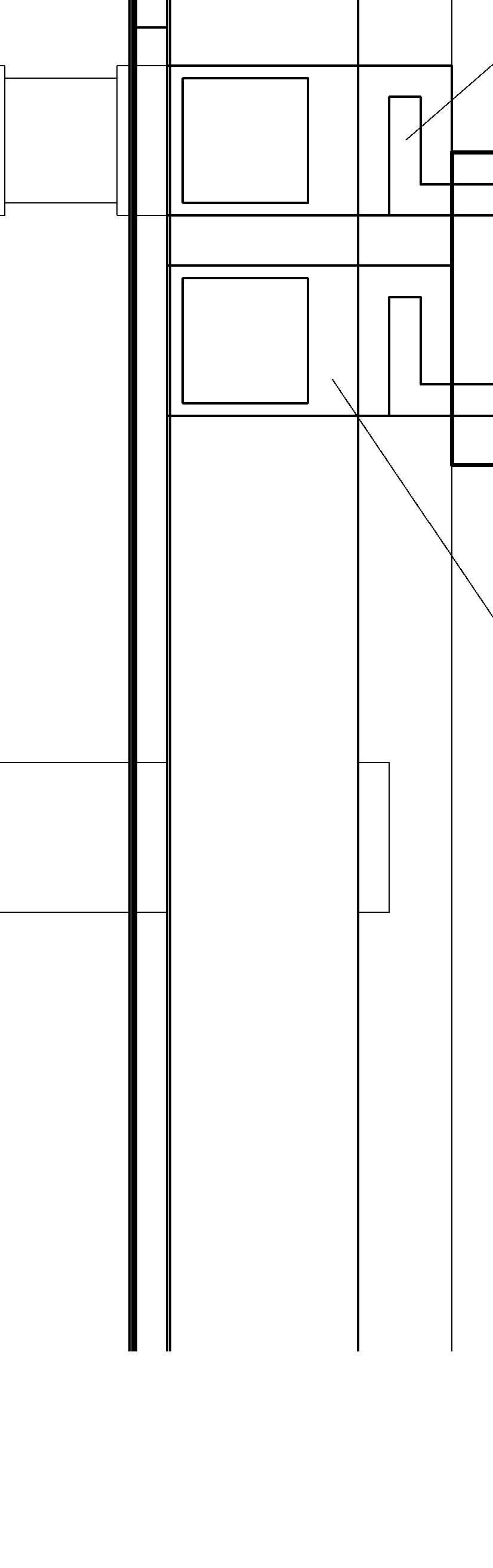

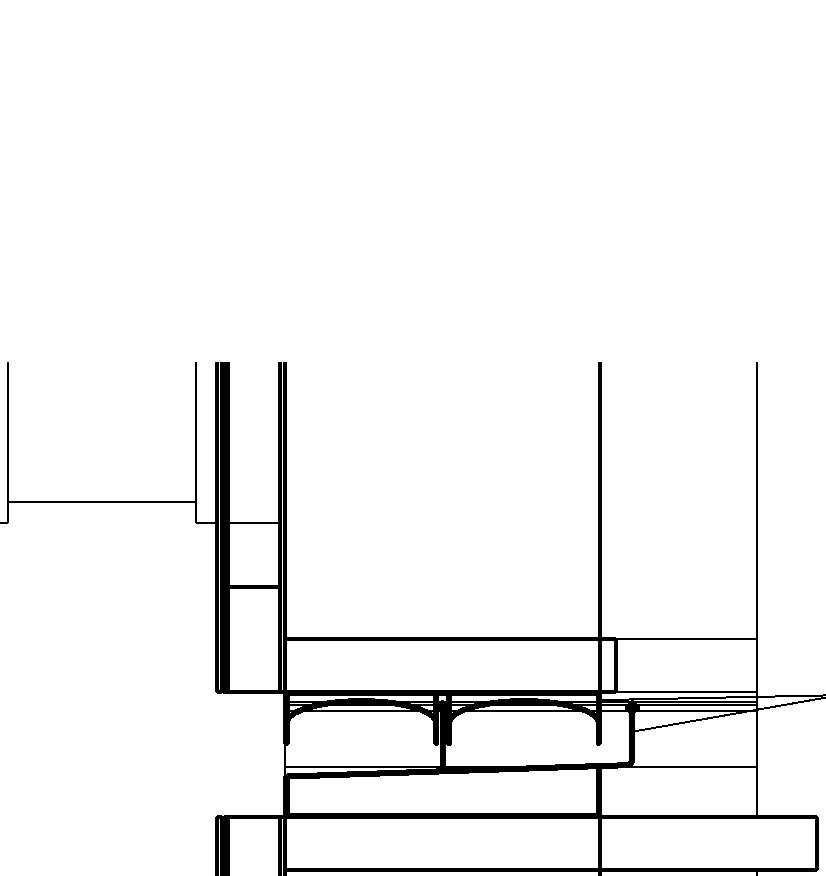

1.0 mm sheet-zinc standing seam cladding 10 sealing layer 25 mm perforated strand board mineral wool insulation 11 vapour barrier 50 mm insulation battens steel I-beam profile metal deck vapour barrier 12 steel I-beam timber floor finish acoustic dampening layer plasterboard 150 mm beams bolted to steel I-beam insulation layer plasterboard opaque glass steel curtain wall frame bolted to welded plate on steel I-beam insulation layer between 10 1.0 mm sheet-zinc standing seam steel brackets with rubber sealing cladding gaskets for triple glazing sealing layer threshold strip 25 mm perforated strand board timber floor finish 40 mm battens 50 mm screed with underfloor heating (25 mm perforated strand board) insulation layer mineral wool insulation 150 - 300 mm lime-crete floor slab vapour barrier sand blinding layer profile metal deck hardcore steel I-beam protective boarding 11 water runoff gutter with drips from rain gutter system under paving standing seam sheet-zinc concrete pad foundation 12 steel column

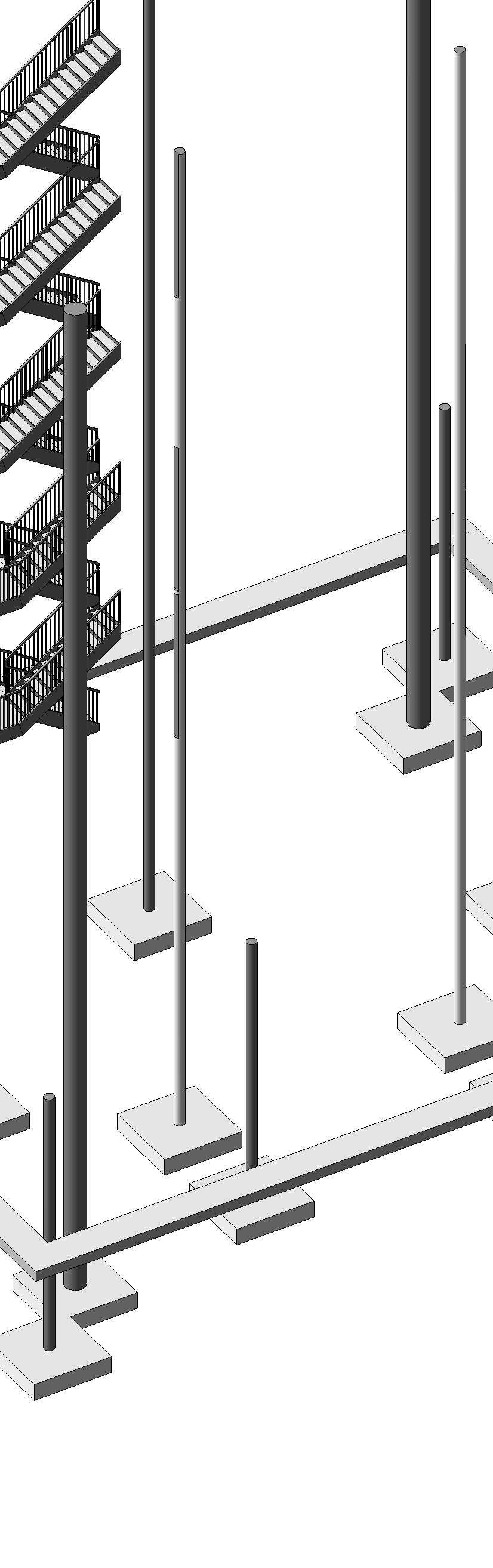

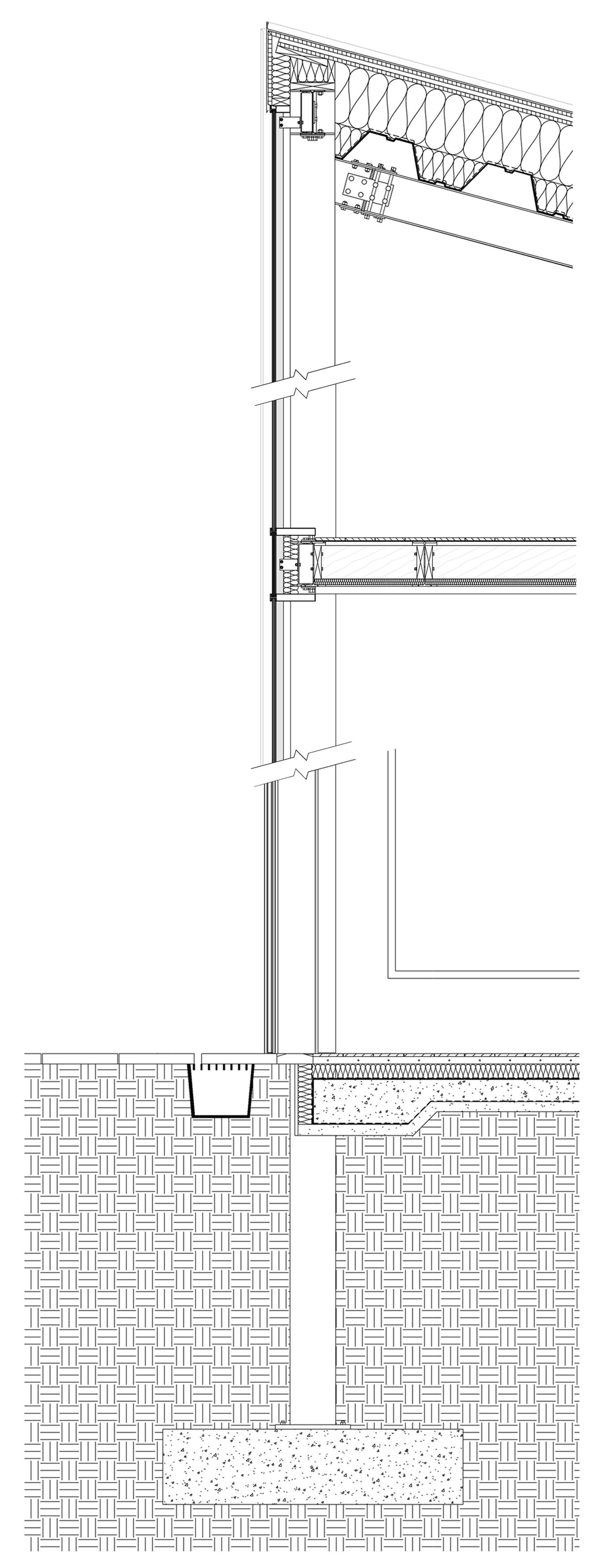

My structural strategy is a steel frame on concrete pad foundations, a limecrete floor slab and a standing seam zinc cladding.

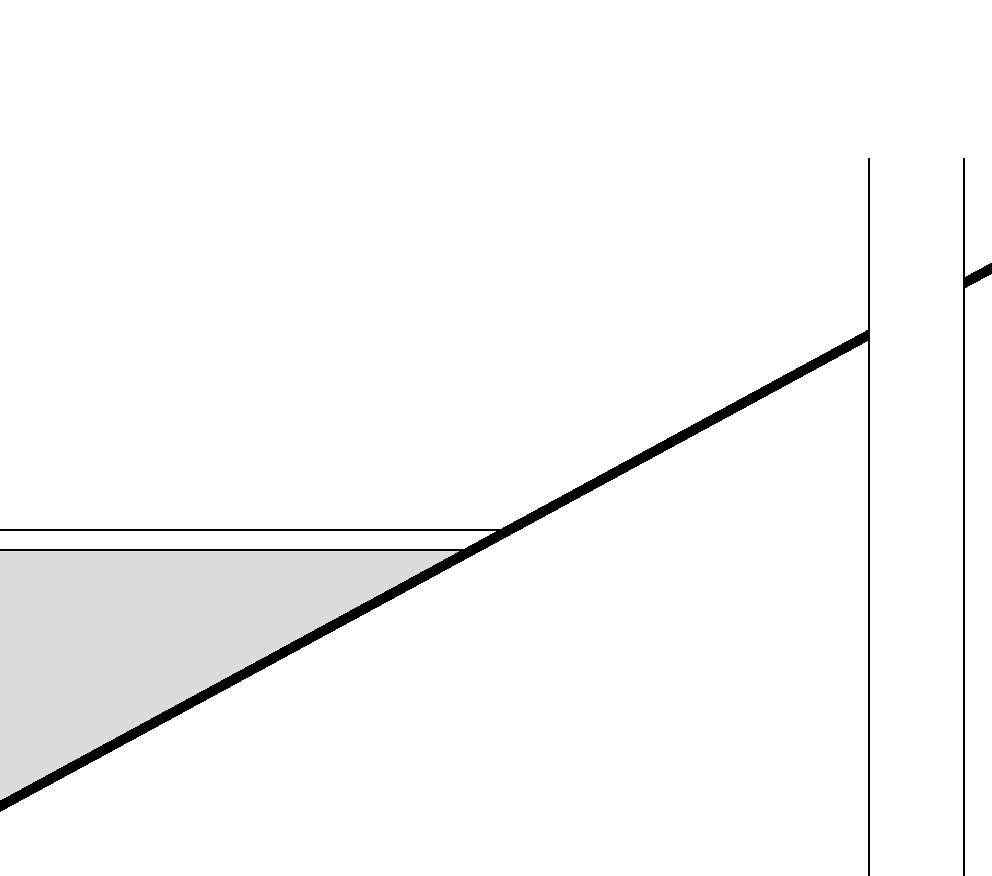

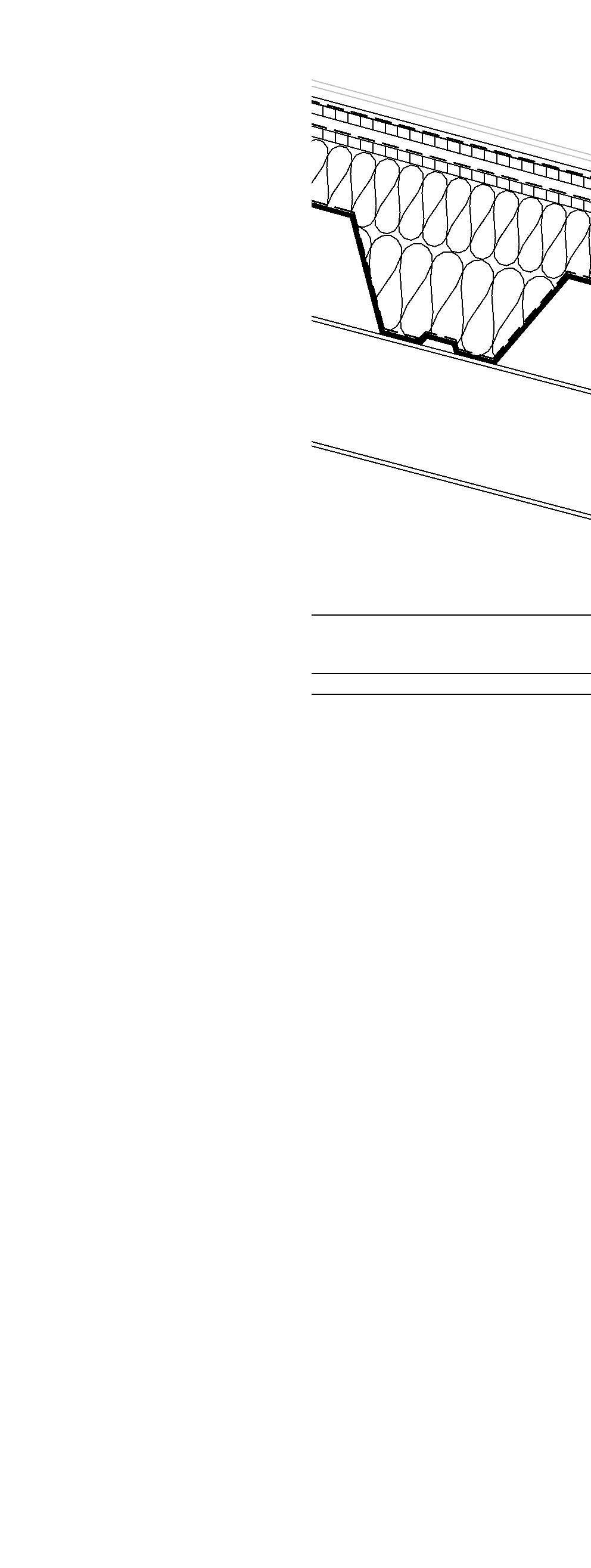

The roof build up will take advantage of the sloped beam systems by placing a profile metal deck on top followed by insulation then a variey of beams, perforated boards and protective layers before the zinc cladding is bolted on.

2025 Portfolio Tom Fenwick

10

HOW HIGH ARE WE? BA Year 3 Semester 1: Weather or Not

11 Tom Fenwick 2025 Portfolio

Weather Or Not Design a self sustainable and environmentally friendly weather station, research centre, or labatory on one of 3 sites in the lake district.

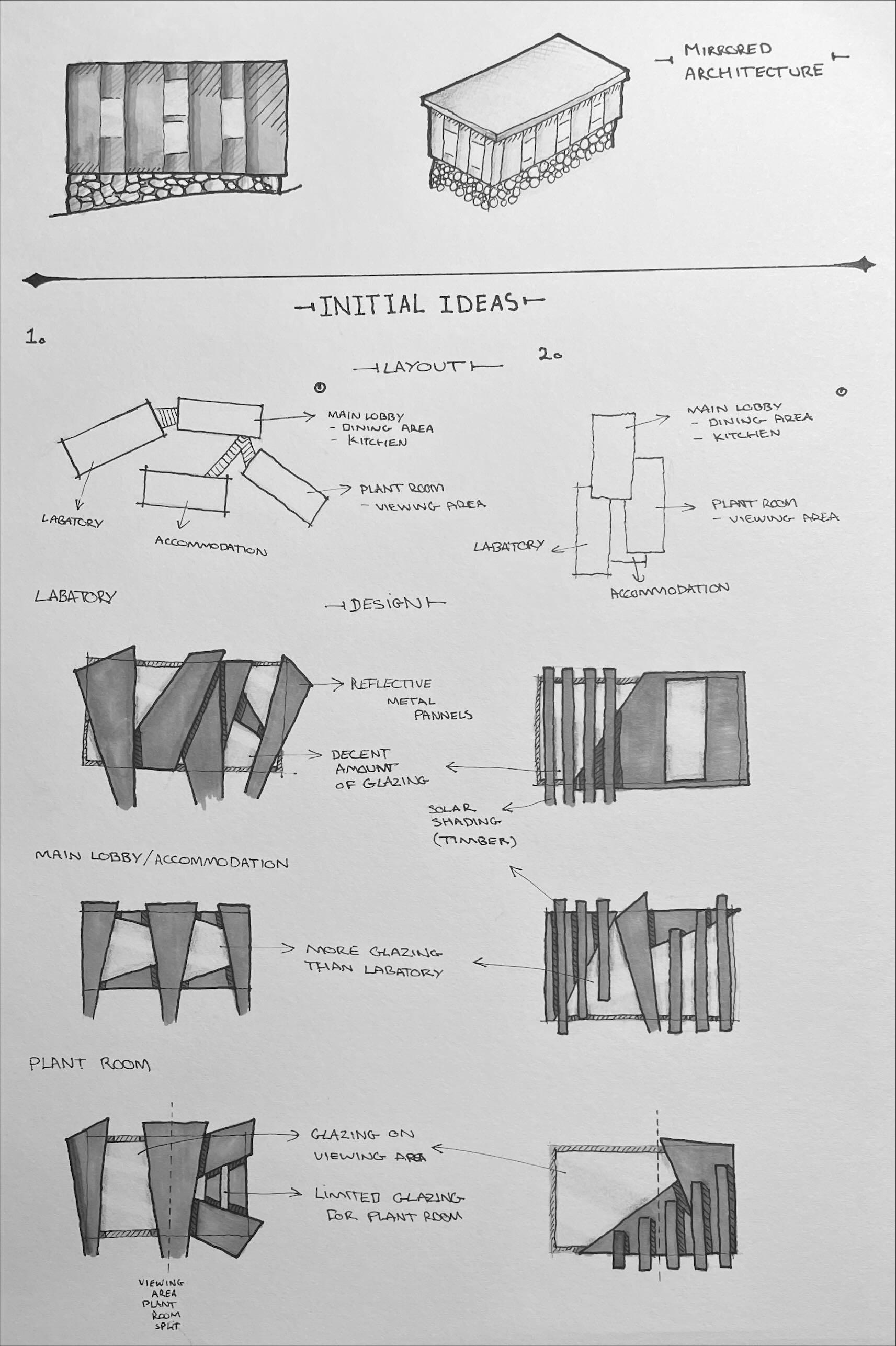

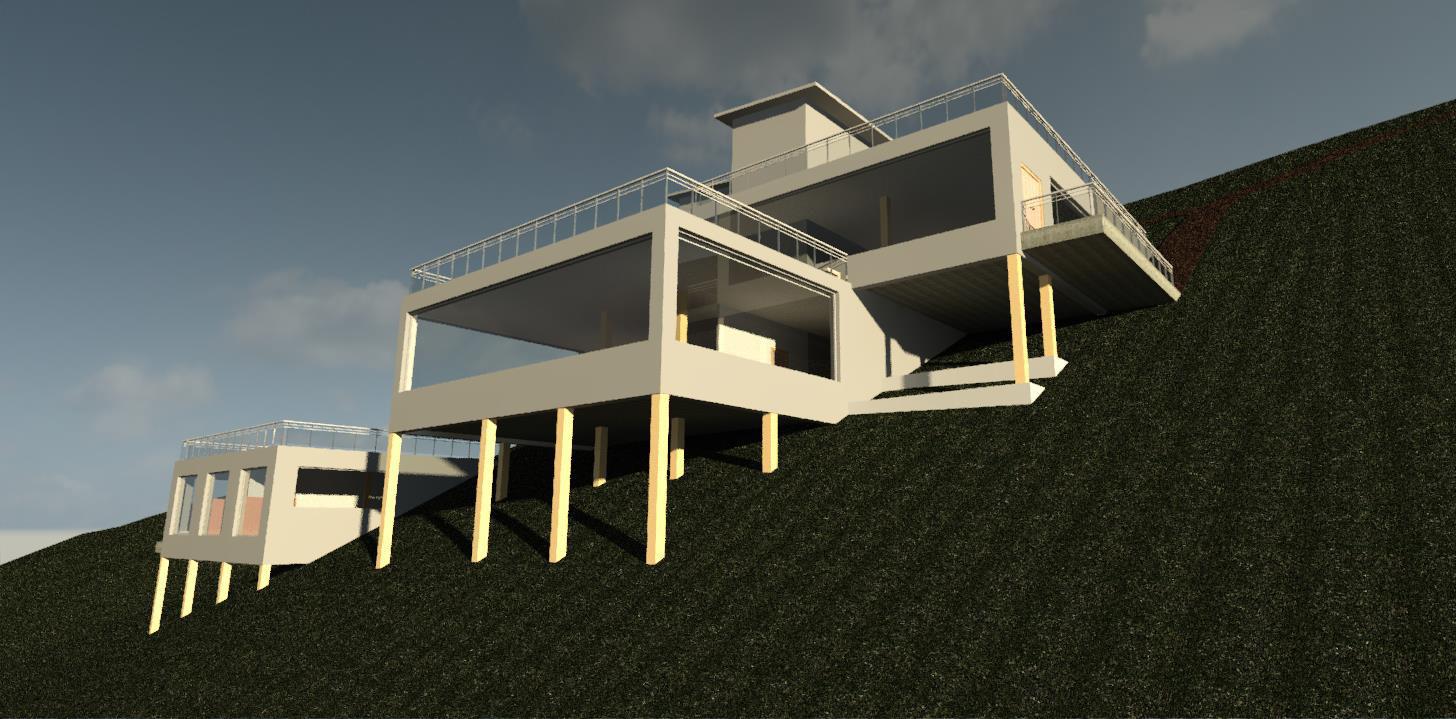

How High are We is the design of a weather and research station based on the peak of Gummers How that is mainly made from hempcrete.

“How sad that nature speaks, and mankind doesn’t listen” - Victor Hugo

2025 Portfolio Tom Fenwick

12

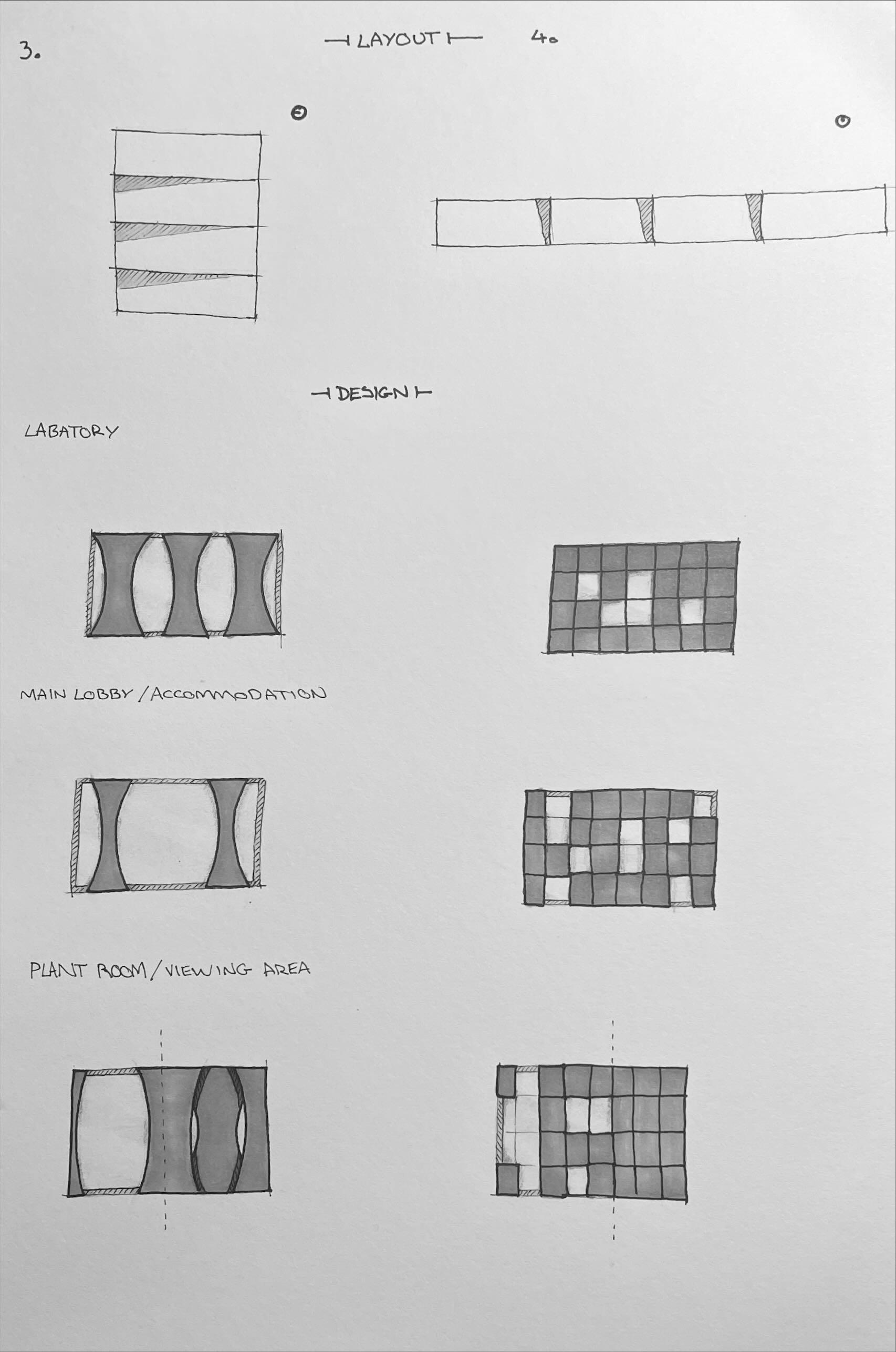

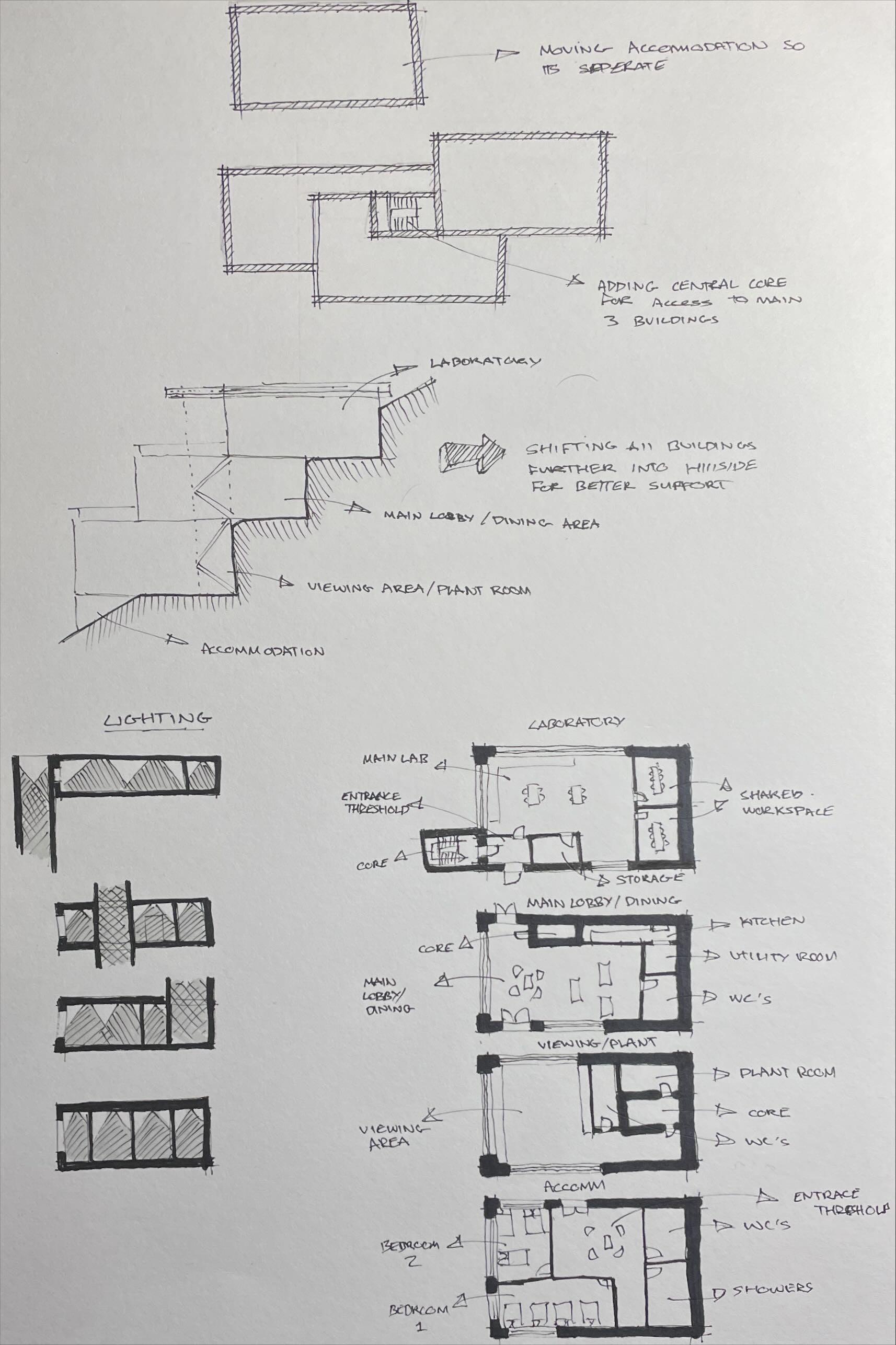

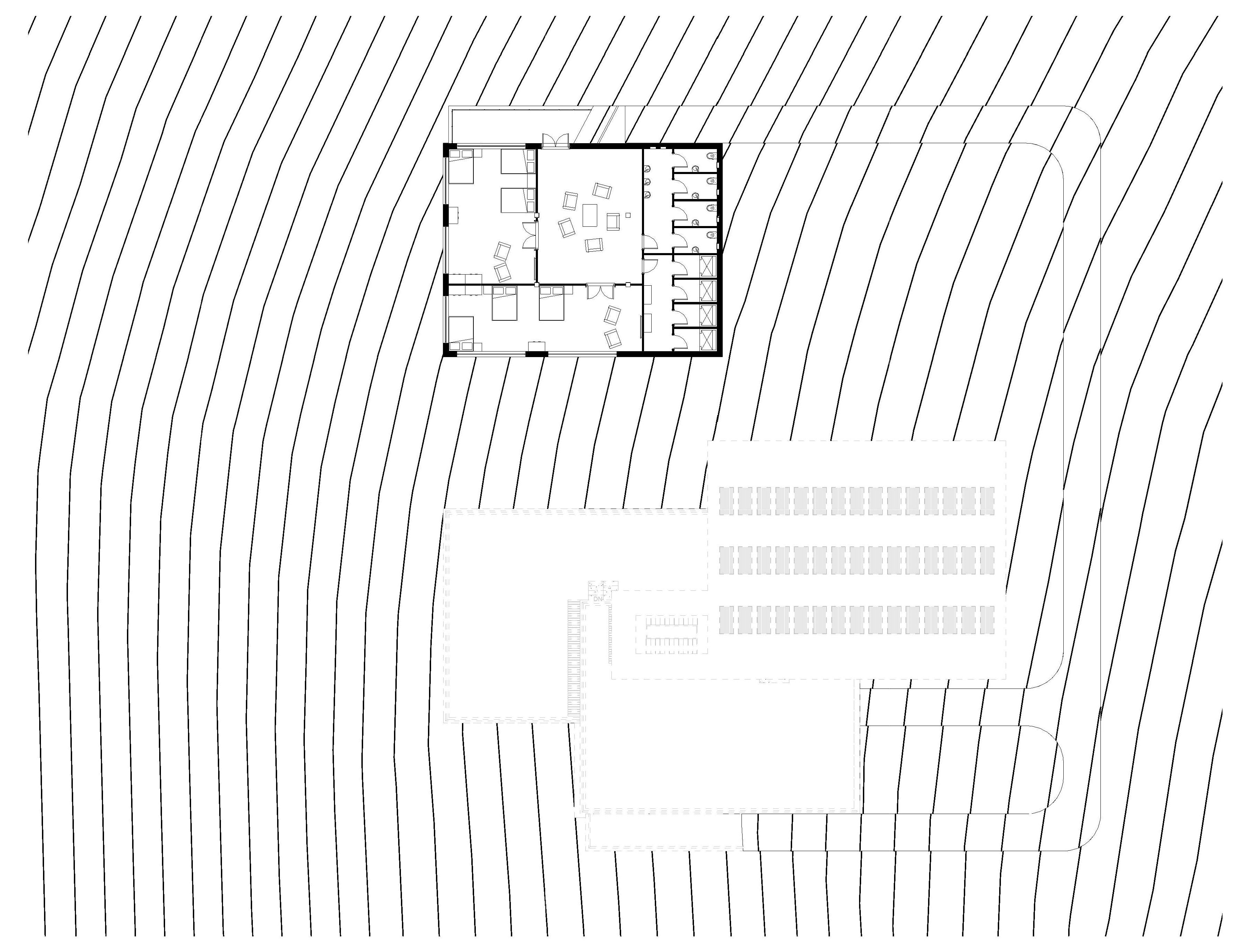

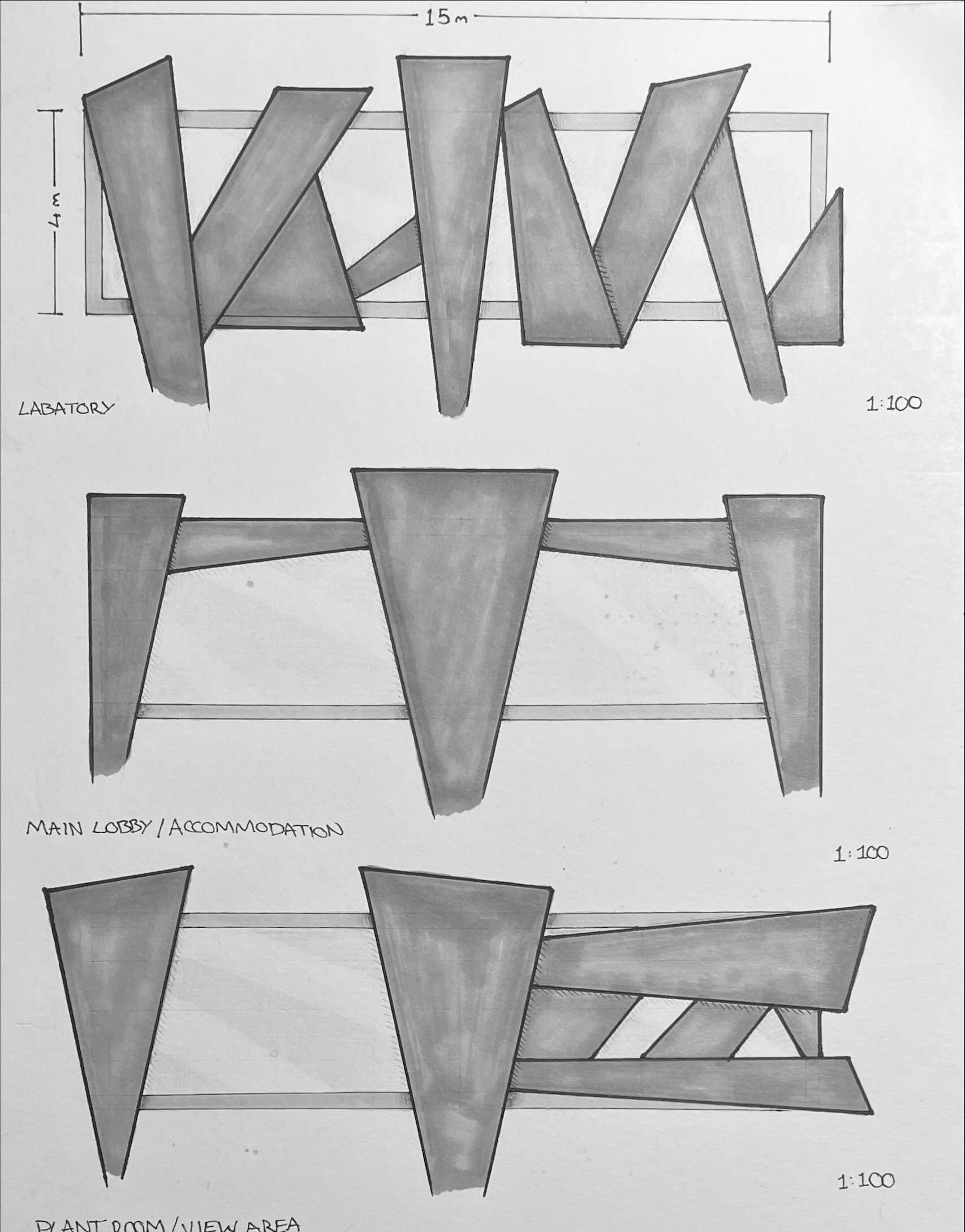

- Entrance lobby/Communal space - 2 Bedrooms - 4 Shower cubicles - 4 WCs

- Viewing area - 2 WCs - Storage room - Plant room

- Entrance lobby/Dining area - Kitchen - Laundry room - 3 WCs - Green roof balcony

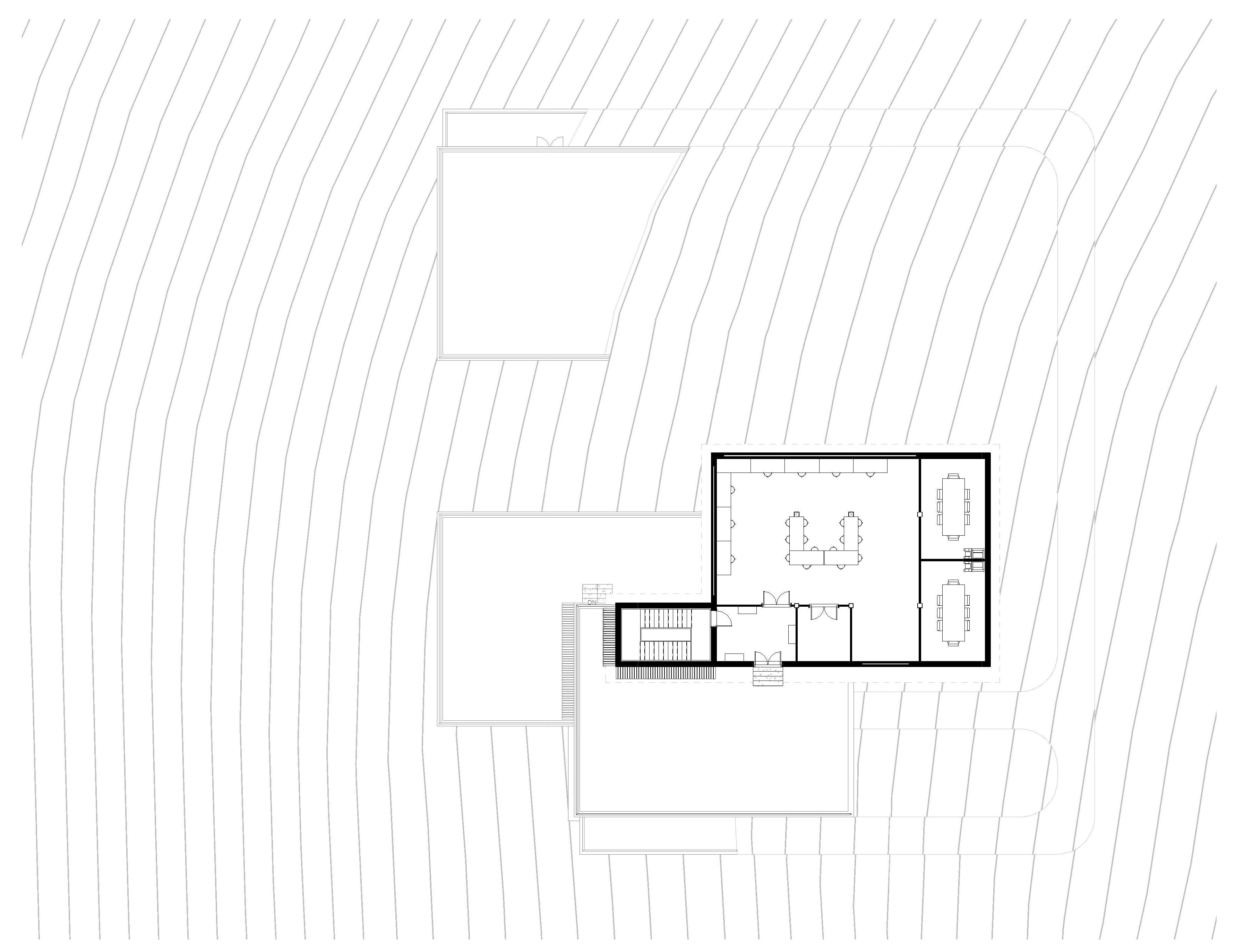

- Entrance lobby/Cloak room - Storage room - Laboratory - 2 Conference rooms - Green roof balcony

GROUND FLOOR

FIRST FLOOR

SECOND FLOOR

THIRD FLOOR

13

Tom Fenwick 2025 Portfolio

Rev

Description

Date

Rev CODE

SUITABILITY DESCRIPTION

STATUS

PURPOSE OF ISSUE

Description

Date

www.autodesk.com/revit

Weather Or Not 6121ASA

PROJECT

CODE

TITLE

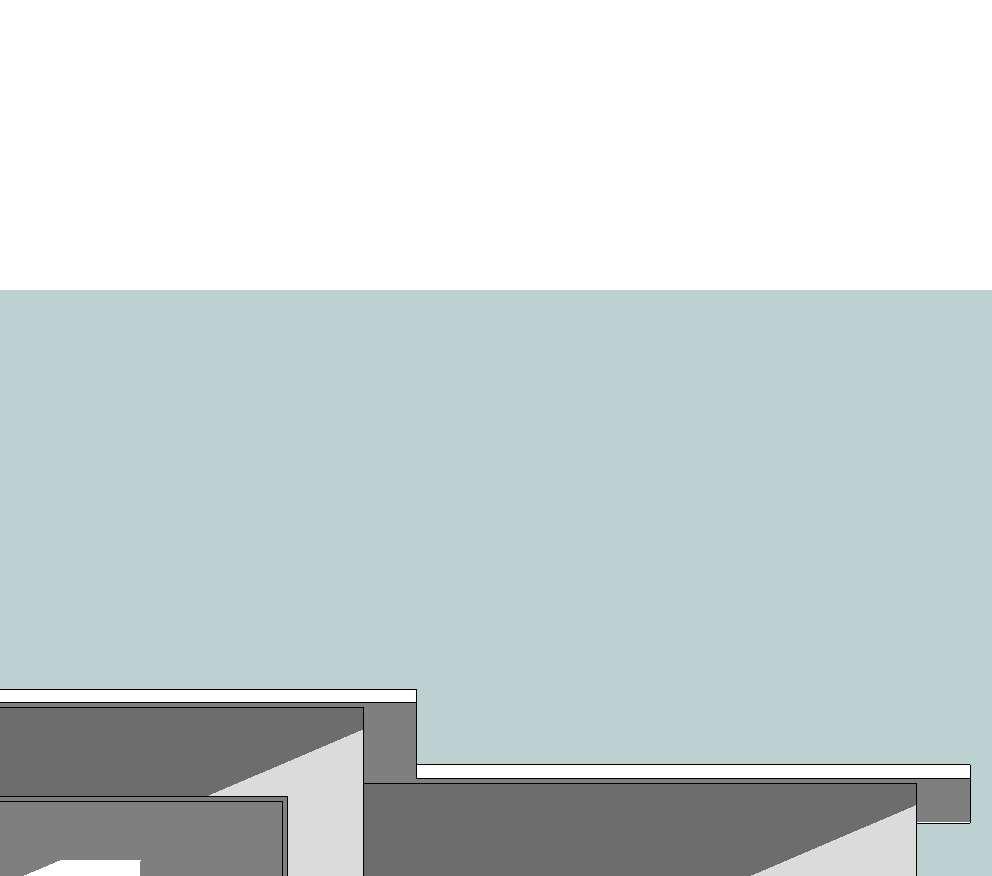

South Elevation

SUITABILITY DESCRIPTION

STATUS

PURPOSE OF ISSUE

CLIENT

www.autodesk.com/revit

Tom Fenwick 1 : 50

A2

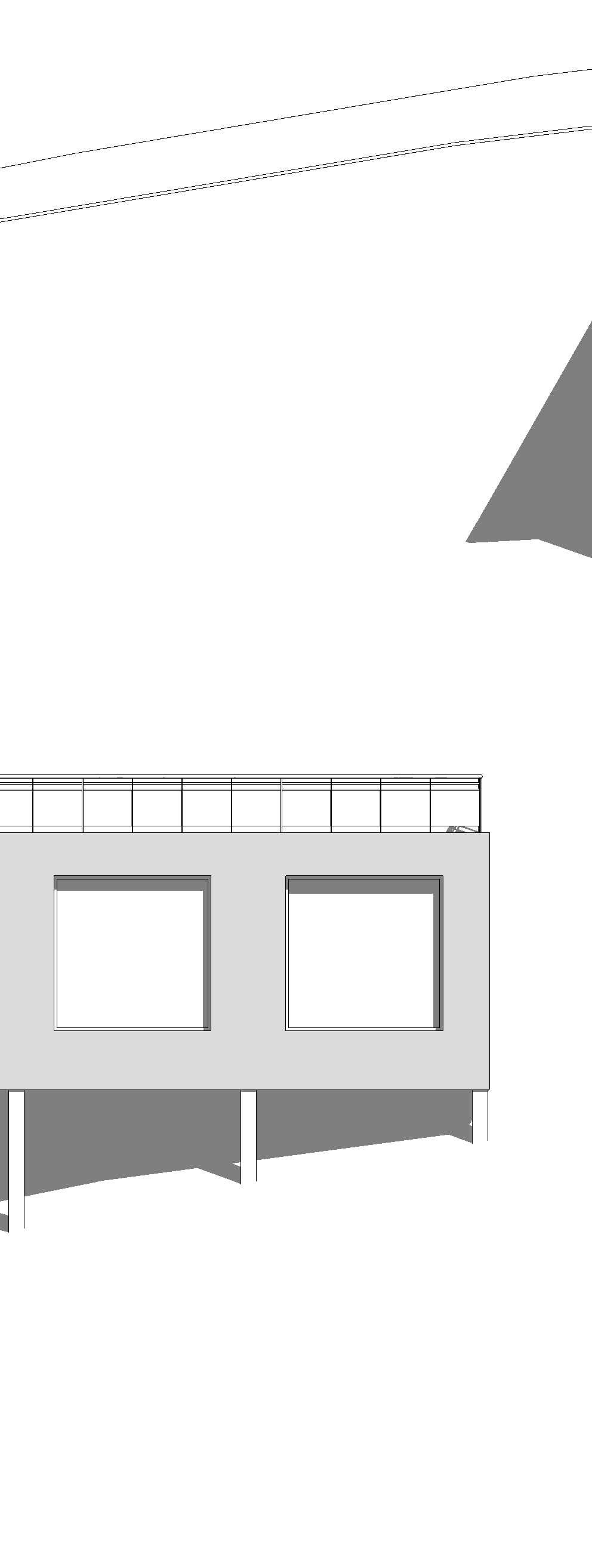

SOUTH ELEVATION

DATE

01/23/07

PROJECT NUMBER

Project Number

REV

NORTH ELEVATION

TITLE

North Elevation

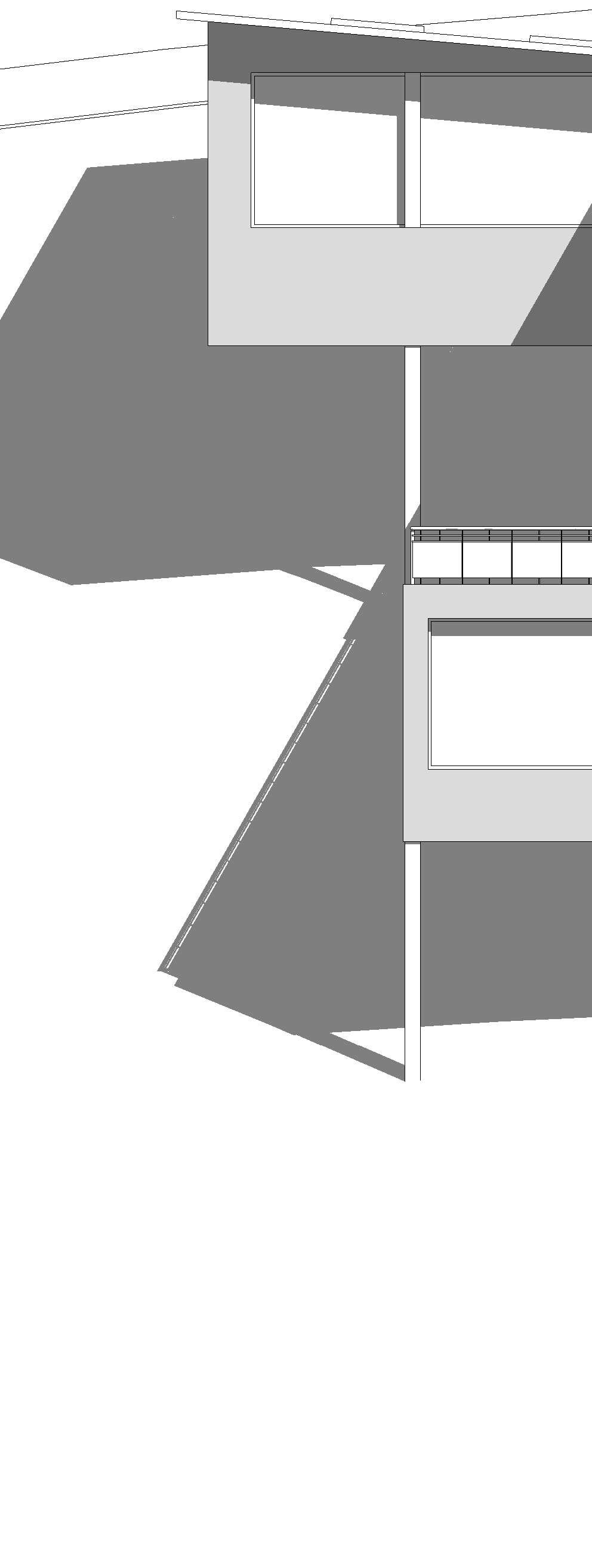

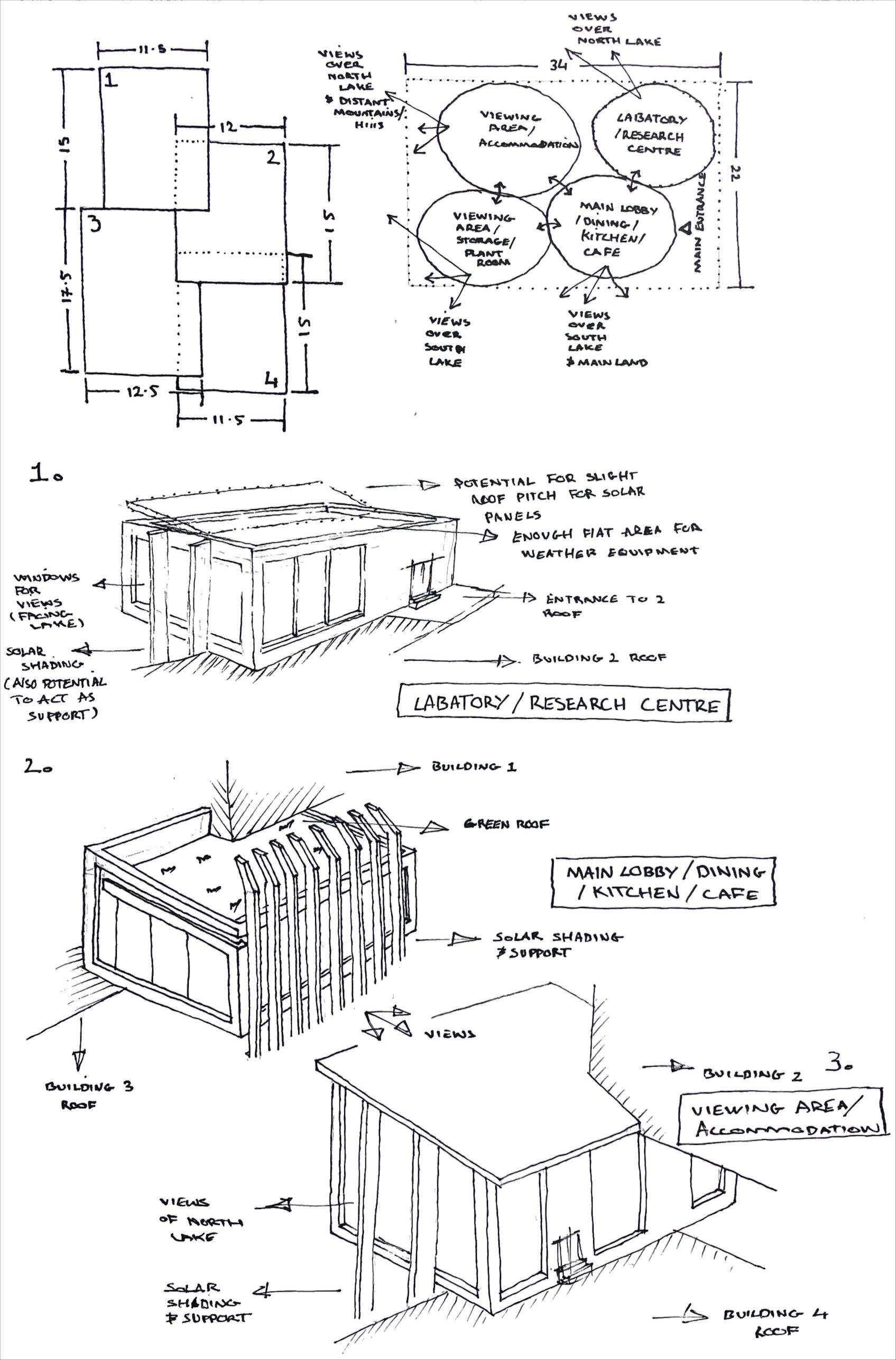

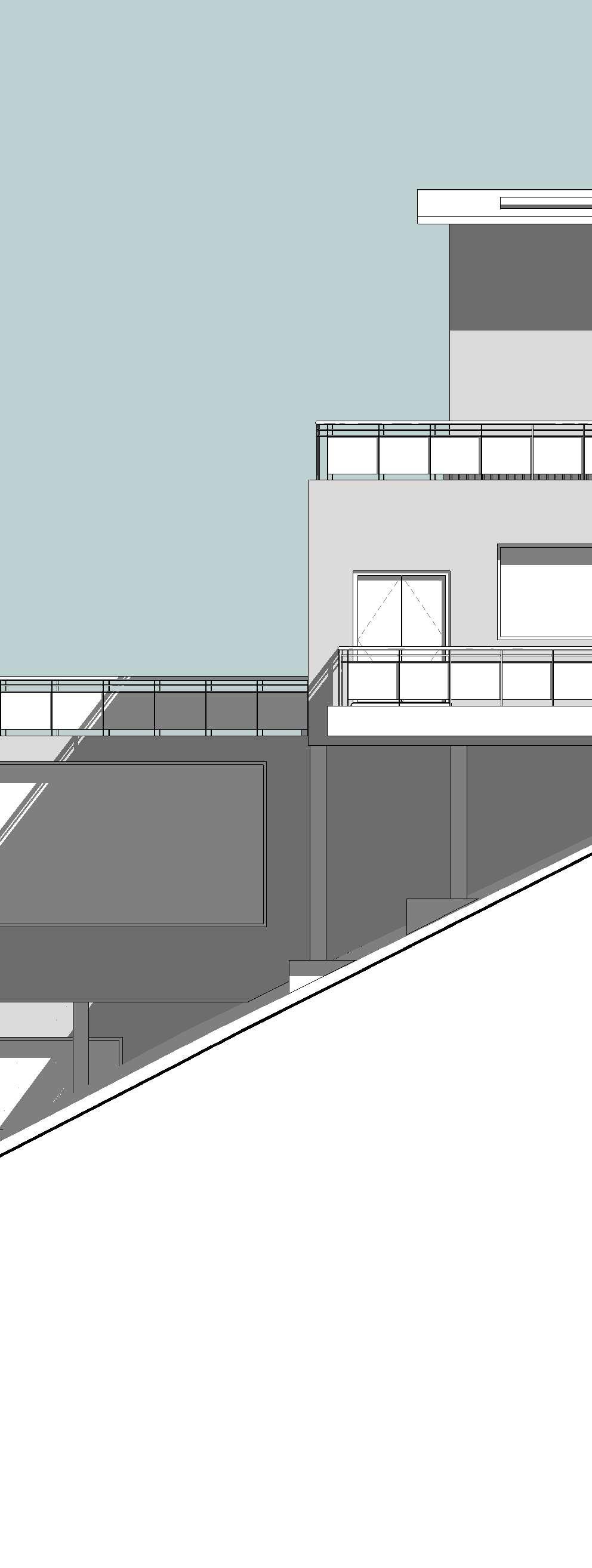

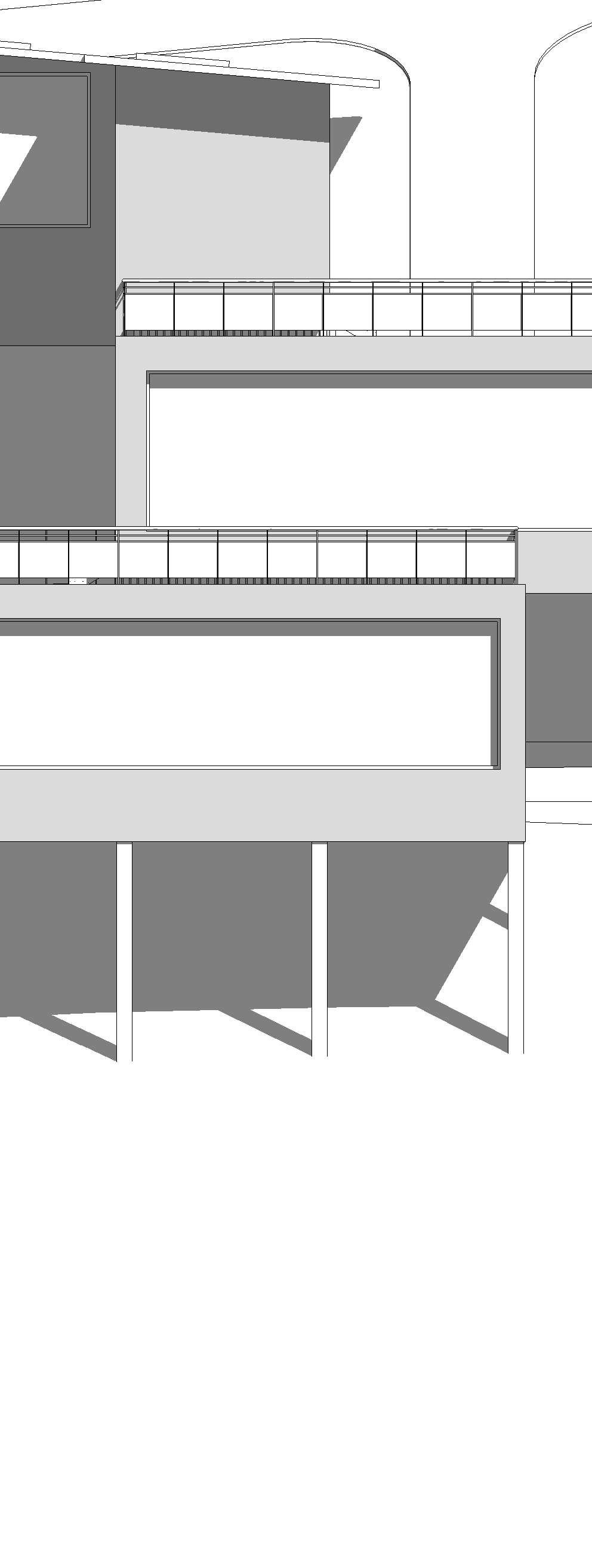

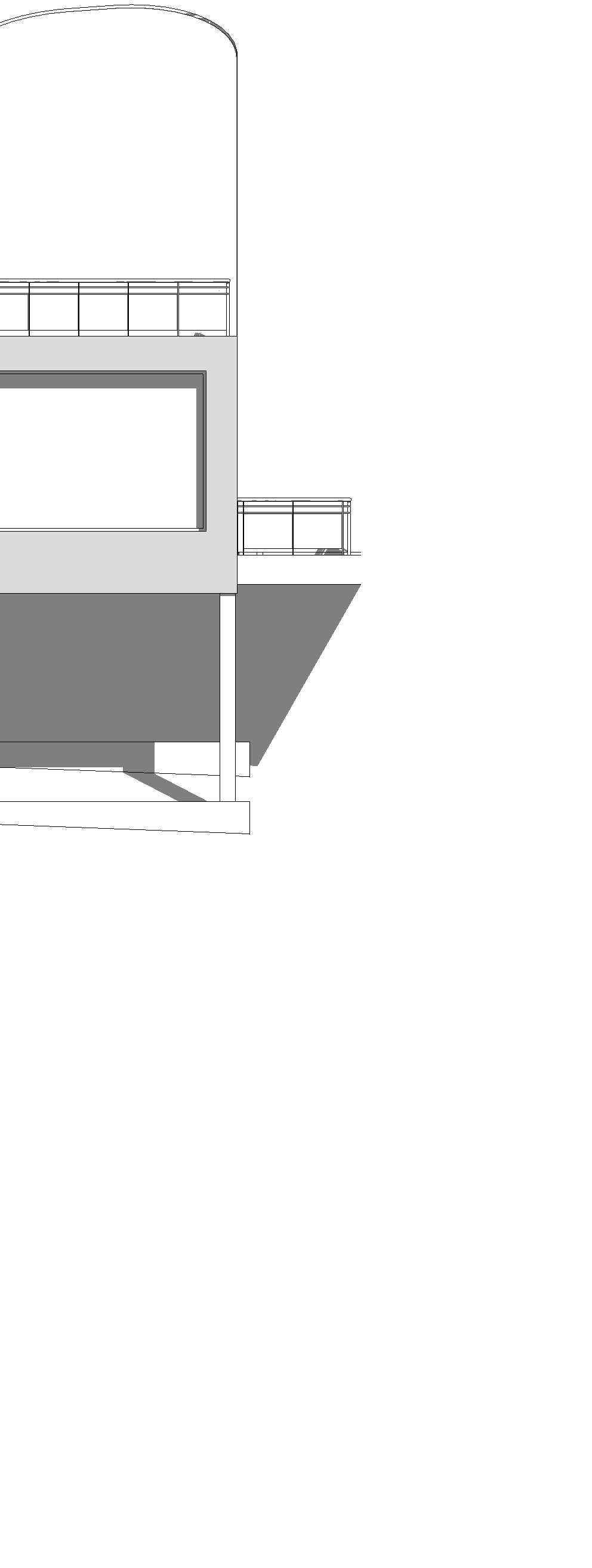

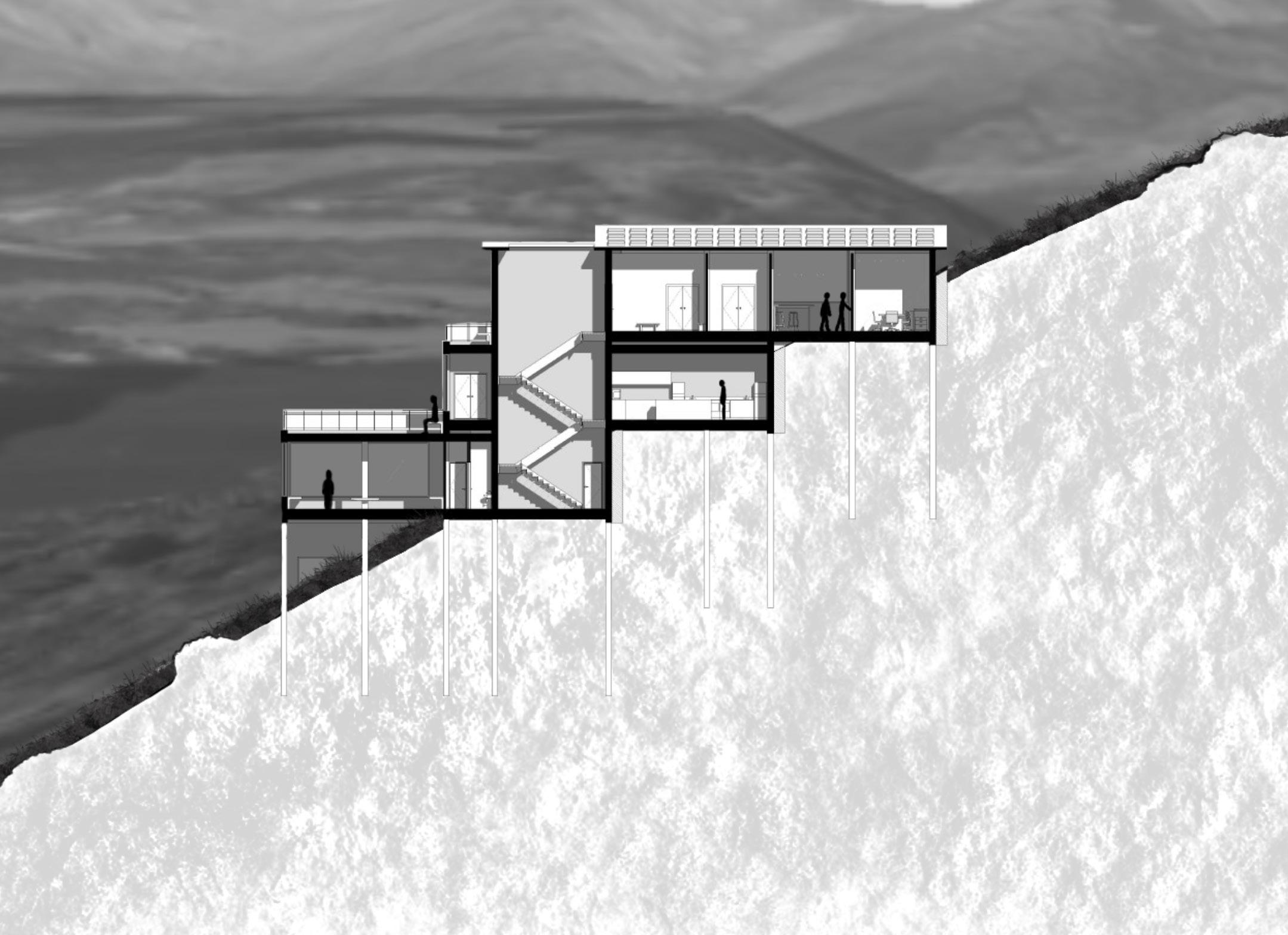

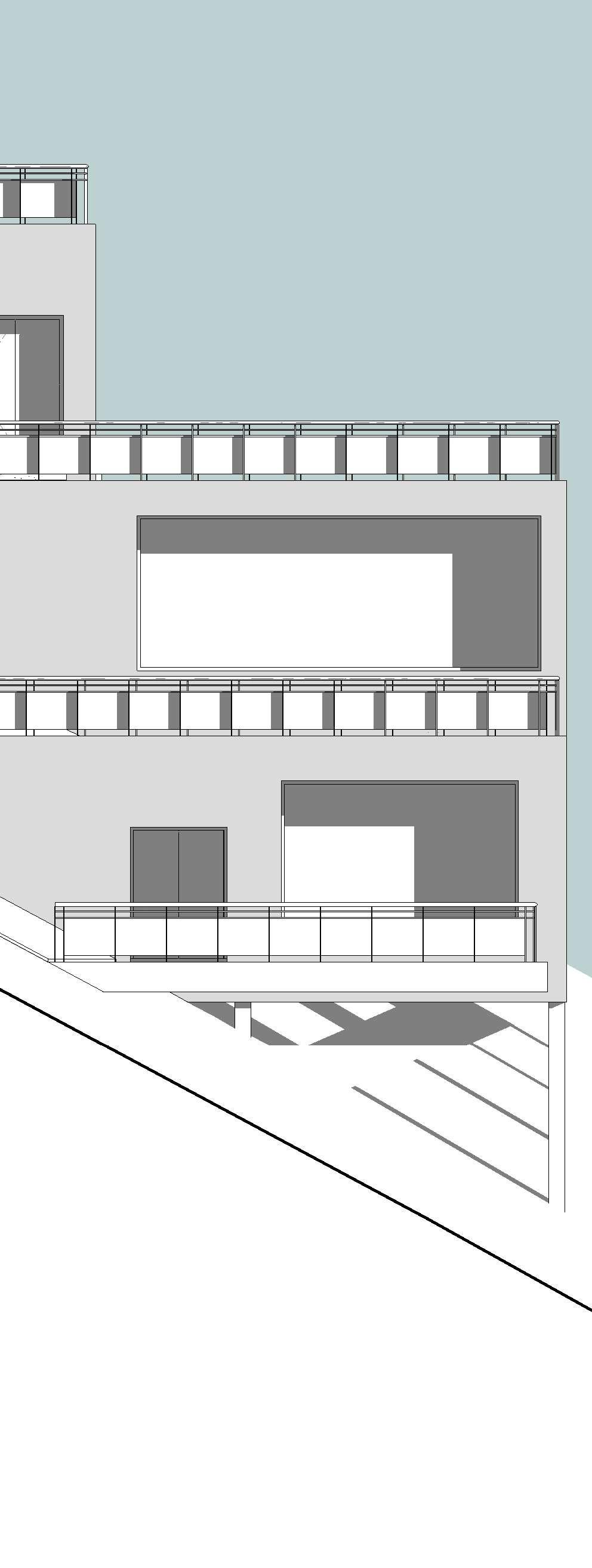

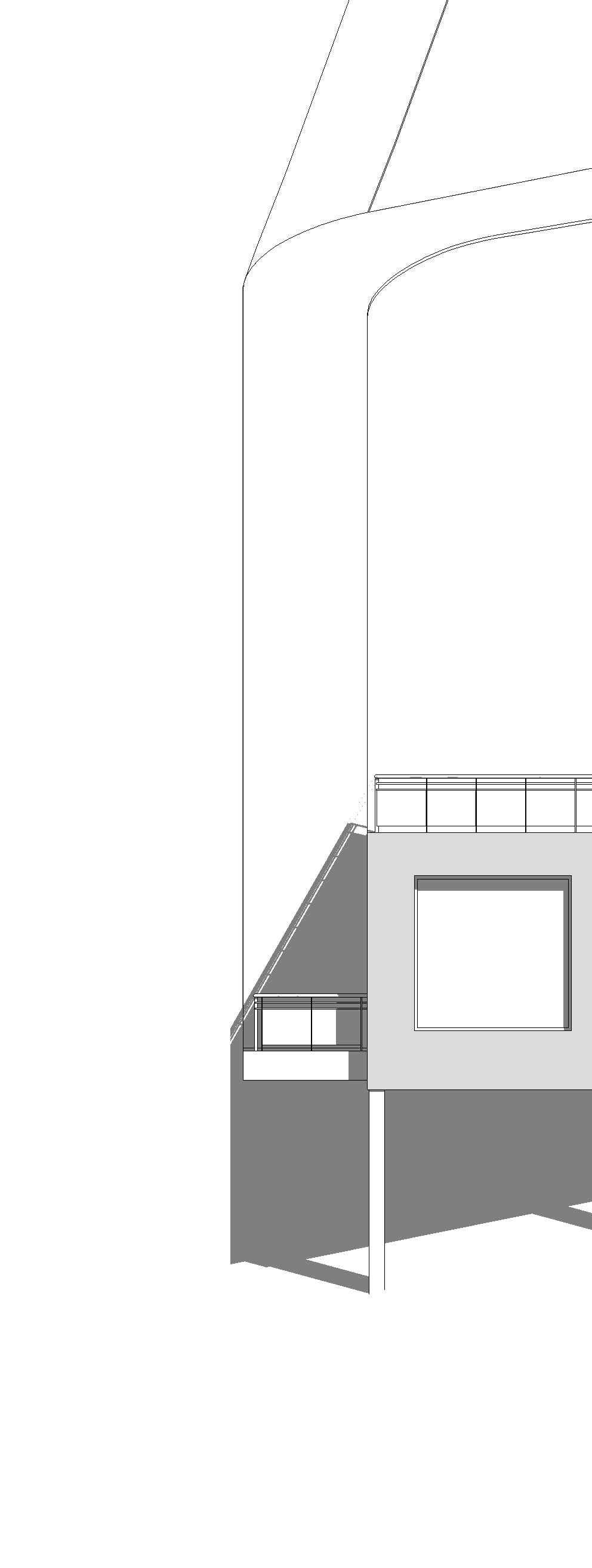

WEST ELEVATION The building is a mix of a laboratory, office, and accommodation, allowing the researchers to stay at the building whilst doing their research so they don’t have to travel up and down the hill everyday.

The ground floor is the main accommodation block in order to keep the journey to work feeling.

CLIENT

Tom Fenwick

DRAWN BY

Author

CHECKED BY

Checker

SCALE (@ A1)

1 : 50

DRAWING NUMBER

A3

DATE

01/23/07

PROJECT NUMBER

Project Number

REV

01/12/2024 07:07:41

CHECKED BY

Checker

SCALE (@ A1) DRAWING NUMBER

01/12/2024 07:07:14

DRAWN BY

Author

Weather Or Not 6121ASA

PROJECT

2025 Portfolio Tom Fenwick

14

15

Tom Fenwick 2025 Portfolio

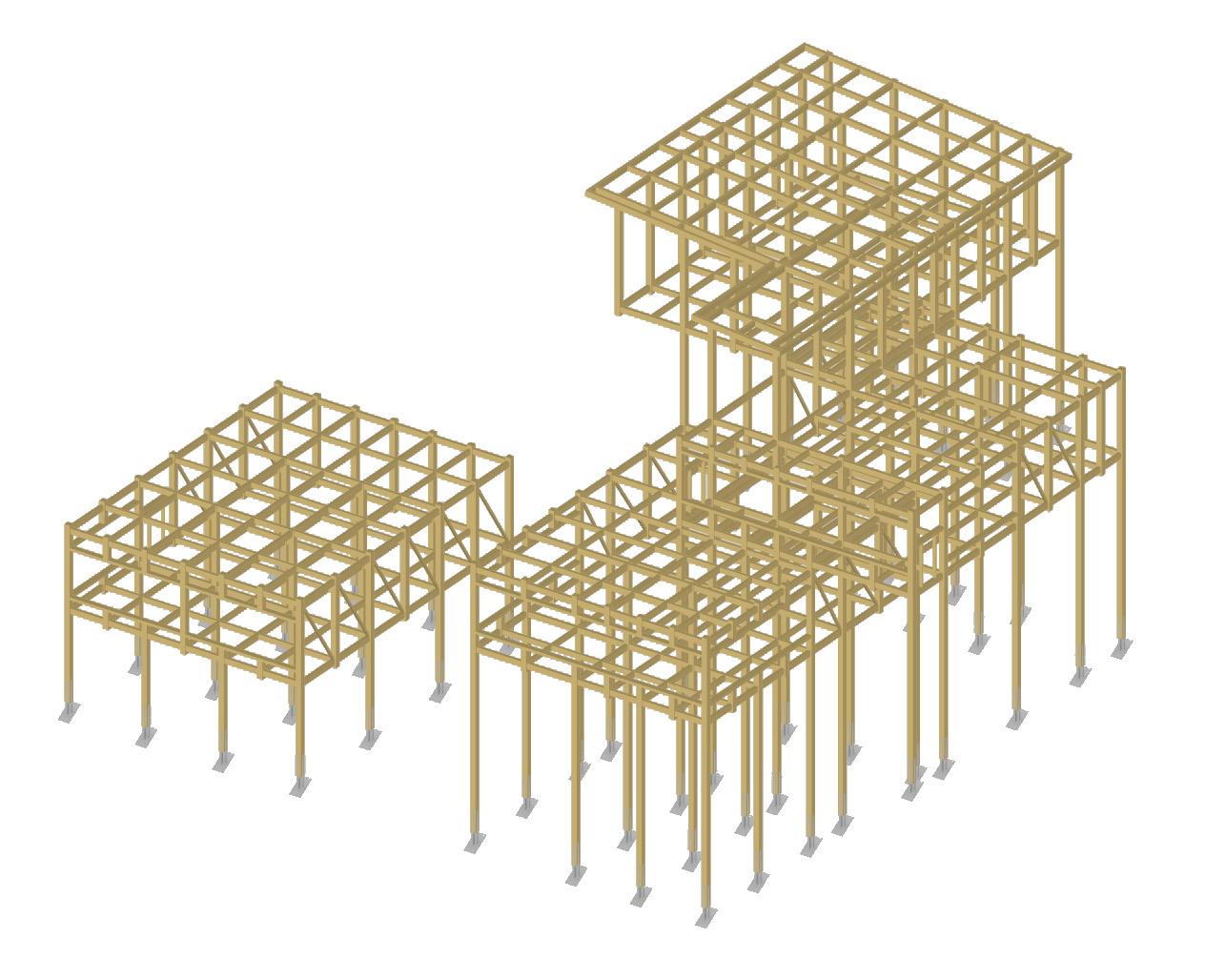

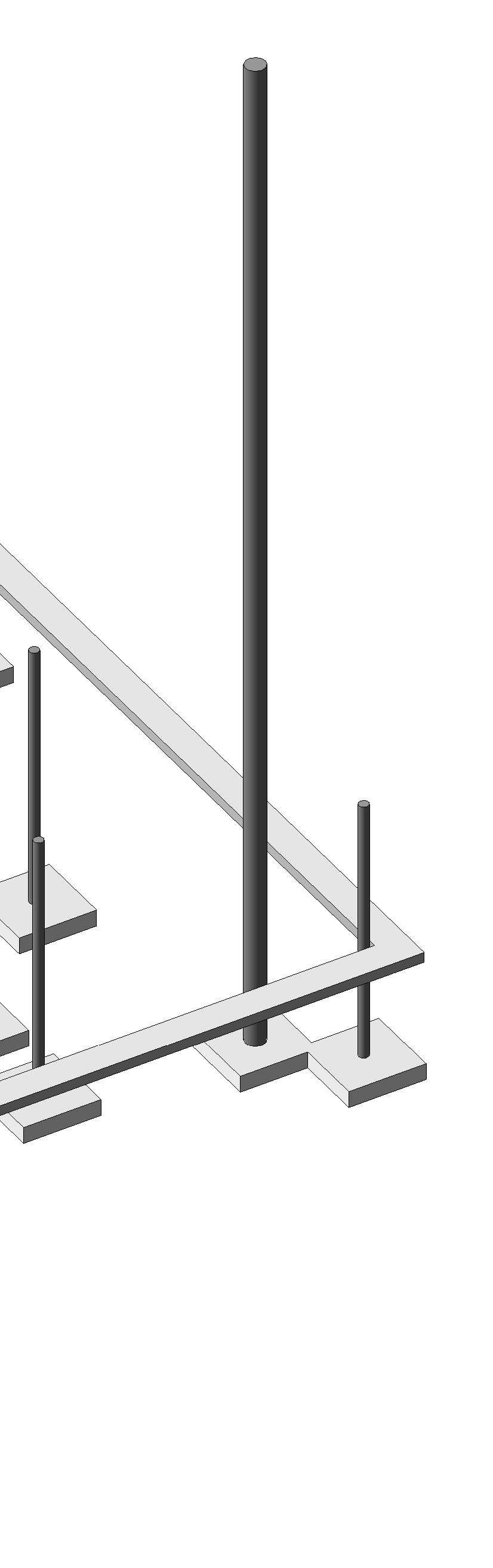

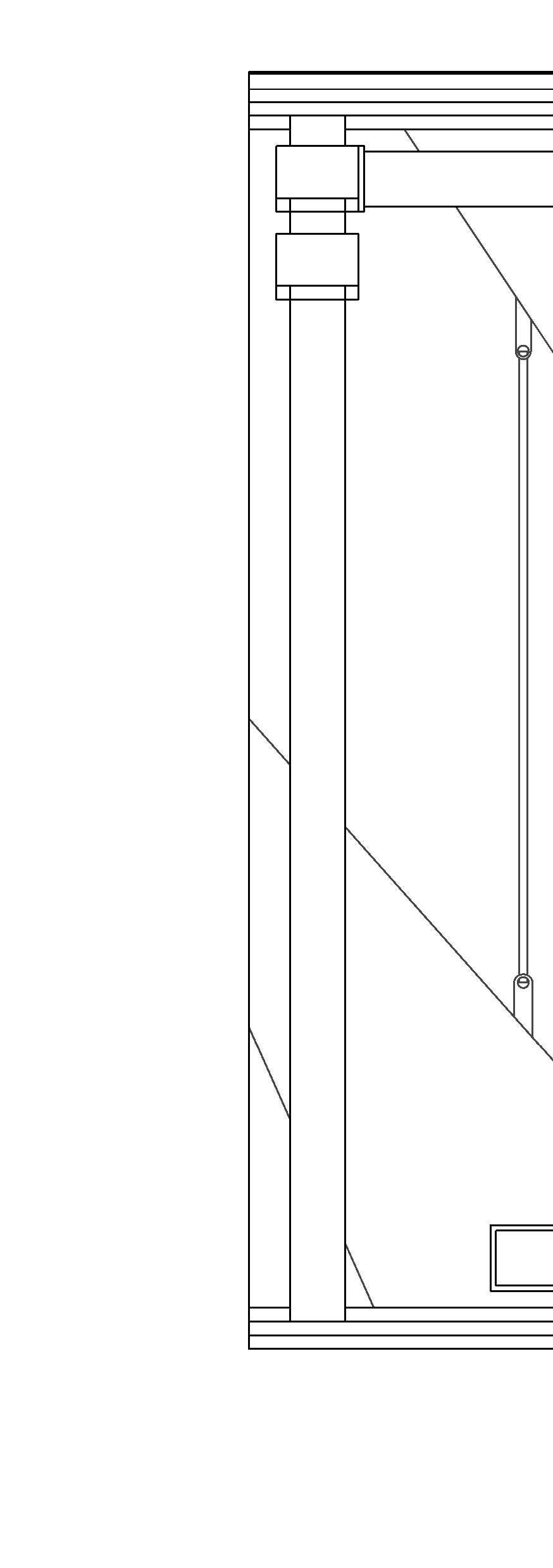

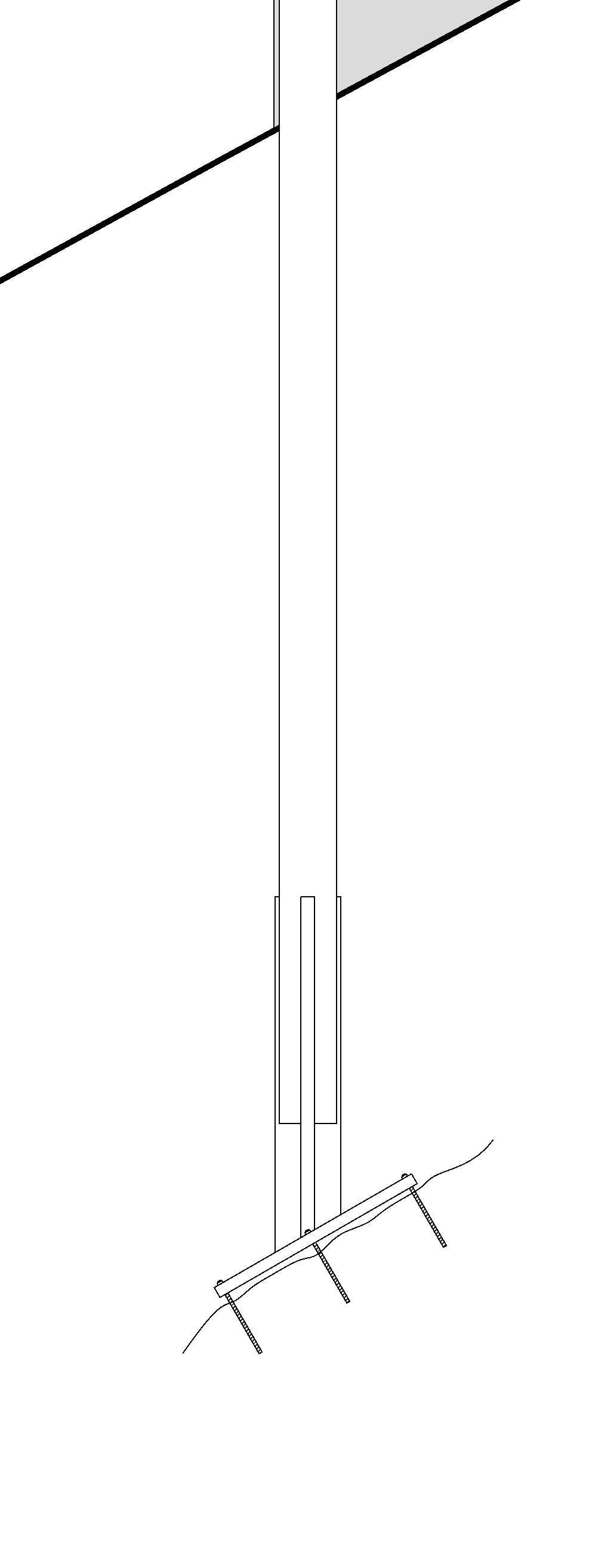

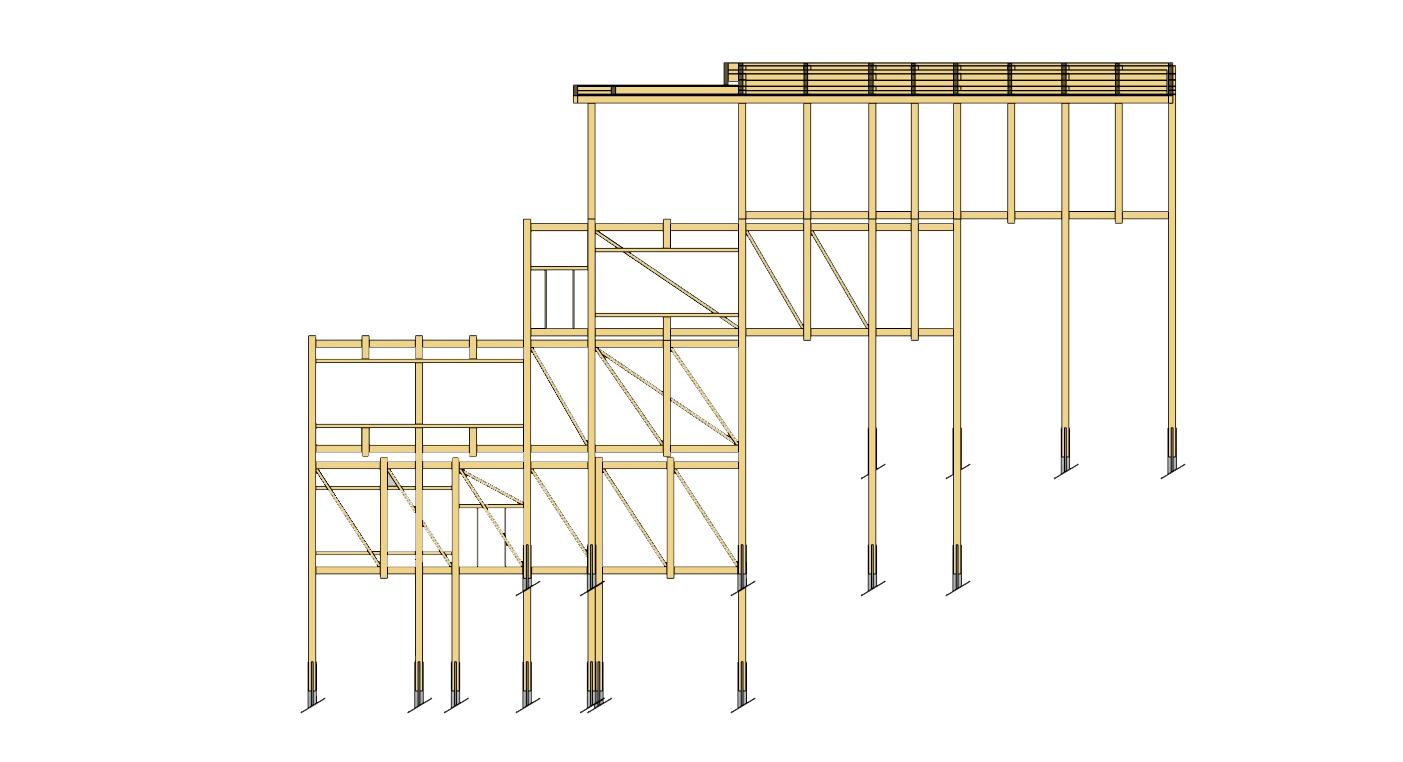

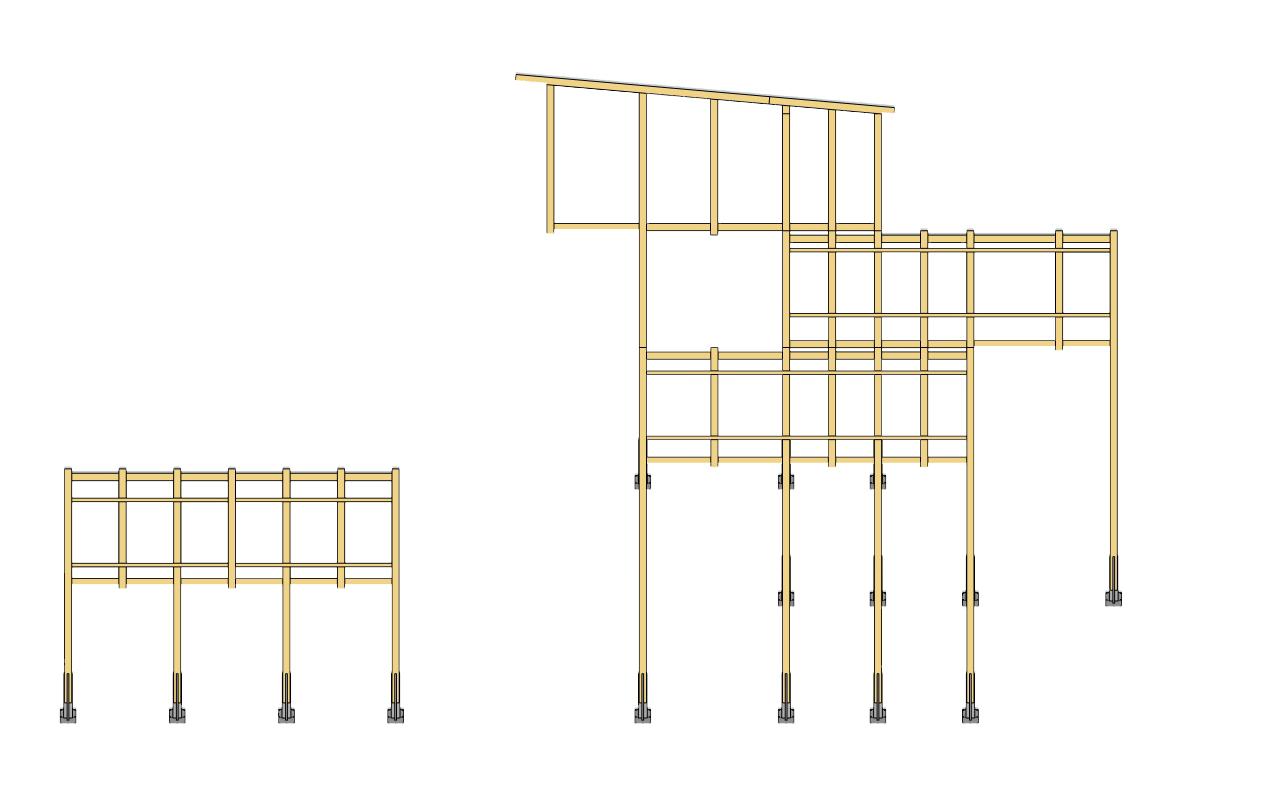

The primary structure of the building is a wooden frame, with steel gusset plates on the end of the columns that are then bolted into solid rocks in the ground for extra support.

The external cladding of the building will be slate, with all the insulation, wiring and plumbing hidden in the frame, and the inside will be finished with plasterboard.

2025 Portfolio Tom Fenwick

16

BLACKBURN OFFICES BA Year 2 Semester 2: Modern Methods of Construction

17 Tom Fenwick 2025 Portfolio

Modern Methods Design a building using one or multiple modern methods of construction in one of multiple sites in Garston.

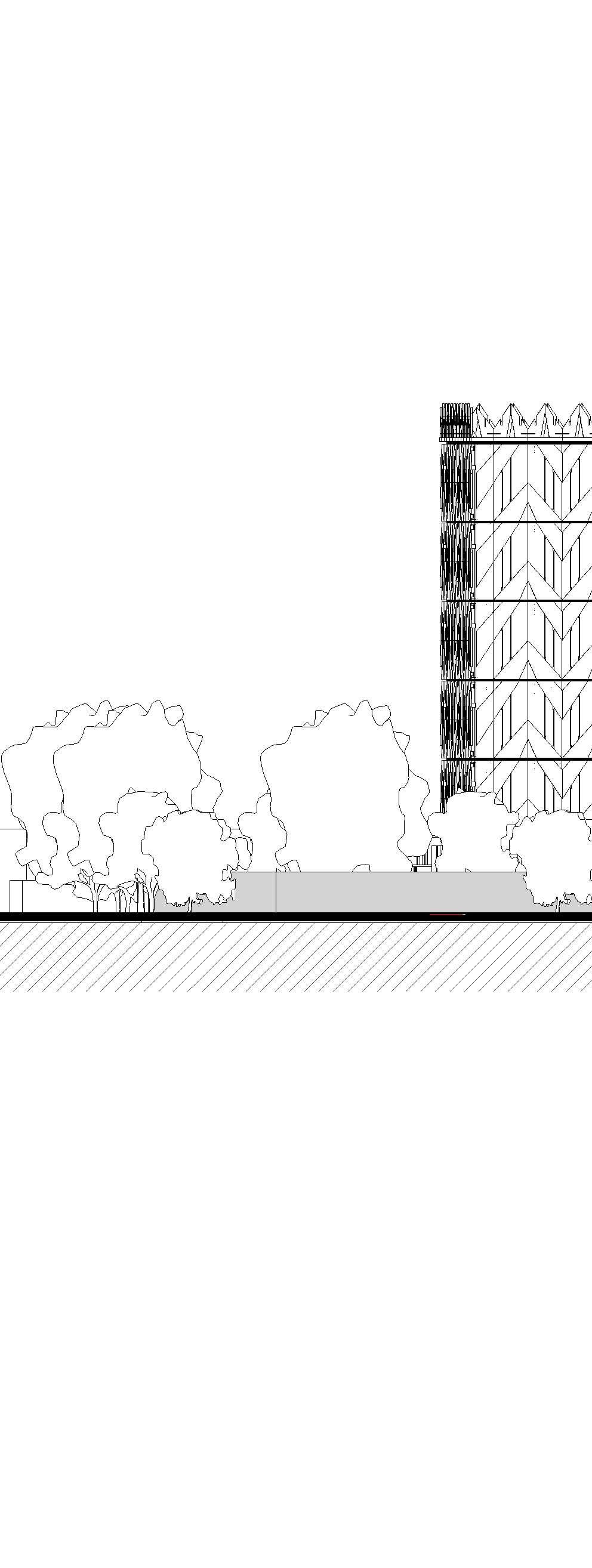

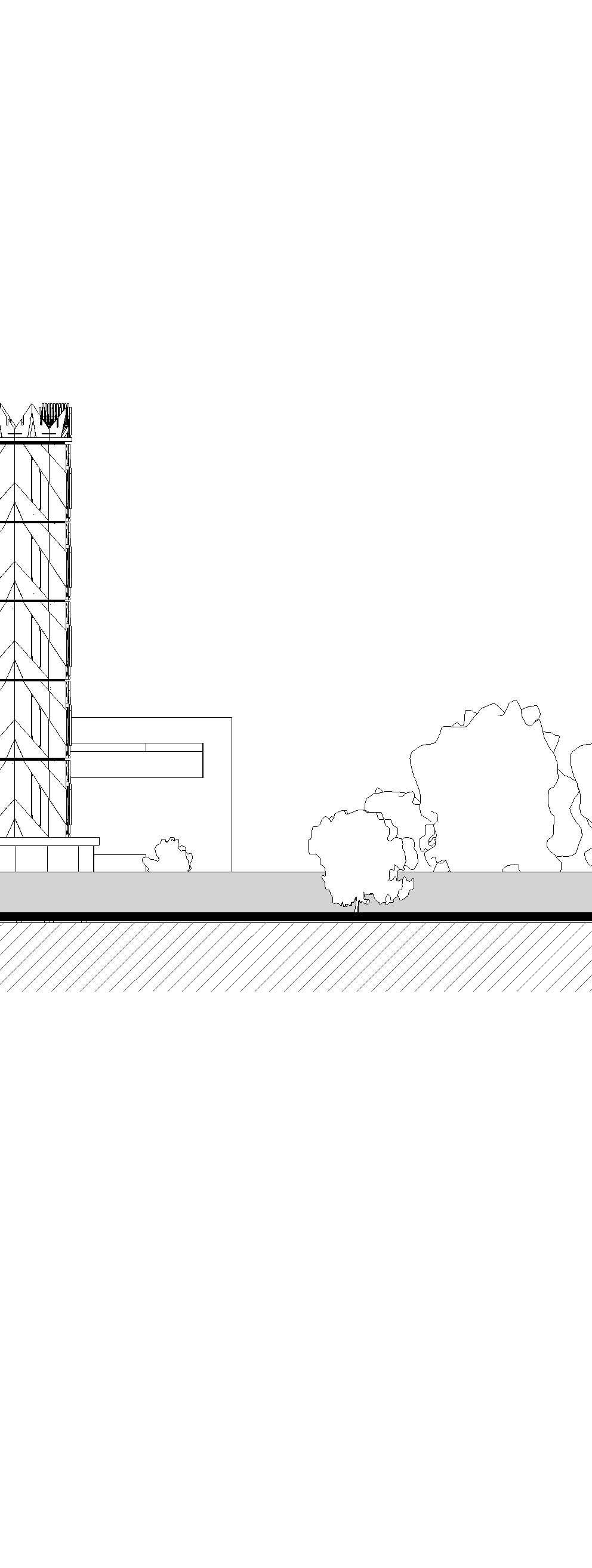

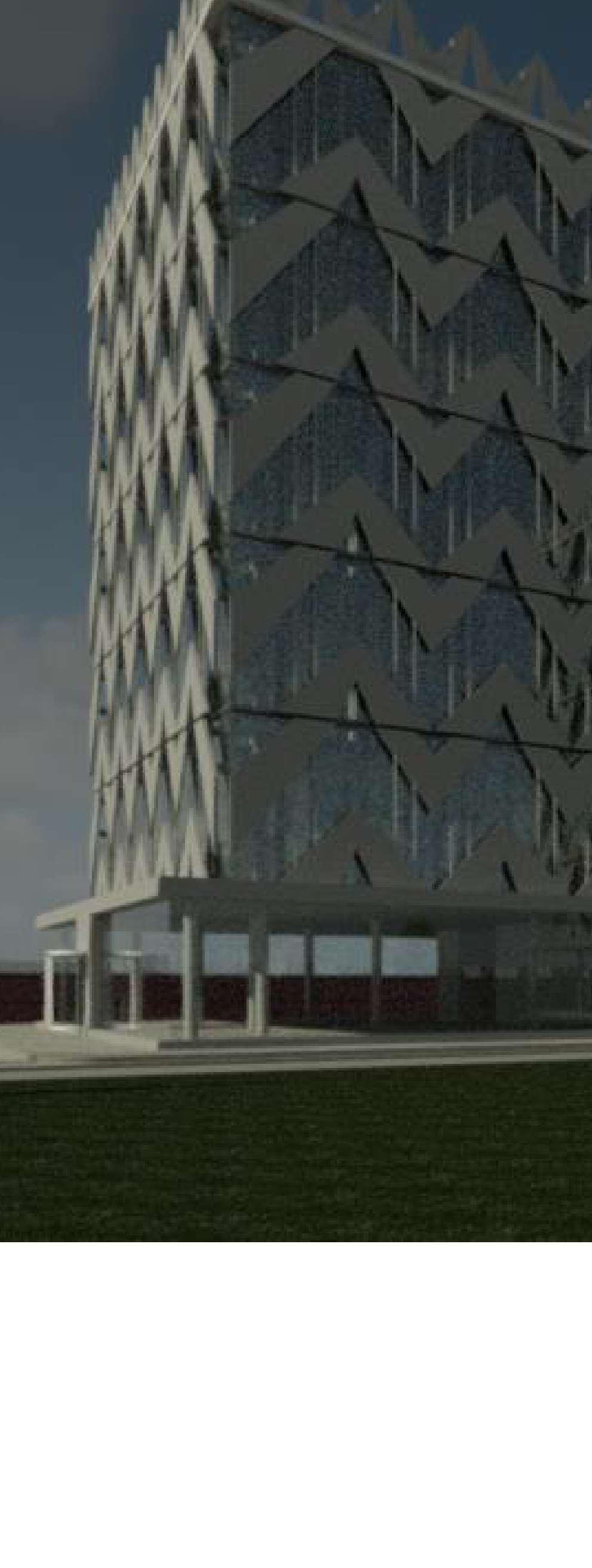

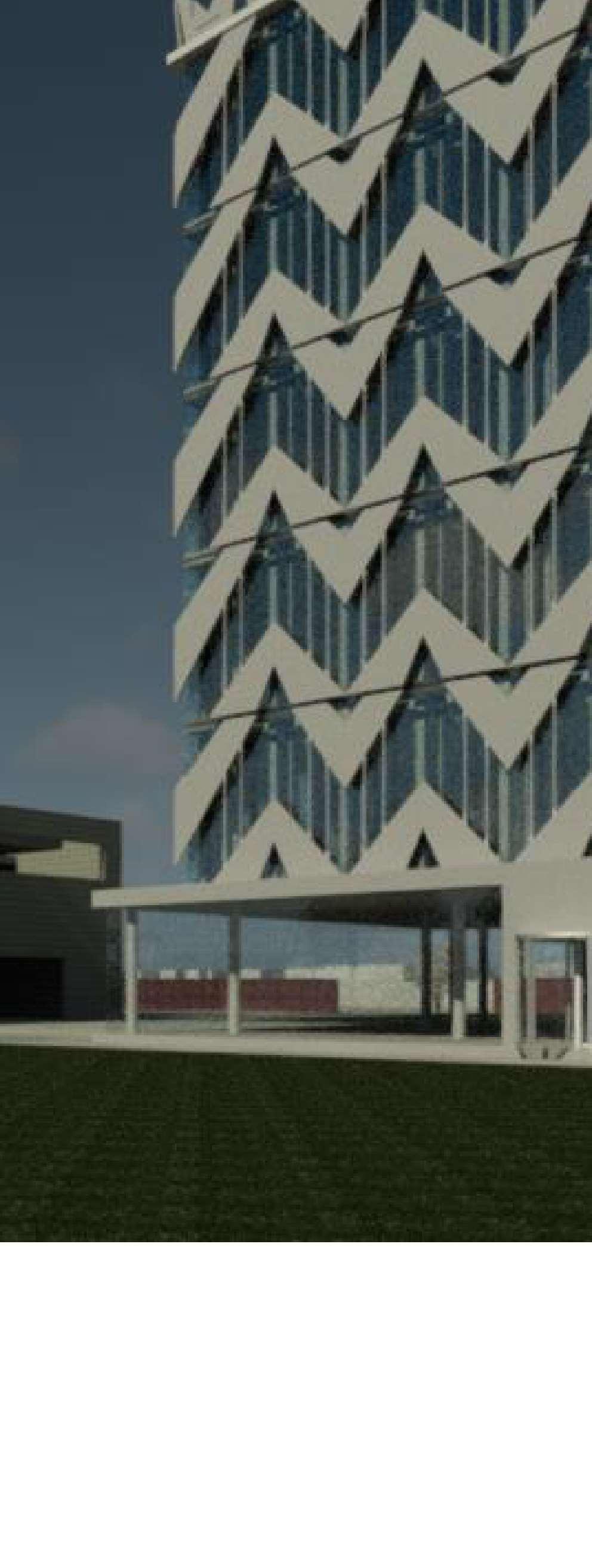

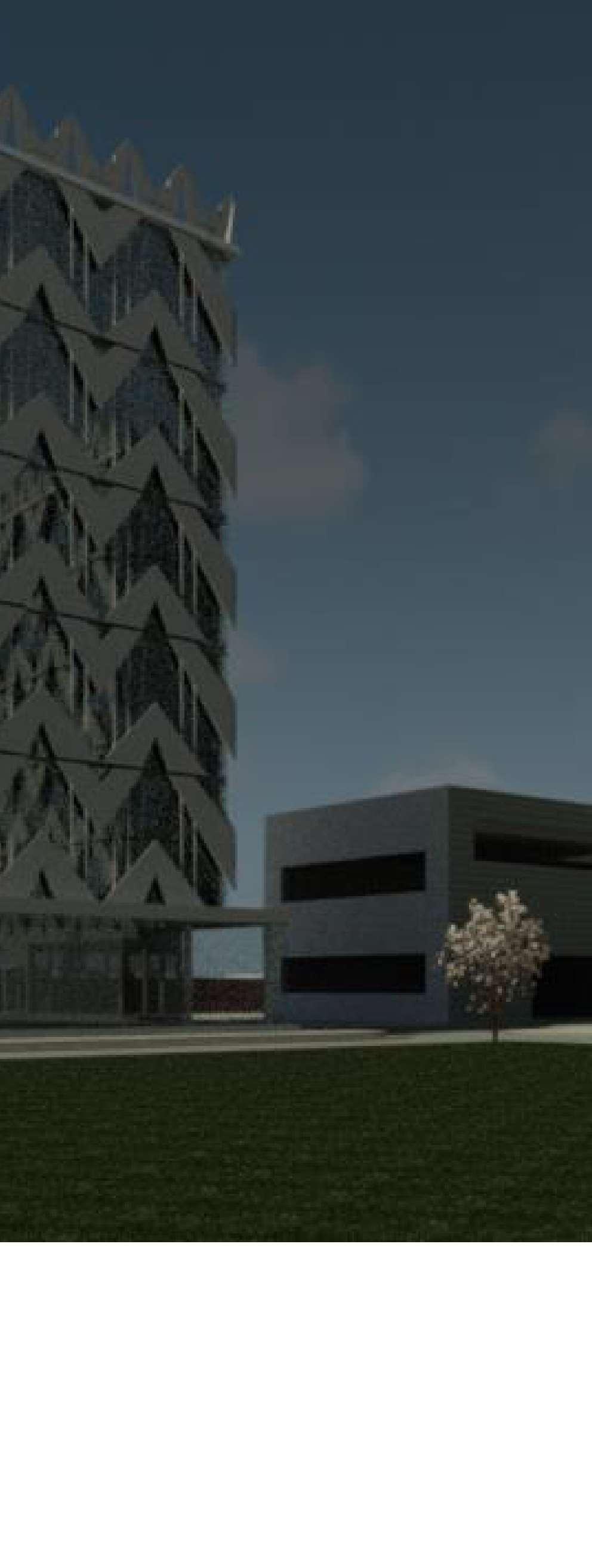

The Blackburn Offices are 2 identical 6 story buildings with rentable and fixed office spaces, including parking, using 2 modern methods of construction.

“Construction is a matter of optimism; it’s a matter of facing the future with confidence” - Cesar Pelli

2025 Portfolio Tom Fenwick

18

Rubber Gasket Concrete Floor Sealer

Rubber Glass-Glass Seal

Female Metal Hook Concrete Facade Pieces

Male Metal Hook

Steel Support Cable

Glass

Concrete Mullion

Metal Facade Support Bracket

Rubber Gasket

19 Tom Fenwick 2025 Portfolio

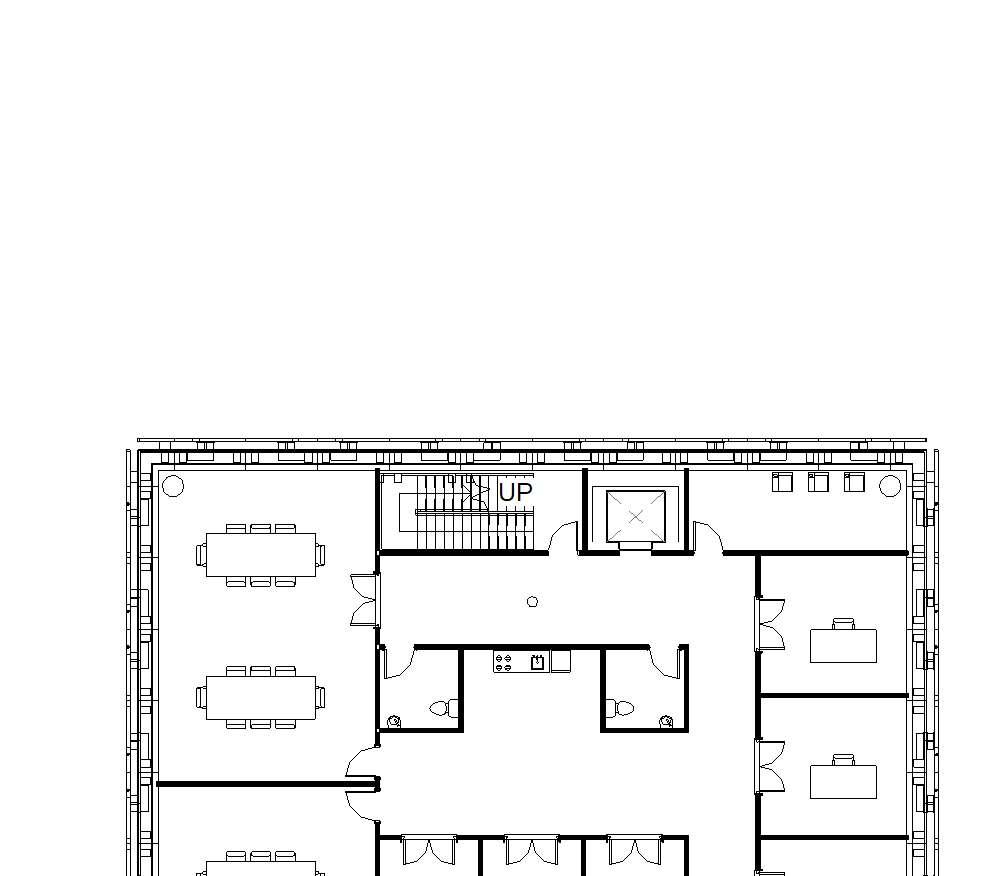

GROUND FLOOR

THIRD FLOOR

FRONT FRONT

FRONT

BACK

BACK

1 : 200 1 : 200

FIRST FLOOR

FOURTH FLOOR

1 : 200

RIGHT RIGHT

RIGHT

LEFT

LEFT

1 : 200 1 : 200

1 : 200

BACKfloor plan is not a definte one, since LEFTthe floors can be Each 1 : 200

1 : 200

hired out by different companies and they are able to change the layout of their floor.

SECOND FLOOR

FIFTH FLOOR

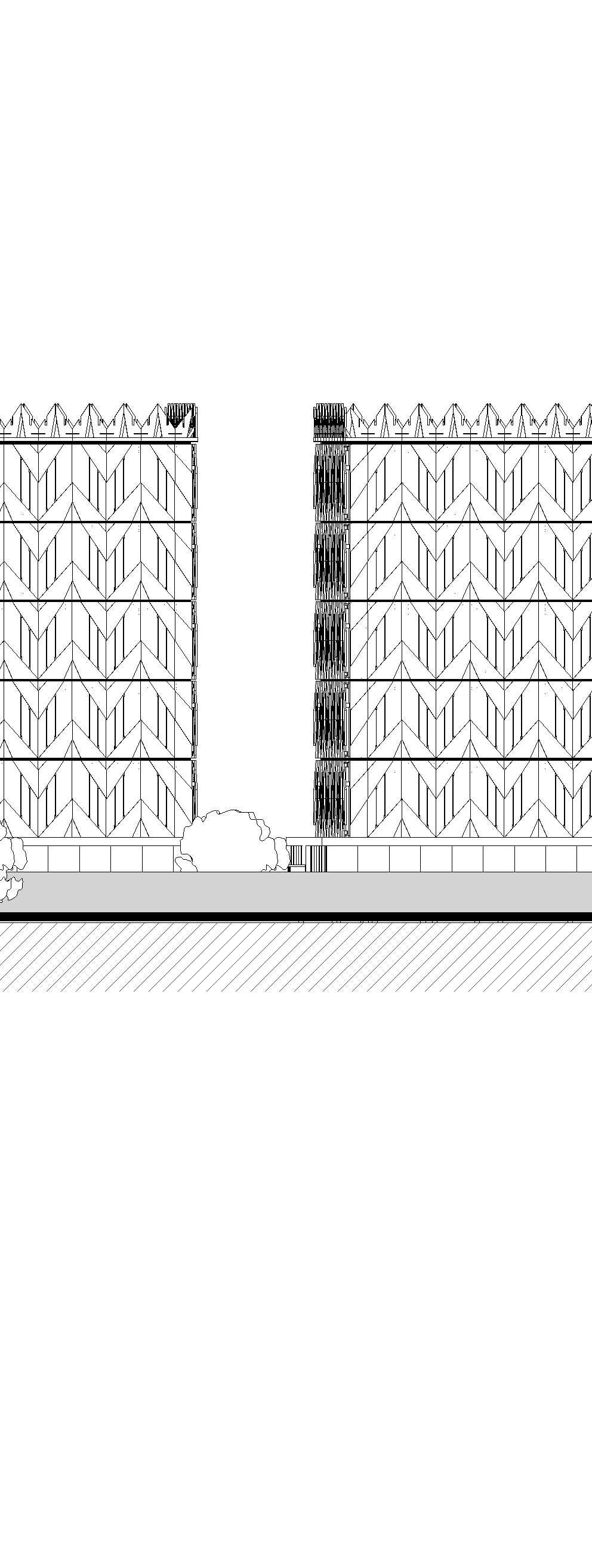

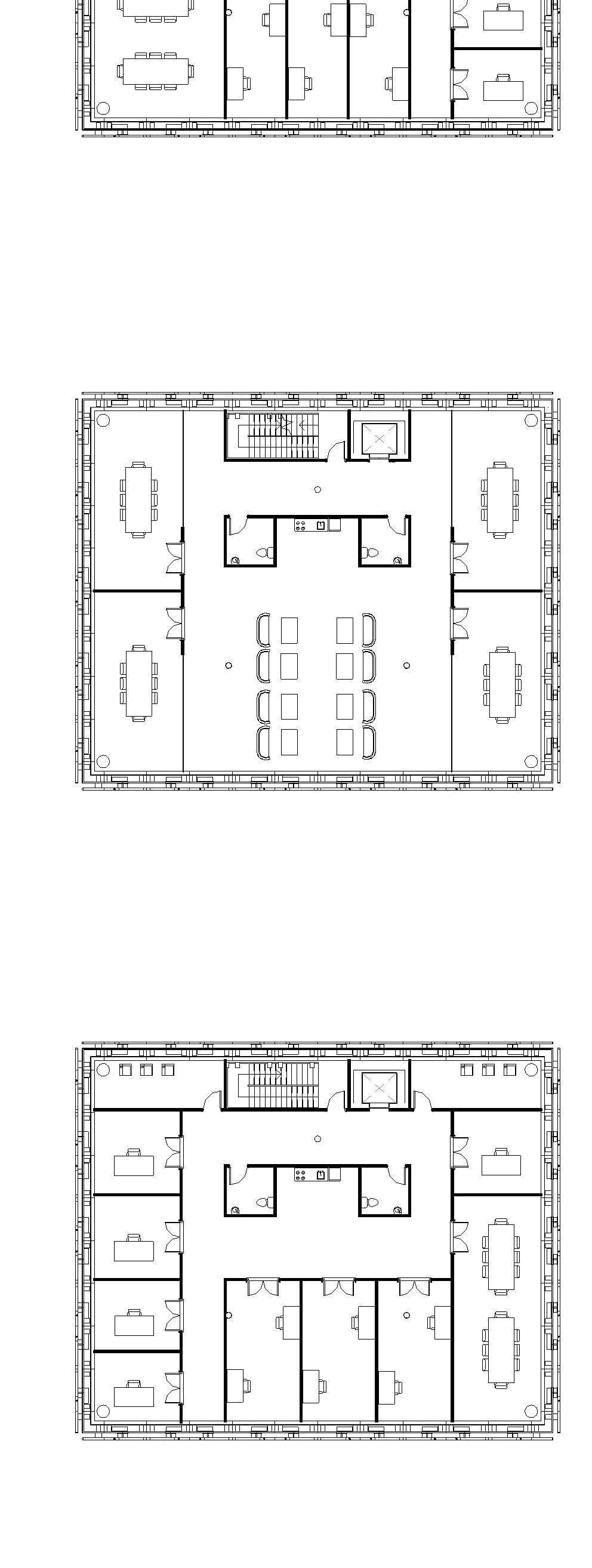

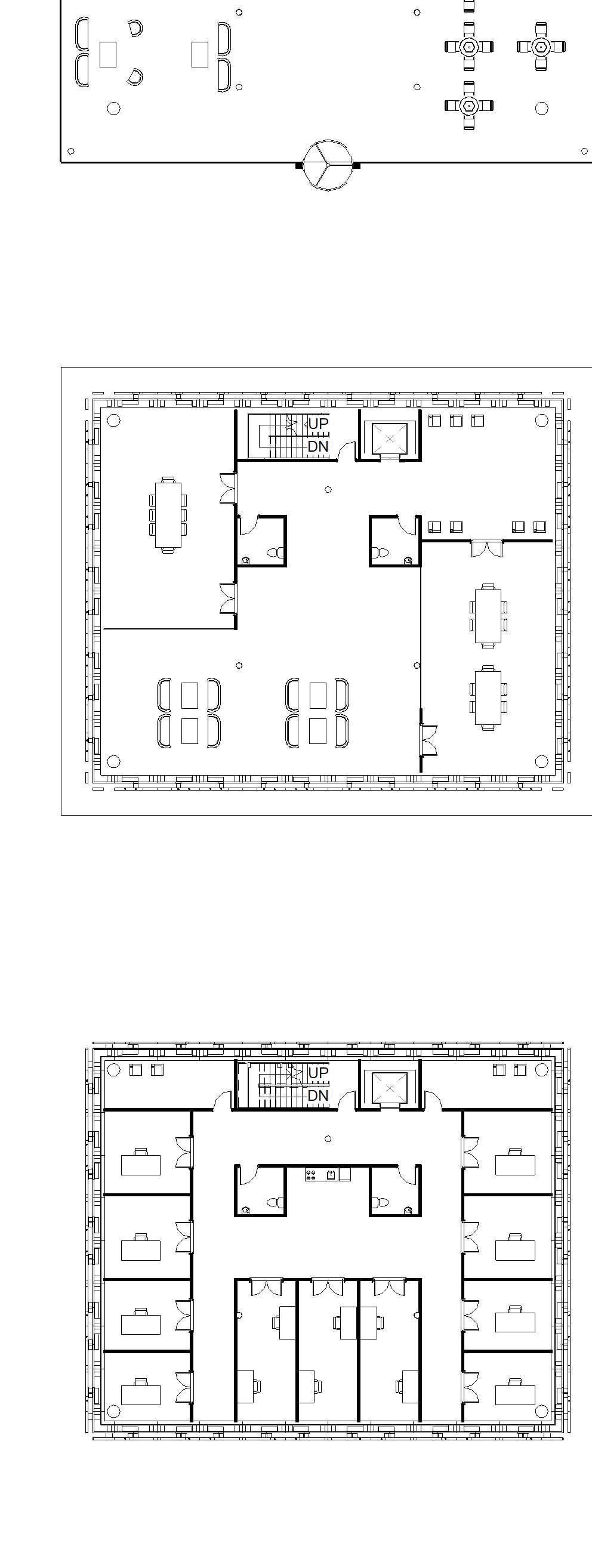

The floor plans are just proposed ones, showing what they could turn each one into. They’re all like this apart from the ground floor which is the reception, lobby and cafe area for each building.

2025 Portfolio Tom Fenwick

20

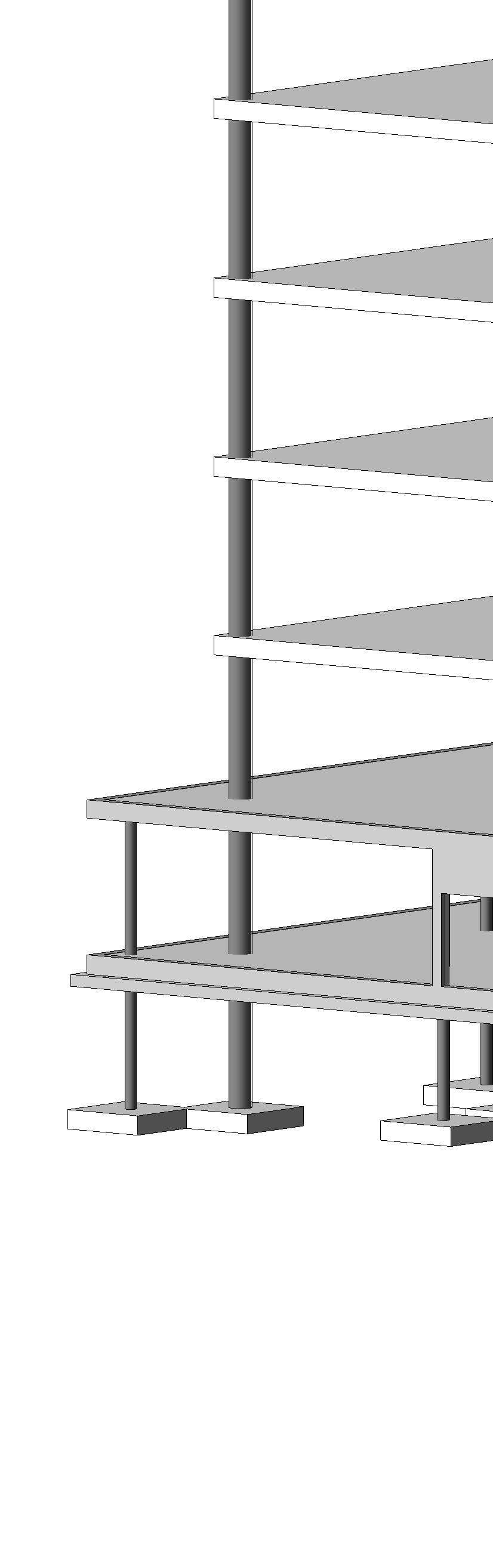

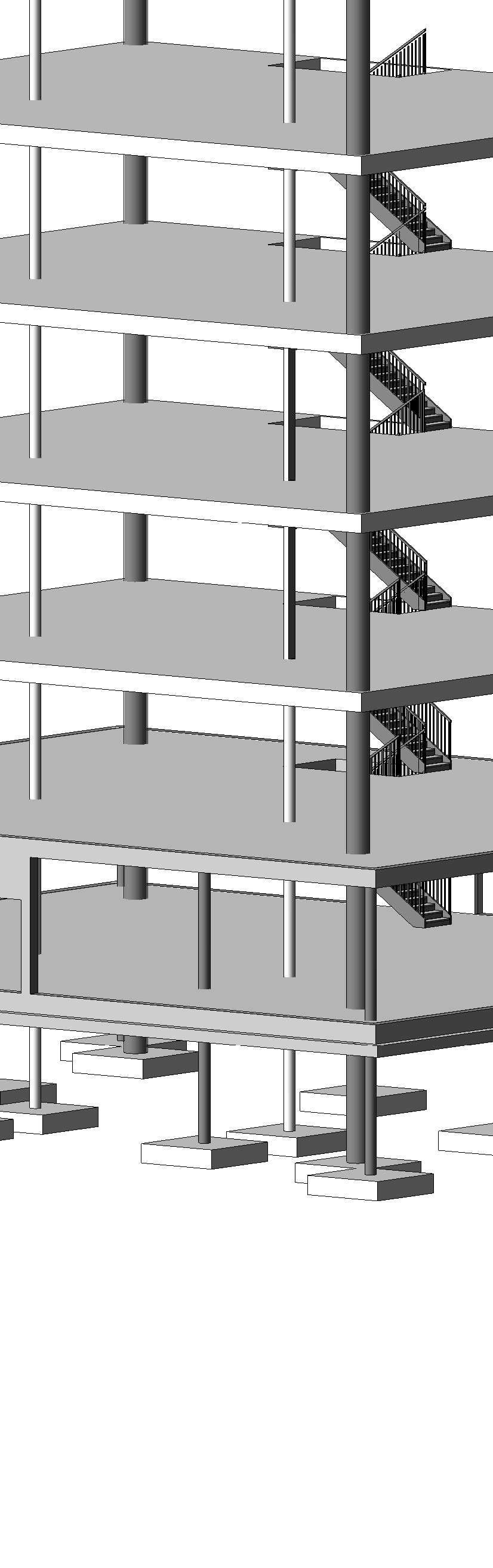

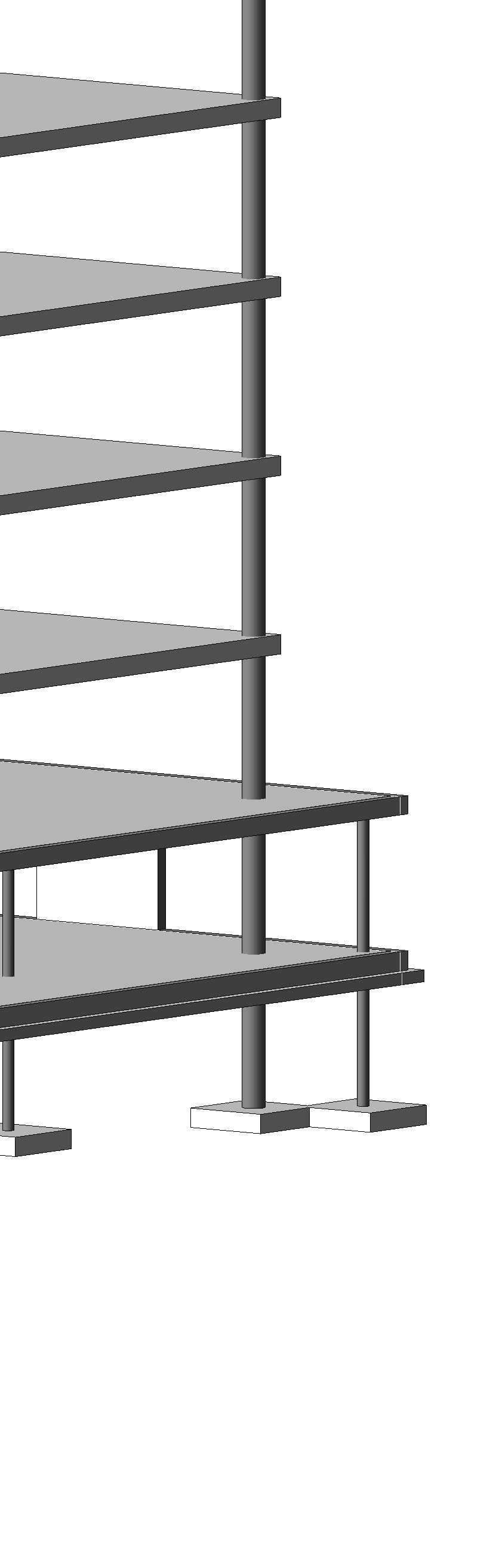

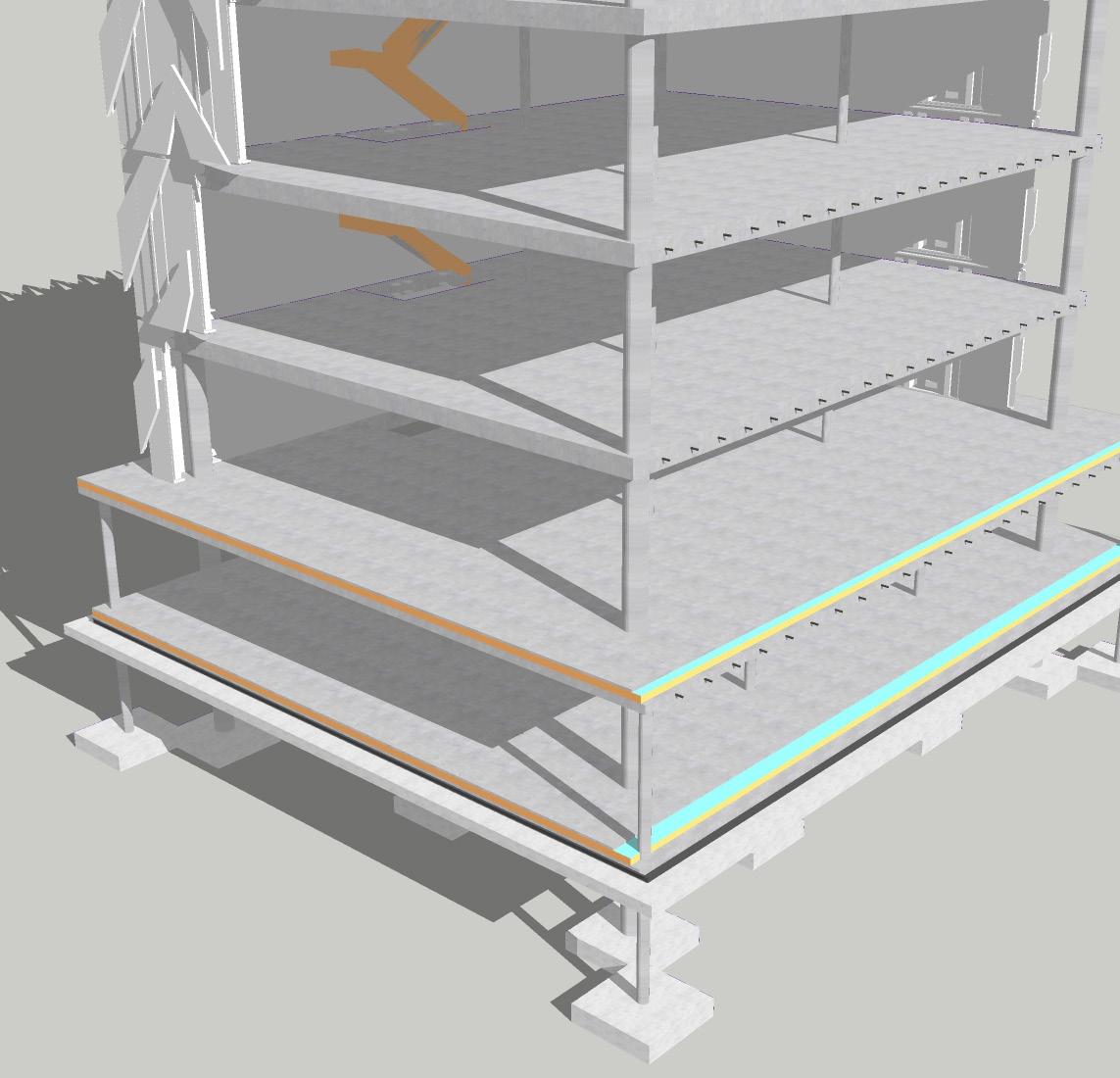

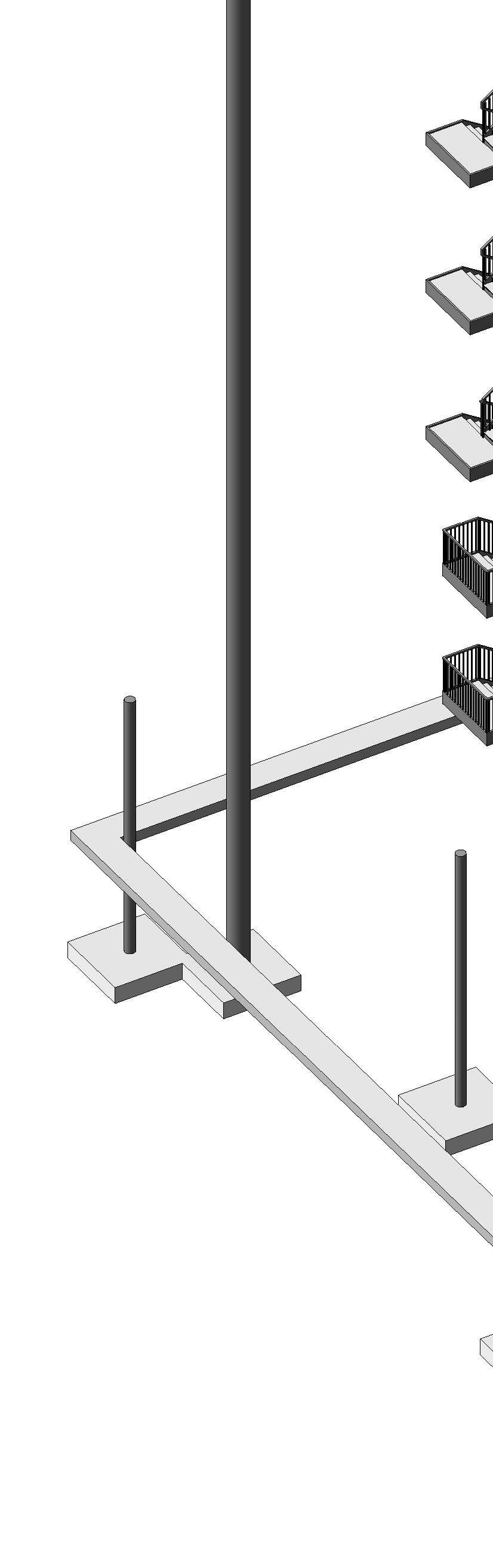

The structure for the offices is a concrete frame, with pad foundations. Each floor is insulated and re-inforced with rebar.

Rubber Gaskets

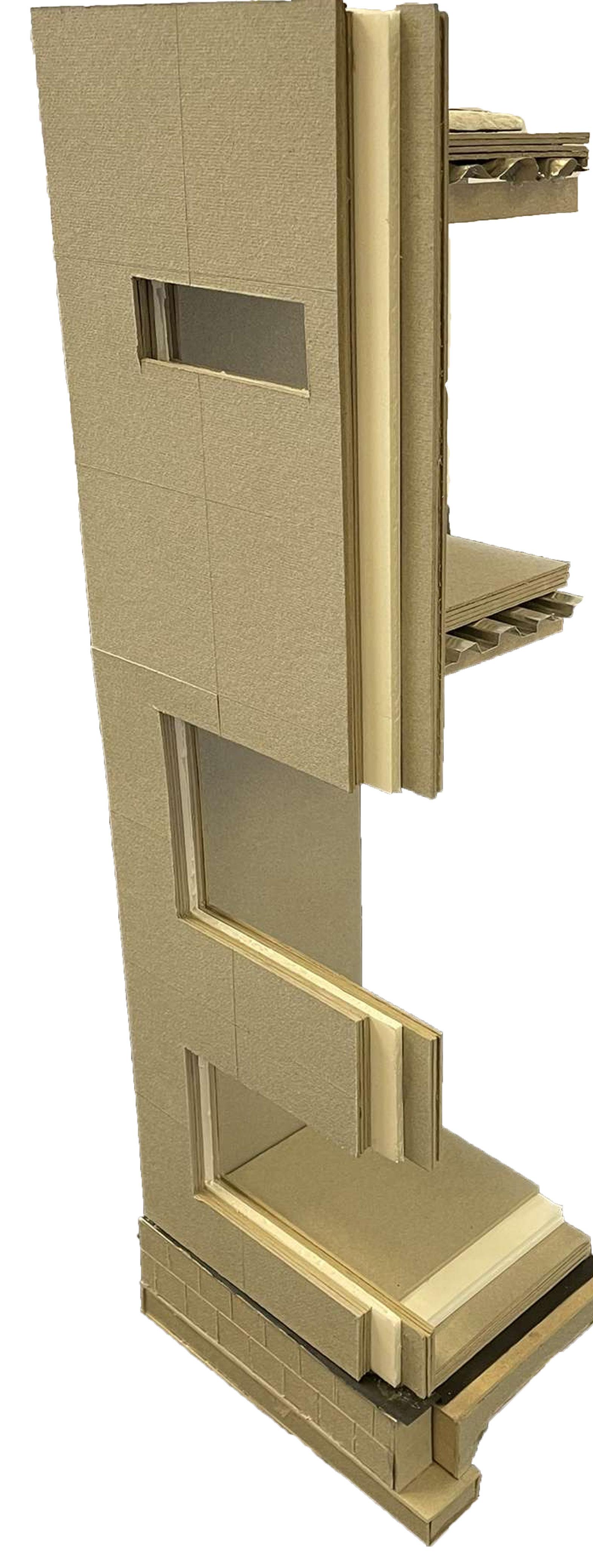

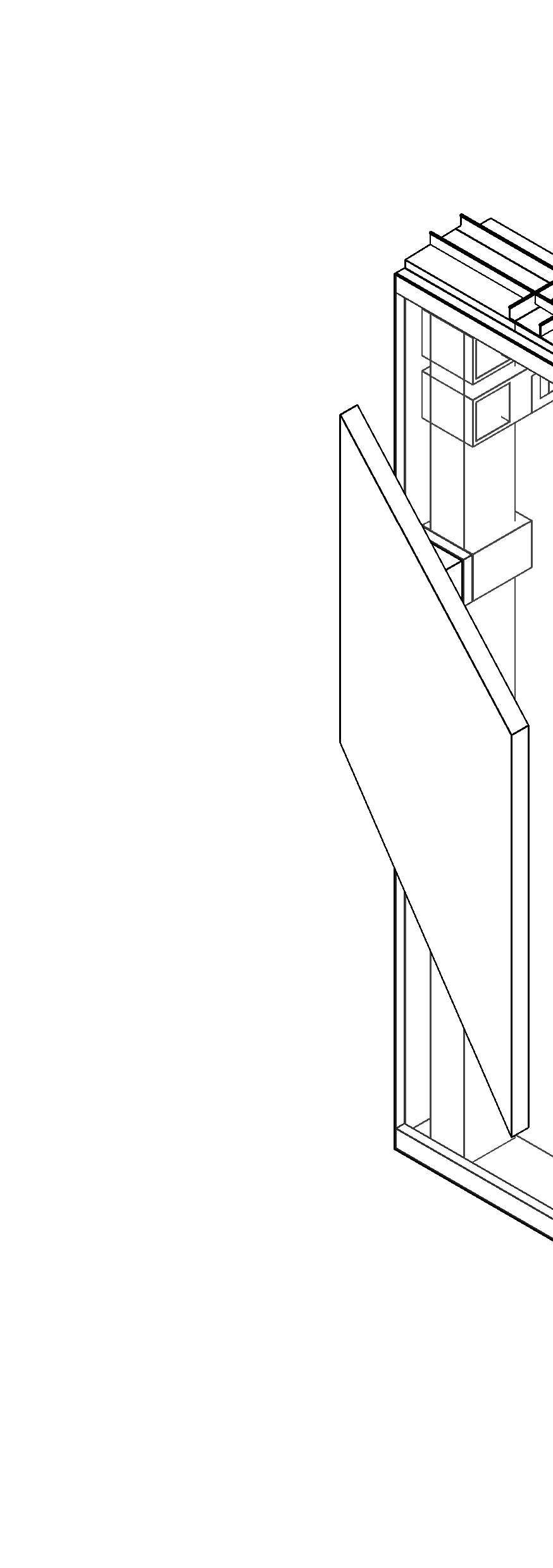

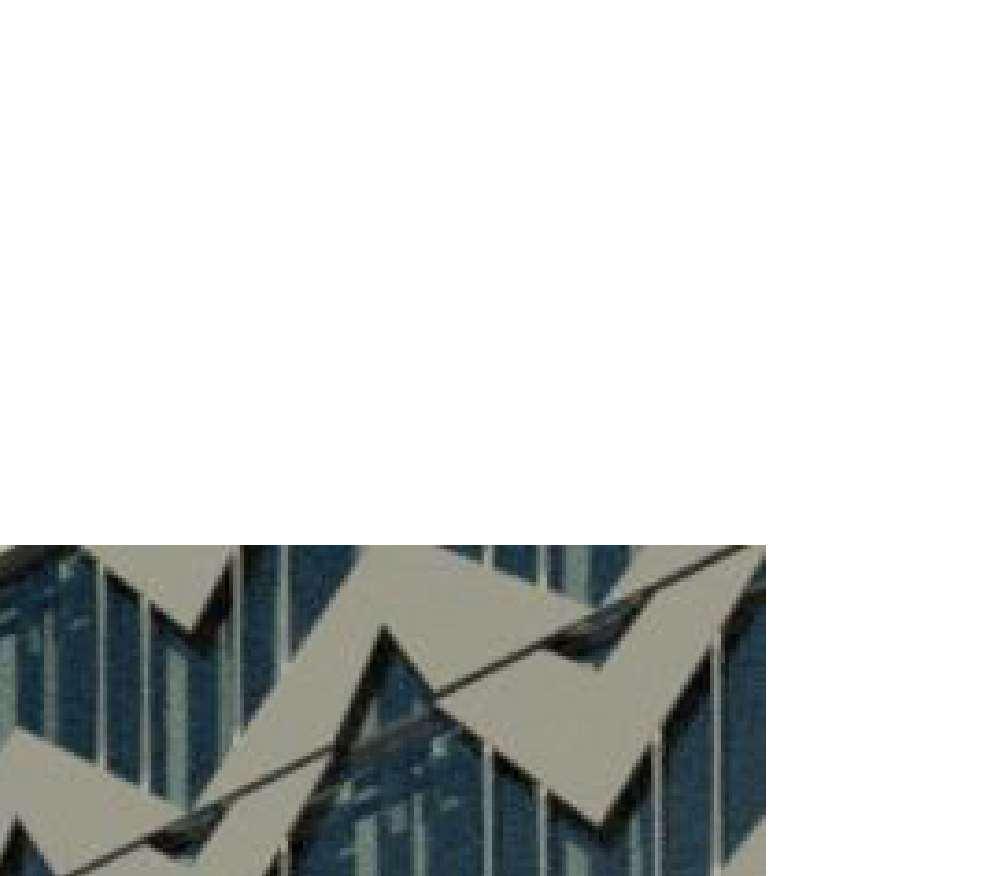

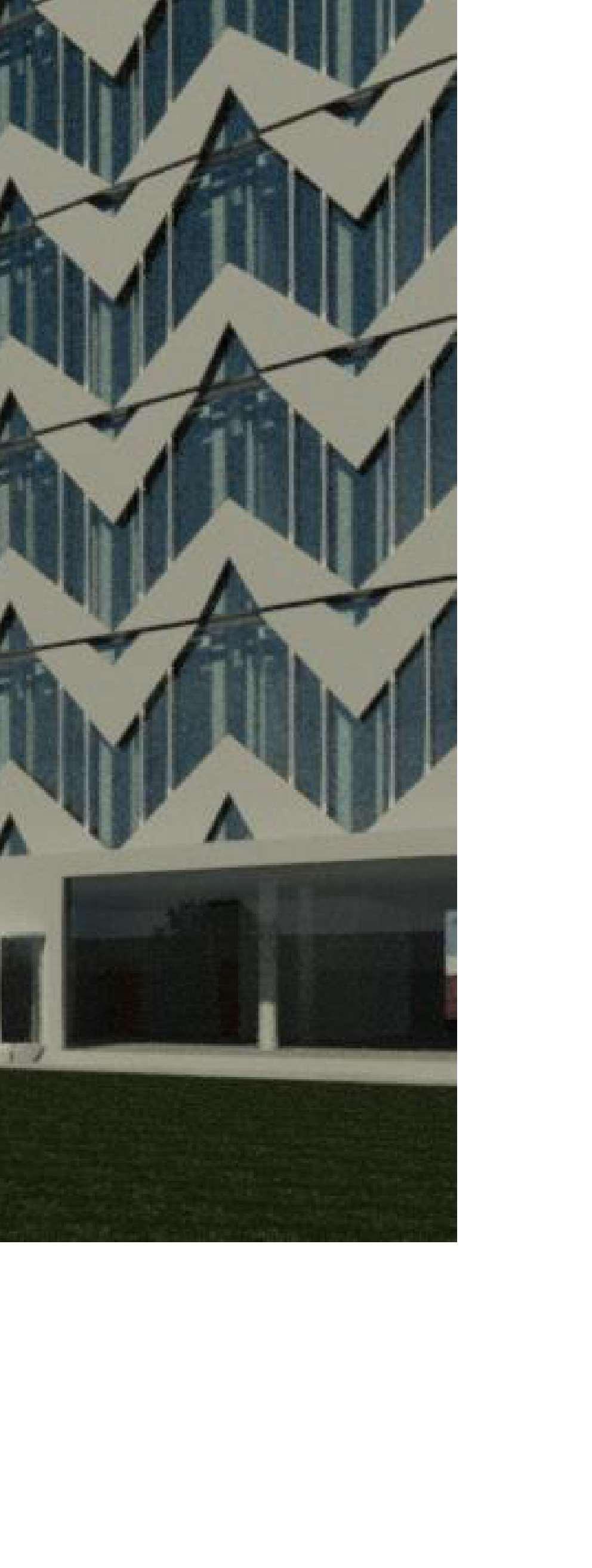

The unitized facades that make up the wall structure are all premade and the steel hooks are set into the concrete flooring so when the get to site the facades can be hung and fitted straight onto the frame.

The other modern method is prebuilt units, things such as bathrooms, storage, and some office cubicles will be premade in a factory, bought to site and placed on the frame, in order to save time, construction and labour costs, and reduce emissions from transport.

21 Tom Fenwick 2025 Portfolio

Floor Slab Male metal hooks set into concrete

Floor Slab

Wall Foundation

Concrete Cloumns

Female metal hooks fastened to mullions

Column Foundations

2025 Portfolio Tom Fenwick

22

WOODWORKS BA Year 1 Semester 2: A Pace to Craft

23 Tom Fenwick 2025 Portfolio

A Place to Craft Pick a craft and design a piece then aim to design a building on one of 4 sites that compliments the chosen craft and item I went with woodworking and designed a dining table as the piece. The building is fitted with accommodation, a gallery, workshop and cafe.

“Done is better than perfect” - Sheryl Sandberg

2025 Portfolio Tom Fenwick

24

25

Tom Fenwick 2025 Portfolio

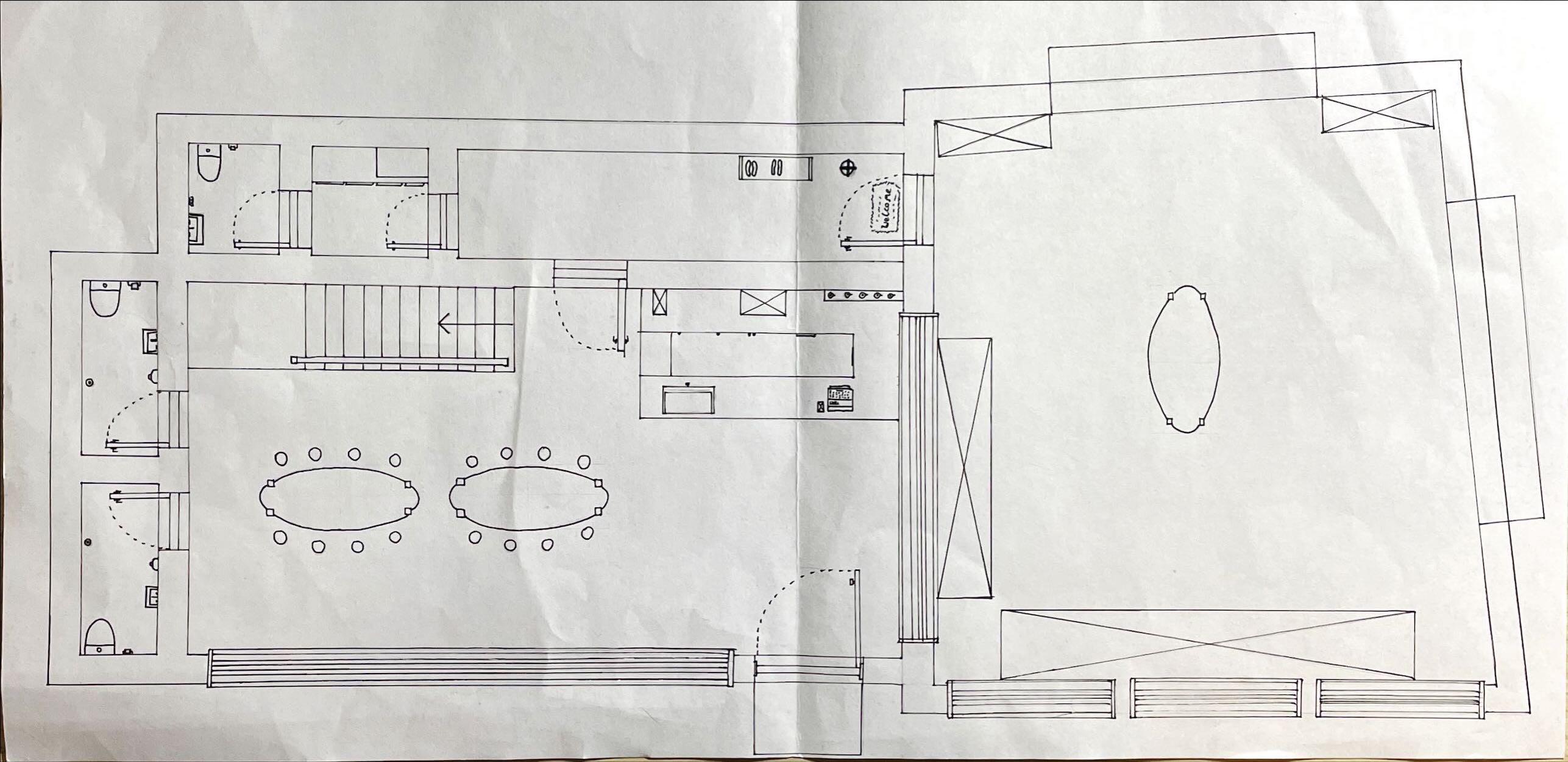

GROUND FLOOR - Workshop - Cafe - 2 WCs - Private corridoor for craftsman - Utility room - Private WC

FIRST FLOOR - Gallery to buy wood crafted items - Mezanine

SECOND FLOOR - Bedroom - Kitchen - Bathroom

This was the first big project of my years at John Moores, and I was delighted with it relative to my experience.

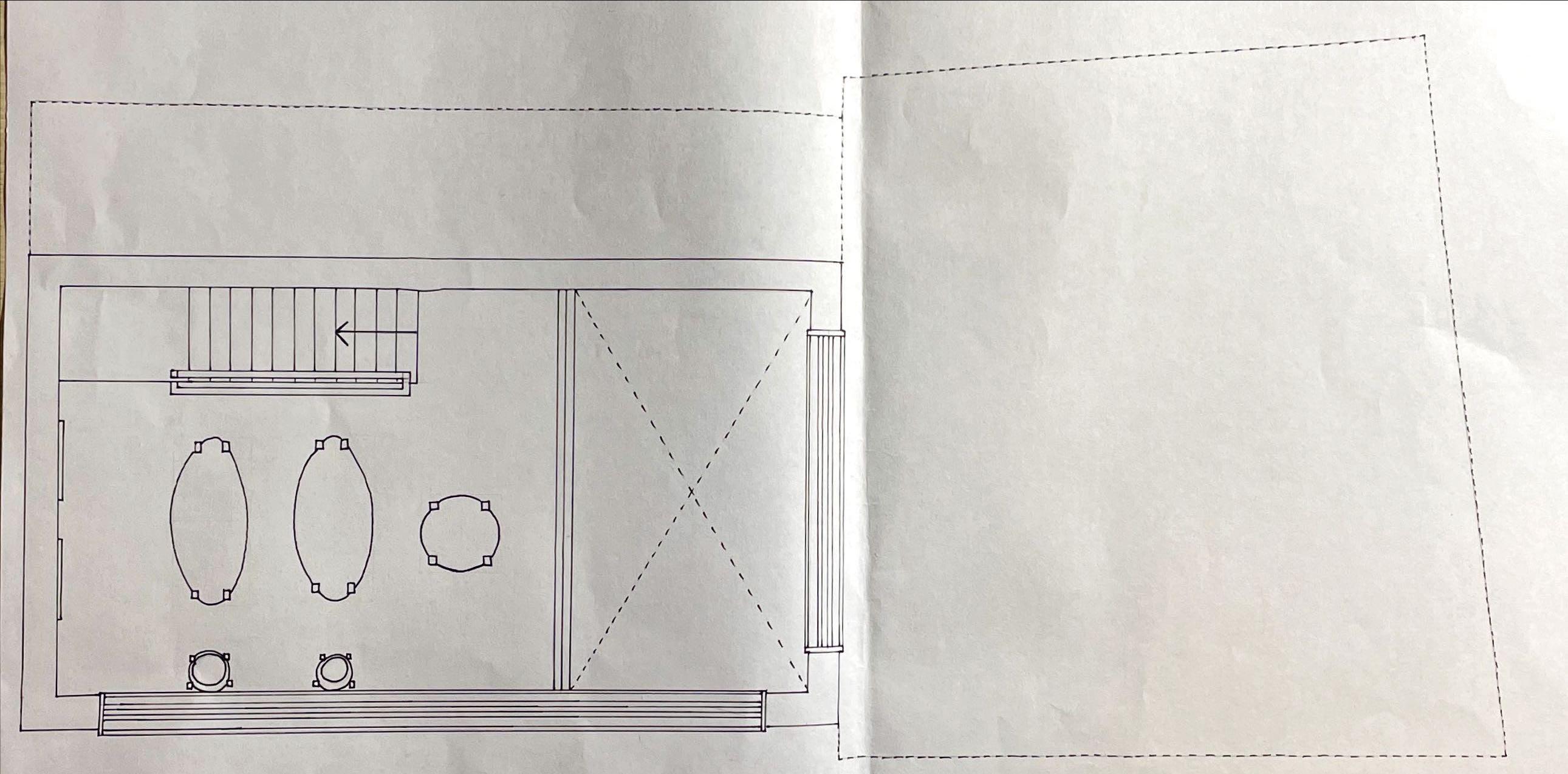

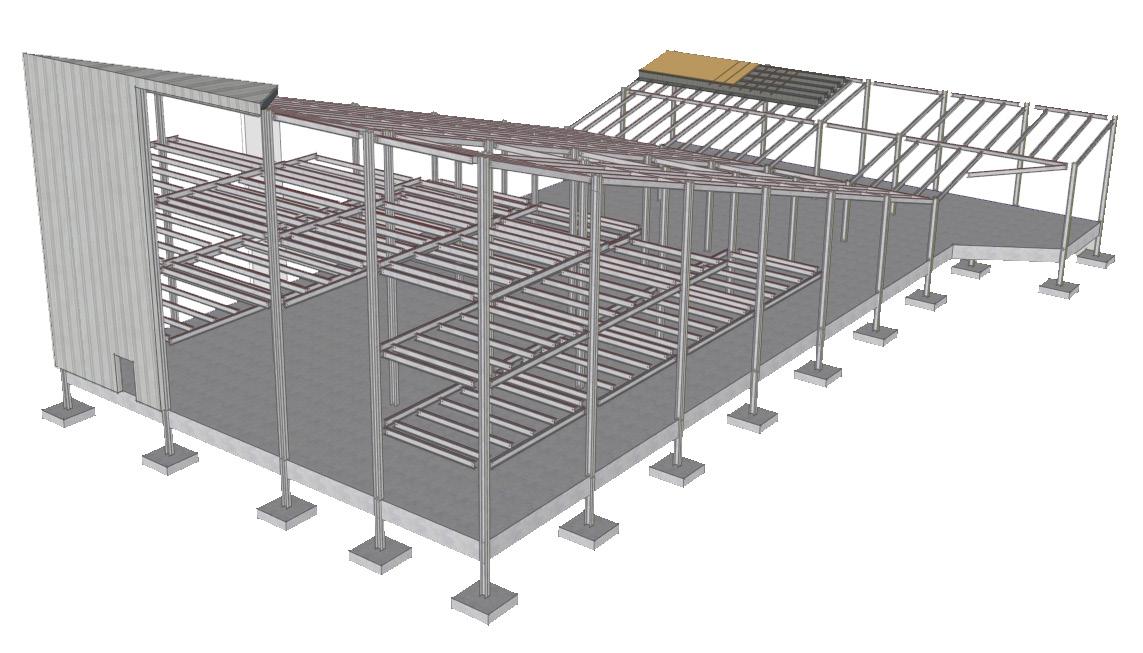

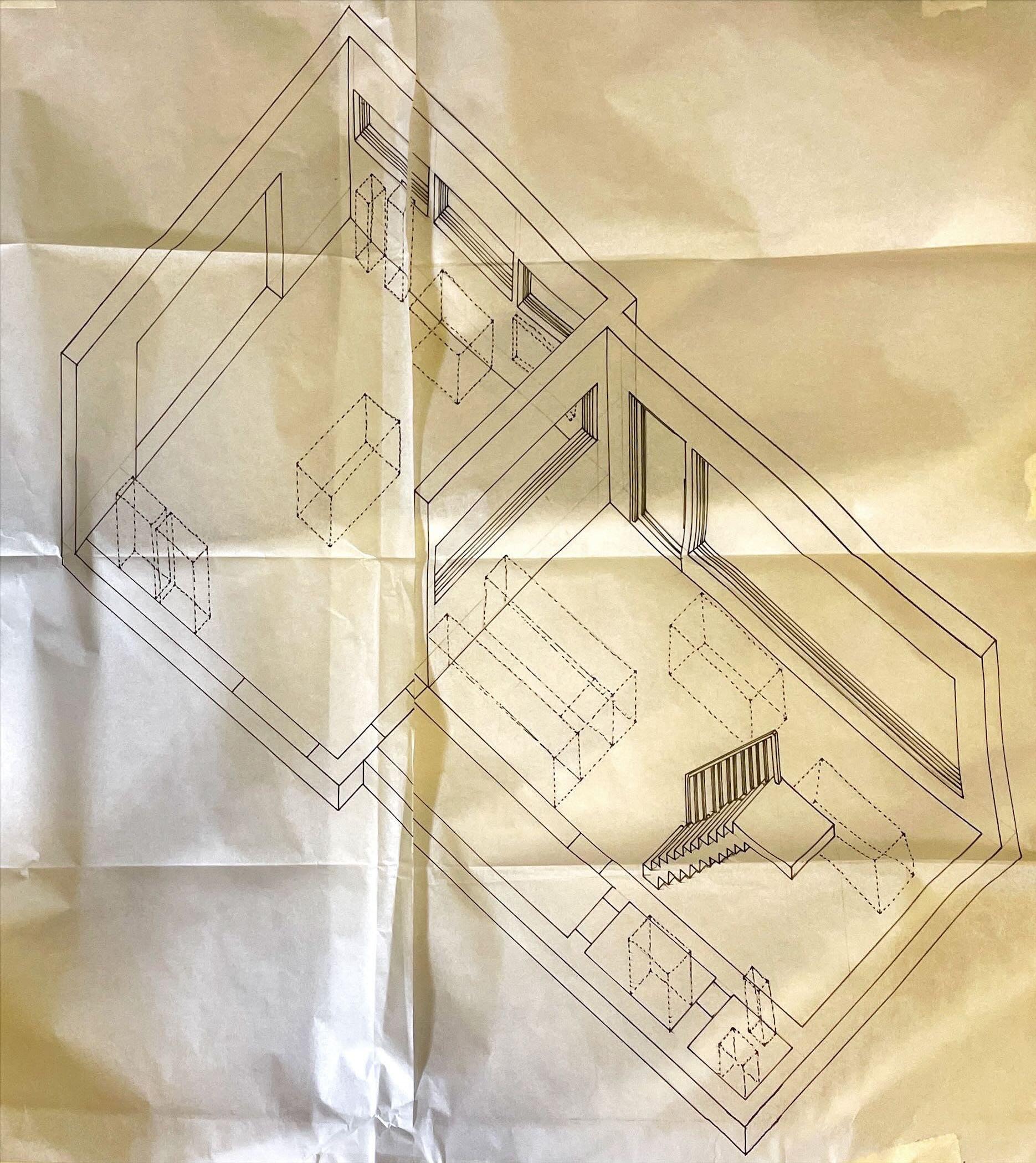

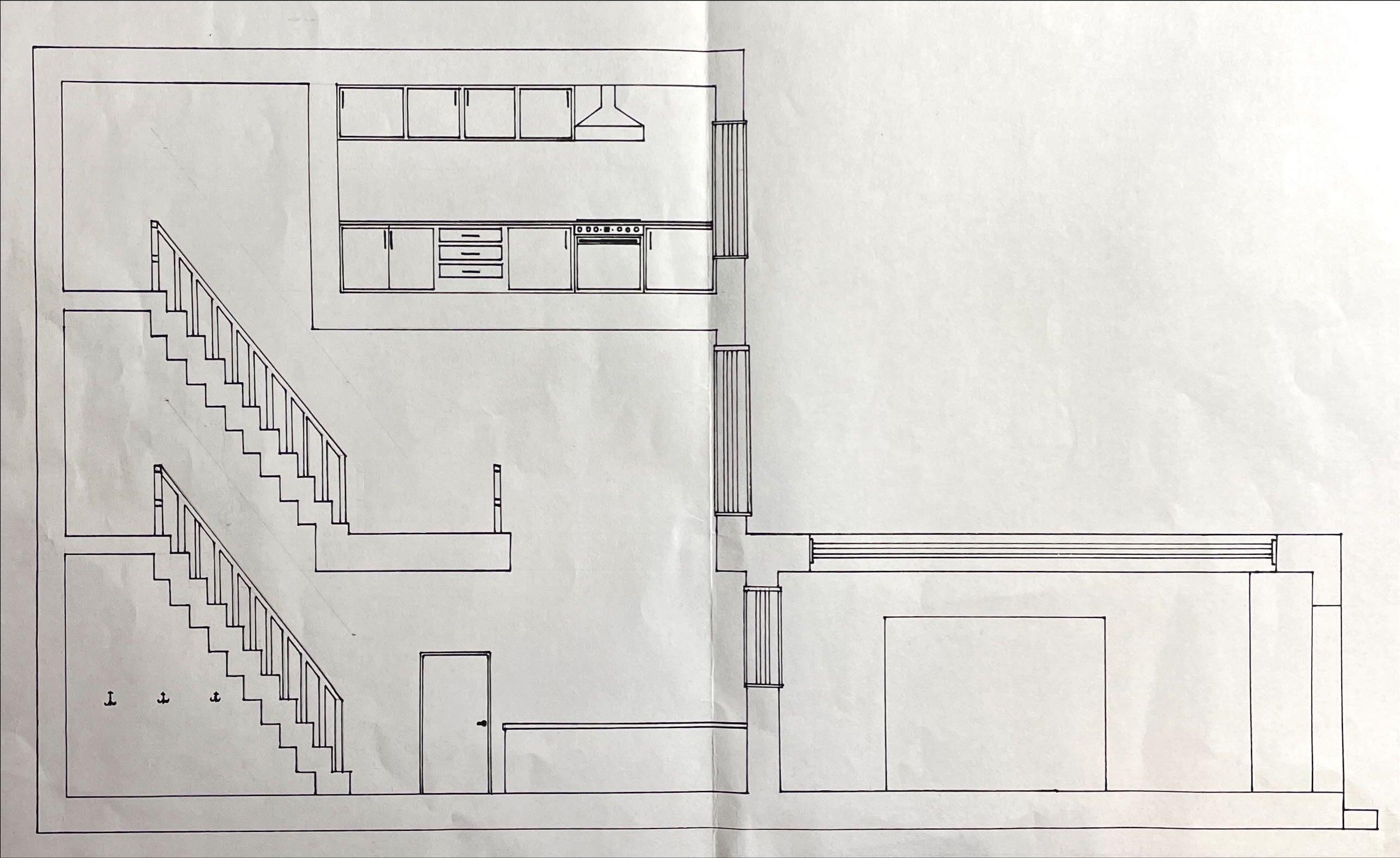

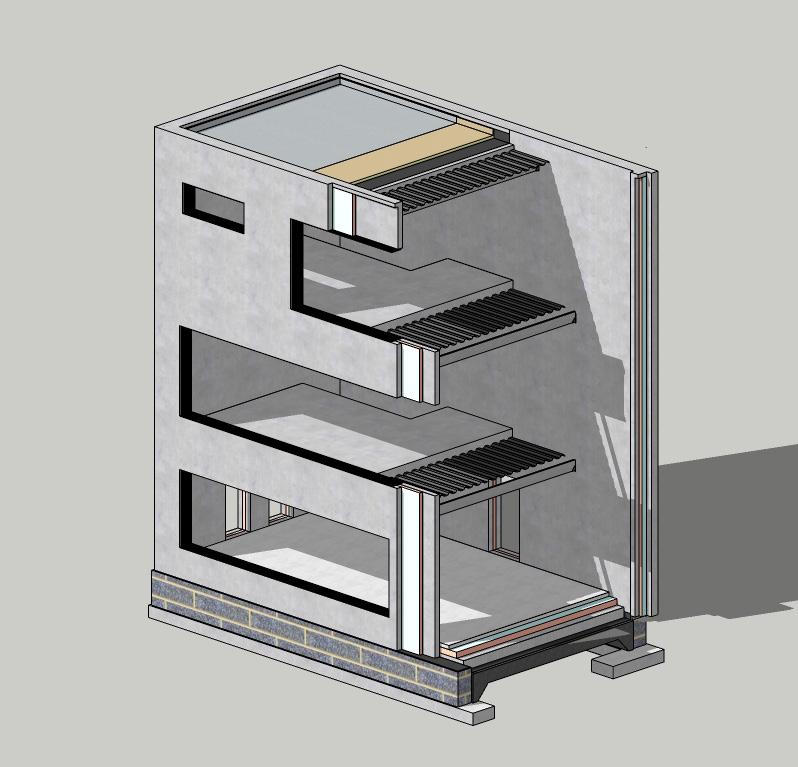

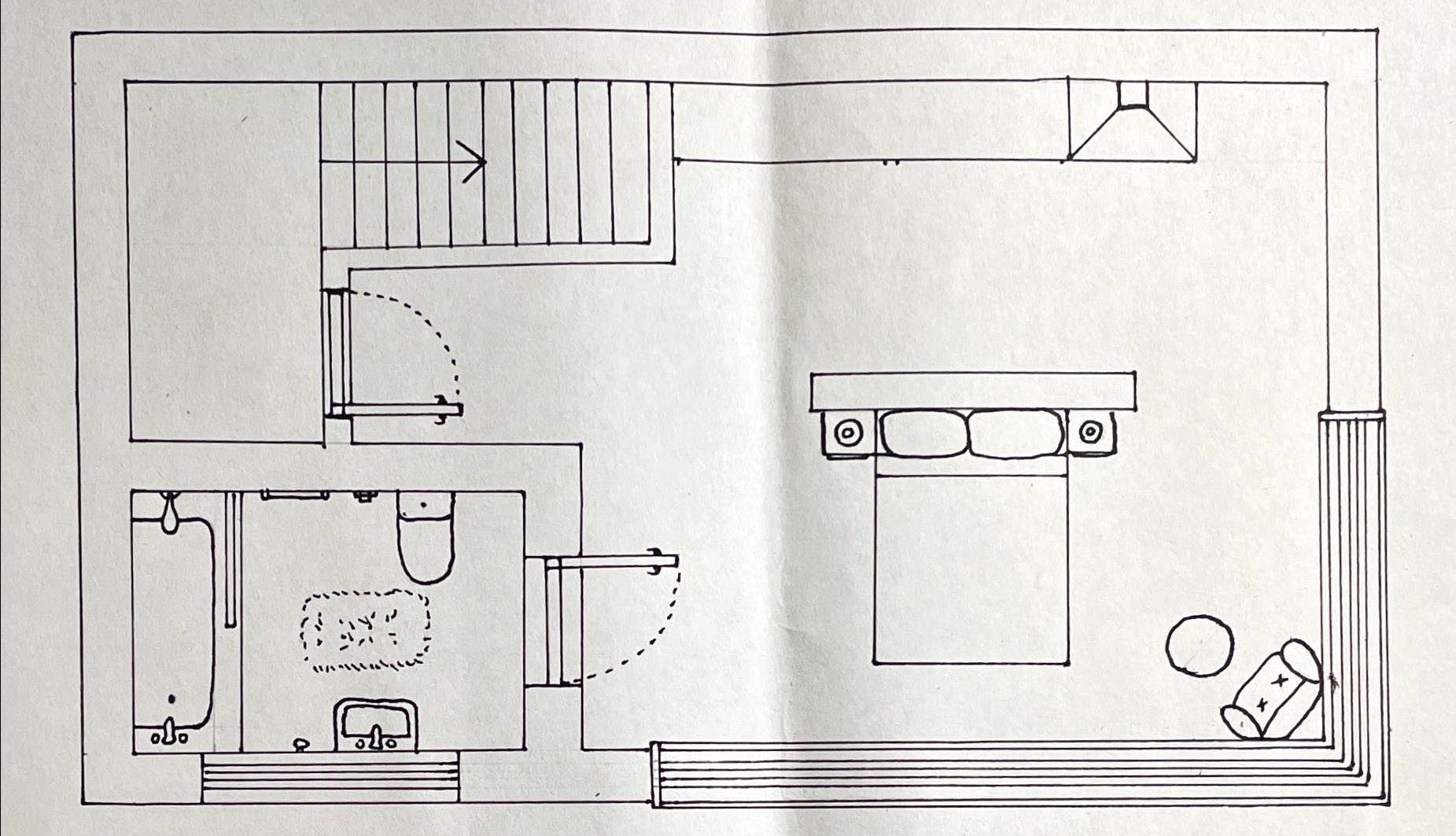

Everything was hand drawn apart from the structures model which was made in sketchup. The structure of the building is precast concrete panels that come insulated and the floors are made from concrete poured onto a metal deck and supported by exposed steel beams.
